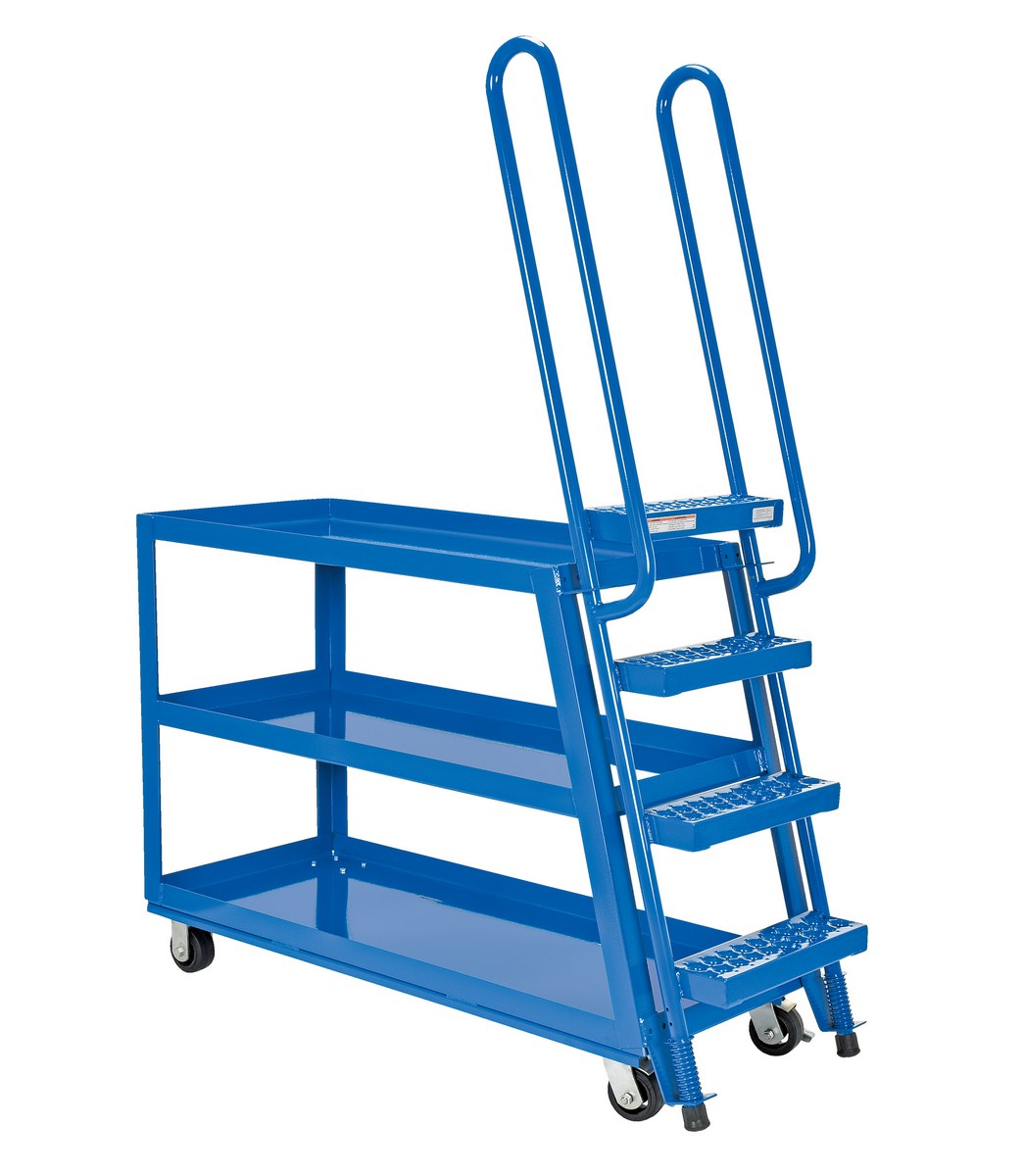

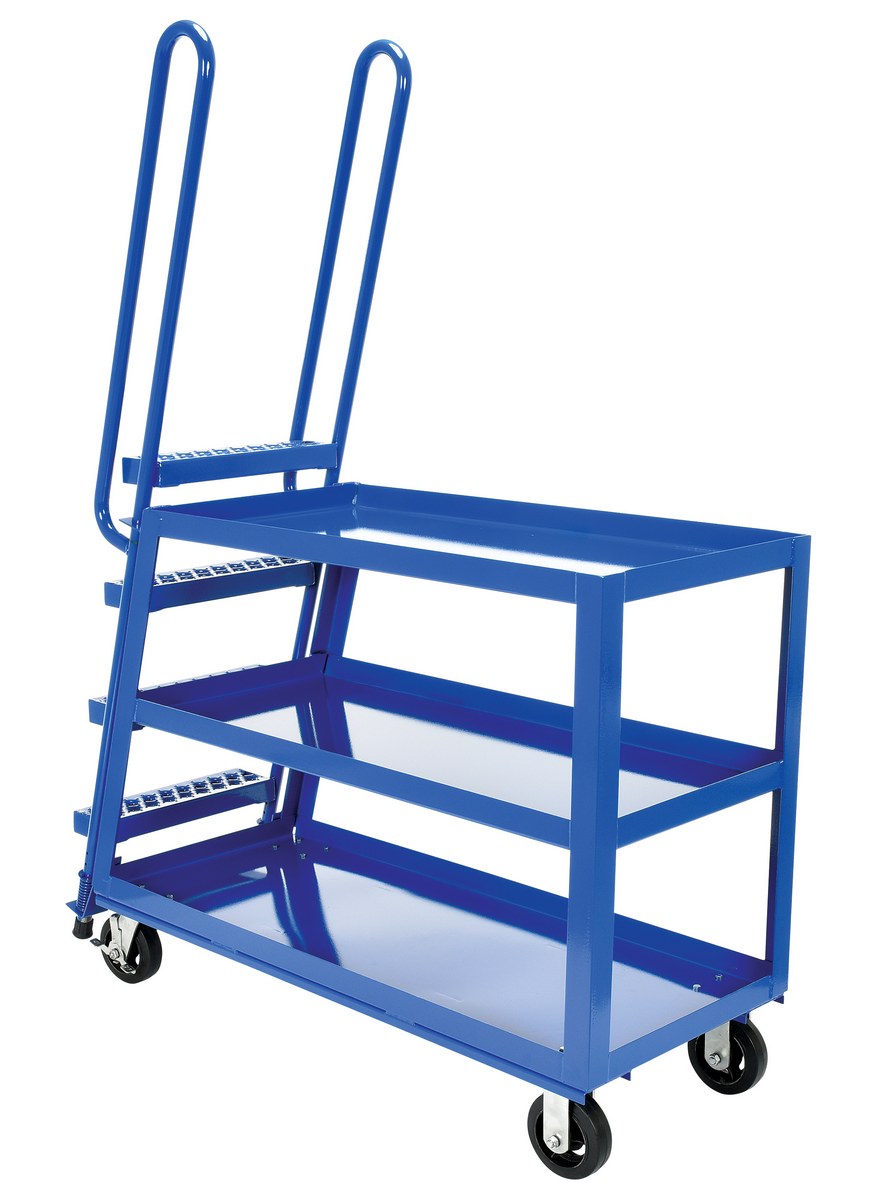

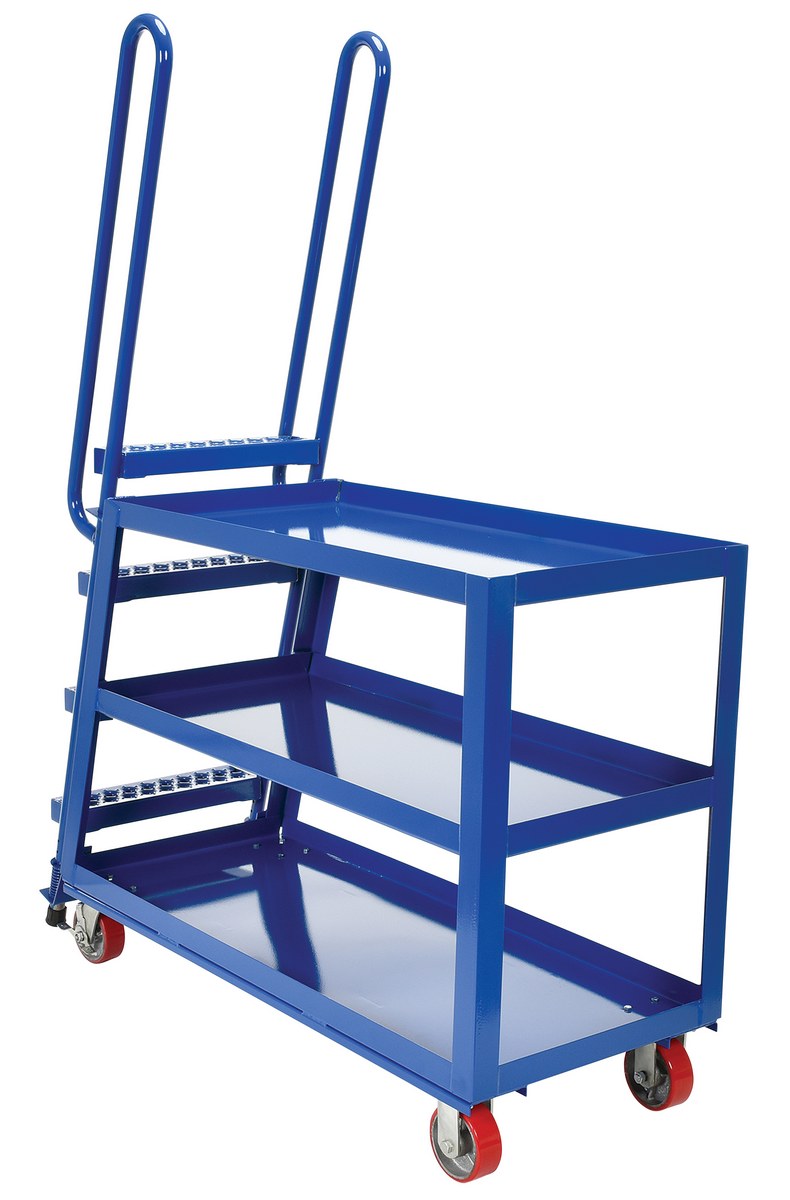

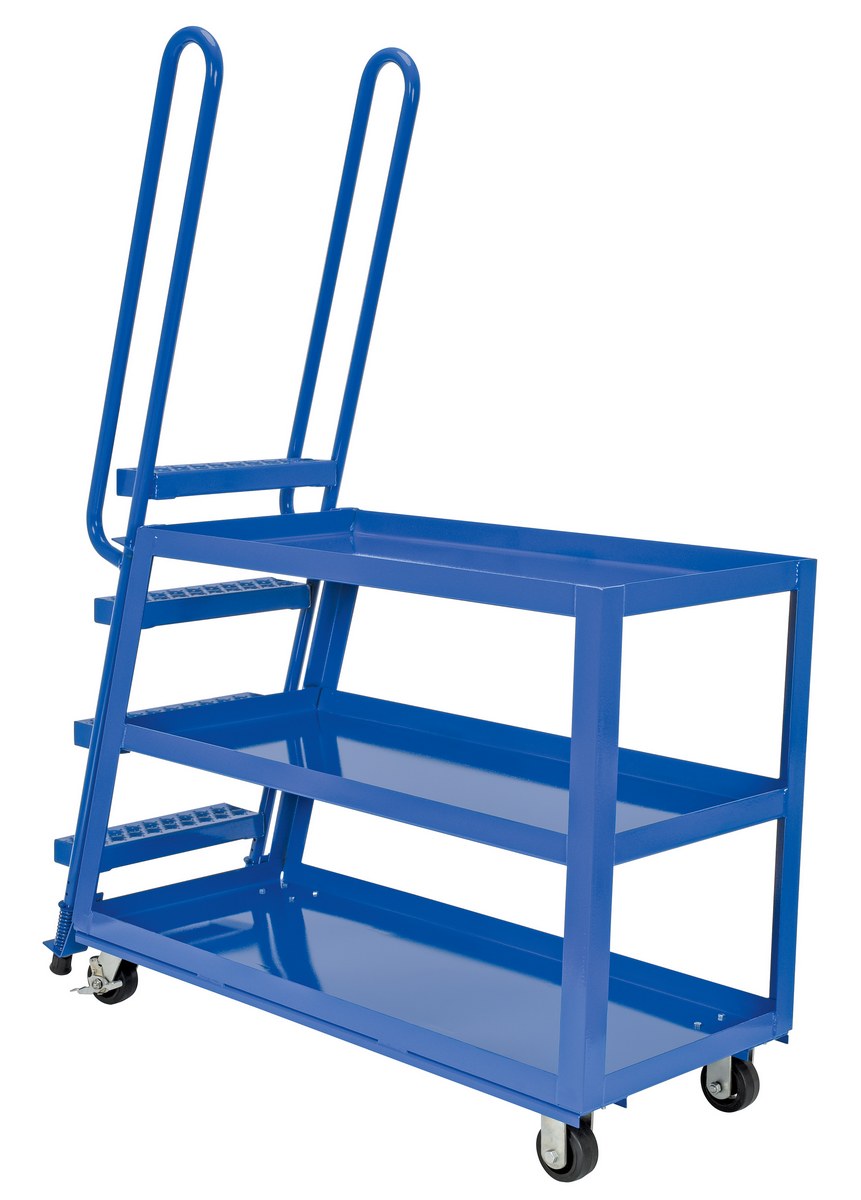

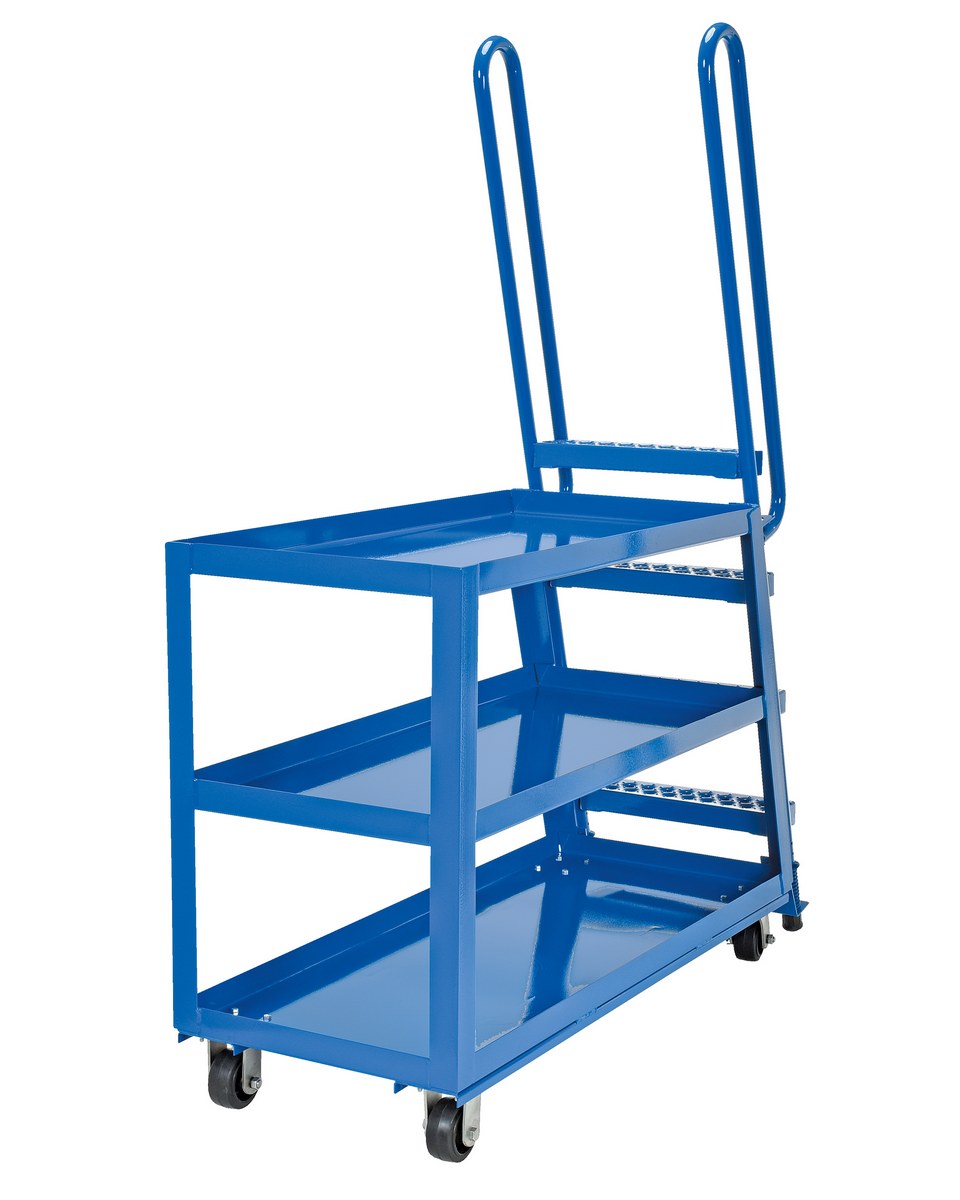

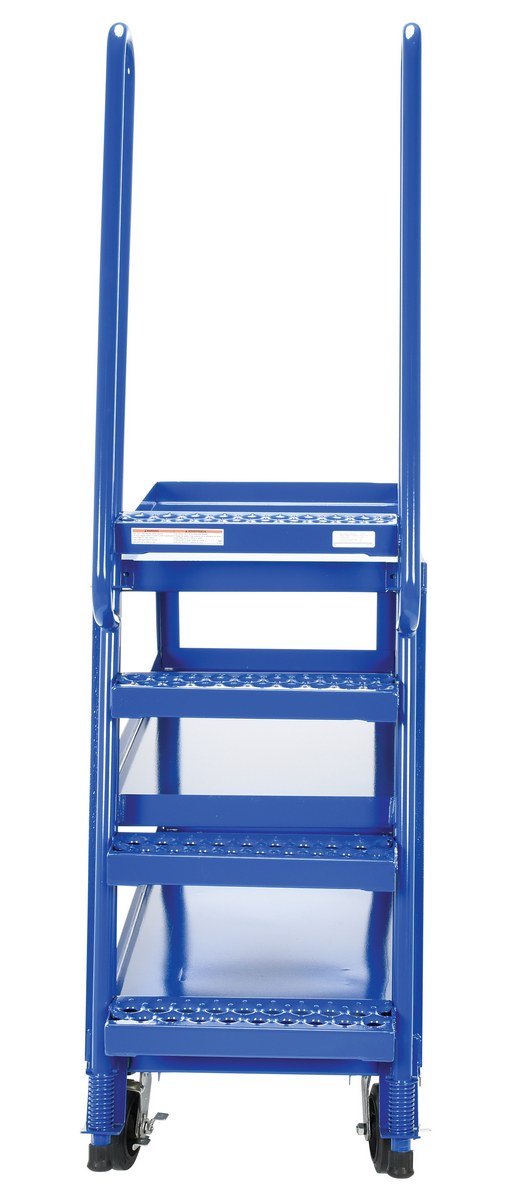

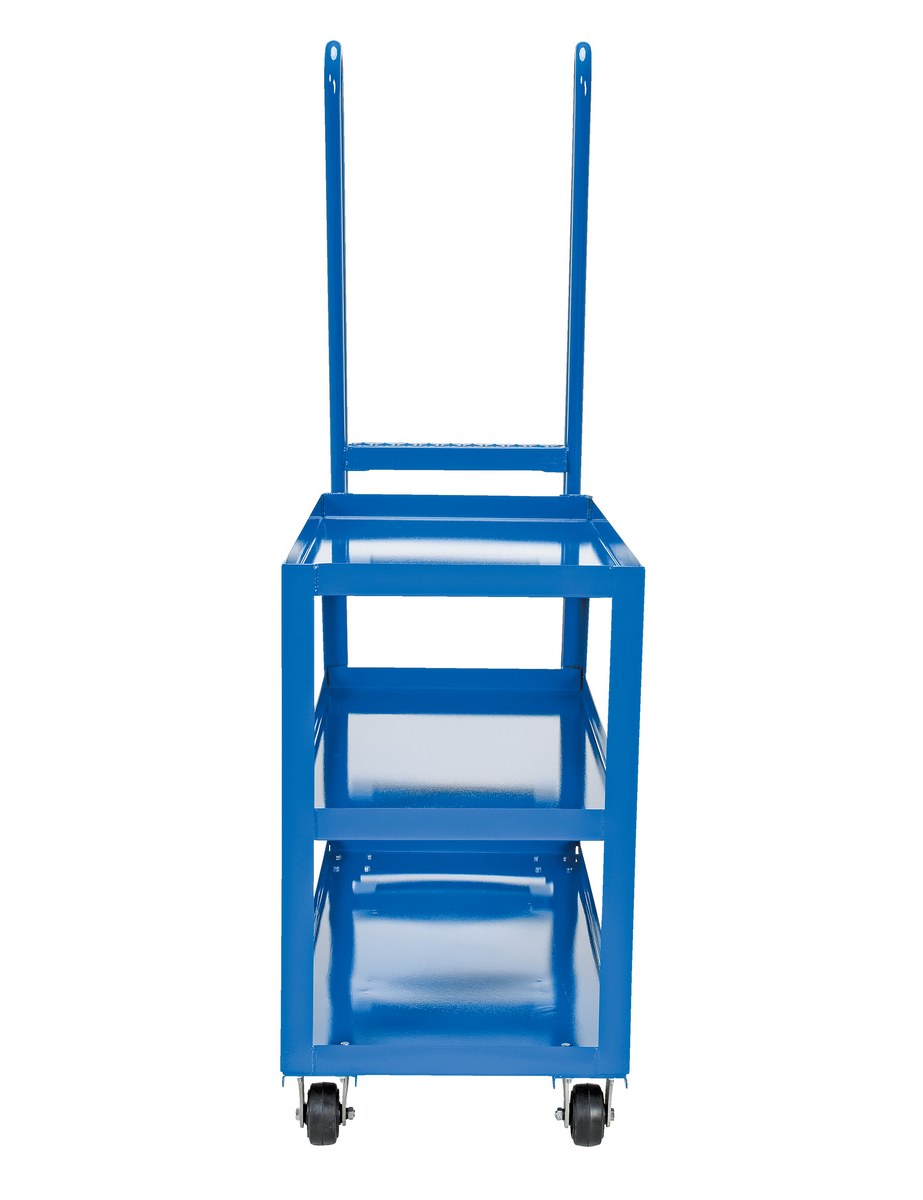

model SPS-HD-2252
SERIES: SPS-HD

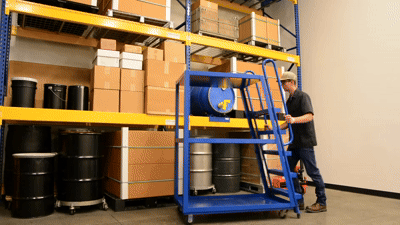

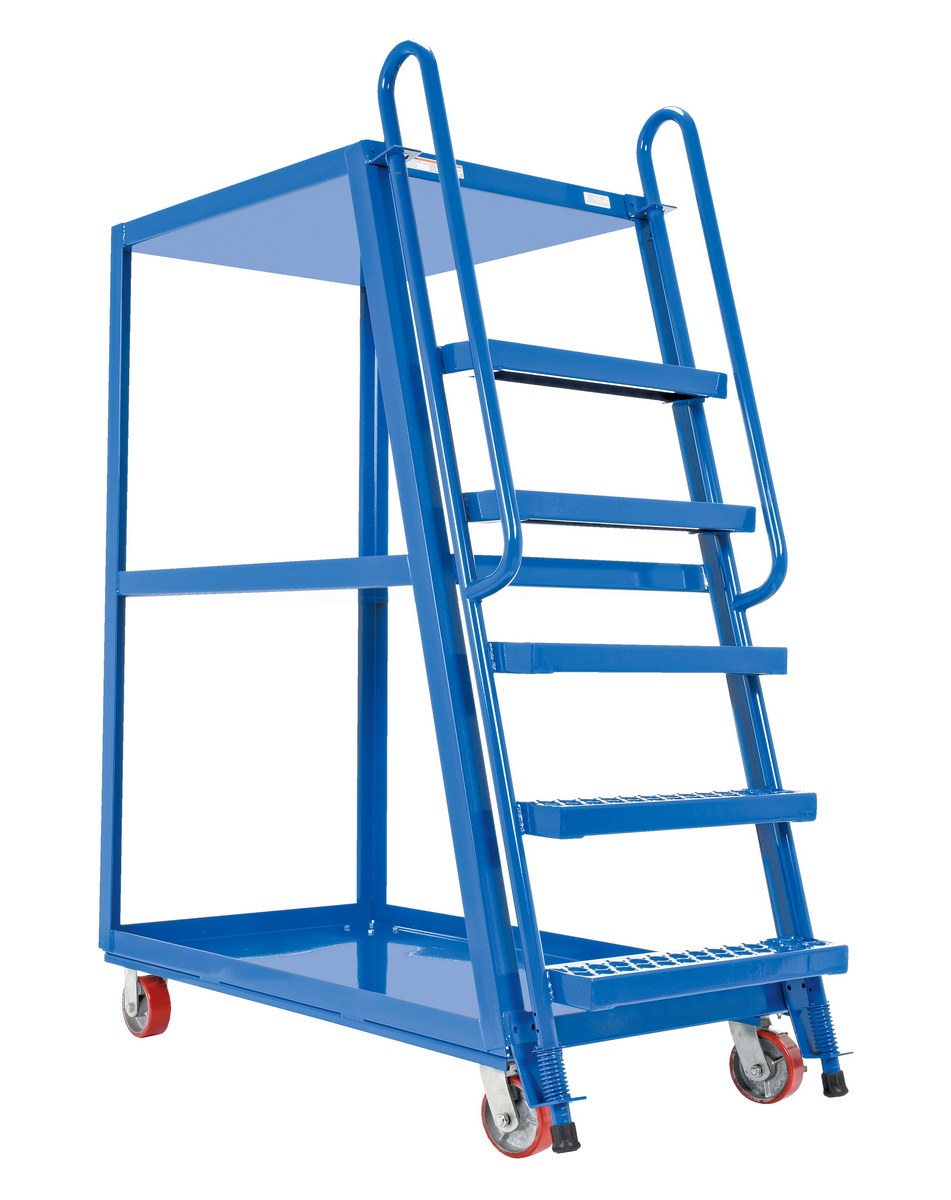

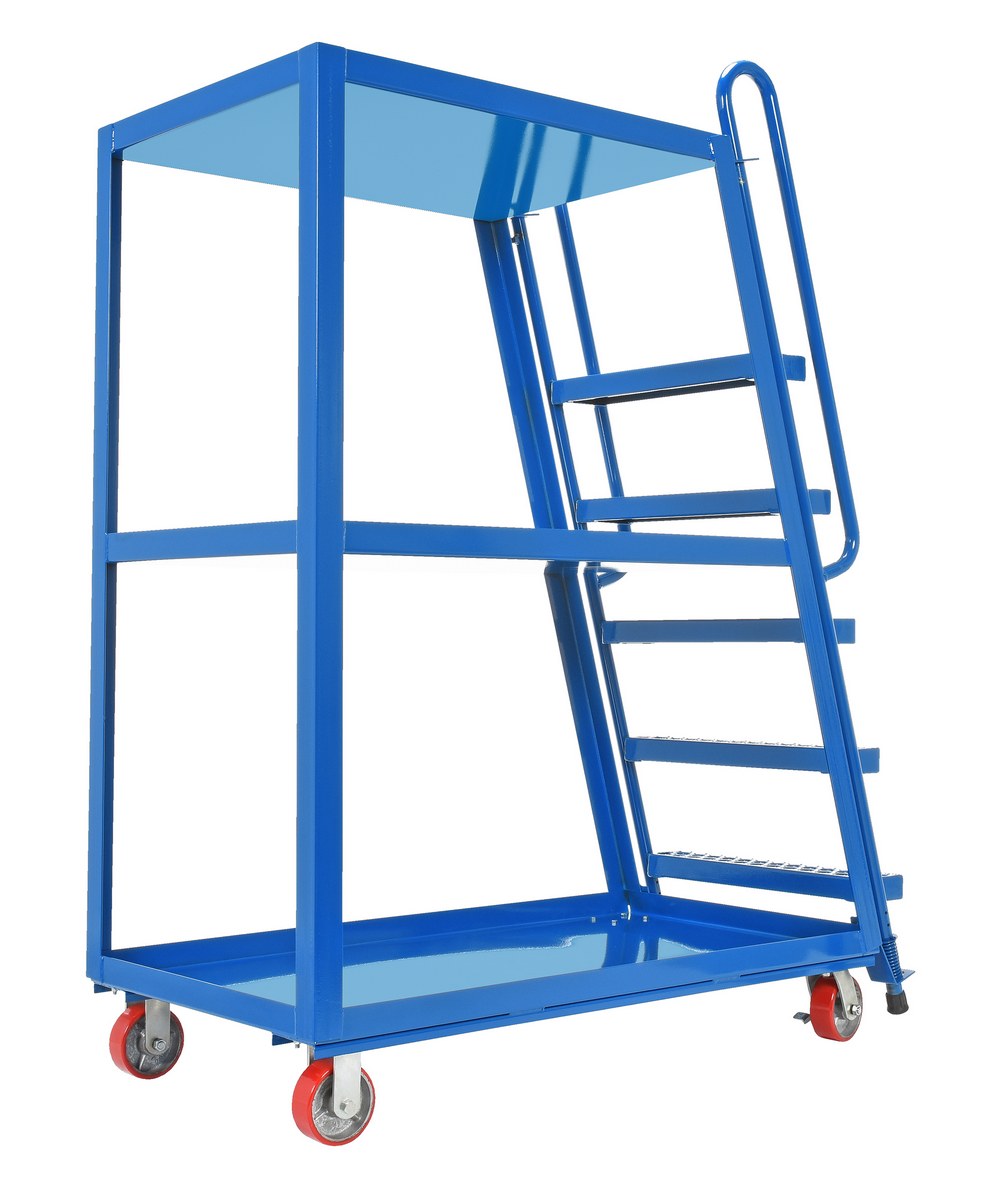

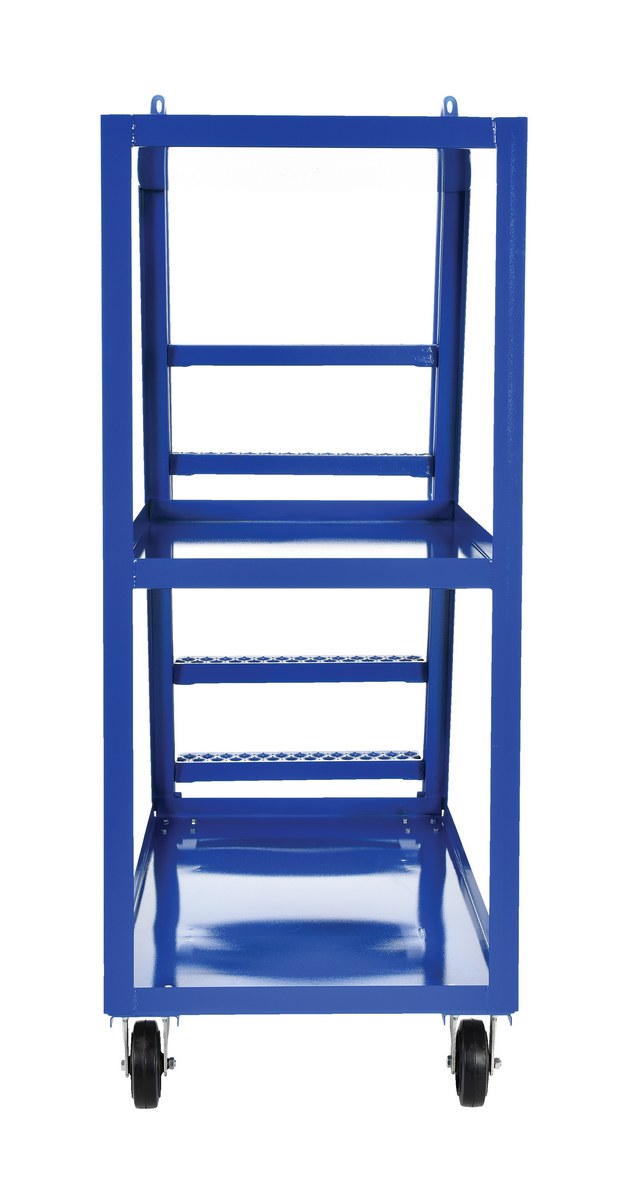

Hi-Duty & Hi-Frame Stockpicker Trucks

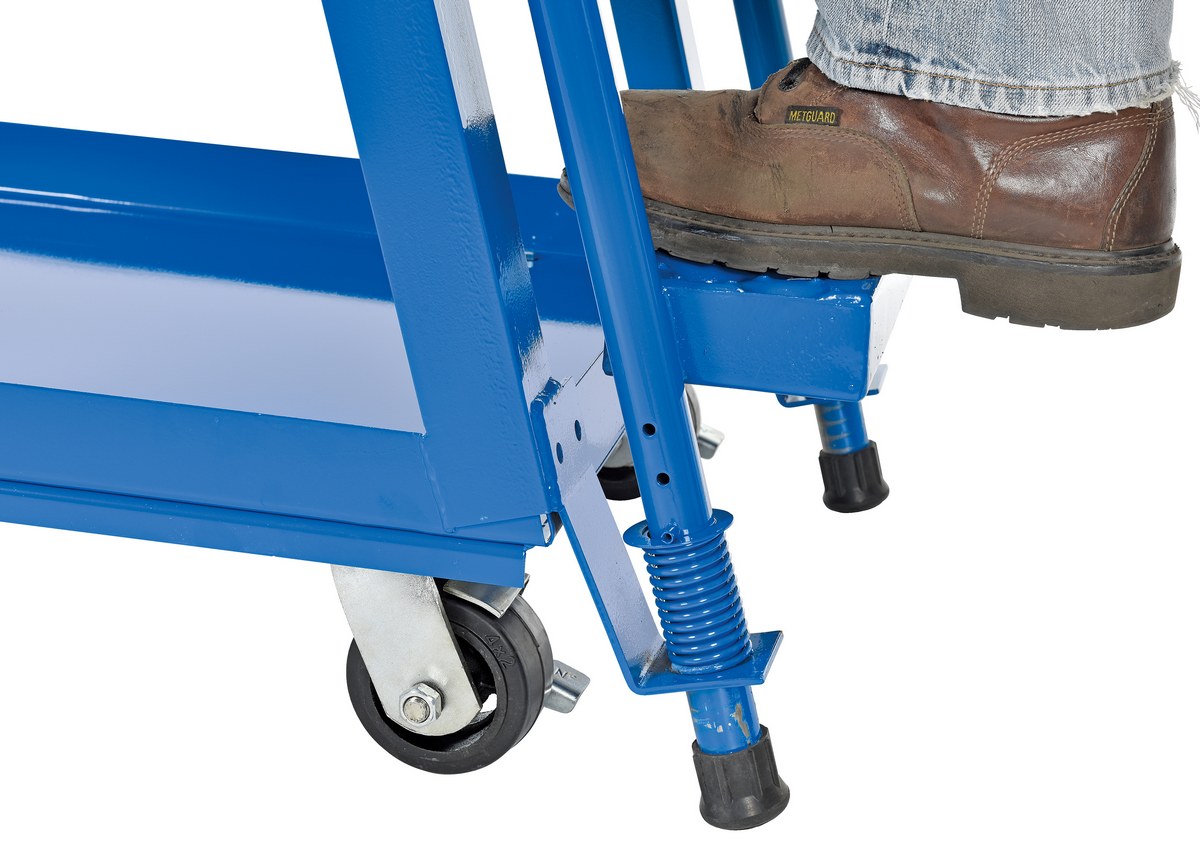

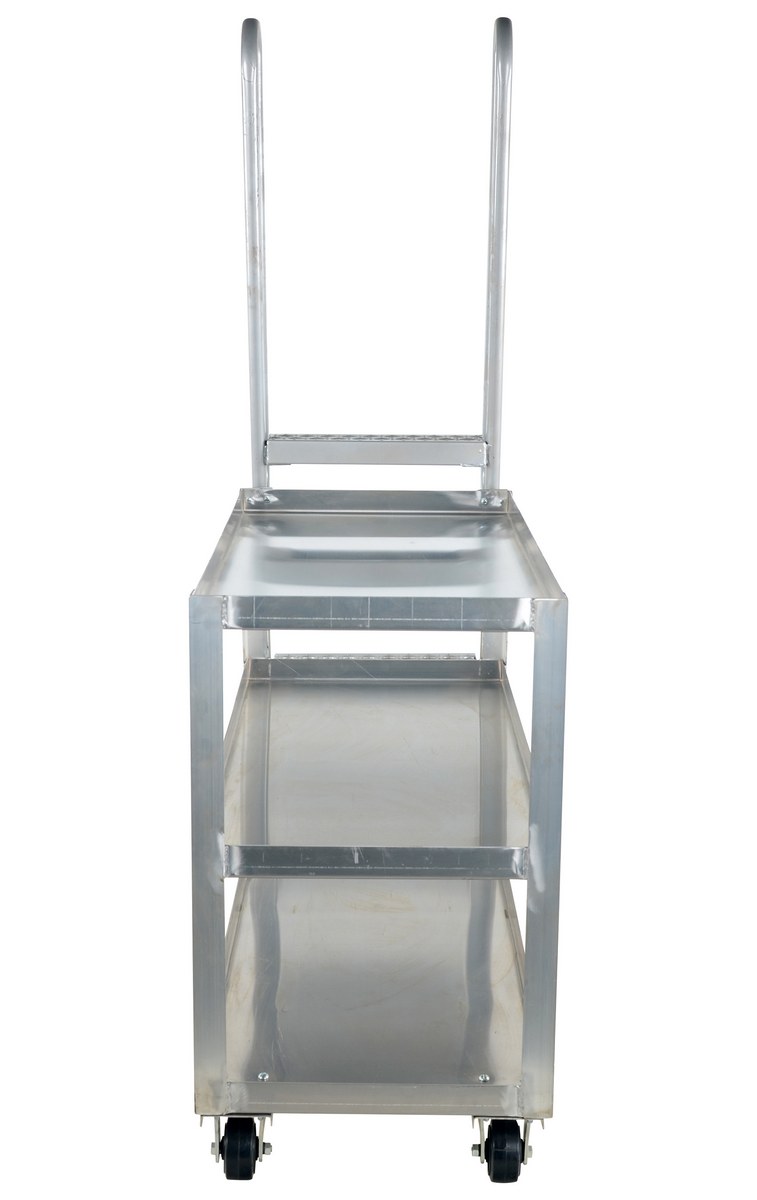

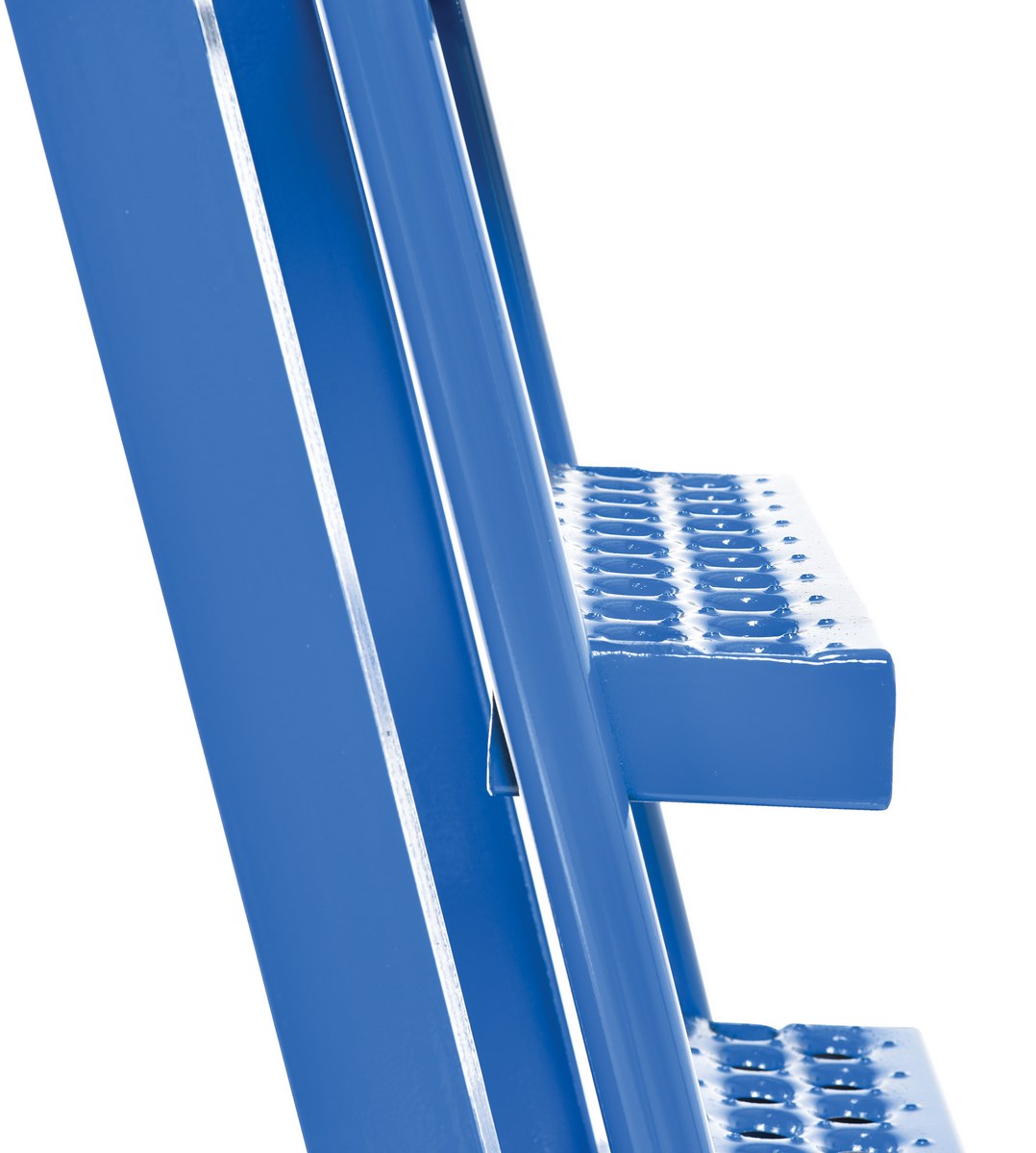

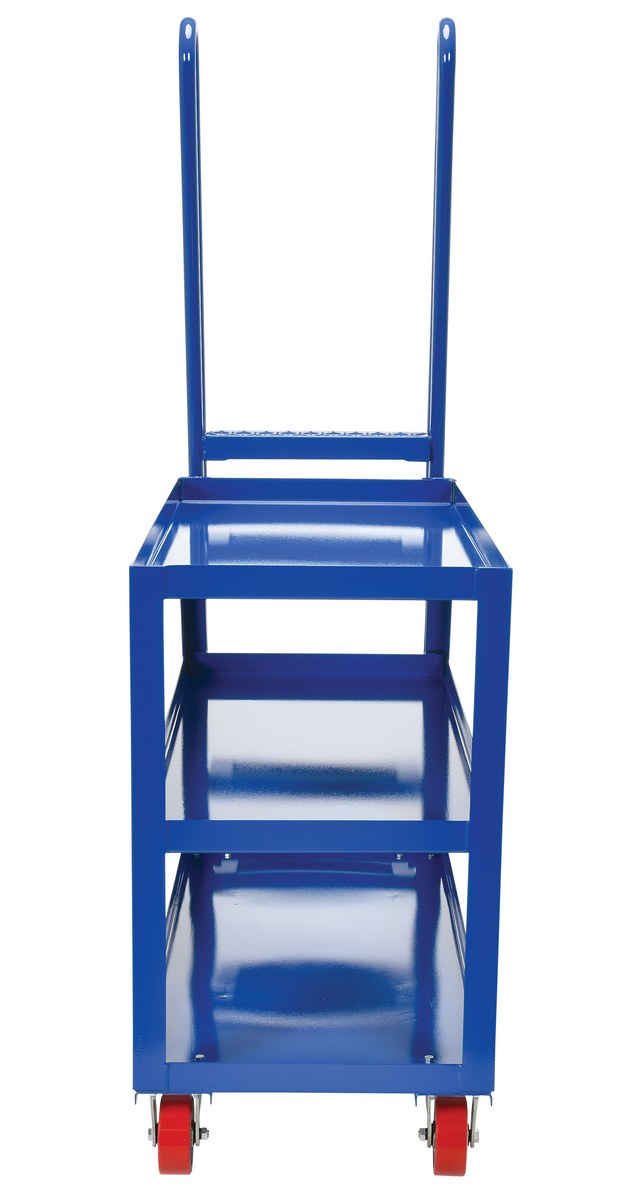

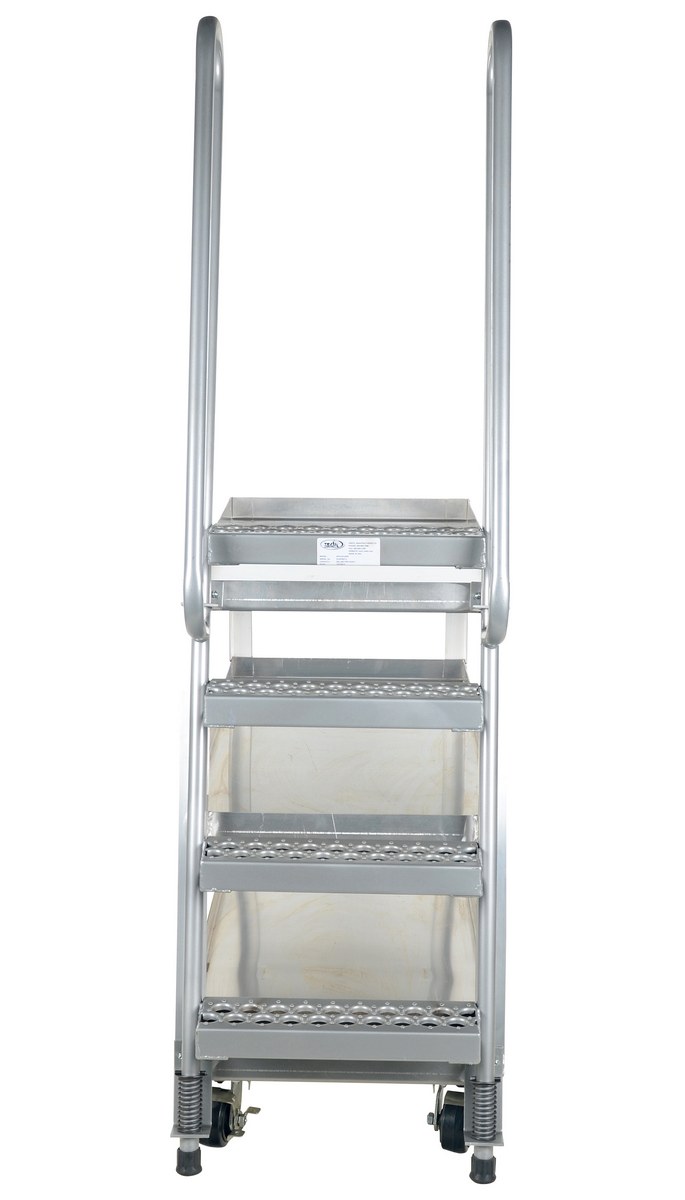

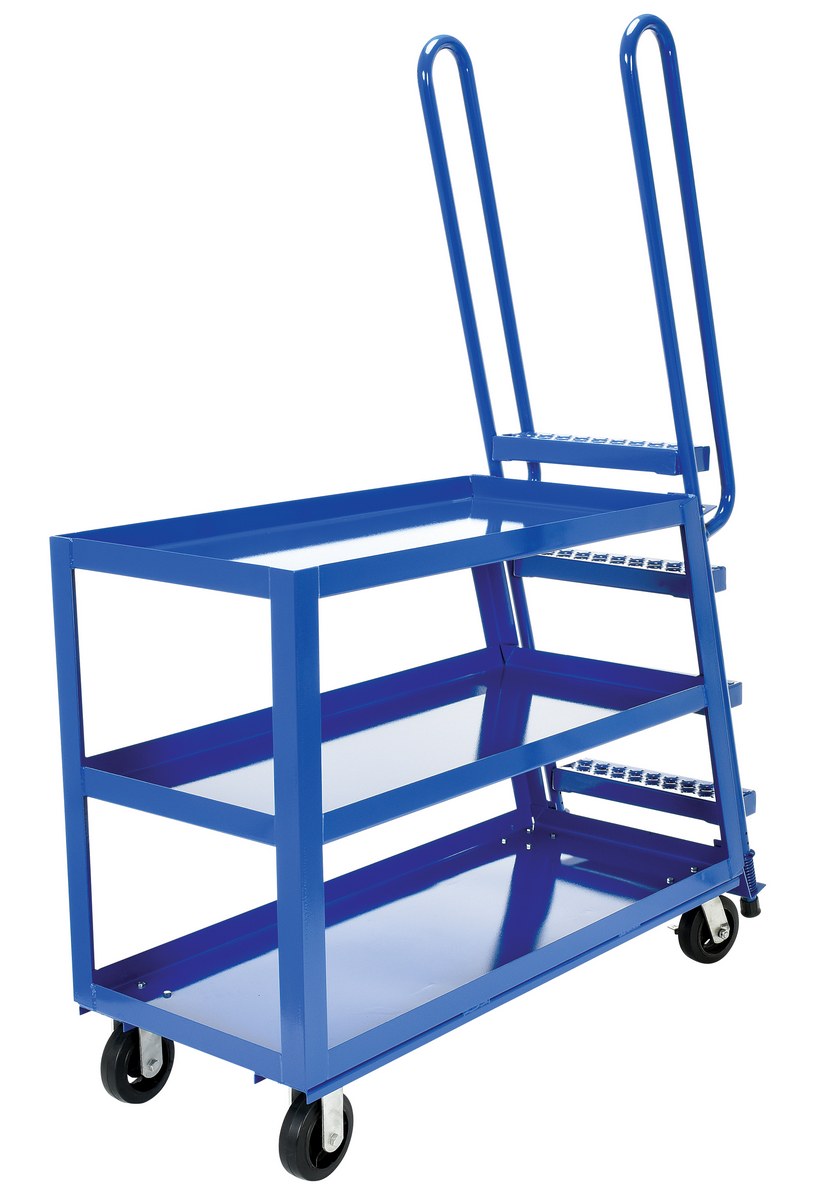

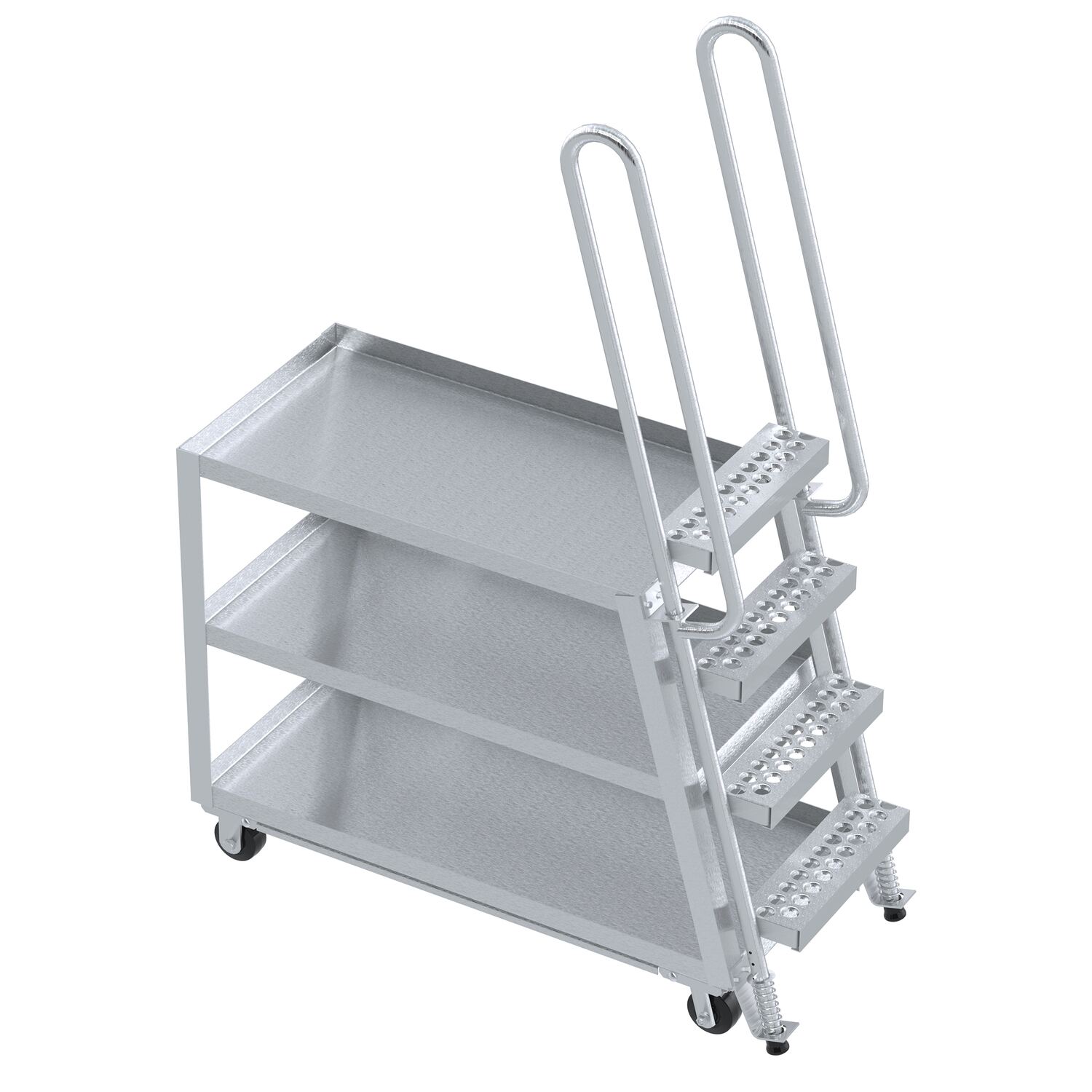

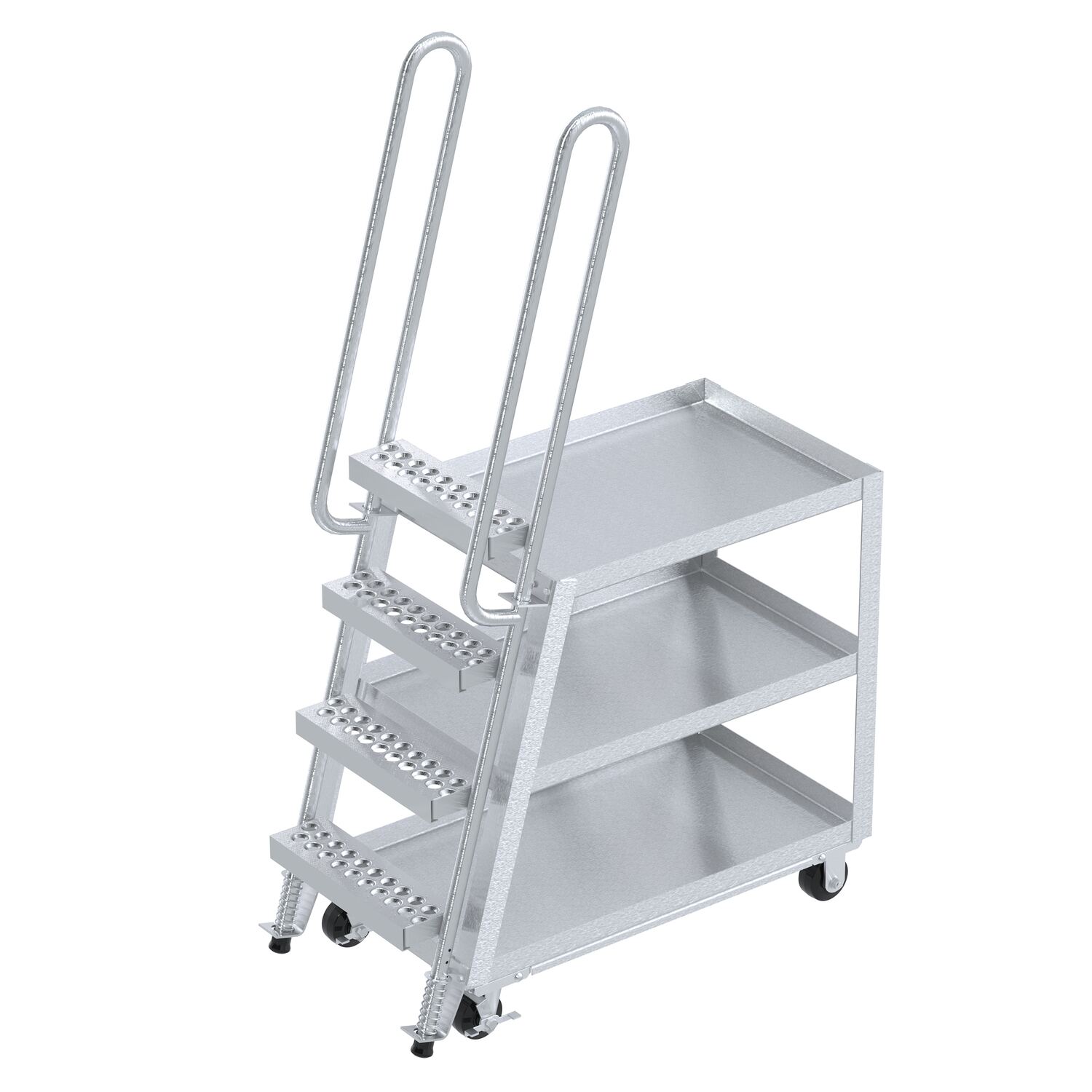

These oversized units are perfect for large jobs. Ideal for oversized cartons, boxes, parts, and supplies. A spring loaded steel ladder for sure, safe climbing, and loading is featured on both the SPS and SPA models. Steps have nonskid footing with self-cleaning surface. Each unit features three shelves. Standard 4" x 2" mold-on-rubber casters, 2 rigid and 2 swivel with brake. Built of durable steel or aluminum construction. Steel units have a blue baked-in powder coated finish for toughness, while the steel ladders included on the aluminum units have a baked-in silver powder coat finish.

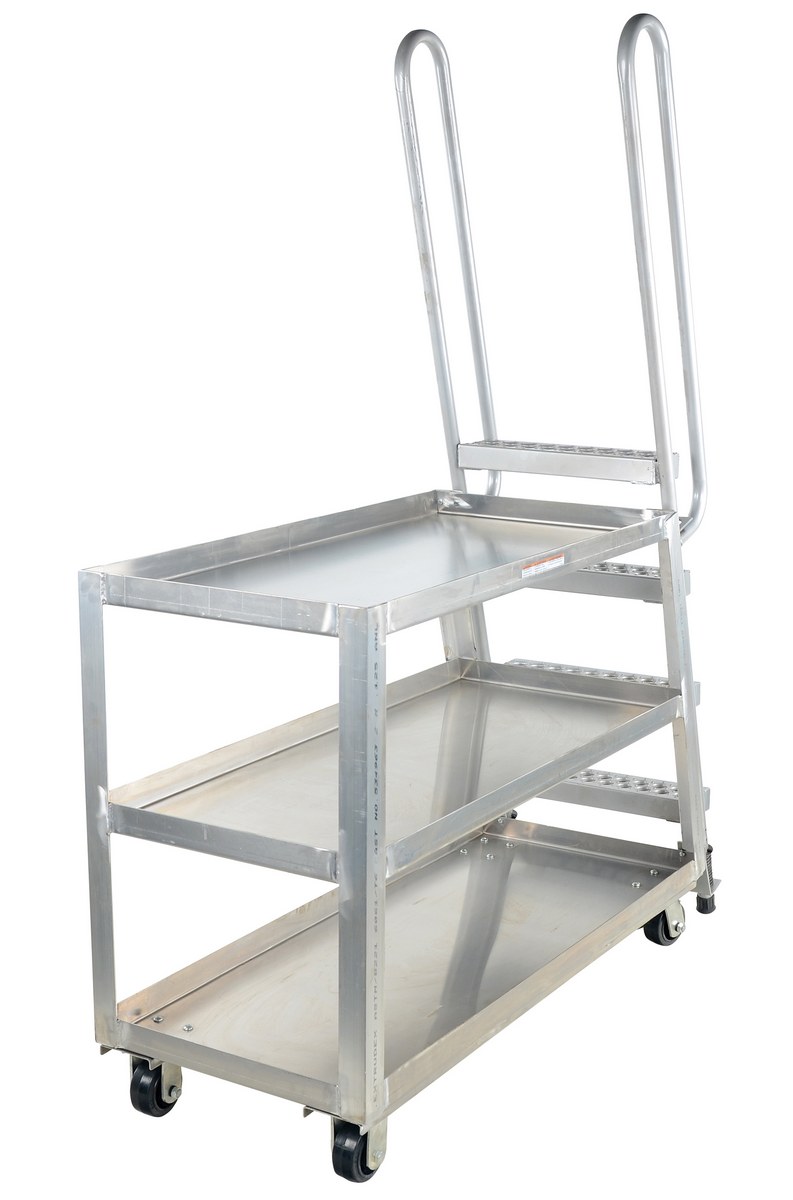

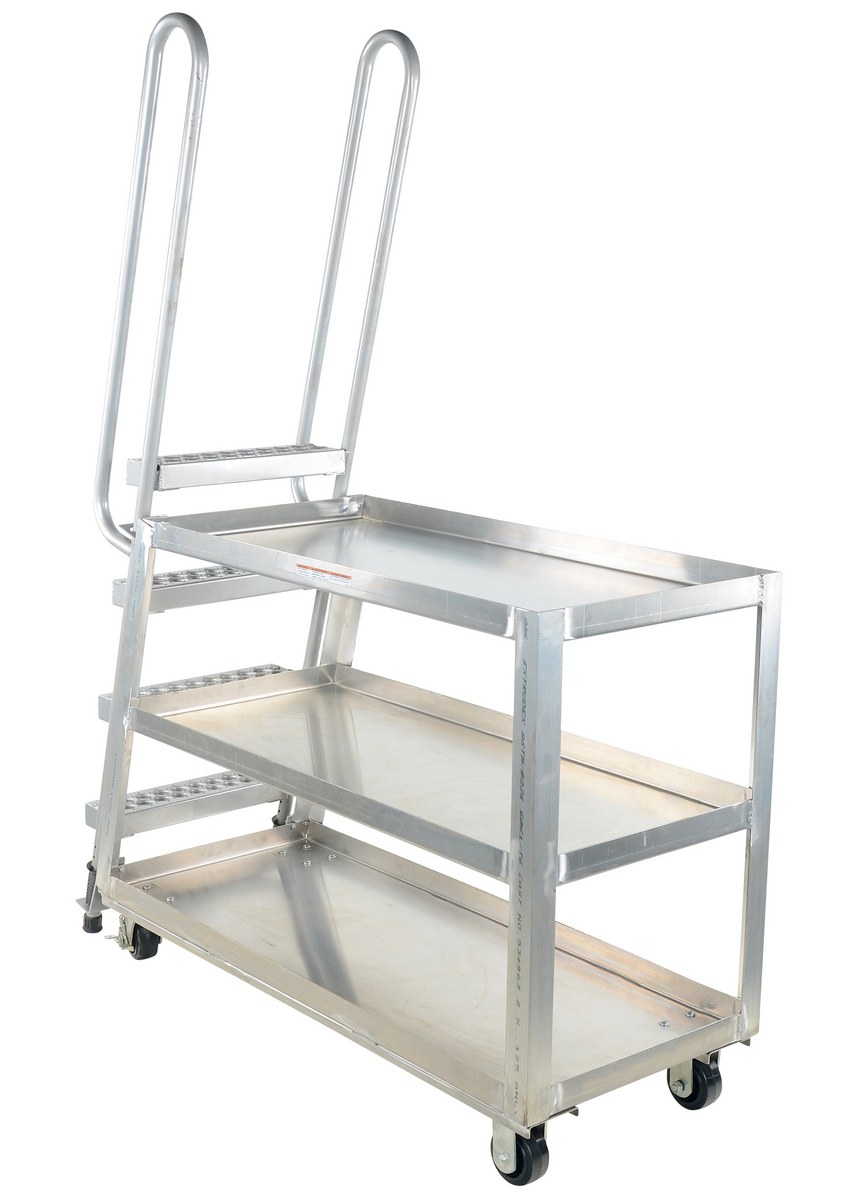

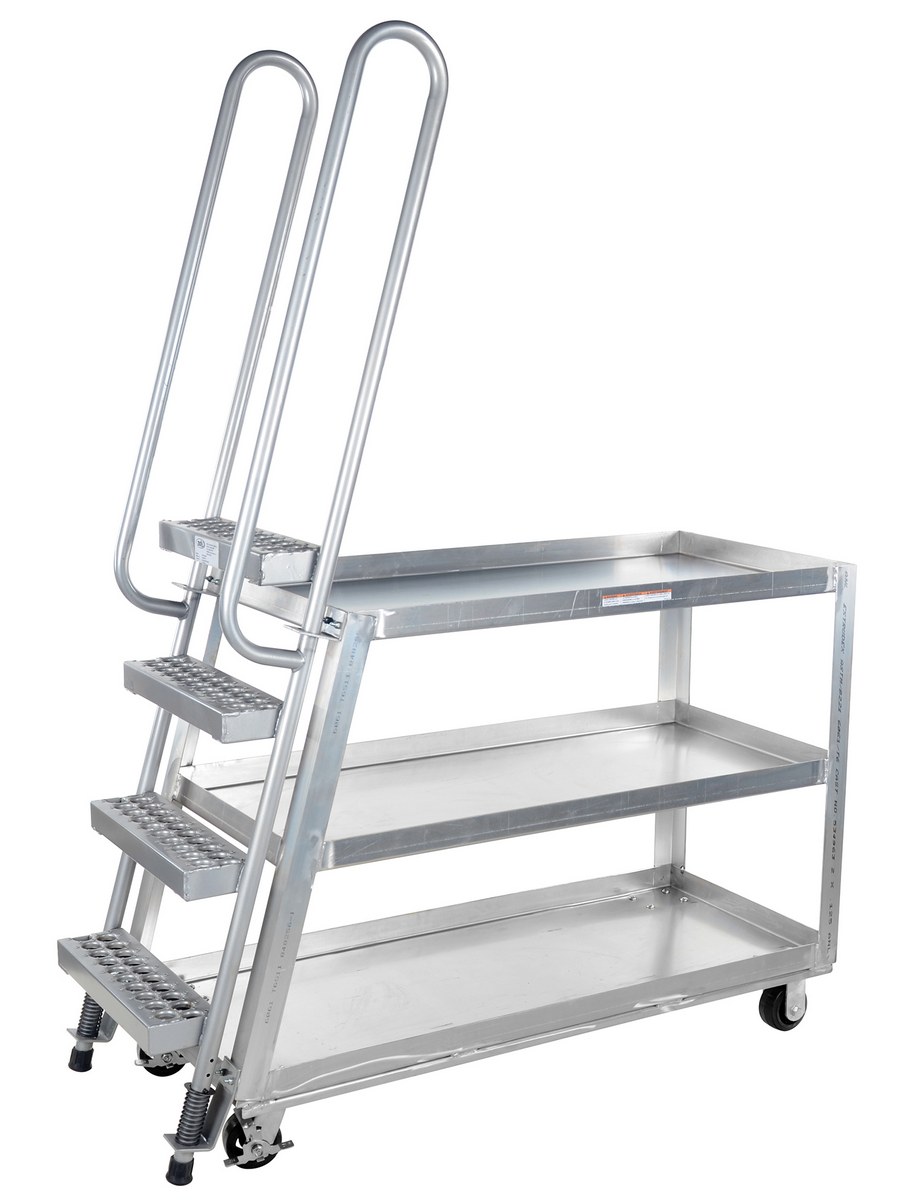

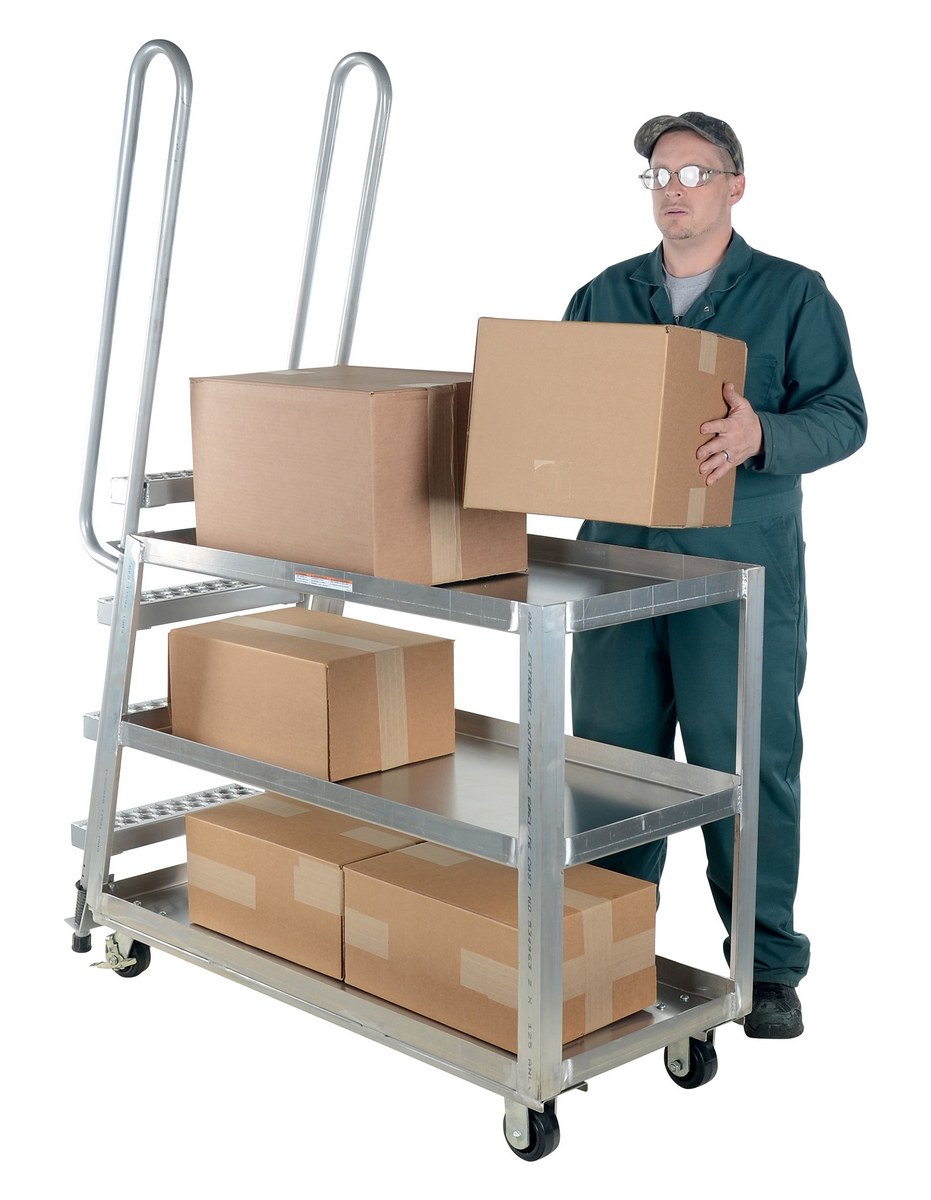

SPA-HD-2252

model SPA-HD-2252

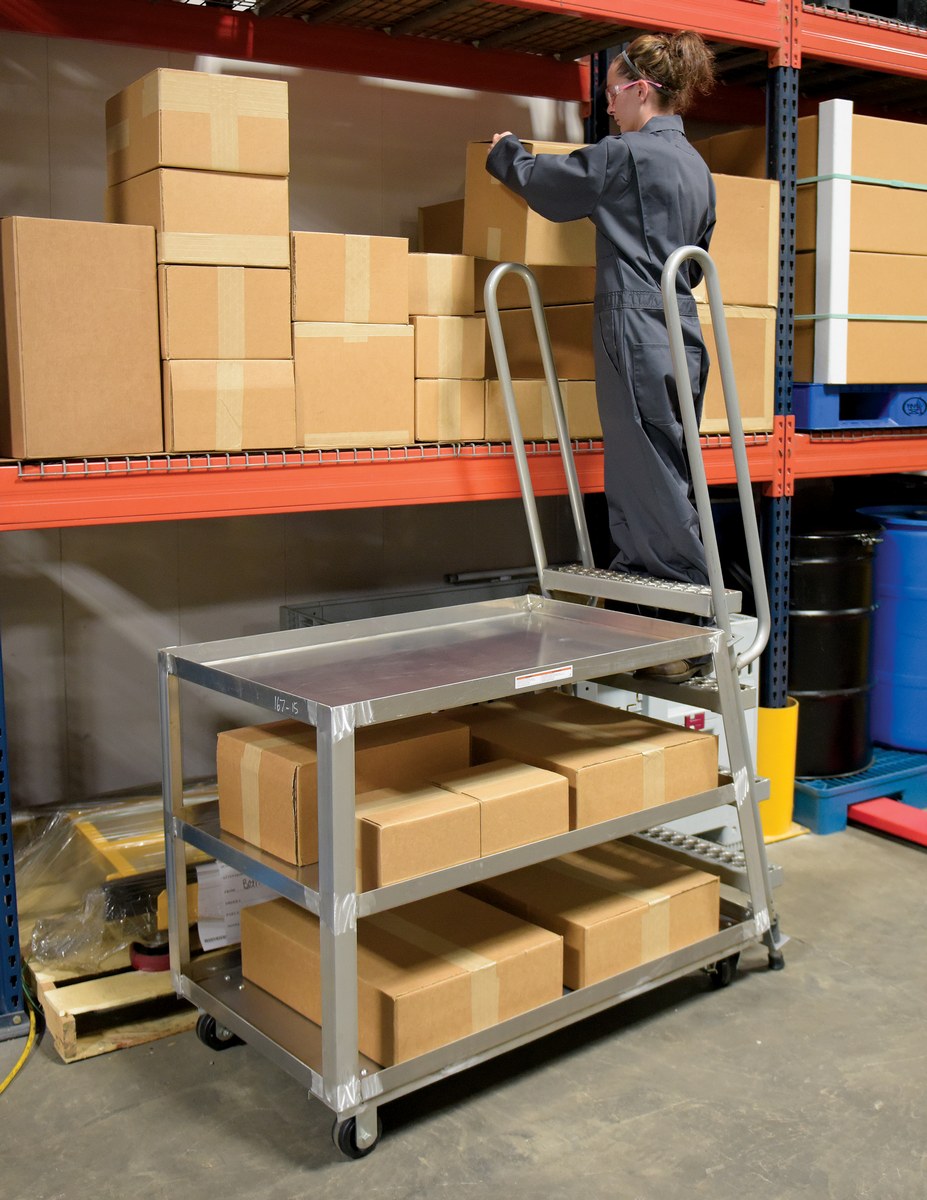

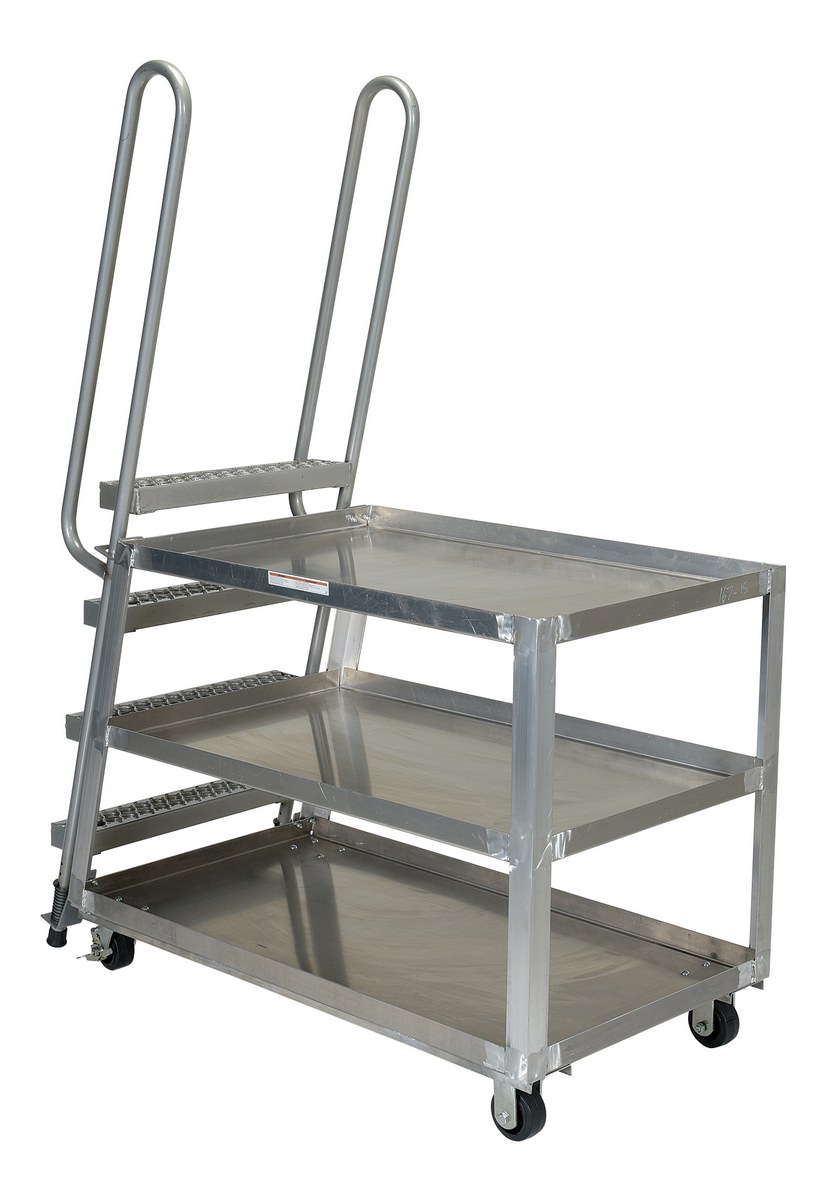

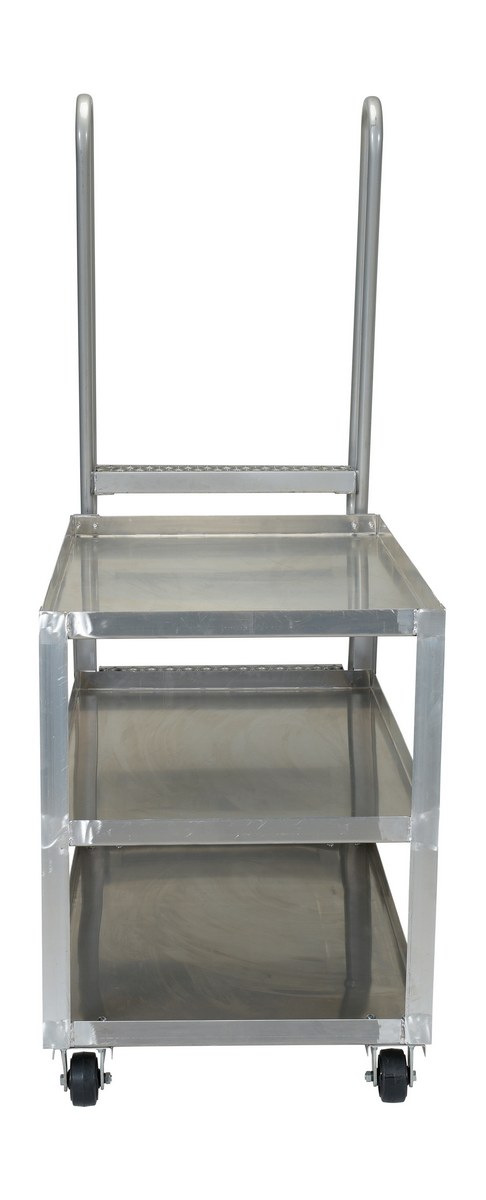

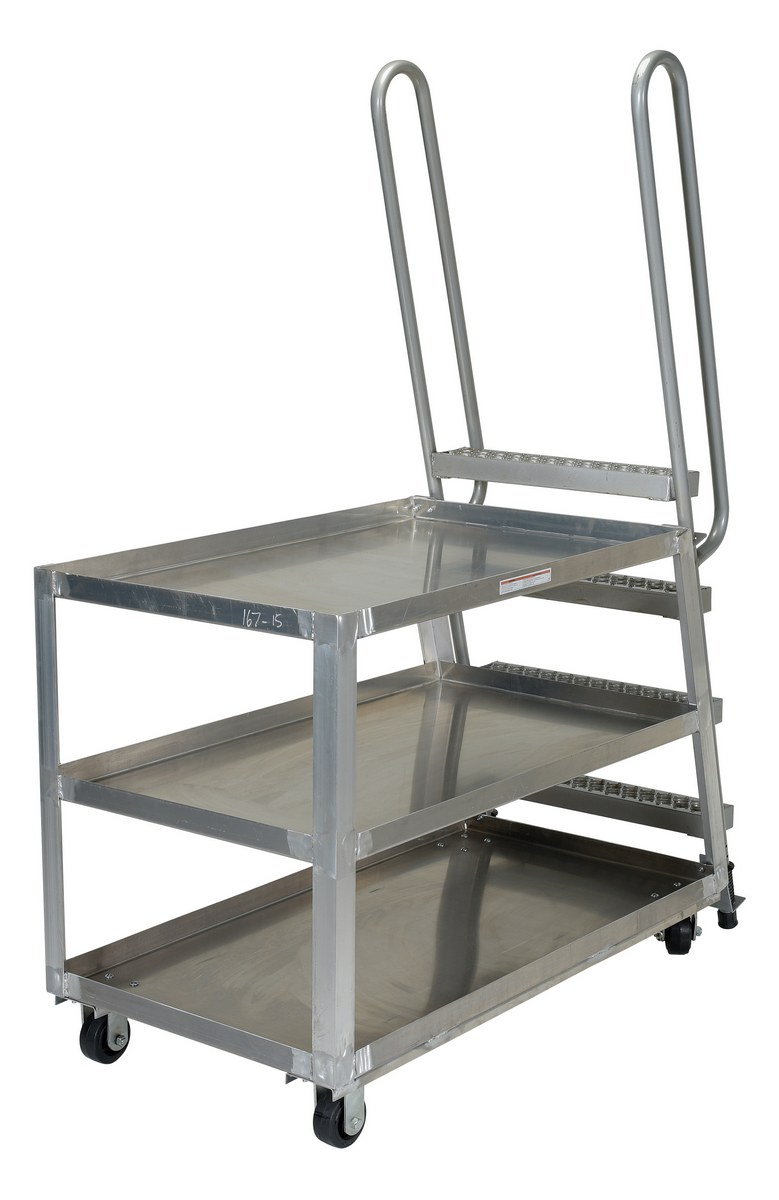

SPA-HD-2852

model SPA-HD-2852

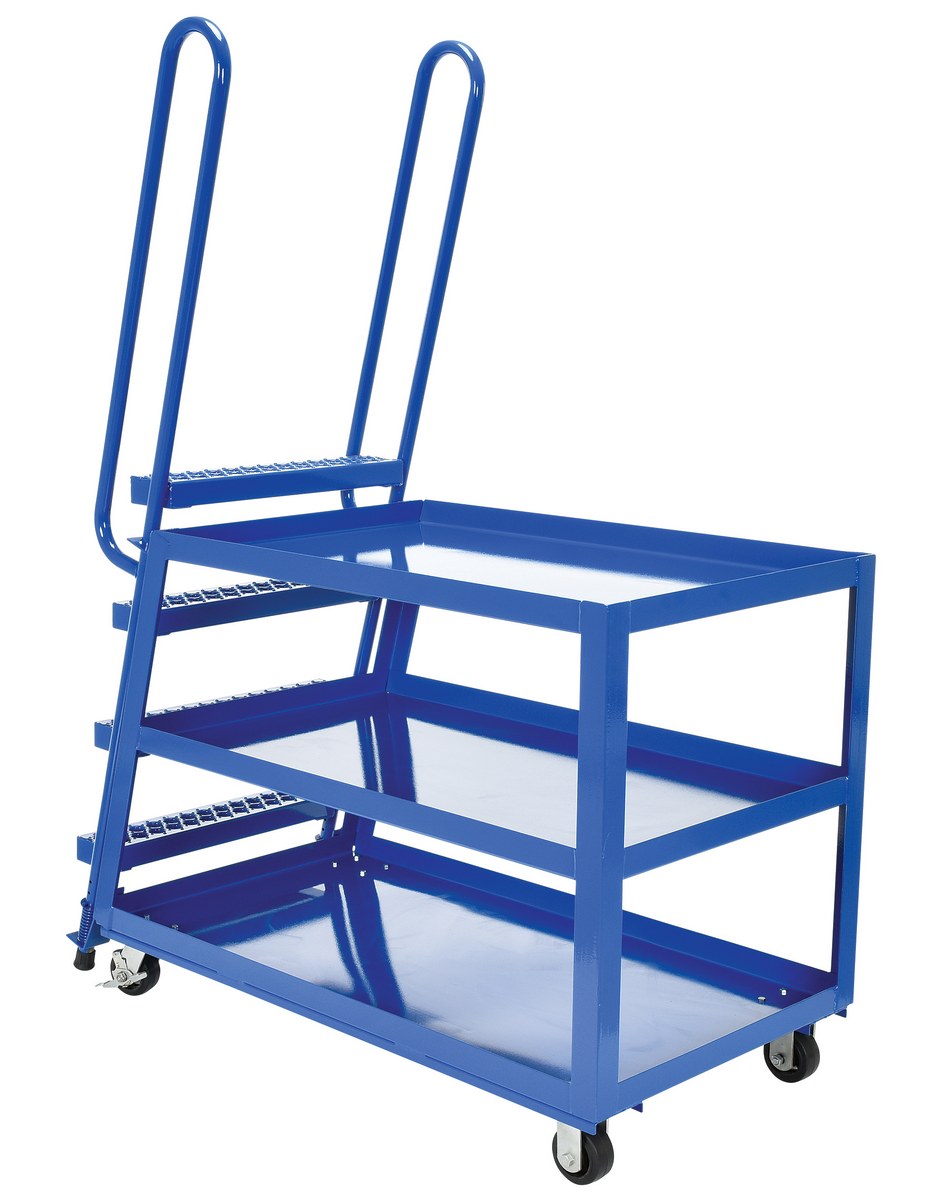

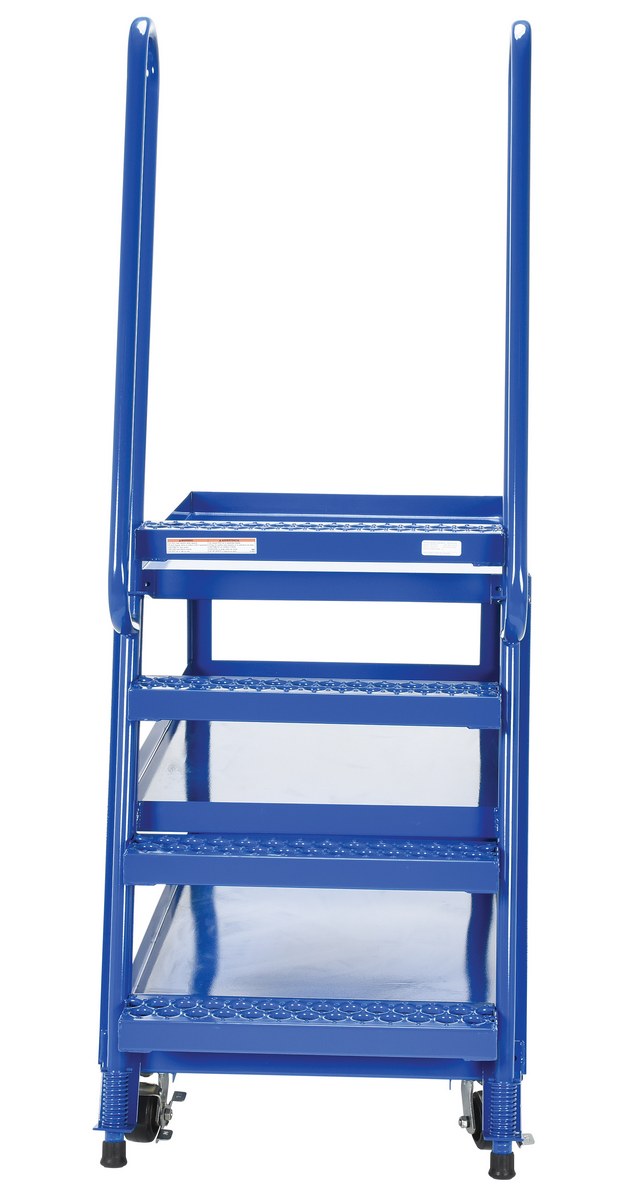

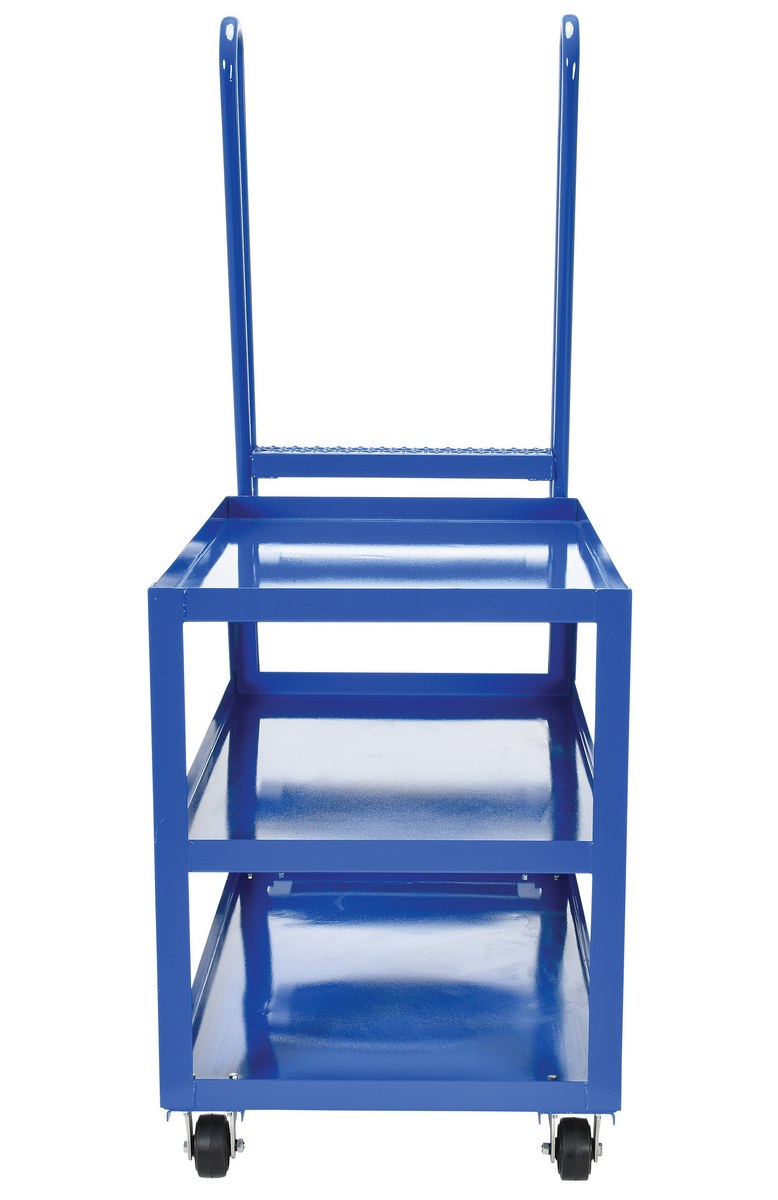

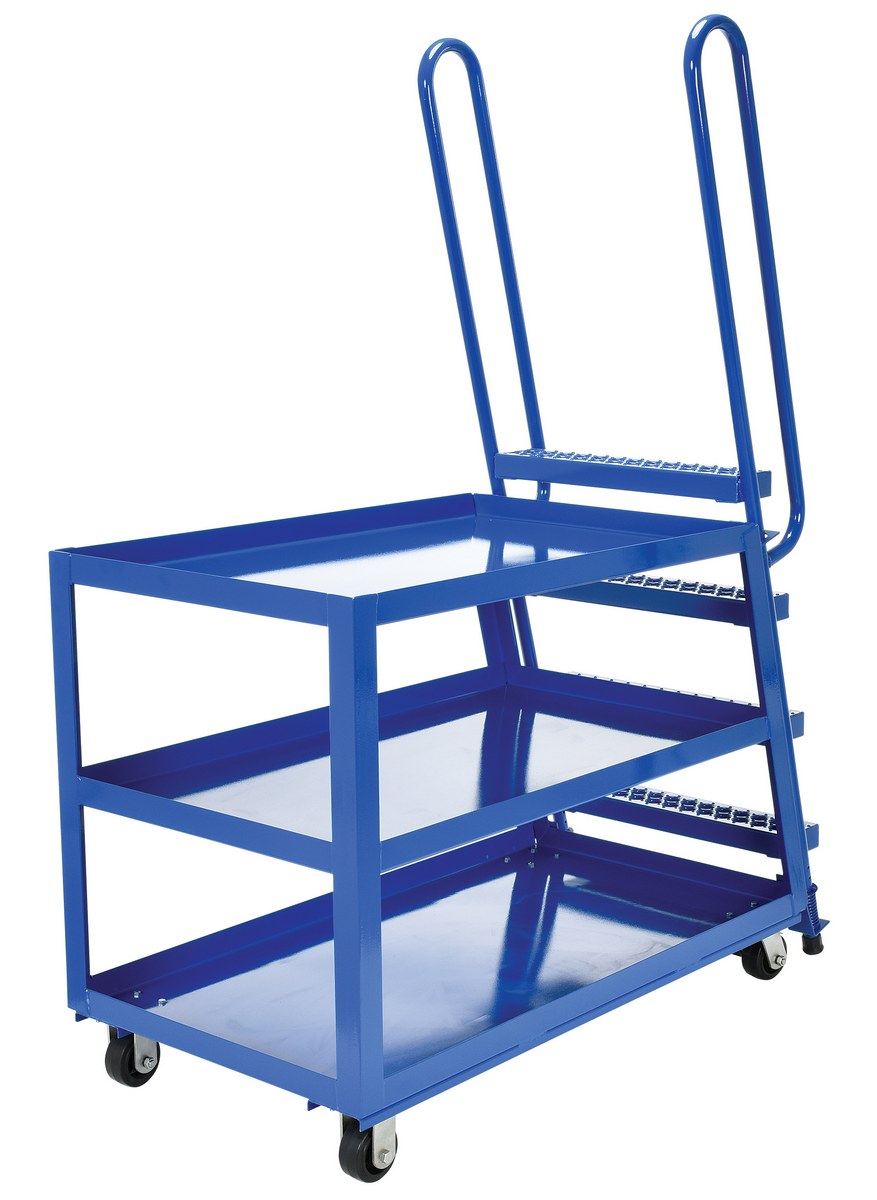

SPS-HD-2852

model SPS-HD-2852

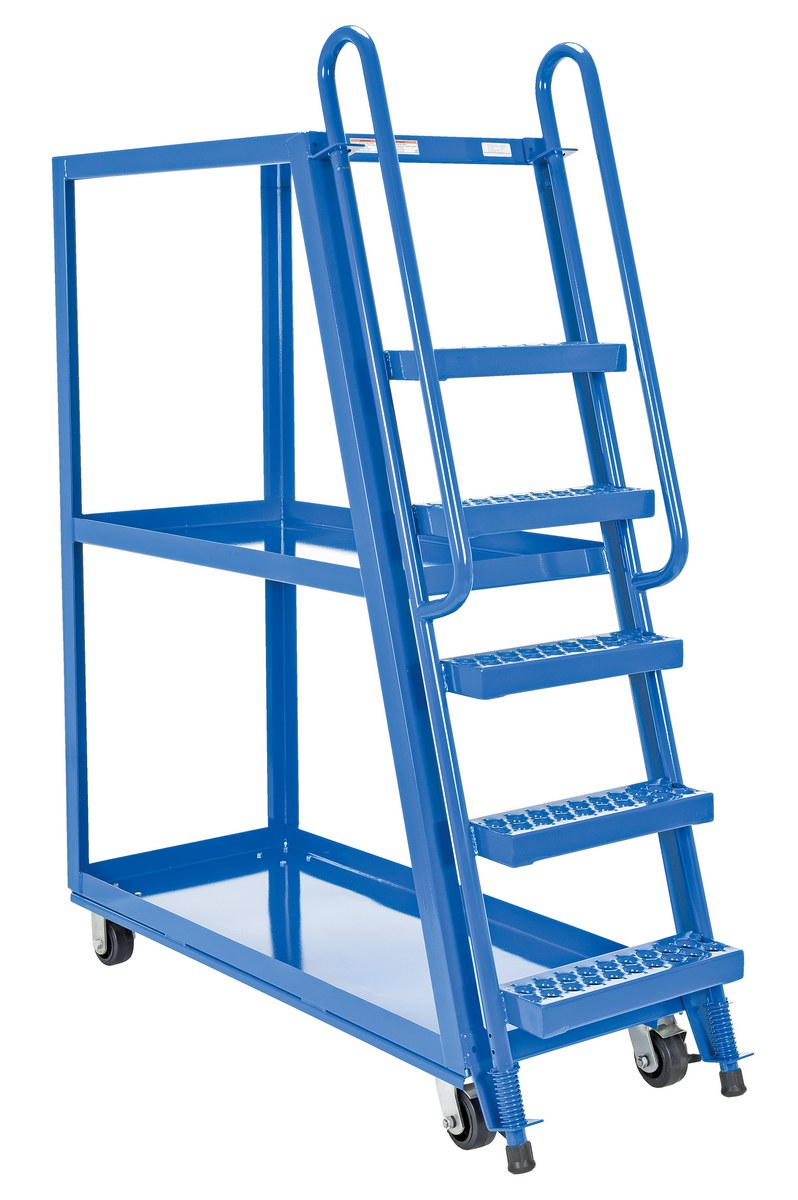

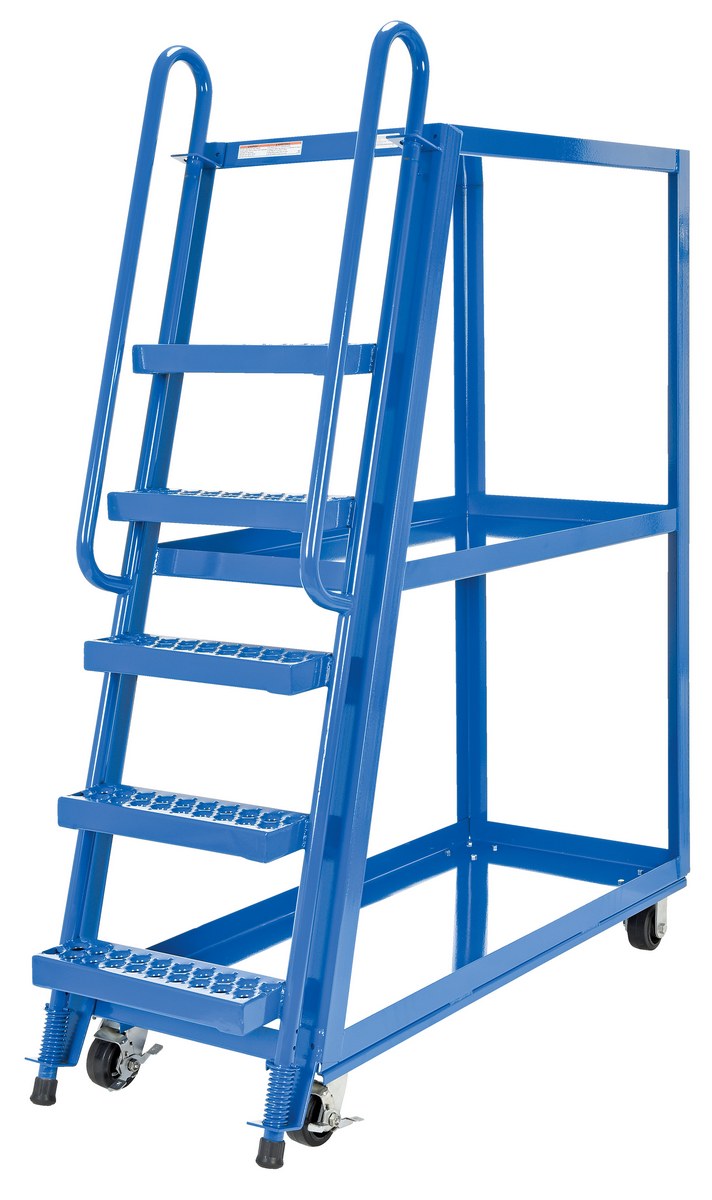

SPS-HF-2252

model SPS-HF-2252

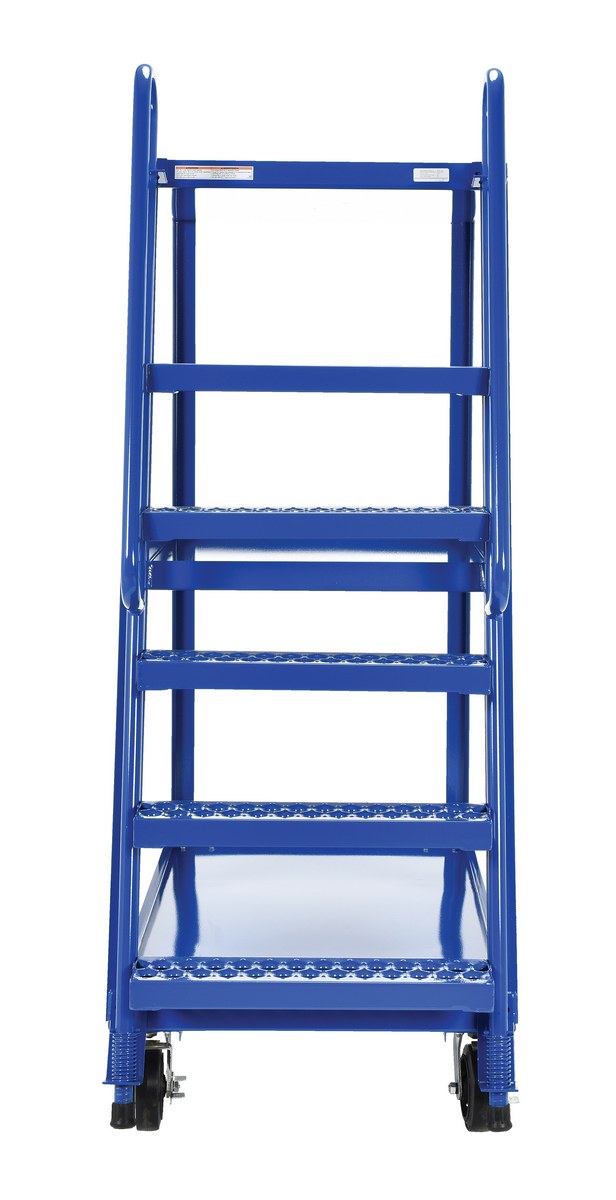

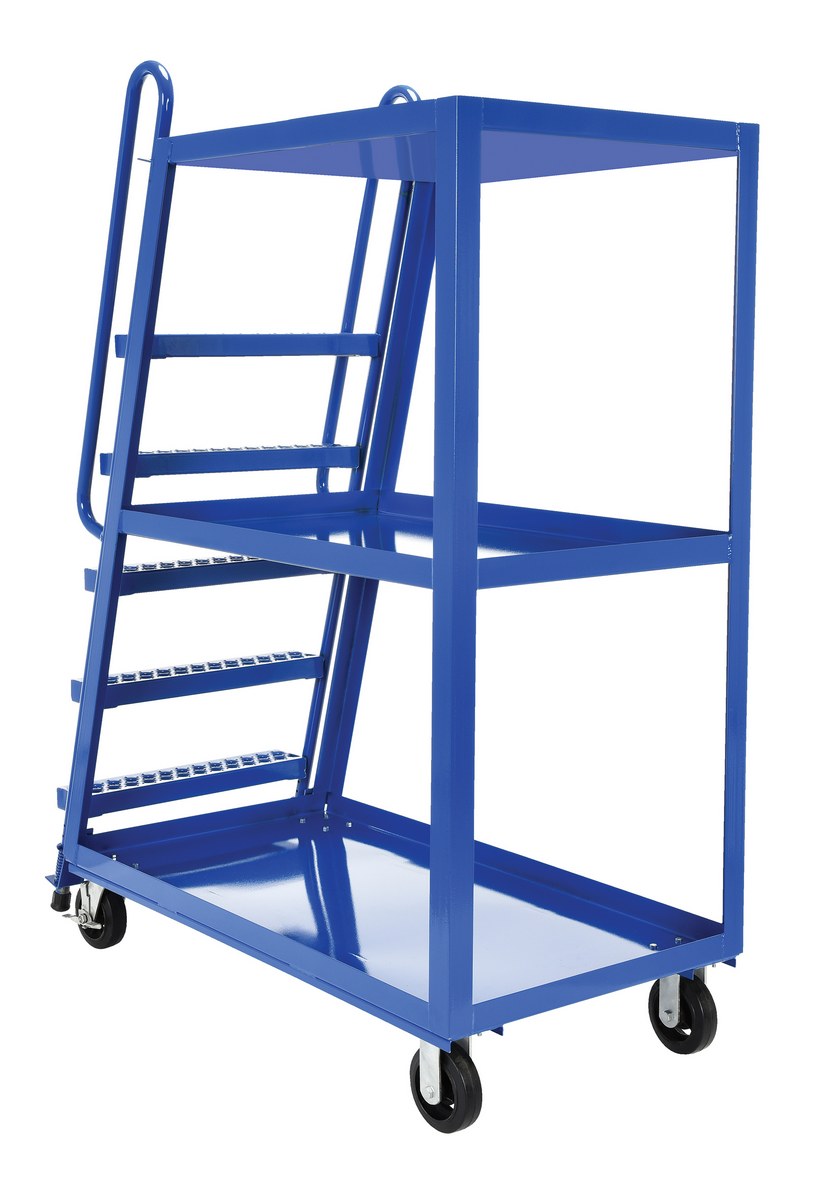

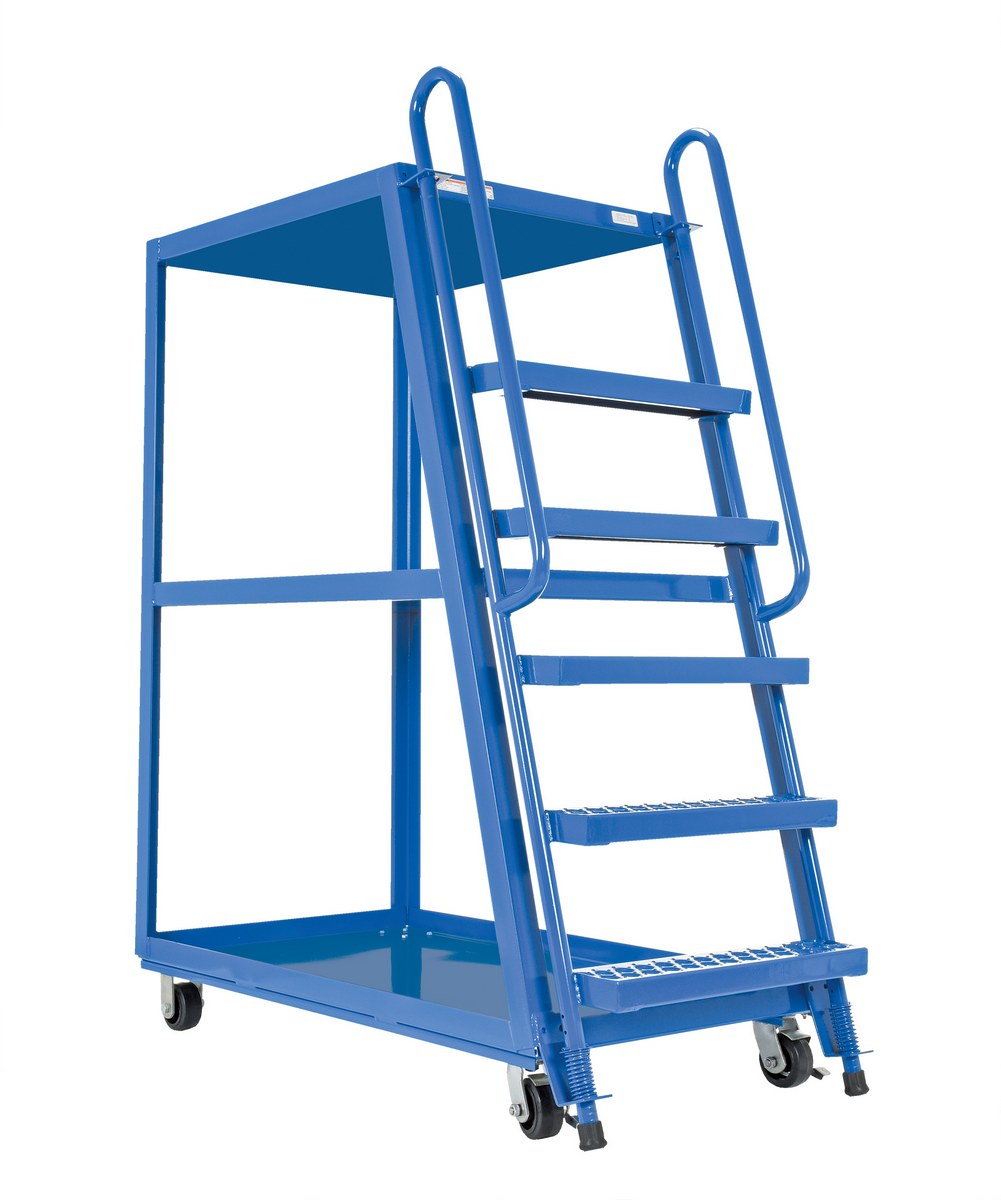

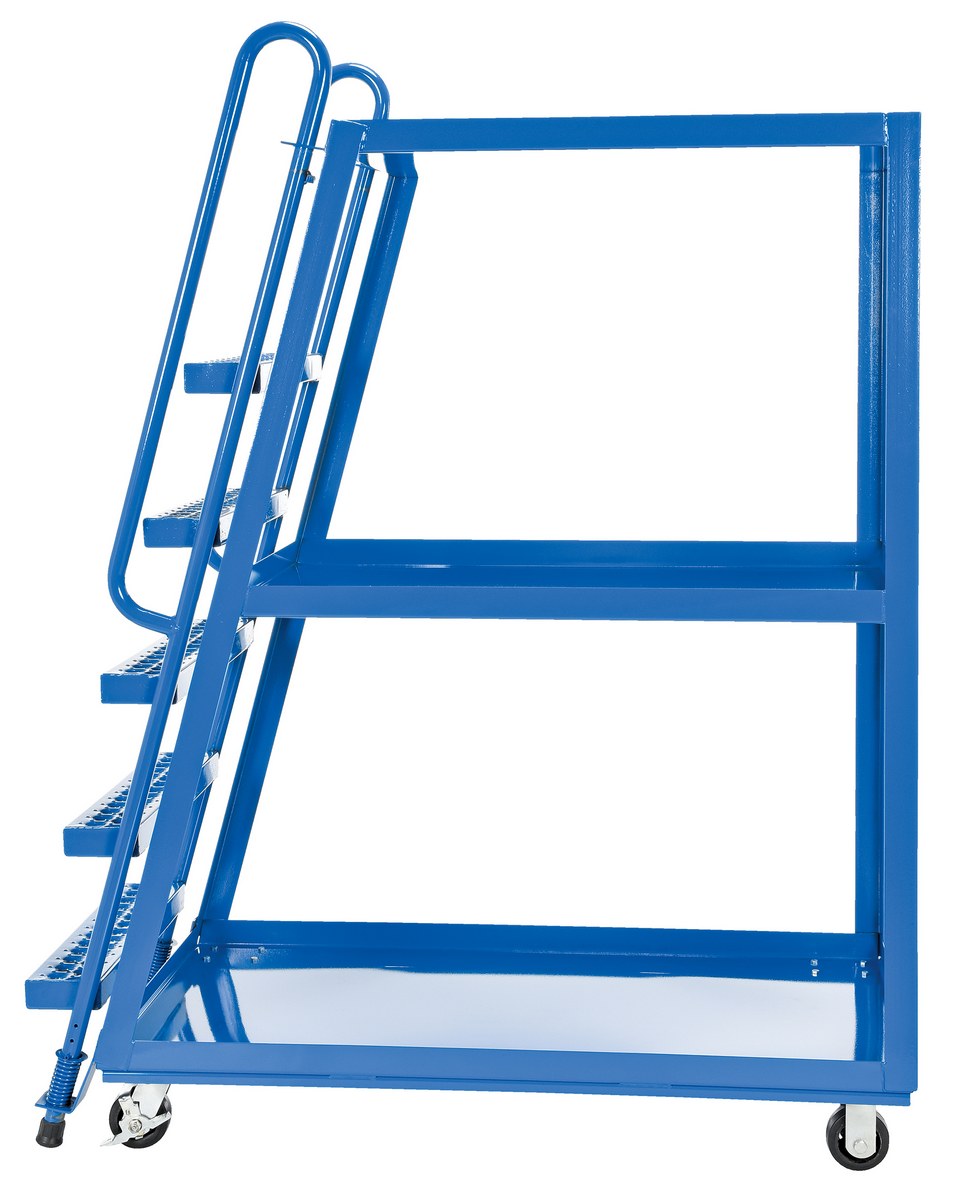

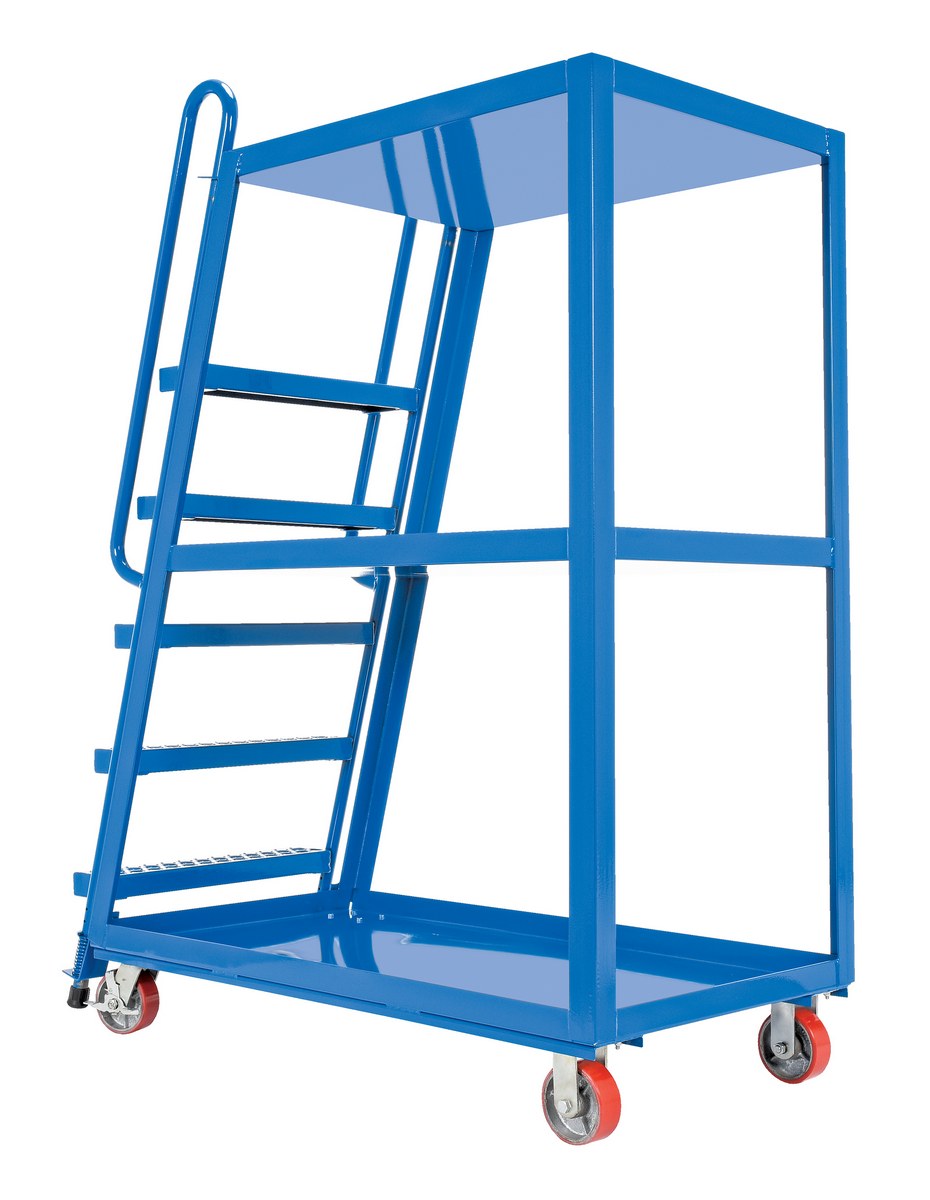

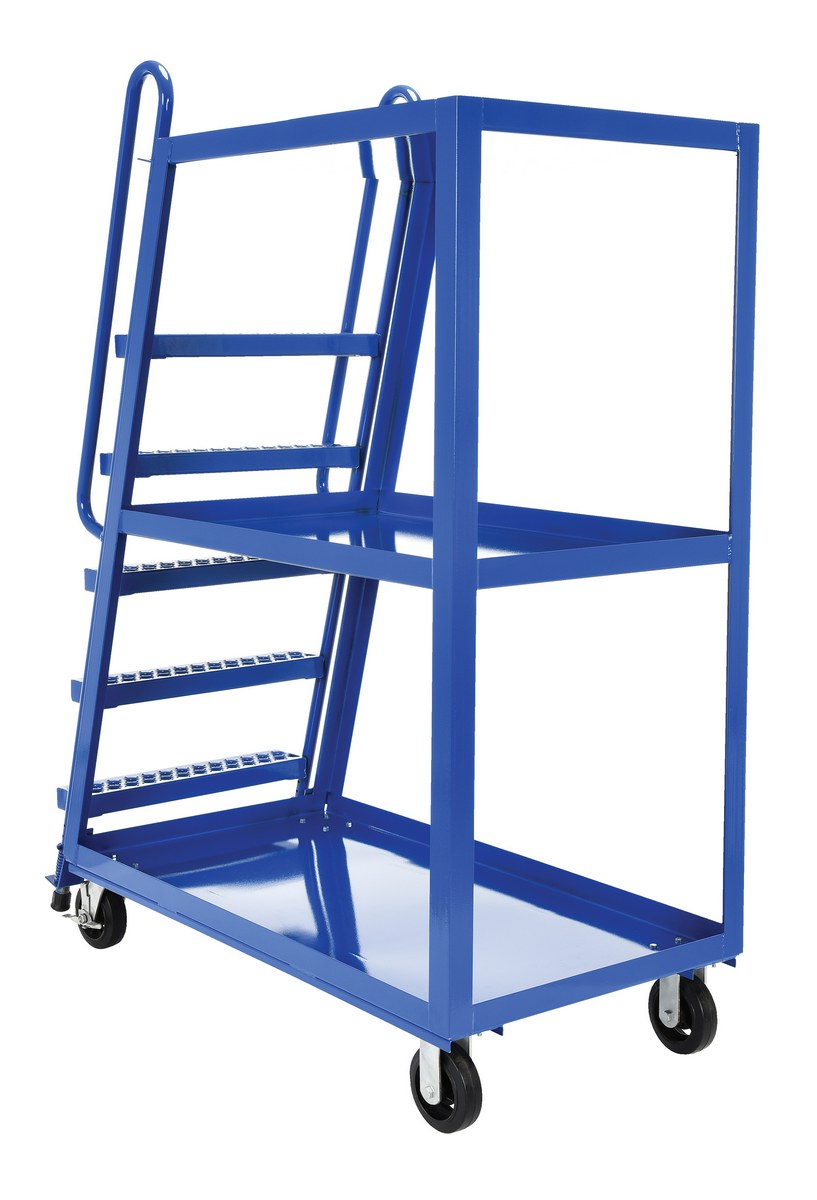

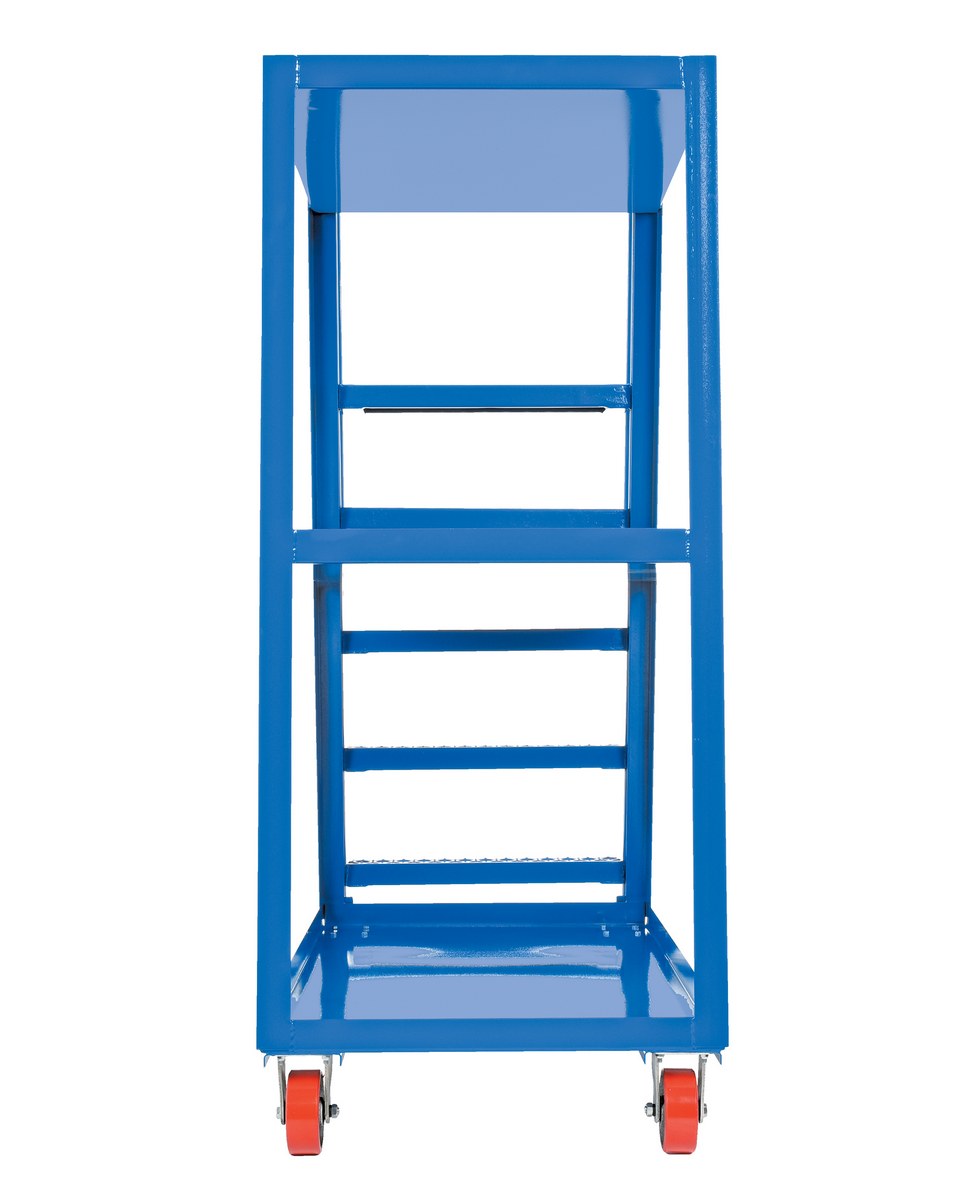

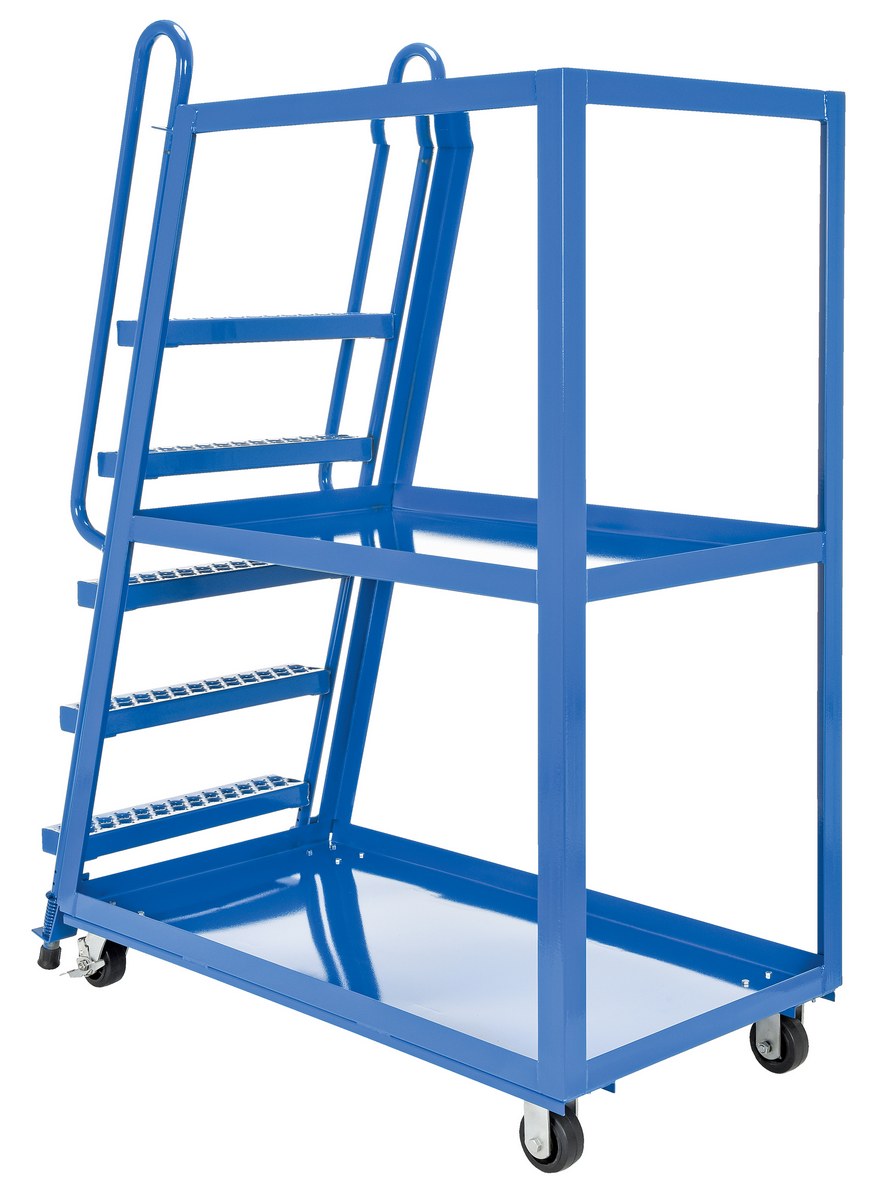

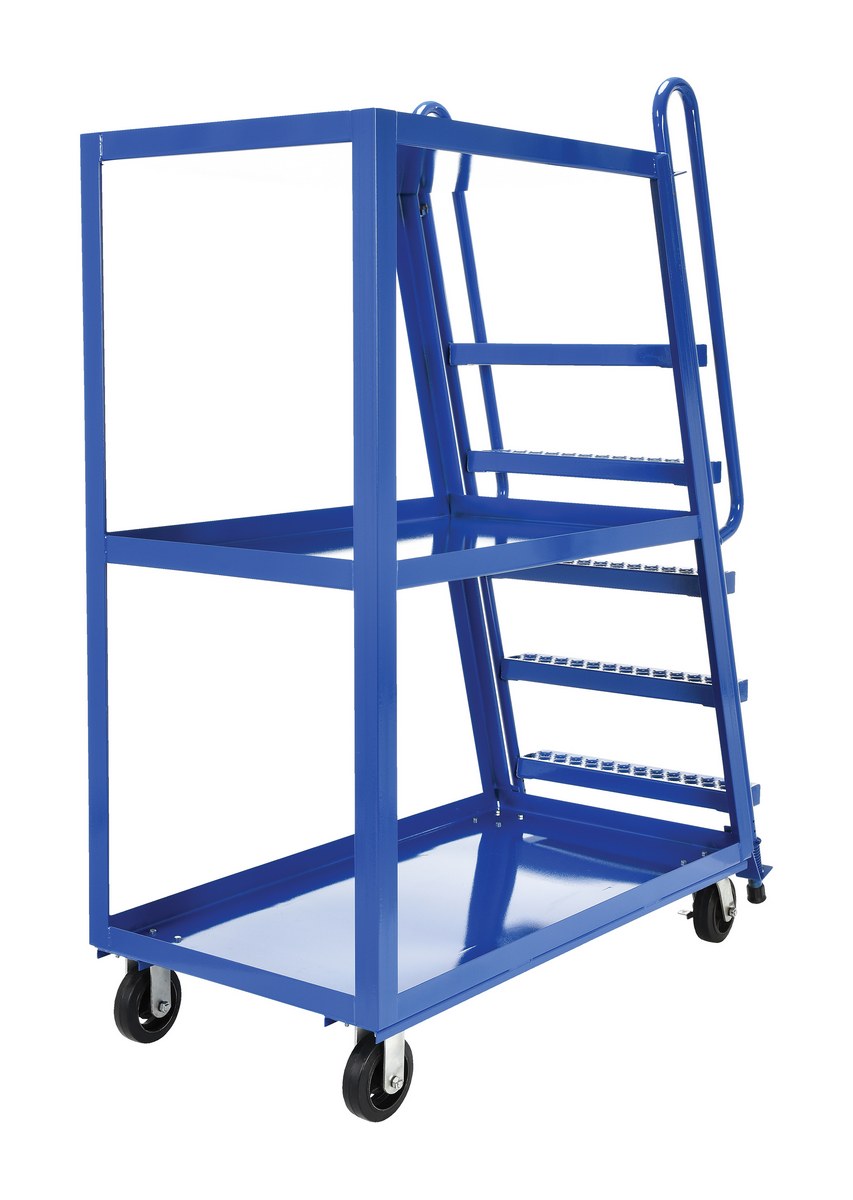

SPS-HF-2852

model SPS-HF-2852

Click A Tab For More Information. If A Tab Is Missing, This Product Has No Content For That Tab.

KEY: Approval Drawing = Approval Drawing -- Approval Drawing = Warranty -- Approval Drawing = Testing Certificate

Model Number & Specs Table

Hi-Duty & Hi-Frame Stockpicker Trucks
Model PDF's Bottom Shelf
Size (WxL)
Shelf
Clearance
Top Shelf
Height
Capacity
Per Shelf
Total
Capacity
Wt.
(lbs)

Hi-Duty Stockpicker Trucks

Aluminum
SPA-HD-2252 icon_approvaldrawings.jpgCompliance Certificate 21-5/8"x52-1/8" 13" 37-3/4" 330lbs. 500lbs 156
SPA-HD-2852 icon_approvaldrawings.jpgCompliance Certificate 27-5/8"x52-1/8" 13" 37-3/4" 330lbs. 500lbs 168
Steel
SPS-HD-2252 icon_approvaldrawings.jpgCompliance Certificate 21-1/2"x50-3/4" 13" 37-3/4" 500lbs. 1,000lbs 218
SPS-HD-2852 icon_approvaldrawings.jpgCompliance Certificate 27-1/2"x50-3/4" 13" 37-3/4" 500lbs. 1,000lbs 252

Hi-Frame Stockpicker Trucks

Steel
SPS-HF-2252 icon_approvaldrawings.jpgCompliance Certificate 21-1/2"x50-3/4" 27" 65-3/4" 500lbs. 1,000lbs. 228
SPS-HF-2852 icon_approvaldrawings.jpgCompliance Certificate 27-1/2"x50-3/4" 27" 65-3/4" 500lbs. 1,000lbs. 252

KEY: Approval Drawing = Approval Drawing -- Approval Drawing = Warranty -- Approval Drawing = Testing Certificate

Owner's Manuals

No Owners Manuals For This Product.


Survey Sheets

No Survey Sheets For This Product.


Approval Drawings

SPA-HD-2252
SPA-HD-2852
SPS-HD-2252
SPS-HD-2852
SPS-HF-2252
SPS-HF-2852

Testing Certificates

SPA-HD-2252
SPA-HD-2852
SPS-HD-2252
SPS-HD-2852
SPS-HF-2252
SPS-HF-2852

Other PDF's

No "Other PDFs" For This Product...


Directory Links Of Available PDF's For All Products

Video Gallery

No Videos for this product at this time. Please Check back.









Options

Options
SPS-LIPD Lips Down on top shelf
