Click Image to Enlarge

model: MFM-6-RAL


SERIES: MFM
Machinery Lifts

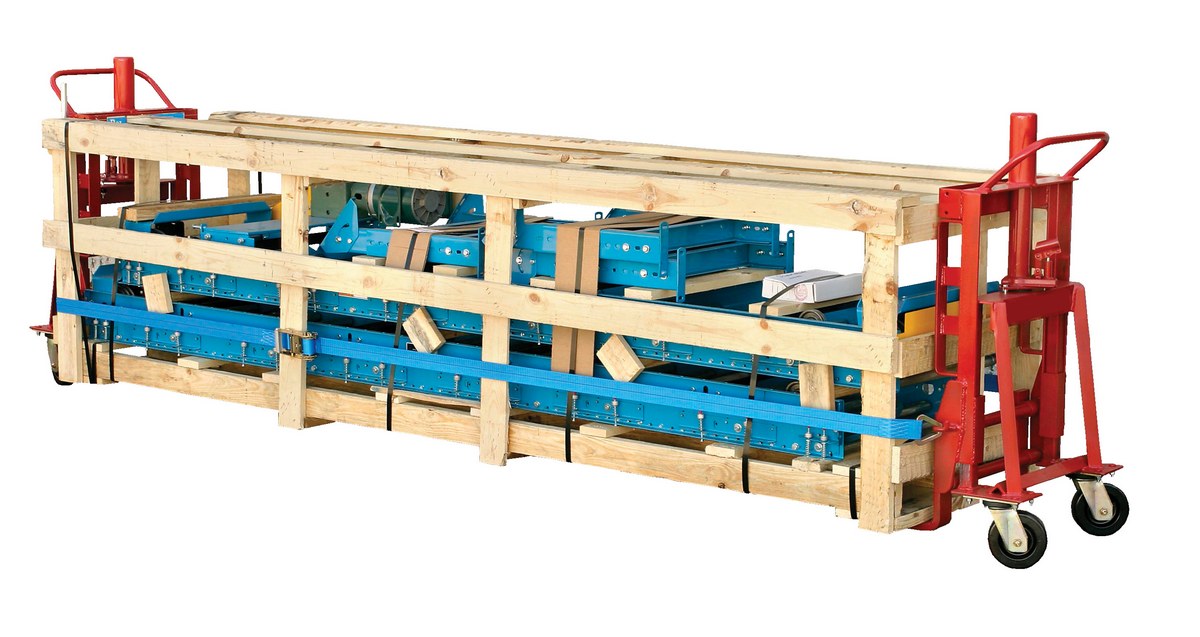

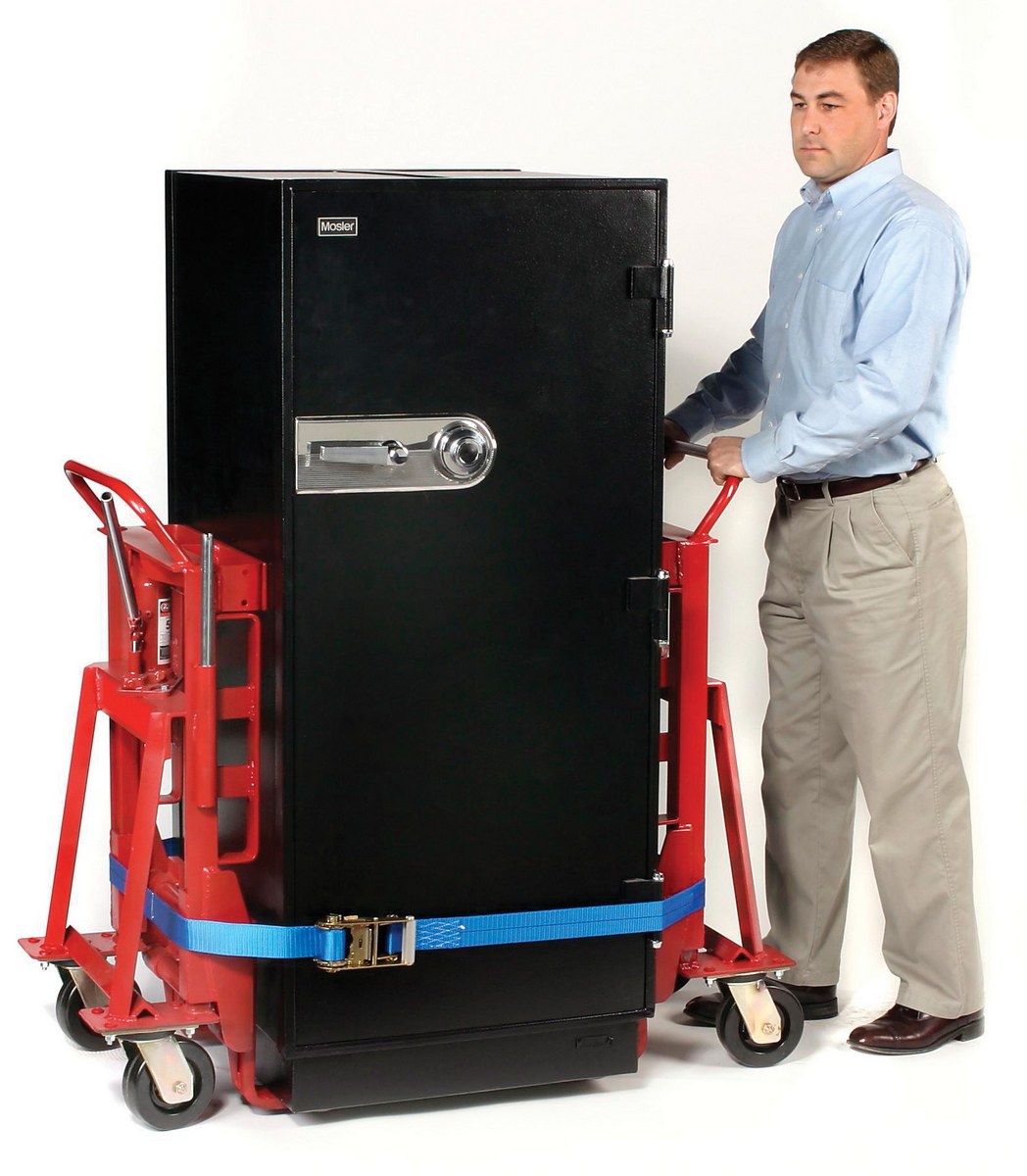

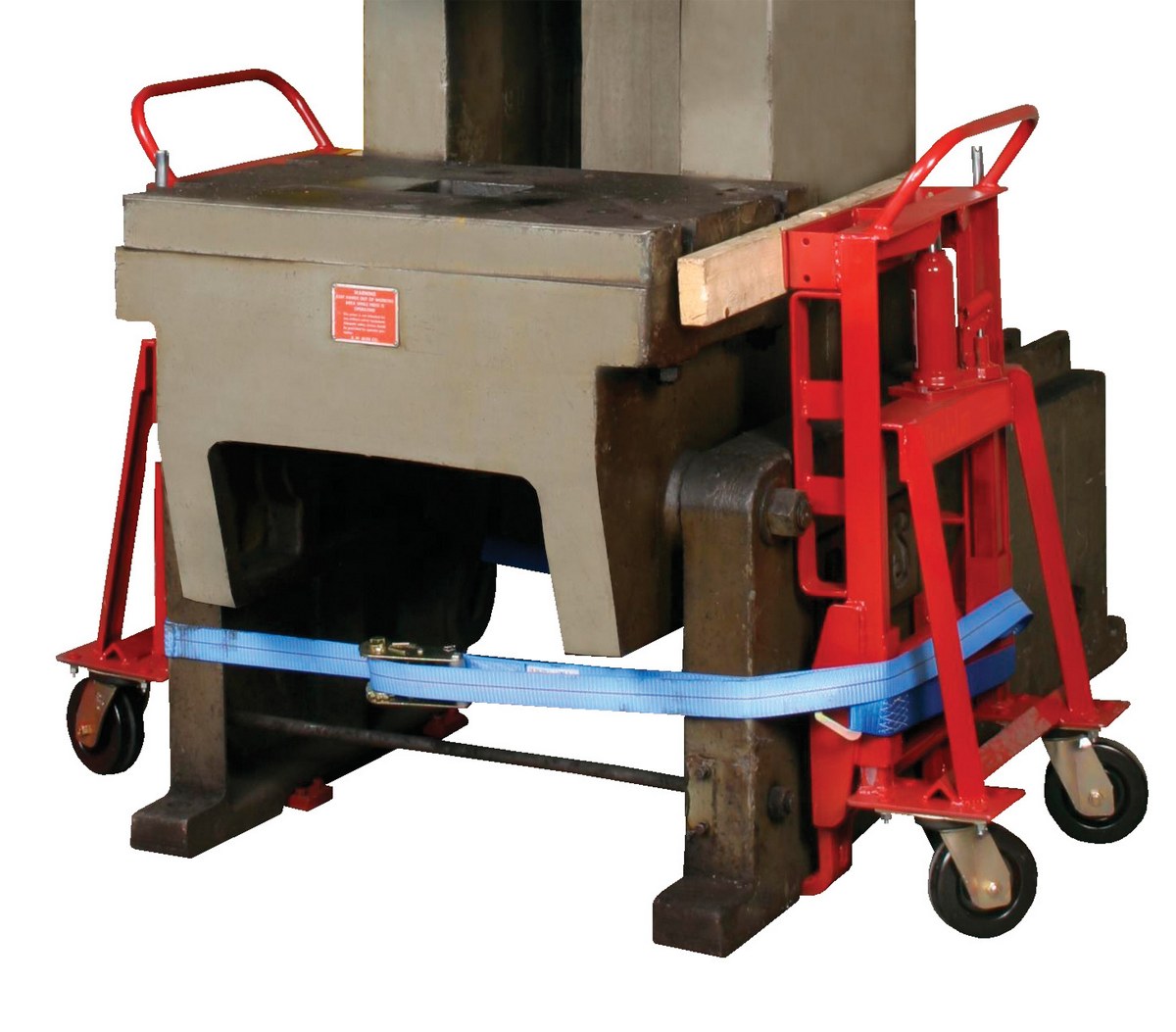

These machinery and vending machine lifts are the ideal method to move bulky and hard to handle loads. Move large, awkward objects or heavy equipment that is difficult to maneuver or position like refrigerators, safes, furniture, or machines. Yet they are versatile enough to safely handle fragile, sensitive equipment like glass, and computers. Lift height is 6" (model MFM-2-RAL has a 5?" lift height). Optional side straps secure loads for stable moving. Large wheels allow smooth movement over bumps and cracks of factory floors. Forks are adjustable with mounting pegs to allow for positioning of forks to accommodate different width loads. Priced and sold in pairs.

These machinery and vending machine lifts are the ideal method to move bulky and hard to handle loads. Move large, awkward objects or heavy equipment that is difficult to maneuver or position like refrigerators, safes, furniture, or machines. Yet they are versatile enough to safely handle fragile, sensitive equipment like glass, and computers. Lift height is 6" (model MFM-2-RAL has a 5?" lift height). Optional side straps secure loads for stable moving. Large wheels allow smooth movement over bumps and cracks of factory floors. Forks are adjustable with mounting pegs to allow for positioning of forks to accommodate different width loads. Priced and sold in pairs.

Other Machine Rollers & Lifts

Open Deck Machinery Dollies

Open Deck Machinery Dollies

Machinery Lifts

Machinery Lifts

Cast Aluminum Dollies

Cast Aluminum Dollies

Machinery Skates

Machinery Skates

Steel Machine Rollers & Accessories

Steel Machine Rollers & Accessories

Share This Page

MFM-2-RAL

model MFM-2-RAL

MFM-4-RAL

model MFM-4-RAL

MFM-10-RAL

model MFM-10-RAL

MFM-BELT-12

model MFM-BELT-12




KEY: Approval Drawing = Approval Drawing -- Approval Drawing = Warranty -- Approval Drawing = Testing Certificate

All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.
Machinery/Vending Machine Lifts
Model PDFs Casters Lift
Style
Fork
Adjust
Fork
Length
Capacity
[per pair]
(lbs)
Lift
Height
Overall
Size
(WxDxH)
Net
Wt.
[per pair]
(lbs)
MFM-2-RAL Warranty PDF 5"x 2"
Phenolic
Hydraulic 7-1/4" to 17-1/2" 5" 2,000 5-1/8" 22"x12-1/2"x47-1/2" 160
MFM-4-RAL Warranty PDF 6"x2"
Phenolic
Hydraulic 5" to 19-1/2" 6" 4,000 6" 23"x16-1/2"x49-3/4" 325
MFM-6-RAL Warranty PDF 6"x2"
Phenolic
Hydraulic 6" to 19-1/2" 6" 6,000 6" 23"x16-3/4"x49-3/4" 335
MFM-8-RAL Warranty PDF 8"x2-1/2"
Semi-Steel
Hydraulic 7-1/4" to 19-1/2" 6" 8,000 6" 23-1/8"x17-1/4" x 45-1/2" 400
MFM-10-RAL Warranty PDF 8"x 3"
Semi-Steel
Hydraulic 9-1/4" to 19-1/2" 6" 10,000 6" 24"x 18"x45-1/2'" 438
MFM-12-RAL Warranty PDF 8"x2-1/2"
Semi-Steel
Hydraulic 9-1/4" to 19-1/2" 6" 12,000 6" 24"x18"x45-1/2" 470

KEY: Approval Drawing = Approval Drawing -- Approval Drawing = Warranty -- Approval Drawing = Testing Certificate

If you did not find an expected Model or SKU # in the table, try the Options Section Below

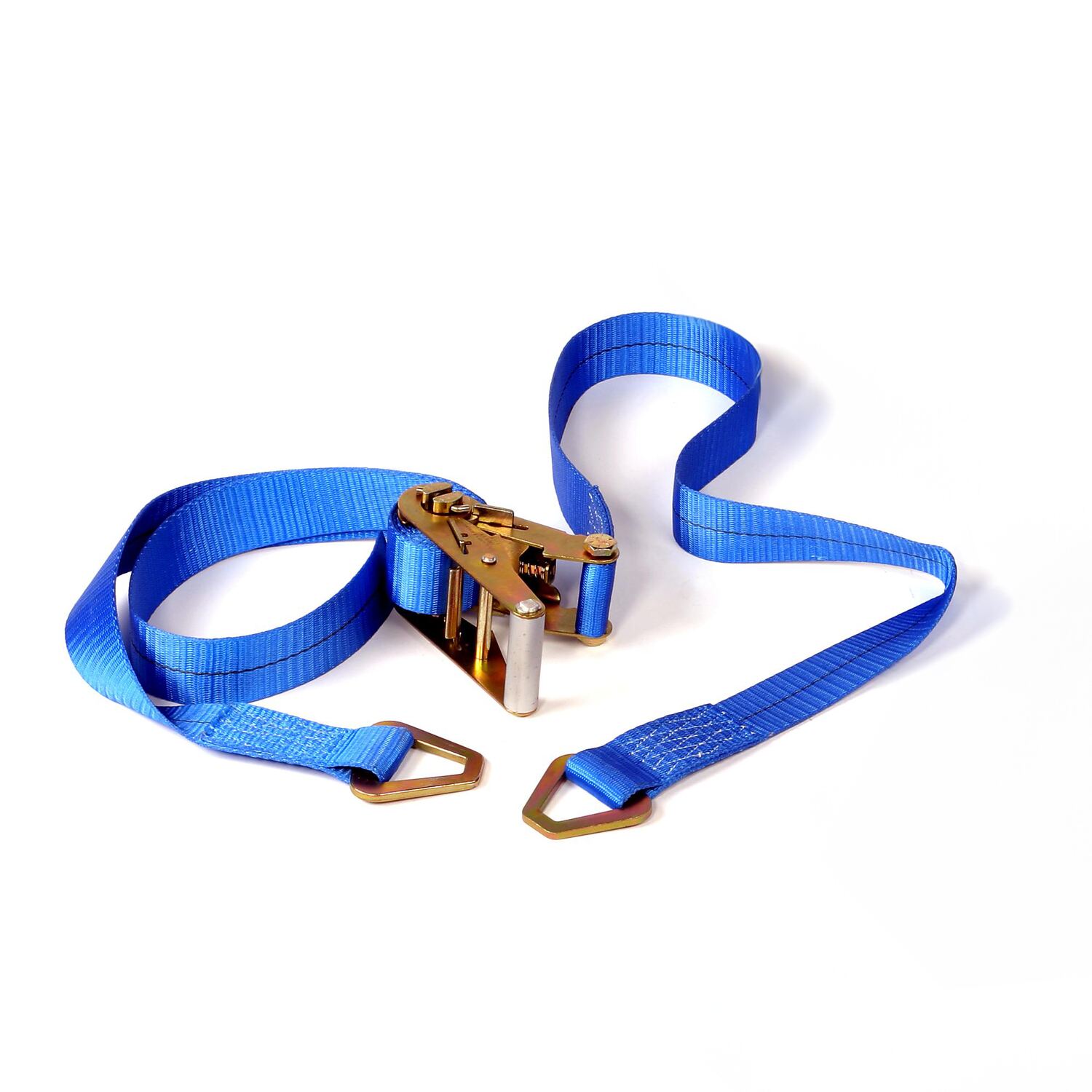

MFM-BELT-12 Warranty PDF 12' Long Belt with triangle hook ends 5
MFM-BELT-16 Warranty PDF 16' Long Belt with triangle hook ends 5
MFM-BELT-20 Warranty PDF 20' Long Belt with triangle hook ends 10

KEY: Approval Drawing = Approval Drawing -- Approval Drawing = Warranty -- Approval Drawing = Testing Certificate

If you did not find an expected Model or SKU # in this table, try the Product Specifications Section Above
