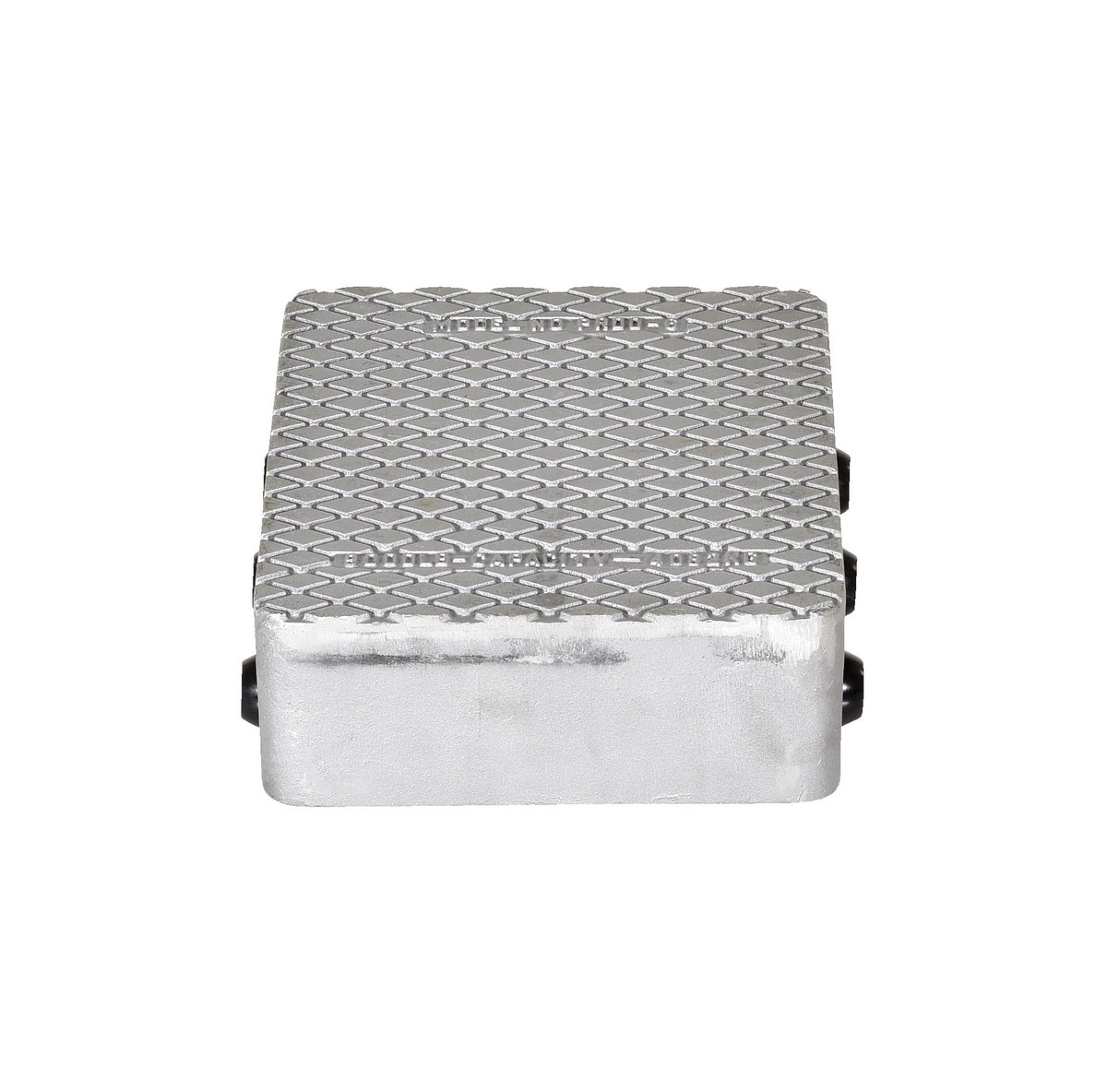

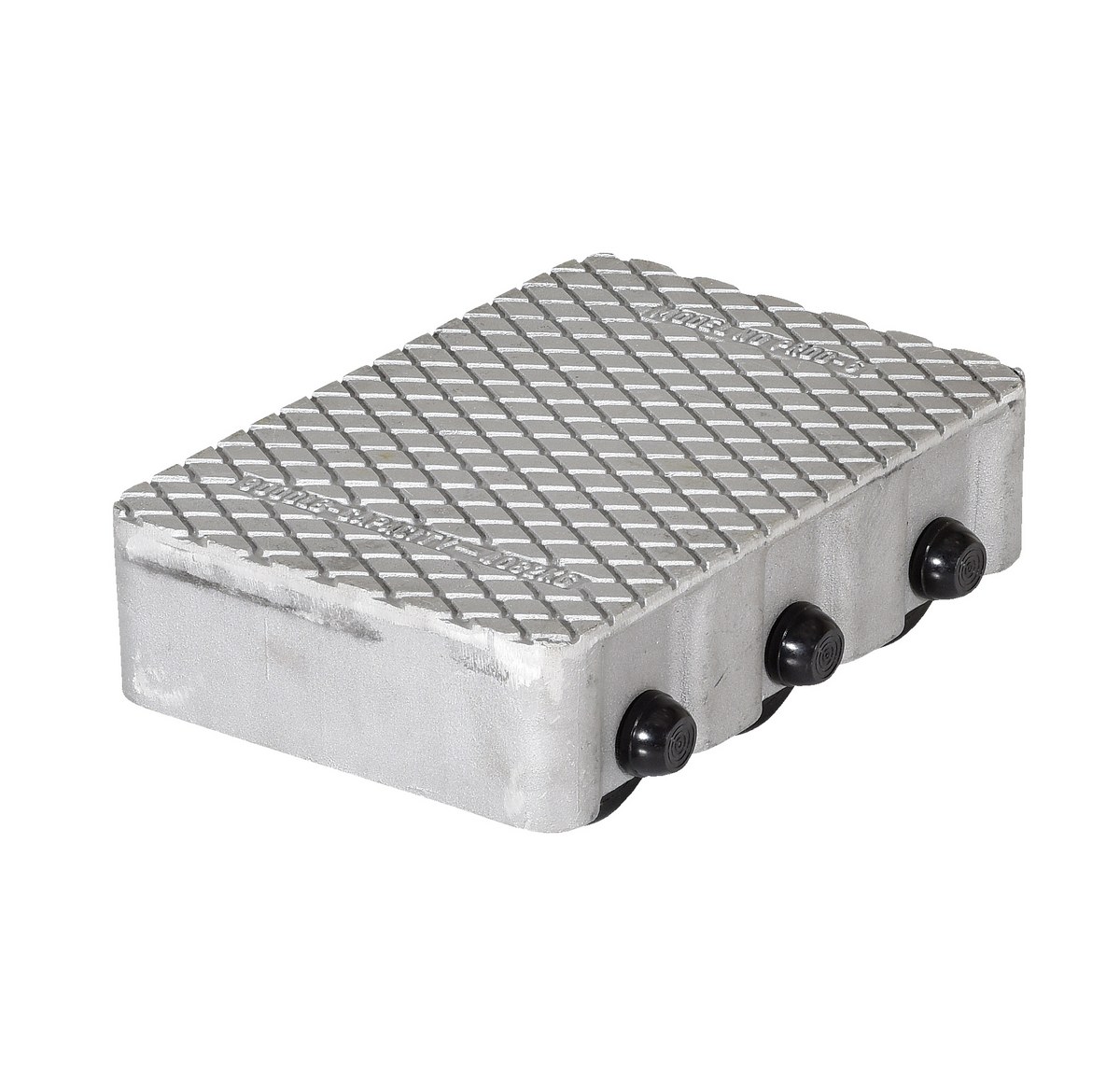

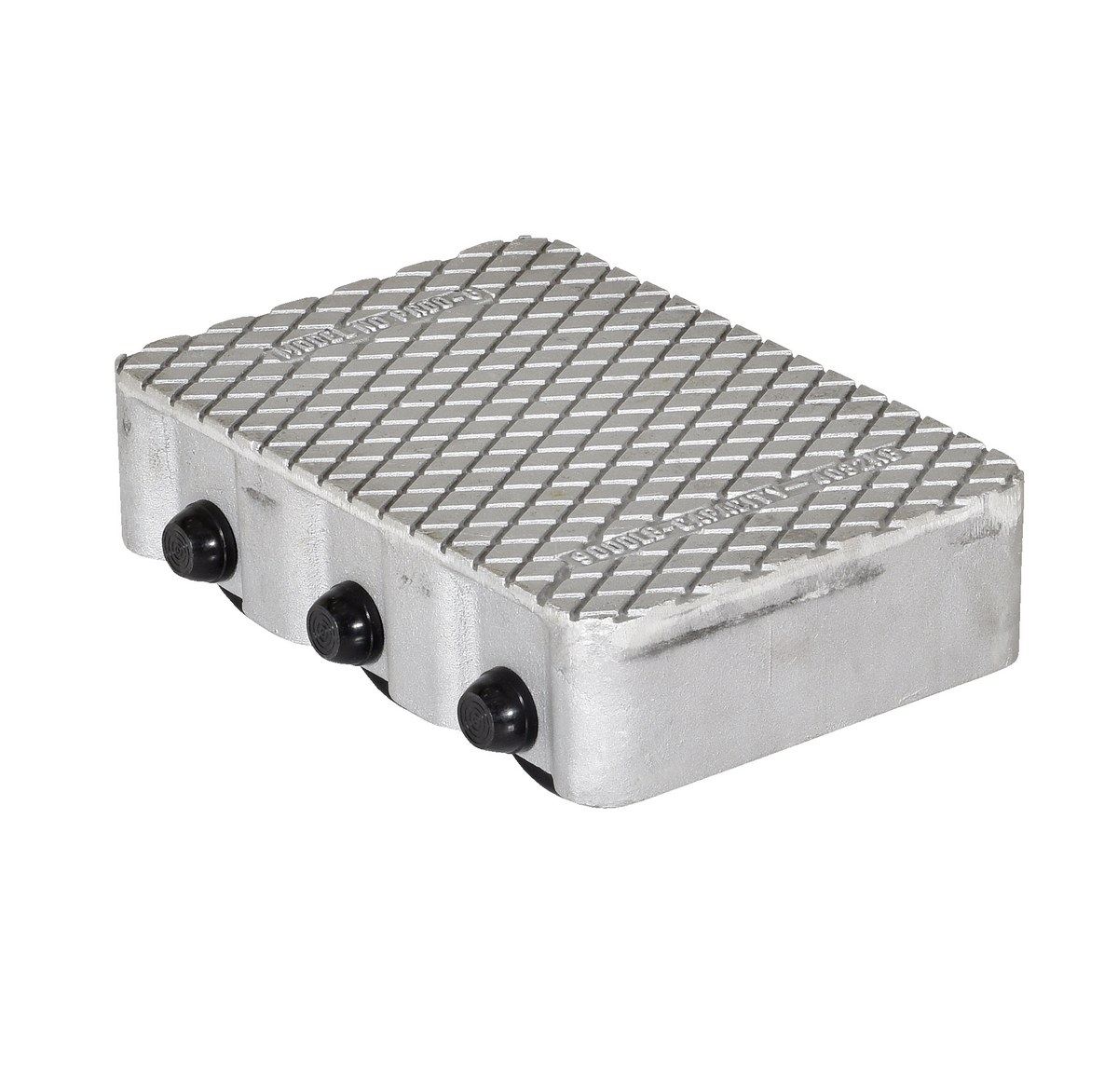

model: VPRDO-6

SERIES: VPRDO
Cast Aluminum Dollies

These Propel Dollies are easy to use and provide efficient moving time. Aluminum, box-like frames have integral sides and deeply fluted tops. Dollies include 3-1/2" dia. x 3" wide phenolic rollers. They are excellent for moving heavy crates and machinery. Note: Except when used individually, corners should be turned by lifting the load and rotating each dolly individually. Overall height 4-1/4".

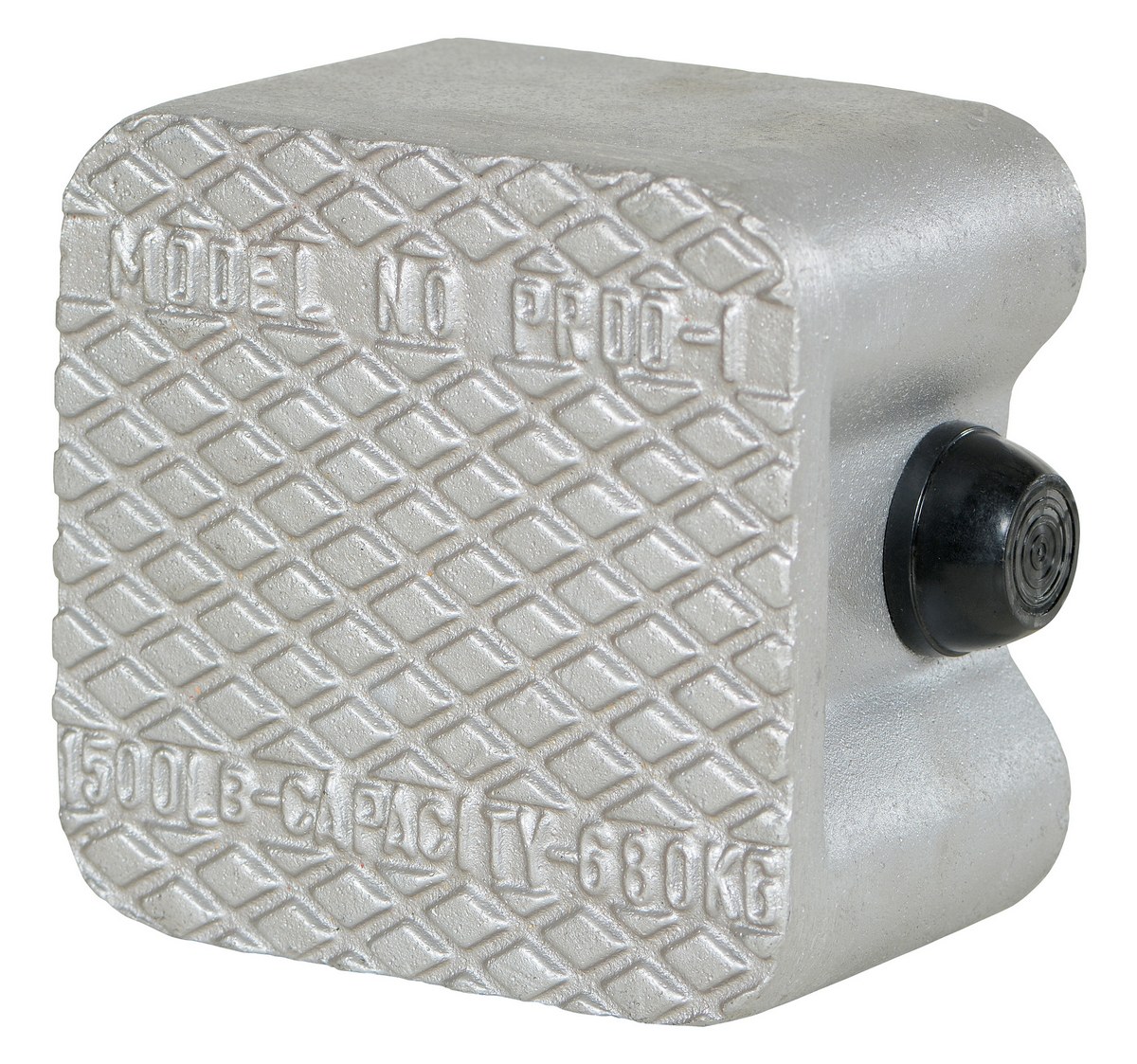

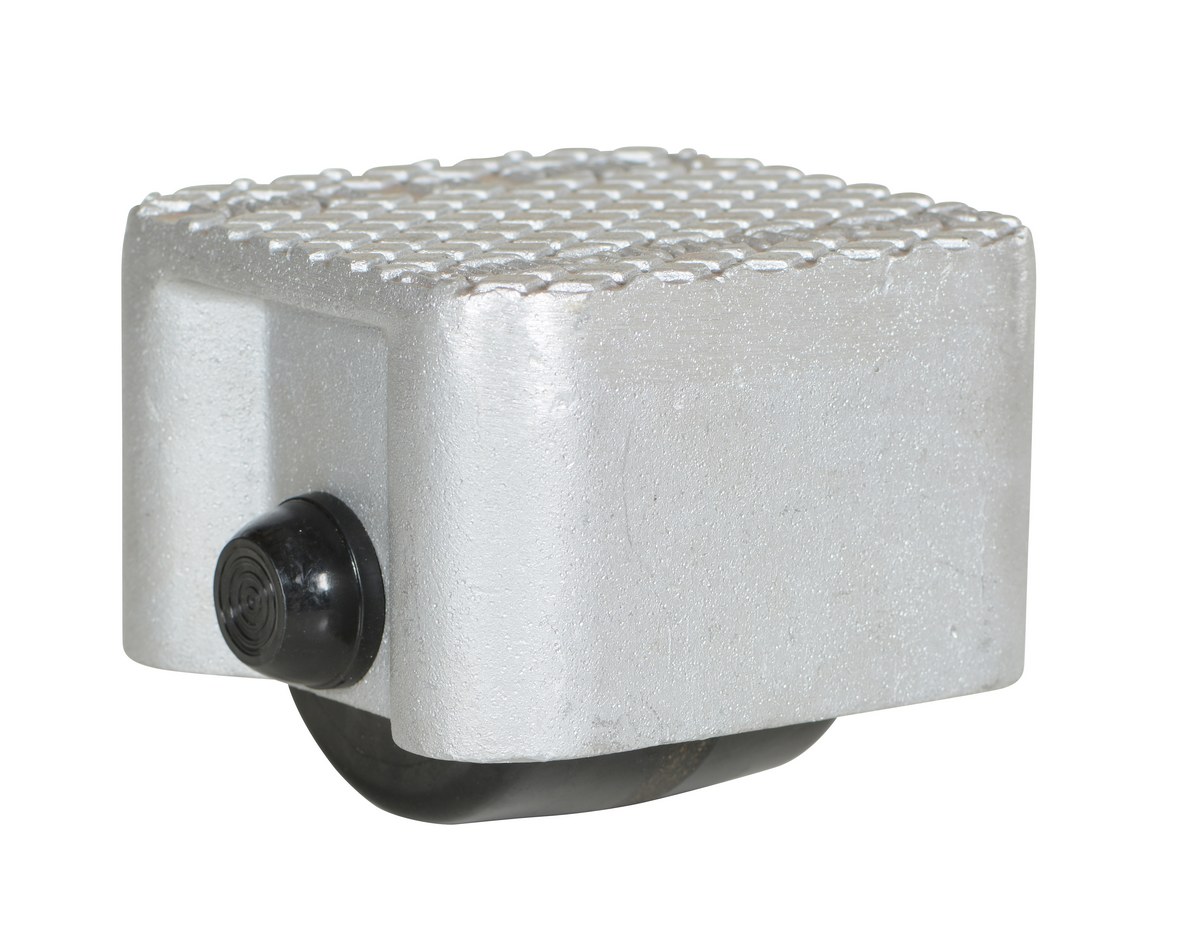

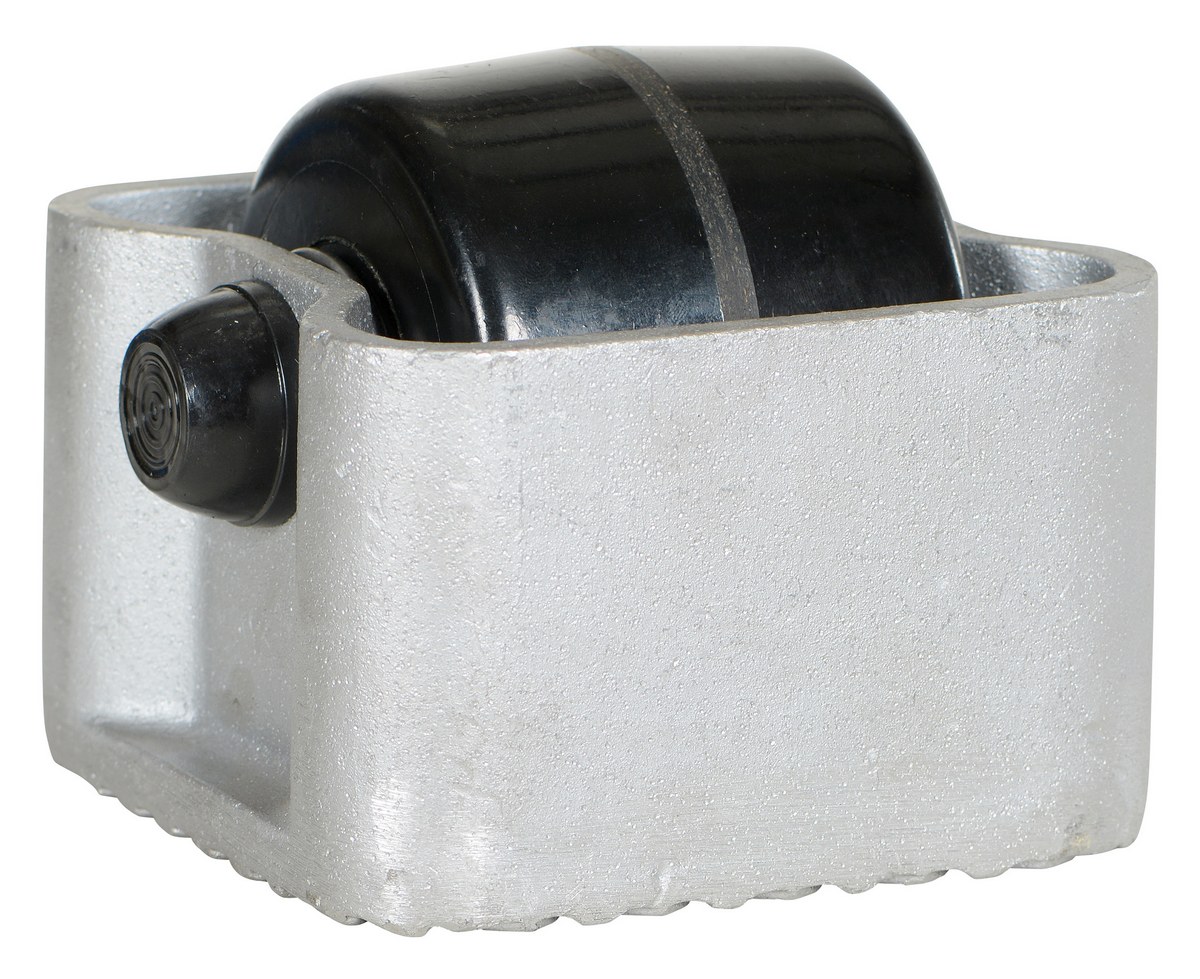

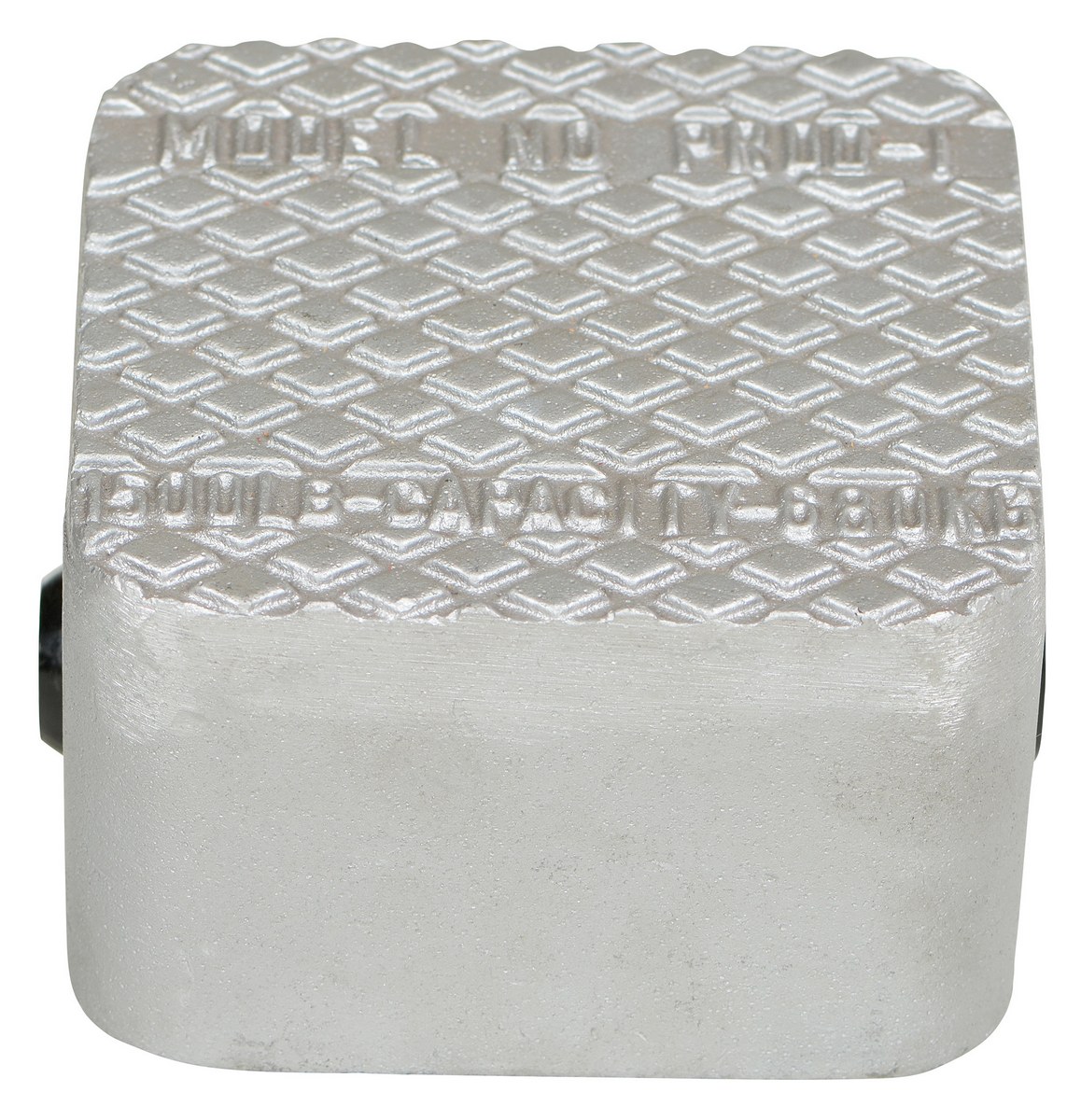

VPRDO-1

model VPRDO-1

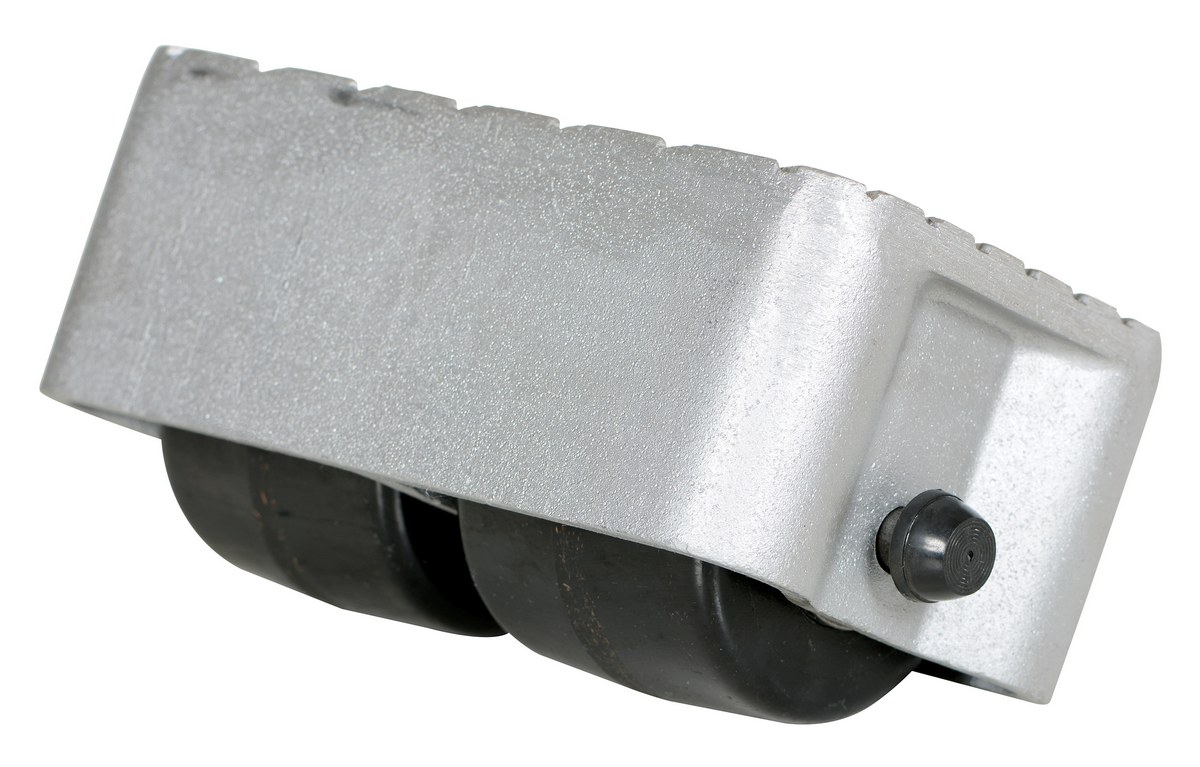

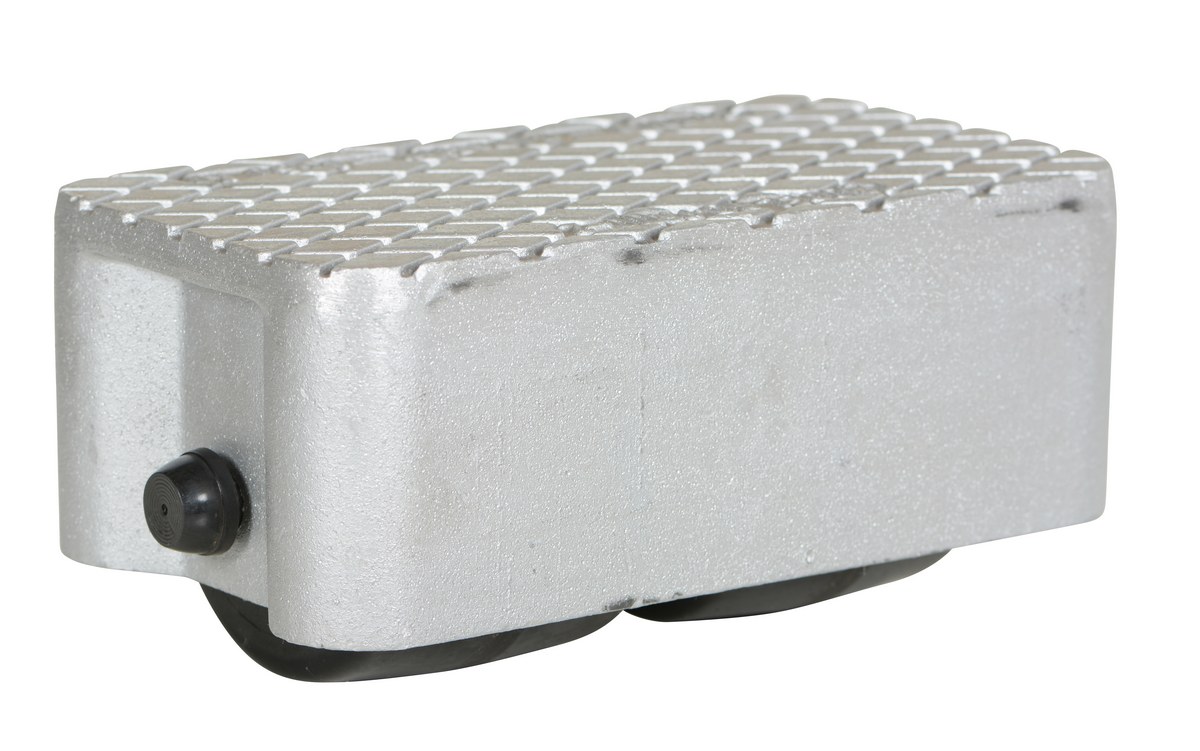

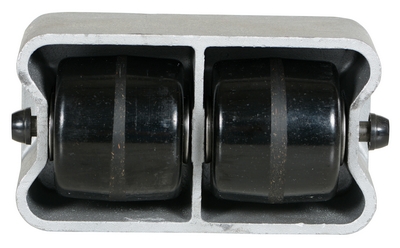

VPRDO-2

model VPRDO-2

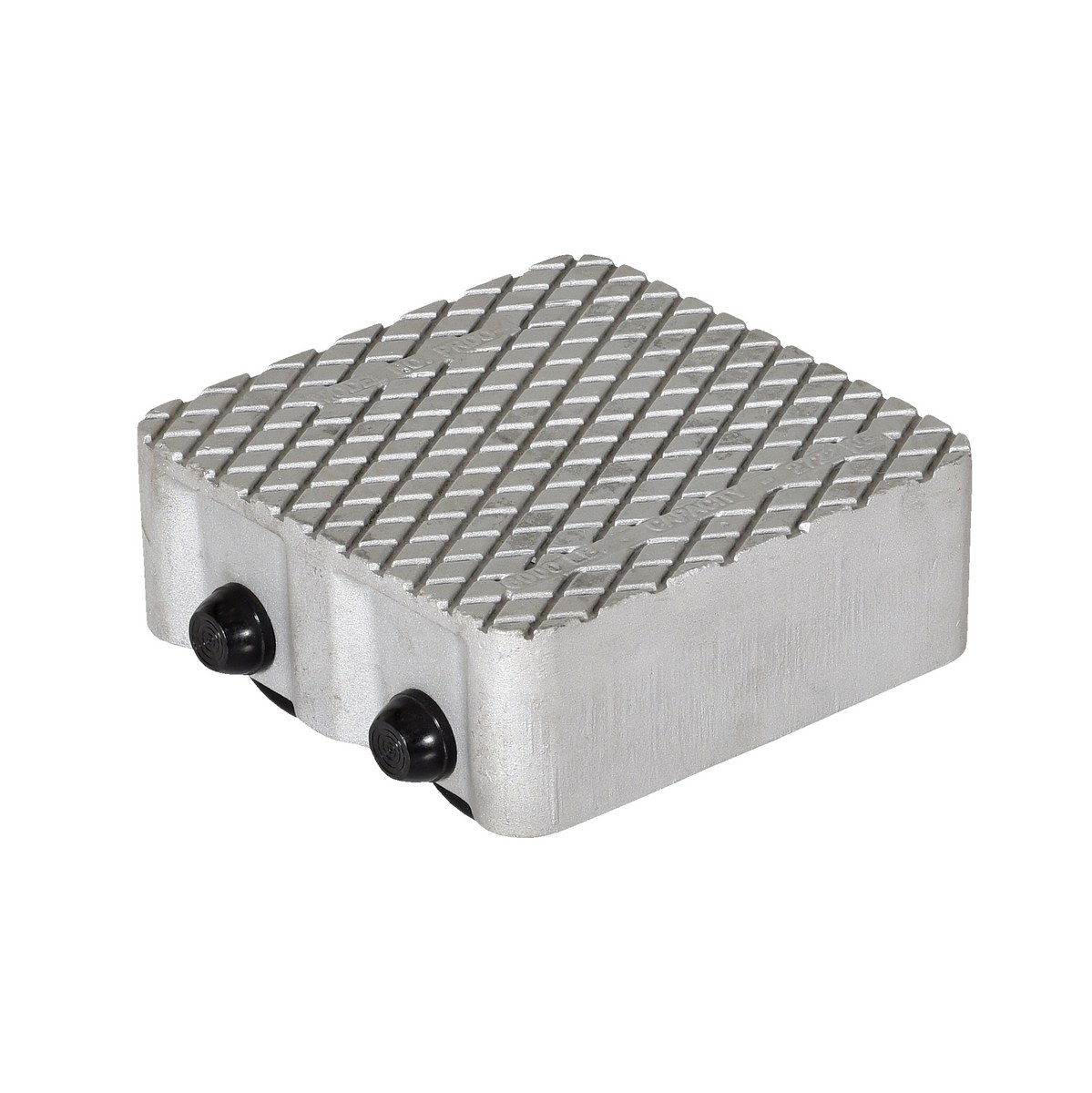

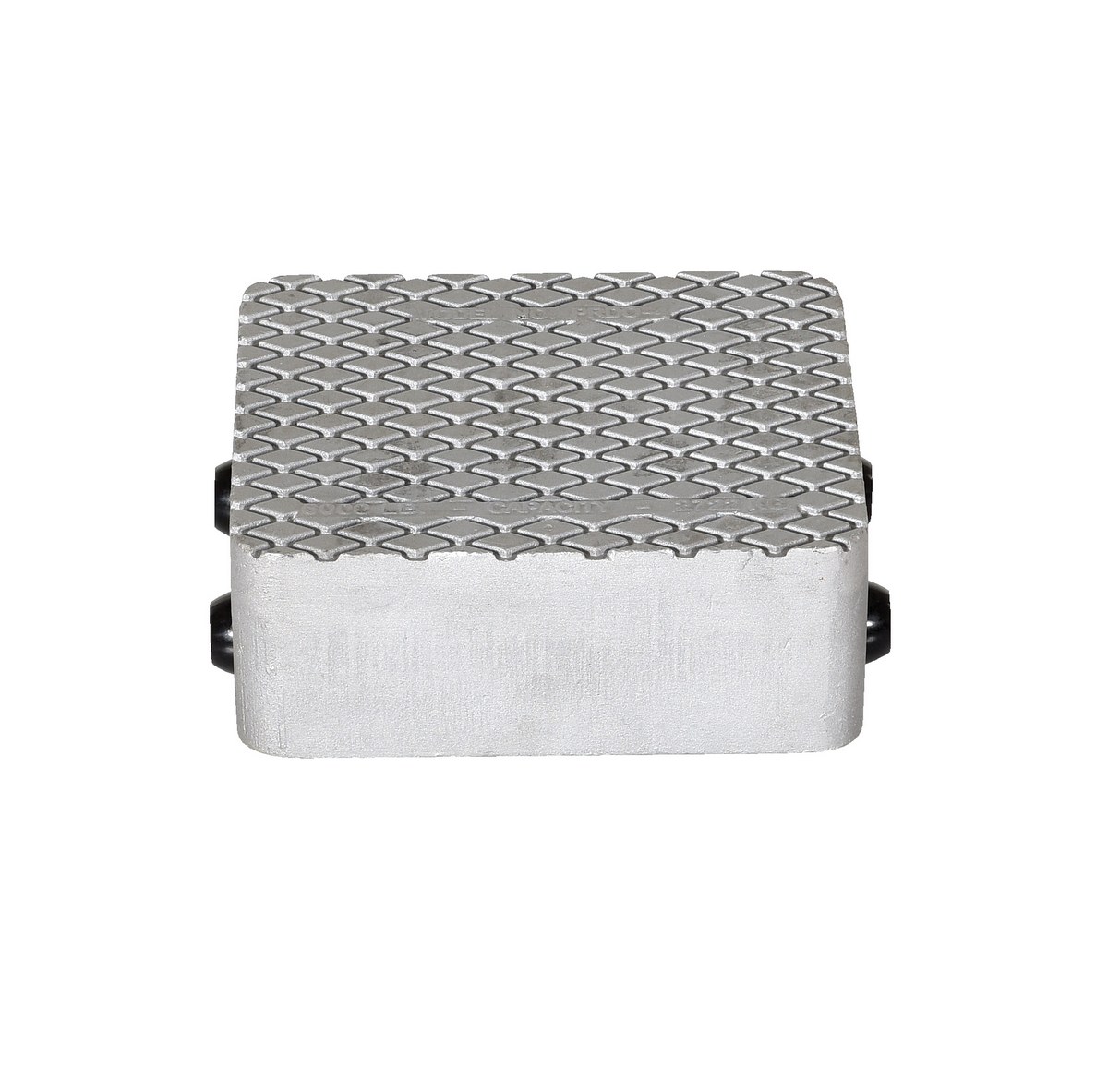

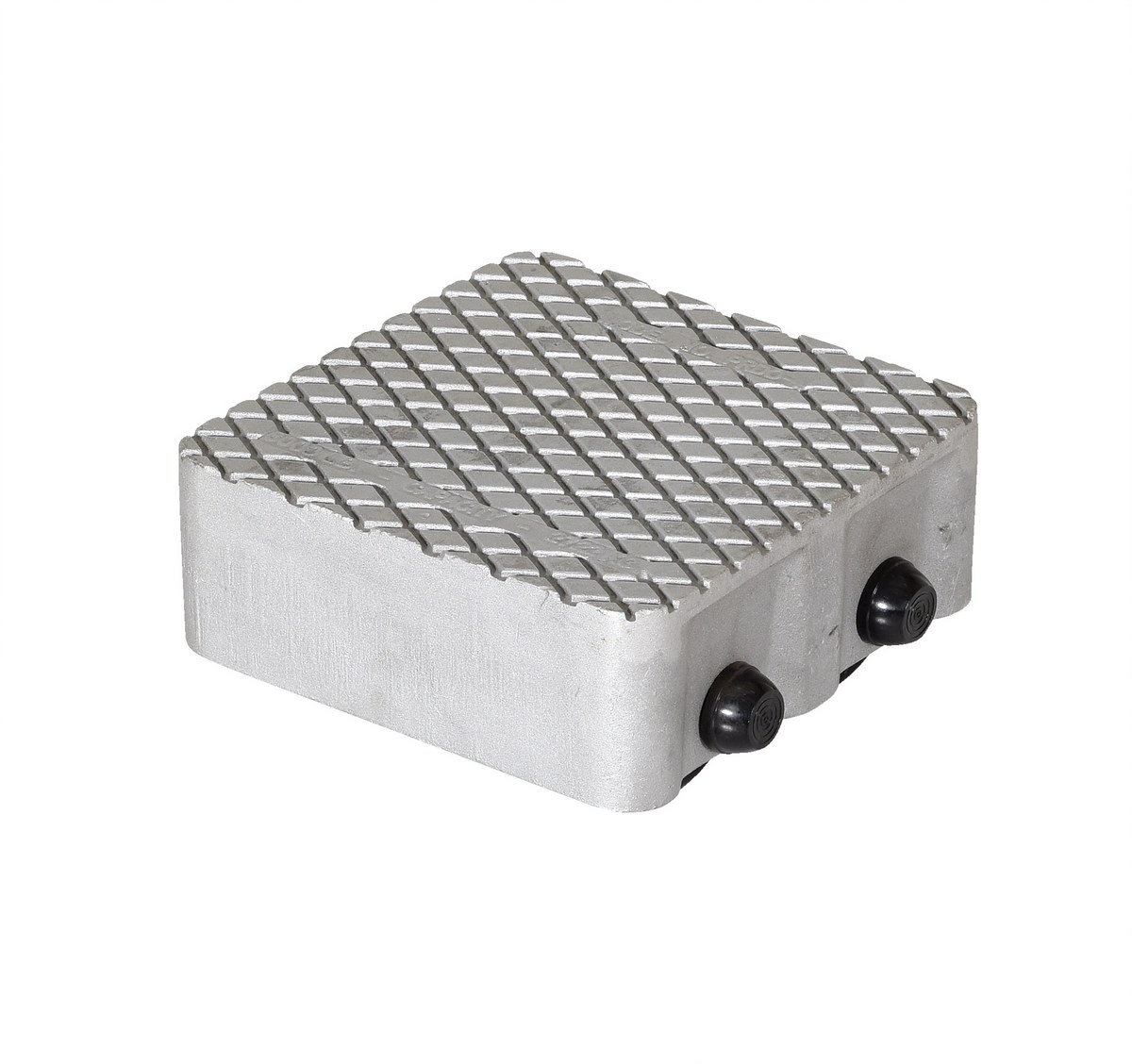

VPRDO-4

model VPRDO-4

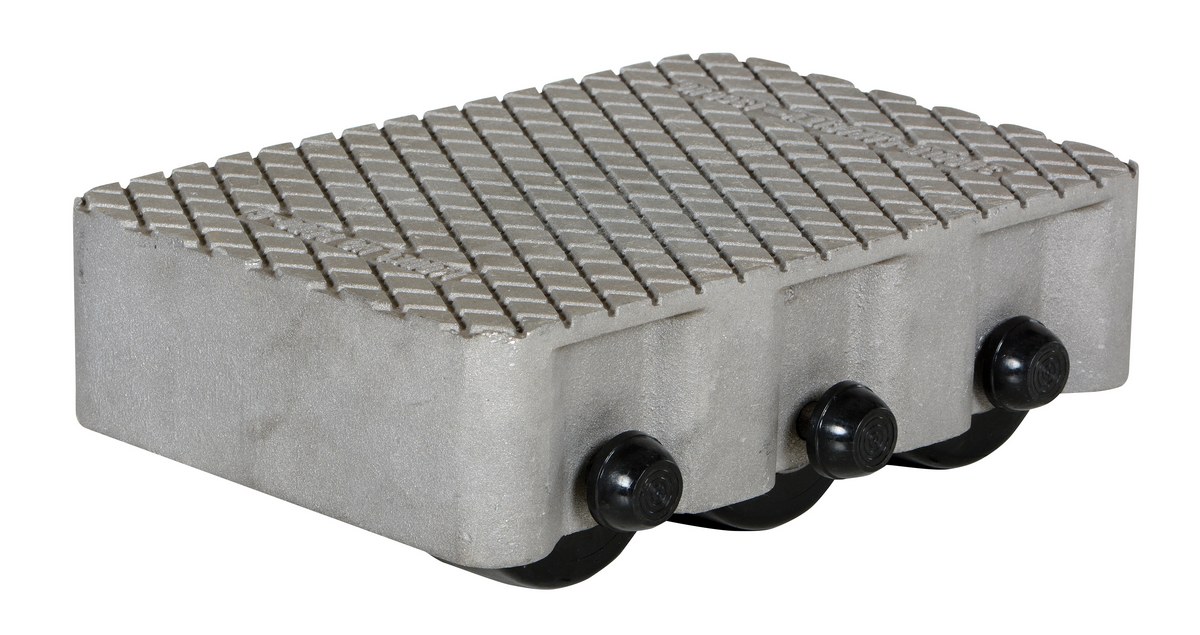

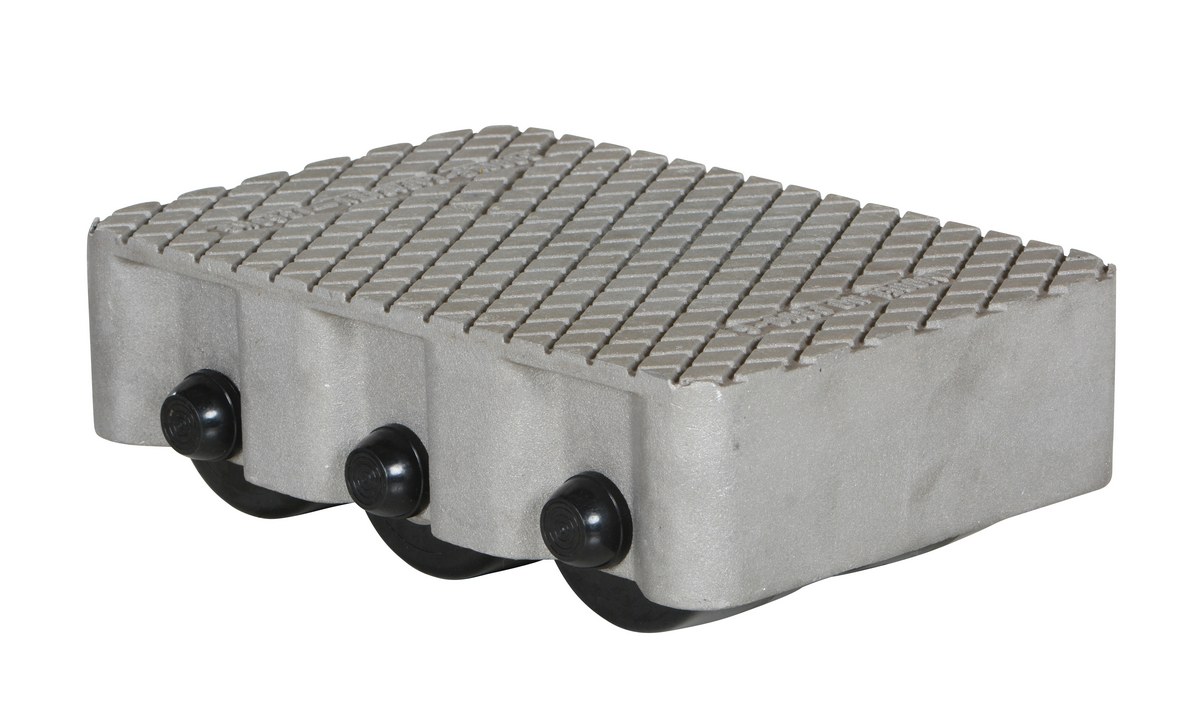

VPRDO-6T

model VPRDO-6T


Be sure to scroll below the model chart to view more product content (ie Options, PDF's, Videos, & Galleries).



KEY: Approval Drawing = Approval Drawing -- Approval Drawing = Warranty -- Approval Drawing = Testing Certificate

All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.
Cast Aluminum Dollies
Model PDF Deck Size
(WxL)
Uniform Static
Capacity (lbs)
Number
of Rollers
Wt.
(lbs)
VPRDO-1 Warranty PDFCompliance Certificate 4-1/2"x4-1/2" 1,500 1 5
VPRDO-2 Warranty PDFCompliance Certificate 4-3/4"x8-1/2" 3,000 2 8
VPRDO-4 Warranty PDFCompliance Certificate 8-1/2"x8-1/2" 6,000 4 13
VPRDO-6 icon_approvaldrawings.jpgWarranty PDFCompliance Certificate 8-1/2"x12-1/2" 9,000 6 20
VPRDO-6T Warranty PDFCompliance Certificate 8-1/2"x12-1/2" 3,000 6 20

KEY: Approval Drawing = Approval Drawing -- Approval Drawing = Warranty -- Approval Drawing = Testing Certificate




Click A SKU Below To Show Details

VPRDO-1

VPRDO-1

VPRDO-2

VPRDO-2

VPRDO-4

VPRDO-4

VPRDO-6

VPRDO-6

VPRDO-6T

VPRDO-6T






Cast Aluminum Dollies PDF's will open in a new window when clicked.
No Owners Manuals For This Product.


Survey Sheets

No Survey Sheets For This Product.


Approval Drawings

VPRDO-6

Testing Certificates

VPRDO-1
VPRDO-2
VPRDO-4
VPRDO-6
VPRDO-6T

Other PDF's

No "Other PDFs" For This Product...
