model: PRS-51-D


SERIES: PRS
Pallet Rack Sump

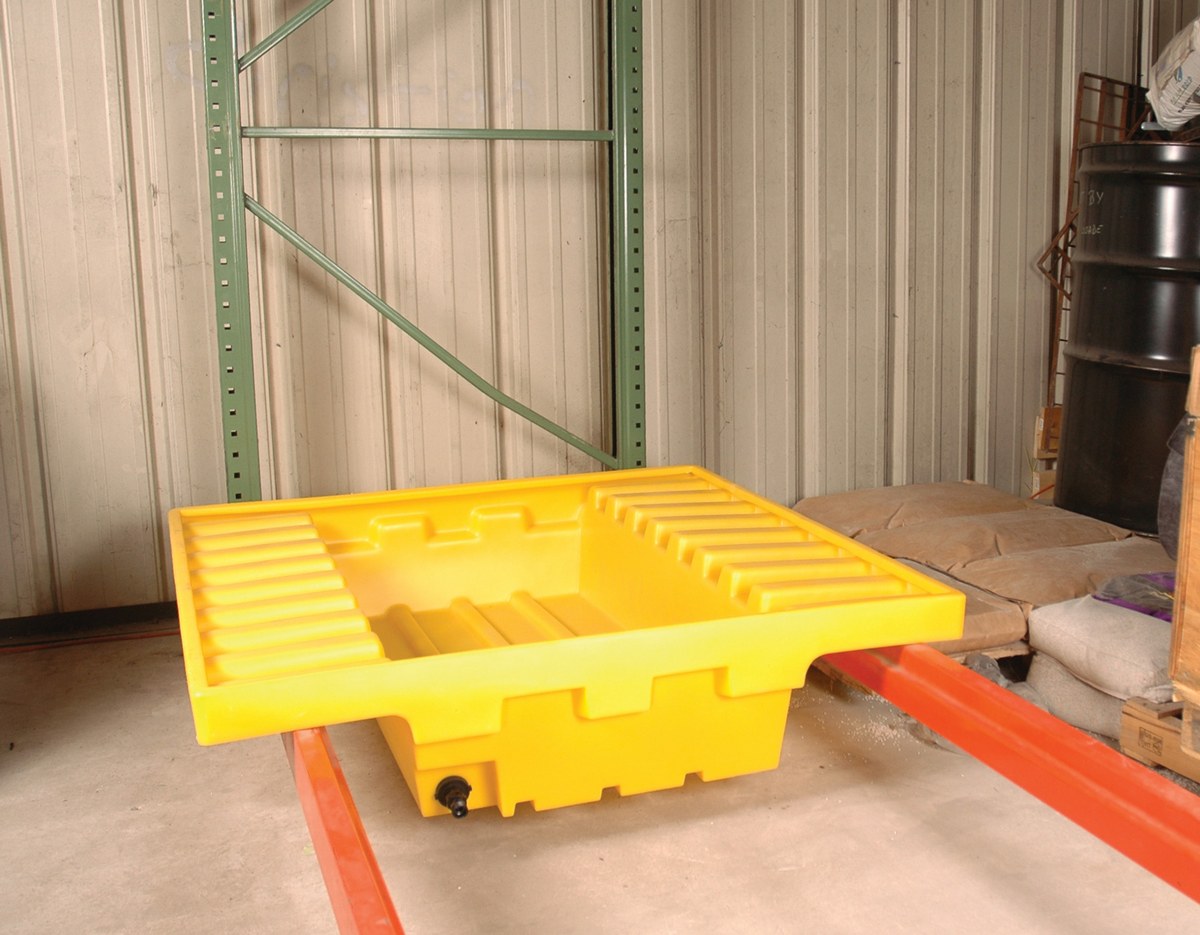

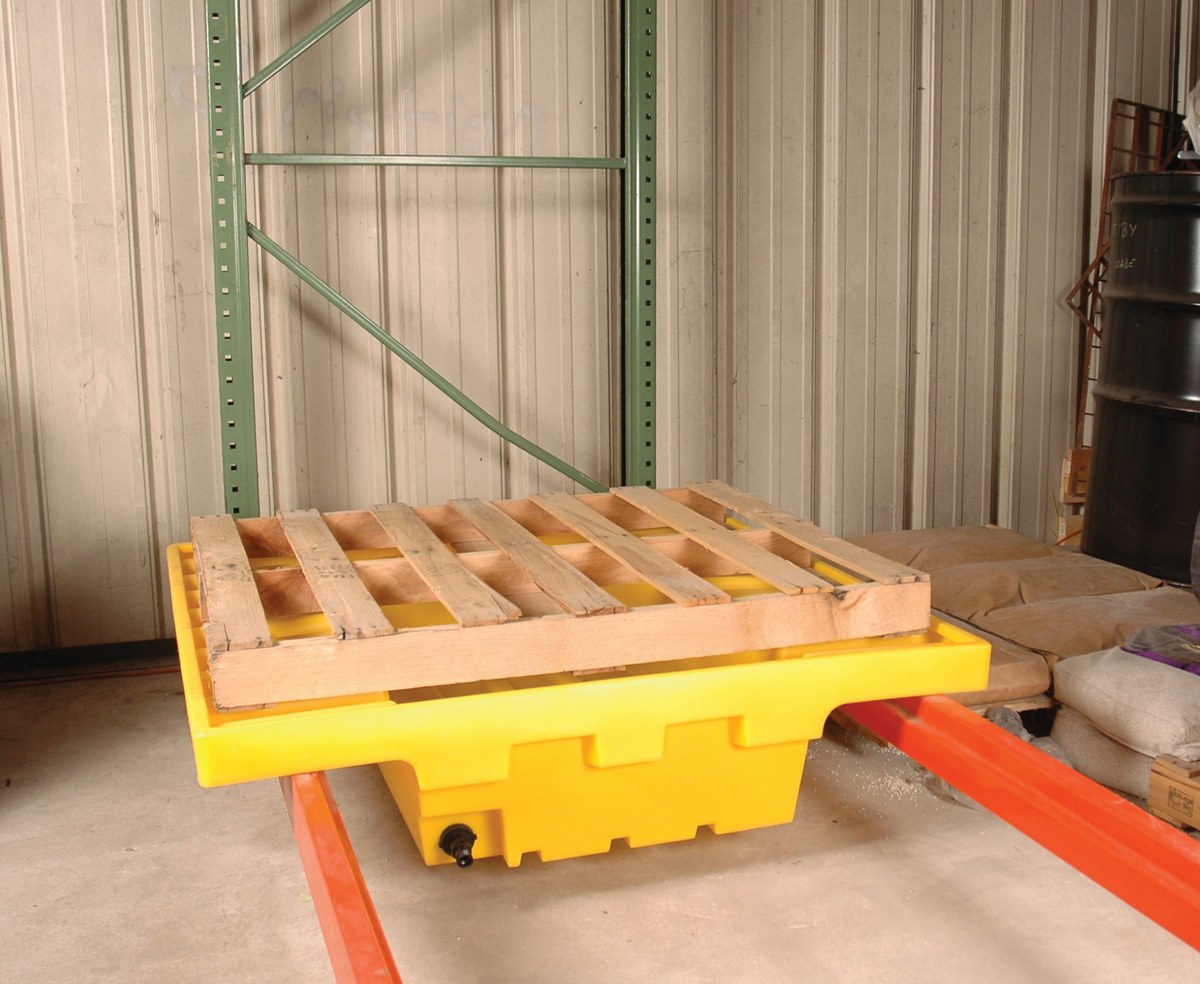

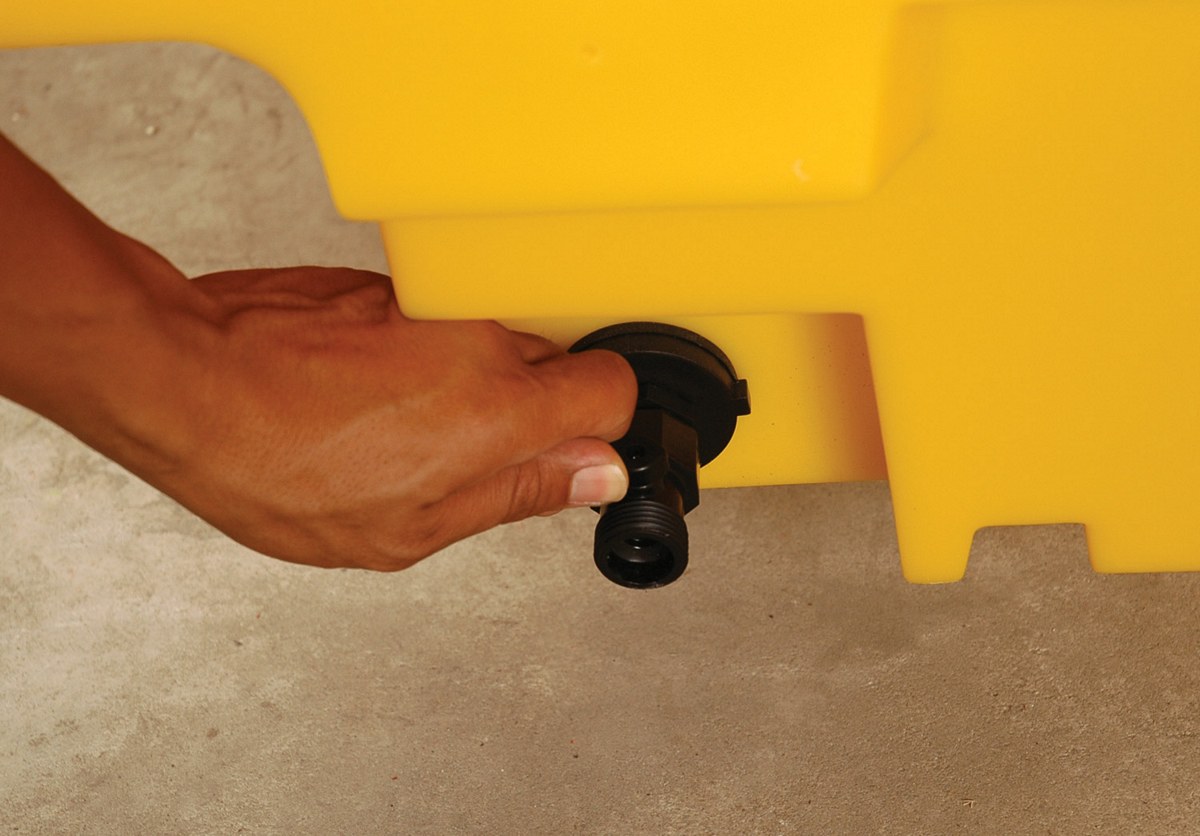

Polyethylene Pallet Rack containment sump keeps dangerous and costly spills off floors, equipment and inventory. Allows direct forklift access to wooden pallet - sump unit stays positioned in the rack when removing pallet and drums. Low profile design fits into warehouse racking with minimal obstruction to adjacent storage areas. Unit holds up to (4) 55-gallon drums on a standard shipping pallet. Inside dimensions for a pallet are 49" x 49". Model PRS-51-D comes with drain/ball valve assembly for draining liquids.

Polyethylene Pallet Rack containment sump keeps dangerous and costly spills off floors, equipment and inventory. Allows direct forklift access to wooden pallet - sump unit stays positioned in the rack when removing pallet and drums. Low profile design fits into warehouse racking with minimal obstruction to adjacent storage areas. Unit holds up to (4) 55-gallon drums on a standard shipping pallet. Inside dimensions for a pallet are 49" x 49". Model PRS-51-D comes with drain/ball valve assembly for draining liquids.

Other Pallet Racking & Accessories

Pallet Support Bars

Pallet Support Bars

Pallet Rack Wire Decking

Pallet Rack Wire Decking

Crown Pallet Rack Decking

Crown Pallet Rack Decking

Open Area Rack Decking

Open Area Rack Decking

Gravity Flow Inserts

Gravity Flow Inserts

Share This Page




KEY: Approval Drawing = Approval Drawing -- Approval Drawing = Warranty -- Approval Drawing = Testing Certificate

All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.

Pallet Rack Sump

Model PDFs Description Overall Size Uniform
Containment
Capacity
Wt.
(lbs.)
PRS-51-D Warranty PDF With Drain 51-1/2" x 51-1/2" x 12" 66 Gal. 38

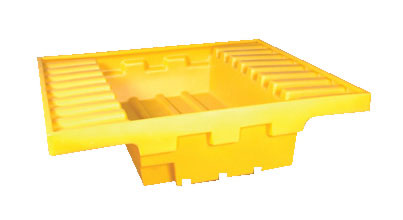

PRS-51-ND Warranty PDF No Drain 51-1/2" x 51-1/2" x 12" 66 Gal. 38

KEY: Approval Drawing = Approval Drawing -- Approval Drawing = Warranty -- Approval Drawing = Testing Certificate




Click A SKU Below To Show Details

PRS-51-D

PRS-51-D

PRS-51-ND

PRS-51-ND






Pallet Rack Sump PDF's will open in a new window when clicked.
No Owners Manuals For This Product.


Survey Sheets

No Survey Sheets For This Product.


Approval Drawings

No Approval Drawings For This Product

Testing Certificates

No Testing Certificates For This Product

Other PDF's

No "Other PDFs" For This Product...
