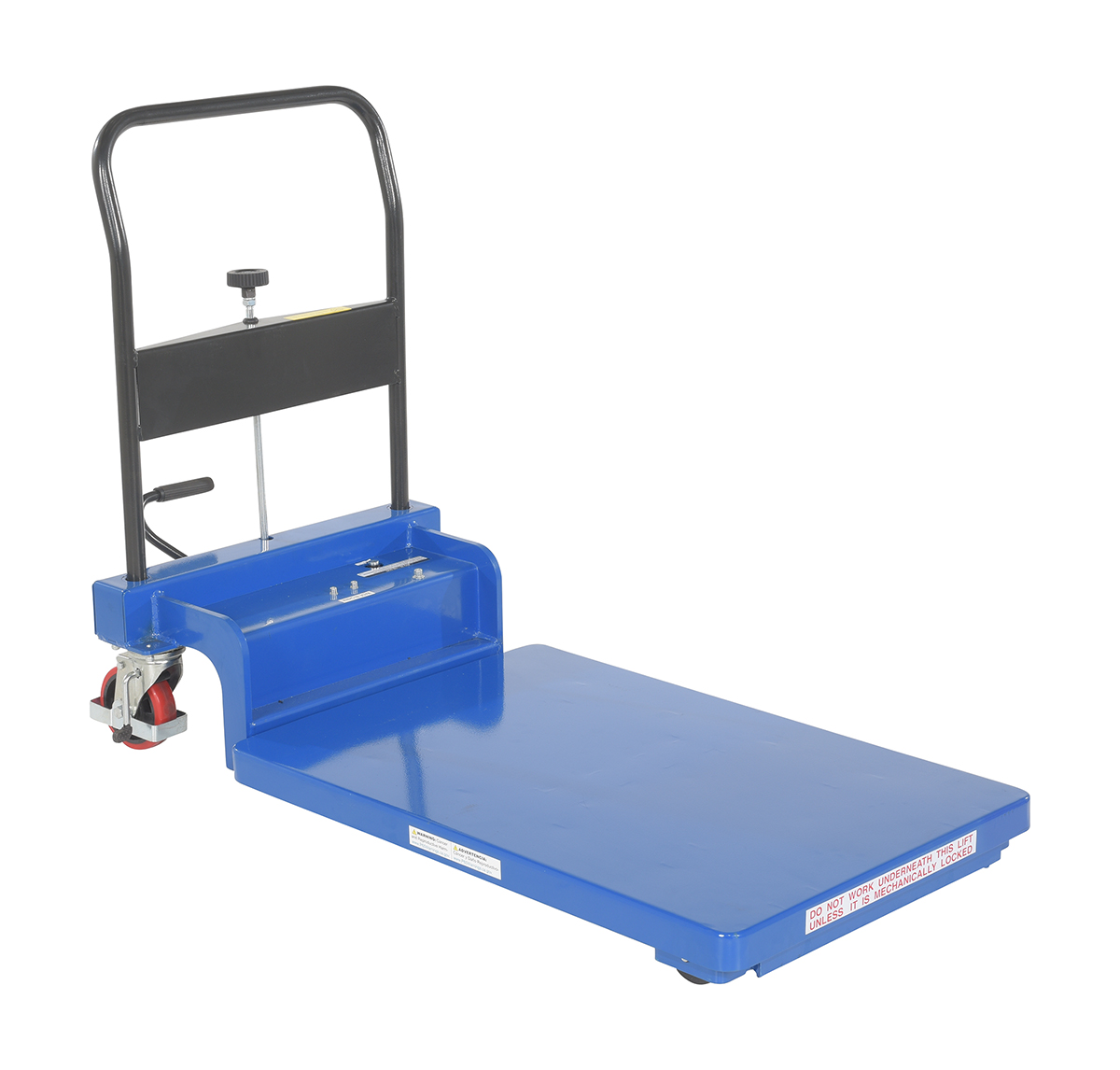

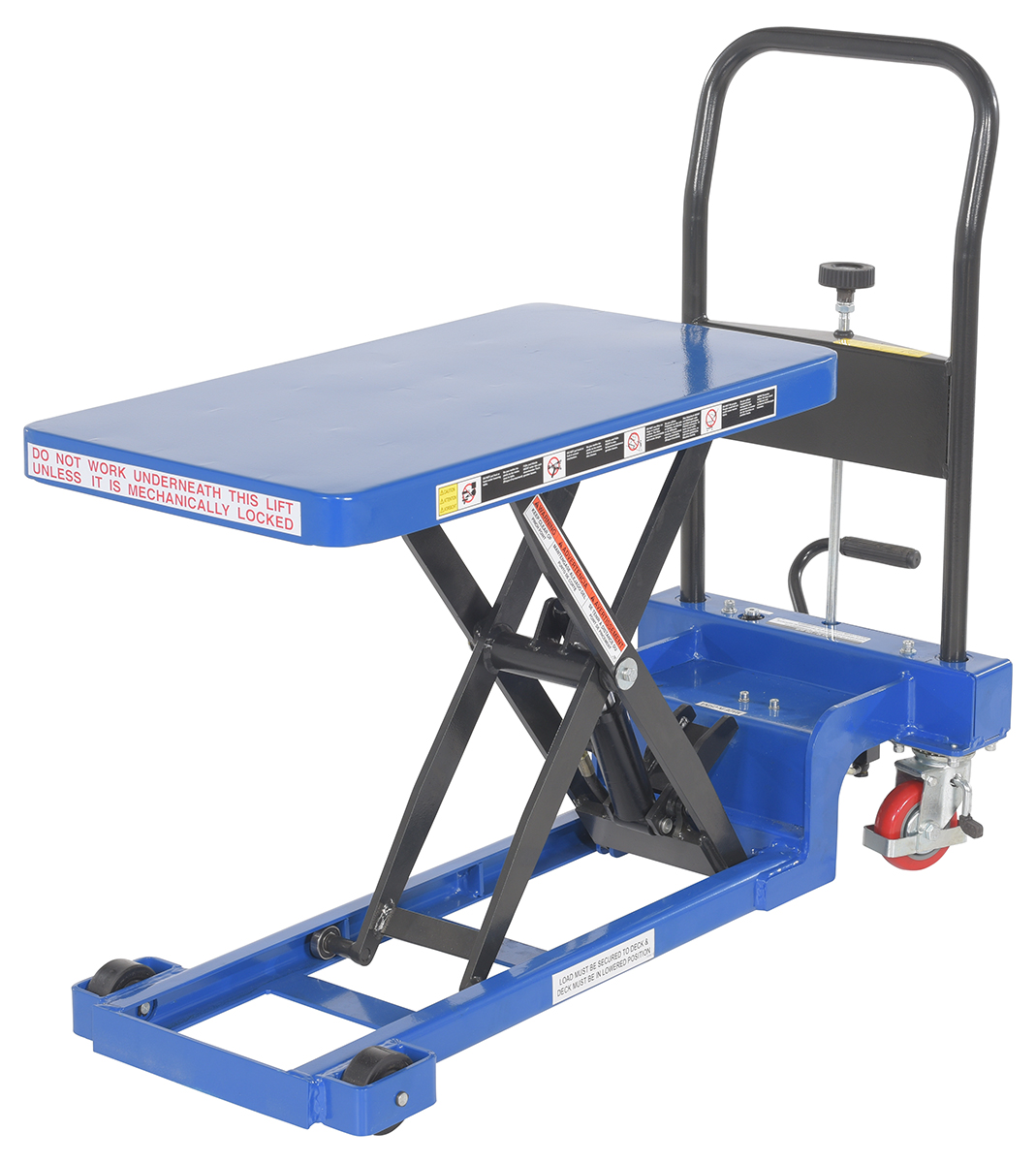

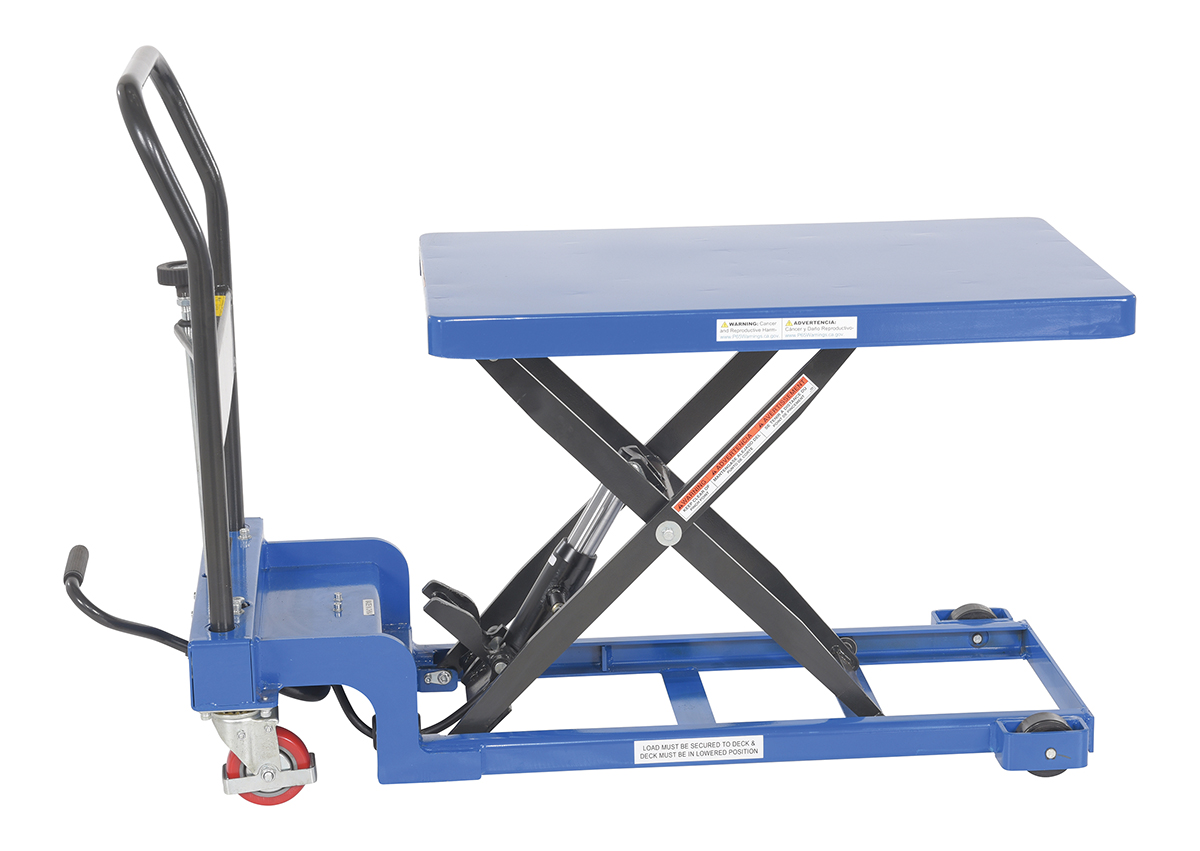

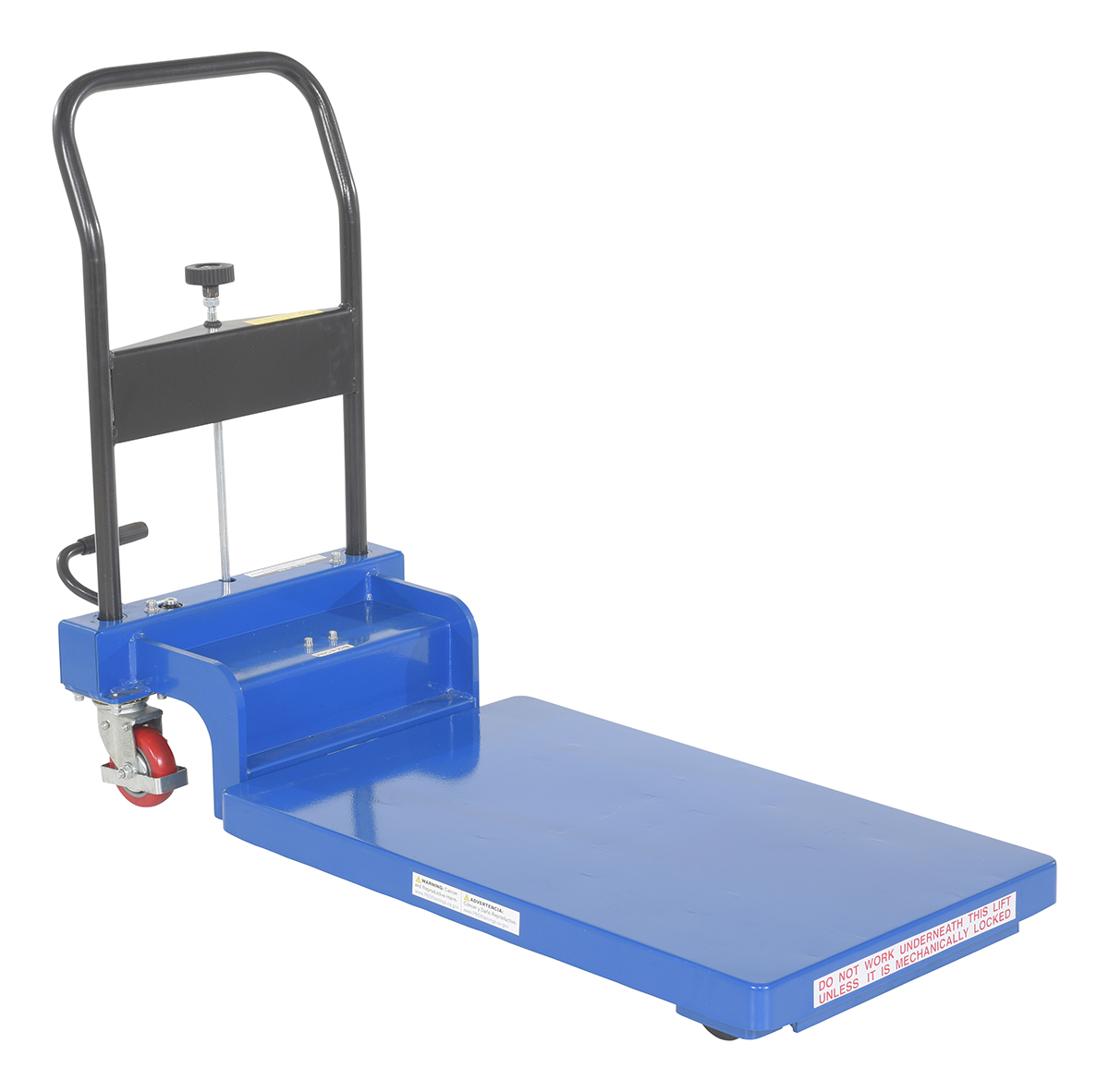

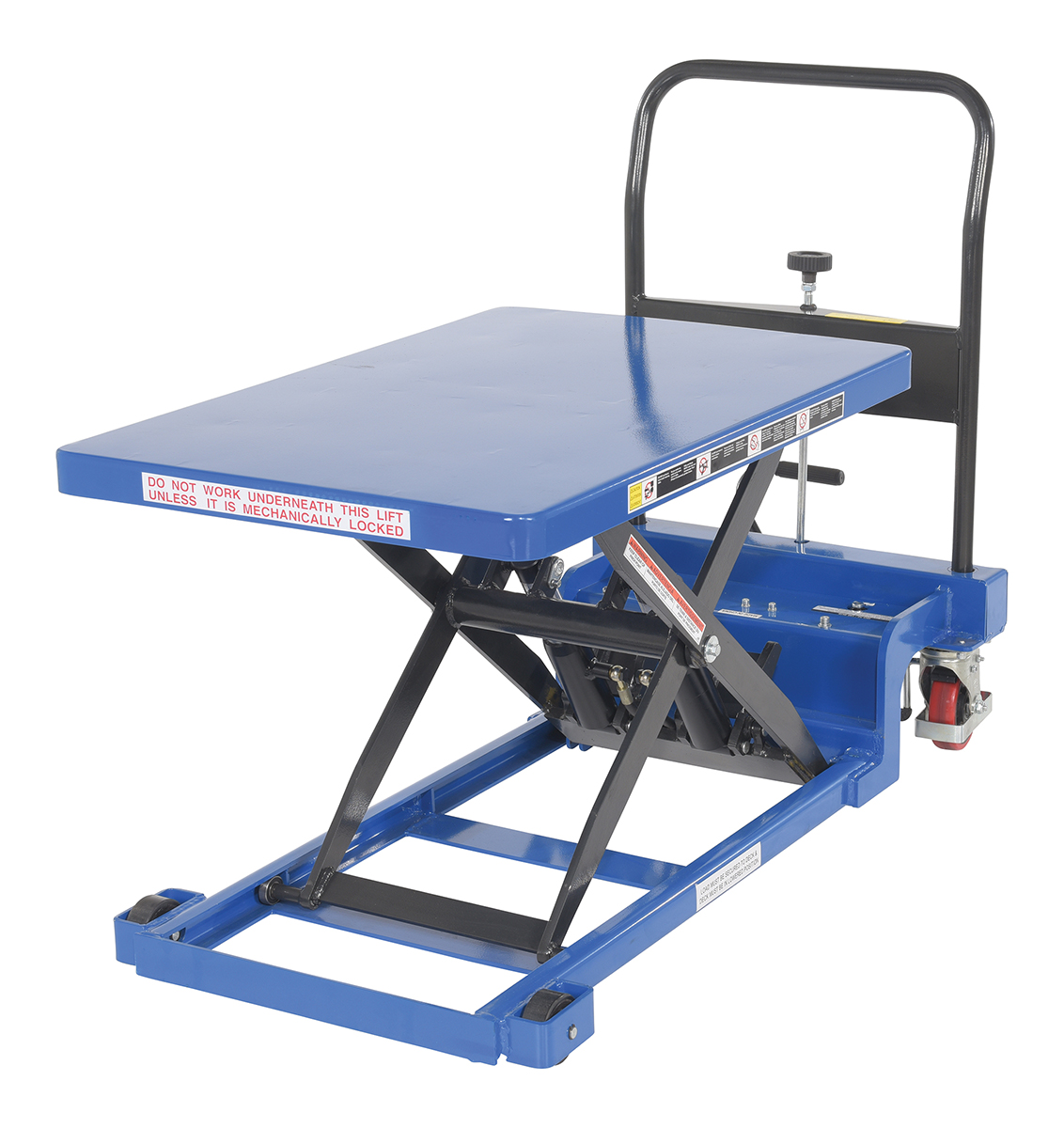

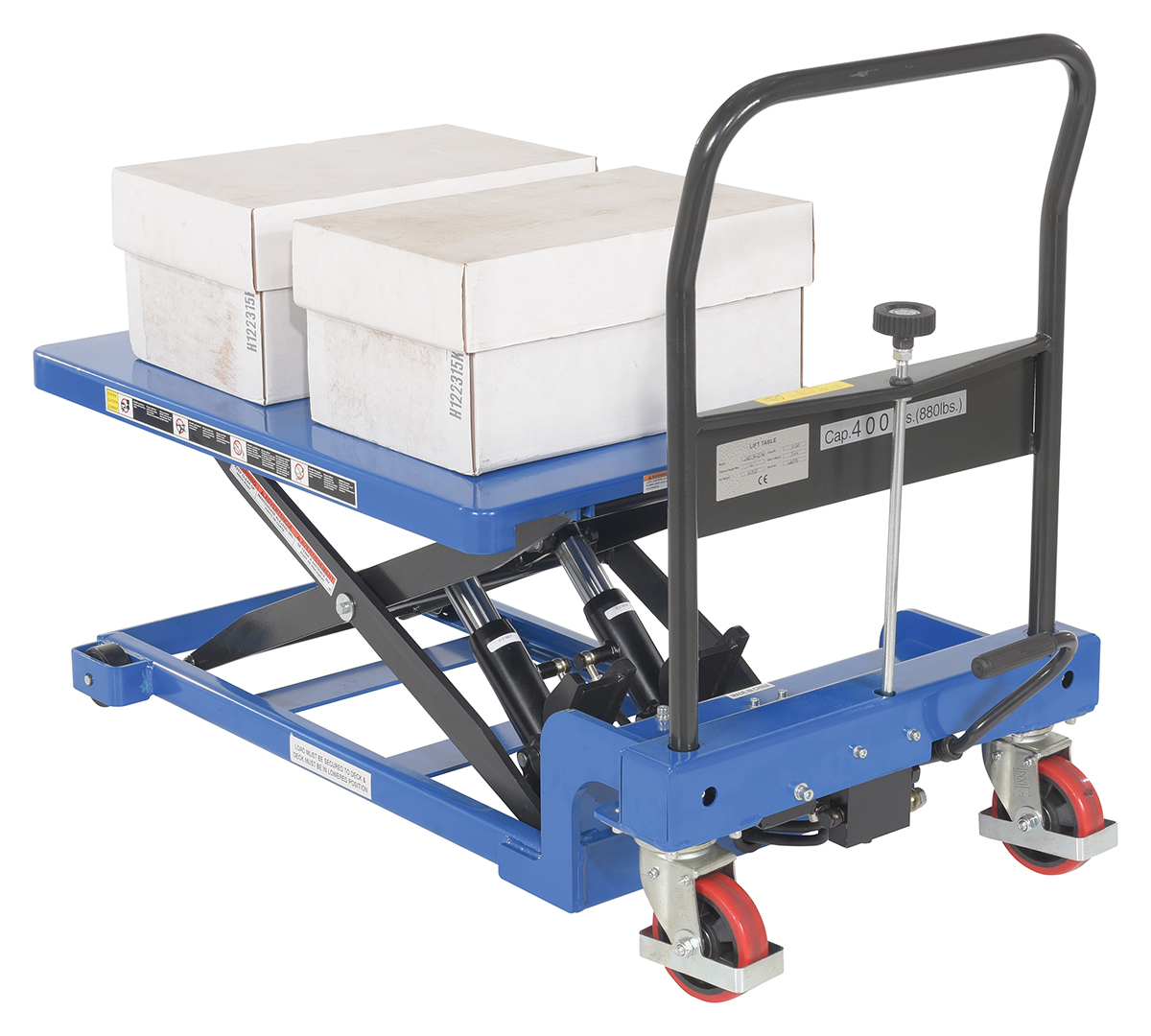

Low Profile Scissor Cart w/ Auto-Shift
SERIES: CART-LP-AS

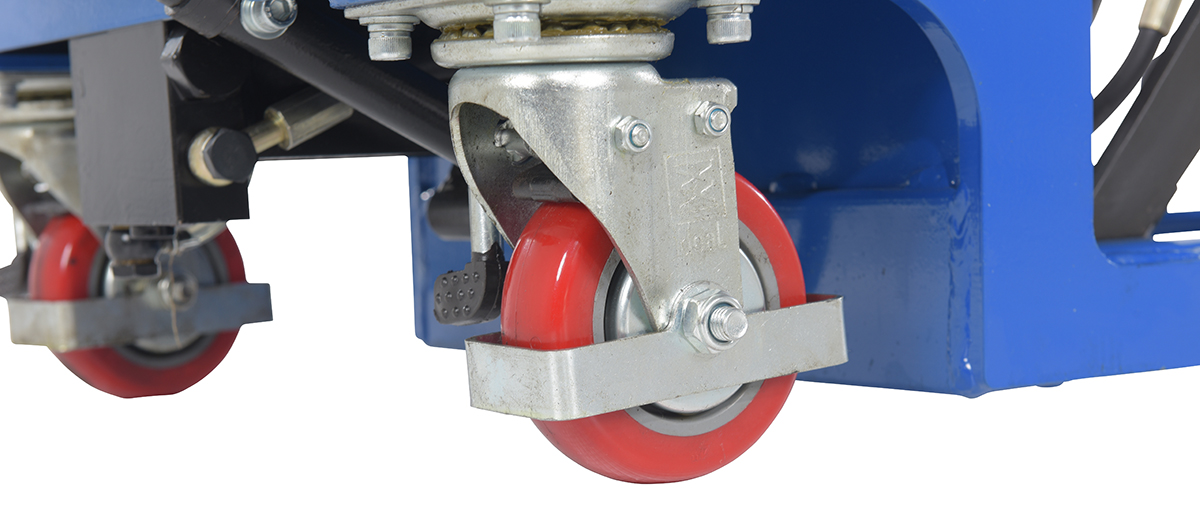

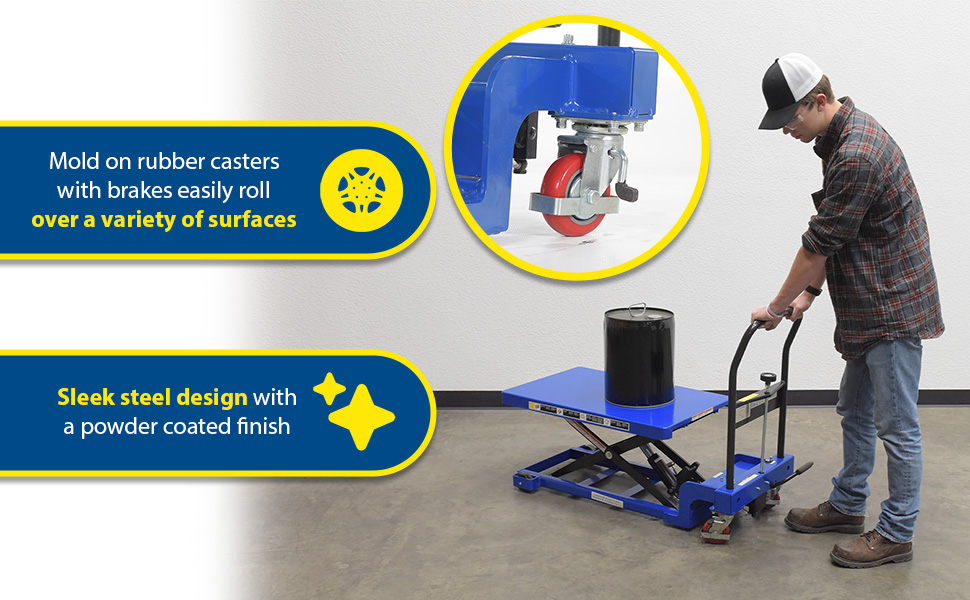

In areas of congestion a low profile scissor cart is a must. With a two speed foot pump, the platform is easily raised/lowered to the desired position. Not only is this design extremely efficient but also ergonomically friendly. With a raised steering handle the user can maintain a proper working posture during transit. The sleek steel design, with a powder coated finish for baked in added toughness, is simple to clean and limits needless scuffs or abrasions. Mold on rubber casters with brakes roll easily over a variety of surfaces.

  • Robust capacity is great for handling products both large and small
  • Included casters roll smoothly
  • High handle to minimize slouching during transportation
  • Single scissor design

Auto-Shift

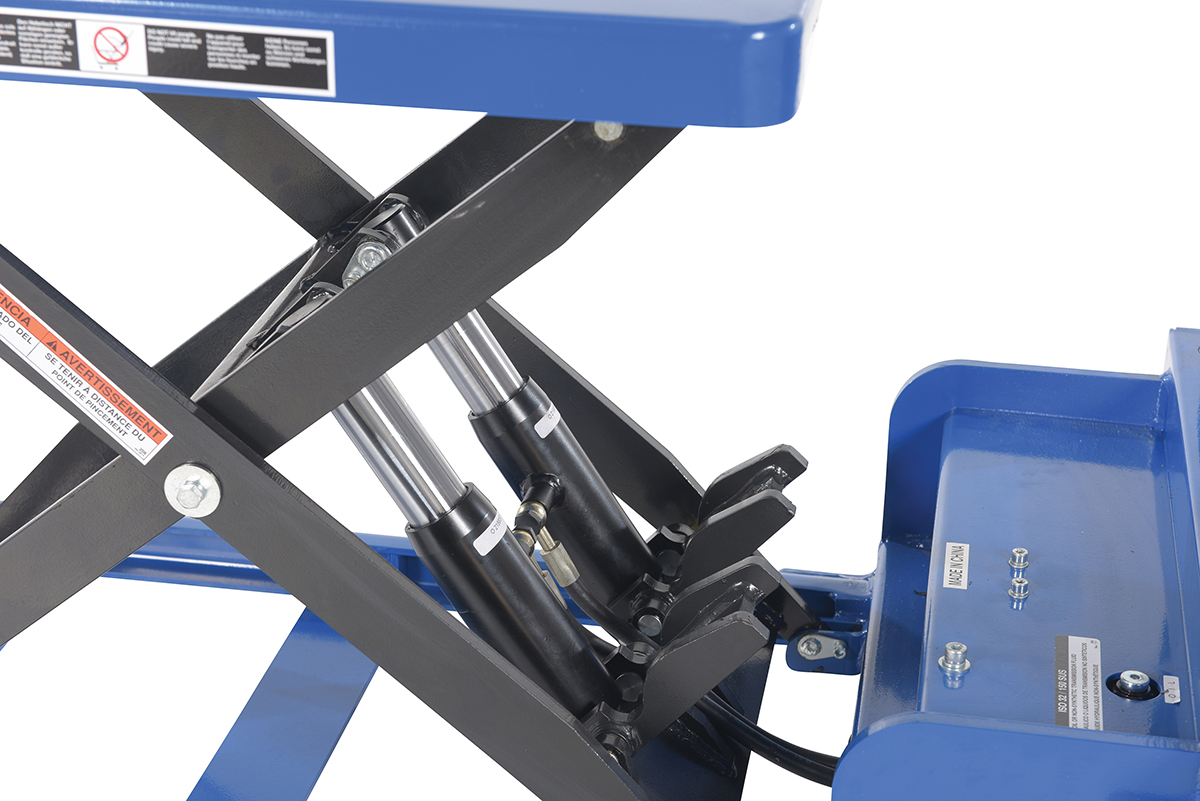

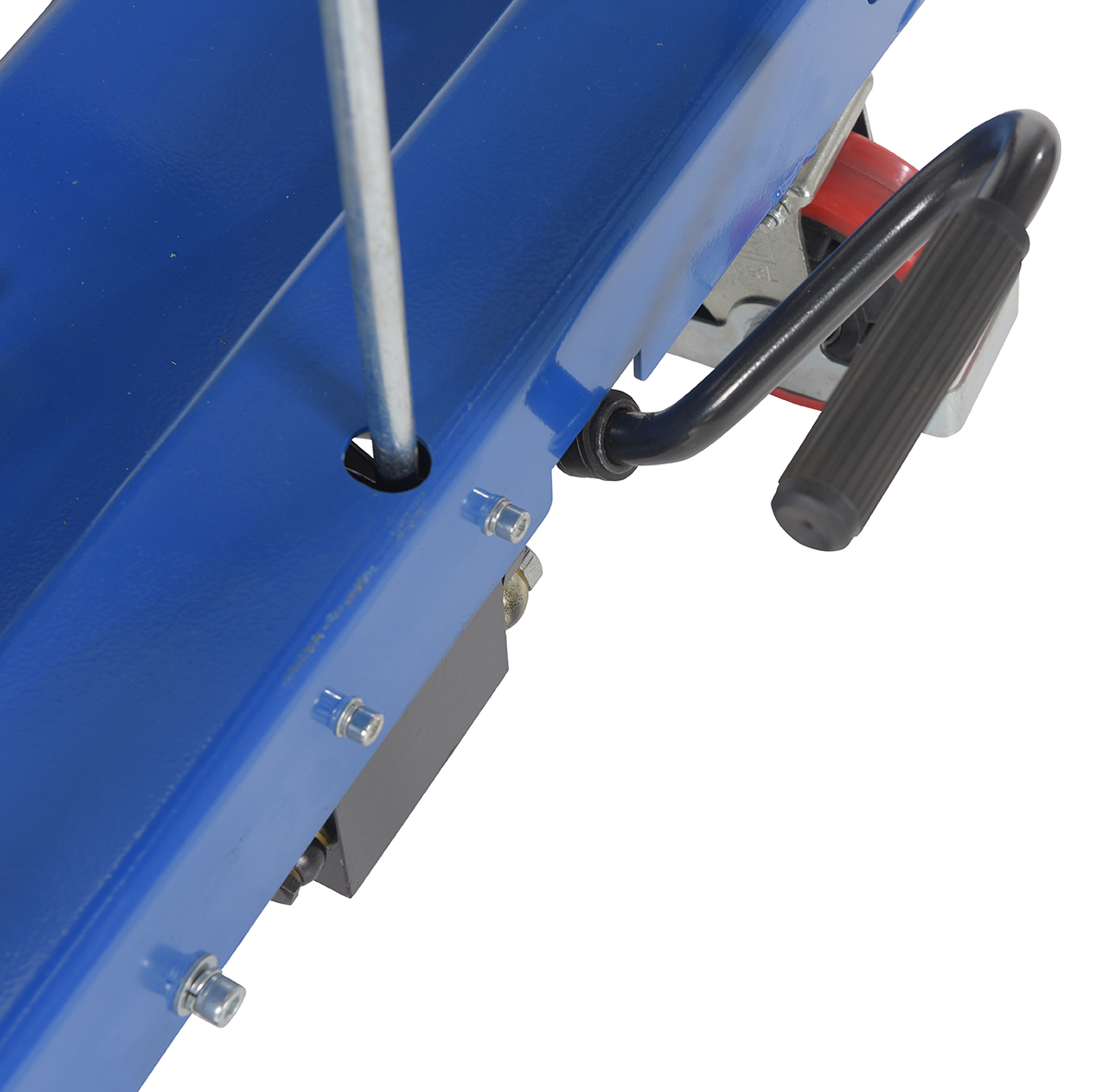

Auto-Shift is a two-speed pump that automatically shifts between speeds based on the output pressure of the hydraulic system. Internal features of the pump include primary pressure relief and pressure compensated return-flow mechanisms, an integrated lowering valve, and an auto-shifting valve assembly. The pump also utilizes replaceable sleeve bearings, valve components, and seals to simplify maintenance requirements and maximize service life.

In areas of congestion a low profile scissor cart is a must. With a two speed foot pump, the platform is easily raised/lowered to the desired position. Not only is this design extremely efficient but also ergonomically friendly. With a raised steering handle the user can maintain a proper working posture during transit. The sleek steel design, with a powder coated finish for baked in added toughness, is simple to clean and limits needless scuffs or abrasions. Mold on rubber casters with brakes roll easily over a variety of surfaces.

  • Robust capacity is great for handling products both large and small
  • Included casters roll smoothly
  • High handle to minimize slouching during transportation
  • Single scissor design

Auto-Shift
Auto-Shift is a two-speed pump that automatically shifts between speeds based on the output pressure of the hydraulic system. Internal features of the pump include primary pressure relief and pressure compensated return-flow mechanisms, an integrated lowering valve, and an auto-shifting valve assembly. The pump also utilizes replaceable sleeve bearings, valve components, and seals to simplify maintenance requirements and maximize service life.

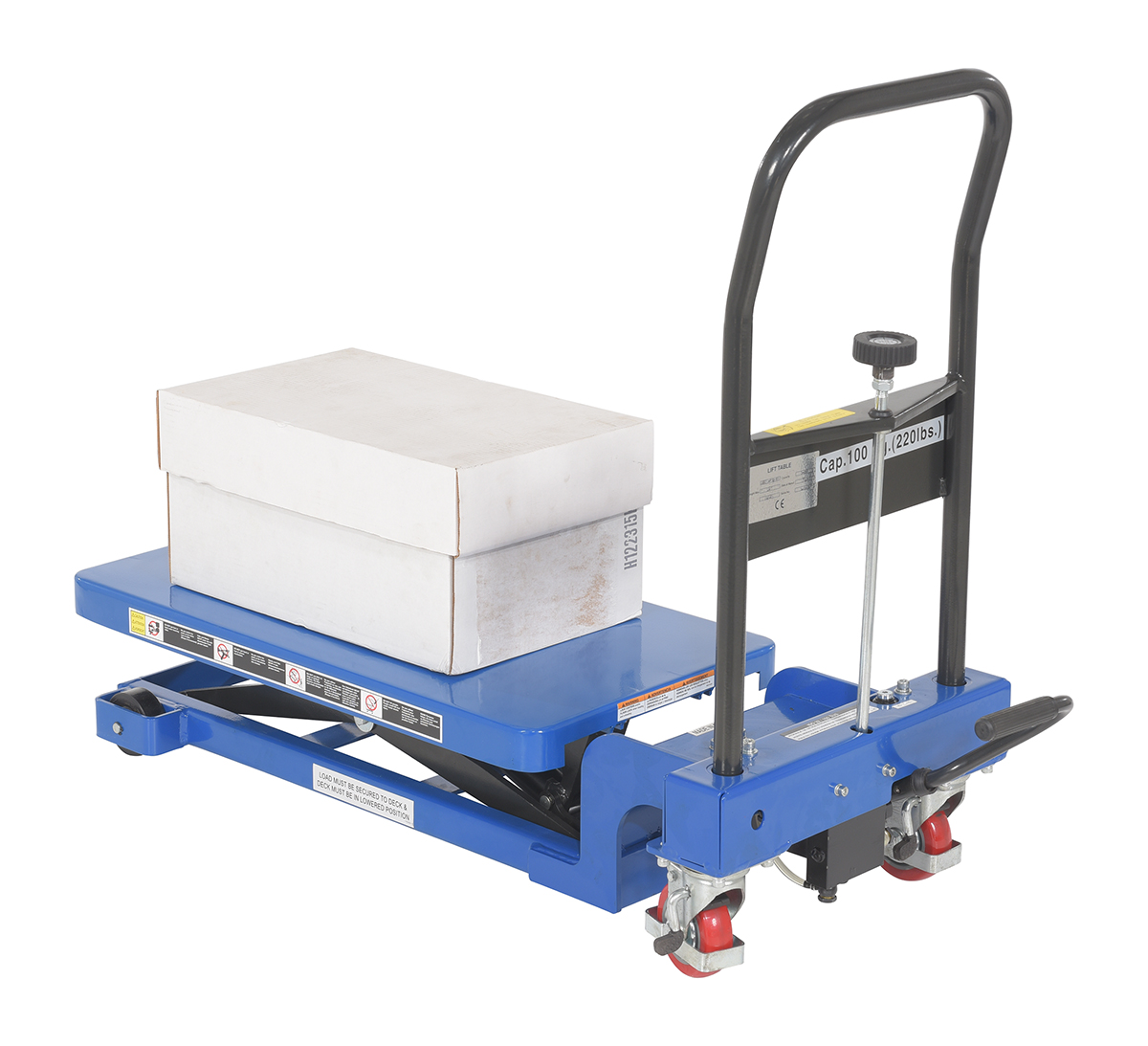

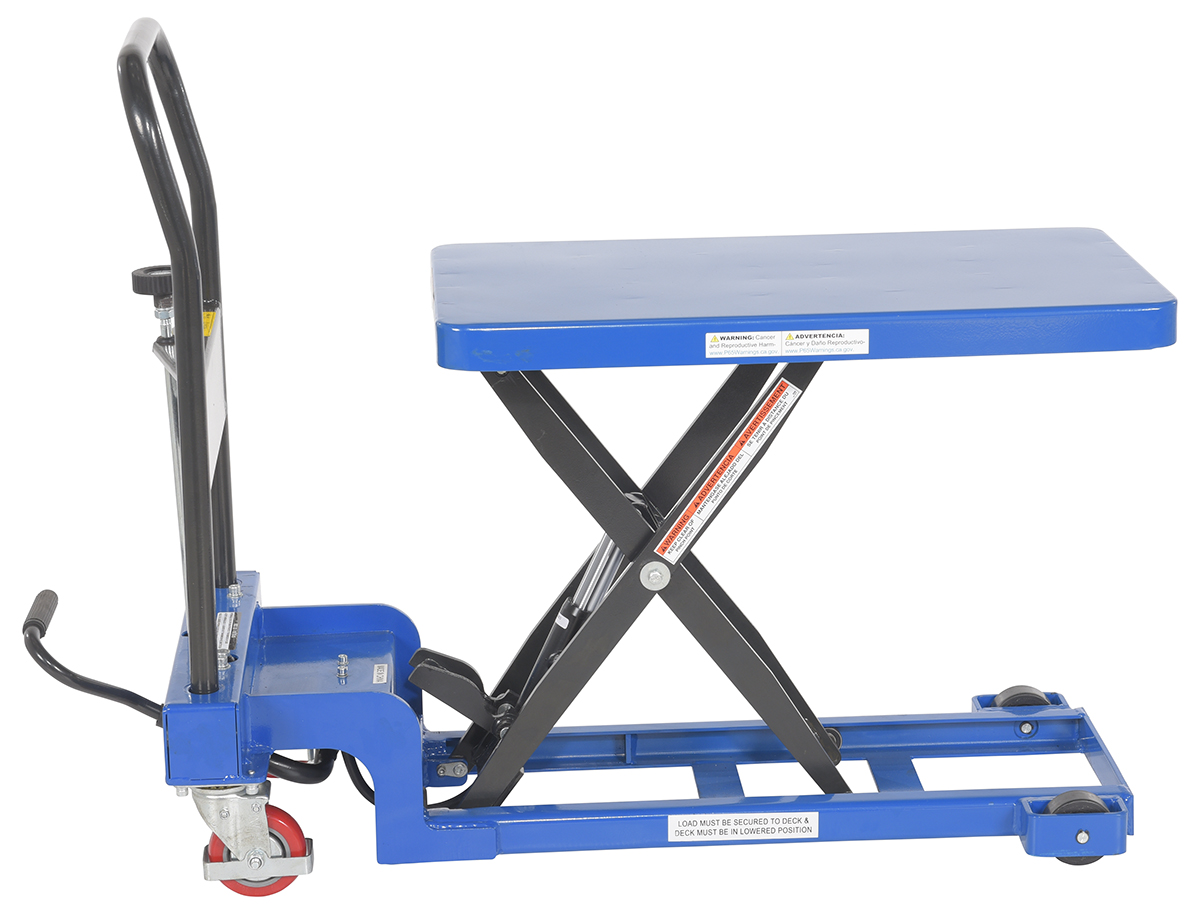

CART-200-LP-AS

model CART-200-LP-AS

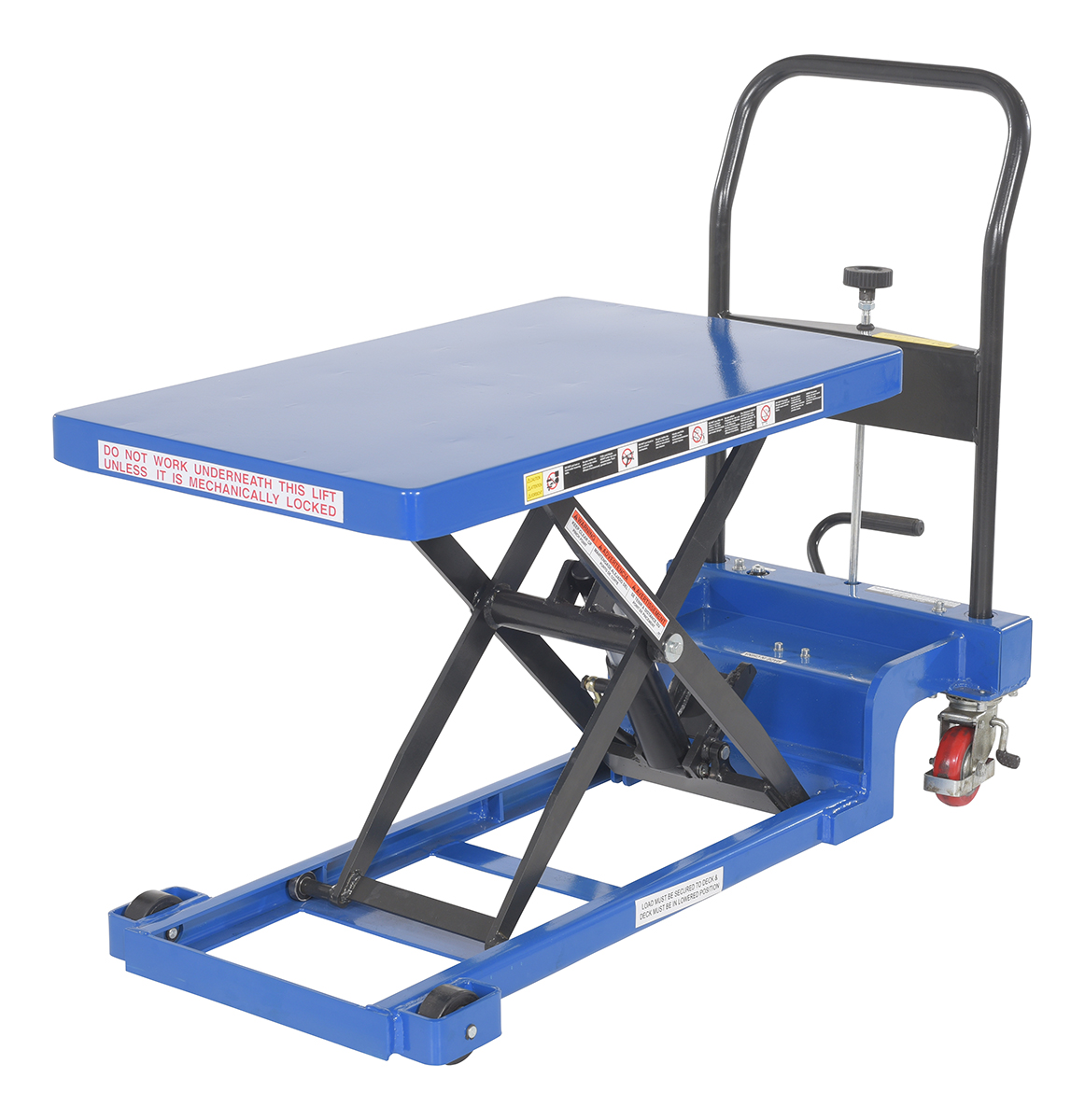

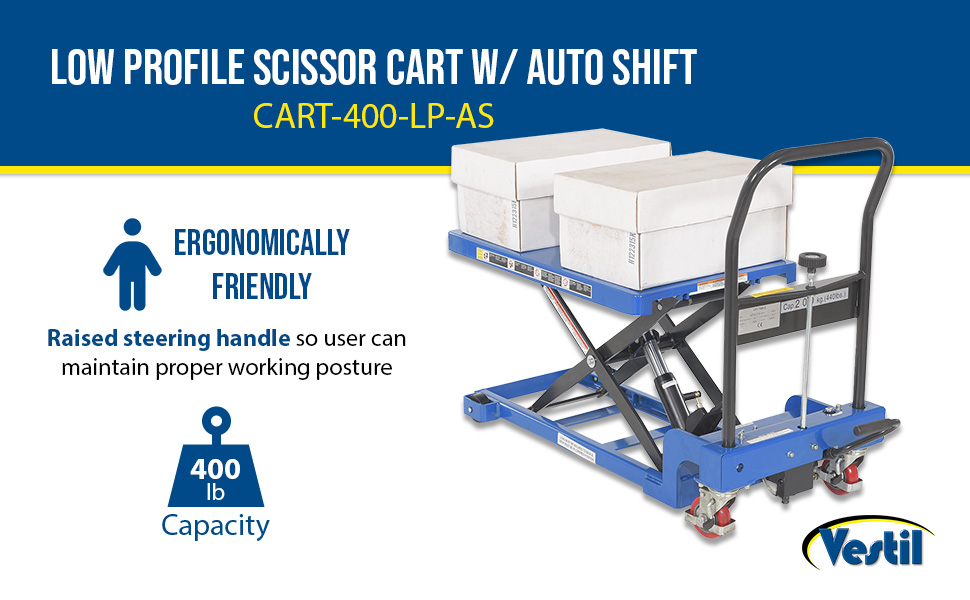

CART-400-LP-AS

model CART-400-LP-AS




All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.
The Search Box below is within the Model Chart on this page. Not an entire site search.
Model Image PDFs Description Attributes Net Wt.
(lbs)

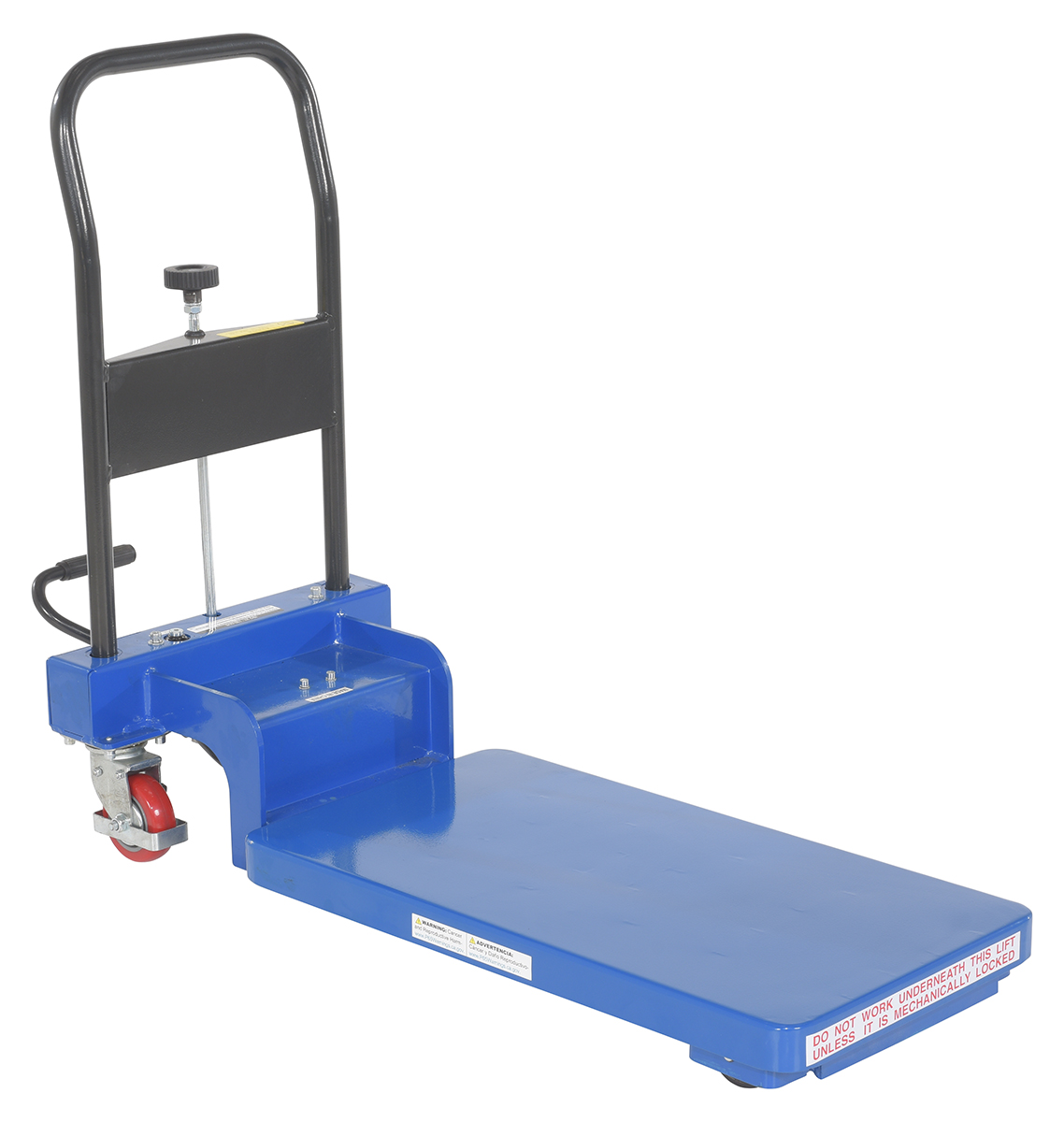

CART-200-LP-AS Limited WarrantyLow Profile Scissor Cart with Auto Shift 17-3/4 In. x 27-1/2 In. 200 Lb. Capacity Blue/BlackCapacity: 200 lbs.
Deck Deminsions: 17-3/4"x27-1/2"
161

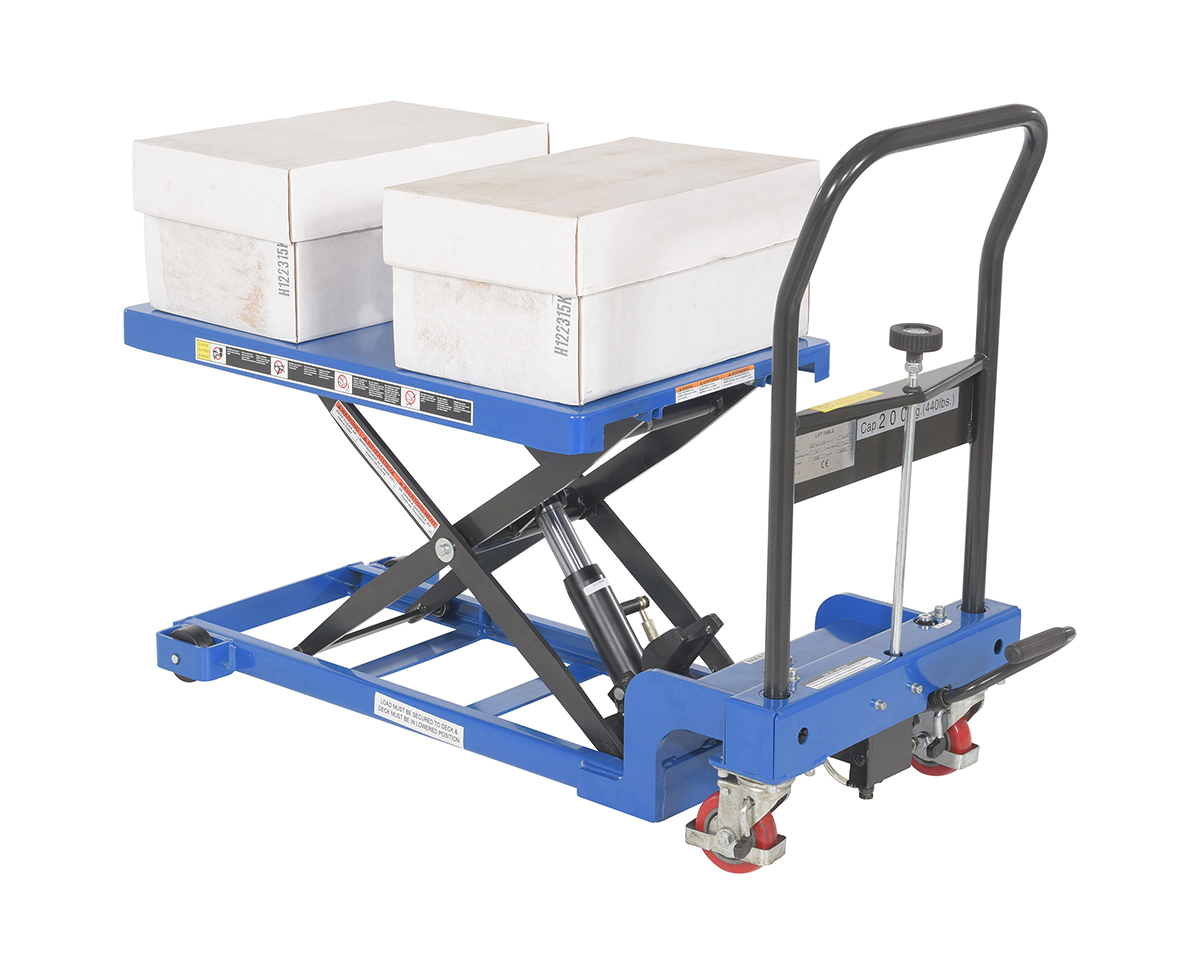

CART-400-LP-AS Limited WarrantySteel Low Profile Scissor Lift Cart Auto Shift 19-5/8 In. x 32-1/4 In. 400 Lb. Capacity BlueCapacity: 400 lbs.
Deck Deminsions: 19-5/8"x32-1/4"
199

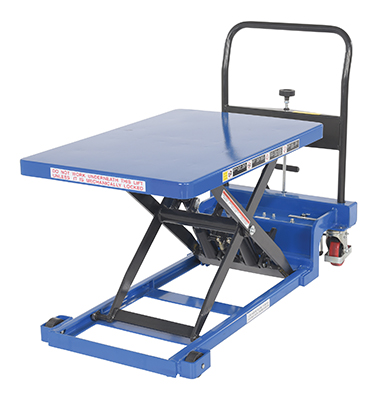

CART-900-LP-AS Limited WarrantySteel Low Profile Scissor Carts with Auto Shift 23-5/8 In. x 35-1/2 In. 900 Lb. Capacity BlueCapacity: 900 lbs.
Deck Deminsions: 23-5/8"x35-1/2"
274

KEY: = Click For Expanded Model Details -- = Approval Drawing -- = Testing Certificate -- Warranty

Low Profile Scissor Cart with Auto Shift 17-3/4 In. x 27-1/2 In. 200 Lb. Capacity Blue/Black


Unit: Each
Size: 17-3/4"W x 44-1/8"L x 34-5/8"H
Weight: 161
Limited Warranty
Capacity: 200 lbs.
Deck Deminsions: 17-3/4"x27-1/2"
Capacity: 200 lbs.
Deck Deminsions: 17-3/4"x27-1/2"

Steel Low Profile Scissor Lift Cart Auto Shift 19-5/8 In. x 32-1/4 In. 400 Lb. Capacity Blue


Unit: Each
Size: 19-5/8"W x 48-7/8"L x 34-5/8"H
Weight: 199
Limited Warranty
Capacity: 400 lbs.
Deck Deminsions: 19-5/8"x32-1/4"
Capacity: 400 lbs.
Deck Deminsions: 19-5/8"x32-1/4"

Steel Low Profile Scissor Carts with Auto Shift 23-5/8 In. x 35-1/2 In. 900 Lb. Capacity Blue


Unit: Each
Size: 23-5/8"W x 52-1/8"L x 34-5/8"H
Weight: 274
Limited Warranty
Capacity: 900 lbs.
Deck Deminsions: 23-5/8"x35-1/2"
Capacity: 900 lbs.
Deck Deminsions: 23-5/8"x35-1/2"


Low Profile Scissor Cart w/ Auto-Shift PDF's will open in a new window when clicked.

Manuals

No Owners Manuals For This Product


Survey Sheets

No Survey Sheets For This Product


Approval Drawings

No Approval Drawings For This Product

Testing Certificates

SDS Sheets

Hydraulic Oil SDS Sheet for: CART-200-LP-AS
Hydraulic Oil SDS Sheet for: CART-400-LP-AS
Hydraulic Oil SDS Sheet for: CART-900-LP-AS

Other PDF's


Directory Links Of Available PDF's For All Products

Before placing an order, please confirm that the ship to company is able to receive shipments on the estimated delivery date





Low Profile Scissor Cart w/ Au...




In areas of congestion a low profile scissor cart is a must. With a two speed foot pump, the platform is easily raised/lowered to the desired position. Not only is this design extremely efficient but also ergonomically friendly. With a raised steering handle the user can maintain a proper working posture during transit. The sleek steel design, with a powder coated finish for baked in added toughness, is simple to clean and limits needless scuffs or abrasions. Mold on rubber casters with brakes roll easily over a variety of surfaces.

  • Robust capacity is great for handling products both large and small
  • Included casters roll smoothly
  • High handle to minimize slouching during transportation
  • Single scissor design

Auto-Shift
Auto-Shift is a two-speed pump that automatically shifts between speeds based on the output pressure of the hydraulic system. Internal features of the pump include primary pressure relief and pressure compensated return-flow mechanisms, an integrated lowering valve, and an auto-shifting valve assembly. The pump also utilizes replaceable sleeve bearings, valve components, and seals to simplify maintenance requirements and maximize service life.


Low Profile Scissor Carts w/ Auto-Shift
Model Image PDF Platform
Size (WxL)
Overall Size
(LxWxH)
Service
Range
Uniform
Capacity (lbs)
Wt.
(lbs)
CART-200-LP-AS - 17-3/4"x27-1/2" 44-1/8"x17-3/4"x34-5/8" 3-1/2" - 23-5/8" 200 161
CART-400-LP-AS
- 19-5/8"x32-1/4" 48-7/8"x19-5/8"x34-5/8" 3-1/2" - 23-5/8" 400 199
CART-900-LP-AS - 23-5/8"x35-1/2" 52-1/8"x23-5/8"x34-5/8" 3-1/2" - 23-5/8" 900 274
