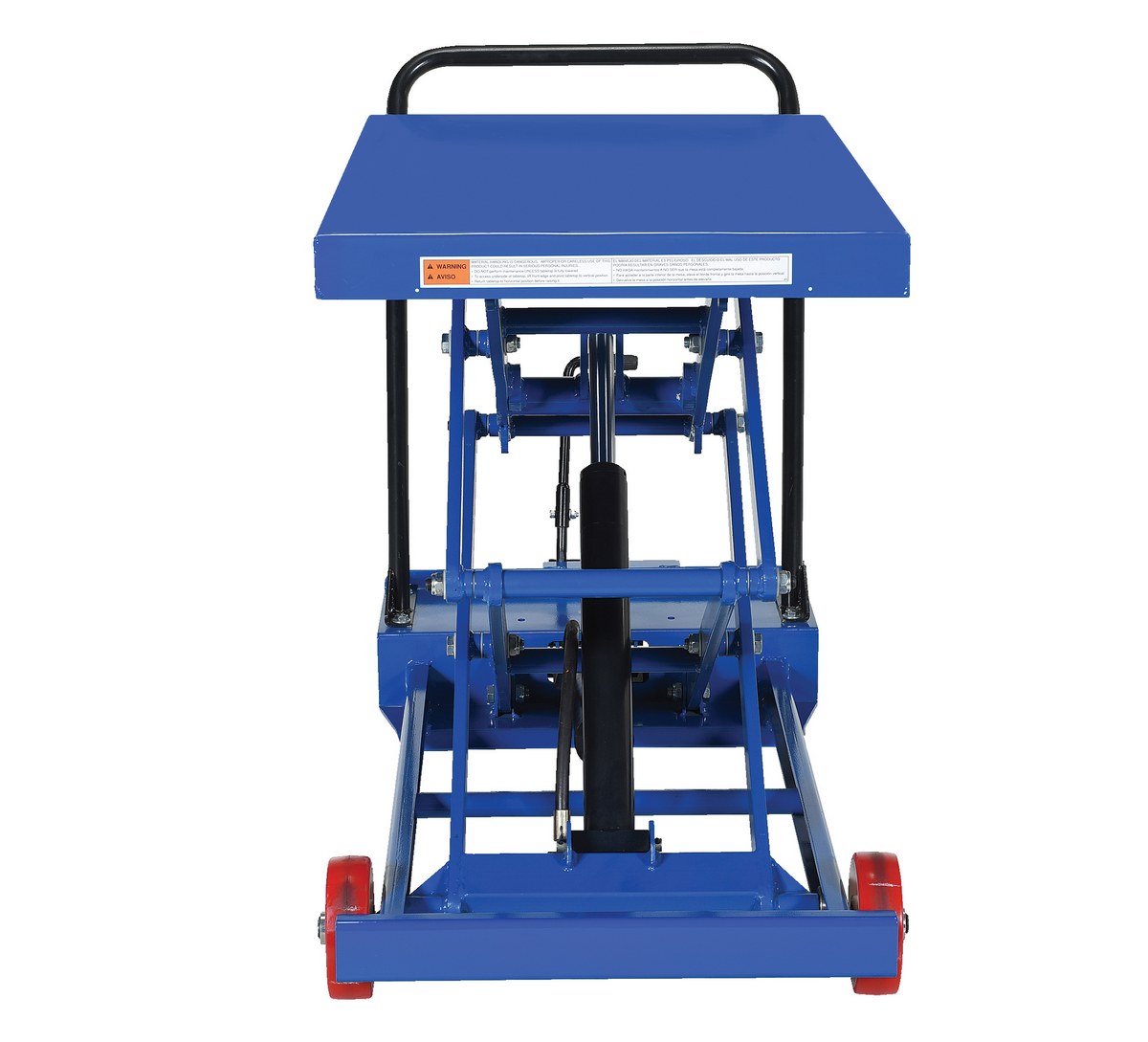

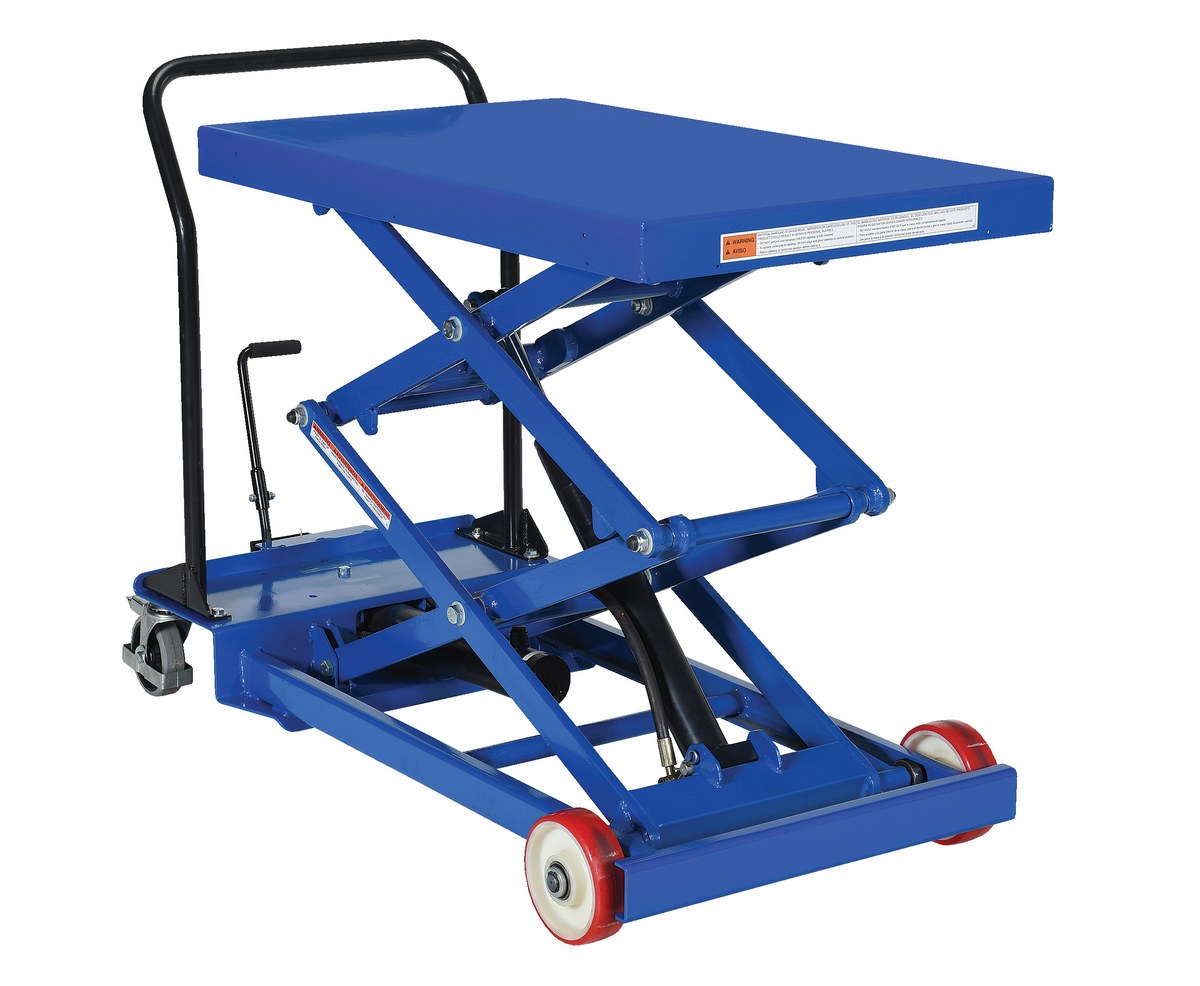

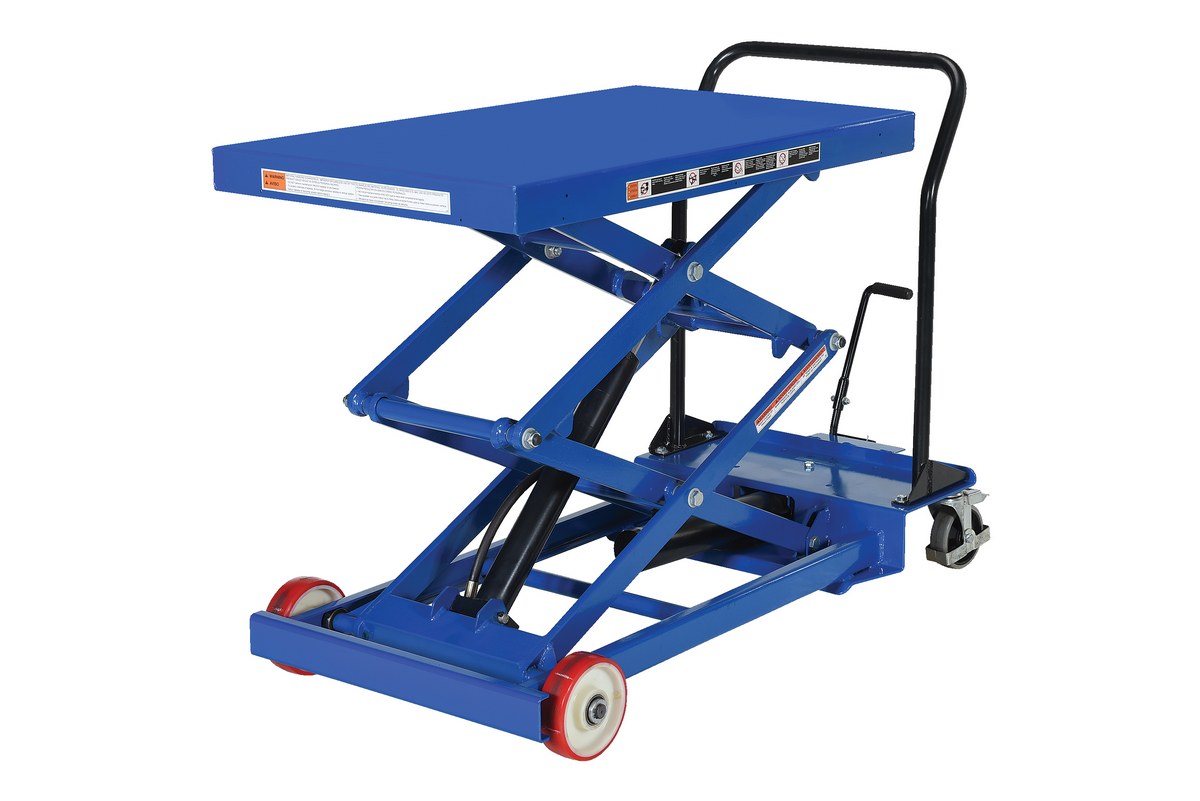

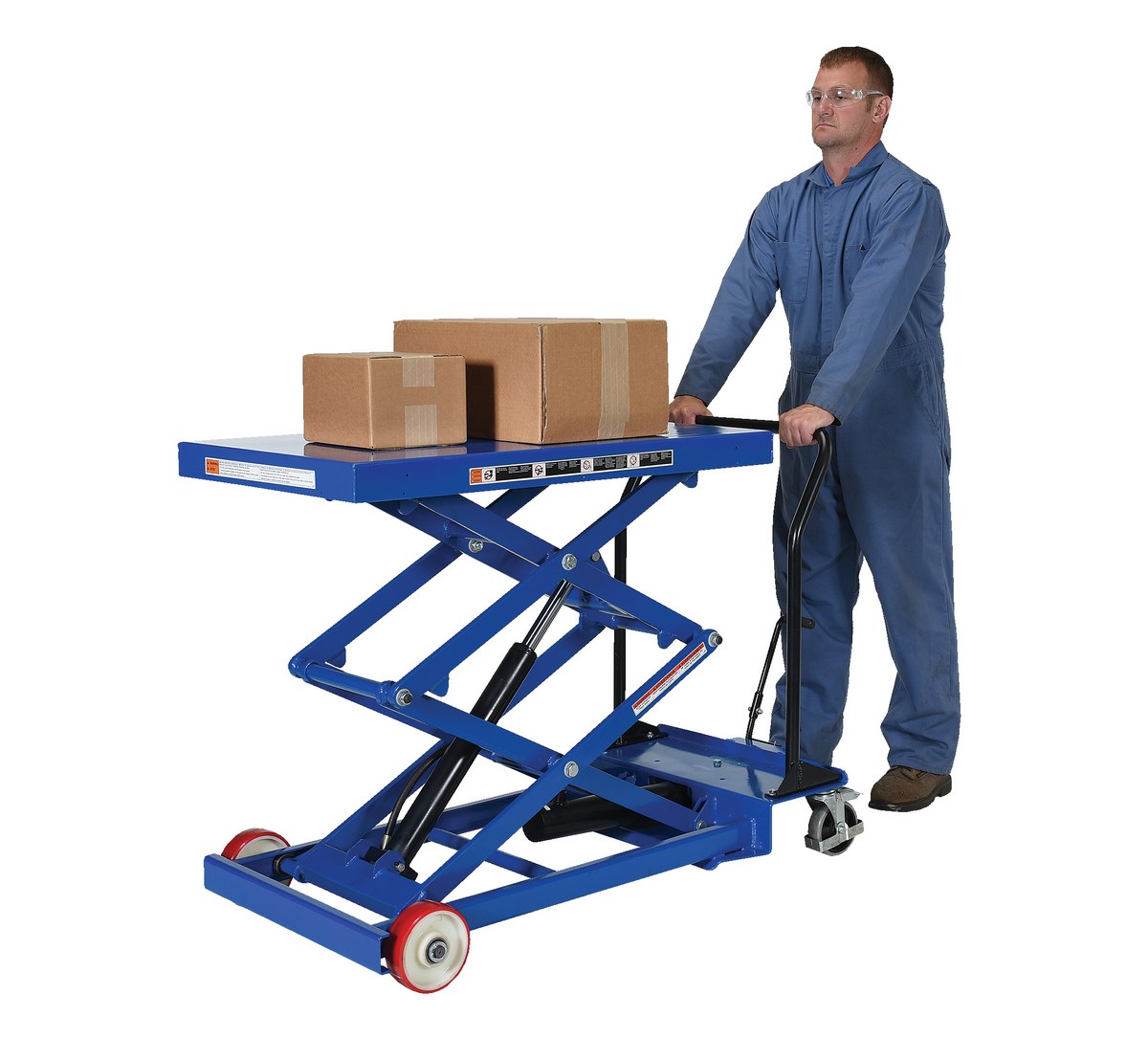

model: CART-1000-D-FR


SERIES: CART
Premium Scissor Lift Carts

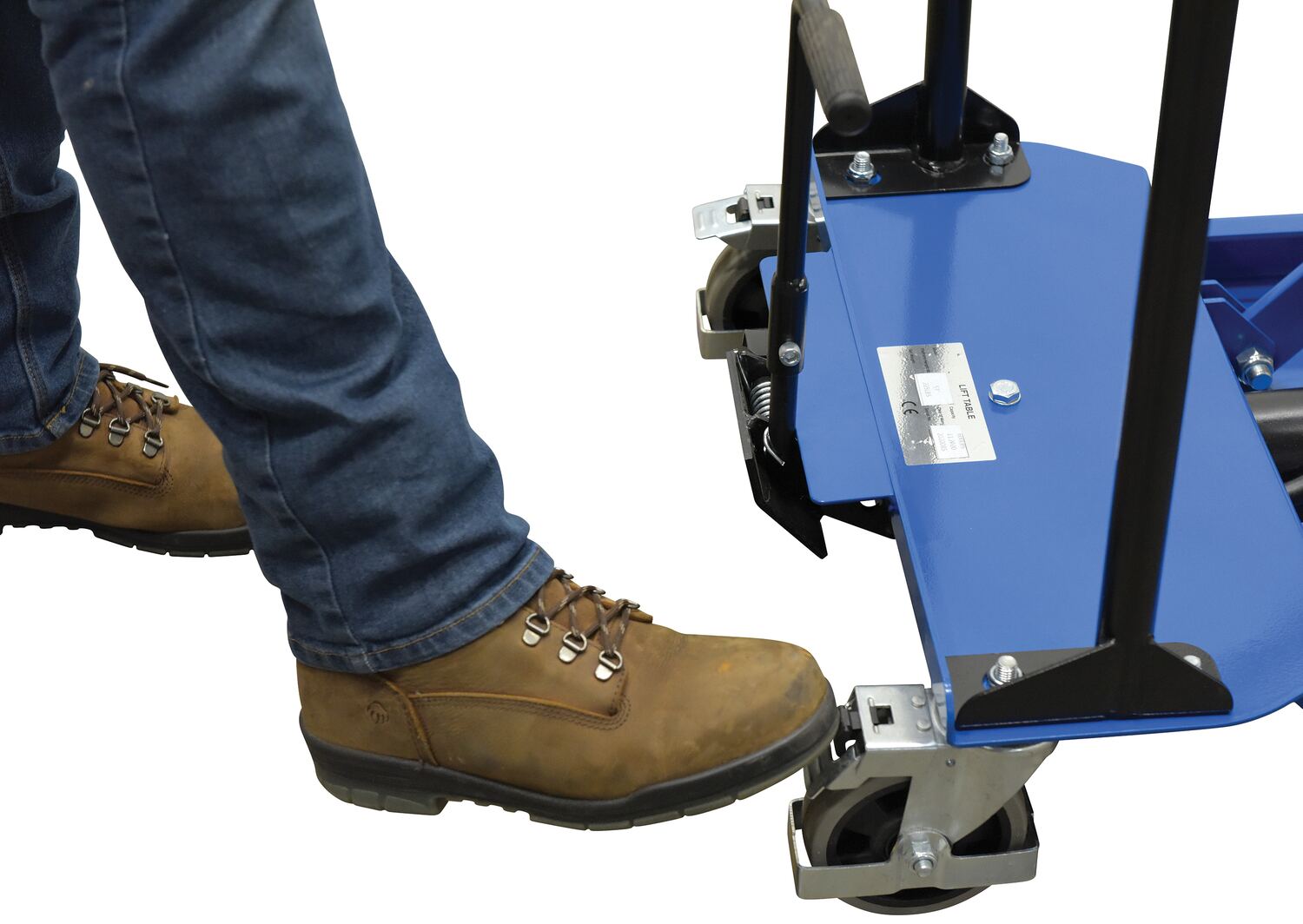

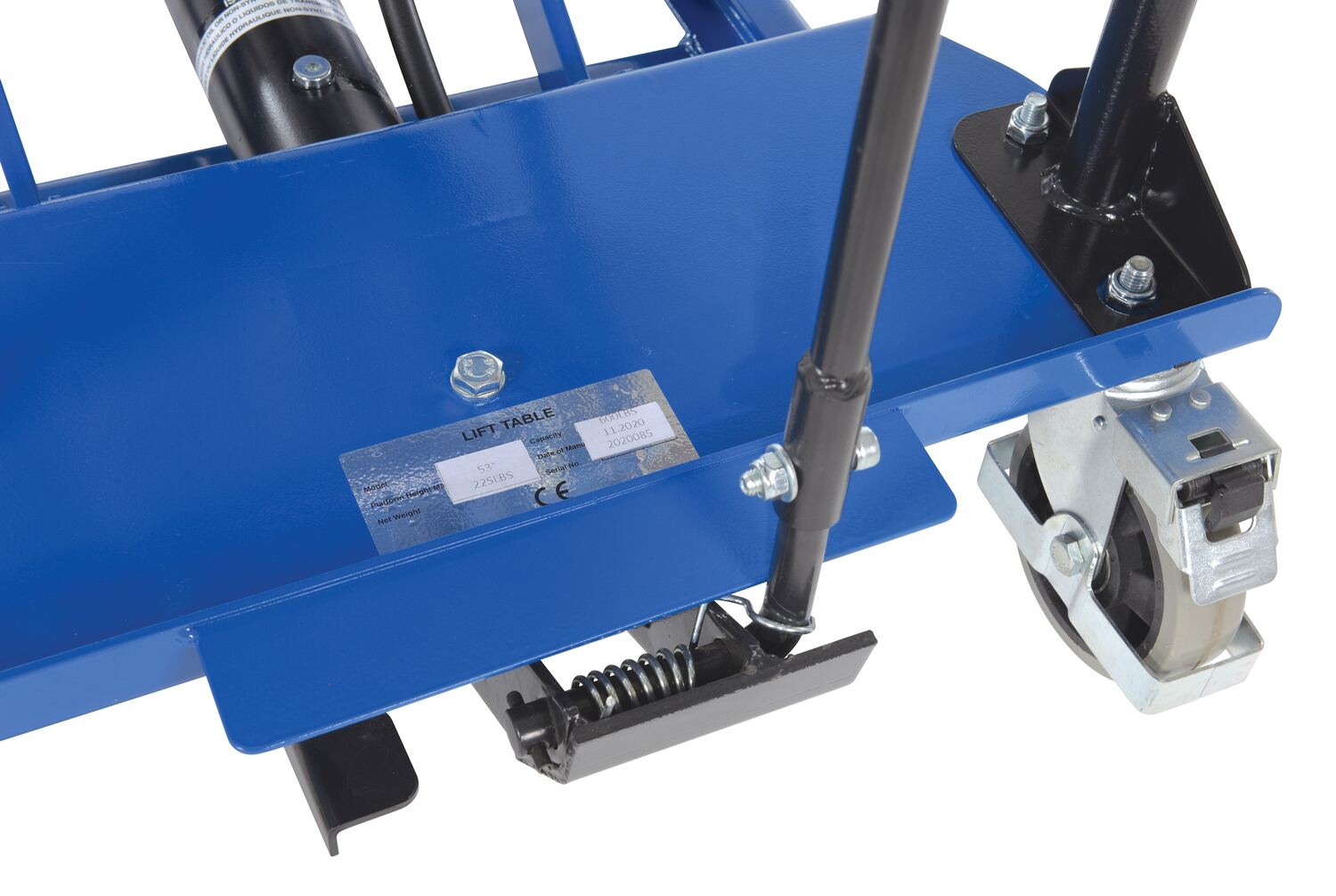

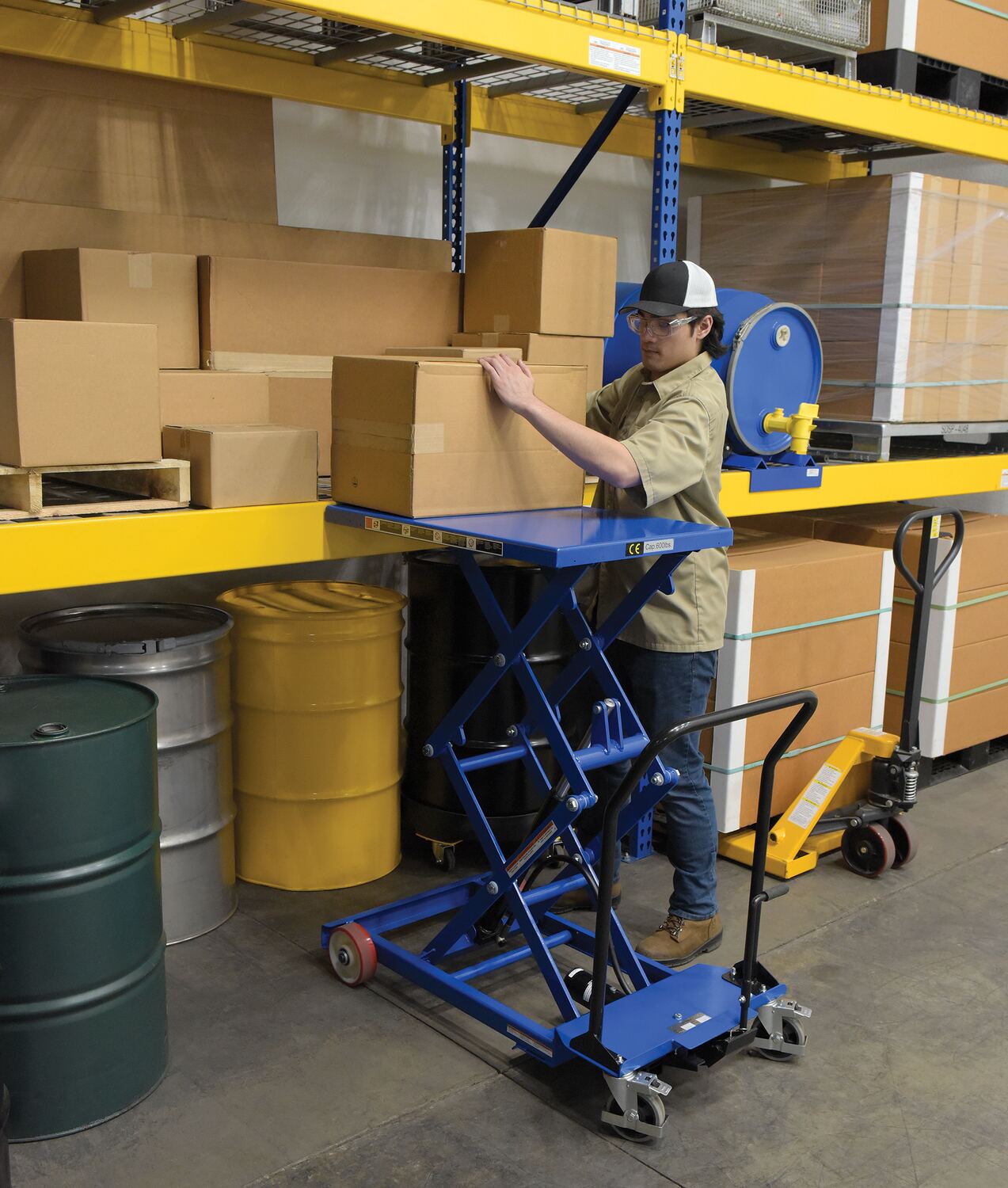

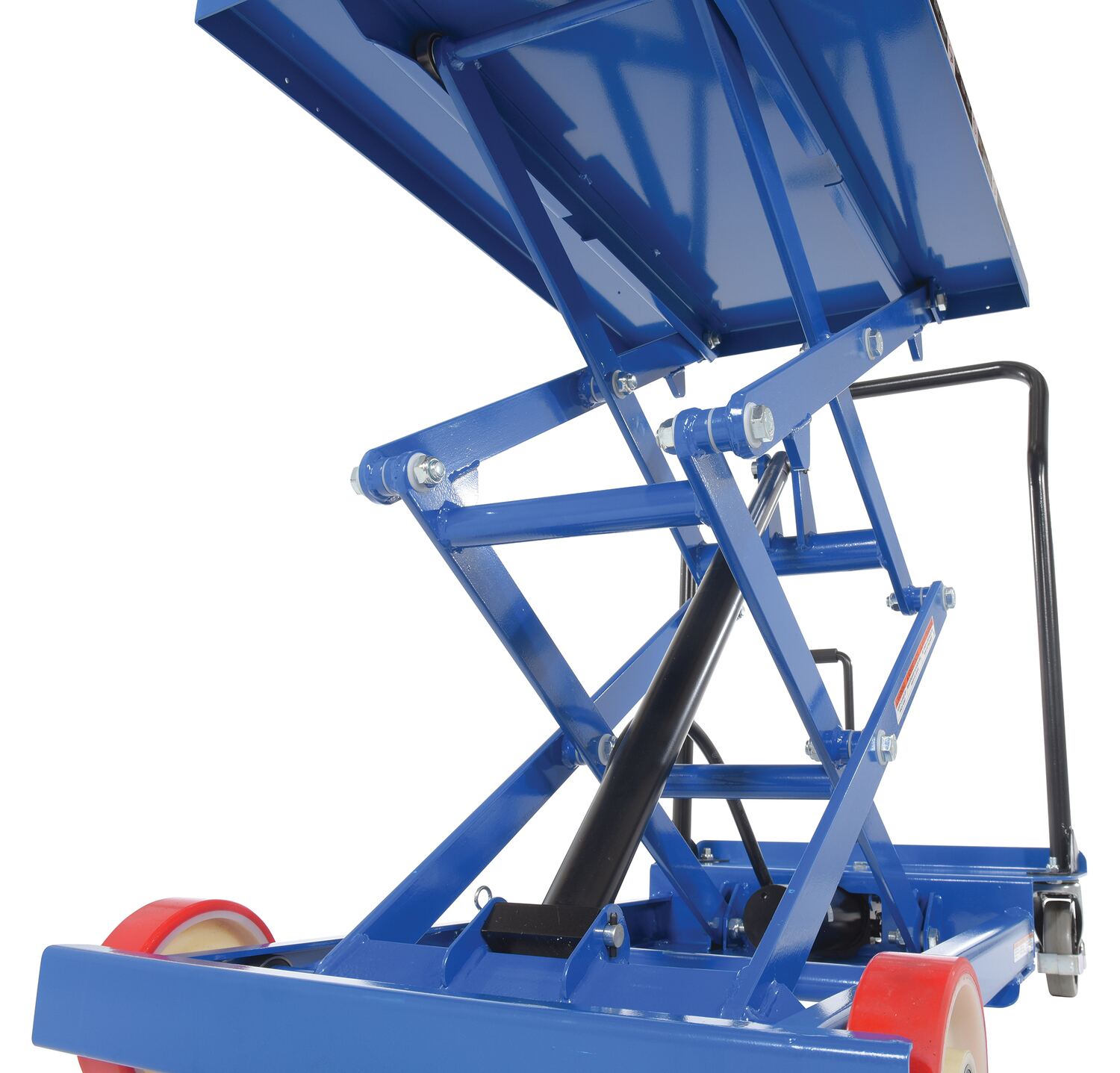

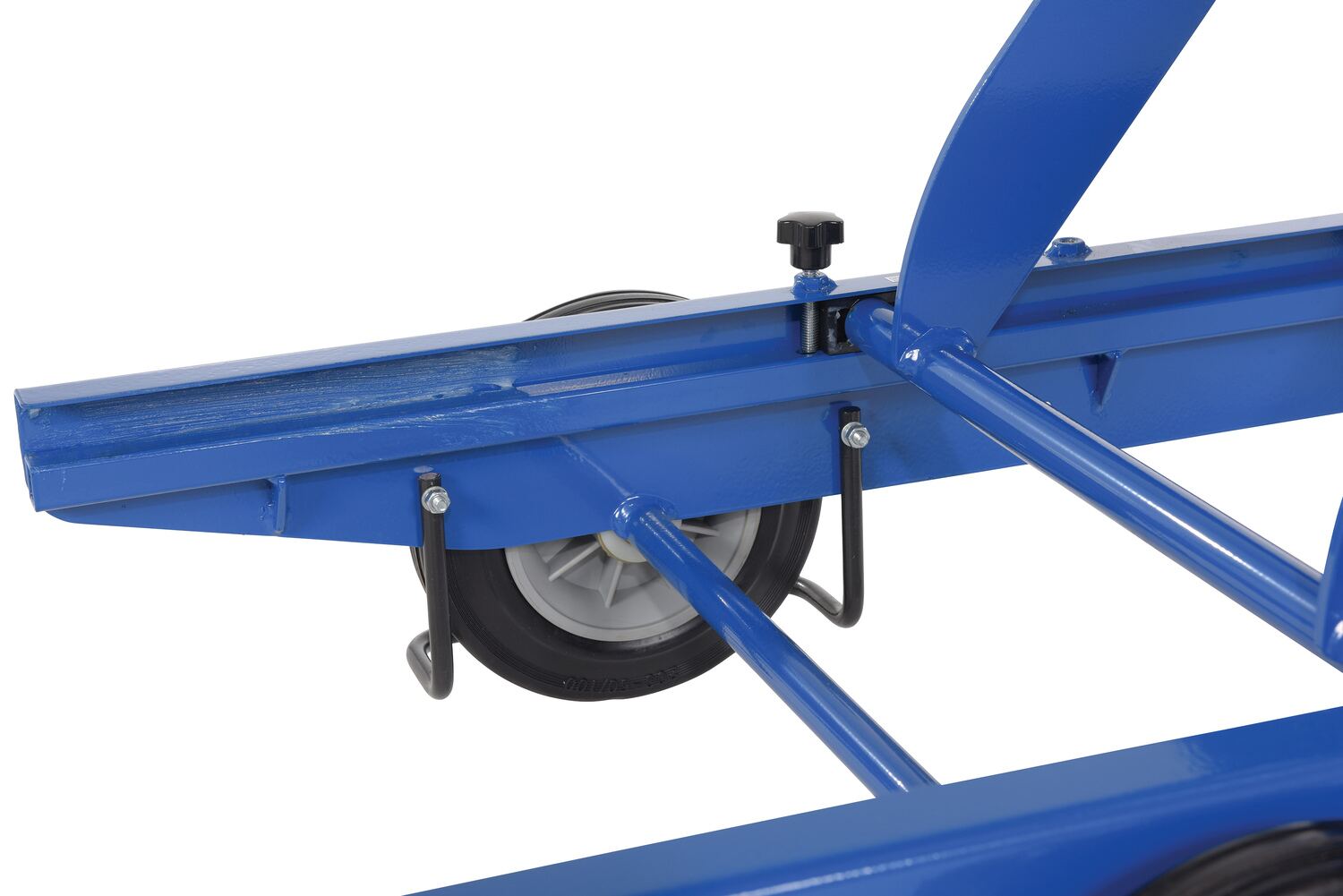

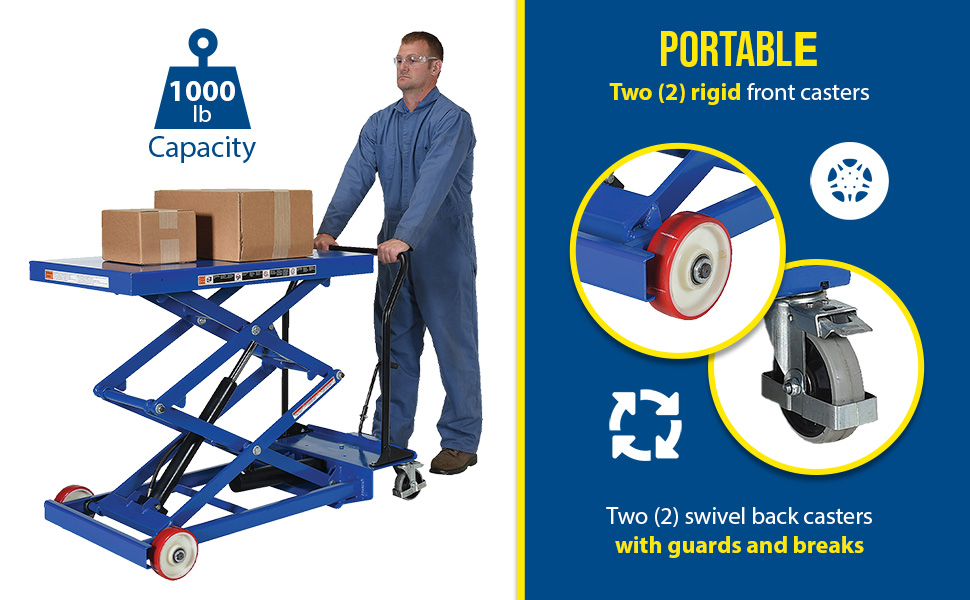

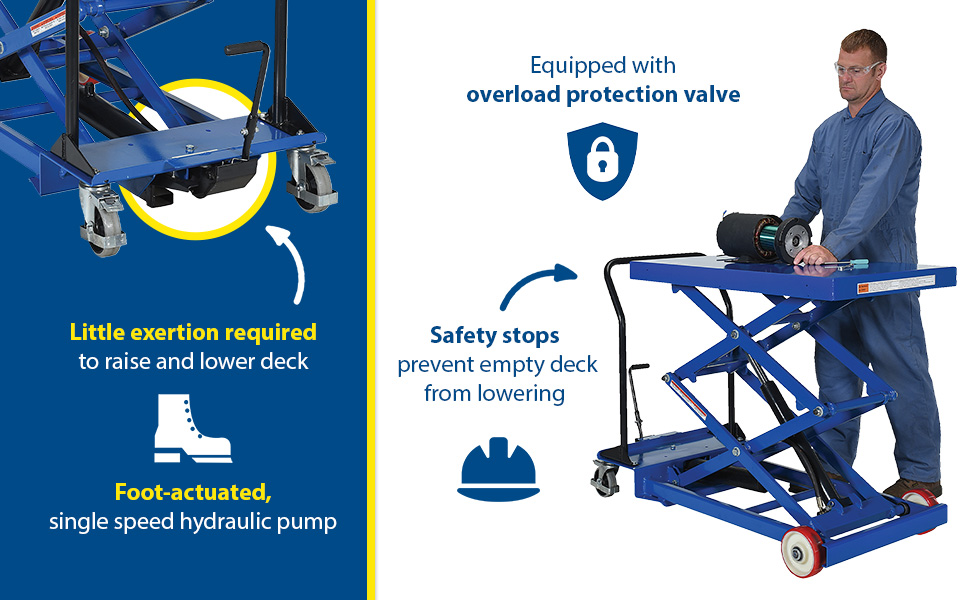

Constructed of heavy duty steel and designed to withstand the most demanding industrial environments. Ideal for lifting and transporting loads, order-picking, die handling, and for use in support of assembly operations. Little exertion is required to raise and lower the deck with the high quality, foot-actuated, single-speed hydraulic pump. The hydraulic system is equipped with an overload protection valve. The hand operated carts have safety stops to prevent an empty deck from lowering while performing maintenance. The foot operated carts have a unique tilt-up table top that allows for safe and easy maintenance. Two (2) rigid front casters and two (2) rear swivel polyurethane casters with brake provide a high degree of maneuverability; each swivel wheel is protected by guards and is equipped with brakes.

Constructed of heavy duty steel and designed to withstand the most demanding industrial environments. Ideal for lifting and transporting loads, order-picking, die handling, and for use in support of assembly operations. Little exertion is required to raise and lower the deck with the high quality, foot-actuated, single-speed hydraulic pump. The hydraulic system is equipped with an overload protection valve. The hand operated carts have safety stops to prevent an empty deck from lowering while performing maintenance. The foot operated carts have a unique tilt-up table top that allows for safe and easy maintenance. Two (2) rigid front casters and two (2) rear swivel polyurethane casters with brake provide a high degree of maneuverability; each swivel wheel is protected by guards and is equipped with brakes.

Other Elevating Lift Carts

Adjustable Pallet Stands

Adjustable Pallet Stands

Mechanical Scissor Carts

Mechanical Scissor Carts

Scissor Carts with Built-In Scale

Scissor Carts with Built-In Scale

Premium Scissor Lift Carts

Premium Scissor Lift Carts

Low Profile Scissor Lift Cart

Low Profile Scissor Lift Cart

Share This Page




KEY: Approval Drawing = Approval Drawing -- Approval Drawing = Warranty -- Approval Drawing = Testing Certificate

All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.
Premium Scissor Lift Carts
Model Image PDF Scissor
Design
Platform
Size (WxL)
Uniform
Capacity (lbs)
Lowered Height Raised Height Wt.
(lbs)
Foot Release

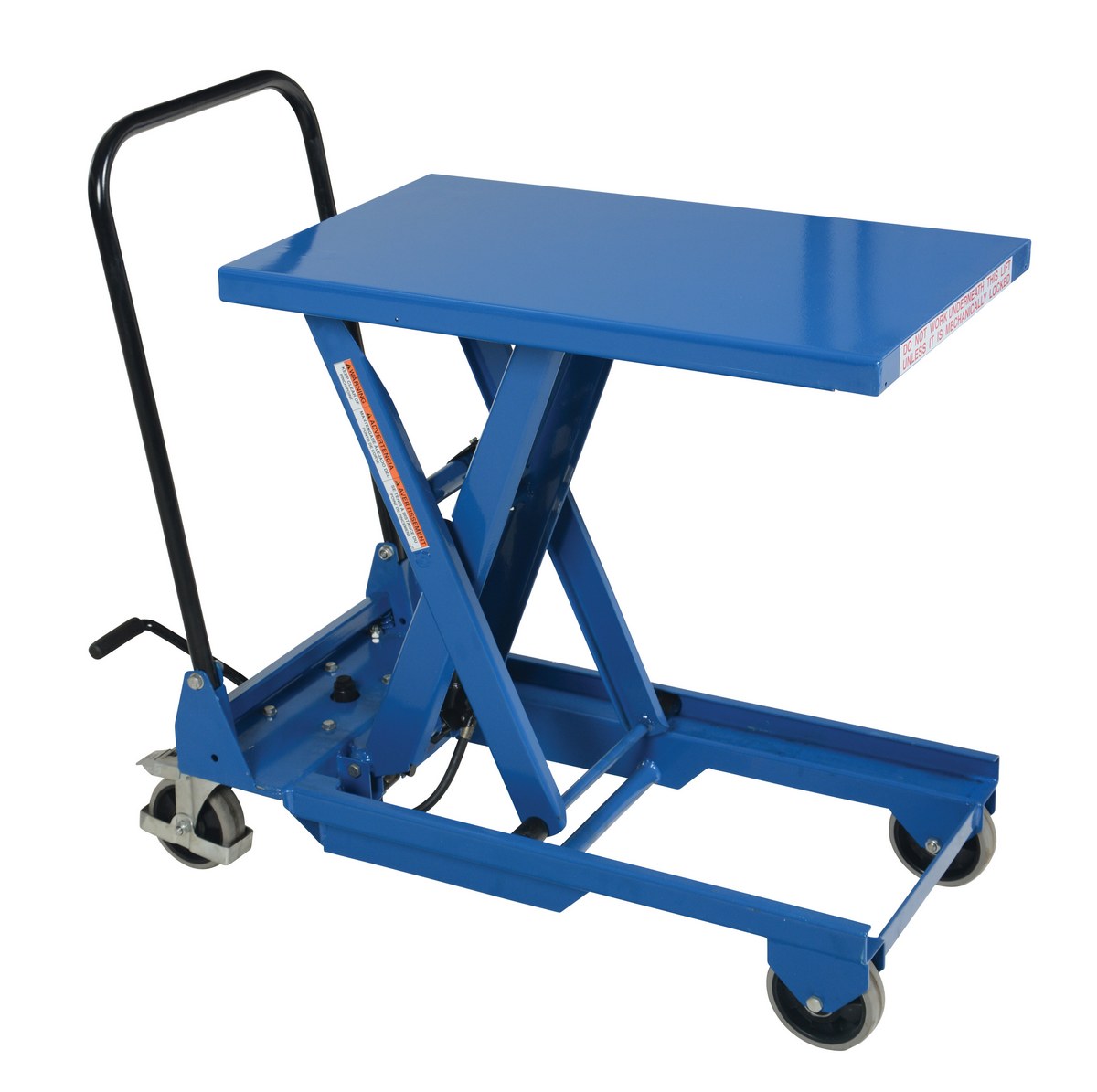

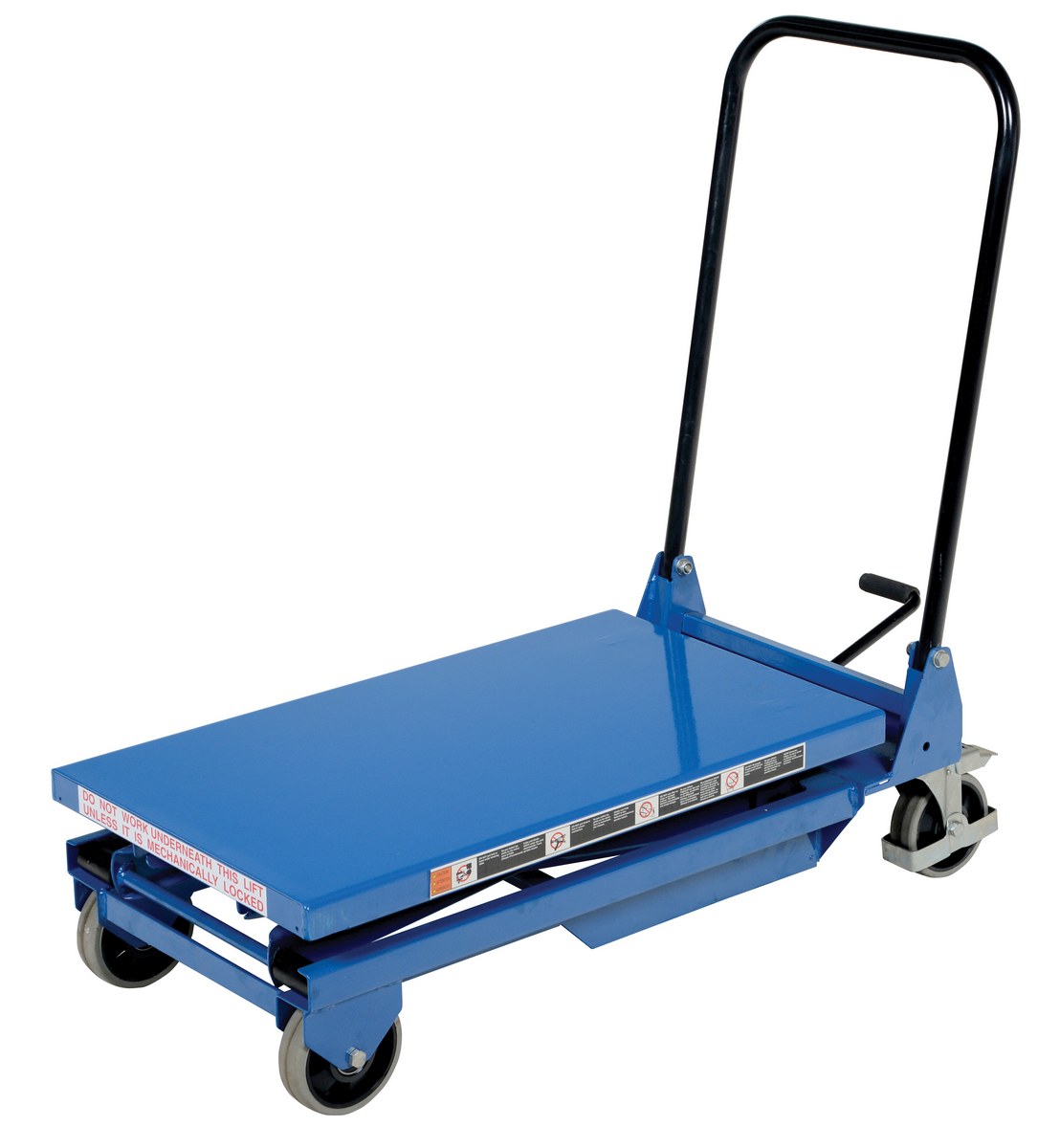

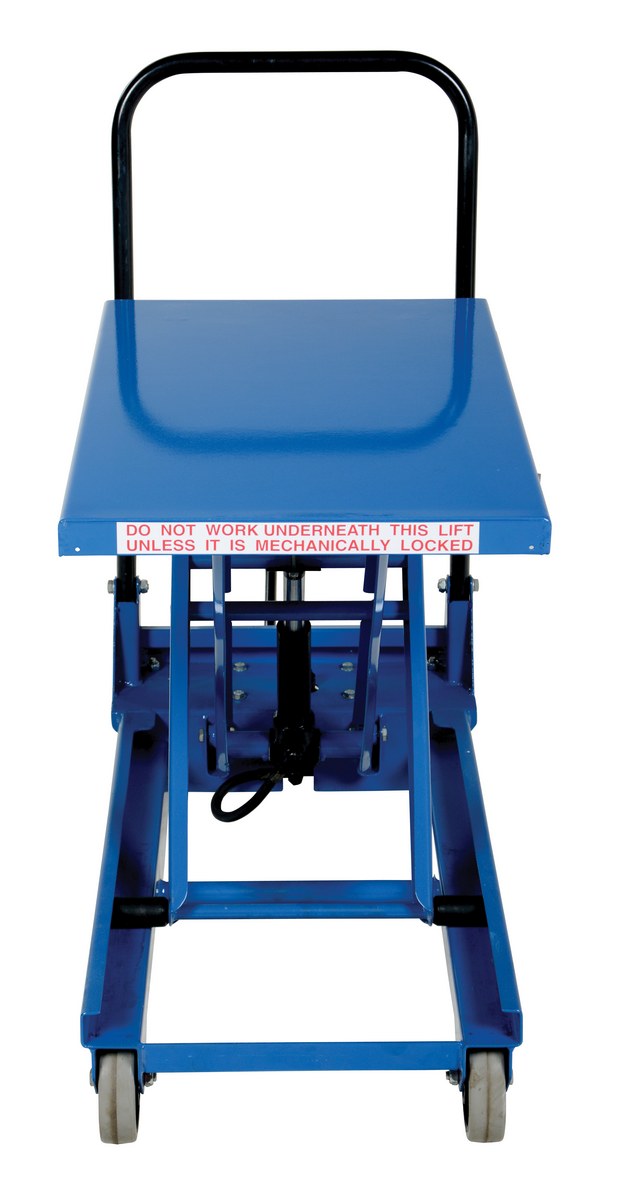

CART-300-S-FR Compliance Certificate Single 17-3/4"x30" 300 10" 31" 177

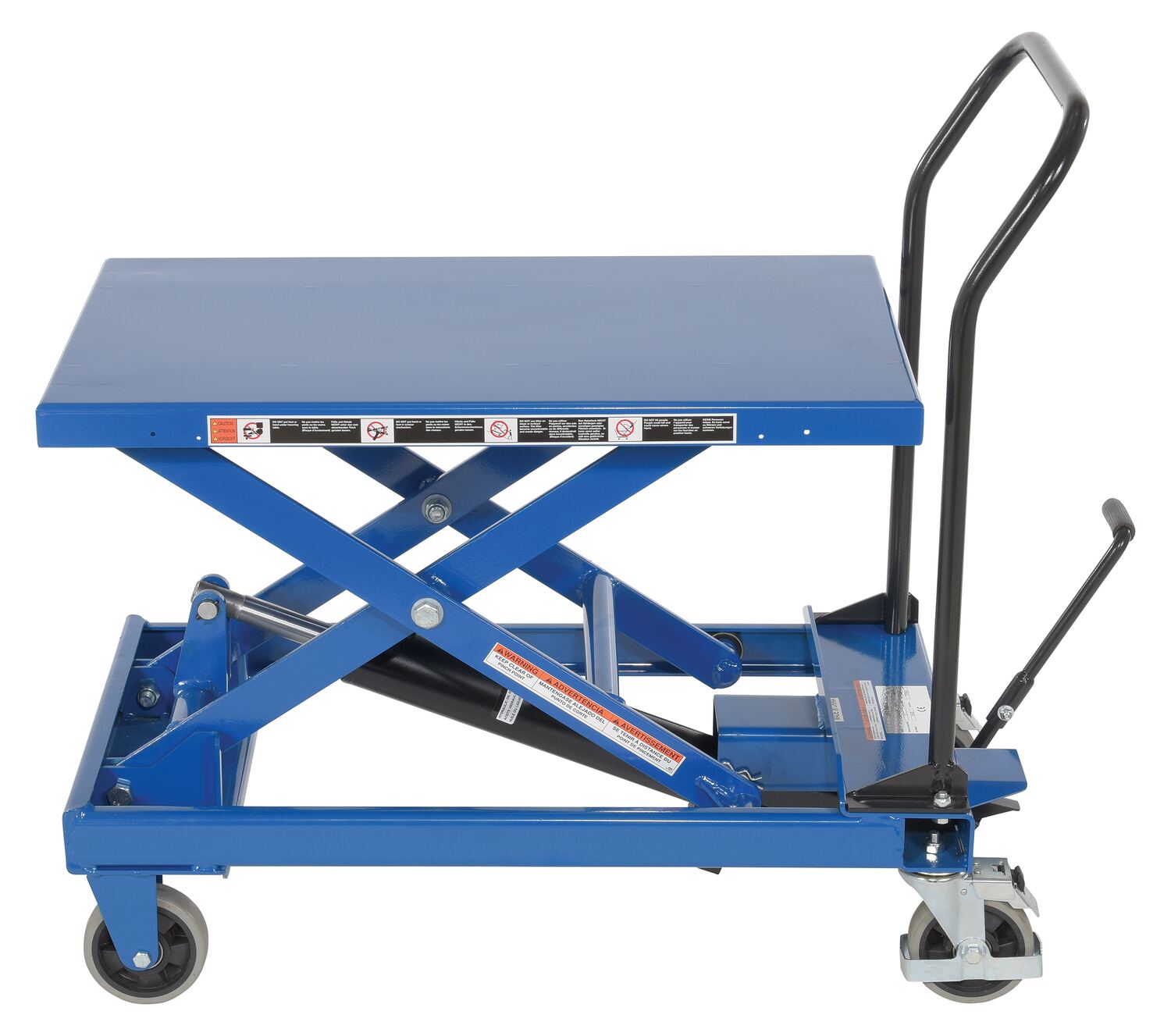

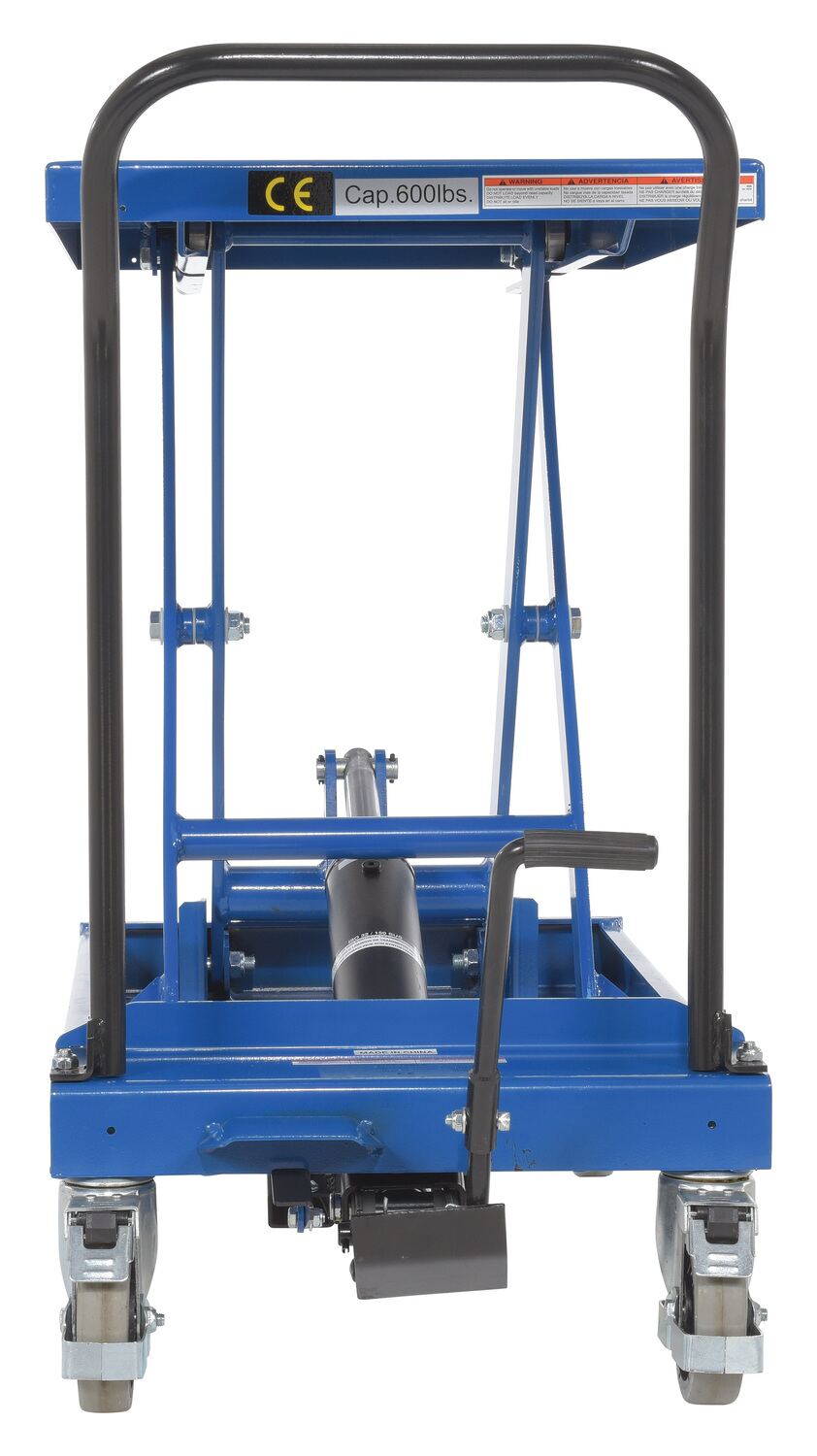

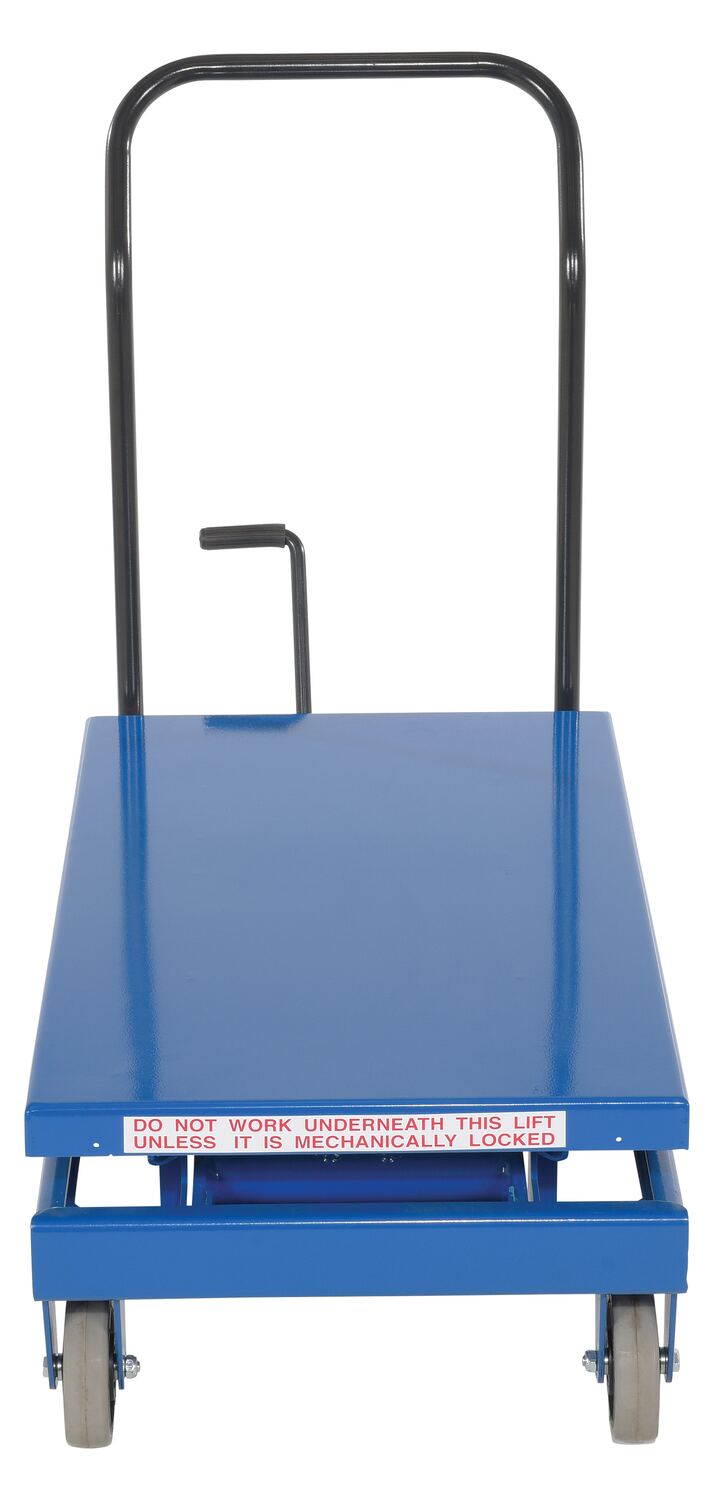

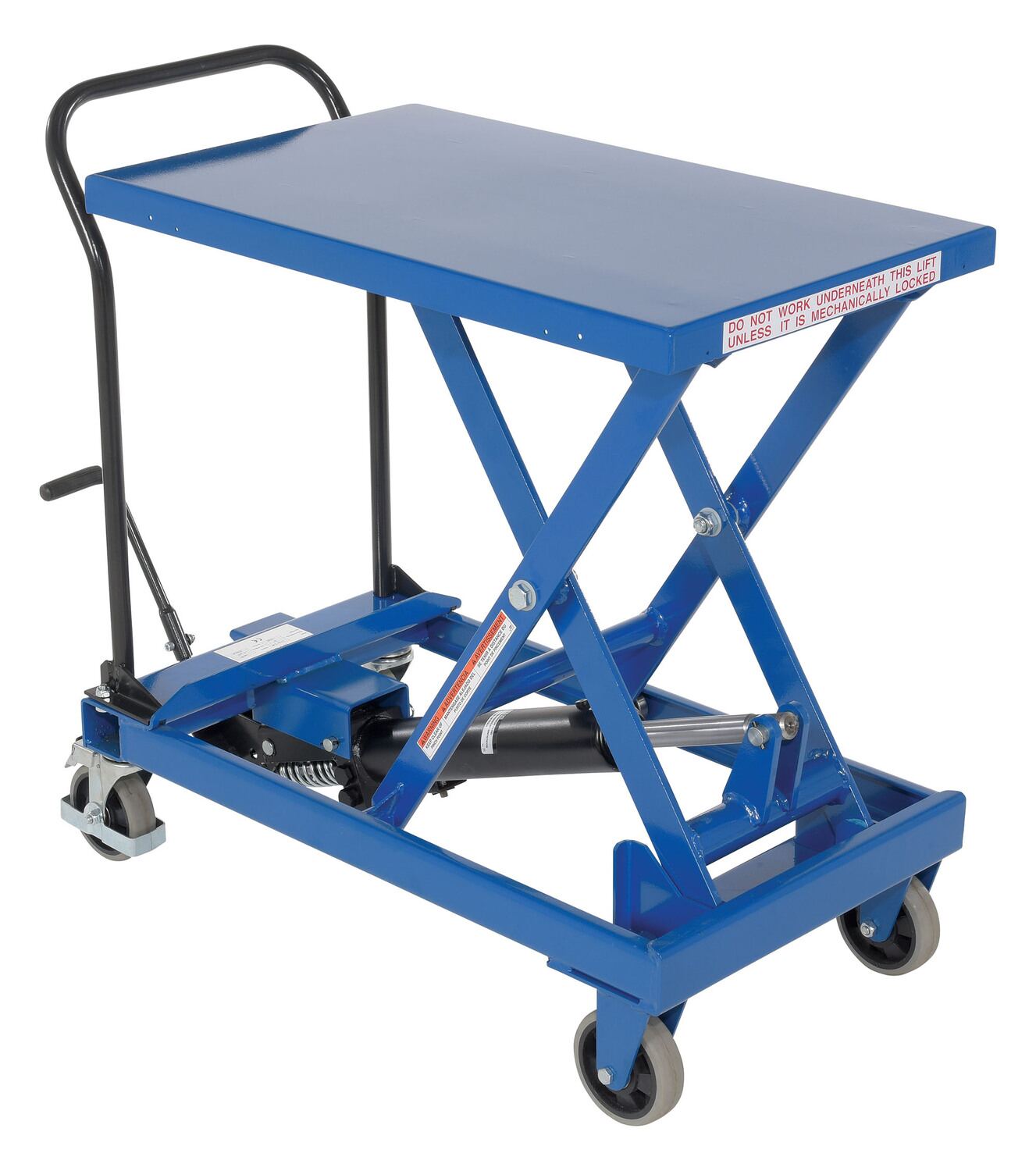

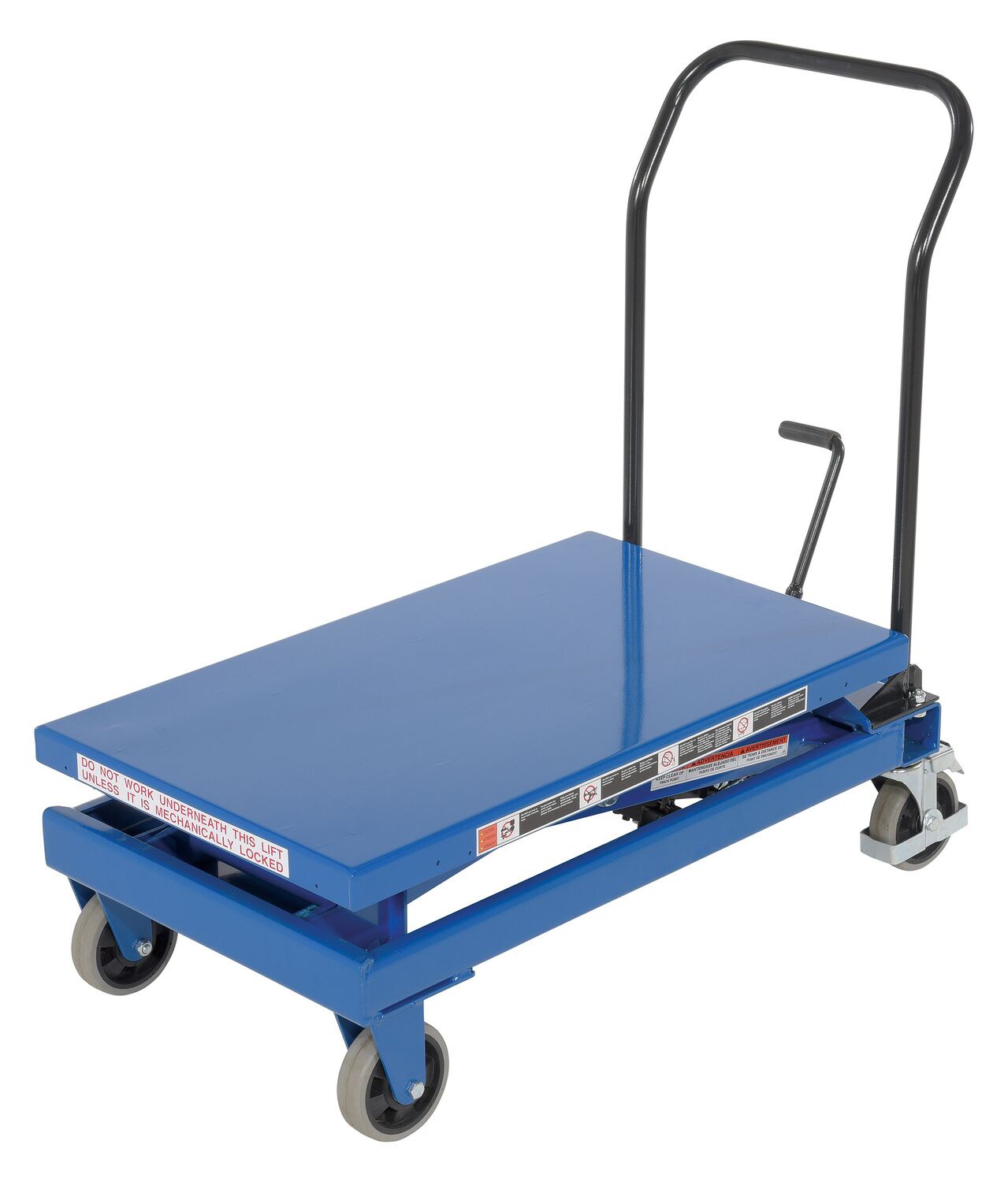

CART-600-S-FR Compliance Certificate Single 19-3/4"x33-1/8" 600 13 1/4" 34" 233

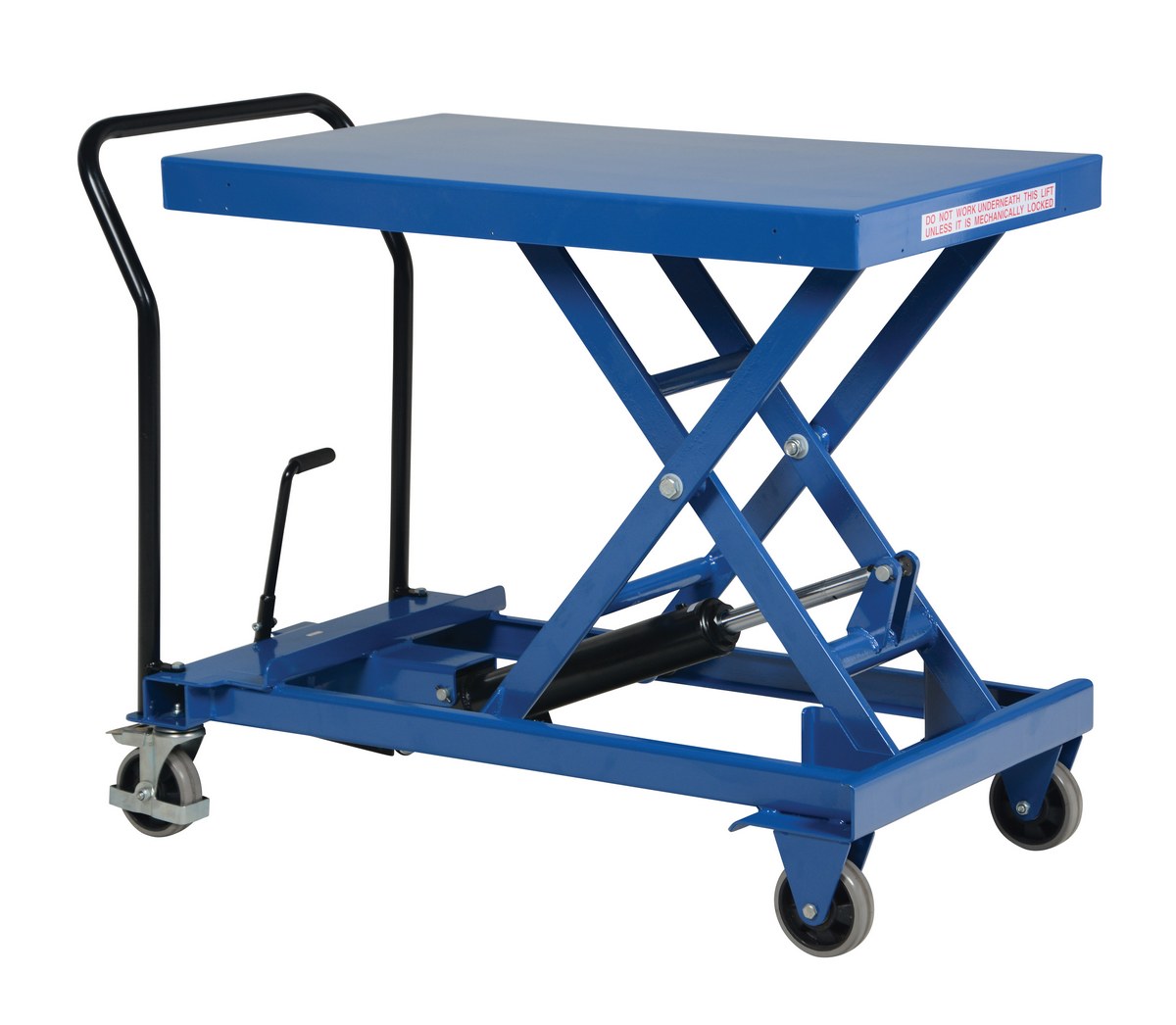

CART-1000-S-FR icon_approvaldrawings.jpgCompliance Certificate Single 24"x40-1/2" 1,000 13 1/2" 35-1/2" 312

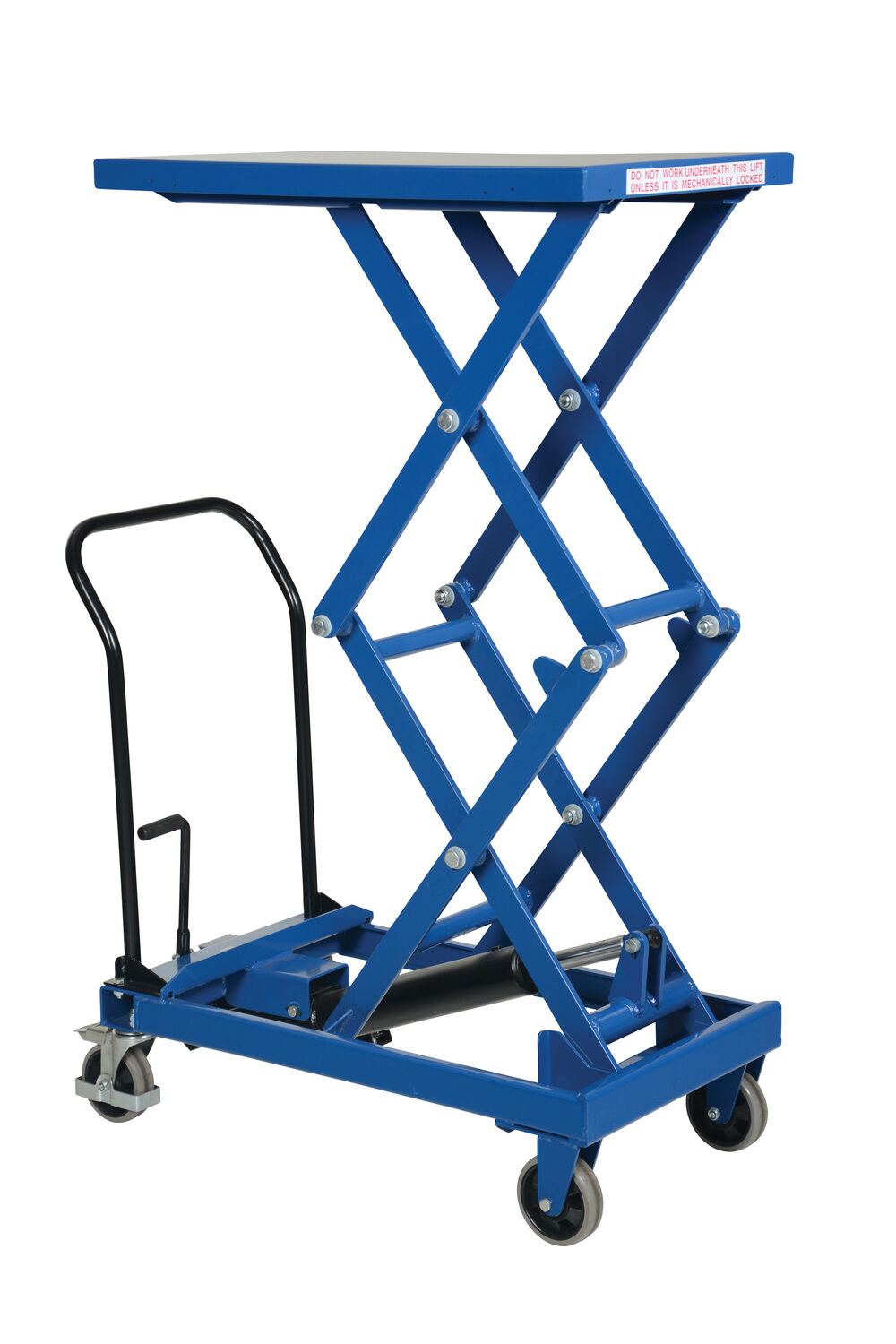

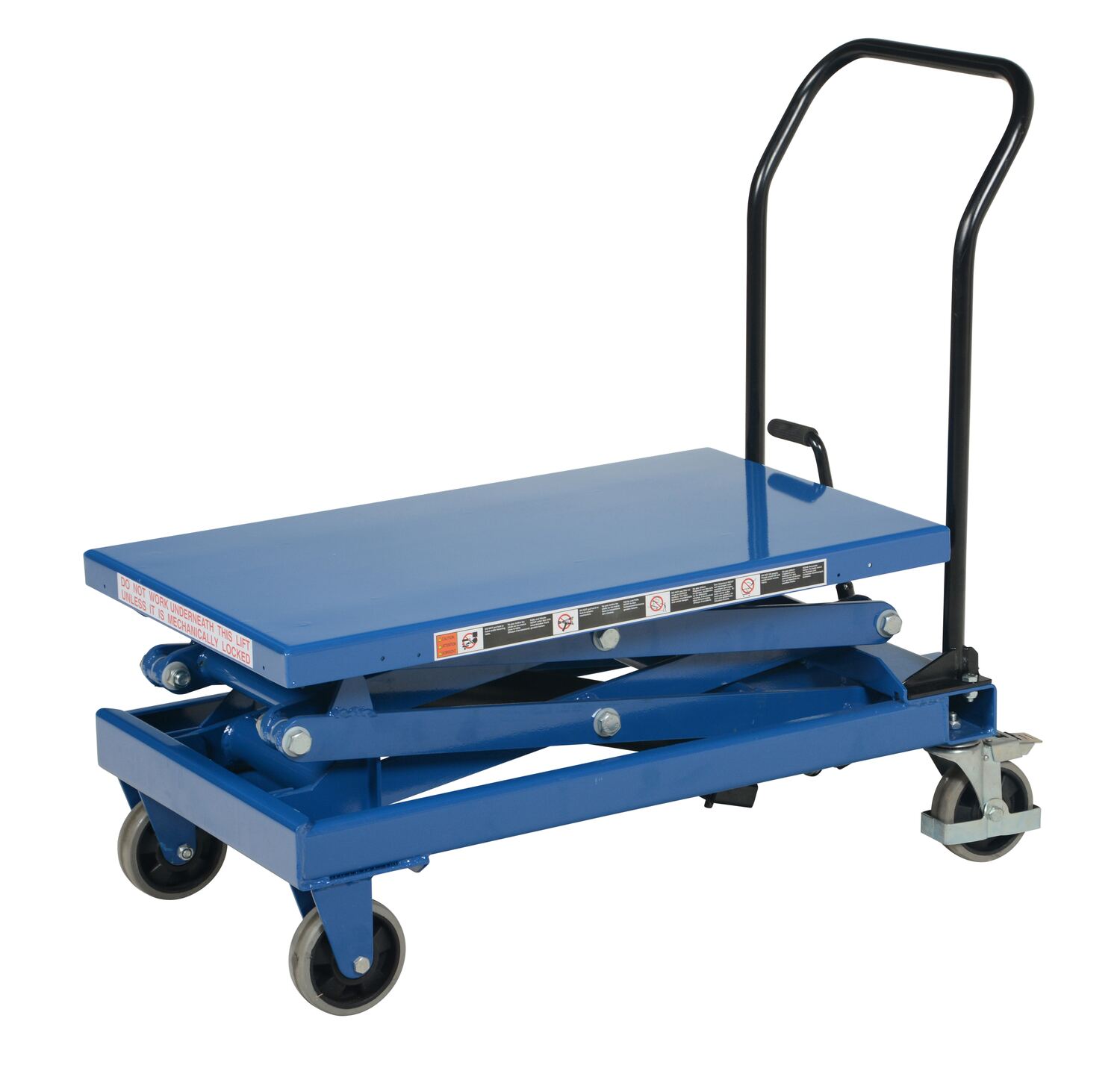

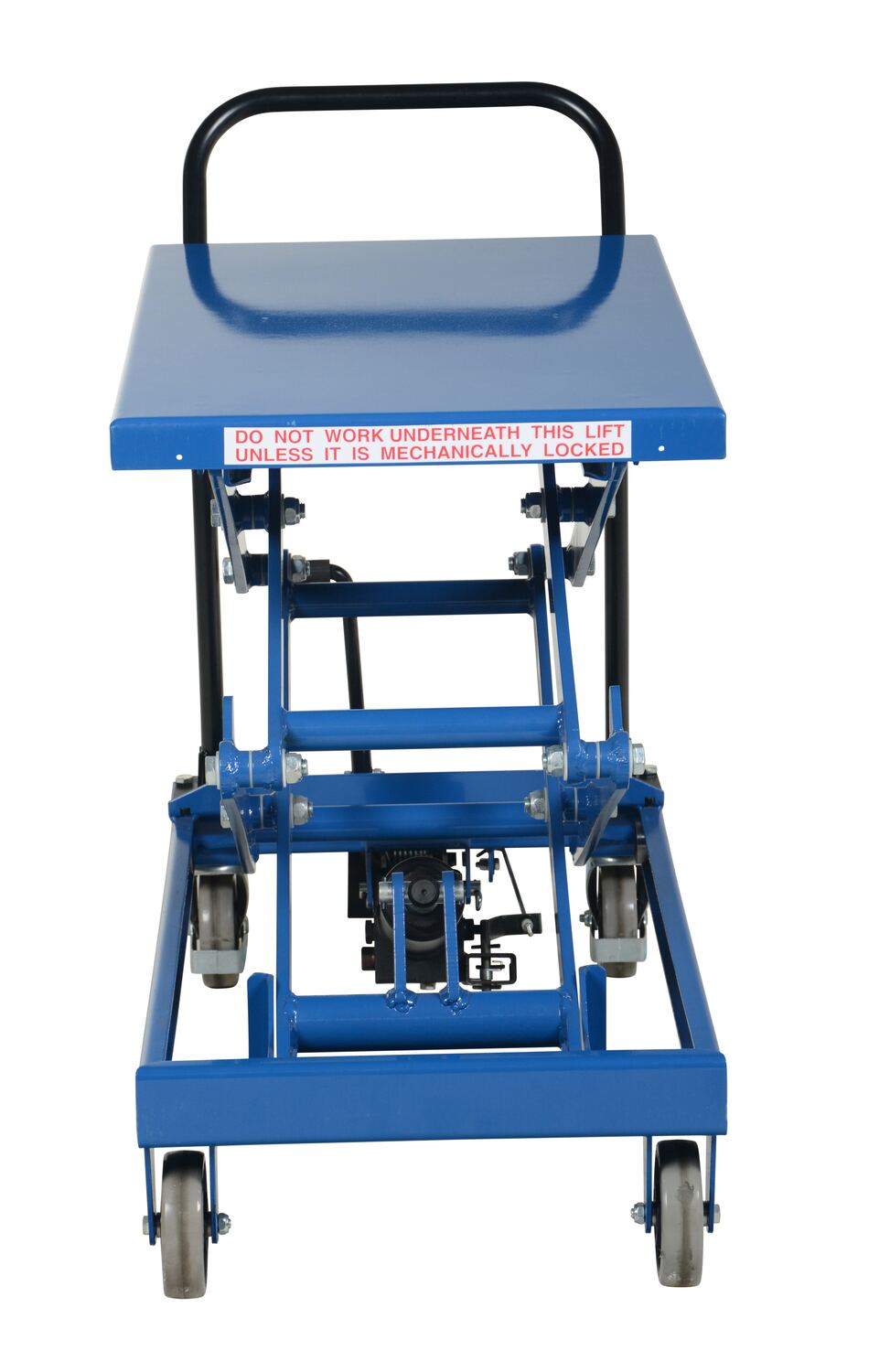

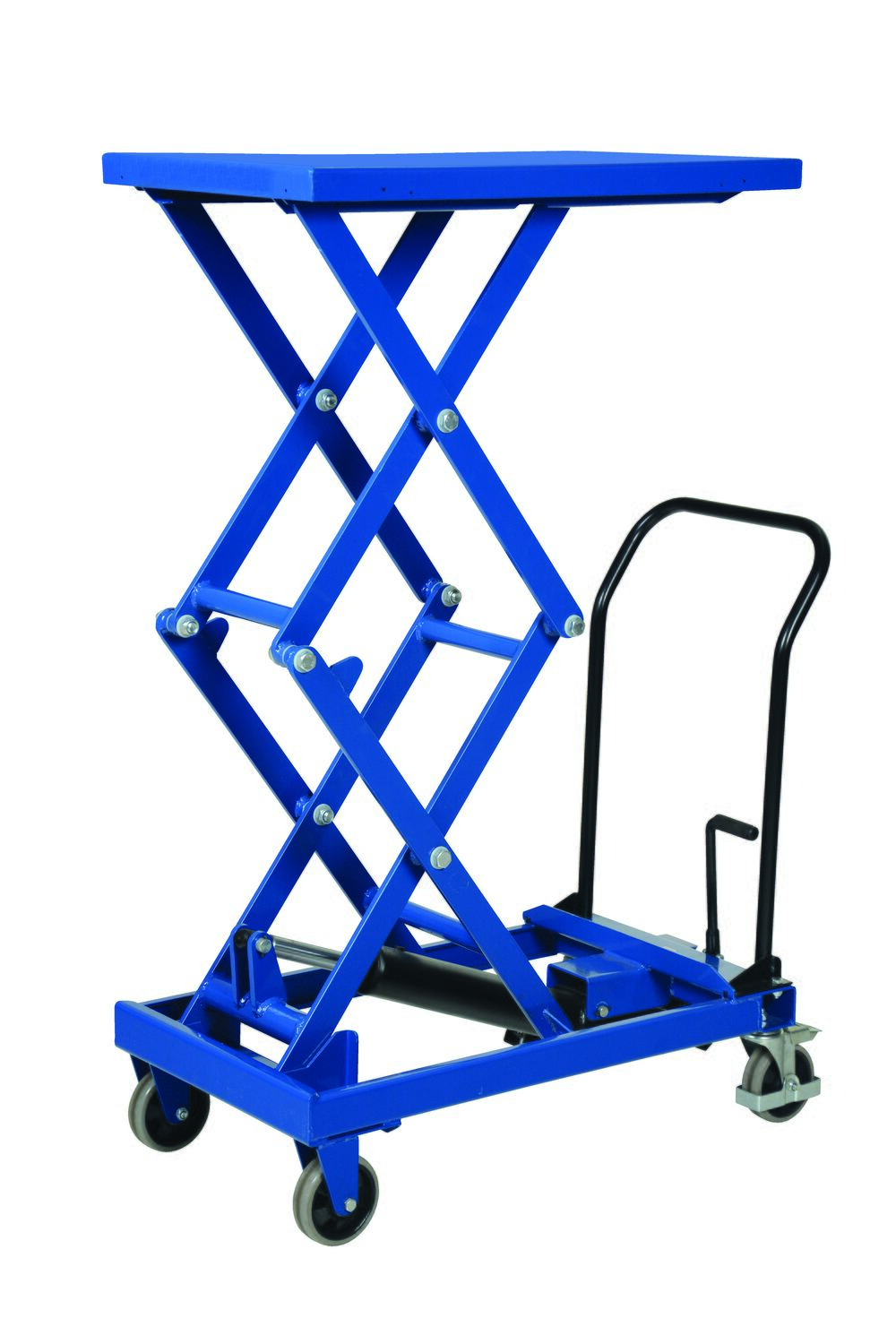

CART-300-D-FR Compliance Certificate Double 19-1/2"x33" 300 17" 56" 264

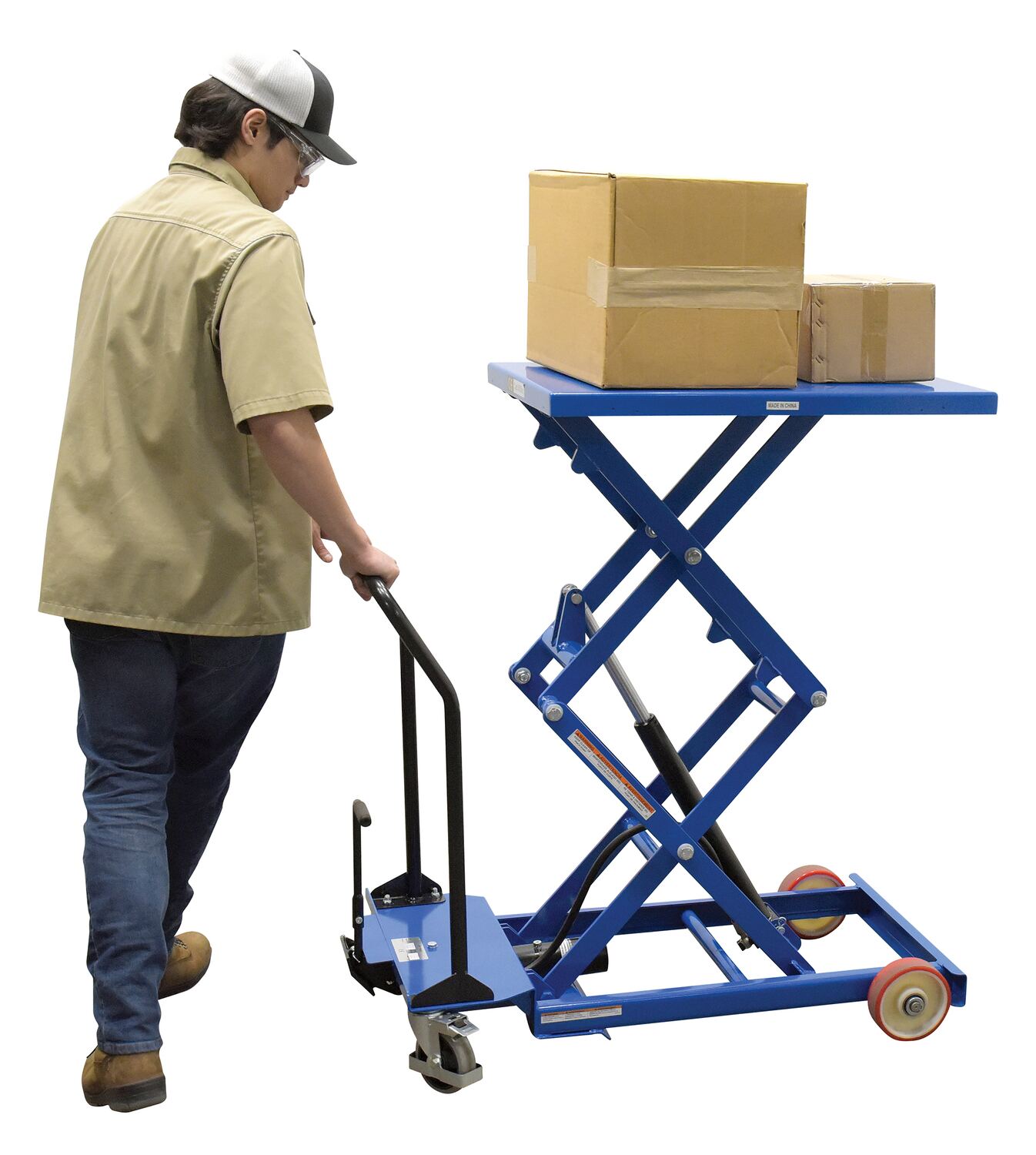

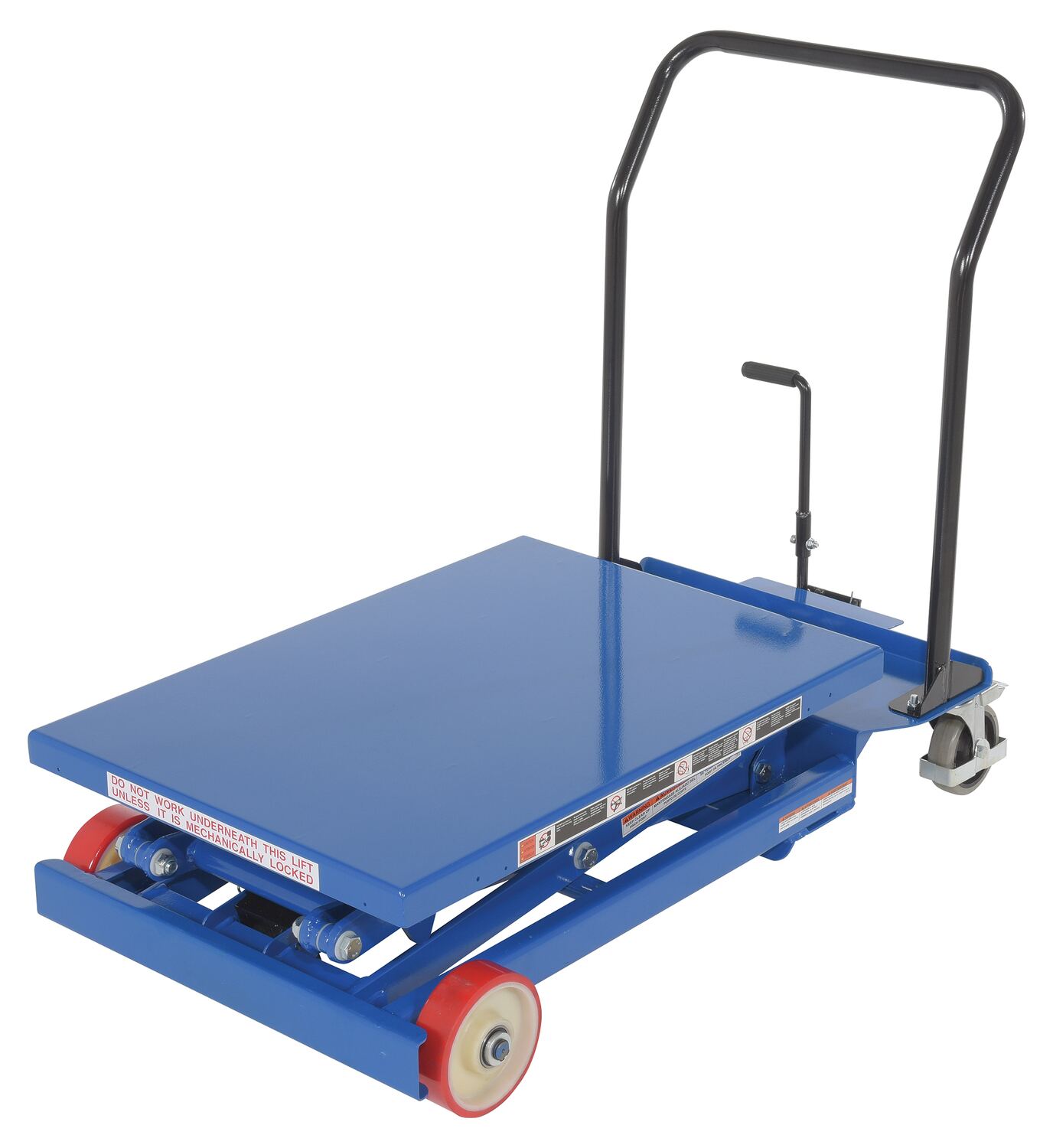

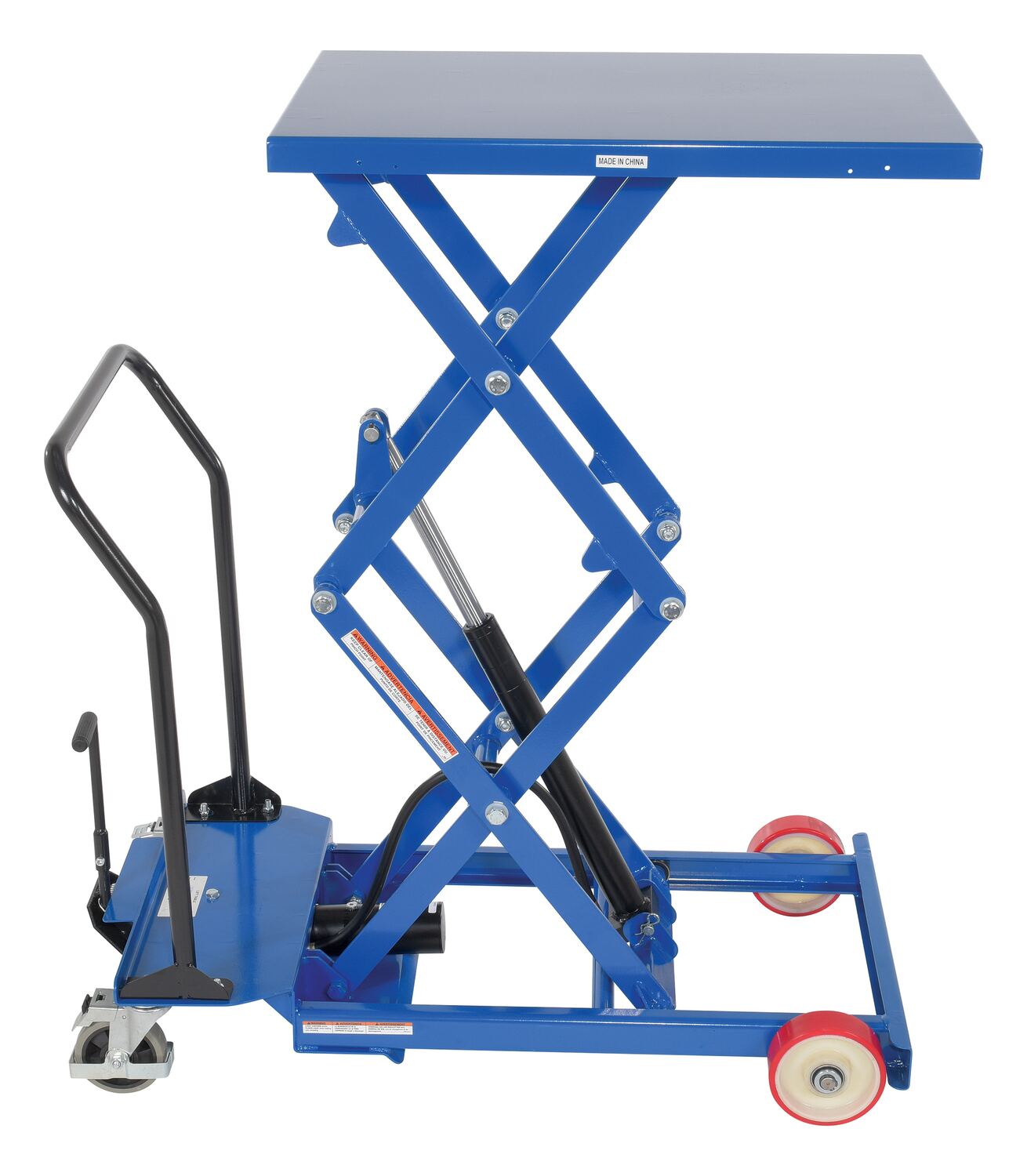

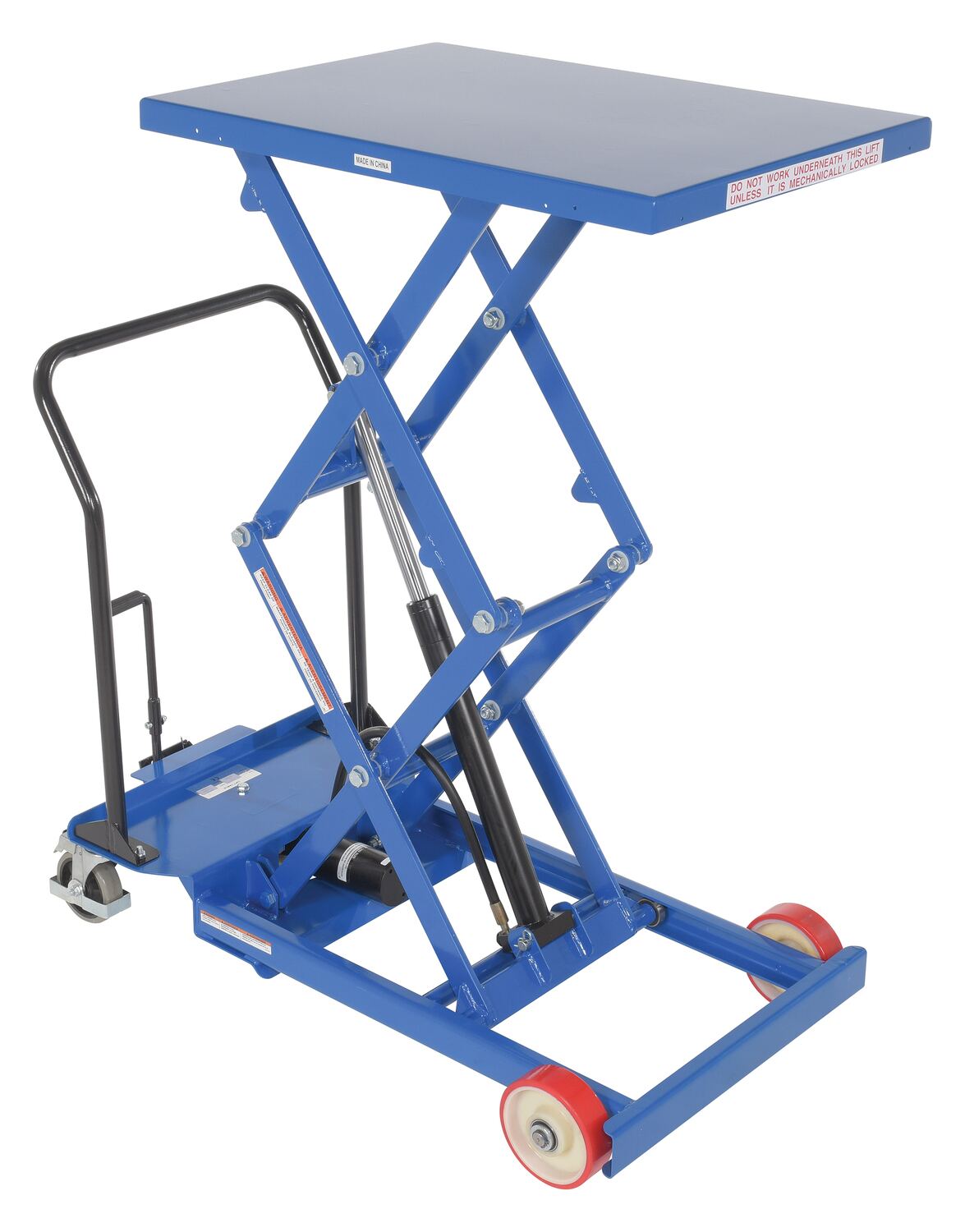

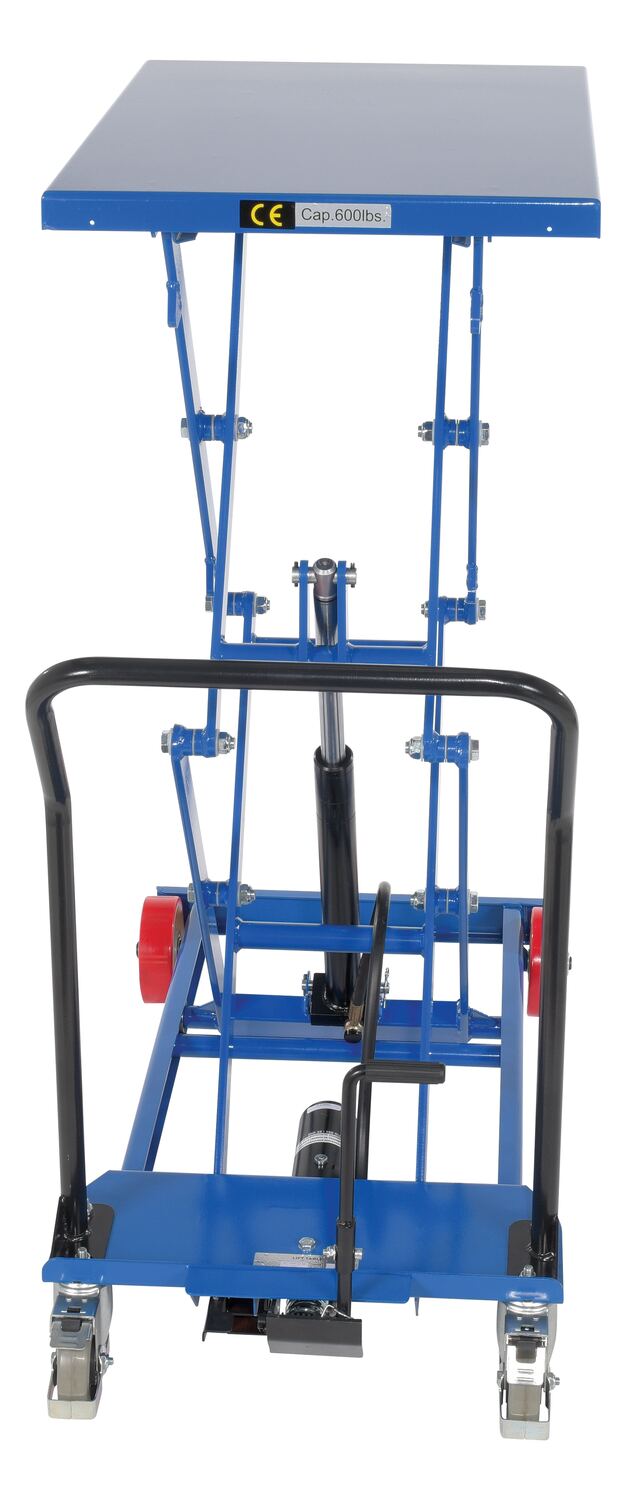

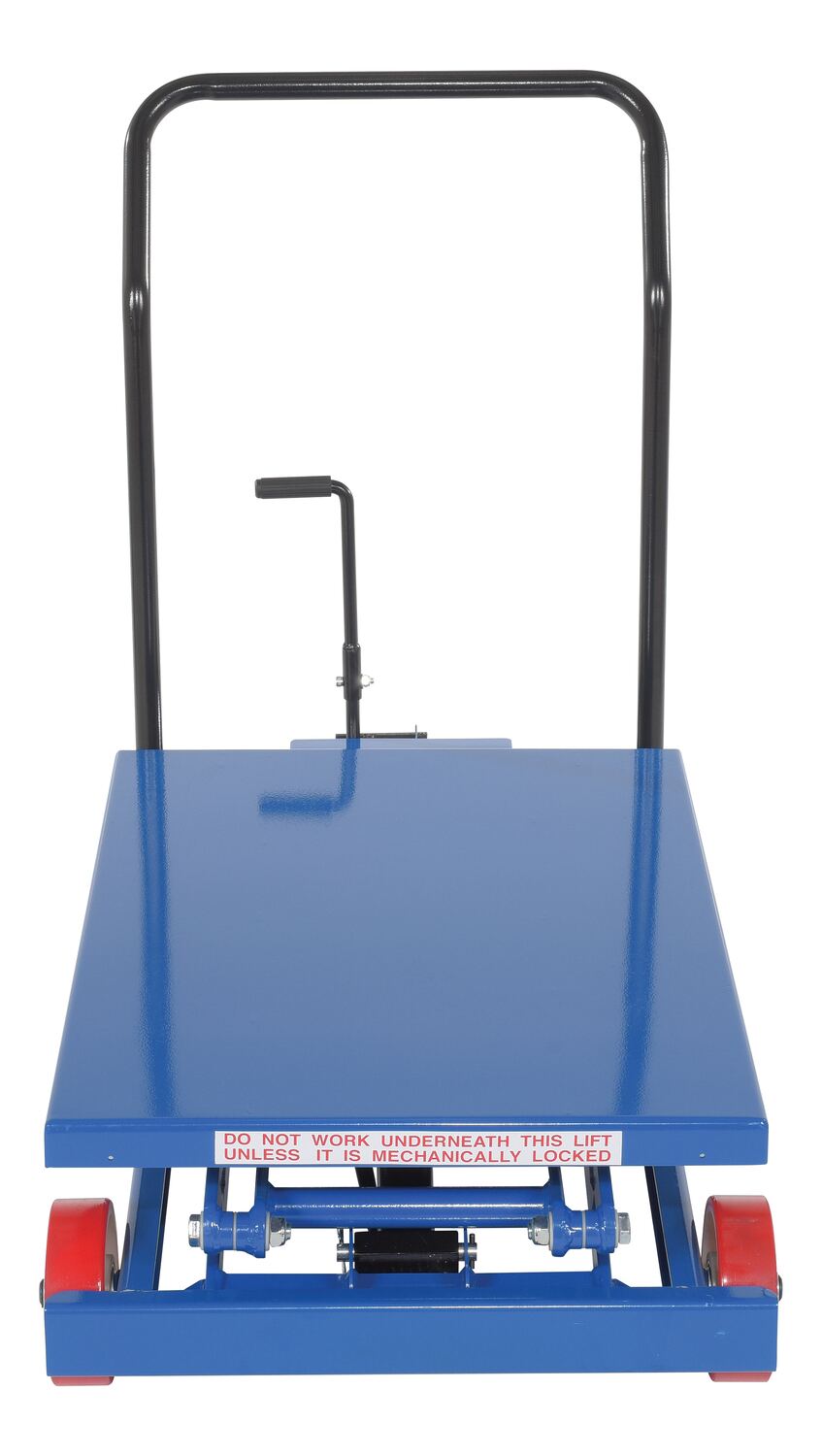

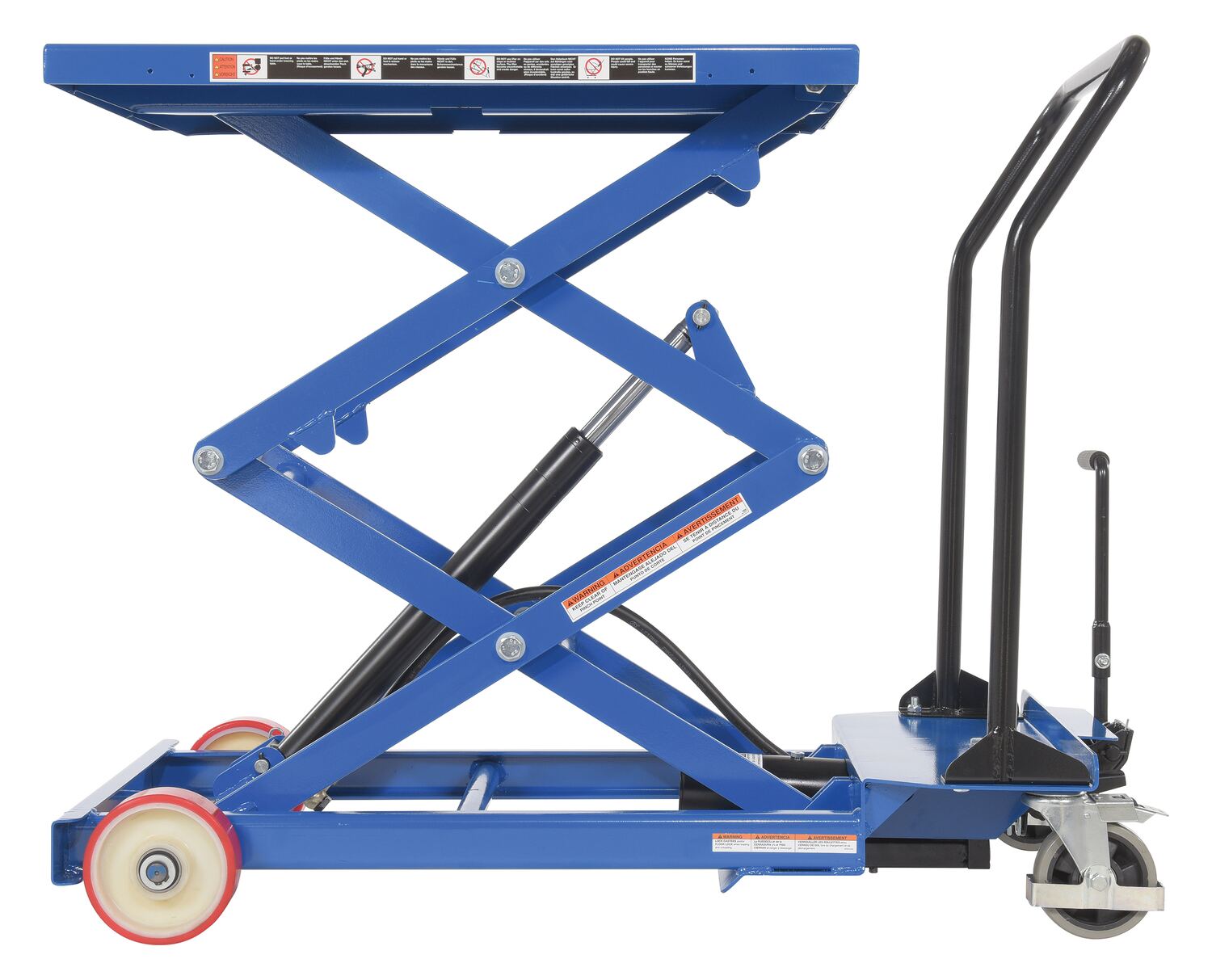

CART-600-D-FR Compliance Certificate Double 23-1/4"x33" 600 12" 53-1/2" 301

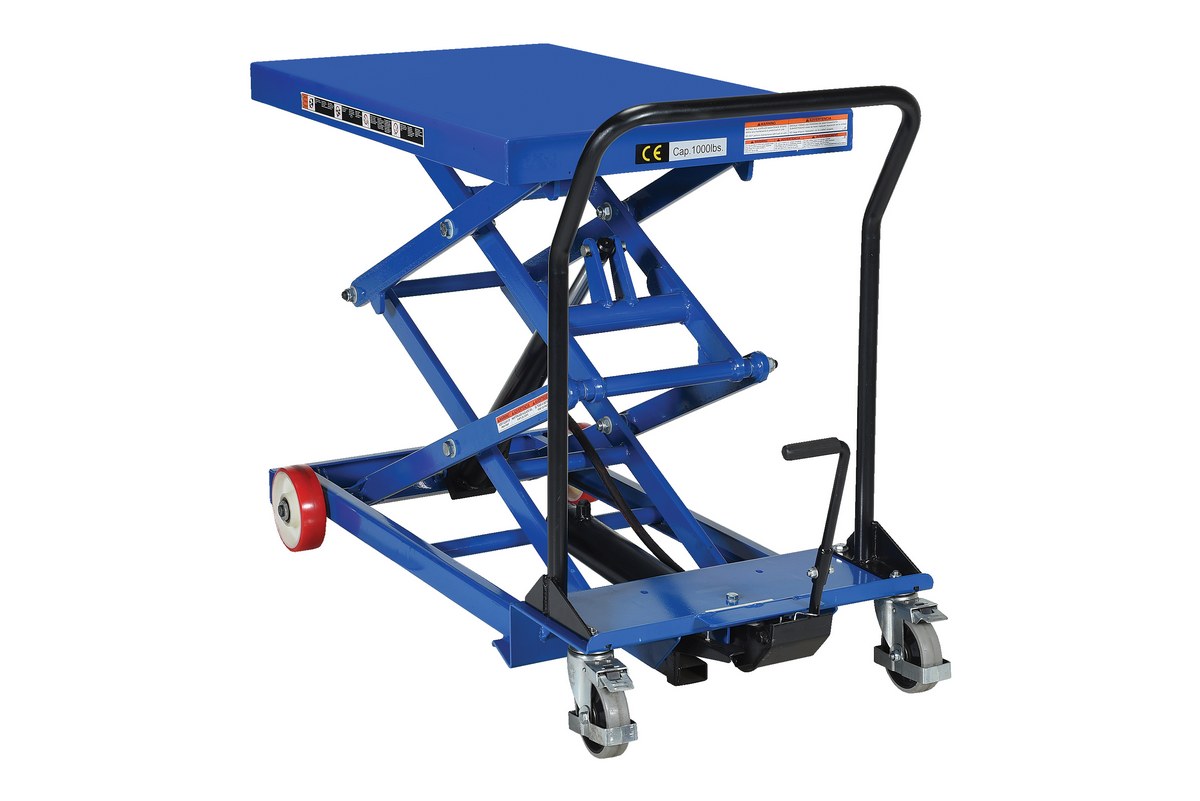

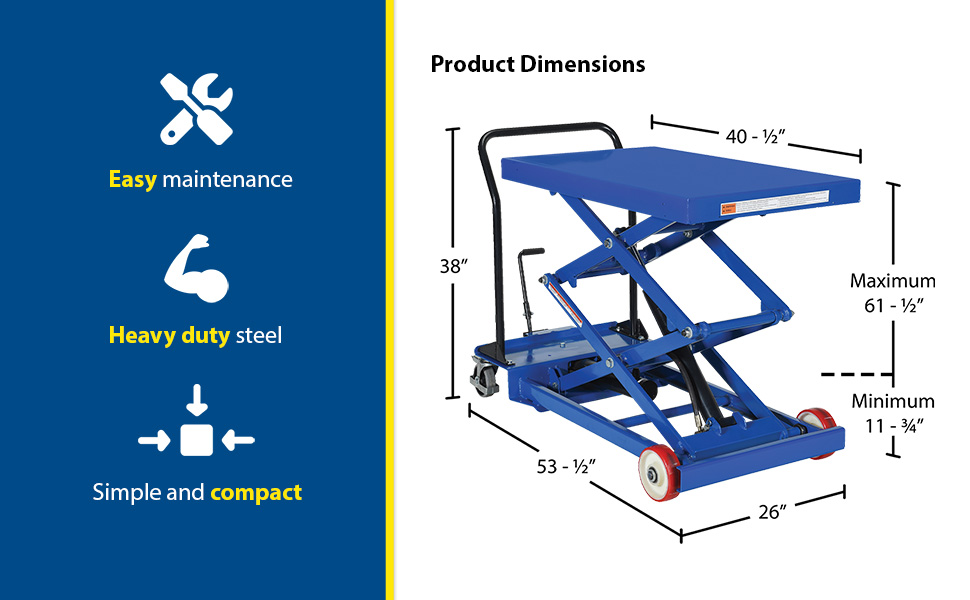

CART-1000-D-FR icon_approvaldrawings.jpgCompliance Certificate Double 24"x40-1/2" 1,000 11-3/4" 61-1/2" 384

Hand Release

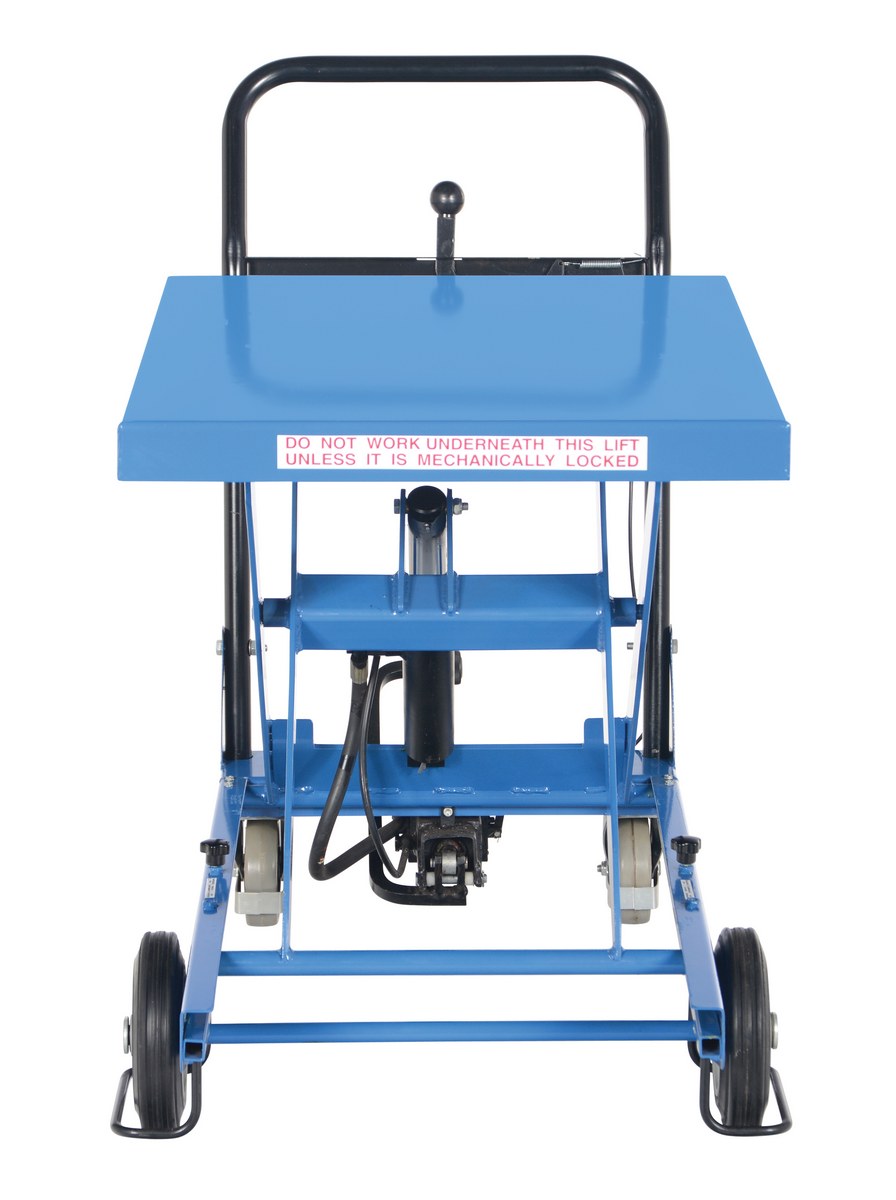

CART-300-S-HR Compliance Certificate Single 23-5/8"x35-7/16" 300 13-1/8" 36-3/8" 180

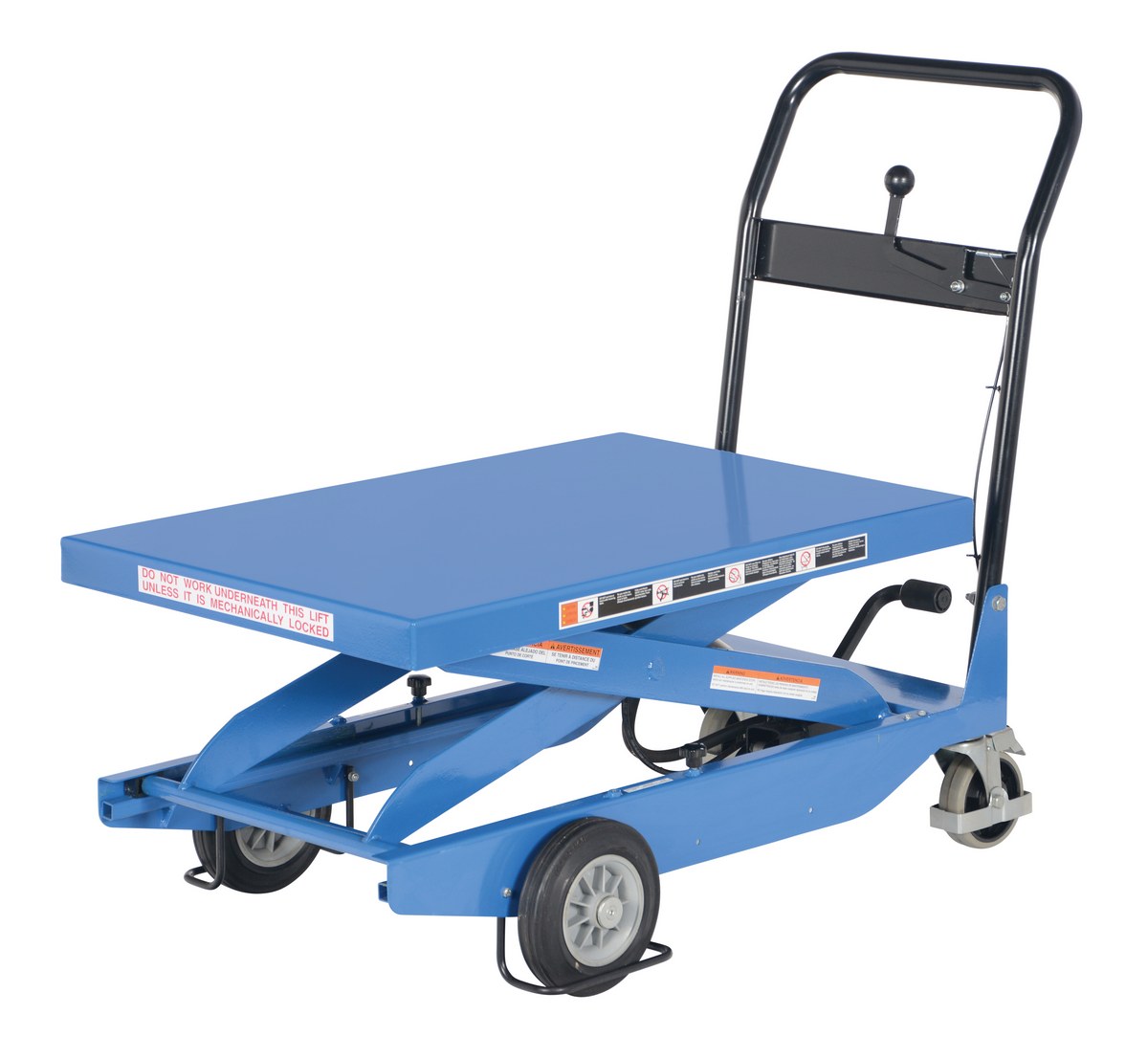

CART-1000-S-HR icon_approvaldrawings.jpgCompliance Certificate Single 23-5/8"x35-7/16" 1,000 13-1/8" 36-3/8" 212

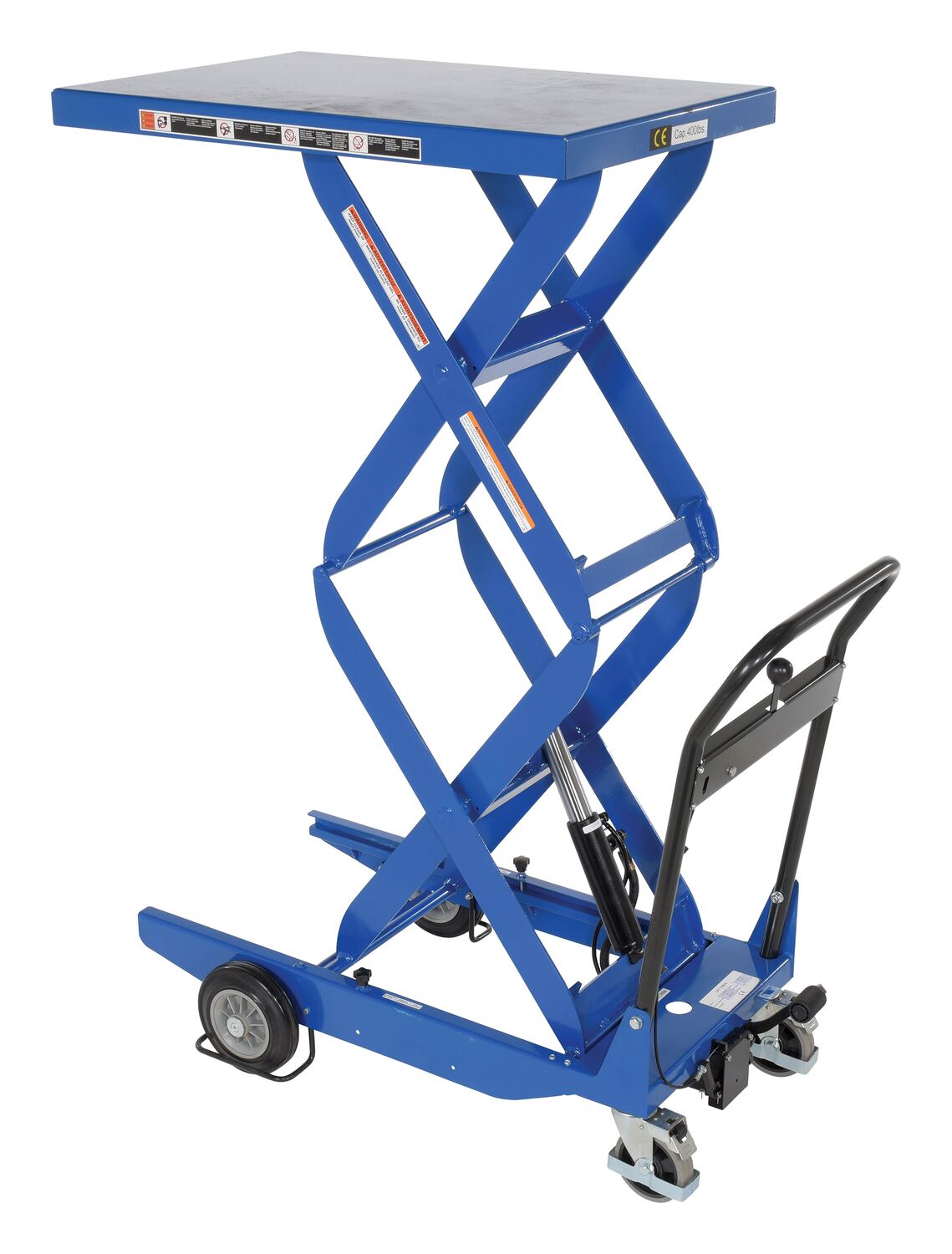

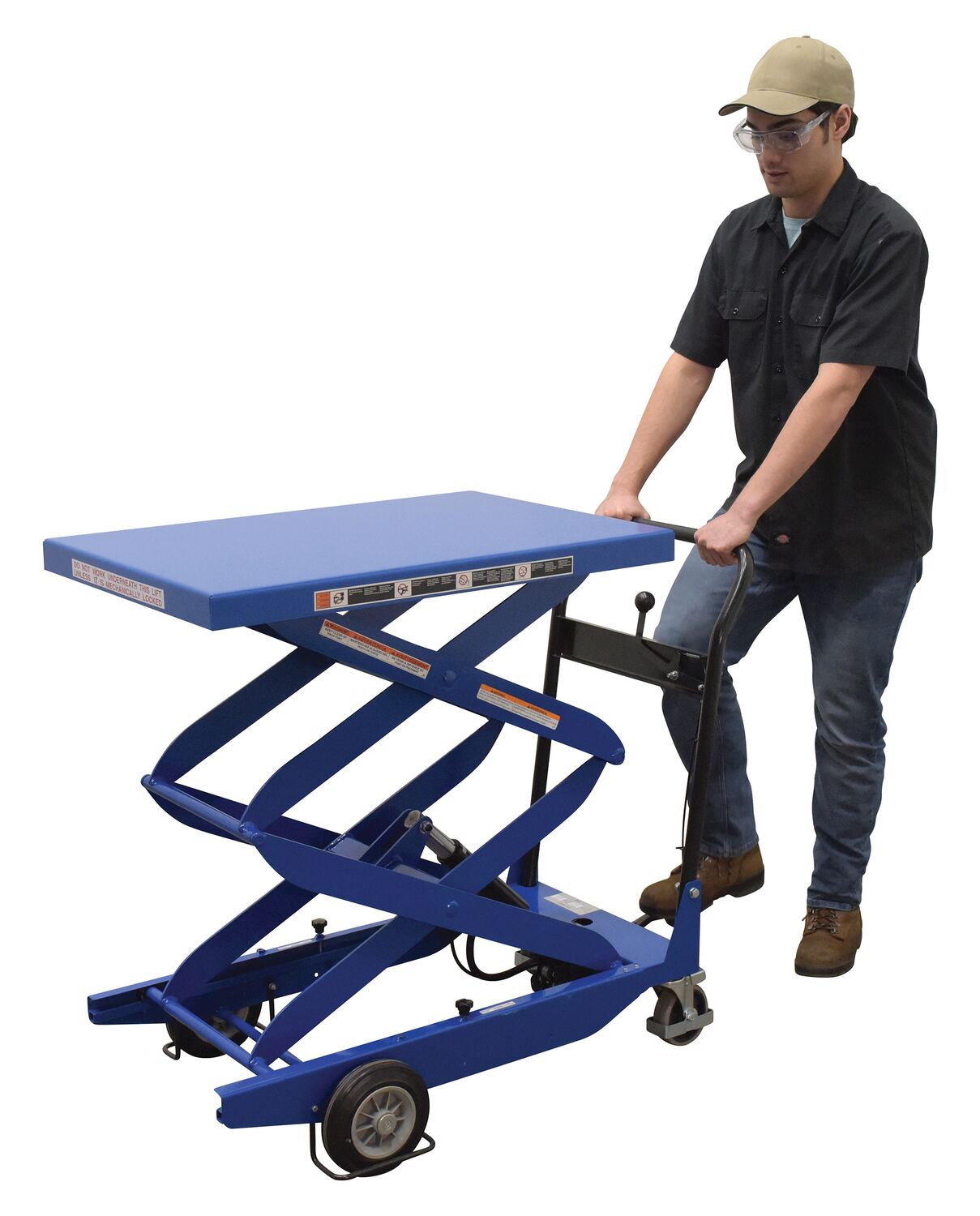

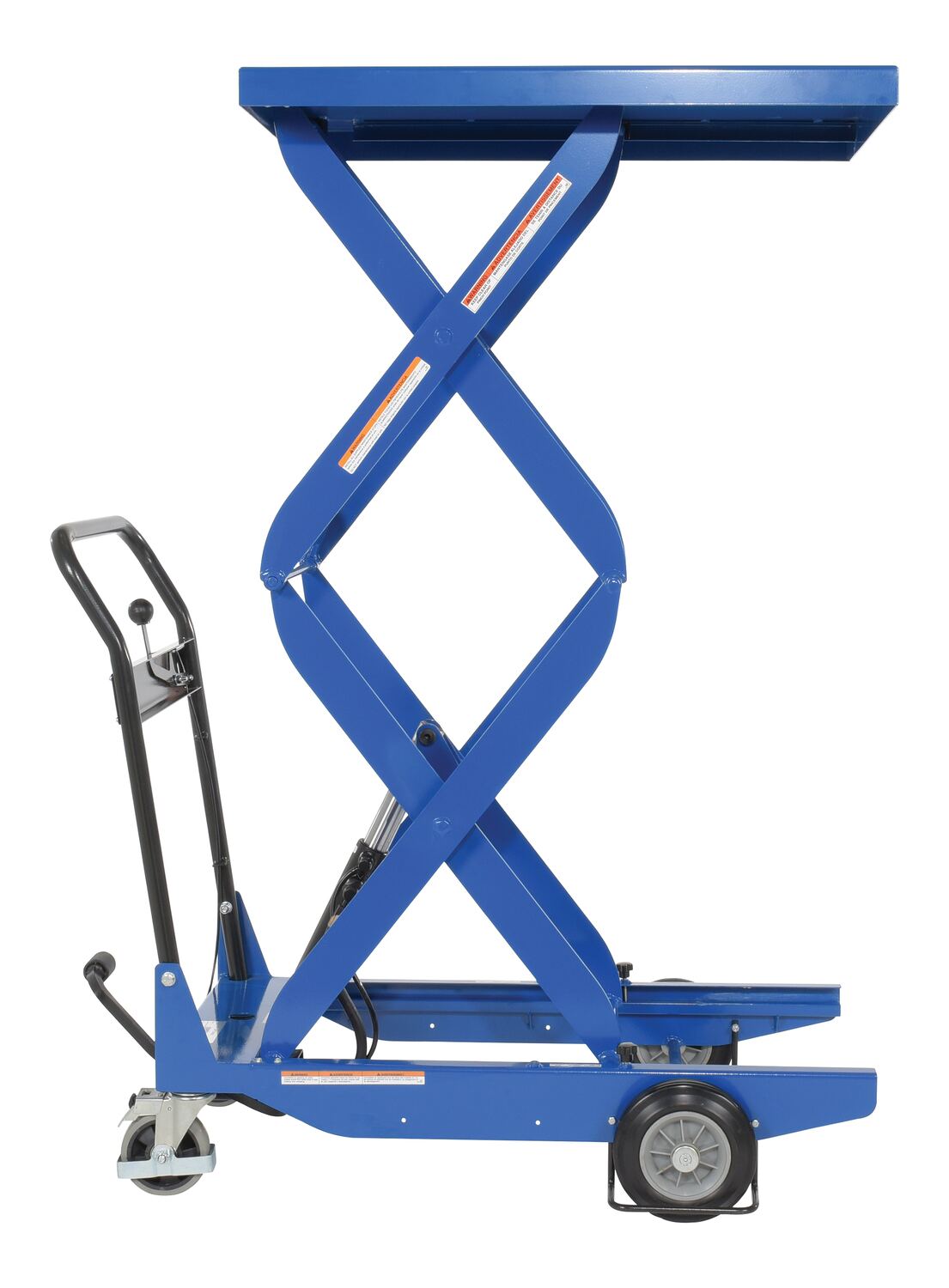

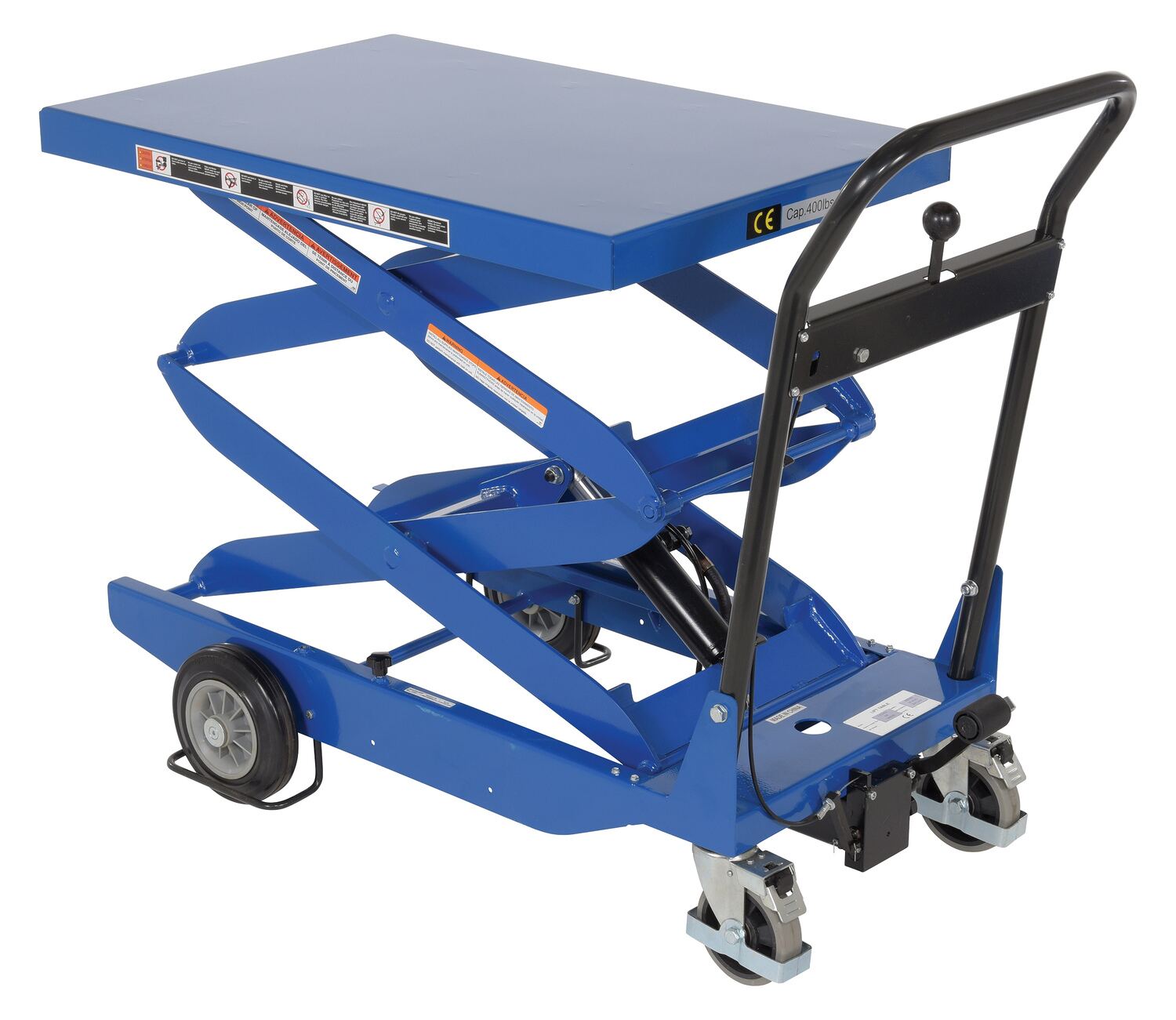

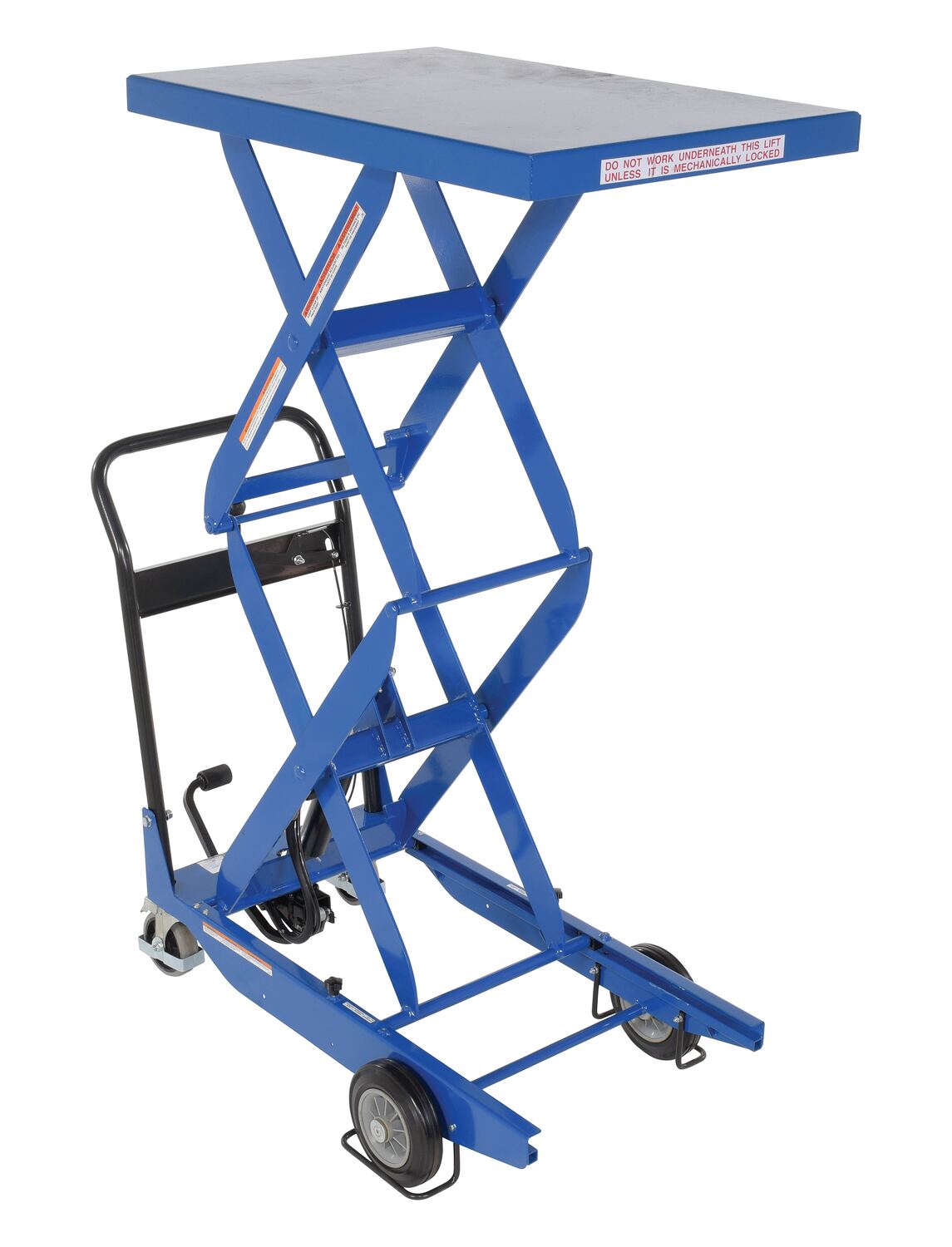

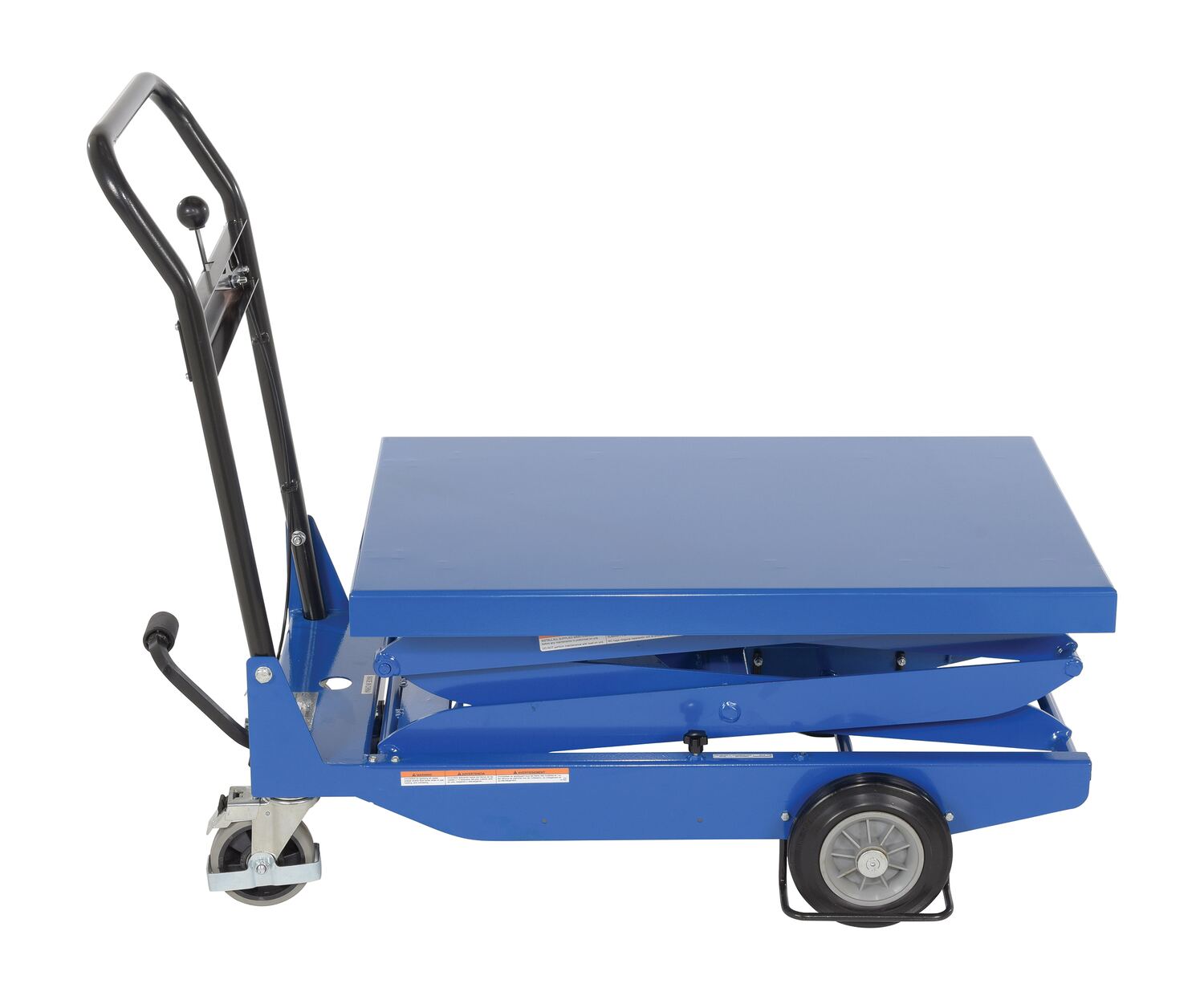

CART-400-D-HR Compliance Certificate Double 23 5/8"x35 7/16" 400 18 1/8" 65" 284

KEY: Approval Drawing = Approval Drawing -- Approval Drawing = Warranty -- Approval Drawing = Testing Certificate




Click A SKU Below To Show Details

CART-1000-D-FR

CART-1000-D-FR

CART-1000-S-FR

CART-1000-S-FR

CART-1000-S-HR

CART-1000-S-HR

CART-300-D-FR

CART-300-D-FR

CART-300-S-FR

CART-300-S-FR

CART-300-S-HR

CART-300-S-HR

CART-32-10-DC

CART-32-10-DC

CART-32-10-M

CART-32-10-M

CART-32-15-DC

CART-32-15-DC

CART-32-15-M

CART-32-15-M

CART-400-D-HR

CART-400-D-HR

CART-600-D-FR

CART-600-D-FR

CART-600-S-FR

CART-600-S-FR






Premium Scissor Lift Carts PDF's will open in a new window when clicked.

Survey Sheets

No Survey Sheets For This Product.


Approval Drawings

CART-1000-D-FR
CART-1000-S-FR
CART-1000-S-HR

Testing Certificates

CART-1000-S-HR
CART-1000-S-FR
CART-1000-D-FR
CART-600-S-FR
CART-600-D-FR
CART-400-D-HR
CART-300-S-HR
CART-300-S-FR
CART-300-D-FR
CART-32-15-M
CART-32-15-DC
CART-32-10-M
CART-32-10-DC

Other PDF's

No "Other PDFs" For This Product...


Directory Links Of Available PDF's For All Products




Q: How many pumps to the raised height?

A: Approximately 60-64 pumps to the raised height of 61 1/2".
