Product Family Overview


Foot Pump & Powered Scissor Lift Tables
SERIES: SCTAB

Foot Pump Scissor Lift Tables are used by all types of manufacturing and warehousing facilities.Features torsion tubes for side to side stability, pressure flow control valve for controlled lowering, and foot pump. Rugged welded steel construction. Painted blue finish.

DC Scissor Lift Tables utilizes (1) 12V battery, raised and lowered buttons are on top of power unit with on board charger and handheld 2 push-button hand control on an 8' coil cord.

AC Scissor Lift Tables are 460V, 3 phase power with handheld 2 push-button hand control on an 8' coil cord.

Foot Pump Scissor Lift Tables are used by all types of manufacturing and warehousing facilities.Features torsion tubes for side to side stability, pressure flow control valve for controlled lowering, and foot pump. Rugged welded steel construction. Painted blue finish.

DC Scissor Lift Tables utilizes (1) 12V battery, raised and lowered buttons are on top of power unit with on board charger and handheld 2 push-button hand control on an 8' coil cord.

AC Scissor Lift Tables are 460V, 3 phase power with handheld 2 push-button hand control on an 8' coil cord.

Additional Models In This Family

Model Specific Details




All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.
The Search Box below is within the Model Chart on this page. Not an entire site search.
Model # PDF's Description Attributes Net Wt.
(lbs)
SCTAB-1000-2040-AC SCTAB-1000-2040-AC1 Year Limited WarrantySteel Scissor Lift Table AC Power 51-9/16 In. x 20-1/2 In. x 32 In. 1,000 Lb. Capacity BlueUniform Capacity (lb.): 1000
Platform Width (in.): 20-3/8
315

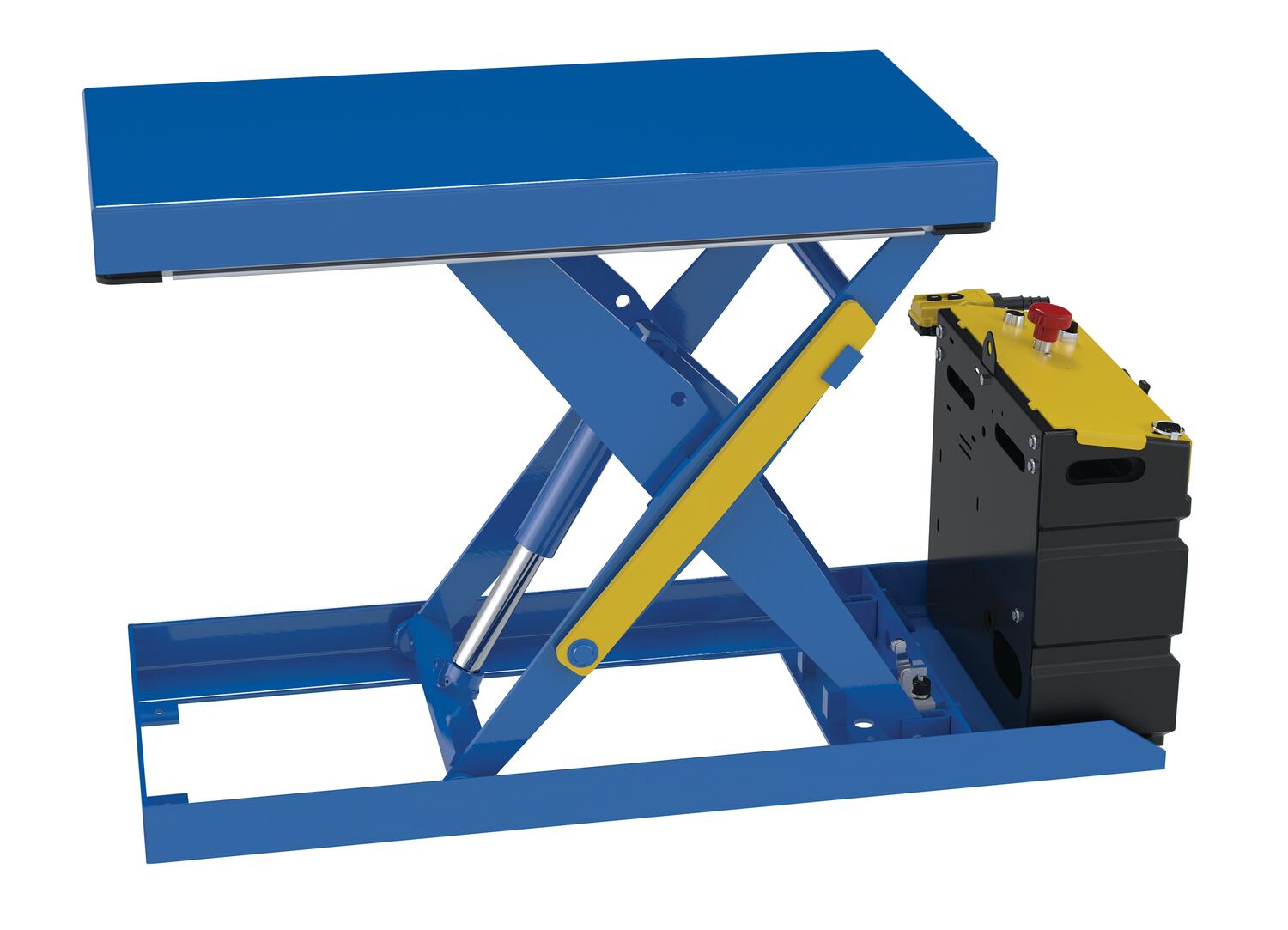

SCTAB-1000-2040-DC 1 Year Limited WarrantySteel Scissor Lift Table DC Power 51-9/16 In. x 20-1/2 In. x 32 In. 1,000 Lb. Capacity BlueUniform Capacity (lb.): 1000
Platform Width (in.): 20-3/8
378

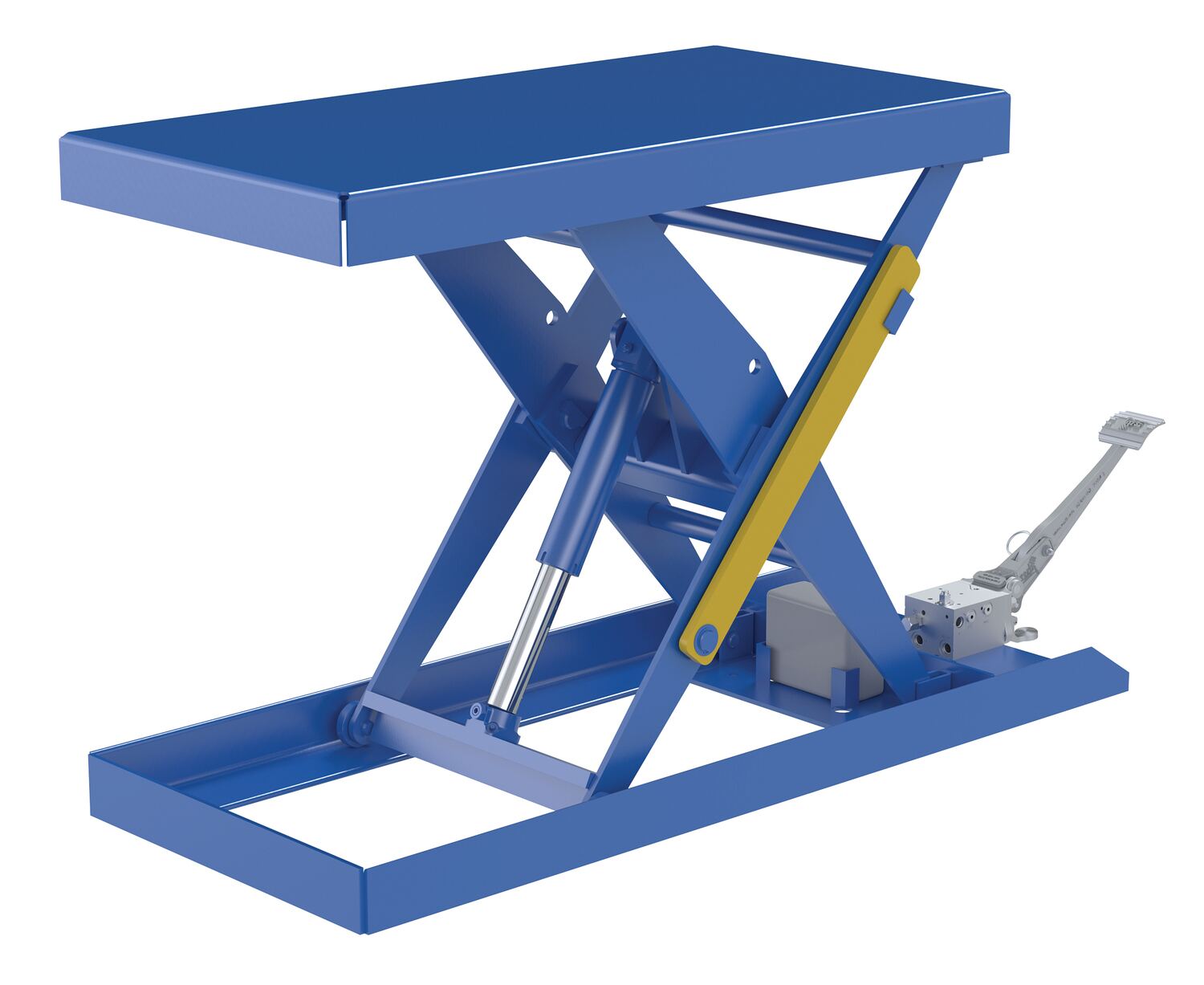

SCTAB-1000-2040-FP SCTAB-1000-2040-FP1 Year Limited WarrantySteel Scissor Lift Table Foot Pump 63-1/16 In. x 20-1/2 In. x 32 In. 1,000 Lb. Capacity BlueUniform Capacity (lb.): 1000
Platform Width (in.): 20-3/8
298
SCTAB-2000-2040-AC SCTAB-2000-2040-AC1 Year Limited WarrantySteel Scissor Lift Table AC Power 51-1/2 In. x 20-1/2 In. x 32 In. 2,000 Lb. Capacity BlueUniform Capacity (lb.): 2000
Platform Width (in.): 20-3/8
328

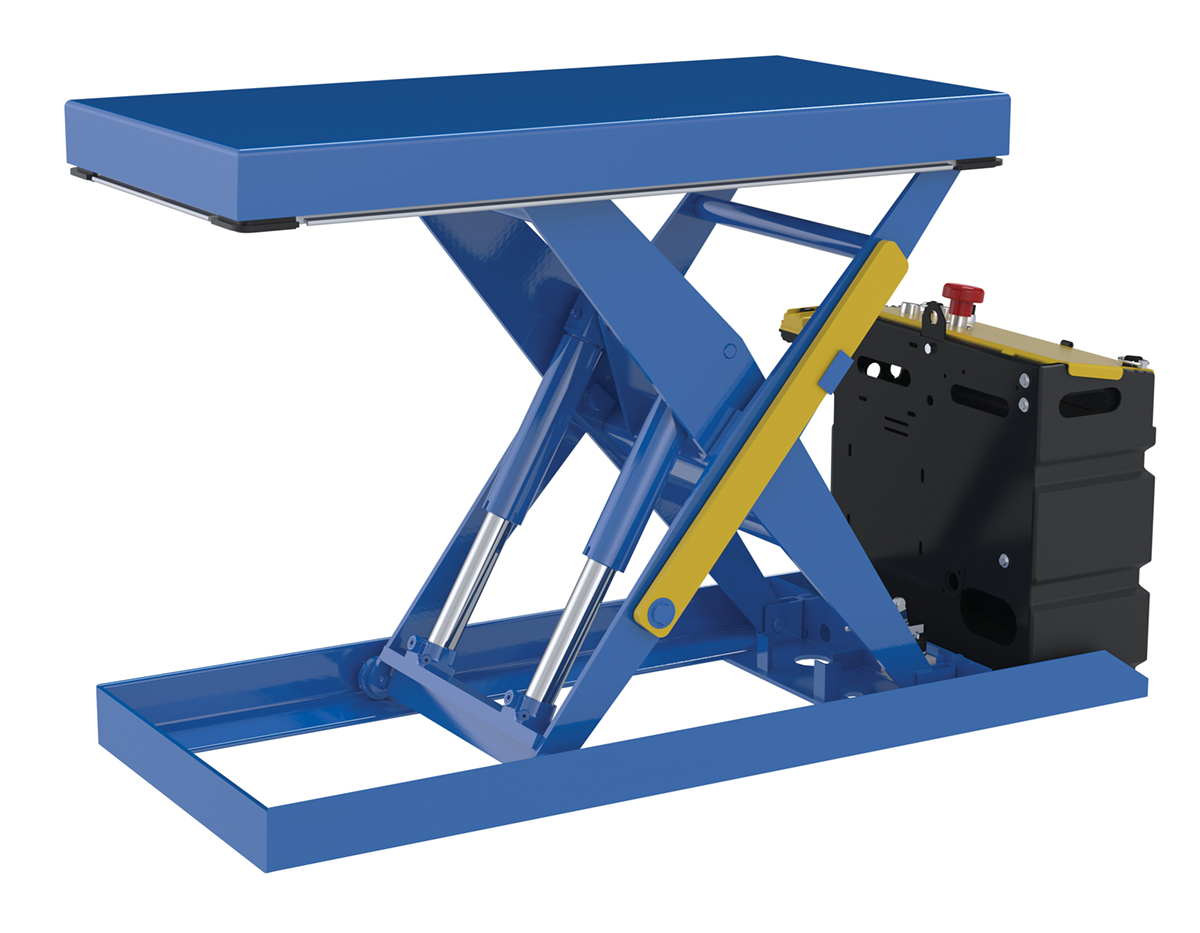

SCTAB-2000-2040-DC SCTAB-2000-2040-DC1 Year Limited WarrantySteel Scissor Lift Table DC Power 51-9/16 In. x 20-1/2 In. x 32 In. 2,000 Lb. Capacity BlueUniform Capacity (lb.): 2000
Platform Width (in.): 20-3/8
396

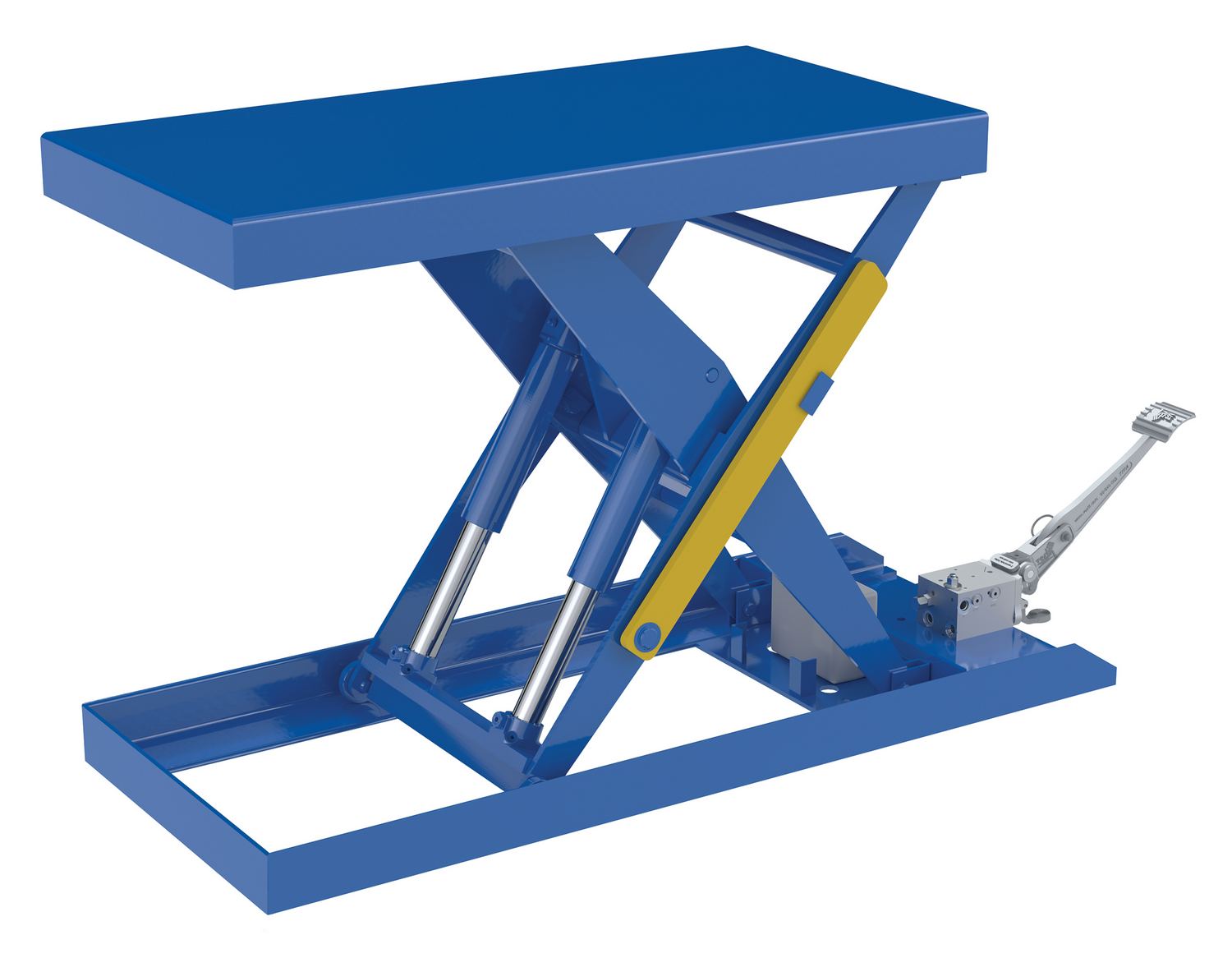

SCTAB-2000-2040-FP 1 Year Limited WarrantySteel Scissor Lift Table Foot Pump 63-1/16 In. x 20-1/2 In. x 32 In. 2,000 Lb. Capacity BlueUniform Capacity (lb.): 2000
Platform Width (in.): 20-3/8
314
SCTAB-2000-3240-AC SCTAB-2000-3240-AC1 Year Limited WarrantySteel Scissor Lift Table AC Power 54-1/16 In. x 32-1/2 In. x 32 In. 2,000 Lb. Capacity BlueUniform Capacity (lb.): 2000
Platform Width (in.): 32-3/8
394

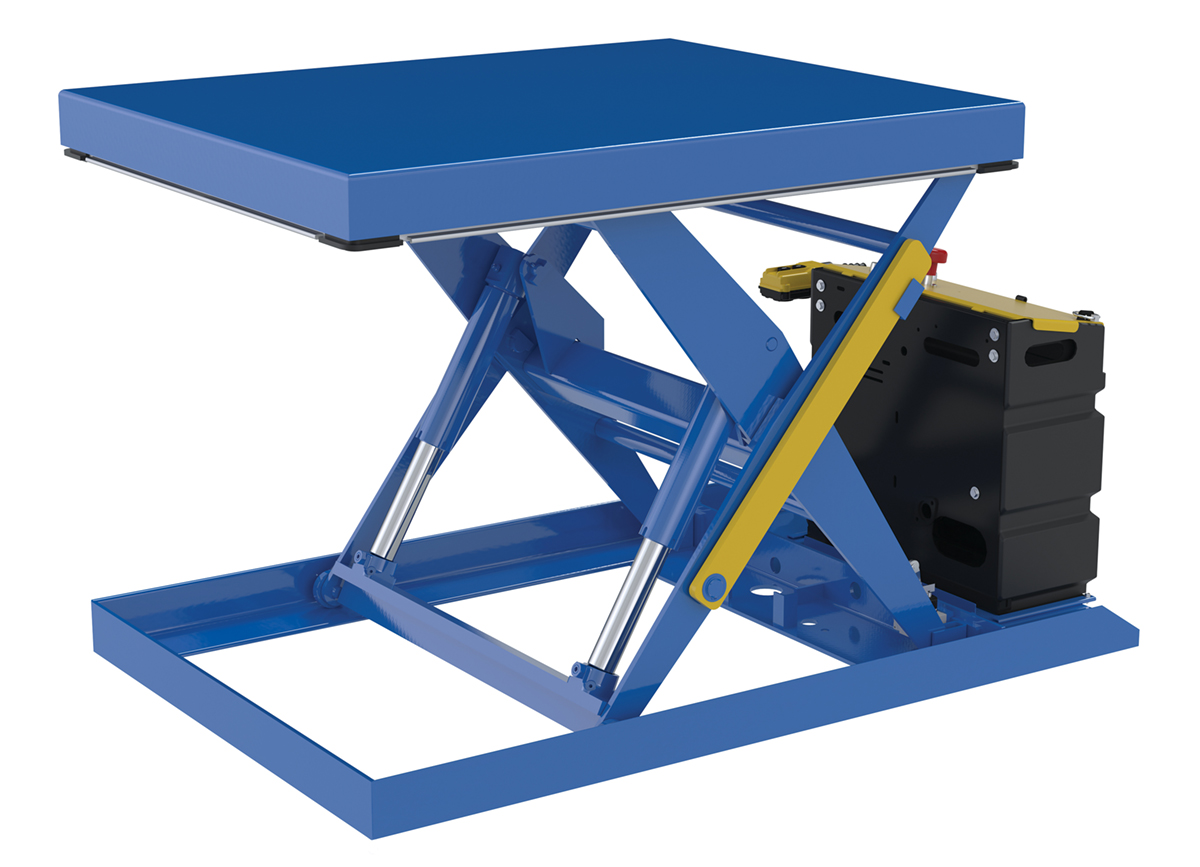

SCTAB-2000-3240-DC SCTAB-2000-3240-DC1 Year Limited WarrantySteel Scissor Lift Table DC Power 54-1/8 In. x 32-1/2 In. x 32 In. 2,000 Lb. Capacity BlueUniform Capacity (lb.): 2000
Platform Width (in.): 32-3/8
438
SCTAB-2000-3240-FP SCTAB-2000-3240-FP1 Year Limited WarrantySteel Scissor Lift Table Foot Pump 65 In. x 32-1/2 In. x 32 In. 2,000 Lb. Capacity BlueUniform Capacity (lb.): 2000
Platform Width (in.): 32-3/8
430

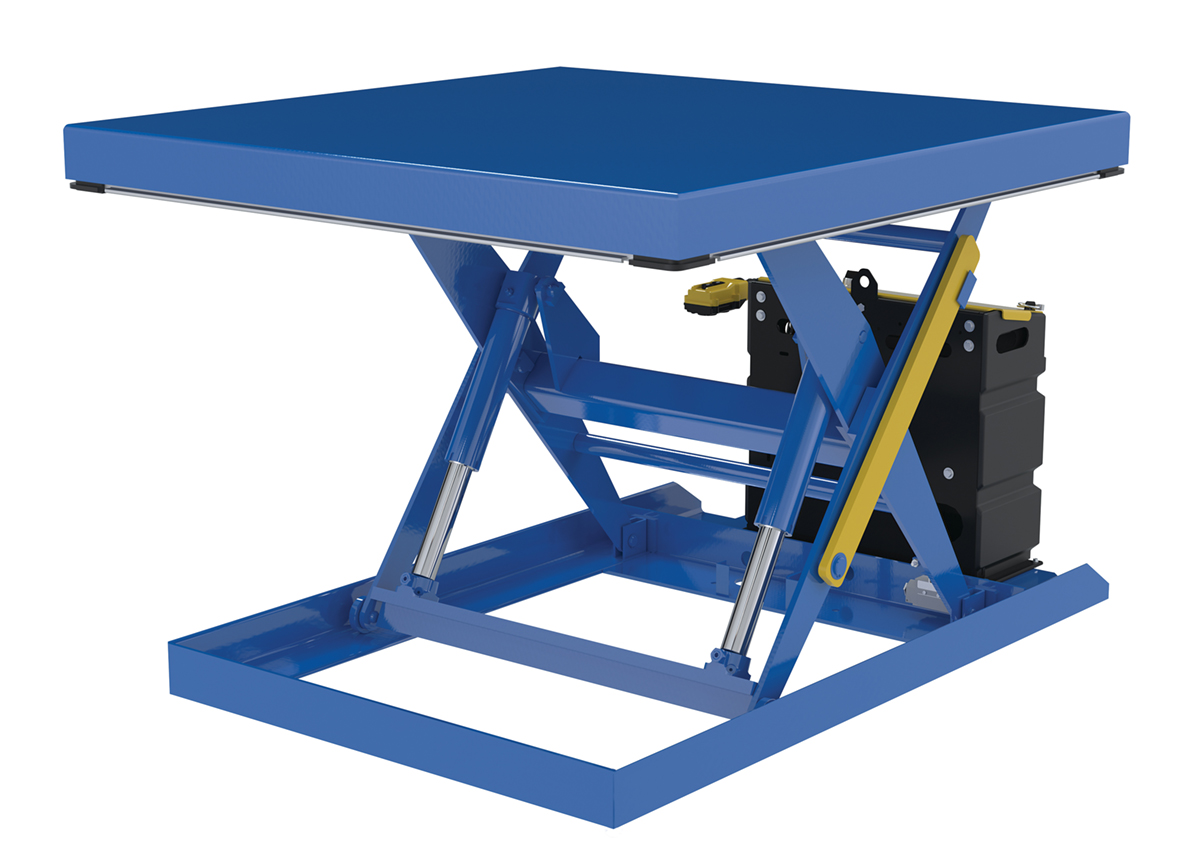

SCTAB-2000-4242-AC SCTAB-2000-4242-AC1 Year Limited WarrantySteel Scissor Lift Table AC Power 55-3/8 In. x 42-3/8 In. x 32 In. 2,000 Lb. Capacity BlueUniform Capacity (lb.): 2000
Platform Width (in.): 42-3/8
417

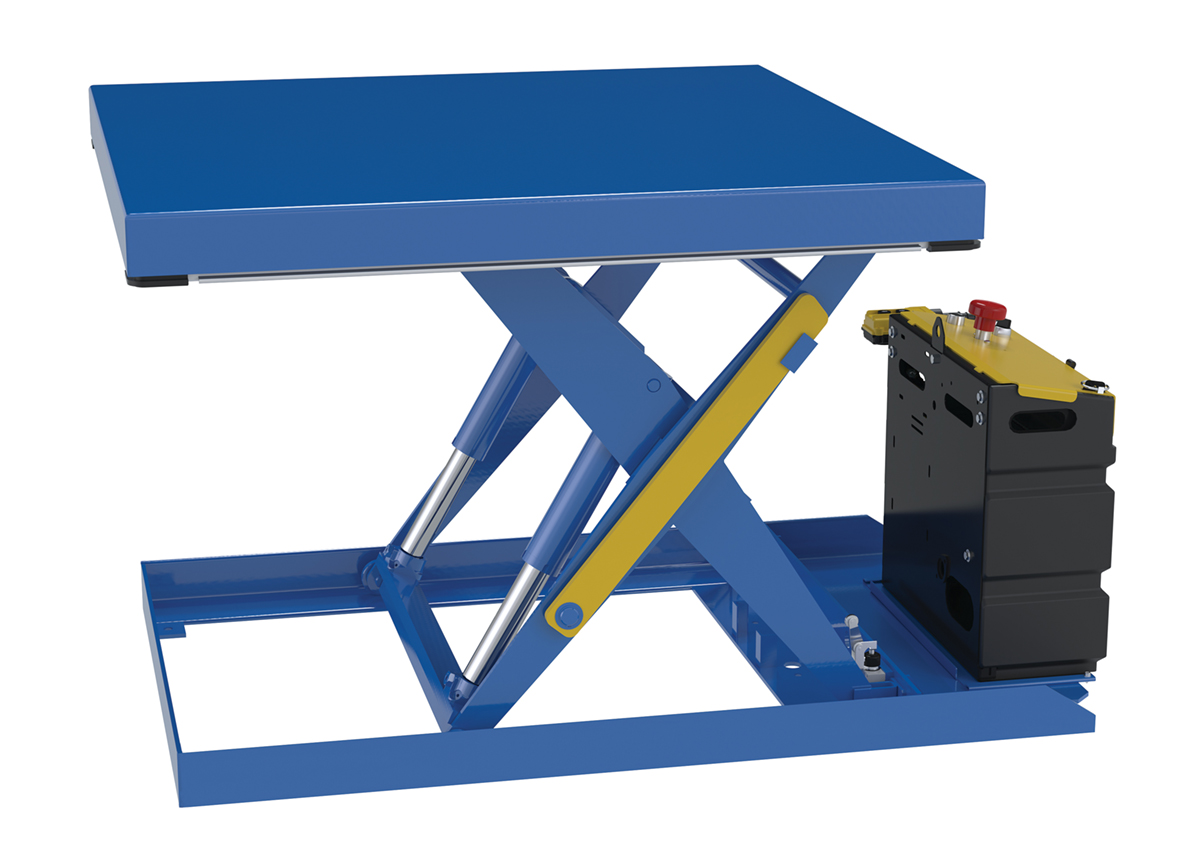

SCTAB-2000-4242-DC SCTAB-2000-4242-DC1 Year Limited WarrantySteel Scissor Lift Table DC Power 55-7/16 In. x 42-3/8 In. x 32 In. 2,000 Lb. Capacity BlueUniform Capacity (lb.): 2000
Platform Width (in.): 42-3/8
456
SCTAB-2000-4242-FP SCTAB-2000-4242-FP1 Year Limited WarrantySteel Scissor Lift Table Foot Pump 64-9/16 In. x 42-3/8 In. x 32 In. 2,000 Lb. Capacity BlueUniform Capacity (lb.): 2000
Platform Width (in.): 42-3/8
400

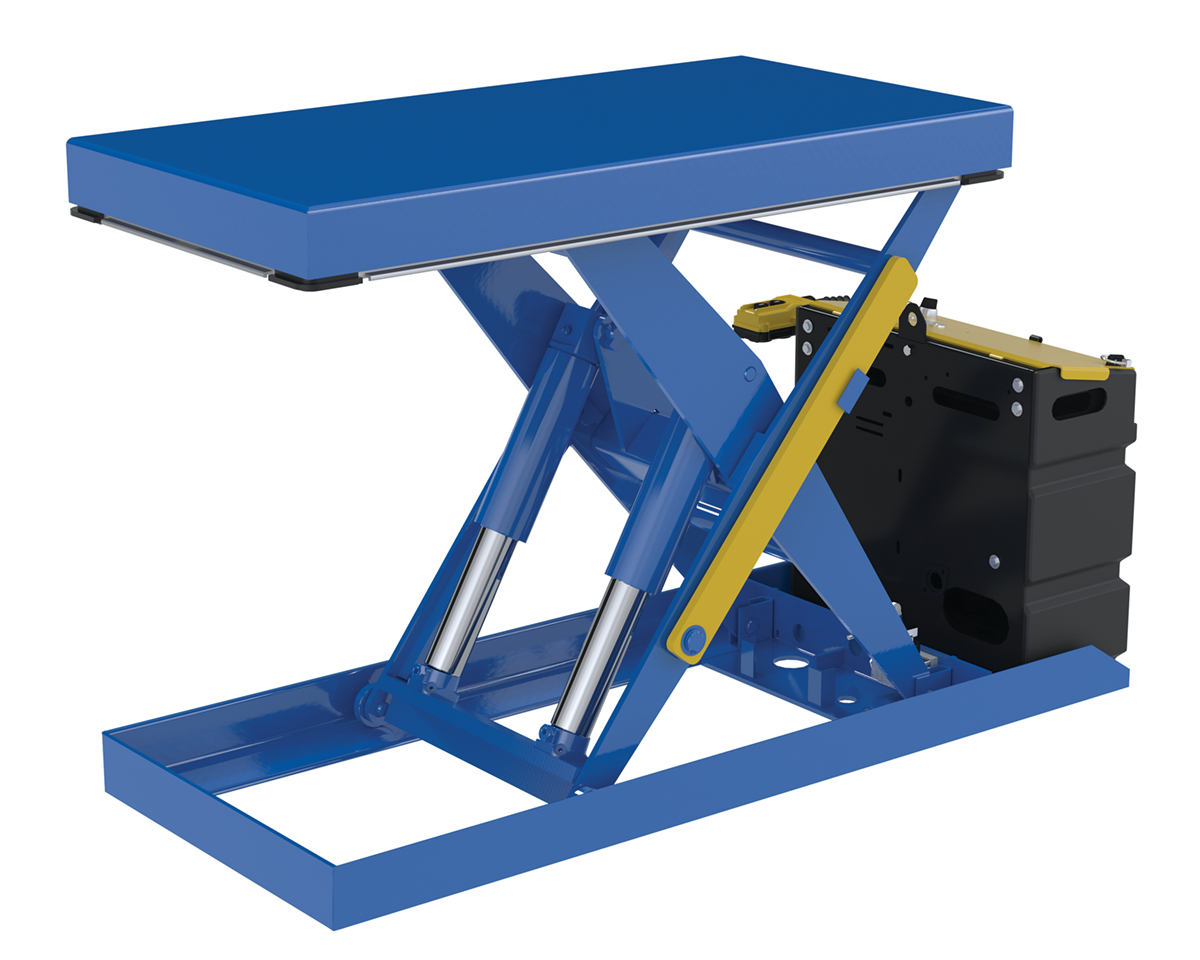

SCTAB-2500-2040-AC SCTAB-2500-2040-AC1 Year Limited WarrantySteel Scissor Lift Table AC Power 51-1/2 In. x 20-1/2 In. x 32 In. 2,500 Lb. Capacity BlueUniform Capacity (lb.): 2500
Platform Width (in.): 20-3/8
347

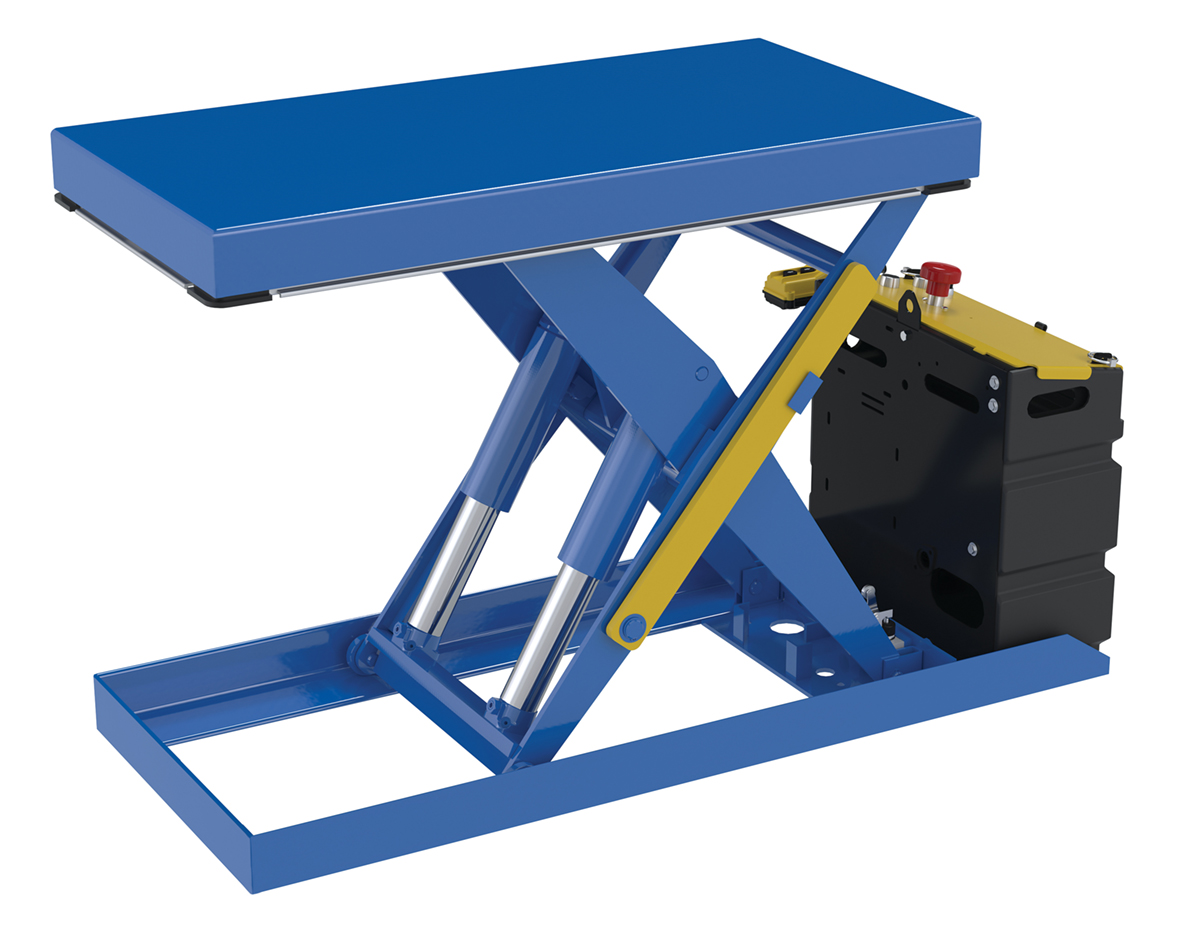

SCTAB-2500-2040-DC SCTAB-2500-2040-DC1 Year Limited WarrantySteel Scissor Lift Table DC Power 51-9/16 In. x 20-1/2 In. x 32 In. 2,500 Lb. Capacity BlueUniform Capacity (lb.): 2500
Platform Width (in.): 20-3/8
385
SCTAB-2500-2040-FP SCTAB-2500-2040-FP1 Year Limited WarrantySteel Scissor Lift Table Foot Pump 63-7/16 In. x 20-1/2 In. x 32 In. 2,500 Lb. Capacity BlueUniform Capacity (lb.): 2500
Platform Width (in.): 20-3/8
332

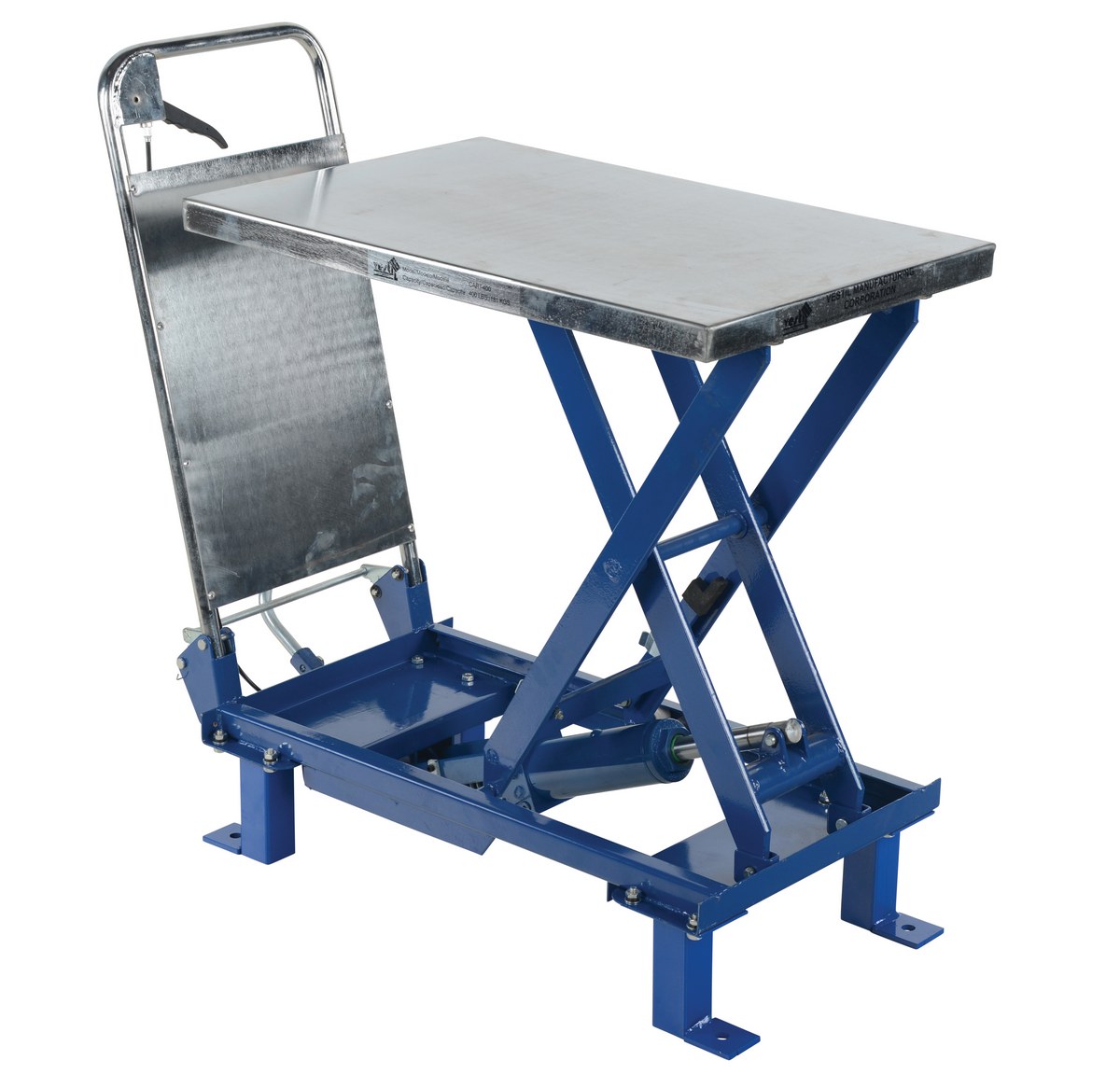

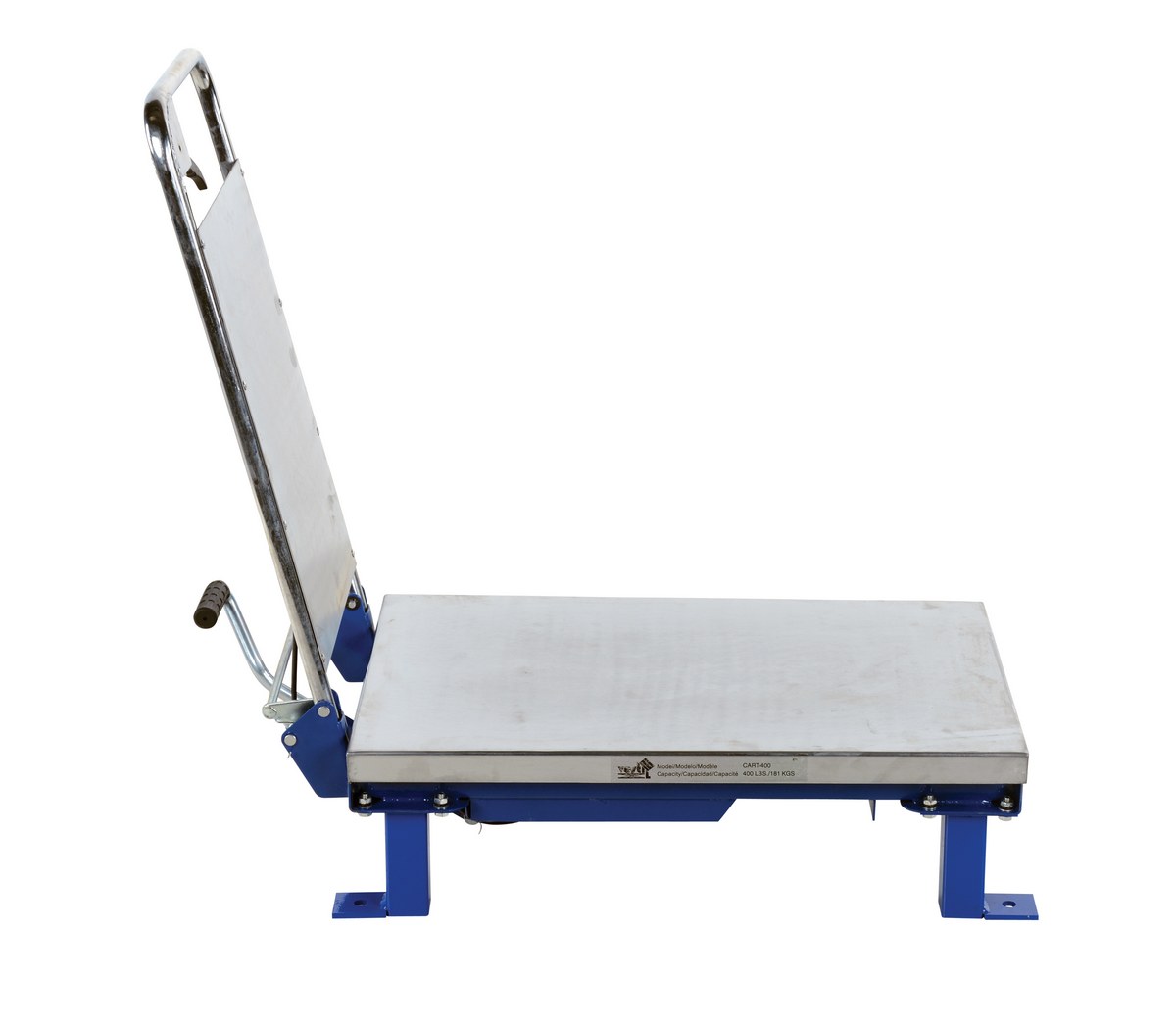

SCTAB-400 SCTAB-4001 Year Limited WarrantySteel Scissor Lift Table Foot Pump 34-9/16 In. x 17-3/4 In. x 34-1/2 In. 400 Lb. Capacity BlueUniform Capacity (lb.): 400
Platform Width (in.): 17-3/4
269

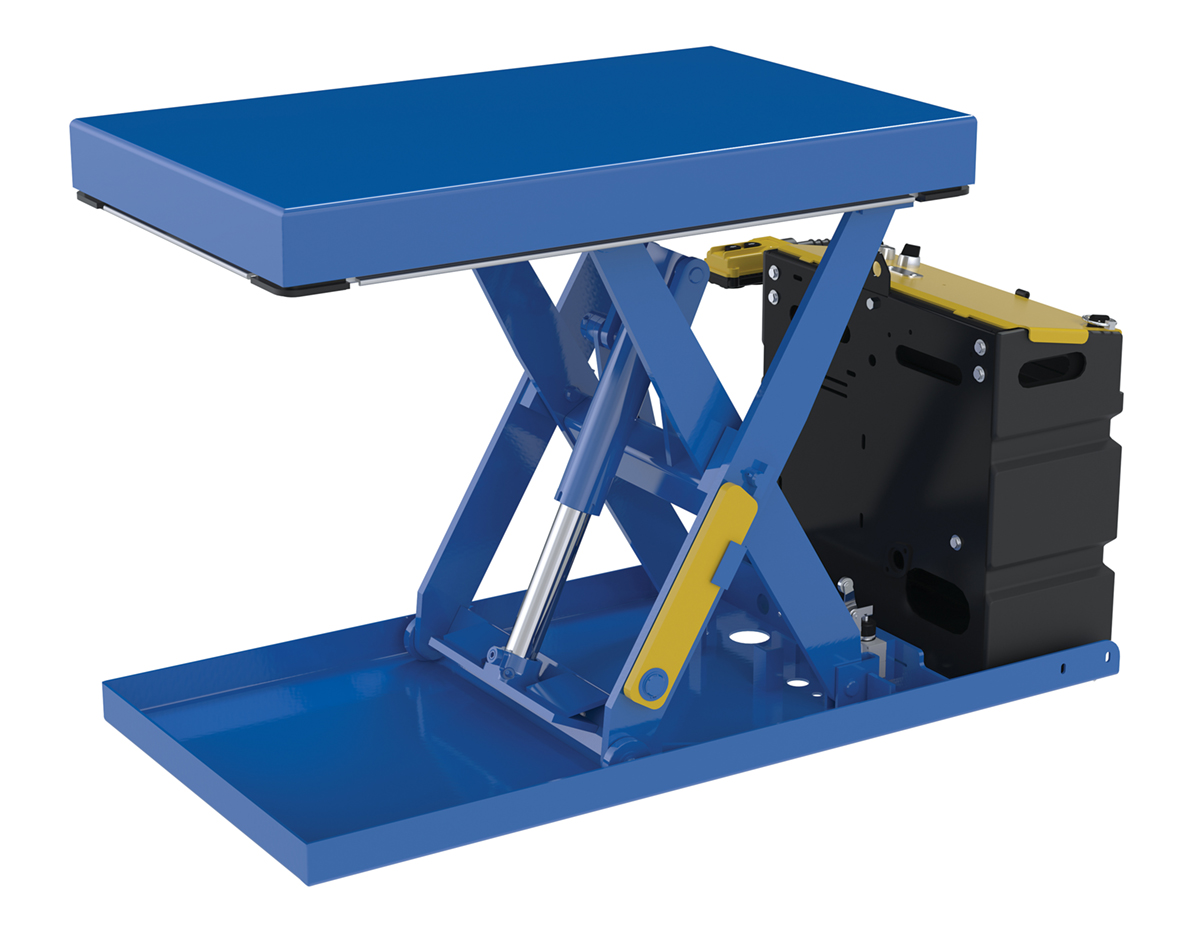

SCTAB-500-2033-AC SCTAB-500-2033-AC1 Year Limited WarrantySteel Scissor Lift Table AC Power 44-3/16 In. x 20-1/2 In. x 28 In. 500 Lb. Capacity BlueUniform Capacity (lb.): 500
Platform Width (in.): 20-3/8
263
SCTAB-500-2033-DC SCTAB-500-2033-DC1 Year Limited WarrantySteel Scissor Lift Table DC Power 44-3/16 In. x 20-1/2 In. x 28 In. 500 Lb. Capacity BlueUniform Capacity (lb.): 500
Platform Width (in.): 20-3/8
320
SCTAB-500-2033-FP SCTAB-500-2033-FP1 Year Limited WarrantySteel Scissor Lift Table Foot Pump 56-1/16 In. x 20-1/2 In. x 28 In. 500 Lb. Capacity BlueUniform Capacity (lb.): 500
Platform Width (in.): 20-3/8
263

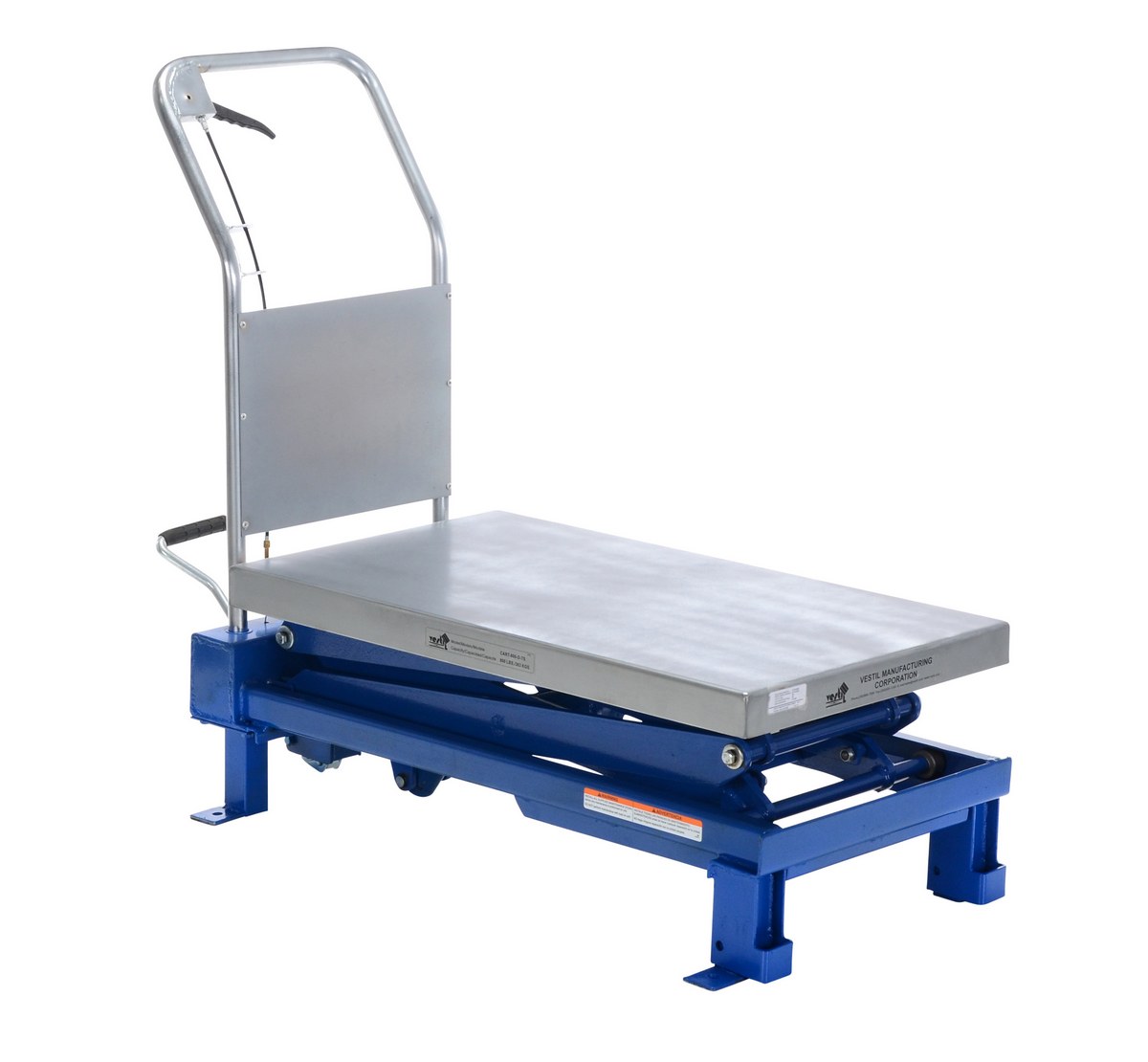

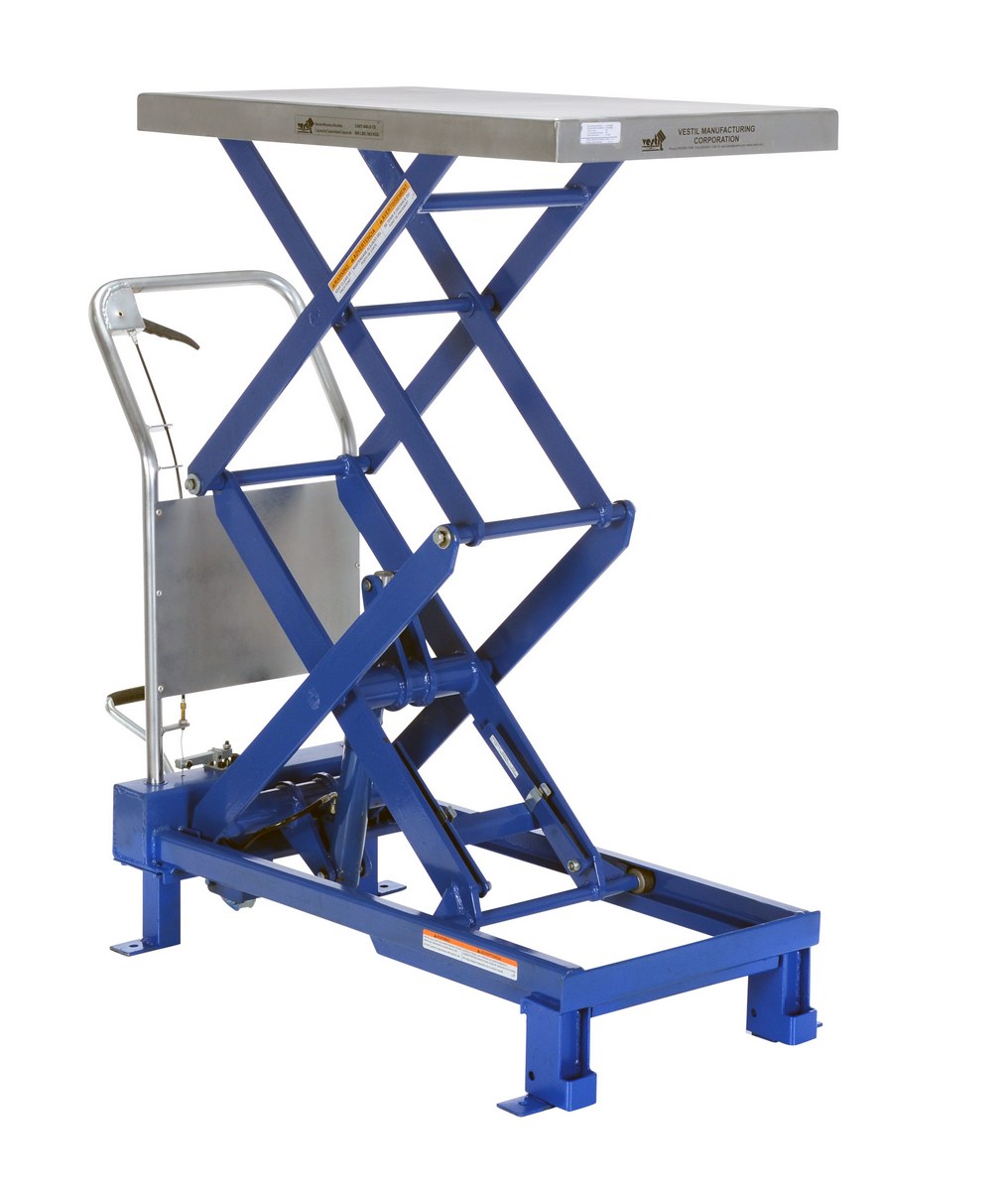

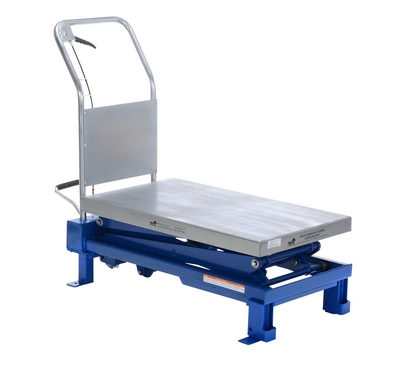

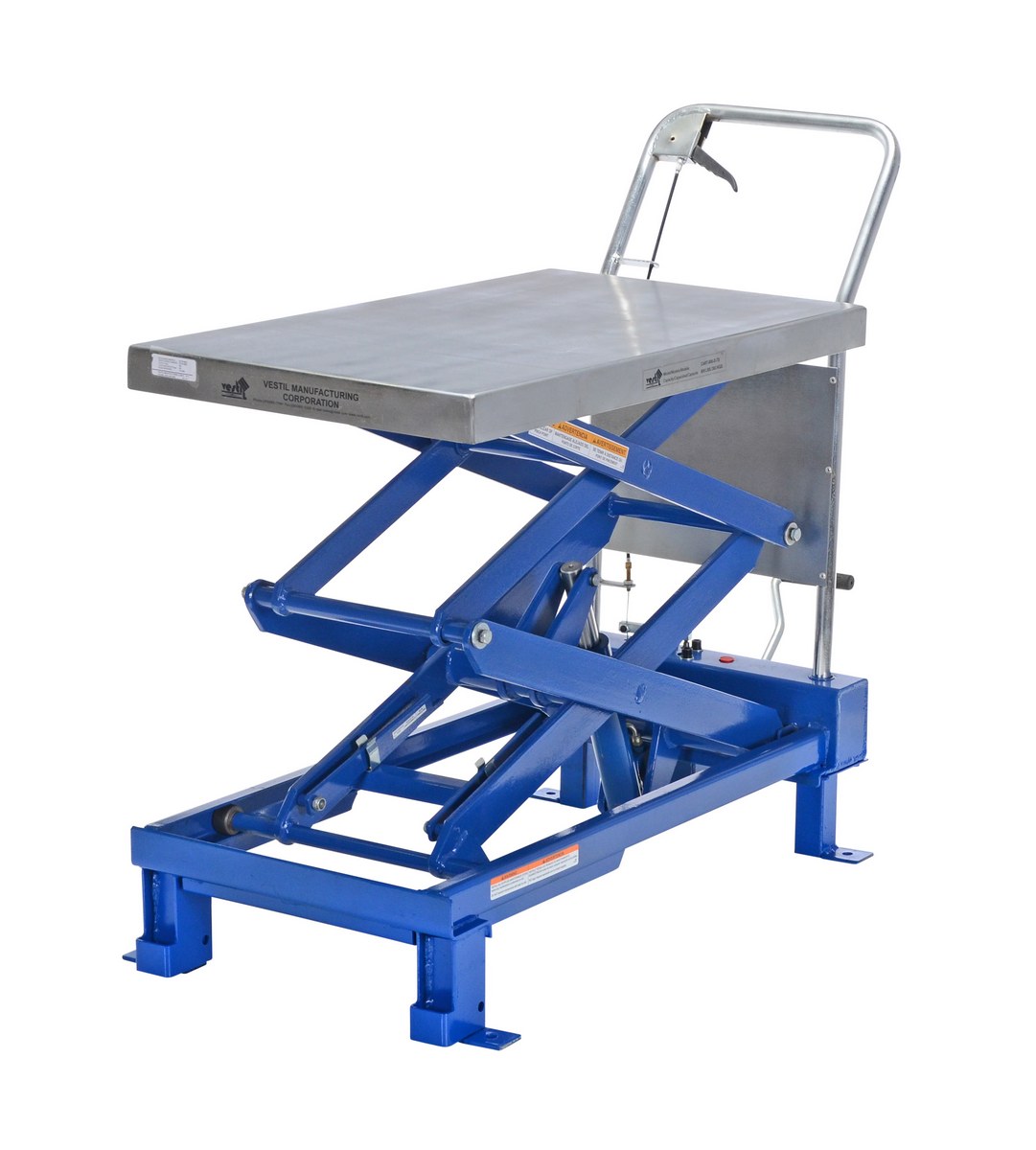

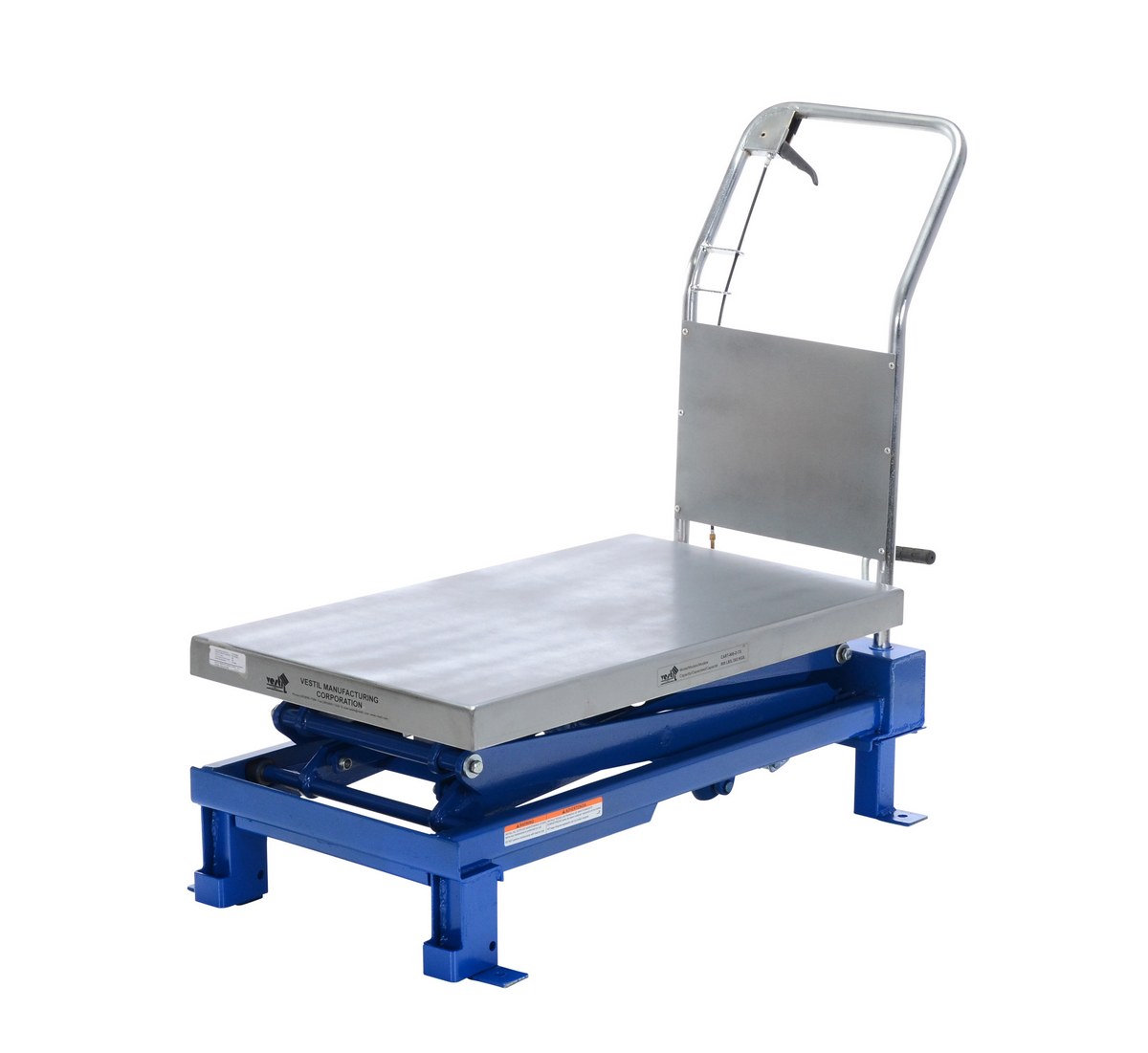

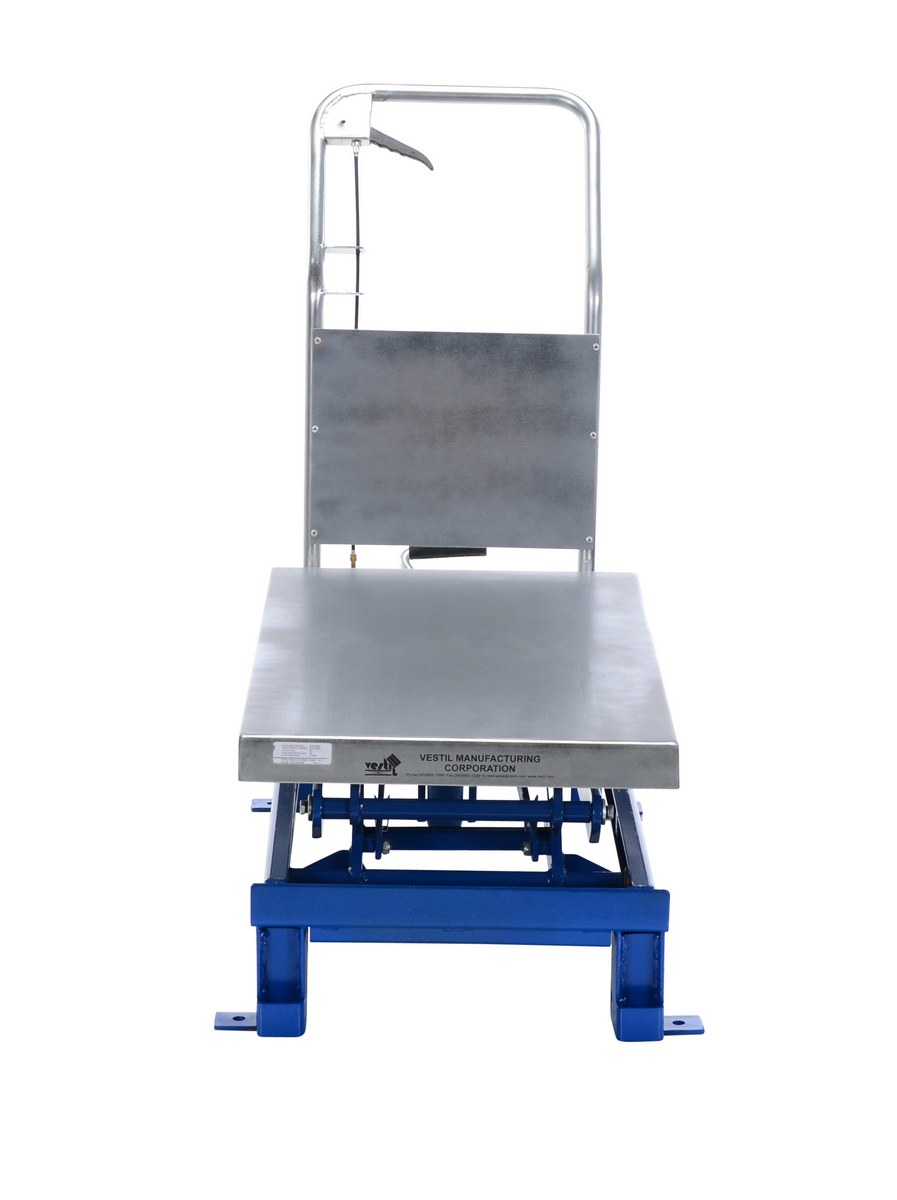

SCTAB-800D SCTAB-800D1 Year Limited WarrantySteel Scissor Lift Table Double Foot Pump 52-5/8 In. x 21-3/8 In. x 39-1/2 In. 800 Lb. Capacity BlueUniform Capacity (lb.): 800
Platform Width (in.): 20
290
SCTABD-1000-2033-AC 1 Year Limited WarrantySteel Double Scissor Lift Table AC Power 43-1/4 In. x 20-1/2 In. x 35 In. 1,000 Lb. Capacity BlueUniform Capacity (lb.): 1000
Platform Width (in.): 20-3/8
302
SCTABD-1000-2033-DC SCTABD-1000-2033-DC1 Year Limited WarrantySteel Double Scissor Lift Table DC Power 43-1/4 In. x 20-1/2 In. x 35 In. 1,000 Lb. Capacity BlueUniform Capacity (lb.): 1000
Platform Width (in.): 20-3/8
346
SCTABD-1000-2033-FP SCTABD-1000-2033-FP1 Year Limited WarrantySteel Double Scissor Lift Table Foot Pump 56-1/16 In. x 20-1/2 In. x 35 In. 1,000 Lb. Capacity BlueUniform Capacity (lb.): 1000
Platform Width (in.): 20-3/8
309
SCTABD-750-2040-AC SCTABD-750-2040-AC1 Year Limited WarrantySteel Double Scissor Lift Table AC Power 49-1/2 In. x 20-1/2 In. x 35 In. 750 Lb. Capacity BlueUniform Capacity (lb.): 750
Platform Width (in.): 20-3/8
304
SCTABD-750-2040-DC SCTABD-750-2040-DC1 Year Limited WarrantySteel Double Scissor Lift Table DC Power 49-9/16 In. x 20-1/2 In. x 35 In. 750 Lb. Capacity BlueUniform Capacity (lb.): 750
Platform Width (in.): 20-3/8
339
SCTABD-750-2040-FP SCTABD-750-2040-FP1 Year Limited WarrantySteel Double Scissor Lift Table Foot Pump 61-7/16 In. x 20-1/2 In. x 35 In. 750 Lb. Capacity BlueUniform Capacity (lb.): 750
Platform Width (in.): 20-3/8
291

KEY: = Expand Model Details = 48hr Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= Approval Drawing = Testing Certificate Warranty

Manual Foot Pump
Model Number Image PDF's Foot Pump
Speed
Platform
(WxL)
Capacity
(lbs)
Lowered
Height
Raised
Height
Wt.
(lbs)
SCTAB-400 Compliance Certificate Single 17-3/4"x27-5/8" 400 8-1/2" 28-13/16" 138
SCTAB-800D icon_approvaldrawings.jpgCompliance Certificate Two 20"x35-1/2" 800 15-7/16" 52" 290

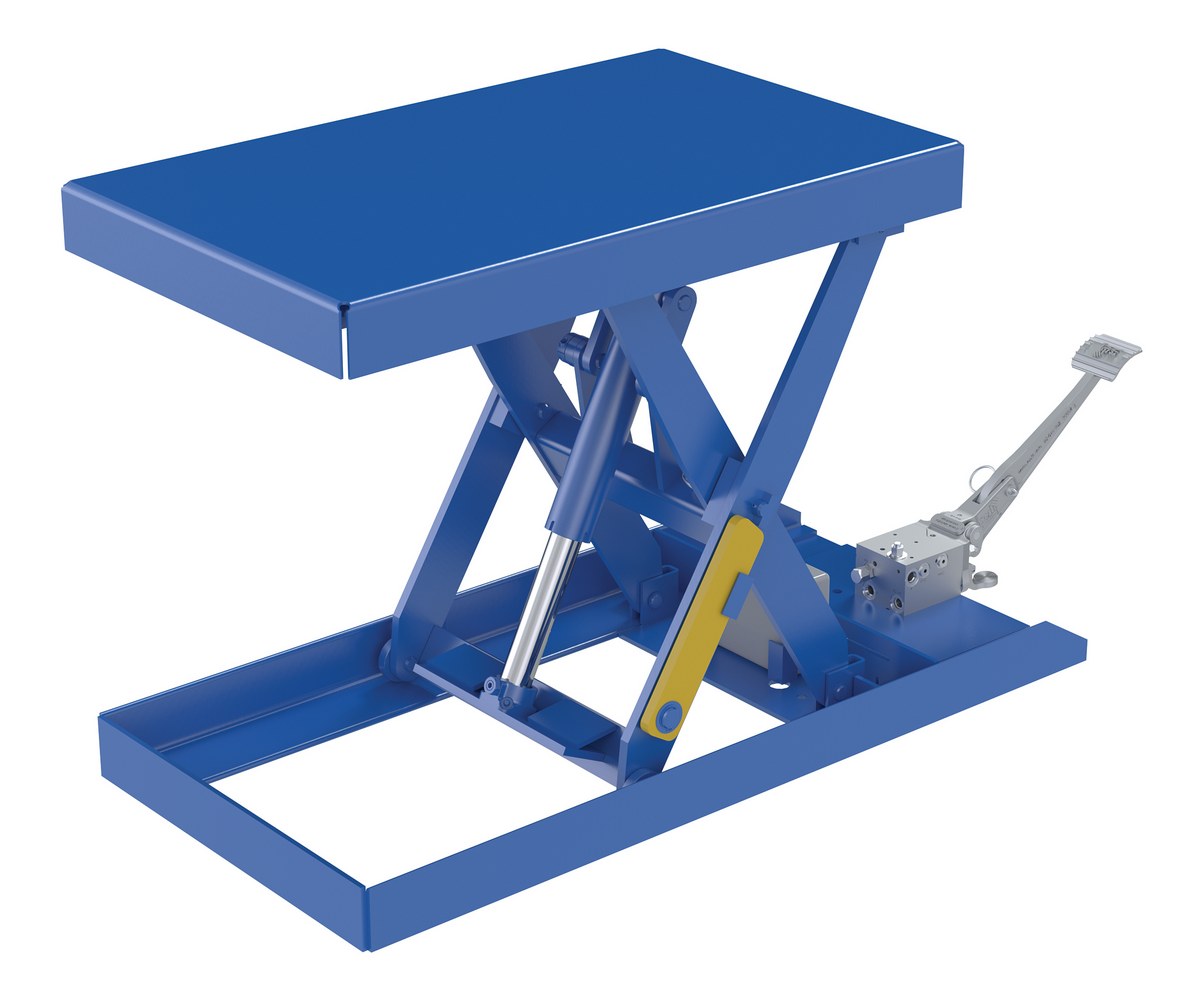

SCTAB-500-2033-FP icon_approvaldrawings.jpgWarranty PDF Two 20"x33" 500 6" 28" 263
SCTAB-1000-2040-FP icon_approvaldrawings.jpgWarranty PDF Two 20"x40" 1000 8" 32" 298
SCTAB-2000-2040-FP - icon_approvaldrawings.jpgWarranty PDF Two 20"x40" 2000 8" 32" 314

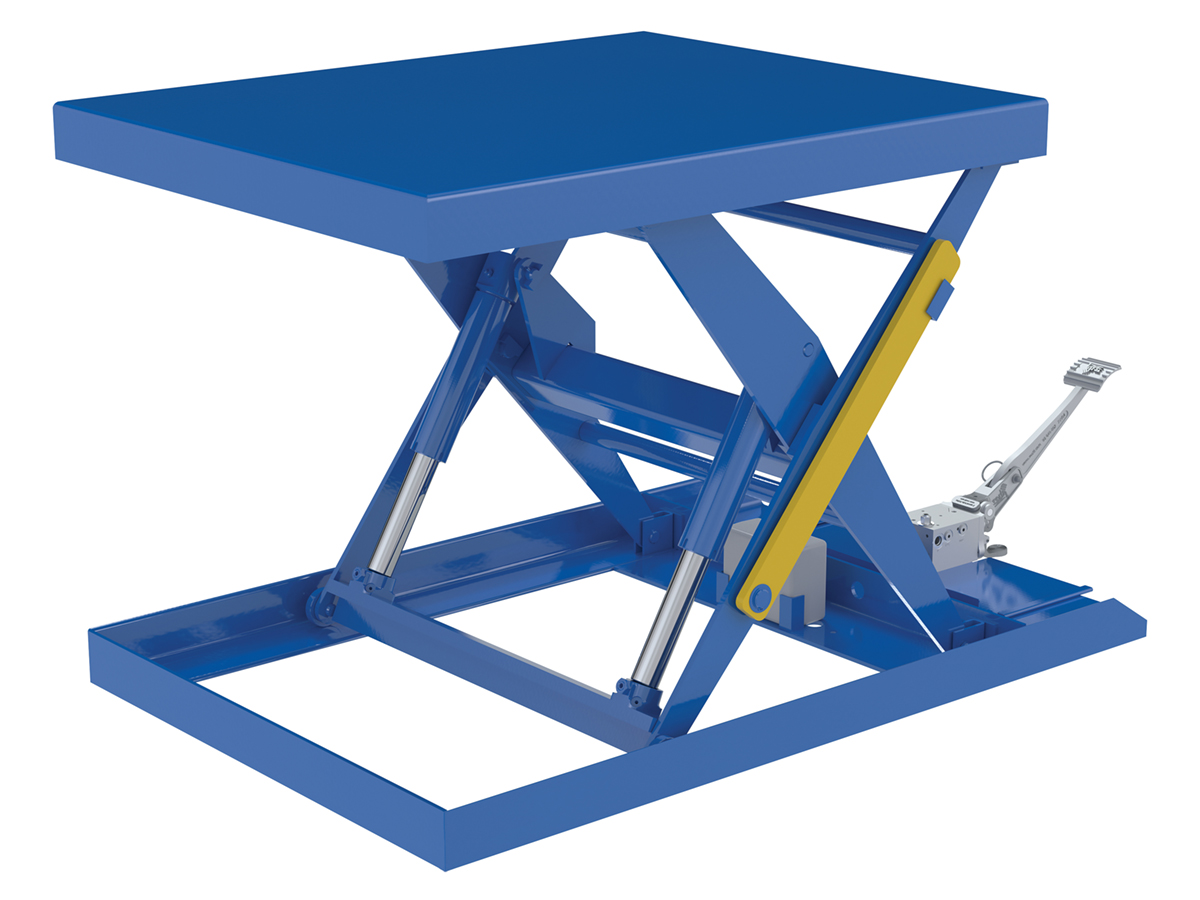

SCTAB-2000-3240-FP icon_approvaldrawings.jpgWarranty PDF Two 32"x40" 2000 8" 32" 430

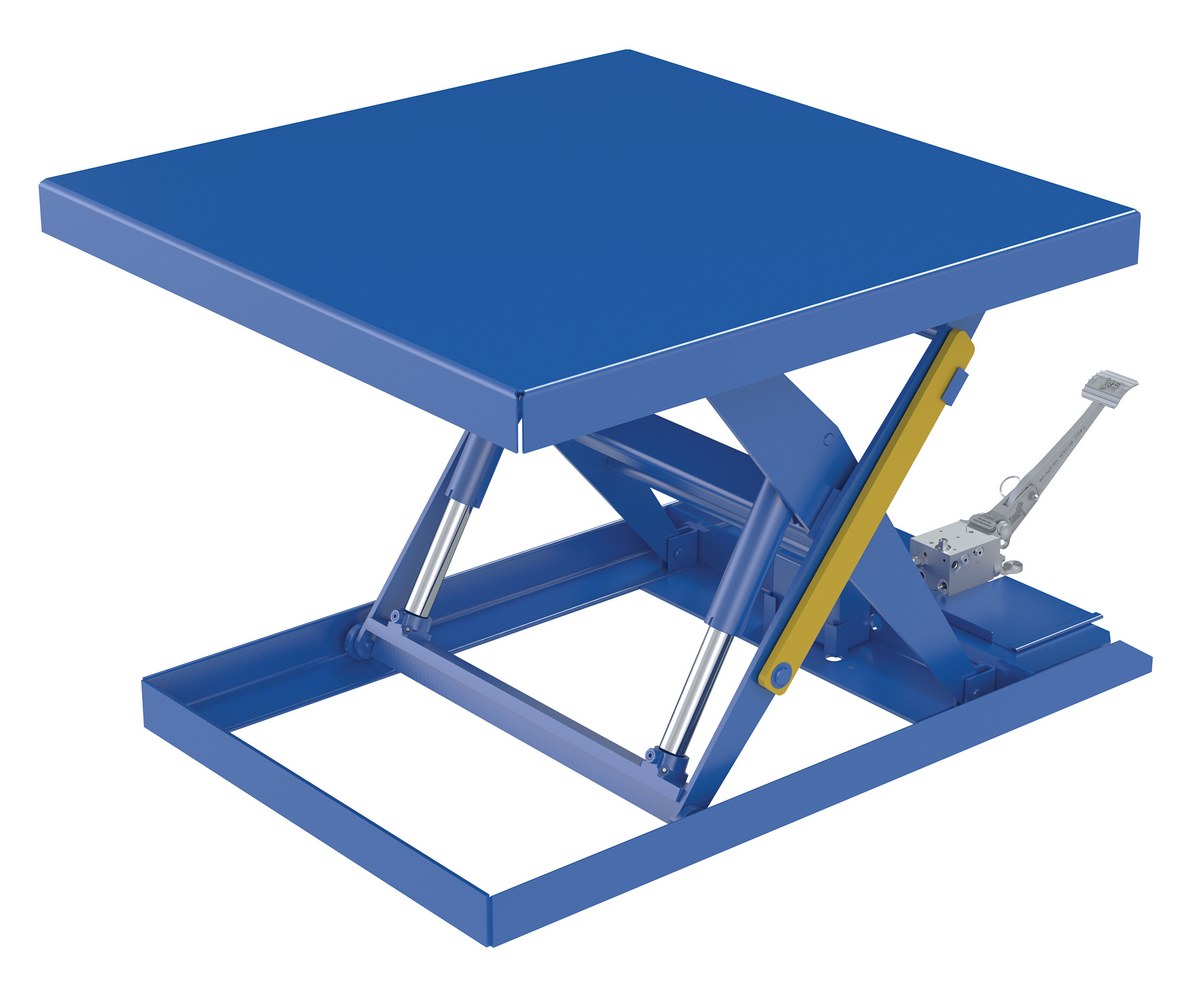

SCTAB-2000-4242-FP icon_approvaldrawings.jpgWarranty PDF Two 42"x42" 2000 8" 32" 400

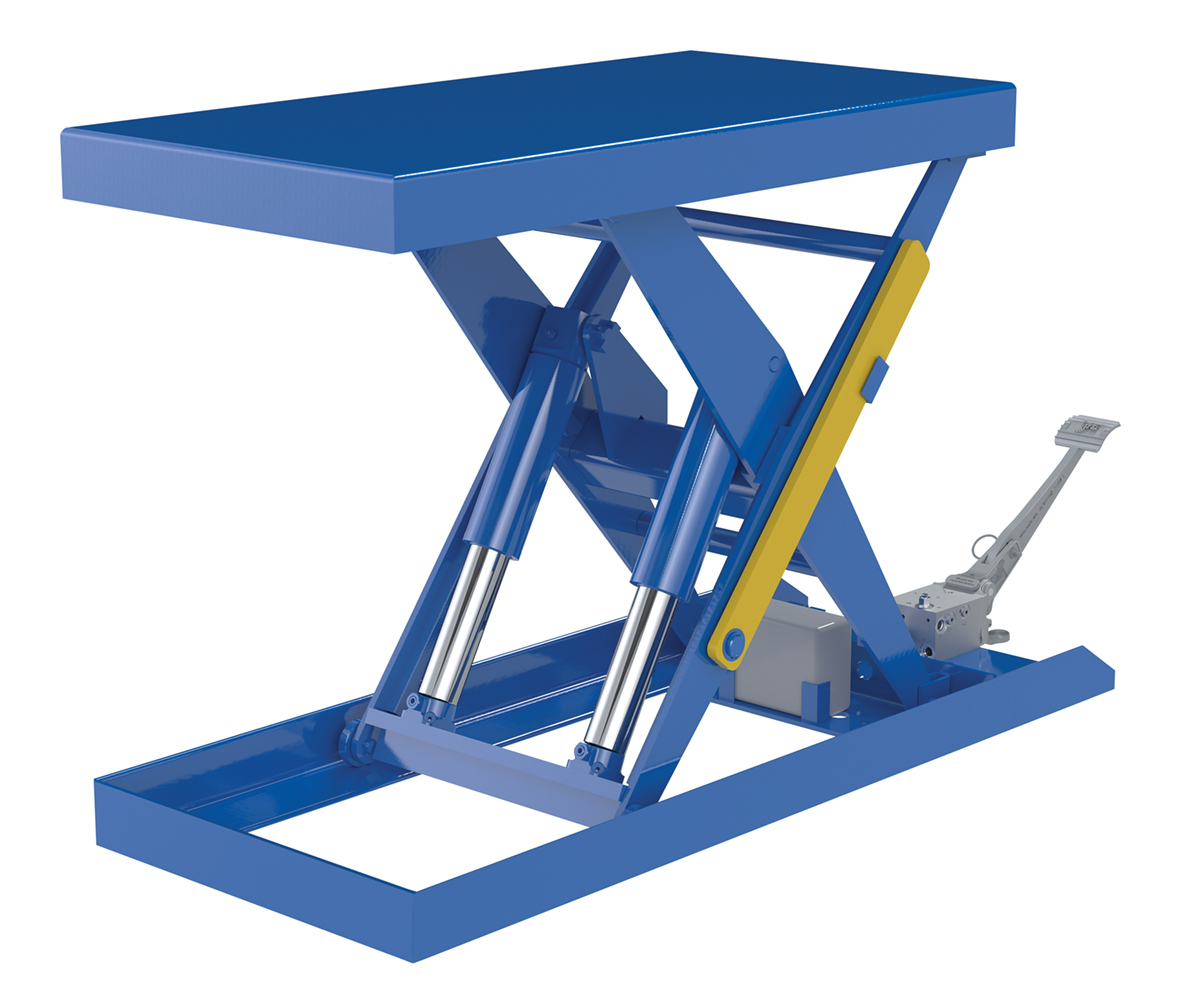

SCTAB-2500-2040-FP icon_approvaldrawings.jpgWarranty PDF Two 20"x40" 2500 8" 32" 332

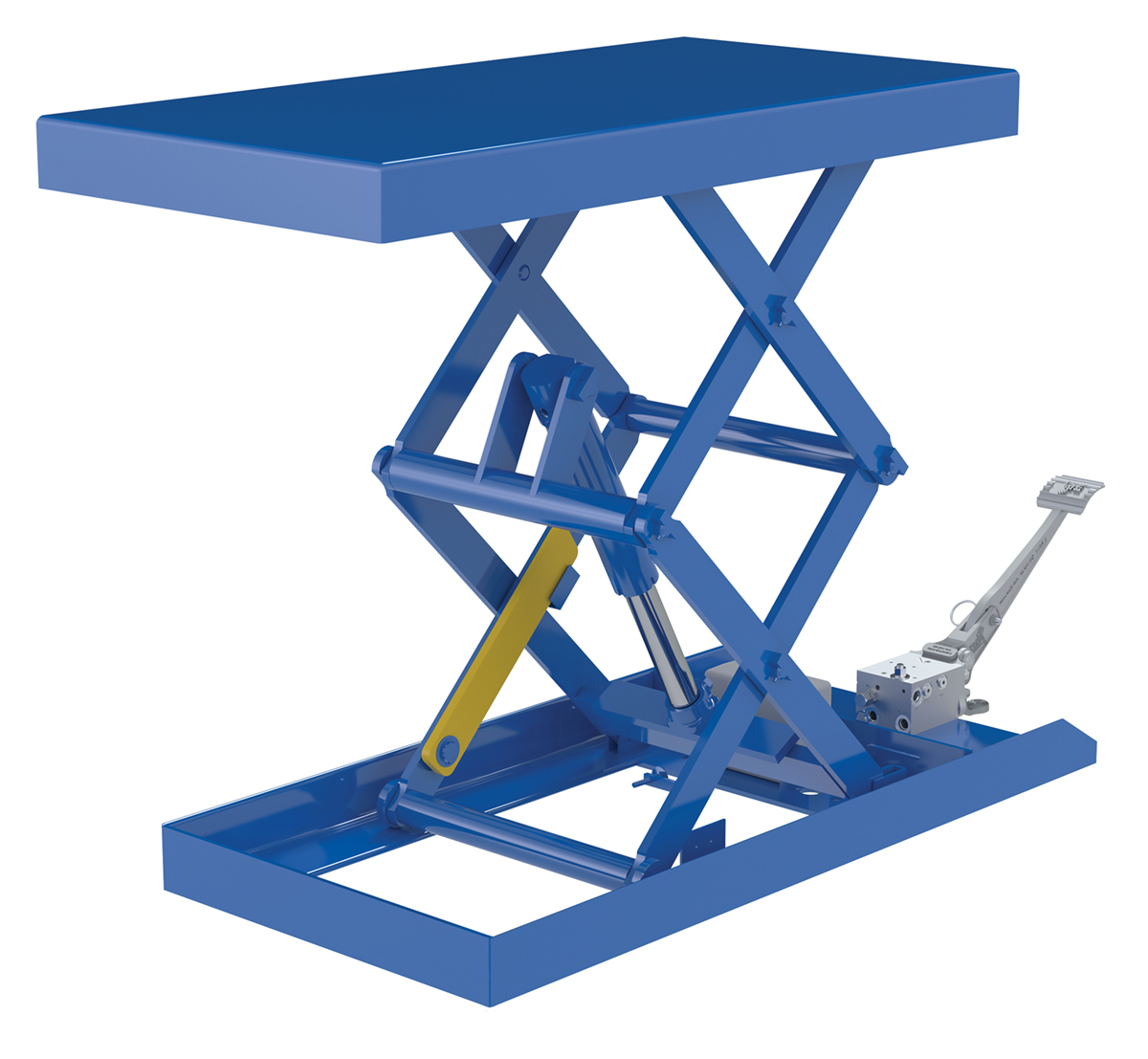

SCTABD-750-2040-FP - icon_approvaldrawings.jpgWarranty PDF Two 20"x40" 750 7" 35" 291
SCTABD-1000-2033-FP - icon_approvaldrawings.jpgWarranty PDF Two 20"x33" 1000 7" 35" 309
12V DC Powered
Model Number Image PDF's Lift Speed Platform (WxL) Capacity (lbs) Lowered Height Raised Height Wt. (lbs)
SCTAB-500-2033-DC icon_approvaldrawings.jpgWarranty PDF 4 sec. 20"x33" 500 6" 28" 362
SCTAB-1000-2040-DC - icon_approvaldrawings.jpgWarranty PDF 4 sec. 20"x40" 1000 8" 32" 402
SCTAB-2000-2040-DC icon_approvaldrawings.jpgWarranty PDF 7 sec. 20"x40" 2000 8" 32" 414
SCTAB-2000-3240-DC icon_approvaldrawings.jpgWarranty PDF 7 sec. 32"x40" 2000 8" 32" 480
SCTAB-2000-4242-DC icon_approvaldrawings.jpgWarranty PDF 7 sec. 42"x42" 2000 8" 32" 502
SCTAB-2500-2040-DC icon_approvaldrawings.jpgWarranty PDF 12 sec. 20"x40" 2500 8" 32" 433

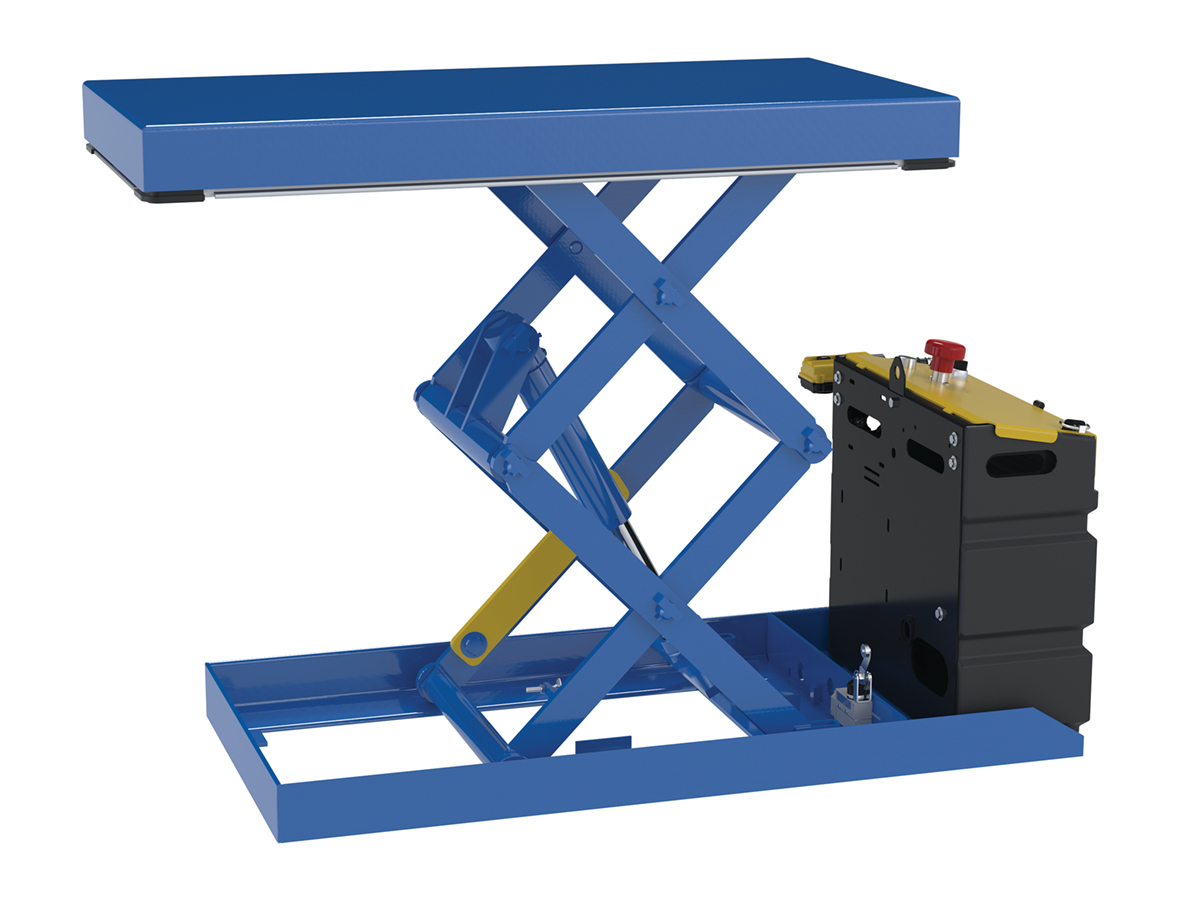

SCTABD-750-2040-DC icon_approvaldrawings.jpgWarranty PDF 4 sec. 20"x40" 750 7" 35" 391
SCTABD-1000-2033-DC icon_approvaldrawings.jpgWarranty PDF 4 sec. 20"x33" 1000 7" 35" 388
AC Powered
Model Number Image PDF's Lift Speed Platform (WxL) Capacity (lbs) Lowered Height Raised Height Wt. (lbs)
SCTAB-500-2033-AC icon_approvaldrawings.jpgWarranty PDF 7 sec. 20"x33" 500 6" 28" 263
SCTAB-1000-2040-AC icon_approvaldrawings.jpgWarranty PDF 7 sec. 20"x40" 1000 8" 32" 315

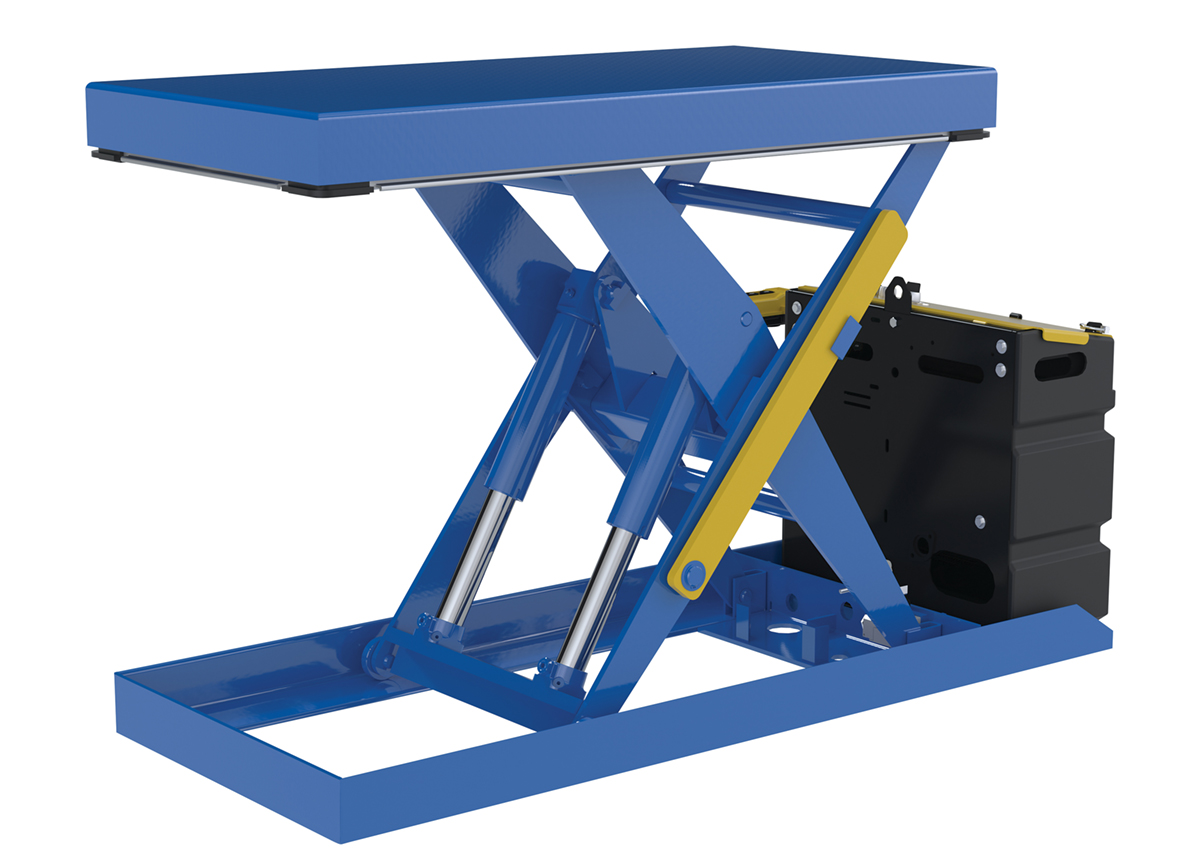

SCTAB-2000-2040-AC icon_approvaldrawings.jpgWarranty PDF 14 sec. 20"x40" 2000 8" 32" 328

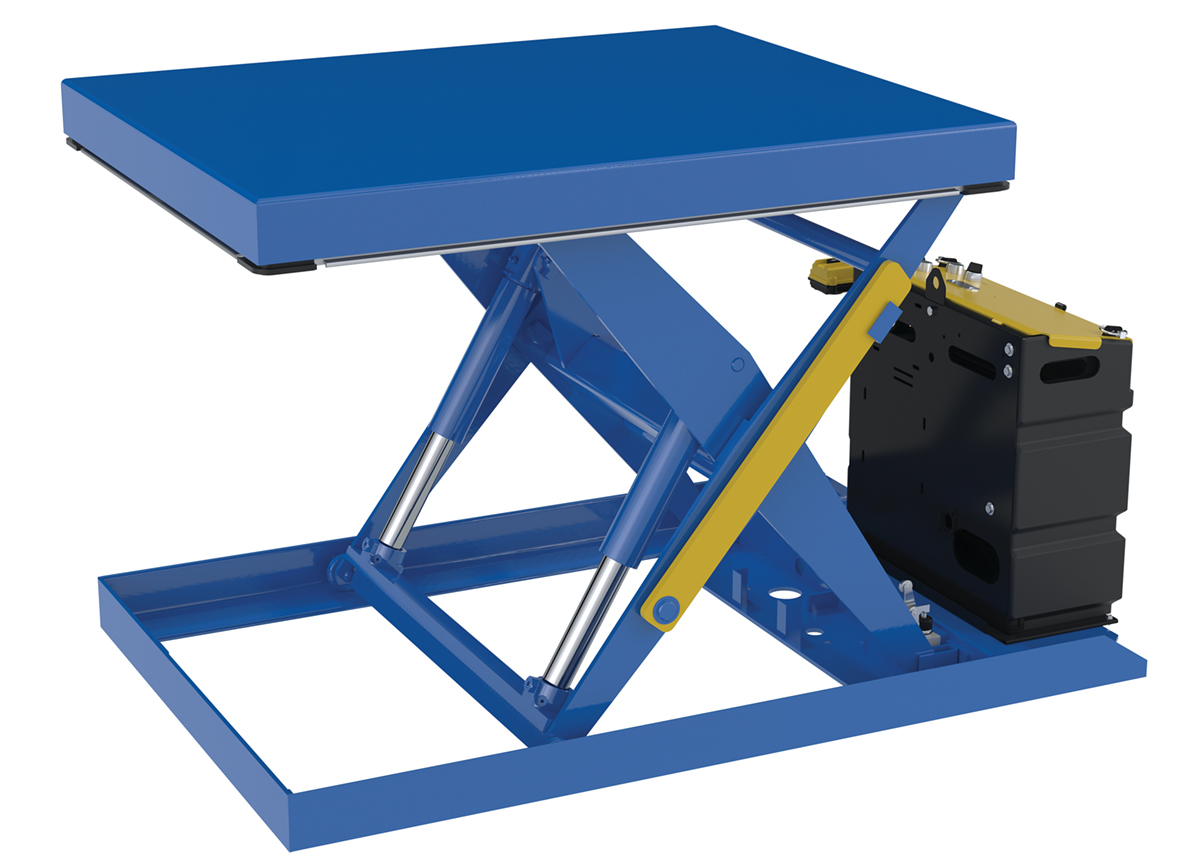

SCTAB-2000-3240-AC icon_approvaldrawings.jpgWarranty PDF 14 sec. 32"x40" 2000 8" 32" 394
SCTAB-2000-4242-AC icon_approvaldrawings.jpgWarranty PDF 14 sec. 42"x42" 2000 8" 32" 417
SCTAB-2500-2040-AC icon_approvaldrawings.jpgWarranty PDF 14 sec. 20"x40" 2500 8" 32" 347
SCTABD-750-2040-AC icon_approvaldrawings.jpgWarranty PDF 7 sec. 20"x40" 750 7" 35" 302
SCTABD-1000-2033-AC - icon_approvaldrawings.jpgWarranty PDF 7 sec. 20"x33" 1000 7" 35" 304

KEY: Approval Drawing = Approval Drawing -- Approval Drawing = Warranty -- Approval Drawing = Testing Certificate

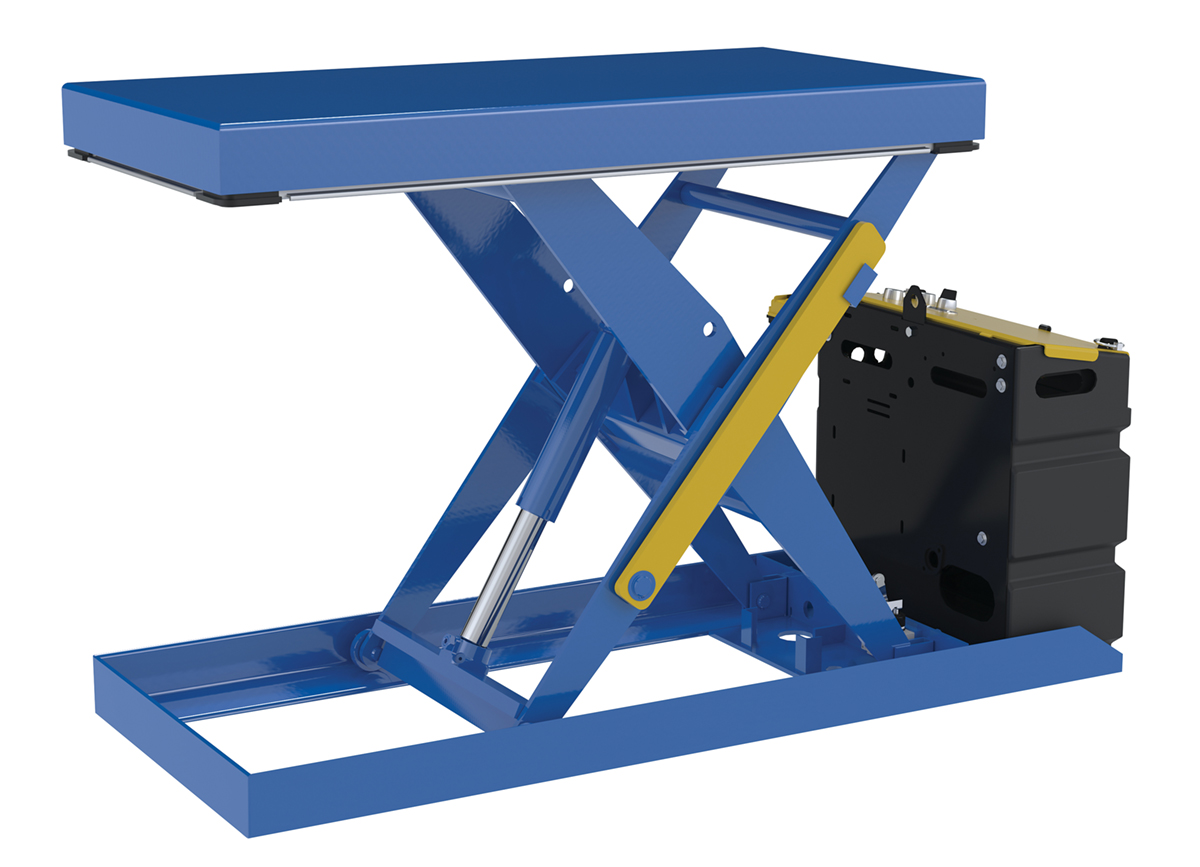

SCTAB-1000-2040-AC
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 1000
Platform Width (in.): 20-3/8
Uniform Capacity (lb.): 1000
Platform Width (in.): 20-3/8


Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 1000
Platform Width (in.): 20-3/8
Uniform Capacity (lb.): 1000
Platform Width (in.): 20-3/8

SCTAB-1000-2040-FP
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 1000
Platform Width (in.): 20-3/8
Uniform Capacity (lb.): 1000
Platform Width (in.): 20-3/8

SCTAB-2000-2040-AC
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 2000
Platform Width (in.): 20-3/8
Uniform Capacity (lb.): 2000
Platform Width (in.): 20-3/8

SCTAB-2000-2040-DC
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 2000
Platform Width (in.): 20-3/8
Uniform Capacity (lb.): 2000
Platform Width (in.): 20-3/8


Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 2000
Platform Width (in.): 20-3/8
Uniform Capacity (lb.): 2000
Platform Width (in.): 20-3/8

SCTAB-2000-3240-AC
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 2000
Platform Width (in.): 32-3/8
Uniform Capacity (lb.): 2000
Platform Width (in.): 32-3/8

SCTAB-2000-3240-DC
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 2000
Platform Width (in.): 32-3/8
Uniform Capacity (lb.): 2000
Platform Width (in.): 32-3/8

SCTAB-2000-3240-FP
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 2000
Platform Width (in.): 32-3/8
Uniform Capacity (lb.): 2000
Platform Width (in.): 32-3/8

SCTAB-2000-4242-AC
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 2000
Platform Width (in.): 42-3/8
Uniform Capacity (lb.): 2000
Platform Width (in.): 42-3/8

SCTAB-2000-4242-DC
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 2000
Platform Width (in.): 42-3/8
Uniform Capacity (lb.): 2000
Platform Width (in.): 42-3/8

SCTAB-2000-4242-FP
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 2000
Platform Width (in.): 42-3/8
Uniform Capacity (lb.): 2000
Platform Width (in.): 42-3/8

SCTAB-2500-2040-AC
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 2500
Platform Width (in.): 20-3/8
Uniform Capacity (lb.): 2500
Platform Width (in.): 20-3/8

SCTAB-2500-2040-DC
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 2500
Platform Width (in.): 20-3/8
Uniform Capacity (lb.): 2500
Platform Width (in.): 20-3/8

SCTAB-2500-2040-FP
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 2500
Platform Width (in.): 20-3/8
Uniform Capacity (lb.): 2500
Platform Width (in.): 20-3/8

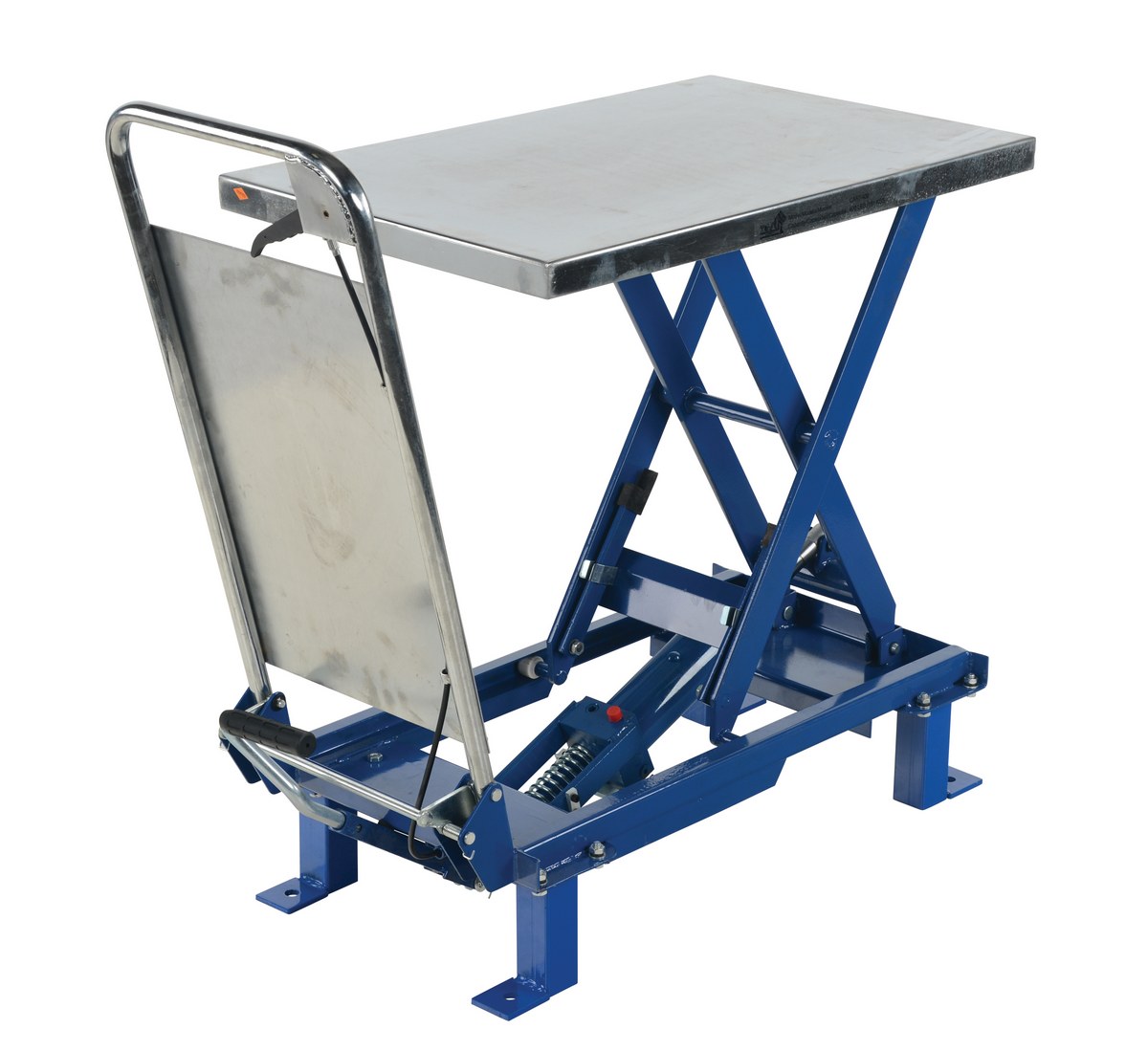

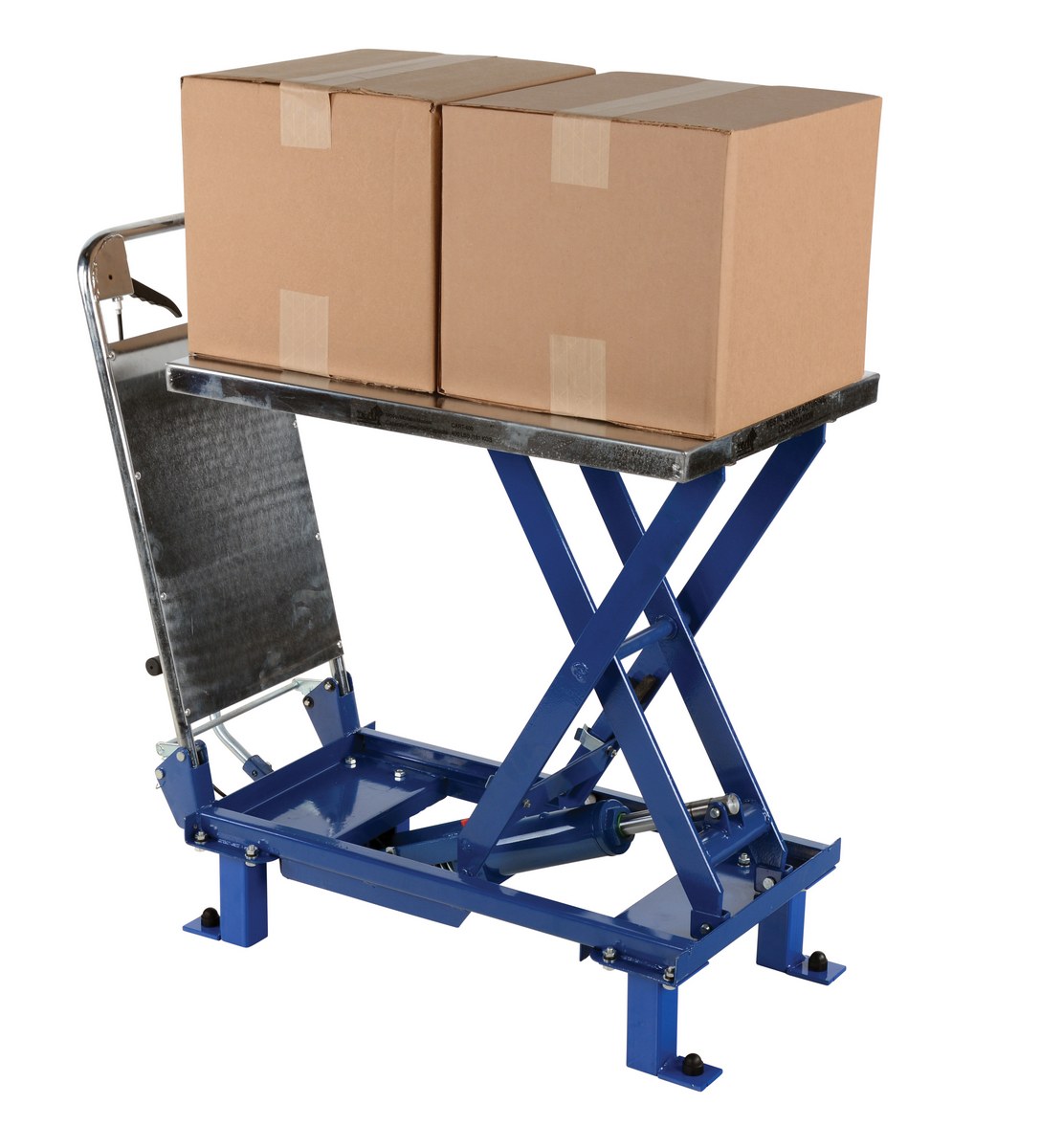

SCTAB-400
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 400
Platform Width (in.): 17-3/4
Uniform Capacity (lb.): 400
Platform Width (in.): 17-3/4

SCTAB-500-2033-AC
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 500
Platform Width (in.): 20-3/8
Uniform Capacity (lb.): 500
Platform Width (in.): 20-3/8

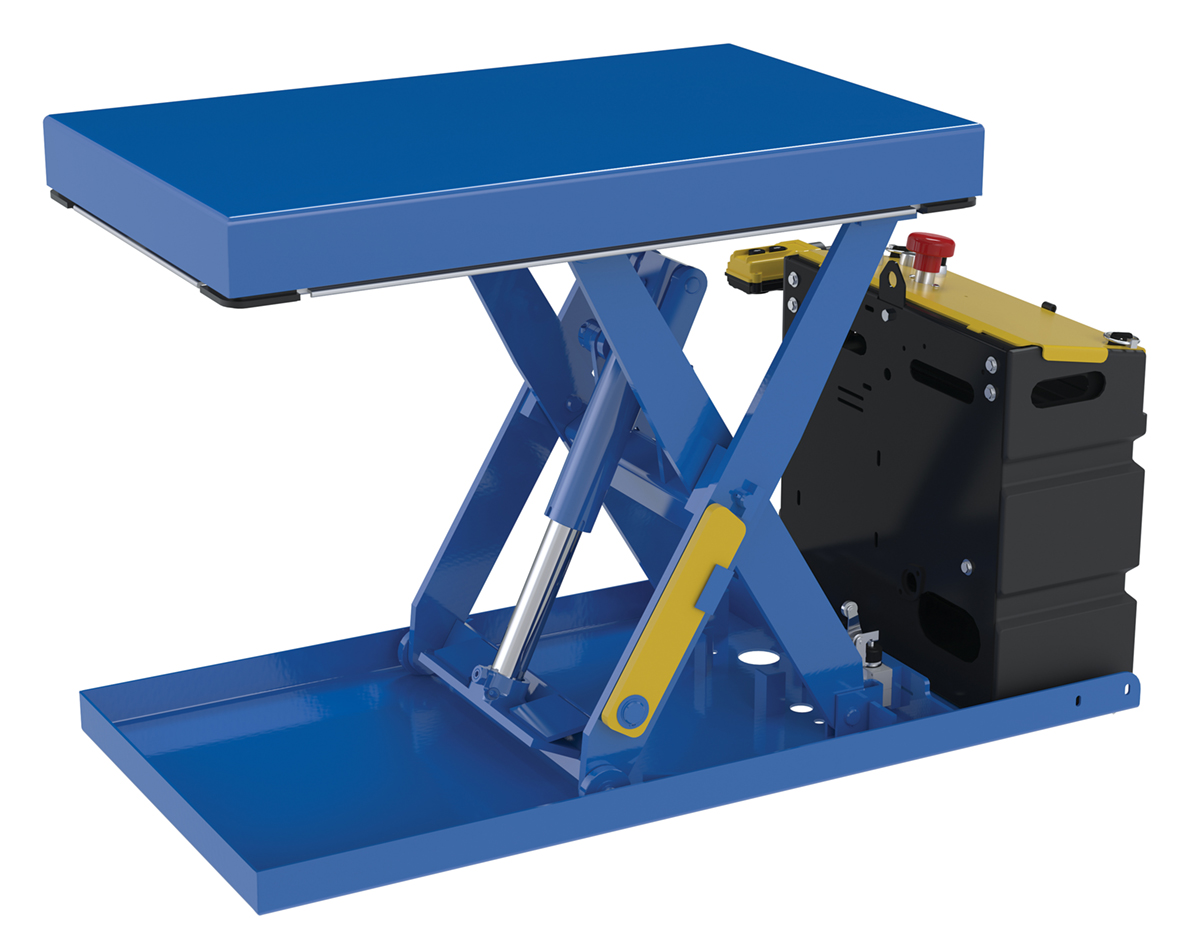

SCTAB-500-2033-DC
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 500
Platform Width (in.): 20-3/8
Uniform Capacity (lb.): 500
Platform Width (in.): 20-3/8

SCTAB-500-2033-FP
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 500
Platform Width (in.): 20-3/8
Uniform Capacity (lb.): 500
Platform Width (in.): 20-3/8

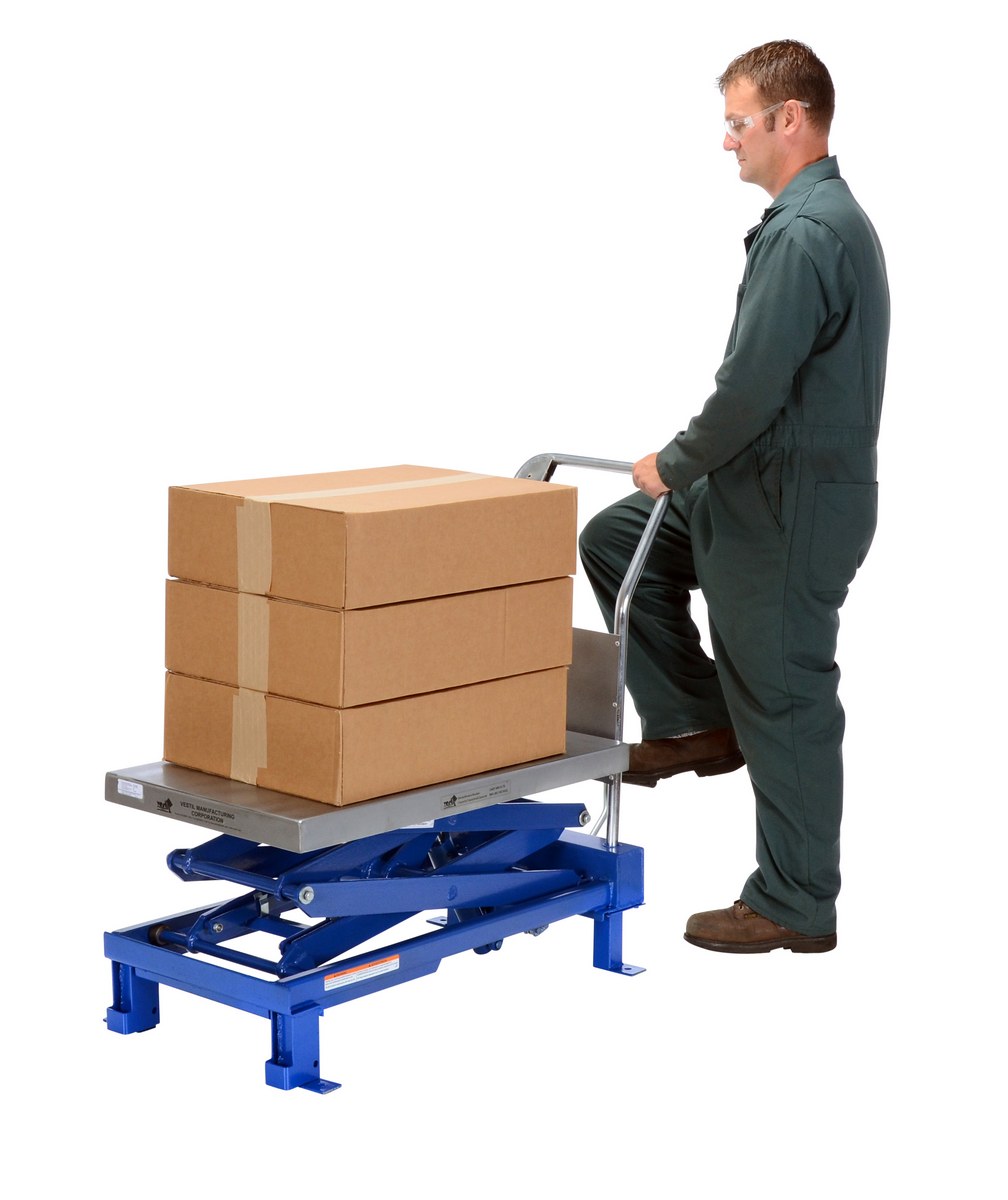

SCTAB-800D
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 800
Platform Width (in.): 20
Uniform Capacity (lb.): 800
Platform Width (in.): 20


Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 1000
Platform Width (in.): 20-3/8
Uniform Capacity (lb.): 1000
Platform Width (in.): 20-3/8

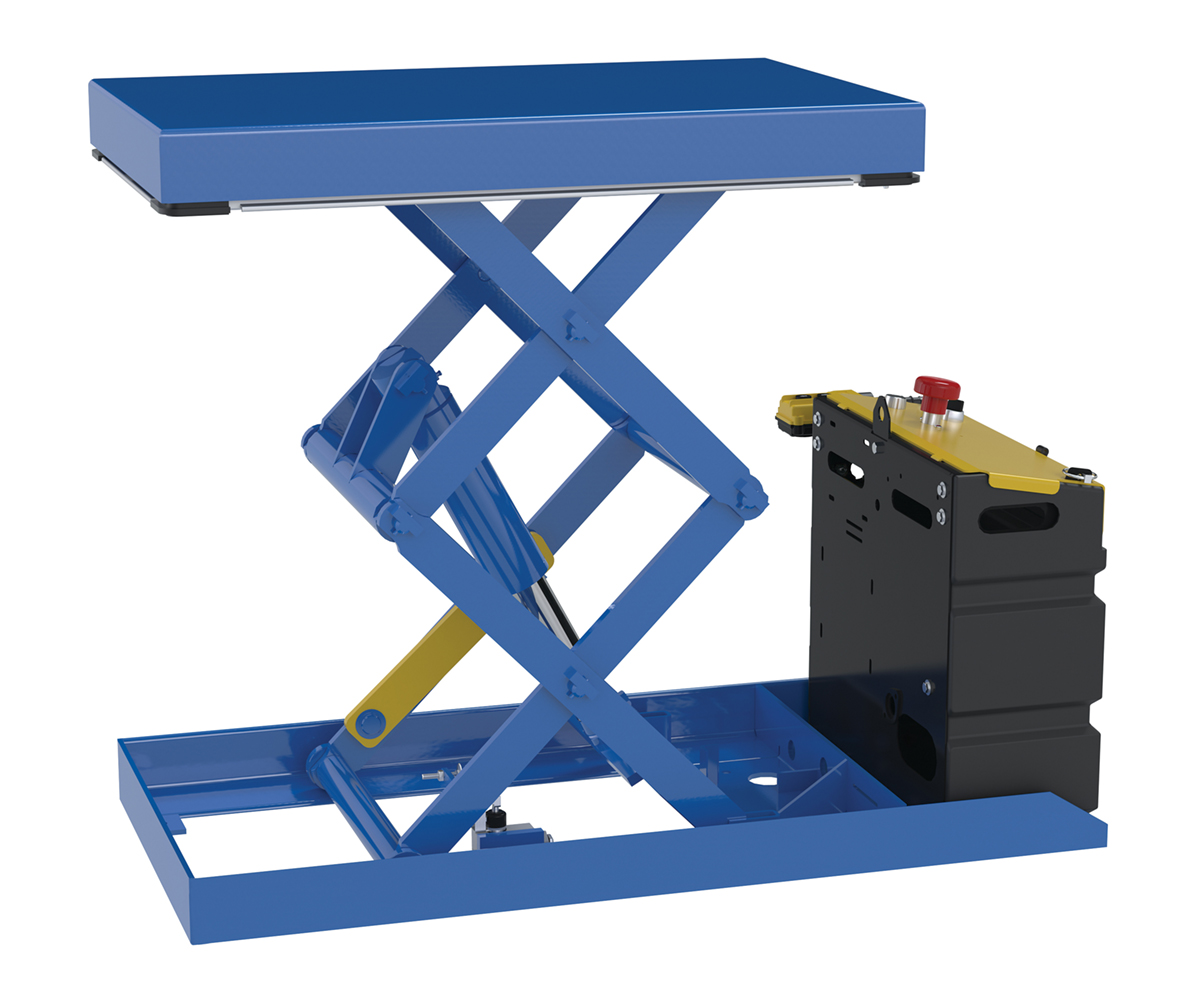

SCTABD-1000-2033-DC
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 1000
Platform Width (in.): 20-3/8
Uniform Capacity (lb.): 1000
Platform Width (in.): 20-3/8

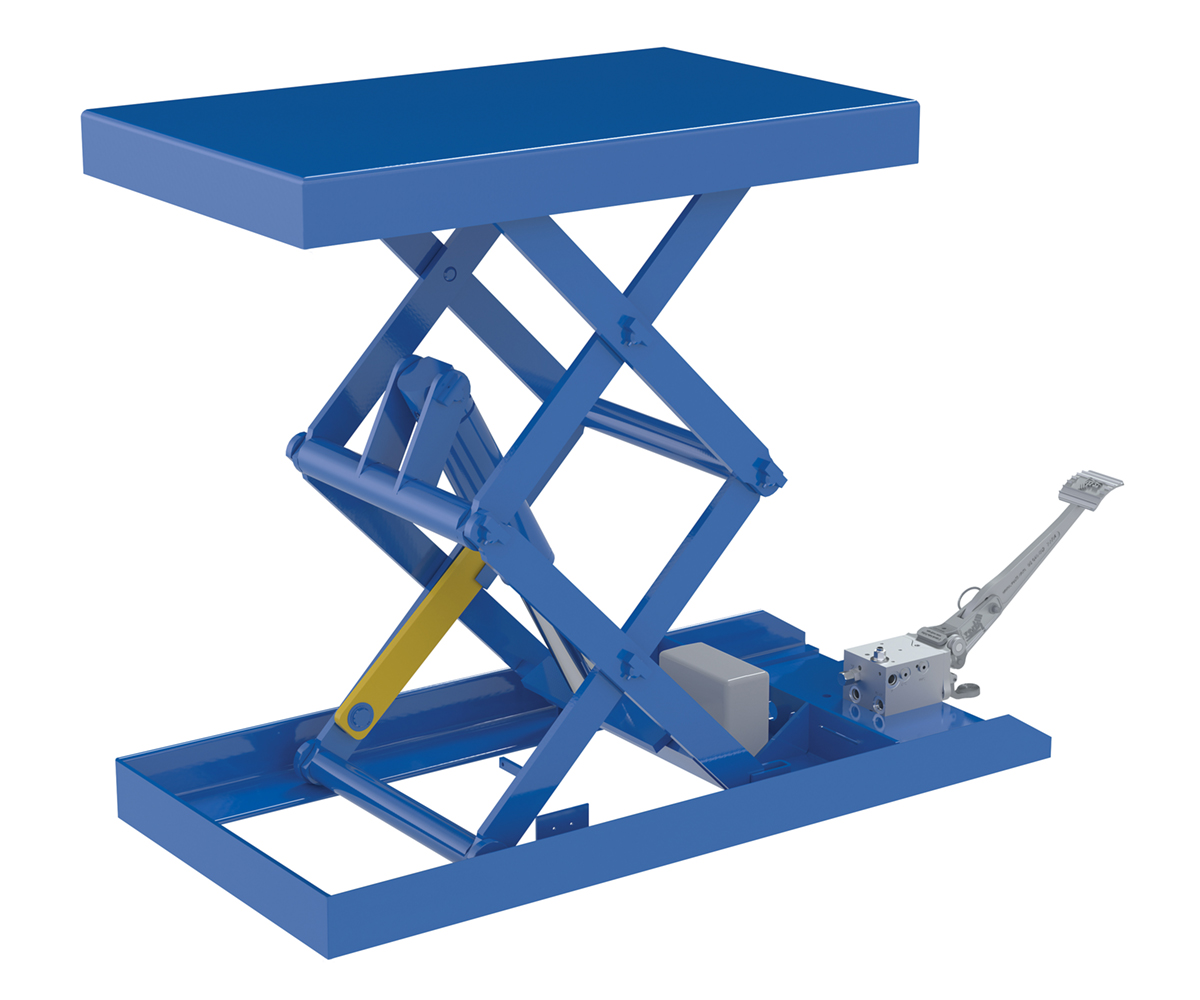

SCTABD-1000-2033-FP
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 1000
Platform Width (in.): 20-3/8
Uniform Capacity (lb.): 1000
Platform Width (in.): 20-3/8

SCTABD-750-2040-AC
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 750
Platform Width (in.): 20-3/8
Uniform Capacity (lb.): 750
Platform Width (in.): 20-3/8

SCTABD-750-2040-DC
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 750
Platform Width (in.): 20-3/8
Uniform Capacity (lb.): 750
Platform Width (in.): 20-3/8

SCTABD-750-2040-FP
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 750
Platform Width (in.): 20-3/8
Uniform Capacity (lb.): 750
Platform Width (in.): 20-3/8


Foot Pump & Powered Scissor Lift Tables PDF's will open in a new window when clicked.

Manuals


Survey Sheets


Approval Drawings

Testing Certificates


SCTAB-400

SCTAB-500-2033-AC

SCTAB-500-2033-DC

SCTAB-500-2033-FP

SCTAB-800D

SCTAB-1000-2040-AC

SCTAB-1000-2040-DC

SCTAB-1000-2040-FP

SCTAB-2000-2040-AC

SCTAB-2000-2040-DC

SCTAB-2000-2040-FP

SCTAB-2000-3240-AC

SCTAB-2000-3240-DC

SCTAB-2000-3240-FP

SCTAB-2000-4242-AC

SCTAB-2000-4242-DC

SCTAB-2000-4242-FP

SCTAB-2500-2040-AC

SCTAB-2500-2040-DC

SCTAB-2500-2040-FP

SCTABD-750-2040-AC

SCTABD-750-2040-DC

SCTABD-750-2040-FP

SCTABD-1000-2033-AC

SCTABD-1000-2033-DC

SCTABD-1000-2033-FP

SDS Sheets

Hydraulic Oil SDS Sheet for: SCTAB-1000-2040-AC

Midwest Battery - Lead/Acid Battery, Wet, Filled with Acid SDS Sheet for: SCTAB-1000-2040-DC
Hydraulic Oil SDS Sheet for: SCTAB-1000-2040-DC
Hydraulic Oil SDS Sheet for: SCTAB-1000-2040-FP
Hydraulic Oil SDS Sheet for: SCTAB-2000-2040-AC

Midwest Battery - Lead/Acid Battery, Wet, Filled with Acid SDS Sheet for: SCTAB-2000-2040-DC
Hydraulic Oil SDS Sheet for: SCTAB-2000-2040-DC
Hydraulic Oil SDS Sheet for: SCTAB-2000-2040-FP
Hydraulic Oil SDS Sheet for: SCTAB-2000-3240-AC

Midwest Battery - Lead/Acid Battery, Wet, Filled with Acid SDS Sheet for: SCTAB-2000-3240-DC
Hydraulic Oil SDS Sheet for: SCTAB-2000-3240-DC
Hydraulic Oil SDS Sheet for: SCTAB-2000-3240-FP
Hydraulic Oil SDS Sheet for: SCTAB-2000-4242-AC

Midwest Battery - Lead/Acid Battery, Wet, Filled with Acid SDS Sheet for: SCTAB-2000-4242-DC
Hydraulic Oil SDS Sheet for: SCTAB-2000-4242-DC
Hydraulic Oil SDS Sheet for: SCTAB-2000-4242-FP
Hydraulic Oil SDS Sheet for: SCTAB-2500-2040-AC

Midwest Battery - Lead/Acid Battery, Wet, Filled with Acid SDS Sheet for: SCTAB-2500-2040-DC
Hydraulic Oil SDS Sheet for: SCTAB-2500-2040-DC
Hydraulic Oil SDS Sheet for: SCTAB-2500-2040-FP
Hydraulic Oil SDS Sheet for: SCTAB-400
Hydraulic Oil SDS Sheet for: SCTAB-500-2033-AC

Midwest Battery - Lead/Acid Battery, Wet, Filled with Acid SDS Sheet for: SCTAB-500-2033-DC
Hydraulic Oil SDS Sheet for: SCTAB-500-2033-DC
Hydraulic Oil SDS Sheet for: SCTAB-500-2033-FP
Hydraulic Oil SDS Sheet for: SCTAB-800D
Hydraulic Oil SDS Sheet for: SCTABD-1000-2033-AC

Midwest Battery - Lead/Acid Battery, Wet, Filled with Acid SDS Sheet for: SCTABD-1000-2033-DC
Hydraulic Oil SDS Sheet for: SCTABD-1000-2033-DC
Hydraulic Oil SDS Sheet for: SCTABD-1000-2033-FP
Hydraulic Oil SDS Sheet for: SCTABD-750-2040-AC

Midwest Battery - Lead/Acid Battery, Wet, Filled with Acid SDS Sheet for: SCTABD-750-2040-DC
Hydraulic Oil SDS Sheet for: SCTABD-750-2040-DC
Hydraulic Oil SDS Sheet for: SCTABD-750-2040-FP

Other PDF's

pdf-logo.gifAuto-Shifting Foot Pump Instruction Manual(For All Foot Pump SCTAB Models)


Directory Links Of Available PDF's For All Products



Q: How loud is the motor in the model SCTAB-1000-2040-AC?

A: The power unit is approximately 72 dB at 2' away.






Some of our products may be temporarily unavailable due to supply chain disruptions. Contact our Sales Department for help with finding alternate product solutions. We apologize for the inconvenience.

Before placing an order, please confirm that the ship to company is able to receive shipments on the estimated delivery date





Foot Pump & Powered Scisso...




Foot Pump Scissor Lift Tables are used by all types of manufacturing and warehousing facilities.Features torsion tubes for side to side stability, pressure flow control valve for controlled lowering, and foot pump. Rugged welded steel construction. Painted blue finish.

DC Scissor Lift Tables utilizes (1) 12V battery, raised and lowered buttons are on top of power unit with on board charger and handheld 2 push-button hand control on an 8' coil cord.

AC Scissor Lift Tables are 460V, 3 phase power with handheld 2 push-button hand control on an 8' coil cord.


Manual Foot Pump
Model Number Image PDF's Foot Pump
Speed
Platform
(WxL)
Capacity
(lbs)
Lowered
Height
Raised
Height
Wt.
(lbs)
SCTAB-400 Compliance Certificate Single 17-3/4"x27-5/8" 400 8-1/2" 28-13/16" 138
SCTAB-800D icon_approvaldrawings.jpgCompliance Certificate Two 20"x35-1/2" 800 15-7/16" 52" 290
SCTAB-500-2033-FP icon_approvaldrawings.jpgWarranty PDF Two 20"x33" 500 6" 28" 263
SCTAB-1000-2040-FP icon_approvaldrawings.jpgWarranty PDF Two 20"x40" 1000 8" 32" 298
SCTAB-2000-2040-FP - icon_approvaldrawings.jpgWarranty PDF Two 20"x40" 2000 8" 32" 314
SCTAB-2000-3240-FP icon_approvaldrawings.jpgWarranty PDF Two 32"x40" 2000 8" 32" 430
SCTAB-2000-4242-FP icon_approvaldrawings.jpgWarranty PDF Two 42"x42" 2000 8" 32" 400
SCTAB-2500-2040-FP icon_approvaldrawings.jpgWarranty PDF Two 20"x40" 2500 8" 32" 332
SCTABD-750-2040-FP - icon_approvaldrawings.jpgWarranty PDF Two 20"x40" 750 7" 35" 291
SCTABD-1000-2033-FP - icon_approvaldrawings.jpgWarranty PDF Two 20"x33" 1000 7" 35" 309
12V DC Powered
Model Number Image PDF's Lift Speed Platform (WxL) Capacity (lbs) Lowered Height Raised Height Wt. (lbs)
SCTAB-500-2033-DC icon_approvaldrawings.jpgWarranty PDF 4 sec. 20"x33" 500 6" 28" 362
SCTAB-1000-2040-DC - icon_approvaldrawings.jpgWarranty PDF 4 sec. 20"x40" 1000 8" 32" 402
SCTAB-2000-2040-DC icon_approvaldrawings.jpgWarranty PDF 7 sec. 20"x40" 2000 8" 32" 414
SCTAB-2000-3240-DC icon_approvaldrawings.jpgWarranty PDF 7 sec. 32"x40" 2000 8" 32" 480
SCTAB-2000-4242-DC icon_approvaldrawings.jpgWarranty PDF 7 sec. 42"x42" 2000 8" 32" 502
SCTAB-2500-2040-DC icon_approvaldrawings.jpgWarranty PDF 12 sec. 20"x40" 2500 8" 32" 433
SCTABD-750-2040-DC icon_approvaldrawings.jpgWarranty PDF 4 sec. 20"x40" 750 7" 35" 391
SCTABD-1000-2033-DC icon_approvaldrawings.jpgWarranty PDF 4 sec. 20"x33" 1000 7" 35" 388
AC Powered
Model Number Image PDF's Lift Speed Platform (WxL) Capacity (lbs) Lowered Height Raised Height Wt. (lbs)
SCTAB-500-2033-AC icon_approvaldrawings.jpgWarranty PDF 7 sec. 20"x33" 500 6" 28" 263
SCTAB-1000-2040-AC icon_approvaldrawings.jpgWarranty PDF 7 sec. 20"x40" 1000 8" 32" 315
SCTAB-2000-2040-AC icon_approvaldrawings.jpgWarranty PDF 14 sec. 20"x40" 2000 8" 32" 328
SCTAB-2000-3240-AC icon_approvaldrawings.jpgWarranty PDF 14 sec. 32"x40" 2000 8" 32" 394
SCTAB-2000-4242-AC icon_approvaldrawings.jpgWarranty PDF 14 sec. 42"x42" 2000 8" 32" 417
SCTAB-2500-2040-AC icon_approvaldrawings.jpgWarranty PDF 14 sec. 20"x40" 2500 8" 32" 347
SCTABD-750-2040-AC icon_approvaldrawings.jpgWarranty PDF 7 sec. 20"x40" 750 7" 35" 302

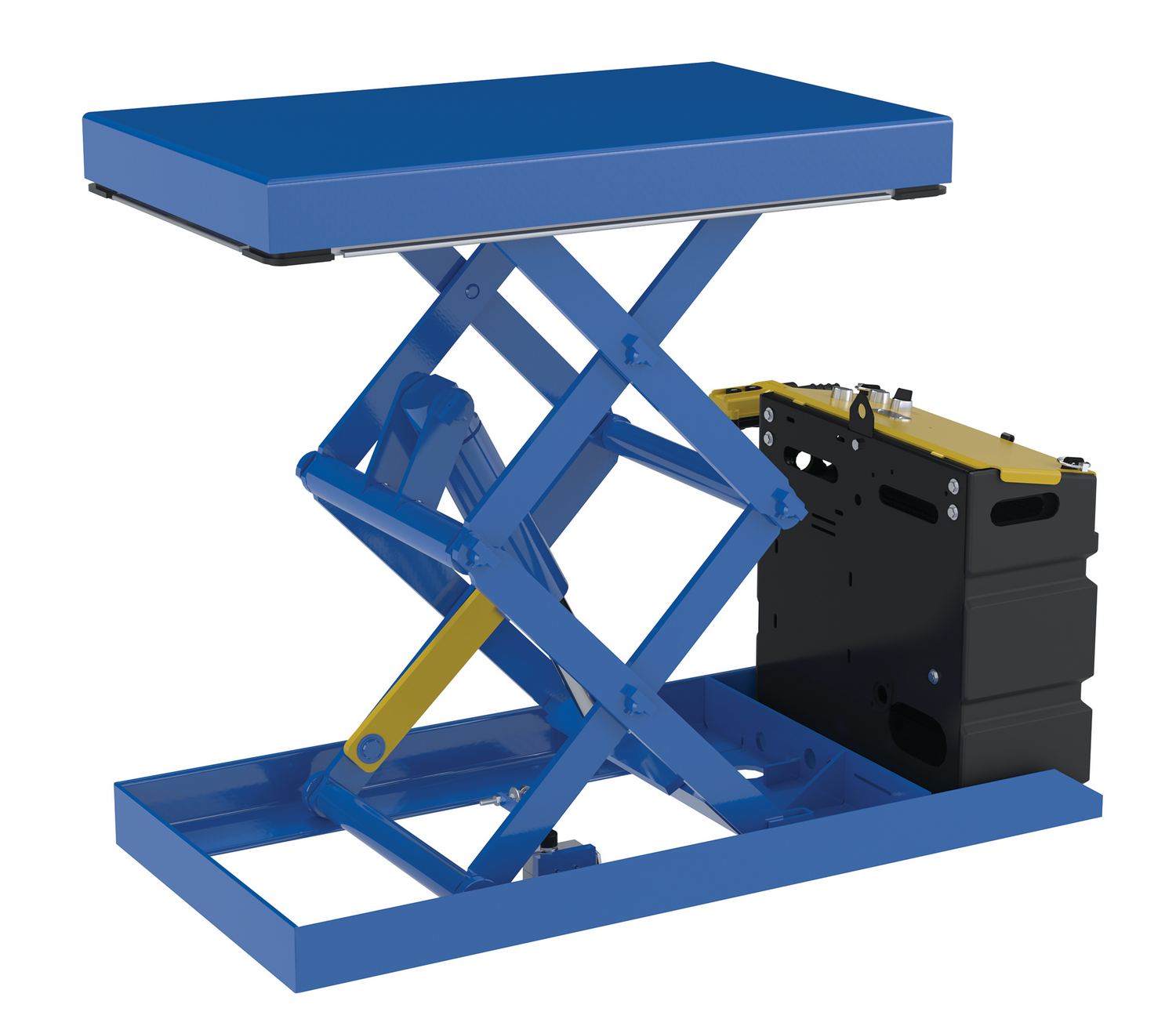

SCTABD-1000-2033-AC - icon_approvaldrawings.jpgWarranty PDF 7 sec. 20"x33" 1000 7" 35" 304


Our Customer Service Associates Are Here To Assist You!
Call Vestil At 260-665-7586 Or info@vestil.com
