Product Family Overview

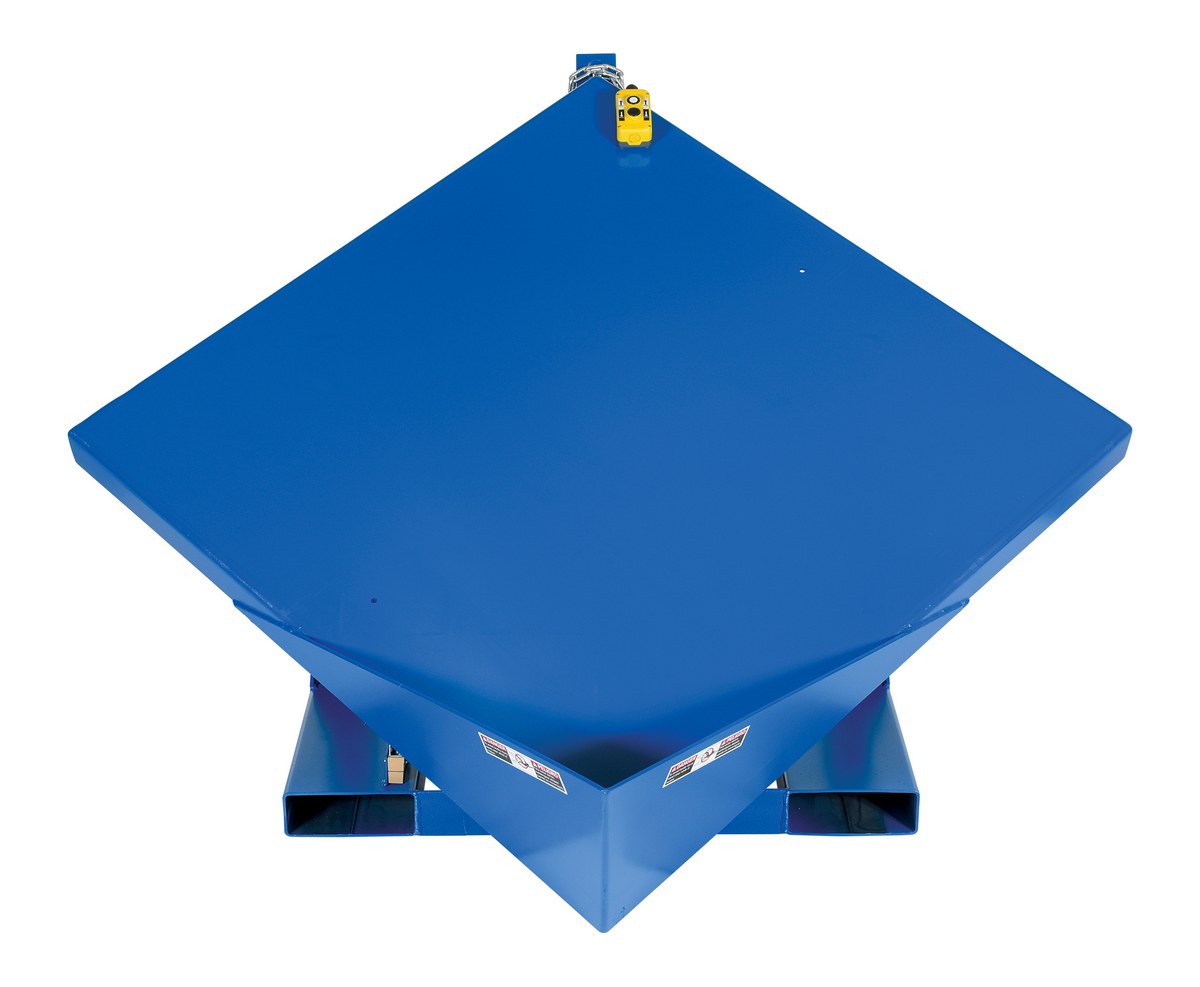

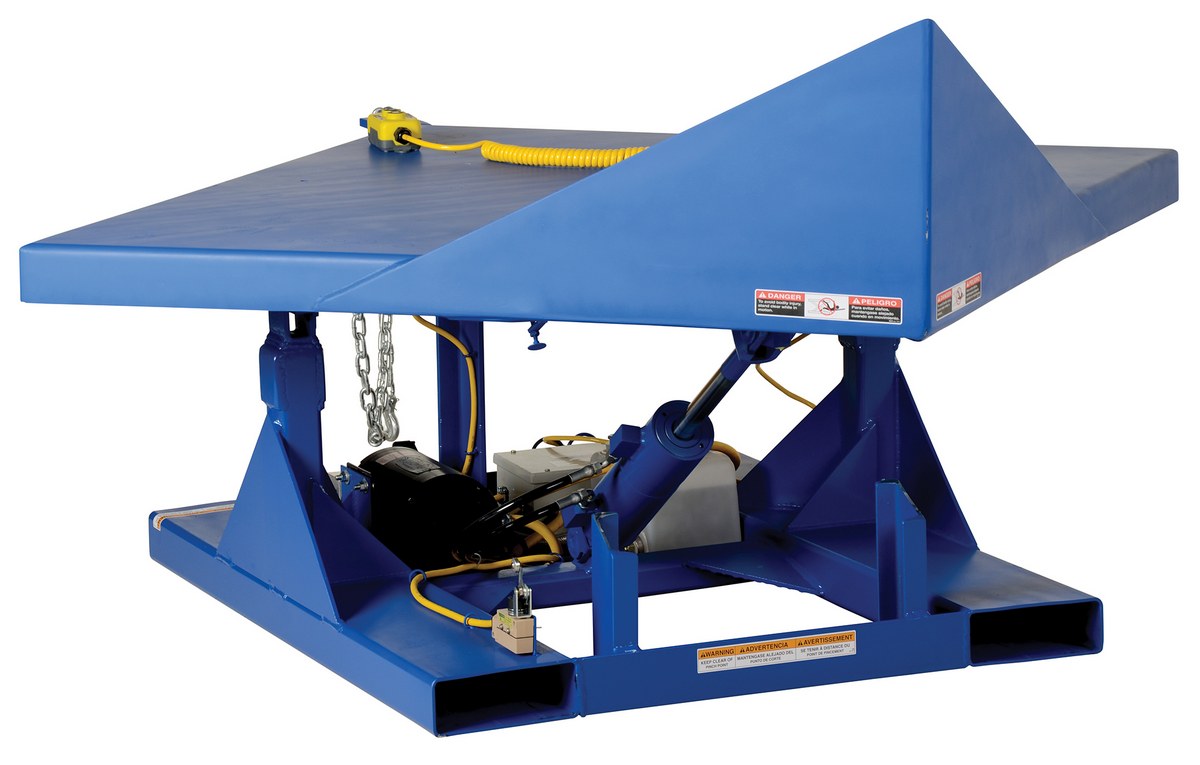

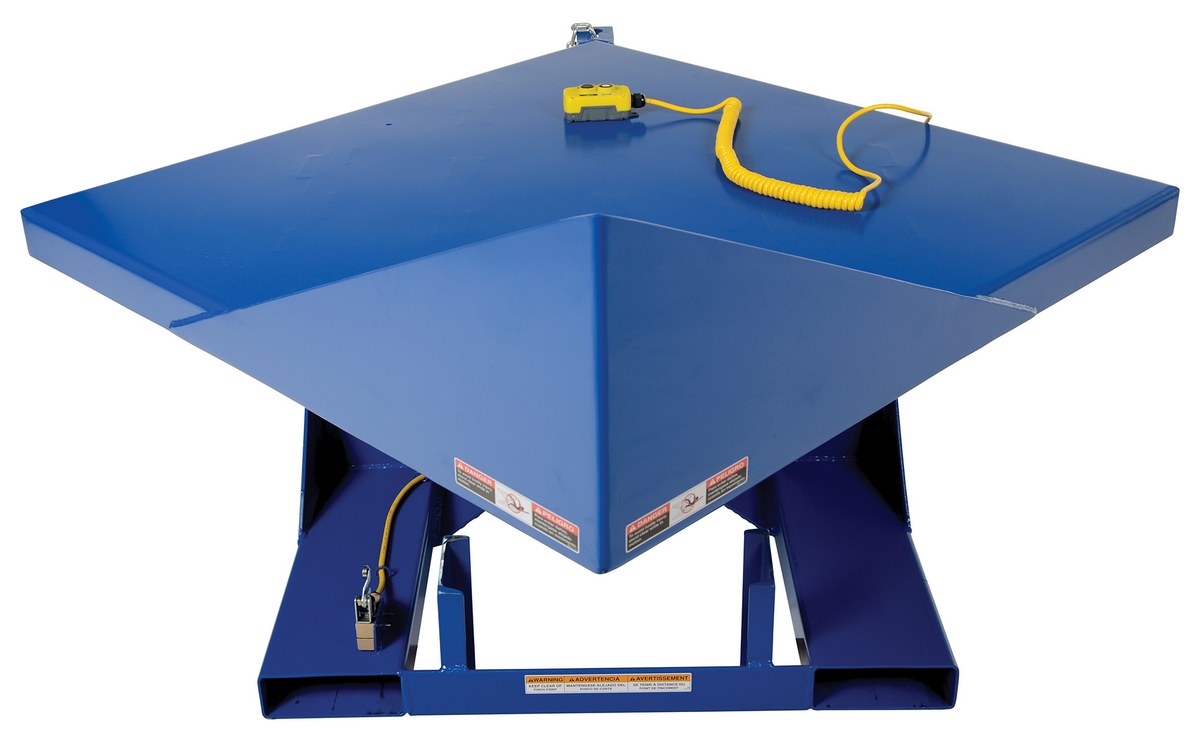

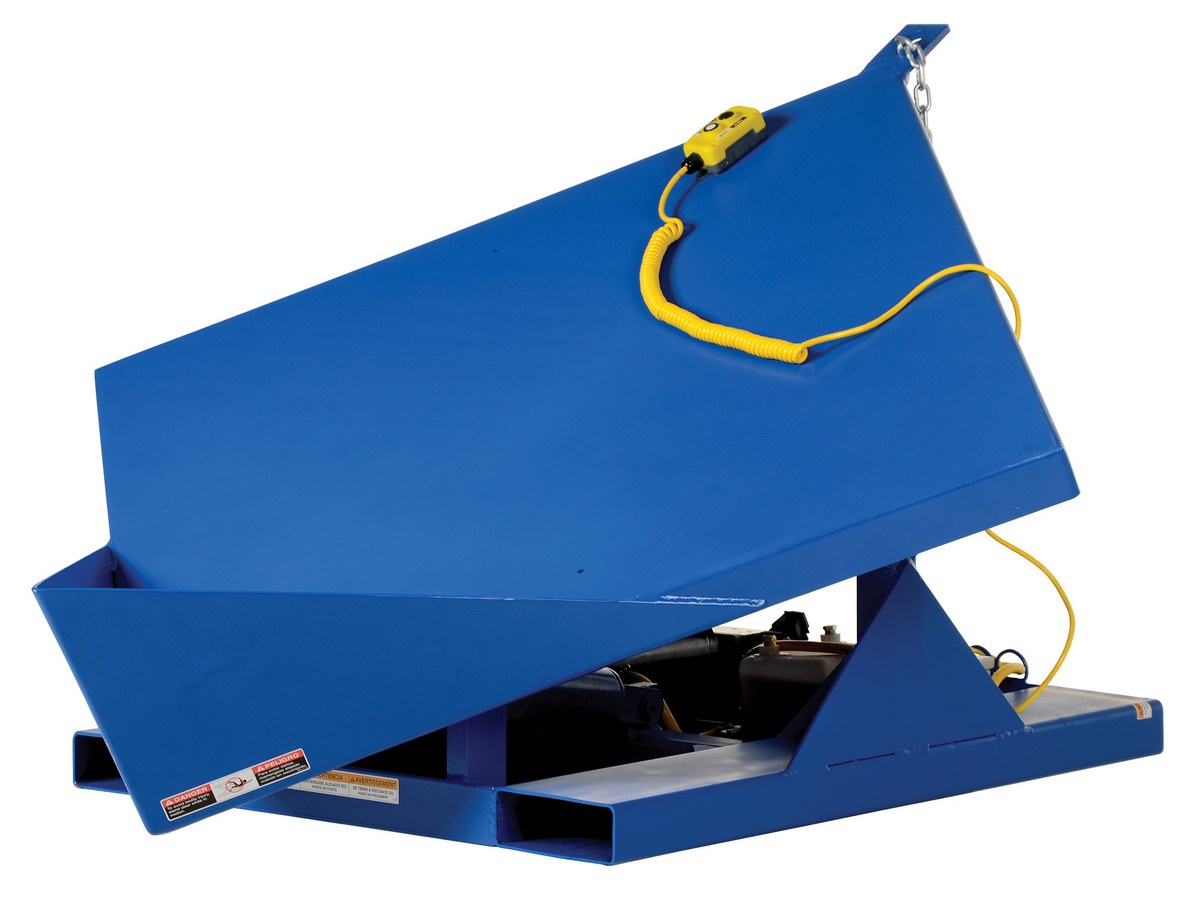

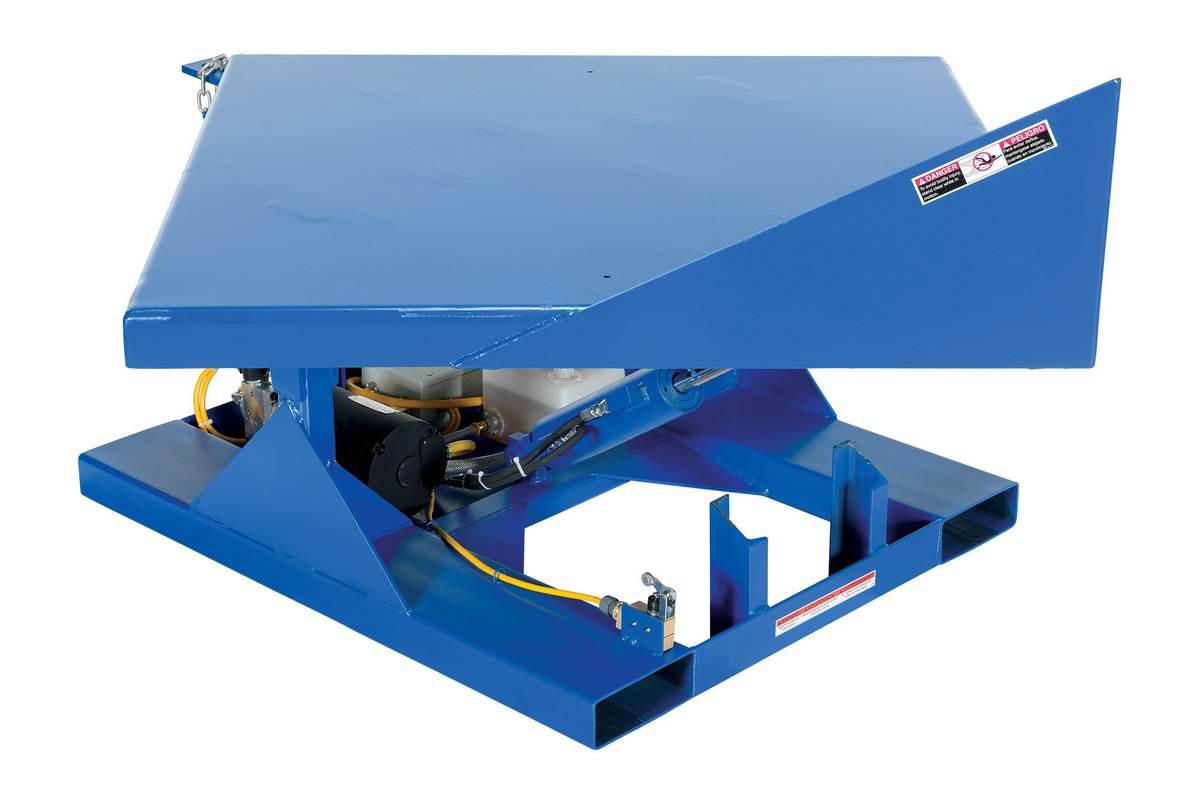

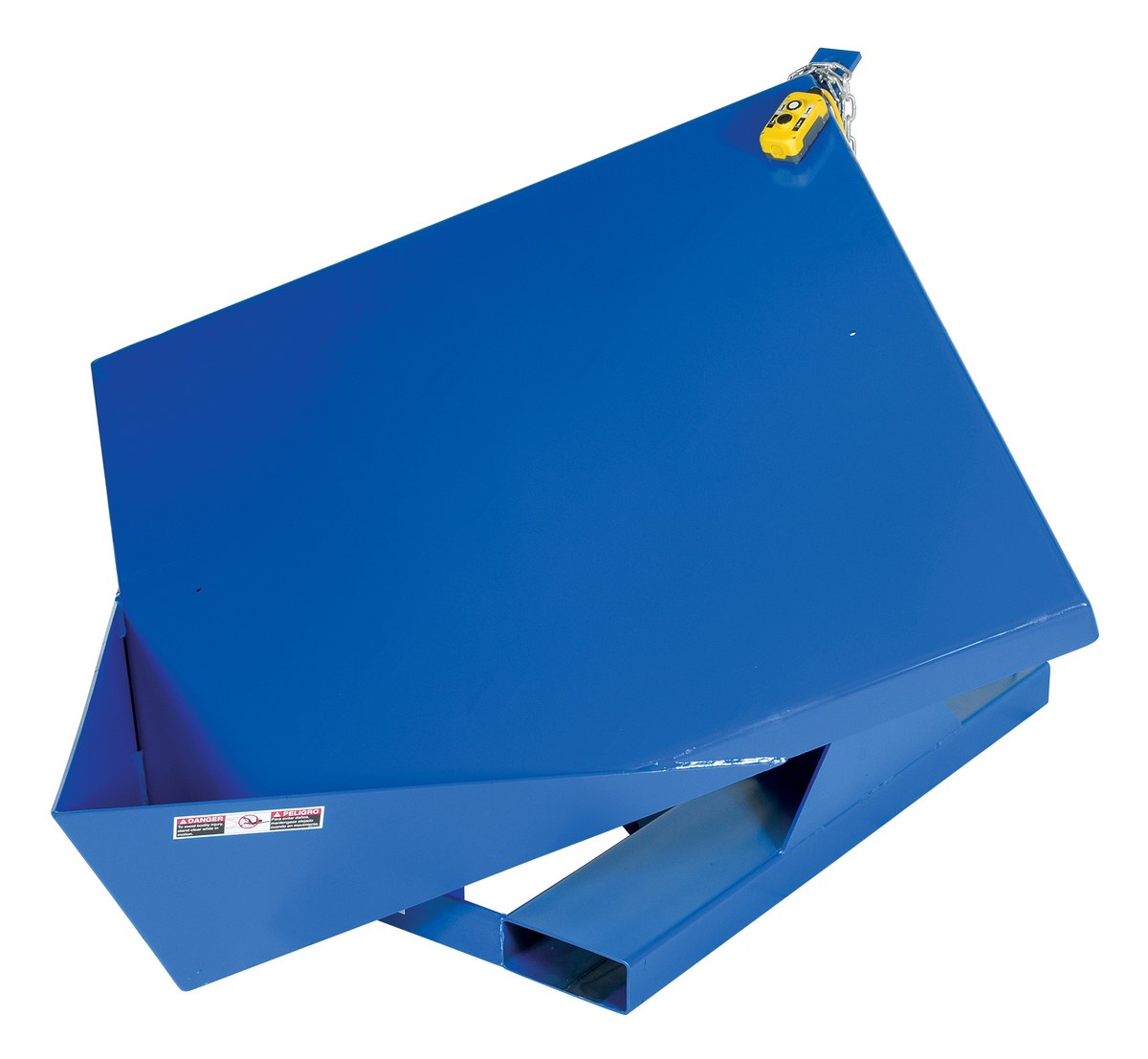

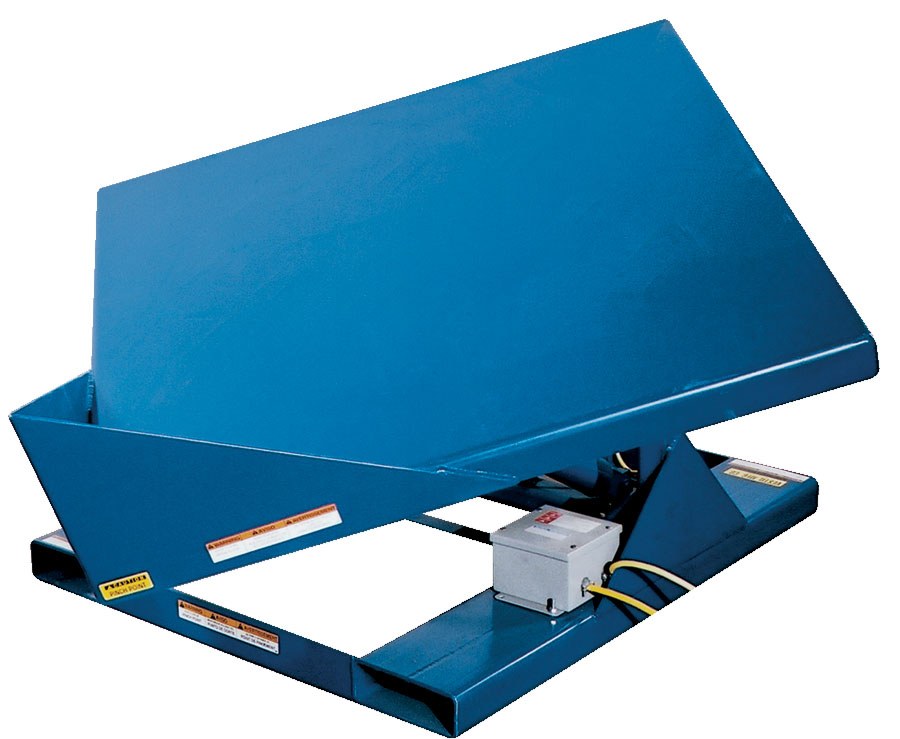

Electric/Hydraulic Corner Tilters
SERIES: EMC

460V 3-PHASE STANDARD

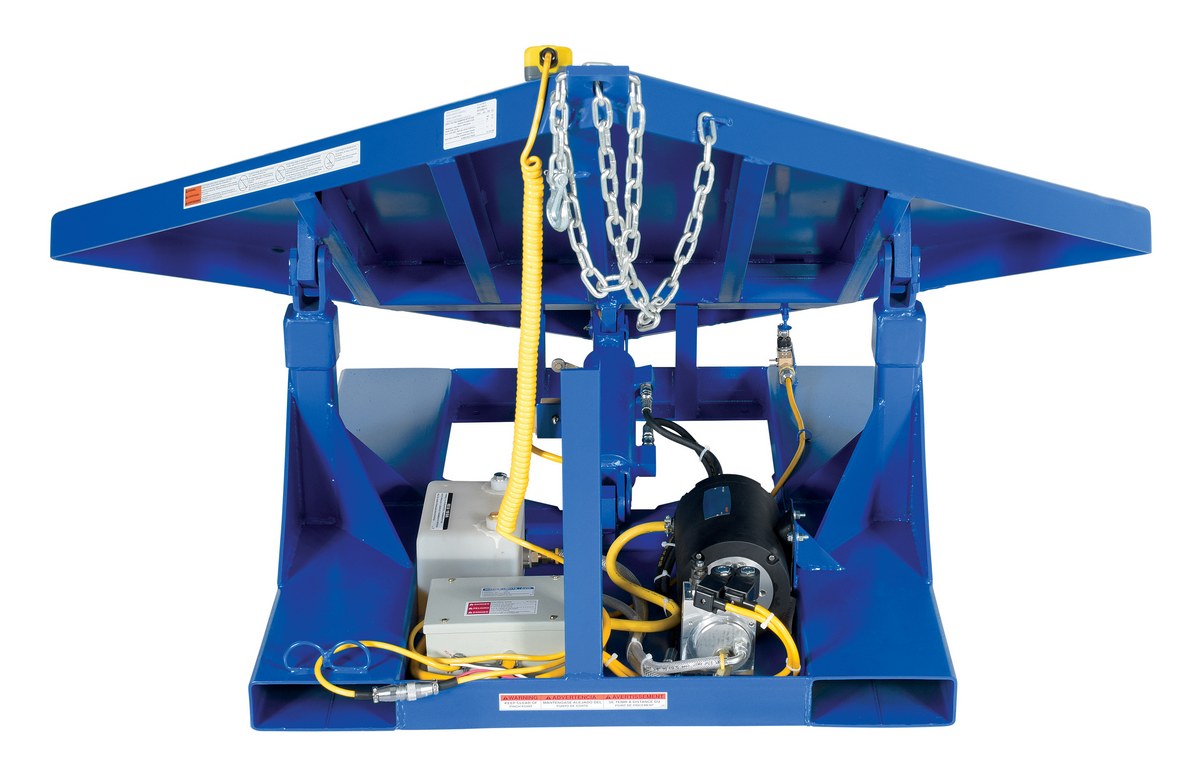

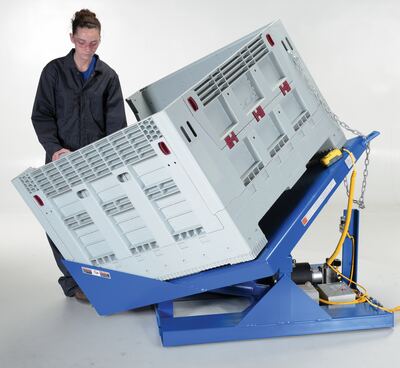

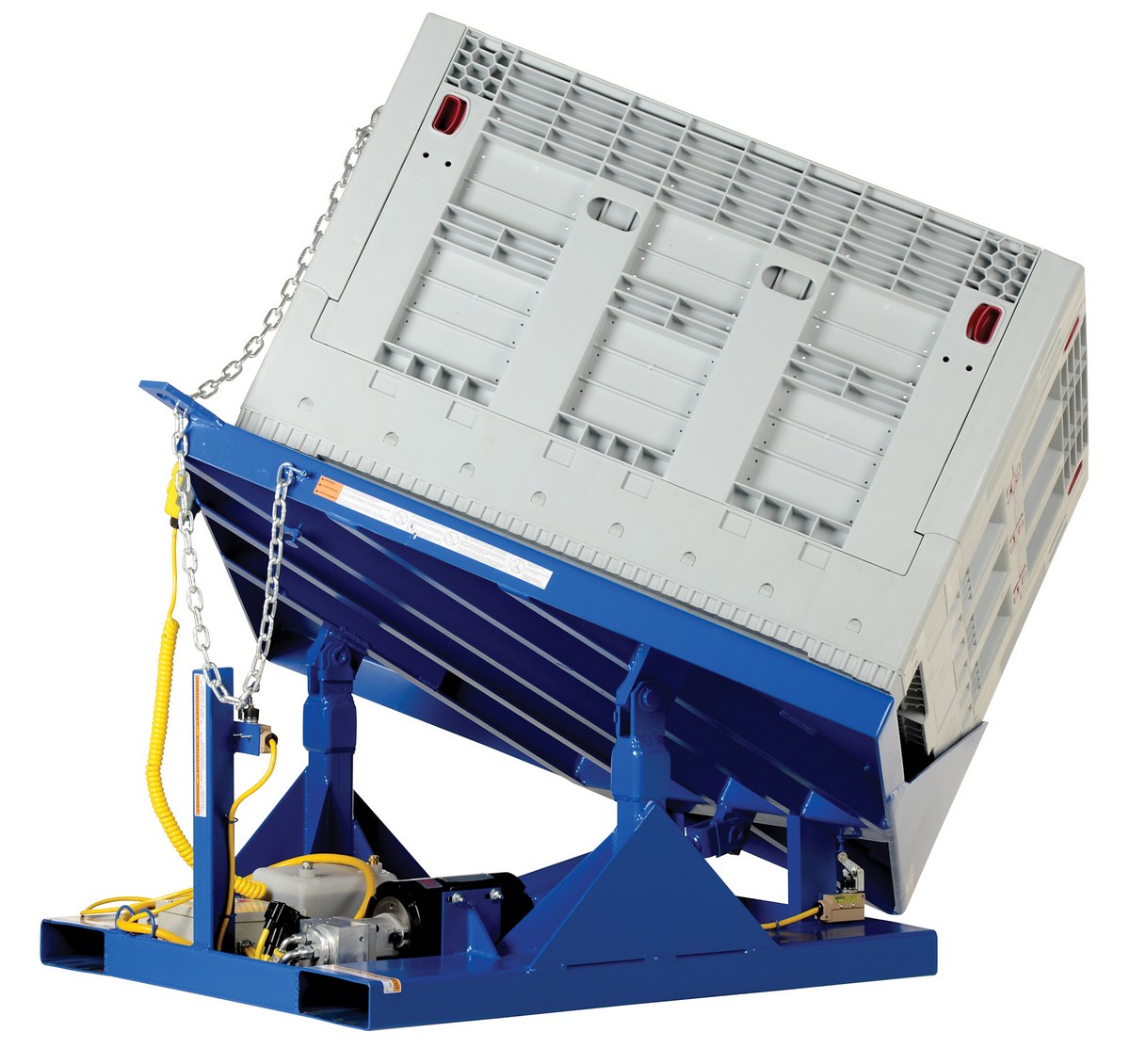

Reduce repetitive motion injuries and fatigue, while making your job easier and faster. Designed to corner tilt pallets, crates, boxes, or baskets. AC powered with 2HP 460V 3 phase with a push button control, other voltages available. Built-in fork tubes for easy portability with a fork truck.

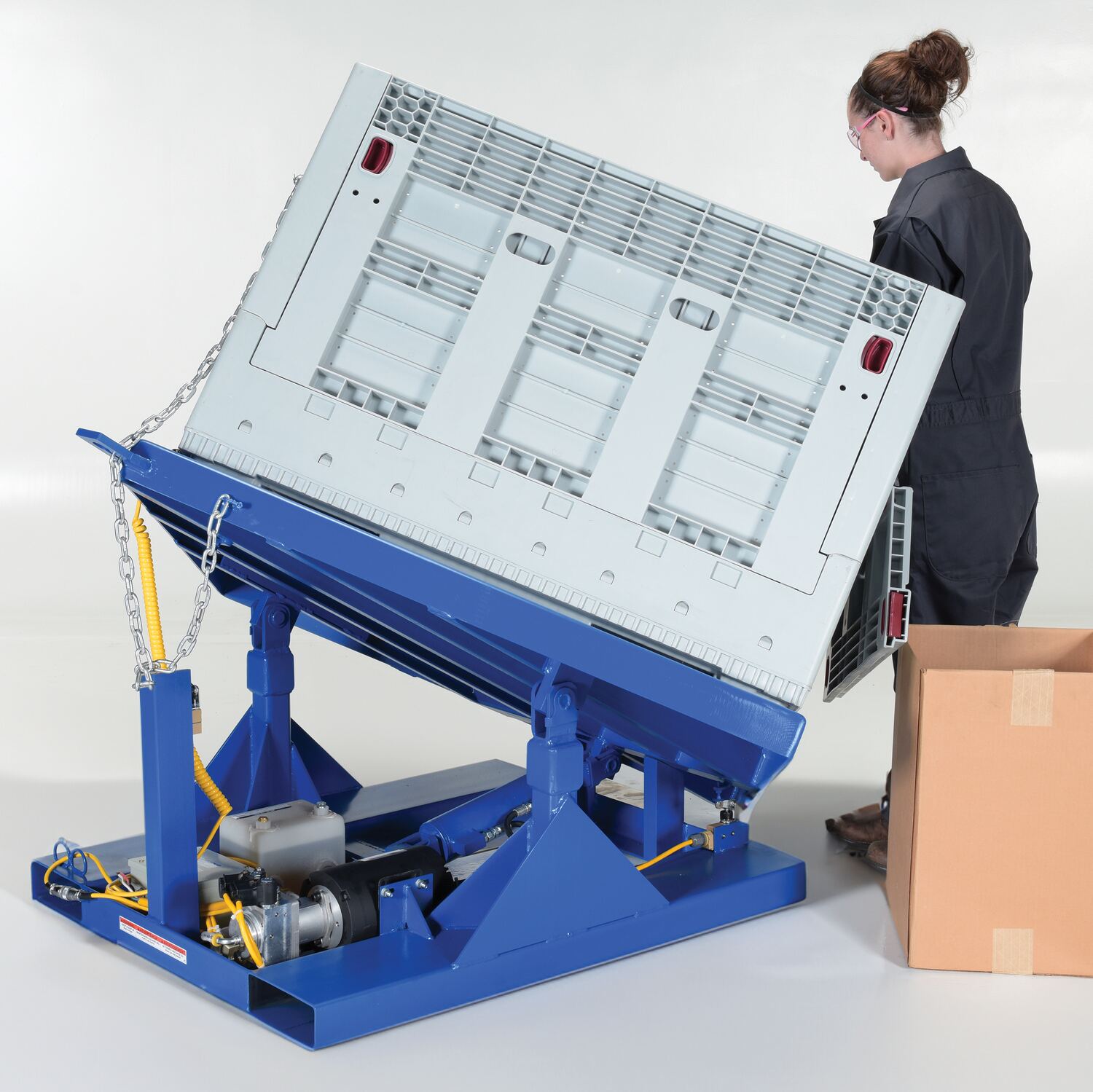

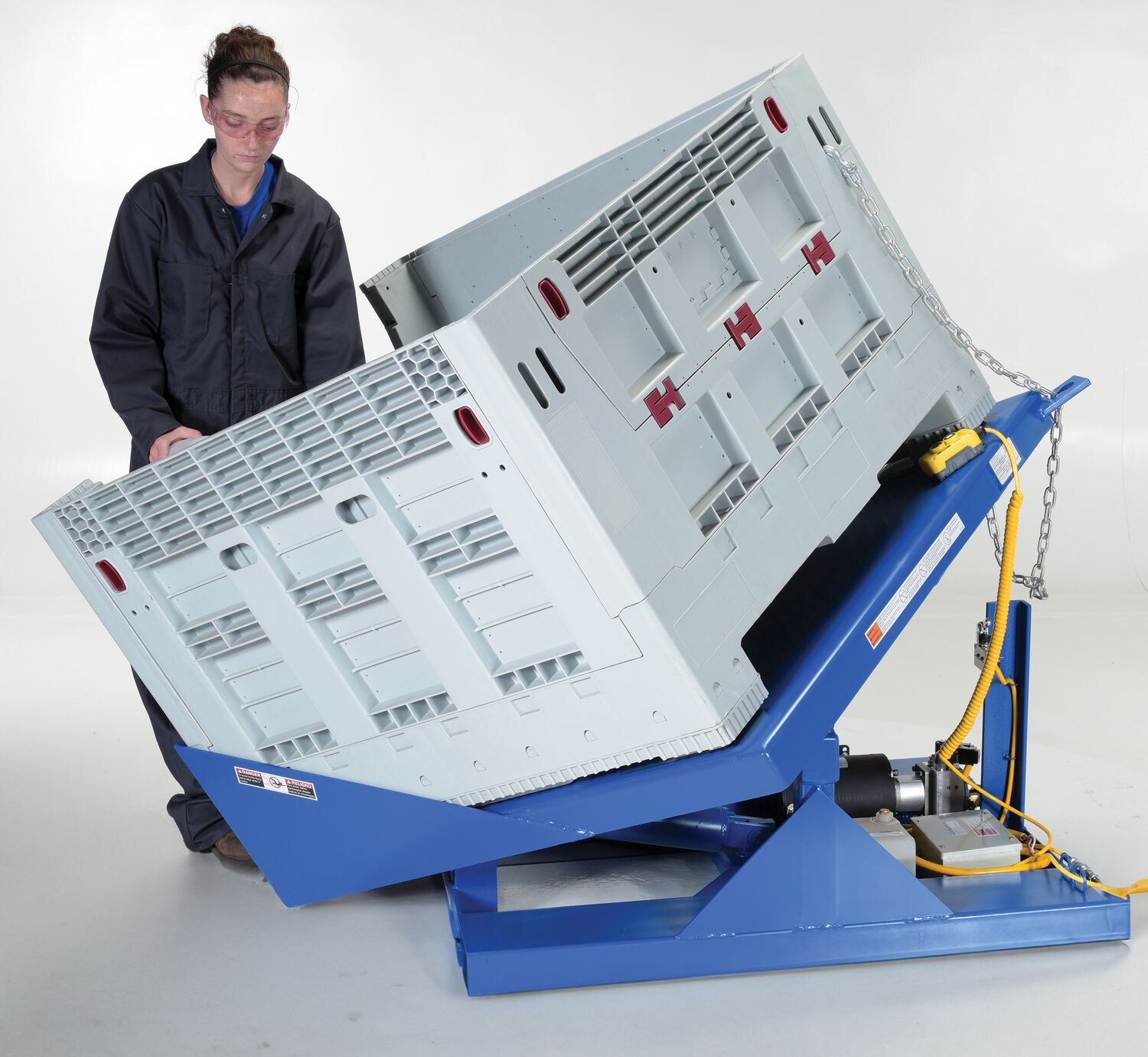

  • The 29-30 degree tilt makes many packaging jobs easier and faster
  • Built in fork tubes make portability easy with a fork truck
  • Ergonomic design reduces repetitive motion injuries and fatigue

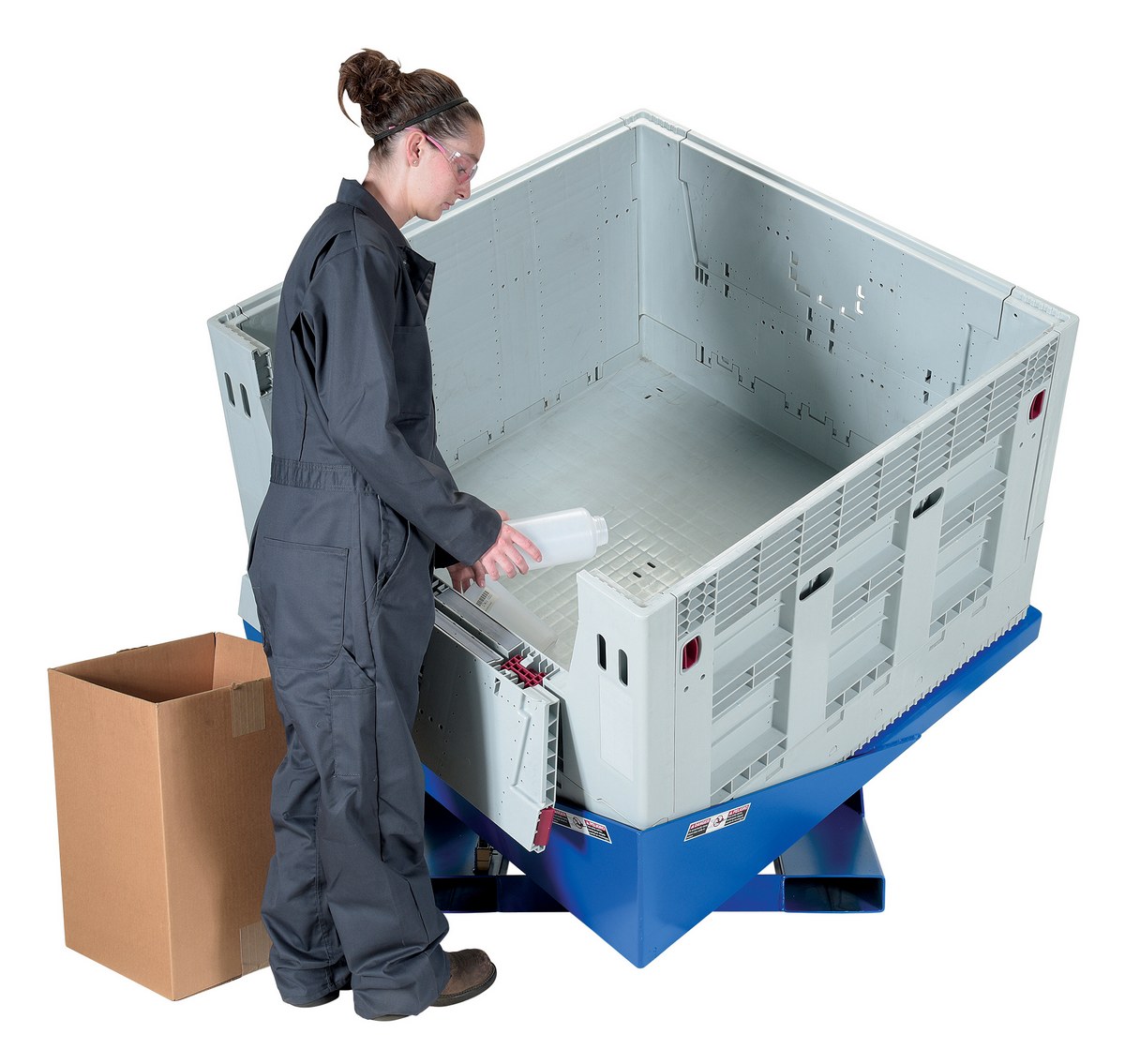

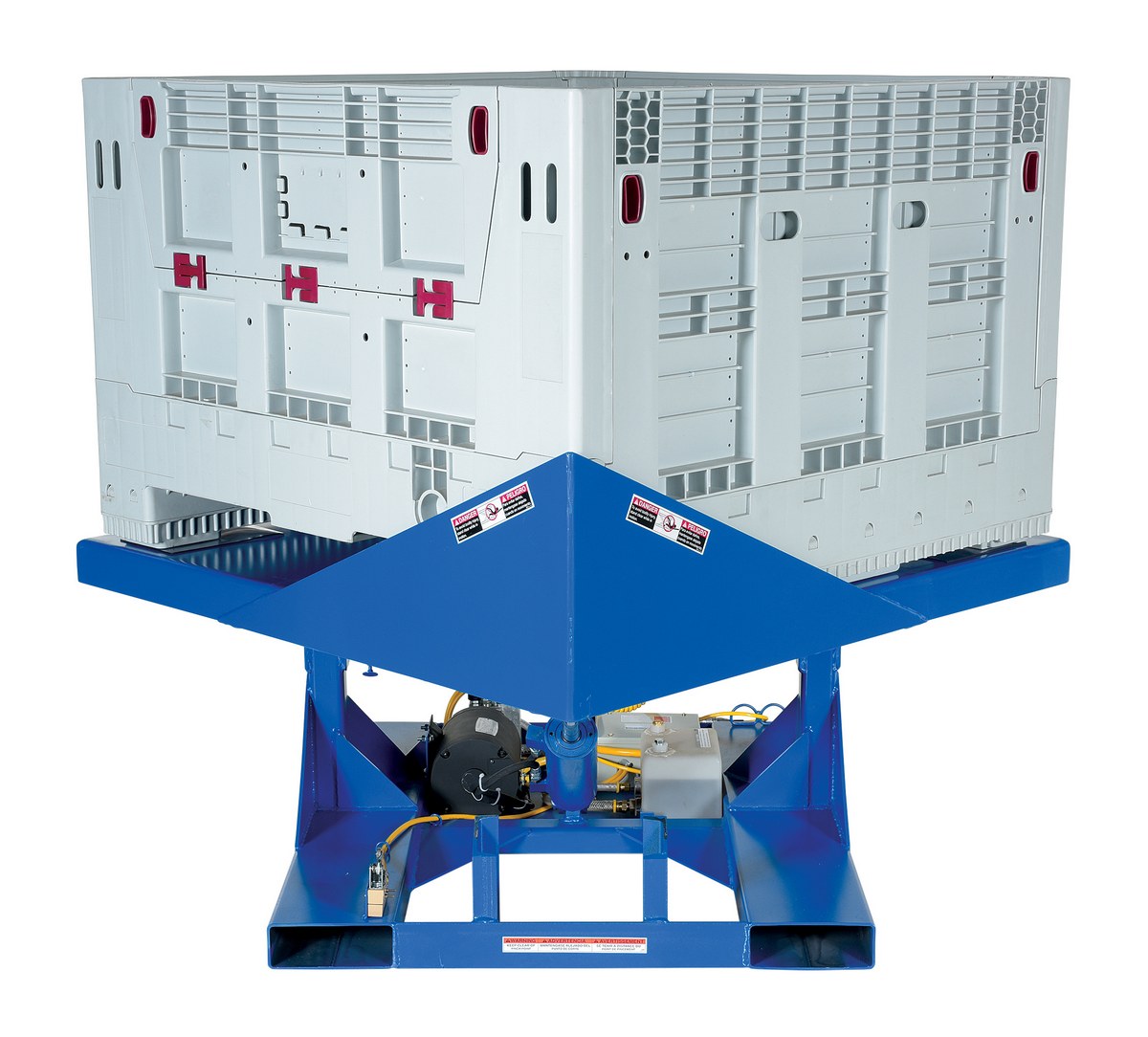

  • Corner tilt design can tilt pallets, crates, boxes, and baskets

460V 3-PHASE STANDARD

Reduce repetitive motion injuries and fatigue, while making your job easier and faster. Designed to corner tilt pallets, crates, boxes, or baskets. AC powered with 2HP 460V 3 phase with a push button control, other voltages available. Built-in fork tubes for easy portability with a fork truck.

  • The 29-30 degree tilt makes many packaging jobs easier and faster
  • Built in fork tubes make portability easy with a fork truck
  • Ergonomic design reduces repetitive motion injuries and fatigue
  • Corner tilt design can tilt pallets, crates, boxes, and baskets

Additional Models In This Family

EMC-4848-4

model EMC-4848-4

Model Specific Details




All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.
The Search Box below is within the Model Chart on this page. Not an entire site search.
Model # PDF's Description Attributes Net Wt.
(lbs)
EMC-4242-2 EMC-4242-21 Year Limited WarrantySteel Electric Hydraulic Corner Tilters 42 In. x 42 In. 2000 Lb. Capacity BlueUniform Capacity (lb.): 2,000
Maximum Tilt Degree: 30
750
EMC-4242-4 EMC-4242-41 Year Limited WarrantySteel Electric Hydraulic Corner Tilters 42 In. x 42 In. 4000 Lb. Capacity BlueUniform Capacity (lb.): 4,000
Maximum Tilt Degree: 30
800
EMC-4848-2 EMC-4848-21 Year Limited WarrantySteel Electric Hydraulic Corner Tilters 48 In. x 48 In. 2000 Lb. Capacity BlueUniform Capacity (lb.): 2,000
Maximum Tilt Degree: 29
800
EMC-4848-4 EMC-4848-41 Year Limited WarrantySteel Electric Hydraulic Corner Tilters 48 In. x 48 In. 4000 Lb. Capacity BlueUniform Capacity (lb.): 4,000
Maximum Tilt Degree: 29
674

KEY: = Expand Model Details = 48hr Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= Approval Drawing = Testing Certificate Warranty

EMC-4242-2
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 2,000
Maximum Tilt Degree: 30
Uniform Capacity (lb.): 2,000
Maximum Tilt Degree: 30

EMC-4242-4
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 4,000
Maximum Tilt Degree: 30
Uniform Capacity (lb.): 4,000
Maximum Tilt Degree: 30

EMC-4848-2
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 2,000
Maximum Tilt Degree: 29
Uniform Capacity (lb.): 2,000
Maximum Tilt Degree: 29

EMC-4848-4
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 4,000
Maximum Tilt Degree: 29
Uniform Capacity (lb.): 4,000
Maximum Tilt Degree: 29


Electric/Hydraulic Corner Tilters PDF's will open in a new window when clicked.

Manuals


Survey Sheets

No Survey Sheets For This Product


Approval Drawings

Testing Certificates


EMC-4242-2

EMC-4242-4

EMC-4848-2

EMC-4848-4

SDS Sheets

Hydraulic Oil SDS Sheet for: EMC-4848-2
Hydraulic Oil SDS Sheet for: EMC-4848-4

Other PDF's

No "Other PDFs" For This Product...


Directory Links Of Available PDF's For All Products

Some of our products may be temporarily unavailable due to supply chain disruptions. Contact our Sales Department for help with finding alternate product solutions. We apologize for the inconvenience.

Before placing an order, please confirm that the ship to company is able to receive shipments on the estimated delivery date





Electric/Hydraulic Corner Tilters




460V 3-PHASE STANDARD

Reduce repetitive motion injuries and fatigue, while making your job easier and faster. Designed to corner tilt pallets, crates, boxes, or baskets. AC powered with 2HP 460V 3 phase with a push button control, other voltages available. Built-in fork tubes for easy portability with a fork truck.

  • The 29-30 degree tilt makes many packaging jobs easier and faster
  • Built in fork tubes make portability easy with a fork truck
  • Ergonomic design reduces repetitive motion injuries and fatigue
  • Corner tilt design can tilt pallets, crates, boxes, and baskets

Electric / Hydraulic Corner Tilters
Model Image PDFs Description Platform Size (WxL) Capacity
(lbs)
Degree
of Tilt
Wt. (lbs)
EMC-4242-2 icon_approvaldrawings.jpgWarranty PDFCompliance Certificate Push Button Control 42"x42"x24" 2,000 30 750
EMC-4242-4 icon_approvaldrawings.jpgWarranty PDFCompliance Certificate Push Button Control 42"x42"x24" 4,000 30 800
EMC-4848-2 icon_approvaldrawings.jpgWarranty PDFCompliance Certificate Push Button Control 48"x48"x24" 2,000 29 800
EMC-4848-4 icon_approvaldrawings.jpgWarranty PDFCompliance Certificate Push Button Control 48"x48"x24" 4,000 29 874
