Click Image to Enlarge

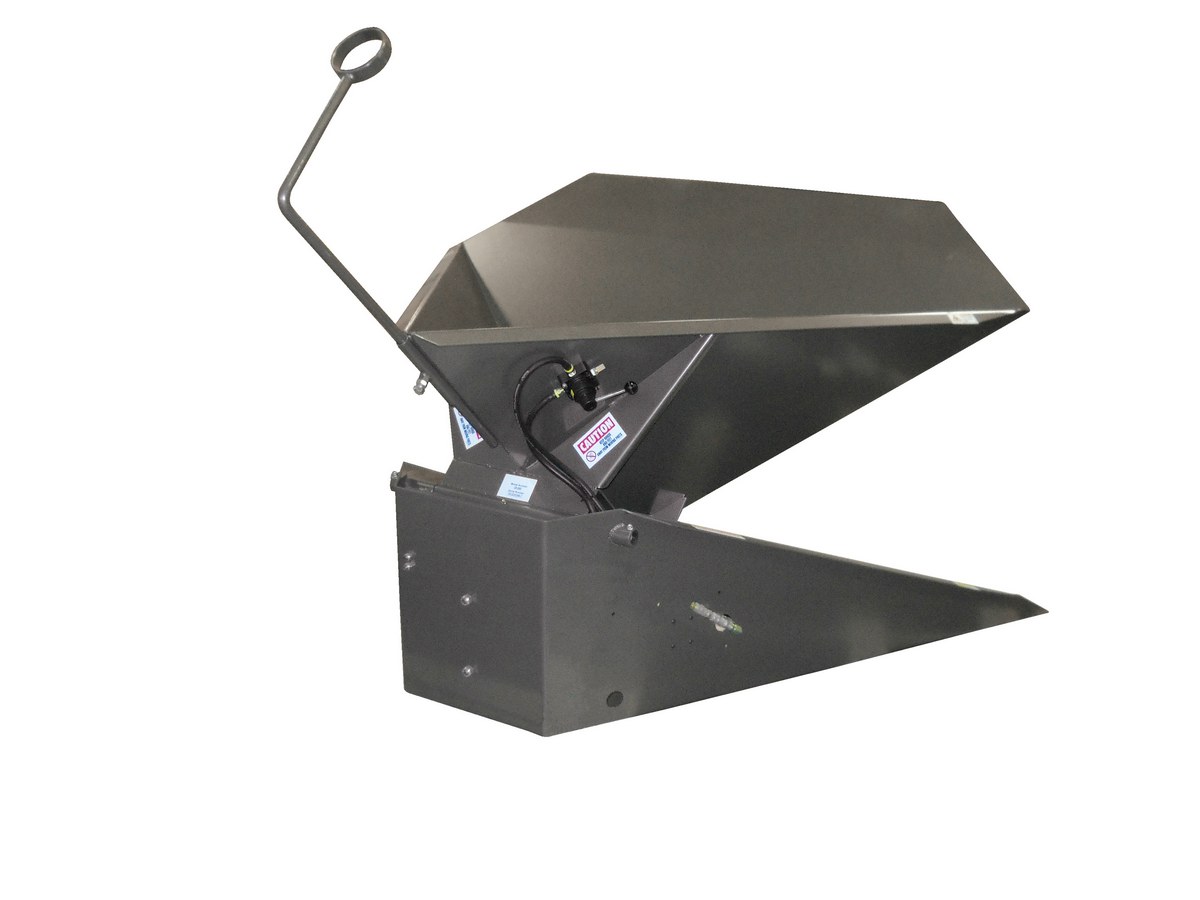

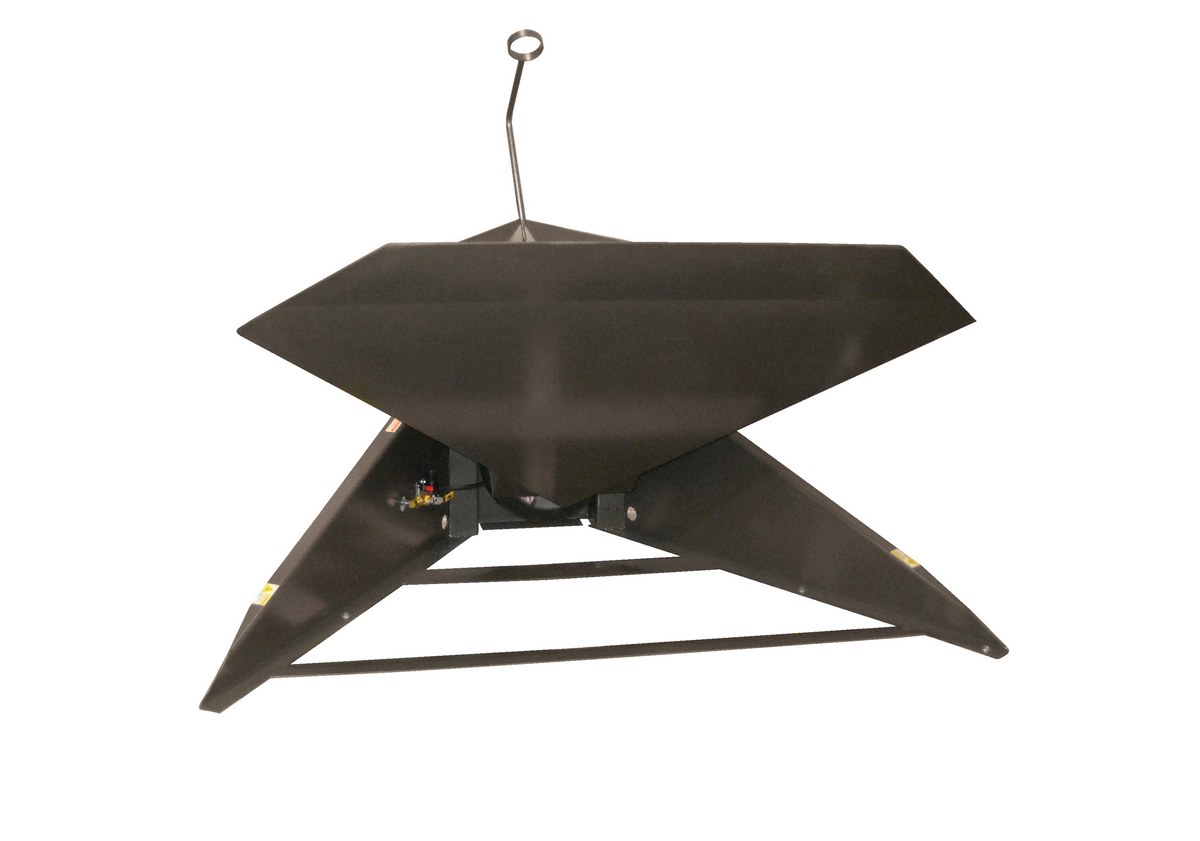

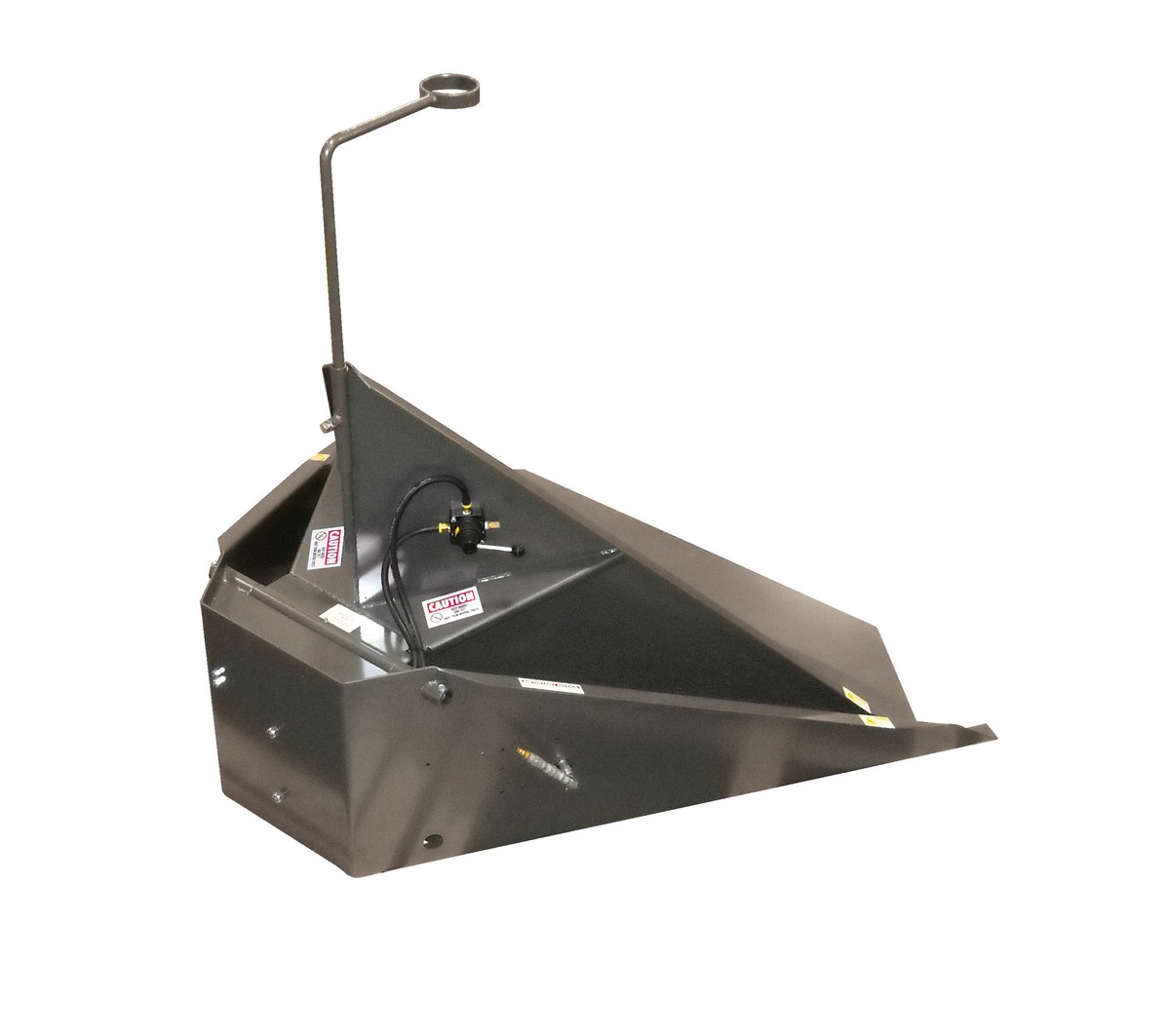

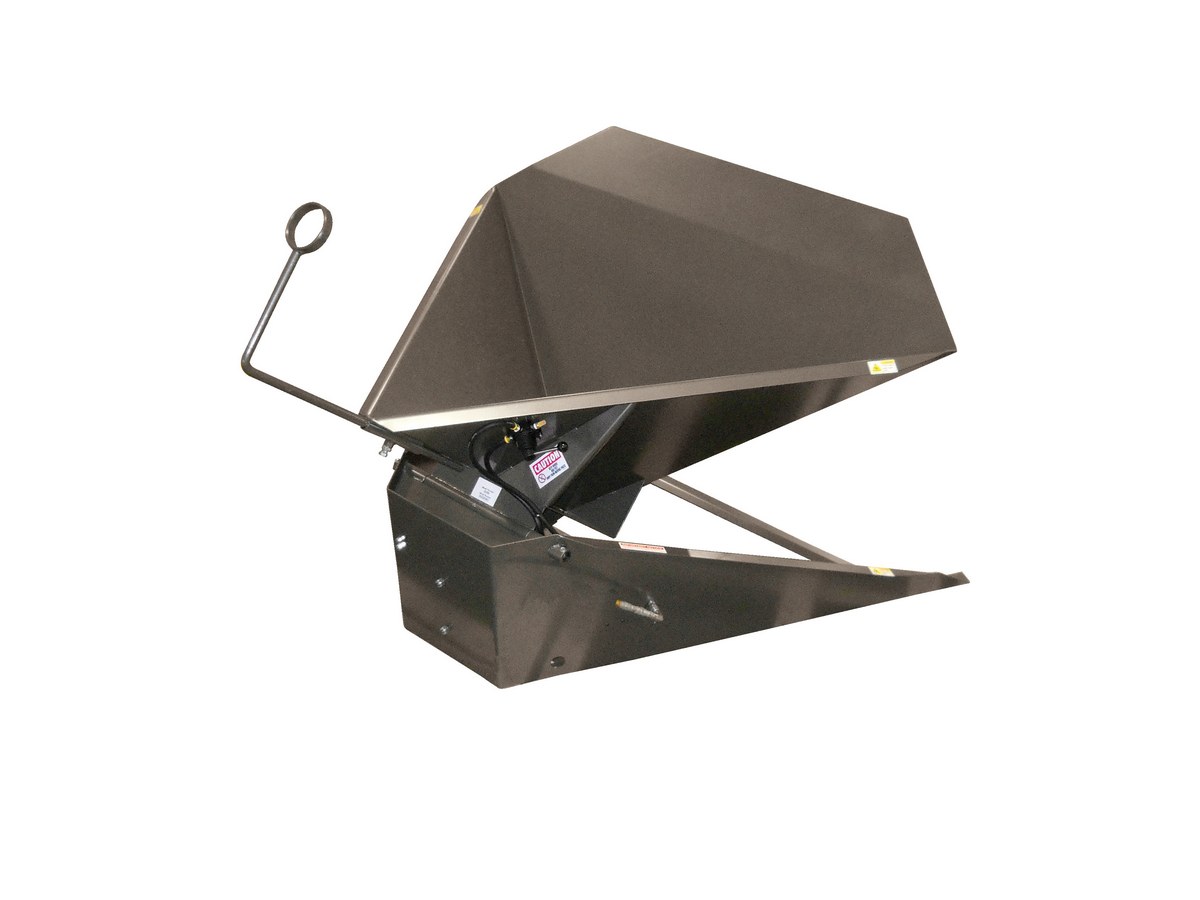

model: AIR-THL


Air Corner Tilters
SERIES: AIR

FACTORY AIR POWERED

The Air Corner Tilter provides ergonomic loading and unloading of bulk containers, gaylords or crates. Allows two wall accessibility with both pallet jacks and fork trucks. Constructed of 7 gauge steel, this heavy duty unit has a maximum rated capacity of 1,500 lbs. and can tilt up to 45 degrees. The tilter is activated by a hand operated control lever or foot pedal. The air bag inflates tilting the container automatically as it is unloaded. As the container becomes lighter, it automatically tilts and the material shifts to the corner of the container where it can be easily removed by manual or mechanical means. The regulator is factory preset to begin rotating the container when the weight reaches approximately 900 lbs.

Features

  • 45 Degree Tilt
  • Base Size 71"W x 52"D
  • Multi-ply air bag
  • Three position manually operated air valve to activate air bag \
  • Adjustable air line filter/regulator assembly
  • Adjustable vacuum wand holder (3-1/2" ID) (not shown)

FACTORY AIR POWERED

The Air Corner Tilter provides ergonomic loading and unloading of bulk containers, gaylords or crates. Allows two wall accessibility with both pallet jacks and fork trucks. Constructed of 7 gauge steel, this heavy duty unit has a maximum rated capacity of 1,500 lbs. and can tilt up to 45 degrees. The tilter is activated by a hand operated control lever or foot pedal. The air bag inflates tilting the container automatically as it is unloaded. As the container becomes lighter, it automatically tilts and the material shifts to the corner of the container where it can be easily removed by manual or mechanical means. The regulator is factory preset to begin rotating the container when the weight reaches approximately 900 lbs.

Features

  • 45 Degree Tilt
  • Base Size 71"W x 52"D
  • Multi-ply air bag
  • Three position manually operated air valve to activate air bag \
  • Adjustable air line filter/regulator assembly
  • Adjustable vacuum wand holder (3-1/2" ID) (not shown)
AIR-PVO

model AIR-PVO

AIR-THL-SS

model AIR-THL-SS




All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.
The Search Box below is within the Model Chart on this page. Not an entire site search.
Model Image PDFs Description Attributes Net Wt.
(lbs)
AIR-THL-SS 90 Days Limited WarrantyStainless Steel Hand Lever Operated Air Corner Tilter 50-7/8 In. x 78-1/2 In. x 35-1/4 In. 1500 Lb. Capacity SilverUniform Capacity (lb.): 1,500
Maximum Tilt (degree): 45
550
AIR-TFP 90 Days Limited WarrantySteel Foot Treadle Operated Air Corner Tilter 45 In. x 70-1/2 In. x 52-9/32 In. 1500 Lb. Capacity SilverUniform Capacity (lb.): 1,500
Maximum Tilt (degree): 45
550
AIR-THL 90 Days Limited WarrantySteel Hand Lever Operated Air Corner Tilter 50-7/8 In. x 78-1/2 In. x 35-1/4 In. 1500 Lb. Capacity SilverUniform Capacity (lb.): 1,500
Maximum Tilt (degree): 45
550

KEY: = Click For Expanded Model Details -- = Approval Drawing -- = Testing Certificate -- Warranty

If you did not find an expected Model or SKU # in the table, try the Options Section Below

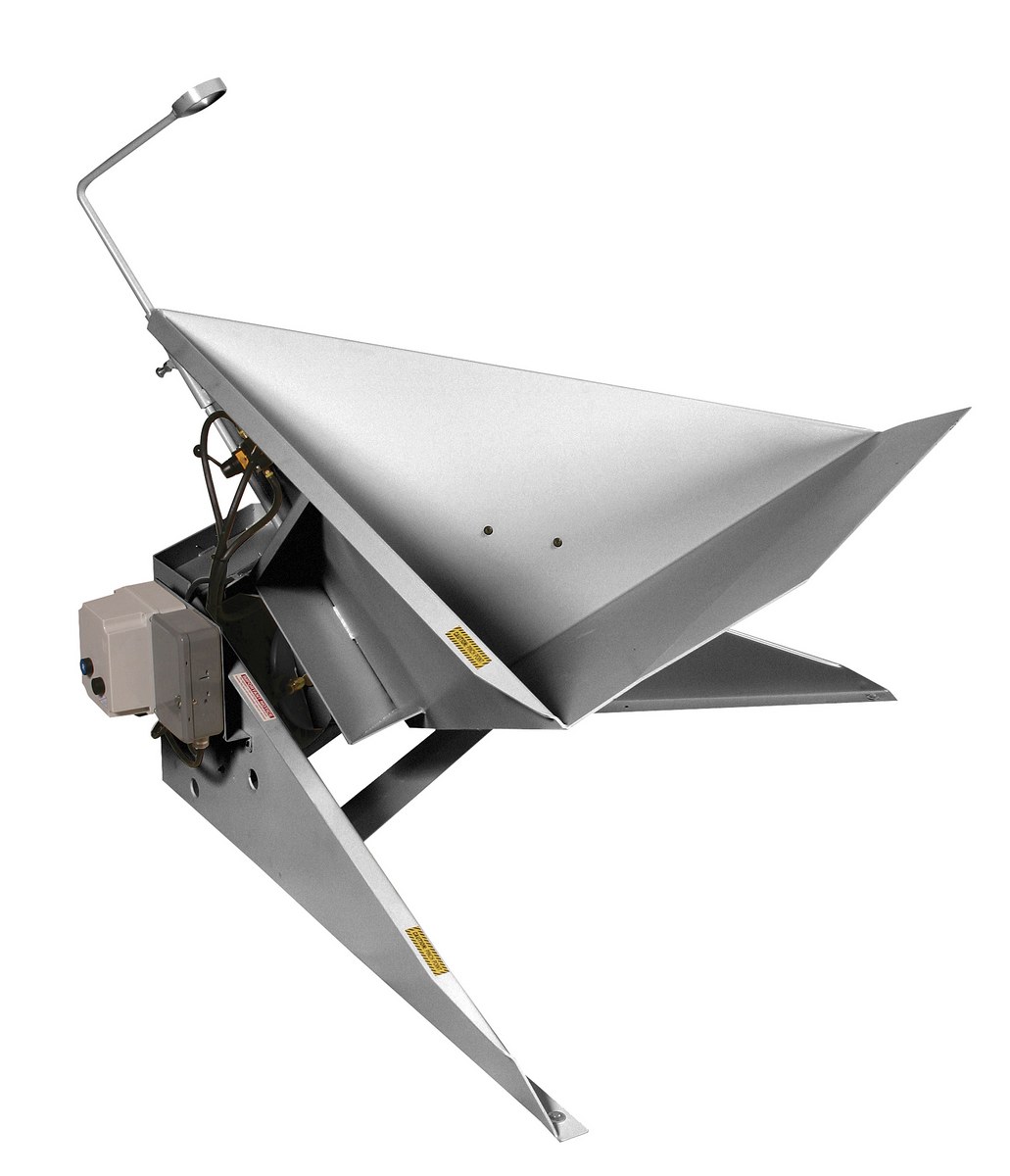

Stainless Steel Hand Lever Operated Air Corner Tilter 50-7/8 In. x 78-1/2 In. x 35-1/4 In. 1500 Lb. Capacity Silver


Unit: EACH
Size: 78.5W x 50.875L x 35.25H
Weight: 550
90 Days Limited Warranty
Uniform Capacity (lb.): 1,500
Maximum Tilt (degree): 45
Uniform Capacity (lb.): 1,500
Maximum Tilt (degree): 45

Steel Foot Treadle Operated Air Corner Tilter 45 In. x 70-1/2 In. x 52-9/32 In. 1500 Lb. Capacity Silver


Unit: EACH
Size: 70.5W x 45L x 52.28H
Weight: 550
90 Days Limited Warranty
Uniform Capacity (lb.): 1,500
Maximum Tilt (degree): 45
Uniform Capacity (lb.): 1,500
Maximum Tilt (degree): 45

Steel Hand Lever Operated Air Corner Tilter 50-7/8 In. x 78-1/2 In. x 35-1/4 In. 1500 Lb. Capacity Silver


Unit: EACH
Size: 78.5W x 50.875L x 35.25H
Weight: 550
90 Days Limited Warranty
Uniform Capacity (lb.): 1,500
Maximum Tilt (degree): 45
Uniform Capacity (lb.): 1,500
Maximum Tilt (degree): 45


Air Corner Tilter Options
Model Image PDF's Description Wt.
(lbs)

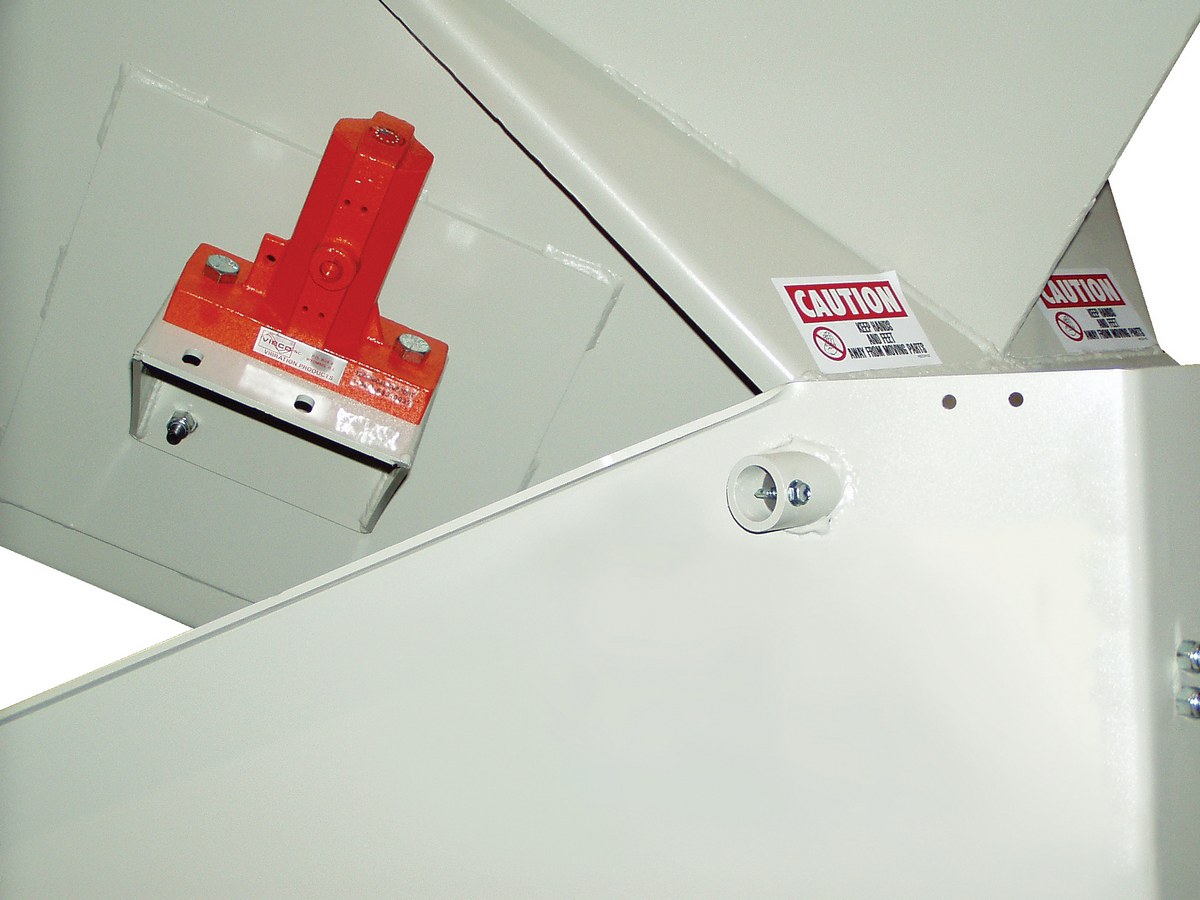

AIR-PVO tilt_m4.jpg Power Vibrator Option 30

KEY: Approval Drawing = Approval Drawing -- Approval Drawing = Warranty -- Approval Drawing = Testing Certificate

If you did not find an expected Model or SKU # in this table, try the Product Specifications Section Above



Air Corner Tilters PDF's will open in a new window when clicked.
No Owners Manuals For This Product.


Survey Sheets

No Survey Sheets For This Product


Approval Drawings

Testing Certificates

Other PDF's

No "Other PDFs" For This Product...


Directory Links Of Available PDF's For All Products





We are hoping to continue adding new product pictures to each gallery. Check back soon.

Before placing an order, please confirm that the ship to company is able to receive shipments on the estimated delivery date





Air Corner Tilters




FACTORY AIR POWERED

The Air Corner Tilter provides ergonomic loading and unloading of bulk containers, gaylords or crates. Allows two wall accessibility with both pallet jacks and fork trucks. Constructed of 7 gauge steel, this heavy duty unit has a maximum rated capacity of 1,500 lbs. and can tilt up to 45 degrees. The tilter is activated by a hand operated control lever or foot pedal. The air bag inflates tilting the container automatically as it is unloaded. As the container becomes lighter, it automatically tilts and the material shifts to the corner of the container where it can be easily removed by manual or mechanical means. The regulator is factory preset to begin rotating the container when the weight reaches approximately 900 lbs.

Features

  • 45 Degree Tilt
  • Base Size 71"W x 52"D
  • Multi-ply air bag
  • Three position manually operated air valve to activate air bag \
  • Adjustable air line filter/regulator assembly
  • Adjustable vacuum wand holder (3-1/2" ID) (not shown)

Air Corner Tilter
Model Image PDF's Description Platform Size
(WxL)
Capacity
(lbs)
Wt.
(lbs)
AIR-THL icon_approvaldrawings.jpgtilt_m4.jpgCompliance Certificate Hand Lever Operated 44"x44" 1,500 550
AIR-TFP - icon_approvaldrawings.jpgtilt_m4.jpgCompliance Certificate Foot Treadle Operated 44"x44" 1,500 550
AIR-THL-SS tilt_m4.jpgCompliance Certificate Stainless Steel Hand Lever Operated 44"x44" 1,500 550

Options


Air Corner Tilter Options
Model Image PDF's Description Wt.
(lbs)
AIR-PVO tilt_m4.jpg Power Vibrator Option 30
