SERIES: SL

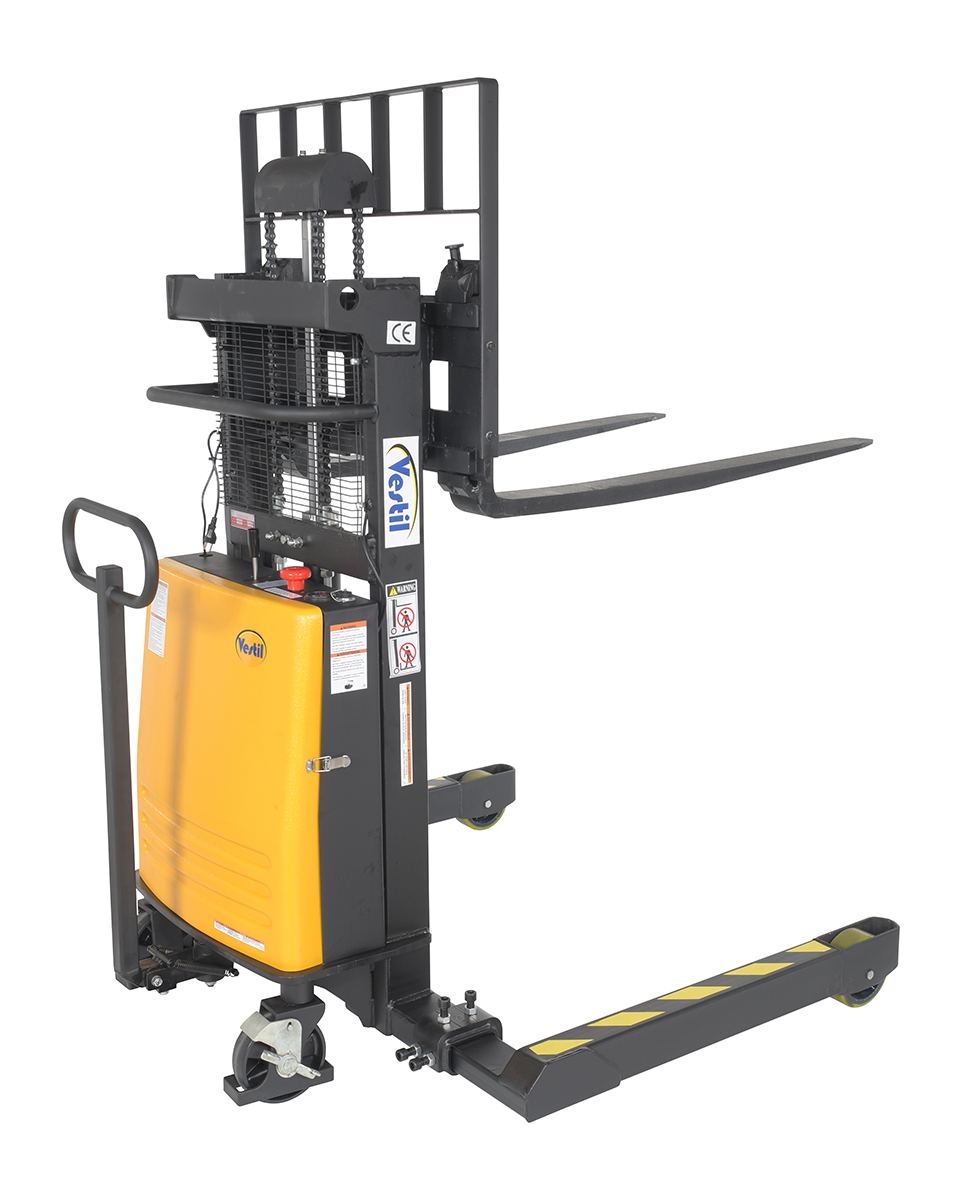

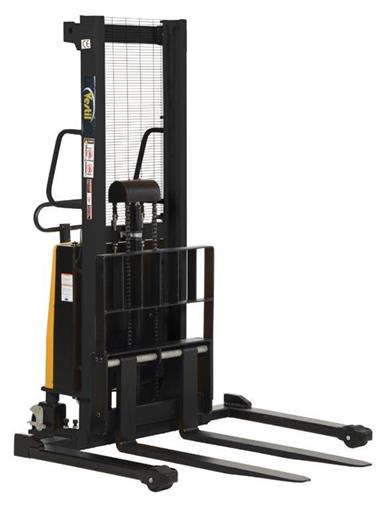

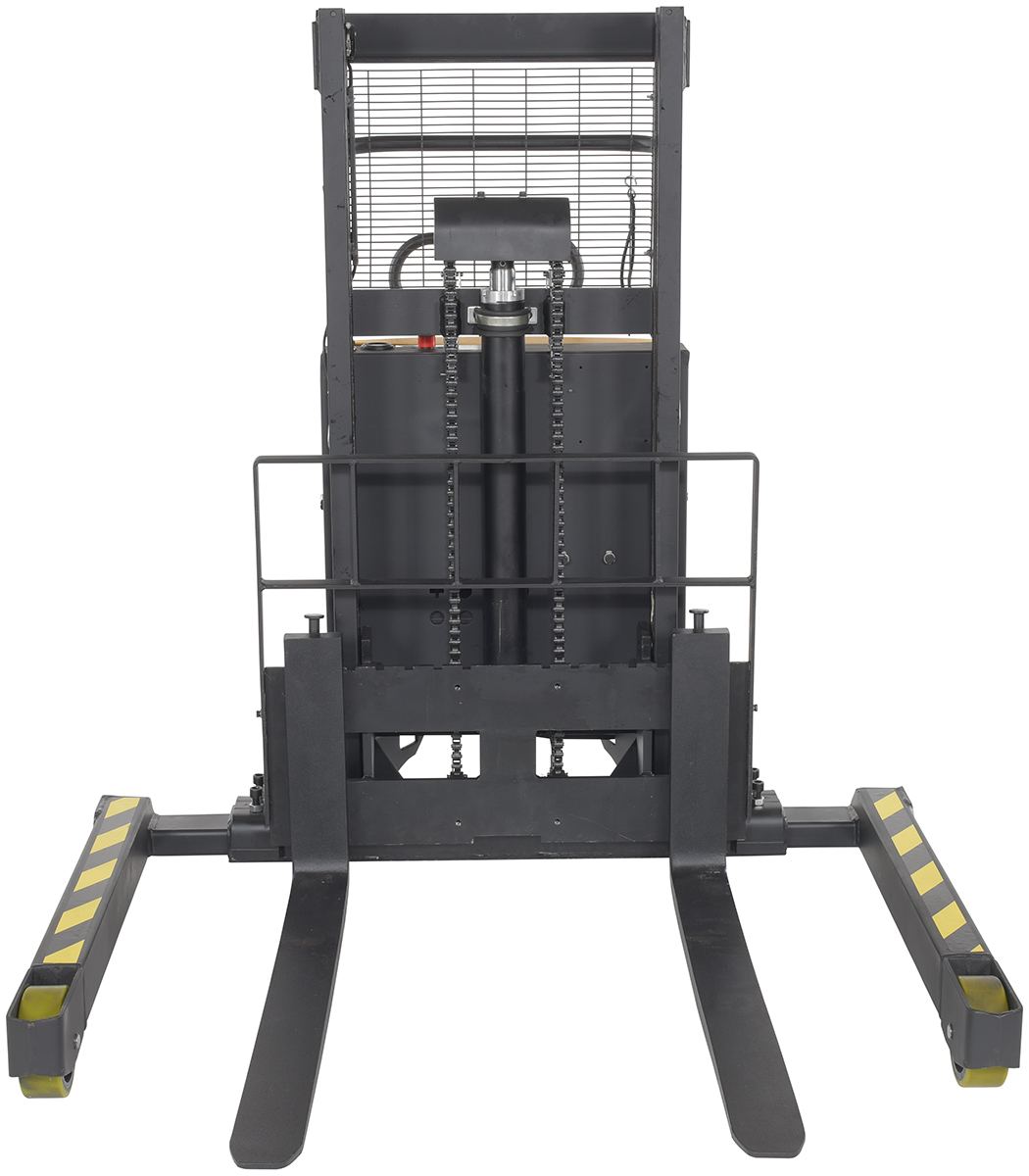

Stacker with Powered Lift

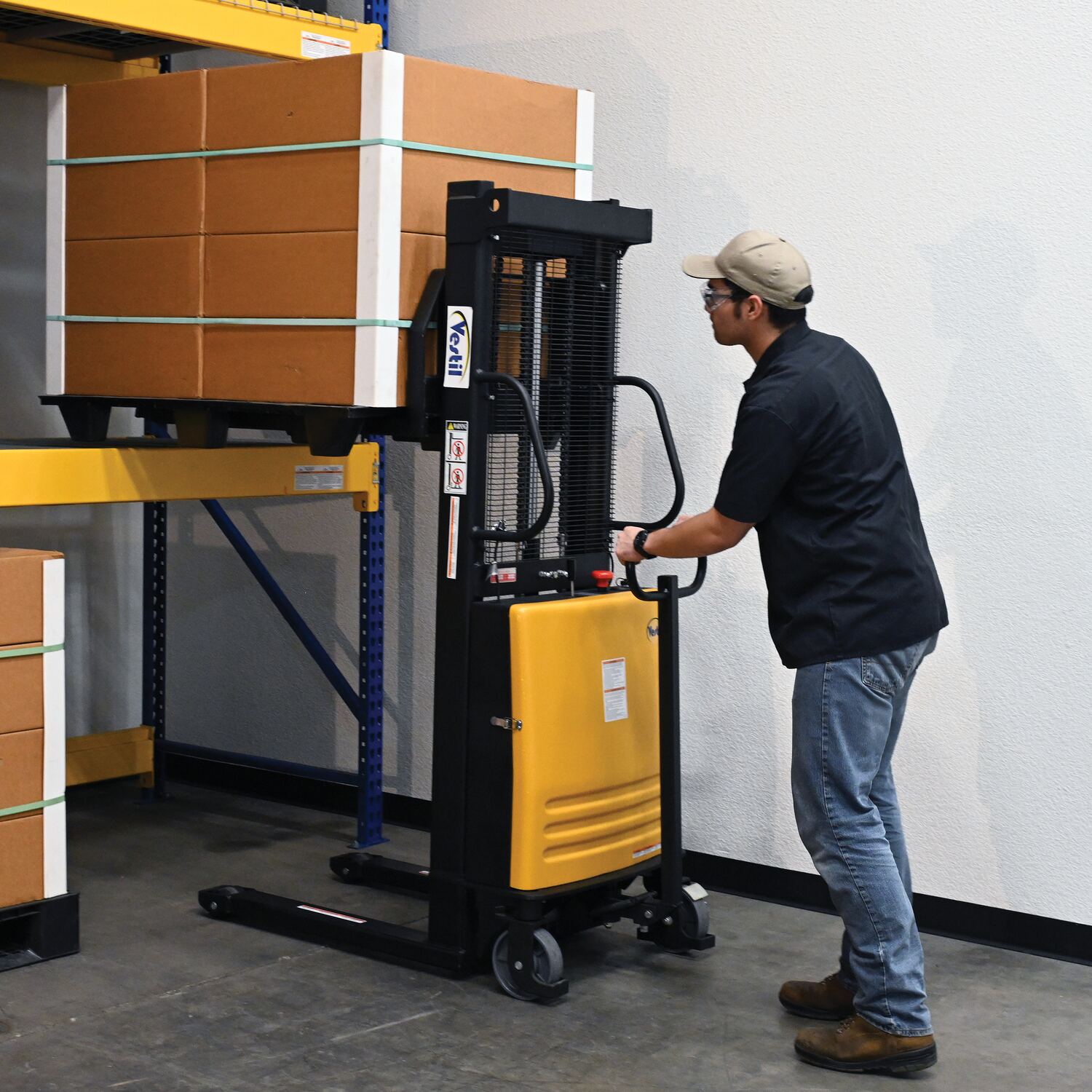

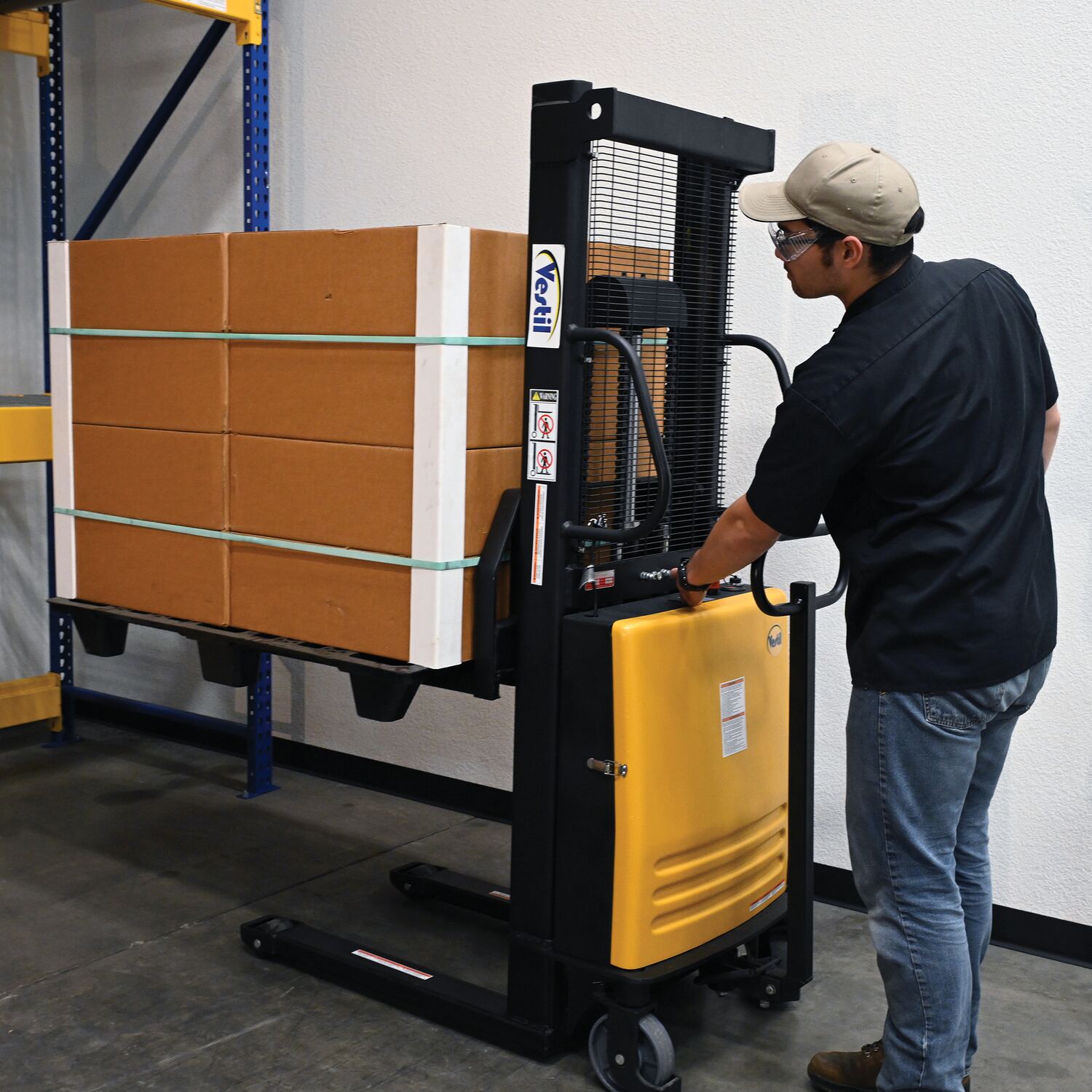

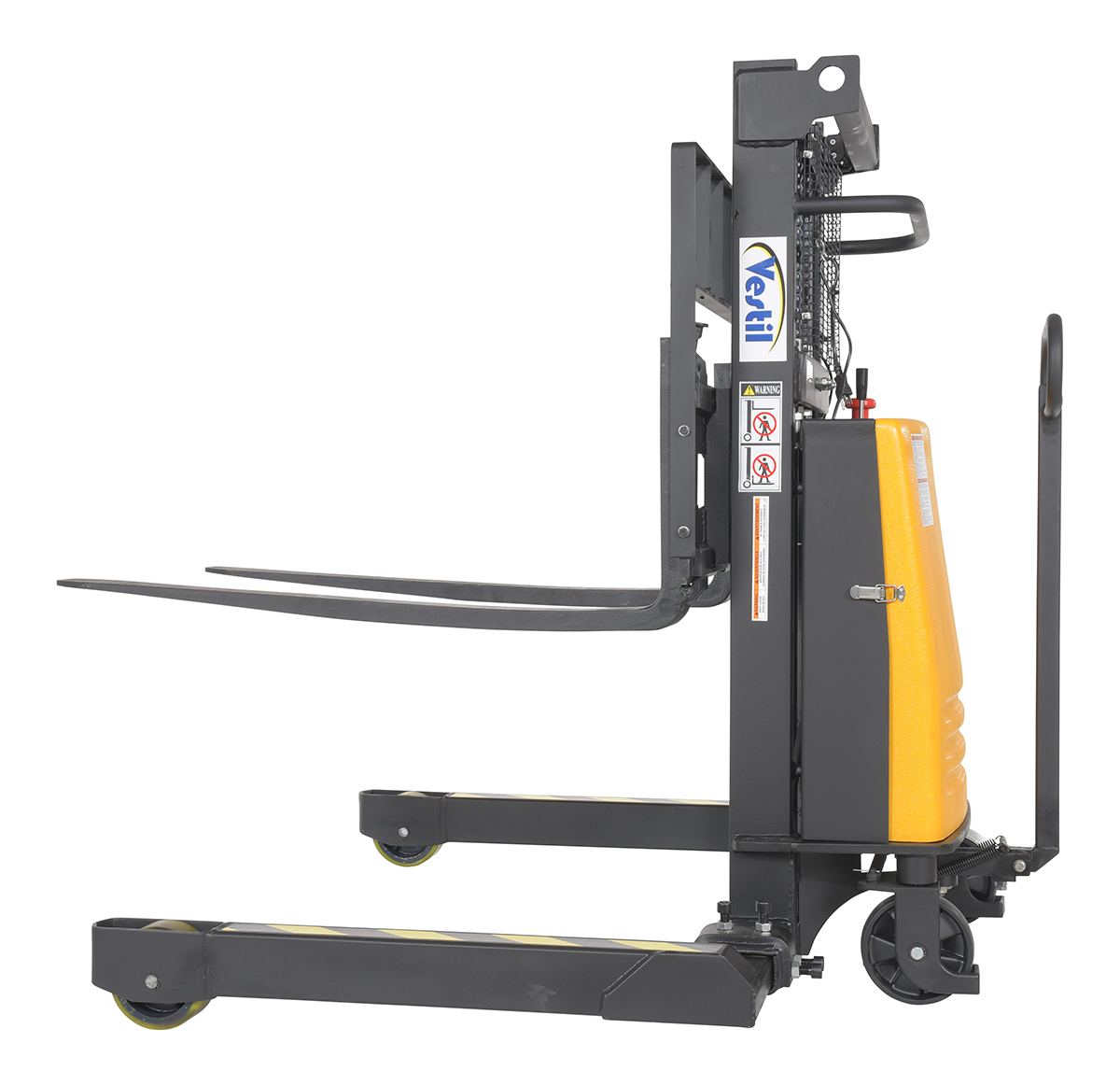

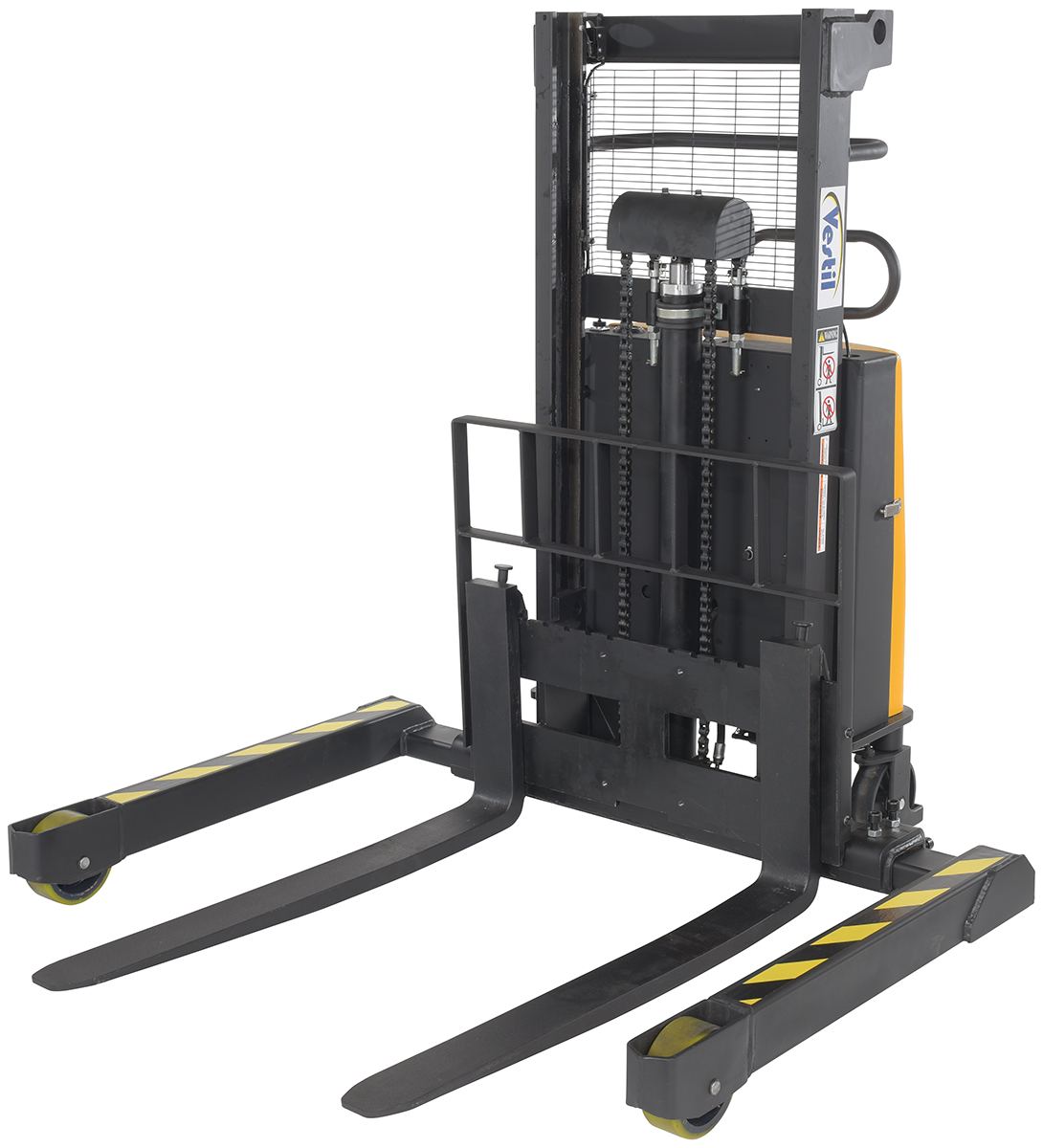

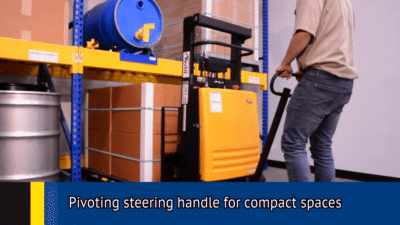

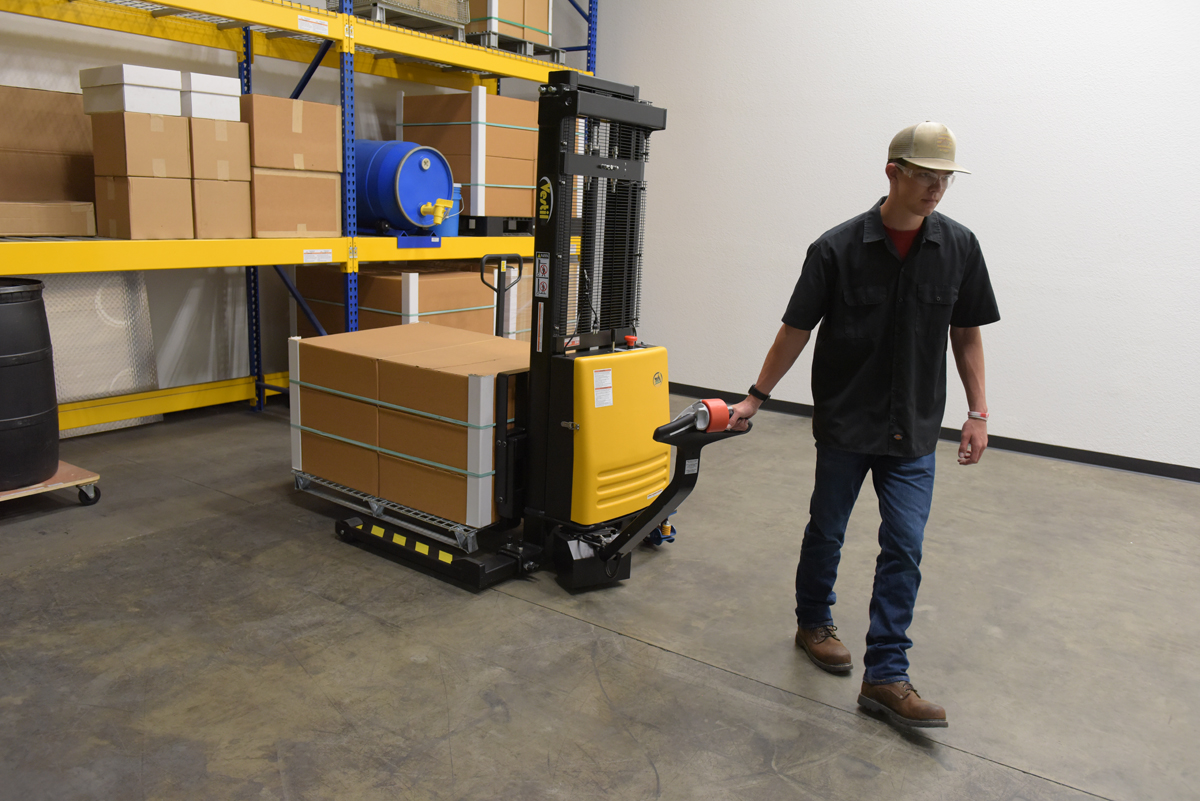

Semi-Electric Stackers with Powered Lift will raise and lower loads quickly and easily. Manual push operation stackers are made using high quality material and parts. All models are easily maneuverable using the standard pulling handle. Stackers are highly efficient and durable. Semi-electric stackers use (1) 12V. Integral battery charger and battery level gauge. Reduce worker fatigue and injury with the Power Traction Drive System. An alternative to costly fork trucks. This state of the art option allows a single operator to safely and ergonomically transport products. Maximum speed is 2.5 m.p.h. PTDS includes: Combination throttle / direction butterfly style controller, An adjustable steering yoke, An auto reverse emergency "belly switch", (2) 12V batteries.


Click A Tab For More Information. If A Tab Is Missing, This Product Has No Content For That Tab.

KEY: Approval Drawing = Approval Drawing -- Approval Drawing = Warranty -- Approval Drawing = Testing Certificate

Model Number & Specs Table

Stacker with Powered Lift
Model PDF's Lowered
Height
Raised
Height
Uniform
Capacity
0"-63" RH
*Uniform
Capacity
63"-118" RH
*Uniform
Capacity
118"-137" RH
*Uniform
Capacity
137"-150" RH
Wt.
(lbs)

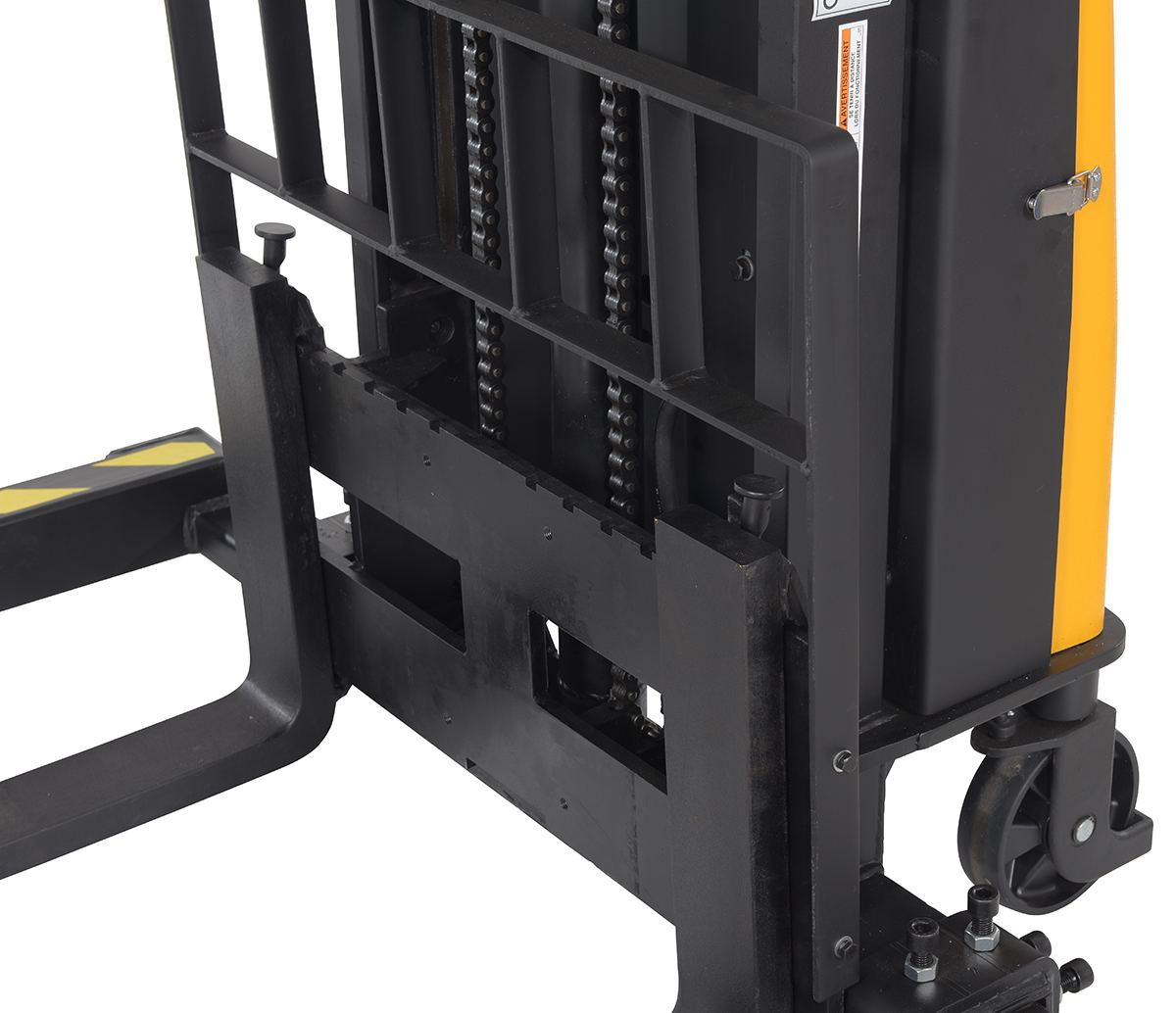

Adjustable Forks/ Adjustable Support Legs (works with pallets & skids)

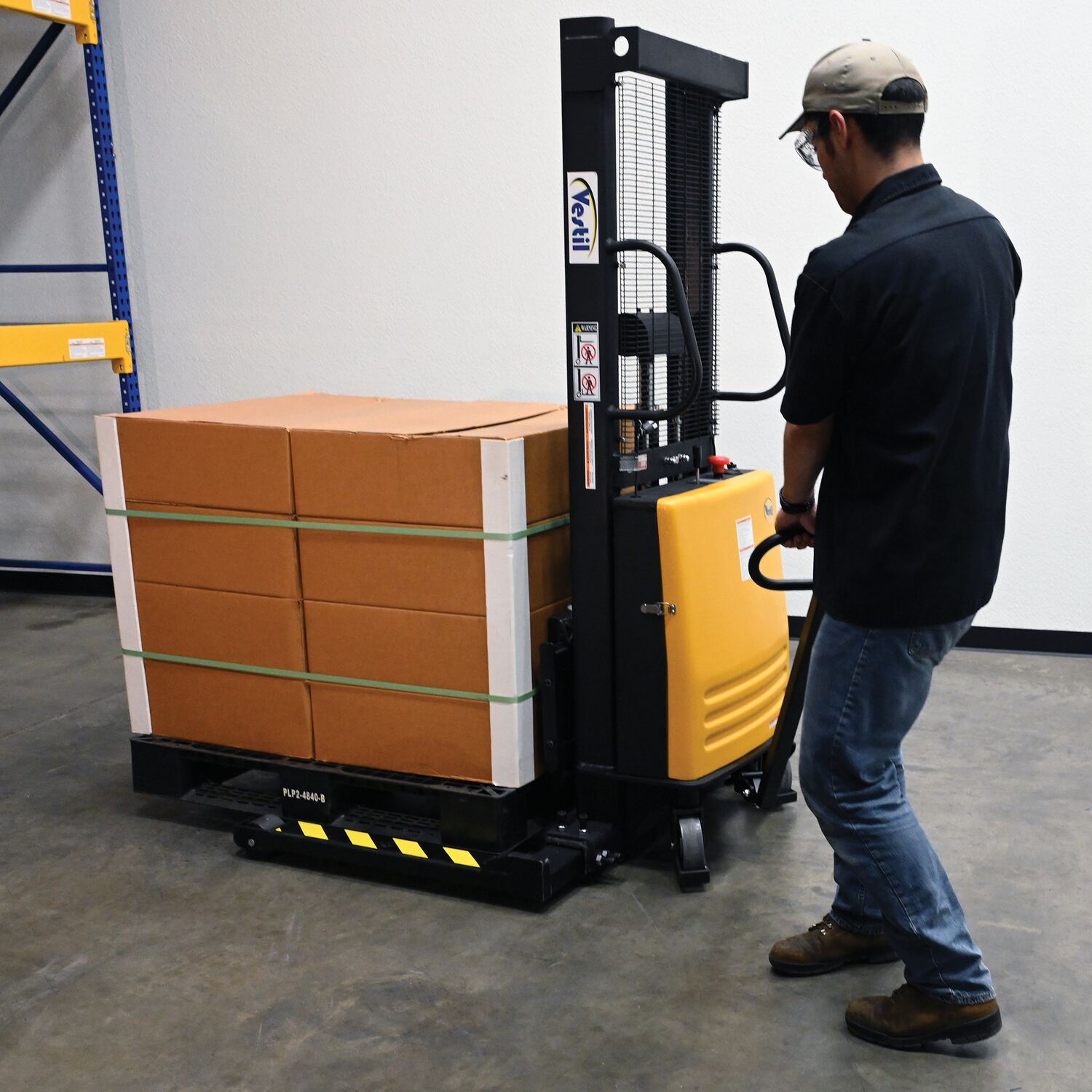

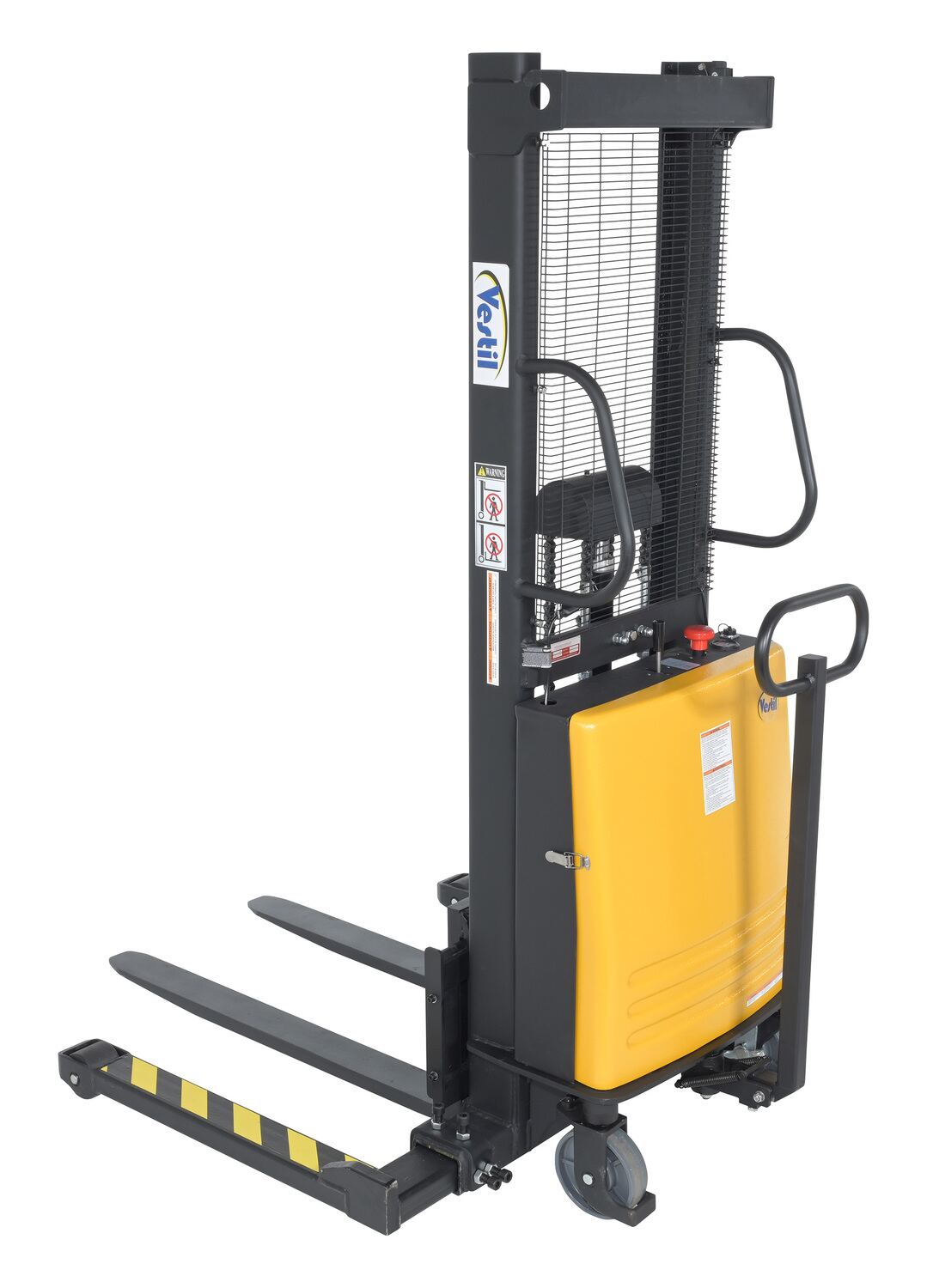

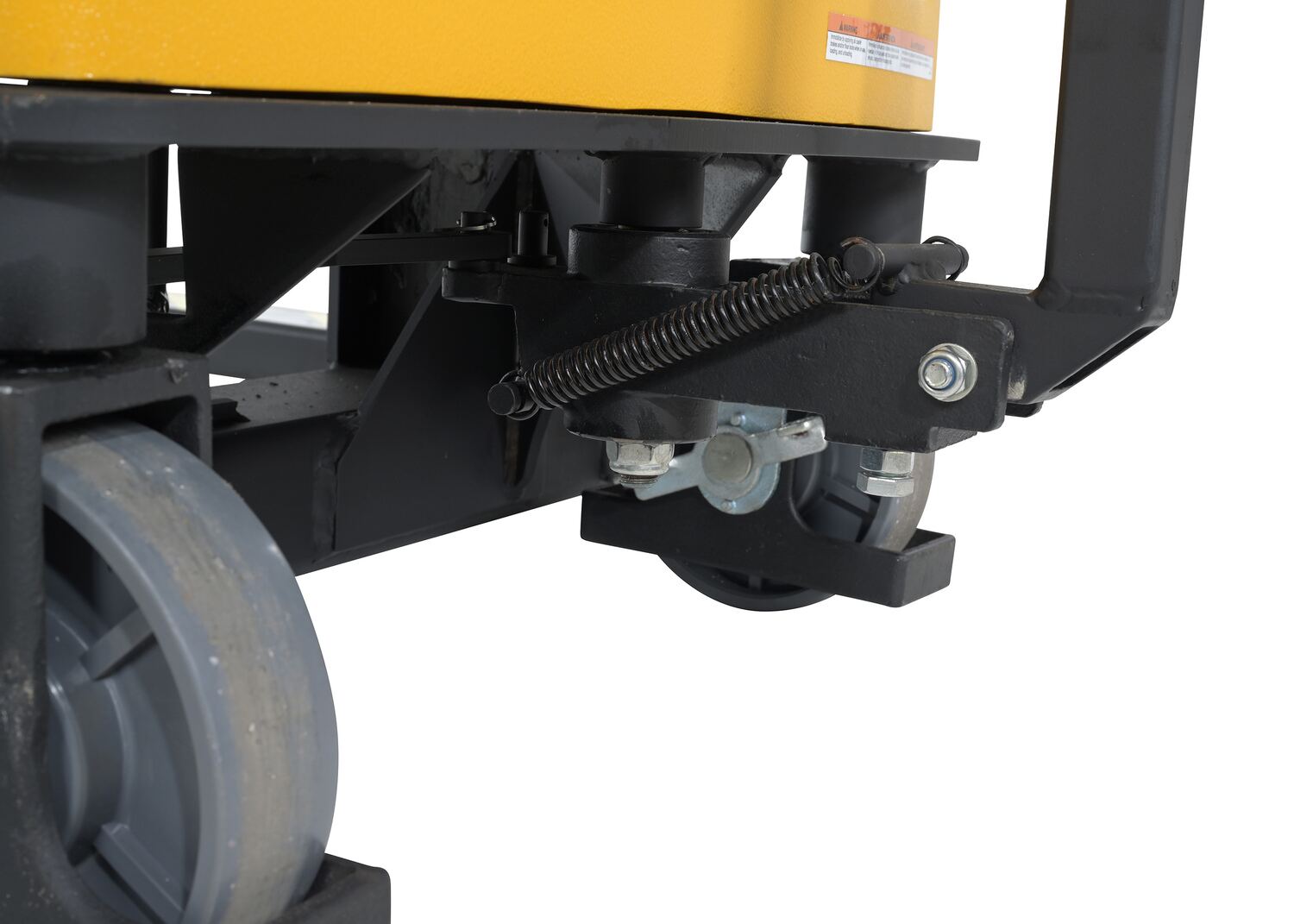

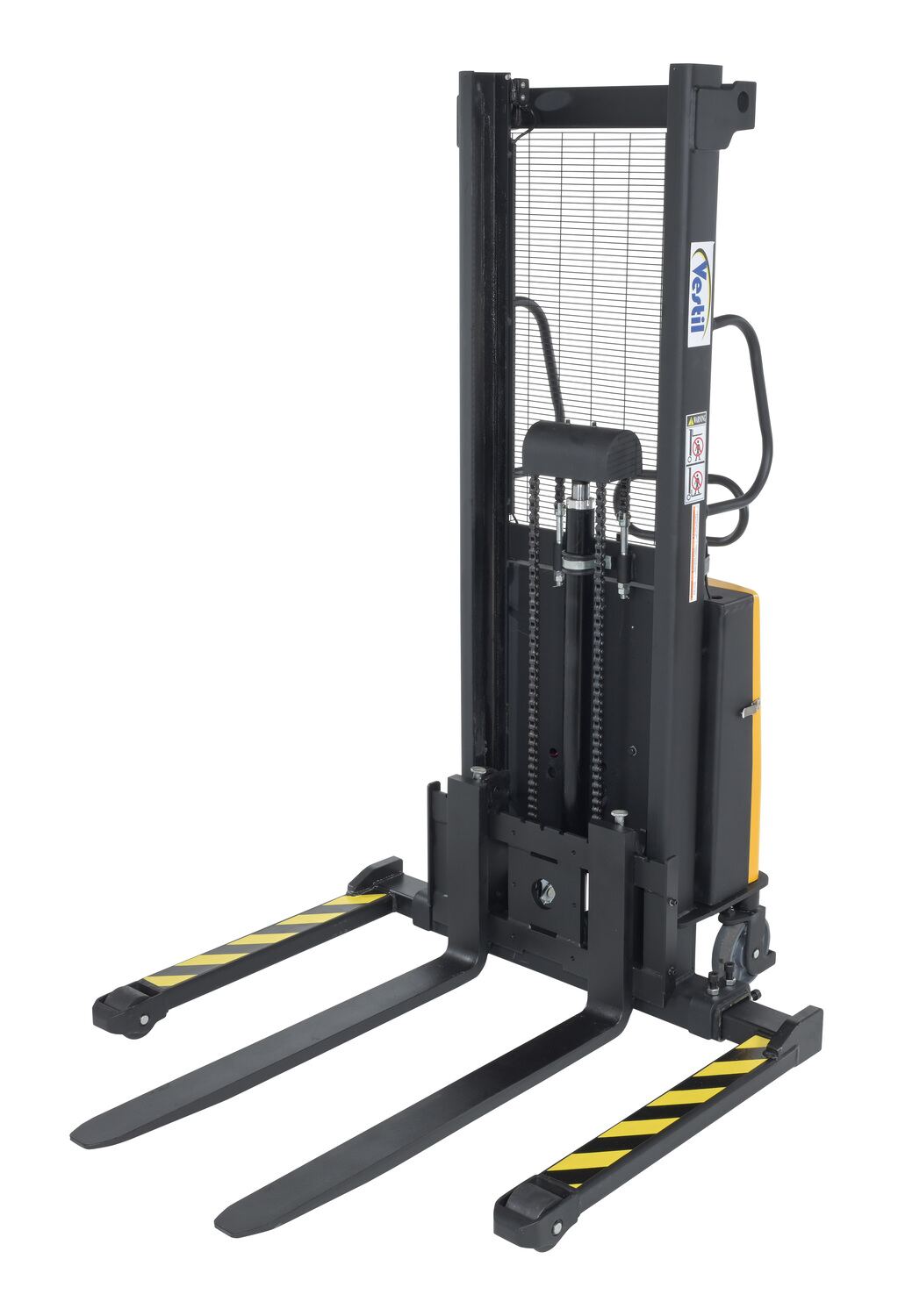

SL-63-AA icon_approvaldrawings.jpgWarranty PDFCompliance Certificate 2-1/8" 63" 2,000 lbs. -- -- -- 1132

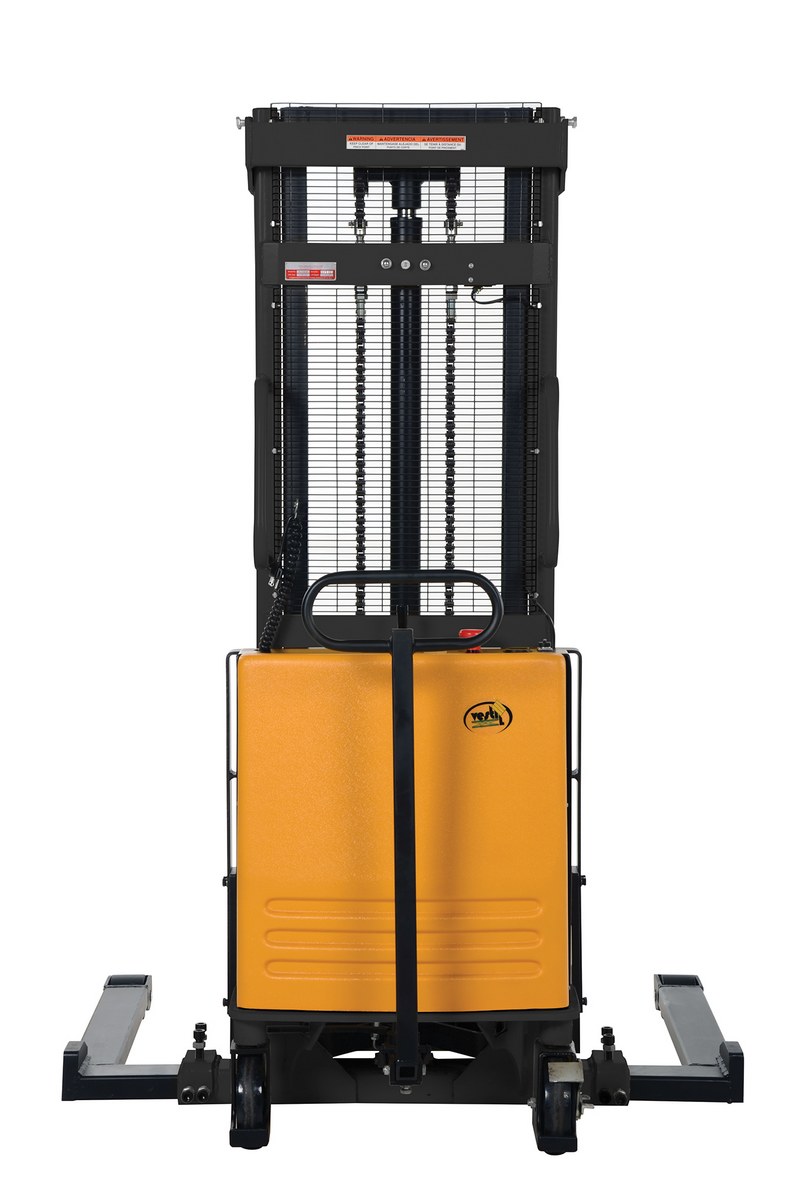

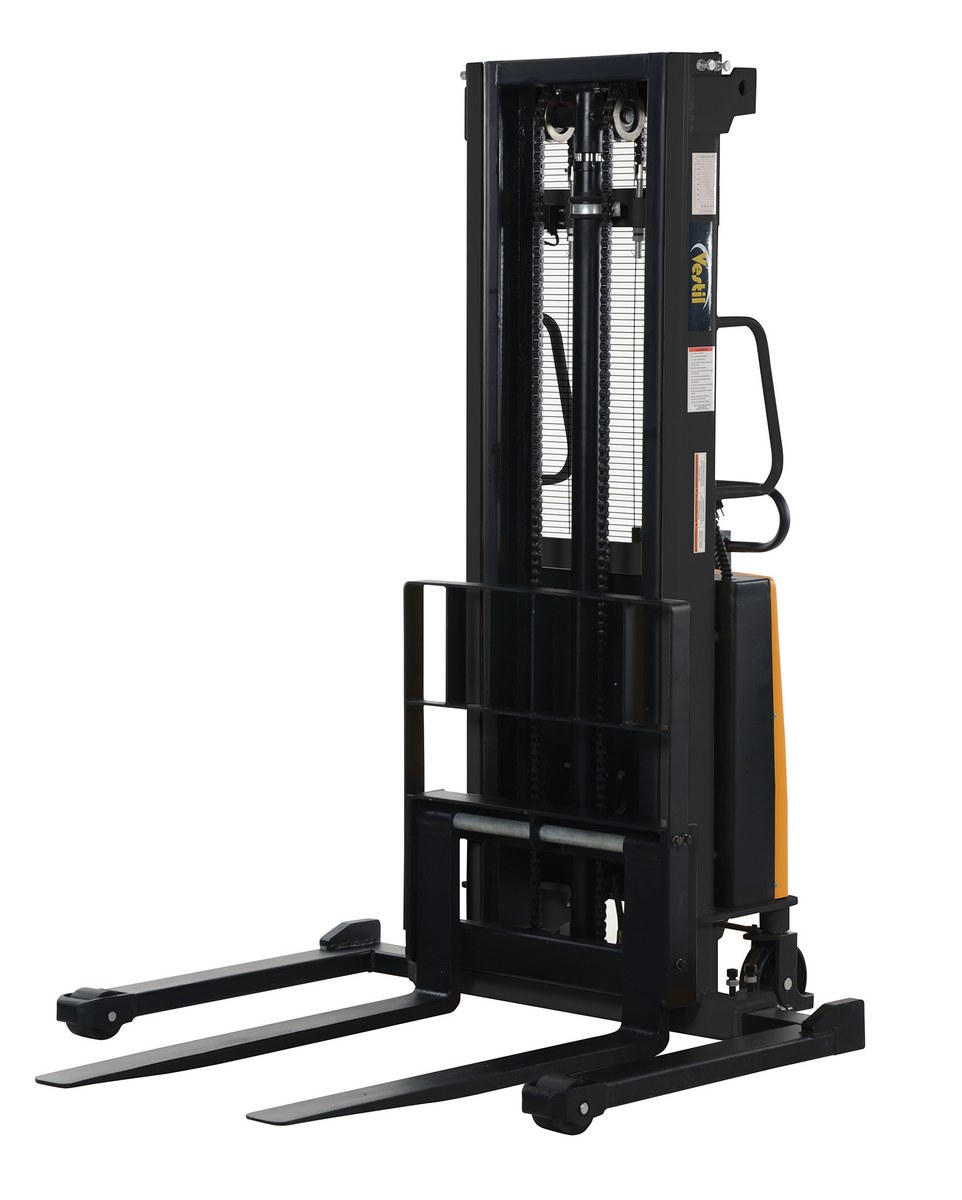

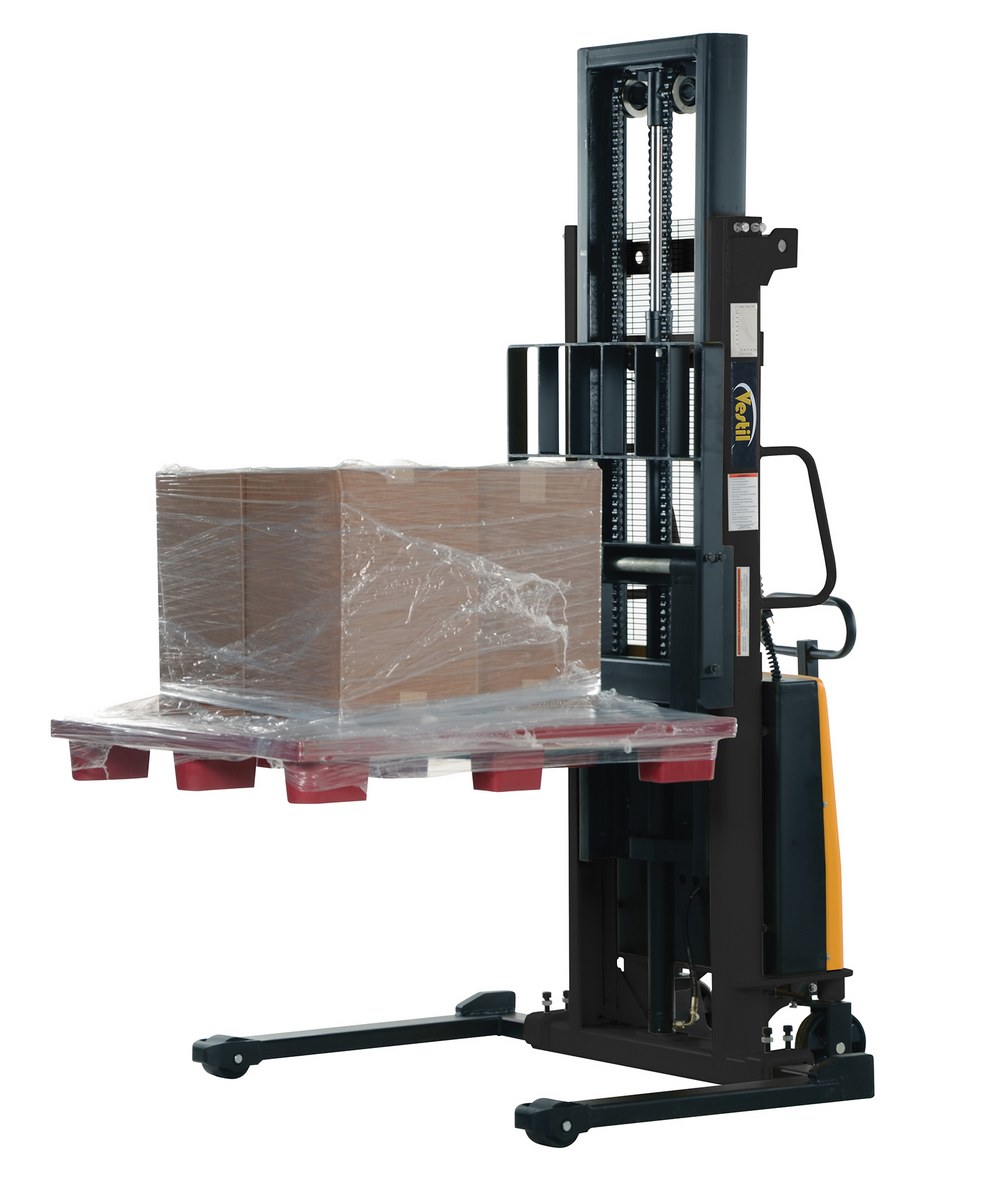

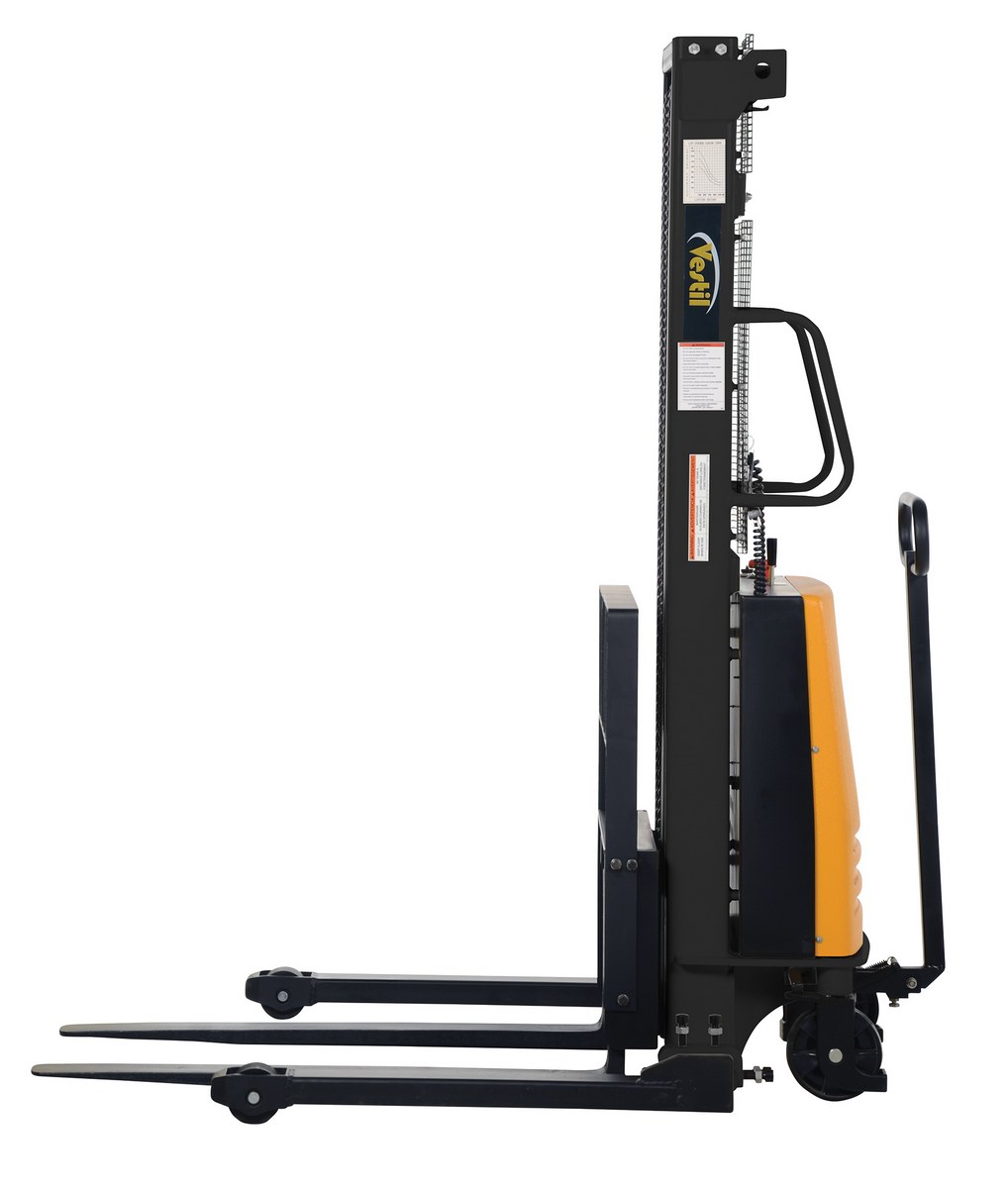

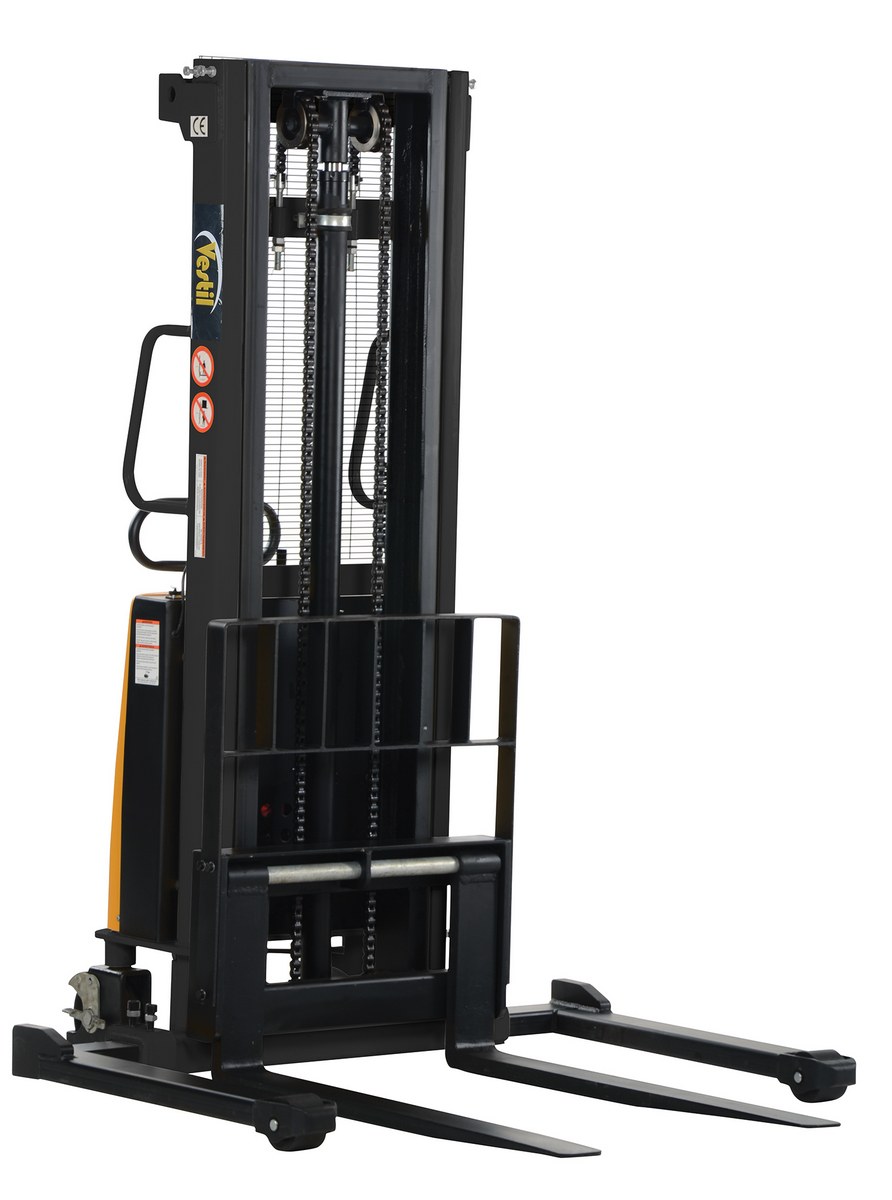

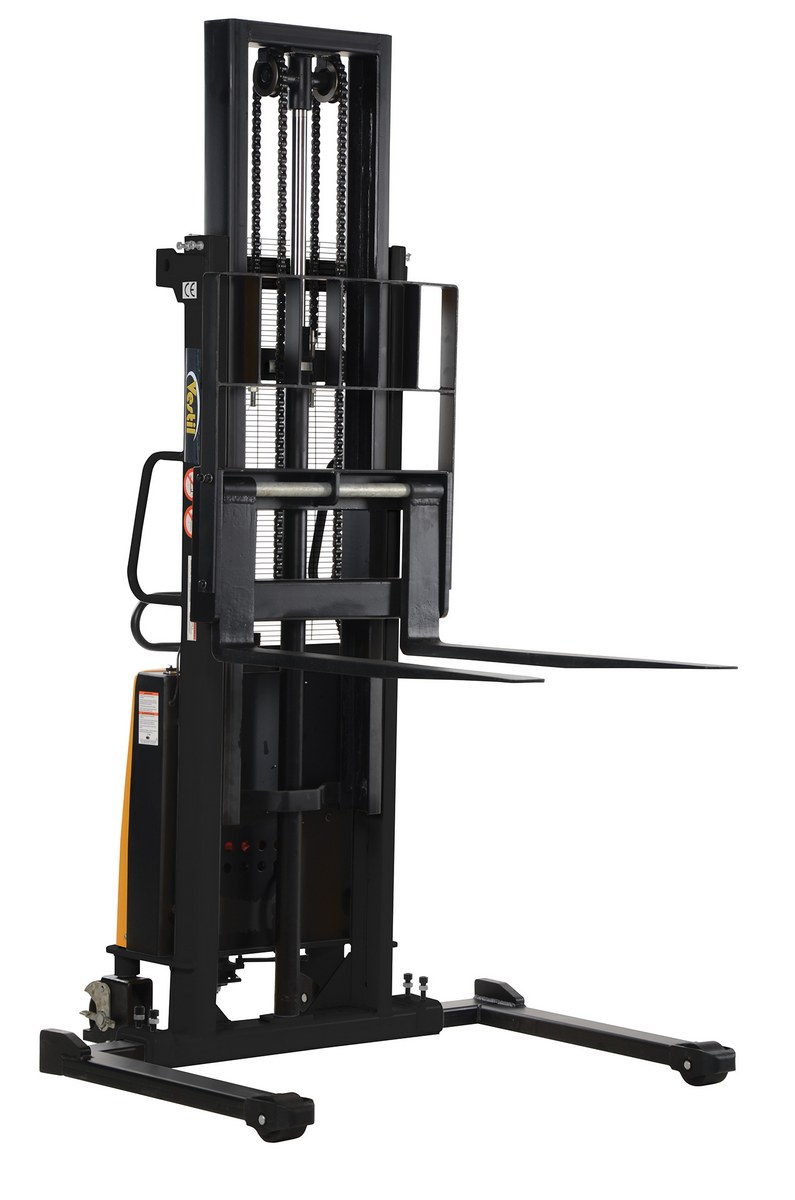

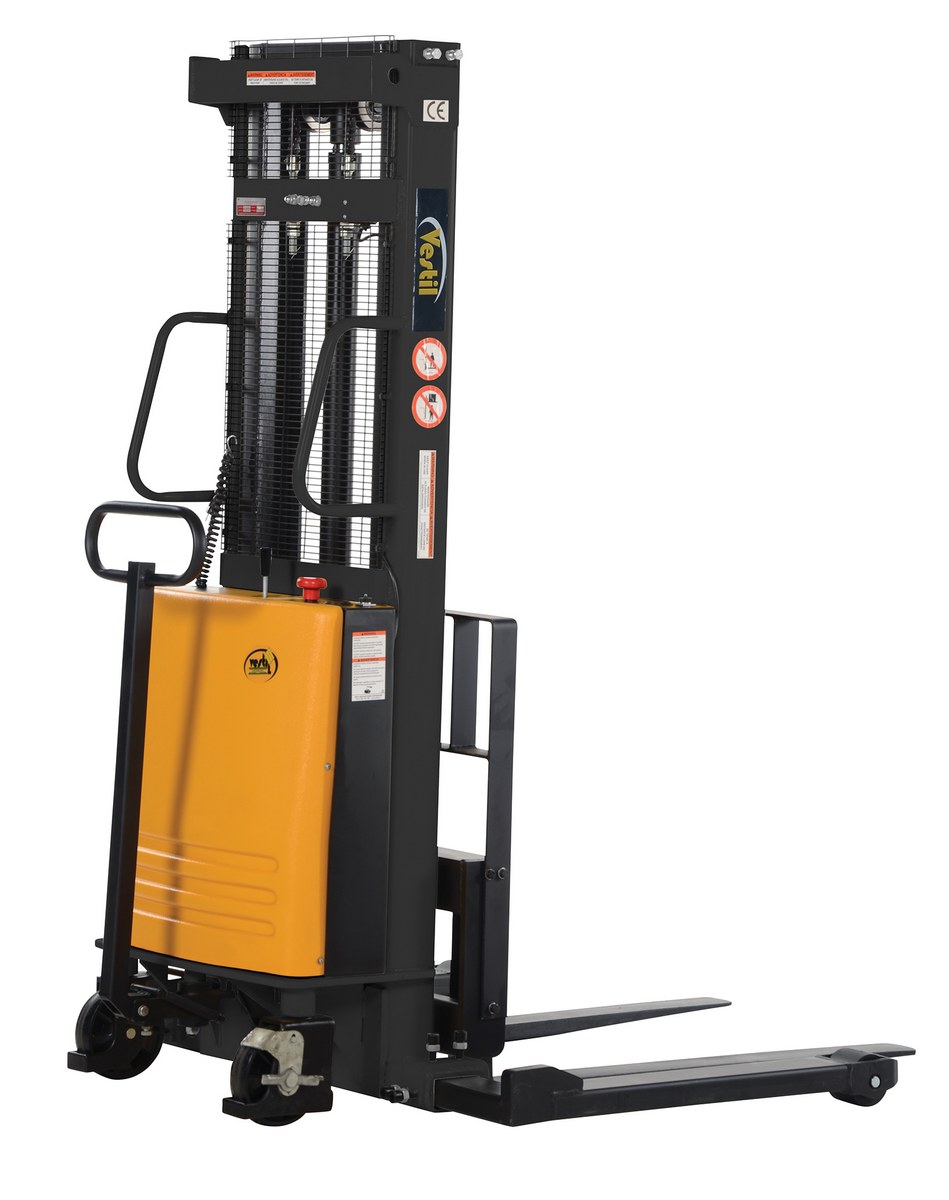

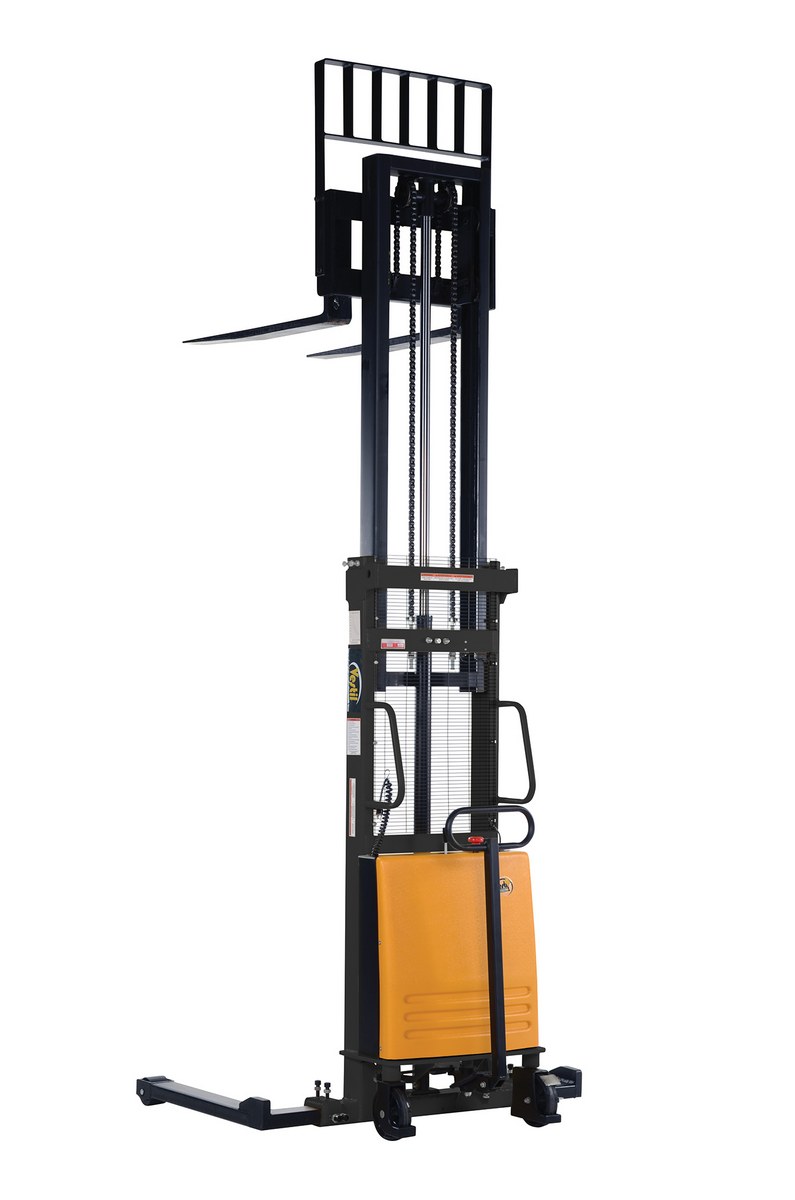

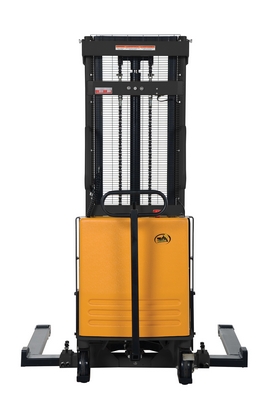

SL-118-AA icon_approvaldrawings.jpgWarranty PDFCompliance Certificate 2-1/8" 118" 2,000 lbs. 1,500 lbs. -- -- 1294

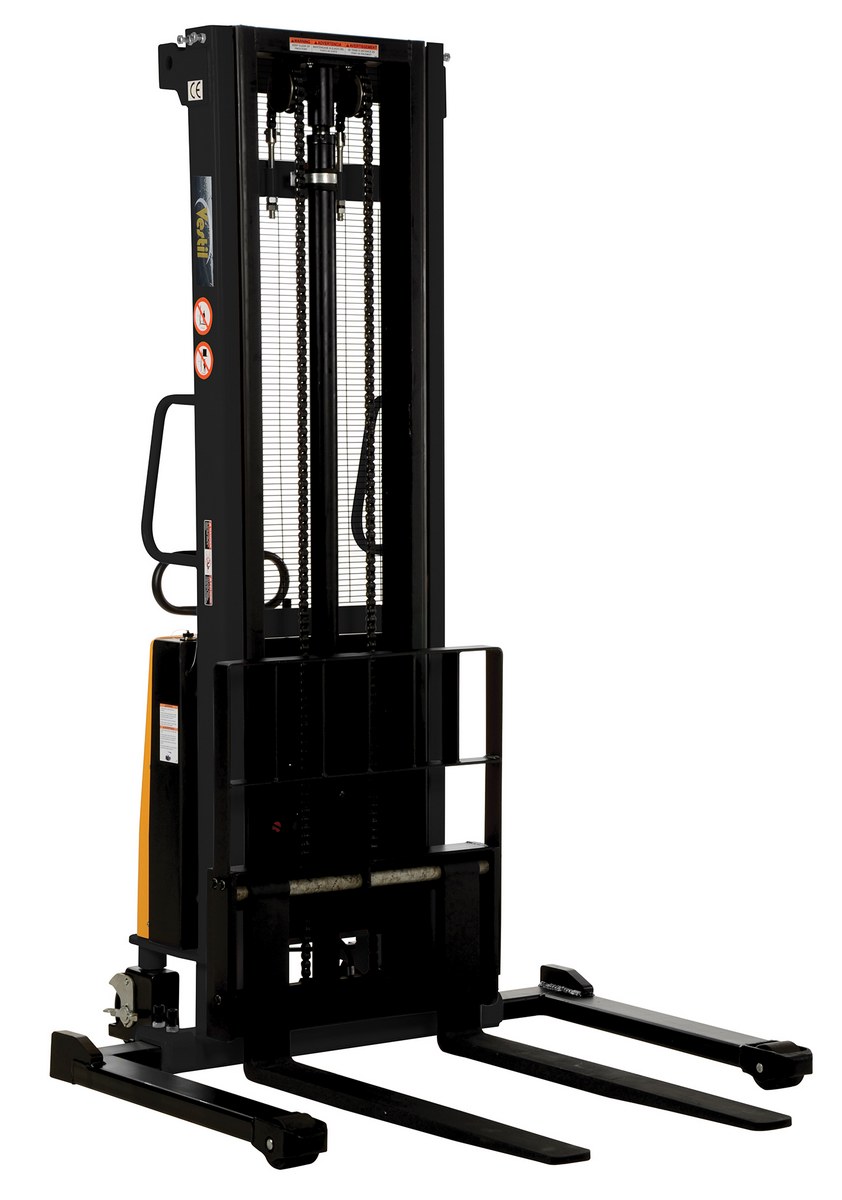

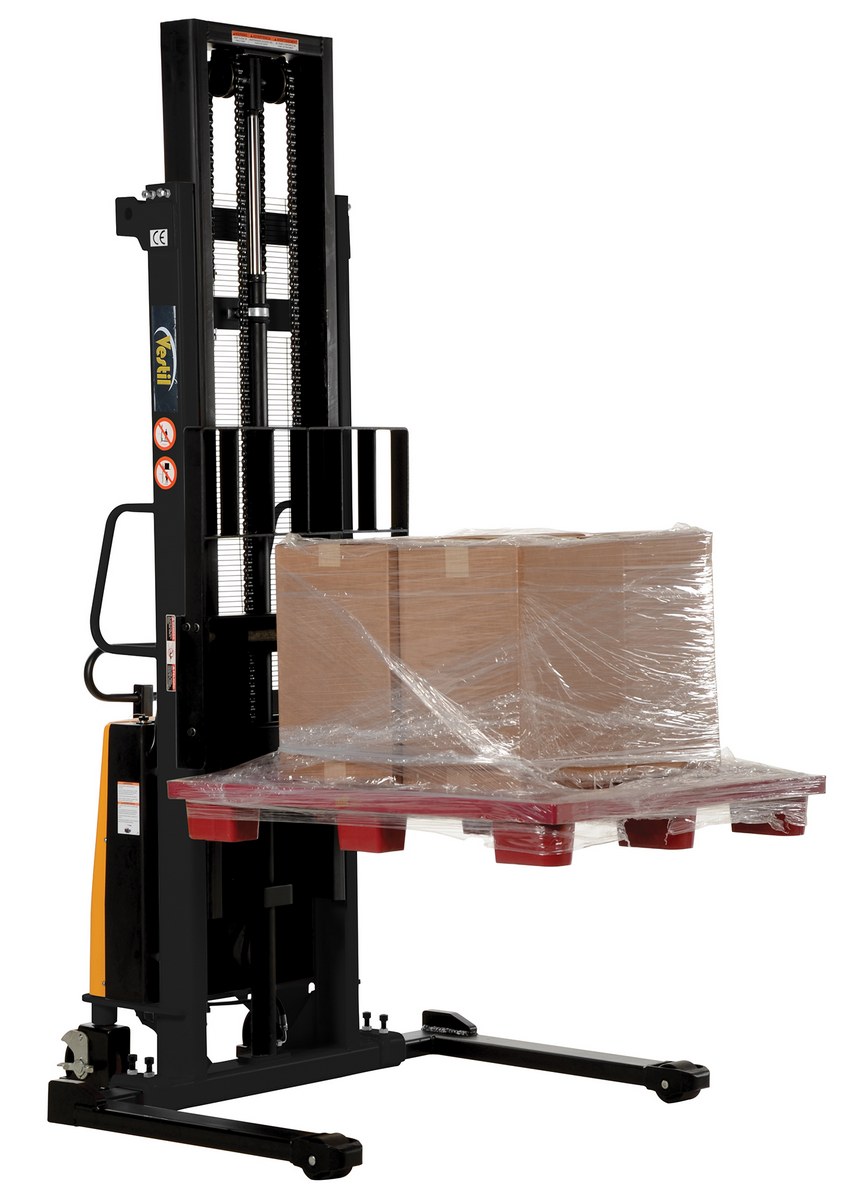

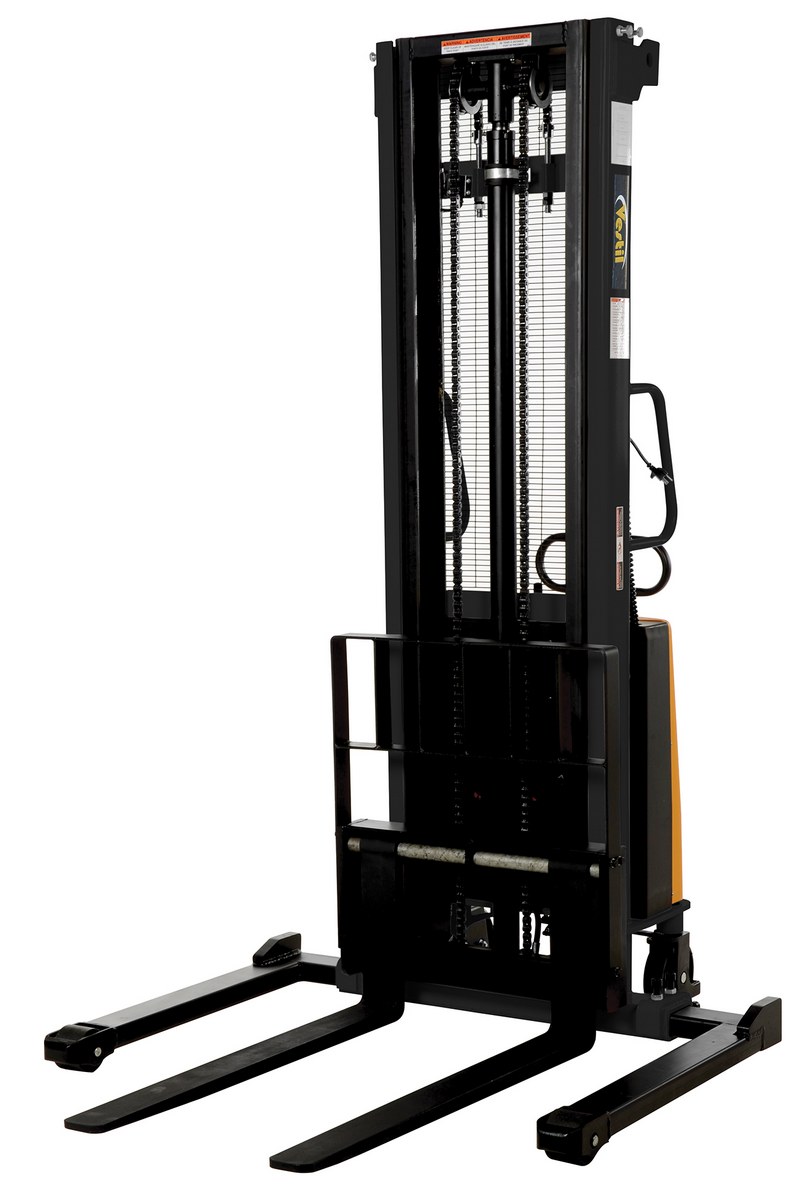

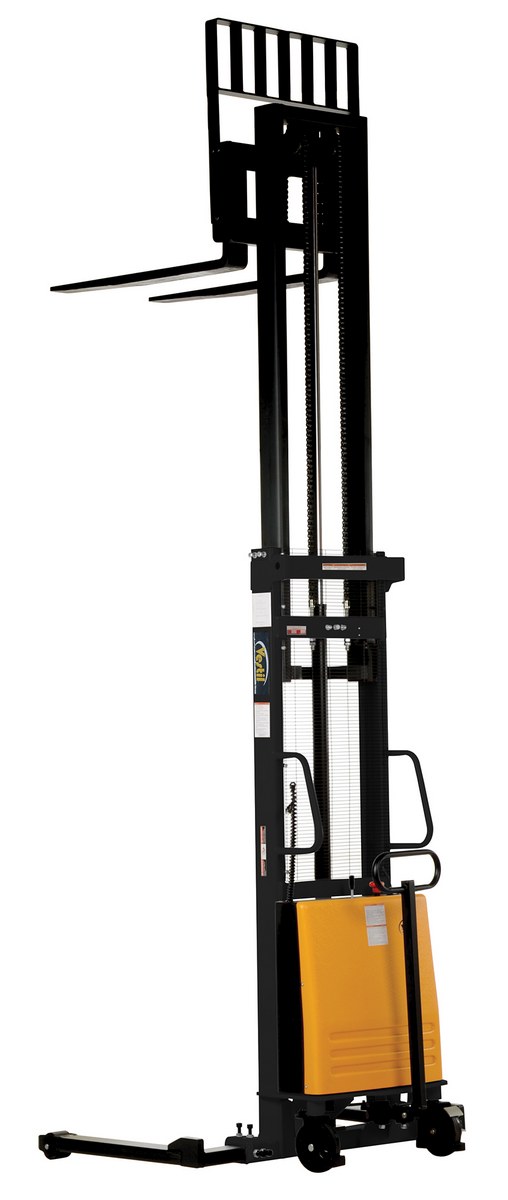

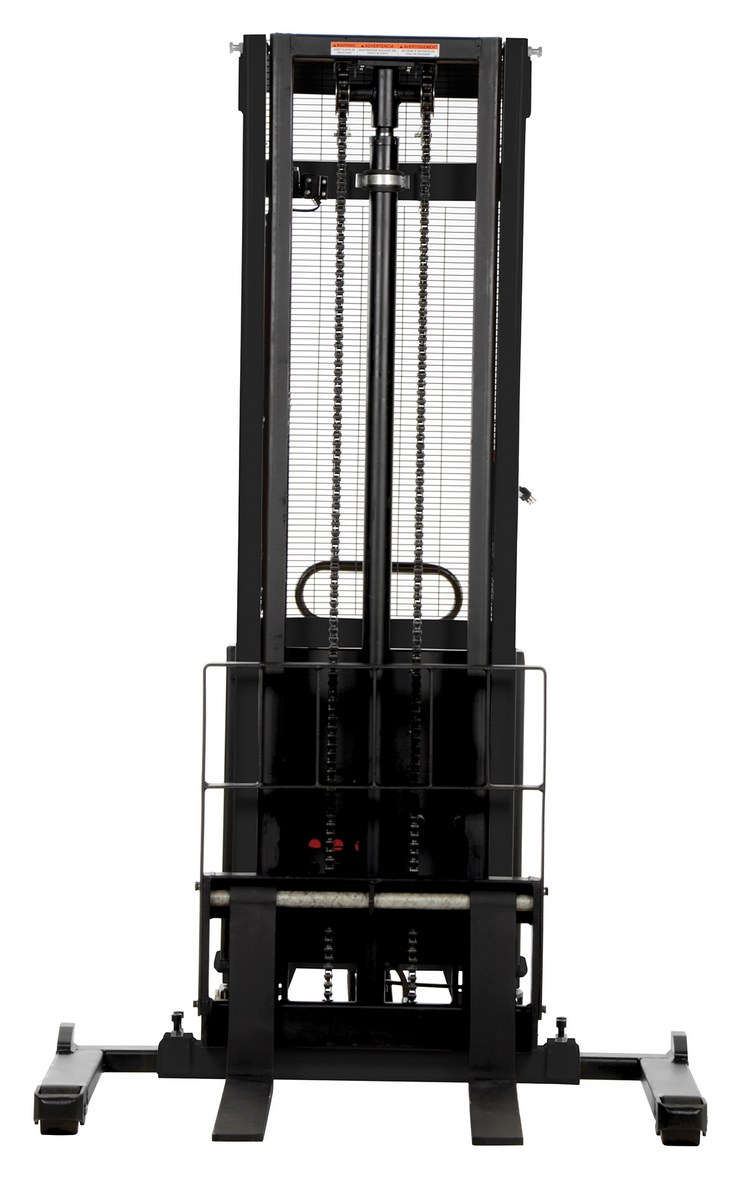

SL-137-AA icon_approvaldrawings.jpgWarranty PDFCompliance Certificate 2-1/8" 137" 2,000 lbs. 1,500 lbs. 1,000 lbs -- 1289

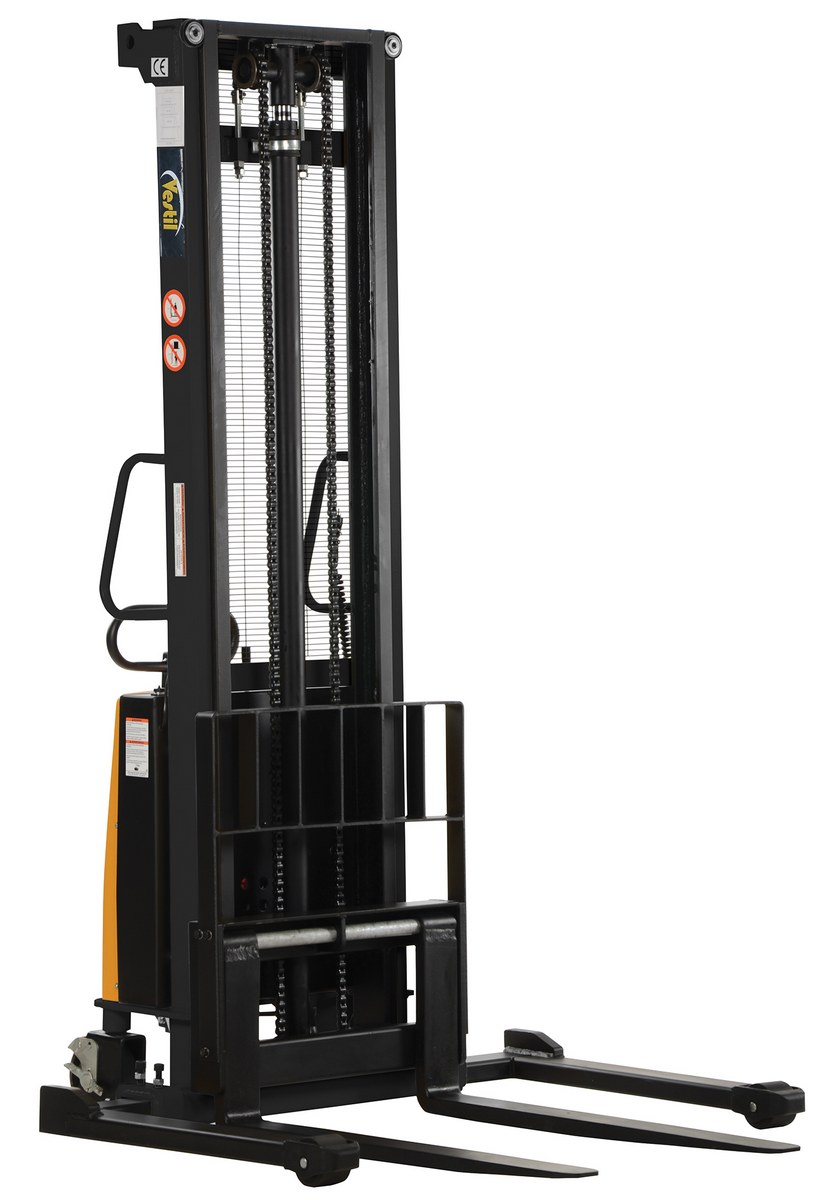

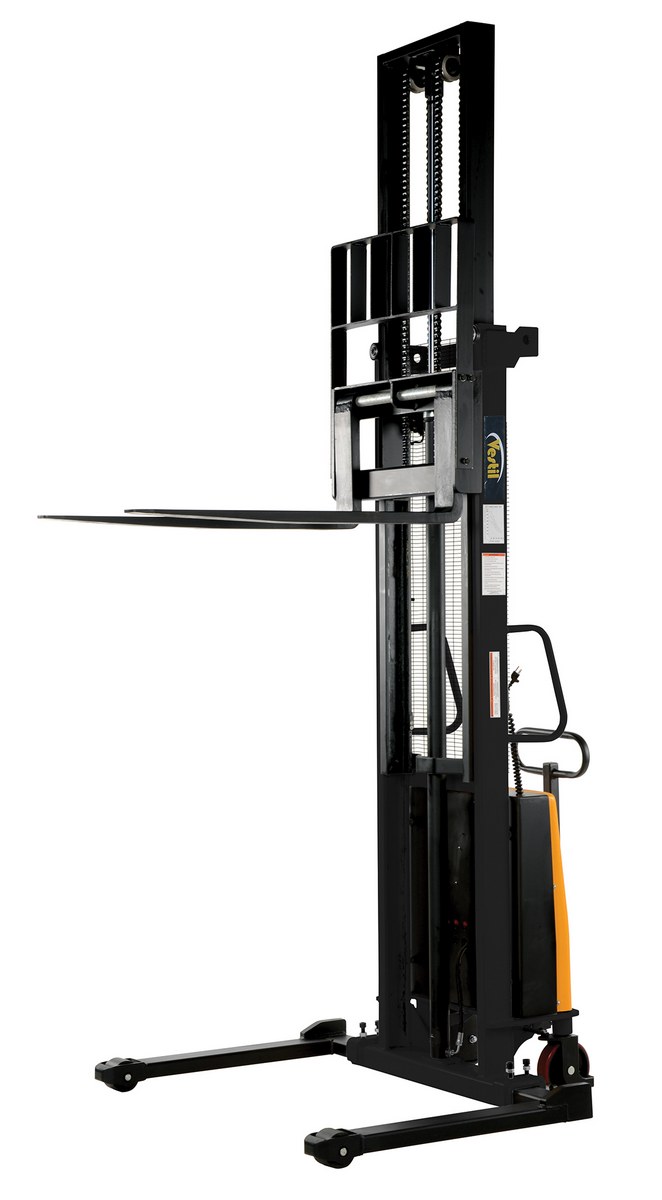

SL-150-AA icon_approvaldrawings.jpgWarranty PDFCompliance Certificate 2-1/8" 150" 2,000 lbs. 1,500 lbs. 1000 lbs. 750 lbs. 1359
Fixed Forks Over Fixed Support Legs (works for skids only)

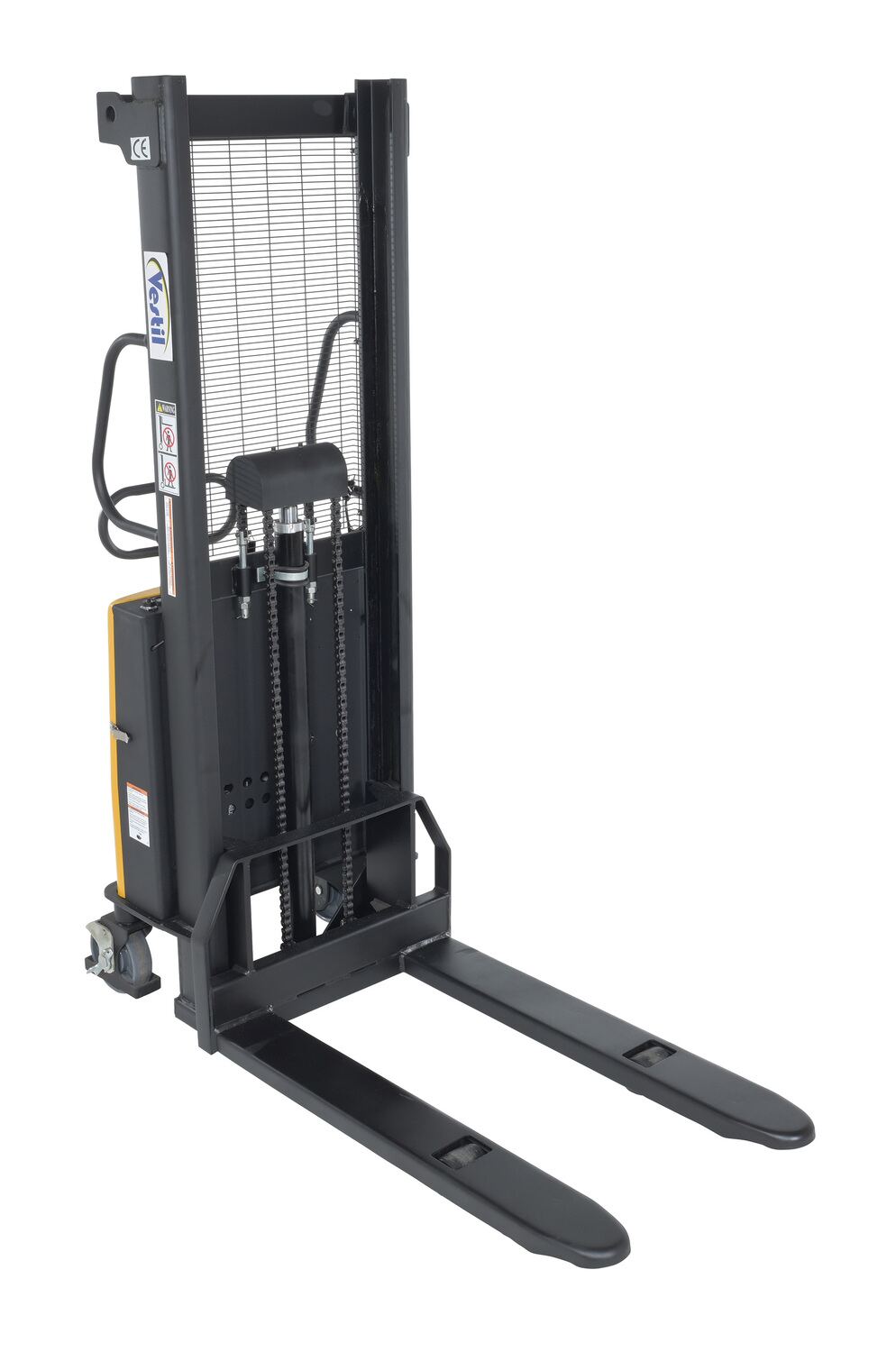

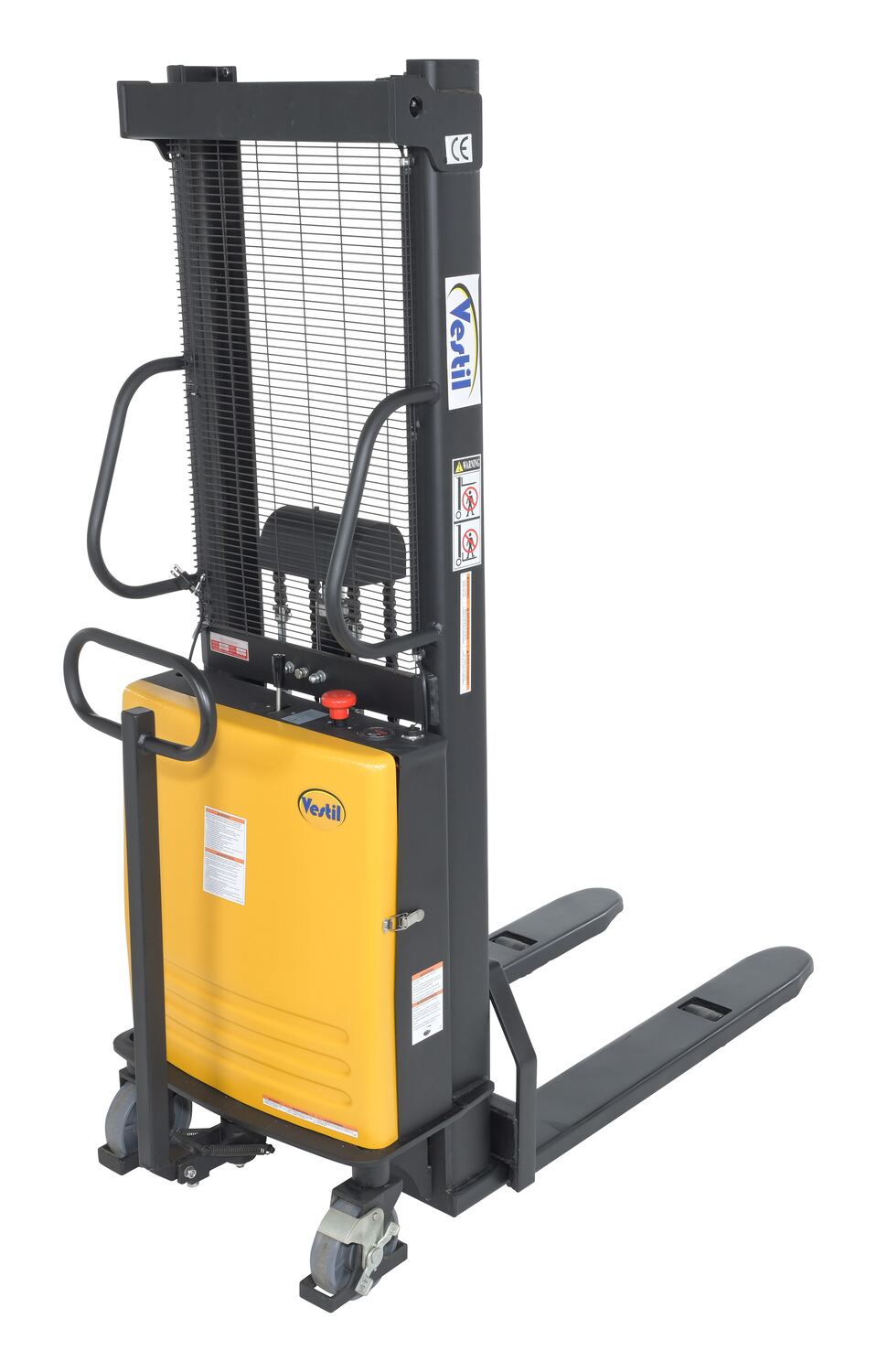

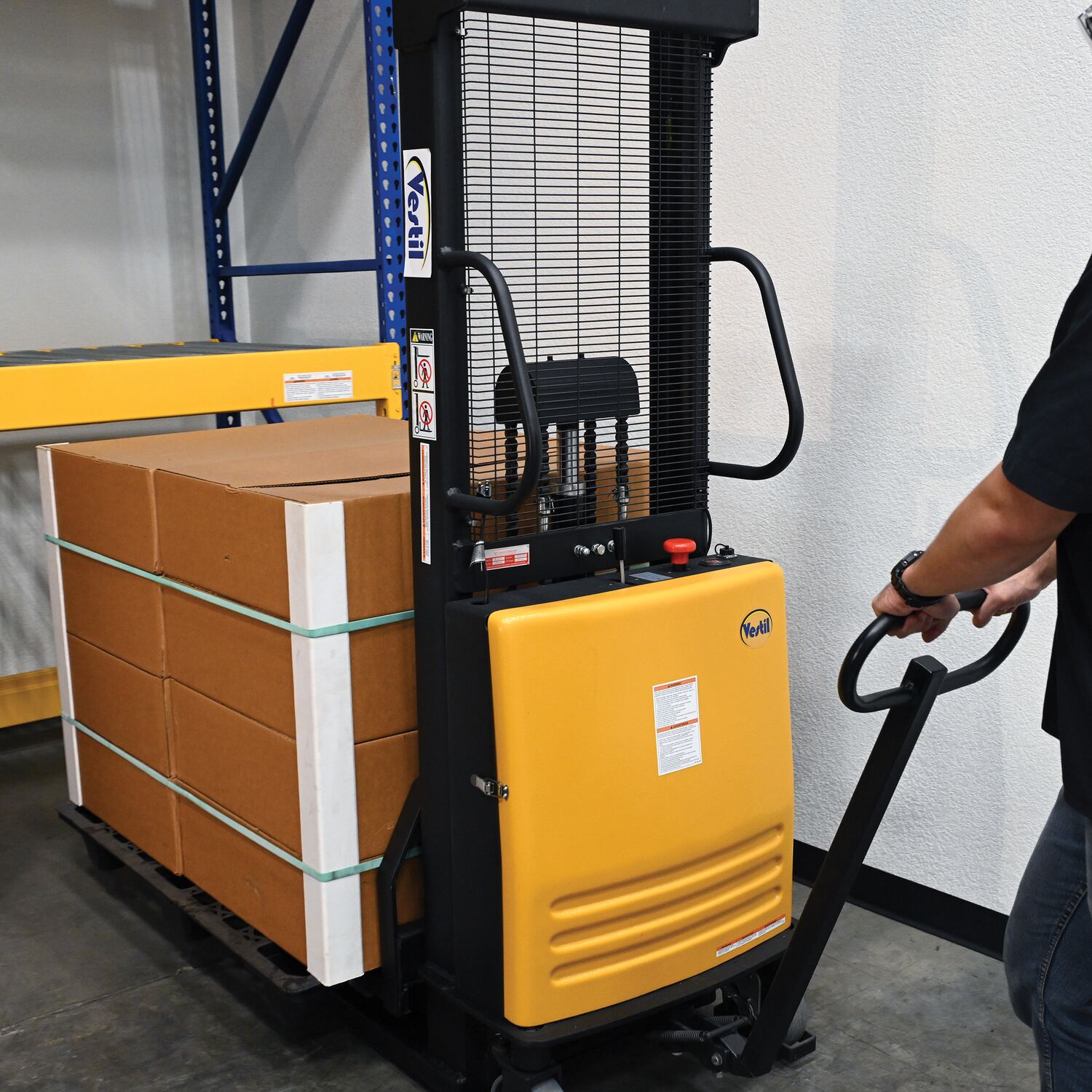

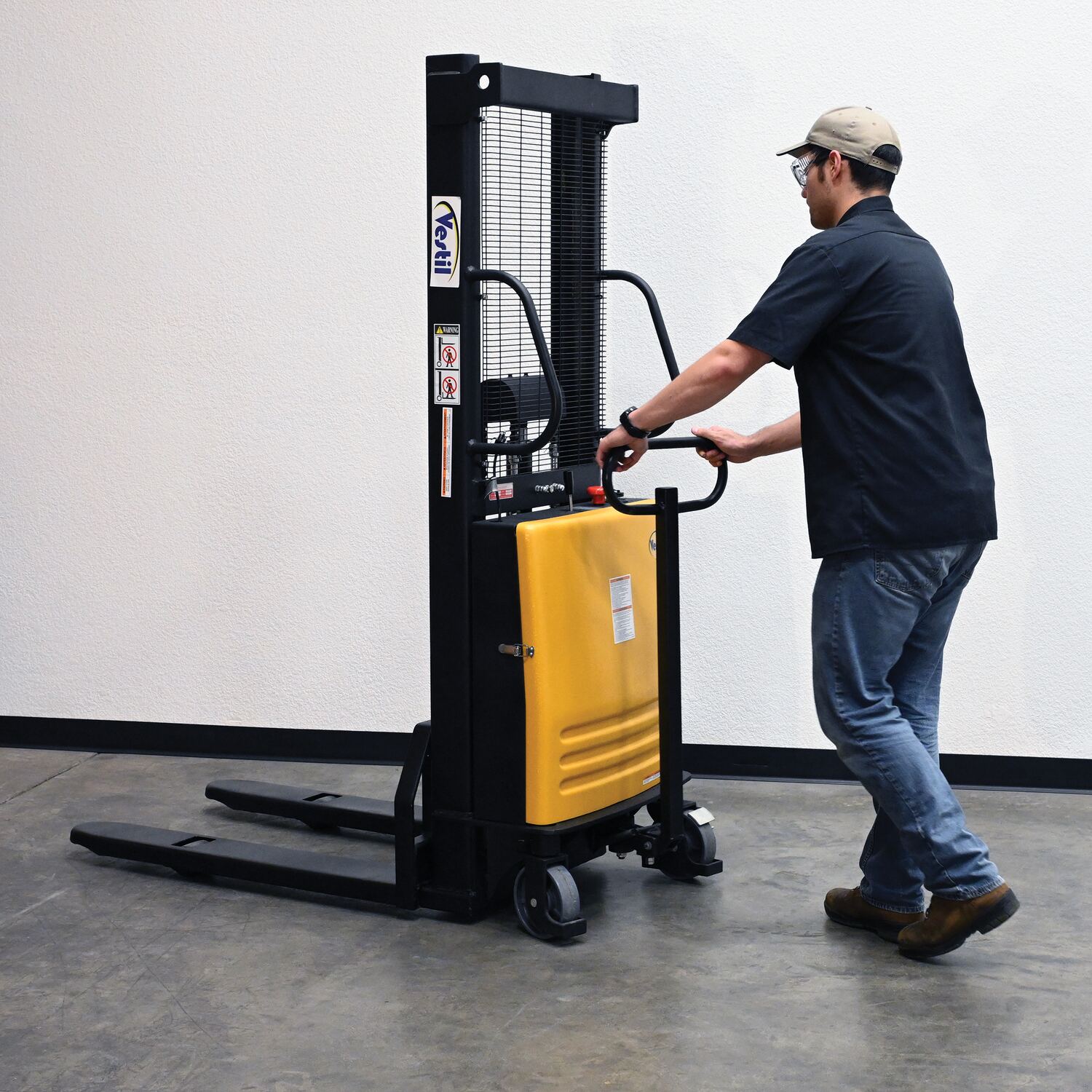

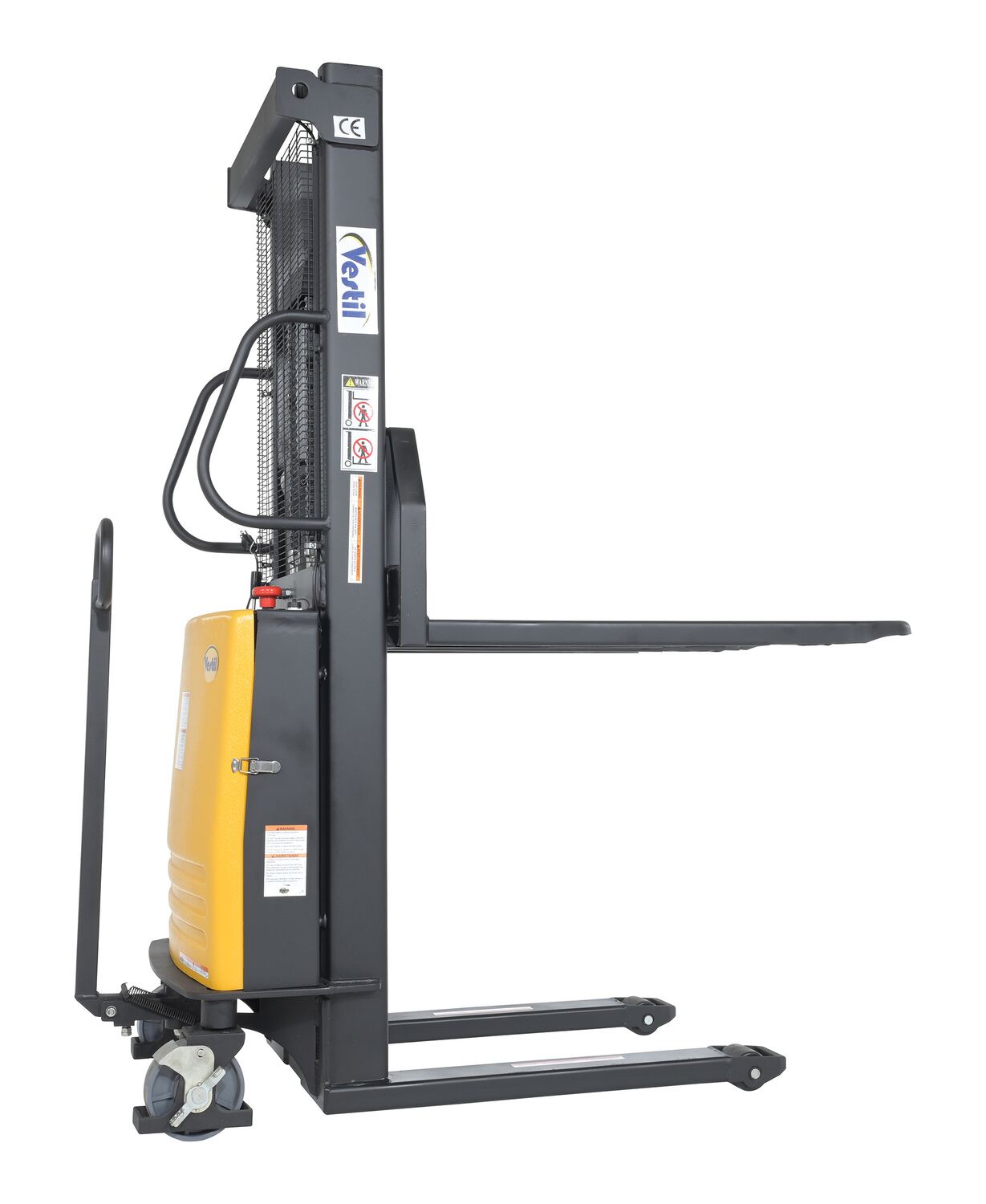

SL-63-FF icon_approvaldrawings.jpgWarranty PDFCompliance Certificate 3-3/8" 63" 2,000 lbs. -- -- -- 1010

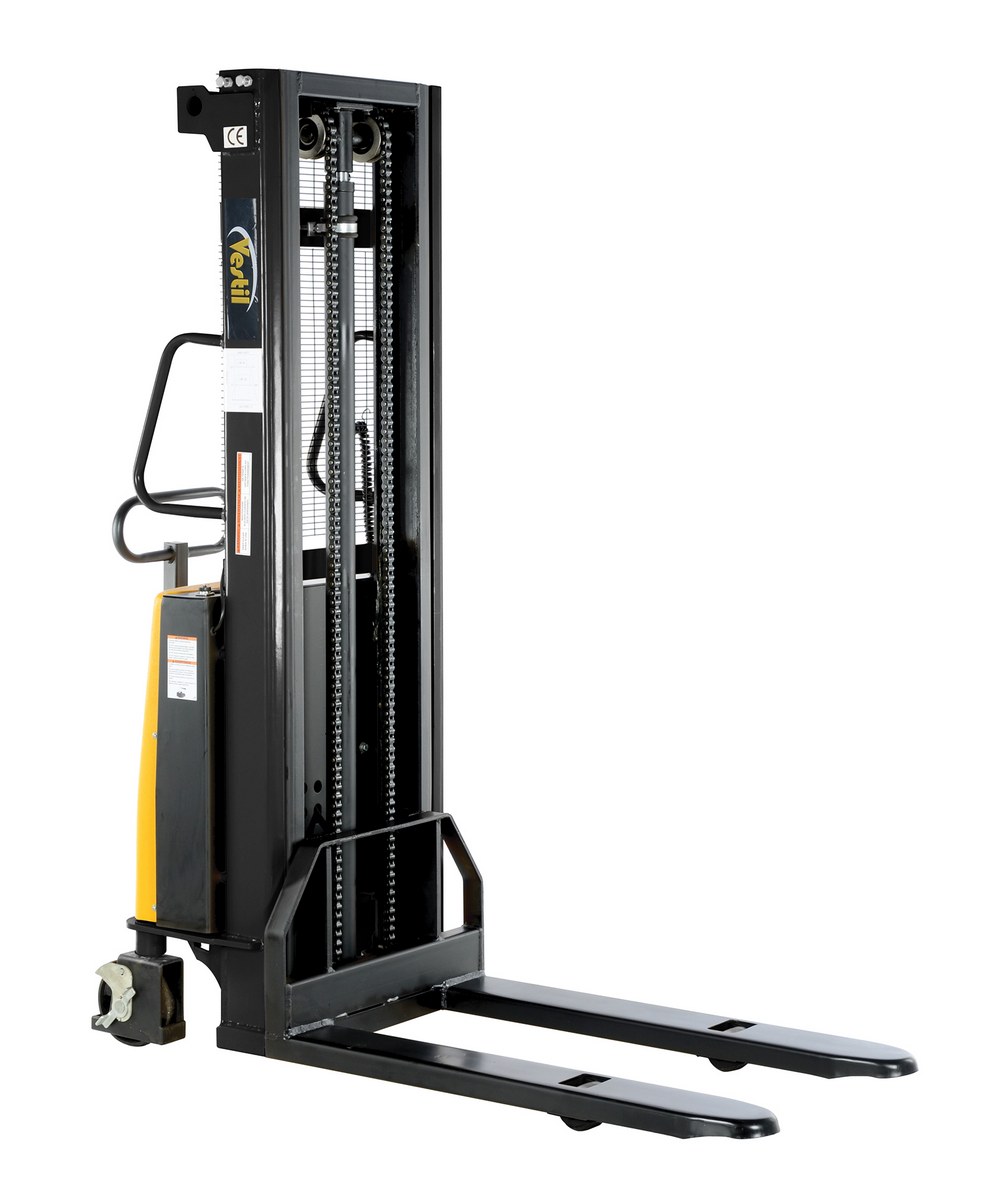

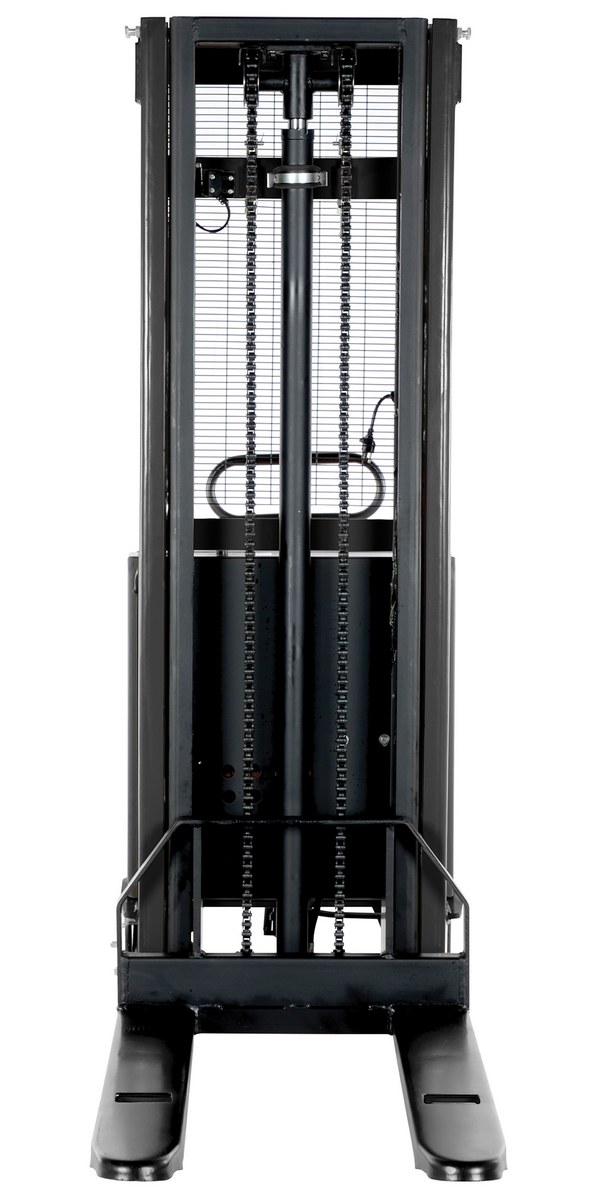

SL-118-FF icon_approvaldrawings.jpgWarranty PDFCompliance Certificate 3-3/8" 118" 2,000 lbs. 1,500 lbs. -- -- 1349

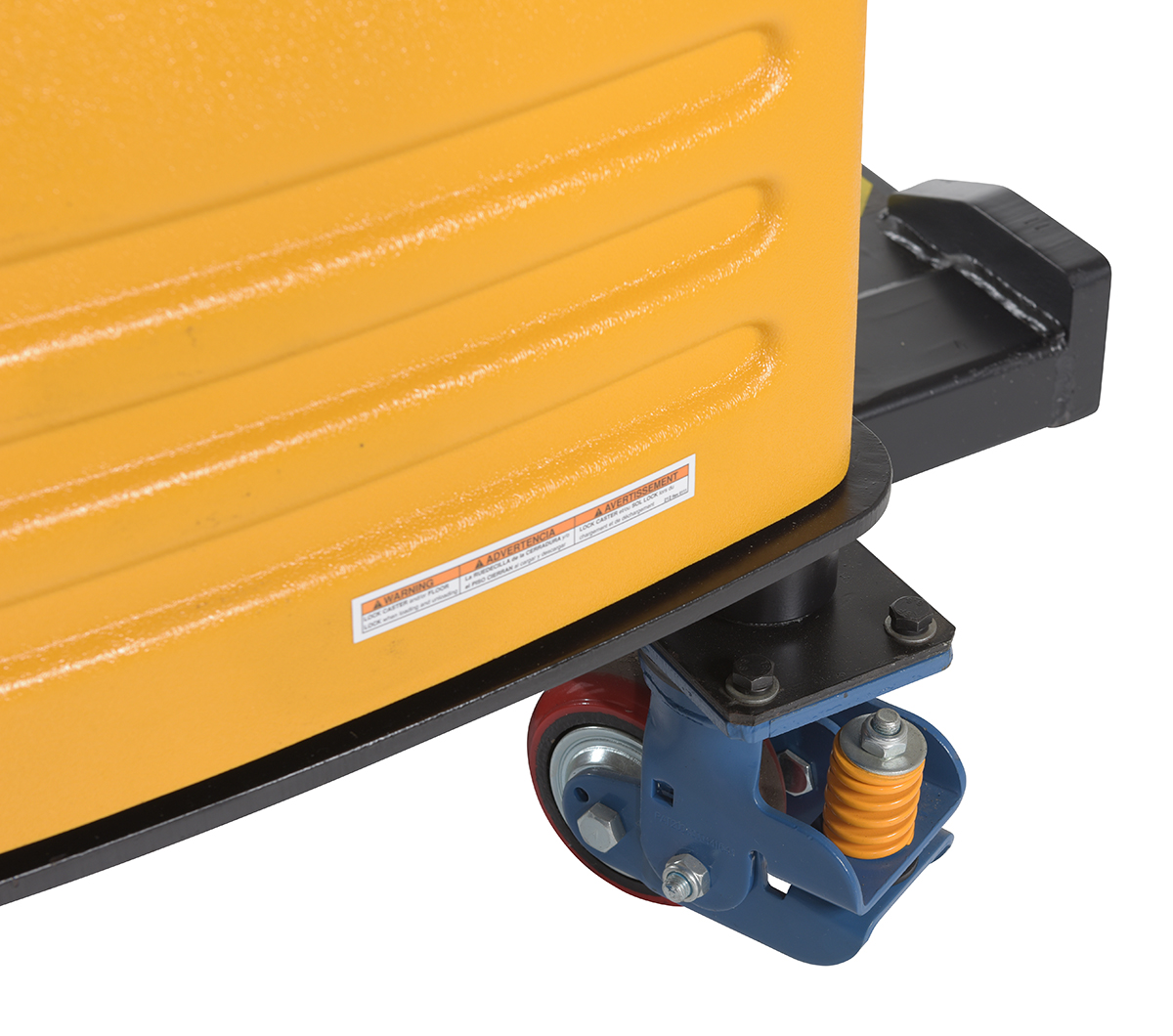

Adjustable Stacker W/Power lift, power traction drive

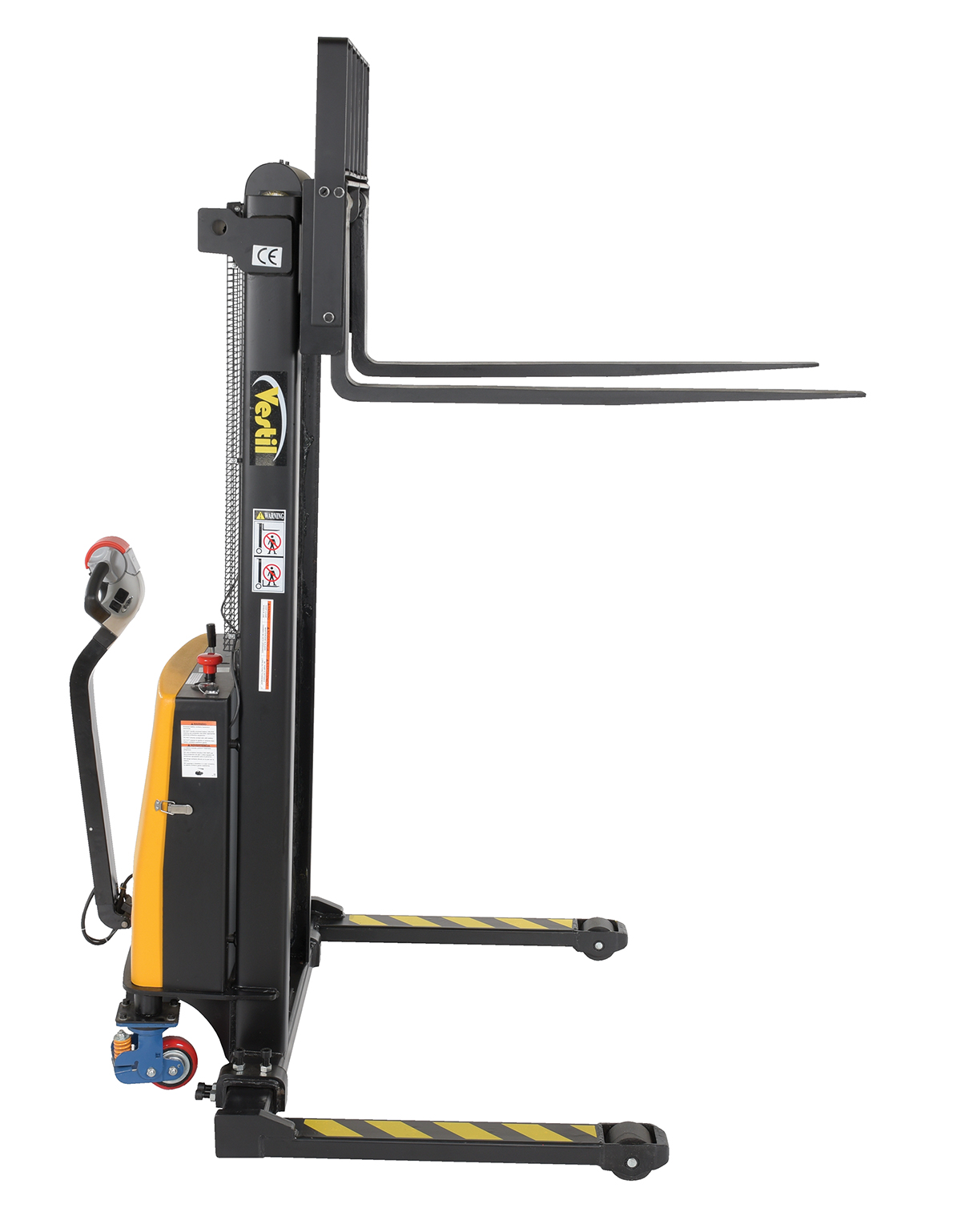

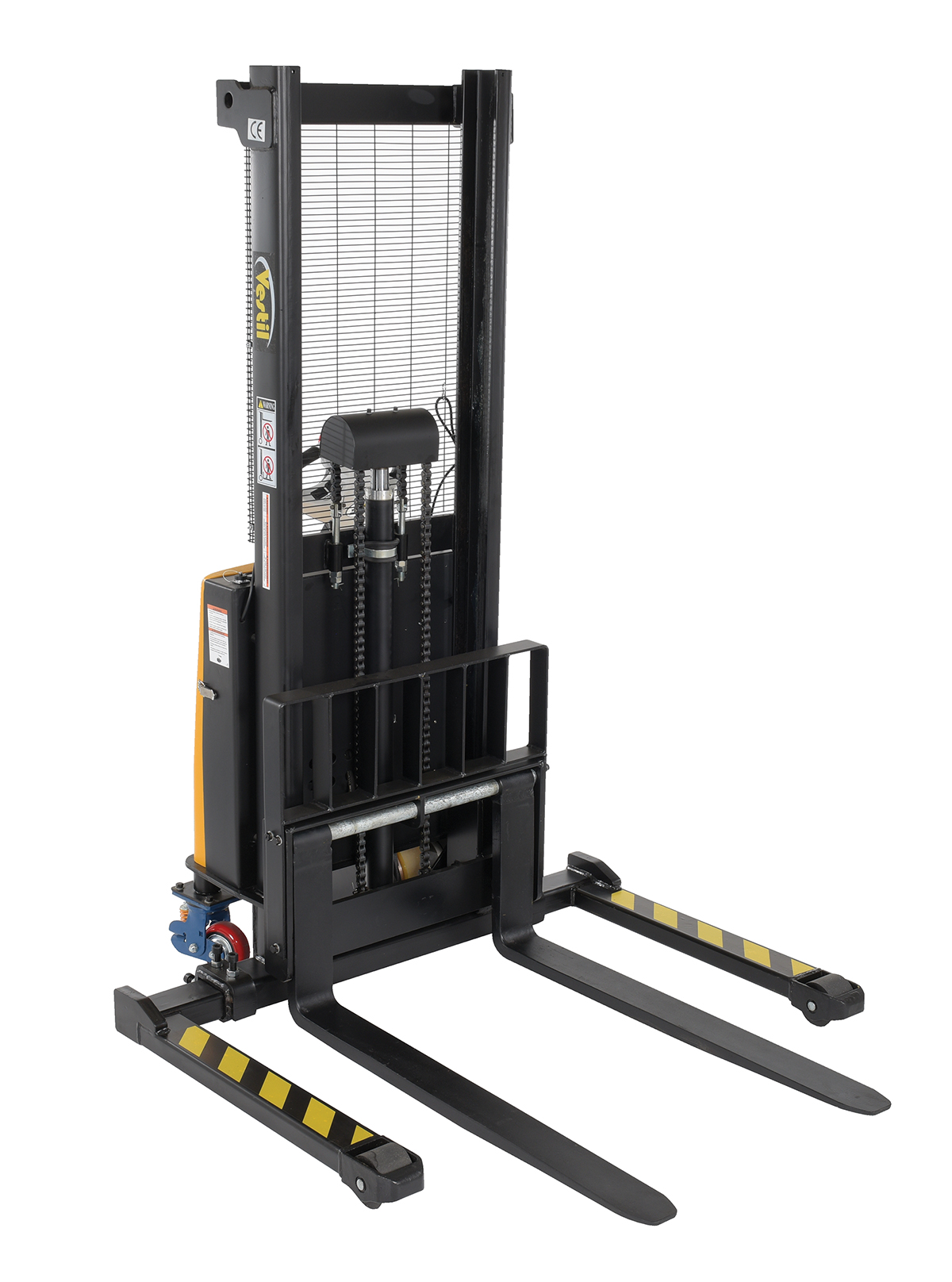

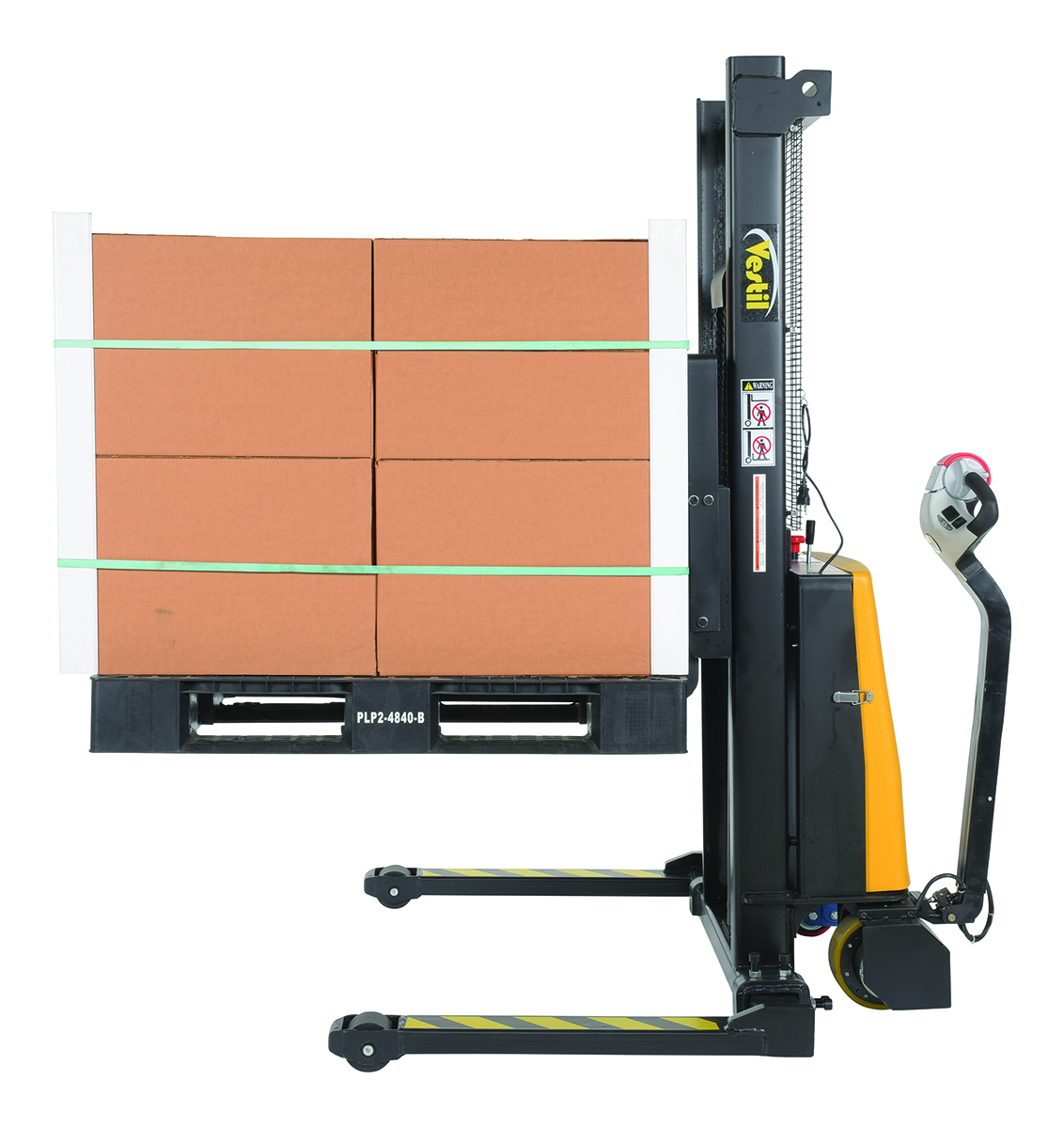

SL-63-AA-PTDS Warranty PDF 2-1/8" 63" 2,000 lbs. -- -- -- 1136

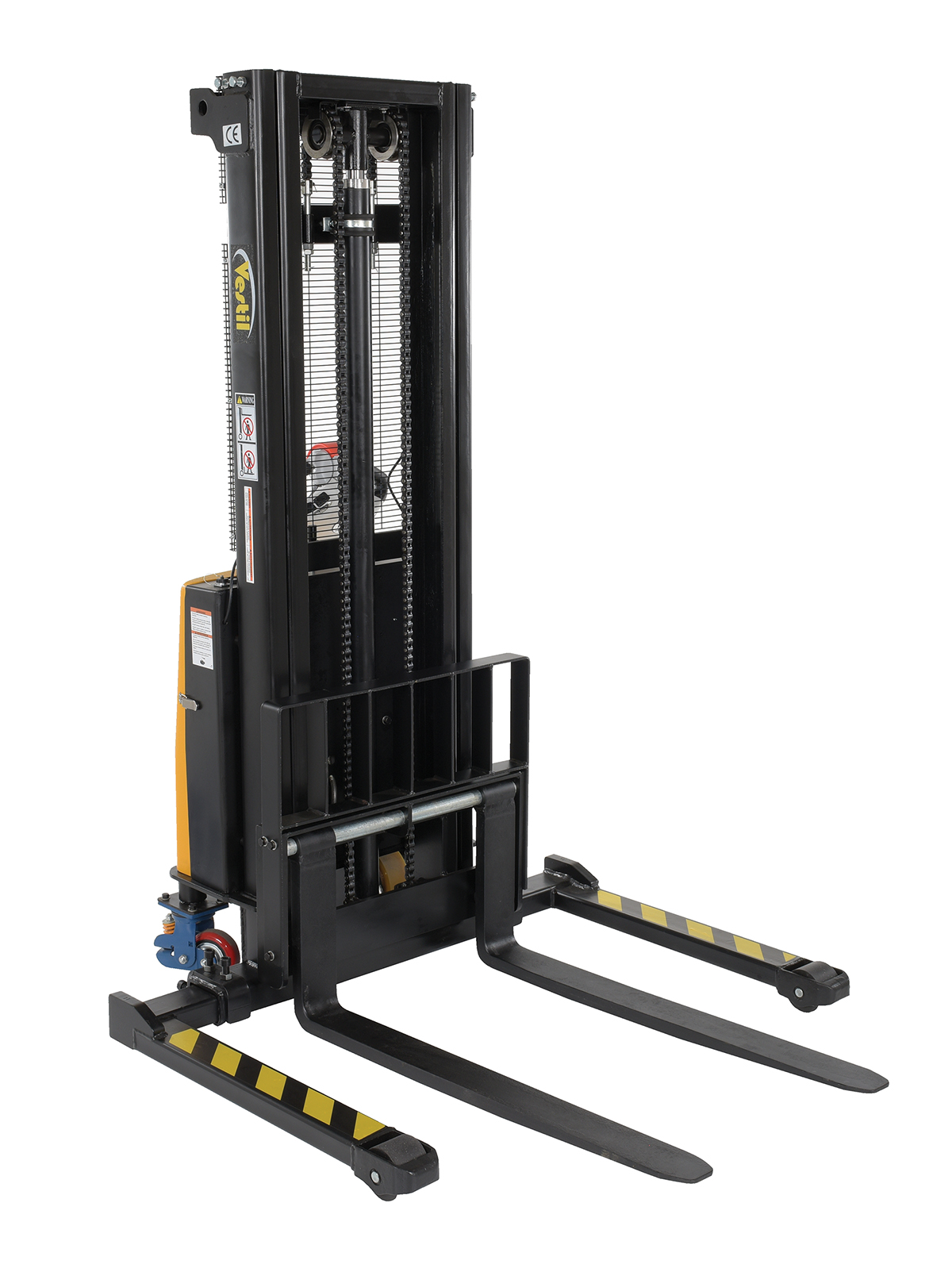

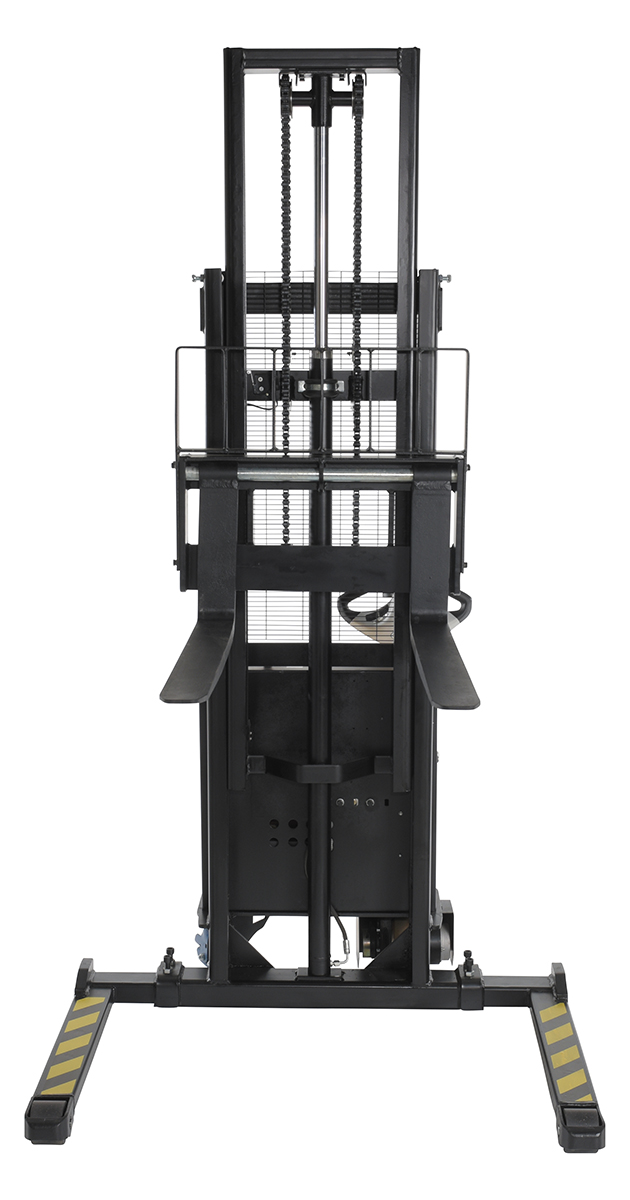

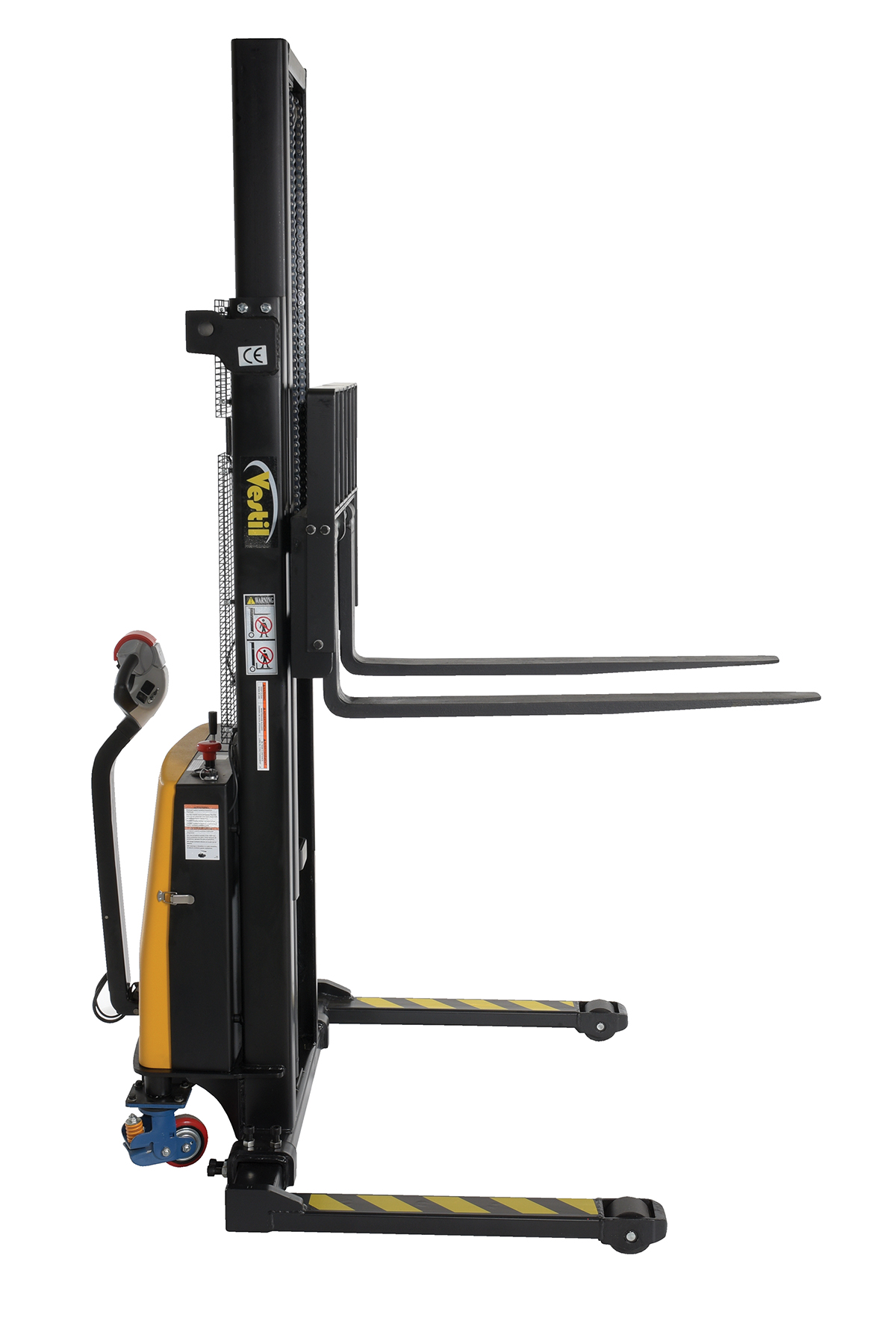

SL-118-AA-PTDS Warranty PDF 2-1/8" 118" 2,000 lbs. 1,500 lbs -- -- 1294
SL-137-AA-PTDS Warranty PDF 2-1/8" 137" 2,000 lbs. 1,500 lbs 1,000 lbs -- 1420
*Uniform Capacity at specific raised height

KEY: Approval Drawing = Approval Drawing -- Approval Drawing = Warranty -- Approval Drawing = Testing Certificate

PDF's will open in a new window when clicked.

Owner's Manuals


Survey Sheets

* No Survey Sheets For This Product.


Approval Drawings

SL-63-AA
SL-63-FF
SL-118-AA
SL-118-FF
SL-137-AA
SL-150-AA
SL-DK

Testing Certificates

SL-PTDS
SL-HC
SL-DK
SL-150-AA
SL-137-AA
SL-118-FF
SL-118-AA
SL-63-FF
SL-63-AA

Other PDF's

* No "Other PDFs" For This Product...


Directory Links Of Available PDF's For All Products

Options

Options

SL-HC Warranty PDFCompliance Certificate Hand Control -- 3
SL-DK icon_approvaldrawings.jpgWarranty PDFCompliance Certificate Solid Platform -- 46

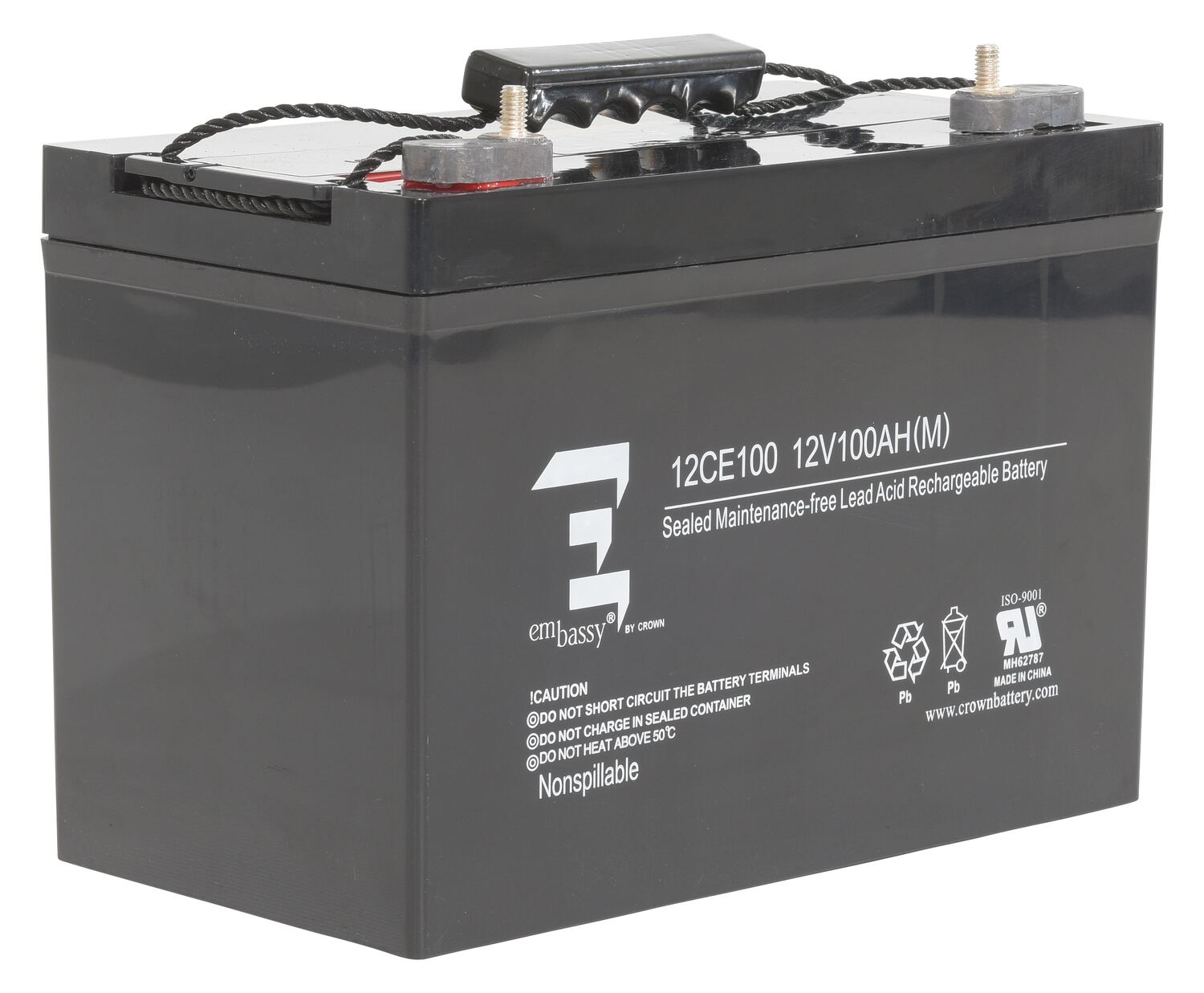

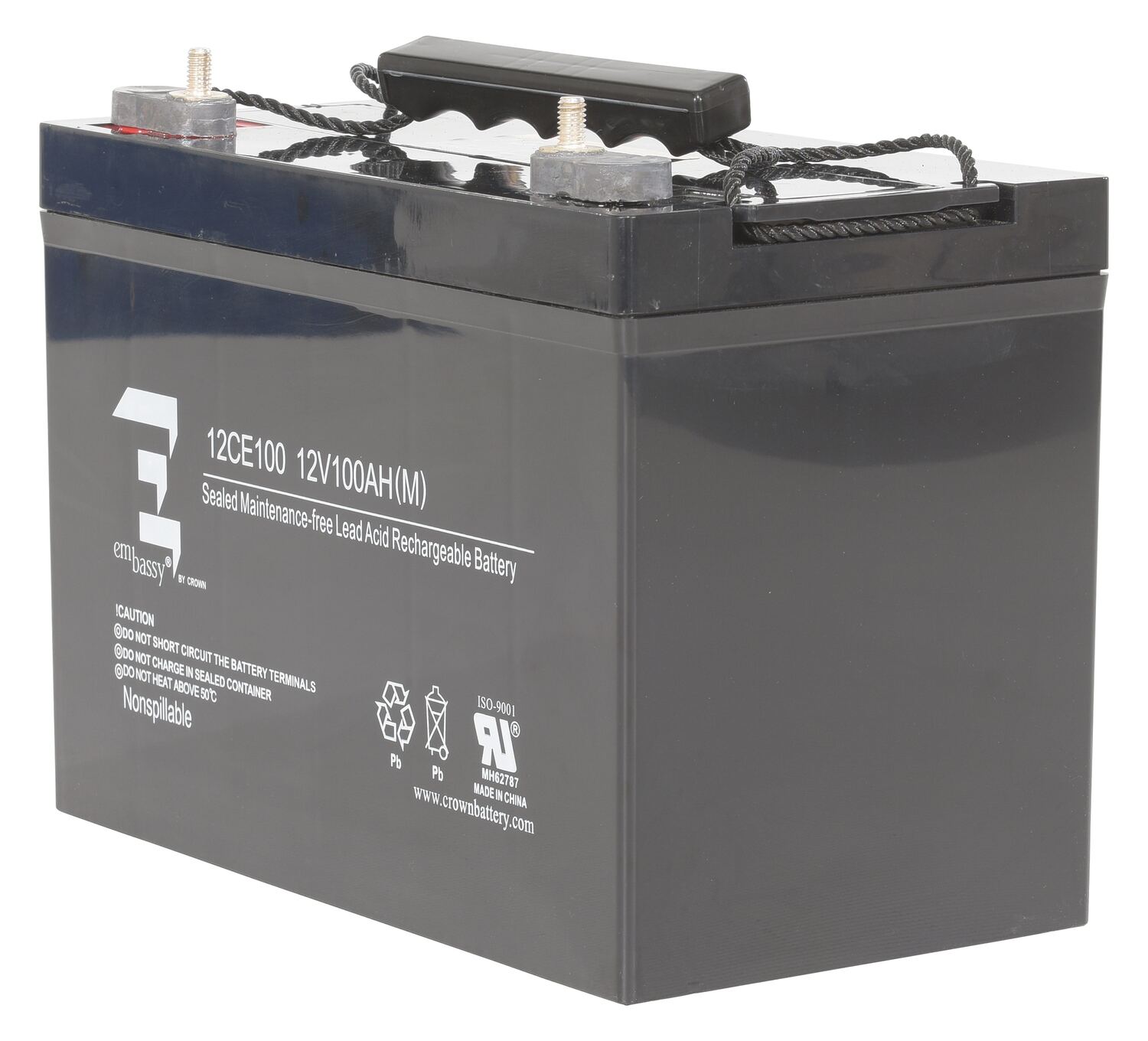

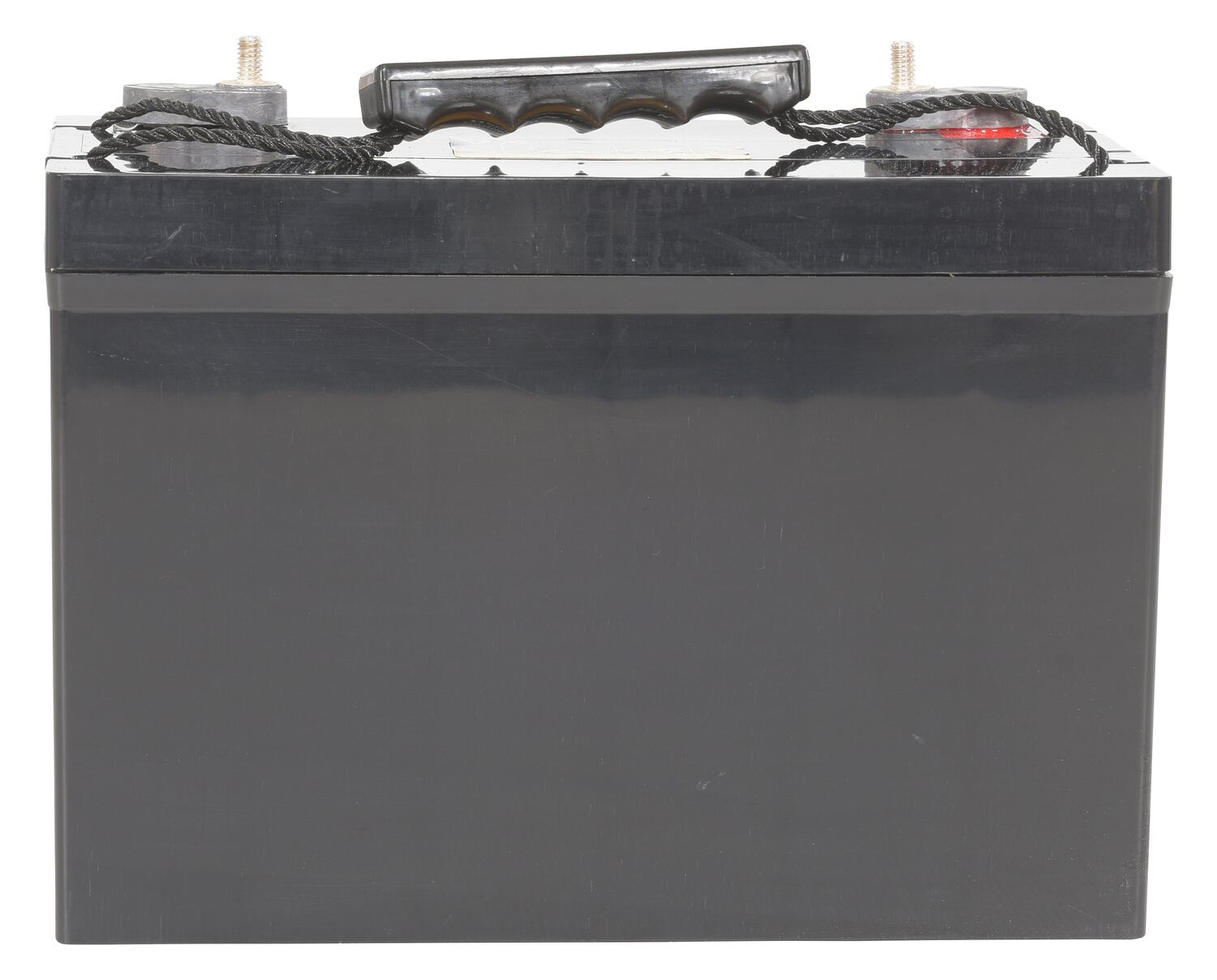

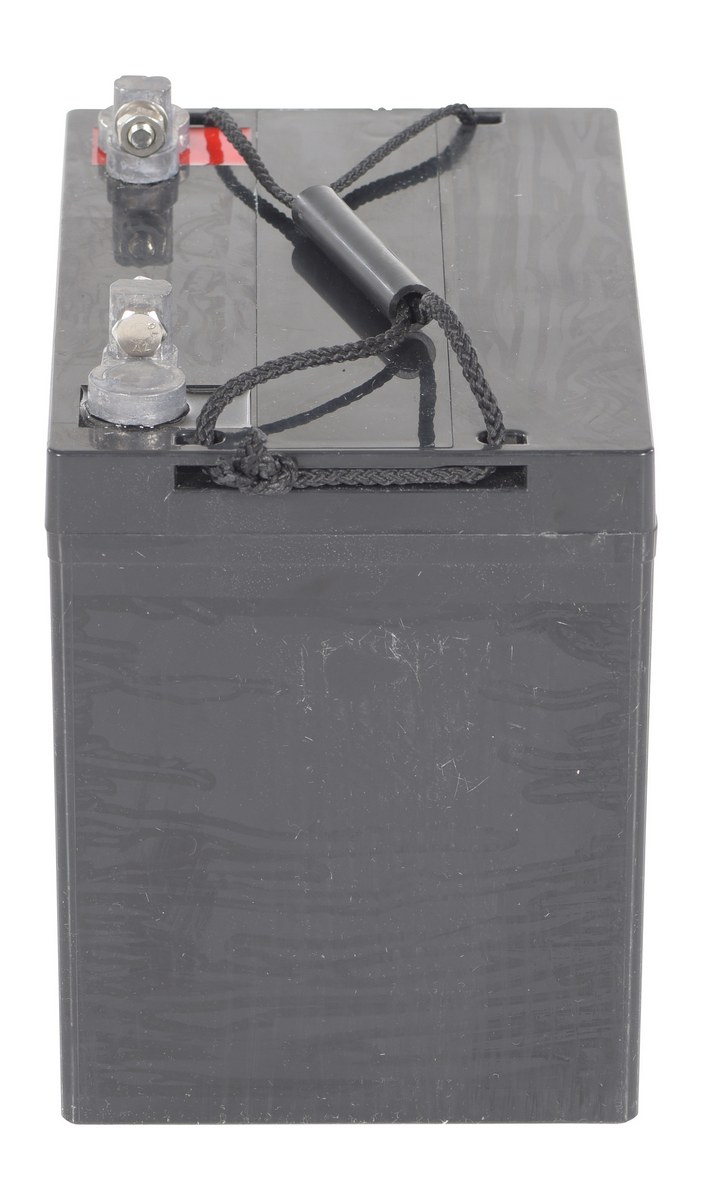

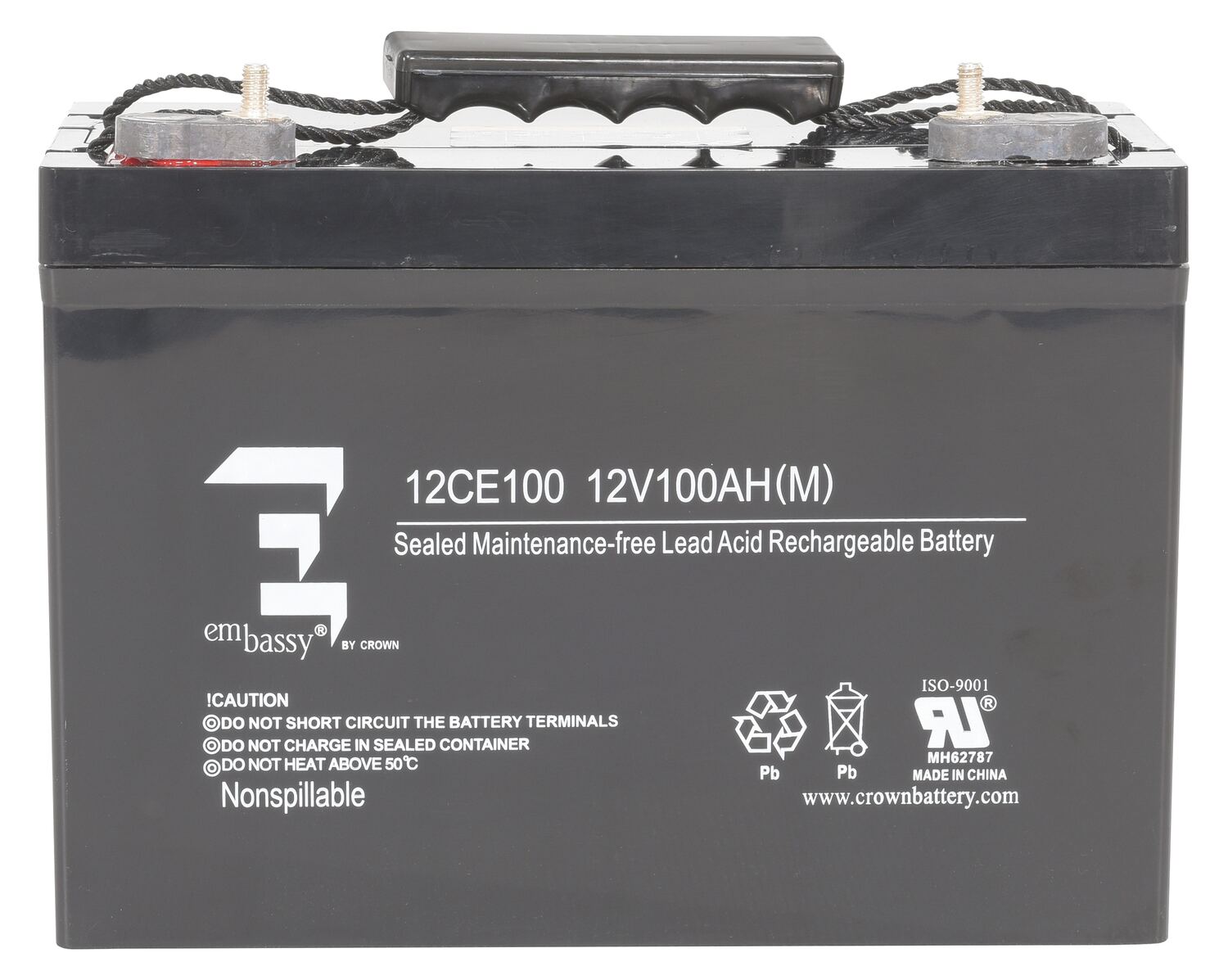

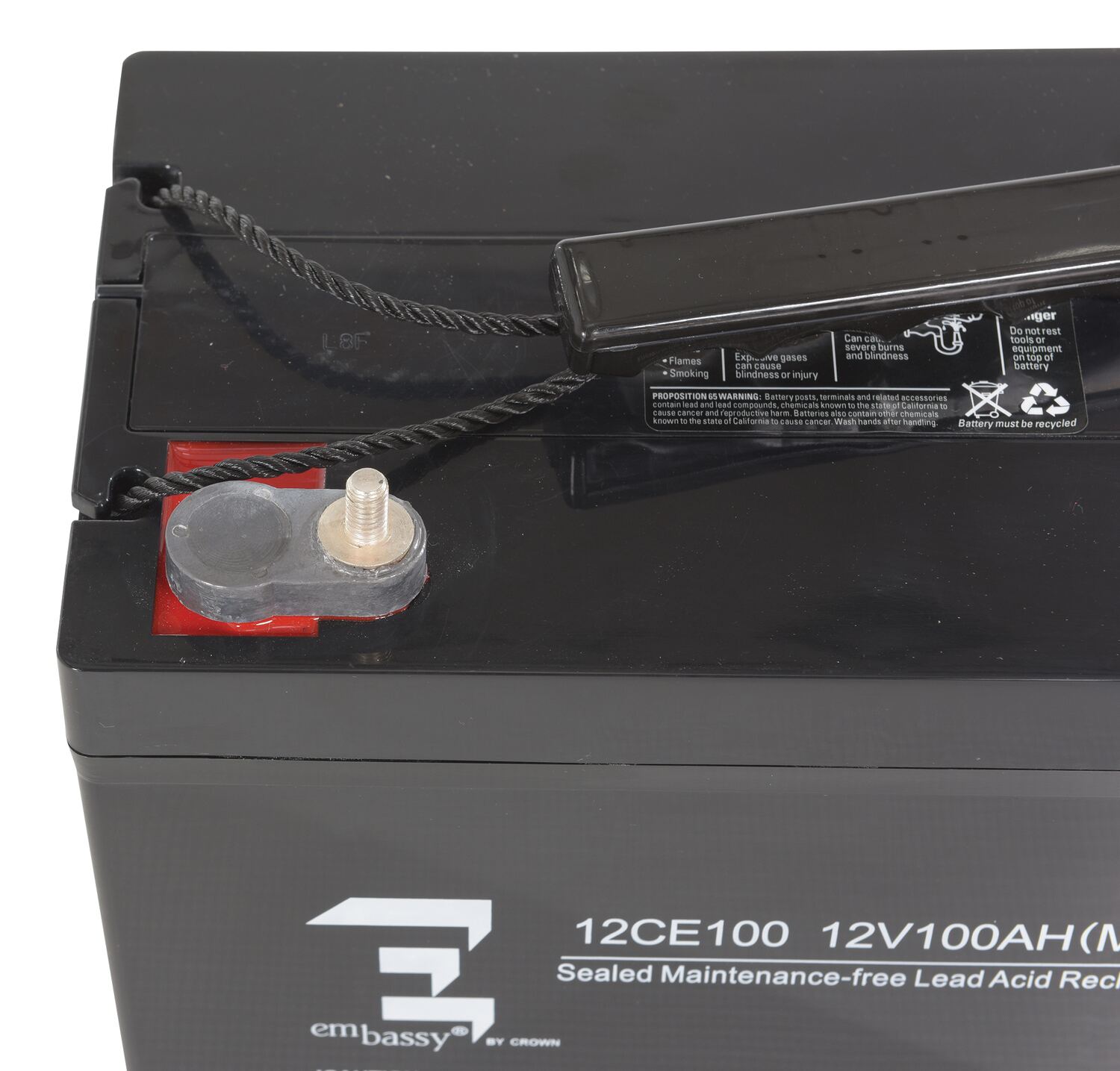

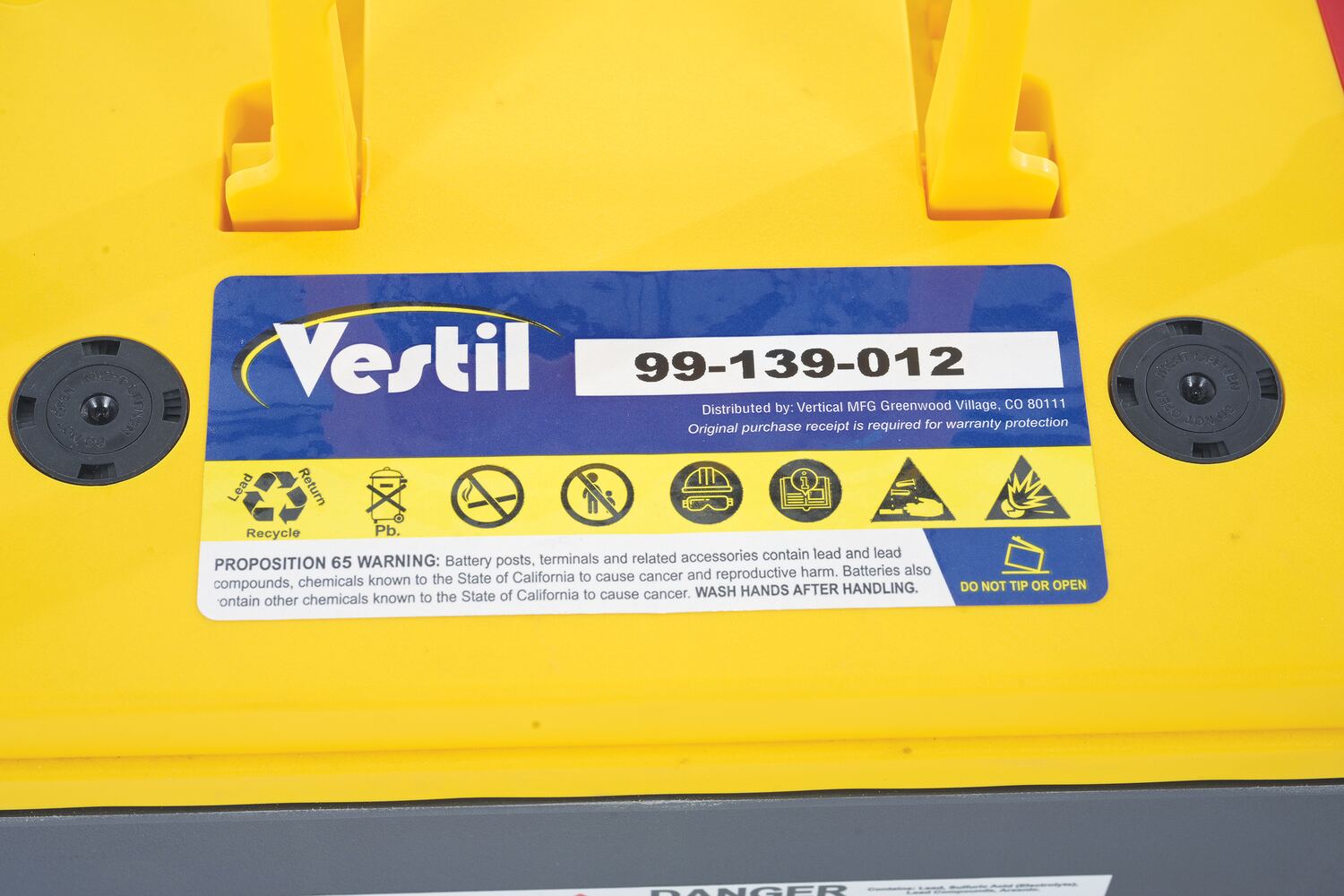

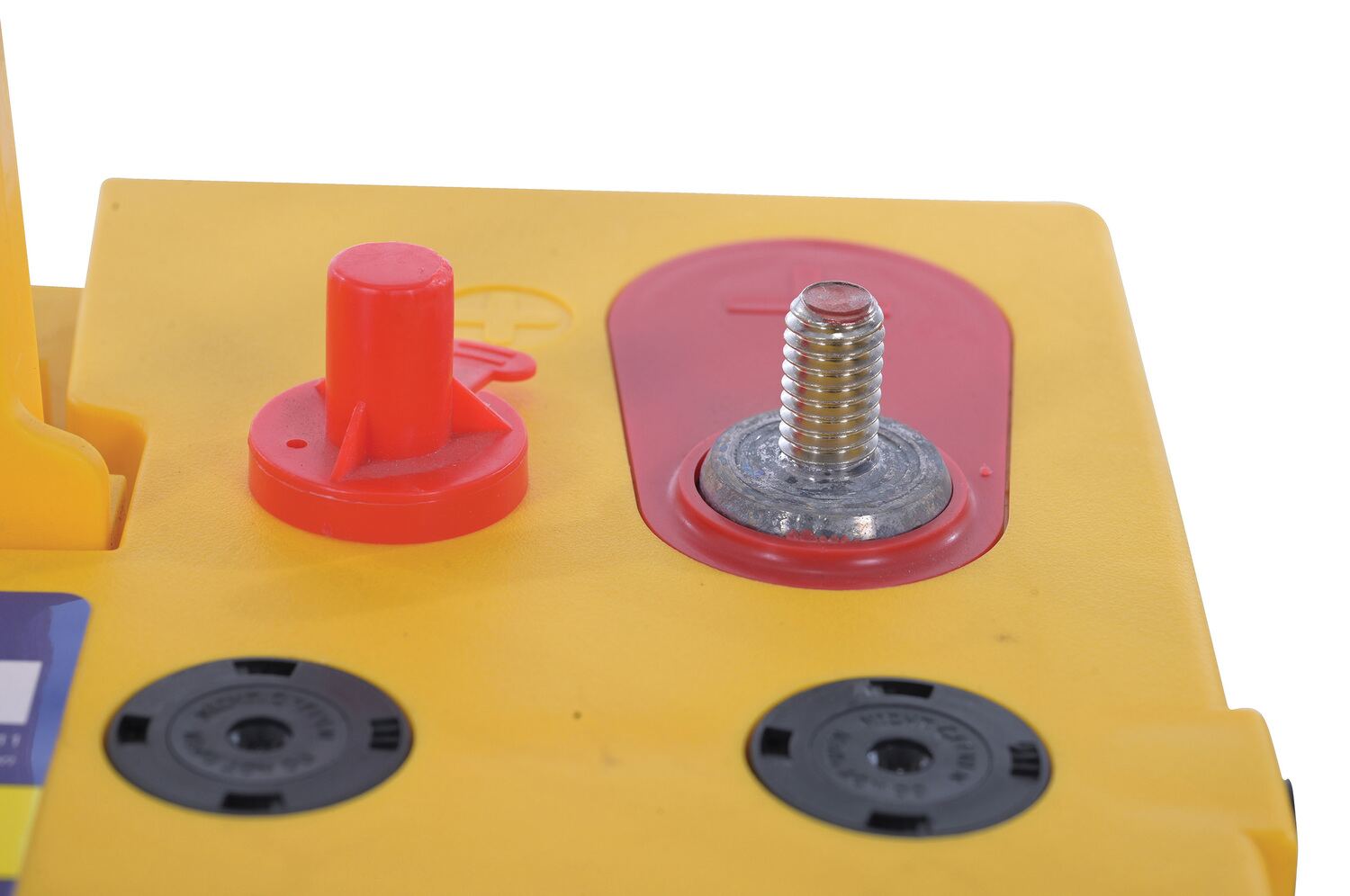

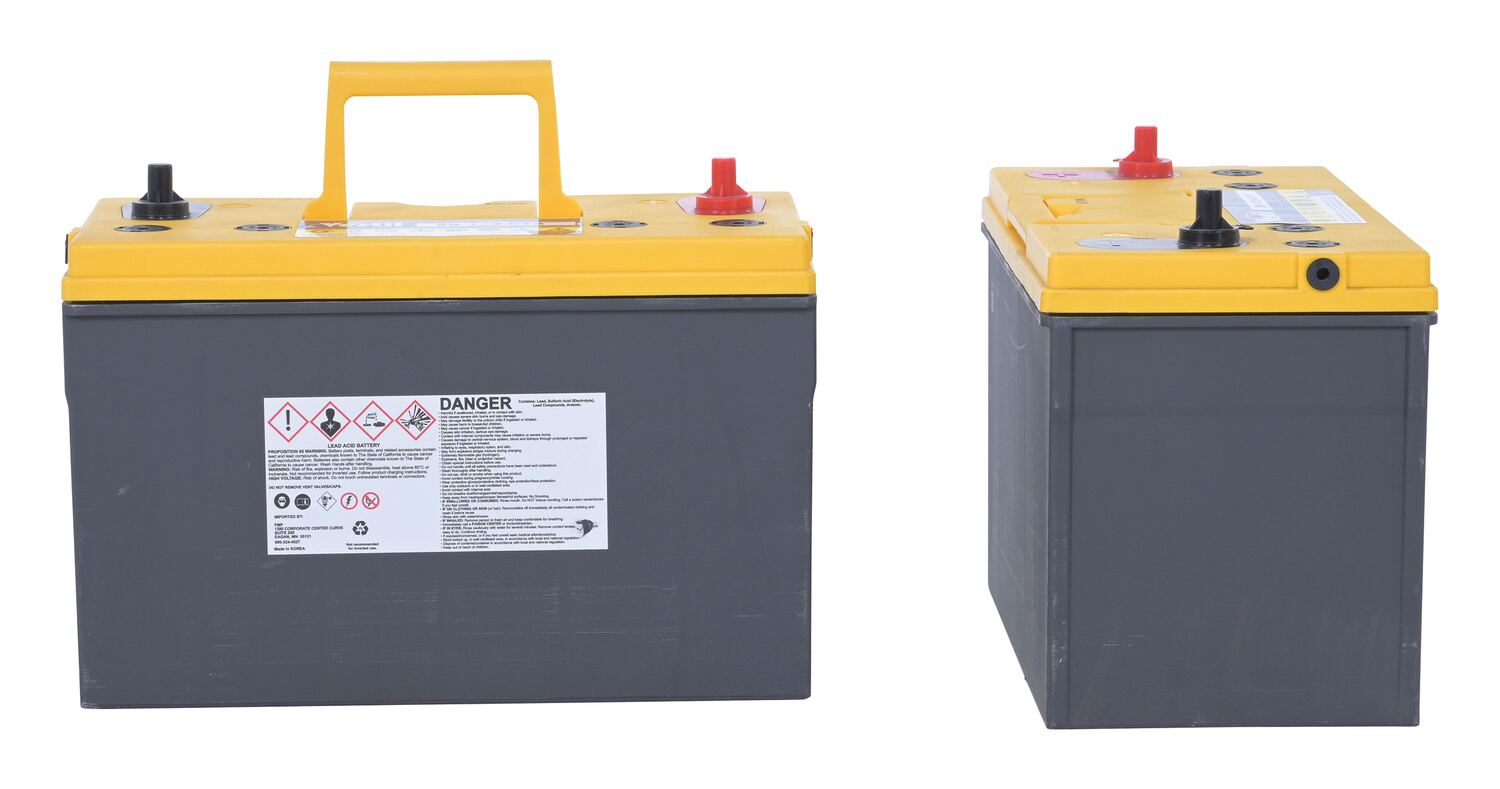

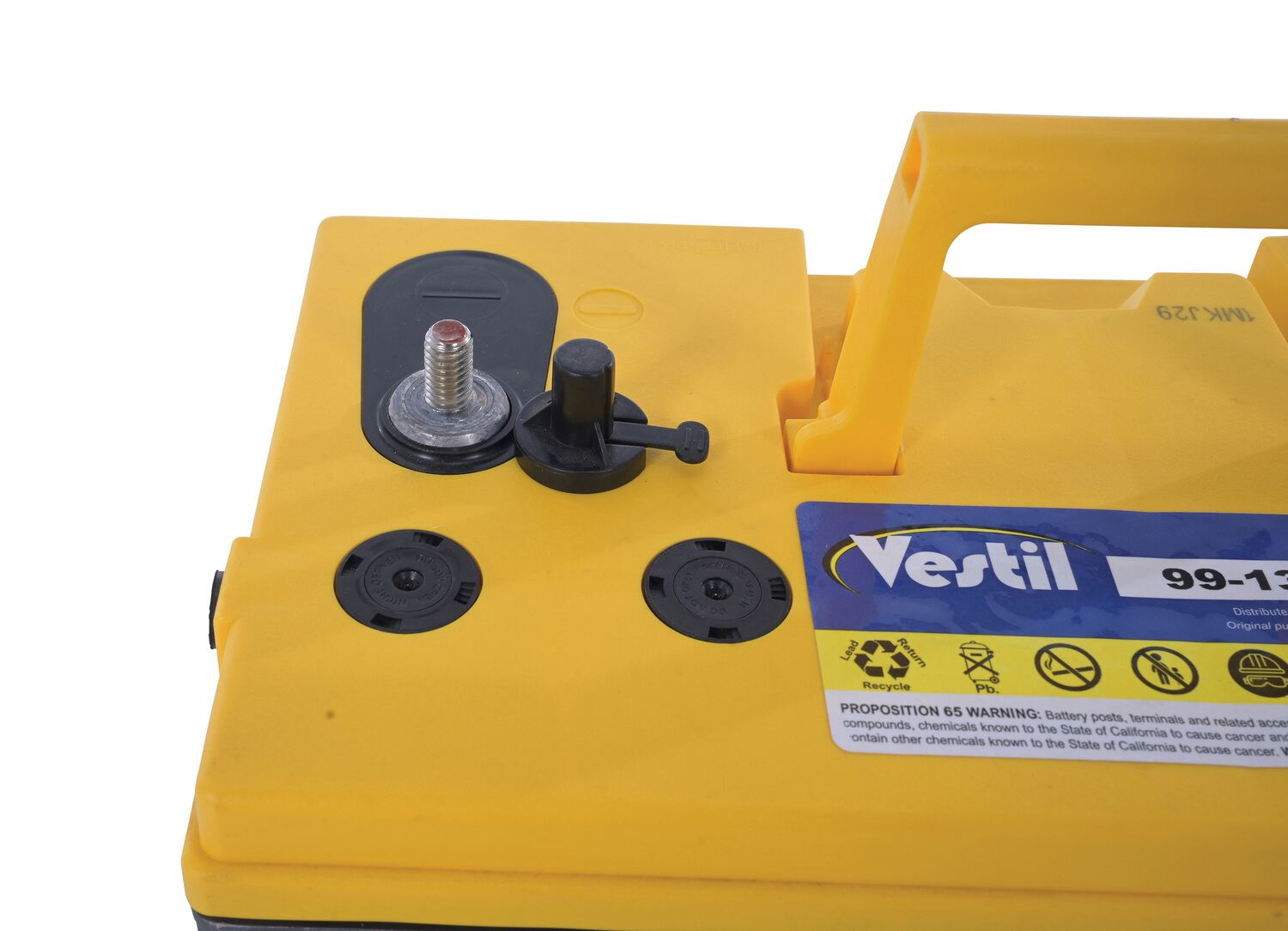

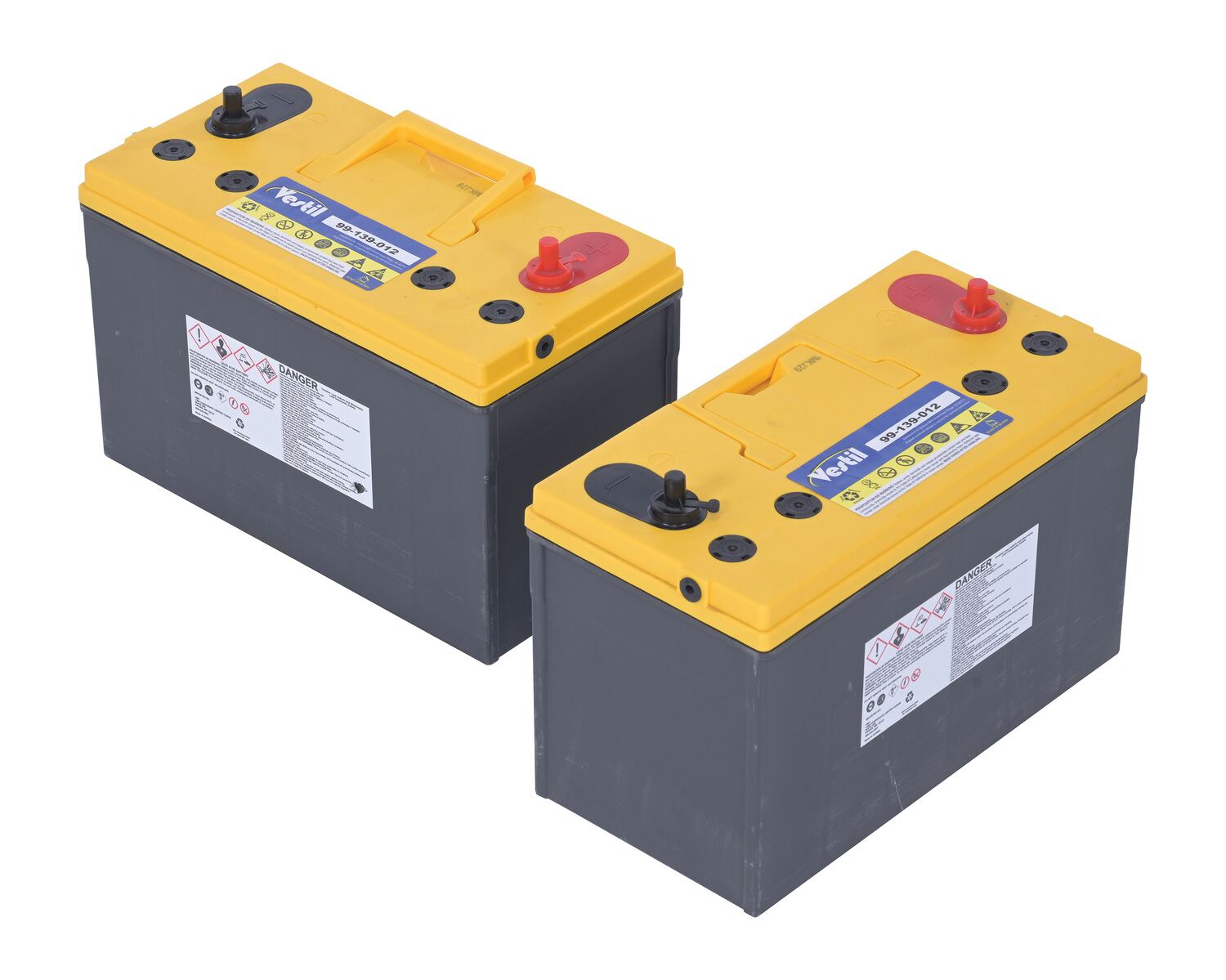

AGM-UPG-SL Warranty PDFCompliance Certificate AGM Battery Upgrade (1) 12V 100Ah Hour (must purchase with new unit) -- 68

KEY: Approval Drawing = Approval Drawing -- Approval Drawing = Warranty -- Approval Drawing = Testing Certificate

Questions & Answers

No current Questions for this product. Check back soon, or submit a question to be answered below




If you did not find an expected Model or SKU # on this page, try the Options Tab.
