Product Family Overview


Powered Stacker with Power Drive, Power Lift, & Power Fork Reach
SERIES: S

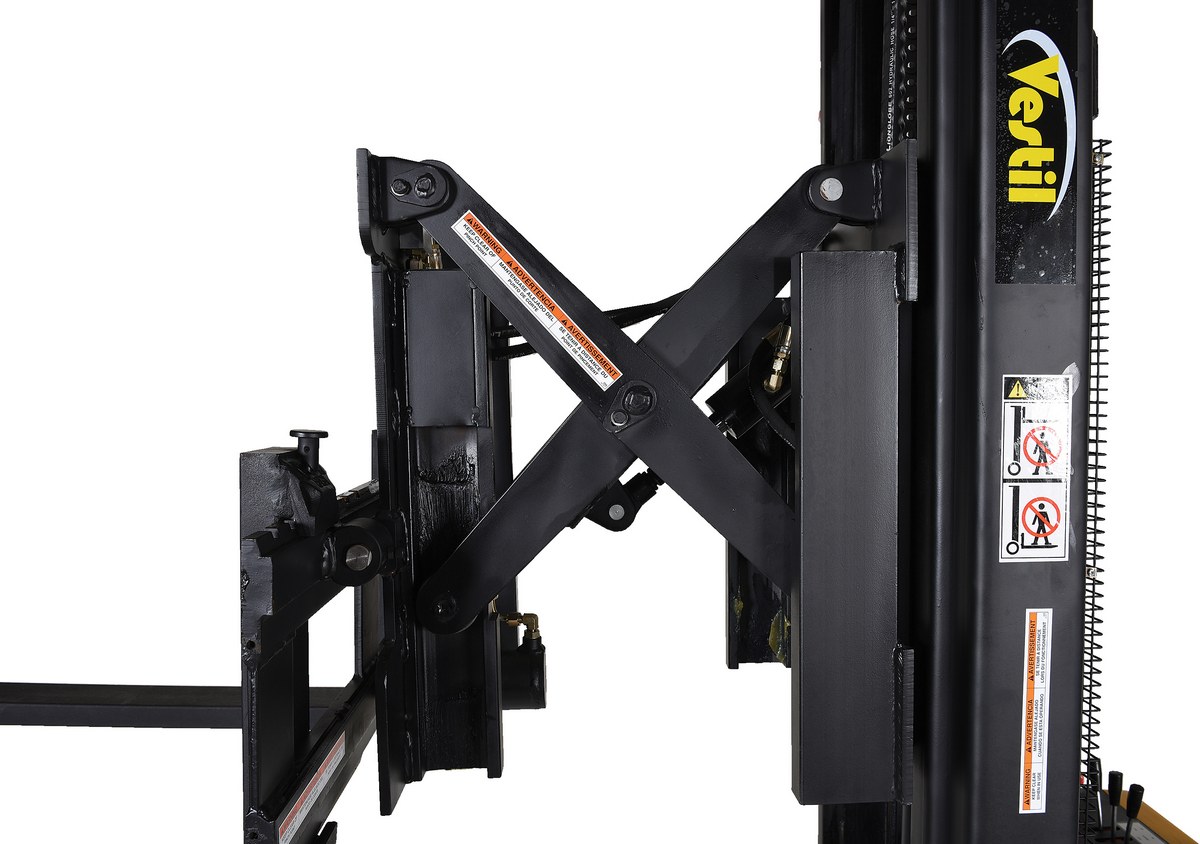

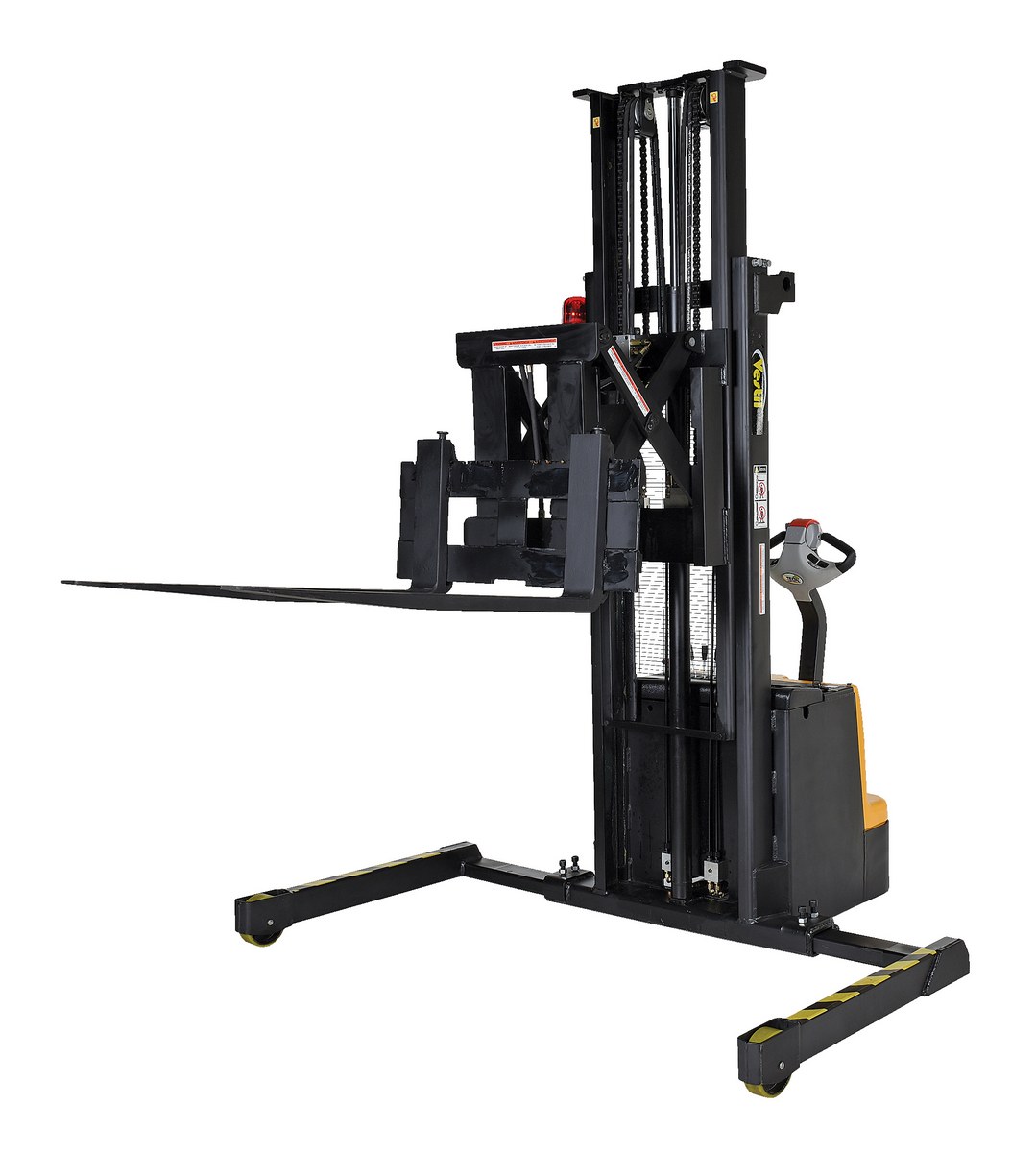

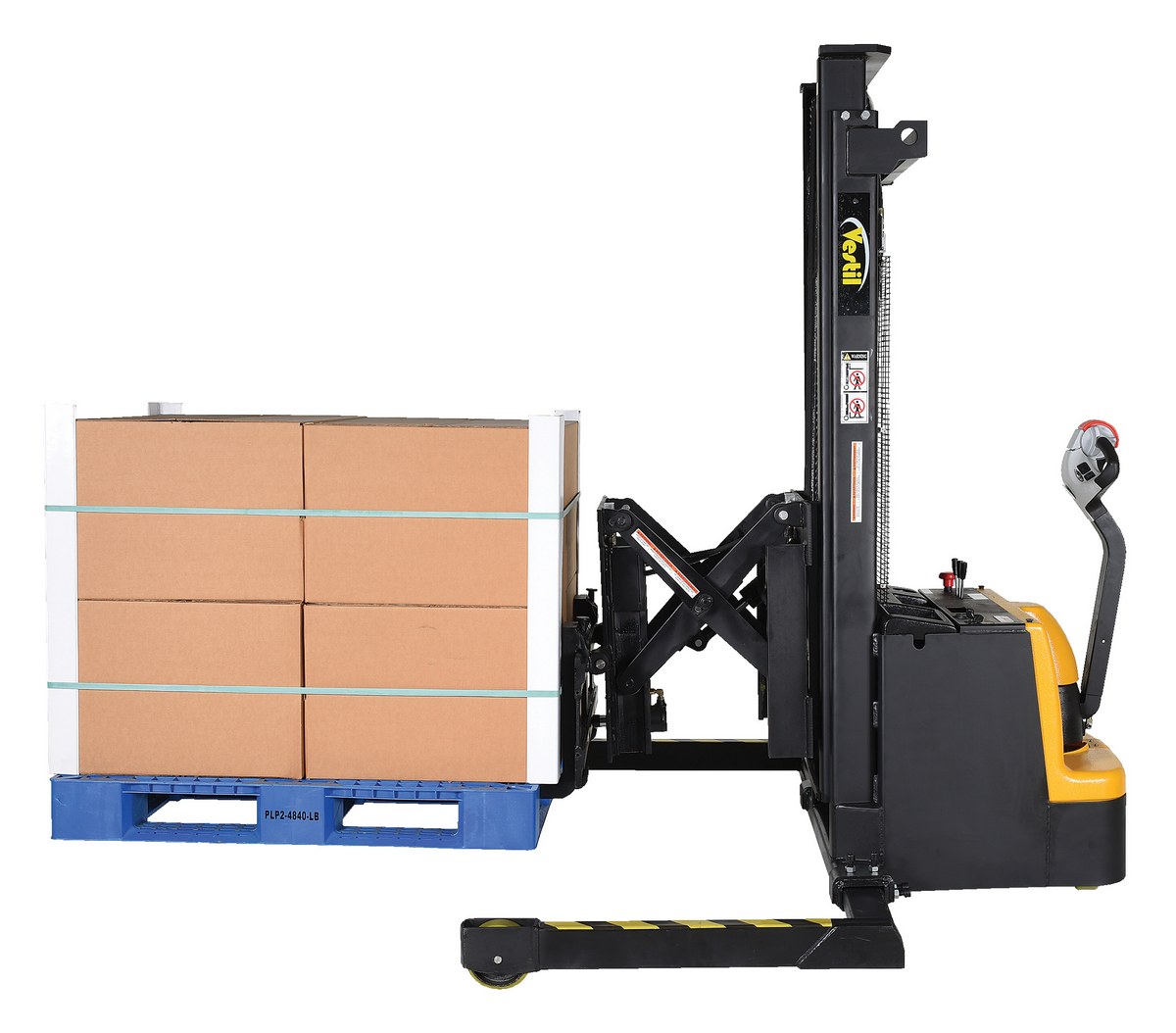

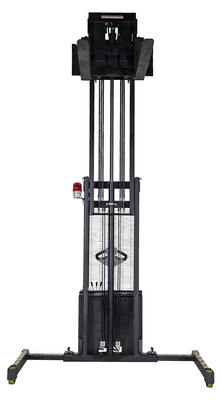

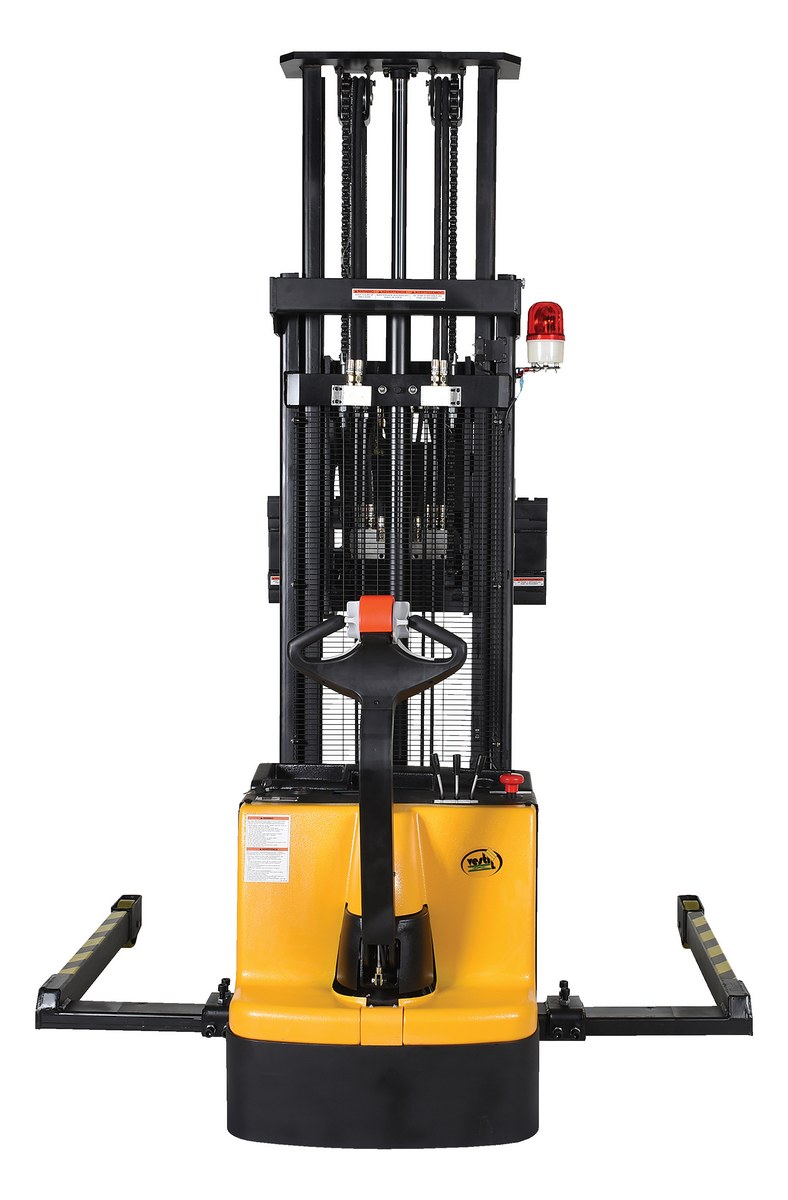

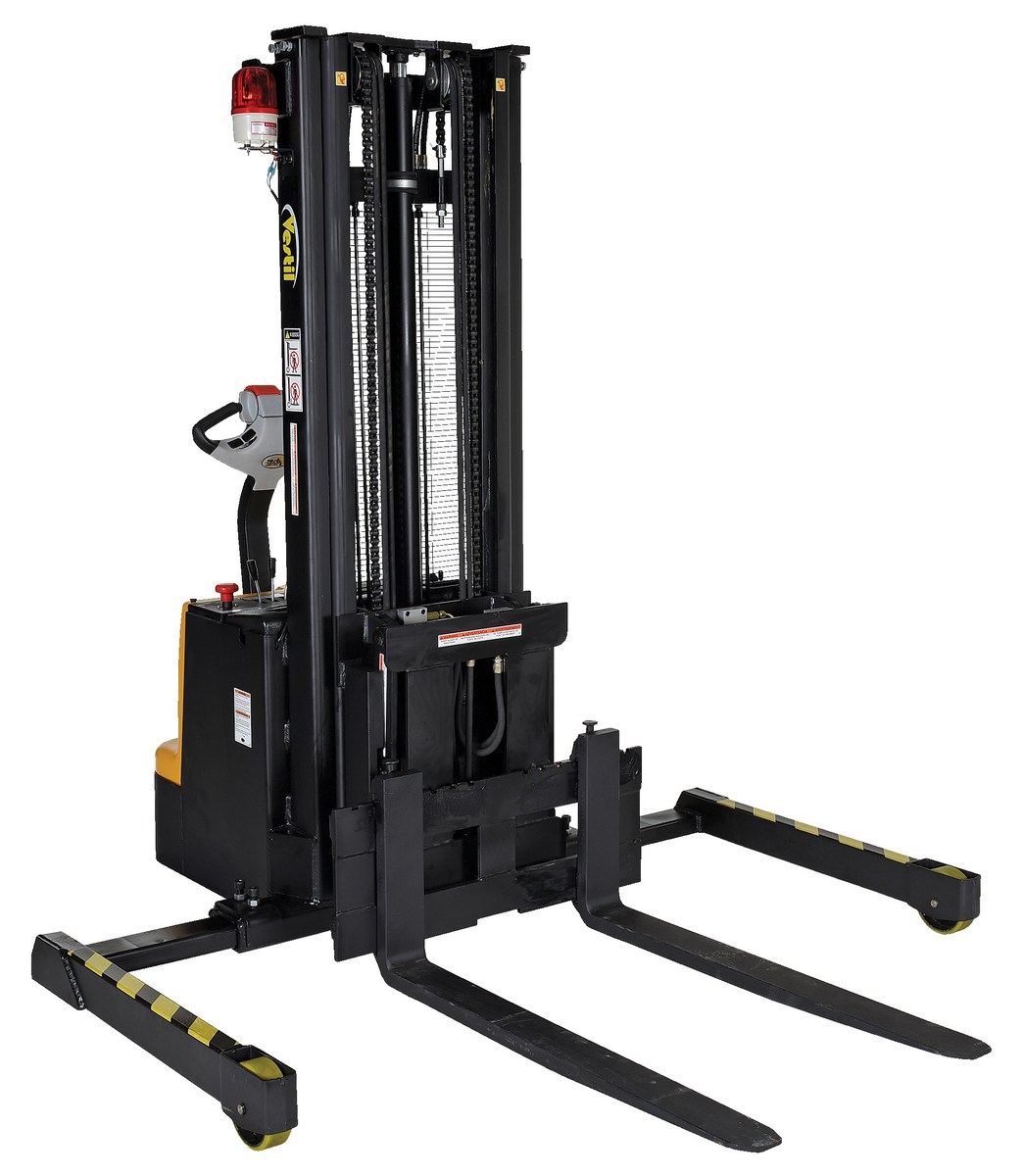

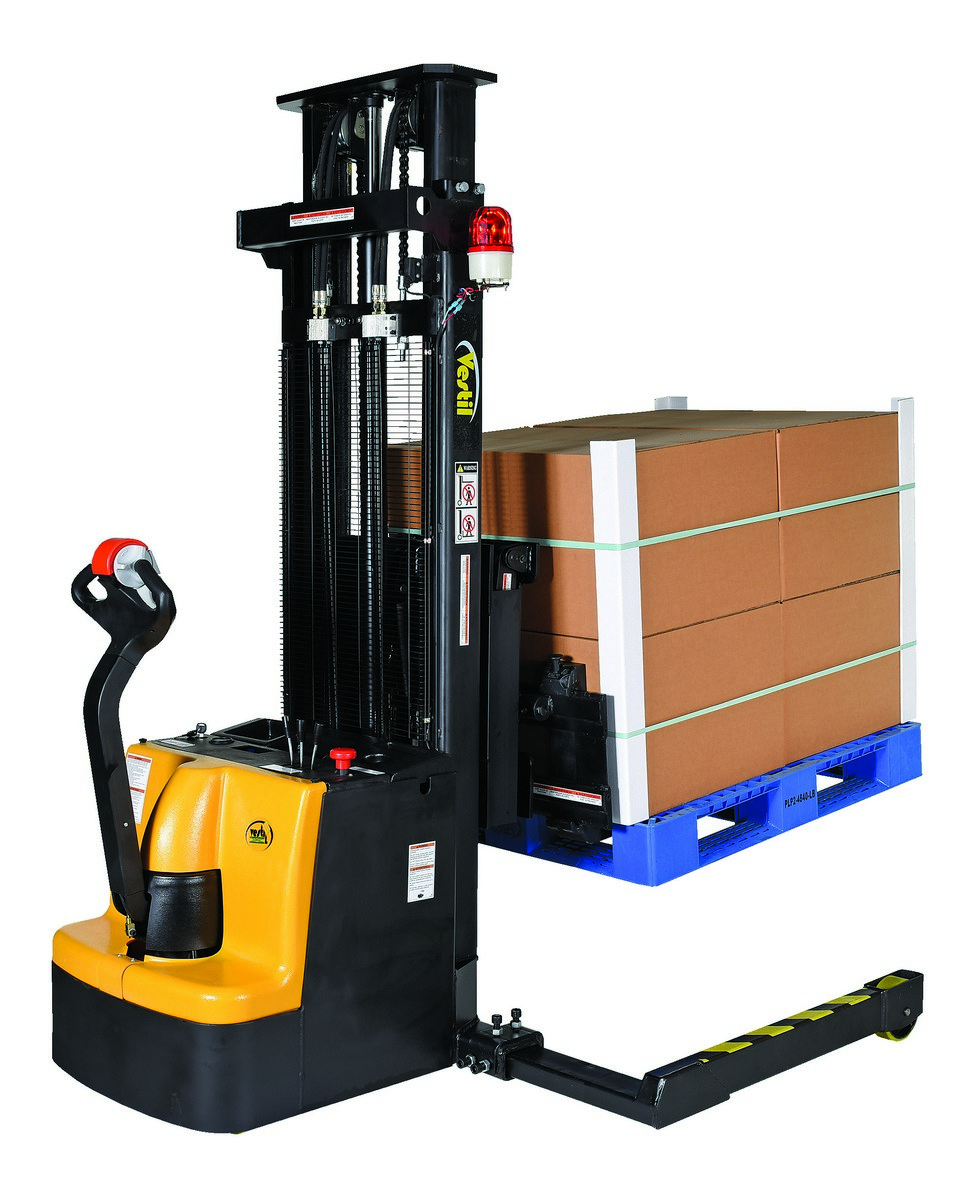

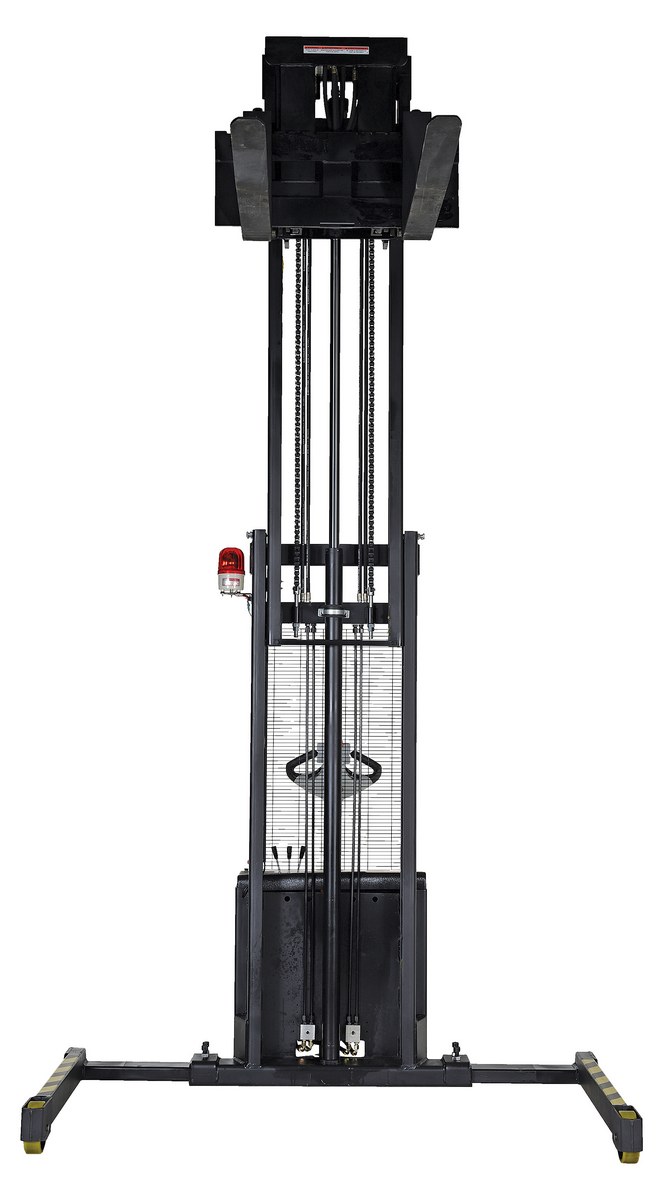

Powered Stacker with Power Drive, Power Lift, and Power Fork Reach is ideal for distribution and shipping facilities. The stacker is equipped with extendable forks, which can be utilized to reach 25" and lift objects in a condensed area where room to maneuver is limited. The stacker is power driven with simple controls that allow for precise positioning of products. Features two (2) 12V batteries with on-board charger. To use, align forks in the desired position and extend the forks to reach the product safely. Once the unit is in place and the product is secured, the stacker can be driven to the preferred workspace.

  • Utilize in both big and small loads
  • Powered unit to minimize manual labor
  • Diminishes amount of bending and twisting
  • Simple movement controls

Powered Stacker with Power Drive, Power Lift, and Power Fork Reach is ideal for distribution and shipping facilities. The stacker is equipped with extendable forks, which can be utilized to reach 25" and lift objects in a condensed area where room to maneuver is limited. The stacker is power driven with simple controls that allow for precise positioning of products. Features two (2) 12V batteries with on-board charger. To use, align forks in the desired position and extend the forks to reach the product safely. Once the unit is in place and the product is secured, the stacker can be driven to the preferred workspace.

  • Utilize in both big and small loads
  • Powered unit to minimize manual labor
  • Diminishes amount of bending and twisting
  • Simple movement controls

Model Specific Details


All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.
The Search Box below is within the Model Chart for this Product Family (on this current page). Not an entire site search.
Model # Description Attributes Net Wt.
(lbs)
S-118-AA-FR S-118-AA-FR1 Year Limited WarrantySteel Adjustable Extendable Fork Stacker 118 In. Raised Height 1500 Lb. Capacity Black / YellowUniform Capacity Forks Retracted at 2" to 62" Raised Height (lb.): 1500
Uniform Capacity Forks Extended at 2" to 62" Raised Height (lb.): 800
1850

* Uniform capacity with forks retracted and extended at specific raised height

KEY: = Expand Model Details = 48hr Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= On Hold/Temporarily Unavailable = Approval Drawing = Testing Certificate = 360 Image Warranty
= Works w/ Skid Only = Flatbed Truck Required

If you did not find an expected Model or SKU # in the table, try the Options Section Below

S-118-AA-FR
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity Forks Retracted at 2" to 62" Raised Height (lb.): 1500
Uniform Capacity Forks Extended at 2" to 62" Raised Height (lb.): 800
Uniform Capacity Forks Retracted at 2" to 62" Raised Height (lb.): 1500
Uniform Capacity Forks Extended at 2" to 62" Raised Height (lb.): 800
For More Details of the Option Click the Red Model Button

Options

Model Image Description Wt (lbs.)
AGM-UPG-2-12V AGM Battery Upgrade (2x12V) must be purchased with new unit 80 lbs
If you did not find an expected Model or SKU # in this table, try the Product Specifications Section Above

Powered Stacker with Power Drive, Power Lift, & Power Fork Reach PDF's will open in a new window when clicked.

Manuals


Survey Sheets

No Survey Sheets For This Product


Approval Drawings

Testing Certificates


S-118-AA-FR

SDS Sheets

Midwest Battery - Lead/Acid Battery, Wet, Filled with Acid SDS Sheet for: S-118-AA-FR
Hydraulic Oil SDS Sheet for: S-118-AA-FR

Other PDF's


Directory Links Of Available PDF's For All Products


Q: On the drawing for the S-118-AA-FR what does "UDL" stand for?

A: UDL stands for Uniform Distributed Load - even load across the forks.


Q: What is the height of the load guard back rest?

A: The load guard back rest is 30" high.


Q: What is the distance from the floor to the fork?

A: The lowered height from the top of the fork to the floor is 2". The raised height from the top of the fork to the floor is 118". The 3.3" is the height of the outrigger.


Q: What is the lifting speed?

A: Lifting speed for the S-118-AA-FR is 18 seconds unloaded. When loaded lifting speed is 21 seconds.
