SERIES: SSSC

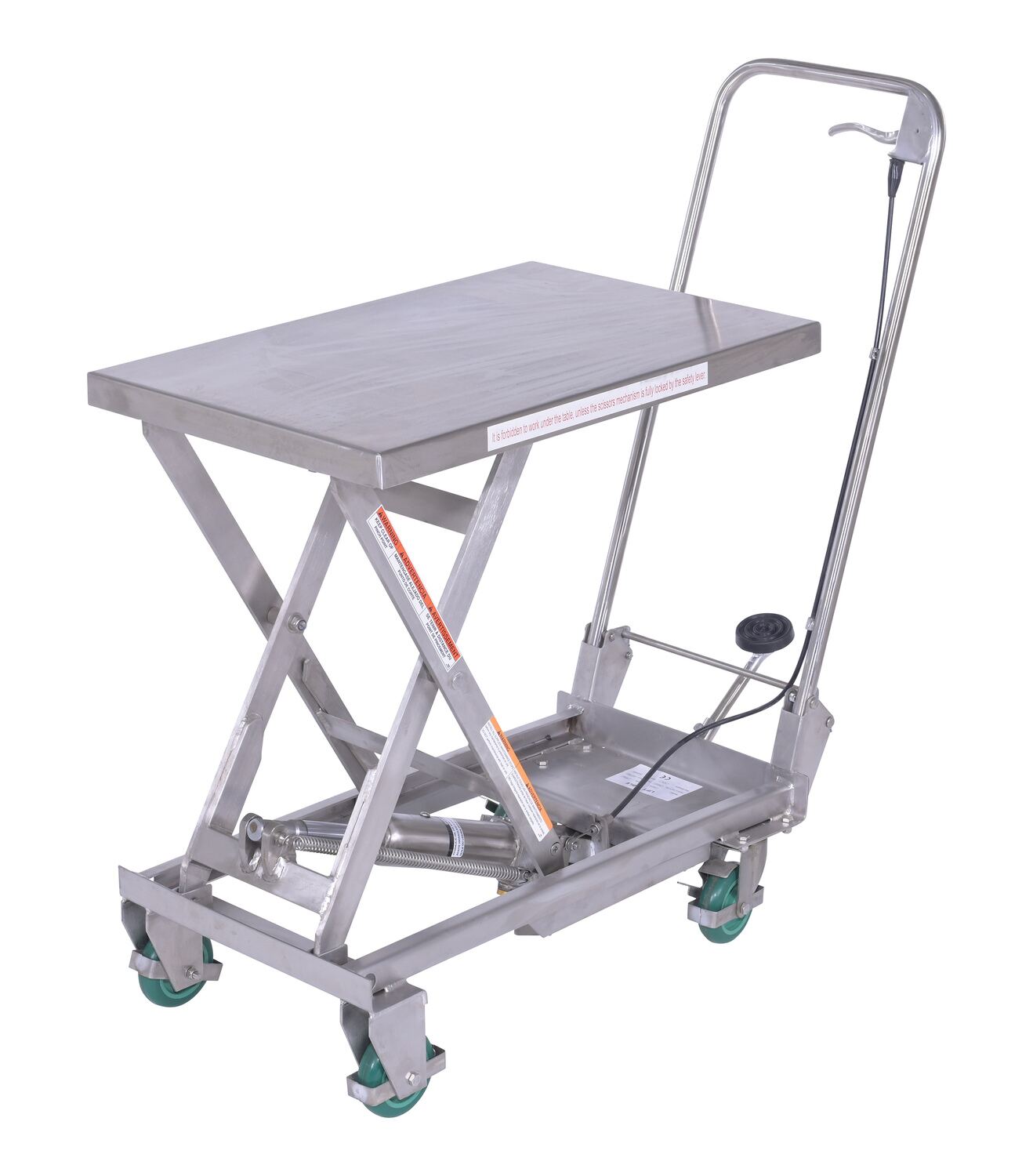

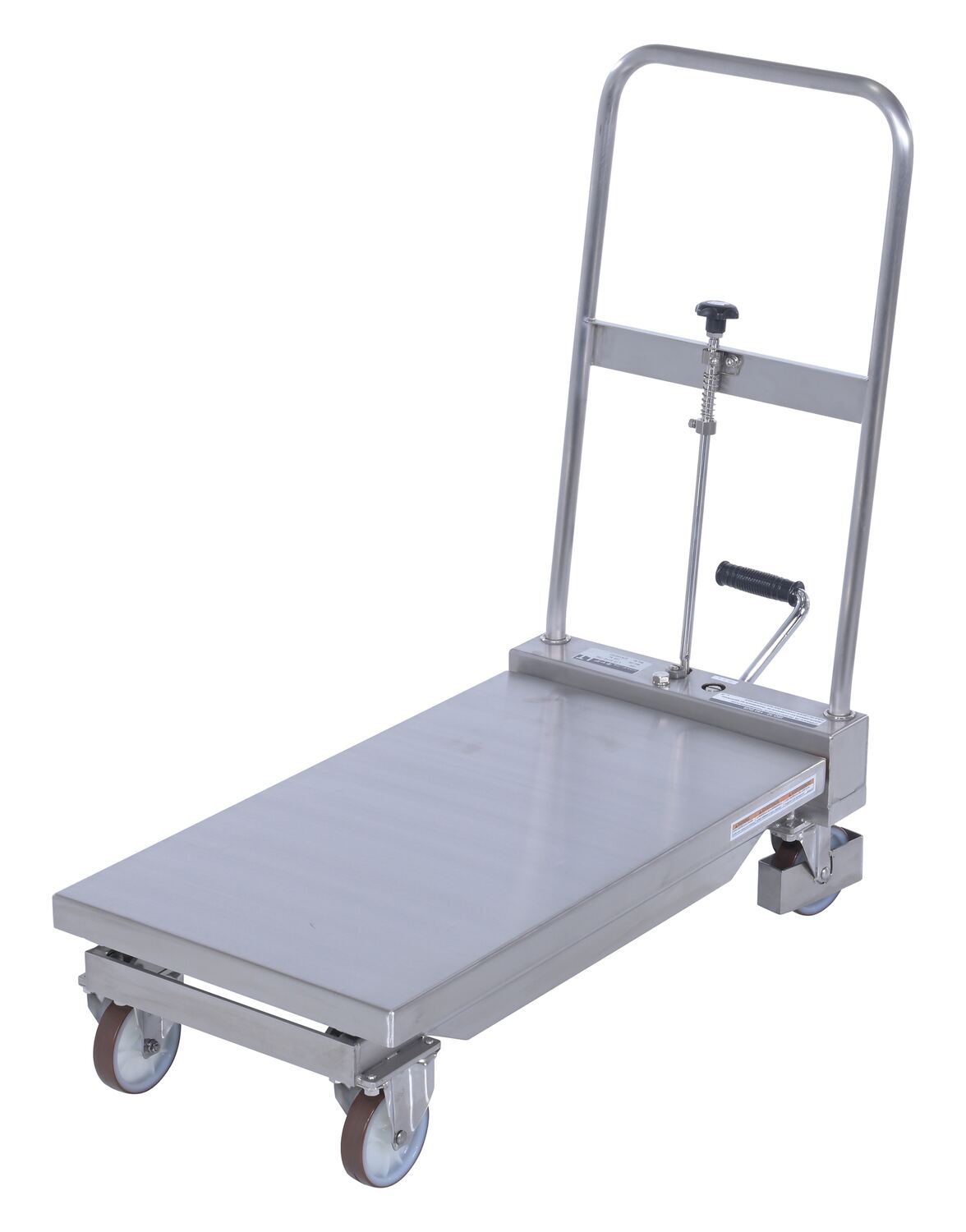

Stainless Steel Scissor Carts

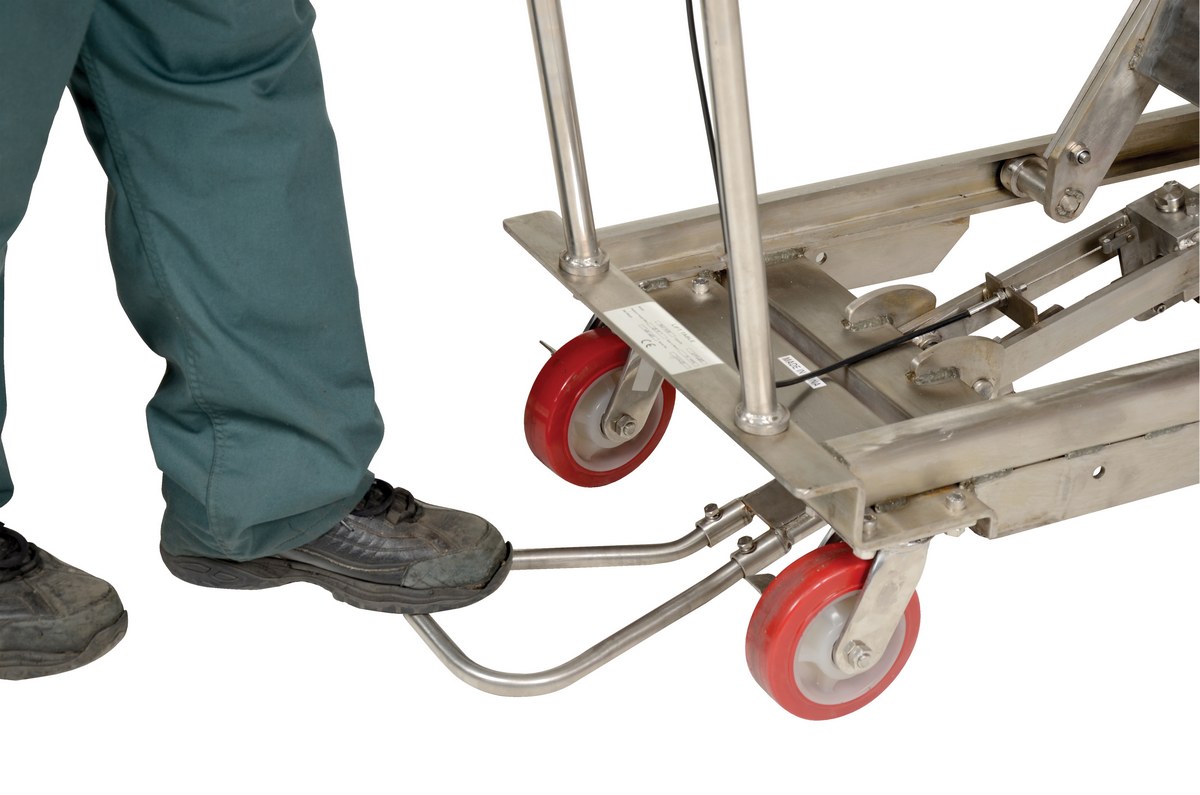

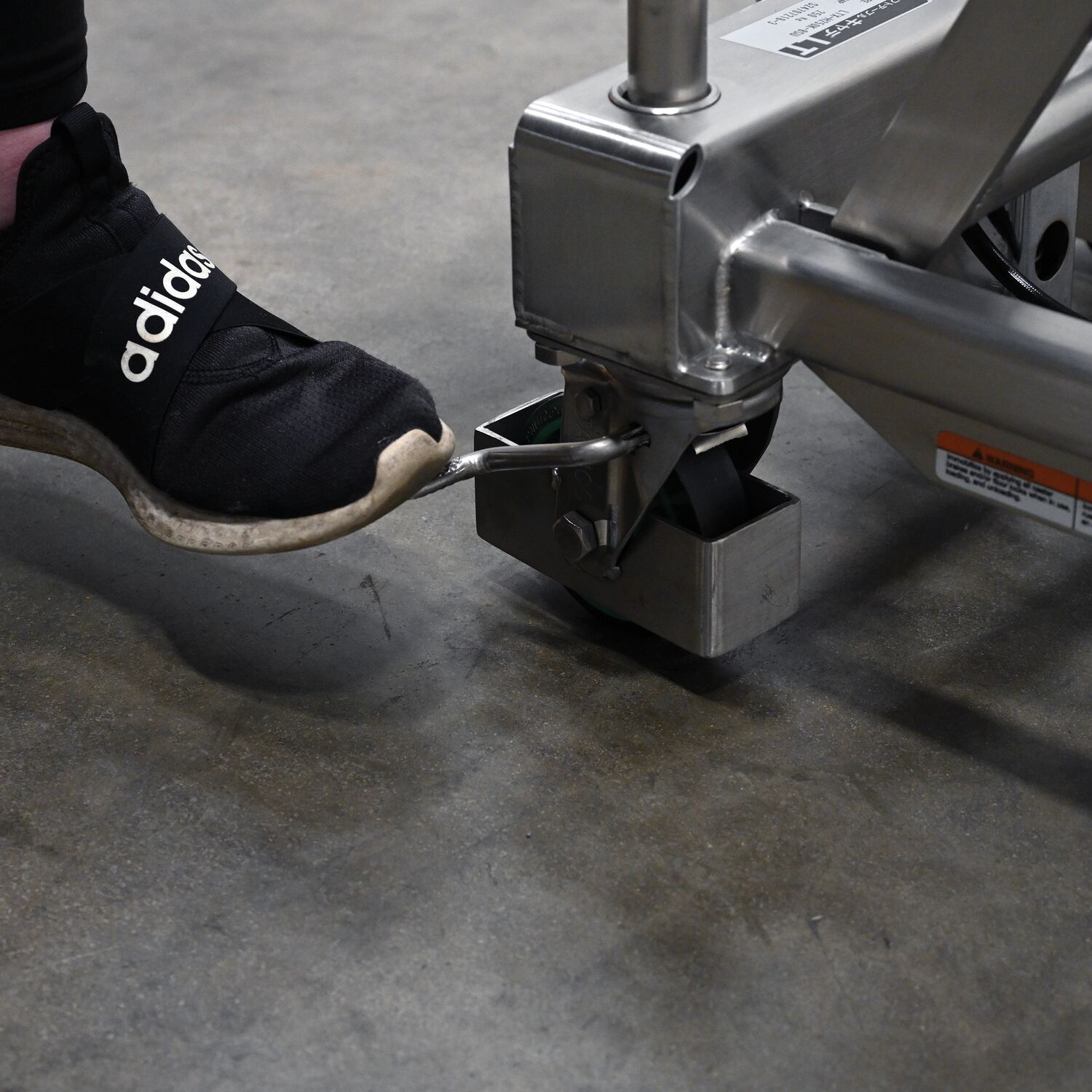

Our fully welded Stainless Steel Carts resist corrosion and wet environments. All parts are made from 304 grade stainless steel, including the hydraulic pump and foot pedal. These carts are suitable for most food, medical, and pharmaceutical industry settings. Also suitable for wash-down applications. 2 rigid and 2 swivel polyurethane wheels with brakes standard. Units feature a high quality actuated, single-speed hydraulic pump, Models CART-550-SS and CART-1100-SS, two speed hydraulic pump.

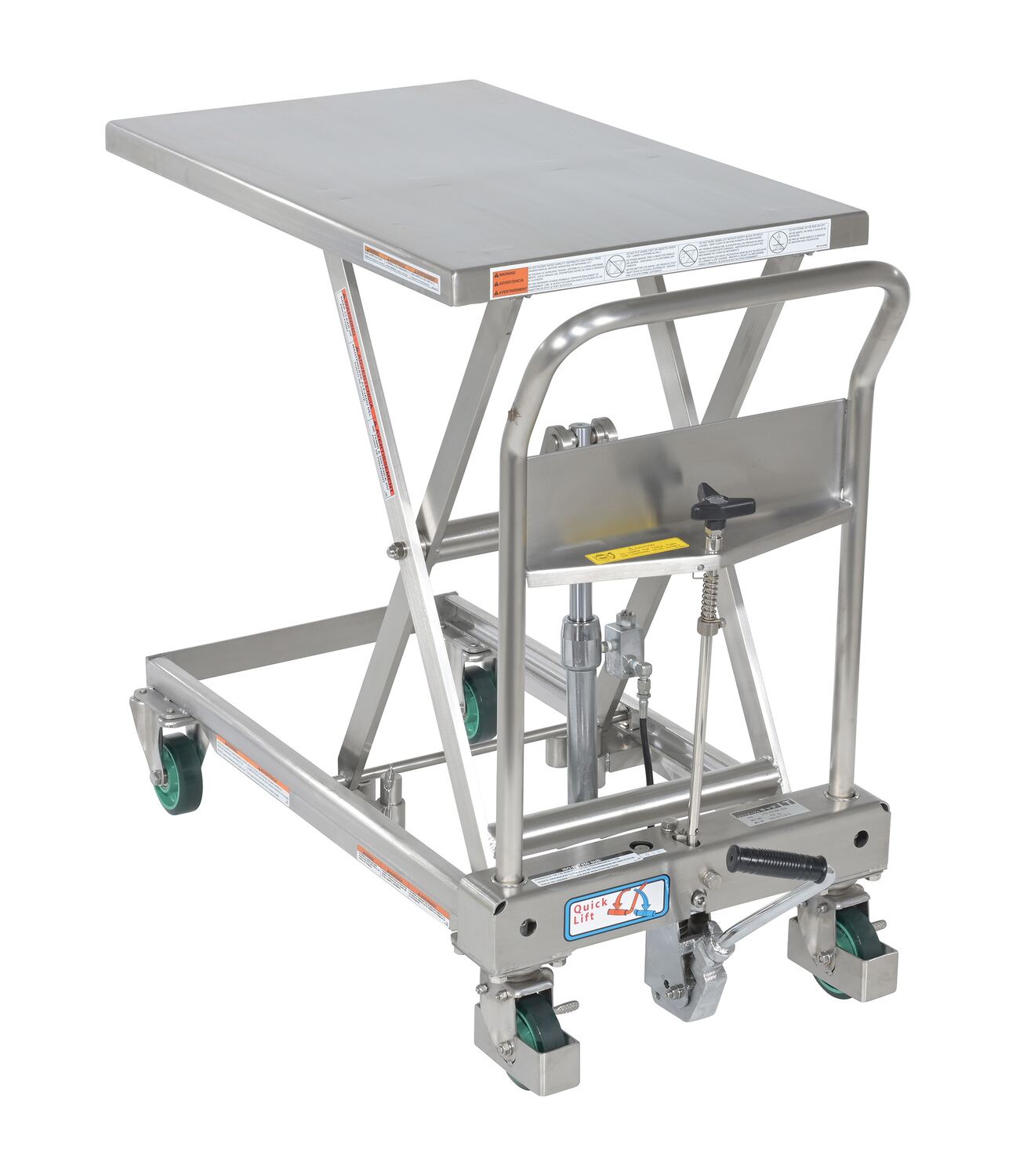

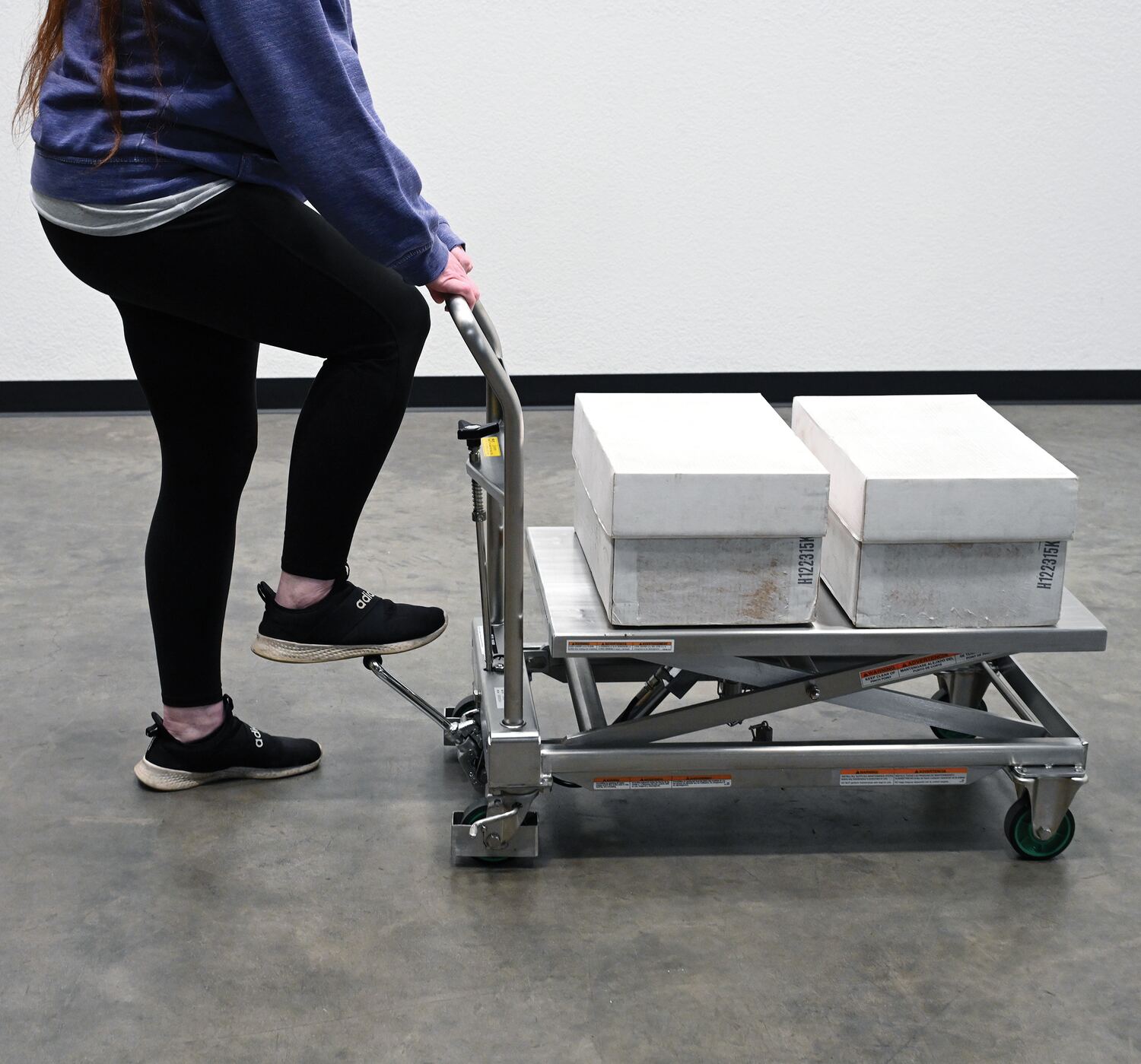

CART-550-SS

model CART-550-SS

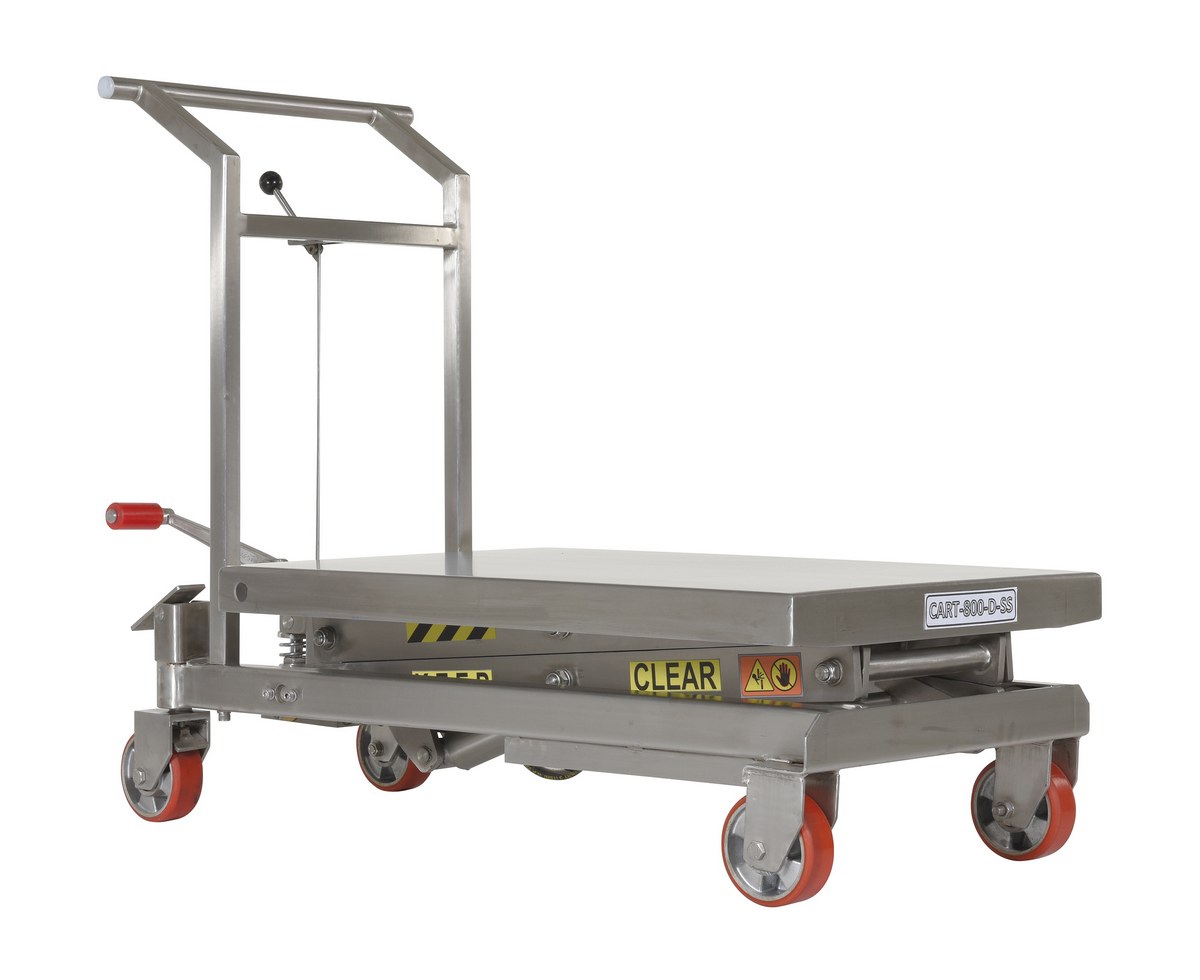

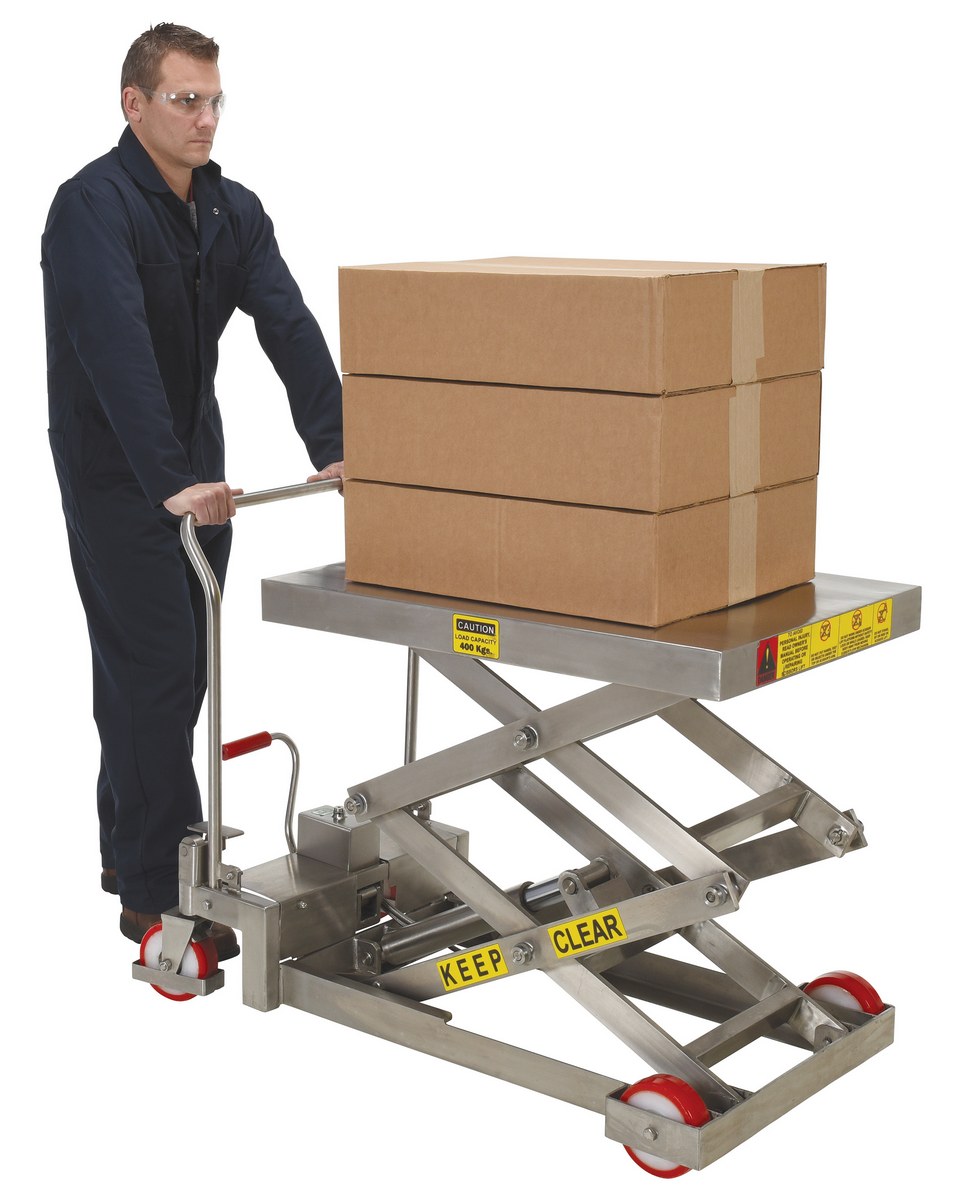

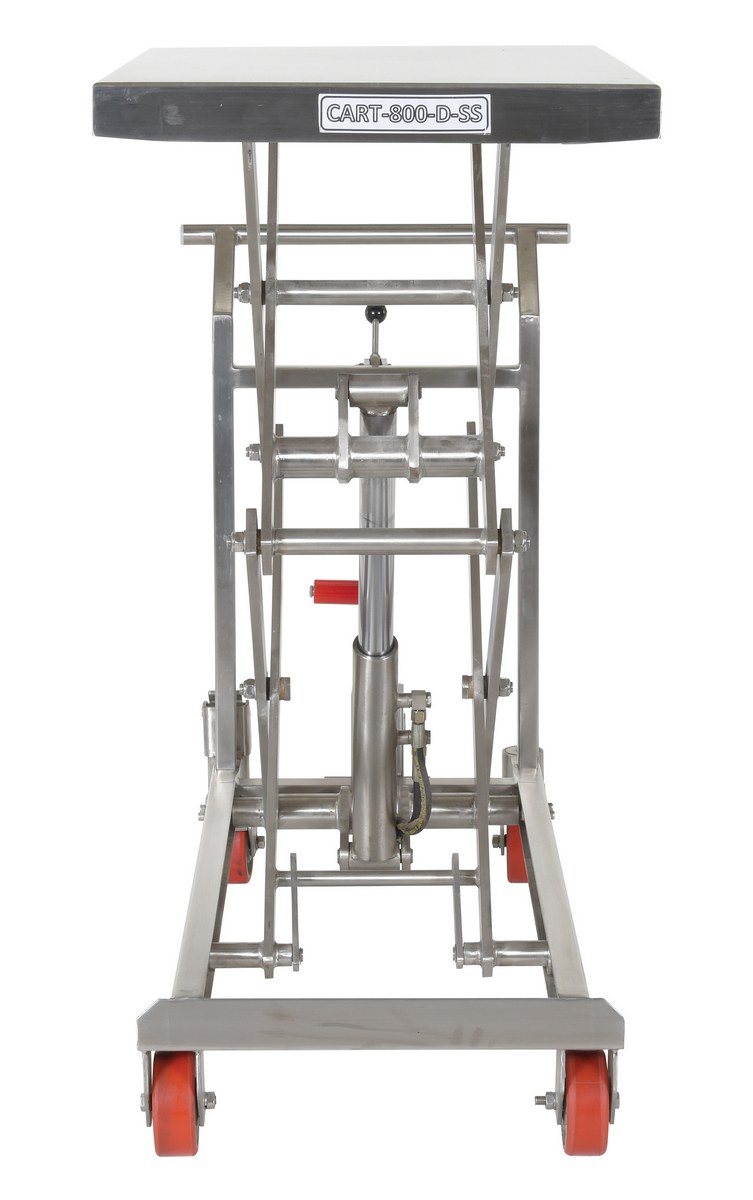

CART-800-D-SS

model CART-800-D-SS

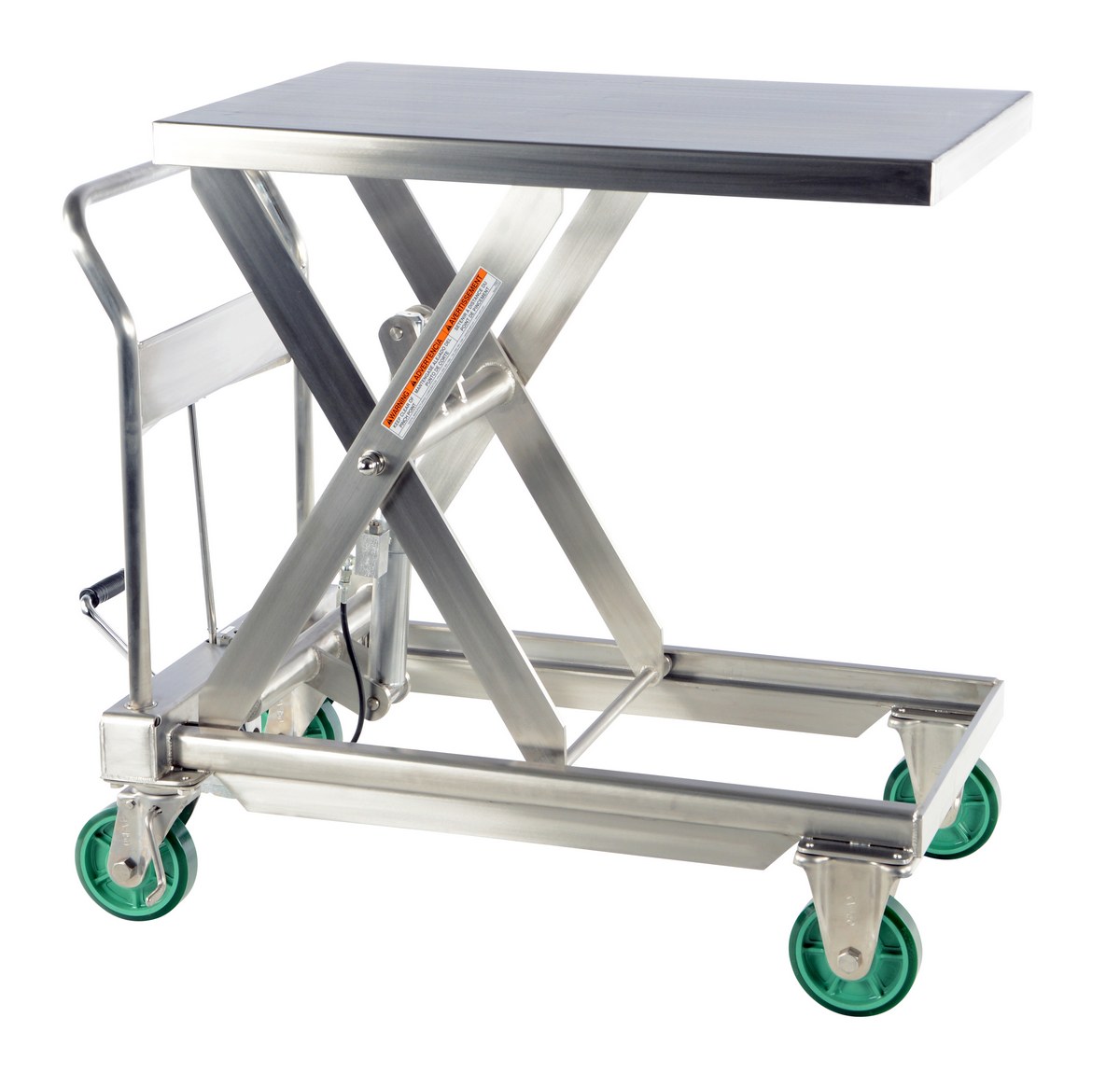

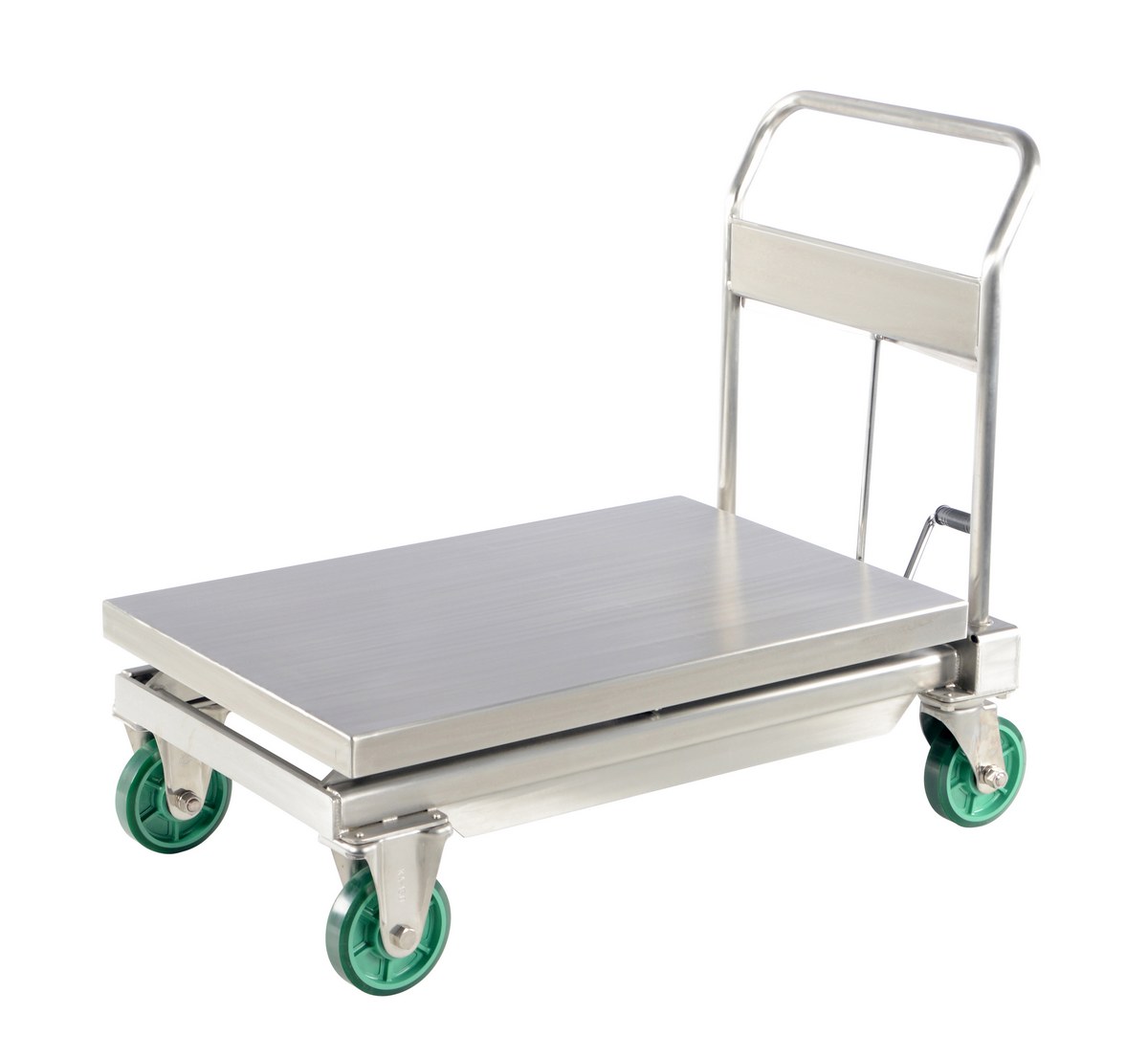

CART-1100-SS

model CART-1100-SS

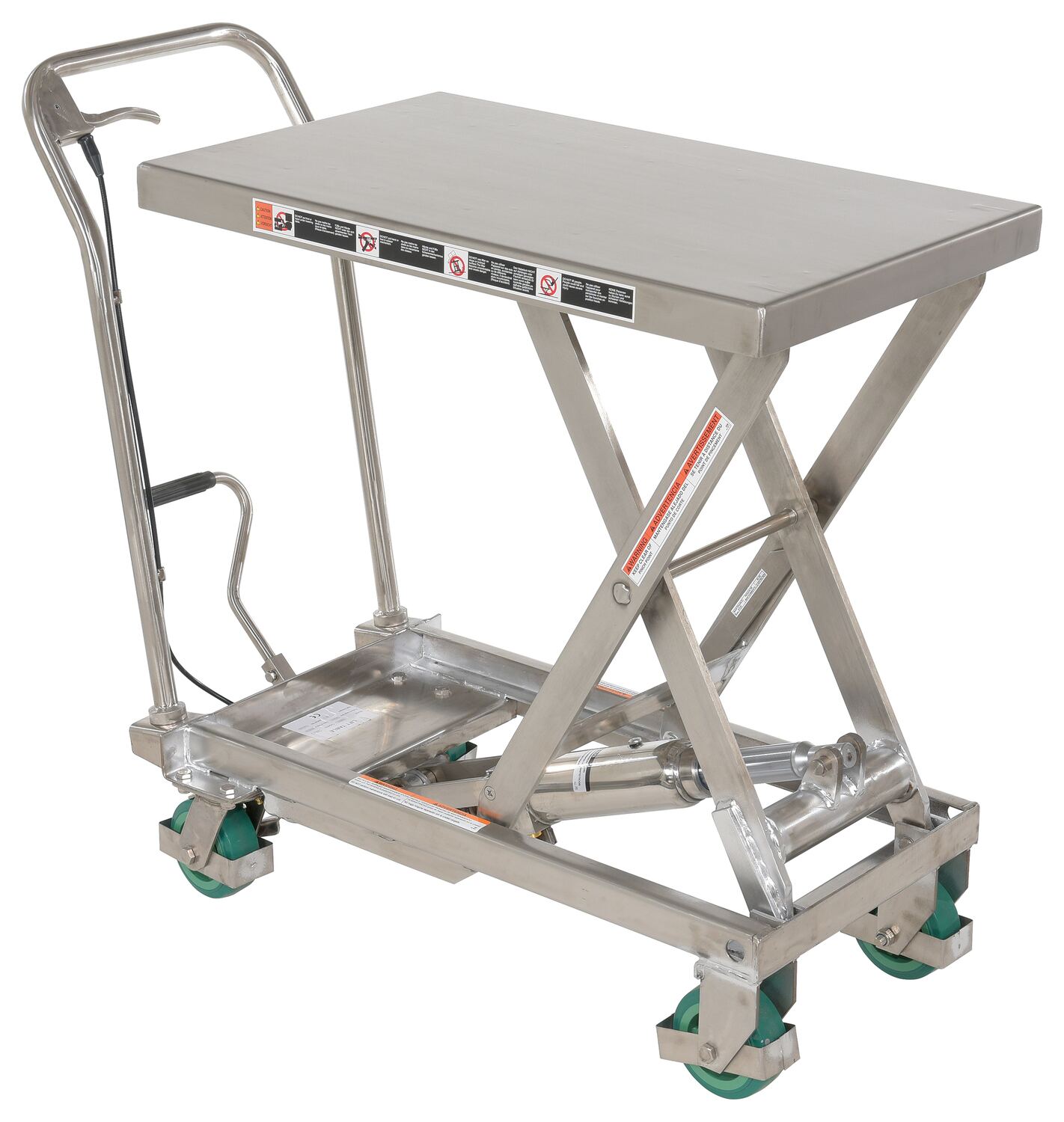

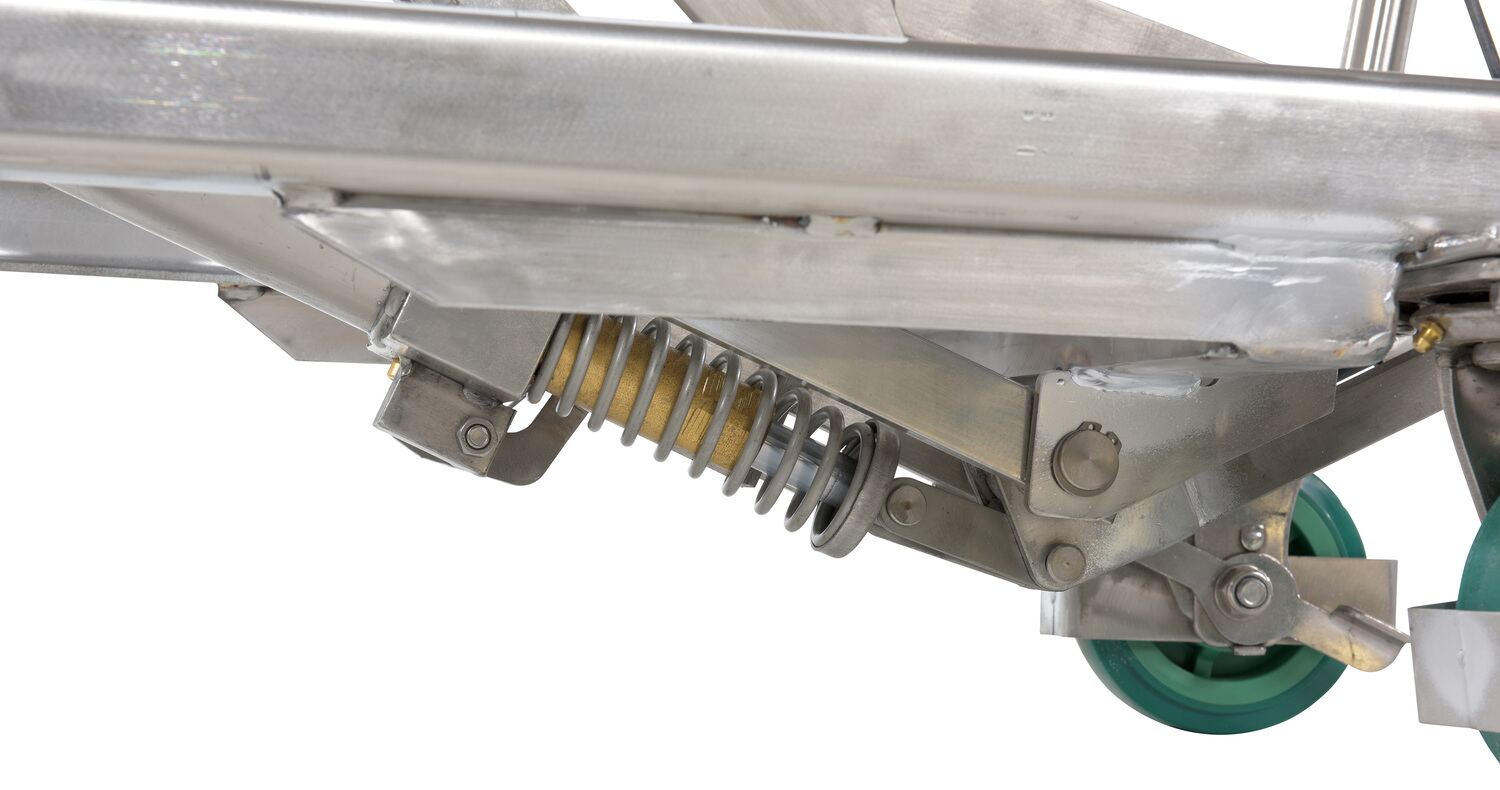

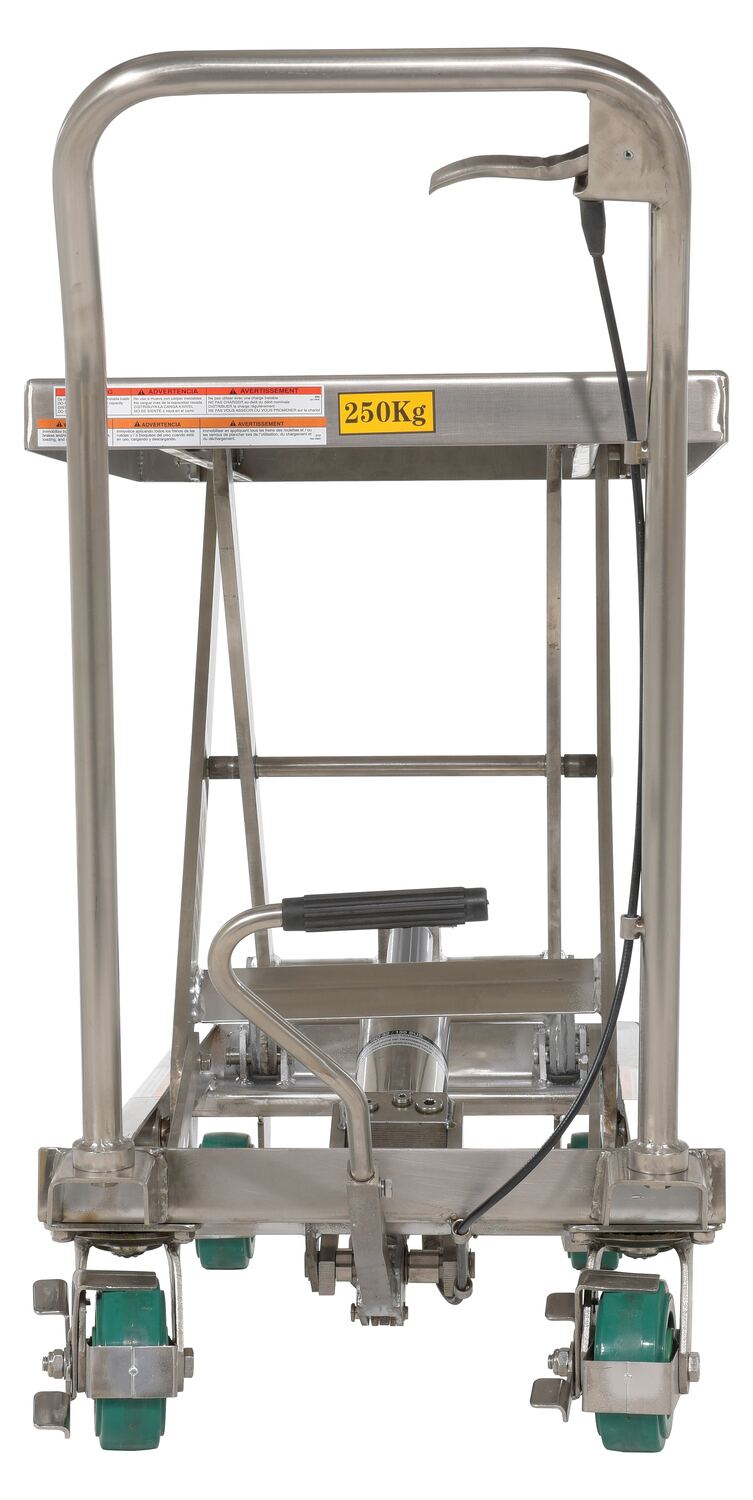

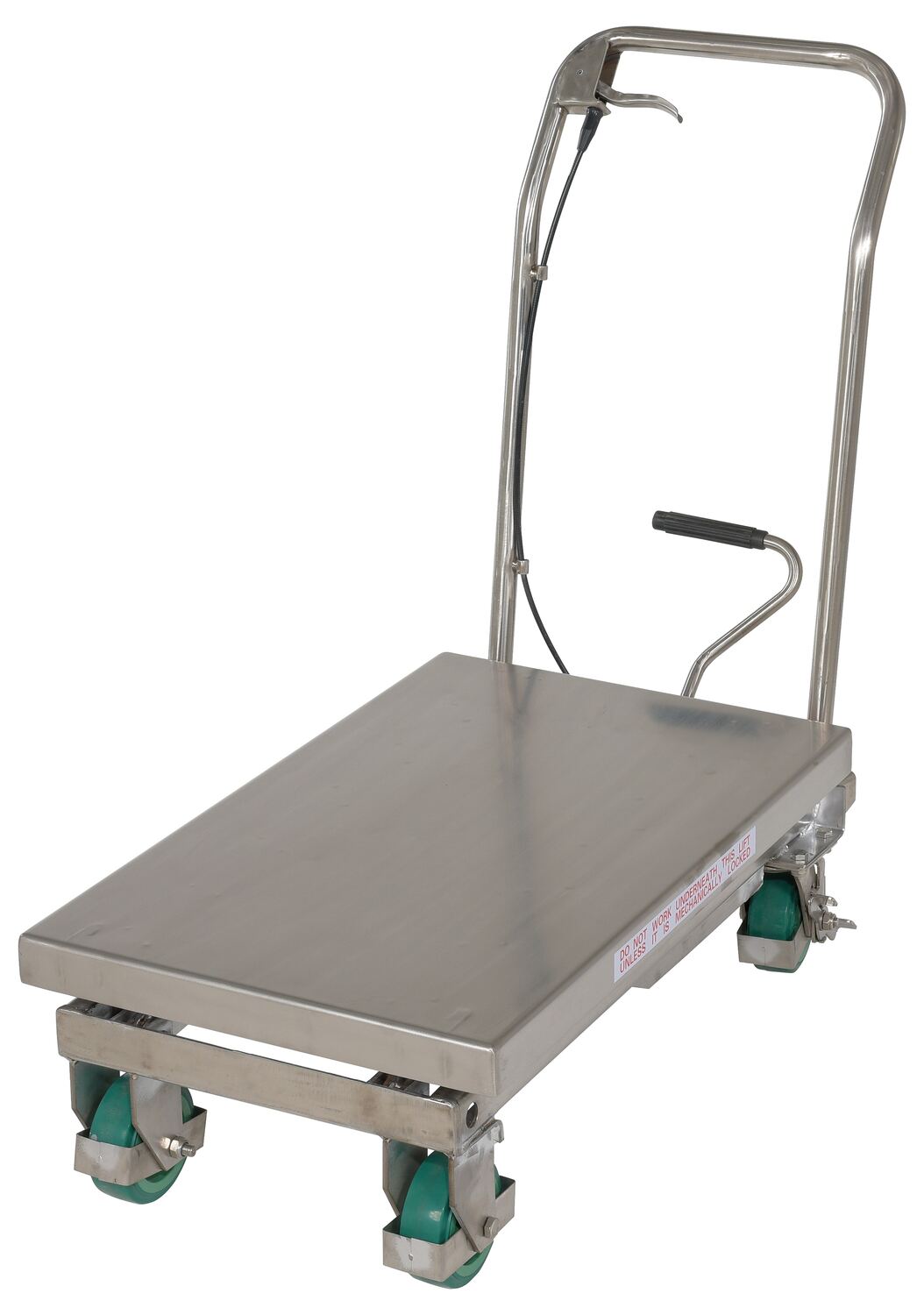

CART-500-SS3

model CART-500-SS3

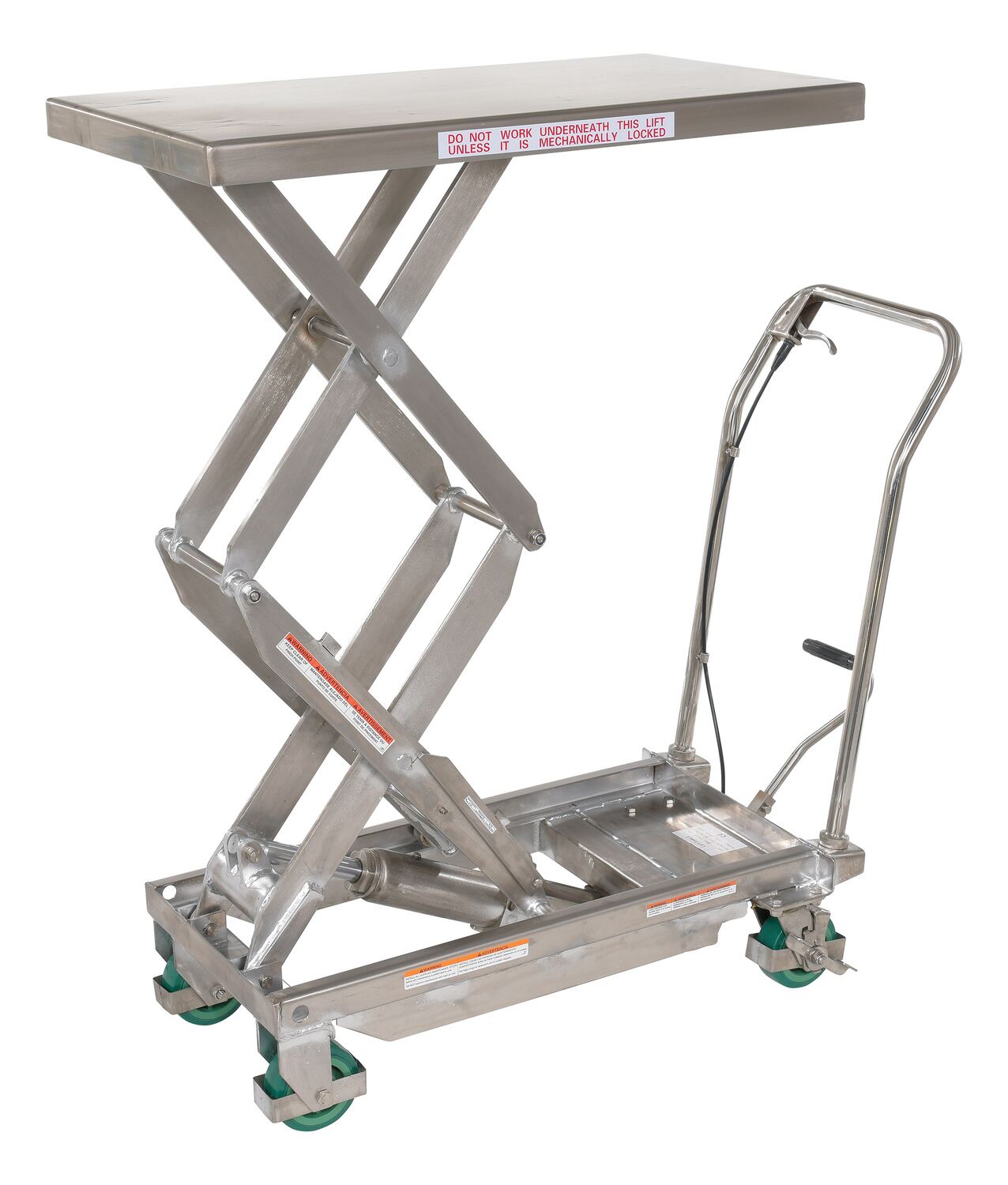

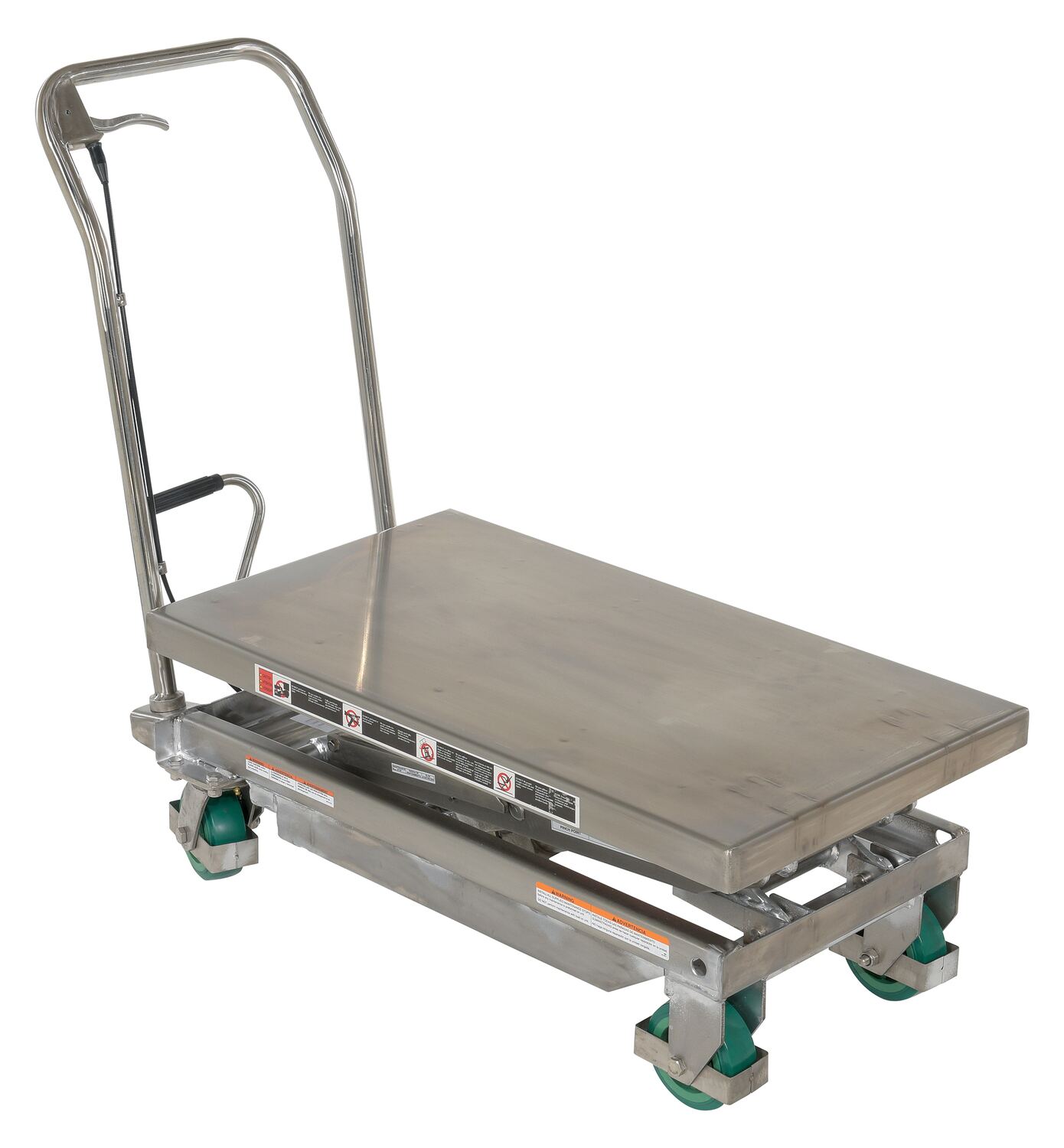

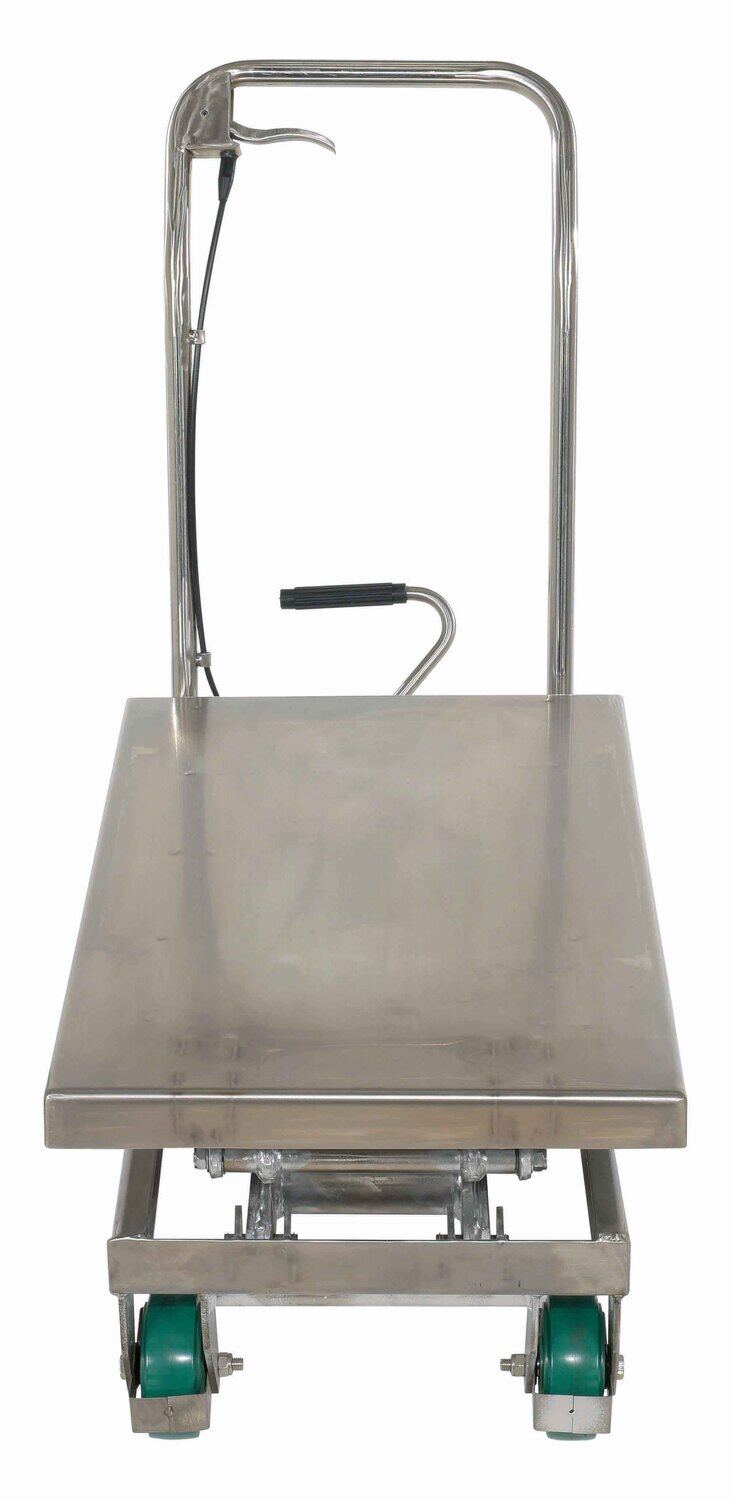

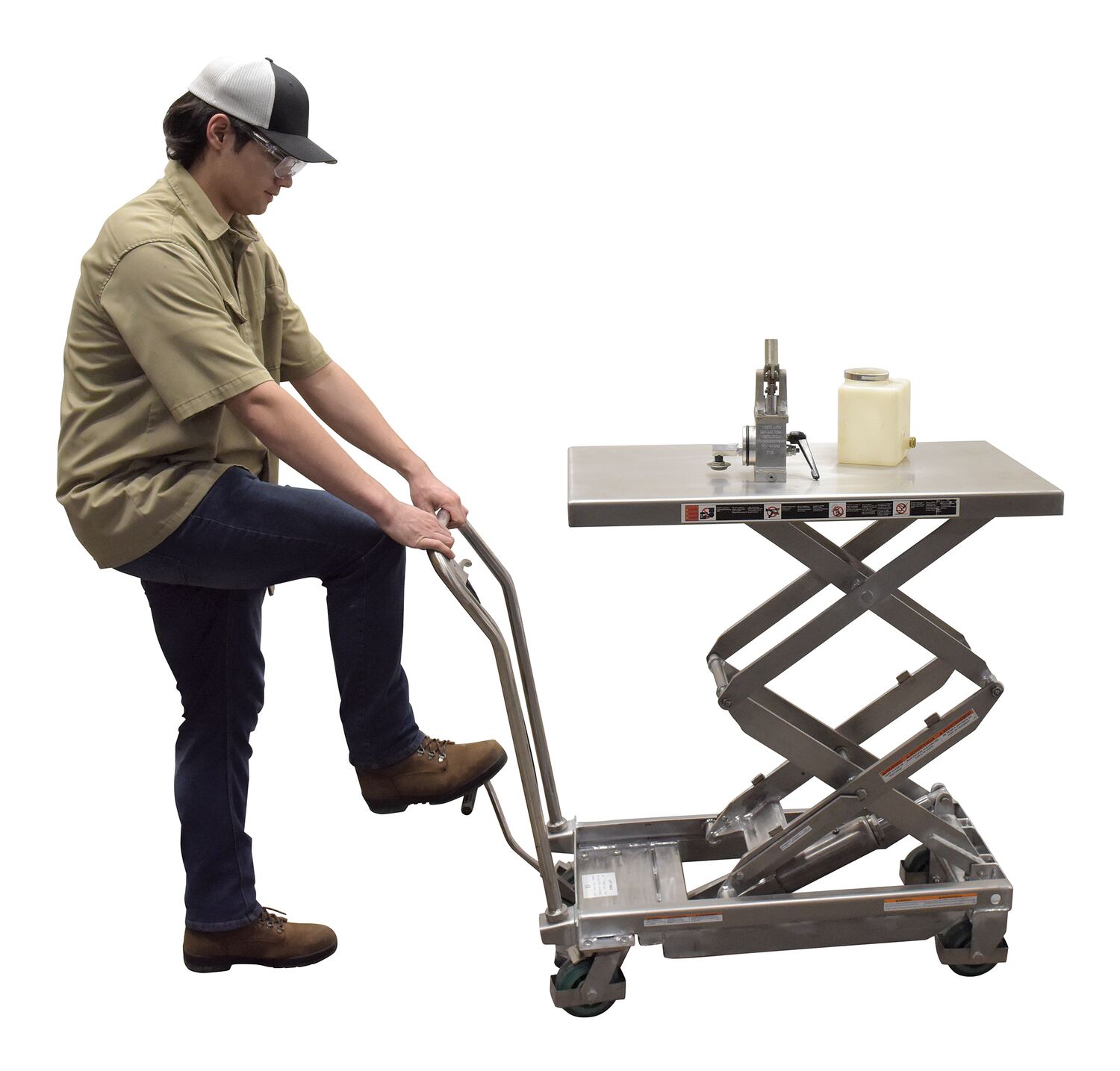

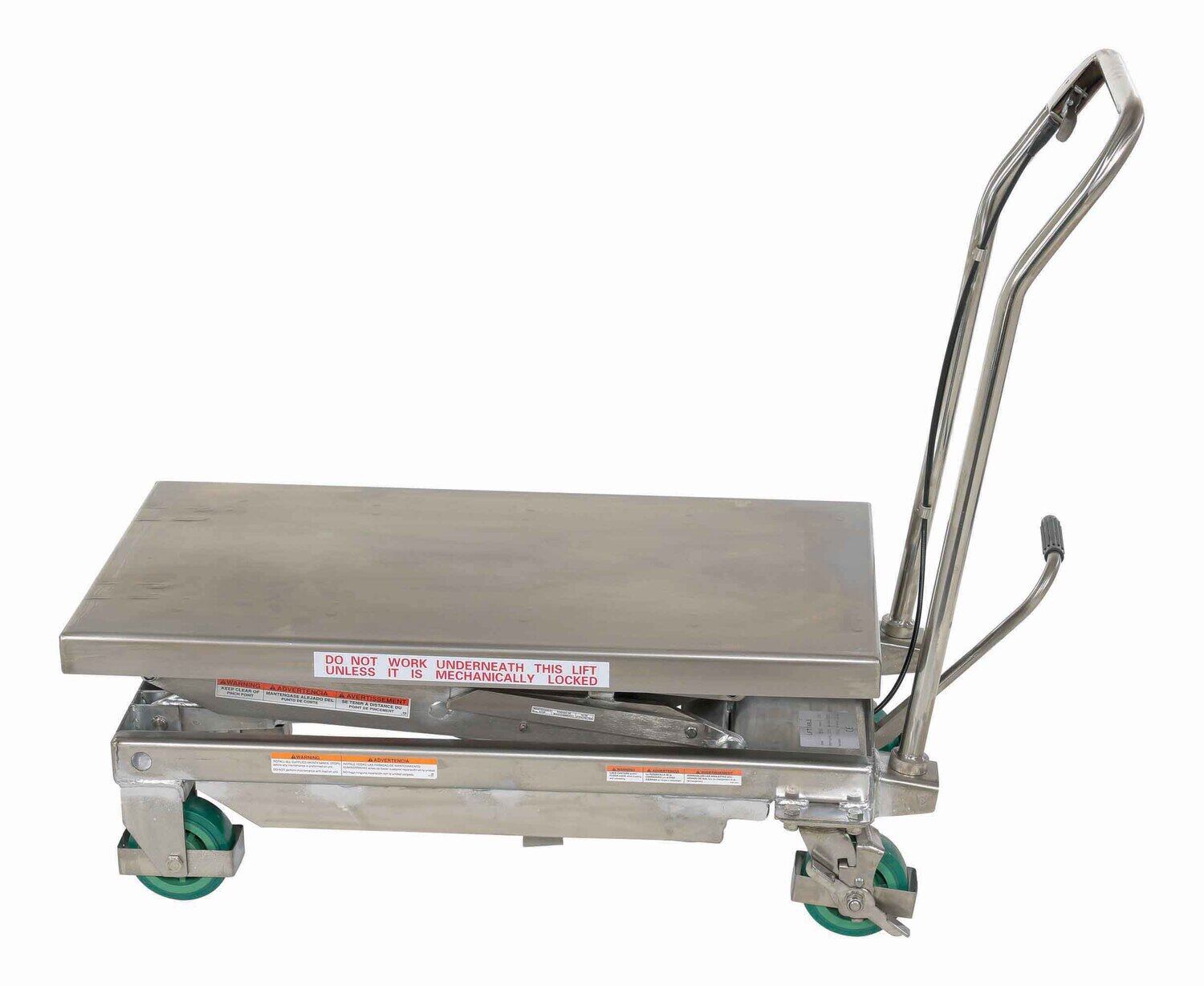

CART-600-D-SS2

model CART-600-D-SS2

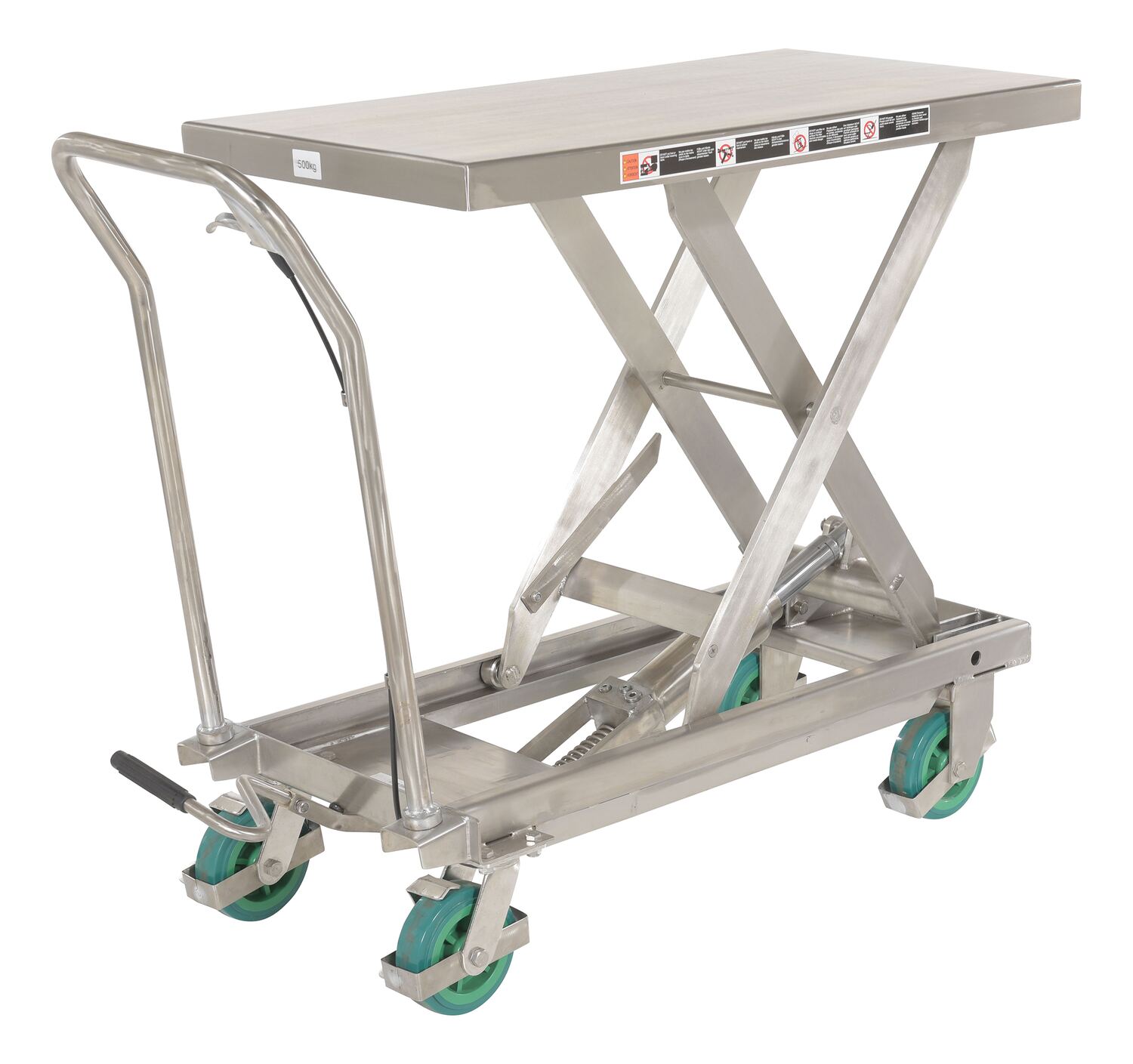

CART-1000-SS2

model CART-1000-SS2




KEY: Approval Drawing = Approval Drawing -- Approval Drawing = Warranty -- Approval Drawing = Testing Certificate

All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.
Stainless Steel Scissor Carts
Model PDFs Platform
Size (WxL)
Uniform
Capacity (lbs)
Service
Range
Wt.
(lbs)

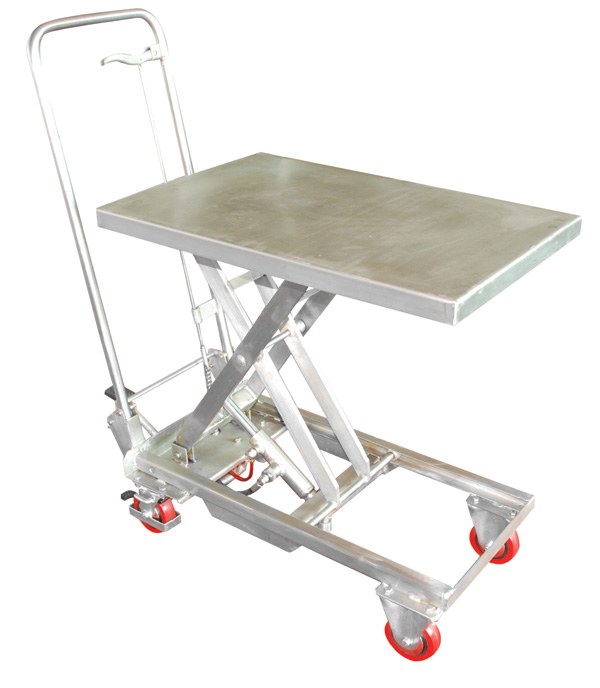

SSSC-200 Warranty PDF Compliance Certificate 17-3/4"x27-1/2" 200 10" to 30-1/2" 135

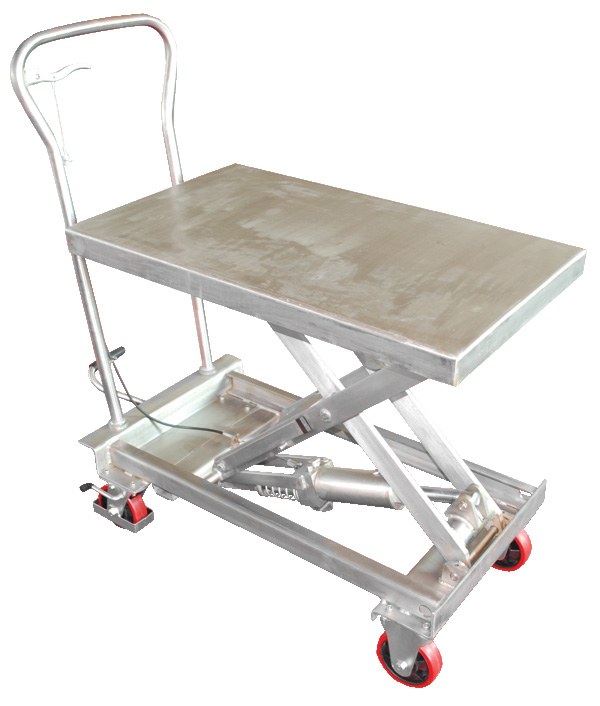

SSSC-400 Warranty PDF Compliance Certificate 19-1/2" x 32-3/4" 400 12-3/4" to 36-1/2" 209

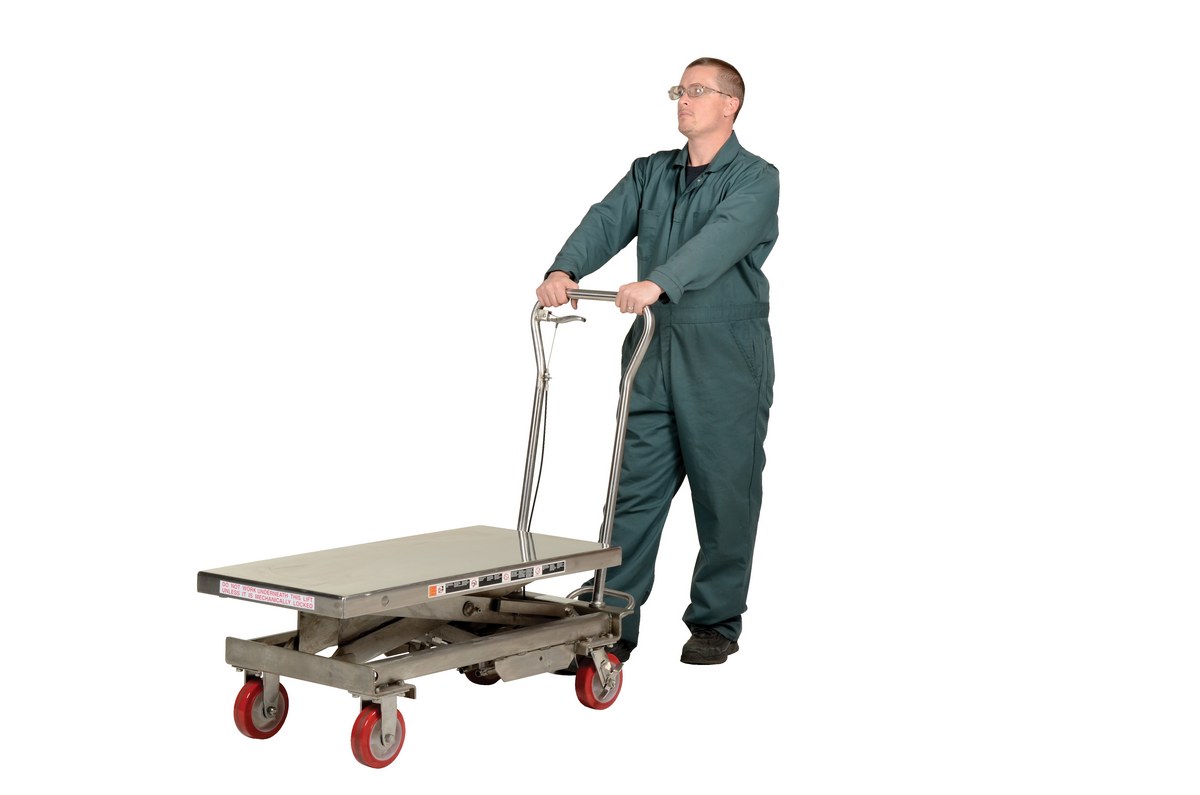

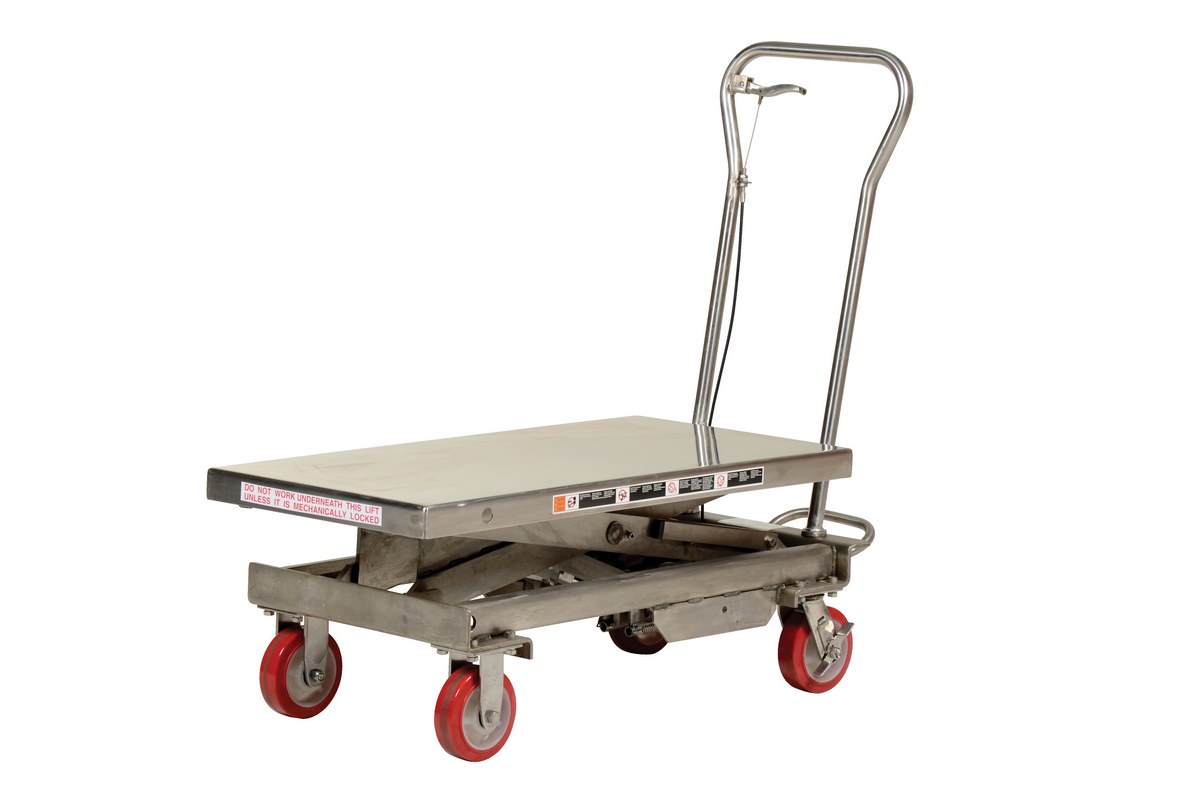

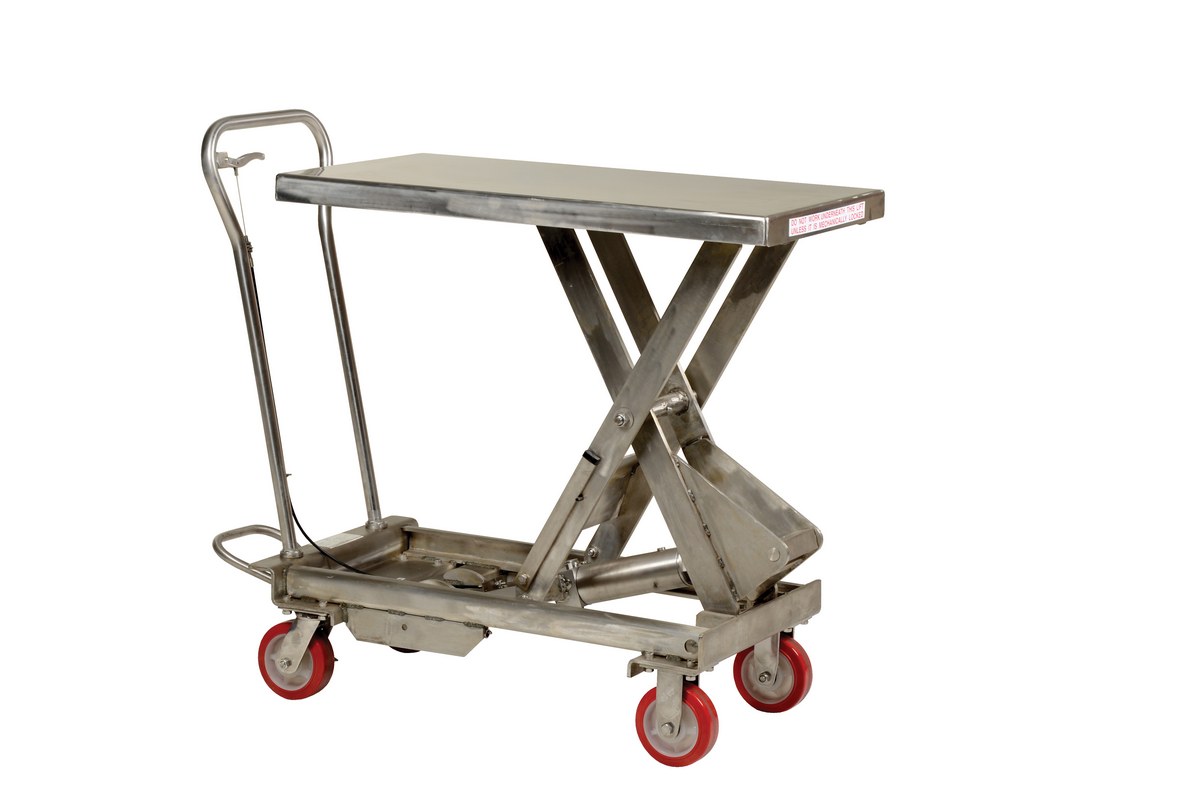

SSSC-1000 Warranty PDF Compliance Certificate 20-1/2"x40" 1,000 17" to 40" 313
CART-550-SS * icon_approvaldrawings.jpg Warranty PDF Compliance Certificate 19-1/2"x31-1/2" 550 9-3/4" to 33-1/2" 179
CART-500-SS3 Warranty PDF 32-1/2"x19-3/8" 500 11" to 35-7/8" 198
CART-600-D-SS2 Warranty PDF 36-1/4"x19-3/8" 600 13-3/4" to 51" 255

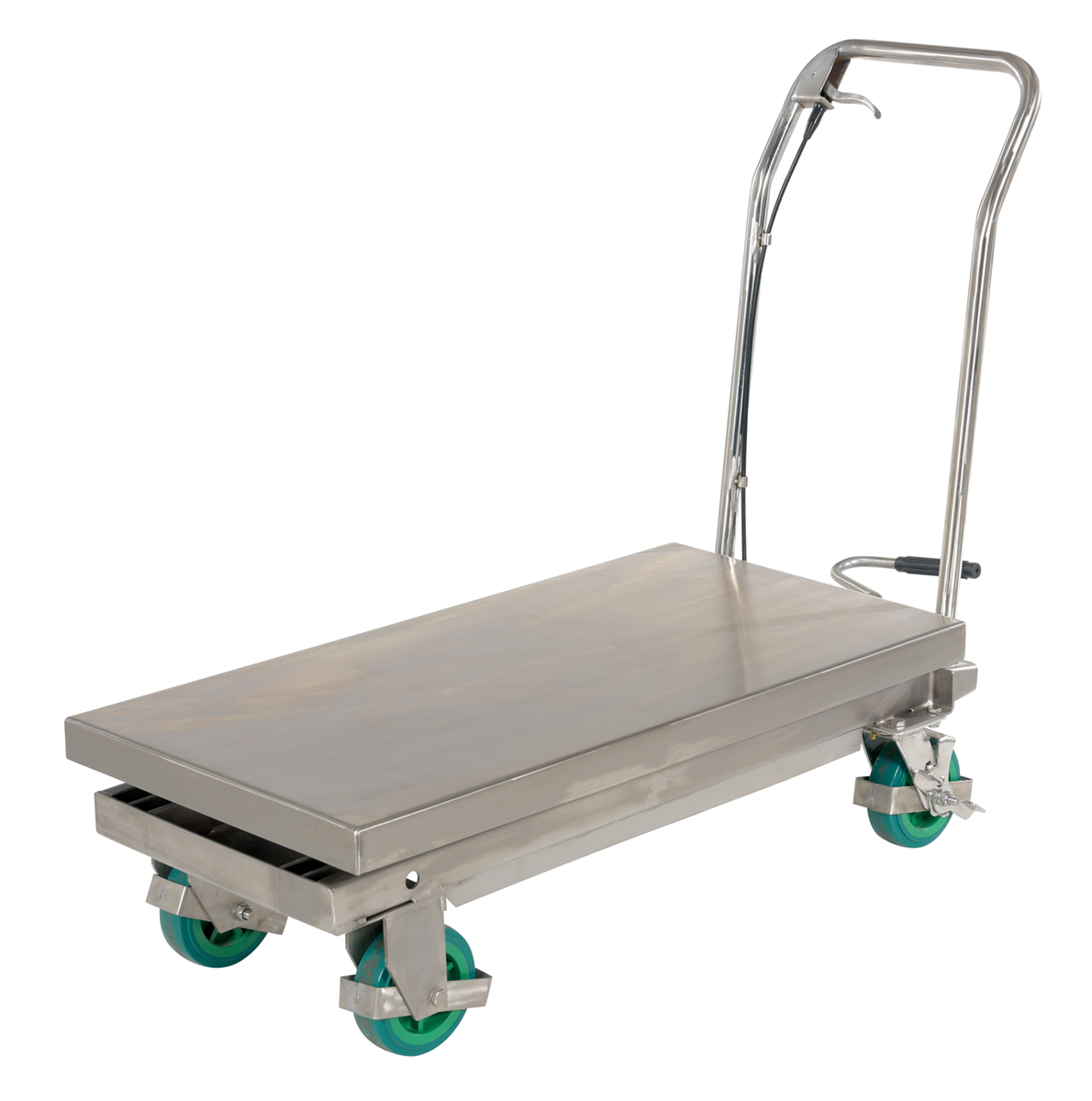

CART-1000-SS2 Warranty PDF 39-3/8"x19-3/8" 1,000 12-1/2" to 38-1/2" 208
CART-800-D-SS Warranty PDF Compliance Certificate 23-5/8"x35-1/2" 800 13-3/8" to 48-7/16" 335
CART-1100-SS * icon_approvaldrawings.jpg Warranty PDF Compliance Certificate 23-1/2"x35-1/2" 1,100 13" to 38-1/2" 249
* Foot pump pedal, pump assembly, and hydraulic cylinder are chrome plated. Rest of the unit is fully stainless steel.

KEY: Approval Drawing = Approval Drawing -- Approval Drawing = Warranty -- Approval Drawing = Testing Certificate




Click A SKU Below To Show Details

CART-1000-SS2

CART-1000-SS2

CART-1100-SS

CART-1100-SS

CART-500-SS3

CART-500-SS3

CART-550-SS

CART-550-SS

CART-600-D-SS2

CART-600-D-SS2

CART-800-D-SS

CART-800-D-SS

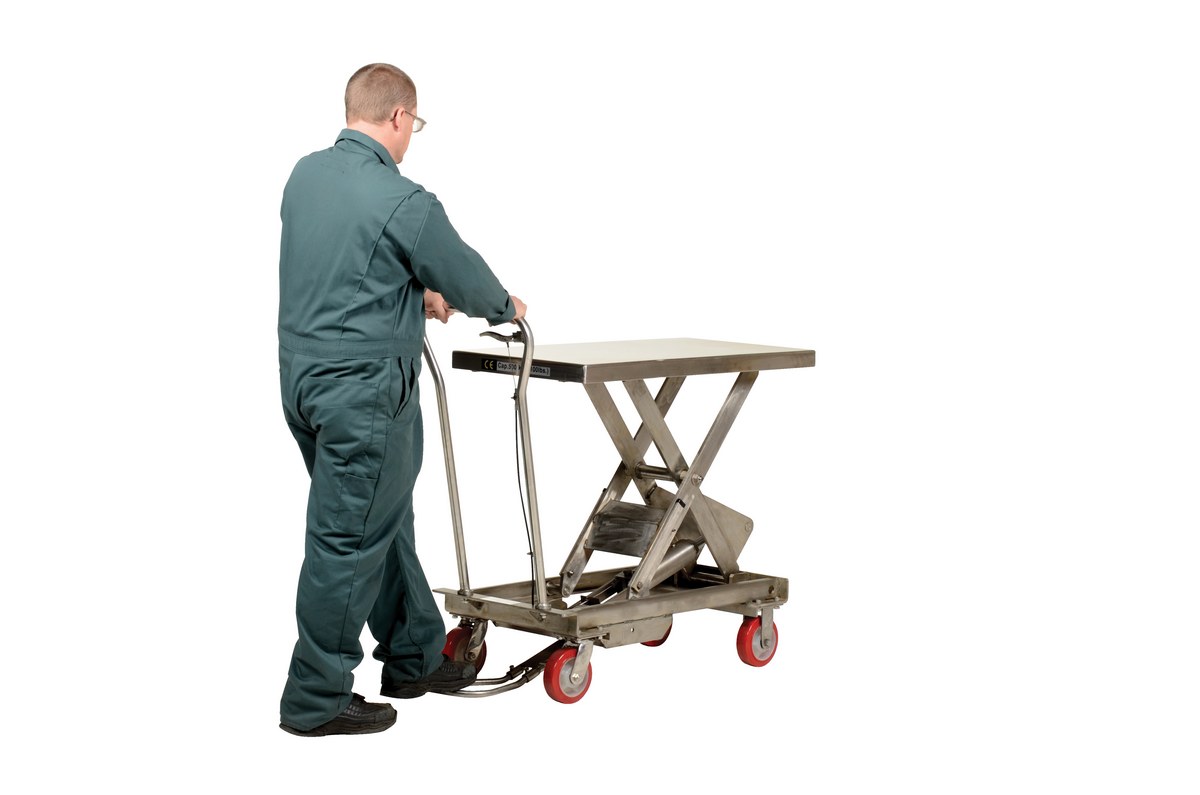

SSSC-1000
