Pneumatic Scissor Lift Table

- - - -

Description
Model Chart
PDF's
Image Gallery
AT-10_E.jpg AT-10_A.jpg AT-10_B.jpg AT-10_C.jpg
AT-10_D.jpg AT-10_1.jpg AT-10_2.jpg AT-10_3.jpg
Pneumatic Scissor Lift Table

model: AT-10



Pneumatic Scissor Lift Table

model: AT-10

Featured Ergonomic Solutions


Scissor Carts with Built-In Scale
Hydraulic Work Positioner
Pallet Trucks (Pallet Jacks)
Worker Platforms
Electric Powered Roll Pallet Trucks
Hydra Carts
Air Corner Tilter
Electric Pallet Truck (Pegasolift)
Quick Lift Pallet Trucks
model chart

Product Family Overview

Print Friendly
Pneumatic Scissor Lift Table
SERIES: AT

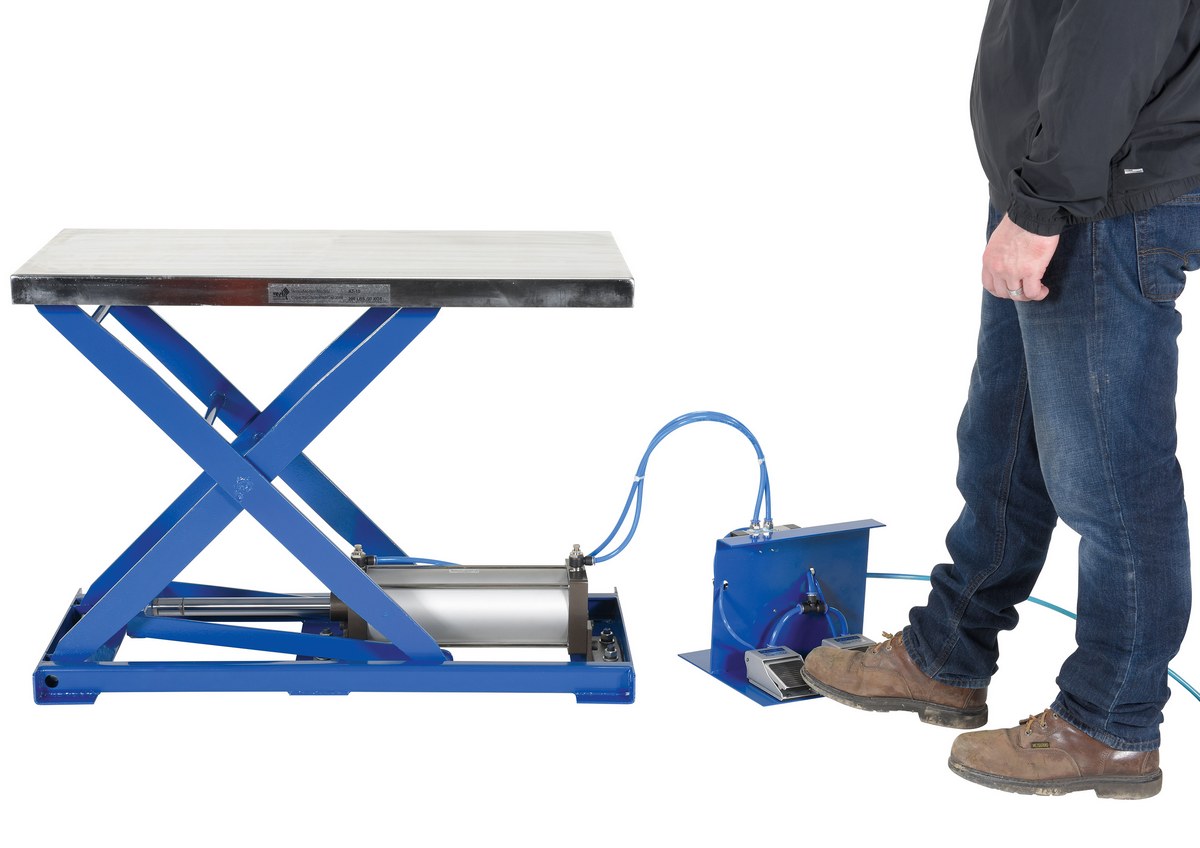

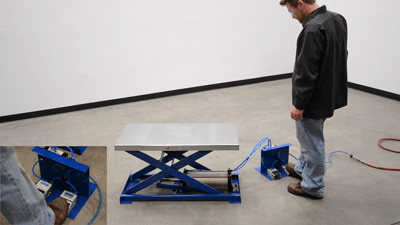

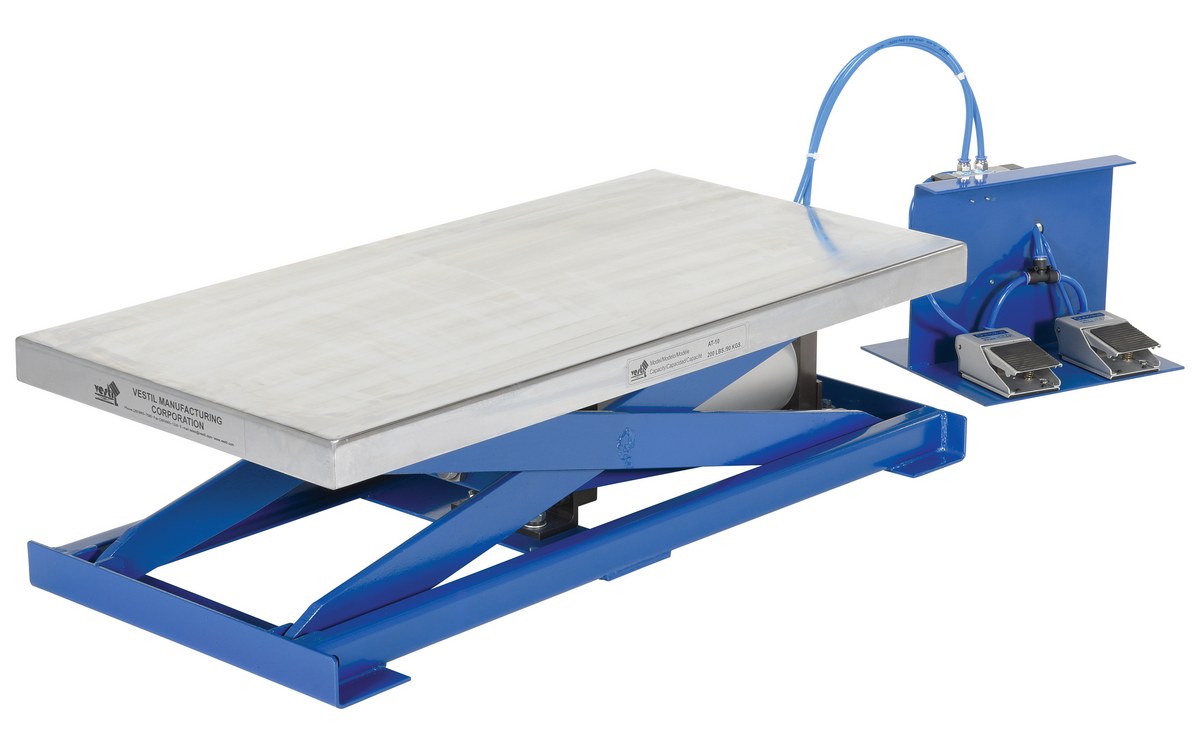

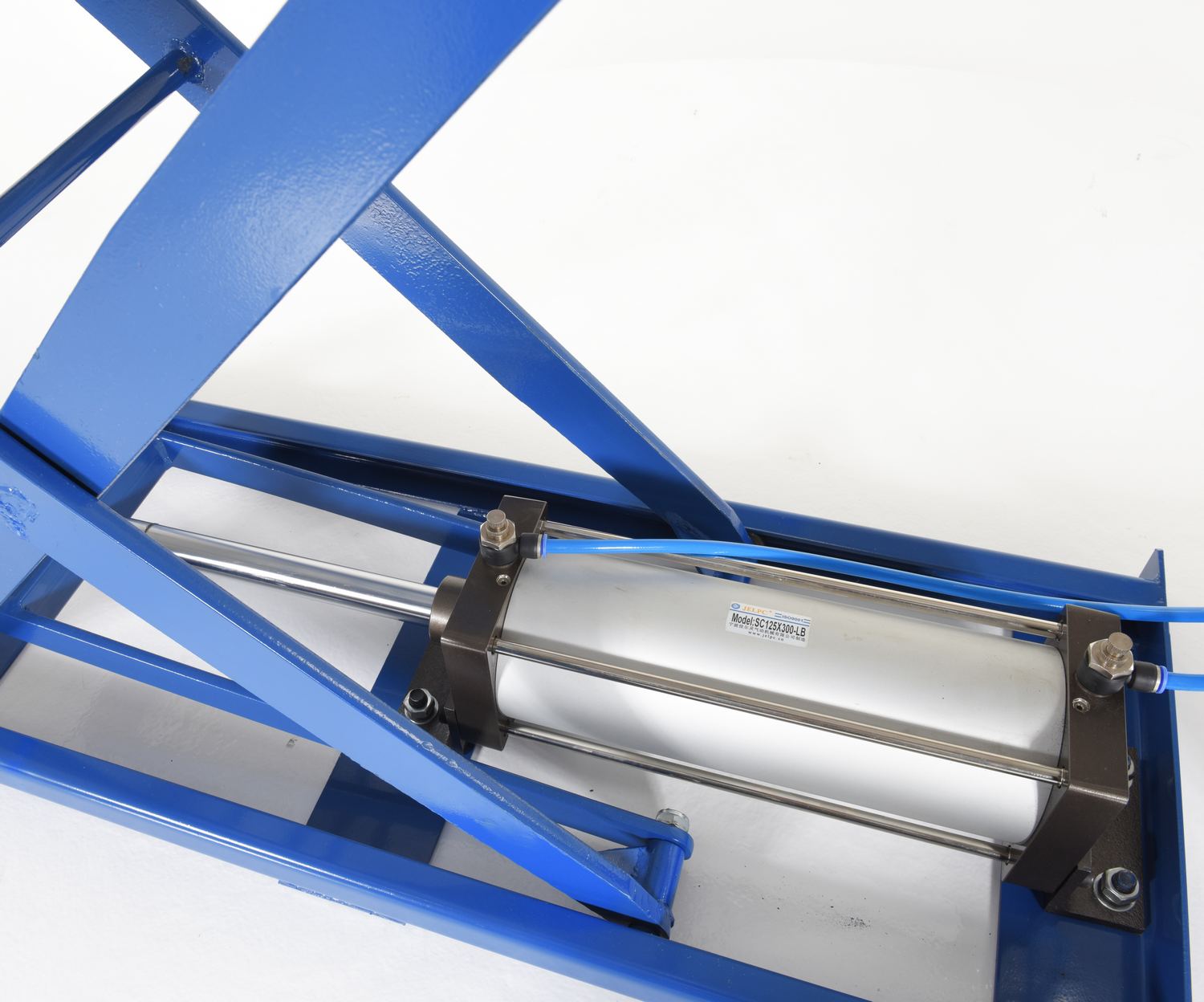

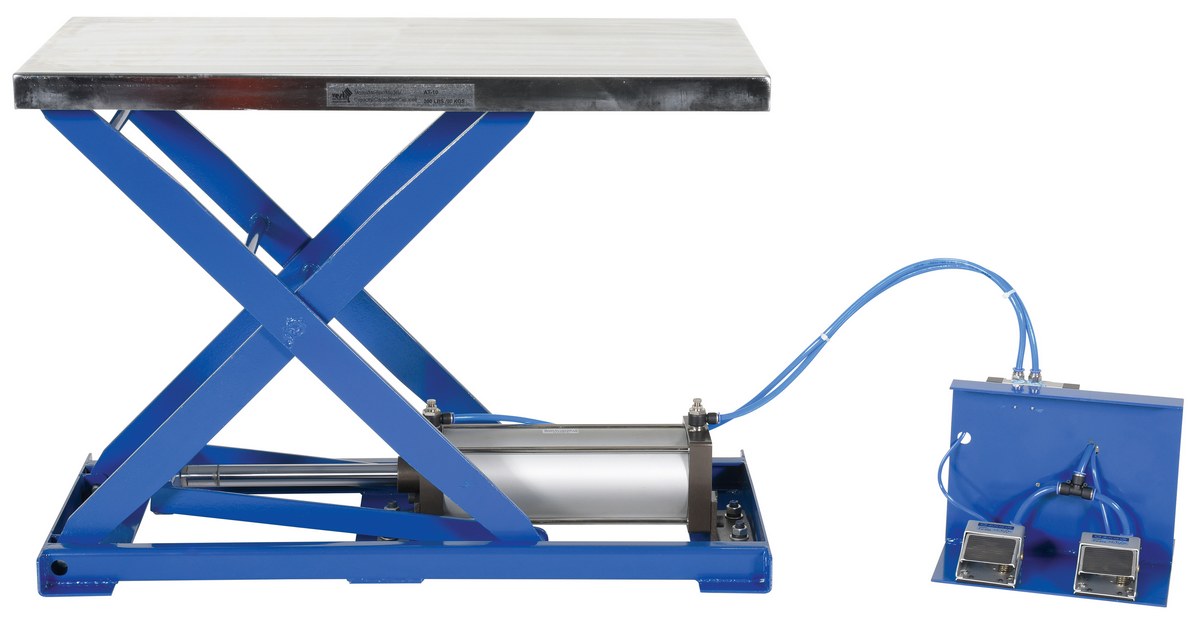

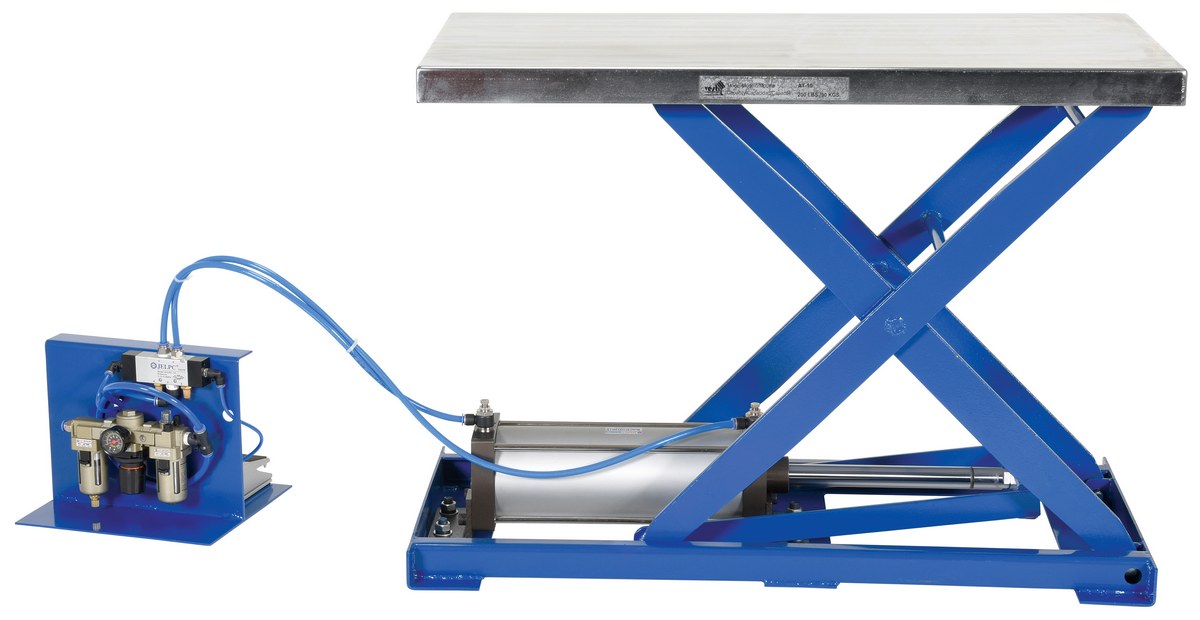

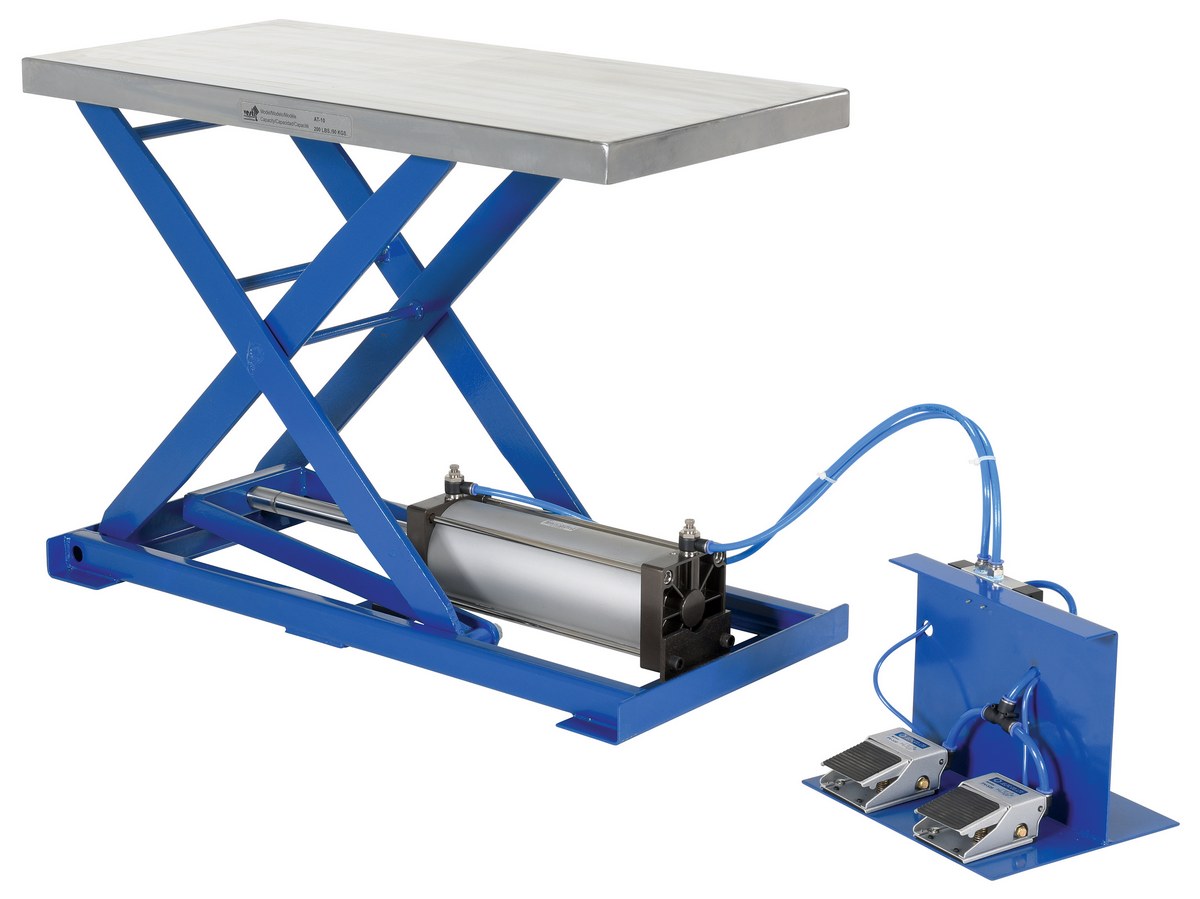

Pneumatic Scissor Lift Tables feature foot operated controls for raising and lowering the scissor platform. AT-10 requires 80-100 psi factory air supply for operation. AT-20 requires 70-90 psi factory air supply for operation. Features robust steel construction and has a chrome plated deck.

  • Lift table for ergonomic work in many environmentally sensitive applications

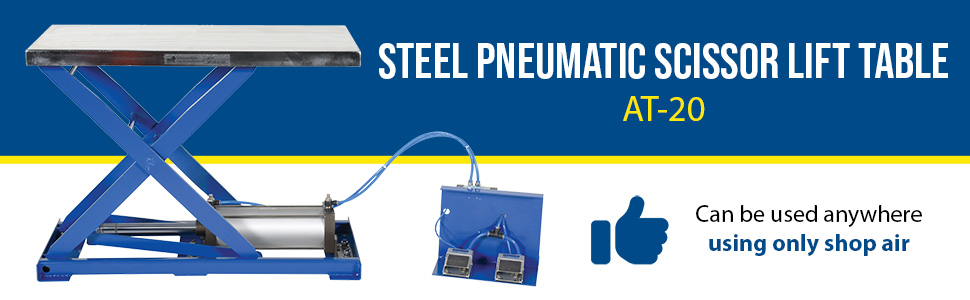

  • The table utilizes shop air so that it can be used anywhere

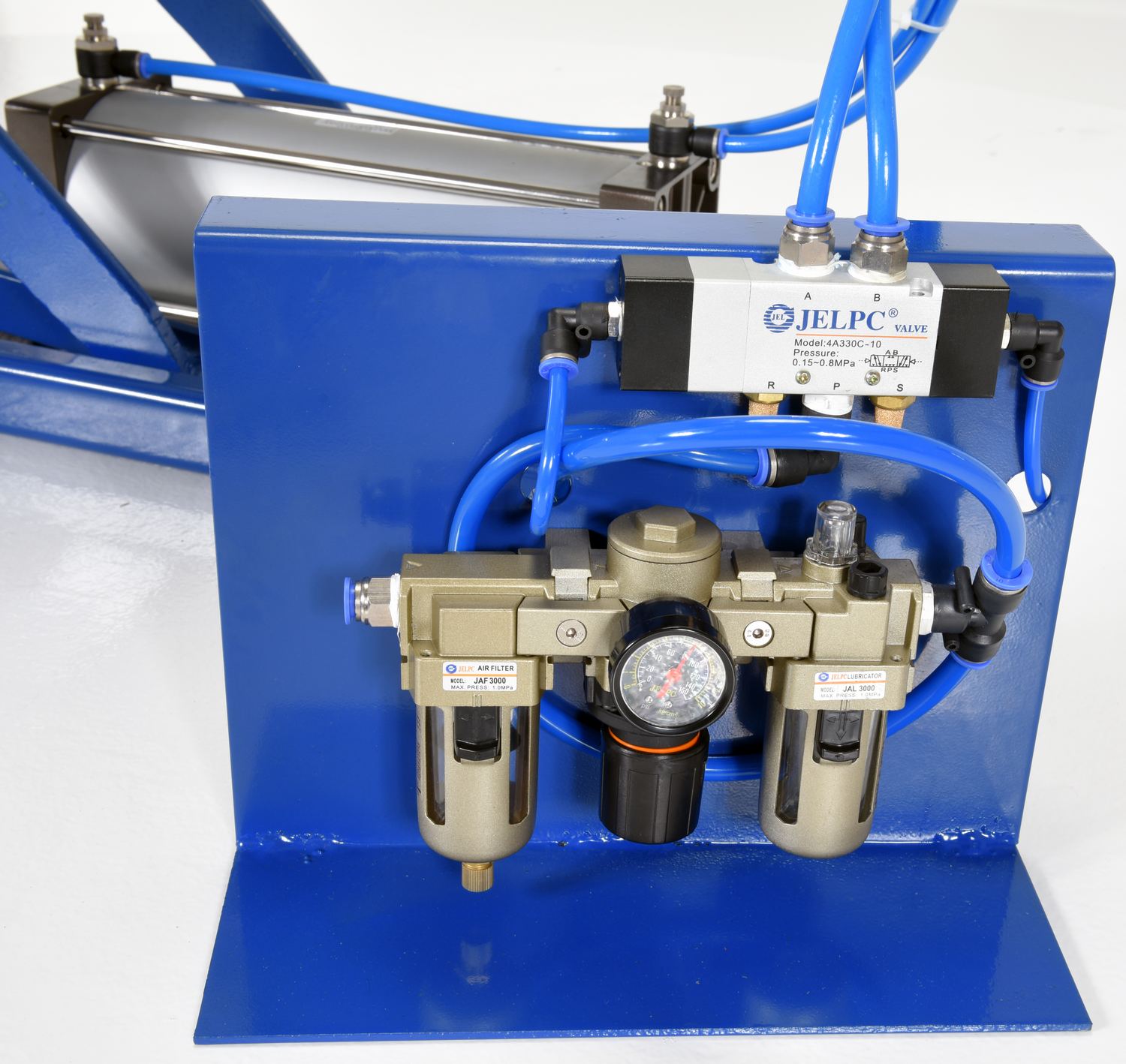

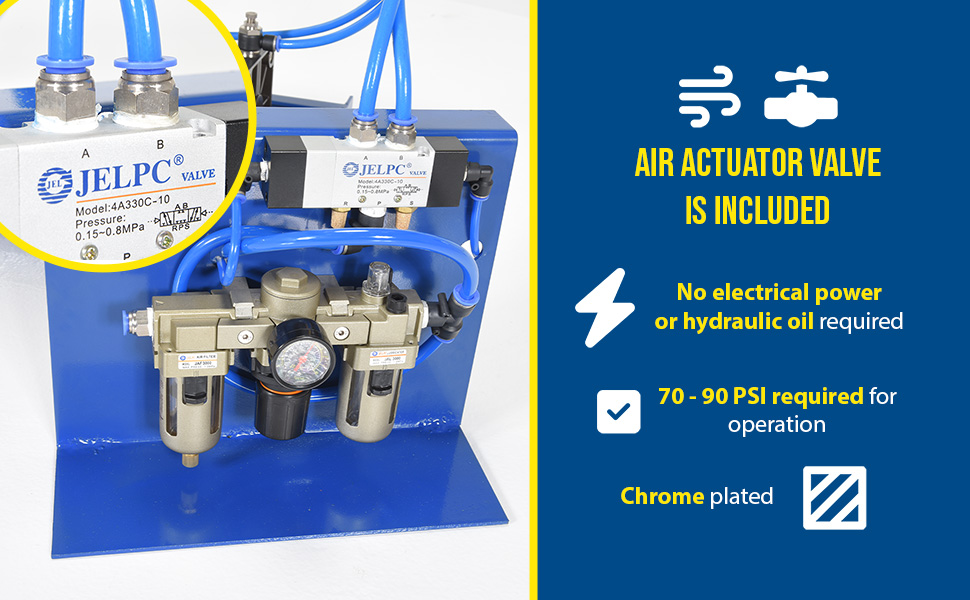

  • Air actuator valve uses no electrical power or hydraulic oil which is useful in a clean environment

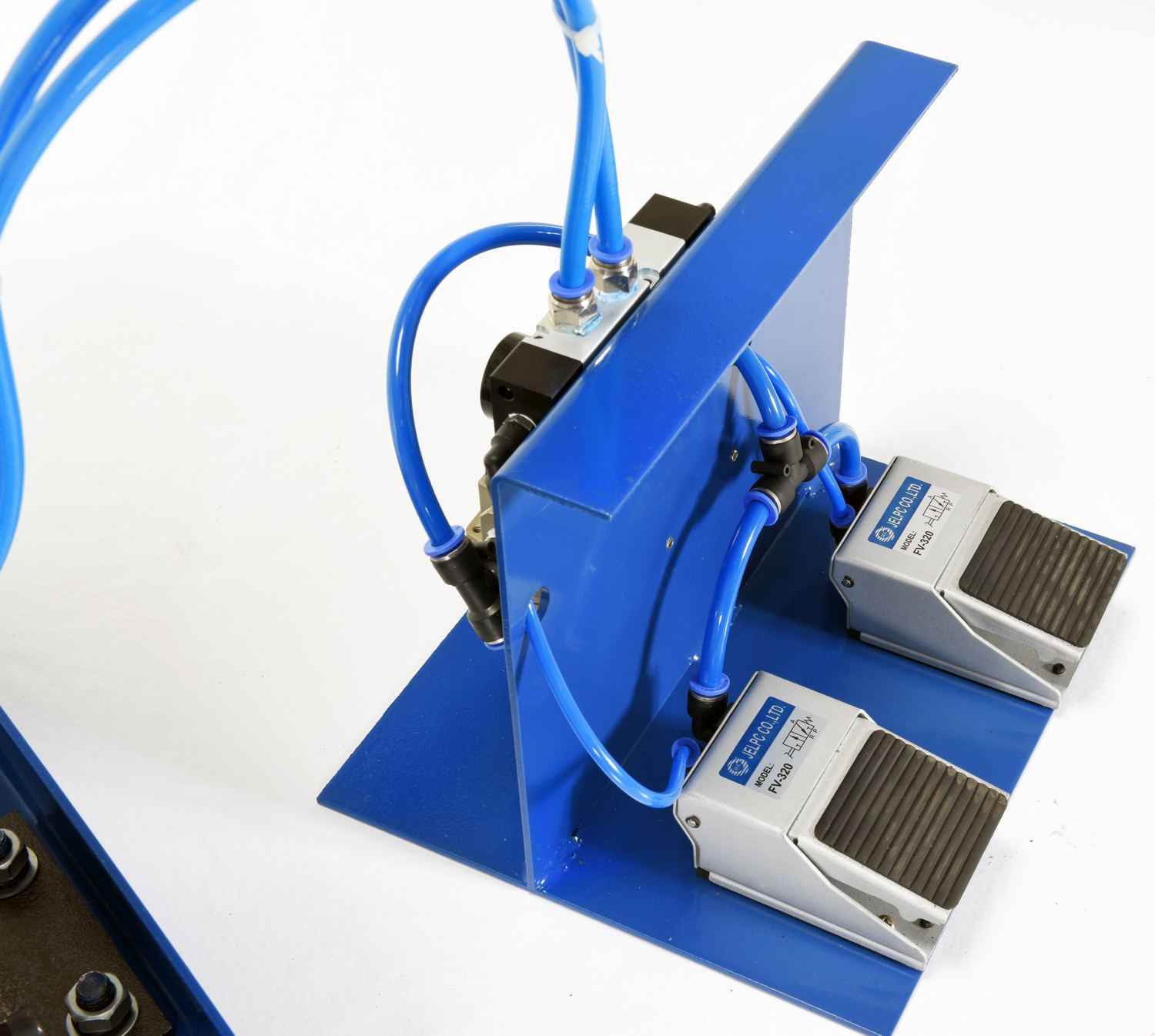

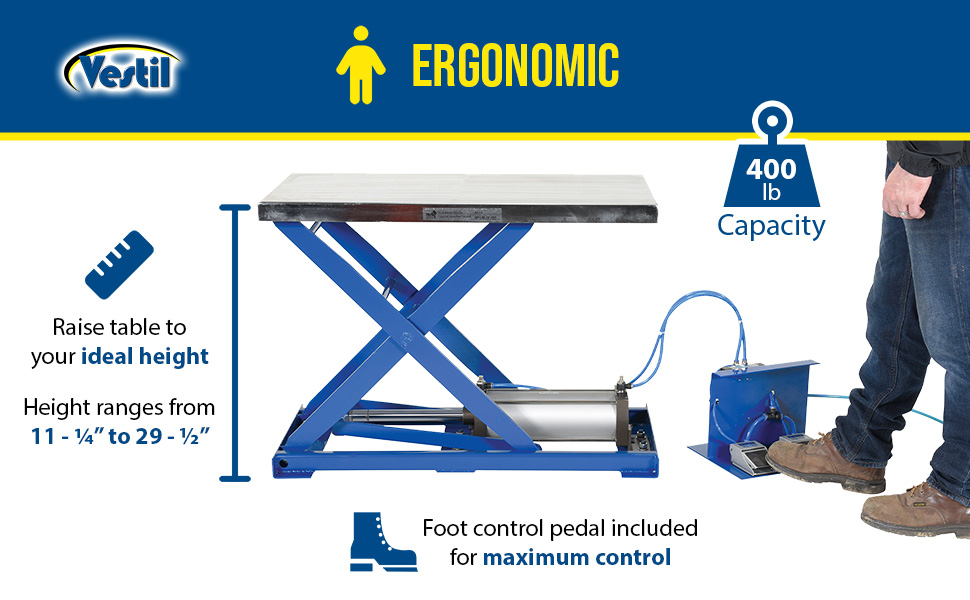

  • Foot control pedal included for maximum control in environmentally sensitive applications

Pneumatic Scissor Lift Tables feature foot operated controls for raising and lowering the scissor platform. AT-10 requires 80-100 psi factory air supply for operation. AT-20 requires 70-90 psi factory air supply for operation. Features robust steel construction and has a chrome plated deck.

  • Lift table for ergonomic work in many environmentally sensitive applications
  • The table utilizes shop air so that it can be used anywhere
  • Air actuator valve uses no electrical power or hydraulic oil which is useful in a clean environment
  • Foot control pedal included for maximum control in environmentally sensitive applications

Other Lift & Tilt Tables

 Single Scissor Lift & Tilt Tables Manual Built-In Carousel for Scissor Tables Low Profile Electric Lift Tables Ground Lift Scissor Tables

model chart
How To Purchase

Model Specific Details

All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.
The Search Box below is within the Model Chart for this Product Family (on this current page). Not an entire site search.
Model # Description Attributes Net Wt.
(lbs)
AT-10 AT-101 Year Limited WarrantySteel Pneumatic Scissor Lift Table 39-1/2 In. x 19-3/4 In. x 29-1/2 In. 200 Lb. Capacity BlueUniform Capacity (lb.): 200
Platform Width (in.): 19-1/2		229
AT-20 AT-201 Year Limited WarrantySteel Pneumatic Scissor Lift Table 39-1/2 In. x 19-3/4 In. x 29-1/2 In. 400 Lb. Capacity BlueUniform Capacity (lb.): 400
Platform Width (in.): 19-1/2		234

KEY: = Expand Model Details = Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= On Hold/Temporarily Unavailable = Approval Drawing = Testing Certificate = 360 Image Warranty
= Works w/ Skid Only = Flatbed Truck Required

AT-10
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 200
Platform Width (in.): 19-1/2
Uniform Capacity (lb.): 200
Platform Width (in.): 19-1/2

AT-20
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 400
Platform Width (in.): 19-1/2
Uniform Capacity (lb.): 400
Platform Width (in.): 19-1/2
Pneumatic Scissor Lift Table PDF's will open in a new window when clicked.

Manuals

No Owners Manuals For This Product


Survey Sheets

No Survey Sheets For This Product


Approval Drawings


AT-10

Testing Certificates


AT-10

SDS Sheets

Hydraulic Oil SDS Sheet for: AT-10
Hydraulic Oil SDS Sheet for: AT-20

Other PDF's


Pneumatic Scissor Lift Table Mailing Brochure

Directory Links Of Available PDF's For All Products

Manuals
Survey Sheets
Drawings
Certificates of Testing
Warranties
SDS Data Sheets







Visit Our Youtube Channel For All Available Videos For All Products

Q: What is the lifting speed of the AT-10?

A: When the table is loaded at 200 lbs. the lifting speed is 13.31 seconds. The table unloaded lifting speed is 8.31 seconds.
