DC Powered and Manual Scissor Carts

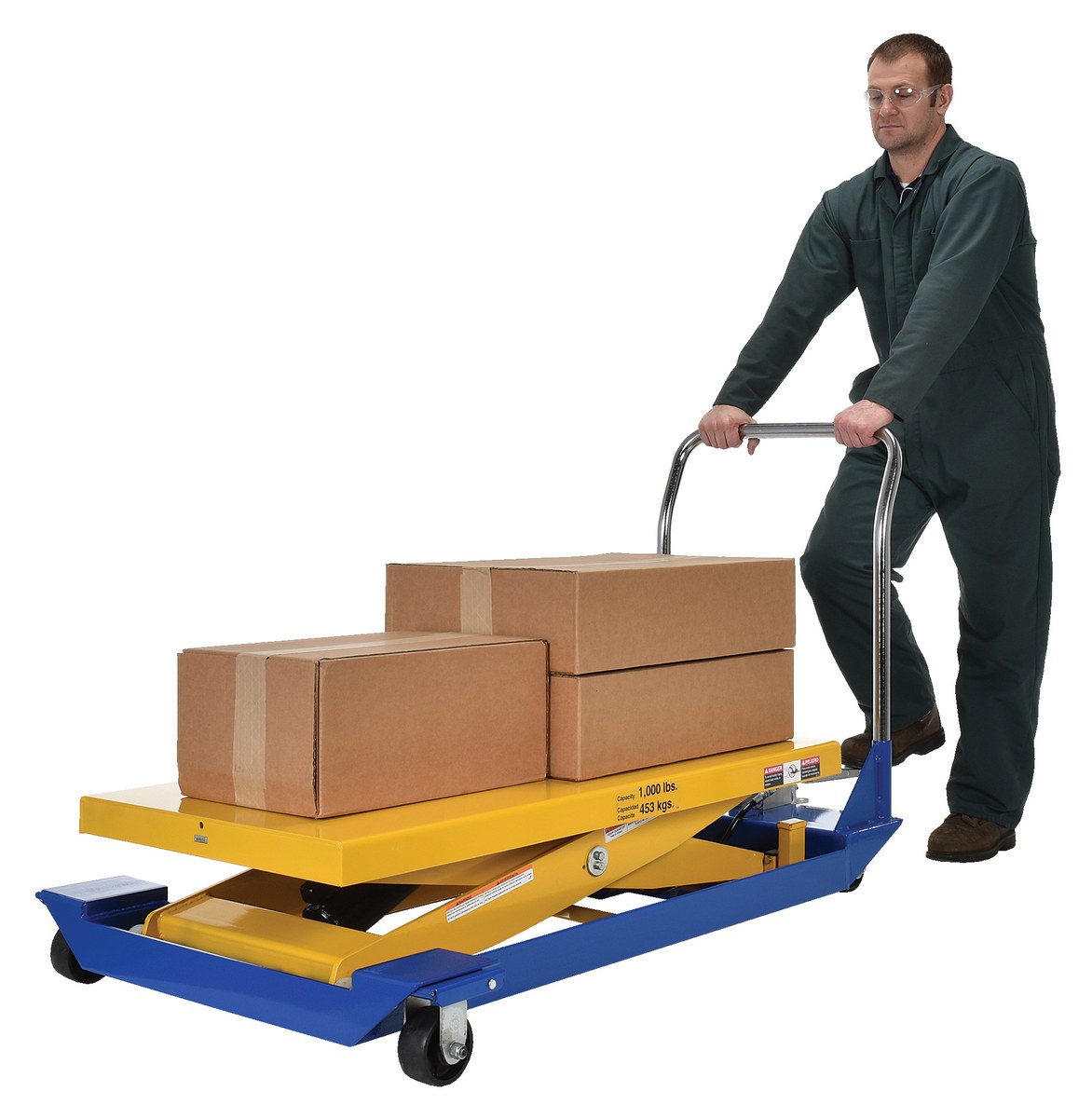

model: CART-24-10-M

Featured Ergonomic Solutions:


Tote/ Skid Lifters
Electric Hydraulic Scissor Lift Tables
Economy Hand Pallet Truck
Electric Order Pickers
Single Scissor Lift & Tilt Tables
Integral Scale for Scissor Tables
Linear Actuated Post Table
Basket & Skid Stackers
Cold Room Hand Pallet Truck
Print Friendly
DC Powered and Manual Scissor Carts
SERIES: CART

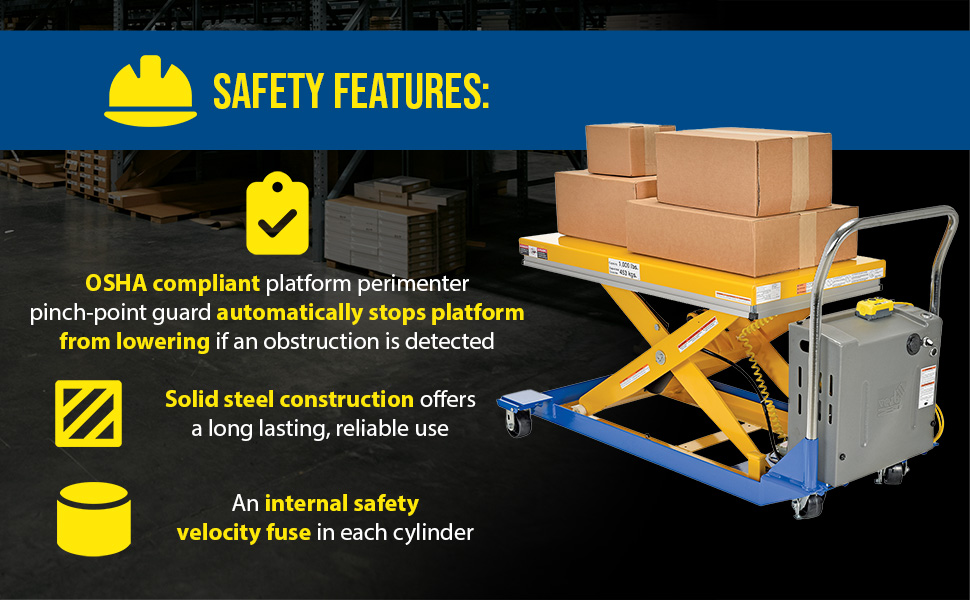

Tables provide unparalleled ergonomic support in lifting, palletizing, loading, and unloading applications. Carts are raised or lowered with either a 12V DC powered motor or a manual two-speed auto-shift foot pump. Units roll smoothly with (2) rigid and (2) swivel 4" x 2" phenolic casters with brakes. Push handle is removable.

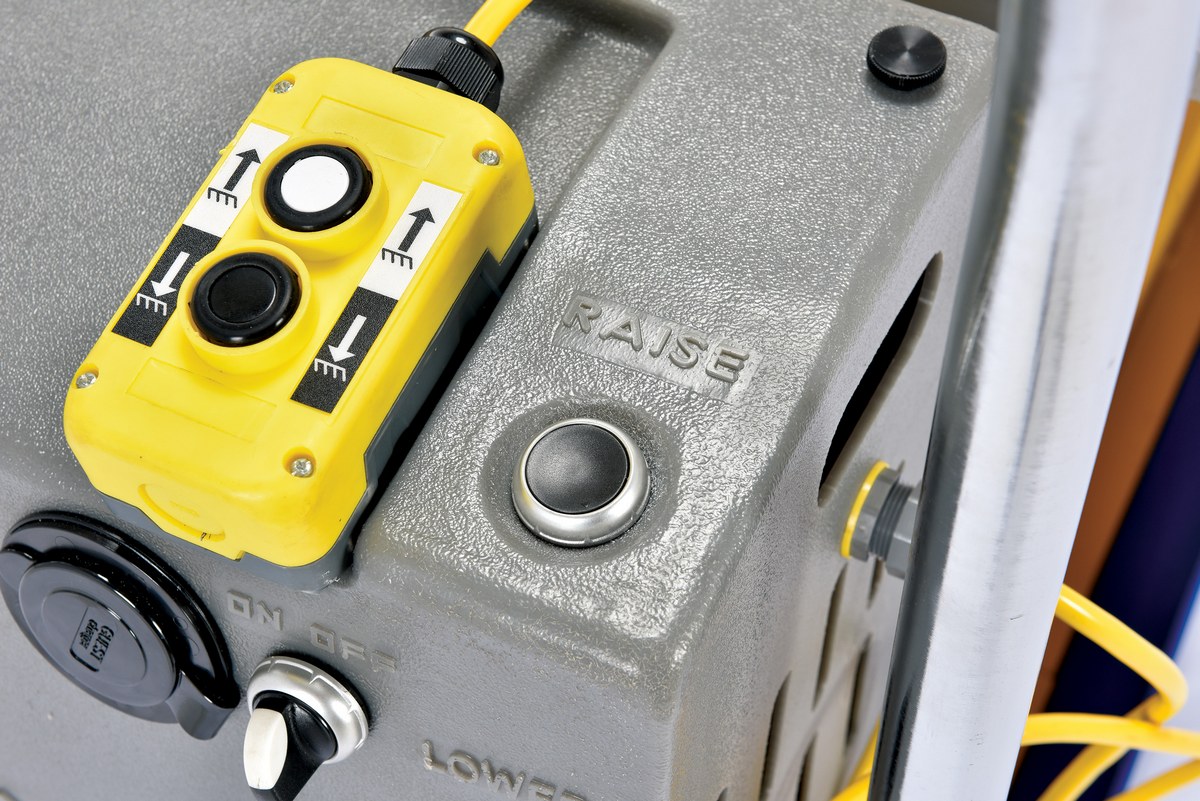

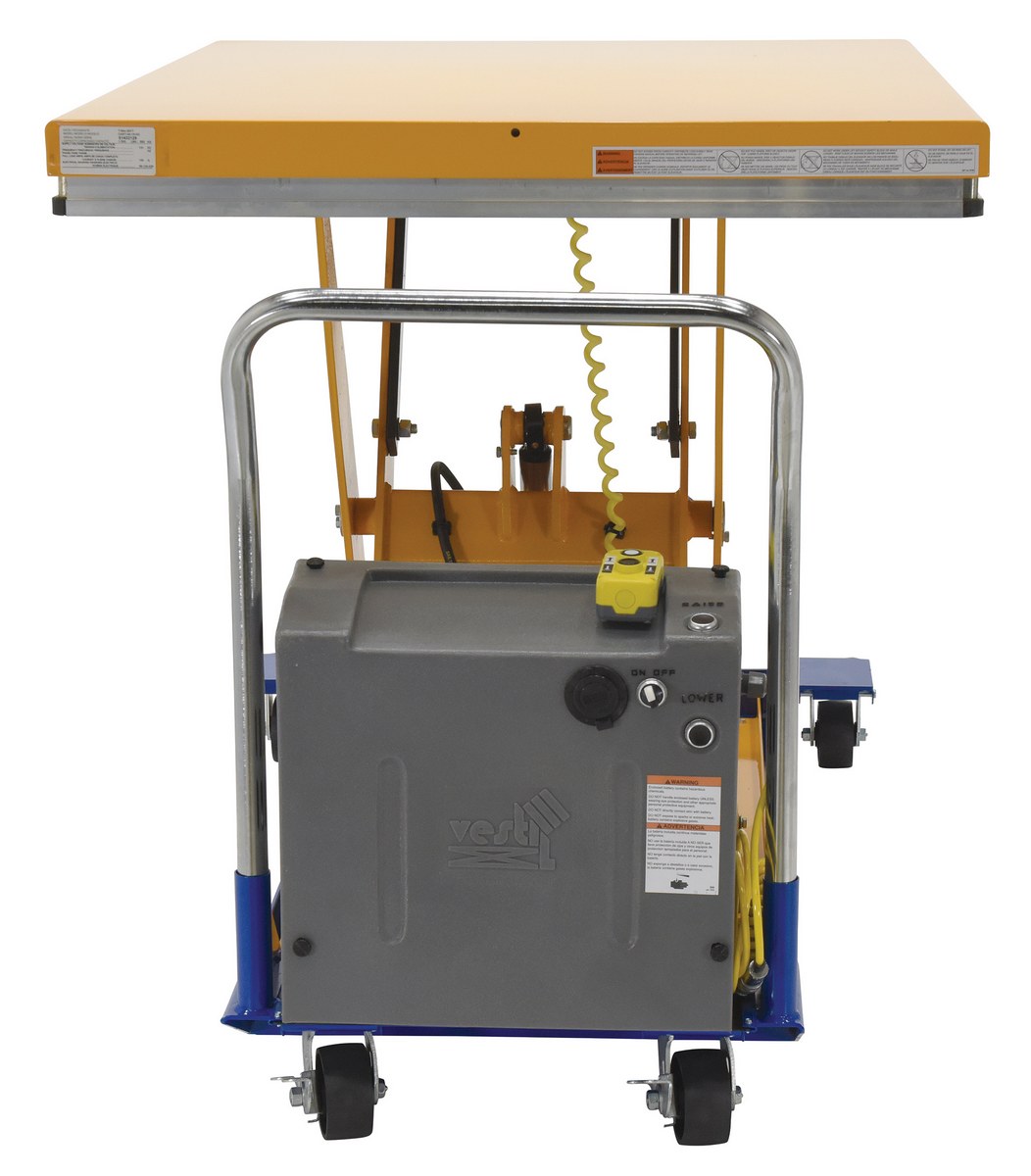

Internal DC powered electric motor and 12V battery is included on DC units. Electric motor is rated at 1600 watts. Includes battery charger (operated on 115V AC power). Push buttons to raise and lower lift are located on power unit. Detachable hand control on coil cord is standard. Key-operated ON/OFF control for better security is built into the power unit. Platform is equipped with perimeter pinch-point guard for OSHA compliance. Baked-in powder-coat finish for added toughness.

Tables provide unparalleled ergonomic support in lifting, palletizing, loading, and unloading applications. Carts are raised or lowered with either a 12V DC powered motor or a manual two-speed auto-shift foot pump. Units roll smoothly with (2) rigid and (2) swivel 4" x 2" phenolic casters with brakes. Push handle is removable.

Internal DC powered electric motor and 12V battery is included on DC units. Electric motor is rated at 1600 watts. Includes battery charger (operated on 115V AC power). Push buttons to raise and lower lift are located on power unit. Detachable hand control on coil cord is standard. Key-operated ON/OFF control for better security is built into the power unit. Platform is equipped with perimeter pinch-point guard for OSHA compliance. Baked-in powder-coat finish for added toughness.

Other Elevating Lift Carts

 Auto-Shift Hydraulic Elevating Carts Premium Scissor Lift Carts Mechanical Scissor Carts DC Powered Hydraulic Elevating Carts

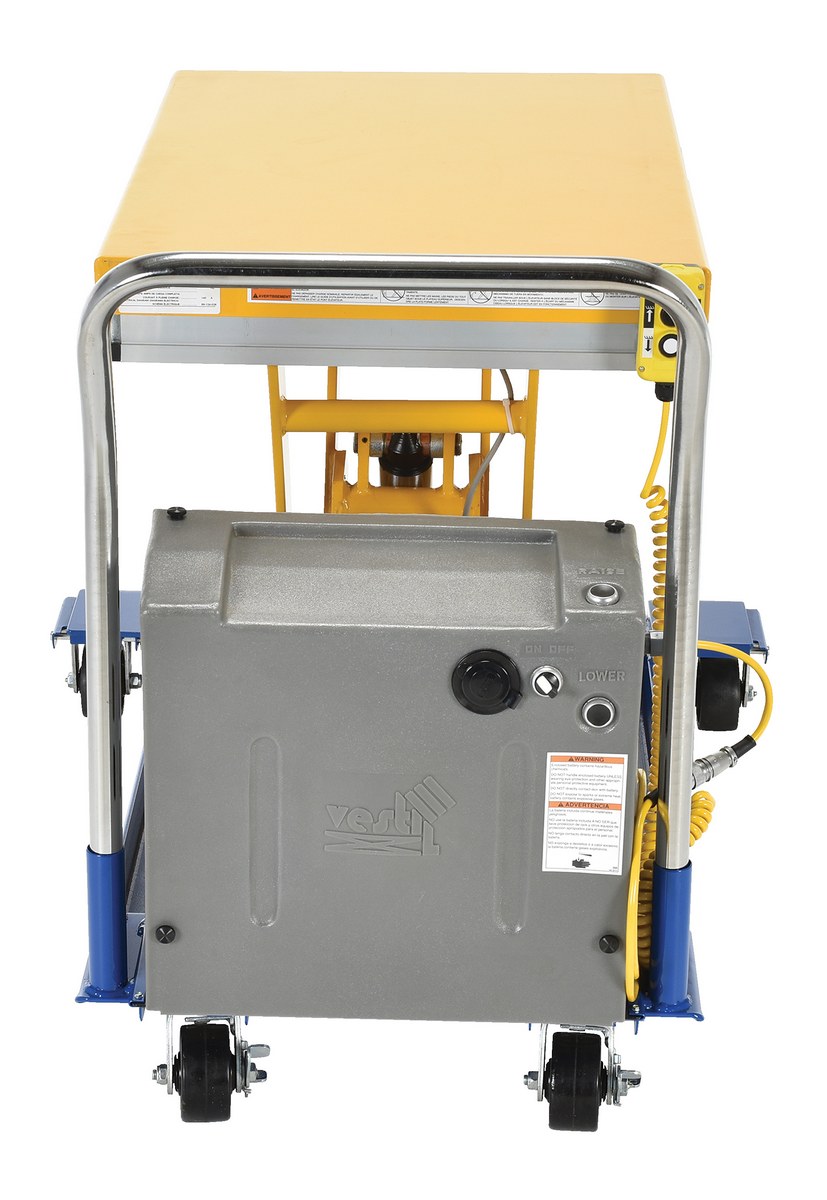

CART-23-10-DC

model CART-23-10-DC

CART-23-10-M

model CART-23-10-M

CART-23-10-M-PSS

model CART-23-10-M-PSS

CART-23-15-DC

model CART-23-15-DC

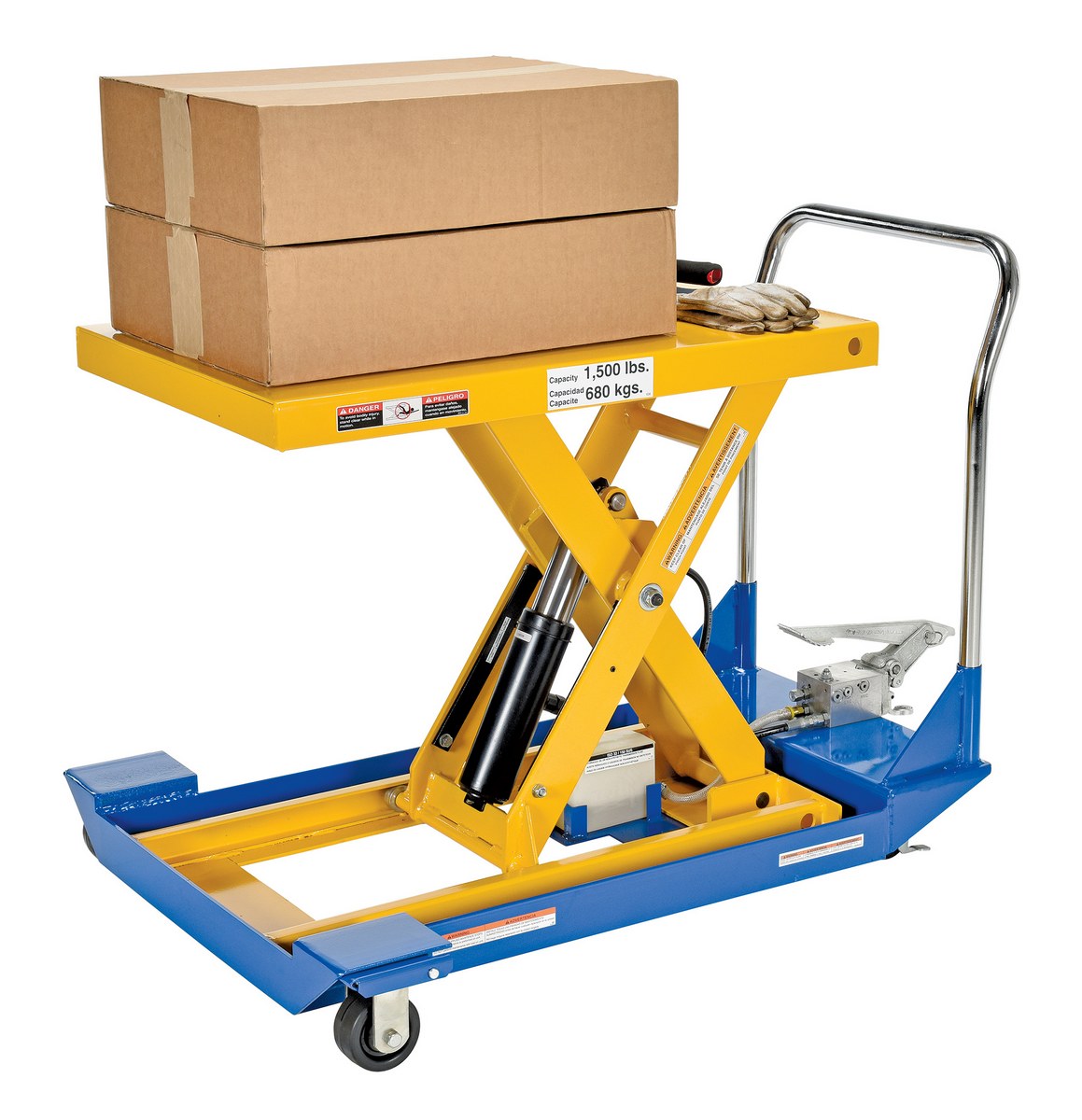

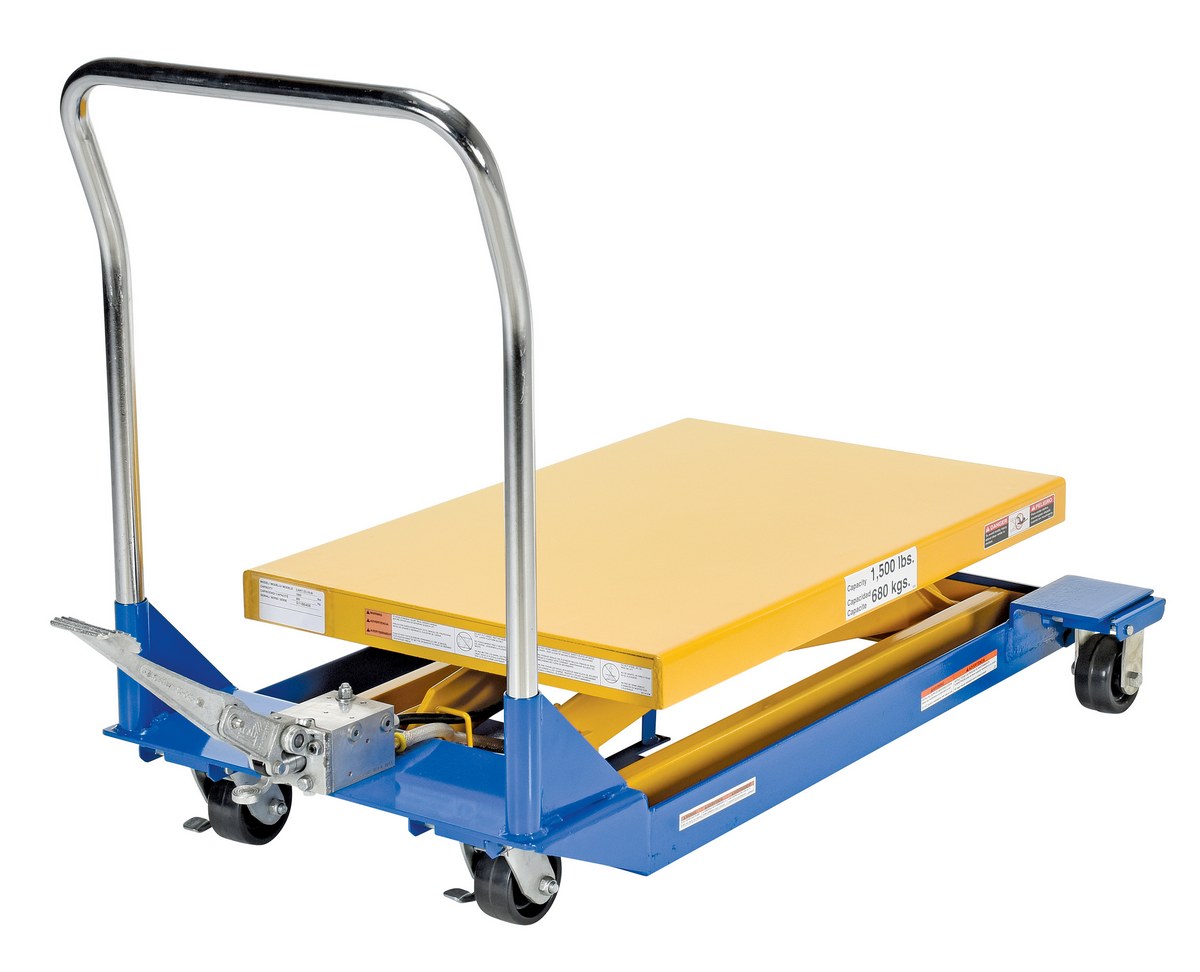

CART-23-15-M

model CART-23-15-M

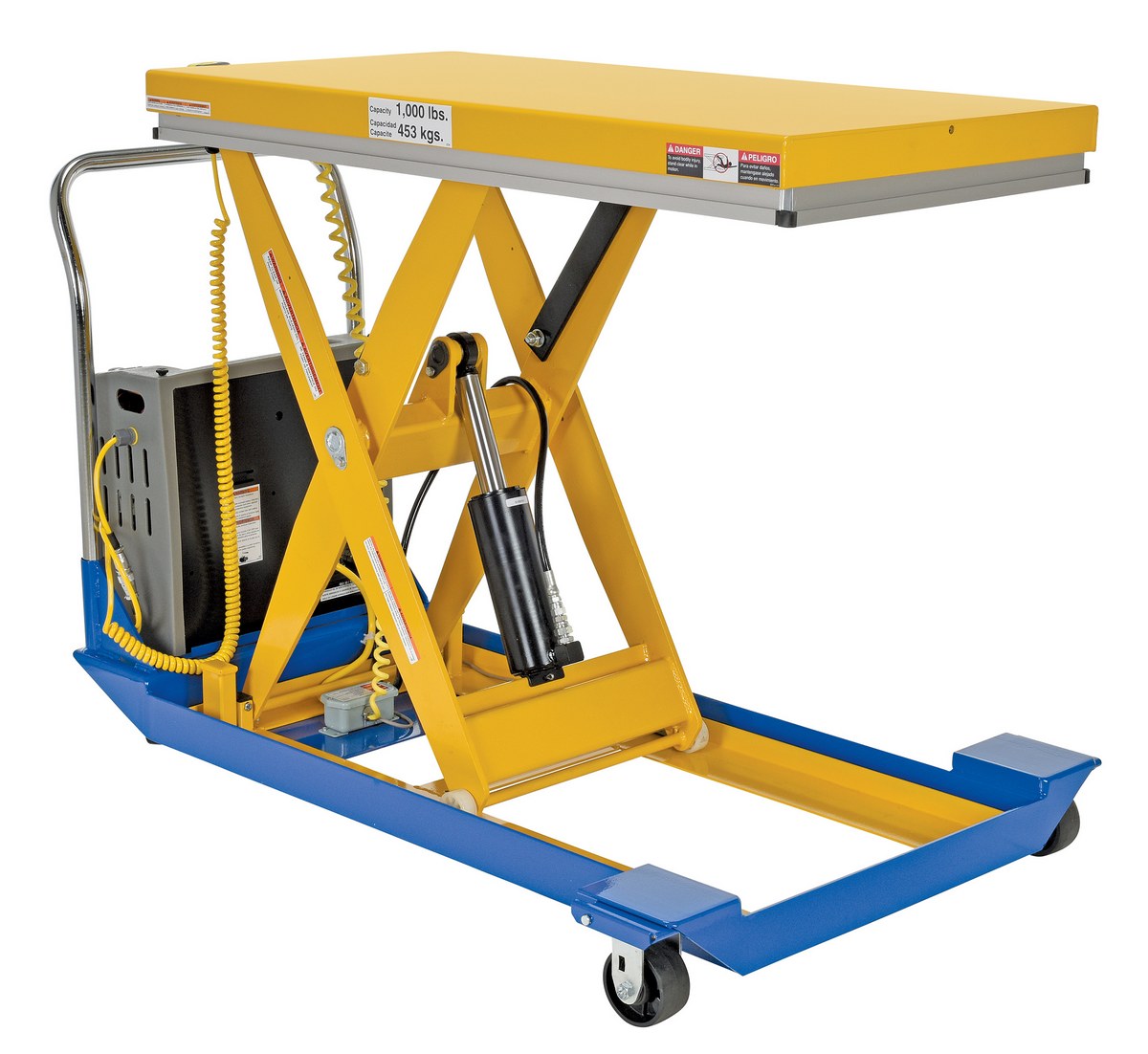

CART-24-10-DC

model CART-24-10-DC

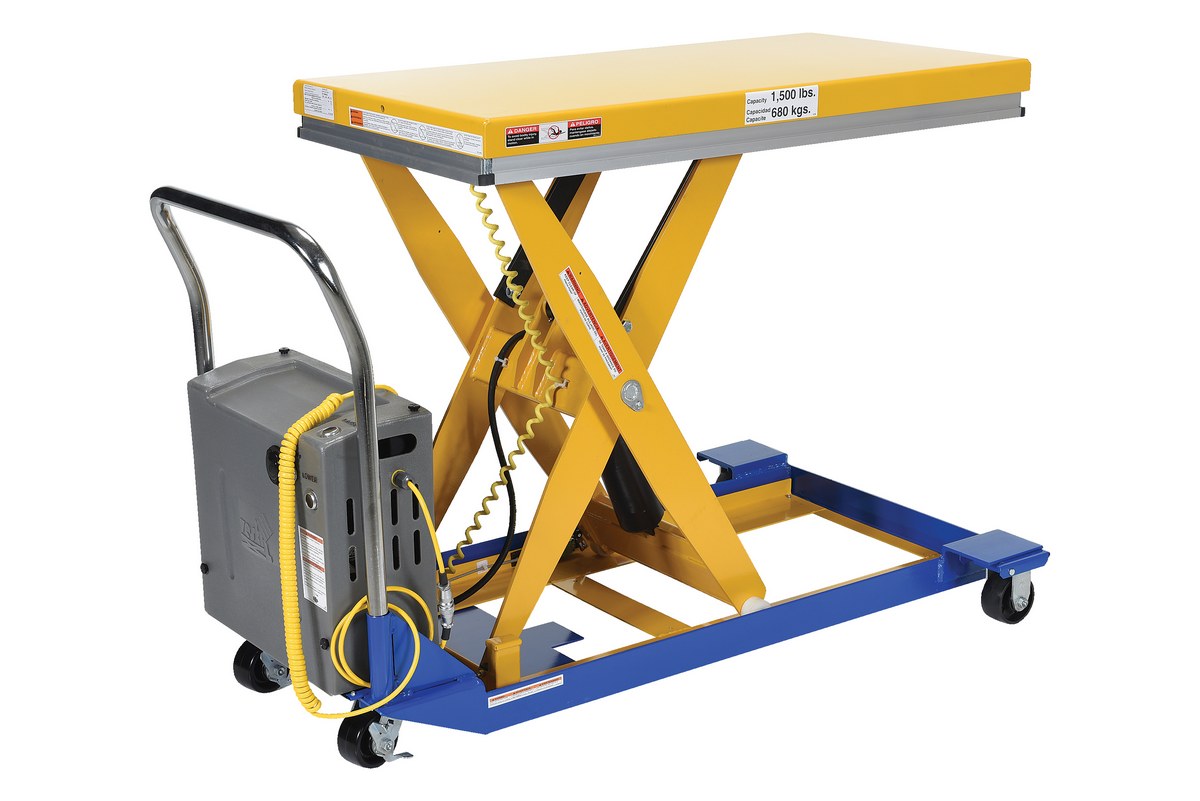

CART-24-15-DC

model CART-24-15-DC

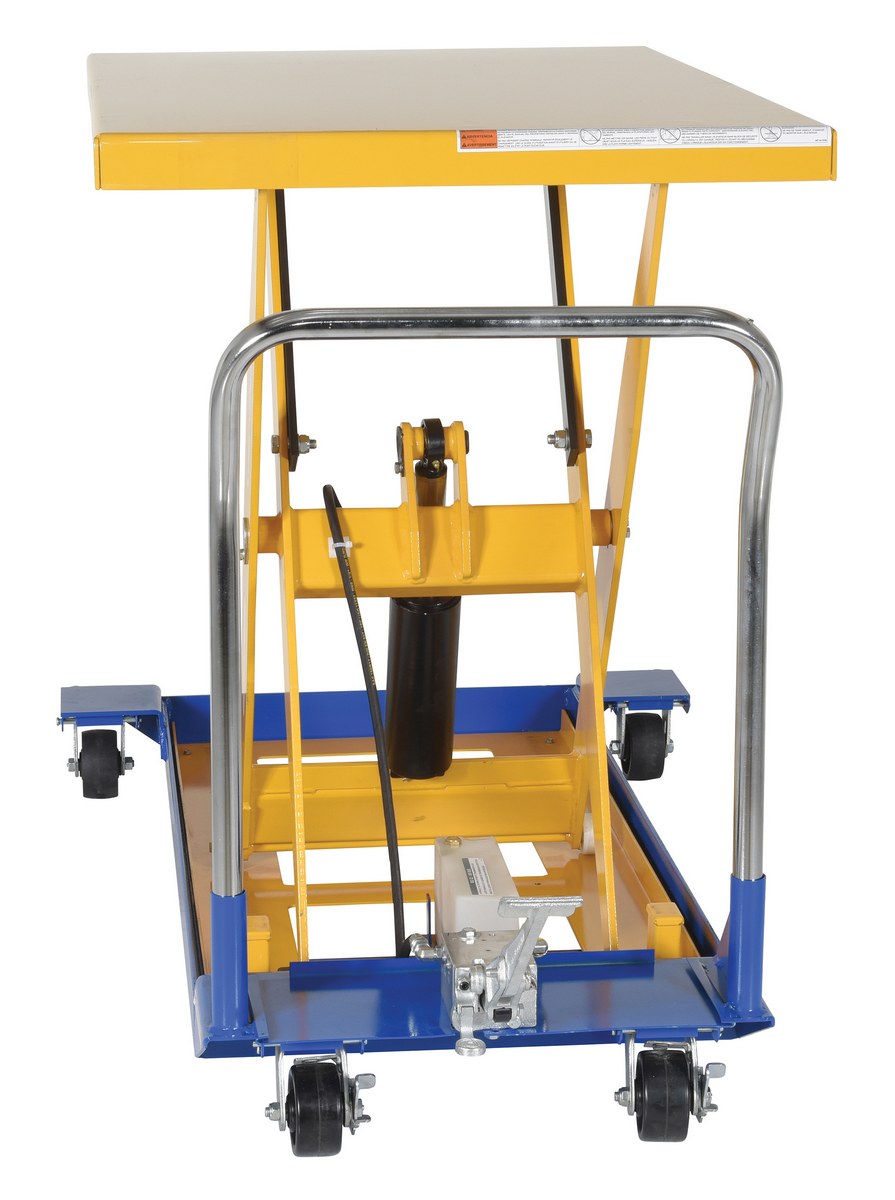

CART-32-10-M

model CART-32-10-M

CART-40-15-M

model CART-40-15-M

CART-40-15-DC

model CART-40-15-DC

How To Order
Share:


All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.
The Search Box below is within the Model Chart on this page. Not an entire site search.
Model Image PDFs Description Attributes Net Wt.
(lbs)

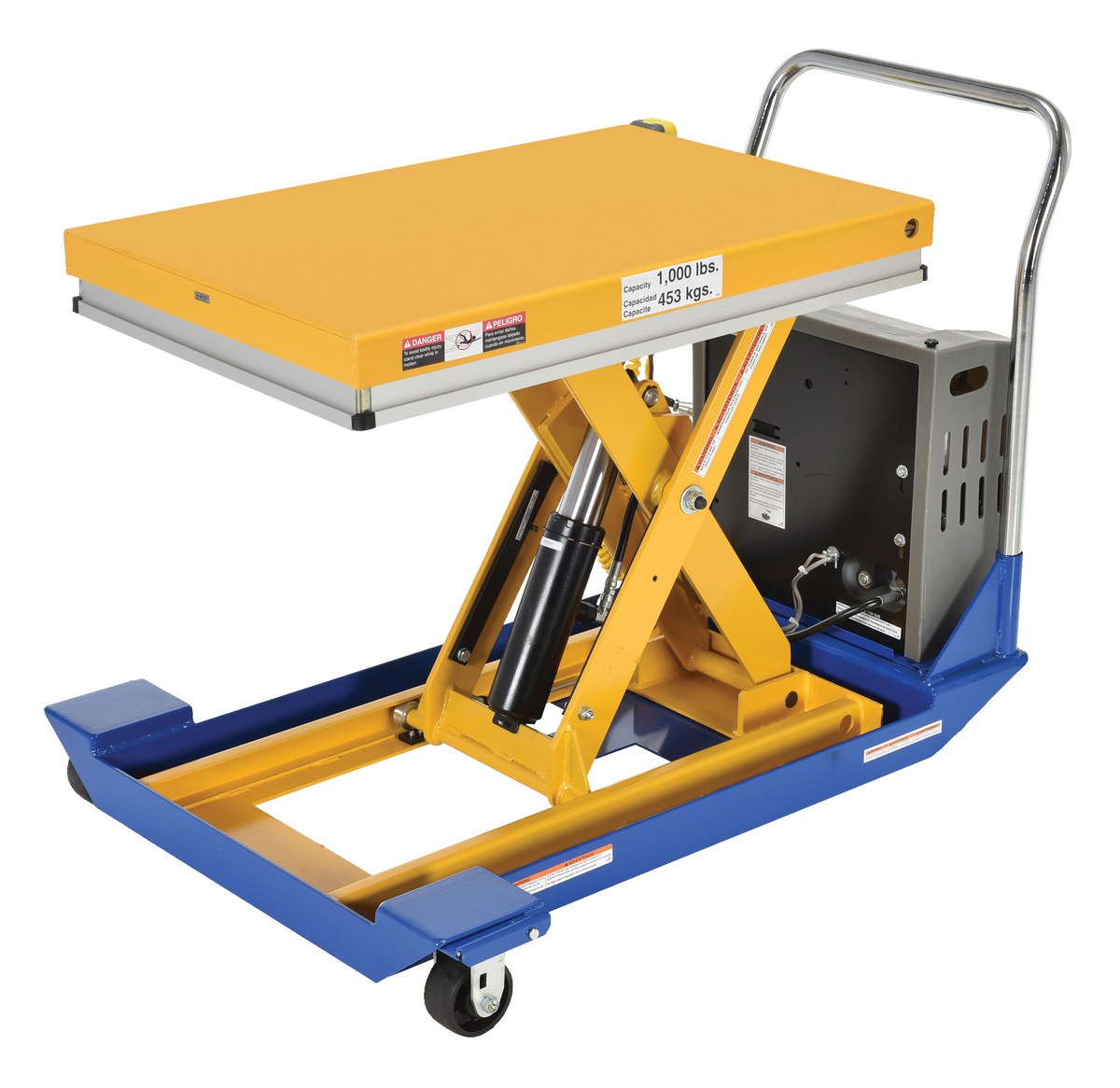

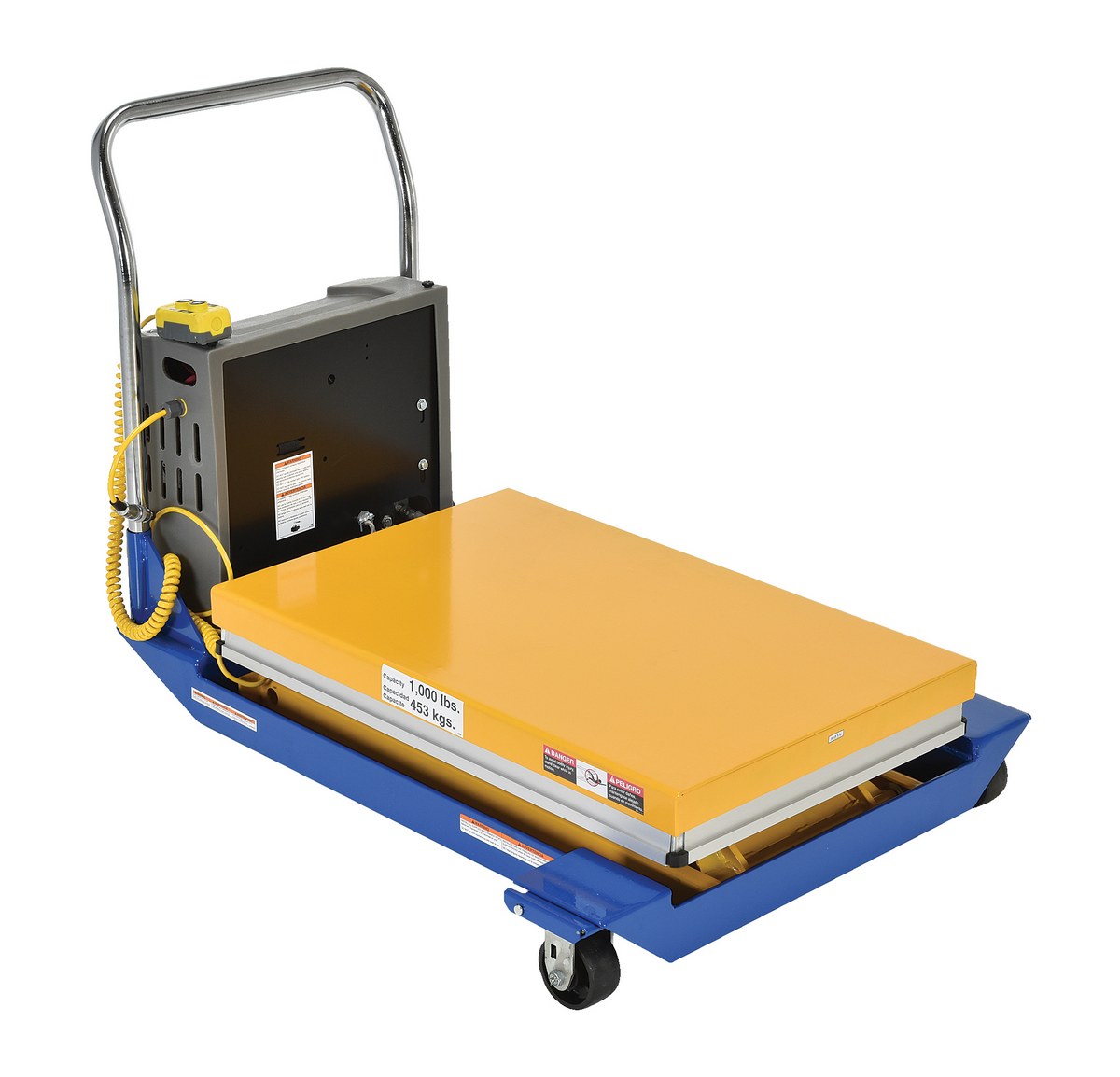

CART-23-10-DC 1 Year Limited WarrantySteel DC Powered Scissor Cart 36 In. x 24 In. 1000 Lb. Capacity Blue/YellowUniform Capacity (lb.): 1,000
Platform Width (in.): 24		494

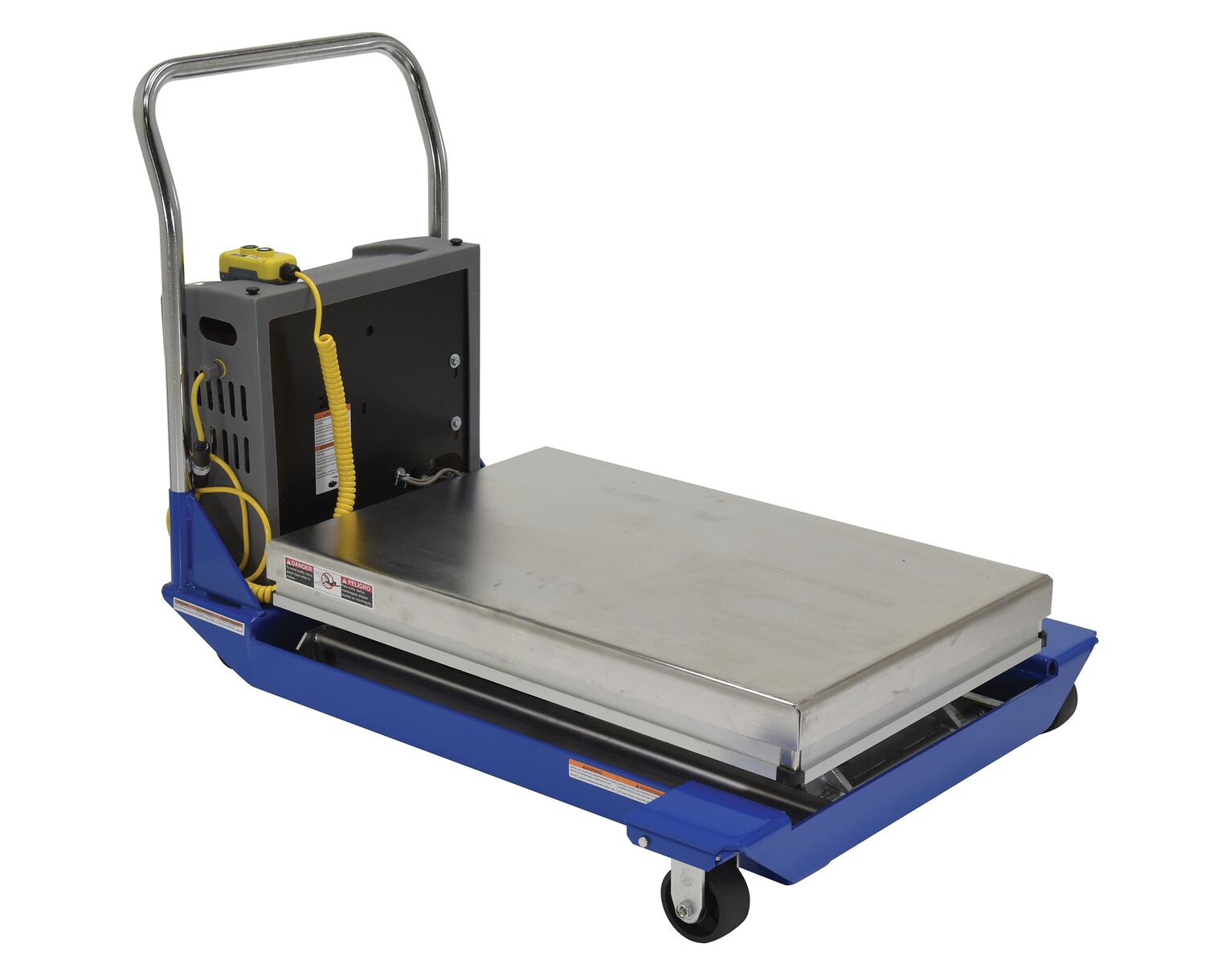

CART-23-10-DC-PSS 1 Year Limited WarrantyPartially Stainless Steel DC Powered Scissor Cart 36 In. x 24 In. 1000 Lb. Capacity Blue/YellowUniform Capacity (lb.): 1,000
Platform Width (in.): 24		536

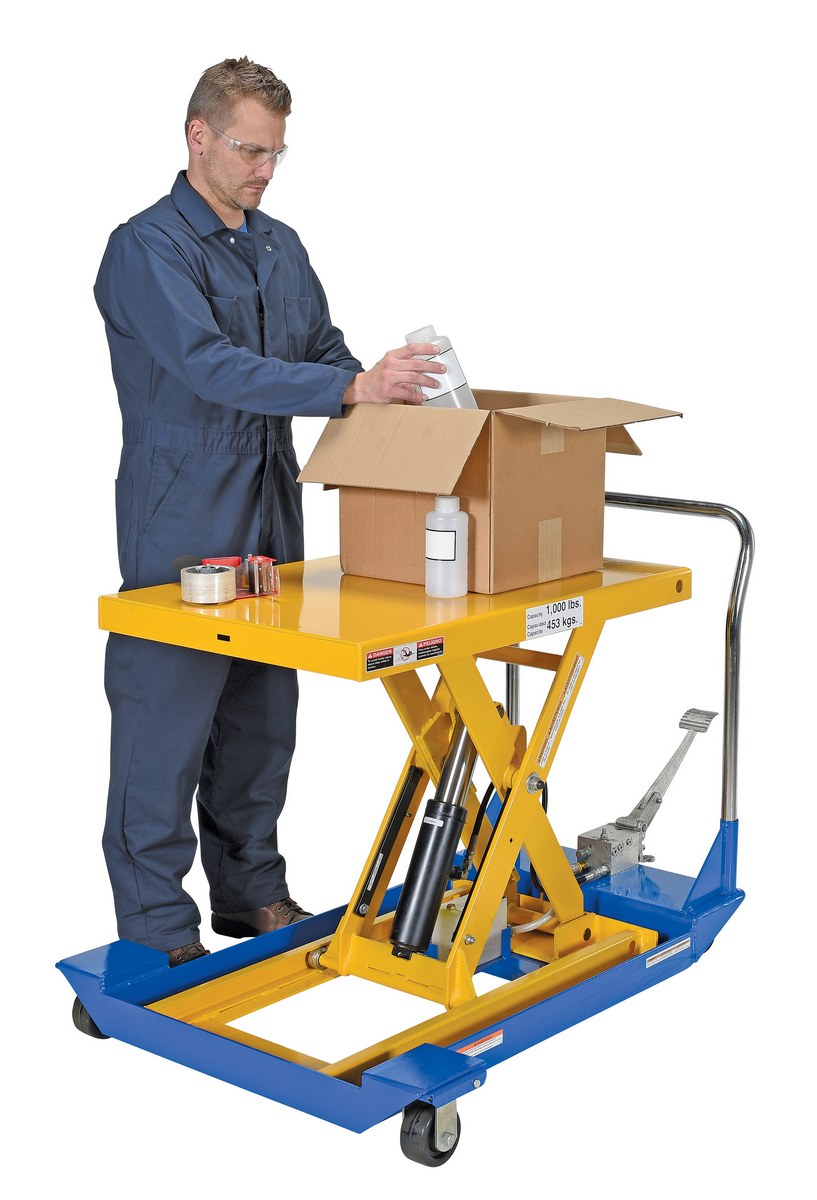

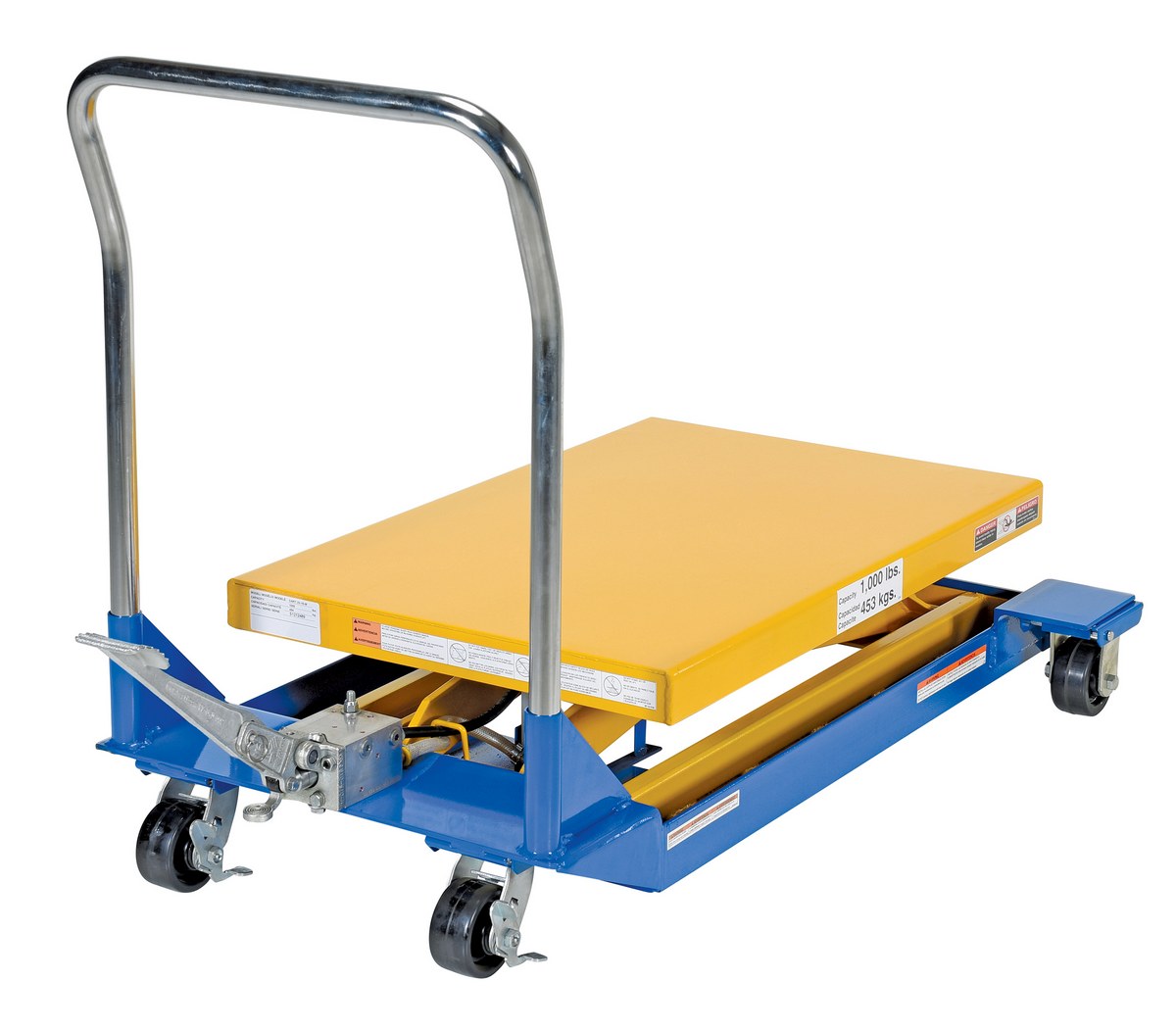

CART-23-10-M 1 Year Limited WarrantySteel Foot Pump Scissor Cart 36 In. x 24 In. 1000 Lb. Capacity Blue/YellowUniform Capacity (lb.): 1,000
Platform Width (in.): 24		395
CART-23-10-M-PSS 1 Year Limited WarrantyPartially Stainless Steel Foot Pump Scissor Cart 36 In. x 24 In. 1000 Lb. Capacity Blue/SilverUniform Capacity (lb.): 1,000
Platform Width (in.): 24		395

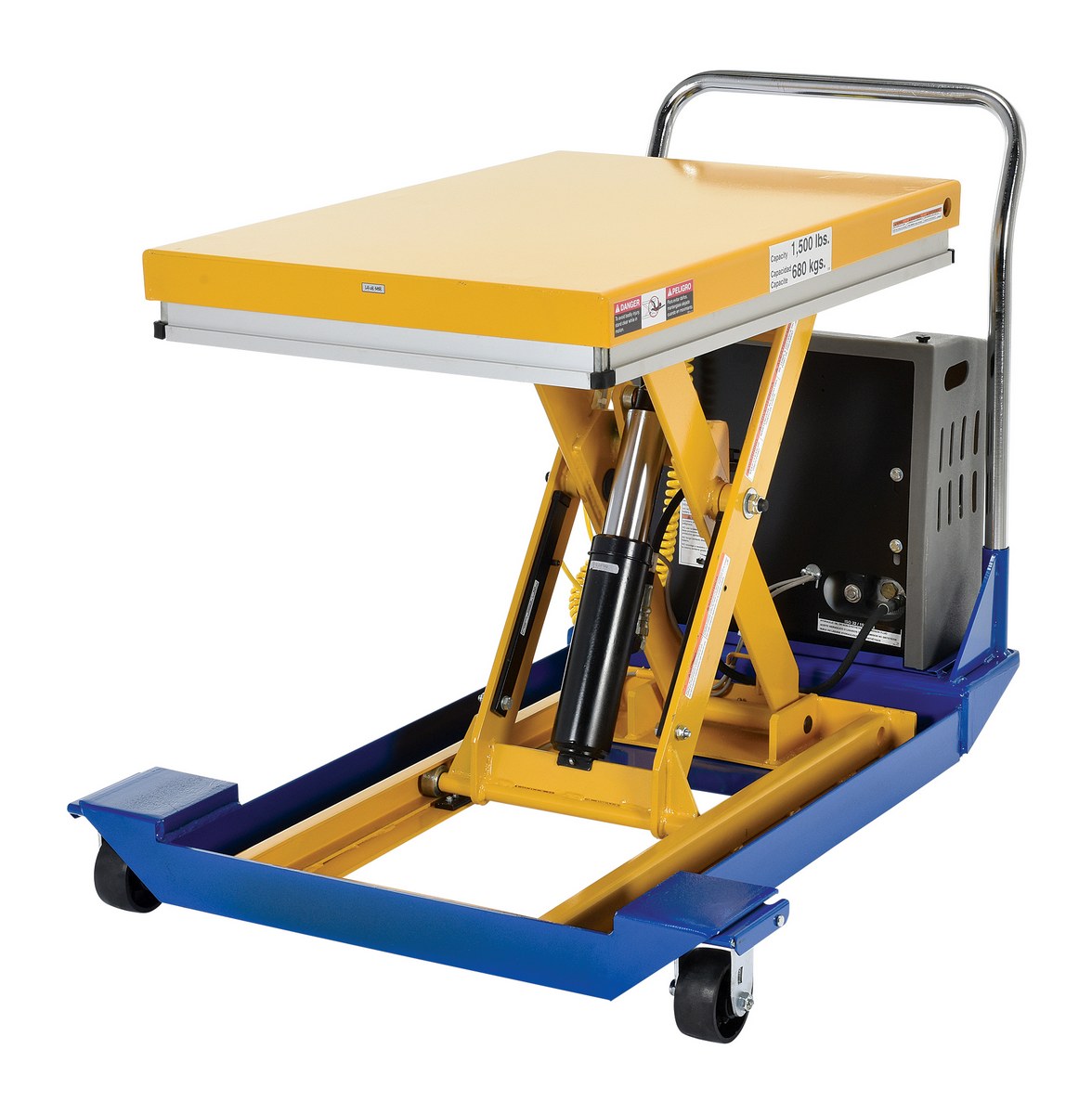

CART-23-15-DC 1 Year Limited WarrantySteel DC Powered Scissor Cart 36 In. x 24 In. 1500 Lb. Capacity Blue/YellowUniform Capacity (lb.): 1,500
Platform Width (in.): 24		521

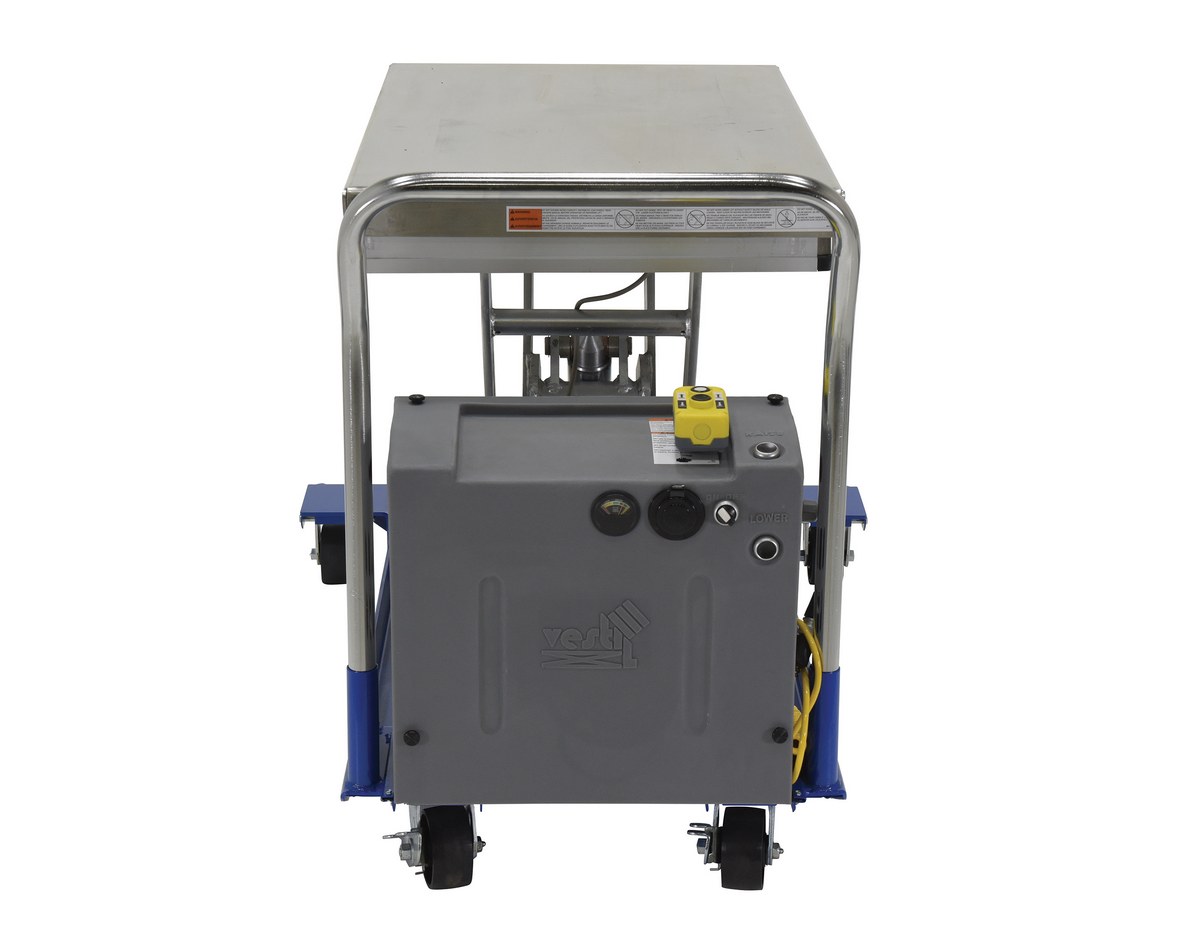

CART-23-15-DC-PSS 1 Year Limited WarrantyPartially Stainless Steel DC Powered Scissor Cart 36 In. x 24 In. 1500 Lb. Capacity Blue/YellowUniform Capacity (lb.): 1,500
Platform Width (in.): 24		521

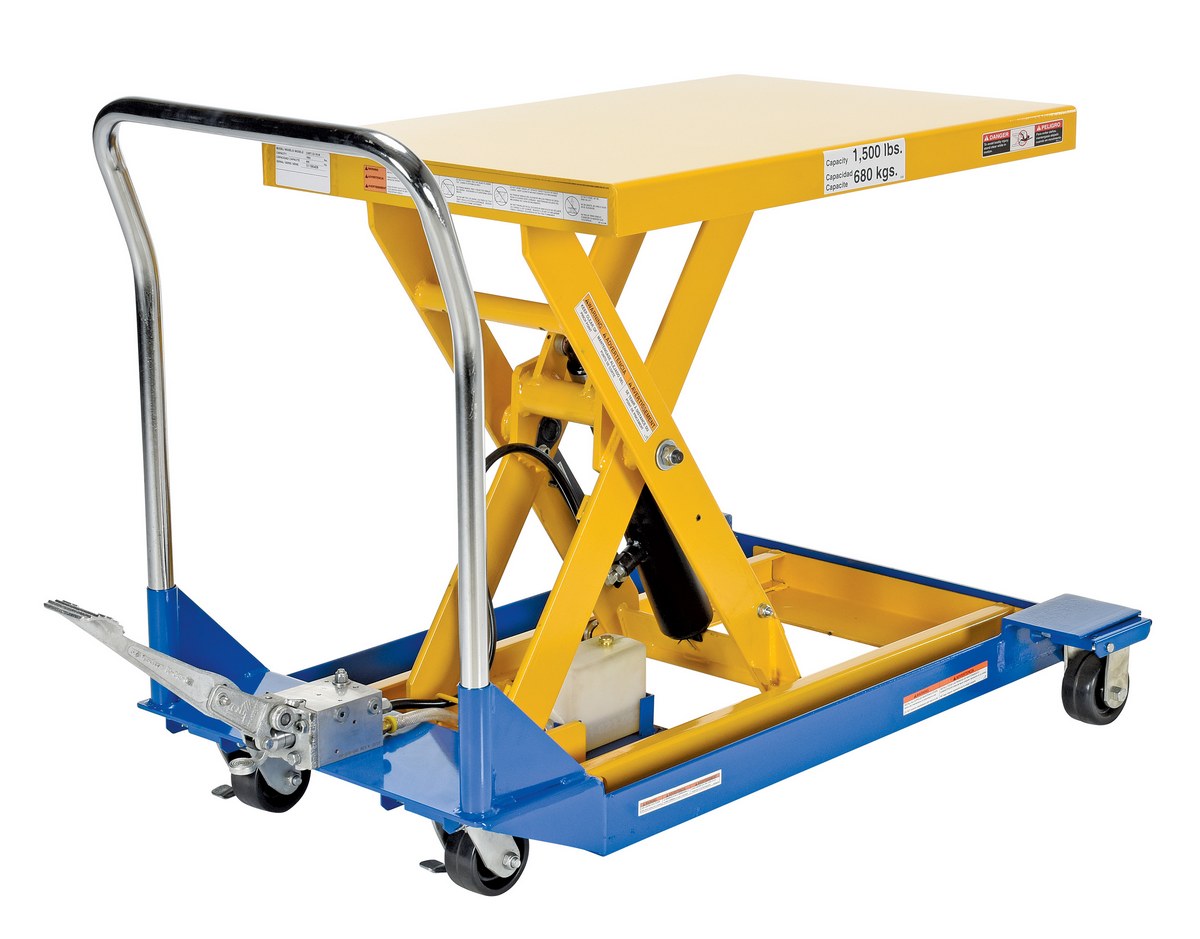

CART-23-15-M 1 Year Limited WarrantySteel Foot Pump Scissor Cart 36 In. x 24 In. 1500 Lb. Capacity Blue/YellowUniform Capacity (lb.): 1,500
Platform Width (in.): 24		408
CART-23-15-M-PSS 1 Year Limited WarrantyPartially Stainless Steel Foot Pump Scissor Cart 36 In. x 24 In. 1500 Lb. Capacity Blue/SilverUniform Capacity (lb.): 1,500
Platform Width (in.): 24		408

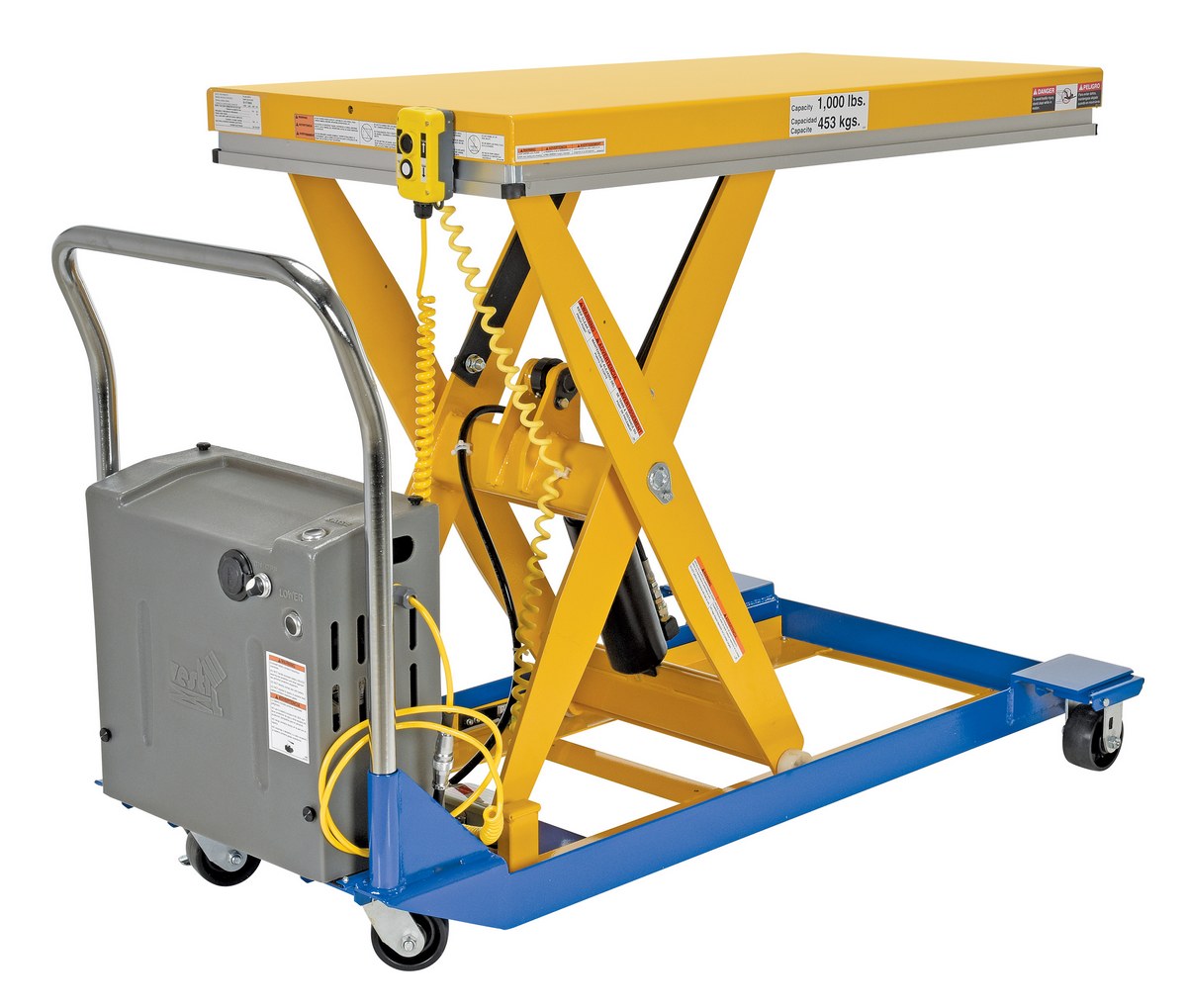

CART-24-10-DC 1 Year Limited WarrantySteel DC Powered Scissor Cart 48 In. x 24 In. 1000 Lb. Capacity Blue/YellowUniform Capacity (lb.): 1,000
Platform Width (in.): 24		512
CART-24-10-DC-PSS 1 Year Limited WarrantyPartially Stainless Steel DC Powered Scissor Cart 48 In. x 24 In. 1000 Lb. Capacity Blue/YellowUniform Capacity (lb.): 1,000
Platform Width (in.): 24		512

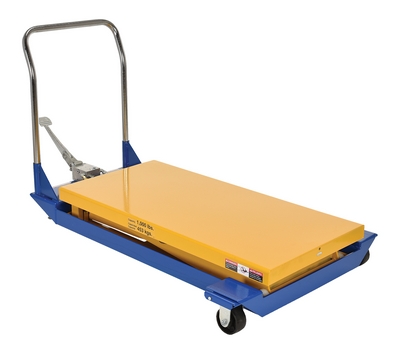

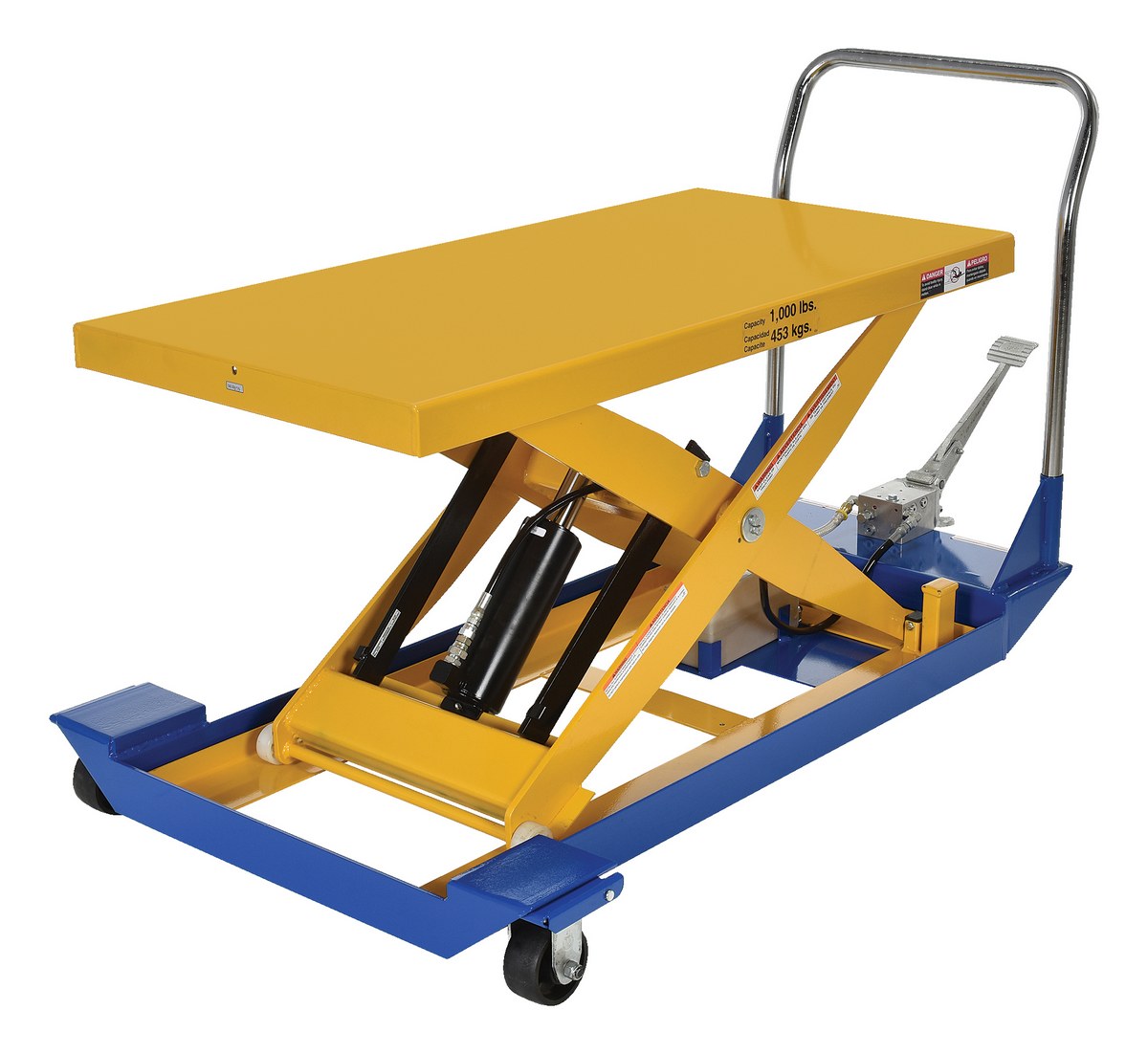

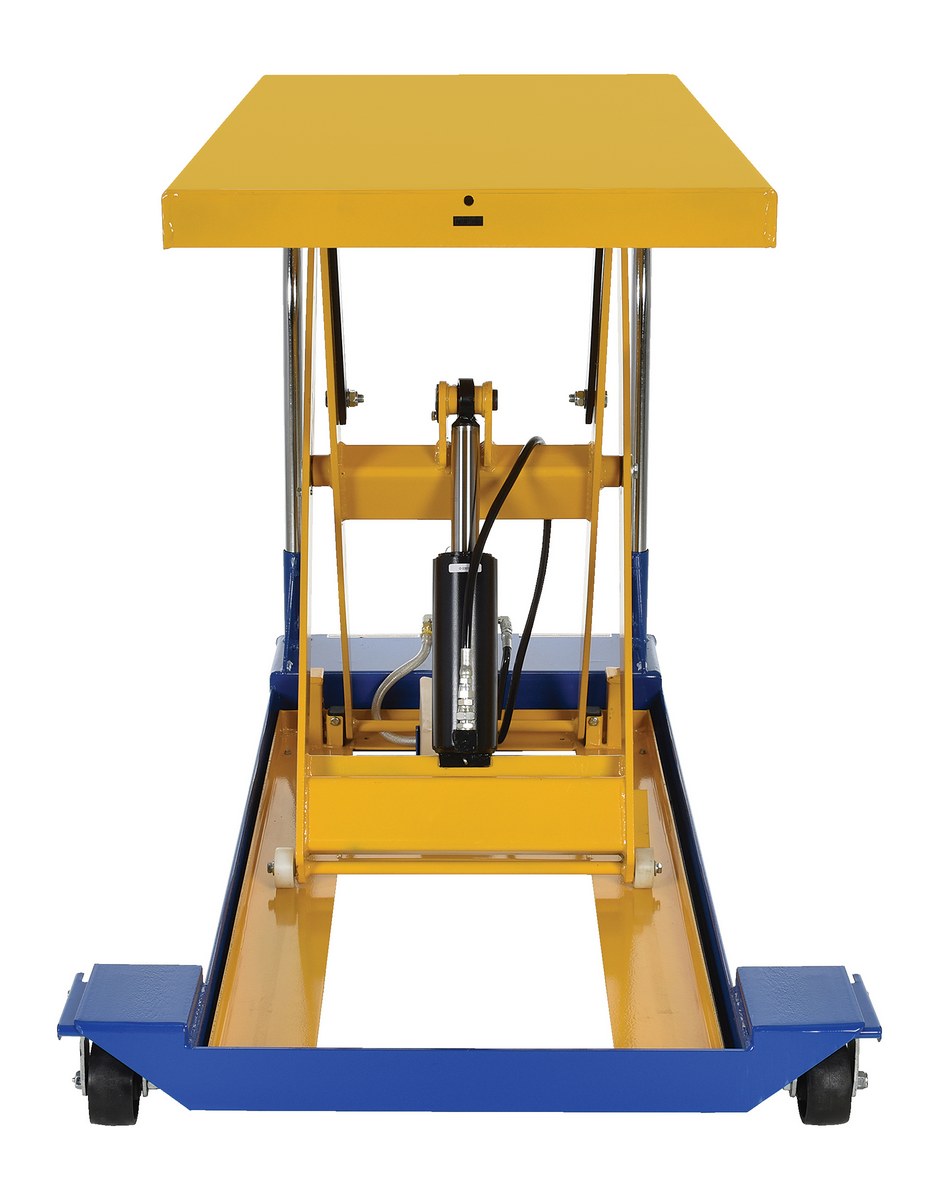

CART-24-10-M 1 Year Limited WarrantySteel Foot Pump Scissor Cart 48 In. x 24 In. 1000 Lb. Capacity Blue/YellowUniform Capacity (lb.): 1,000
Platform Width (in.): 24		424
CART-24-10-M-PSS 1 Year Limited WarrantyPartially Stainless Steel Foot Pump Scissor Cart 48 In. x 24 In. 1000 Lb. Capacity Blue/SilverUniform Capacity (lb.): 1,000
Platform Width (in.): 24		433

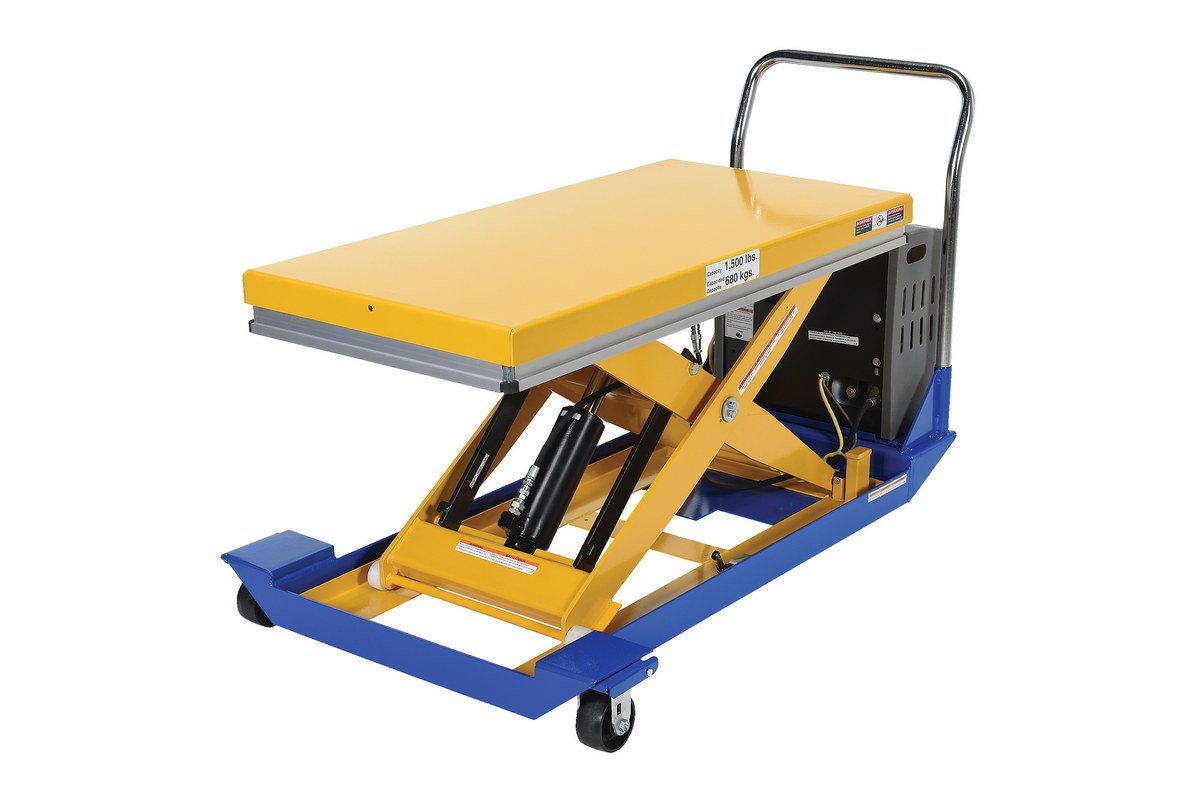

CART-24-15-DC 1 Year Limited WarrantySteel Foot Pump Scissor Cart 36 In. x 24 In. 1500 Lb. Capacity Blue/YellowUniform Capacity (lb.): 1,500
Platform Width (in.): 24		516
CART-24-15-DC-PSS 1 Year Limited WarrantyPartially Stainless Steel Foot Pump Scissor Cart 36 In. x 24 In. 1500 Lb. Capacity Blue/SilverUniform Capacity (lb.): 1,500
Platform Width (in.): 24		558
CART-24-15-M 1 Year Limited WarrantySteel Foot Pump Scissor Cart 48 In. x 24 In. 1500 Lb. Capacity Blue/YellowUniform Capacity (lb.): 1,500
Platform Width (in.): 24		427
CART-24-15-M-PSS 1 Year Limited WarrantyPartially Stainless Steel Foot Pump Scissor Cart 48 In. x 24 In. 1500 Lb. Capacity Blue/SilverUniform Capacity (lb.): 1,500
Platform Width (in.): 24		447
CART-32-10-DC 1 Year Limited WarrantySteel DC Powered Scissor Cart 48 In. x 32 In. 1000 Lb. Capacity Blue/YellowUniform Capacity (lb.): 1,000
Platform Width (in.): 32		527

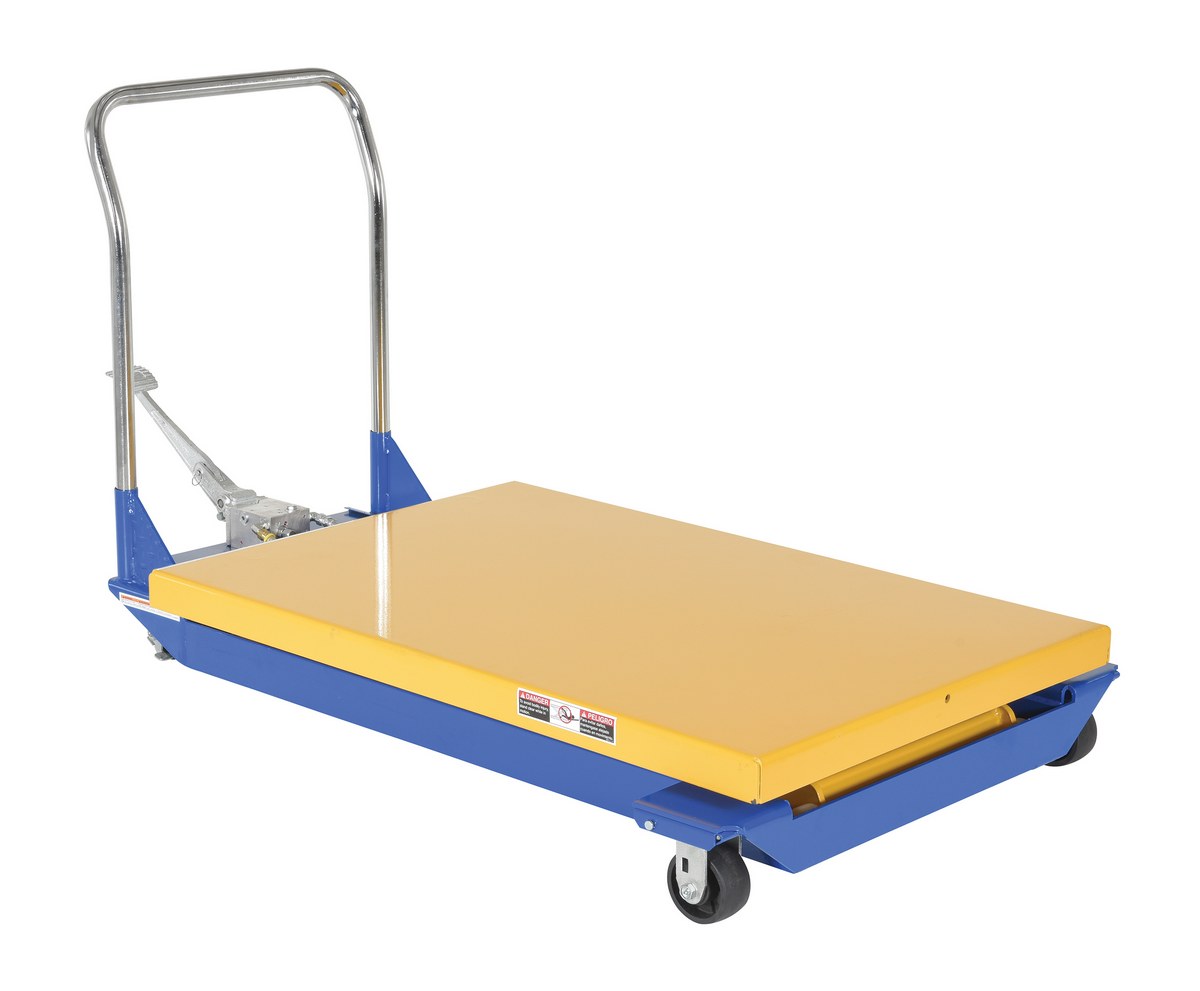

CART-32-10-M 1 Year Limited WarrantySteel Foot Pump Powered Scissor Cart 48 In. x 32 In. 1000 Lb. Capacity Blue/YellowUniform Capacity (lb.): 1,000
Platform Width (in.): 32		415
CART-32-15-DC 1 Year Limited WarrantySteel DC Powered Scissor Cart 48 In. x 32 In. 1500 Lb. Capacity Blue/YellowUniform Capacity (lb.): 1,500
Platform Width (in.): 32		522

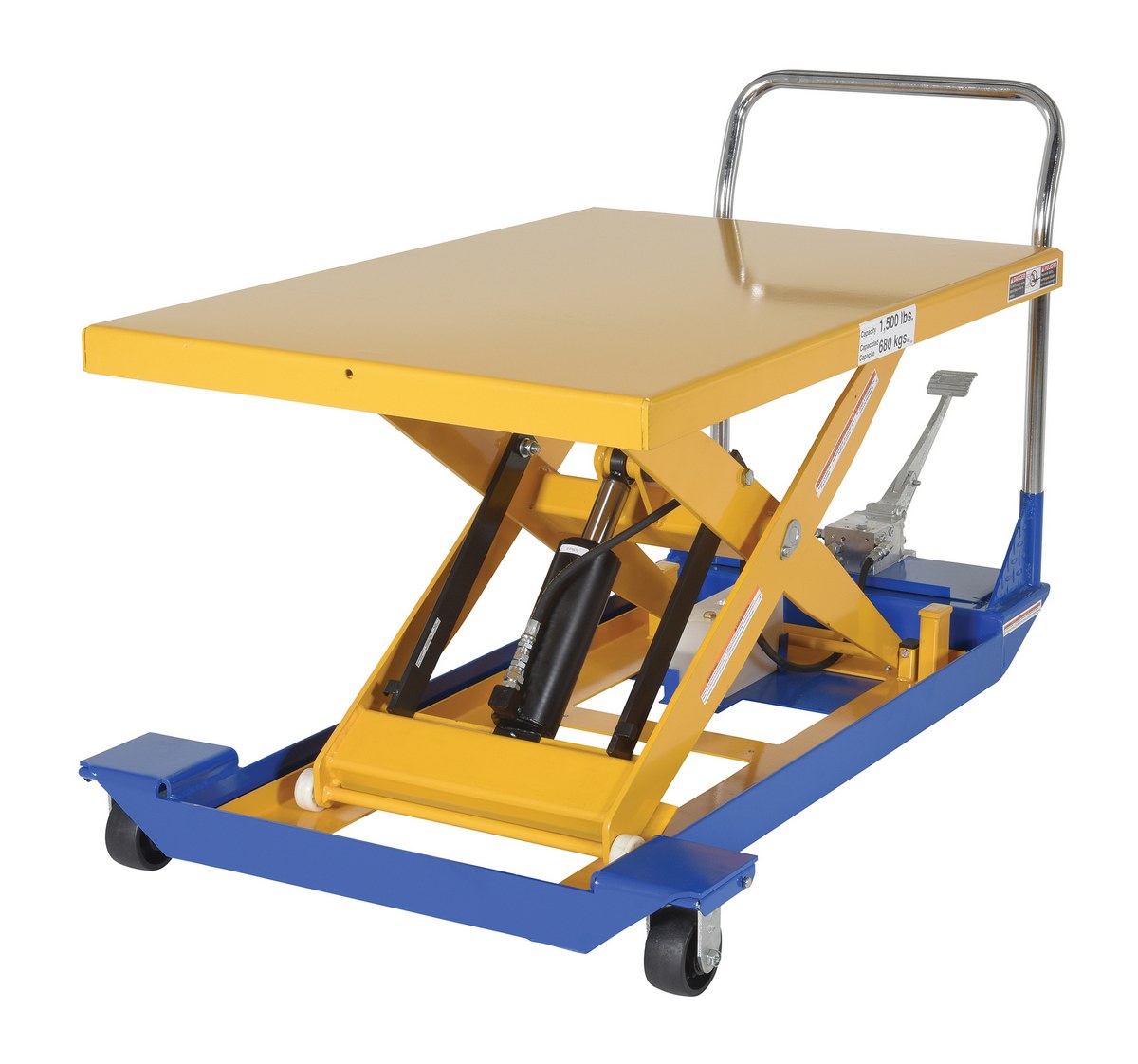

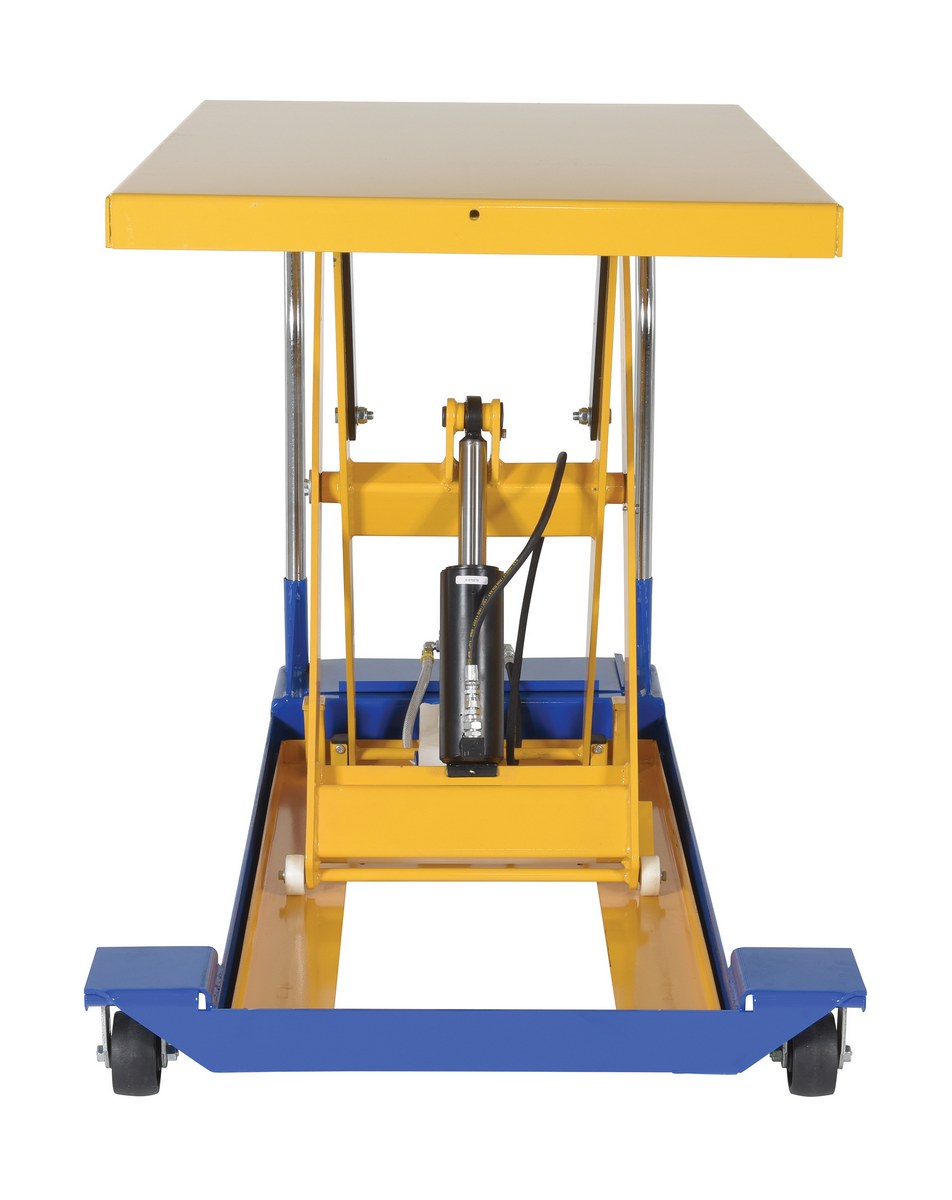

CART-32-15-M 1 Year Limited WarrantySteel Foot Pump Powered Scissor Cart 48 In. x 32 In. 1500 Lb. Capacity Blue/YellowUniform Capacity (lb.): 1,500
Platform Width (in.): 32		445

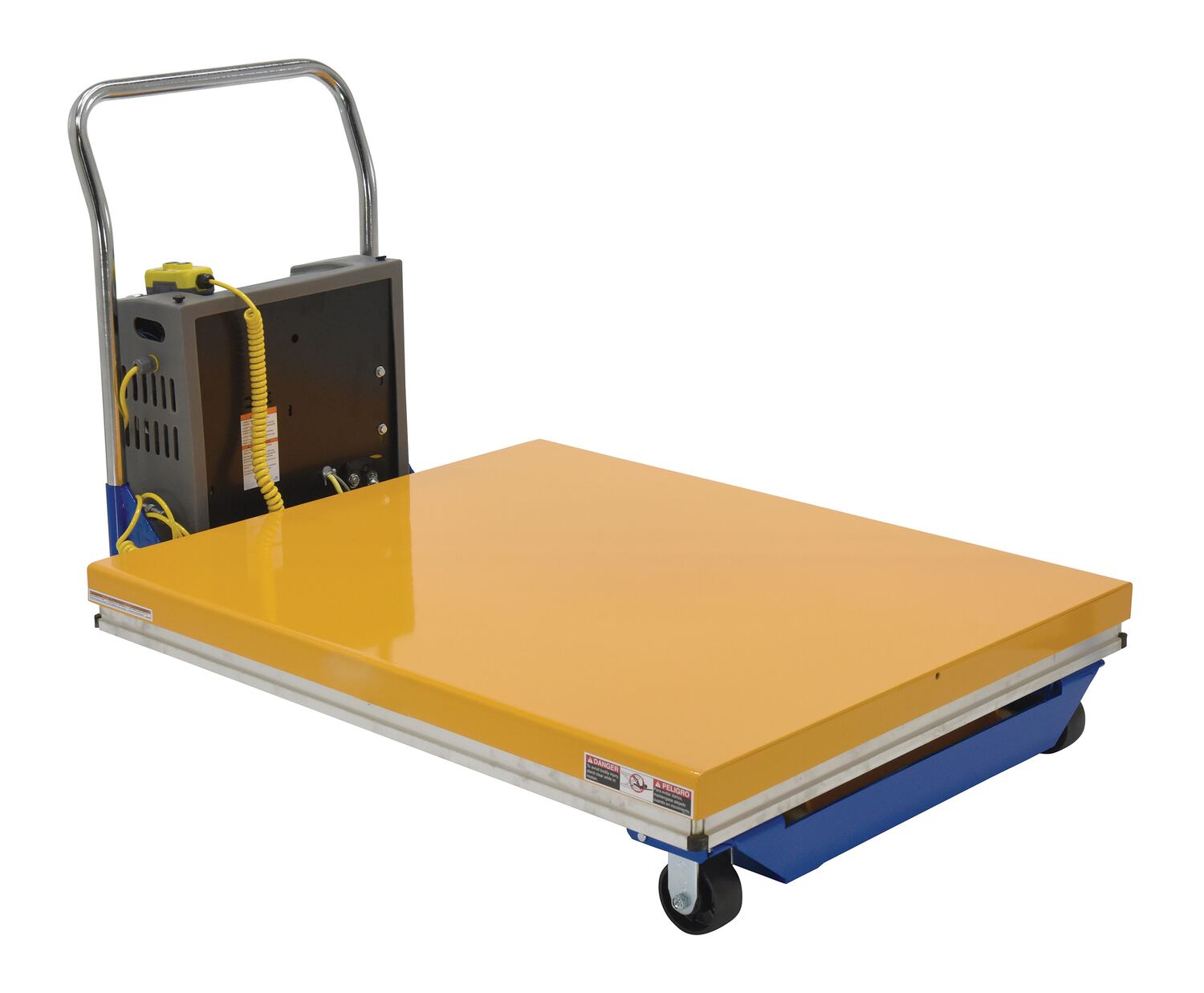

CART-40-10-DC 1 Year Limited WarrantySteel DC Powered Scissor Cart 48 In. x 40 In. 1000 Lb. Capacity Blue/YellowUniform Capacity (lb.): 1,000
Platform Width (in.): 40		563
CART-40-10-DC-PSS 1 Year Limited WarrantyPartially Stainless Steel DC Powered Scissor Cart 48 In. x 40 In. 1000 Lb. Capacity Blue/Yellow-
597
CART-40-10-M 1 Year Limited WarrantySteel Foot Pump Powered Scissor Cart 48 In. x 40 In. 1000 Lb. Capacity Blue/YellowUniform Capacity (lb.): 1,000
Platform Width (in.): 40		464
CART-40-10-M-PSS 1 Year Limited WarrantyPartially Stainless Steel Foot Pump Powered Scissor Cart 48 In. x 40 In. 1000 Lb. Capacity Blue/Yellow-
706
CART-40-15-DC 1 Year Limited WarrantySteel DC Powered Scissor Cart 48 In. x 40 In. 1500 Lb. Capacity Blue/YellowUniform Capacity (lb.): 1,500
Platform Width (in.): 40		568
CART-40-15-DC-PSS 1 Year Limited WarrantyPartially Stainless Steel DC Powered Scissor Cart 48 In. x 40 In. 1500 Lb. Capacity Blue/Yellow-
591

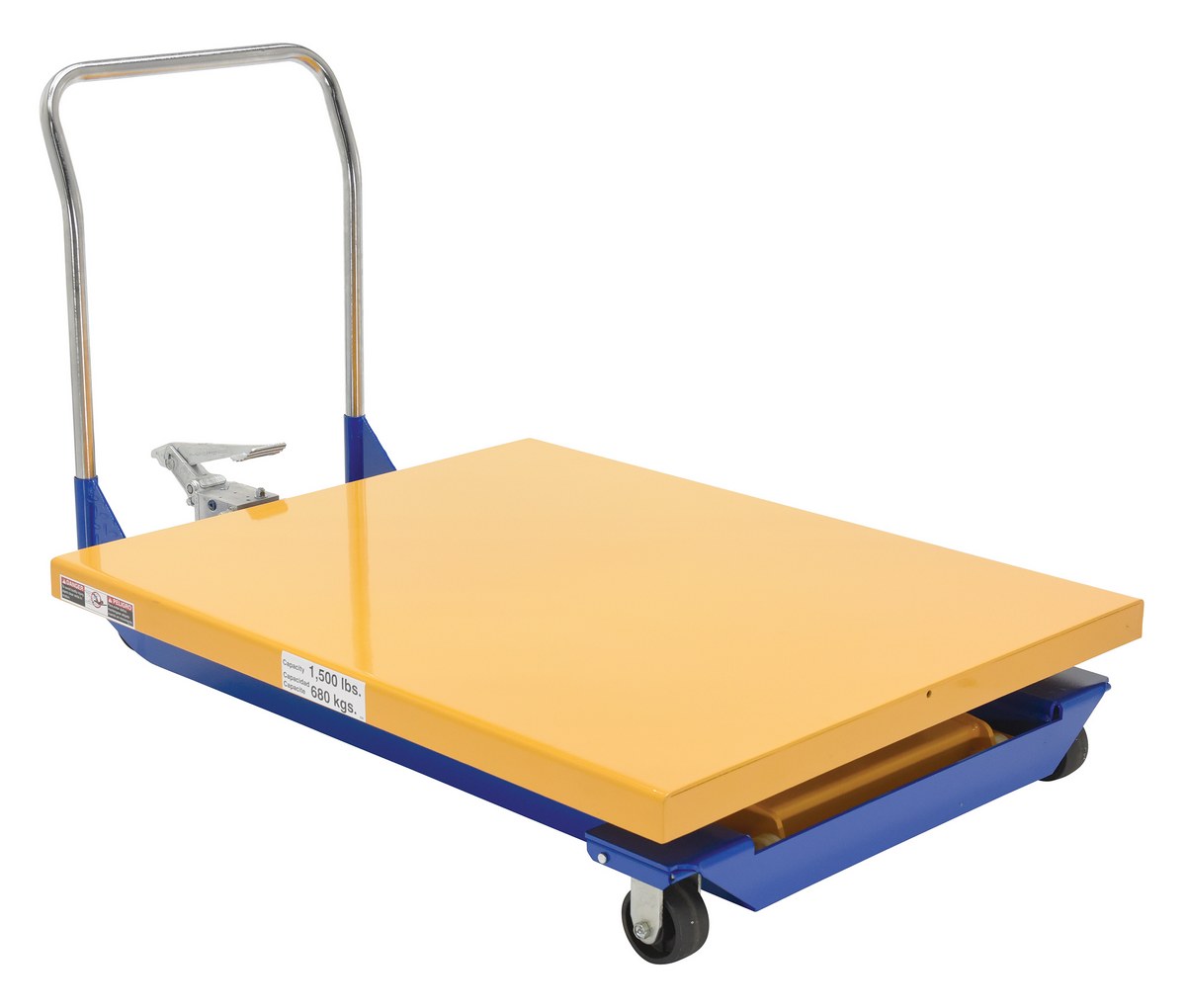

CART-40-15-M 1 Year Limited WarrantySteel Foot Pump Powered Scissor Cart 48 In. x 40 In. 1500 Lb. Capacity Blue/YellowUniform Capacity (lb.): 1,500
Platform Width (in.): 40		465
CART-40-15-M-PSS 1 Year Limited WarrantyPartially Stainless Steel Foot Pump Powered Scissor Cart 48 In. x 40 In. 1500 Lb. Capacity Blue/Yellow-
706

KEY: = Click For Expanded Model Details -- = 48hr Quickship item -- = Approval Drawing -- = Testing Certificate -- Warranty

DC & Manual Scissor Carts
Model Image PDF's Platform Size
(WxL)		 Capacity
(lbs)		 Service
Range		 Lift Speed Wt.
(lbs)

12V DC Power
CART-23-10-DC icon_approvaldrawings.jpgtilt_m4.jpgCompliance Certificate 24"x36" 1,000 11"to33-1/2" 14 sec. 578
CART-23-10-DC-PSS* Compliance Certificate 24"x36" 1,000 11" to 33-1/2" 14 sec. 578
CART-23-15-DC icon_approvaldrawings.jpgtilt_m4.jpgCompliance Certificate 24"x36" 1,500 11" to 33-1/2" 16 sec. 583
CART-23-15-DC-PSS* Compliance Certificate 24"x36" 1,500 11" to 33-1/2" 16 sec. 583
CART-24-10-DC icon_approvaldrawings.jpgtilt_m4.jpgCompliance Certificate 24"x48" 1,000 9" to 42-1/2" 15 sec. 584
CART-24-10-DC-PSS*
icon_approvaldrawings.jpg 24"x48" 1,000 9" to 42-1/2" 15 sec. 584
CART-24-15-DC icon_approvaldrawings.jpgtilt_m4.jpgCompliance Certificate 24"x48" 1,500 9" to 42-1/2" 17 sec. 602
CART-24-15-DC-PSS* - 24"x48" 1,500 9" to 42-1/2" 17 sec. 602
CART-32-10-DC Compliance Certificate 32"x48" 1,000 10-1/2" to 42-1/2" 15 sec. 670
CART-32-15-DC Compliance Certificate 32"x48" 1,500 10-1/2" to 42-1/2" 17 sec. 670
CART-40-10-DC Compliance Certificate 40"x48" 1,000 10-1/2" to 42-1/2" 15 sec 1005
CART-40-10-DC-PSS* - 40"x48" 1,000 10-1/2" to 42-1/2" 15 sec 1005
CART-40-15-DC Compliance Certificate 40"x48" 1,500 10-1/2" to 42-1/2" 17 sec. 1005
CART-40-15-DC-PSS* - 40"x48" 1,500 10-1/2" to 42-1/2" 17 sec. 1005
Two-Speed Foot Pump Foot Pump Speed
CART-23-10-M icon_approvaldrawings.jpgtilt_m4.jpgCompliance Certificate 24"x36" 1,000 11" to 33-1/2" Two 424
CART-23-10-M-PSS* Compliance Certificate 24"x36" 1,000 11" x 33-1/2" Two 424
CART-23-15-M icon_approvaldrawings.jpgtilt_m4.jpgCompliance Certificate 24"x36" 1,500 11" to 33-1/2" Two 427
CART-23-15-M-PSS* Compliance Certificate 24"x36" 1,500 11" x 33-1/2" Two 427
CART-24-10-M icon_approvaldrawings.jpgtilt_m4.jpgCompliance Certificate 24"x48" 1,000 9" to 42-1/2" Two 433
CART-24-10-M-PSS* - 24"x48" 1,000 9" to 42-1/2" Two 433
CART-24-15-M icon_approvaldrawings.jpgtilt_m4.jpgCompliance Certificate 24"x48" 1,500 9" to 42-1/2" Two 447
CART-24-15-M-PSS* - 24"x48" 1,500 9" to 42-1/2" Two 447
CART-32-10-M Compliance Certificate 32" x 48" 1,000 10-1/2" to 42-1/2" Two 565
CART-32-15-M Compliance Certificate 32" x 48" 1,500 10-1/2" to 42-1/2" Two 565

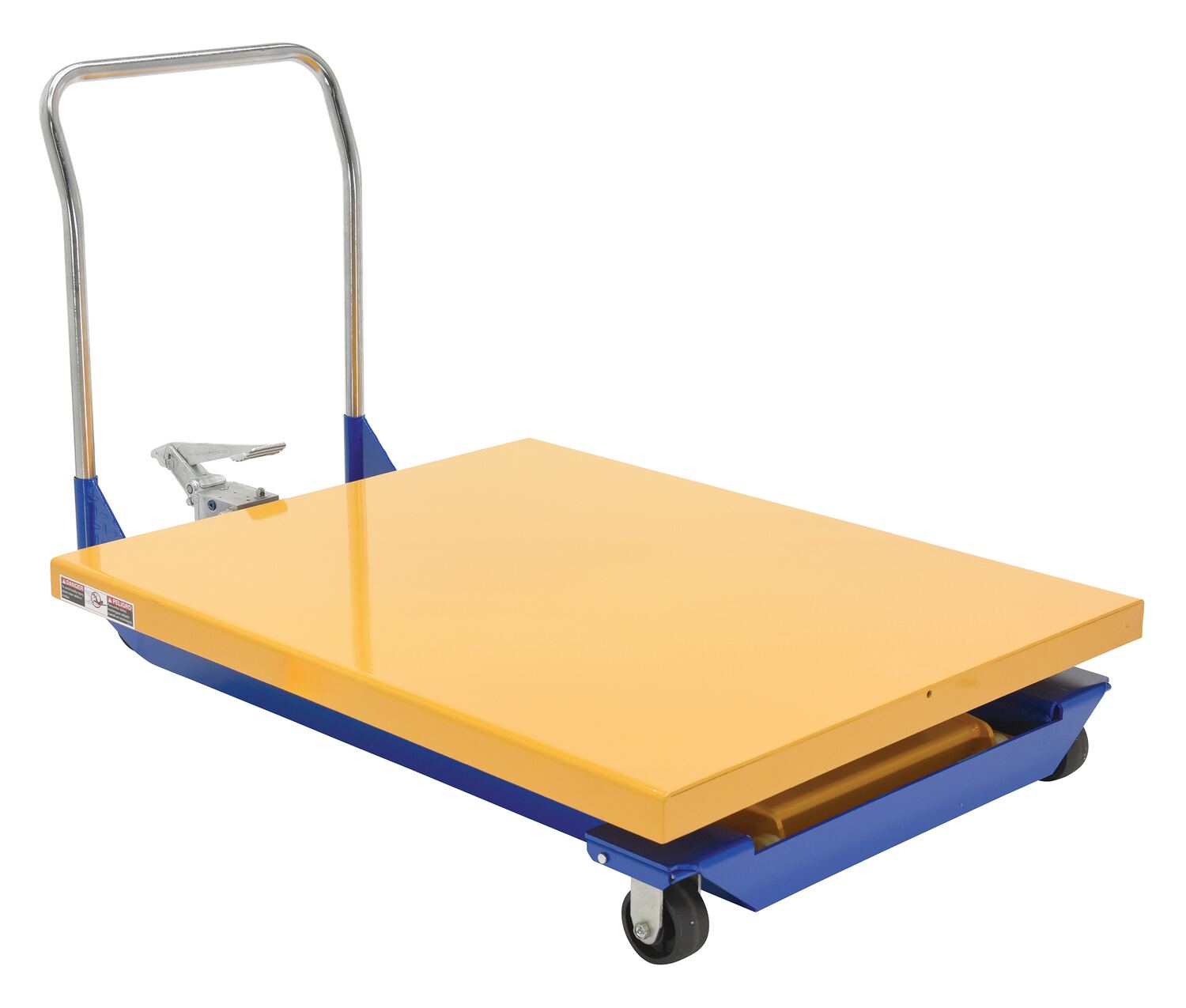

CART-40-10-M Compliance Certificate 40"x48" 1,000 10-1/2" to 42-1/2" Two 706
CART-40-10-M-PSS* - 40"x48" 1,000 10-1/2" to 42-1/2" Two 706
CART-40-15-M Compliance Certificate 40"x48" 1,500 10-1/2" to 42-1/2" Two 706
CART-40-15-M-PSS* - 40"x48" 1,500 10-1/2" to 42-1/2" Two 706

* Partially Stainless Steel Finish

KEY: Approval Drawing = Approval Drawing -- Approval Drawing = Warranty -- Approval Drawing = Testing Certificate

Steel DC Powered Scissor Cart 36 In. x 24 In. 1000 Lb. Capacity Blue/Yellow


Unit: EACH
Size: 36W x 46.5L x 36H
Weight: 494
1 Year Limited Warranty
Uniform Capacity (lb.): 1,000
Platform Width (in.): 24
Uniform Capacity (lb.): 1,000
Platform Width (in.): 24

Partially Stainless Steel DC Powered Scissor Cart 36 In. x 24 In. 1000 Lb. Capacity Blue/Yellow


Unit: EACH
Size: 36W x 46.5L x 36H
Weight: 536
1 Year Limited Warranty
Uniform Capacity (lb.): 1,000
Platform Width (in.): 24
Uniform Capacity (lb.): 1,000
Platform Width (in.): 24

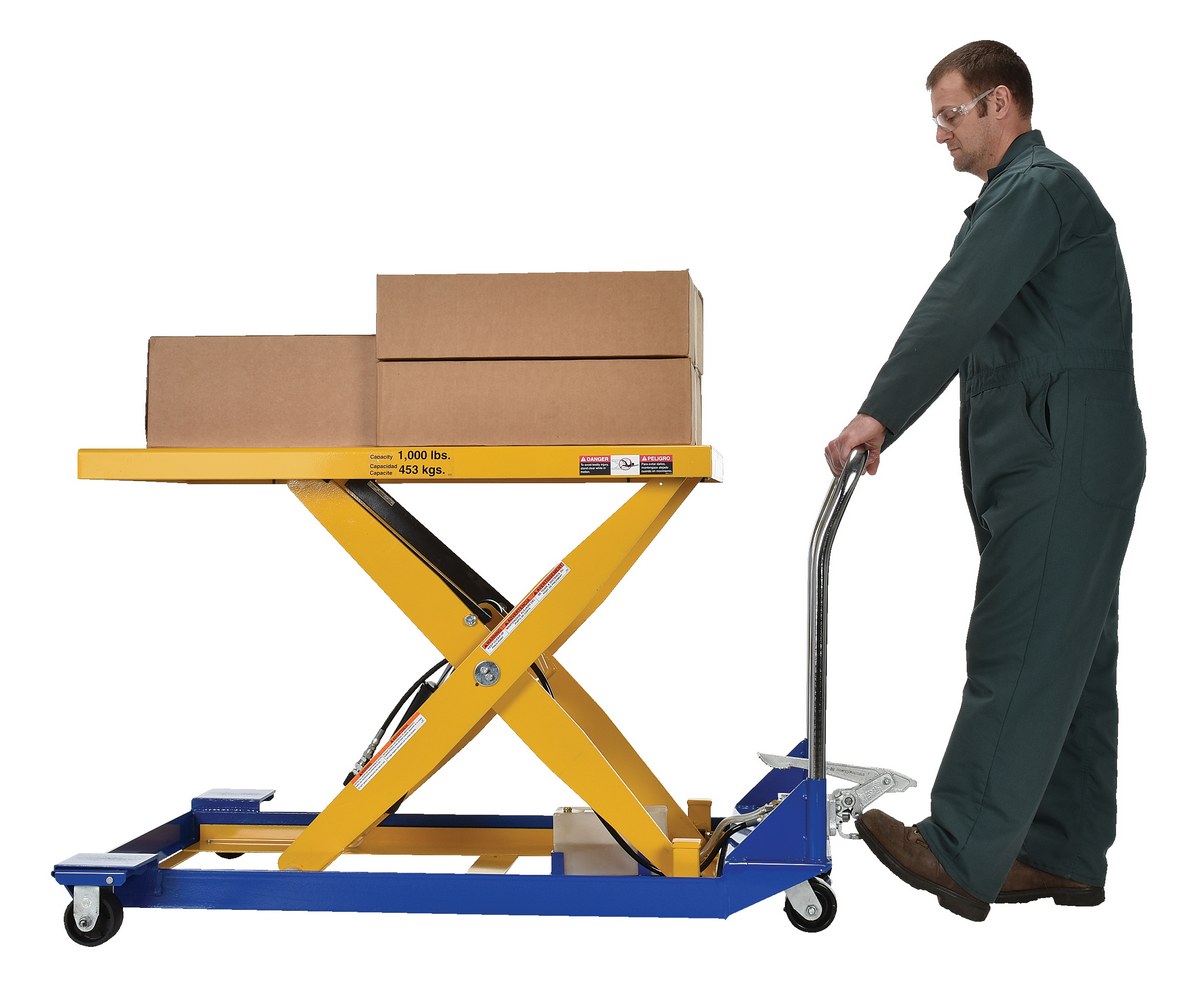

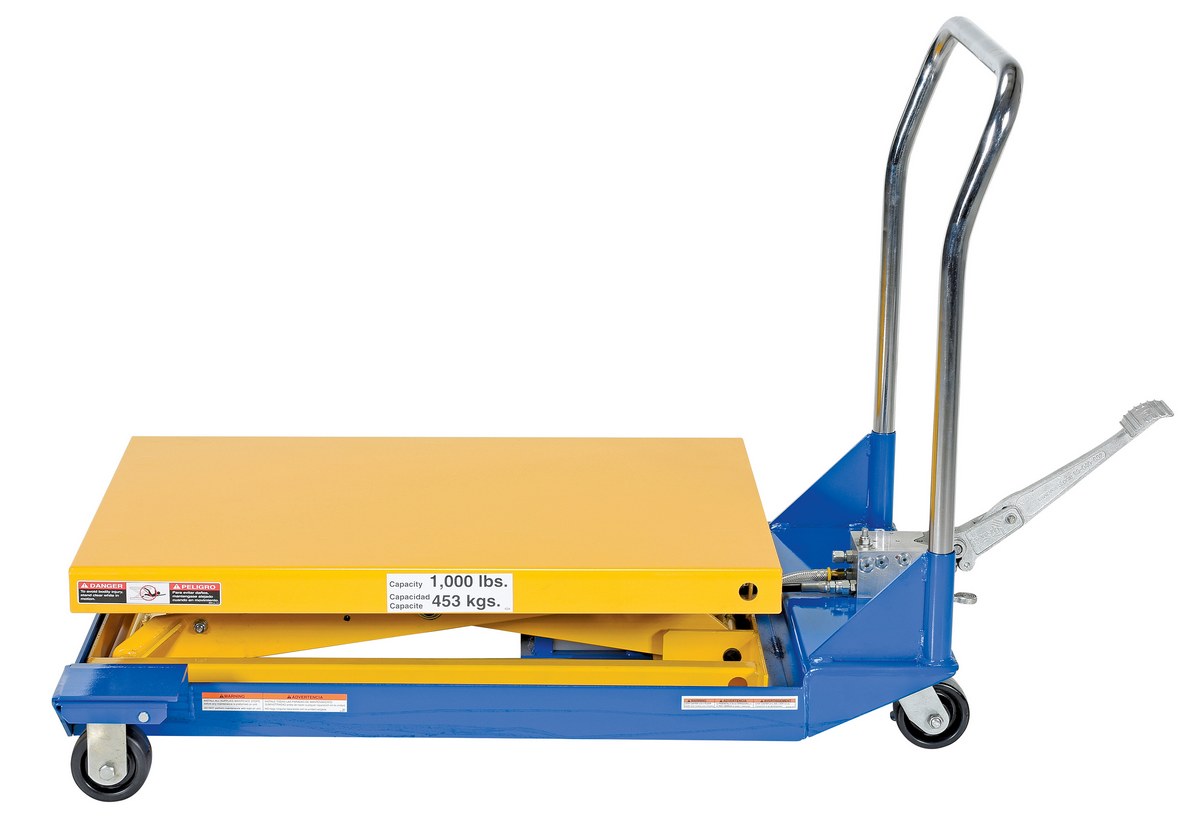

Steel Foot Pump Scissor Cart 36 In. x 24 In. 1000 Lb. Capacity Blue/Yellow


Unit: EACH
Size: 36W x 58.875L x 36H
Weight: 395
1 Year Limited Warranty
Uniform Capacity (lb.): 1,000
Platform Width (in.): 24
Uniform Capacity (lb.): 1,000
Platform Width (in.): 24

Stainless Steel Foot Pump Scissor Cart 36 In. x 24 In. 1000 Lb. Capacity Blue/Silver


Unit: EACH
Size: 36W x 58.875L x 36H
Weight: 395
1 Year Limited Warranty
Uniform Capacity (lb.): 1,000
Platform Width (in.): 24
Uniform Capacity (lb.): 1,000
Platform Width (in.): 24

Steel DC Powered Scissor Cart 36 In. x 24 In. 1500 Lb. Capacity Blue/Yellow


Unit: EACH
Size: 36W x 46.5L x 36H
Weight: 521
1 Year Limited Warranty
Uniform Capacity (lb.): 1,500
Platform Width (in.): 24
Uniform Capacity (lb.): 1,500
Platform Width (in.): 24

Partially Stainless Steel DC Powered Scissor Cart 36 In. x 24 In. 1500 Lb. Capacity Blue/Yellow


Unit: EACH
Size: 36W x 46.5L x 36H
Weight: 521
1 Year Limited Warranty
Uniform Capacity (lb.): 1,500
Platform Width (in.): 24
Uniform Capacity (lb.): 1,500
Platform Width (in.): 24

Steel Foot Pump Scissor Cart 36 In. x 24 In. 1500 Lb. Capacity Blue/Yellow


Unit: EACH
Size: 36W x 58.875L x 36H
Weight: 408
1 Year Limited Warranty
Uniform Capacity (lb.): 1,500
Platform Width (in.): 24
Uniform Capacity (lb.): 1,500
Platform Width (in.): 24

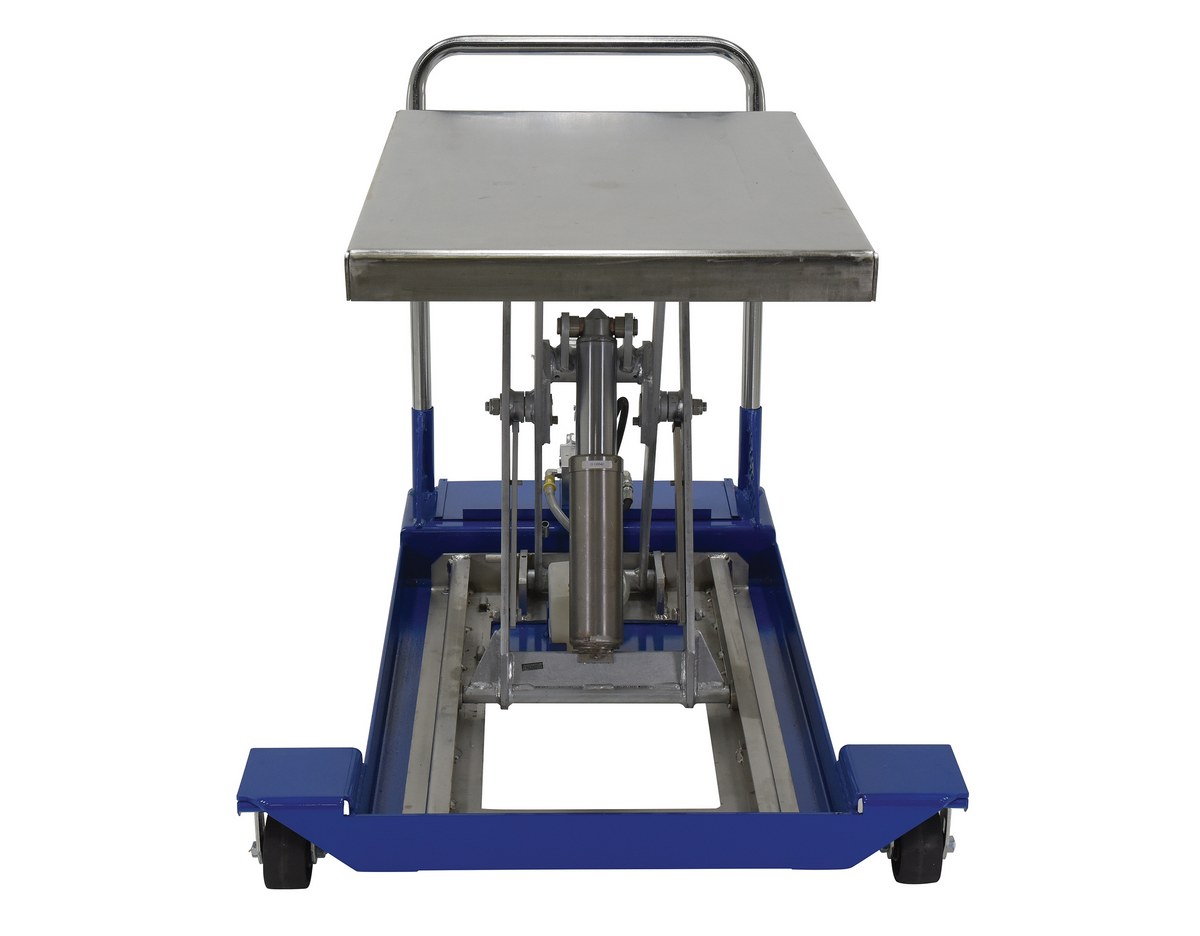

Partial Stainless Steel Foot Pump Scissor Cart 36 In. x 24 In. 1500 Lb. Capacity Blue/Silver


Unit: EACH
Size: 36W x 58.875L x 36H
Weight: 408
1 Year Limited Warranty
Uniform Capacity (lb.): 1,500
Platform Width (in.): 24
Uniform Capacity (lb.): 1,500
Platform Width (in.): 24

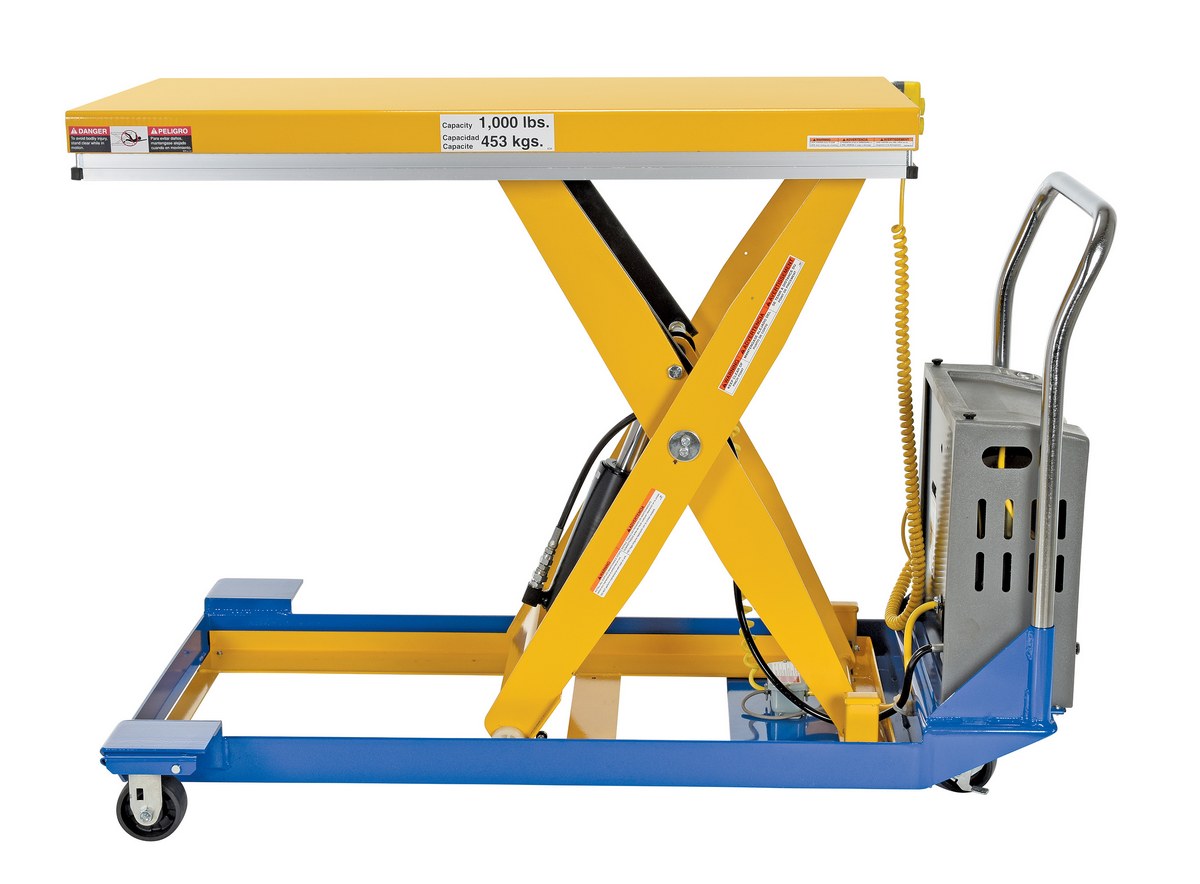

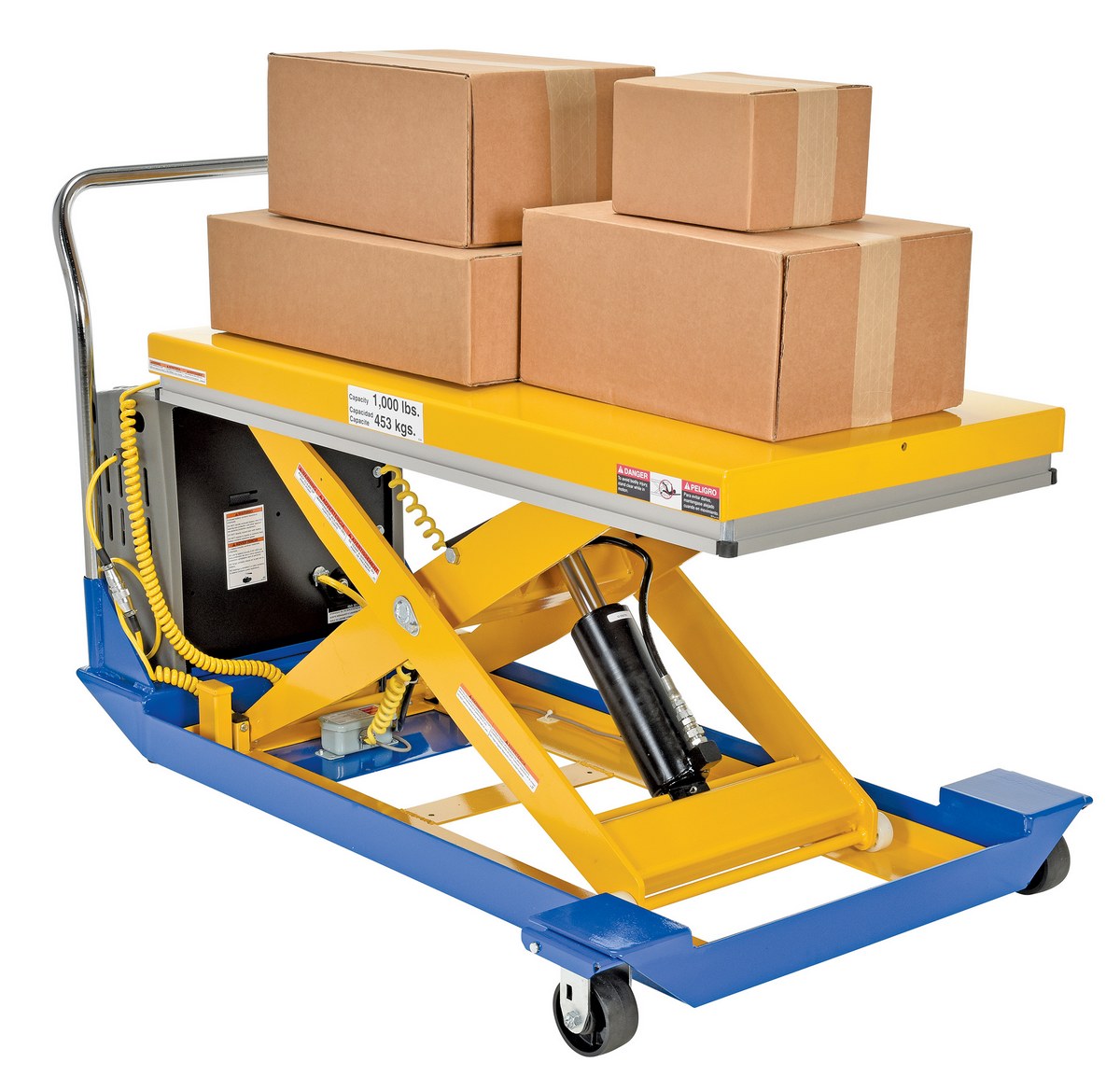

Steel DC Powered Scissor Cart 48 In. x 24 In. 1000 Lb. Capacity Blue/Yellow


Unit: EACH
Size: 36W x 59L x 36H
Weight: 512
1 Year Limited Warranty
Uniform Capacity (lb.): 1,000
Platform Width (in.): 24
Uniform Capacity (lb.): 1,000
Platform Width (in.): 24

Partially Stainless Steel DC Powered Scissor Cart 48 In. x 24 In. 1000 Lb. Capacity Blue/Yellow


Unit: EACH
Size: 36W x 59L x 42.5H
Weight: 512
1 Year Limited Warranty
Uniform Capacity (lb.): 1,000
Platform Width (in.): 24
Uniform Capacity (lb.): 1,000
Platform Width (in.): 24

Steel Foot Pump Scissor Cart 48 In. x 24 In. 1000 Lb. Capacity Blue/Yellow


Unit: EACH
Size: 36W x 69.5L x 36H
Weight: 424
1 Year Limited Warranty
Uniform Capacity (lb.): 1,000
Platform Width (in.): 24
Uniform Capacity (lb.): 1,000
Platform Width (in.): 24

Partial Stainless Steel Foot Pump Scissor Cart 48 In. x 24 In. 1000 Lb. Capacity Blue/Silver


Unit: EACH
Size: 36W x 69.5L x 42.5H
Weight: 433
1 Year Limited Warranty
Uniform Capacity (lb.): 1,000
Platform Width (in.): 24
Uniform Capacity (lb.): 1,000
Platform Width (in.): 24

Steel Foot Pump Scissor Cart 36 In. x 24 In. 1500 Lb. Capacity Blue/Yellow


Unit: EACH
Size: 36W x 59L x 36H
Weight: 516
1 Year Limited Warranty
Uniform Capacity (lb.): 1,500
Platform Width (in.): 24
Uniform Capacity (lb.): 1,500
Platform Width (in.): 24

Partial Stainless Steel Foot Pump Scissor Cart 36 In. x 24 In. 1500 Lb. Capacity Blue/Silver


Unit: EACH
Size: 36W x 59L x 42.5H
Weight: 516
1 Year Limited Warranty
Uniform Capacity (lb.): 1,500
Platform Width (in.): 24
Uniform Capacity (lb.): 1,500
Platform Width (in.): 24

Steel Foot Pump Scissor Cart 48 In. x 24 In. 1500 Lb. Capacity Blue/Yellow


Unit: EACH
Size: 36W x 69.5L x 36H
Weight: 427
1 Year Limited Warranty
Uniform Capacity (lb.): 1,500
Platform Width (in.): 24
Uniform Capacity (lb.): 1,500
Platform Width (in.): 24

Partial Stainless Steel Foot Pump Scissor Cart 48 In. x 24 In. 1500 Lb. Capacity Blue/Silver


Unit: EACH
Size: 36W x 69.5L x 42.5H
Weight: 447
1 Year Limited Warranty
Uniform Capacity (lb.): 1,500
Platform Width (in.): 24
Uniform Capacity (lb.): 1,500
Platform Width (in.): 24

Steel DC Powered Scissor Cart 48 In. x 32 In. 1000 Lb. Capacity Blue/Yellow


Unit: EACH
Size: W x L x H
Weight: 527
1 Year Limited Warranty
Uniform Capacity (lb.): 1,000
Platform Width (in.): 32
Uniform Capacity (lb.): 1,000
Platform Width (in.): 32

Steel Foot Pump Powered Scissor Cart 48 In. x 32 In. 1000 Lb. Capacity Blue/Yellow


Unit: EACH
Size: W x L x H
Weight: 415
1 Year Limited Warranty
Uniform Capacity (lb.): 1,000
Platform Width (in.): 32
Uniform Capacity (lb.): 1,000
Platform Width (in.): 32

Steel DC Powered Scissor Cart 48 In. x 32 In. 1500 Lb. Capacity Blue/Yellow


Unit: EACH
Size: W x L x H
Weight: 522
1 Year Limited Warranty
Uniform Capacity (lb.): 1,500
Platform Width (in.): 32
Uniform Capacity (lb.): 1,500
Platform Width (in.): 32

Steel Foot Pump Powered Scissor Cart 48 In. x 32 In. 1500 Lb. Capacity Blue/Yellow


Unit: EACH
Size: W x L x H
Weight: 445
1 Year Limited Warranty
Uniform Capacity (lb.): 1,500
Platform Width (in.): 32
Uniform Capacity (lb.): 1,500
Platform Width (in.): 32

Steel DC Powered Scissor Cart 48 In. x 40 In. 1000 Lb. Capacity Blue/Yellow


Unit: EACH
Size: W x L x H
Weight: 555
1 Year Limited Warranty
Uniform Capacity (lb.): 1,000
Platform Width (in.): 40
Uniform Capacity (lb.): 1,000
Platform Width (in.): 40

Partially Stainless Steel DC Powered Scissor Cart 48 In. x 40 In. 1000 Lb. Capacity Blue/Yellow


Unit: EACH
Size: 36W x 59L x 42.5H
Weight: 555
1 Year Limited Warranty
-

-

Steel Foot Pump Powered Scissor Cart 48 In. x 40 In. 1000 Lb. Capacity Blue/Yellow


Unit: EACH
Size: W x L x H
Weight: 435
1 Year Limited Warranty
Uniform Capacity (lb.): 1,000
Platform Width (in.): 40
Uniform Capacity (lb.): 1,000
Platform Width (in.): 40

Partially Stainless Steel Foot Pump Powered Scissor Cart 48 In. x 40 In. 1000 Lb. Capacity Blue/Yellow


Unit: EACH
Size: 36W x 69.5L x 42.5H
Weight: 706
1 Year Limited Warranty
-

-

Steel DC Powered Scissor Cart 48 In. x 40 In. 1500 Lb. Capacity Blue/Yellow


Unit: EACH
Size: W x L x H
Weight: 549
1 Year Limited Warranty
Uniform Capacity (lb.): 1,500
Platform Width (in.): 40
Uniform Capacity (lb.): 1,500
Platform Width (in.): 40

Partially Stainless Steel DC Powered Scissor Cart 48 In. x 40 In. 1500 Lb. Capacity Blue/Yellow


Unit: EACH
Size: 36W x 59L x 42.5H
Weight: 549
1 Year Limited Warranty
-

-

Steel Foot Pump Powered Scissor Cart 48 In. x 40 In. 1500 Lb. Capacity Blue/Yellow


Unit: EACH
Size: 39.25W x 69.5L x 37H
Weight: 465
1 Year Limited Warranty
Uniform Capacity (lb.): 1,500
Platform Width (in.): 40
Uniform Capacity (lb.): 1,500
Platform Width (in.): 40

Partially Stainless Steel Foot Pump Powered Scissor Cart 48 In. x 40 In. 1500 Lb. Capacity Blue/Yellow


Unit: EACH
Size: 36W x 69.5L x 42.5H
Weight: 706
1 Year Limited Warranty
-

-


DC Powered and Manual Scissor Carts PDF's will open in a new window when clicked.

Manuals


CART-23 -24
Owners Manual

CART-DC
Owners Manual

Autoshifter
Owners Manual

FOOT PUMP
Owners Manual

Survey Sheets

No Survey Sheets For This Product


Approval Drawings


CART-23-10-DC

CART-23-10-M

CART-23-15-DC

CART-23-15-M

CART-24-10-DC

CART-24-10-DC-PSS

CART-24-10-M

CART-24-15-DC

CART-24-15-M

CART-32-15-DC

CART-32-15-M

CART-32-10-M

CART-32-10-DC

Testing Certificates


CART-23-10-DC

CART-23-10-DC-PSS

CART-23-10-M

CART-23-10-M-PSS

CART-23-15-DC

CART-23-15-DC-PSS

CART-23-15-M

CART-23-15-M-PSS

CART-24-10-DC

CART-24-10-DC-PSS

CART-24-10-M

CART-24-10-M-PSS

CART-24-15-DC

CART-24-15-DC-PSS

CART-24-15-M

CART-24-15-M-PSS

CART-32-10-DC

CART-32-10-M

CART-32-15-DC

CART-32-15-M

CART-40-10-DC

CART-40-10-DC-PSS

CART-40-10-M

CART-40-10-M-PSS

CART-40-15-DC

CART-40-15-DC-PSS

CART-40-15-M

CART-40-15-M-PSS

SDS Sheets


Midwest Battery - Lead/Acid Battery, Wet, Filled with Acid SDS Sheet for: CART-23-10-DC
Hydraulic Oil SDS Sheet for: CART-23-10-DC

Midwest Battery - Lead/Acid Battery, Wet, Filled with Acid SDS Sheet for: CART-23-10-DC-PSS
Hydraulic Oil SDS Sheet for: CART-23-10-DC-PSS
Hydraulic Oil SDS Sheet for: CART-23-10-M
Hydraulic Oil SDS Sheet for: CART-23-10-M-PSS

Midwest Battery - Lead/Acid Battery, Wet, Filled with Acid SDS Sheet for: CART-23-15-DC
Hydraulic Oil SDS Sheet for: CART-23-15-DC

Midwest Battery - Lead/Acid Battery, Wet, Filled with Acid SDS Sheet for: CART-23-15-DC-PSS
Hydraulic Oil SDS Sheet for: CART-23-15-DC-PSS
Hydraulic Oil SDS Sheet for: CART-23-15-M
Hydraulic Oil SDS Sheet for: CART-23-15-M-PSS

Midwest Battery - Lead/Acid Battery, Wet, Filled with Acid SDS Sheet for: CART-24-10-DC
Hydraulic Oil SDS Sheet for: CART-24-10-DC

Midwest Battery - Lead/Acid Battery, Wet, Filled with Acid SDS Sheet for: CART-24-10-DC-PSS
Hydraulic Oil SDS Sheet for: CART-24-10-DC-PSS
Hydraulic Oil SDS Sheet for: CART-24-10-M
Hydraulic Oil SDS Sheet for: CART-24-10-M-PSS

Midwest Battery - Lead/Acid Battery, Wet, Filled with Acid SDS Sheet for: CART-24-15-DC
Hydraulic Oil SDS Sheet for: CART-24-15-DC

Midwest Battery - Lead/Acid Battery, Wet, Filled with Acid SDS Sheet for: CART-24-15-DC-PSS
Hydraulic Oil SDS Sheet for: CART-24-15-DC-PSS
Hydraulic Oil SDS Sheet for: CART-24-15-M
Hydraulic Oil SDS Sheet for: CART-24-15-M-PSS

Midwest Battery - Lead/Acid Battery, Wet, Filled with Acid SDS Sheet for: CART-32-10-DC
Hydraulic Oil SDS Sheet for: CART-32-10-DC
Hydraulic Oil SDS Sheet for: CART-32-10-M

Midwest Battery - Lead/Acid Battery, Wet, Filled with Acid SDS Sheet for: CART-32-15-DC
Hydraulic Oil SDS Sheet for: CART-32-15-DC
Hydraulic Oil SDS Sheet for: CART-32-15-M

Midwest Battery - Lead/Acid Battery, Wet, Filled with Acid SDS Sheet for: CART-40-10-DC
Hydraulic Oil SDS Sheet for: CART-40-10-DC

Midwest Battery - Lead/Acid Battery, Wet, Filled with Acid SDS Sheet for: CART-40-10-DC-PSS
Hydraulic Oil SDS Sheet for: CART-40-10-DC-PSS
Hydraulic Oil SDS Sheet for: CART-40-10-M
Hydraulic Oil SDS Sheet for: CART-40-10-M-PSS

Midwest Battery - Lead/Acid Battery, Wet, Filled with Acid SDS Sheet for: CART-40-15-DC
Hydraulic Oil SDS Sheet for: CART-40-15-DC

Midwest Battery - Lead/Acid Battery, Wet, Filled with Acid SDS Sheet for: CART-40-15-DC-PSS
Hydraulic Oil SDS Sheet for: CART-40-15-DC-PSS
Hydraulic Oil SDS Sheet for: CART-40-15-M
Hydraulic Oil SDS Sheet for: CART-40-15-M-PSS

Other PDF's

No "Other PDFs" For This Product...


Directory Links Of Available PDF's For All Products

Manuals
Survey Sheets
Drawings
Certificates of Testing
Warranties
SDS Data Sheets








Visit Our Youtube Channel For All Available Videos For All Products


CART-23-10-DC-PSS
 CART-23-10-DC-PSS CART-23-10-DC
 CART-23-10-DC CART-23-10-DC
 CART-23-10-DC CART-23-10-DC
 CART-23-10-DC CART-23-10-DC
 CART-23-10-DC CART-23-10-DC
 CART-23-10-DC CART-23-10-M-PSS
 CART-23-10-M-PSS CART-23-10-M-PSS
 CART-23-10-M-PSS CART-23-10-M-PSS
 CART-23-10-M-PSS CART-23-10-M-PSS
 CART-23-10-M-PSS CART-23-10-M-PSS
 CART-23-10-M-PSS CART-23-10-M
 CART-23-10-M CART-23-10-M
 CART-23-10-M CART-23-10-M
 CART-23-10-M CART-23-10-M
 CART-23-10-M CART-23-10-M
 CART-23-10-M CART-23-10-M
 CART-23-10-M CART-23-10-M
 CART-23-10-M CART-23-10-M
 CART-23-10-M CART-23-15-DC-PSS
 CART-23-15-DC-PSS CART-23-15-DC-PSS
 CART-23-15-DC-PSS CART-23-15-DC-PSS
 CART-23-15-DC-PSS CART-23-15-DC-PSS
 CART-23-15-DC-PSS CART-23-15-DC-PSS
 CART-23-15-DC-PSS CART-23-15-DC
 CART-23-15-DC CART-23-15-DC
 CART-23-15-DC CART-23-15-DC
 CART-23-15-DC CART-23-15-DC
 CART-23-15-DC CART-23-15-DC
 CART-23-15-DC CART-23-15-M-PSS
 CART-23-15-M-PSS CART-23-15-M-PSS
 CART-23-15-M-PSS CART-23-15-M-PSS
 CART-23-15-M-PSS CART-23-15-M-PSS
 CART-23-15-M-PSS CART-23-15-M-PSS
 CART-23-15-M-PSS CART-23-15-M
 CART-23-15-M CART-23-15-M
 CART-23-15-M CART-23-15-M
 CART-23-15-M CART-23-15-M
 CART-23-15-M CART-23-15-M
 CART-23-15-M CART-23-15-M
 CART-23-15-M CART-23-15-M
 CART-23-15-M CART-23-15-M
 CART-23-15-M CART-24-10-DC-PSS
 CART-24-10-DC-PSS CART-24-10-DC
 CART-24-10-DC CART-24-10-DC
 CART-24-10-DC CART-24-10-DC
 CART-24-10-DC CART-24-10-DC
 CART-24-10-DC CART-24-10-DC
 CART-24-10-DC CART-24-10-DC
 CART-24-10-DC CART-24-10-DC
 CART-24-10-DC CART-24-10-DC
 CART-24-10-DC CART-24-10-M-PSS
 CART-24-10-M-PSS CART-24-10-M
 CART-24-10-M CART-24-10-M
 CART-24-10-M CART-24-10-M
 CART-24-10-M CART-24-10-M
 CART-24-10-M CART-24-10-M
 CART-24-10-M CART-24-10-M
 CART-24-10-M CART-24-15-DC-PSS
 CART-24-15-DC-PSS CART-24-15-DC
 CART-24-15-DC CART-24-15-DC
 CART-24-15-DC CART-24-15-DC
 CART-24-15-DC CART-24-15-DC
 CART-24-15-DC CART-24-15-DC
 CART-24-15-DC CART-24-15-DC
 CART-24-15-DC CART-24-15-DC
 CART-24-15-DC CART-24-15-DC
 CART-24-15-DC CART-24-15-DC
 CART-24-15-DC CART-24-15-DC
 CART-24-15-DC CART-24-15-DC
 CART-24-15-DC CART-24-15-M-PSS
 CART-24-15-M-PSS CART-24-15-M
 CART-24-15-M CART-24-15-M
 CART-24-15-M CART-24-15-M
 CART-24-15-M CART-24-15-M
 CART-24-15-M CART-32-10-DC
 CART-32-10-DC CART-32-10-M
 CART-32-10-M CART-32-10-M
 CART-32-10-M CART-32-10-M
 CART-32-10-M CART-32-10-M
 CART-32-10-M CART-32-15-DC
 CART-32-15-DC CART-32-15-M
 CART-32-15-M CART-32-15-M
 CART-32-15-M CART-32-15-M
 CART-32-15-M CART-32-15-M
 CART-32-15-M CART-40-10-DC-PSS
 CART-40-10-DC-PSS CART-40-10-DC
 CART-40-10-DC CART-40-10-M-PSS
 CART-40-10-M-PSS CART-40-10-M
 CART-40-10-M CART-40-15-DC-PSS
 CART-40-15-DC-PSS CART-40-15-DC
 CART-40-15-DC CART-40-15-DC
 CART-40-15-DC CART-40-15-DC
 CART-40-15-DC CART-40-15-DC
 CART-40-15-DC CART-40-15-M-PSS
 CART-40-15-M-PSS CART-40-15-M
 CART-40-15-M CART-40-15-M
 CART-40-15-M CART-40-15-M
 CART-40-15-M CART-40-15-M
 CART-40-15-M
We will continue adding new product images to each gallery as they become available. Check back soon.

Q: Does the CART-24-10-DC have a battery charge indicator?

A: The BCI (battery charge indicator) is included with the DC powered carts.




Print Friendly

Related or Similar Products:

Hydraulic Elevating Carts
Product

Hydraulic Elevating Carts

Auto-Shift Hydraulic Elevating Carts
Product

Auto-Shift Hydraulic Elevating Carts

DC Powered Hydraulic Elevating Carts
Product

DC Powered Hydraulic Elevating Carts

Powered Drive and Powered Lift Hydraulic Scissor Carts
Product

Powered Drive and Powered Lift Hydraulic Scissor Carts

Traction Drive Electric Hydraulic Elevating Carts
Product

Traction Drive Electric Hydraulic Elevating Carts

Pneumatic Scissor Lift Table
Product

Pneumatic Scissor Lift Table

Before placing an order, please confirm that the ship to company is able to receive shipments on the estimated delivery date





DC Powered and Manual Scissor ...




Tables provide unparalleled ergonomic support in lifting, palletizing, loading, and unloading applications. Carts are raised or lowered with either a 12V DC powered motor or a manual two-speed auto-shift foot pump. Units roll smoothly with (2) rigid and (2) swivel 4" x 2" phenolic casters with brakes. Push handle is removable.

Internal DC powered electric motor and 12V battery is included on DC units. Electric motor is rated at 1600 watts. Includes battery charger (operated on 115V AC power). Push buttons to raise and lower lift are located on power unit. Detachable hand control on coil cord is standard. Key-operated ON/OFF control for better security is built into the power unit. Platform is equipped with perimeter pinch-point guard for OSHA compliance. Baked-in powder-coat finish for added toughness.


DC & Manual Scissor Carts
Model Image PDF's Platform Size
(WxL)		 Capacity
(lbs)		 Service
Range		 Lift Speed Wt.
(lbs)

12V DC Power
CART-23-10-DC icon_approvaldrawings.jpgtilt_m4.jpgCompliance Certificate 24"x36" 1,000 11"to33-1/2" 14 sec. 578
CART-23-10-DC-PSS* Compliance Certificate 24"x36" 1,000 11" to 33-1/2" 14 sec. 578
CART-23-15-DC icon_approvaldrawings.jpgtilt_m4.jpgCompliance Certificate 24"x36" 1,500 11" to 33-1/2" 16 sec. 583
CART-23-15-DC-PSS* Compliance Certificate 24"x36" 1,500 11" to 33-1/2" 16 sec. 583
CART-24-10-DC icon_approvaldrawings.jpgtilt_m4.jpgCompliance Certificate 24"x48" 1,000 9" to 42-1/2" 15 sec. 584
CART-24-10-DC-PSS*
icon_approvaldrawings.jpg 24"x48" 1,000 9" to 42-1/2" 15 sec. 584
CART-24-15-DC icon_approvaldrawings.jpgtilt_m4.jpgCompliance Certificate 24"x48" 1,500 9" to 42-1/2" 17 sec. 602
CART-24-15-DC-PSS* - 24"x48" 1,500 9" to 42-1/2" 17 sec. 602
CART-32-10-DC Compliance Certificate 32"x48" 1,000 10-1/2" to 42-1/2" 15 sec. 670
CART-32-15-DC Compliance Certificate 32"x48" 1,500 10-1/2" to 42-1/2" 17 sec. 670
CART-40-10-DC Compliance Certificate 40"x48" 1,000 10-1/2" to 42-1/2" 15 sec 1005
CART-40-10-DC-PSS* - 40"x48" 1,000 10-1/2" to 42-1/2" 15 sec 1005
CART-40-15-DC Compliance Certificate 40"x48" 1,500 10-1/2" to 42-1/2" 17 sec. 1005
CART-40-15-DC-PSS* - 40"x48" 1,500 10-1/2" to 42-1/2" 17 sec. 1005

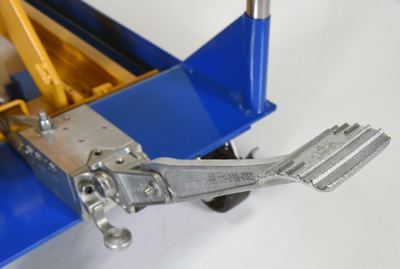

Two-Speed Foot Pump Foot Pump Speed

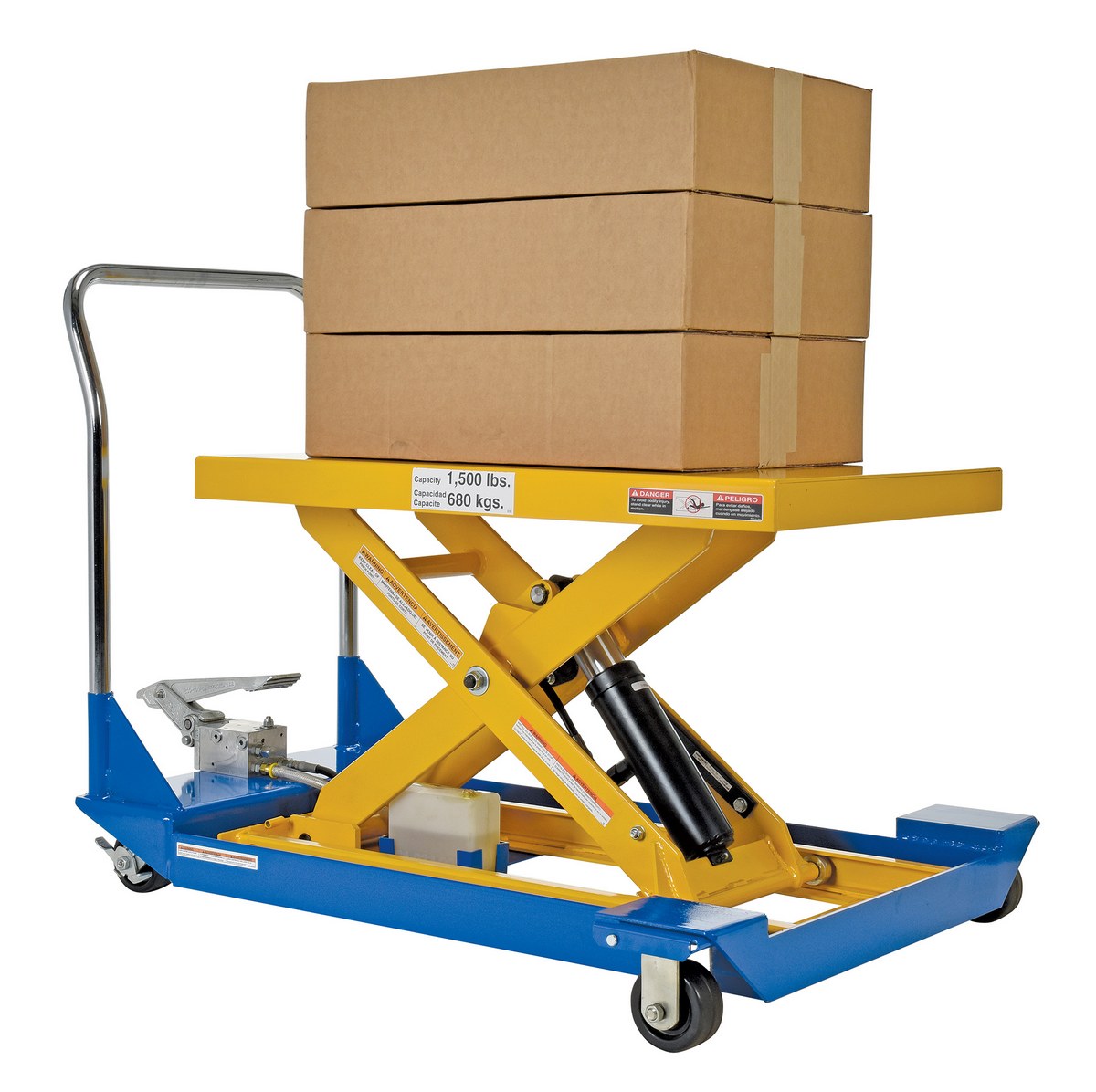

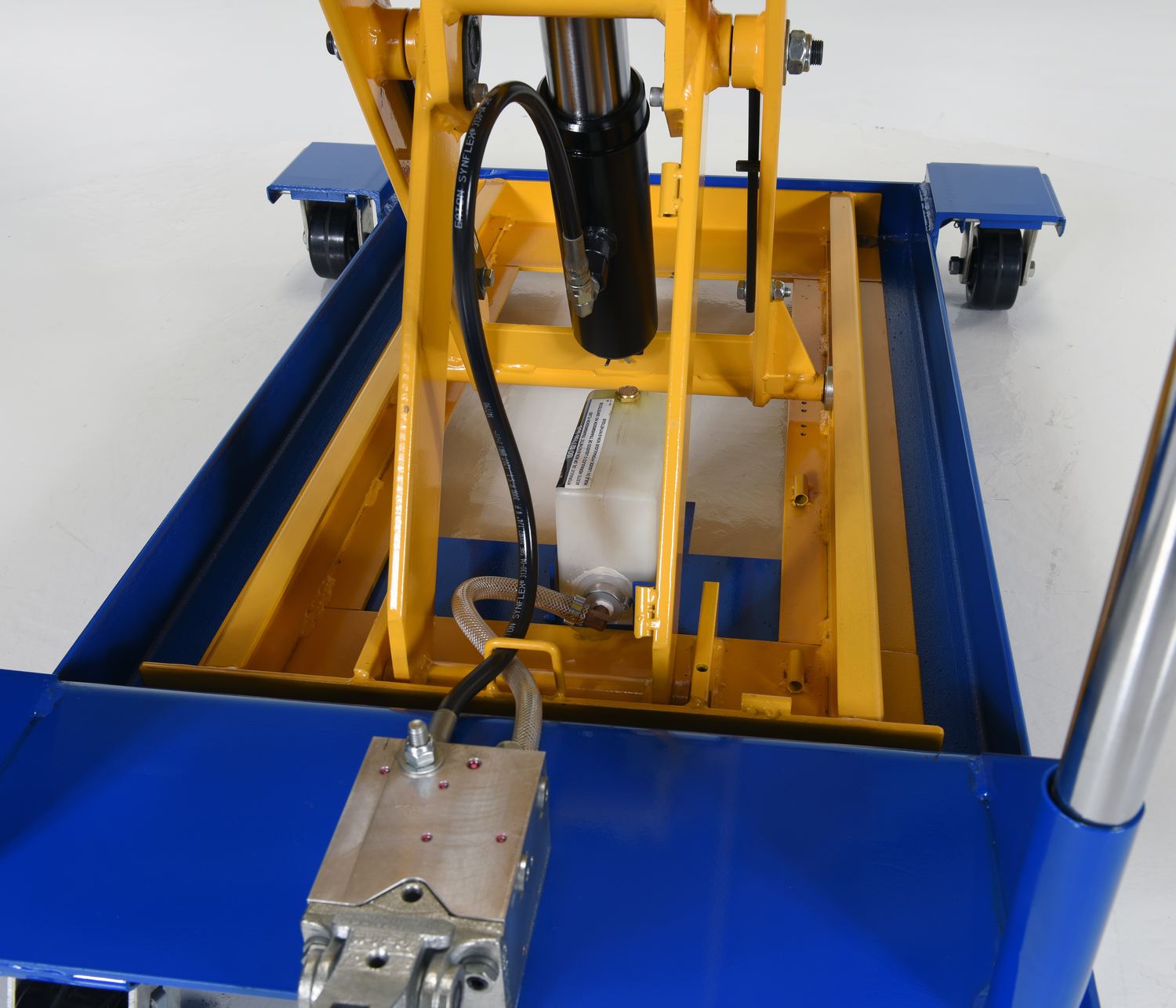

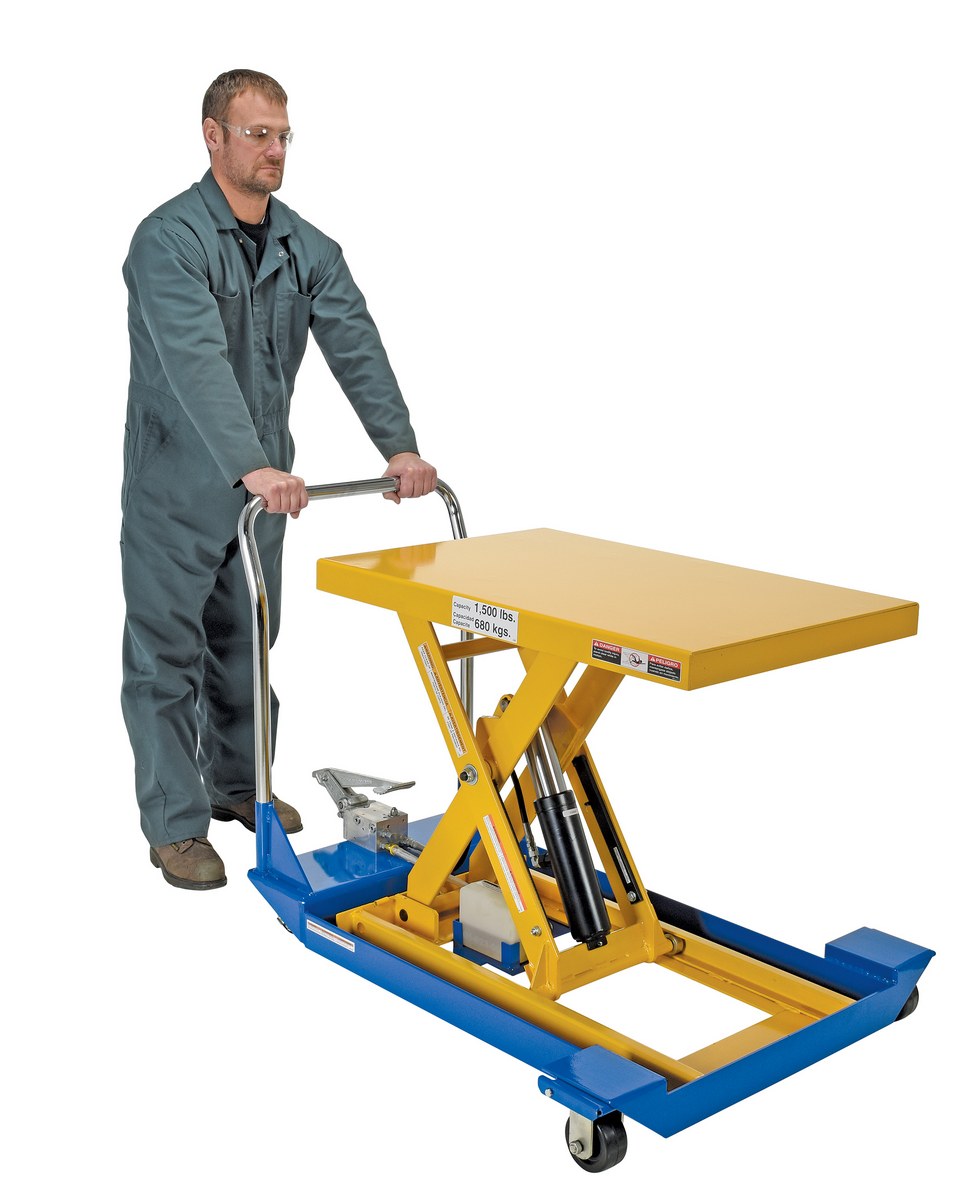

CART-23-10-M icon_approvaldrawings.jpgtilt_m4.jpgCompliance Certificate 24"x36" 1,000 11" to 33-1/2" Two 424
CART-23-10-M-PSS* Compliance Certificate 24"x36" 1,000 11" x 33-1/2" Two 424

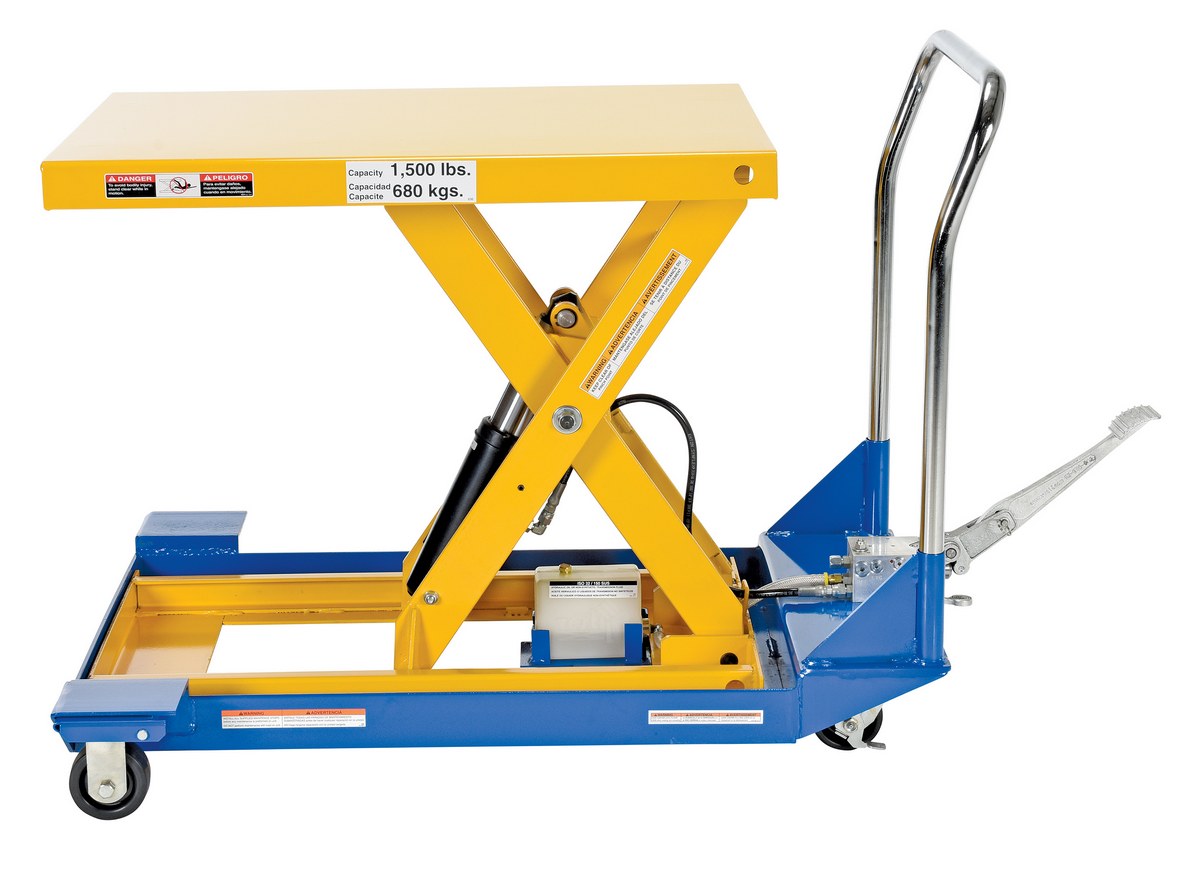

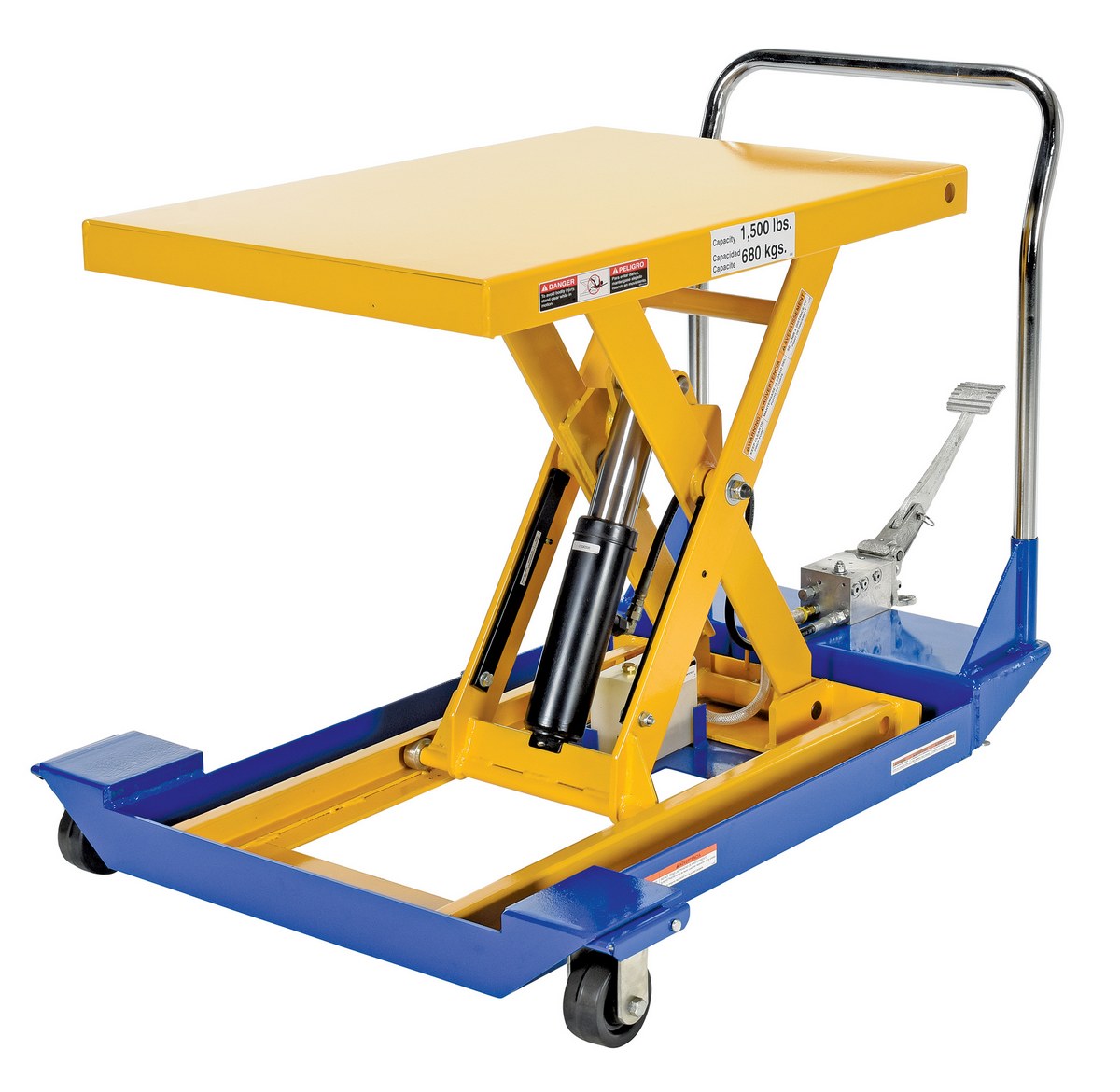

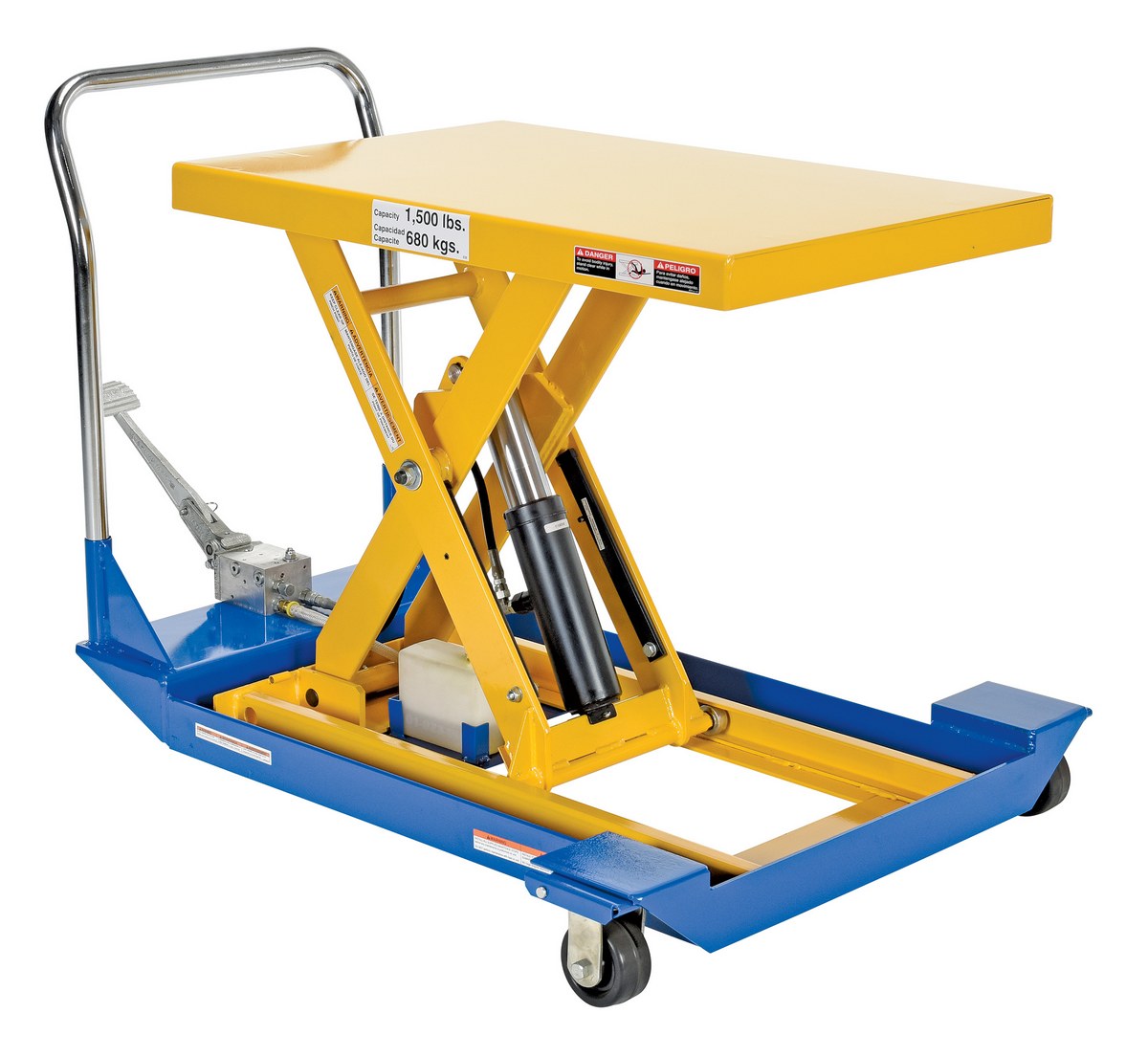

CART-23-15-M icon_approvaldrawings.jpgtilt_m4.jpgCompliance Certificate 24"x36" 1,500 11" to 33-1/2" Two 427

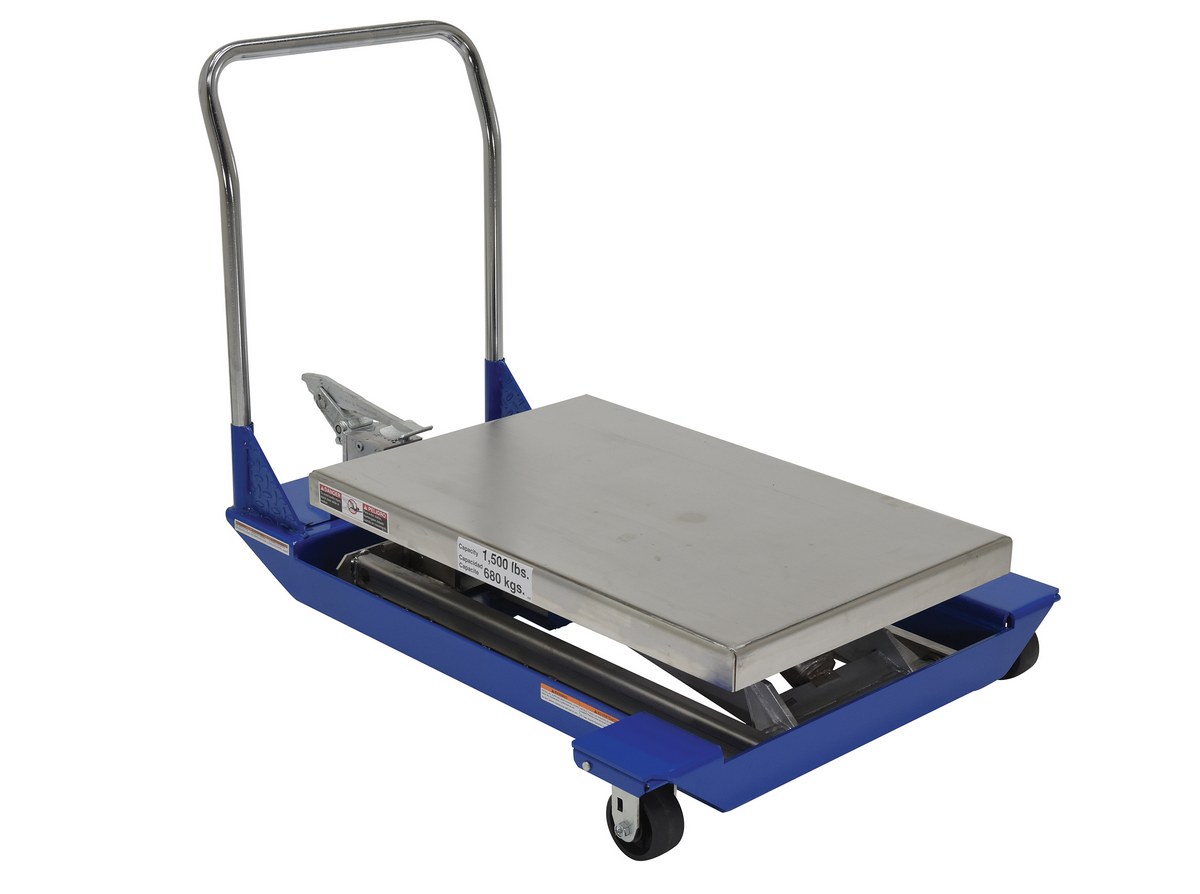

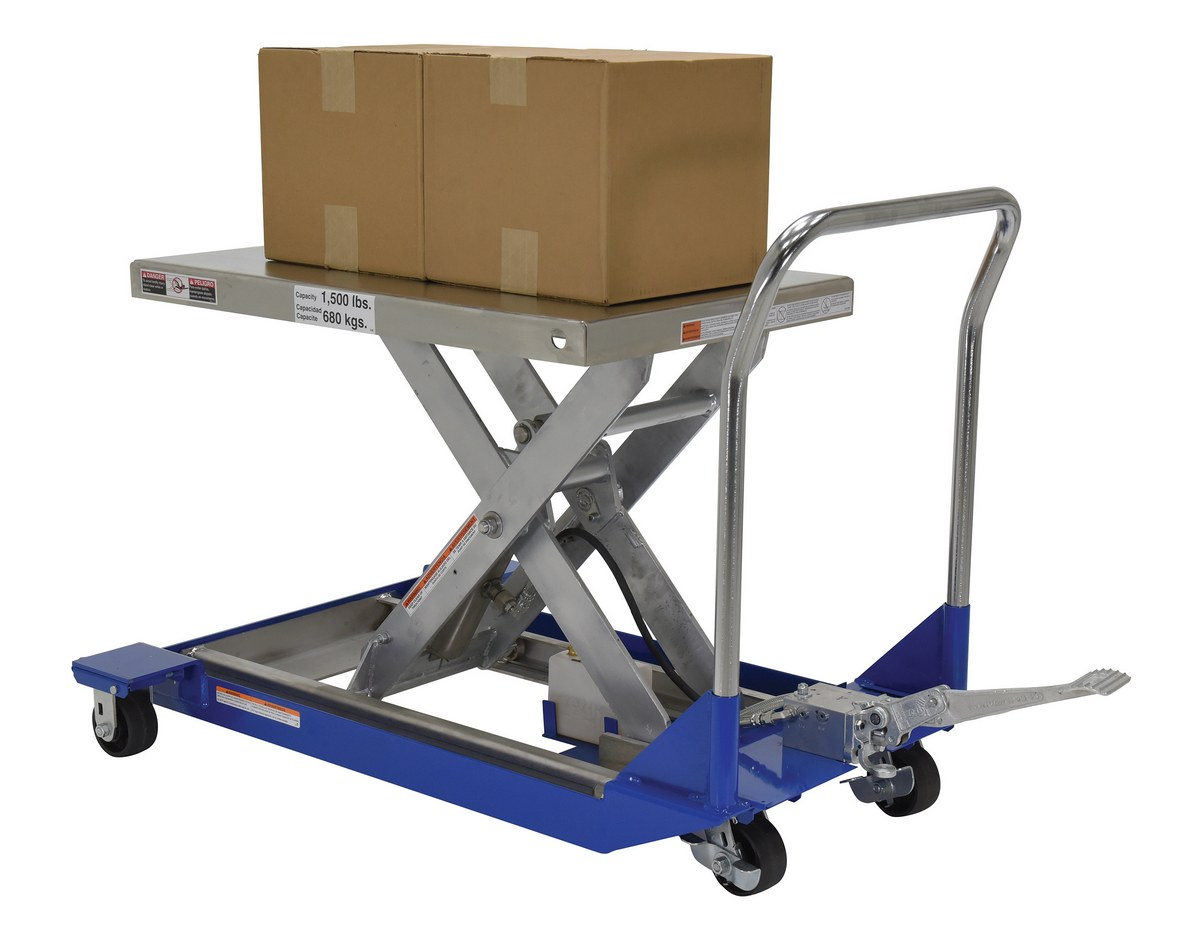

CART-23-15-M-PSS* Compliance Certificate 24"x36" 1,500 11" x 33-1/2" Two 427

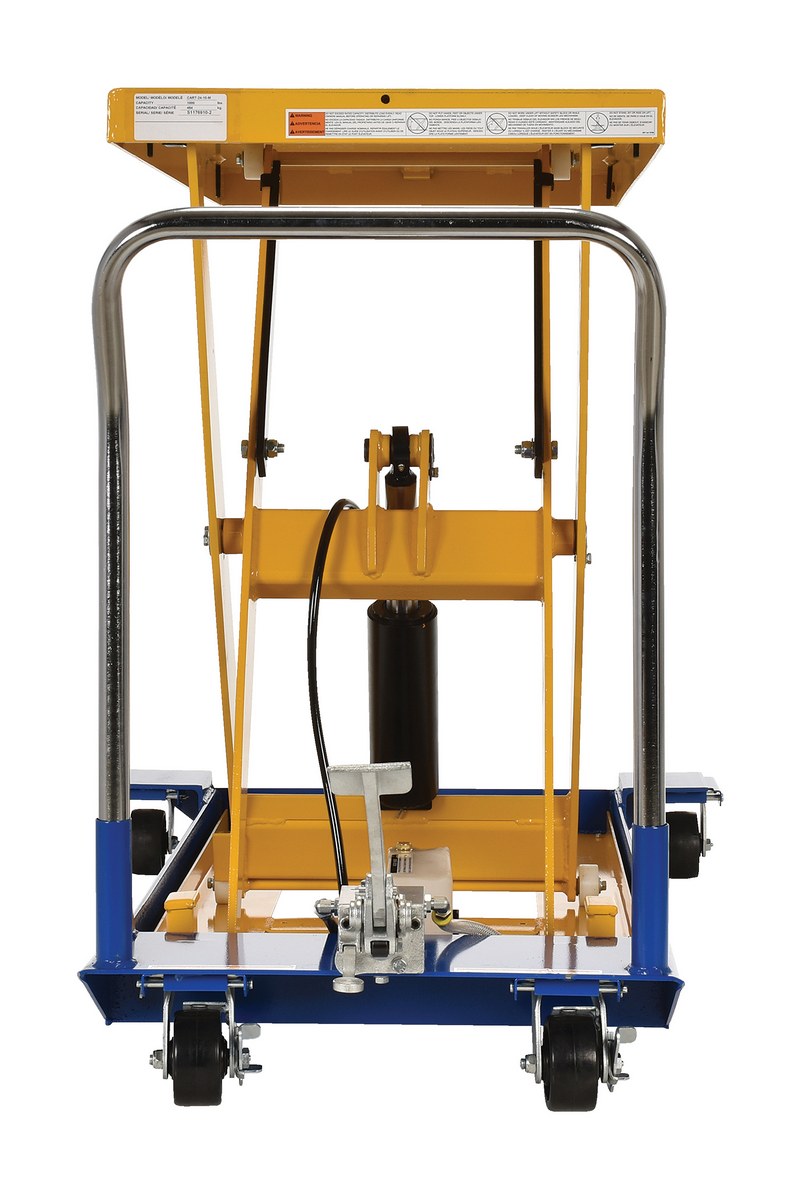

CART-24-10-M icon_approvaldrawings.jpgtilt_m4.jpgCompliance Certificate 24"x48" 1,000 9" to 42-1/2" Two 433

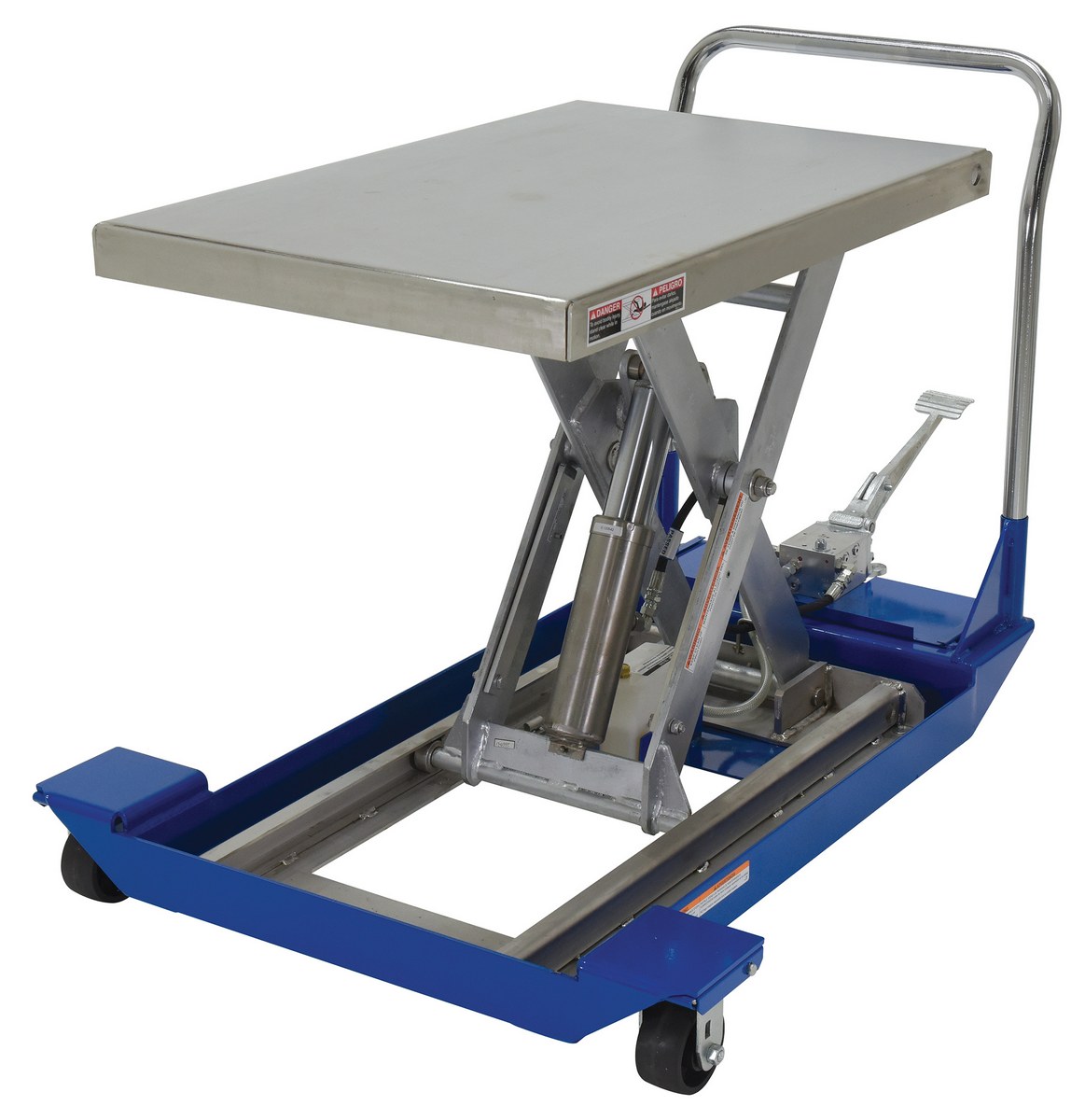

CART-24-10-M-PSS* - 24"x48" 1,000 9" to 42-1/2" Two 433

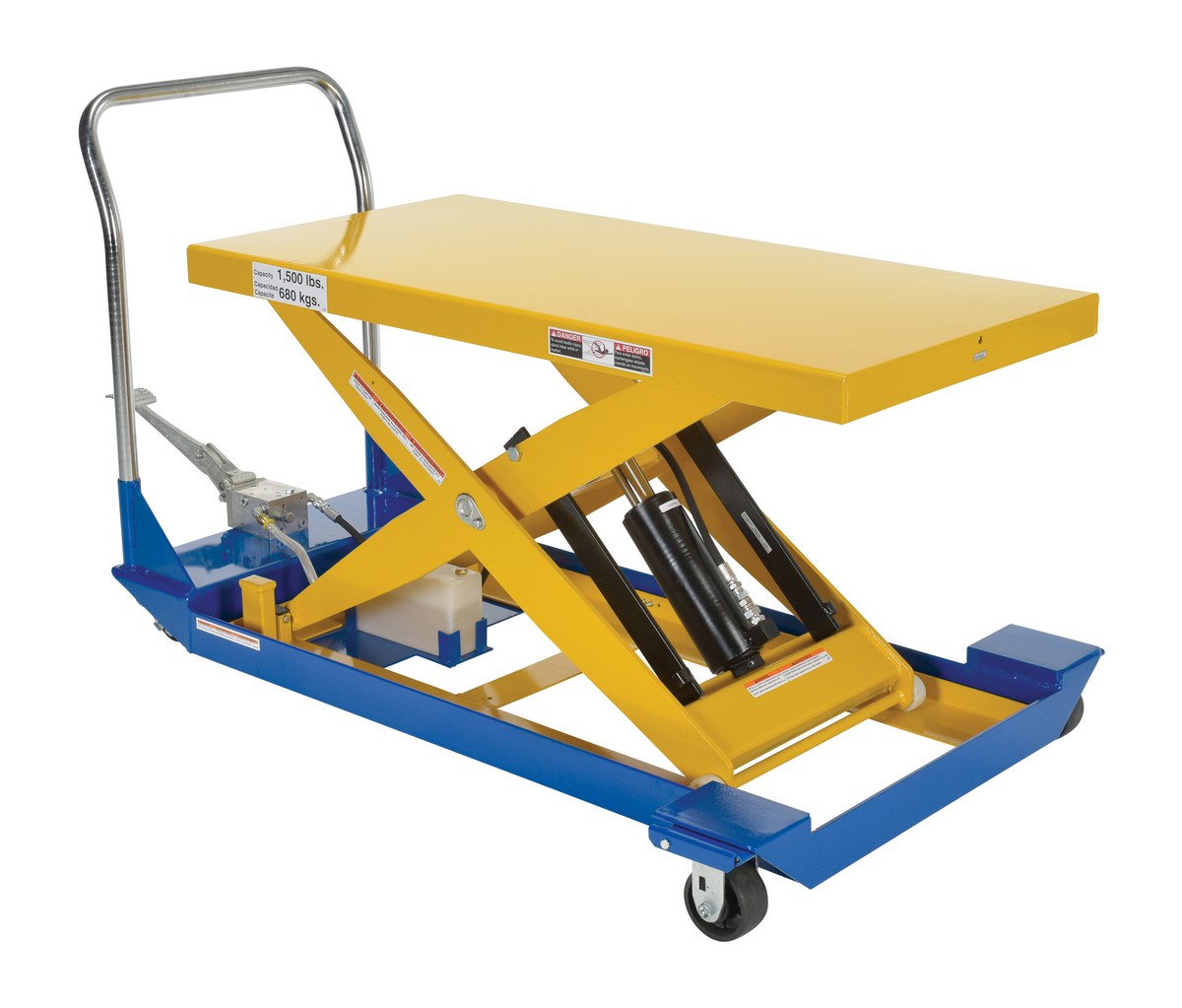

CART-24-15-M icon_approvaldrawings.jpgtilt_m4.jpgCompliance Certificate 24"x48" 1,500 9" to 42-1/2" Two 447
CART-24-15-M-PSS* - 24"x48" 1,500 9" to 42-1/2" Two 447
CART-32-10-M Compliance Certificate 32" x 48" 1,000 10-1/2" to 42-1/2" Two 565
CART-32-15-M Compliance Certificate 32" x 48" 1,500 10-1/2" to 42-1/2" Two 565
CART-40-10-M Compliance Certificate 40"x48" 1,000 10-1/2" to 42-1/2" Two 706
CART-40-10-M-PSS* - 40"x48" 1,000 10-1/2" to 42-1/2" Two 706

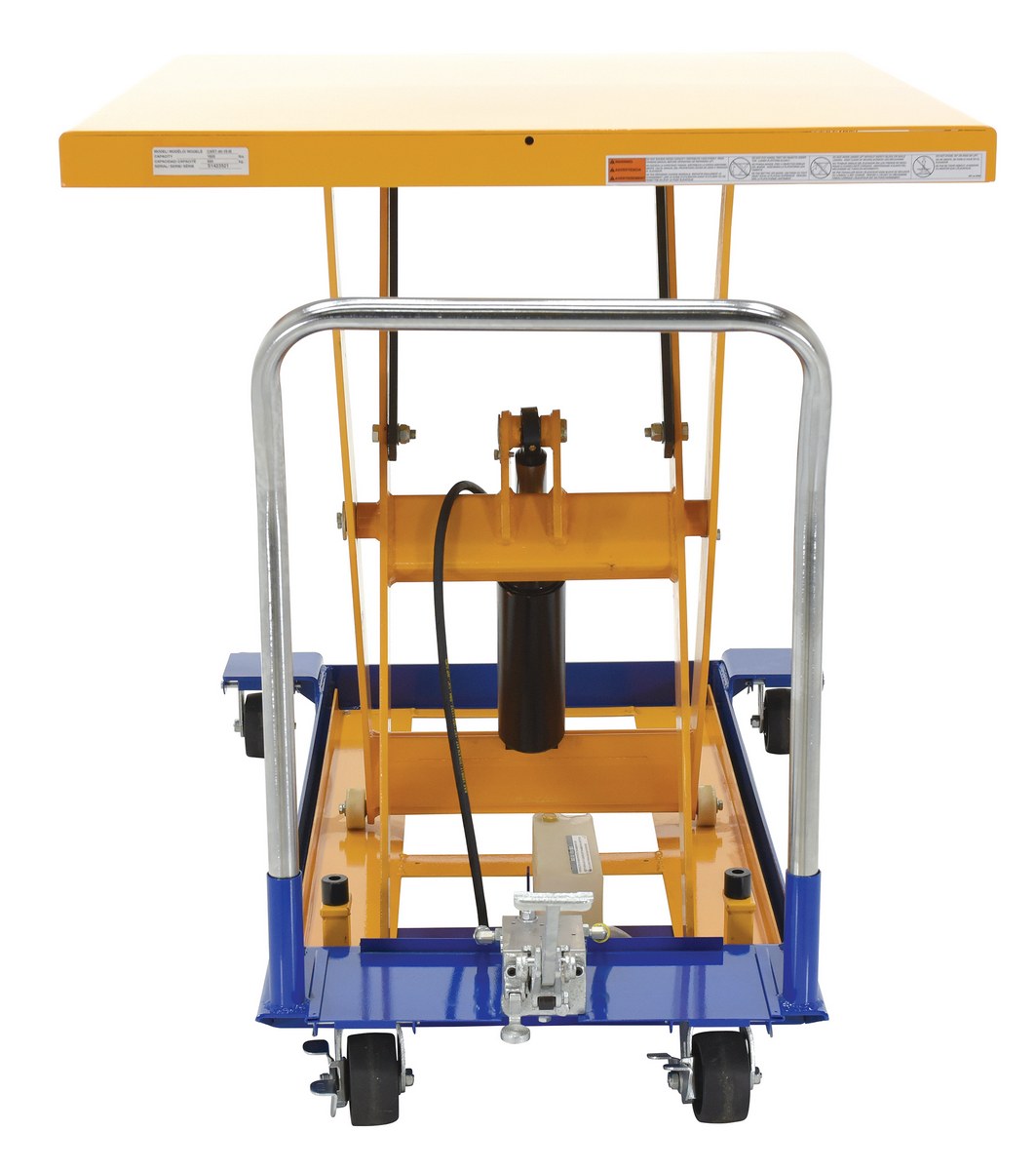

CART-40-15-M Compliance Certificate 40"x48" 1,500 10-1/2" to 42-1/2" Two 706
CART-40-15-M-PSS* - 40"x48" 1,500 10-1/2" to 42-1/2" Two 706

* Partially Stainless Steel Finish

Our Customer Service Associates Are Here To Assist You!
Call Vestil At 260-665-7586 Or info@vestil.com
