Product Family Overview


Stainless Steel Pallet Trucks
SERIES: ULM-PM

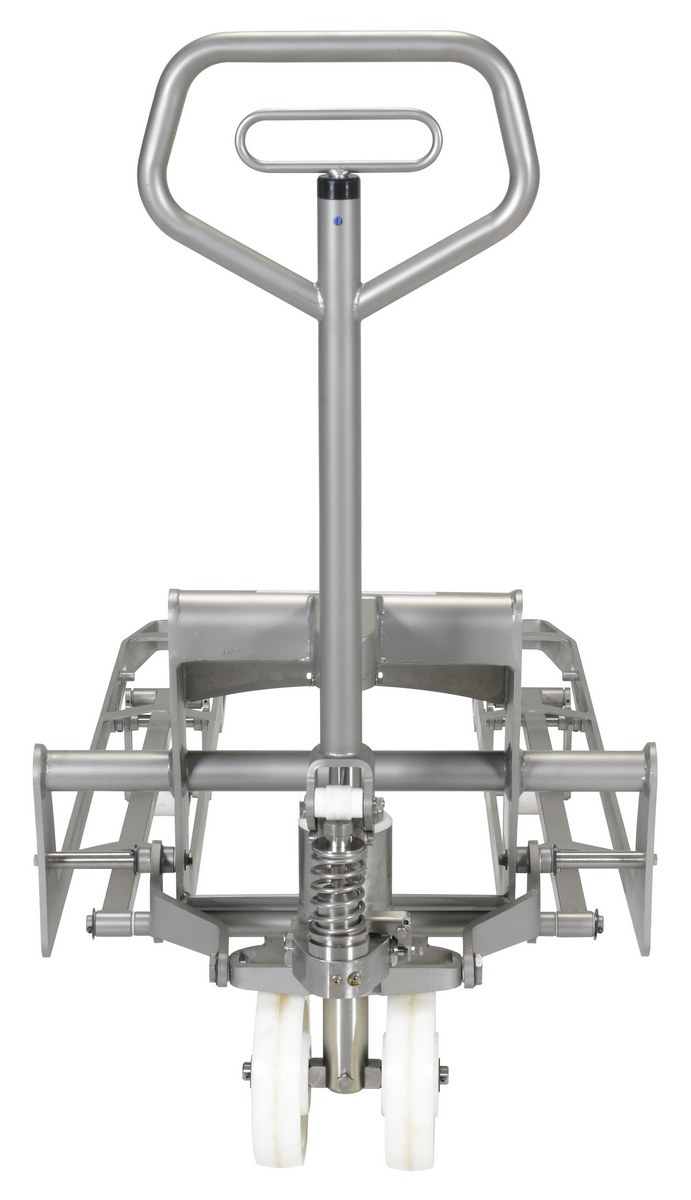

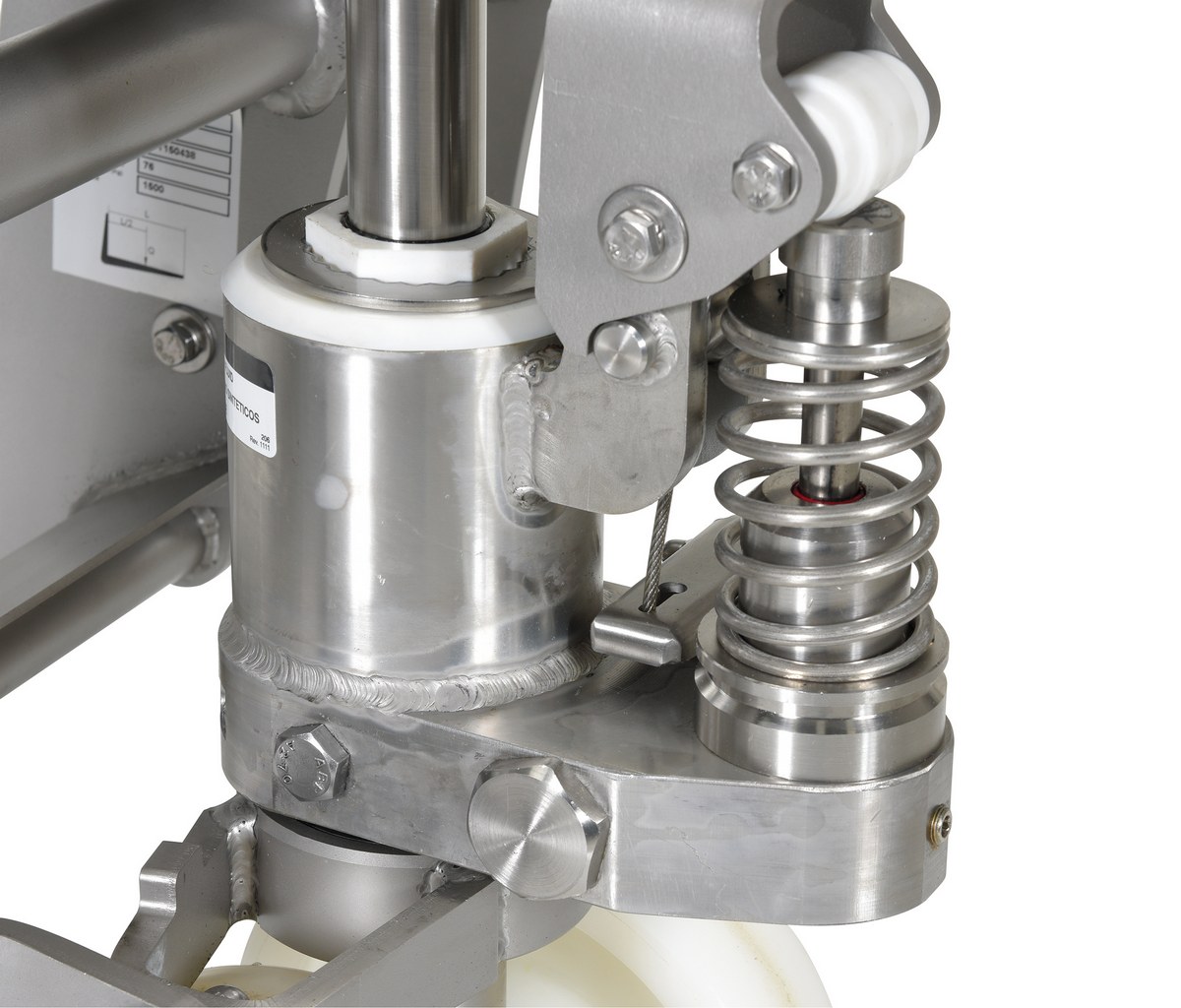

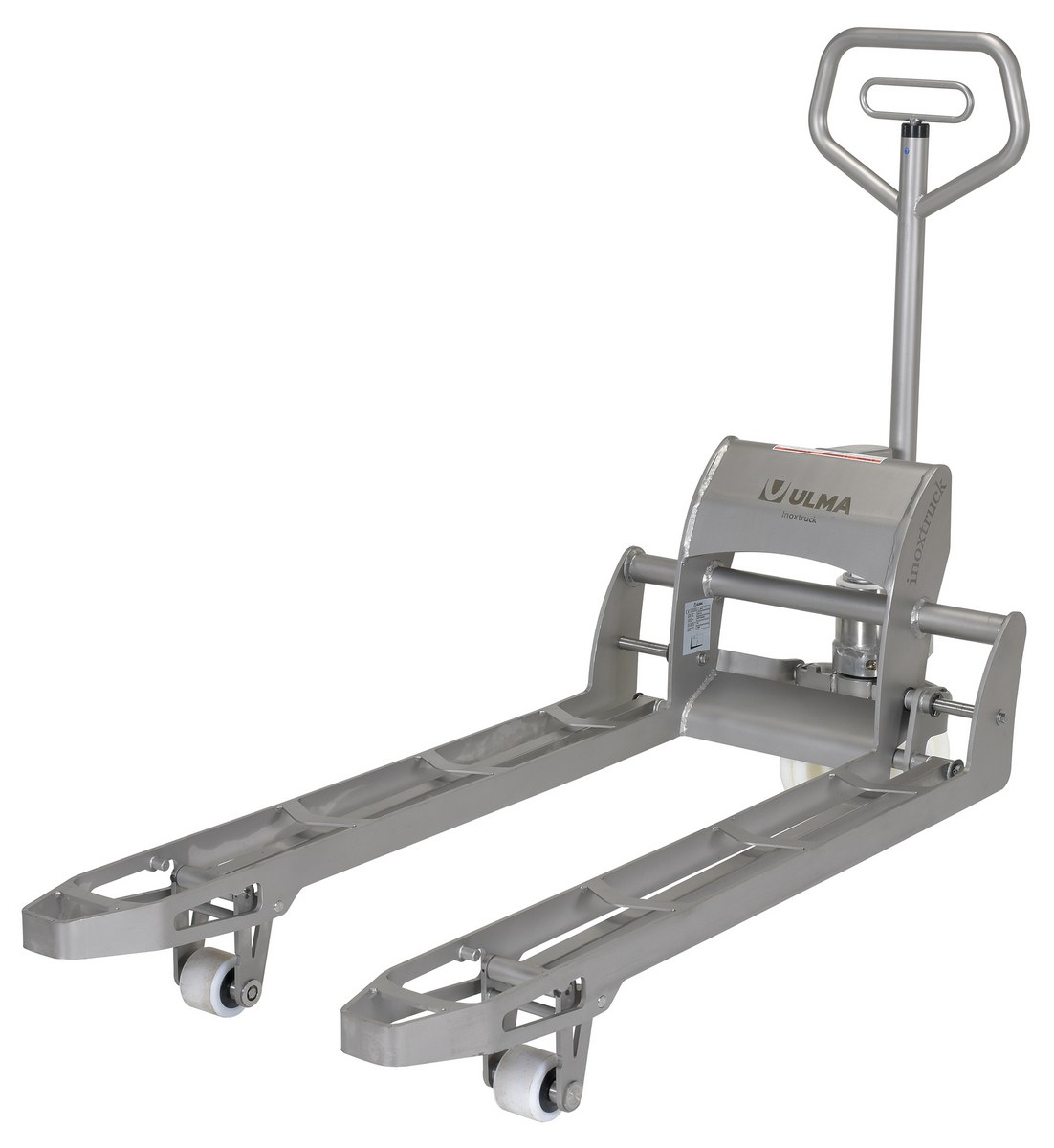

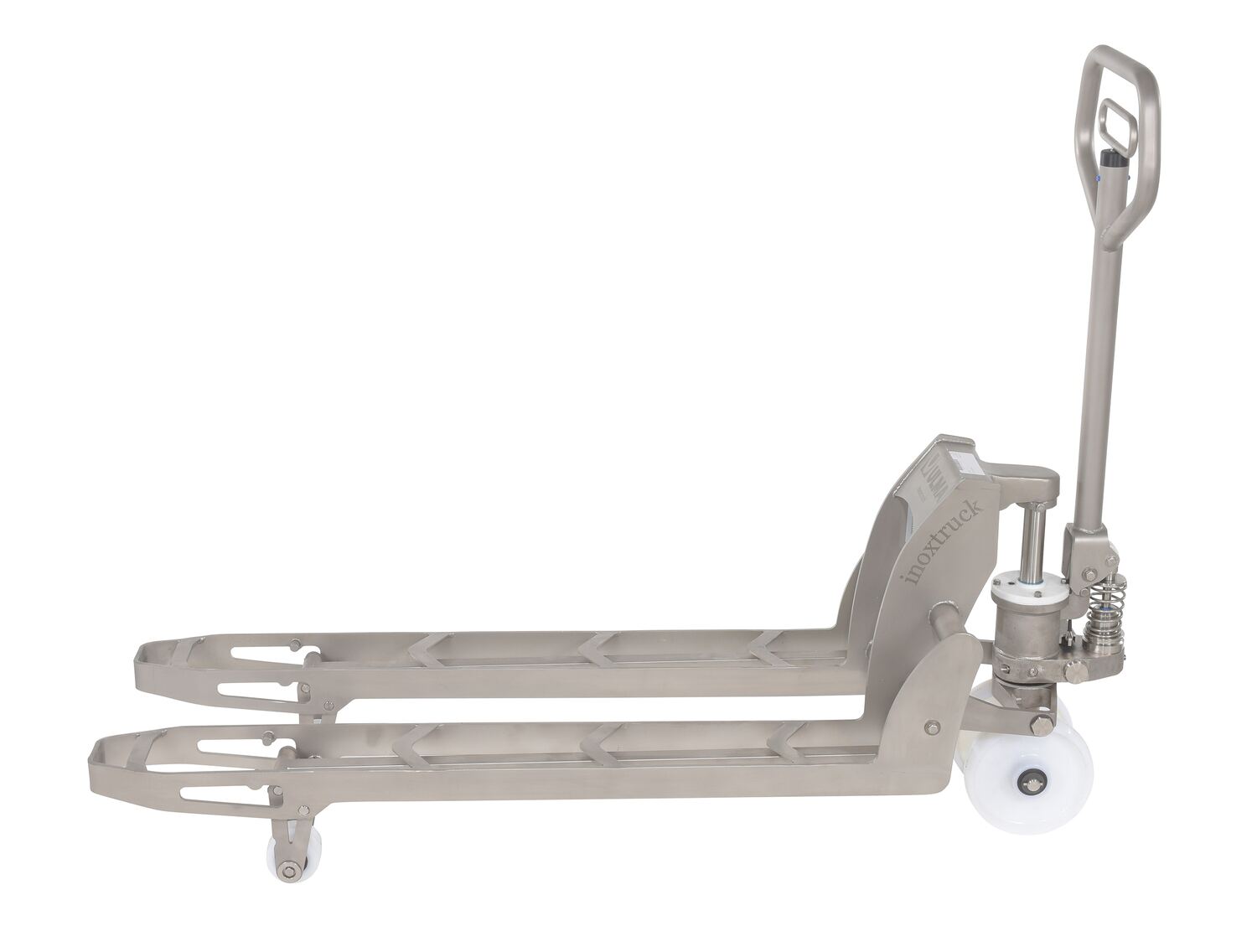

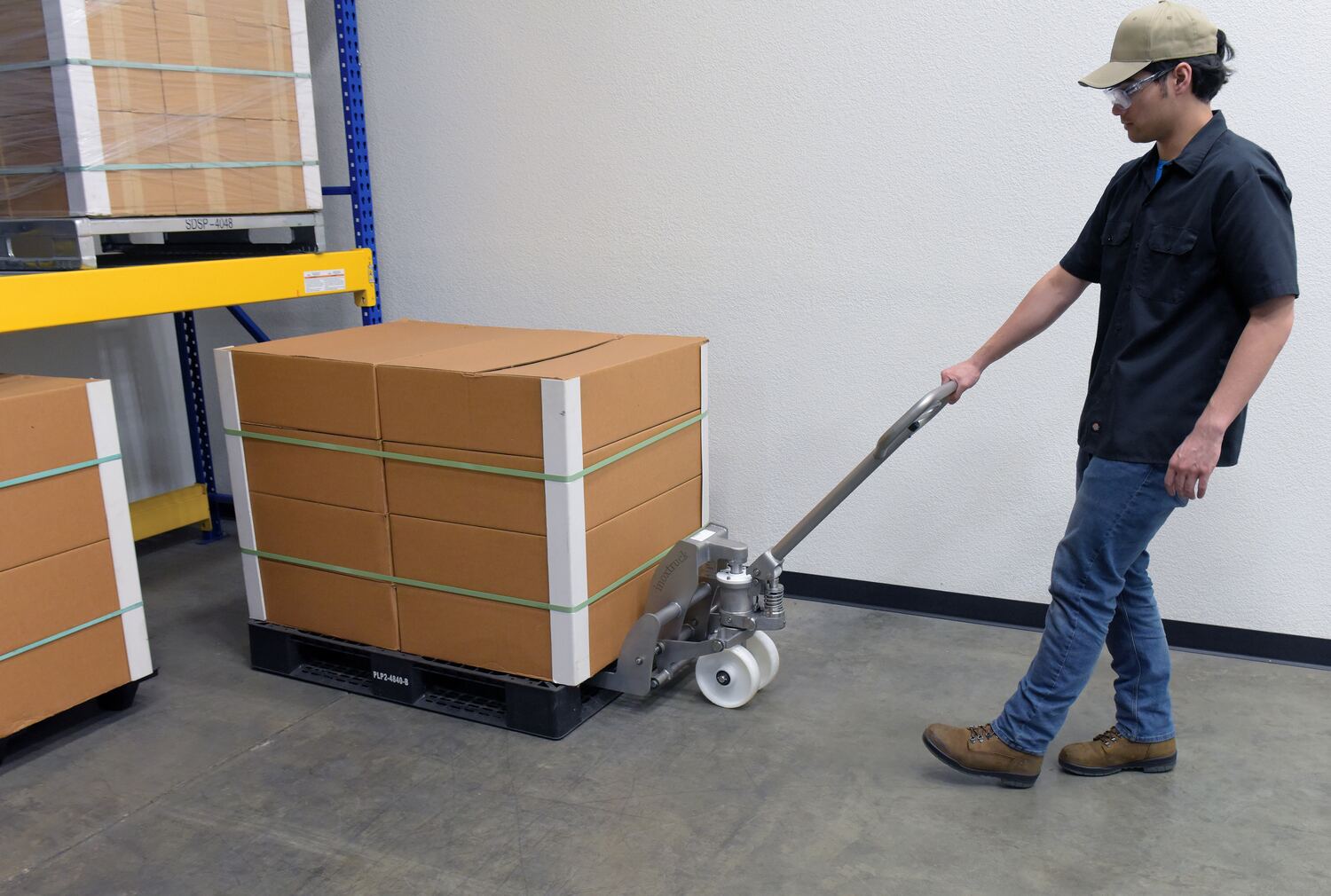

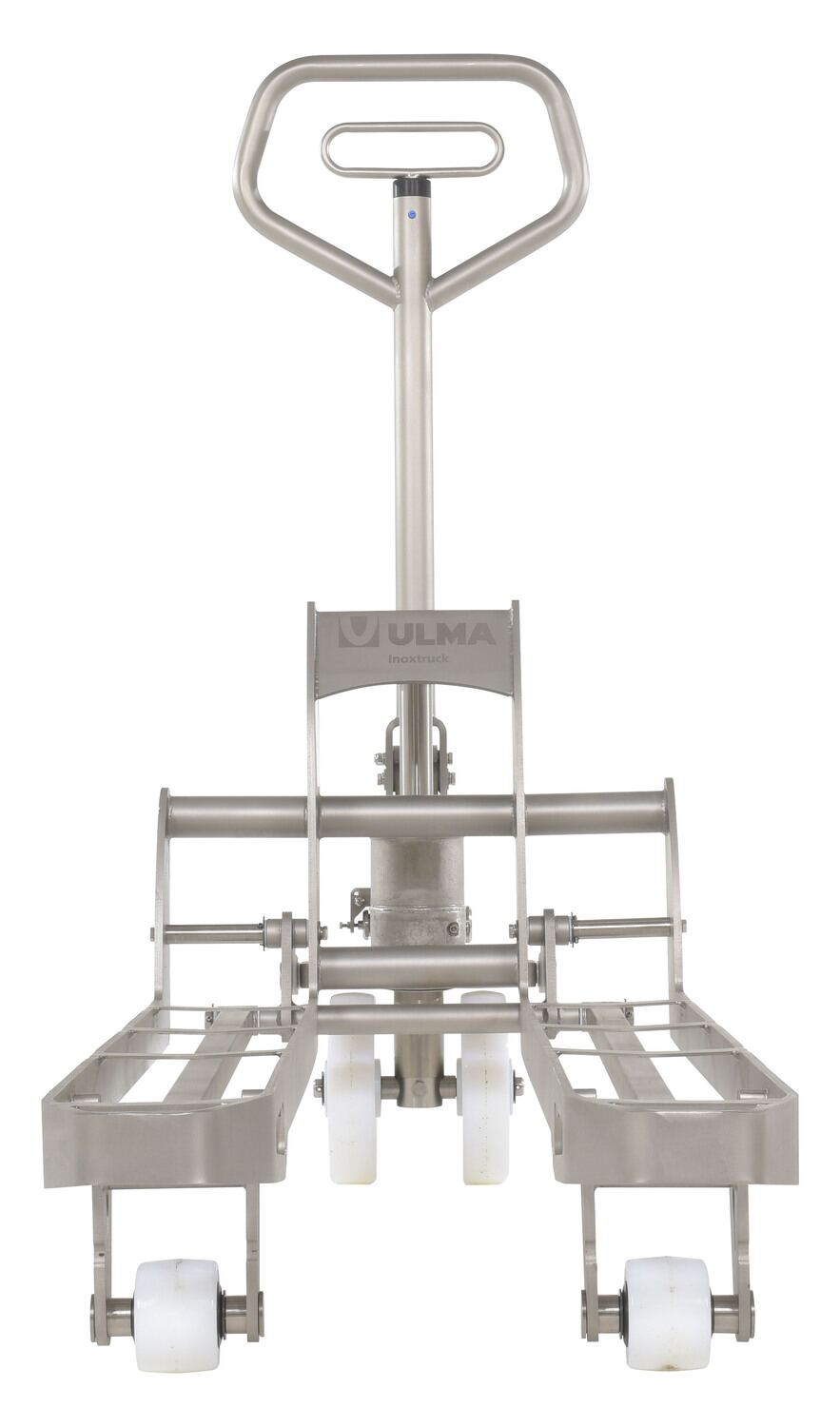

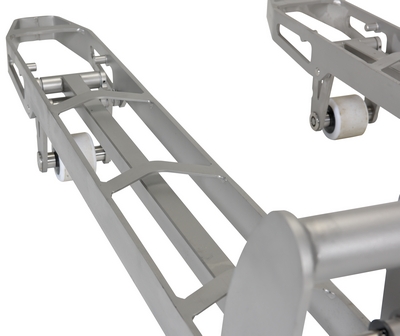

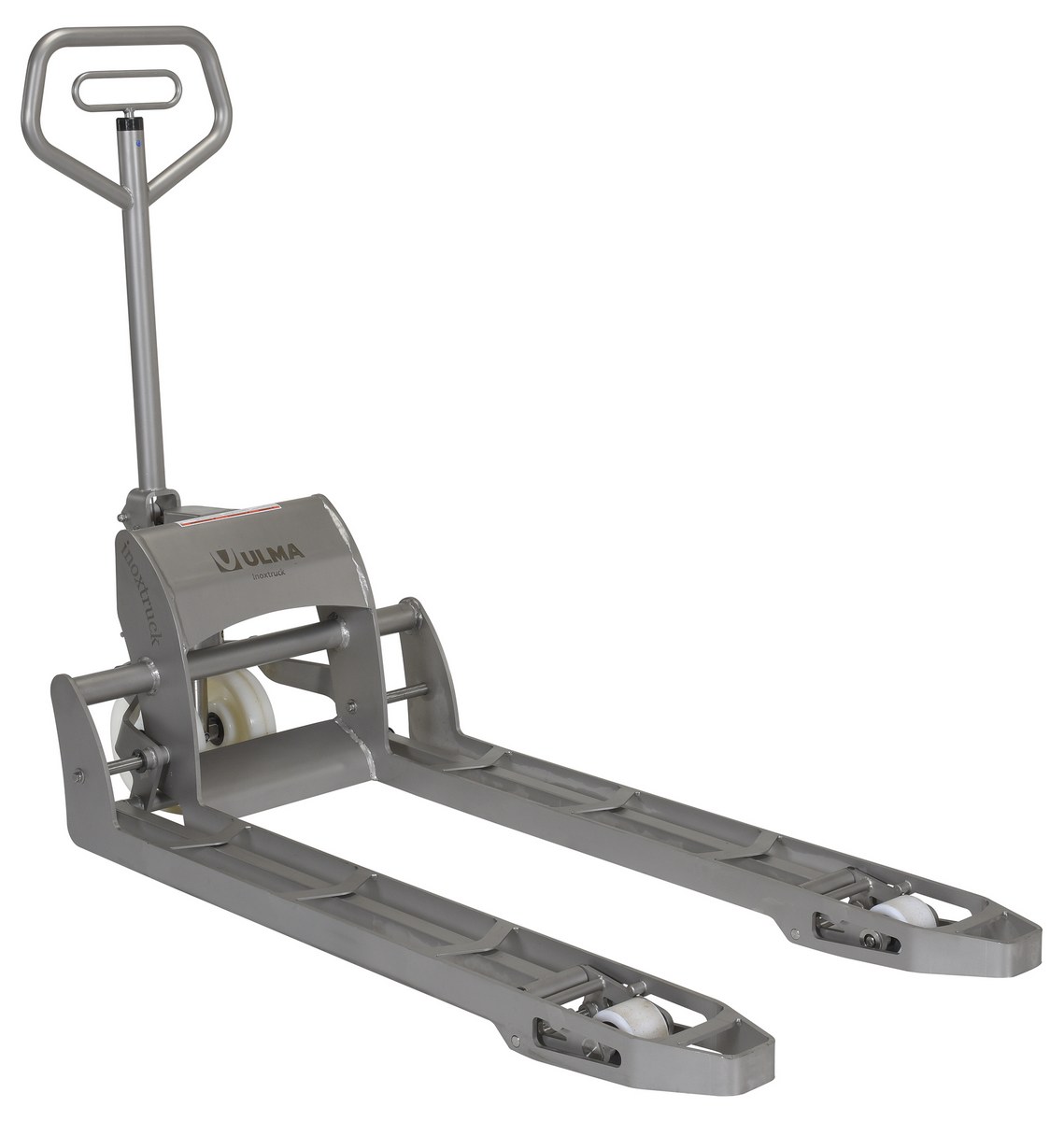

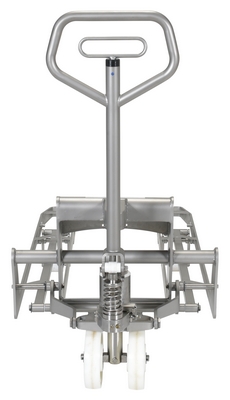

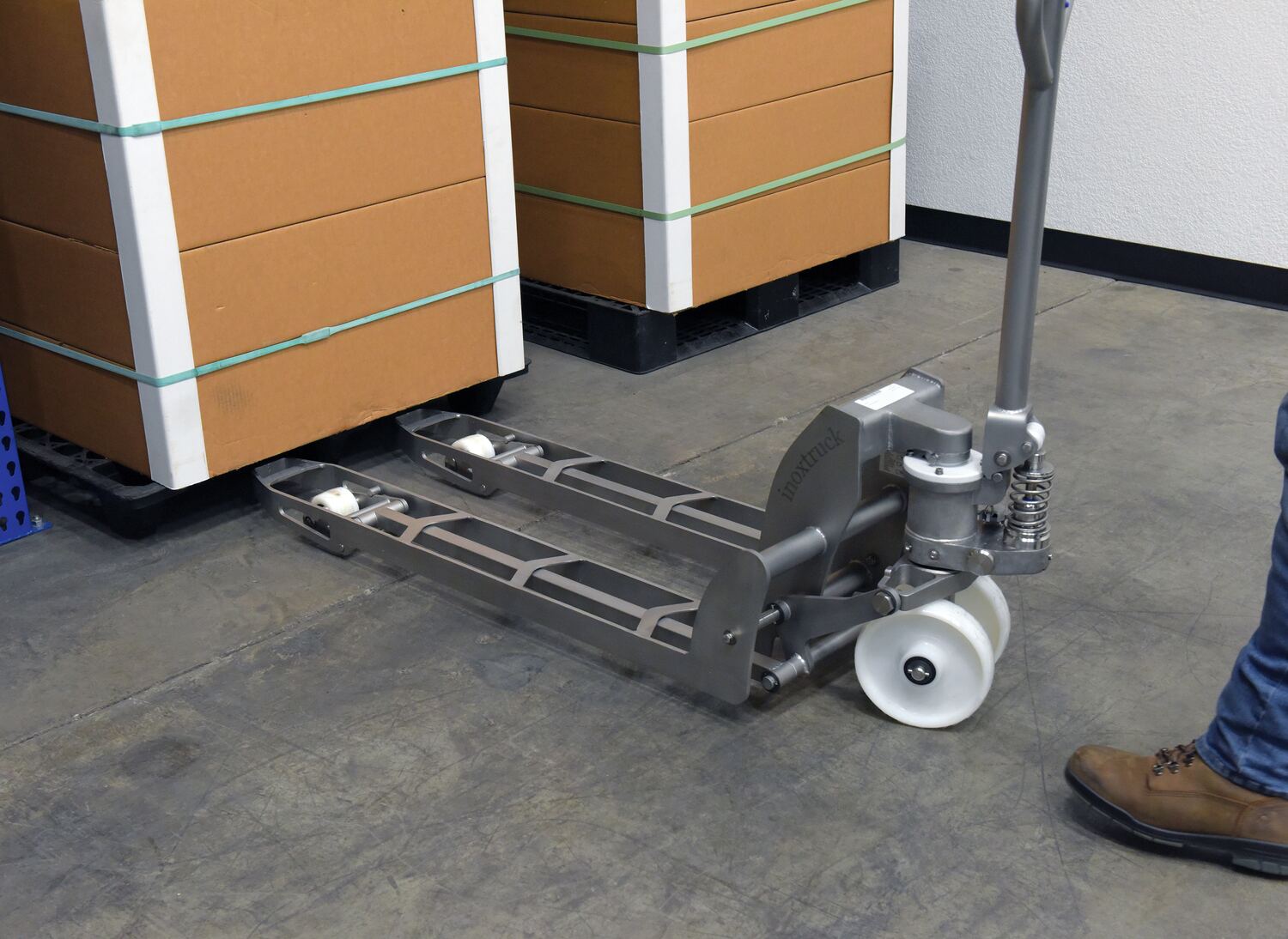

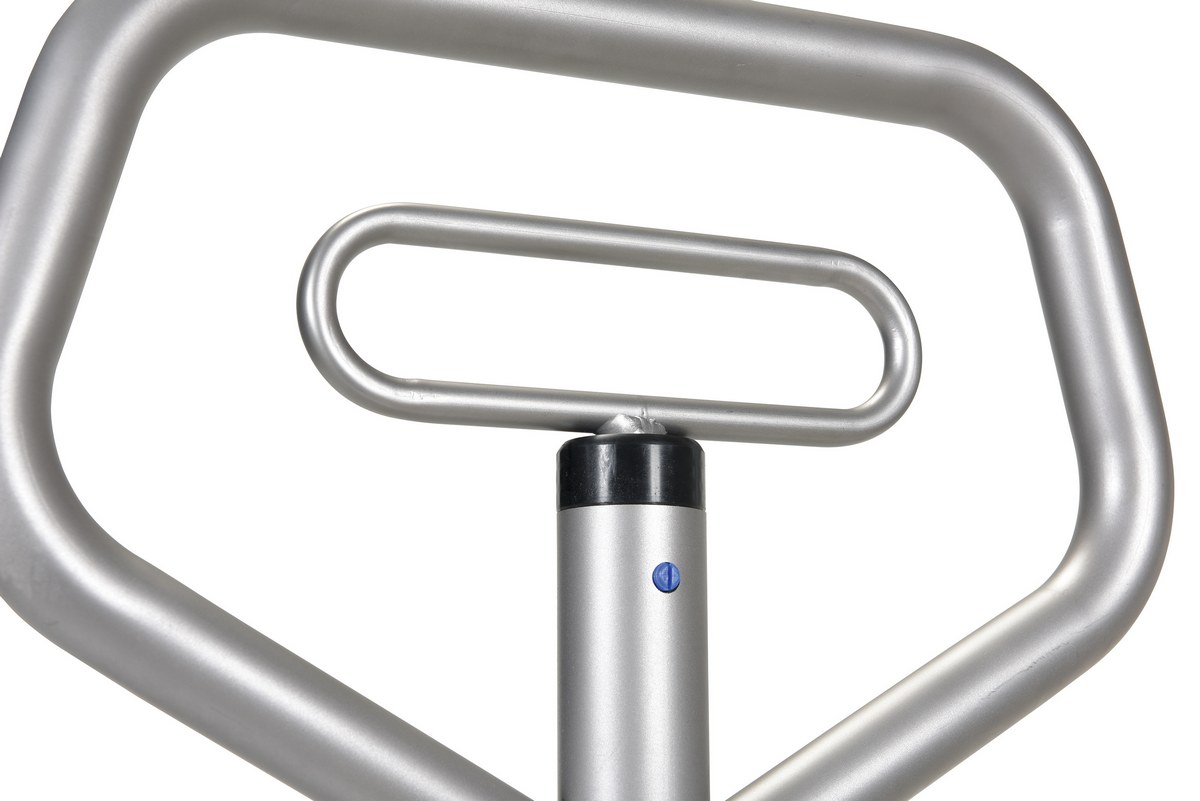

The 304L Stainless Steel Hydraulic Hand Pump Pallet Jack is a superb addition to the food handling and other hygienic environments. The 304L stainless steel construction including hydraulic cylinders as as the piston is not only strong, but also simple clean with its open fork design for thoroughly detailing the unit before/after transferring products. The height of the ergonomically friendly handle diminishes slouching and can be rotated for simple maneuvering of products down narrow corridors and pathways. All bearings are sealed for waterproof protection during both use and cleaning. For best use, in the lowered position place the forks inside the fork pockets of the desired product, pump the handle up/down until the unit is raised off of the surface, and once elevated to the desired height simply maneuver the unit to the preferred location.


The 304L Stainless Steel Hydraulic Hand Pump Pallet Jack is a superb addition to the food handling and other hygienic environments. The 304L stainless steel construction including hydraulic cylinders as as the piston is not only strong, but also simple clean with its open fork design for thoroughly detailing the unit before/after transferring products. The height of the ergonomically friendly handle diminishes slouching and can be rotated for simple maneuvering of products down narrow corridors and pathways. All bearings are sealed for waterproof protection during both use and cleaning. For best use, in the lowered position place the forks inside the fork pockets of the desired product, pump the handle up/down until the unit is raised off of the surface, and once elevated to the desired height simply maneuver the unit to the preferred location.

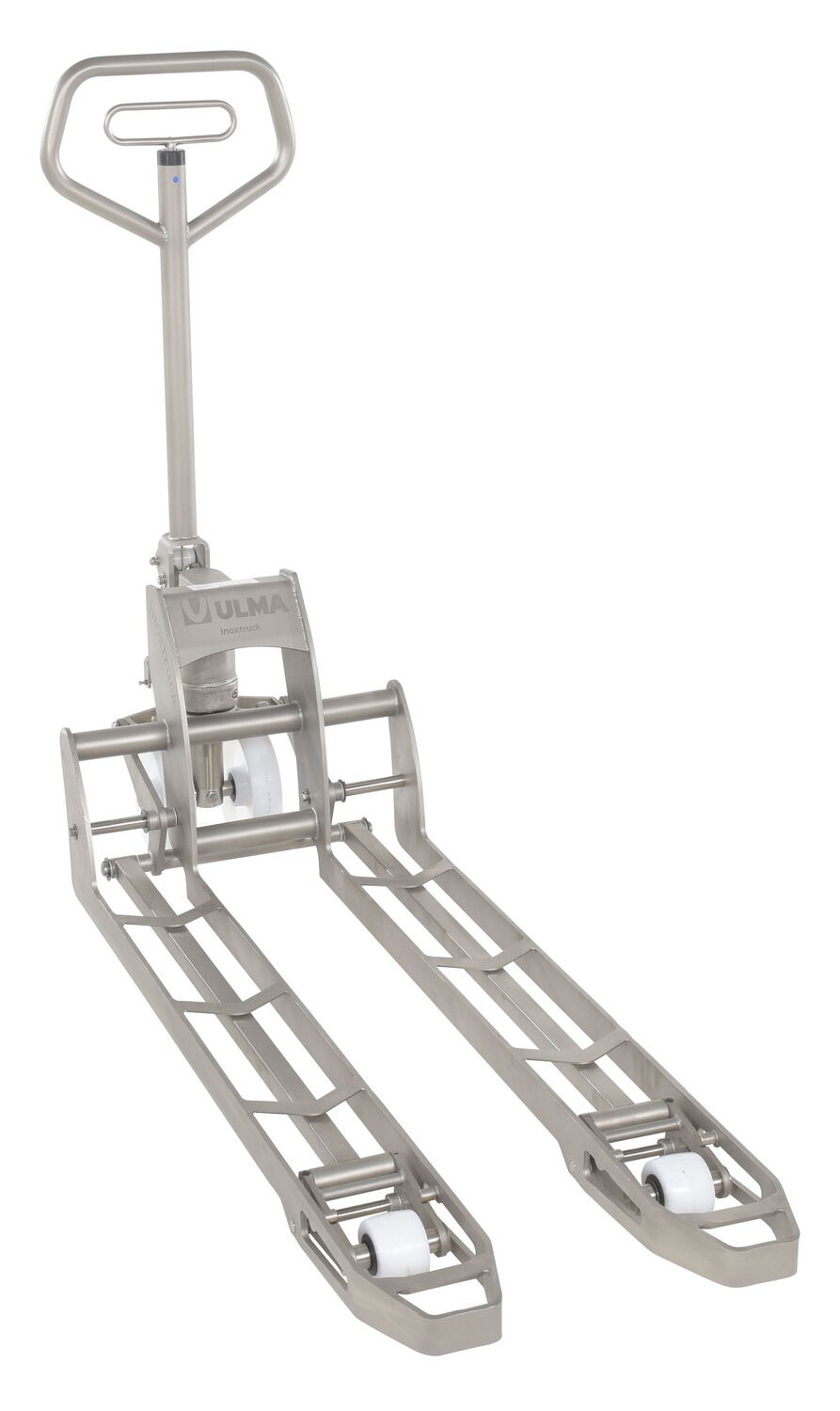

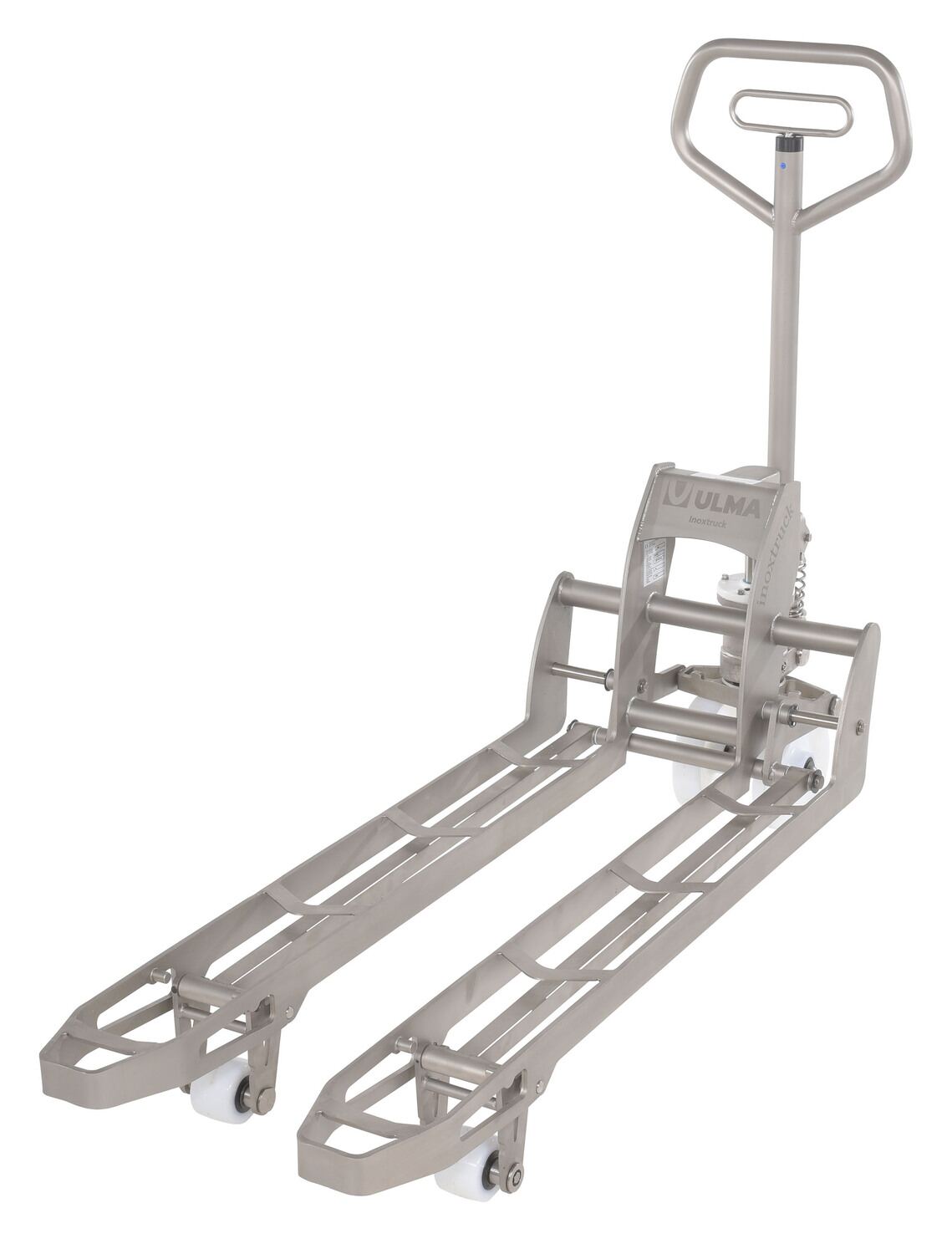

ULM-PM-2045-30

model ULM-PM-2045-30

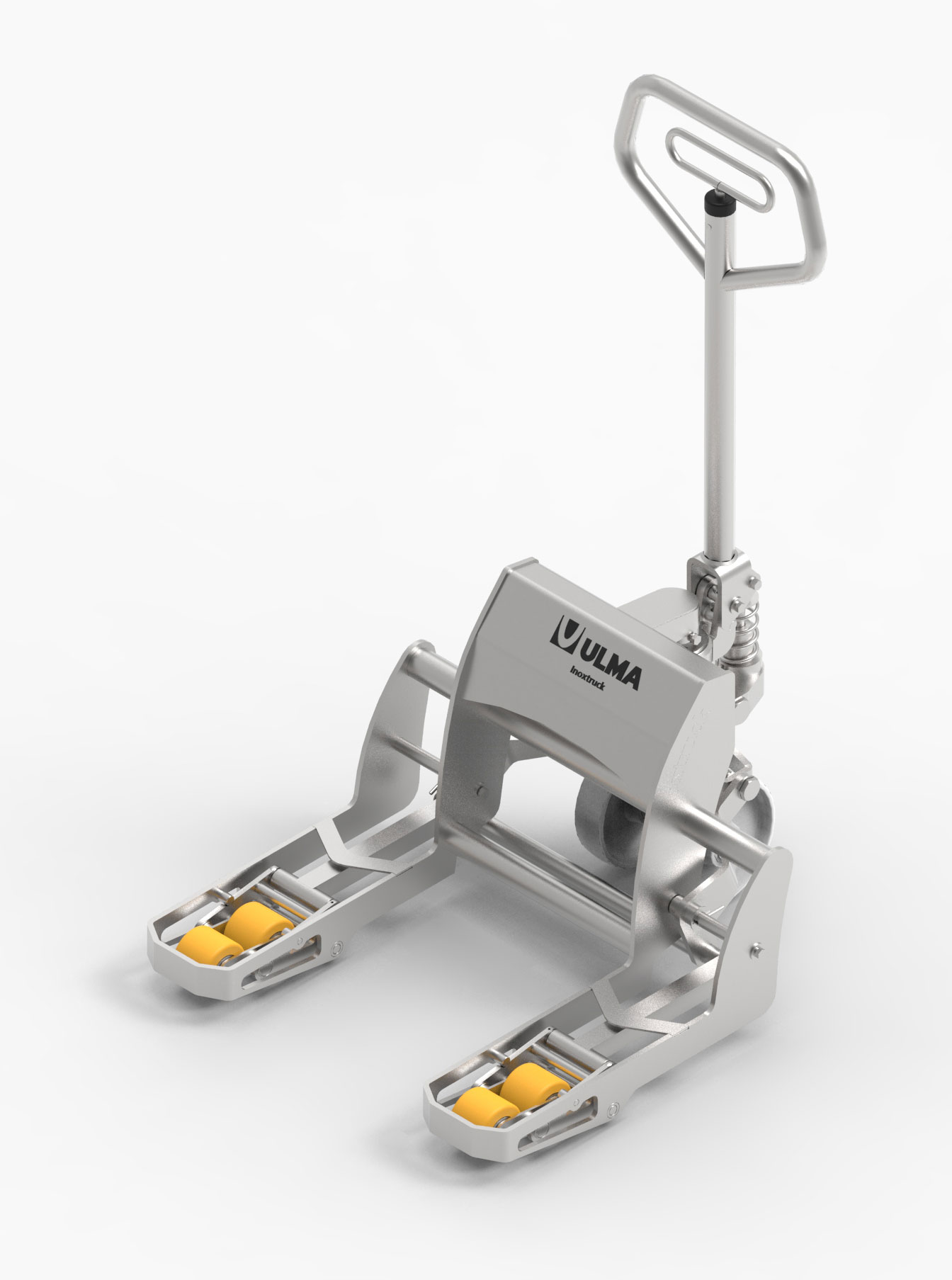

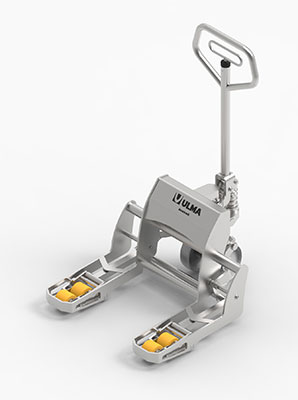

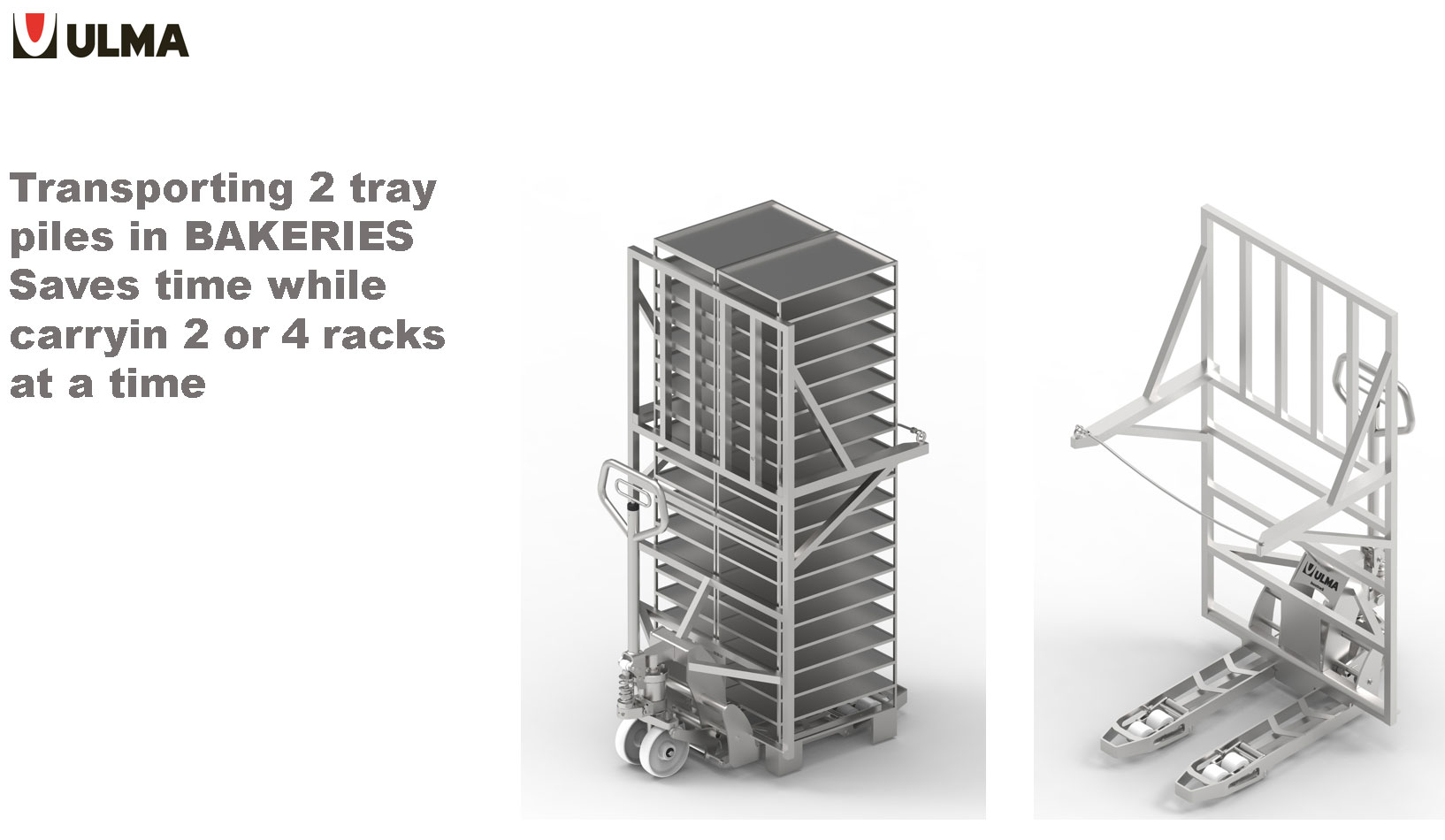

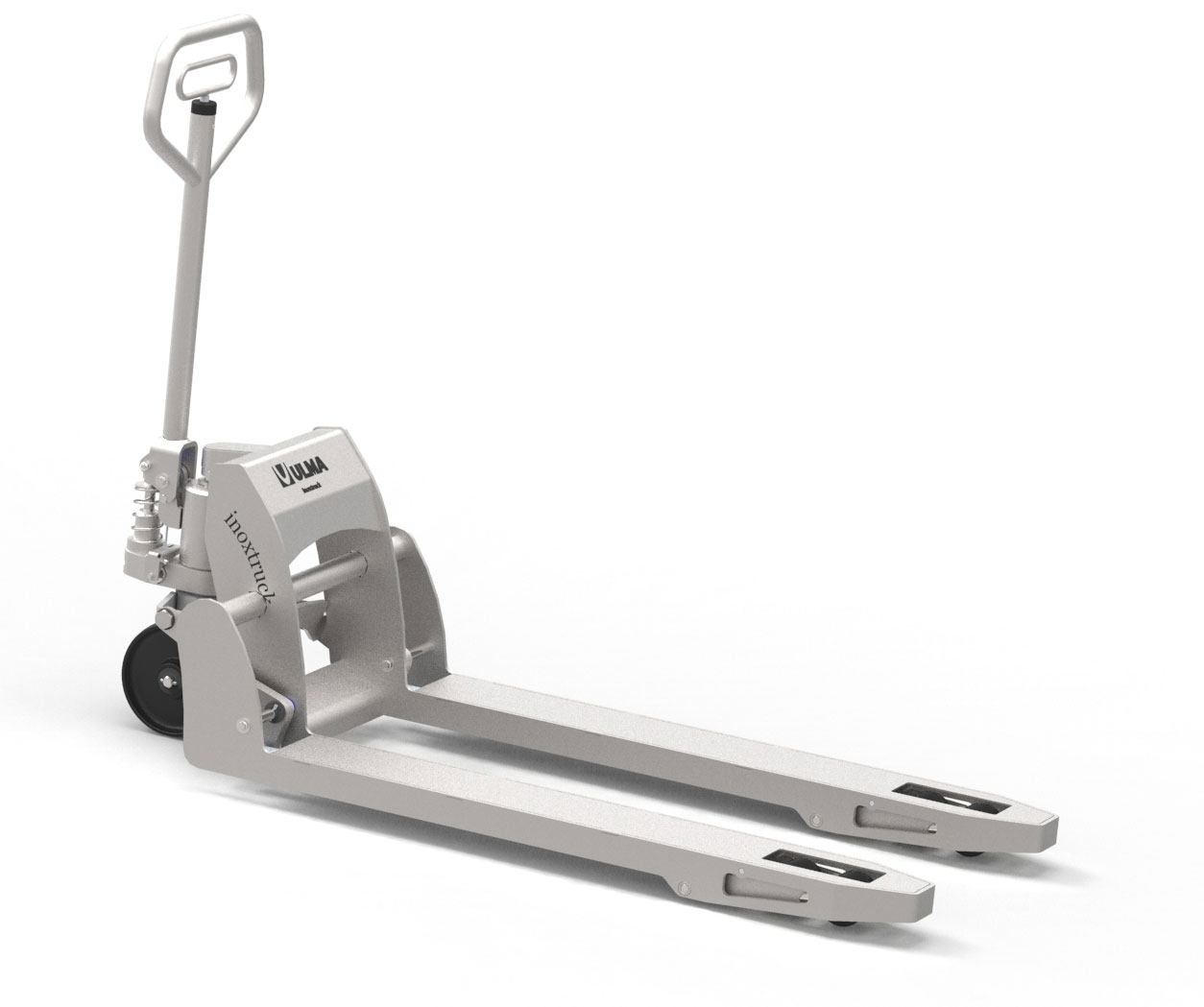

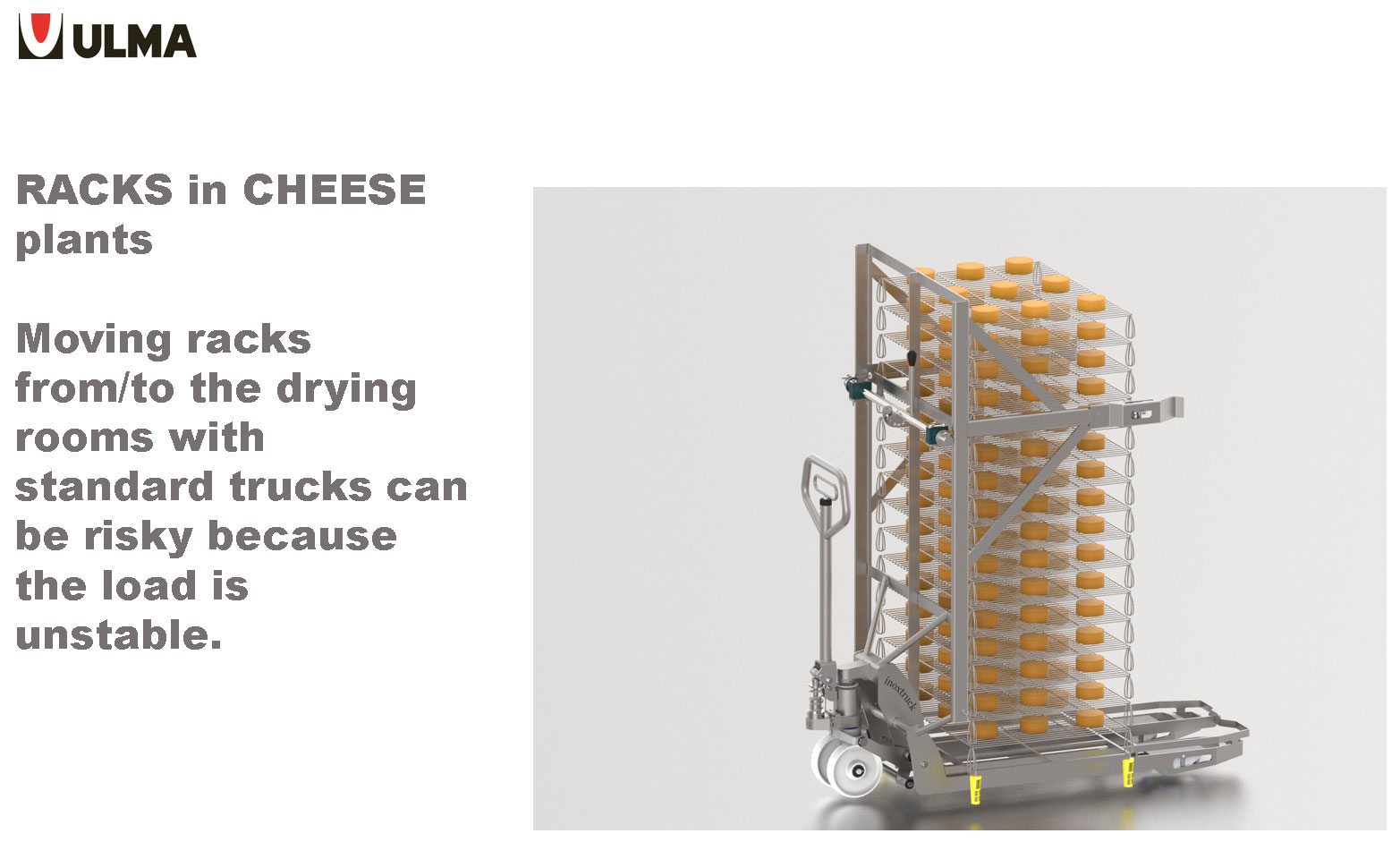

SPECIAL DESIGN CONFIGURATIONS AVAILABLE

Special Versions Available (call for more information)

Model Specific Details




All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.
The Search Box below is within the Model Chart on this page. Not an entire site search.
Model # PDF's Description Attributes Net Wt.
(lbs)
ULM-PM-2045-30 ULM-PM-2045-301 Year Limited Warranty304L Stainless Steel Hydraulic Hand Pump Pallet Jack 20 in. X 45 in. 3,300 Lb. Capacity SilverUniform Capacity (lbs.): 3,000
Operation Type: Hydraulic Hand Pump
187
ULM-PM-2745-30 ULM-PM-2745-303 Year Limited Warranty304L Stainless Steel Hydraulic Hand Pump Pallet Jack 27 in. X 45 in. 3,300 Lb. Capacity SilverUniform Capacity (lb.): 3300
Overall Fork Width/Length (in.): 26-3/4 x 45-1/4
206
ULM-PM-2745-40 ULM-PM-2745-403 Year Limited Warranty304L Stainless Steel Hydraulic Hand Pump Pallet Jack 4,500 Lb. Capacity SilverUniform Capacity (lb.): 4500
Overall Fork Width/Length (in.): 26-3/4 x 45-1/4
206

KEY: = Expand Model Details = 48hr Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= Approval Drawing = Testing Certificate Warranty

No Model Numbers Associated To This Product Page


Stainless Steel Pallet Trucks PDF's will open in a new window when clicked.

Manuals

No Owners Manuals For This Product


Survey Sheets

No Survey Sheets For This Product


Approval Drawings

Testing Certificates

SDS Sheets

Hydraulic Oil SDS Sheet for: ULM-PM-2745-30
Hydraulic Oil SDS Sheet for: ULM-PM-2745-40

Other PDF's

No "Other PDFs" For This Product...


Directory Links Of Available PDF's For All Products

Before placing an order, please confirm that the ship to company is able to receive shipments on the estimated delivery date





Stainless Steel Pallet Trucks




The 304L Stainless Steel Hydraulic Hand Pump Pallet Jack is a superb addition to the food handling and other hygienic environments. The 304L stainless steel construction including hydraulic cylinders as as the piston is not only strong, but also simple clean with its open fork design for thoroughly detailing the unit before/after transferring products. The height of the ergonomically friendly handle diminishes slouching and can be rotated for simple maneuvering of products down narrow corridors and pathways. All bearings are sealed for waterproof protection during both use and cleaning. For best use, in the lowered position place the forks inside the fork pockets of the desired product, pump the handle up/down until the unit is raised off of the surface, and once elevated to the desired height simply maneuver the unit to the preferred location.



Stainless Steel Hydraulic Hand Pump Pallet Jack
Model Image PDF's Overall Fork Size
(WxLxH)
Capacity
(lbs)
Service
Range
Wt.
(lbs)

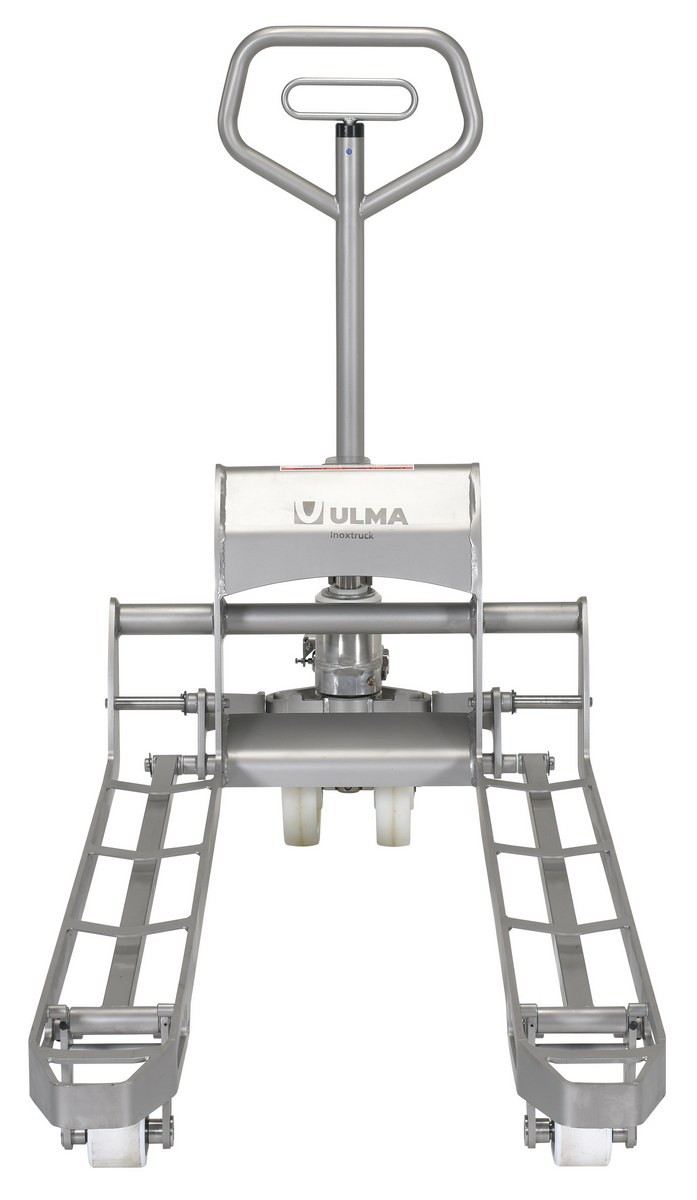

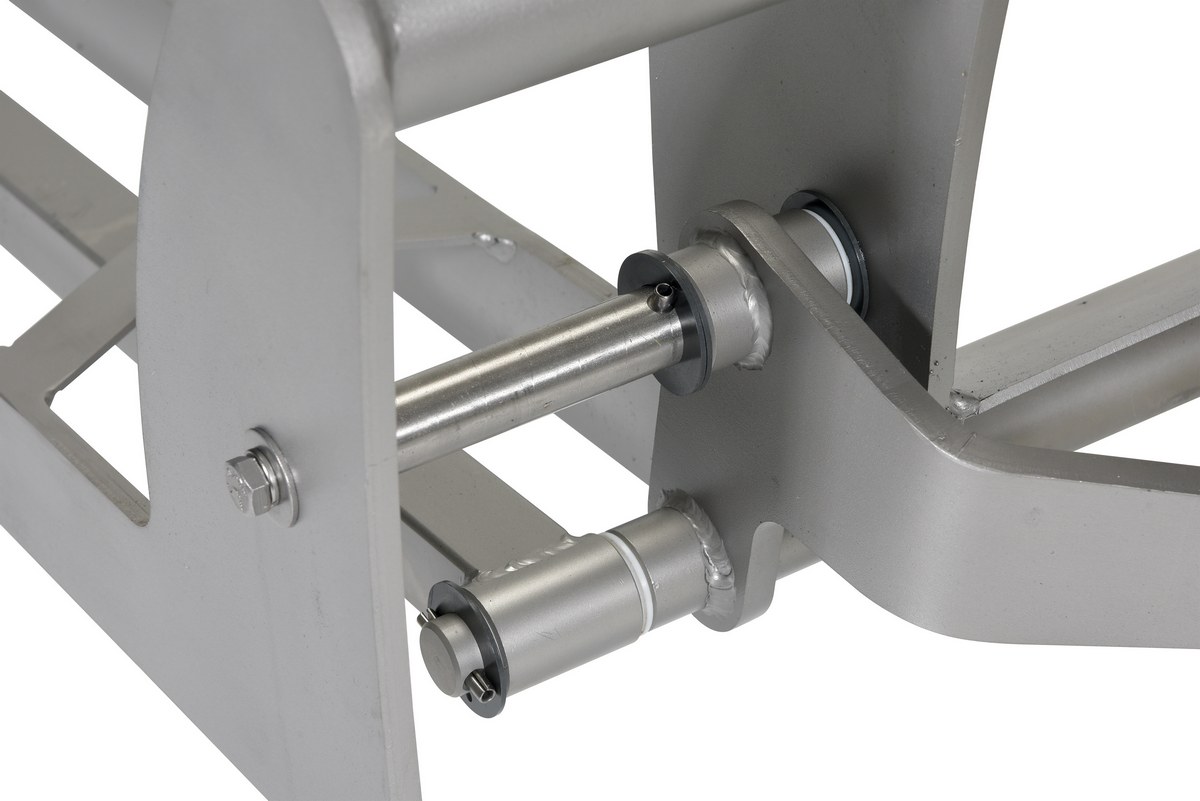

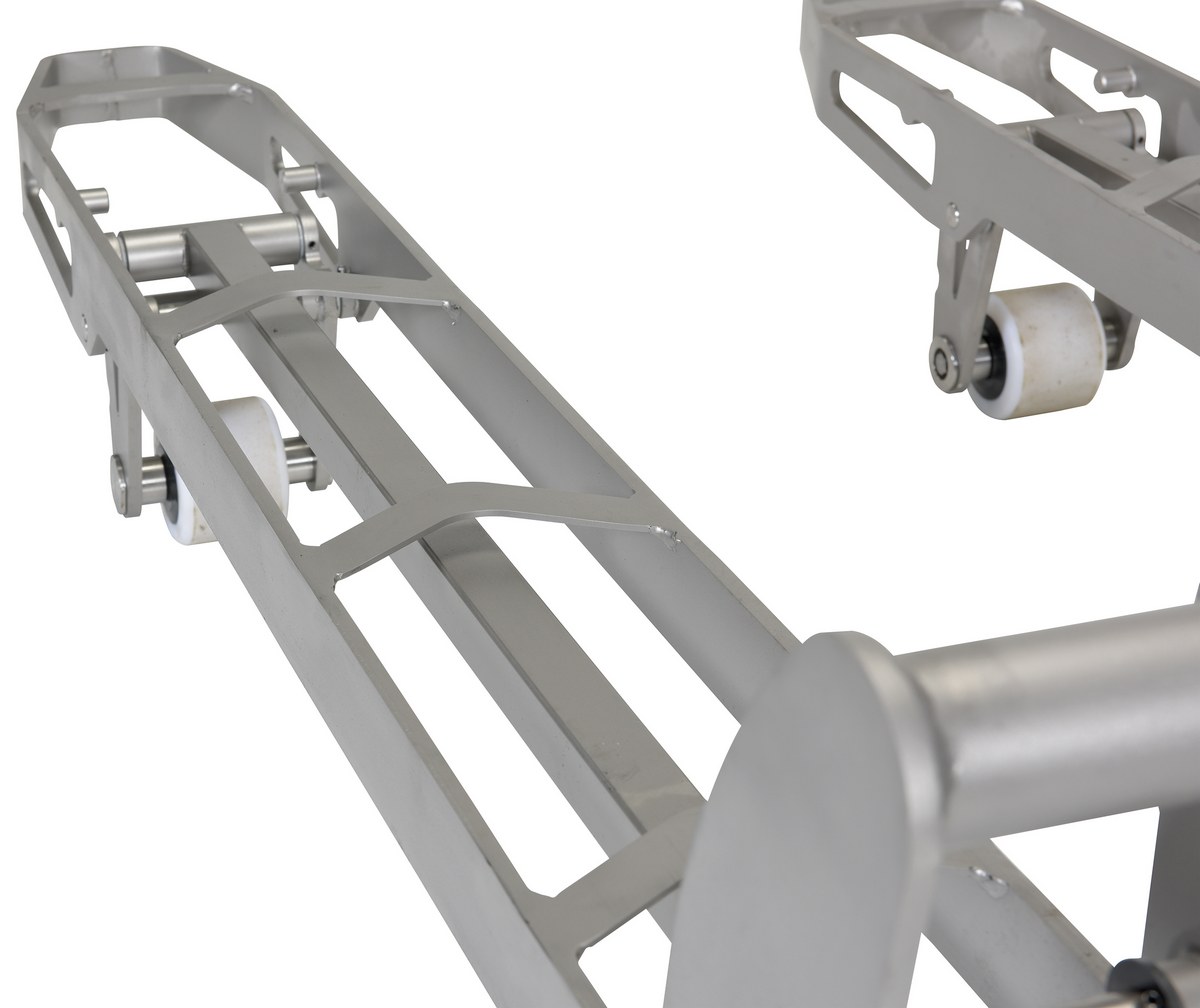

ULM-PM-2745-30 icon_approvaldrawings.jpgWarranty PDF 26-3/4"x 45-1/4" 3300 3-3/8" to 8" 170
ULM-PM-2745-40
icon_approvaldrawings.jpgWarranty PDF 26-3/4" x 45-1/4" 4500 3-3/8" to 8" 170
