SERIES: ALL-T


All Terrain Pallet Trucks

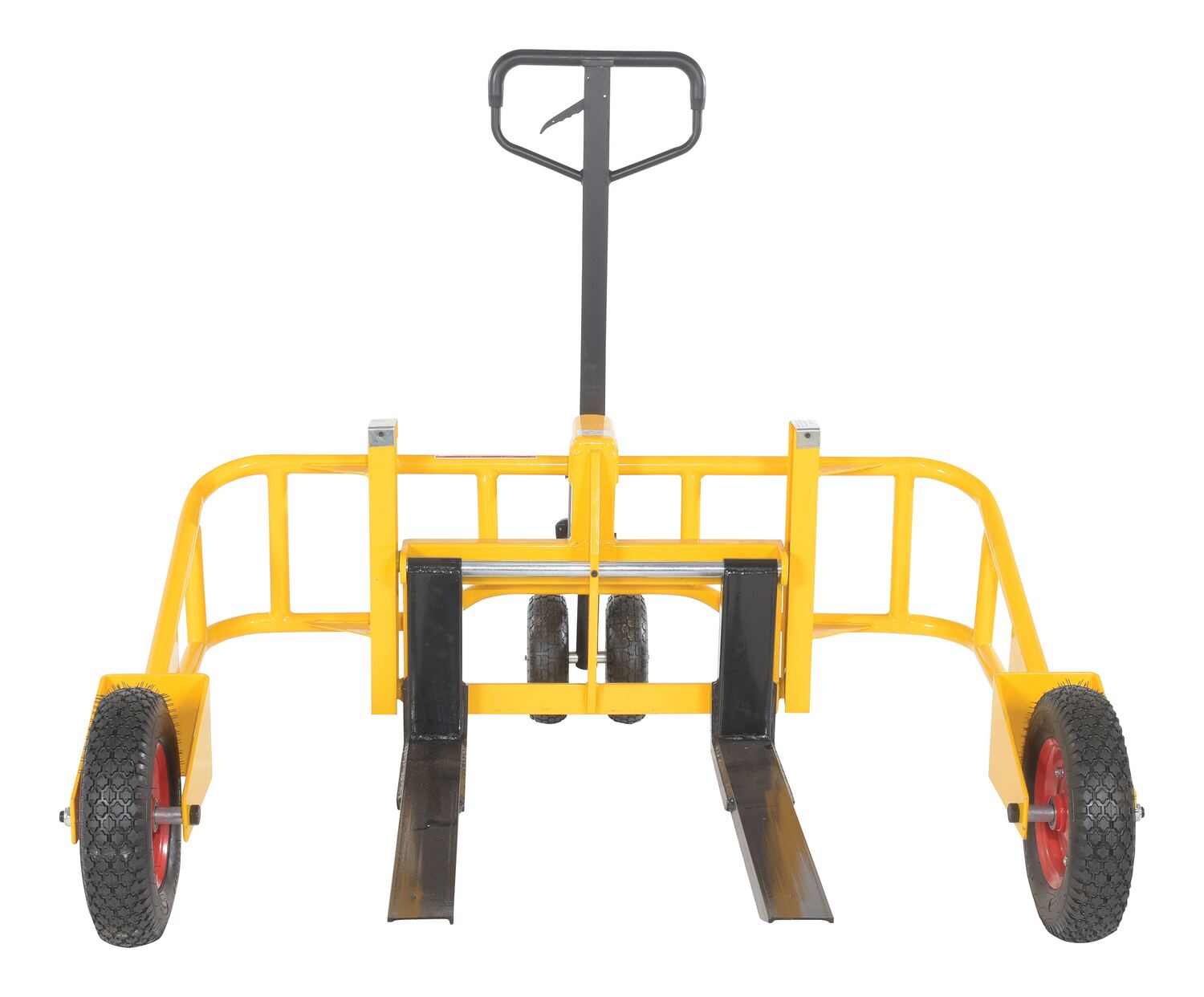

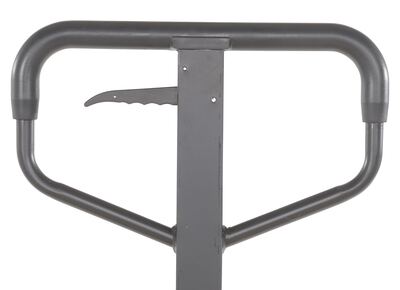

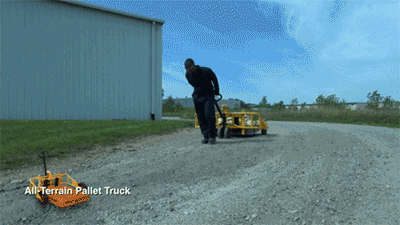

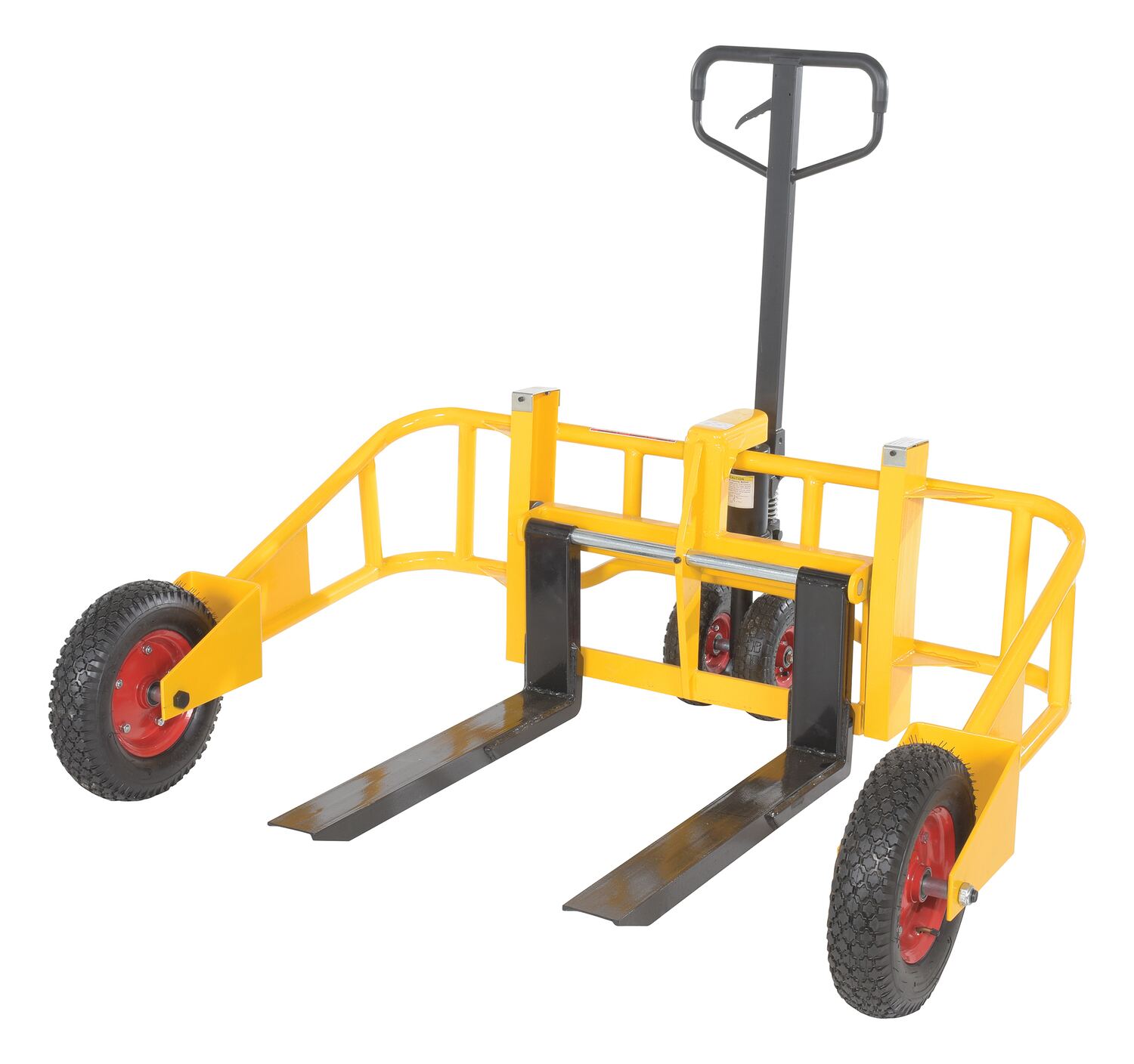

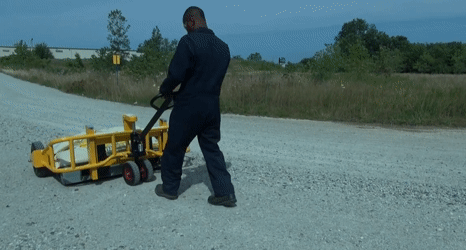

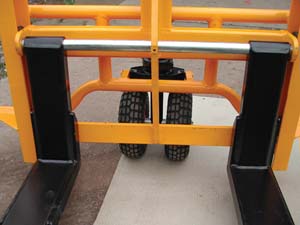

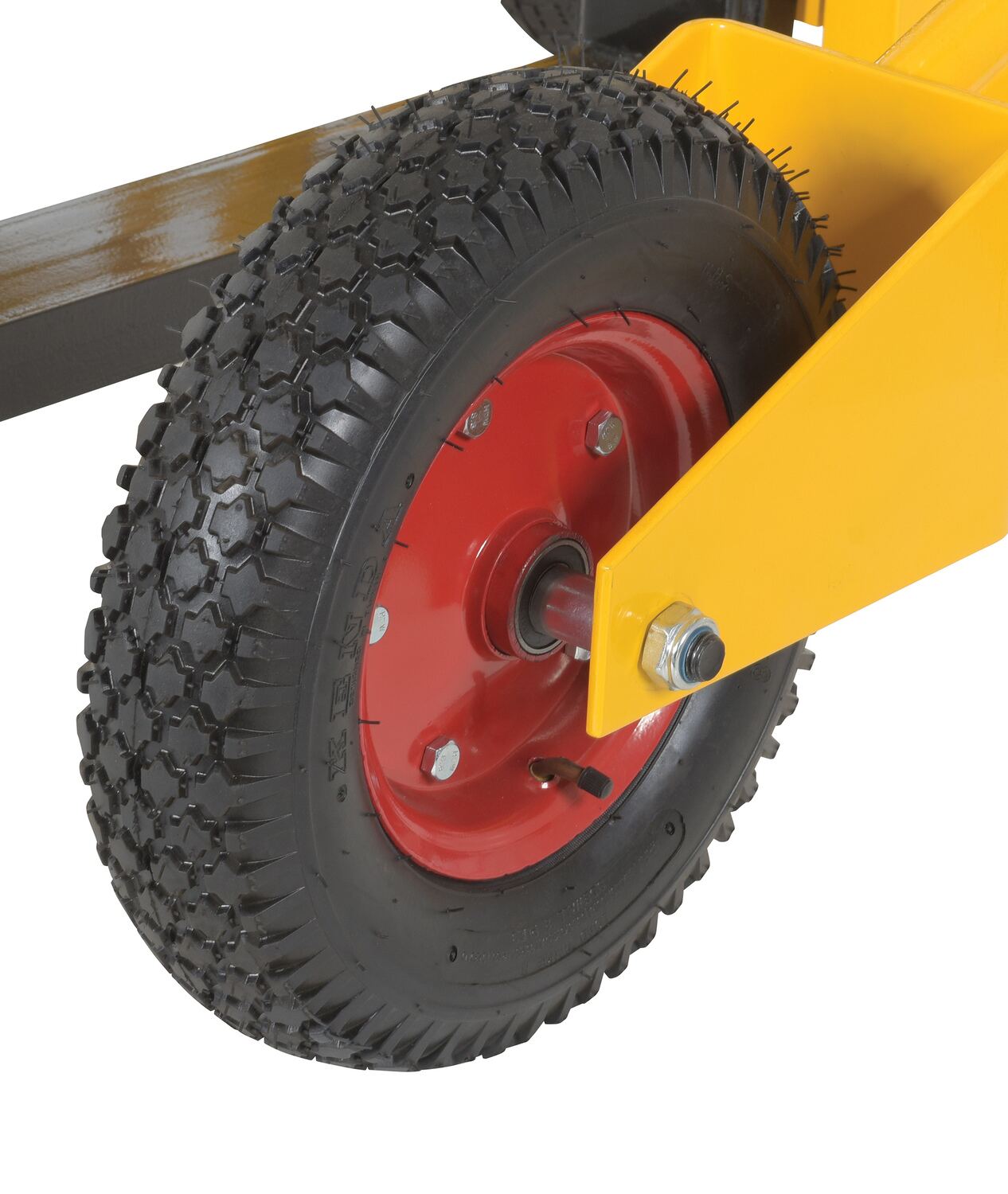

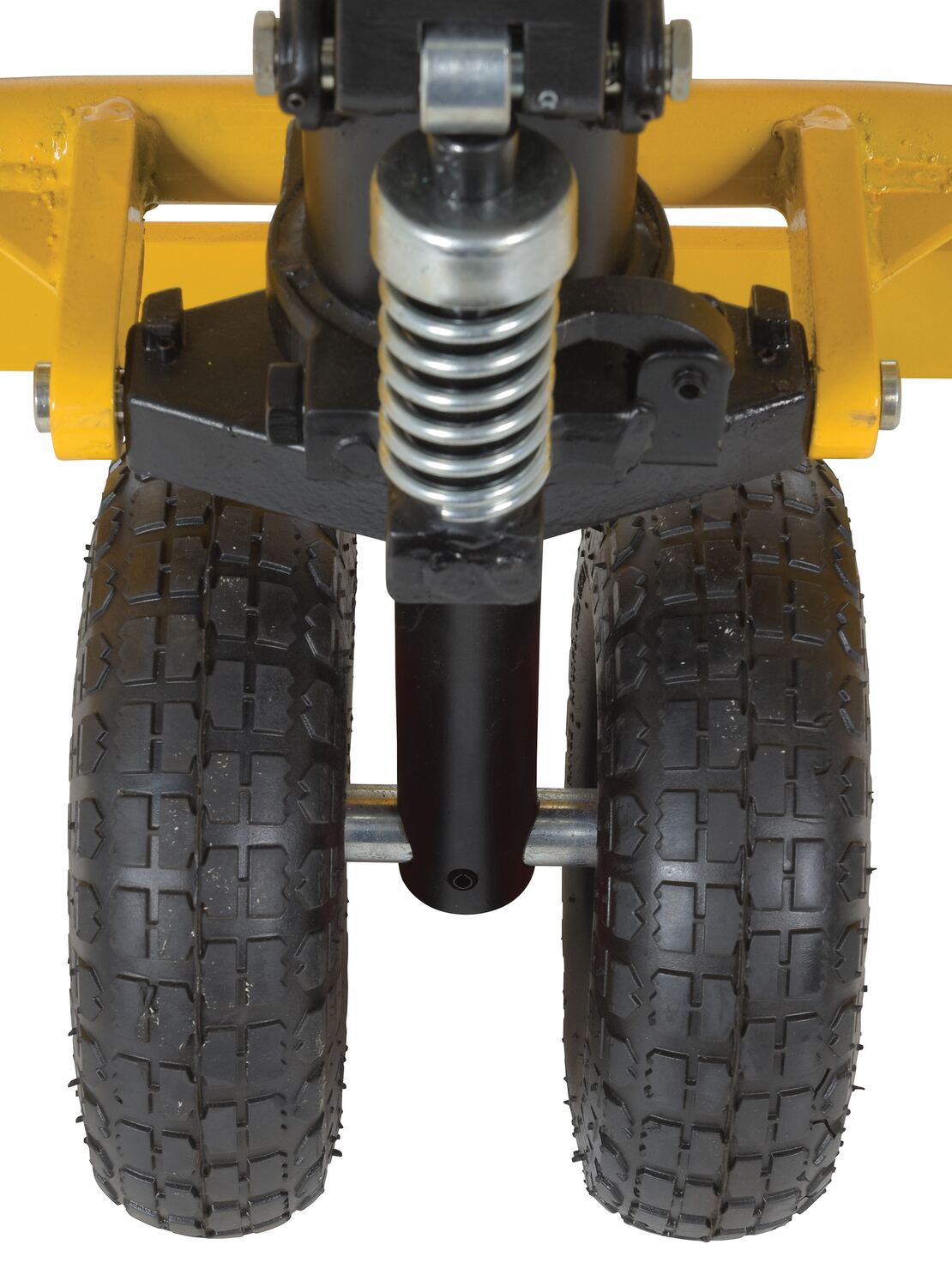

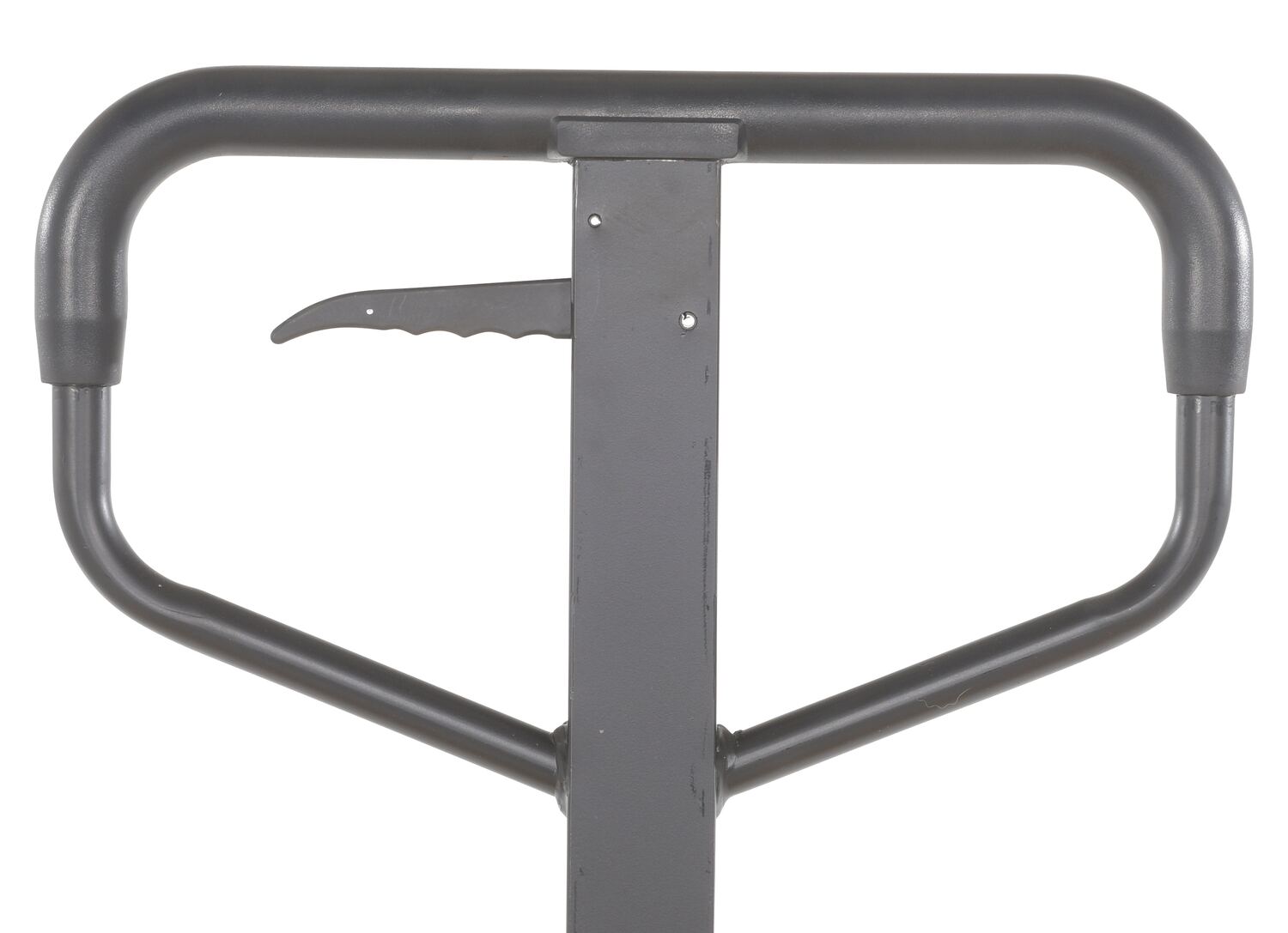

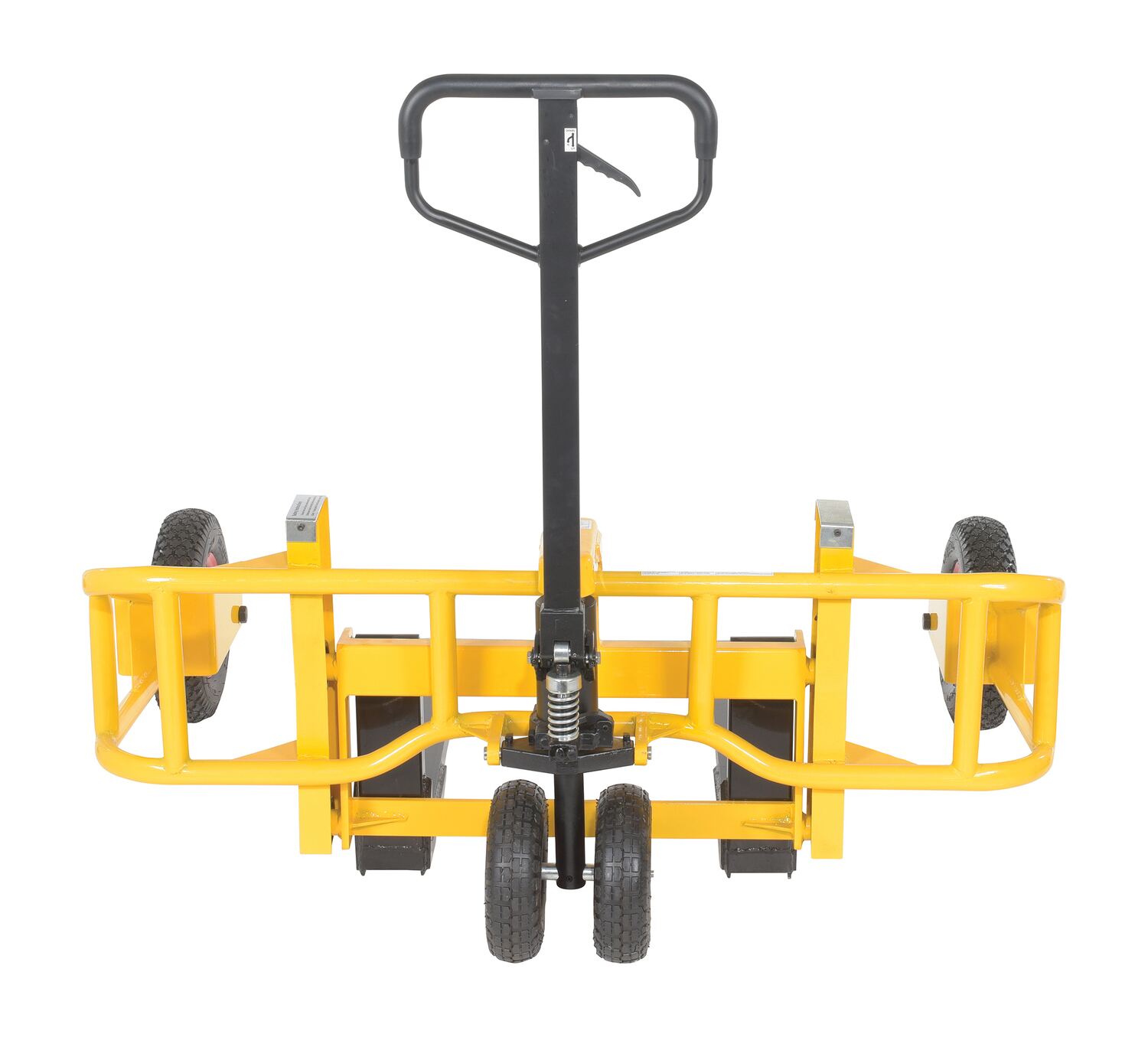

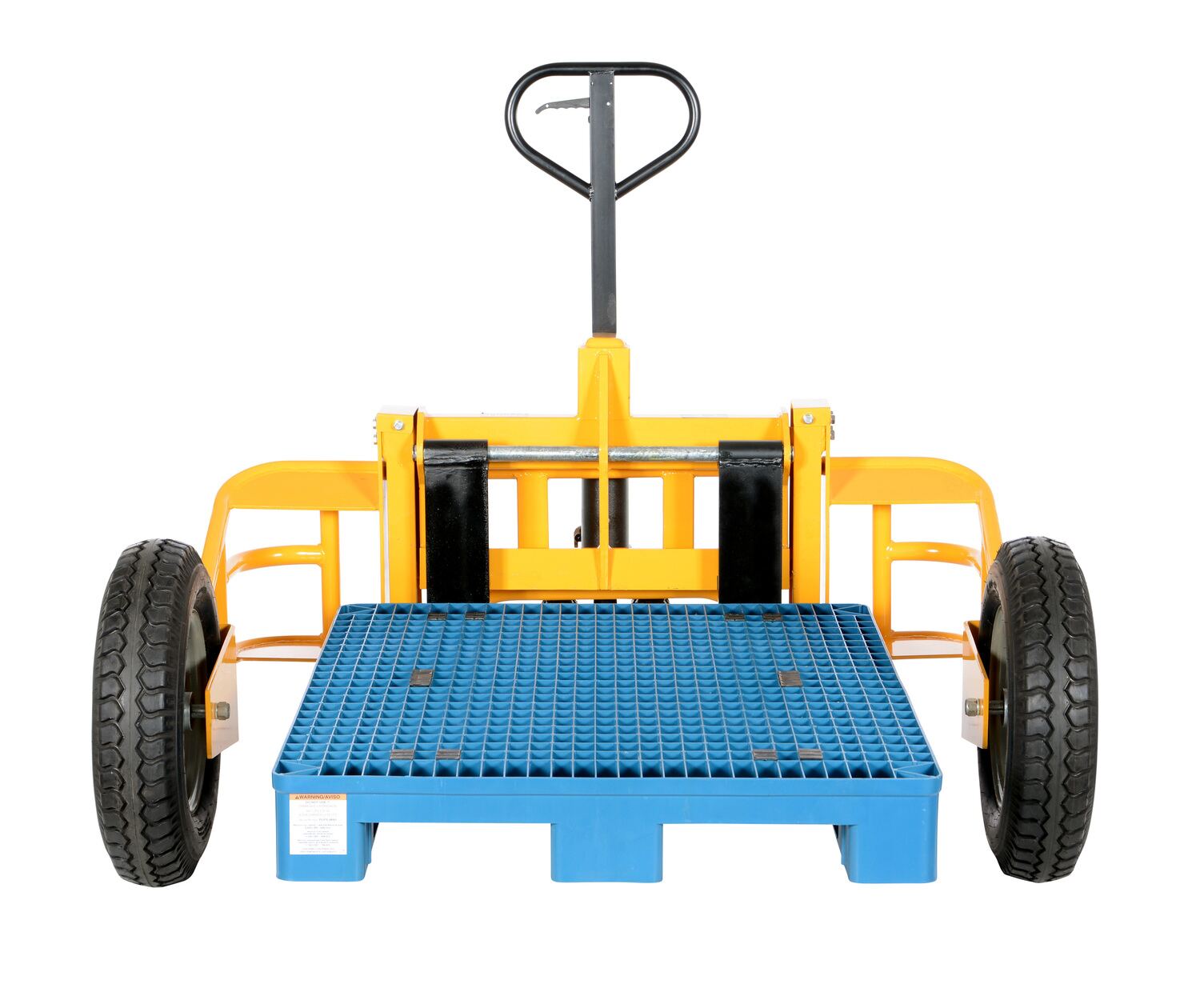

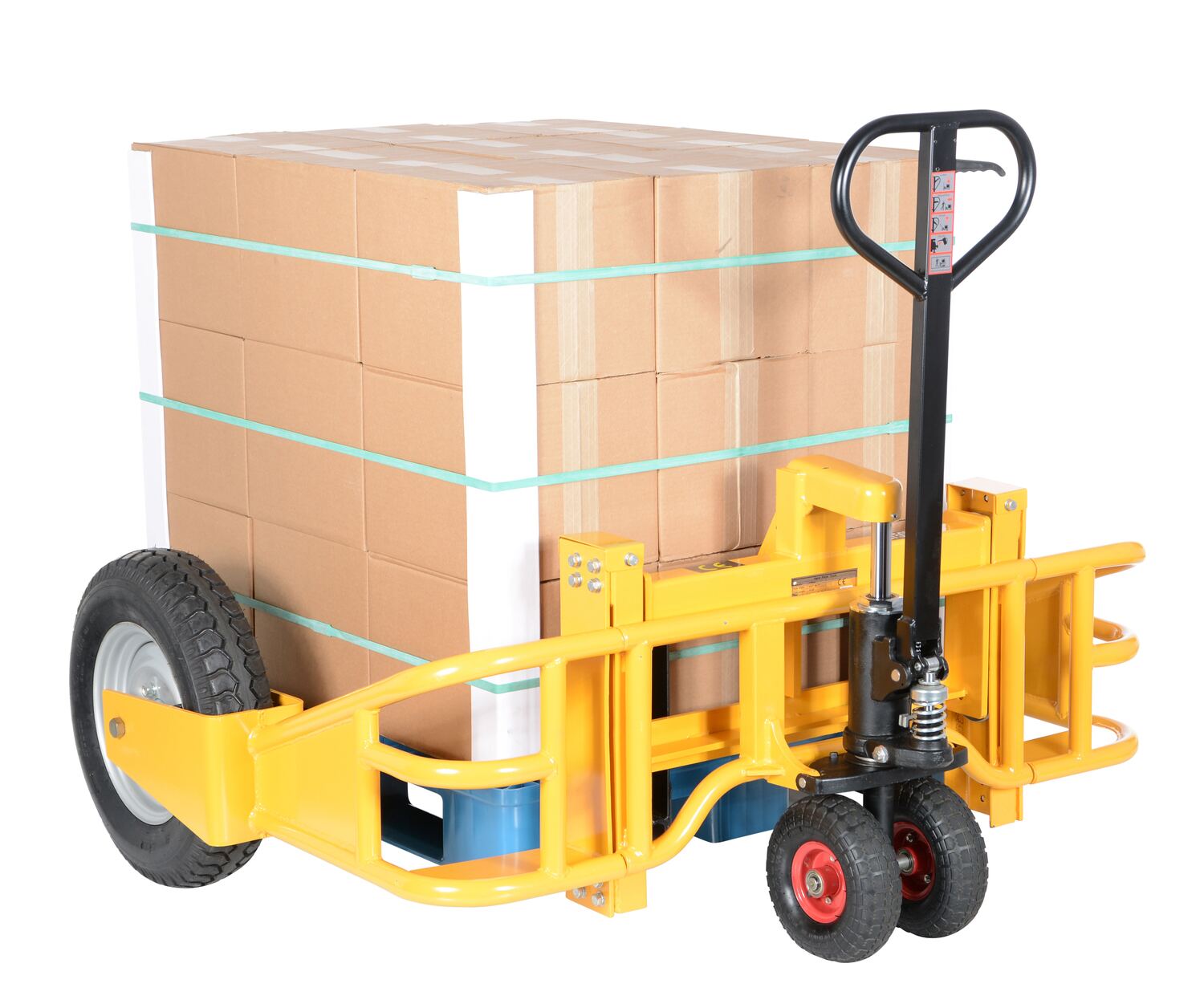

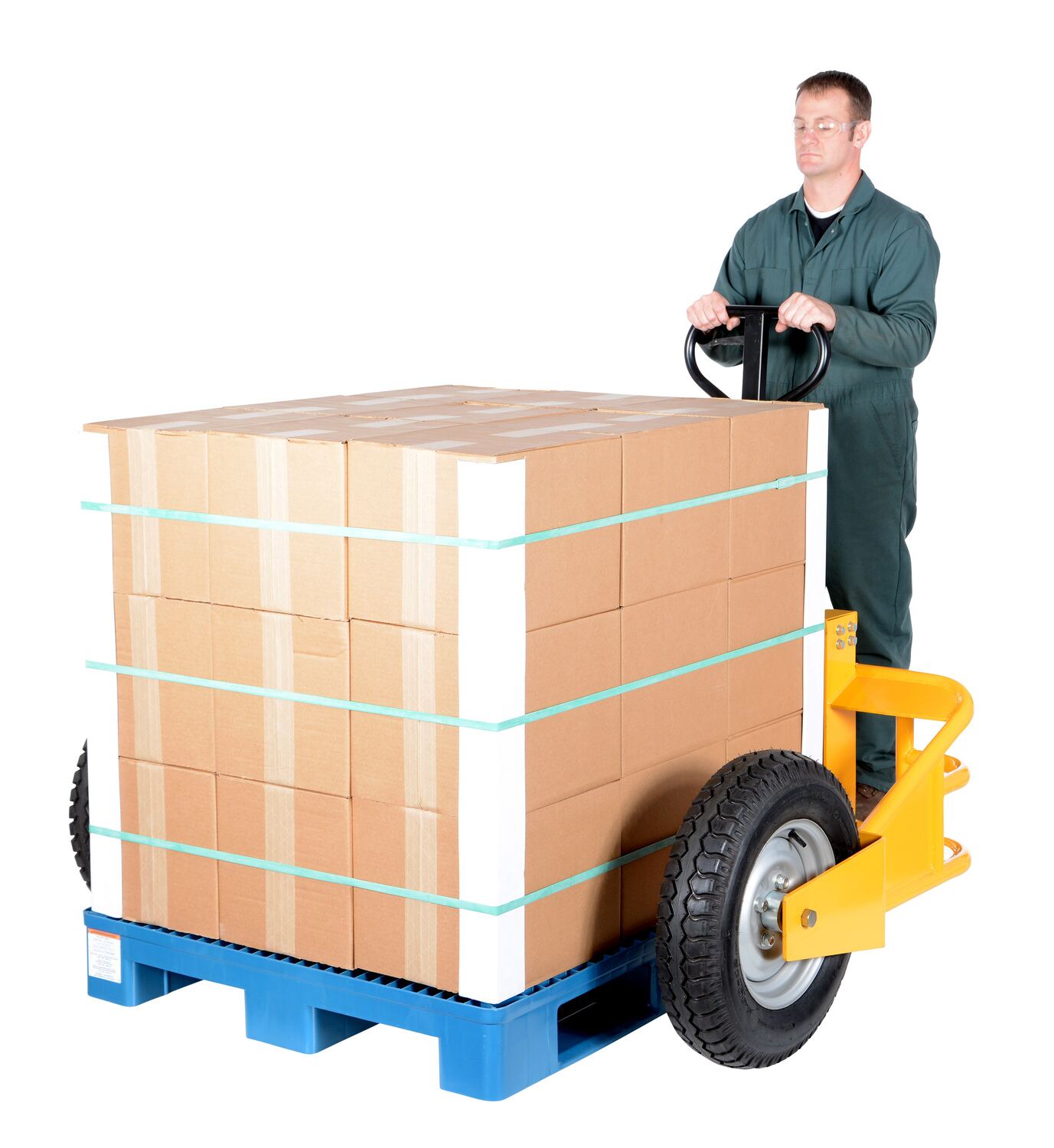

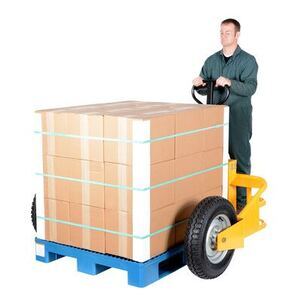

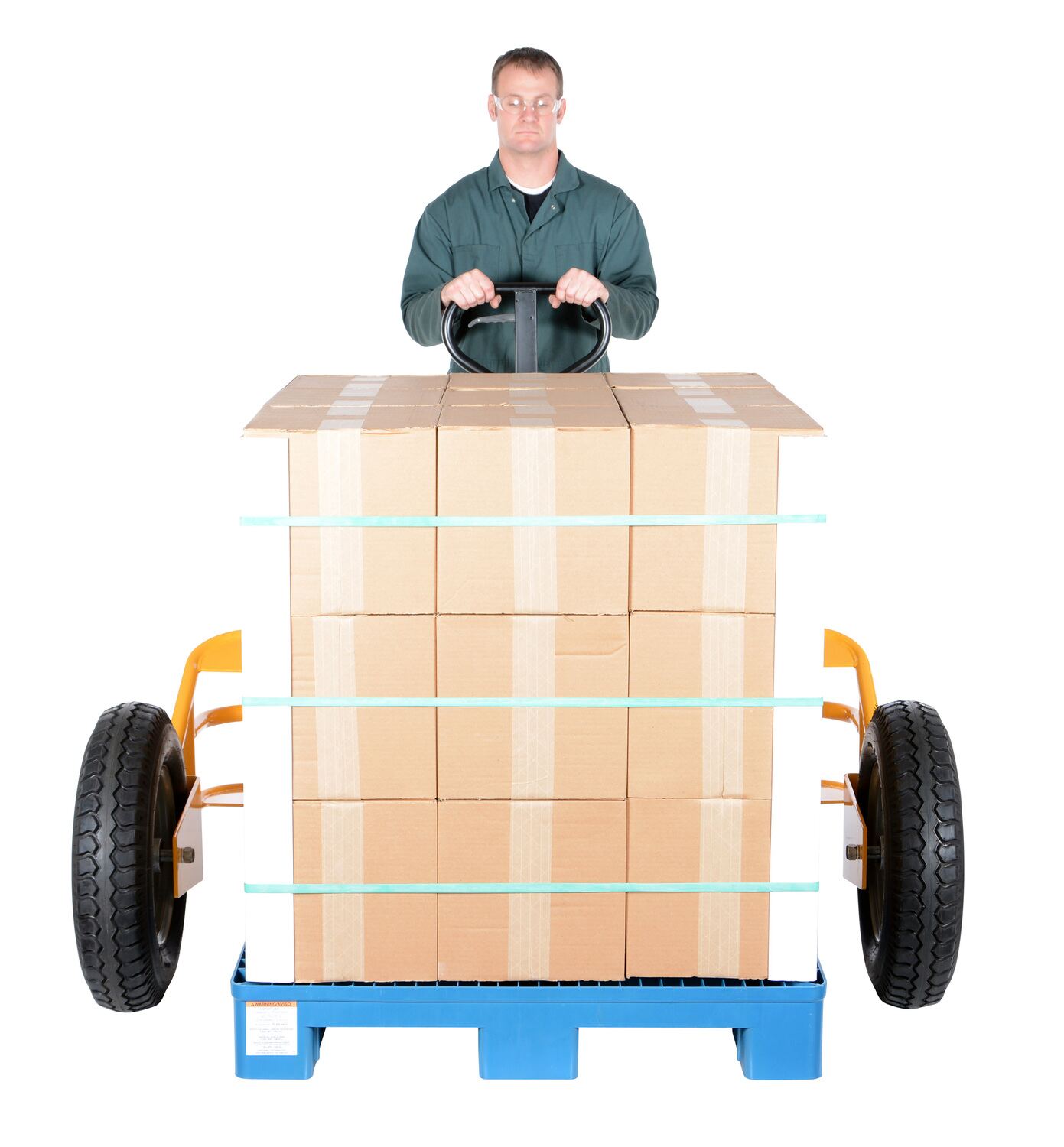

ALL-T-FORKS.jpgThis lightweight, yet strong tubular frame design handles evenly distributed loads. Large wheels allow for movement over most surfaces. Use at construction sites, gravel pits, and nurseries. Features large 15" front pneumatic tires (22" on ALL-T-HD) and 10" pneumatic steering wheels. Individual forks are 4"W x 2"H (4"W on ALL-T-HD). Easy to operate with three position handle (UP, DOWN, and NEUTRAL). Usable width between outriggers is 48".

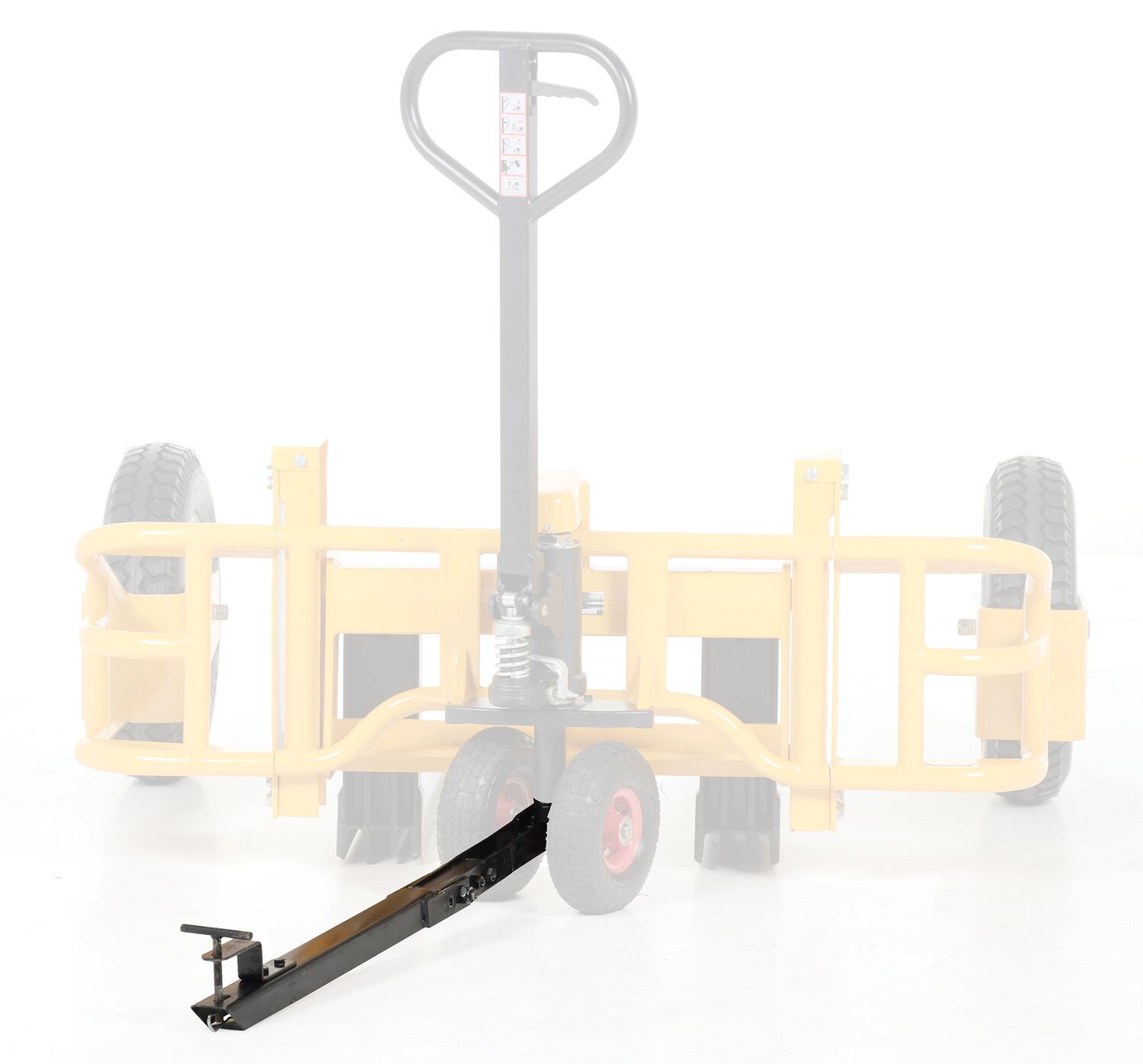

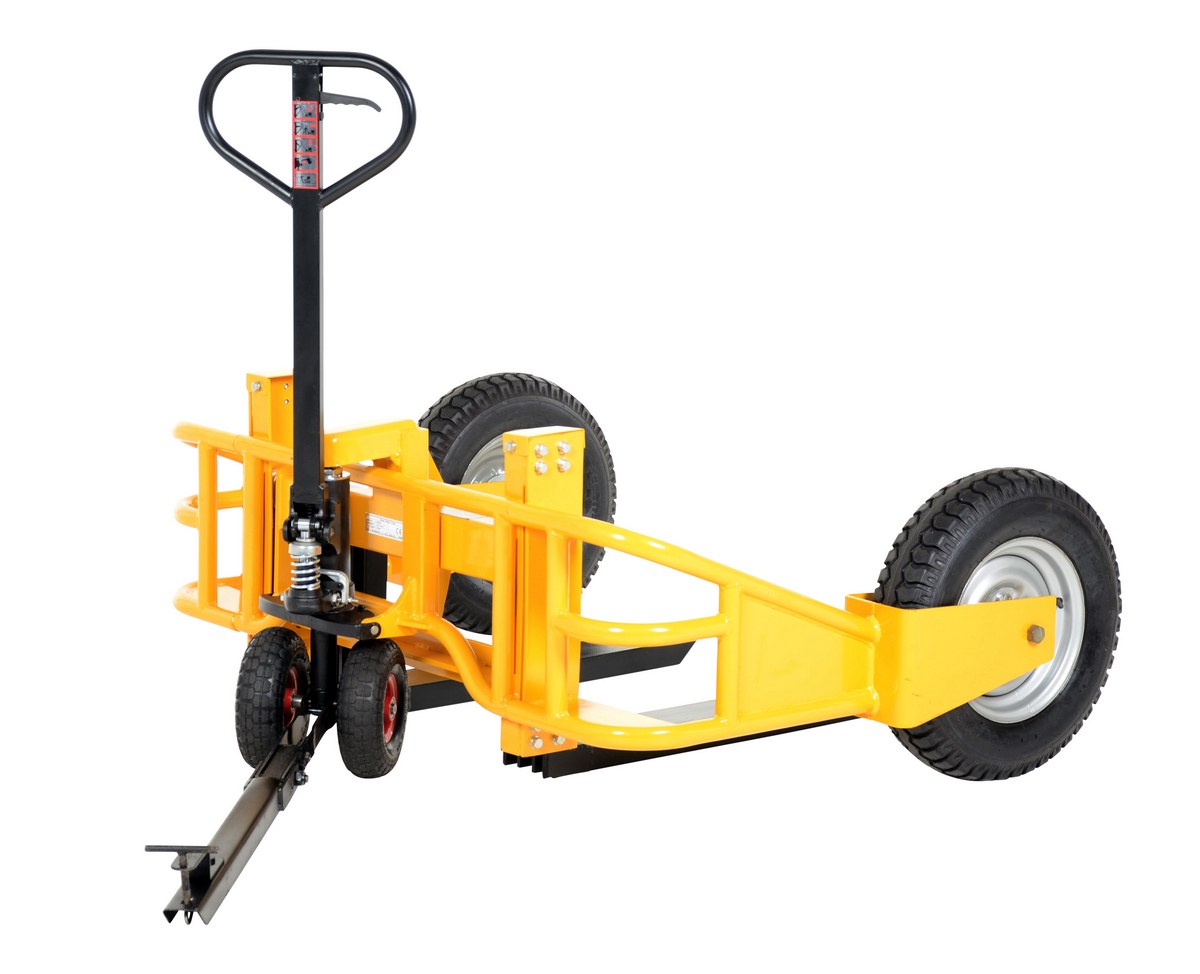

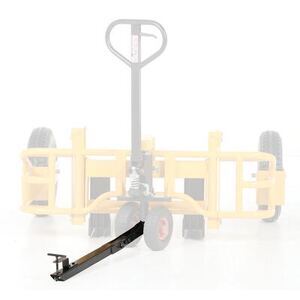

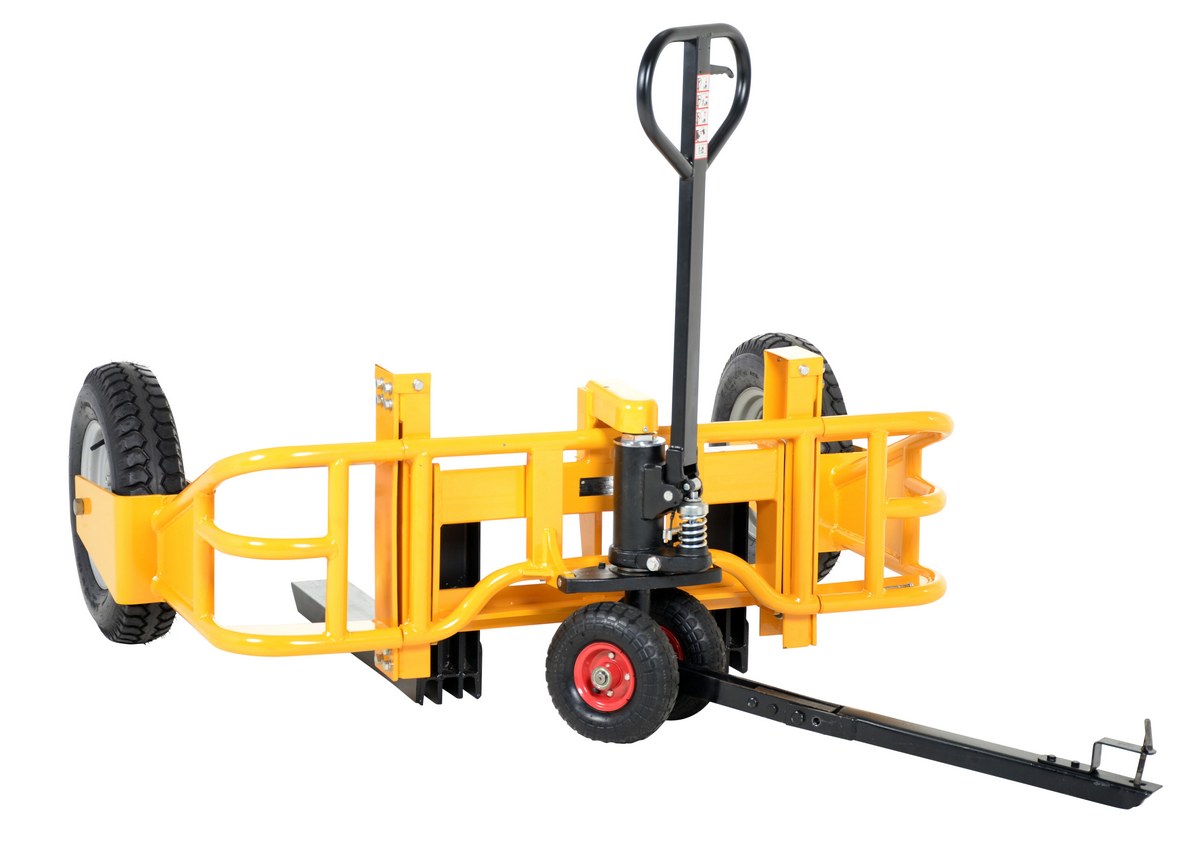

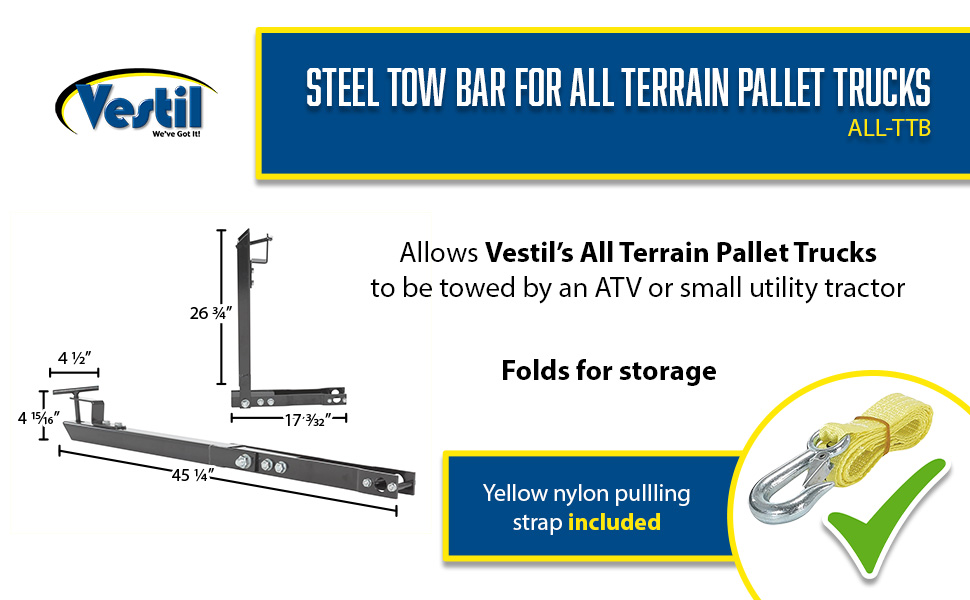

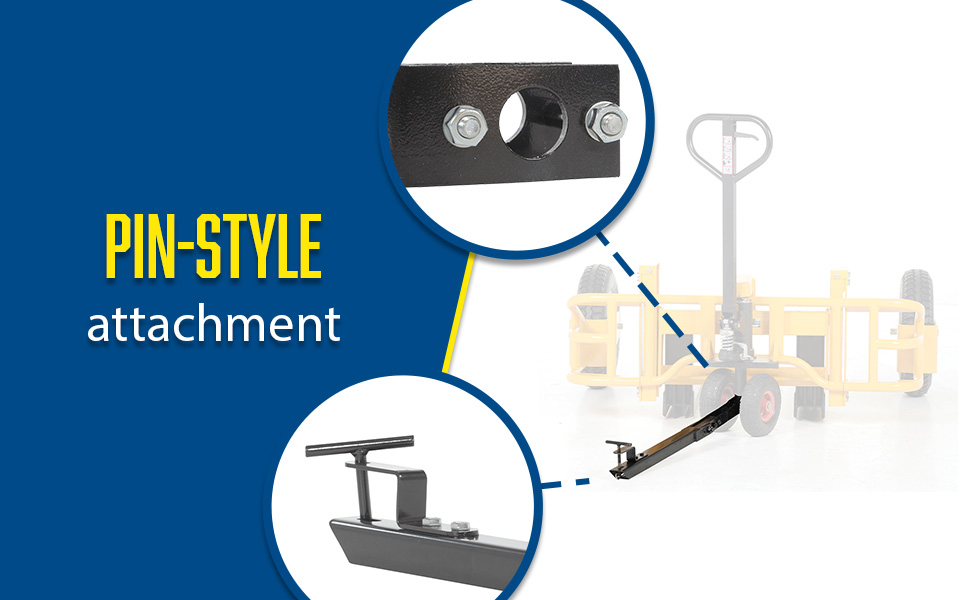

Optional Tow Bar package allows unit to be towed by an ATV or small utility tractor. Designed for pulling in either loaded or unloaded position.

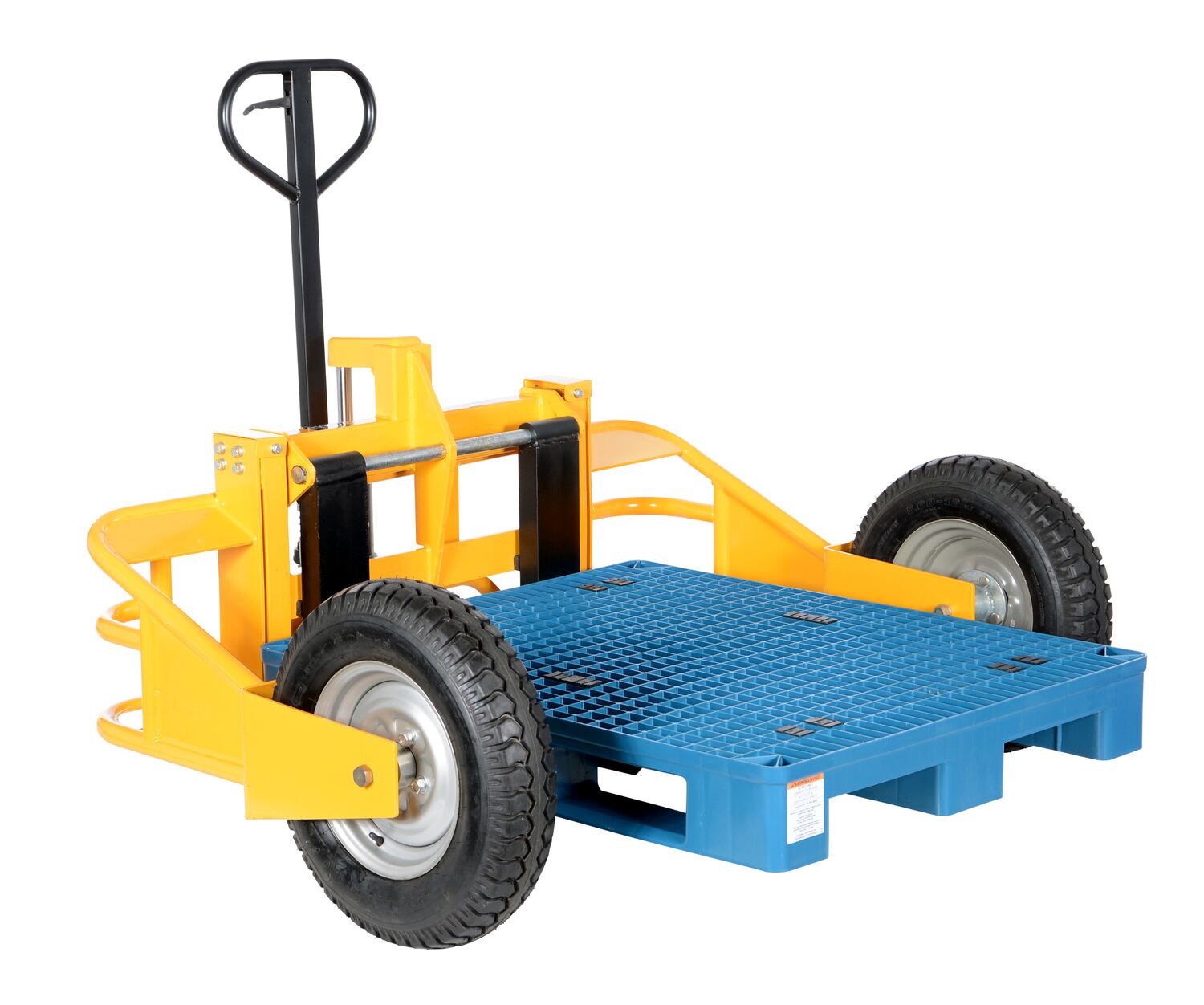

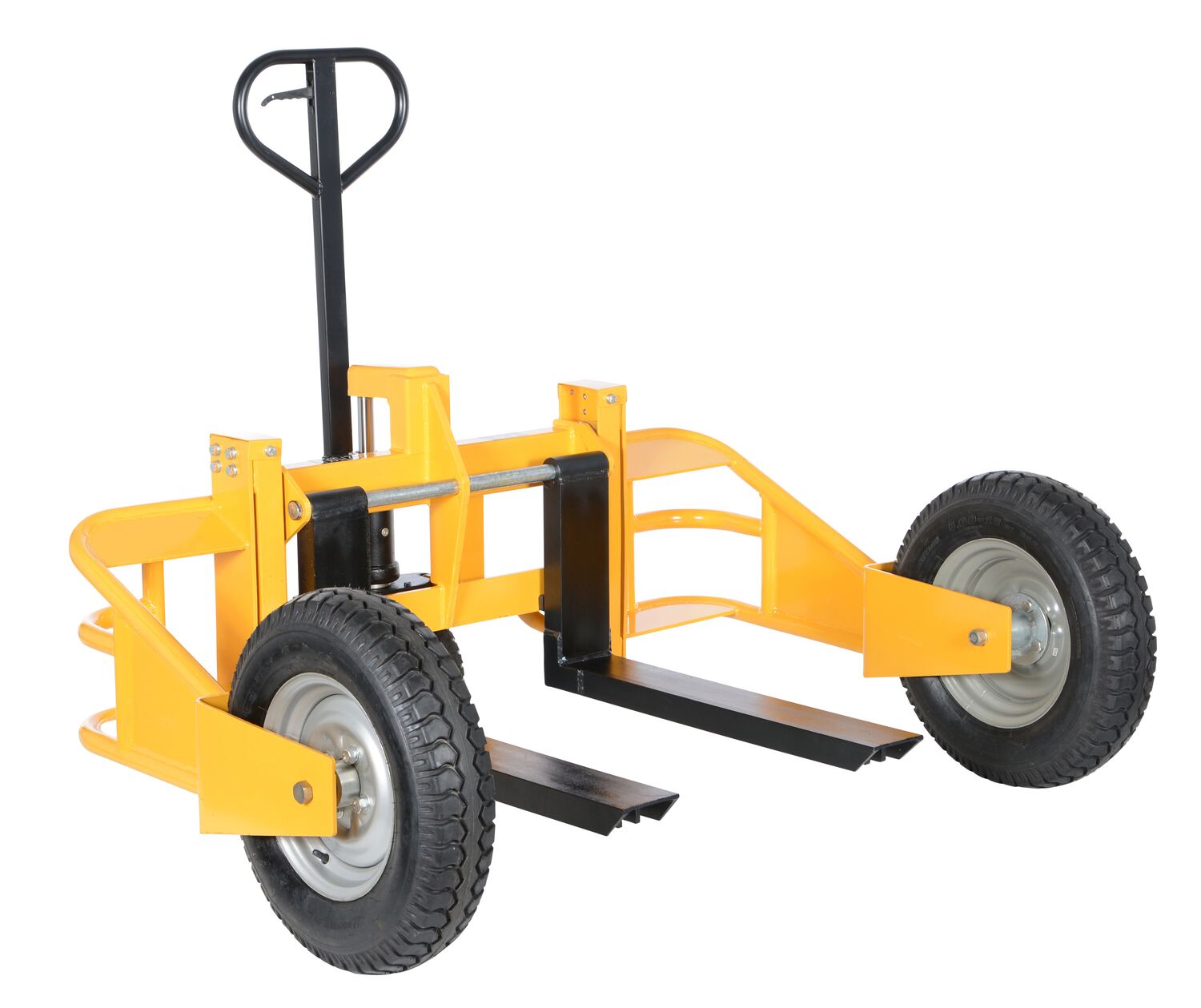

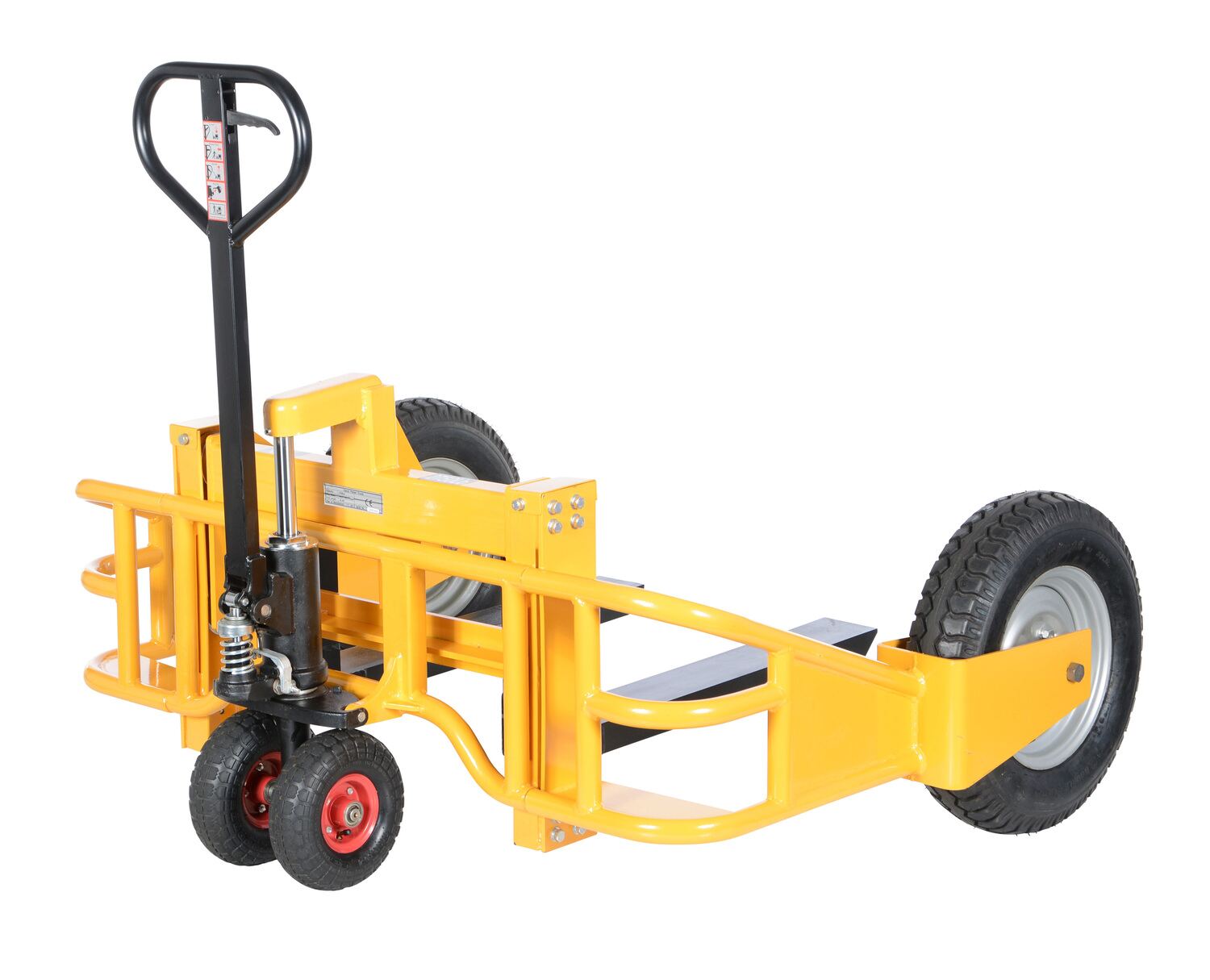

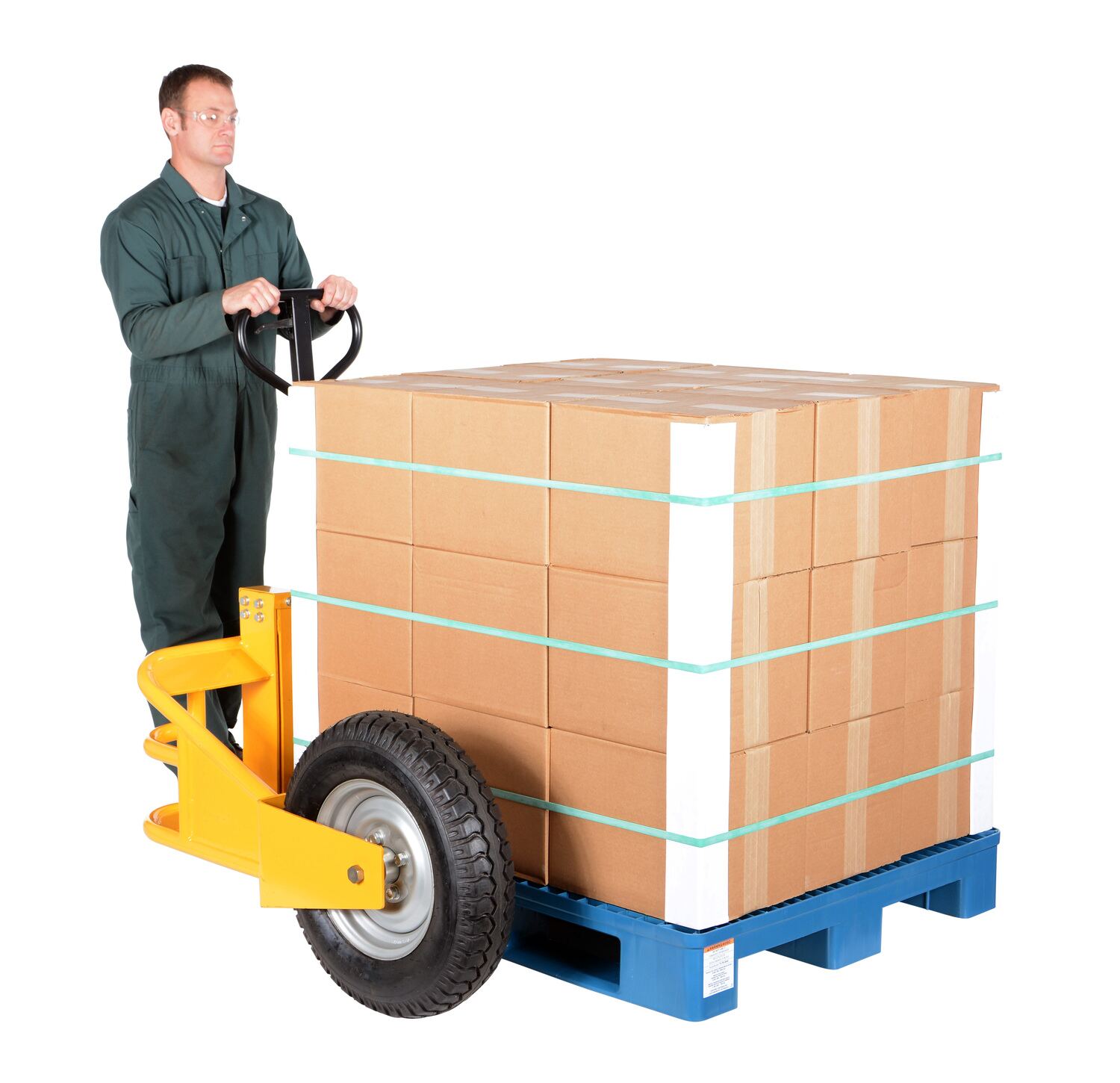

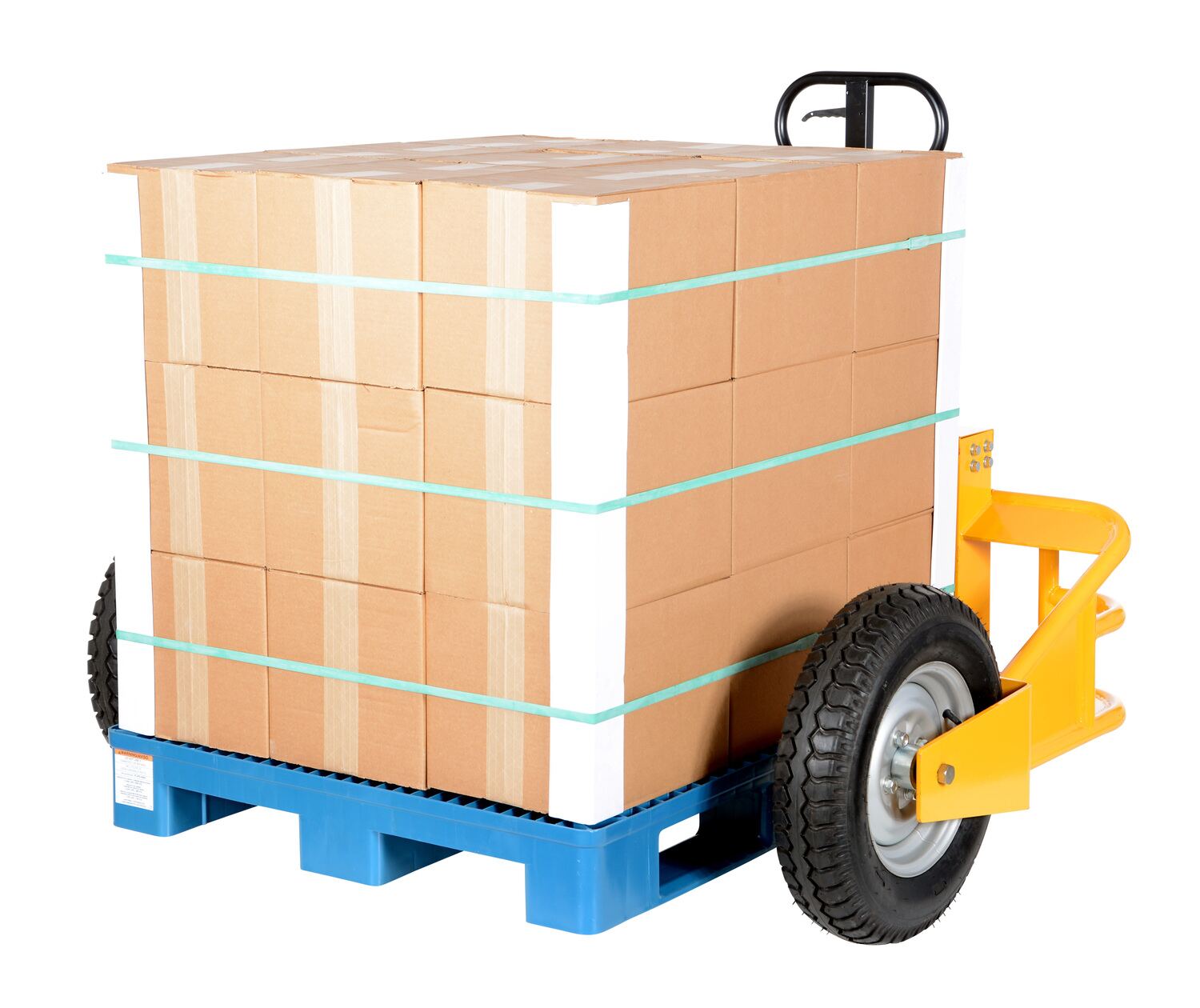

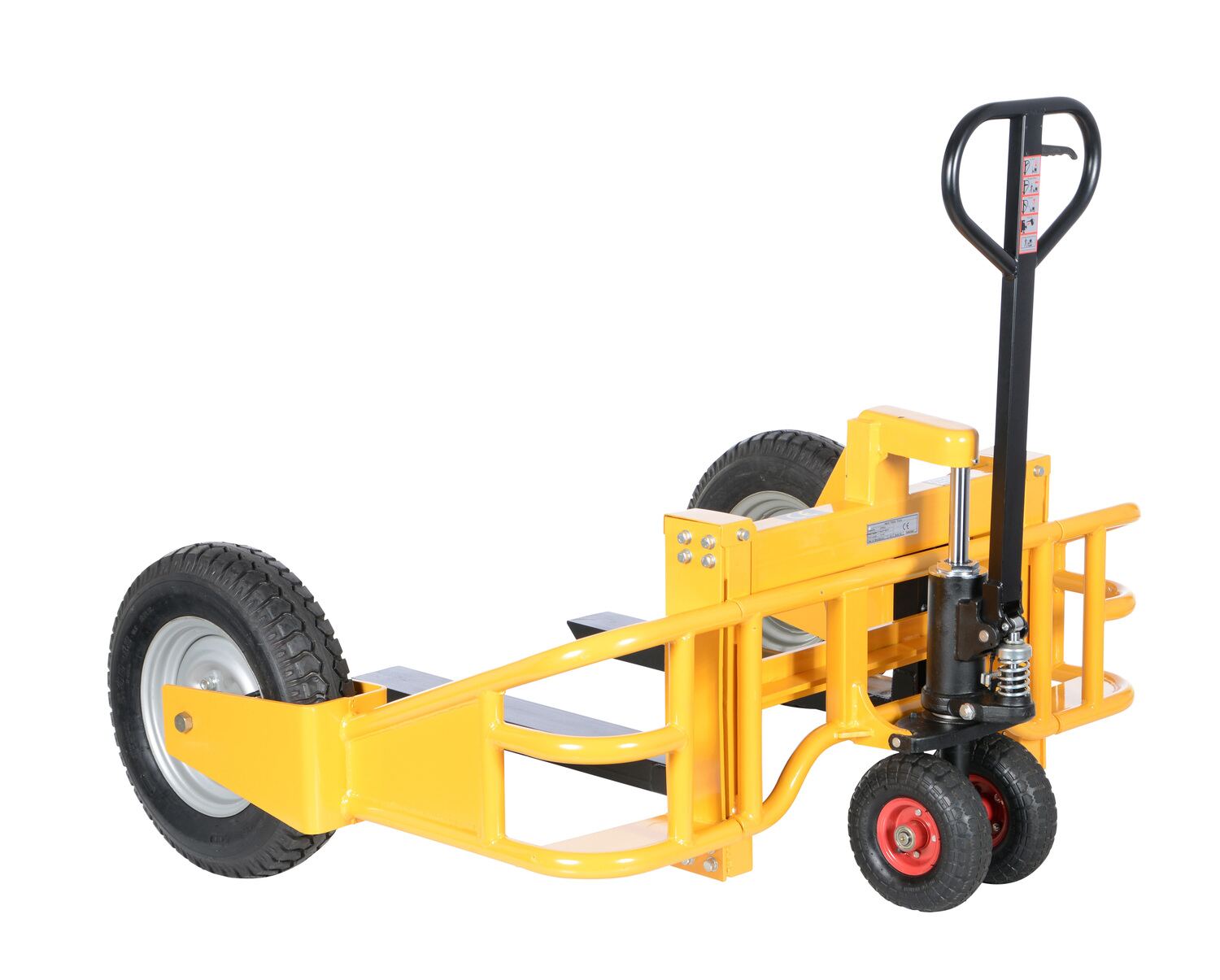

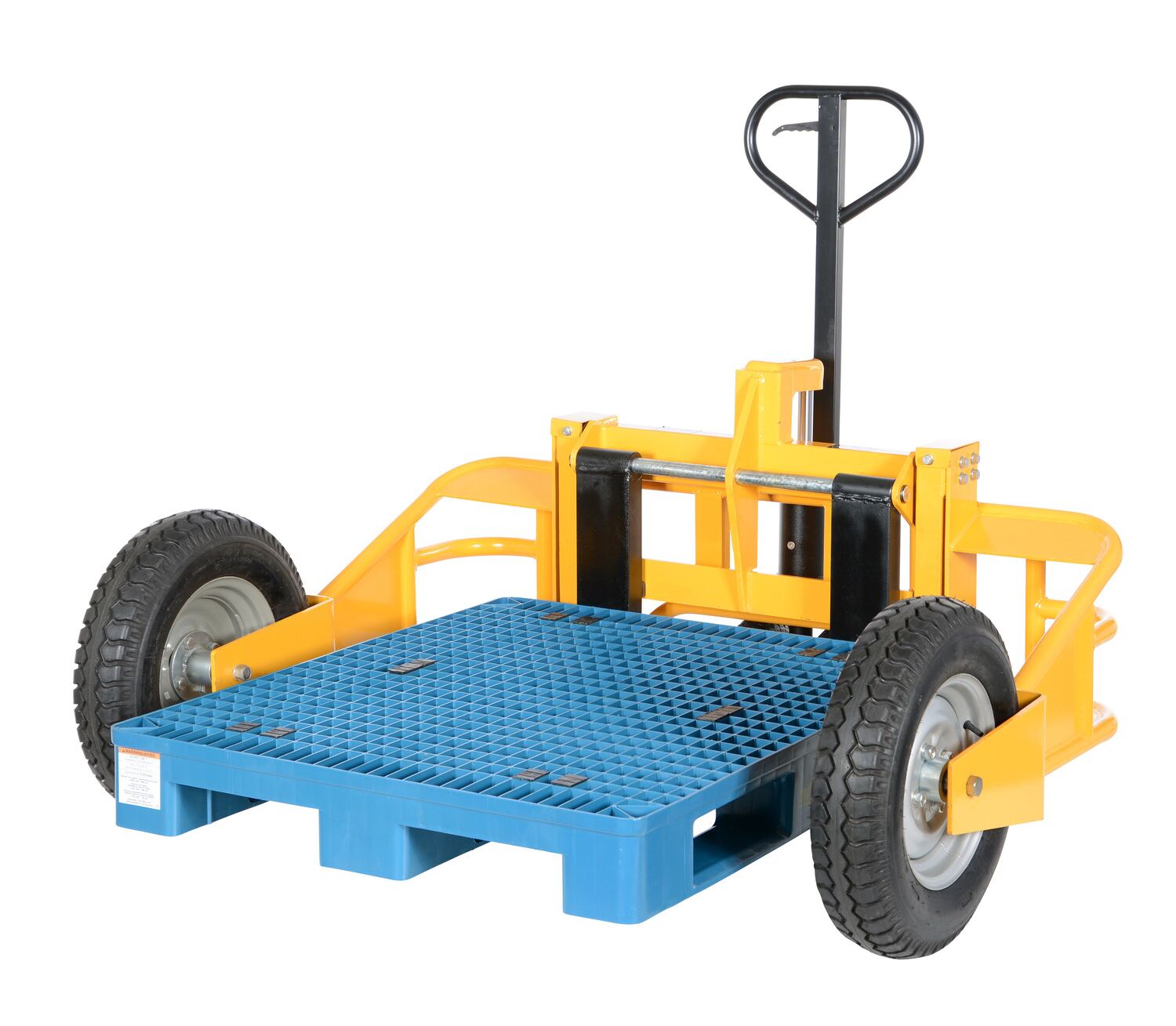

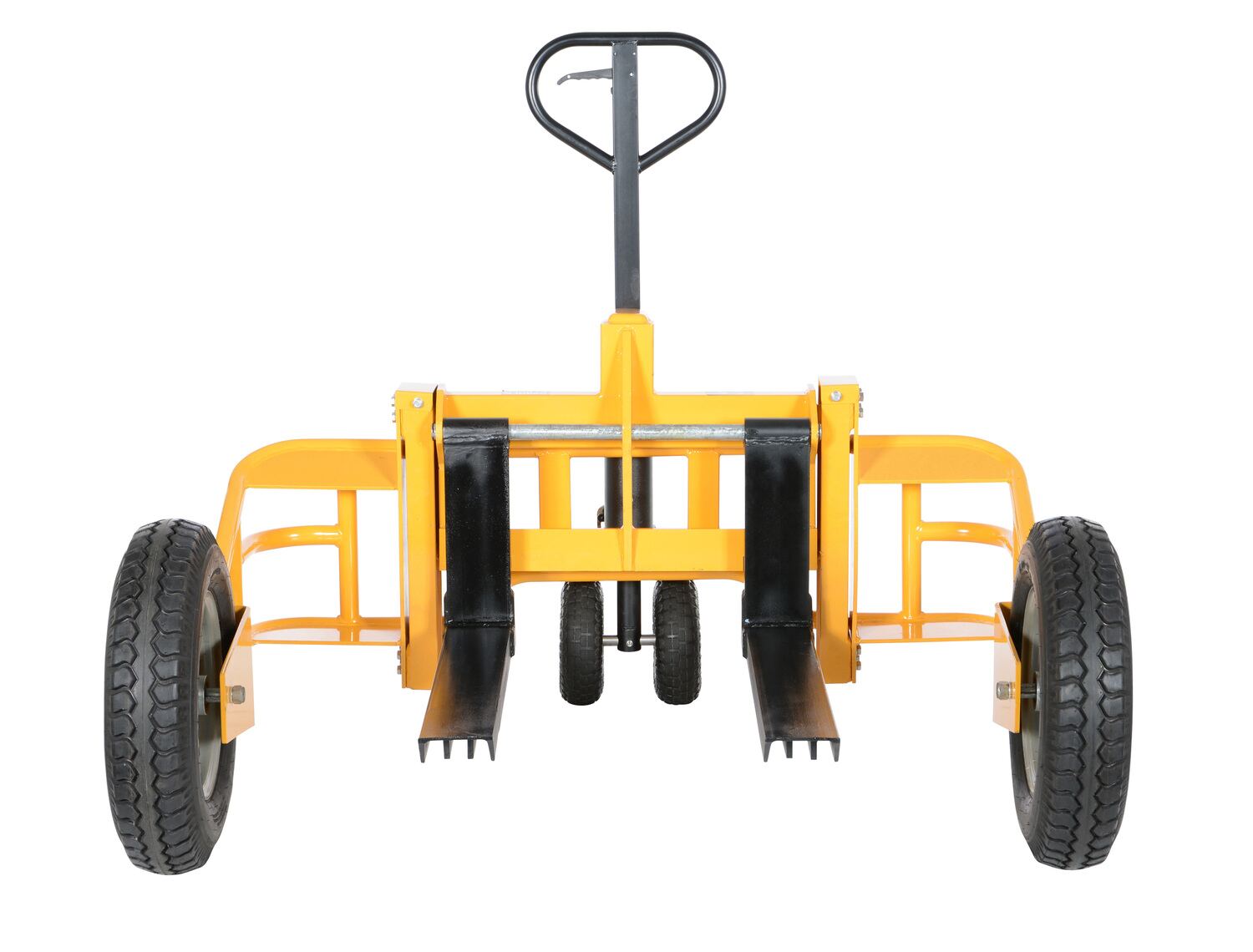

ALL-T-HD

model ALL-T-HD

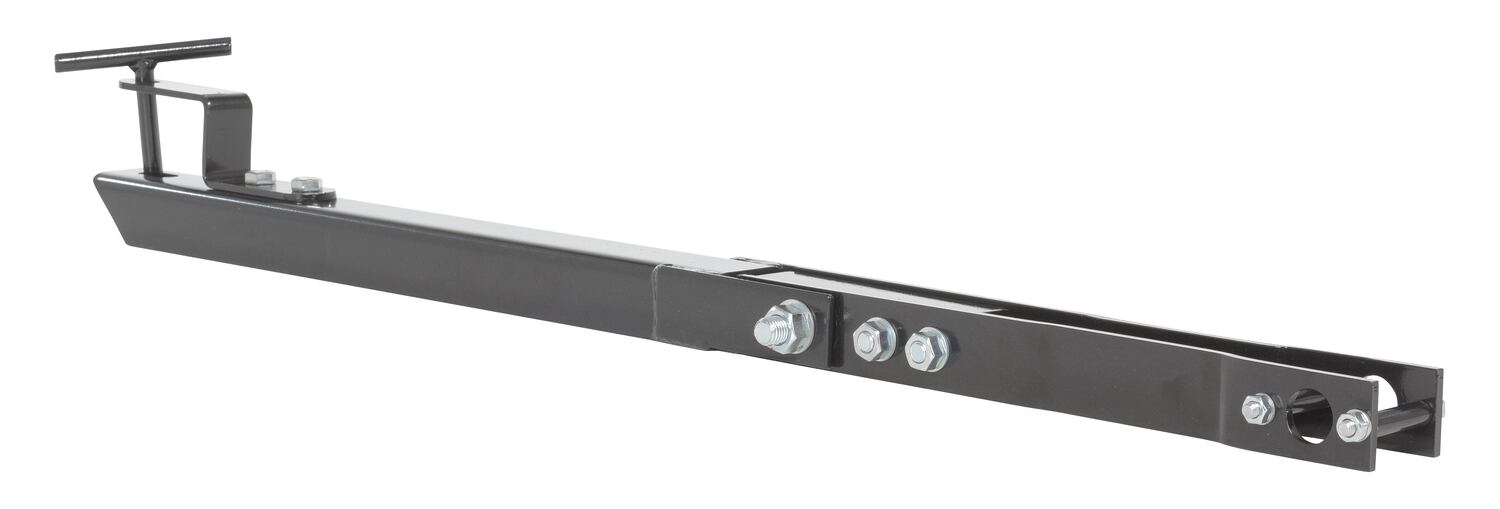

ALL-TTB

model ALL-TTB

Click A Tab For More Information. If A Tab Is Missing, This Product Has No Content For That Tab.

KEY: Approval Drawing = Approval Drawing -- Approval Drawing = Warranty -- Approval Drawing = Testing Certificate

Model Number & Specs Table

All Terrain Pallet Truck
Model PDF's Overall Size
(WxLxH)
Capacity
(lbs)
Adjustable
Fork Width
Fork
Length
Service
Range
Wt.
(lbs)
Manual

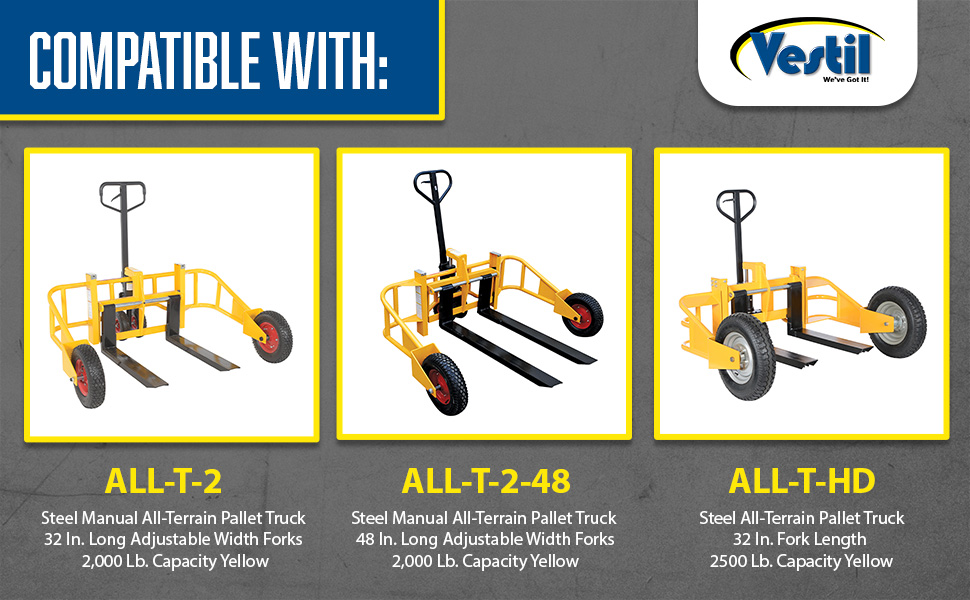

ALL-T-2 icon_approvaldrawings.jpgCompliance Certificate 63-3/4"x49"x51" 2,000* 9-1/2" to 26" 32" 3" to 9" 328

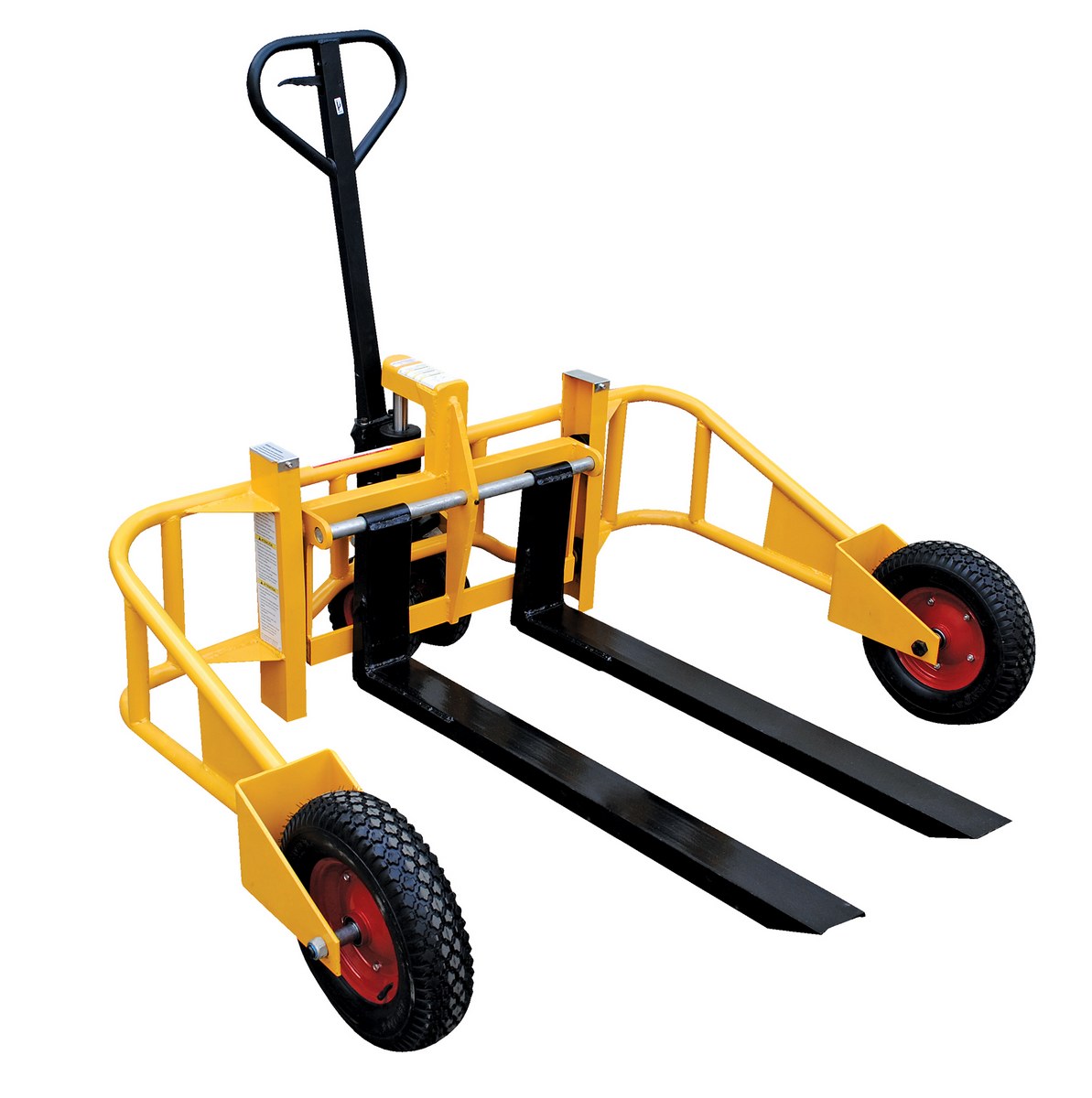

ALL-T-2-48 icon_approvaldrawings.jpgCompliance Certificate 65"x63"x51" 2,000** 9-1/2" to 26" 48" 3" to 9" 368
ALL-T-HD icon_approvaldrawings.jpgCompliance Certificate 64"x50"x51" 2,500*** 12" to 26-3/4" 32" 3" to 9" 546

KEY: Approval Drawing = Approval Drawing -- Approval Drawing = Warranty -- Approval Drawing = Testing Certificate

Click A Model Number Below To Show Details



Owner's Manuals


Survey Sheets

No Survey Sheets For This Product.


Approval Drawings

ALL-T-2
ALL-T-2-48
ALL-T-HD
ALL-TTB

Testing Certificates

ALL-T-2
ALL-T-2-48
ALL-T-HD
ALL-TTB

Other PDF's

No "Other PDFs" For This Product...


Directory Links Of Available PDF's For All Products

Options

Model Description Wt.
(lbs)

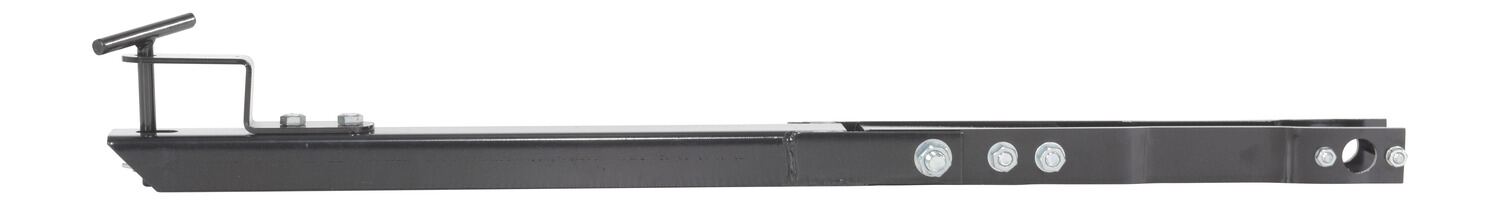

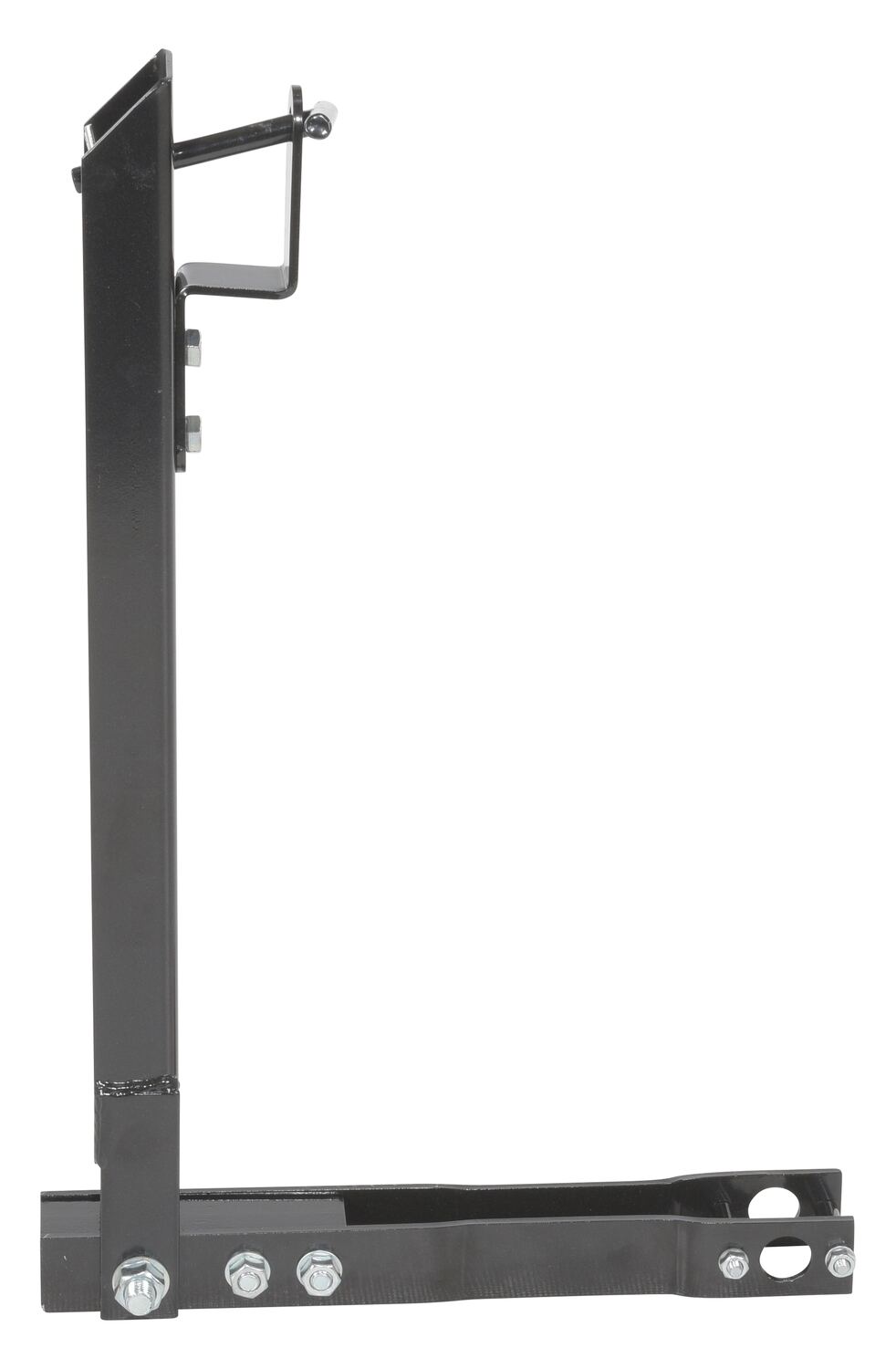

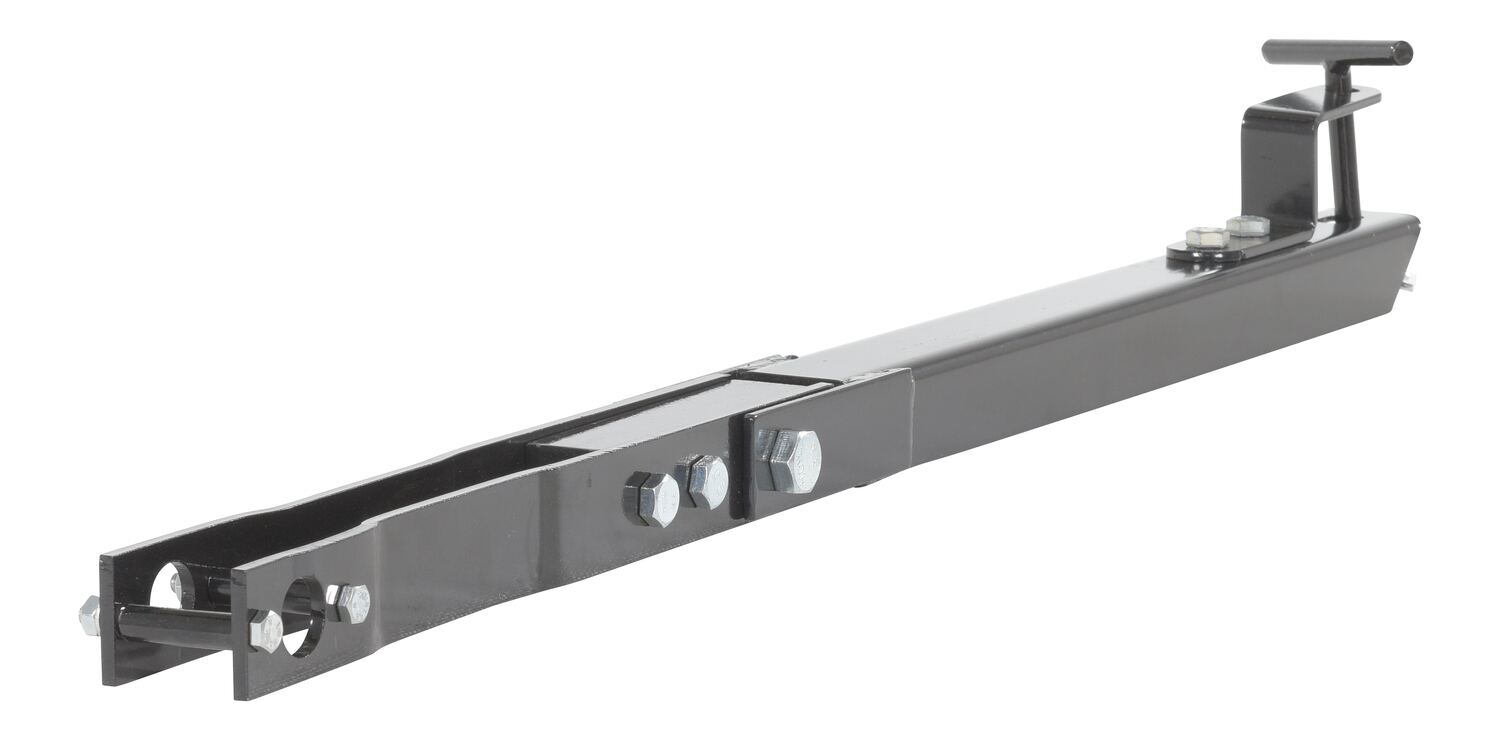

ALL-TTB Optional Tow Bar Package (45-1/4"Lx4-1/2"Wx4-15/16"D) 23

KEY: Approval Drawing = Approval Drawing -- Approval Drawing = Warranty -- Approval Drawing = Testing Certificate

Questions & Answers

No current Questions for this product. Check back soon, or submit a question to be answered below
