Click Image to Enlarge

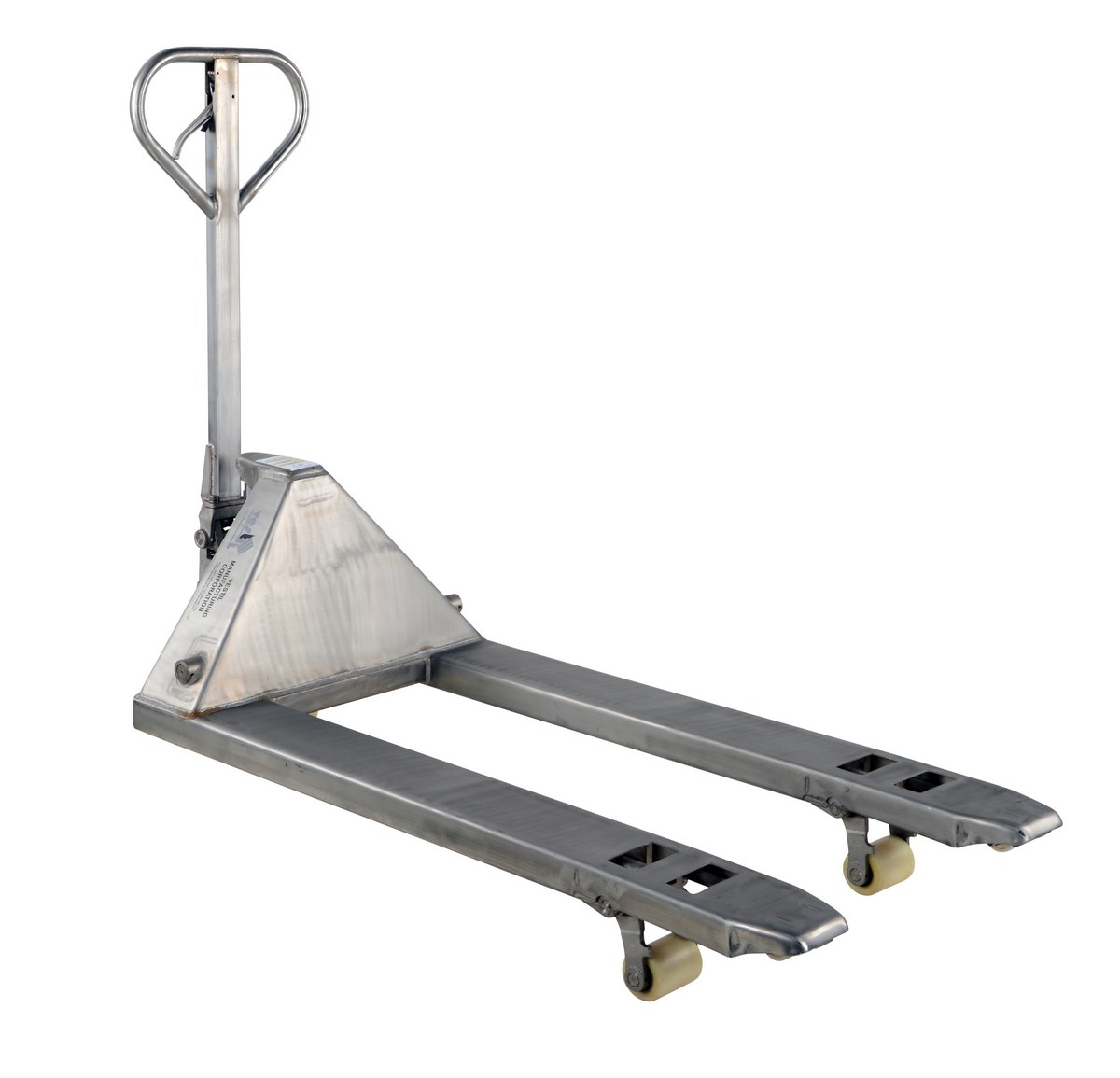

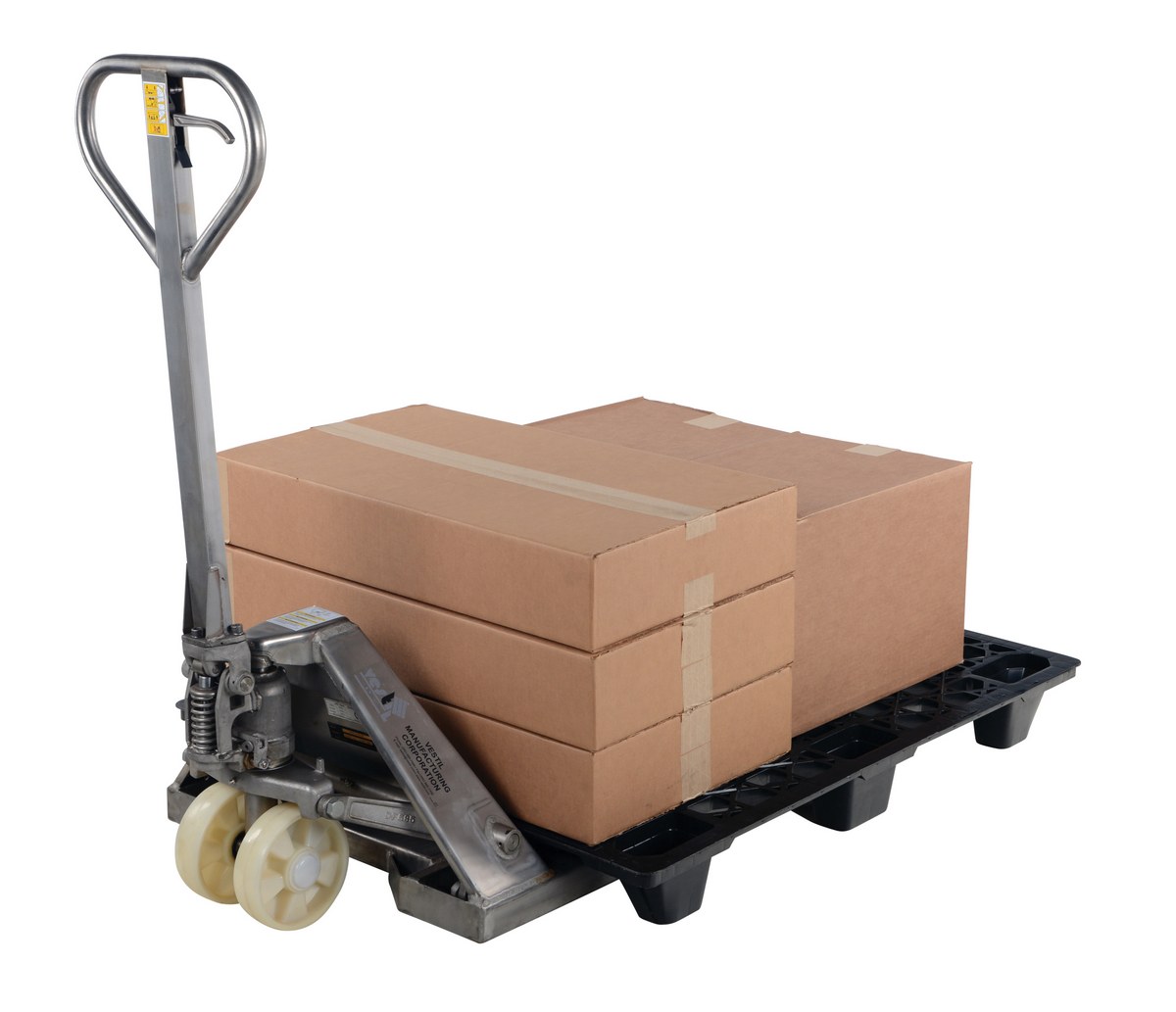

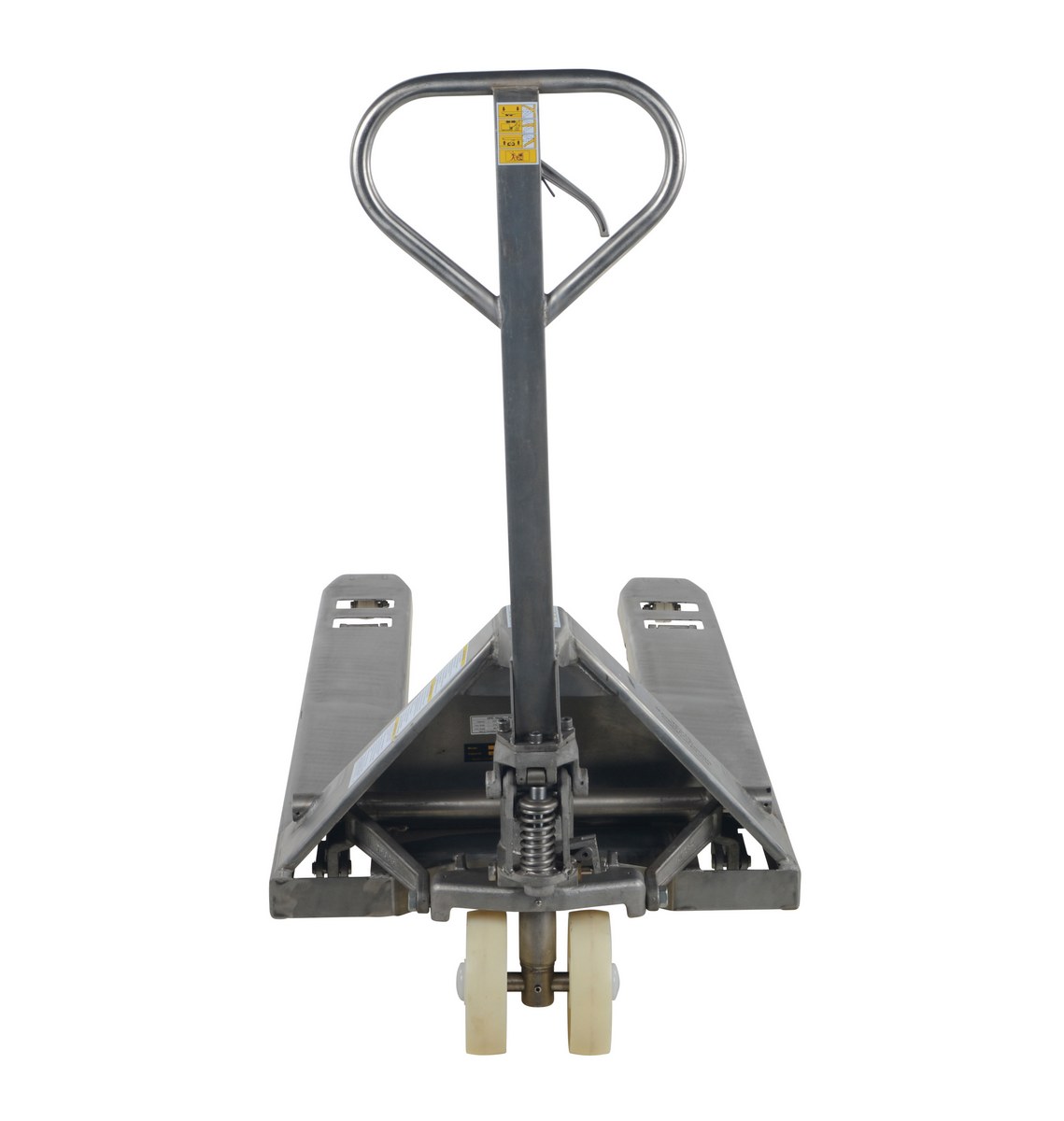

model: PM5-2748-SS


Specialized Pallet Trucks
SERIES: PM5

Ships with the Handle Detached Standard

Stainless Steel and Stainless Steel Frame & Forks - Ideal for sanitary, pharmaceutical, medical, food, corrosive, and wet environments. Choose type 304 stainless steel frame and forks only (chrome handle) or 100% type 304 stainless steel pallet truck for long life in the harshest environments. 5,500 pounds uniform capacity. Individual fork width is 6-1/2".

Galvanized and Zinc Coated - Ideal for corrosive environments. Full-featured pallet trucks were designed for chemical, pharmaceutical, and wash-down applications. 5,500 pounds uniform capacity.

Ships with the Handle Detached Standard

Stainless Steel and Stainless Steel Frame & Forks - Ideal for sanitary, pharmaceutical, medical, food, corrosive, and wet environments. Choose type 304 stainless steel frame and forks only (chrome handle) or 100% type 304 stainless steel pallet truck for long life in the harshest environments. 5,500 pounds uniform capacity. Individual fork width is 6-1/2".

Galvanized and Zinc Coated - Ideal for corrosive environments. Full-featured pallet trucks were designed for chemical, pharmaceutical, and wash-down applications. 5,500 pounds uniform capacity.

Share This Page

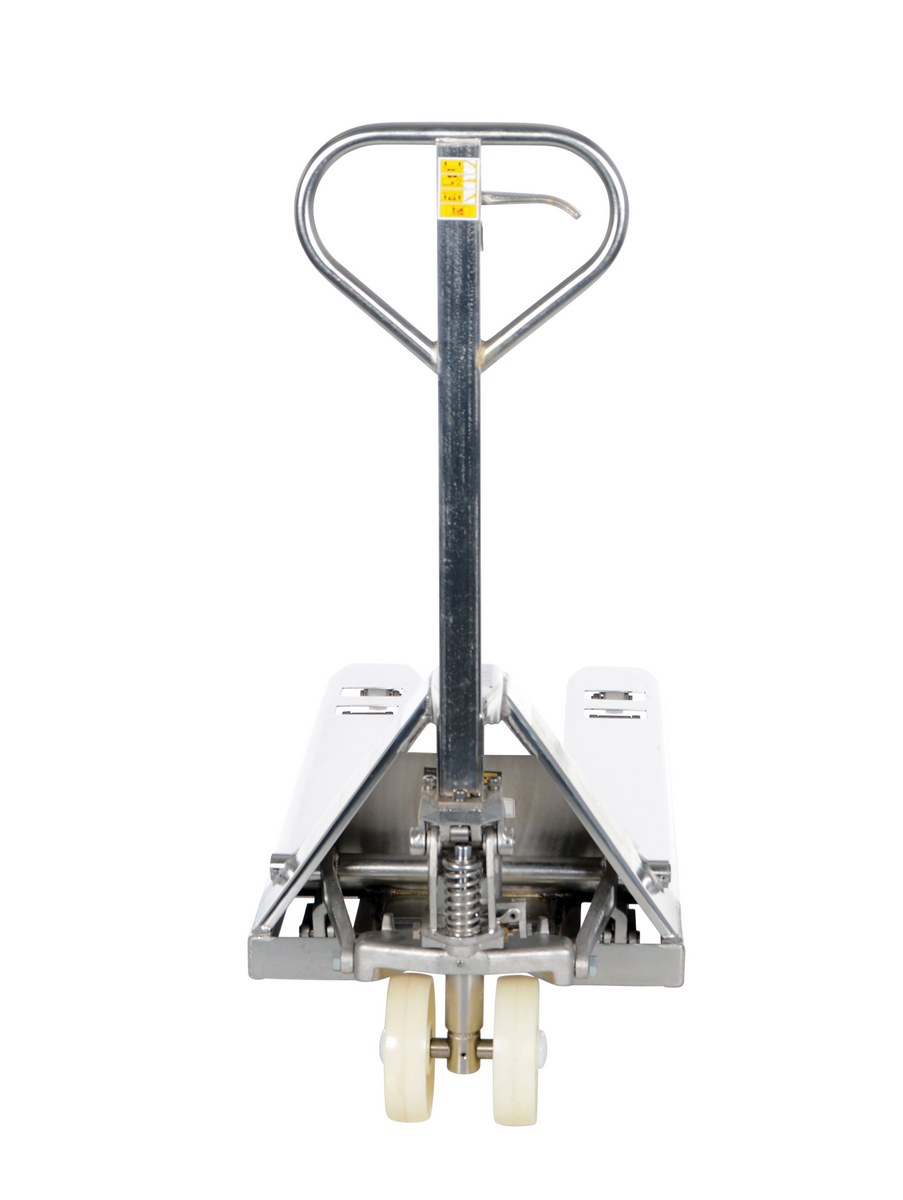

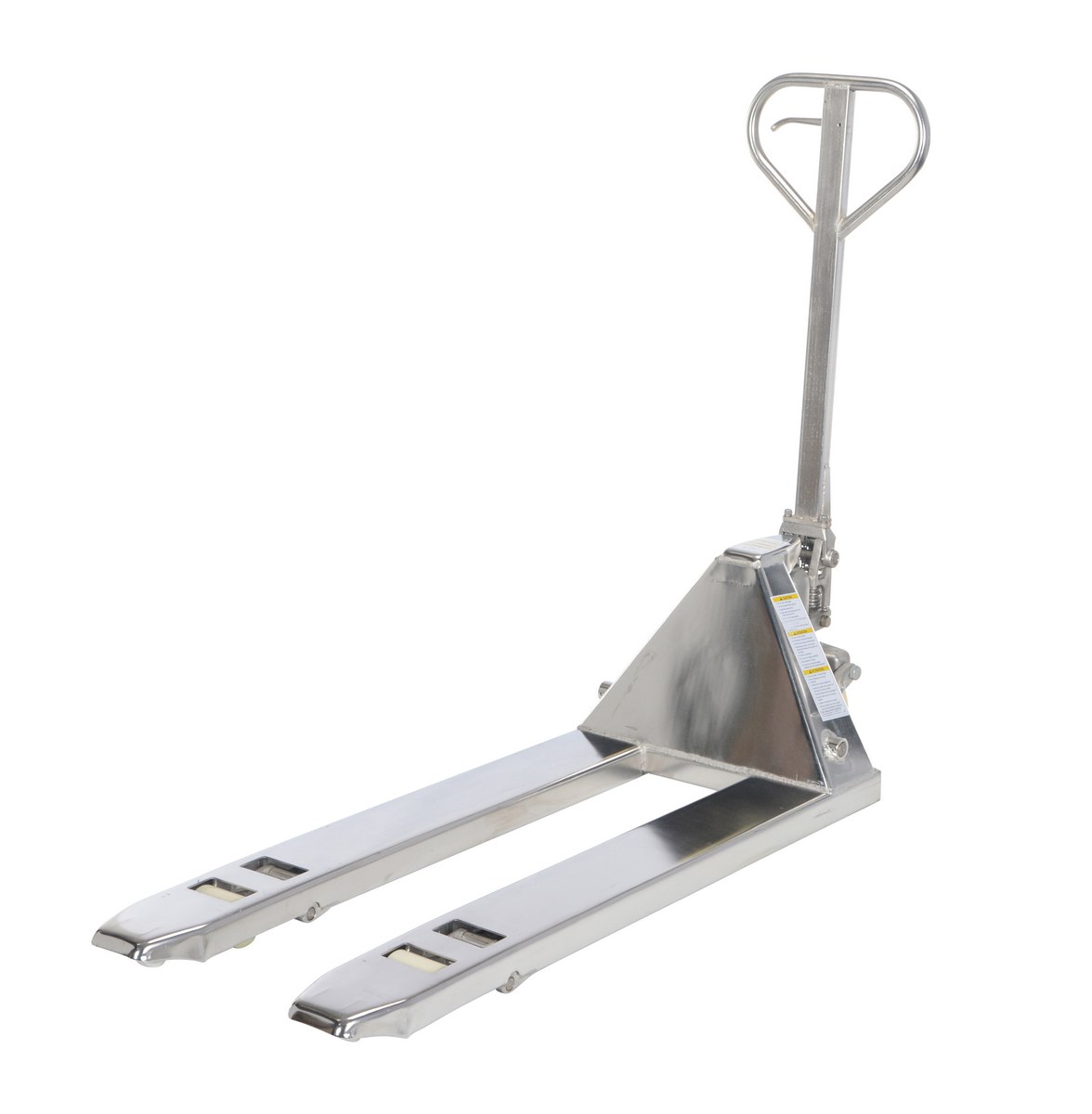

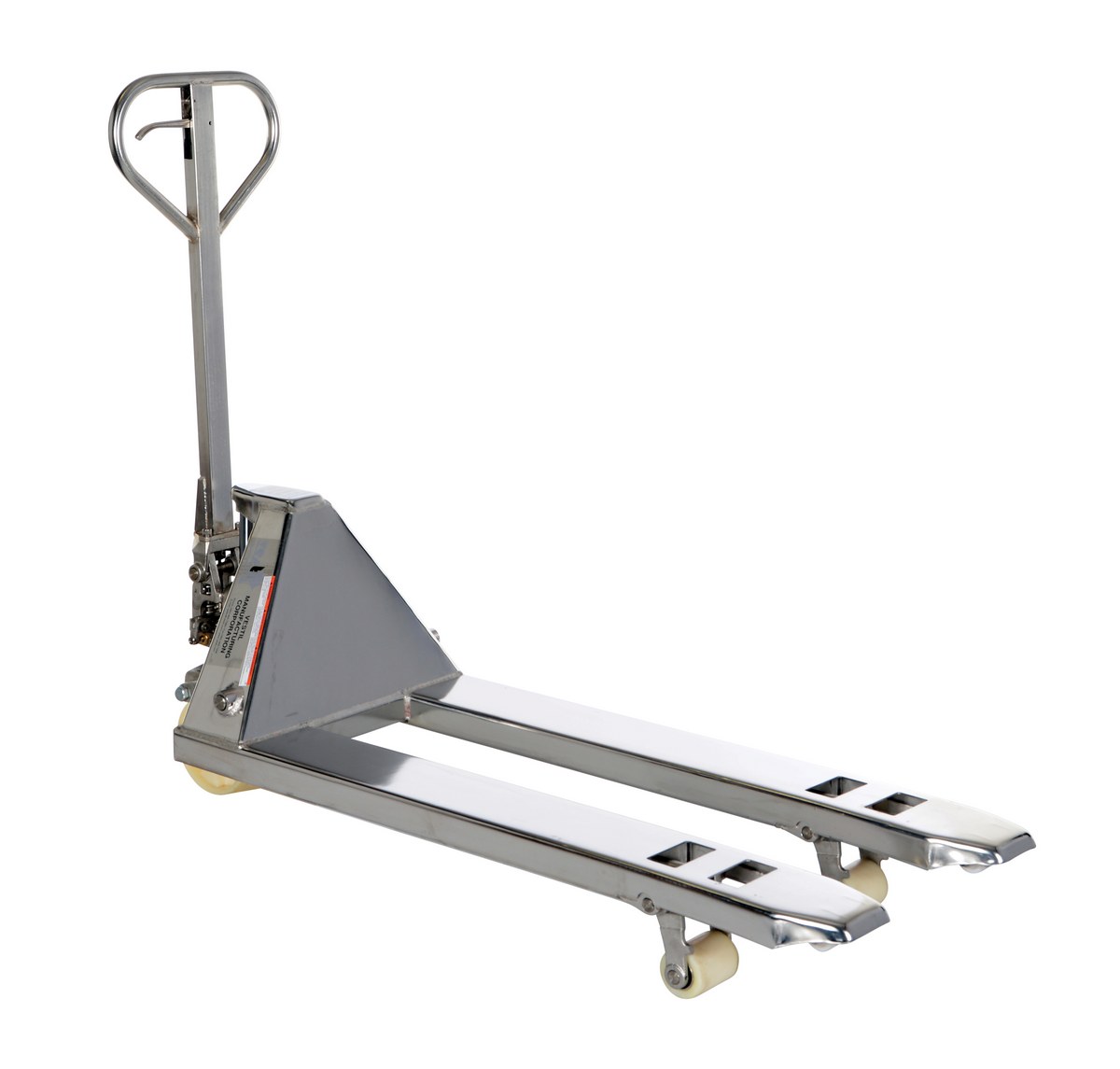

PM5-2048-SS

model PM5-2048-SS

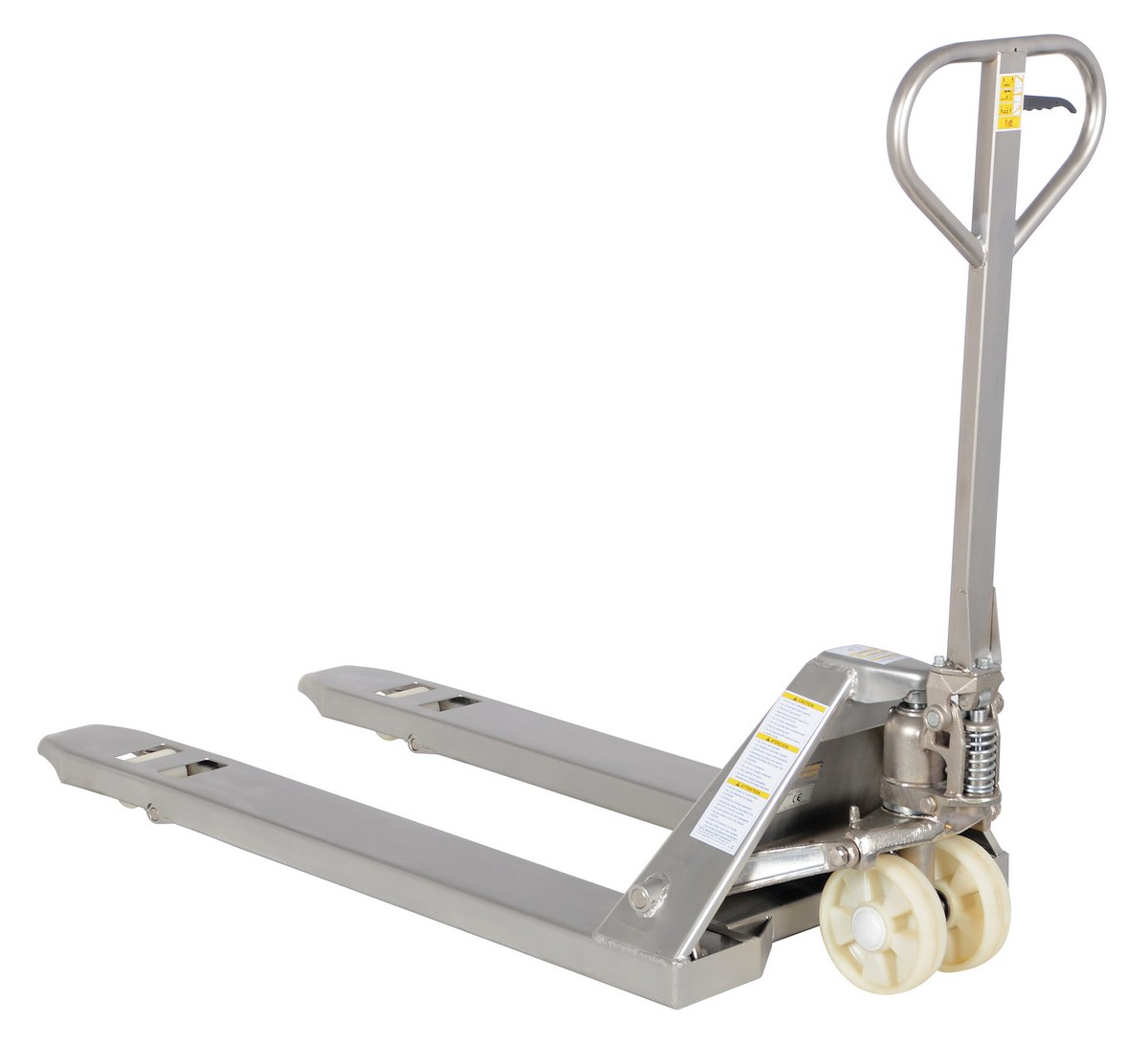

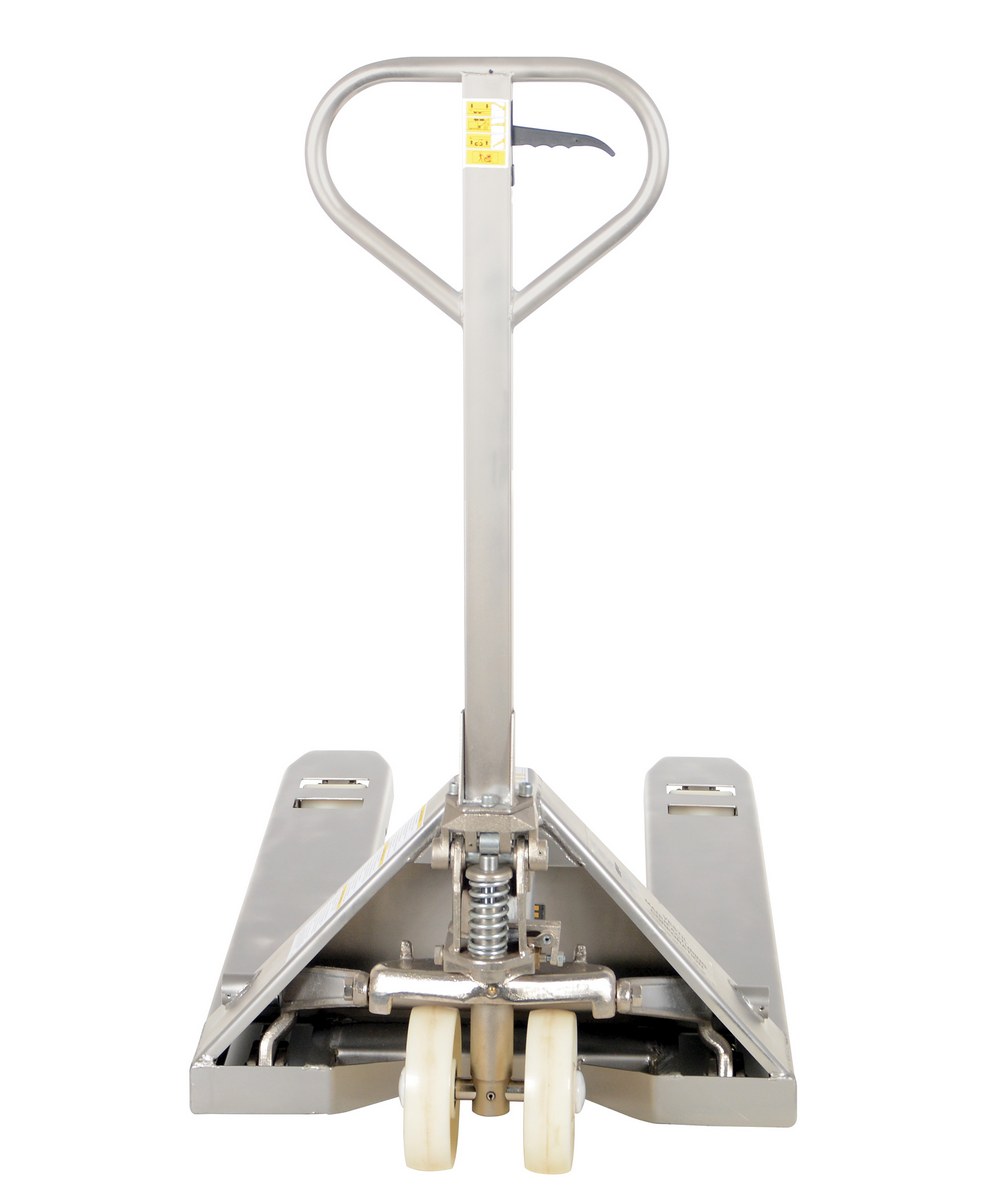

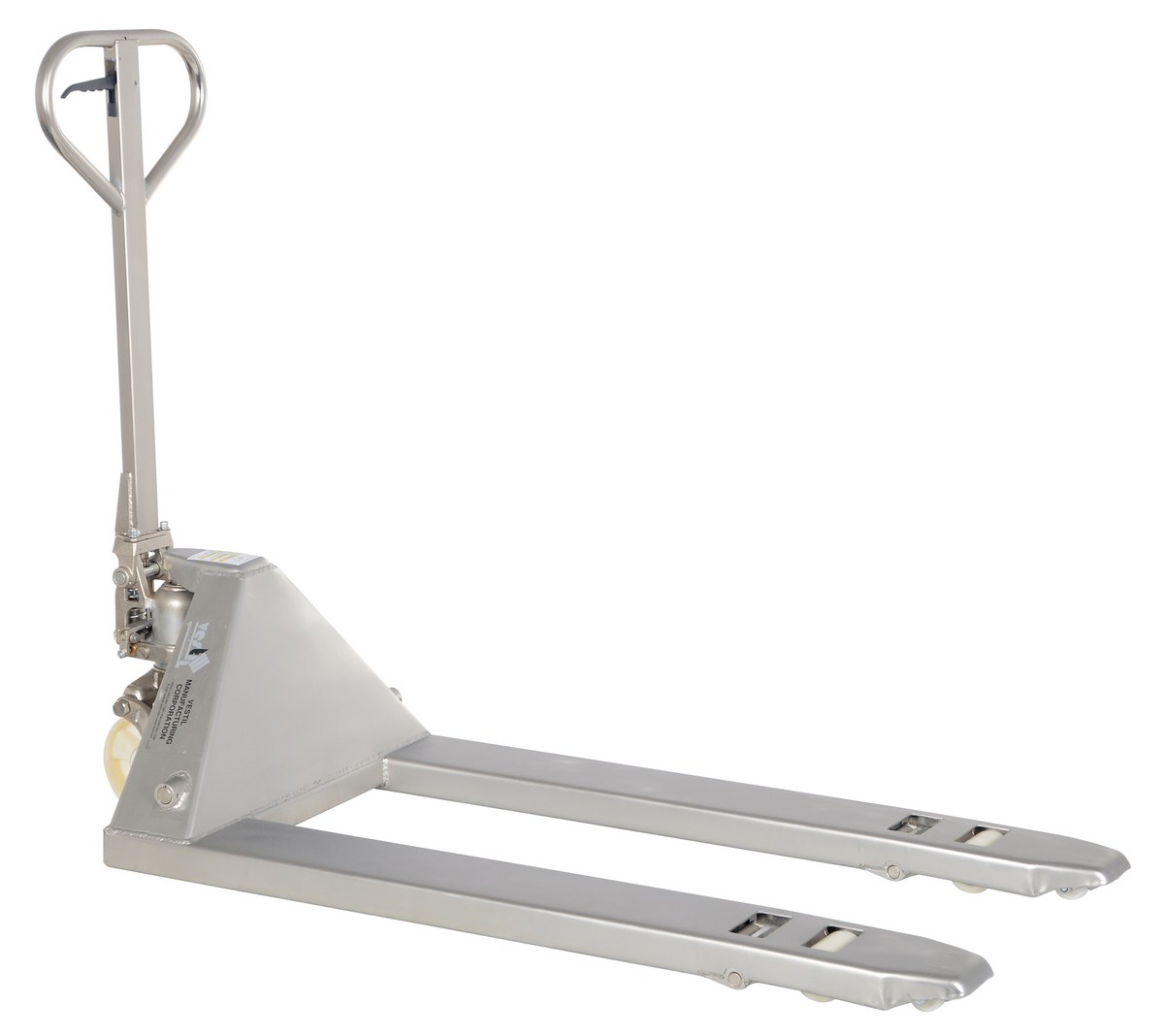

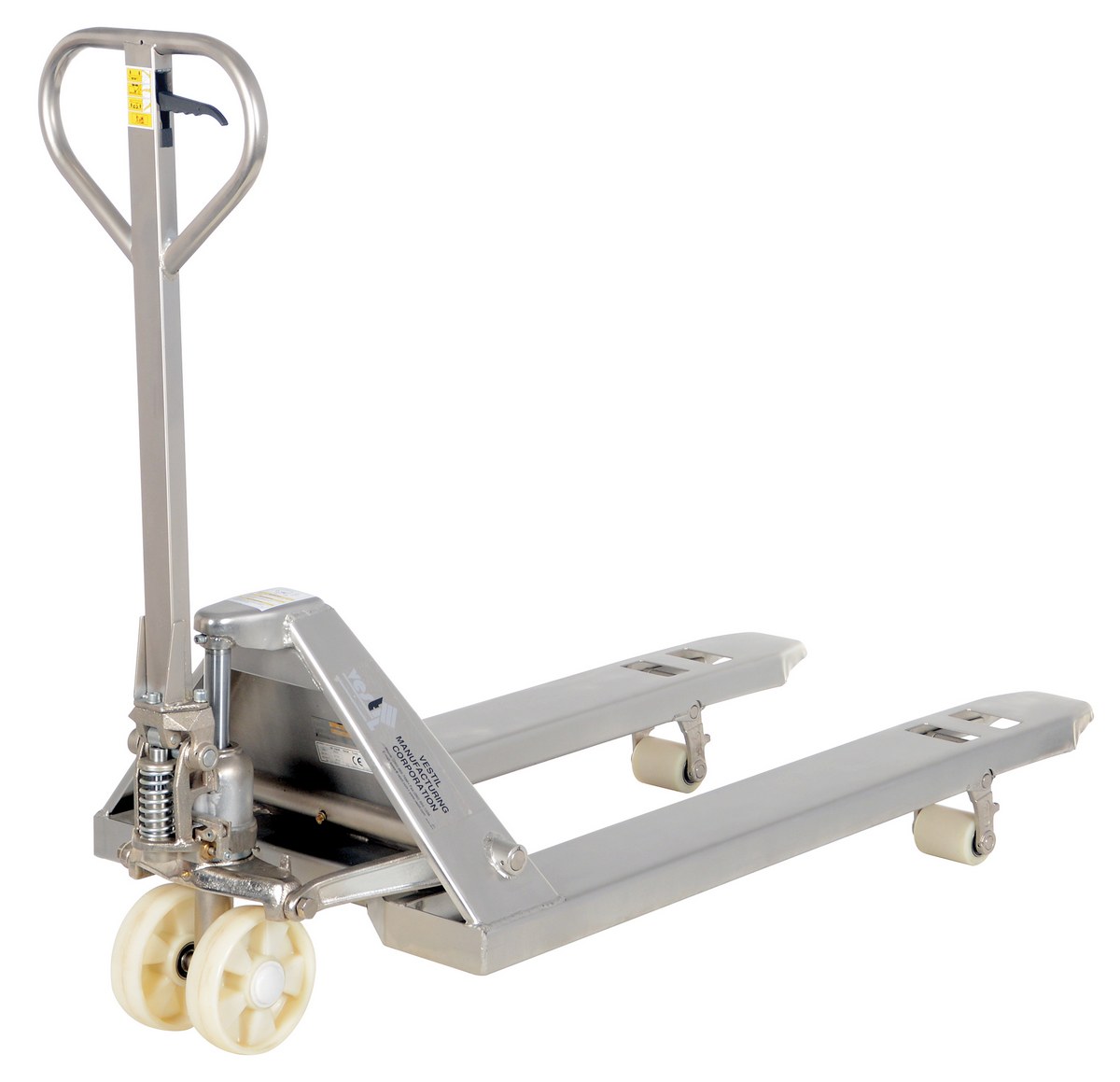

PM5-2748-SFF

model PM5-2748-SFF

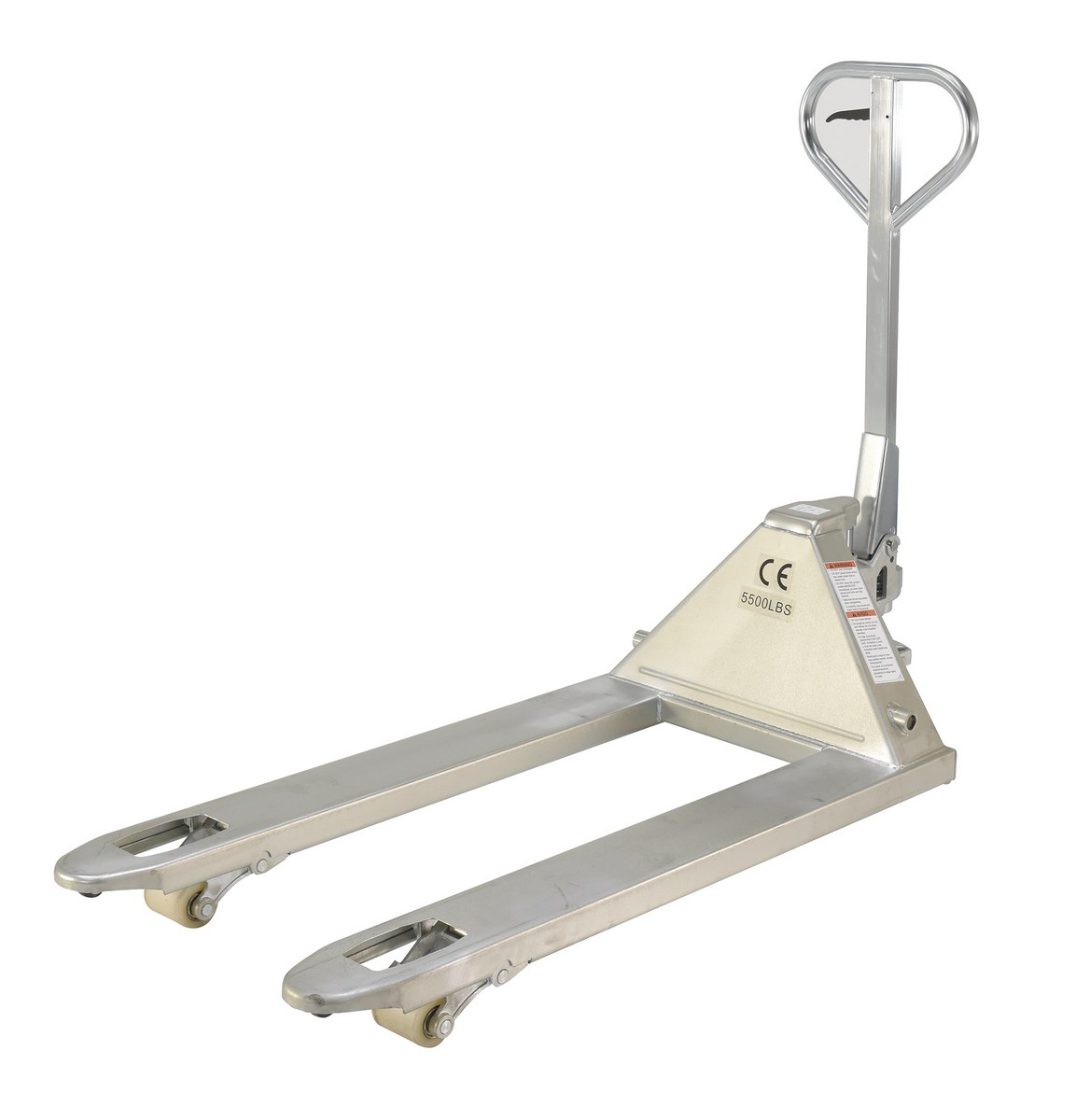

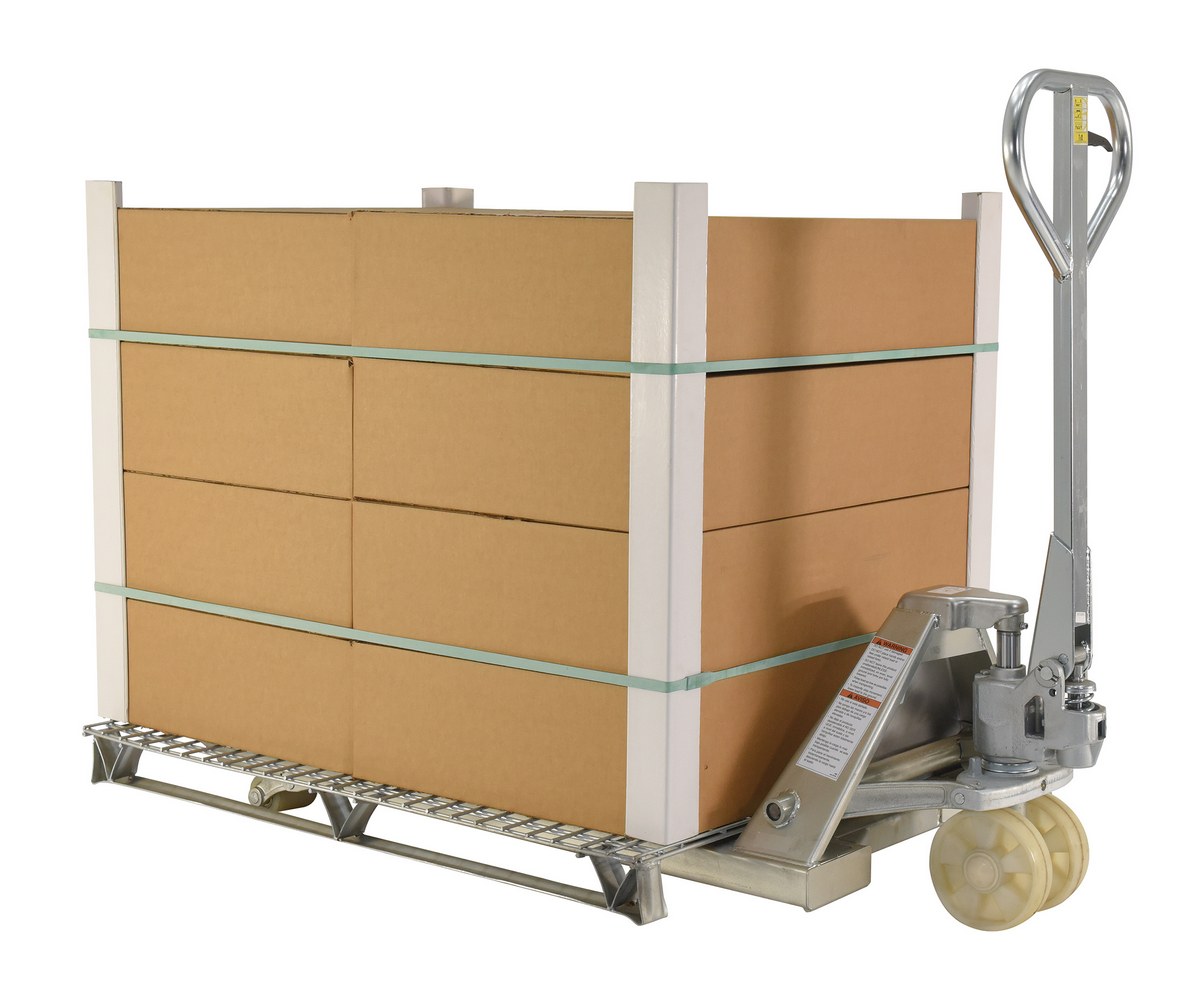

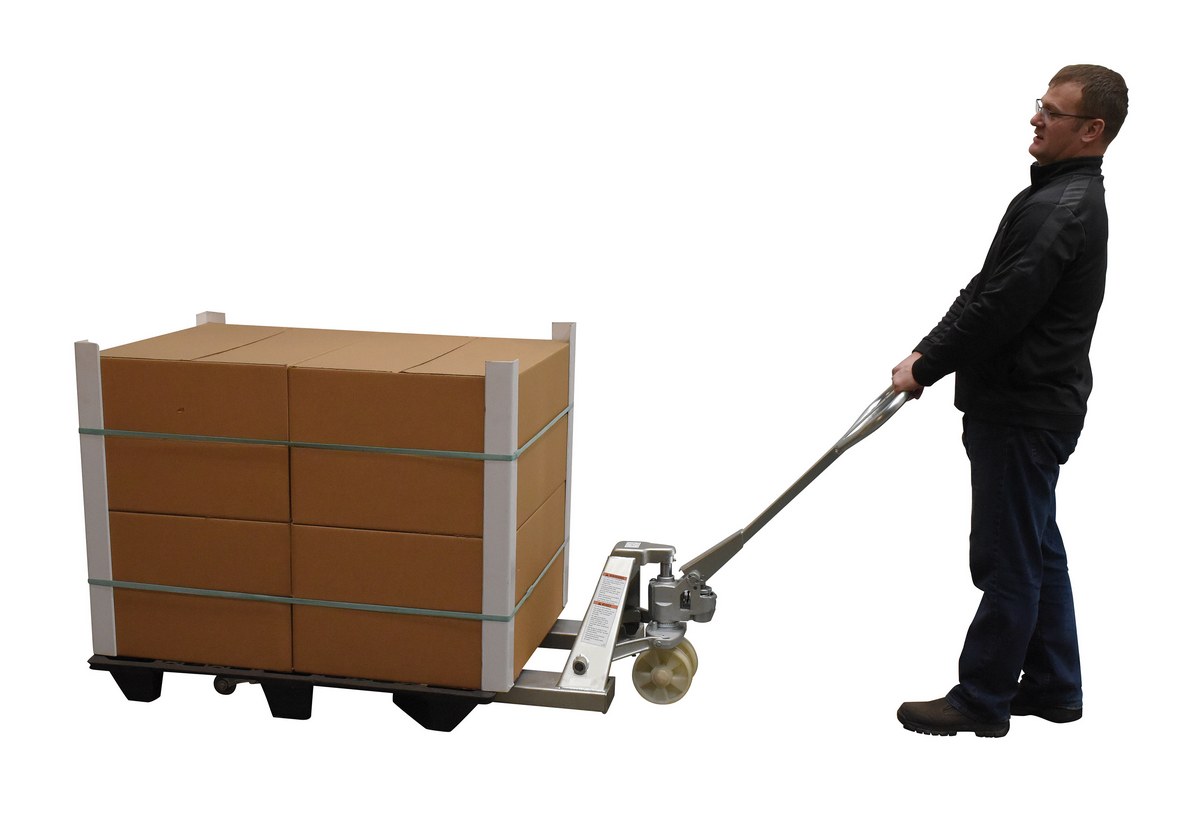

PM5-2748-S-Z

model PM5-2748-S-Z

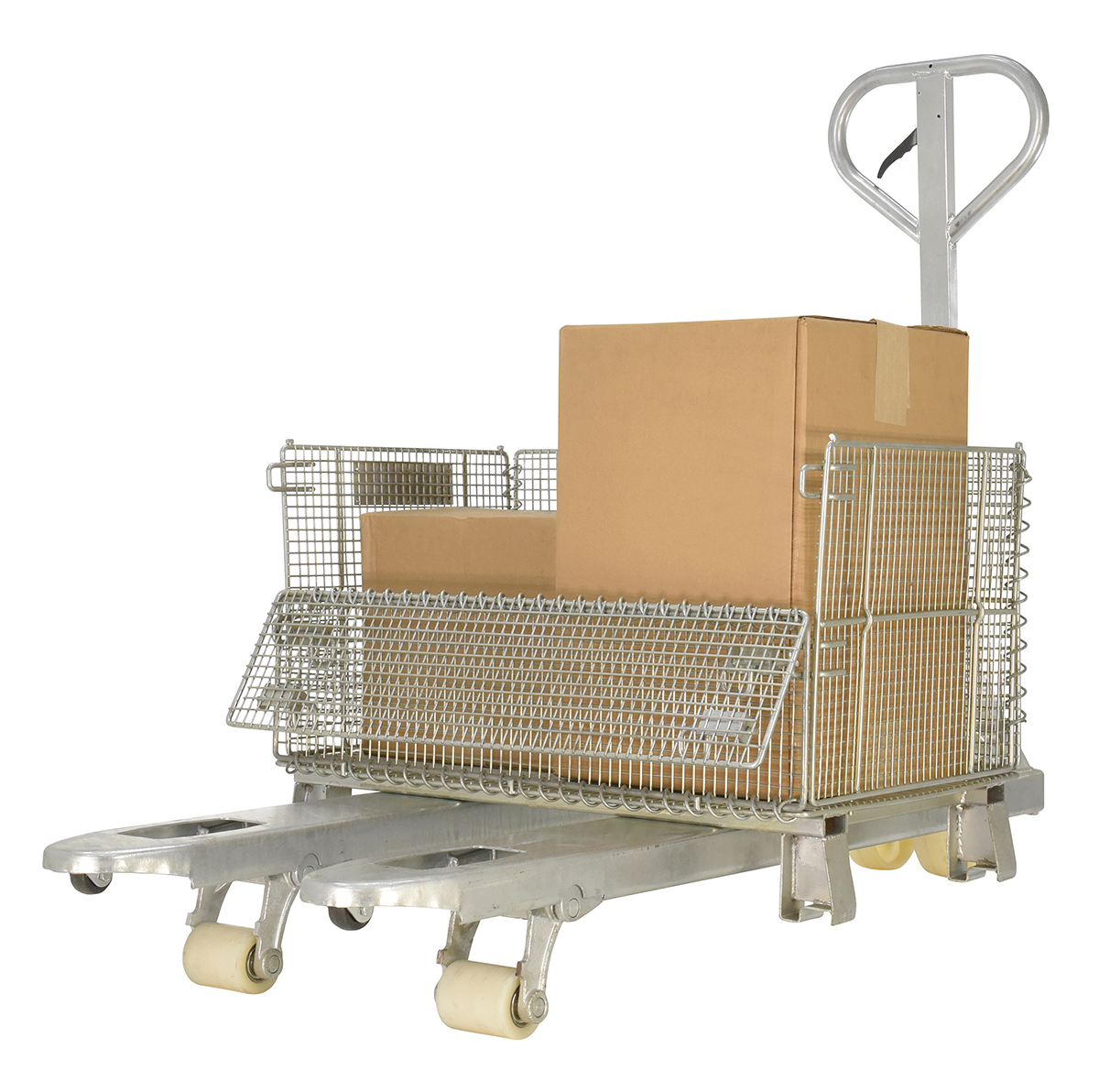

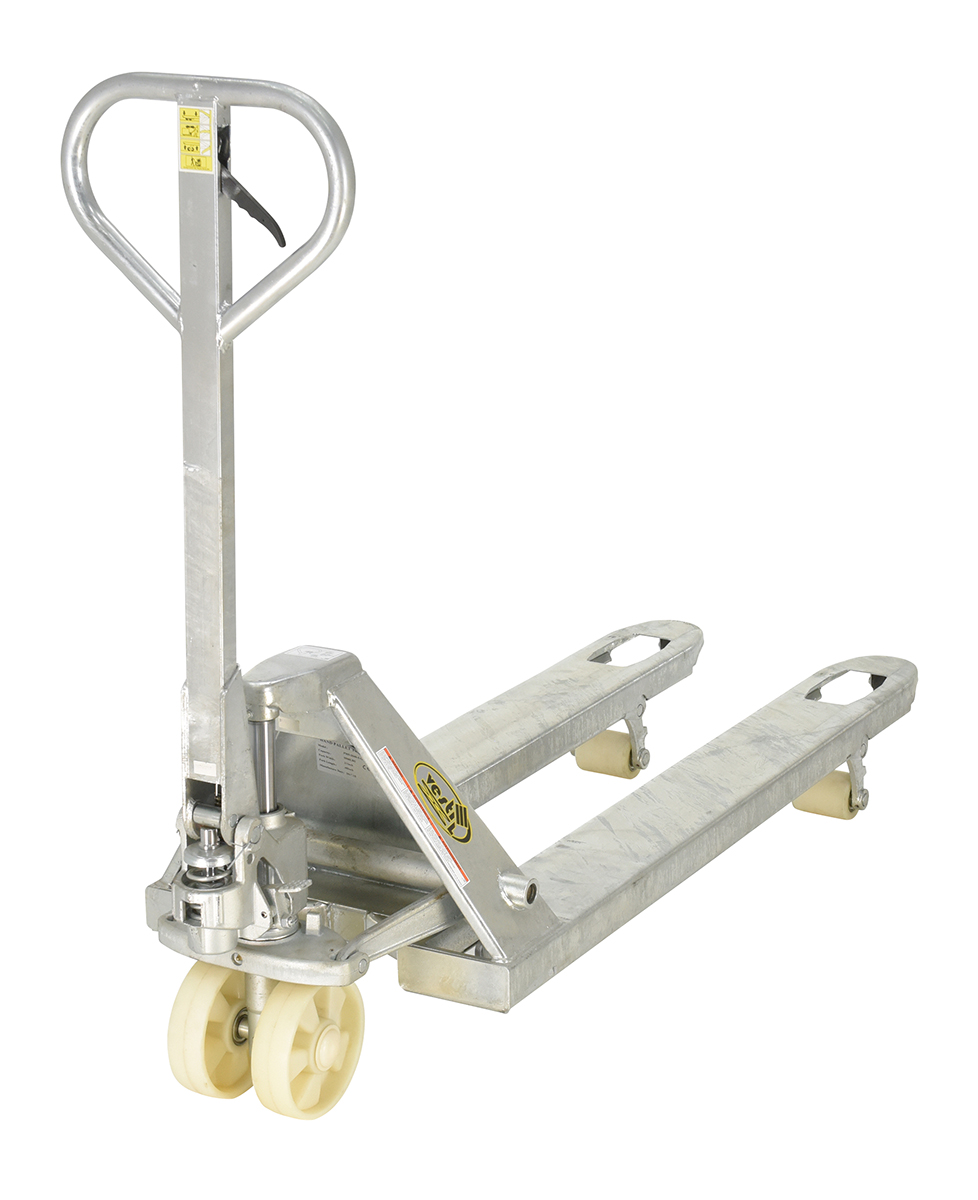

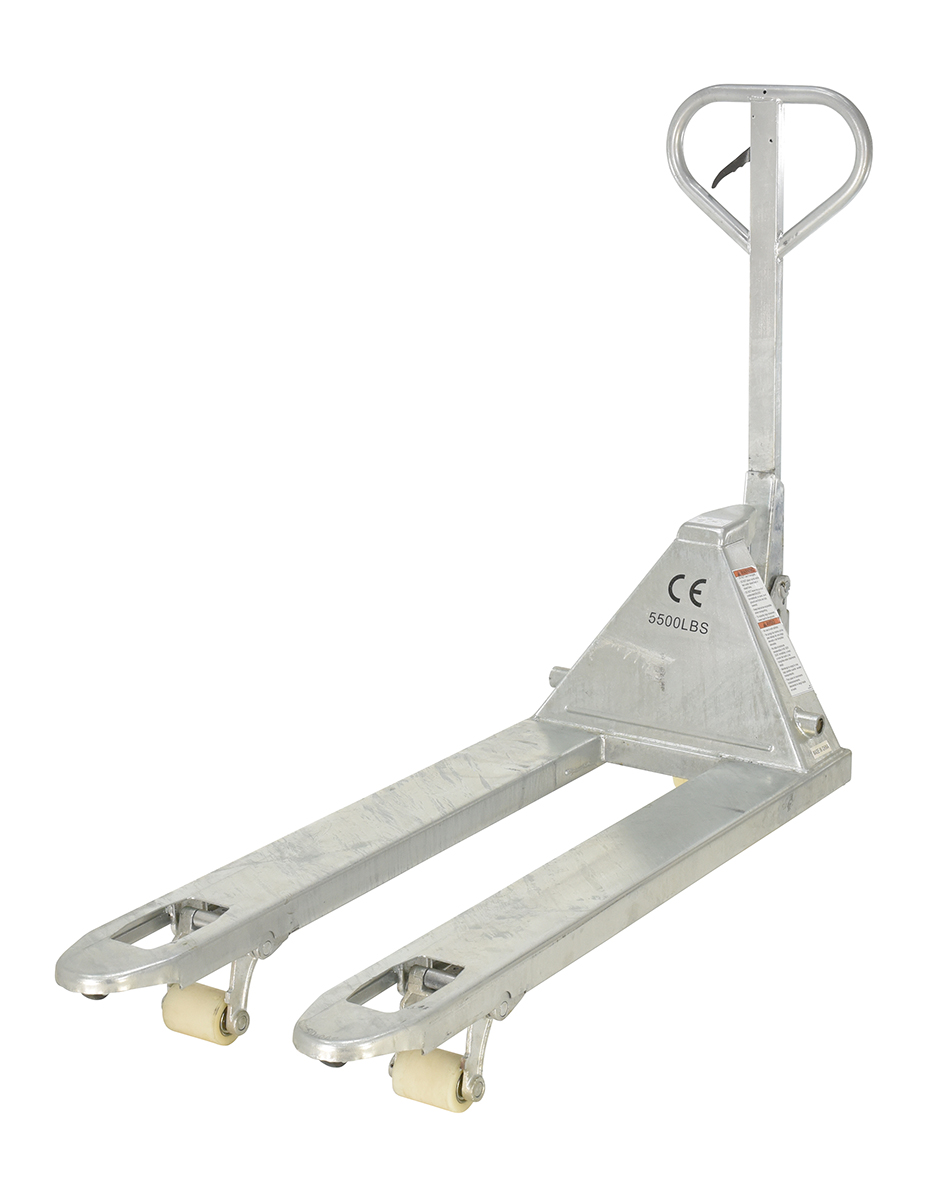

PM5-2048-S-G

model PM5-2048-S-G

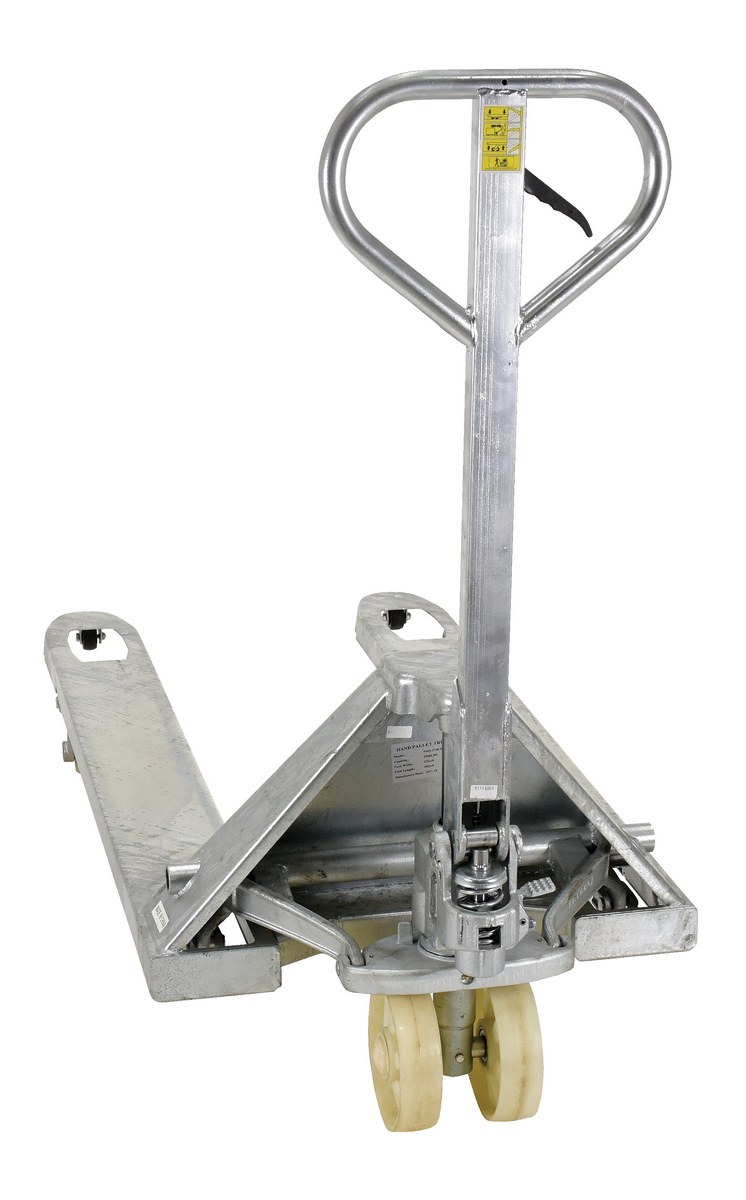

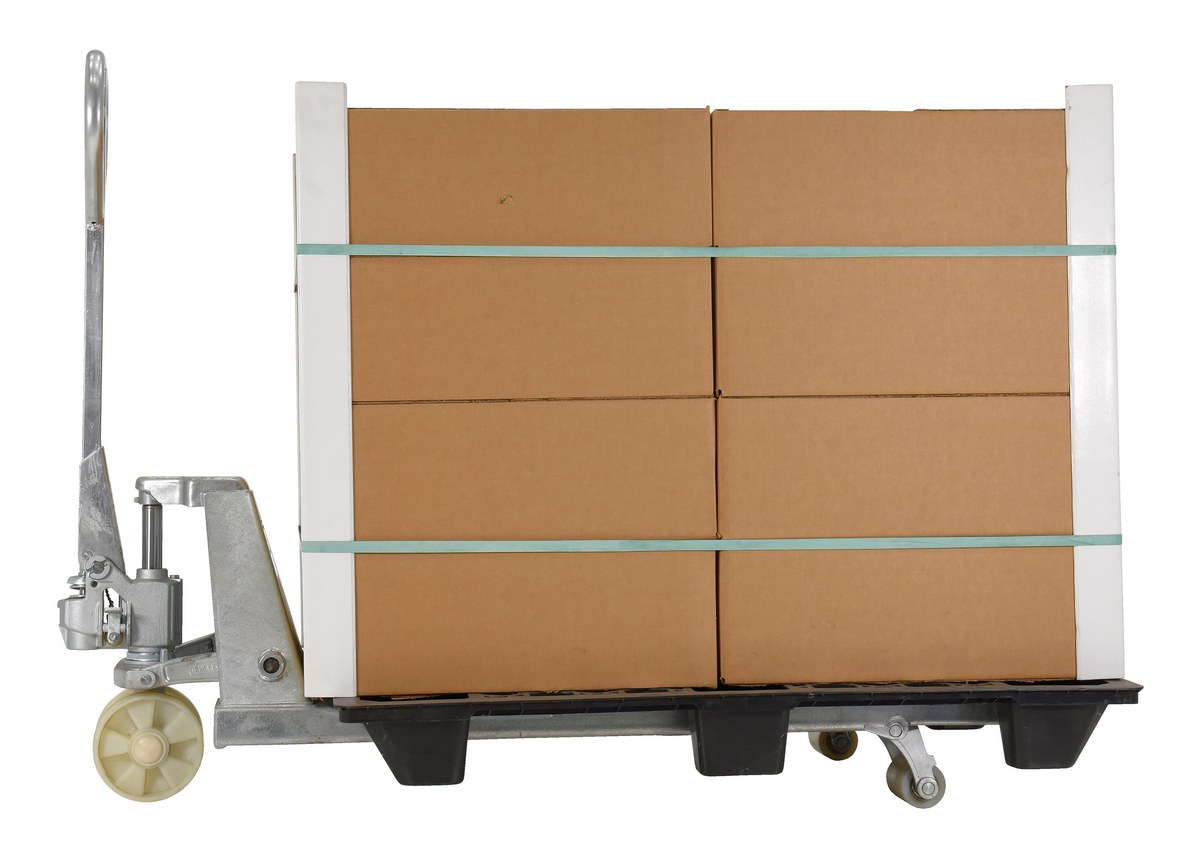

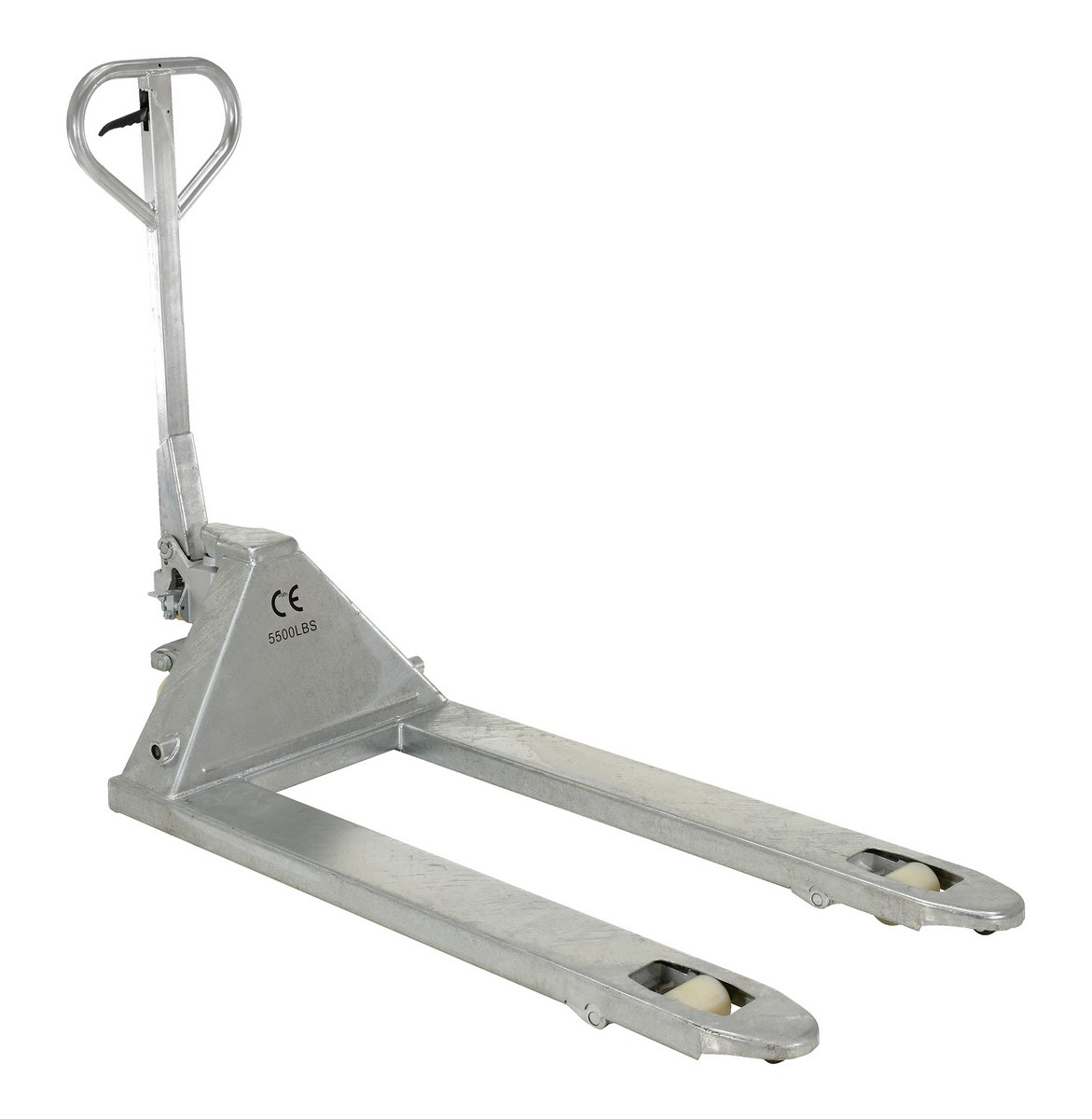

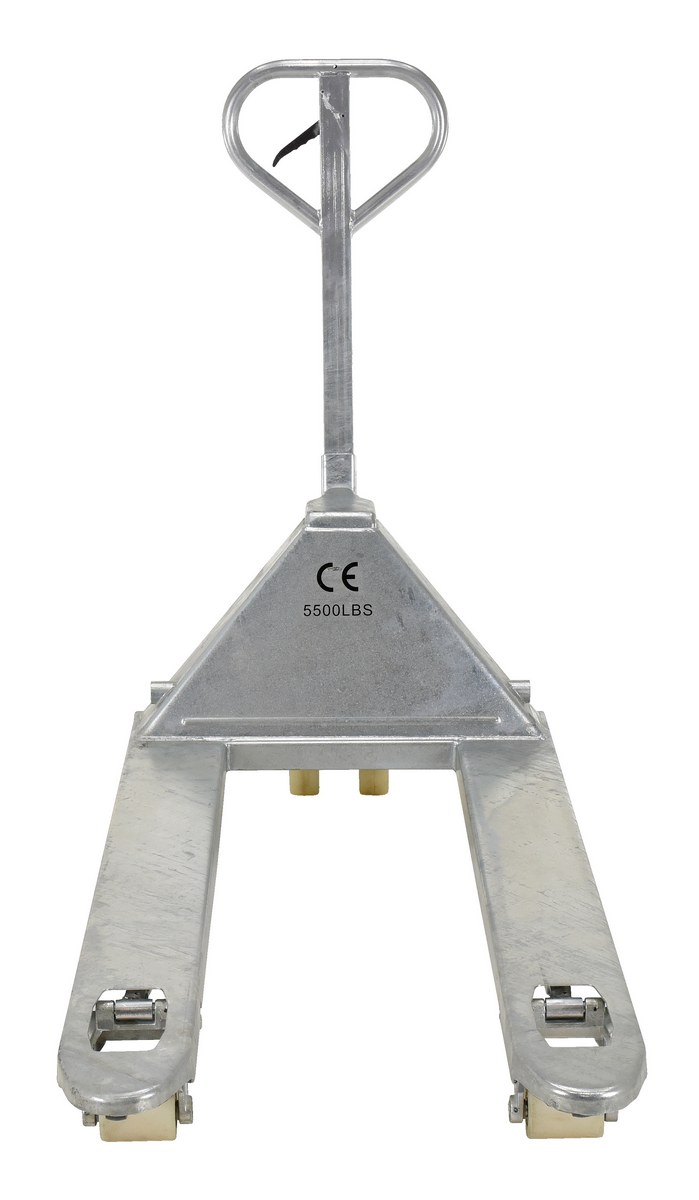

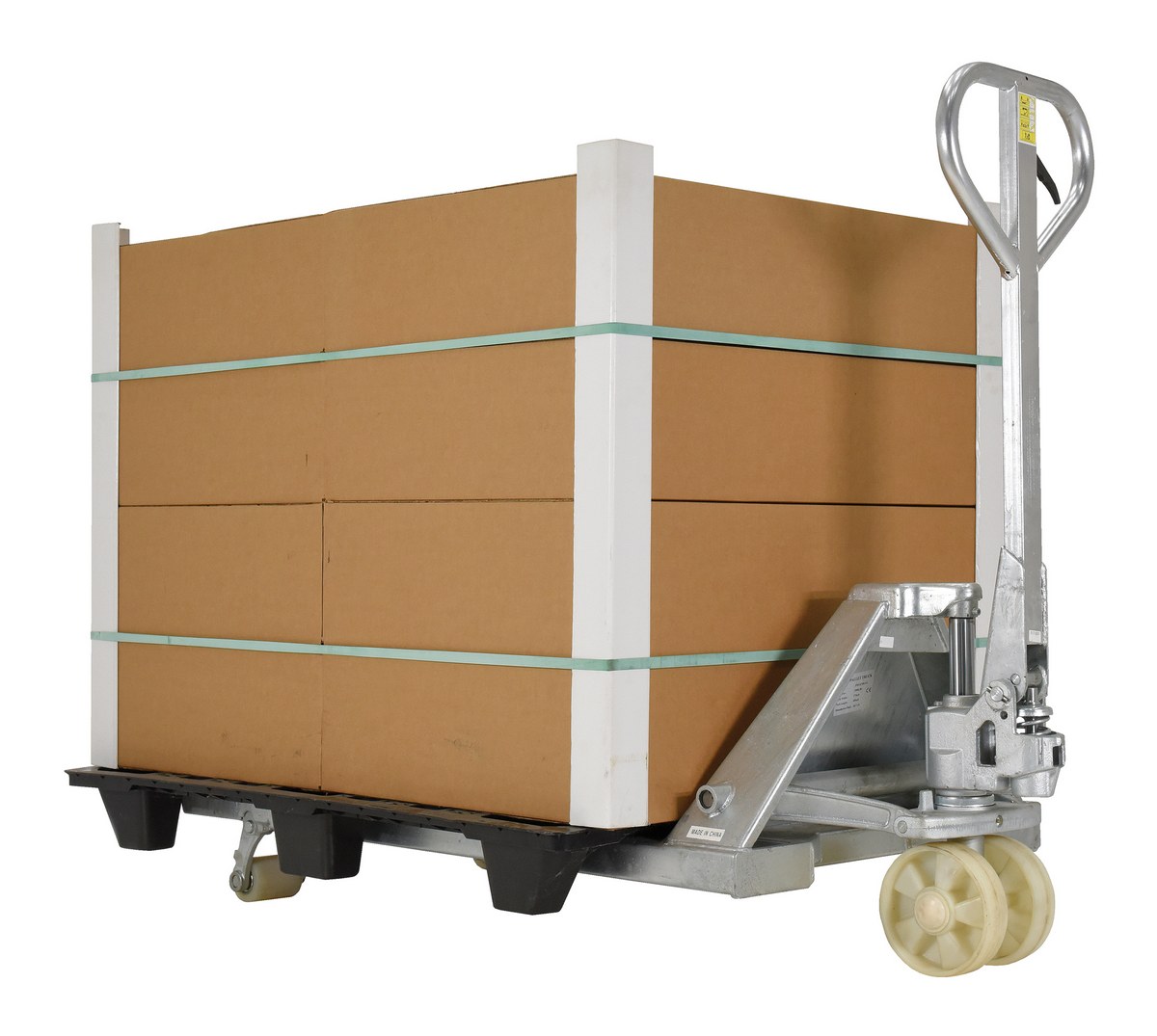

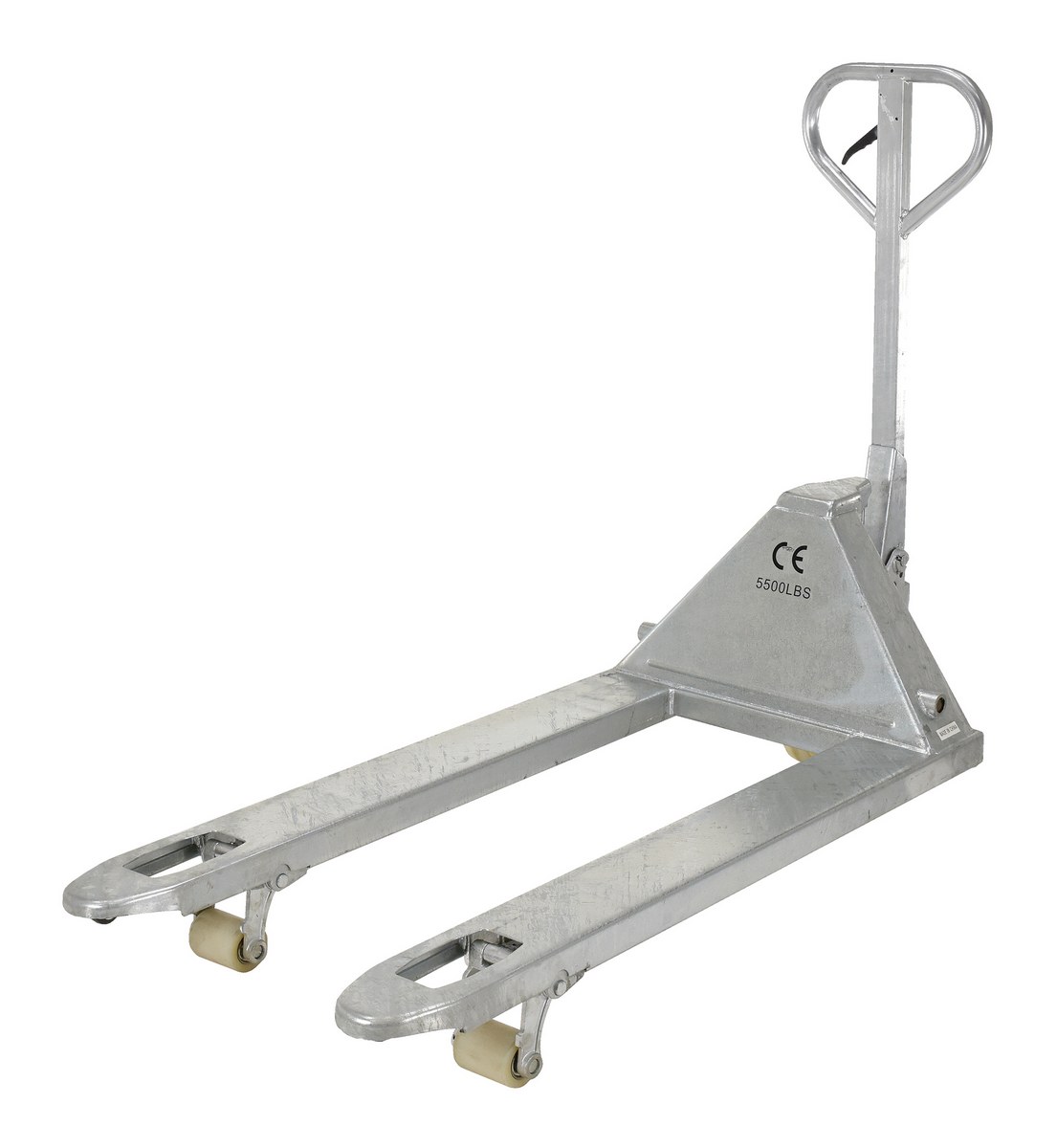

PM5-2748-S-G

model PM5-2748-S-G




KEY: Approval Drawing = Approval Drawing -- Approval Drawing = Warranty -- Approval Drawing = Testing Certificate

All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.
Specialized Steel Pallet Trucks
Model Number Image PDF Description Capacity
(lbs)
Fork Dim. Service
Range
Wt. (lbs)

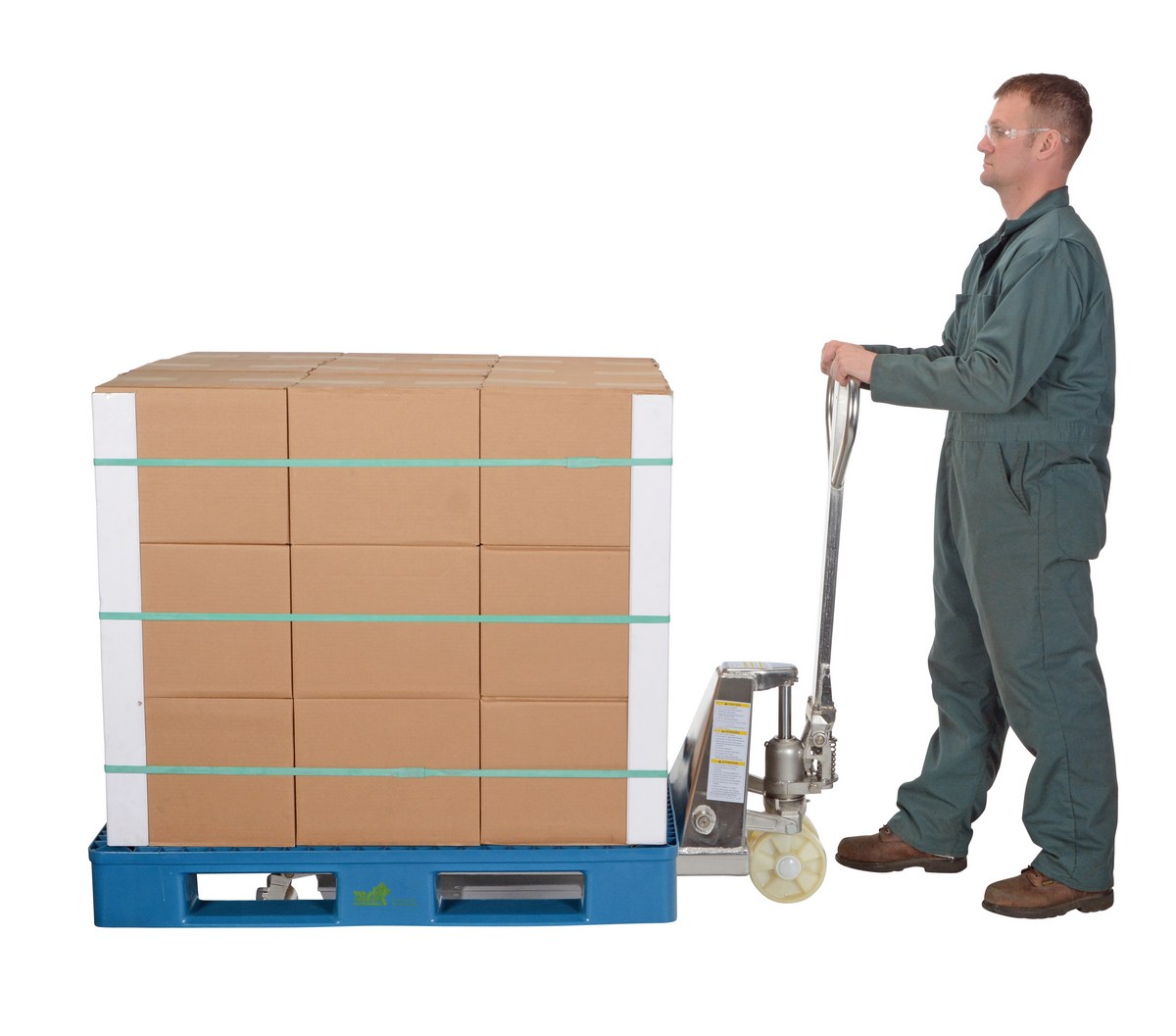

PM5-2048-SS icon_approvaldrawings.jpg Compliance Certificate 304 Stainless Steel 5,500 21-1/2"Wx45"L 2-7/8"-7-3/4" 232

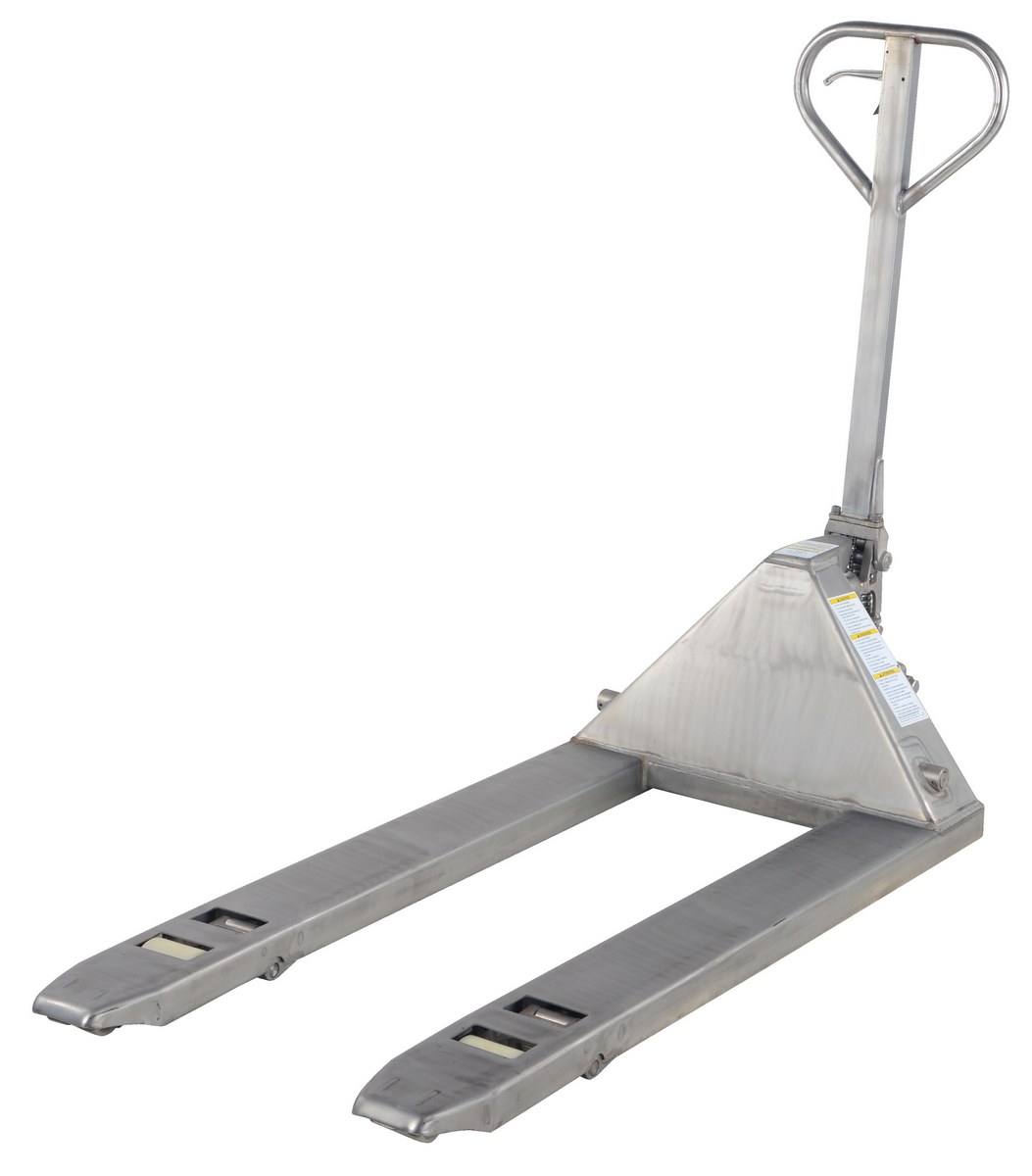

PM5-2748-SS icon_approvaldrawings.jpgCompliance Certificate 304 Stainless Steel 5,500 27"Wx48"L 2-7/8"-7-3/4" 225
PM5-2748-SFF icon_approvaldrawings.jpgCompliance Certificate 304 Stainless Frame & Forks 5,500 27"Wx48"L 2-7/8"-7-3/4" 194

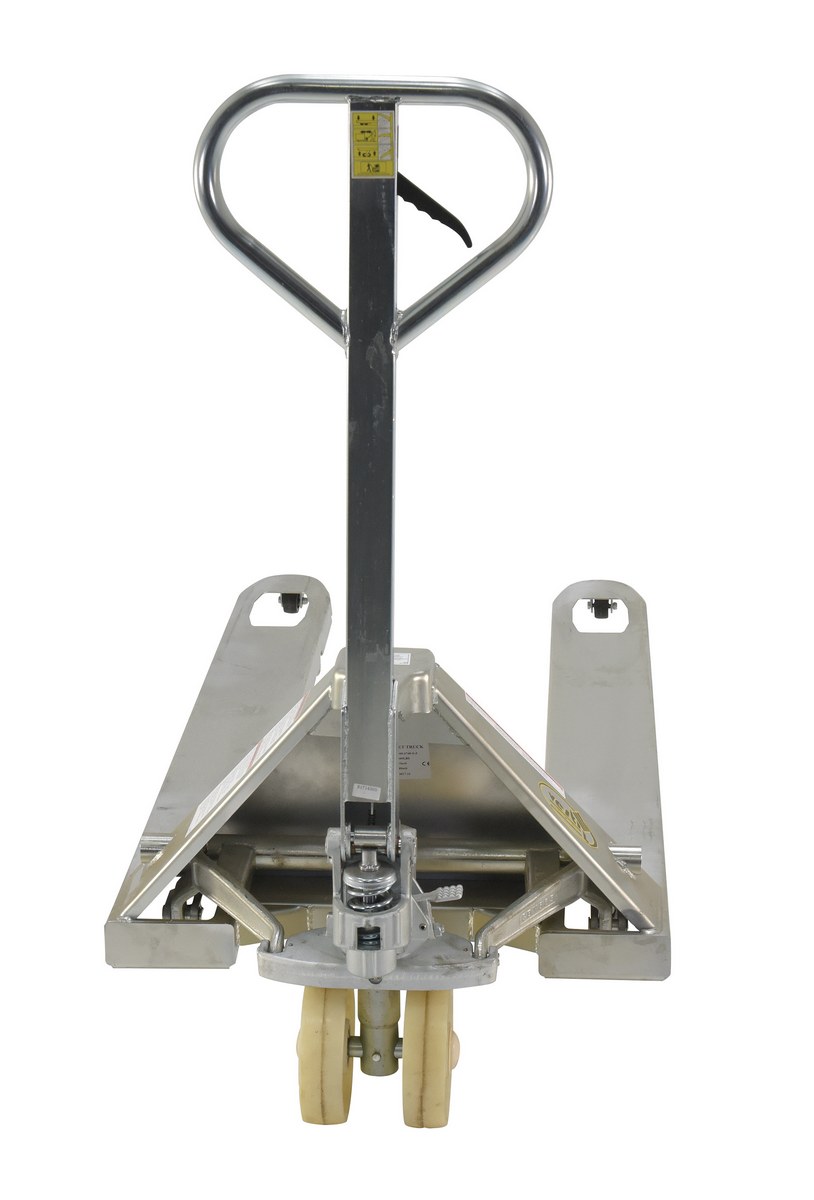

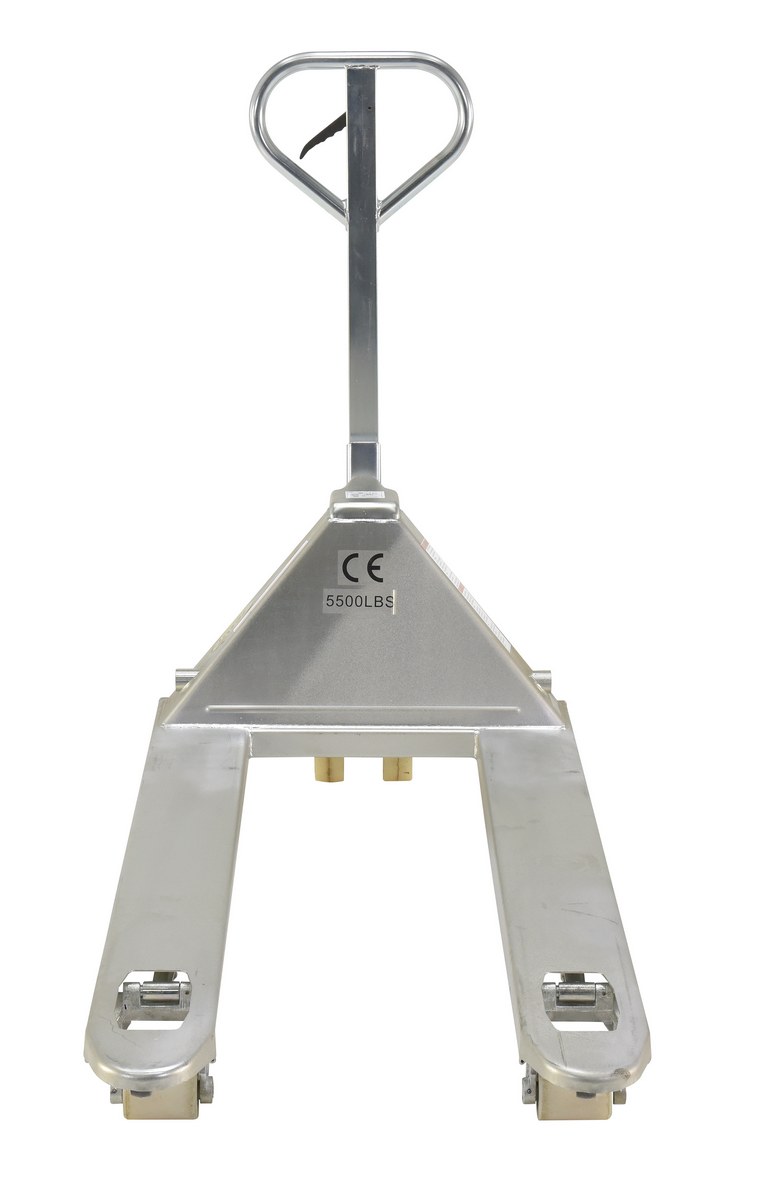

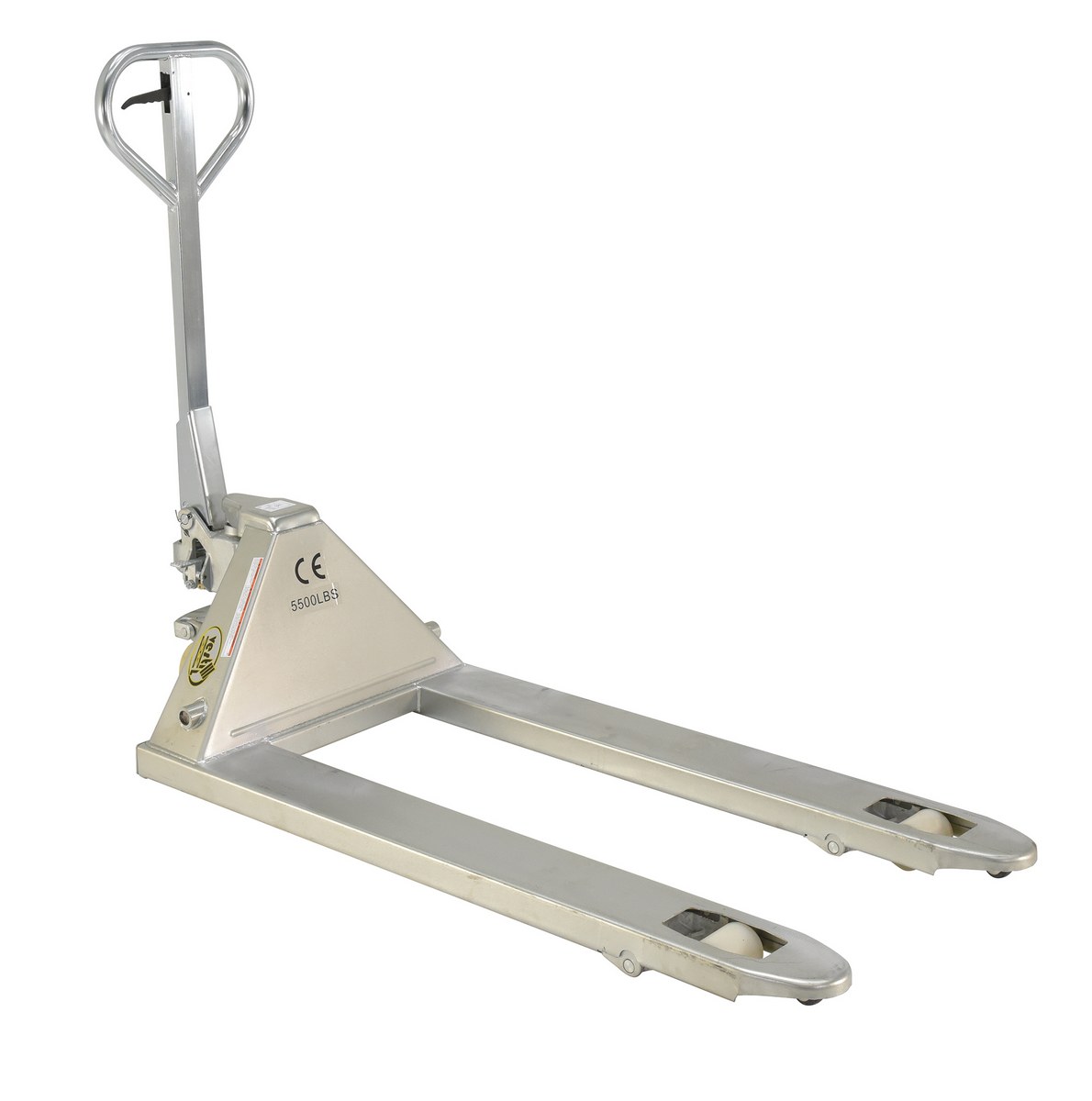

PM5-2748-S-Z icon_approvaldrawings.jpgCompliance Certificate Zinc Coated 5,500 27"Wx48"L 2-7/8"-7-3/4" 211

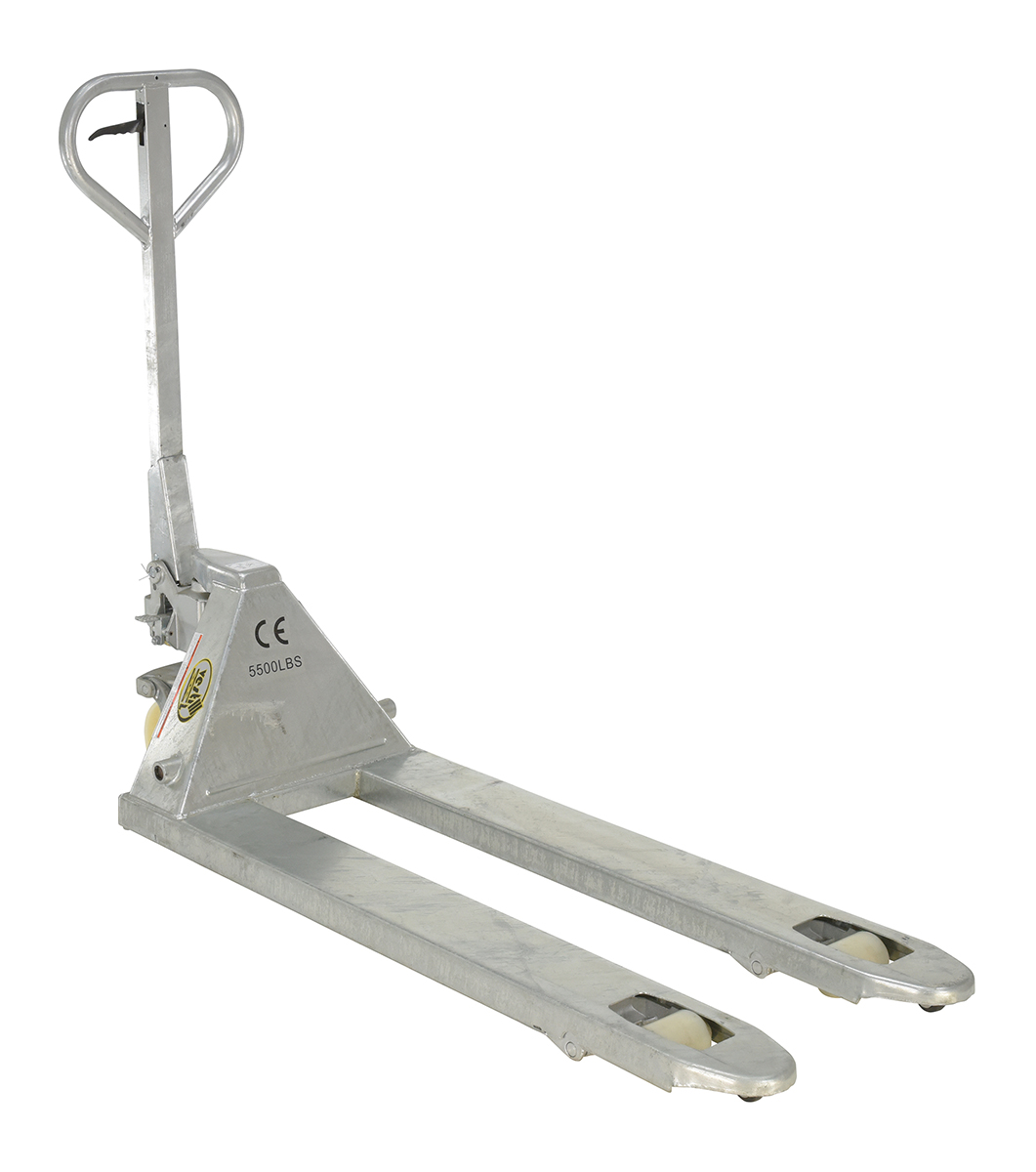

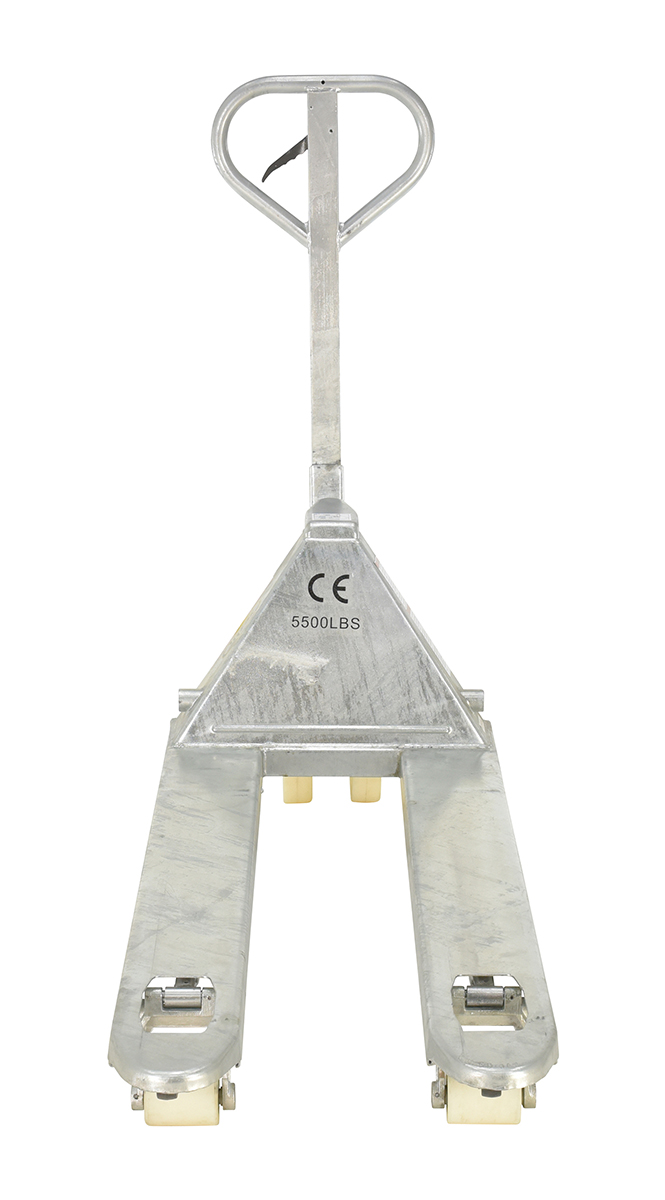

PM5-2048-S-G Compliance Certificate Galvanized 5,500 20"Wx48"L 2-7/8"-7-3/4" 182
PM5-2748-S-G icon_approvaldrawings.jpgCompliance Certificate Galvanized 5,500 27"Wx48"L 2-7/8"-7-3/4" 197
(6) SIX PACKS - CRATED

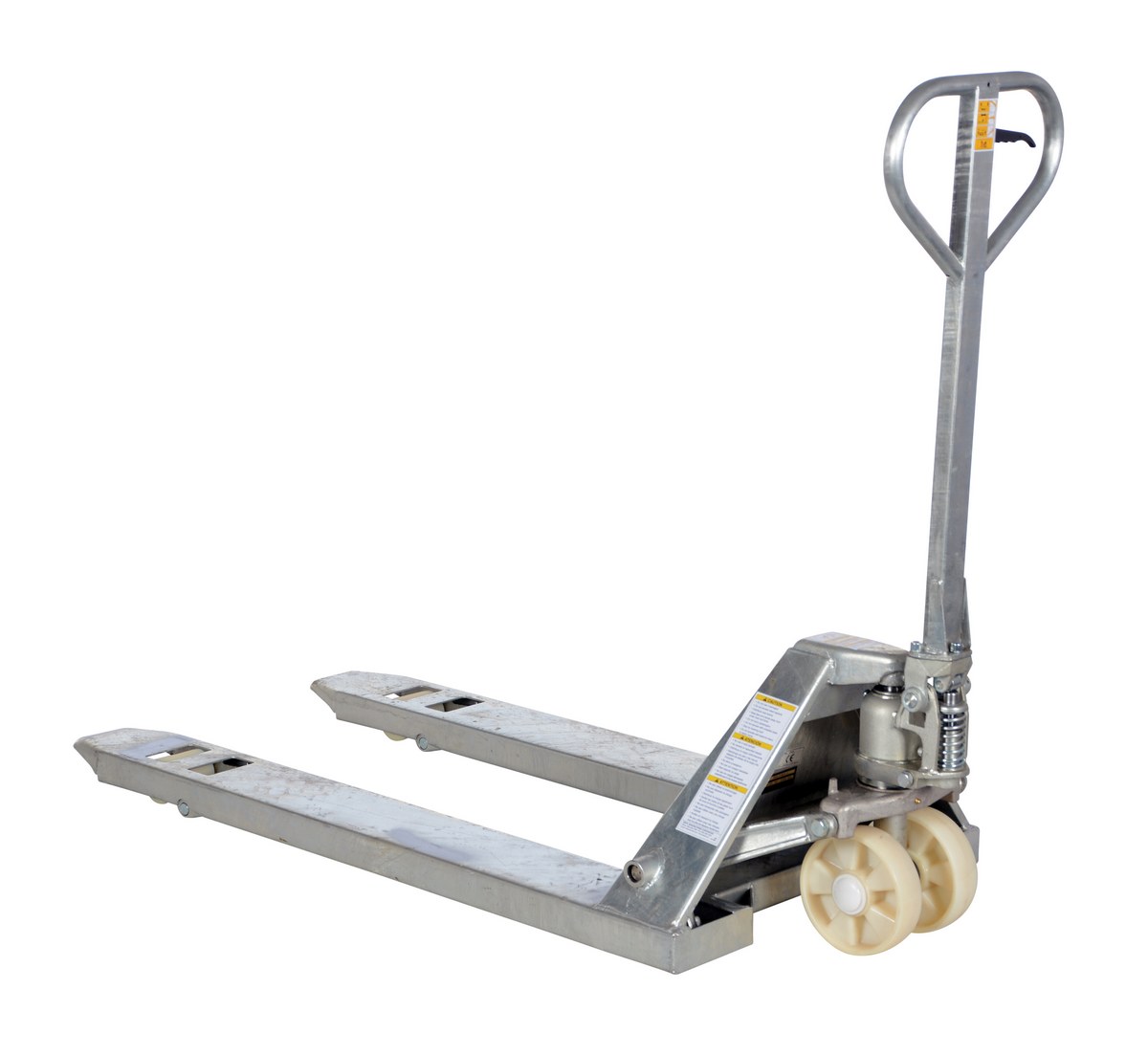

PM5-2748-S-G-6PKG icon_approvaldrawings.jpg Galvanized 5,500 27"Wx48"L 2-7/8"-7-3/4" 1141

KEY: Approval Drawing = Approval Drawing -- Approval Drawing = Warranty -- Approval Drawing = Testing Certificate


Model Image PDFs Description * Net Wt.
(lbs)
PM5-2048-S-G 1 Year WarrantyGALVANIZED STEEL PALLET TRUCK 20 X 48Uniform Capacity (lb.): 5500147
PM5-2048-SS download.gif1 Year WarrantySTAINLESS STEEL PALLET TRK 5.5K 21.5X45Uniform Capacity (lb.): 5500152
PM5-2748-SFF download.gif1 Year WarrantySTAINLESS STEEL FRAME PALLET TRUCK 27X48Uniform Capacity (lb.): 5500194
PM5-2748-S-G download.gif1 Year WarrantyGALVANIZED STEEL PALLET TRUCK 27 X 48Uniform Capacity (lb.): 5500165
PM5-2748-S-G-6PKG 1 Year WarrantyGALVANIZED STEEL PALLET TRUCK 27 X 48Uniform Capacity (lb.): 55001141
PM5-2748-SS download.gif1 Year WarrantySTAINLESS STEEL PALLET TRUCK 5.5K 27X48Uniform Capacity (lb.): 5500225
PM5-2748-S-Z download.gif1 Year WarrantyZINC COATED PALLET TRUCK 5.5K 27X48Uniform Capacity (lb.): 5500158



Specialized Pallet Trucks PDF's will open in a new window when clicked.
No Owners Manuals For This Product.


Survey Sheets

No Survey Sheets For This Product.


Approval Drawings

PM5-2048-SS
PM5-2748-SFF
PM5-2748-S-G
PM5-2748-SS
PM5-2748-S-Z

Testing Certificates

PM5-2048-S-G
PM5-2048-SS
PM5-2748-SFF
PM5-2748-S-G
PM5-2748-S-G-6PKG
PM5-2748-SS
PM5-2748-S-Z

Other PDF's

No "Other PDFs" For This Product...


Directory Links Of Available PDF's For All Products

Before placing an order, please confirm that the ship to company is able to receive shipments on the estimated delivery date





Specialized Pallet Trucks




Ships with the Handle Detached Standard

Stainless Steel and Stainless Steel Frame & Forks - Ideal for sanitary, pharmaceutical, medical, food, corrosive, and wet environments. Choose type 304 stainless steel frame and forks only (chrome handle) or 100% type 304 stainless steel pallet truck for long life in the harshest environments. 5,500 pounds uniform capacity. Individual fork width is 6-1/2".

Galvanized and Zinc Coated - Ideal for corrosive environments. Full-featured pallet trucks were designed for chemical, pharmaceutical, and wash-down applications. 5,500 pounds uniform capacity.


Specialized Steel Pallet Trucks
Model Number Image PDF Description Capacity
(lbs)
Fork Dim. Service
Range
Wt. (lbs)
PM5-2048-SS icon_approvaldrawings.jpg Compliance Certificate 304 Stainless Steel 5,500 21-1/2"Wx45"L 2-7/8"-7-3/4" 232
PM5-2748-SS icon_approvaldrawings.jpgCompliance Certificate 304 Stainless Steel 5,500 27"Wx48"L 2-7/8"-7-3/4" 225
PM5-2748-SFF icon_approvaldrawings.jpgCompliance Certificate 304 Stainless Frame & Forks 5,500 27"Wx48"L 2-7/8"-7-3/4" 194
PM5-2748-S-Z icon_approvaldrawings.jpgCompliance Certificate Zinc Coated 5,500 27"Wx48"L 2-7/8"-7-3/4" 211
PM5-2048-S-G Compliance Certificate Galvanized 5,500 20"Wx48"L 2-7/8"-7-3/4" 182
PM5-2748-S-G icon_approvaldrawings.jpgCompliance Certificate Galvanized 5,500 27"Wx48"L 2-7/8"-7-3/4" 197
(6) SIX PACKS - CRATED
PM5-2748-S-G-6PKG icon_approvaldrawings.jpg Galvanized 5,500 27"Wx48"L 2-7/8"-7-3/4" 1141
