Product Family Overview


Electric Pallet Trucks with Scale
SERIES: EPT

24V DC STANDARD

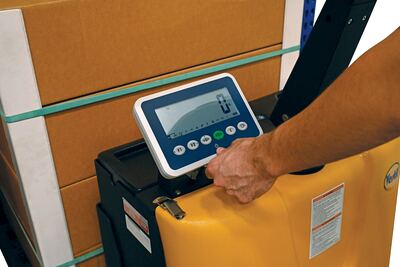

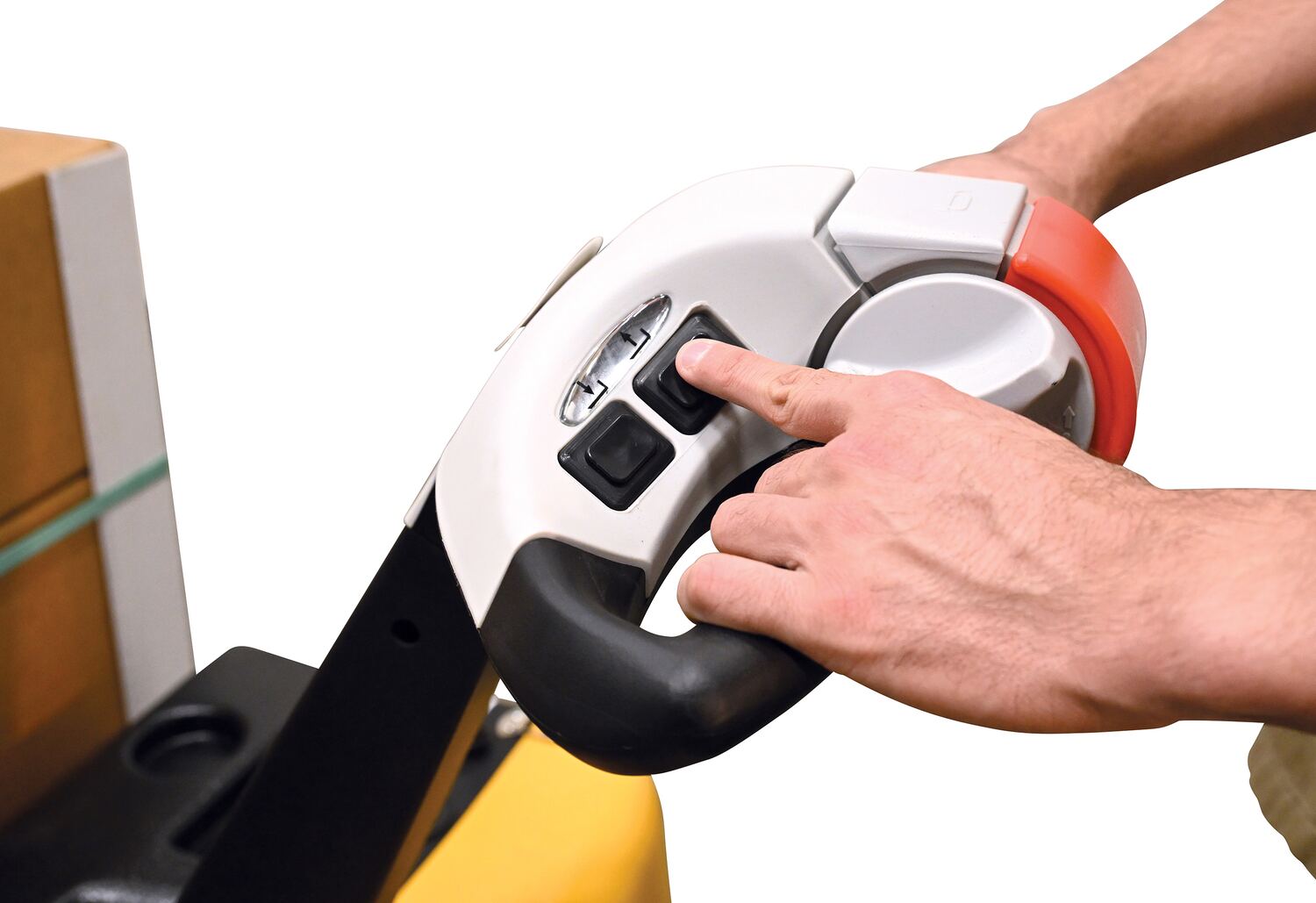

Verify inbound and outbound freight right on your pallet truck and then move your loads with ease. LCD Scale, with 1/2" high characters and 5 function keys (ZERO, TARE, NET/GROSS, PRINT, LB./KG.), displays weight in 1 lb. increments within trucks rated capacity. Scale display operates on (6) six AA batteries. Scale is not NTEP approved (not legal for trade). Scale head includes RS232 port for serial printing. Raise and lower loads with a push of a button. Maneuver loads in warehouses and trailers. Reinforced welded forks with adjustable tie-rods give long service. High-torque 24V DC drive & lift motors handle heavy duty jobs. Ergonomic handle features easy to operate throttle with infinite adjustment of forward and reverse speeds, lift/lower controls, proprietary safety-enhancing emergency reverse function, and horn. Includes an electromagnetic disc brake with automatic dead-man feature that activates when the user releases the handle. WORKS ONLY WITH OPEN BOTTOM SKIDS.

24V DC STANDARD

Verify inbound and outbound freight right on your pallet truck and then move your loads with ease. LCD Scale, with 1/2" high characters and 5 function keys (ZERO, TARE, NET/GROSS, PRINT, LB./KG.), displays weight in 1 lb. increments within trucks rated capacity. Scale display operates on (6) six AA batteries. Scale is not NTEP approved (not legal for trade). Scale head includes RS232 port for serial printing. Raise and lower loads with a push of a button. Maneuver loads in warehouses and trailers. Reinforced welded forks with adjustable tie-rods give long service. High-torque 24V DC drive & lift motors handle heavy duty jobs. Ergonomic handle features easy to operate throttle with infinite adjustment of forward and reverse speeds, lift/lower controls, proprietary safety-enhancing emergency reverse function, and horn. Includes an electromagnetic disc brake with automatic dead-man feature that activates when the user releases the handle. WORKS ONLY WITH OPEN BOTTOM SKIDS.

Additional Models In This Family

EPT-2796-45-SCL

model EPT-2796-45-SCL

EPT-SCL-PT

model EPT-SCL-PT

Model Specific Details




All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.
The Search Box below is within the Model Chart on this page. Not an entire site search.
Model # PDF's Description Attributes Net Wt.
(lbs)

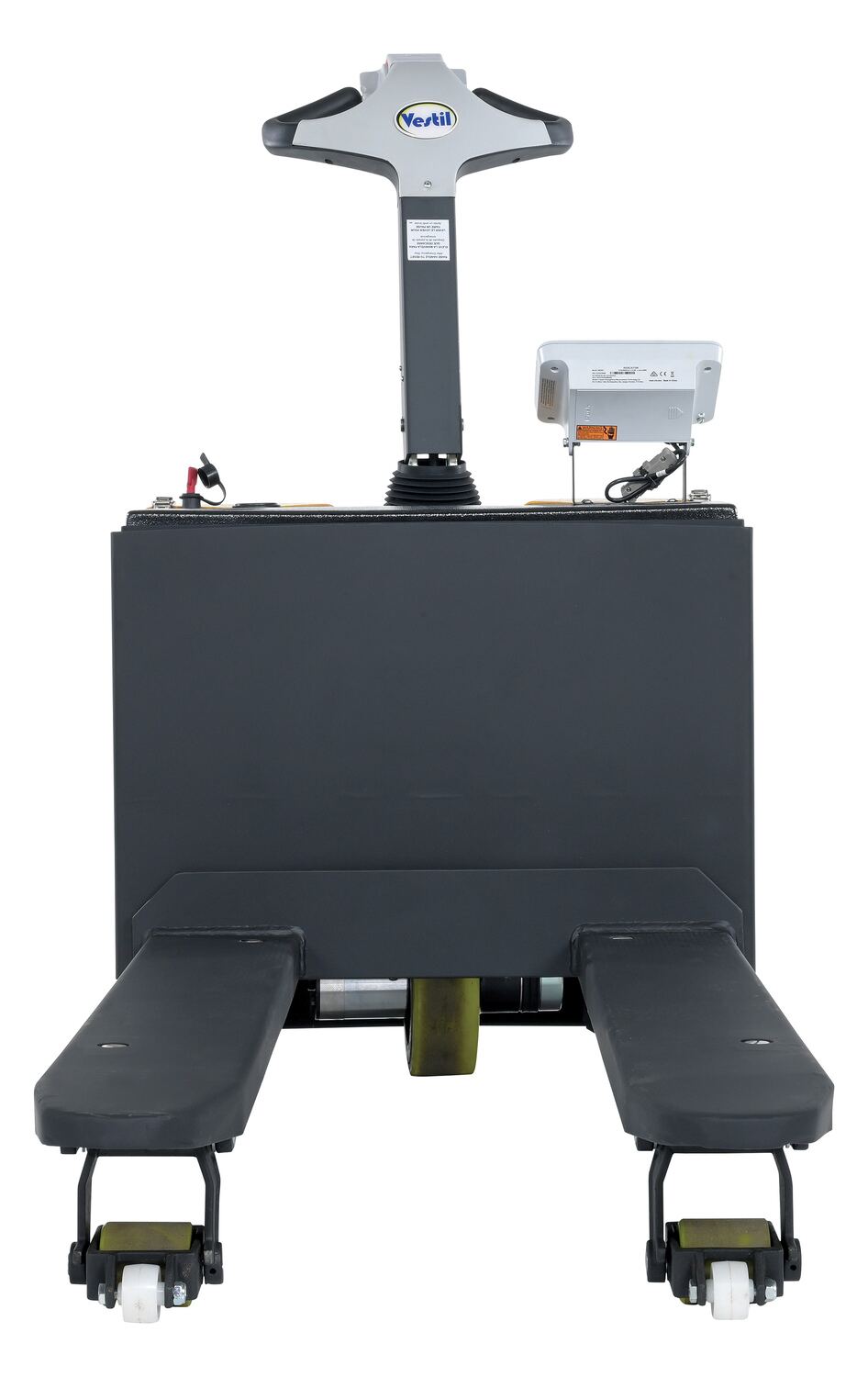

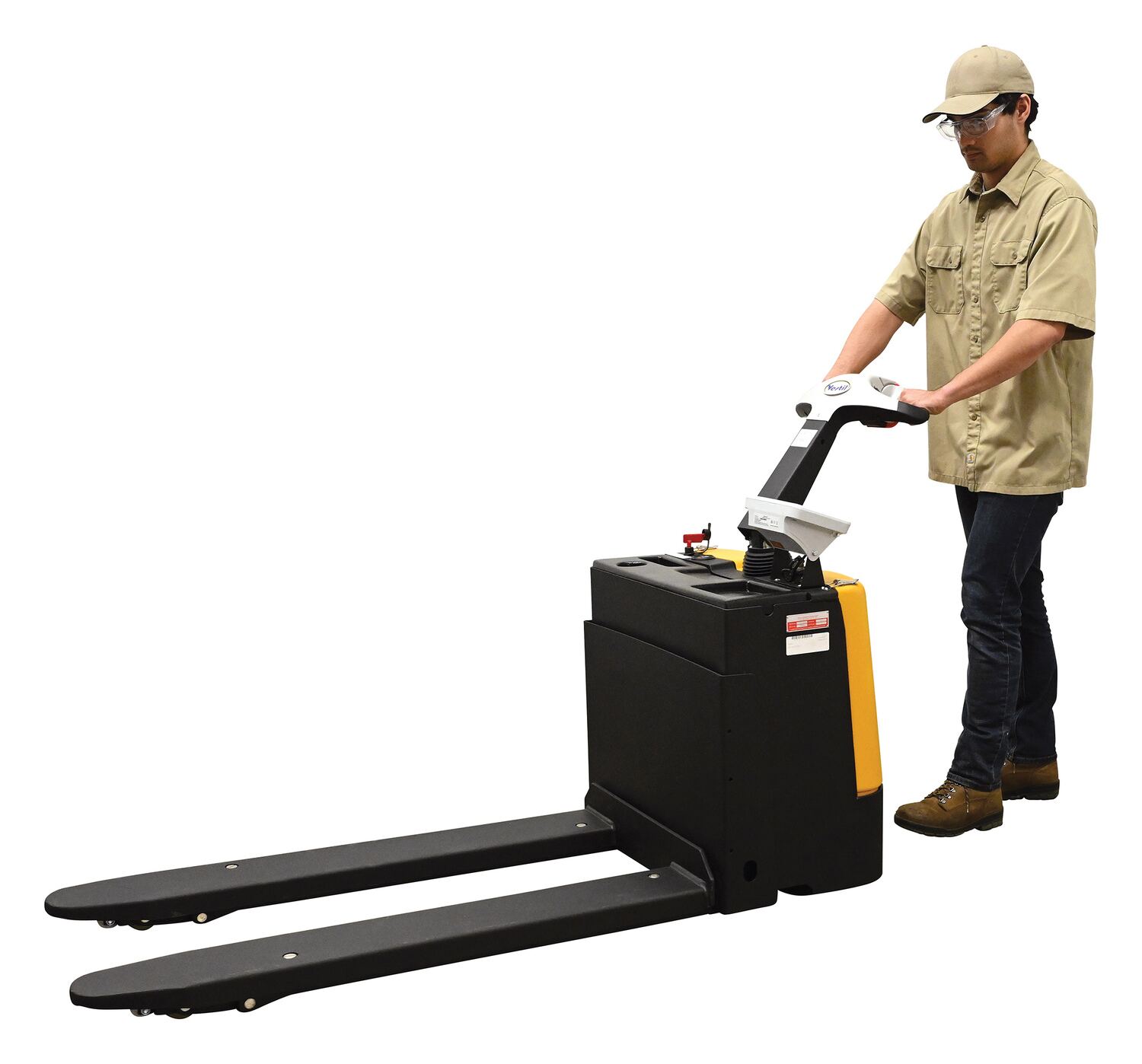

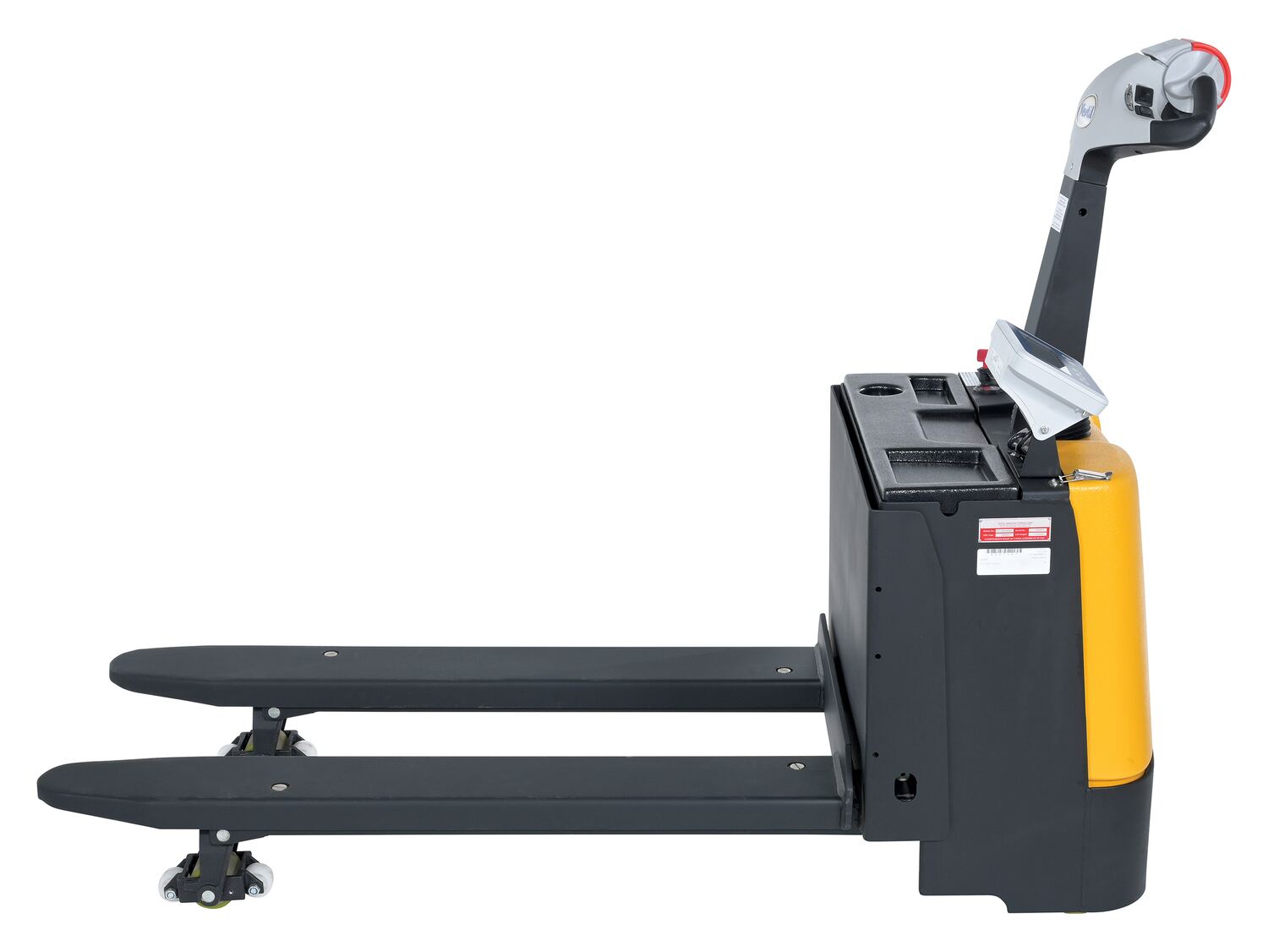

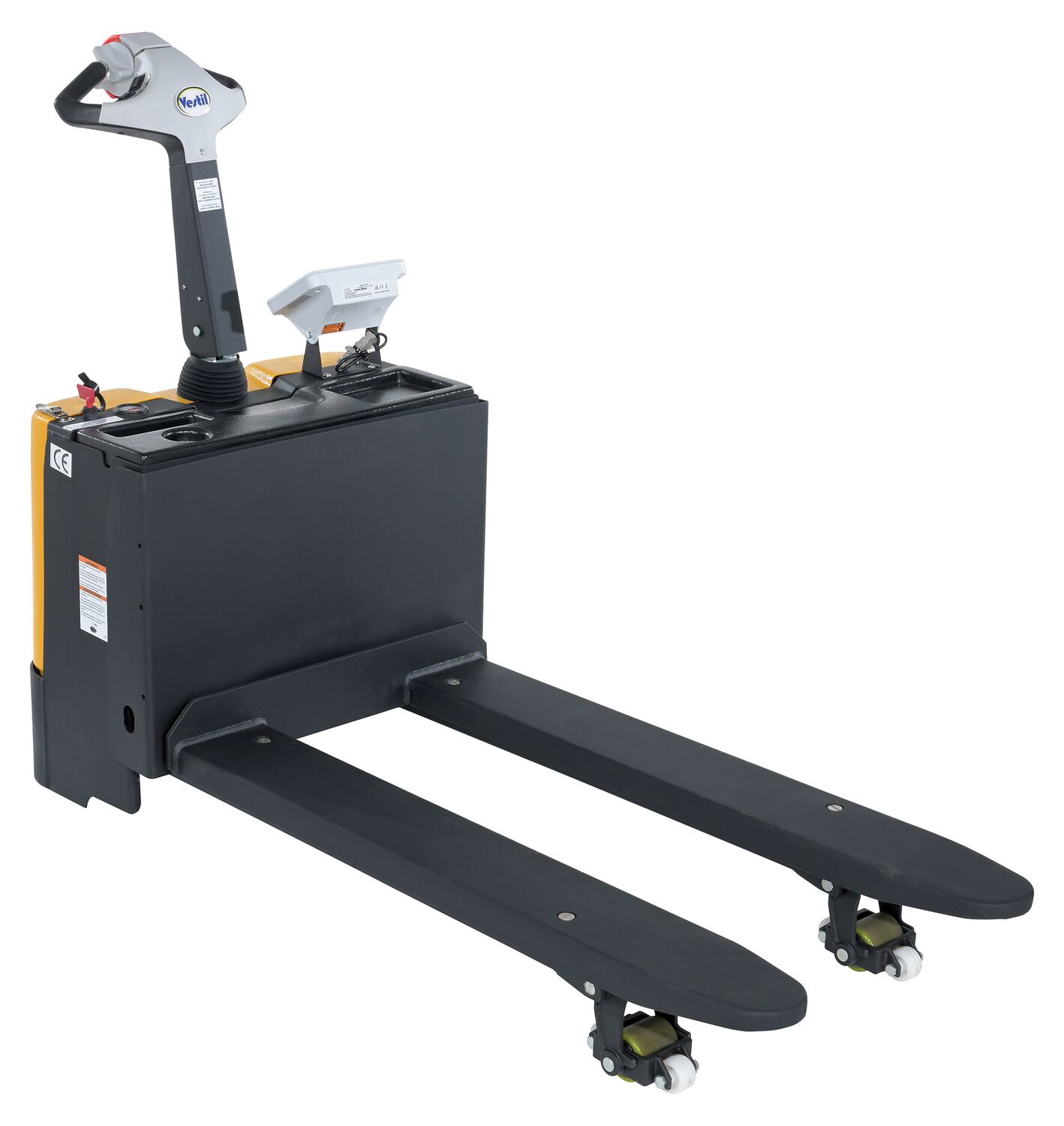

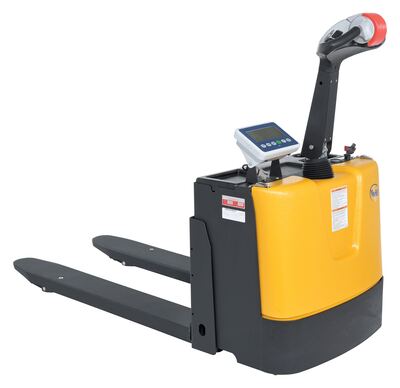

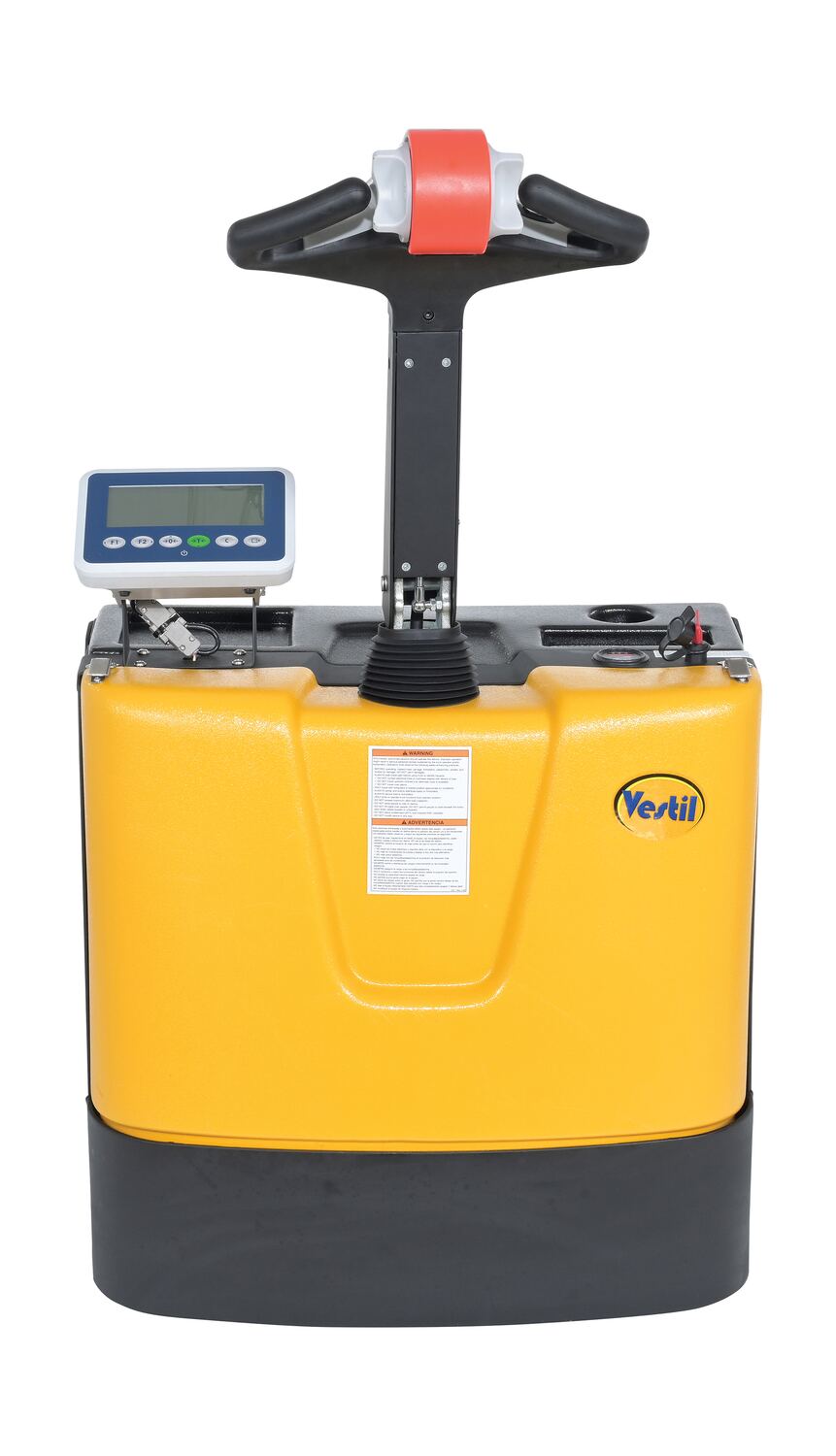

EPT-2547-30-SCL EPT-2547-30-SCL1 Year Limited WarrantySteel Electric Pallet Truck with Scale 25 In. x 47 In. 3000 Lb. Capacity Black / YellowUniform Capacity (lb.): 3000
Overall Fork Width (in.): 25
706

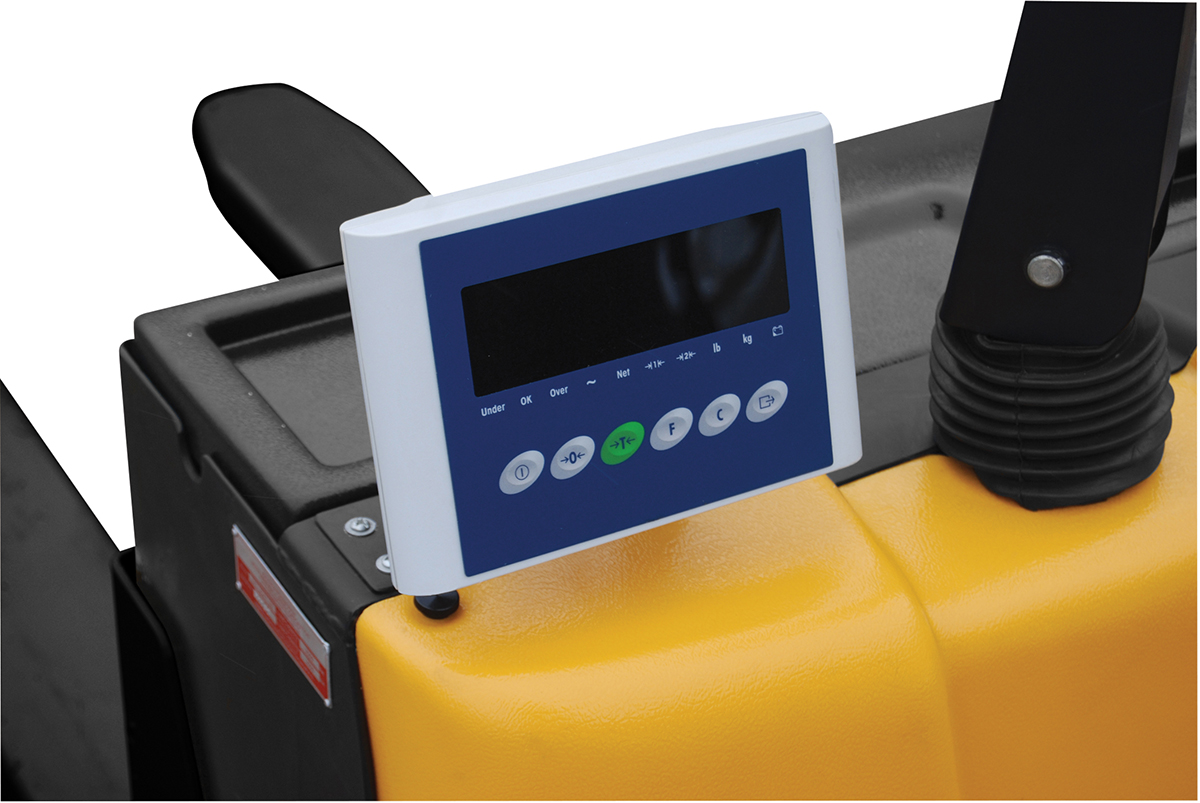

EPT-2547-30-SCL-AGM EPT-2547-30-SCL-AGM1 Year Limited WarrantySteel Electric Pallet Truck with Scale 25 In. x 47 In. 3,300 Lb. CapacityUniform Capacity (lb.): 3000
Overall Fork Width (in.): 25
702
EPT-2748-45-SCL EPT-2748-45-SCL1 Year Limited WarrantySteel Electric Pallet Truck with Scale 27 In. x 48 In. 4500 Lb. Capacity Black / YellowUniform Capacity (lb.): 4500
Overall Fork Width (in.): 27
916
EPT-2748-45-SCL-AGM EPT-2748-45-SCL-AGM1 Year Limited WarrantySteel Electric Pallet Truck with AGM Batteries and Scale 27 In. x 48 In. 4500 Lb. CapacityUniform Capacity (lb.): 4500
Overall Fork Width (in.): 27
1054

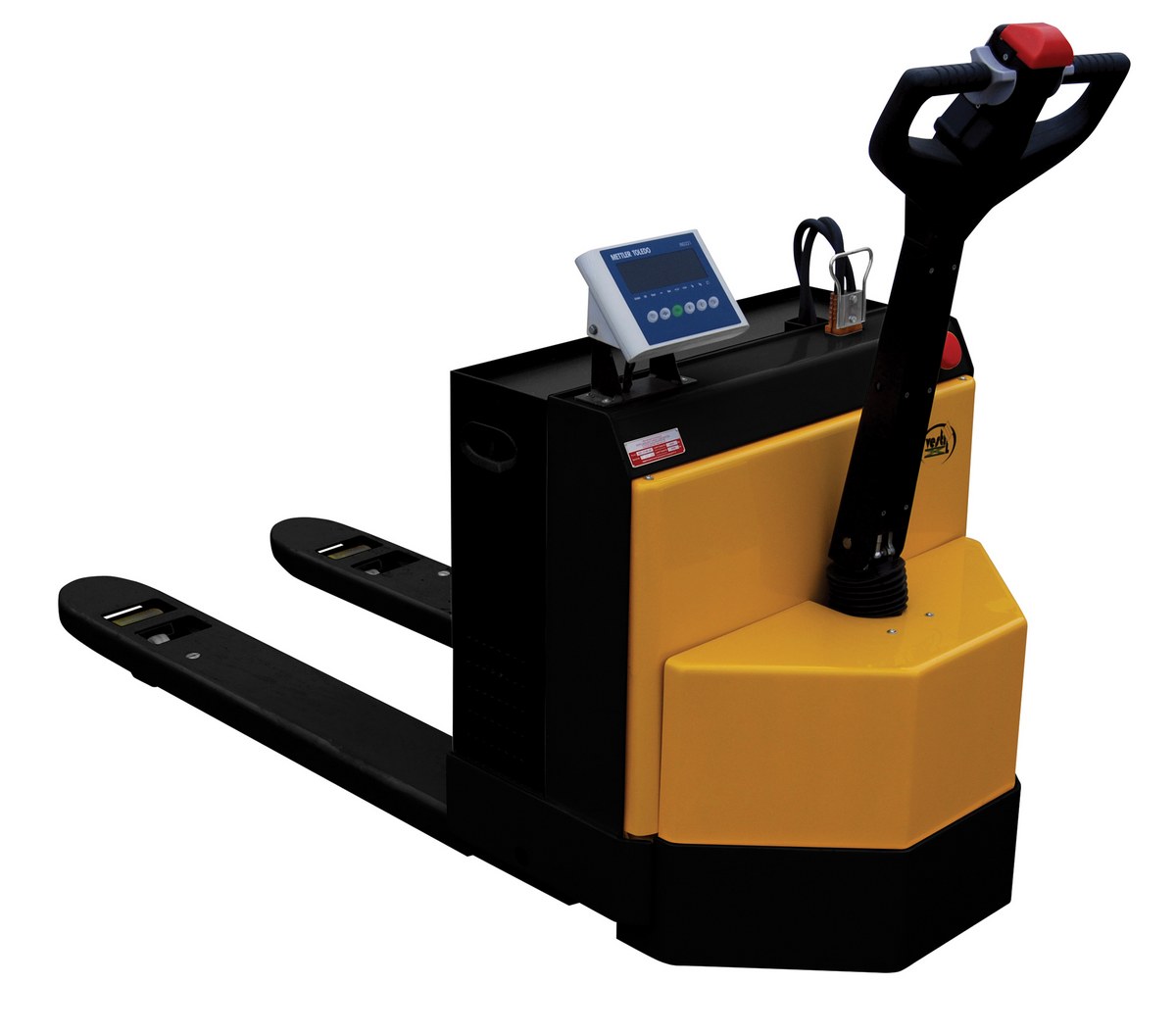

EPT-2748-45-SCL-RP EPT-2748-45-SCL-RP1 Year Limited WarrantySteel Electric Pallet Truck with Scale and Rider Platform 27 In. x 48 In. 4500 Lb. Capacity Yellow/BlackUniform Capacity (lb.): 4500
Overall Fork Width (in.): 27
954
EPT-2748-45-SCLRPAGM EPT-2748-45-SCLRPAGM1 Year Limited WarrantySteel Electric Pallet Truck with AGM Batteries, Scale and Riding Platform 27 In. x 48 In. 4500 Lb. CapacityUniform Capacity (lb.): 4500
Overall Fork Width (in.): 27
1082

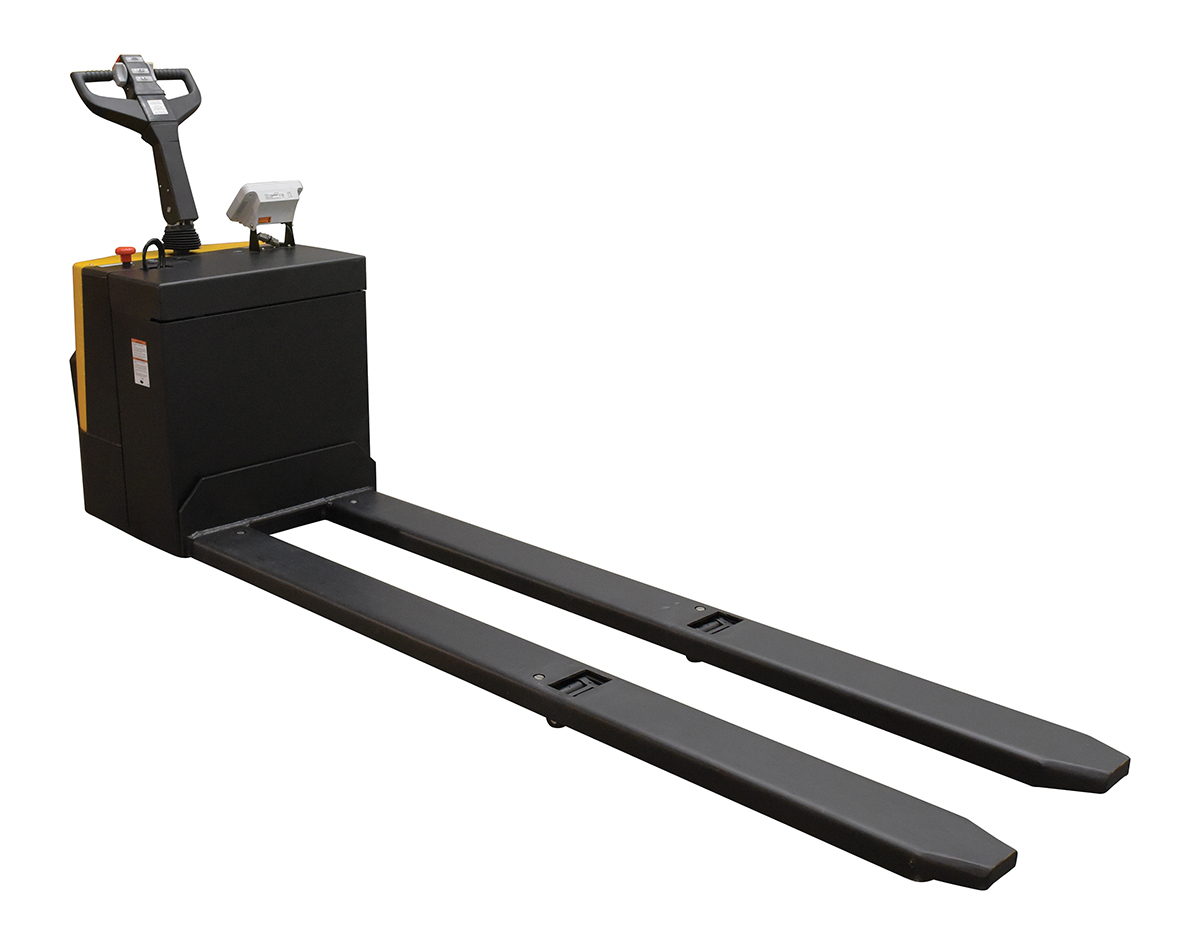

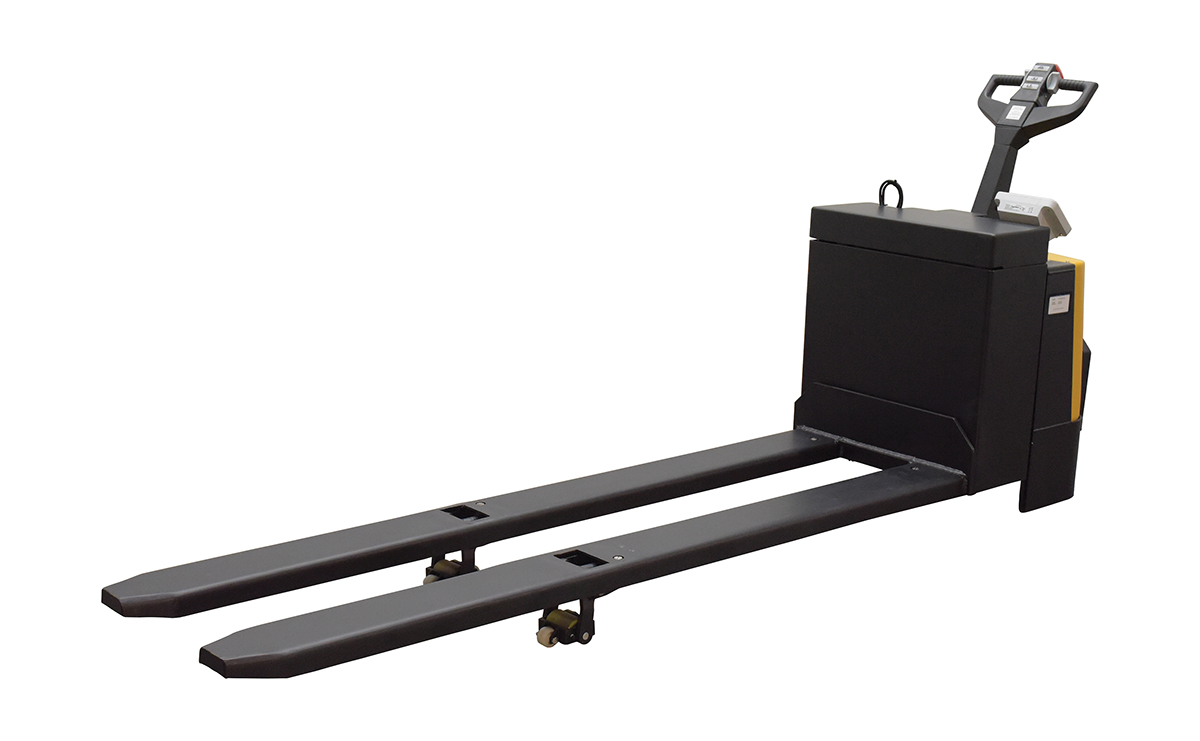

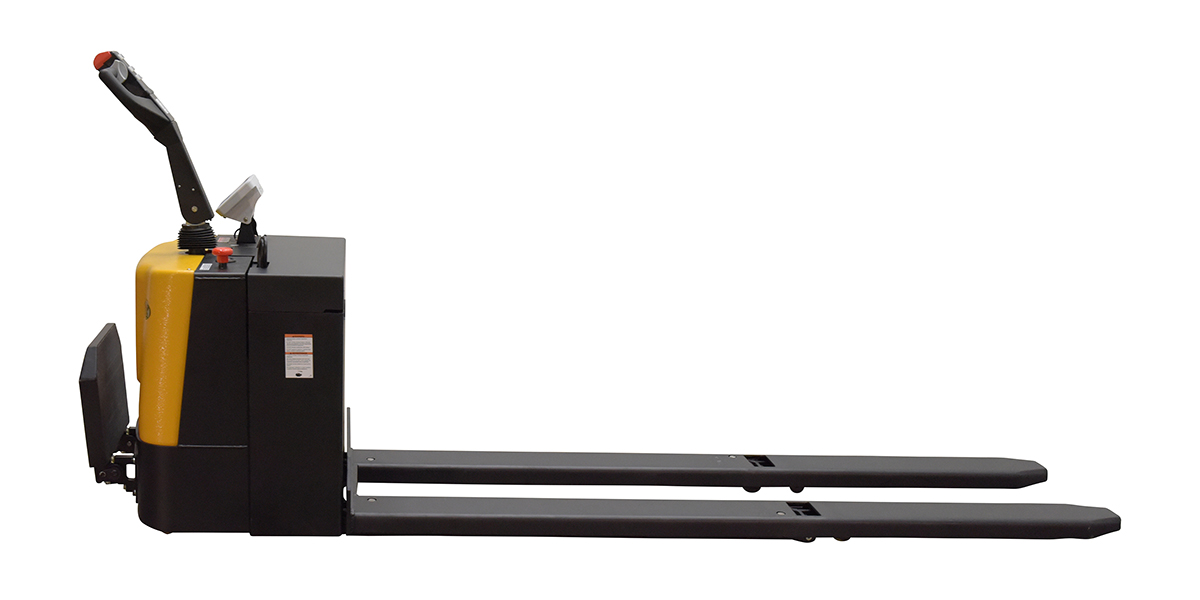

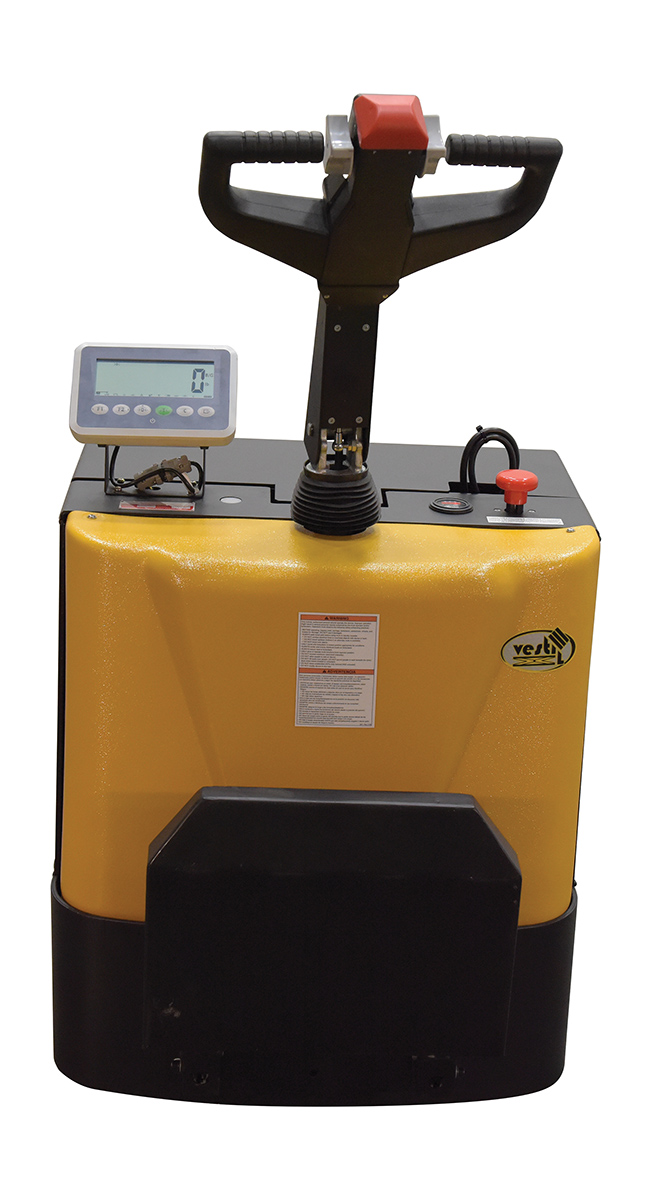

EPT-2796-45-SCL EPT-2796-45-SCL1 Year Limited WarrantySteel Electric Pallet Truck with Scale 27 In. x 96 In. 4500 Lb. Capacity Black / Yellow-
1442

KEY: = Expand Model Details = 48hr Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= Approval Drawing = Testing Certificate Warranty

If you did not find an expected Model or SKU # in the table, try the Options Section Below

EPT-2547-30-SCL
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 3000
Overall Fork Width (in.): 25
Uniform Capacity (lb.): 3000
Overall Fork Width (in.): 25

EPT-2547-30-SCL-AGM
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 3000
Overall Fork Width (in.): 25
Uniform Capacity (lb.): 3000
Overall Fork Width (in.): 25

EPT-2748-45-SCL
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 4500
Overall Fork Width (in.): 27
Uniform Capacity (lb.): 4500
Overall Fork Width (in.): 27

EPT-2748-45-SCL-AGM
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 4500
Overall Fork Width (in.): 27
Uniform Capacity (lb.): 4500
Overall Fork Width (in.): 27

EPT-2748-45-SCL-RP
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 4500
Overall Fork Width (in.): 27
Uniform Capacity (lb.): 4500
Overall Fork Width (in.): 27

EPT-2748-45-SCLRPAGM
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 4500
Overall Fork Width (in.): 27
Uniform Capacity (lb.): 4500
Overall Fork Width (in.): 27

EPT-2796-45-SCL
Unit:
Size: W x L x H
Weight:
Limited Warranty
-

-


For More Details then the Option chart below provides, Click the blue button below, w/ the Model Number you want details for
EPT-SCL-PT

EPT OPTIONS
Model Image Description Wt (lbs.)
EPT-45-RP-KIT Optional Rider Platform, Fields Installed, Available on 4,500 lb. units only 20

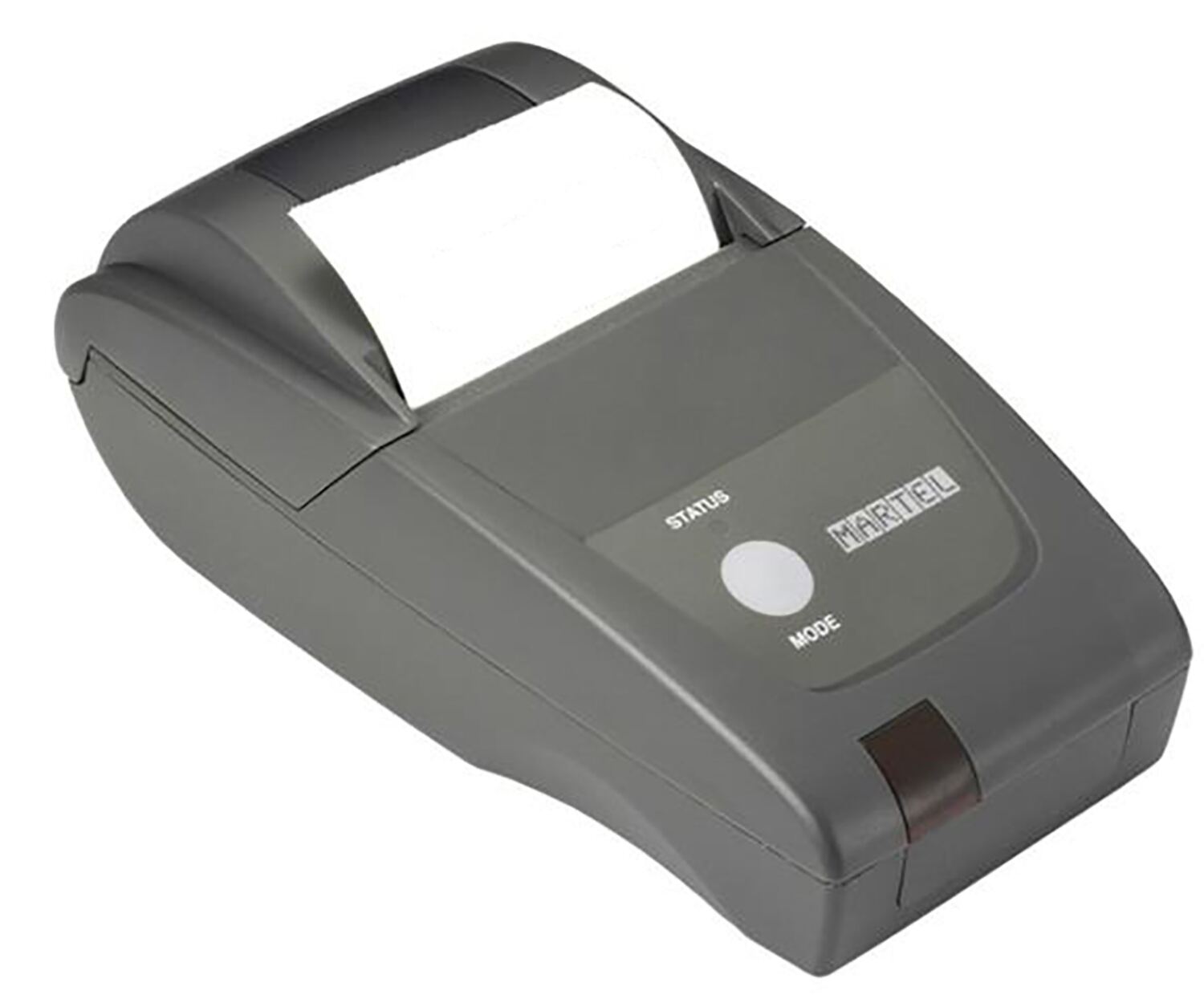

EPT-SCL-PT Optional Printer 3
Optional Batteries (Must be Ordered with New Units)
AGM-UPG-2-12V AGM Battery Upgrade 2x12V order with EPT-2547-30-SCL
AGM-UPG-4-6V AGM Battery Upgrade 4x6V order w/EPT-2748-45-SCL or EPT-2748-45-SCL-RP
If you did not find an expected Model or SKU # in this table, try the Product Specifications Section Above


Electric Pallet Trucks with Scale PDF's will open in a new window when clicked.

Manuals


Survey Sheets

No Survey Sheets For This Product


Approval Drawings

Testing Certificates


EPT-2547-30-SCL

EPT-2547-30-SCL-AGM

EPT-2748-45-SCL

EPT-2748-45-SCL-AGM

EPT-2748-45-SCL-RP

EPT-2748-45-SCLRPAGM

EPT-SCL-PT

SDS Sheets


Midwest Battery - Lead/Acid Battery, Wet, Filled with Acid SDS Sheet for: EPT-2748-45-SCL
Hydraulic Oil SDS Sheet for: EPT-2748-45-SCL

Valve Regulated Lead Acid Battery SDS Sheet for: EPT-2748-45-SCL-AGM
Hydraulic Oil SDS Sheet for: EPT-2748-45-SCL-AGM

Midwest Battery - Lead/Acid Battery, Wet, Filled with Acid SDS Sheet for: EPT-2748-45-SCL-RP
Hydraulic Oil SDS Sheet for: EPT-2748-45-SCL-RP

Valve Regulated Lead Acid Battery SDS Sheet for: EPT-2748-45-SCLRPAGM
Hydraulic Oil SDS Sheet for: EPT-2748-45-SCLRPAGM

Midwest Battery - Lead/Acid Battery, Wet, Filled with Acid SDS Sheet for: EPT-2796-45-SCL
Hydraulic Oil SDS Sheet for: EPT-2796-45-SCL

Other PDF's

No "Other PDFs" For This Product...


Directory Links Of Available PDF's For All Products



Q: Can these be used with skids and pallets?

A: The electric pallet truck with scale is designed for use with skids or open bottom pallets. There should be a minimum of 3 1/2" clearance.






Some of our products may be temporarily unavailable due to supply chain disruptions. Contact our Sales Department for help with finding alternate product solutions. We apologize for the inconvenience.

Before placing an order, please confirm that the ship to company is able to receive shipments on the estimated delivery date





Electric Pallet Trucks with Scale




24V DC STANDARD

Verify inbound and outbound freight right on your pallet truck and then move your loads with ease. LCD Scale, with 1/2" high characters and 5 function keys (ZERO, TARE, NET/GROSS, PRINT, LB./KG.), displays weight in 1 lb. increments within trucks rated capacity. Scale display operates on (6) six AA batteries. Scale is not NTEP approved (not legal for trade). Scale head includes RS232 port for serial printing. Raise and lower loads with a push of a button. Maneuver loads in warehouses and trailers. Reinforced welded forks with adjustable tie-rods give long service. High-torque 24V DC drive & lift motors handle heavy duty jobs. Ergonomic handle features easy to operate throttle with infinite adjustment of forward and reverse speeds, lift/lower controls, proprietary safety-enhancing emergency reverse function, and horn. Includes an electromagnetic disc brake with automatic dead-man feature that activates when the user releases the handle. WORKS ONLY WITH OPEN BOTTOM SKIDS.


Electric Pallet Trucks with Scale
Model Image PDF's Overall Size
(WxLxH)
Uniform
Capacity (lbs)
Fork Size
(WxL)
Service
Range
Wt.
(lbs)
EPT-2547-30-SCL
icon_approvaldrawings.jpgWarranty PDFCompliance Certificate 28-1/2"x 66 "x 49" 3,000 25"x47" 3-3/8" to 8" 789
EPT-2748-45-SCL icon_approvaldrawings.jpgWarranty PDFCompliance Certificate 31-3/16"x76-1/2"x 51-3/8" 4,500 27"x48" 3-3/4" to 8" 1178
EPT-2796-45-SCL Warranty PDF 30"x125"x51" 4,500 27"x96" 3-3/8" to 8" 1938
Includes Rider Platform which flips up when not in use (18"Wx12"Lx4-3/4"H)
EPT-2748-45-SCL-RP icon_approvaldrawings.jpgWarranty PDF 30.25"x76.5"x49" 4,500 27"x48" 3-3/4" to 8" 1202

Options


EPT OPTIONS
Model Image Description Wt (lbs.)
EPT-45-RP-KIT Optional Rider Platform, Fields Installed, Available on 4,500 lb. units only 20
EPT-SCL-PT Optional Printer 3
Optional Batteries (Must be Ordered with New Units)
AGM-UPG-2-12V AGM Battery Upgrade 2x12V order with EPT-2547-30-SCL
AGM-UPG-4-6V AGM Battery Upgrade 4x6V order w/EPT-2748-45-SCL or EPT-2748-45-SCL-RP
