Product Family Overview


Fully Powered Electric Pallet Trucks
SERIES: EPT

24V DC Standard

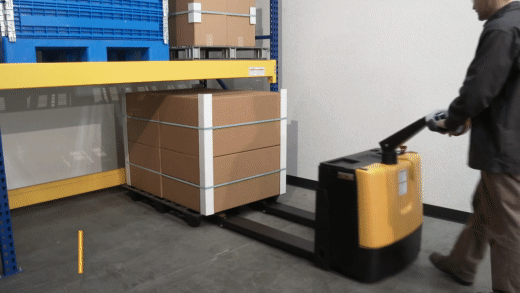

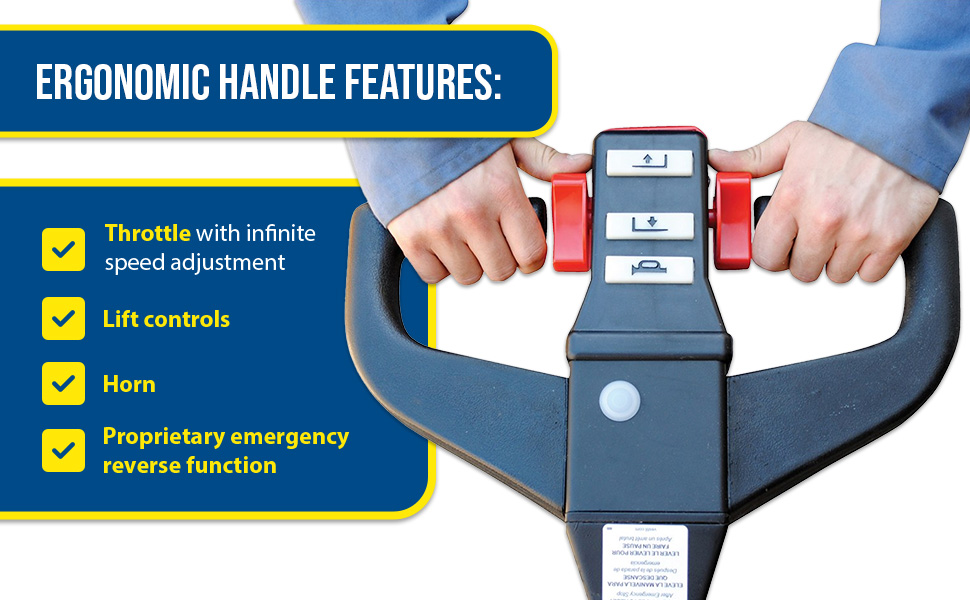

Fully Powered Electric Pallet Truck for easy and quick operation. Raise and lower loads with a push of a button. Maneuvers loads in warehouses and trailers. Reinforced welded forks with adjustable tie-rods give long service. High-torque 24V DC drive & lift motors handle heavy-duty jobs. Ergonomic handle features easy to operate throttle with infinite adjustment of forward and reverse speeds, lift/lower controls, proprietary safety-enhancing emergency reverse function, and horn. Includes an electromagnetic disc brake with automatic dead-man feature that activates when the user releases the handle.

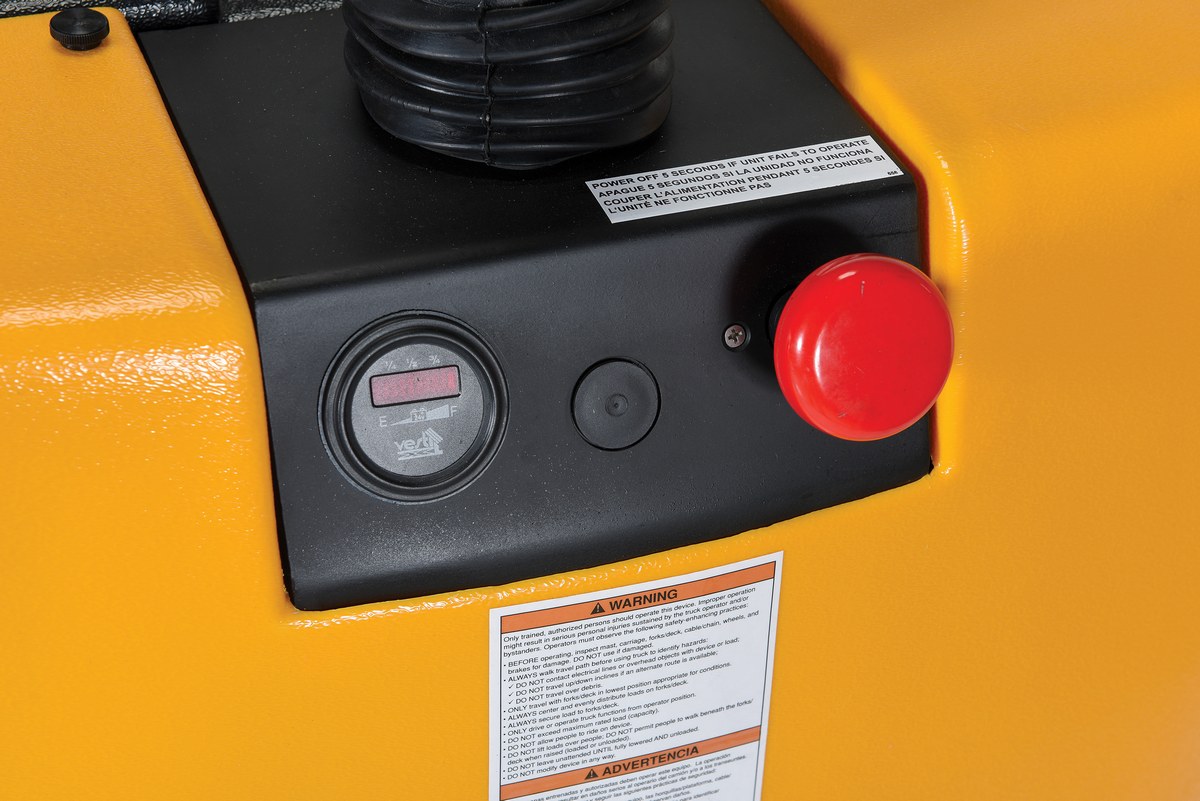

3,000 and 3,300 pound unit uses two (2) 12V batteries, integral battery charger, and battery level gauge. The truck rolls smoothly on poly-on-steel steer and load wheels. Features 0.7 KW drive and 1.3 KW lift motor. 3-4 hour operation at full charge - 8 hours when used intermittently.

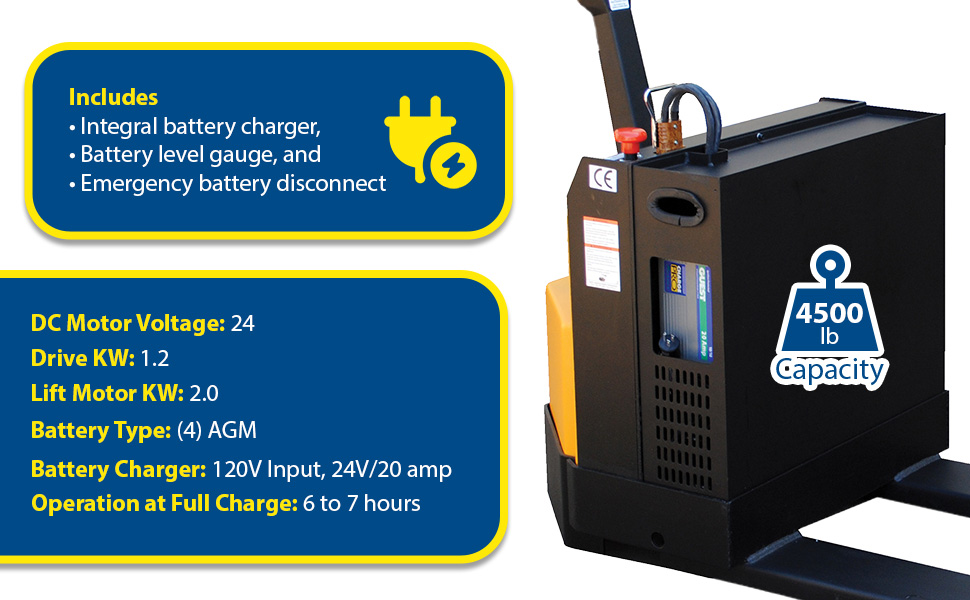

4,500 pound unit uses four (4) 6V batteries, integral battery charger, battery level gauge, and emergency battery disconnect. The truck rolls smoothly on poly-on-steel steer and load wheels. Features 1.2 KW drive and 1.3 KW lift motor. 6-7 hours operation at full charge - 8 hours when used intermittently.

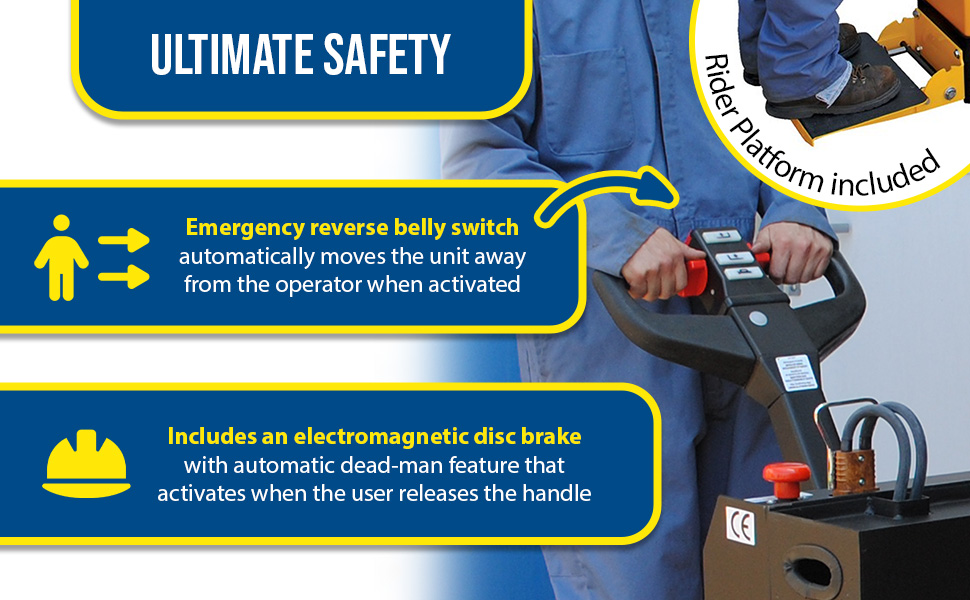

When actuated, the emergency reverse belly switch instantly reverses direction and moves the unit forward (away from the operator) until the switch is released or after 1.5 seconds have elapsed. The built-in safety circuit will automatically disable the entire unit if the emergency reverse belly switch is activated for more than 1.5 seconds after which the unit must be re-set to return to normal operating conditions. This state-of-the-art safety device provides a high degree of operator protection.

24V DC Standard

Fully Powered Electric Pallet Truck for easy and quick operation. Raise and lower loads with a push of a button. Maneuvers loads in warehouses and trailers. Reinforced welded forks with adjustable tie-rods give long service. High-torque 24V DC drive & lift motors handle heavy-duty jobs. Ergonomic handle features easy to operate throttle with infinite adjustment of forward and reverse speeds, lift/lower controls, proprietary safety-enhancing emergency reverse function, and horn. Includes an electromagnetic disc brake with automatic dead-man feature that activates when the user releases the handle.

3,000 and 3,300 pound unit uses two (2) 12V batteries, integral battery charger, and battery level gauge. The truck rolls smoothly on poly-on-steel steer and load wheels. Features 0.7 KW drive and 1.3 KW lift motor. 3-4 hour operation at full charge - 8 hours when used intermittently.

4,500 pound unit uses four (4) 6V batteries, integral battery charger, battery level gauge, and emergency battery disconnect. The truck rolls smoothly on poly-on-steel steer and load wheels. Features 1.2 KW drive and 1.3 KW lift motor. 6-7 hours operation at full charge - 8 hours when used intermittently.

When actuated, the emergency reverse belly switch instantly reverses direction and moves the unit forward (away from the operator) until the switch is released or after 1.5 seconds have elapsed. The built-in safety circuit will automatically disable the entire unit if the emergency reverse belly switch is activated for more than 1.5 seconds after which the unit must be re-set to return to normal operating conditions. This state-of-the-art safety device provides a high degree of operator protection.

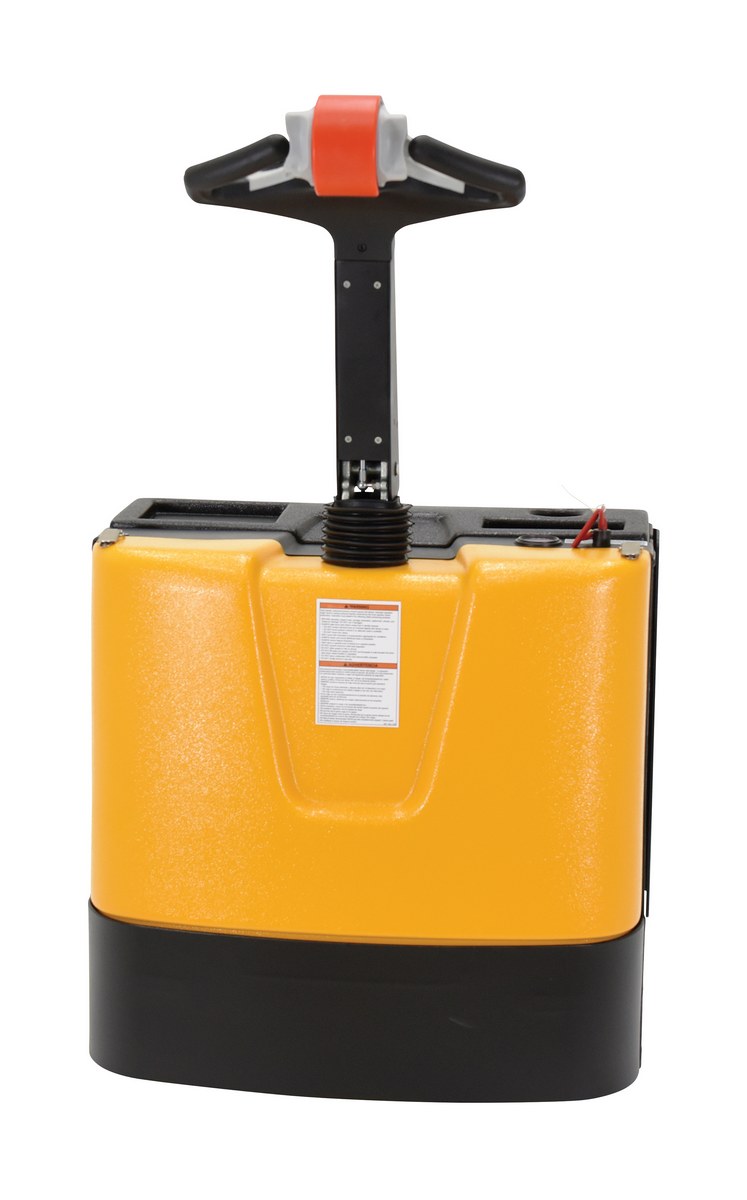

EPT-2547-30

model EPT-2547-30

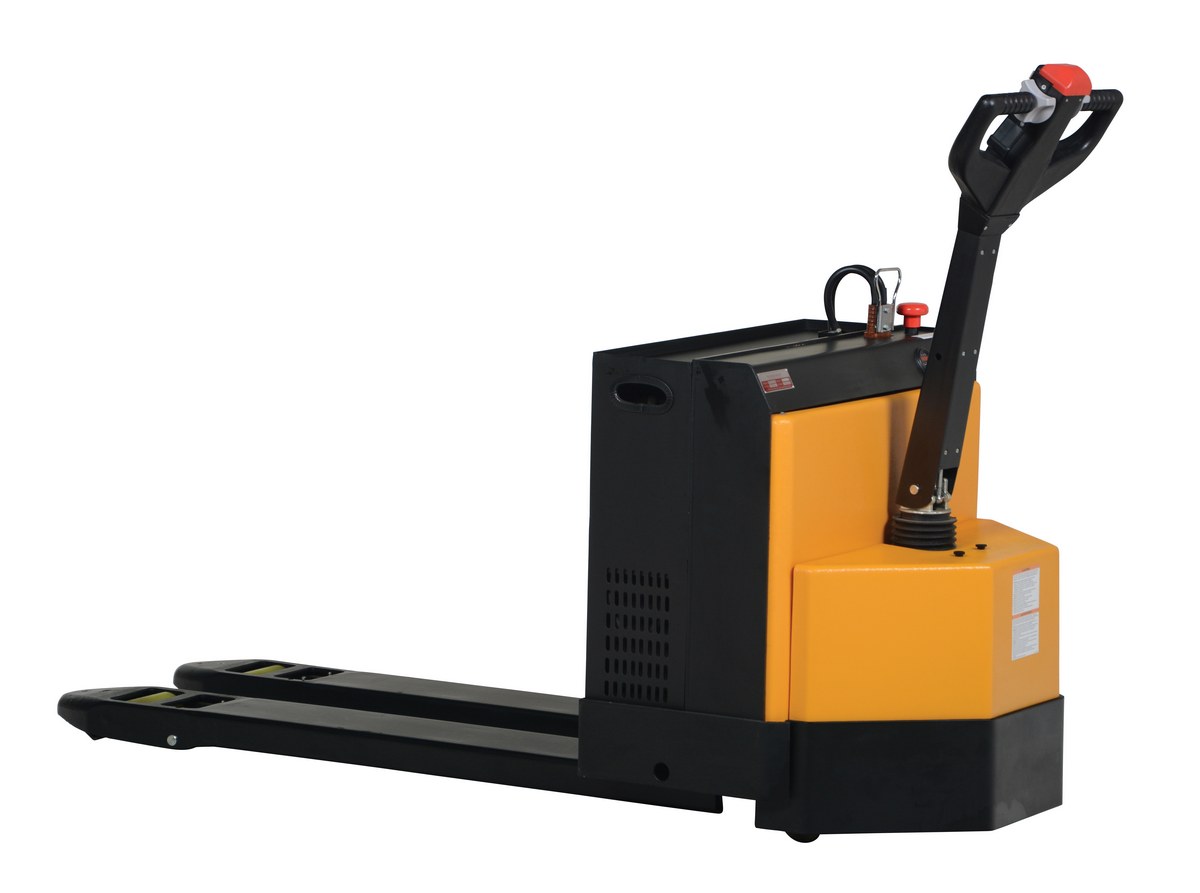

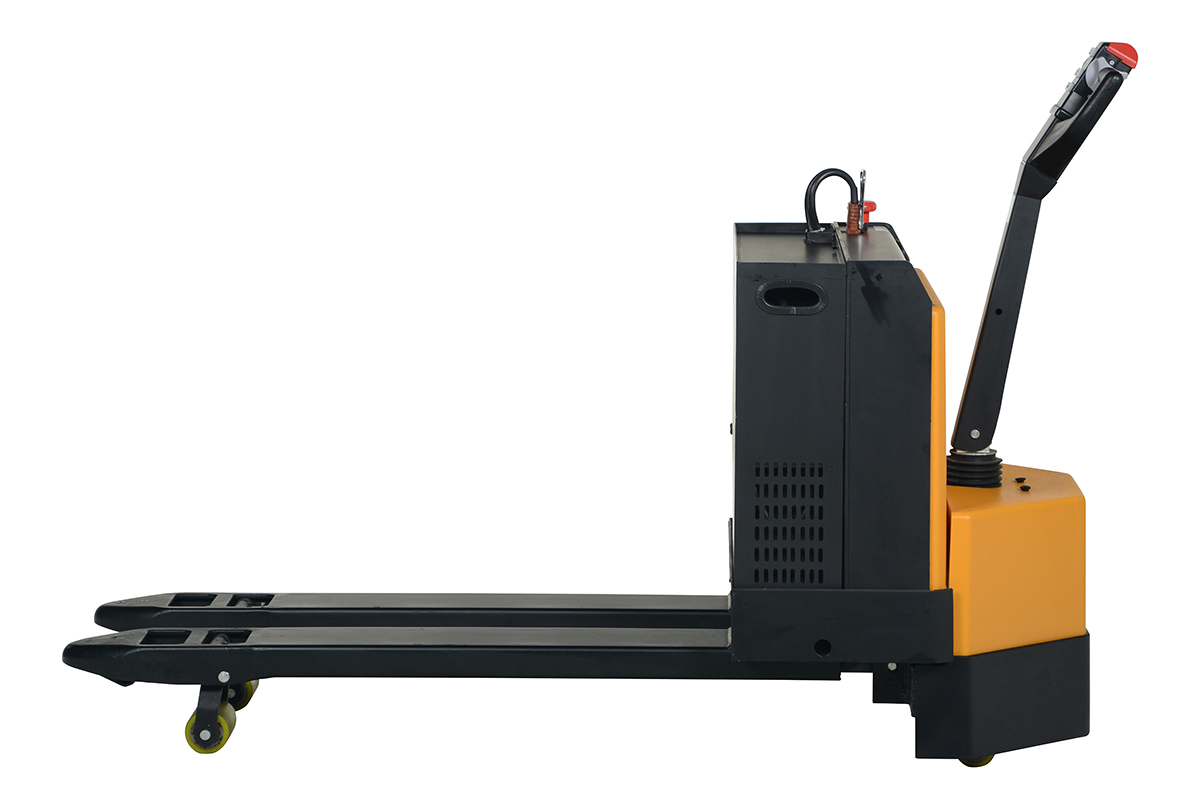

EPT-2048-45

model EPT-2048-45

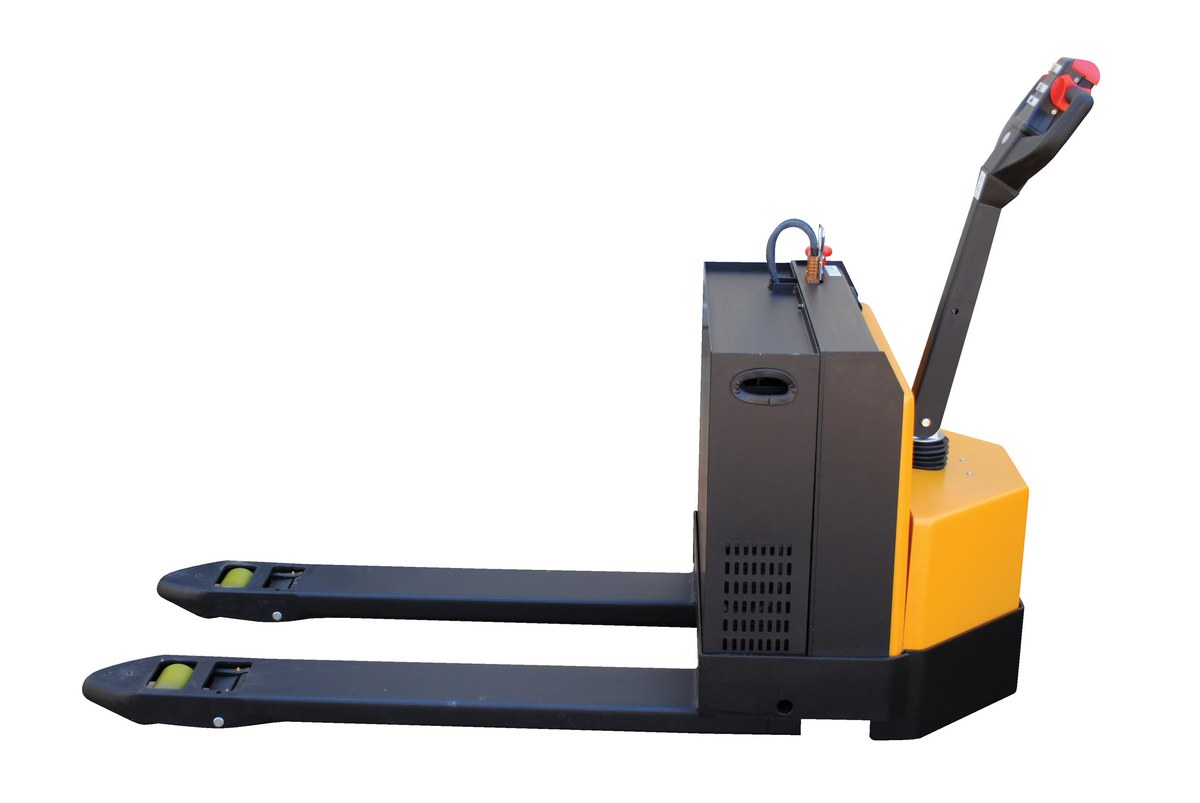

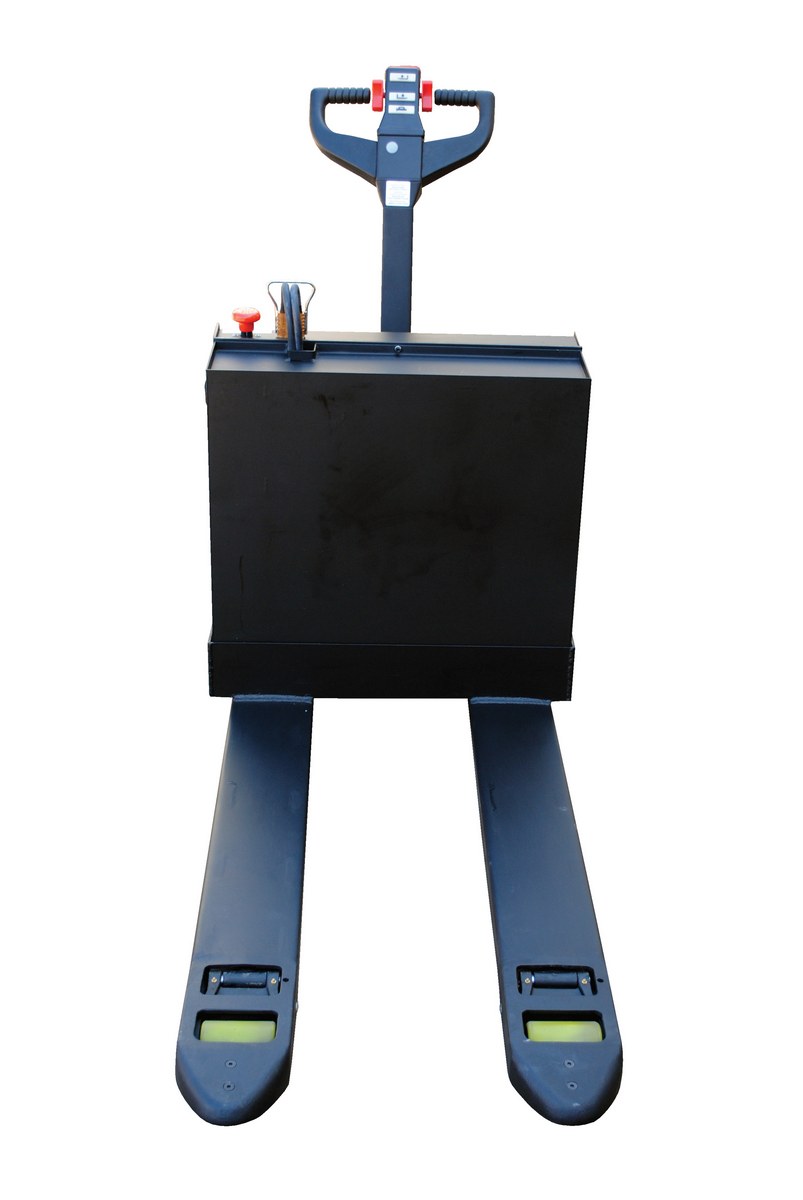

EPT-2748-45

model EPT-2748-45

EPT-2748-45-RP

model EPT-2748-45-RP

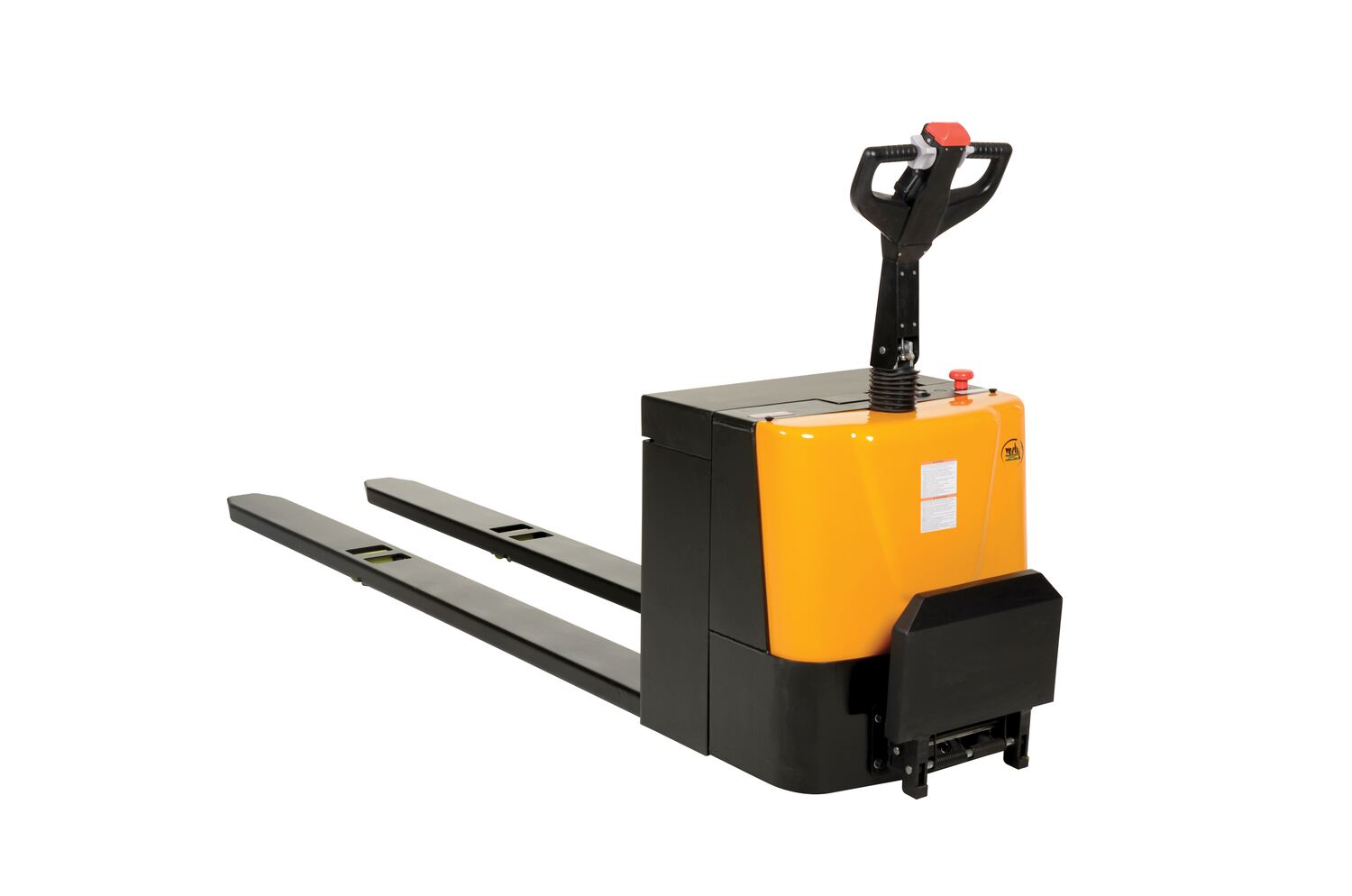

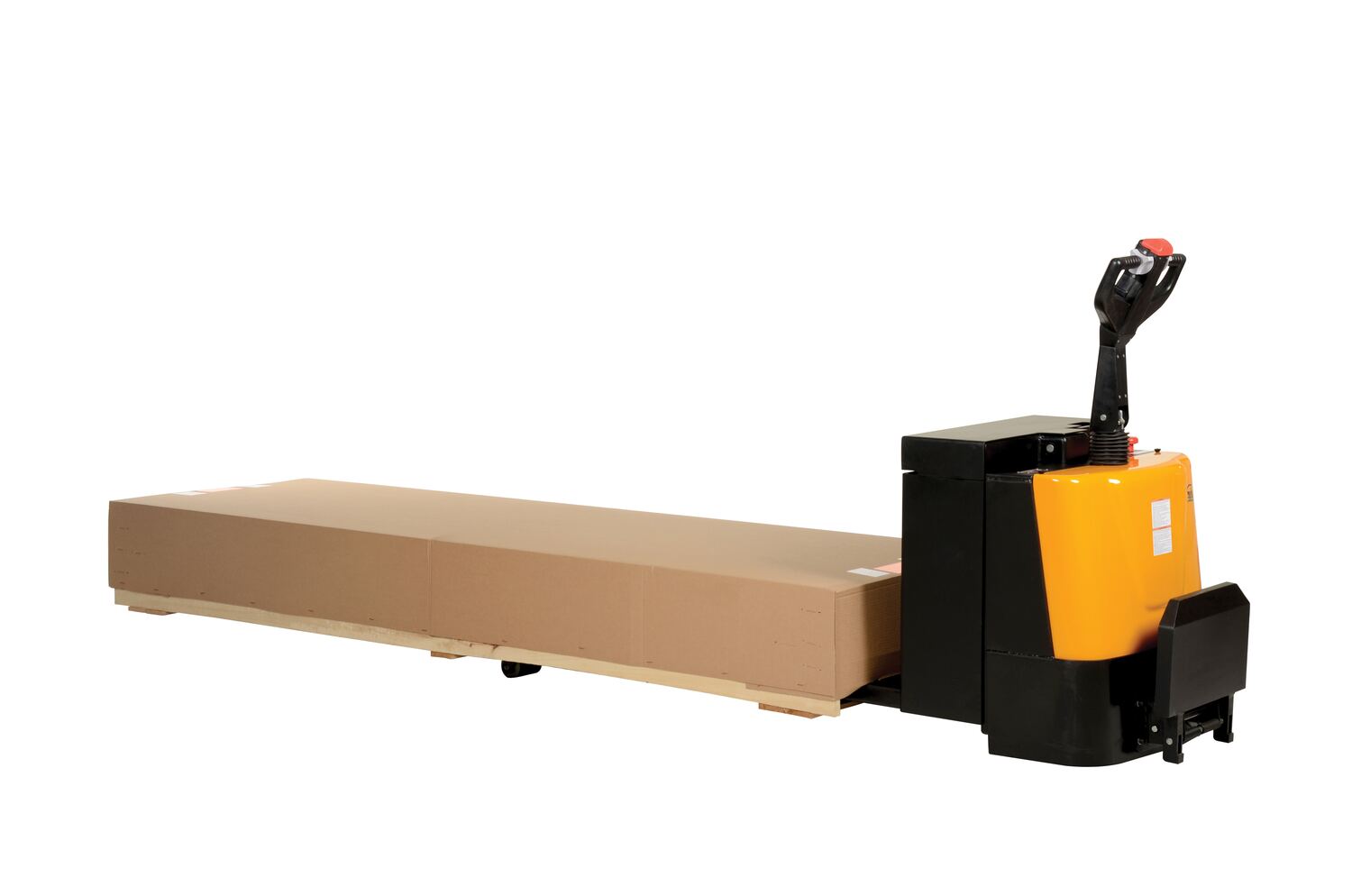

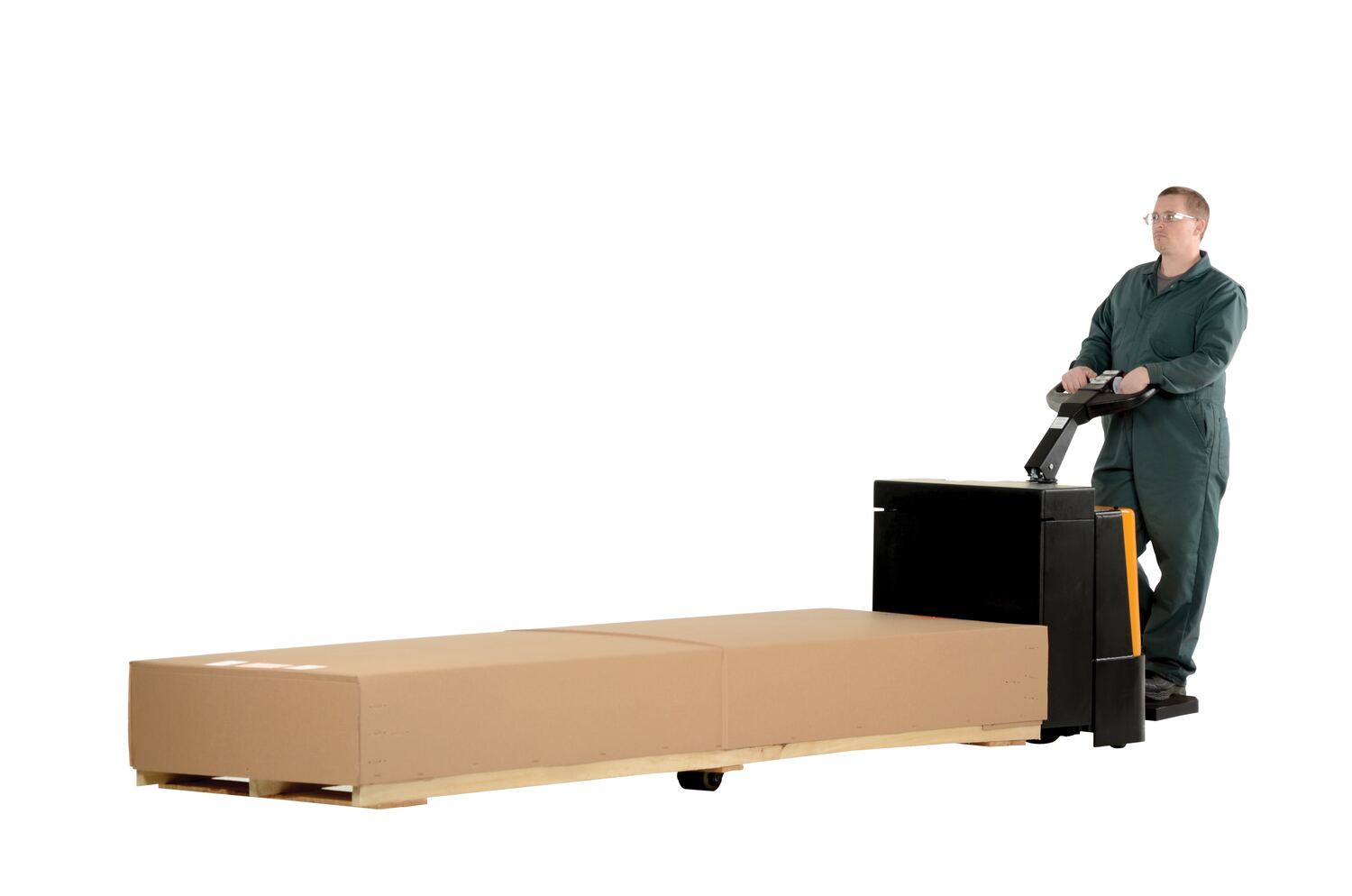

EPT-2796-45

model EPT-2796-45

Model Specific Details




All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.
The Search Box below is within the Model Chart on this page. Not an entire site search.
Model # PDF's Description Attributes Net Wt.
(lbs)

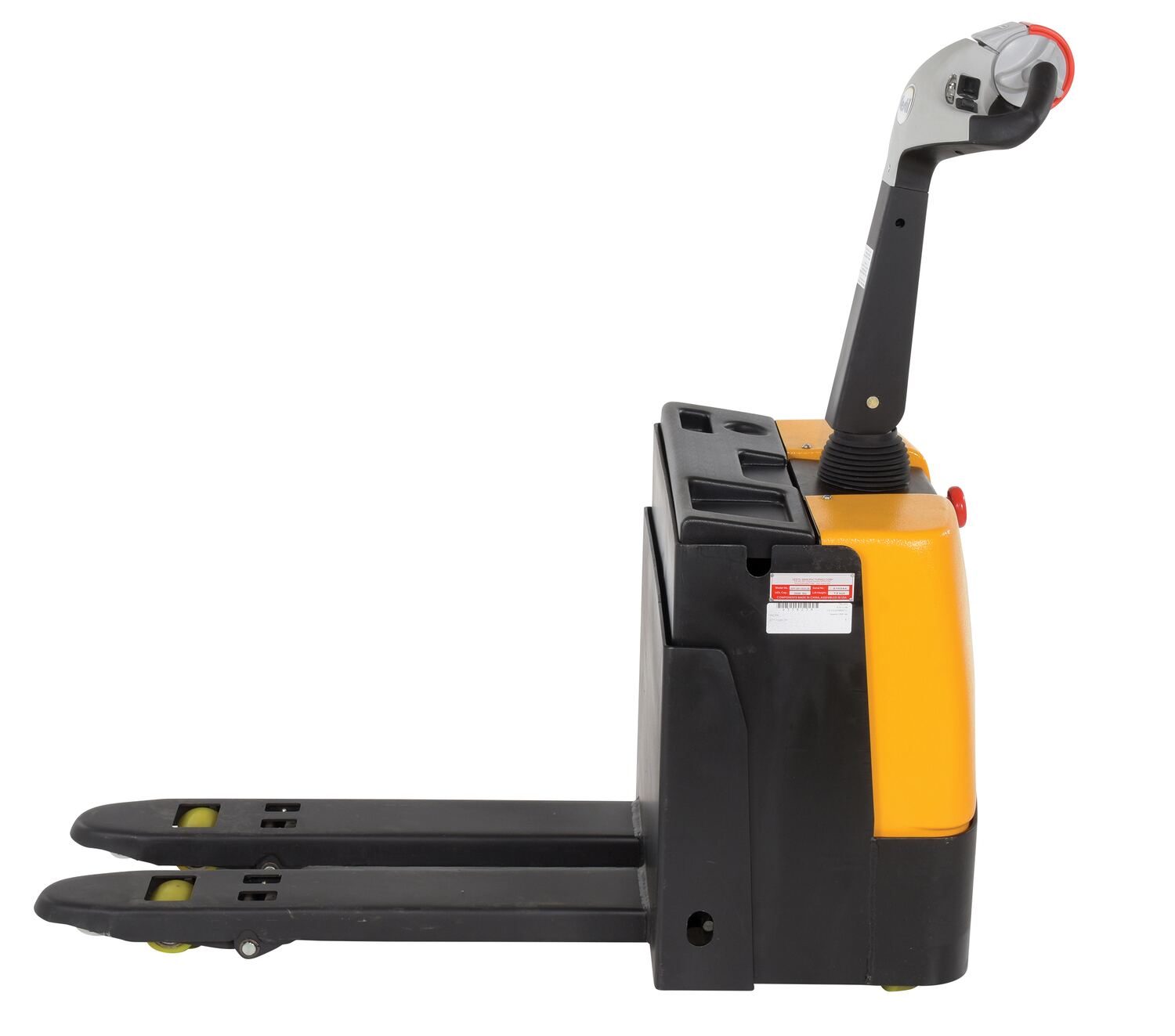

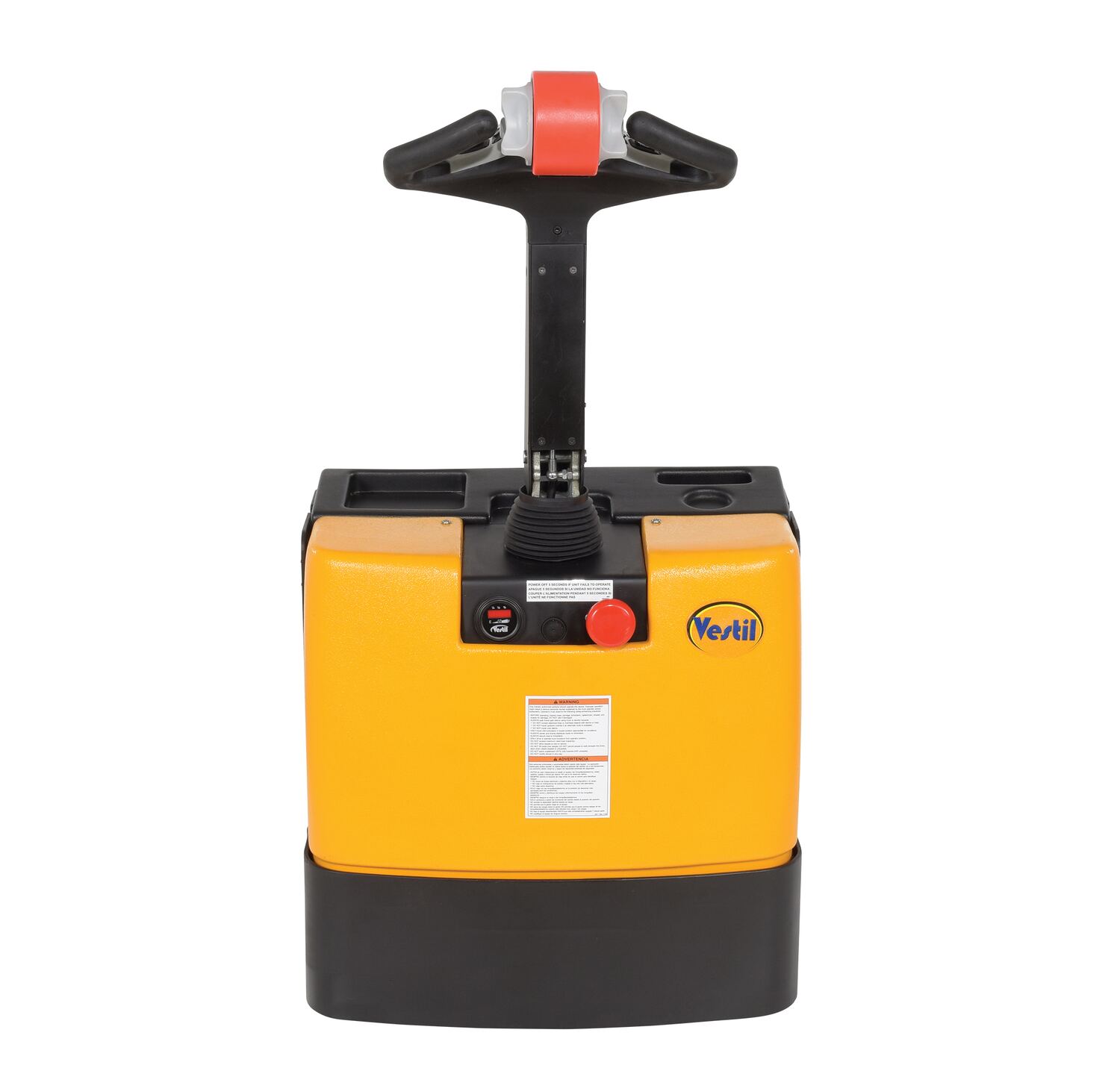

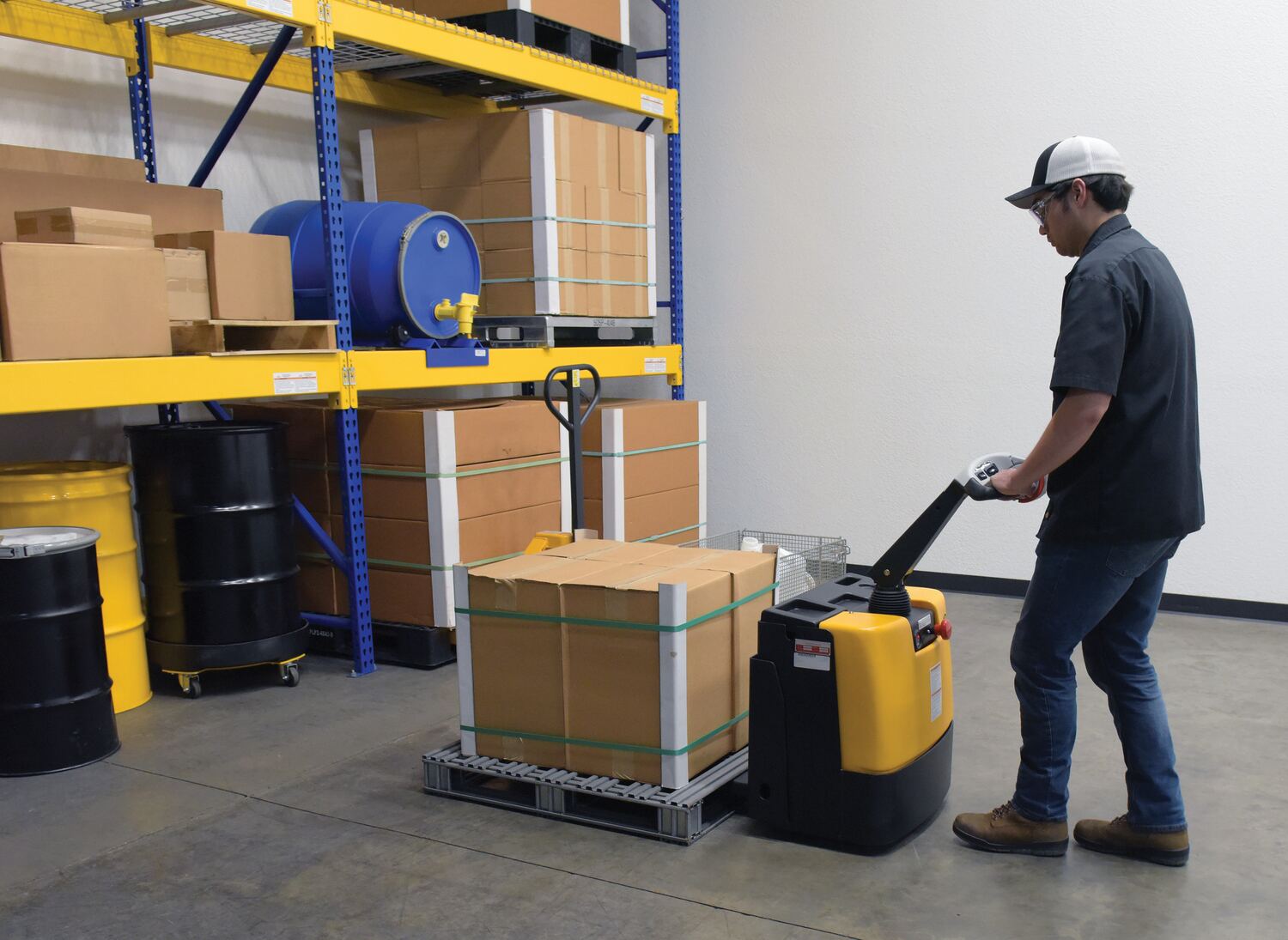

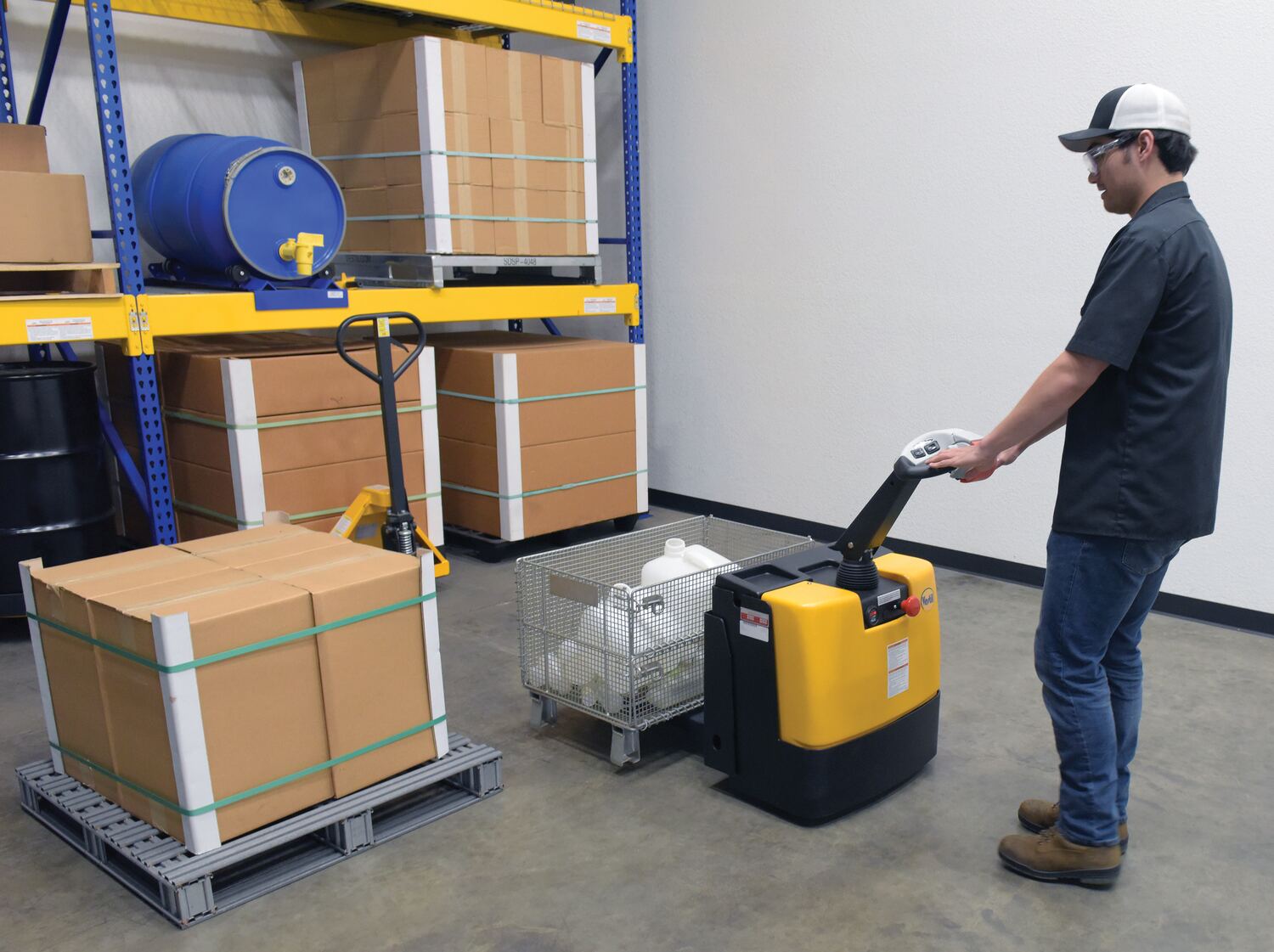

EPT-1540-26 1 Year Limited WarrantySteel Fully Powered Electric Pallet Truck 20 In. x 47 In. 3,300 Lb. Capacity BlackUniform Capacity (lbs.): 2,600
Battery size (in.): 7.75x6.5x6.69
401
EPT-2047-30 EPT-2047-301 Year Limited WarrantySteel Fully Powered Electric Pallet Truck 20 In. x 47 In. 3,300 Lb. Capacity BlackUniform Capacity (lb.): 3300
Overall Fork Width (in.): 20
613

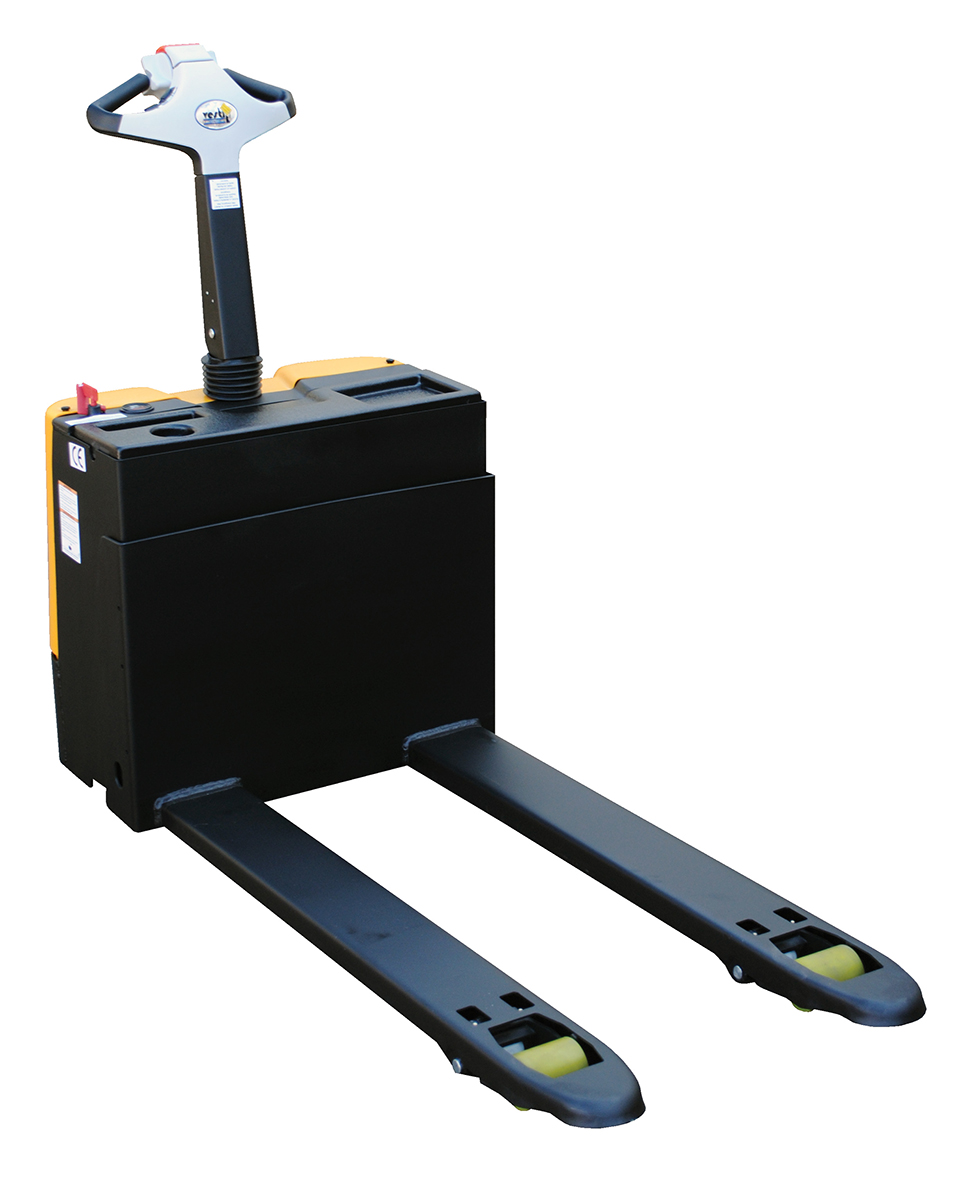

EPT-2047-30-AGM EPT-2047-30-AGM1 Year Limited WarrantySteel Electric Pallet Truck 20 In. x 47 In. 3300 Lb. CapacityUniform Capacity (lb.): 3300
Overall Fork Width (in.): 20
636

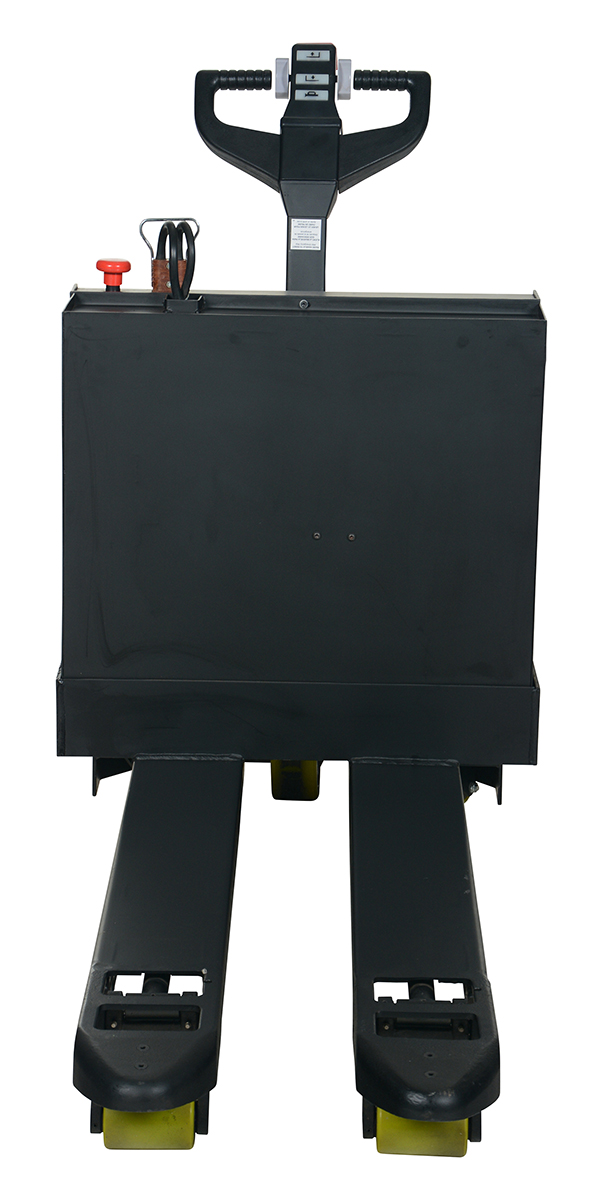

EPT-2048-45 EPT-2048-451 Year Limited WarrantySteel Fully Powered Electric Pallet Truck 20 In. x 48 In. 4,500 Lb. Capacity BlackUniform Capacity (lb.): 4500
Overall Fork Width (in.): 20.5
868
EPT-2048-45-AGM EPT-2048-45-AGM1 Year Limited WarrantySteel Electric Pallet Truck 20 In. x 48 In. 4500 Lb. CapacityUniform Capacity (lb.): 4500
Overall Fork Width (in.): 20
1028
EPT-2048-45-RP EPT-2048-45-RP1 Year Limited WarrantySteel Pallet Truck with Rider Platform 20 In. x 48 In. 4500 Lb. Capacity BlackUniform Capacity (lb.): 4500
Overall Fork Width (in.): 20
888

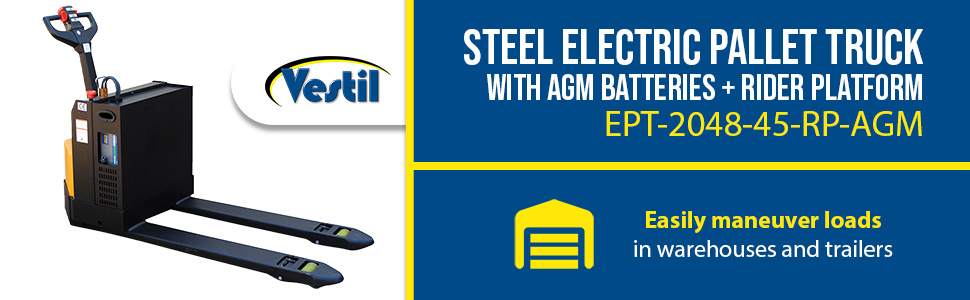

EPT-2048-45-RP-AGM EPT-2048-45-RP-AGM1 Year Limited WarrantySteel Electric Pallet Truck with Rider Platform 20 In. x 48 In. 4,500 Lb. CapacityUniform Capacity (lb.): 4500
Overall Fork Width (in.): 20
1016

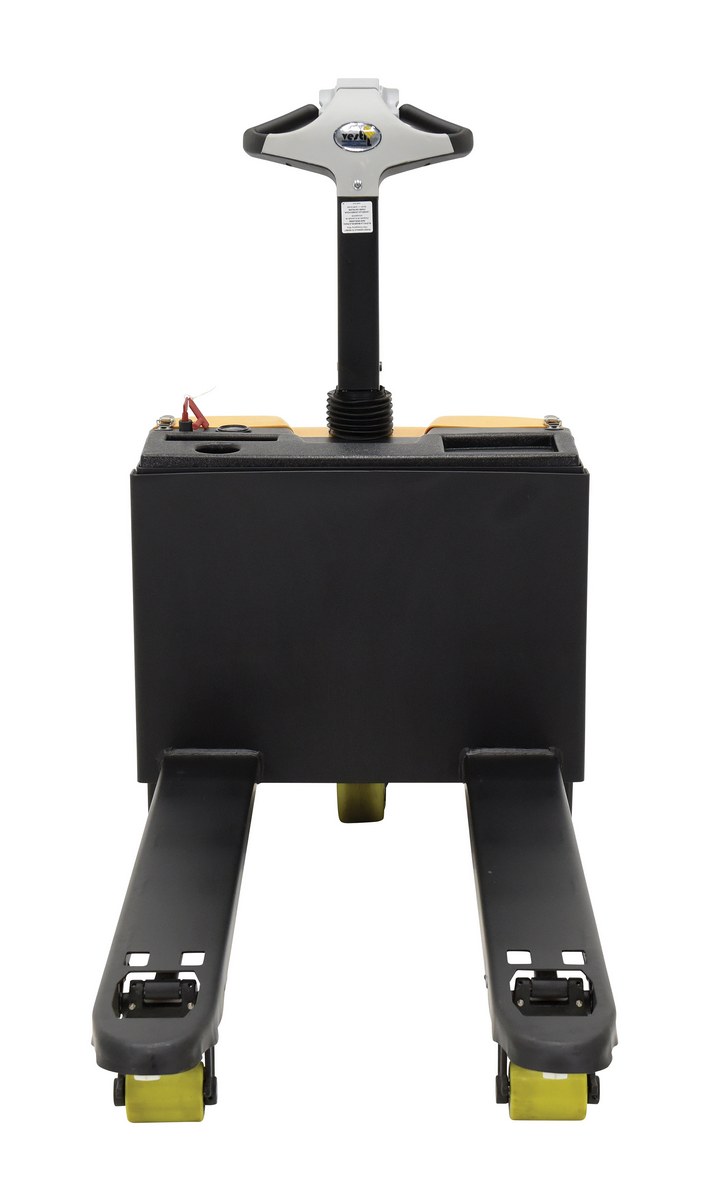

EPT-2547-30 EPT-2547-301 Year Limited WarrantySteel Fully Powered Electric Pallet Truck 25 In. x 48 In. 3,300 Lb. Capacity BlackUniform Capacity (lb.): 3300
Overall Fork Width (in.): 25
613

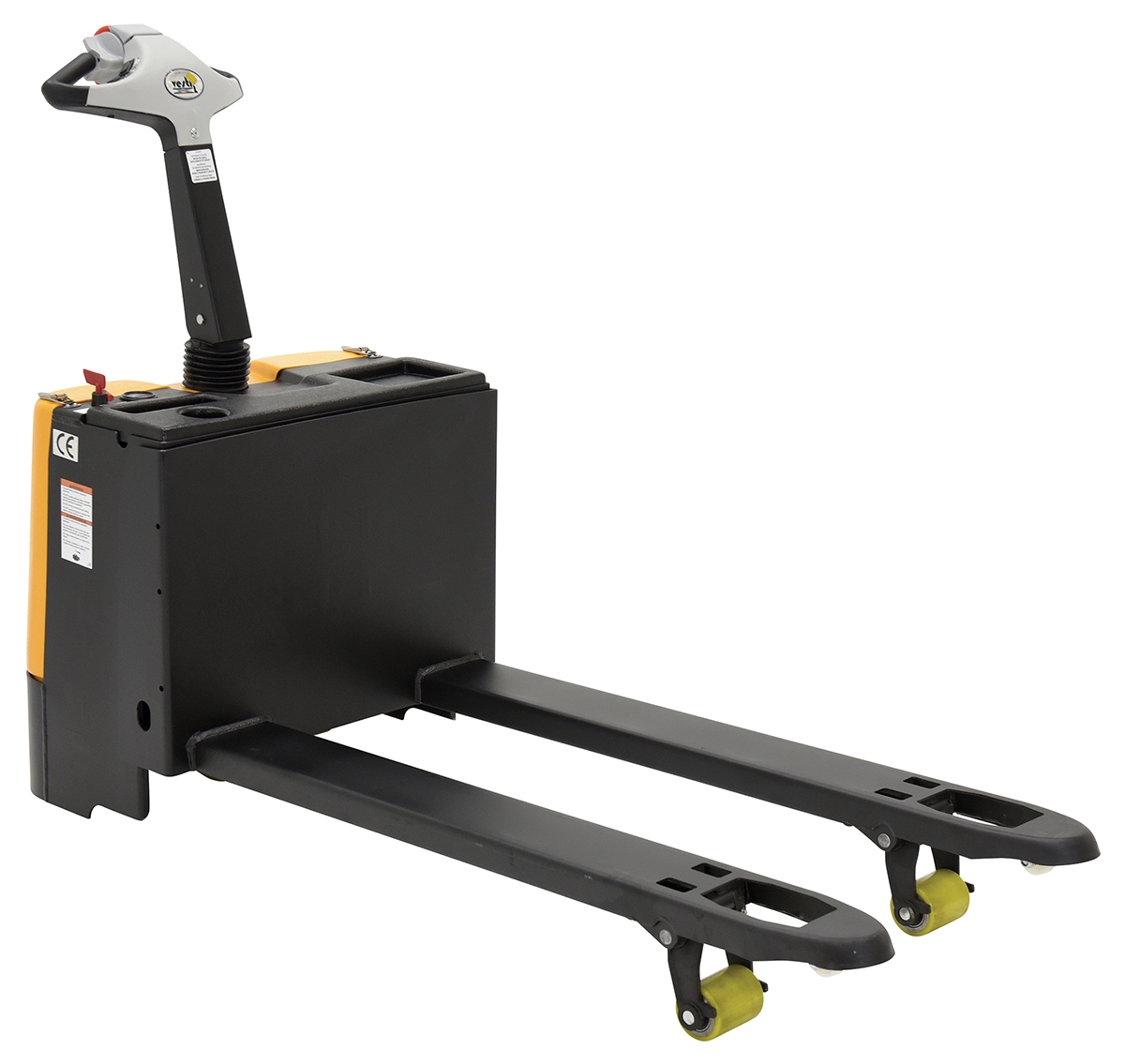

EPT-2547-30-AGM EPT-2547-30-AGM1 Year Limited WarrantySteel Electric Pallet Truck 25 In. x 47 In. 3,300 Lb. CapacityUniform Capacity (lb.): 3300
Overall Fork Width (in.): 25
636

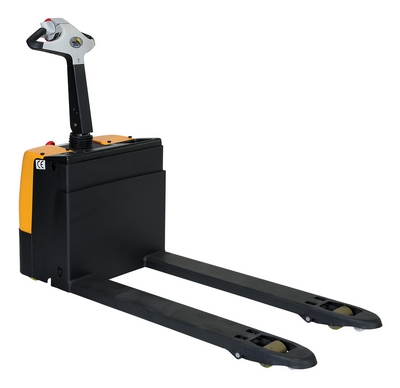

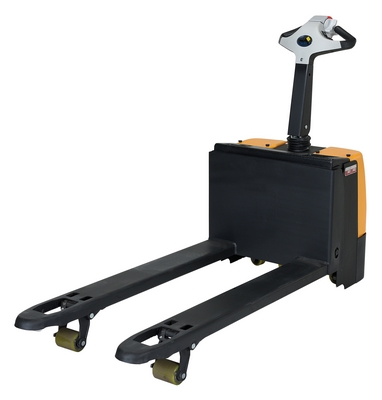

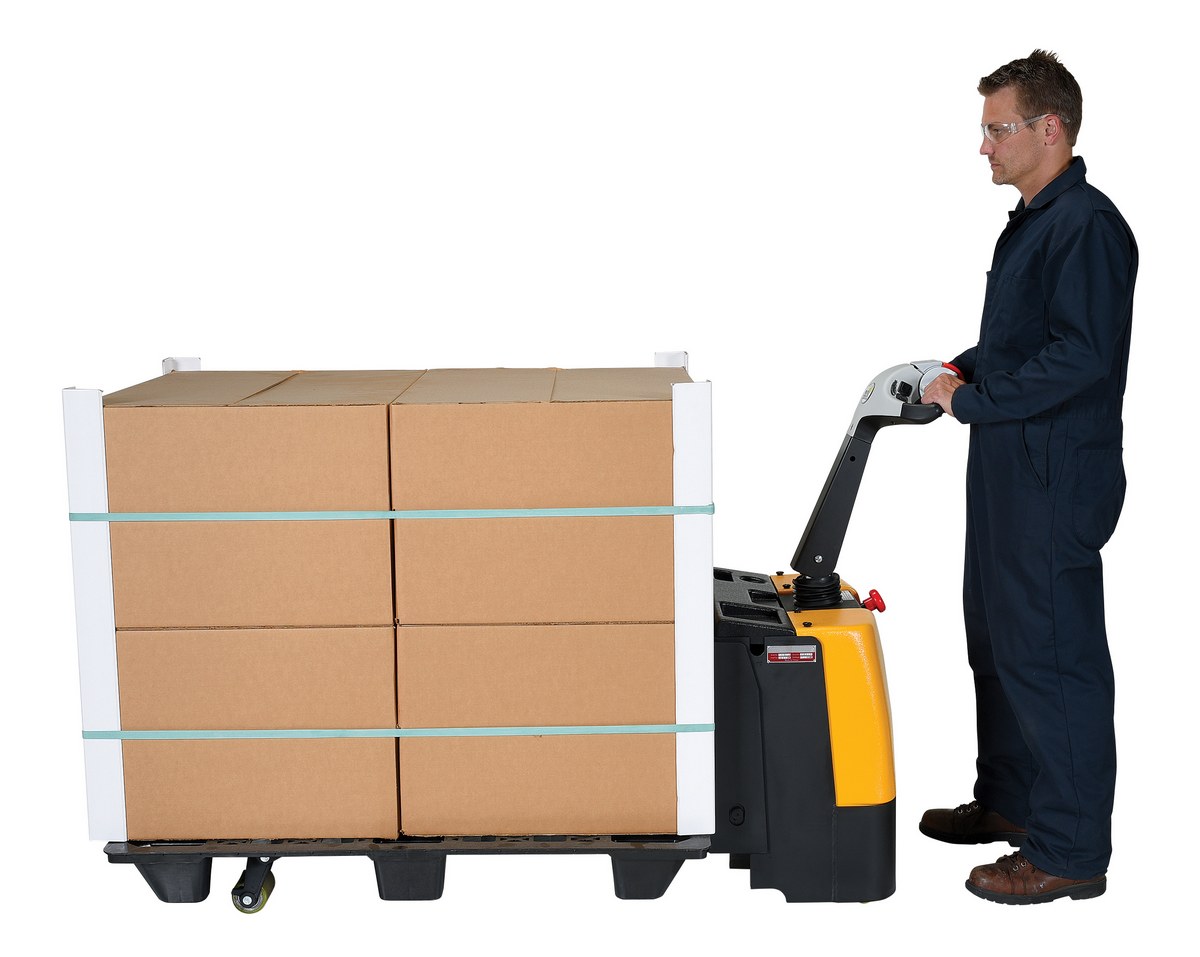

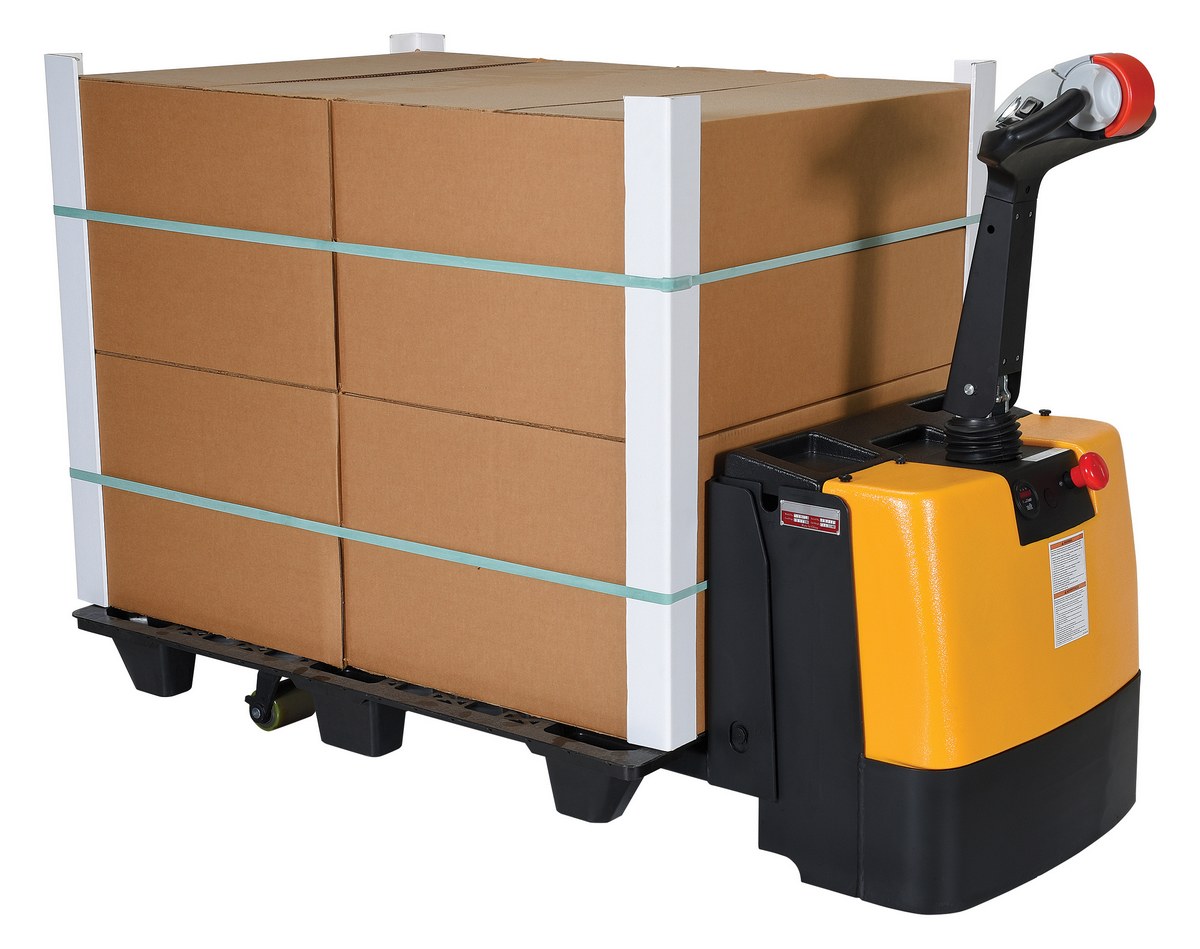

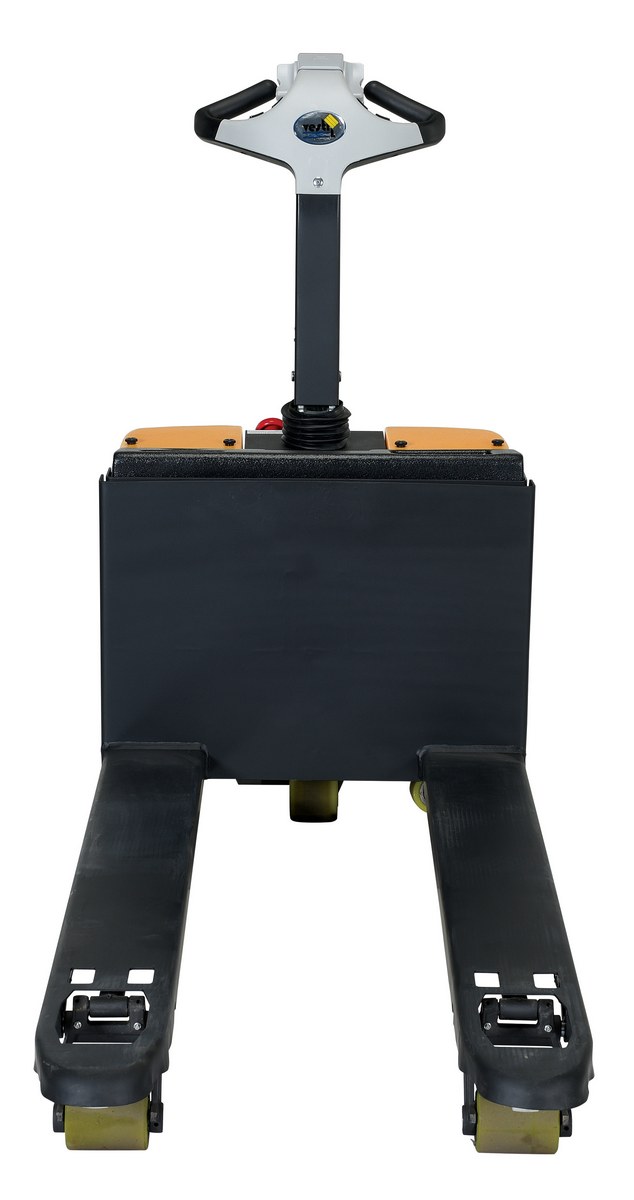

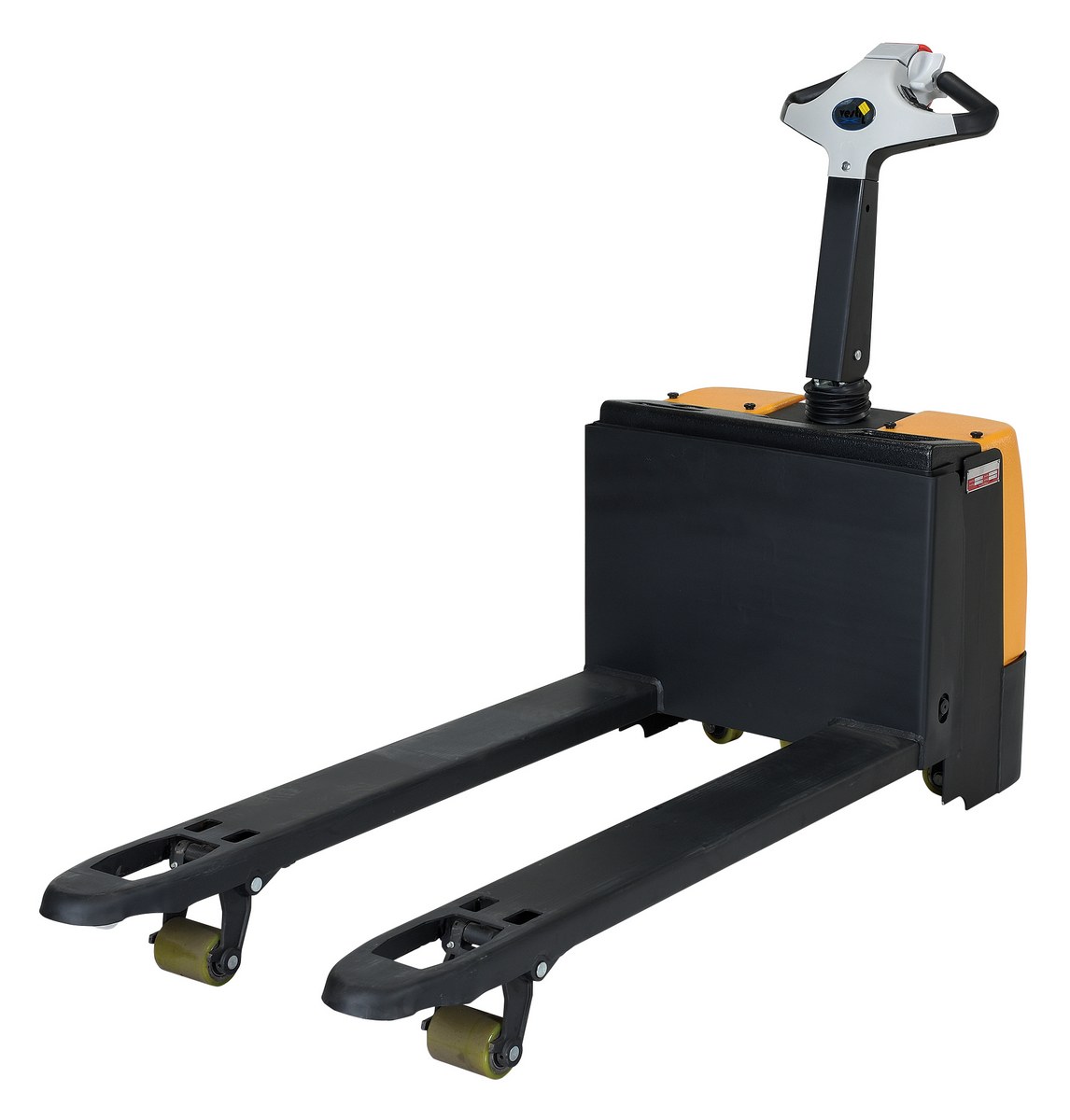

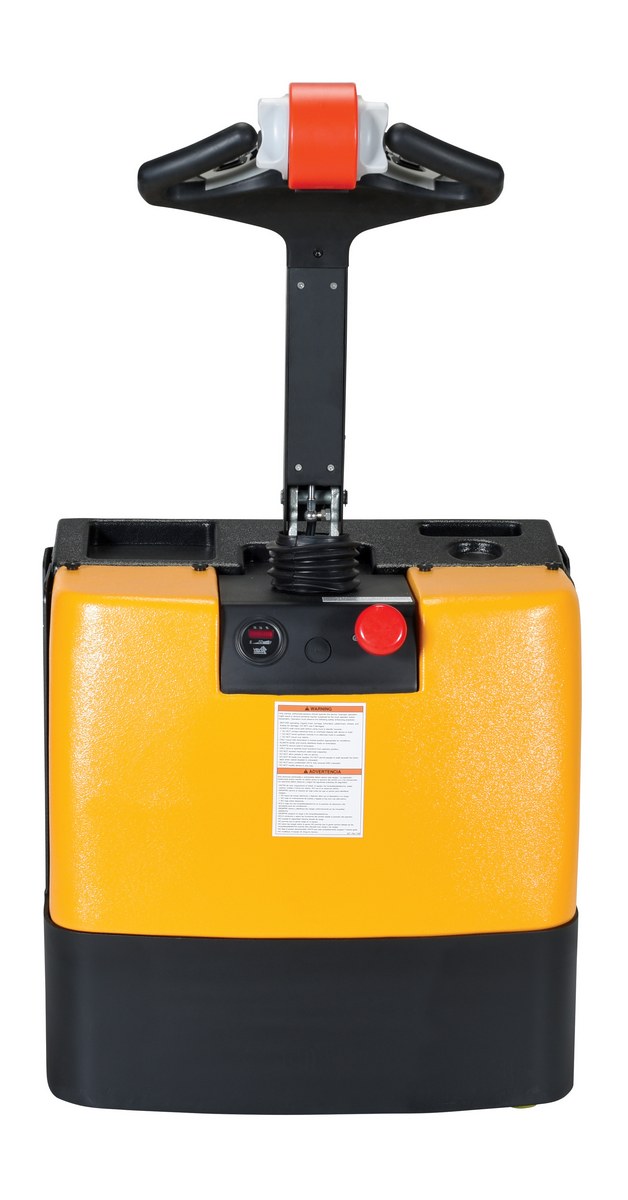

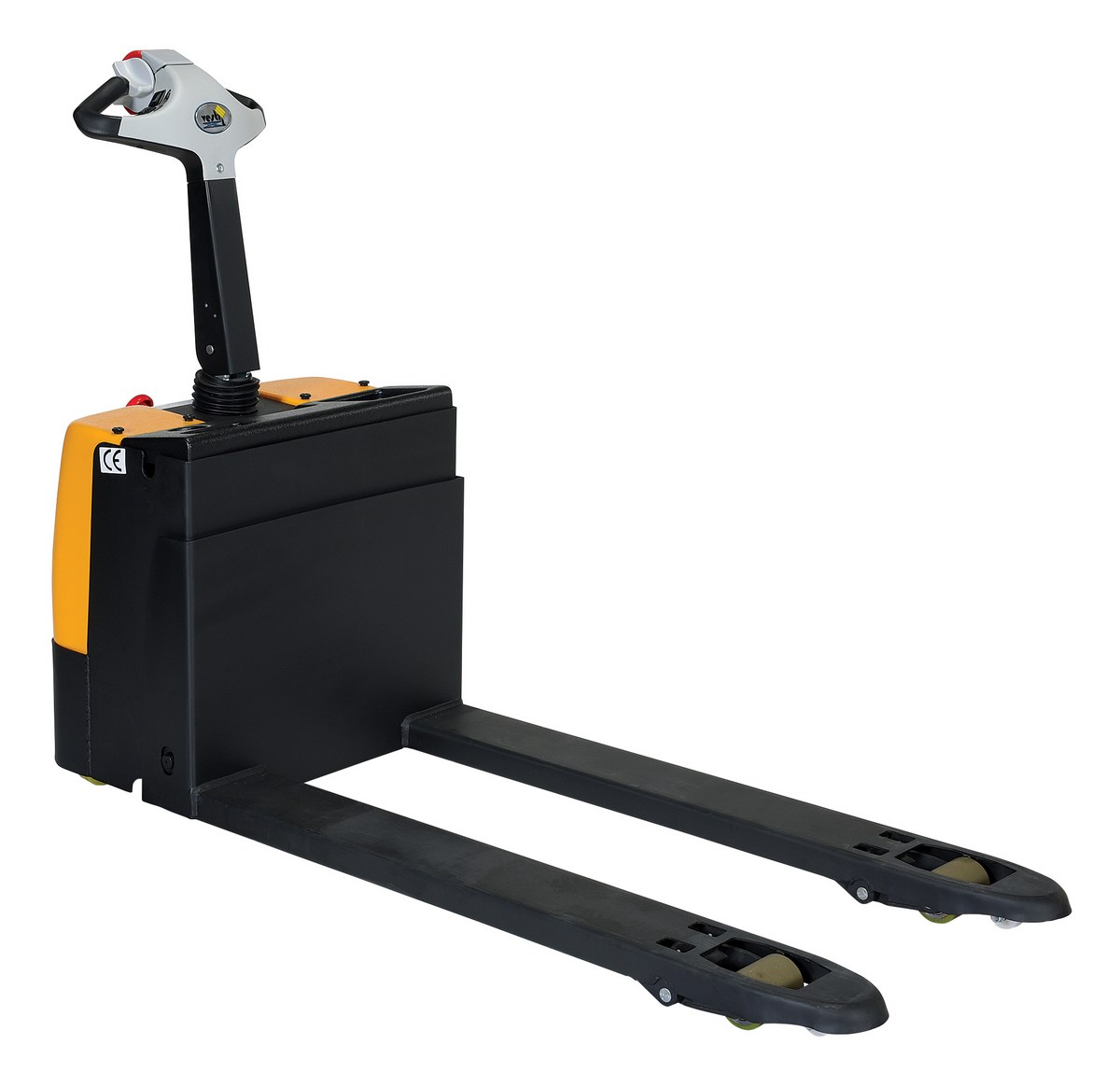

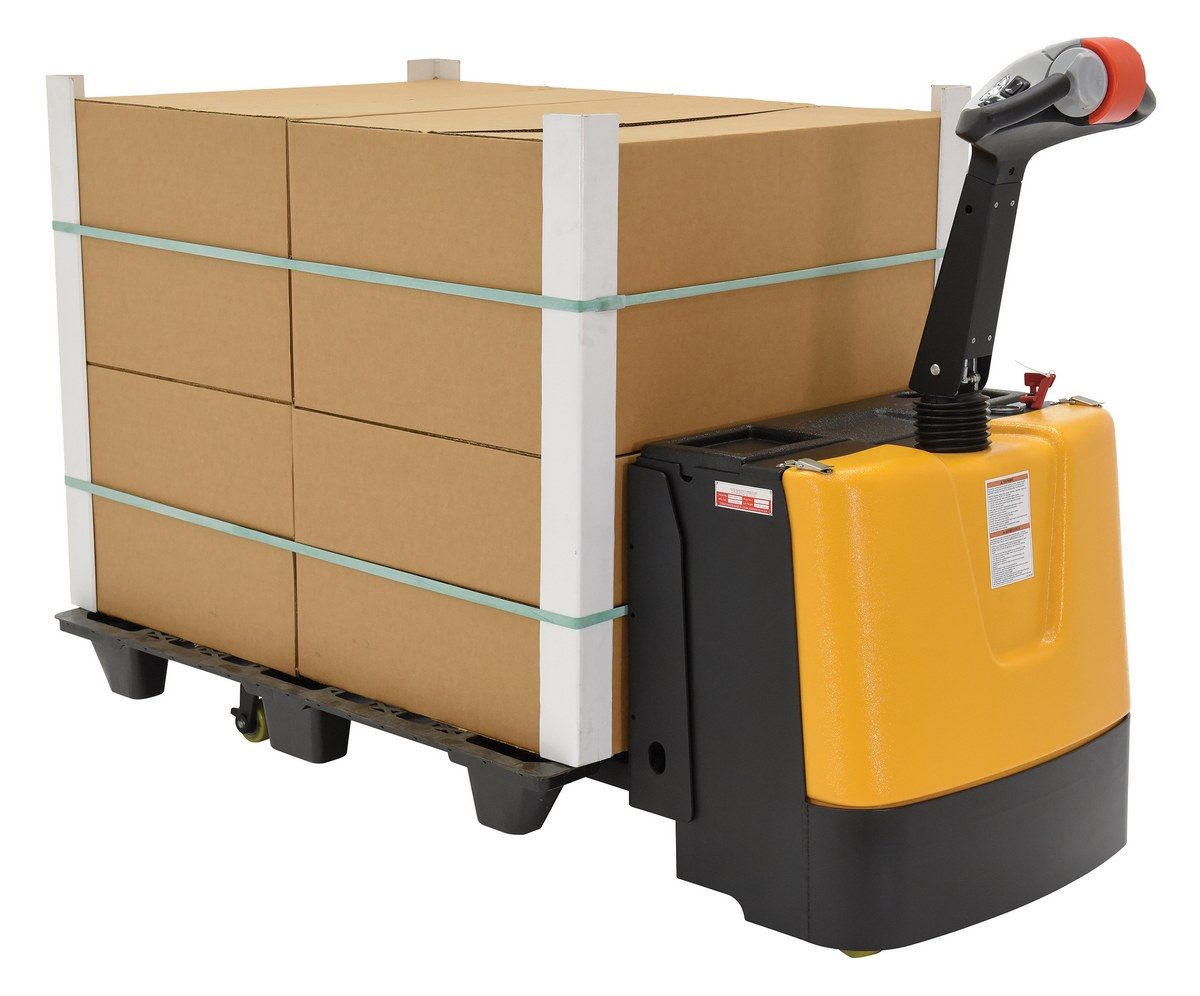

EPT-2547-30-E EPT-2547-30-E1 Year Limited WarrantySteel Fully Powered Electric Pallet Truck with Lead Acid Batteries 25 In. x 47 In. 3000 Lb. Capacity BlackUniform Capacity (lb.): 3000
Overall Fork Width (in.): 25
556
EPT-2748-45 EPT-2748-451 Year Limited WarrantySteel Fully Powered Electric Pallet Truck with Lead Acid Batteries 27 In. x 48 In. 4500 Lb. Capacity BlackUniform Capacity (lb.): 4500
Overall Fork Width (in.): 27
868

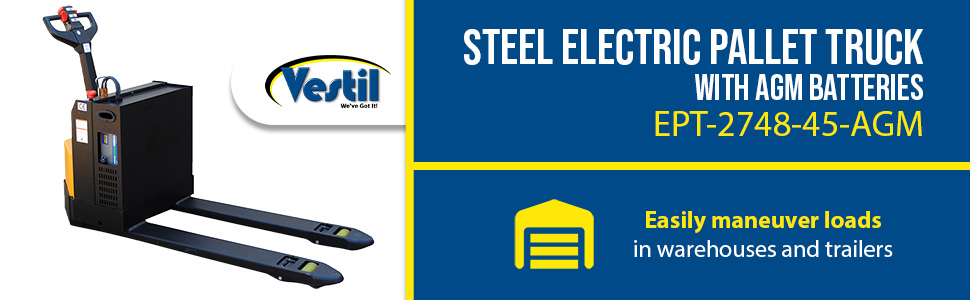

EPT-2748-45-AGM EPT-2748-45-AGM1 Year Limited WarrantySteel Electric Pallet Truck with AGM Batteries 27 In. x 48 In. 4500 Lb. CapacityUniform Capacity (lb.): 4500
Overall Fork Width (in.): 27
992

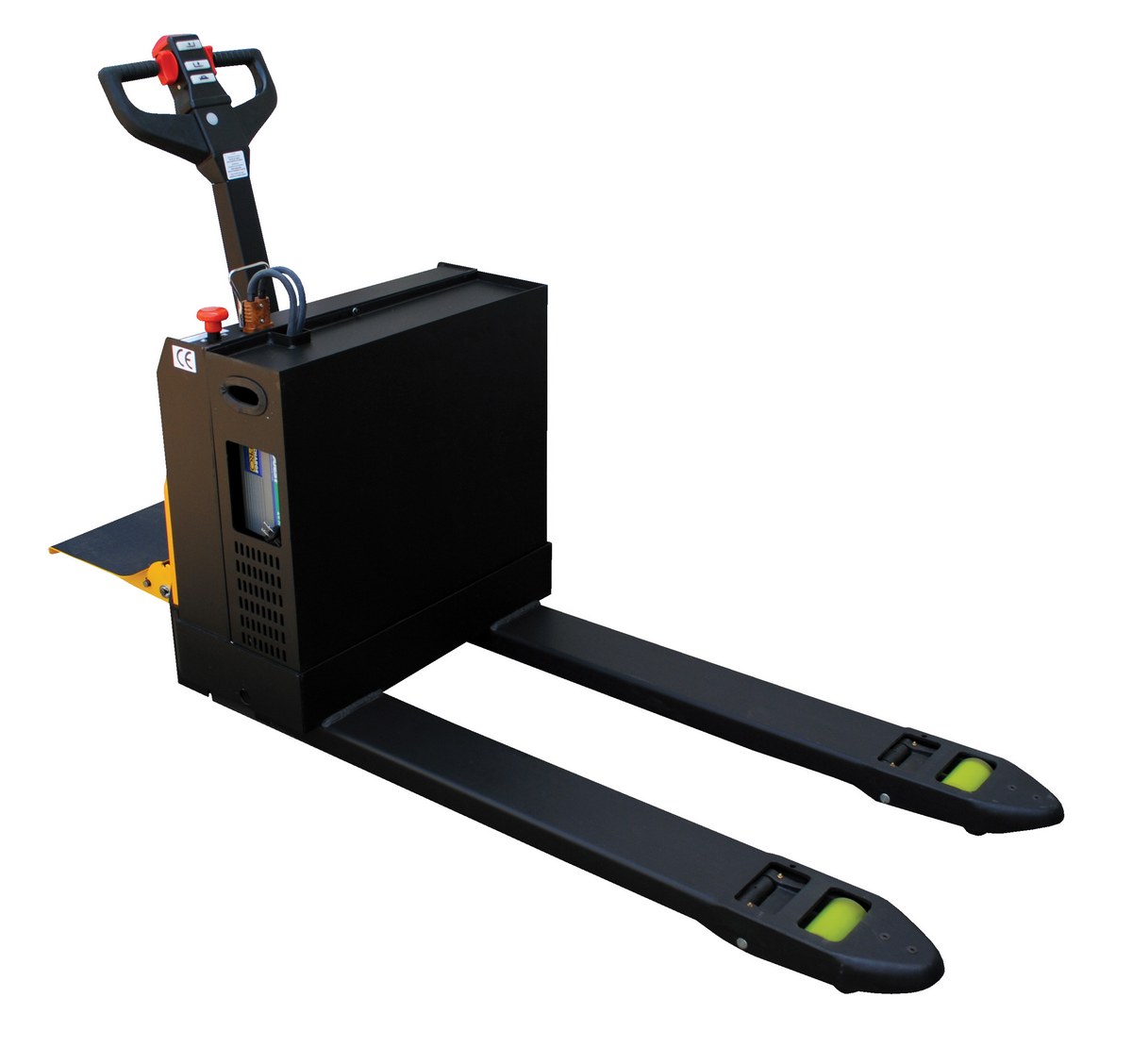

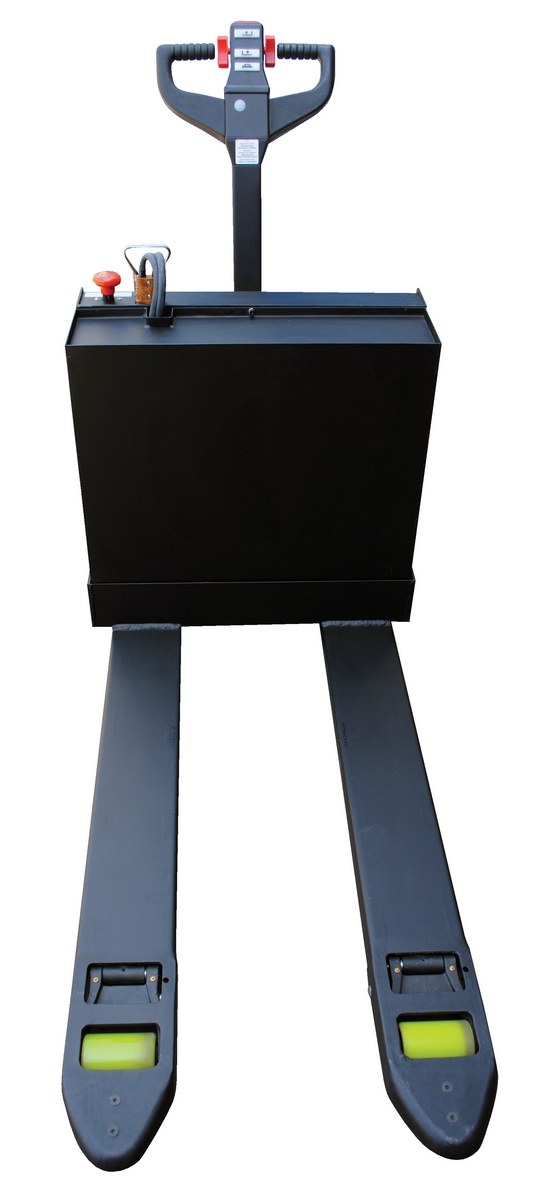

EPT-2748-45-RP EPT-2748-45-RP1 Year Limited WarrantySteel Pallet Truck with Rider Platform 27 In. x 48 In. 4500 Lb. Capacity BlackUniform Capacity (lb.): 4500
Overall Fork Width (in.): 27
874
EPT-2748-45-RP-AGM EPT-2748-45-RP-AGM1 Year Limited WarrantySteel Electric Pallet Truck with AGM Batteries and Rider Platform 27 In. x 48 In. 4500 Lb. CapacityUniform Capacity (lb.): 4500
Overall Fork Width (in.): 27
1076

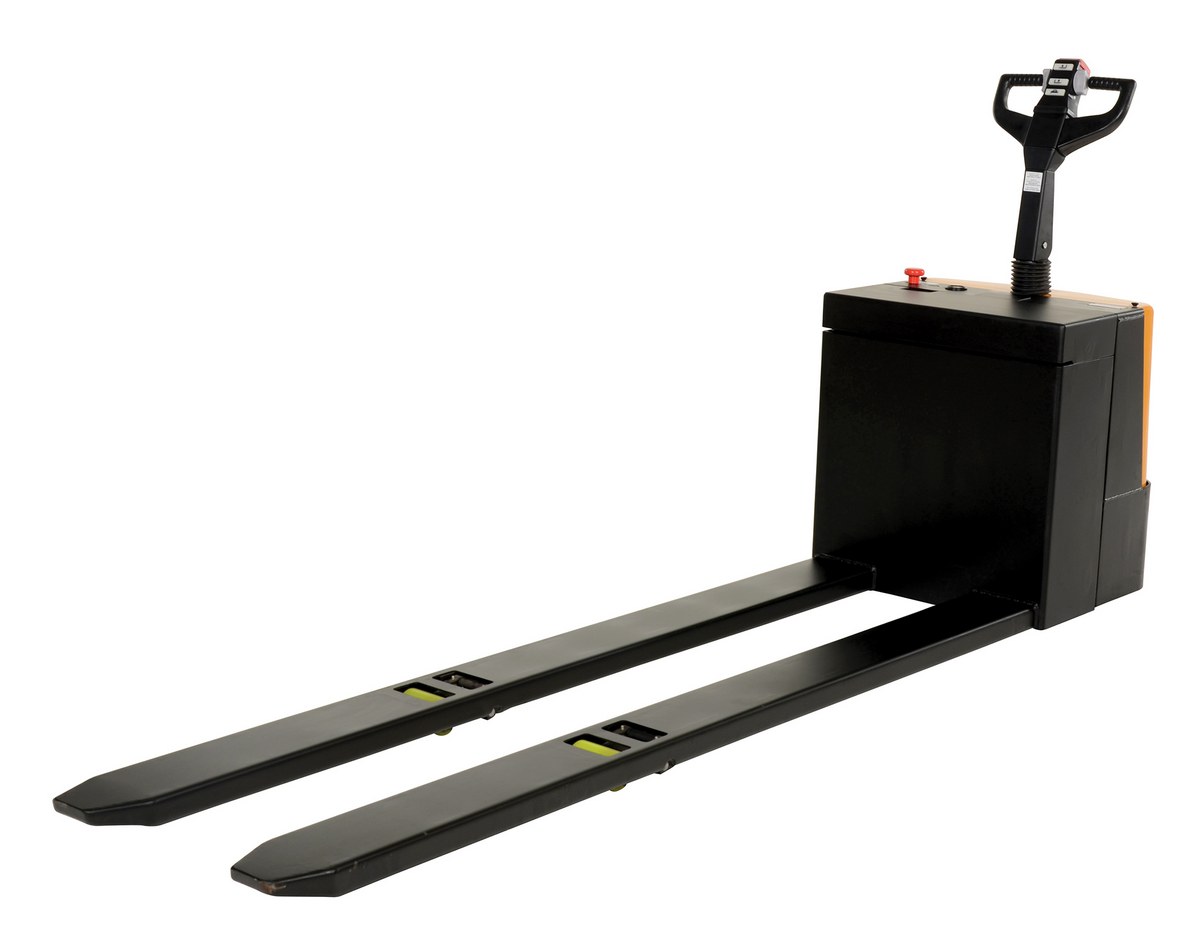

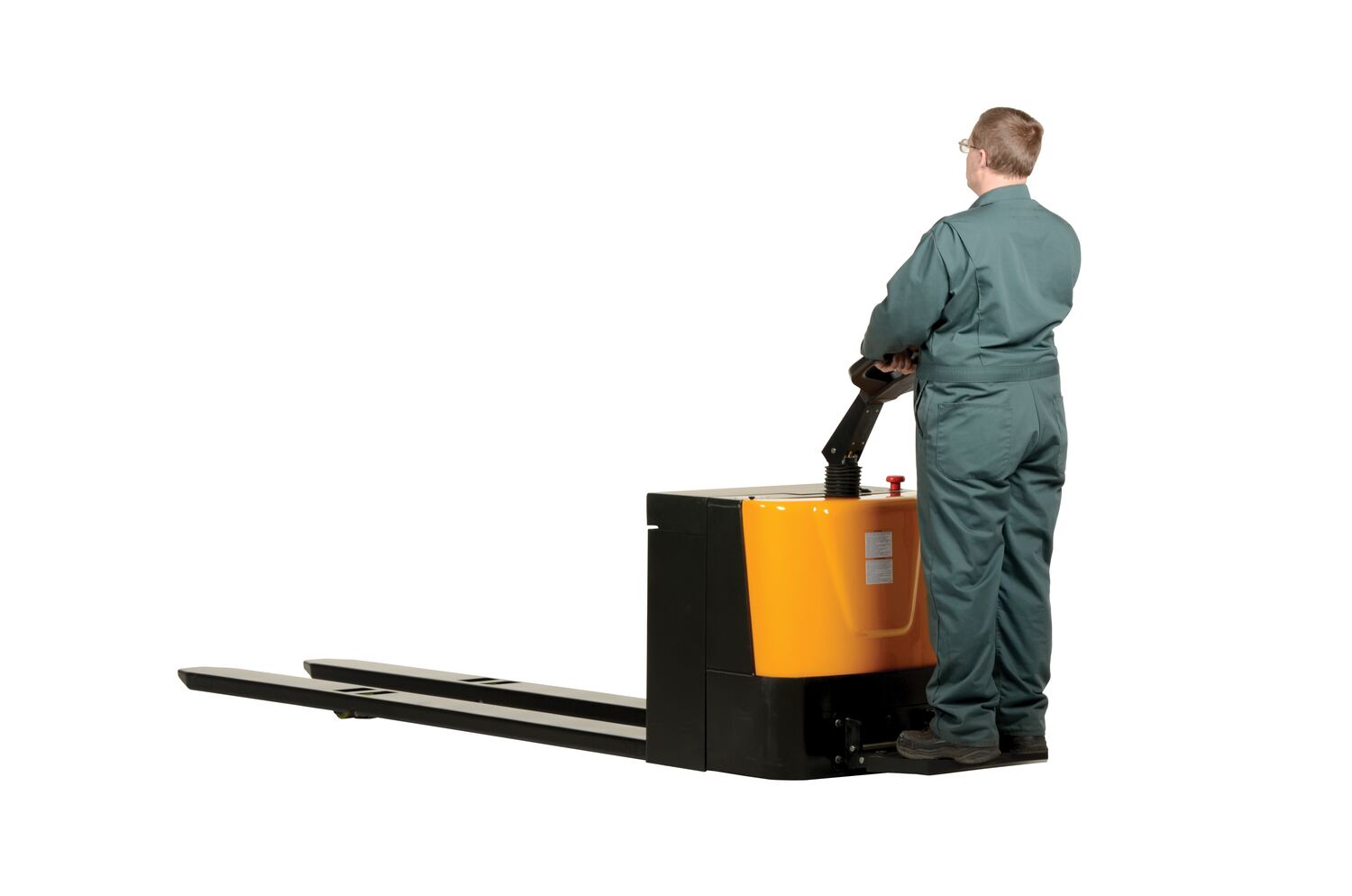

EPT-2796-45 EPT-2796-451 Year Limited WarrantySteel Fully Powered Electric Pallet Truck with Rider Platform 27 In. x 96 In. 4500 Lb. Capacity BlackUniform Capacity (lb.): 4500
Overall Fork Width (in.): 27
1268

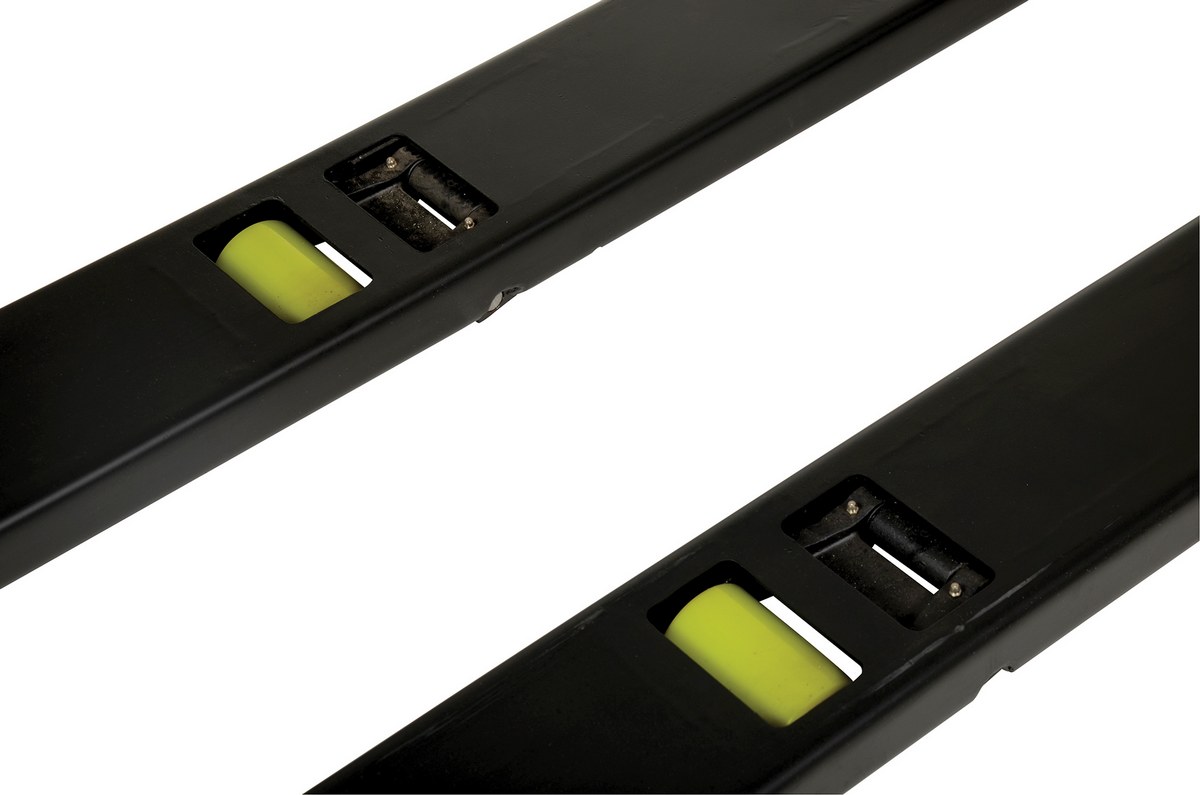

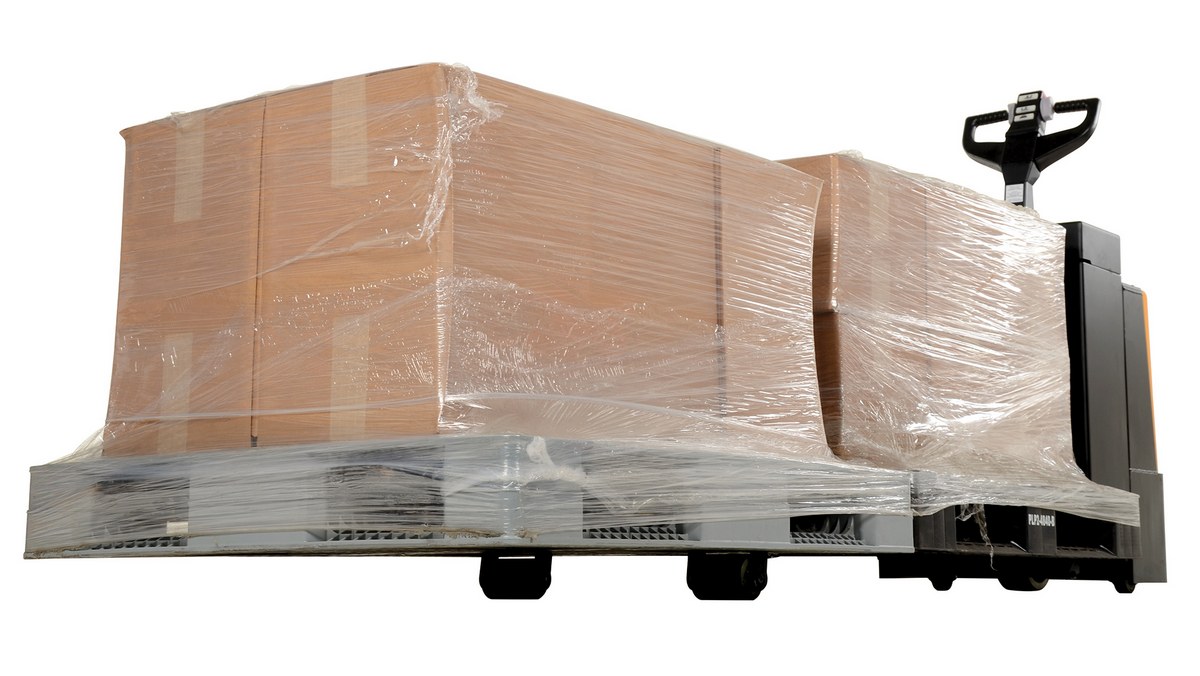

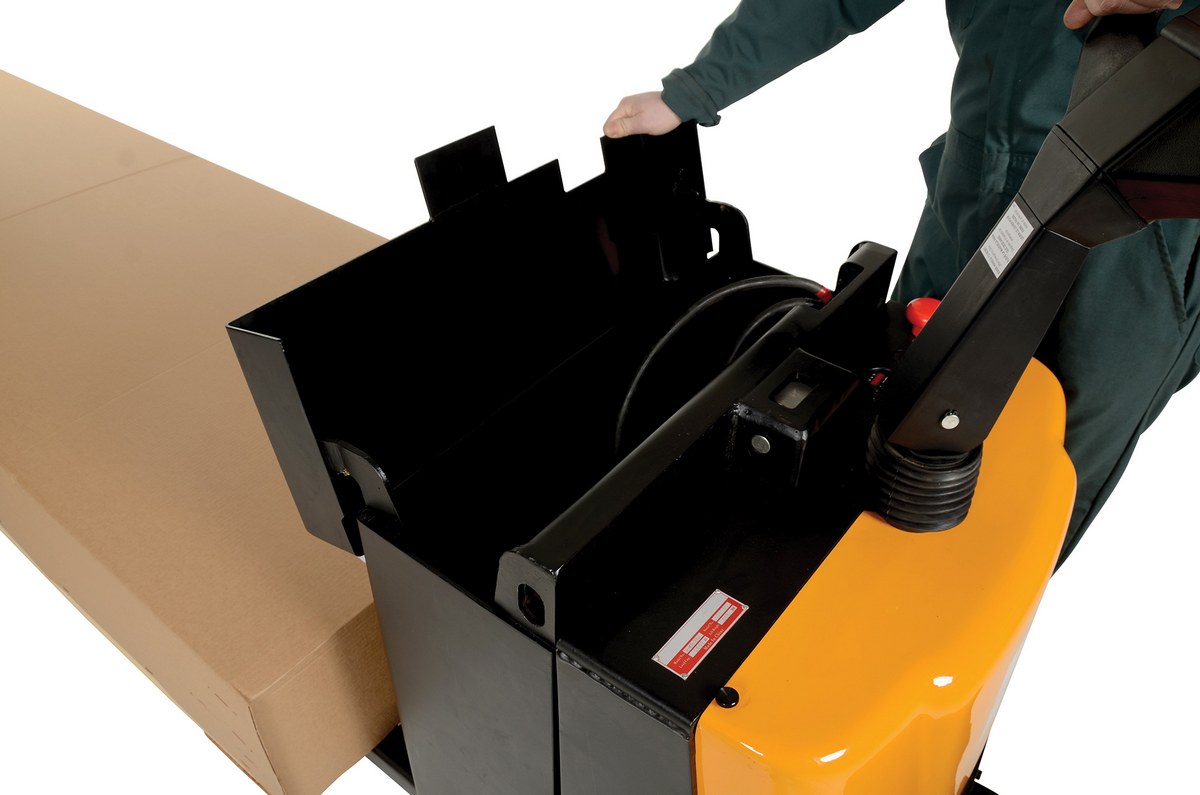

EPT-2796-45-AGM EPT-2796-45-AGM1 Year Limited WarrantySteel Electric Pallet Truck with AGM Batteries 27 In. x 96 In. 4500 Lb. CapacityUniform Capacity (lb.): 4500
Overall Fork Width (in.): 27
1442

KEY: = Expand Model Details = 48hr Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= Approval Drawing = Testing Certificate Warranty

If you did not find an expected Model or SKU # in the table, try the Options Section Below
No Model Numbers Associated To This Product Page

For More Details then the Option chart below provides, Click the blue button below, w/ the Model Number you want details for
EPT-45-RP-KIT

Model Image PDFs Description Wt (lbs.)

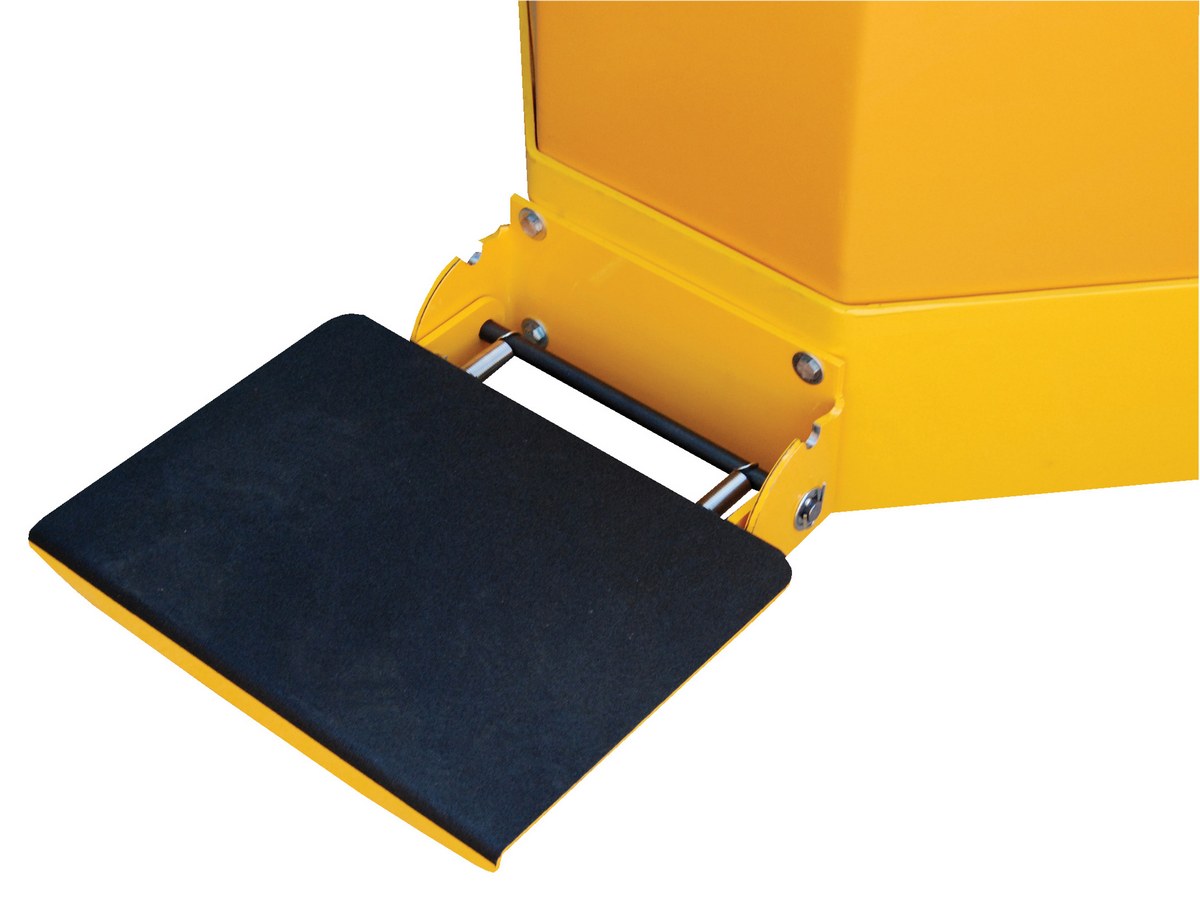

EPT-45-RP-KIT icon_approvaldrawings.jpg Optional Rider Platform, Field Installed - Available for 4,500 lbs. capacity Electric Pallet Trucks 20
If you did not find an expected Model or SKU # in this table, try the Product Specifications Section Above


Fully Powered Electric Pallet Trucks PDF's will open in a new window when clicked.

Manuals


Survey Sheets

No Survey Sheets For This Product


Approval Drawings

Testing Certificates

SDS Sheets


Midwest Battery - Lead/Acid Battery, Wet, Filled with Acid SDS Sheet for: EPT-2047-30
Hydraulic Oil SDS Sheet for: EPT-2047-30

Non-Spillable Lead Acid Battery SDS Sheet for: EPT-2047-30-AGM
Hydraulic Oil SDS Sheet for: EPT-2047-30-AGM

Midwest Battery - Lead/Acid Battery, Wet, Filled with Acid SDS Sheet for: EPT-2048-45
Hydraulic Oil SDS Sheet for: EPT-2048-45

Valve Regulated Lead Acid Battery SDS Sheet for: EPT-2048-45-AGM
Hydraulic Oil SDS Sheet for: EPT-2048-45-AGM

Midwest Battery - Lead/Acid Battery, Wet, Filled with Acid SDS Sheet for: EPT-2048-45-RP
Hydraulic Oil SDS Sheet for: EPT-2048-45-RP

Valve Regulated Lead Acid Battery SDS Sheet for: EPT-2048-45-RP-AGM
Hydraulic Oil SDS Sheet for: EPT-2048-45-RP-AGM

Midwest Battery - Lead/Acid Battery, Wet, Filled with Acid SDS Sheet for: EPT-2547-30
Hydraulic Oil SDS Sheet for: EPT-2547-30

Non-Spillable Lead Acid Battery SDS Sheet for: EPT-2547-30-AGM
Hydraulic Oil SDS Sheet for: EPT-2547-30-AGM

Non-Spillable Lead Acid Battery SDS Sheet for: EPT-2547-30-E
Hydraulic Oil SDS Sheet for: EPT-2547-30-E

Midwest Battery - Lead/Acid Battery, Wet, Filled with Acid SDS Sheet for: EPT-2547-30-SCL
Hydraulic Oil SDS Sheet for: EPT-2547-30-SCL

Non-Spillable Lead Acid Battery SDS Sheet for: EPT-2547-30-SCL-AGM
Hydraulic Oil SDS Sheet for: EPT-2547-30-SCL-AGM
Hydraulic Oil SDS Sheet for: EPT-2748-26
Haufu Lithium Battery SDS Sheet for: EPT-2748-30
Hydraulic Oil SDS Sheet for: EPT-2748-30
Haufu Lithium Battery SDS Sheet for: EPT-2748-30-BATT

Midwest Battery - Lead/Acid Battery, Wet, Filled with Acid SDS Sheet for: EPT-2748-45
Hydraulic Oil SDS Sheet for: EPT-2748-45

Valve Regulated Lead Acid Battery SDS Sheet for: EPT-2748-45-AGM
Hydraulic Oil SDS Sheet for: EPT-2748-45-AGM

Midwest Battery - Lead/Acid Battery, Wet, Filled with Acid SDS Sheet for: EPT-2748-45-RP
Hydraulic Oil SDS Sheet for: EPT-2748-45-RP

Valve Regulated Lead Acid Battery SDS Sheet for: EPT-2748-45-RP-AGM
Hydraulic Oil SDS Sheet for: EPT-2748-45-RP-AGM

Midwest Battery - Lead/Acid Battery, Wet, Filled with Acid SDS Sheet for: EPT-2796-45
Hydraulic Oil SDS Sheet for: EPT-2796-45

Valve Regulated Lead Acid Battery SDS Sheet for: EPT-2796-45-AGM
Hydraulic Oil SDS Sheet for: EPT-2796-45-AGM

Other PDF's


Directory Links Of Available PDF's For All Products



Q: We have a slight incline about 10 degrees and need to lift about 2,000 lbs. with the electric pallet truck. Will that be possible?

A: The EPT-2047-30 is capable of lifting up to 2,500 lbs. at a 10 degree incline.


Q: What is the amp/hr. rating for the EPT-2748-45-AGM?

A: AMP rating is 220 AH


Q: What is the amp/hr. rating for the EPT-2748-45 with the lead acid battery ?

A: AMP rating is 75 AH






Before placing an order, please confirm that the ship to company is able to receive shipments on the estimated delivery date





Fully Powered Electric Pallet ...




24V DC Standard

Fully Powered Electric Pallet Truck for easy and quick operation. Raise and lower loads with a push of a button. Maneuvers loads in warehouses and trailers. Reinforced welded forks with adjustable tie-rods give long service. High-torque 24V DC drive & lift motors handle heavy-duty jobs. Ergonomic handle features easy to operate throttle with infinite adjustment of forward and reverse speeds, lift/lower controls, proprietary safety-enhancing emergency reverse function, and horn. Includes an electromagnetic disc brake with automatic dead-man feature that activates when the user releases the handle.

3,000 and 3,300 pound unit uses two (2) 12V batteries, integral battery charger, and battery level gauge. The truck rolls smoothly on poly-on-steel steer and load wheels. Features 0.7 KW drive and 1.3 KW lift motor. 3-4 hour operation at full charge - 8 hours when used intermittently.

4,500 pound unit uses four (4) 6V batteries, integral battery charger, battery level gauge, and emergency battery disconnect. The truck rolls smoothly on poly-on-steel steer and load wheels. Features 1.2 KW drive and 1.3 KW lift motor. 6-7 hours operation at full charge - 8 hours when used intermittently.

When actuated, the emergency reverse belly switch instantly reverses direction and moves the unit forward (away from the operator) until the switch is released or after 1.5 seconds have elapsed. The built-in safety circuit will automatically disable the entire unit if the emergency reverse belly switch is activated for more than 1.5 seconds after which the unit must be re-set to return to normal operating conditions. This state-of-the-art safety device provides a high degree of operator protection.


Fully Powered Electric Pallet Trucks with Lead Acid Batteries
Model Image PDF's Overall Size
(WxLxH)
Uniform
Capacity (lbs)
Fork Size
(WxL)
Service
Range
Wt. (lbs)
EPT-2047-30 icon_approvaldrawings.jpgWarranty PDF 28-1/4"x64"x48" 3,300 20"x47" 3.2"to7.8" 740
EPT-2547-30 icon_approvaldrawings.jpgWarranty PDF 28-1/4"x 64"x 48" 3,300 25"x48" 3.1"to7.8" 726
EPT-2547-30-E Warranty PDF 25"x 65"x 49" 3,000 25"x47" 3.1"to7.8" 568
EPT-2048-45 Warranty PDF 30-1/4"x76"x52" 4,500 20-1/2"x48" 3.4"to7.8" 1116
EPT-2748-45 icon_approvaldrawings.jpgWarranty PDF 30-1/4"x 76" x52" 4,500 27"x48" 3.2"to8.2" 1116
Below Items Includes Rider Platform which flips up when not in use (18"Wx12"Lx4-3/4"H)

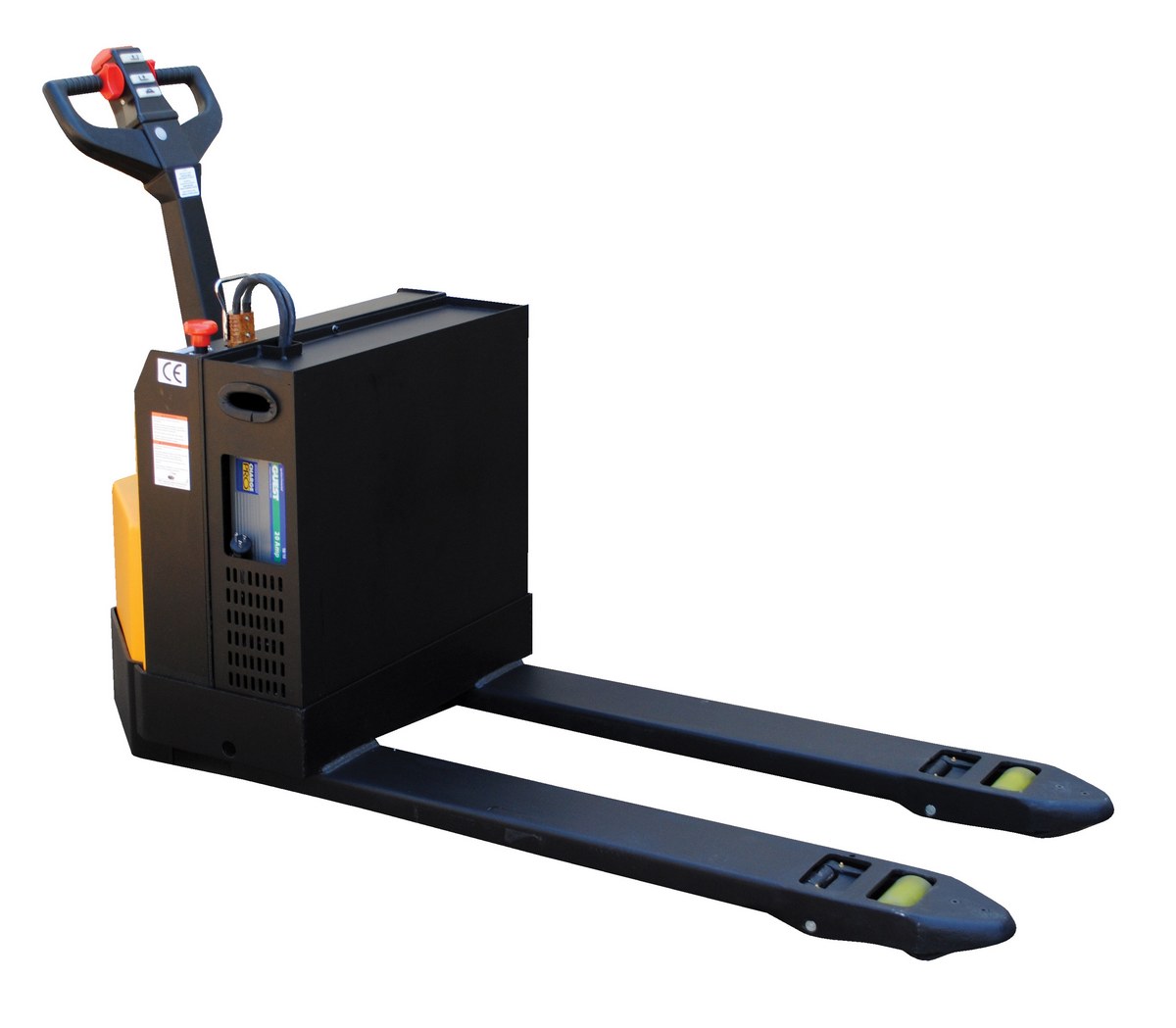

EPT-2048-45-RP Warranty PDF 30"x80-3/4"x51" 4,500 20"x48" 3.4"to7.8" 1136
EPT-2748-45-RP Warranty PDF 30"x80-3/4"x51" 4,500 27"x48" 3.4"to7.8" 1122
EPT-2796-45 icon_approvaldrawings.jpgWarranty PDF 30"x125"x51" 4,500 27"x96" 3.2"to8.2" 1562

Options


Model Image PDFs Description Wt (lbs.)
EPT-45-RP-KIT icon_approvaldrawings.jpg Optional Rider Platform, Field Installed - Available for 4,500 lbs. capacity Electric Pallet Trucks 20
