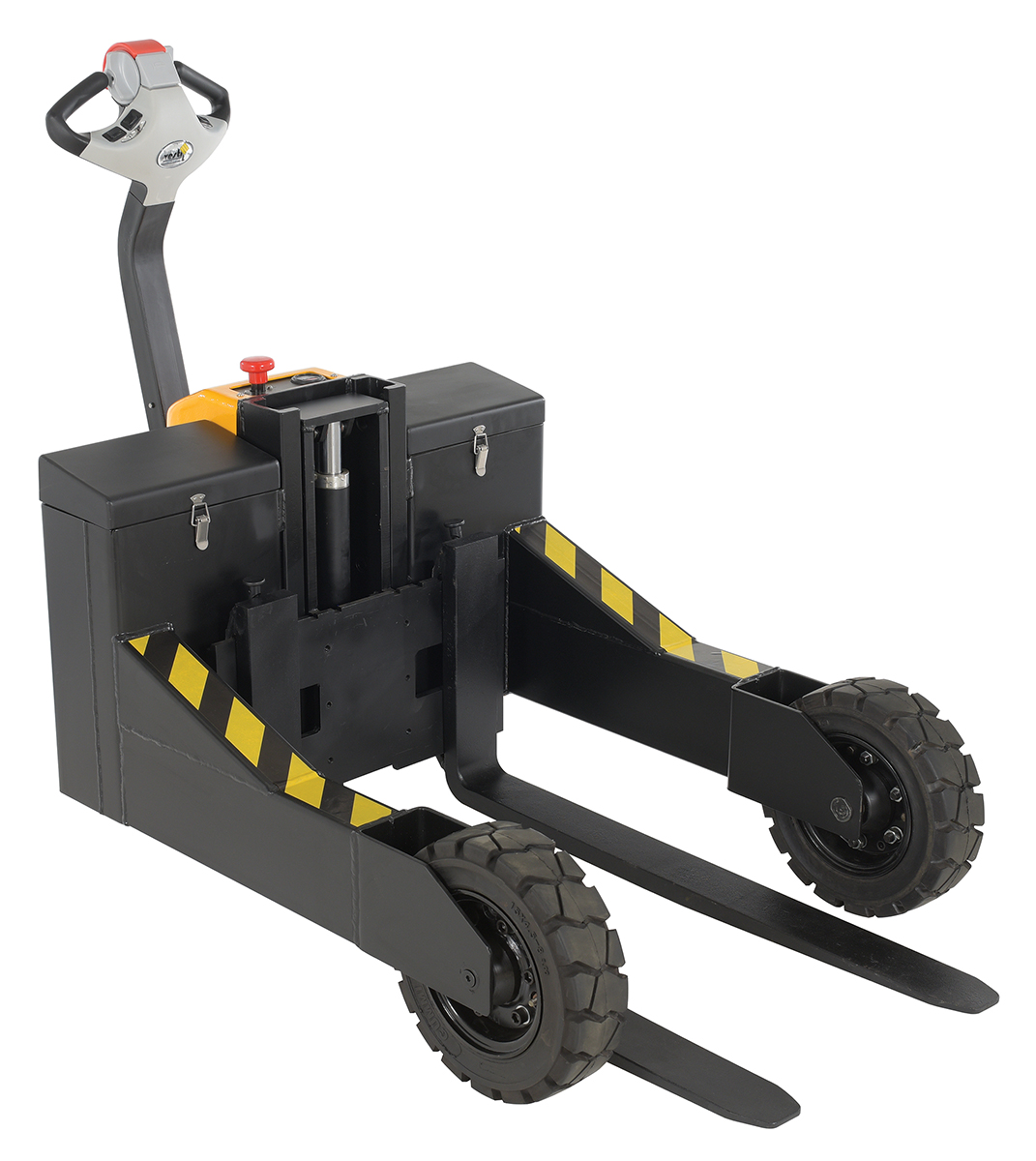

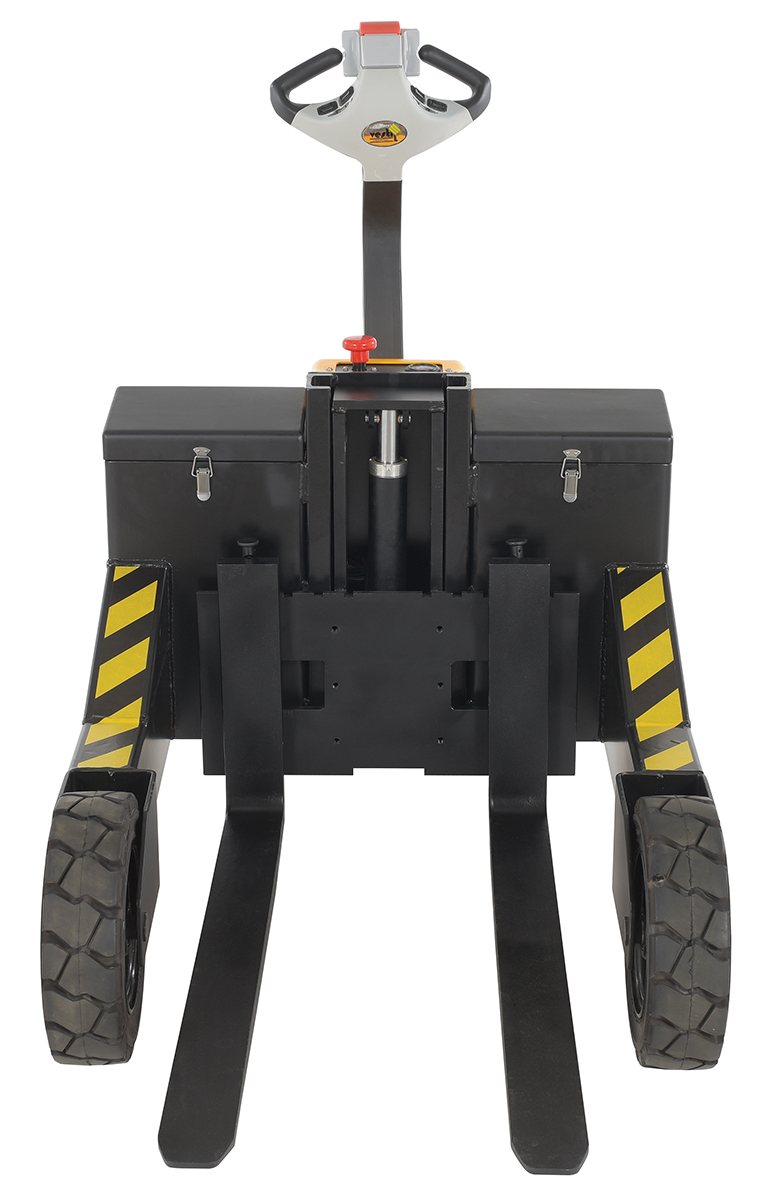

model ALL-T-DC-ACD-3-24
SERIES: ALL-T-DC

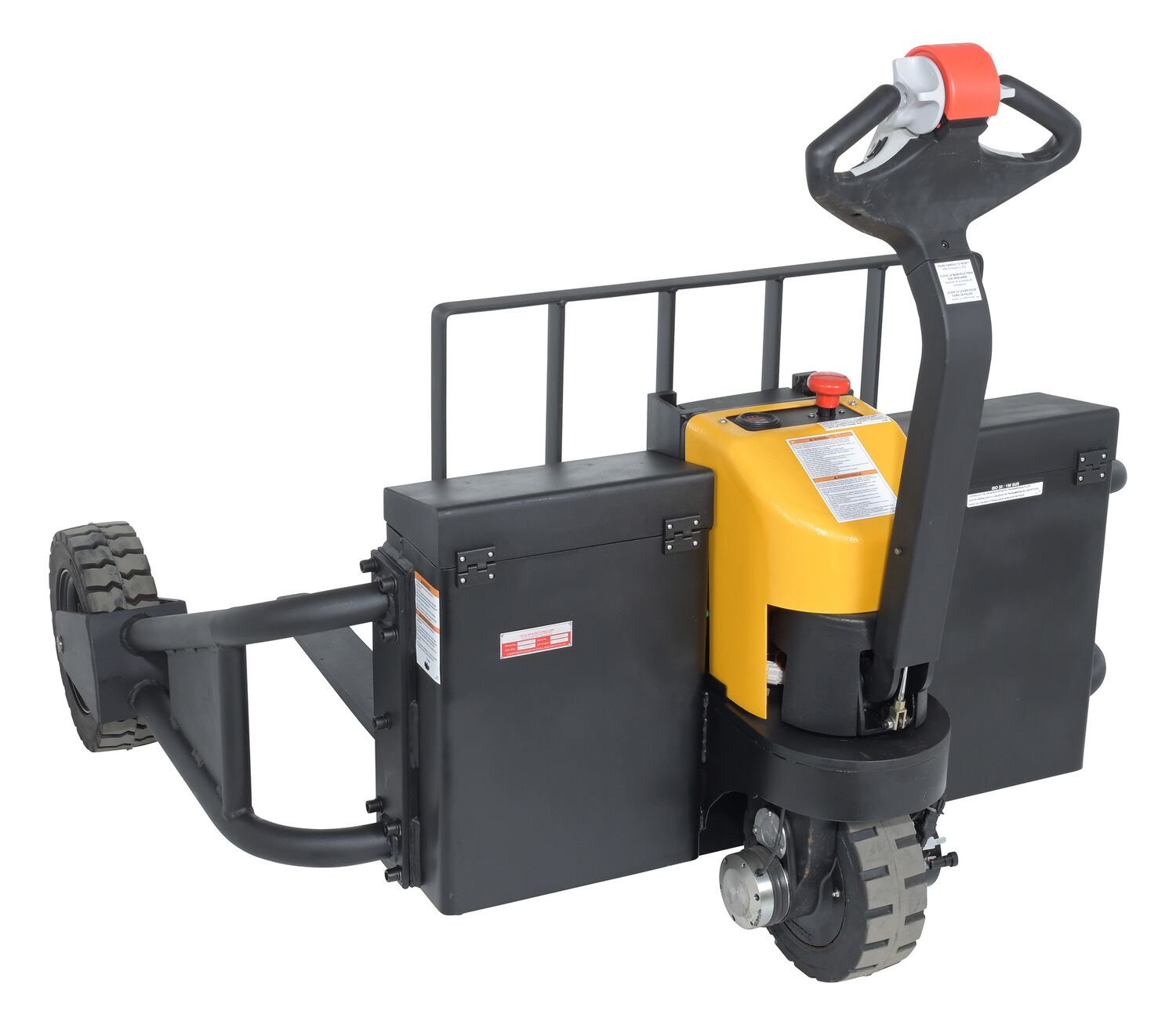

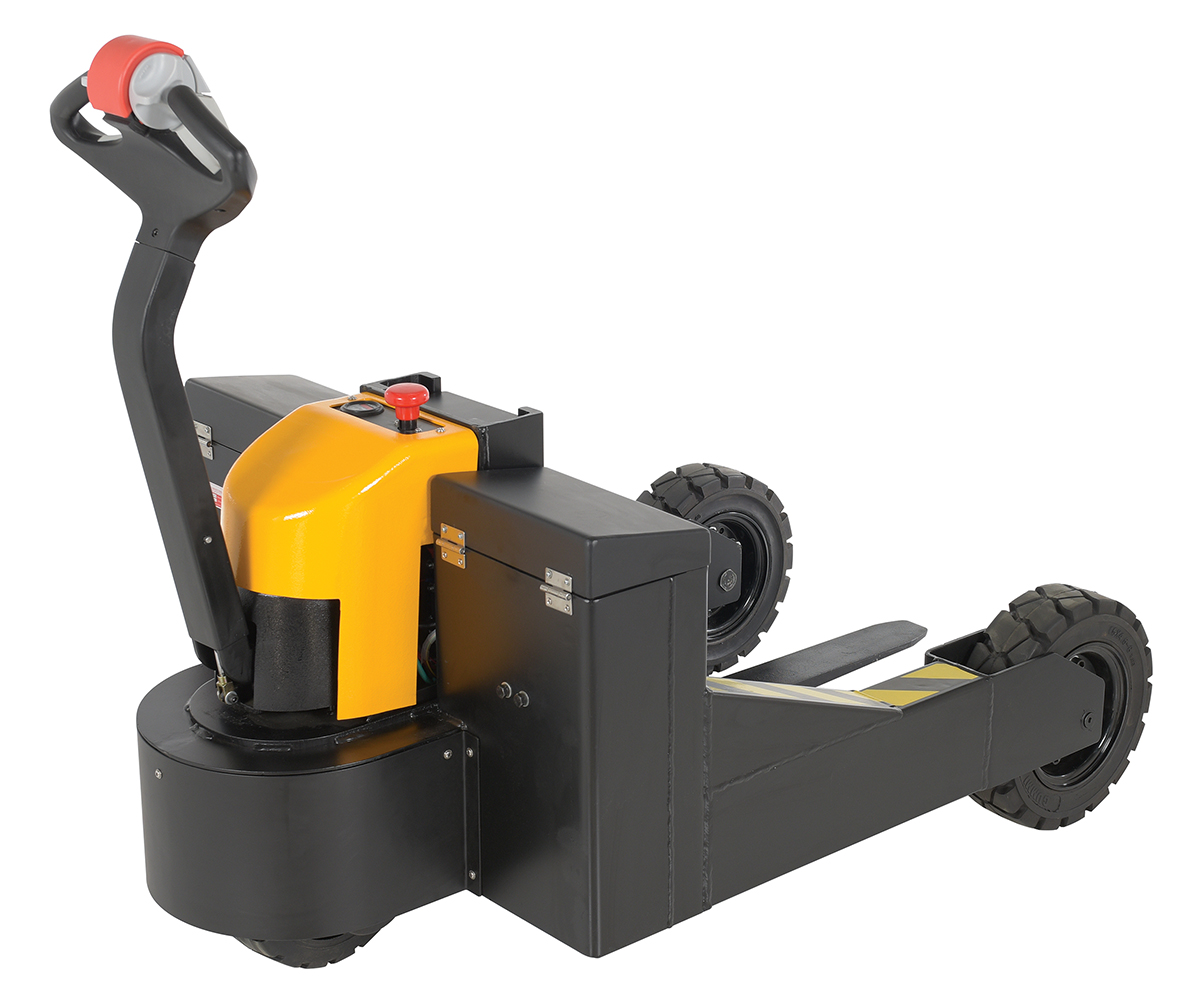

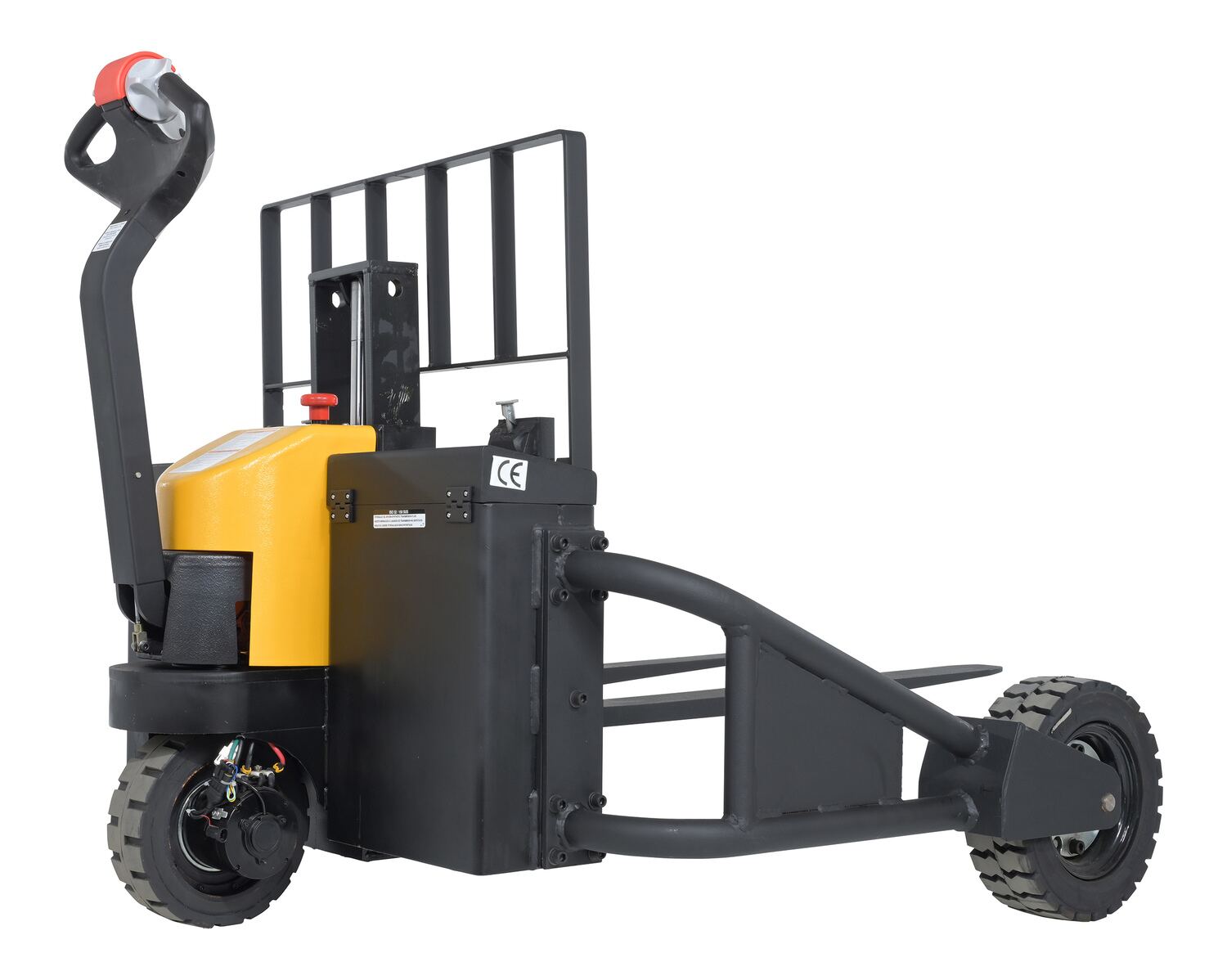

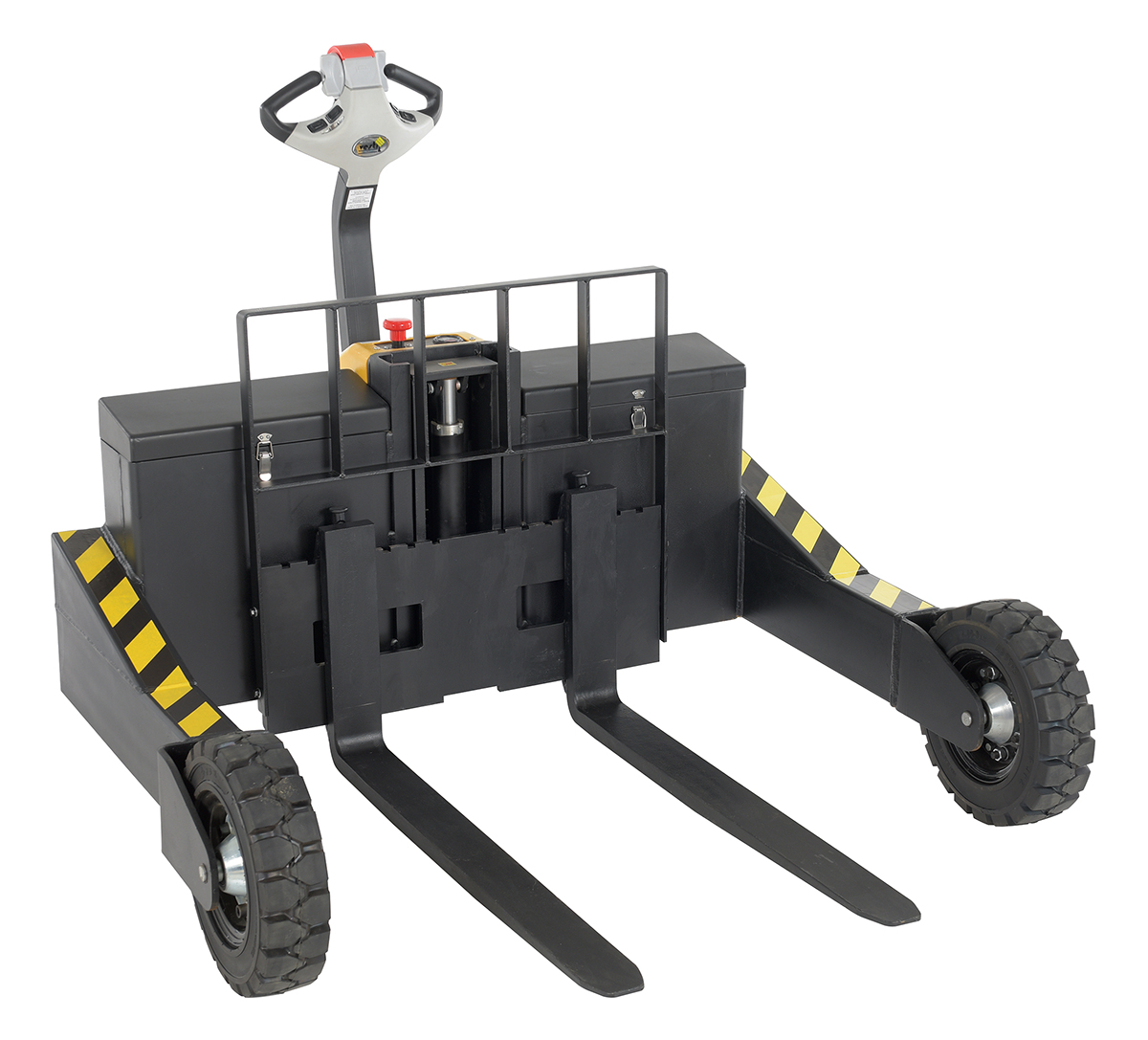

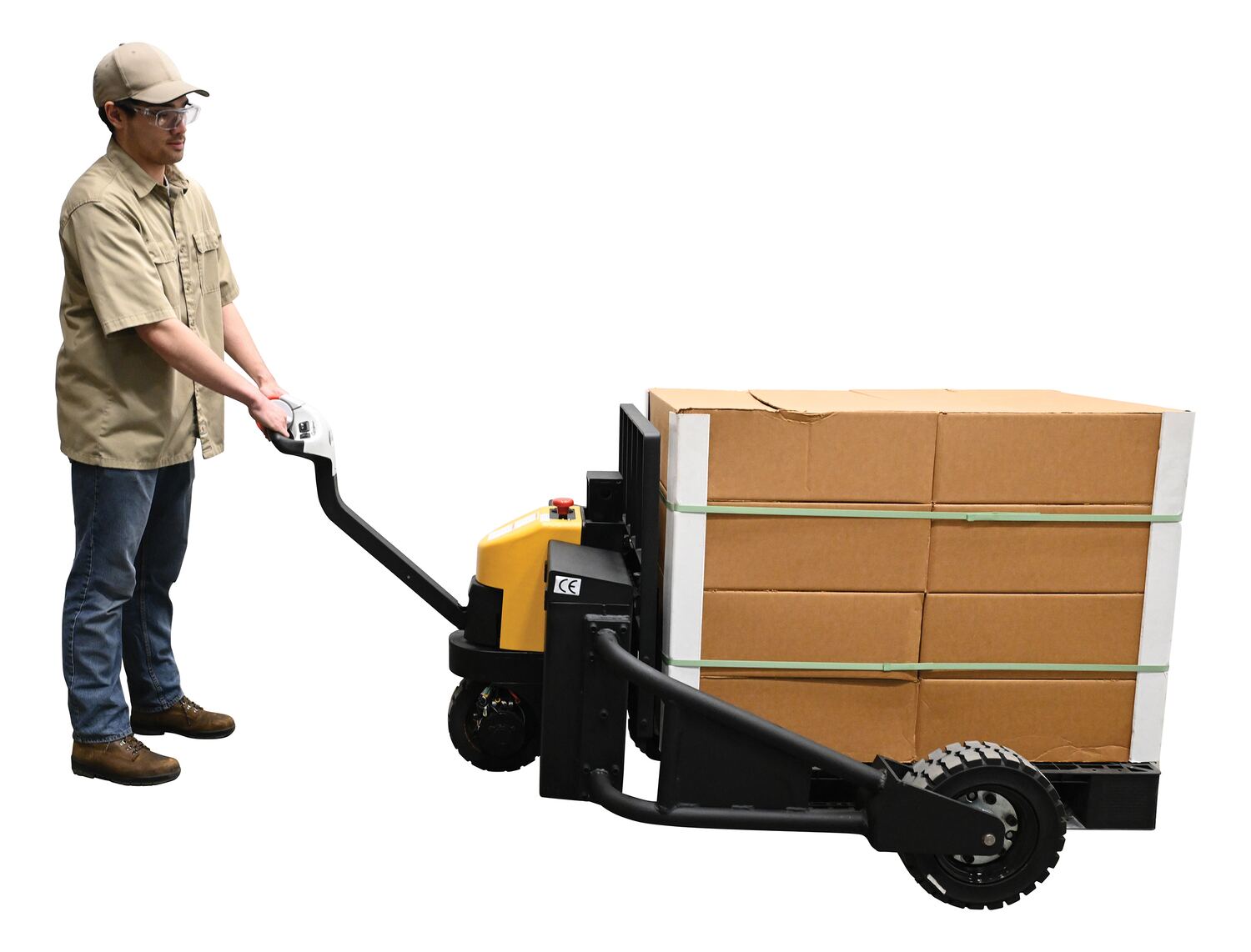

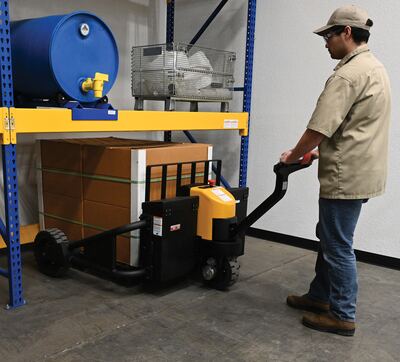

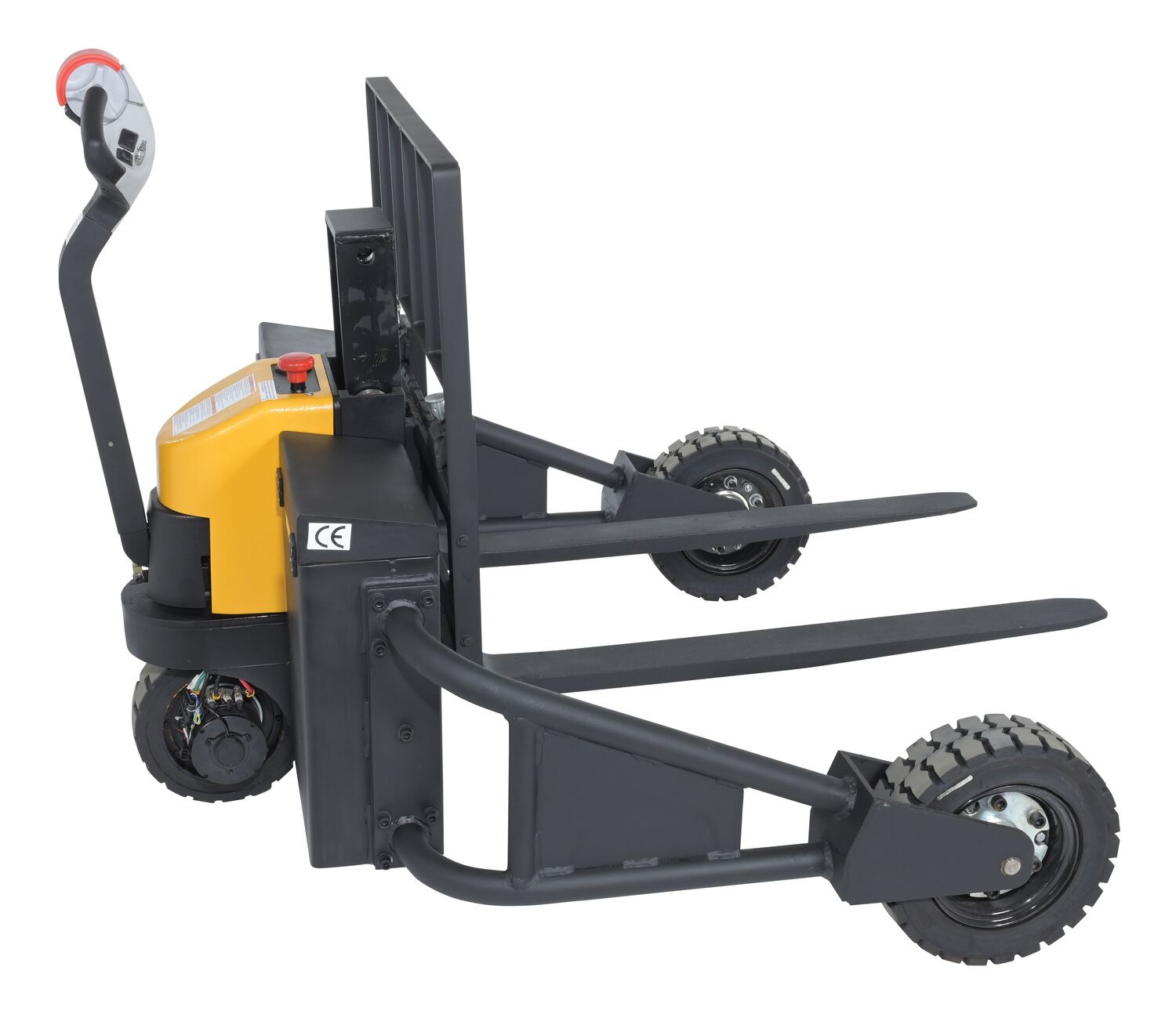

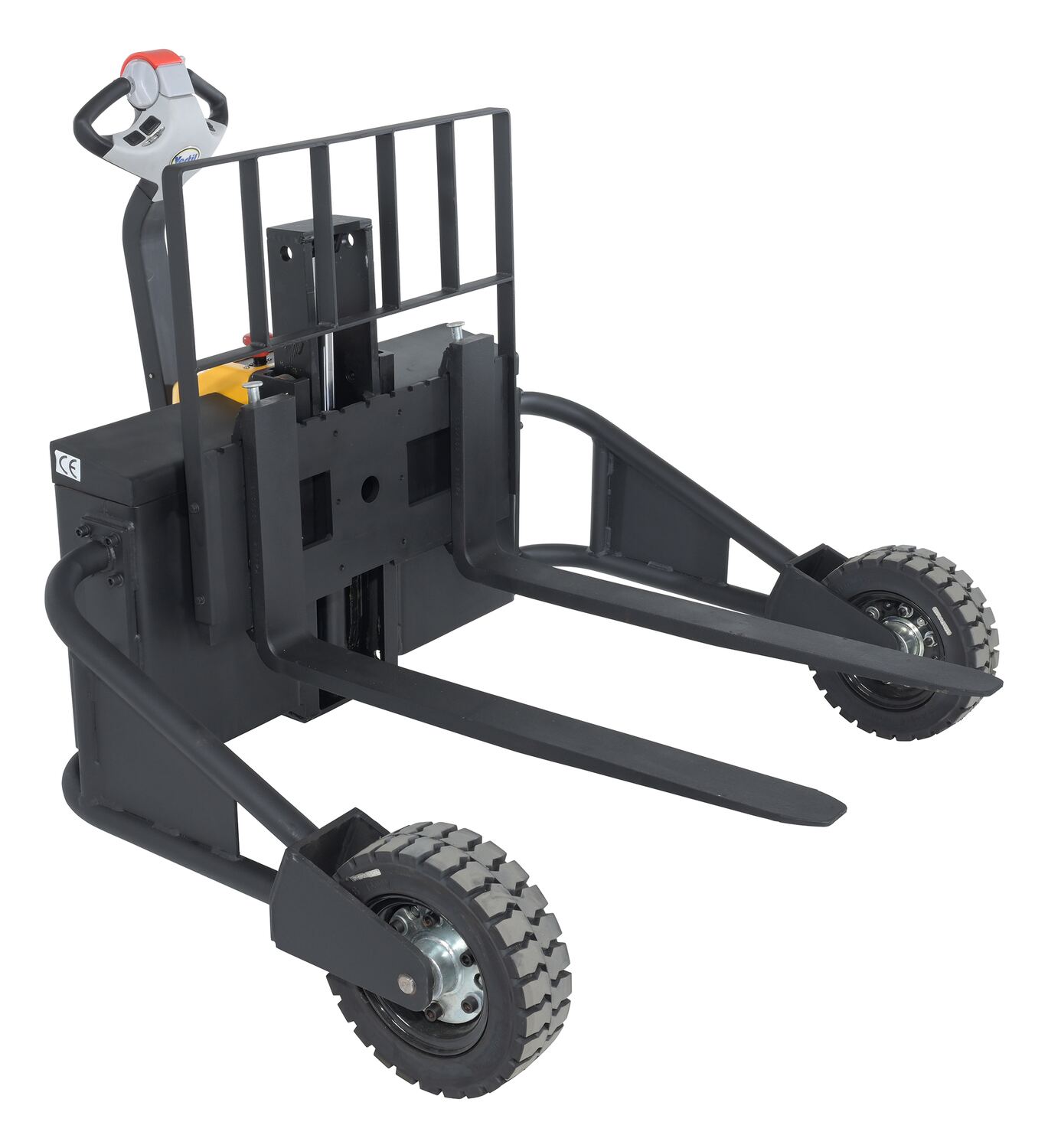

Electric Powered Rough Terrain Pallet Trucks

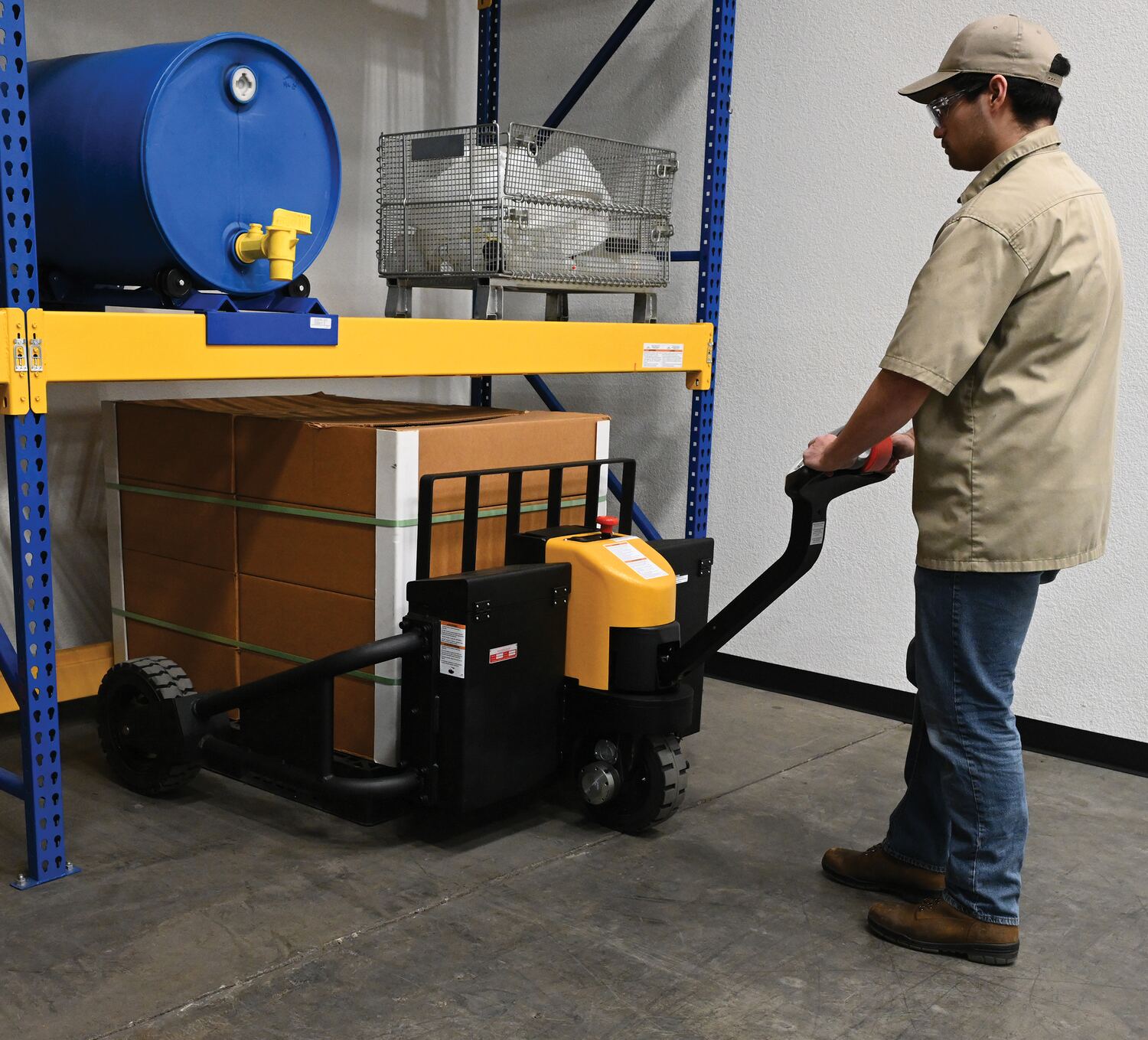

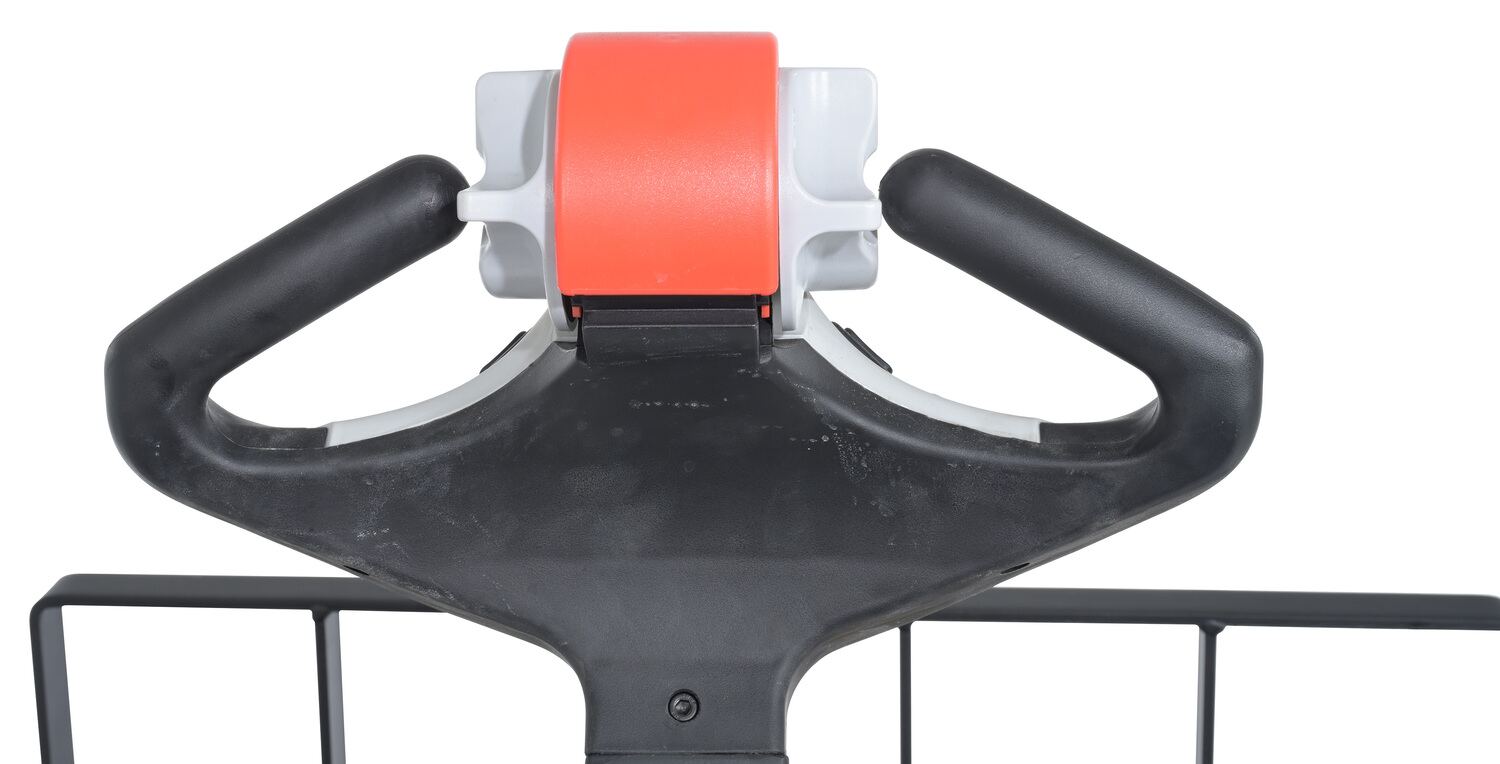

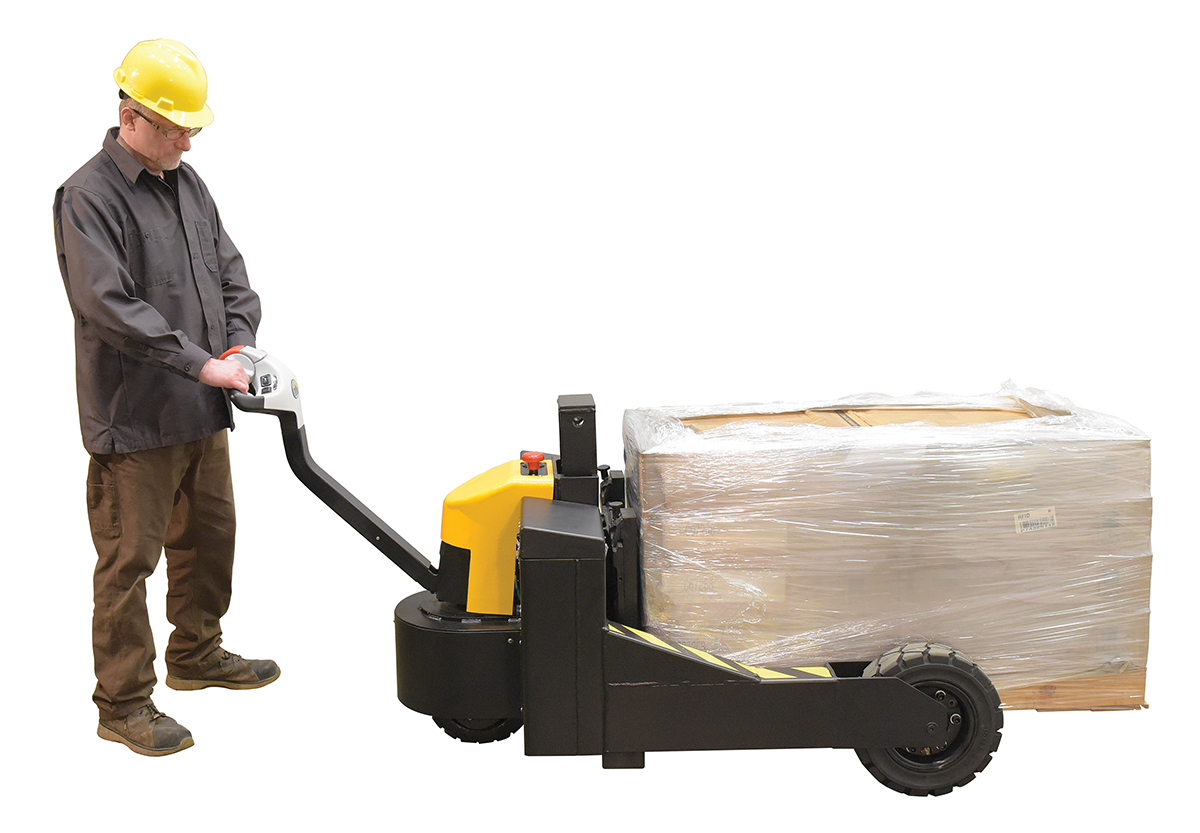

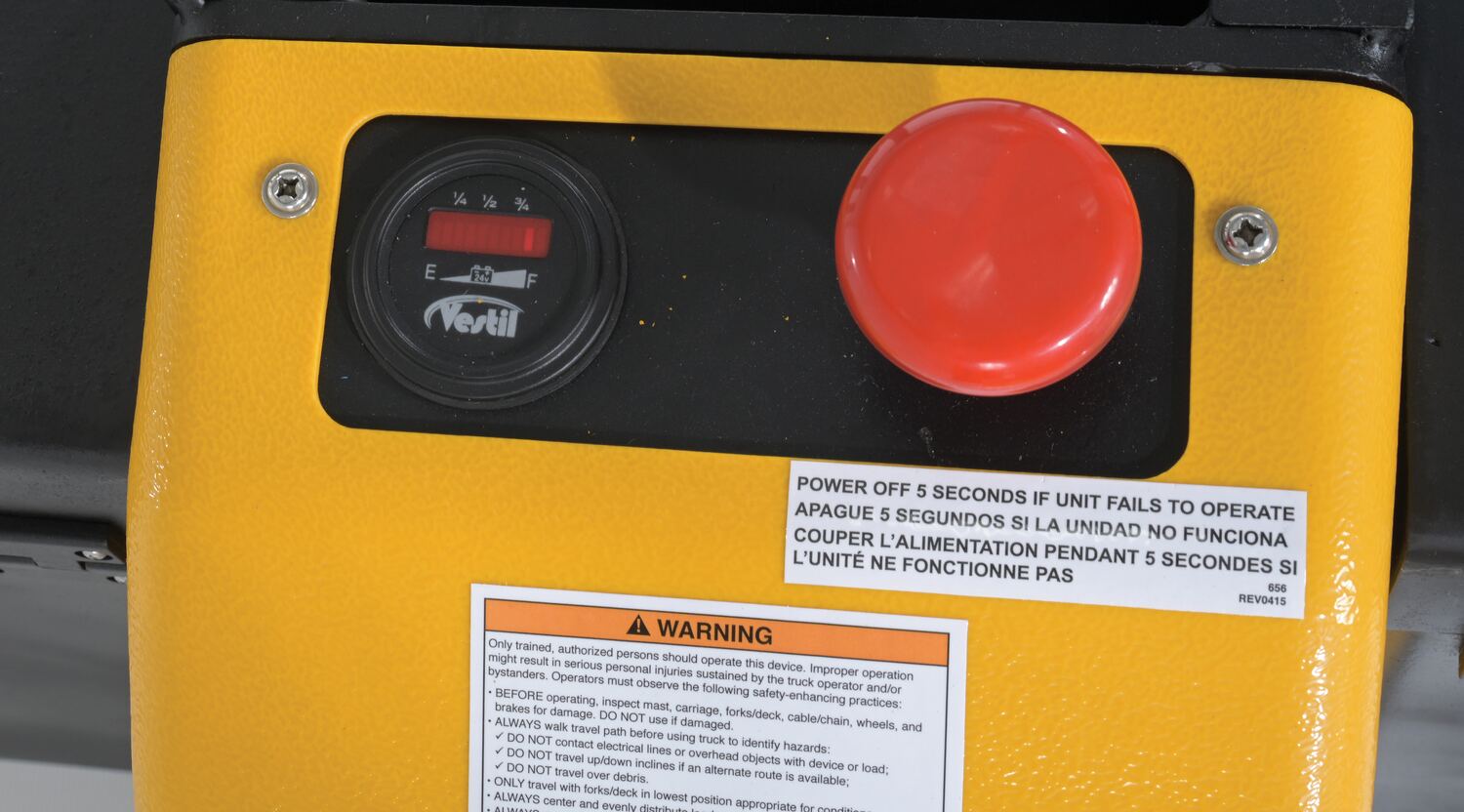

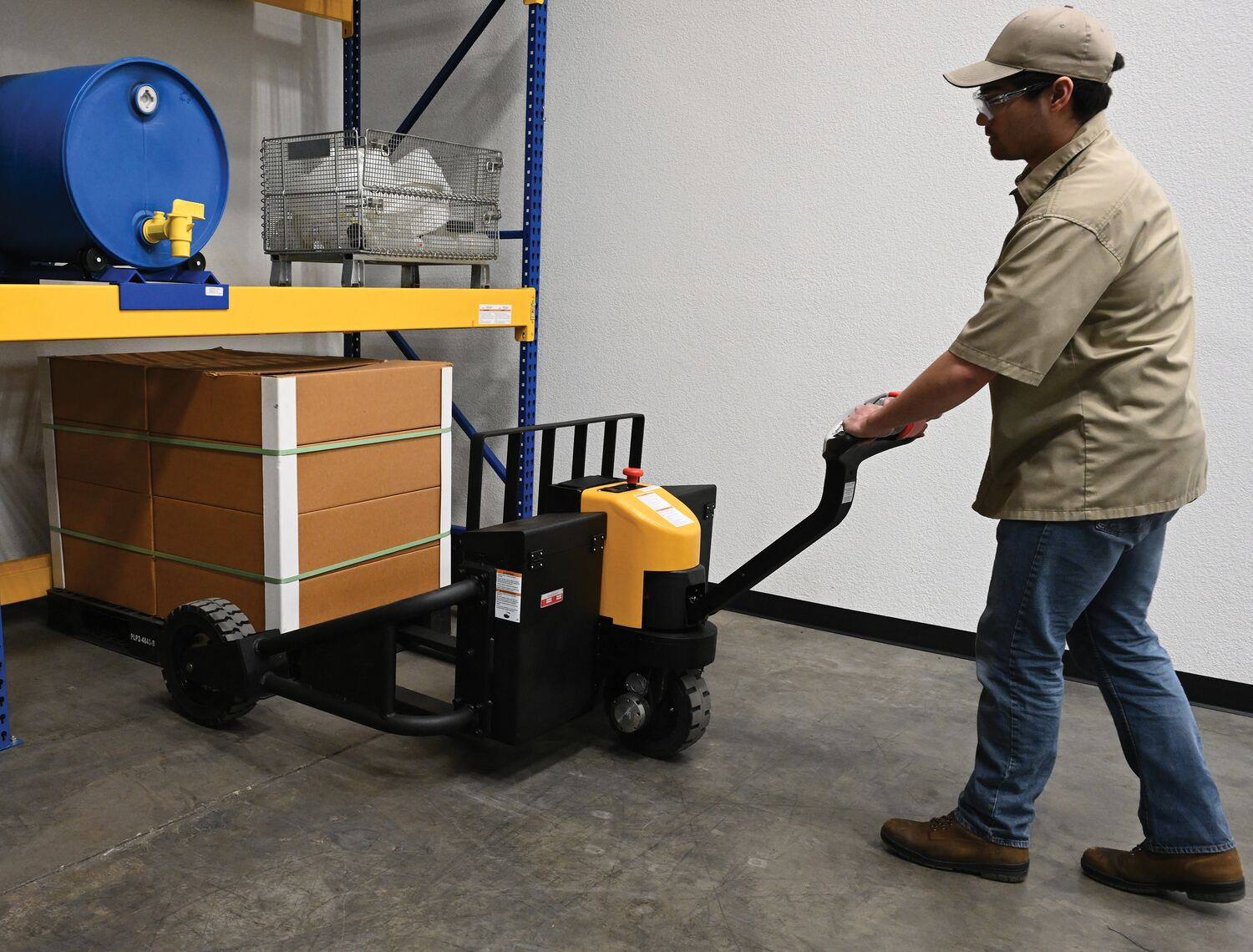

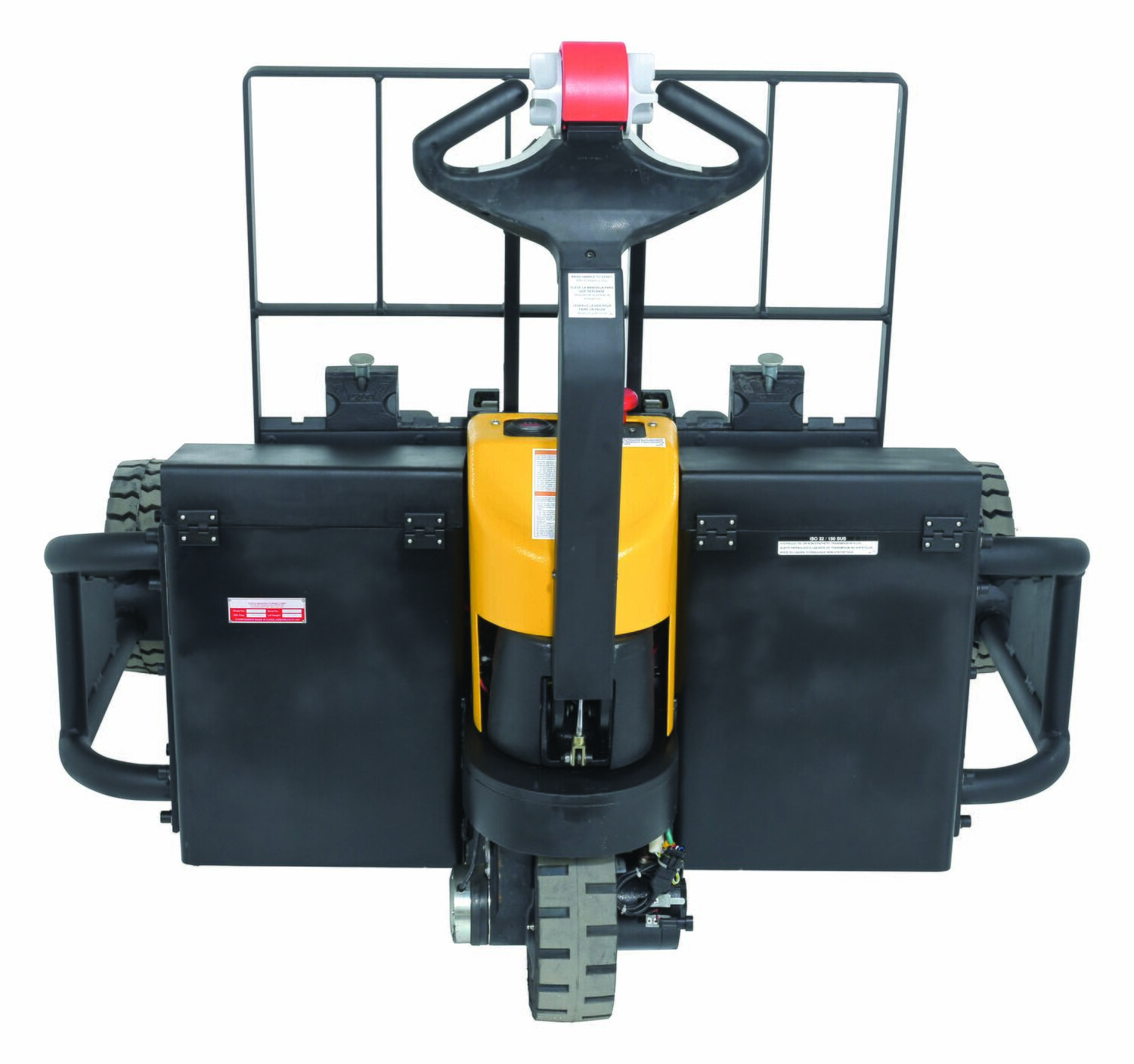

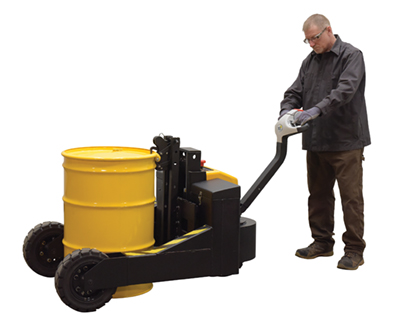

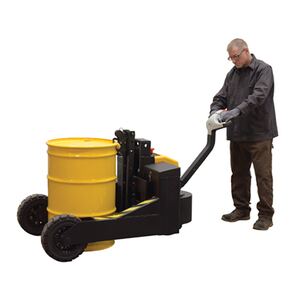

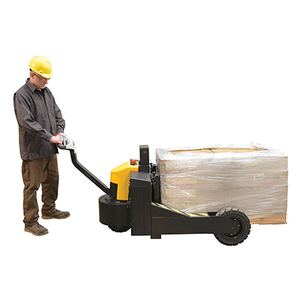

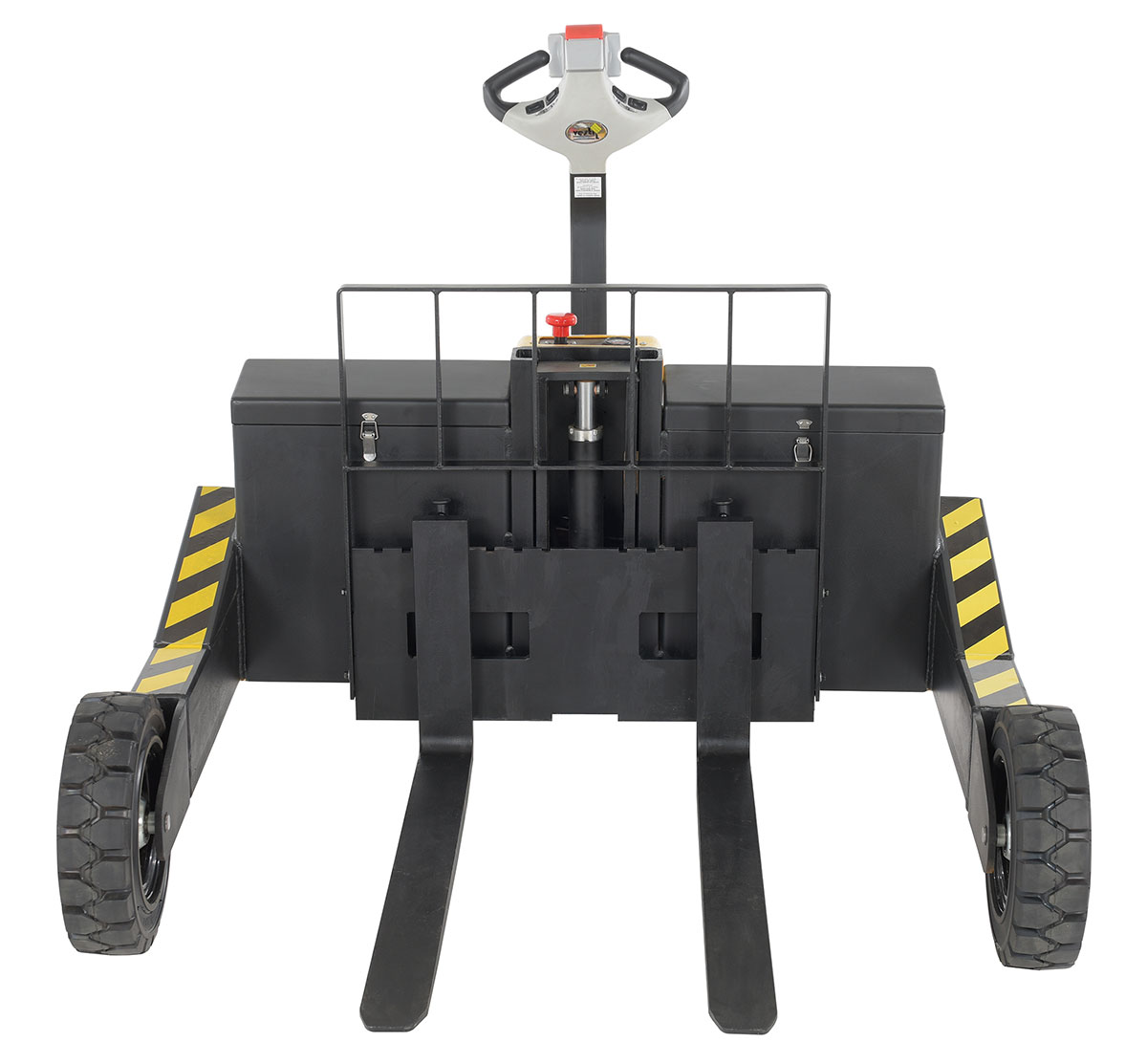

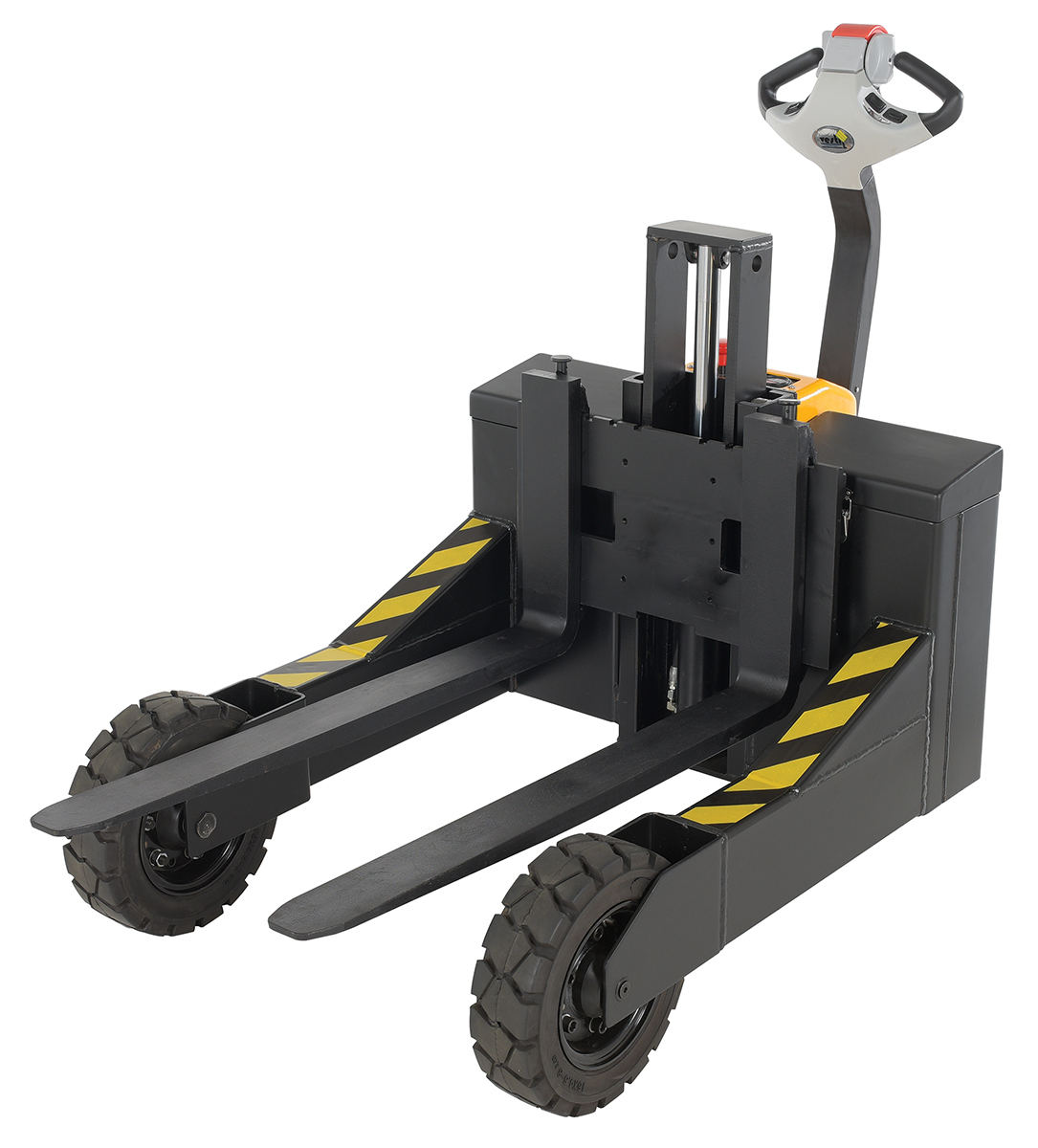

All Terrain truck with AC powered drive system for easy and quick operation. Great for moving heavy loads over rough terrain. Raise and lower loads with a push of a button. Large wheels allow for movement over most surfaces. Maneuver loads in warehouses, construction sites, gravel pits and nurseries. Ideal for outdoor and indoor use. Truck is designed to work on smooth and gravel surfaces. Ergonomic handle features easy to operate throttle with infinite adjustment of forward and reverse speeds, lift/lower controls, emergency reverse-function and horn. Truck rolls smoothly on Front (16") and Rear (11-13/16") rubber tires. Rough Terrain truck is equipped with 2x12V batteries, integral battery charger, and battery level indicator.


ALL-T-DC-ACD-3-48

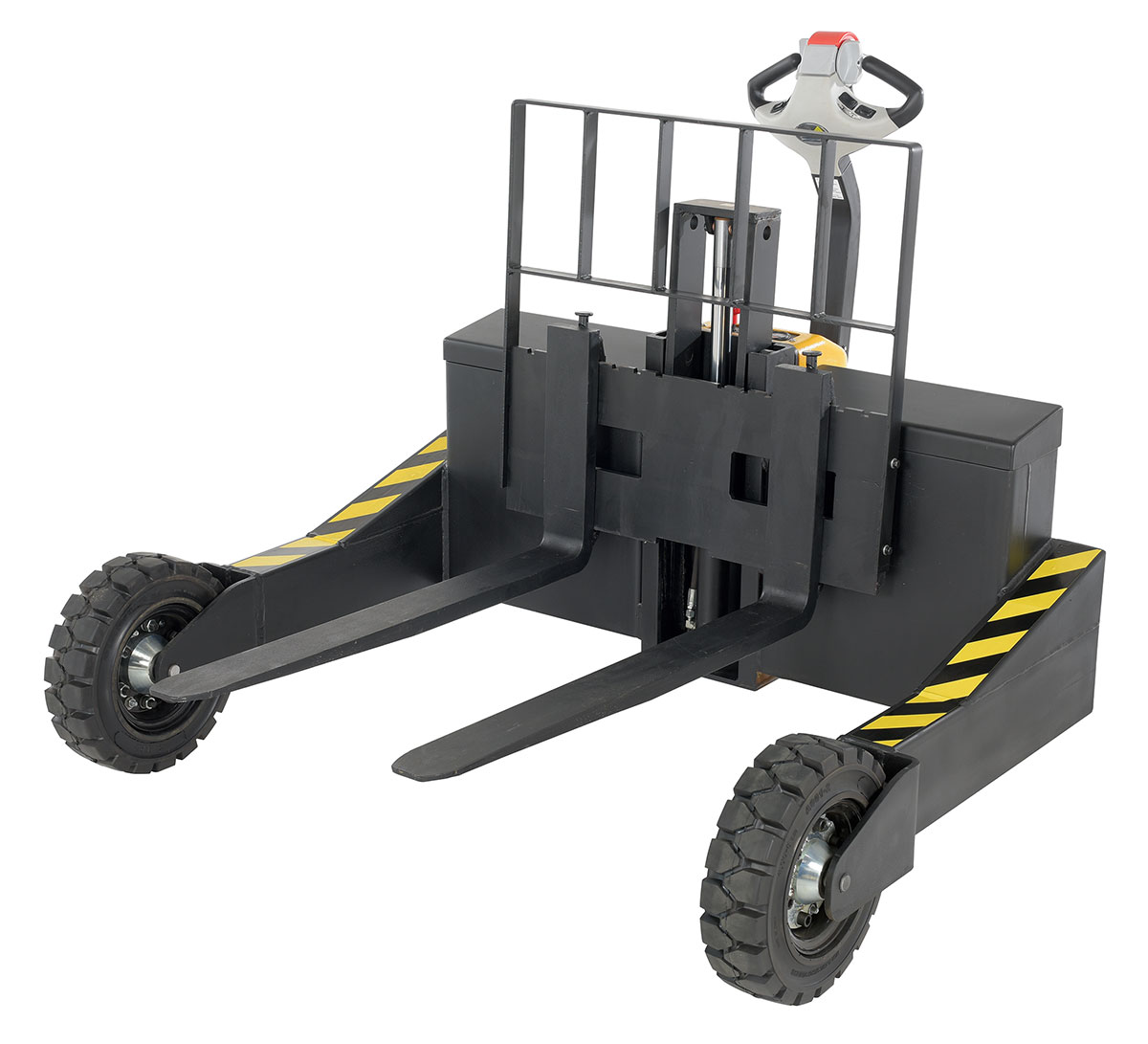

model ALL-T-DC-ACD-3-48

Click A Tab For More Information. If A Tab Is Missing, This Product Has No Content For That Tab.

KEY: Approval Drawing = Approval Drawing -- Approval Drawing = Warranty -- Approval Drawing = Testing Certificate

Model Number & Specs Table

Electric Powered Rough Terrain Pallet Jacks
Model PDFs Fork
(WxL)
Service
Range
Overall Size
(WxLxH)
Usable Width Uniform
Capacity
(lbs)
Net Wt.
(lbs)
ALL-T-DC-ACD-3-48 Warranty PDF 4"x42" 2-1/8" to 13" 62"x67-1/2"x49" 48" 3,000 1,316
ALL-T-DC-ACD-3-24 Warranty PDF 4"x42" 2-1/8" to 13" 36-5/8"x67-1/2"x49" 24" 3,000 1,063

KEY: Approval Drawing = Approval Drawing -- Approval Drawing = Warranty -- Approval Drawing = Testing Certificate

Click A Model Number Below To Show Details



PDF's will open in a new window when clicked.

Owner's Manuals

No Owners Manuals For This Product.


Survey Sheets

* No Survey Sheets For This Product.


Approval Drawings

* No Approval Drawings For This Product

Testing Certificates

ALL-T-DC-ACD-3-48
ALL-T-DC-ACD-3-24

Other PDF's

* No "Other PDFs" For This Product...
