Click Image to Enlarge

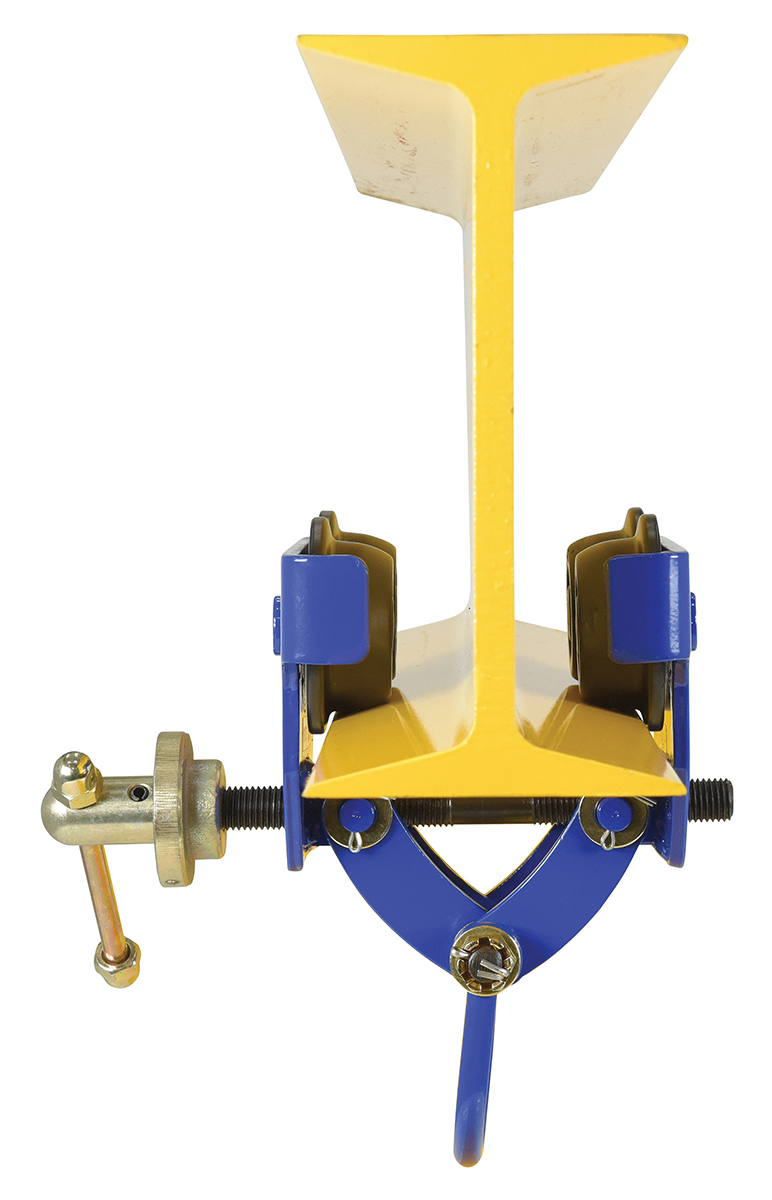

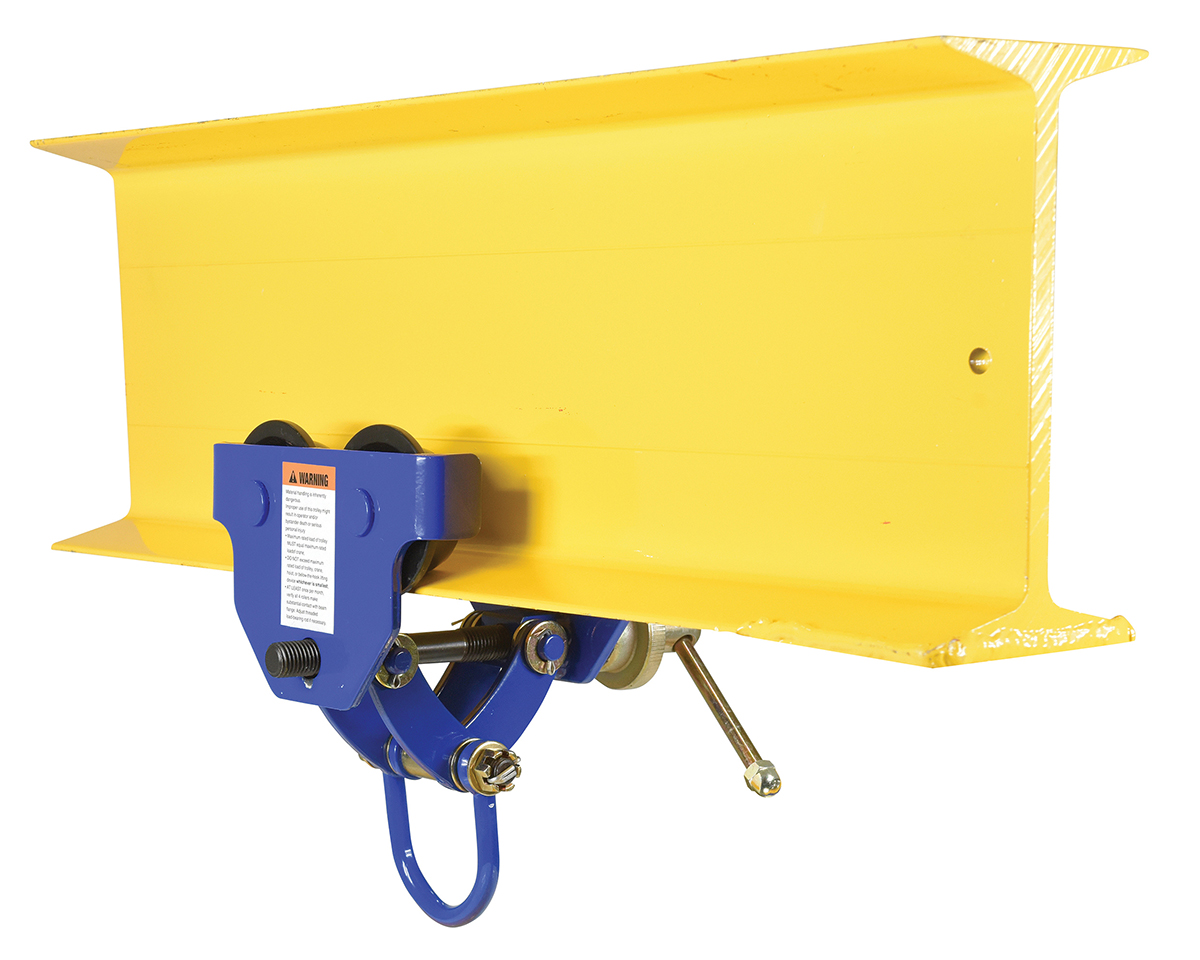

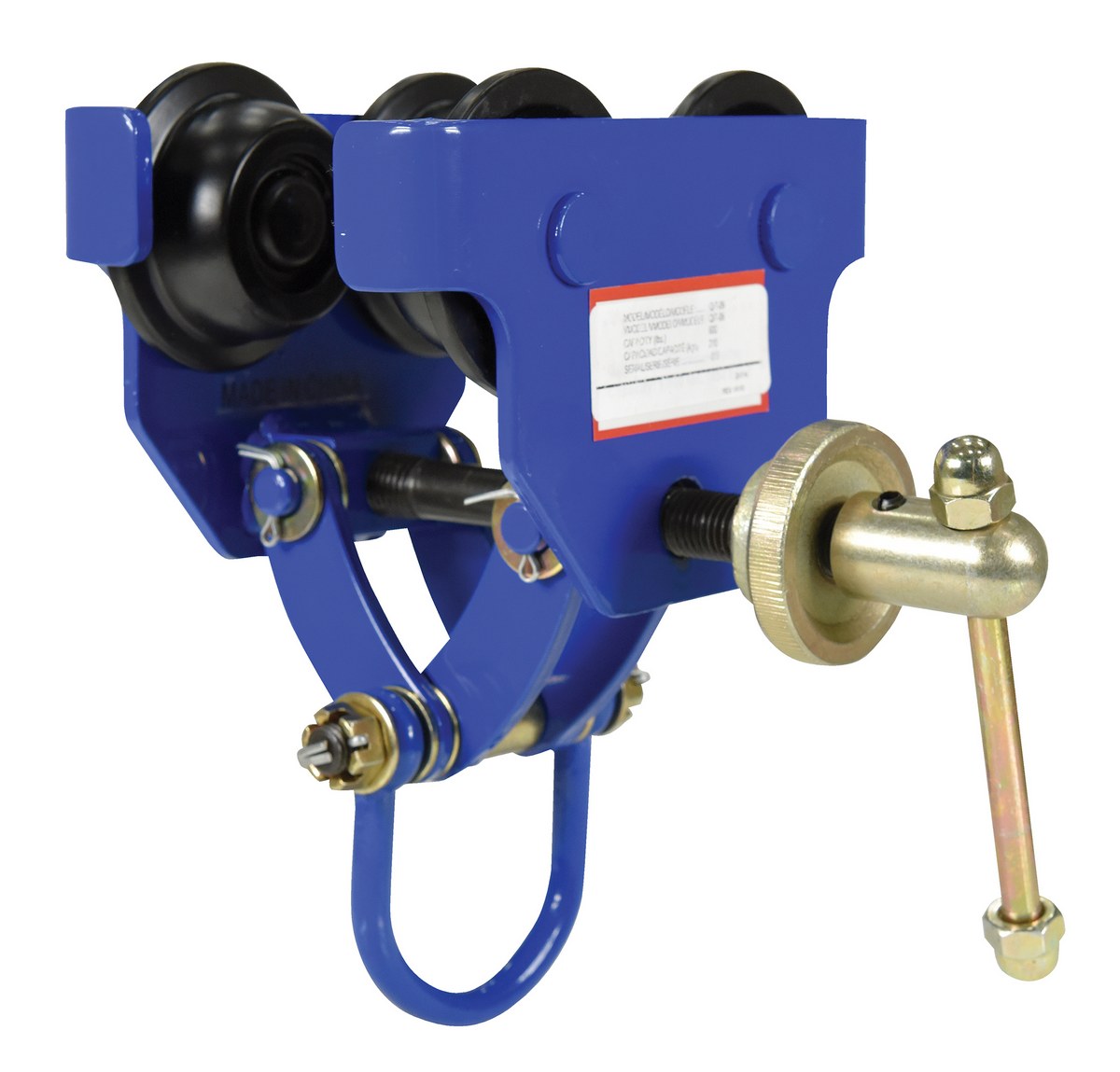

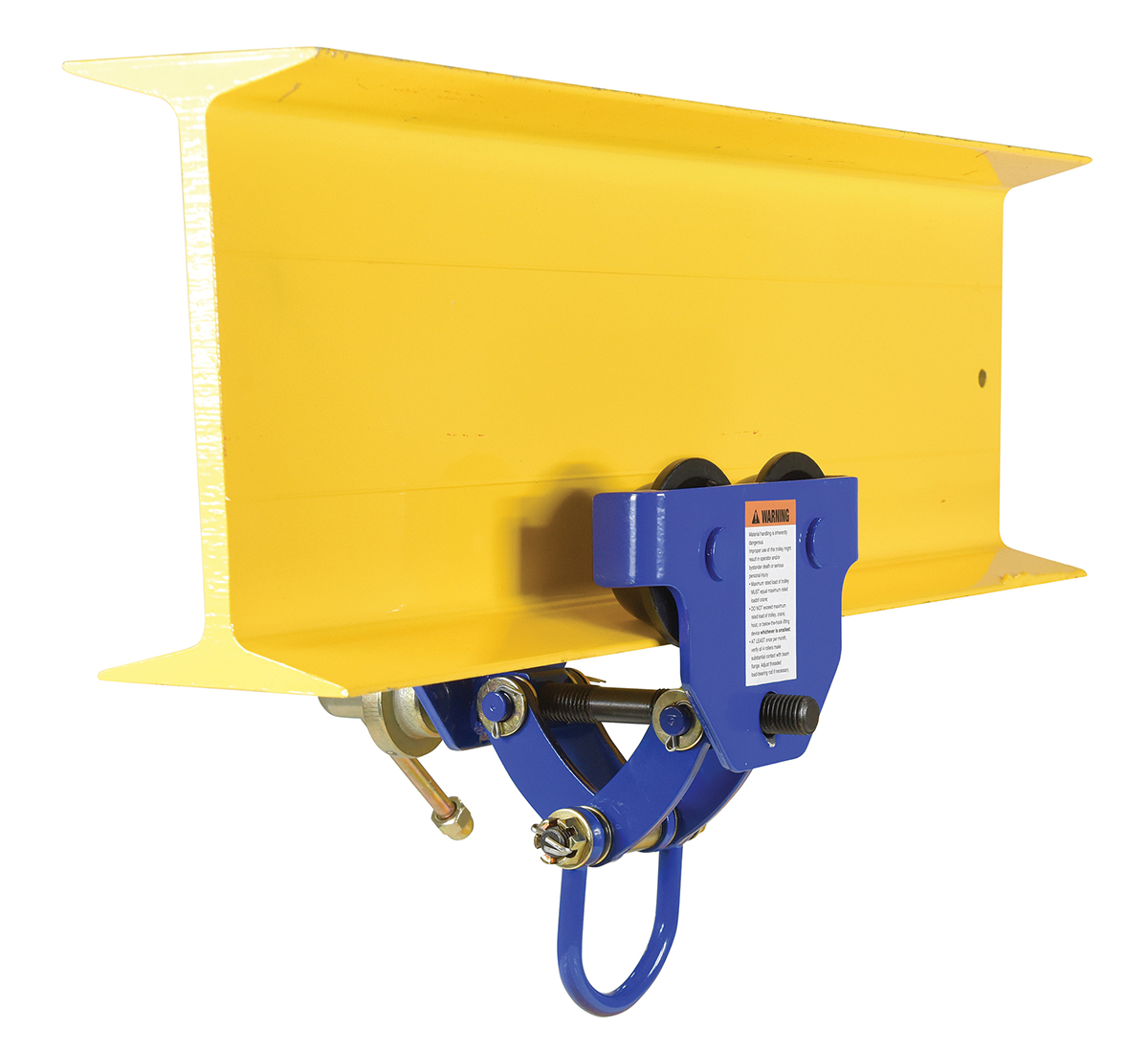

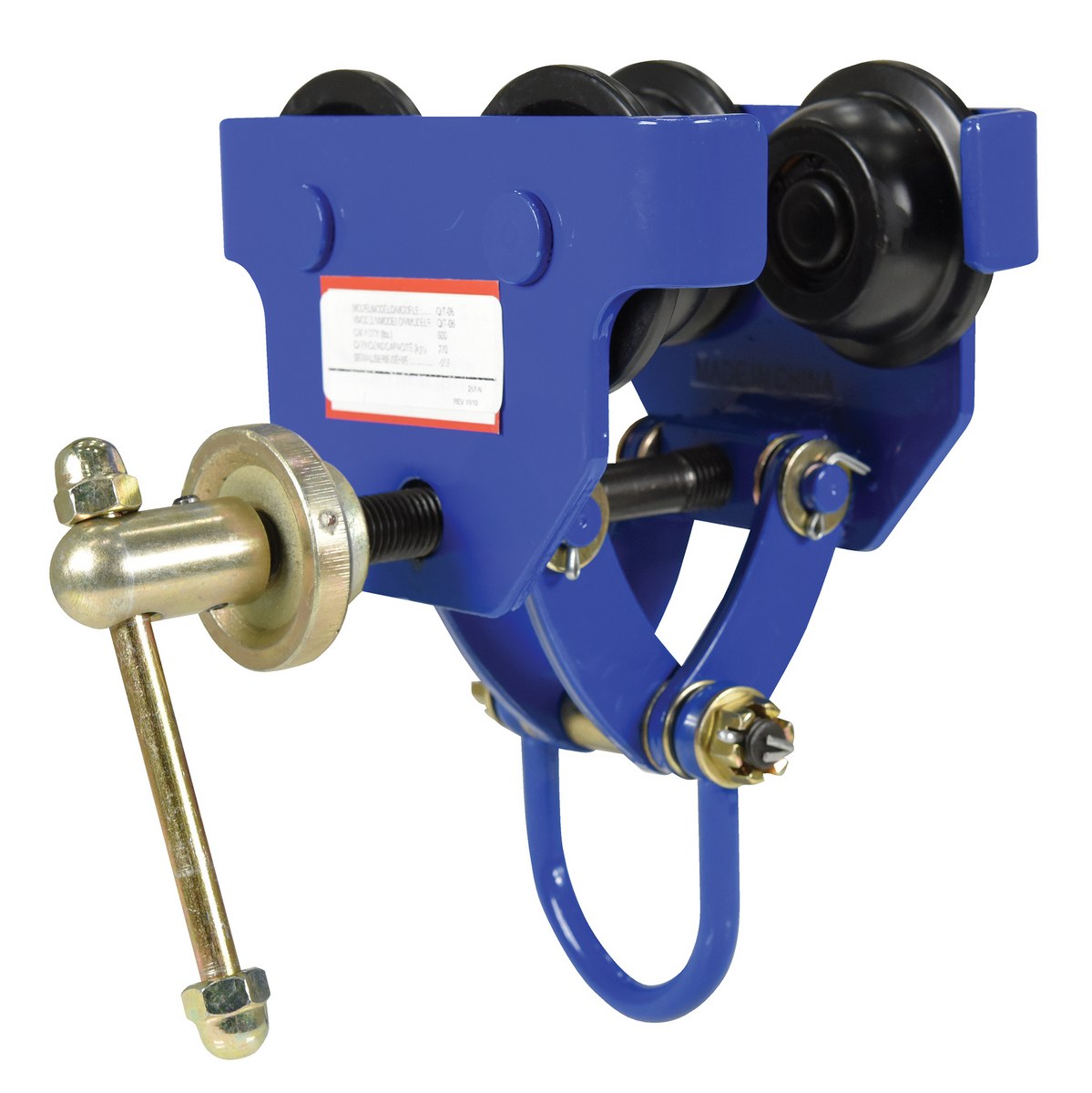

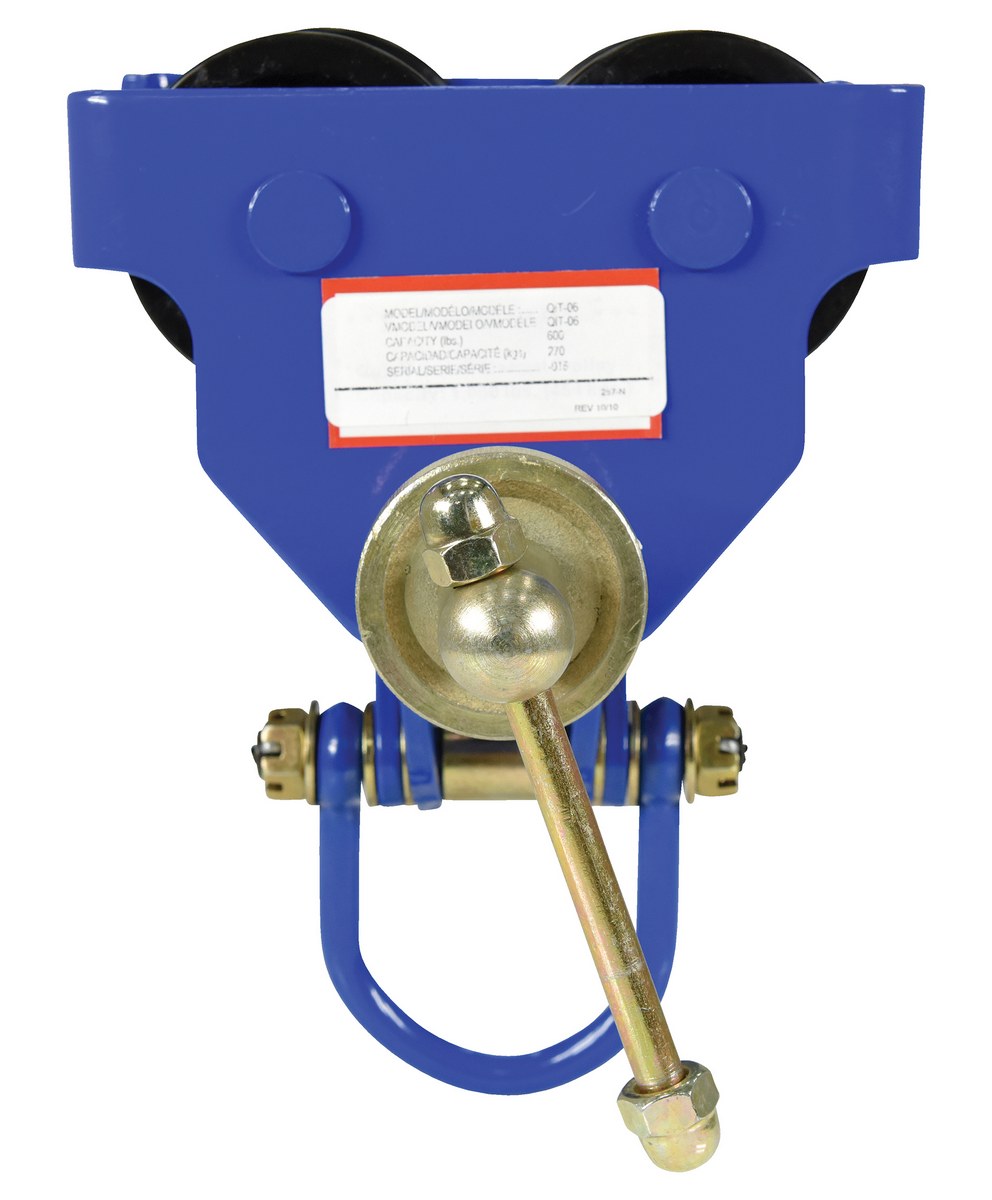

model: QIT-06


Quick Install Manual Trollies
SERIES: QIT

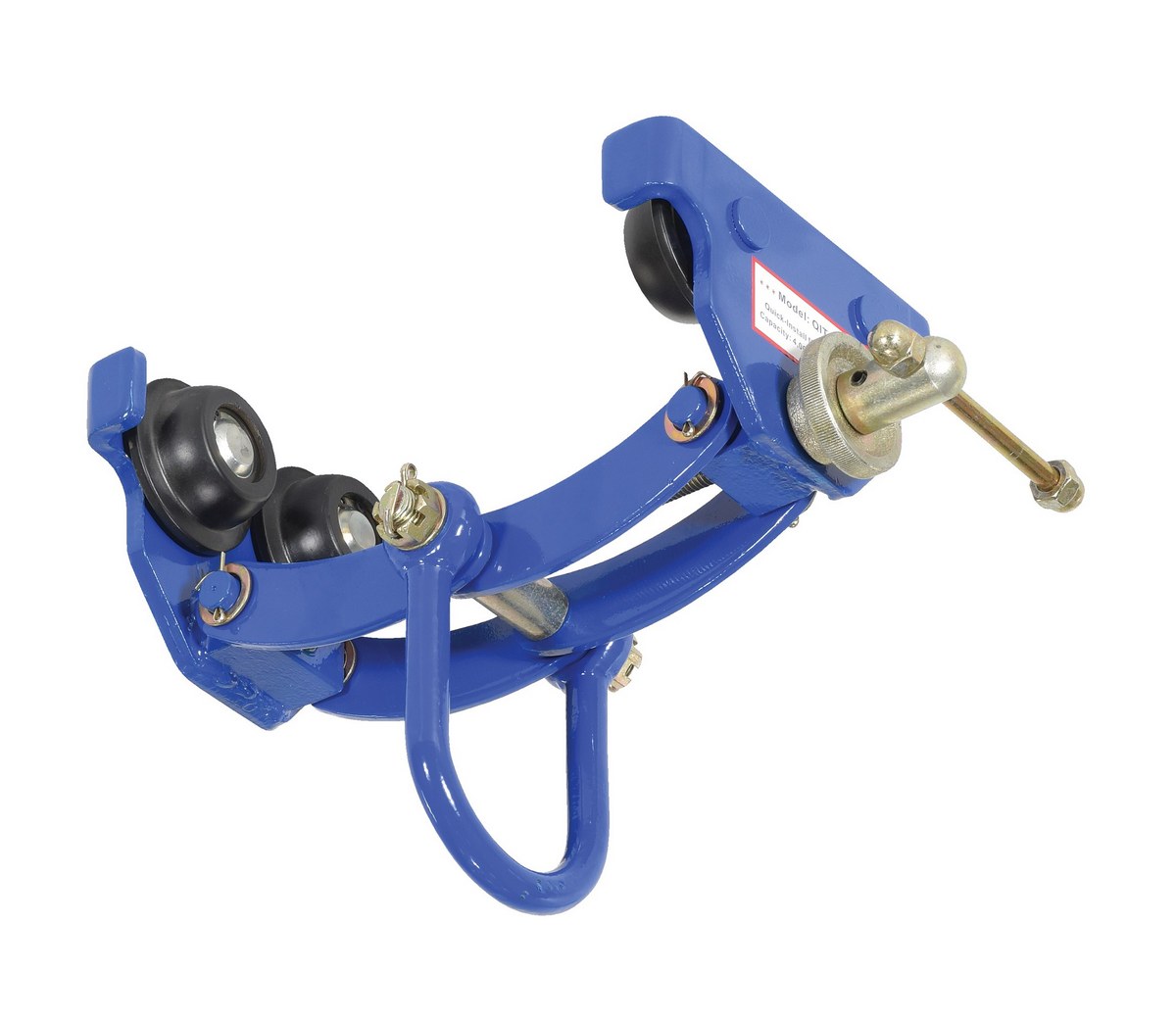

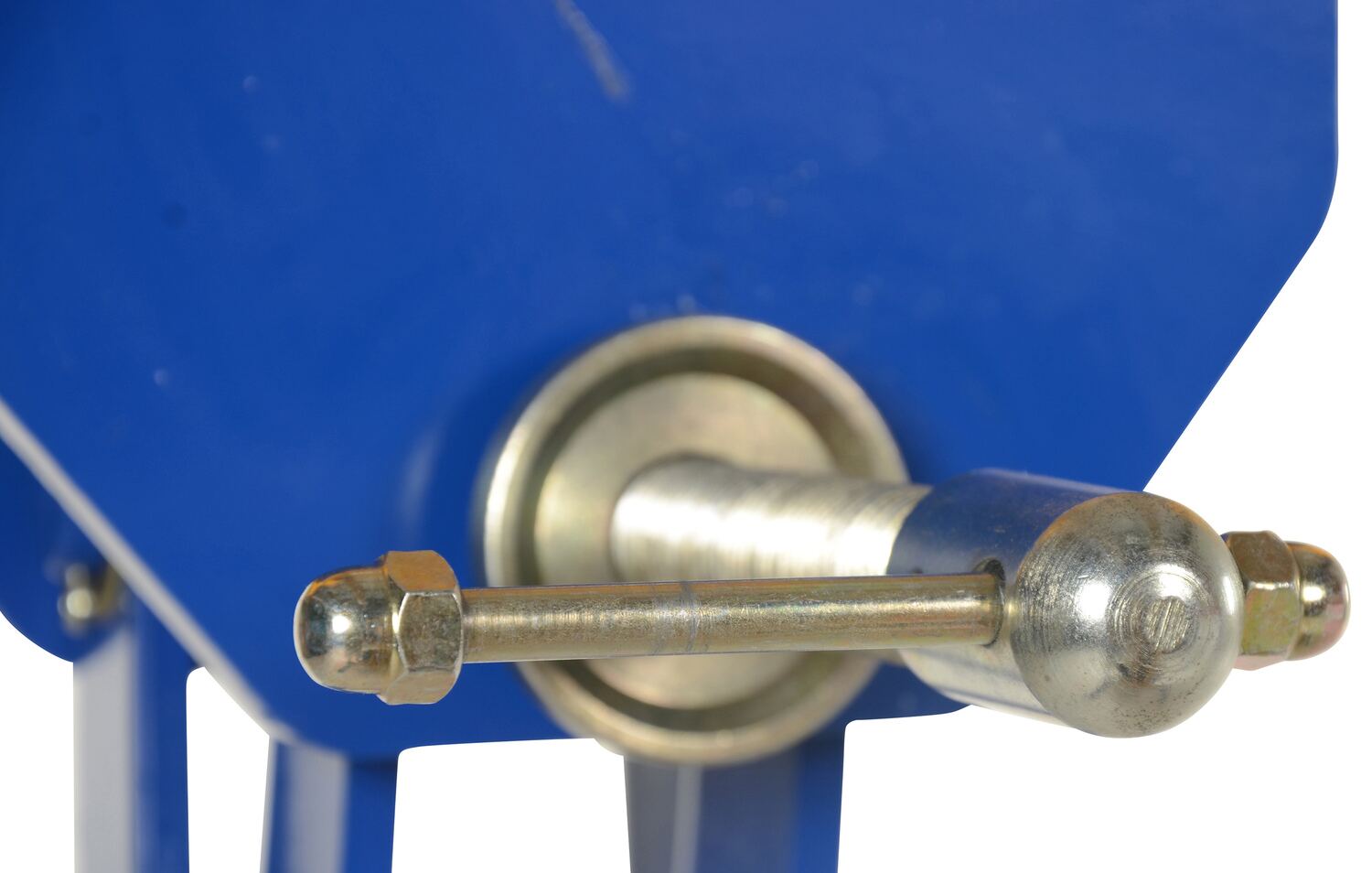

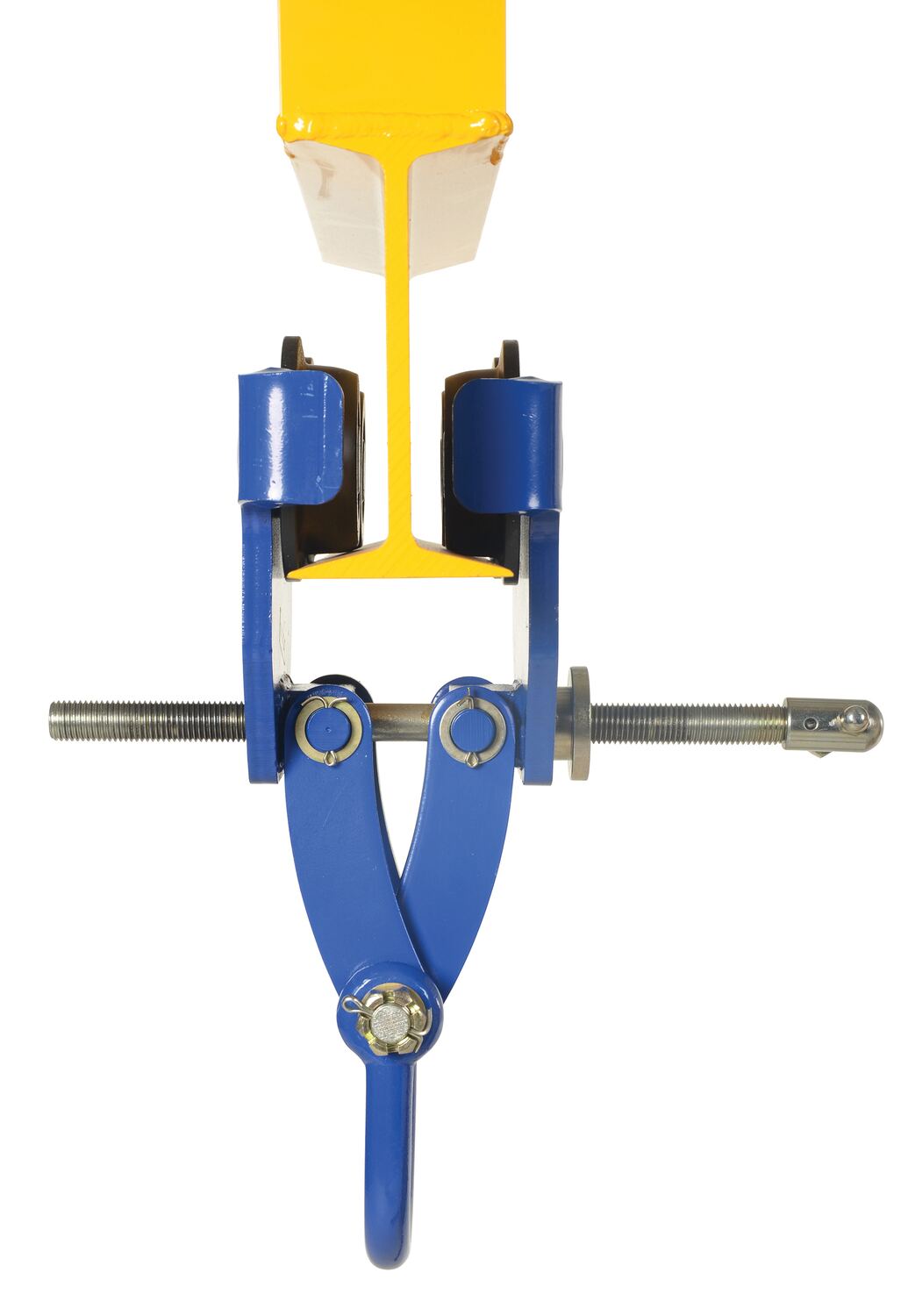

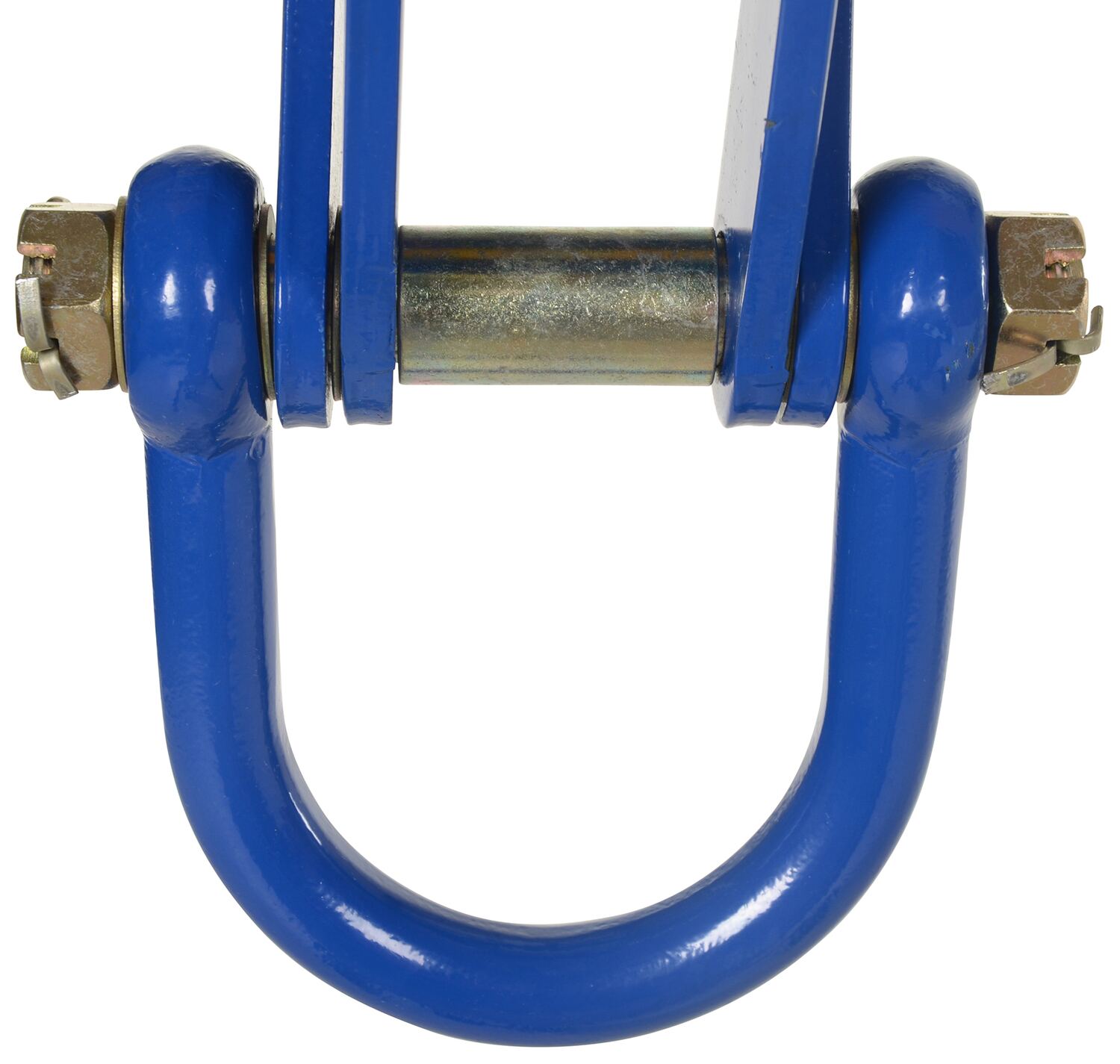

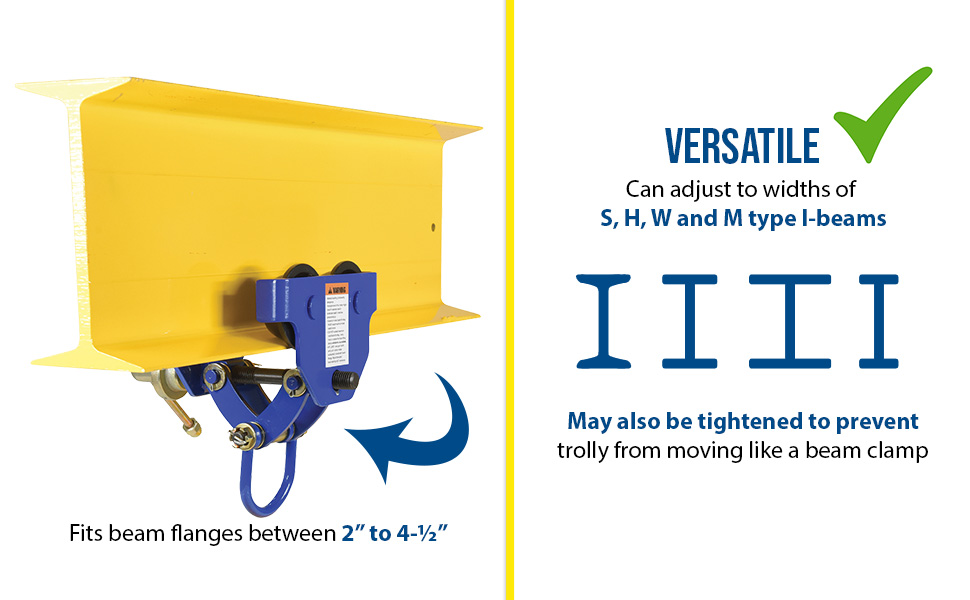

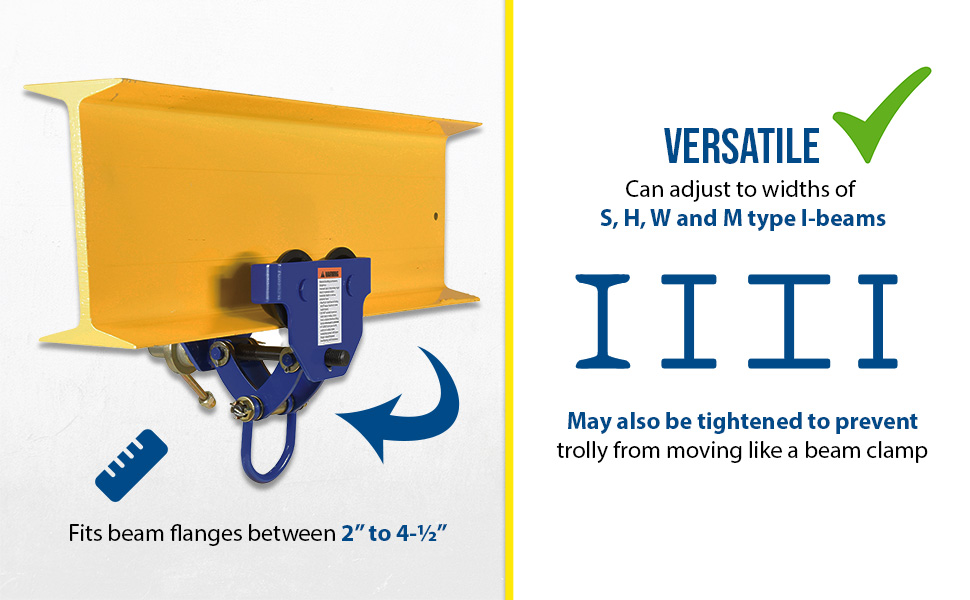

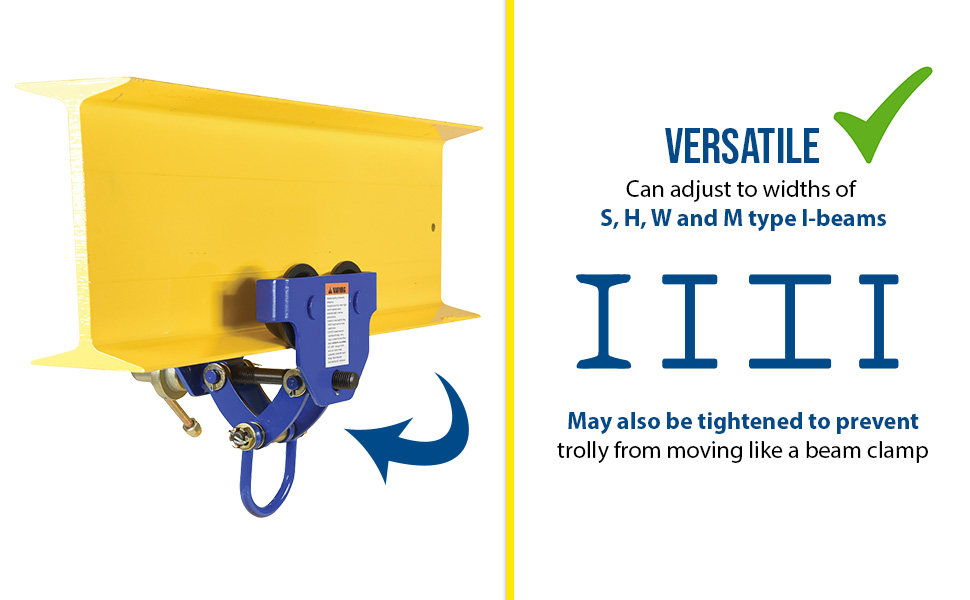

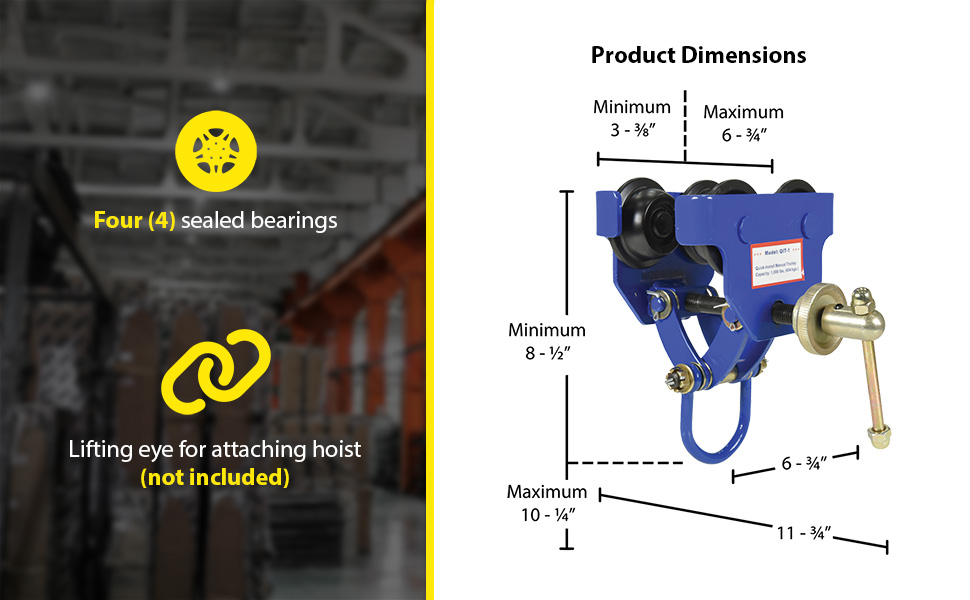

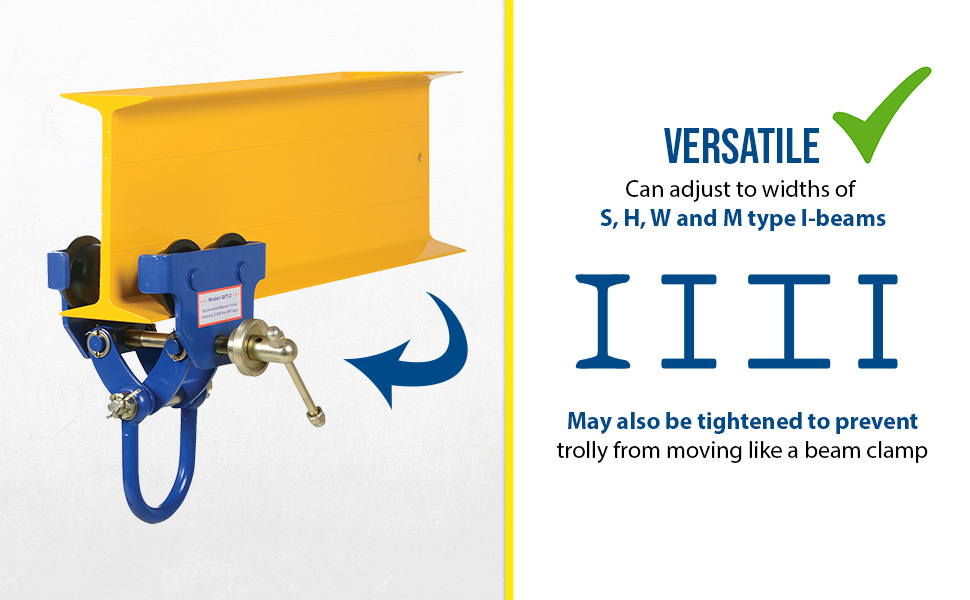

These trollies are dependable, easy and safe to use. Designed to easily adjust to the width of virtually any S, H, W and M type I-beam. Width is adjusted with manual screw mechanism. Includes locking ring to prevent trolley width from changing accidentally. Manual screw mechanism may also be tightened to prevent trolley from moving (similar to a Beam Clamp). Each trolley includes four rollers with sealed bearings for long life. A lifting eye is located at the bottom of the trolley for attaching to a hoist (hoist sold separately). Steel construction and painted finish.

These trollies are dependable, easy and safe to use. Designed to easily adjust to the width of virtually any S, H, W and M type I-beam. Width is adjusted with manual screw mechanism. Includes locking ring to prevent trolley width from changing accidentally. Manual screw mechanism may also be tightened to prevent trolley from moving (similar to a Beam Clamp). Each trolley includes four rollers with sealed bearings for long life. A lifting eye is located at the bottom of the trolley for attaching to a hoist (hoist sold separately). Steel construction and painted finish.

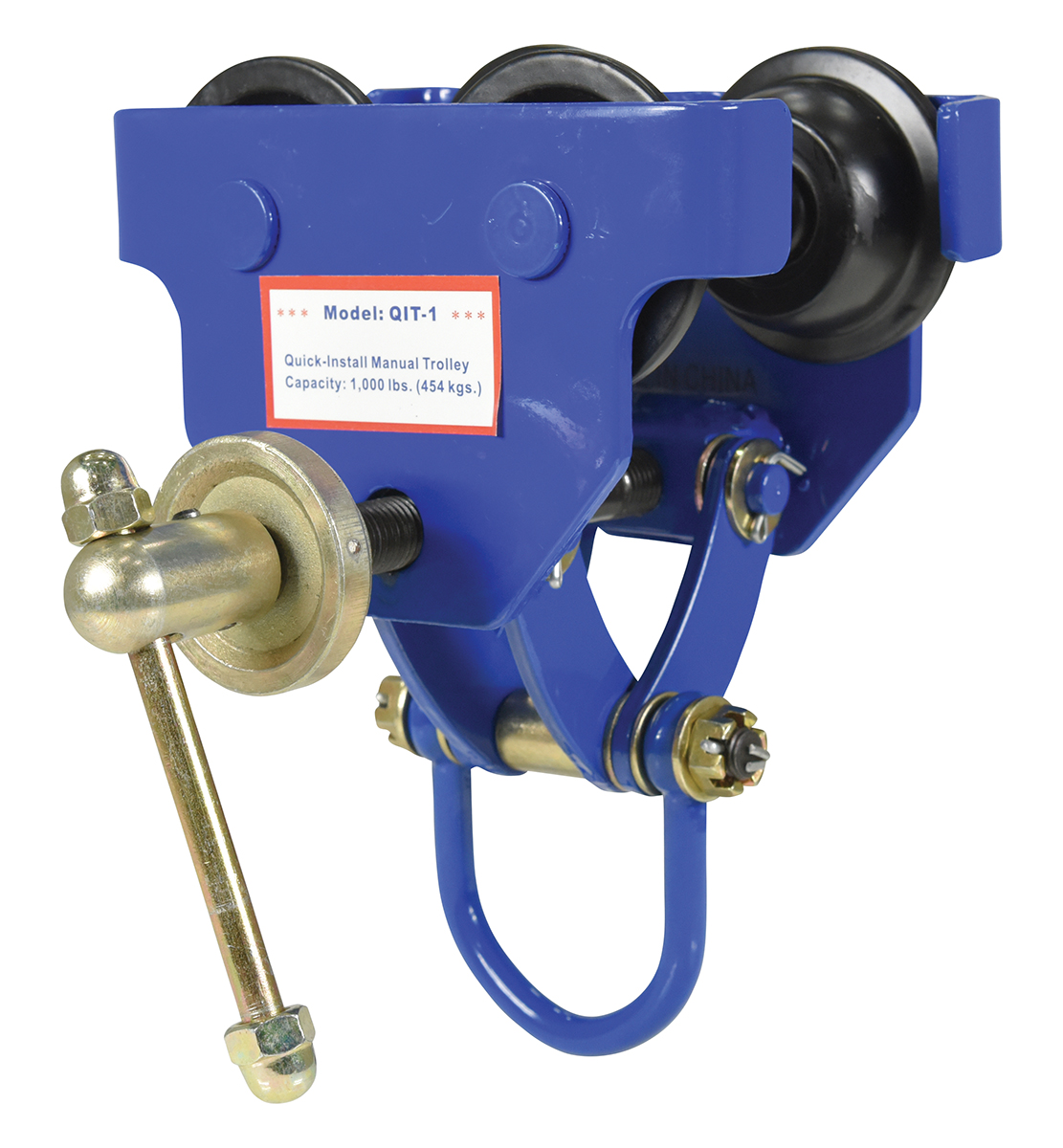

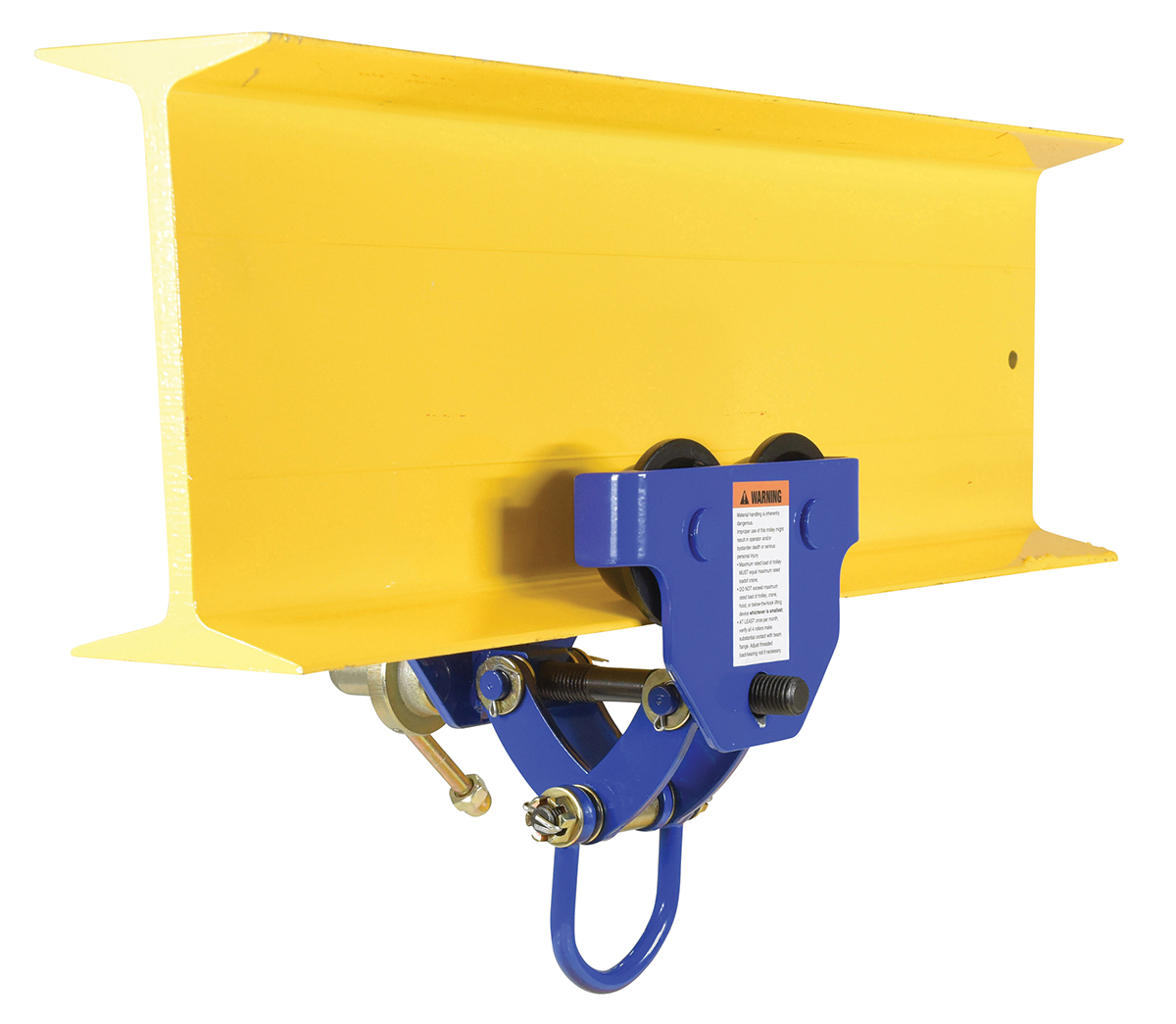

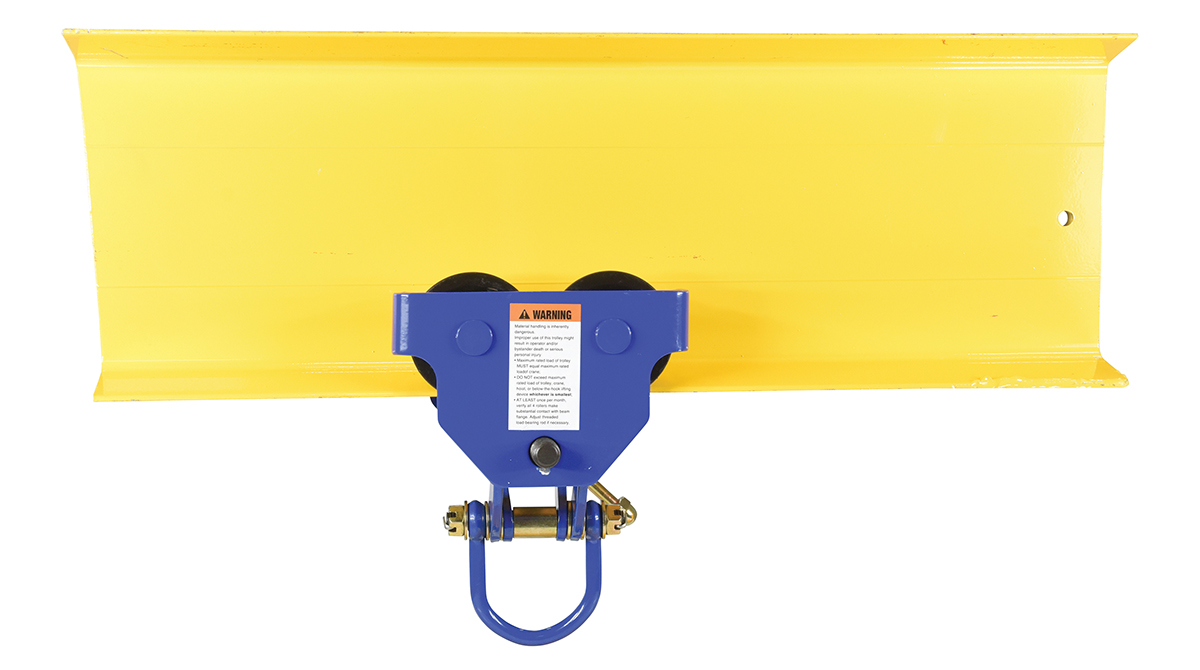

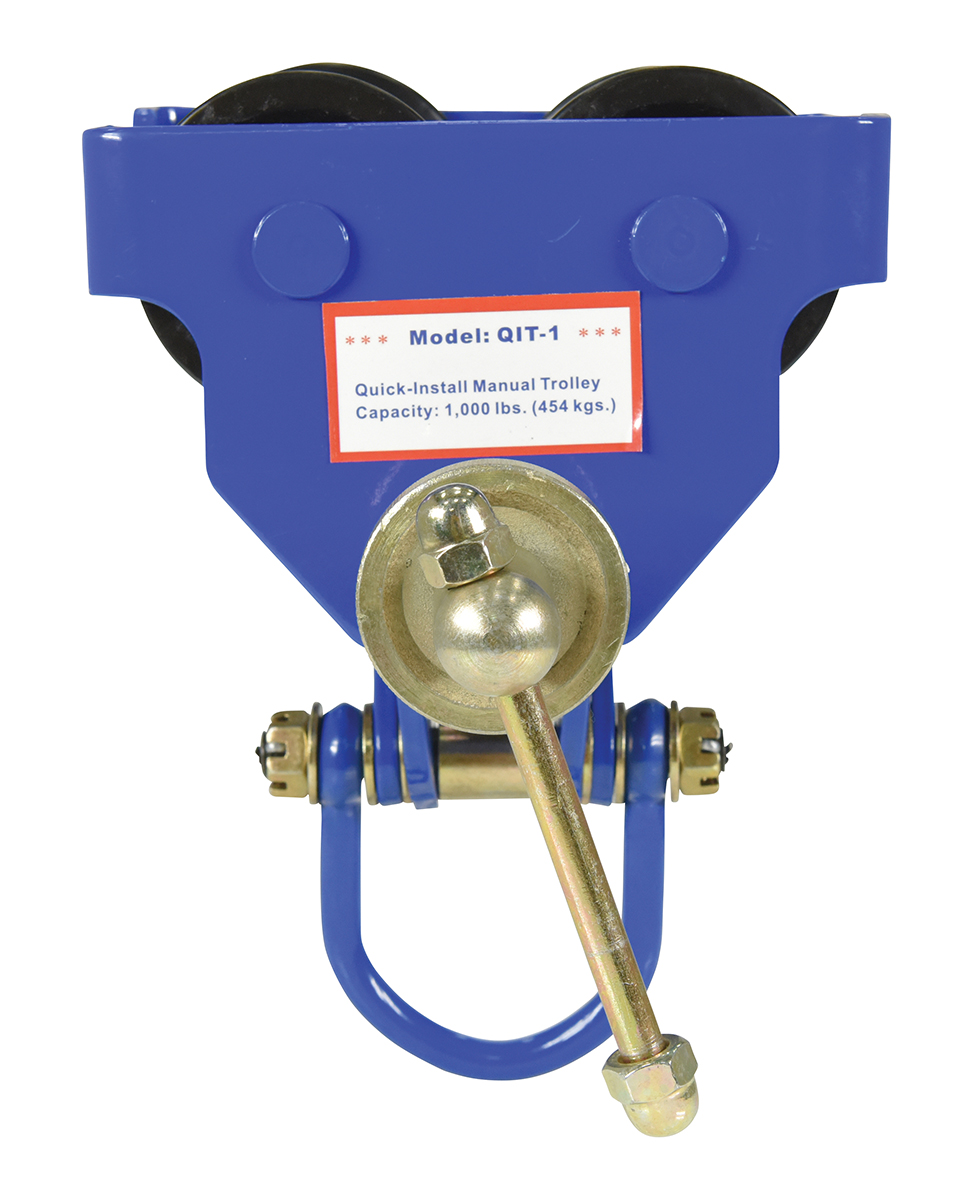

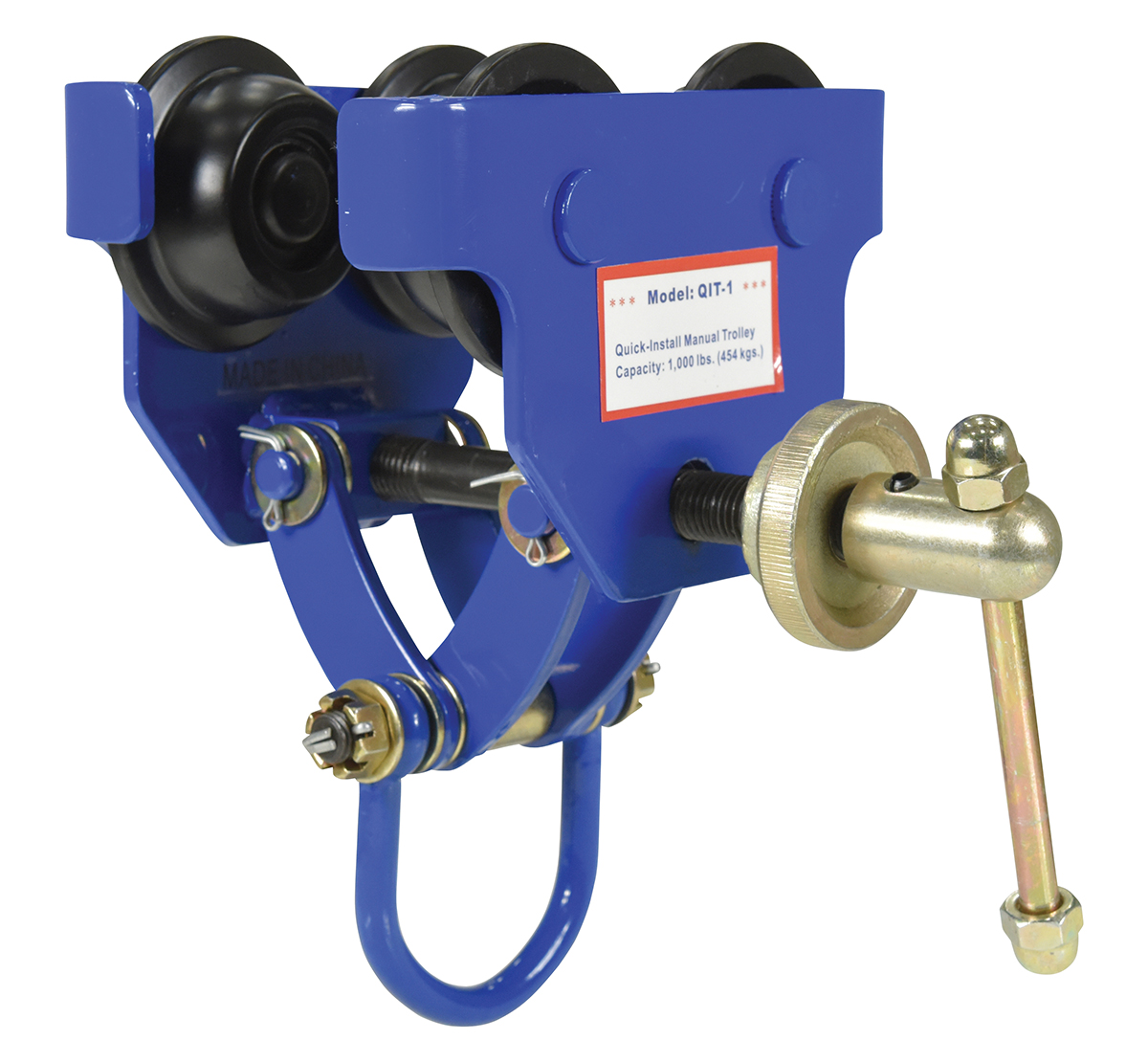

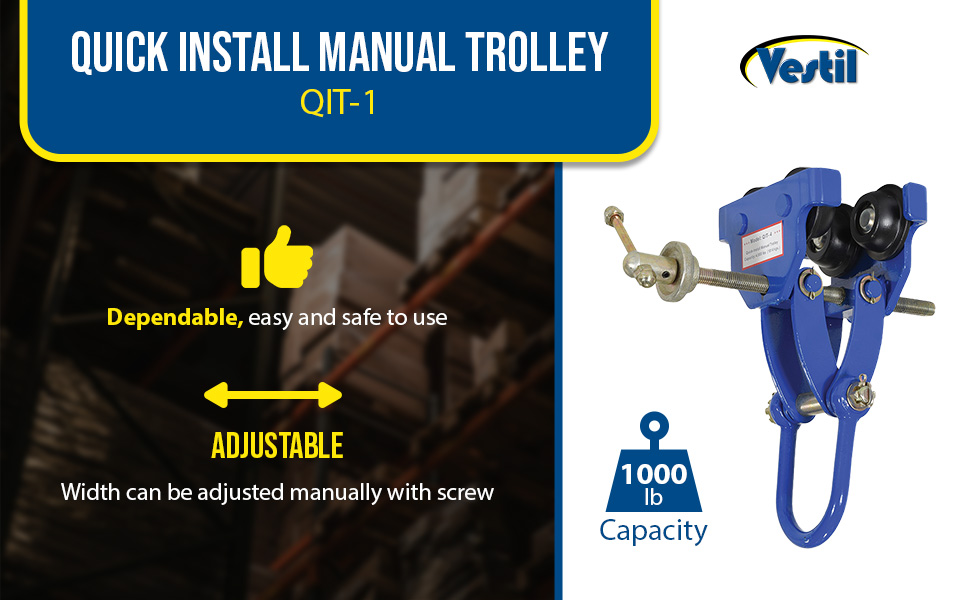

QIT-1

model QIT-1

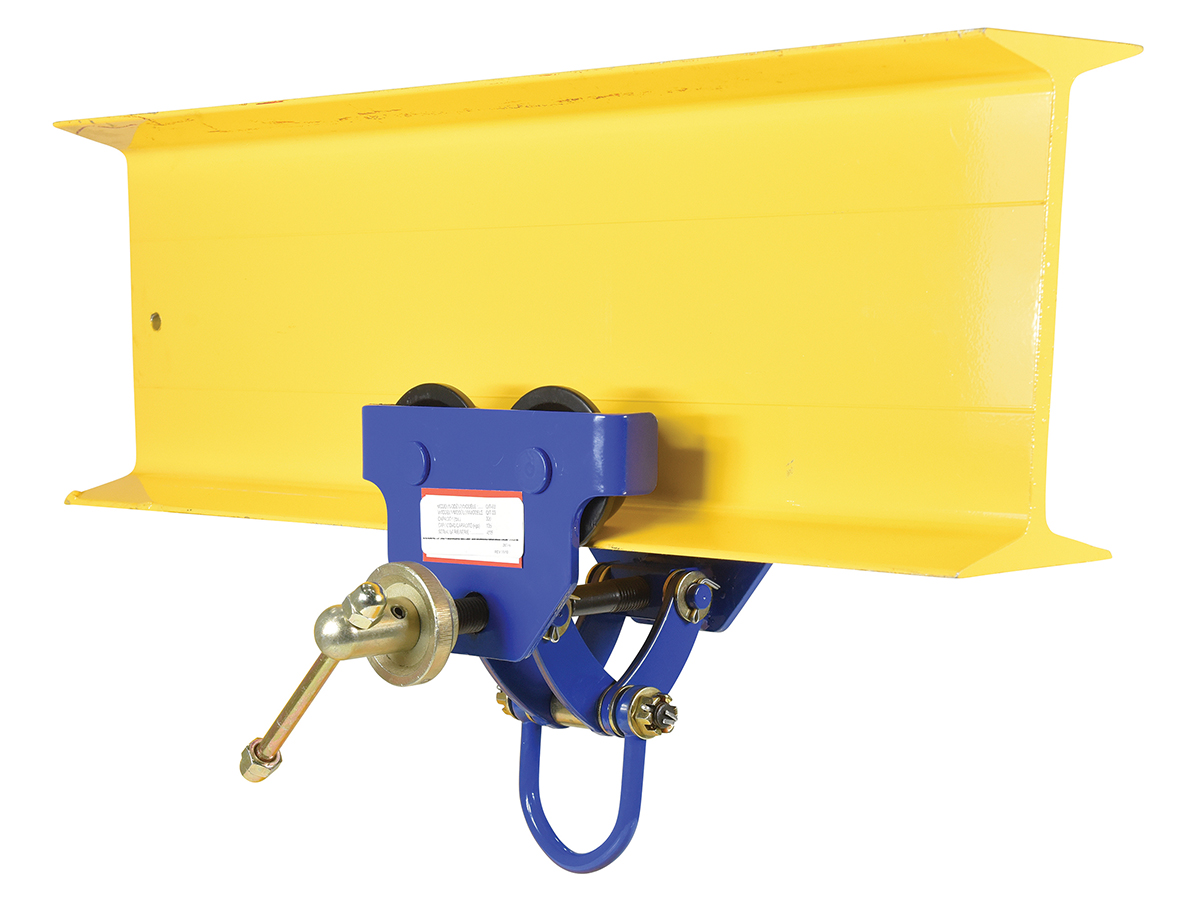

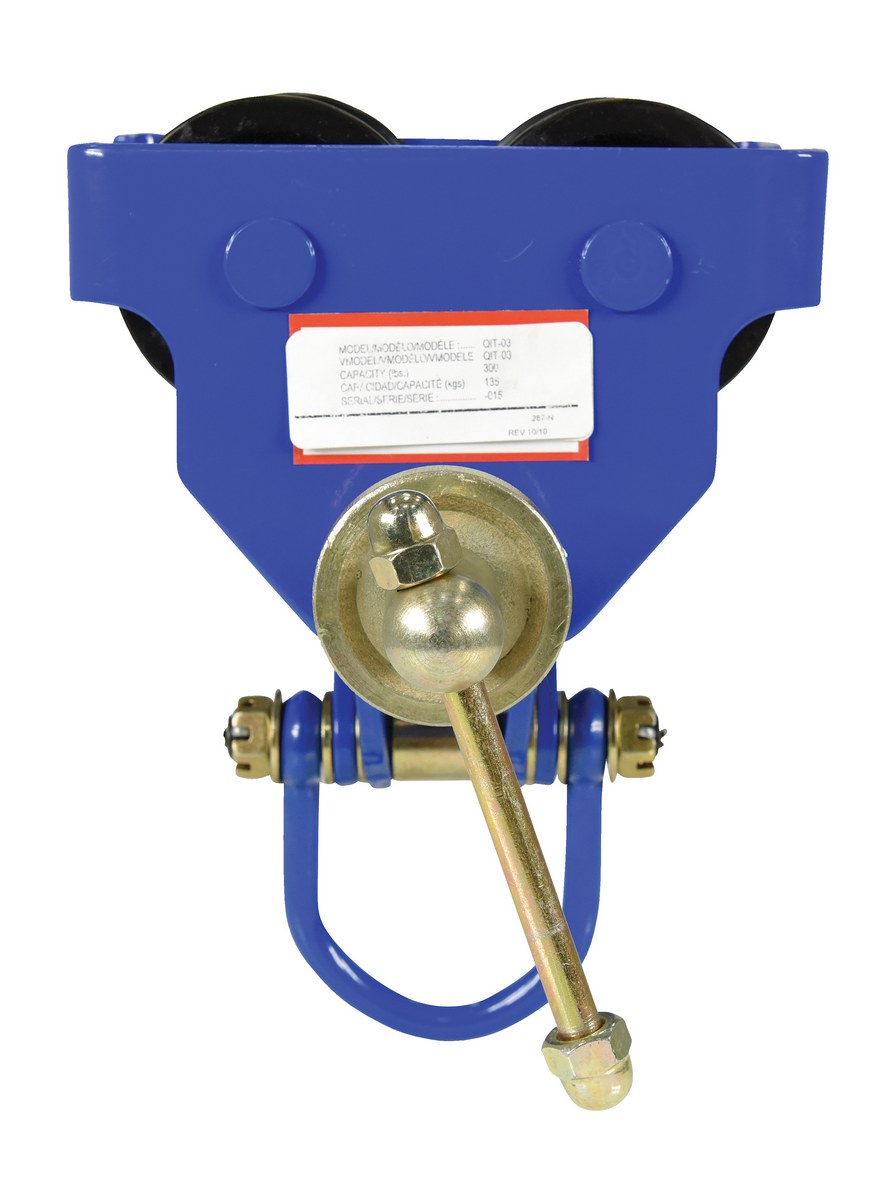

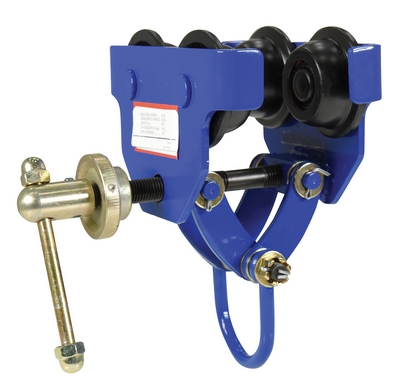

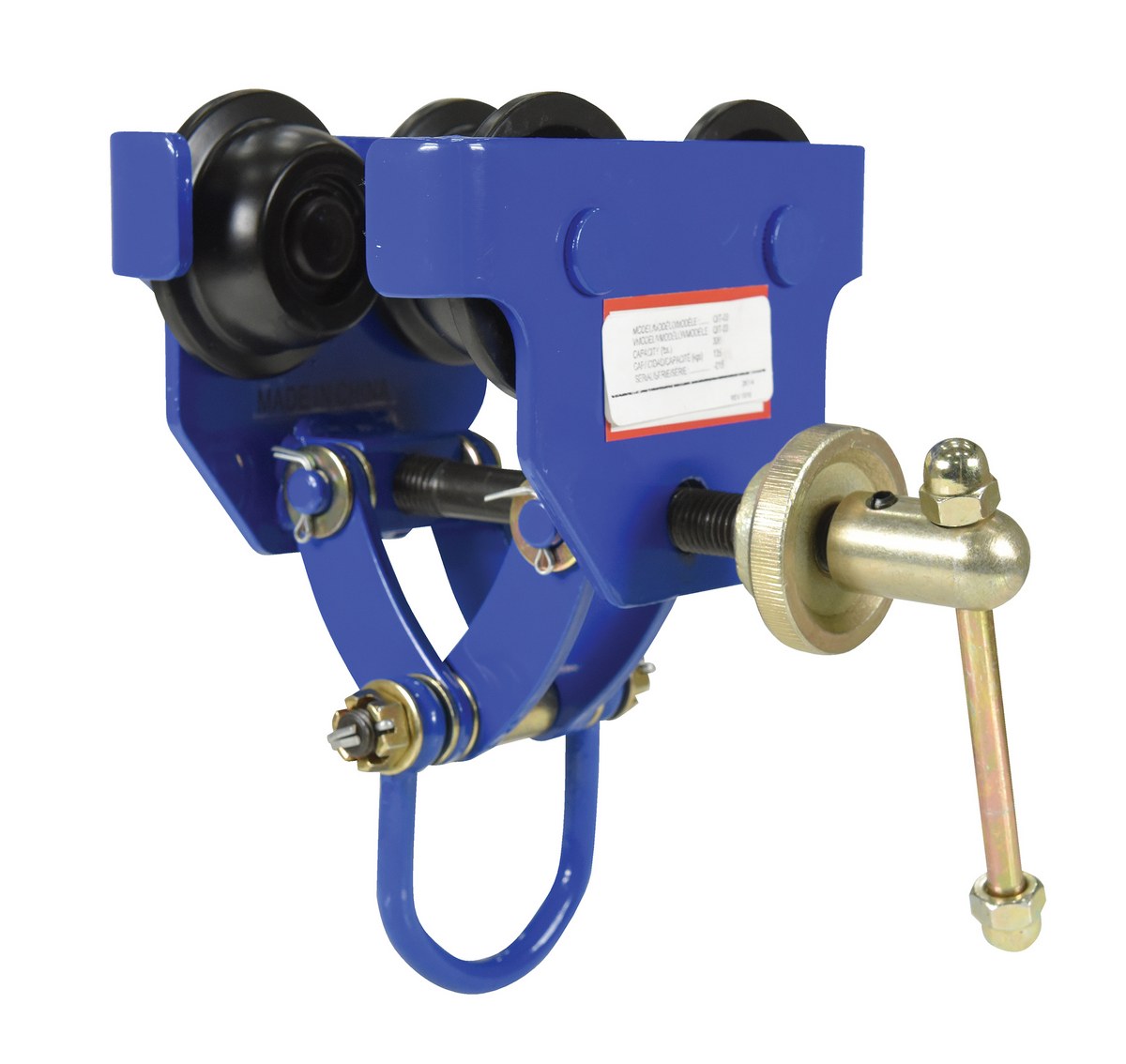

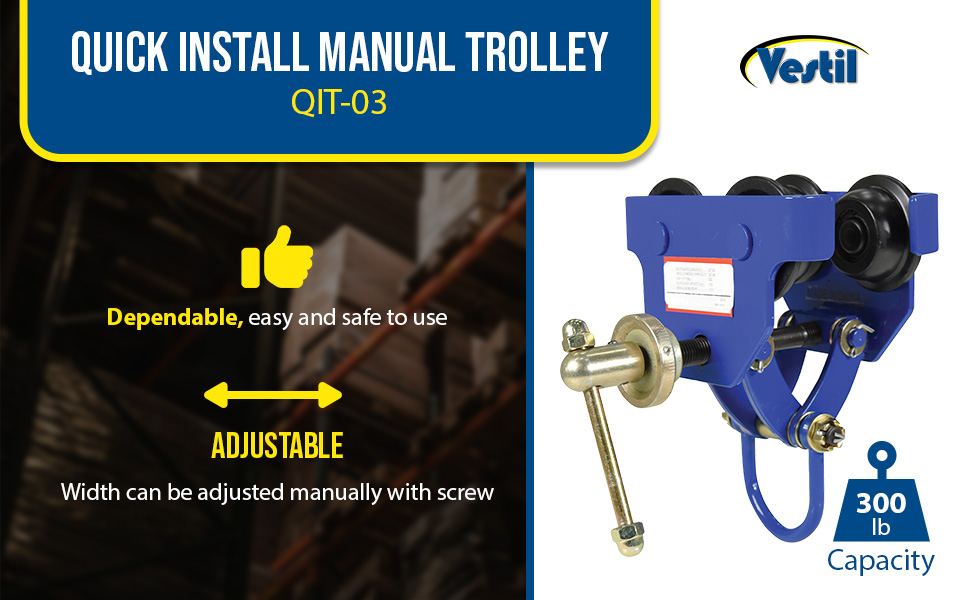

QIT-03

model QIT-03

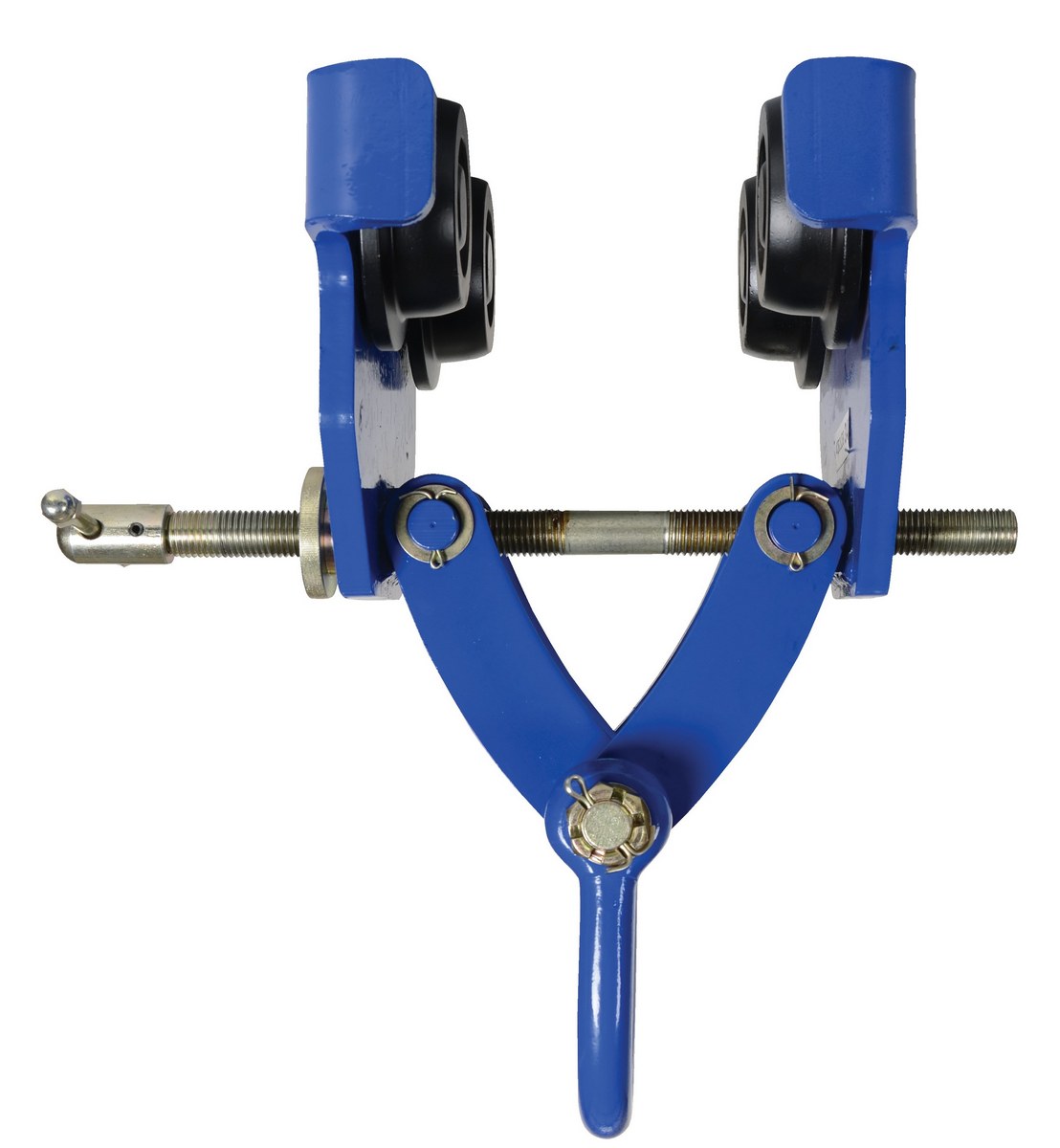

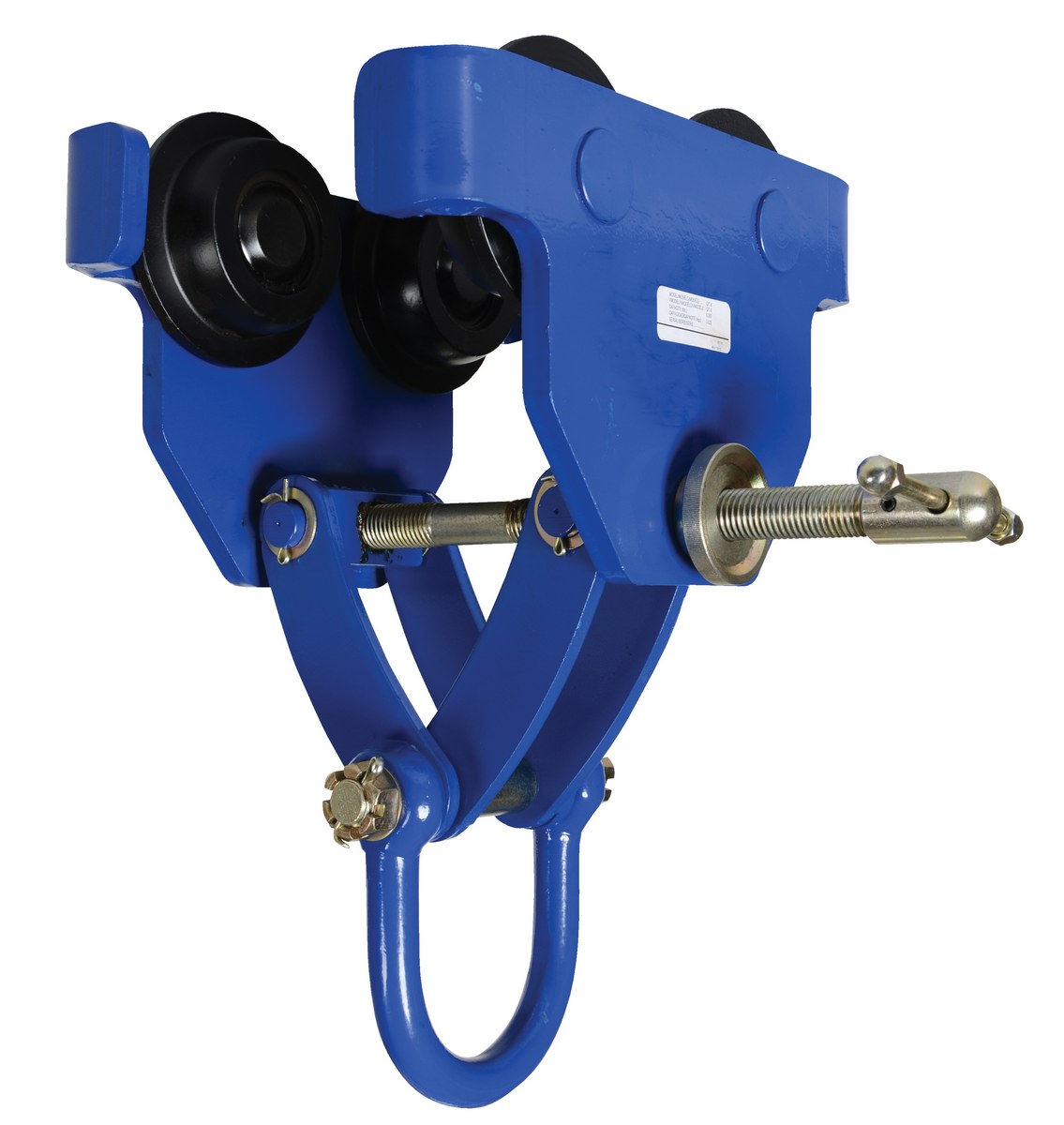

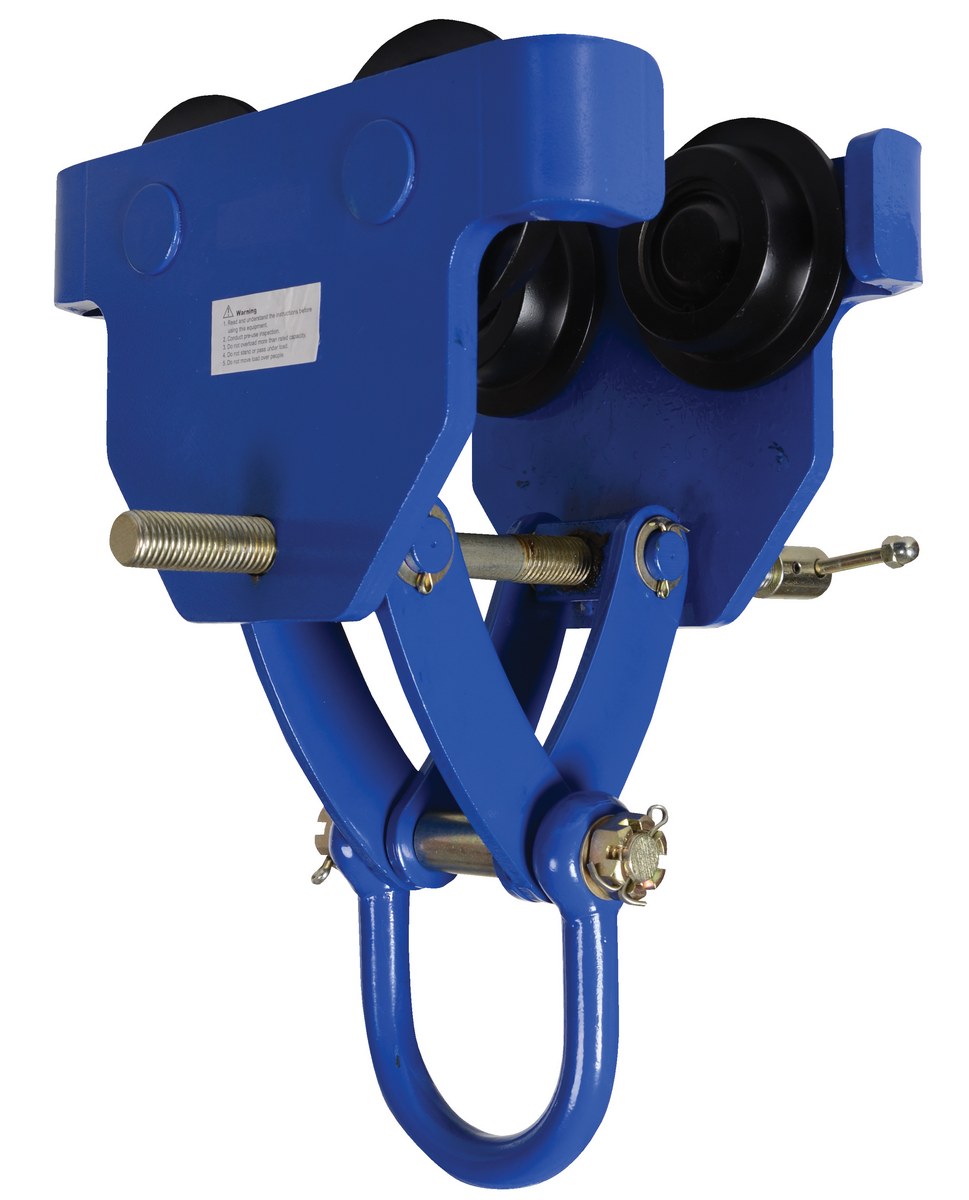

QIT-8

model QIT-8




All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.
The Search Box below is within the Model Chart on this page. Not an entire site search.
Model Image PDFs Description Attributes Net Wt.
(lbs)

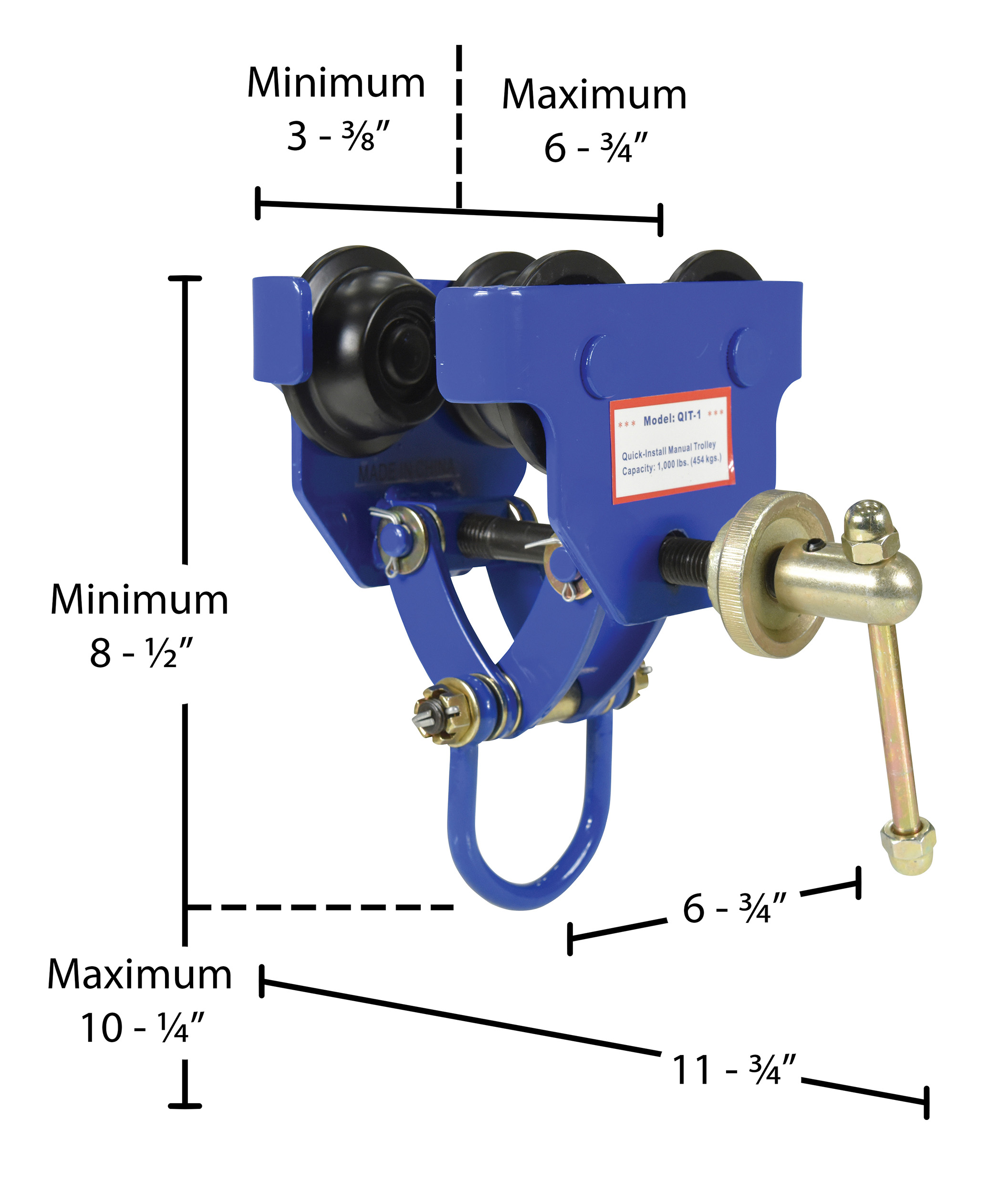

QIT-1 90 Days Limited WarrantyMANUAL TROLLEY 1000 LB CAPACITYUniform Capacity (lb.): 1,000
Fits Beam Flange Width (in.): 3 to 5
13
QIT-2 90 Days Limited WarrantyMANUAL TROLLEY 2000 LB CAPACITYUniform Capacity (lb.): 2,000
Fits Beam Flange Width (in.): 3 to 5
14
QIT-03 90 Days Limited WarrantyMANUAL TROLLEY 300 LB CAPACITYUniform Capacity (lb.): 300
Fits Beam Flange Width (in.): 3 to 5
13

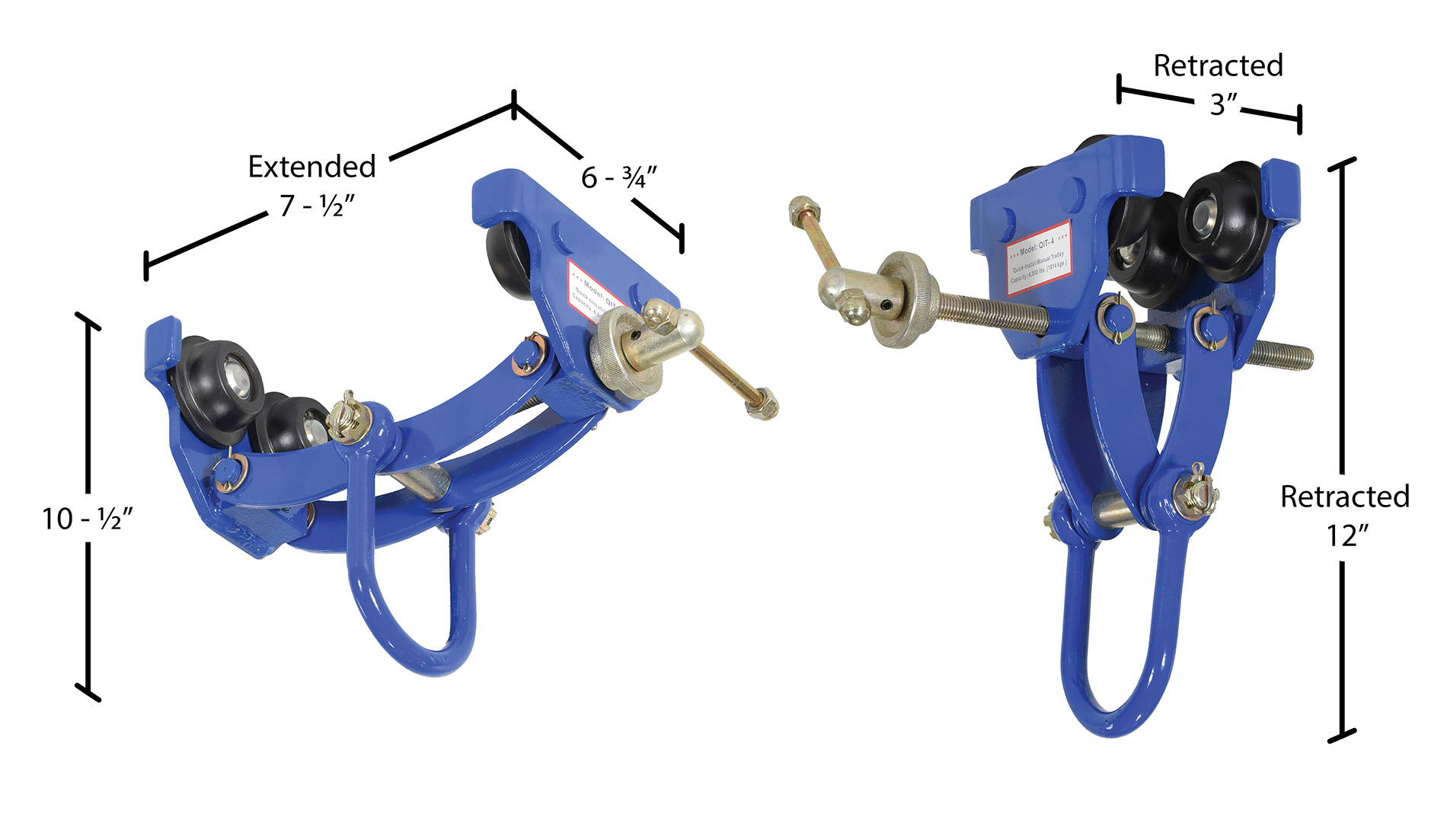

QIT-4 90 Days Limited WarrantyMANUAL TROLLEY 4000 LB CAPACITYUniform Capacity (lb.): 4,000
Fits Beam Flange Width (in.): 3 to 7-1/2
17

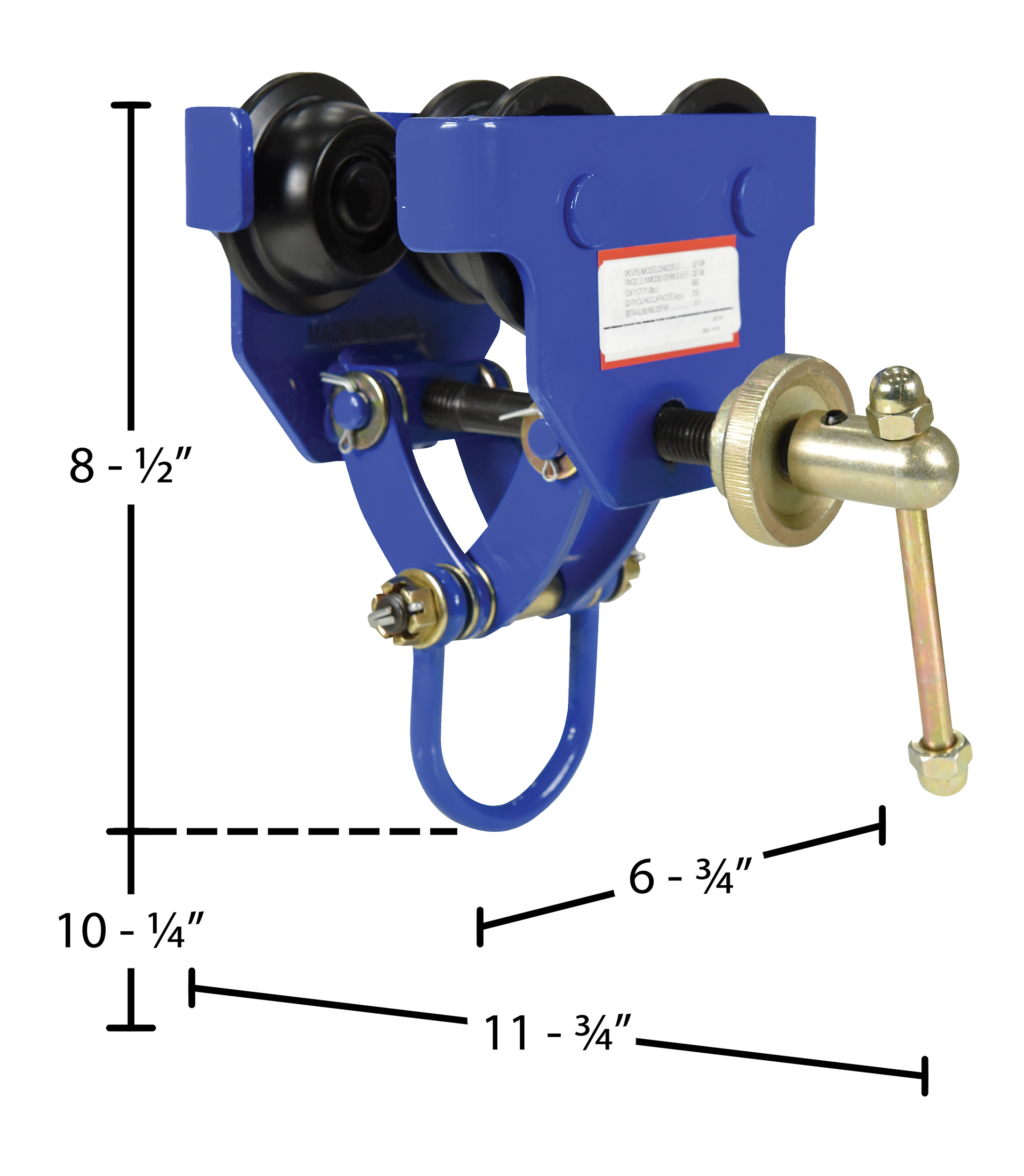

QIT-06 90 Days Limited WarrantyMANUAL TROLLEY 600 LB CAPACITYUniform Capacity (lb.): 600
Fits Beam Flange Width (in.): 3 to 5
13
QIT-6 90 Days Limited WarrantyMANUAL TROLLEY 6000 LB CAPACITYUniform Capacity (lb.): 6,000
Fits Beam Flange Width (in.): 3 to 7-1/2
40
QIT-8 90 Days Limited WarrantyMANUAL TROLLEY 8000 LB CAPACITYUniform Capacity (lb.): 8,000
Fits Beam Flange Width (in.): 4 to 11-3/4
68
QIT-10 90 Days Limited WarrantyMANUAL TROLLEY 10000 LB CAPACITYUniform Capacity (lb.): 10,000
Fits Beam Flange Width (in.): 4 to 11-3/4
68

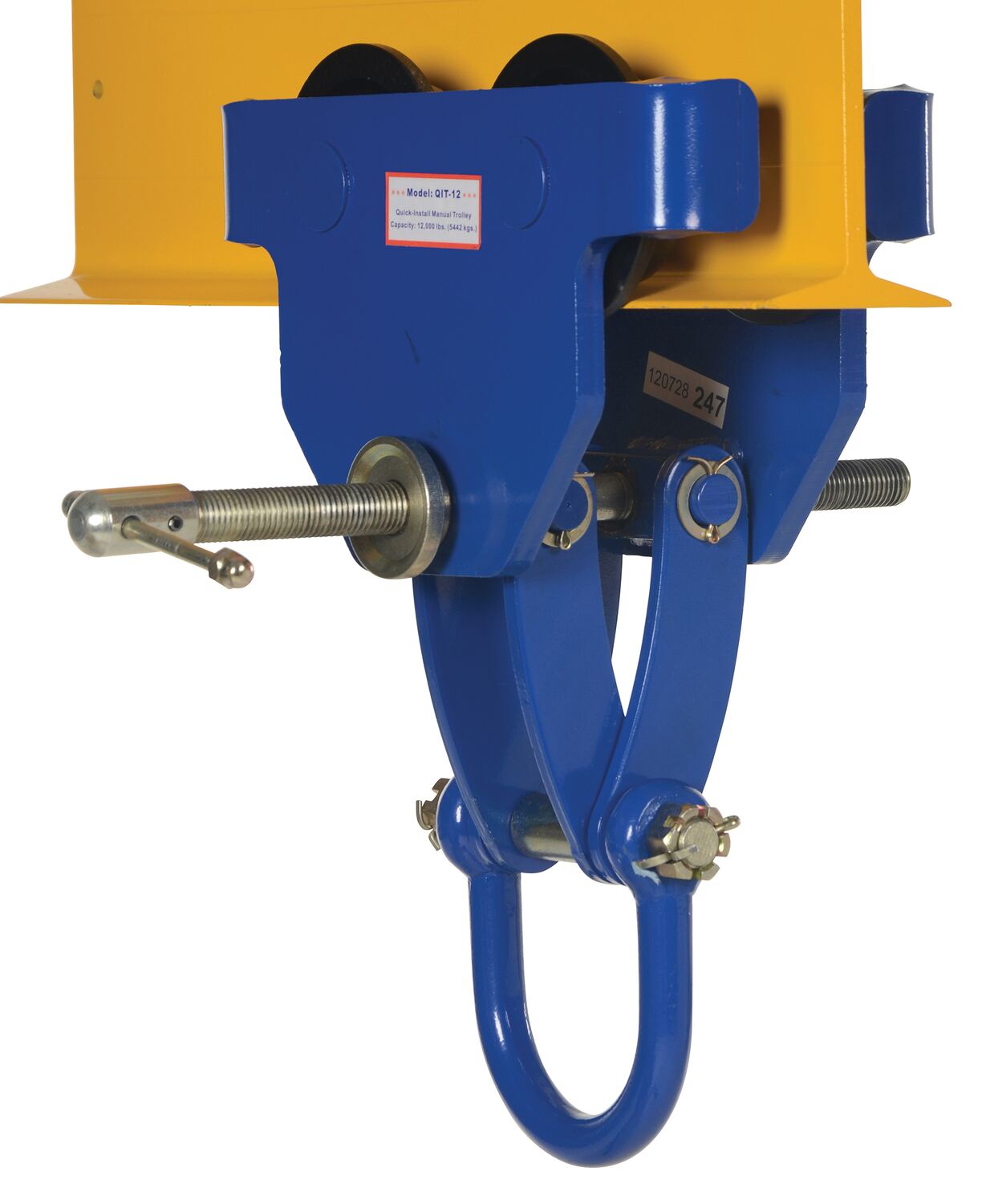

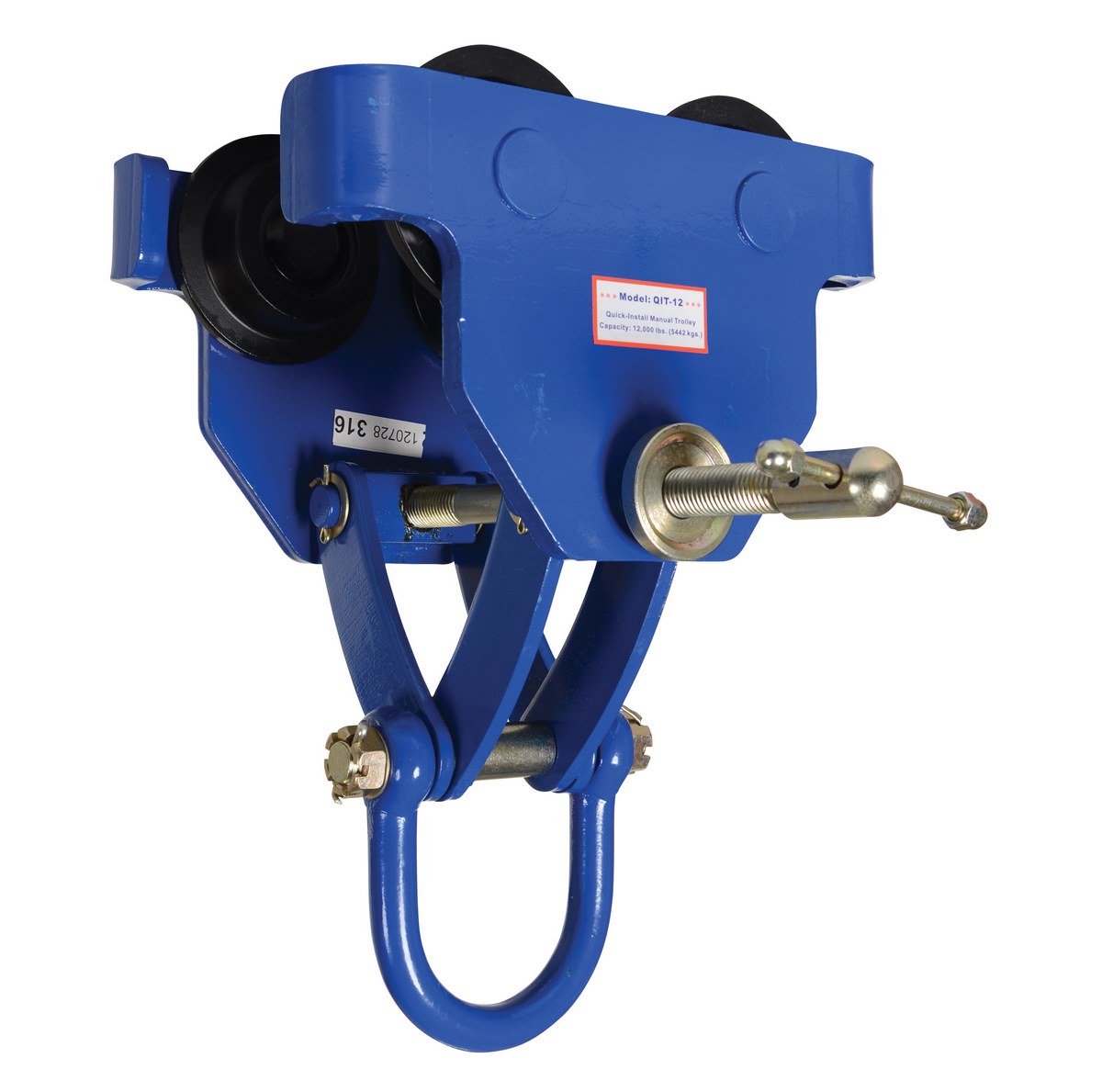

QIT-12 90 Days Limited WarrantyMANUAL TROLLEY 12000 LB CAPACITYUniform Capacity (lb.): 12,000
Fits Beam Flange Width (in.): 4 to 11-3/4
70

KEY: = Click For Expanded Model Details -- = Approval Drawing -- = Testing Certificate -- Warranty




Quick Install Manual Trollies PDF's will open in a new window when clicked.

Survey Sheets

No Survey Sheets For This Product


Approval Drawings

Testing Certificates

Other PDF's

No "Other PDFs" For This Product...


Directory Links Of Available PDF's For All Products

Before placing an order, please confirm that the ship to company is able to receive shipments on the estimated delivery date





Quick Install Manual Trollies




These trollies are dependable, easy and safe to use. Designed to easily adjust to the width of virtually any S, H, W and M type I-beam. Width is adjusted with manual screw mechanism. Includes locking ring to prevent trolley width from changing accidentally. Manual screw mechanism may also be tightened to prevent trolley from moving (similar to a Beam Clamp). Each trolley includes four rollers with sealed bearings for long life. A lifting eye is located at the bottom of the trolley for attaching to a hoist (hoist sold separately). Steel construction and painted finish.


Quick Install Manual Trollies
Model Image PDF Fits Beam
Flange Width
Headroom Capacity
(lbs.)
Wt.
(lbs)
QIT-03 Warranty PDFCompliance Certificate 3" to 5" 6-3/4" 300 13

QIT-06

Warranty PDFCompliance Certificate 3" to 5" 6-3/4" 600 13
QIT-1 icon_approvaldrawings.jpgWarranty PDFCompliance Certificate 3" to 5" 6-3/4" 1,000 13
QIT-2 icon_approvaldrawings.jpgWarranty PDFCompliance Certificate 3" to 5" 8-1/8" 2,000 14
QIT-4 icon_approvaldrawings.jpgWarranty PDFCompliance Certificate 3" to 7-1/2" 10" 4,000 17
QIT-6 icon_approvaldrawings.jpgWarranty PDFCompliance Certificate 3"to 7-1/2" 10.3/8" 6,000 40
QIT-8 icon_approvaldrawings.jpgWarranty PDFCompliance Certificate 4" to 11-3/4" 13-7/8" 8,000 68
QIT-10 icon_approvaldrawings.jpgWarranty PDFCompliance Certificate 4" to 11-3/4" 13-7/8" 10,000 68
QIT-12 icon_approvaldrawings.jpgWarranty PDFCompliance Certificate 4" to 11-3/4" 13-7/8" 12,000 70
