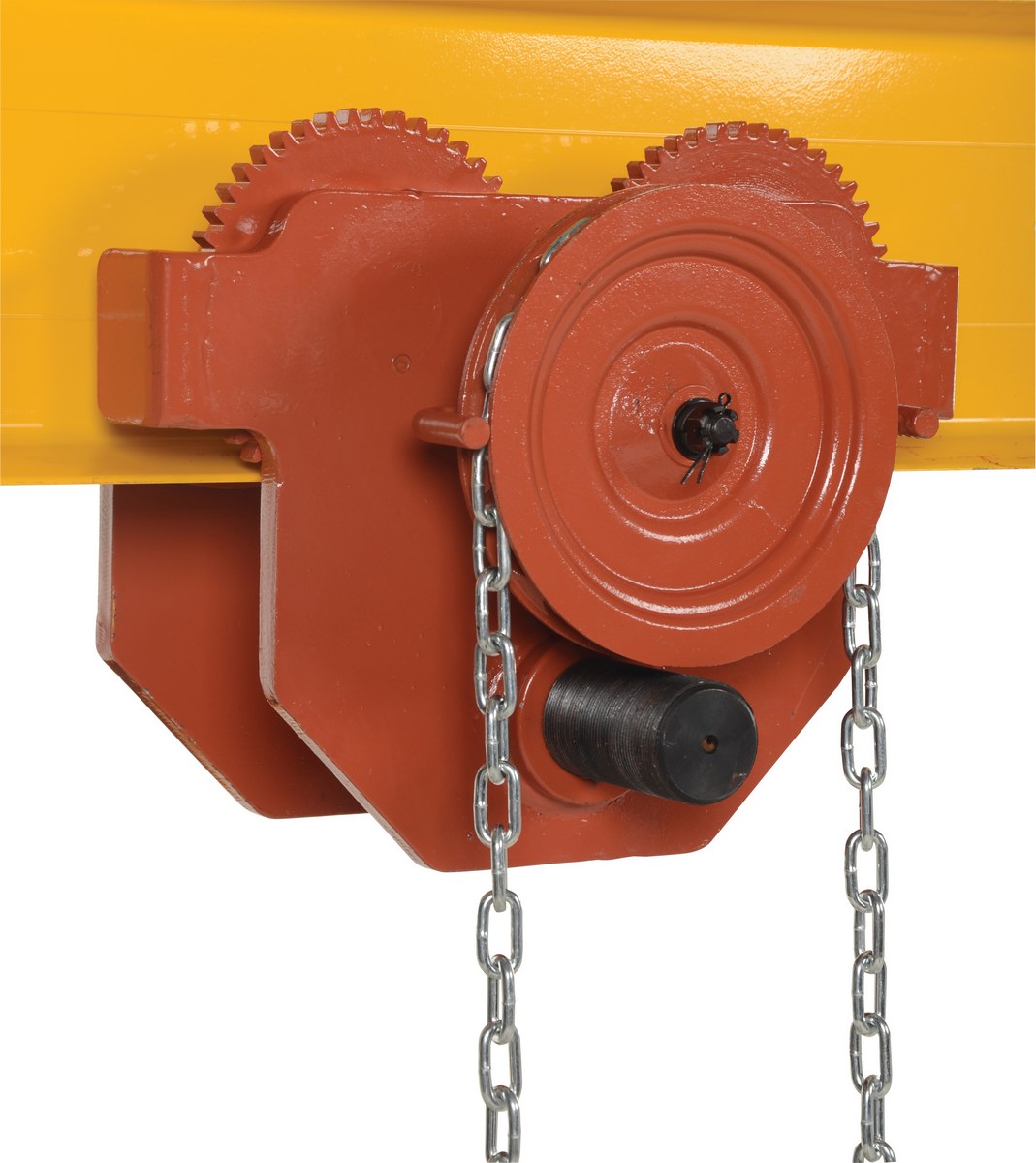

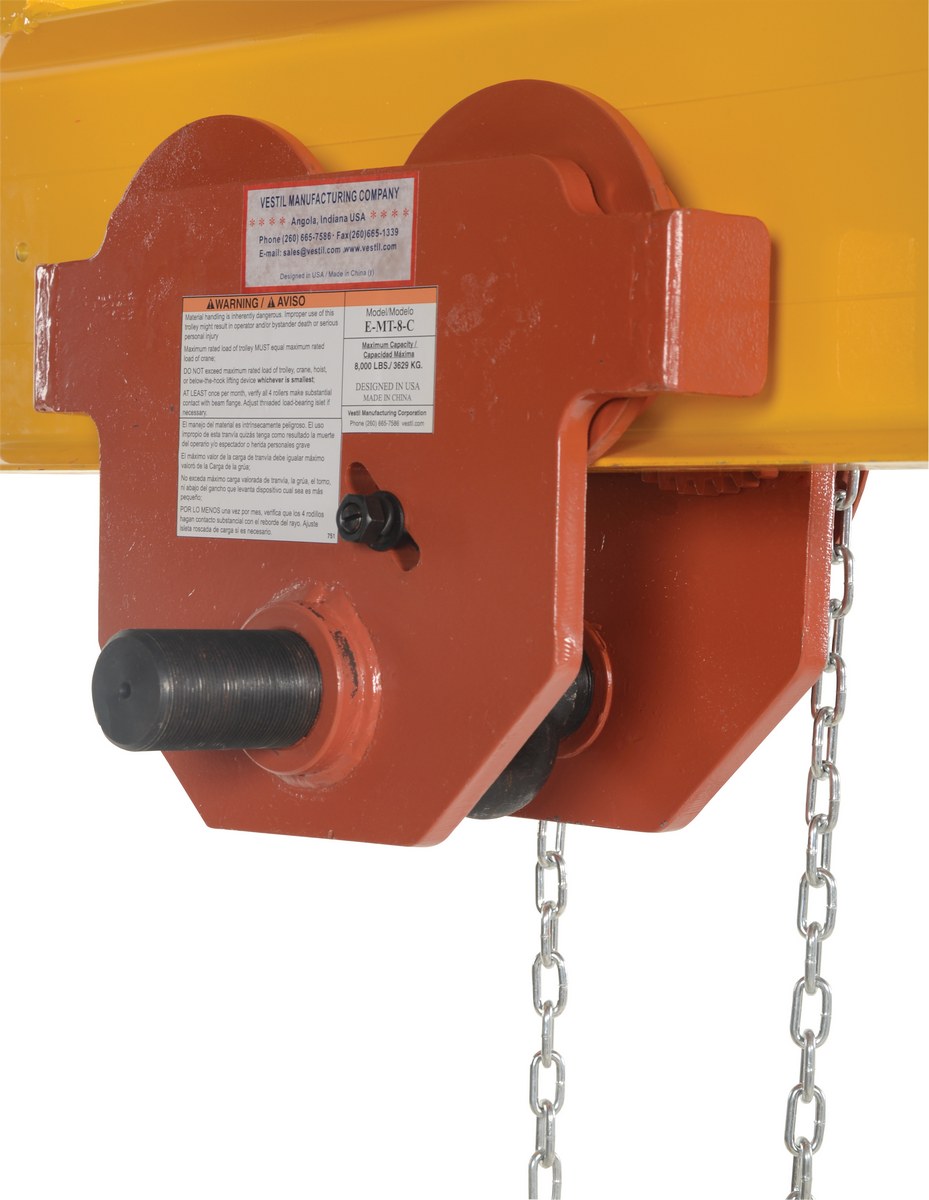

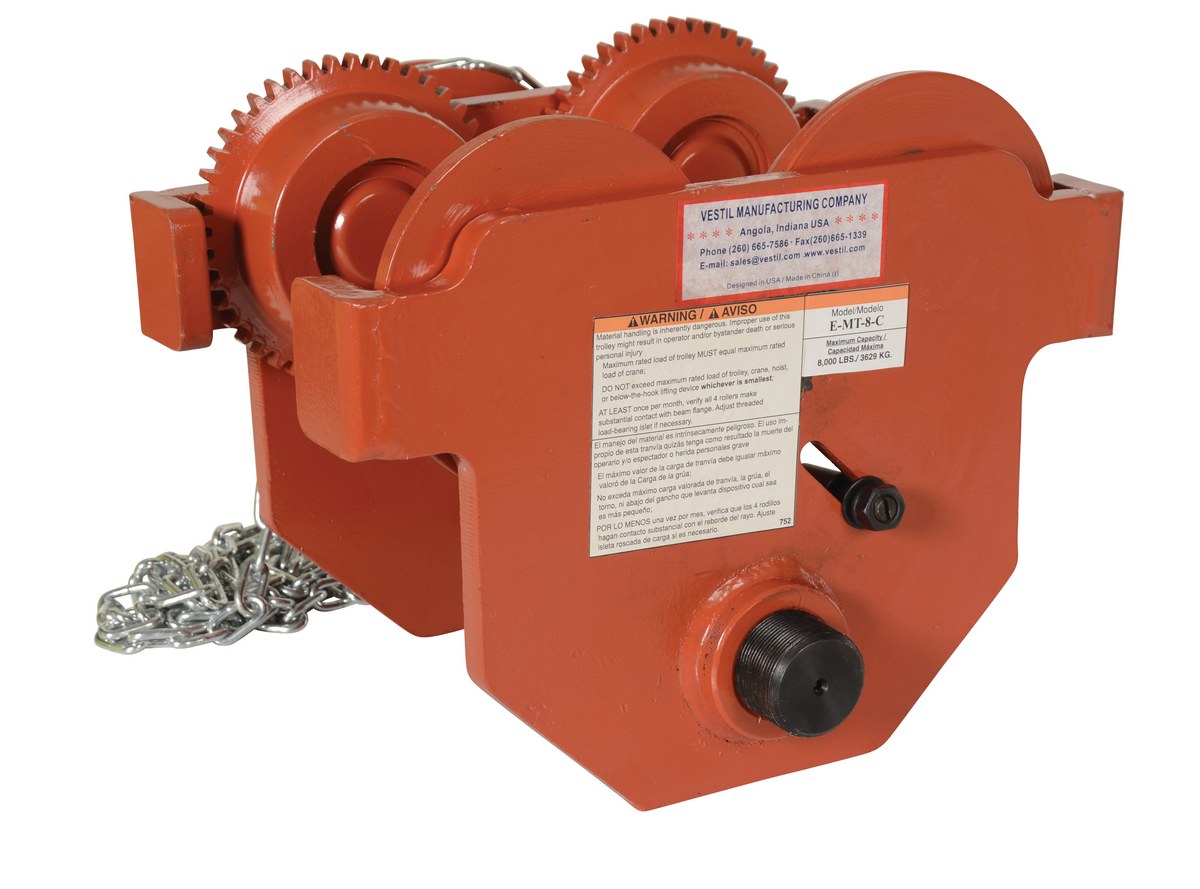

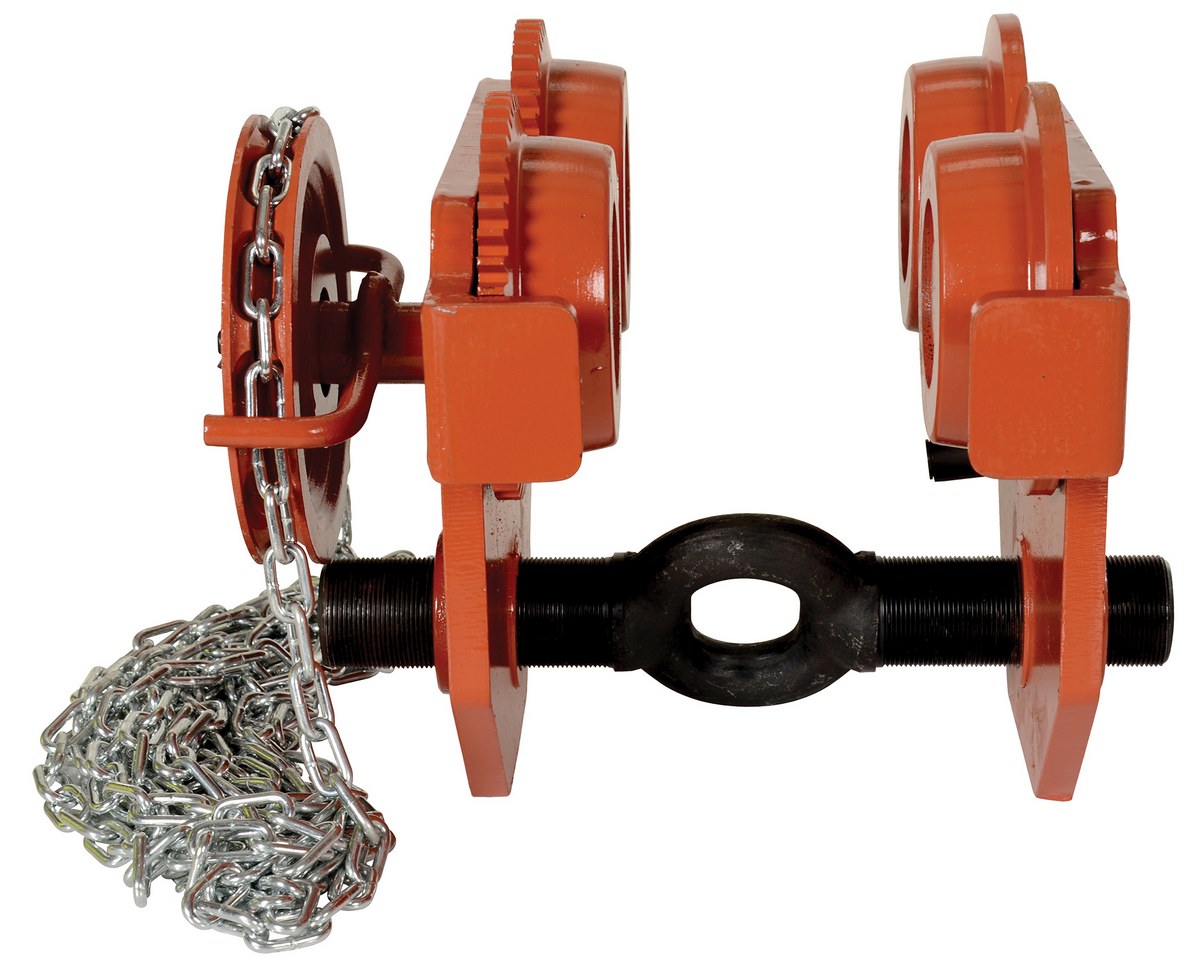

model: E-MT-8-C


Low Profile Manual Trollies
SERIES: E-MT

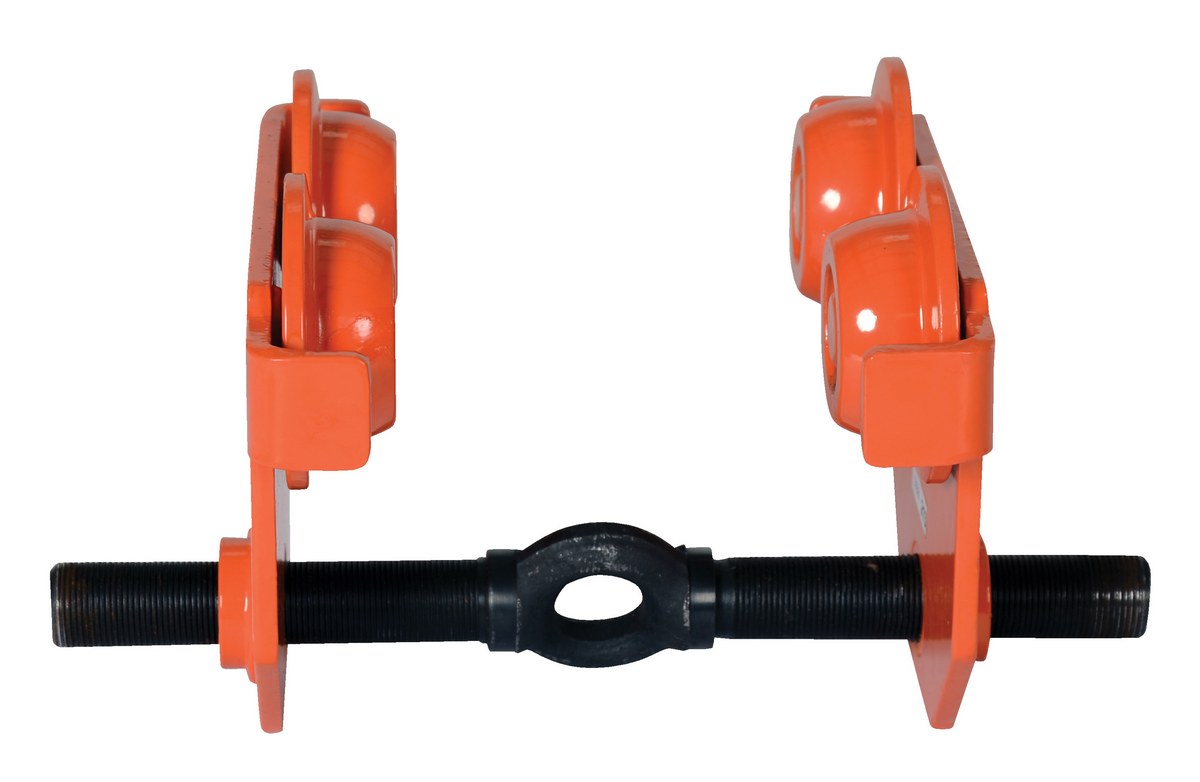

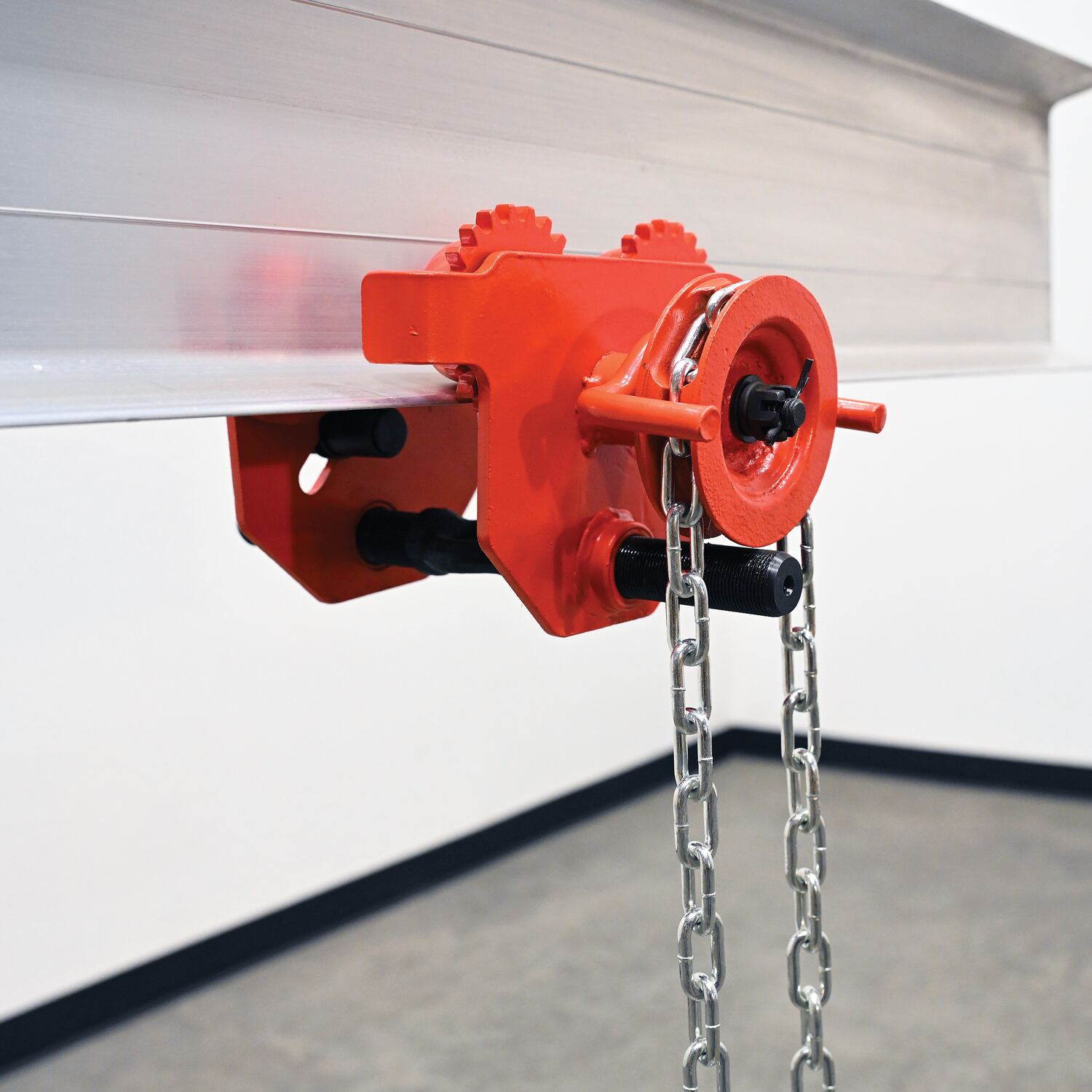

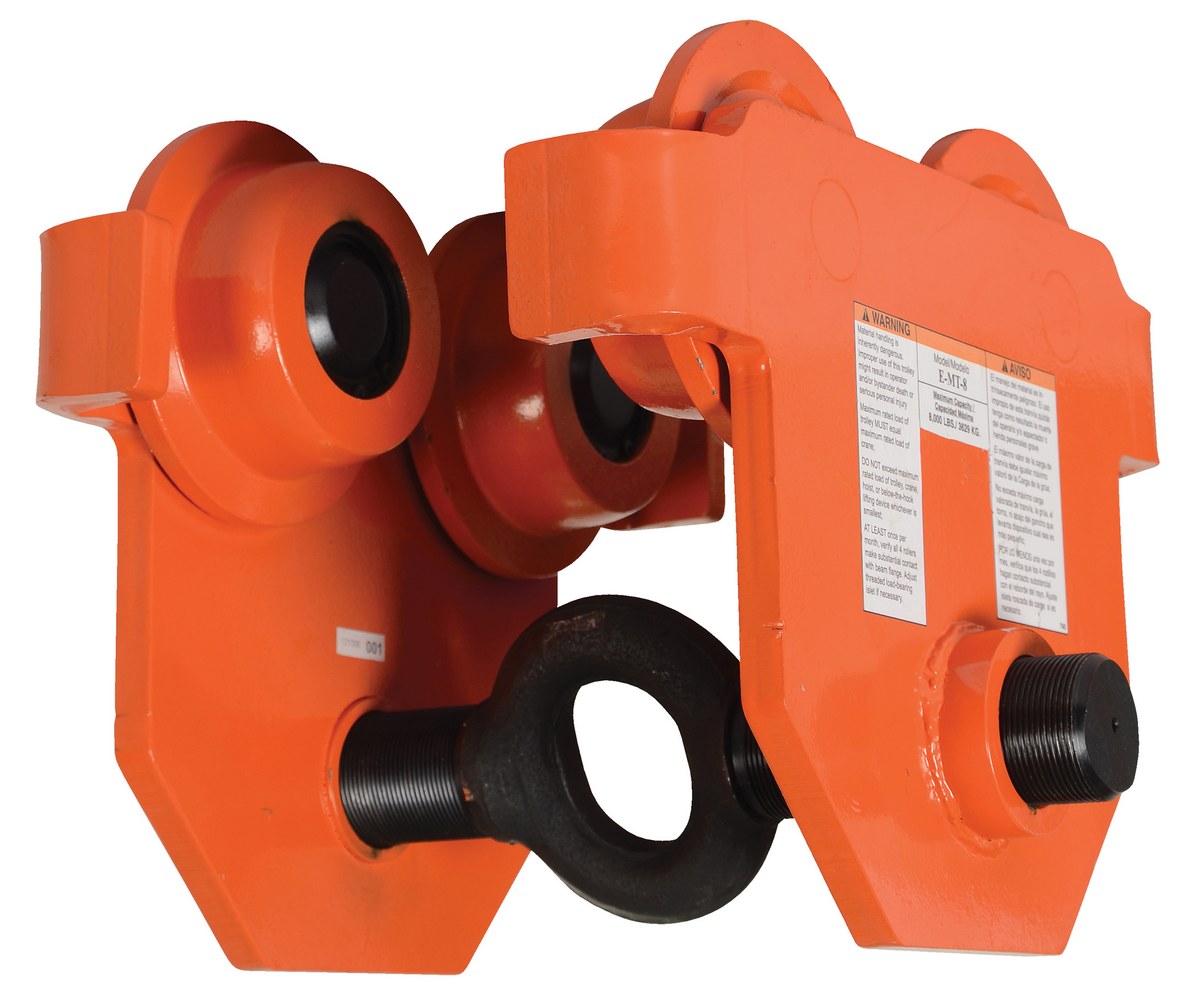

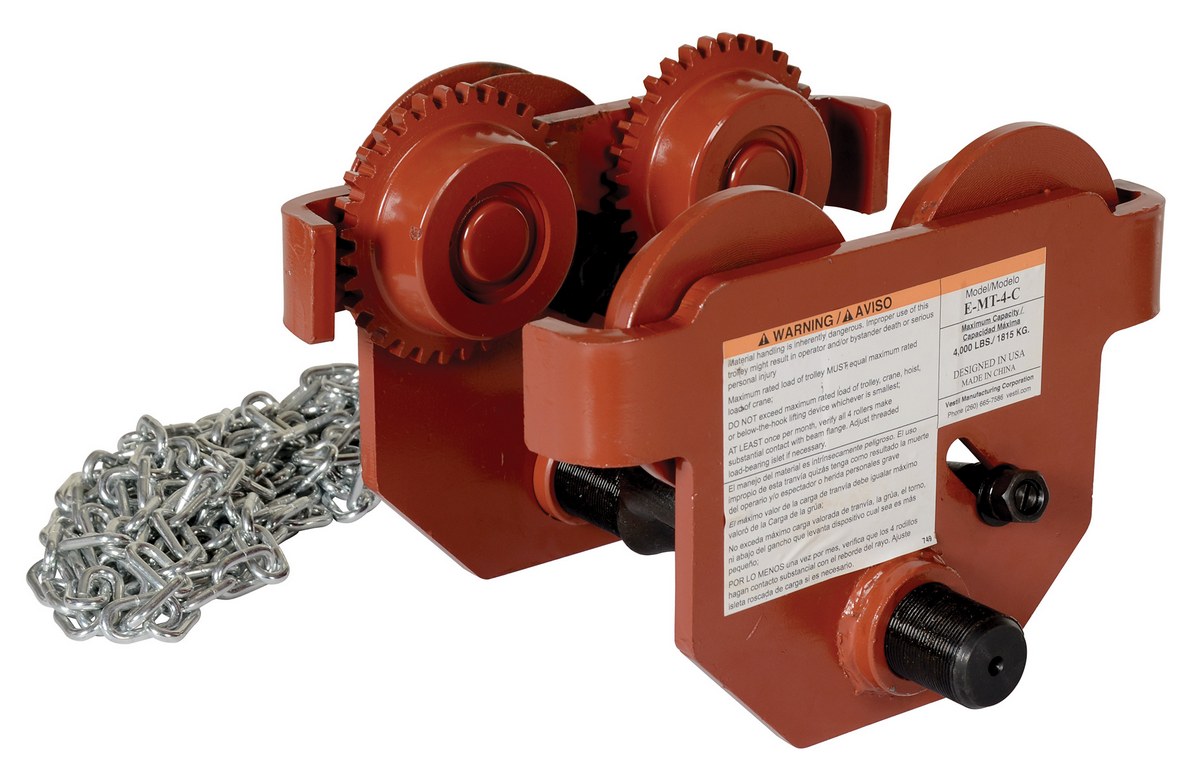

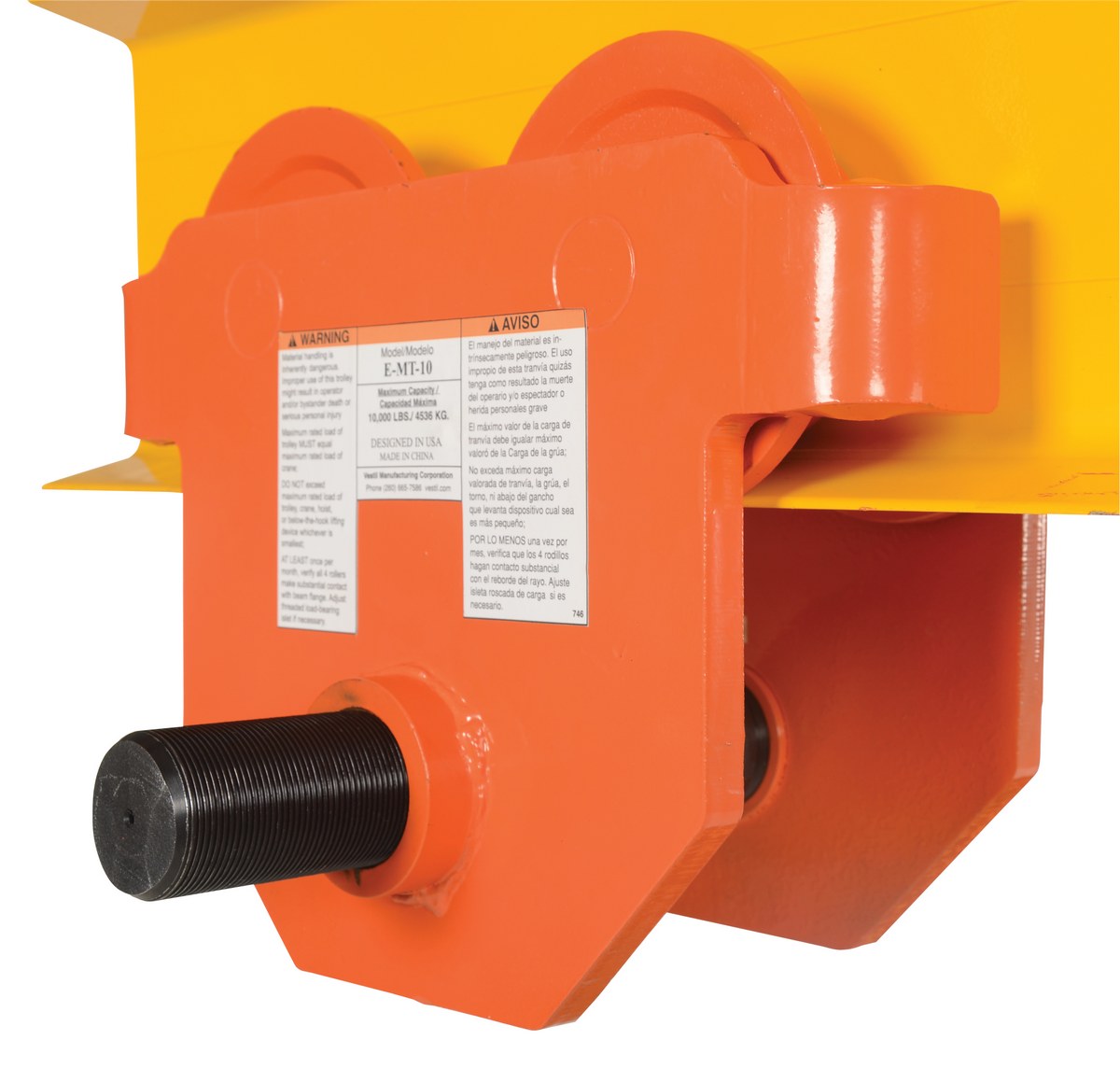

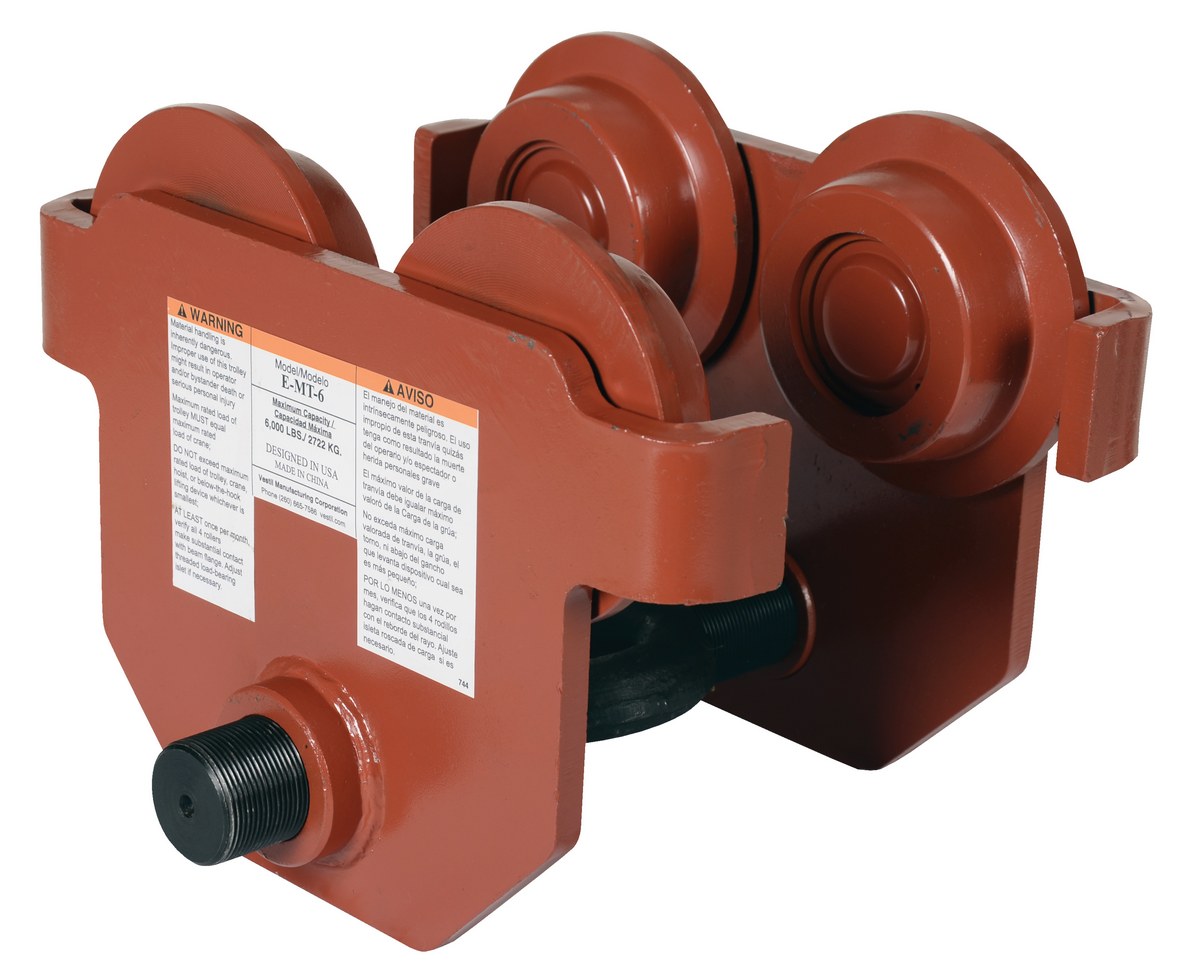

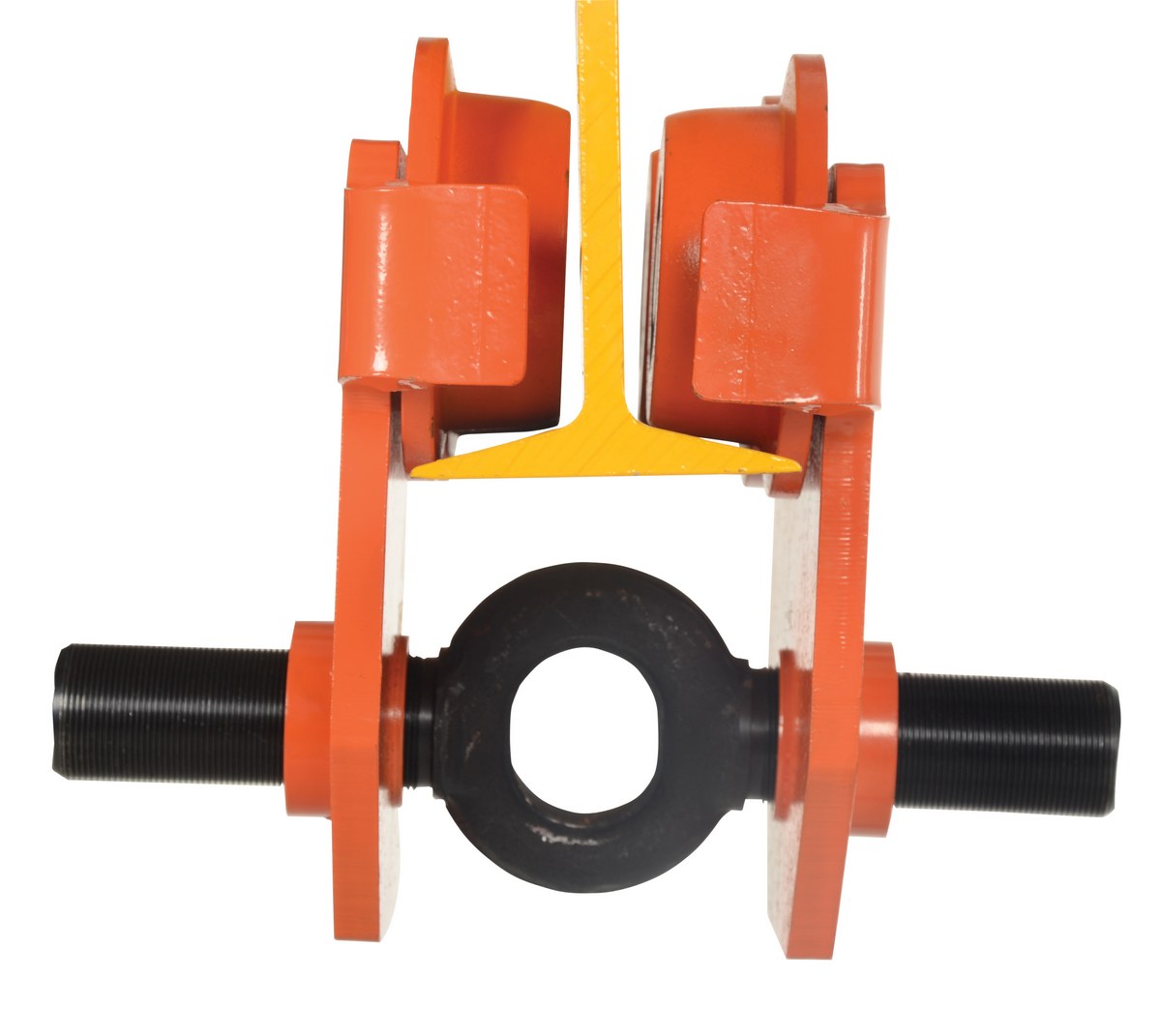

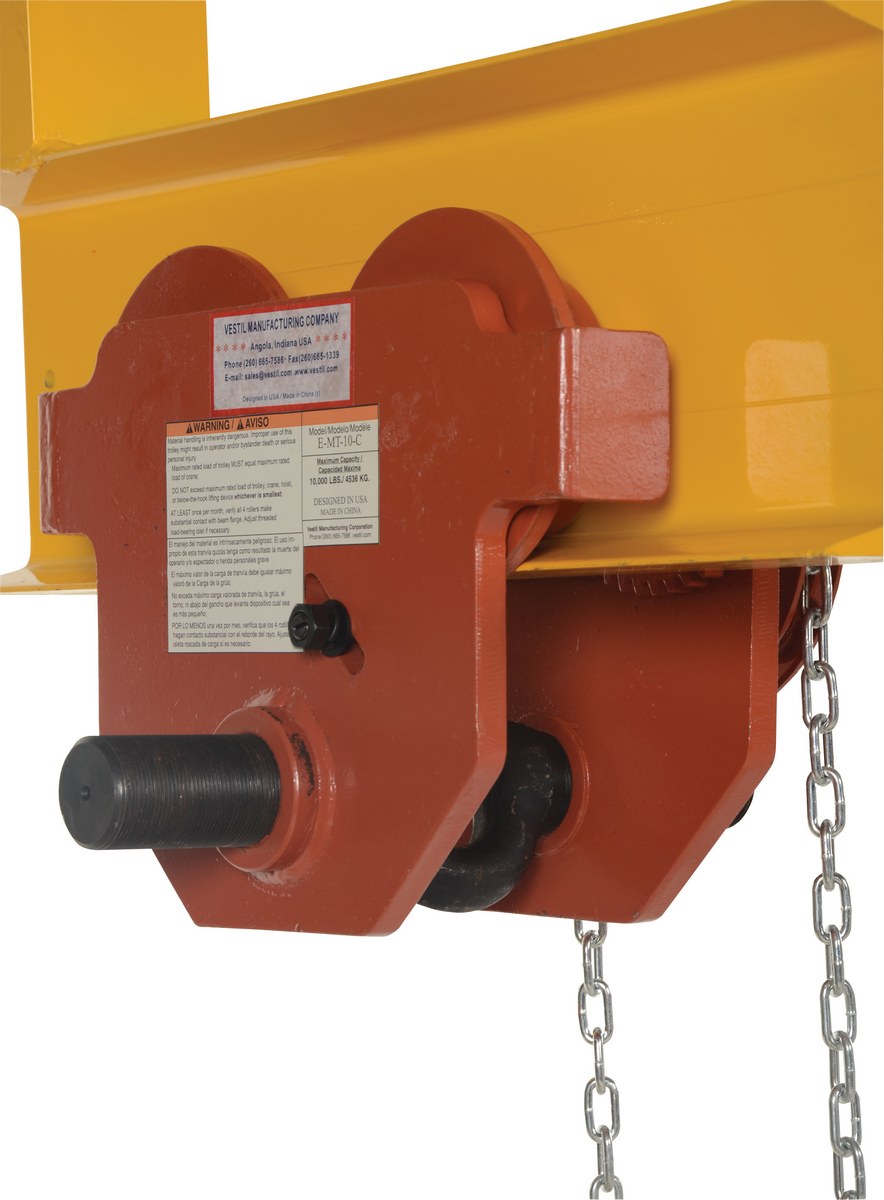

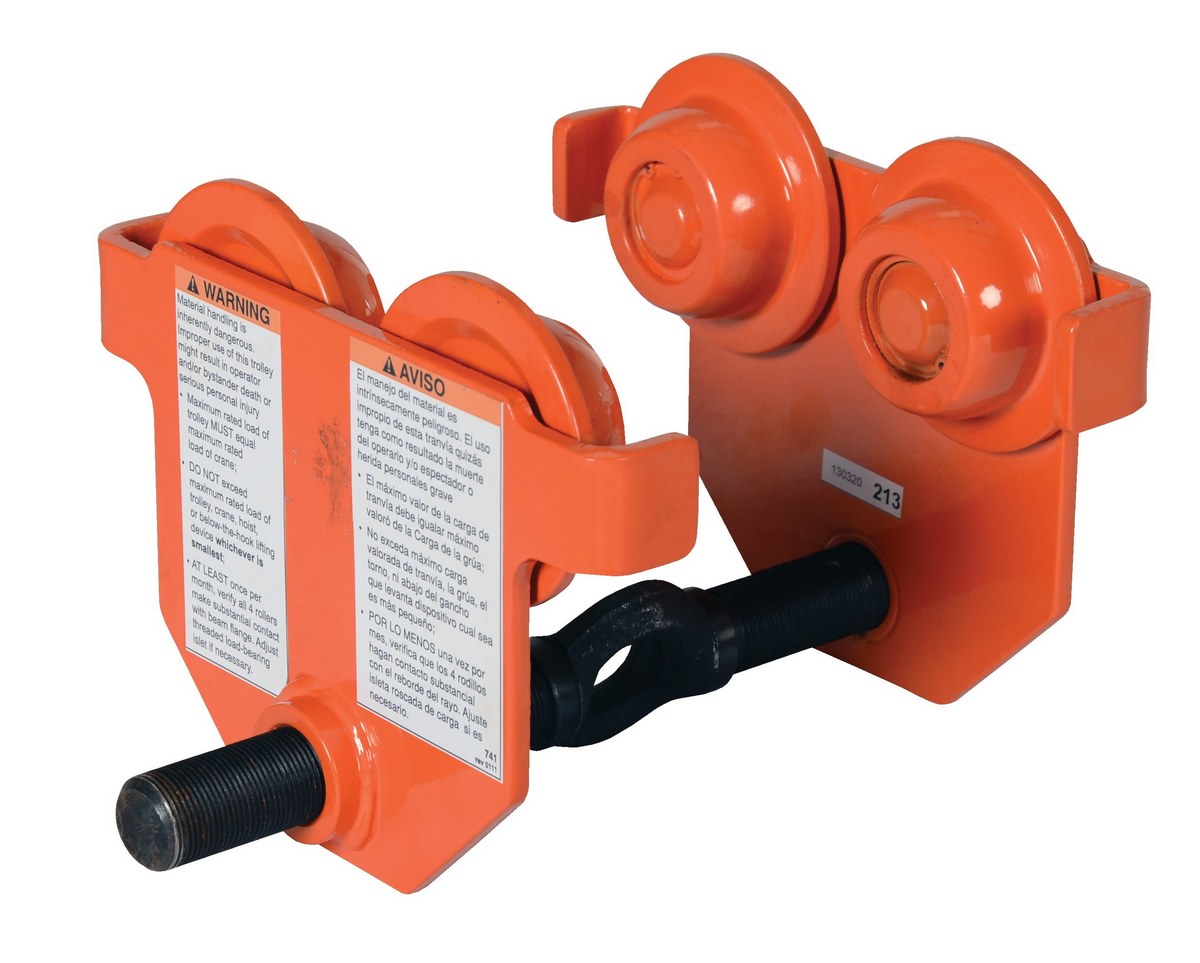

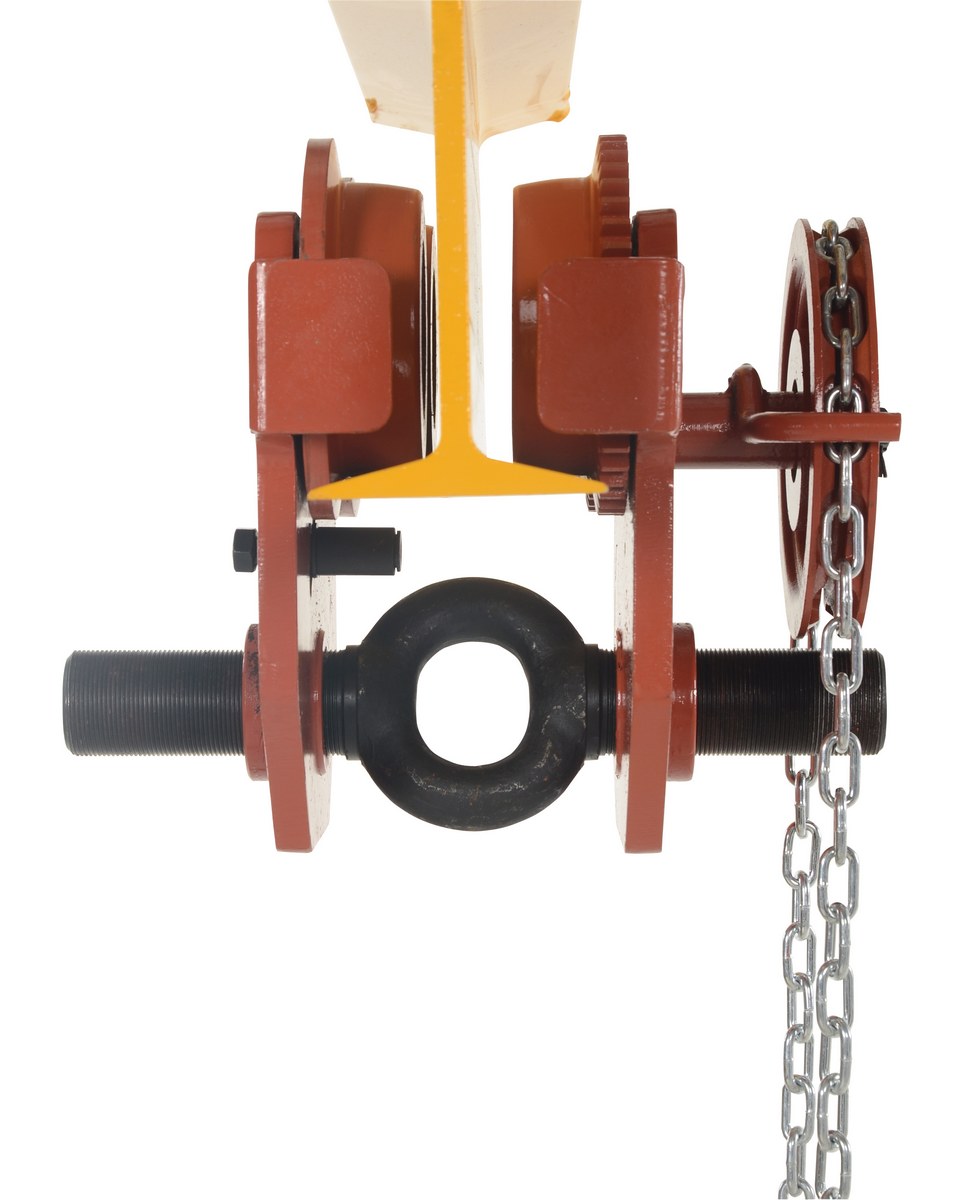

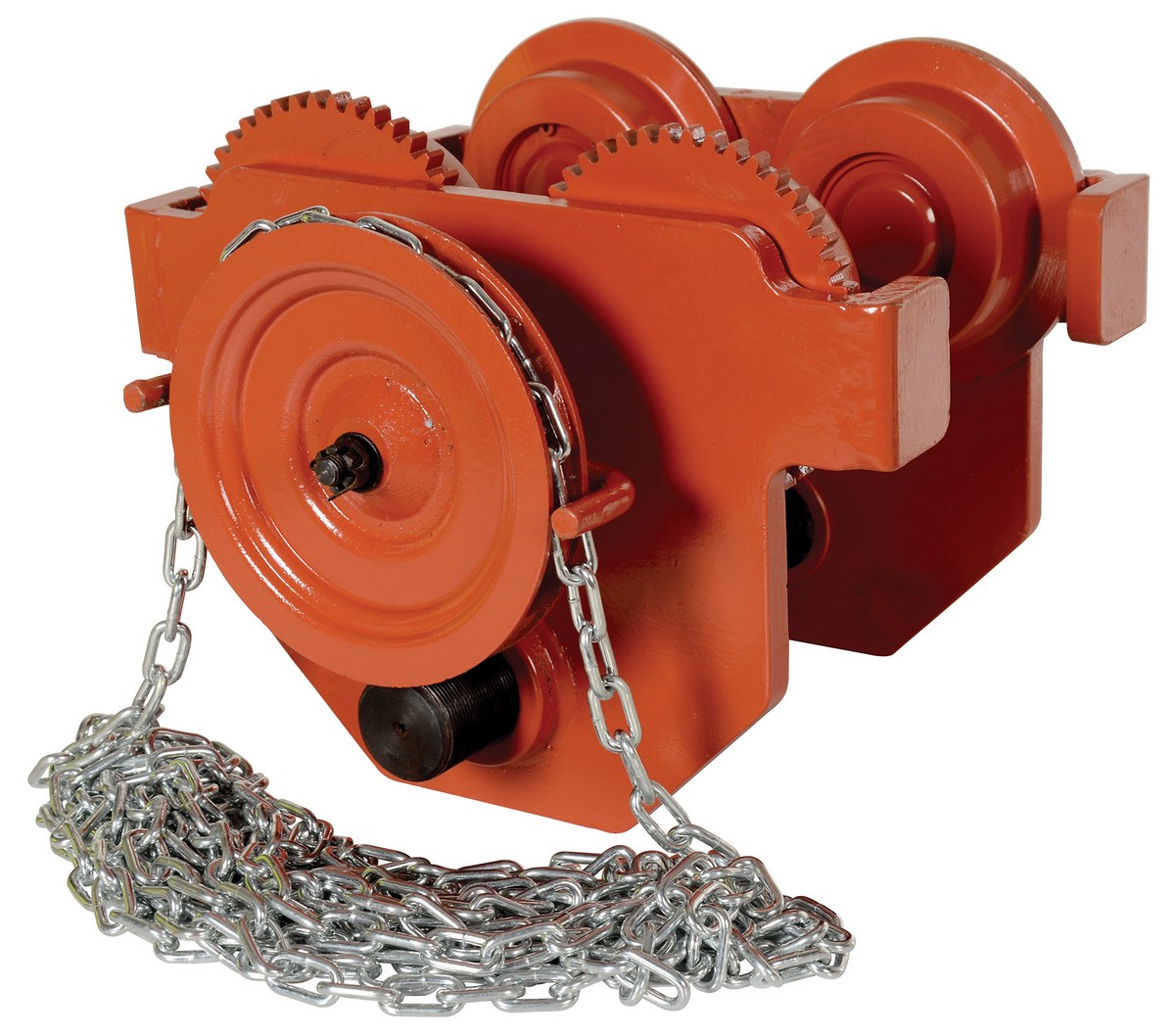

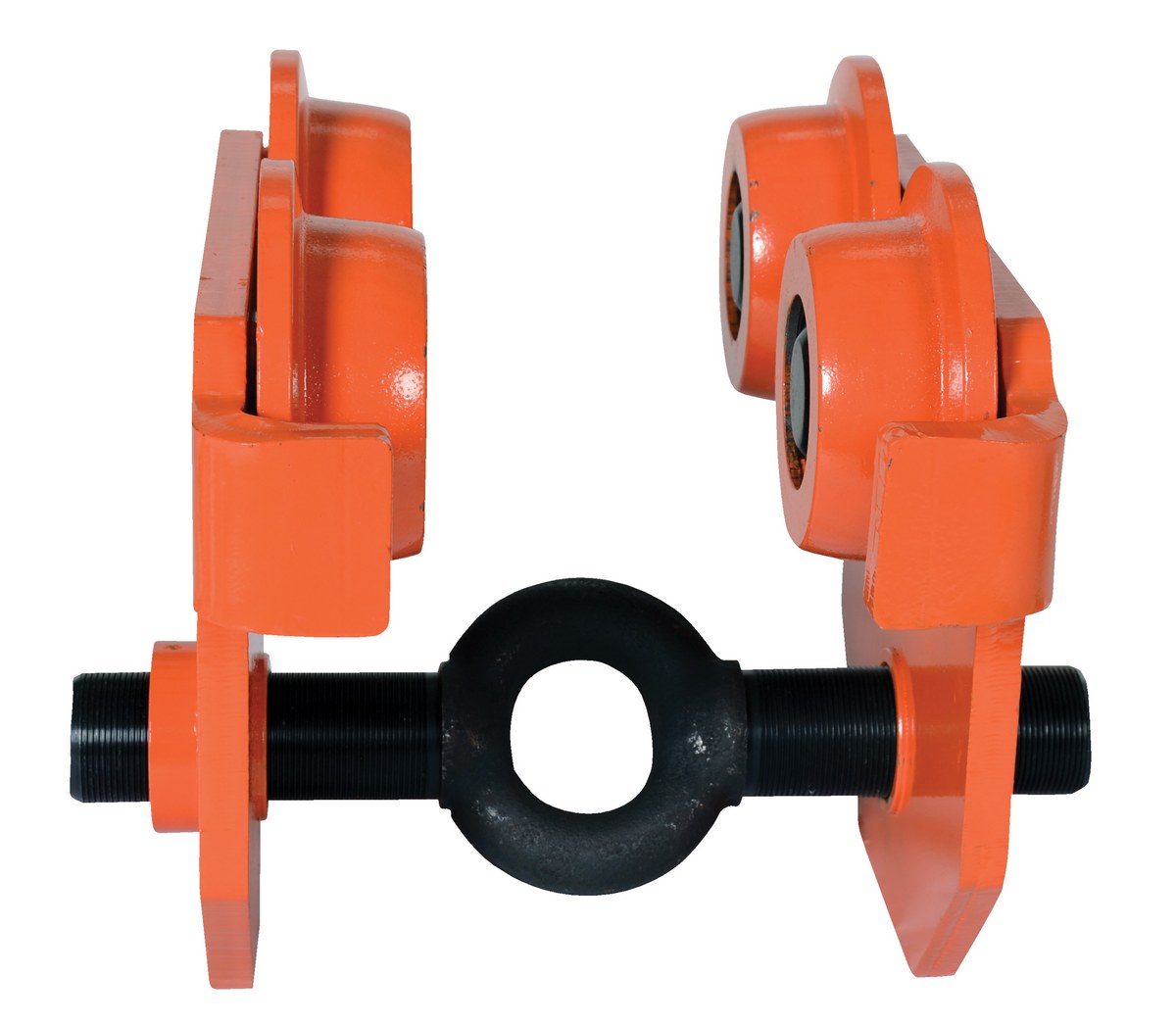

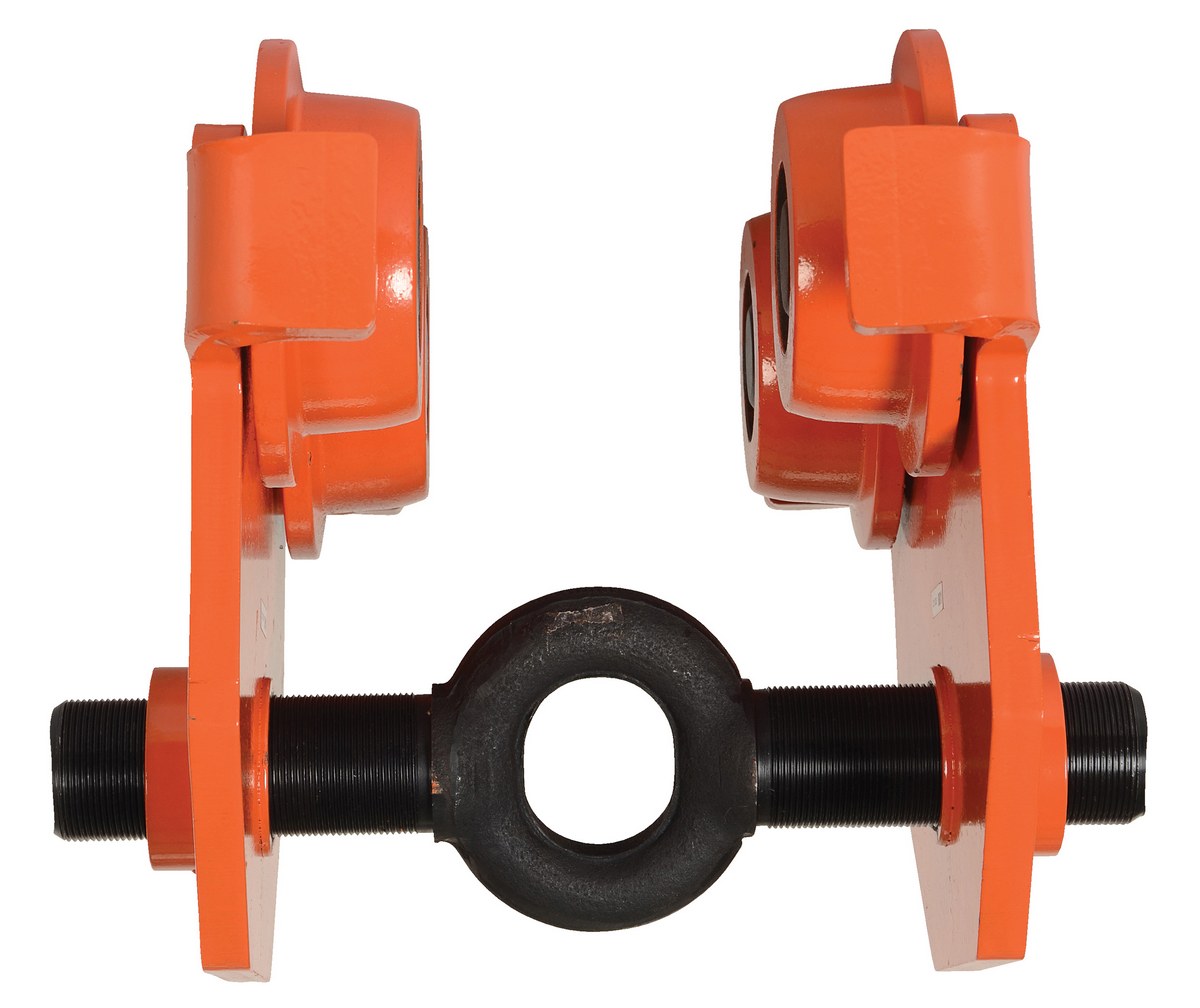

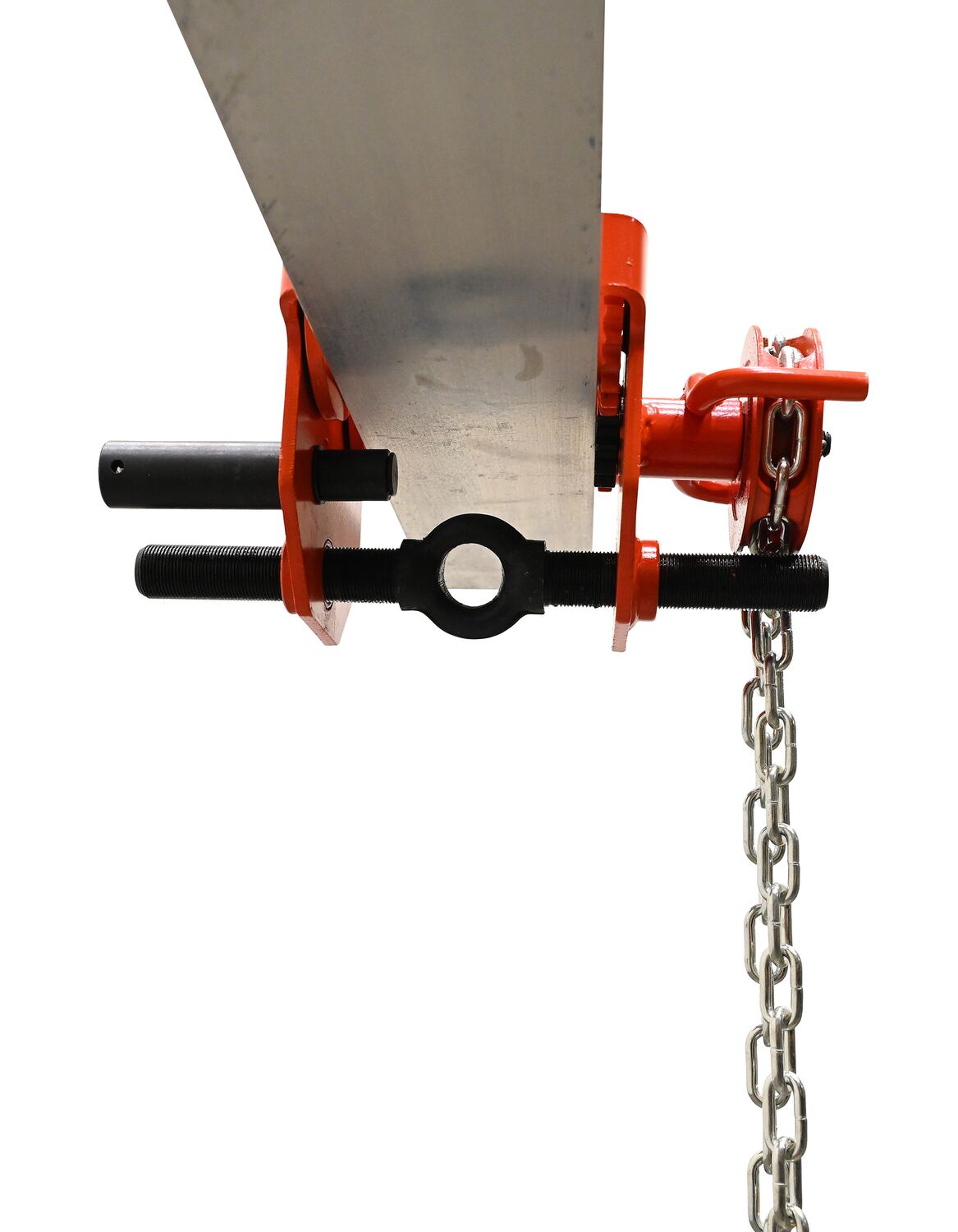

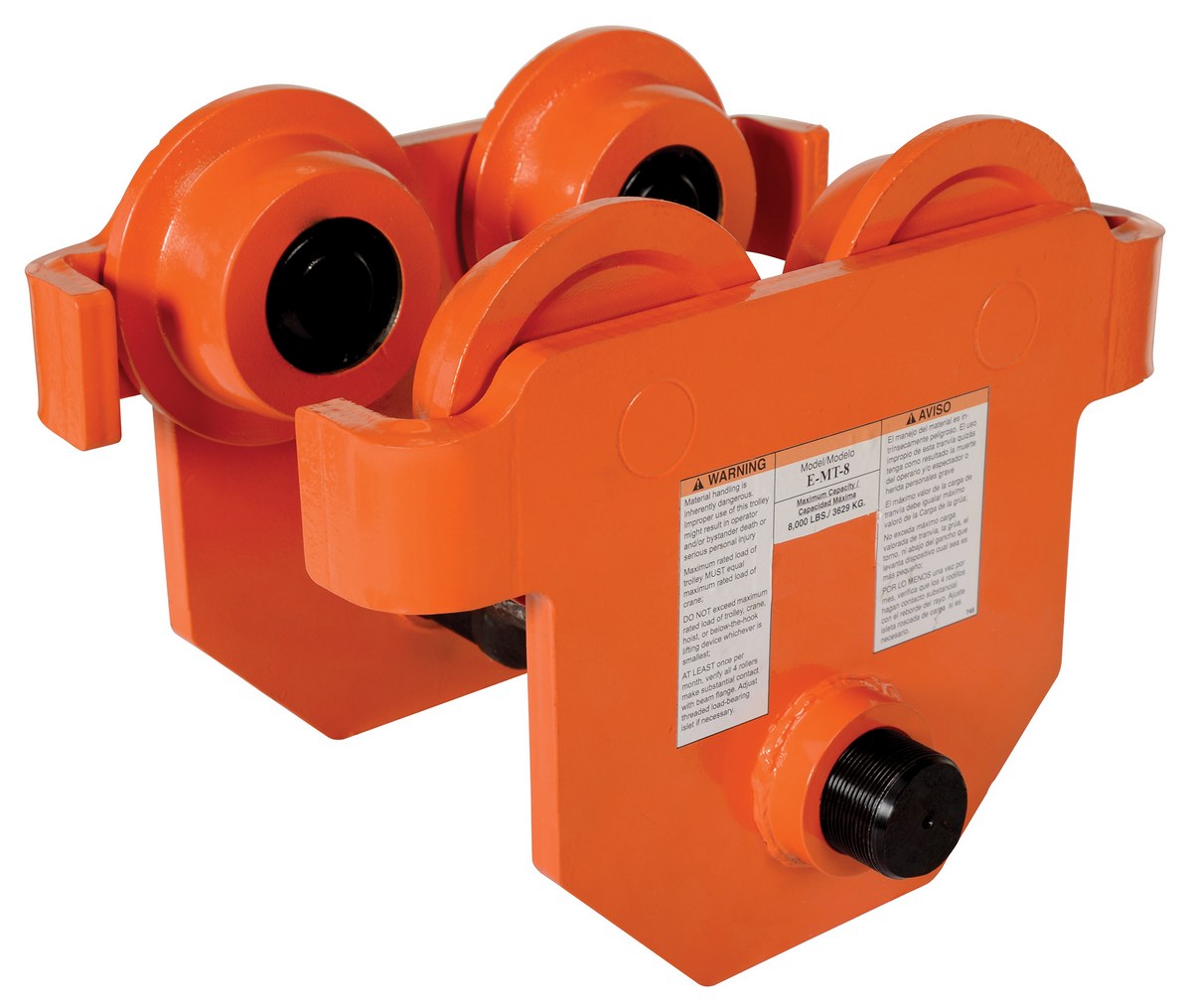

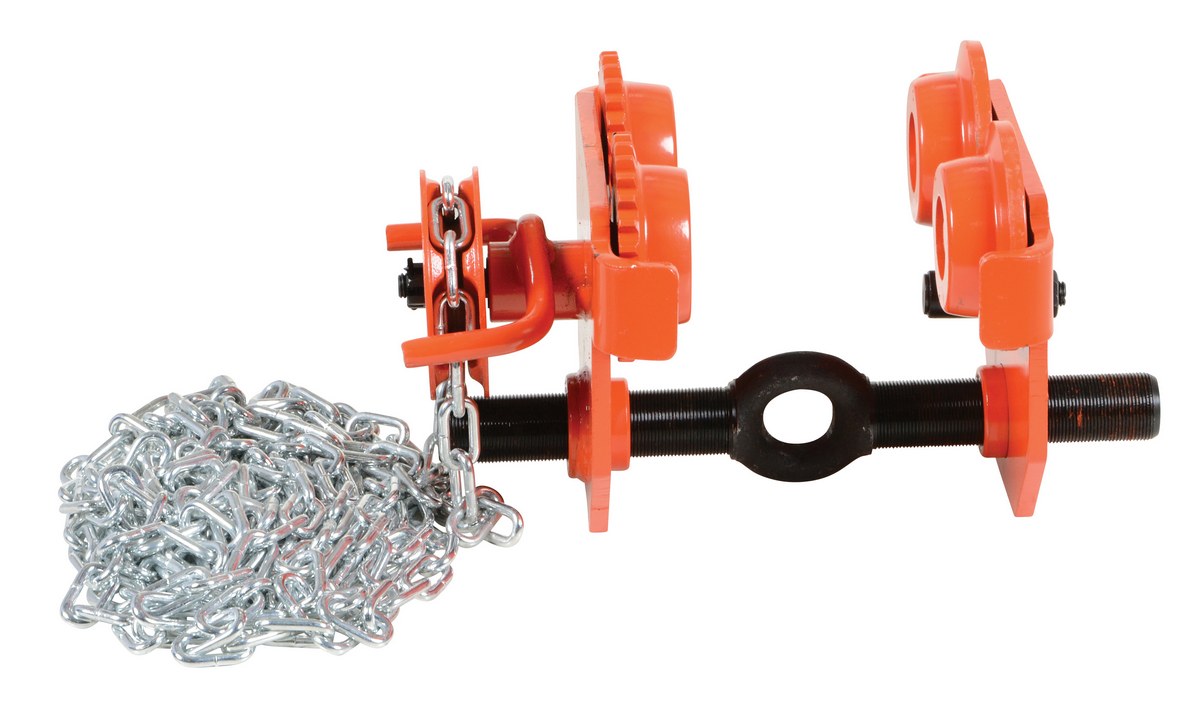

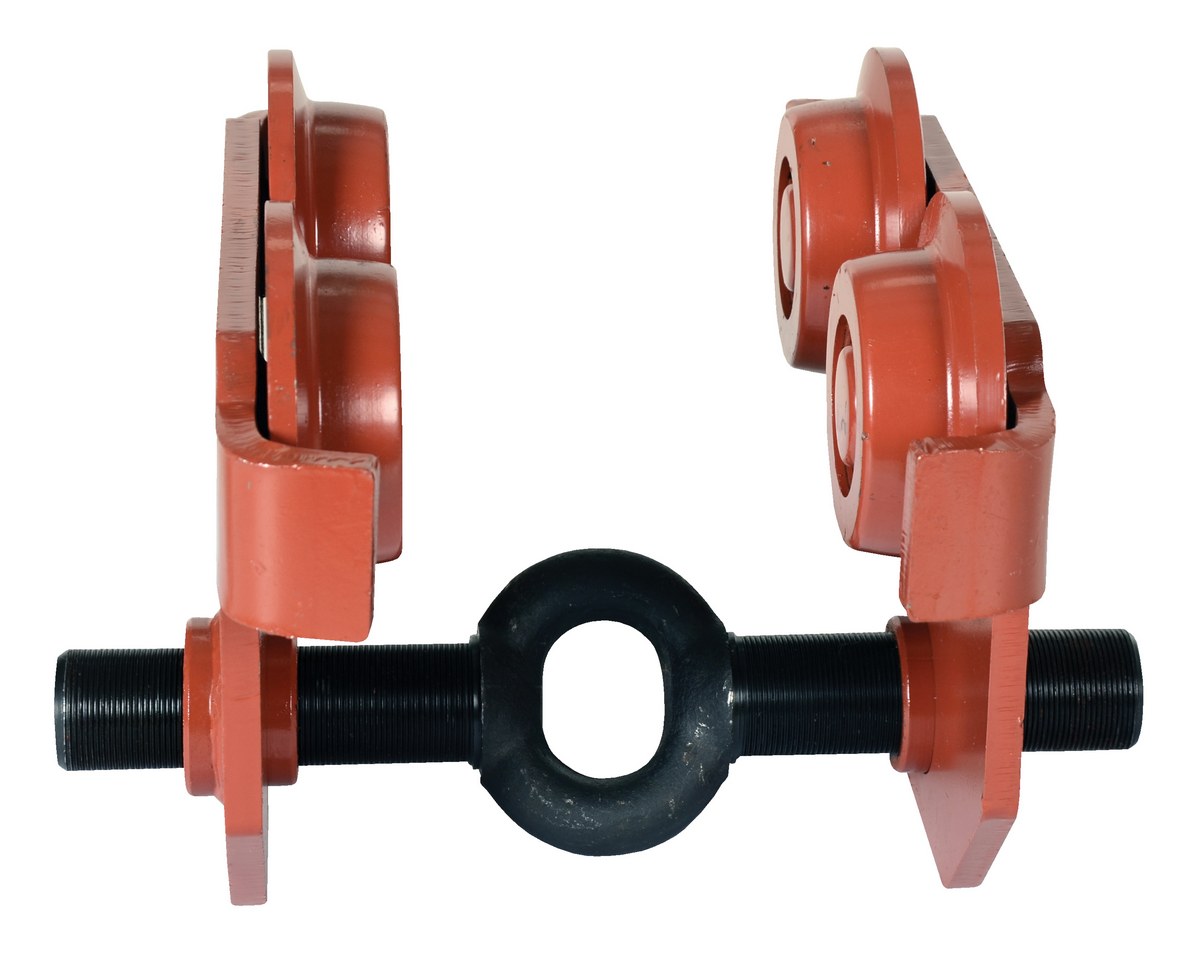

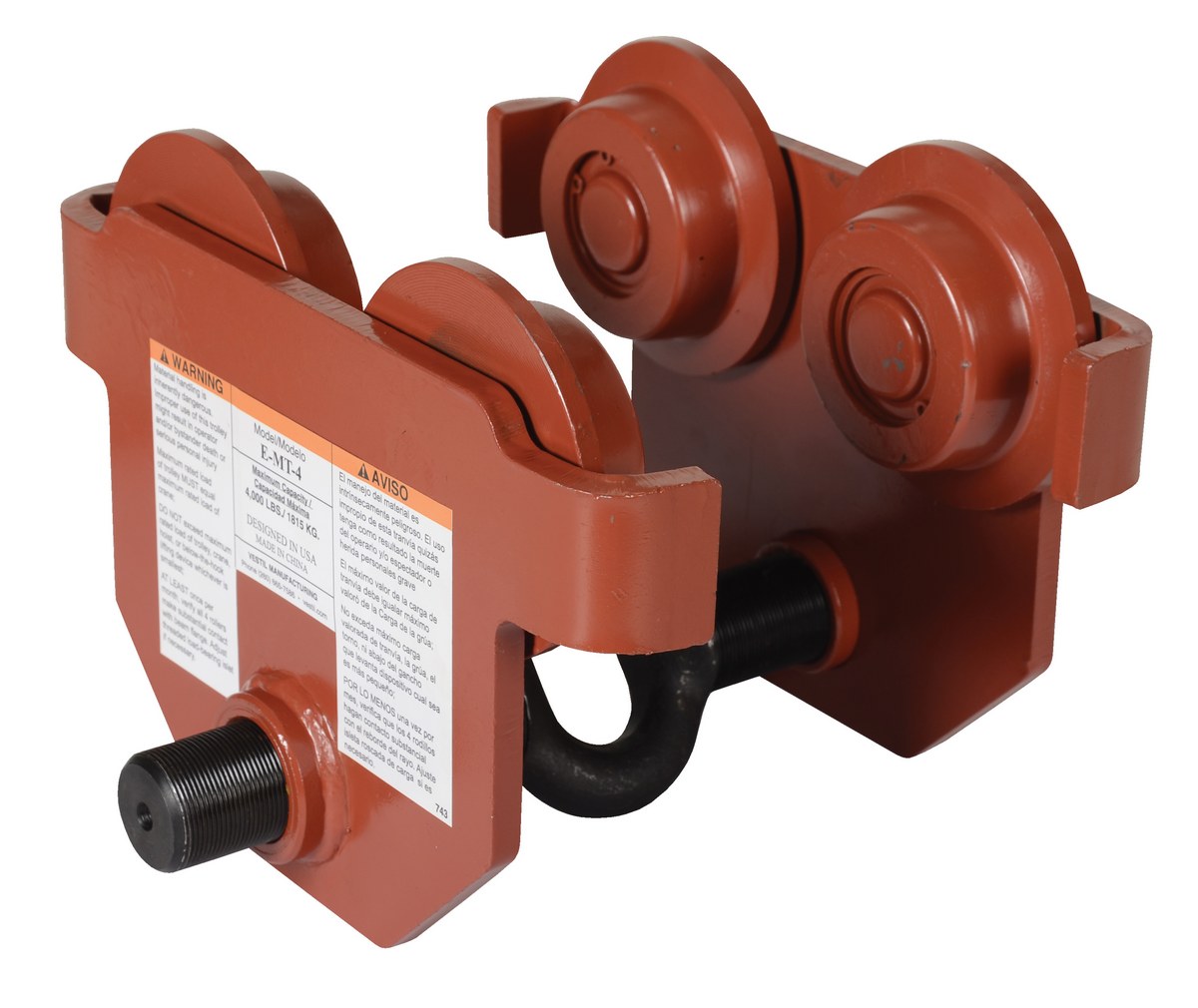

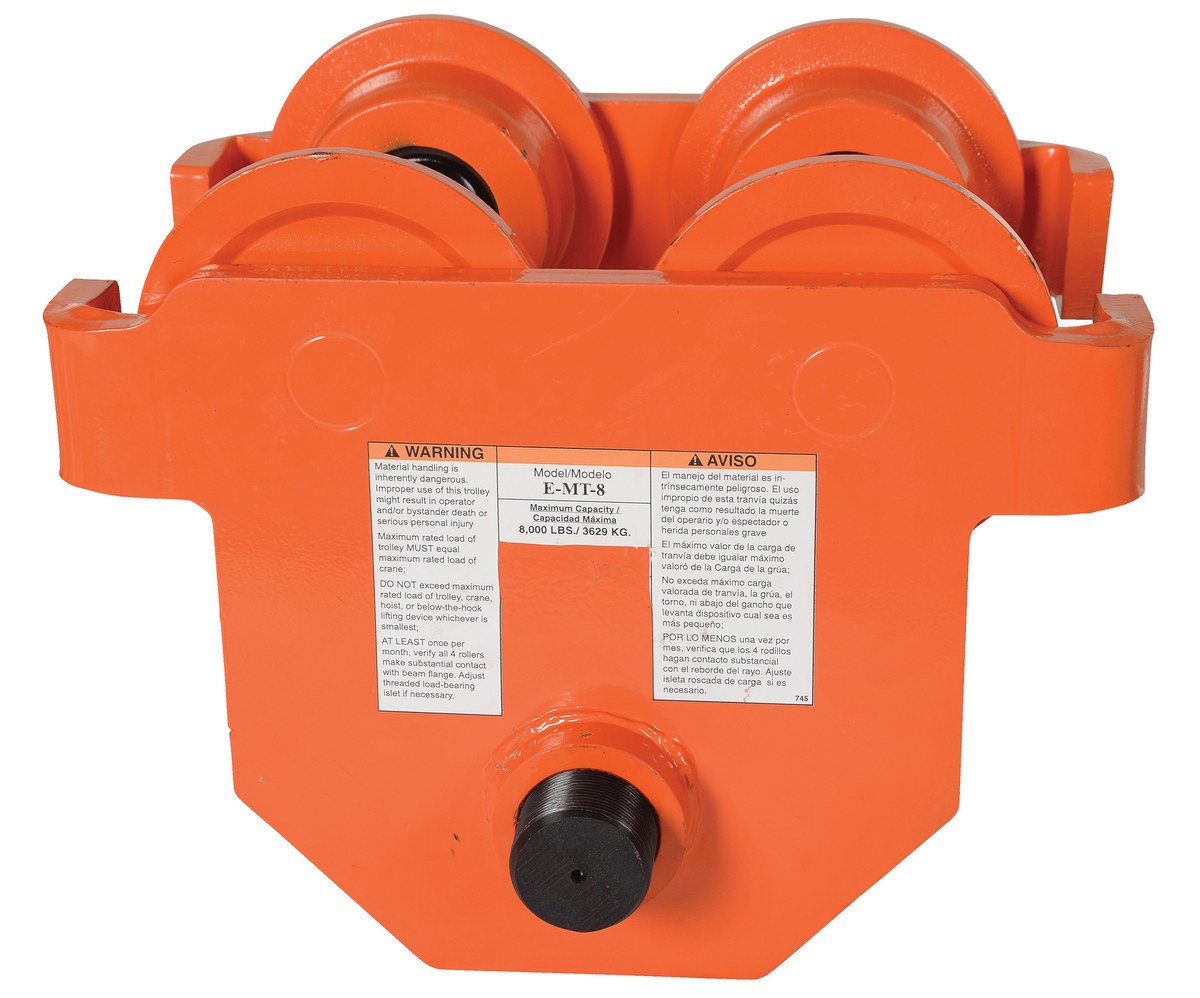

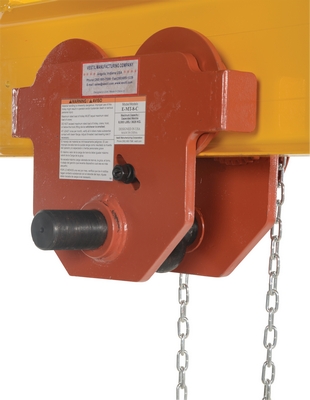

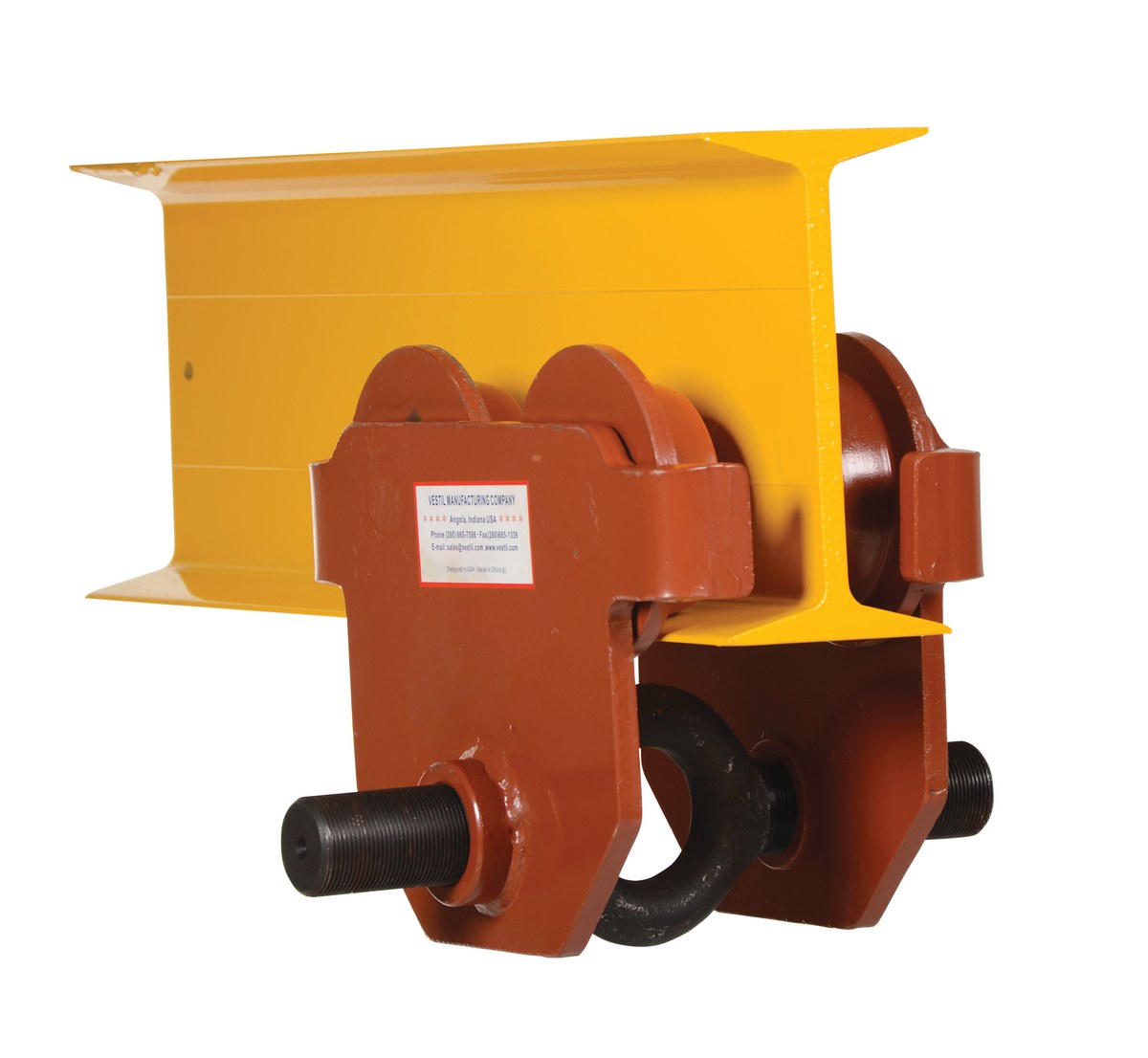

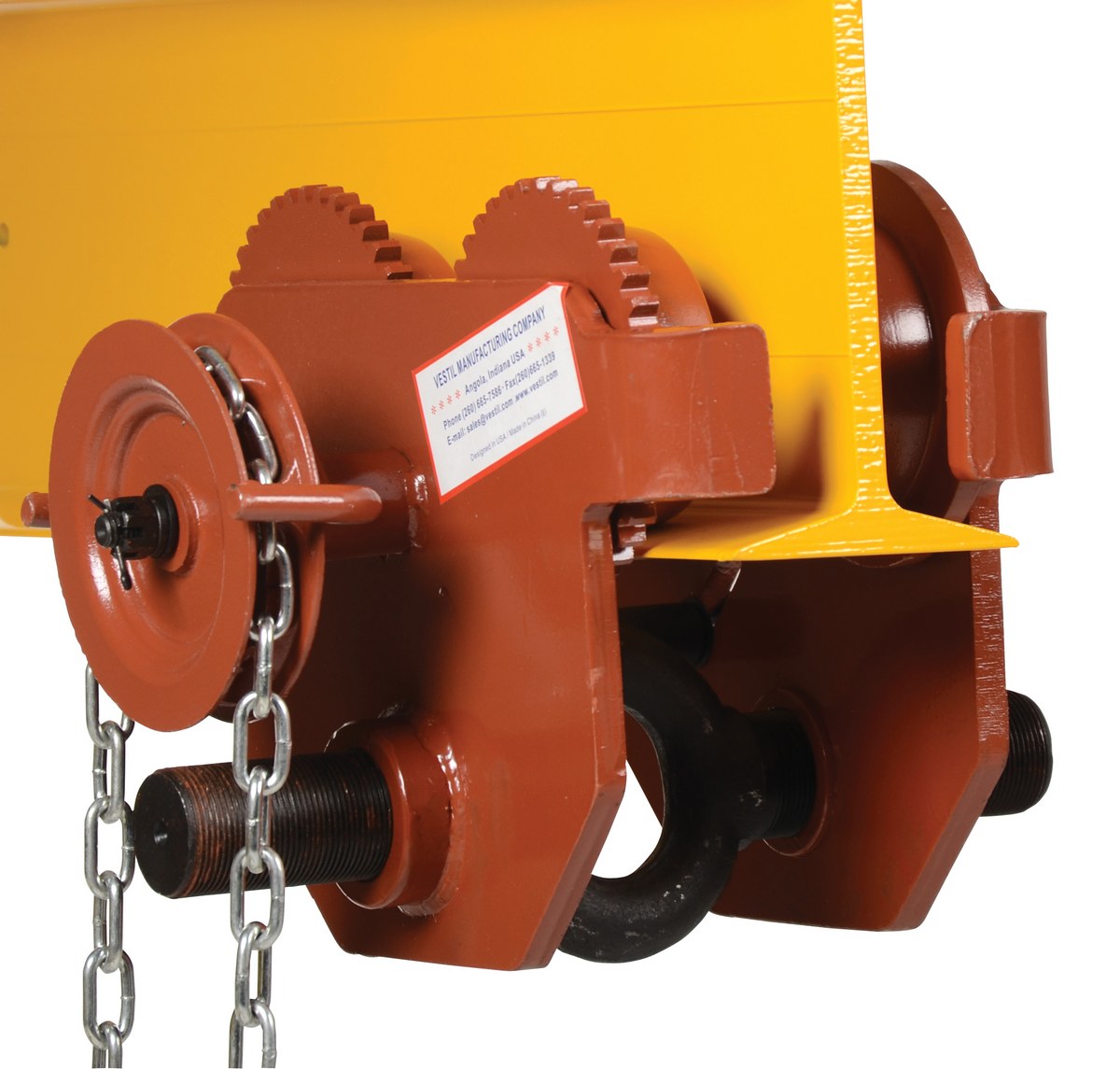

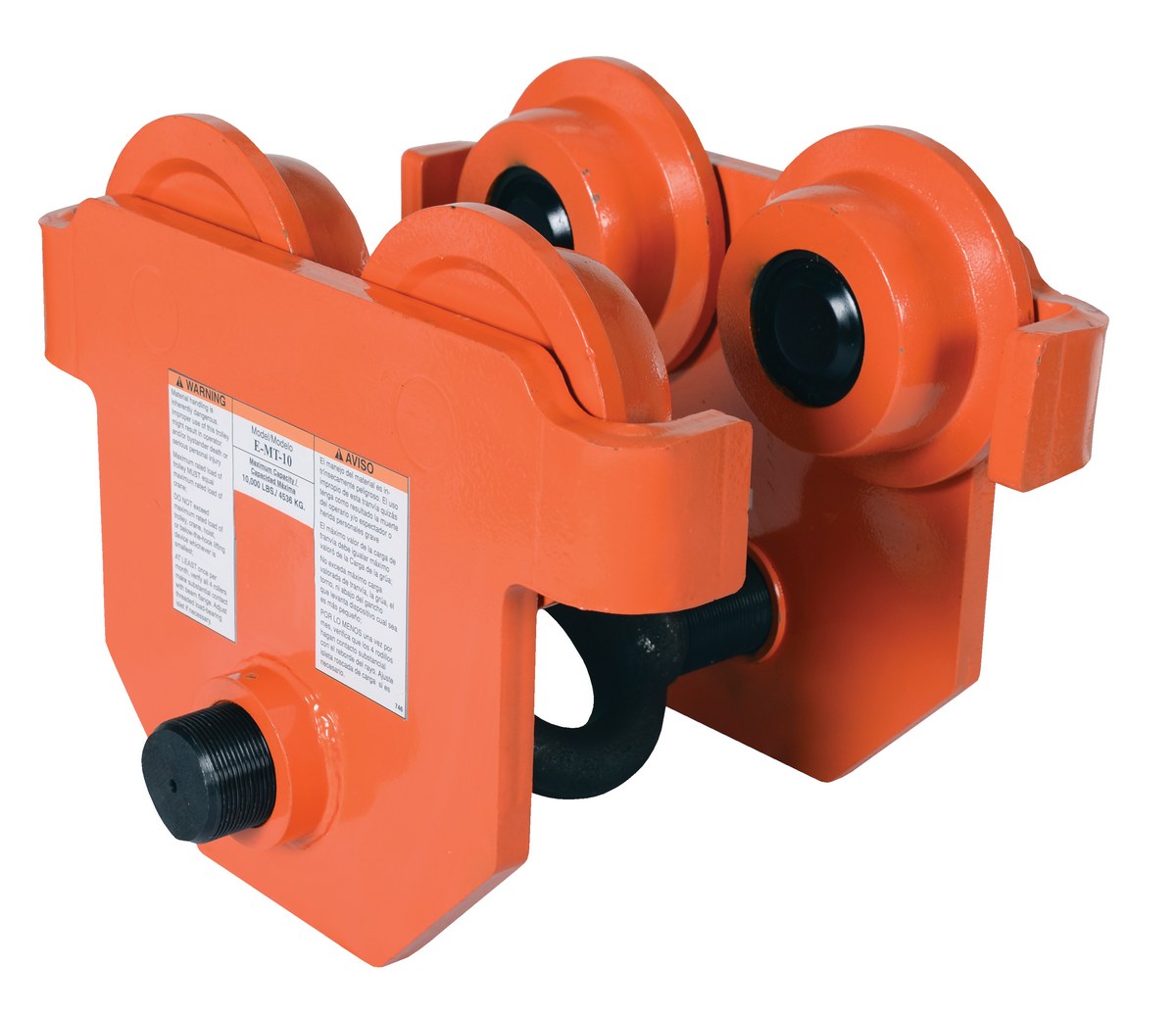

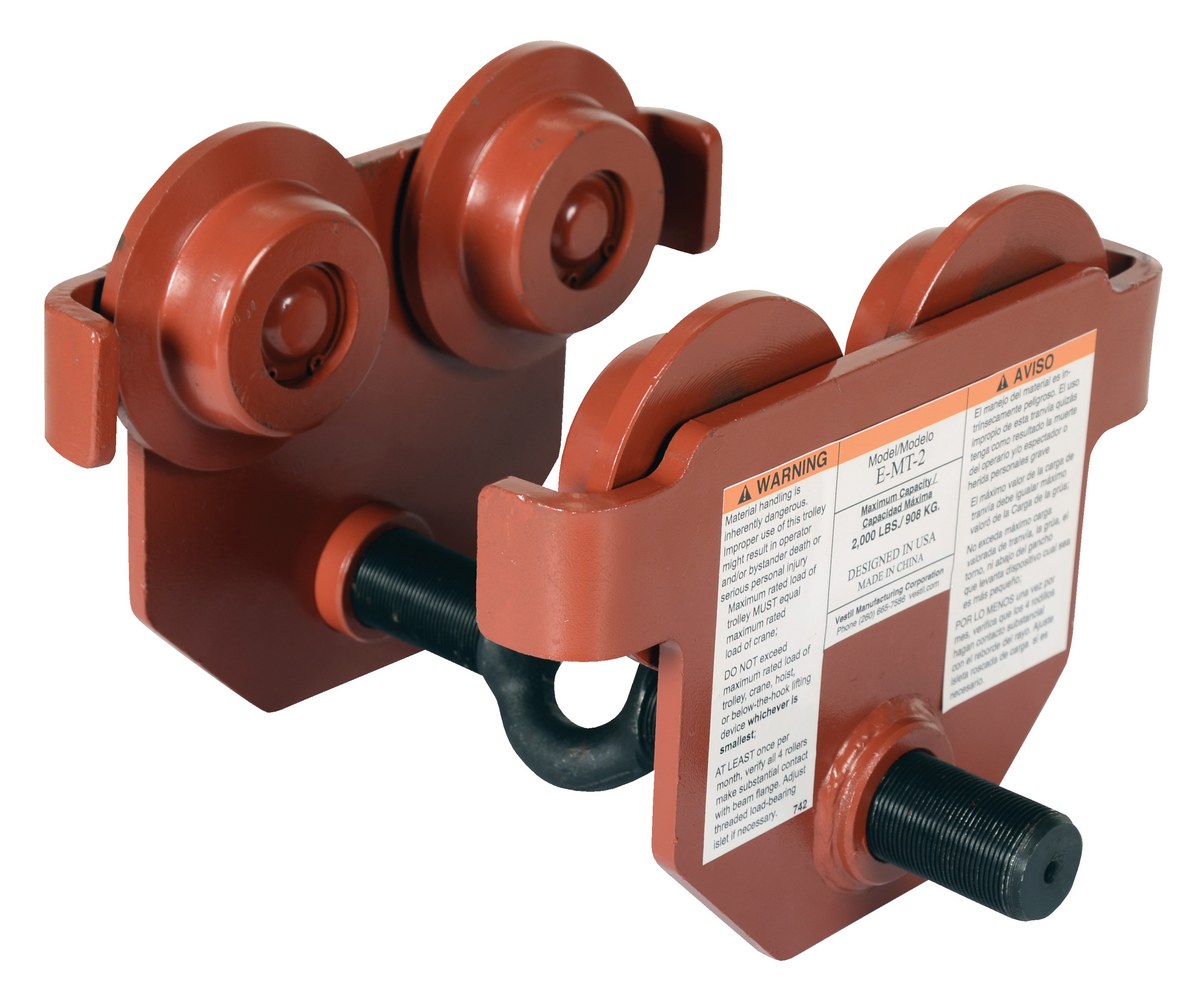

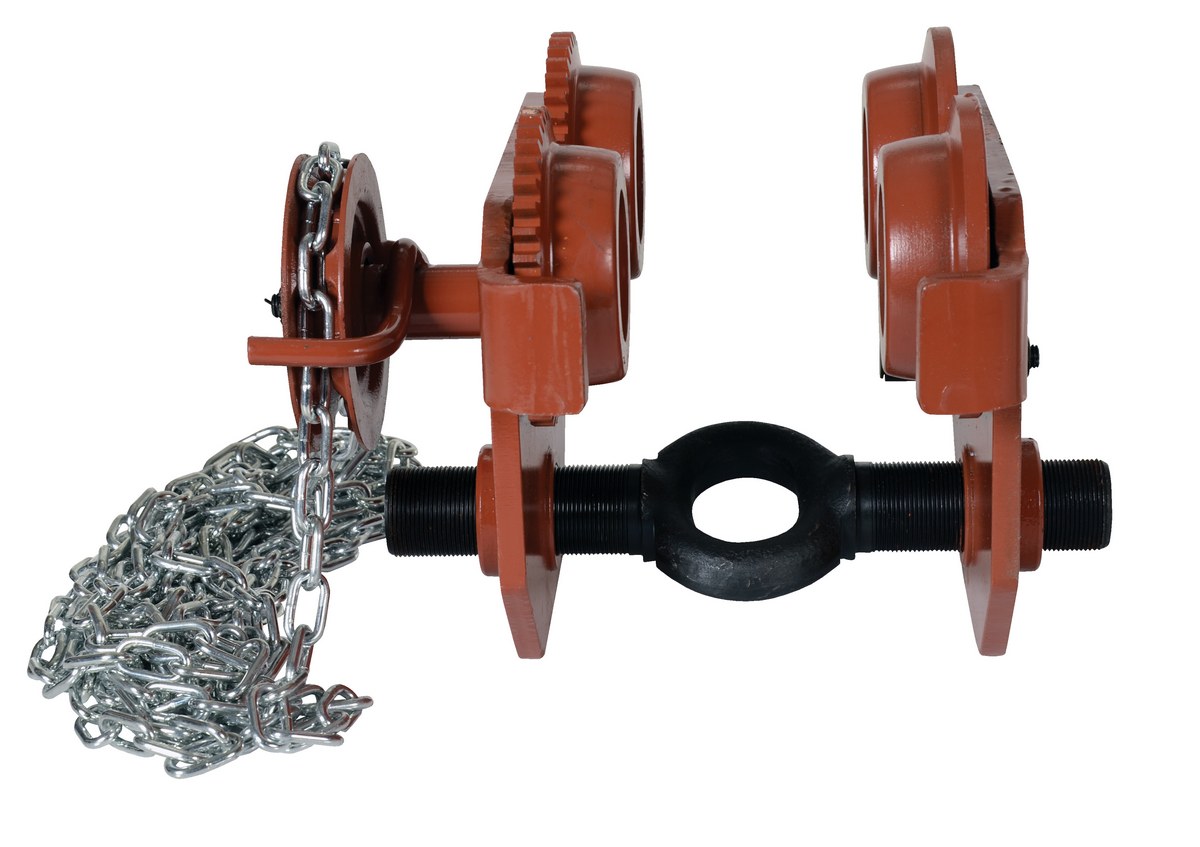

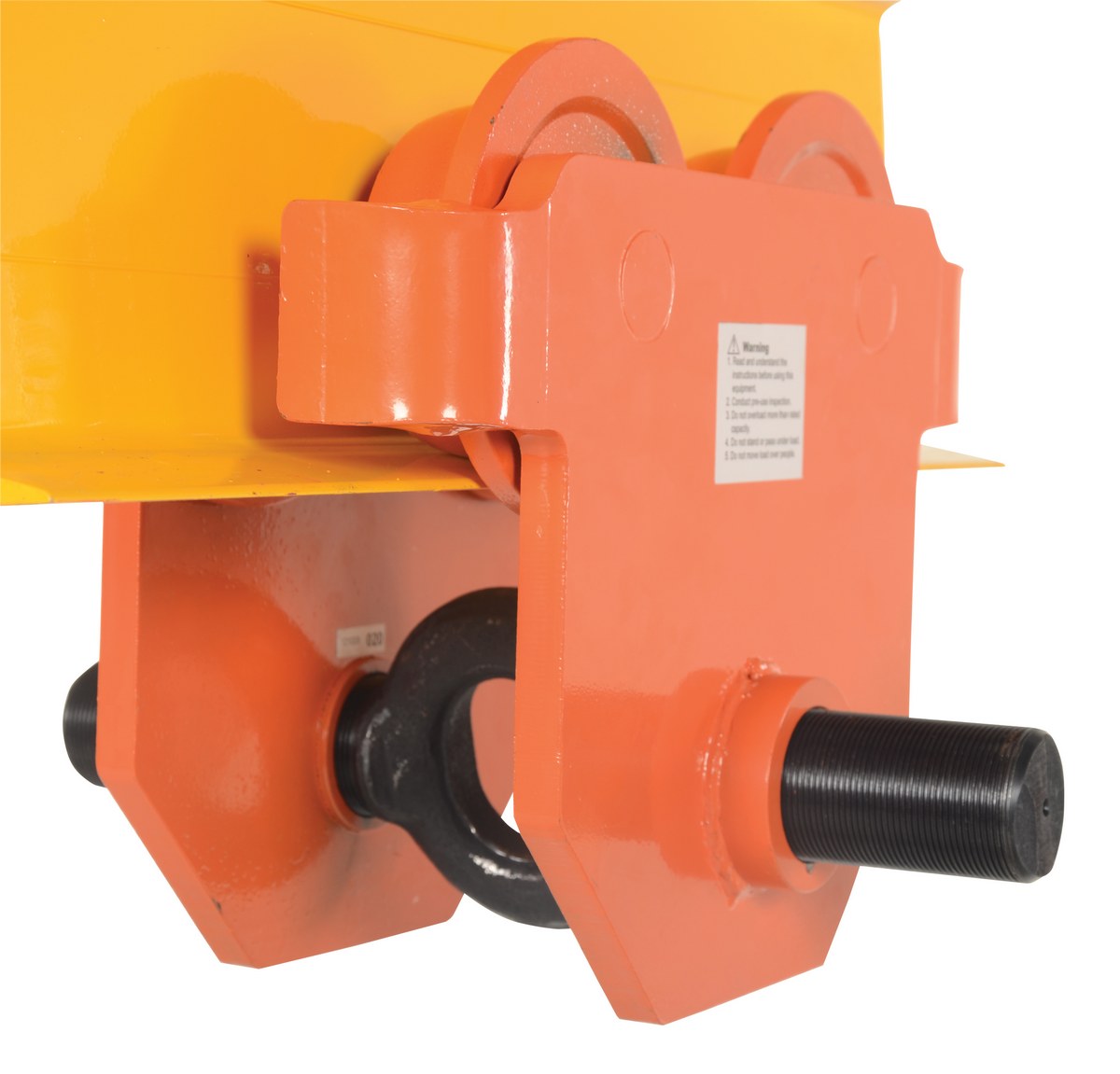

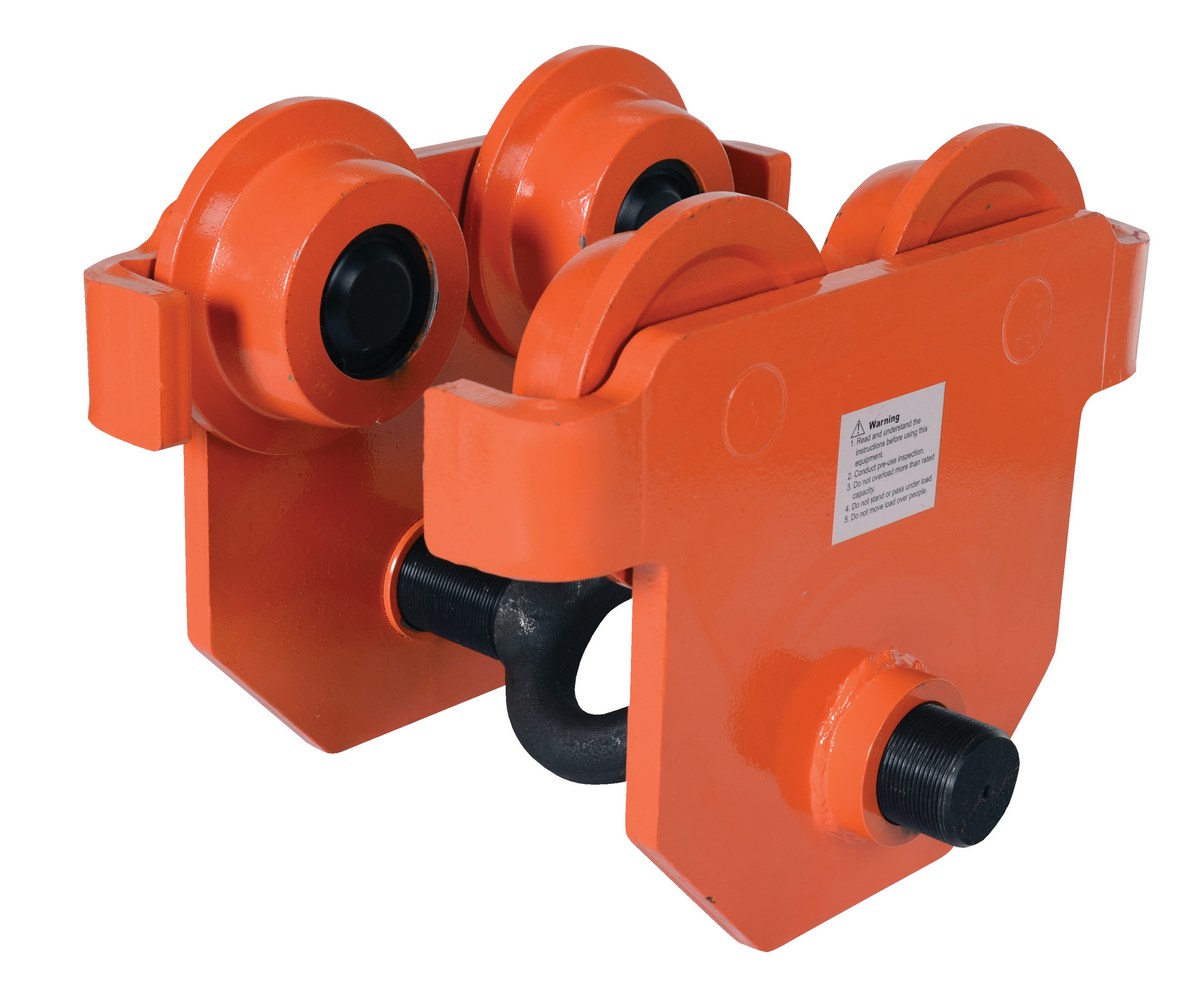

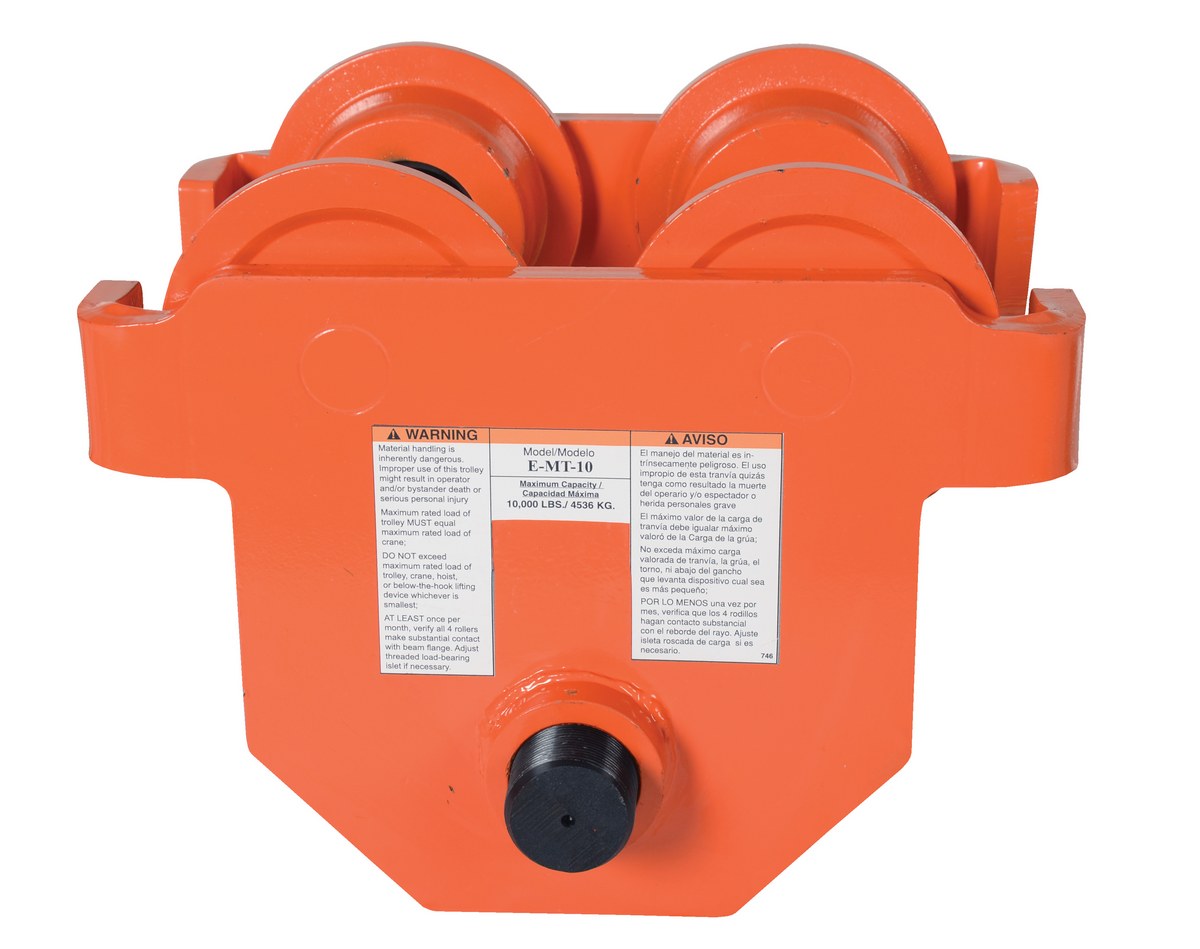

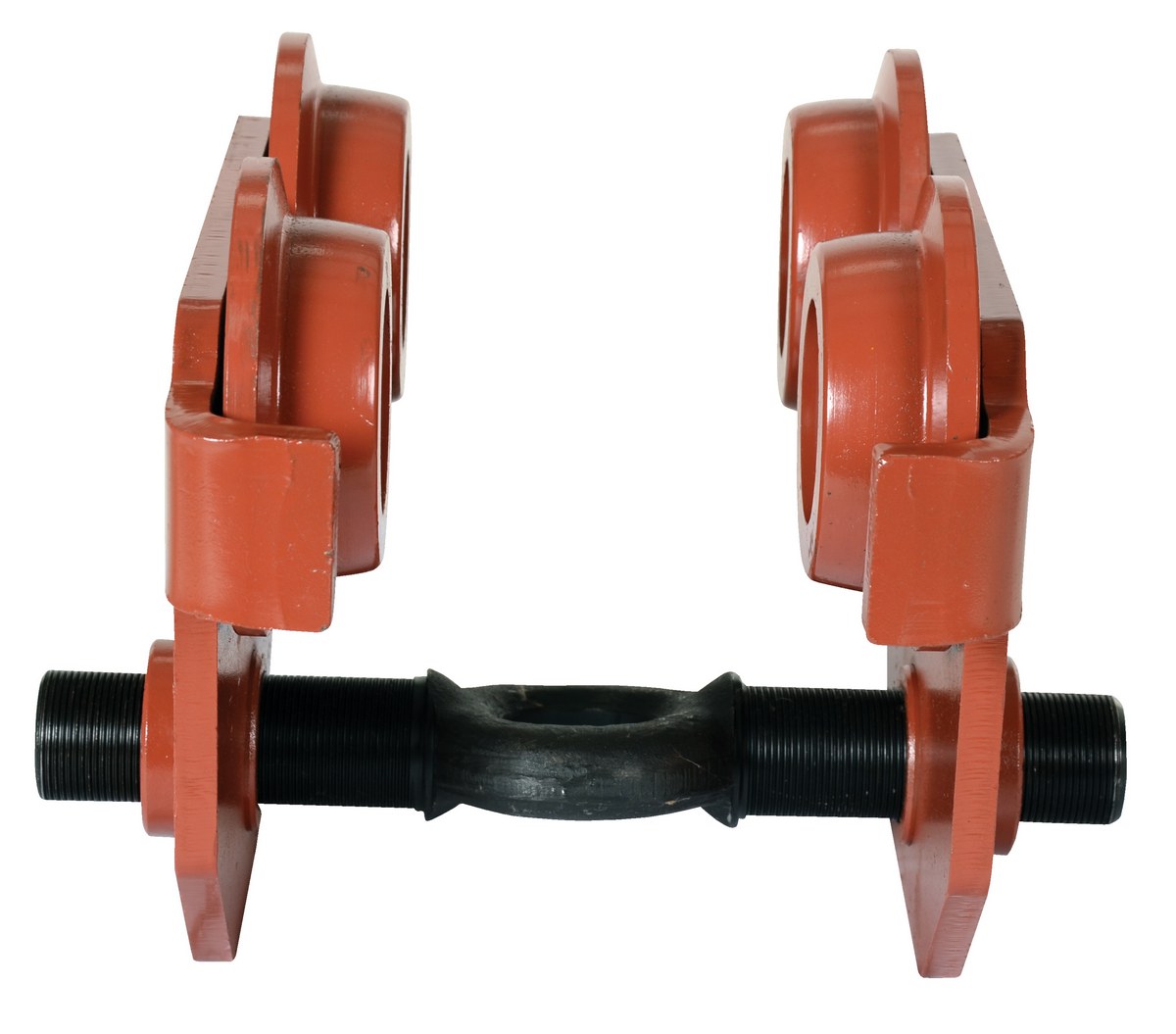

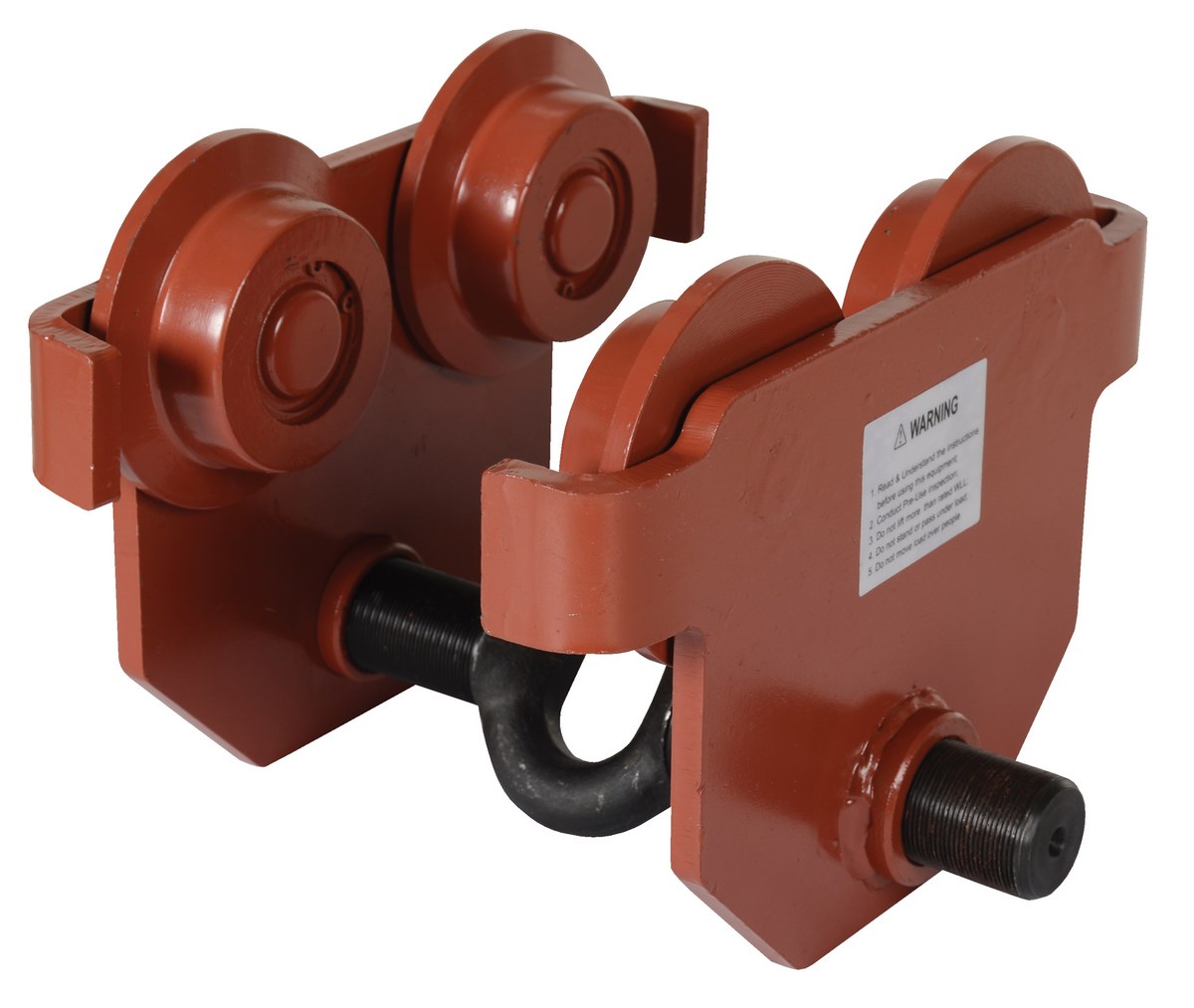

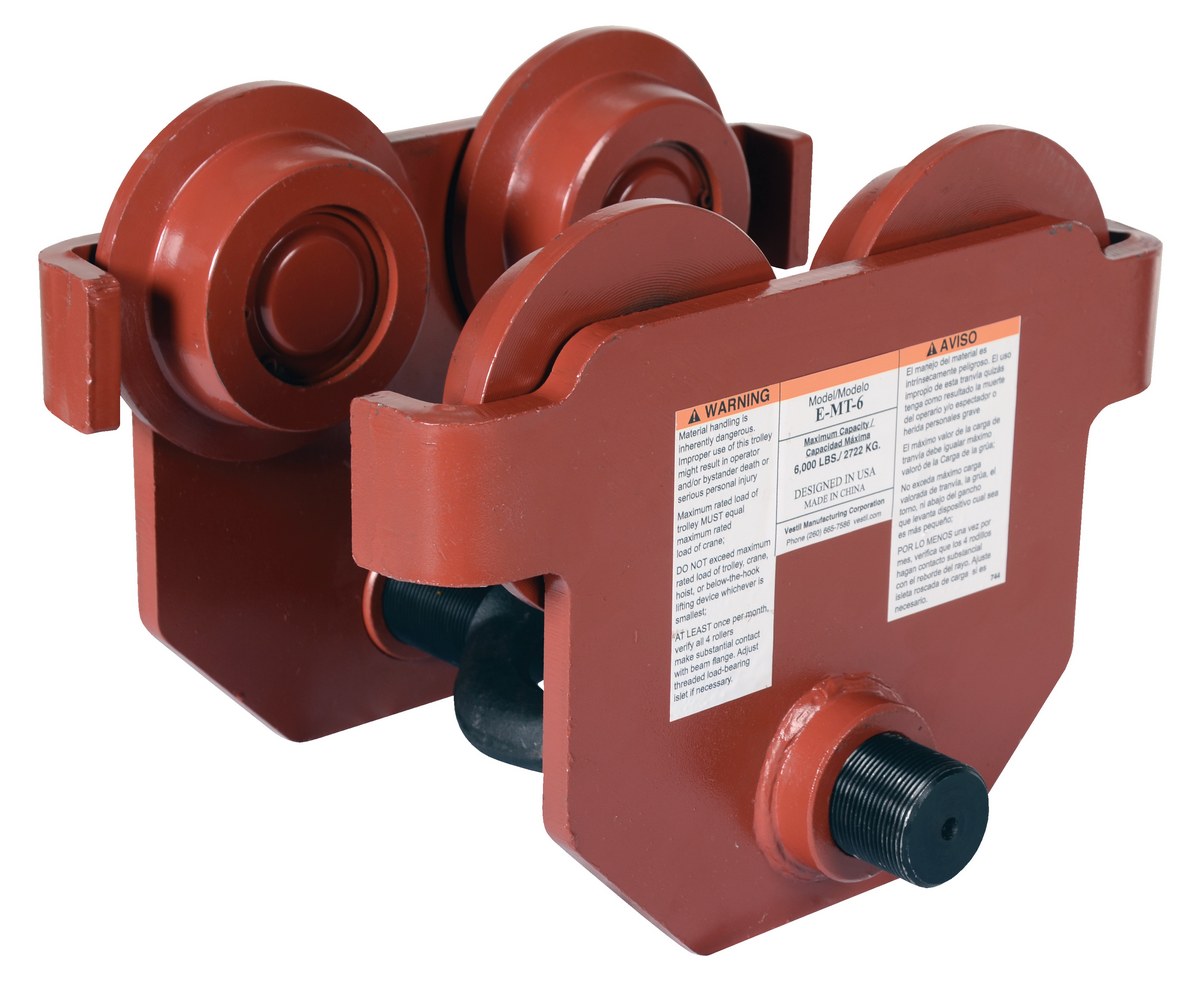

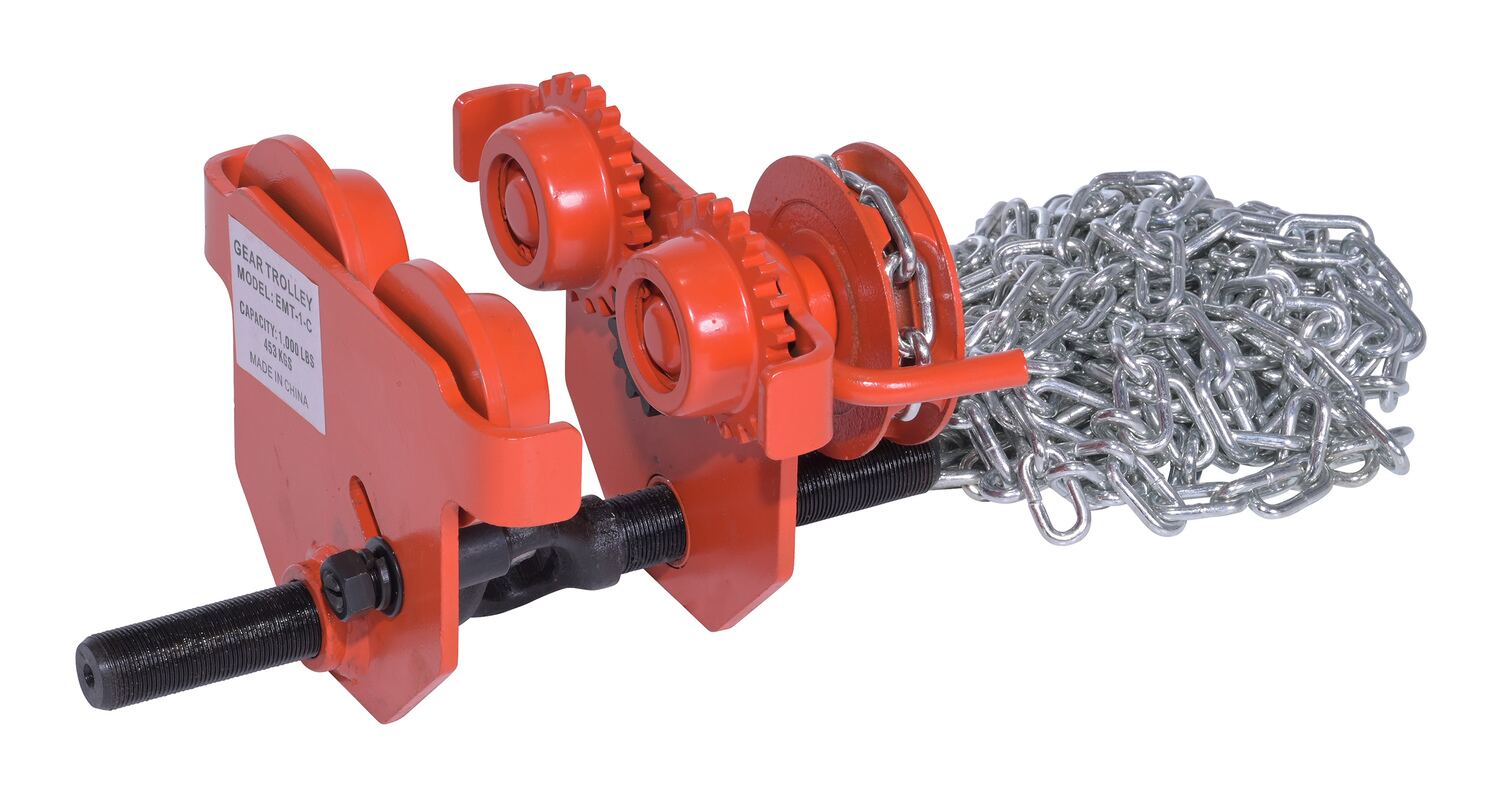

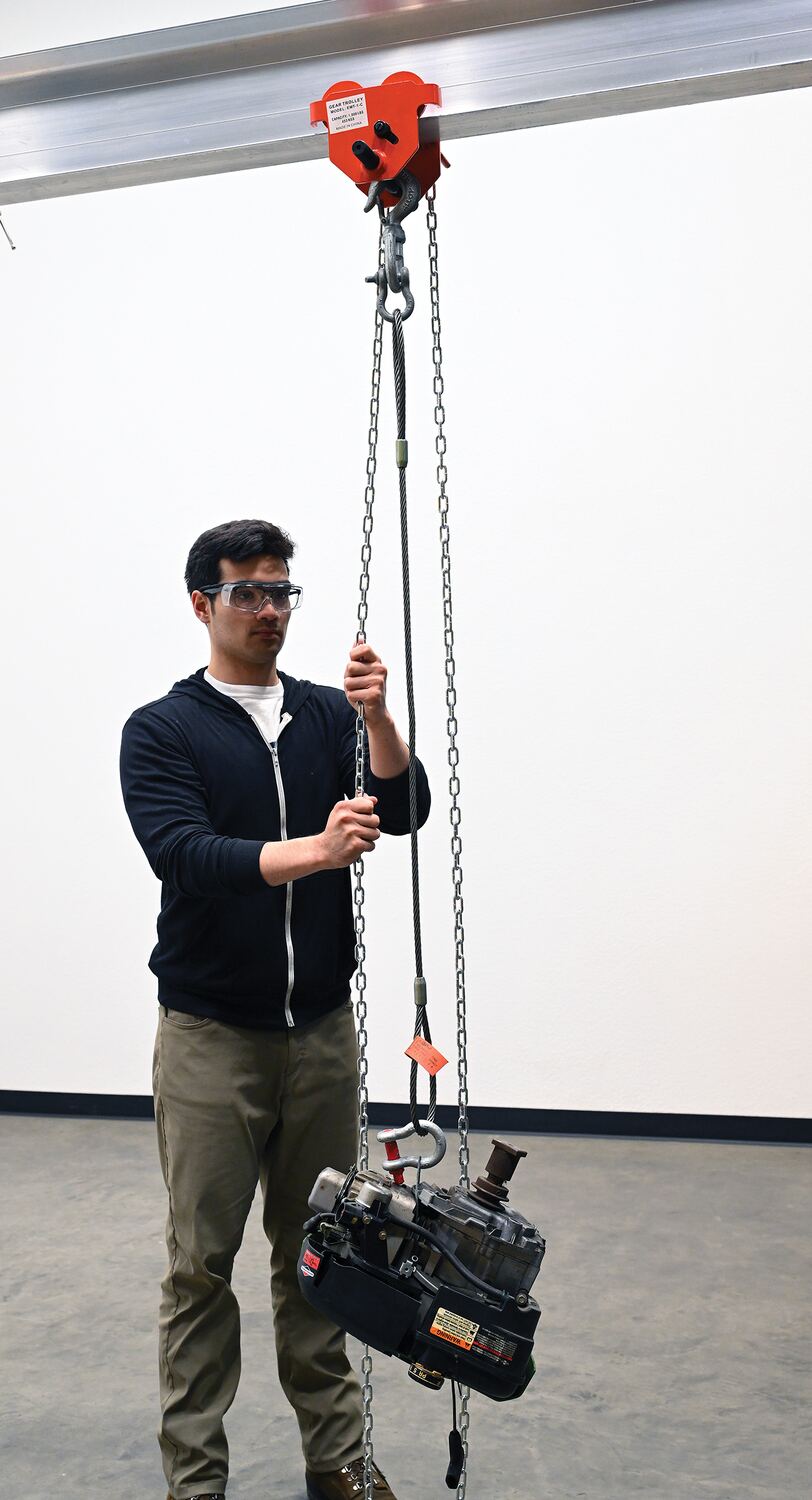

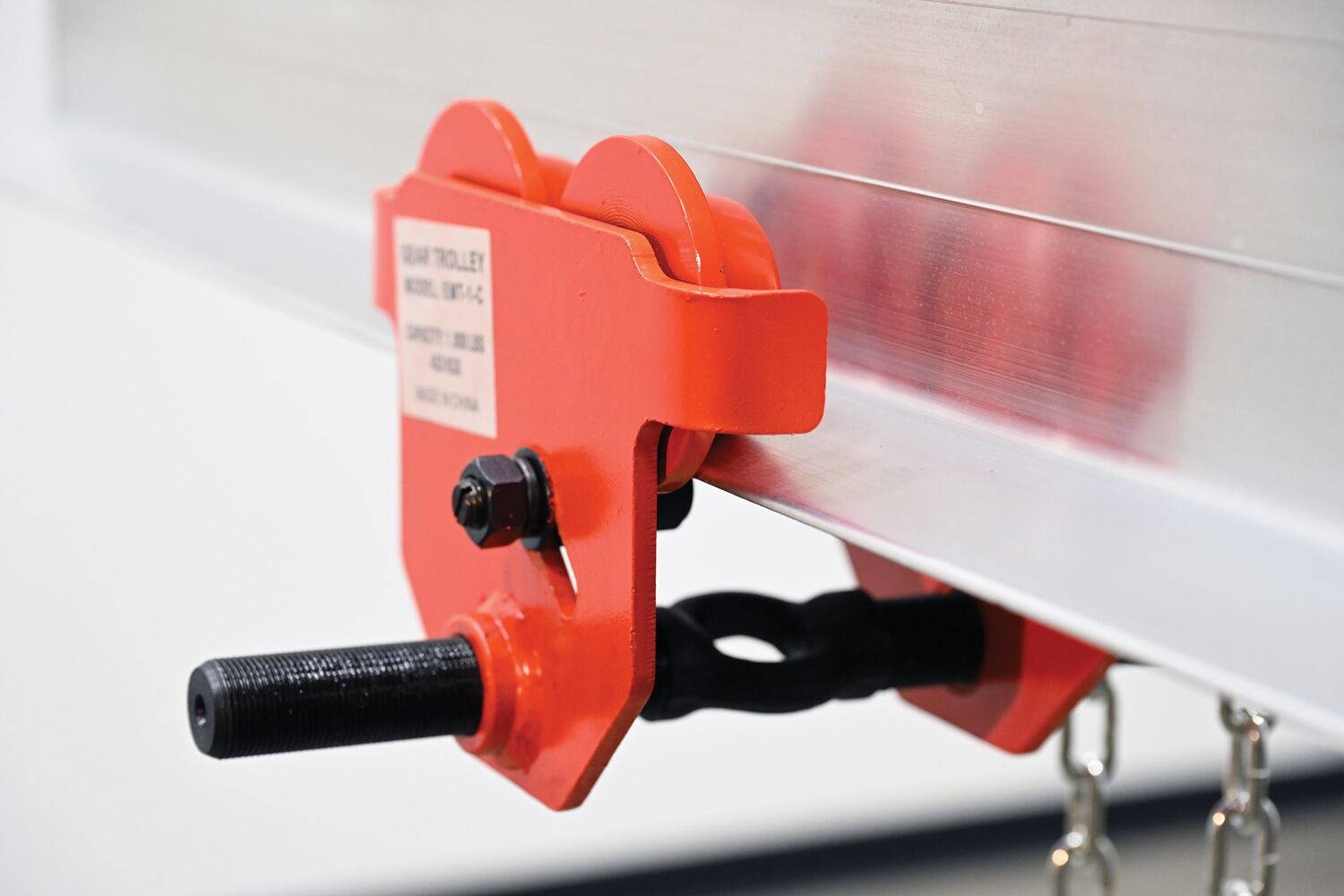

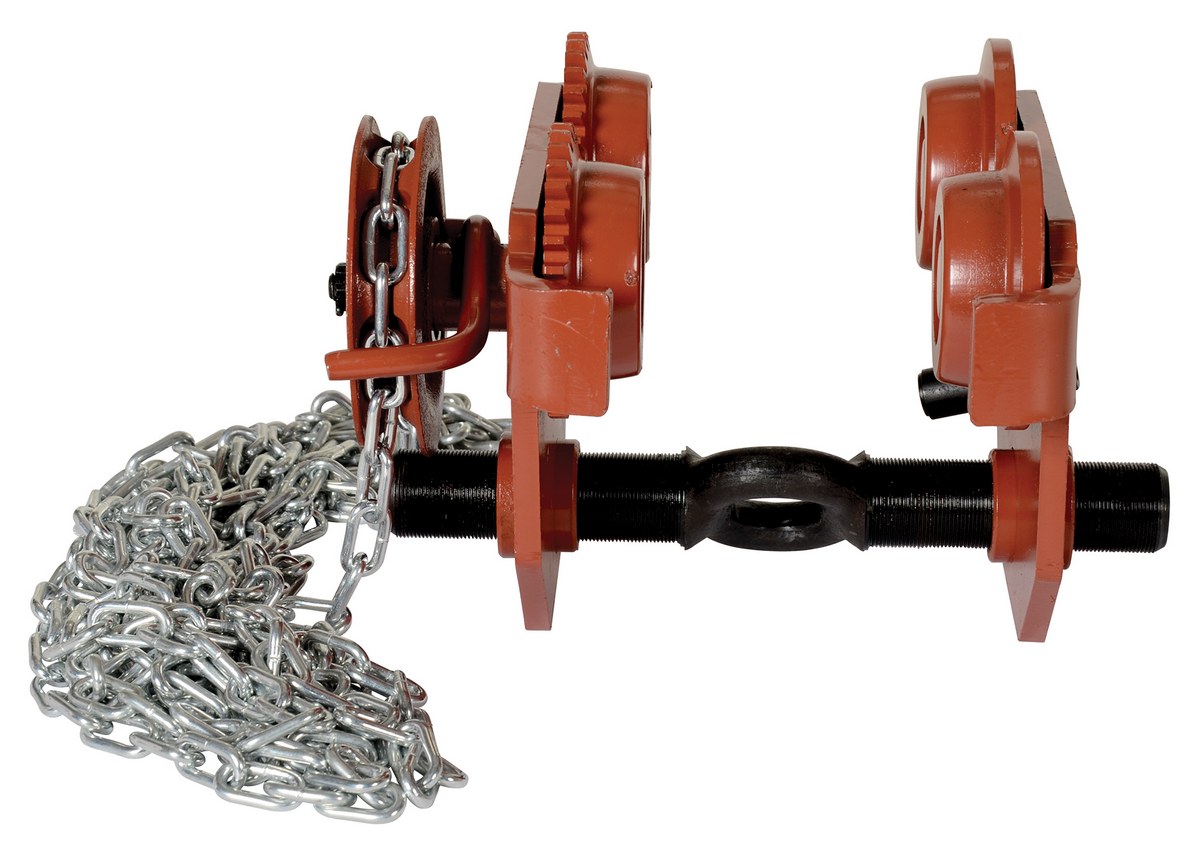

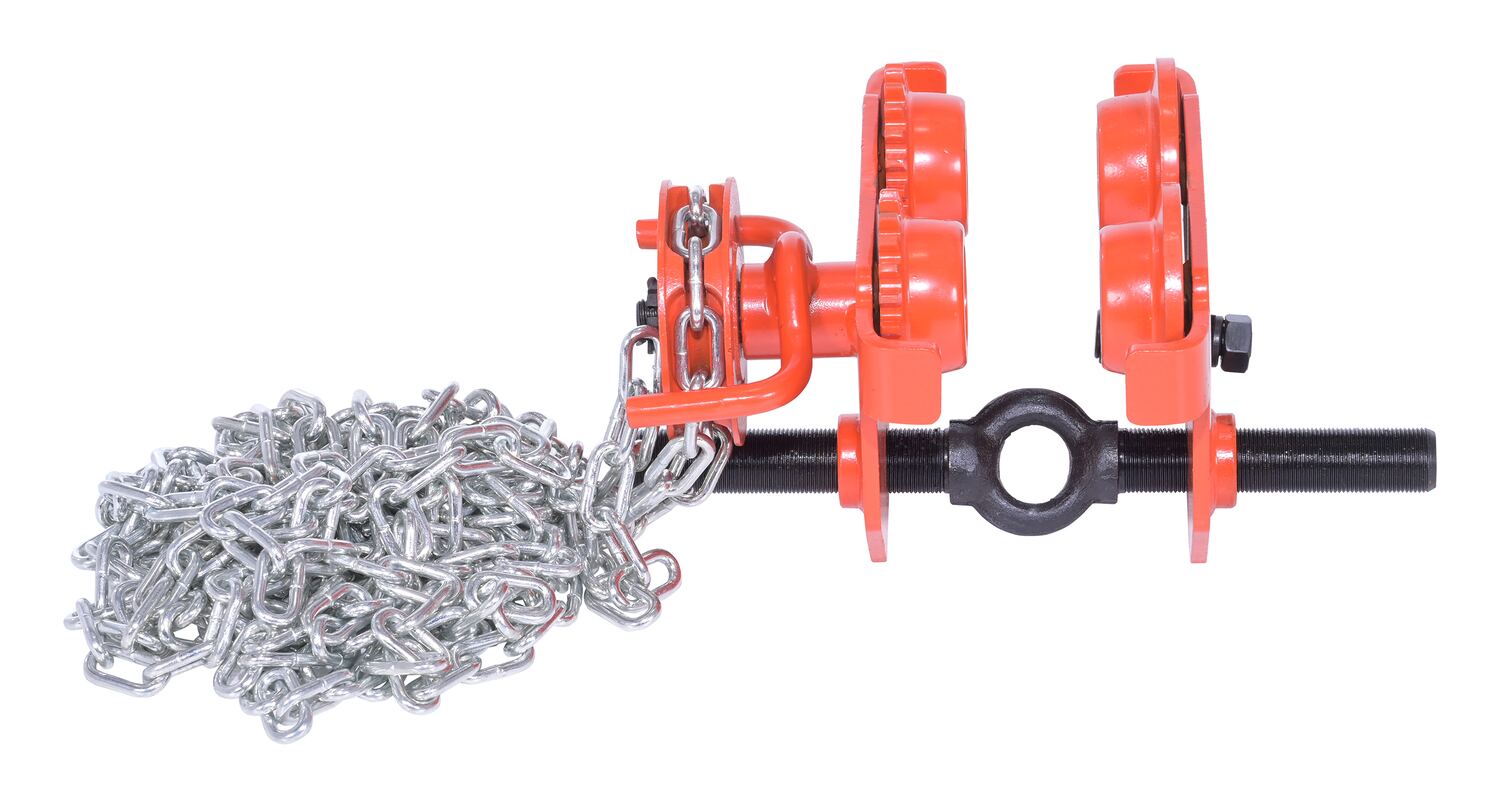

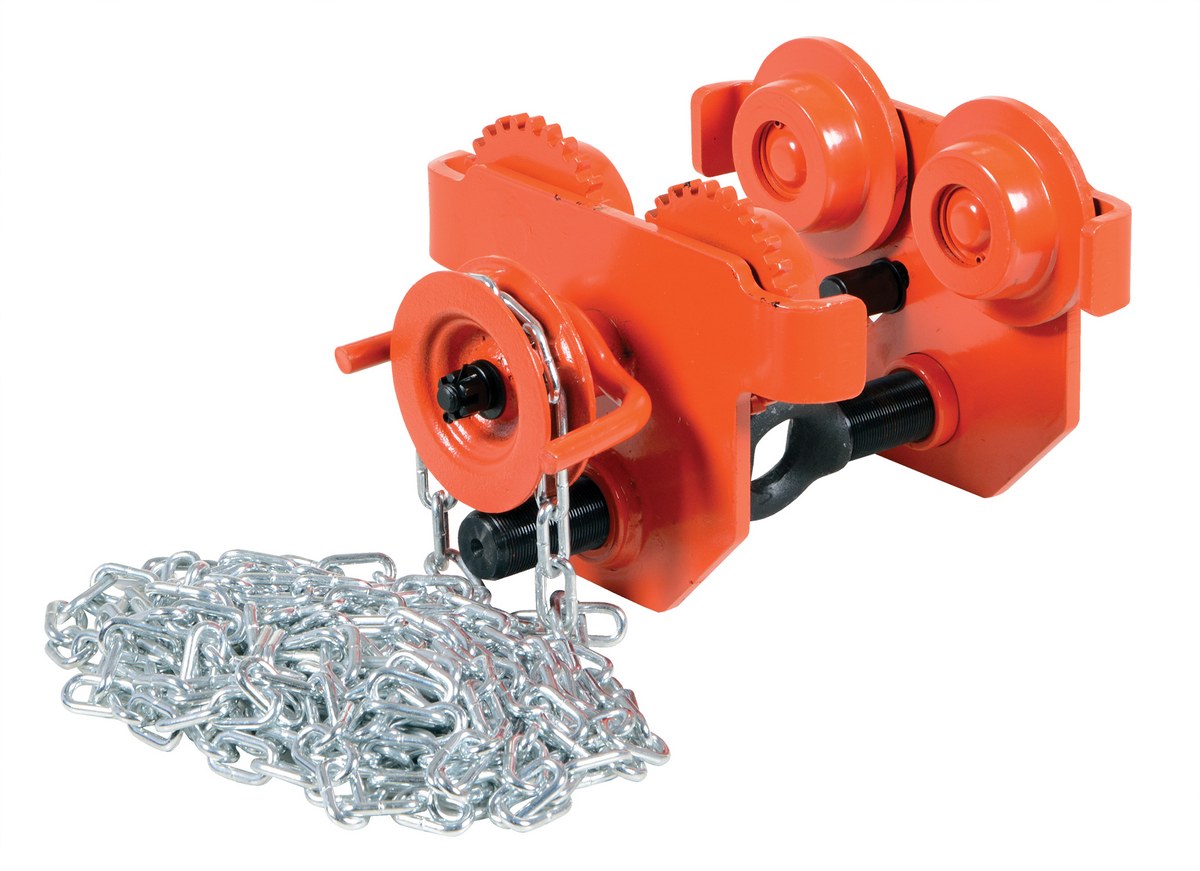

These trollies have been designed to quickly install on virtually any S, H,W, and M type I-beam. The width of the trolley is adjusted by rotating the center rod with lifting eye clockwise or counterclockwise. Once hoist (not included) is attached, center rod cannot be rotated which prevents trolley width from accidentally changing. Choose either push trolley or geared trolley. Geared trolley is ideal for use when precise positioning of the trolley is required. The trolley includes four rollers with sealed bearings for long life. A lifting eye is located at the bottom of the trolley for attaching a hoist (not included). Steel construction and painted finish. Headroom is measured from the bottom of wheel to bottom of hooking eye.

These trollies have been designed to quickly install on virtually any S, H,W, and M type I-beam. The width of the trolley is adjusted by rotating the center rod with lifting eye clockwise or counterclockwise. Once hoist (not included) is attached, center rod cannot be rotated which prevents trolley width from accidentally changing. Choose either push trolley or geared trolley. Geared trolley is ideal for use when precise positioning of the trolley is required. The trolley includes four rollers with sealed bearings for long life. A lifting eye is located at the bottom of the trolley for attaching a hoist (not included). Steel construction and painted finish. Headroom is measured from the bottom of wheel to bottom of hooking eye.




All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.
The Search Box below is within the Model Chart on this page. Not an entire site search.
Model Image PDFs Description Attributes Net Wt.
(lbs)

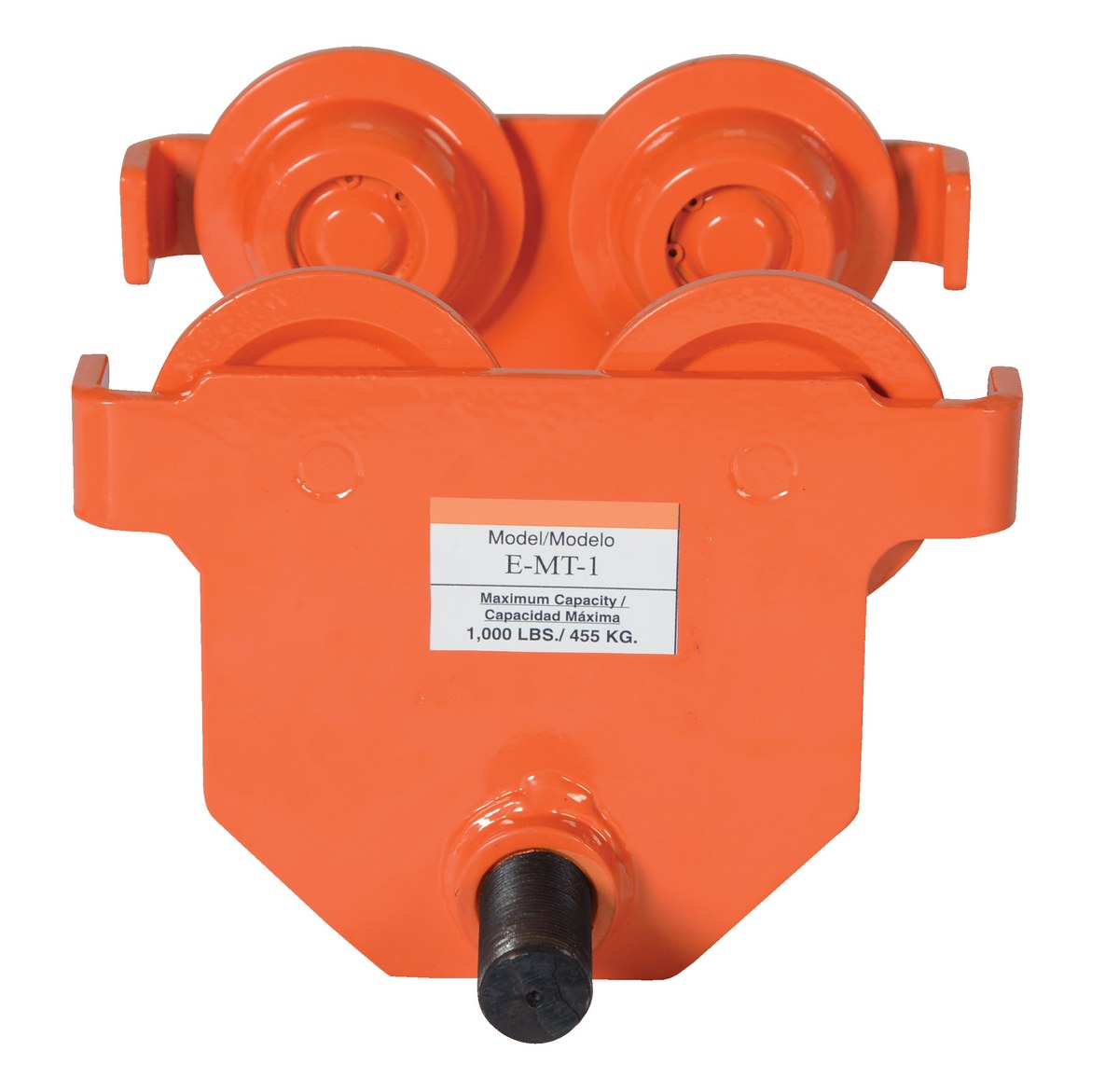

E-MT-1 90 Days Limited WarrantyEYE MANUAL TROLLEY PUSH 1K CAPACITYUniform Capacity (lb.): 1,000
Fits Beam Flange Width (in.): 2 to 8-5/8
12

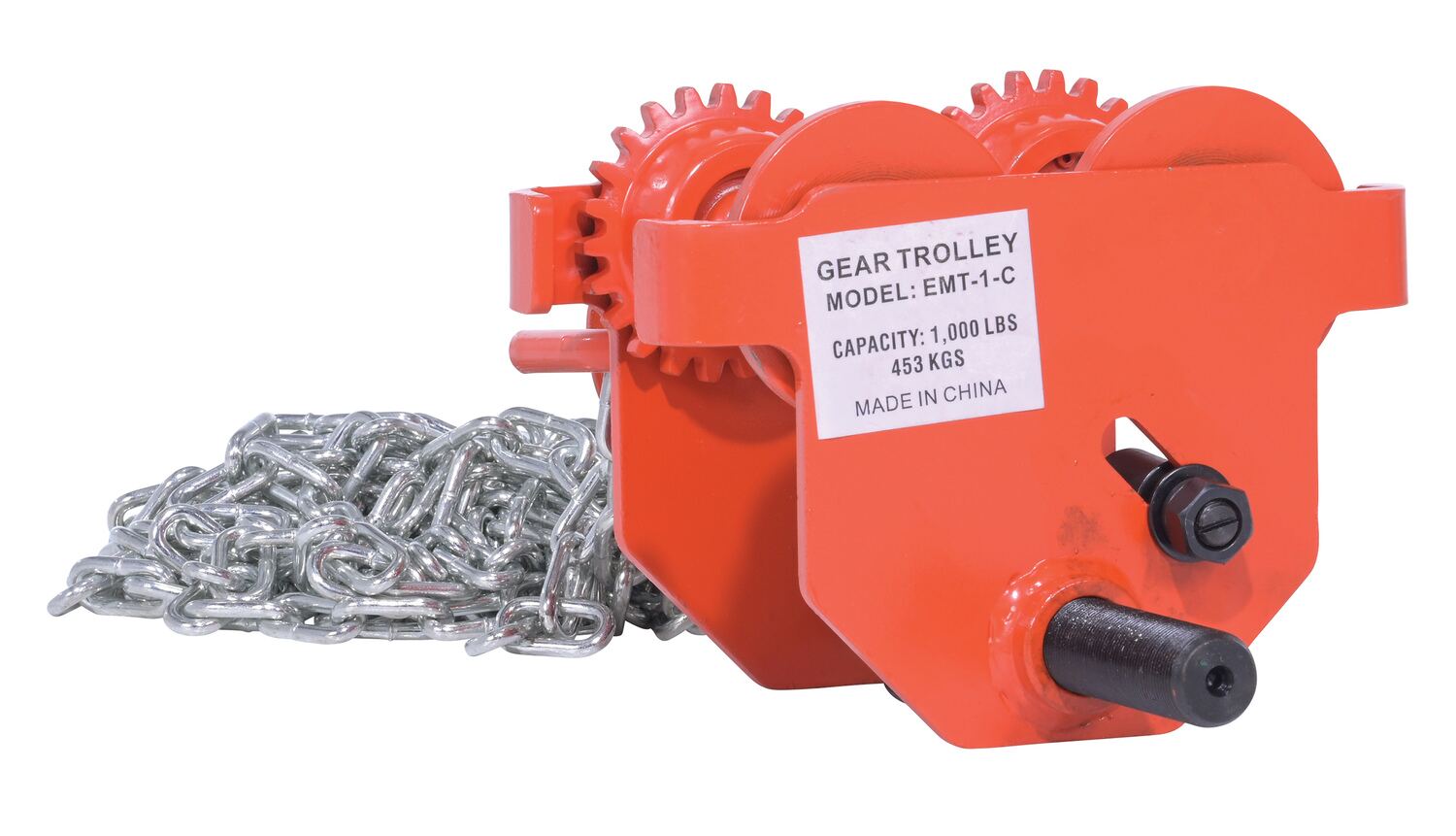

E-MT-1-C 90 Days Limited WarrantyEYE MANUAL TROLLEY GEARED 1K CAPACITYUniform Capacity (lb.): 1,000
Fits Beam Flange Width (in.): 2-1/2 to 5-1/2
21
E-MT-2 90 Days Limited WarrantyEYE MANUAL TROLLEY PUSH 2K CAPACITYUniform Capacity (lb.): 2,000
Fits Beam Flange Width (in.): 2-1/2 to 10-1/8
20

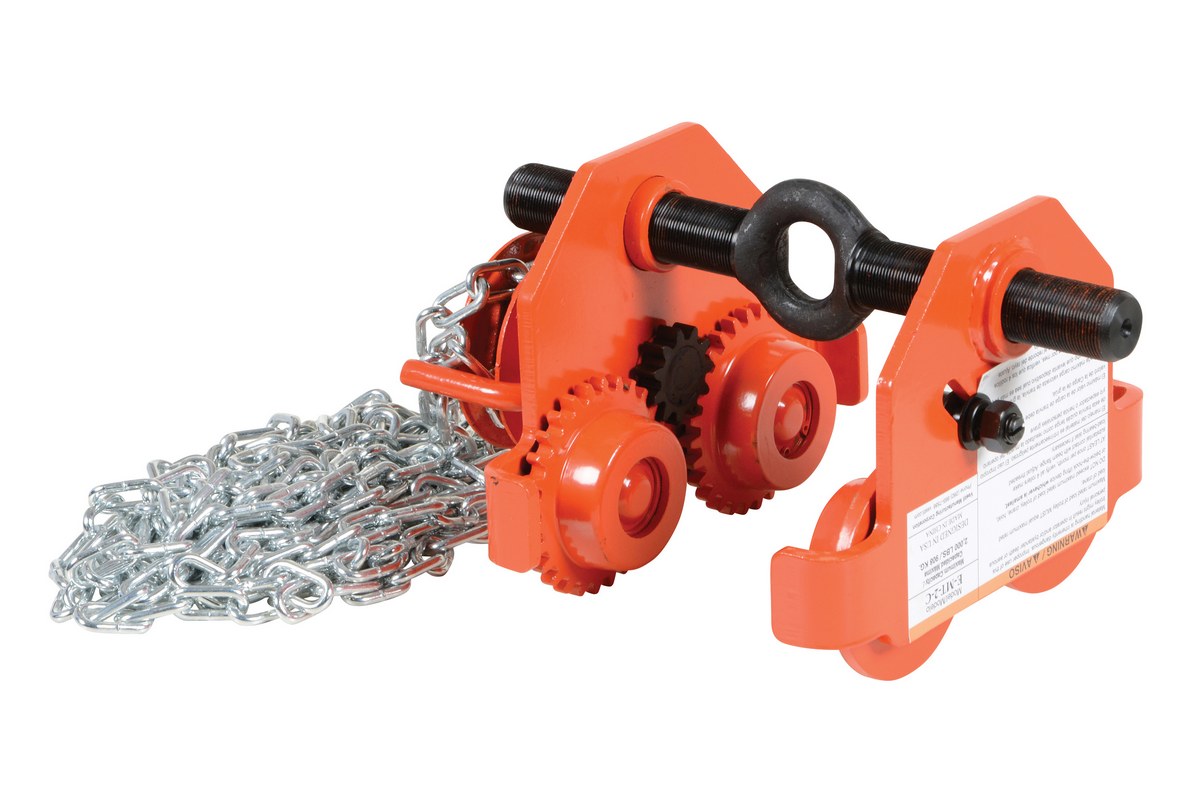

E-MT-2-C 90 Days Limited WarrantyEYE MANUAL TROLLEY GEARED 2K CAPACITYUniform Capacity (lb.): 2,000
Fits Beam Flange Width (in.): 2-1/2 to 5-1/2
29
E-MT-4 90 Days Limited WarrantyEYE MANUAL TROLLEY PUSH 4K CAPACITYUniform Capacity (lb.): 4,000
Fits Beam Flange Width (in.): 2-1/2 to 8-5/8
31
E-MT-4-C 90 Days Limited WarrantyEYE MANUAL TROLLEY GEARED 4K CAPACITYUniform Capacity (lb.): 4,000
Fits Beam Flange Width (in.): 3 to 6-1/2
41
E-MT-6 90 Days Limited WarrantyEYE MANUAL TROLLEY PUSH 6K CAPACITYUniform Capacity (lb.): 6,000
Fits Beam Flange Width (in.): 3 to 8-5/8
52

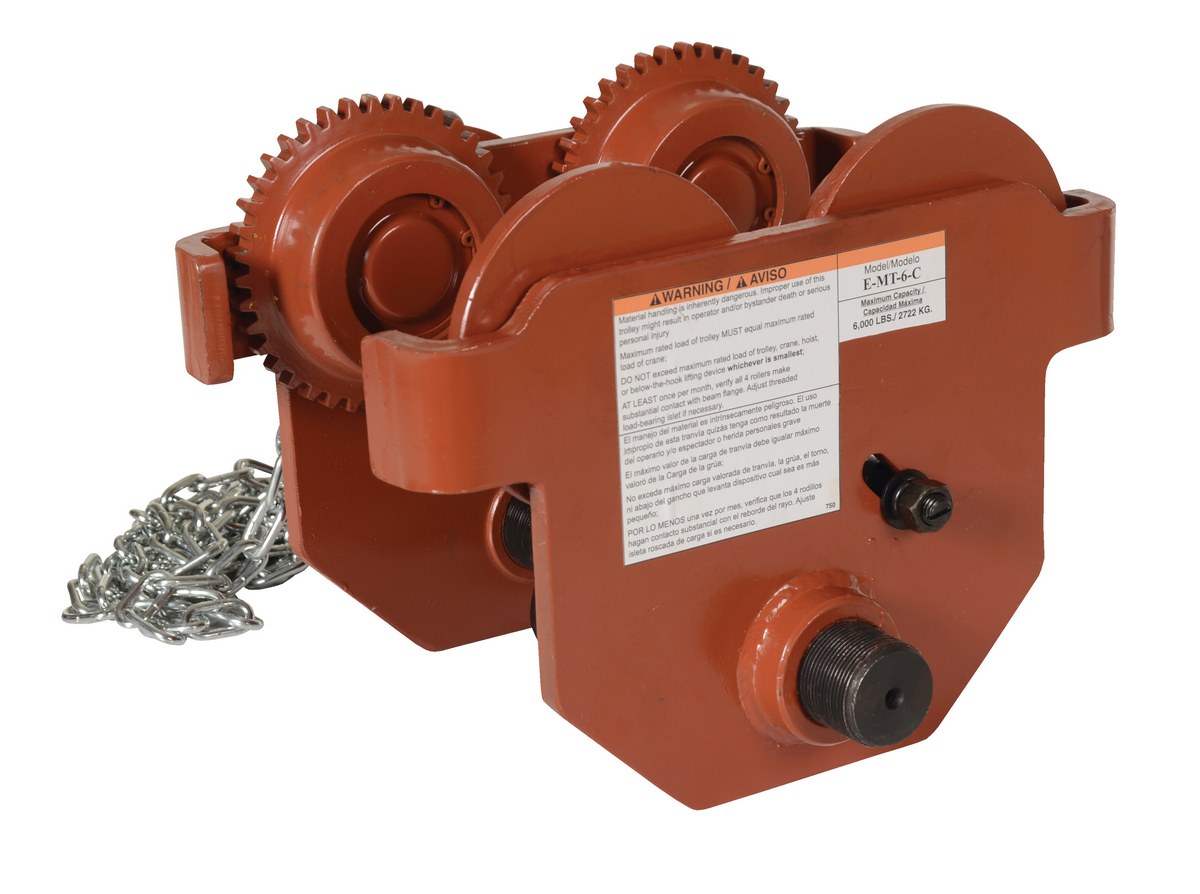

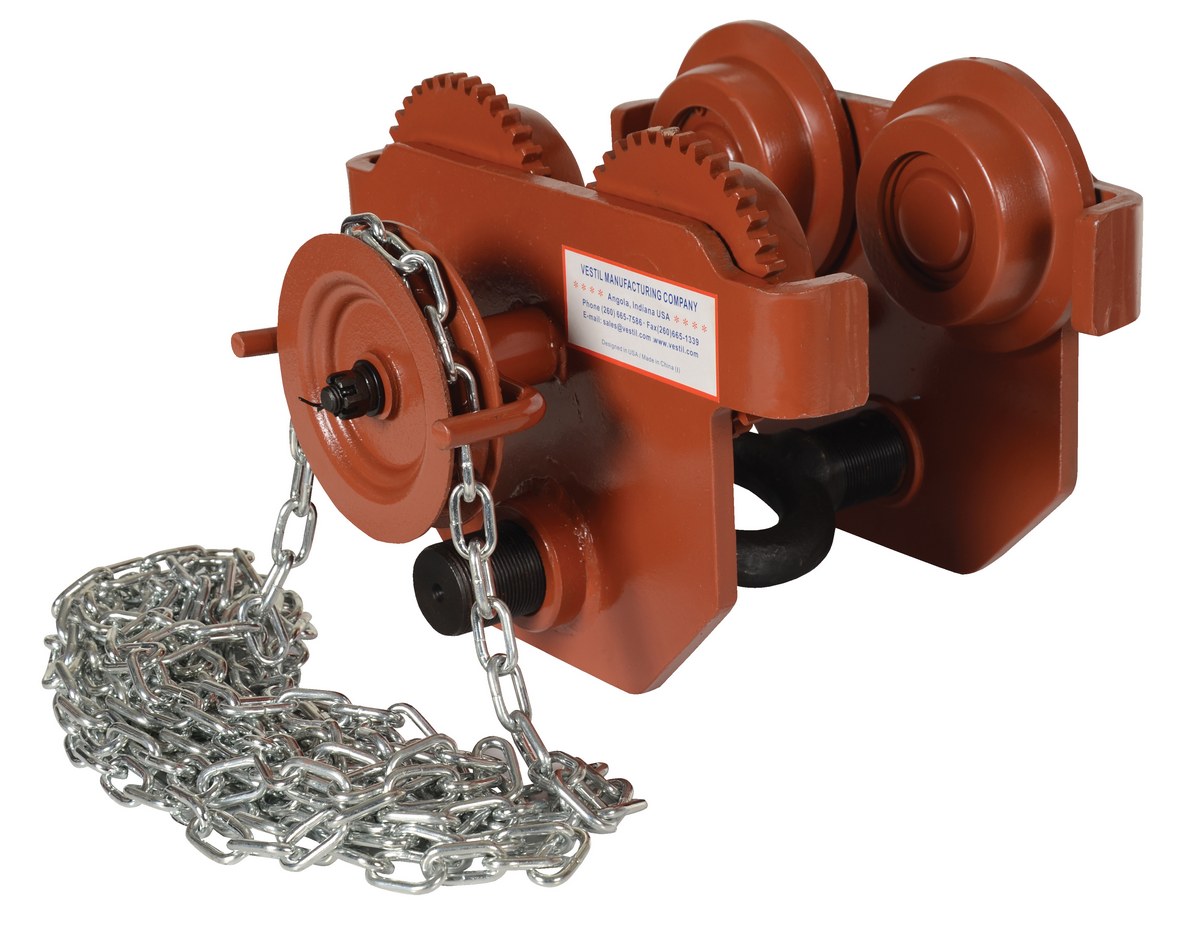

E-MT-6-C 90 Days Limited WarrantyEYE MANUAL TROLLEY GEARED 6K CAPACITYUniform Capacity (lb.): 6,000
Fits Beam Flange Width (in.): 3 to 8
62
E-MT-8 90 Days Limited WarrantyEYE MANUAL TROLLEY PUSH 8K CAPACITYUniform Capacity (lb.): 8,000
Fits Beam Flange Width (in.): 3 to 9
83
E-MT-8-C 90 Days Limited WarrantyEYE MANUAL TROLLEY GEARED 8K CAPACITYUniform Capacity (lb.): 8,000
Fits Beam Flange Width (in.): 3 to 9
100
E-MT-10 90 Days Limited WarrantyEYE MANUAL TROLLEY PUSH 10K CAPACITYUniform Capacity (lb.): 10,000
Fits Beam Flange Width (in.): 3 to 9
82

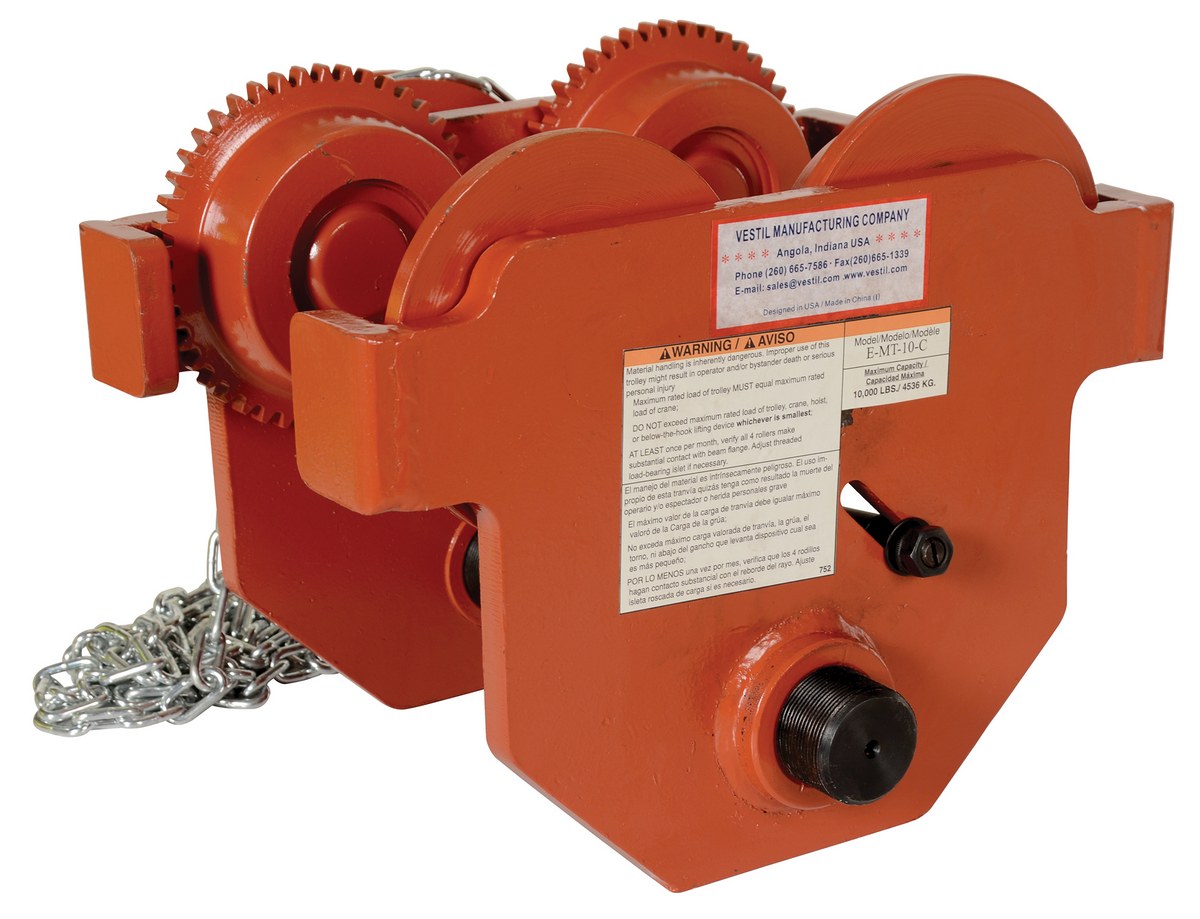

E-MT-10-C 90 Days Limited WarrantyEYE MANUAL TROLLEY GEARED 10K CAPACITYUniform Capacity (lb.): 10,000
Fits Beam Flange Width (in.): 3 to 9
103

KEY: = Click For Expanded Model Details -- = Approval Drawing -- = Testing Certificate -- Warranty




Low Profile Manual Trollies PDF's will open in a new window when clicked.

Survey Sheets

No Survey Sheets For This Product


Approval Drawings

Testing Certificates

Other PDF's

No "Other PDFs" For This Product...


Directory Links Of Available PDF's For All Products

Before placing an order, please confirm that the ship to company is able to receive shipments on the estimated delivery date





Low Profile Manual Trollies




These trollies have been designed to quickly install on virtually any S, H,W, and M type I-beam. The width of the trolley is adjusted by rotating the center rod with lifting eye clockwise or counterclockwise. Once hoist (not included) is attached, center rod cannot be rotated which prevents trolley width from accidentally changing. Choose either push trolley or geared trolley. Geared trolley is ideal for use when precise positioning of the trolley is required. The trolley includes four rollers with sealed bearings for long life. A lifting eye is located at the bottom of the trolley for attaching a hoist (not included). Steel construction and painted finish. Headroom is measured from the bottom of wheel to bottom of hooking eye.


Low Profile Manual Trollies
Model Image PDF Description I-Beam
Flange
Headroom Capacity
(lbs.)
Wt.
(lbs)
E-MT-1 icon_approvaldrawings.jpgWarranty PDFCompliance Certificate Push 2"-8-5/8" 2 1/2" 1,000 12

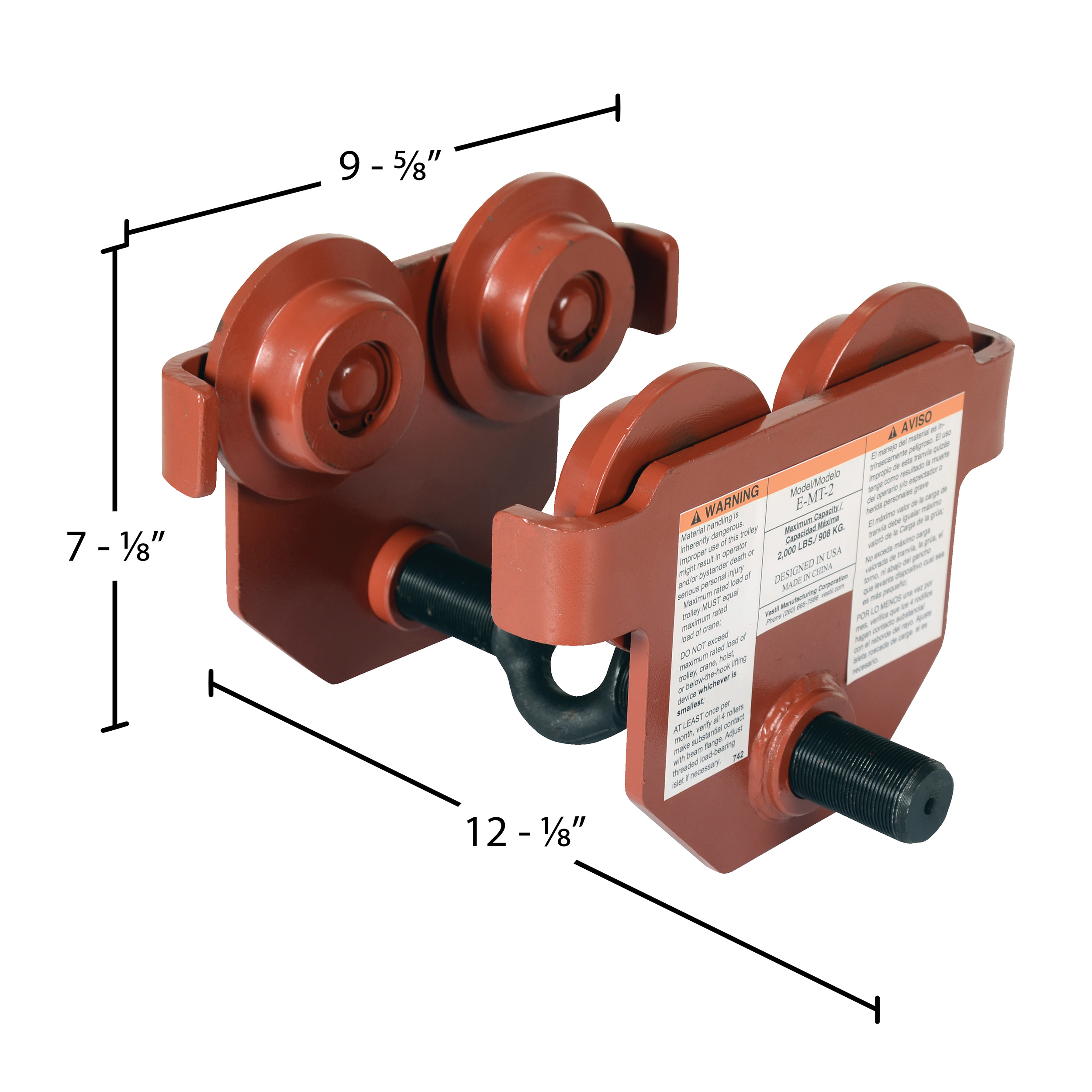

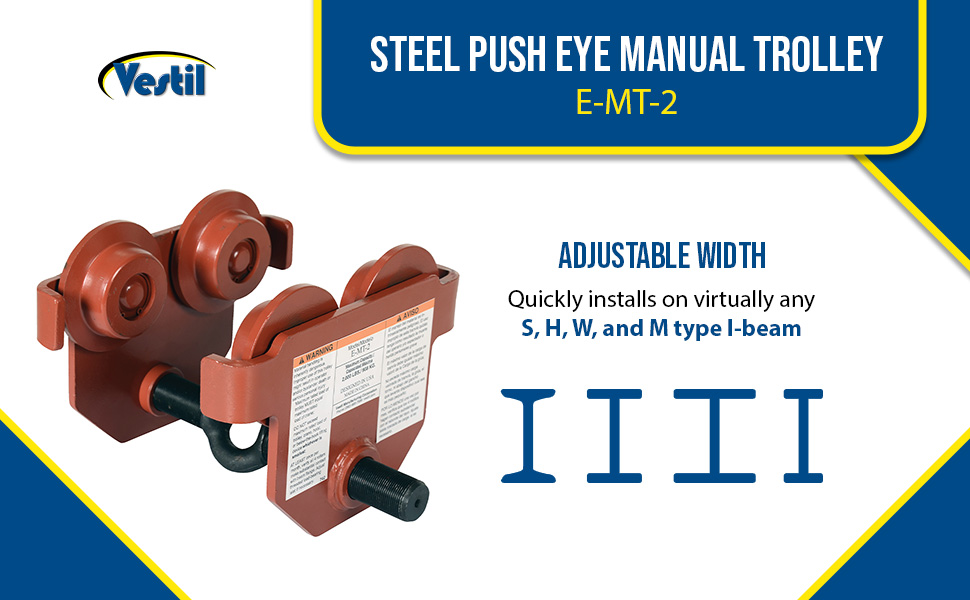

E-MT-2 icon_approvaldrawings.jpgWarranty PDFCompliance Certificate Push 2-1/2"-10-1/8" 2 5/8" 2,000 20
E-MT-4 icon_approvaldrawings.jpgWarranty PDFCompliance Certificate Push 2-1/2" - 8-5/8" 3" 4,000 31
E-MT-6 icon_approvaldrawings.jpgWarranty PDFCompliance Certificate Push 3"-8-5/8" 3 3/8" 6,000 52
E-MT-8 icon_approvaldrawings.jpgWarranty PDFCompliance Certificate Push 3"-9" 4" 8,000 82
E-MT-10 icon_approvaldrawings.jpgWarranty PDFCompliance Certificate Push 3"-9" 4" 10,000 82
E-MT-1-C icon_approvaldrawings.jpgWarranty PDFCompliance Certificate Geared 2-1/2" - 5-1/2" 4 1/2" 1,000 21
E-MT-2-C icon_approvaldrawings.jpgWarranty PDFCompliance Certificate Geared 2-1/2" - 5-1/2" 5" 2,000 29

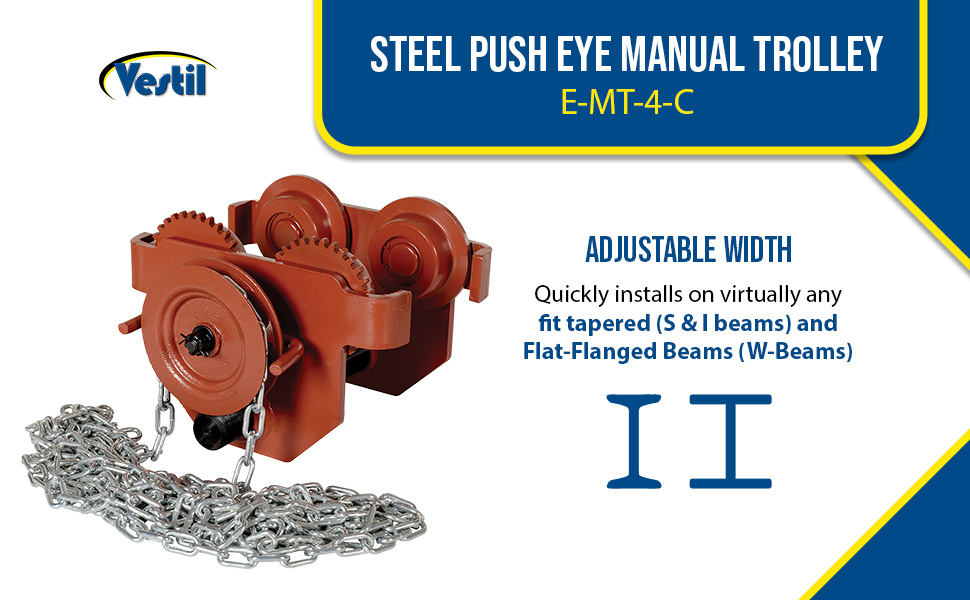

E-MT-4-C icon_approvaldrawings.jpgWarranty PDFCompliance Certificate Geared 3" - 6-1/2" 6" 4,000 41
E-MT-6-C icon_approvaldrawings.jpgWarranty PDFCompliance Certificate Geared 3" - 8" 7 3/8" 6,000 62
E-MT-8-C icon_approvaldrawings.jpgWarranty PDFCompliance Certificate Geared 3" - 9" 8 5/8" 8,000 100
E-MT-10-C icon_approvaldrawings.jpgWarranty PDFCompliance Certificate Geared 3" - 9" 8 5/8" 10,000 103
