SERIES: H-2000


Economy Chain Hoists with Chain Container

This compact hoist features a high efficiency motor with convenient 2H4V push-button operation. Single or three phase power available. Unit is dust and water resistant, load limit fitted, and features a 4:1 safety factor. Chain container included.





KEY: Approval Drawing = Approval Drawing -- Approval Drawing = Warranty -- Approval Drawing = Testing Certificate

All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.
Economy Chain Hoist with Chain Container
Model Image PDF Capacity
(lbs)
Feet Per
Minute
Head
Room
Lift
(Feet)
Power Wt
(lbs)

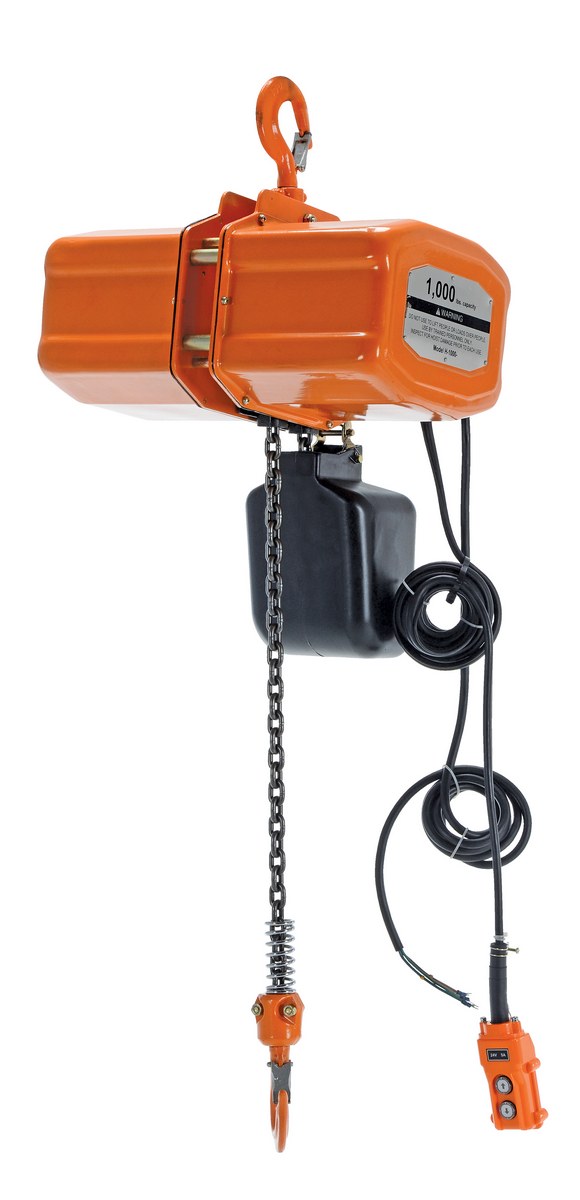

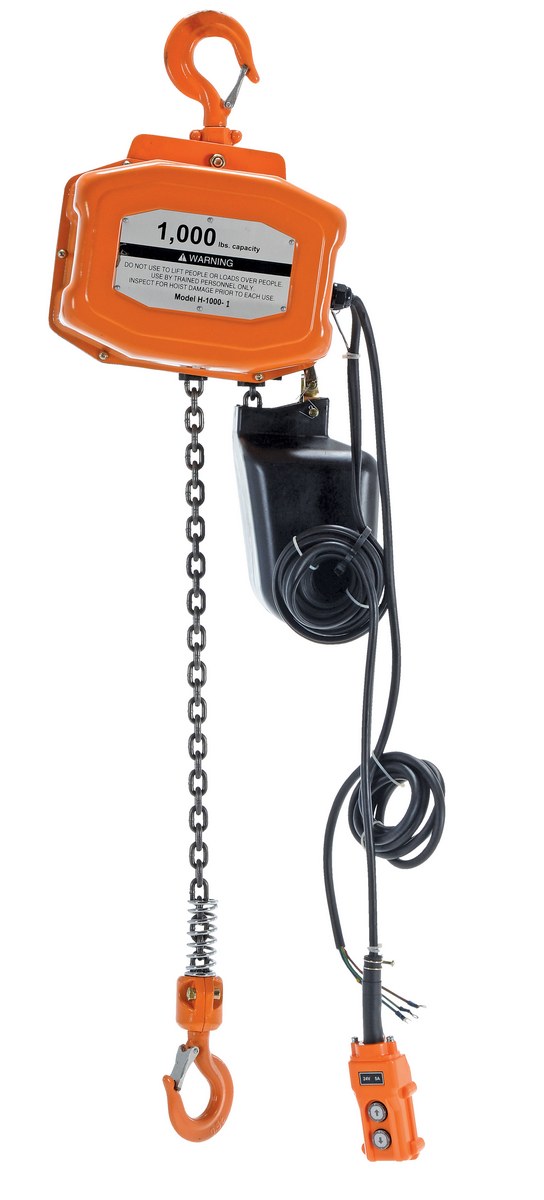

H-1000-1 icon_approvaldrawings.jpgWarranty PDFCompliance Certificate 1,000 17 21-7/16" 15 1 Phase 182

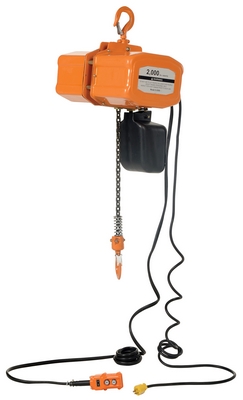

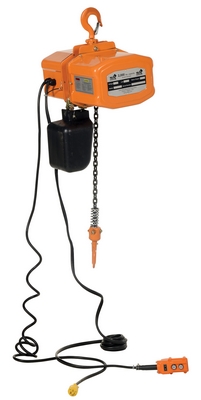

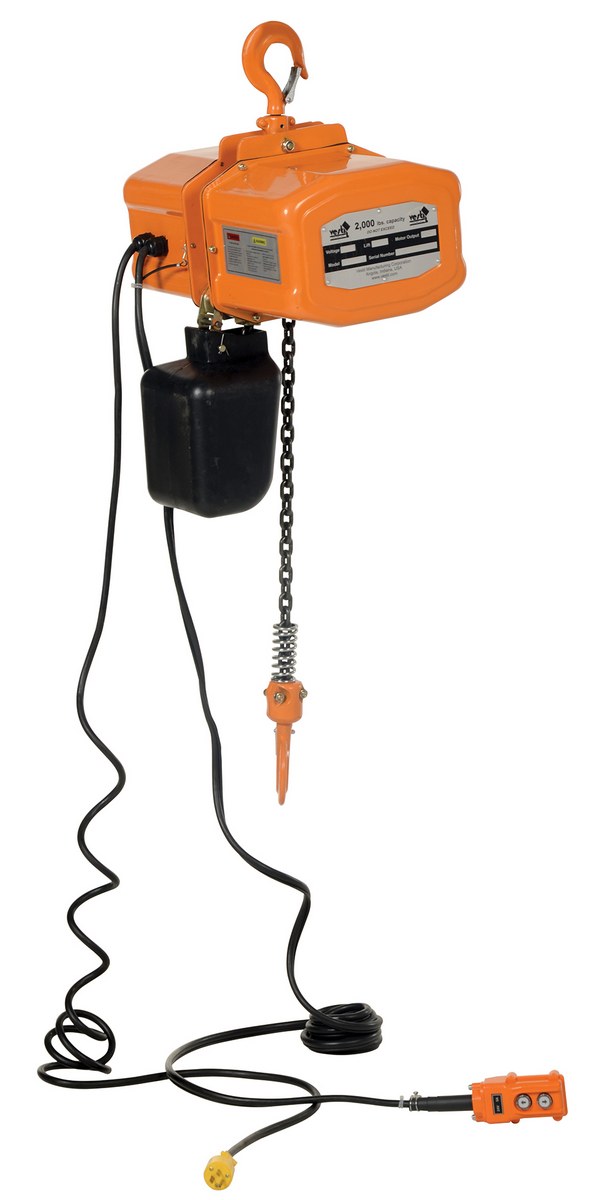

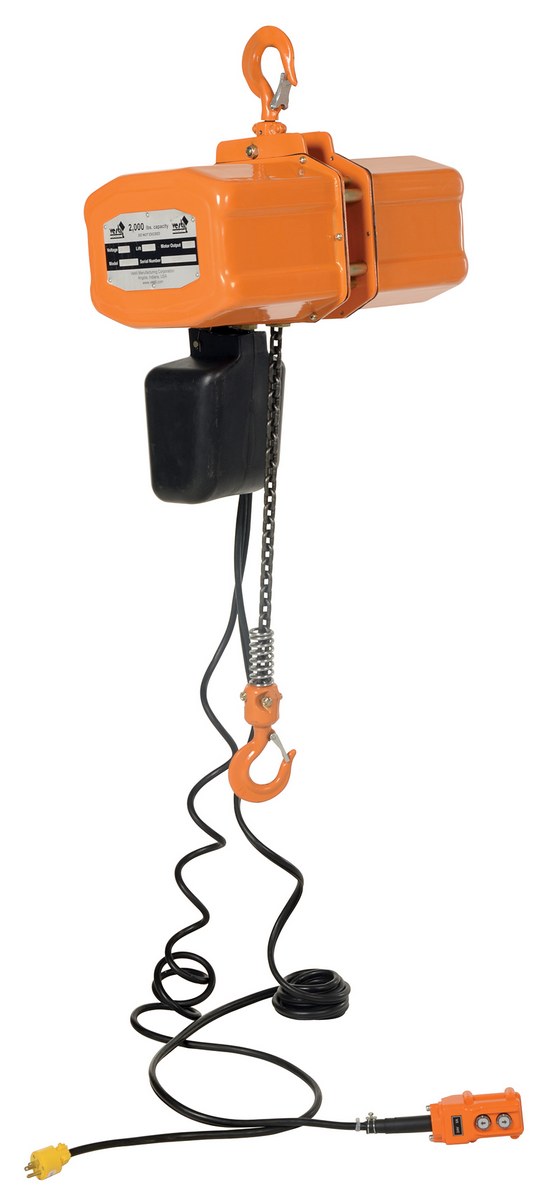

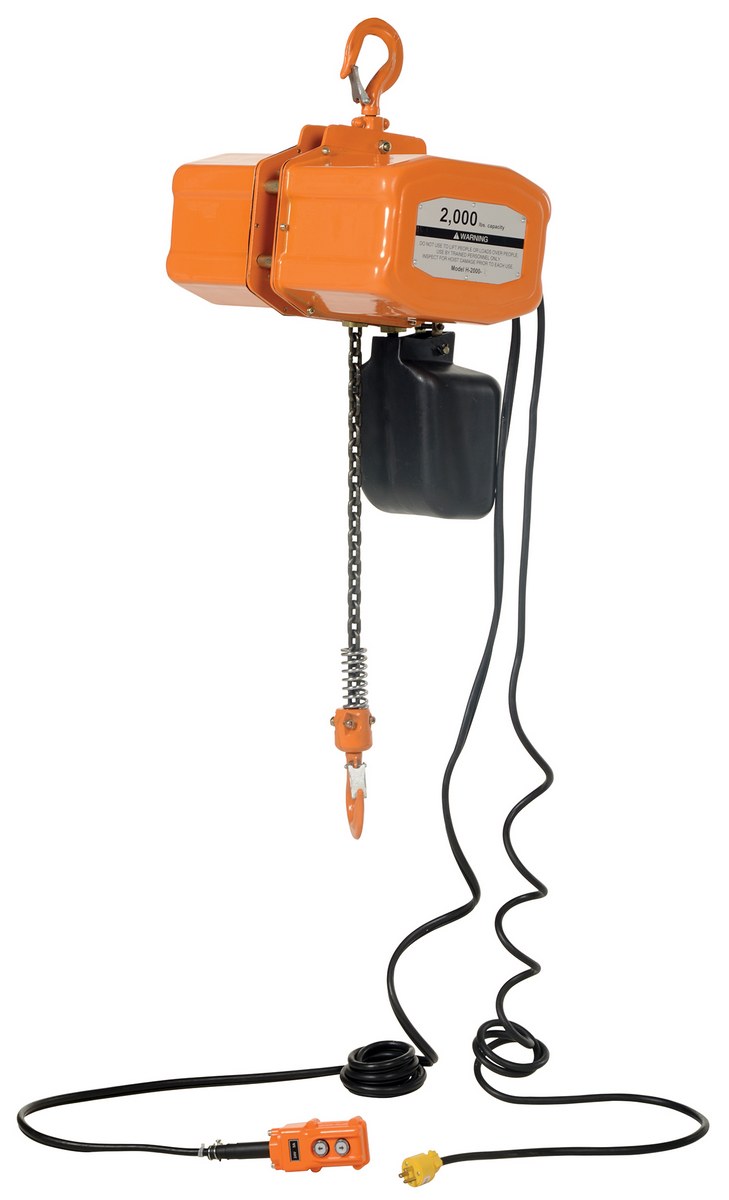

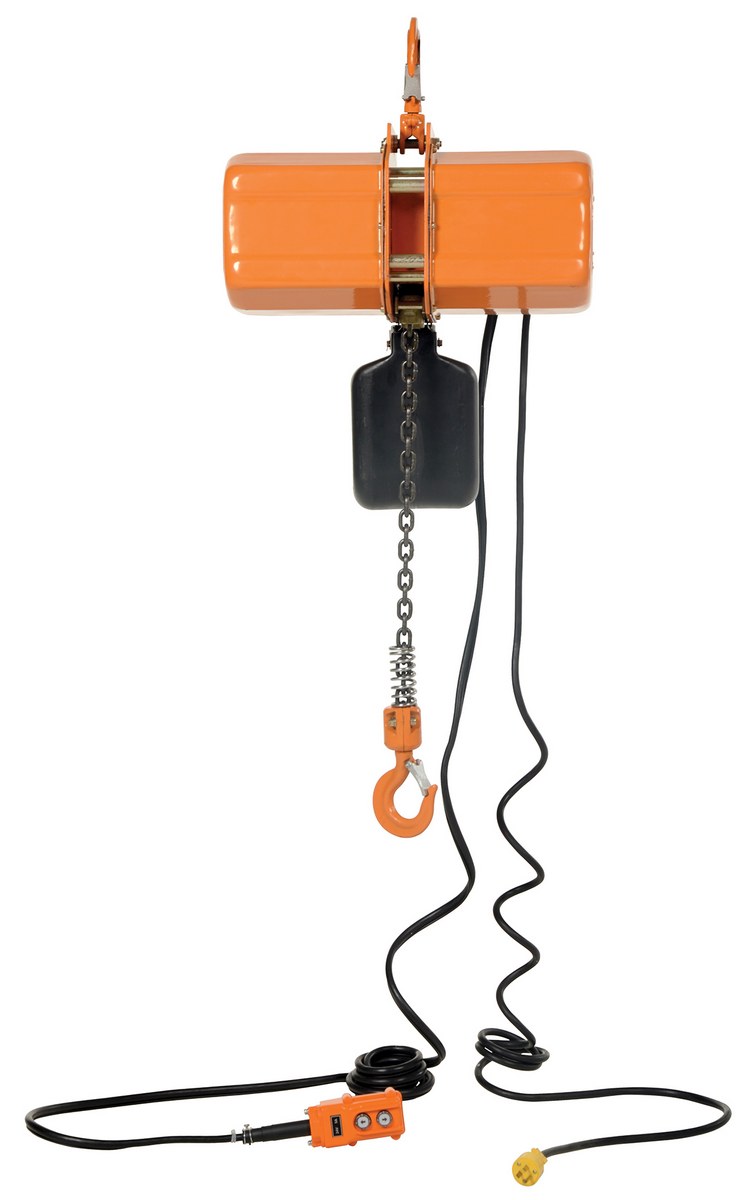

H-2000-1 Warranty PDFCompliance Certificate 2,000 17 22-13/16" 15 1 Phase 194

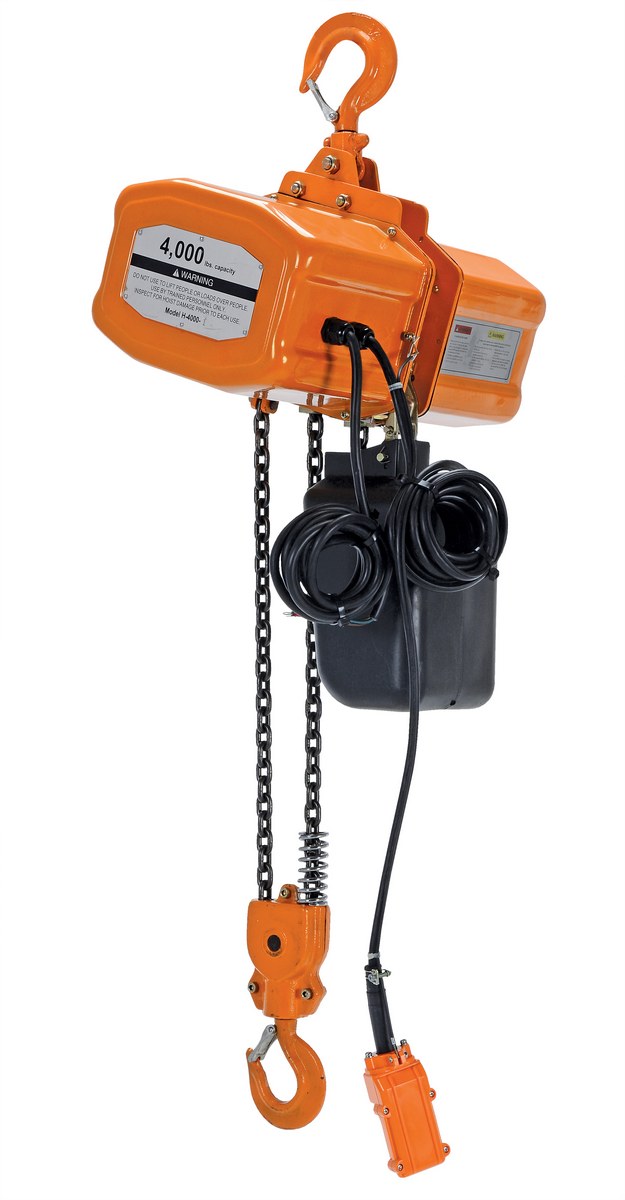

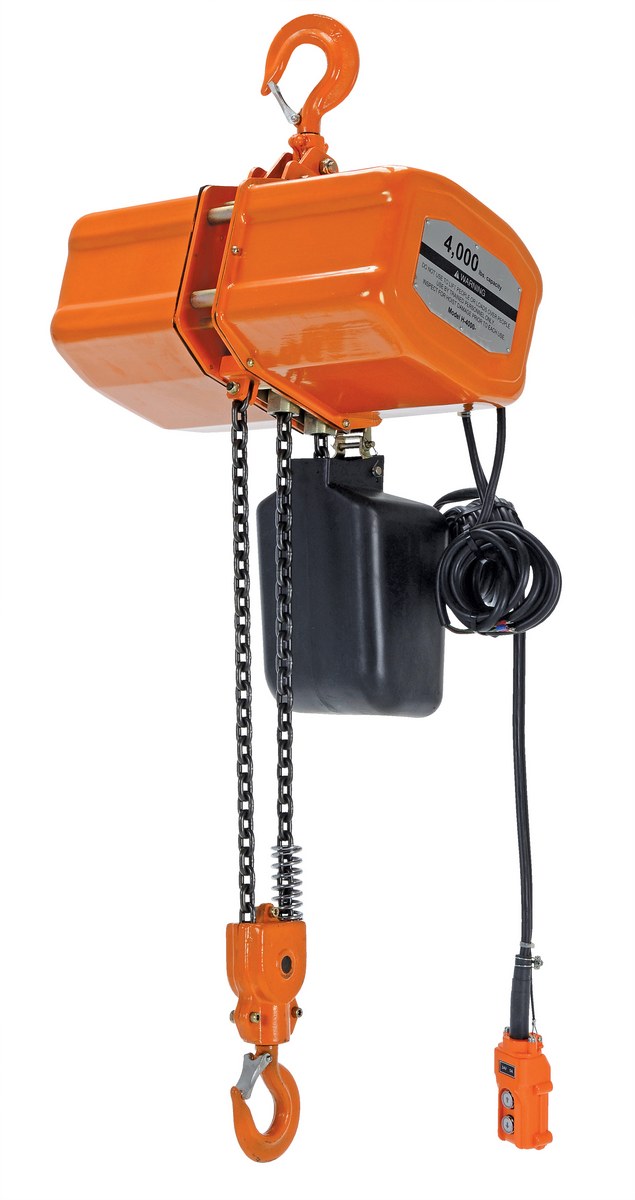

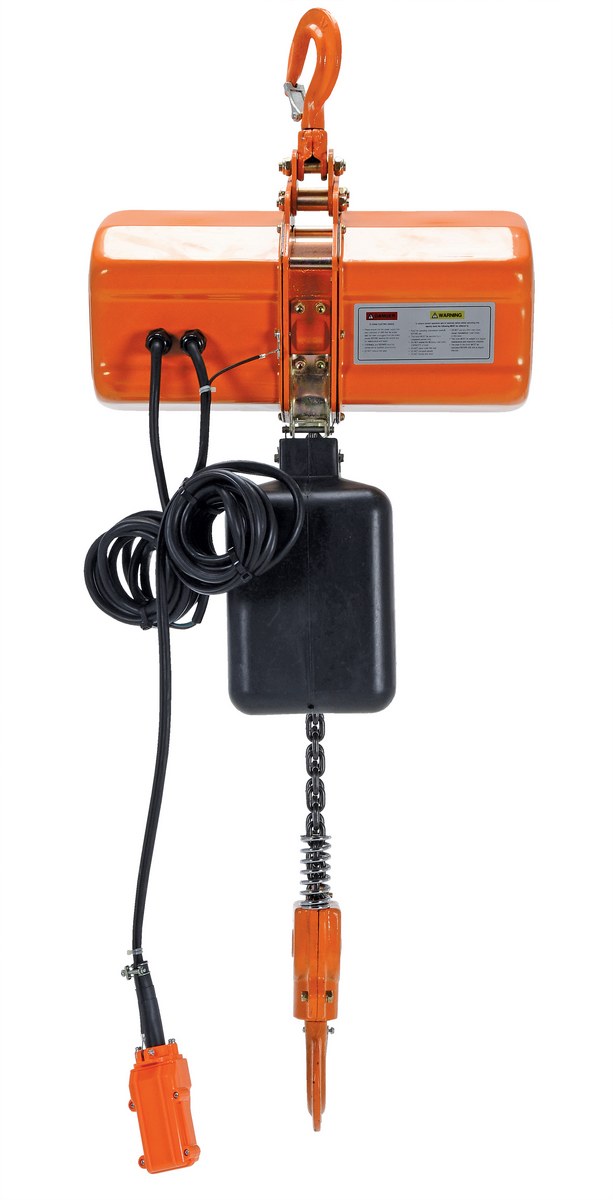

H-4000-1 icon_approvaldrawings.jpgWarranty PDFCompliance Certificate 4,000 8-1/2 21-7/16" 15 1 Phase 205

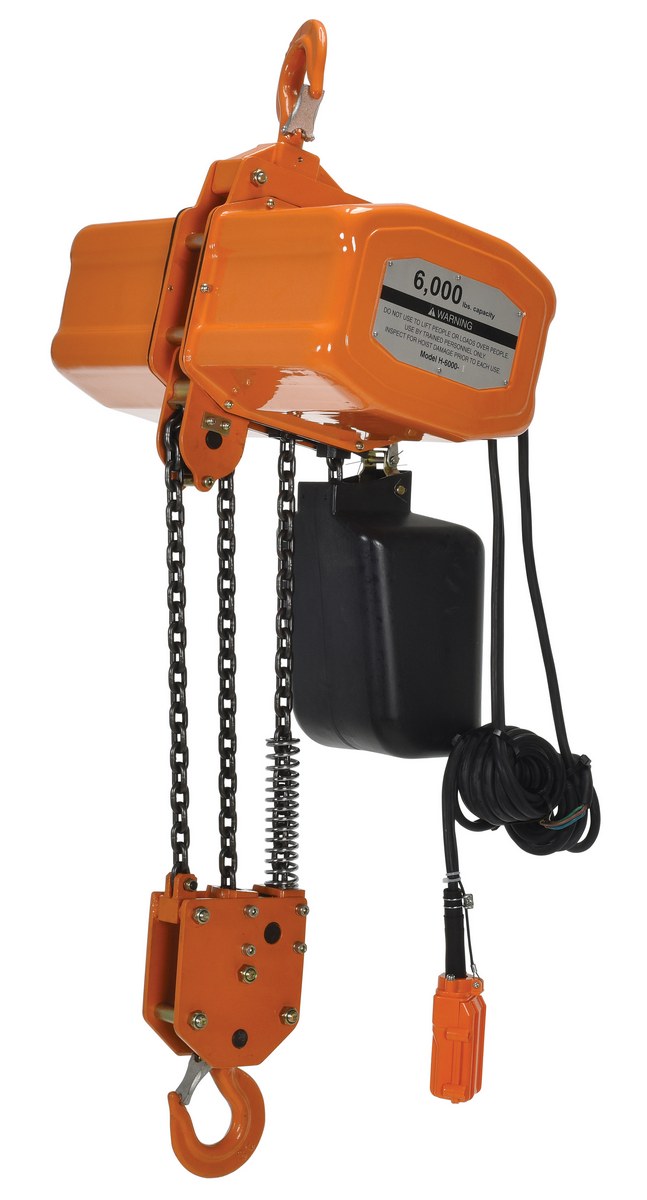

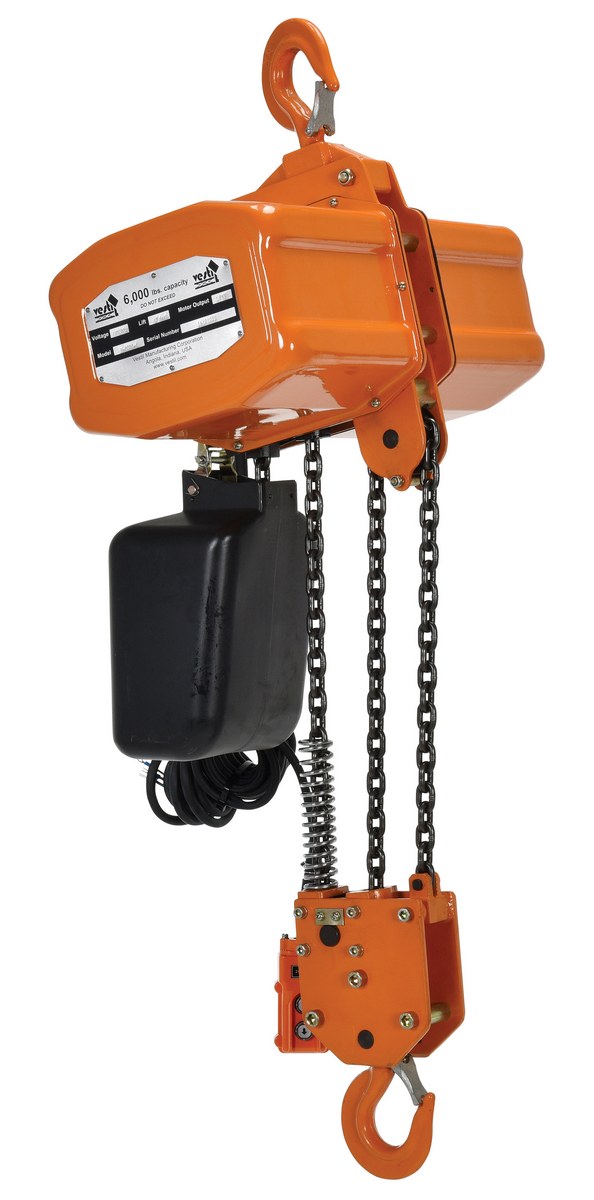

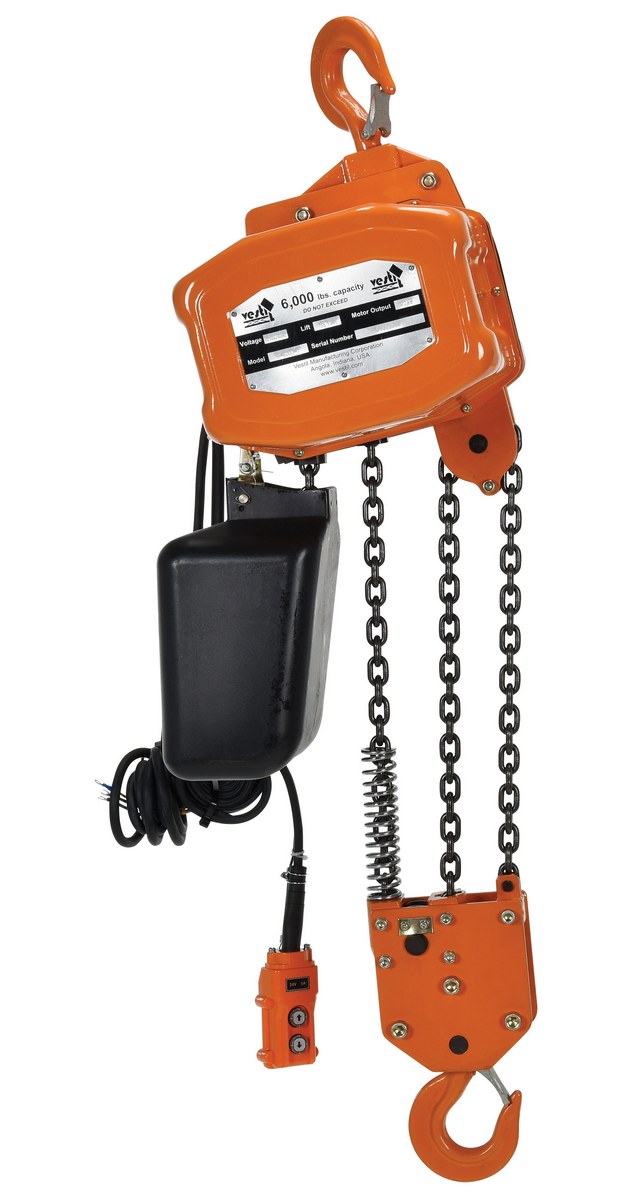

H-6000-1 Warranty PDFCompliance Certificate 6,000 5-1/2 29-1/8" 15 1 Phase 215

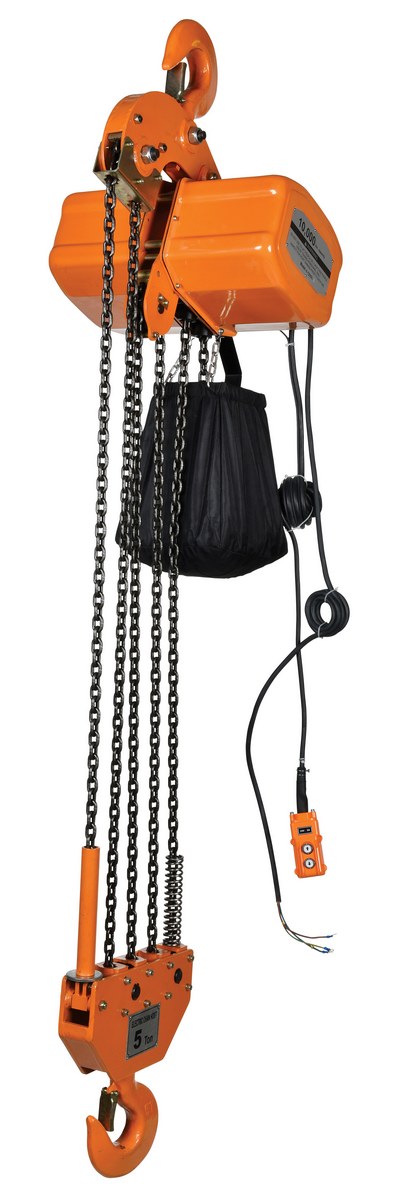

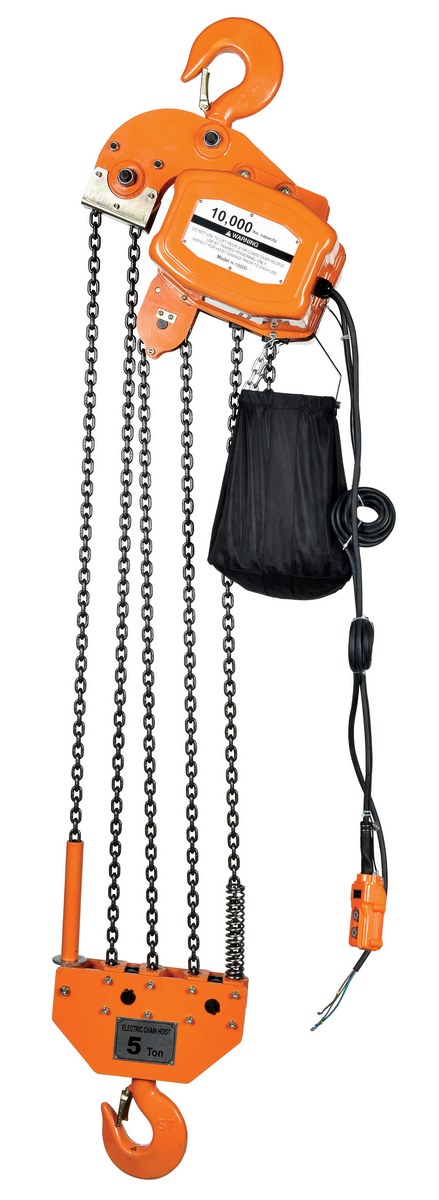

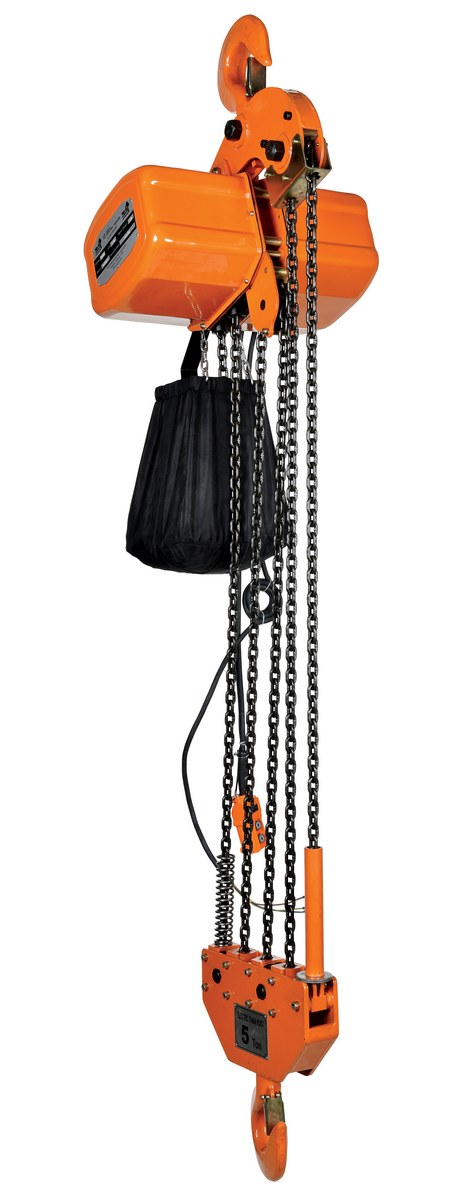

H-10000-1 Warranty PDFCompliance Certificate 10,000 3-1/2 31-1/8" 15 1 Phase 342

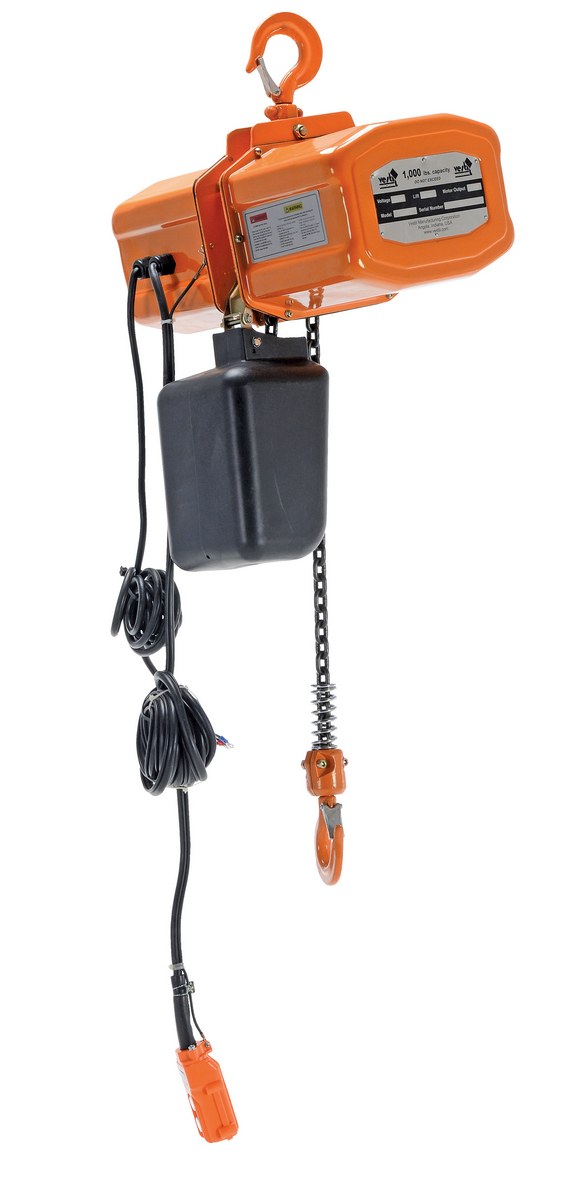

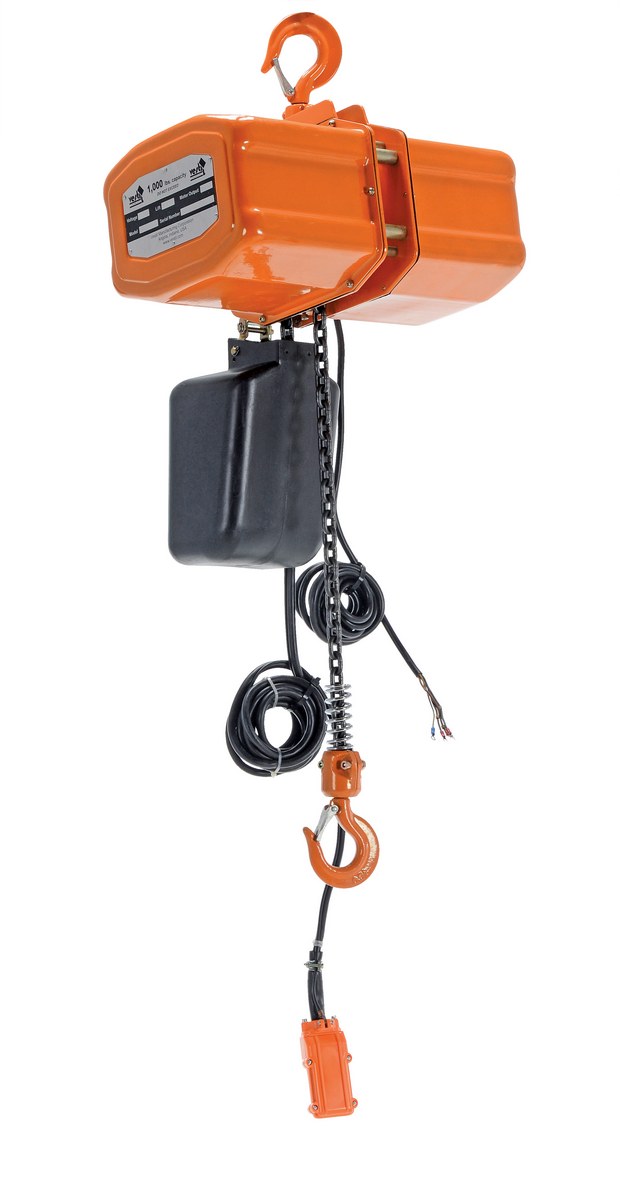

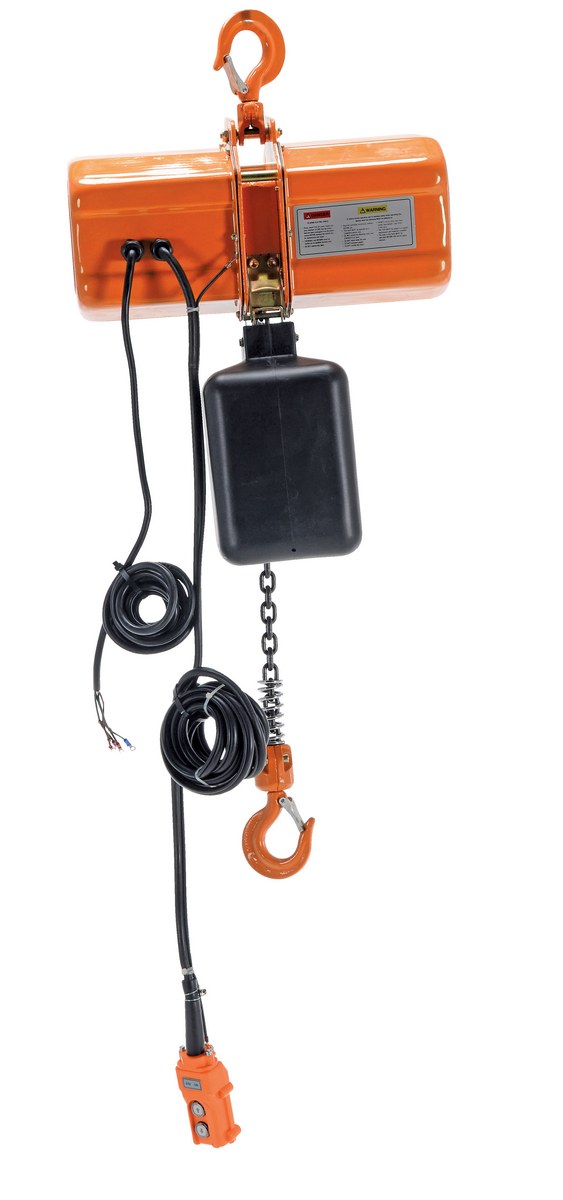

H-1000-3 icon_approvaldrawings.jpgWarranty PDFCompliance Certificate 1,000 20-1/2 21-7/16" 15 3 Phase 185

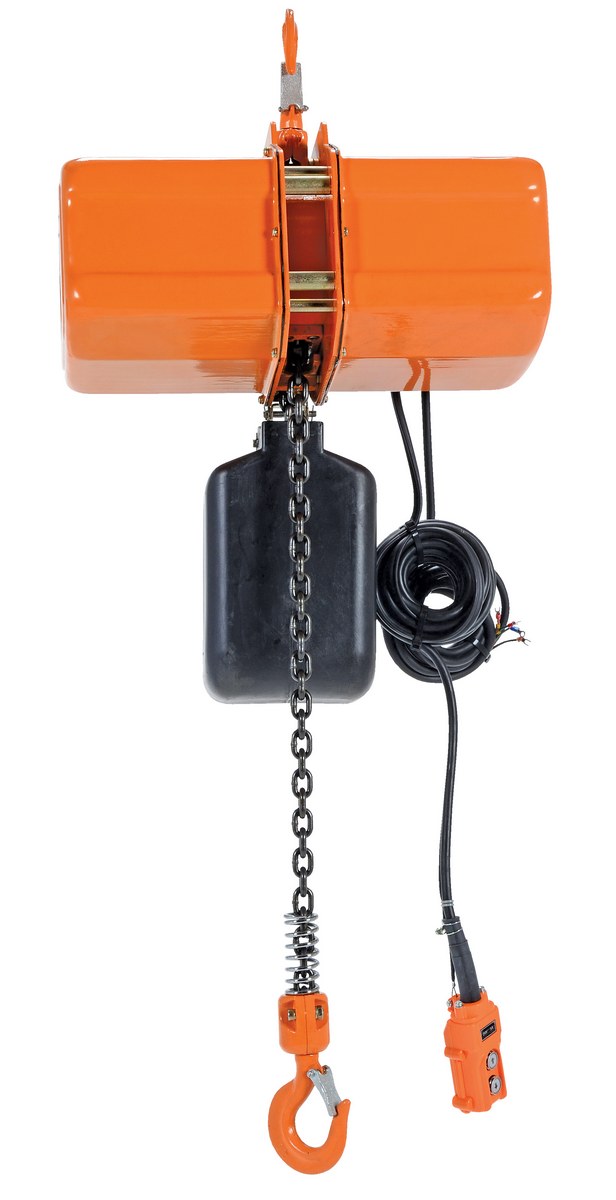

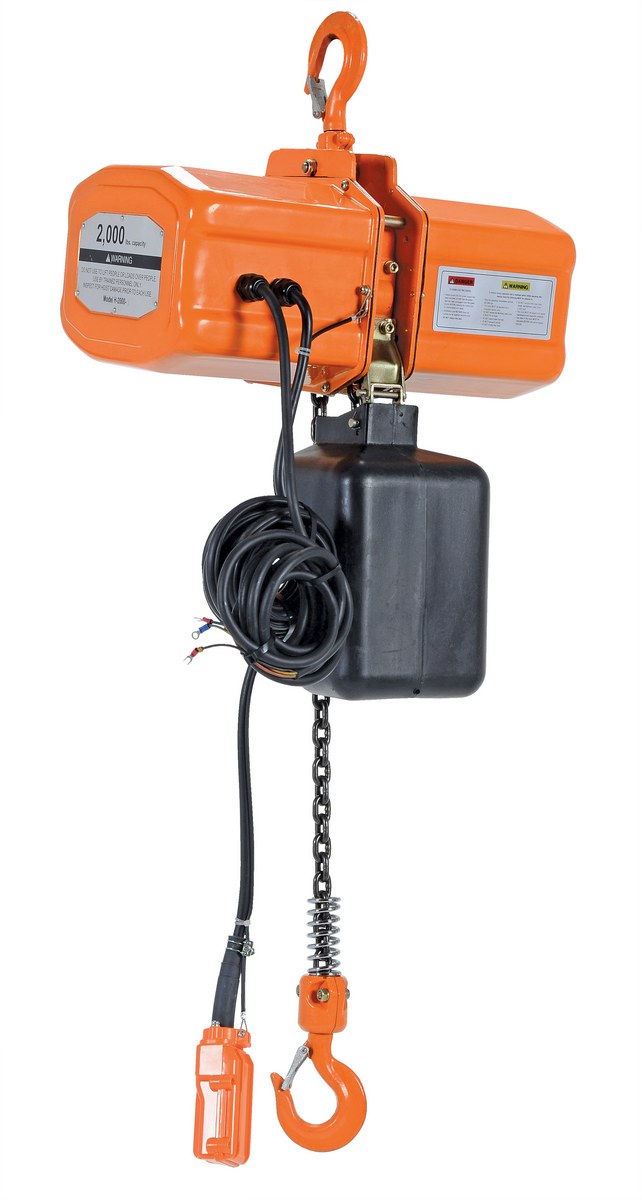

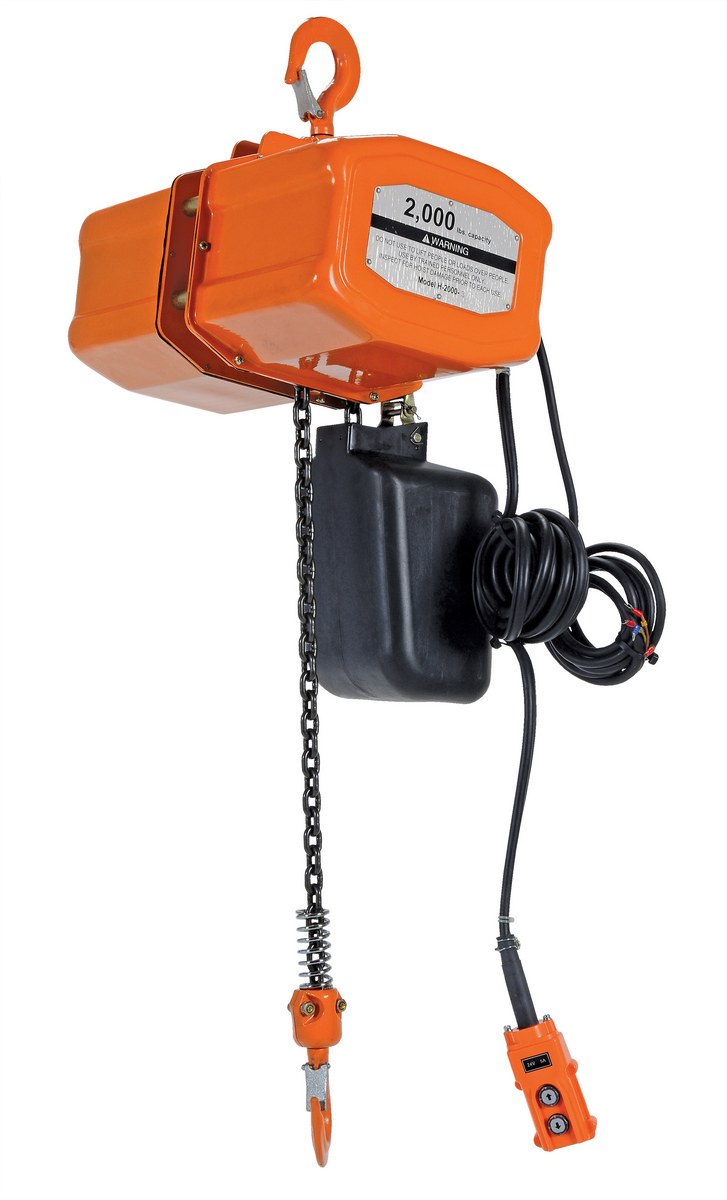

H-2000-3 icon_approvaldrawings.jpgWarranty PDFCompliance Certificate 2,000 17 22-13/16" 15 3 Phase 189

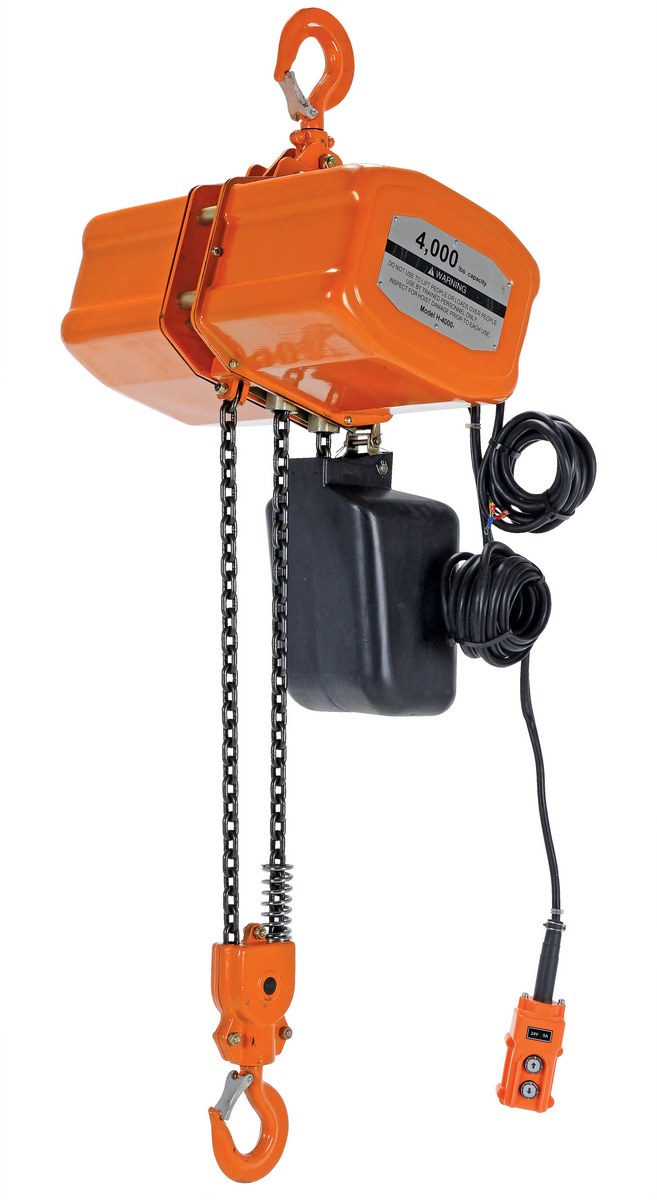

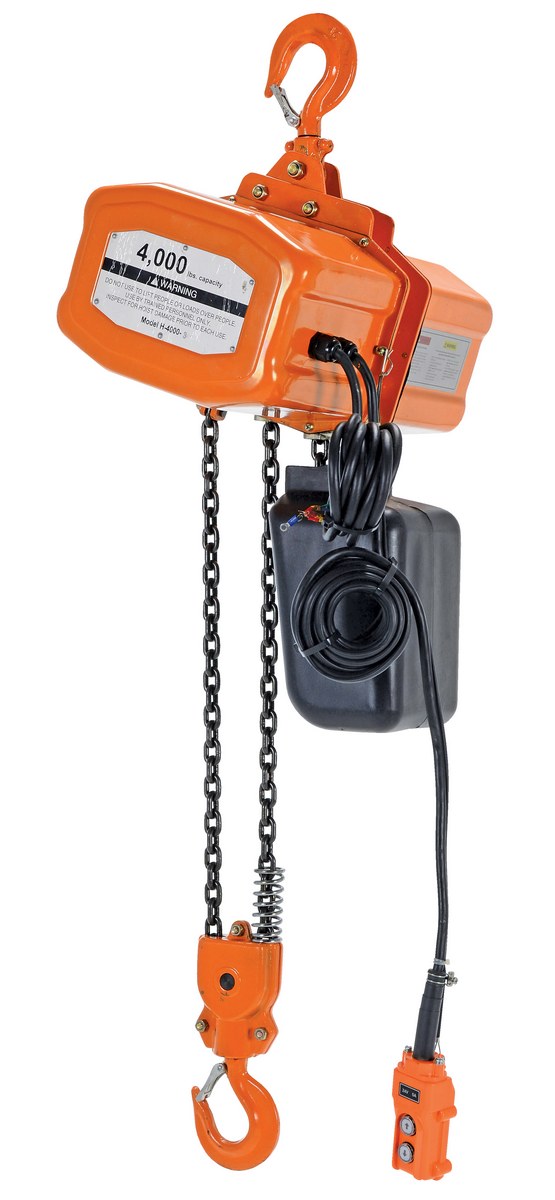

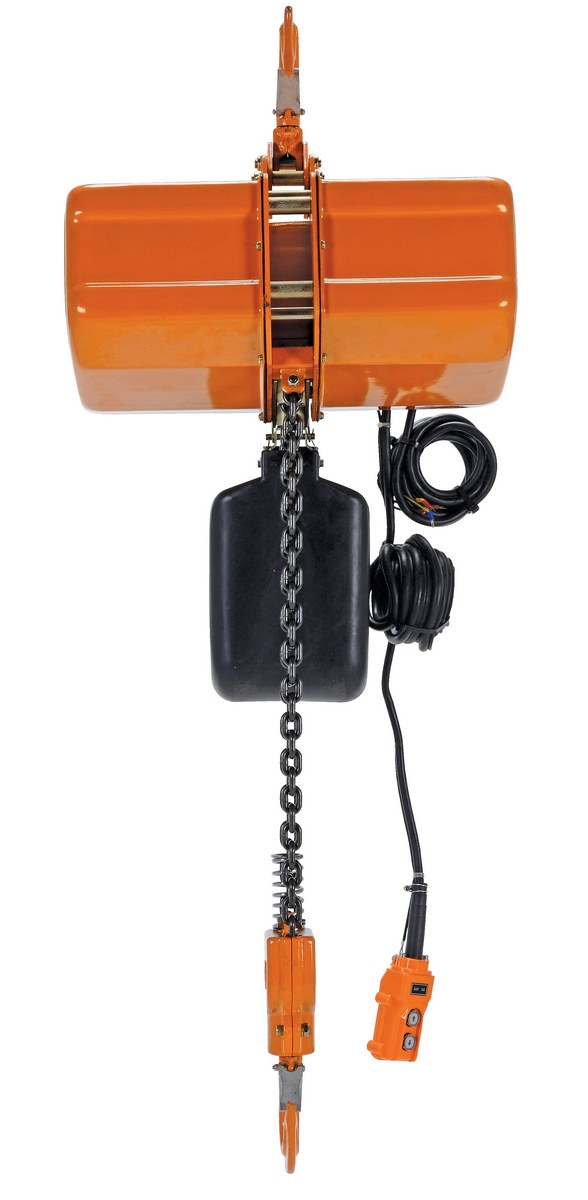

H-4000-3 icon_approvaldrawings.jpgWarranty PDFCompliance Certificate 4,000 16 21-7/16" 15 3 Phase 198

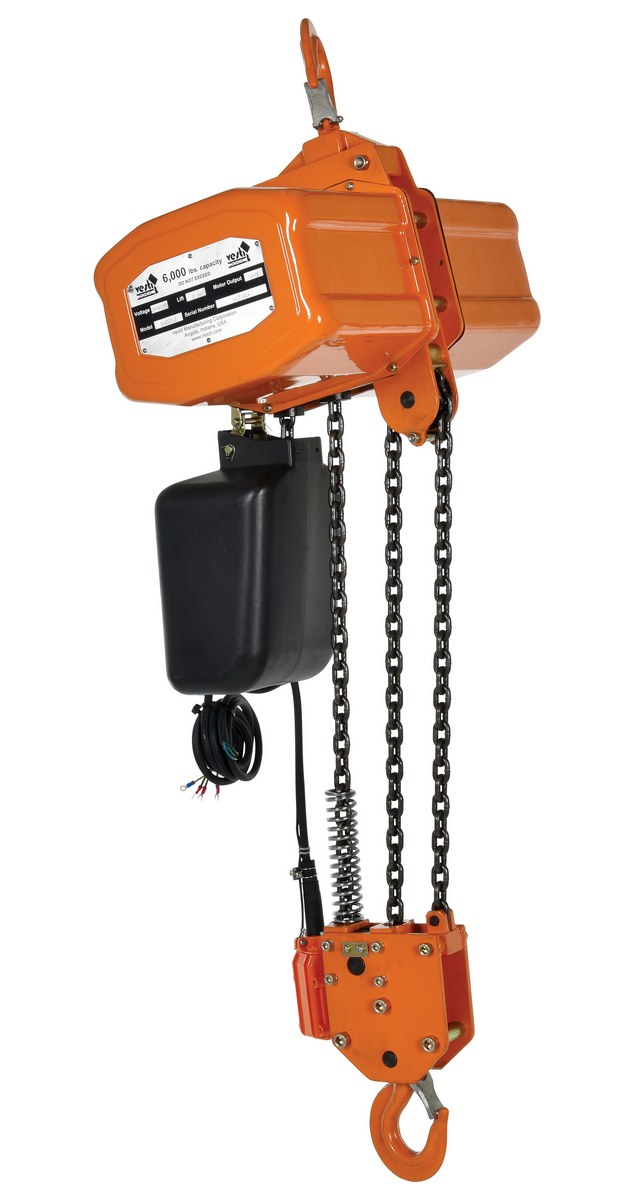

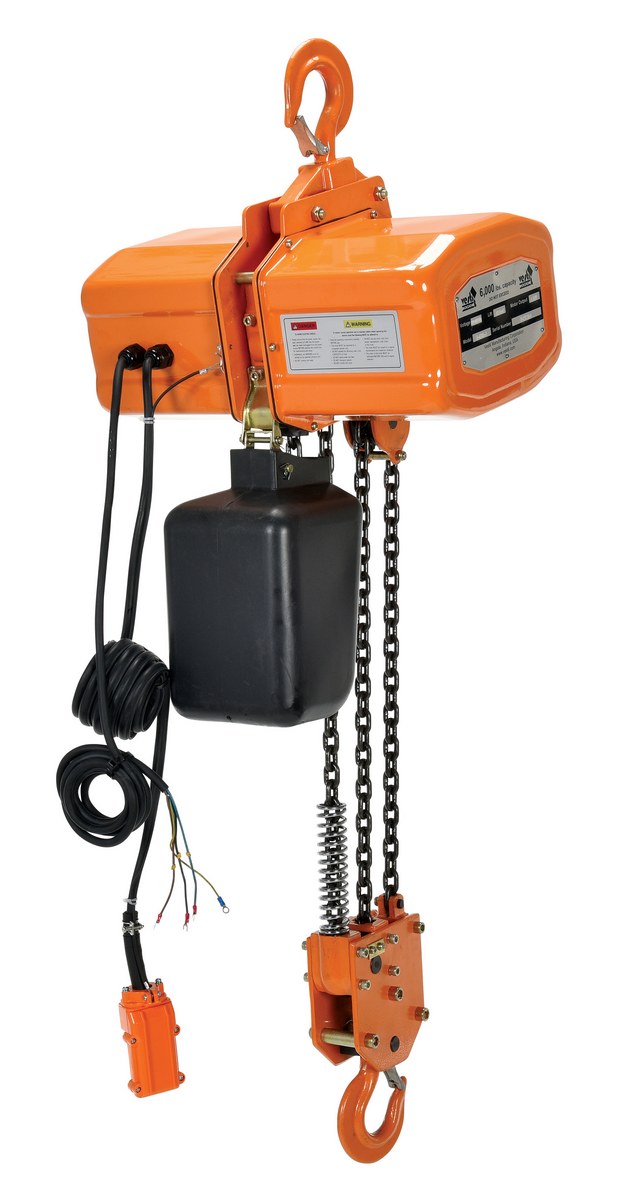

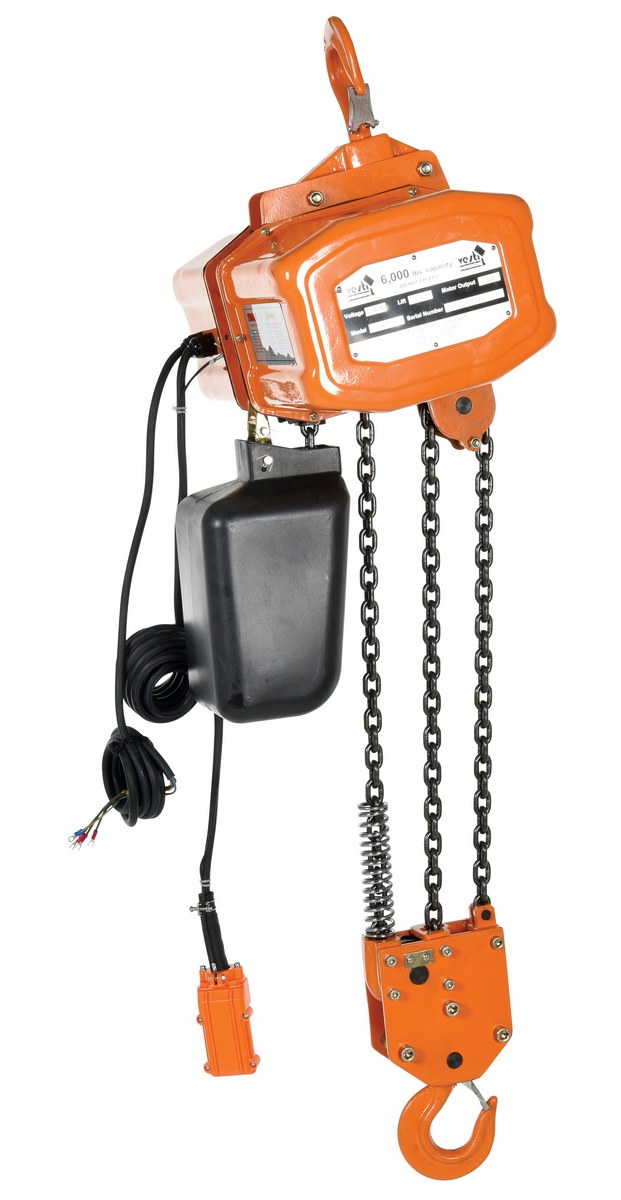

H-6000-3 Warranty PDFCompliance Certificate 6,000 6-7/8 29-1/8" 15 3 Phase 215

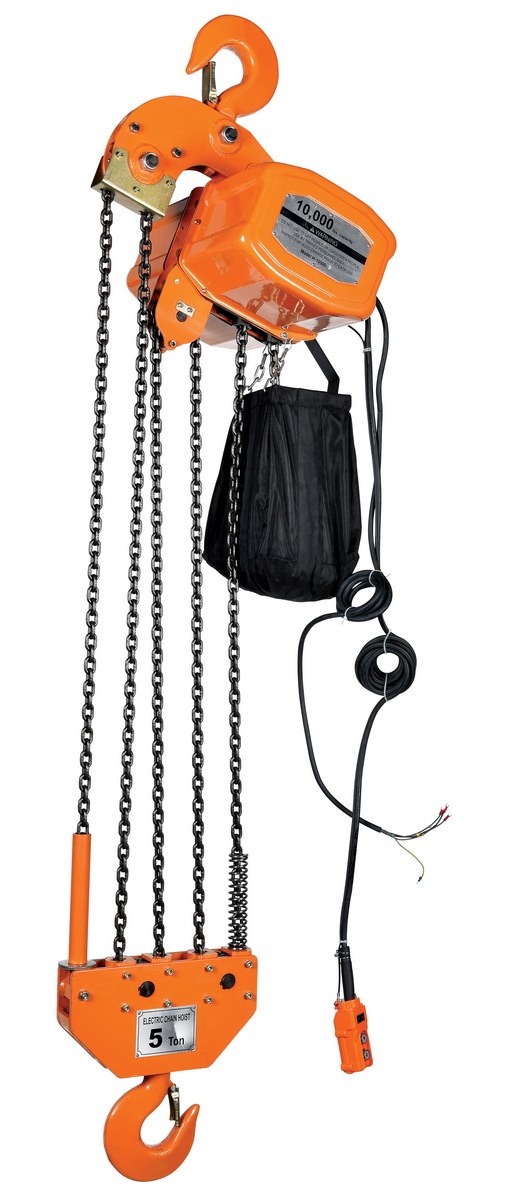

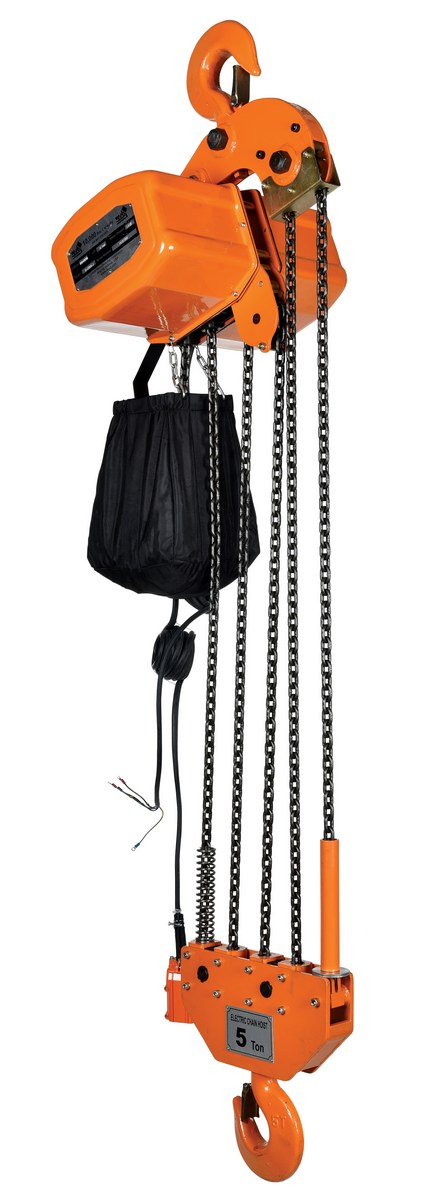

H-10000-3 Warranty PDFCompliance Certificate 10,000 3-1/4 31-1/8" 15 3 Phase 342

KEY: Approval Drawing = Approval Drawing -- Approval Drawing = Warranty -- Approval Drawing = Testing Certificate




Click A SKU Below To Show Details

H-1000-1

H-1000-1

H-1000-3

H-1000-3

H-10000-1

H-10000-1

H-10000-3

H-10000-3

H-2000-1

H-2000-1

H-2000-3

H-2000-3

H-4000-1

H-4000-1

H-4000-3

H-4000-3

H-6000-1

H-6000-1

H-6000-3

H-6000-3






PDF's will open in a new window when clicked.

Survey Sheets

* No Survey Sheets For This Product.


Approval Drawings

H-1000-1
H-1000-3
H-2000-3
H-4000-1
H-4000-3

Testing Certificates

H-1000-1
H-1000-3
H-2000-1
H-2000-3
H-4000-1
H-4000-3
H-6000-1
H-6000-3
H-10000-1
H-10000-3

Other PDF's

* No "Other PDFs" For This Product...
