SERIES: P-JIB


Portable Cantilever Hoists

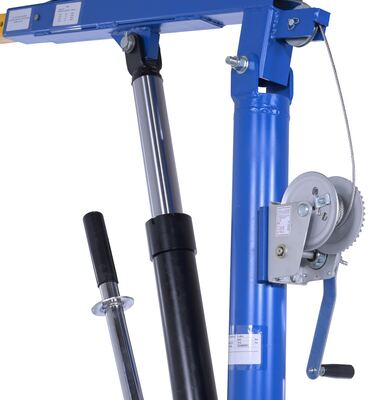

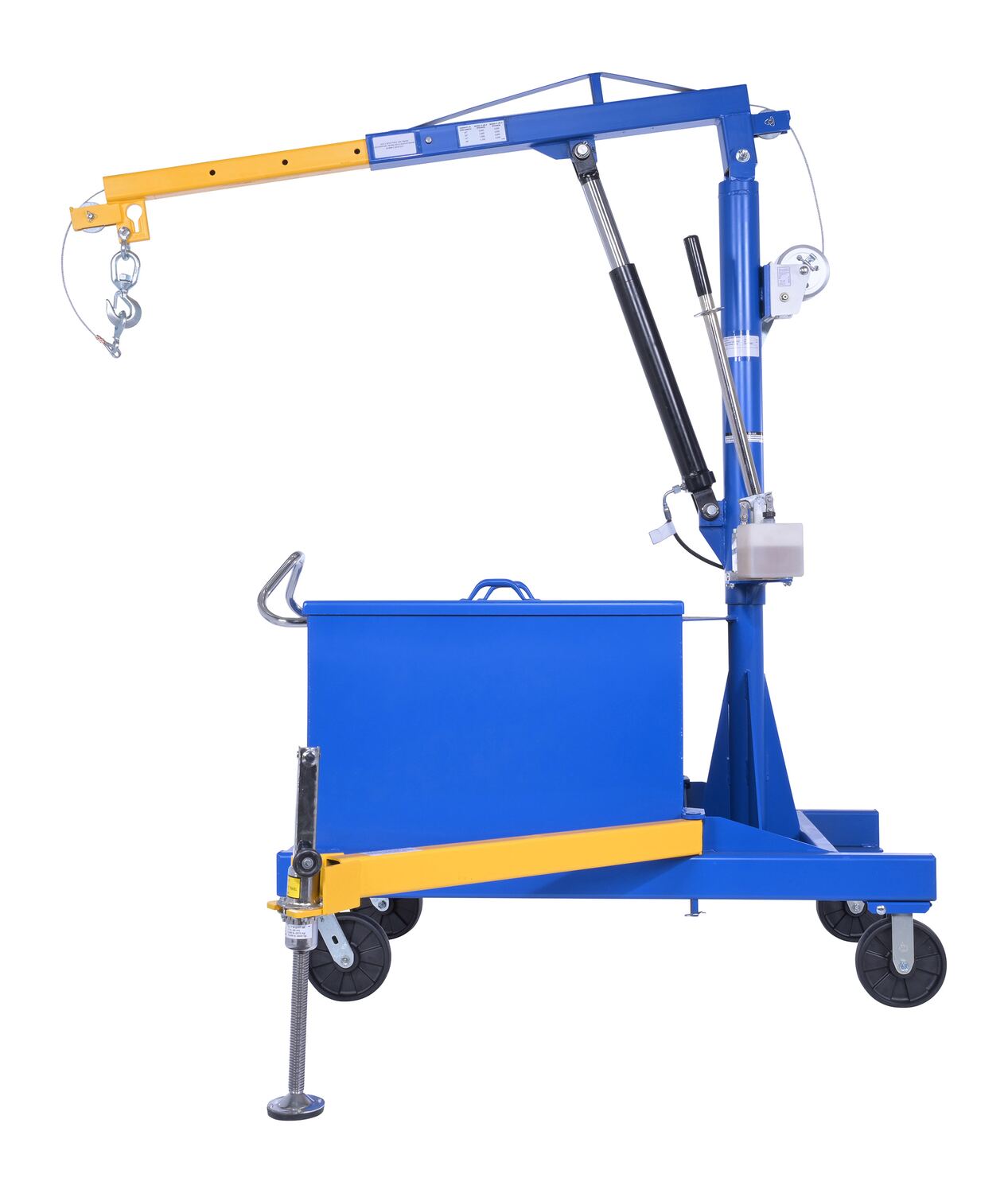

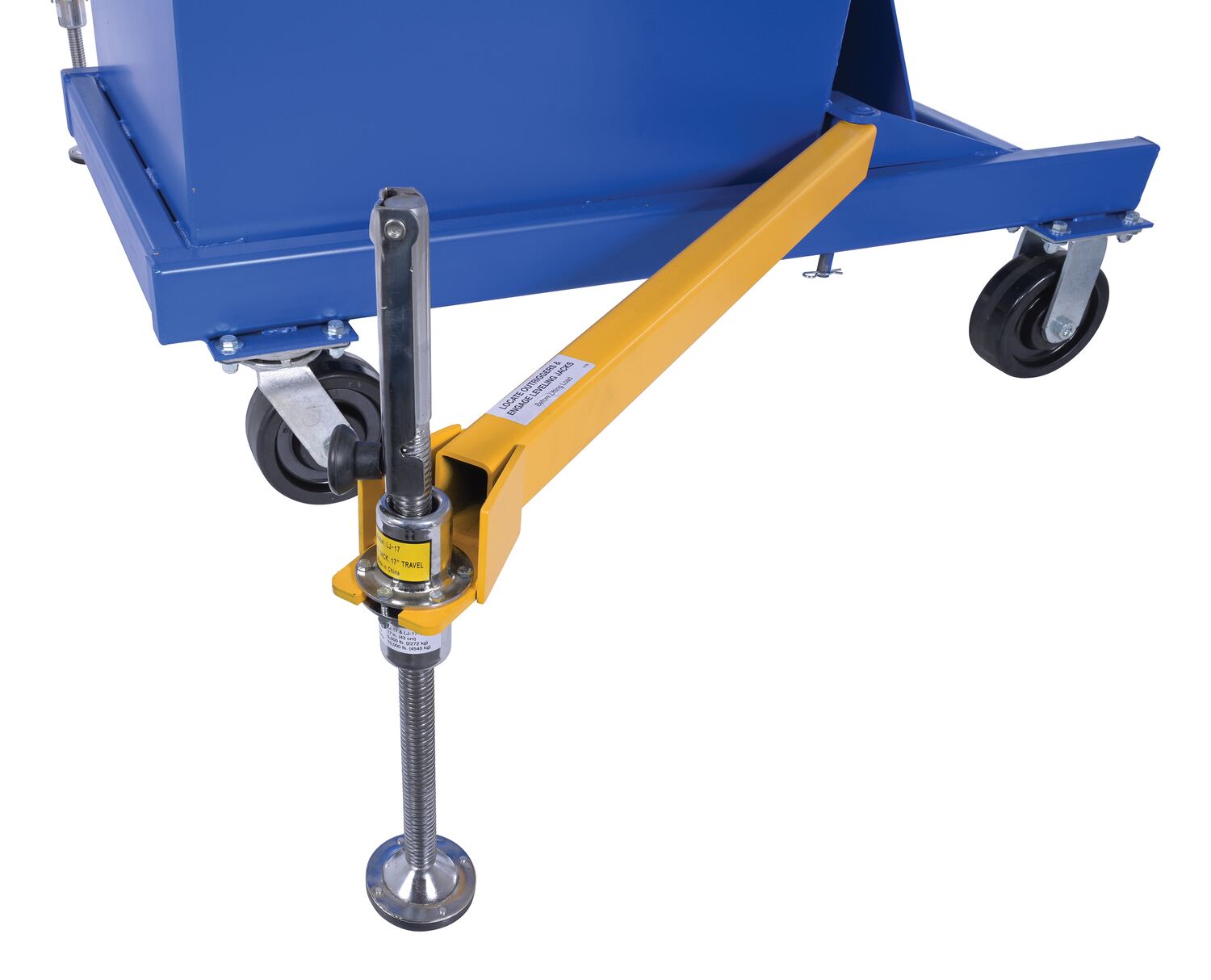

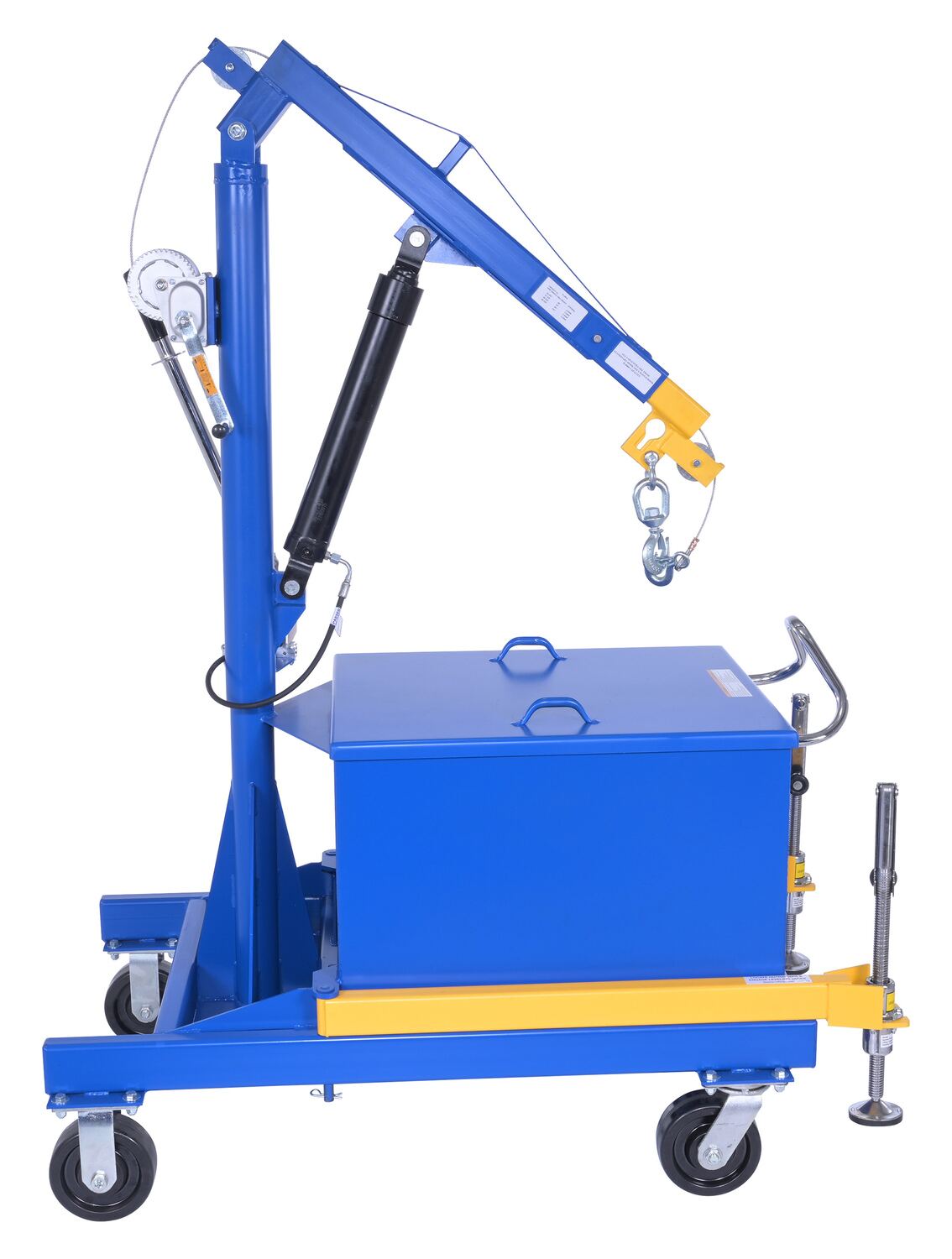

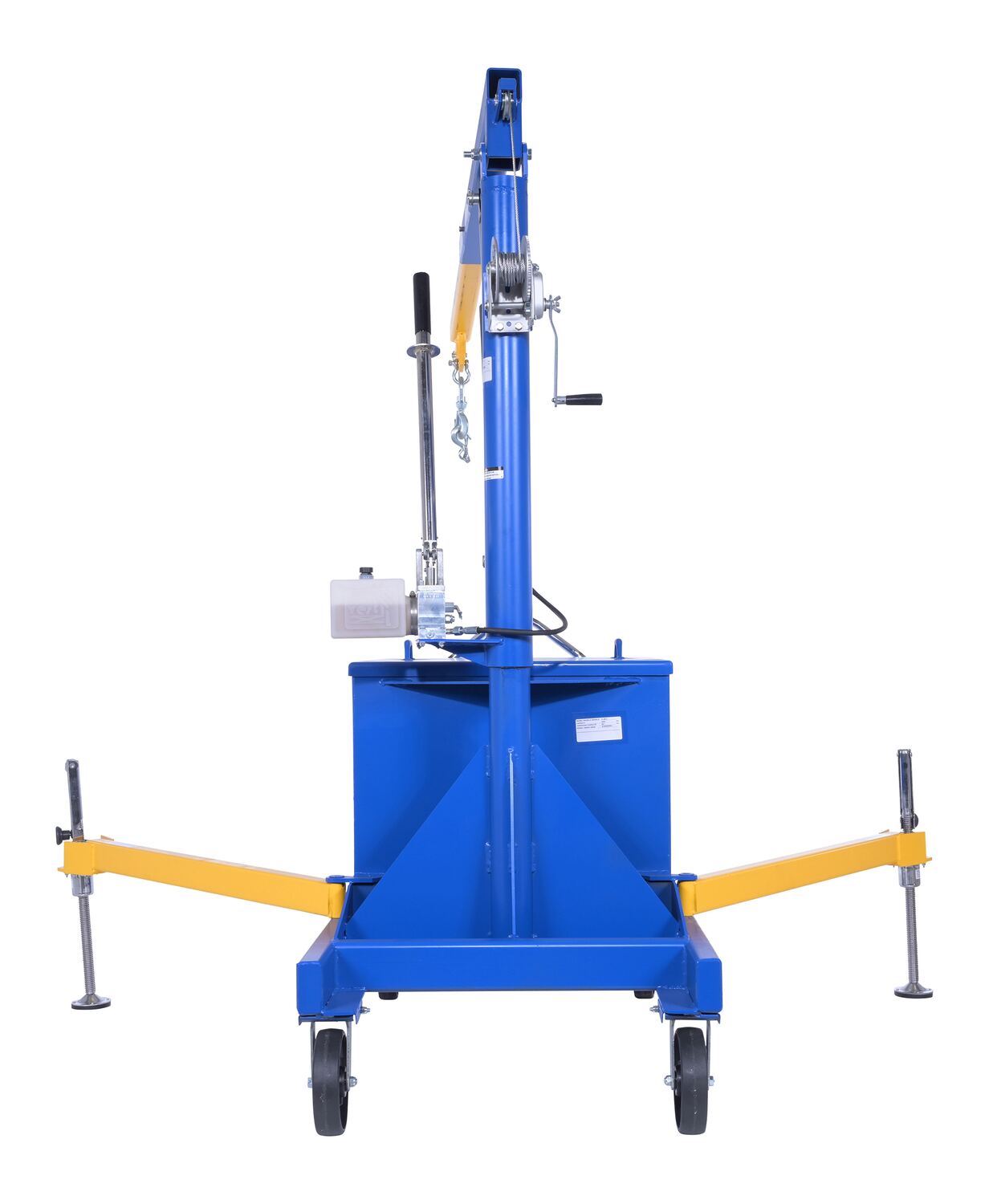

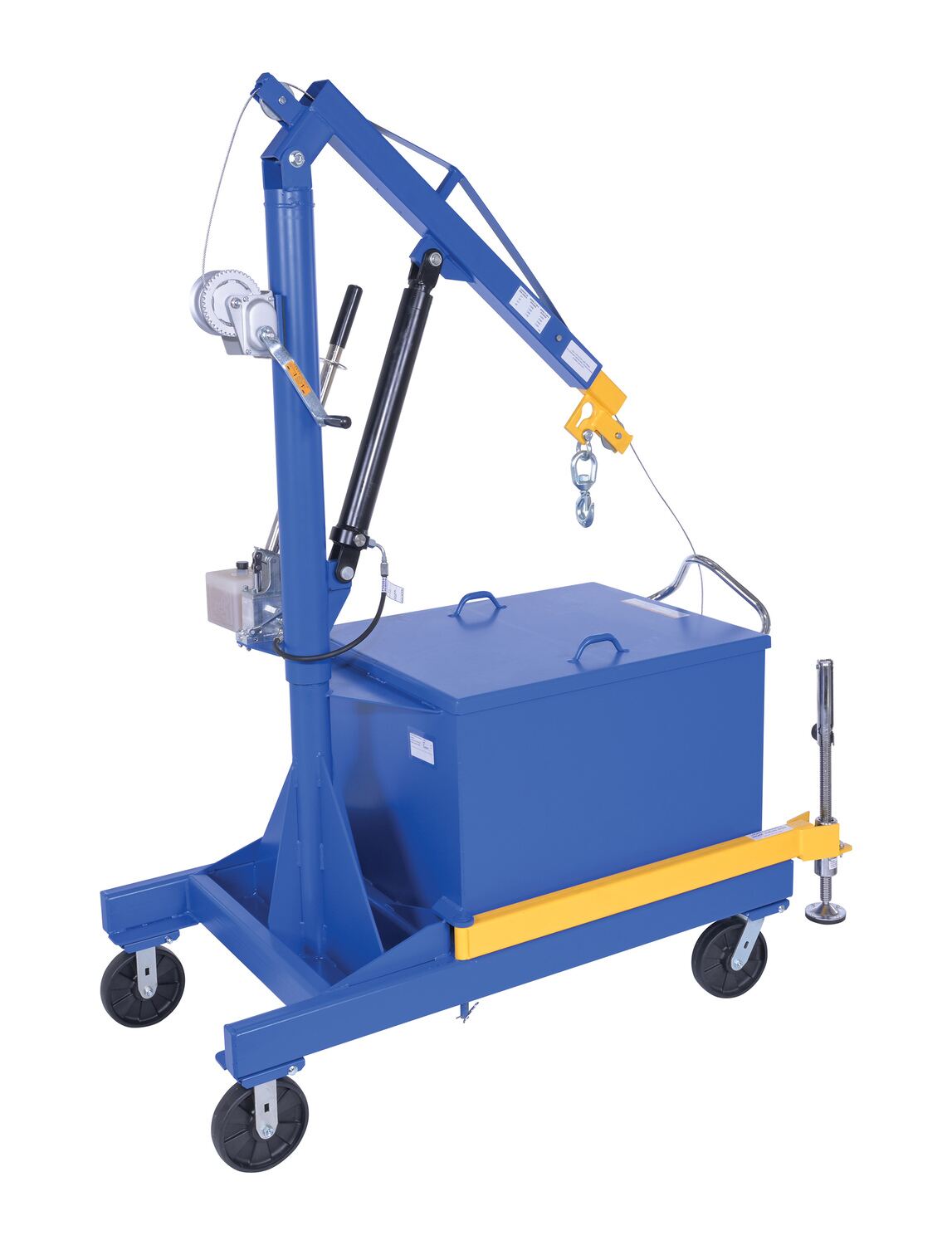

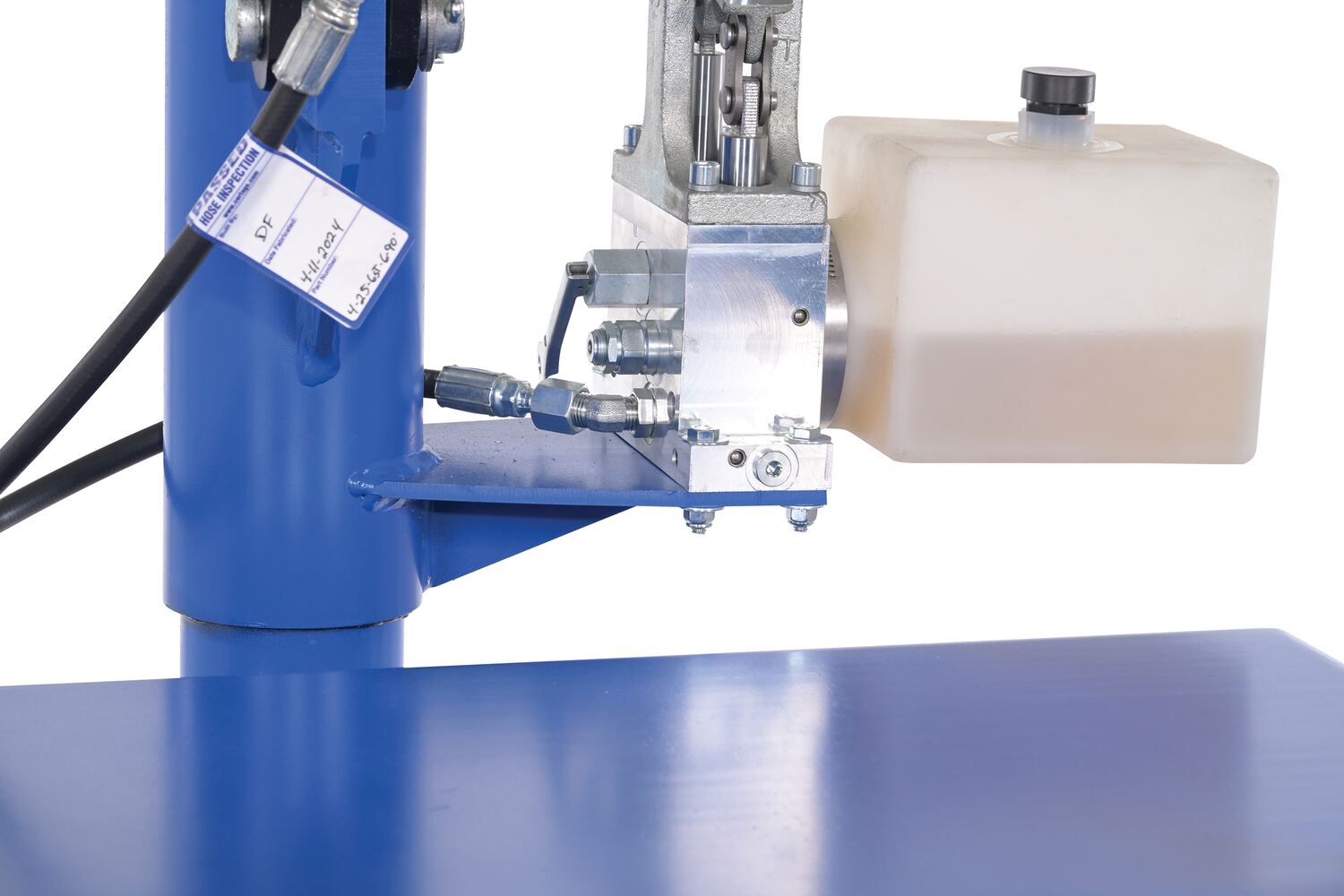

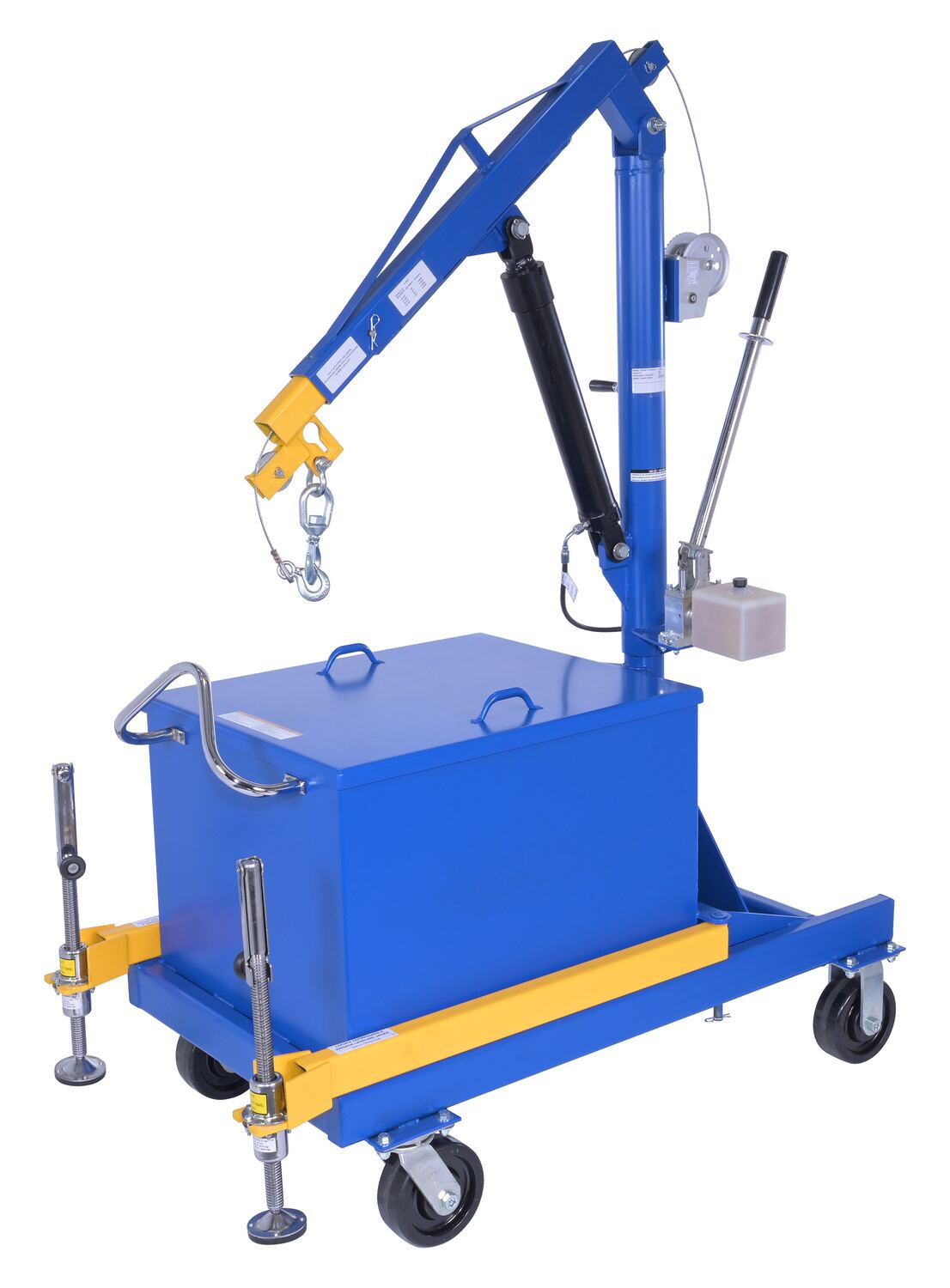

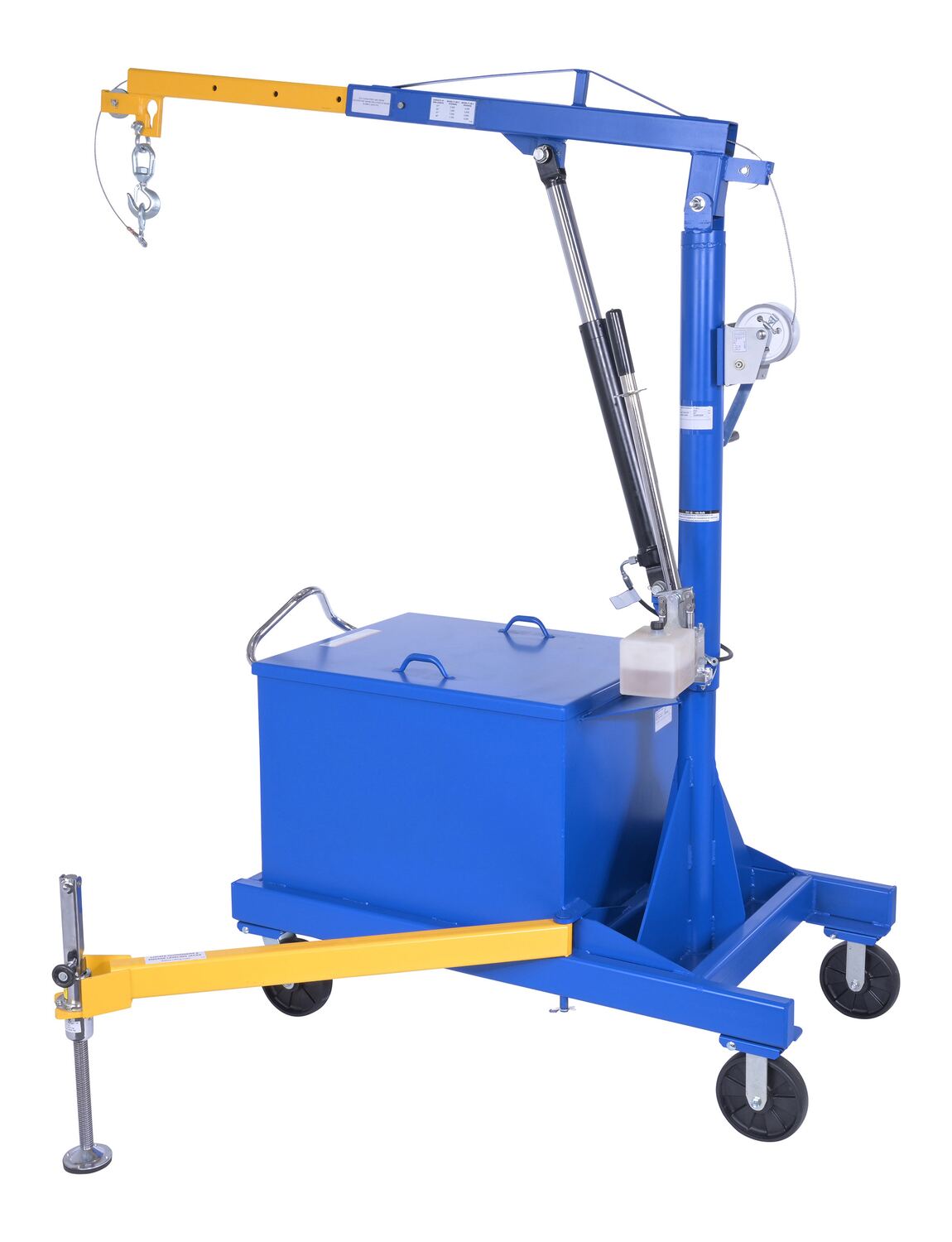

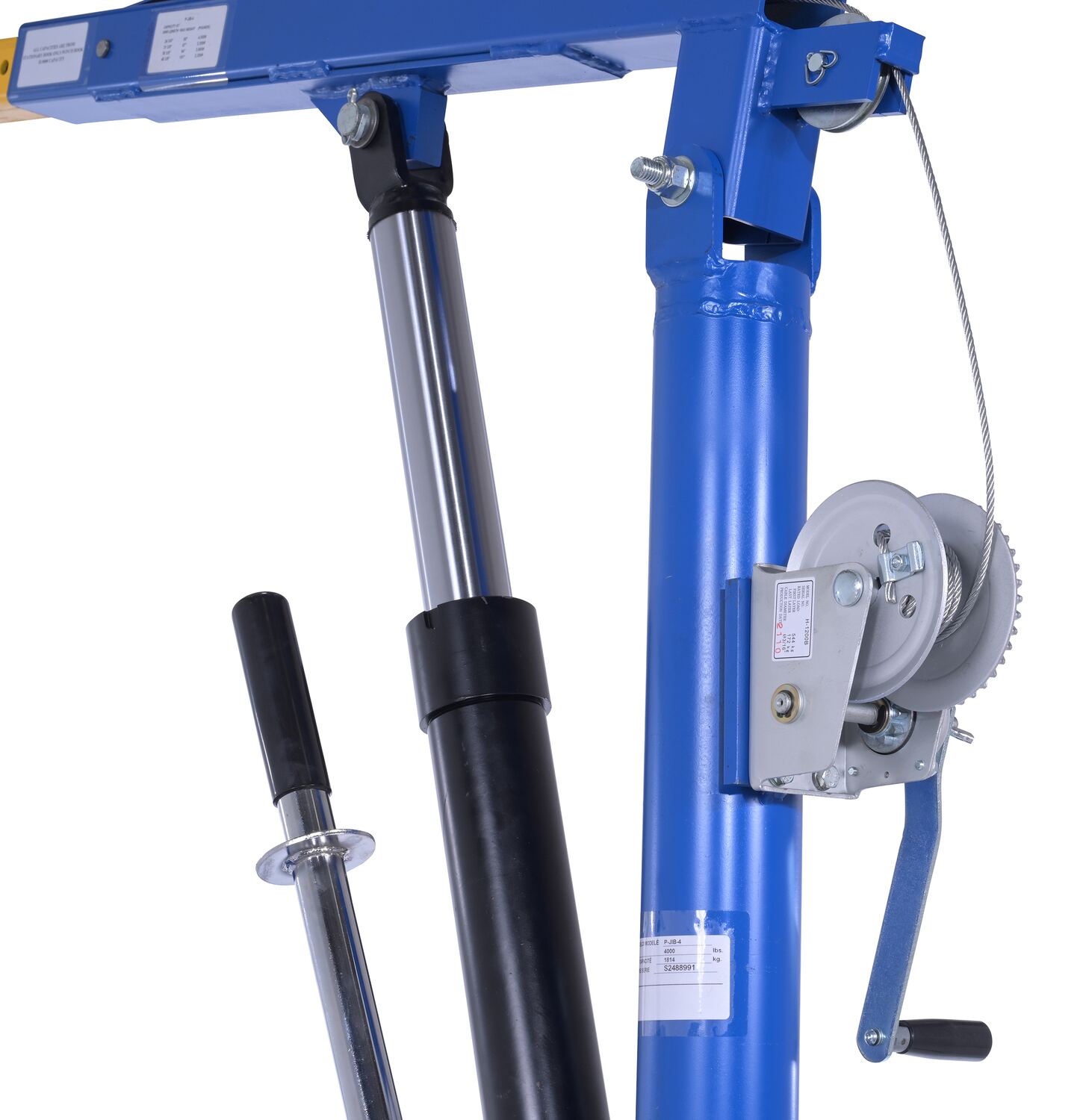

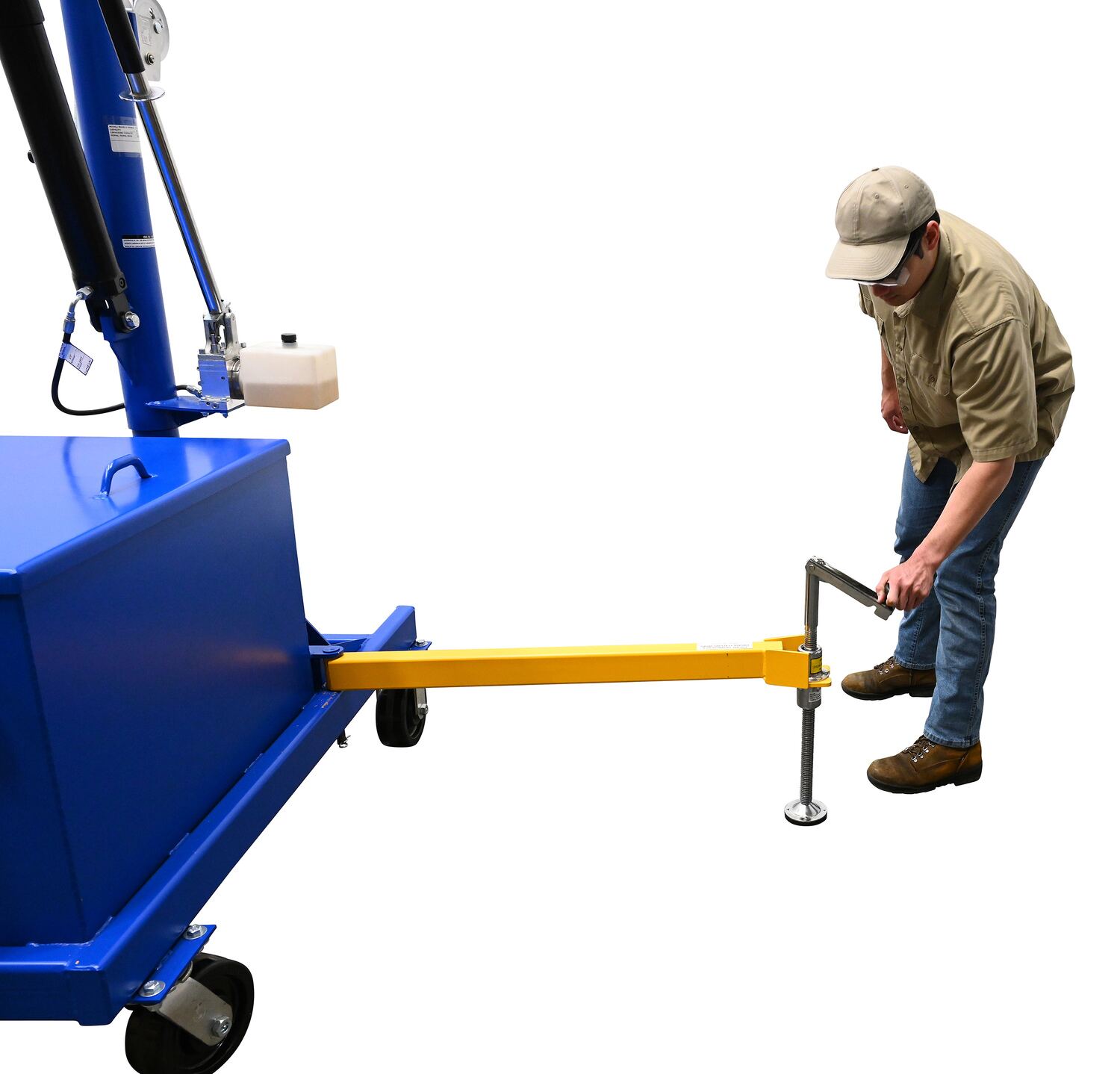

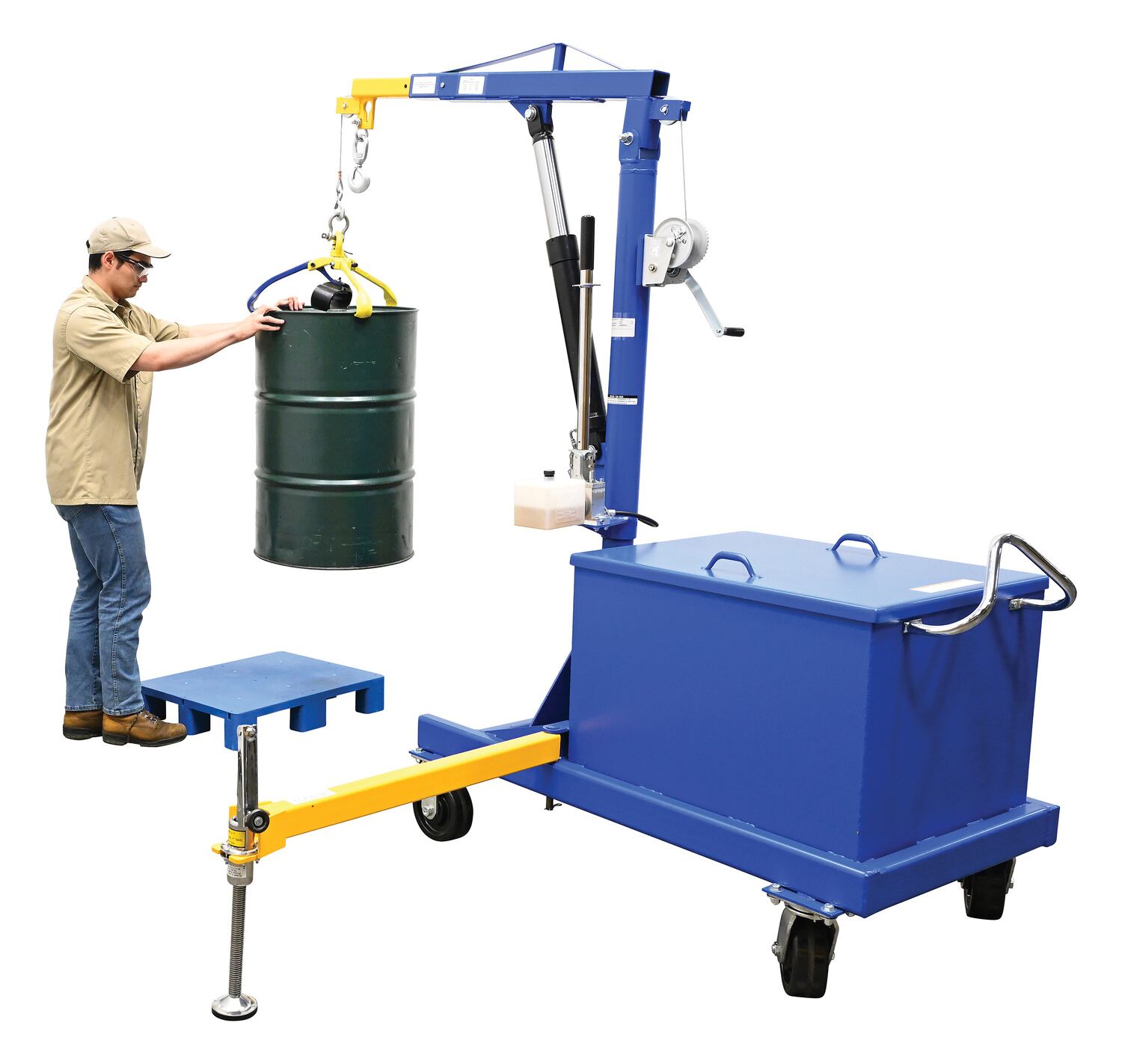

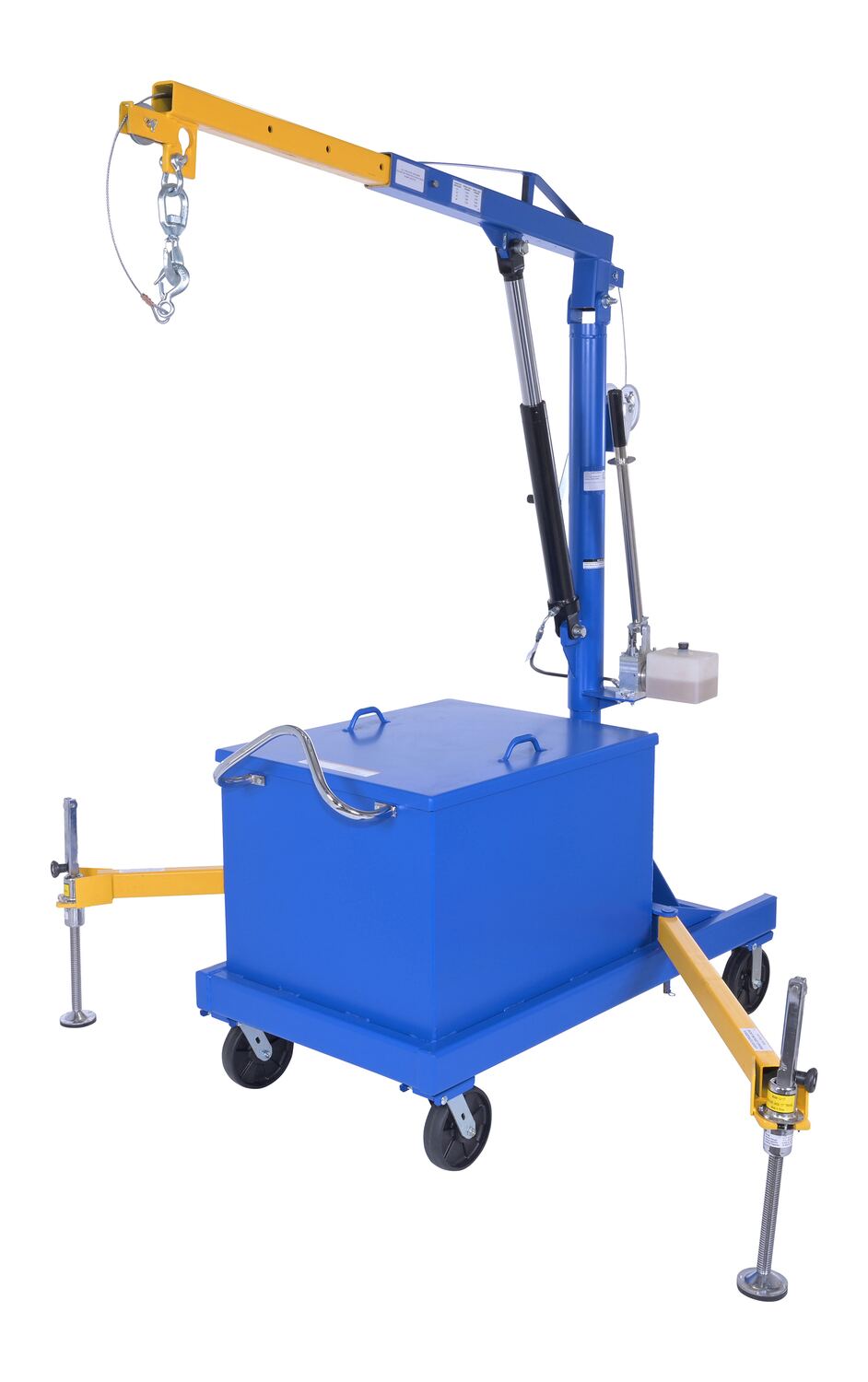

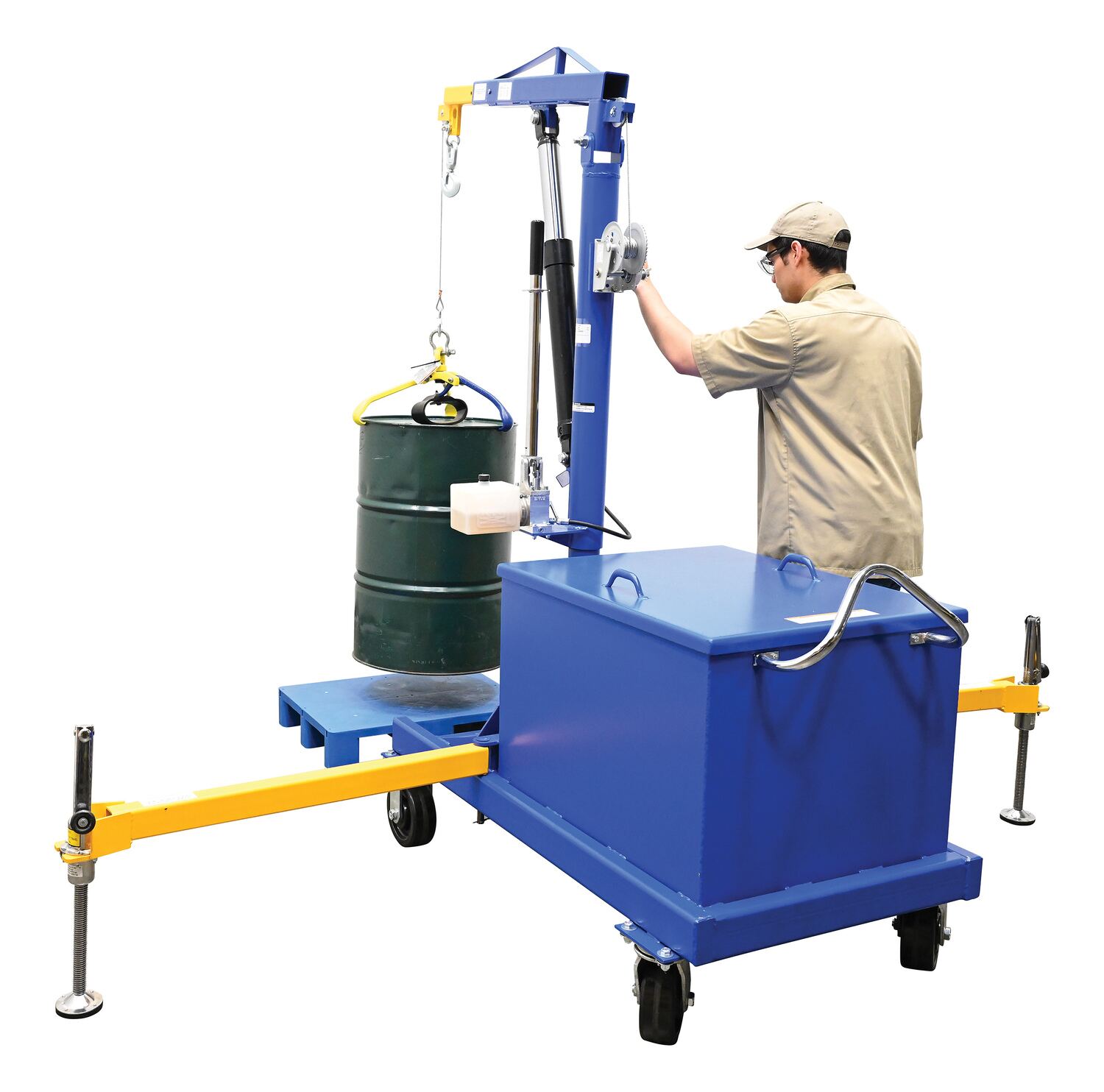

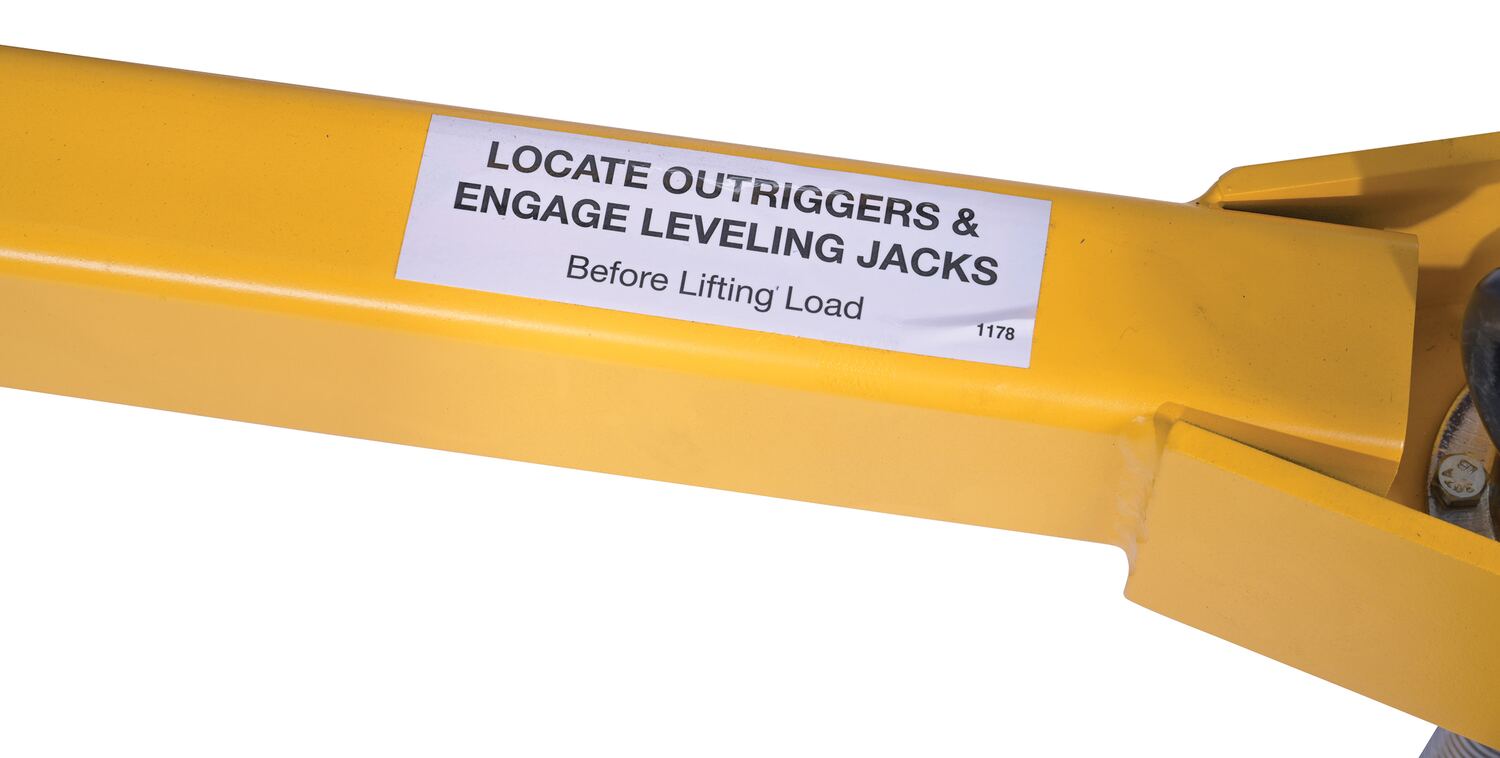

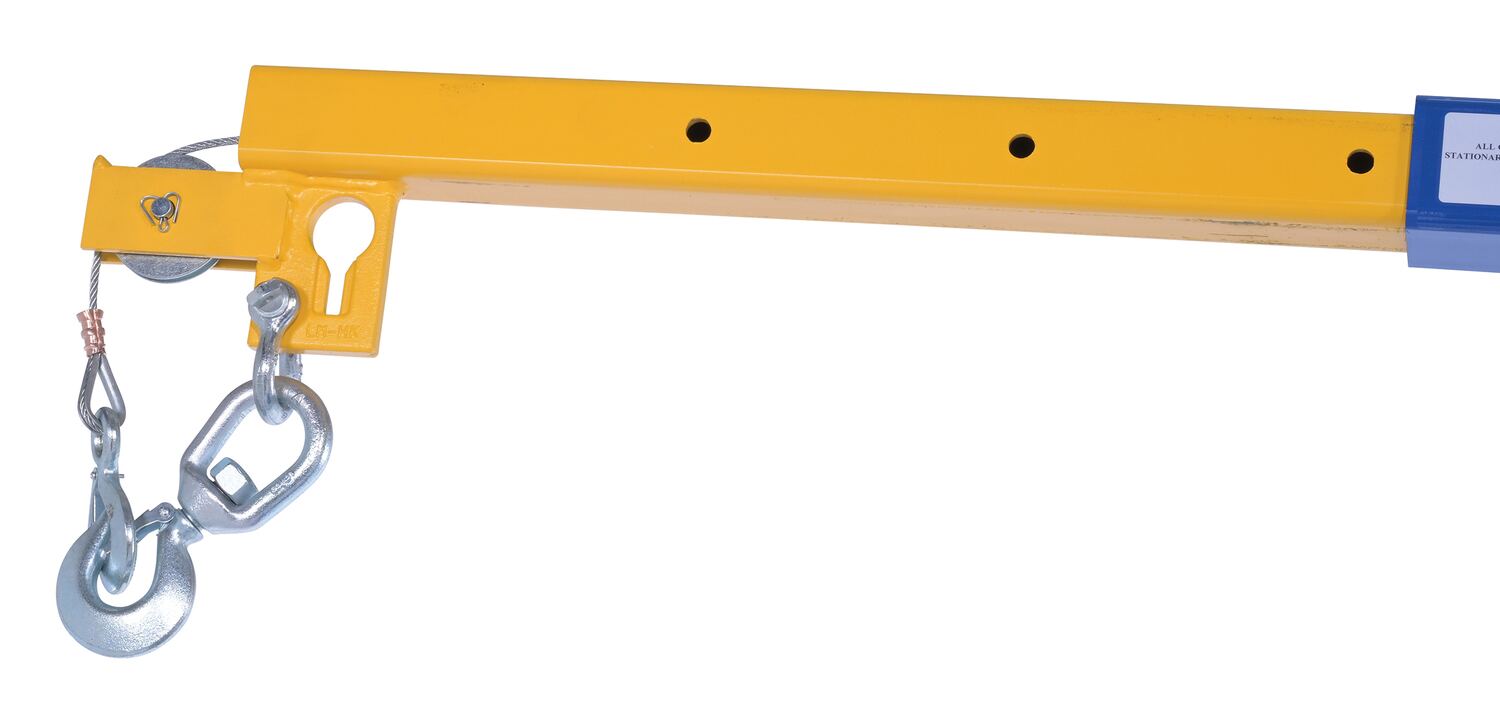

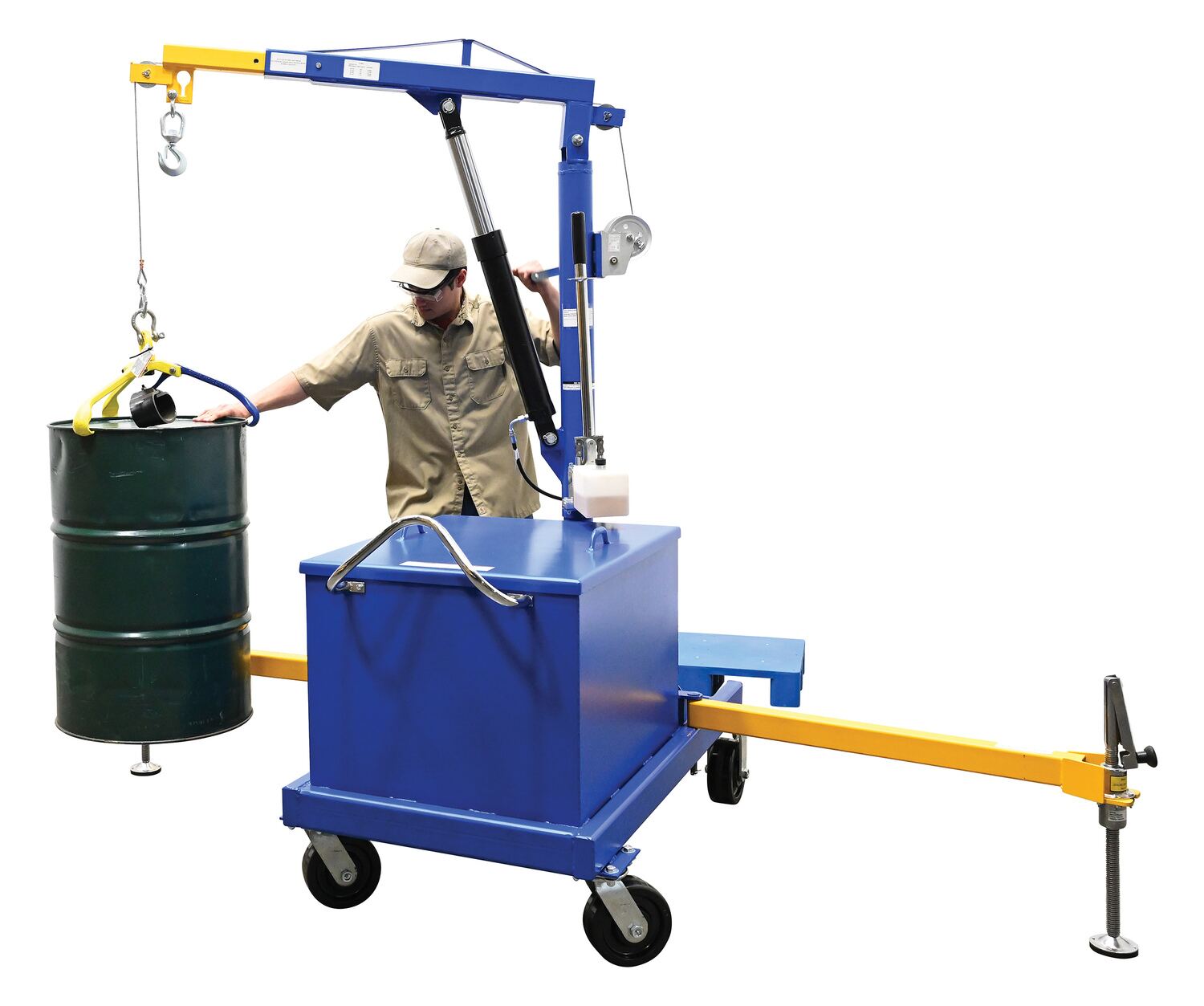

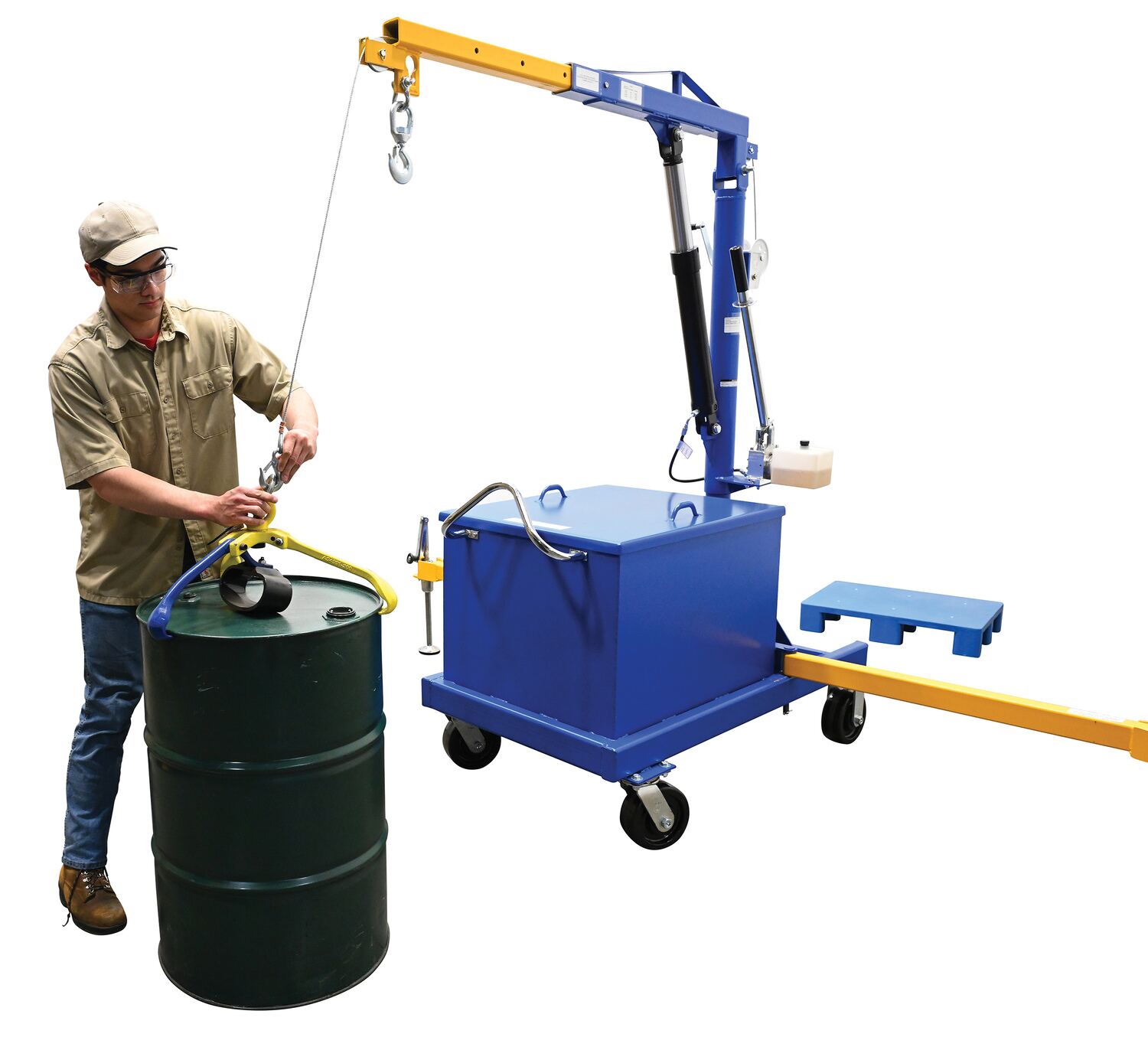

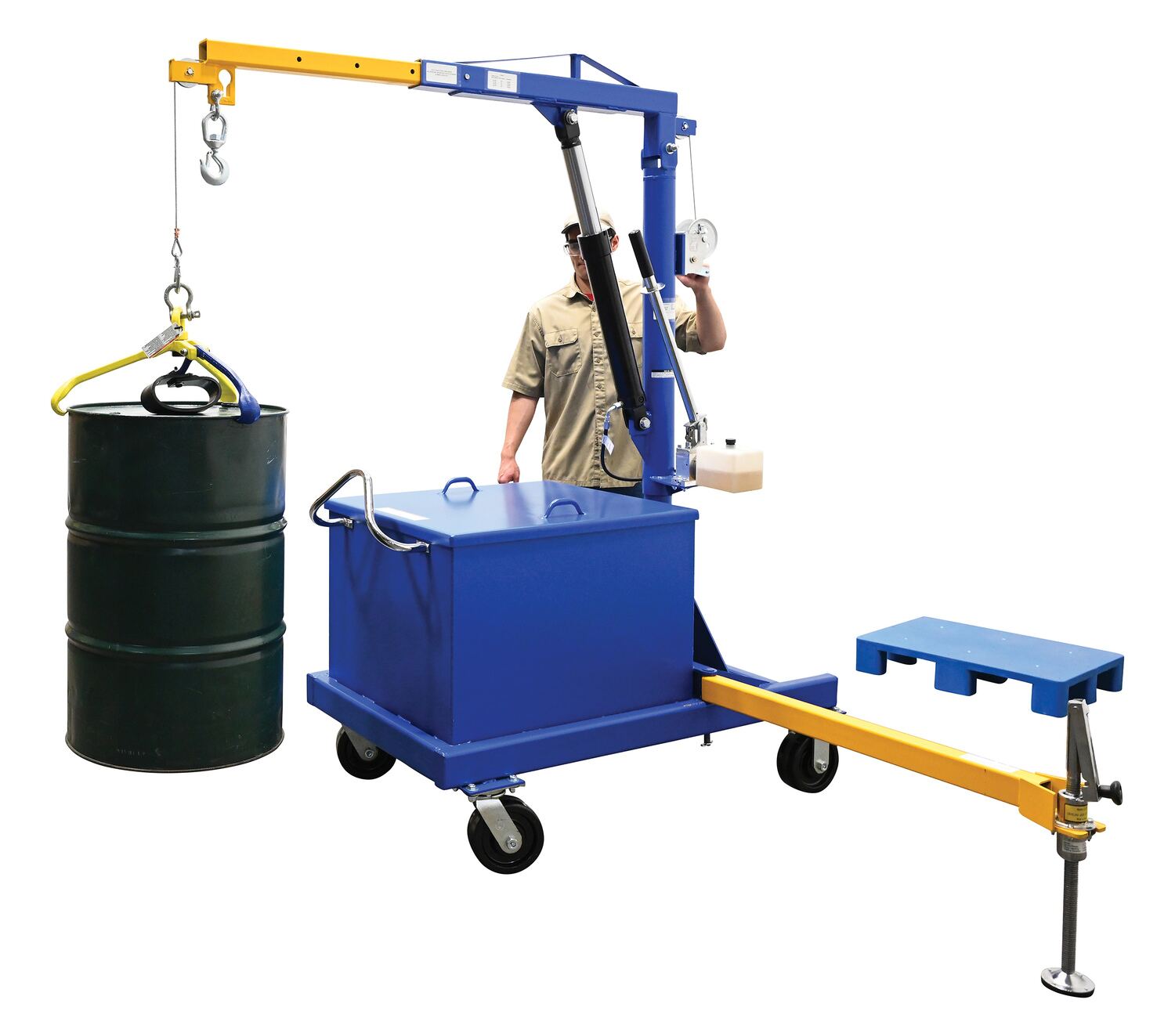

The Portable Cantilever Hoist is a swivel crane for side loading and controlled lowering. The Hoist has outriggers to increase stability with a counterbalanced / cantilever design. Adjustable extendable boom swivels 360 degrees for a variety of applications. Maximum arm length beyond the frame is 50-3/8". Manual hydraulic hand pump. Available with or without counter balancing ballast. Hand winch capacity 800 lbs. Painted finish.

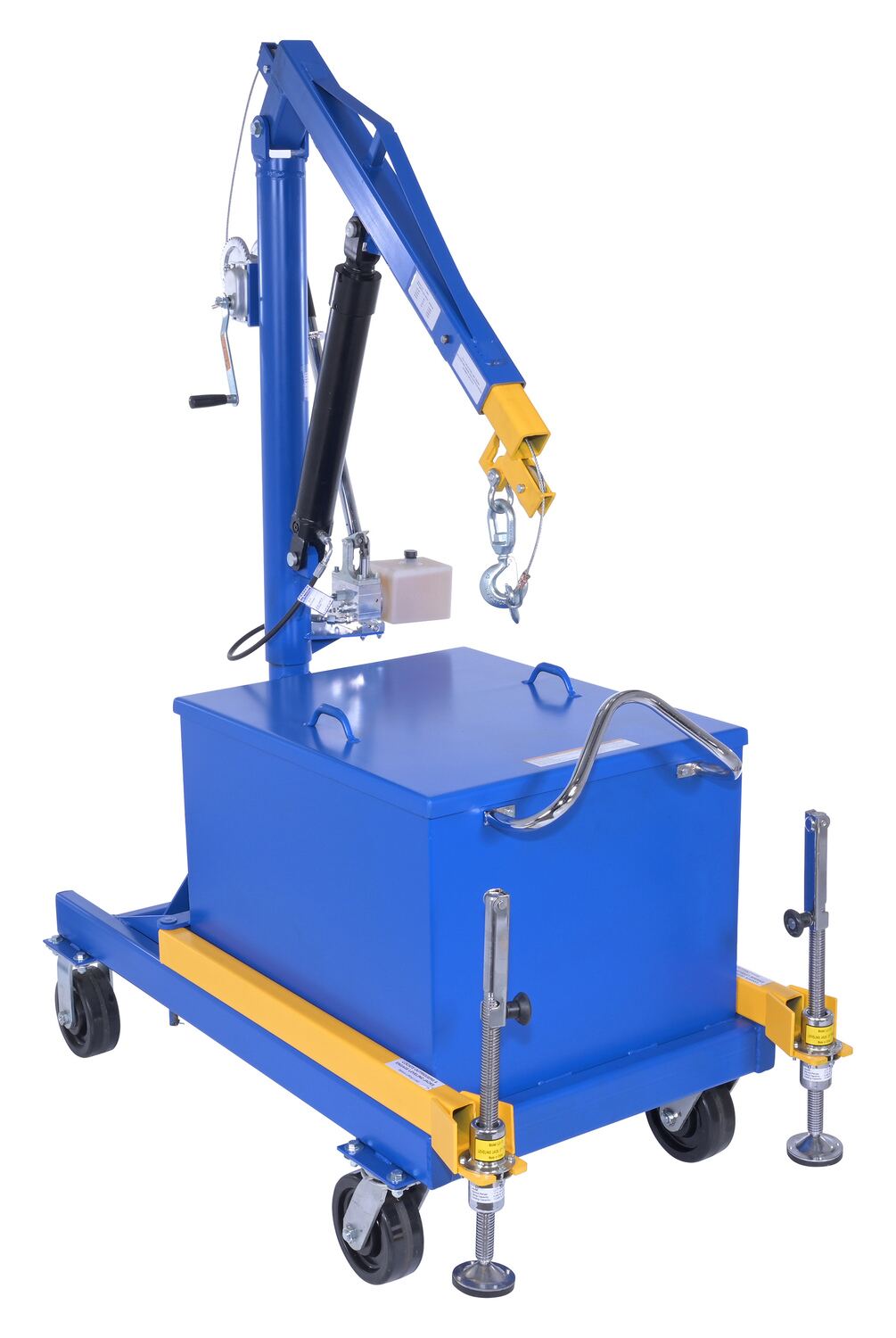

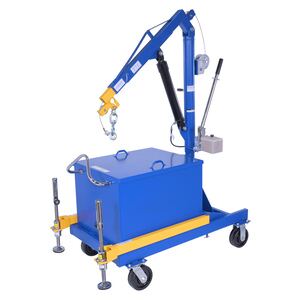

P-JIB-4

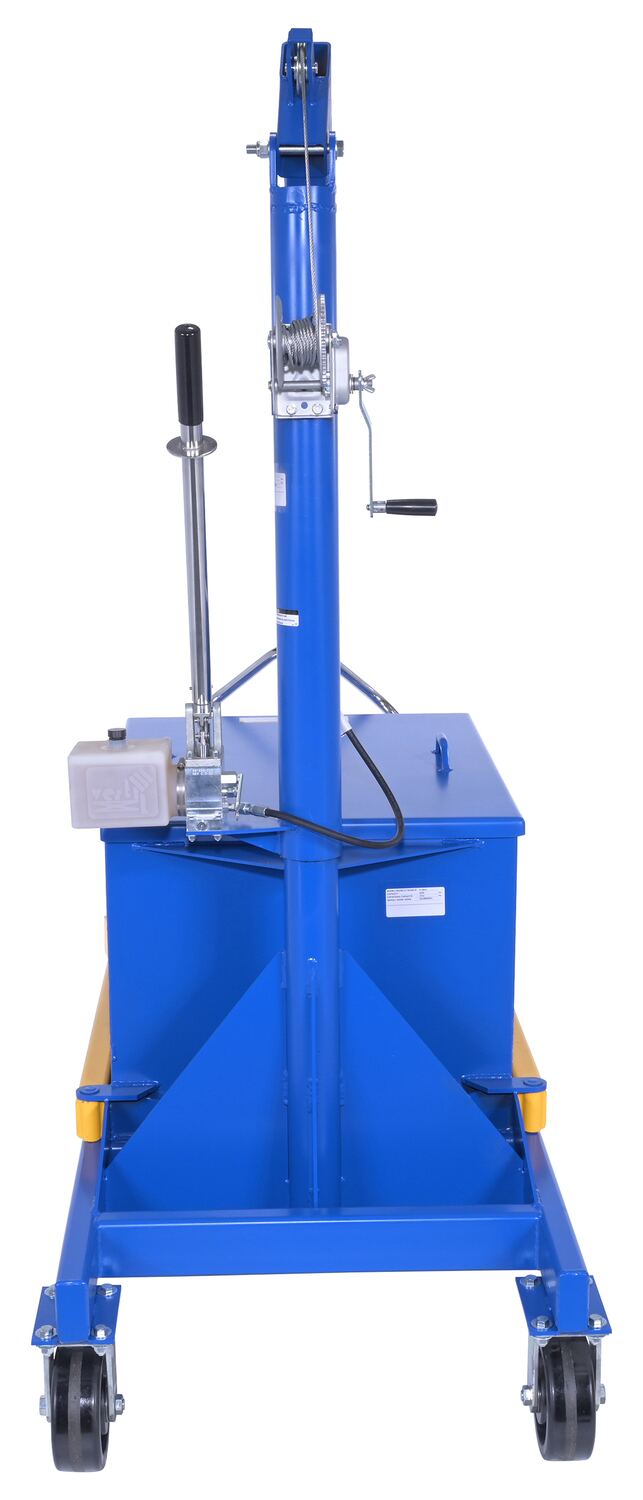

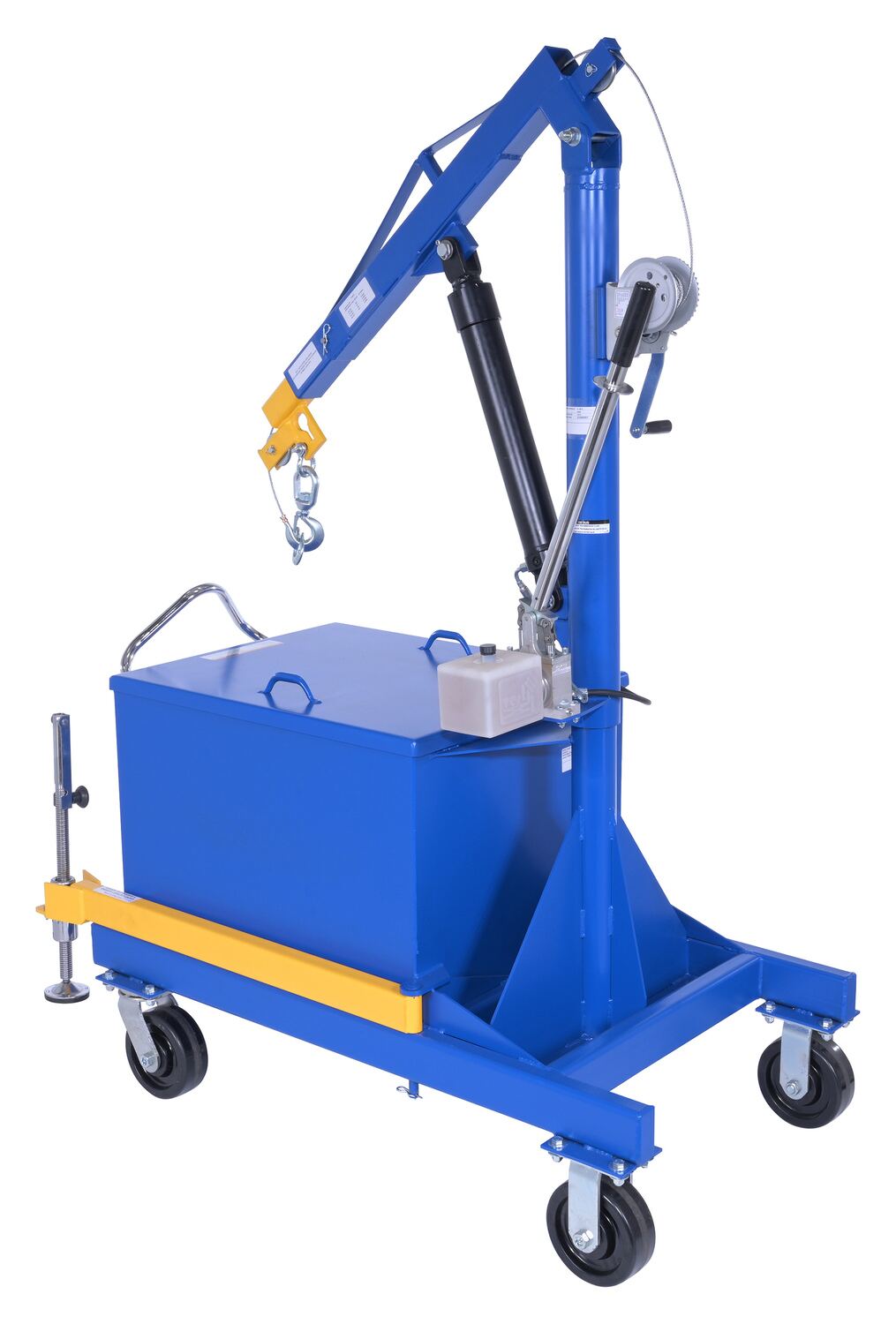

model P-JIB-4

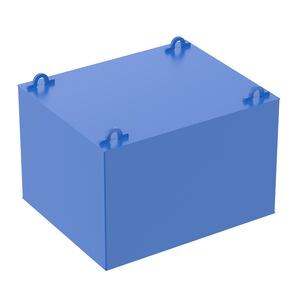

P-JIB-BALL-4

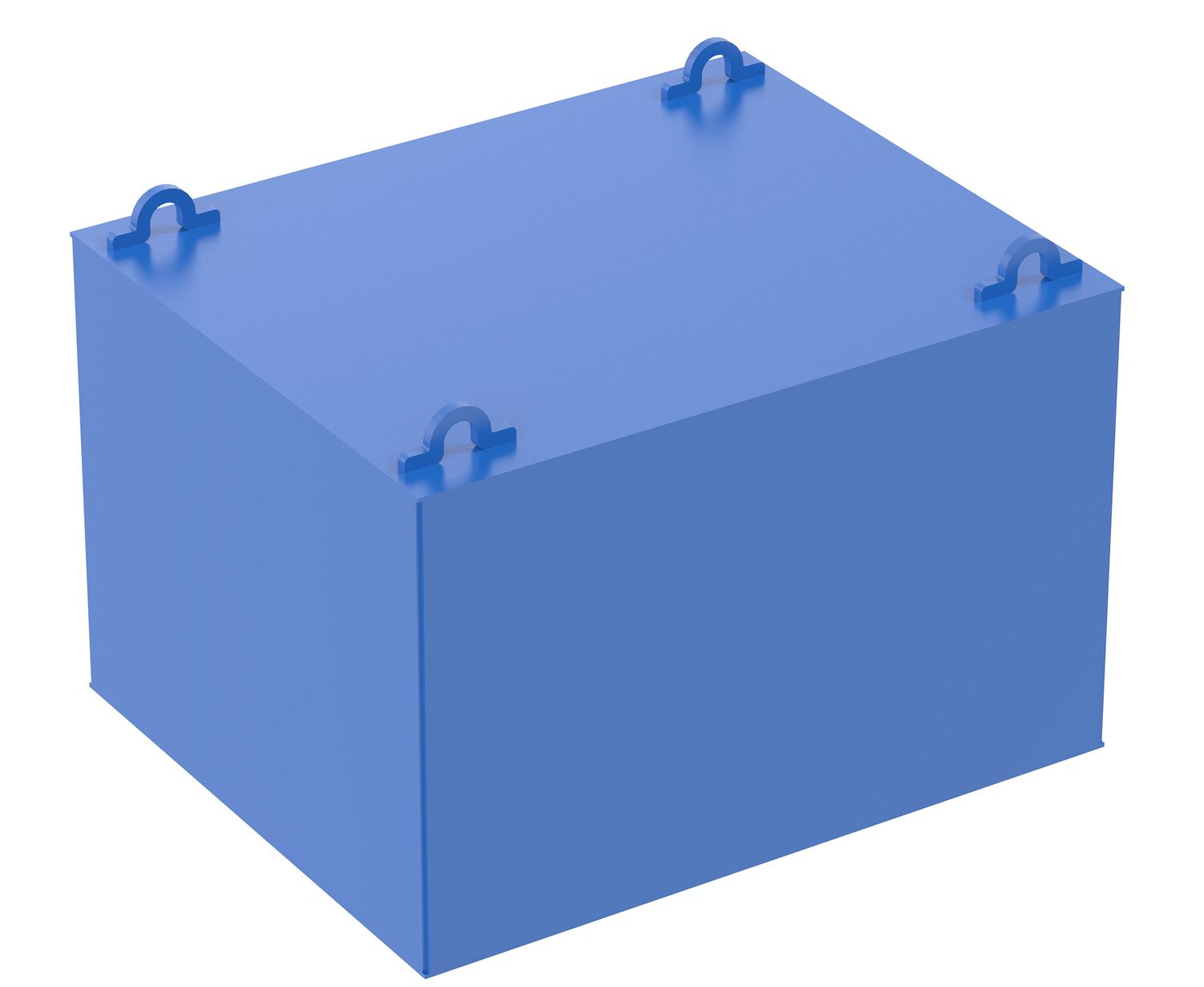

model P-JIB-BALL-4

Click A Tab For More Information. If A Tab Is Missing, This Product Has No Content For That Tab.

KEY: Approval Drawing = Approval Drawing -- Approval Drawing = Warranty -- Approval Drawing = Testing Certificate

Model Number & Specs Table

Portable Cantilever Hoists

Model PDF's Overall Size
(WxLxH)

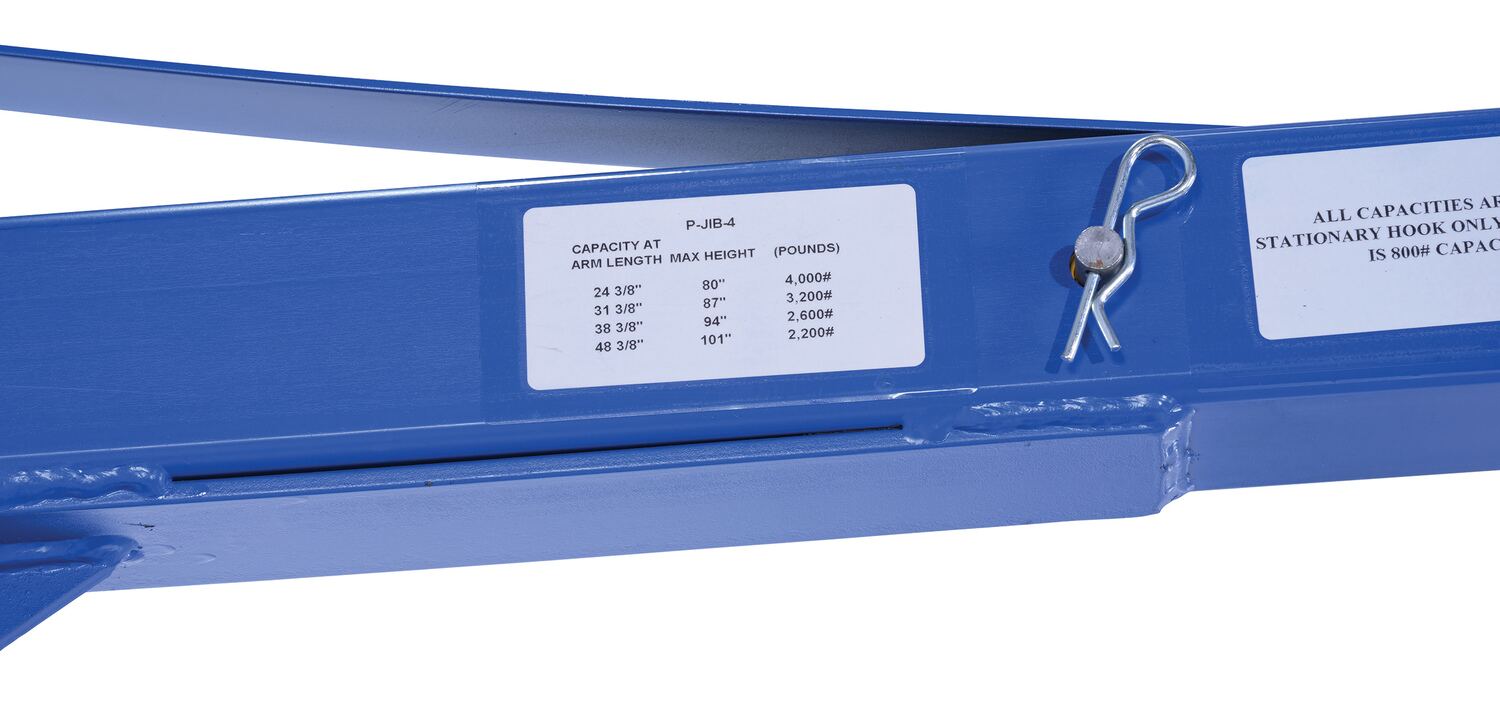

Maximum Arm Length Beyond Frame Max.
Capacity

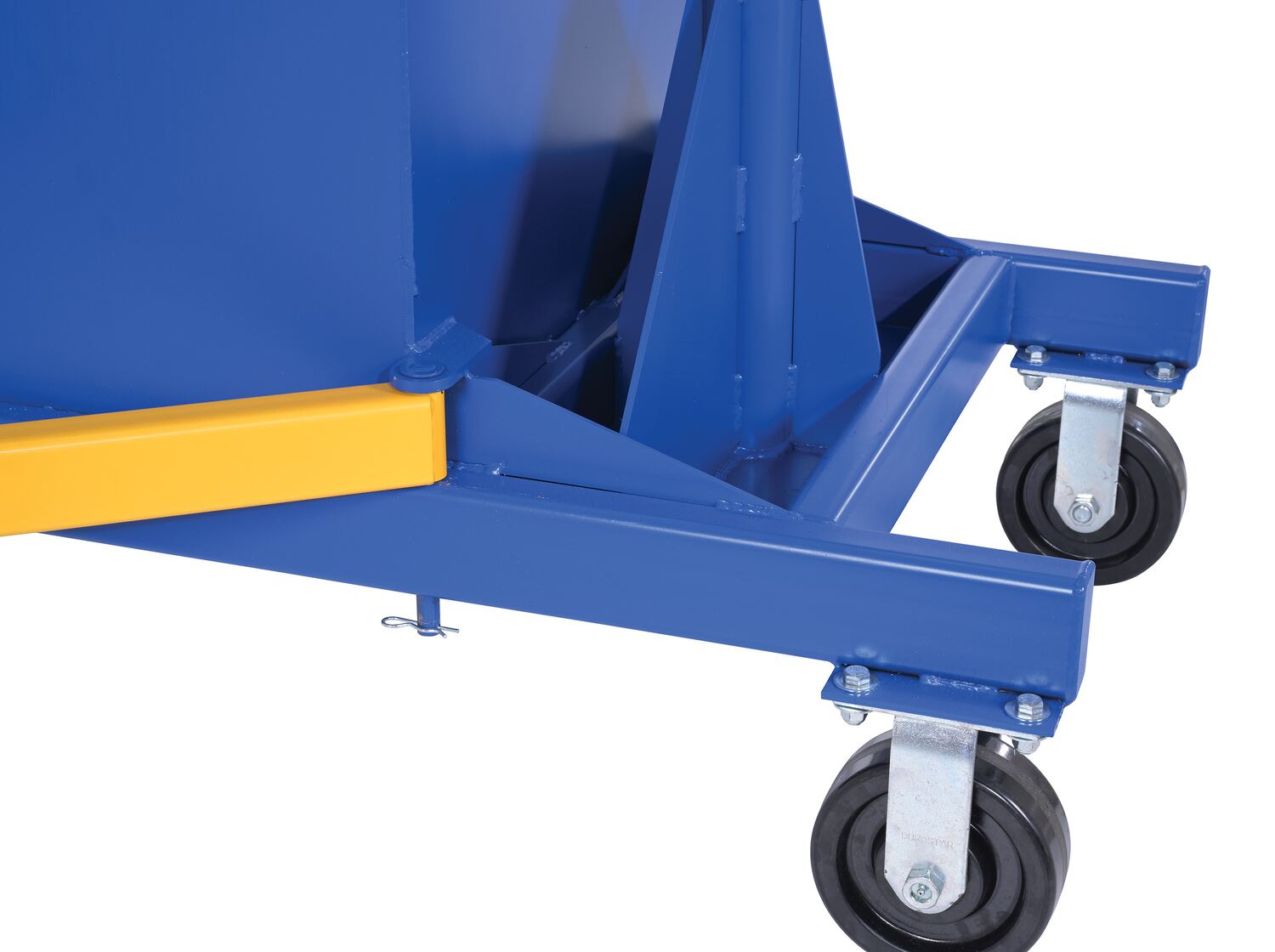

Casters Wt. (lbs)
P-JIB-2 icon_approvaldrawings.jpgWarranty PDF 35-11/16" x 113-3/8"x 89" 50-3/8" 2,000 lbs. 8"x2" Glass Filled Nylon 939
P-JIB-4 icon_approvaldrawings.jpgWarranty PDF 35-11/16"x 113-3/8" x 89" 50-3/8" 4,000 lbs. 8"x3" Phenolic 950

KEY: Approval Drawing = Approval Drawing -- Approval Drawing = Warranty -- Approval Drawing = Testing Certificate

If you did not find an expected Model or SKU # on this page, try the Options Tab.

Click A Model Number Below To Show Details



PDF's will open in a new window when clicked.

Owner's Manuals


Survey Sheets

* No Survey Sheets For This Product.


Approval Drawings

P-JIB-2
P-JIB-4

Testing Certificates

P-JIB-BALL-4
P-JIB-BALL-2
P-JIB-4
P-JIB-2

Other PDF's

* No "Other PDFs" For This Product...


Directory Links Of Available PDF's For All Products

Image Gallery

We are hoping to continue adding new product pictures to each gallery. Check back soon.

Options

P-JIB-BALL-2 Optional Factory Supplied Ballast for 2,000 lb. units 2780
P-JIB-BALL-4 Optional Factory Supplied Ballast for 4,000 lb. units 3650
