Manual Low Profile Hydraulic Drum Truck

- - - -

Description
Model Chart
PDF's
Image Gallery
LPDT_A.jpg LPDT_B.jpg LPDT_C.jpg LPDT_D.jpg
LPDT_G.jpg LPDT_H.jpg LPDT_I.jpg LPDT_J.jpg
Manual Low Profile Hydraulic Drum Truck

model: LPDT



Manual Low Profile Hydraulic Drum Truck

model: LPDT

Featured Drum Handling Equipment


Wall Mounted Cylinder Holder
Low-Profile Drum Caddies with Bung Wrench Handle
Lift-and-Dump Hydraulic Drum Dumpers
LP Tank Lifter
Drum Carrier Right Angle
Manual Drum Carrier/Rotator
Waste Disposal Tops for Drums
Metal Bottles
Fork Mounted Drum Lifters
model chart

Product Family Overview

Print Friendly
Manual Low Profile Hydraulic Drum Truck
SERIES: LPDT

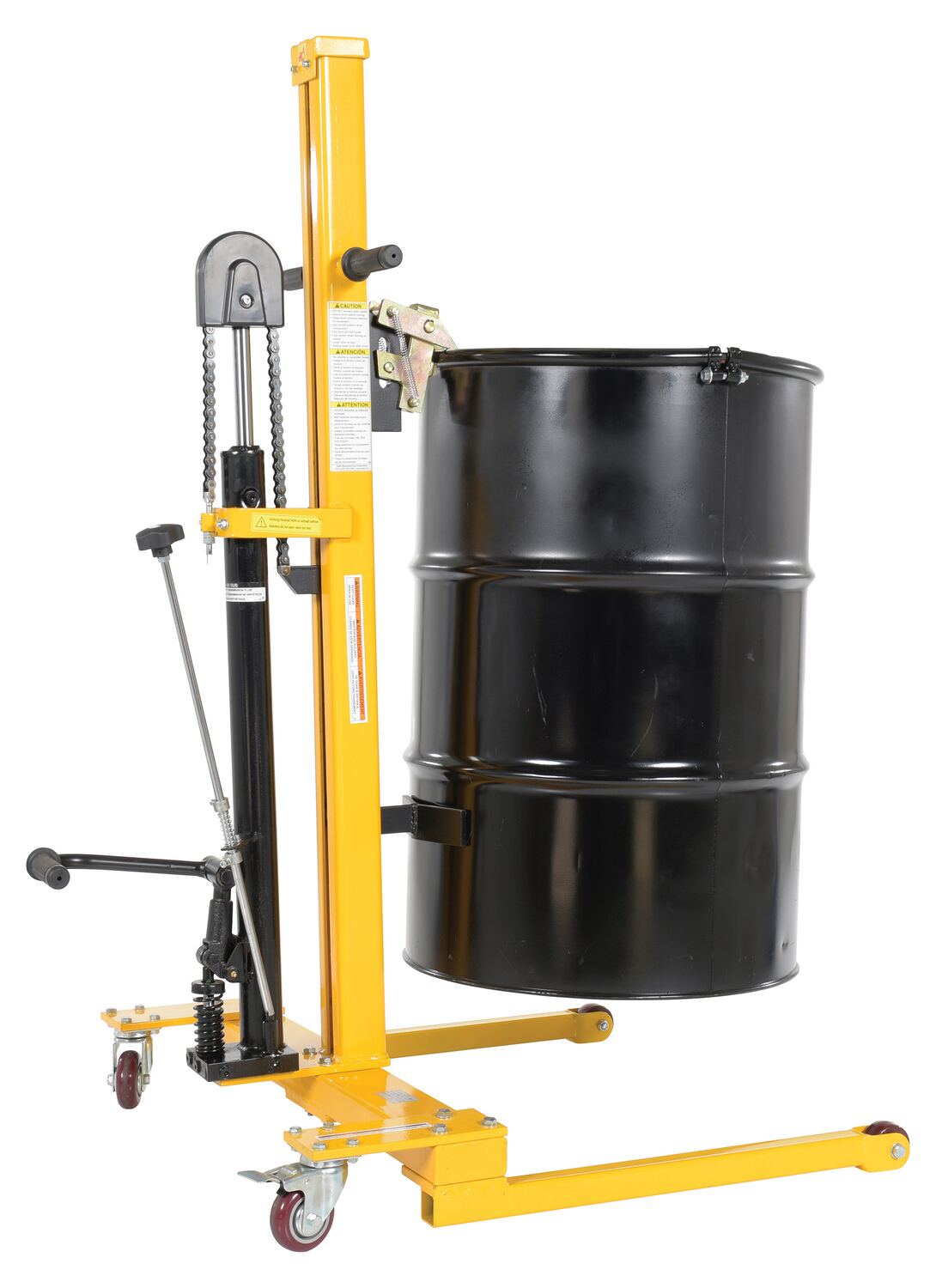

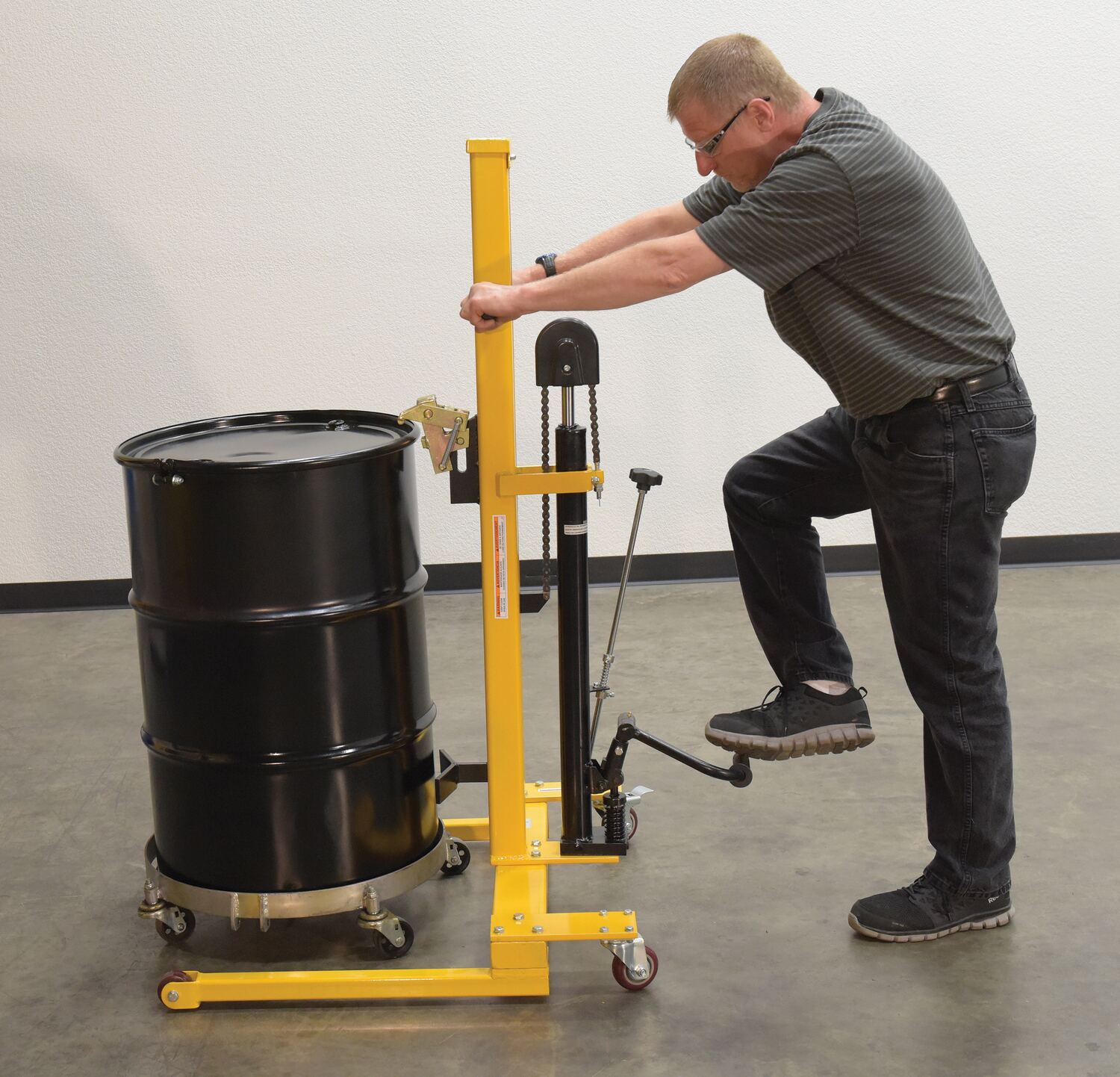

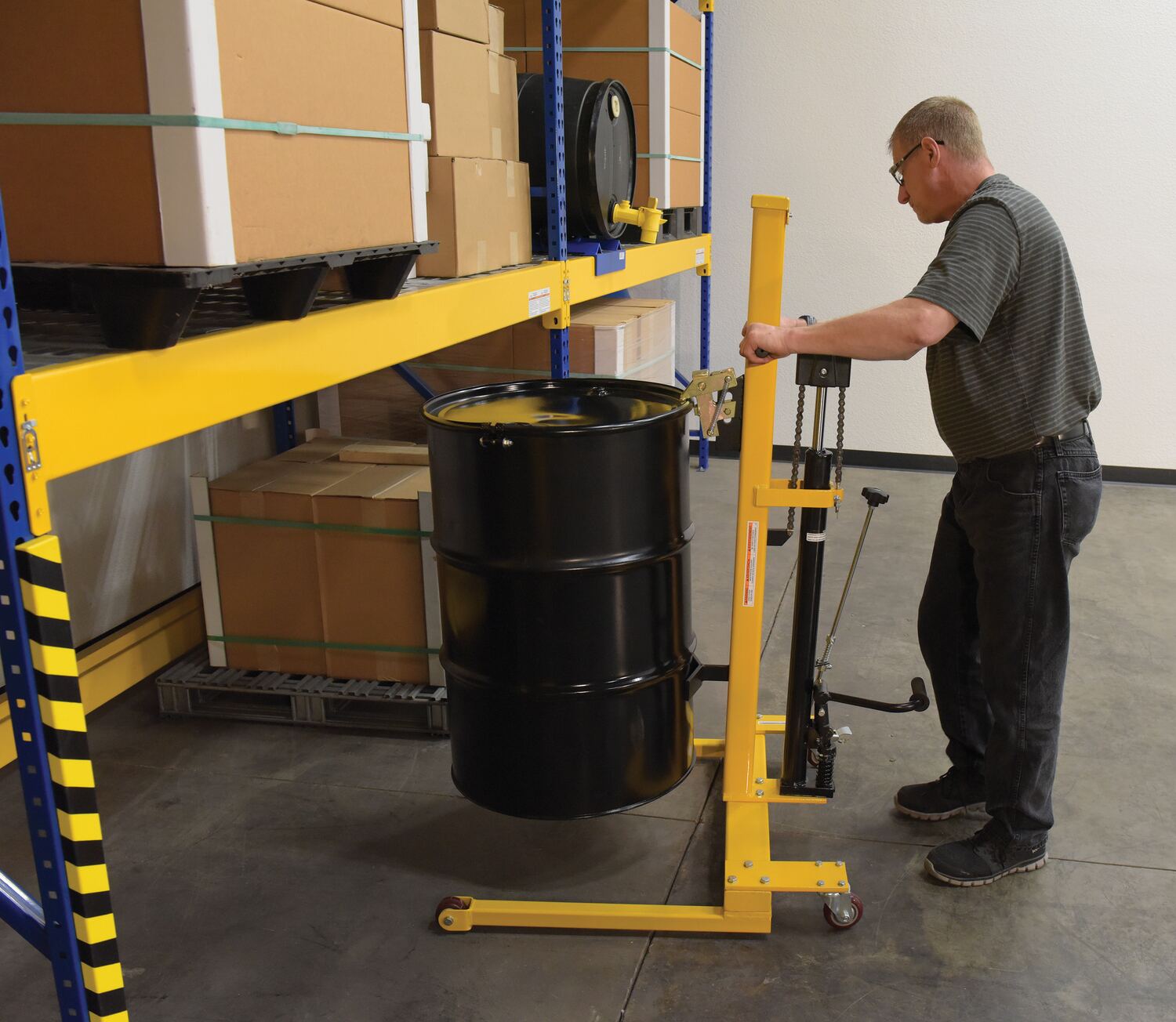

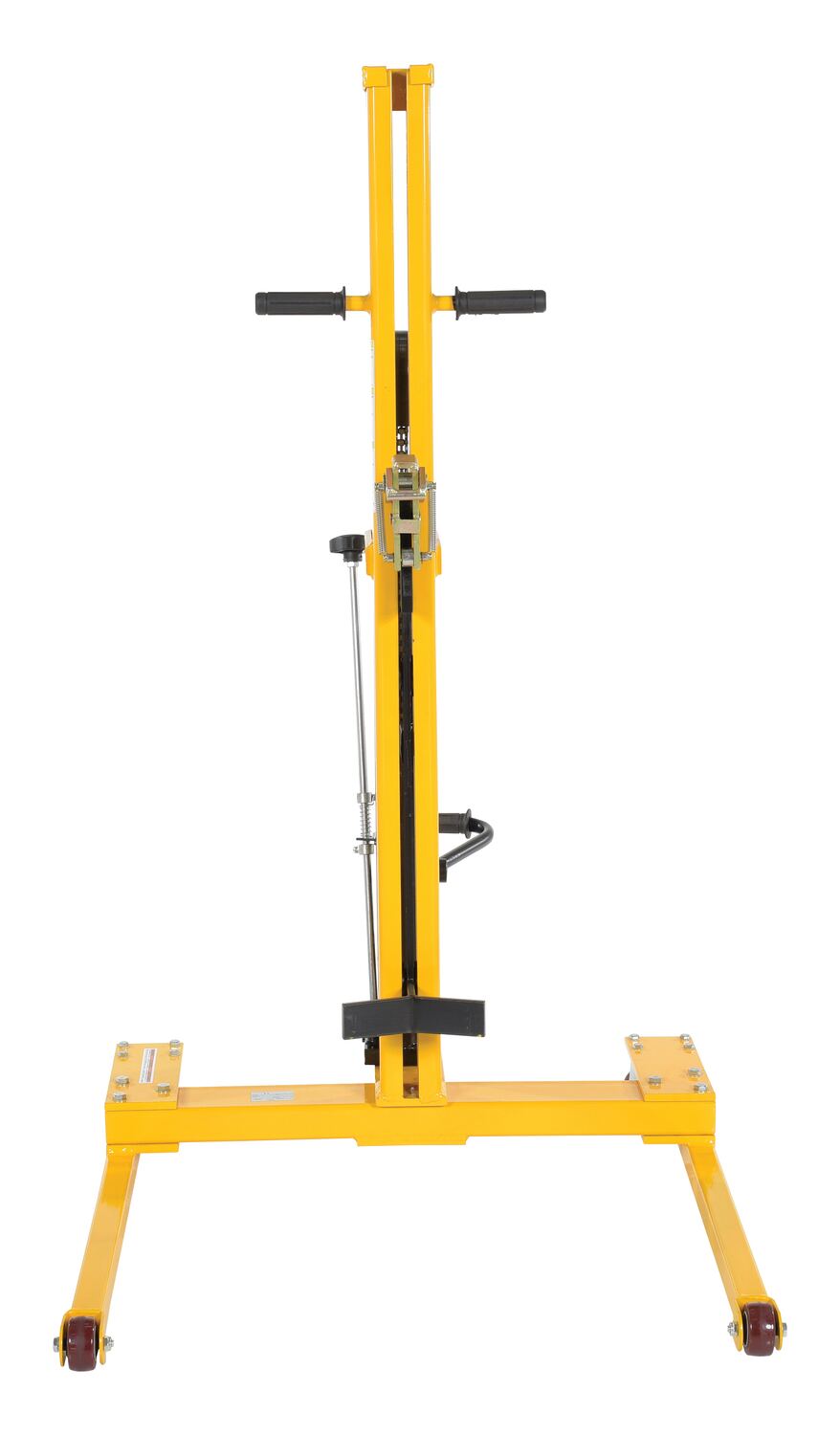

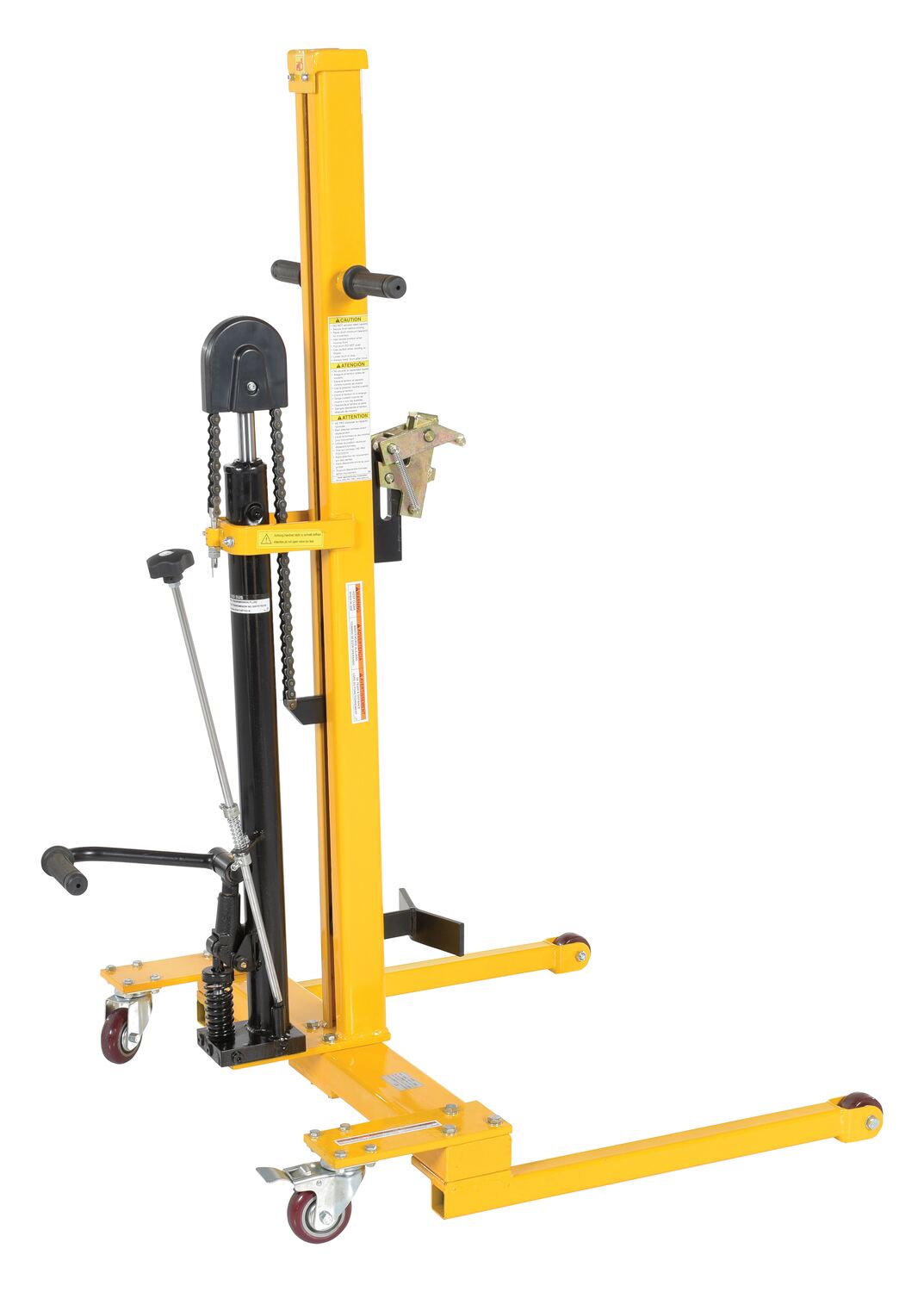

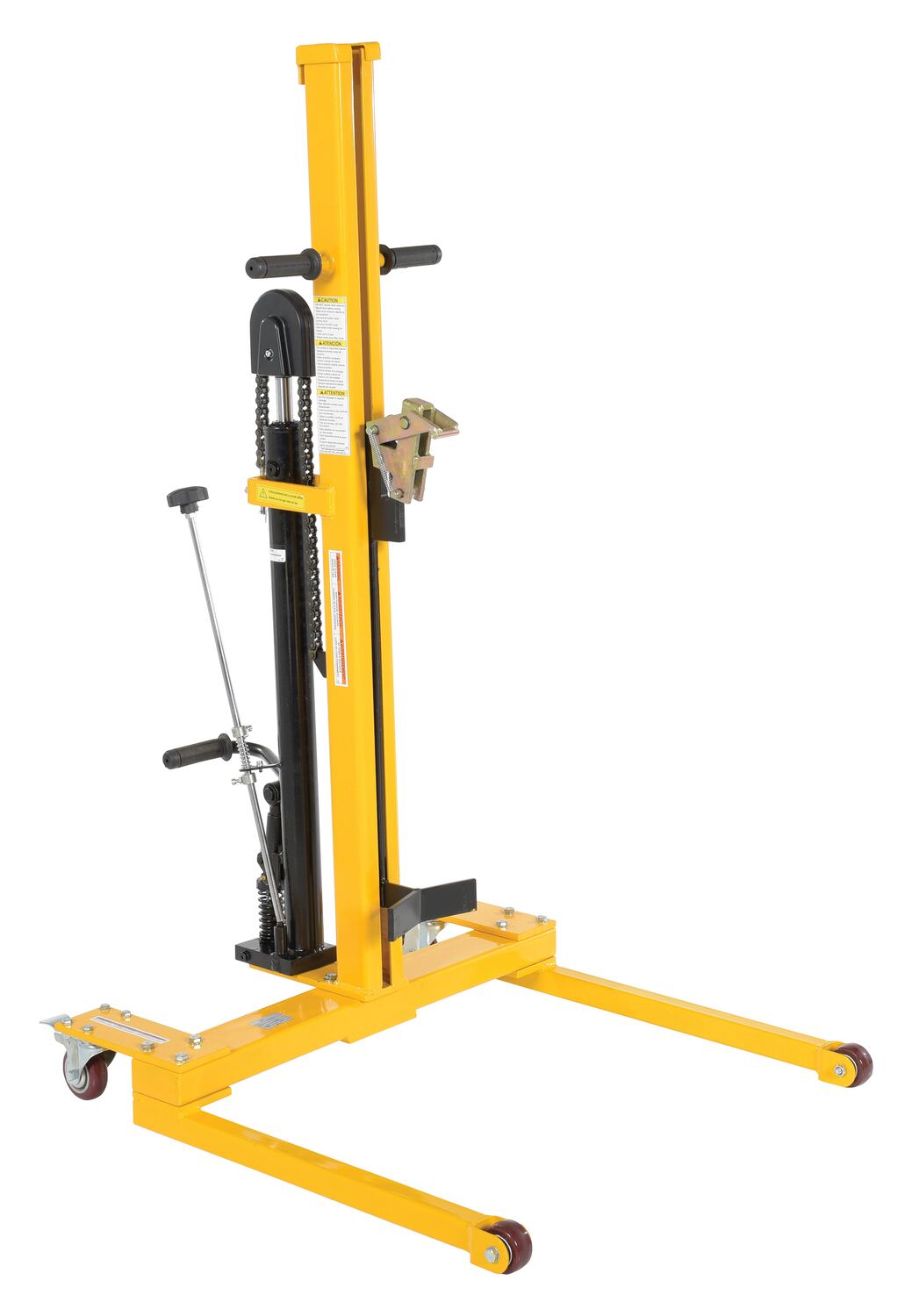

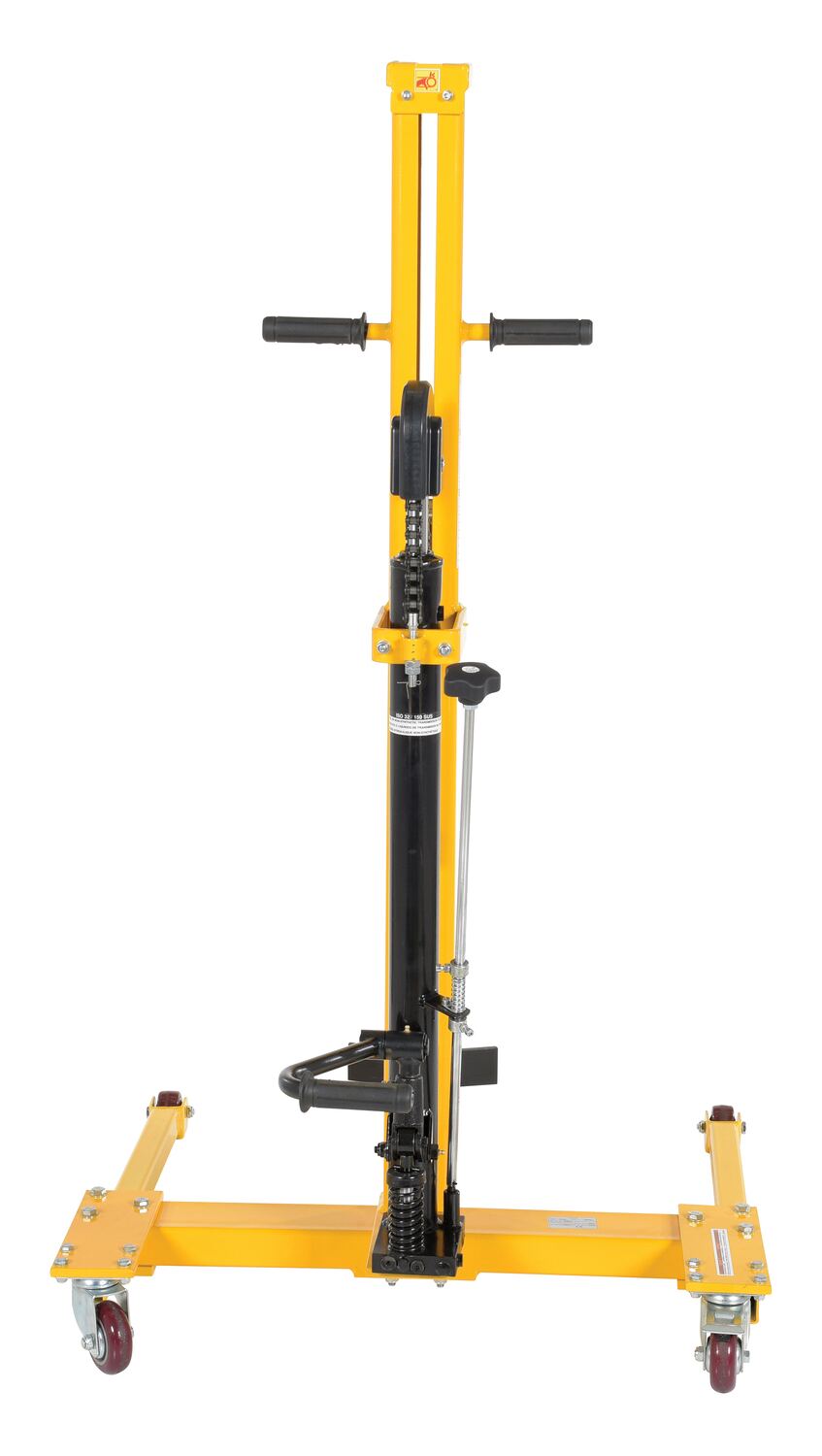

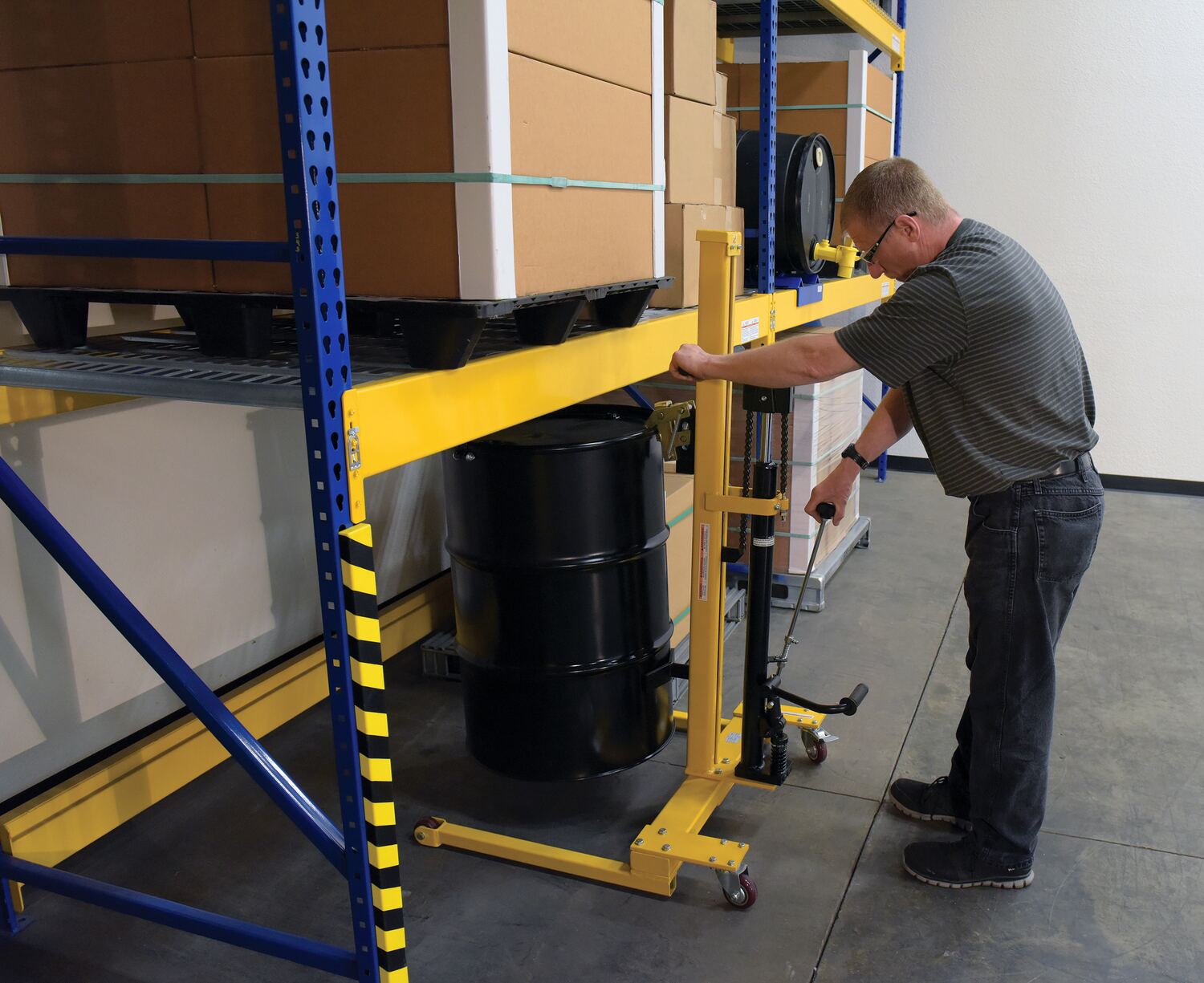

Ideal for loading and unloading 55 gallon steel drums when no fork truck is available. This device allows a single operator to engage elevated drums as well as to transport and position drums. A spring-loaded clamp securely grasps the rim of a drum. To elevate the rim clamp up to 5 feet, the truck incorporates a foot-operated hydraulic pump. Unit rolls smoothly on 2 rigid 2-1/2" x 1-1/2" front wheels and 3-1/8" x 1-1/4" poly rear wheels. Truck is easy to assemble/disassemble for storage.

  • Manual low profile hydraulic drum truck transports and positions drums efficiently
  • Load and unload steel drums for ideal operation

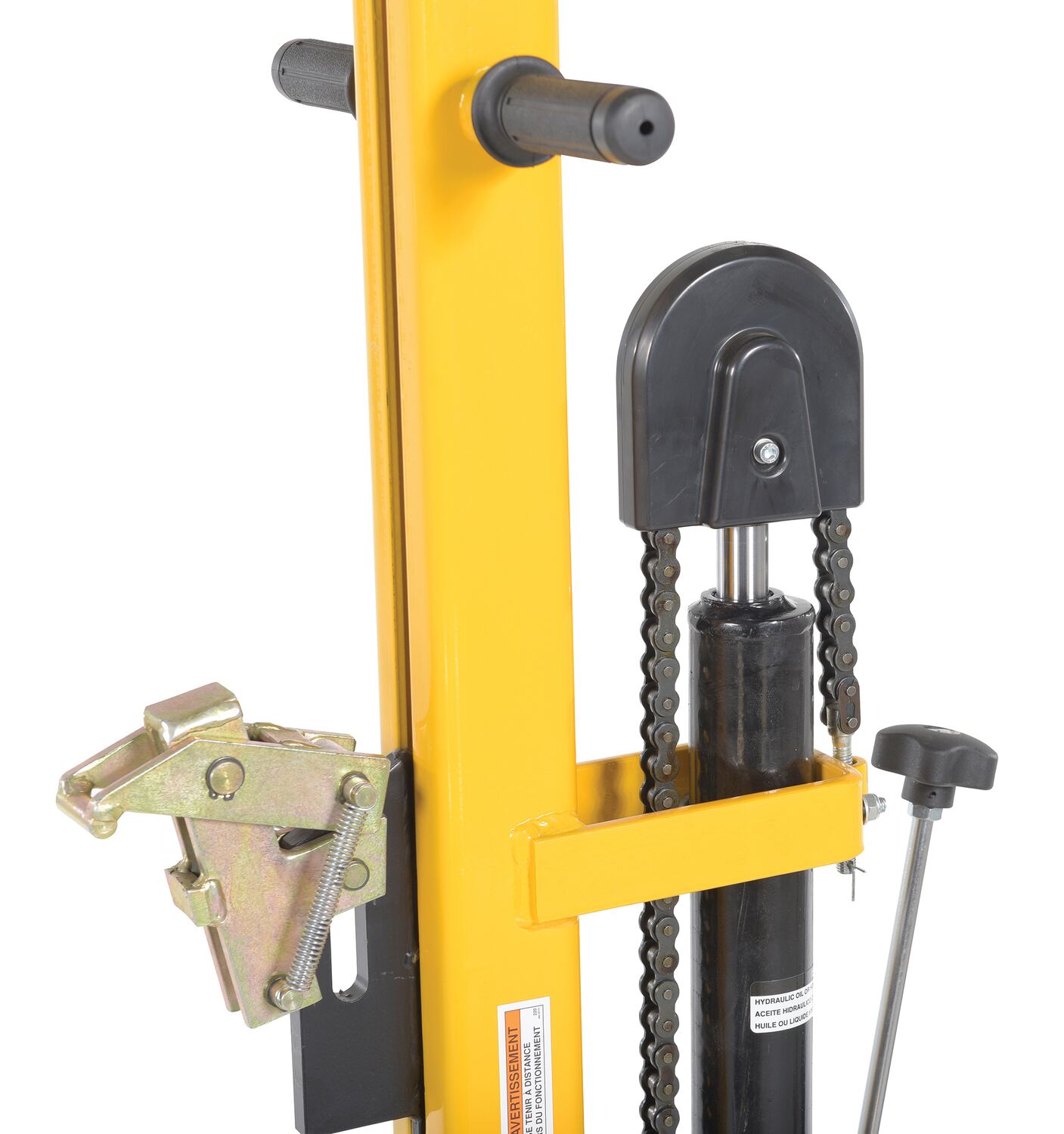

  • Features a spring-loaded clamp which securely grasps the rim of a drum for transport

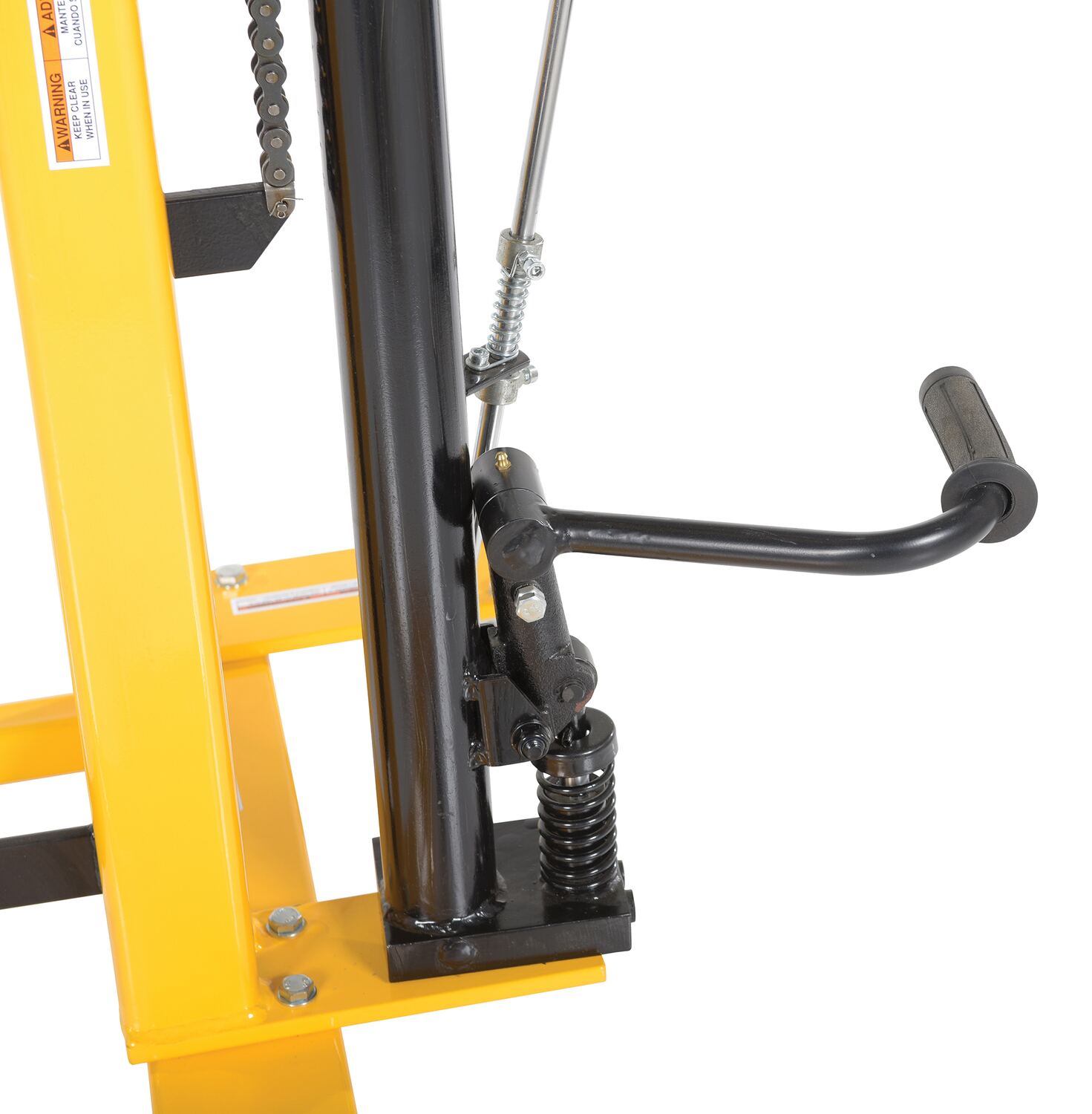

  • Foot-operated hydraulic pump elevates the rim clamp that the truck incorporates

Ideal for loading and unloading 55 gallon steel drums when no fork truck is available. This device allows a single operator to engage elevated drums as well as to transport and position drums. A spring-loaded clamp securely grasps the rim of a drum. To elevate the rim clamp up to 5 feet, the truck incorporates a foot-operated hydraulic pump. Unit rolls smoothly on 2 rigid 2-1/2" x 1-1/2" front wheels and 3-1/8" x 1-1/4" poly rear wheels. Truck is easy to assemble/disassemble for storage.

  • Manual low profile hydraulic drum truck transports and positions drums efficiently
  • Load and unload steel drums for ideal operation
  • Features a spring-loaded clamp which securely grasps the rim of a drum for transport
  • Foot-operated hydraulic pump elevates the rim clamp that the truck incorporates

Other Drum Transporters, Trucks, Carts & Jacks

 Multi-Purpose Drum & Hand Trucks Revolving Drum Carts Fully Powered Vertical Gripper/Rotator Portable Drum Lifter/Rotator/Transporters

model chart
How To Purchase

Model Specific Details

All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.
The Search Box below is within the Model Chart for this Product Family (on this current page). Not an entire site search.
Model # Description Attributes Net Wt.
(lbs)
LPDT LPDT30 Days Limited WarrantySteel Manual Low Profile Hydraulic Drum Truck 37 In. x 34 In. x 60 In. 600 Lb. Capacity YellowUniform Capacity (lb.): 600
Lowered Height (in.): 32-7/8		185

KEY: = Expand Model Details = Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= On Hold/Temporarily Unavailable = Approval Drawing = Testing Certificate = 360 Image Warranty
= Works w/ Skid Only = Flatbed Truck Required

LPDT
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 600
Lowered Height (in.): 32-7/8
Uniform Capacity (lb.): 600
Lowered Height (in.): 32-7/8
Manual Low Profile Hydraulic Drum Truck PDF's will open in a new window when clicked.

Manuals


LPDT
Owners Manual

Survey Sheets

No Survey Sheets For This Product


Approval Drawings


LPDT

Testing Certificates


LPDT

SDS Sheets

Hydraulic Oil SDS Sheet for: LPDT

Other PDF's

No "Other PDFs" For This Product...


Directory Links Of Available PDF's For All Products

Manuals
Survey Sheets
Drawings
Certificates of Testing
Warranties
SDS Data Sheets







Visit Our Youtube Channel For All Available Videos For All Products

Q: Does LPDT work with fiber and plastic drums?

A: No- LPDT will only work with 55 Gallon Steel Drums
