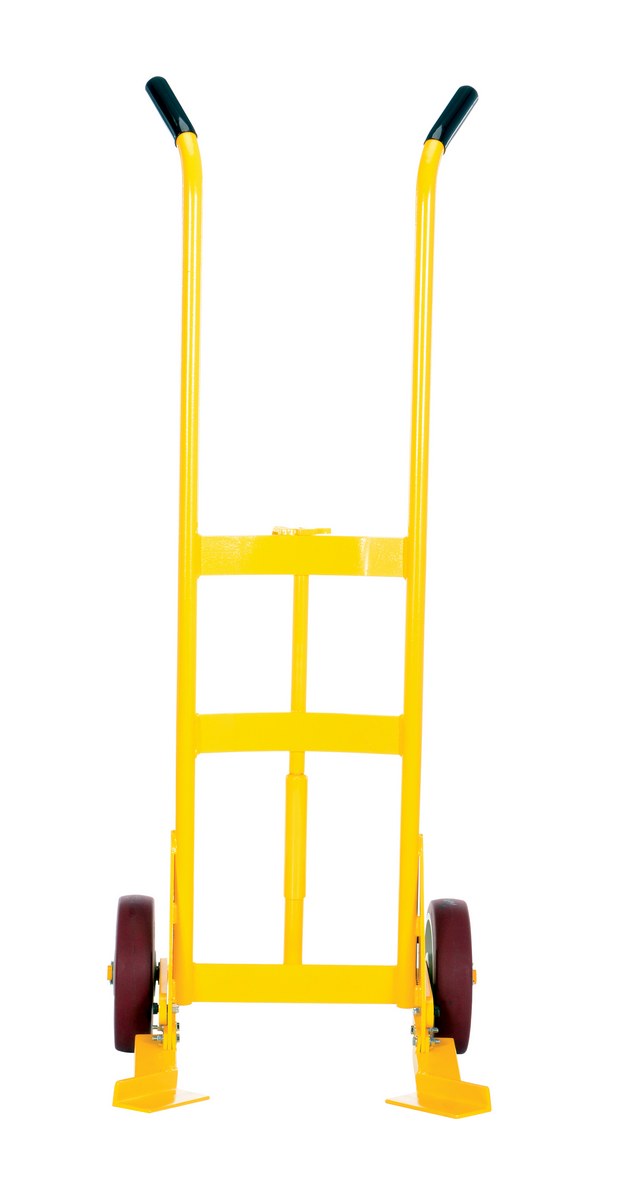

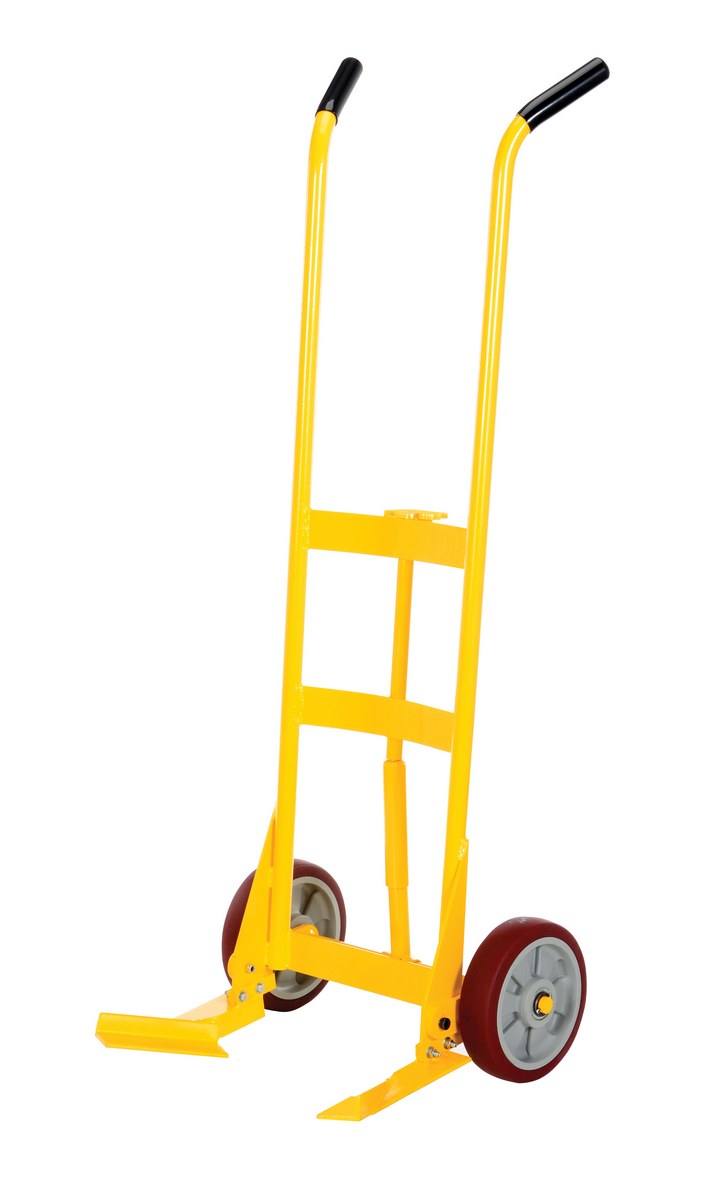

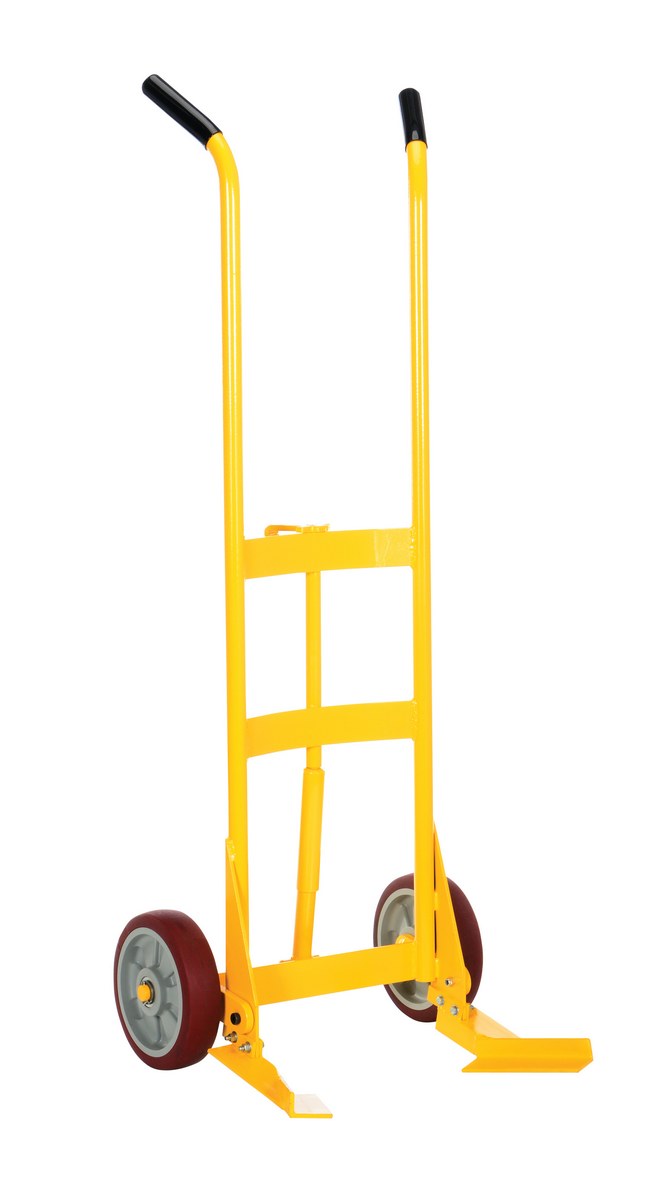

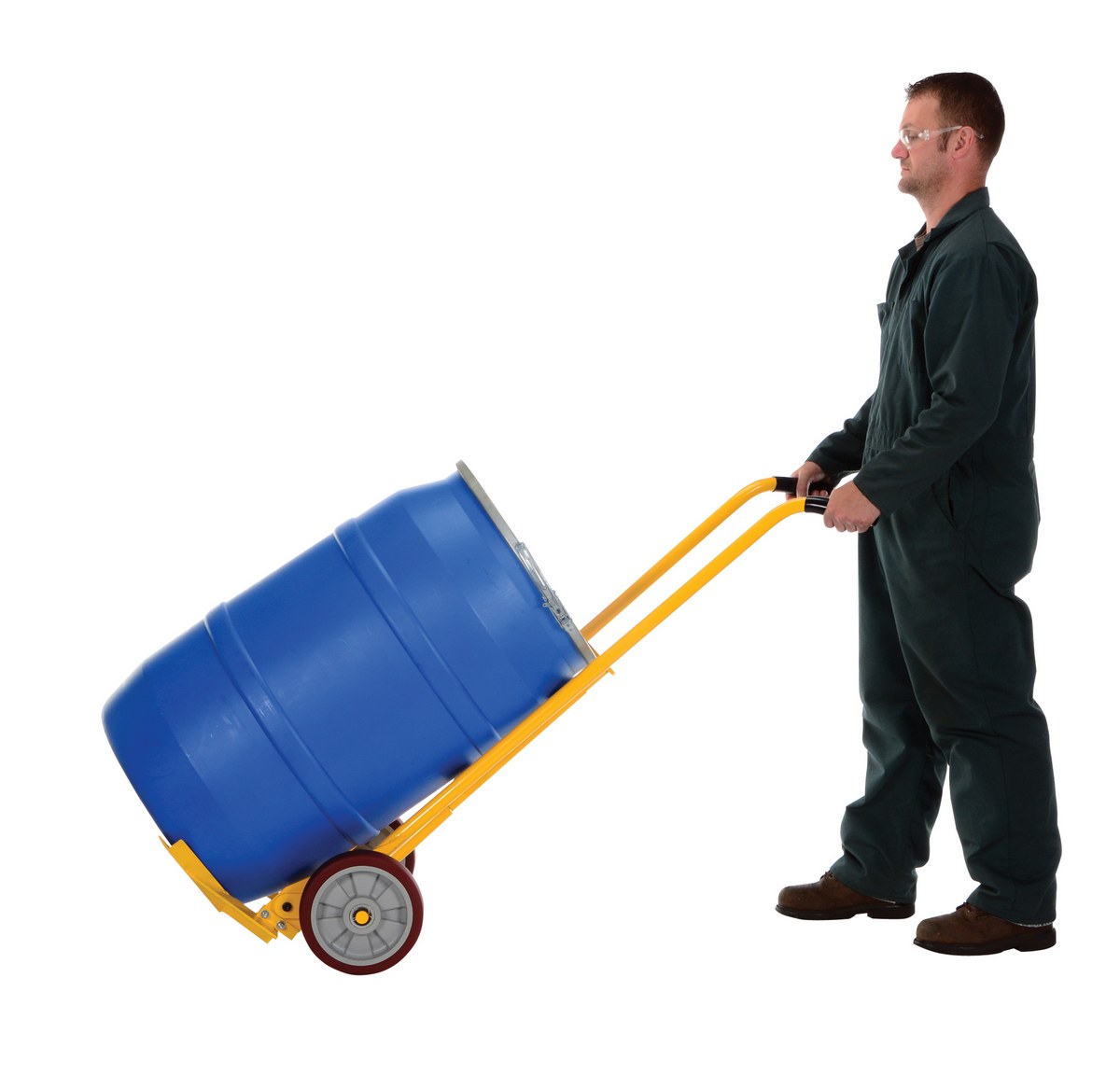

model: DBT-P-SA-PO

SERIES: DBT

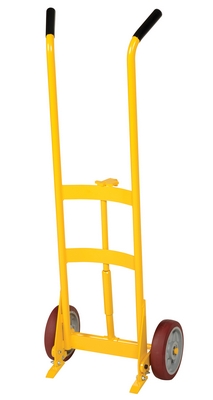

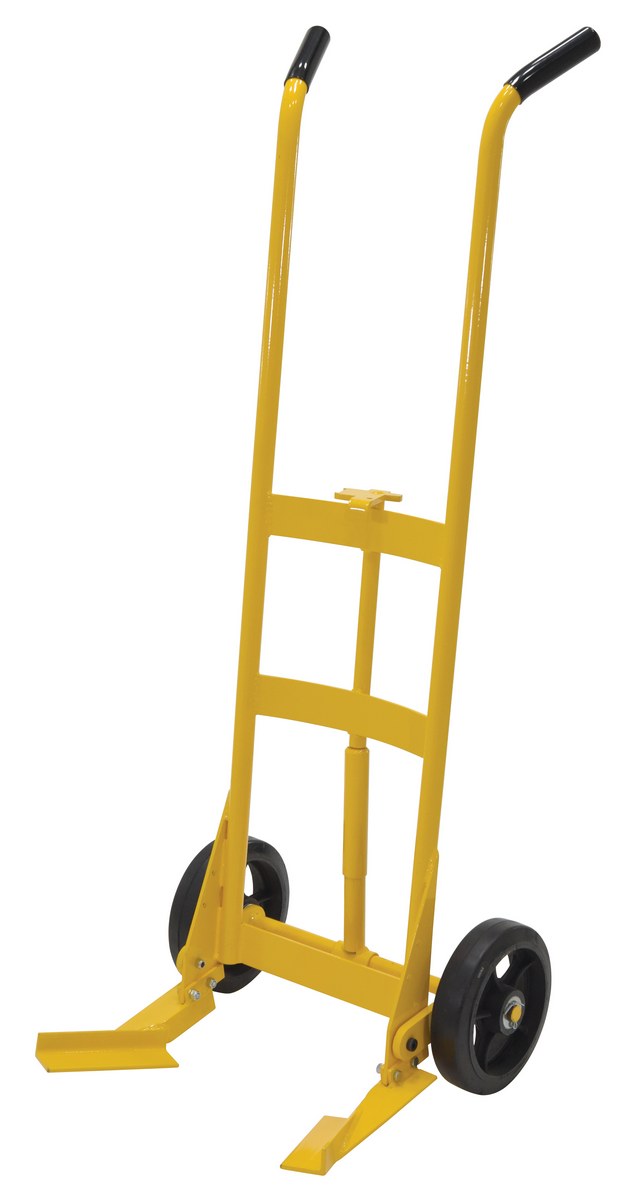

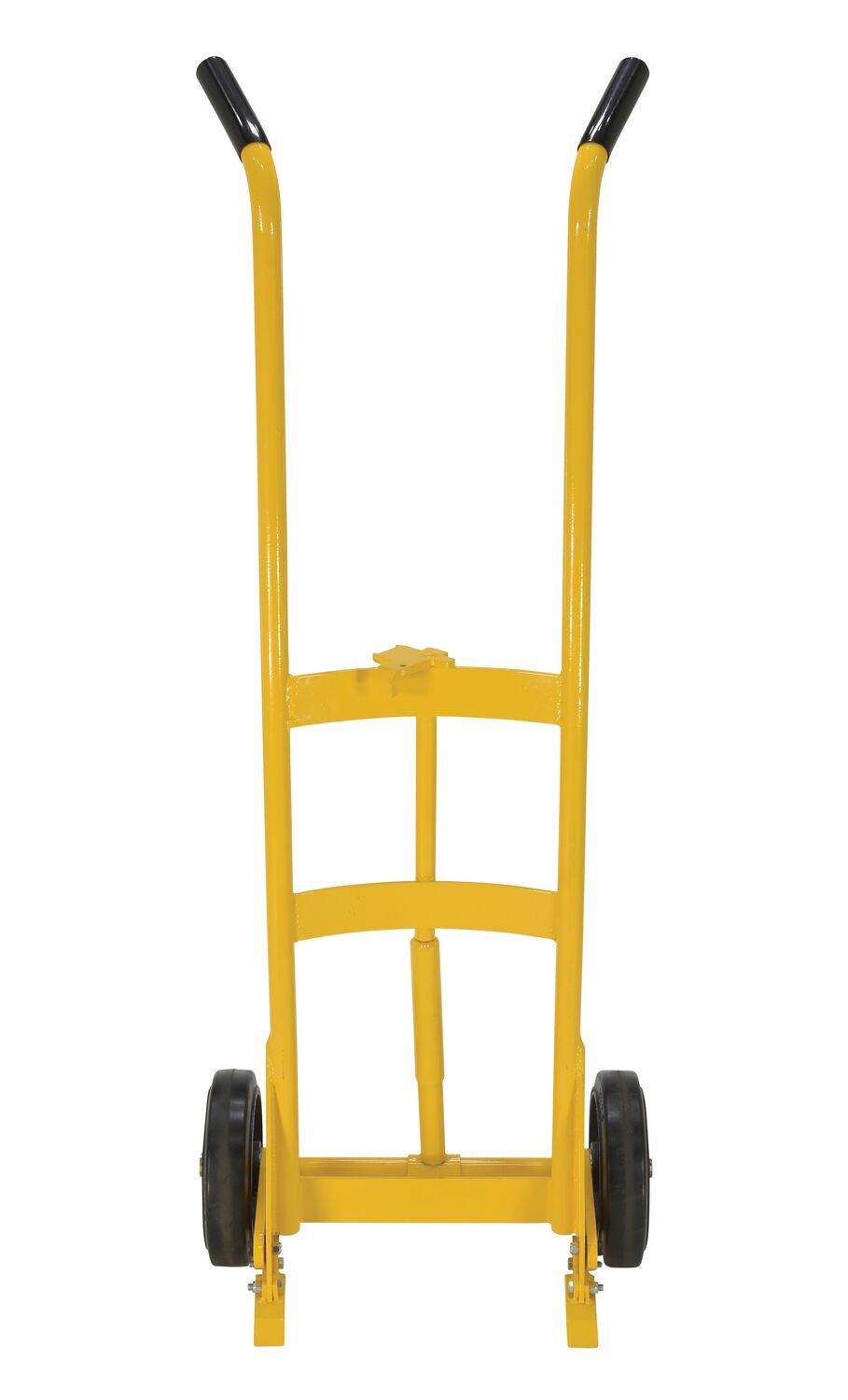

Drum Trucks with Spring Assist

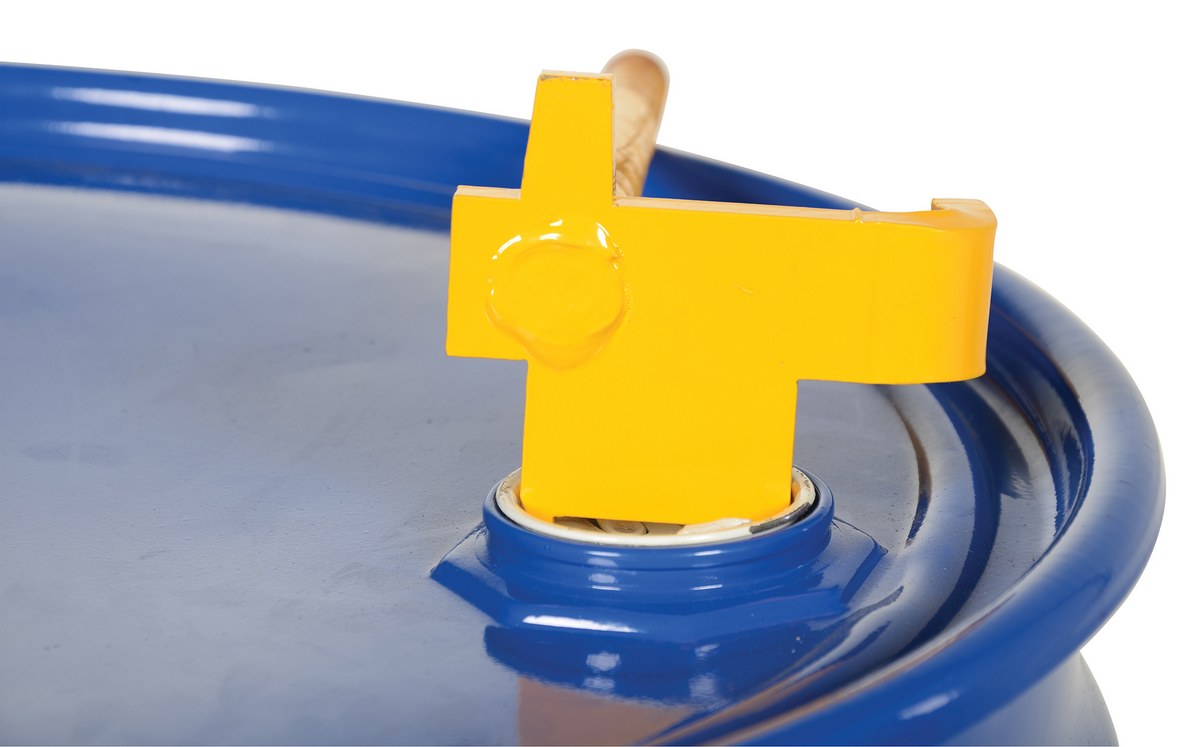

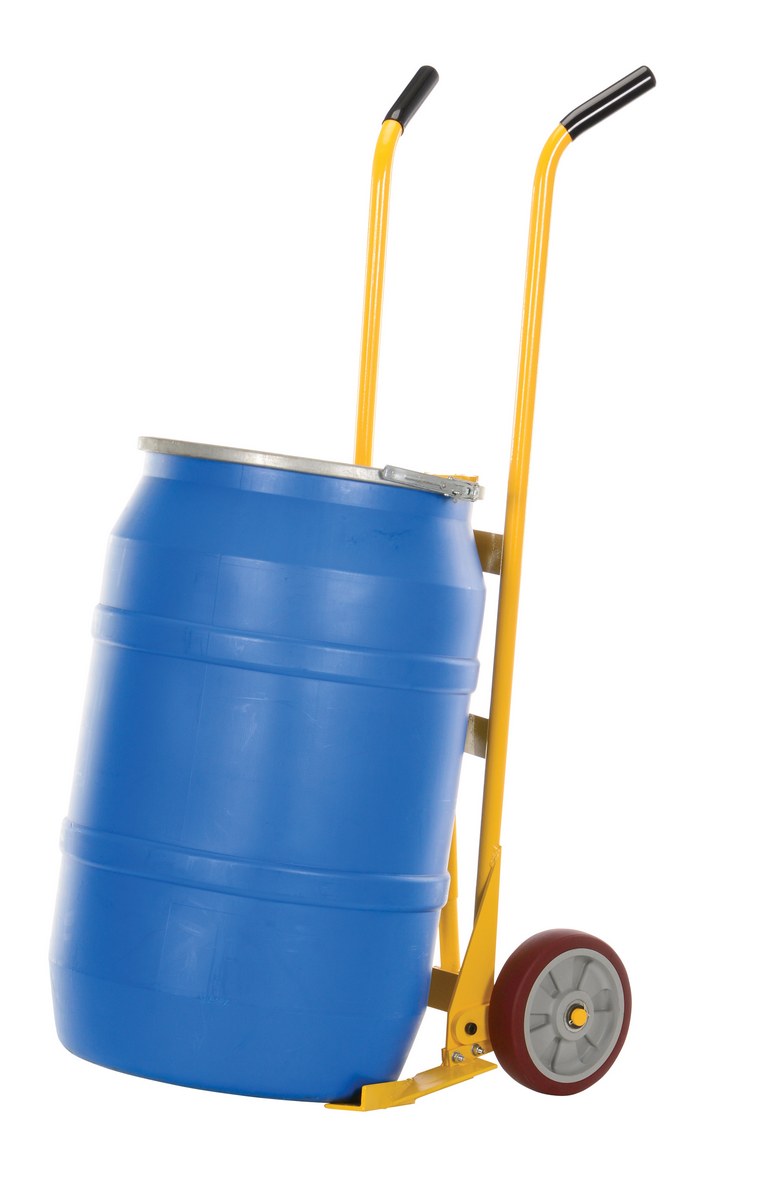

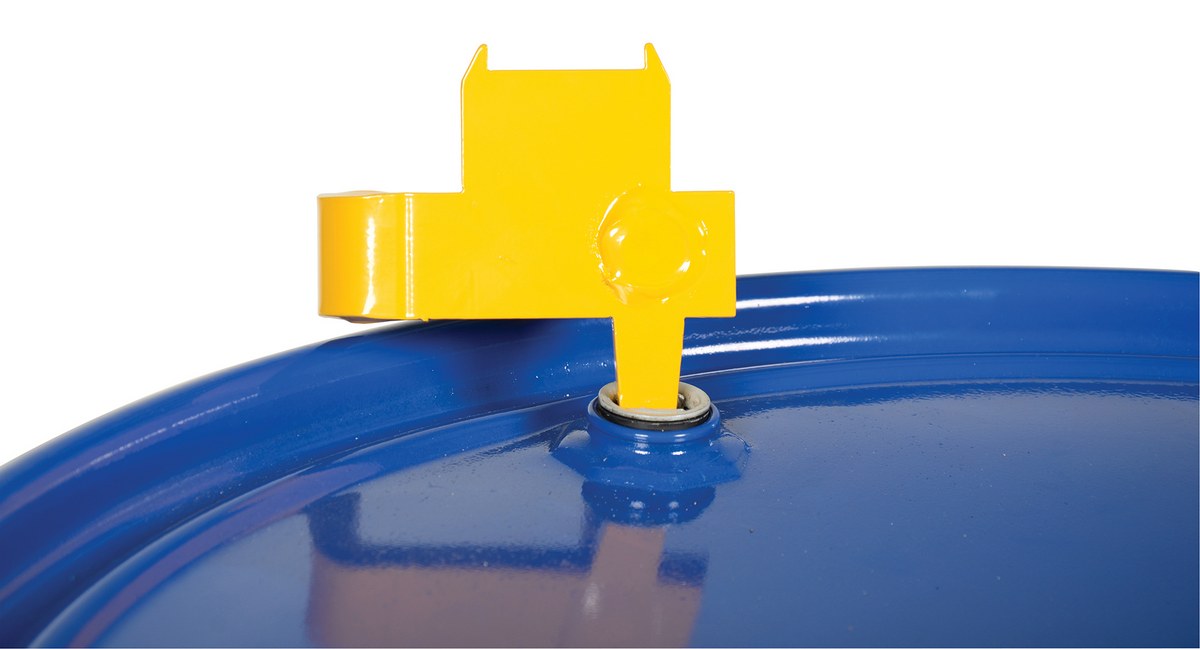

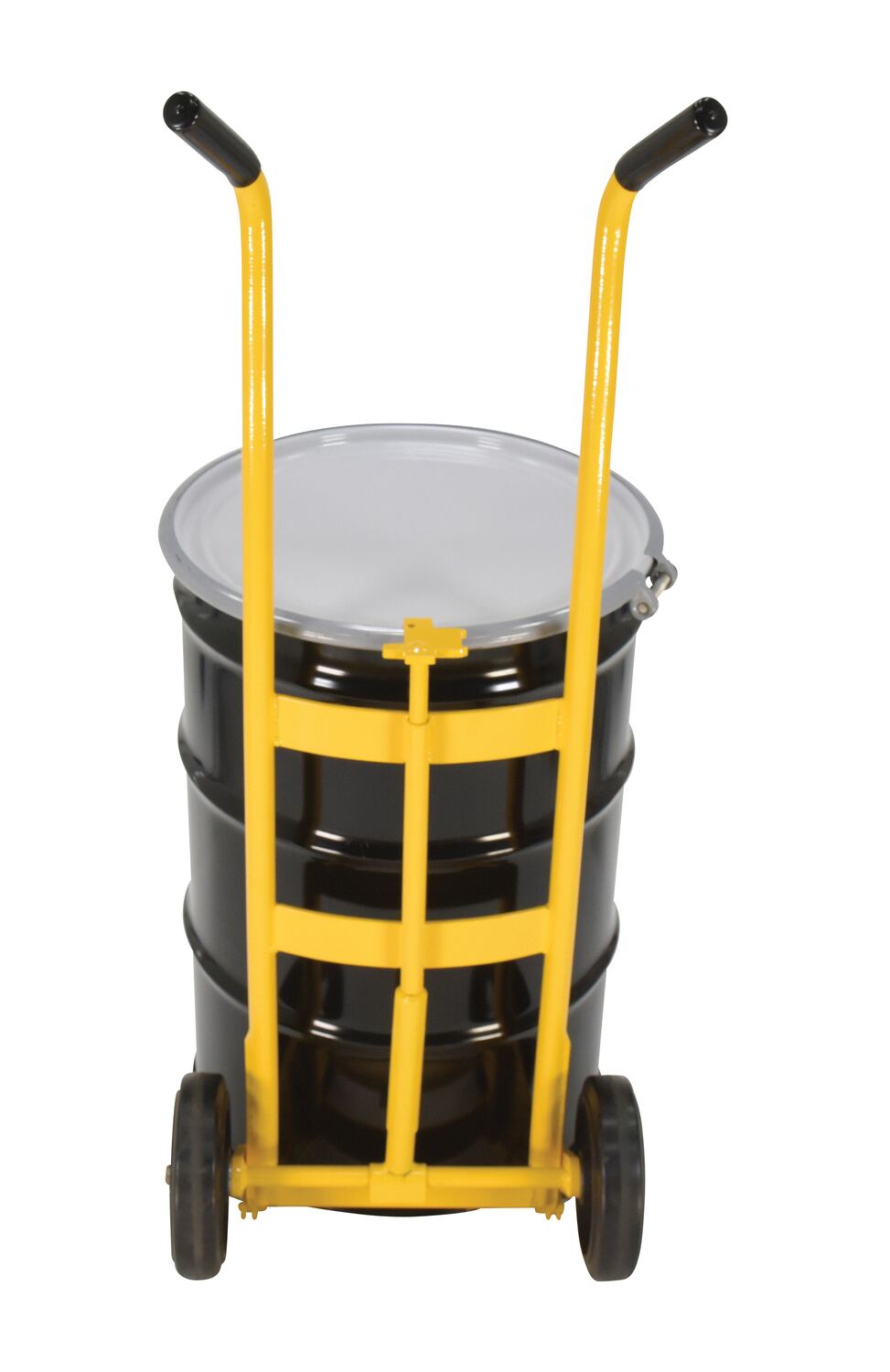

Hand truck designed for moving 55-gallon steel and plastic drums weighing up to 1,000 lbs. Special design features spring mechanism for easy use. Spring allows for easier tilting of fully-loaded drums. Removable hook bar includes built-in bung nut wrenches. Steel construction with baked-in powder coat yellow finish for added toughness. 10" x 2-1/2" wheels standard.

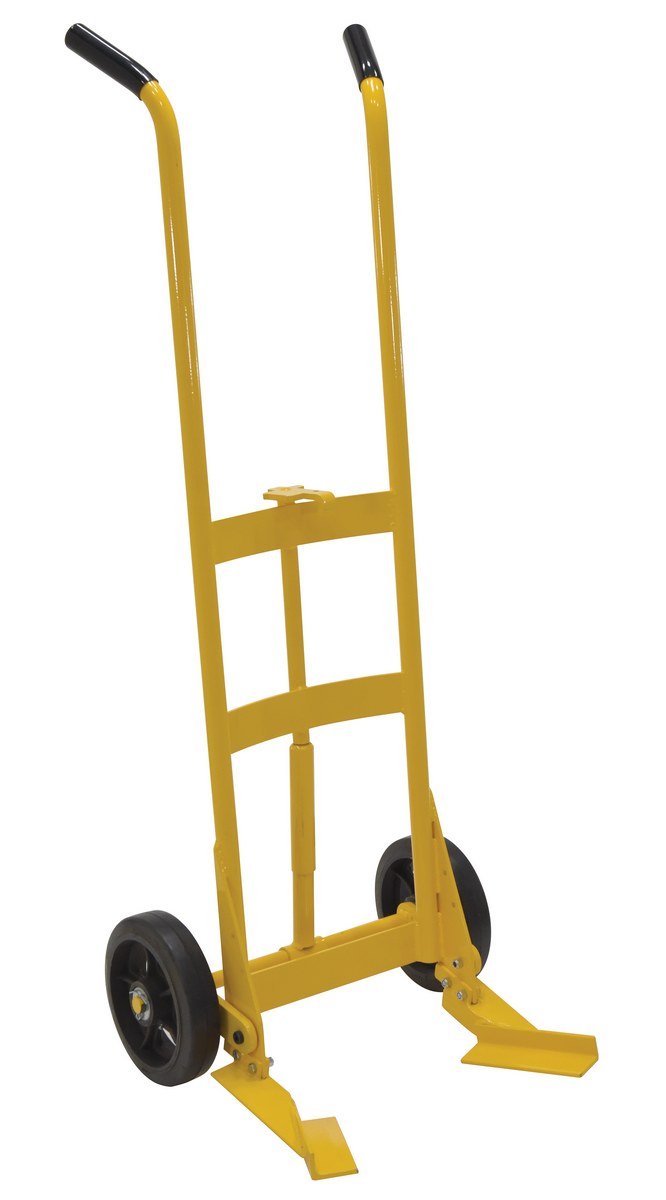

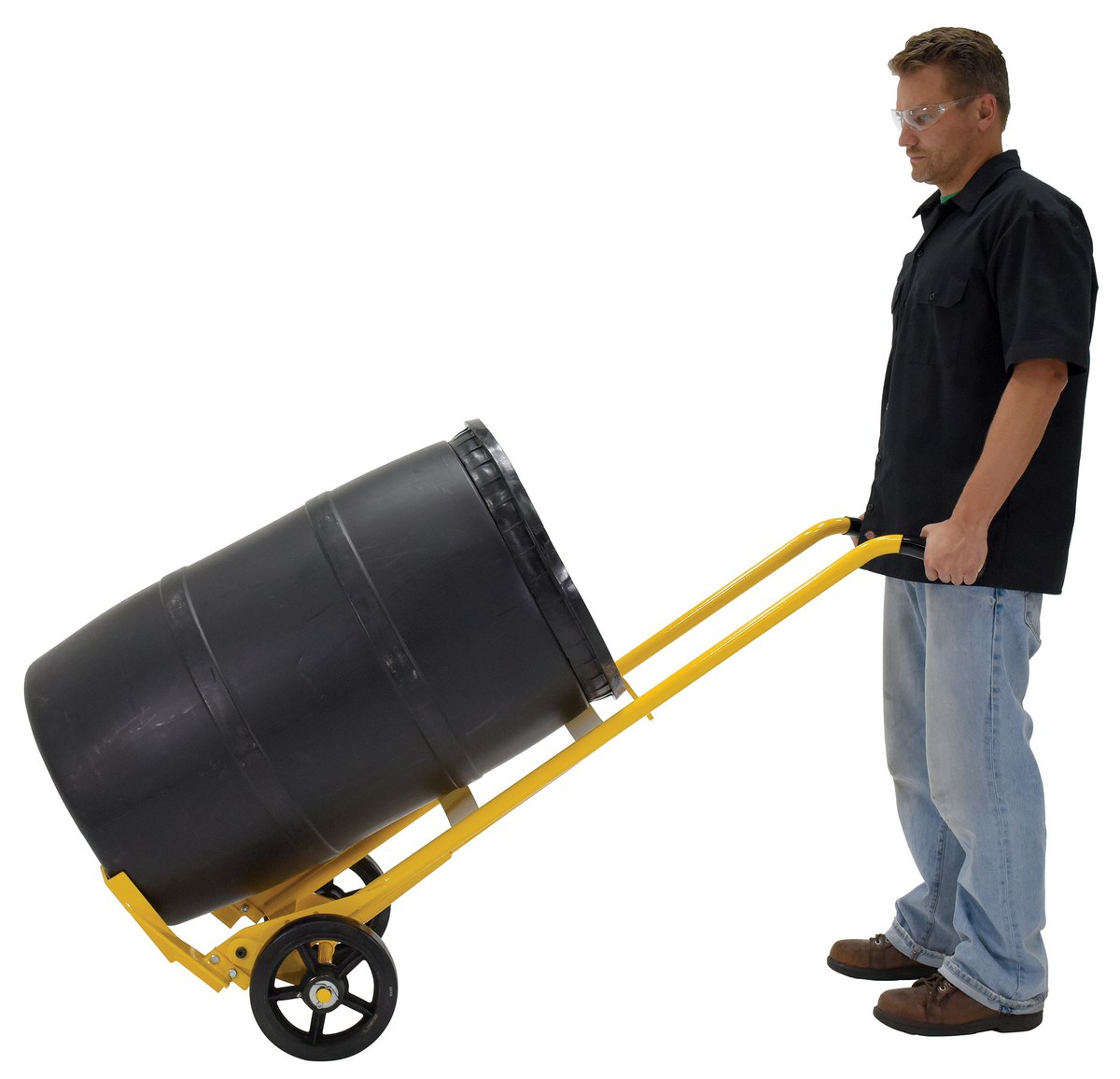

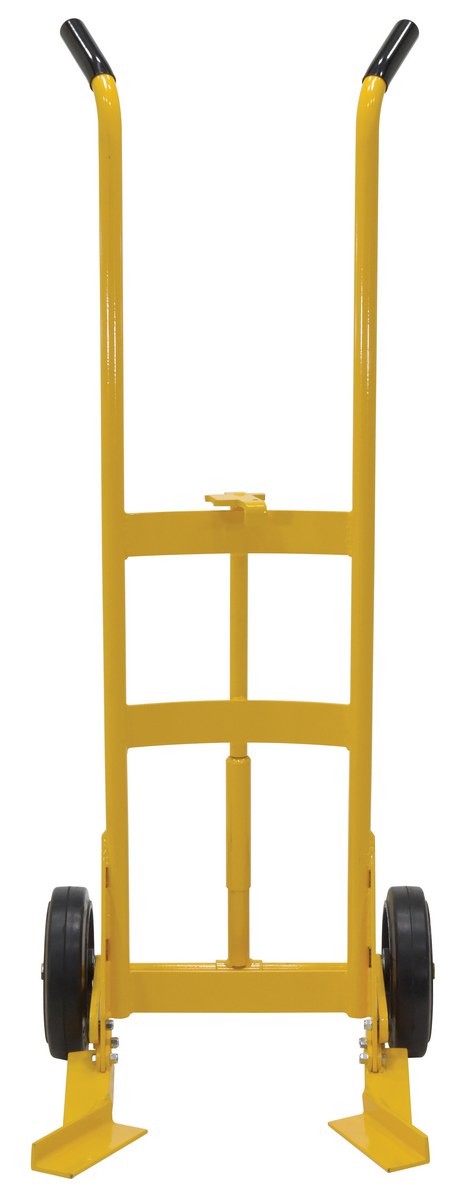

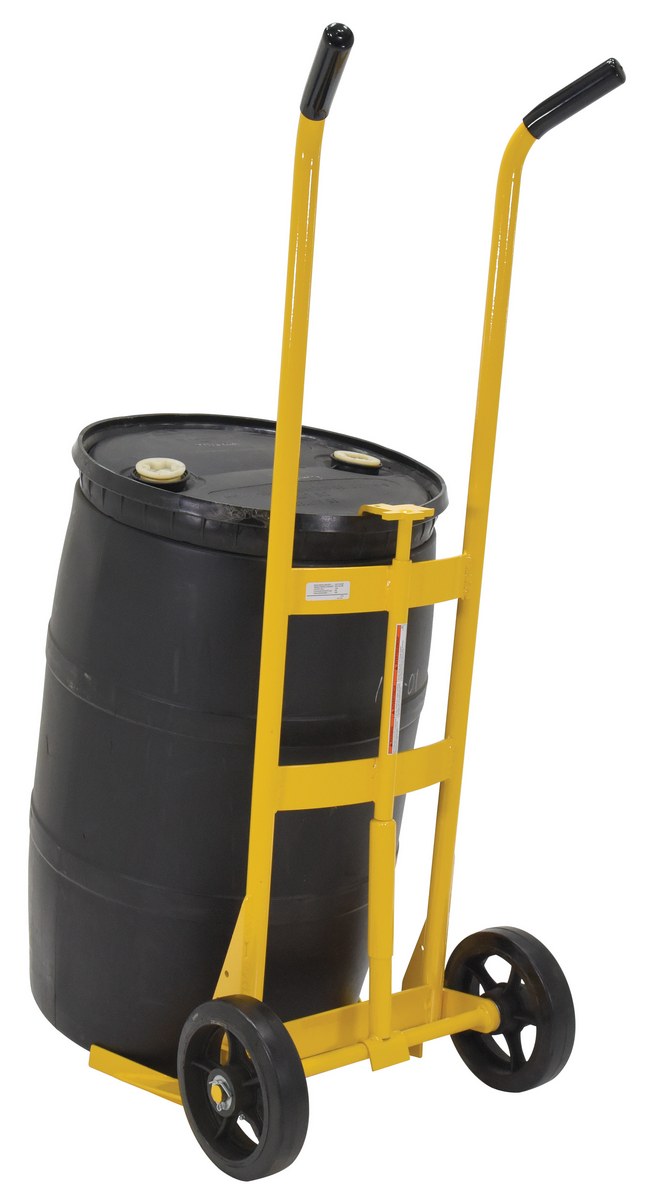

DBT-P-SA-MR

model DBT-P-SA-MR

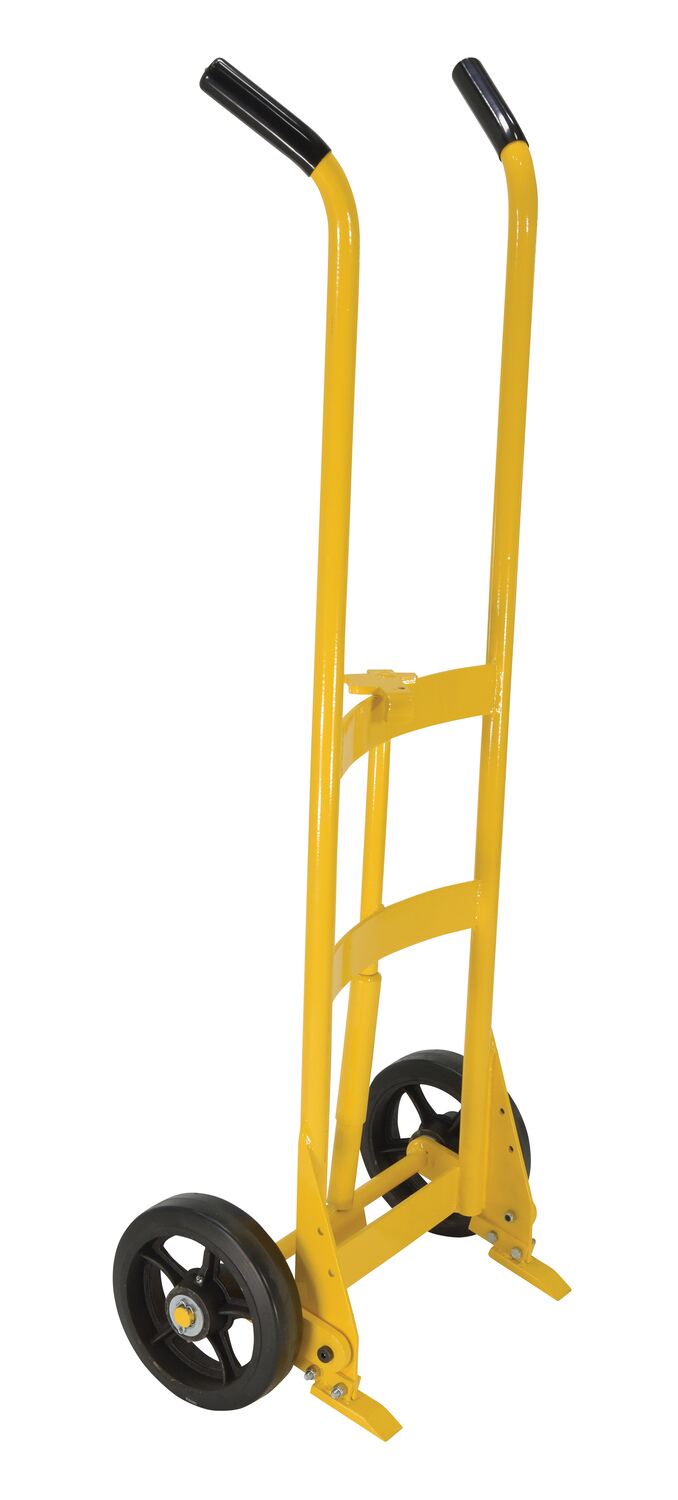

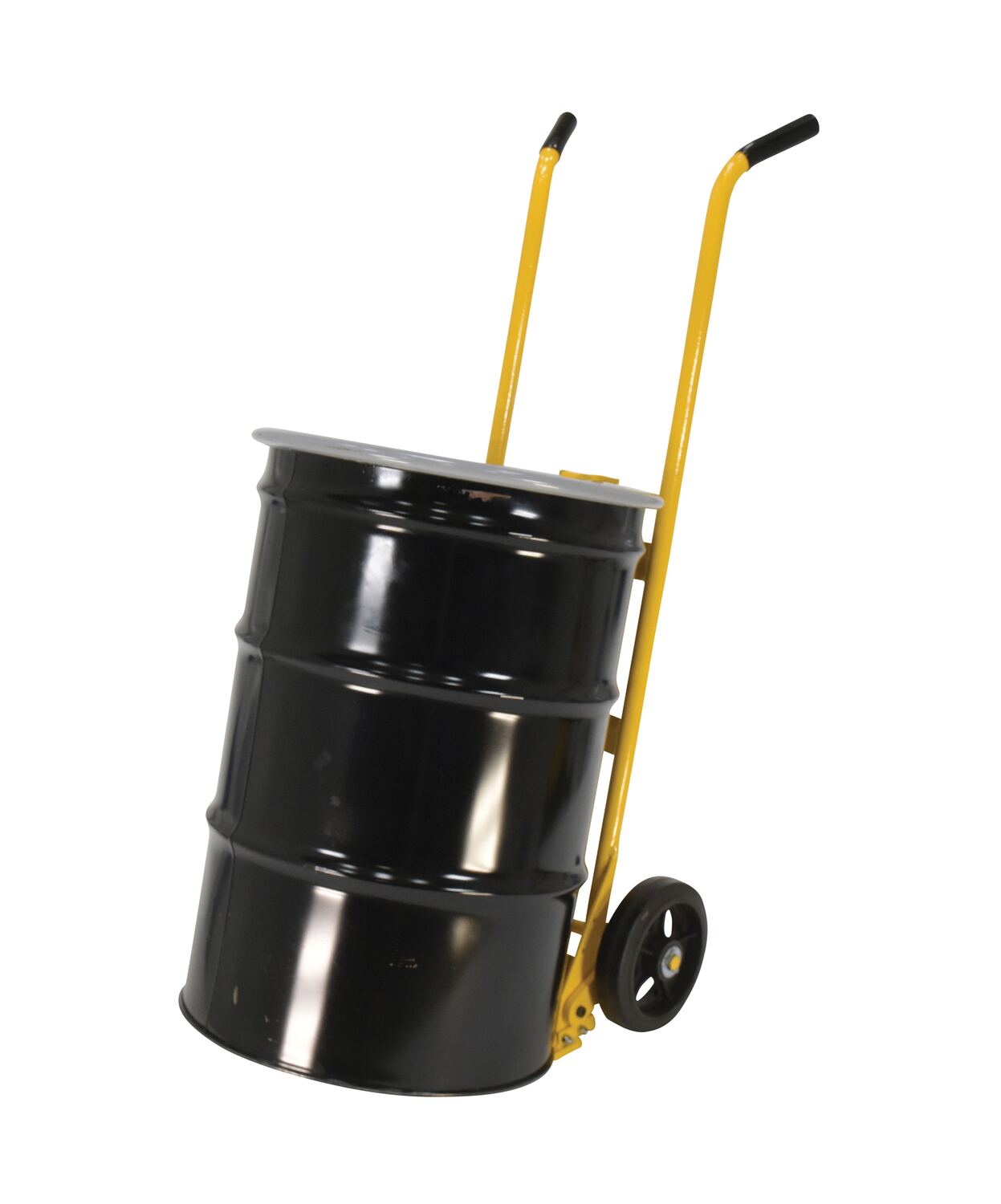

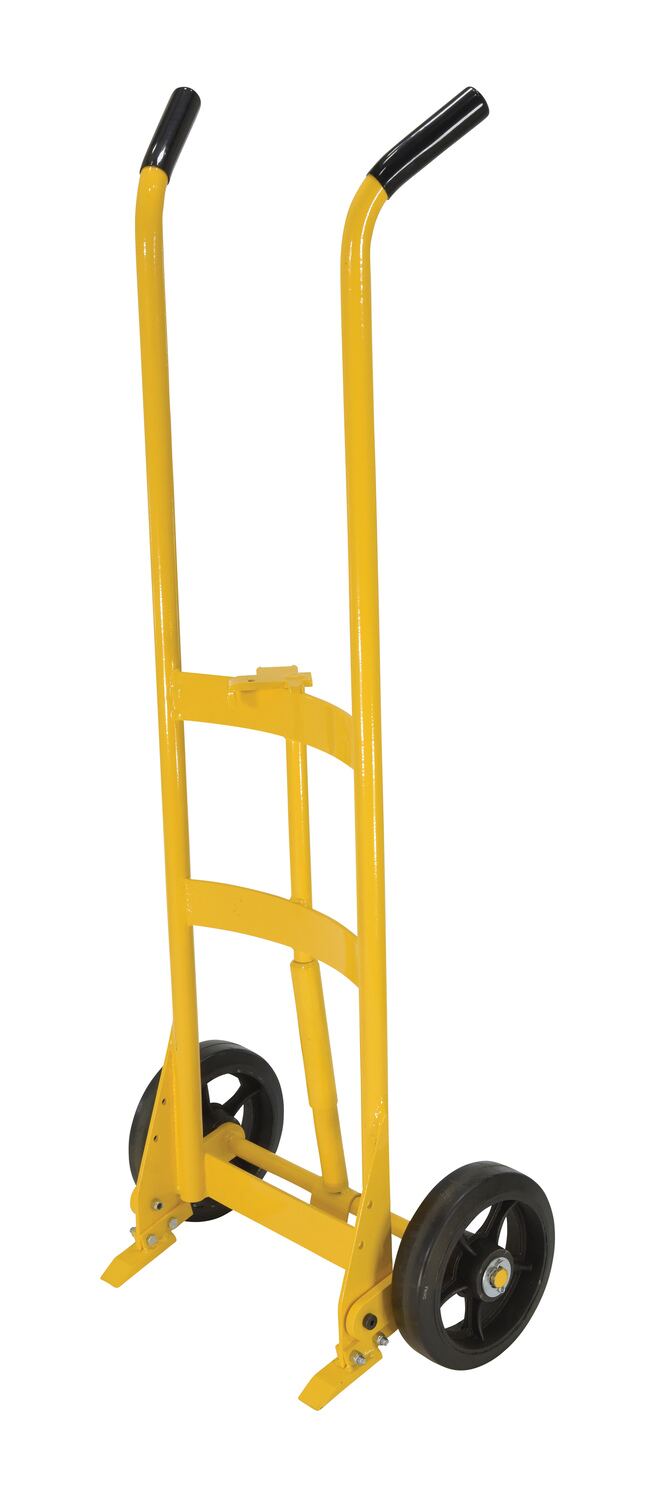

DBT-SA-MR

model DBT-SA-MR

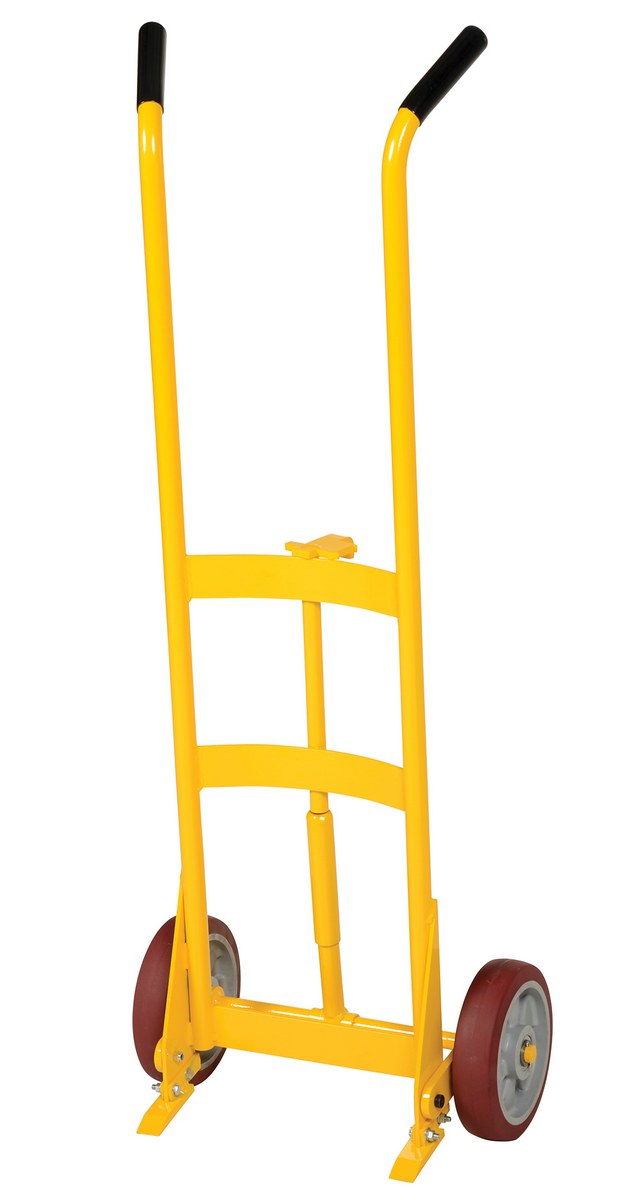

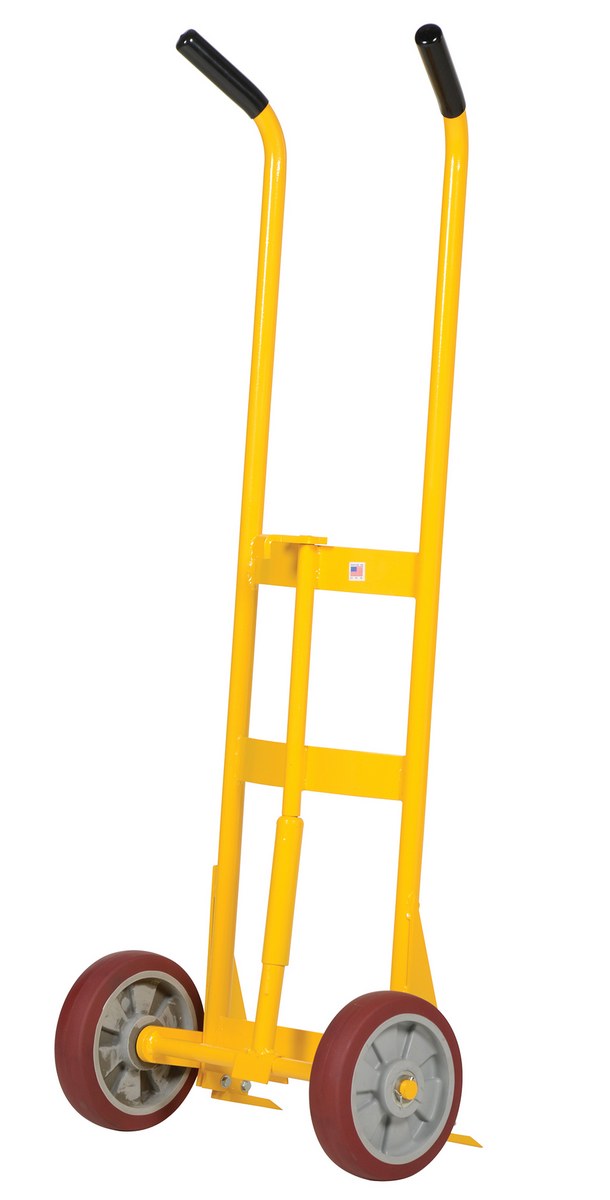

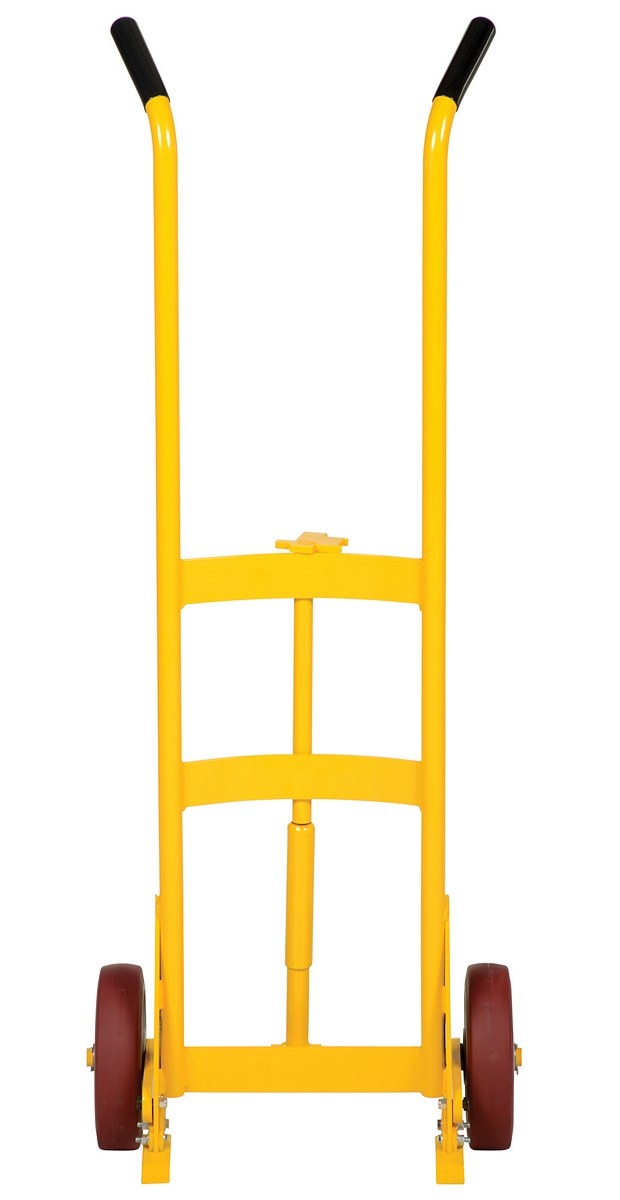

DBT-SA-PO

model DBT-SA-PO


Be sure to scroll below the model chart to view more product content (ie Options, PDF's, Videos, & Galleries).



KEY: Approval Drawing = Approval Drawing -- Approval Drawing = Warranty -- Approval Drawing = Testing Certificate

All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.
Drum Truck w/ Spring Assist
Model PDFs Drum Types Overall
(WxLxH)
Wheel Type Wt.
(lbs)
DBT-SA-MR icon_approvaldrawings.jpgWarranty PDF Steel 23-11/16""x14-5/16"x60-5/8" Mold-On-Rubber 103
DBT-SA-PO Warranty PDF Steel 23-11/16""x14-5/16"x60-5/8" Poly-On-Poly 110
DBT-P-SA-MR icon_approvaldrawings.jpgWarranty PDF Plastic 23-11/16""x22"x60-5/8" Mold-On-Rubber 106
DBT-P-SA-PO Warranty PDF Plastic 23-11/16""x22"x60-5/8" Poly-On-Poly 110

KEY: Approval Drawing = Approval Drawing -- Approval Drawing = Warranty -- Approval Drawing = Testing Certificate




Click A SKU Below To Show Details

DBT-P-SA-MR

DBT-P-SA-MR

DBT-P-SA-PO

DBT-P-SA-PO

DBT-SA-MR

DBT-SA-MR

DBT-SA-PO

DBT-SA-PO






Drum Trucks with Spring Assist PDF's will open in a new window when clicked.
No Owners Manuals For This Product.


Survey Sheets

No Survey Sheets For This Product.


Approval Drawings

DBT-P-SA-MR
DBT-P-SA-PO
DBT-SA-MR
DBT-SA-PO

Testing Certificates

DBT-P-SA-MR
DBT-P-SA-PO
DBT-SA-MR
DBT-SA-PO

Other PDF's

No "Other PDFs" For This Product...
