Click Image to Enlarge

model: SPS2-2848


SERIES: SPA2/SPA3
Stockpicker Trucks

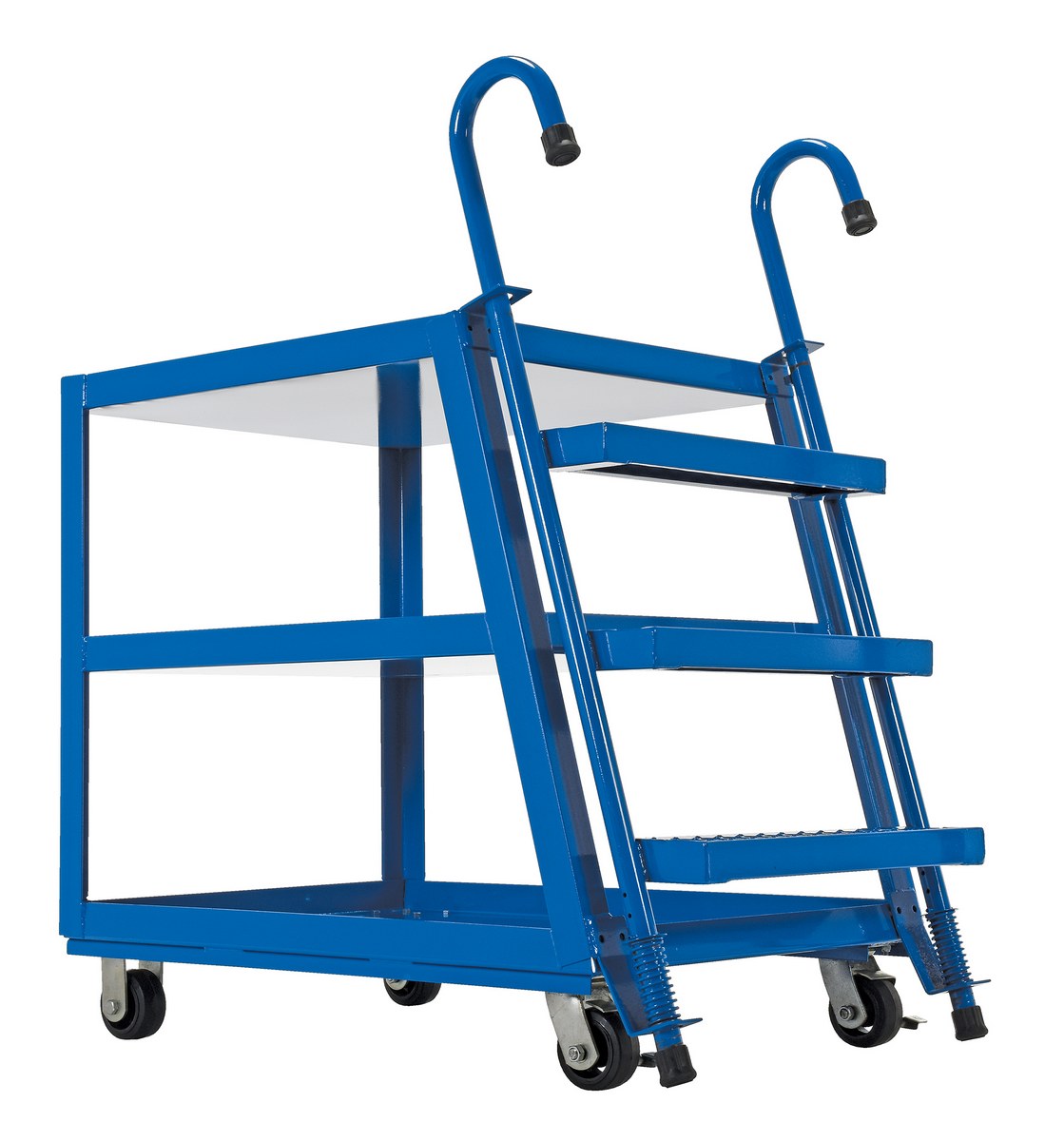

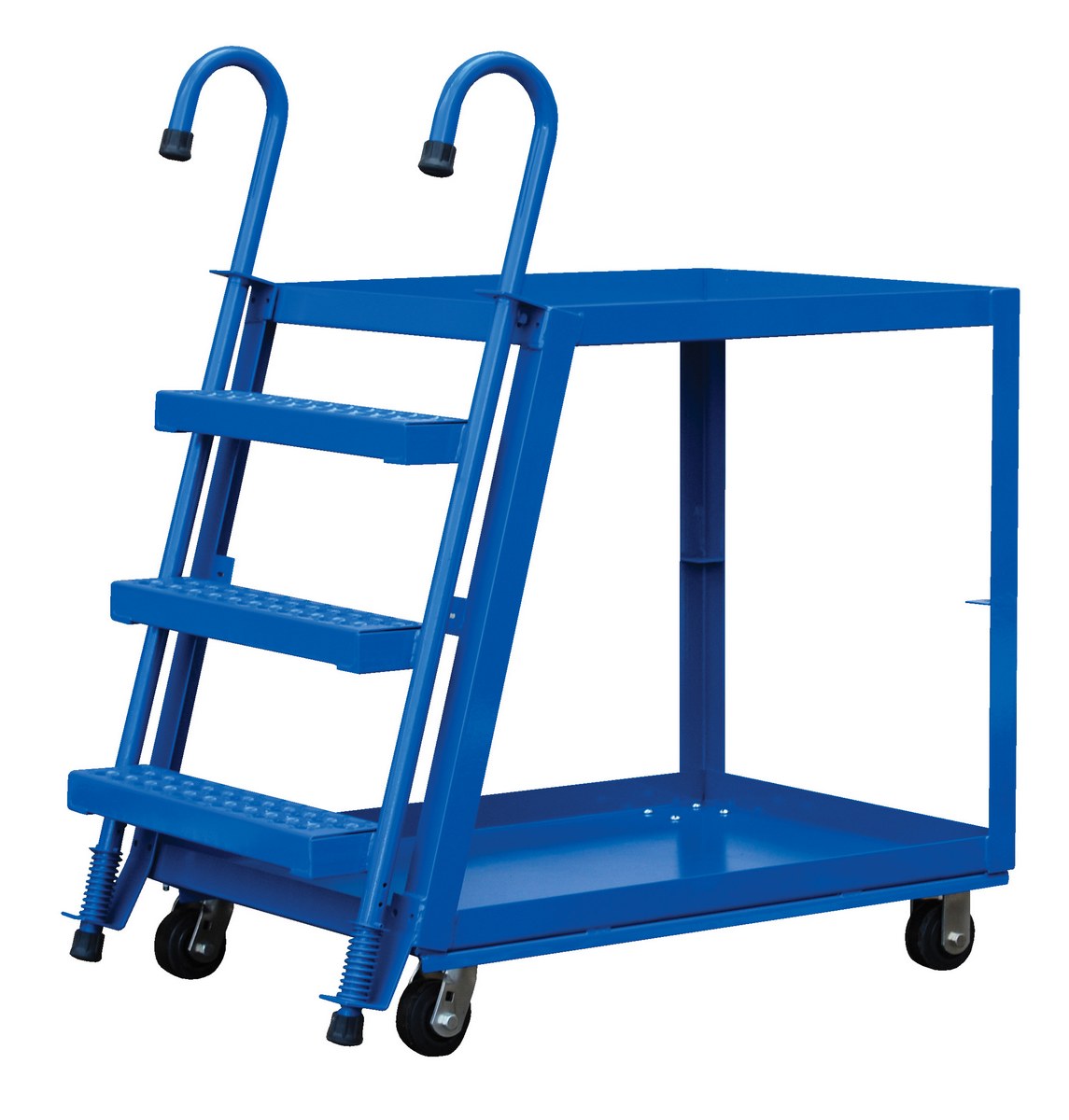

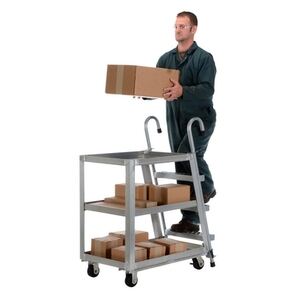

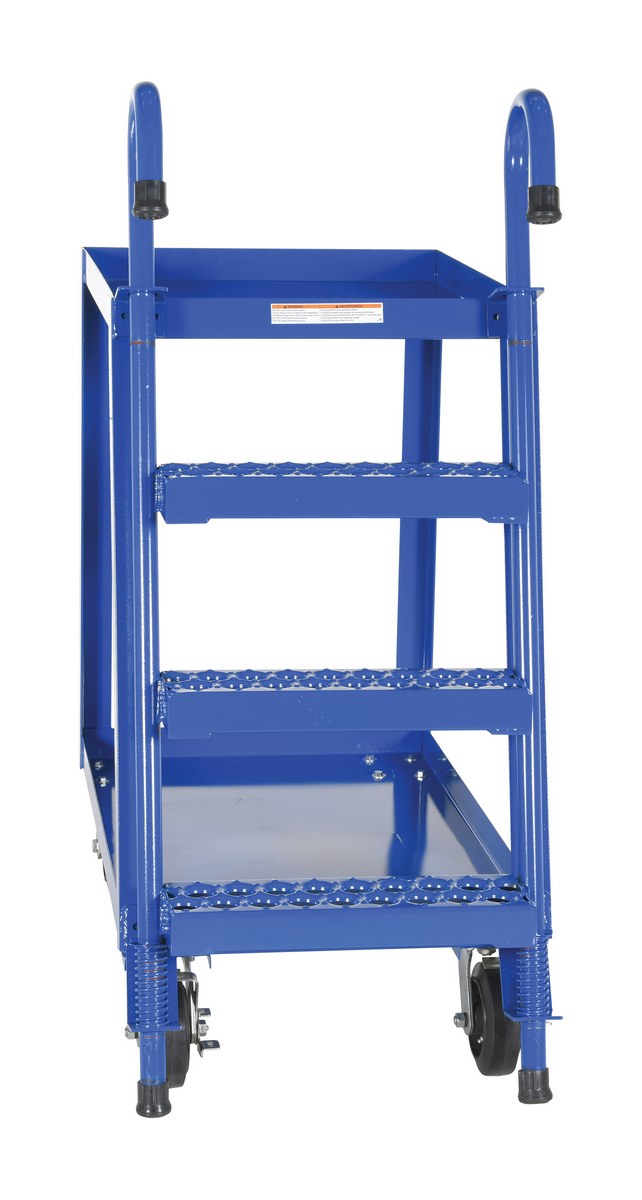

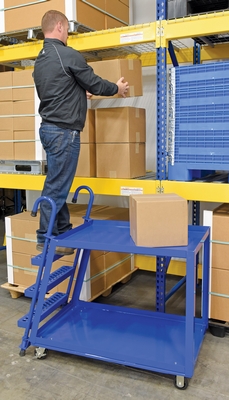

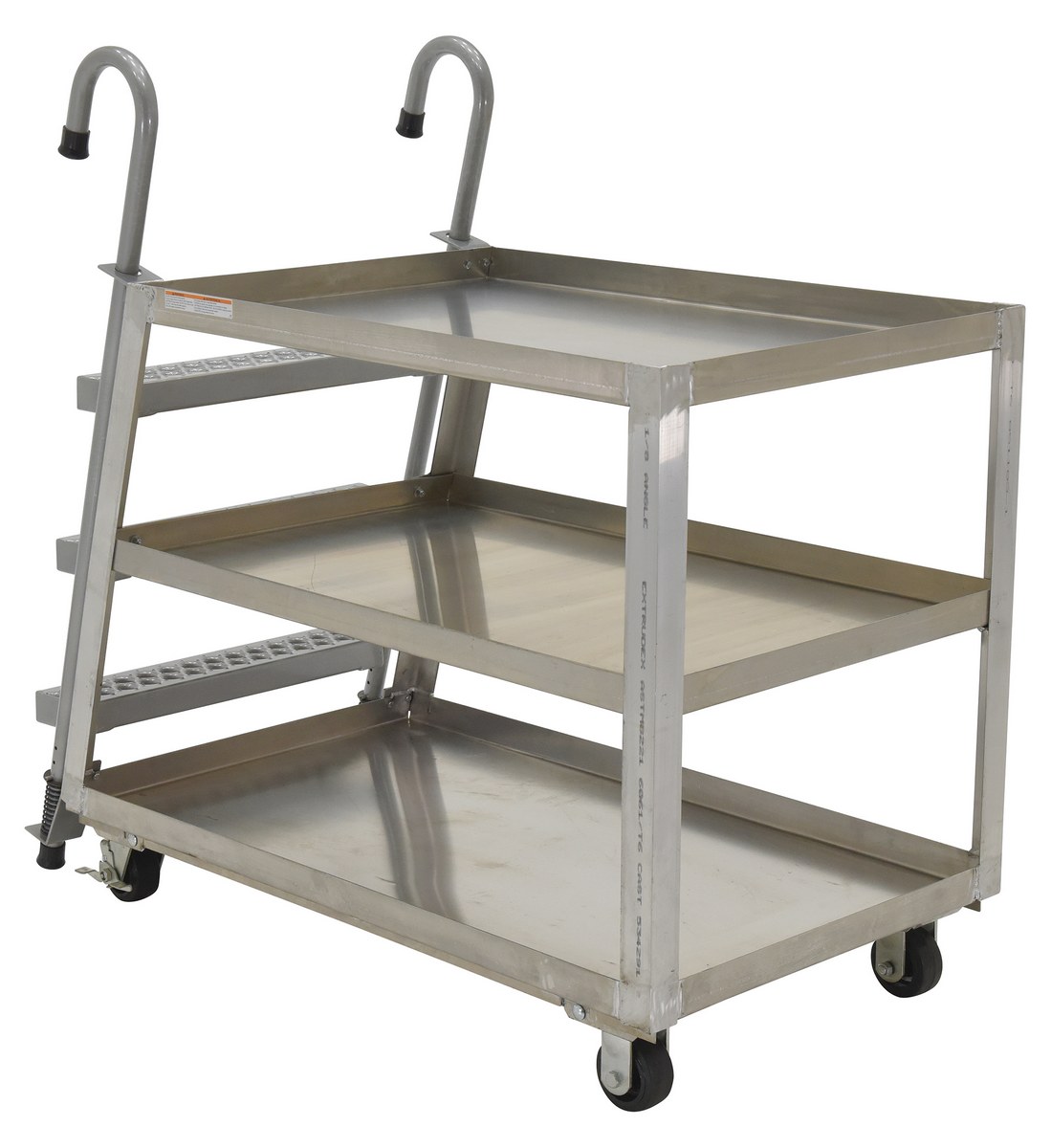

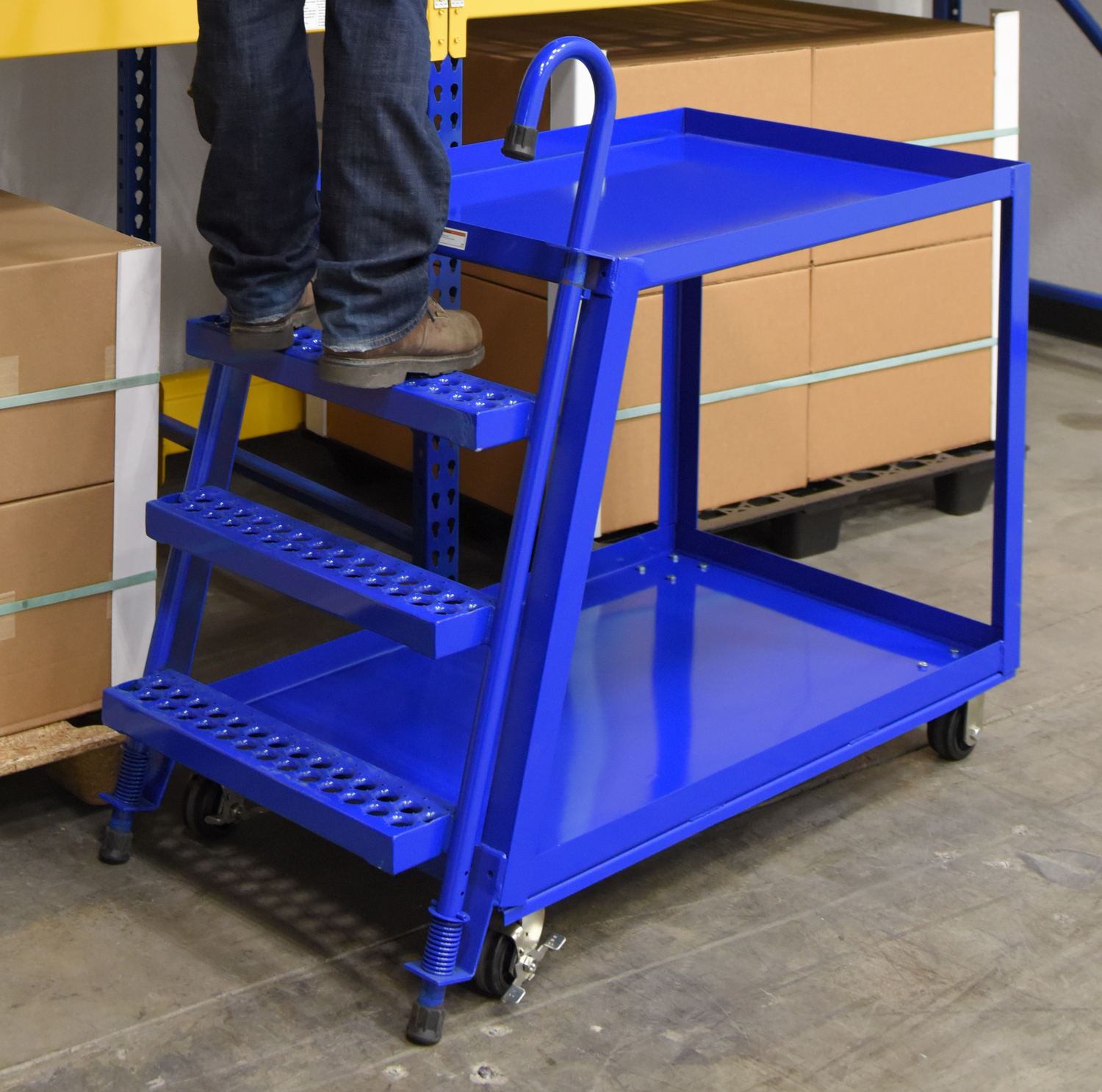

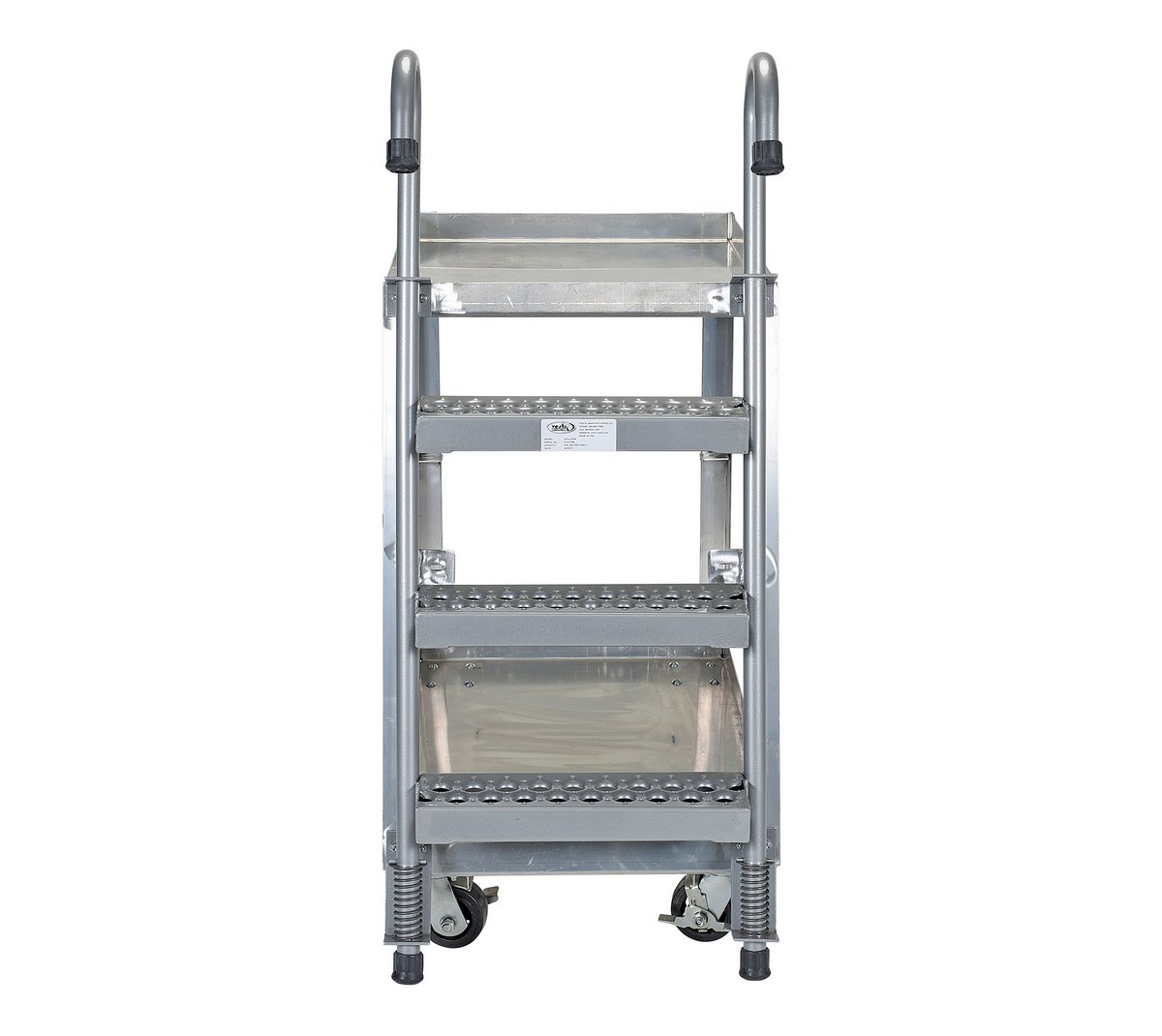

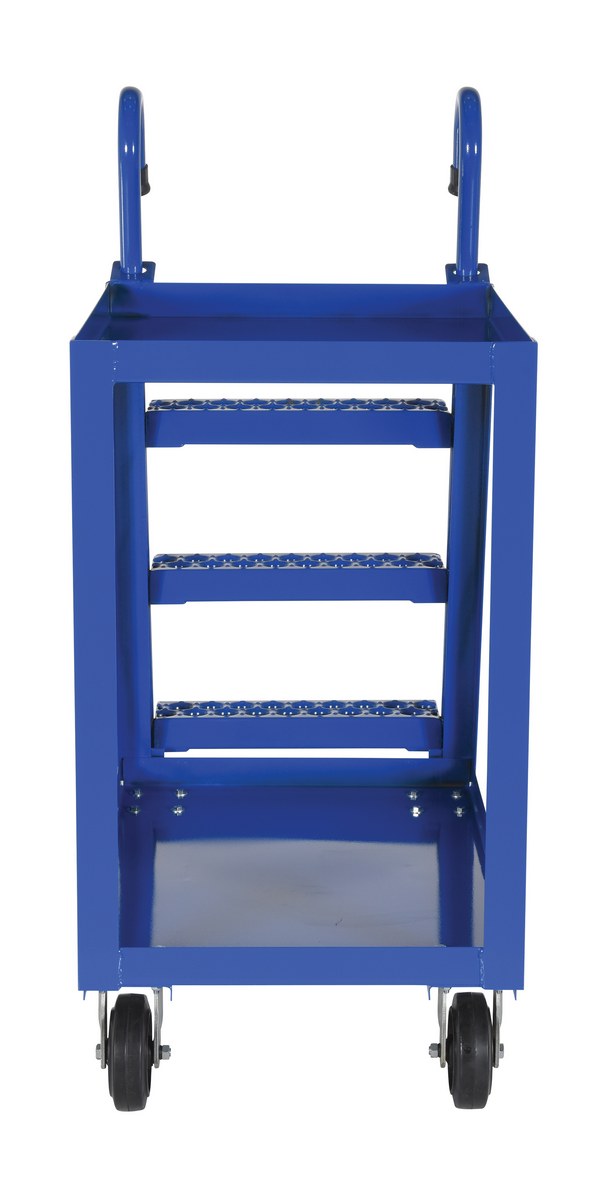

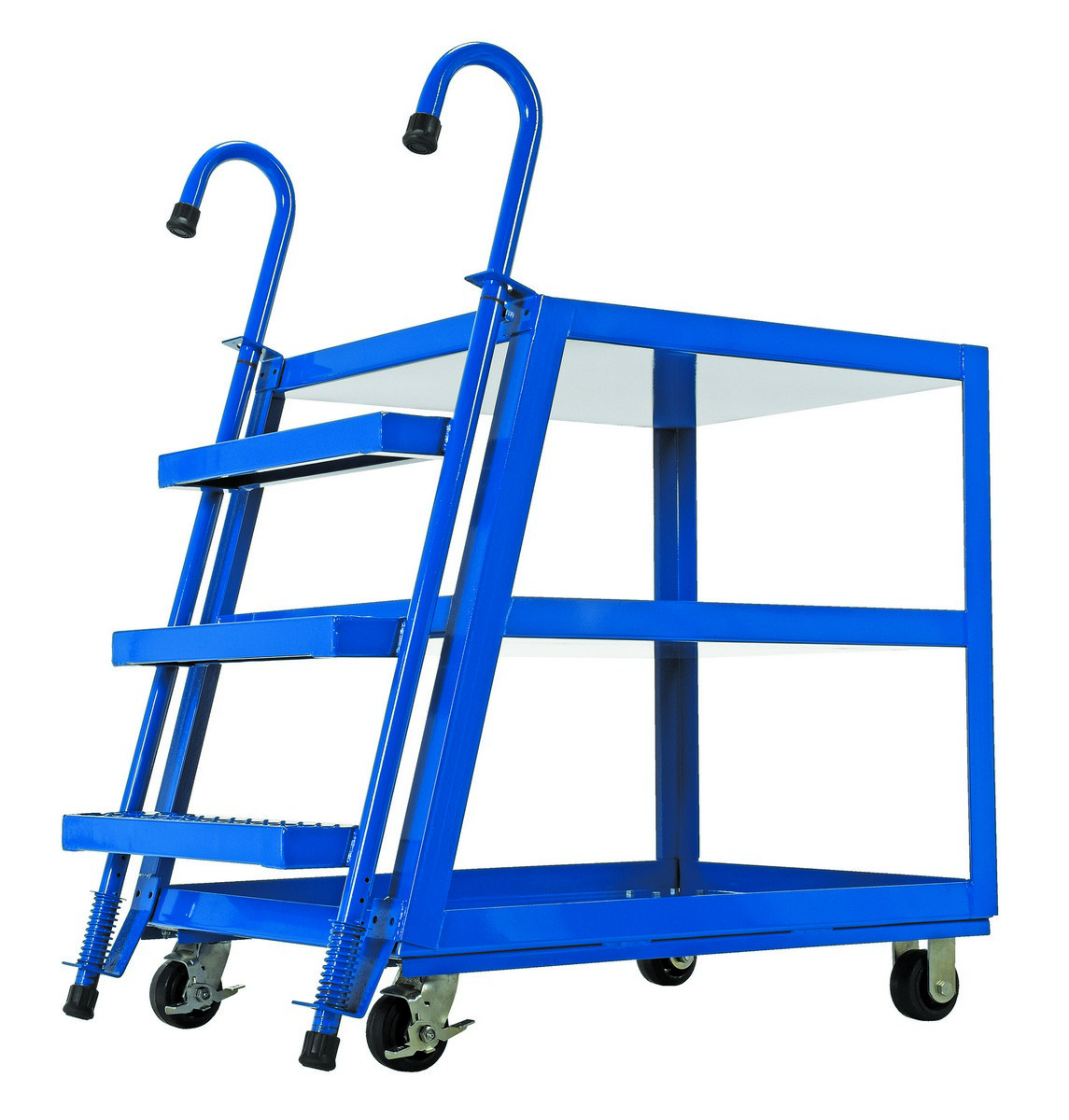

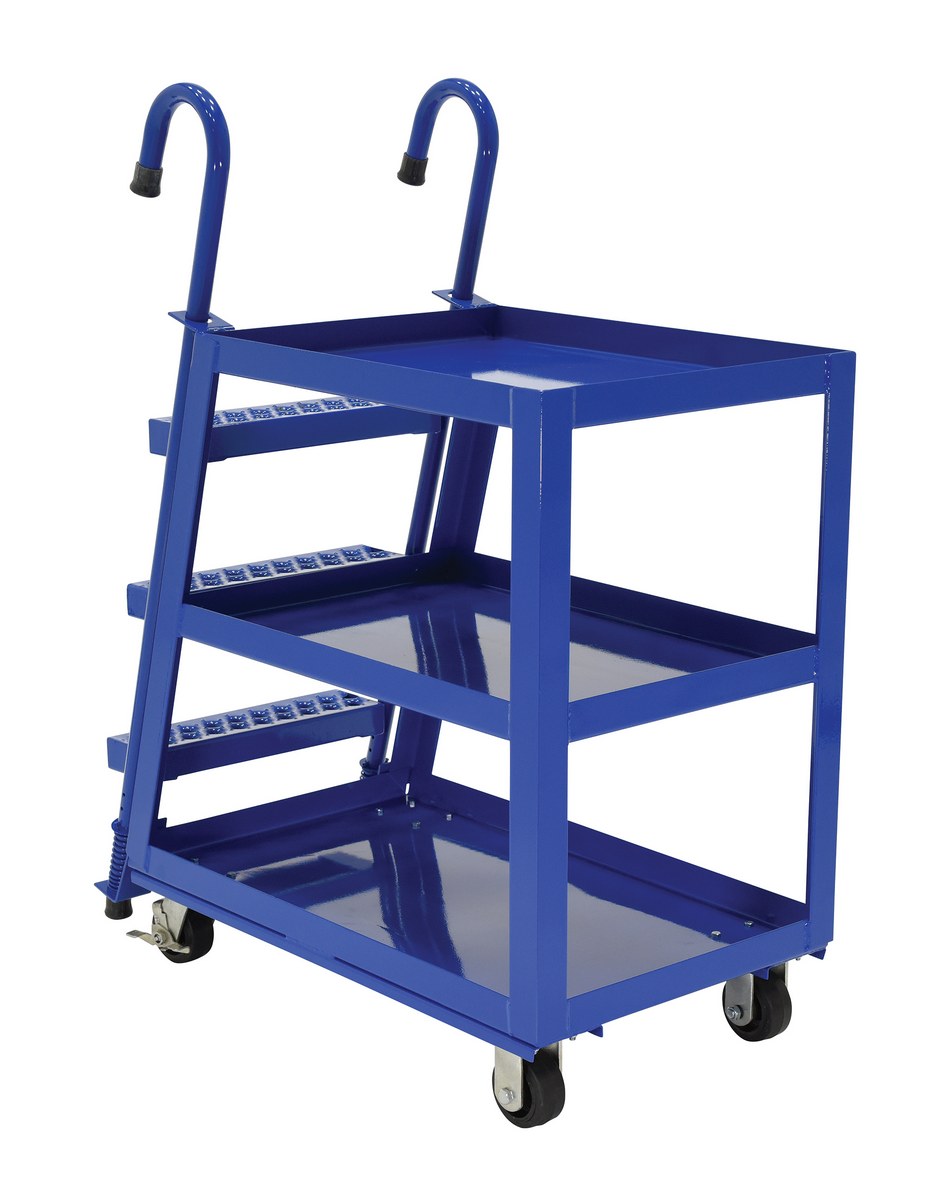

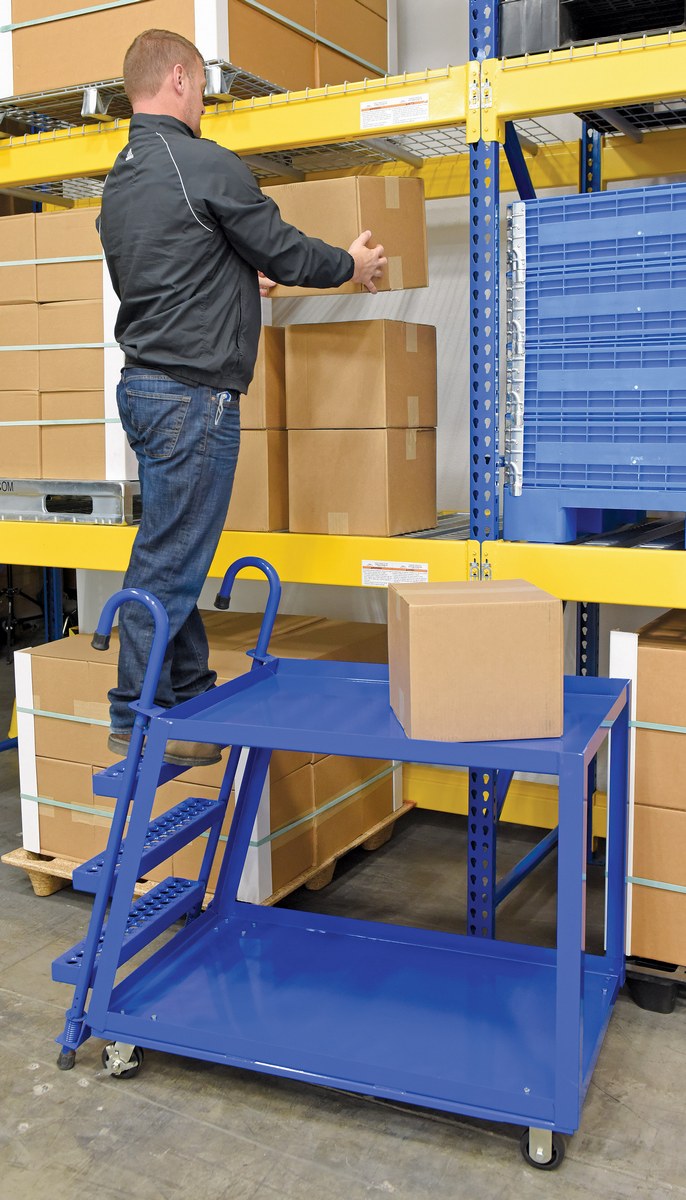

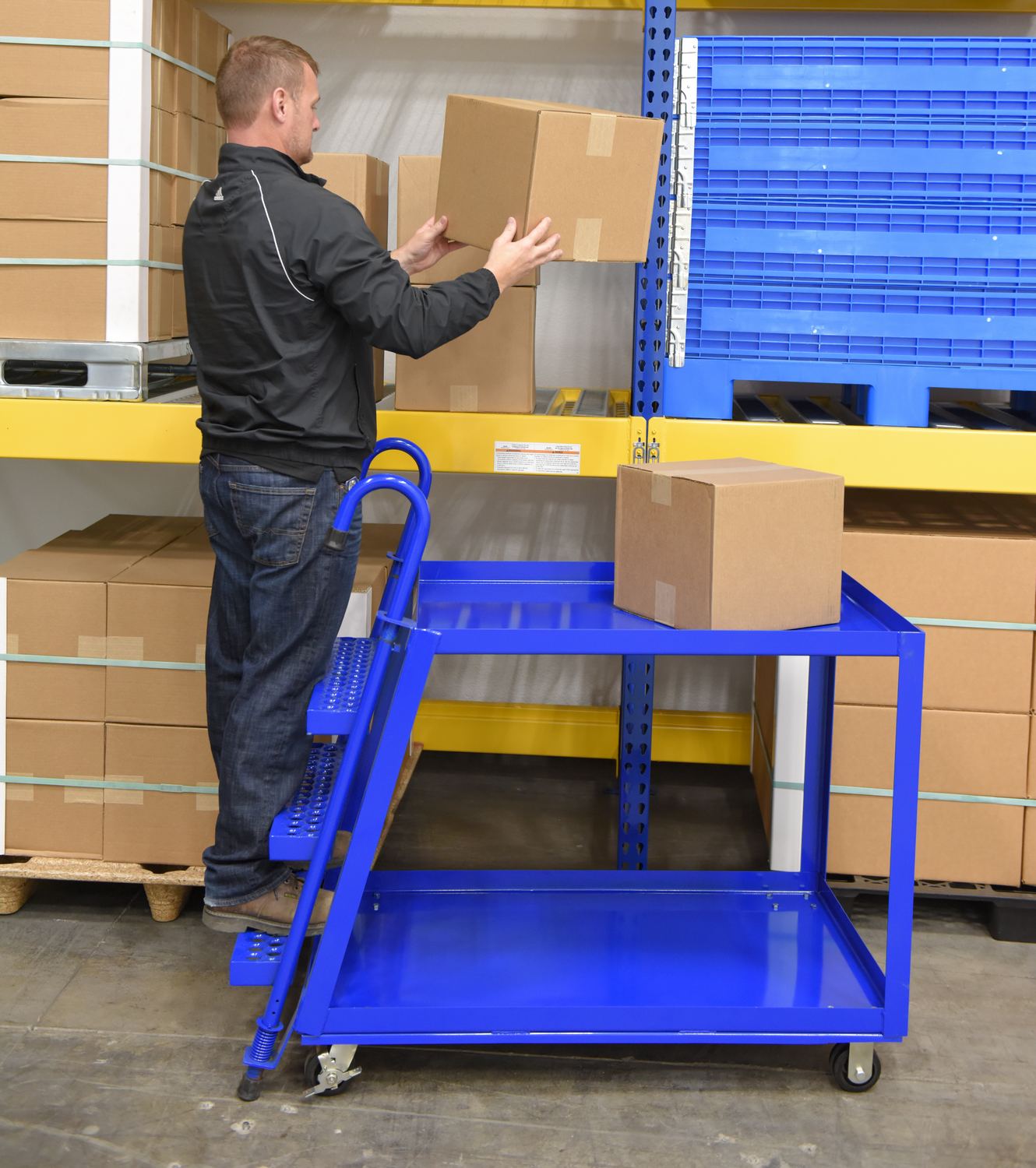

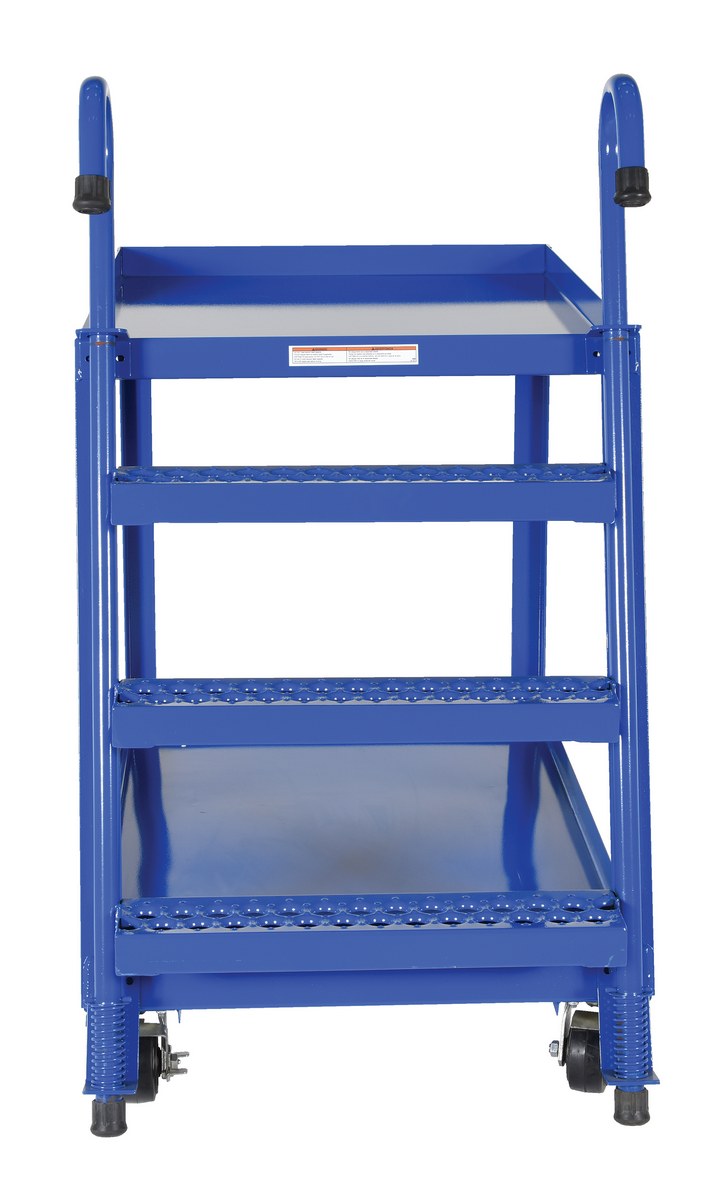

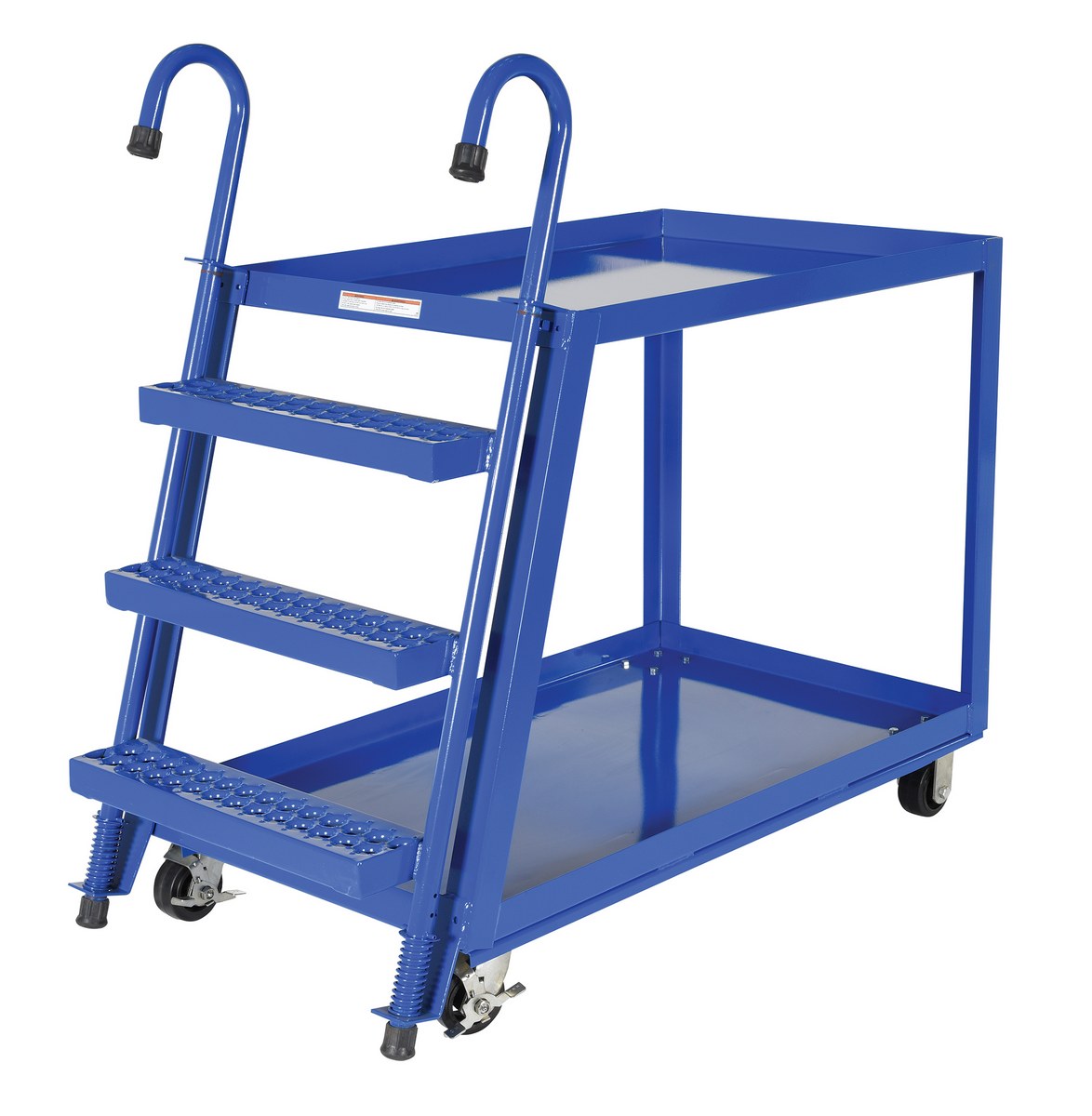

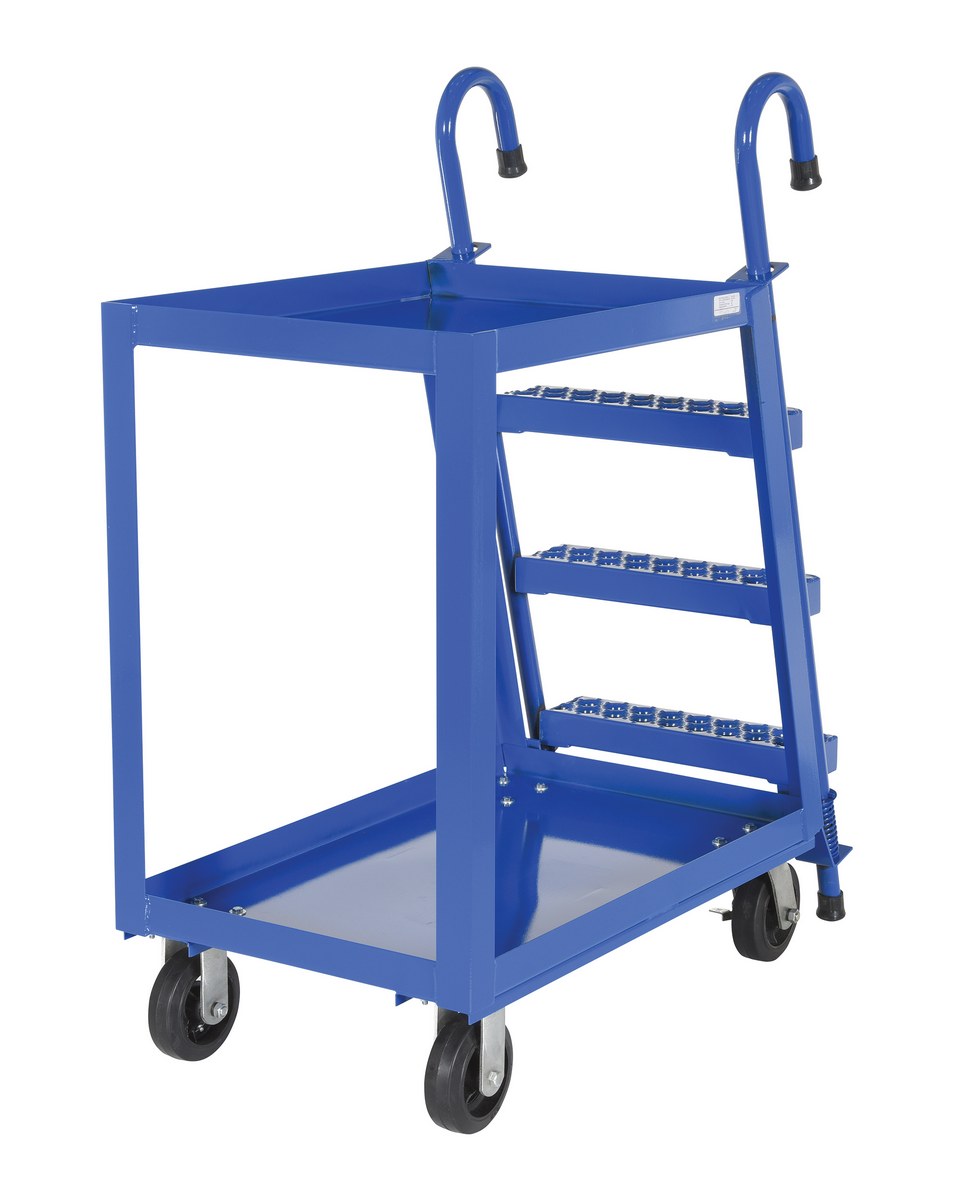

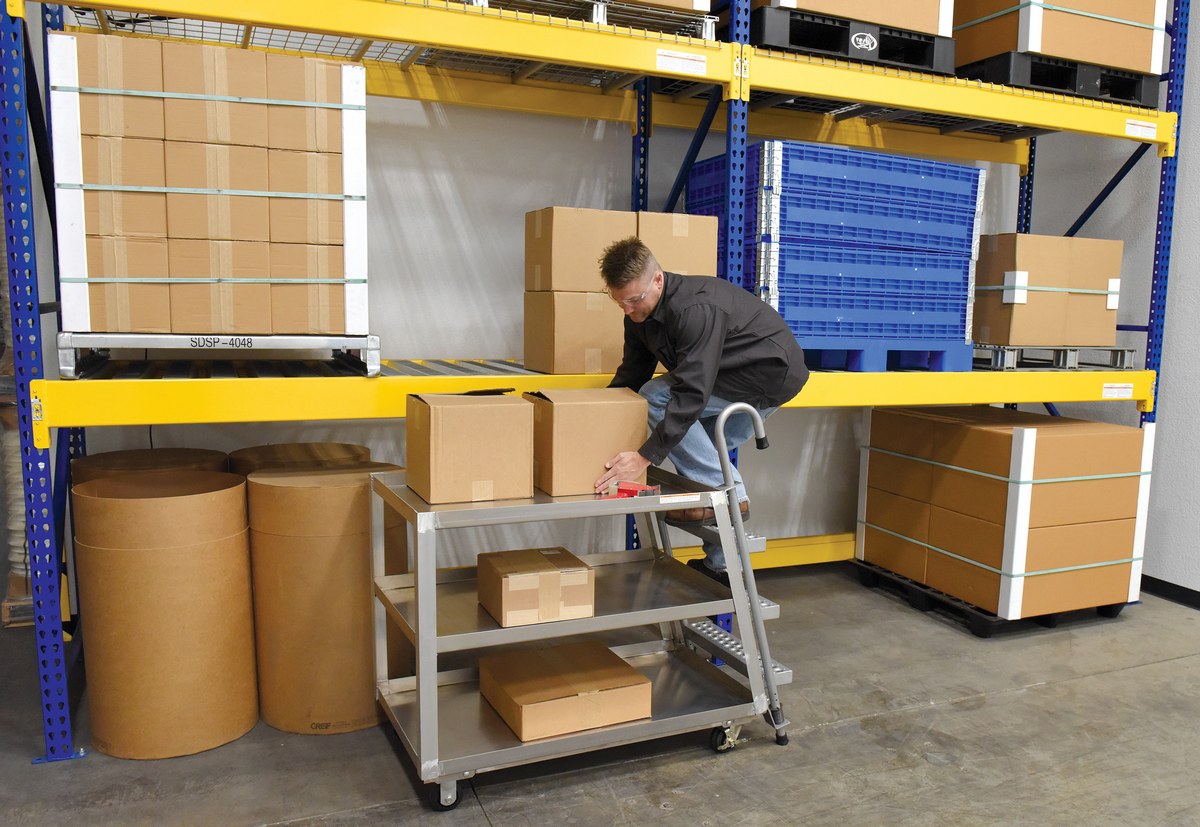

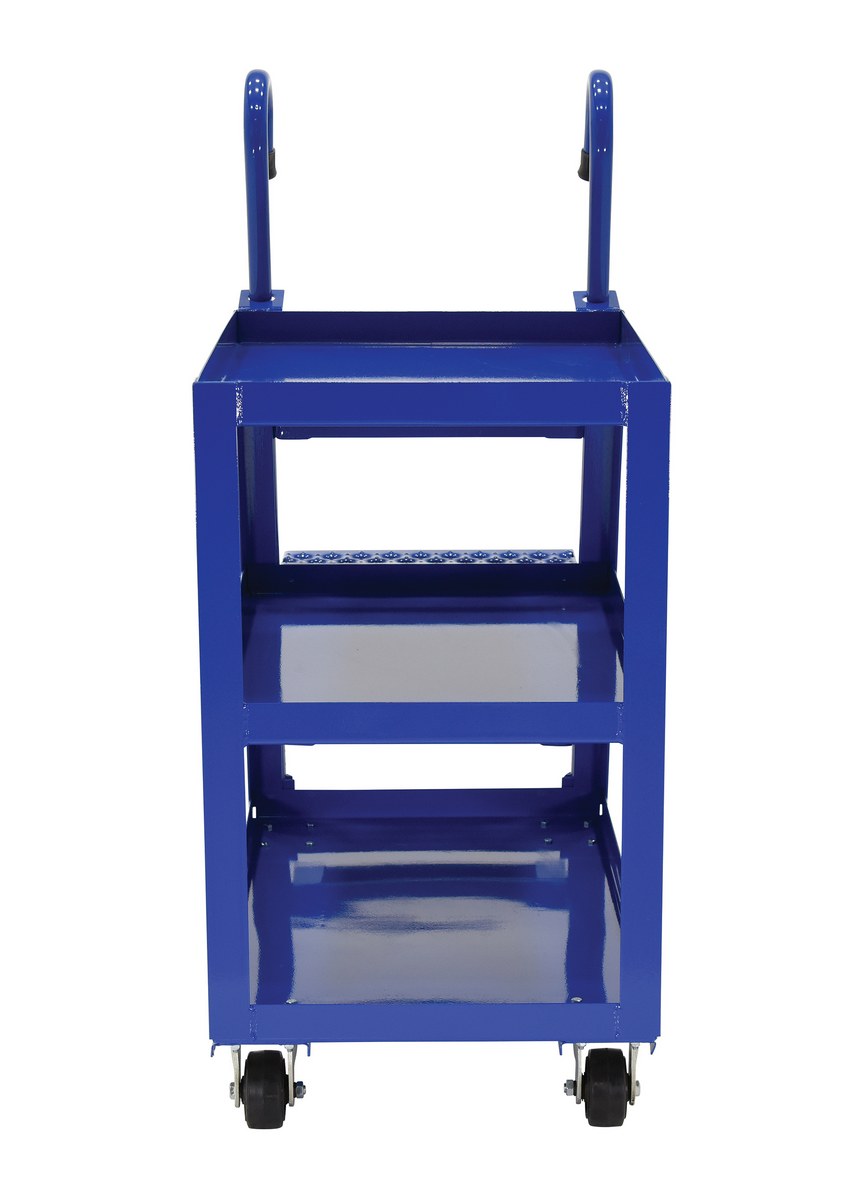

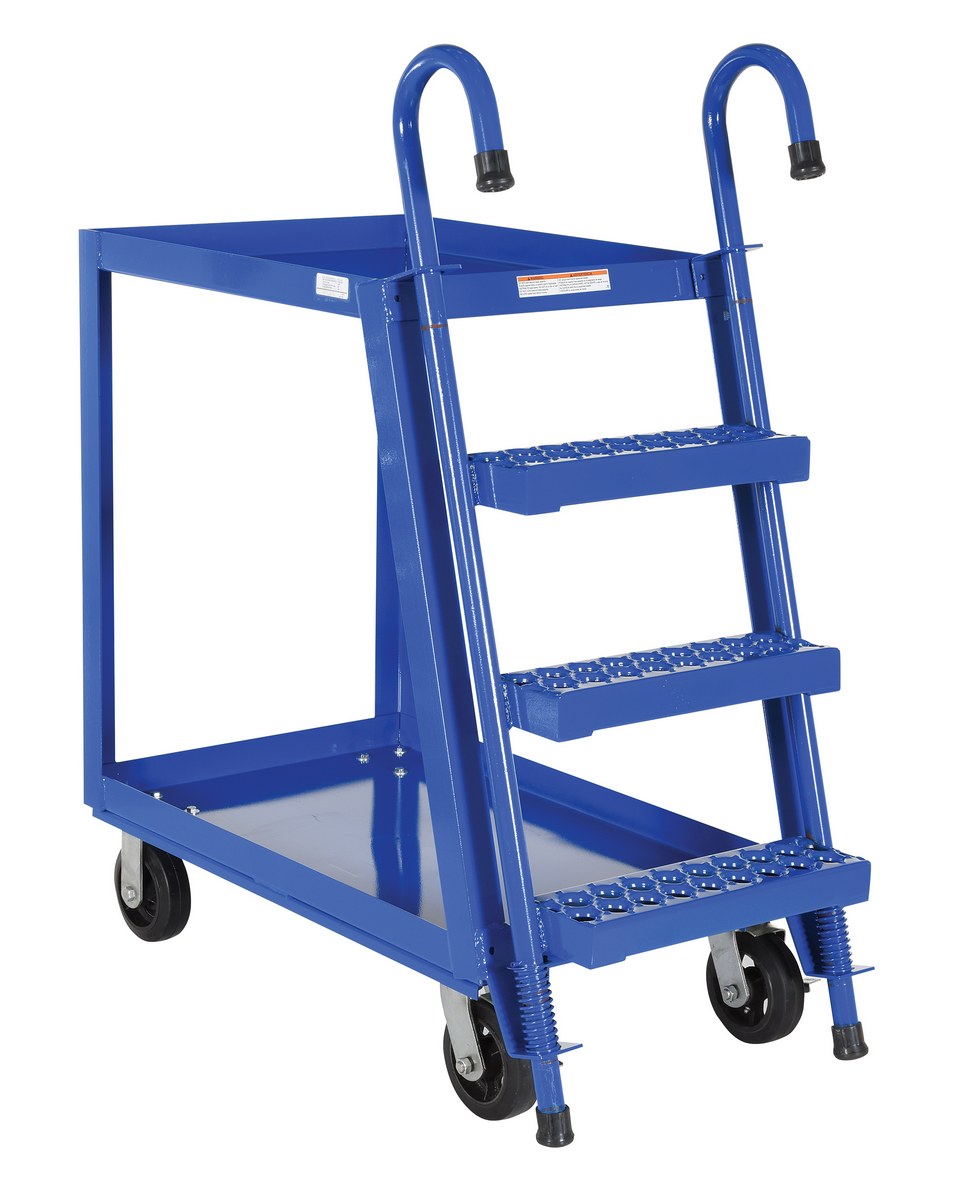

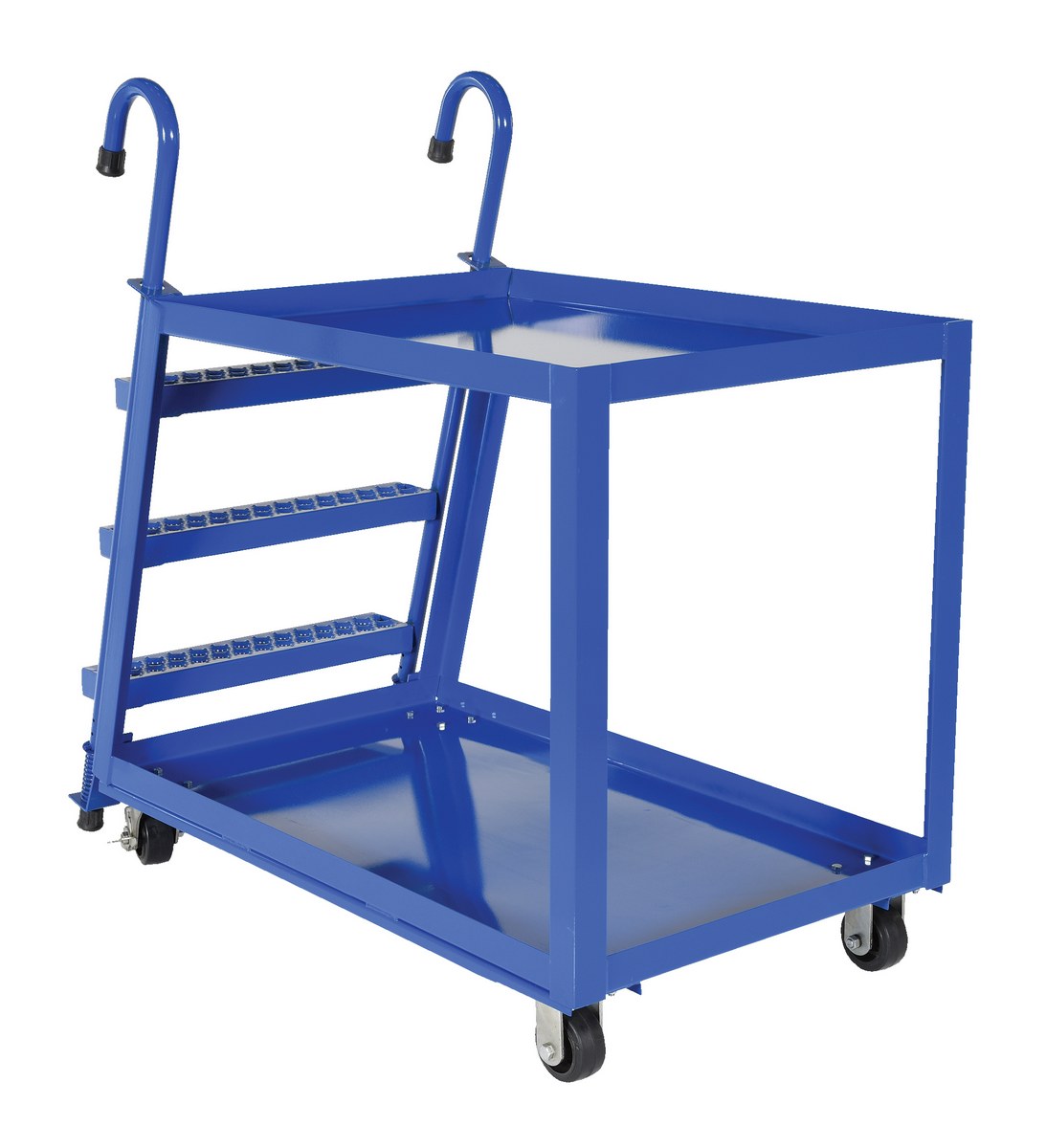

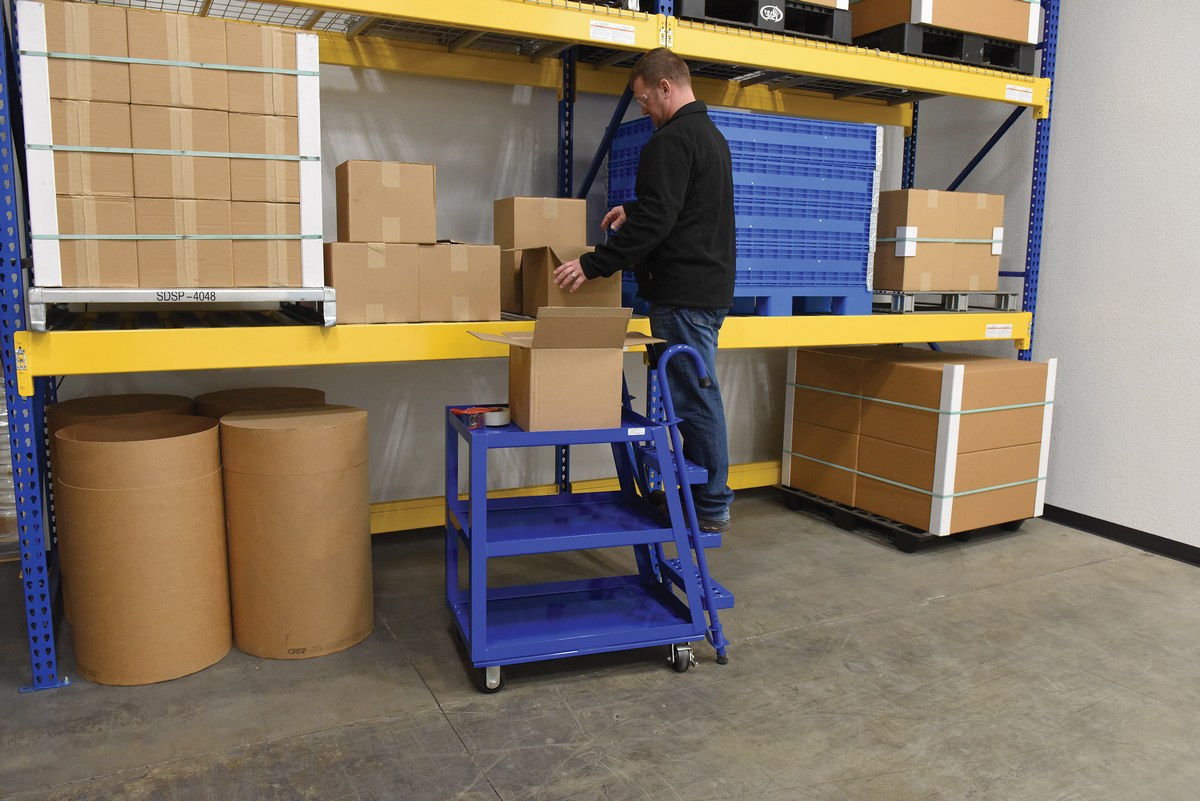

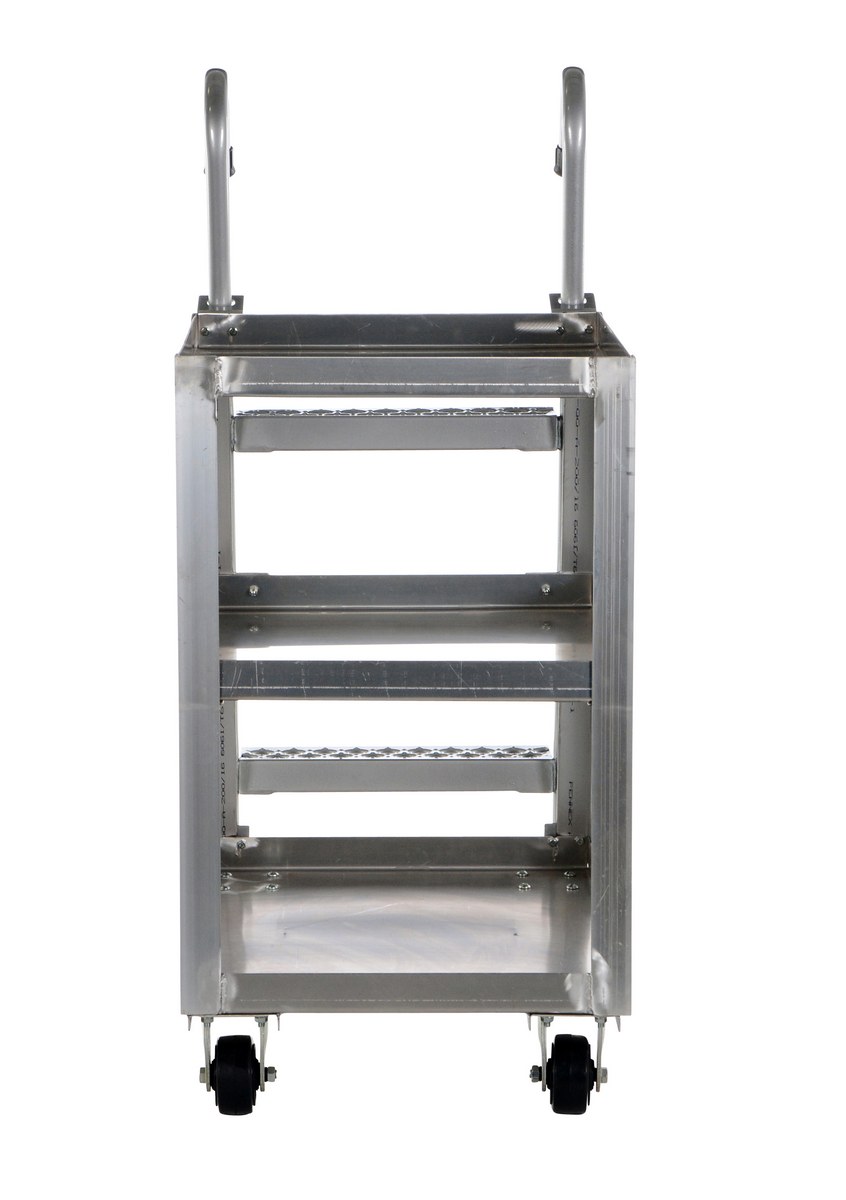

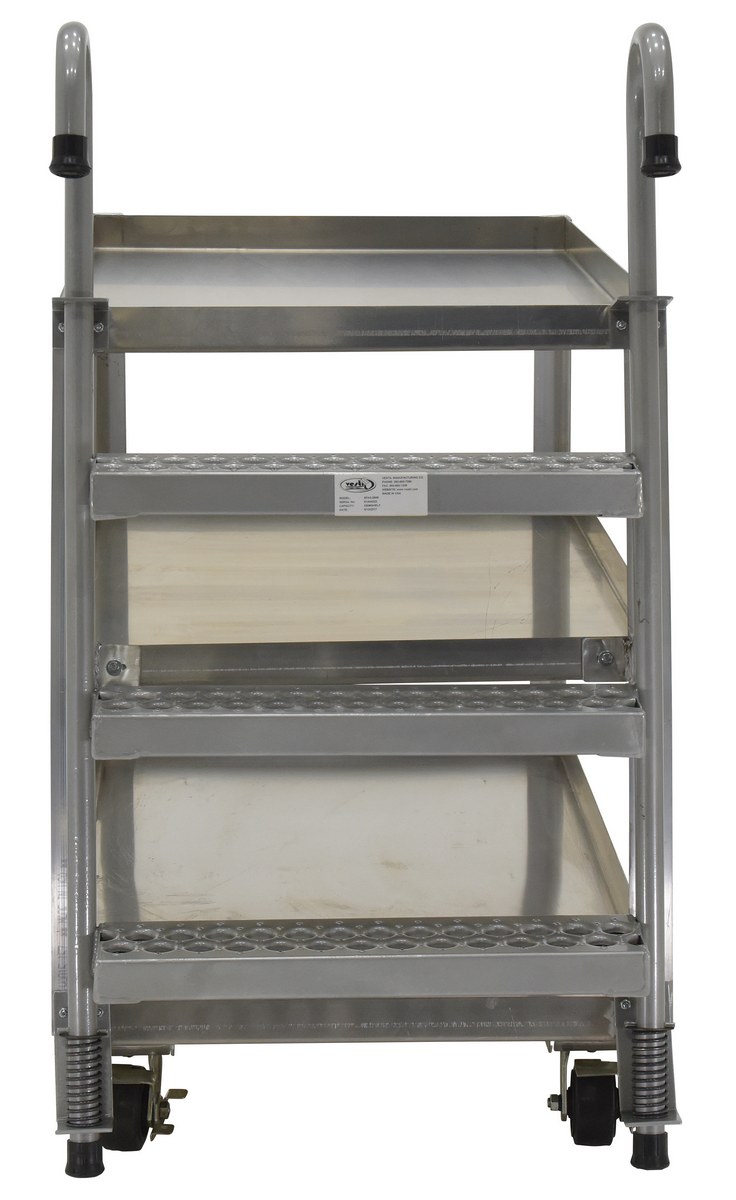

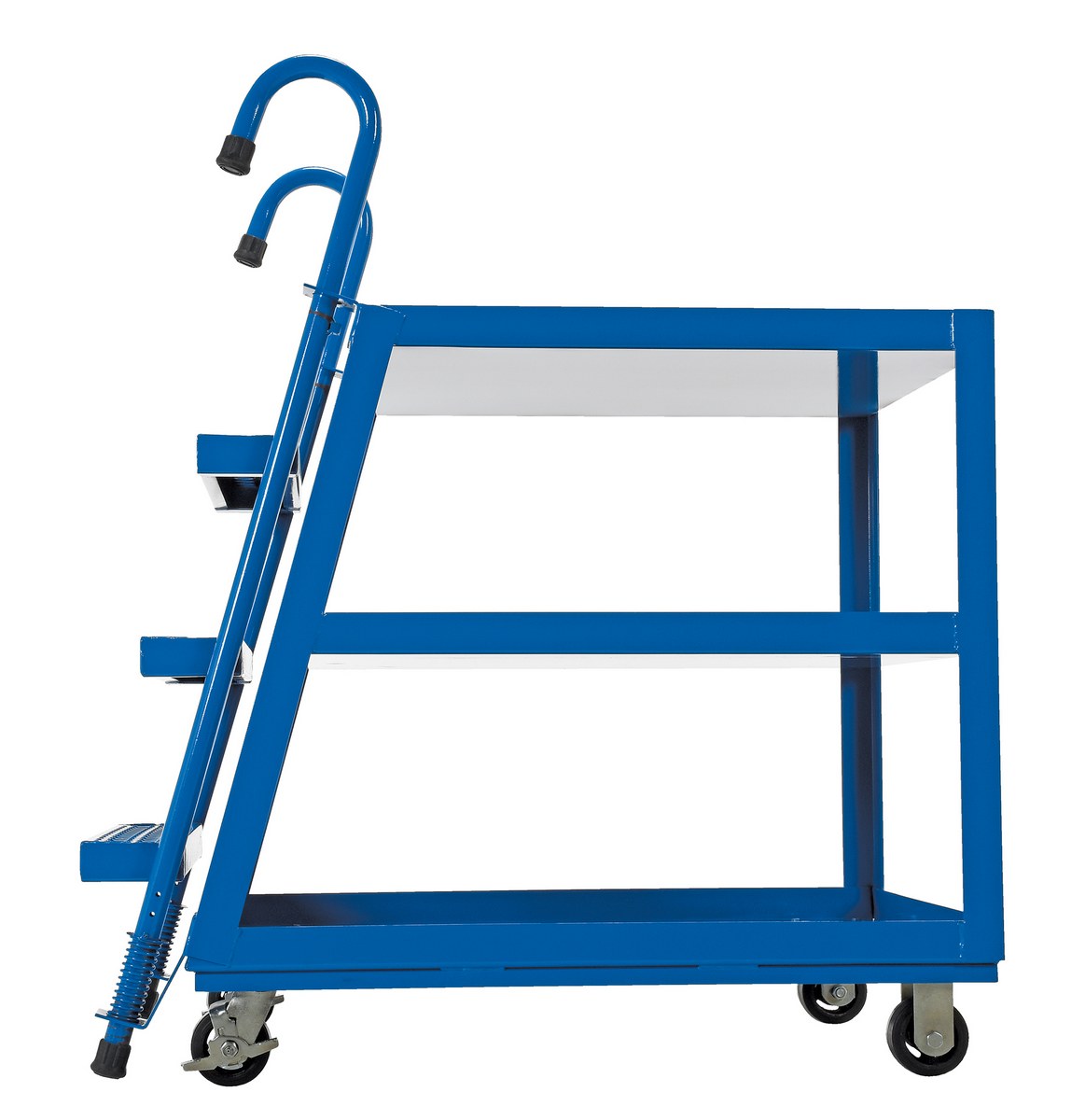

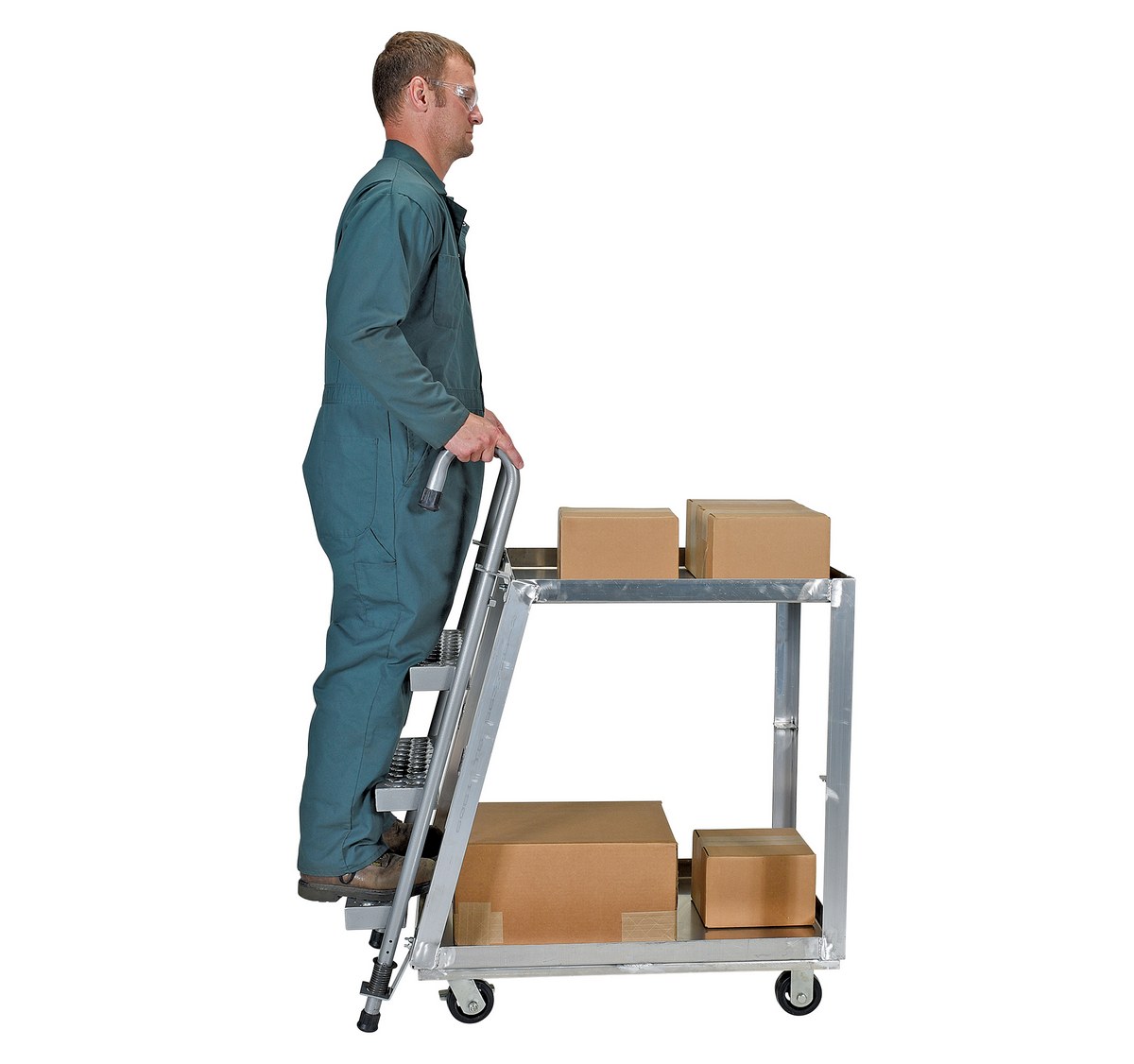

Stockpicker Trucks combine the mobility of a cart with the versatility of a step ladder. Convenient spring loaded steel step ladder holds the cart securely in place while a person is standing on the ladder. The rubber tip ladder plungers down to prevent the cart from moving while stocking. Springs then return the ladder to the raised position once the person steps back on the ground. Standard shelves have a 2" lip turned up to prevent items from falling off. Standard casters are 4" x 1-1/2" mold-on-rubber, two rigid and two swivel with wheel brakes. Steel units have a baked-in blue powder coat finish for added toughness. SPA model steel ladders have a baked-in silver powder coat finish. Contact factory for models with optional casters.




Be sure to scroll below the model chart to view more product content (ie Options, PDF's, Videos, & Galleries).



KEY: Approval Drawing = Approval Drawing -- Approval Drawing = Warranty -- Approval Drawing = Testing Certificate

All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.
Stockpicker Trucks
Model PDF's Bottom Shelf Size (WxL) Shelf Clearance Top Shelf Height Capacity Per Shelf Total
Capacity (lbs)
Wt. (lbs)

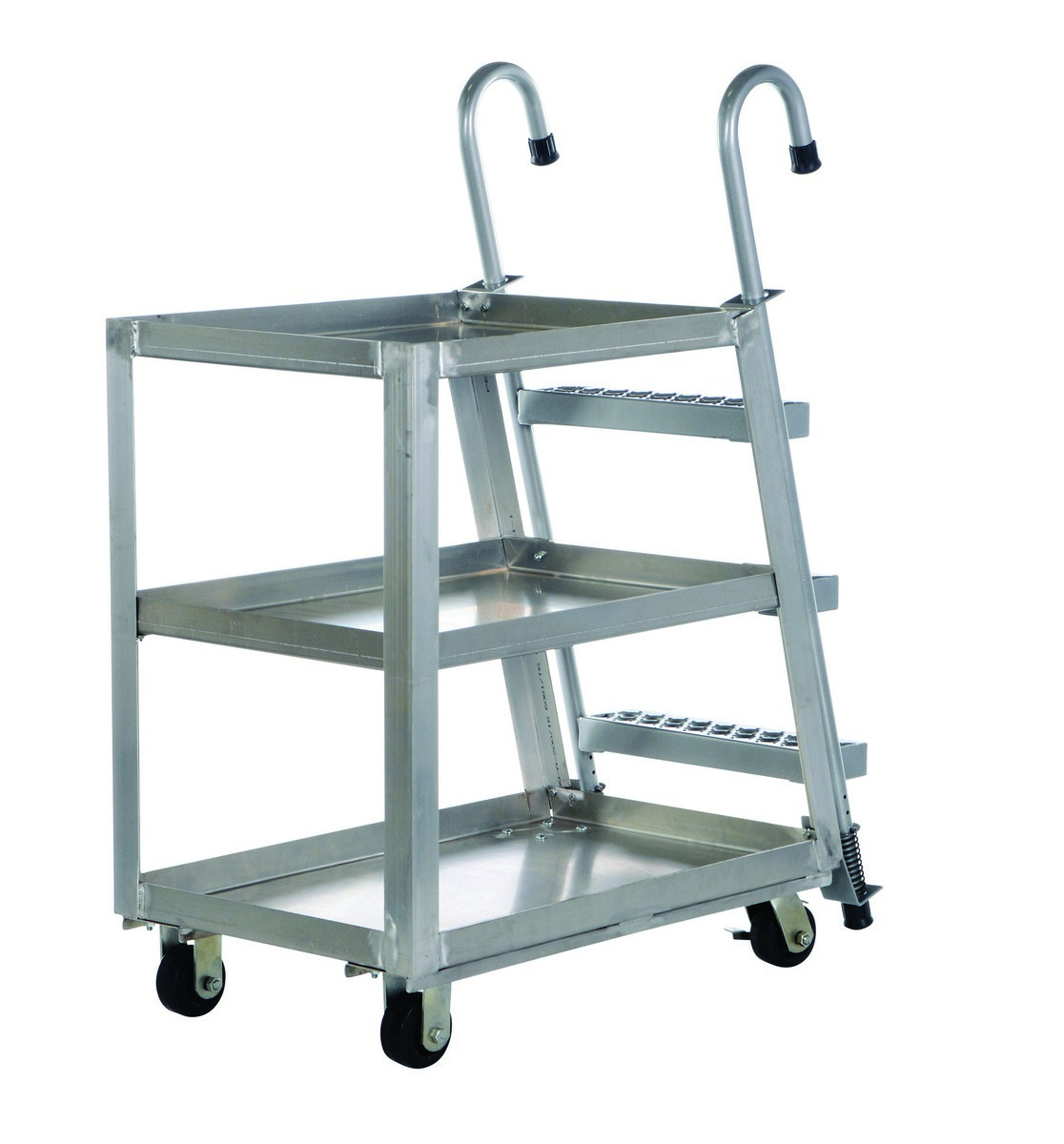

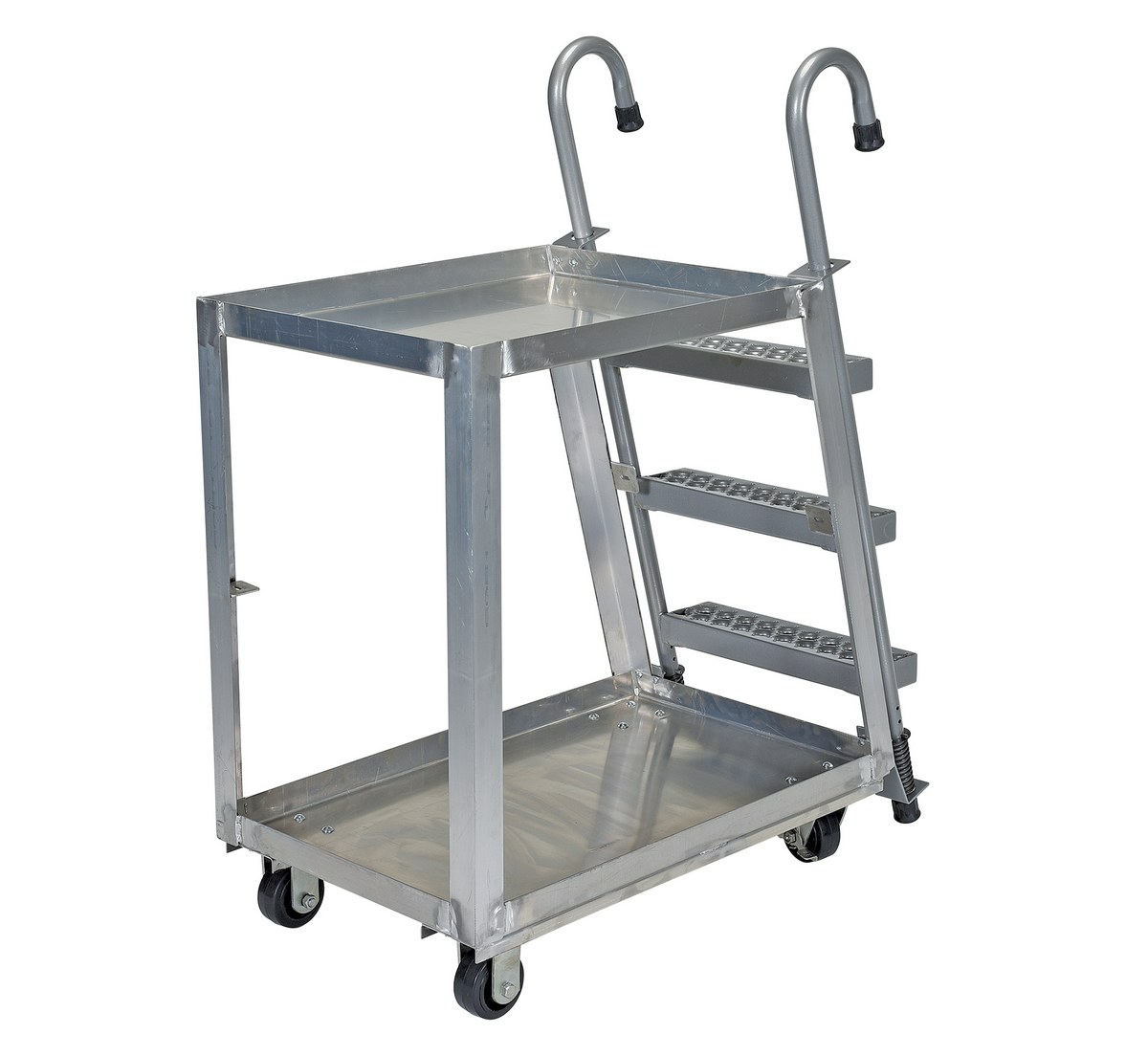

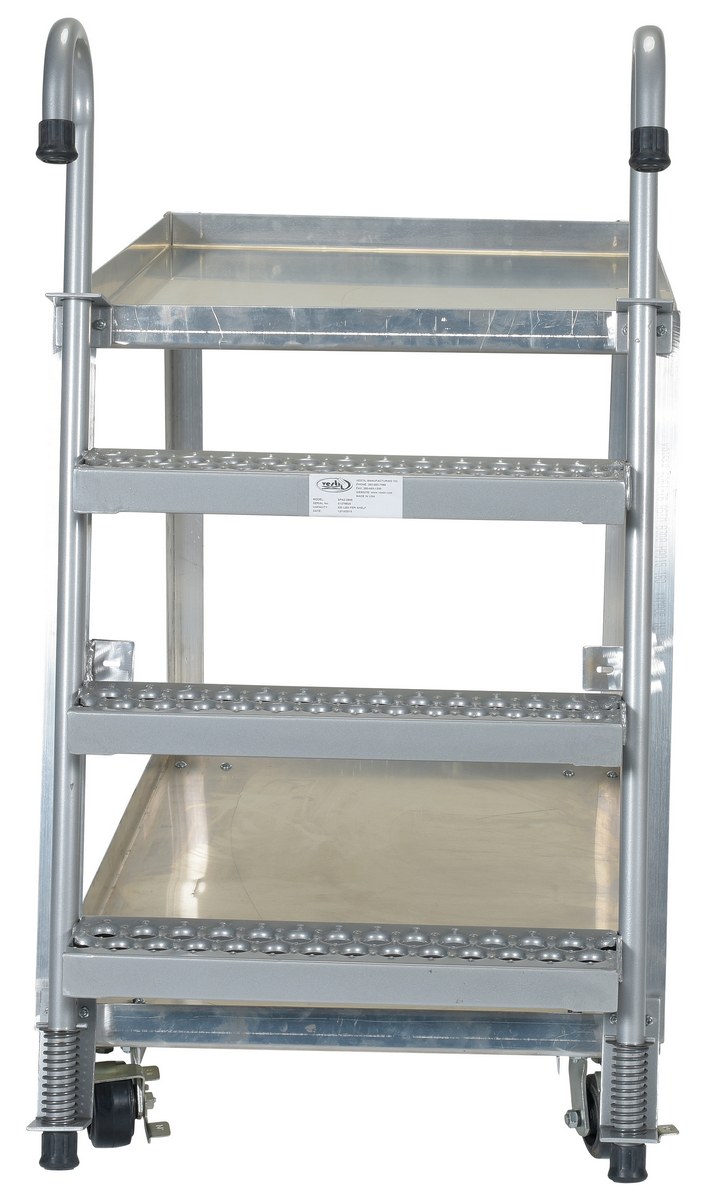

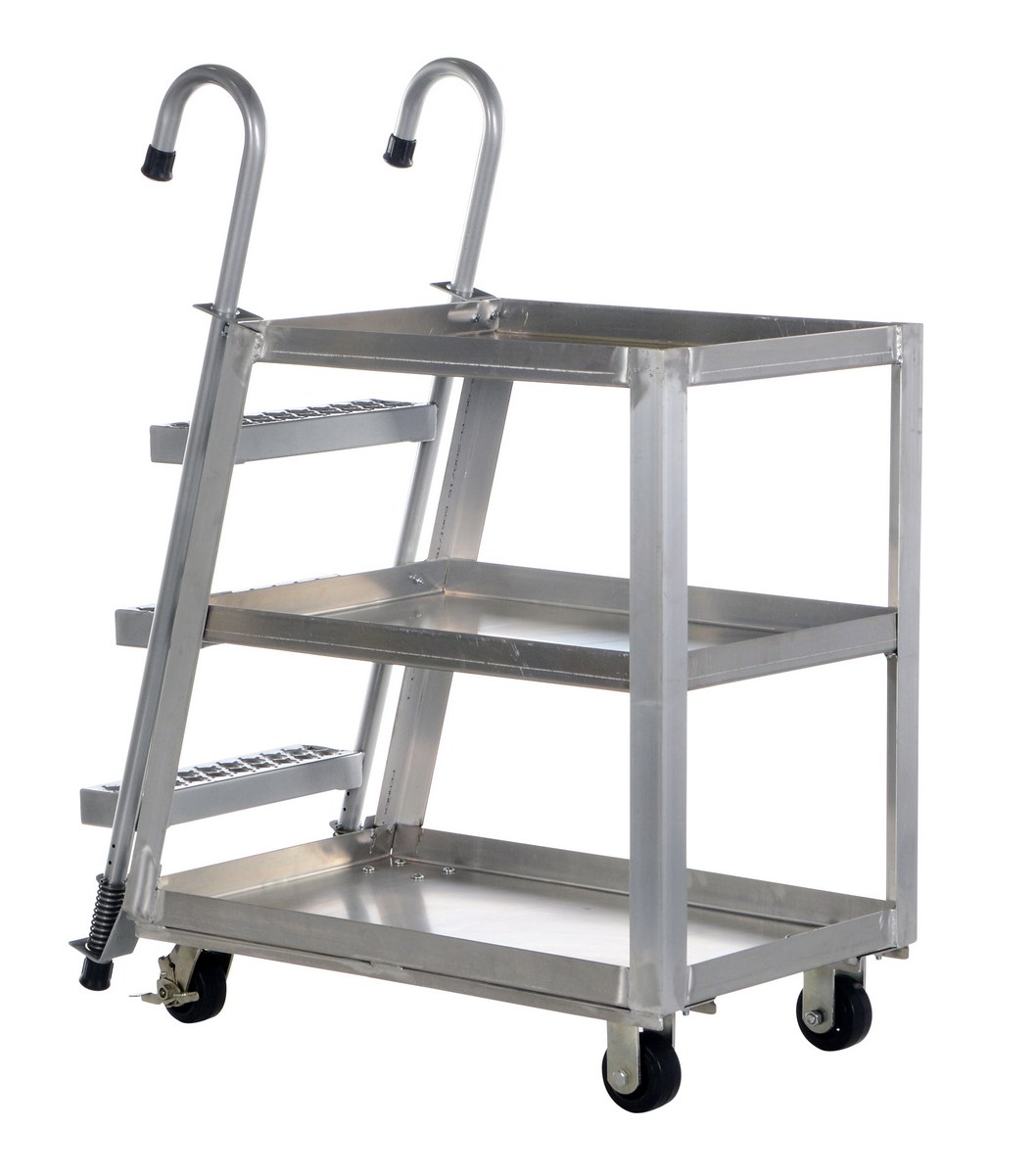

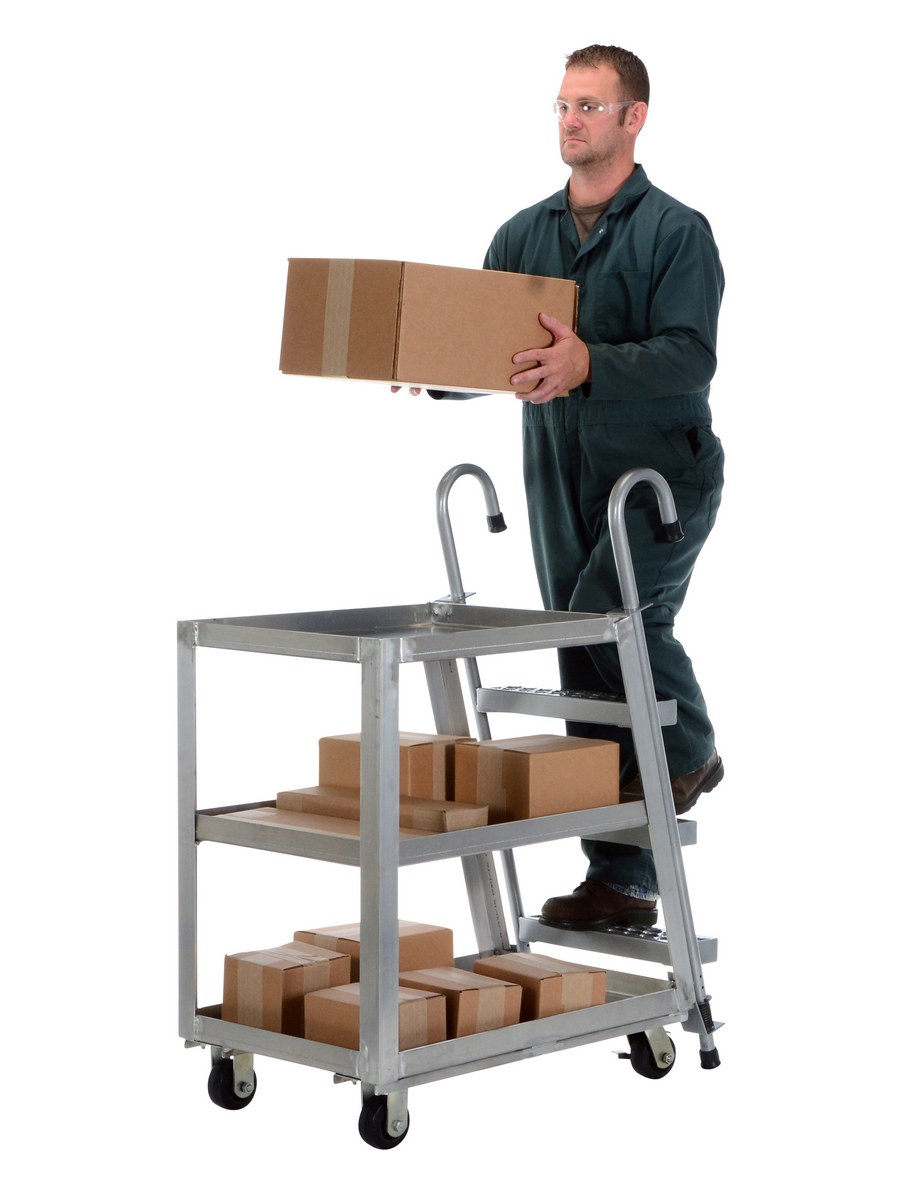

Aluminum Construction

2-Shelf Units

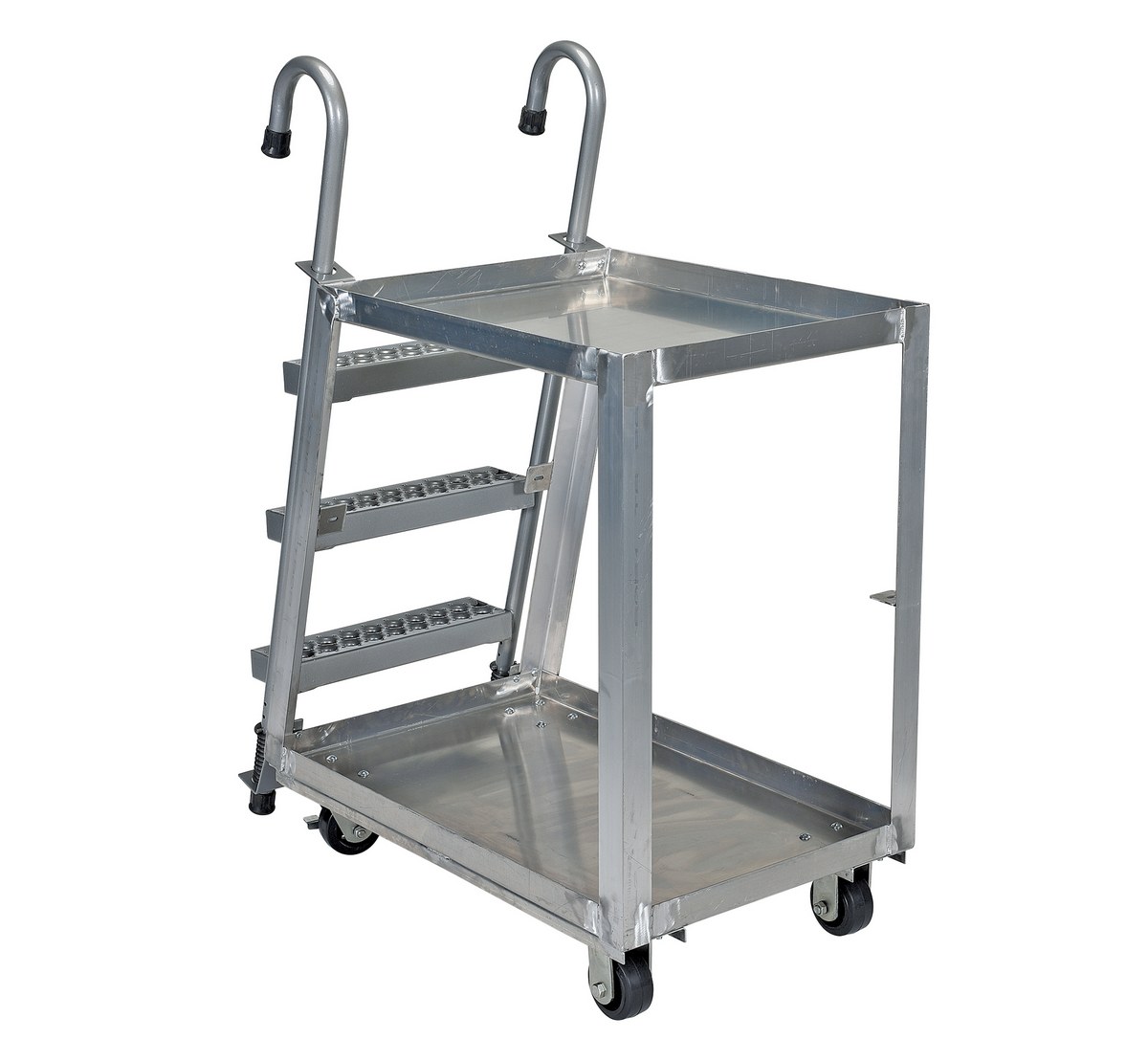

SPA2-2236 icon_approvaldrawings.jpgWarranty PDFCompliance Certificate 21-5/8"x35-3/4" 28" 37-3/4" 330lbs. 660lbs. 126
SPA2-2840 icon_approvaldrawings.jpgWarranty PDFCompliance Certificate 27-5/8"x39-3/4" 28" 37-3/4" 330lbs. 660lbs. 141

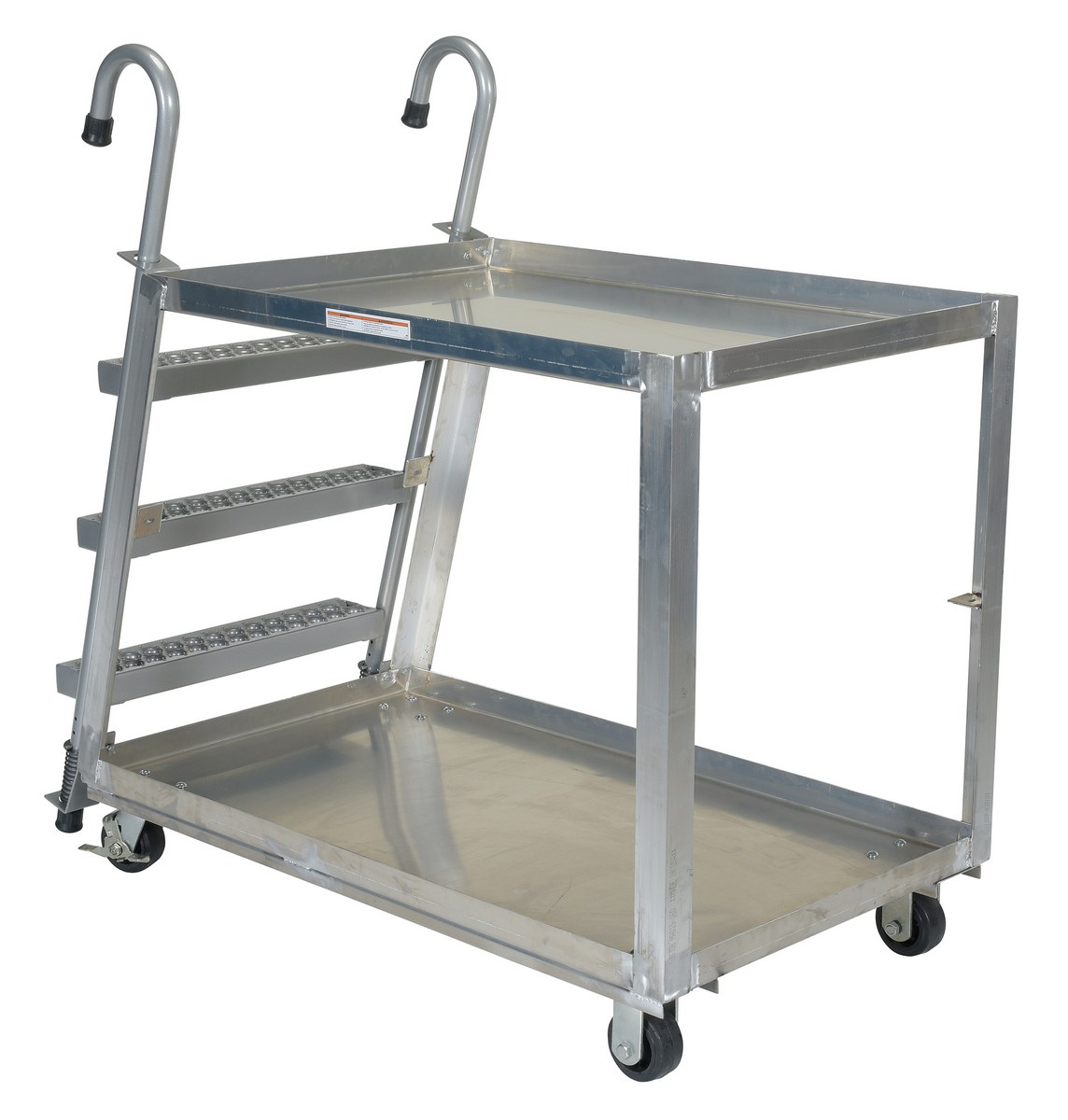

SPA2-2848 icon_approvaldrawings.jpgWarranty PDFCompliance Certificate 27-5/8"x47-3/4" 28" 37-3/4" 330lbs. 660lbs. 147
3-Shelf Units

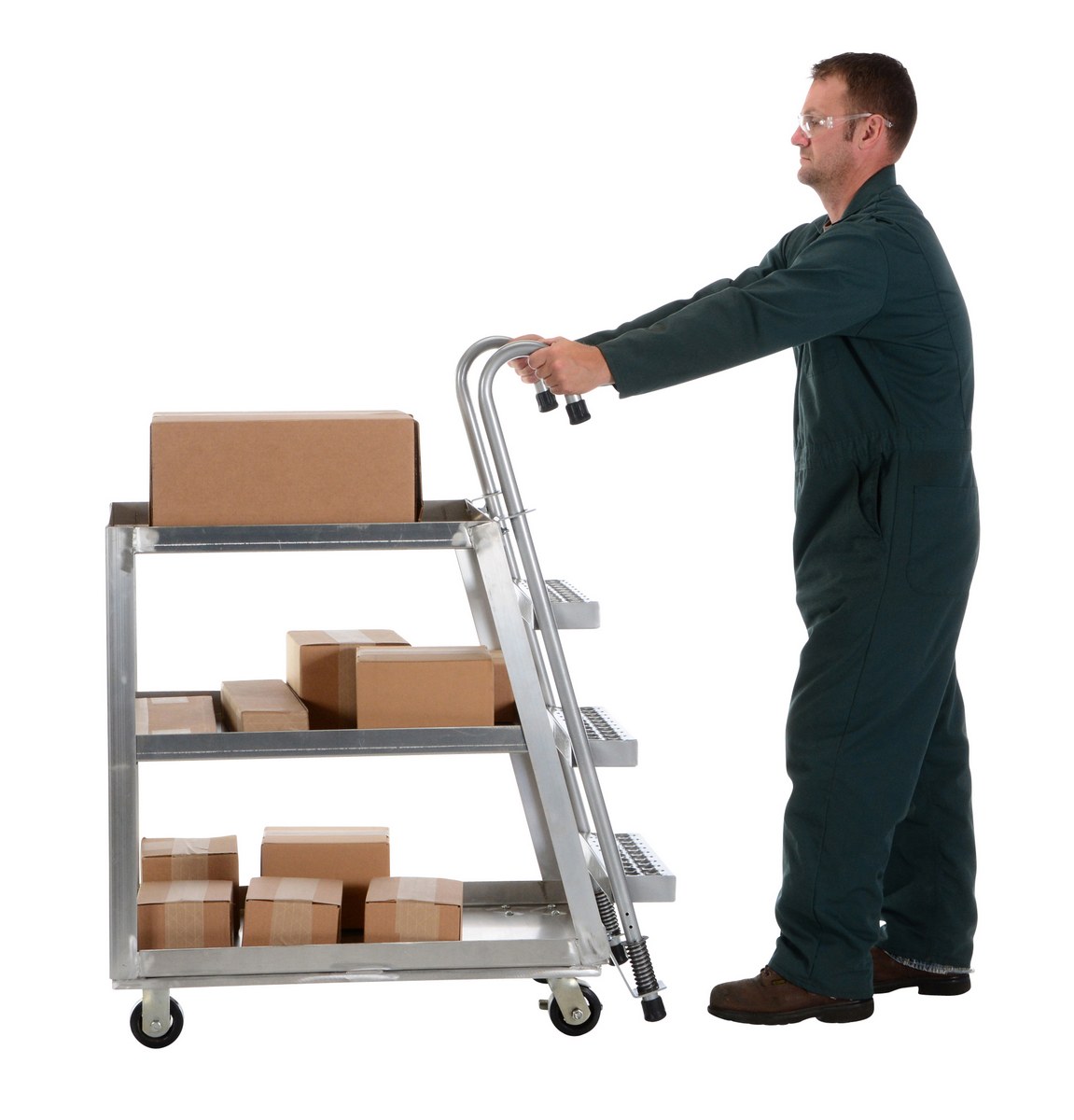

SPA3-2236 icon_approvaldrawings.jpgWarranty PDFCompliance Certificate 21-5/8"x35-5/8" 13" 37-13/16" 330lbs. 660lbs. 134
SPA3-2840 icon_approvaldrawings.jpgWarranty PDFCompliance Certificate 27-5/8"x39" 13" 37-13/16" 330lbs. 660lbs. 146
SPA3-2848 icon_approvaldrawings.jpgWarranty PDFCompliance Certificate 27-5/8"x47" 13" 37-13/16" 330lbs. 660lbs. 175

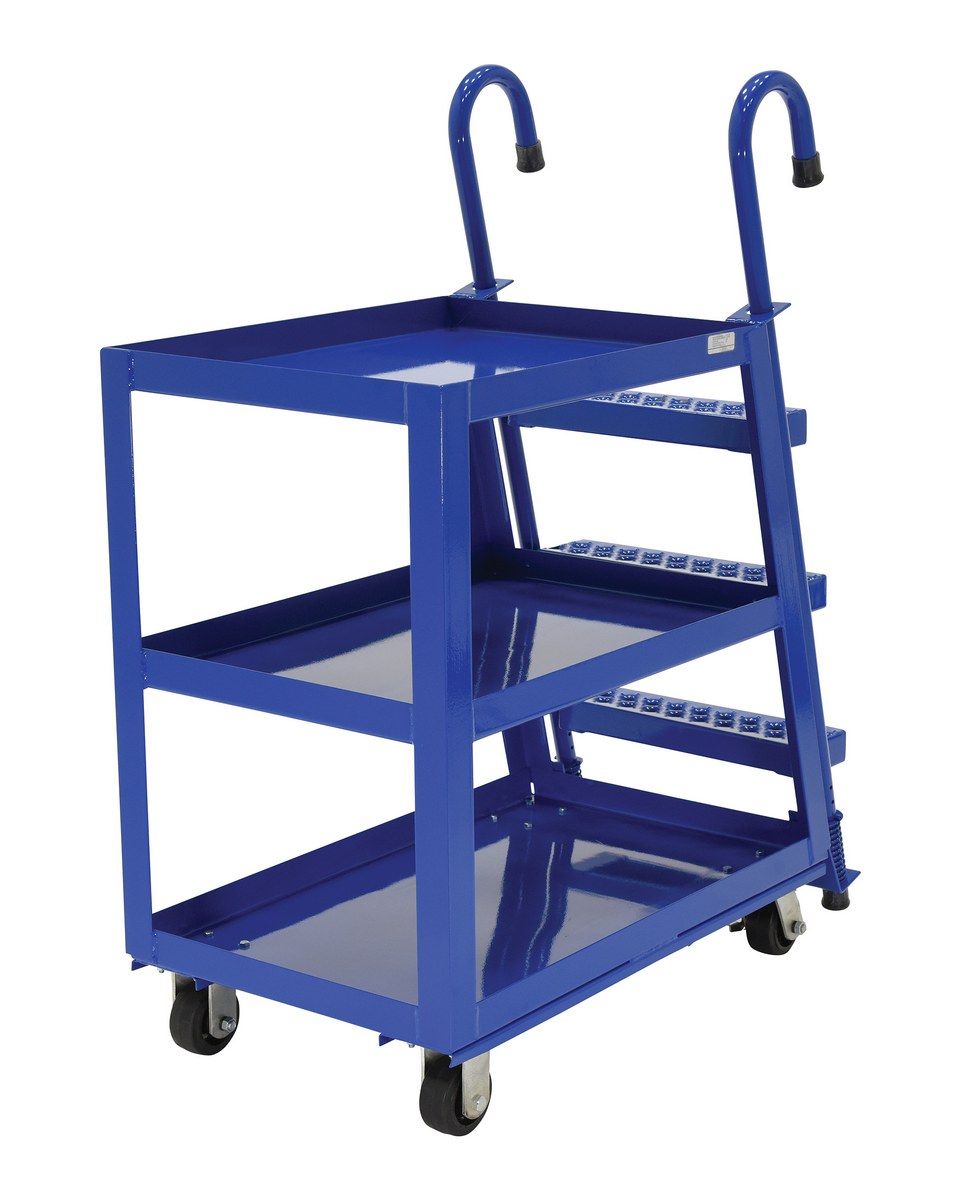

Steel Construction

2-Shelf Units
SPS2-2236 icon_approvaldrawings.jpgWarranty PDFCompliance Certificate 21-5/8"x35-5/8" 28" 37-11/16" 550lbs. 1,000lbs. 146
SPS2-2840 icon_approvaldrawings.jpgWarranty PDFCompliance Certificate 27-5/8"x39-5/8" 28" 37-11/16" 550lbs. 1,000lbs. 165

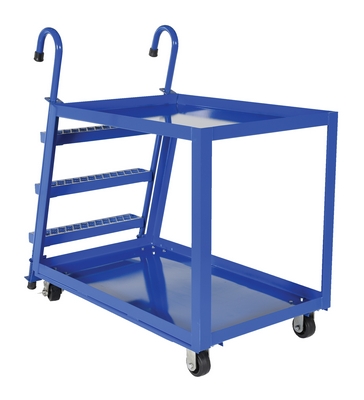

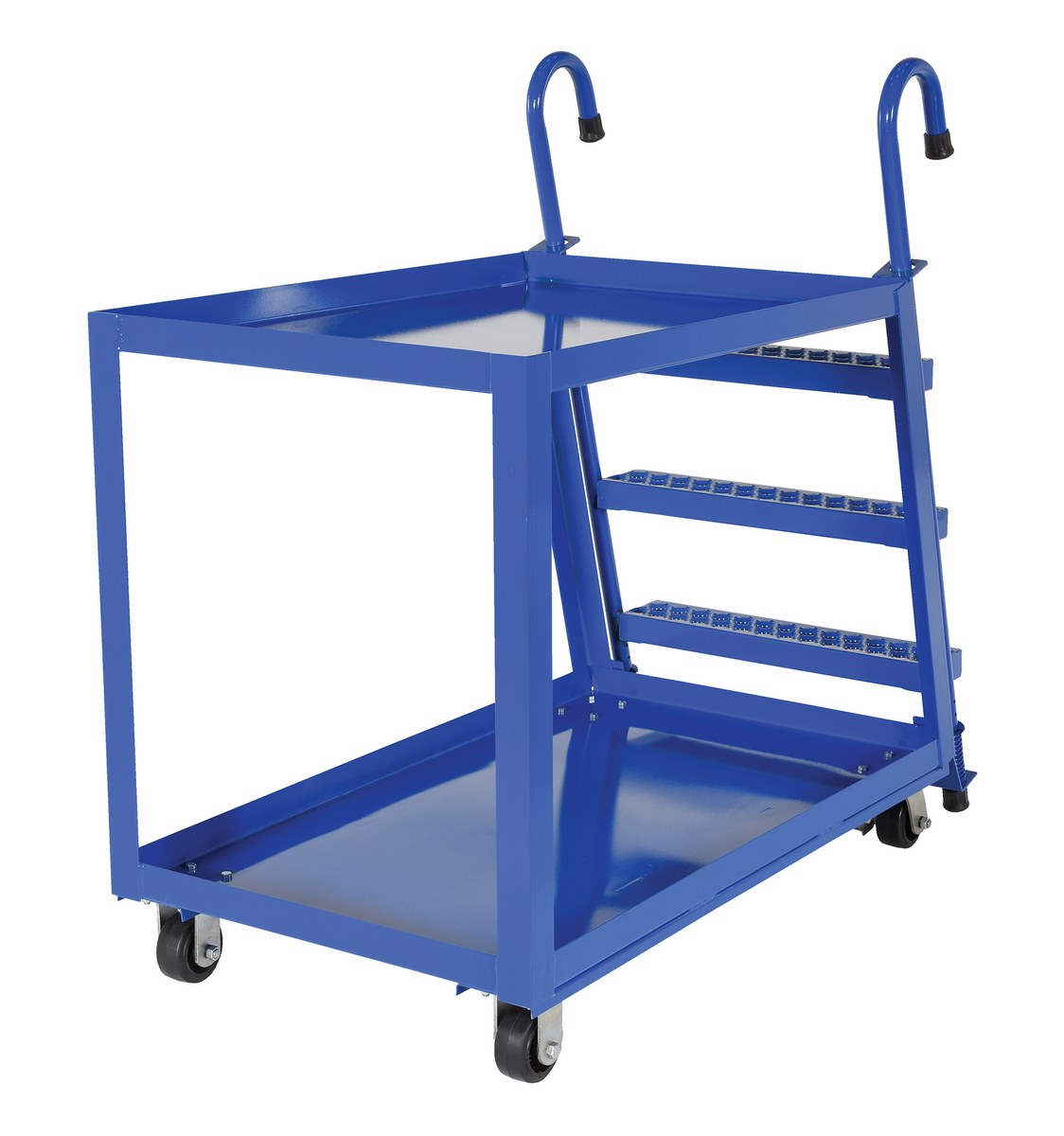

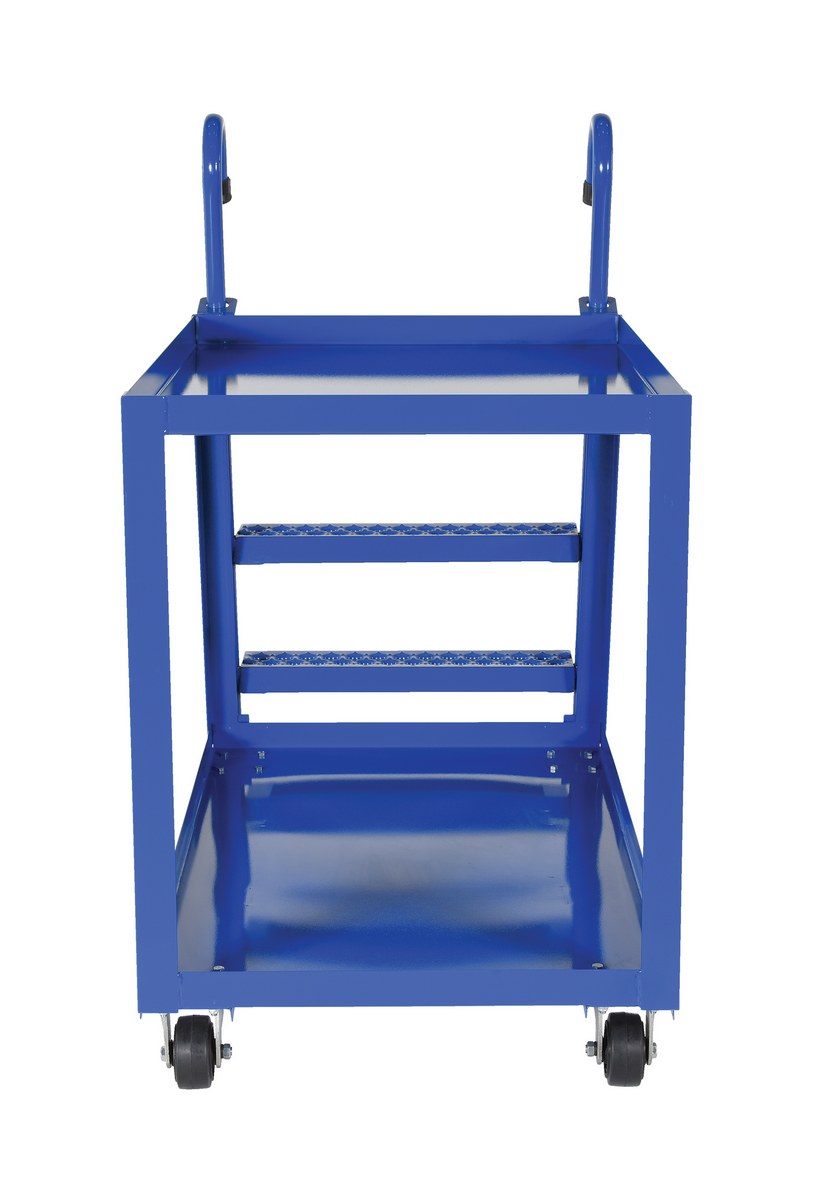

SPS2-2848 icon_approvaldrawings.jpgWarranty PDFCompliance Certificate 27-5/8"x47-5/8" 28" 37-11/16" 550lbs. 1,000lbs. 225
3-Shelf Units
SPS3-2236 icon_approvaldrawings.jpgWarranty PDFCompliance Certificate 21-5/8"x35-3/4" 13" 37-11/16" 550lbs. 1,000lbs. 200
SPS3-2840 icon_approvaldrawings.jpgWarranty PDFCompliance Certificate 27-5/8"x39-3/4" 13" 37-11/16" 550lbs. 1,000lbs. 224
SPS3-2848 icon_approvaldrawings.jpgWarranty PDFCompliance Certificate 27-5/8"x47-3/4" 13" 37-11/16" 550lbs. 1,000lbs. 230

KEY: Approval Drawing = Approval Drawing -- Approval Drawing = Warranty -- Approval Drawing = Testing Certificate

If you did not find an expected Model or SKU # in the table, try the Options Section Below


Options

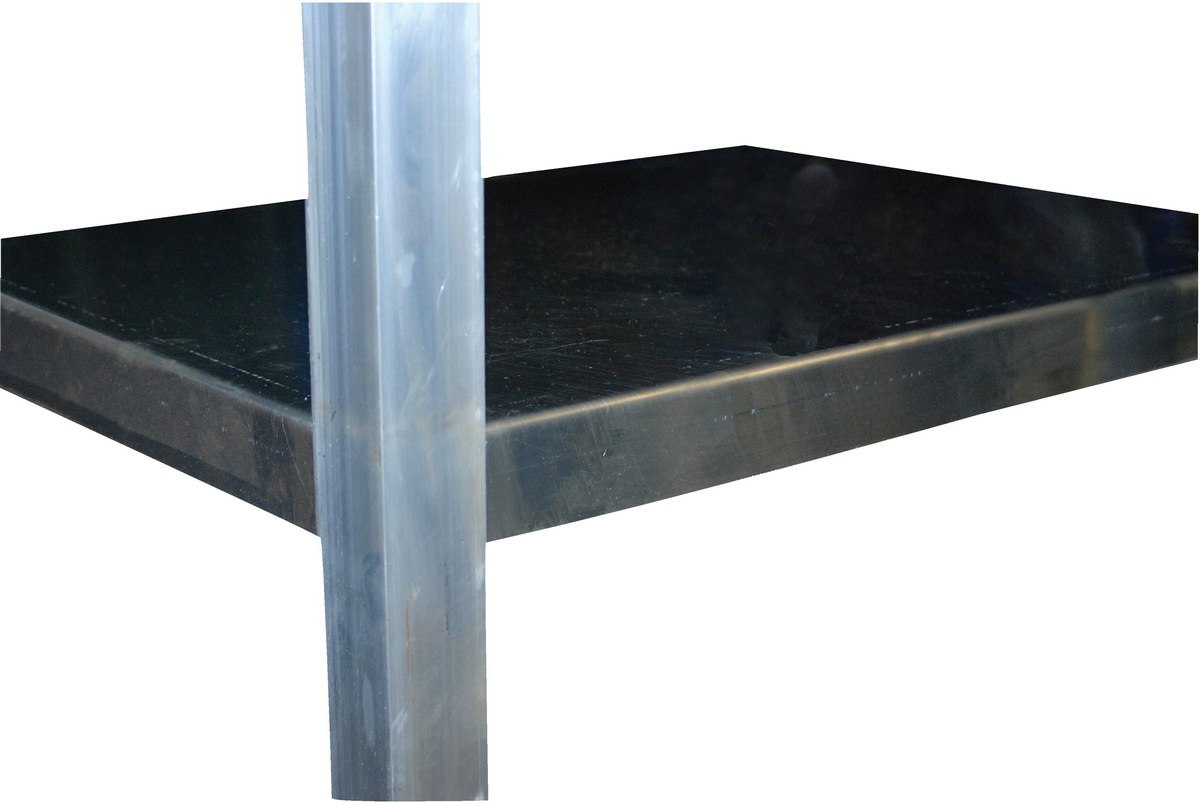

SPS-LIPD Lips Down on top shelf

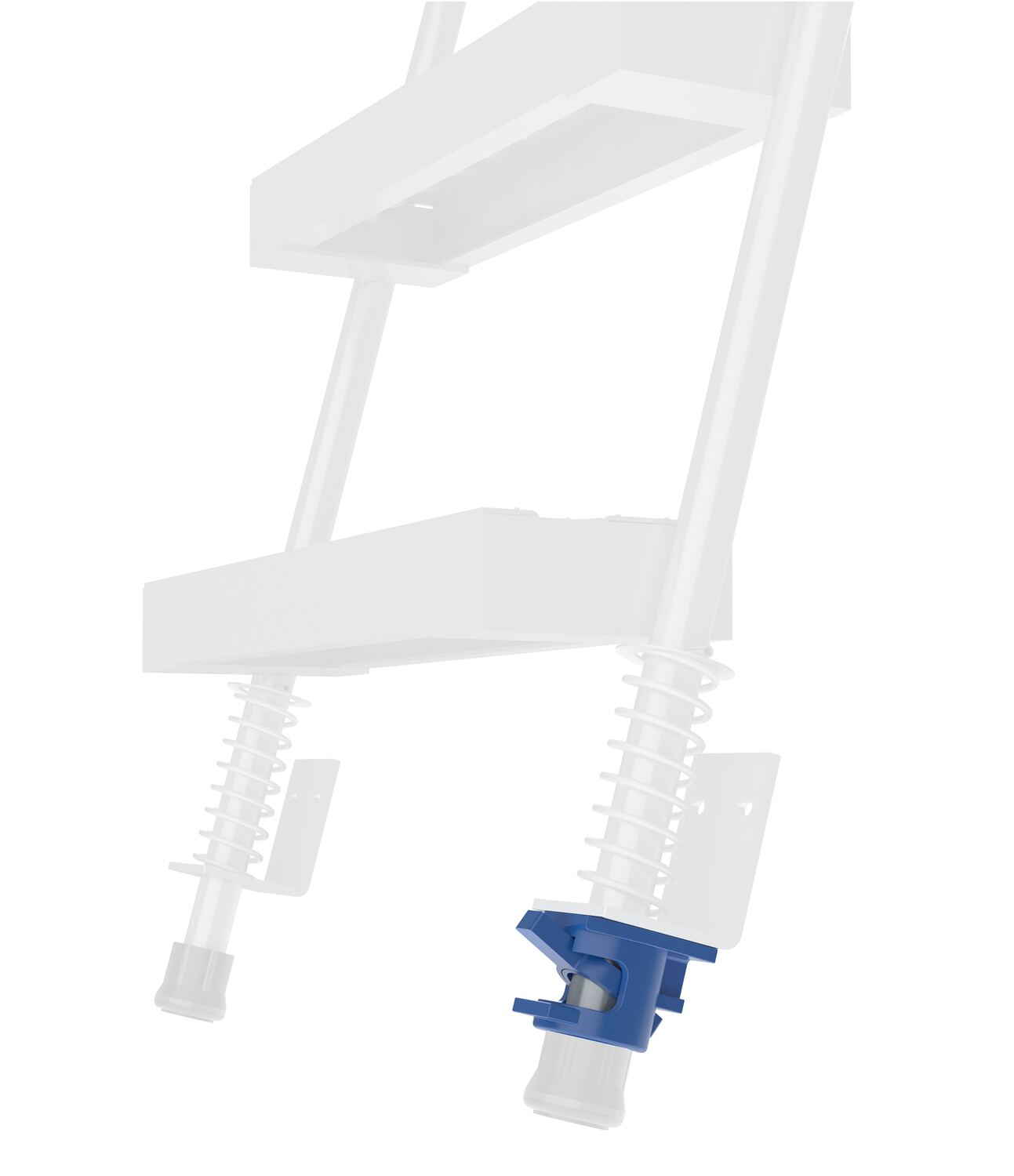

SP-HDL-LOCK Ladder upgrade plus Lock

KEY: Approval Drawing = Approval Drawing -- Approval Drawing = Warranty -- Approval Drawing = Testing Certificate

If you did not find an expected Model or SKU # in this table, try the Product Specifications Section Above



Click A SKU Below To Show Details

SP-HDL-LOCK

SP-HDL-LOCK

SPA2-2236

SPA2-2236

SPA2-2840

SPA2-2840

SPA2-2848

SPA2-2848

SPA3-2236

SPA3-2236

SPA3-2840

SPA3-2840

SPA3-2848

SPA3-2848

SPS-LIPD

SPS-LIPD

SPS2-2236

SPS2-2236

SPS2-2236-5PU

SPS2-2236-5PU

SPS2-2236-6MR

SPS2-2236-6MR

SPS2-2840

SPS2-2840

SPS2-2848

SPS2-2848

SPS2-2848-5PU

SPS2-2848-5PU

SPS2-2848-6MR

SPS2-2848-6MR

SPS3-2236

SPS3-2236

SPS3-2236-5PU

SPS3-2236-5PU

SPS3-2236-6MR

SPS3-2236-6MR

SPS3-2840

SPS3-2840

SPS3-2848

SPS3-2848

SPS3-2848-5PU

SPS3-2848-5PU

SPS3-2848-6MR

SPS3-2848-6MR






Stockpicker Trucks PDF's will open in a new window when clicked.

Survey Sheets


Approval Drawings

SPA2-2236
SPA2-2840
SPA2-2848
SPA3-2236
SPA3-2840
SPA3-2848
SP-HDL-LOCK
SPS2-2236
SPS2-2840
SPS2-2848
SPS3-2236
SPS3-2840
SPS3-2848

Testing Certificates

SPA2-2236
SPA2-2840
SPA2-2848
SPA3-2236
SPA3-2840
SPA3-2848
SP-HDL-LOCK
SPS2-2236
SPS2-2236-5PU
SPS2-2236-6MR
SPS2-2840
SPS2-2848
SPS2-2848-5PU
SPS2-2848-6MR
SPS3-2236
SPS3-2236-5PU
SPS3-2236-6MR
SPS3-2840
SPS3-2848
SPS3-2848-5PU
SPS3-2848-6MR
SPS-LIPD

Other PDF's


Directory Links Of Available PDF's For All Products




Q: What are the dimensions of the stairs on the stockpicker truck?

A: The stairs on the stockpicker truck are 17 3/4" wide x 5" deep.


Q: What are the dimensions of the stairs on the stockpicker truck?

A: The stairs on the stockpicker truck are 23 3/4" wide x 5" deep.


Q: What are the dimensions of the "steps"?

A: The depth of the "step" is 5". The width of the "step" is 17 3/4".
