model: ABLT-1000


SERIES: ABLT

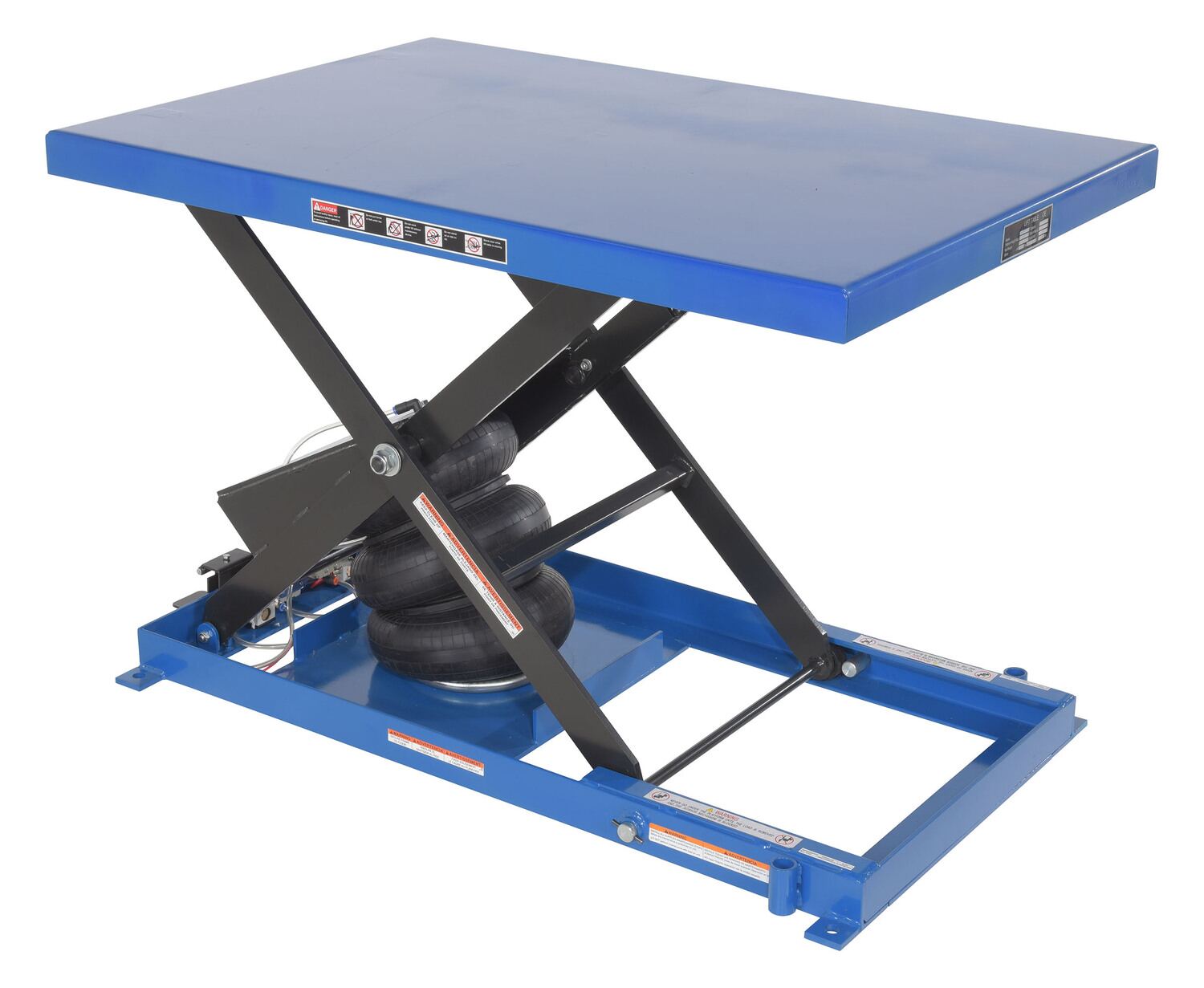

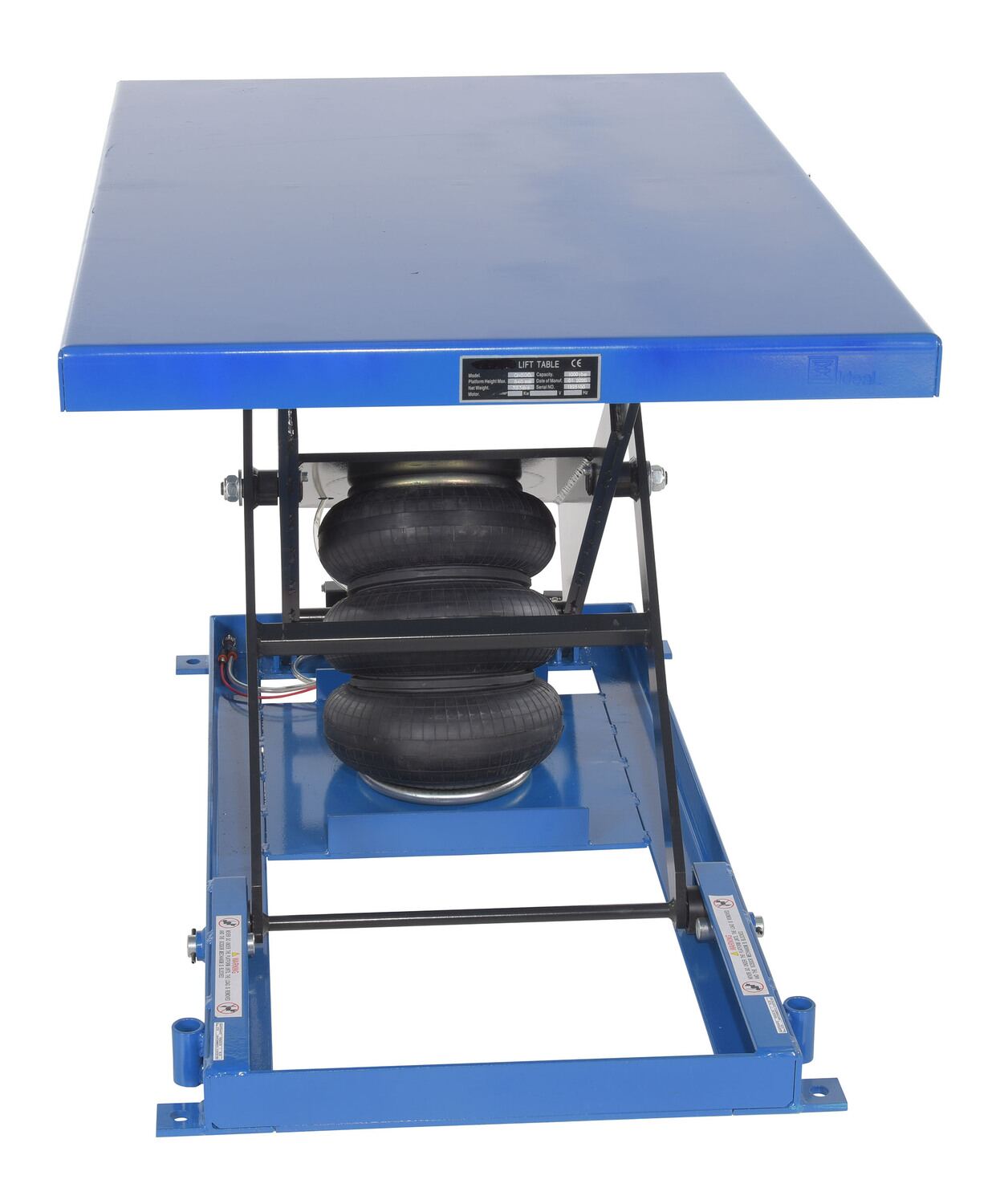

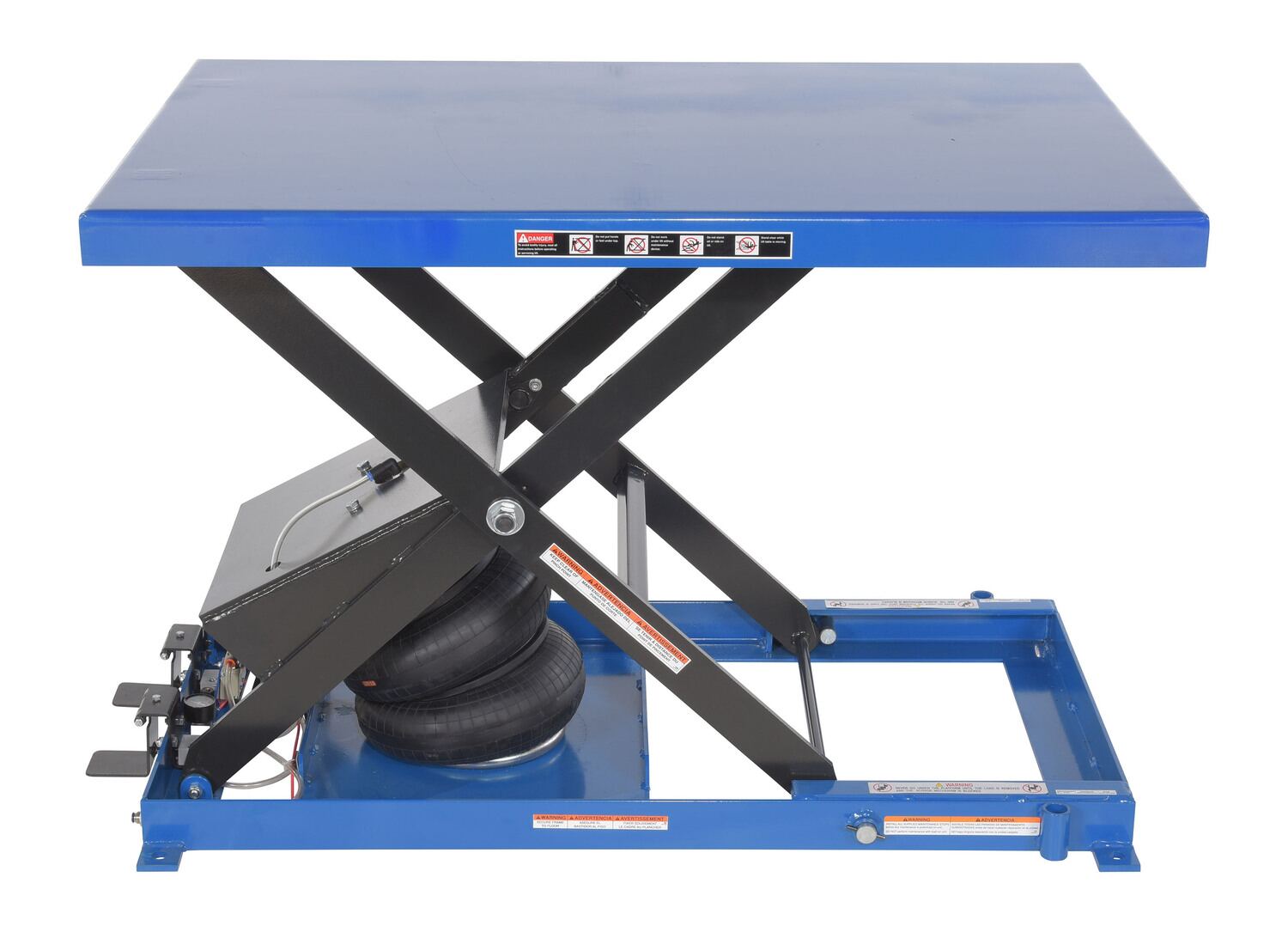

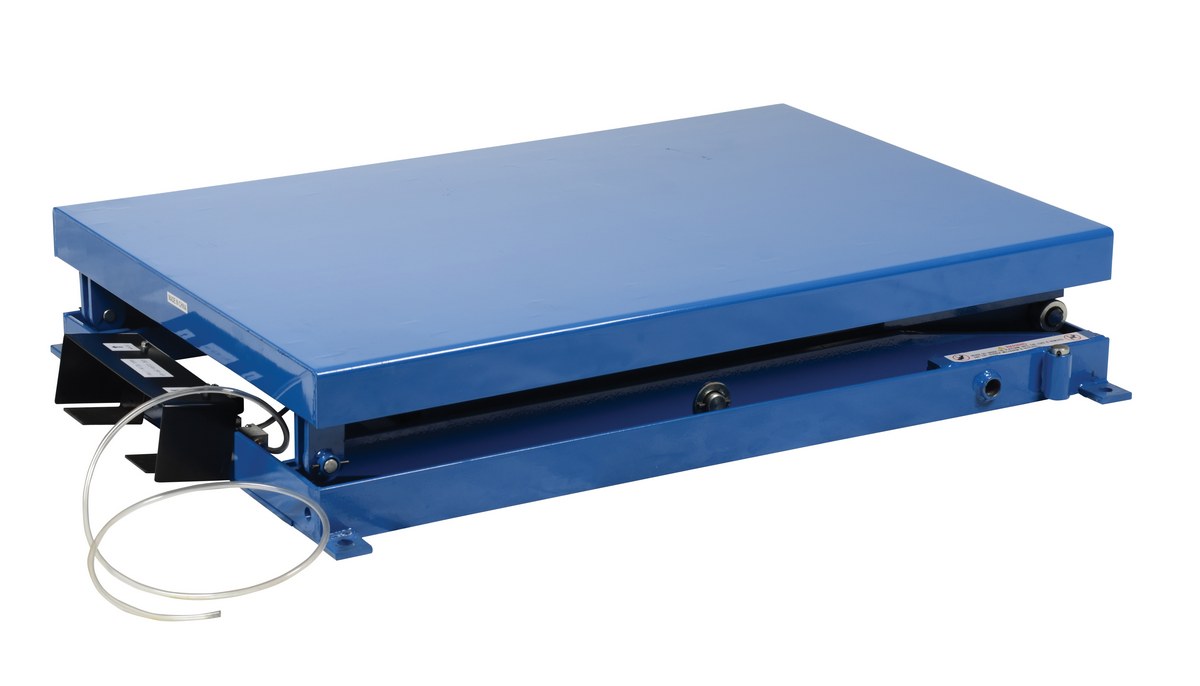

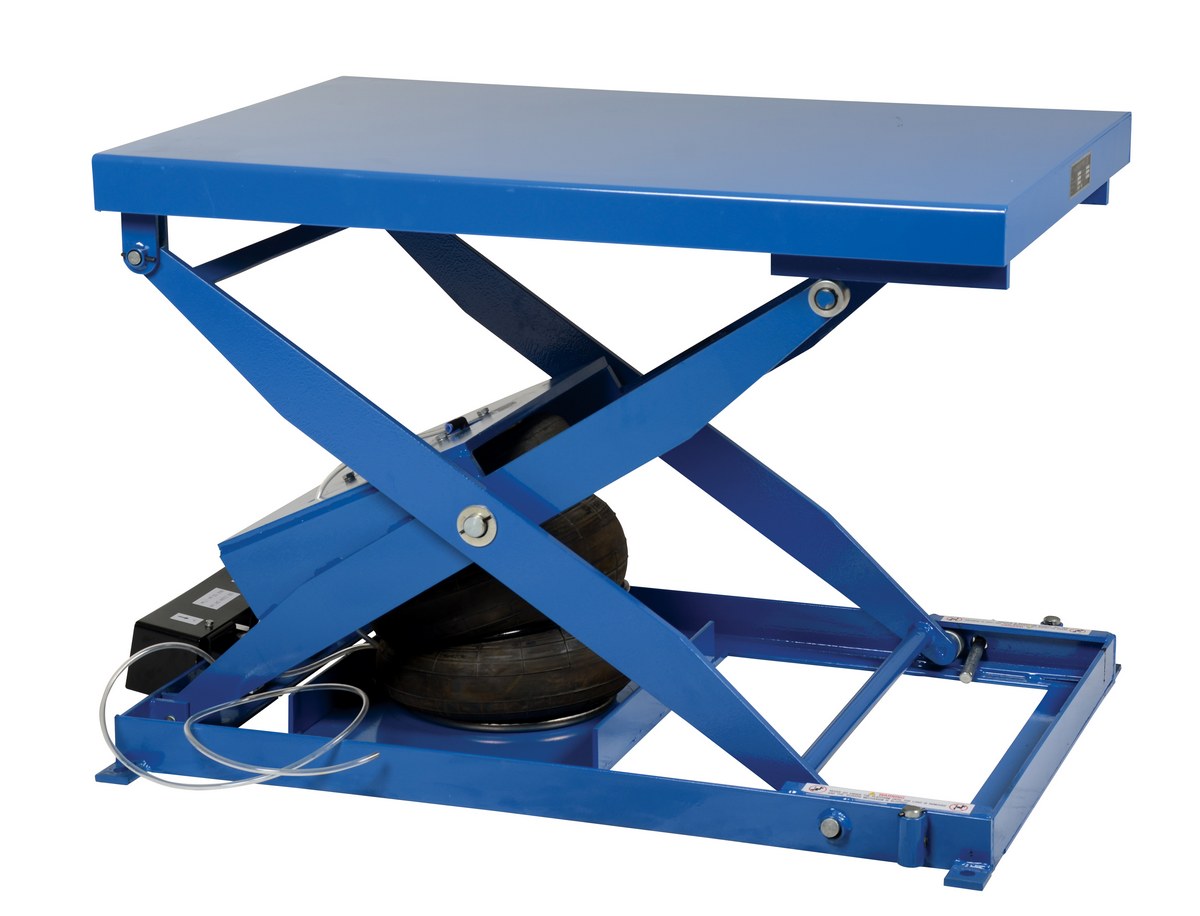

Heavy-Duty Air Bag Scissor Lift Tables

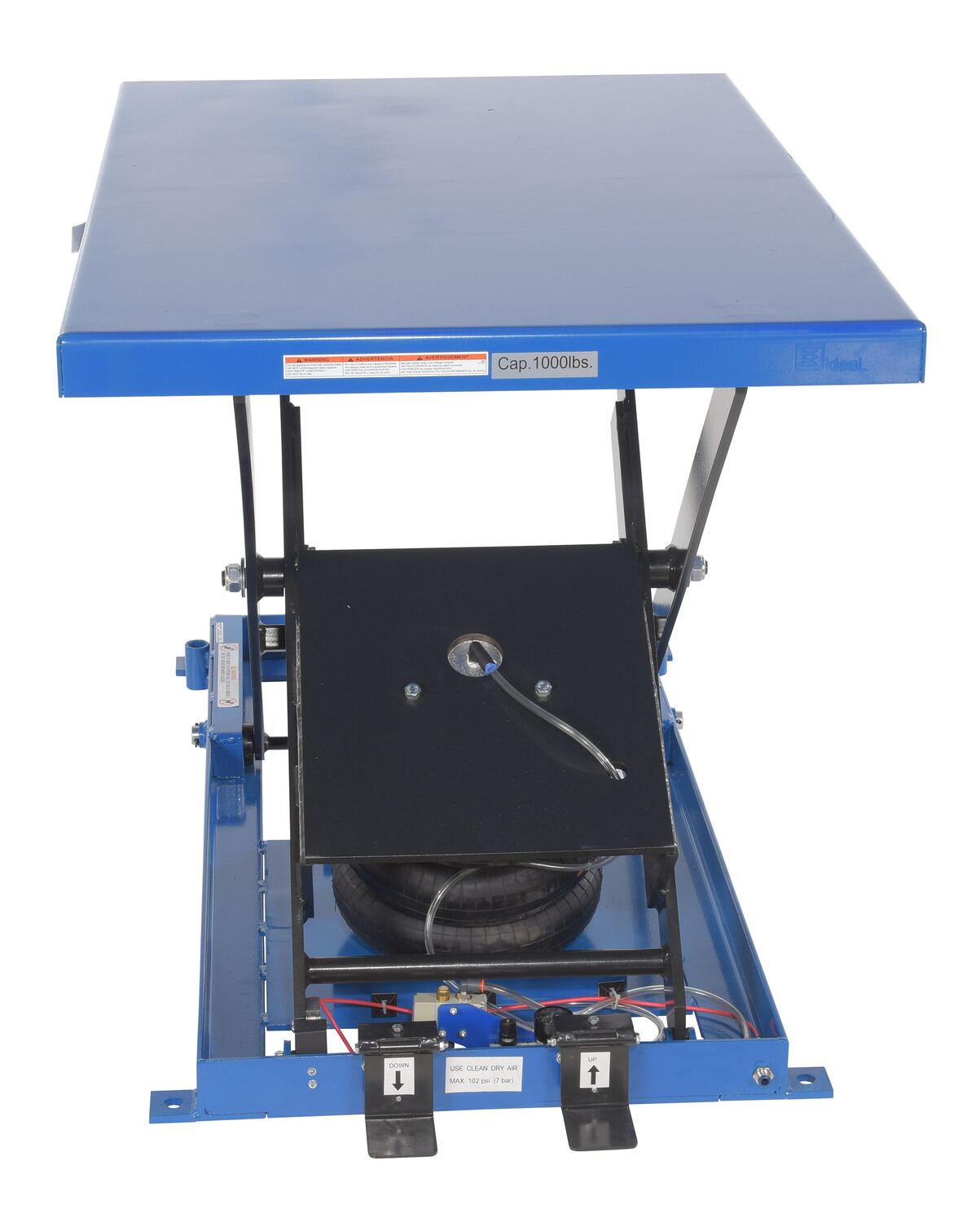

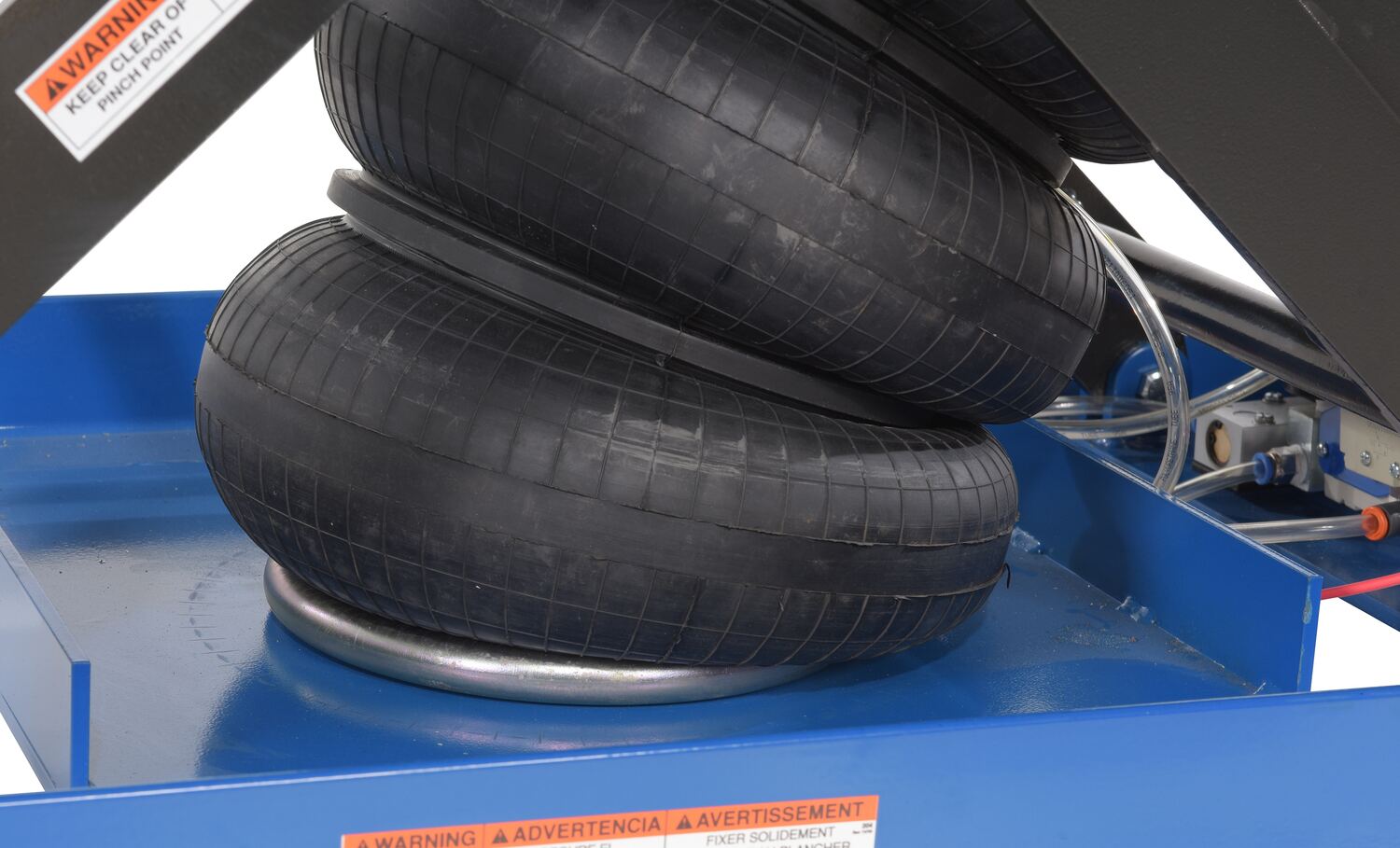

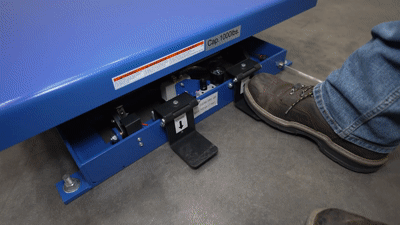

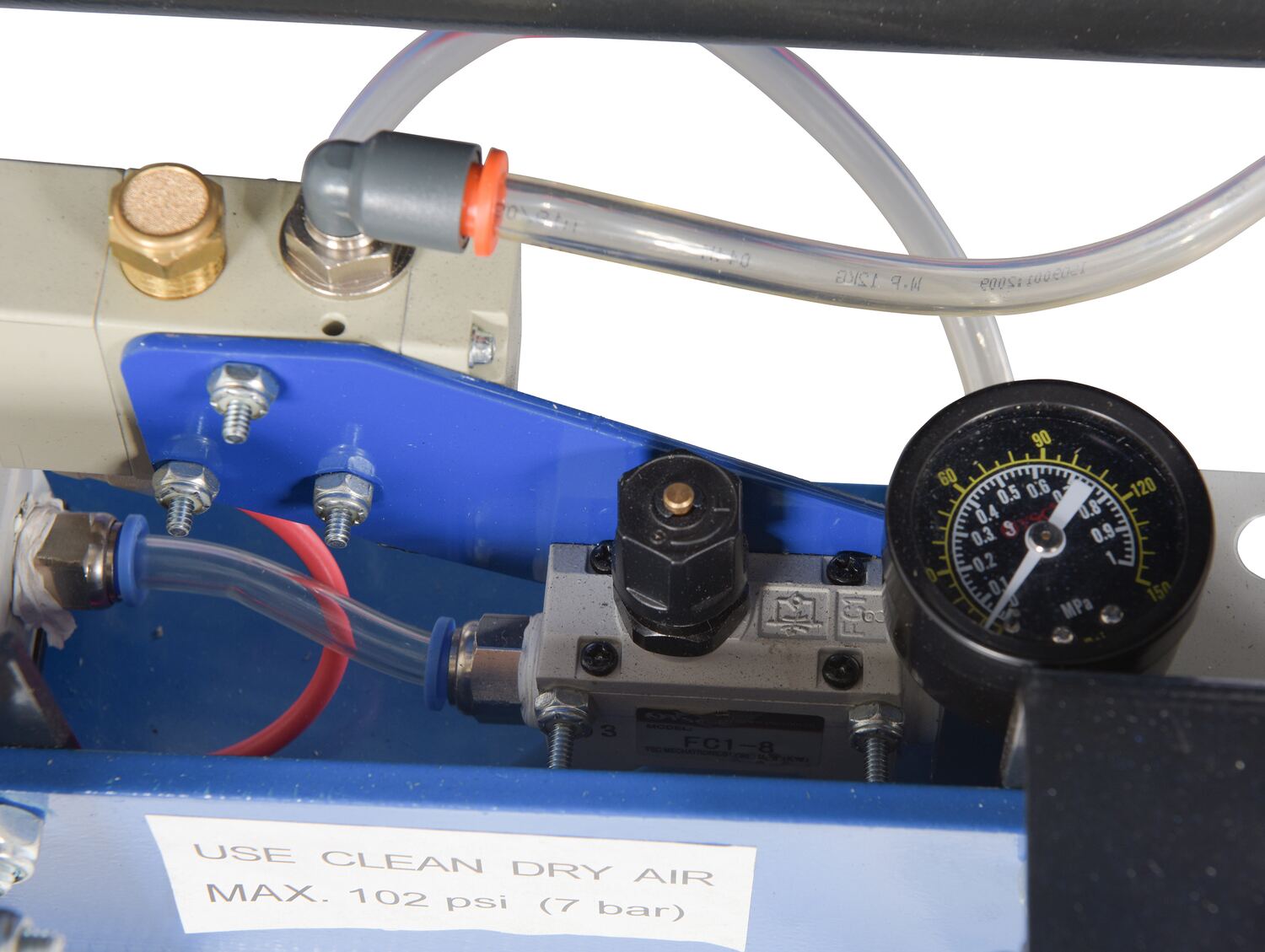

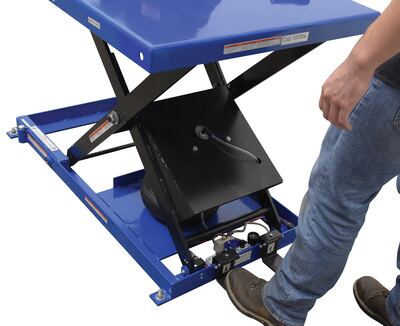

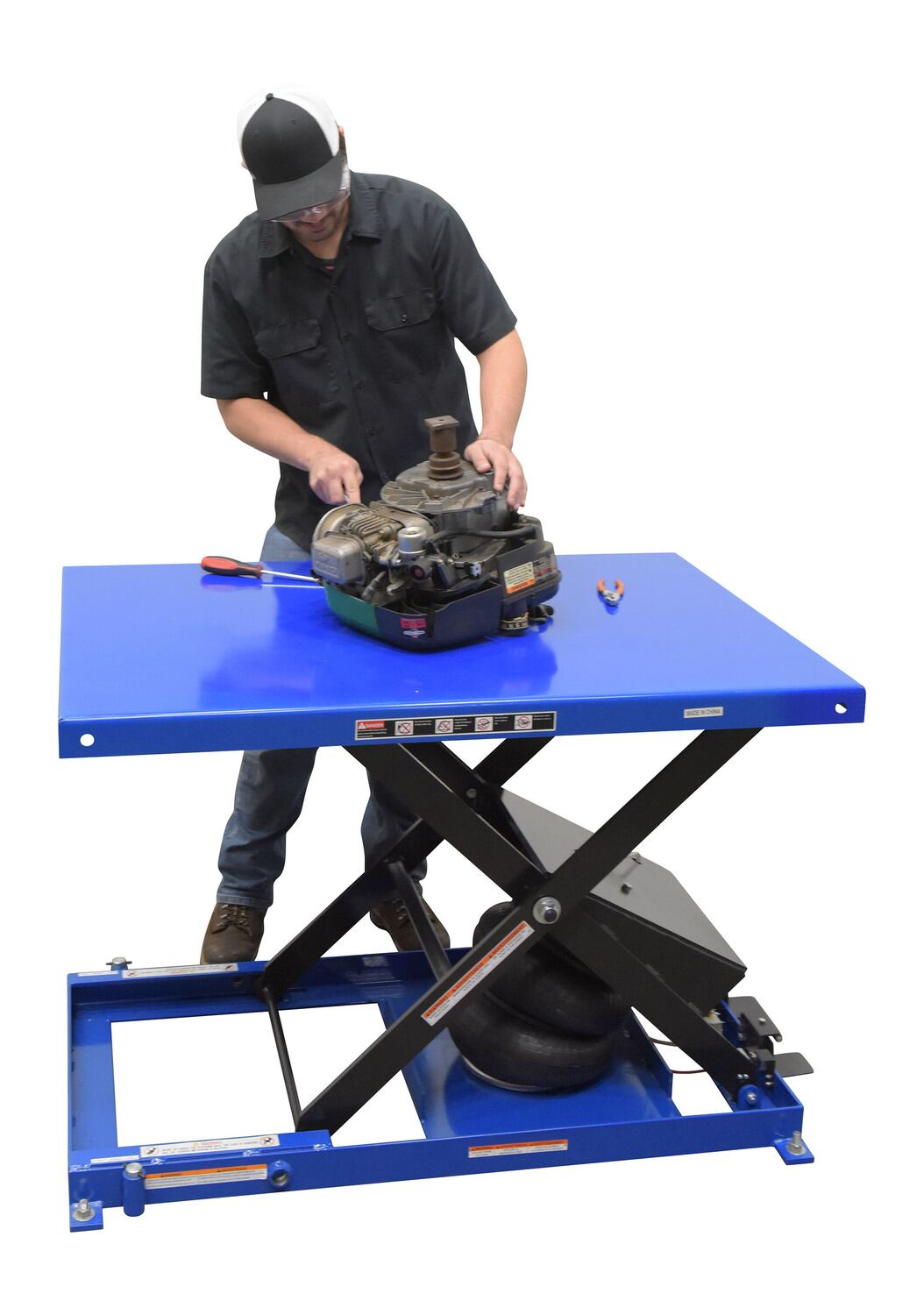

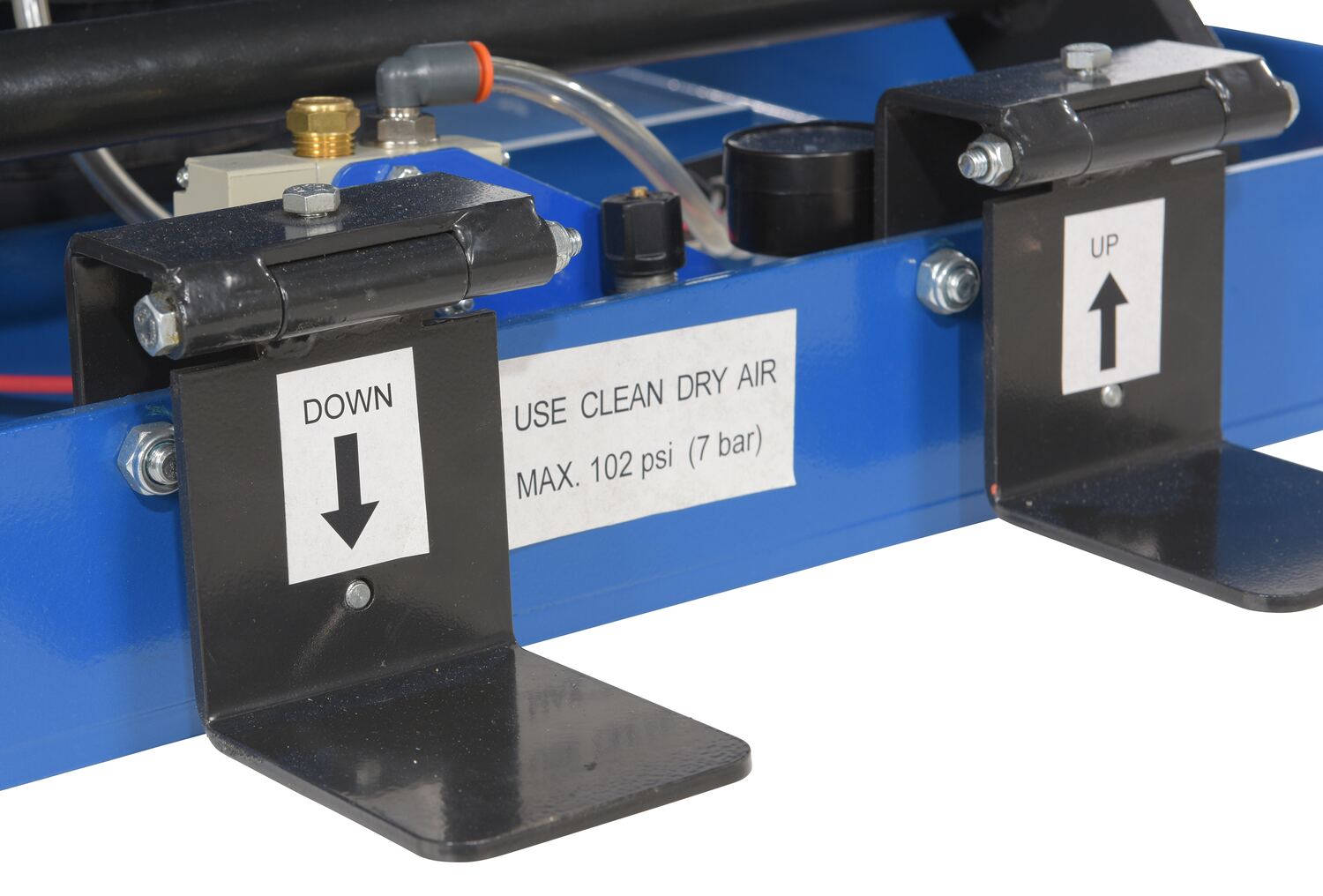

Air Bag Scissor Lift Tables use factory air for clean, dependable, maintenance free operation. Designed to raise products up to an ergonomic working height. Safety features include pressure relief valve and pinch point guard. Models ABLT-1000 and ABLT-2000 come standard with a foot control. Incoming air must be clean, dry, and regulated to 80 psi (min.). Requires 1/2" incoming airline. Standard features include adjustable upper travel limit valve, state-of-the-art lifetime lubricated bearings, and maintenance prop. Filter required. Other sizes available, contact factory.

Air Bag Scissor Lift Tables use factory air for clean, dependable, maintenance free operation. Designed to raise products up to an ergonomic working height. Safety features include pressure relief valve and pinch point guard. Models ABLT-1000 and ABLT-2000 come standard with a foot control. Incoming air must be clean, dry, and regulated to 80 psi (min.). Requires 1/2" incoming airline. Standard features include adjustable upper travel limit valve, state-of-the-art lifetime lubricated bearings, and maintenance prop. Filter required. Other sizes available, contact factory.

Other Lift & Tilt Tables

Electric Hydraulic Scissor Lift Tables

Electric Hydraulic Scissor Lift Tables

Rotary Air/Hydraulic Scissor Lift Tables

Rotary Air/Hydraulic Scissor Lift Tables

Heavy-Duty Air Bag Scissor Lift Tables

Heavy-Duty Air Bag Scissor Lift Tables

Low-Profile Air Bag Scissor Lift Tables

Low-Profile Air Bag Scissor Lift Tables

Air Bag Scissor Lift Tables

Air Bag Scissor Lift Tables

Share This Page

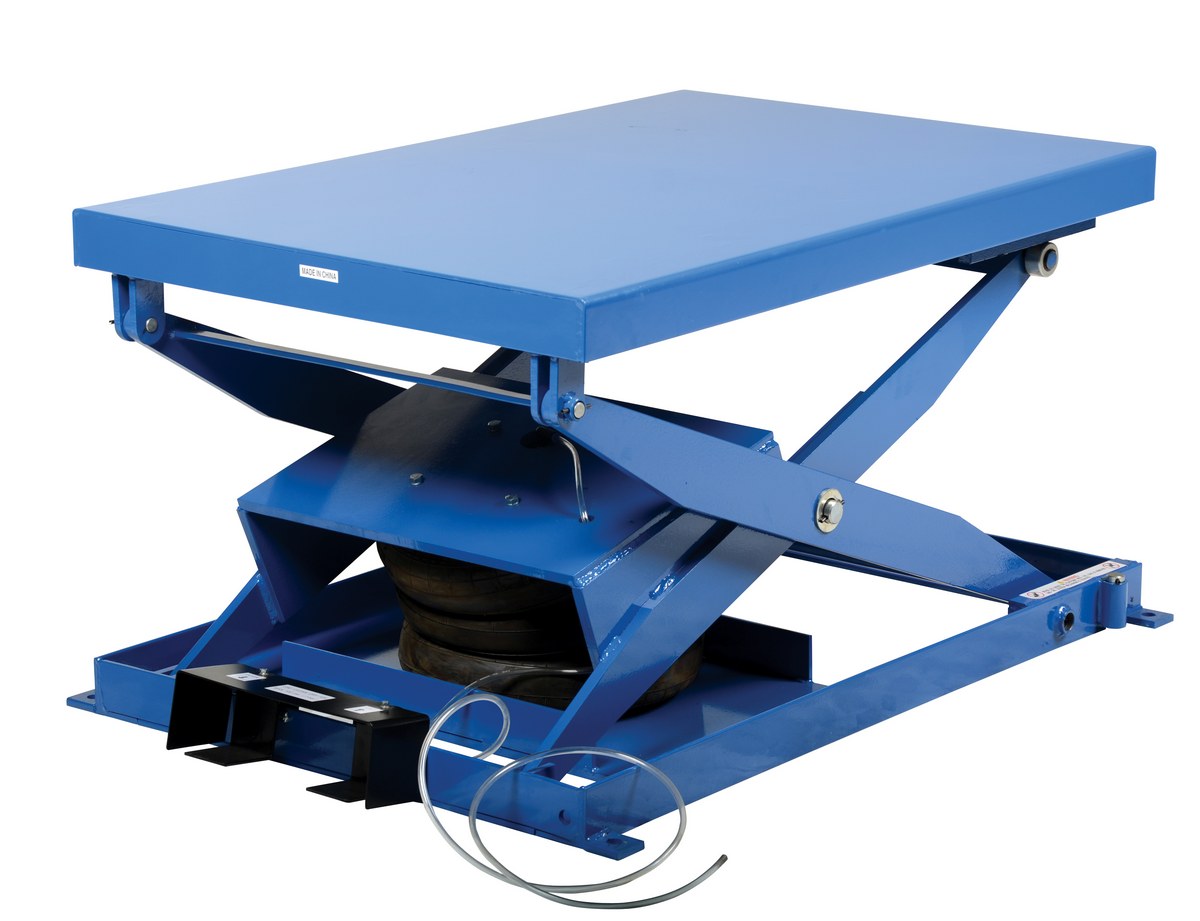

ABLT-2000

model ABLT-2000




KEY: Approval Drawing = Approval Drawing -- Approval Drawing = Warranty -- Approval Drawing = Testing Certificate

All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.
Heavy-Duty Air Bag Scissor Lift Table
Model Image PDFs Platform
Size
(WxL)
Capacity
(lbs)
Raised
Height
Lowered
Height
Wt.
(lbs.)
ABLT-1000 icon_warranty.jpgCompliance Certificate 48"x32" 1,000 33" 9" 357
ABLT-2000 icon_warranty.jpgCompliance Certificate 48"x32" 2,000 33" 9" 630

KEY: Approval Drawing = Approval Drawing -- Approval Drawing = Warranty -- Approval Drawing = Testing Certificate

If you did not find an expected Model or SKU # in the table, try the Options Section Below



Link Safety Accordion Skirt

KEY: Approval Drawing = Approval Drawing -- Approval Drawing = Warranty -- Approval Drawing = Testing Certificate

If you did not find an expected Model or SKU # in this table, try the Product Specifications Section Above



Click A SKU Below To Show Details

ABLT-1000

ABLT-1000

ABLT-2000

ABLT-2000






Heavy-Duty Air Bag Scissor Lift Tables PDF's will open in a new window when clicked.
No Owners Manuals For This Product.


Survey Sheets

No Survey Sheets For This Product.


Approval Drawings

No Approval Drawings For This Product

Testing Certificates

ABLT-2000
ABLT-1000

Other PDF's

No "Other PDFs" For This Product...


Directory Links Of Available PDF's For All Products




We are hoping to continue adding new product pictures to each gallery. Check back soon.



Q: How long does it take for this table to the raised height?

A: Raised height with no load is 2.25 seconds. Lowered height with no load is 30.75 seconds Raised height loaded is 10.13 seconds Lowered height loaded is 12.6 seconds
