UNI-4848-2-BLU-208-3
model UNI-4848-2-BLU-208-3
SERIES: UNI

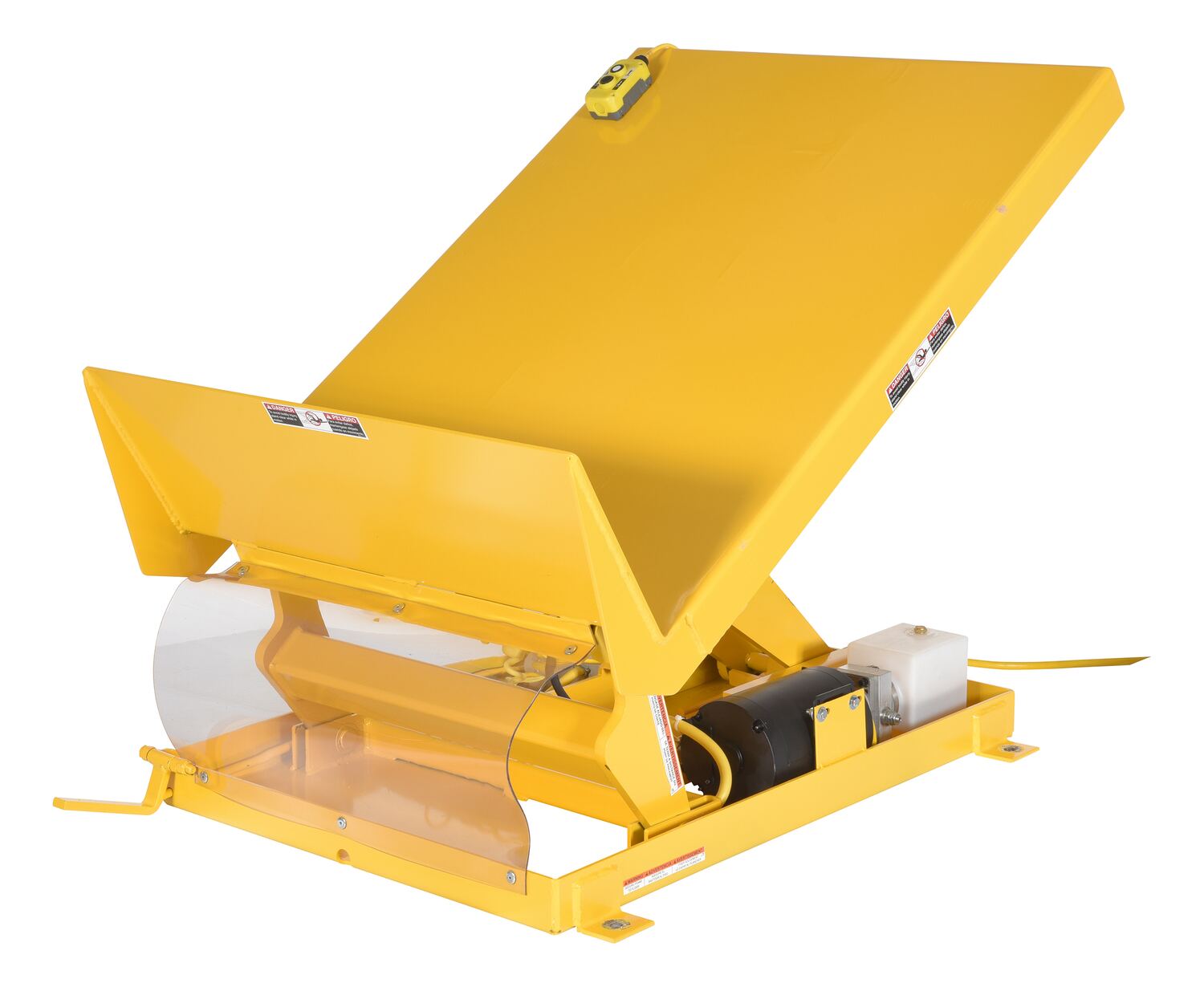

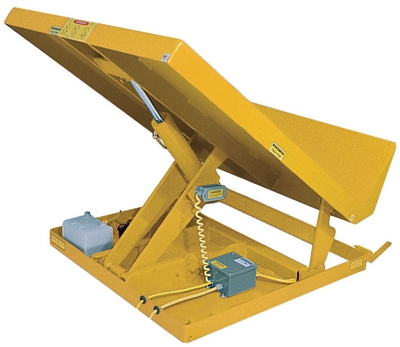

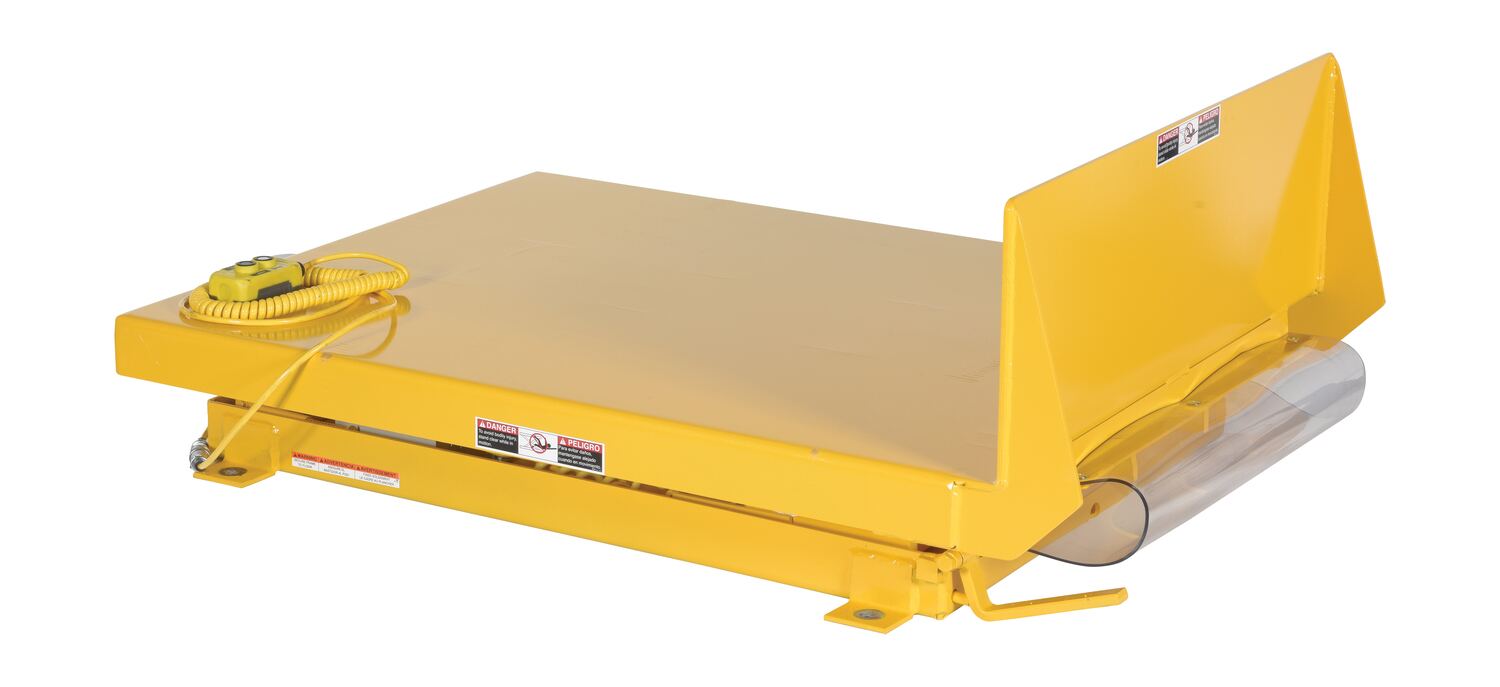

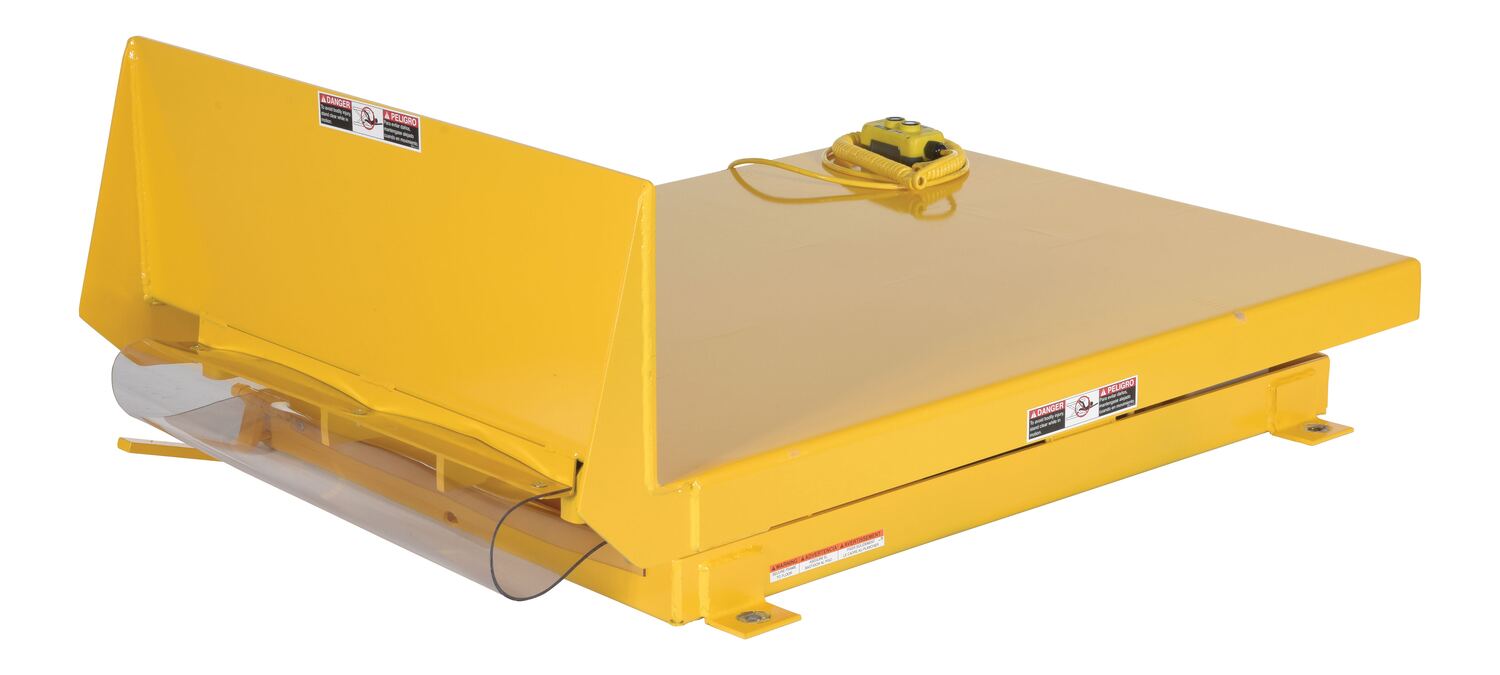

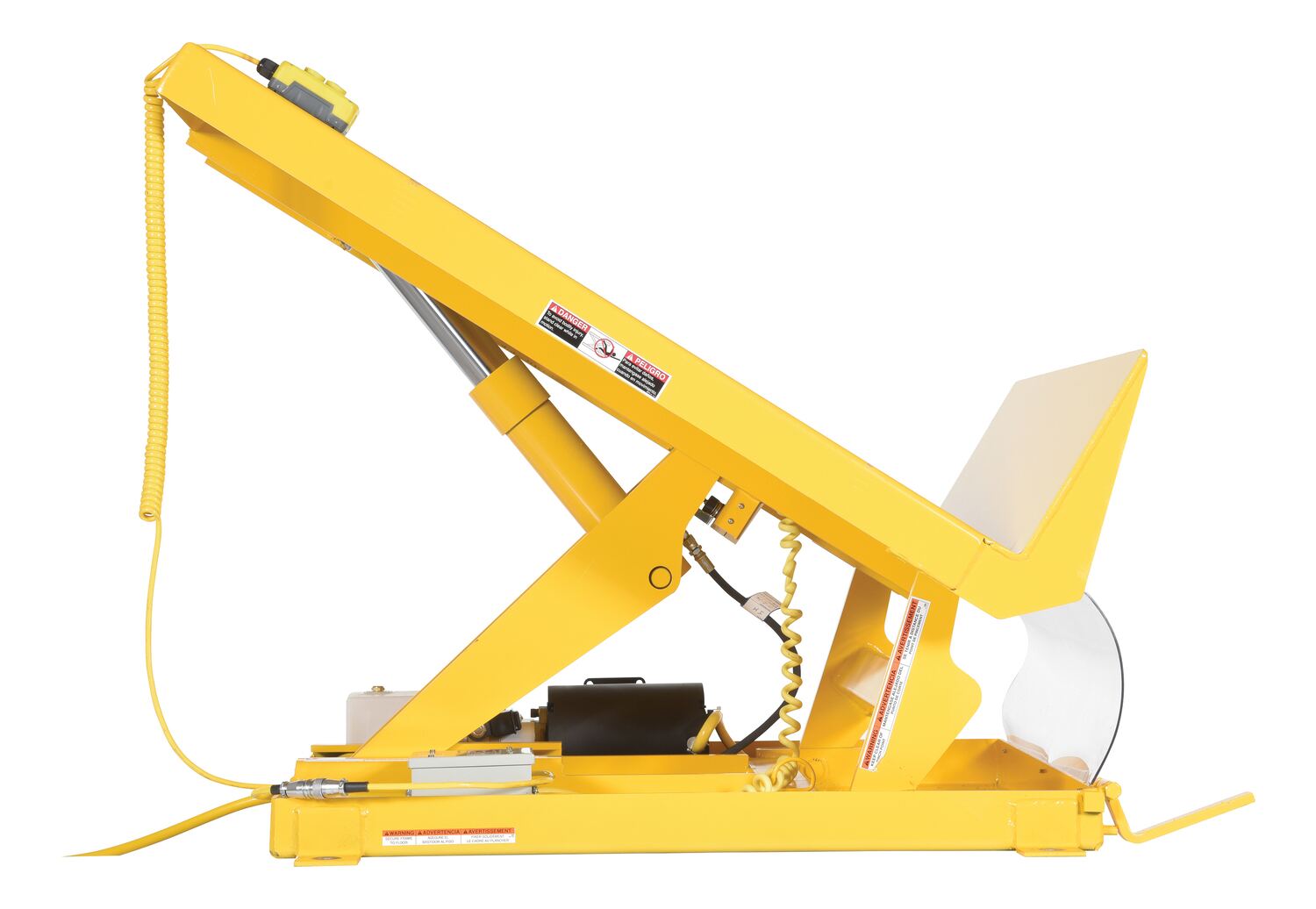

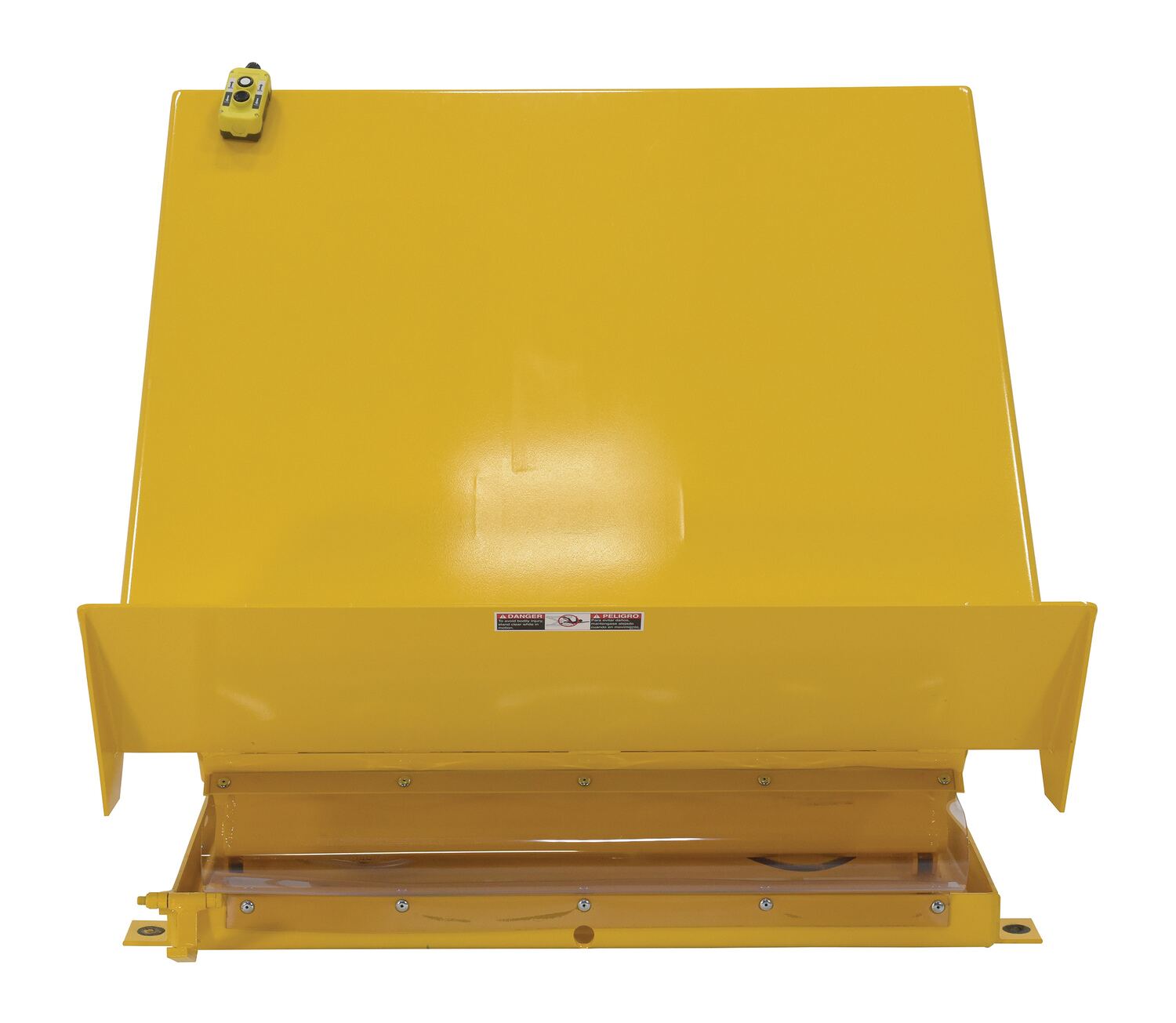

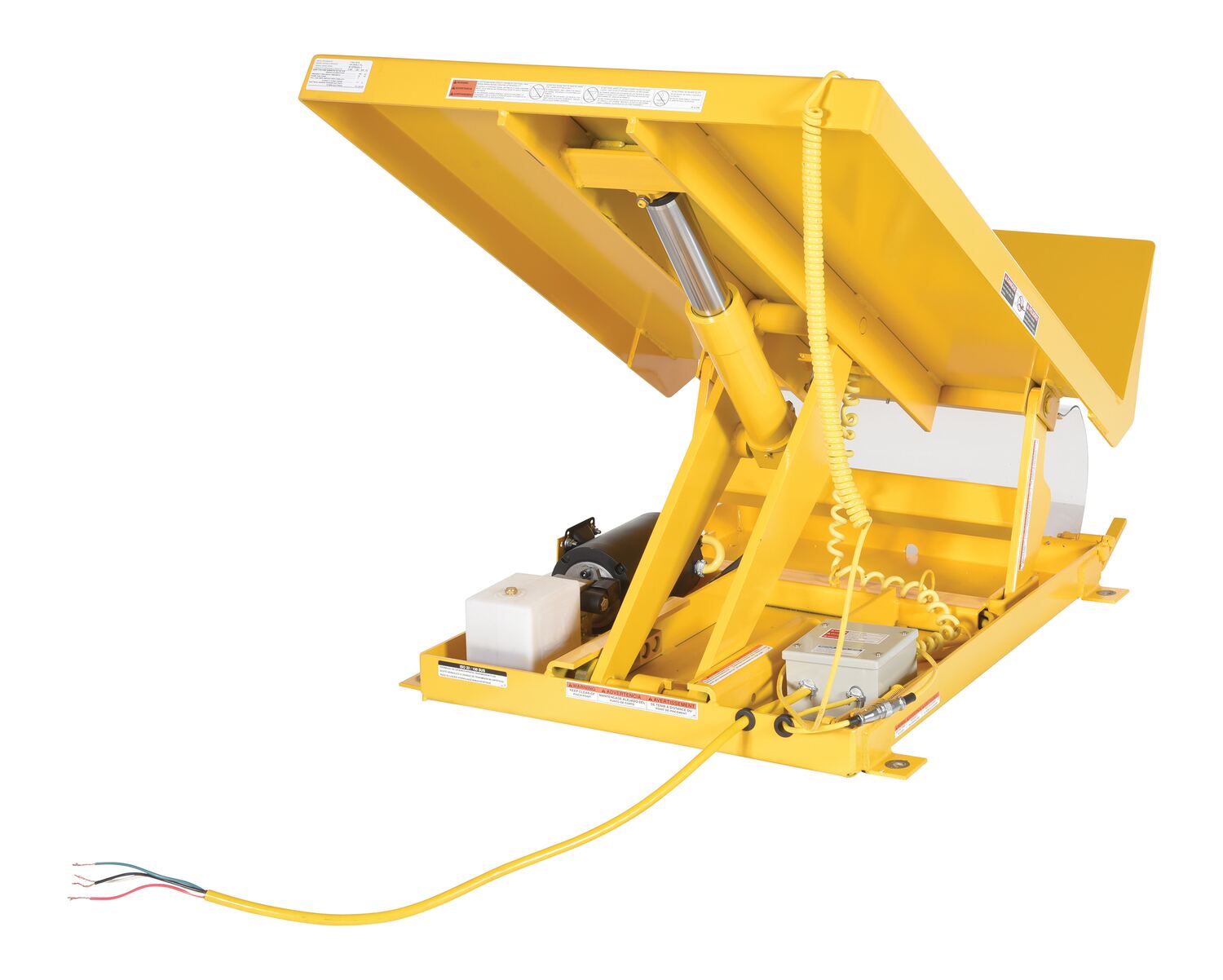

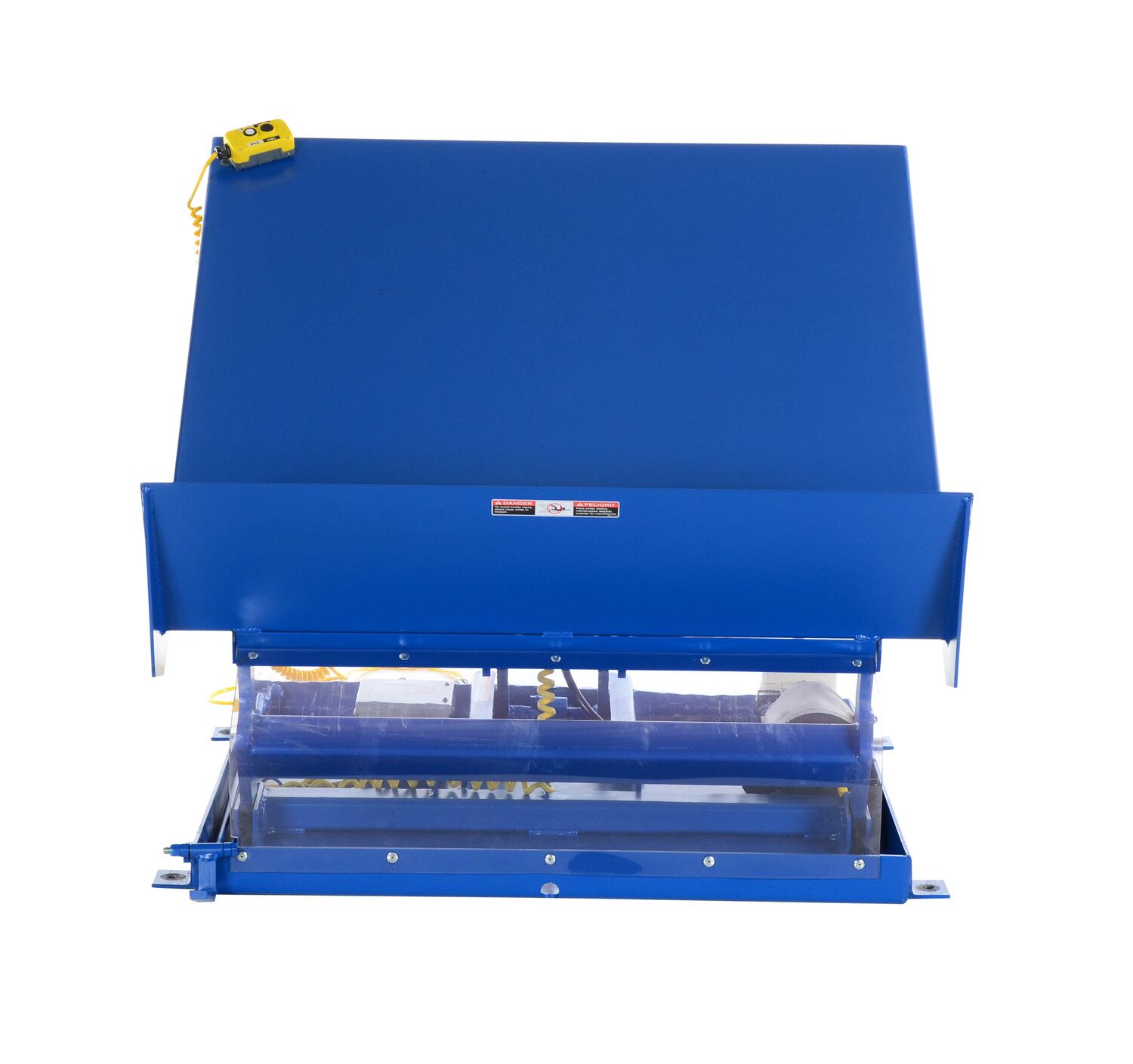

Single Scissor Lift & Tilt Tables

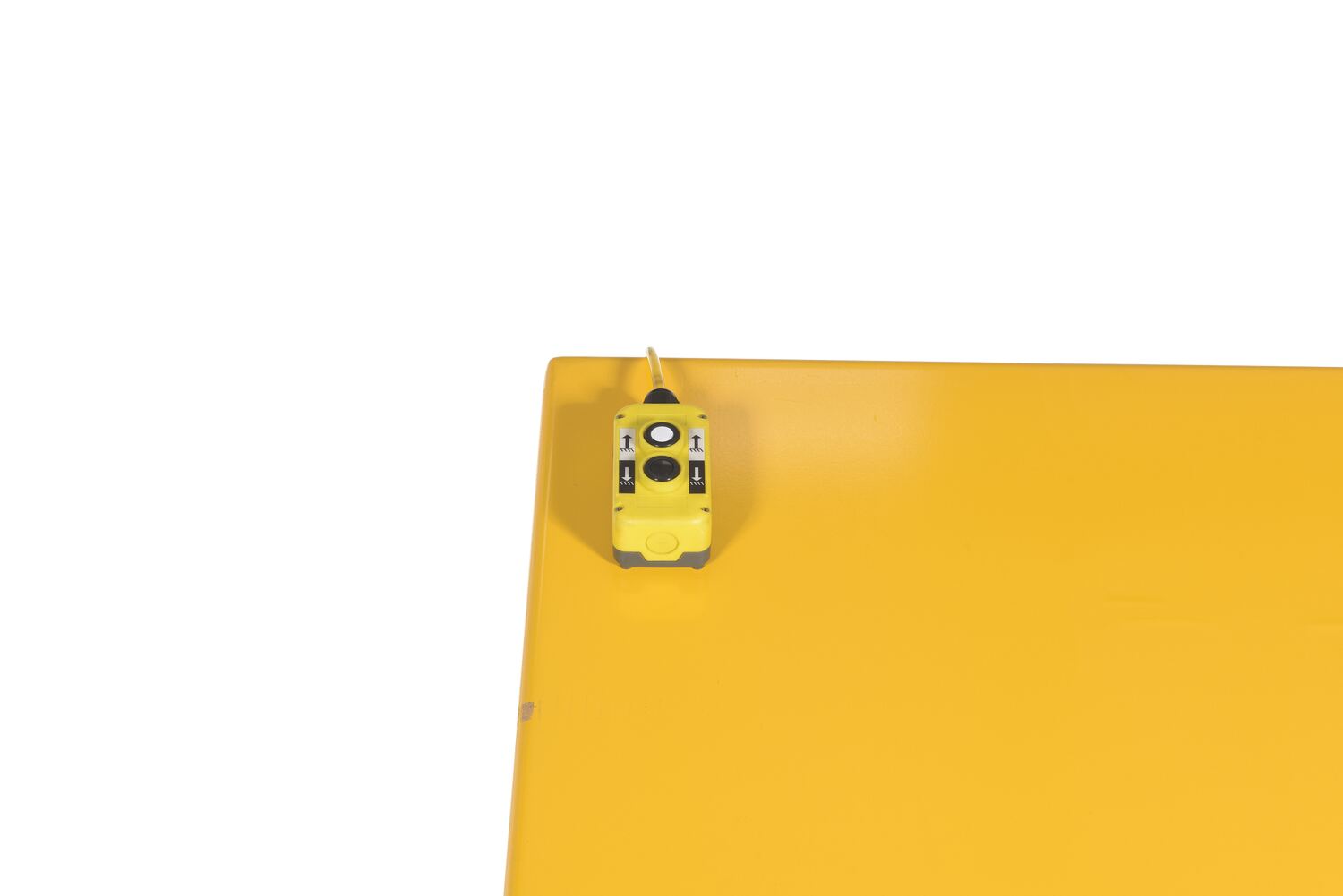

Designed to position containers within easy reach of assembly line workers and machine operators. This unique design reduces fatigue by minimizing repetitive bending and stretching required to obtain components from containers. 96" x 48" unit accommodates (2) 48" x 48" containers, ideal for parts transfer and assembly. Platform includes a 12" high lip on tilt side. A selector pedal allows the operator to lift while tilting or tilt, then lift. 2HP, three phase, 60 Hz totally enclosed motor is standard, other voltages available. Other standard features include: a two-button handheld control, integrated maintenance lock, pressure plated pump, pressure compensated flow valve, lowering valve, independent oil return, and an adjustable upward travel limit switch. Internal power unit standard. Unit must be lagged to floor.


Click A Tab For More Information. If A Tab Is Missing, This Product Has No Content For That Tab.

KEY: Approval Drawing = Approval Drawing -- Approval Drawing = Warranty -- Approval Drawing = Testing Certificate

Model Number & Specs Table

Single Scissor Lift & Tilt (Uni-Tilt)
Model PDF's Platform
size (WxL)
Capacity
(lbs)
Level
Height
Degree
Of Tilt
Power
Unit
Wt.
(lbs)
UNI-2448-2 tilt_m4.jpgCompliance Certificate 24"x48" 2,000 8" 40 External 606
UNI-3648-2 icon_approvaldrawings.jpgtilt_m4.jpgCompliance Certificate 36"x48" 2,000 8" 40 Internal 640
UNI-4048-2 tilt_m4.jpgCompliance Certificate 40"x48" 2,000 8" 40 Internal 696
UNI-4848-2 tilt_m4.jpgCompliance Certificate 48"x48" 2,000 8" 40 Internal 735
UNI-5448-2 tilt_m4.jpgCompliance Certificate 54"x48" 2,000 8" 40 Internal 885
UNI-2448-4 tilt_m4.jpgCompliance Certificate 24"x48" 4,000 8" 40 External 631
UNI-3648-4 tilt_m4.jpgCompliance Certificate 36"x48" 4,000 8" 40 Internal 665
UNI-4048-4 icon_approvaldrawings.jpgtilt_m4.jpgCompliance Certificate 40"x48" 4,000 8" 40 Internal 723
UNI-4848-4 icon_approvaldrawings.jpgtilt_m4.jpg360_icon.jpgCompliance Certificate 48"x48" 4,000 8" 40 Internal 743
UNI-5448-4 icon_approvaldrawings.jpgtilt_m4.jpgCompliance Certificate 54"x48" 4,000 8" 40 Internal 910
UNI-9648-4 icon_approvaldrawings.jpgtilt_m4.jpgCompliance Certificate 96"x48" 4,000 8" 40 Internal 1296
UNI-4848-6 tilt_m4.jpgCompliance Certificate 48"x48" 6,000 8" 40 Internal 763
UNI-5448-6 icon_approvaldrawings.jpgtilt_m4.jpgCompliance Certificate 54"x48" 6,000 8" 40 Internal 935

KEY: Approval Drawing = Approval Drawing -- Approval Drawing = Warranty -- Approval Drawing = Testing Certificate

Click A Model Number Below To Show Details



Owner's Manuals

No Owners Manuals For This Product.


Survey Sheets

No Survey Sheets For This Product.


Approval Drawings

UNI-3648-2
UNI-3648-4
UNI-4048-4
UNI-4848-4
UNI-4848-6
UNI-5448-4
UNI-5448-6
UNI-9648-4

Testing Certificates

UNI-2448-2
UNI-2448-2-BLU-208-3
UNI-2448-2-YEL-208-3
UNI-2448-4
UNI-2448-4-BLU-208-3
UNI-2448-4-YEL-208-3
UNI-3648-2
UNI-3648-2-BLU-208-3
UNI-3648-2-YEL-208-3
UNI-3648-4
UNI-3648-4-BLU-208-3
UNI-3648-4-YEL-208-3
UNI-4048-2
UNI-4048-2-BLU-208-3
UNI-4048-2-YEL-208-3
UNI-4048-4
UNI-4048-4-BLU-208-3
UNI-4048-4-YEL-208-3
UNI-4848-2
UNI-4848-2-BLU-208-3
UNI-4848-2-YEL-208-3
UNI-4848-4
UNI-4848-4-BLU-208-3
UNI-4848-4-YEL-208-3
UNI-4848-6
UNI-4848-6-BLU-208-3
UNI-4848-6-YEL-208-3
UNI-5448-2
UNI-5448-2-BLU-208-3
UNI-5448-2-YEL-208-3
UNI-5448-4
UNI-5448-4-BLU-208-3
UNI-5448-4-YEL-208-3
UNI-5448-6
UNI-5448-6-BLU-208-3
UNI-5448-6-YEL-208-3
UNI-9648-4
UNI-9648-4-BLU-208-3
UNI-9648-4-YEL-208-3

Other PDF's

No "Other PDFs" For This Product...


Directory Links Of Available PDF's For All Products

Image Gallery

UNI-2448-2-BLU-115-1
UNI-2448-2-BLU-115-1

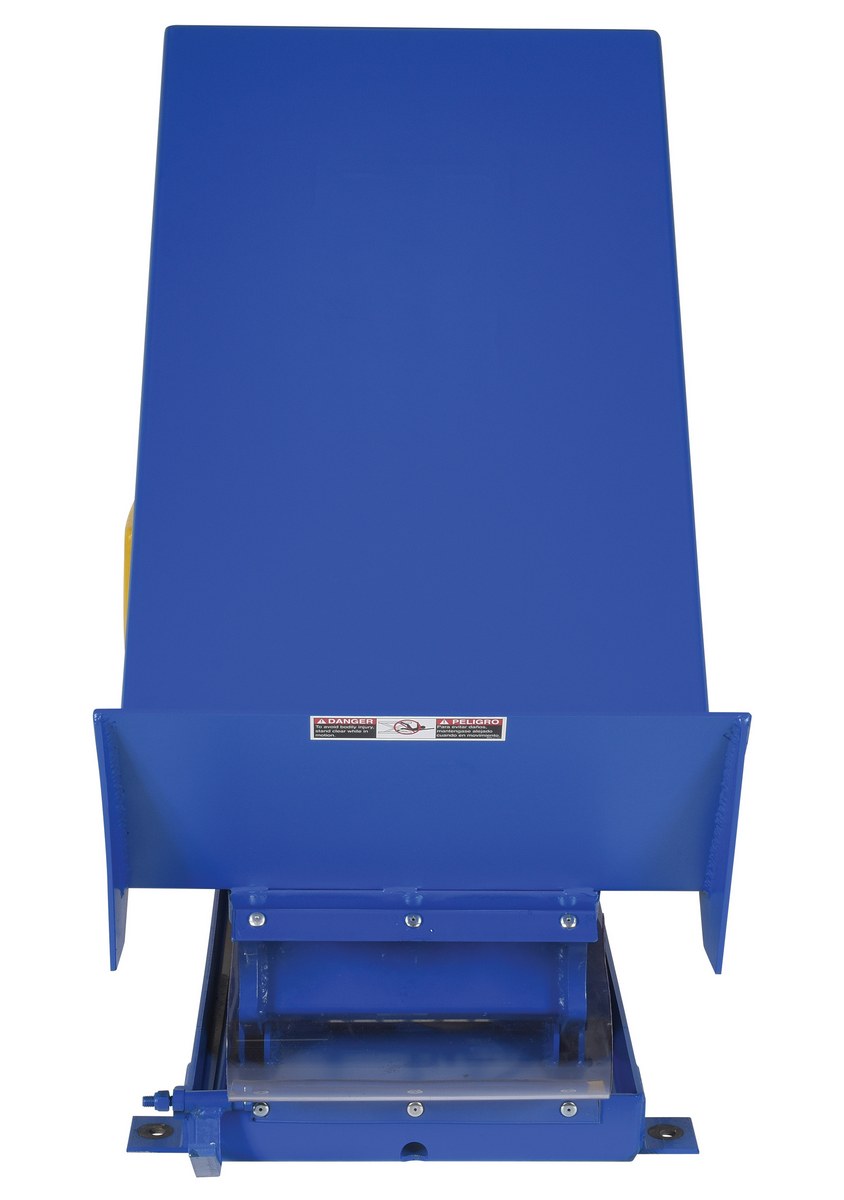

UNI-2448-2-BLU-208-3
UNI-2448-2-BLU-208-3
UNI-2448-2-BLU-230-1
UNI-2448-2-BLU-230-1
UNI-2448-2-BLU-230-3
UNI-2448-2-BLU-230-3
UNI-2448-2-BLU-460-3
UNI-2448-2-BLU-460-3
UNI-2448-2-YEL-115-1
UNI-2448-2-YEL-115-1
UNI-2448-2-YEL-208-3
UNI-2448-2-YEL-208-3
UNI-2448-2-YEL-230-1
UNI-2448-2-YEL-230-1
UNI-2448-2-YEL-230-3
UNI-2448-2-YEL-230-3

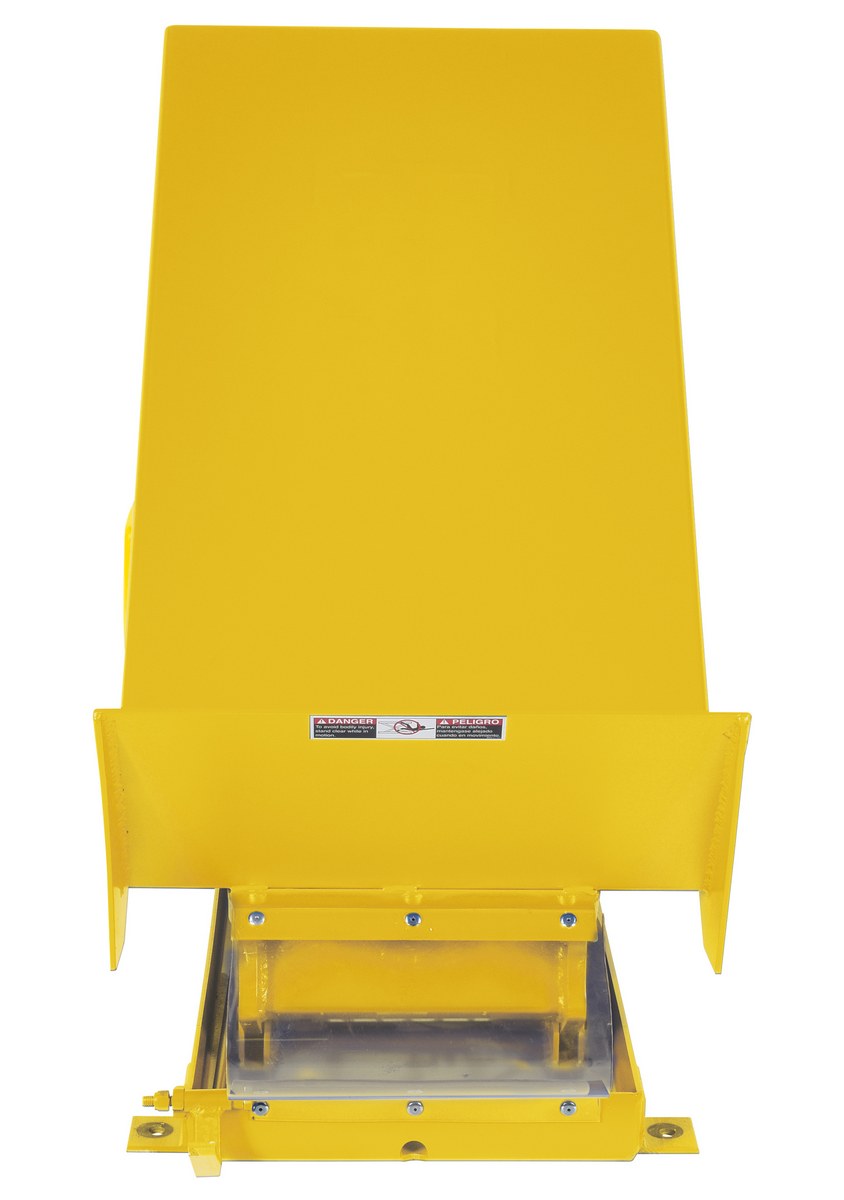

UNI-2448-2-YEL-460-3
UNI-2448-2-YEL-460-3
UNI-2448-4-BLU-115-1
UNI-2448-4-BLU-115-1
UNI-2448-4-BLU-208-3
UNI-2448-4-BLU-208-3
UNI-2448-4-BLU-230-1
UNI-2448-4-BLU-230-1
UNI-2448-4-BLU-230-3
UNI-2448-4-BLU-230-3
UNI-2448-4-BLU-460-3
UNI-2448-4-BLU-460-3
UNI-2448-4-YEL-115-1
UNI-2448-4-YEL-115-1
UNI-2448-4-YEL-208-3
UNI-2448-4-YEL-208-3
UNI-2448-4-YEL-230-1
UNI-2448-4-YEL-230-1
UNI-2448-4-YEL-230-3
UNI-2448-4-YEL-230-3
UNI-2448-4-YEL-460-3
UNI-2448-4-YEL-460-3
UNI-3648-2-BLU-115-1
UNI-3648-2-BLU-115-1
UNI-3648-2-BLU-208-3
UNI-3648-2-BLU-208-3
UNI-3648-2-BLU-230-1
UNI-3648-2-BLU-230-1
UNI-3648-2-BLU-230-3
UNI-3648-2-BLU-230-3
UNI-3648-2-BLU-460-3
UNI-3648-2-BLU-460-3
UNI-3648-2-YEL-115-1
UNI-3648-2-YEL-115-1
UNI-3648-2-YEL-208-3
UNI-3648-2-YEL-208-3
UNI-3648-2-YEL-230-1
UNI-3648-2-YEL-230-1
UNI-3648-2-YEL-230-3
UNI-3648-2-YEL-230-3

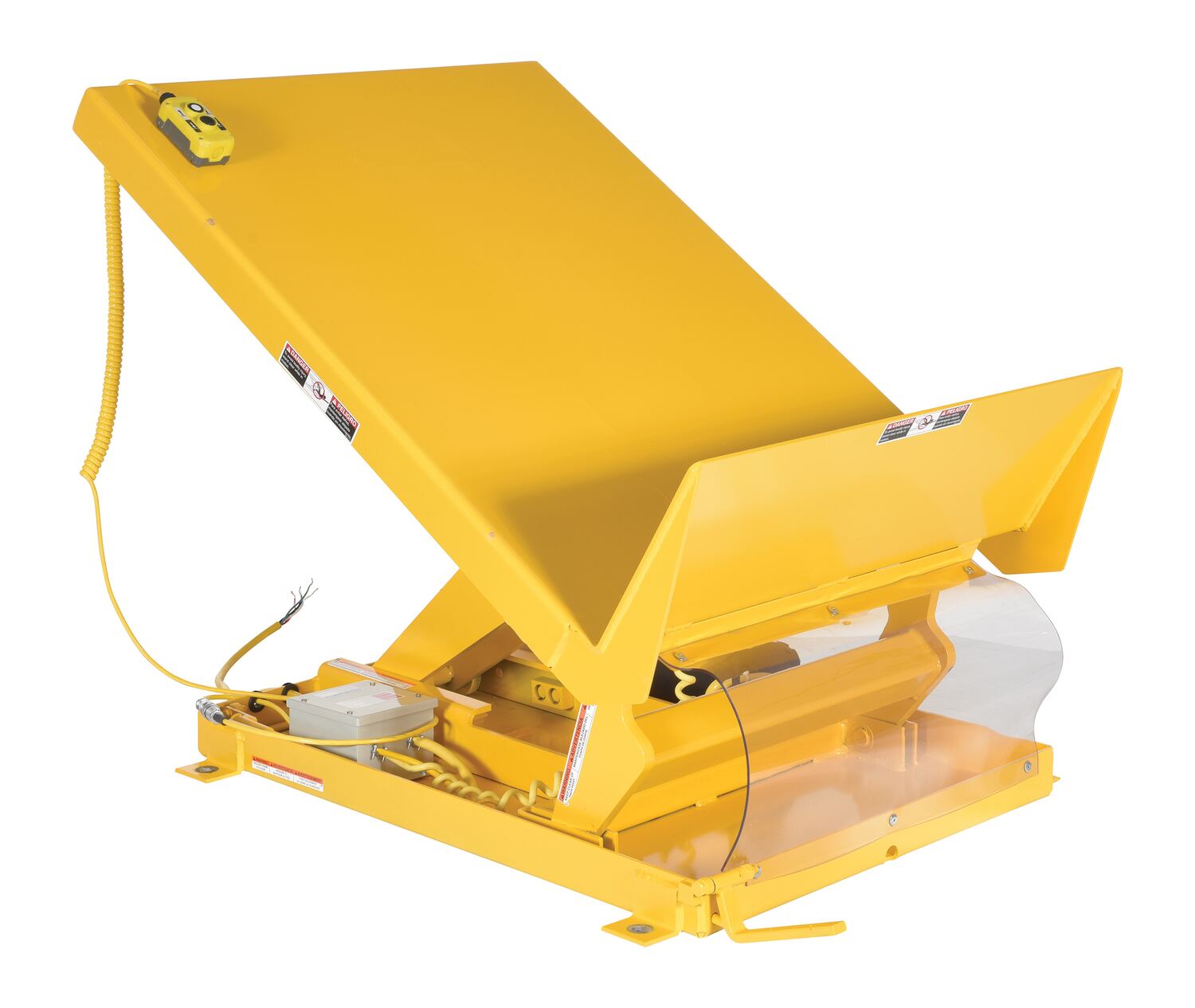

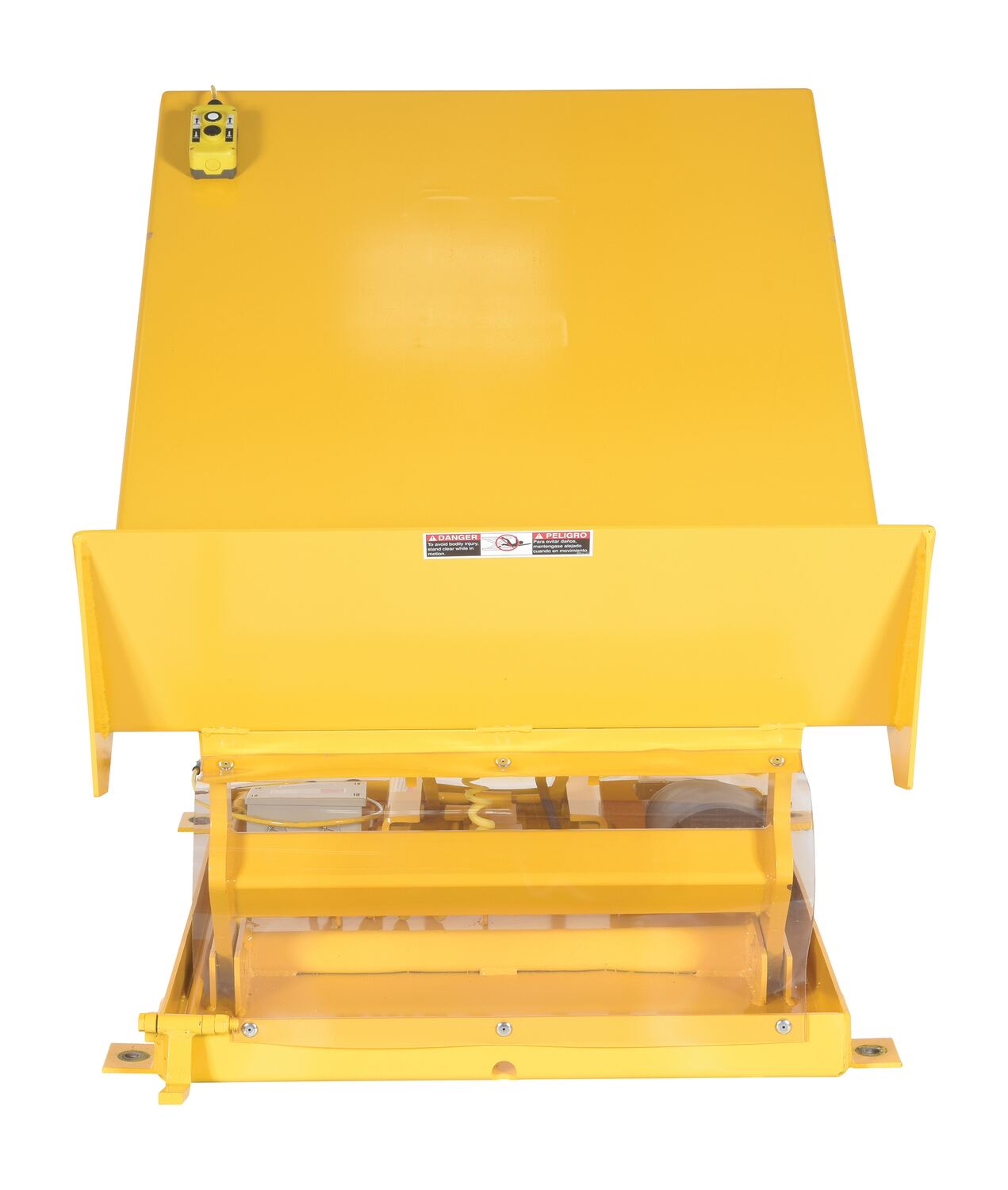

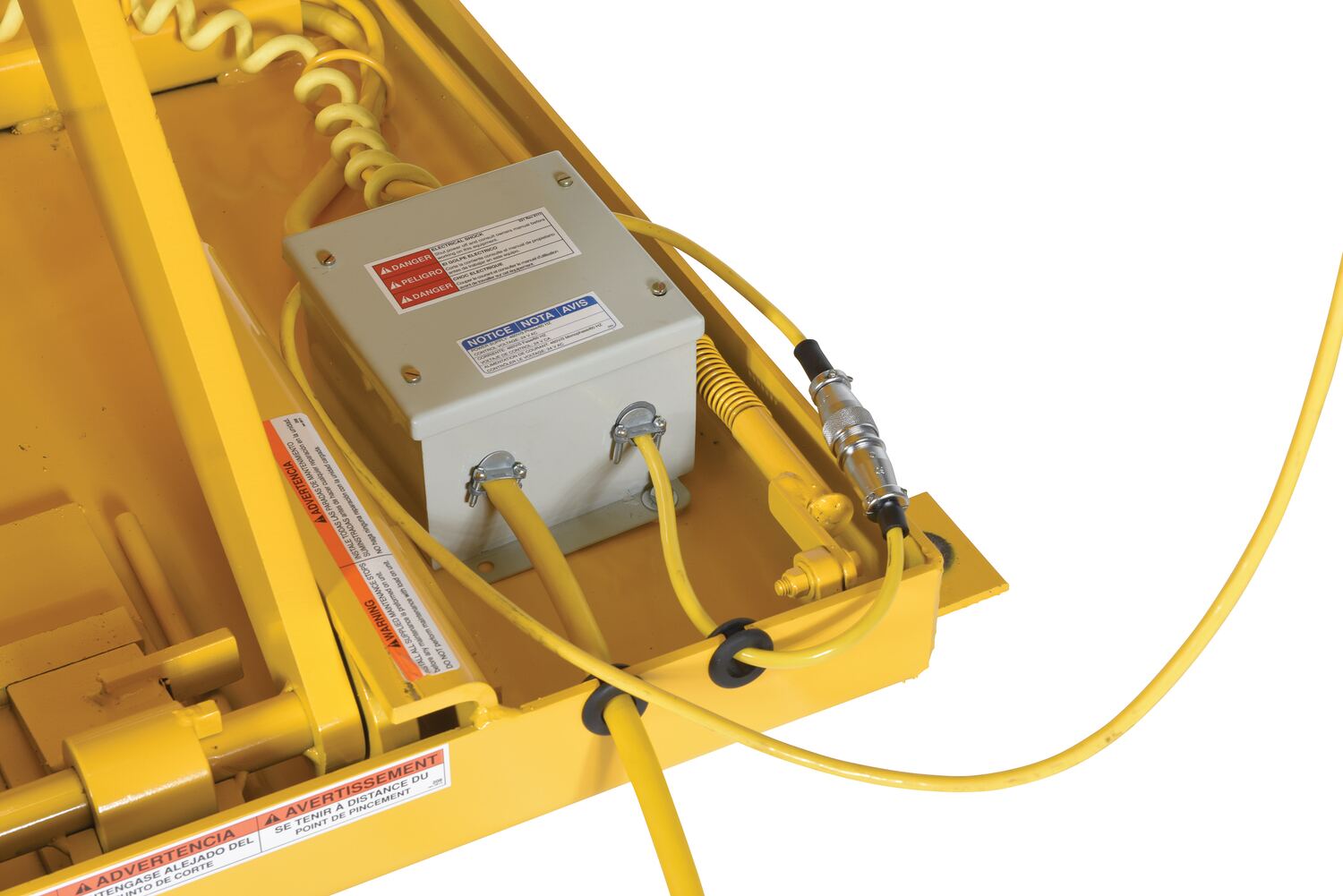

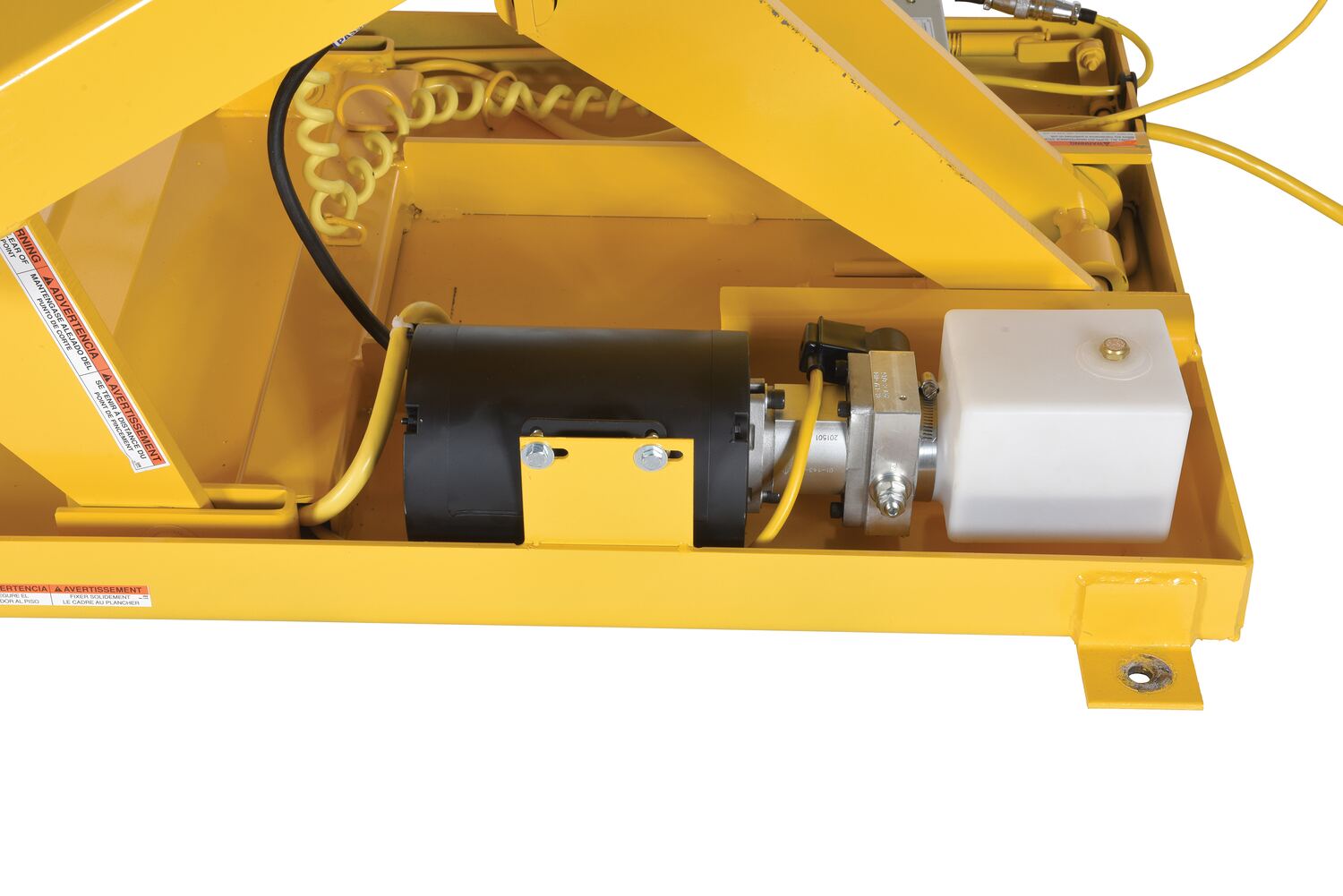

UNI-3648-2-YEL-460-3
UNI-3648-2-YEL-460-3
UNI-3648-4-BLU-115-1
UNI-3648-4-BLU-115-1
UNI-3648-4-BLU-208-3
UNI-3648-4-BLU-208-3
UNI-3648-4-BLU-230-1
UNI-3648-4-BLU-230-1
UNI-3648-4-BLU-230-3
UNI-3648-4-BLU-230-3
UNI-3648-4-BLU-460-3
UNI-3648-4-BLU-460-3
UNI-3648-4-YEL-115-1
UNI-3648-4-YEL-115-1
UNI-3648-4-YEL-208-3
UNI-3648-4-YEL-208-3
UNI-3648-4-YEL-230-1
UNI-3648-4-YEL-230-1
UNI-3648-4-YEL-230-3
UNI-3648-4-YEL-230-3
UNI-3648-4-YEL-460-3
UNI-3648-4-YEL-460-3
UNI-4048-2-BLU-115-1
UNI-4048-2-BLU-115-1
UNI-4048-2-BLU-208-3
UNI-4048-2-BLU-208-3
UNI-4048-2-BLU-230-1
UNI-4048-2-BLU-230-1
UNI-4048-2-BLU-230-3
UNI-4048-2-BLU-230-3
UNI-4048-2-BLU-460-3
UNI-4048-2-BLU-460-3

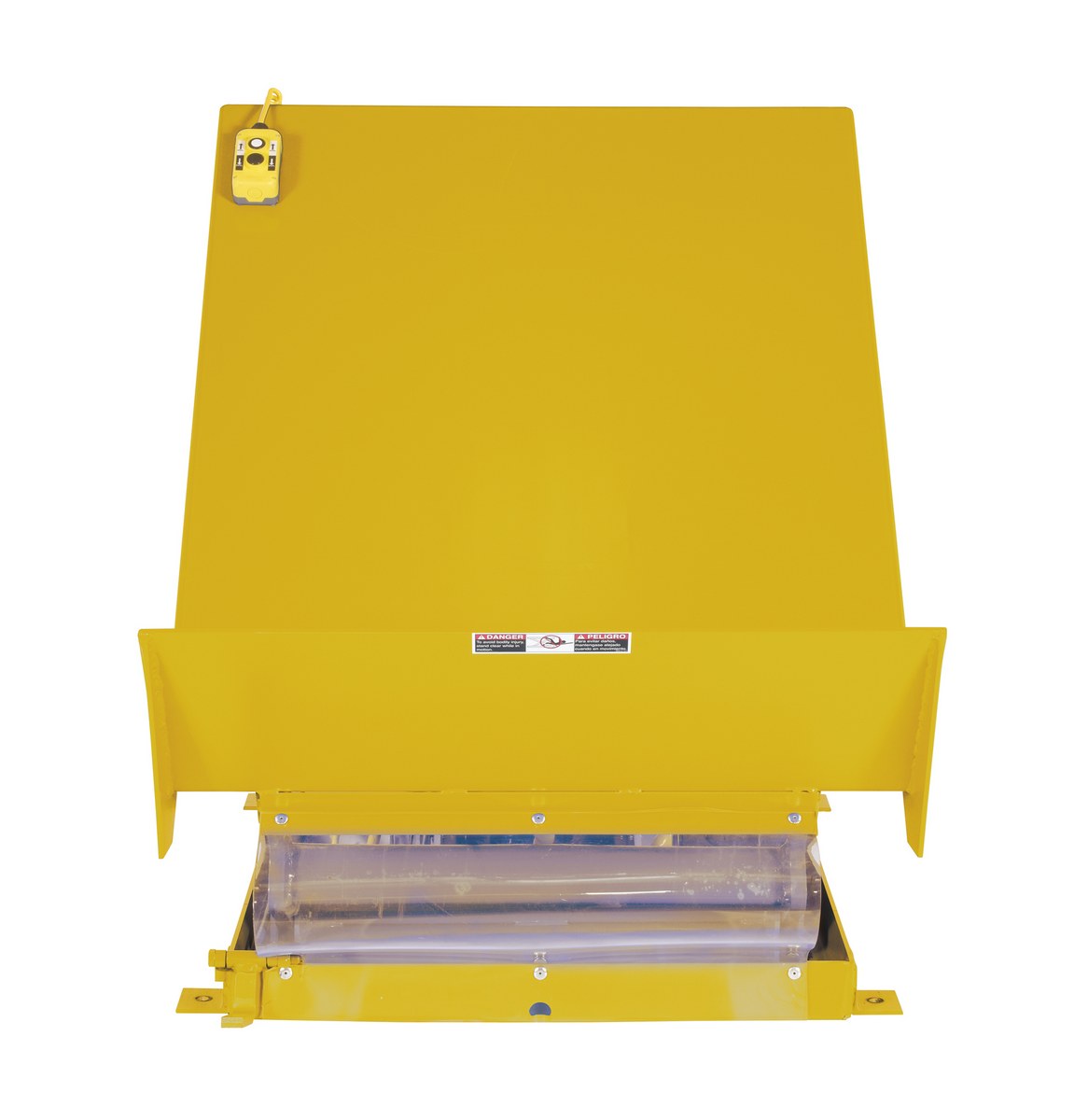

UNI-4048-2-YEL-115-1
UNI-4048-2-YEL-115-1
UNI-4048-2-YEL-208-3
UNI-4048-2-YEL-208-3
UNI-4048-2-YEL-230-1
UNI-4048-2-YEL-230-1
UNI-4048-2-YEL-230-3
UNI-4048-2-YEL-230-3
UNI-4048-2-YEL-460-3
UNI-4048-2-YEL-460-3

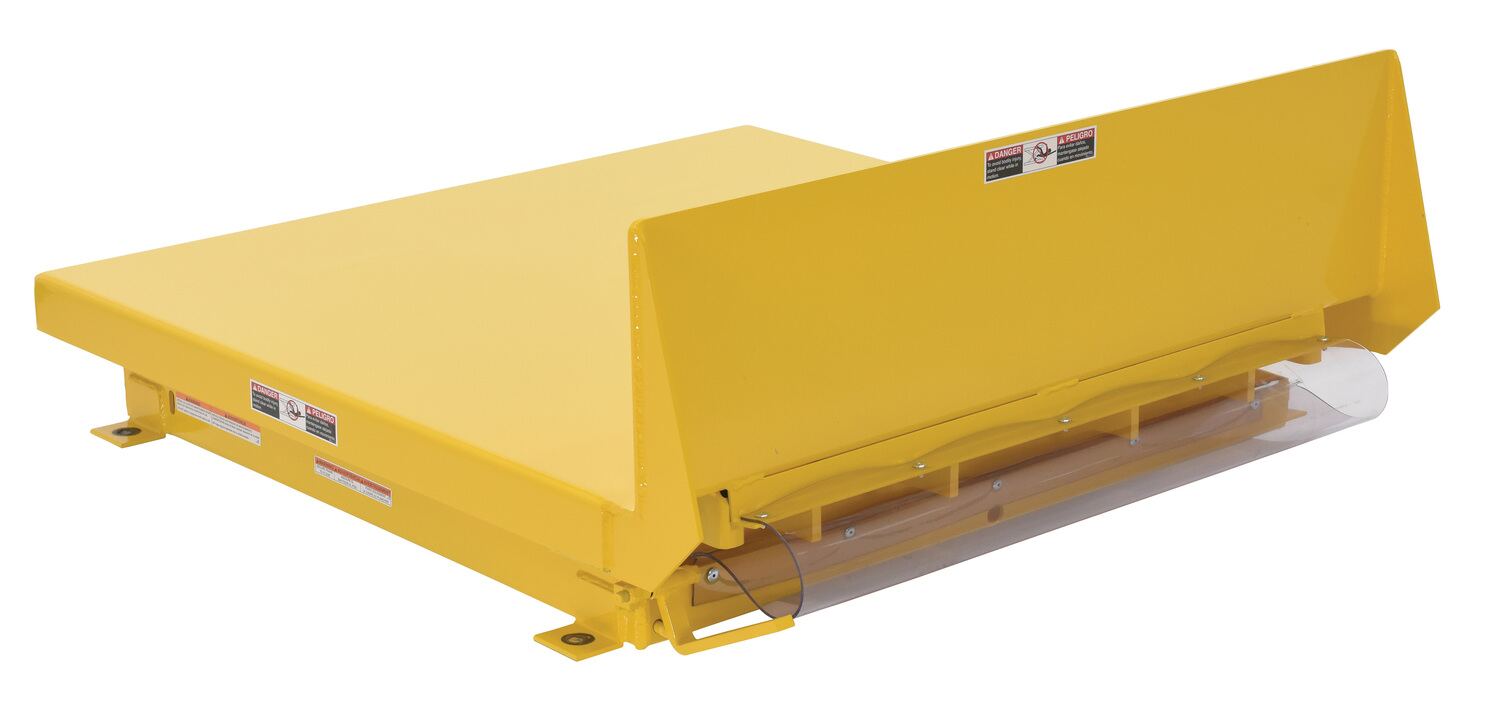

UNI-4048-4-BLU-115-1
UNI-4048-4-BLU-115-1
UNI-4048-4-BLU-208-3
UNI-4048-4-BLU-208-3
UNI-4048-4-BLU-230-1
UNI-4048-4-BLU-230-1
UNI-4048-4-BLU-230-3
UNI-4048-4-BLU-230-3
UNI-4048-4-BLU-460-3
UNI-4048-4-BLU-460-3
UNI-4048-4-YEL-115-1
UNI-4048-4-YEL-115-1
UNI-4048-4-YEL-208-3
UNI-4048-4-YEL-208-3
UNI-4048-4-YEL-230-1
UNI-4048-4-YEL-230-1
UNI-4048-4-YEL-230-3
UNI-4048-4-YEL-230-3
UNI-4048-4-YEL-460-3
UNI-4048-4-YEL-460-3
UNI-4848-2-BLU-115-1
UNI-4848-2-BLU-115-1
UNI-4848-2-BLU-208-3
UNI-4848-2-BLU-208-3
UNI-4848-2-BLU-230-1
UNI-4848-2-BLU-230-1
UNI-4848-2-BLU-230-3
UNI-4848-2-BLU-230-3
UNI-4848-2-BLU-460-3
UNI-4848-2-BLU-460-3
UNI-4848-2-YEL-115-1
UNI-4848-2-YEL-115-1
UNI-4848-2-YEL-208-3
UNI-4848-2-YEL-208-3
UNI-4848-2-YEL-230-1
UNI-4848-2-YEL-230-1
UNI-4848-2-YEL-230-3
UNI-4848-2-YEL-230-3
UNI-4848-2-YEL-460-3
UNI-4848-2-YEL-460-3
UNI-4848-4-BLU-115-1
UNI-4848-4-BLU-115-1
UNI-4848-4-BLU-208-3
UNI-4848-4-BLU-208-3
UNI-4848-4-BLU-230-1
UNI-4848-4-BLU-230-1
UNI-4848-4-BLU-230-3
UNI-4848-4-BLU-230-3
UNI-4848-4-BLU-460-3
UNI-4848-4-BLU-460-3
UNI-4848-4-YEL-115-1
UNI-4848-4-YEL-115-1
UNI-4848-4-YEL-208-3
UNI-4848-4-YEL-208-3
UNI-4848-4-YEL-230-1
UNI-4848-4-YEL-230-1
UNI-4848-4-YEL-230-3
UNI-4848-4-YEL-230-3
UNI-4848-4-YEL-460-3
UNI-4848-4-YEL-460-3
UNI-4848-6-BLU-115-1
UNI-4848-6-BLU-115-1
UNI-4848-6-BLU-208-3
UNI-4848-6-BLU-208-3
UNI-4848-6-BLU-230-1
UNI-4848-6-BLU-230-1
UNI-4848-6-BLU-460-3
UNI-4848-6-BLU-460-3
UNI-4848-6-YEL-115-1
UNI-4848-6-YEL-115-1
UNI-4848-6-YEL-208-3
UNI-4848-6-YEL-208-3
UNI-4848-6-YEL-230-1
UNI-4848-6-YEL-230-1
UNI-4848-6-YEL-230-3
UNI-4848-6-YEL-230-3

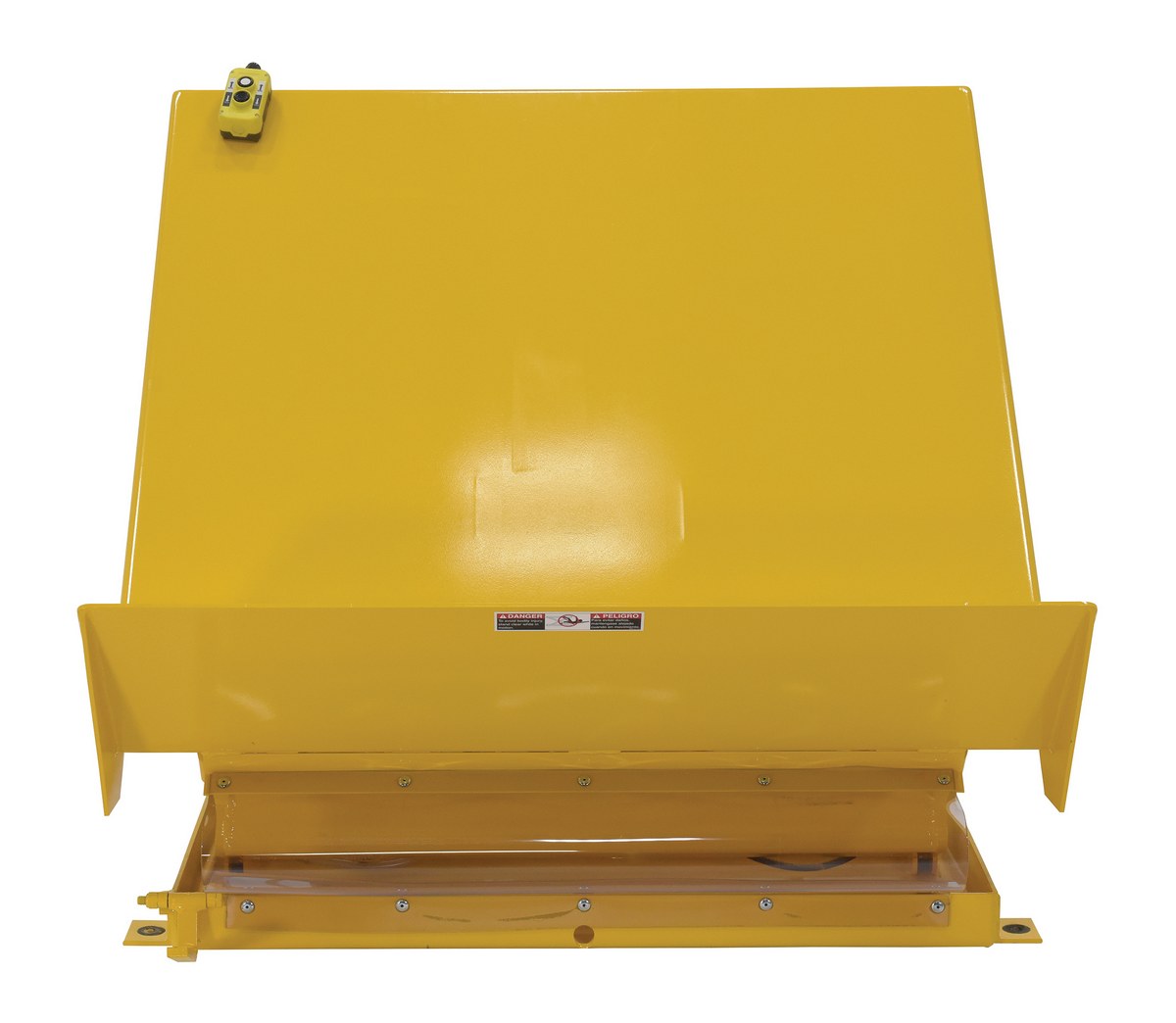

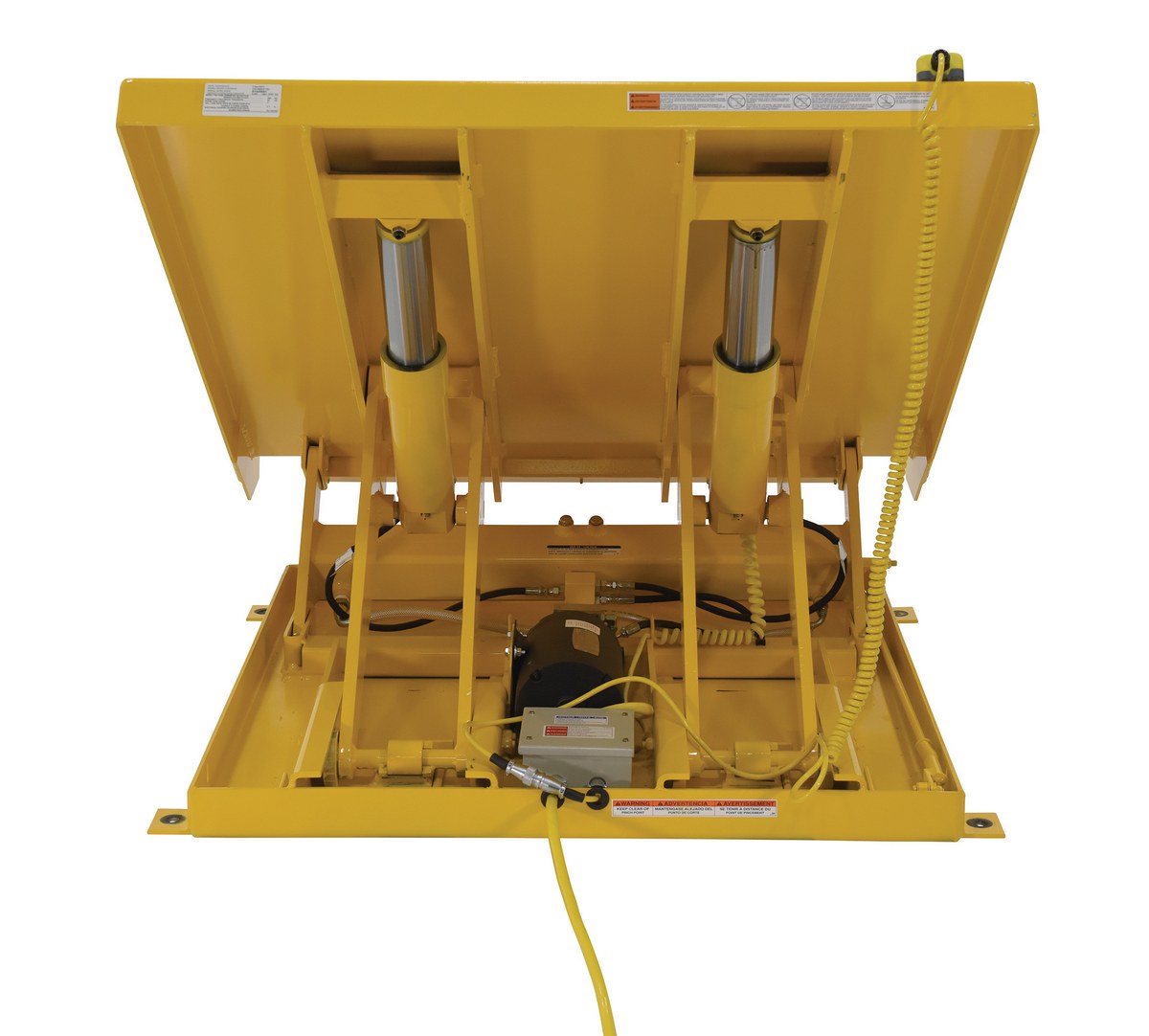

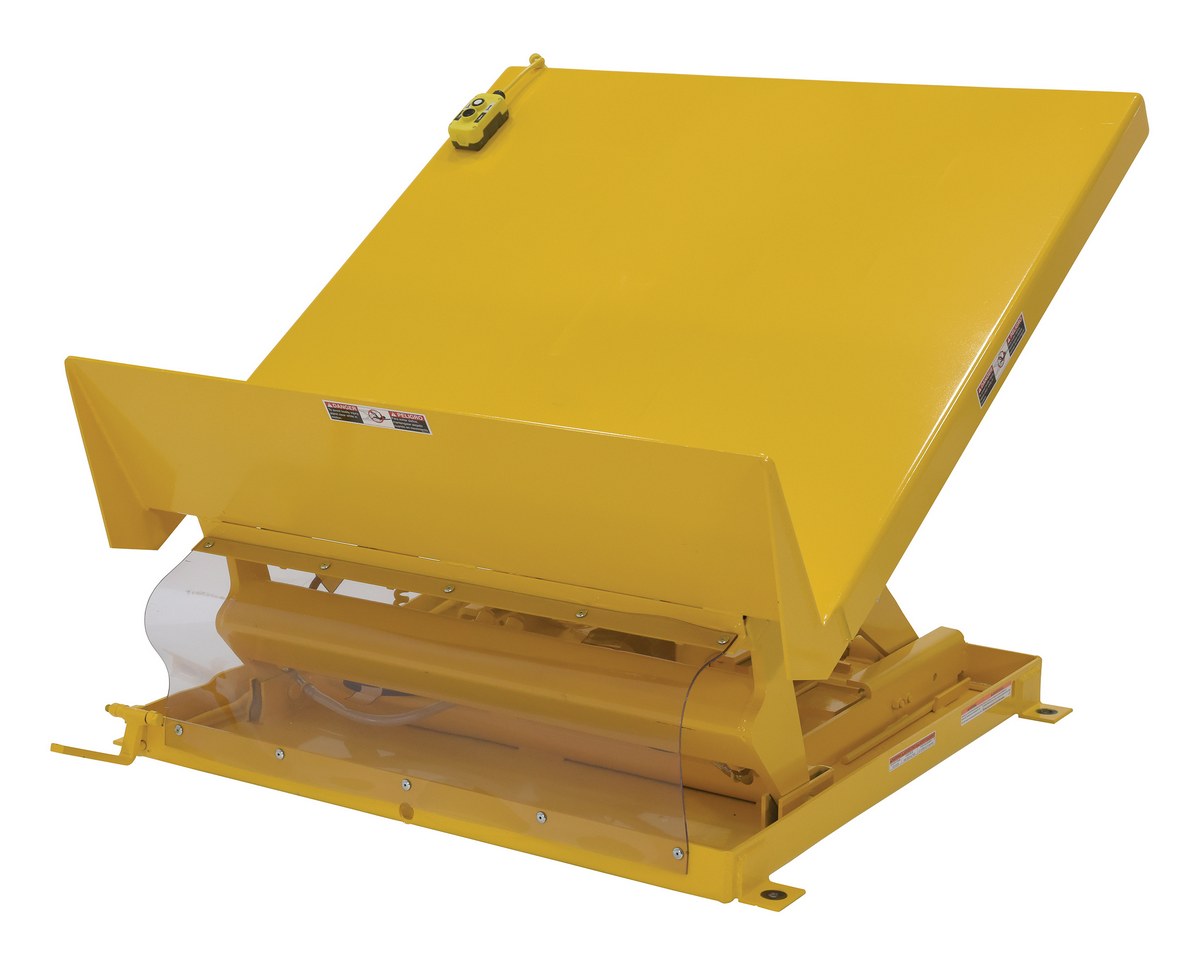

UNI-4848-6-YEL-460-3
UNI-4848-6-YEL-460-3
UNI-4848-6-YEL-460-3
UNI-4848-6-YEL-460-3
UNI-4848-6-YEL-460-3
UNI-4848-6-YEL-460-3
UNI-4848-6-YEL-460-3
UNI-4848-6-YEL-460-3
UNI-5448-2-BLU-115-1
UNI-5448-2-BLU-115-1
UNI-5448-2-BLU-208-3
UNI-5448-2-BLU-208-3
UNI-5448-2-BLU-230-1
UNI-5448-2-BLU-230-1

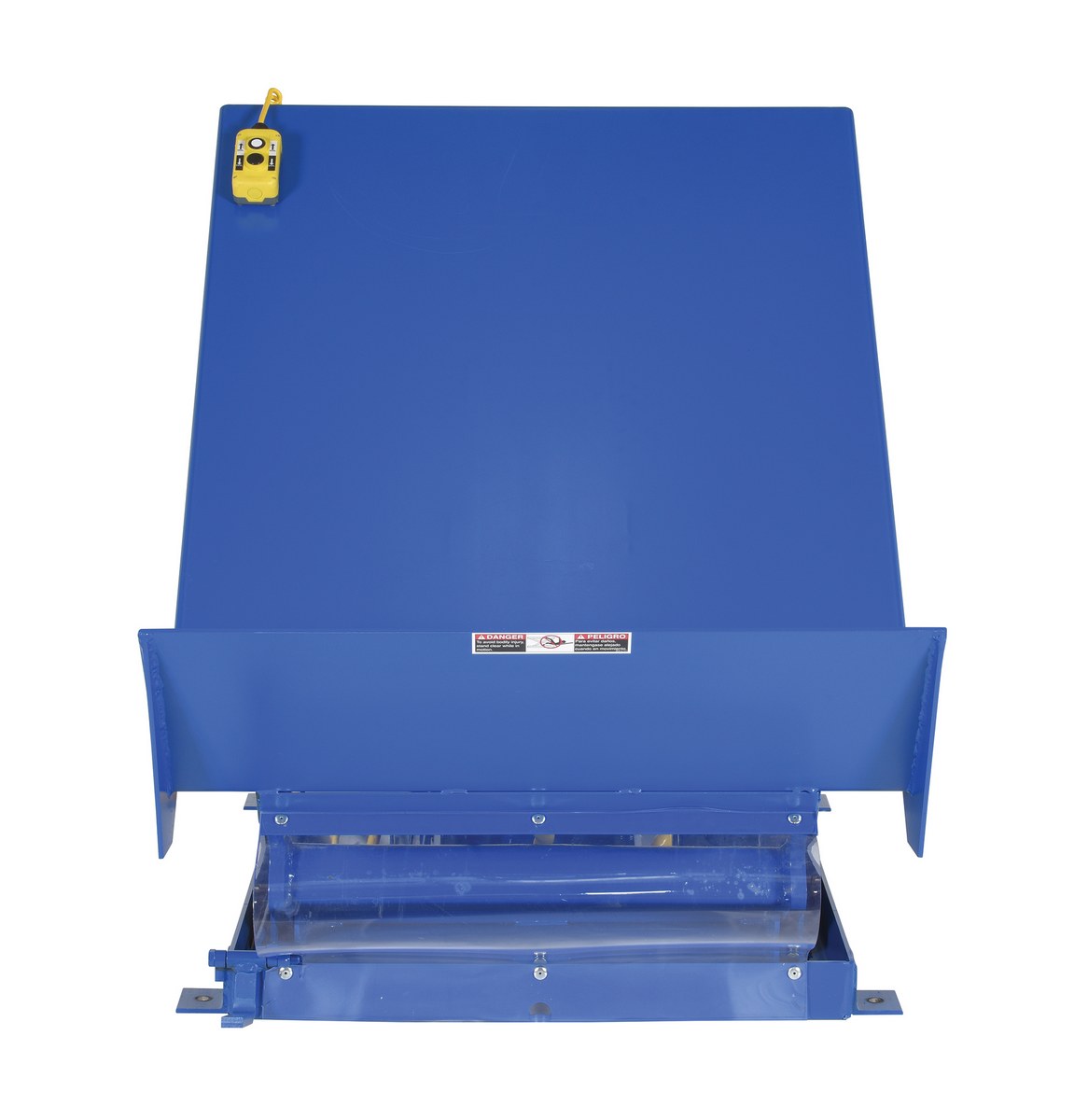

UNI-5448-2-BLU-230-3
UNI-5448-2-BLU-230-3
UNI-5448-2-BLU-460-3
UNI-5448-2-BLU-460-3
UNI-5448-2-YEL-115-1
UNI-5448-2-YEL-115-1
UNI-5448-2-YEL-208-3
UNI-5448-2-YEL-208-3
UNI-5448-2-YEL-230-1
UNI-5448-2-YEL-230-1
UNI-5448-2-YEL-230-3
UNI-5448-2-YEL-230-3
UNI-5448-2-YEL-460-3
UNI-5448-2-YEL-460-3
UNI-5448-4-BLU-115-1
UNI-5448-4-BLU-115-1
UNI-5448-4-BLU-208-3
UNI-5448-4-BLU-208-3
UNI-5448-4-BLU-230-1
UNI-5448-4-BLU-230-1
UNI-5448-4-BLU-230-3
UNI-5448-4-BLU-230-3

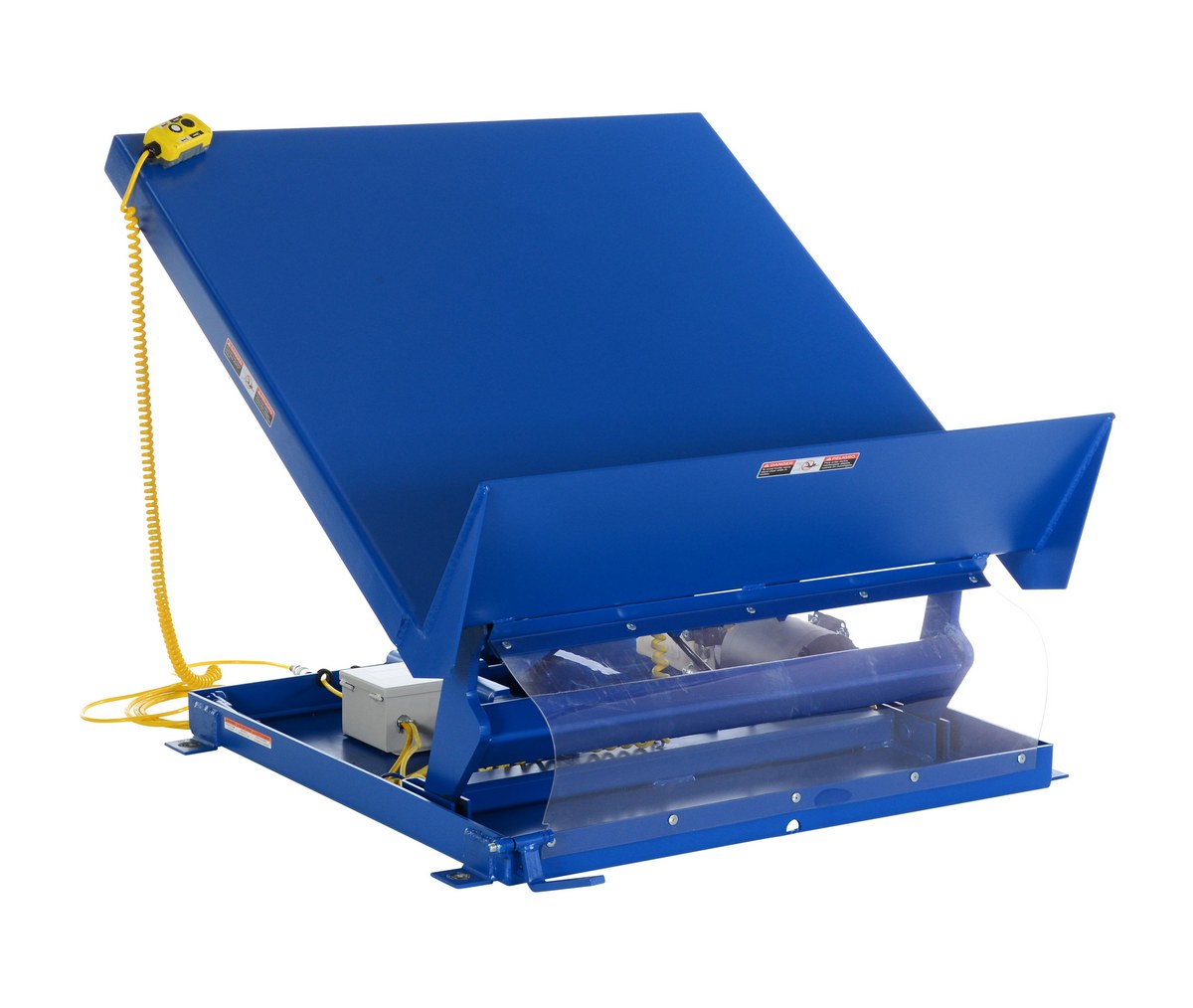

UNI-5448-4-BLU-460-3
UNI-5448-4-BLU-460-3
UNI-5448-4-YEL-115-1
UNI-5448-4-YEL-115-1
UNI-5448-4-YEL-208-3
UNI-5448-4-YEL-208-3
UNI-5448-4-YEL-230-1
UNI-5448-4-YEL-230-1
UNI-5448-4-YEL-230-3
UNI-5448-4-YEL-230-3
UNI-5448-4-YEL-460-3
UNI-5448-4-YEL-460-3
UNI-5448-6-BLU-115-1
UNI-5448-6-BLU-115-1
UNI-5448-6-BLU-208-3
UNI-5448-6-BLU-208-3
UNI-5448-6-BLU-230-1
UNI-5448-6-BLU-230-1
UNI-5448-6-BLU-230-3
UNI-5448-6-BLU-230-3
UNI-5448-6-BLU-460-3
UNI-5448-6-BLU-460-3
UNI-5448-6-YEL-115-1
UNI-5448-6-YEL-115-1

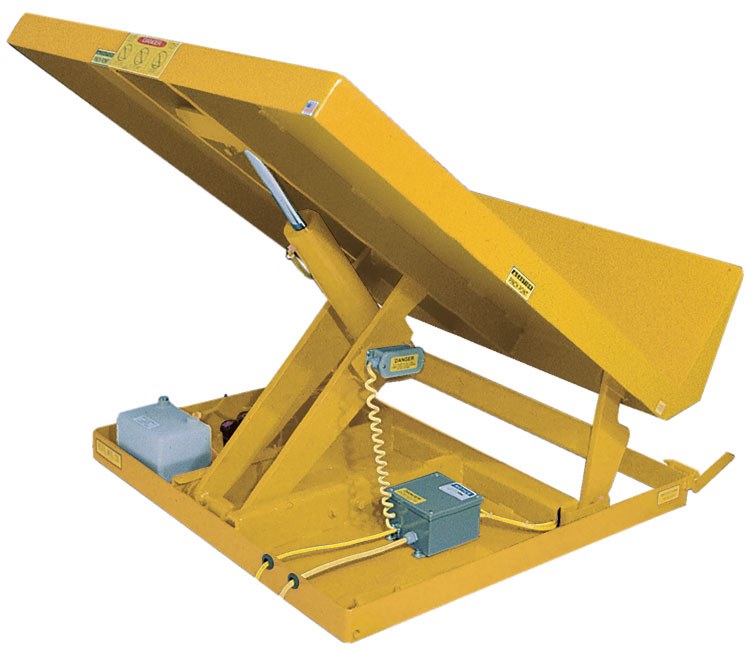

UNI-5448-6-YEL-208-3
UNI-5448-6-YEL-208-3
UNI-5448-6-YEL-230-1
UNI-5448-6-YEL-230-1
UNI-5448-6-YEL-230-3
UNI-5448-6-YEL-230-3
UNI-5448-6-YEL-460-3
UNI-5448-6-YEL-460-3

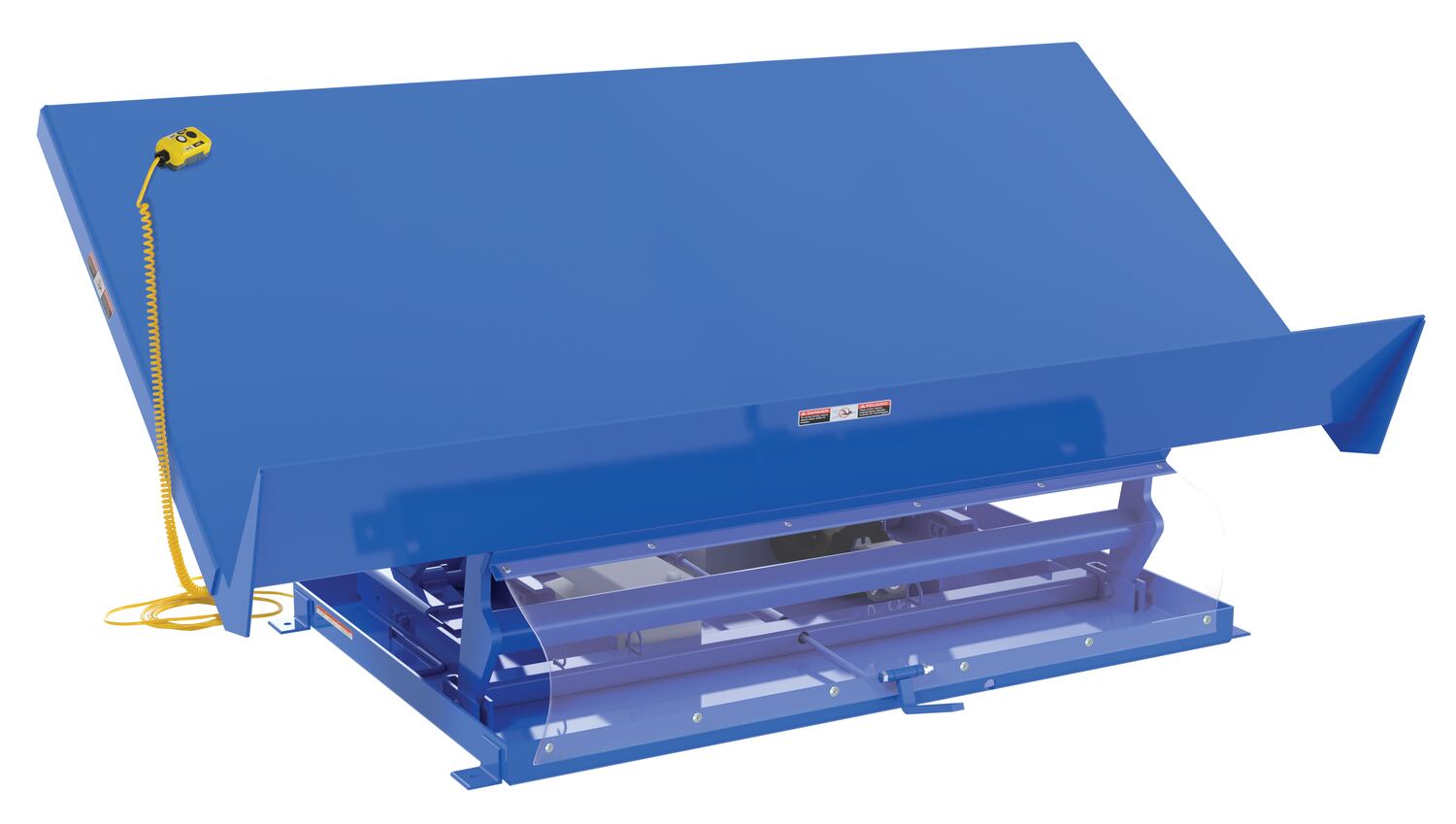

UNI-9648-4-BLU-115-1
UNI-9648-4-BLU-115-1
UNI-9648-4-BLU-208-3
UNI-9648-4-BLU-208-3
UNI-9648-4-BLU-230-3
UNI-9648-4-BLU-230-3
UNI-9648-4-BLU-460-3
UNI-9648-4-BLU-460-3

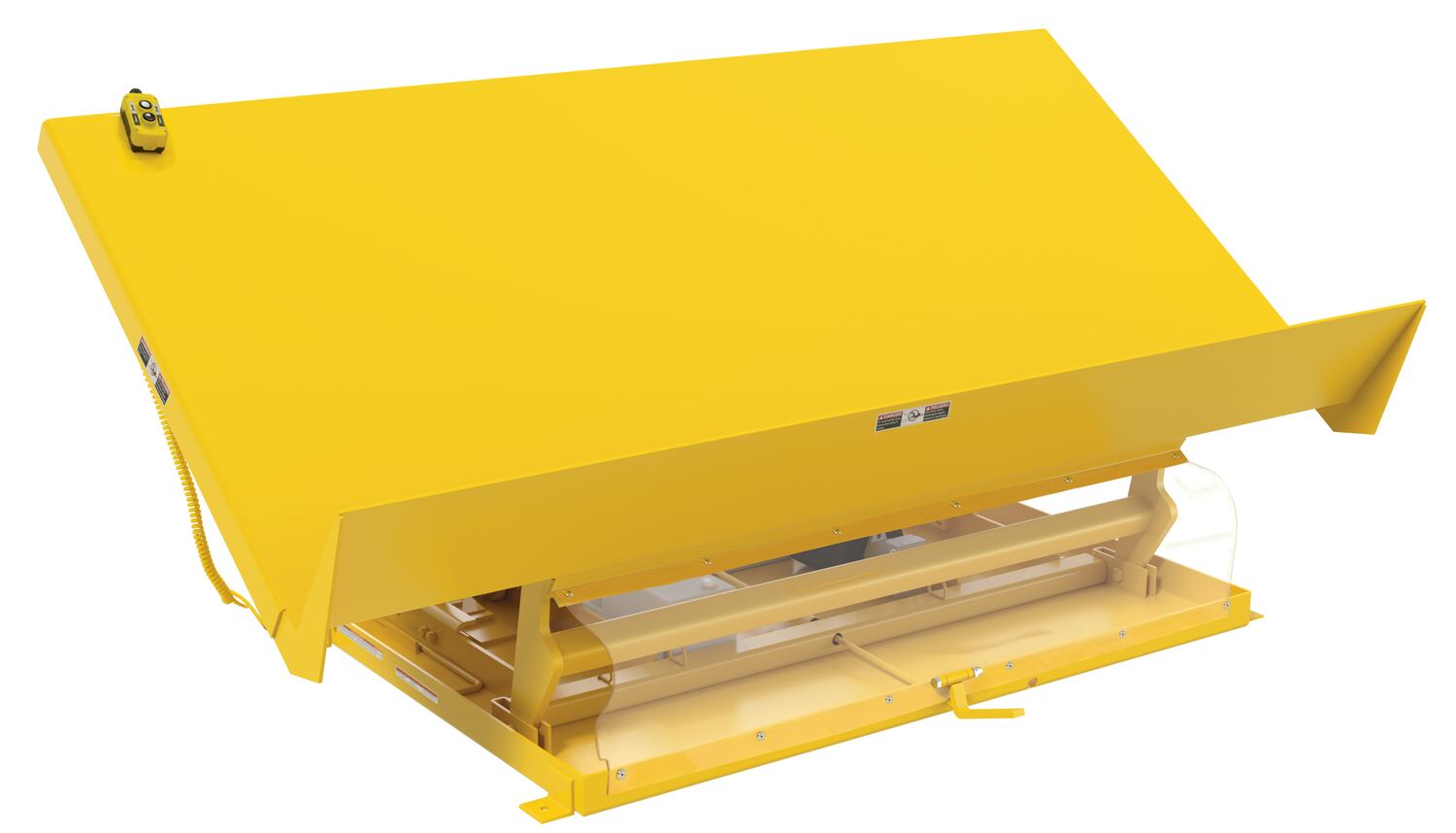

UNI-9648-4-YEL-115-1
