Product Family Overview

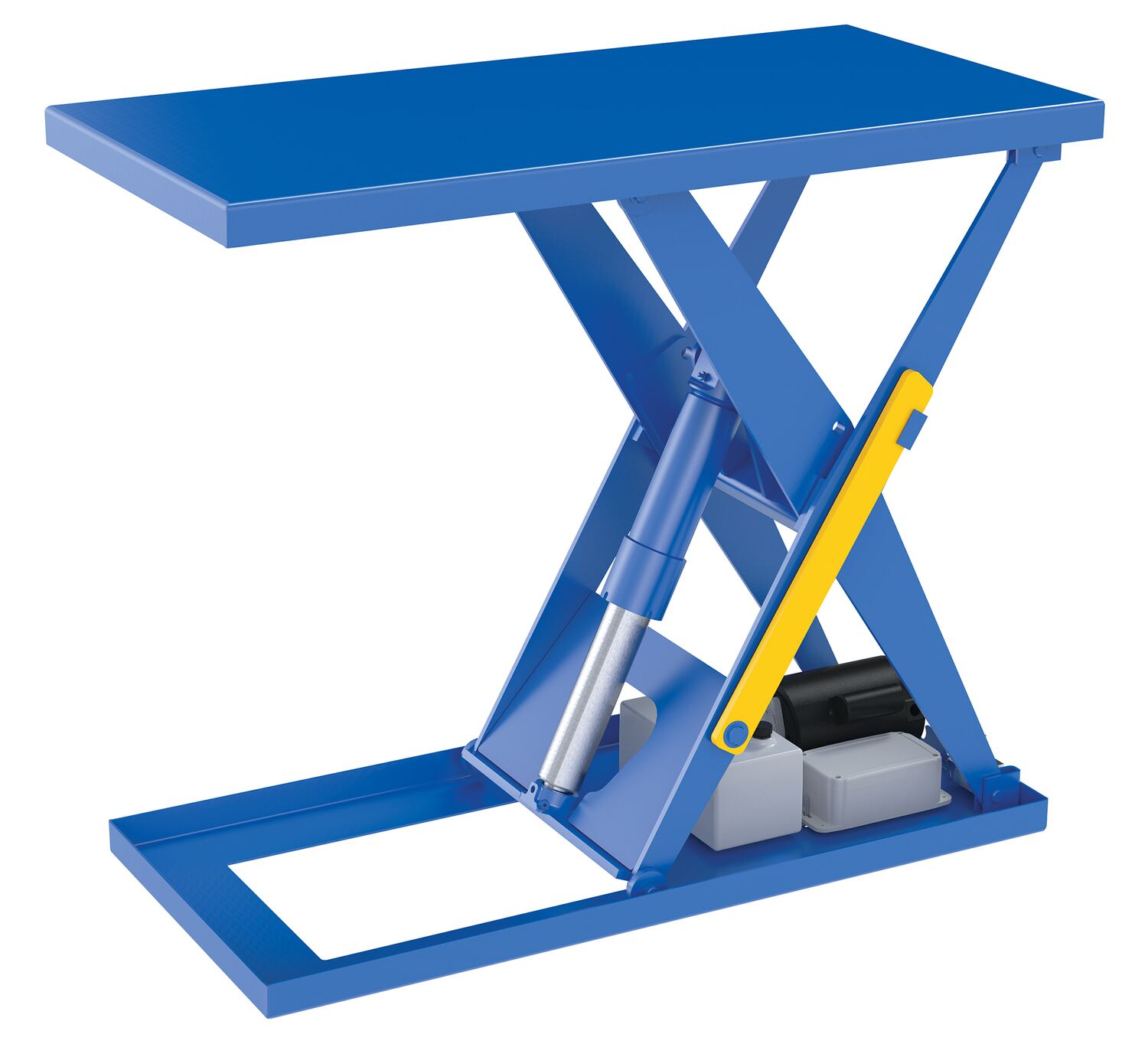

Economy Electric/Hydraulic Lift Table
SERIES: EHLT-E

An electric hydraulic lift table is an efficient addition to a variety of manufacturing and shipping facilities. With an economical design, the 2,000 lb. capacity table lifts and supports items both large and small. The raising and lowering of the table is completed by a push button hand control that allows the user to maintain a safe distance from the actively moving table. An upper travel limit switch is engaged when the table reaches its maximum height, preventing any over extension. With safety always being the number one priority, an internal safety velocity fuse maintains platform height in the event of a hose or fitting failure.

  • Open design for loading and unloading from all four sides
  • Welded steel construction
  • Safety maintenance prop included
  • Internal power unit

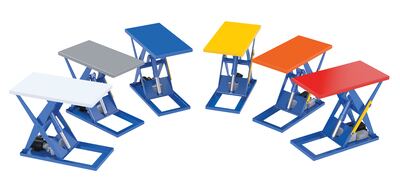

Custom Deck Colors Available

An electric hydraulic lift table is an efficient addition to a variety of manufacturing and shipping facilities. With an economical design, the 2,000 lb. capacity table lifts and supports items both large and small. The raising and lowering of the table is completed by a push button hand control that allows the user to maintain a safe distance from the actively moving table. An upper travel limit switch is engaged when the table reaches its maximum height, preventing any over extension. With safety always being the number one priority, an internal safety velocity fuse maintains platform height in the event of a hose or fitting failure.

  • Open design for loading and unloading from all four sides
  • Welded steel construction
  • Safety maintenance prop included
  • Internal power unit


Custom Deck Colors Available

Model Specific Details




All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.
The Search Box below is within the Model Chart on this page. Not an entire site search.
Model # PDF's Description Attributes Net Wt.
(lbs)
EHLT-E-2448-2-41 EHLT-E-2448-2-411 Year Limited WarrantySteel Economical Electric Hydraulic Lift Table 24 In. x 48 In. 2000 Lb. Capacity BlueUniform Capacity (lbs.): 2,000
Platform Length (in): 48
330

KEY: = Expand Model Details = 48hr Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= Approval Drawing = Testing Certificate Warranty

If you did not find an expected Model or SKU # in the table, try the Options Section Below
No Model Numbers Associated To This Product Page

For More Details then the Option chart below provides, Click the blue button below, w/ the Model Number you want details for
No Options Exclusive To This Product Family

EHLT-E
Economy Electric/Hydraulic Lift Table Mailing Brochure
If you did not find an expected Model or SKU # in this table, try the Product Specifications Section Above


Economy Electric/Hydraulic Lift Table PDF's will open in a new window when clicked.

Manuals

No Owners Manuals For This Product


Survey Sheets

No Survey Sheets For This Product


Approval Drawings

No Approval Drawings For This Product

Testing Certificates

No Testing Certificates For This Product

SDS Sheets

No SDS Sheets For This Product

Other PDF's

No "Other PDFs" For This Product...


Directory Links Of Available PDF's For All Products

Before placing an order, please confirm that the ship to company is able to receive shipments on the estimated delivery date





Economy Electric/Hydraulic Lif...




An electric hydraulic lift table is an efficient addition to a variety of manufacturing and shipping facilities. With an economical design, the 2,000 lb. capacity table lifts and supports items both large and small. The raising and lowering of the table is completed by a push button hand control that allows the user to maintain a safe distance from the actively moving table. An upper travel limit switch is engaged when the table reaches its maximum height, preventing any over extension. With safety always being the number one priority, an internal safety velocity fuse maintains platform height in the event of a hose or fitting failure.

  • Open design for loading and unloading from all four sides
  • Welded steel construction
  • Safety maintenance prop included
  • Internal power unit


Custom Deck Colors Available


Economy Electric/Hydraulic Lift Table
Model Image Deck Size
(WxL)
Service
Range
Capacity
(lbs)
Wt.
(lbs)
EHLT-E-2448-2-41 24"x48" 8" to 41" 2,000 330

Options


EHLT-E
Economy Electric/Hydraulic Lift Table Mailing Brochure
