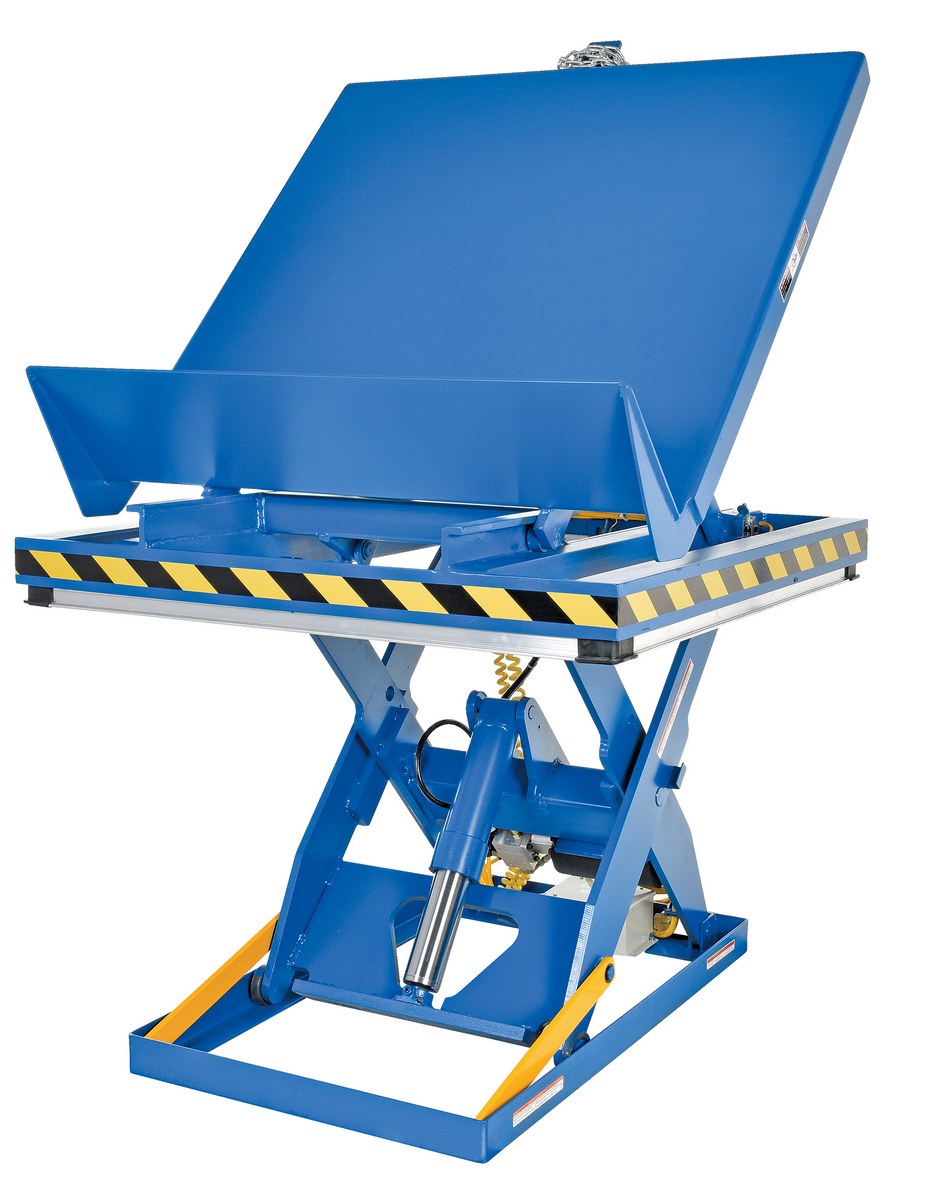

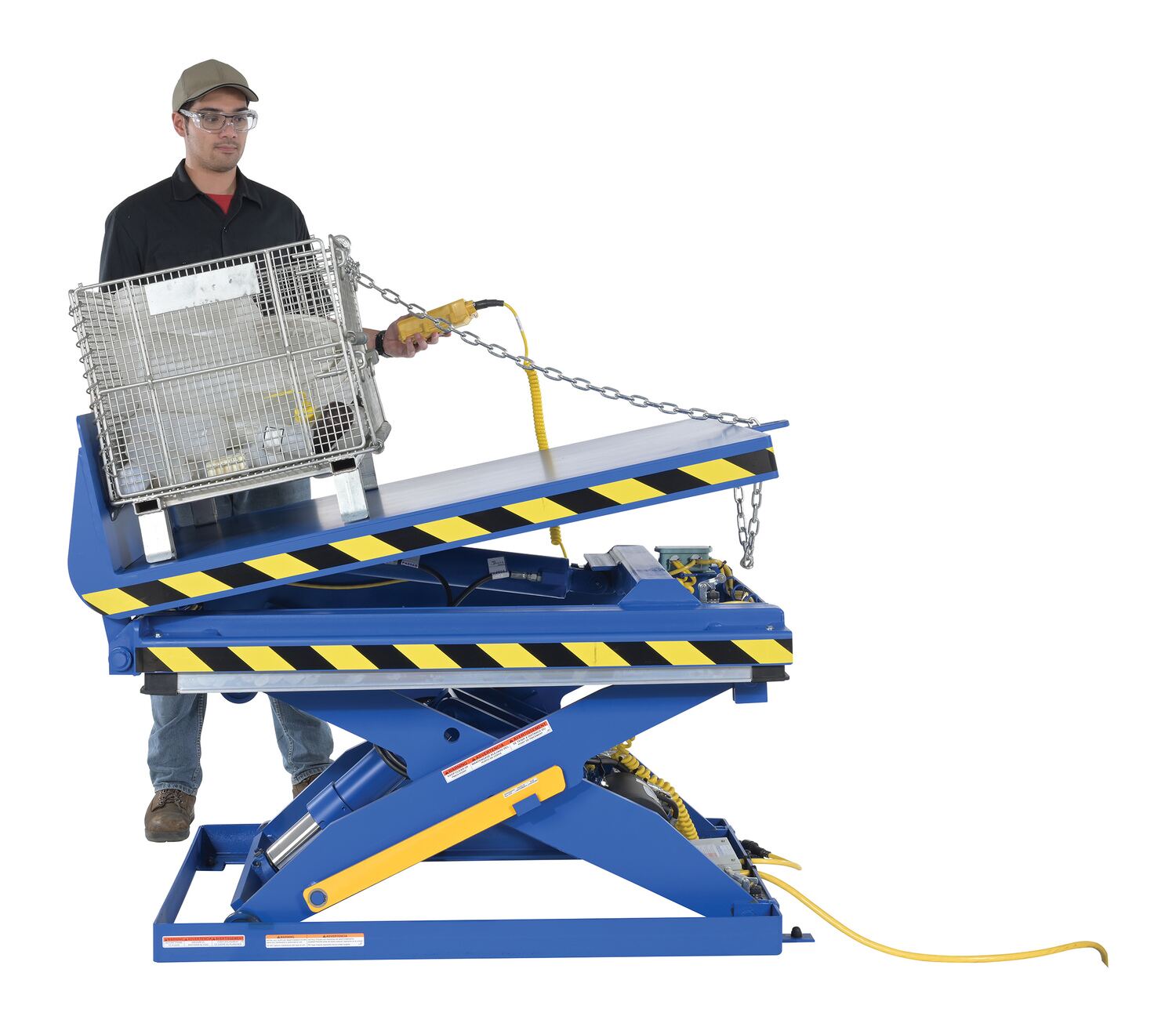

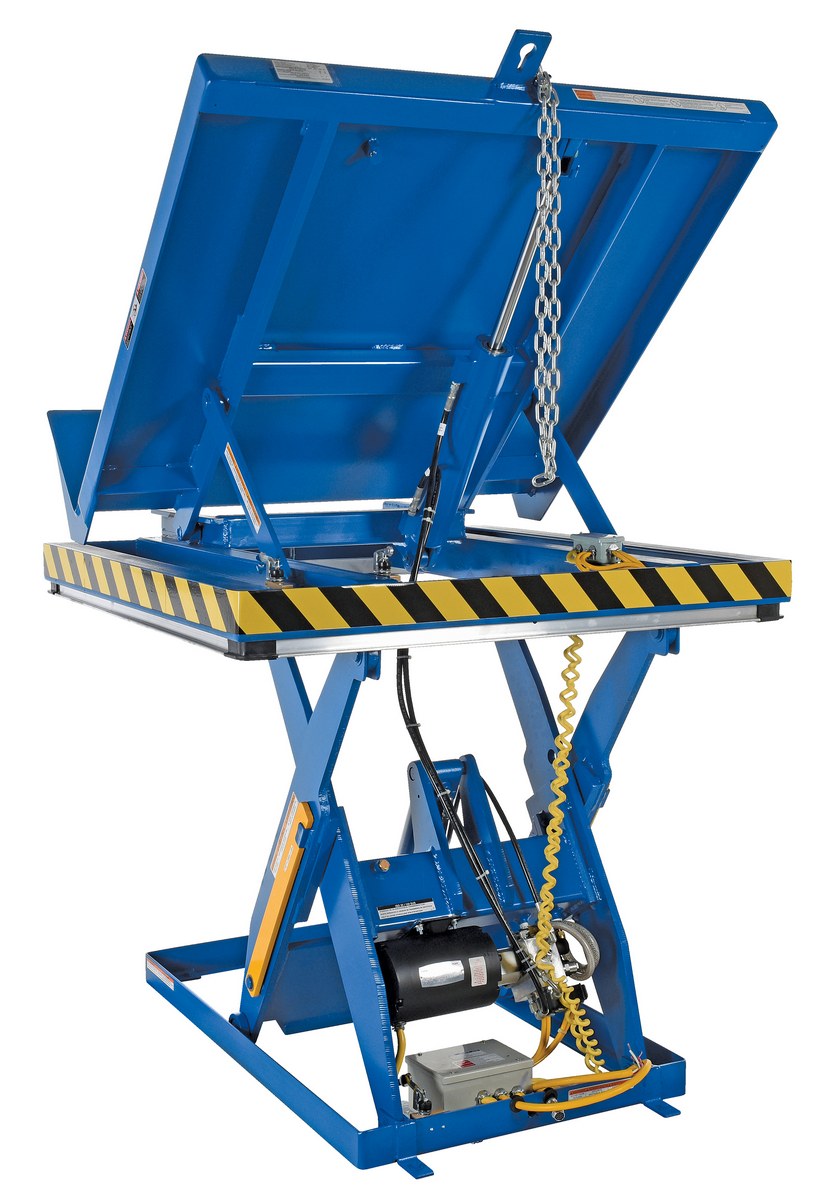

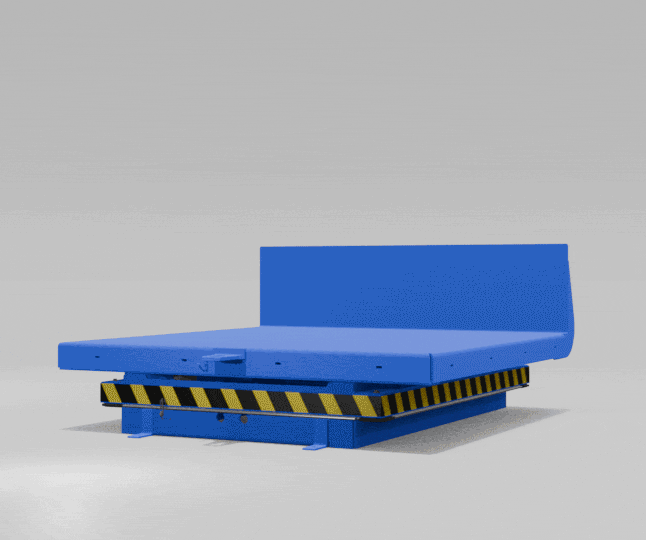

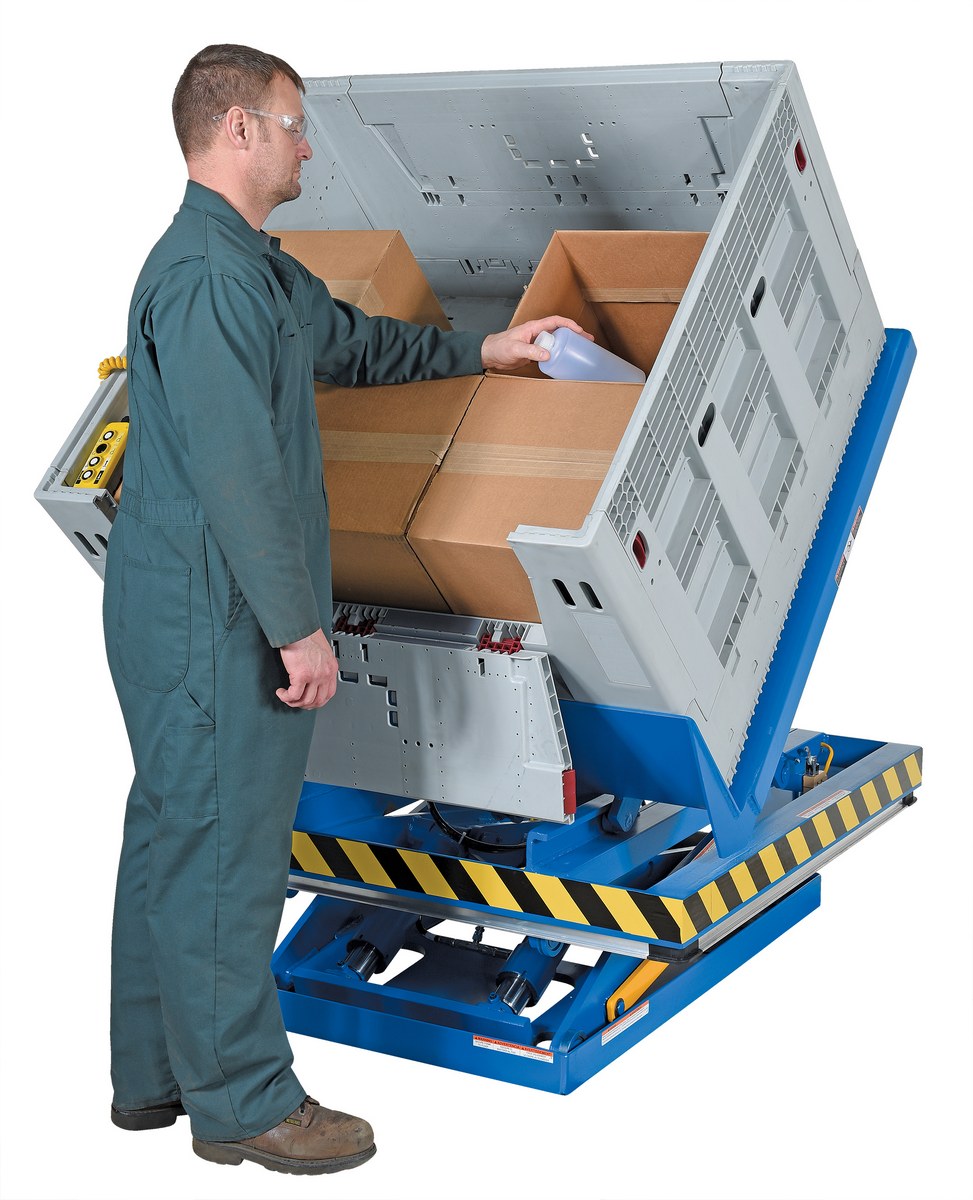

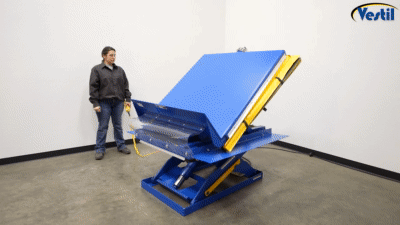

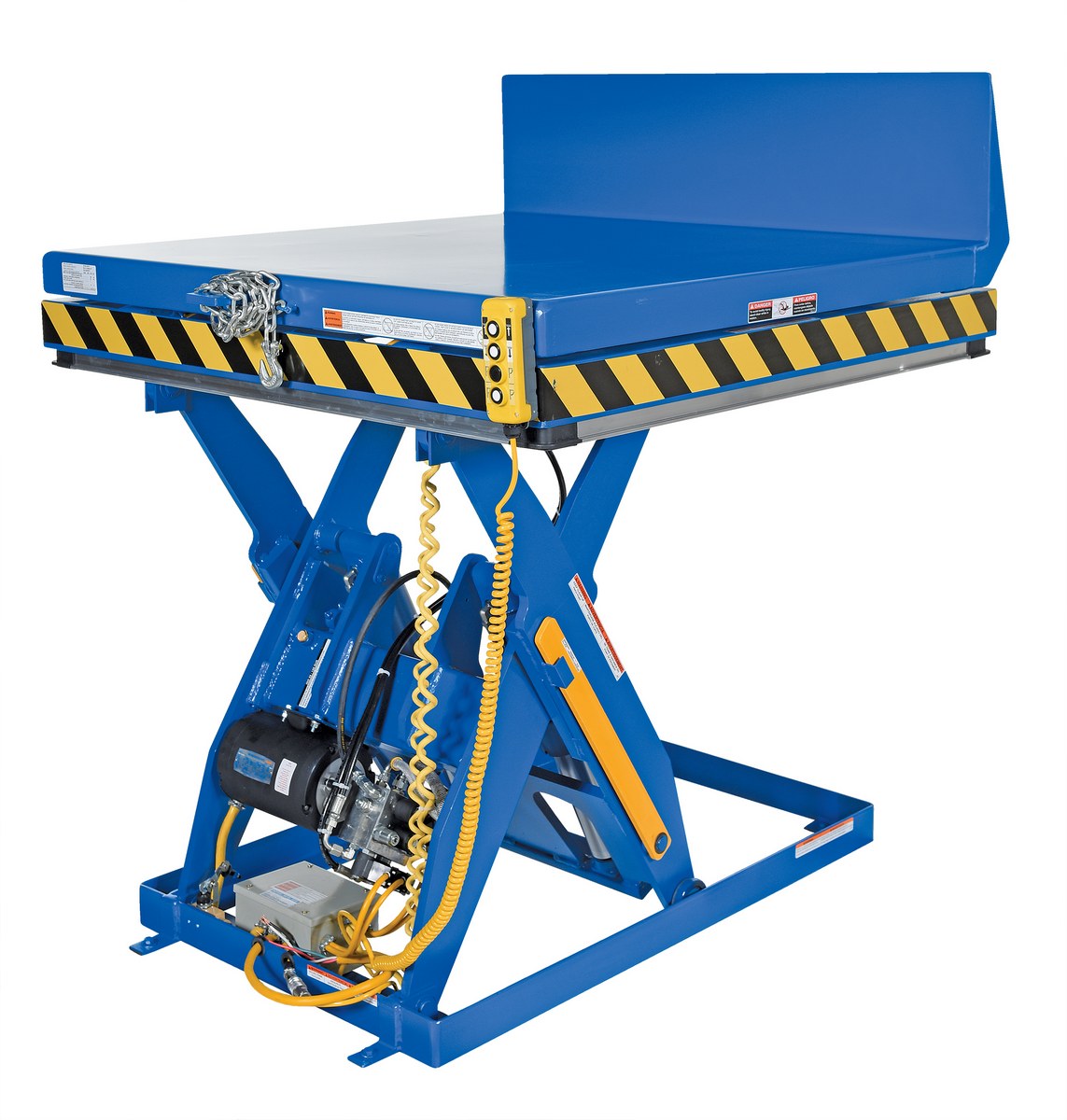

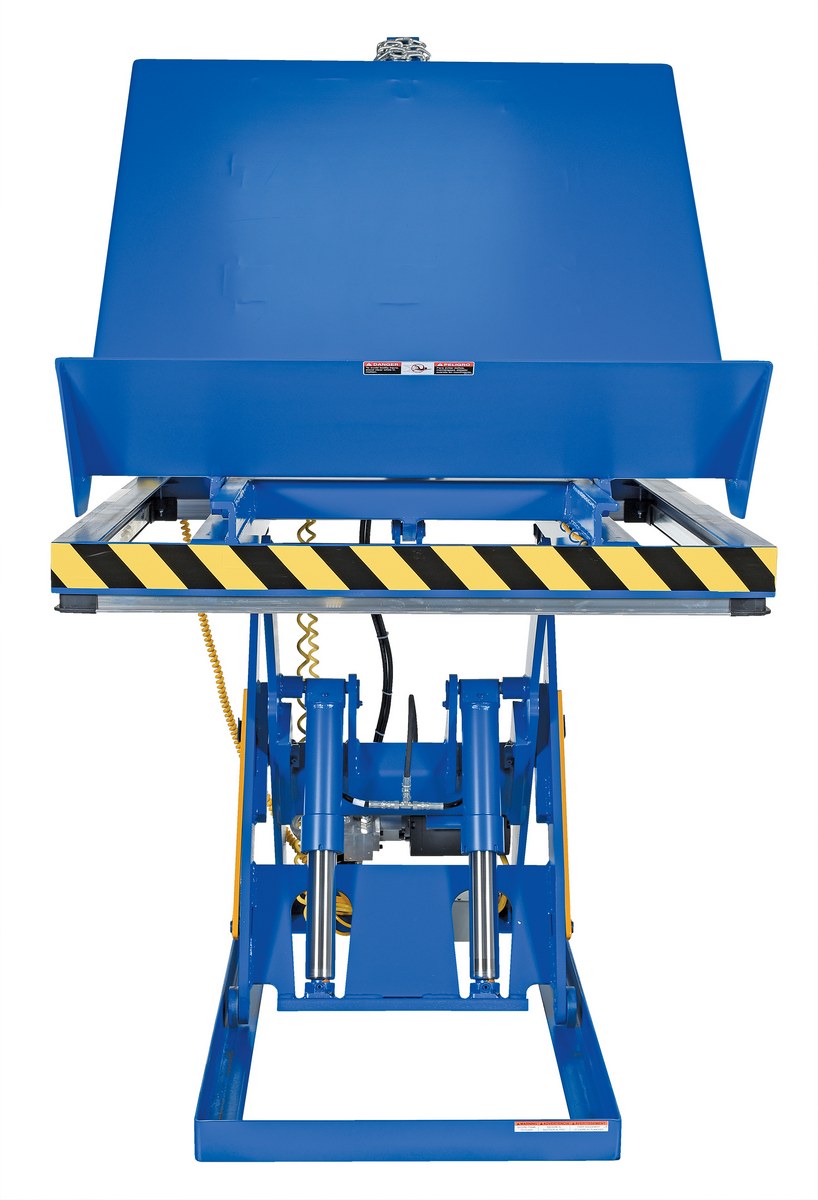

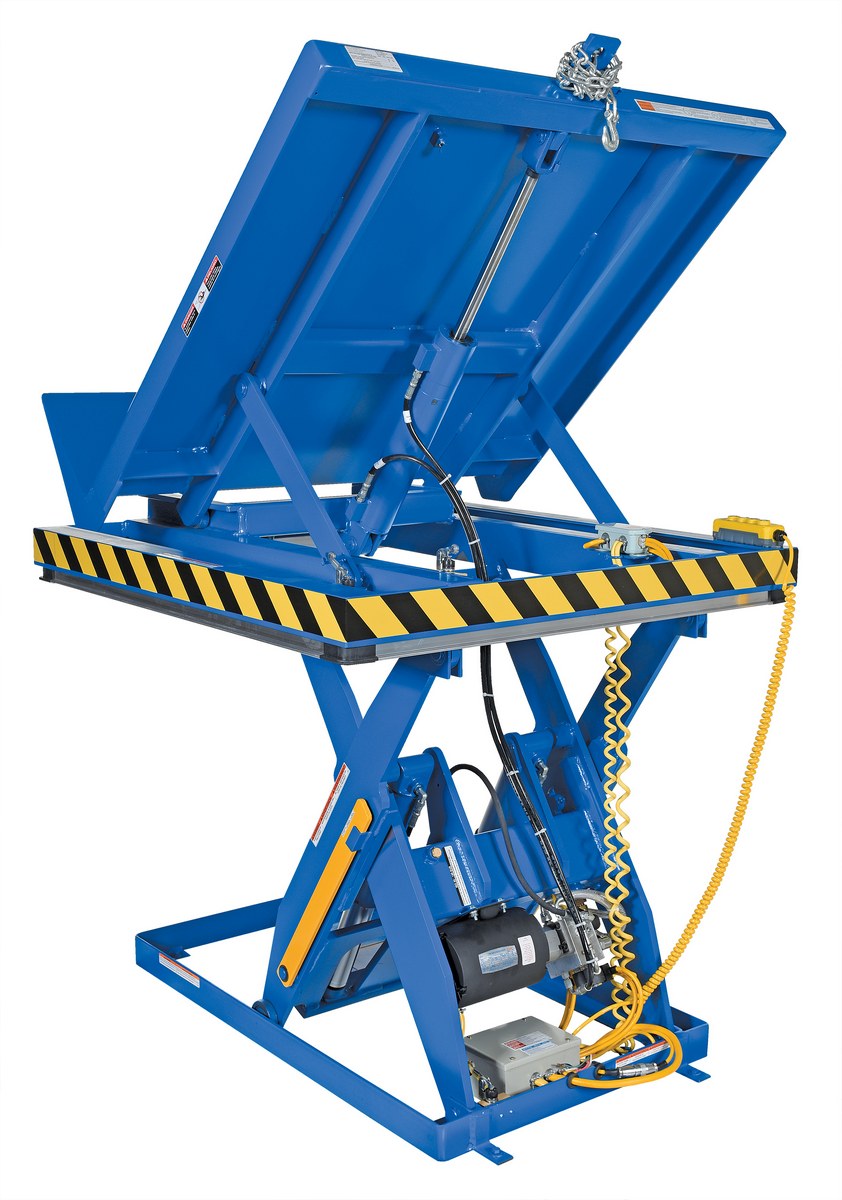

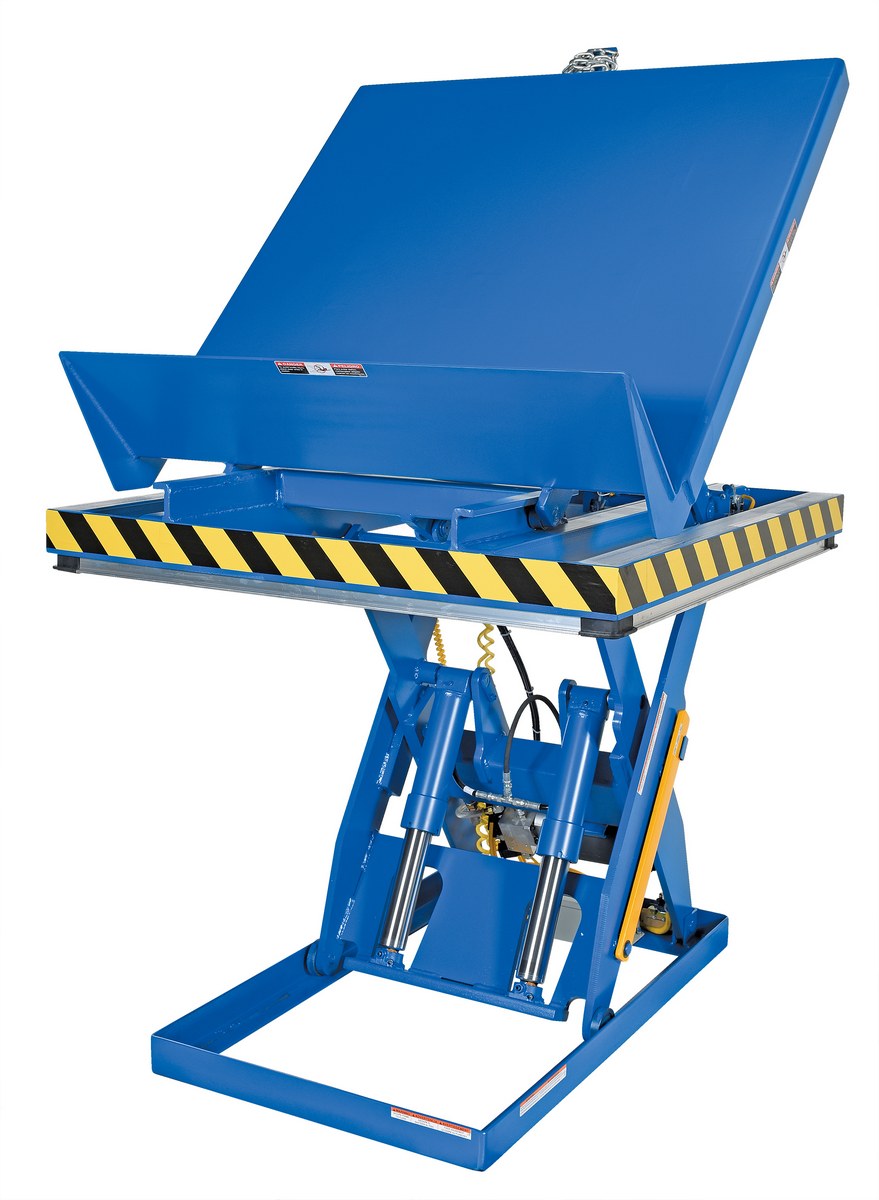

model: EHLTT-4848-4-47


SERIES: EHLTT

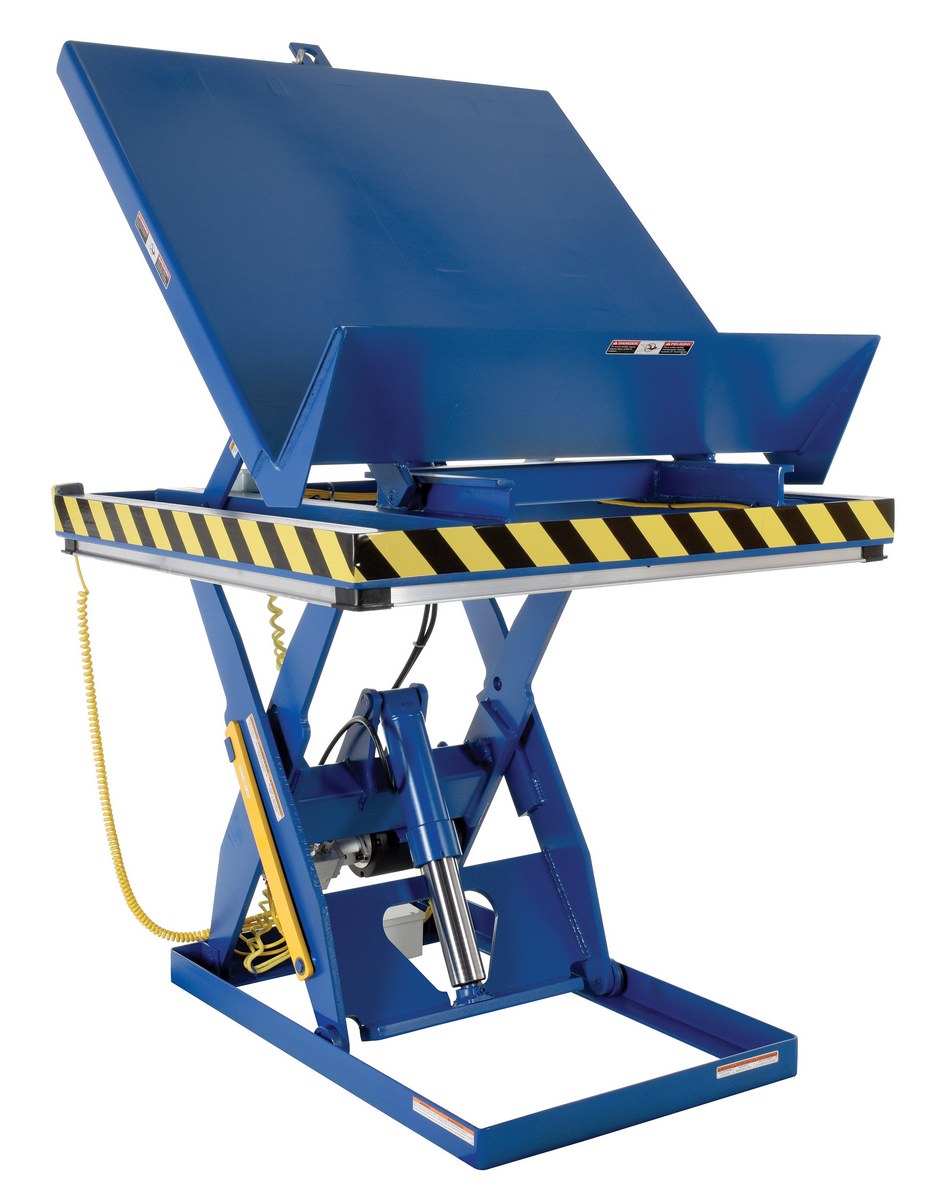

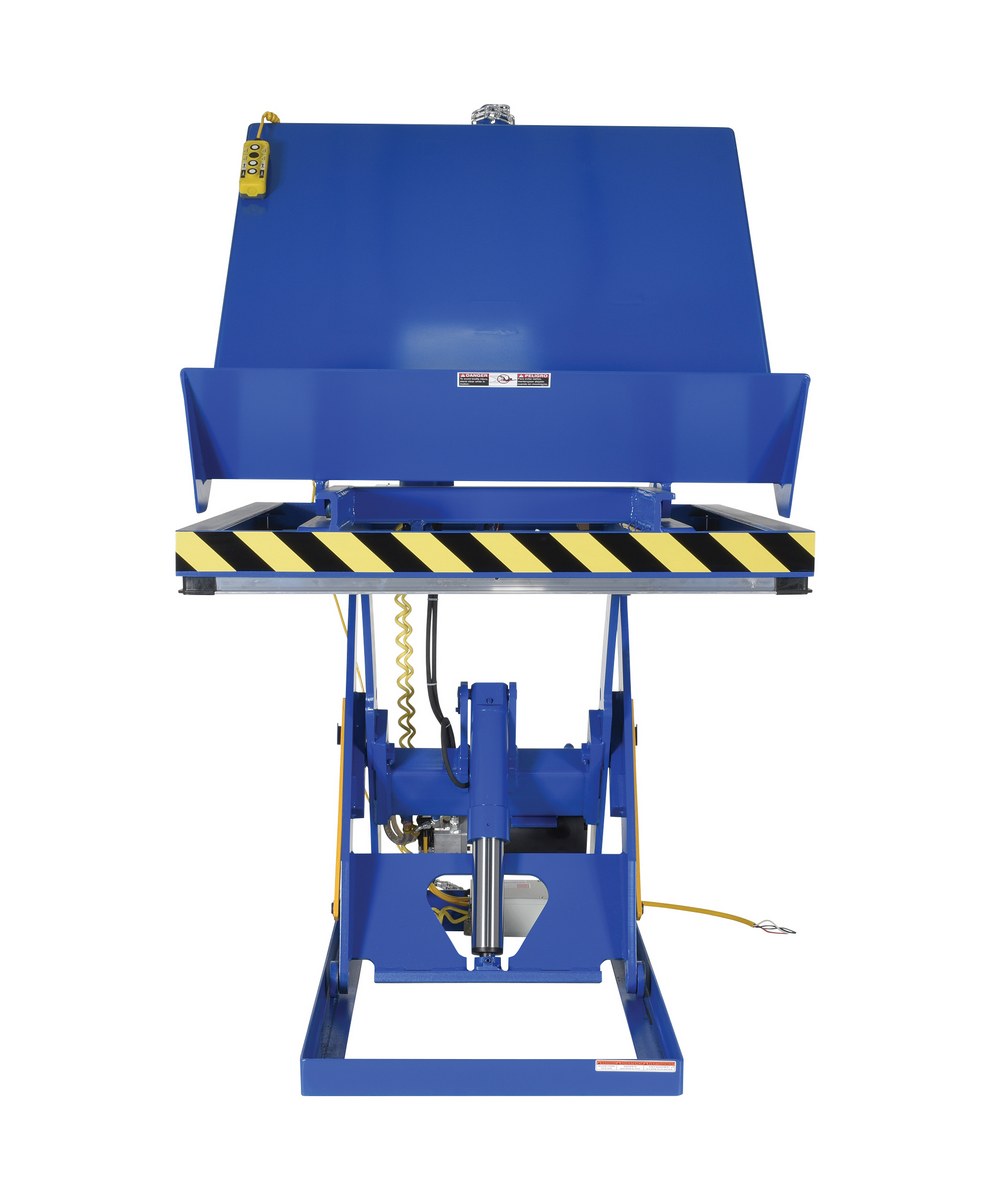

Lift & Tilt Scissor Tables

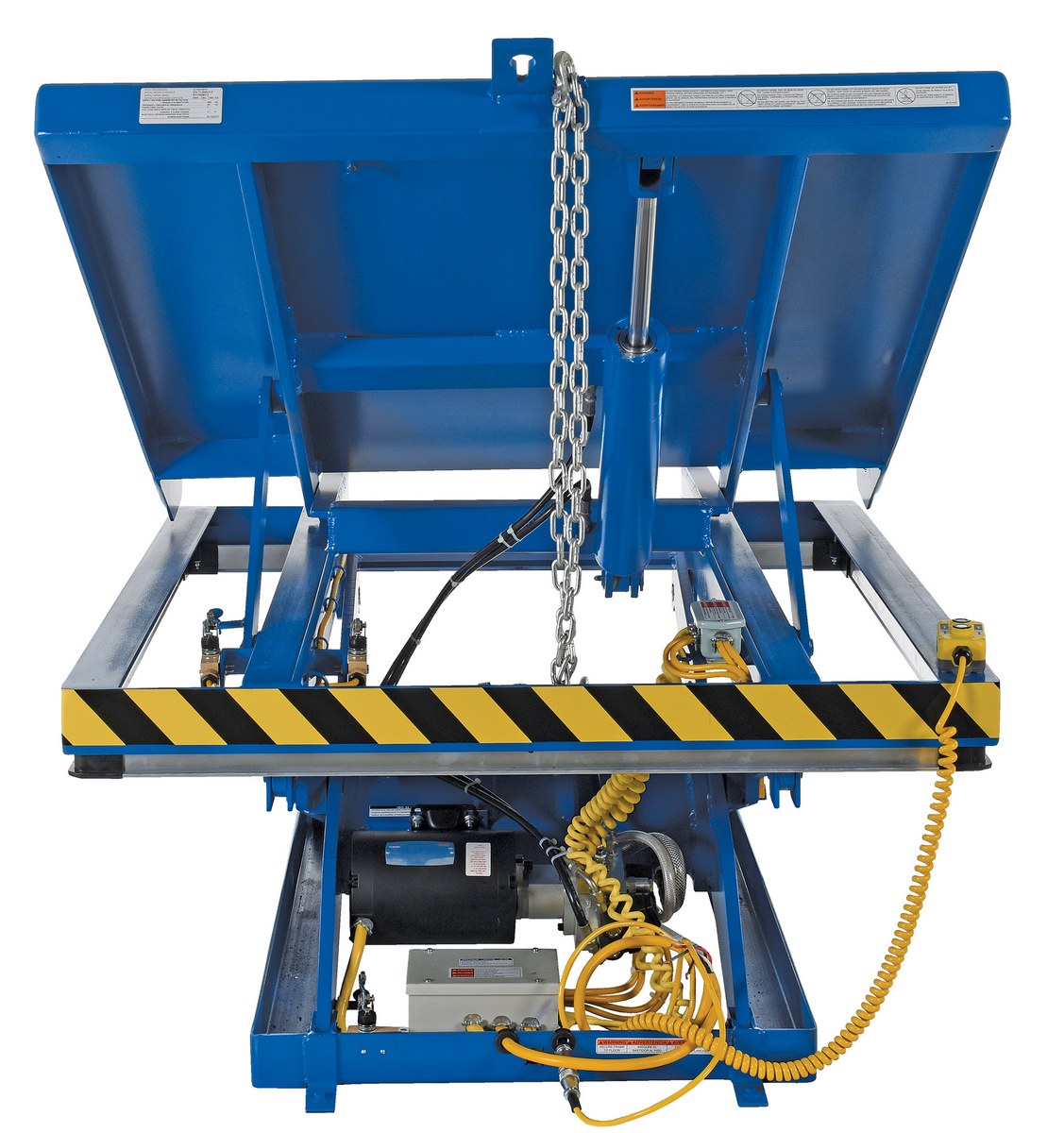

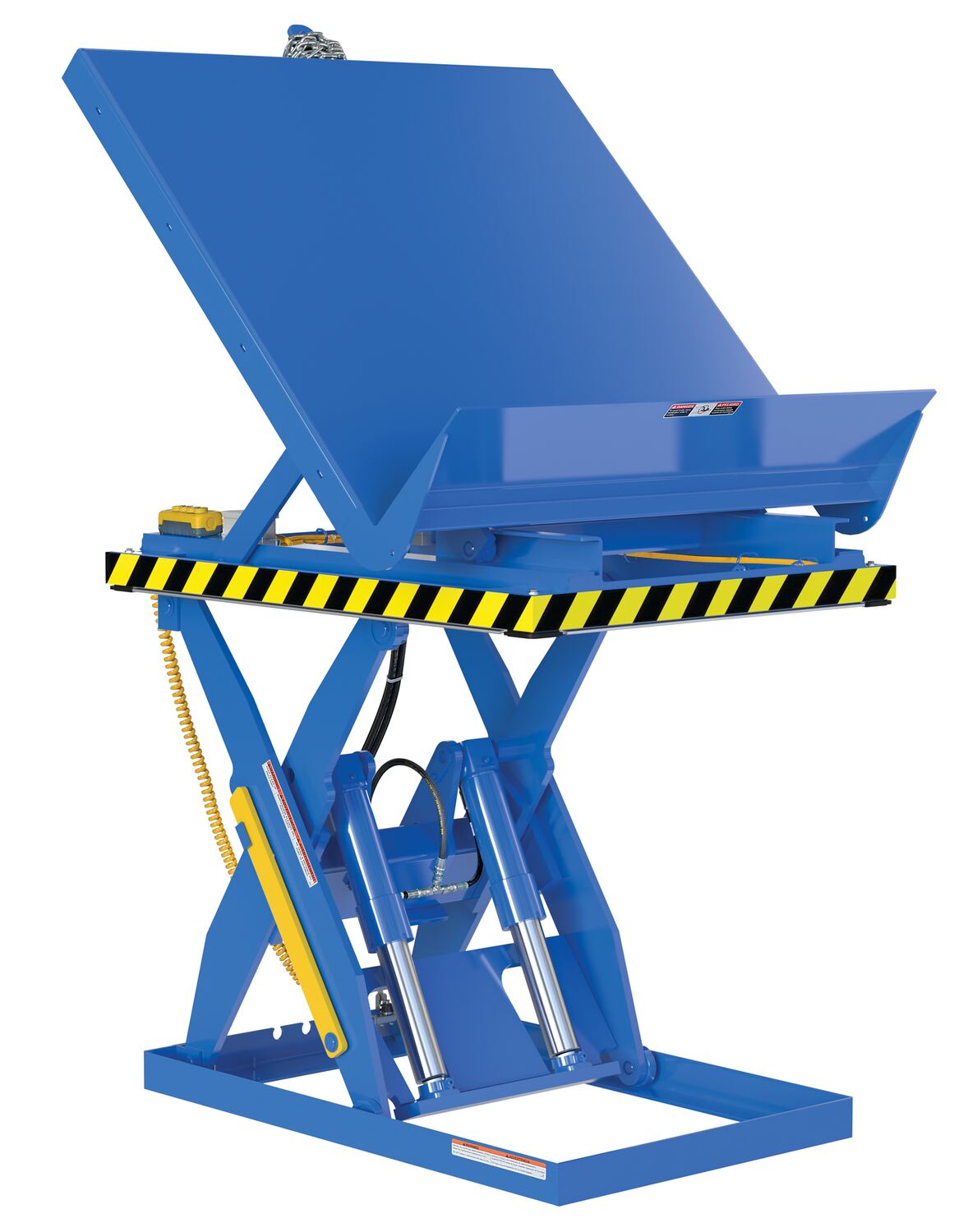

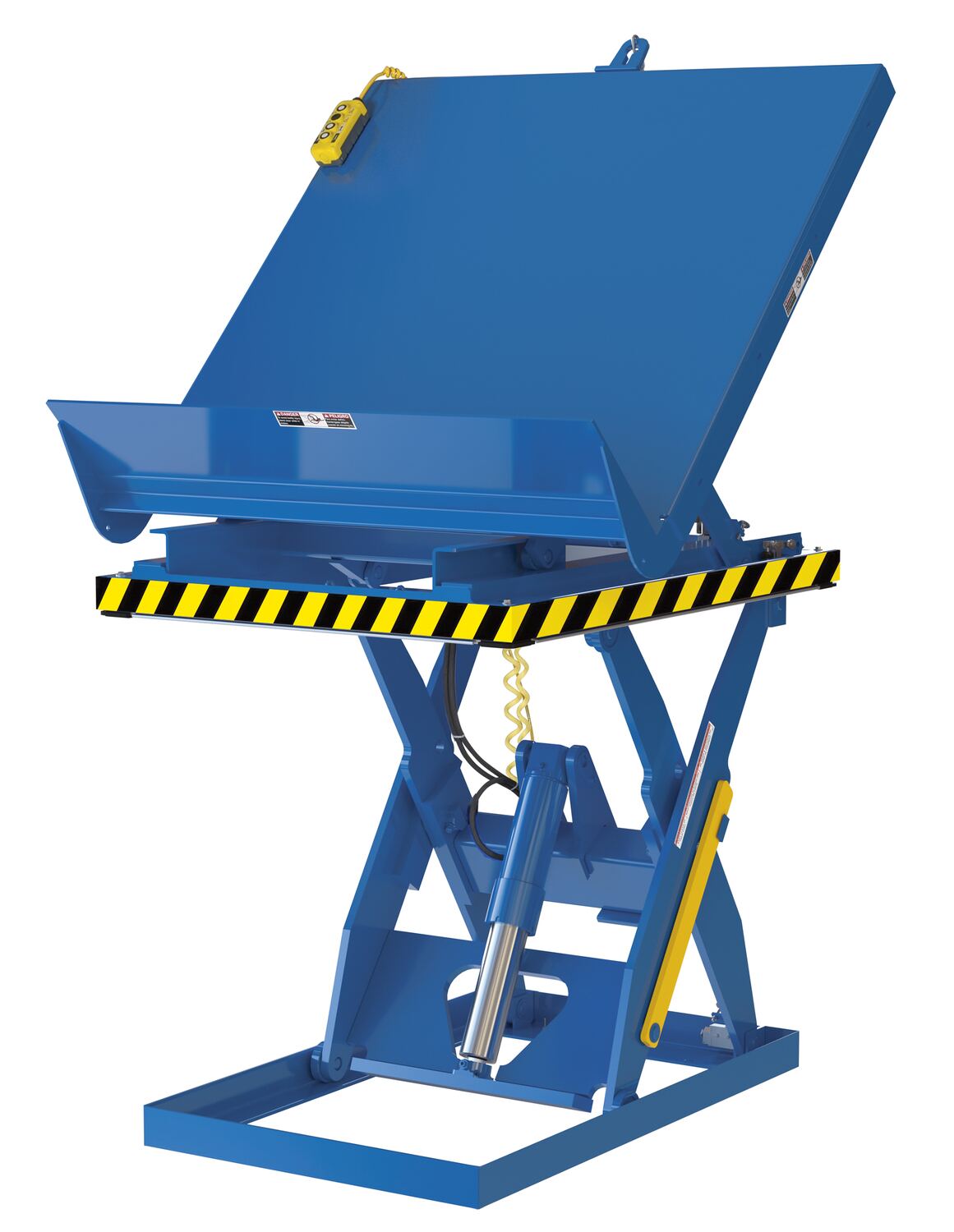

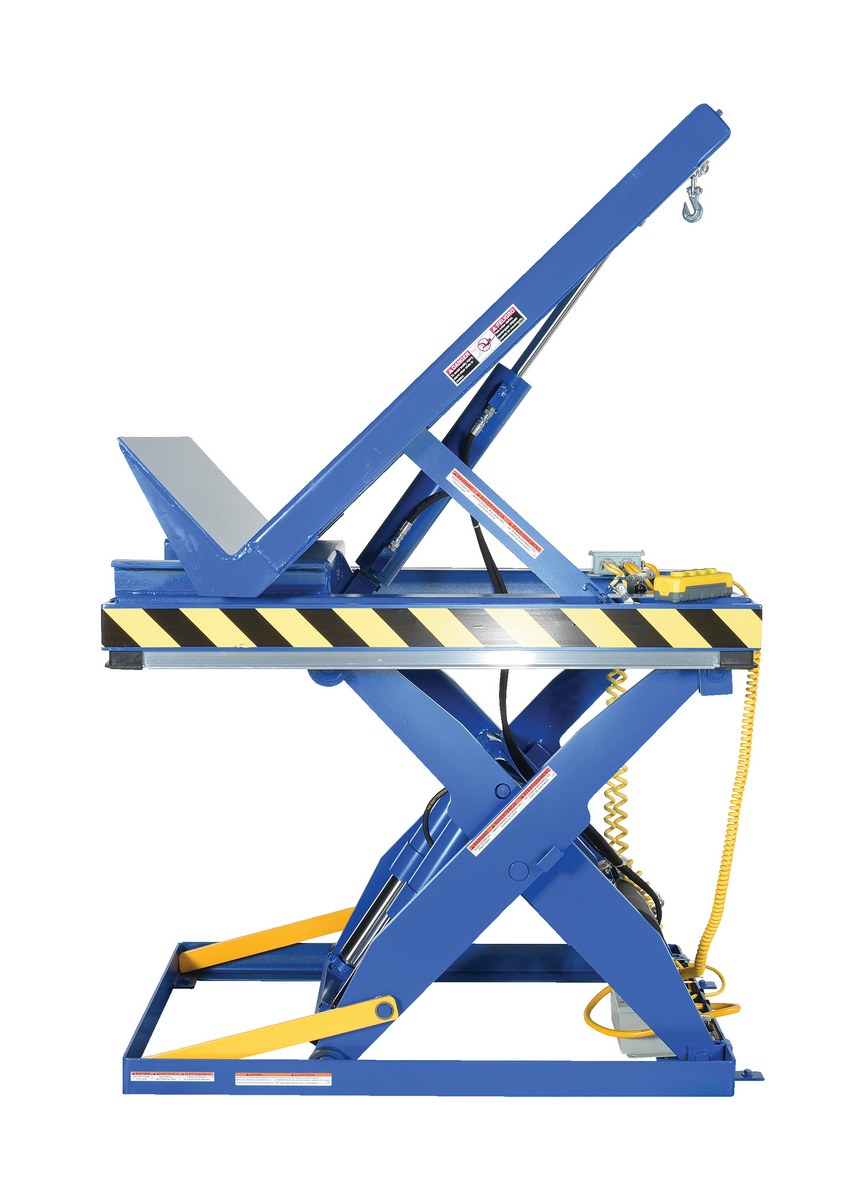

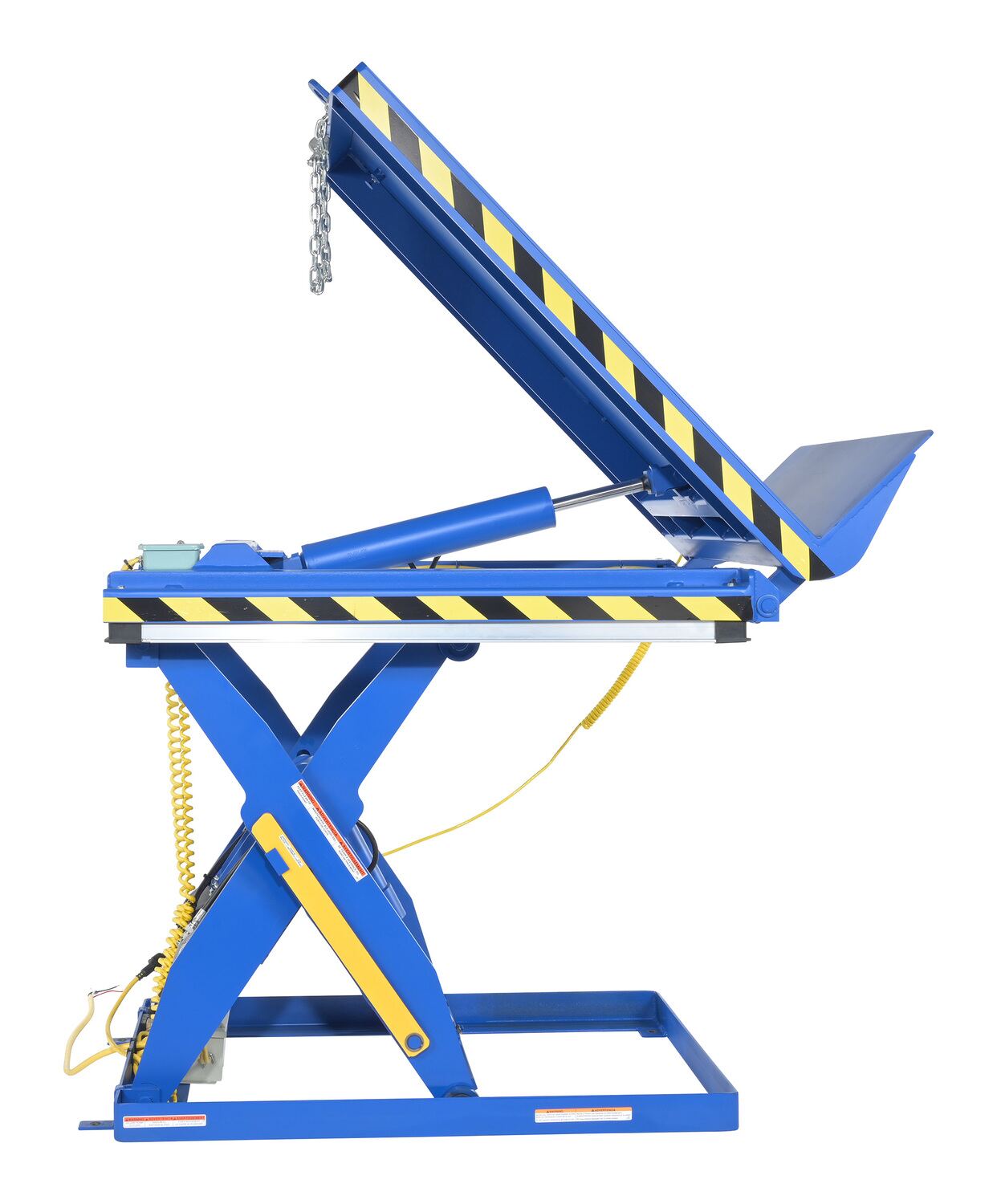

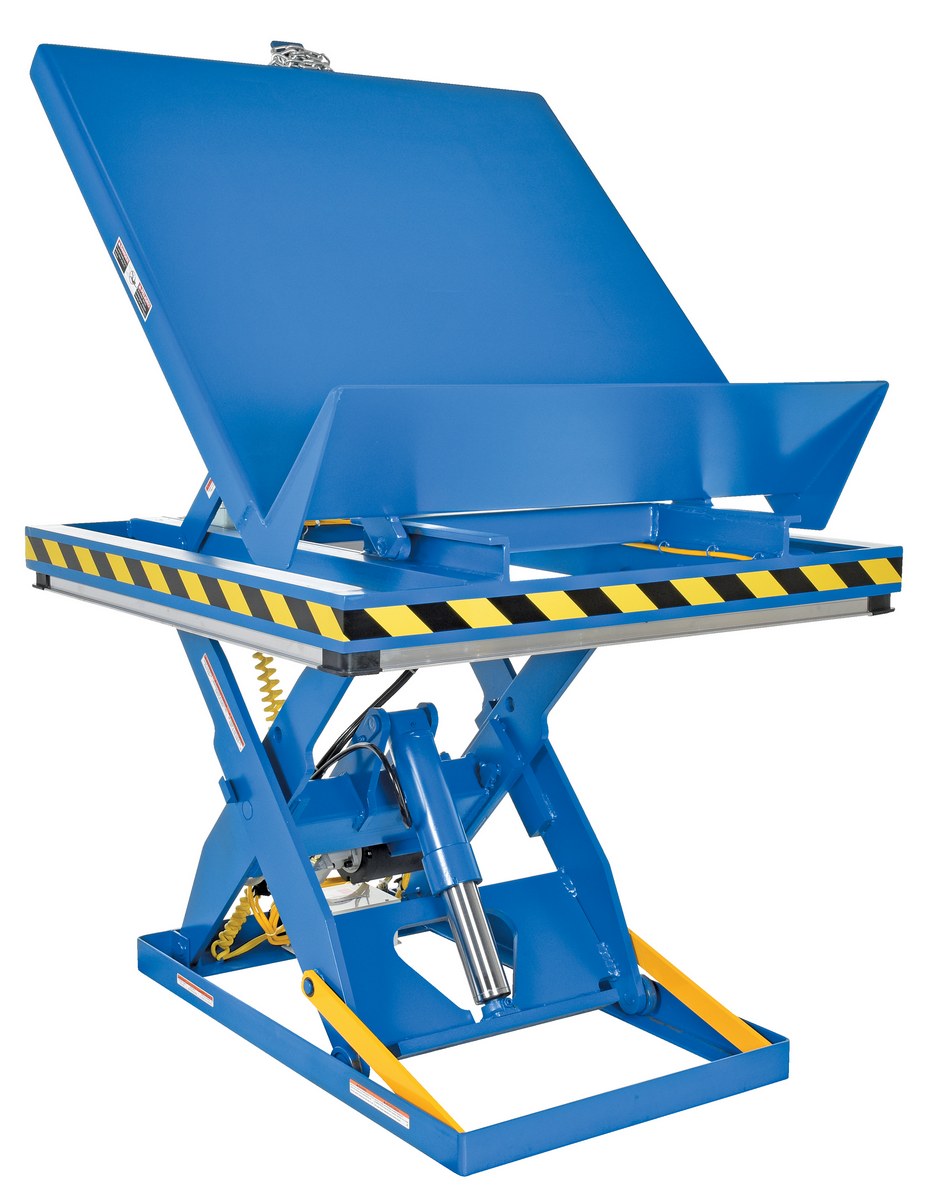

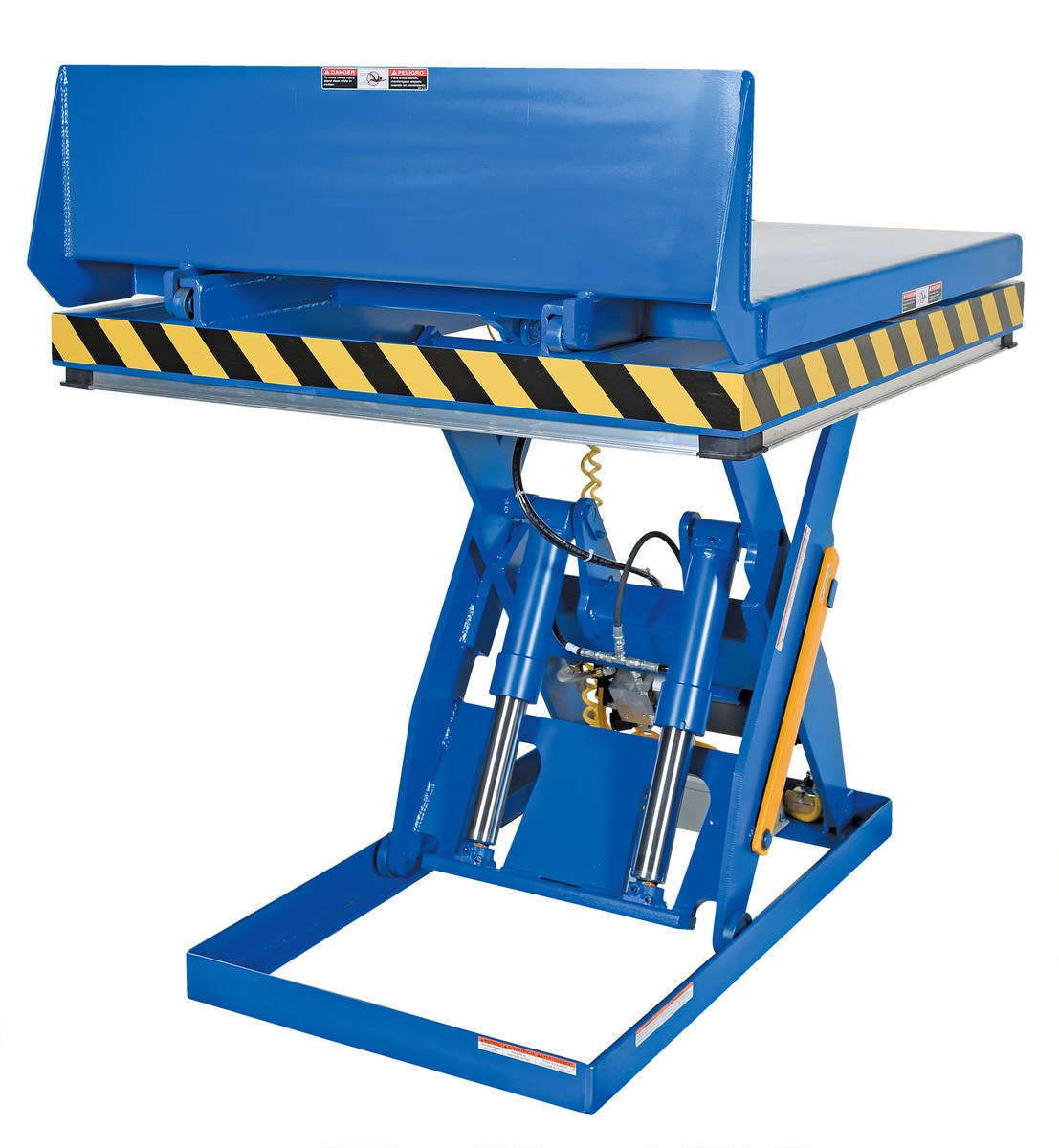

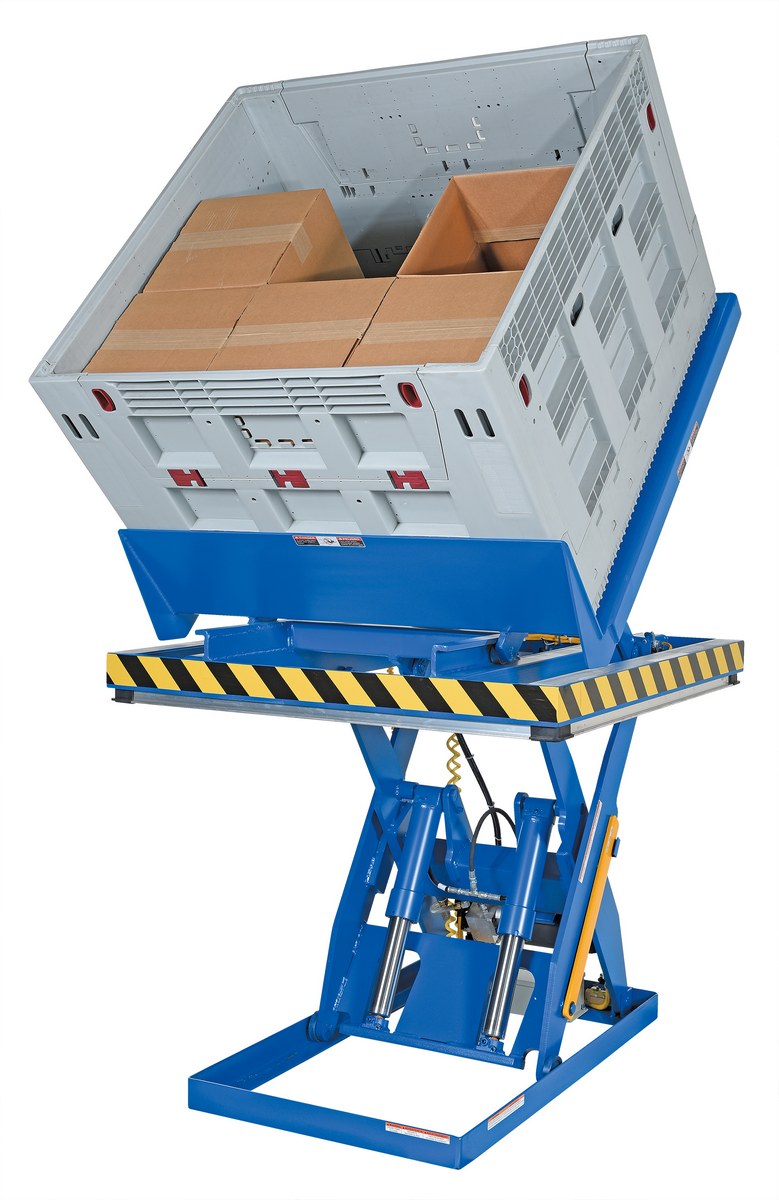

Performs both lifting and tilting operations. 45 degree and 90 degree tilt available. Restraining chain and 12" high lip keep load in place during tilting. Safety features include: electric toe guard to shield worker from pinch points during lowering of table, safety velocity fuses to stop travel due to loss of hydraulic pressure, 4 push-button hand pendent control on an 8 foot coil cord, upper limit switch to stop travel at maximum height reducing motor wear and maintenance prop. End tilt standard, side tilt available. Optional accordion skirting available for both the lifting and tilting portions of the table, contact factory.

Design Features:

  • Steel Cradle is 12" high, open design allows loading/unloading from three sides.
  • Unique link tilt design center of load remains closer to the center of the table to increase safety and minimize space requirements.
  • Safety Velocity fuse in cylinder prevents drop of table in event of hydraulic failure.

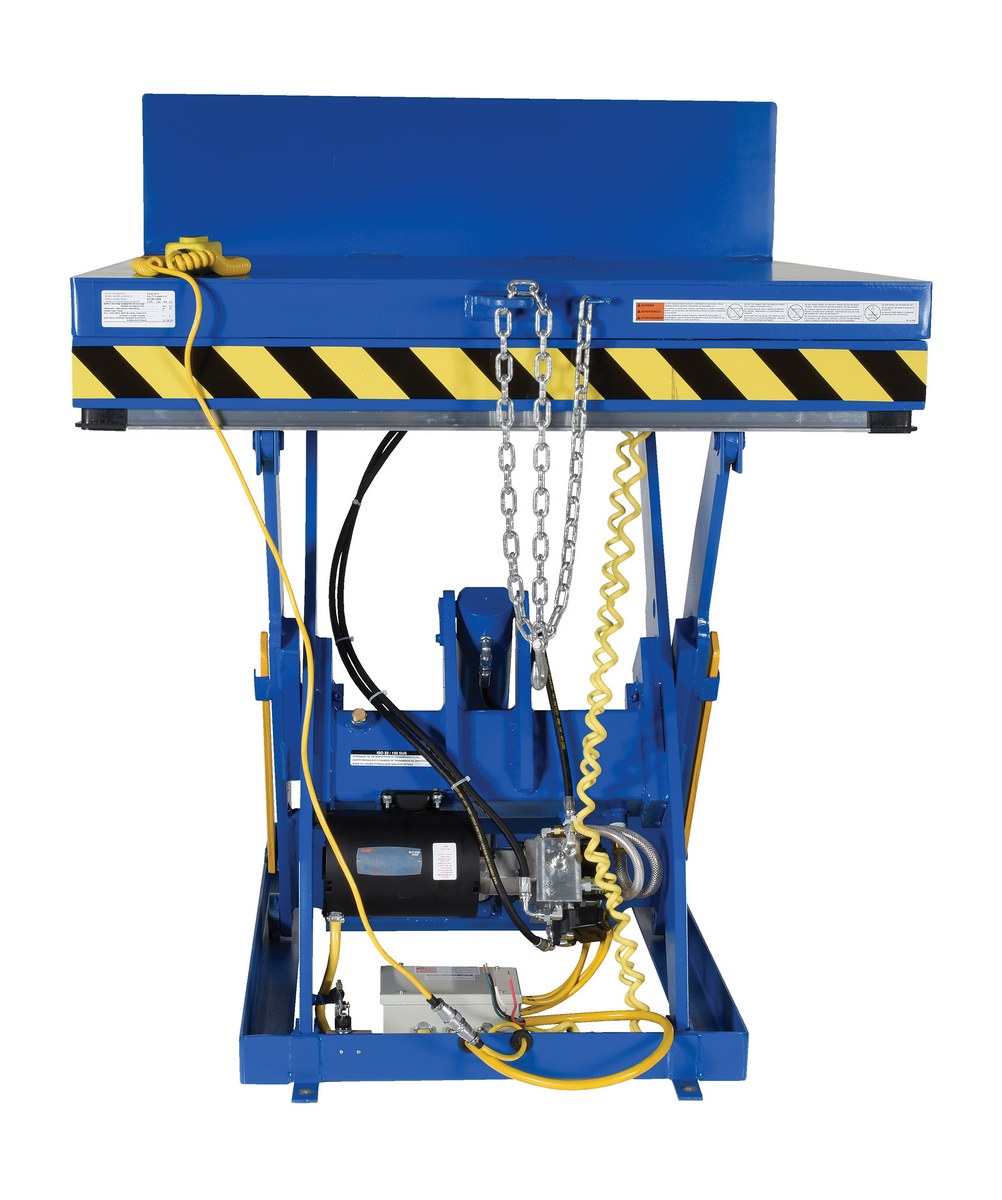

  • Slot lock and restraint chain.

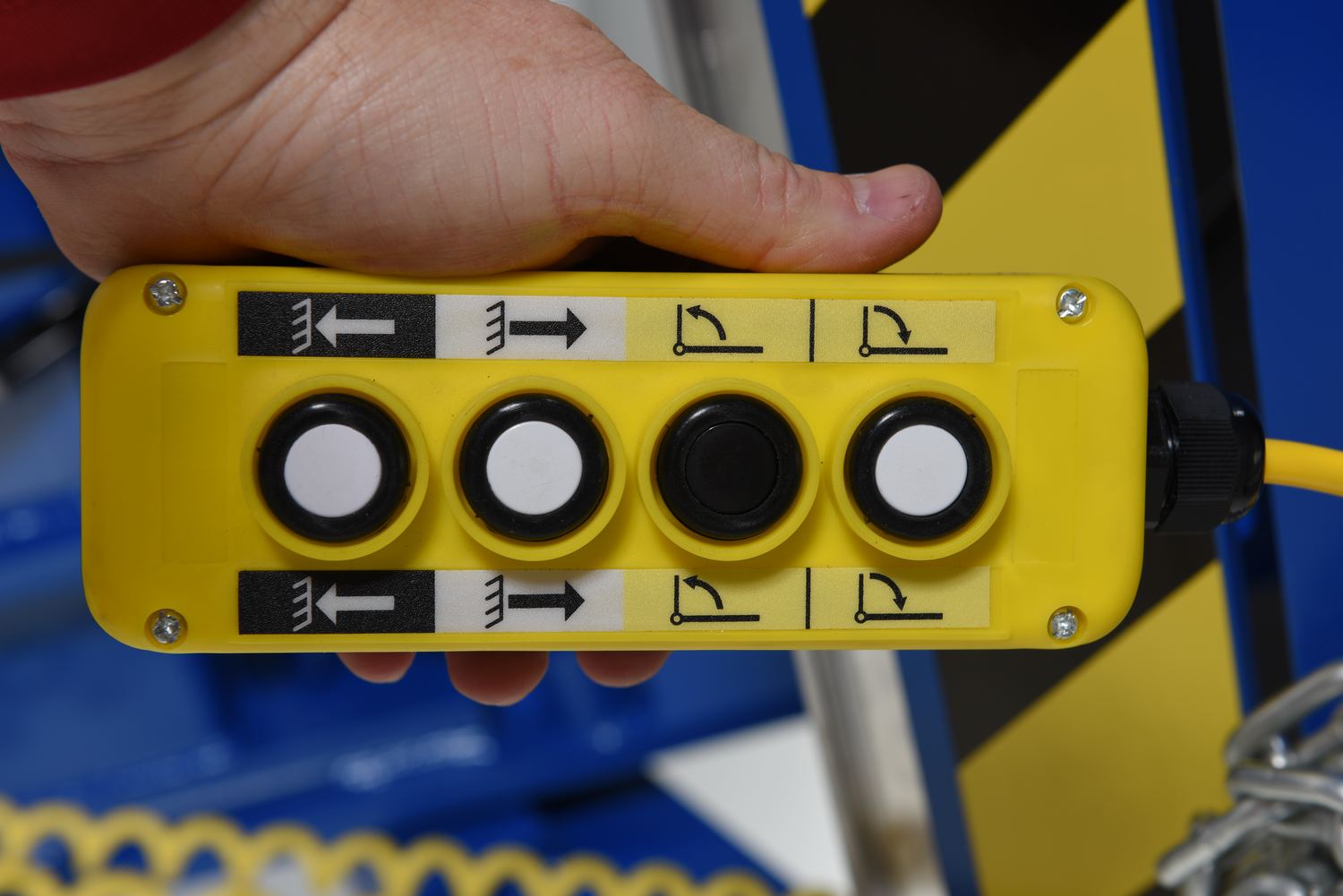

  • NEMA-4 hand control provides a weatherproof case for years of durability.
  • Fused 24 Volt control helps to ensure operator safety.
  • Perimeter pinch point guard

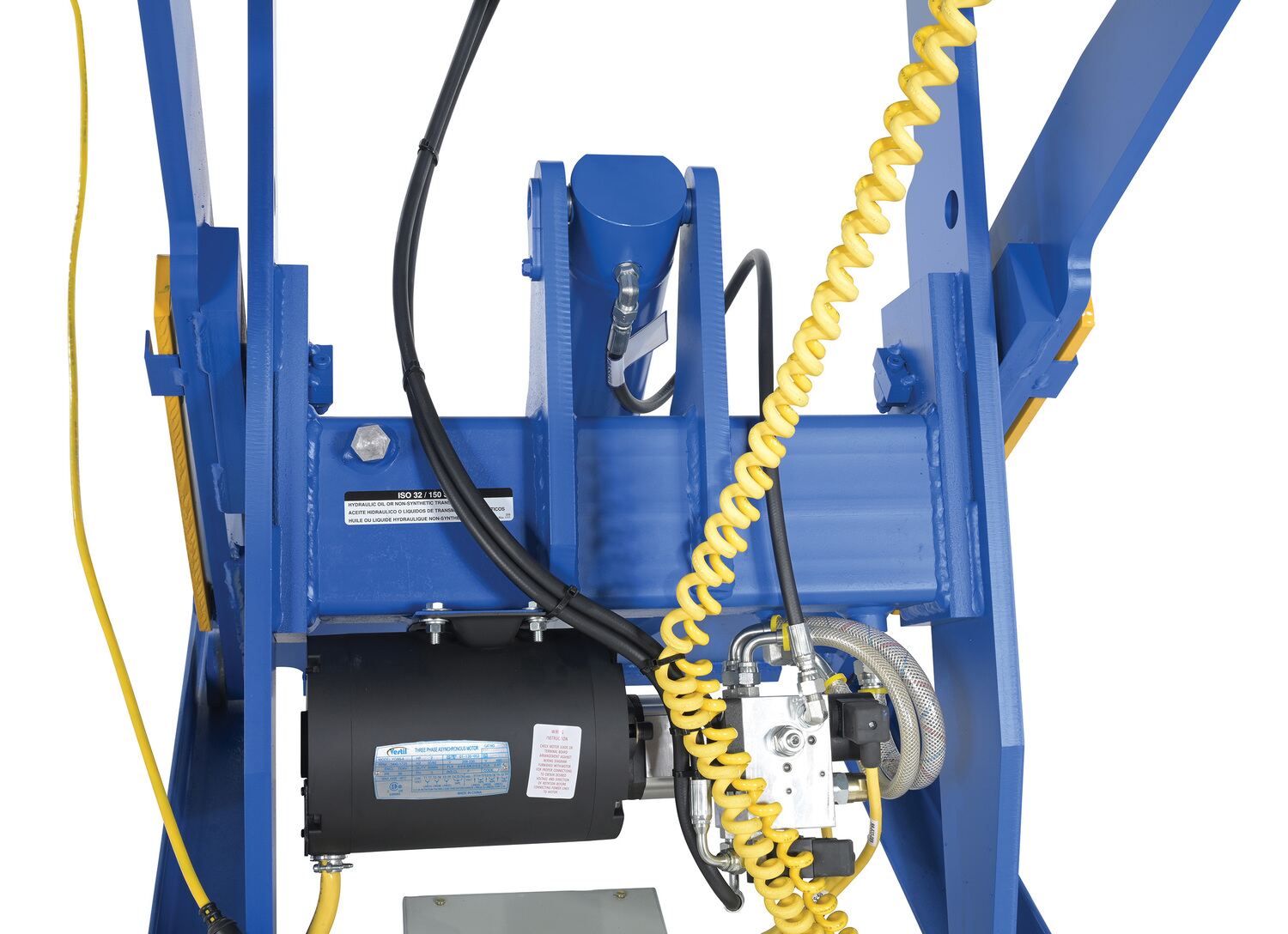

  • Industrial quality, 56 frame, 2 HP motor delivers best torque with minimal amperage draw and maximum life.
  • Upper Travel limit switch is field adjustable
  • 3000 PSI component rating on crimped hoses and fittings.

Performs both lifting and tilting operations. 45 degree and 90 degree tilt available. Restraining chain and 12" high lip keep load in place during tilting. Safety features include: electric toe guard to shield worker from pinch points during lowering of table, safety velocity fuses to stop travel due to loss of hydraulic pressure, 4 push-button hand pendent control on an 8 foot coil cord, upper limit switch to stop travel at maximum height reducing motor wear and maintenance prop. End tilt standard, side tilt available. Optional accordion skirting available for both the lifting and tilting portions of the table, contact factory.

Design Features:

  • Steel Cradle is 12" high, open design allows loading/unloading from three sides.
  • Unique link tilt design center of load remains closer to the center of the table to increase safety and minimize space requirements.
  • Safety Velocity fuse in cylinder prevents drop of table in event of hydraulic failure.
  • Slot lock and restraint chain.
  • NEMA-4 hand control provides a weatherproof case for years of durability.
  • Fused 24 Volt control helps to ensure operator safety.
  • Perimeter pinch point guard
  • Industrial quality, 56 frame, 2 HP motor delivers best torque with minimal amperage draw and maximum life.
  • Upper Travel limit switch is field adjustable
  • 3000 PSI component rating on crimped hoses and fittings.

Other Lift & Tilt Tables

Electric Hydraulic Scissor Lift Tables

Electric Hydraulic Scissor Lift Tables

Rotary Air/Hydraulic Scissor Lift Tables

Rotary Air/Hydraulic Scissor Lift Tables

Heavy-Duty Air Bag Scissor Lift Tables

Heavy-Duty Air Bag Scissor Lift Tables

Low-Profile Air Bag Scissor Lift Tables

Low-Profile Air Bag Scissor Lift Tables

Air Bag Scissor Lift Tables

Air Bag Scissor Lift Tables

Share This Page

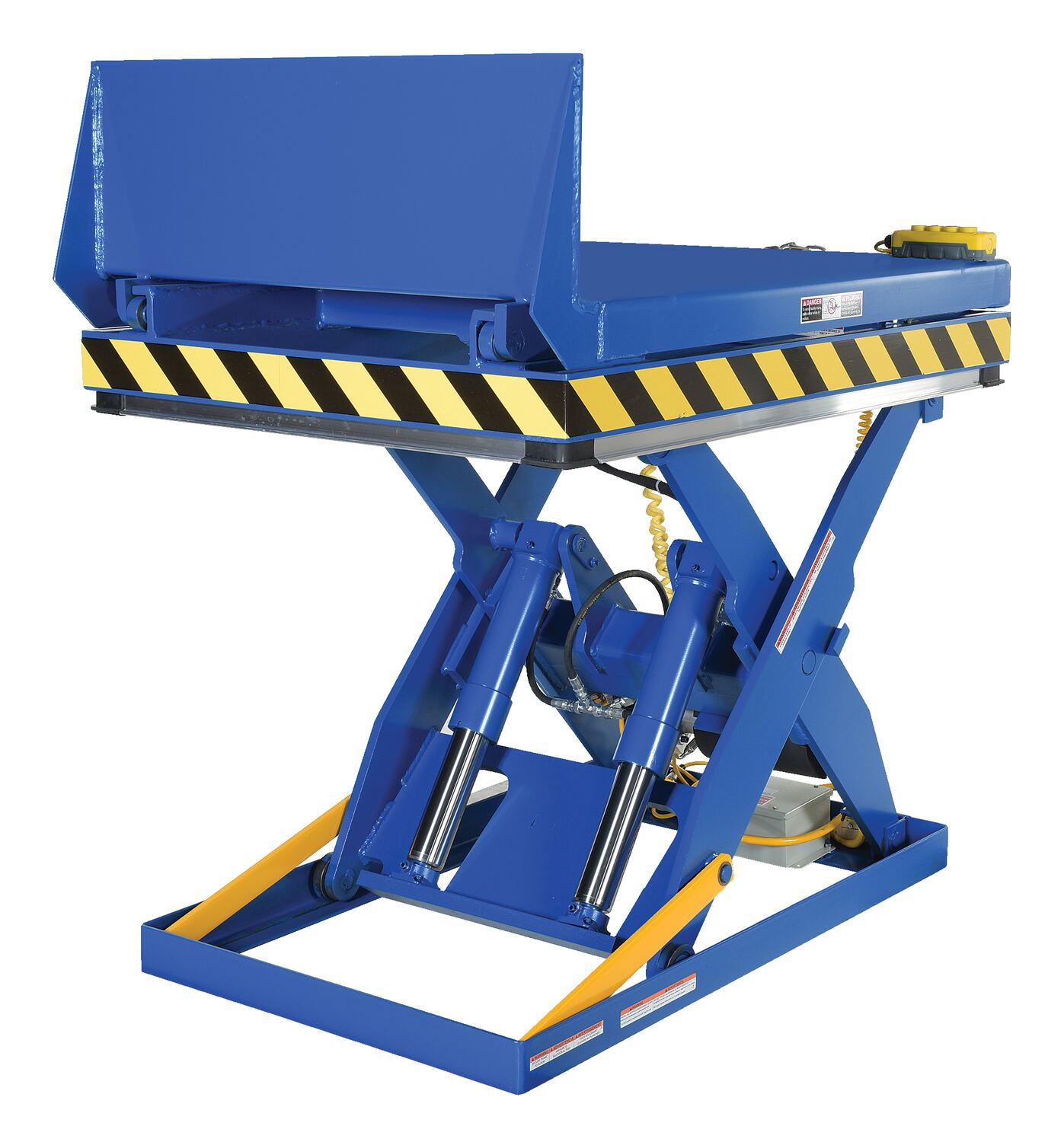

EHLTT-3648-2-47

model EHLTT-3648-2-47

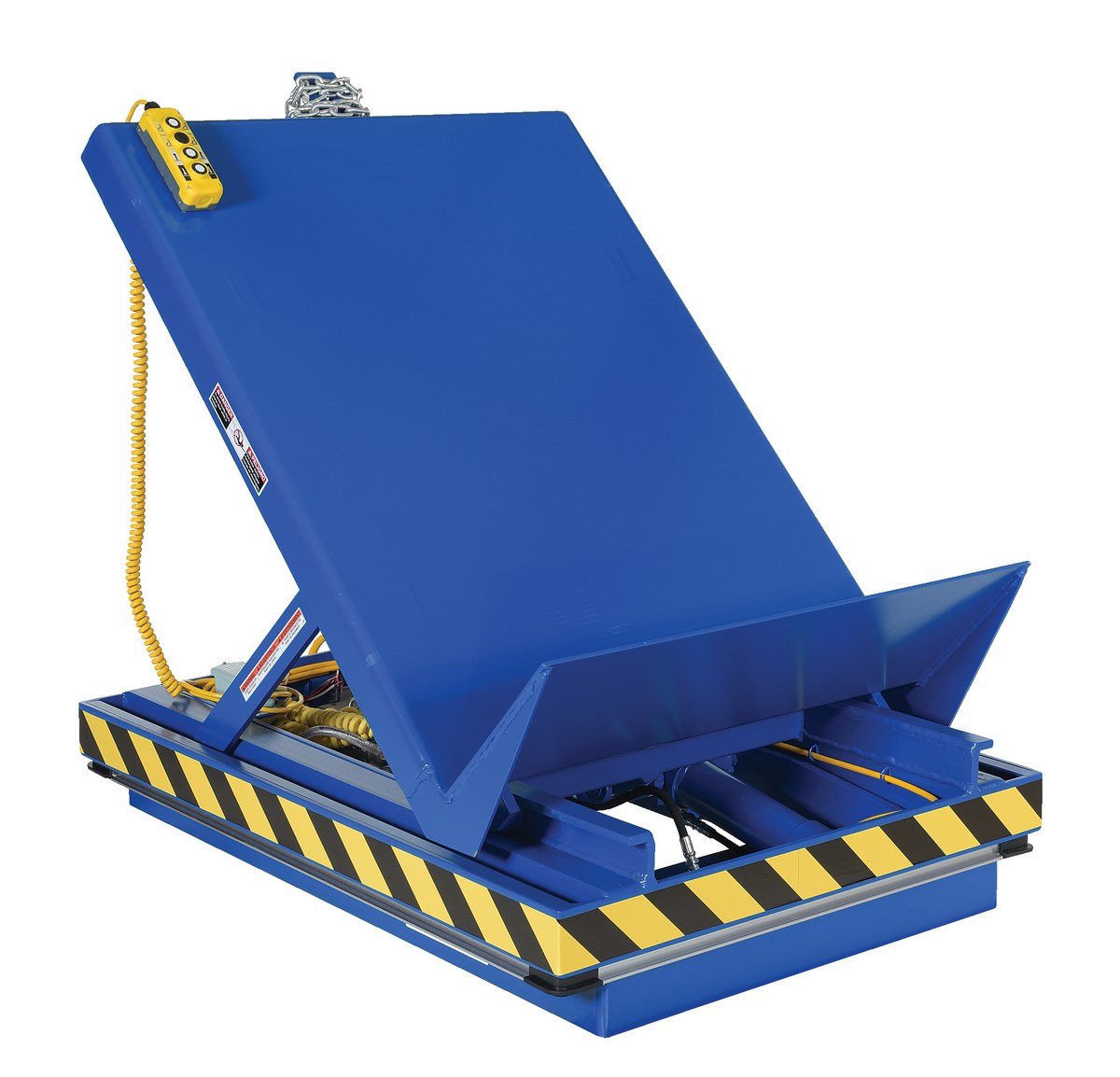

EHLTT-3648-4-47

model EHLTT-3648-4-47

EHLTT-4848-1-47

model EHLTT-4848-1-47

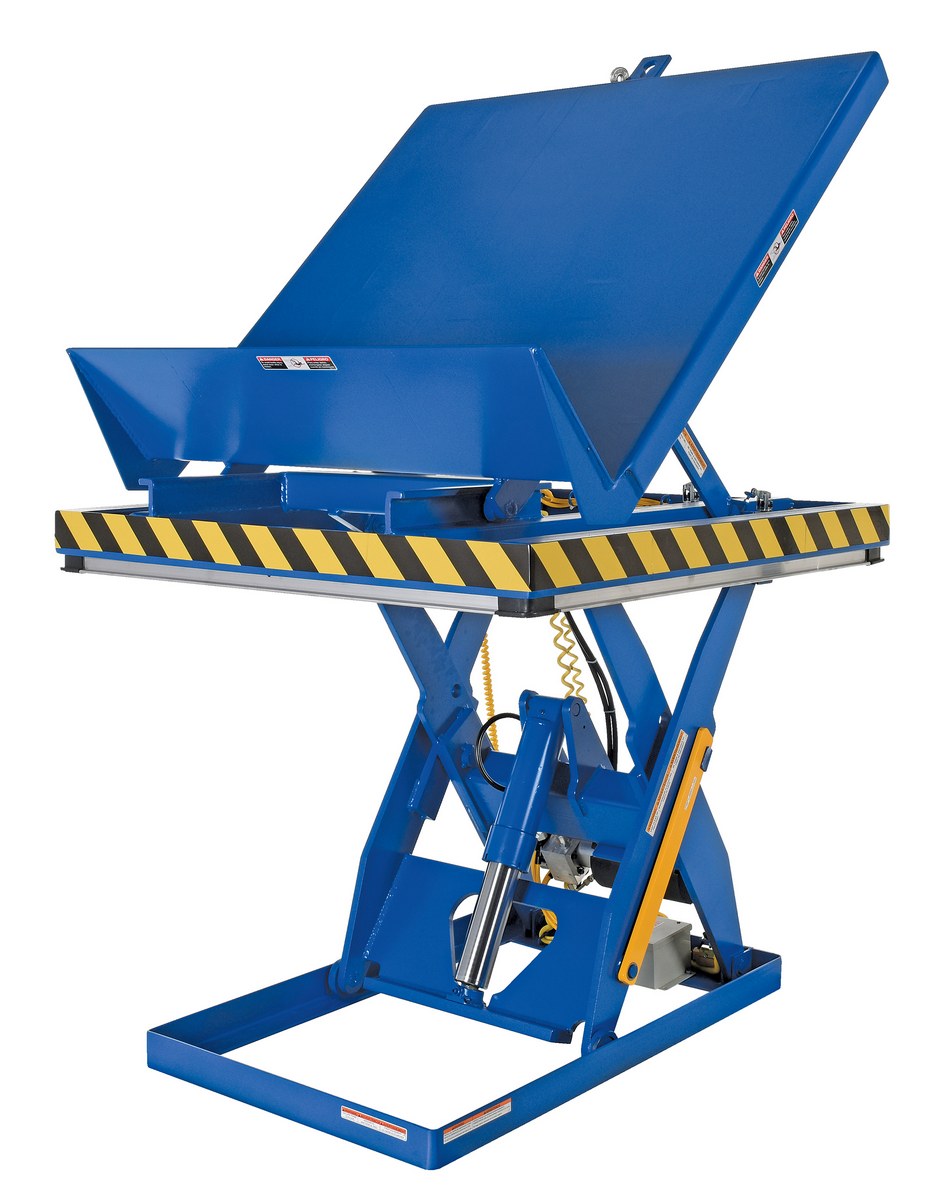

EHLTT-4848-3-47

model EHLTT-4848-3-47

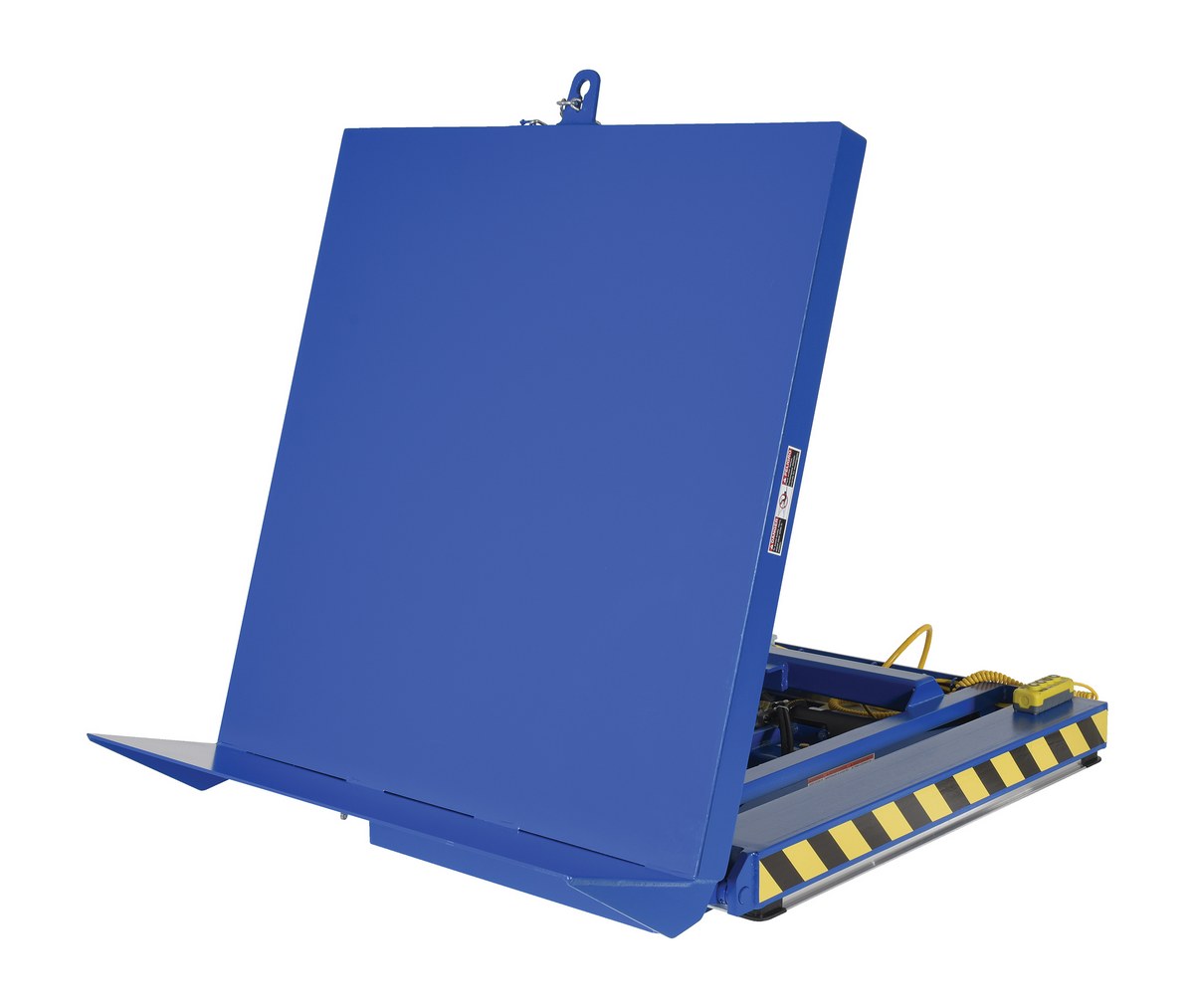

EHLTT-H-4848-2-47

model EHLTT-H-4848-2-47




KEY: Approval Drawing = Approval Drawing -- Approval Drawing = Warranty -- Approval Drawing = Testing Certificate

All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.
Lift & Tilt Scissor Tables
Model PDF's Platform size Capacity (lbs) Raised Height Lowered Height Overall
Size
(WxL)
Wt.
(lbs)
45 Degree End Tilt
EHLTT-3648-1-47 icon_approvaldrawings.jpgtilt_m4.jpgCompliance Certificate 36"x48" 1000 47" 11" 36"x56" 1208
EHLTT-4848-1-47 icon_approvaldrawings.jpgtilt_m4.jpgCompliance Certificate 48"x48" 1000 47" 11" 48"x56" 1228
EHLTT-3648-2-47 icon_approvaldrawings.jpgtilt_m4.jpgCompliance Certificate 36"x48" 2000 47" 11" 36"x56" 1204
EHLTT-4848-2-47 icon_approvaldrawings.jpgtilt_m4.jpgCompliance Certificate 48"x48" 2000 47" 11" 48"x56" 1235
EHLTT-3648-3-47 icon_approvaldrawings.jpgtilt_m4.jpgCompliance Certificate 36"x48" 3000 47" 11" 36"x56" 1299
EHLTT-4848-3-47 icon_approvaldrawings.jpgtilt_m4.jpgCompliance Certificate 48"x48" 3000 47" 11" 48"x56" 1251
EHLTT-3648-4-47 icon_approvaldrawings.jpgtilt_m4.jpgCompliance Certificate 36"x48" 4000 47" 11" 36"x56" 1206
EHLTT-4848-4-47 icon_approvaldrawings.jpgtilt_m4.jpgCompliance Certificate 48"x48" 4000 47" 11" 48"x56" 1282
EHLTT-4848-5-47 icon_approvaldrawings.jpgtilt_m4.jpgCompliance Certificate 48"x48" 5000 49" 13" 48"x56" 1482

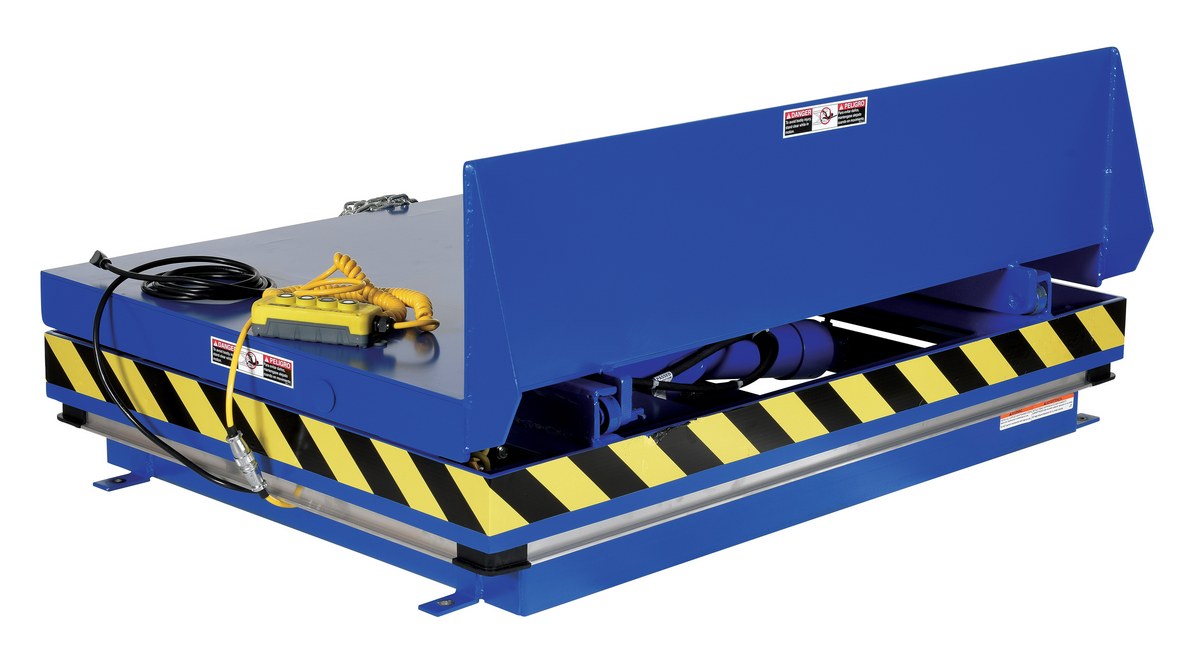

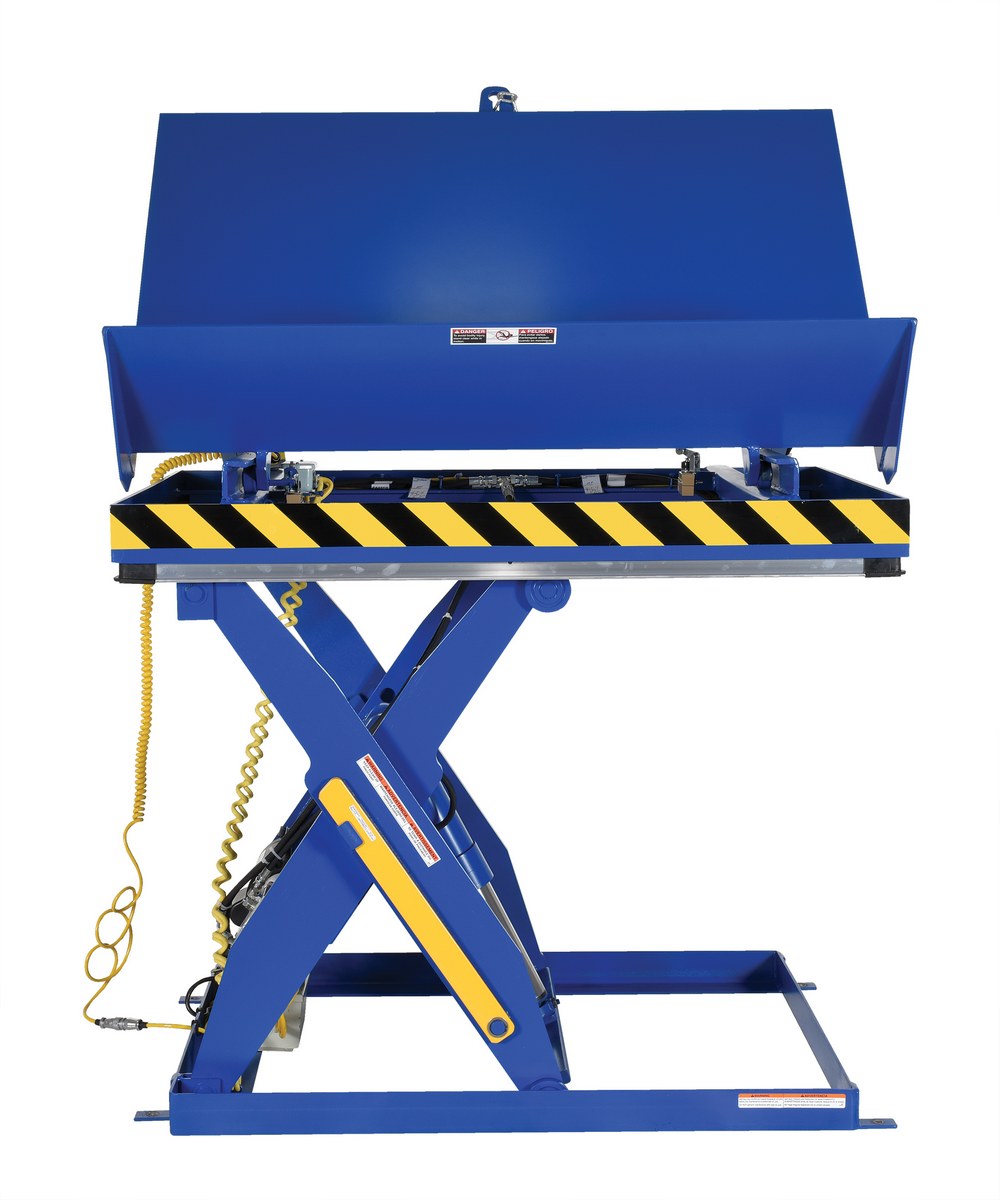

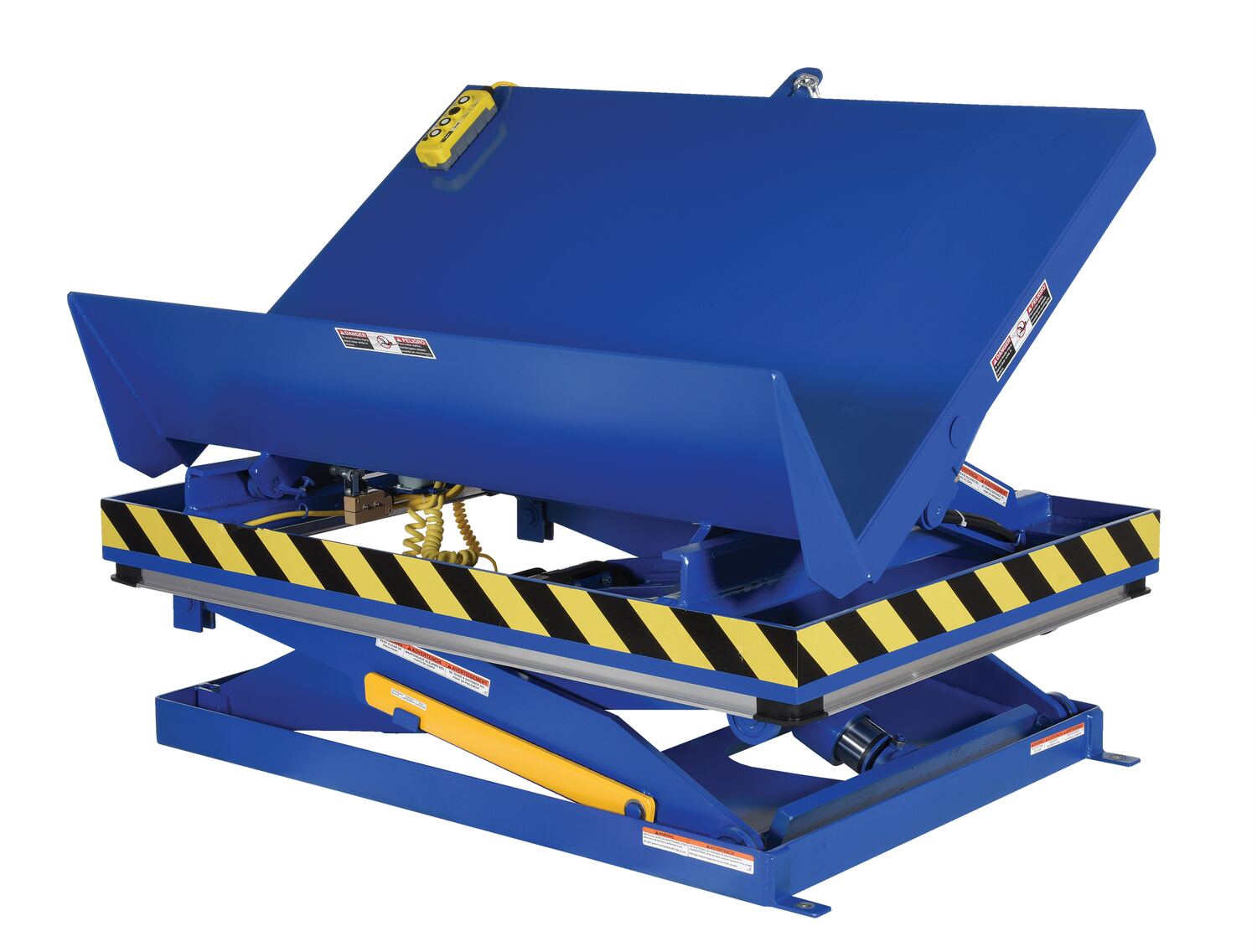

45 Degree Side Link Tilt
EHLTTS-3654-2-48 icon_approvaldrawings.jpgtilt_m4.jpgCompliance Certificate 36"x54" 2000 48" 12" 38"x54" 1238
EHLTTS-3654-4-48 icon_approvaldrawings.jpgtilt_m4.jpgCompliance Certificate 36"x54" 4000 48" 12" 38"x54" 1500

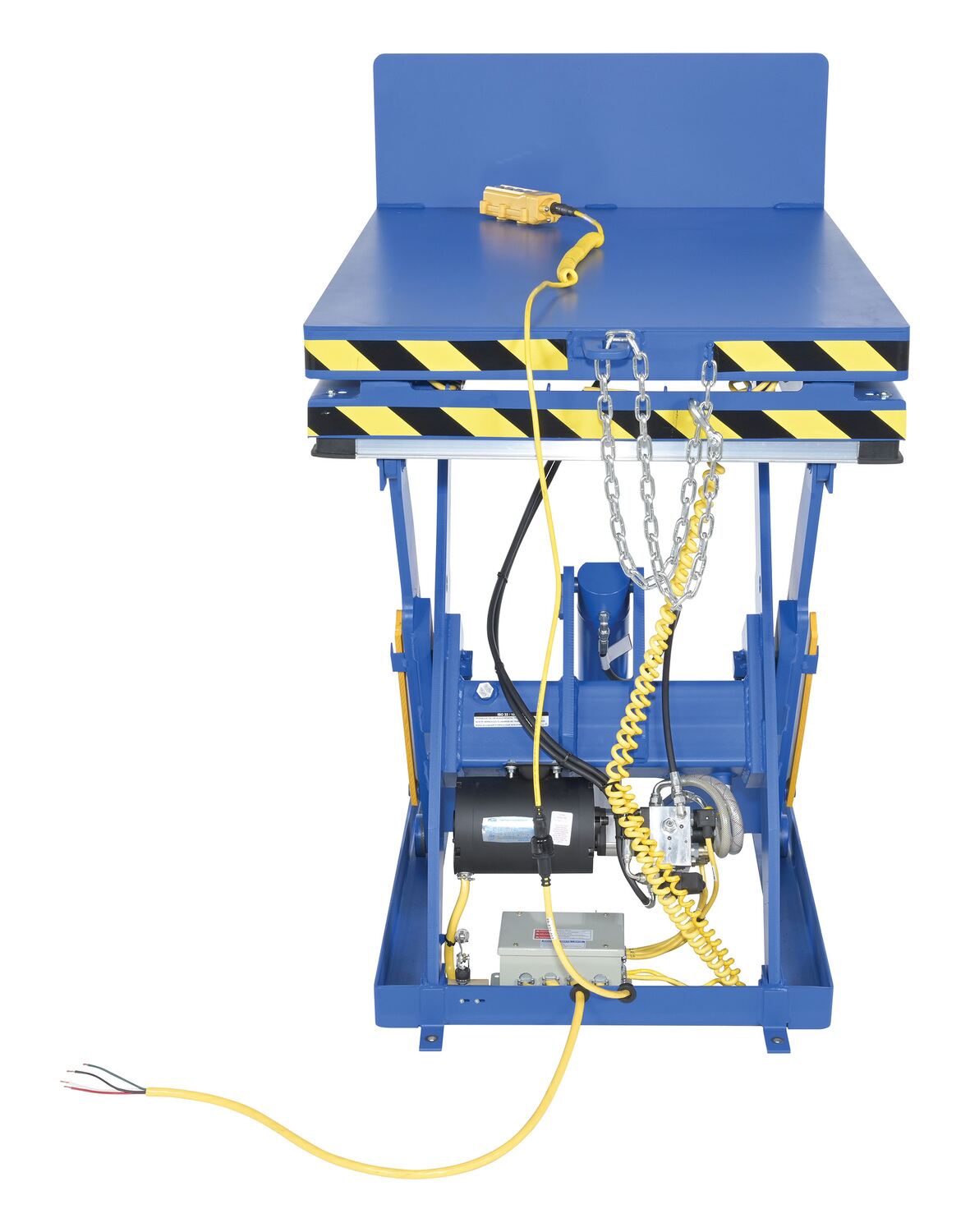

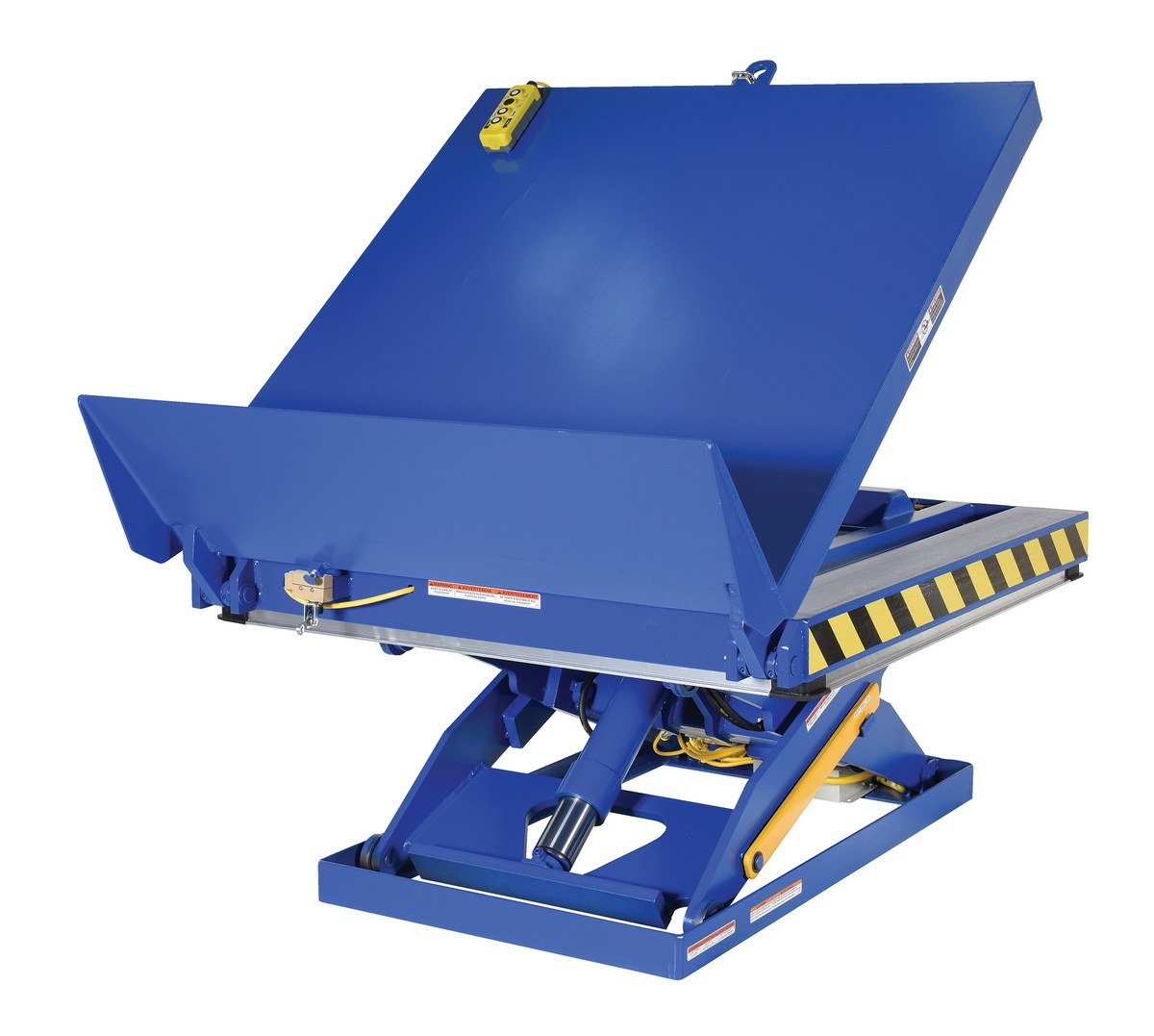

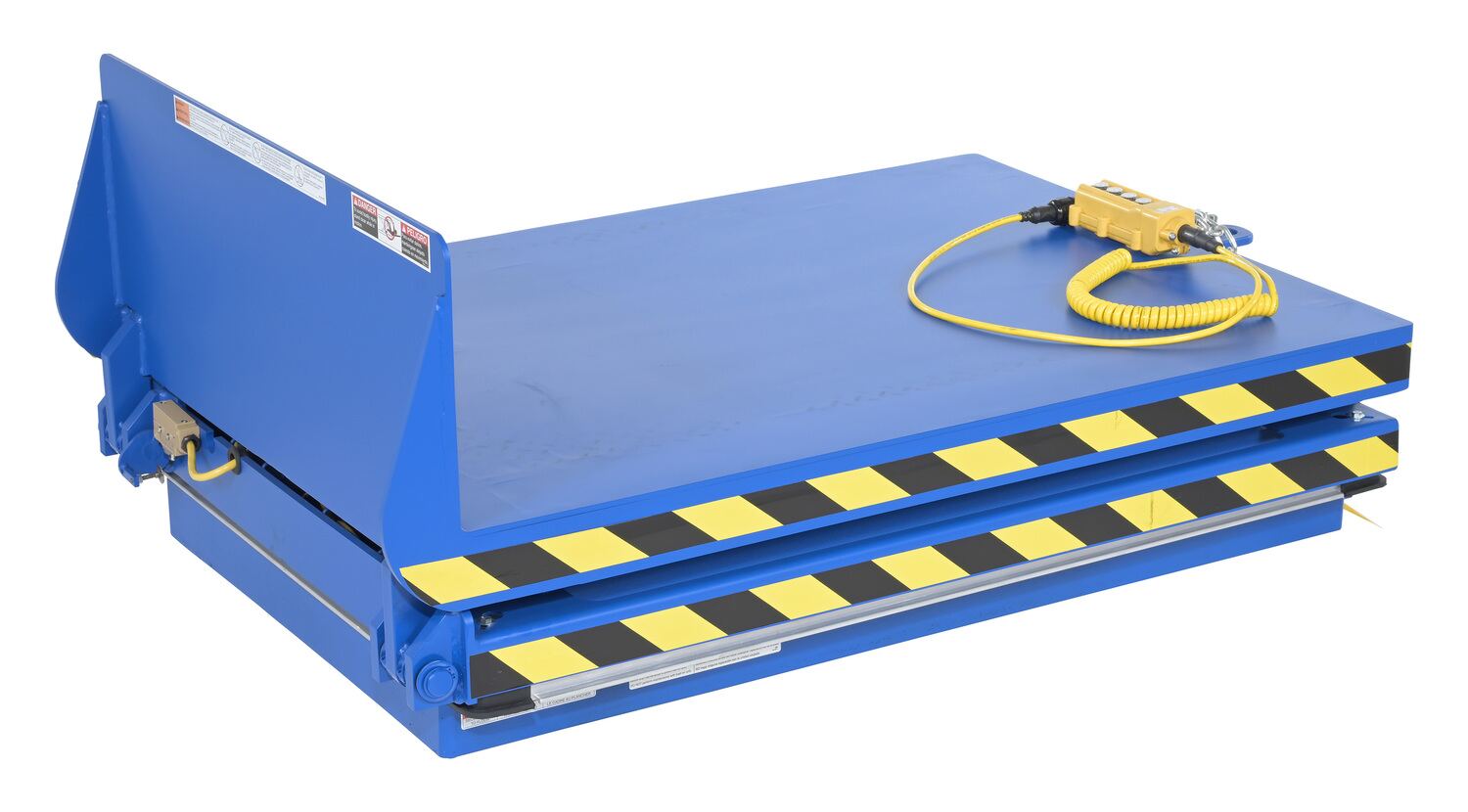

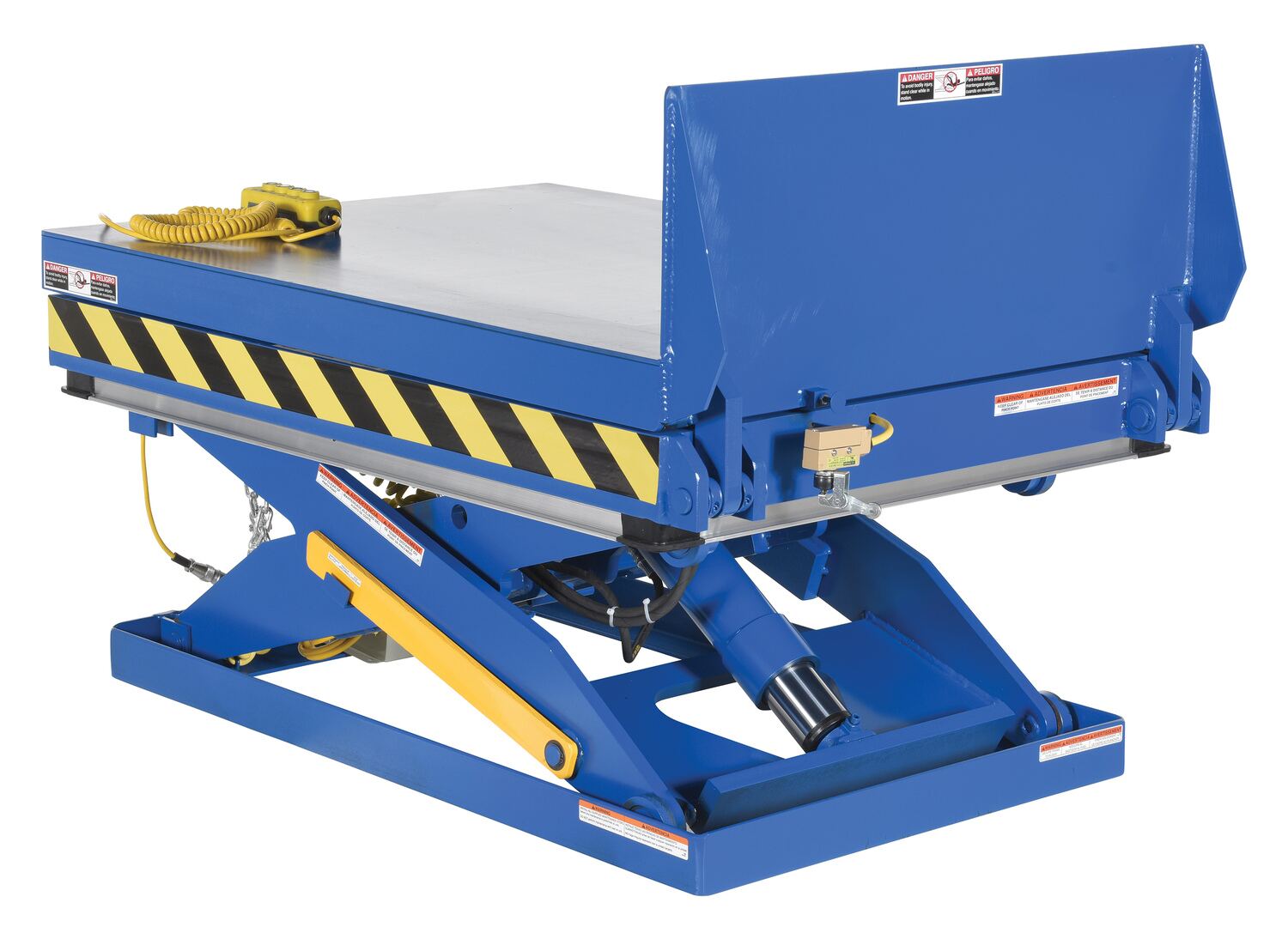

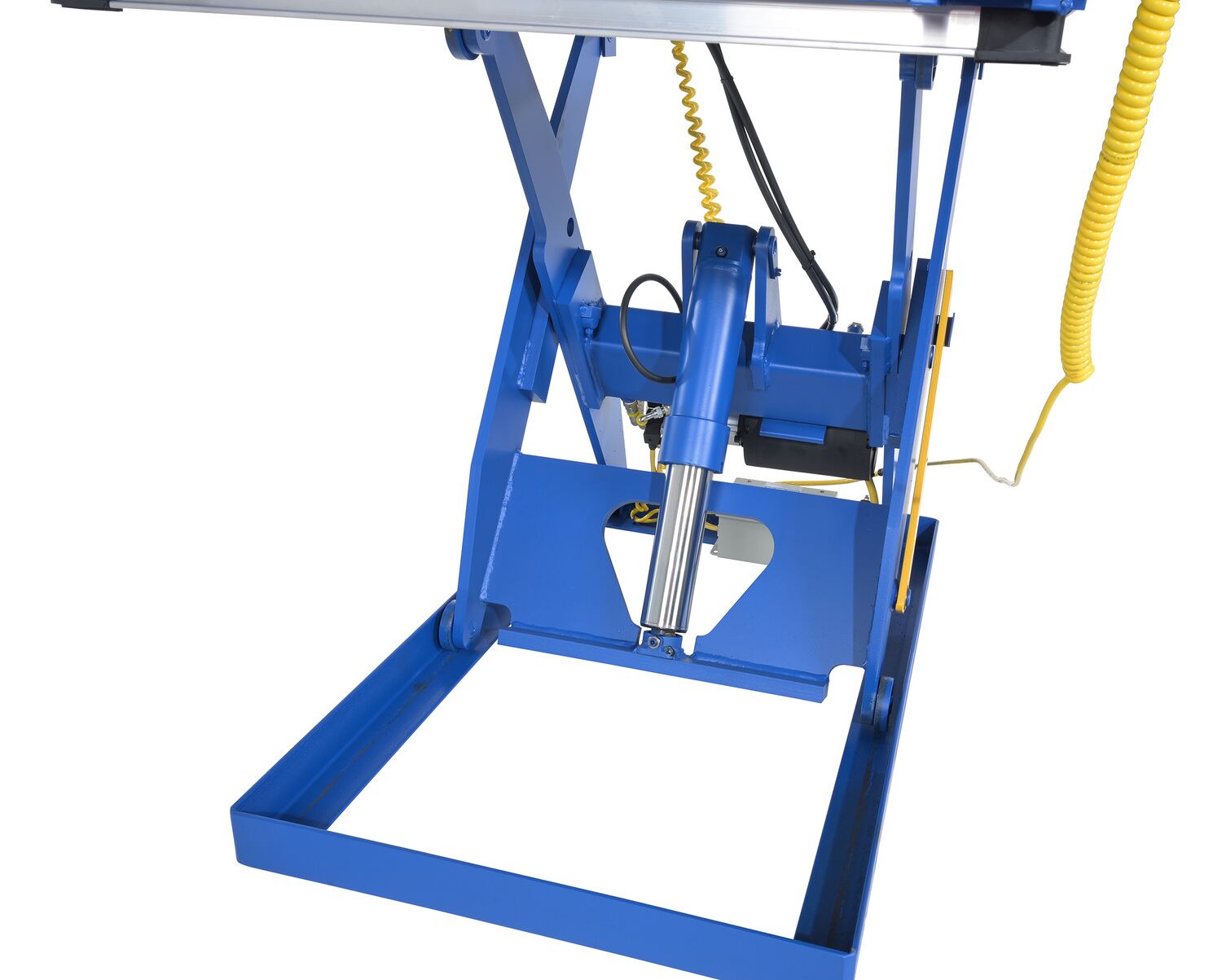

90 Degree Hinge Tilt
