Click Image to Enlarge

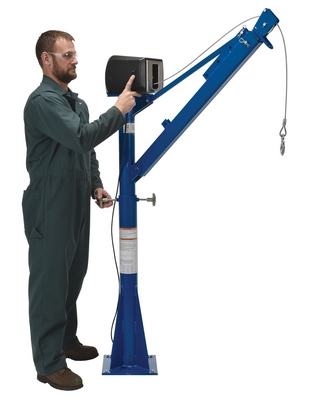

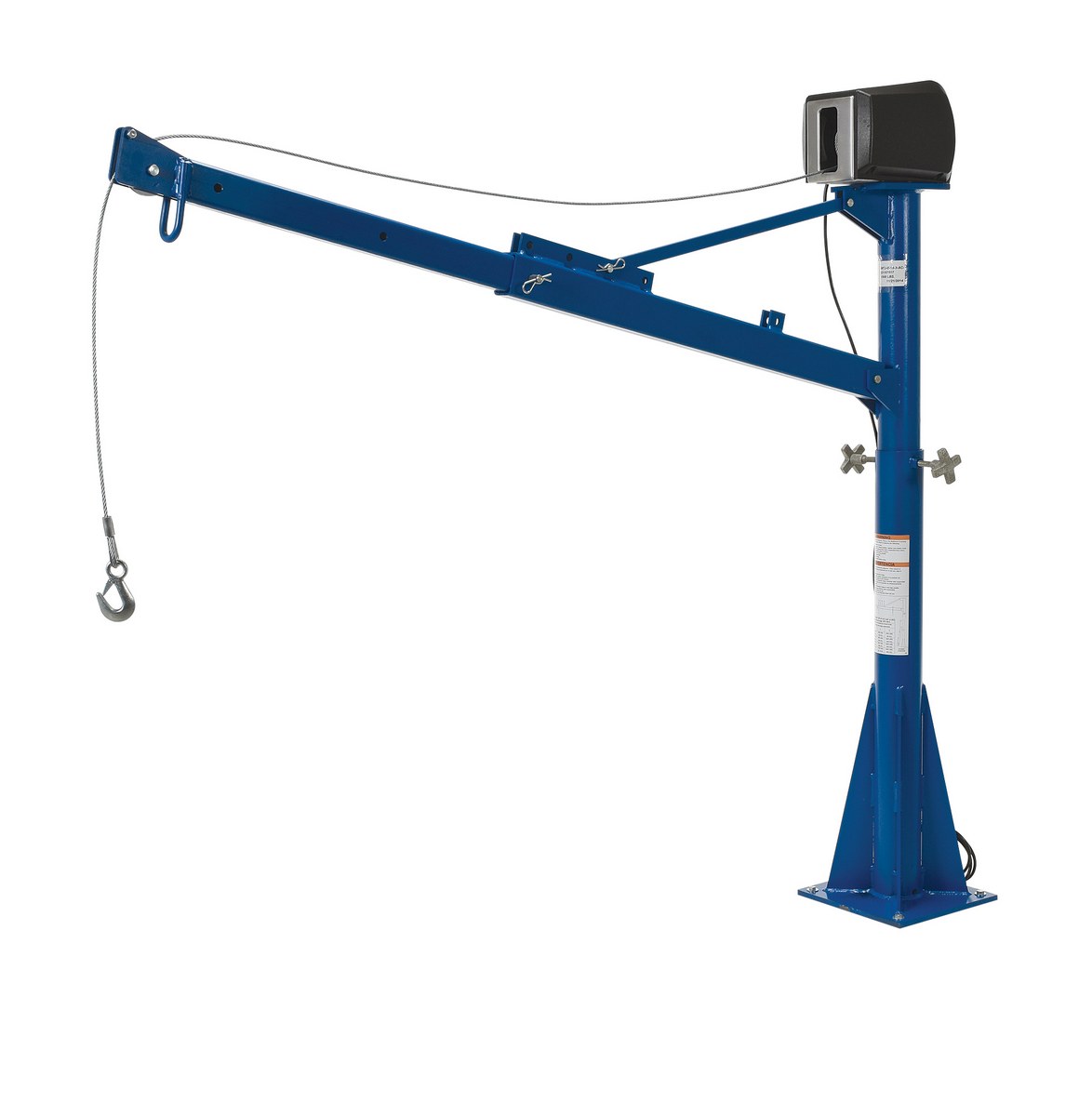

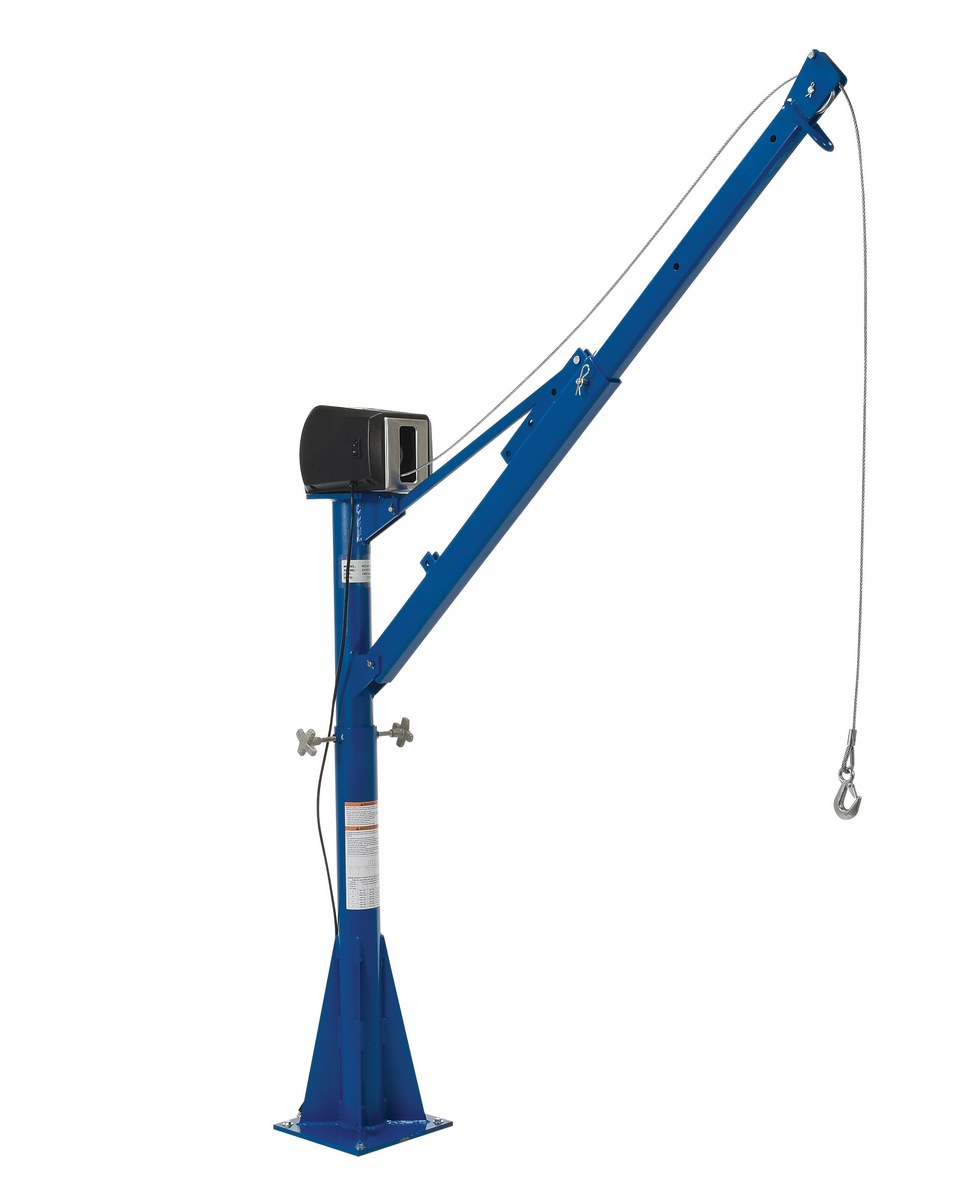

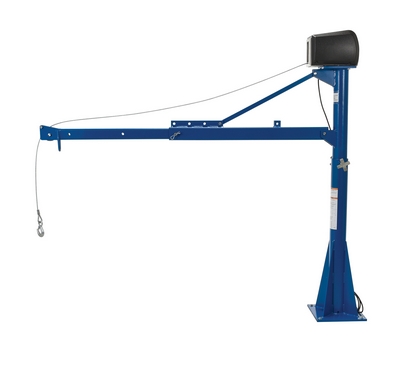

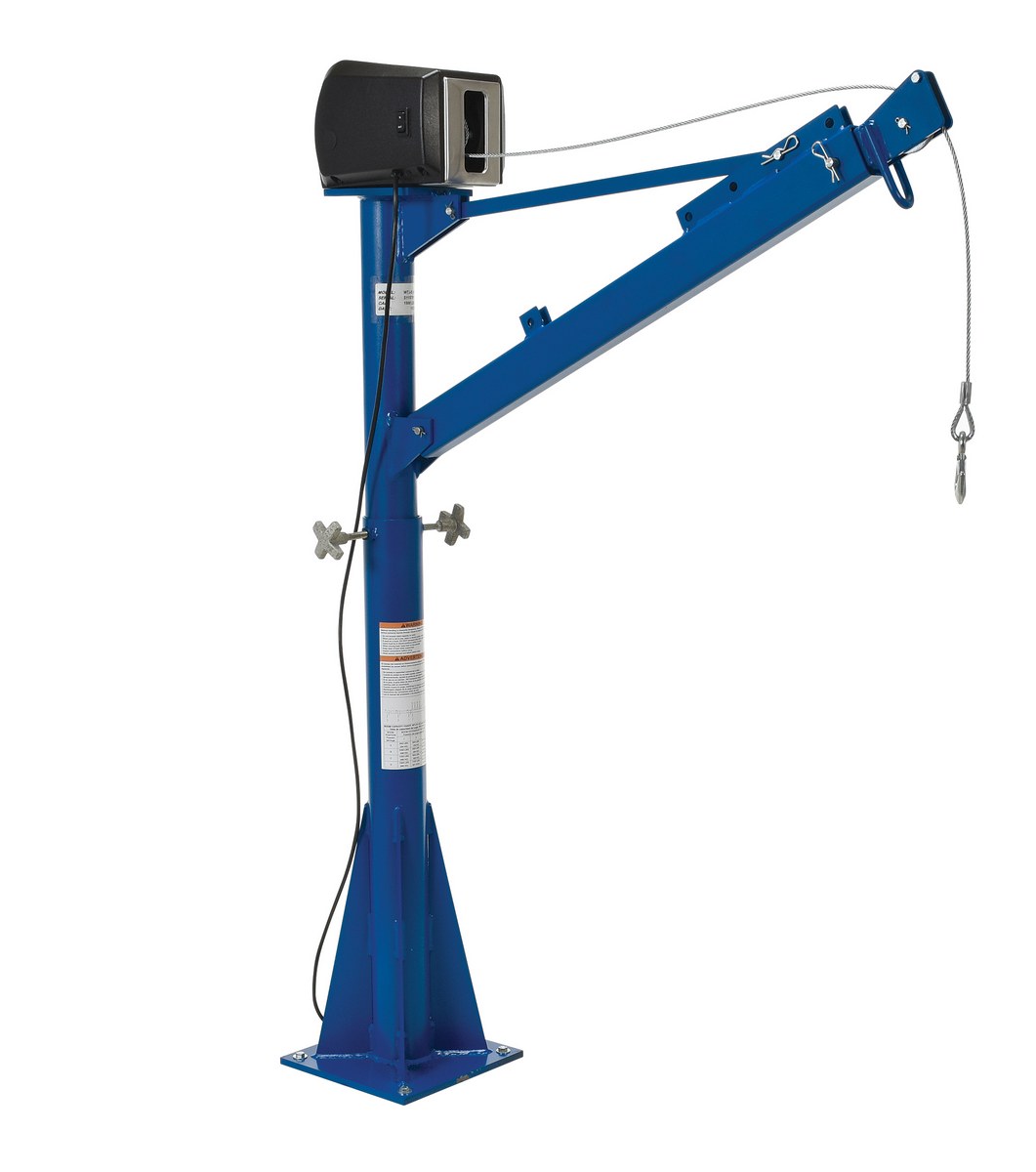

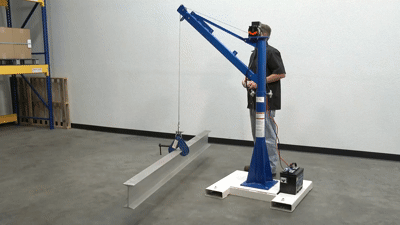

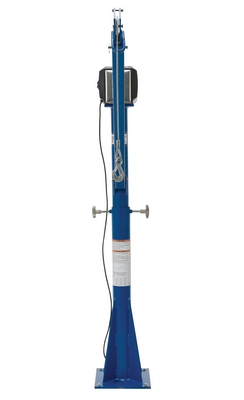

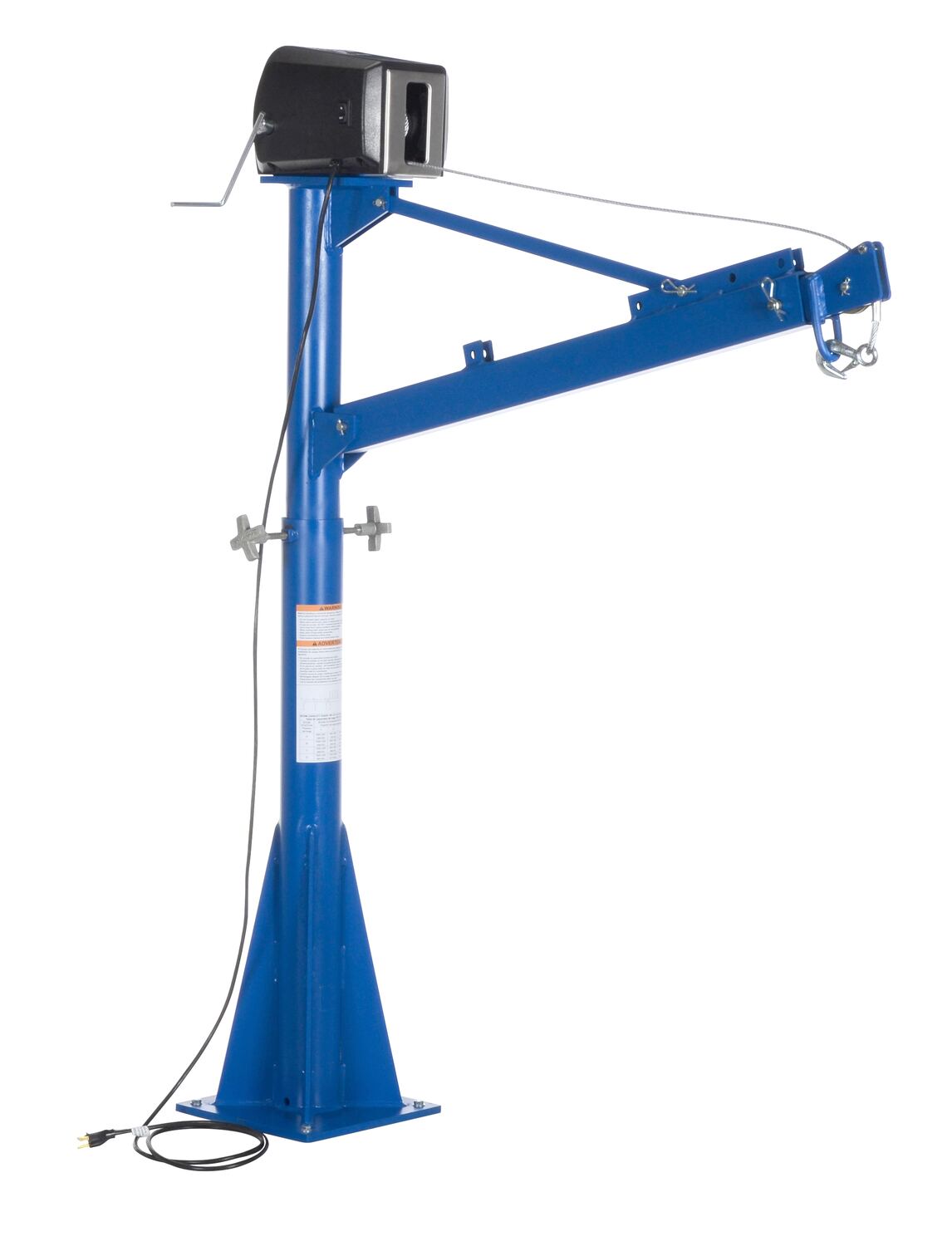

model: WTJ-E-15-3-AC-CSA


SERIES: WTJ

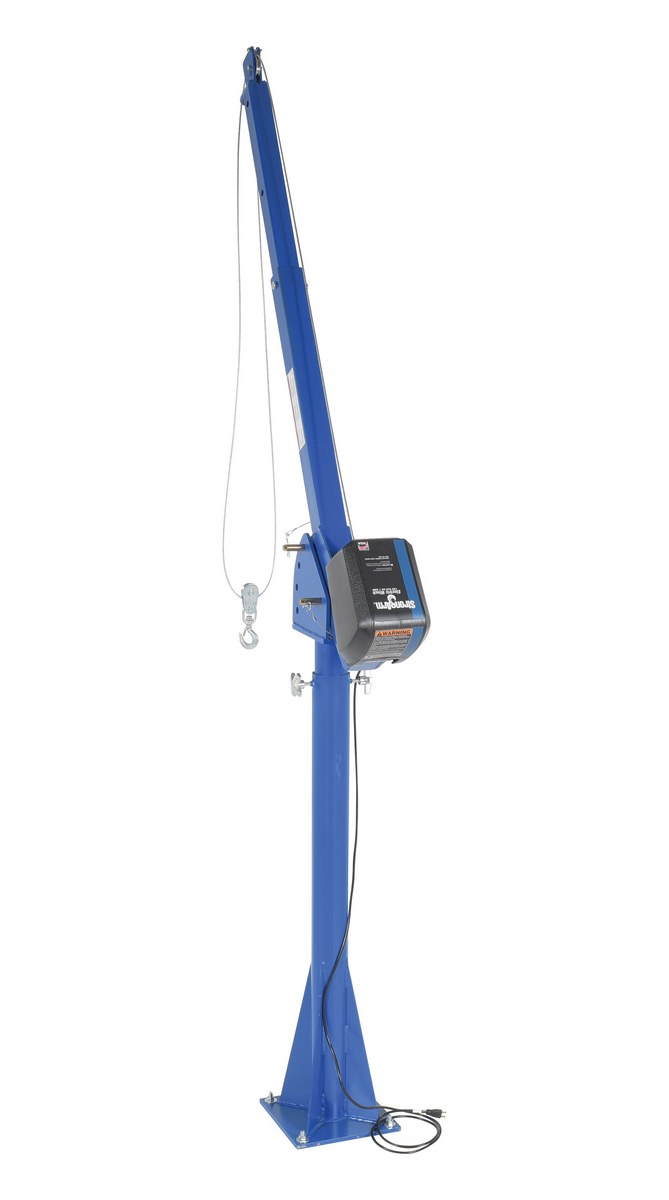

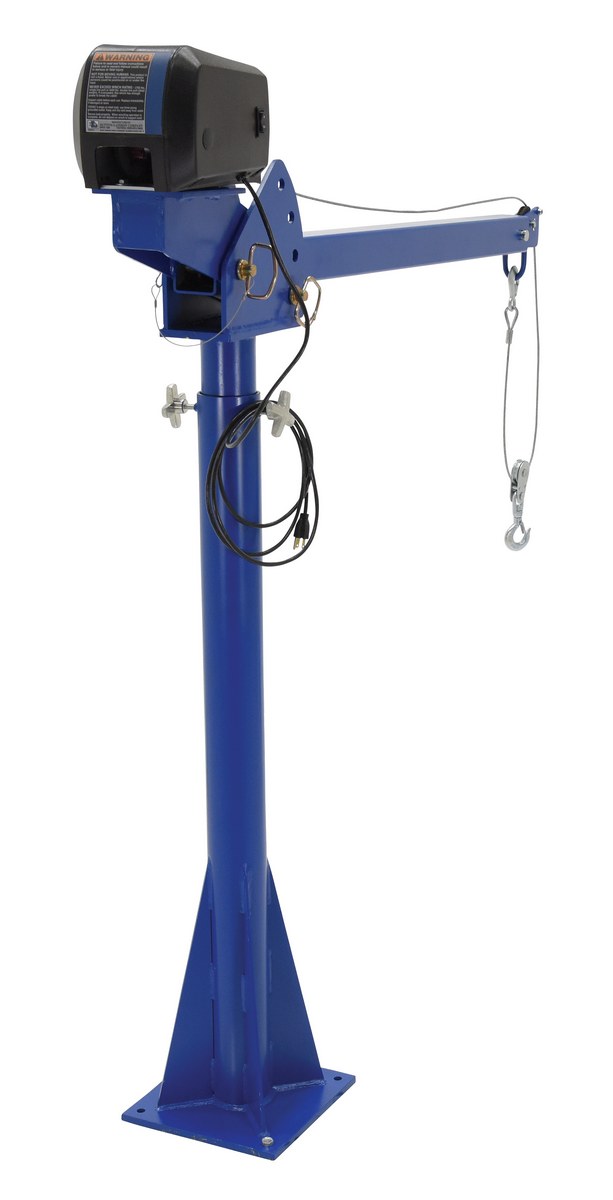

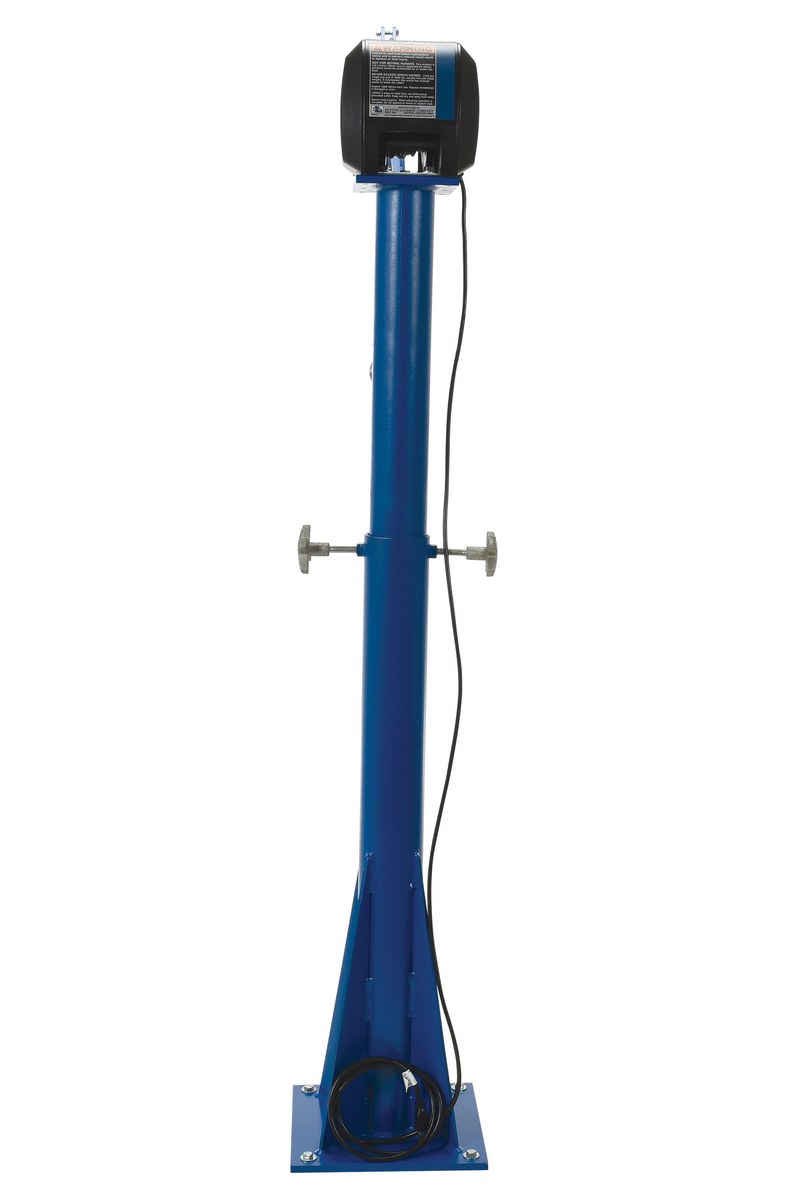

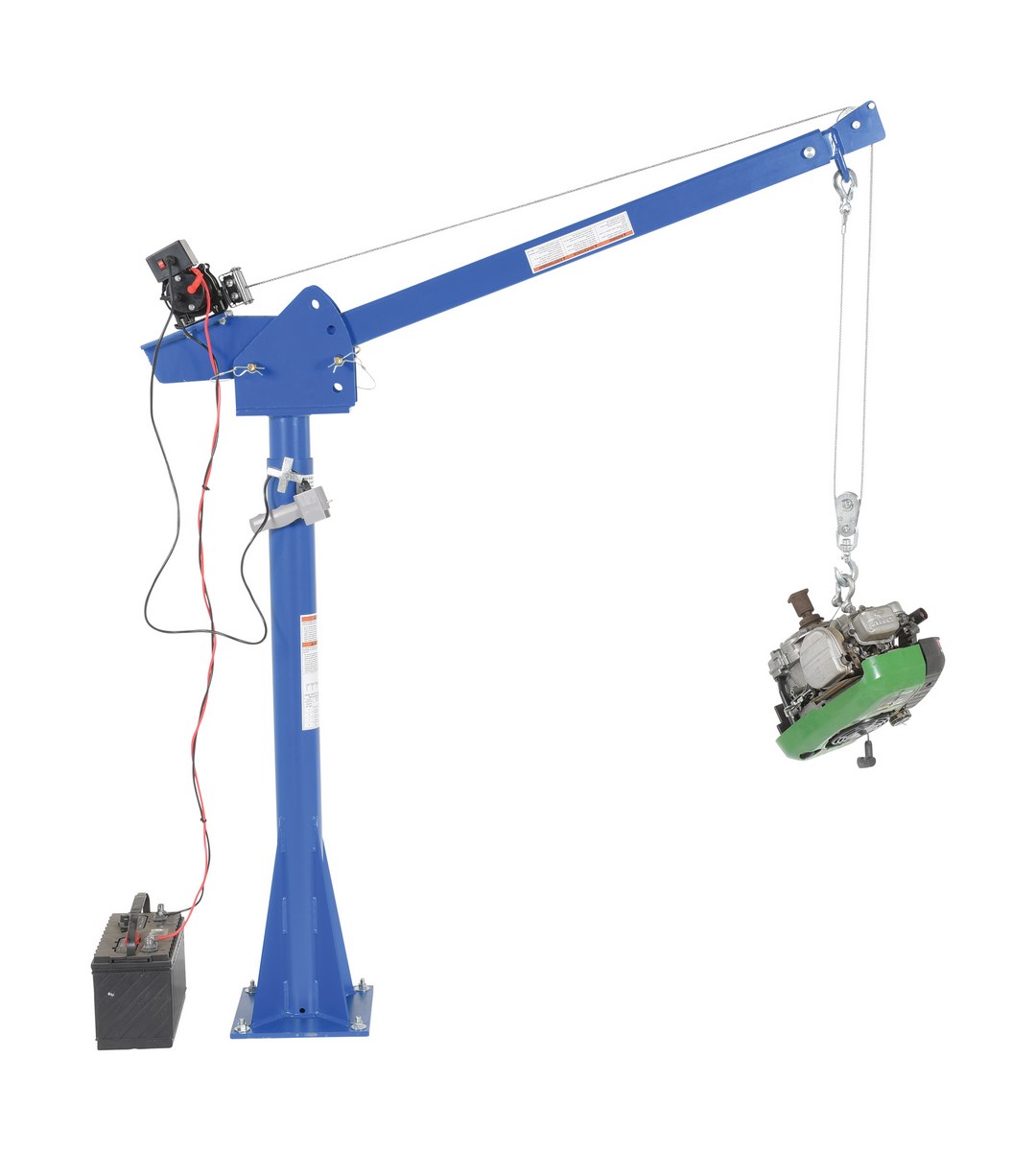

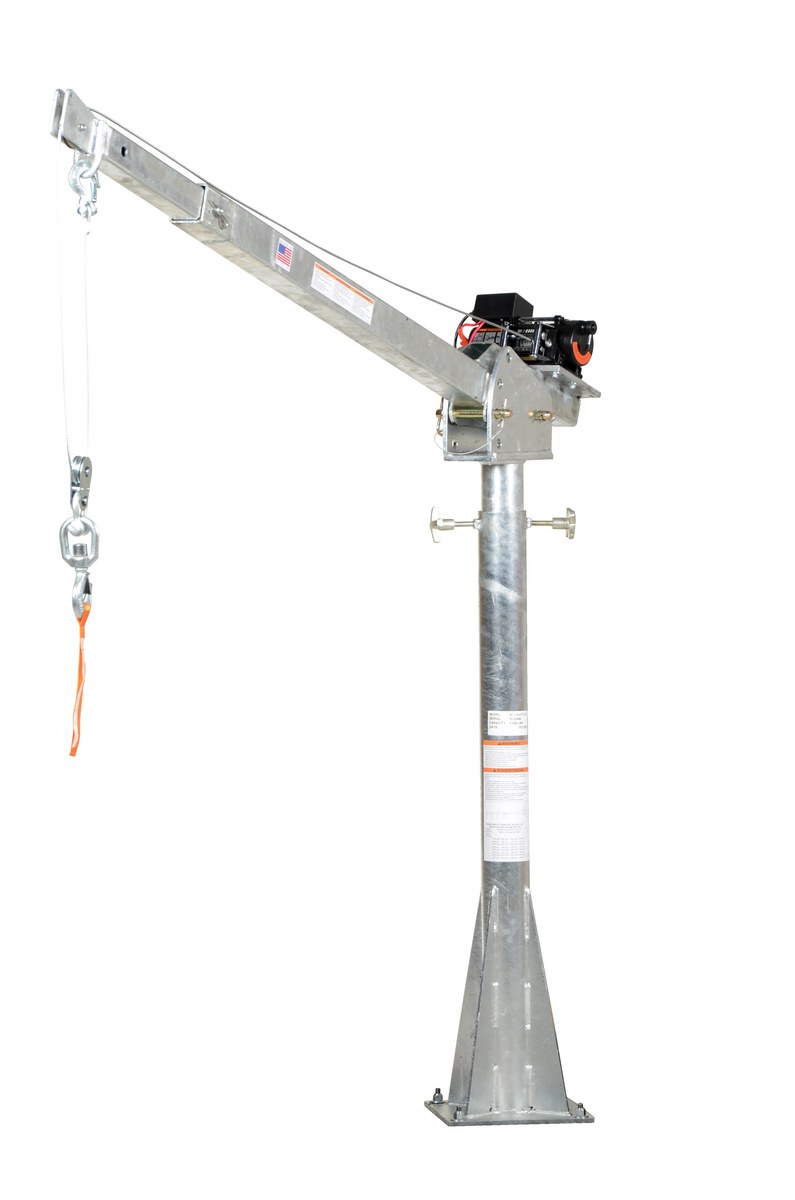

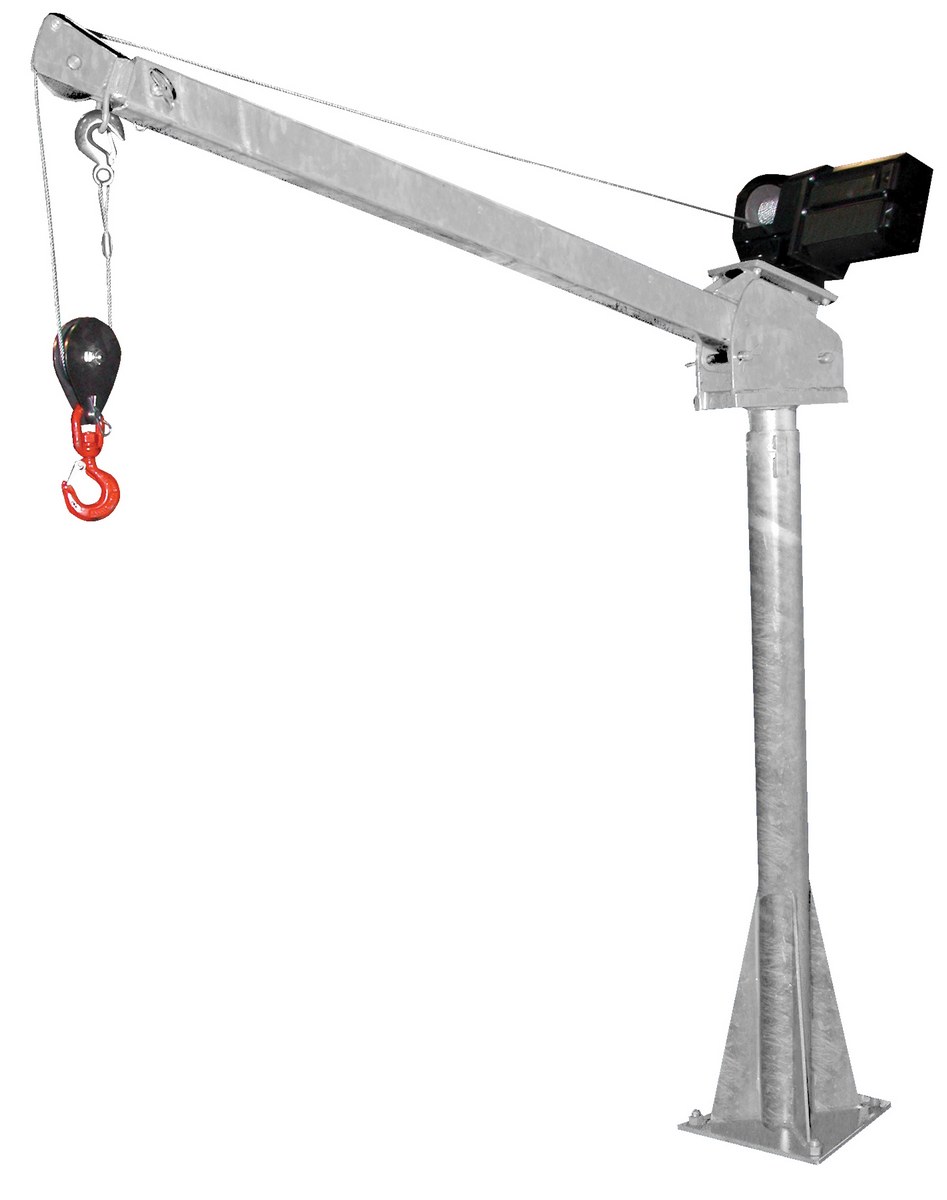

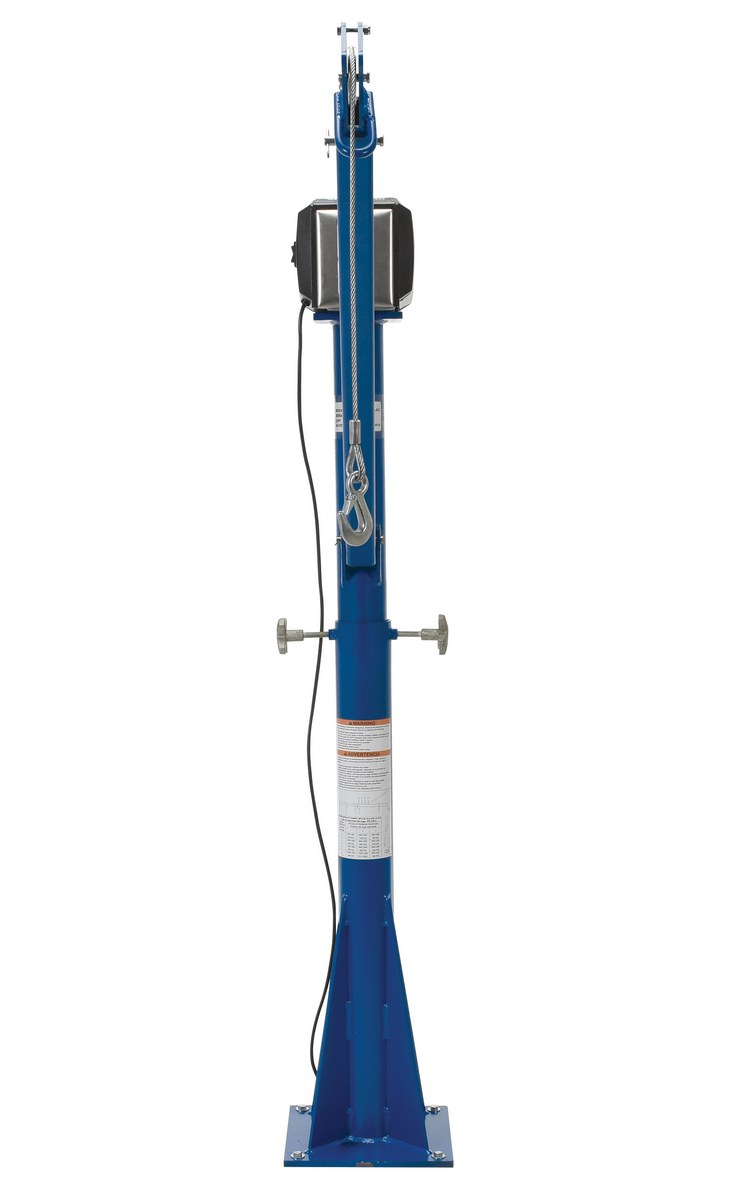

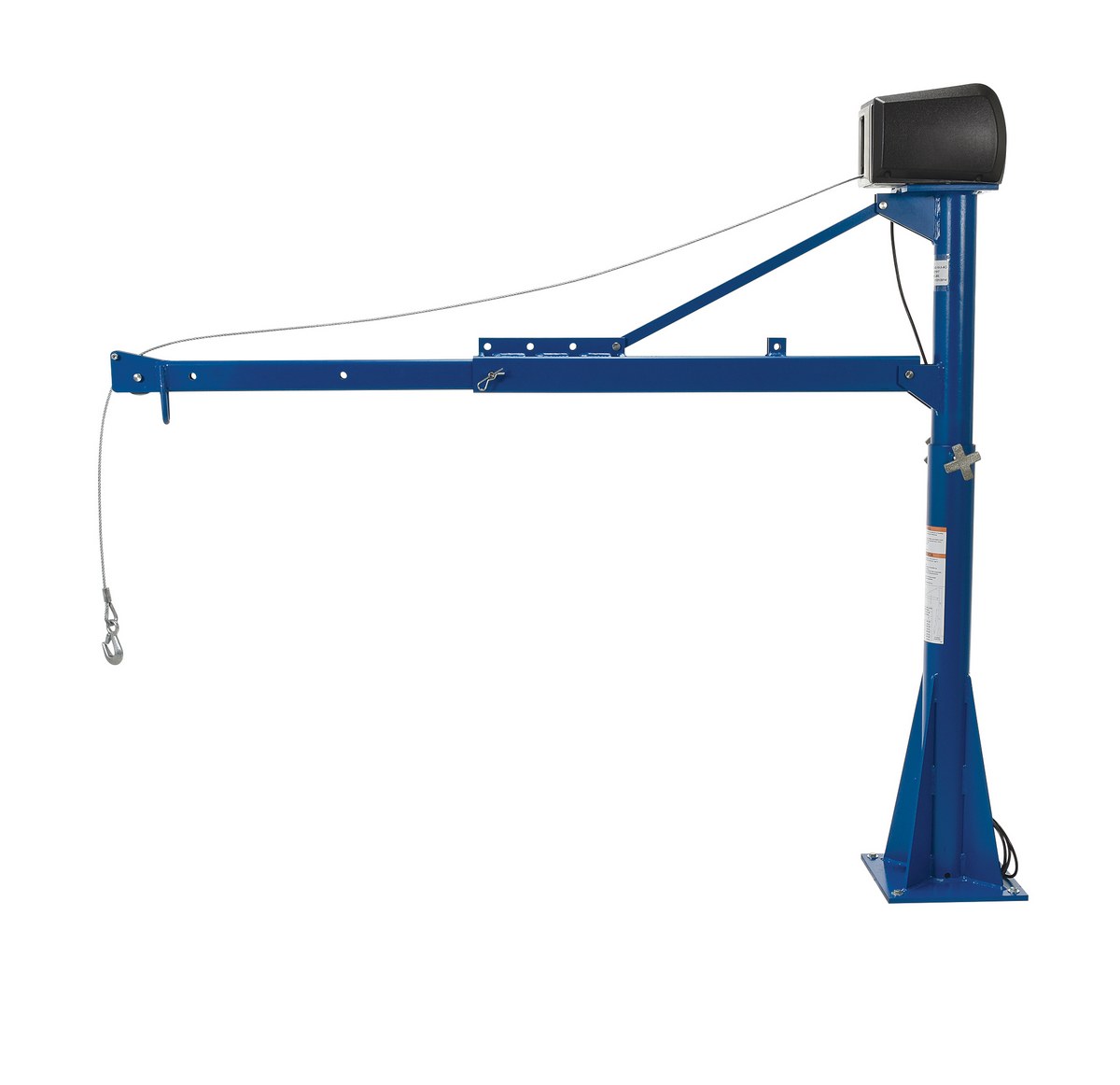

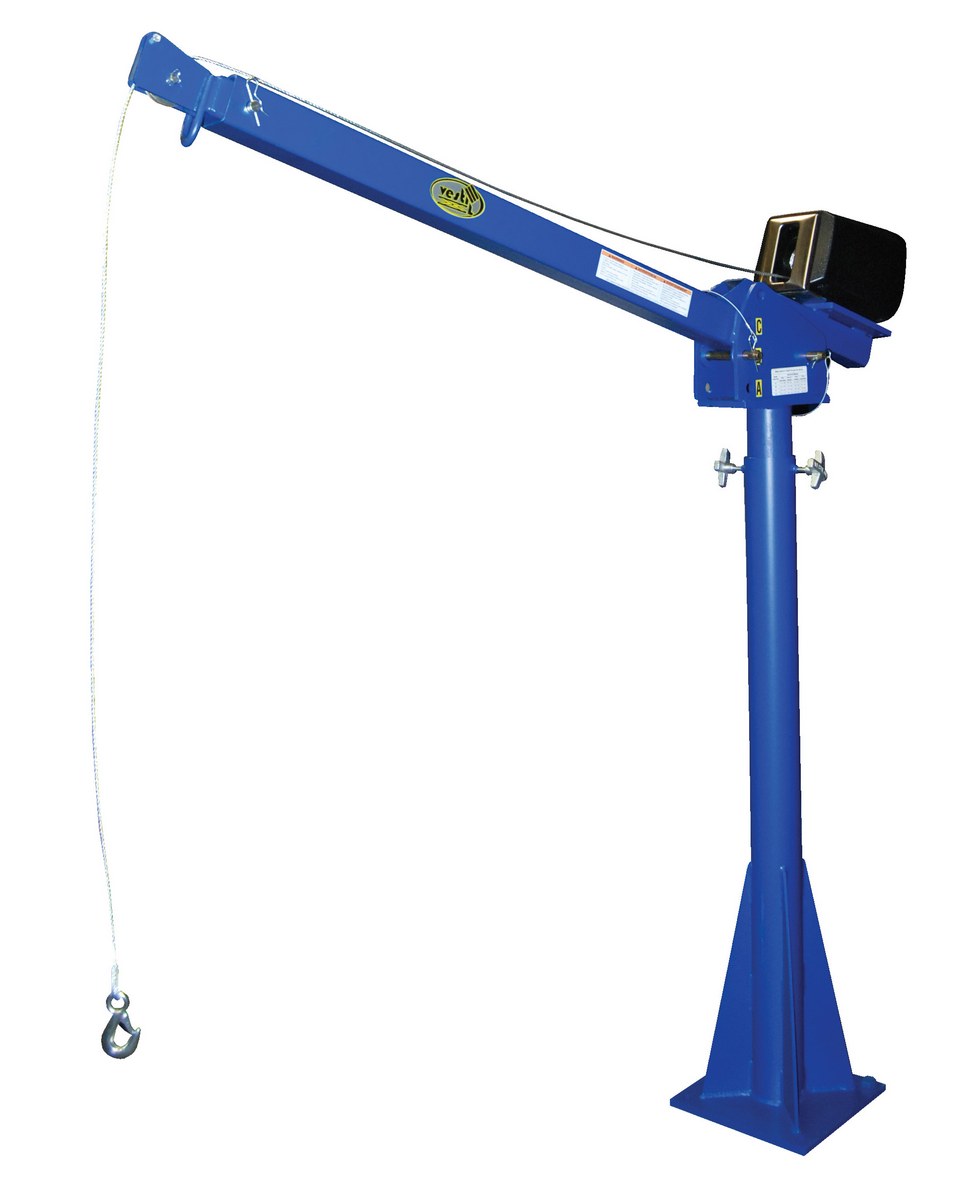

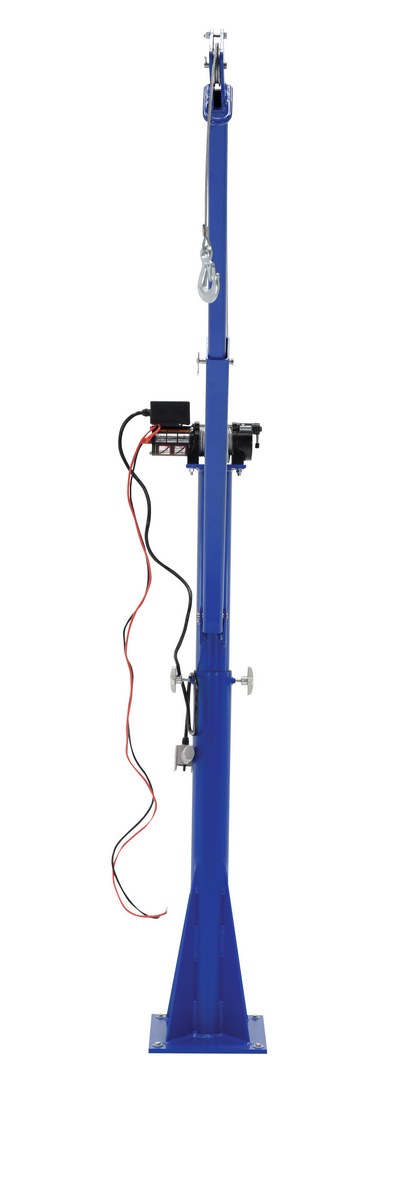

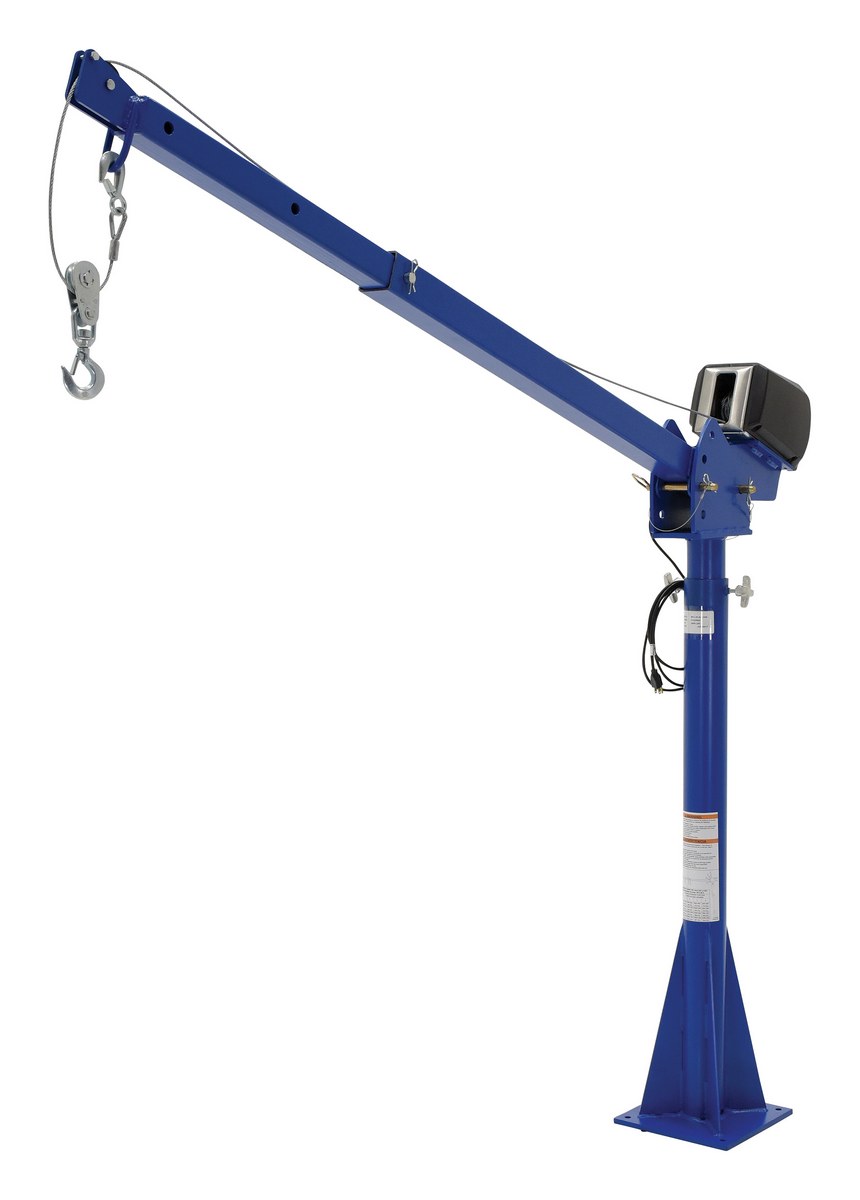

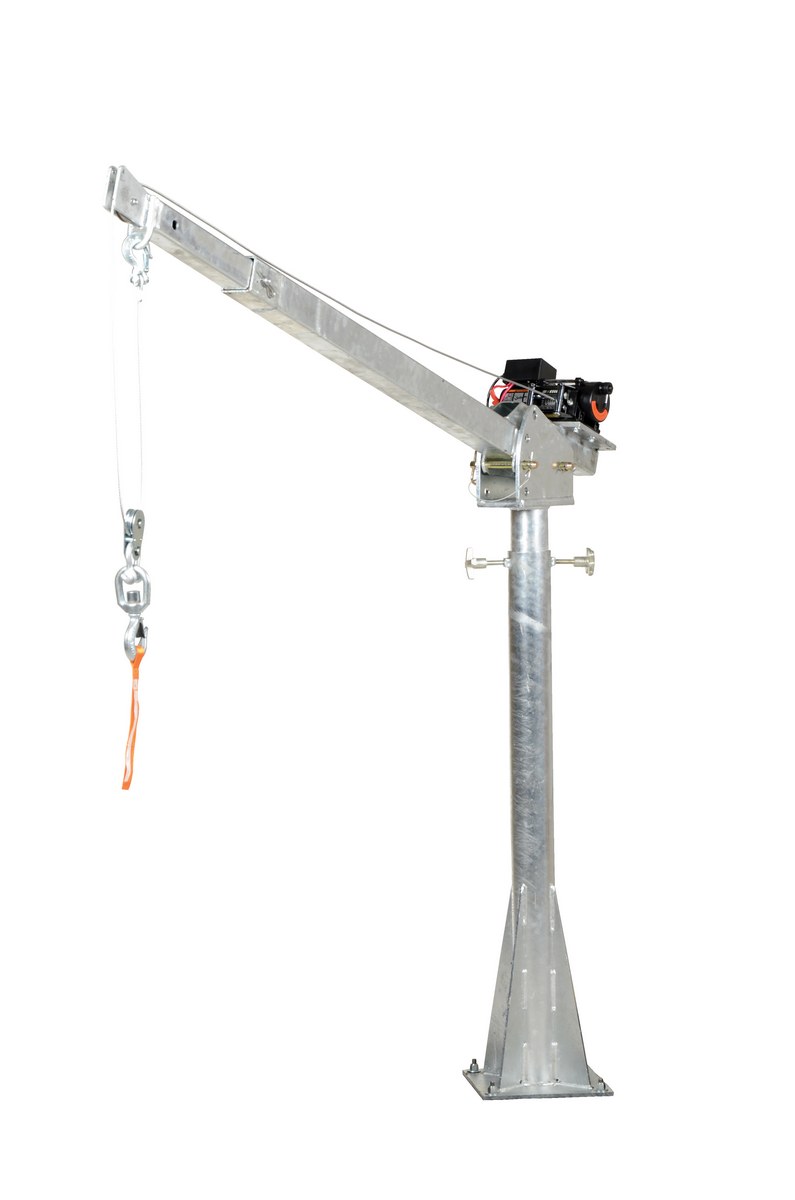

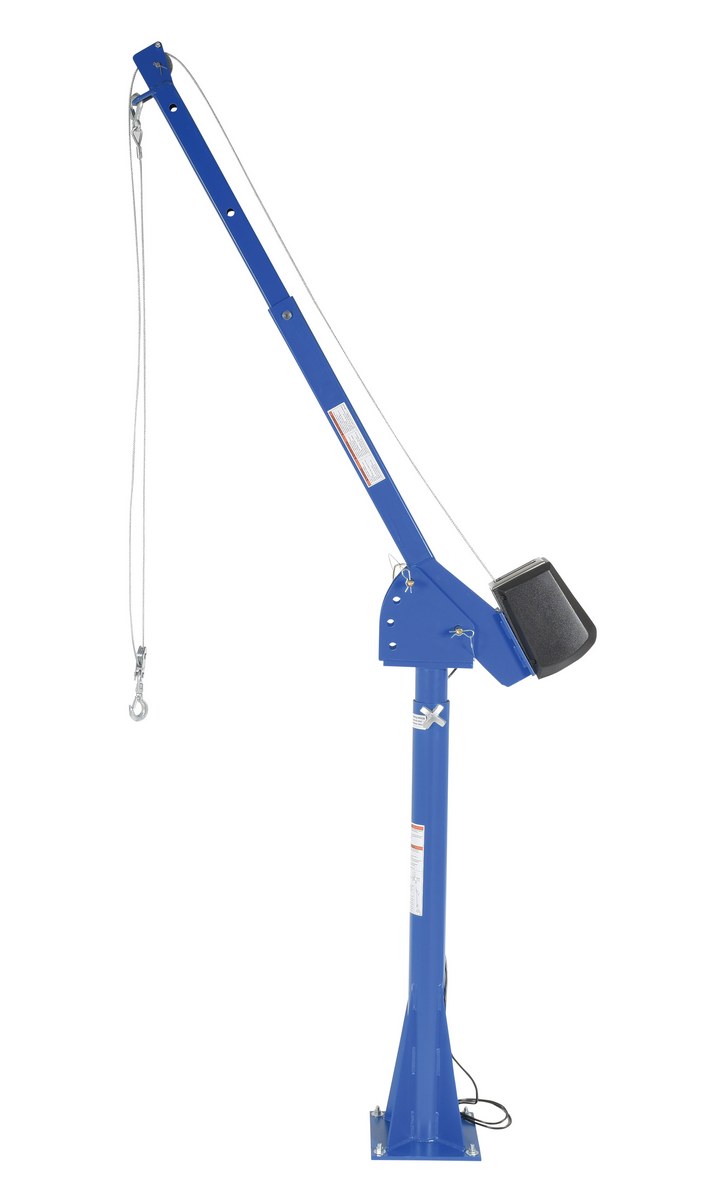

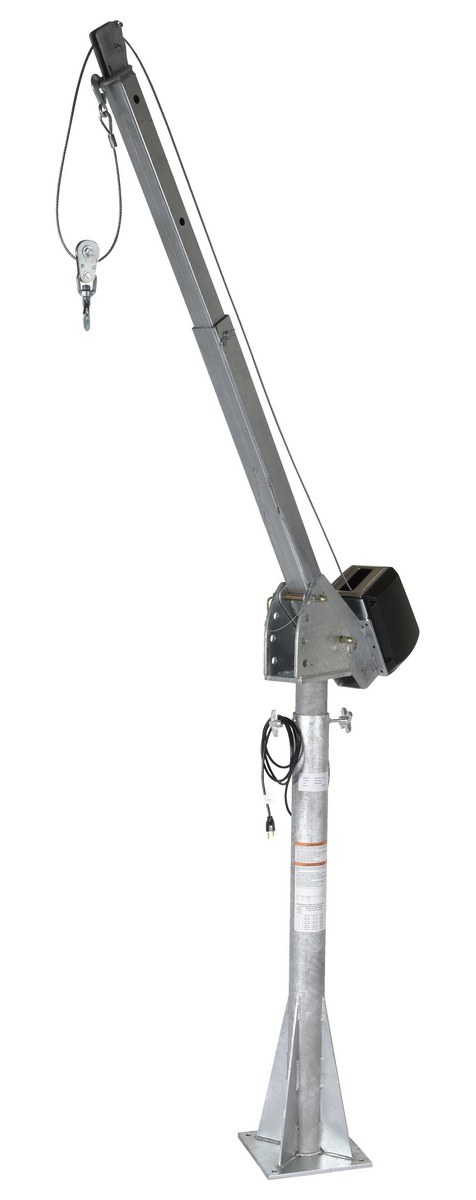

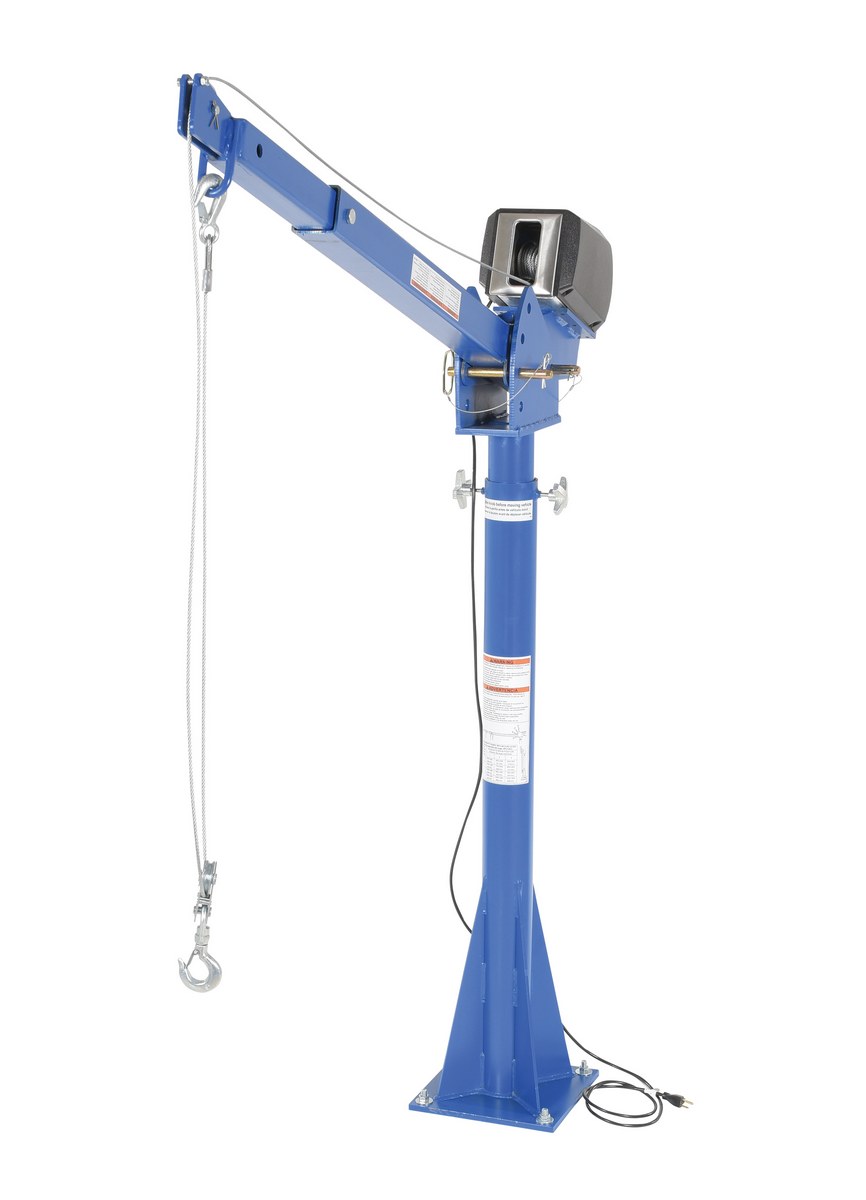

Power Lift Jib Cranes

Designed for material handling applications on docks, in warehouses, or in truck beds. Choose either 12V DC, 1 HP with 6' long non-removable pendant control or 115V AC, 1/3 HP with fingertip switch to raise and lower hook. Powered winches are designed for intermediate lifting. Meets ANSI and OSHA specifications. 12" x 12" mounting plate. Unit is designed for vertical lifting only. Do not use unit for lifting personnel or overhead lifting. Battery not included. Models with suffix -CSA feature a winch that meets Canadian requirements.

Designed for material handling applications on docks, in warehouses, or in truck beds. Choose either 12V DC, 1 HP with 6' long non-removable pendant control or 115V AC, 1/3 HP with fingertip switch to raise and lower hook. Powered winches are designed for intermediate lifting. Meets ANSI and OSHA specifications. 12" x 12" mounting plate. Unit is designed for vertical lifting only. Do not use unit for lifting personnel or overhead lifting. Battery not included. Models with suffix -CSA feature a winch that meets Canadian requirements.

Other Engine Hoists & Floor Cranes

Hitch-Mounted Truck Jib Crane

Hitch-Mounted Truck Jib Crane

Power Lift Jib Cranes

Power Lift Jib Cranes

Lifter Jibs

Lifter Jibs

Shop Crane Engine Hoists

Shop Crane Engine Hoists

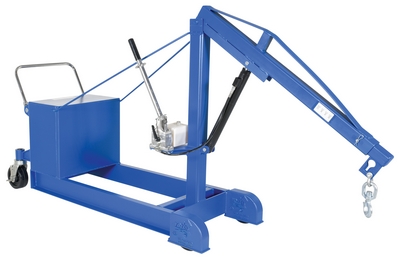

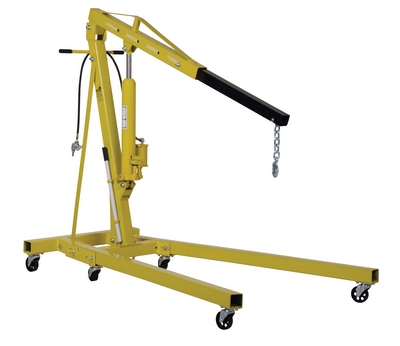

Air/Hand Pump Hydraulic Shop Crane

Air/Hand Pump Hydraulic Shop Crane

Share This Page




KEY: Approval Drawing = Approval Drawing -- Approval Drawing = Warranty -- Approval Drawing = Testing Certificate

All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.
Power Lift Jib Cranes
Model Image PDF's Operation Capacity
(lbs)
Boom
Reach
Boom
Height
Wt
(lbs)

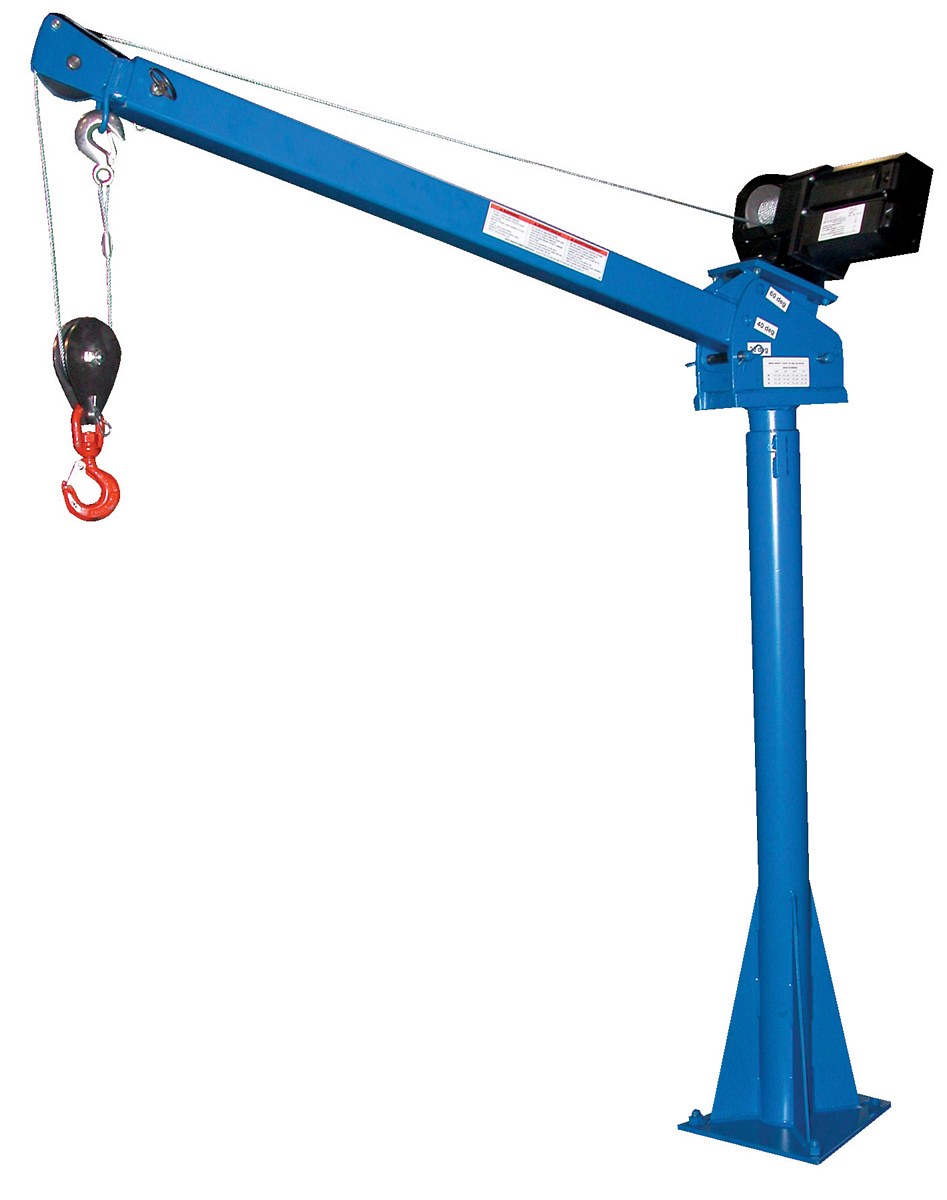

WTJ-20-3-DC icon_approvaldrawings.jpgWarranty PDF 12V DC 2,000 39-1/4"to63-1/4" 59-9/16"-96-1/8" 261

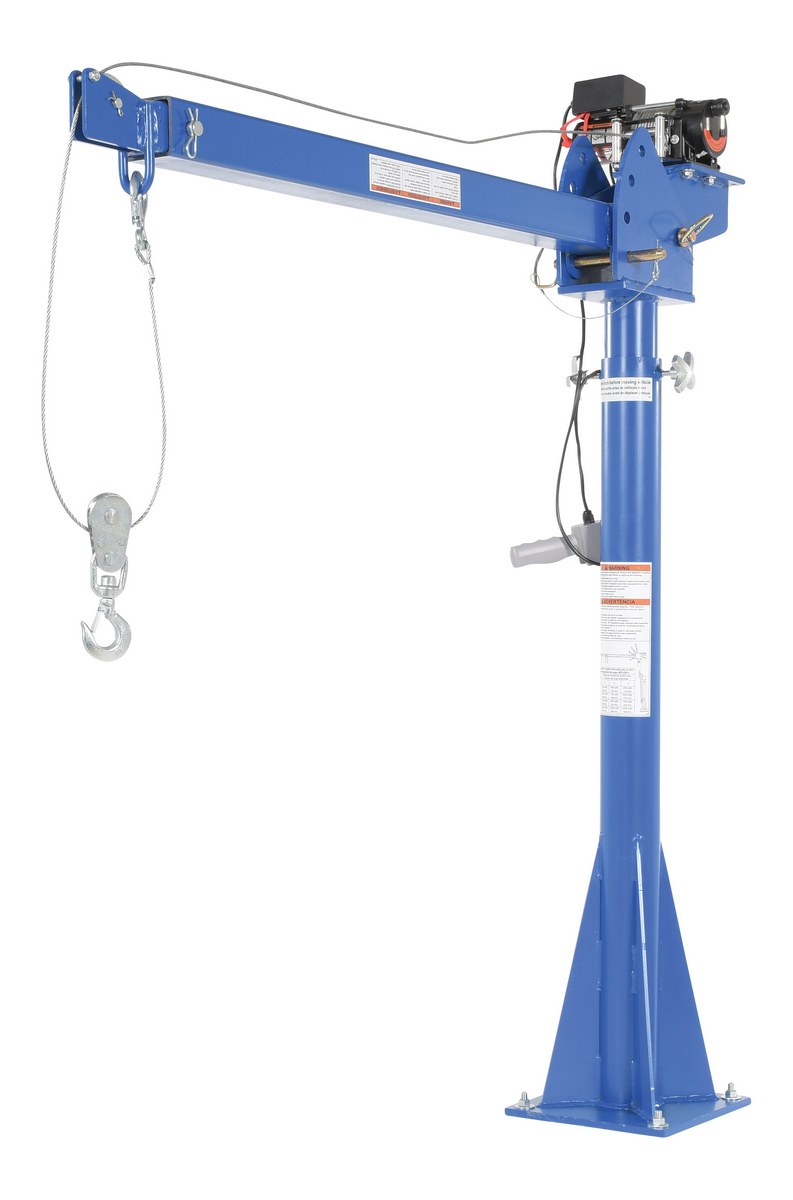

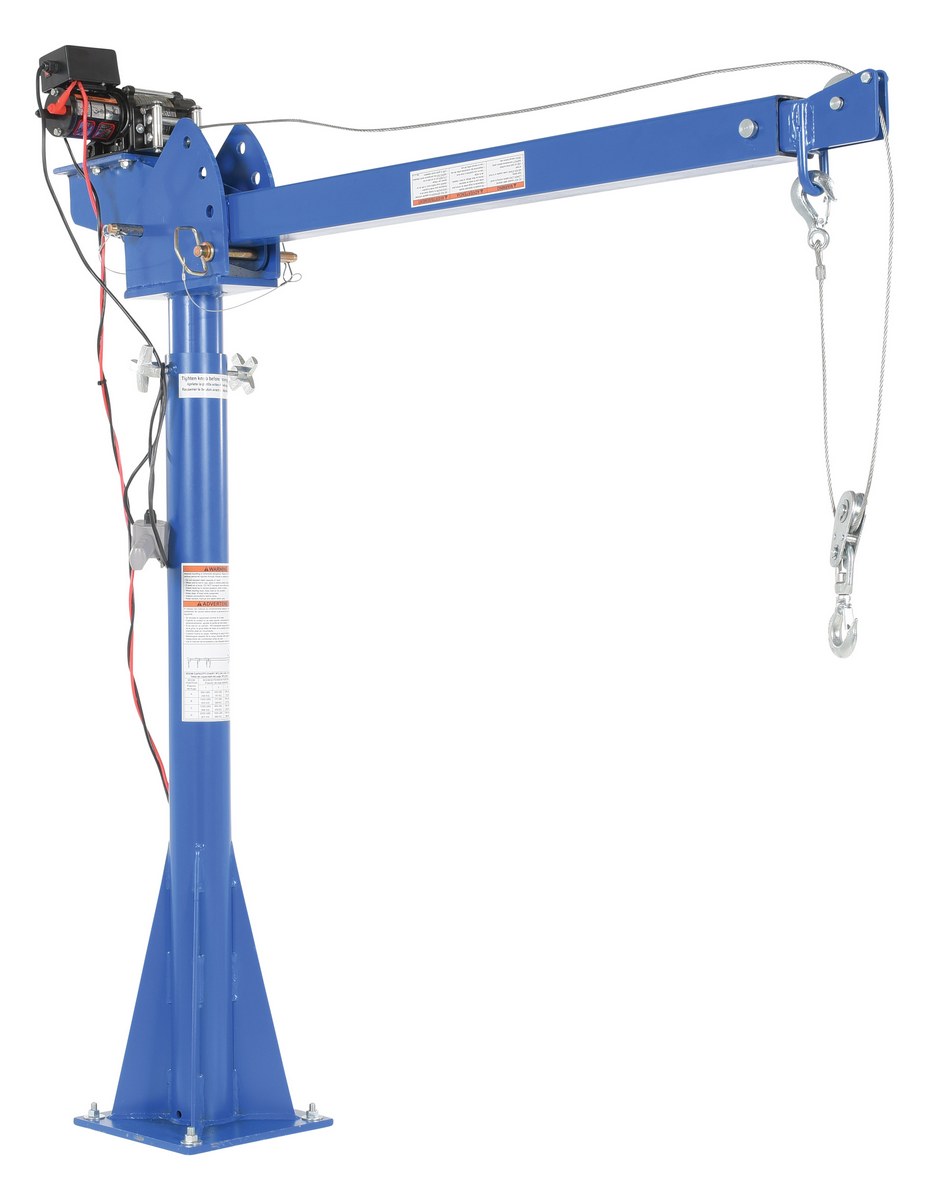

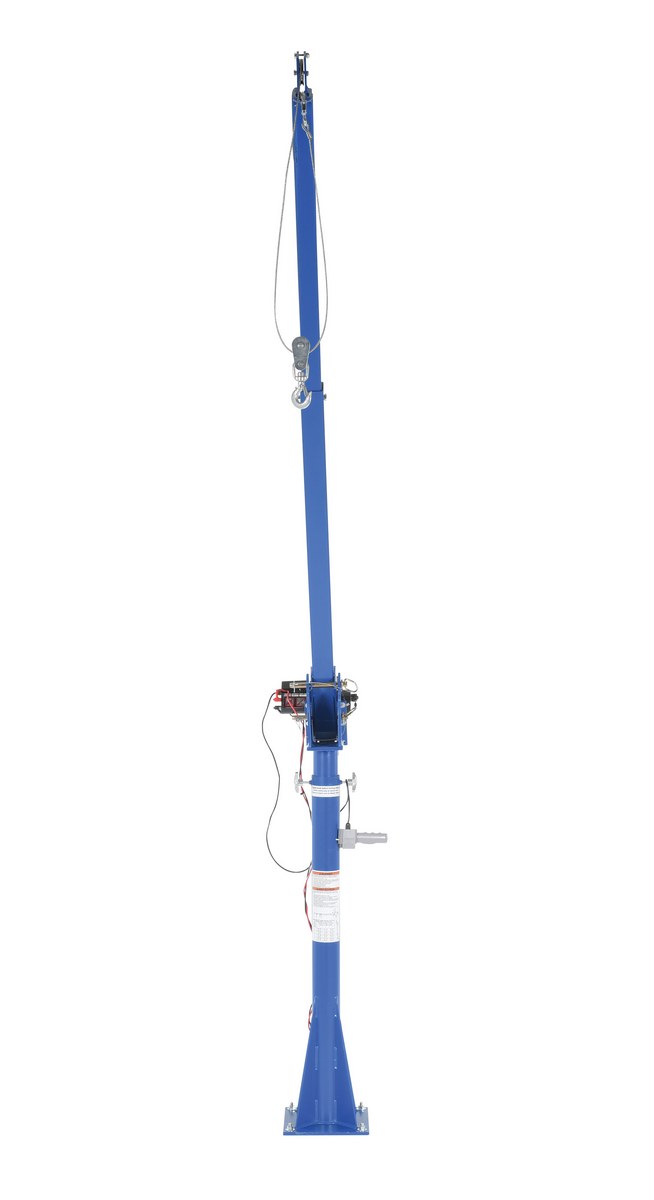

WTJ-20-4-DC icon_approvaldrawings.jpgWarranty PDF 12V DC 2,000 51-1/4"to87-1/4" 59-1/2"to106-1/2" 260

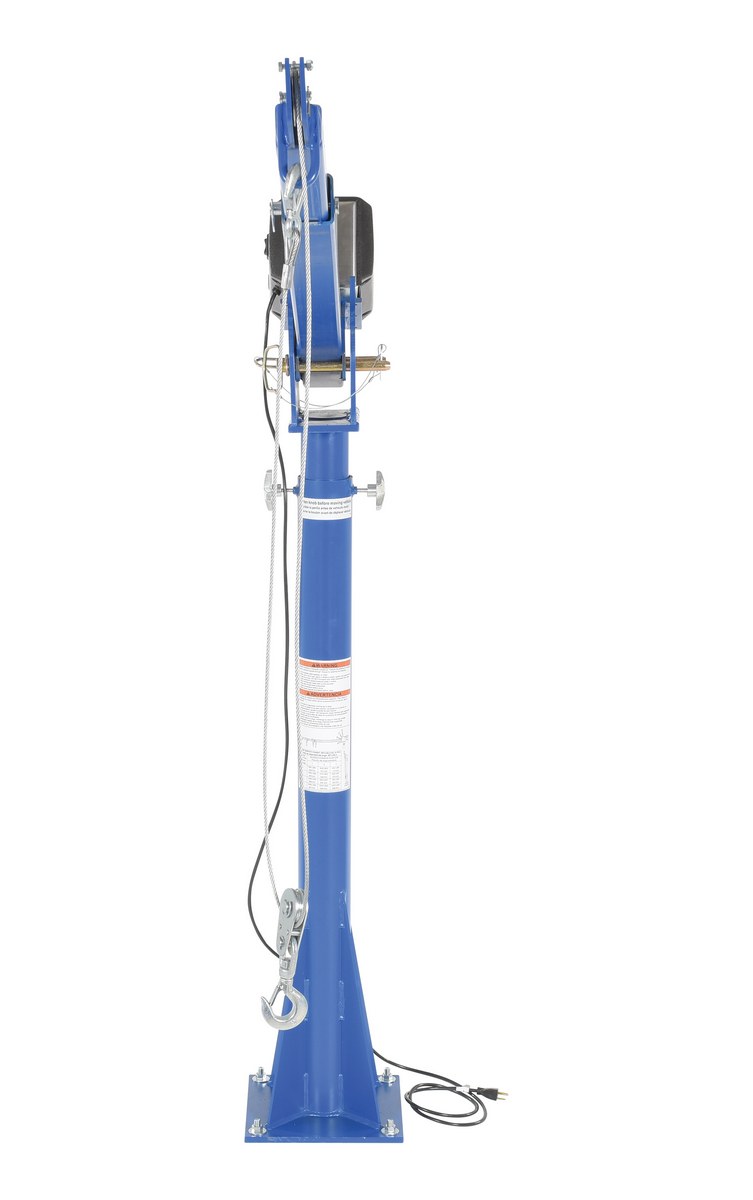

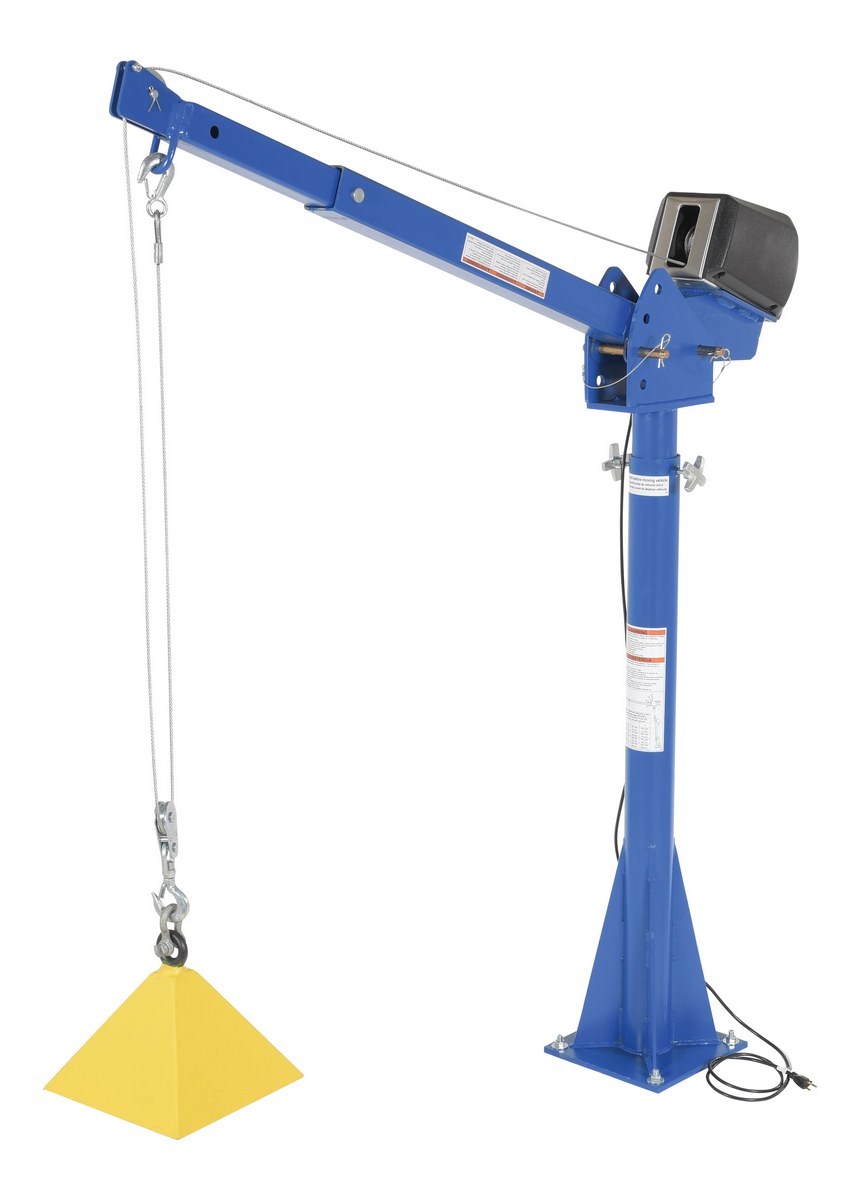

WTJ-20-3-AC icon_approvaldrawings.jpgWarranty PDF 115V AC 2,000 39-1/4"to63-1/4" 59-9/16"-96-1/8" 280

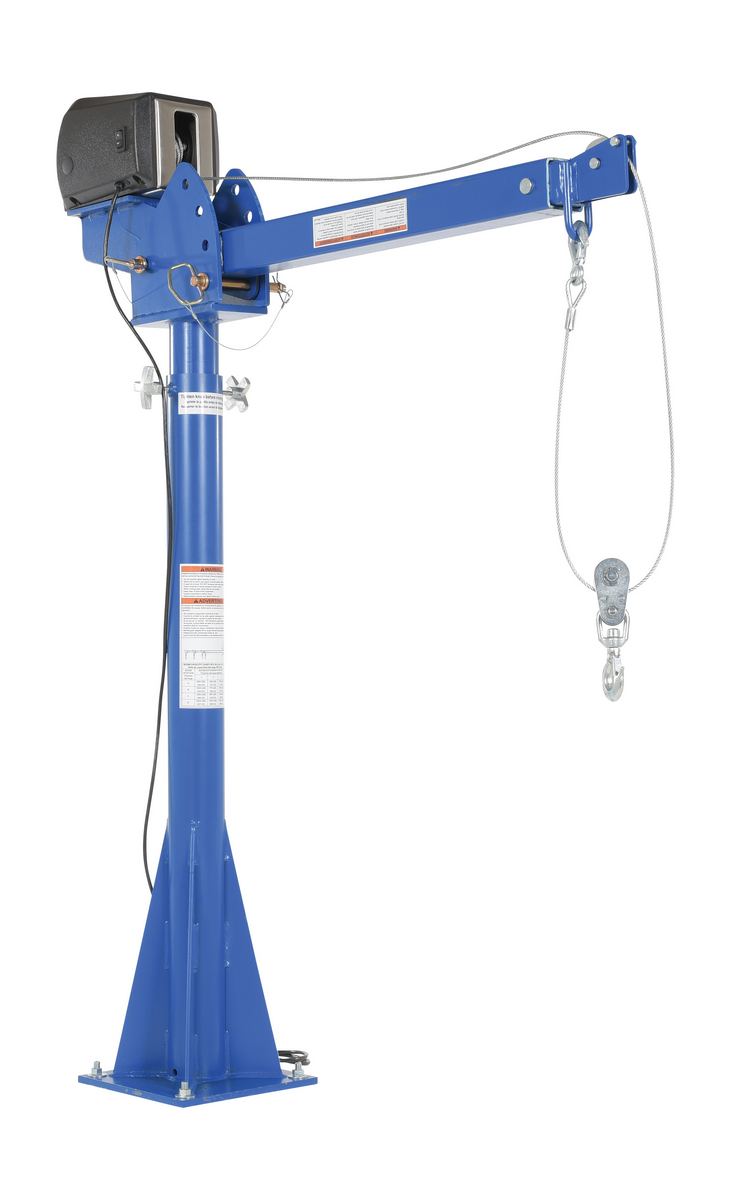

WTJ-20-3-AC-CSA - Warranty PDF 115V AC 2,000 39-1/4"to63-1/4" 59-9/16"-96-1/8" 280
WTJ-20-4-AC icon_approvaldrawings.jpgWarranty PDF 115V AC 2,000 51-1/4"to87-1/4" 59-1/2"to106-1/2" 290

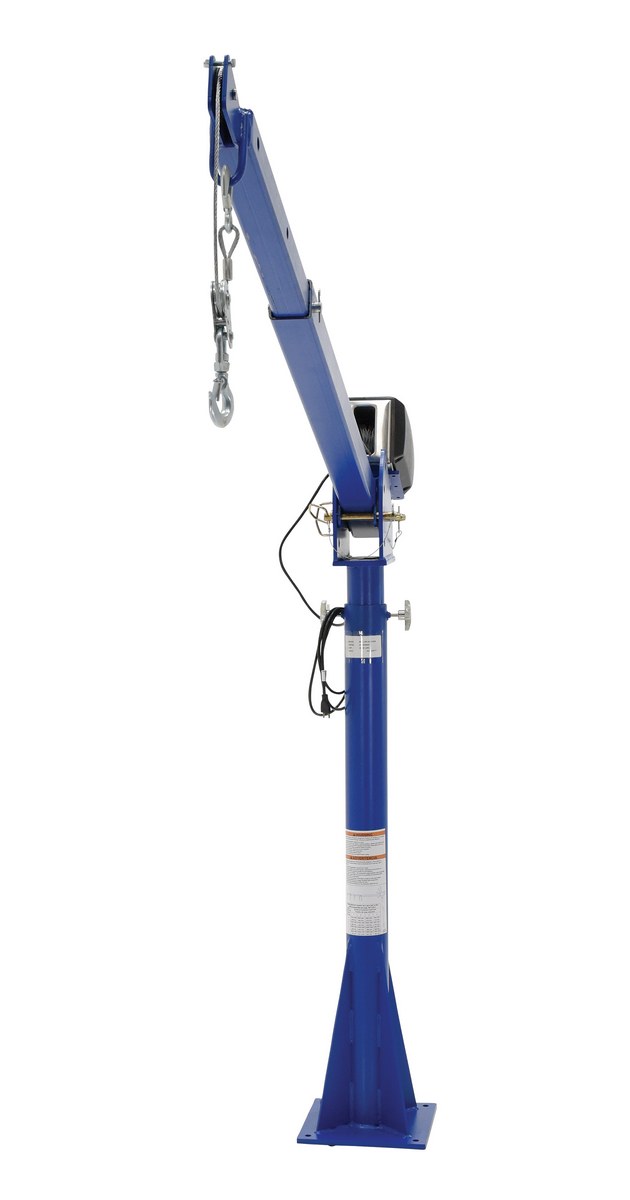

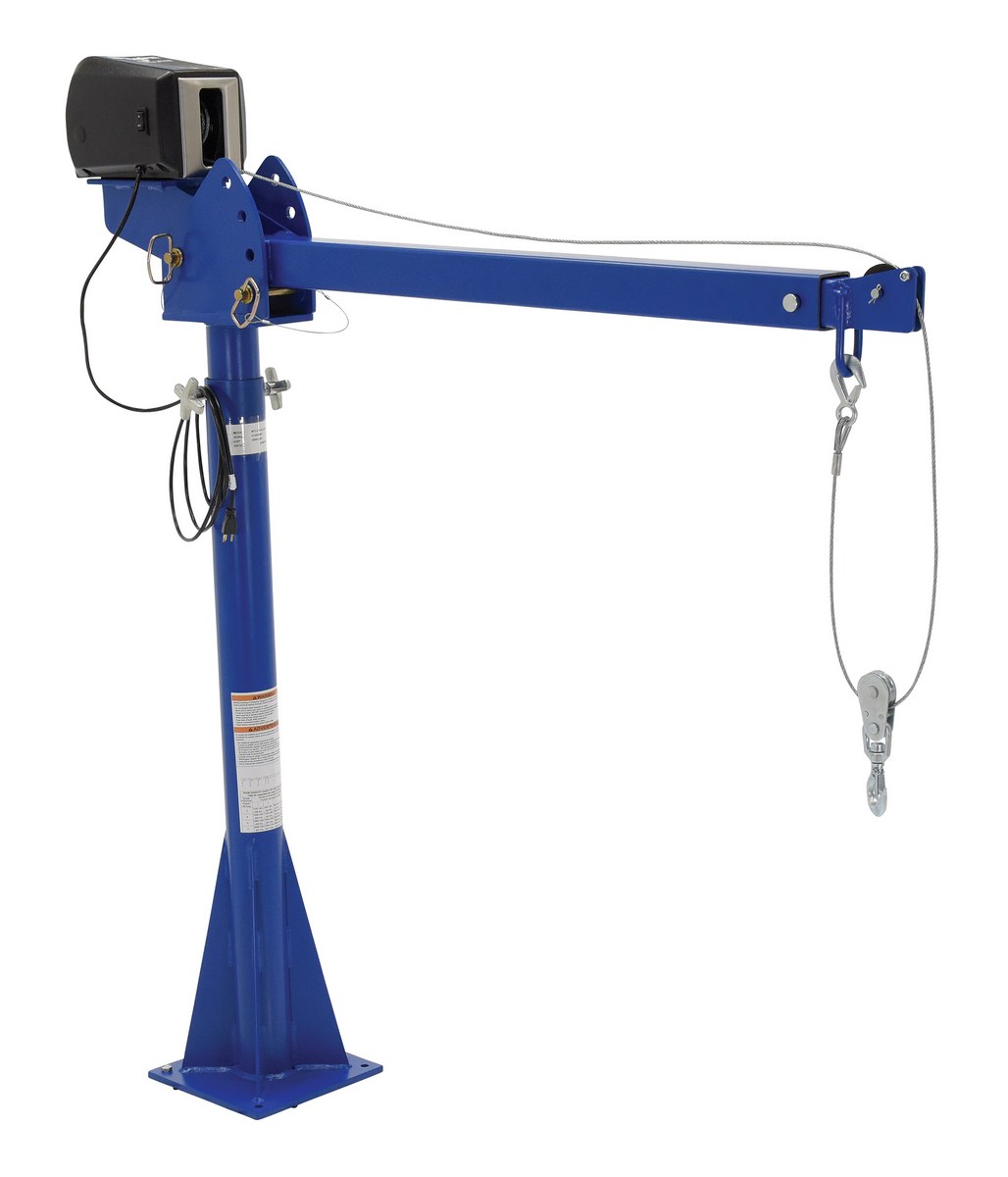

WTJ-20-4-AC-CSA Warranty PDF 115V AC 2,000 51-1/4"to87-1/4" 59-1/2"to 106-1/2" 290

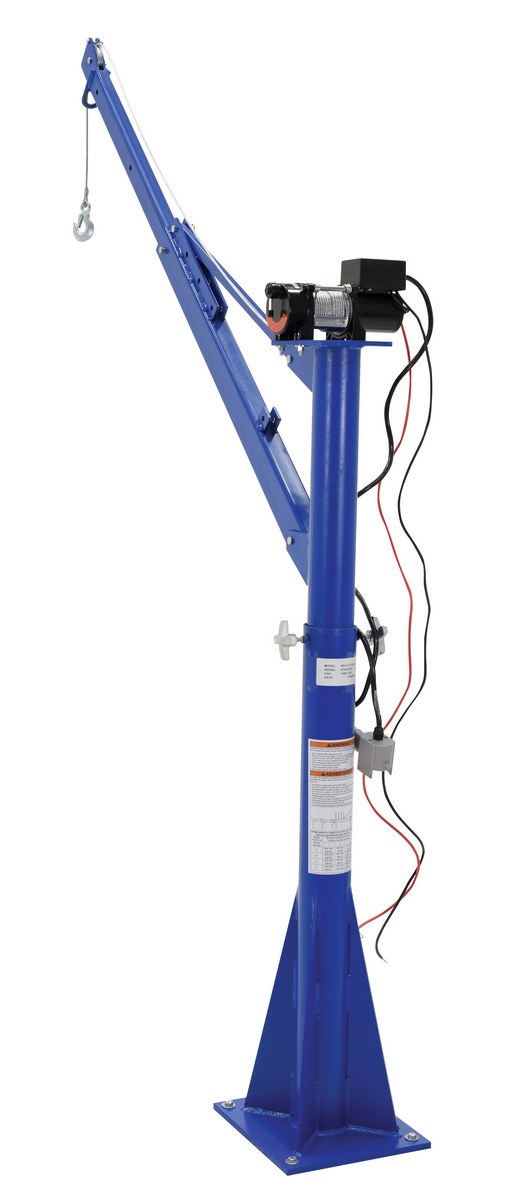

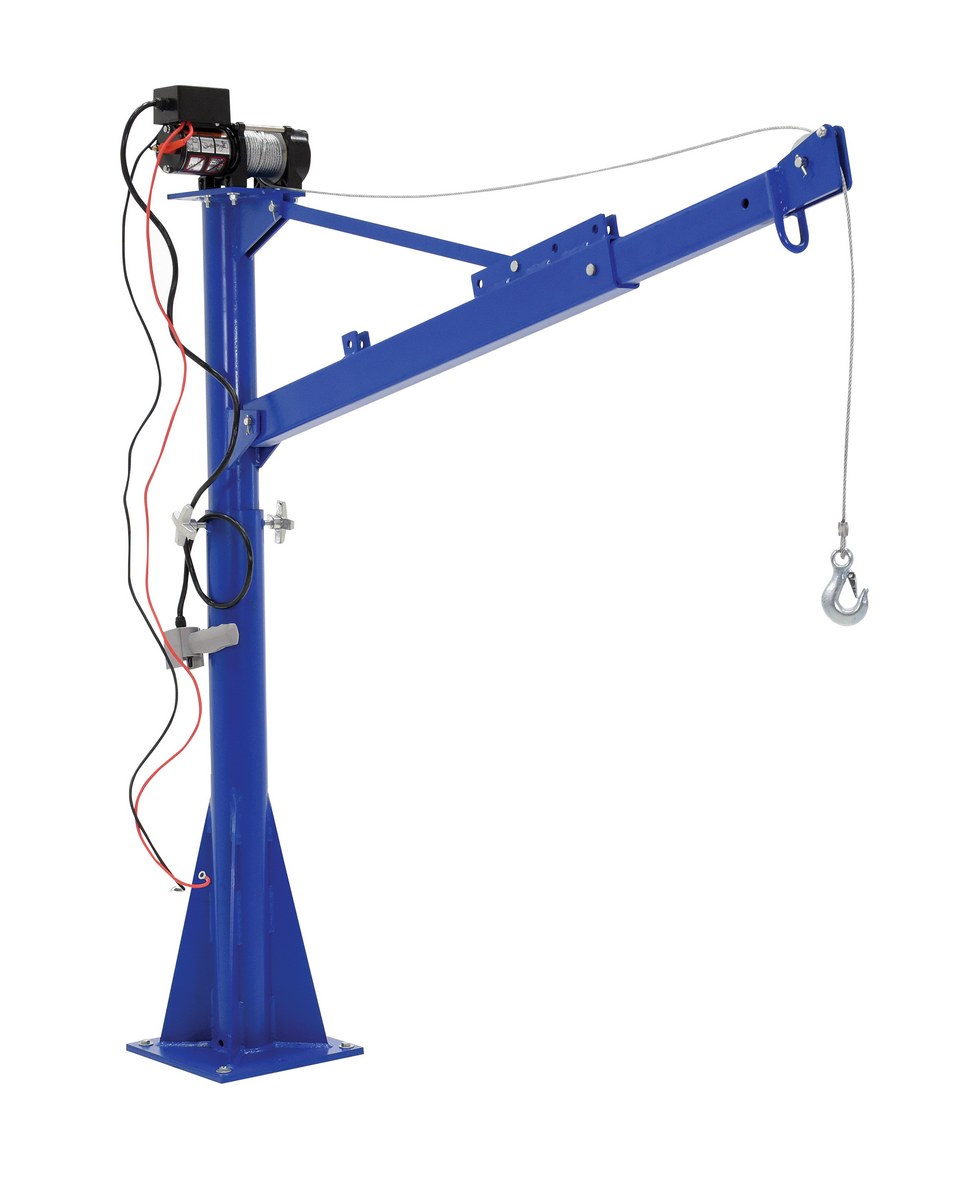

WTJ-E-15-3-DC icon_approvaldrawings.jpgWarranty PDF 12V DC 1,500 43-1/16"to 66-3/4" 47-1/8"-73-5/16" 213

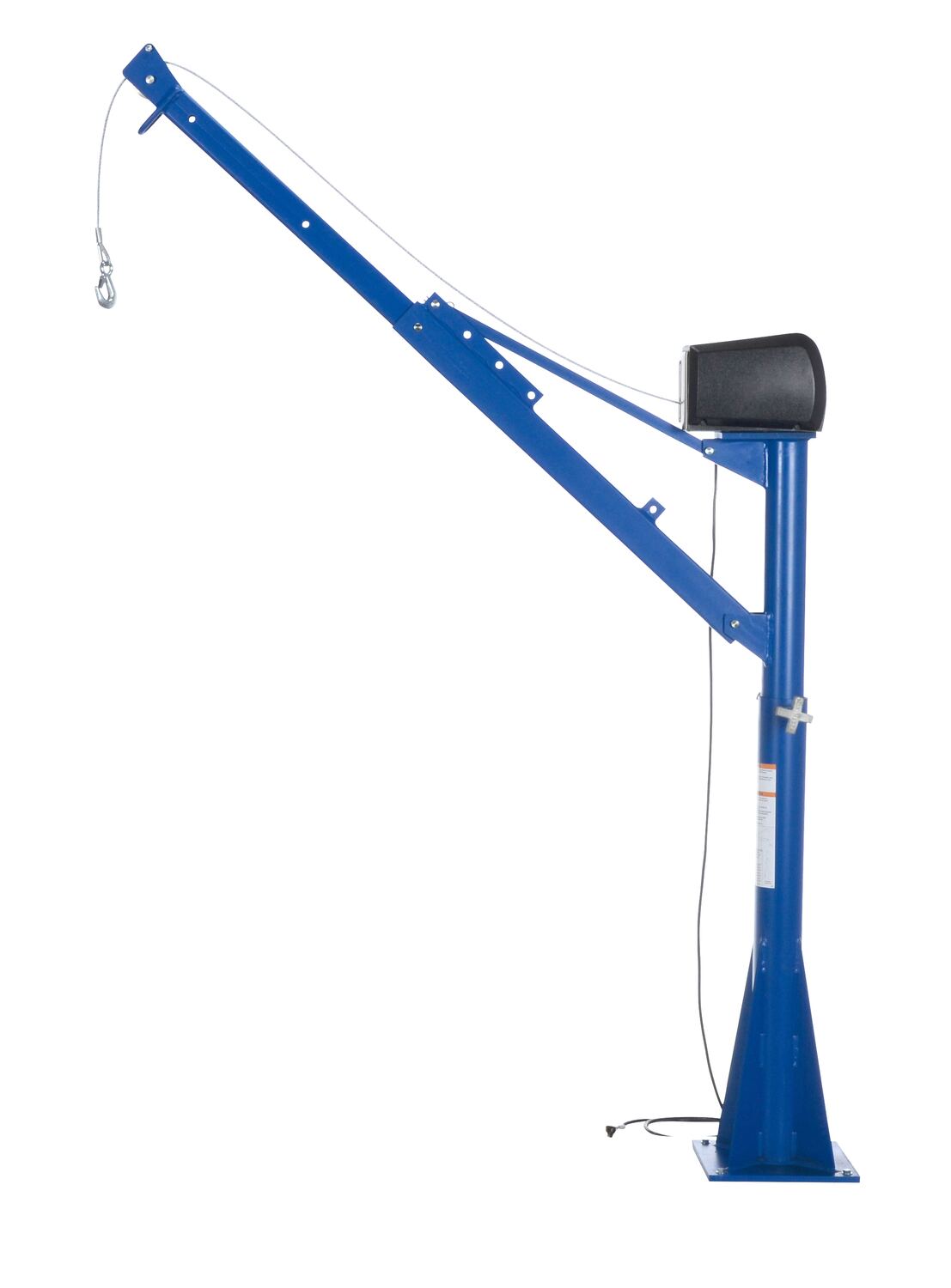

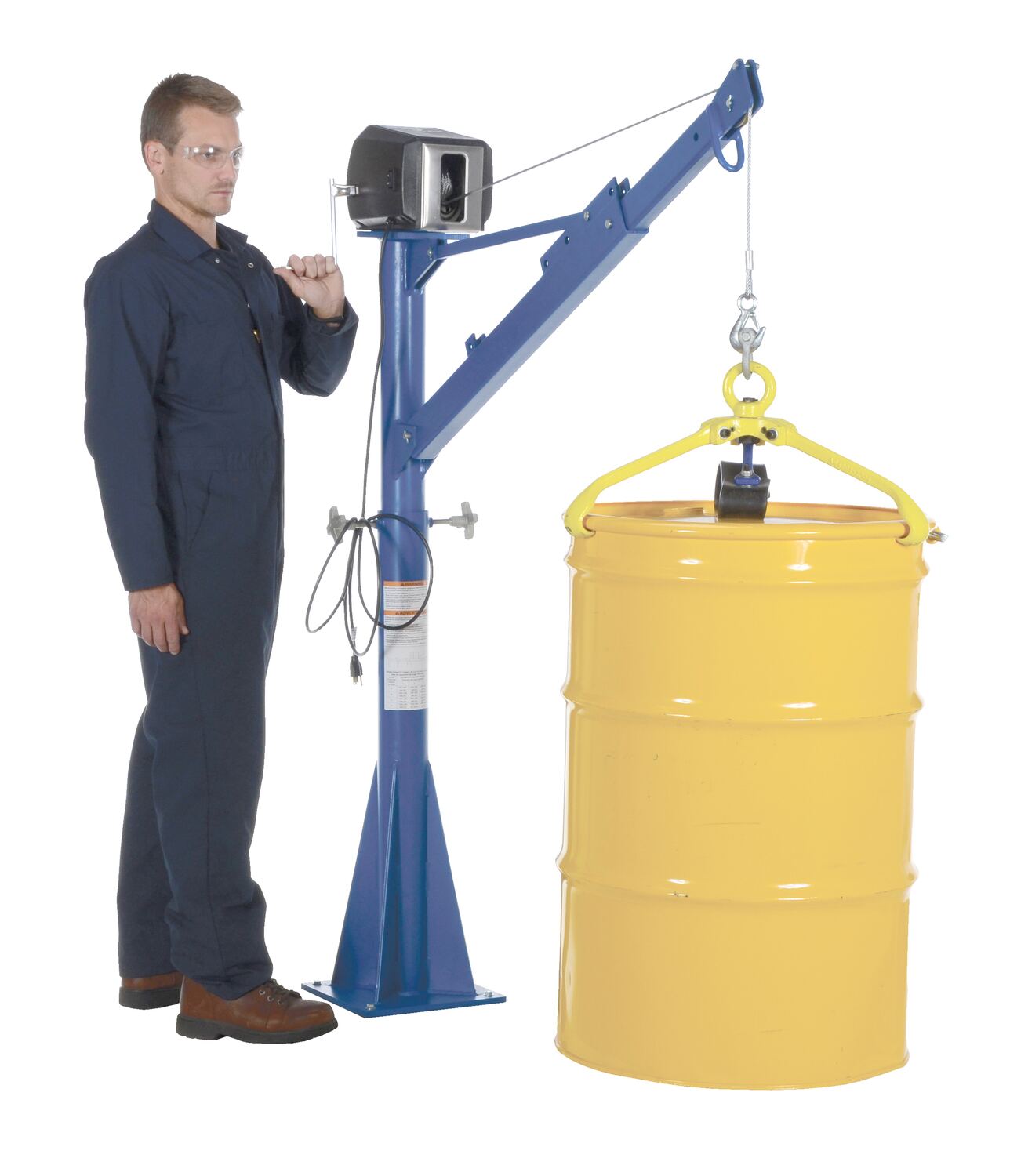

WTJ-E-15-3-AC icon_approvaldrawings.jpgWarranty PDF 115V AC 1,500 43-1/16"to 66-3/4" 47-1/8"-73-5/16" 223
WTJ-E-15-3-AC-CSA Warranty PDF 115V AC 1,500 43-1/16"to 66-3/4" 47-1/8"-73-5/16" 223
WTJ-20-3-DC-GAL icon_approvaldrawings.jpgWarranty PDF 12V DC 2,000 39-1/4"to63-1/4" 59-9/16"-96-1/8" 265

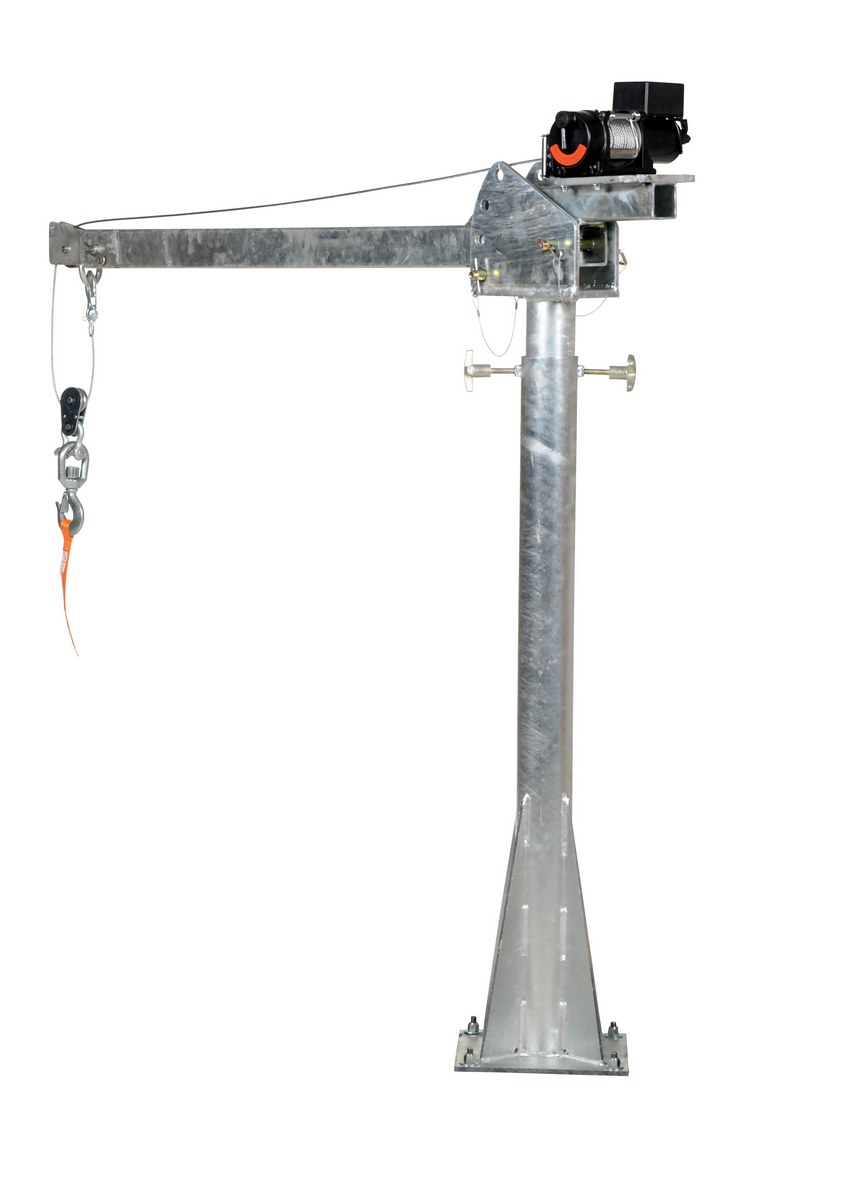

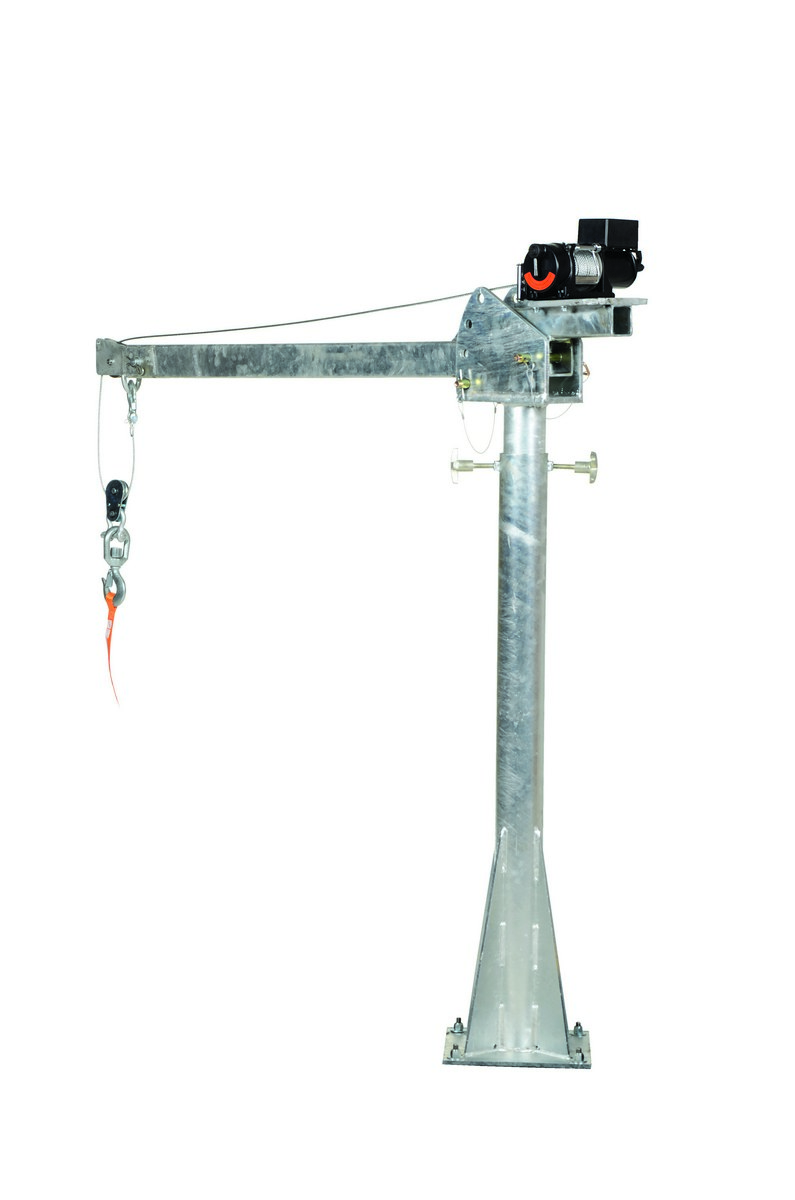

WTJ-20-4-DC-GAL icon_approvaldrawings.jpgWarranty PDF 12V DC 2,000 51-1/4" to 87-1/4" 59-1/2" to 106-1/2" 266

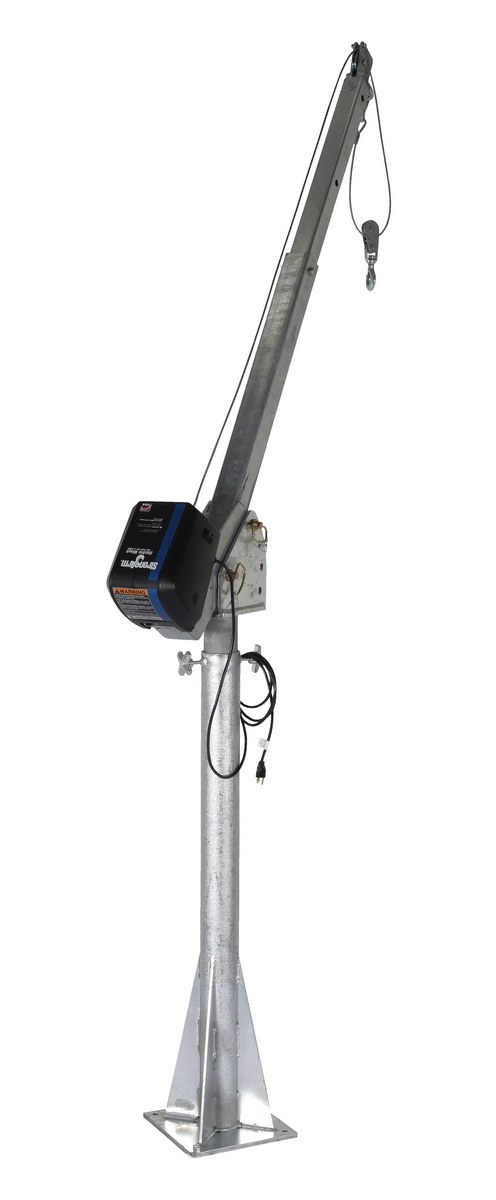

WTJ-20-3-AC-GAL icon_approvaldrawings.jpgWarranty PDF 115V AC 2,000 39-1/4"to63-1/4" 59-9/16"-96-1/8" 284

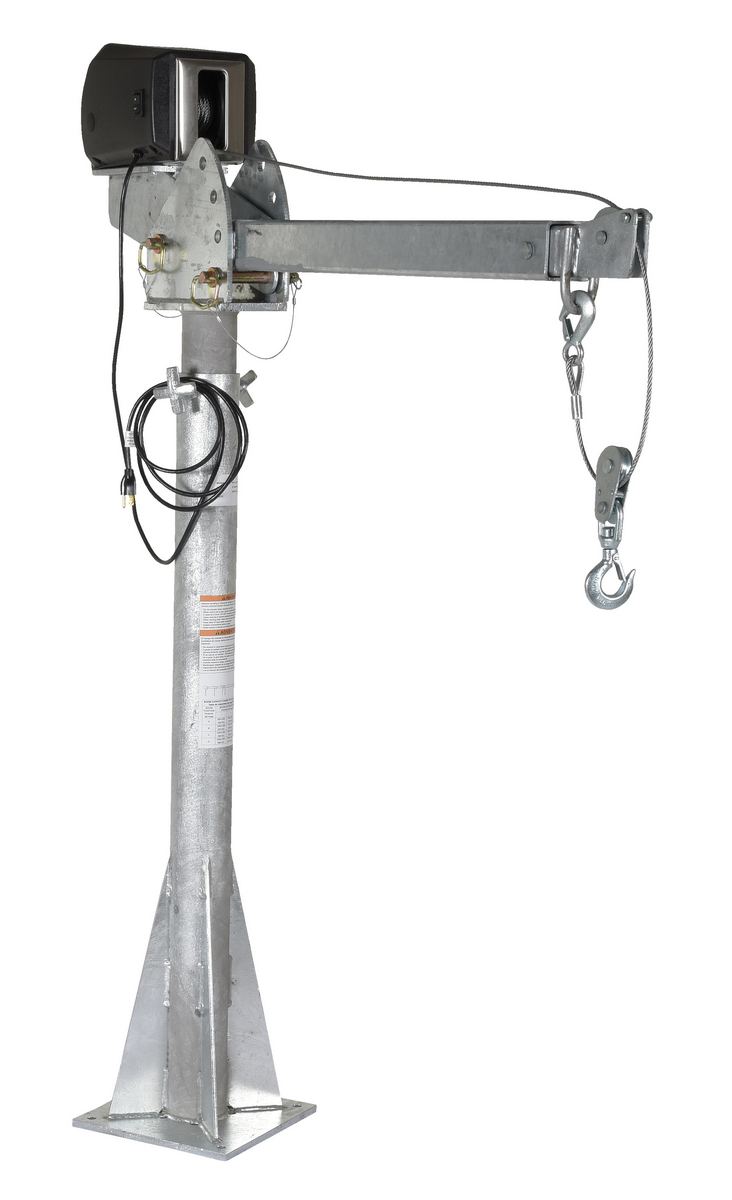

WTJ-20-3-AC-CSA-GAL - Warranty PDF 115V AC 2,000 39-1/4"to63-1/4" 59-9/16"-96-1/8" 284

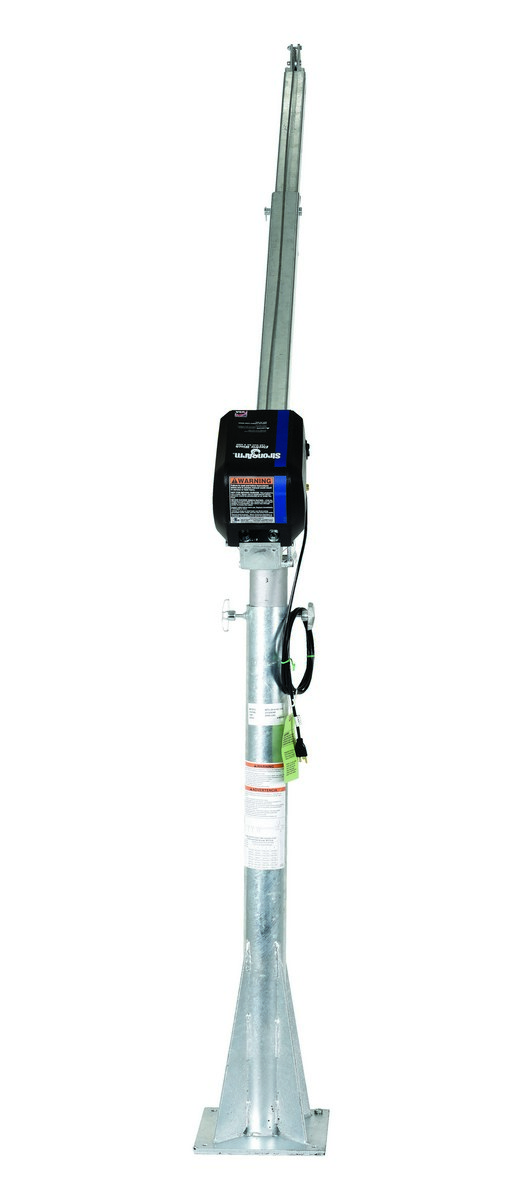

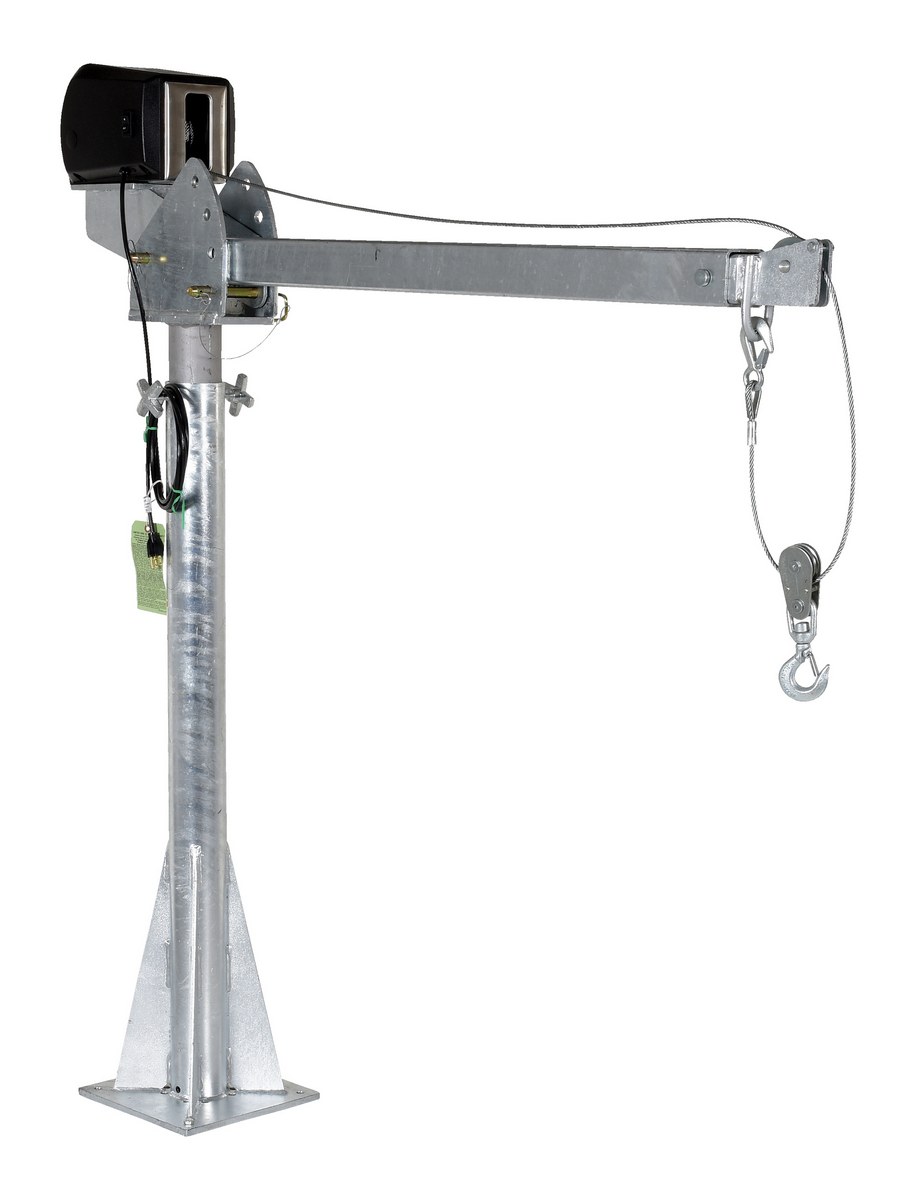

WTJ-20-4-AC-GAL icon_approvaldrawings.jpgWarranty PDF 115V AC 2,000 51-1/4"to87-1/4" 59-1/2"to106-1/2" 281
WTJ-20-4-AC-CSA-GAL - icon_approvaldrawings.jpgWarranty PDF 115V AC 2,000 51-1/4"to87-1/4" 59-1/2"to106-1/2" 281

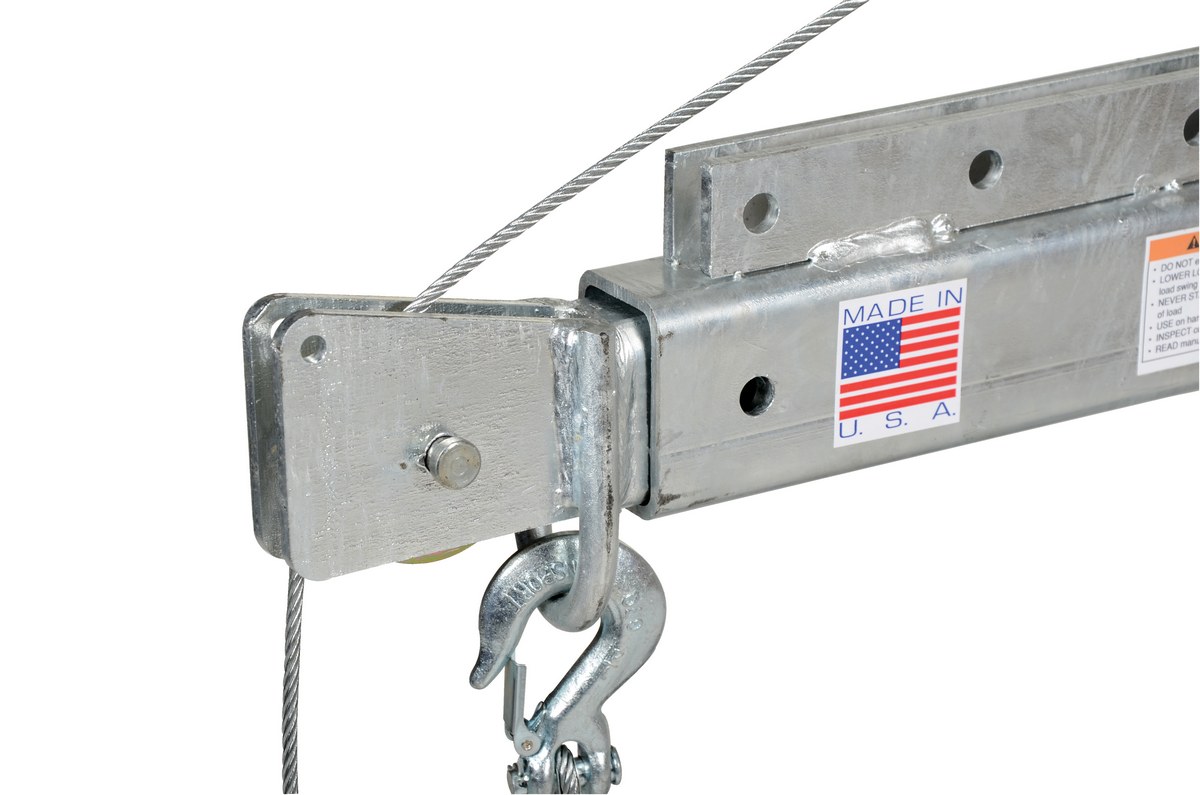

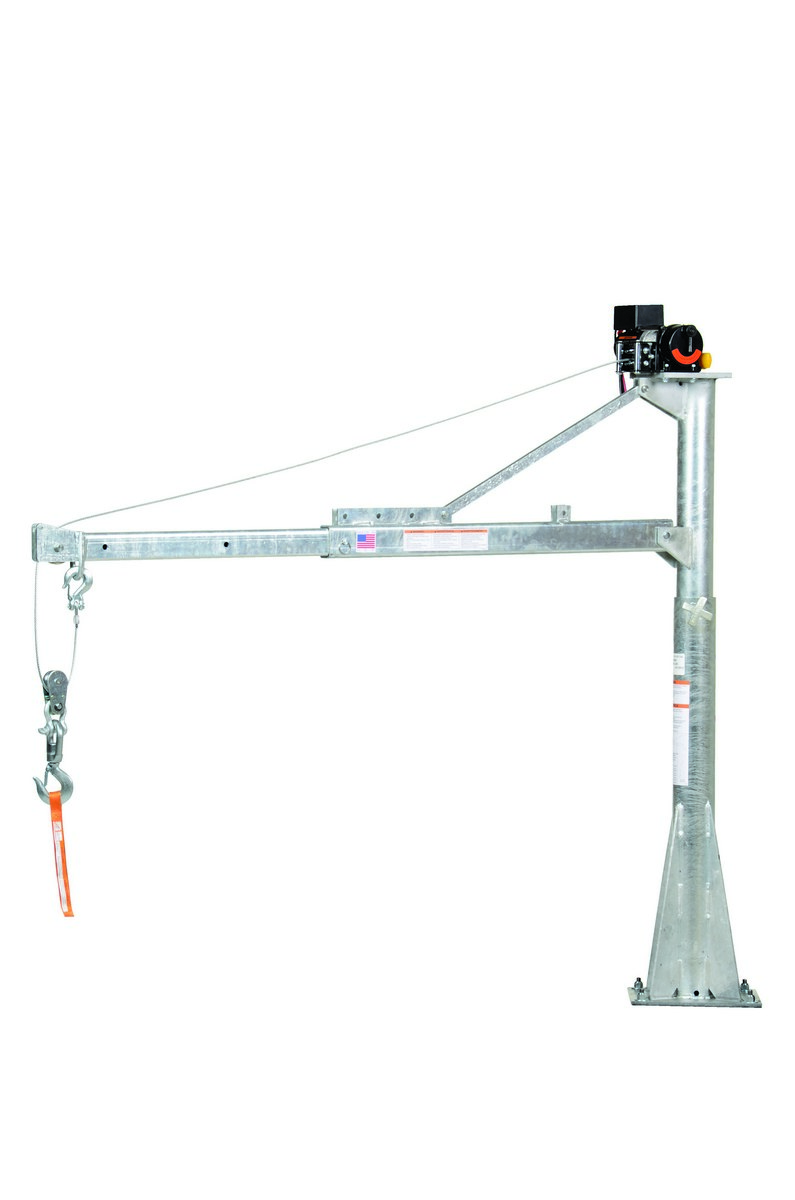

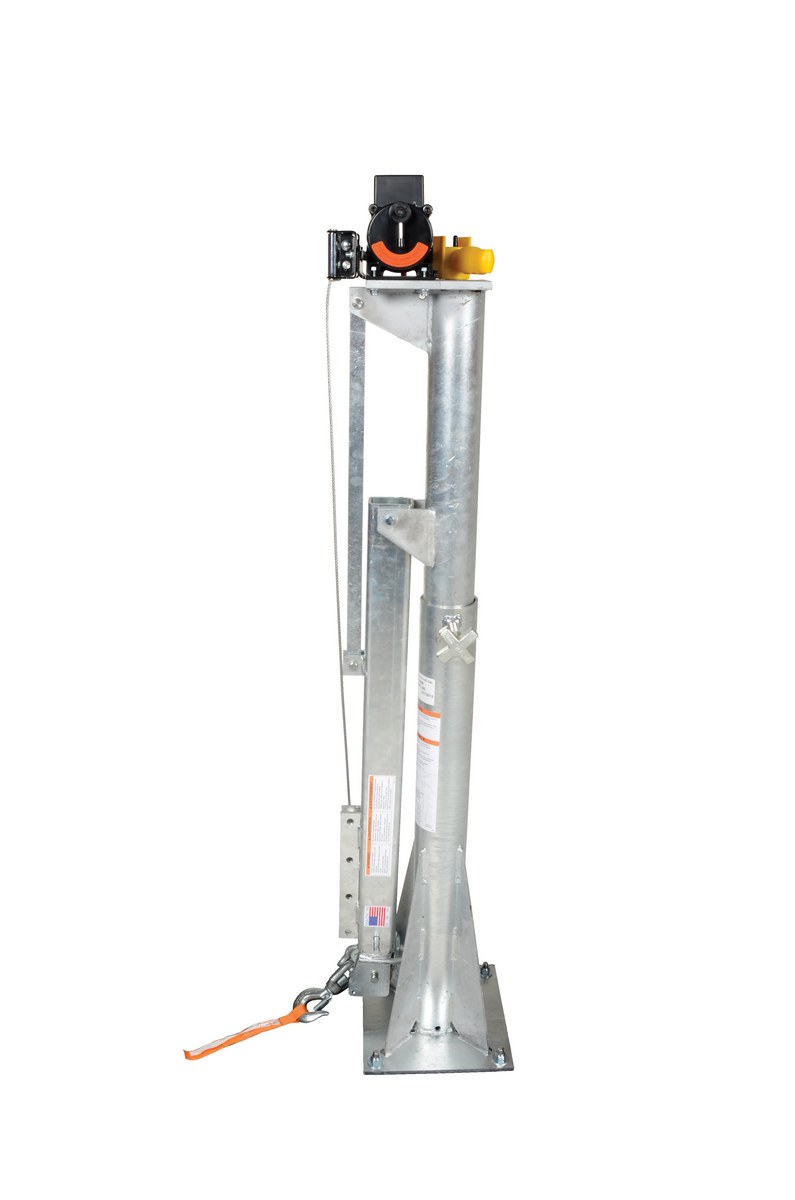

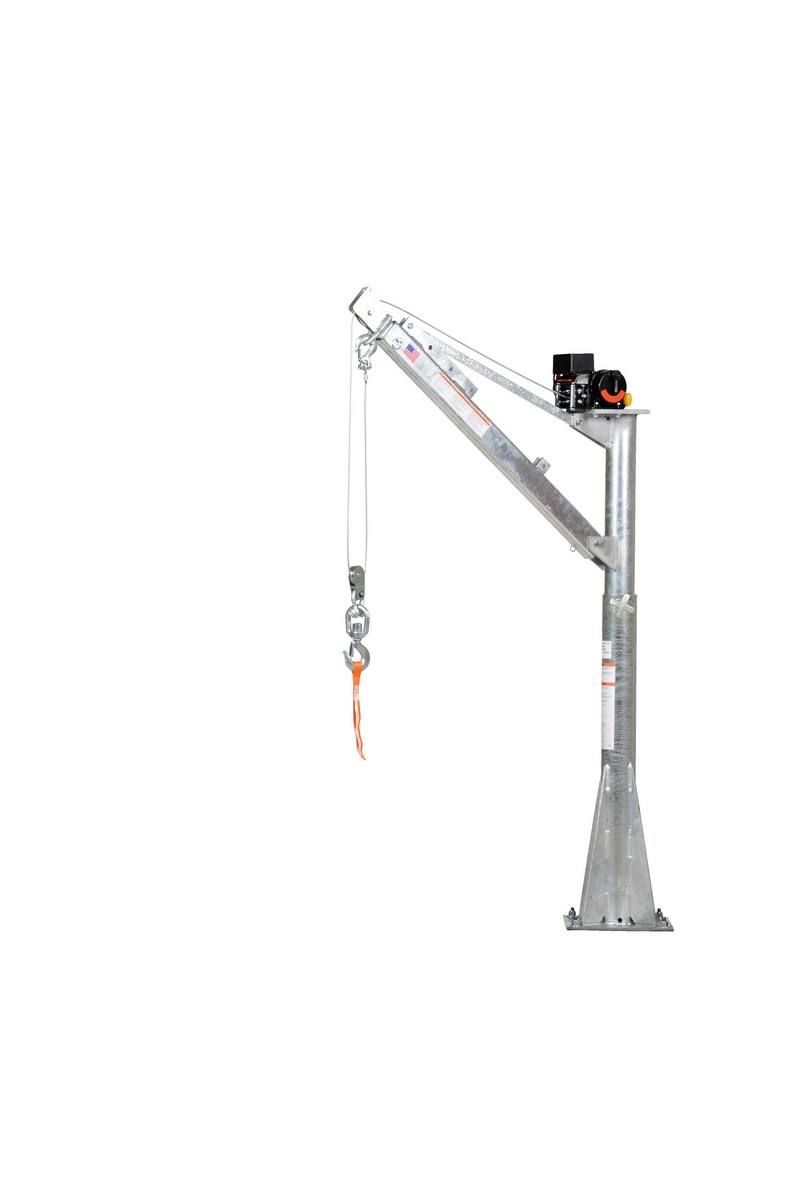

WTJ-E-15-3-DC-GAL icon_approvaldrawings.jpgWarranty PDF 12V DC 1,500 43-1/16"to66-3/4" 47-1/8"-73-5/16" 213
WTJ-E-15-3-AC-GAL - icon_approvaldrawings.jpgWarranty PDF 115V AC 1,500 43-1/16"to66-3/4" 47-1/8"-73-5/16" 223

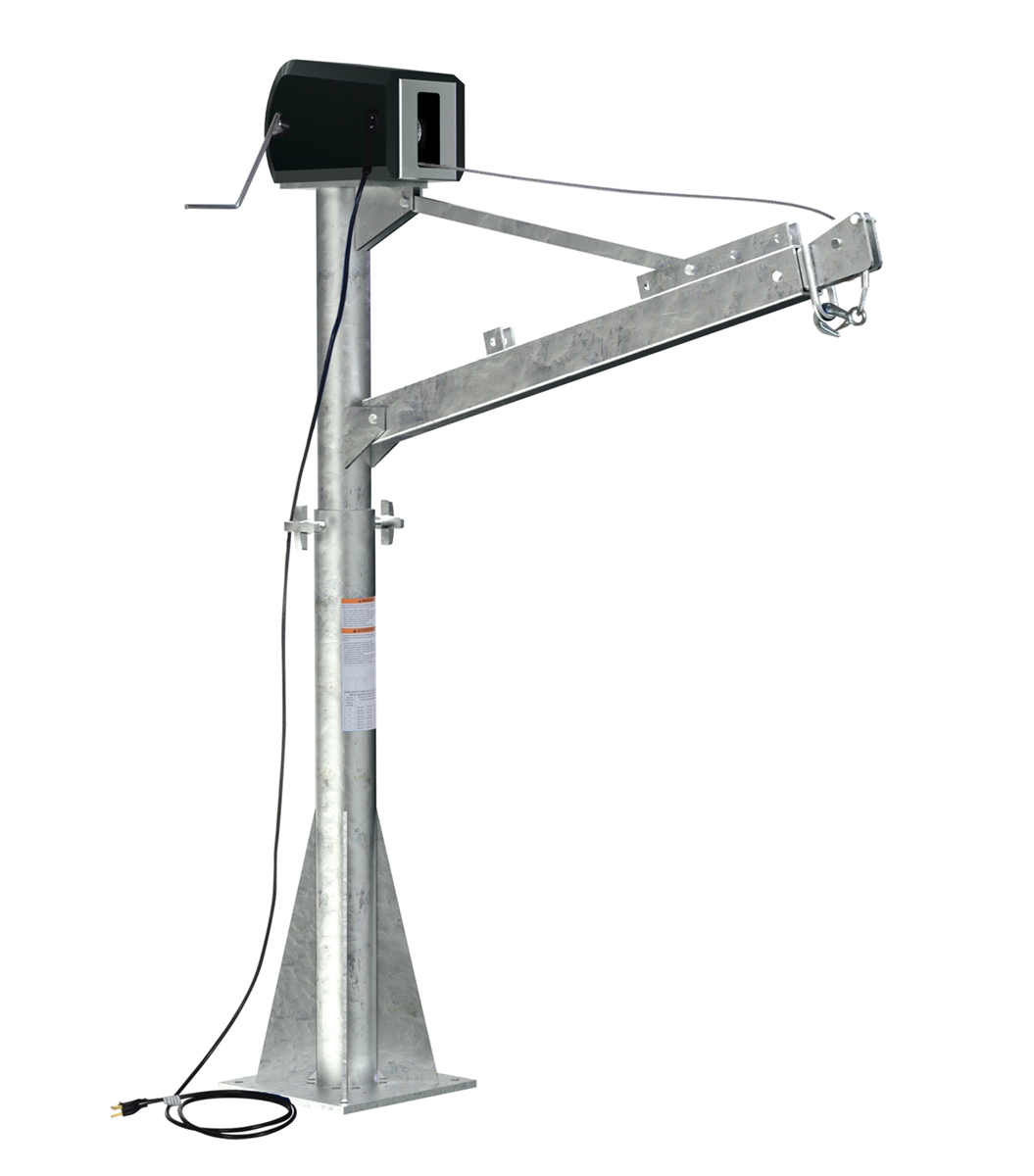

WTJ-E-15-3-AC-CSA-GAL - Warranty PDF 115V AC 1,500 43-1/16"to66-3/4" 47-1/18"-73-5/16" 223

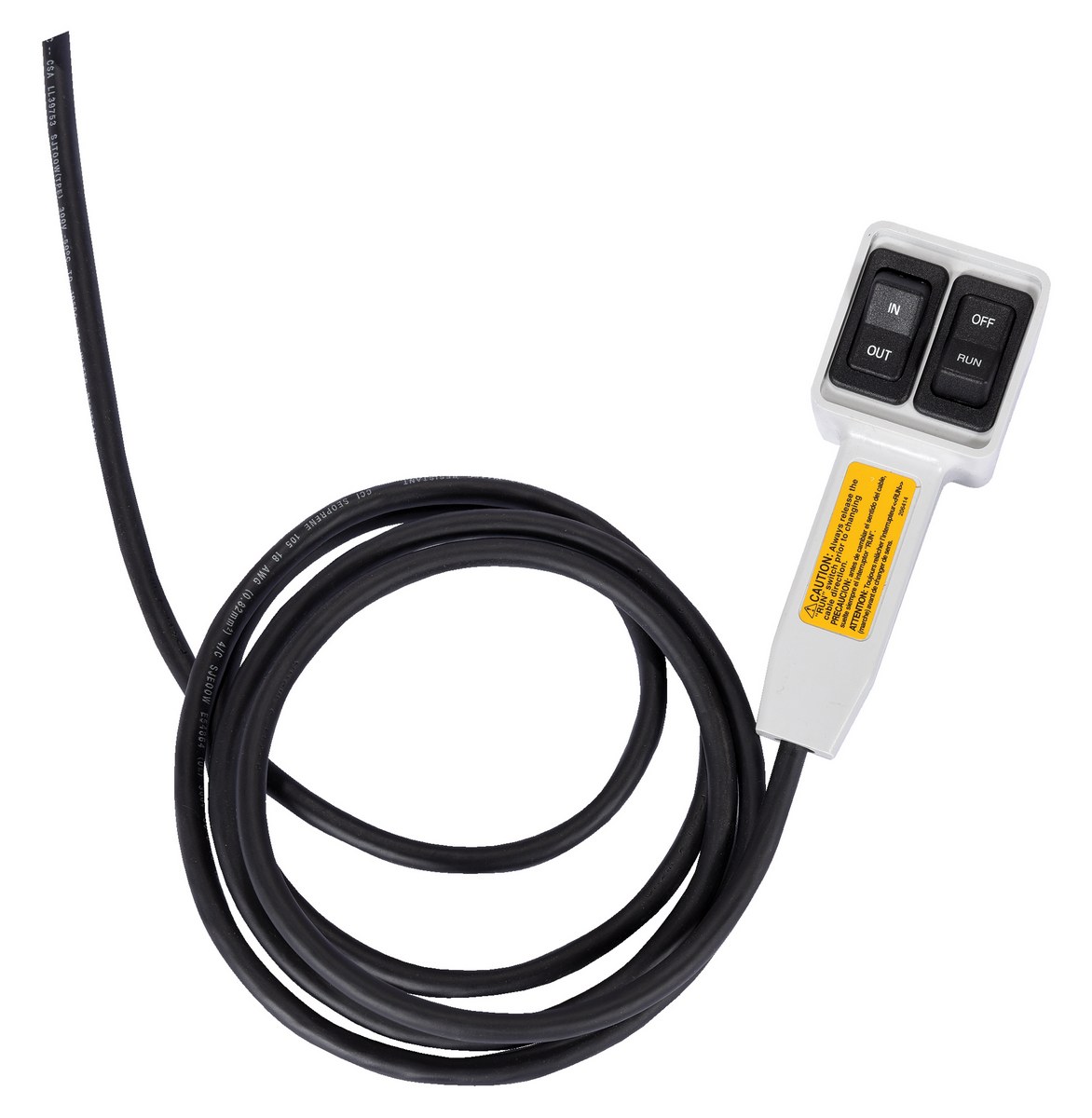

WINCH-AC-HHPB - UPGRADE AC WINCH WITH HANDHELD PUSH BUTTON CONTROL
(THIS OPTION REPLACES STANDARD FINGERTIP SWITCH ON AC WINCHES)
5
