Click Image to Enlarge

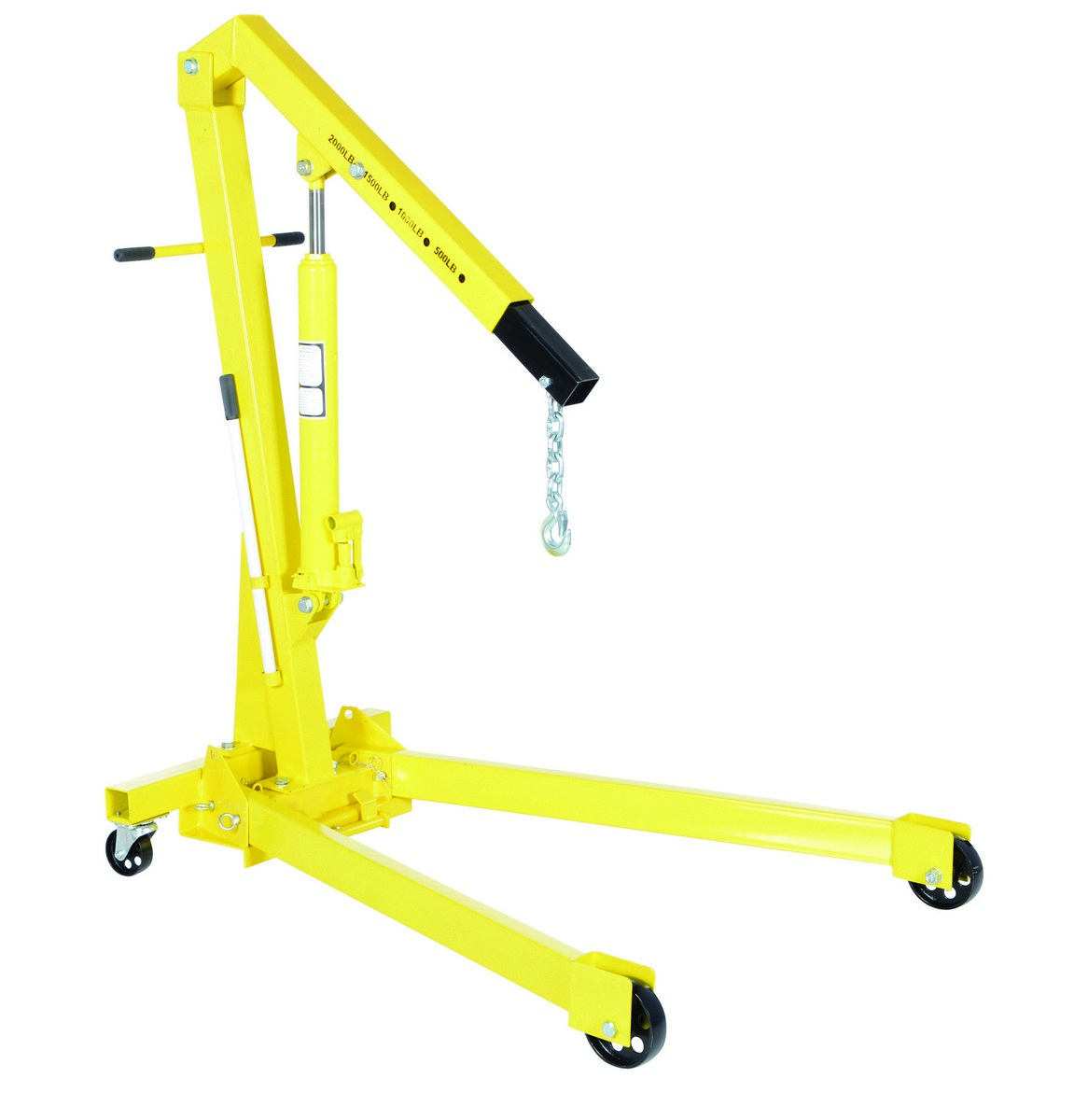

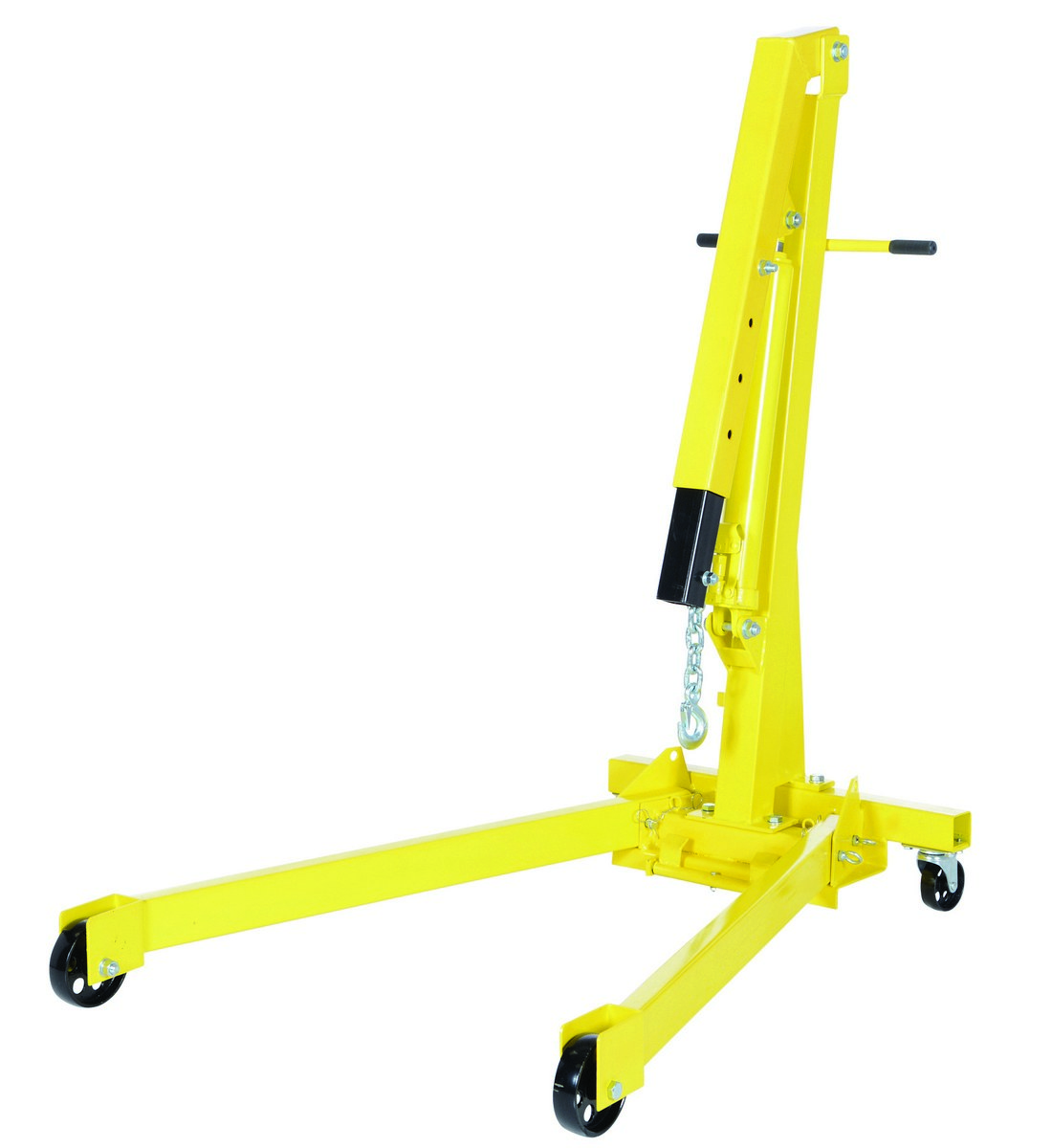

model: EHN-20-C


SERIES: EHN

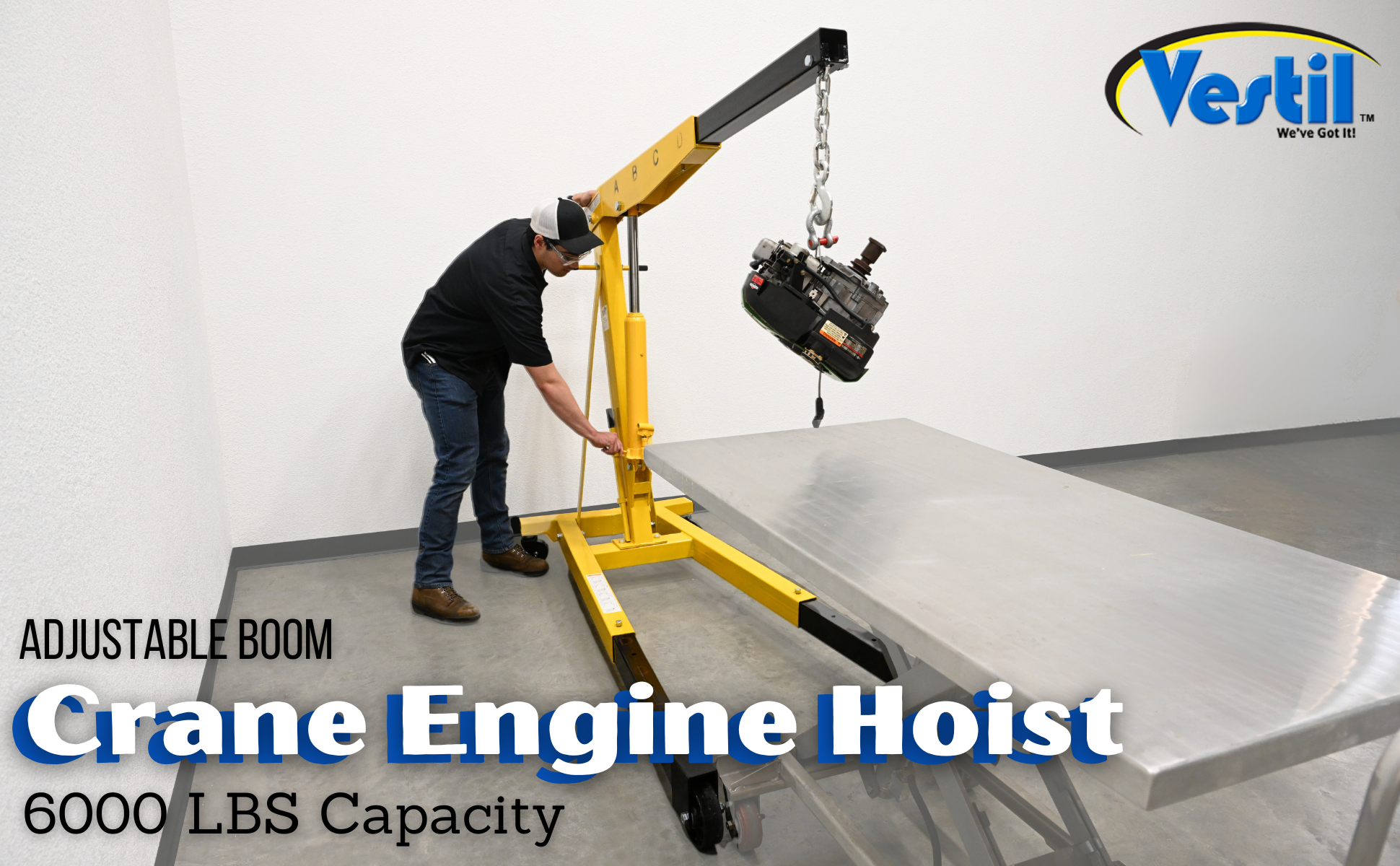

Shop Crane Engine Hoists

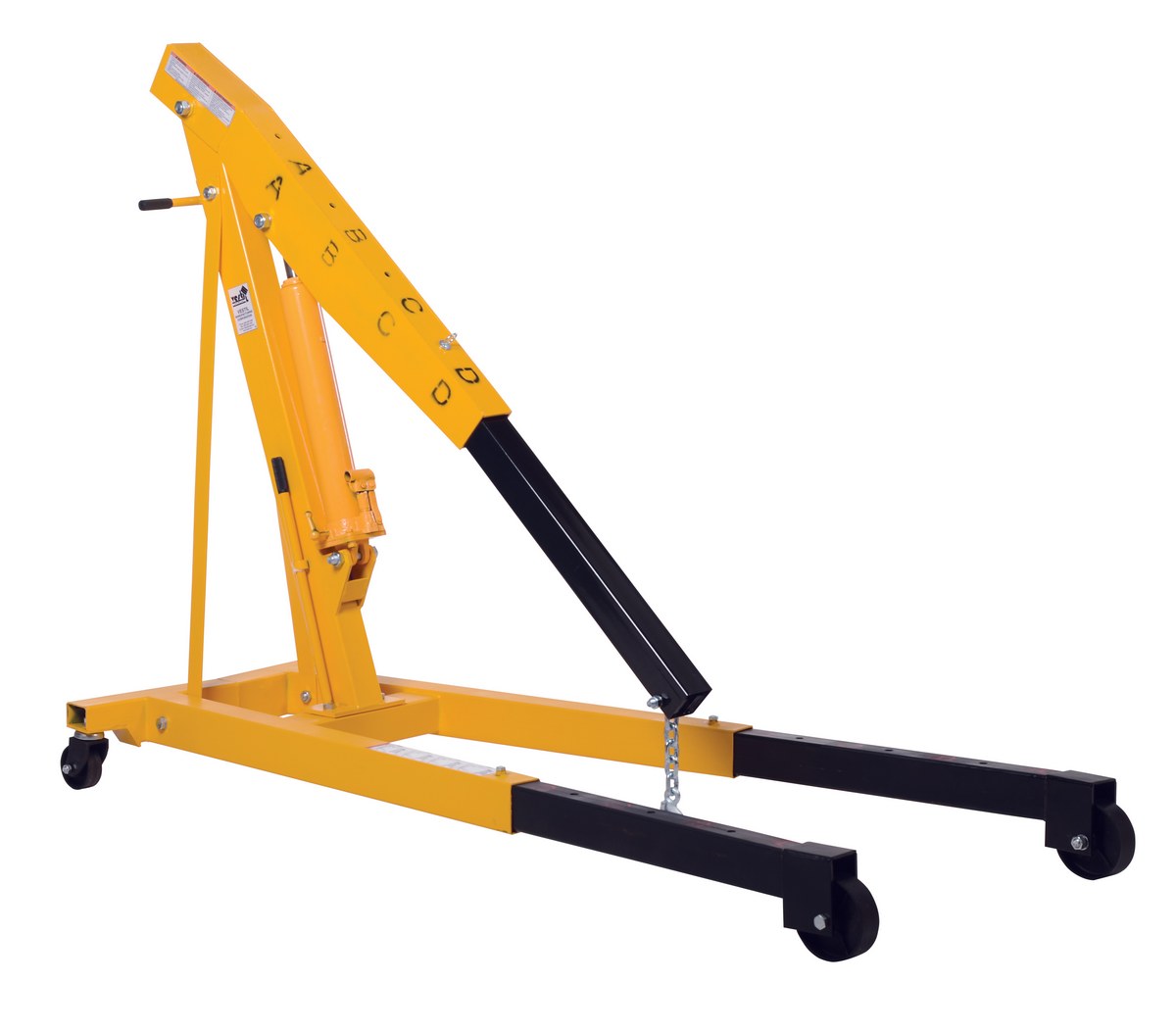

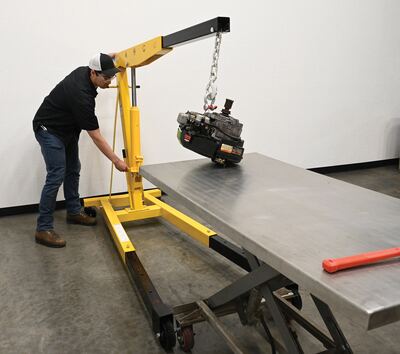

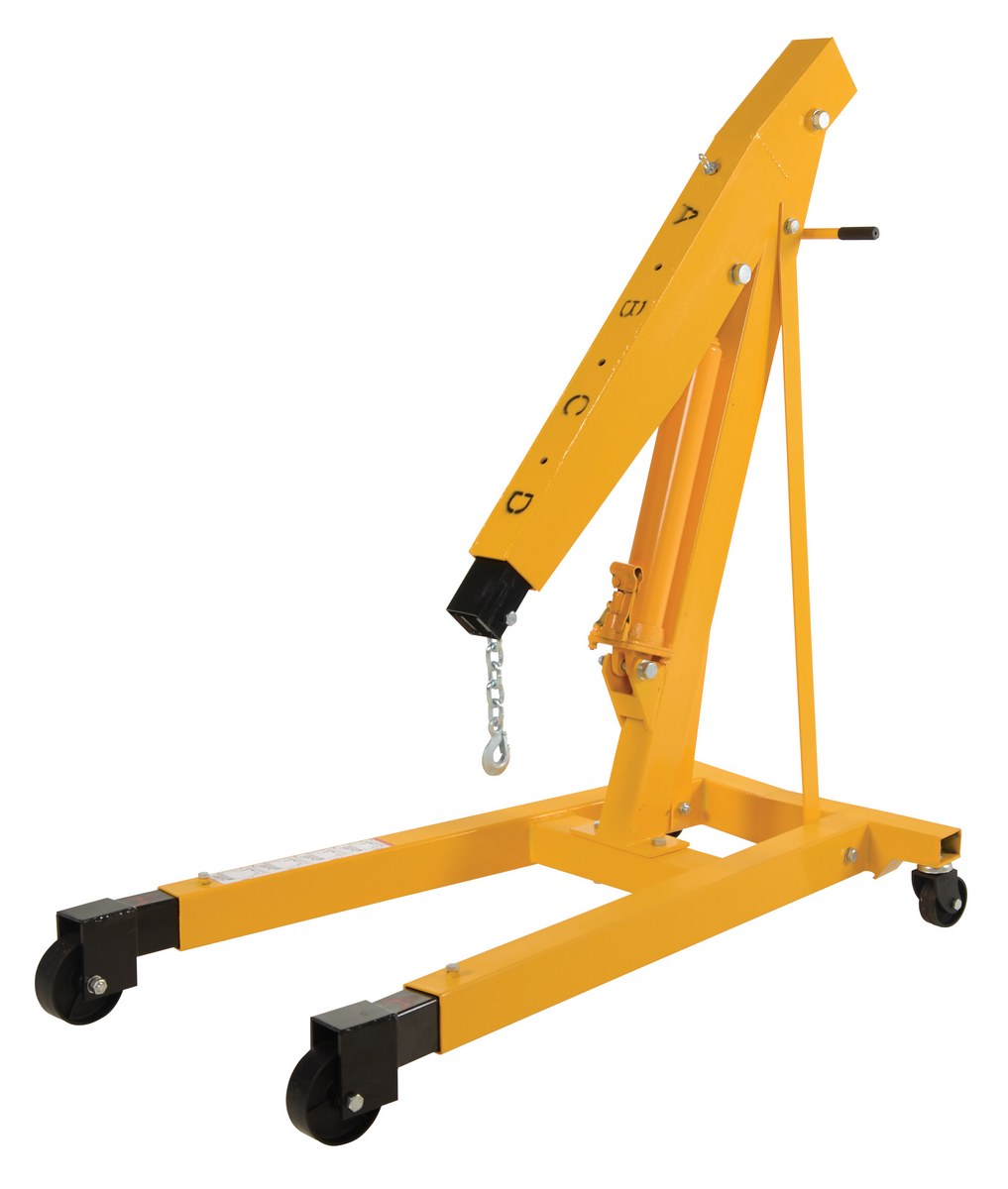

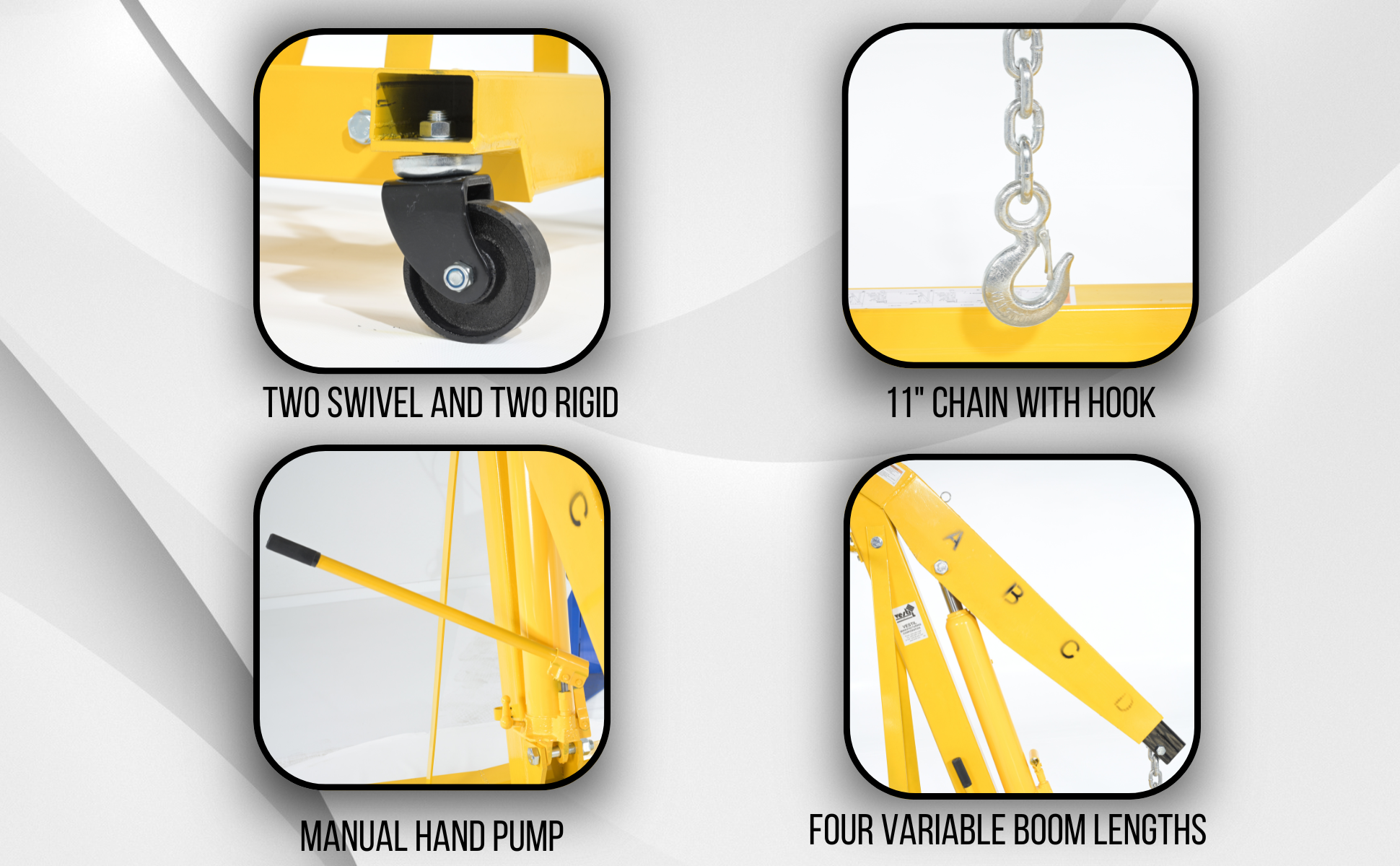

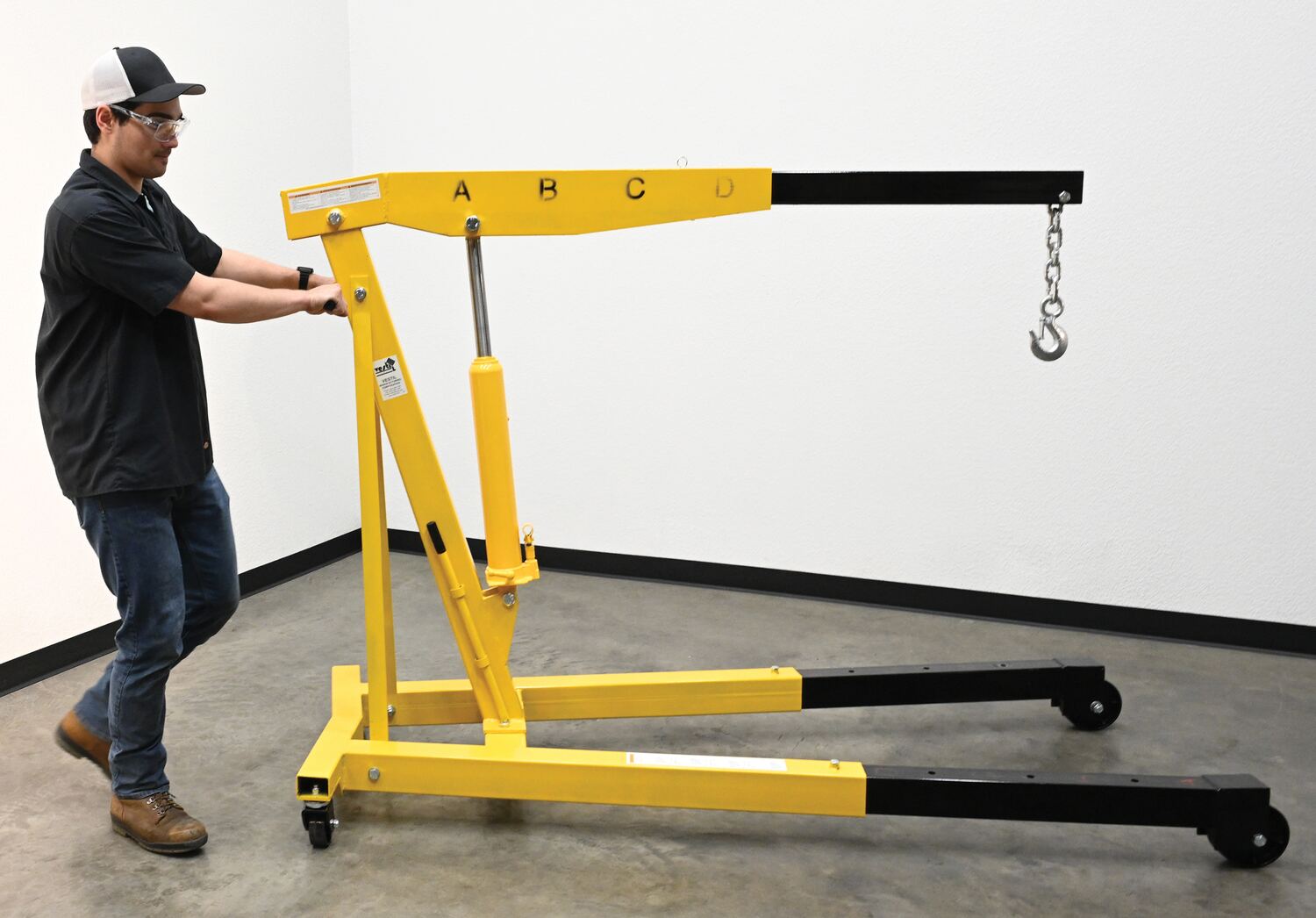

These portable units are great for hundreds of lifting applications. Telescopic boom for multiple lifting heights and capacities. Boom is raised and lowered with a manual hydraulic hand pump. The high-capacity hydraulic cylinder provides for faster lifting action and features a large diameter ram to withstand angled loads when lifting. Includes two rigid and two swivel casters for portability. Heavy-duty steel construction and painted finish.

These portable units are great for hundreds of lifting applications. Telescopic boom for multiple lifting heights and capacities. Boom is raised and lowered with a manual hydraulic hand pump. The high-capacity hydraulic cylinder provides for faster lifting action and features a large diameter ram to withstand angled loads when lifting. Includes two rigid and two swivel casters for portability. Heavy-duty steel construction and painted finish.

Other Engine Hoists & Floor Cranes

Hitch-Mounted Truck Jib Crane

Hitch-Mounted Truck Jib Crane

Power Lift Jib Cranes

Power Lift Jib Cranes

Lifter Jibs

Lifter Jibs

Shop Crane Engine Hoists

Shop Crane Engine Hoists

Air/Hand Pump Hydraulic Shop Crane

Air/Hand Pump Hydraulic Shop Crane

Share This Page

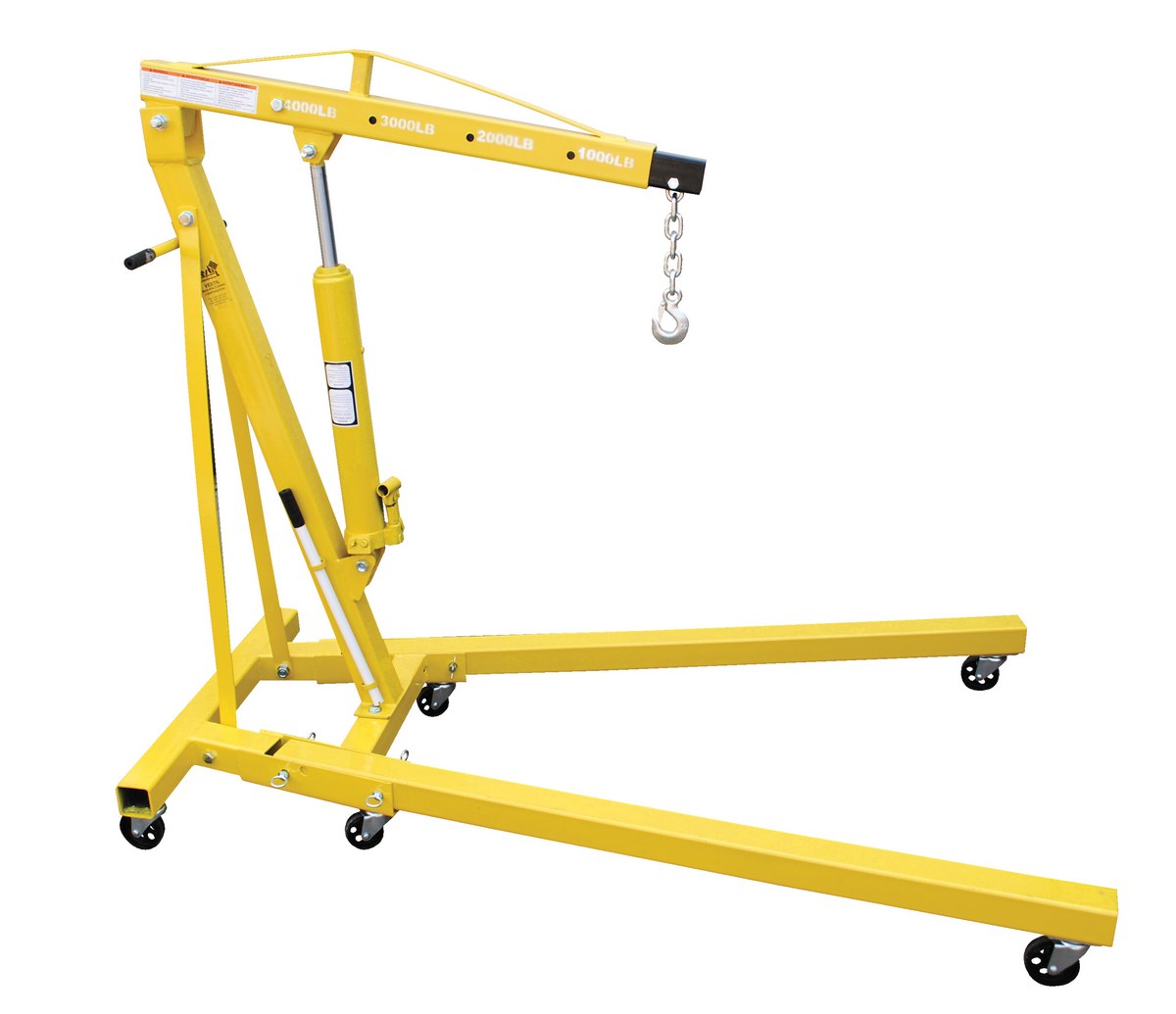

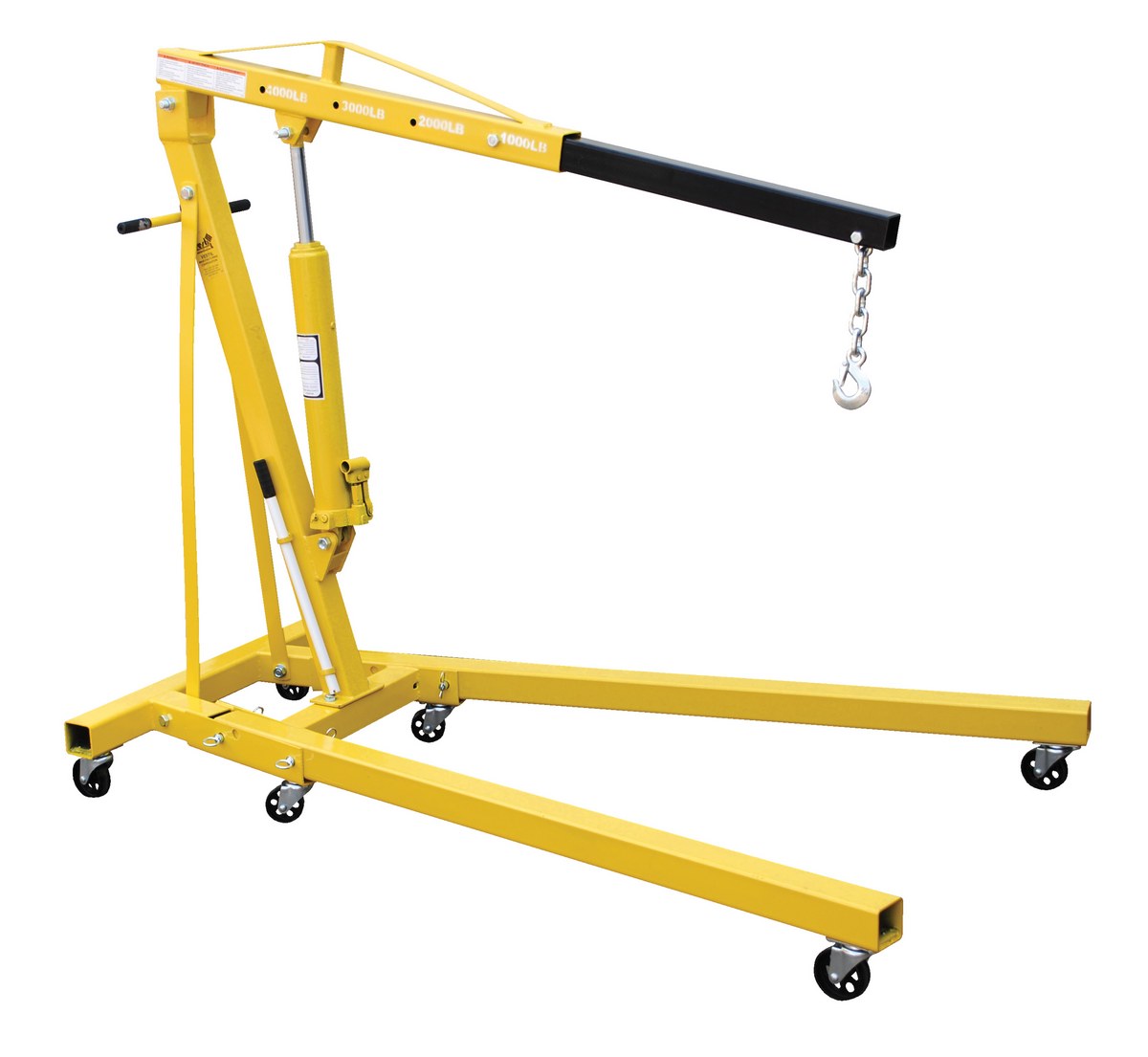

EHN-40-C

model EHN-40-C

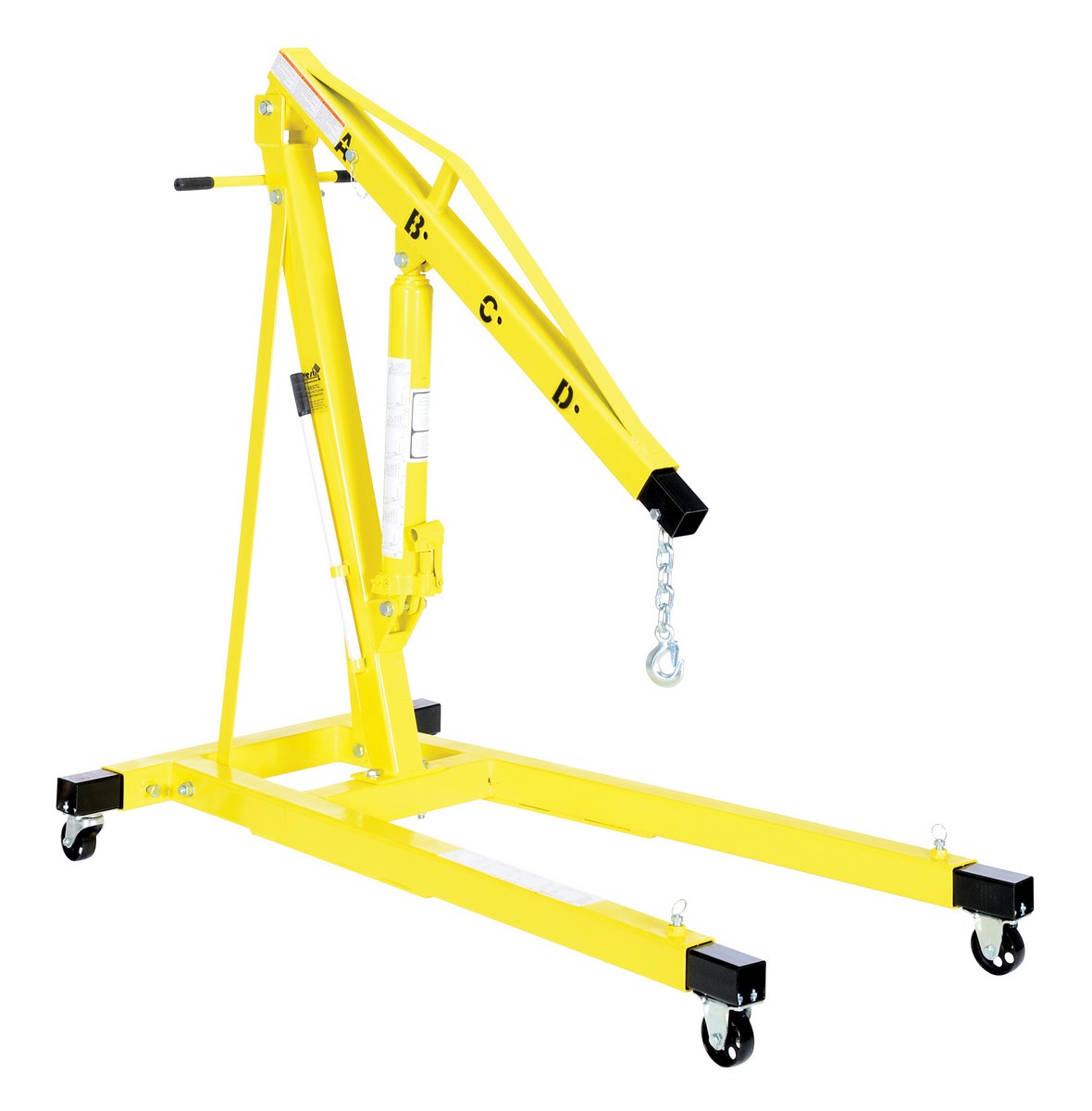

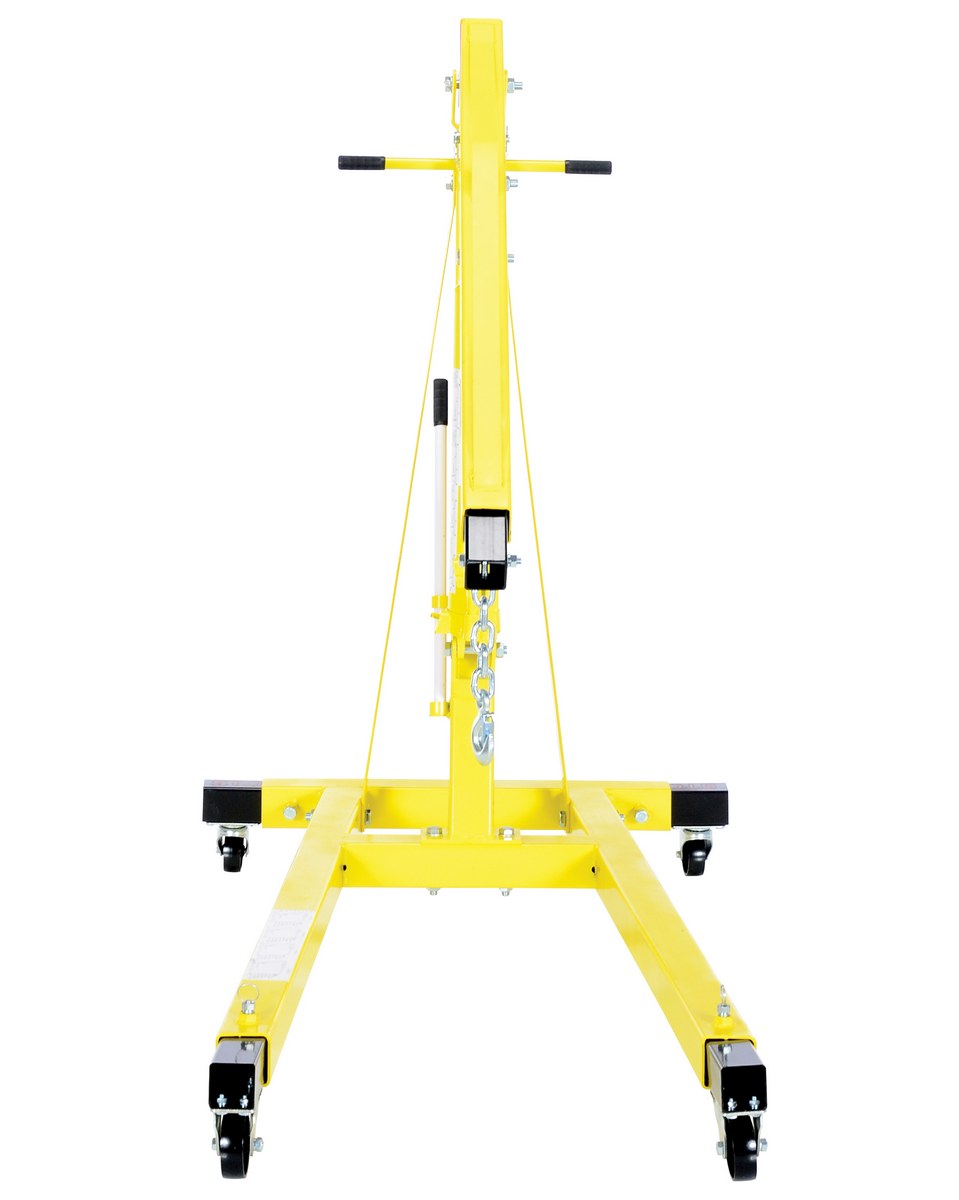

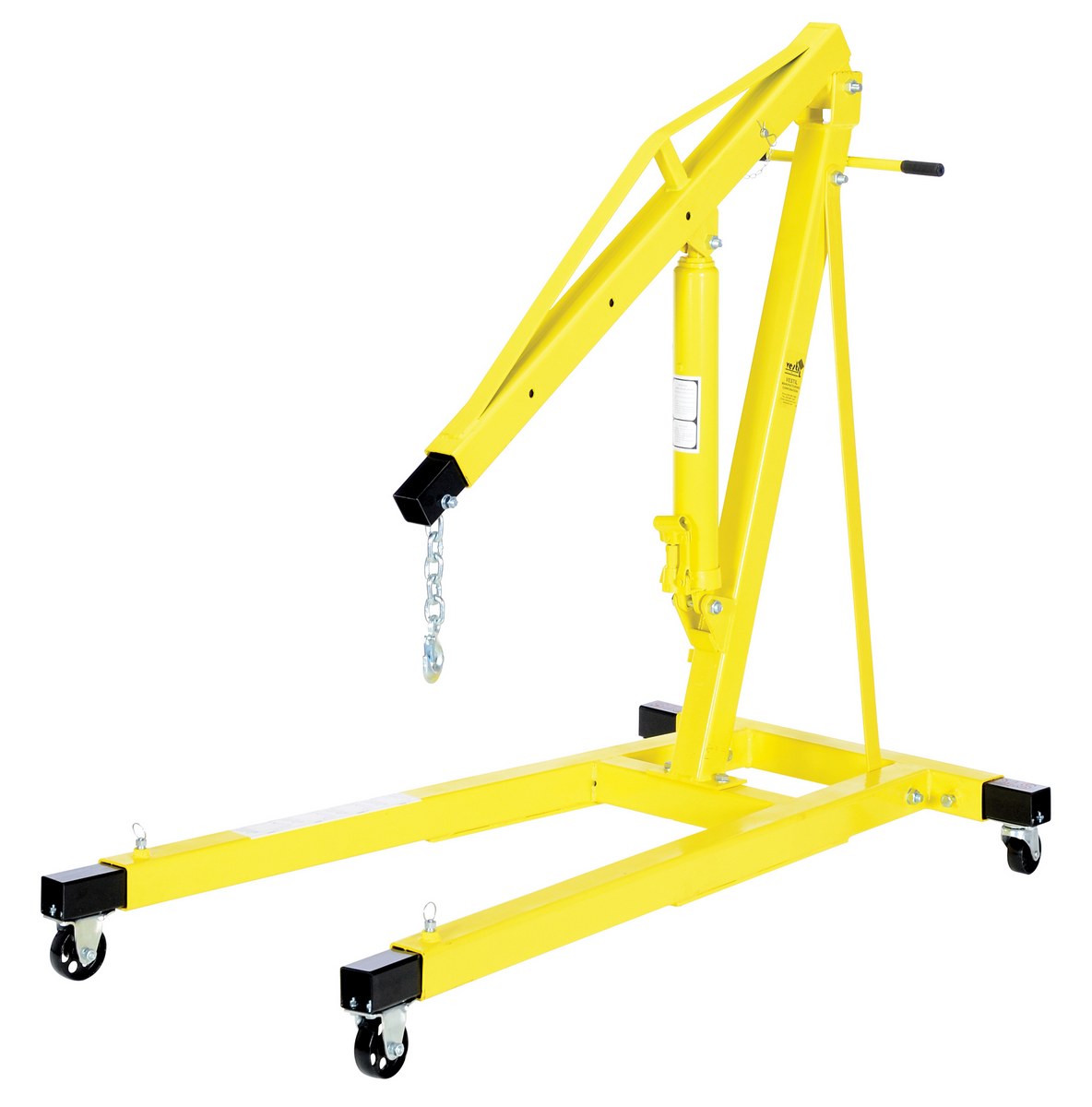

EHN-40-T

model EHN-40-T

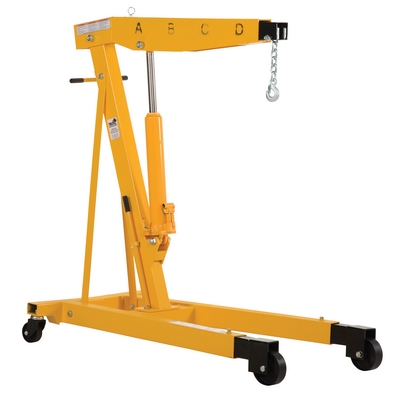

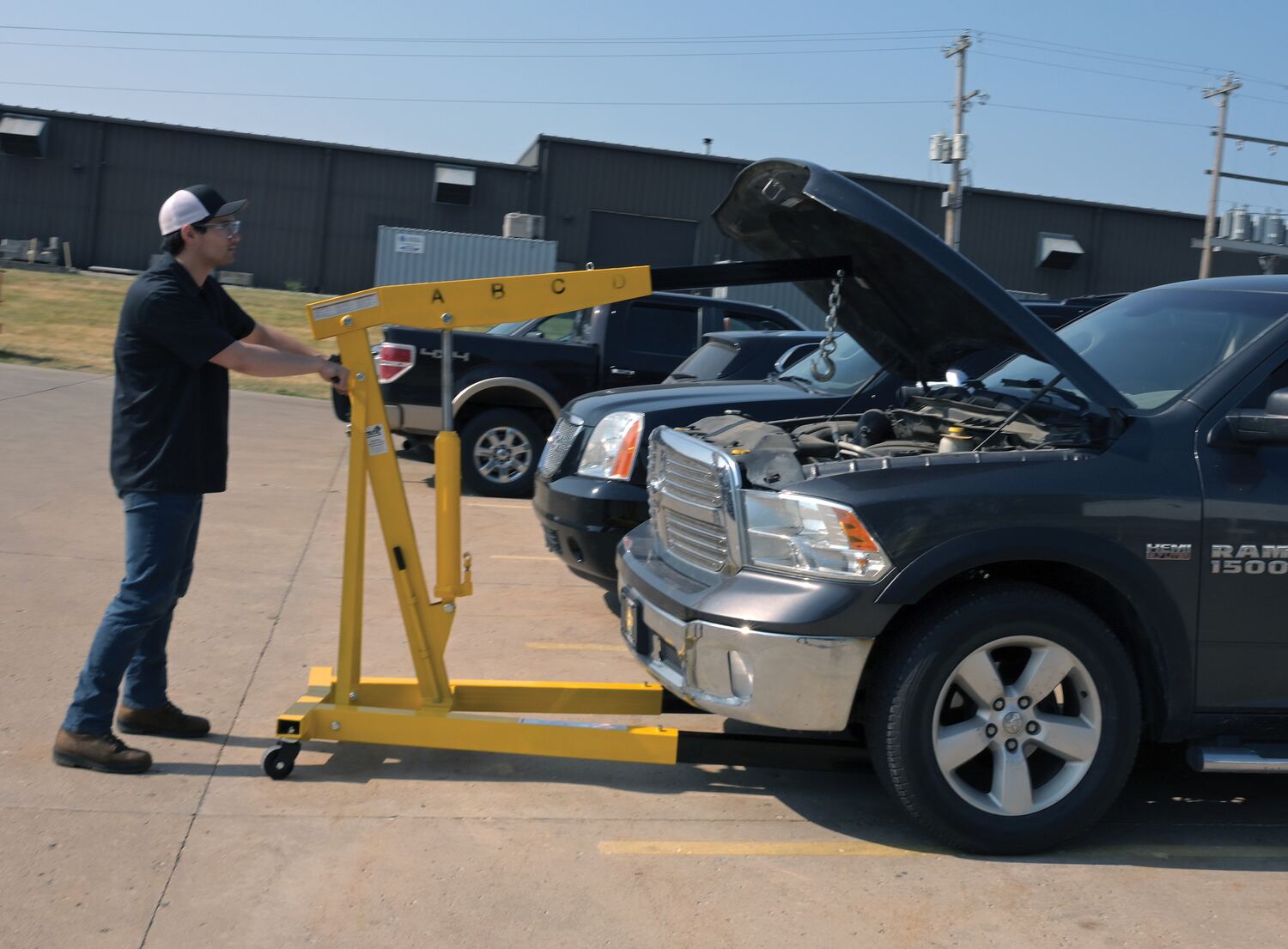

EHN-60-T

model EHN-60-T




KEY: Approval Drawing = Approval Drawing -- Approval Drawing = Warranty -- Approval Drawing = Testing Certificate

All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.
Shop Crane Engine Hoists
Model Image PDF's Capacity
(lbs)
Boom
Length
Boom
Height
Wt.
(lbs)

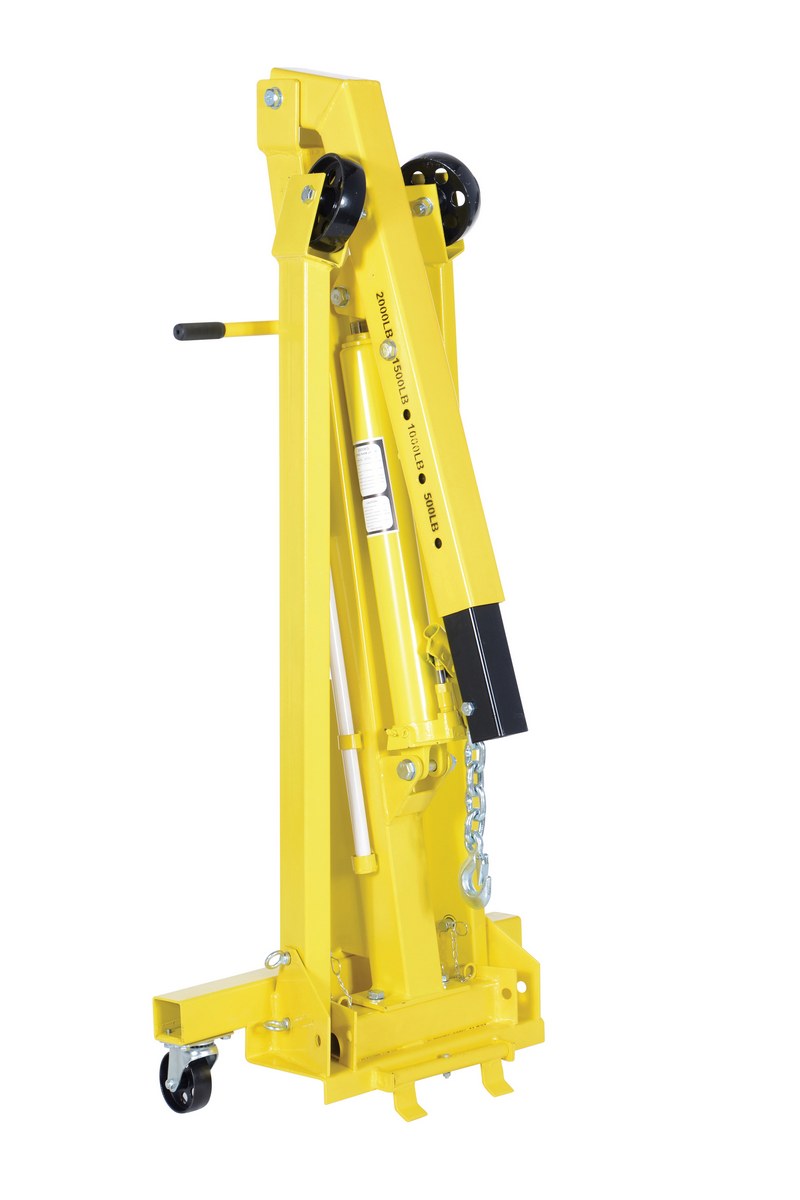

Collapsible for Storage (33-1/2"W x 44"L x 60-1/2"H) -- (Foldable Legs)

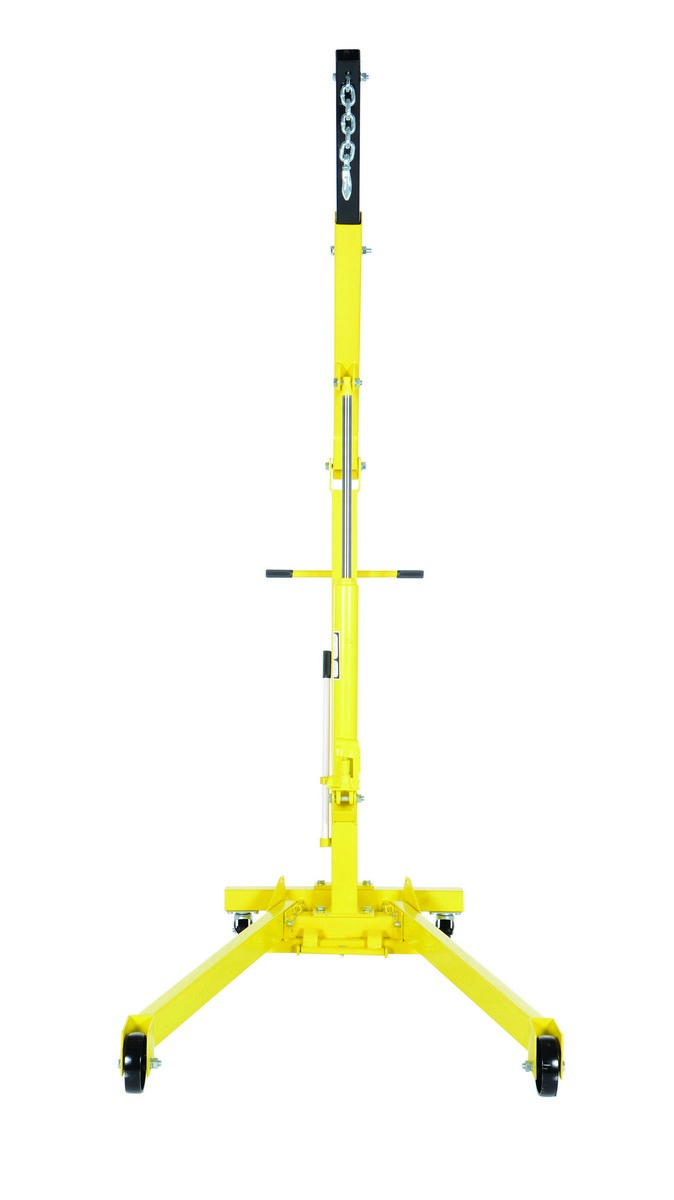

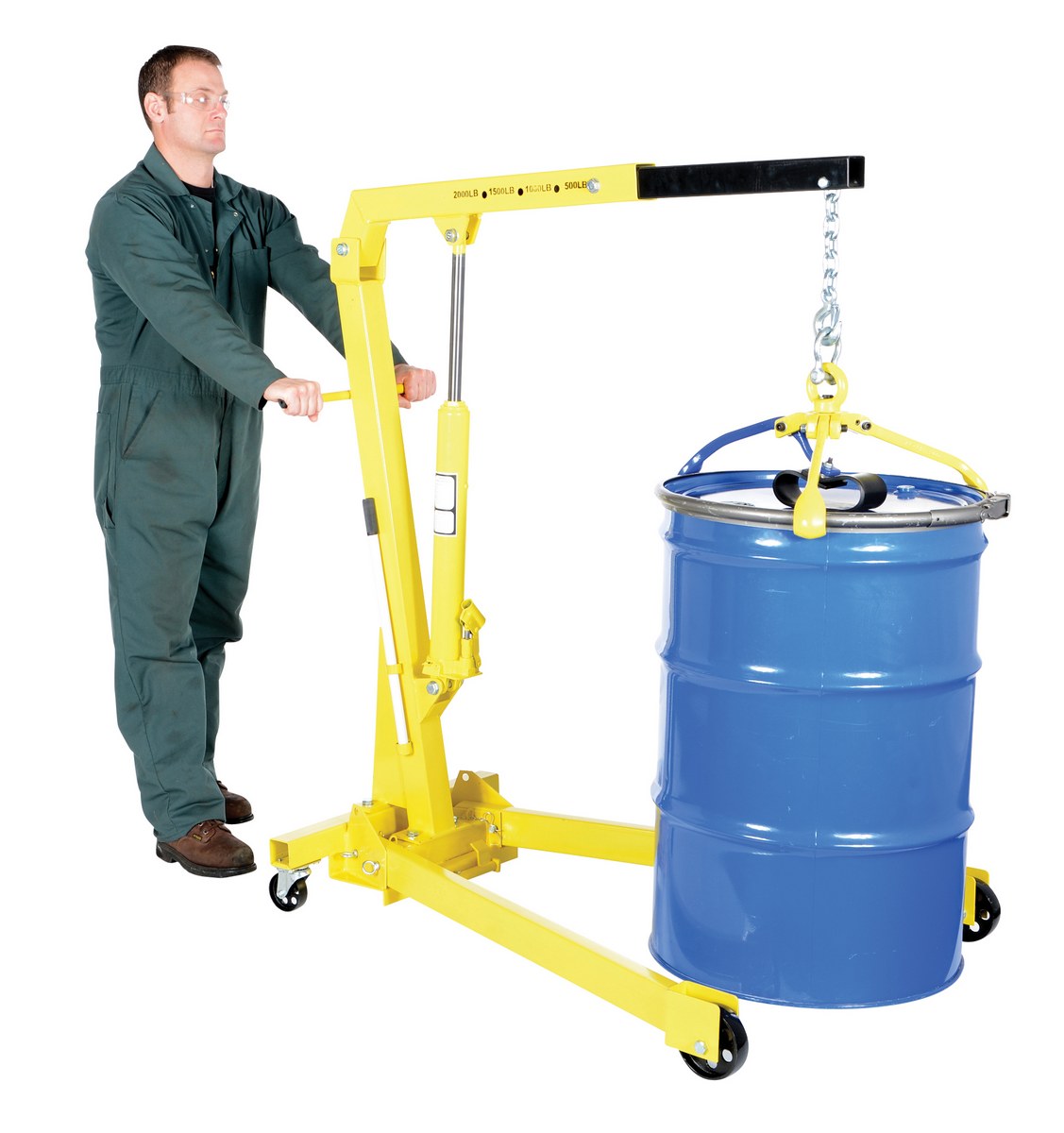

EHN-20-C icon_approvaldrawings.jpgWarranty PDFCompliance Certificate 2,000
1,500
1,000
500
36-5/8"
40"
43-3/4"
47"
20-1/2"--76"
17-1/2"--78"
14-1/2"--80"
10-1/2"--82"
207
EHN-40-C icon_approvaldrawings.jpgWarranty PDFCompliance Certificate 4,000
3,000
2,000
1,000
39-1/4"
46-1/4"
53-1/4"
60-1/2"
21"--85-3/4"
15"--91-1/4"
9"--96-9/16"
3"--102"
238

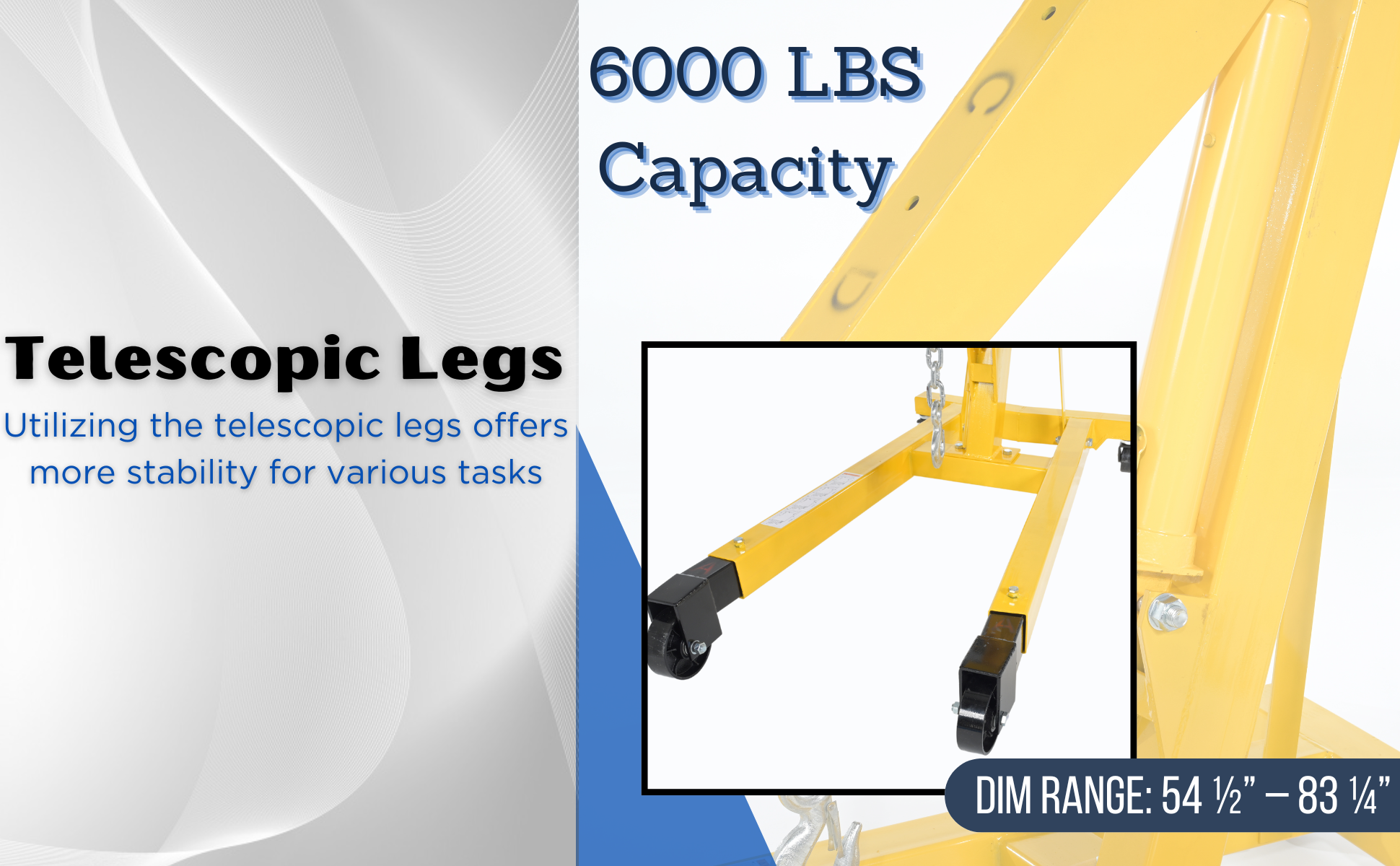

Fixed - will not collapse for storage- (Telescopic Legs)

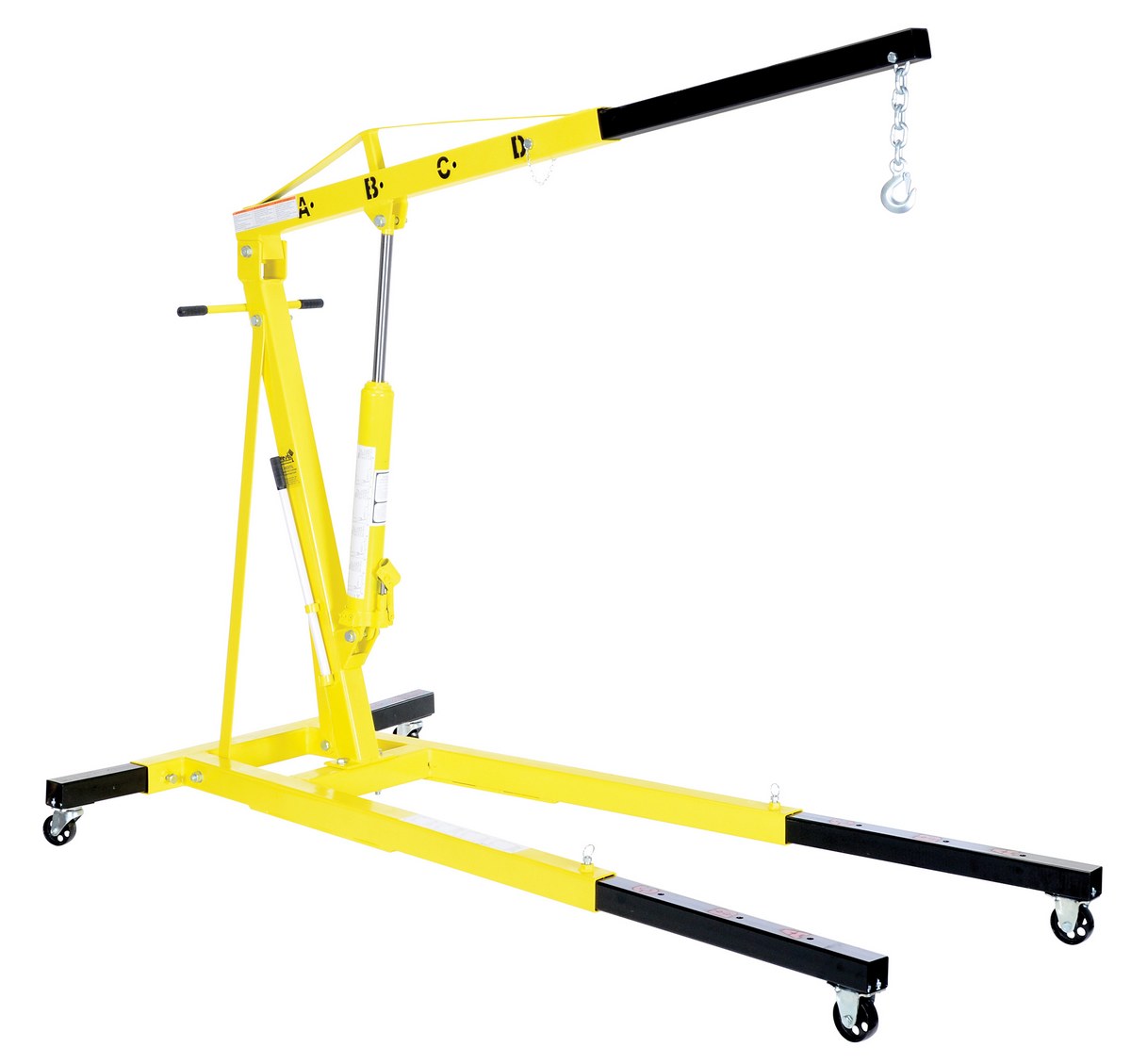

EHN-40-T icon_approvaldrawings.jpgWarranty PDFCompliance Certificate 4,000
3,000
2,000
1,000
49"
58"
67"
76"
8-7/8"--72"
3-1/2"--77"
0"--82"
0"--87"
277

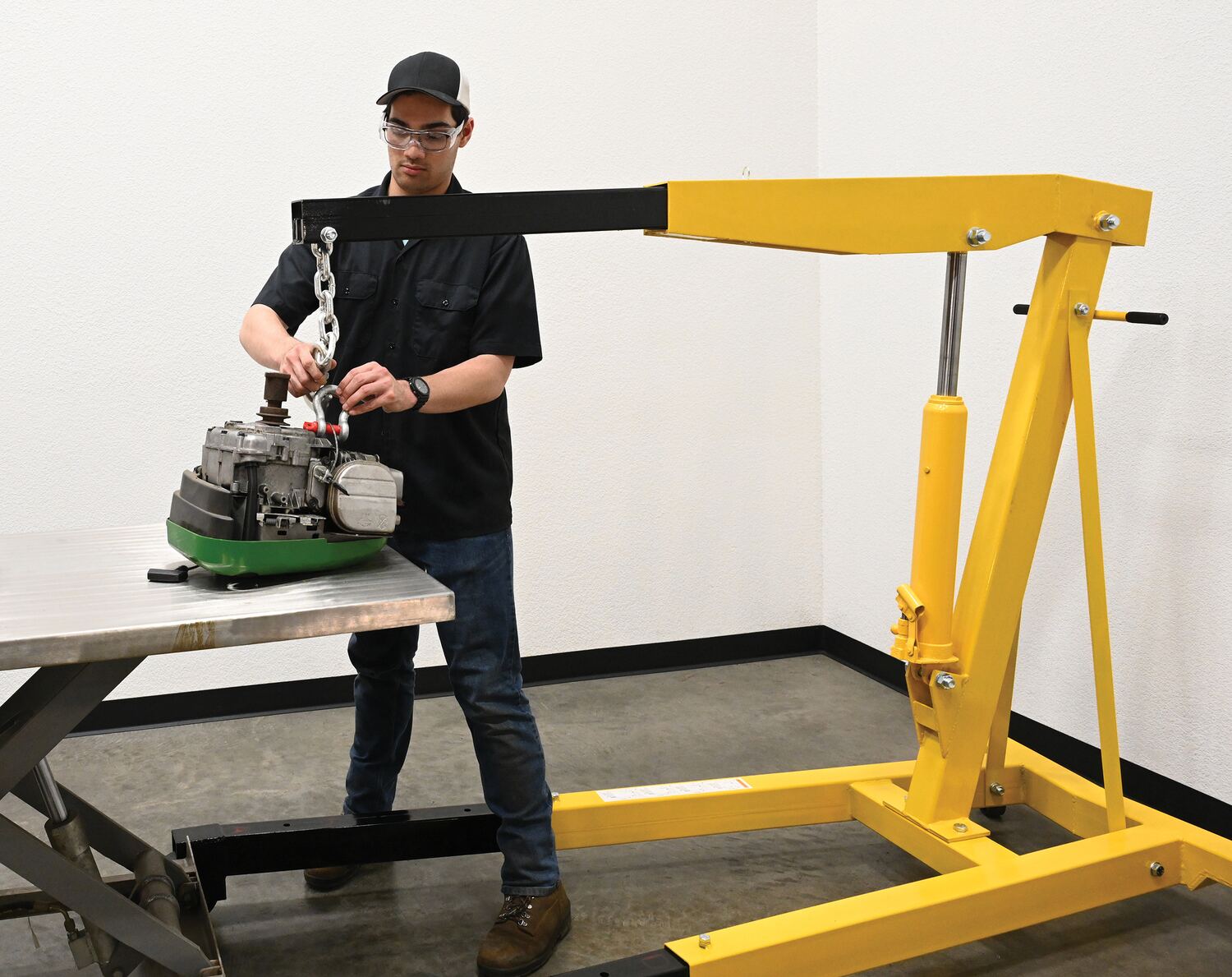

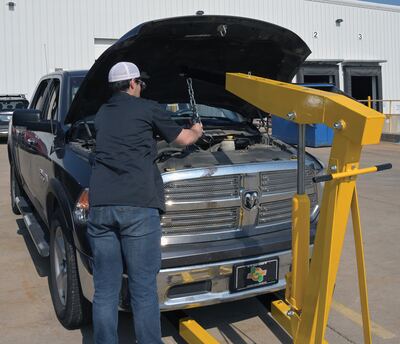

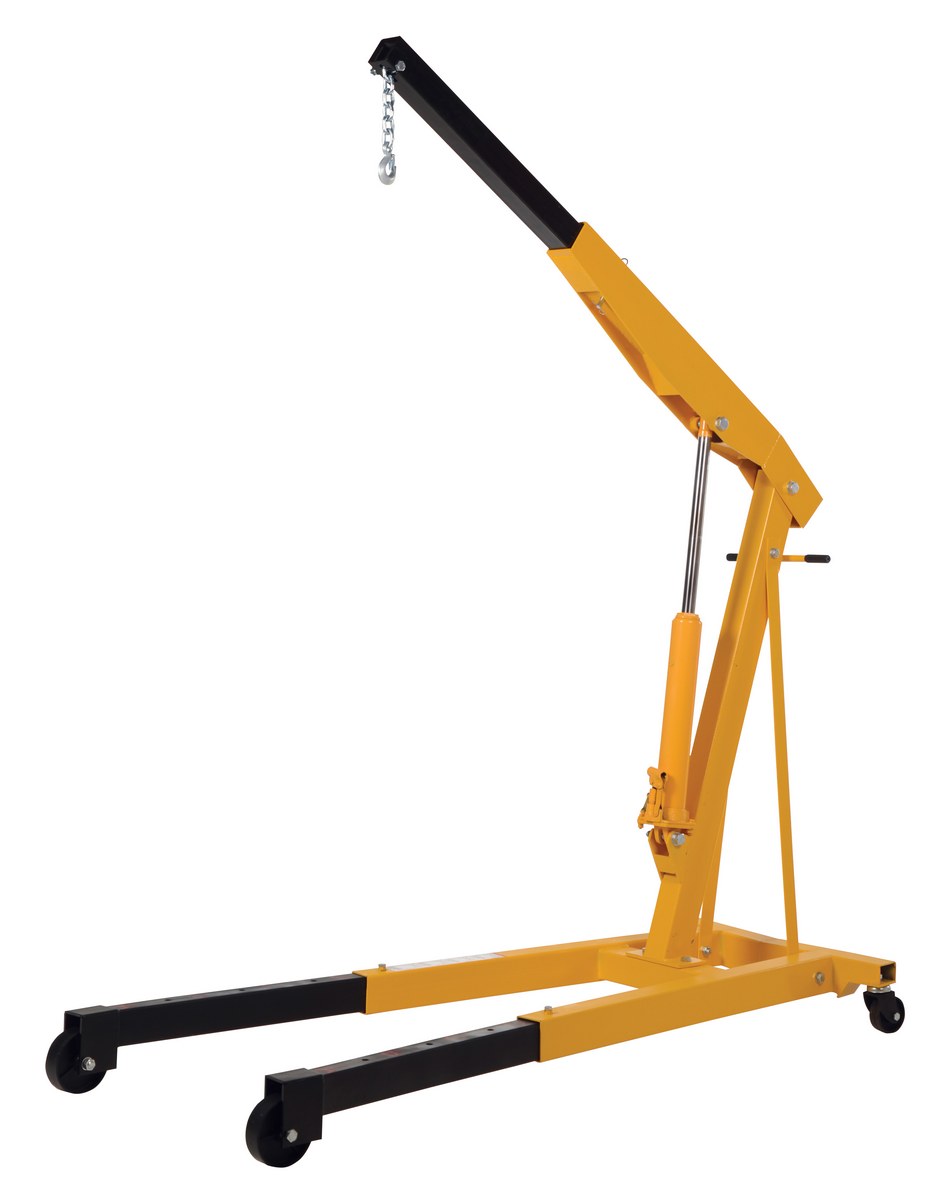

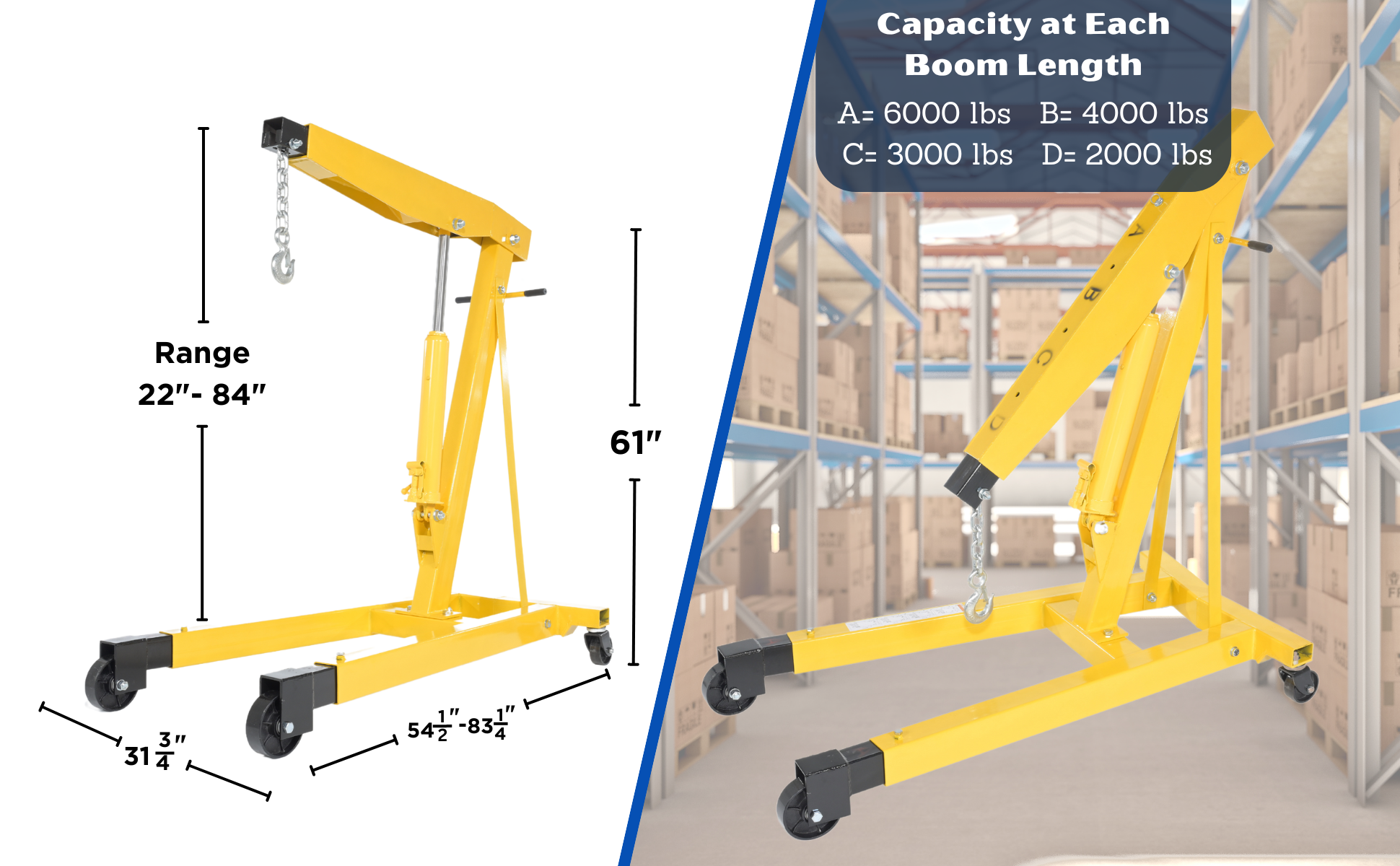

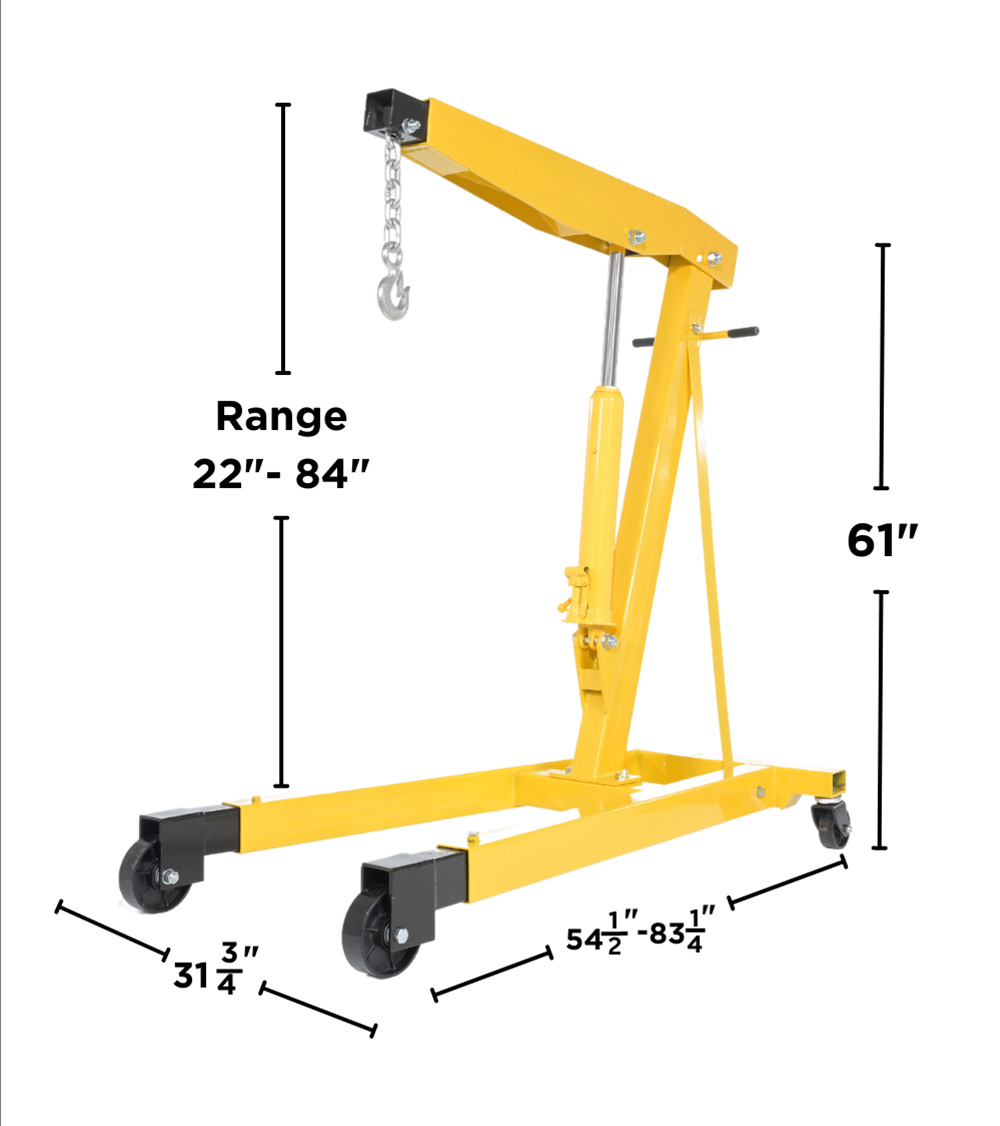

EHN-60-T icon_approvaldrawings.jpgWarranty PDFCompliance Certificate 6,000
4,000
3,000
2,000
51-7/8"
60"
68"
76-1/4"
22"--84"
16-11/16"--88-3/16"
11-1/2"--92-3/8"
6-1/4"--96-9/16"
354

KEY: Approval Drawing = Approval Drawing -- Approval Drawing = Warranty -- Approval Drawing = Testing Certificate




Click A SKU Below To Show Details

EHN-20-C

EHN-20-C

EHN-40-C

EHN-40-C

EHN-40-T

EHN-40-T

EHN-60-T

EHN-60-T






Shop Crane Engine Hoists PDF's will open in a new window when clicked.
