model: EHN-40-C-AH


SERIES: EHN

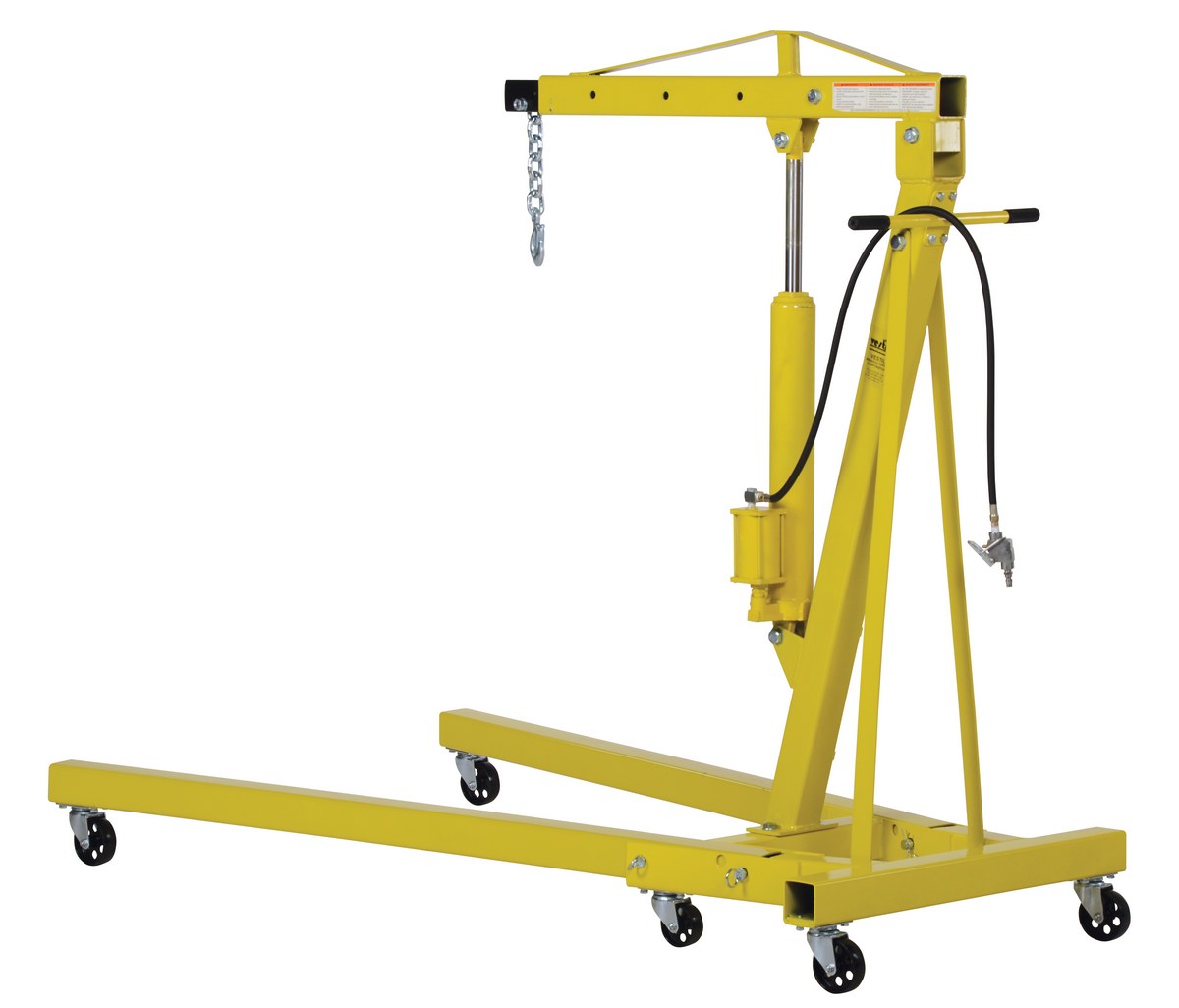

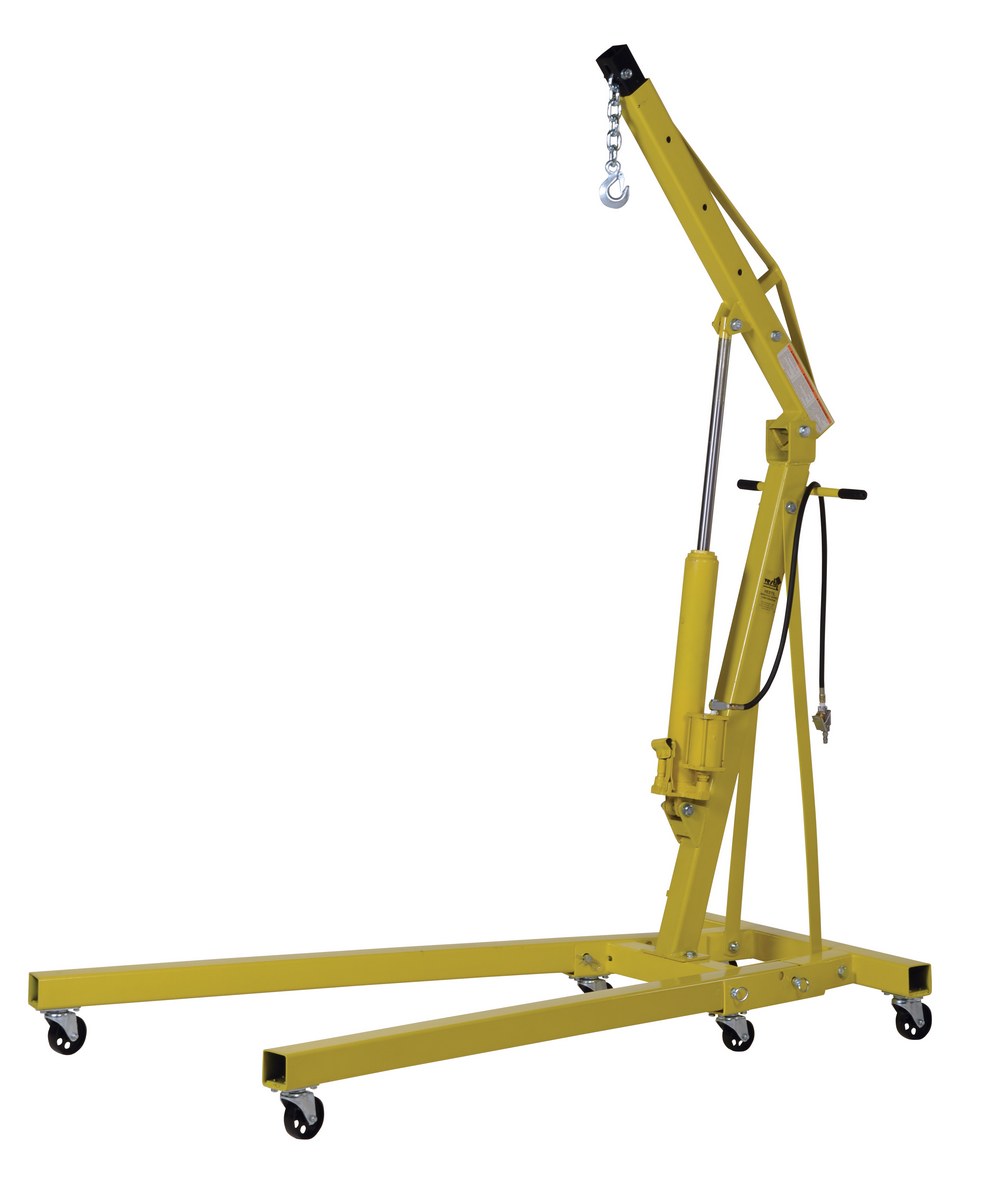

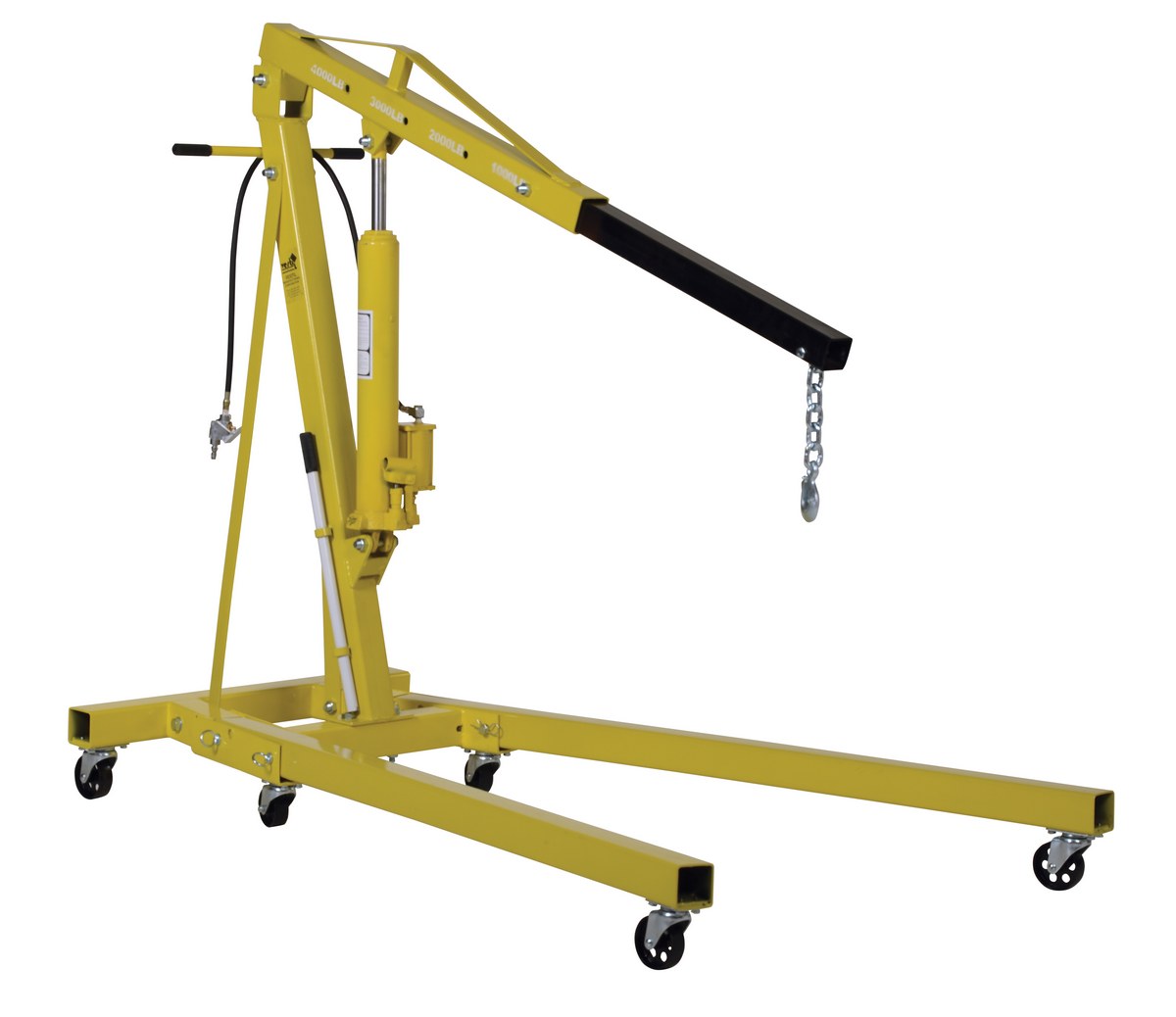

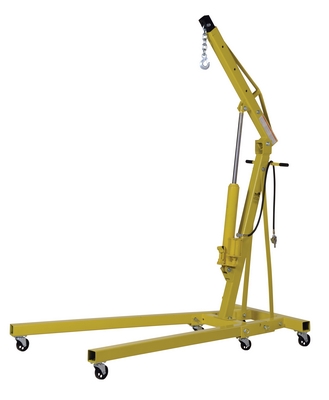

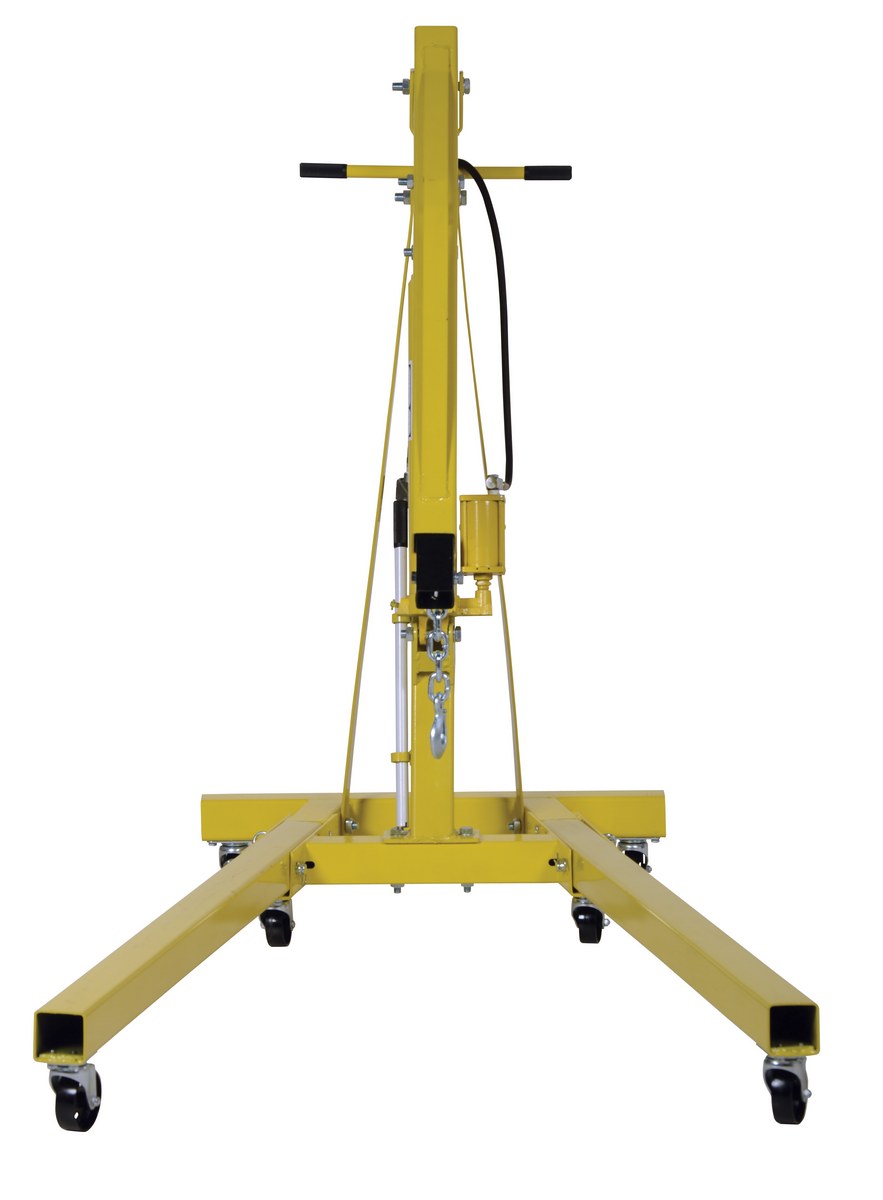

Air/Hand Pump Hydraulic Shop Crane

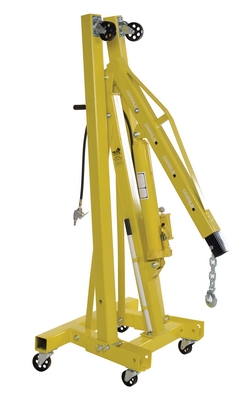

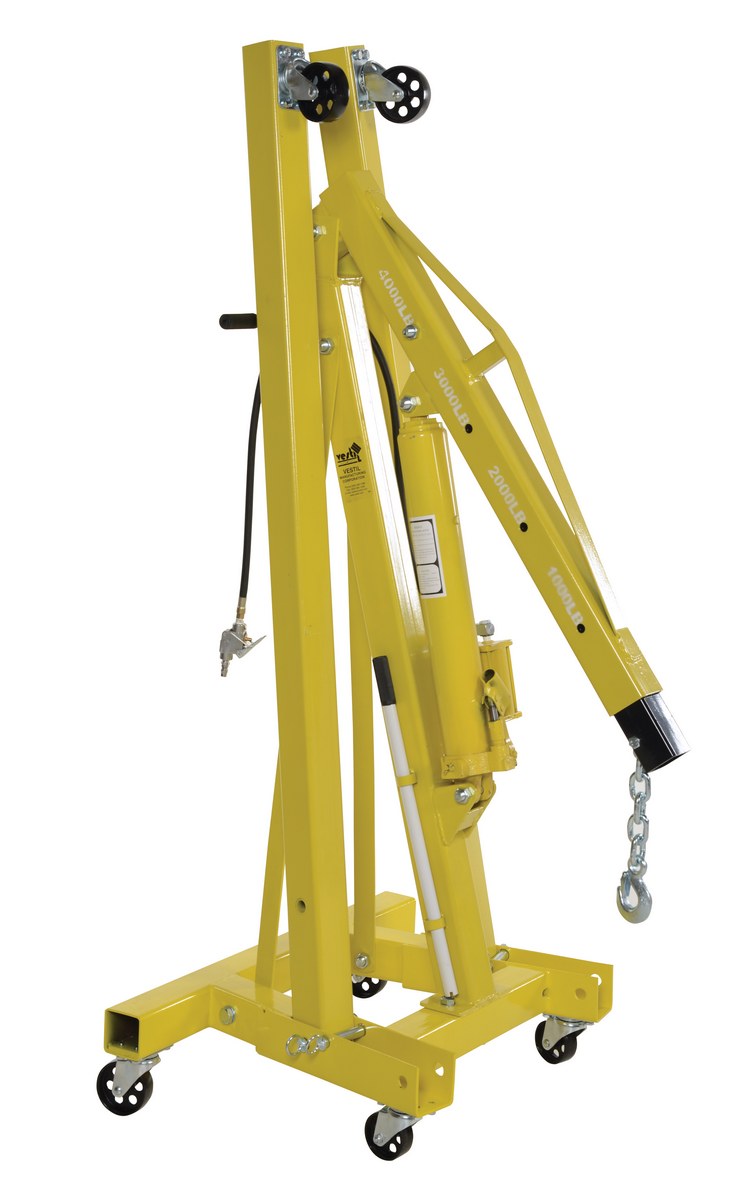

This crane allows one person to maneuver product from location to location, and then lift it with everyday factory air. If air is temporarily unavailable, lift product with the hand pump hydraulic option. Air raises unit 7" to 8" per second. Hand pump raises units 1/2" per stroke. Units roll on 3-1/2." x 1-1/4." cast steel casters, (4) swivel in back (2) rigid in front. The Hoist offers heavy-duty lifting power, while optimizing space when in the folded position. Standard features: foldable legs, adjustable boom, swivel hook, and steel construction.

This crane allows one person to maneuver product from location to location, and then lift it with everyday factory air. If air is temporarily unavailable, lift product with the hand pump hydraulic option. Air raises unit 7" to 8" per second. Hand pump raises units 1/2" per stroke. Units roll on 3-1/2." x 1-1/4." cast steel casters, (4) swivel in back (2) rigid in front. The Hoist offers heavy-duty lifting power, while optimizing space when in the folded position. Standard features: foldable legs, adjustable boom, swivel hook, and steel construction.

Other Engine Hoists & Floor Cranes

Hitch-Mounted Truck Jib Crane

Hitch-Mounted Truck Jib Crane

Power Lift Jib Cranes

Power Lift Jib Cranes

Lifter Jibs

Lifter Jibs

Shop Crane Engine Hoists

Shop Crane Engine Hoists

Air/Hand Pump Hydraulic Shop Crane

Air/Hand Pump Hydraulic Shop Crane

Share This Page




KEY: Approval Drawing = Approval Drawing -- Approval Drawing = Warranty -- Approval Drawing = Testing Certificate

All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.

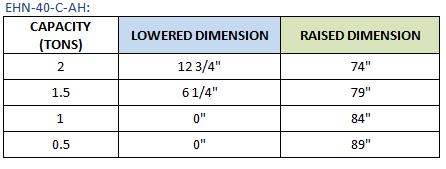

Air/Hand Pump Hydraulic Shop Crane
Model PDF Capacity
(lbs)
Reach Max.
Height
Min.
Height
Wt.
(lbs)
Folded Size: 33-1/2"Wx44"Lx60-1/2"H
EHN-40-C-AH Warranty PDFCompliance Certificate 4,000
3,000
2,000
1,000
39"
46"
53"
61"
86"
91"
97"
102"
21"
15"
9"
3"
249

KEY: Approval Drawing = Approval Drawing -- Approval Drawing = Warranty -- Approval Drawing = Testing Certificate




Click A SKU Below To Show Details

EHN-40-C-AH

EHN-40-C-AH






Air/Hand Pump Hydraulic Shop Crane PDF's will open in a new window when clicked.

Survey Sheets

No Survey Sheets For This Product.


Approval Drawings

EHN-40-C-AH

Testing Certificates

EHN-40-C-AH

Other PDF's

No "Other PDFs" For This Product...


Directory Links Of Available PDF's For All Products




Q: How long is the chain on the EHN-40-C?

A: The chain on the EHN-40-C is 7".
