Click Image to Enlarge

model: EPFC-25-AA


SERIES: EPFC

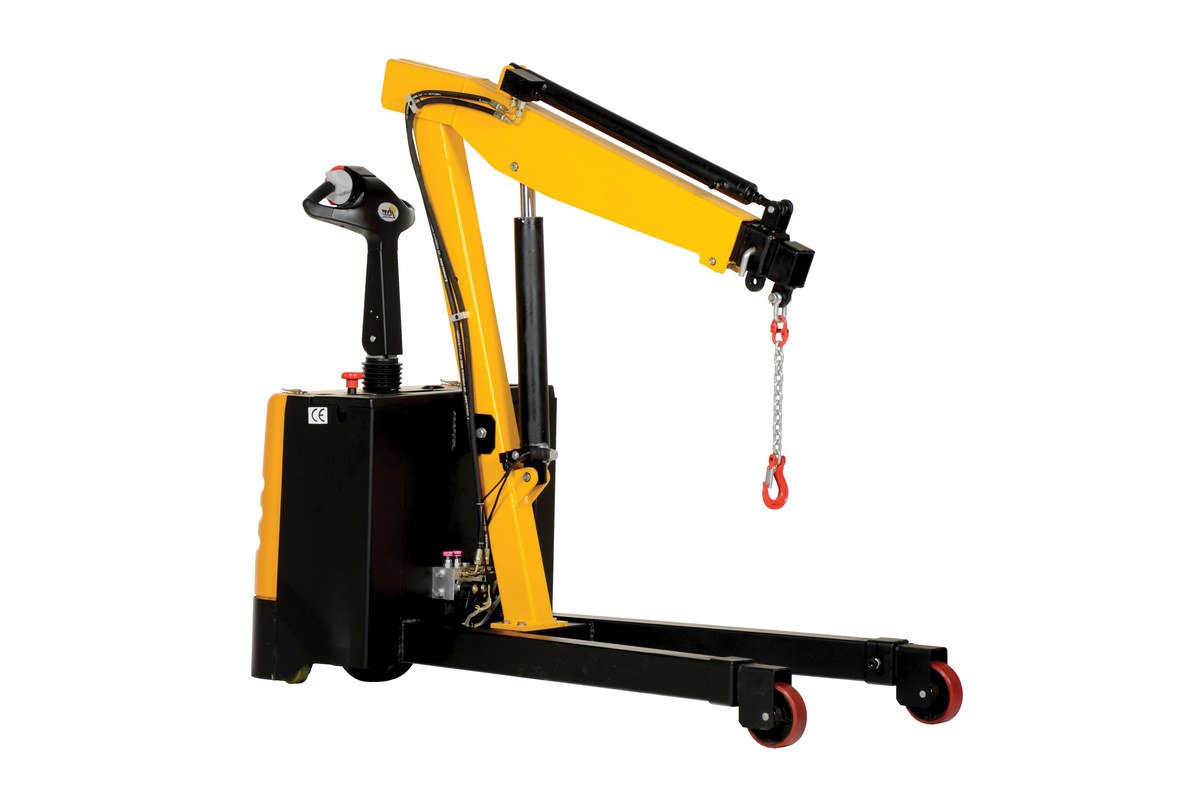

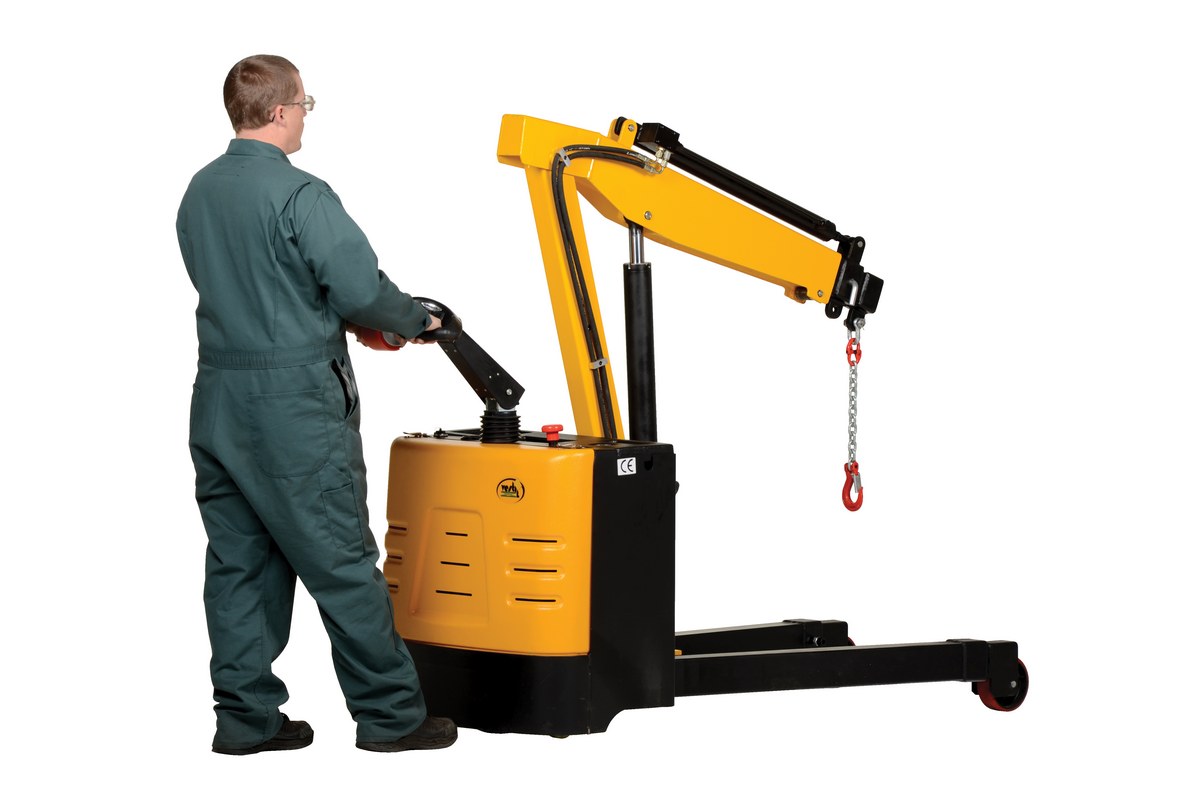

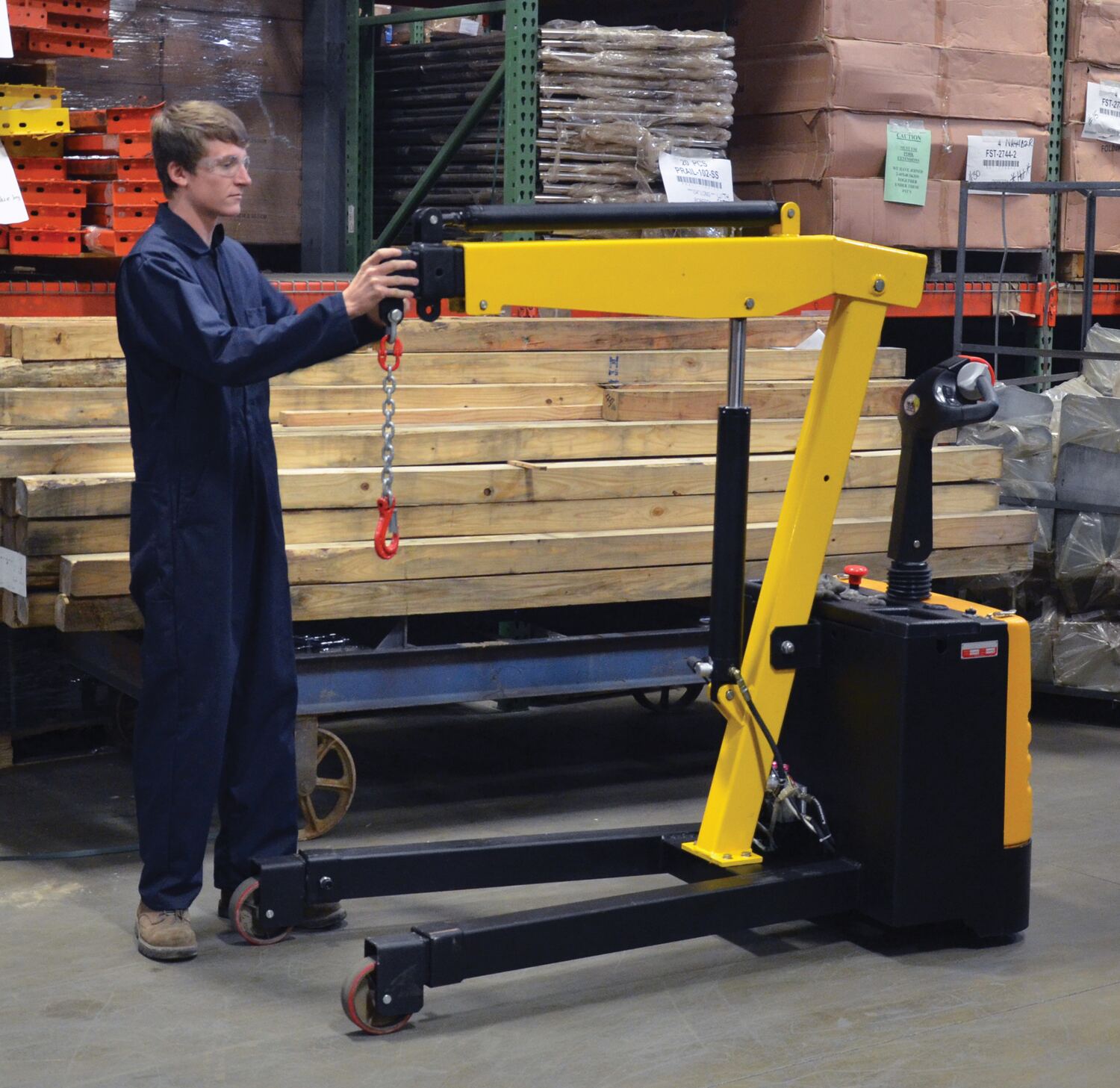

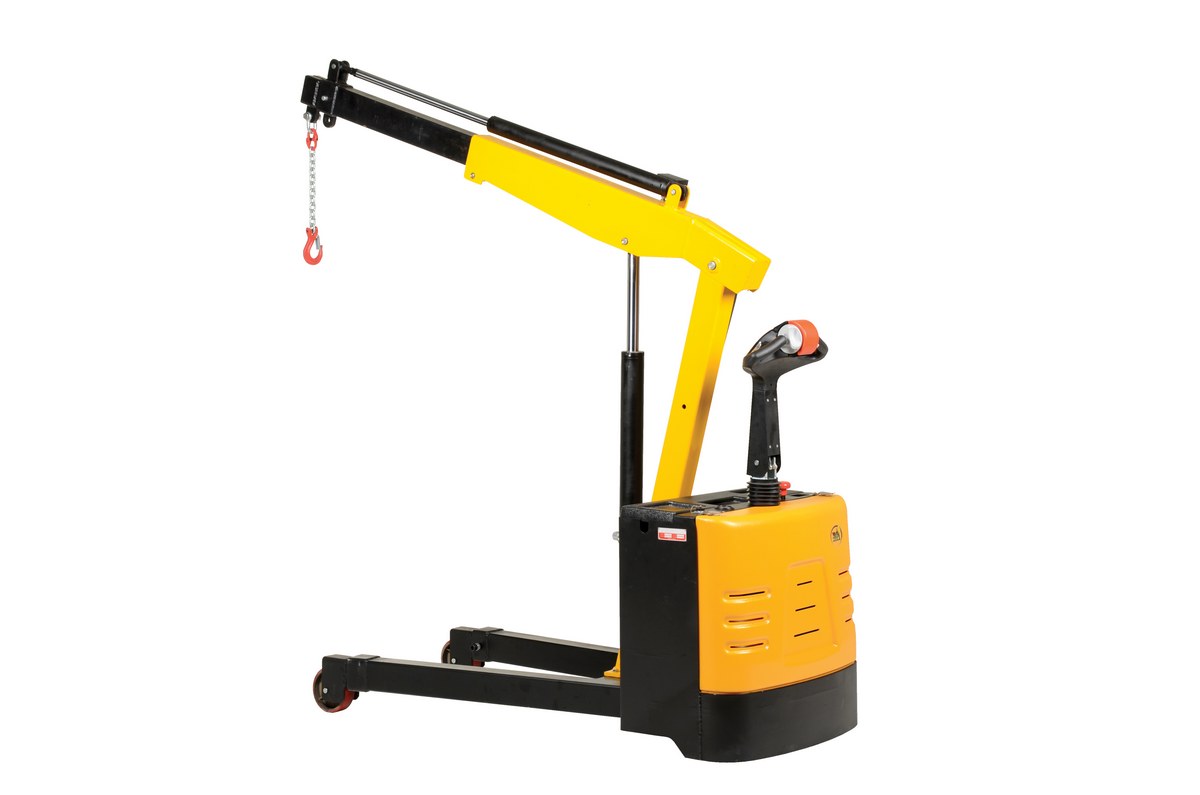

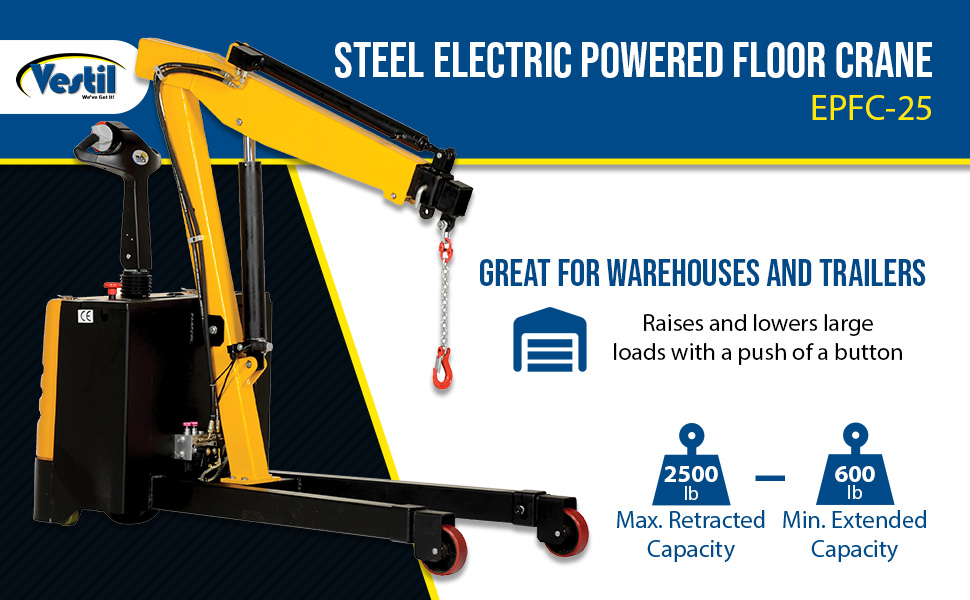

Electric Powered Floor Cranes

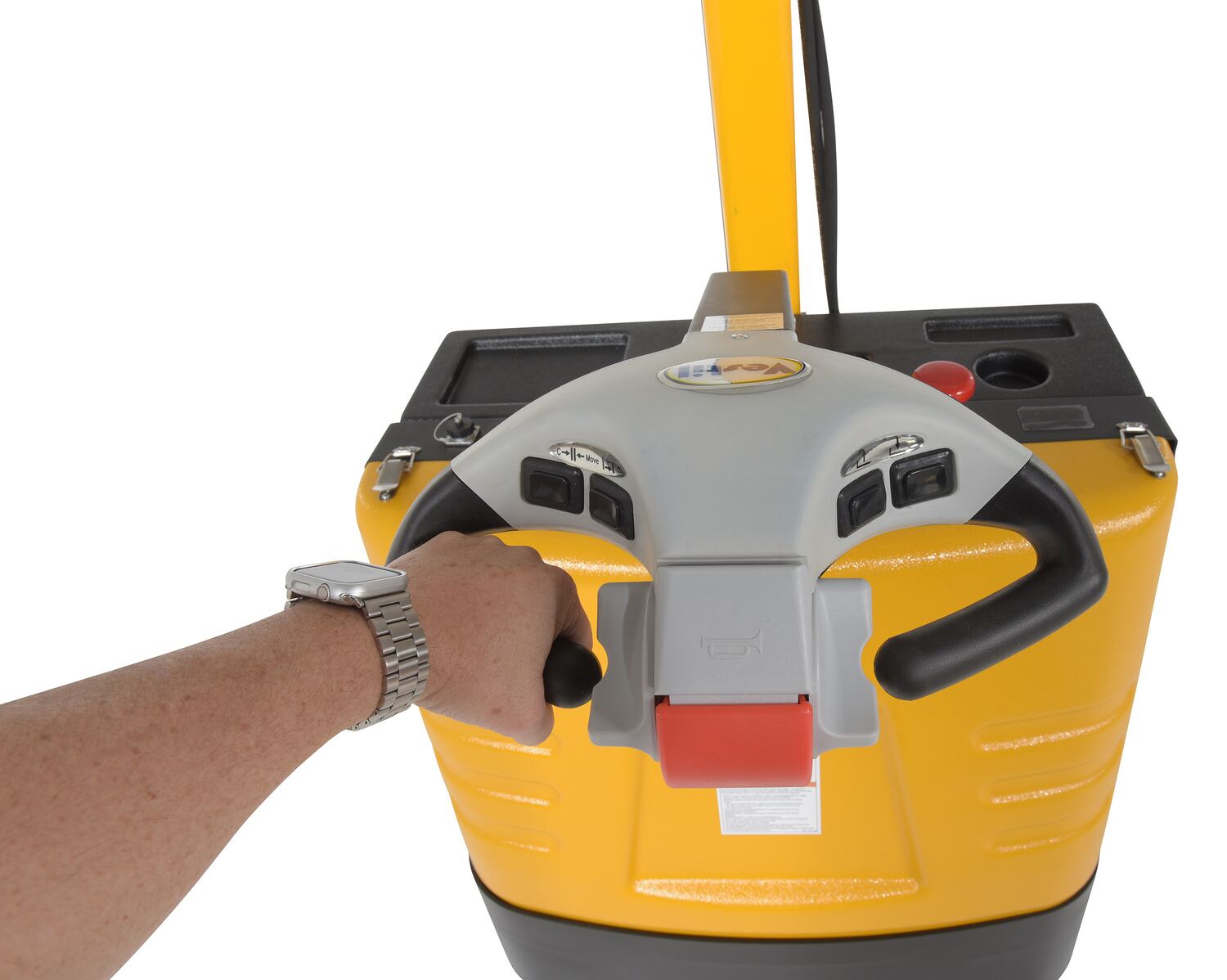

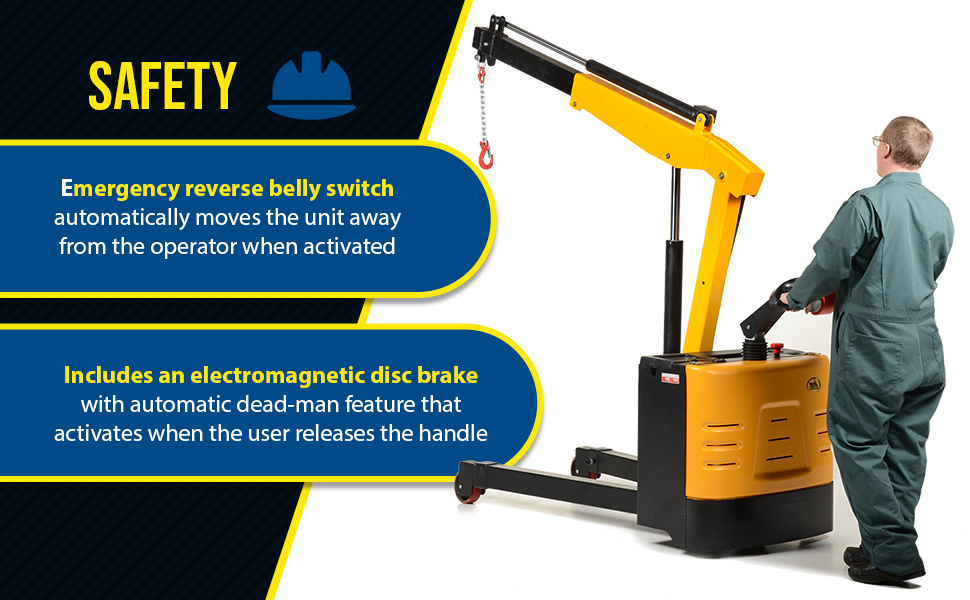

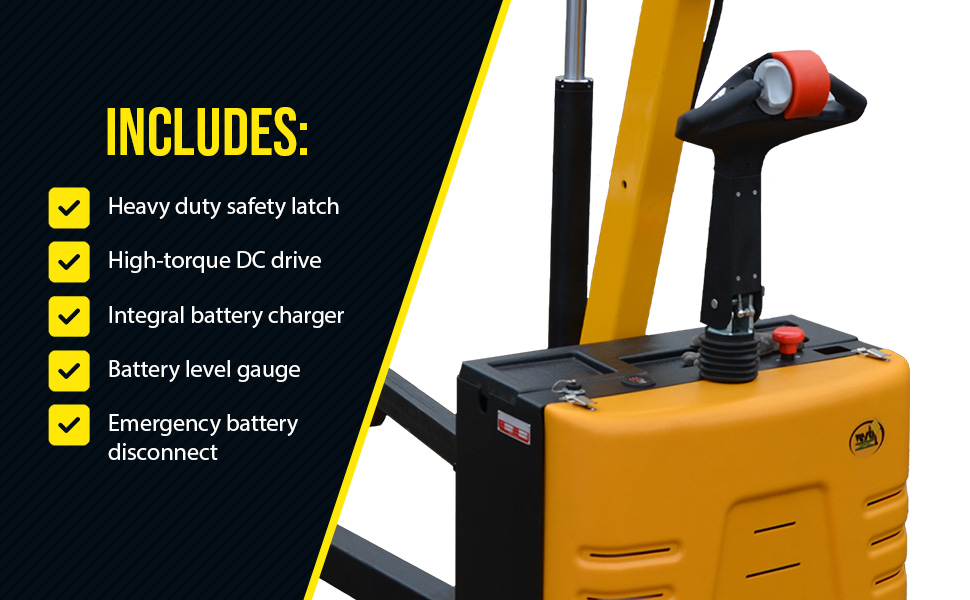

Fully powered shop cranes (power hoist & power in/out boom) for moving loads quickly, easily, and safely. 24V DC drive and lift motor handles heavy-duty jobs. Ergonomic handle features easy-to-operate throttle with infinite adjustment of forward and reverse speeds, lift/lower controls, proprietary safety-enhancing emergency reverse function, and horn. Includes an electromagnetic disc brake with automatic dead-man feature that activates when user releases the handle. Powered shop crane has two 12V, 80 - 95/Ah lead acid deep cycle batteries, integral battery charger, and battery level gauge. Poly-on-steel steer and load wheels. 3-4 hour operation at full charge - 8 hours when used intermittently. Includes rigid hook with safety latch.

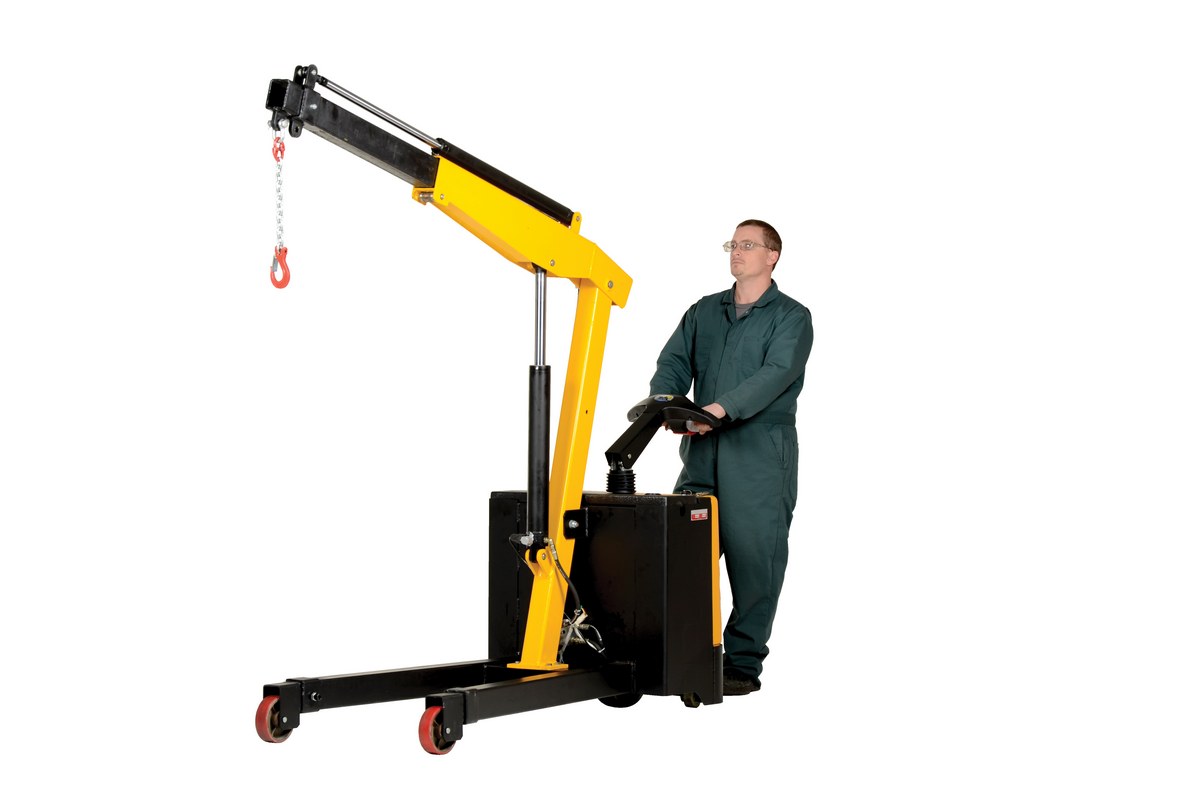

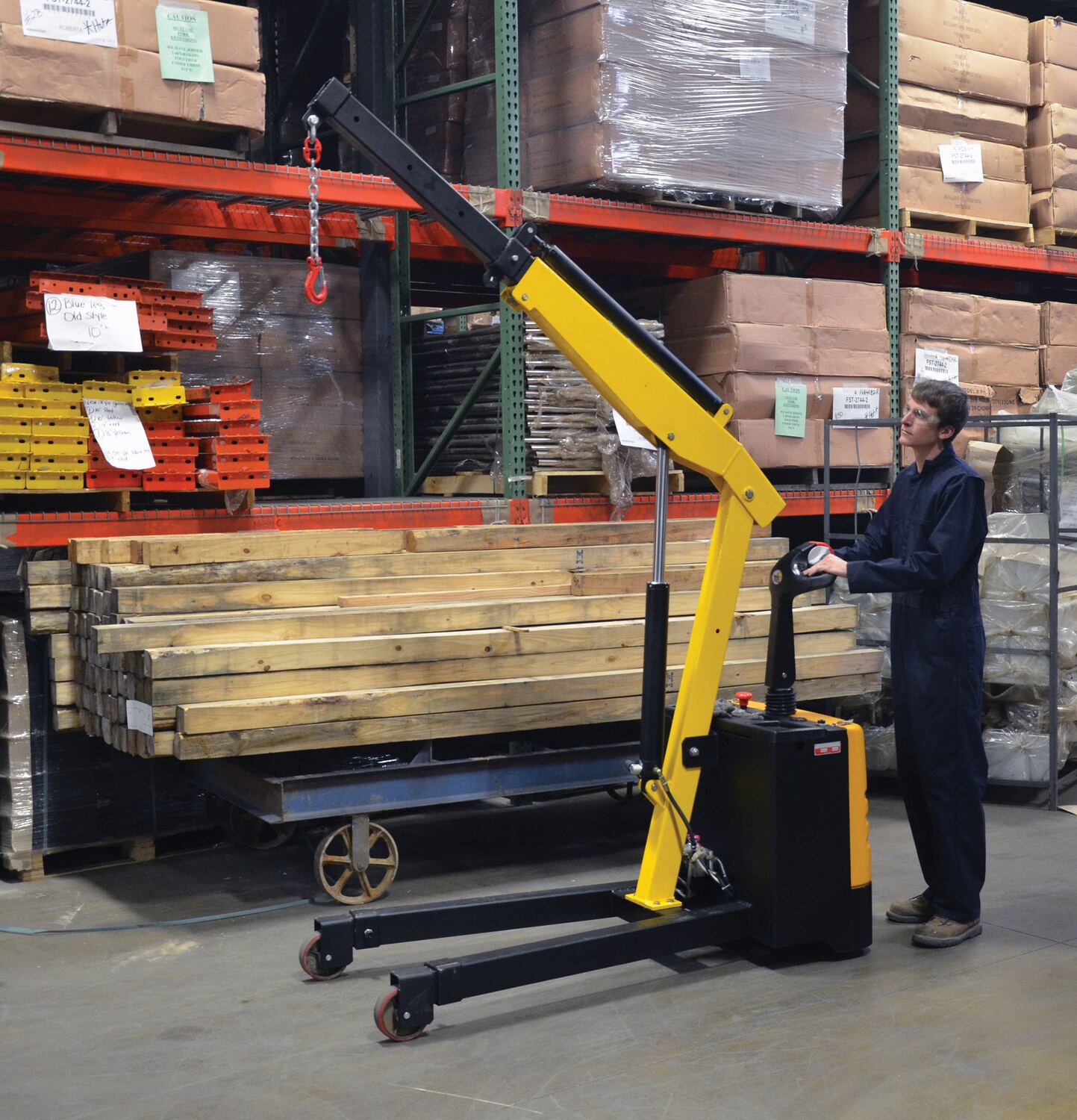

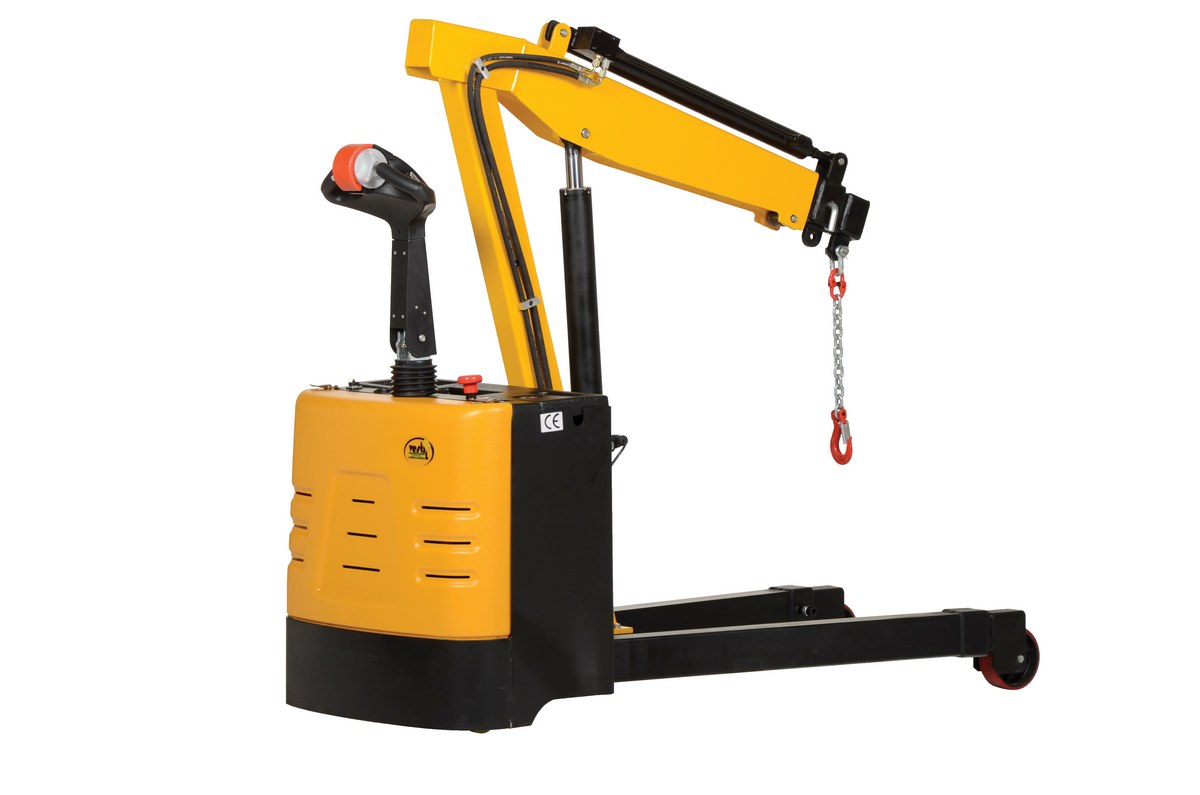

*Model EPFC-25 features adjustable length legs.

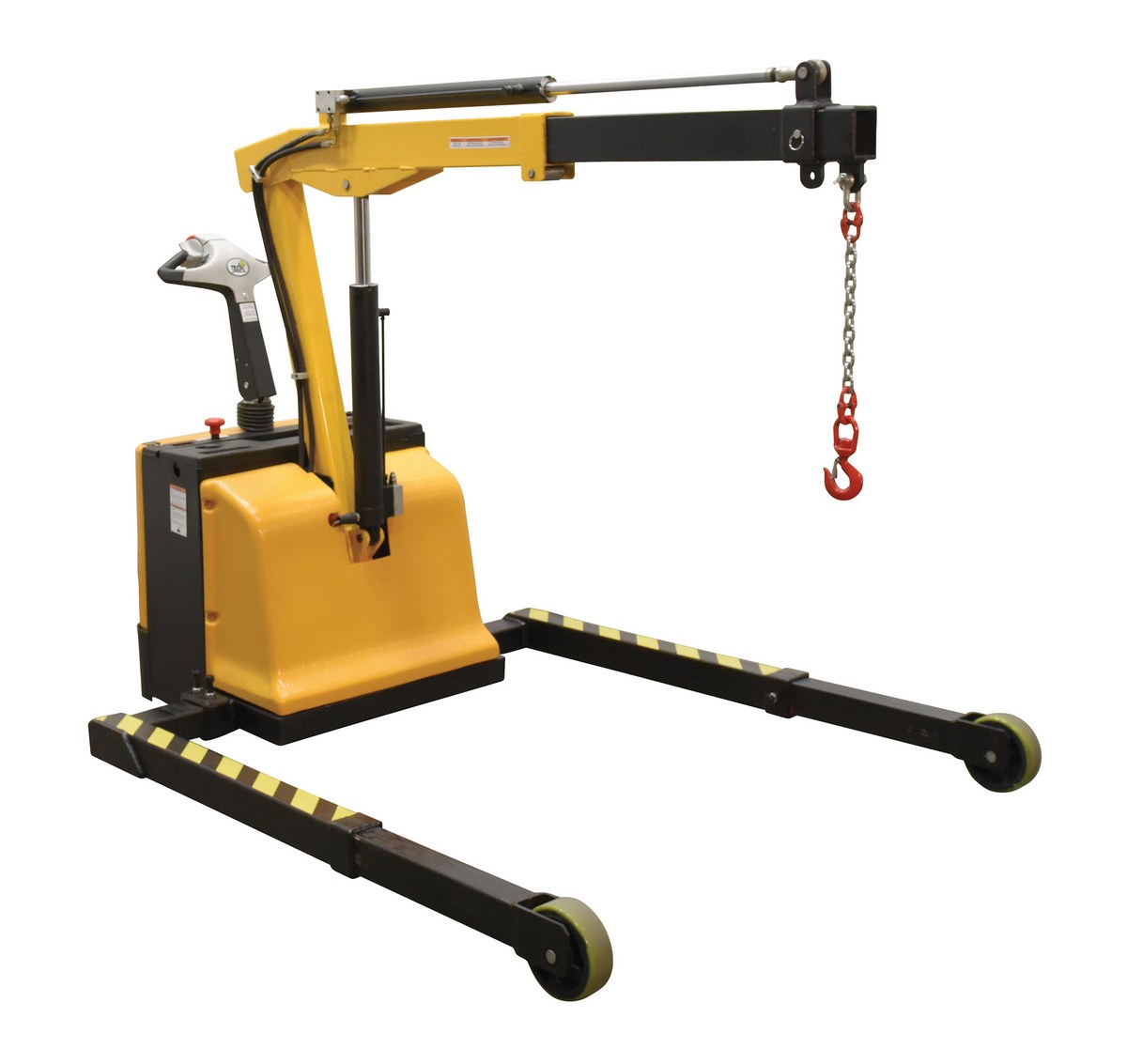

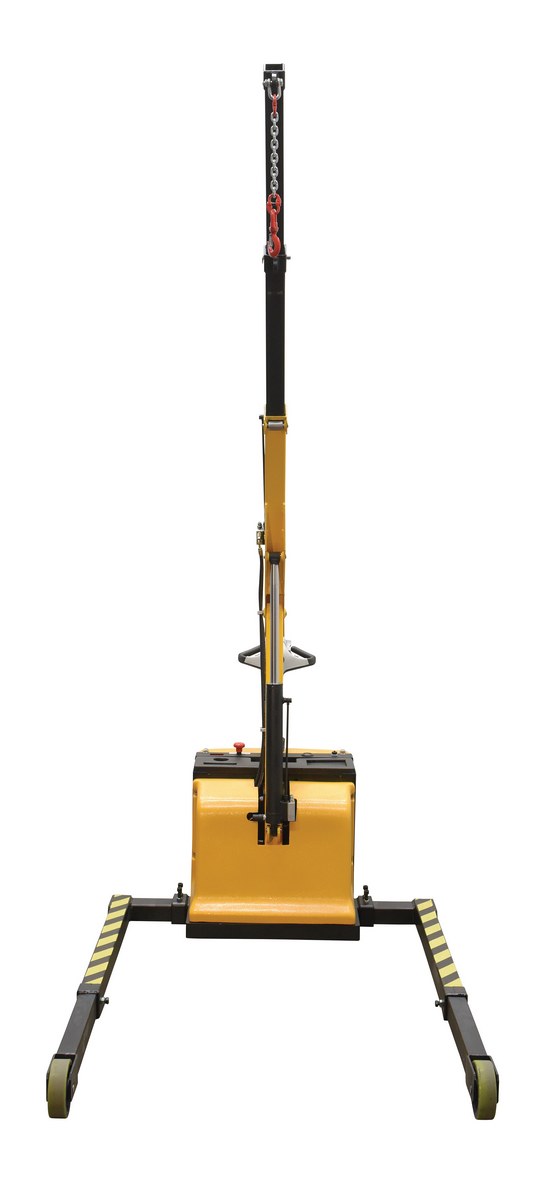

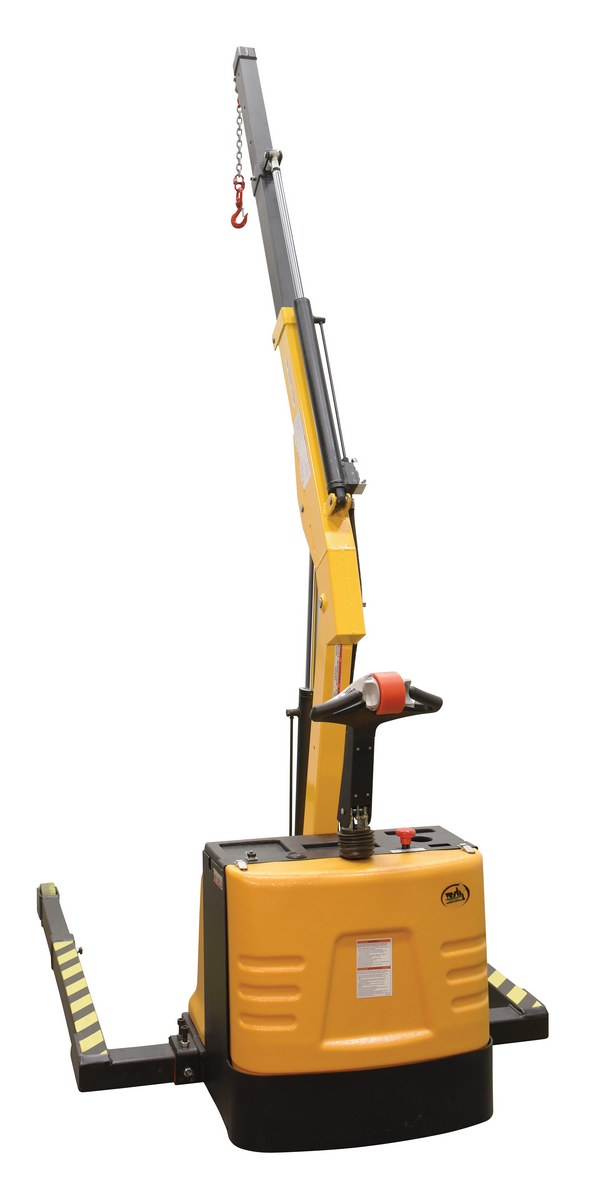

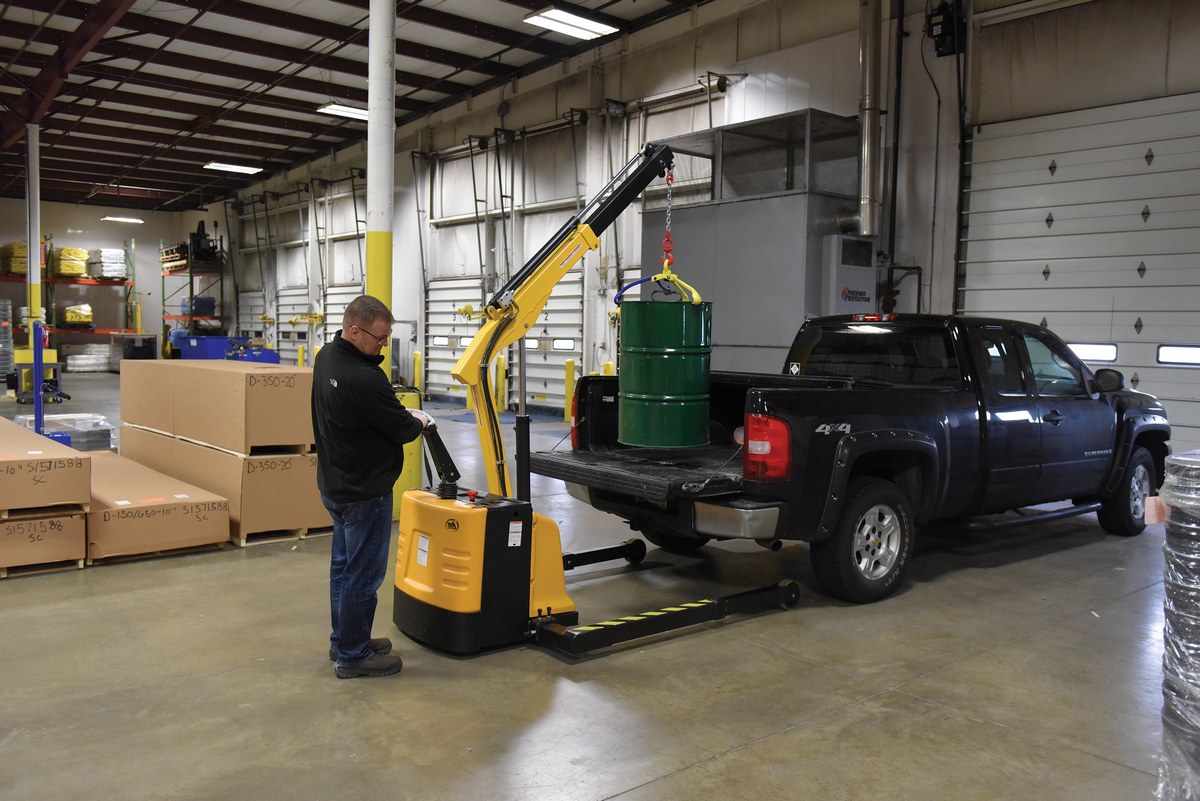

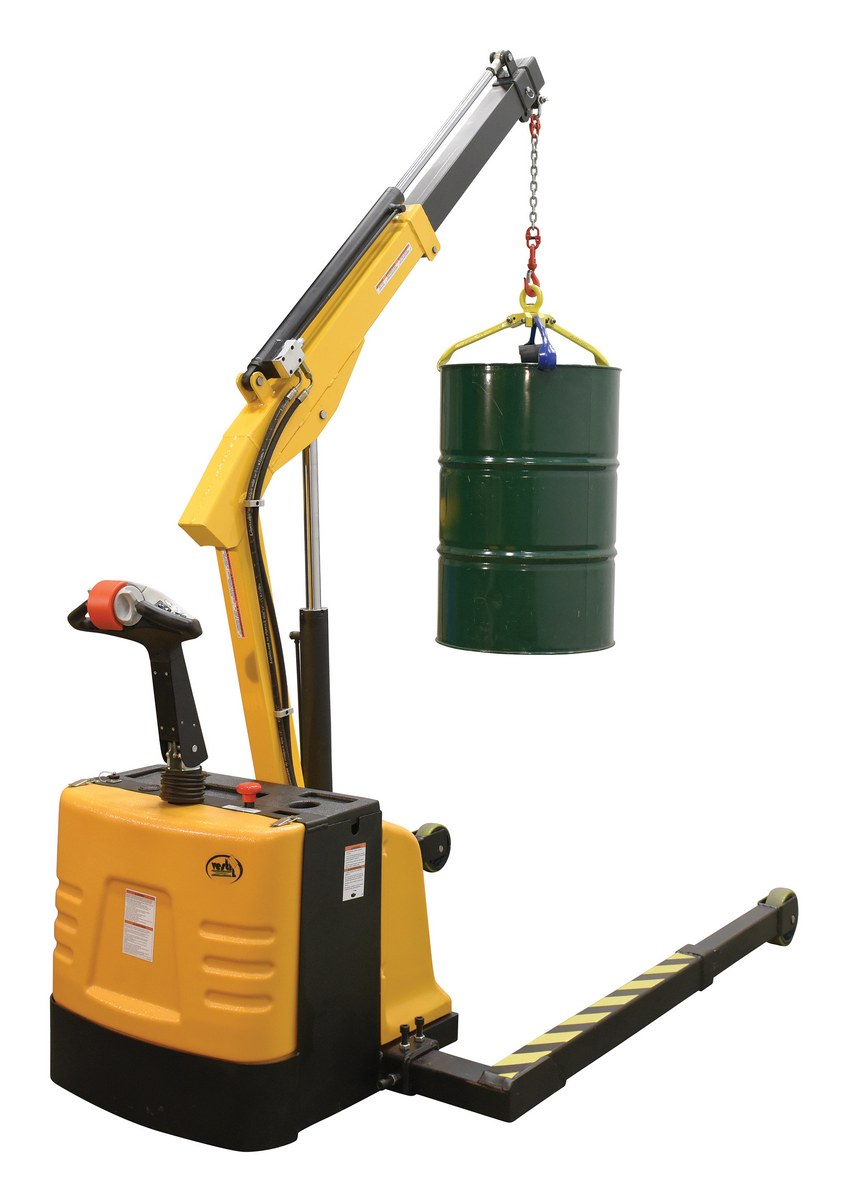

*Model EPFC-25-AA features adjustable length legs and adjustable width legs.

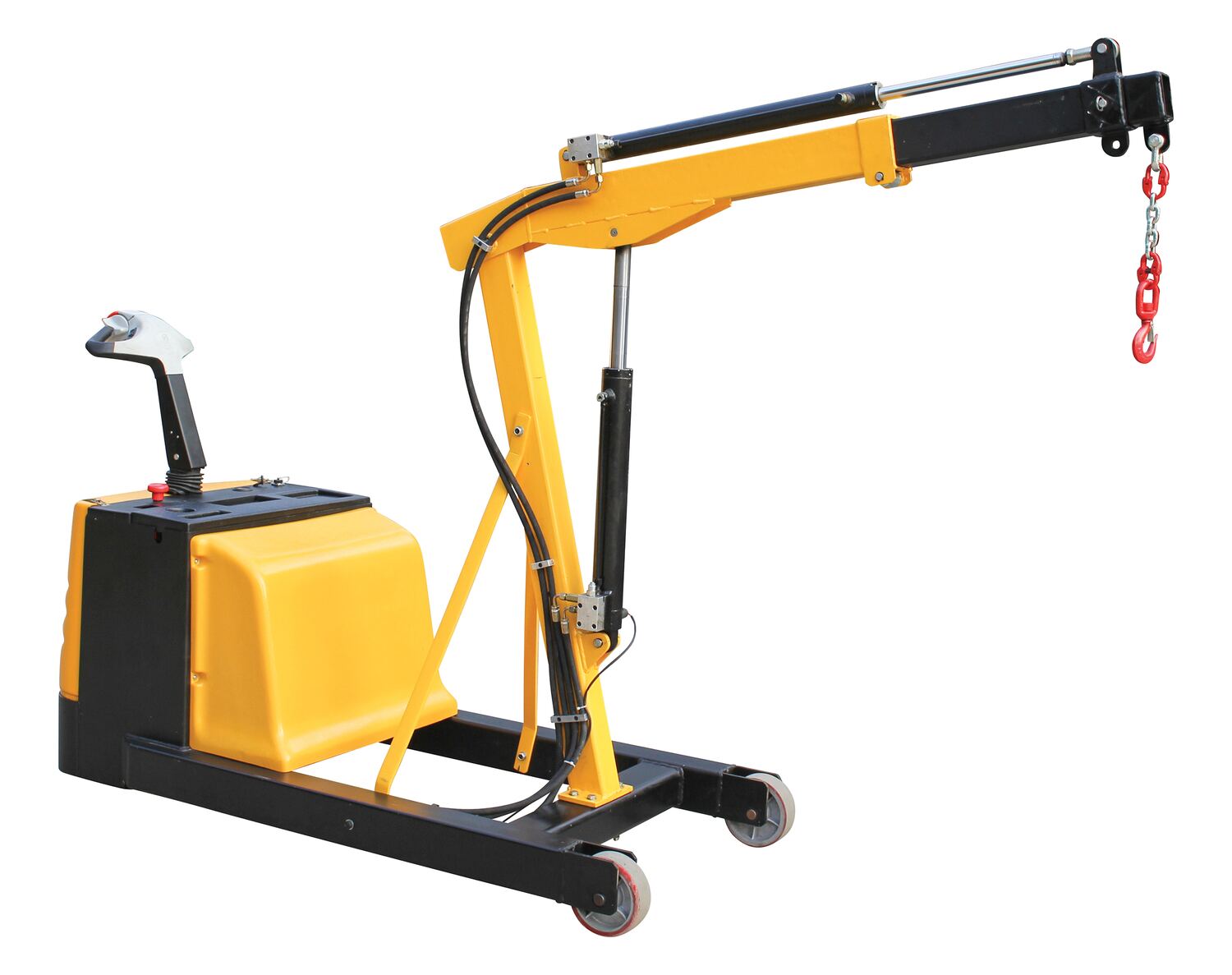

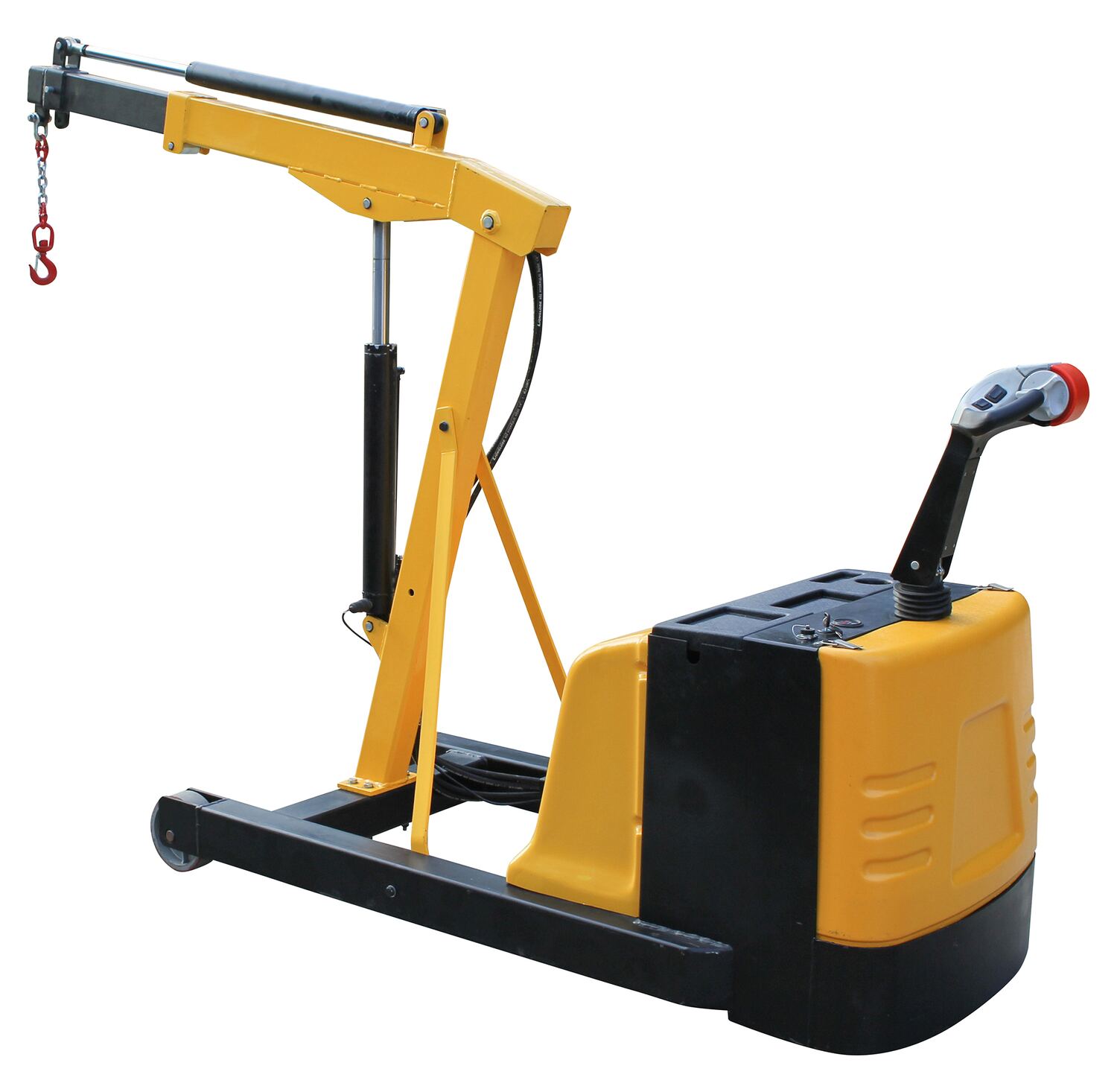

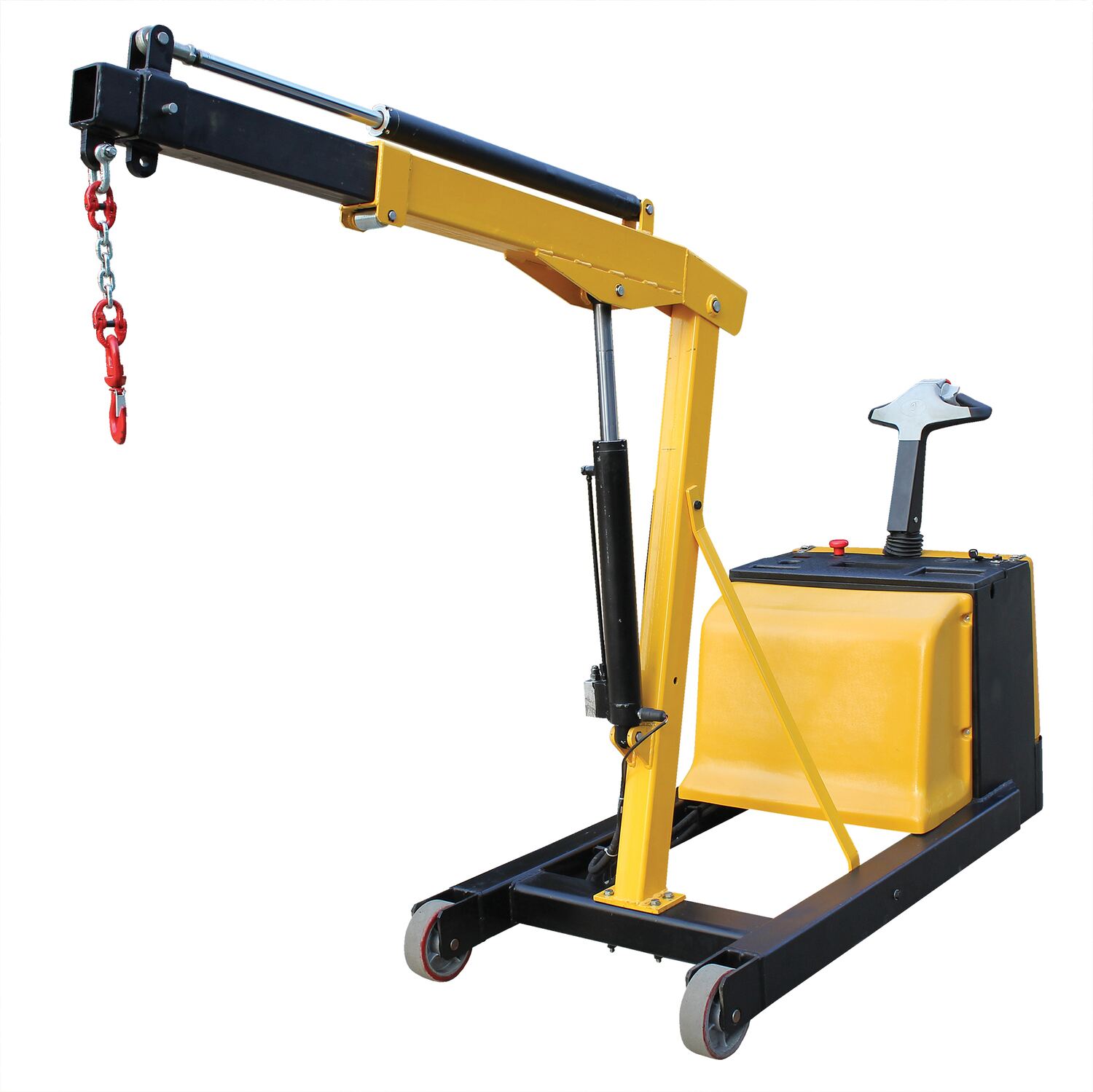

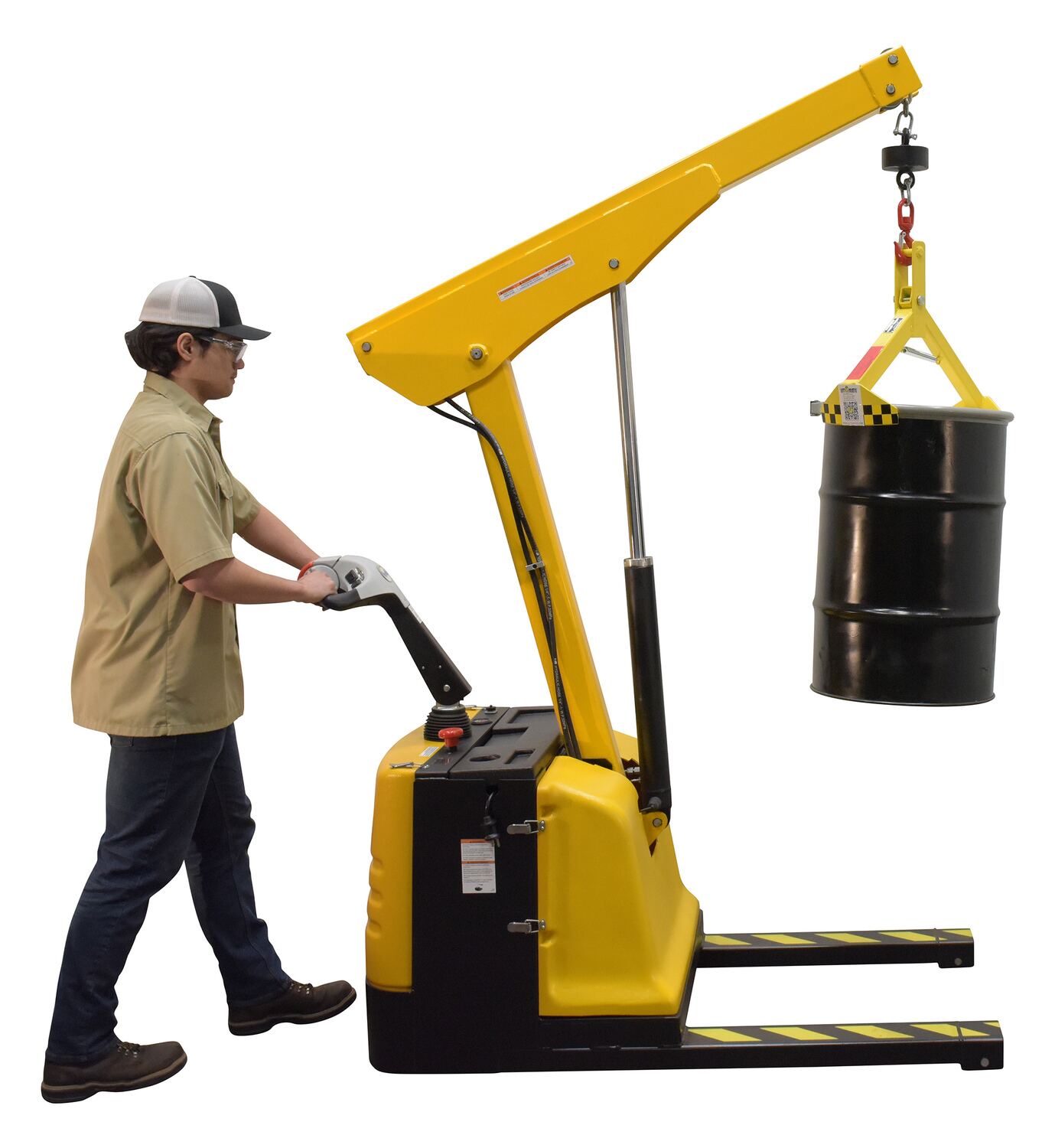

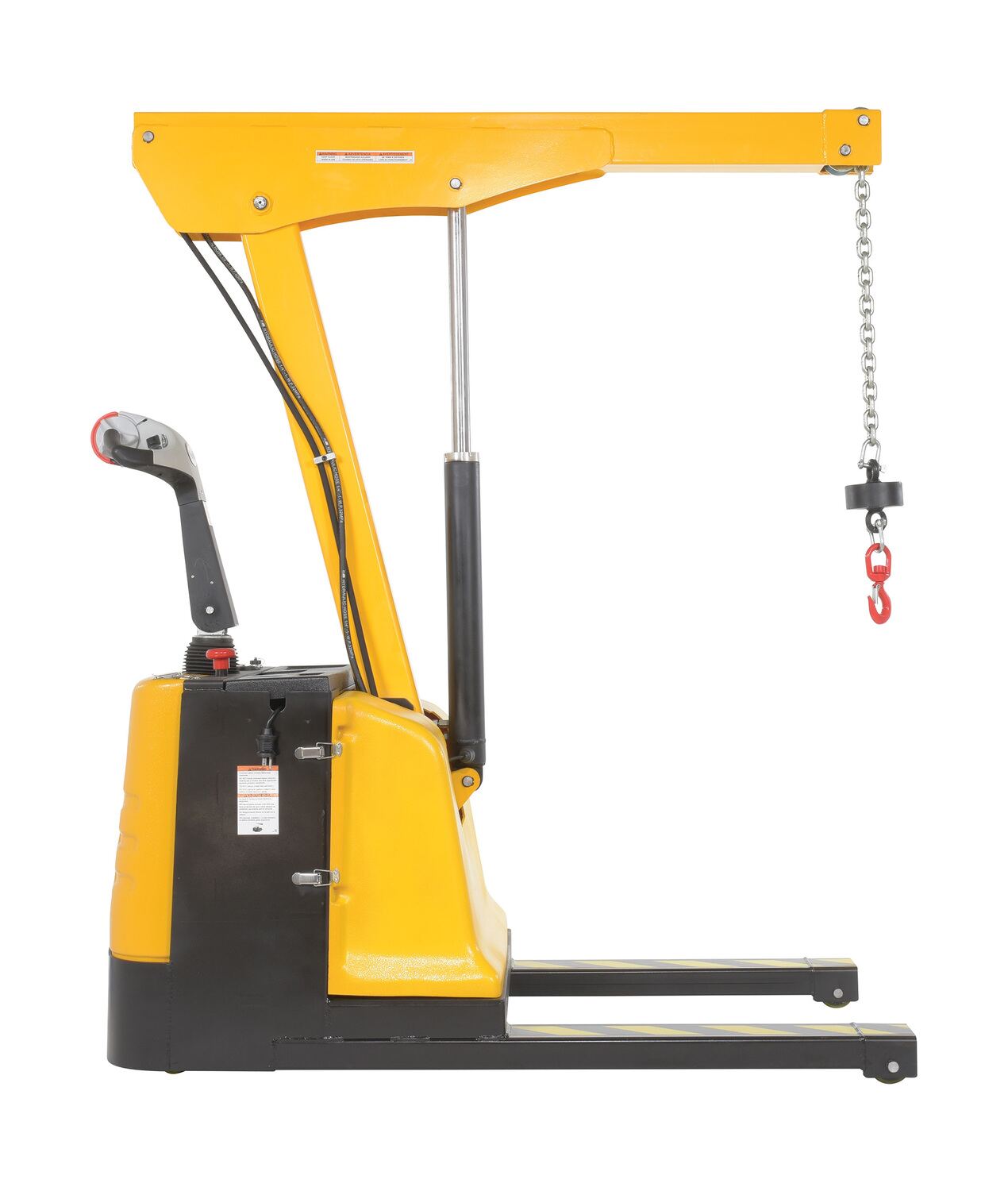

*Model EPFC-CB-15 features fixed legs and counter balance design.

Fully powered shop cranes (power hoist & power in/out boom) for moving loads quickly, easily, and safely. 24V DC drive and lift motor handles heavy-duty jobs. Ergonomic handle features easy-to-operate throttle with infinite adjustment of forward and reverse speeds, lift/lower controls, proprietary safety-enhancing emergency reverse function, and horn. Includes an electromagnetic disc brake with automatic dead-man feature that activates when user releases the handle. Powered shop crane has two 12V, 80 - 95/Ah lead acid deep cycle batteries, integral battery charger, and battery level gauge. Poly-on-steel steer and load wheels. 3-4 hour operation at full charge - 8 hours when used intermittently. Includes rigid hook with safety latch.

*Model EPFC-25 features adjustable length legs.

*Model EPFC-25-AA features adjustable length legs and adjustable width legs.

*Model EPFC-CB-15 features fixed legs and counter balance design.

Other Engine Hoists & Floor Cranes

Hitch-Mounted Truck Jib Crane

Hitch-Mounted Truck Jib Crane

Power Lift Jib Cranes

Power Lift Jib Cranes

Lifter Jibs

Lifter Jibs

Shop Crane Engine Hoists

Shop Crane Engine Hoists

Air/Hand Pump Hydraulic Shop Crane

Air/Hand Pump Hydraulic Shop Crane

Share This Page

EPFC-25-AA

model EPFC-25-AA

EPFC-CB-15

model EPFC-CB-15




KEY: Approval Drawing = Approval Drawing -- Approval Drawing = Warranty -- Approval Drawing = Testing Certificate

All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.
Electric Powered Floor Crane
Model Image PDF's Capacity
(Retracted)
(lbs)
Capacity
(Extended)
(lbs)
Lift Range Retracted/
Extended
Max Height Crane Extended Max Length Legs Extended Retracted
Size
(WxLxH)
Wt.
(lbs)

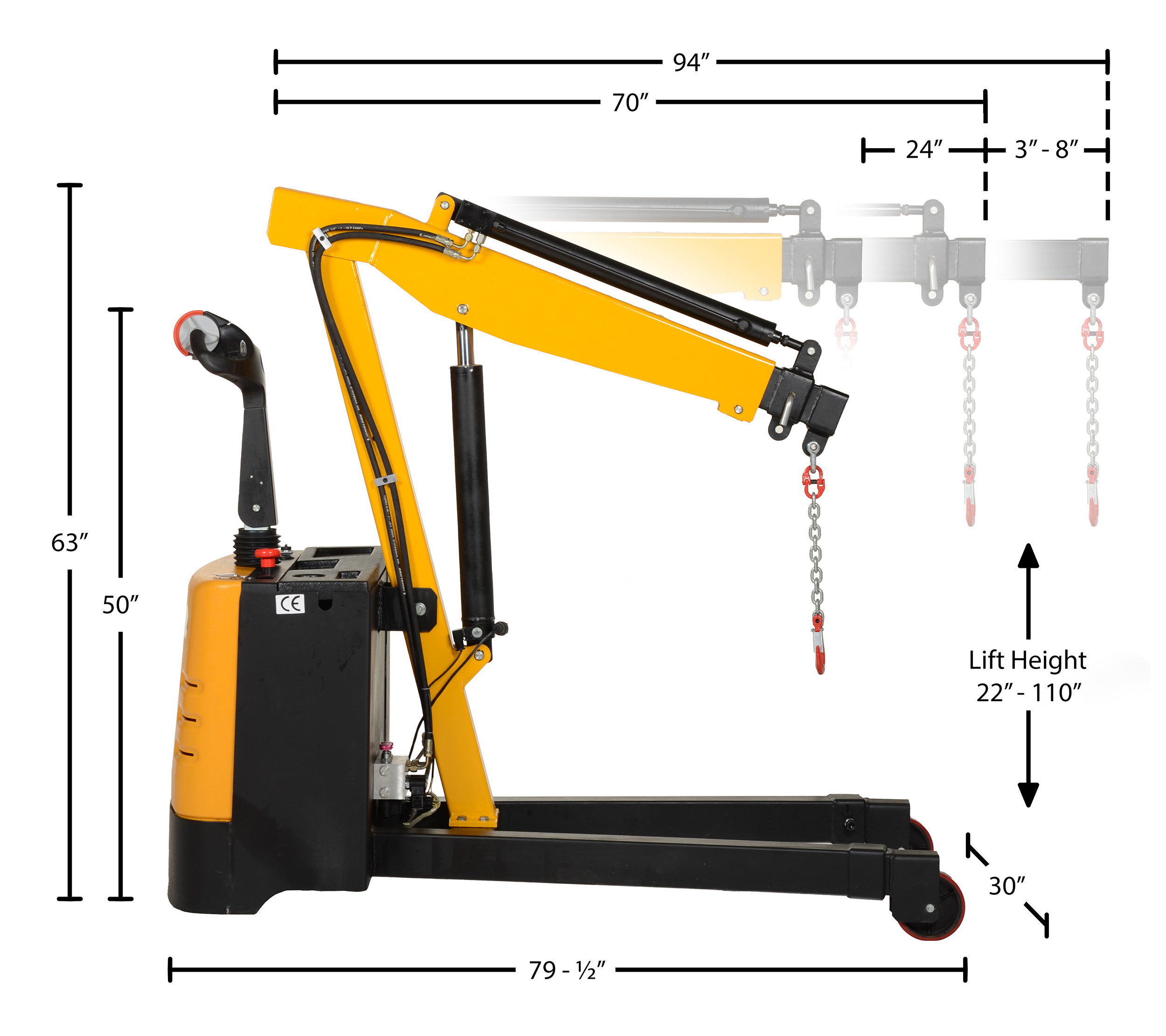

EPFC-25 icon_approvaldrawings.jpgWarranty PDFCompliance Certificate 2,500 600 44-1/4"-94" 110 103-1/8" 30"x80"x63" 925
EPFC-25-AA icon_approvaldrawings.jpgWarranty PDFCompliance Certificate 2,500 600 44-1/4"-97" 110 103-1/8" 43-3/4"x79-1/8"x67" 1,040
EPFC-CB-15 icon_approvaldrawings.jpgWarranty PDFCompliance Certificate 1,500 400 44-1/4"-97" 105 -- 33-7/8" x 107-1/2" x 66-3/8" 1,982

KEY: Approval Drawing = Approval Drawing -- Approval Drawing = Warranty -- Approval Drawing = Testing Certificate

If you did not find an expected Model or SKU # in the table, try the Options Section Below

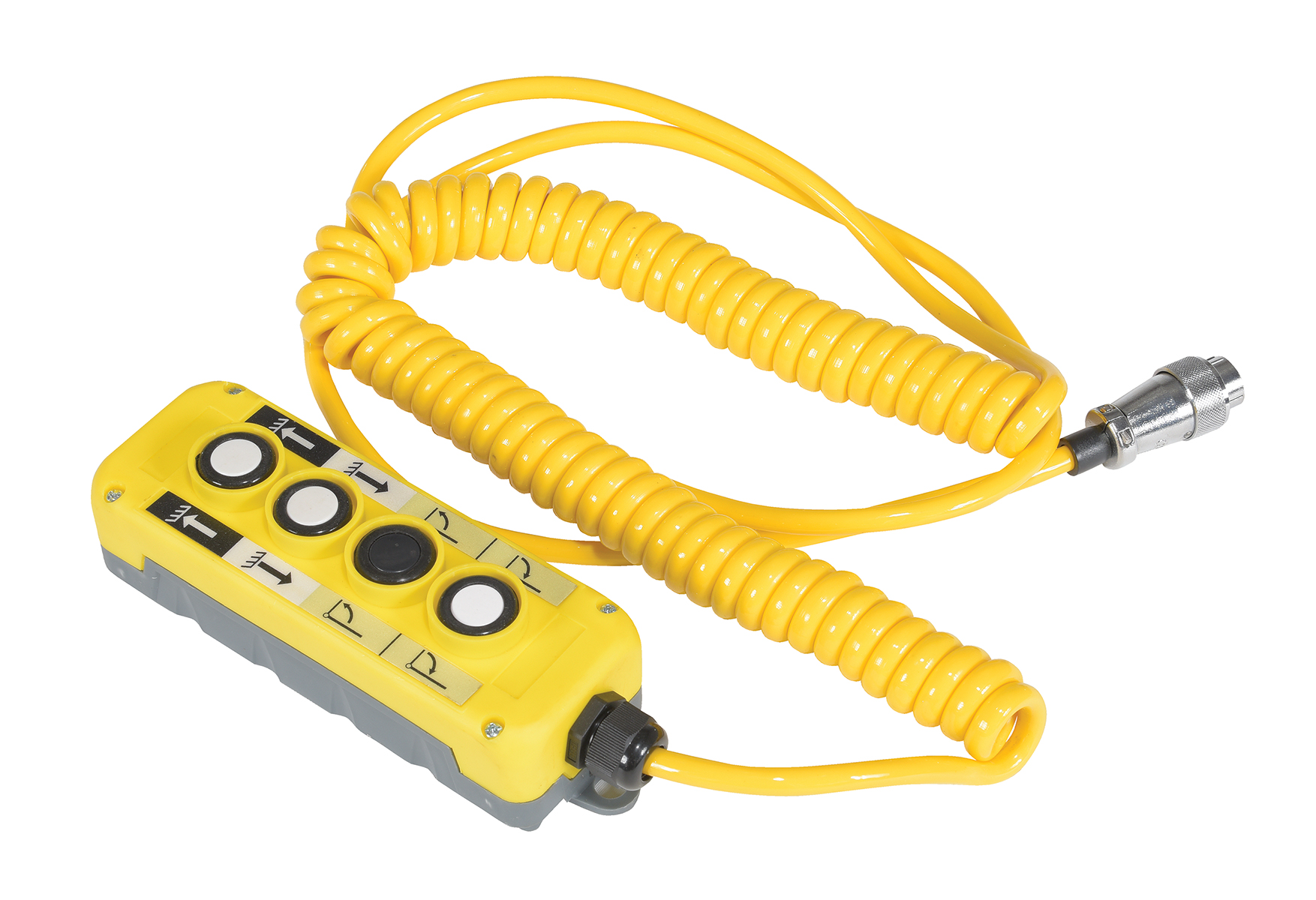

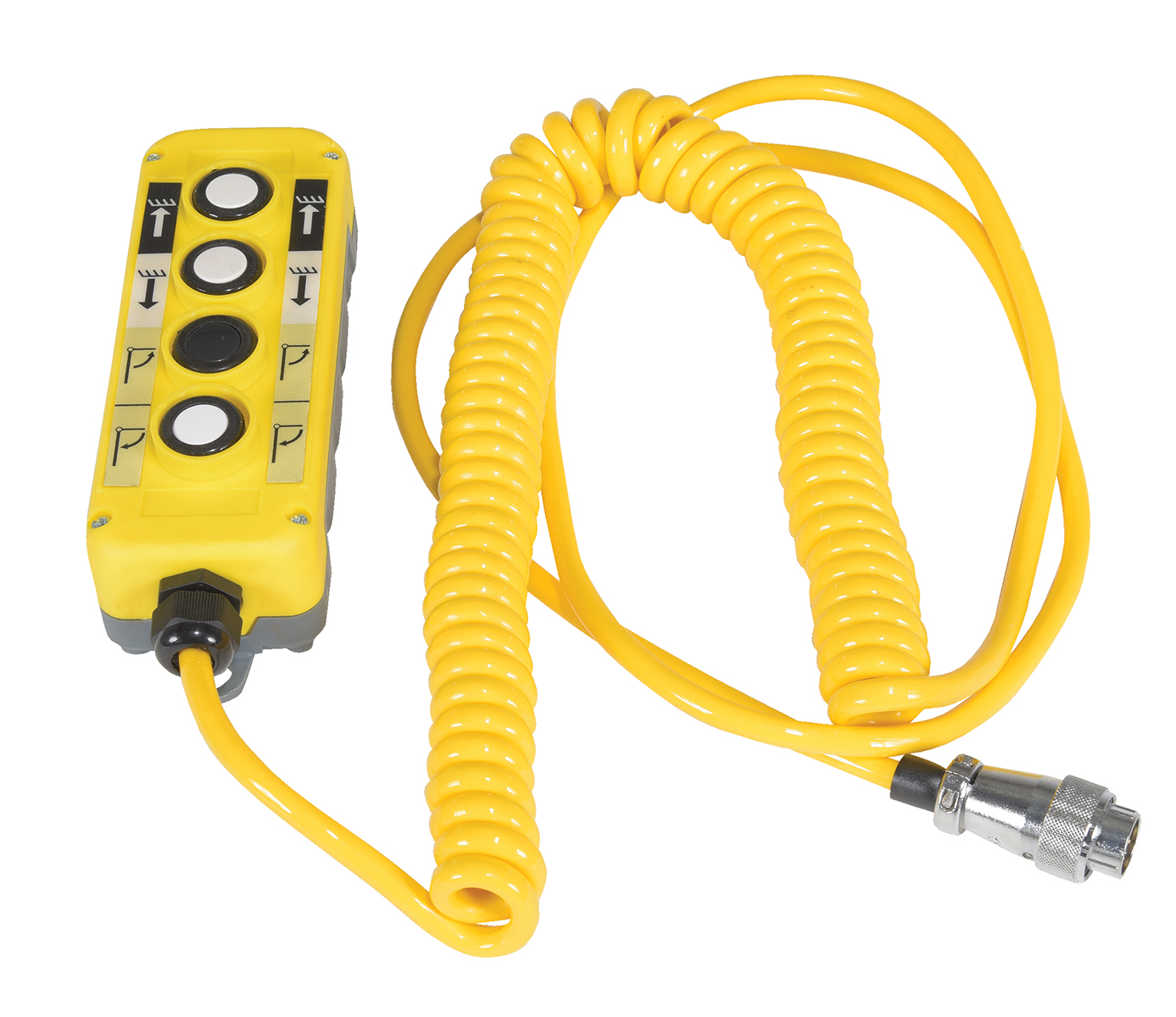

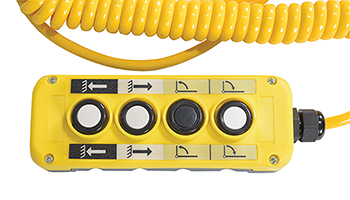

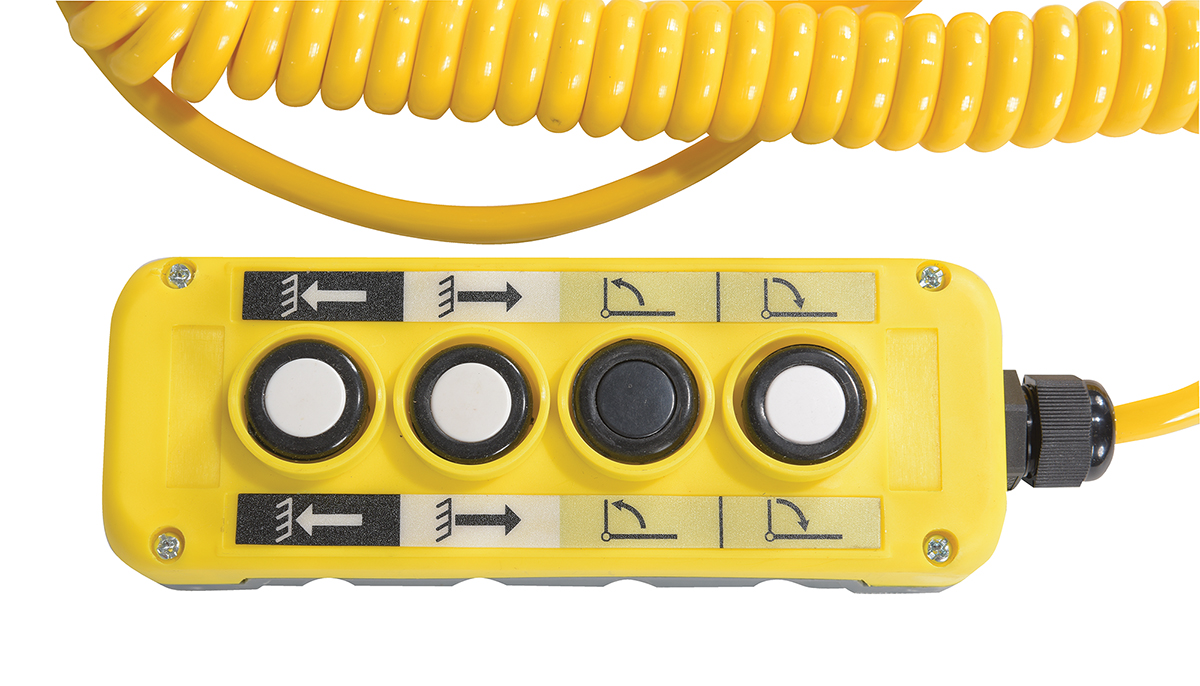

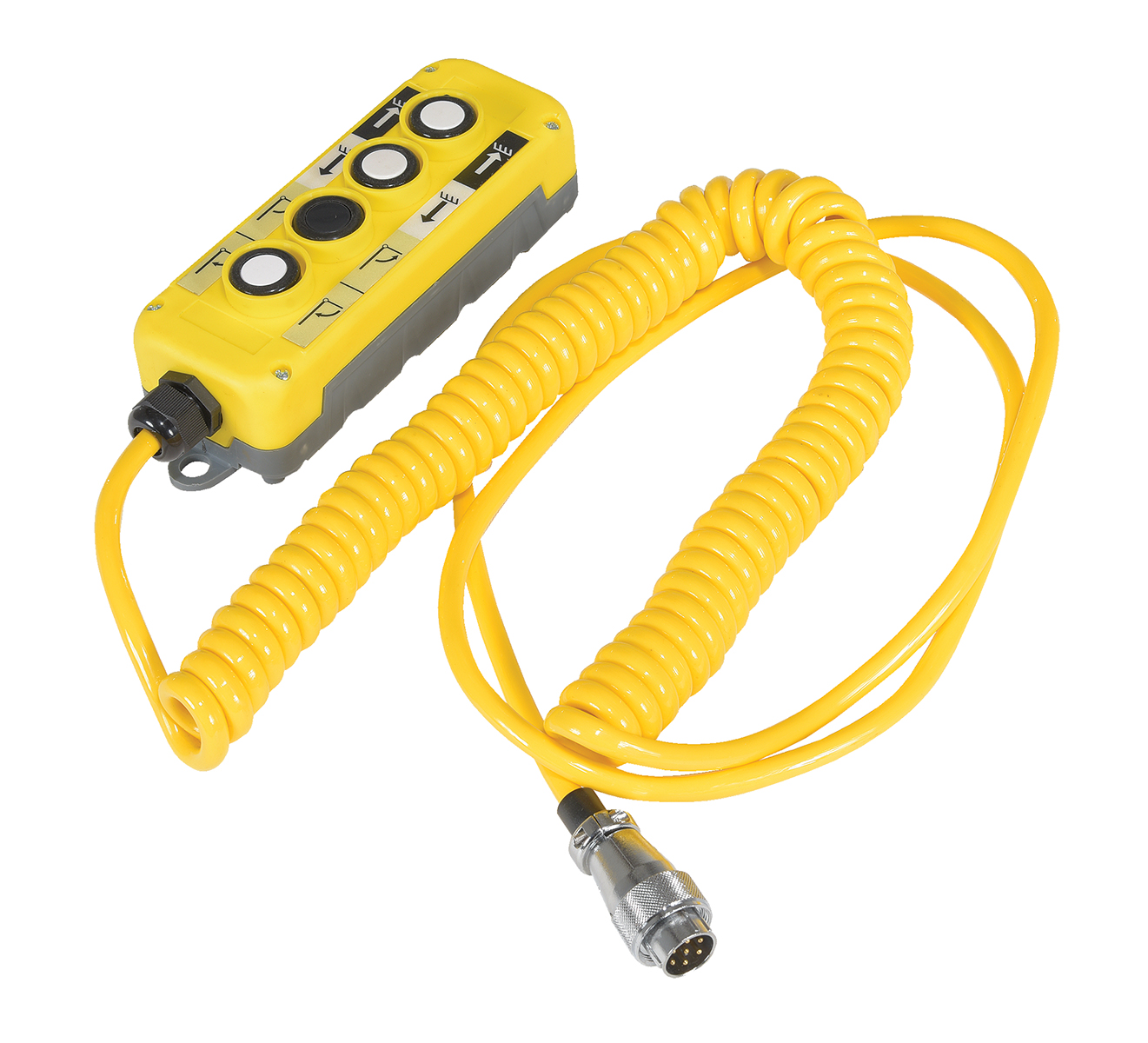

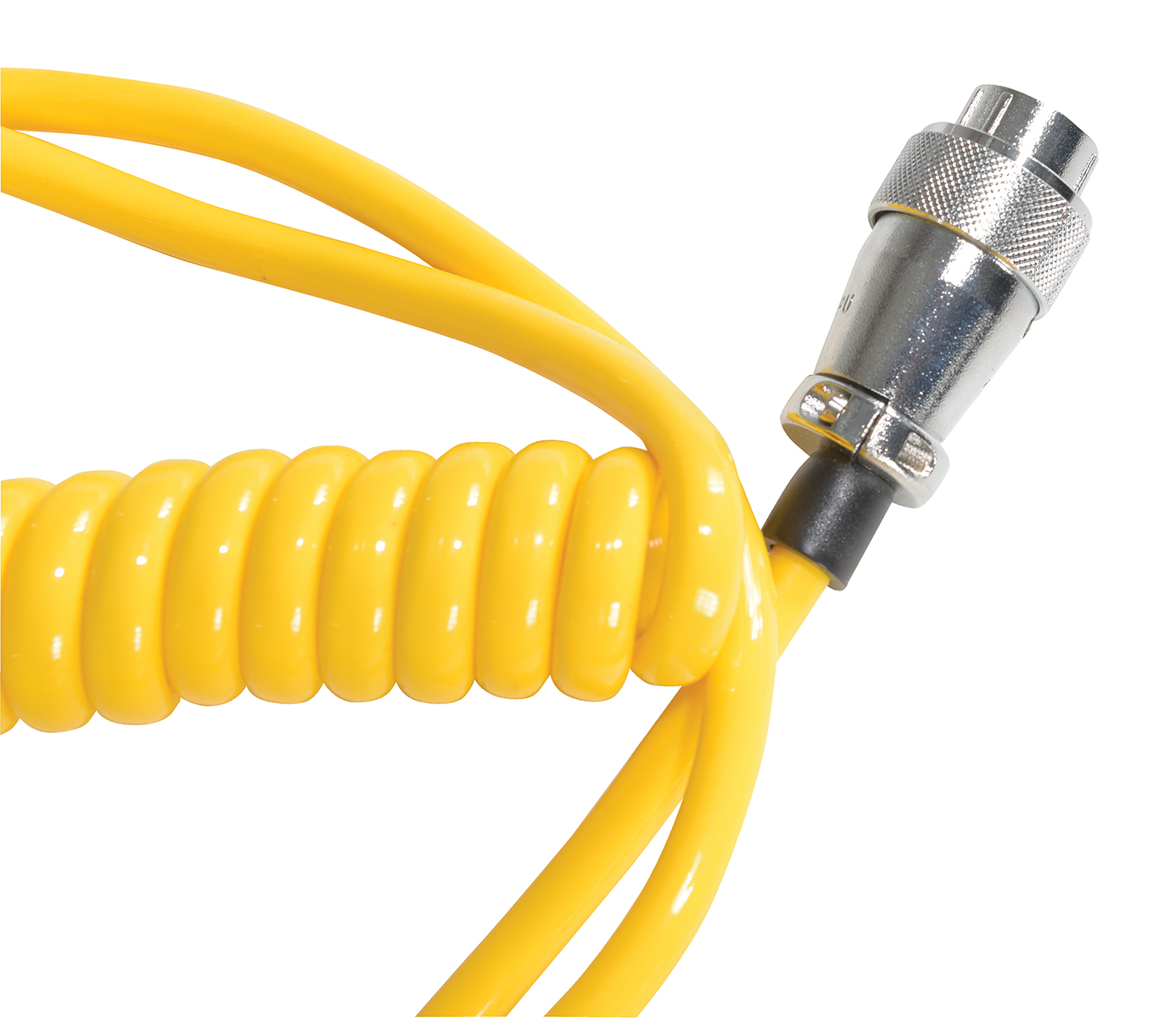

EPFC-HC Optional Floor Crane Hand Control 3

KEY: Approval Drawing = Approval Drawing -- Approval Drawing = Warranty -- Approval Drawing = Testing Certificate

If you did not find an expected Model or SKU # in this table, try the Product Specifications Section Above



Click A SKU Below To Show Details

EPFC-25

EPFC-25

EPFC-25-AA

EPFC-25-AA

EPFC-CB-15

EPFC-CB-15

EPFC-HC

EPFC-HC






Electric Powered Floor Cranes PDF's will open in a new window when clicked.

Survey Sheets

No Survey Sheets For This Product.


Approval Drawings

EPFC-25
EPFC-25-AA
EPFC-CB-15

Testing Certificates

EPFC-HC
EPFC-CB-15
EPFC-25-AA
EPFC-25

Other PDF's

No "Other PDFs" For This Product...


Directory Links Of Available PDF's For All Products




Q: What angle is the boom when it is fully extended?

A: When fully extended the boom is at a 50 degree angle.

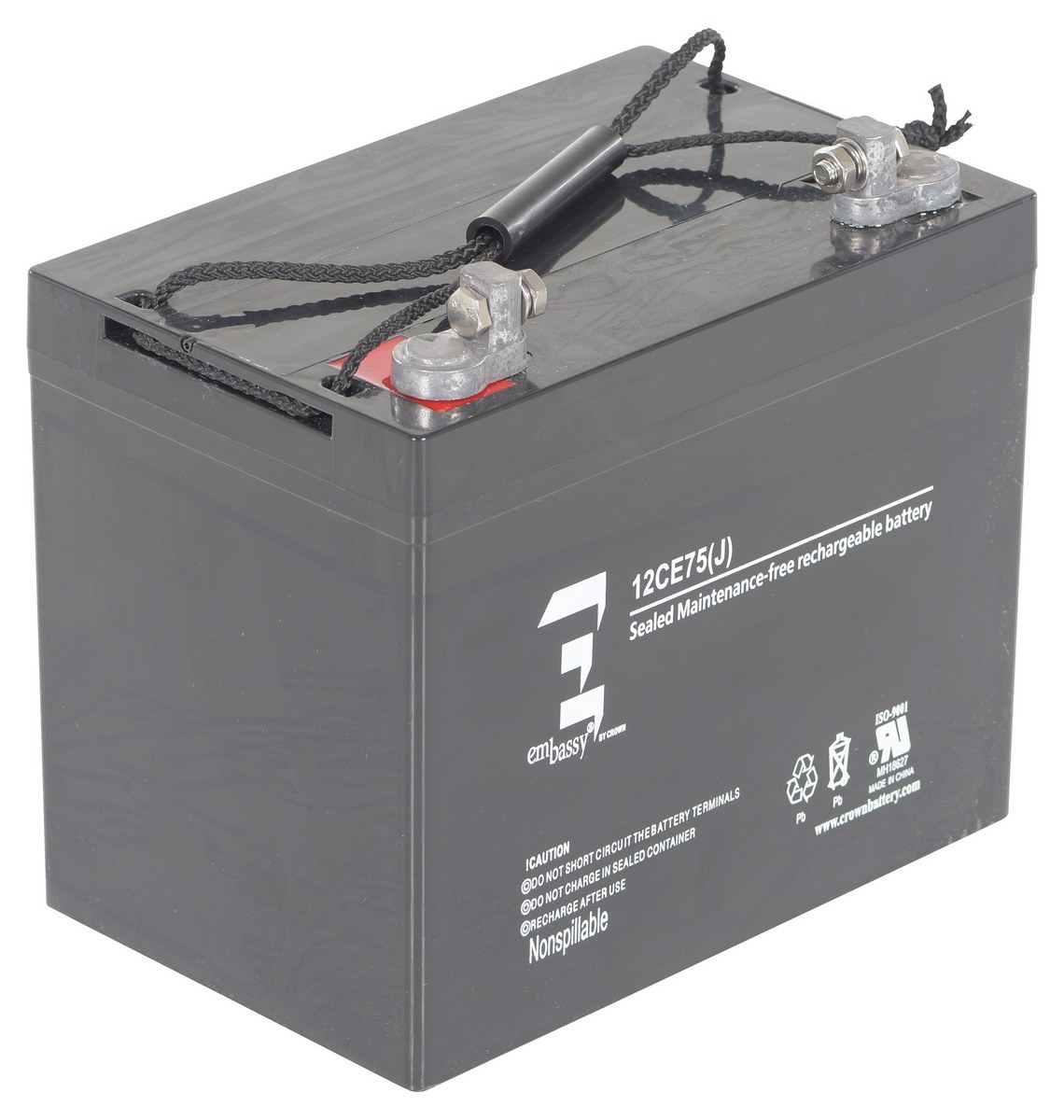

Q: Can I upgrade to AGM batteries?

A: Yes! Please ask for part # AGM-UPG-2-12V when placing your order for a new electric powered floor crane.
