model: ABLT-H-2-32


SERIES: ABLT

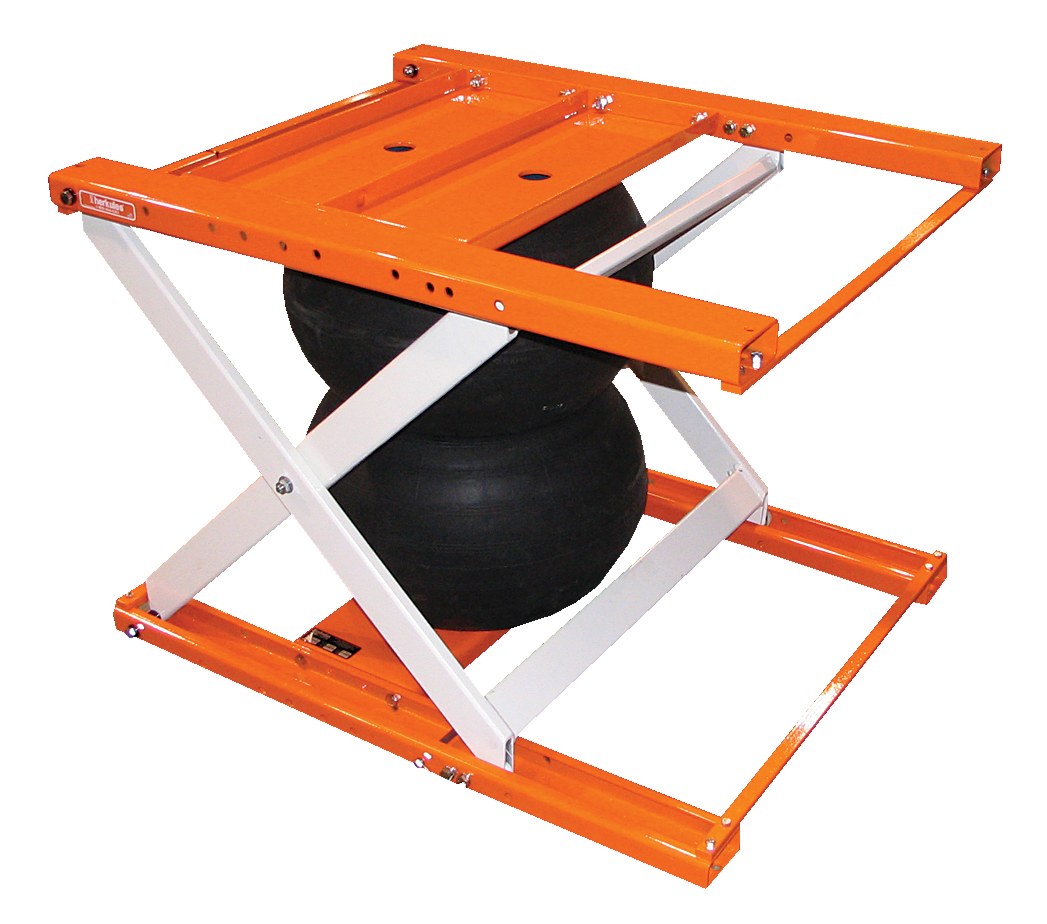

Air Bag Scissor Lift Tables

Improve ergonomics and productivity with our Air Bag Scissor lift tables. The Air Bag Technology helps raise pallets, bins and other materials to your desired working height. These units have Pressure relief valves to prevent over inflation of the air bag, as well as a captured scissor track to provide stability and safety while raising and lowering. Air requirements are 80-100 psi at15 CFM's. Hand pendent control included.

Improve ergonomics and productivity with our Air Bag Scissor lift tables. The Air Bag Technology helps raise pallets, bins and other materials to your desired working height. These units have Pressure relief valves to prevent over inflation of the air bag, as well as a captured scissor track to provide stability and safety while raising and lowering. Air requirements are 80-100 psi at15 CFM's. Hand pendent control included.

Other Lift & Tilt Tables

Electric Hydraulic Scissor Lift Tables

Electric Hydraulic Scissor Lift Tables

Rotary Air/Hydraulic Scissor Lift Tables

Rotary Air/Hydraulic Scissor Lift Tables

Heavy-Duty Air Bag Scissor Lift Tables

Heavy-Duty Air Bag Scissor Lift Tables

Low-Profile Air Bag Scissor Lift Tables

Low-Profile Air Bag Scissor Lift Tables

Air Bag Scissor Lift Tables

Air Bag Scissor Lift Tables

Share This Page

ABLT-H-DK90

model ABLT-H-DK90

ABLT-H-FC

model ABLT-H-FC

ABLT-H-FP

model ABLT-H-FP

ABLT-H-RP-ND

model ABLT-H-RP-ND




KEY: Approval Drawing = Approval Drawing -- Approval Drawing = Warranty -- Approval Drawing = Testing Certificate

All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.

Air Bag Scissor Lift Table

Model PDF Capacity (lbs) Lowered
Height
Raised
Height
Platform
Size (WxL)
Wt.
(lbs)
ABLT-H-1-32 icon_approvaldrawings.jpgicon_warranty.jpgCompliance Certificate 1,000 7" 32" 35-1/5"x43-3/4" 315
ABLT-H-2-32 icon_approvaldrawings.jpgicon_warranty.jpgCompliance Certificate 2,000 7" 32" 35-1/5"x43-3/4" 325
ABLT-H-3-32 icon_approvaldrawings.jpgicon_warranty.jpgCompliance Certificate 3,000 7" 32" 35-1/5"x43-3/4" 335
ABLT-H-4-32 icon_approvaldrawings.jpgicon_warranty.jpgCompliance Certificate 4,000 7" 32" 35-1/5"x43-3/4" 405

KEY: Approval Drawing = Approval Drawing -- Approval Drawing = Warranty -- Approval Drawing = Testing Certificate

If you did not find an expected Model or SKU # in the table, try the Options Section Below


Optional Bolt-On Platforms For ABLT-H Series Only

Model Description Wt.
(lbs)
ABLT-H-P-3648 36"Wx48"Lx1/4"T Platform for 1-3,000 lb ABLT-H 160

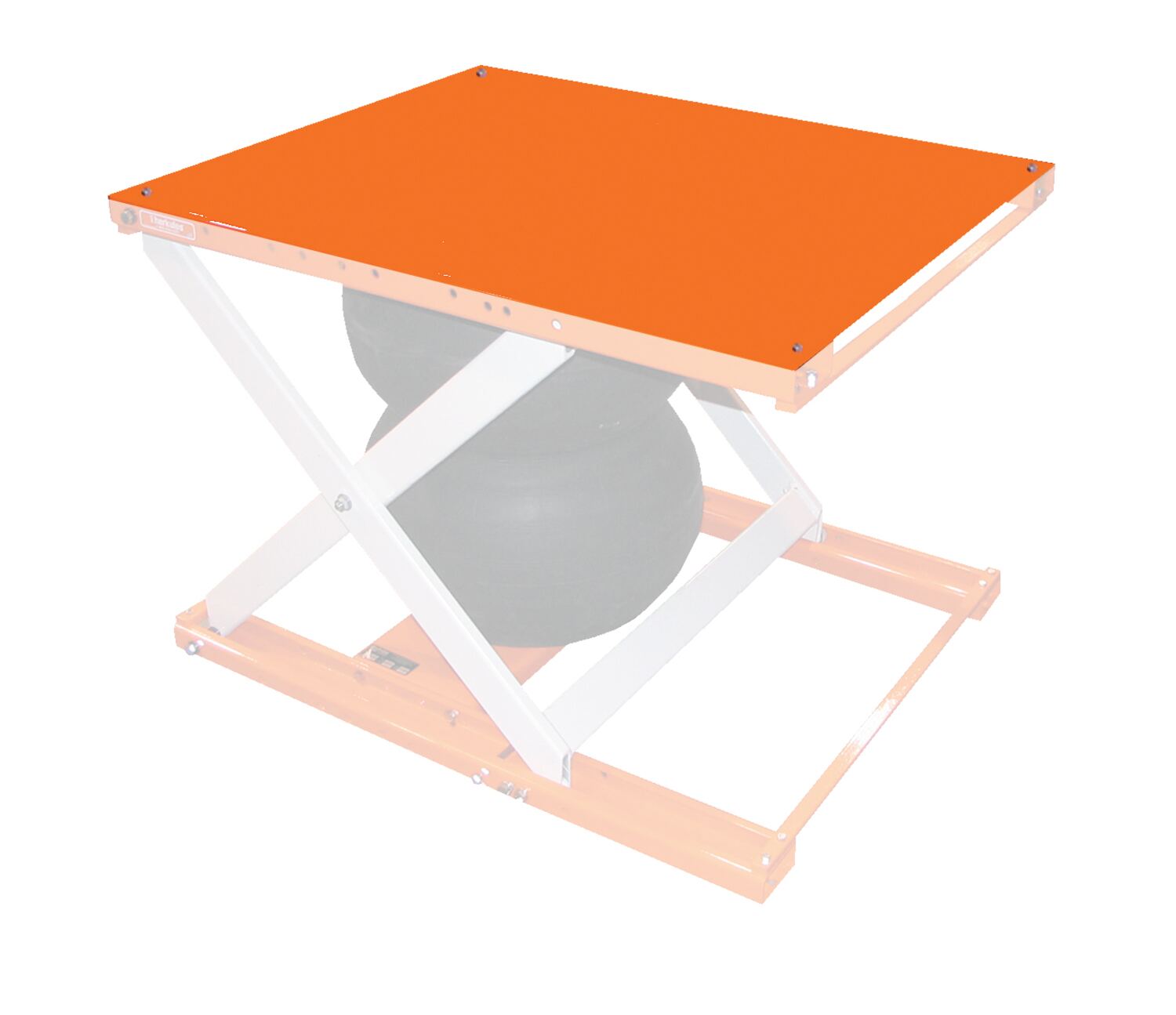

ABLT-H-P-4848 48"Wx48"Lx1/4"T Platform for 1-3,000 lb ABLT-H 290
ABLT-H-P-4848-4K 48"Wx48"Lx1/2"T Platform for 4,000 lb ABLT-H 372

Options For series ABLT-H

Model Description Wt.
(lbs)
ABLT-H-DK180 Detent Kit 180 degrees, customer to weld on, no plate included 2
ABLT-H-DK90 Detent Kit 90 degrees, customer to weld on, no plate included 2

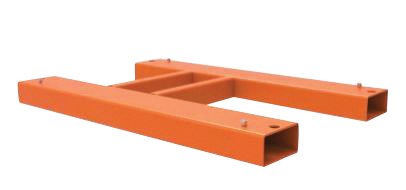

ABLT-H-FP Fork Pockets, Bolt-On Style, Adds 4" to Height 120

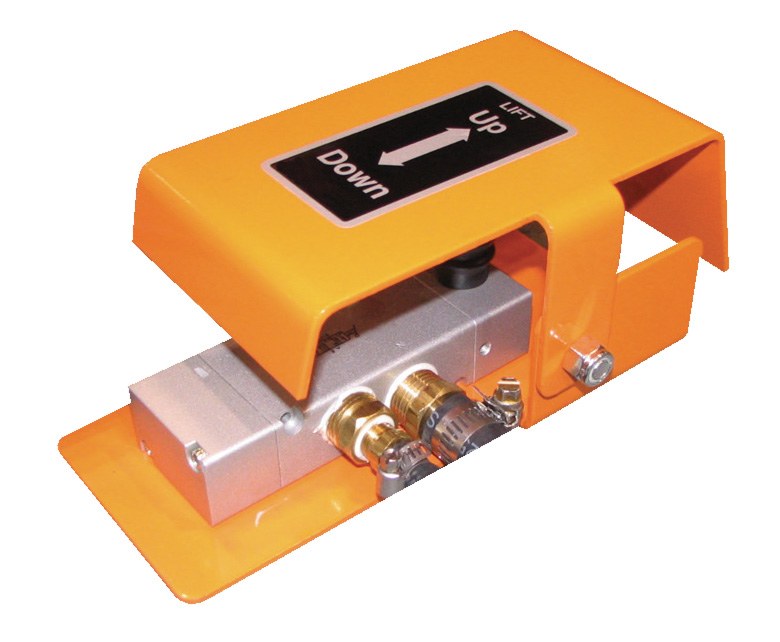

ABLT-H-FC Optional Foot Pedal Control 20


Link Safety Accordion Skirt

KEY: Approval Drawing = Approval Drawing -- Approval Drawing = Warranty -- Approval Drawing = Testing Certificate

If you did not find an expected Model or SKU # in this table, try the Product Specifications Section Above



Click A SKU Below To Show Details

ABLT-H-1-32

ABLT-H-1-32

ABLT-H-2-32

ABLT-H-2-32

ABLT-H-3-32

ABLT-H-3-32

ABLT-H-4-32

ABLT-H-4-32

ABLT-H-DK180

ABLT-H-DK180

ABLT-H-DK90

ABLT-H-DK90

ABLT-H-FC

ABLT-H-FC

ABLT-H-FP

ABLT-H-FP

ABLT-H-P-3648

ABLT-H-P-3648

ABLT-H-P-4848

ABLT-H-P-4848

ABLT-H-P-4848-4K

ABLT-H-P-4848-4K

ABLT-H-RP-ND

ABLT-H-RP-ND

ABLT-H-RP-SD

ABLT-H-RP-SD
