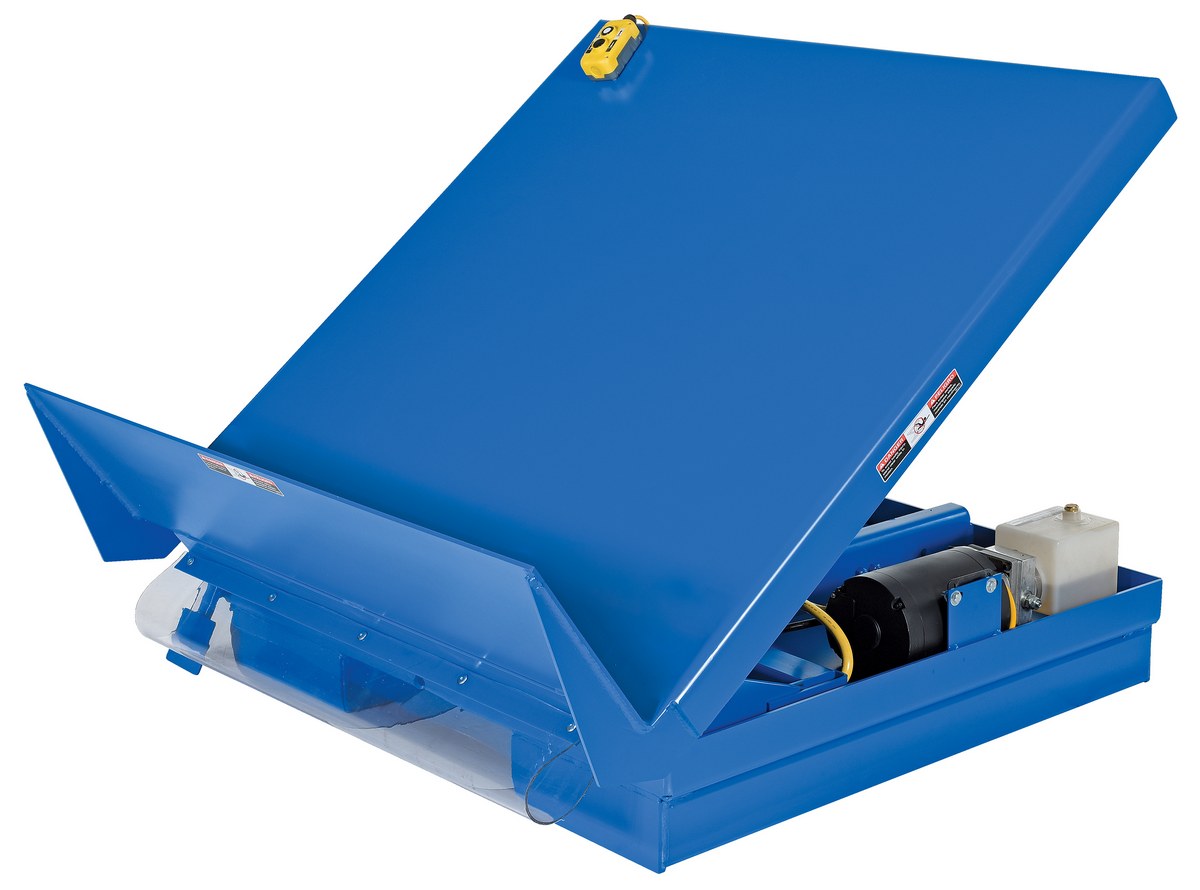

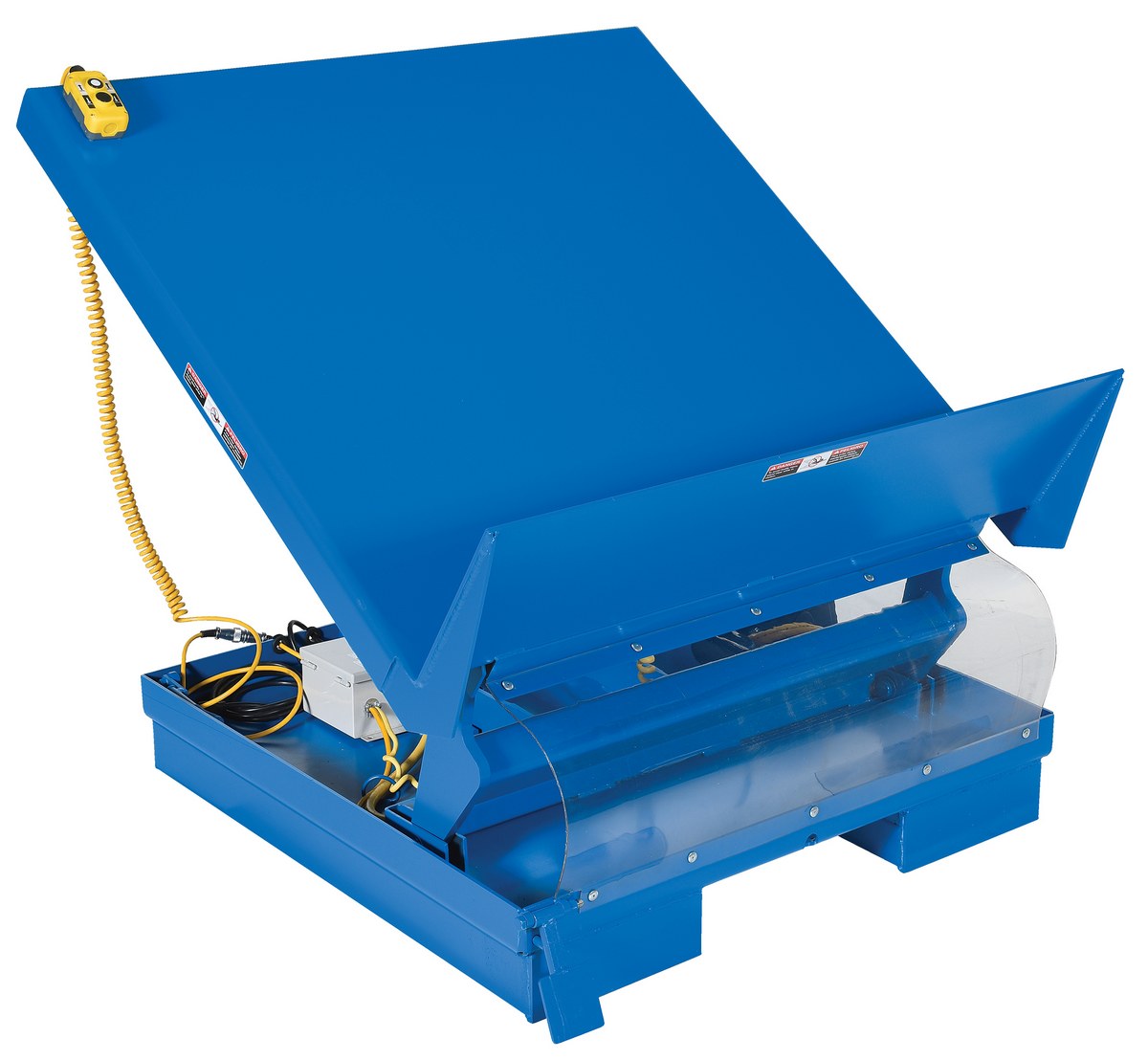

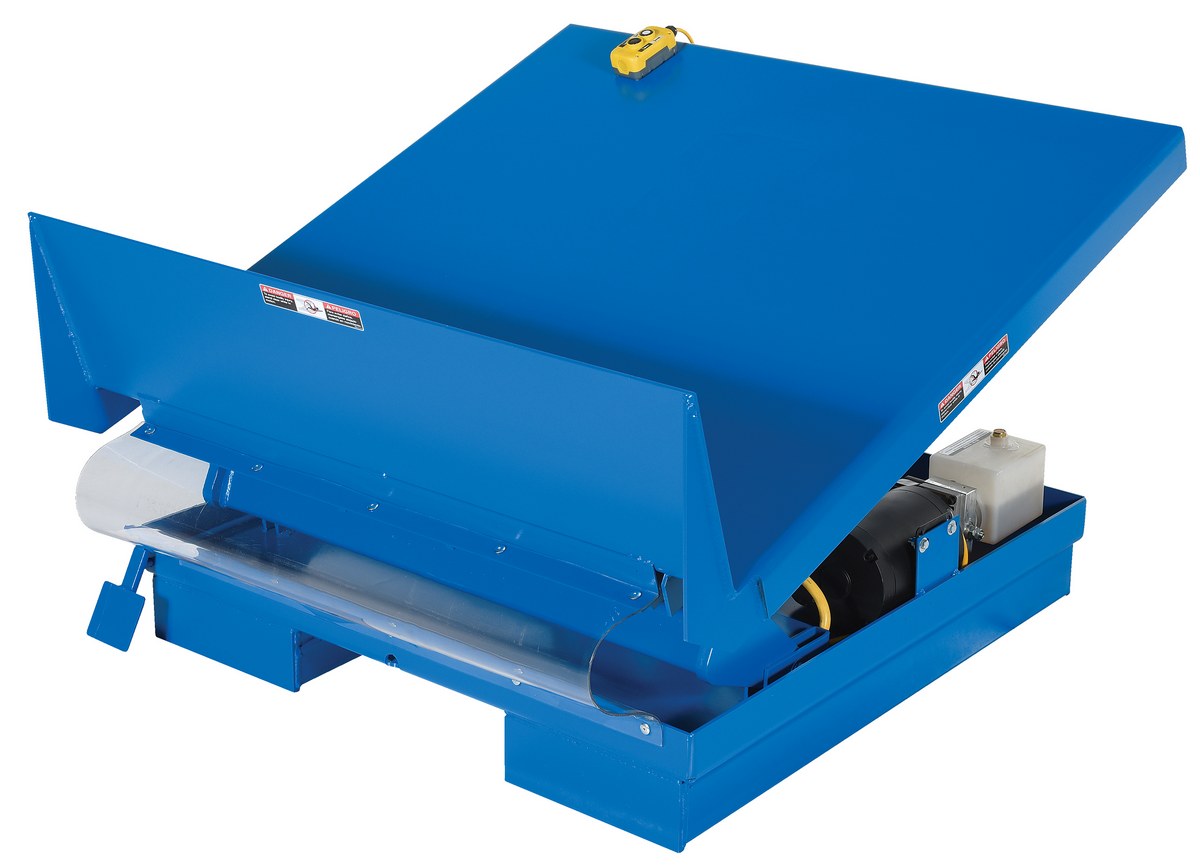

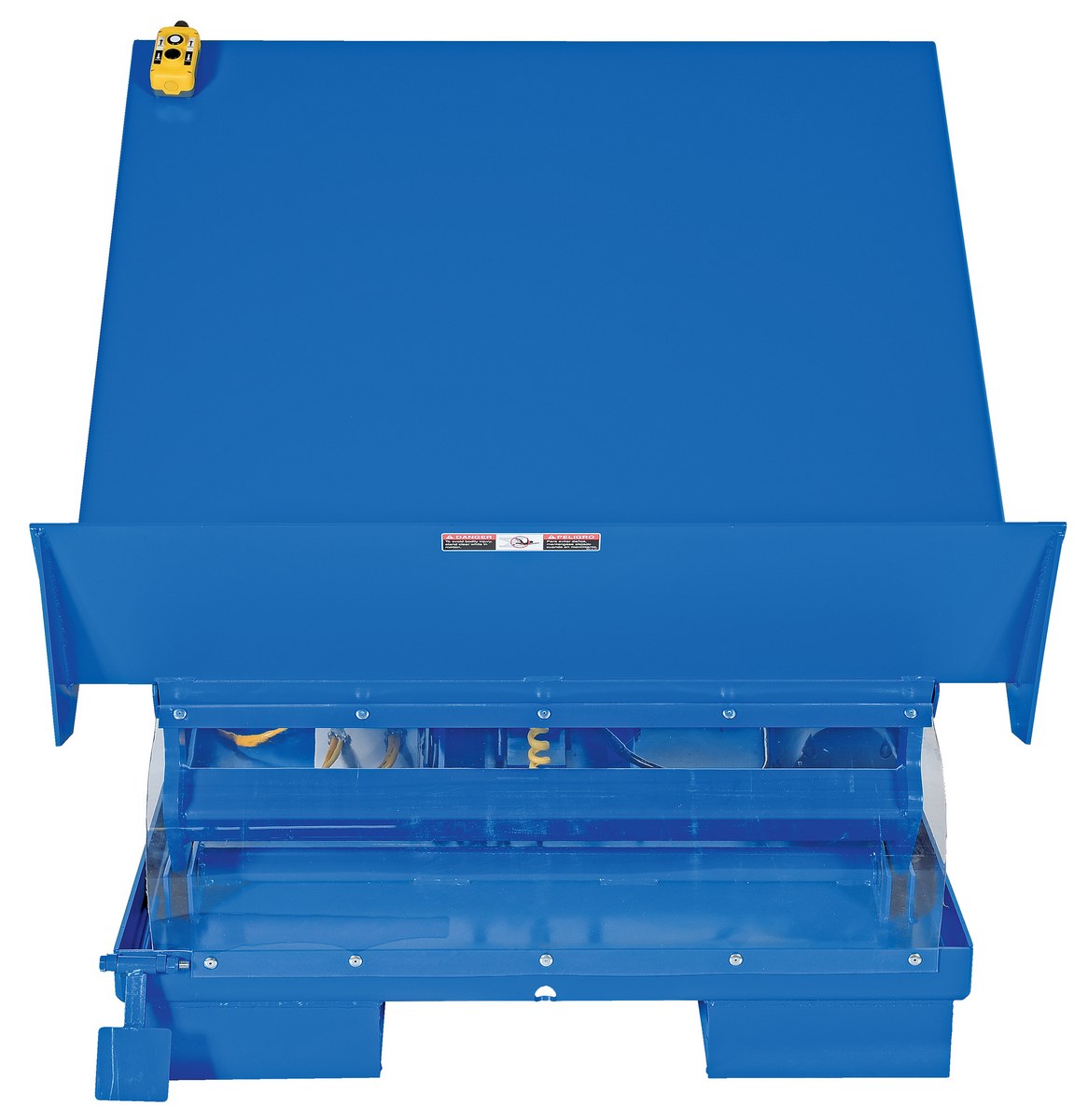

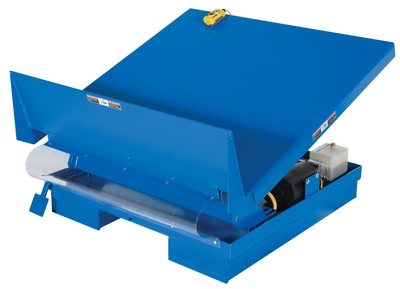

model: UNI-P-4848-4

UNI-P-4848-4_D.jpg UNI-P-4848-4_M.jpg UNI-P-4848-4_C.jpg UNI-P-4848-4_F.jpg
UNI-P-4848-4_G.jpg UNI-P-4848-4_H.jpg UNI-P-4848-4_I.jpg UNI-P-4848-4_J.jpg
Print Friendly

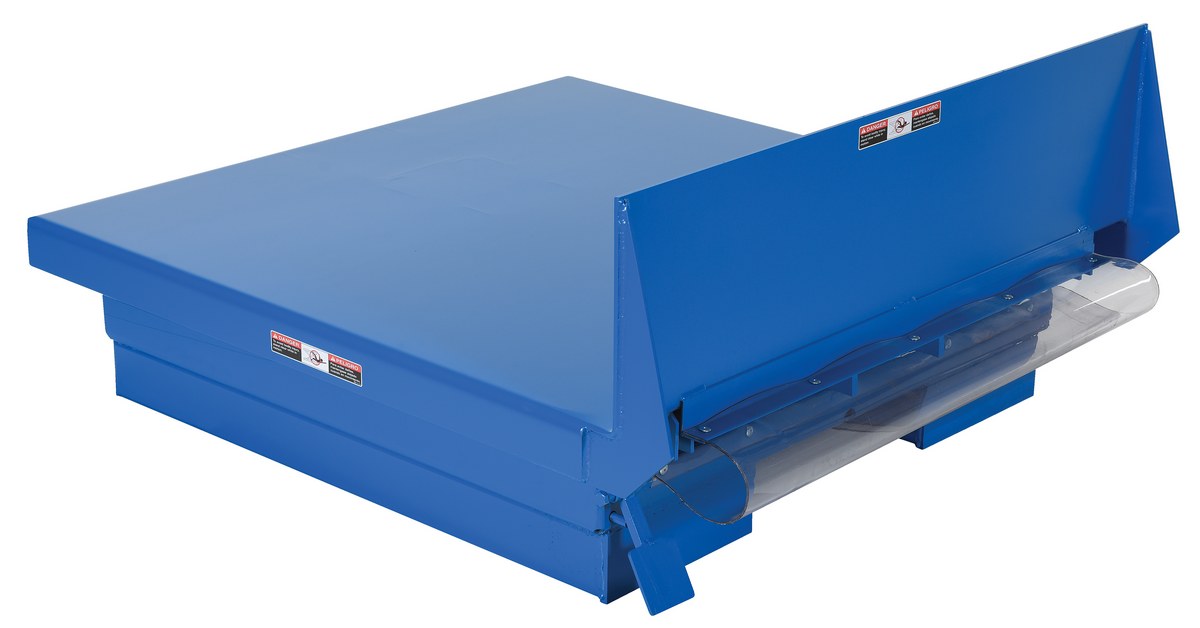

Portable Uni-Tilts
SERIES: UNI-P

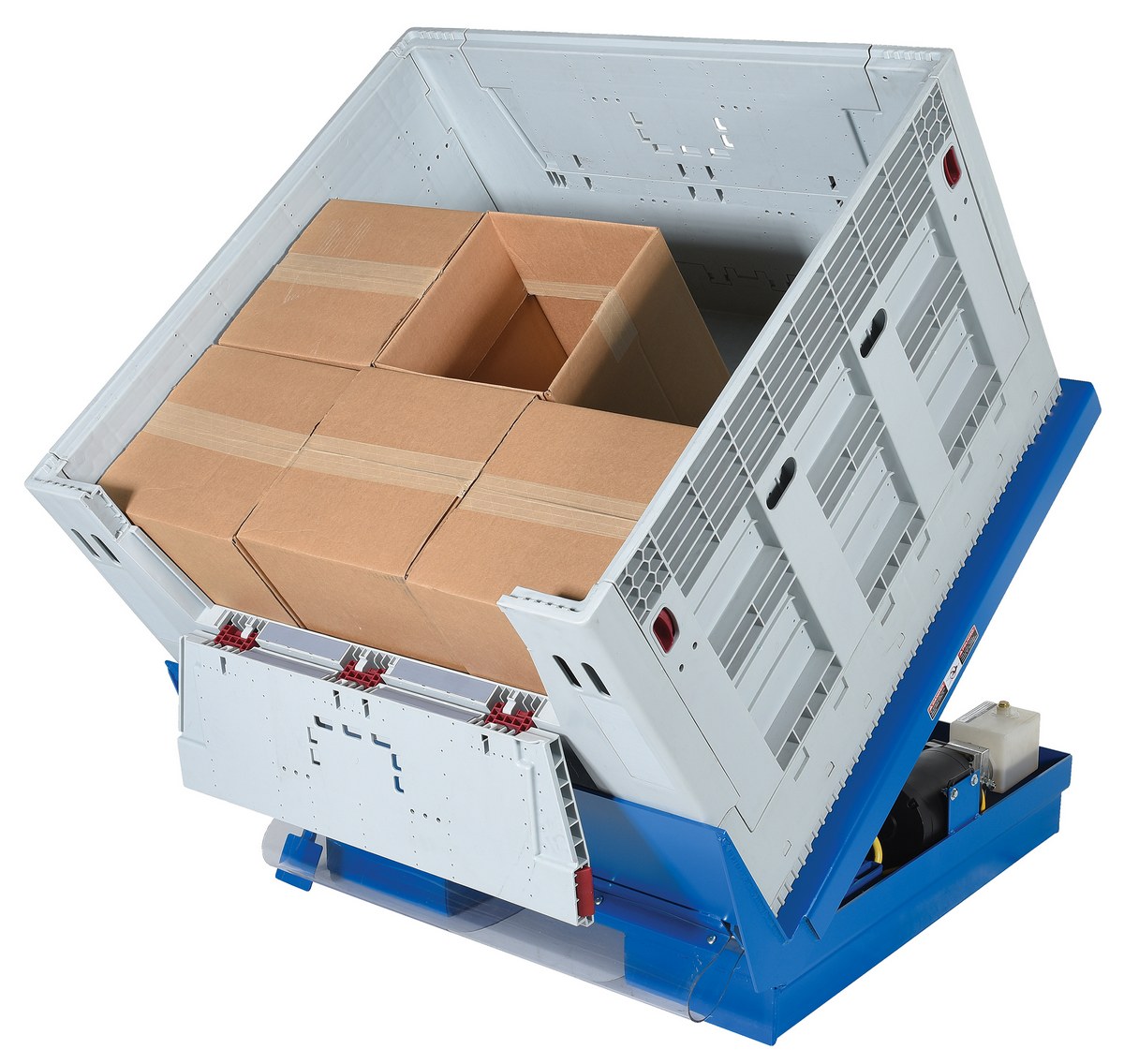

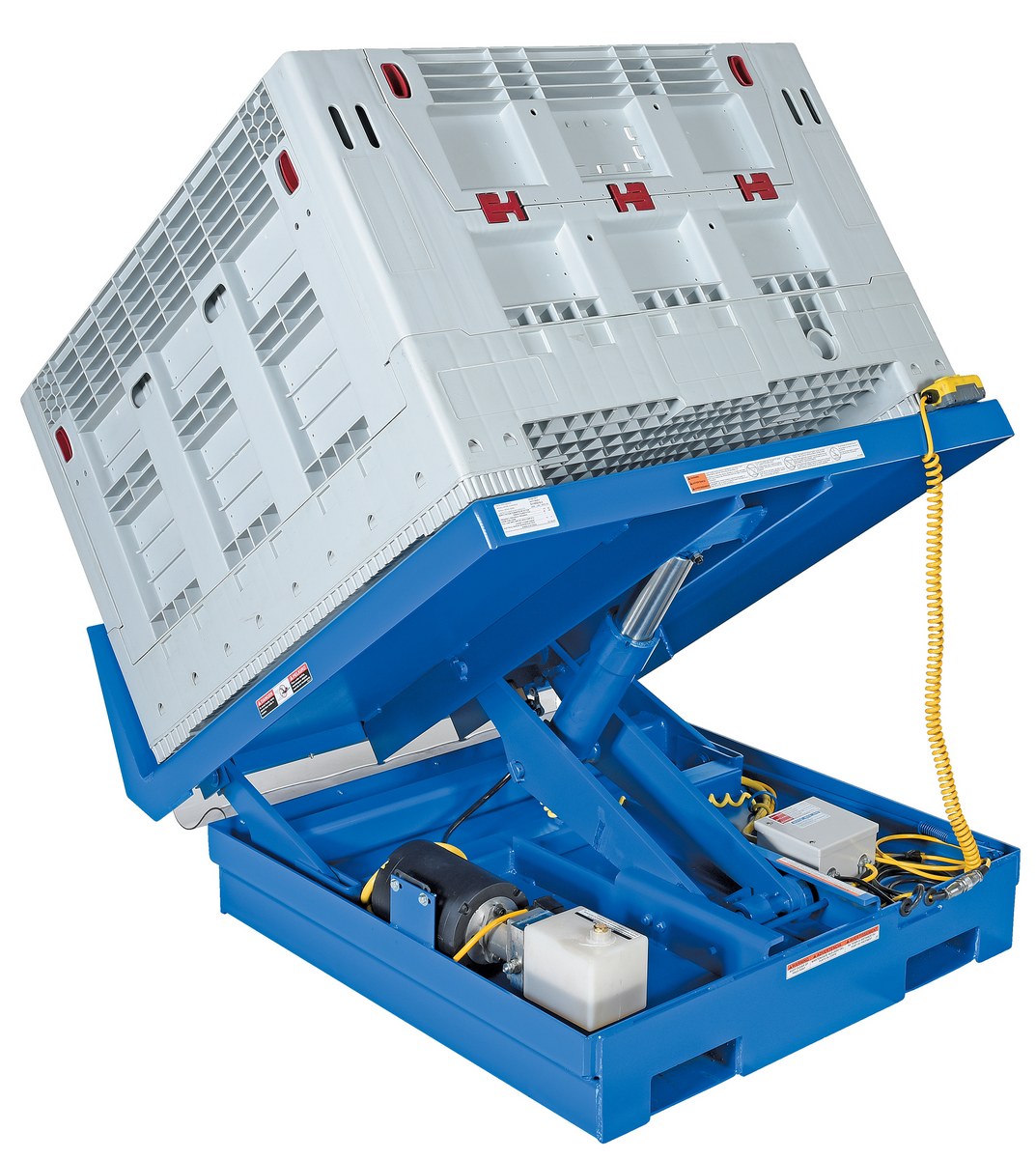

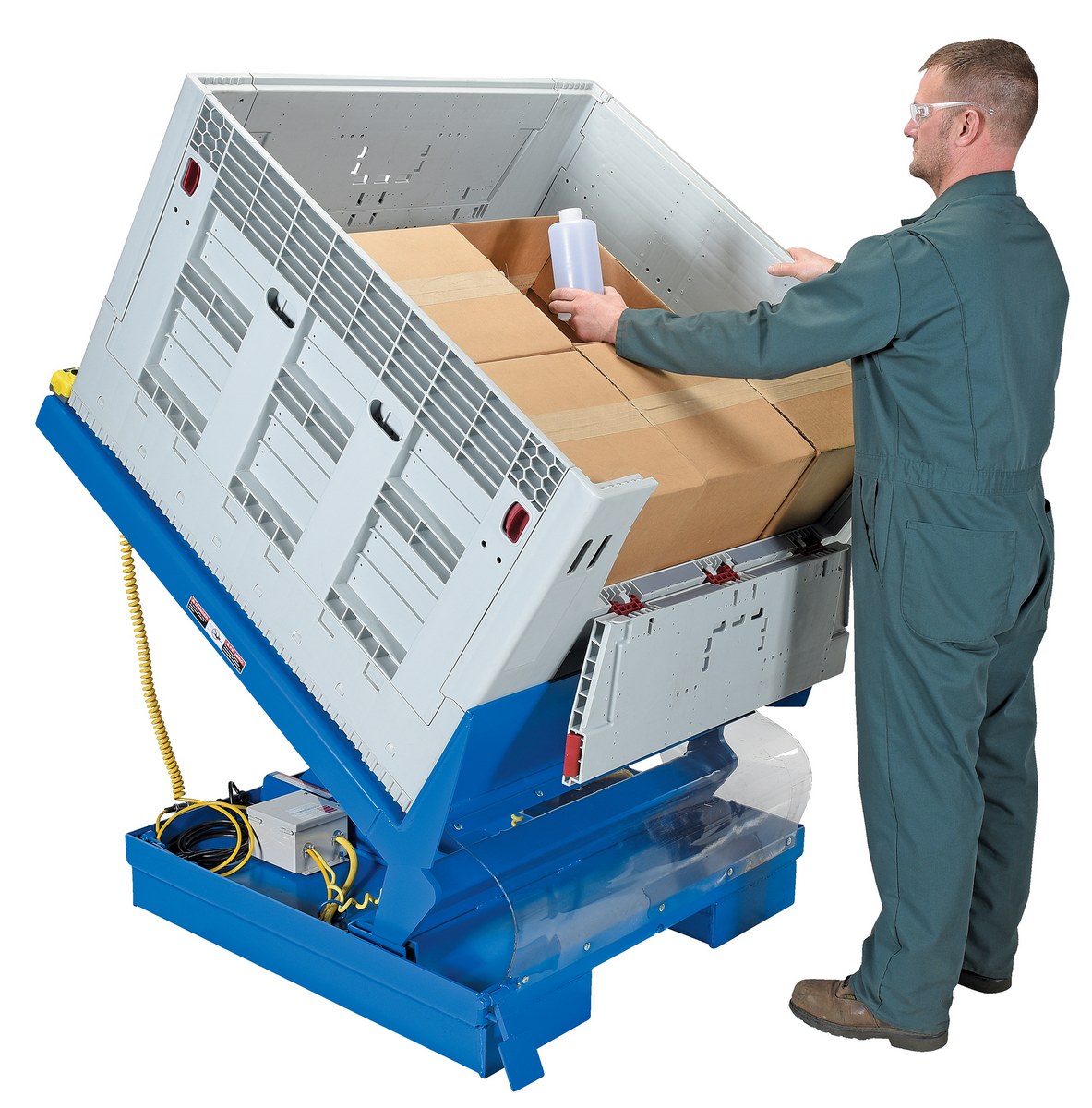

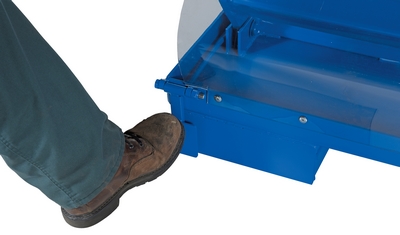

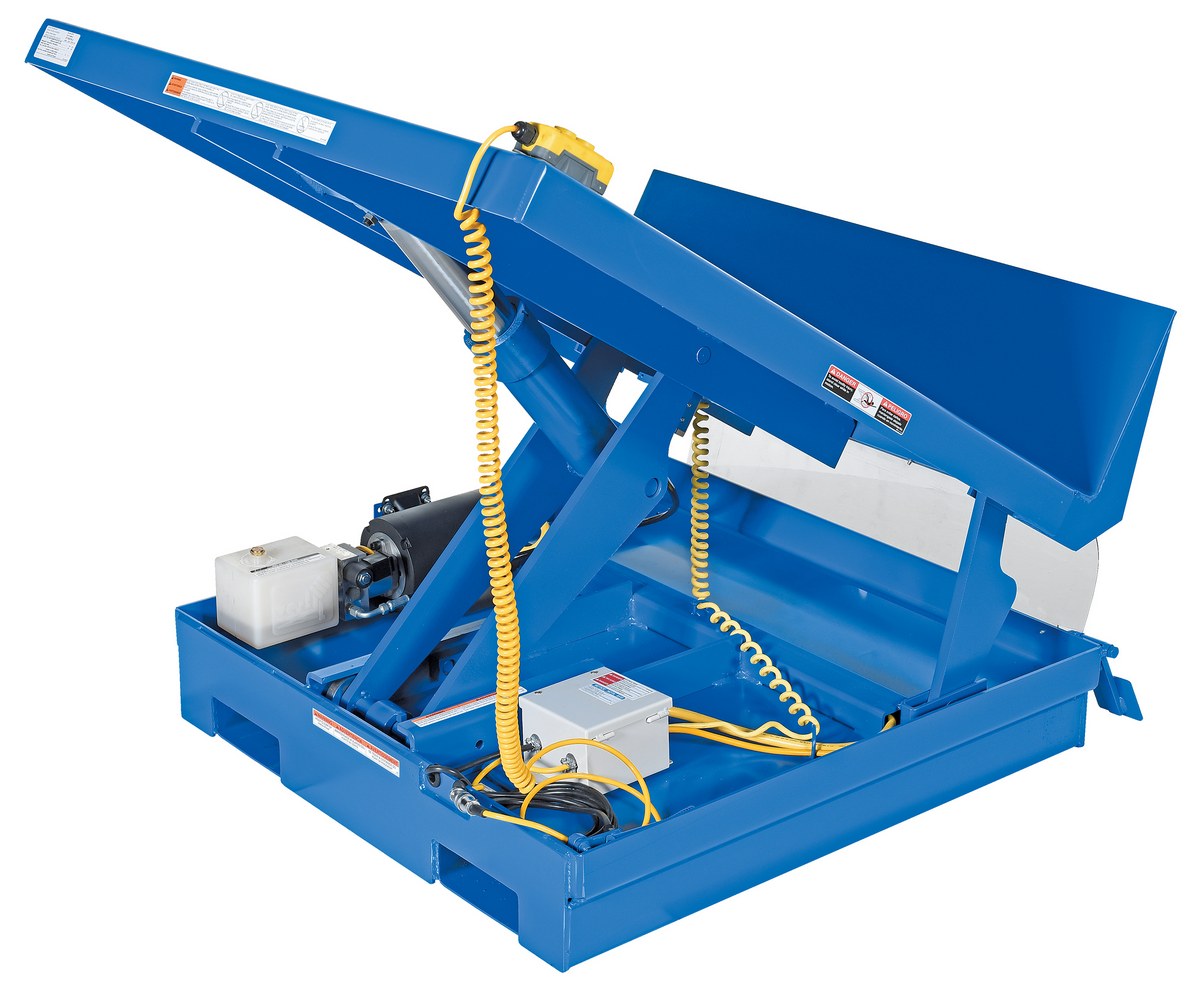

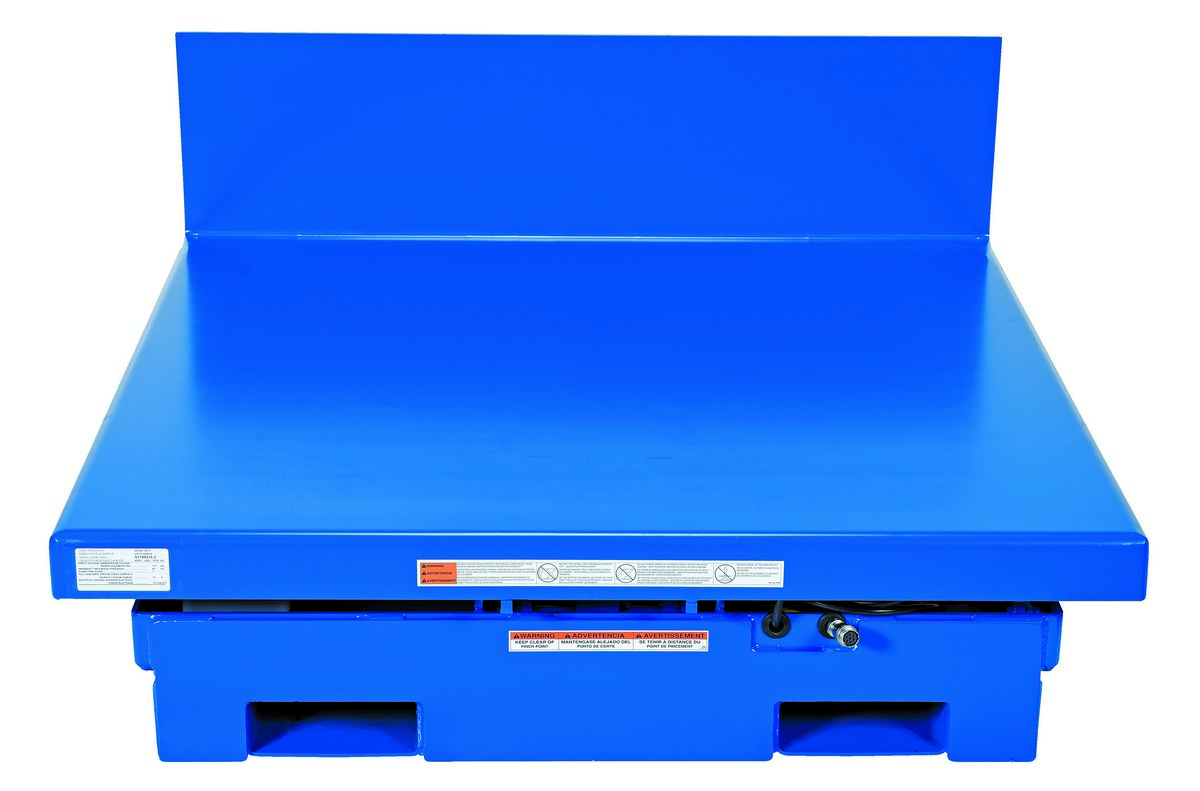

Now you can transport your tilter from workstation to workstation quickly and easily with a fork truck. Usable for pockets 2-1/2"H x 7-1/2"W with 24" fork centers. This unique design reduces fatigue by minimizing repetitive bending and stretching required to obtain components from containers. Platform includes a 12" high lip on tilt side. A selector pedal allows the operator to lift while tilting or tilt then lift. 2HP 460V/3PH AC power unit with hand pendant control is standard, other voltages available.

Now you can transport your tilter from workstation to workstation quickly and easily with a fork truck. Usable for pockets 2-1/2"H x 7-1/2"W with 24" fork centers. This unique design reduces fatigue by minimizing repetitive bending and stretching required to obtain components from containers. Platform includes a 12" high lip on tilt side. A selector pedal allows the operator to lift while tilting or tilt then lift. 2HP 460V/3PH AC power unit with hand pendant control is standard, other voltages available.

Other Lift & Tilt Tables
Electric Hydraulic Scissor Lift Tables

Electric Hydraulic Scissor Lift Tables

Rotary Air/Hydraulic Scissor Lift Tables

Rotary Air/Hydraulic Scissor Lift Tables

Heavy-Duty Air Bag Scissor Lift Tables

Heavy-Duty Air Bag Scissor Lift Tables

Low-Profile Air Bag Scissor Lift Tables

Low-Profile Air Bag Scissor Lift Tables

Air Bag Scissor Lift Tables

Air Bag Scissor Lift Tables

Share This Page

How To Order


KEY: Approval Drawing = Approval Drawing -- Approval Drawing = Warranty -- Approval Drawing = Testing Certificate

All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.
Uni-Tilt AC Powered with Fork Pocket Portability
Model Number PDFs Platform
Size (WxL)		 Capacity
(lbs)		 Level
Height		 Degree
of Tilt		 Power
Unit		 Wt.
(lbs)
UNI-P-4848-4 icon_approvaldrawings.jpgtilt_m4.jpgCompliance Certificate 48"x48" 4,000 12" 40 Internal 1525

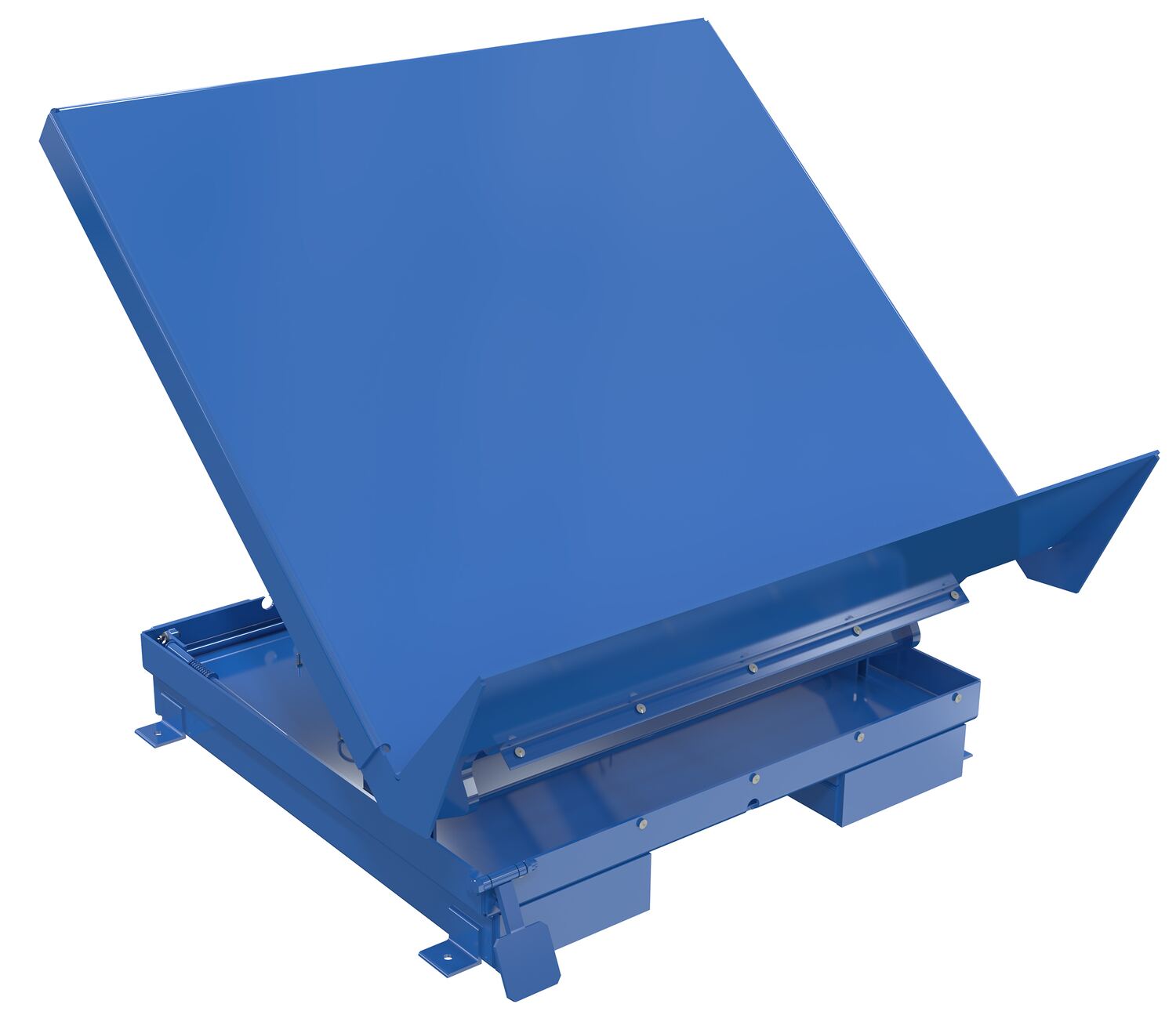

UNI-P-5448-4 icon_approvaldrawings.jpgtilt_m4.jpgCompliance Certificate 54"x48" 4,000 12" 40 Internal 1642

Usable Fork Pockets Measure 7 1/2"x 2 1/2"
