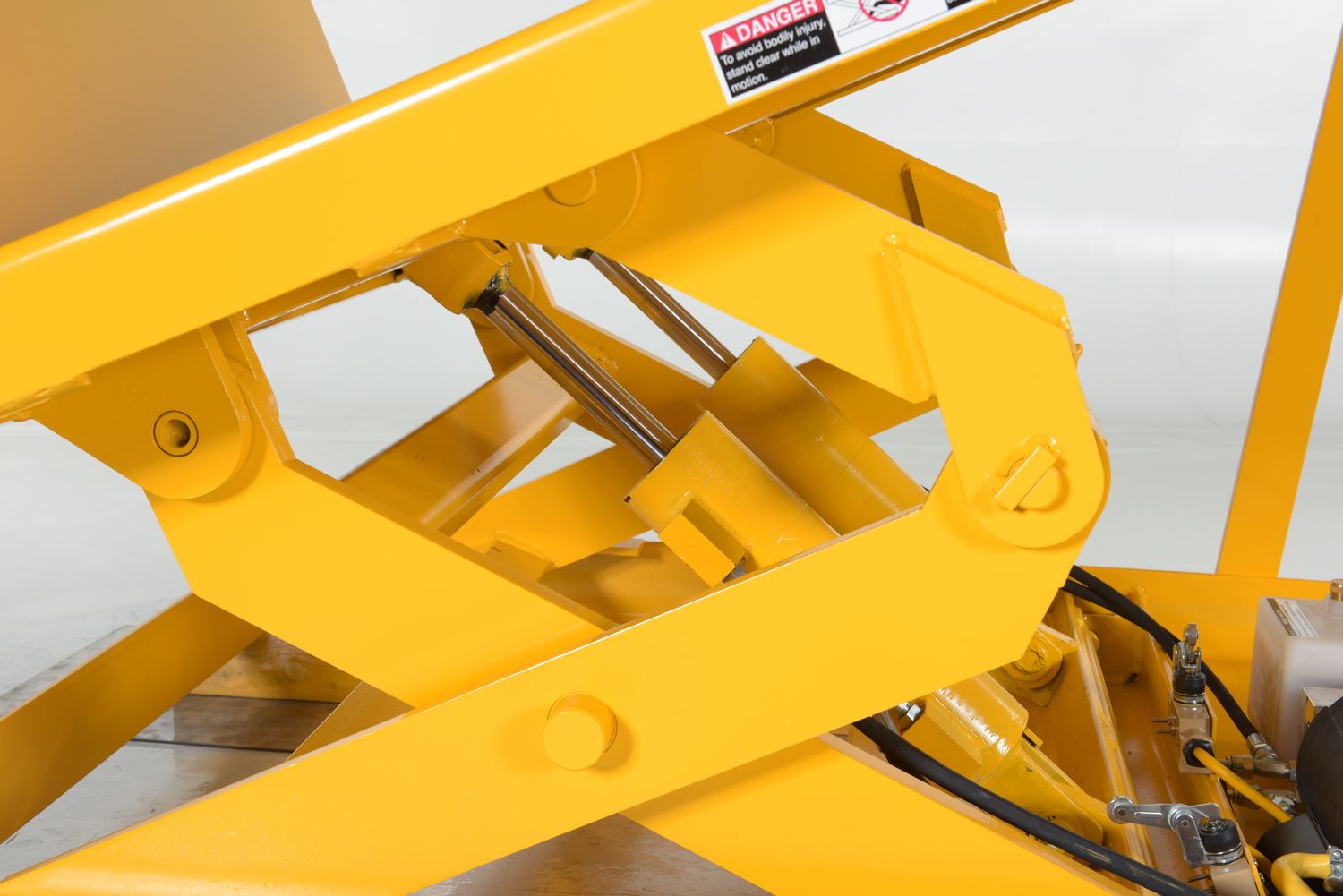

FEATURED Single Scissor Concurrent Lift & Tilt Tables

model: ULTT-4848-4-YEL115-1

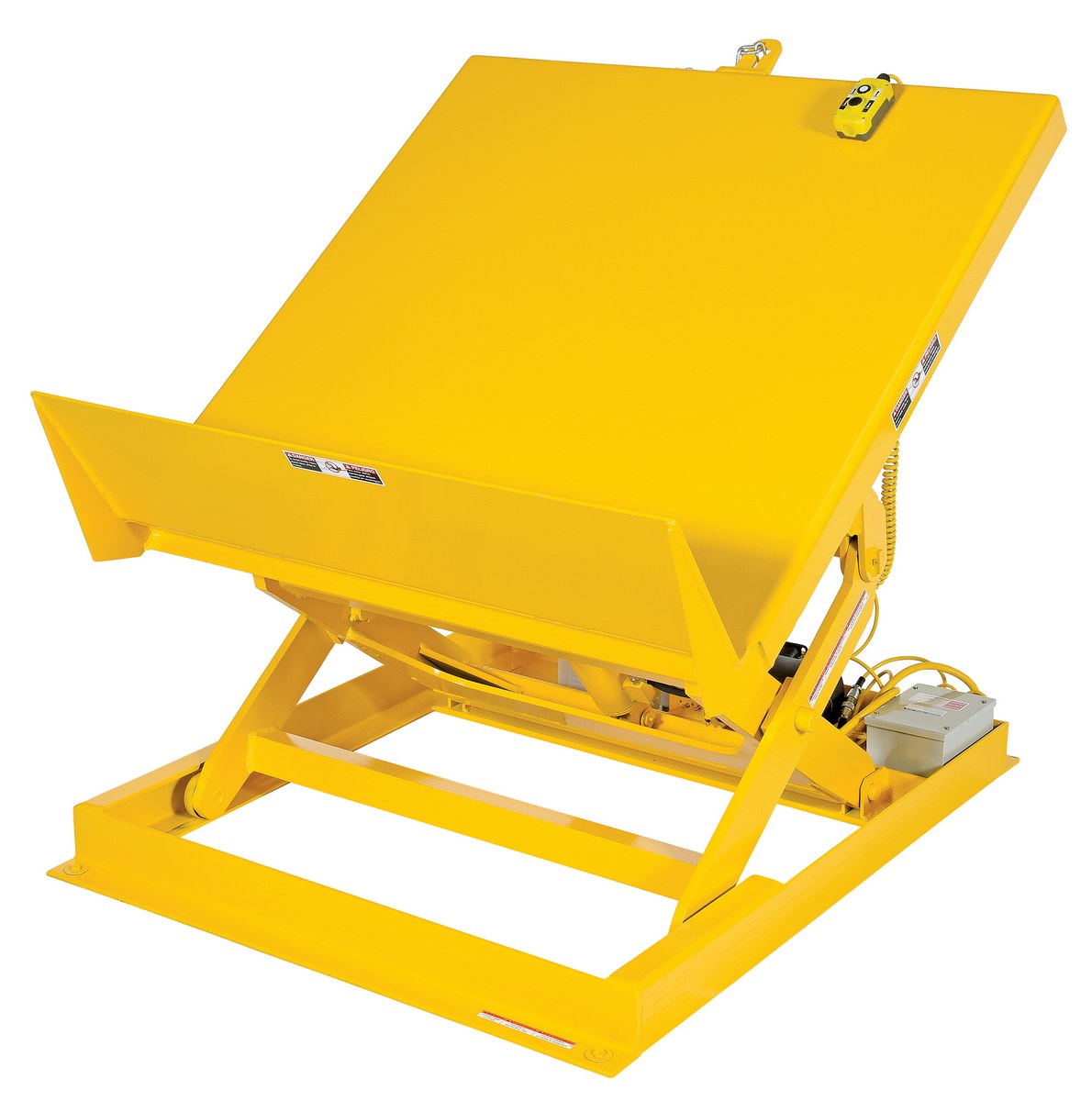

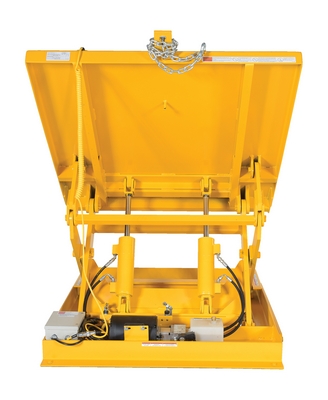

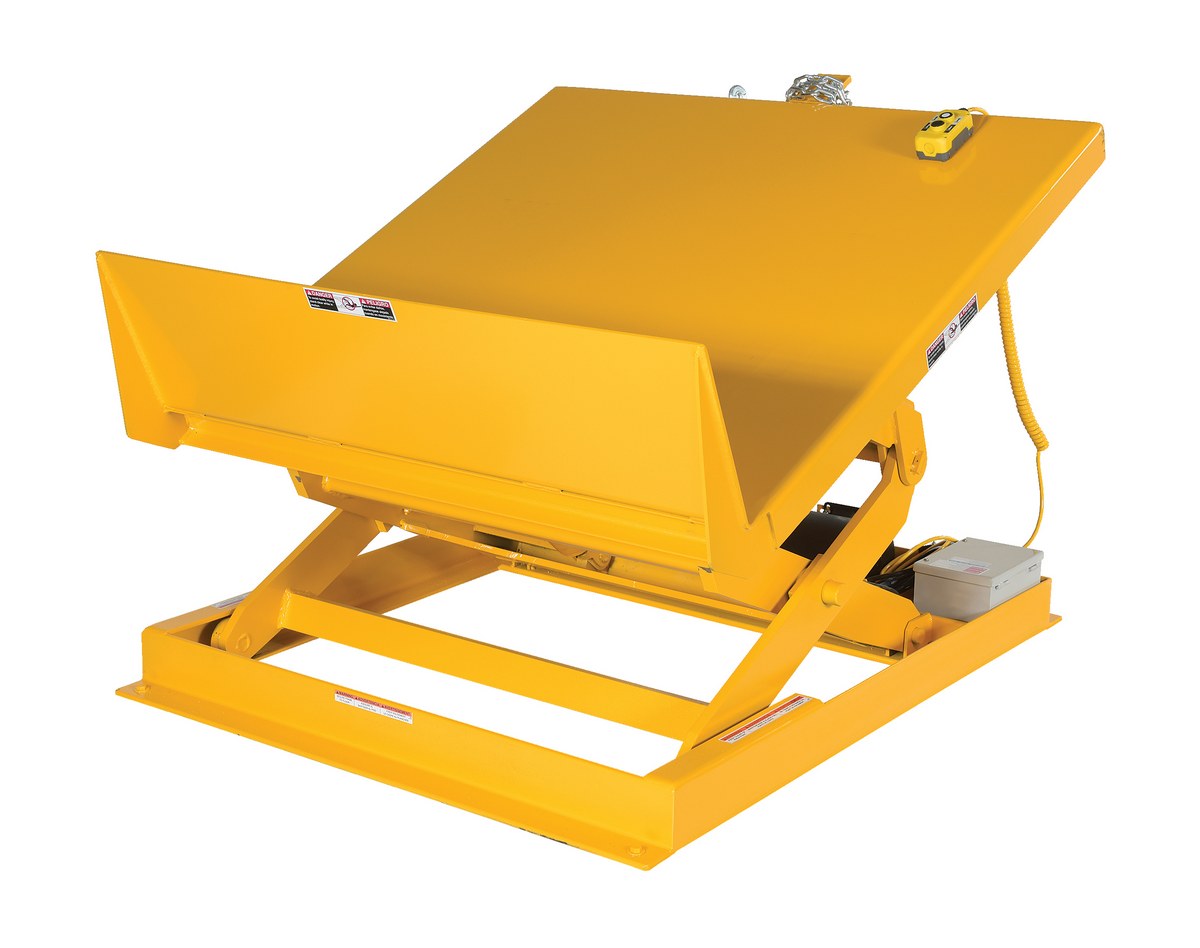

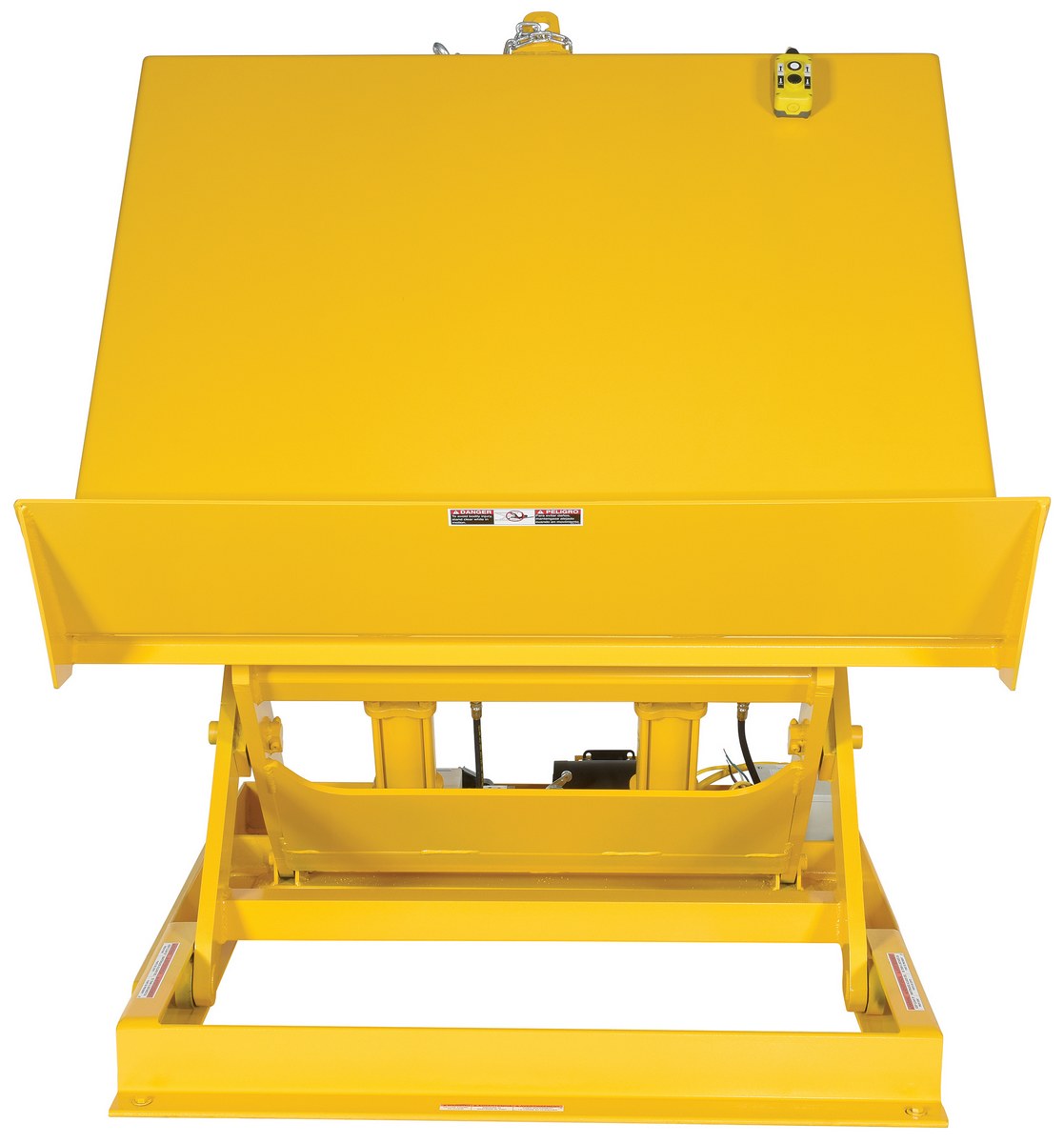

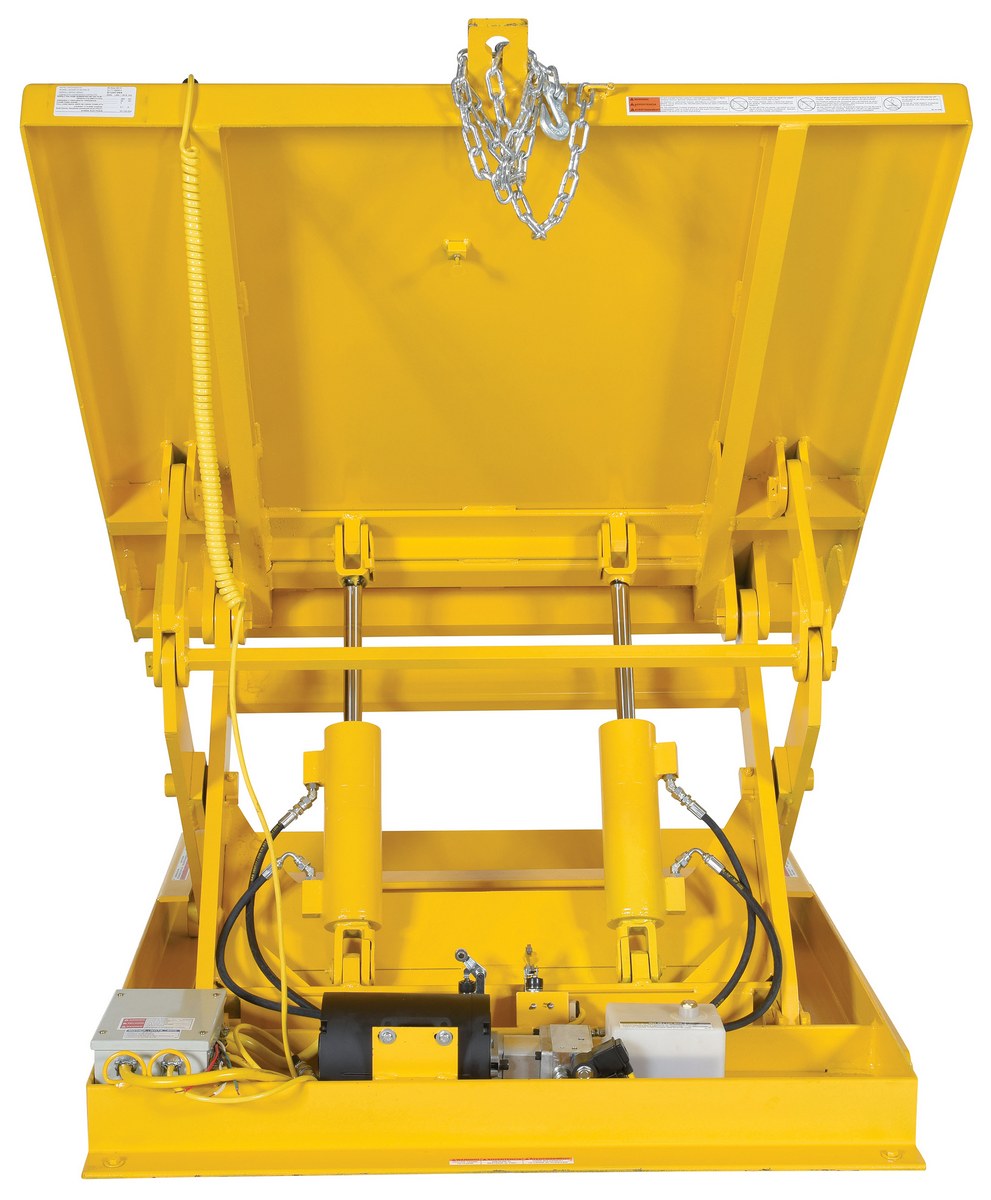

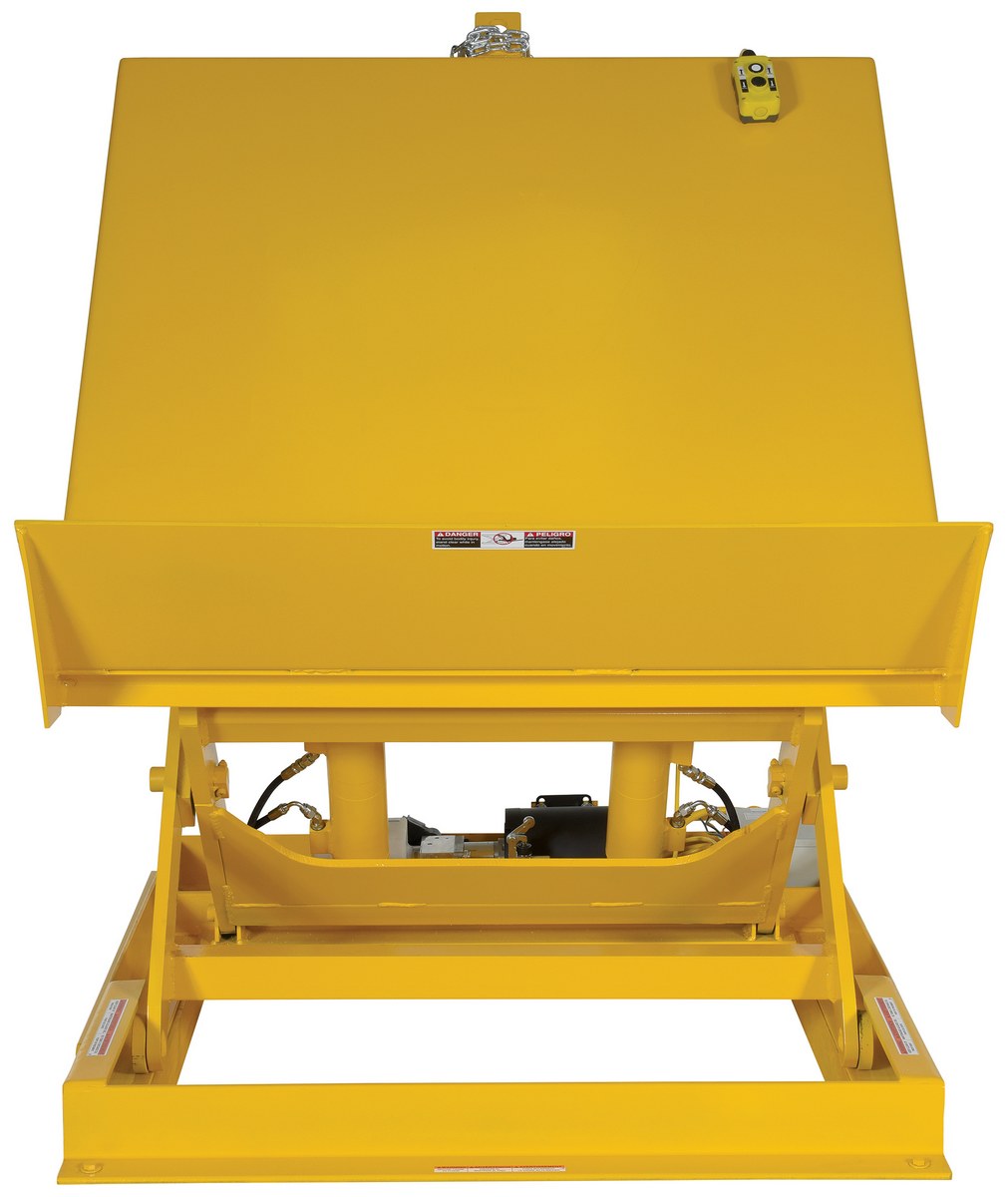

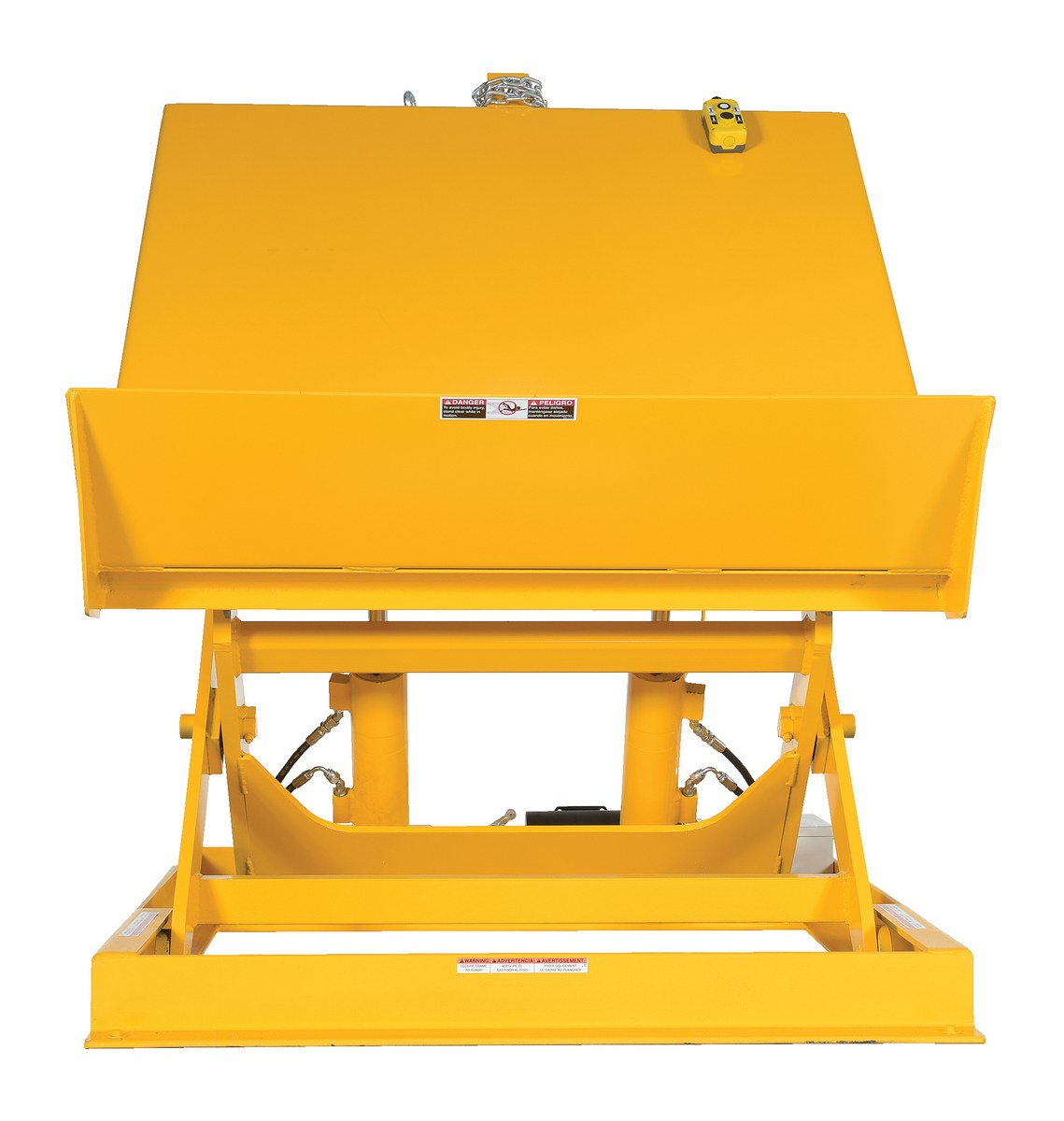

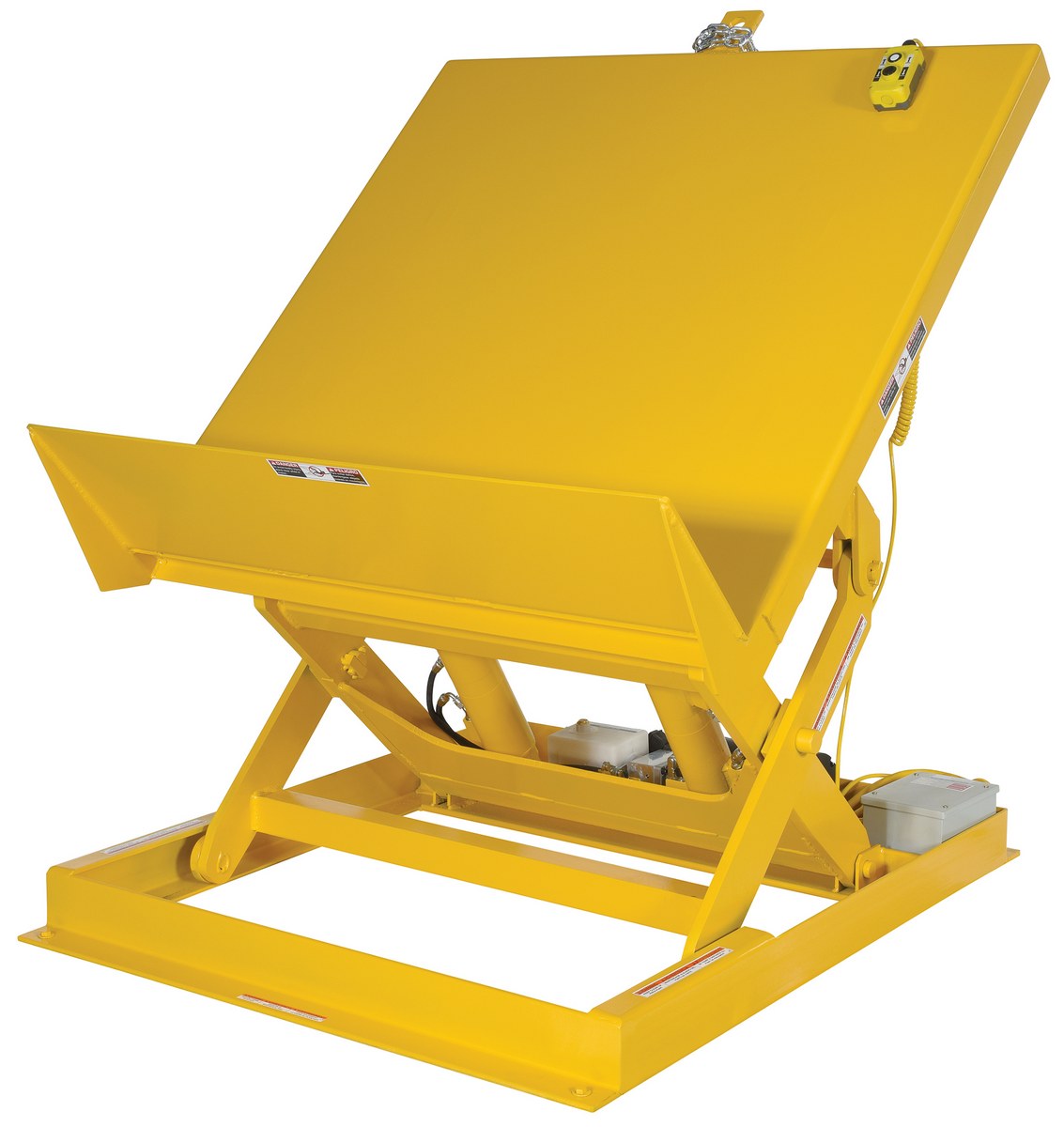

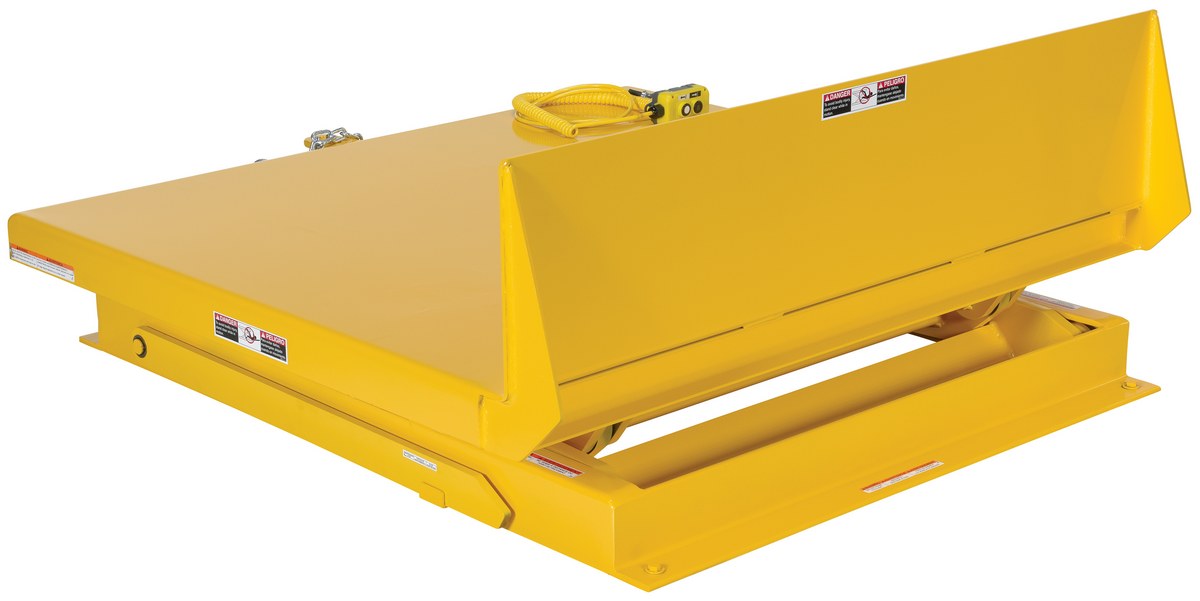

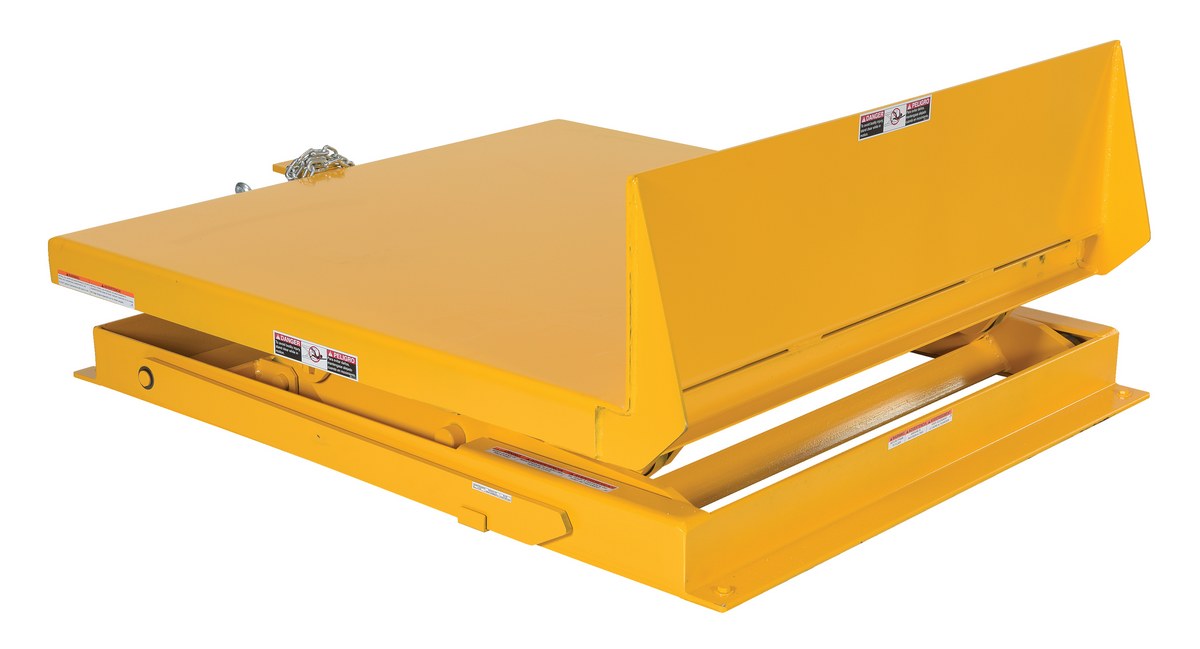

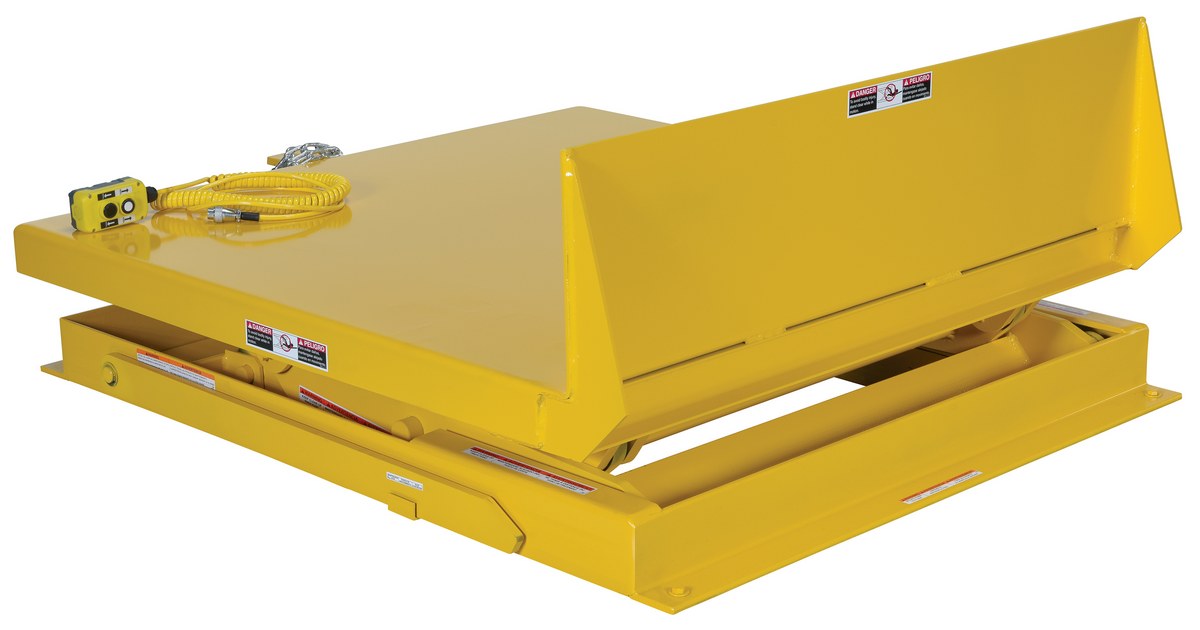

Single Scissor Concurrent Lift & Tilt Tables

SERIES: ULTT 36Products 1Options

Line-X Finish

Electric Hydraulic Concurrent Lift and Tilt Workstation Tables

Vestil electric hydraulic lift and tilt workstation tables raise and tilt the platform at the same time, positioning loads closer to a comfortable working height and angle. The concurrent lift-and-tilt motion is designed for workstation material positioning where reducing repeated bending and twisting can improve operator access to containers and other loads. A full-width raised lip at the platform end helps support containers as the platform tilts.

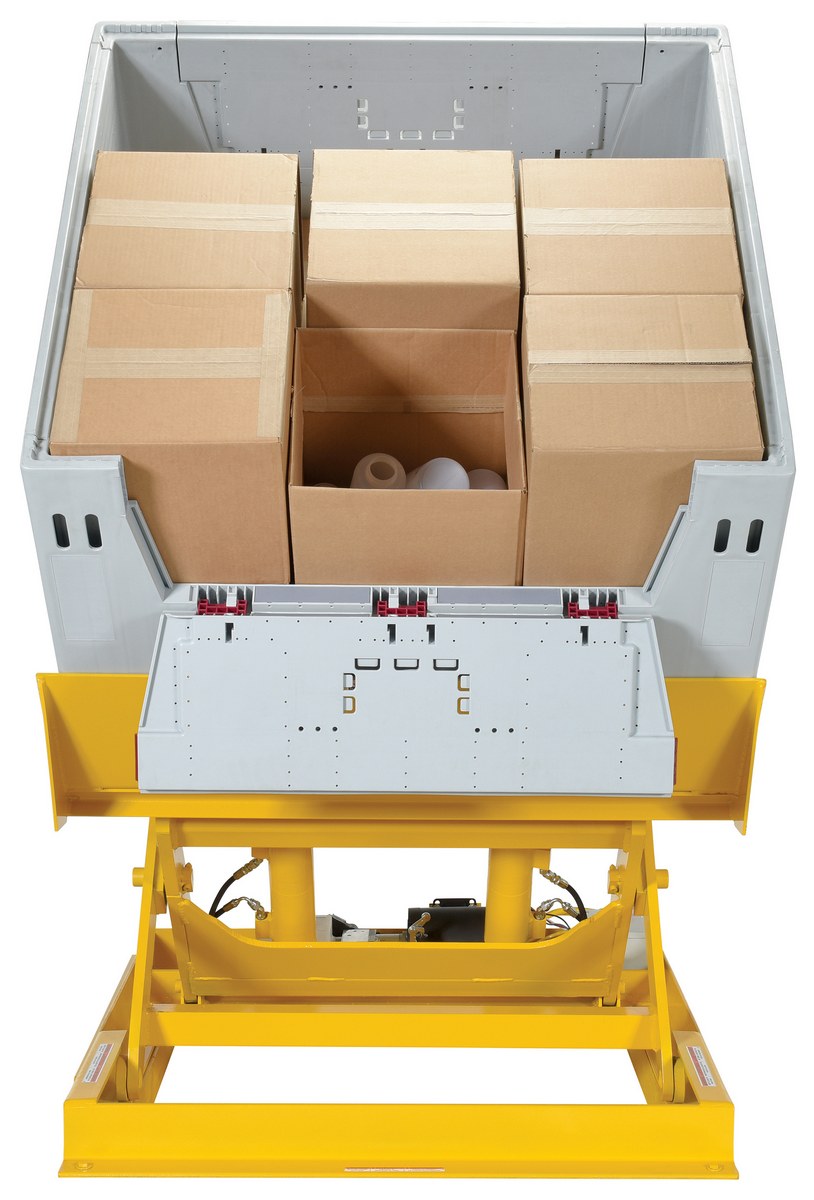

Concurrent Lifting and Tilting

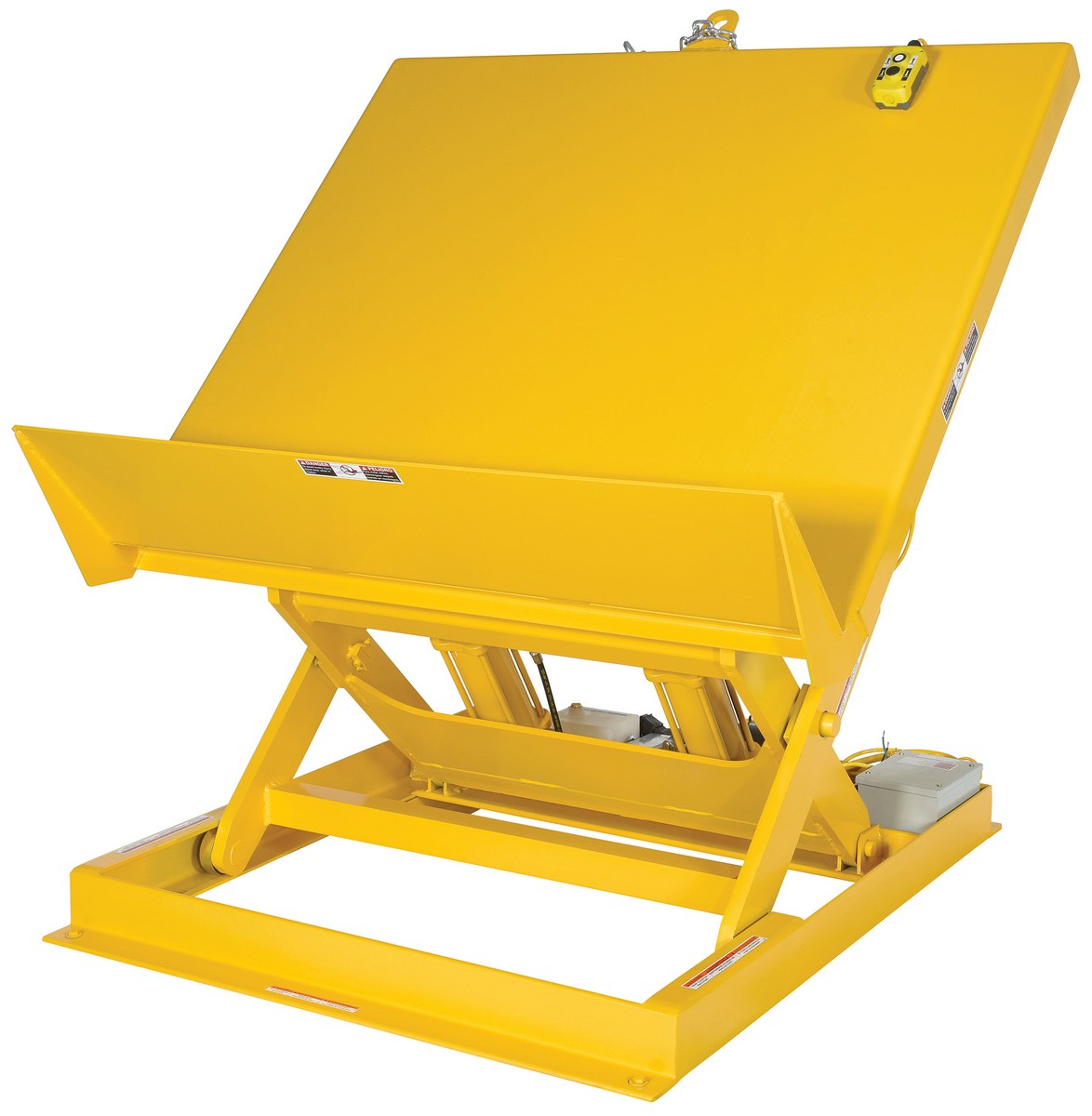

The platform tilts to a maximum of 44 degrees while providing a service height range of 10 to 24 inches, measured to the lowest point of the platform surface. An internal power unit incorporates the electric motor, hydraulic pump, and control box. A two-button handheld pendant provides operating control.

Capacity, Platform Size and Power Choices

Models are available with 2,000, 4,000, or 6,000 lb. uniform capacities and platform sizes of 36 x 48, 48 x 48, or 54 x 48 inches. Electrical configurations include 115VAC single phase, 230VAC single or three phase, and 460VAC three phase. The 2,000 lb. models use one cylinder, while 4,000 and 6,000 lb. models use two cylinders.

Workstation Construction and Control Options

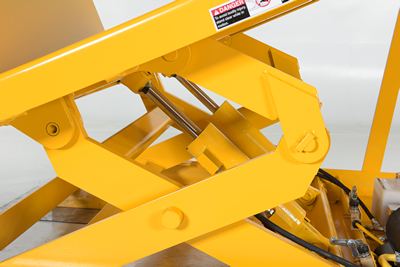

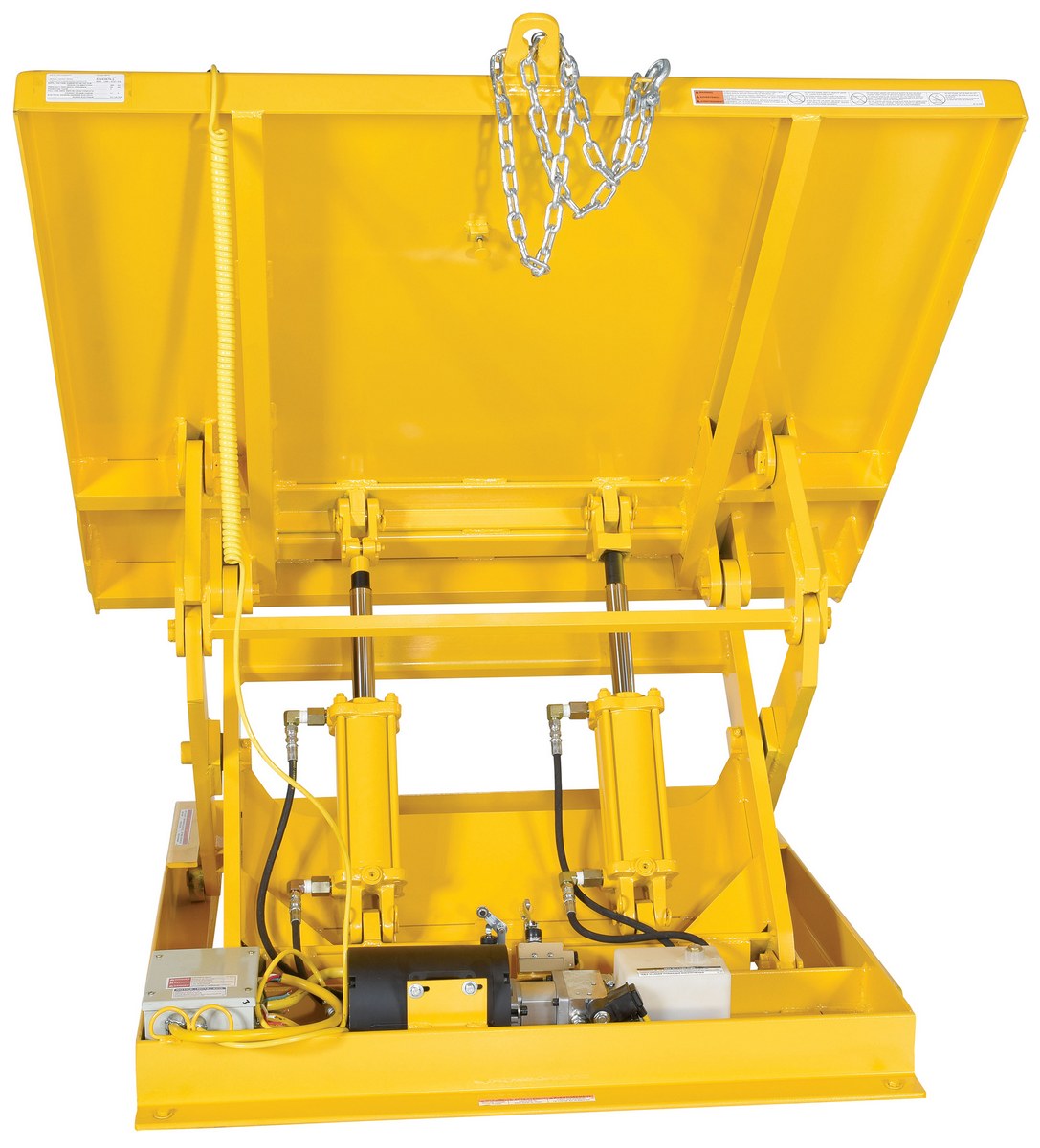

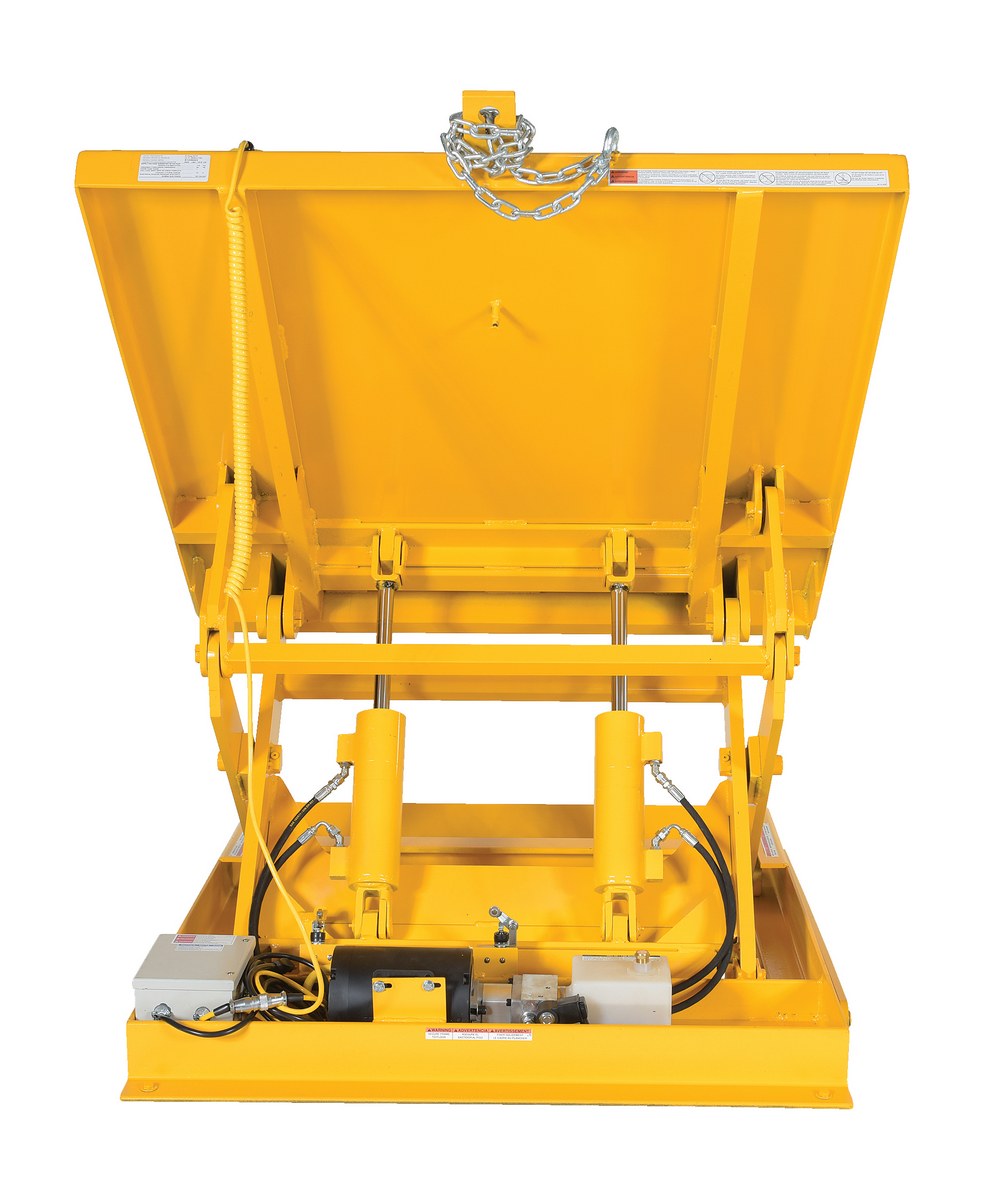

Welded steel construction and a yellow painted finish are standard throughout the family. For applications where a fixed control location is preferred, the HCP-2642 hand control pedestal is available separately as an option.

Single Scissor Concurrent Lift & Tilt Tables

model: ULTT-4848-4-YEL115-1

	Model #				Description	Attributes	Net Wt. (lbs)

All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.

KEY: = Expand Model Details = Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= On Hold/Temporarily Unavailable = Approval Drawing = Testing Certificate = BABAA Compliant = 360 Image Warranty
= New Images Coming Soon! = Dimension Image = Works w/ Skid Only = Flatbed Truck Required

If you did not find an expected Model or SKU # in the table, try the Options Section Below

ULTT-3648-2-YEL115-1

ULTT-3648-2-YEL230-1

ULTT-3648-2-YEL230-3

ULTT-3648-2-YEL460-3

ULTT-3648-4-YEL115-1

ULTT-3648-4-YEL230-1

ULTT-3648-4-YEL230-3

ULTT-3648-4-YEL460-3

ULTT-3648-6-YEL115-1

ULTT-3648-6-YEL230-1

ULTT-3648-6-YEL230-3

ULTT-3648-6-YEL460-3

ULTT-4848-2-YEL115-1

ULTT-4848-2-YEL230-1

ULTT-4848-2-YEL230-3

ULTT-4848-2-YEL460-3

ULTT-4848-4-YEL115-1

ULTT-4848-4-YEL230-1

ULTT-4848-4-YEL230-3

ULTT-4848-4-YEL460-3

ULTT-4848-6-YEL115-1

ULTT-4848-6-YEL230-1

ULTT-4848-6-YEL230-3

ULTT-4848-6-YEL460-3

ULTT-5448-2-YEL115-1

ULTT-5448-2-YEL230-1

ULTT-5448-2-YEL230-3

ULTT-5448-2-YEL460-3

ULTT-5448-4-YEL115-1

ULTT-5448-4-YEL230-1

ULTT-5448-4-YEL230-3

ULTT-5448-4-YEL460-3

ULTT-5448-6-YEL115-1

ULTT-5448-6-YEL230-1

ULTT-5448-6-YEL230-3

ULTT-5448-6-YEL460-3

For More Details of the Option Click the Red Model Button

Model	Image	Details	Icons	Wt.

HCP-2642		Optional Hand Control Pedestal

If you did not find an expected Model or SKU # in this table, try the Product Specifications Section Above

PDFs will open in a new window when clicked.

Owner's Manuals

1

Survey Sheets

1

Approval Drawings

0

No approval drawings for this product family.

Testing Certificates

36

ULTT-3648-2-YEL115-1

Open Certificate

ULTT-3648-2-YEL230-1

Open Certificate

ULTT-3648-2-YEL230-3

Open Certificate

ULTT-3648-2-YEL460-3

Open Certificate

ULTT-3648-4-YEL115-1

Open Certificate

ULTT-3648-4-YEL230-1

Open Certificate

ULTT-3648-4-YEL230-3

Open Certificate

ULTT-3648-4-YEL460-3

Open Certificate

ULTT-3648-6-YEL115-1

Open Certificate

ULTT-3648-6-YEL230-1

Open Certificate

ULTT-3648-6-YEL230-3

Open Certificate

ULTT-3648-6-YEL460-3

Open Certificate

ULTT-4848-2-YEL115-1

Open Certificate

ULTT-4848-2-YEL230-1

Open Certificate

ULTT-4848-2-YEL230-3

Open Certificate

ULTT-4848-2-YEL460-3

Open Certificate

ULTT-4848-4-YEL115-1

Open Certificate

ULTT-4848-4-YEL230-1

Open Certificate

ULTT-4848-4-YEL230-3

Open Certificate

ULTT-4848-4-YEL460-3

Open Certificate

ULTT-4848-6-YEL115-1

Open Certificate

ULTT-4848-6-YEL230-1

Open Certificate

ULTT-4848-6-YEL230-3

Open Certificate

ULTT-4848-6-YEL460-3

Open Certificate

ULTT-5448-2-YEL115-1

Open Certificate

ULTT-5448-2-YEL230-1

Open Certificate

ULTT-5448-2-YEL230-3

Open Certificate

ULTT-5448-2-YEL460-3

Open Certificate

ULTT-5448-4-YEL115-1

Open Certificate

ULTT-5448-4-YEL230-1

Open Certificate

ULTT-5448-4-YEL230-3

Open Certificate

ULTT-5448-4-YEL460-3

Open Certificate

ULTT-5448-6-YEL115-1

Open Certificate

ULTT-5448-6-YEL230-1

Open Certificate

ULTT-5448-6-YEL230-3

Open Certificate

ULTT-5448-6-YEL460-3

Open Certificate

SDS Sheets

36

ULTT-3648-2-YEL115-1

ULTT-3648-2-YEL230-1

ULTT-3648-2-YEL230-3

ULTT-3648-2-YEL460-3

ULTT-3648-4-YEL115-1

ULTT-3648-4-YEL230-1

ULTT-3648-4-YEL230-3

ULTT-3648-4-YEL460-3

ULTT-3648-6-YEL115-1

ULTT-3648-6-YEL230-1

ULTT-3648-6-YEL230-3

ULTT-3648-6-YEL460-3

ULTT-4848-2-YEL115-1

ULTT-4848-2-YEL230-1

ULTT-4848-2-YEL230-3

ULTT-4848-2-YEL460-3

ULTT-4848-4-YEL115-1

ULTT-4848-4-YEL230-1

ULTT-4848-4-YEL230-3

ULTT-4848-4-YEL460-3

ULTT-4848-6-YEL115-1

ULTT-4848-6-YEL230-1

ULTT-4848-6-YEL230-3

ULTT-4848-6-YEL460-3

ULTT-5448-2-YEL115-1

ULTT-5448-2-YEL230-1

ULTT-5448-2-YEL230-3

ULTT-5448-2-YEL460-3

ULTT-5448-4-YEL115-1

ULTT-5448-4-YEL230-1

ULTT-5448-4-YEL230-3

ULTT-5448-4-YEL460-3

ULTT-5448-6-YEL115-1

ULTT-5448-6-YEL230-1

ULTT-5448-6-YEL230-3

ULTT-5448-6-YEL460-3

Label Page PDFs

36

ULTT-3648-2-YEL115-1

ULTT-3648-2-YEL230-1

ULTT-3648-2-YEL230-3

ULTT-3648-2-YEL460-3

ULTT-3648-4-YEL115-1

ULTT-3648-4-YEL230-1

ULTT-3648-4-YEL230-3

ULTT-3648-4-YEL460-3

ULTT-3648-6-YEL115-1

ULTT-3648-6-YEL230-1

ULTT-3648-6-YEL230-3

ULTT-3648-6-YEL460-3

ULTT-4848-2-YEL115-1

ULTT-4848-2-YEL230-1

ULTT-4848-2-YEL230-3

ULTT-4848-2-YEL460-3

ULTT-4848-4-YEL115-1

ULTT-4848-4-YEL230-1

ULTT-4848-4-YEL230-3

ULTT-4848-4-YEL460-3

ULTT-4848-6-YEL115-1

ULTT-4848-6-YEL230-1

ULTT-4848-6-YEL230-3

ULTT-4848-6-YEL460-3

ULTT-5448-2-YEL115-1

ULTT-5448-2-YEL230-1

ULTT-5448-2-YEL230-3

ULTT-5448-2-YEL460-3

ULTT-5448-4-YEL115-1

ULTT-5448-4-YEL230-1

ULTT-5448-4-YEL230-3

ULTT-5448-4-YEL460-3

ULTT-5448-6-YEL115-1

ULTT-5448-6-YEL230-1

ULTT-5448-6-YEL230-3

ULTT-5448-6-YEL460-3

Other PDFs

0

No other PDFs for this product family.

Print Friendly

Related or Similar Products:

More From Lift & Tilt Tables

Hydraulic Motorcycle Lift

Hydraulic Motorcycle Lift

Shorty Scissor Lift Tables

Shorty Scissor Lift Tables

Portable Scissor Lift Tables

Portable Scissor Lift Tables

Low Profile Electric/Hydraulic Scissor Lift Tables

Portable Electric Hydraulic Lift Table w/ Attached Hoist

Portable Electric Hydraulic Lift Table w/ Attached Hoist

Narrow Scissor Lift Tables

Narrow Scissor Lift Tables

Single Scissor Concurrent Lift...

Electric Hydraulic Concurrent Lift and Tilt Workstation Tables

Vestil electric hydraulic lift and tilt workstation tables raise and tilt the platform at the same time, positioning loads closer to a comfortable working height and angle. The concurrent lift-and-tilt motion is designed for workstation material positioning where reducing repeated bending and twisting can improve operator access to containers and other loads. A full-width raised lip at the platform end helps support containers as the platform tilts.

Concurrent Lifting and Tilting

The platform tilts to a maximum of 44 degrees while providing a service height range of 10 to 24 inches, measured to the lowest point of the platform surface. An internal power unit incorporates the electric motor, hydraulic pump, and control box. A two-button handheld pendant provides operating control.

Capacity, Platform Size and Power Choices

Models are available with 2,000, 4,000, or 6,000 lb. uniform capacities and platform sizes of 36 x 48, 48 x 48, or 54 x 48 inches. Electrical configurations include 115VAC single phase, 230VAC single or three phase, and 460VAC three phase. The 2,000 lb. models use one cylinder, while 4,000 and 6,000 lb. models use two cylinders.

Workstation Construction and Control Options

Welded steel construction and a yellow painted finish are standard throughout the family. For applications where a fixed control location is preferred, the HCP-2642 hand control pedestal is available separately as an option.

Model #		Description	Attributes	Net Wt. (lbs)
ULTT-3648-2-YEL230-1		Single Scissor Concurrent Lift/Tilt Table 36 In. x 48 In. 230 Volt 1 Phase 2,000 Lb. Capacity Yellow	Uniform Capacity (lb.): 2,000 Cylinders: 1	842
ULTT-4848-4-YEL230-1		Single Scissor Concurrent Lift/Tilt Table 48 In. x 48 In. 230 Volt 1 Phase 4,000 Lb. Capacity Yellow	Uniform Capacity (lb.): 4,000 Cylinders: 2	1020
ULTT-5448-6-YEL230-3		Single Scissor Concurrent Lift/Tilt Table 54 In. x 48 In. 230 Volt 3 Phase 6,000 Lb. Capacity Yellow	Uniform Capacity (lb.): 6,000 Cylinders: 2	1360
ULTT-3648-2-YEL230-3		Single Scissor Concurrent Lift/Tilt Table 36 In. x 48 In. 230 Volt 3 Phase 2,000 Lb. Capacity Yellow	Uniform Capacity (lb.): 2,000 Cylinders: 1	842
ULTT-3648-6-YEL230-1		Single Scissor Concurrent Lift/Tilt Table 36 In. x 48 In. 230 Volt 1 Phase 6,000 Lb. Capacity Yellow	Uniform Capacity (lb.): 6,000 Cylinders: 2	905
ULTT-4848-4-YEL460-3		Single Scissor Concurrent Lift/Tilt Table 48 In. x 48 In. 460 Volt 3 Phase 4,000 Lb. Capacity Yellow	Uniform Capacity (lb.): 4,000 Cylinders: 2	1020
ULTT-5448-4-YEL230-3		Single Scissor Concurrent Lift/Tilt Table 54 In. x 48 In. 230 Volt 3 Phase 4,000 Lb. Capacity Yellow	Uniform Capacity (lb.): 4,000 Cylinders: 2	1075
ULTT-3648-4-YEL460-3		Single Scissor Concurrent Lift/Tilt Table 36 In. x 48 In. 460 Volt 3 Phase 4,000 Lb. Capacity Yellow	Uniform Capacity (lb.): 4,000 Cylinders: 2	861
ULTT-3648-6-YEL115-1		Single Scissor Concurrent Lift/Tilt Table 36 In. x 48 In. 115 Volt 1 Phase 6,000 Lb. Capacity Yellow	Uniform Capacity (lb.): 6,000 Cylinders: 2	905
ULTT-3648-6-YEL460-3		Single Scissor Concurrent Lift/Tilt Table 36 In. x 48 In. 460 Volt 3 Phase 6,000 Lb. Capacity Yellow	Uniform Capacity (lb.): 6,000 Cylinders: 2	905
ULTT-5448-2-YEL460-3		Single Scissor Concurrent Lift/Tilt Table 54 In. x 48 In. 460 Volt 3 Phase 2,000 Lb. Capacity Yellow	Uniform Capacity (lb.): 2,000 Cylinders: 1	1095
ULTT-4848-6-YEL230-3		Single Scissor Concurrent Lift/Tilt Table 48 In. x 48 In. 230 Volt 3 Phase 6,000 Lb. Capacity Yellow	Uniform Capacity (lb.): 6,000 Cylinders: 2	1065
ULTT-5448-4-YEL460-3		Single Scissor Concurrent Lift/Tilt Table 54 In. x 48 In. 460 Volt 3 Phase 4,000 Lb. Capacity Yellow	Uniform Capacity (lb.): 4,000 Cylinders: 2	1075
ULTT-4848-6-YEL230-1		Single Scissor Concurrent Lift/Tilt Table 48 In. x 48 In. 230 Volt 1 Phase 6,000 Lb. Capacity Yellow	Uniform Capacity (lb.): 6,000 Cylinders: 2	1065
ULTT-5448-4-YEL230-1		Single Scissor Concurrent Lift/Tilt Table 54 In. x 48 In. 230 Volt 1 Phase 4,000 Lb. Capacity Yellow	Uniform Capacity (lb.): 4,000 Cylinders: 2	1075
ULTT-4848-4-YEL230-3		Single Scissor Concurrent Lift/Tilt Table 48 In. x 48 In. 230 Volt 3 Phase 4,000 Lb. Capacity Yellow	Uniform Capacity (lb.): 4,000 Cylinders: 2	1020
ULTT-4848-6-YEL115-1		Single Scissor Concurrent Lift/Tilt Table 48 In. x 48 In. 115 Volt 1 Phase 6,000 Lb. Capacity Yellow	Uniform Capacity (lb.): 4,000 Cylinders: 2	1080
ULTT-5448-2-YEL115-1		Single Scissor Concurrent Lift/Tilt Table 54 In. x 48 In. 115 Volt 1 Phase 2,000 Lb. Capacity Yellow	Uniform Capacity (lb.): 2,000 Cylinders: 1	1095
ULTT-4848-2-YEL460-3		Single Scissor Concurrent Lift/Tilt Table 48 In. x 48 In. 460 Volt 3 Phase 2,000 Lb. Capacity Yellow	Uniform Capacity (lb.): 2,000 Cylinders: 1	953
ULTT-4848-6-YEL460-3		Single Scissor Concurrent Lift/Tilt Table 48 In. x 48 In. 460 Volt 3 Phase 6,000 Lb. Capacity Yellow	Uniform Capacity (lb.): 6,000 Cylinders: 2	1065
ULTT-5448-2-YEL230-3		Single Scissor Concurrent Lift/Tilt Table 54 In. x 48 In. 230 Volt 3 Phase 2,000 Lb. Capacity Yellow	Uniform Capacity (lb.): 2,000 Cylinders: 1	1095
ULTT-5448-6-YEL230-1		Single Scissor Concurrent Lift/Tilt Table 54 In. x 48 In. 230 Volt 1 Phase 6,000 Lb. Capacity Yellow	Uniform Capacity (lb.): 6,000 Cylinders: 2	1360
ULTT-3648-6-YEL230-3		Single Scissor Concurrent Lift/Tilt Table 36 In. x 48 In. 230 Volt 3 Phase 6,000 Lb. Capacity Yellow	Uniform Capacity (lb.): 6,000 Cylinders: 2	905
ULTT-4848-2-YEL230-1		Single Scissor Concurrent Lift/Tilt Table 48 In. x 48 In. 230 Volt 1 Phase 2,000 Lb. Capacity Yellow	Uniform Capacity (lb.): 2,000 Cylinders: 1	953
ULTT-4848-4-YEL115-1		Single Scissor Concurrent Lift/Tilt Table 48 In. x 48 In. 115 Volt 1 Phase 4,000 Lb. Capacity Yellow	Uniform Capacity (lb.): 4,000 Cylinders: 2	1020
ULTT-5448-6-YEL460-3		Single Scissor Concurrent Lift/Tilt Table 54 In. x 48 In. 460 Volt 3 Phase 6,000 Lb. Capacity Yellow	Uniform Capacity (lb.): 6,000 Cylinders: 2	1360
ULTT-3648-4-YEL230-1		Single Scissor Concurrent Lift/Tilt Table 36 In. x 48 In. 230 Volt 1 Phase 4,000 Lb. Capacity Yellow	Uniform Capacity (lb.): 4,000 Cylinders: 2	861
ULTT-4848-2-YEL230-3		Single Scissor Concurrent Lift/Tilt Table 48 In. x 48 In. 230 Volt 3 Phase 2,000 Lb. Capacity Yellow	Uniform Capacity (lb.): 2,000 Cylinders: 1	953
ULTT-3648-2-YEL115-1		Single Scissor Concurrent Lift/Tilt Table 36 In. x 48 In. 115 Volt 1 Phase 2,000 Lb. Capacity Yellow	Uniform Capacity (lb.): 2,000 Cylinders: 1	842
ULTT-3648-4-YEL230-3		Single Scissor Concurrent Lift/Tilt Table 36 In. x 48 In. 230 Volt 3 Phase 4,000 Lb. Capacity Yellow	Uniform Capacity (lb.): 4,000 Cylinders: 2	861
ULTT-5448-2-YEL230-1		Single Scissor Concurrent Lift/Tilt Table 54 In. x 48 In. 230 Volt 1 Phase 2,000 Lb. Capacity Yellow	Uniform Capacity (lb.): 2,000 Cylinders: 1	1095
ULTT-4848-2-YEL115-1		Single Scissor Concurrent Lift/Tilt Table 48 In. x 48 In. 115 Volt 1 Phase 2,000 Lb. Capacity Yellow	Uniform Capacity (lb.): 2,000 Cylinders: 1	953
ULTT-5448-6-YEL115-1		Single Scissor Concurrent Lift/Tilt Table 54 In. x 48 In. 115 Volt 1 Phase 6,000 Lb. Capacity Yellow	Uniform Capacity (lb.): 6,000 Cylinders: 2	1360
ULTT-3648-2-YEL460-3		Single Scissor Concurrent Lift/Tilt Table 36 In. x 48 In. 460 Volt 3 Phase 2,000 Lb. Capacity Yellow	Uniform Capacity (lb.): 2,000 Cylinders: 1	842
ULTT-3648-4-YEL115-1		Single Scissor Concurrent Lift/Tilt Table 36 In. x 48 In. 115 Volt 1 Phase 4,000 Lb. Capacity Yellow	Uniform Capacity (lb.): 4,000 Cylinders: 2	861
ULTT-5448-4-YEL115-1		Single Scissor Concurrent Lift/Tilt Table 54 In. x 48 In. 115 Volt 1 Phase 4,000 Lb. Capacity Yellow	Uniform Capacity (lb.): 4,000 Cylinders: 2	1075

Options

HCP-2642		Optional Hand Control Pedestal
