model TMS-40-DC
SERIES: TM,TMS

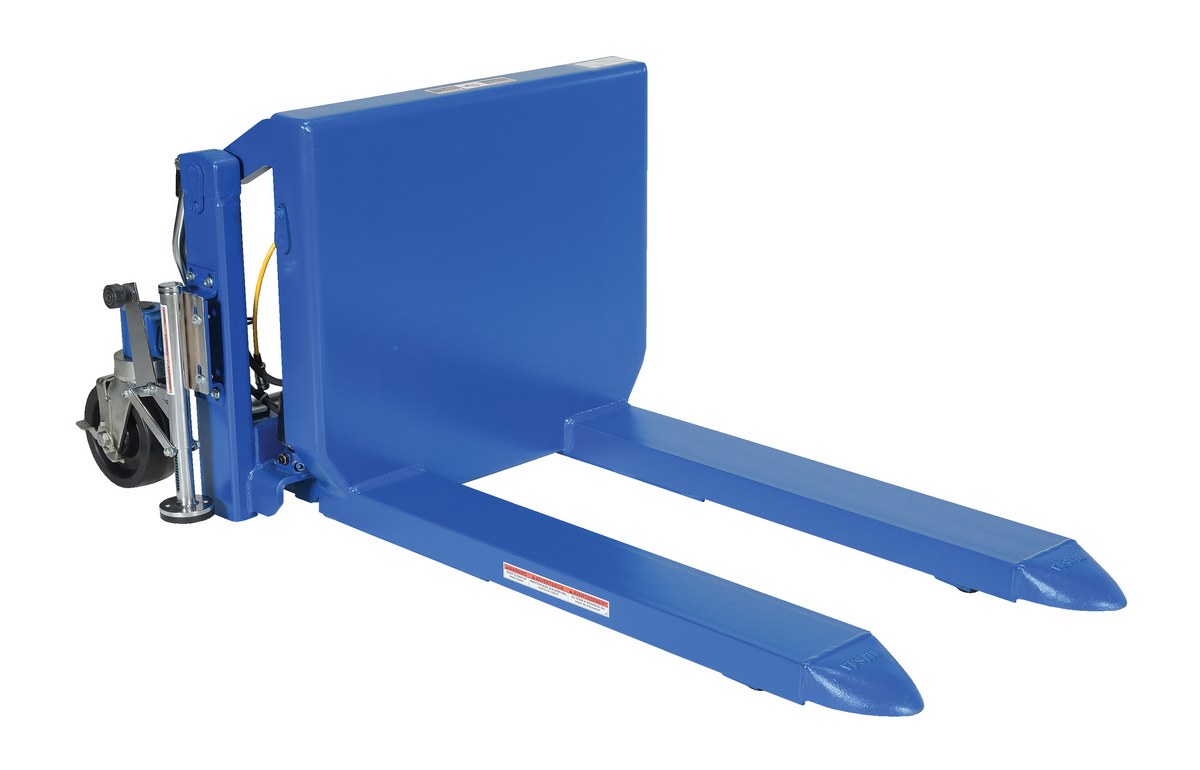

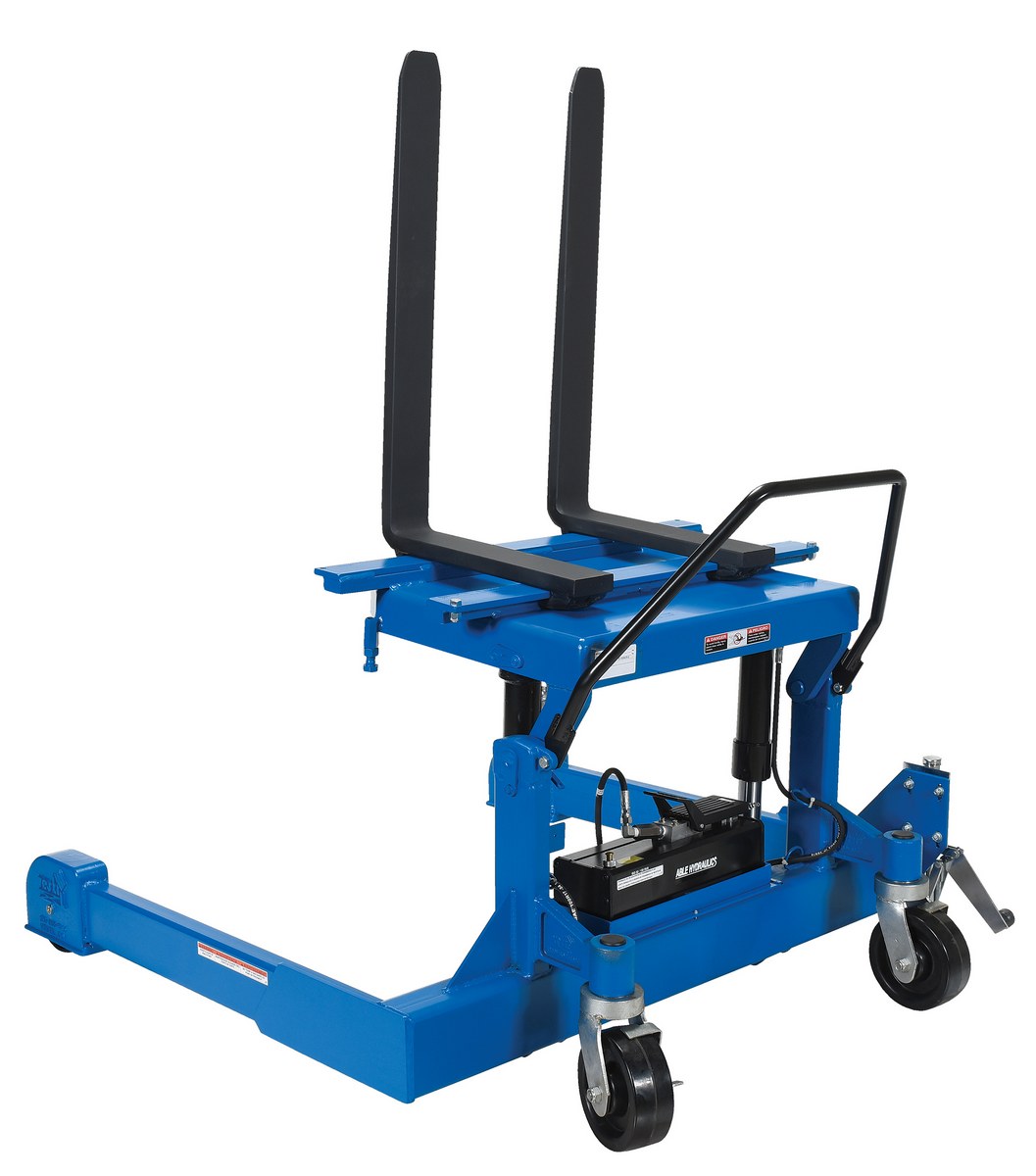

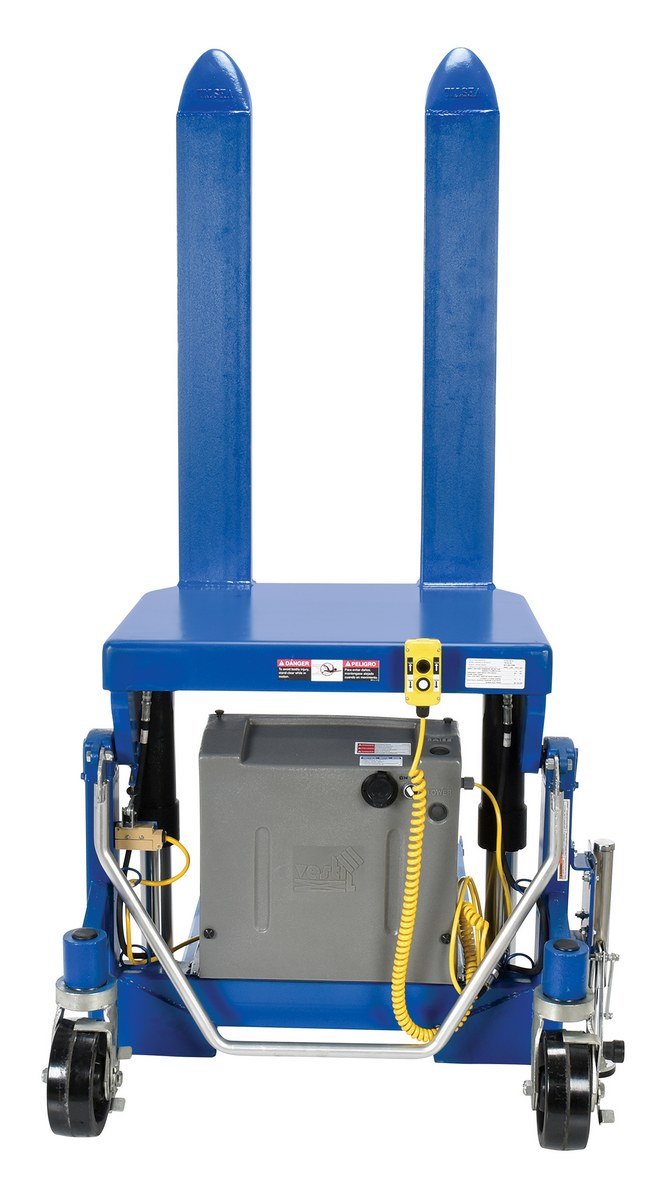

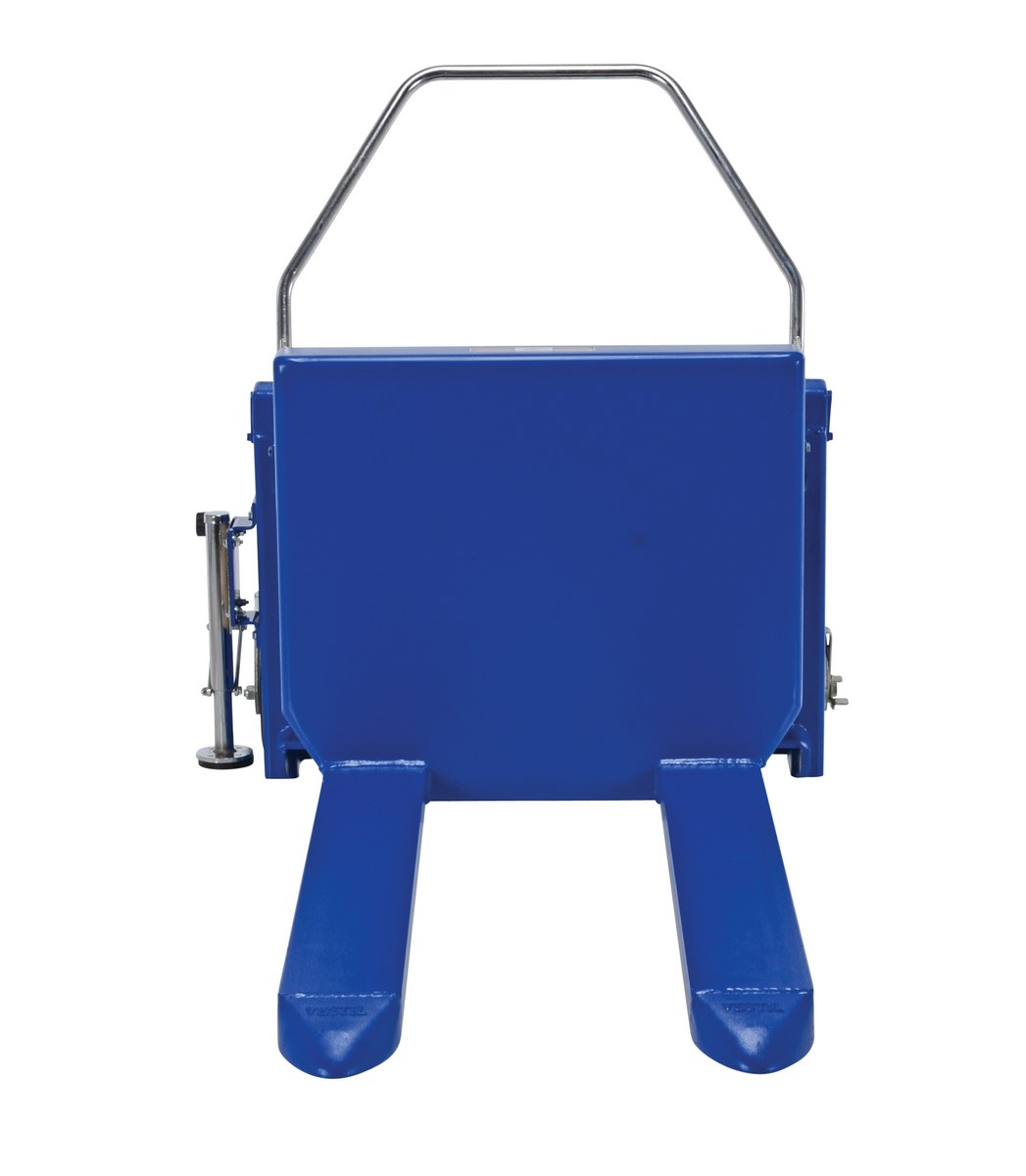

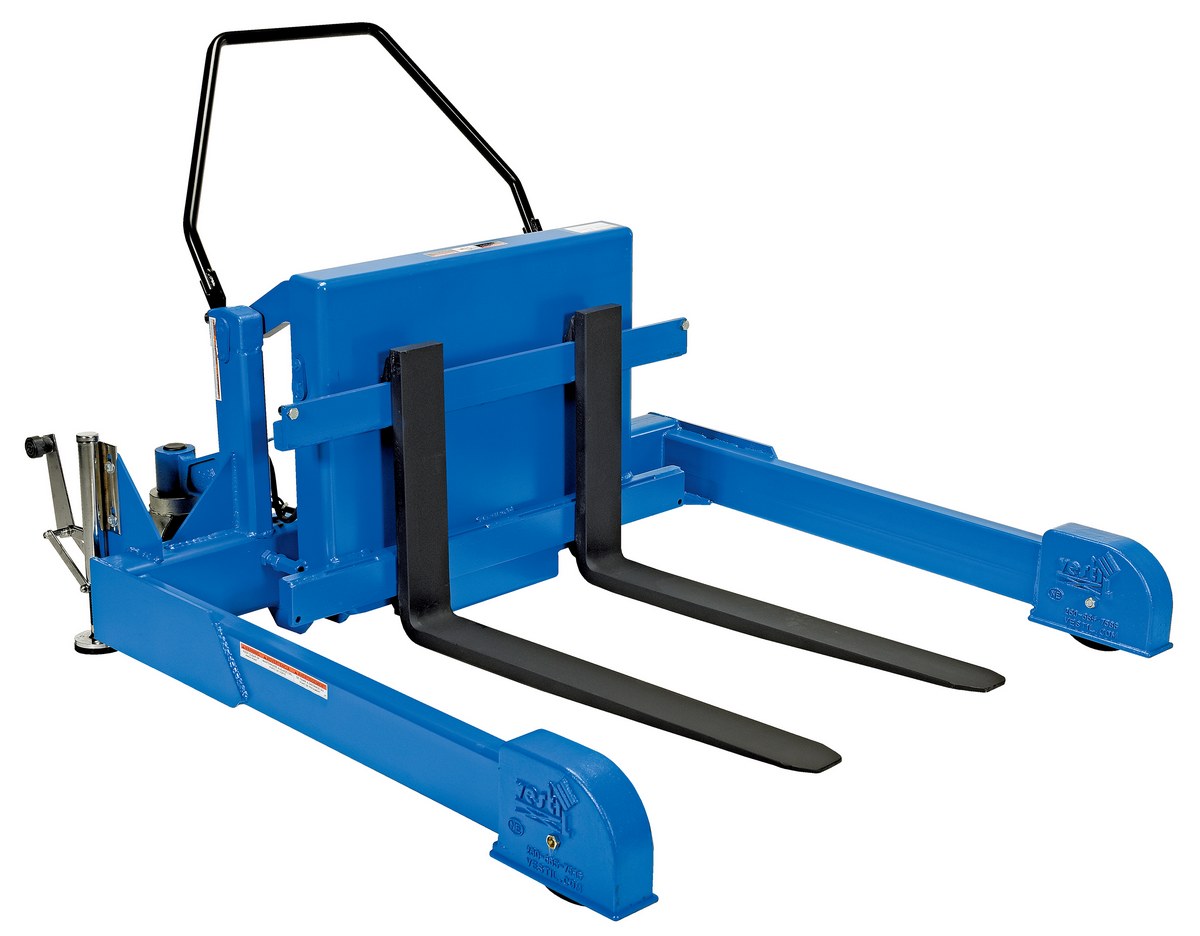

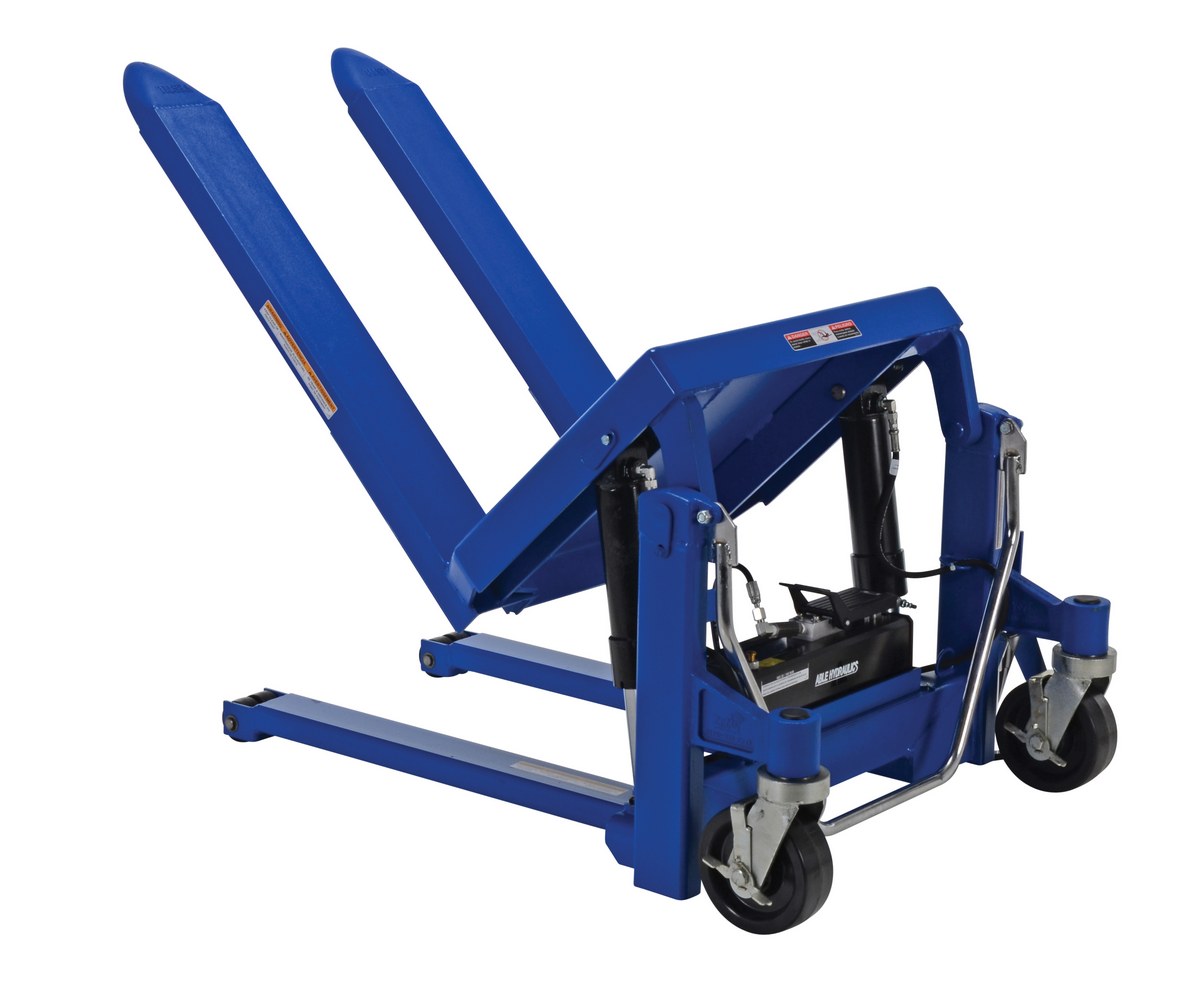

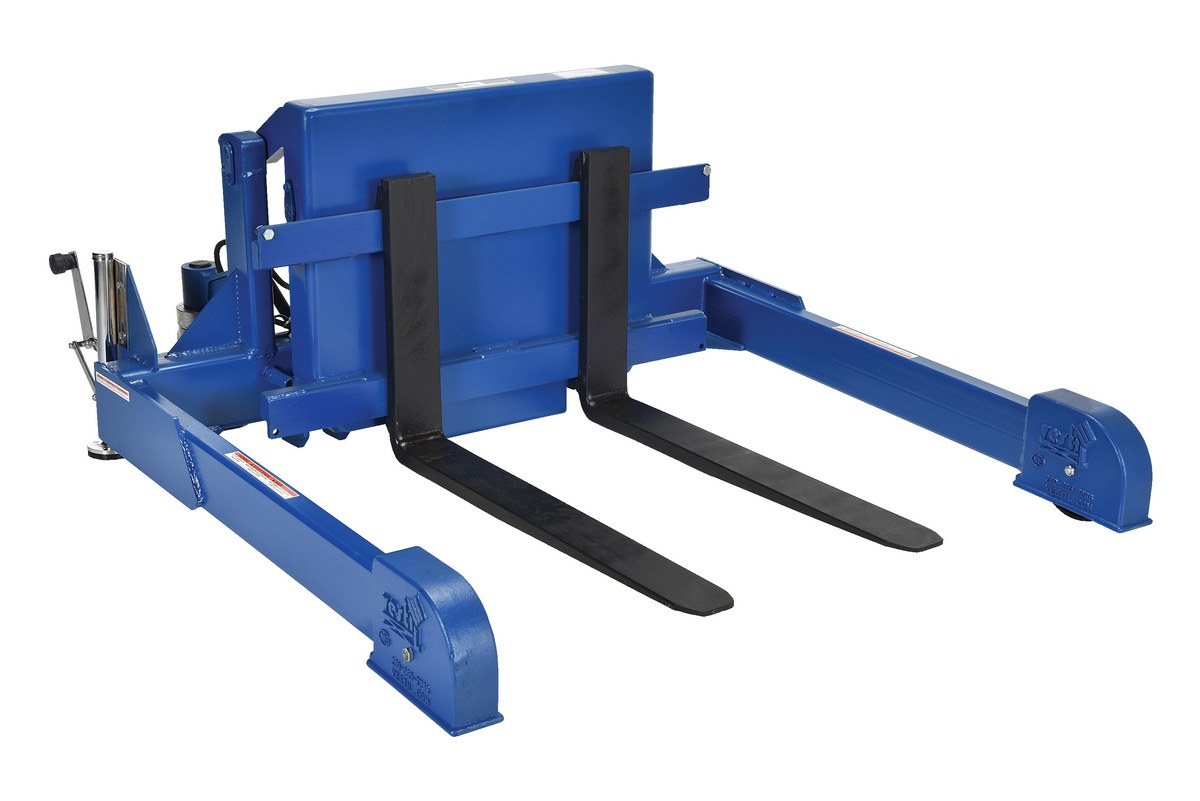

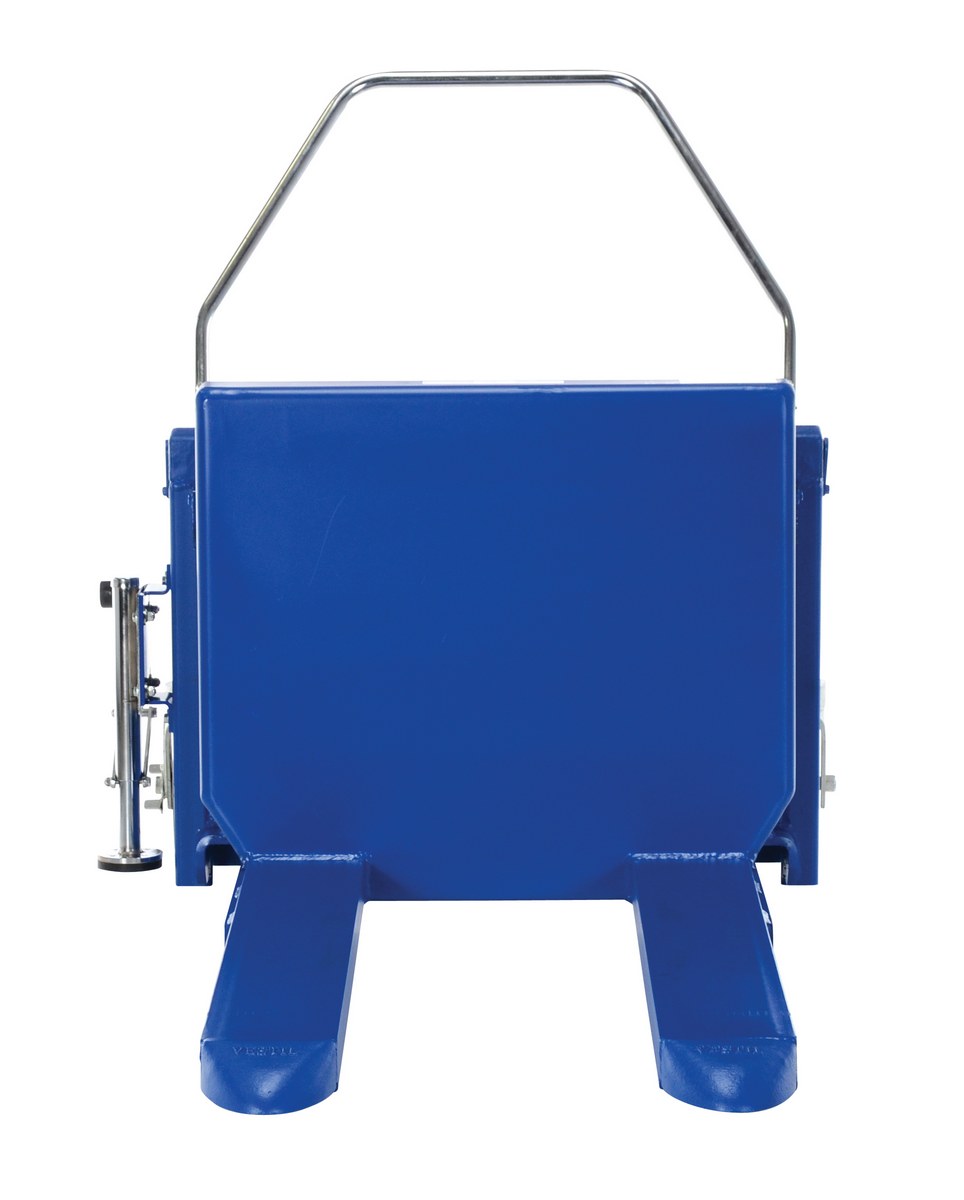

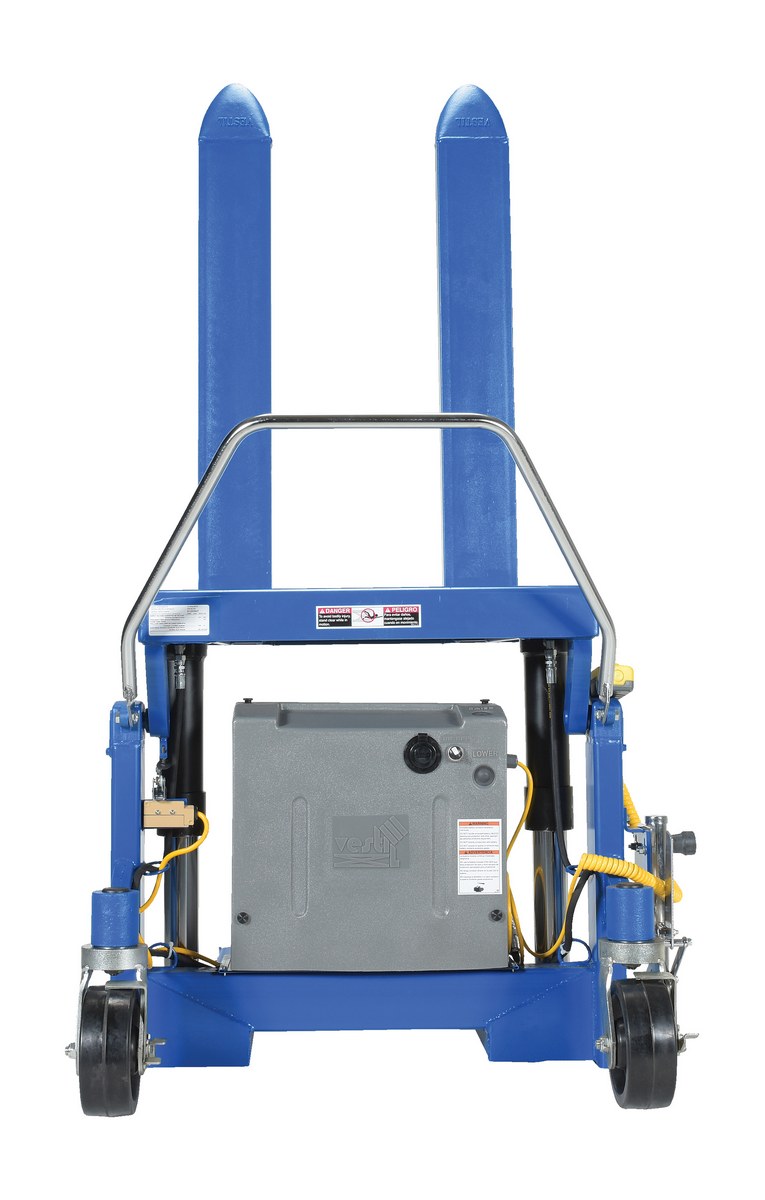

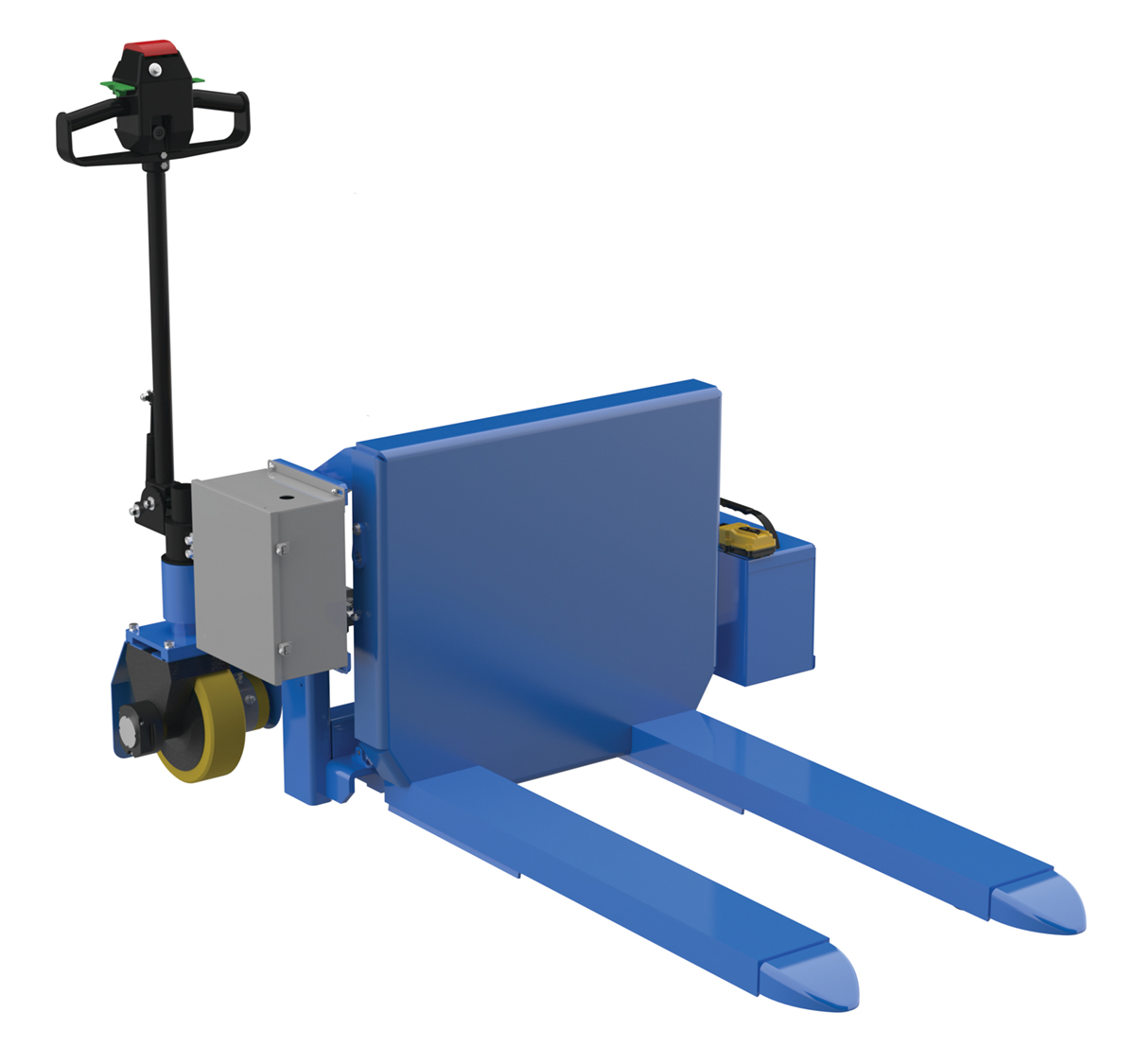

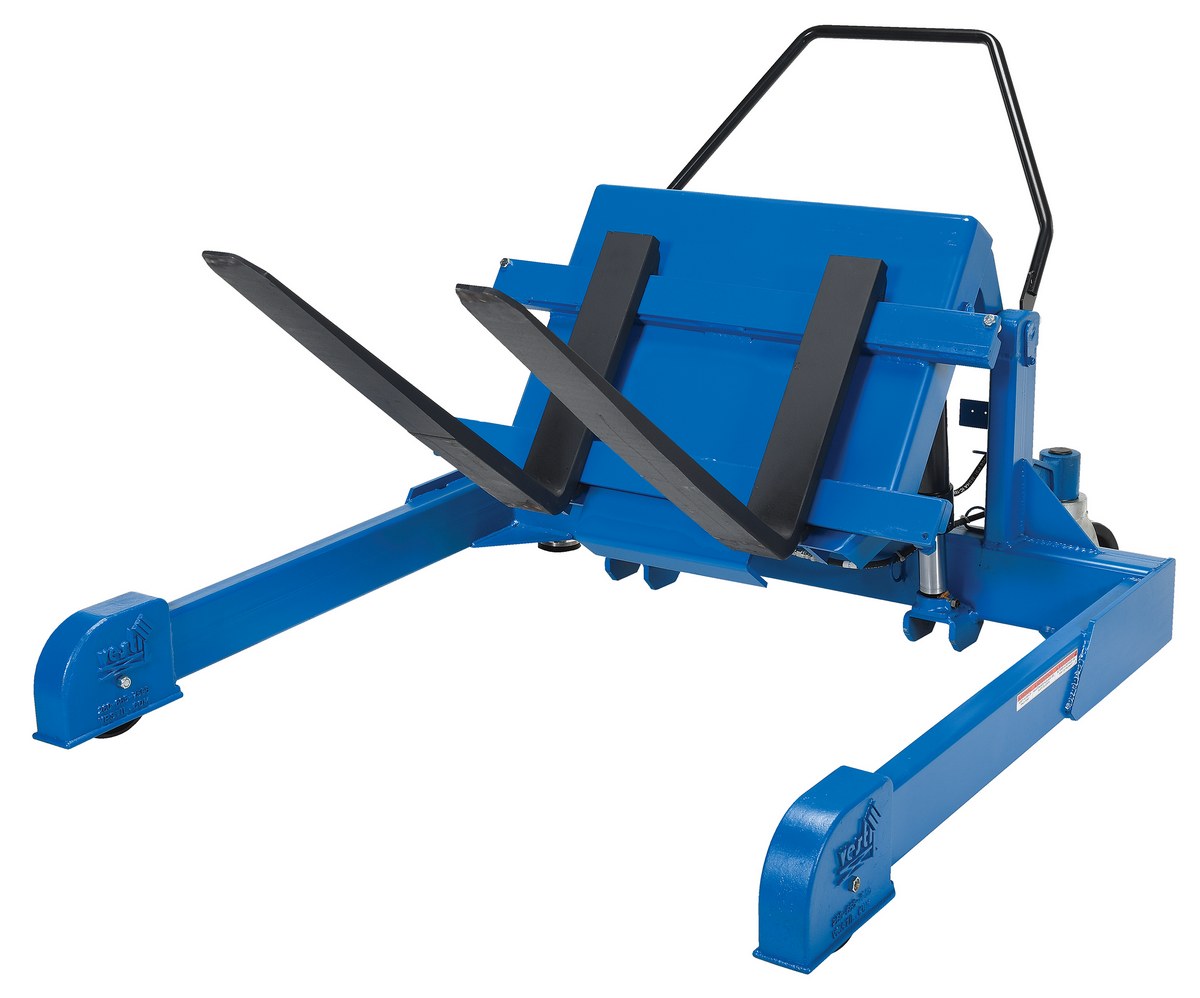

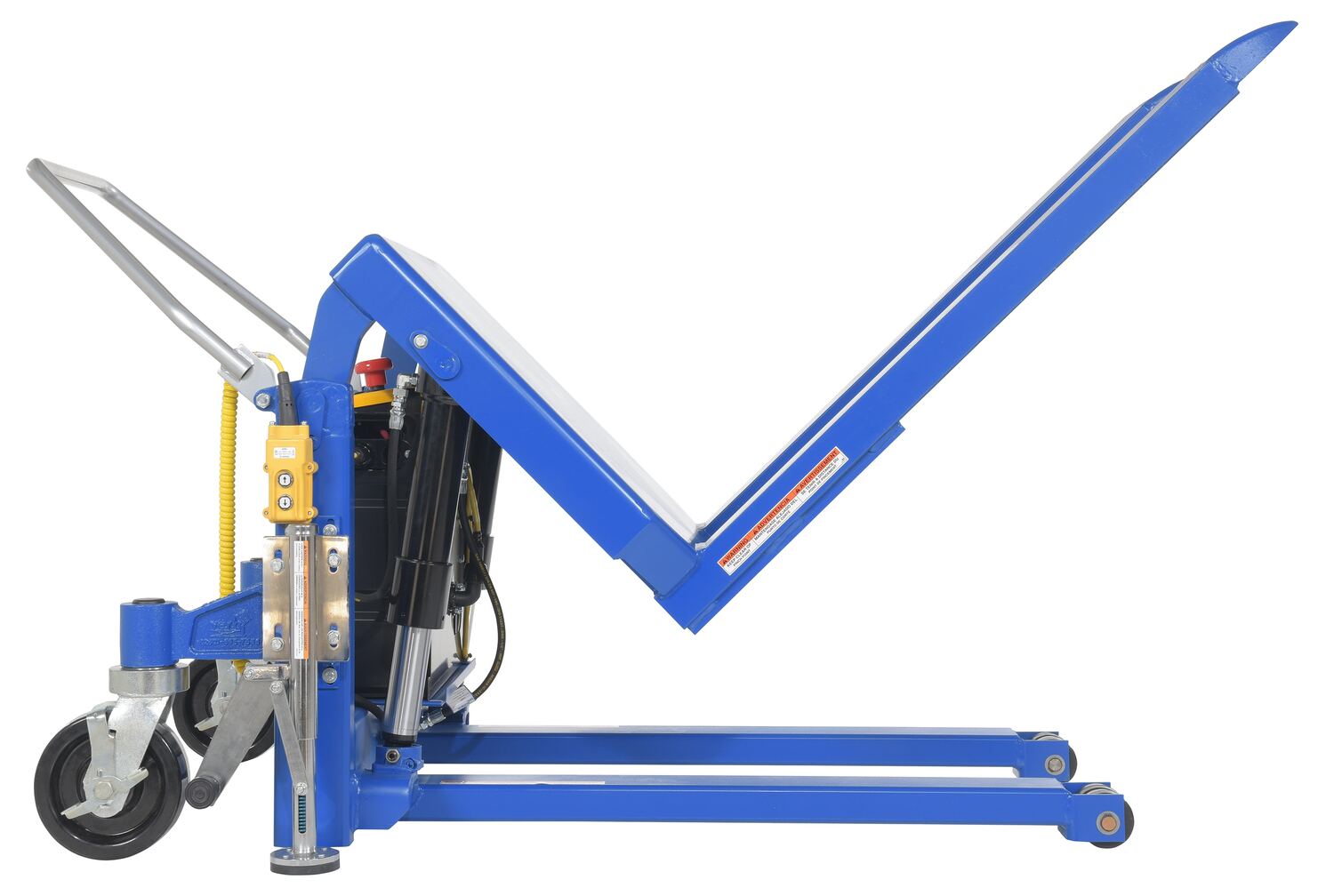

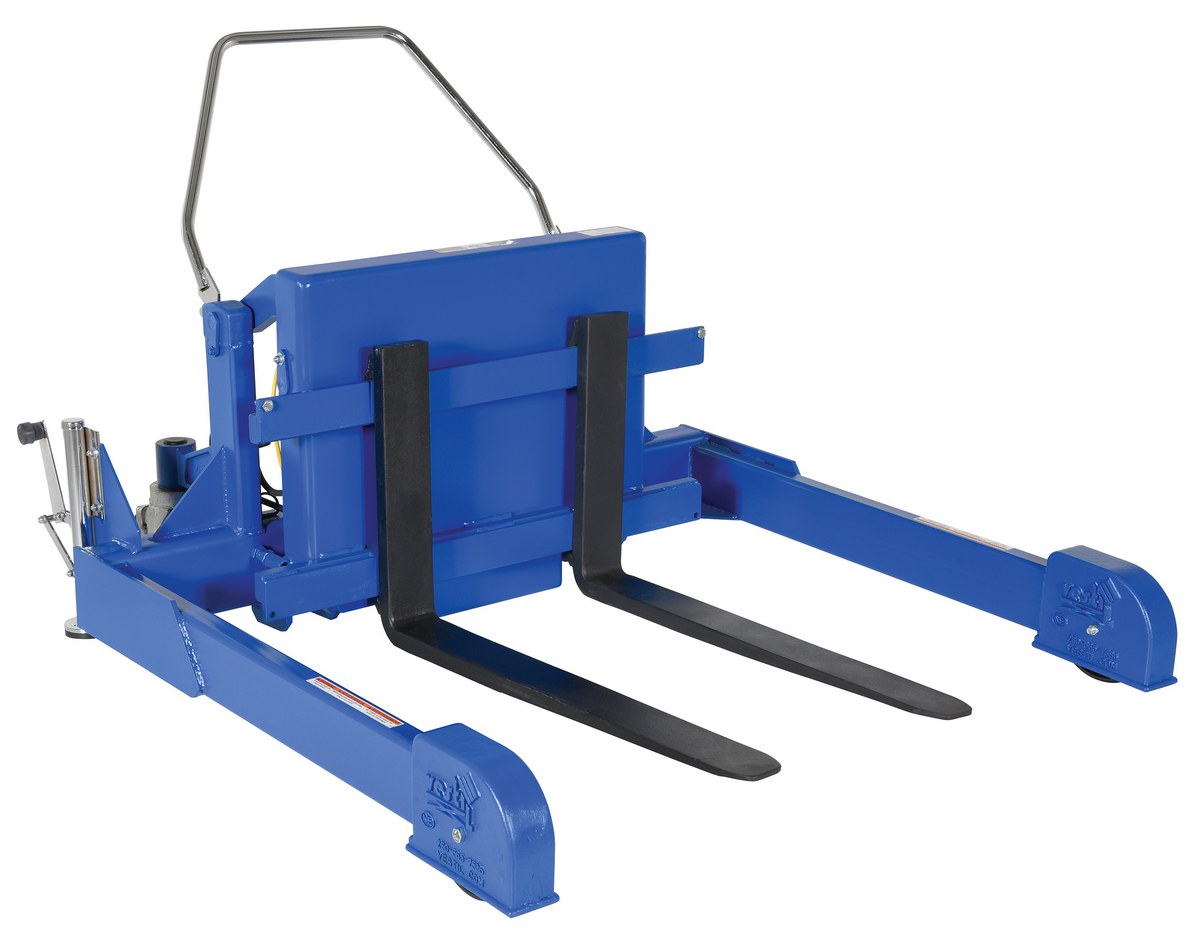

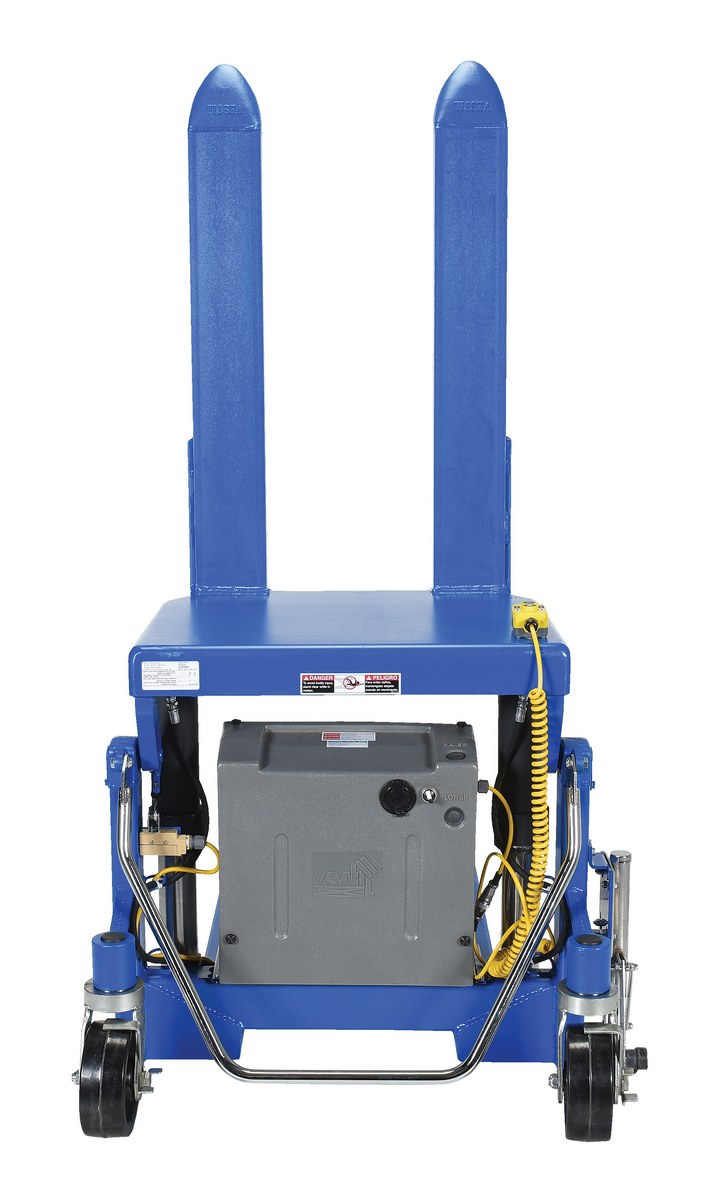

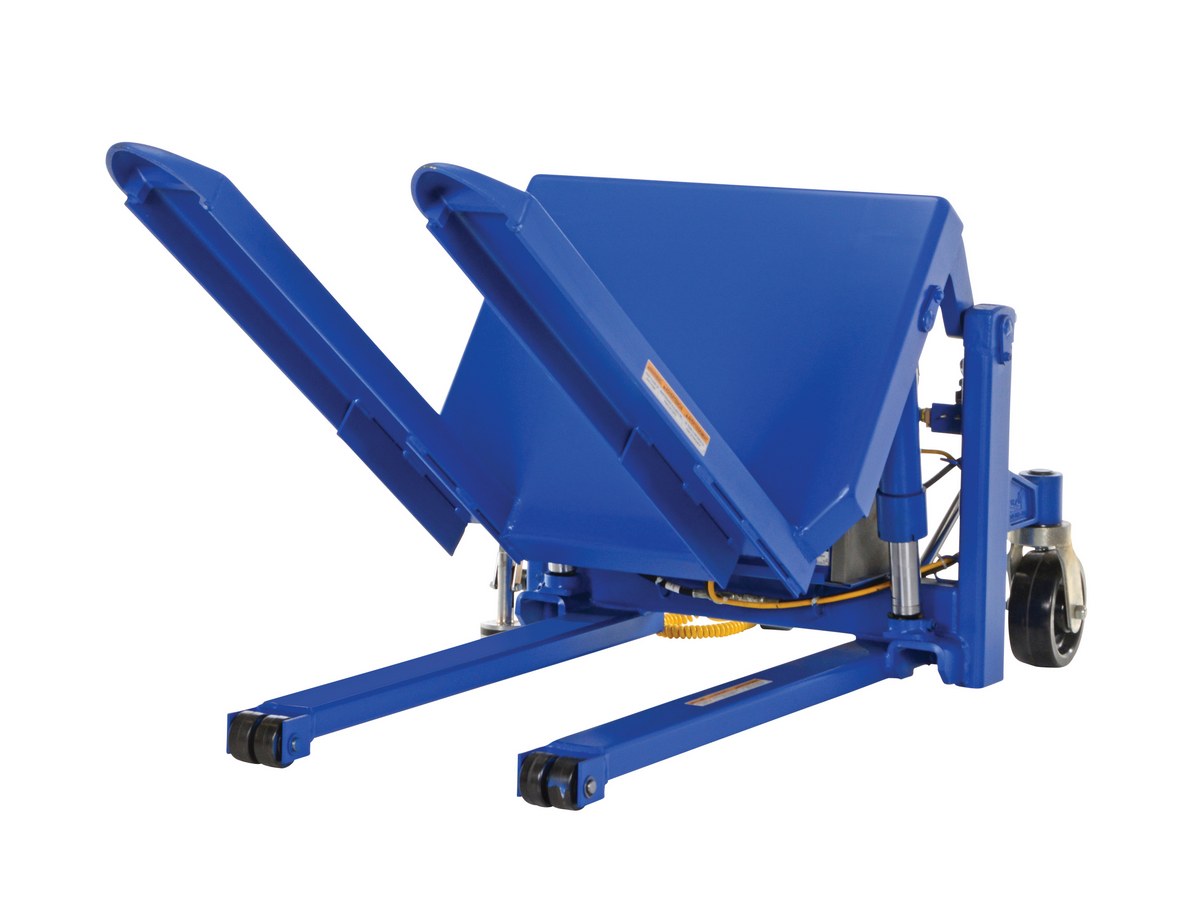

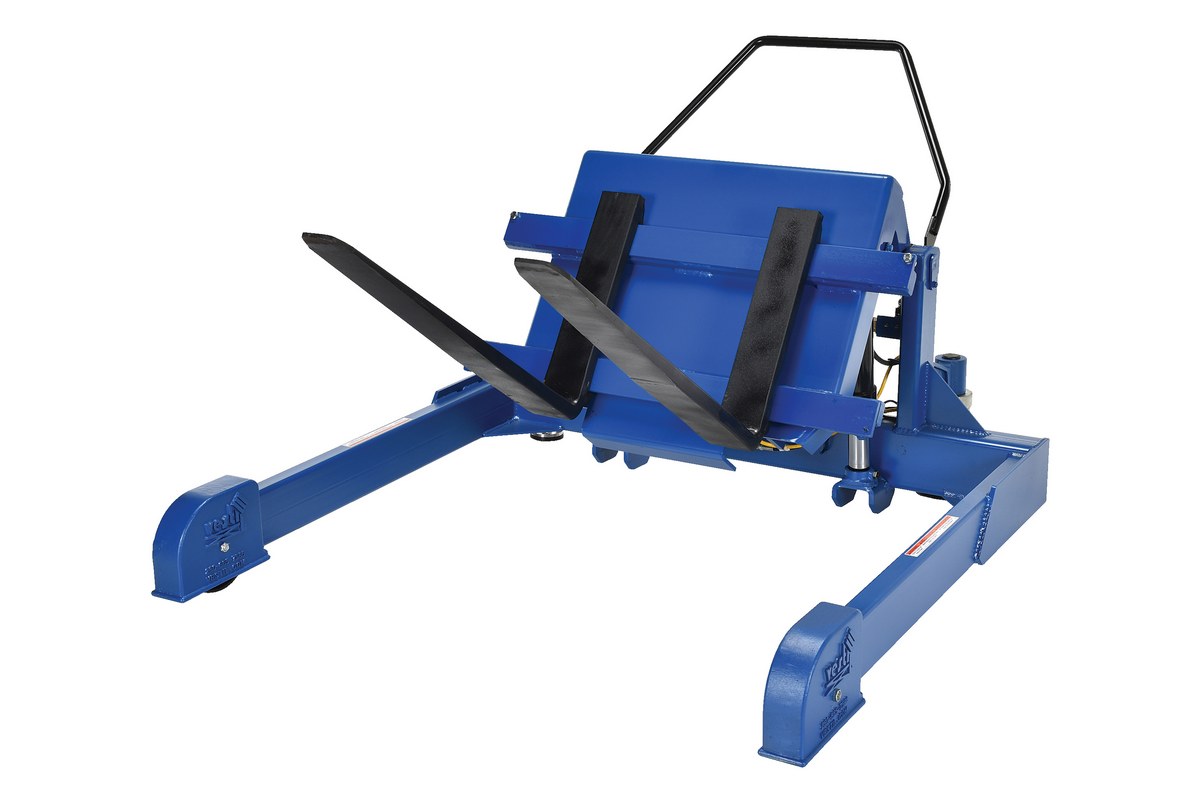

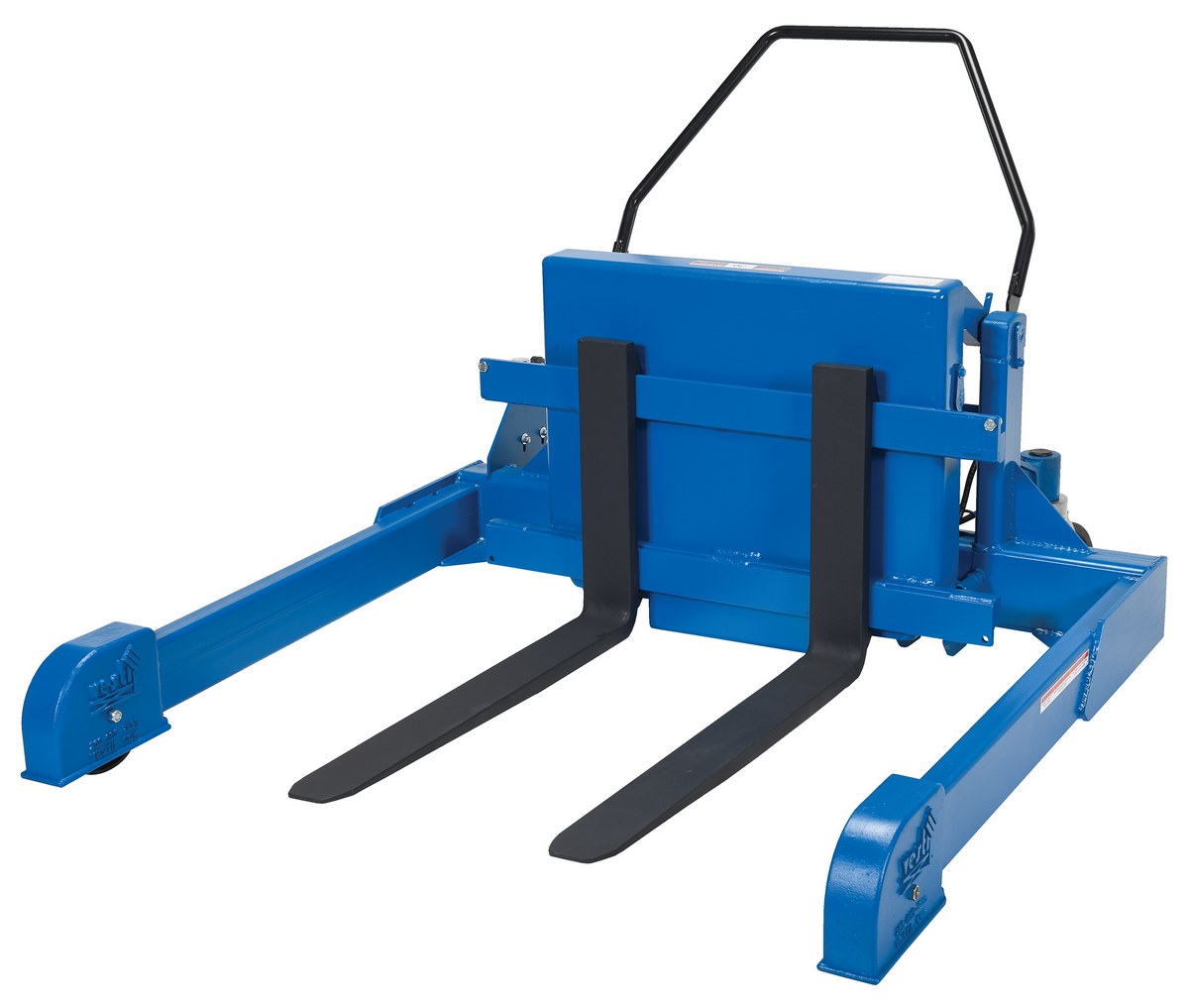

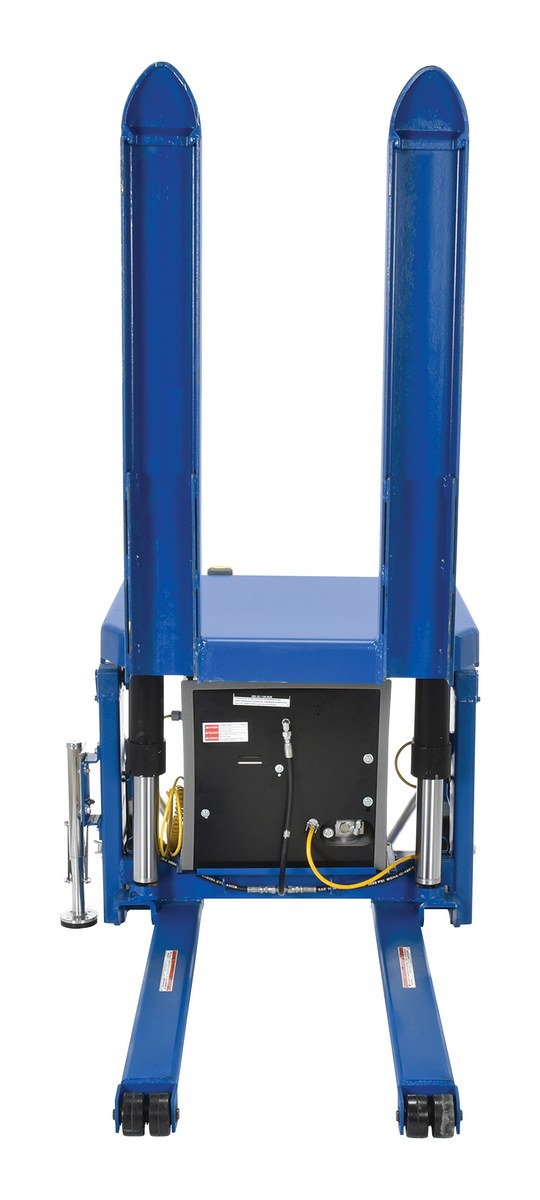

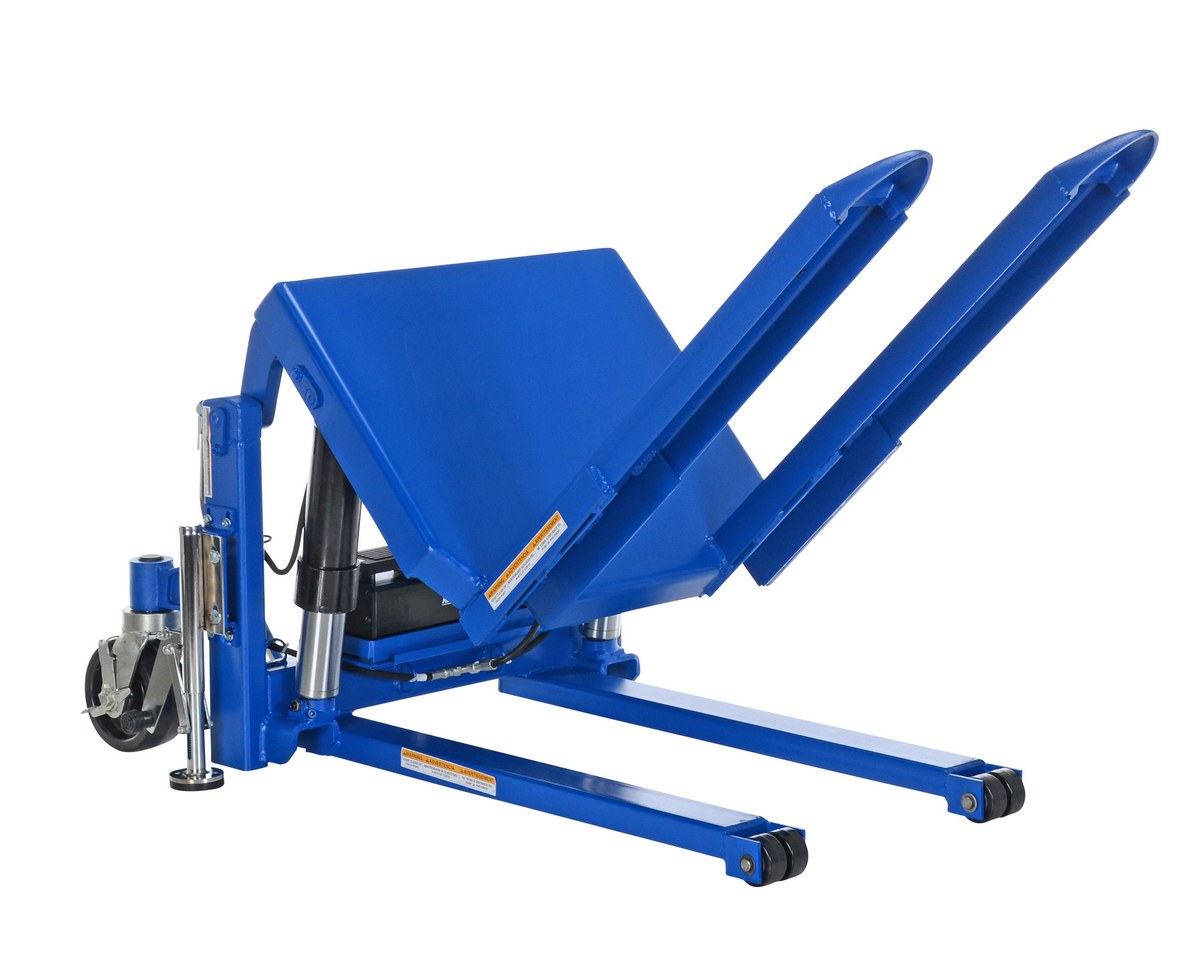

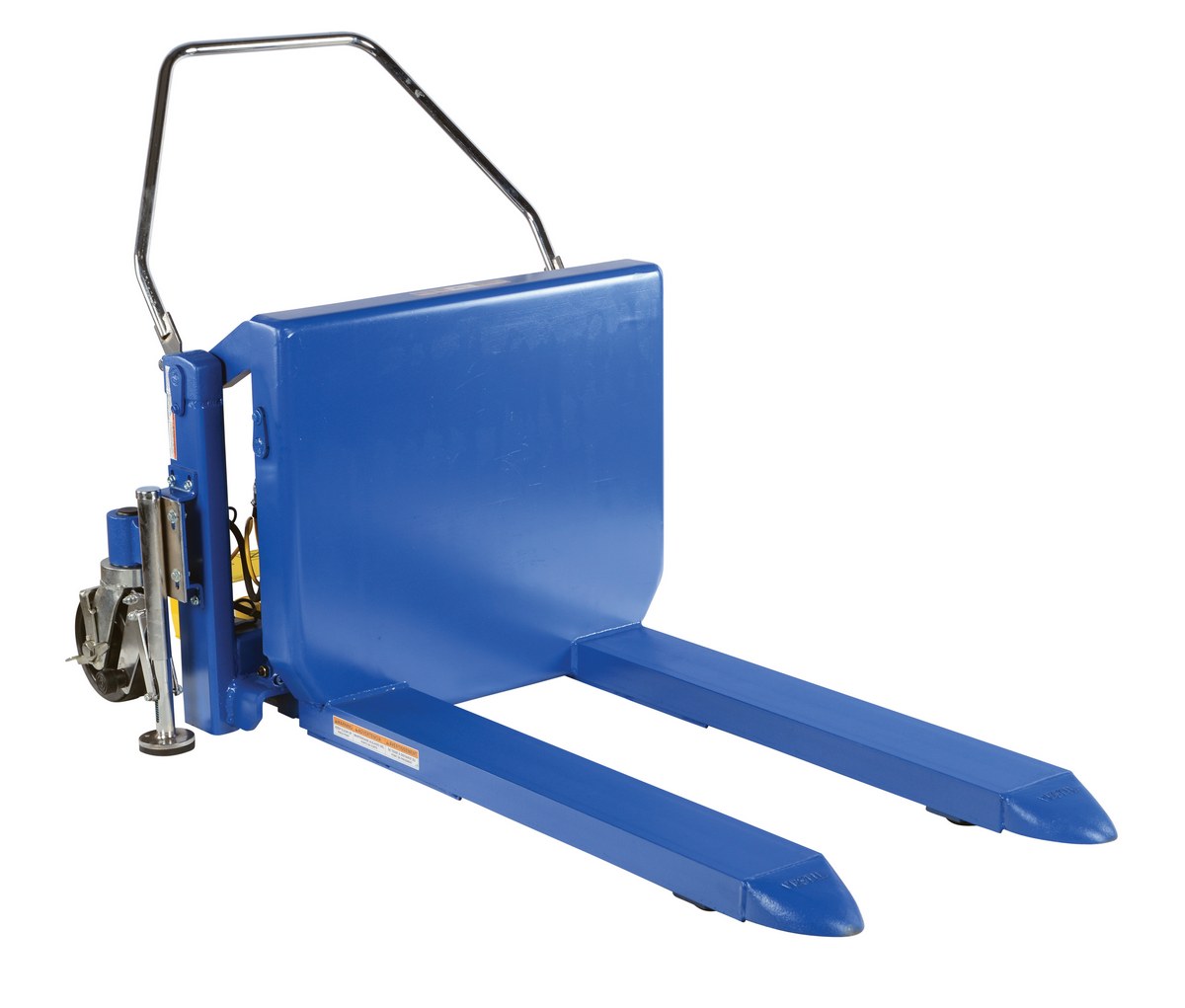

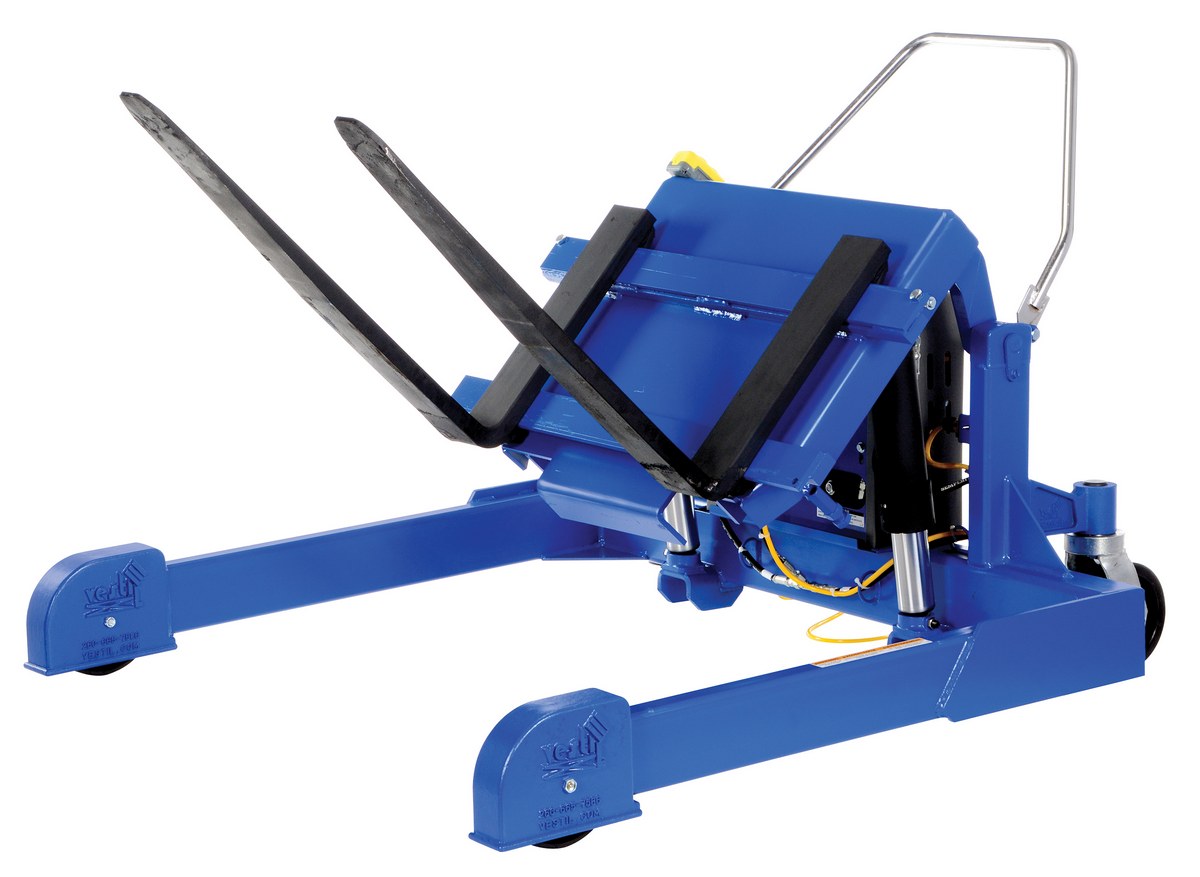

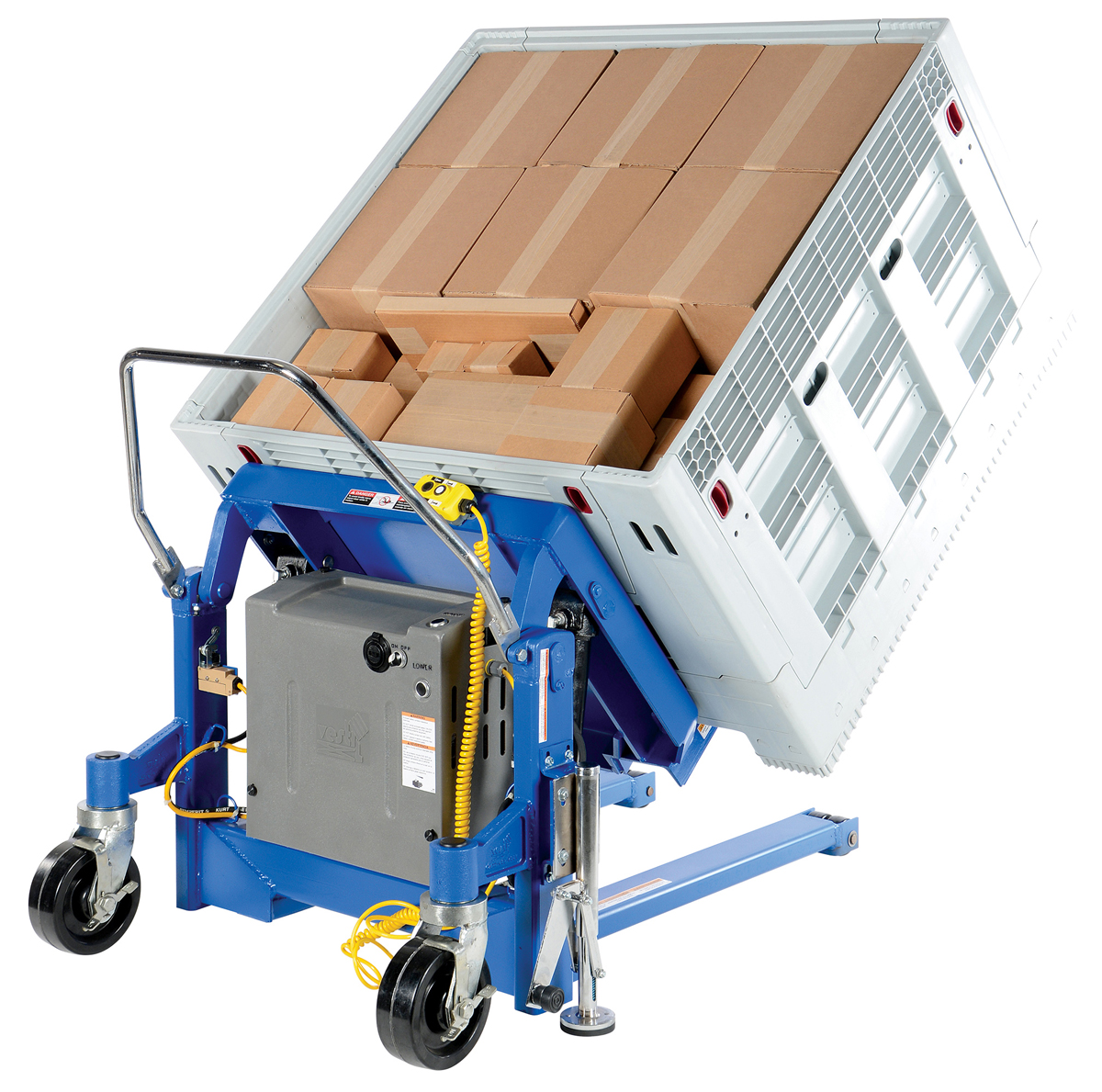

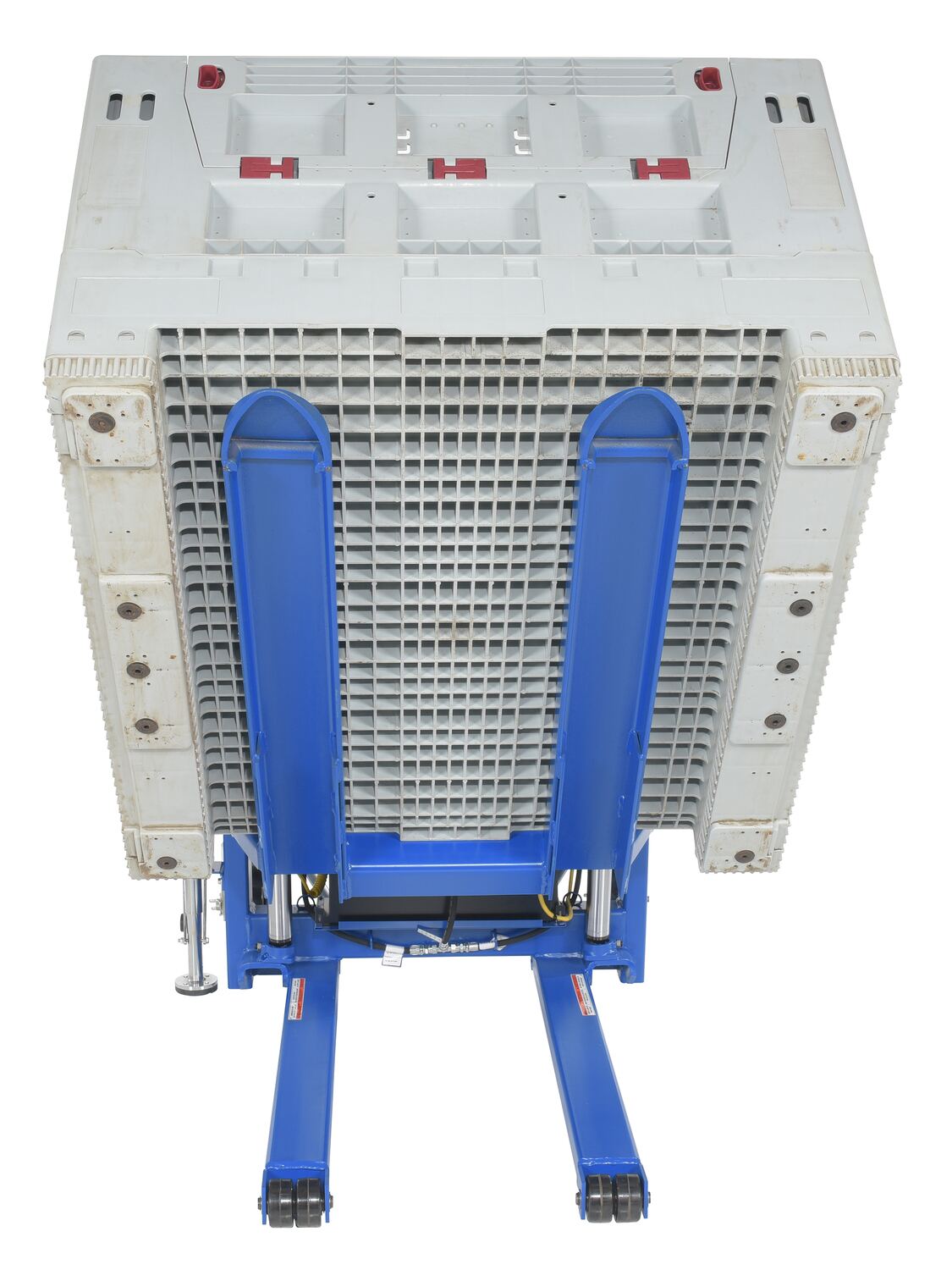

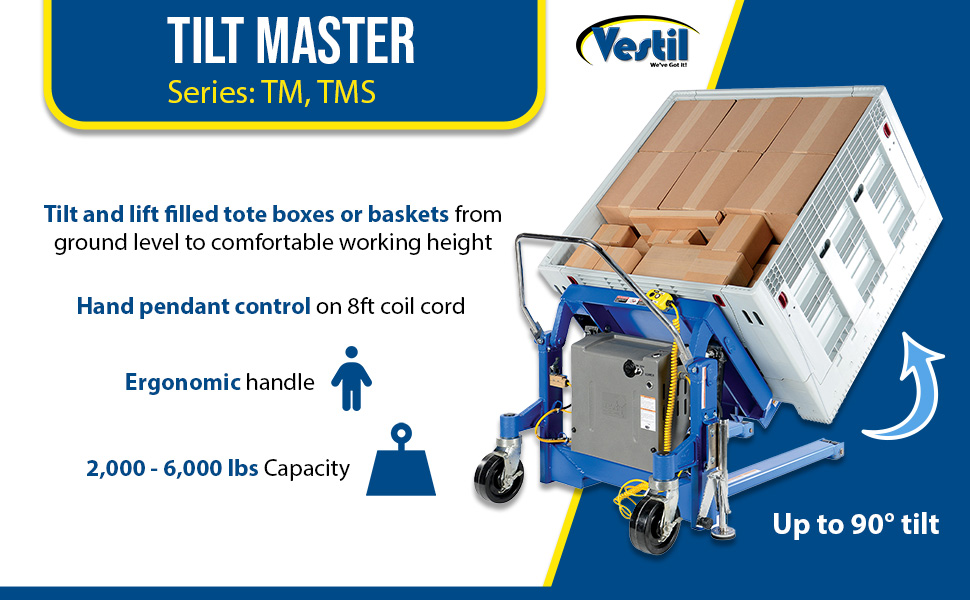

Tilt Master & Tilt Master Straddle

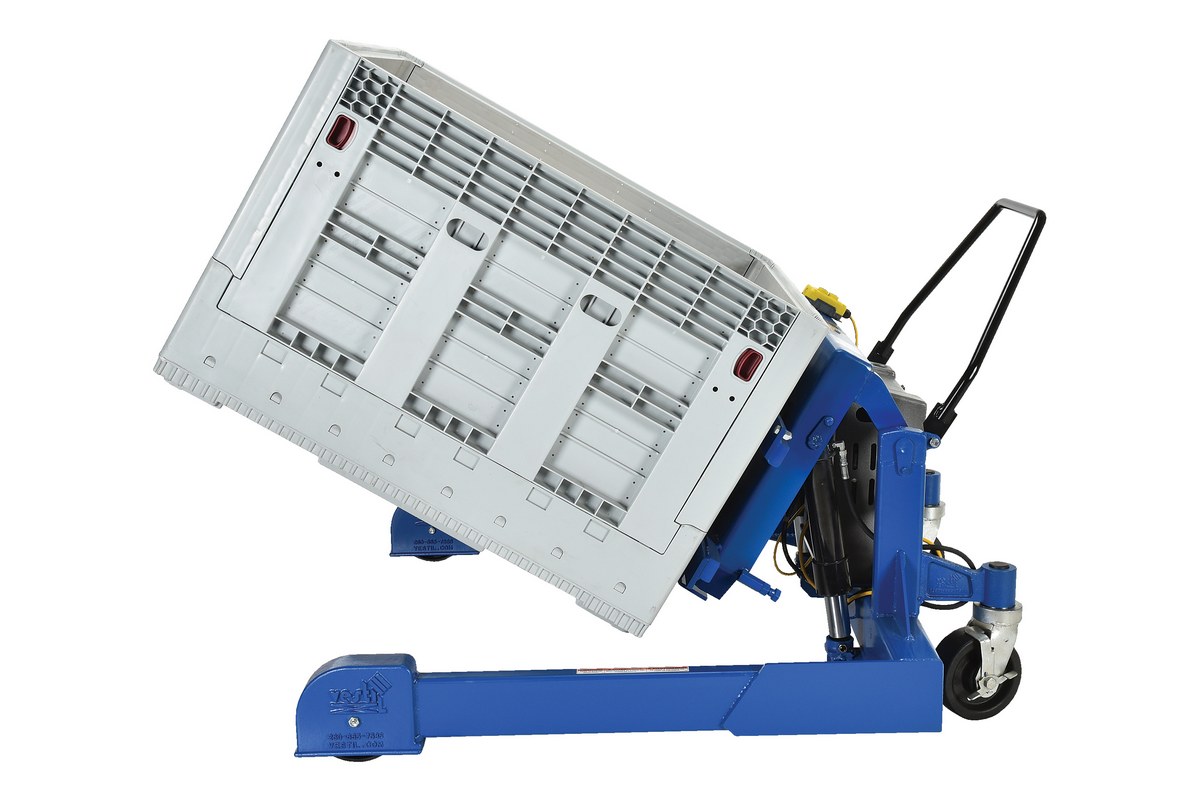

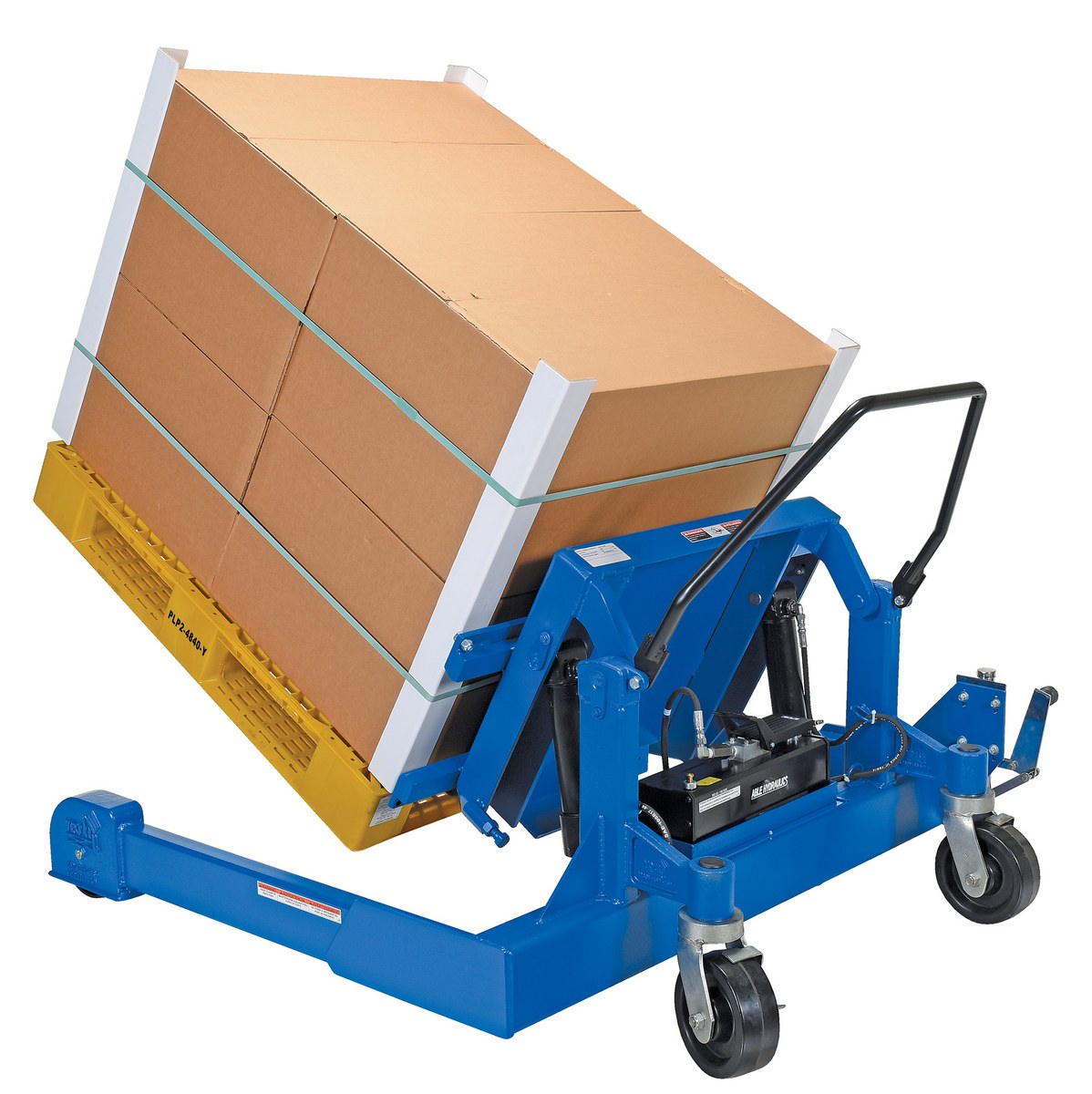

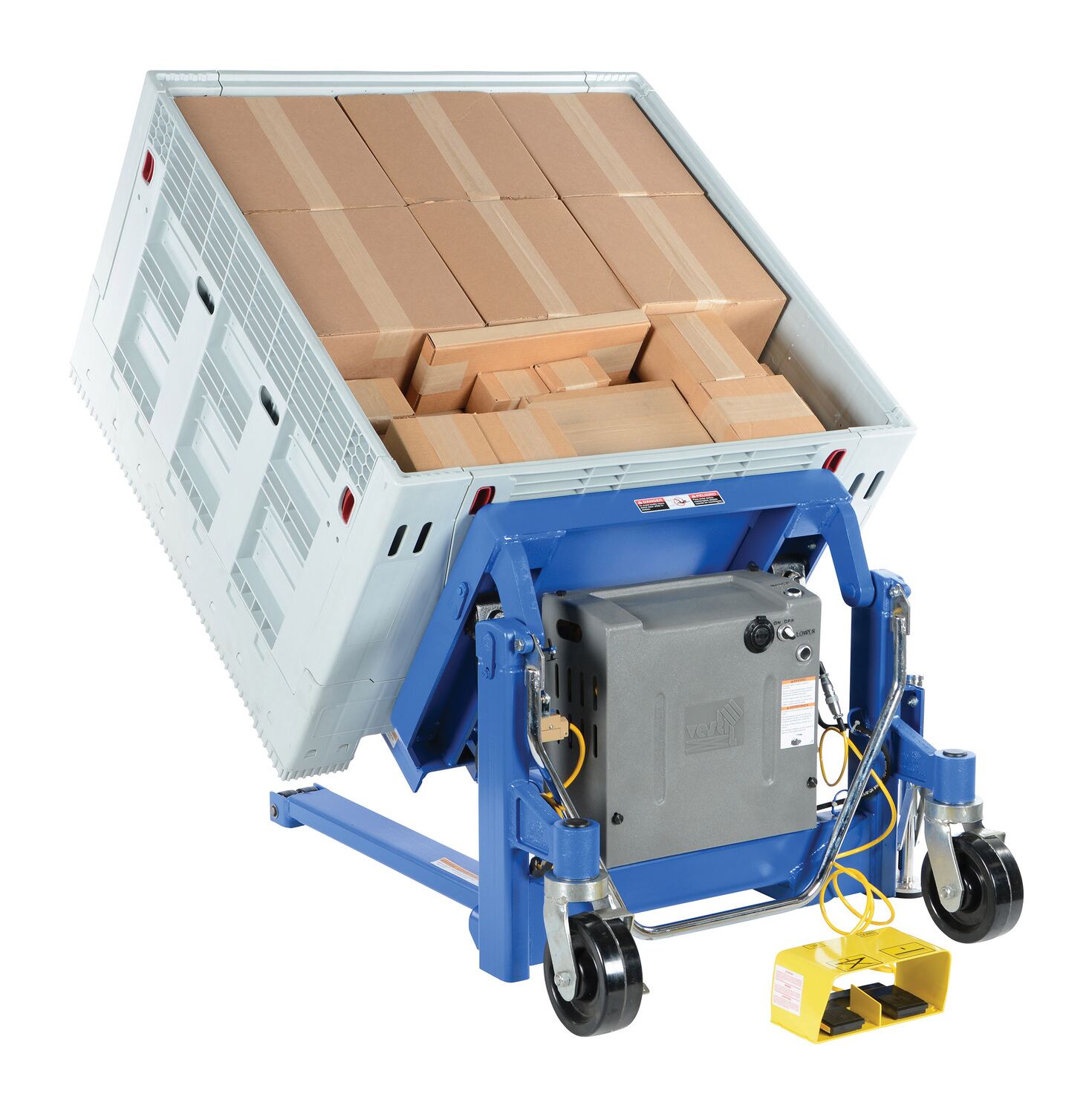

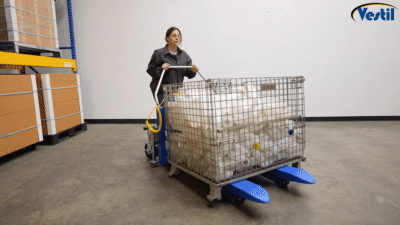

Lift and position filled tote boxes or baskets without the need of a fork truck or lift table using the newly designed heavy-duty Tilt Master. These 90 degree tilters will function as a transporter by moving completed products from work station to work station without waiting for a fork truck.

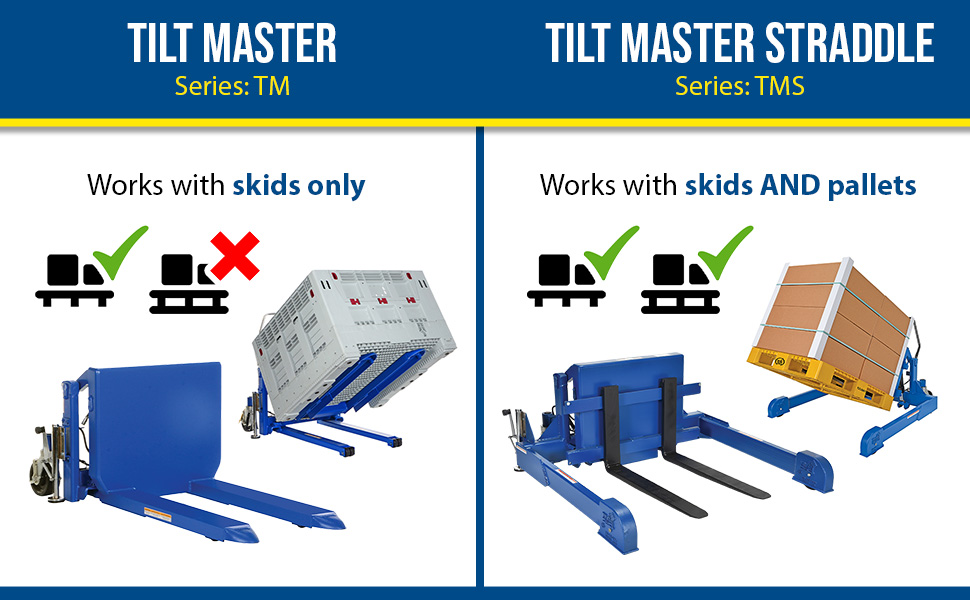

An ergonomic handle comes standard for quick and easy maneuverability. Unit has a thin profile to allow the user to get as close to the load as possible. Units roll easily on 8" x 3" phenolic steering wheels. Floor lock standard on non PTDS units. Series TM is designed to be used with open bottom pallets or skids only. The Tilt Master Straddle units, series TMS, can be used with virtually any kind of container or pallet. Units come standard with a hand pendant control on an 8 foot coil cord.

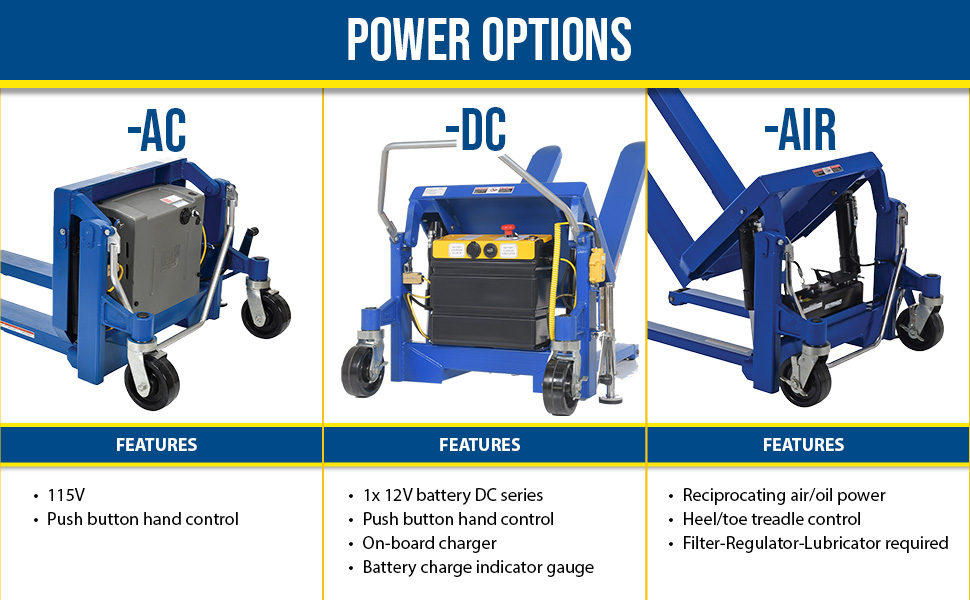

Three power options to choose from:

  • Suffix -AC is 115V, 1 phase power with a push-button hand control.

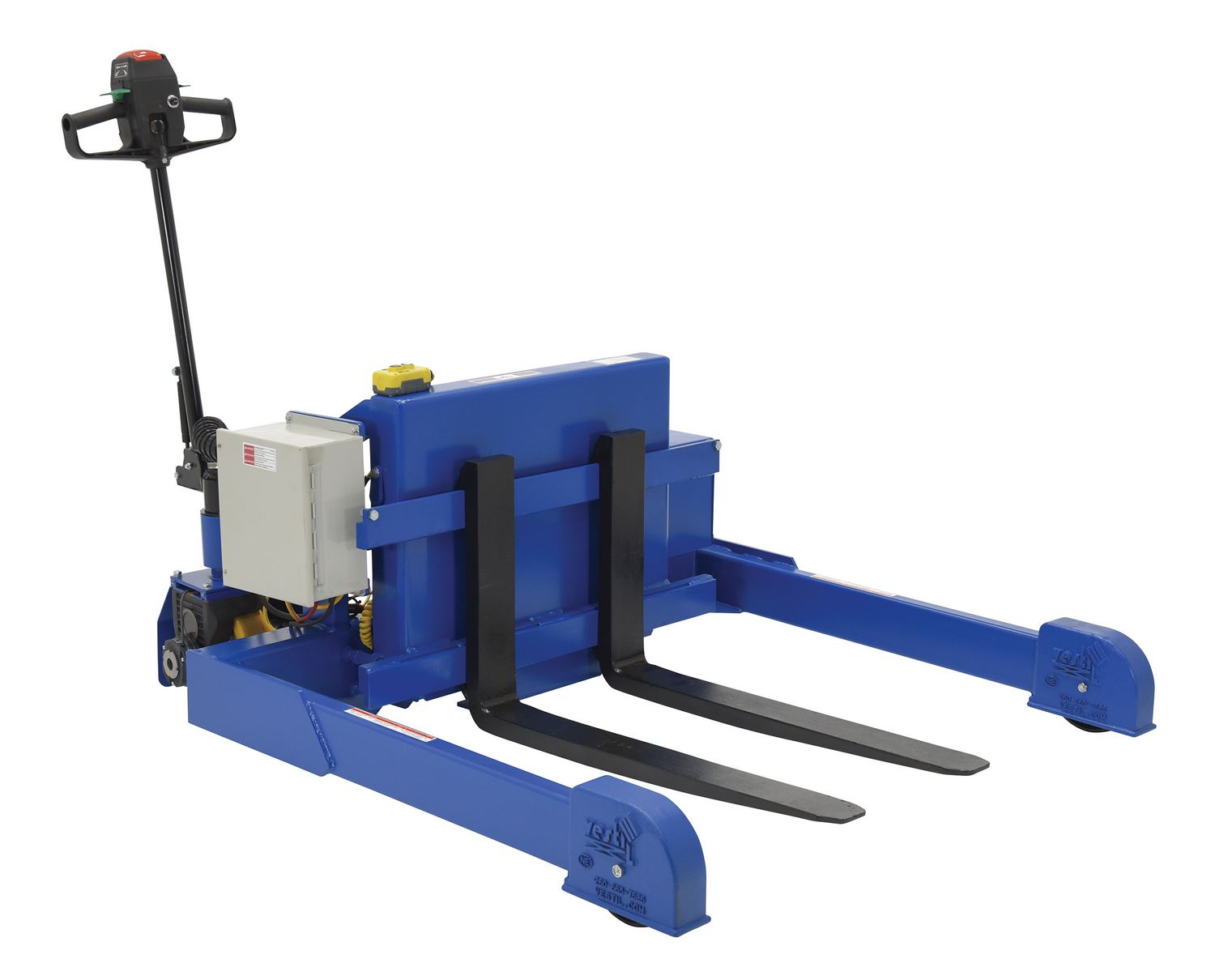

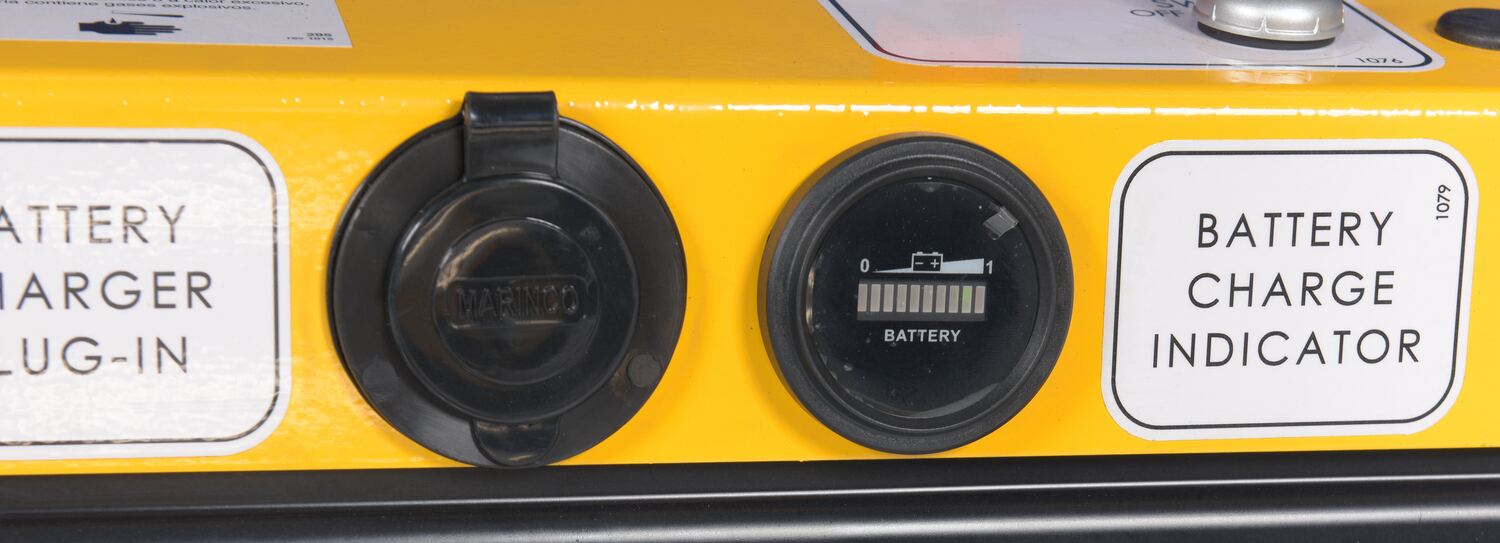

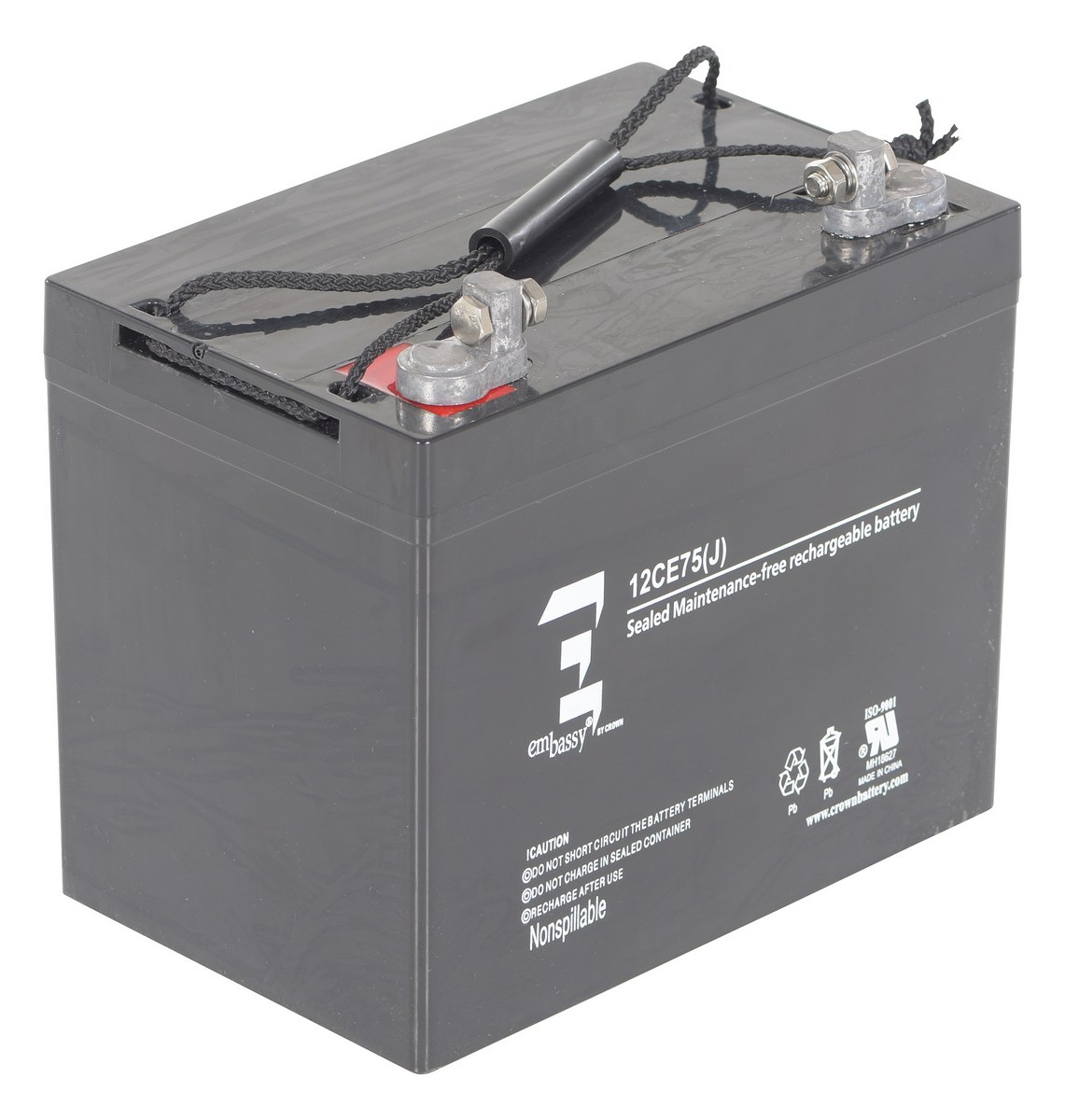

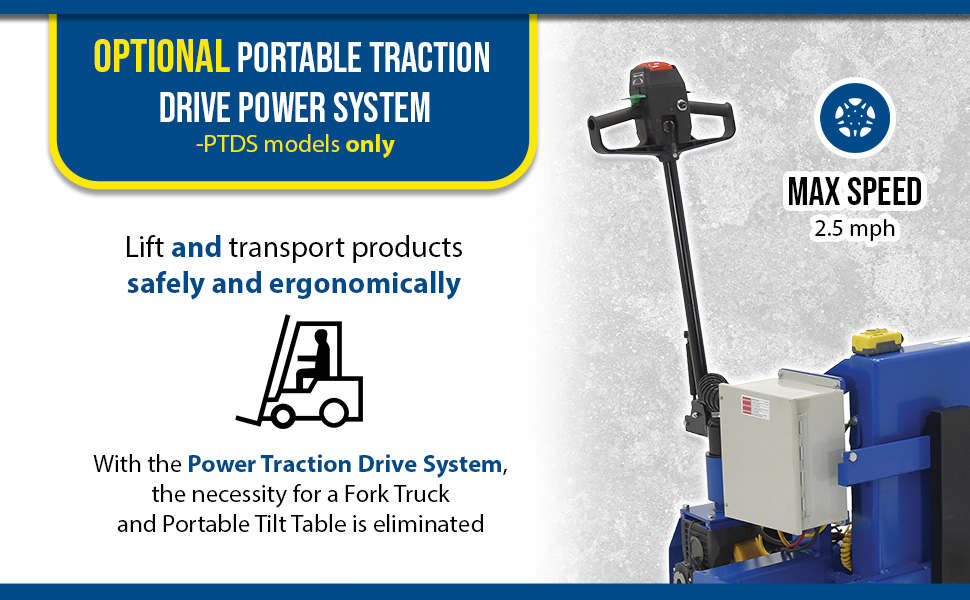

  • Suffix -DC and DC-PTDS includes one (1) 12V battery DC series, (2) 12V batteries) DC-PTDS series, push-button hand control, on-board charger and battery charge indicator gauge.
  • Suffix -DC-FC includes one (1) 12V battery, foot control, on-board charger and battery charge indicator gauge. Suffix -AIR features reciprocating air/oil power with a heel/toe foot treadle control. (Filter -Regulator-Lubricator Required)

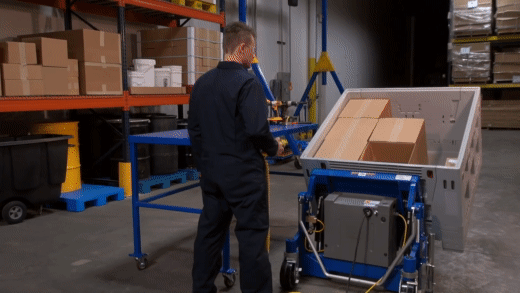

Applications

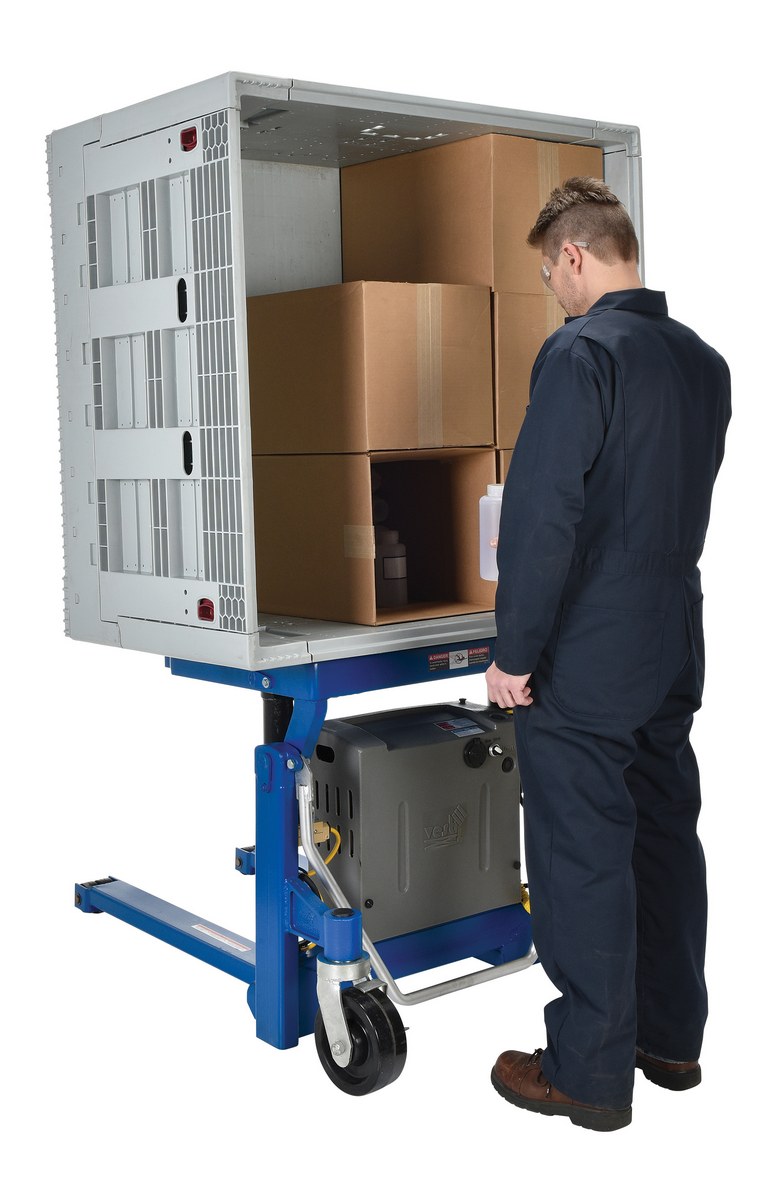

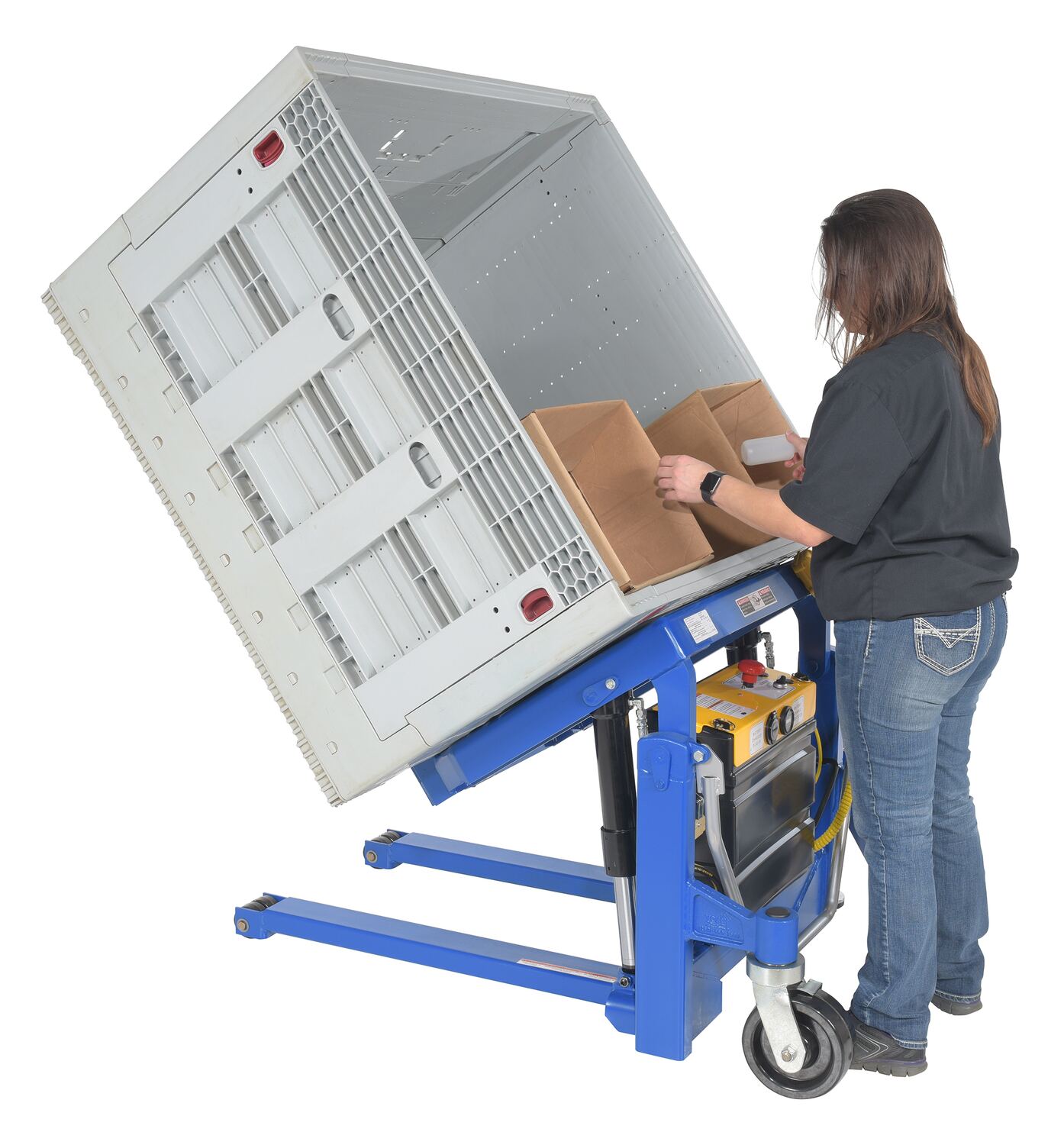

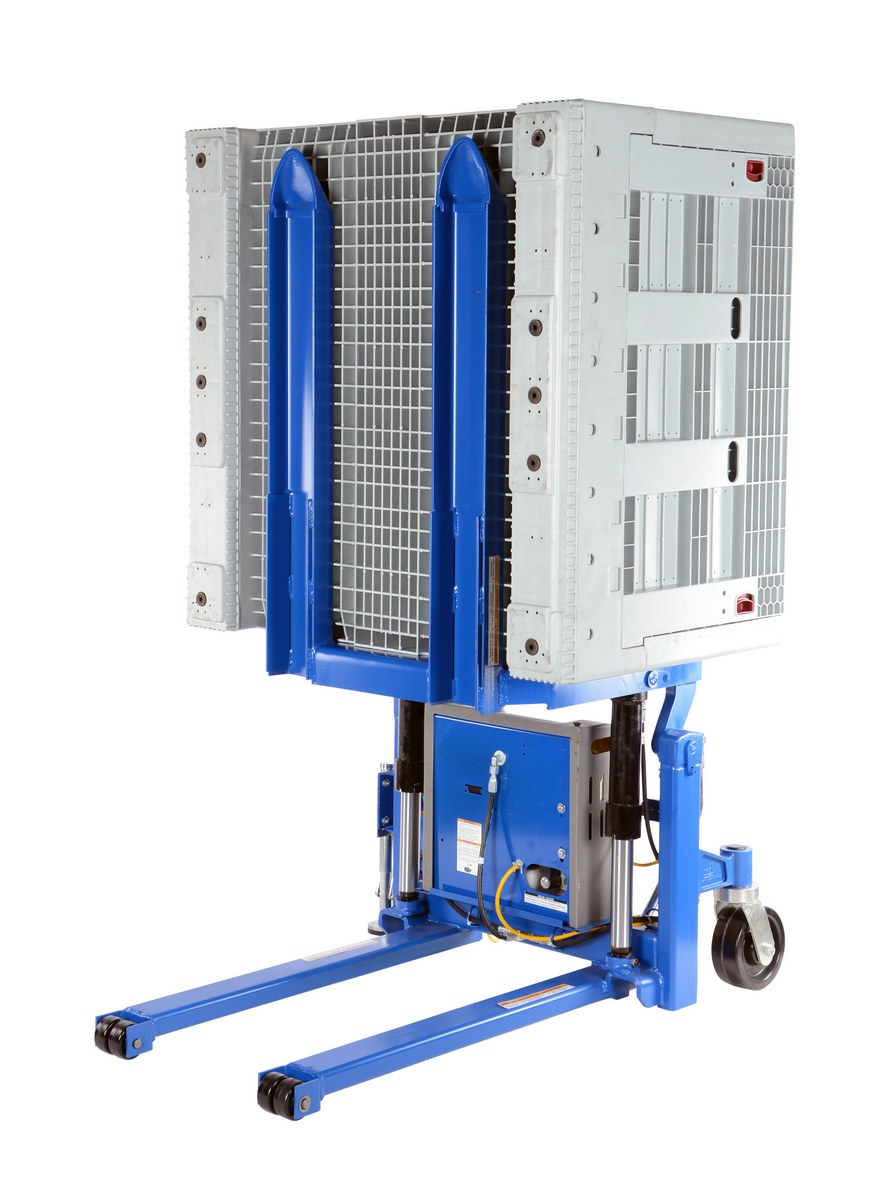

  • Tilts products from ground level to a comfortable operator working height
  • Doubles as a pallet truck and a portable tilt table
  • DC powered lifting mechanism for efficiency

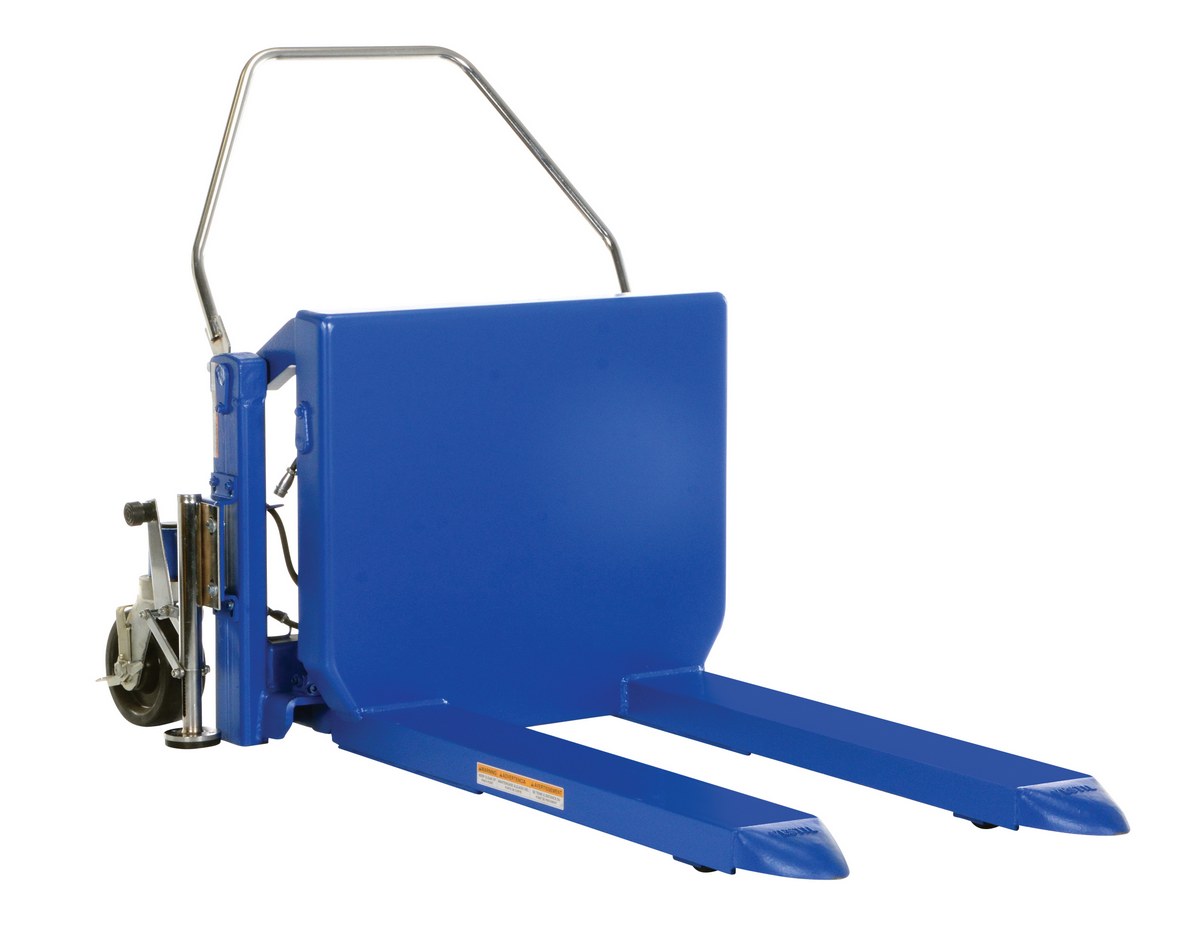

TM-20-AC

model TM-20-AC

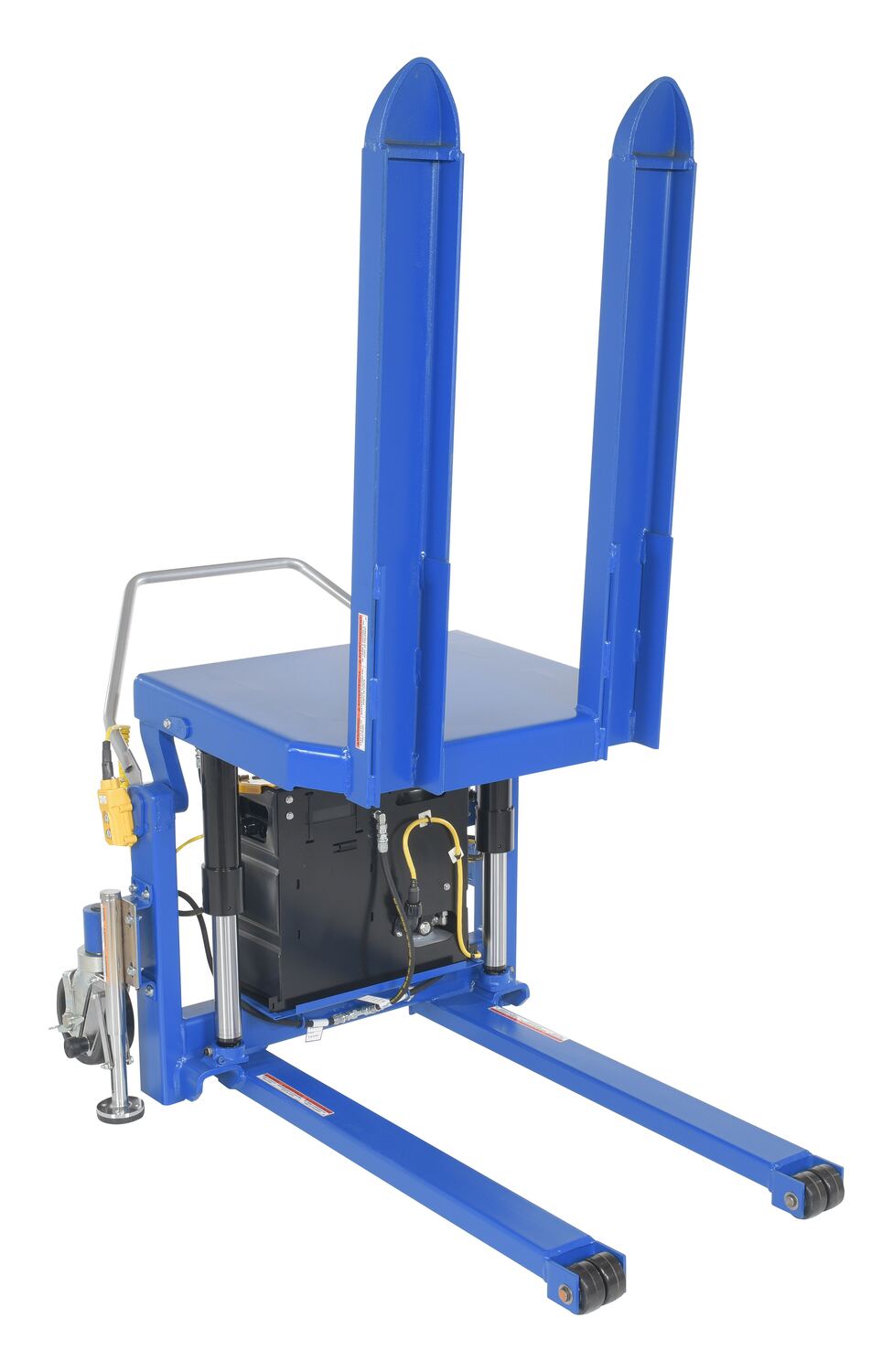

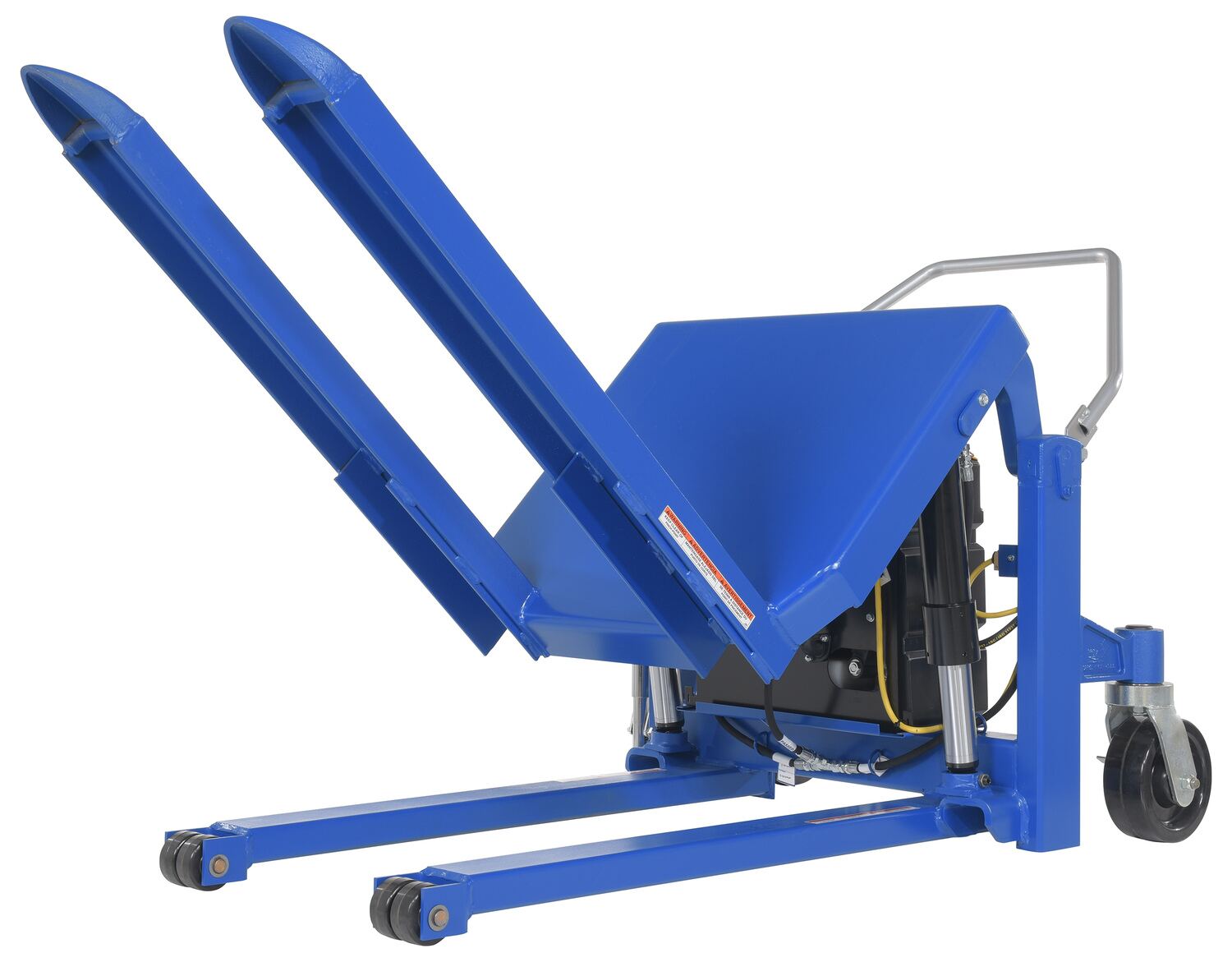

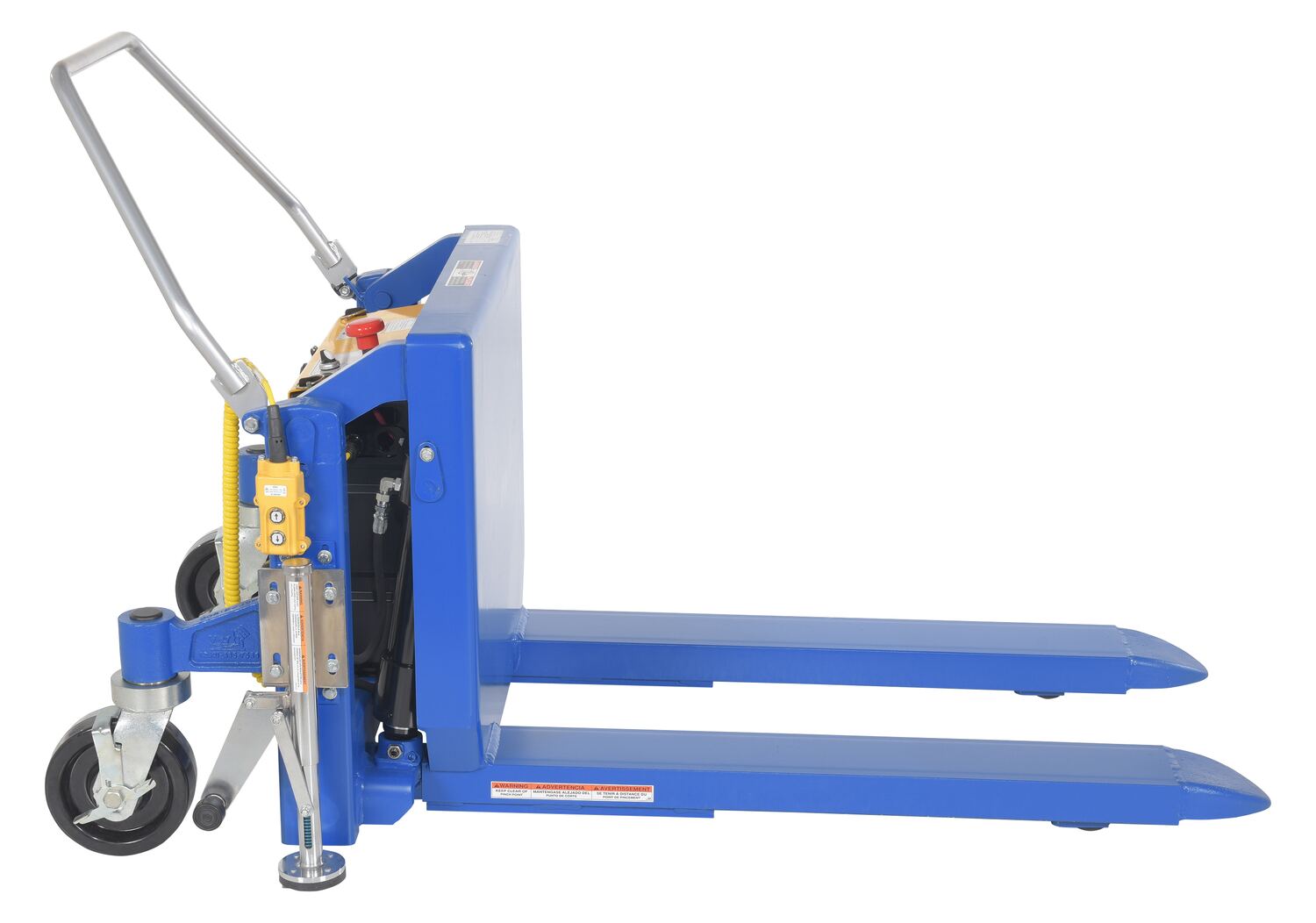

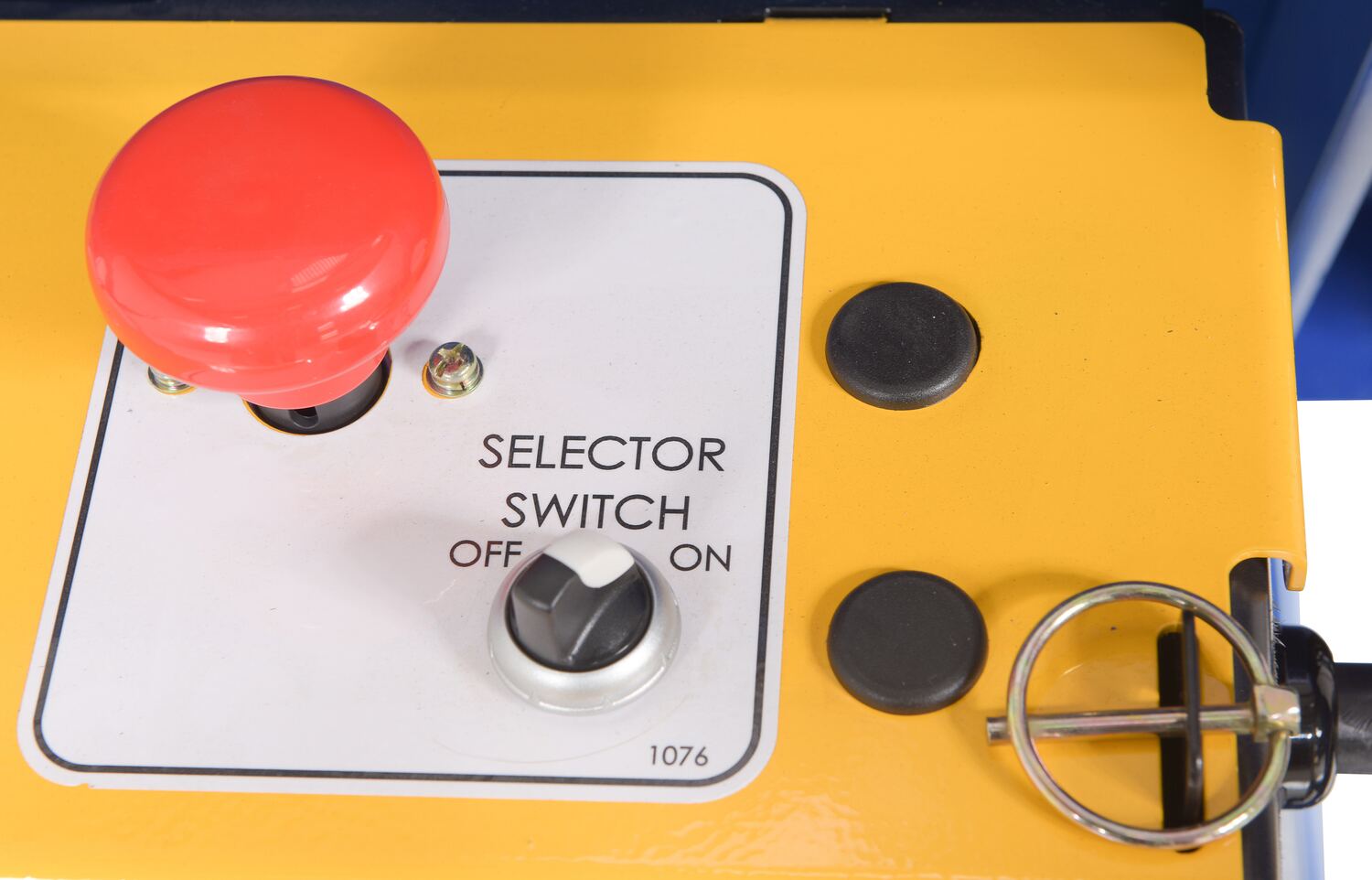

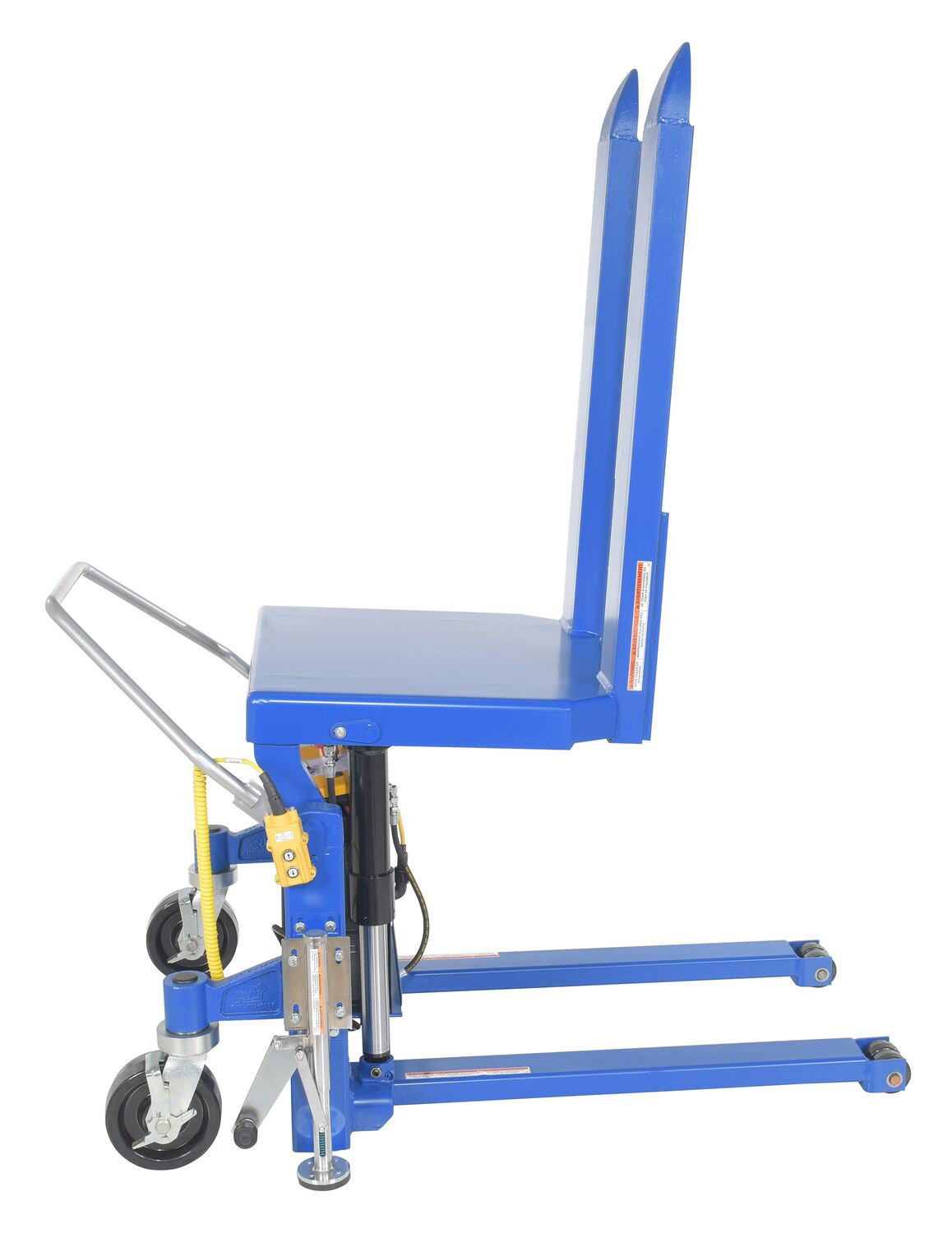

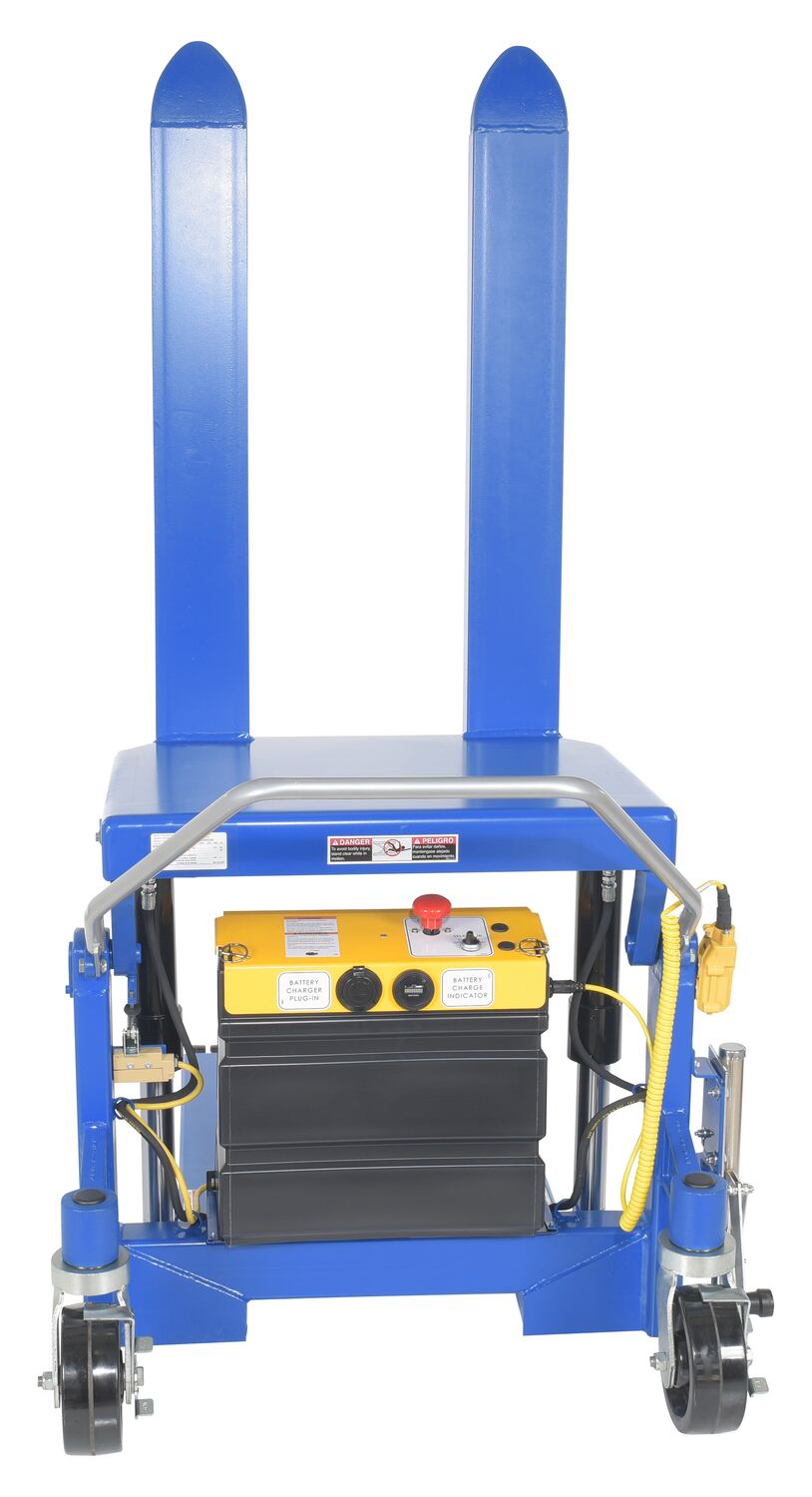

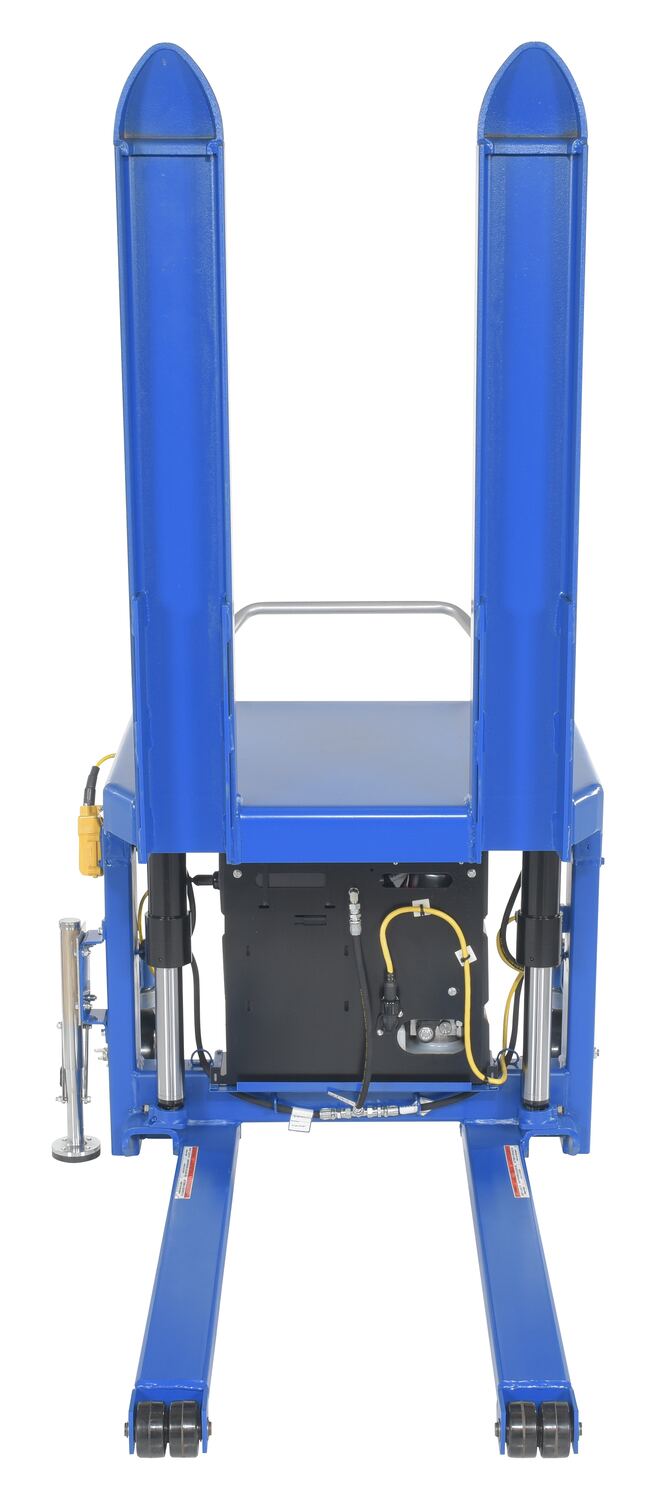

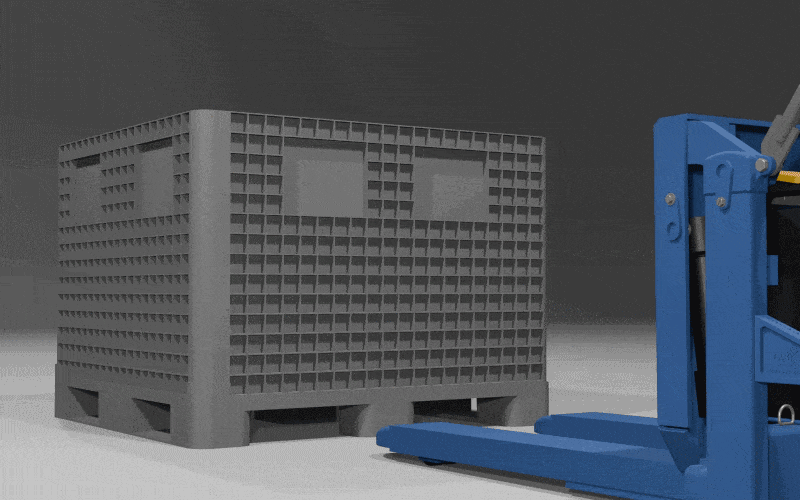

TM-20-DC

model TM-20-DC

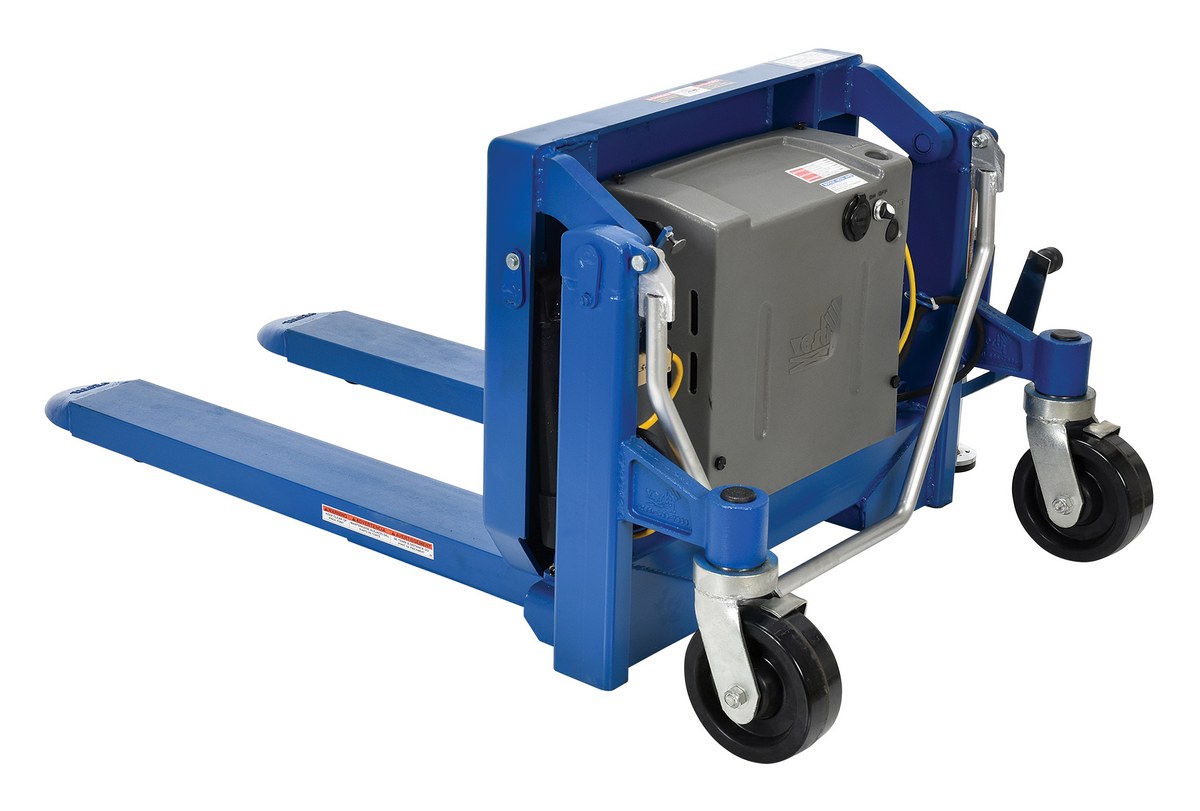

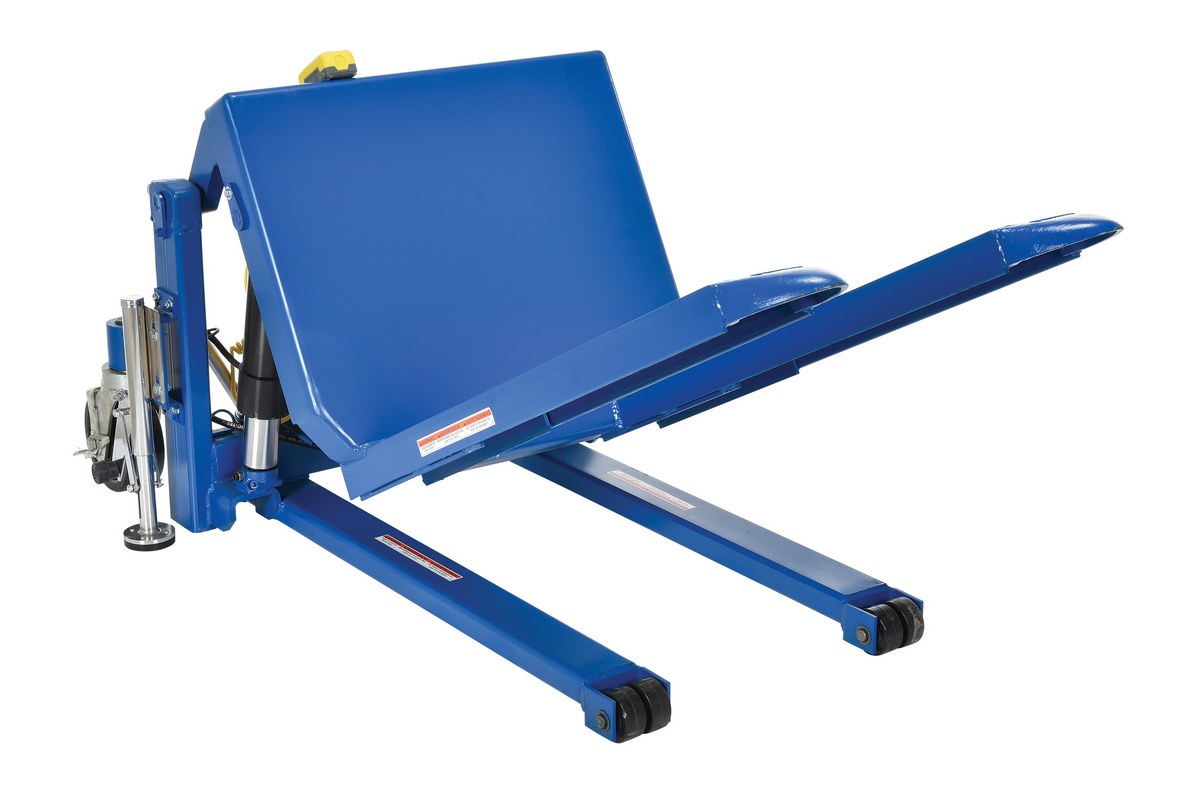

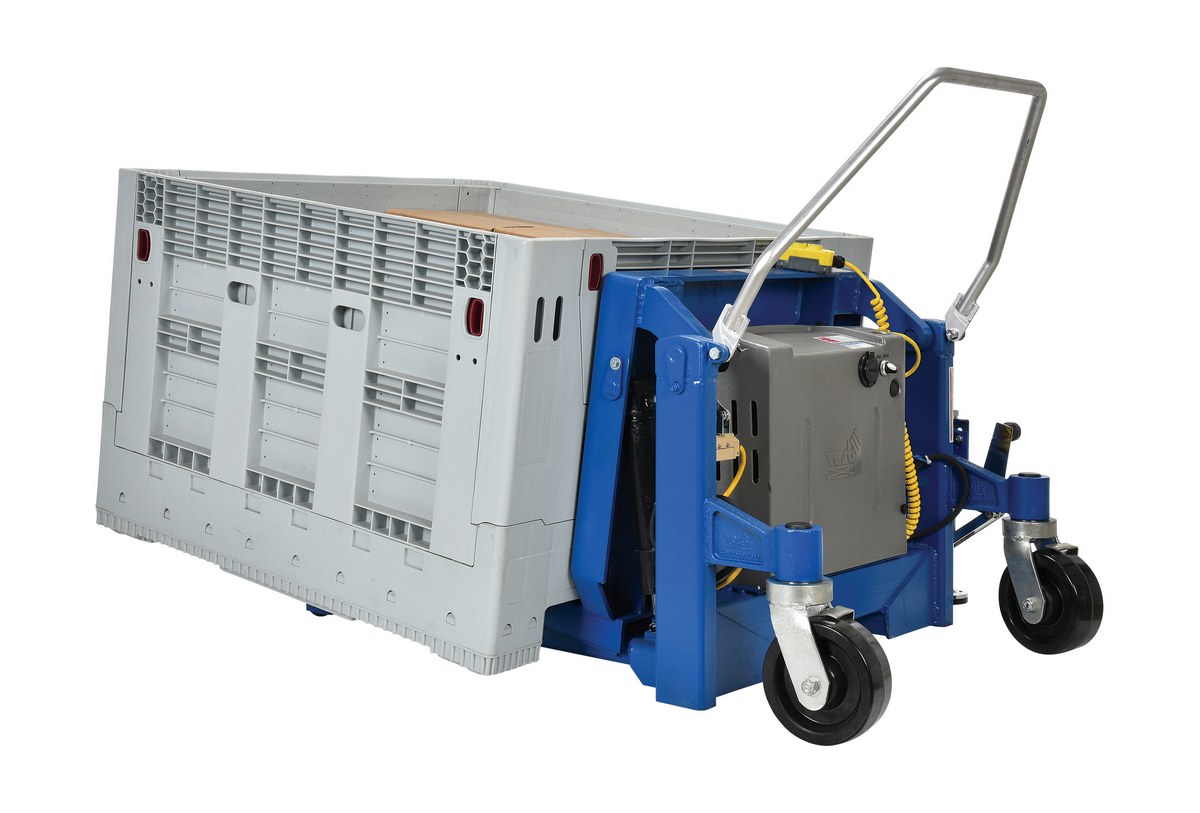

TM-40-AC

model TM-40-AC

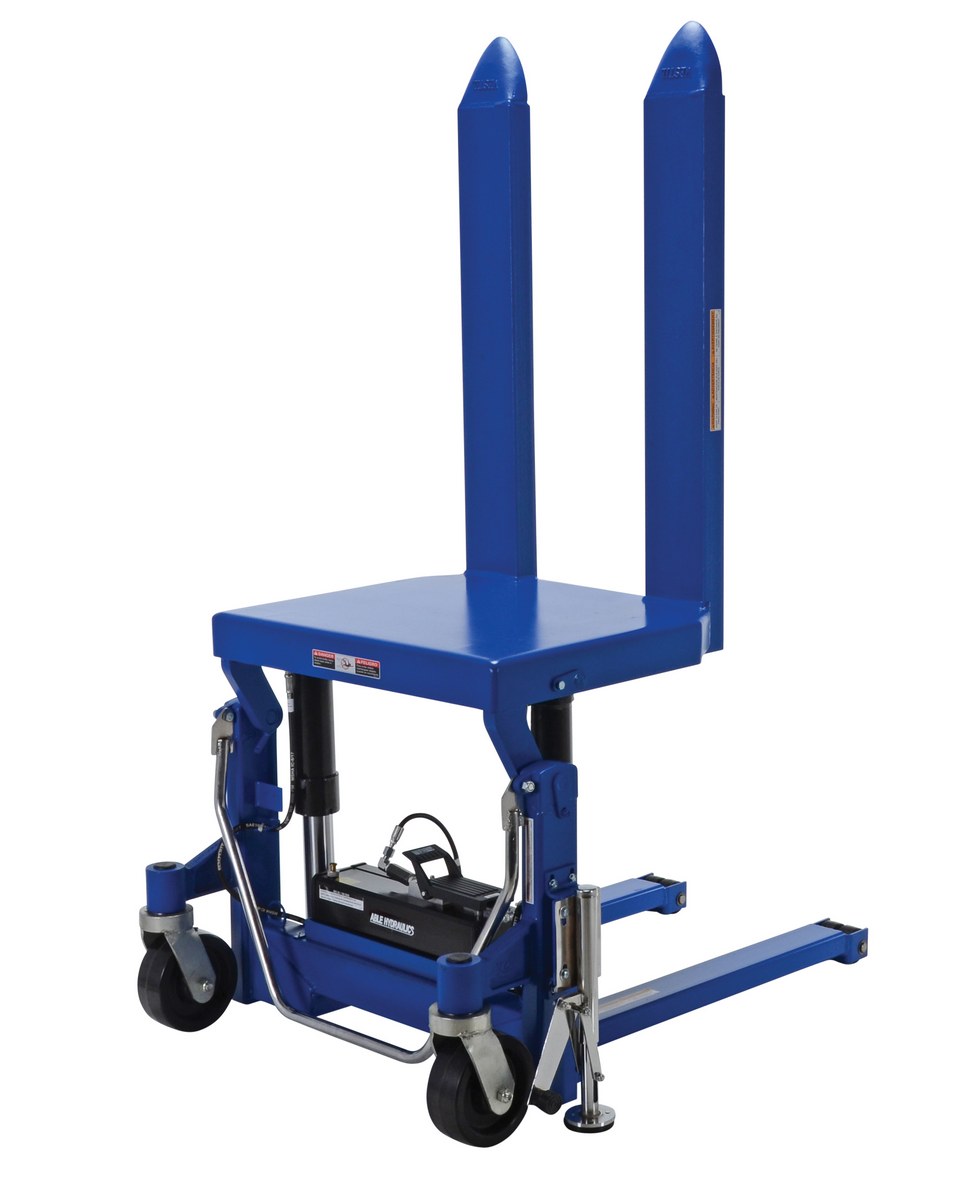

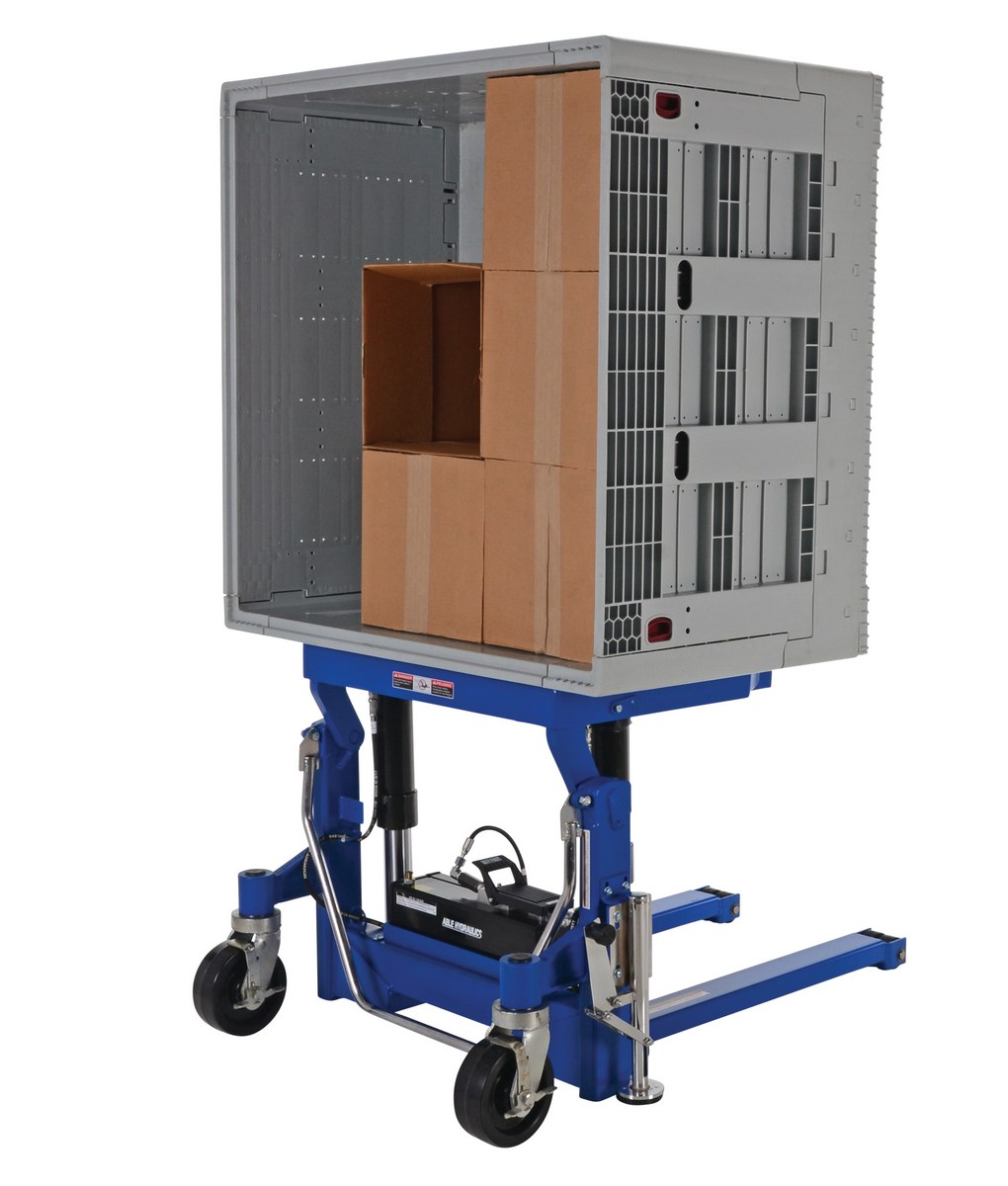

TM-40-AIR

model TM-40-AIR

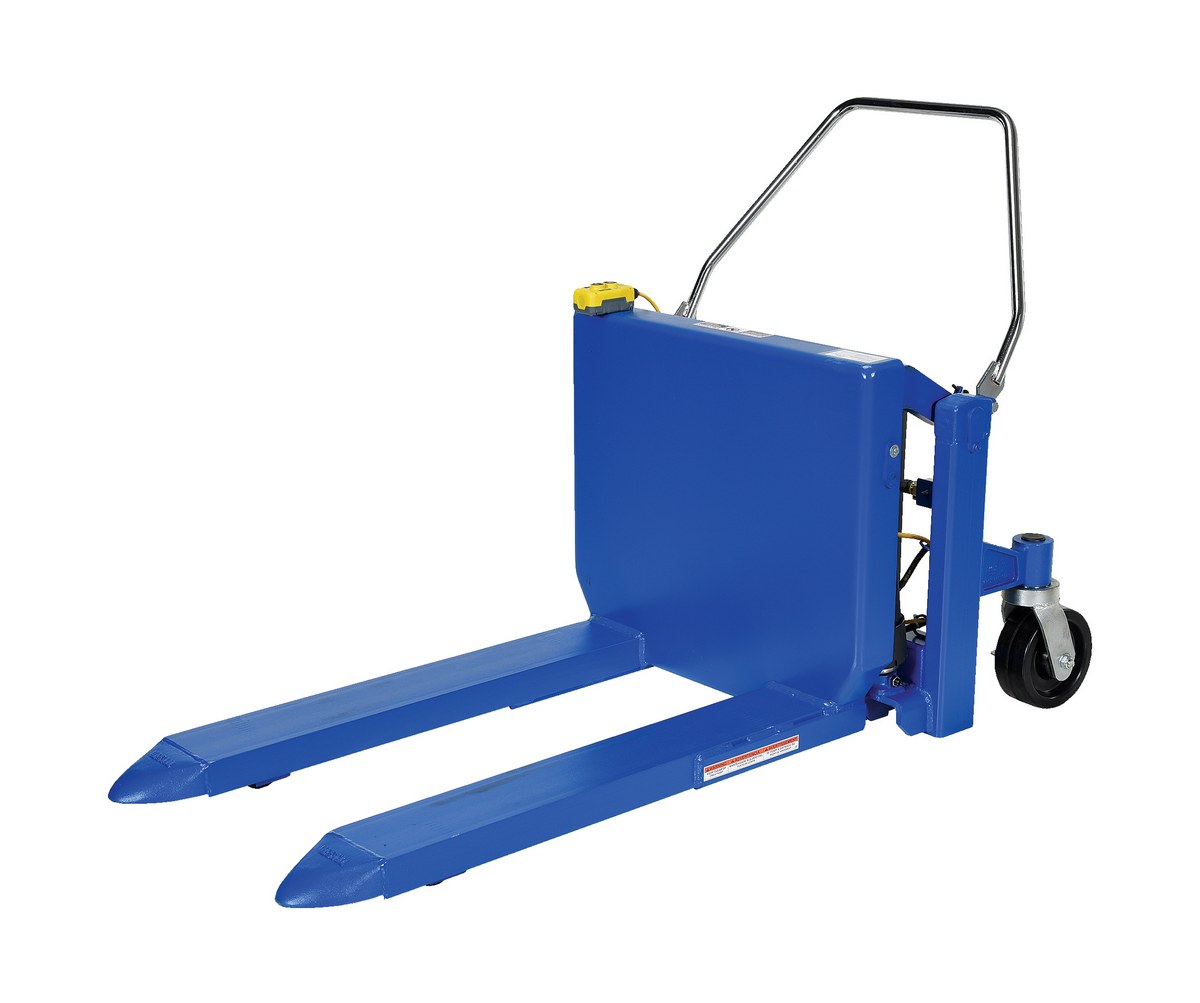

TM-60-AC

model TM-60-AC

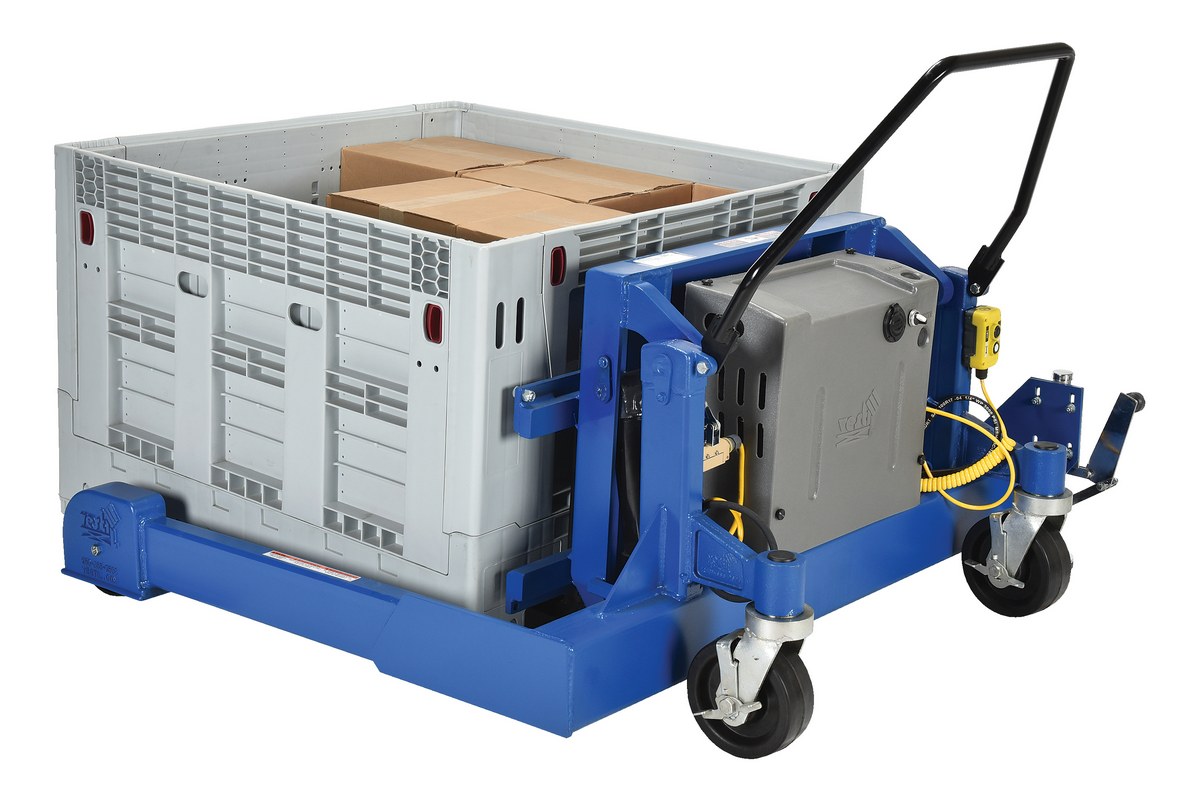

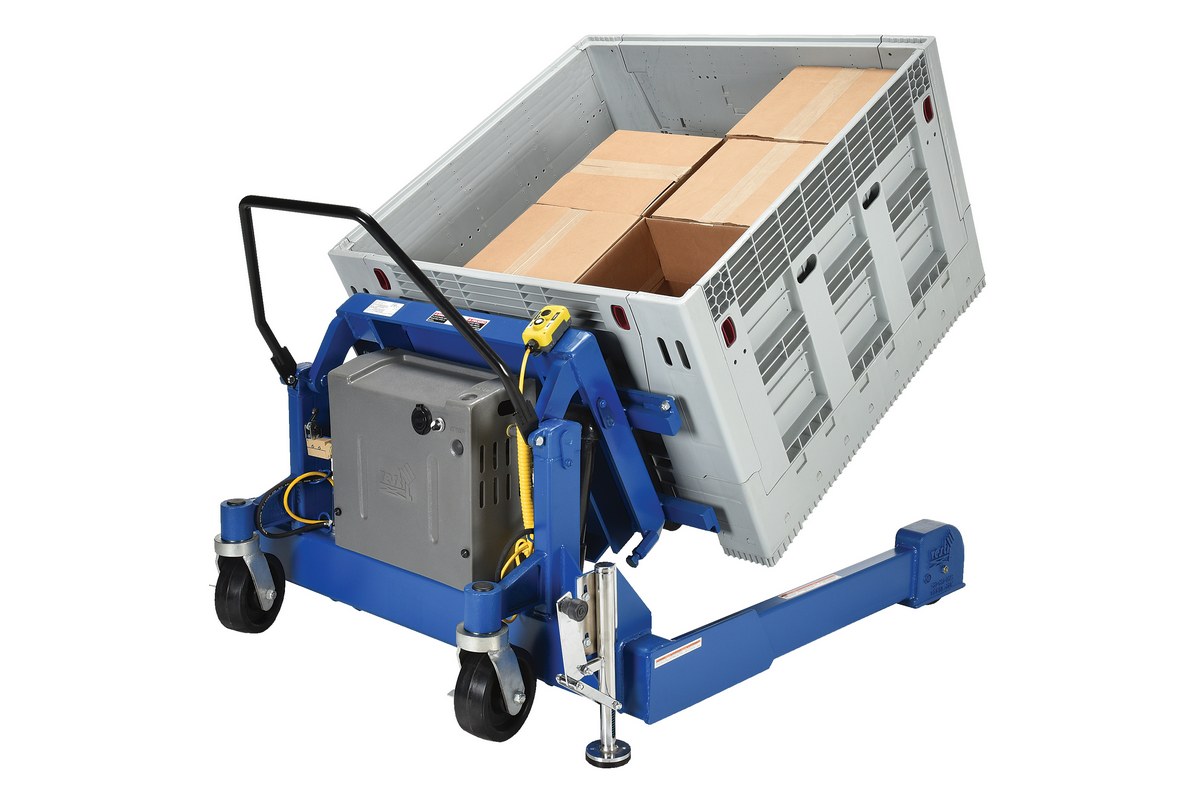

TMS-20-AC

model TMS-20-AC

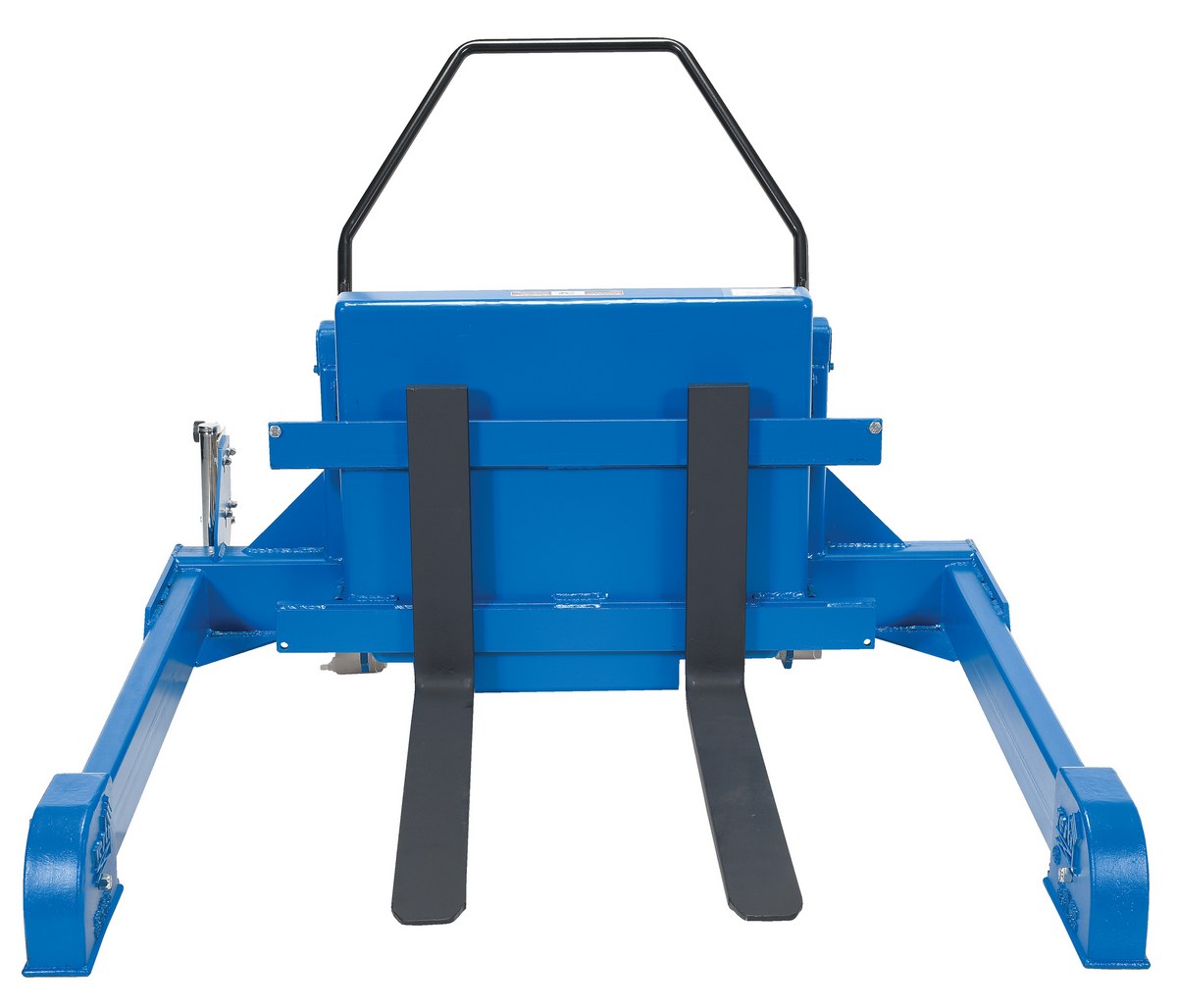

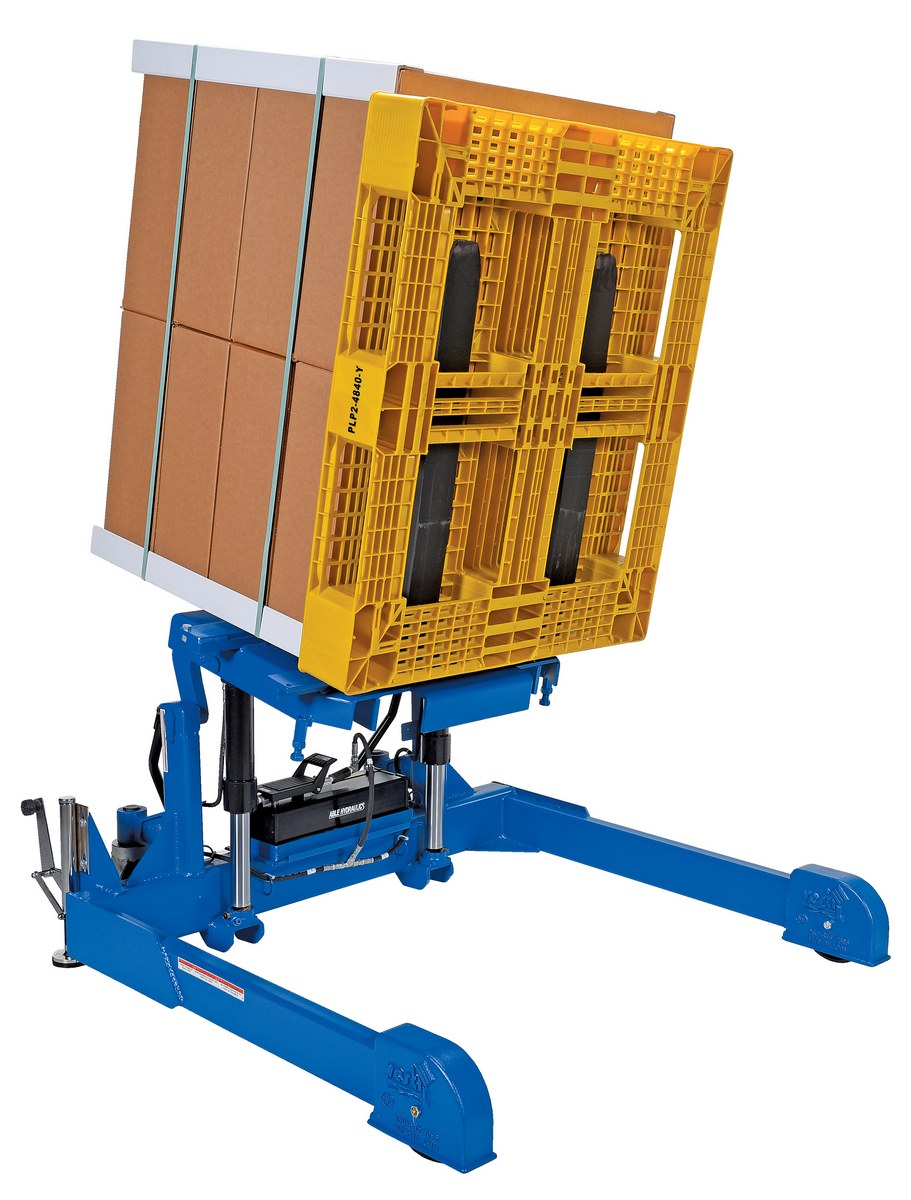

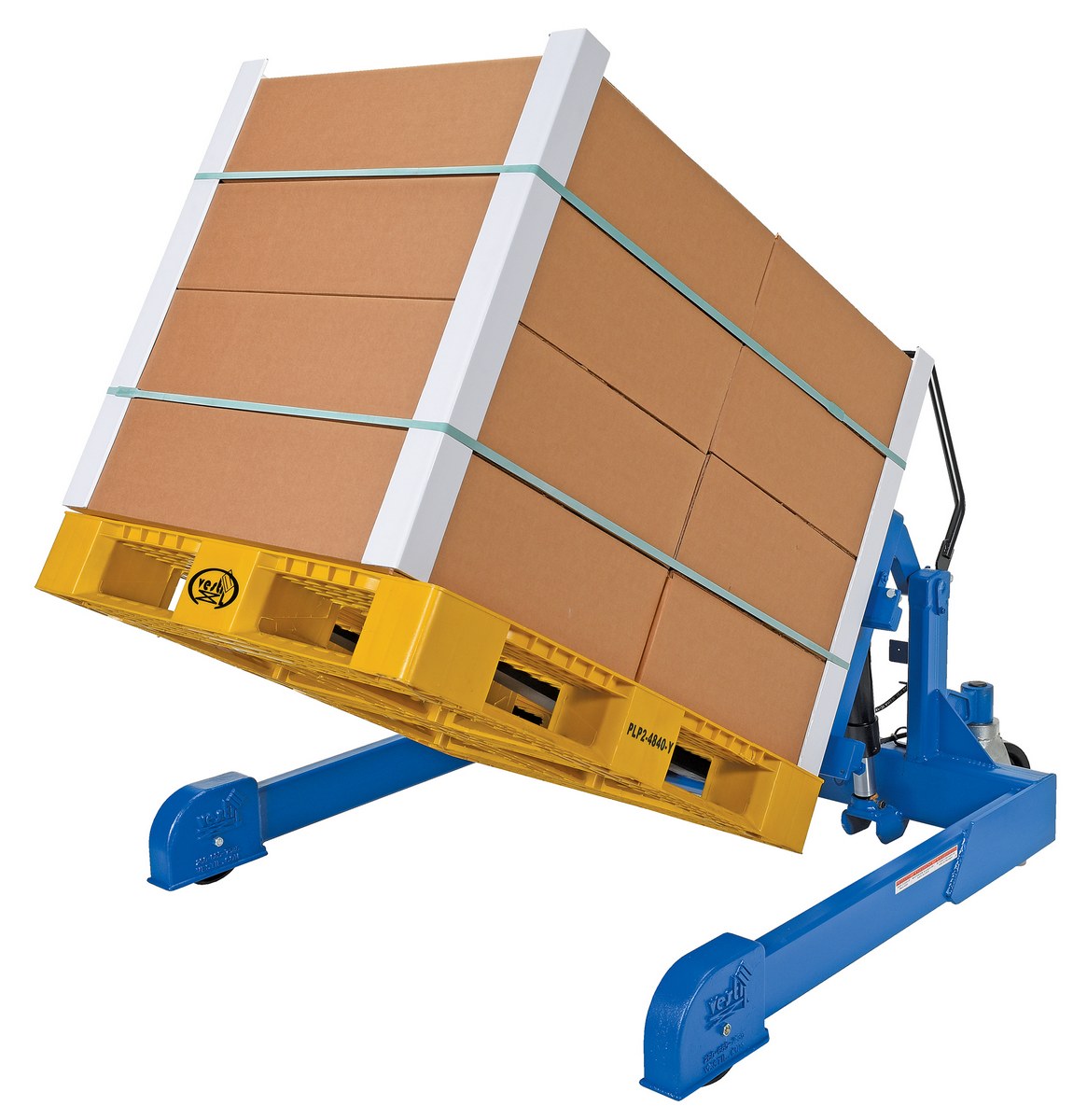

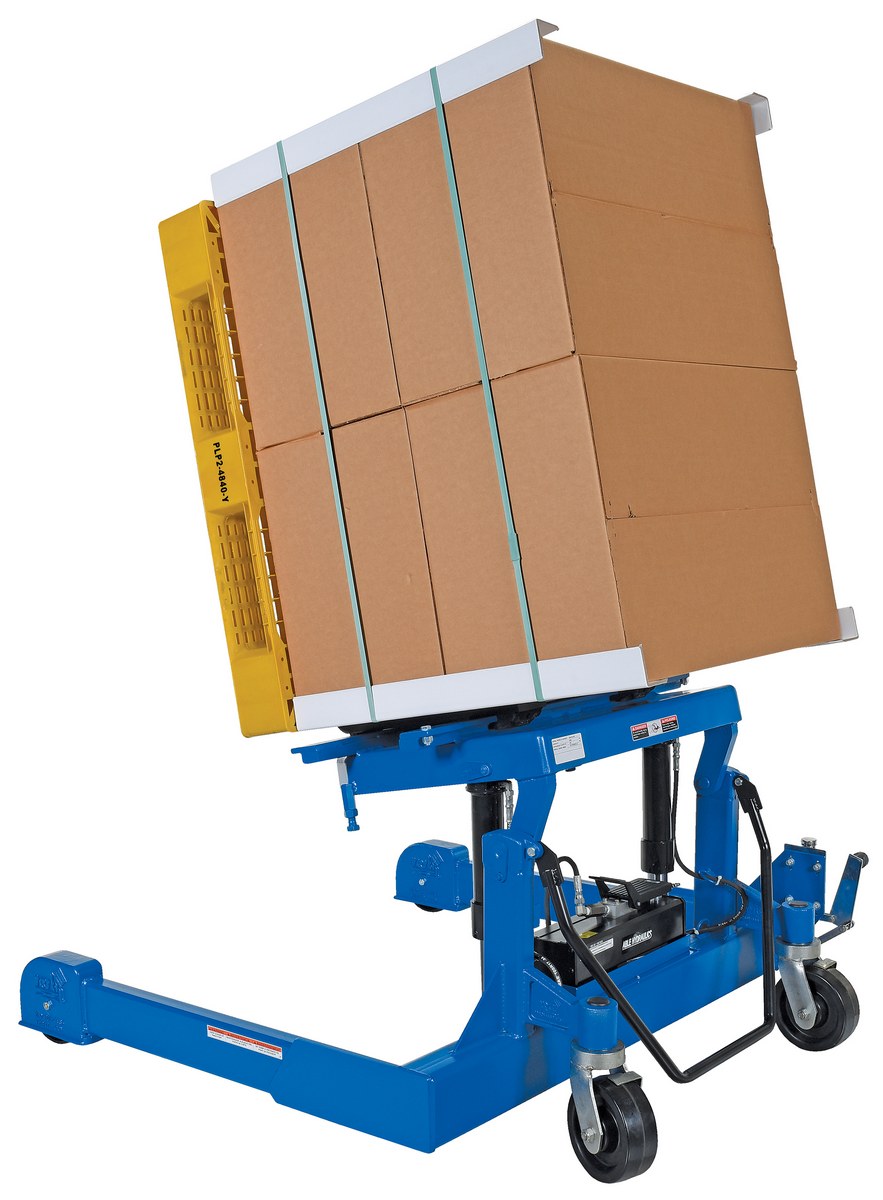

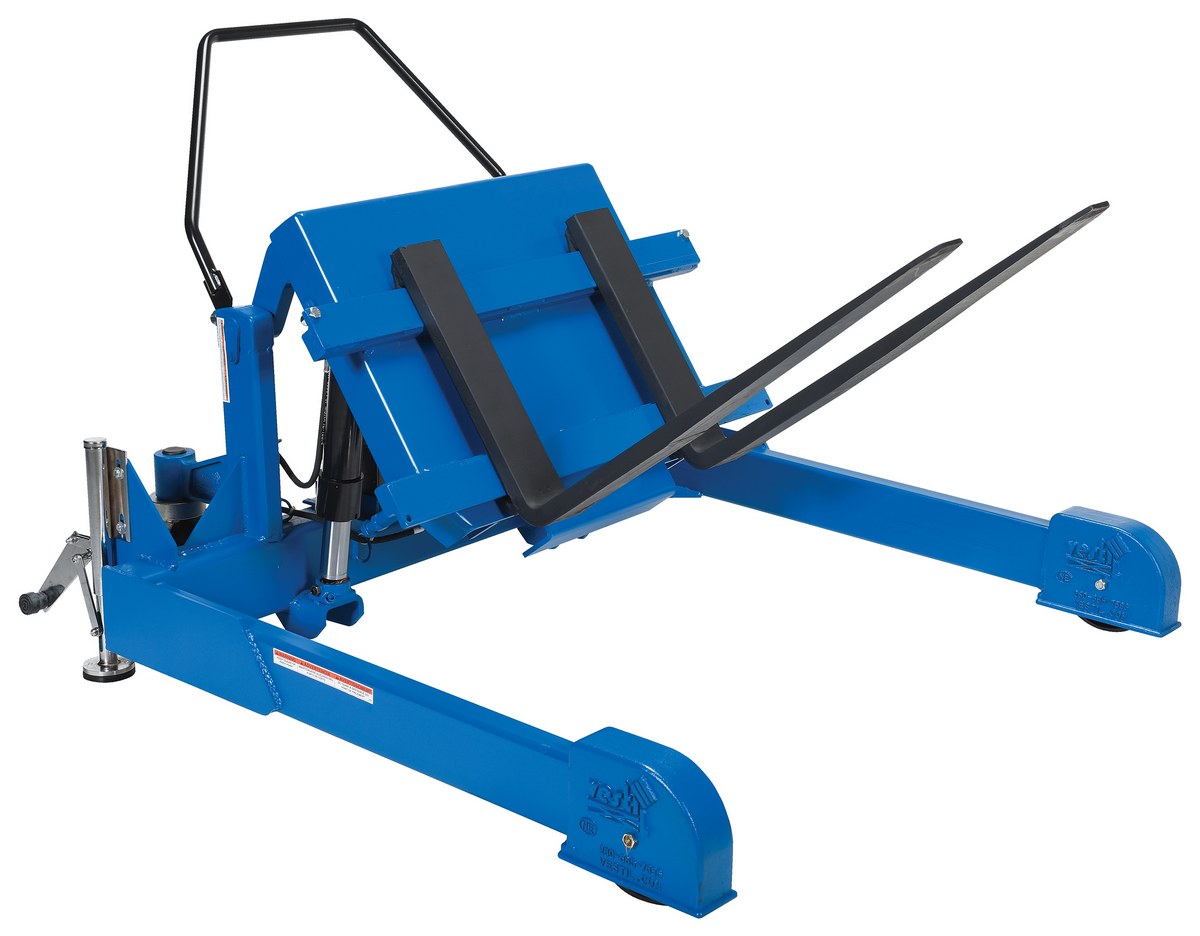

TMS-20-AIR

model TMS-20-AIR

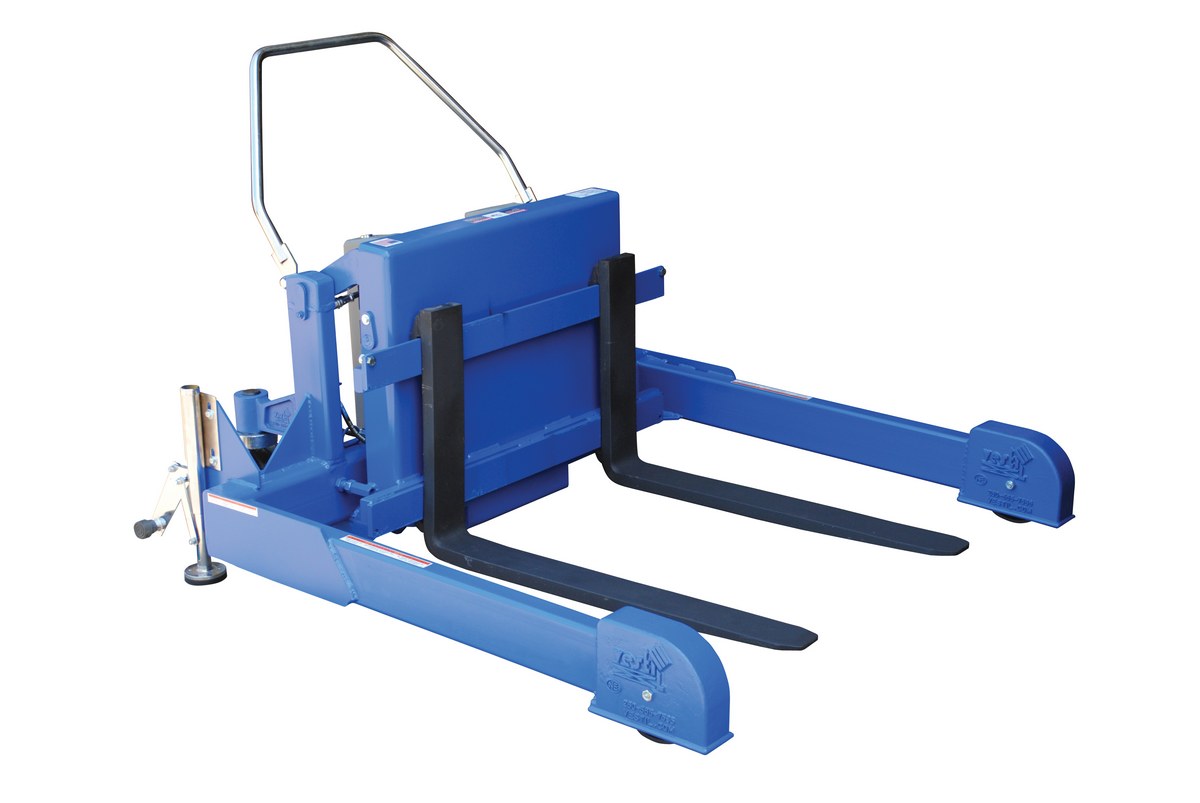

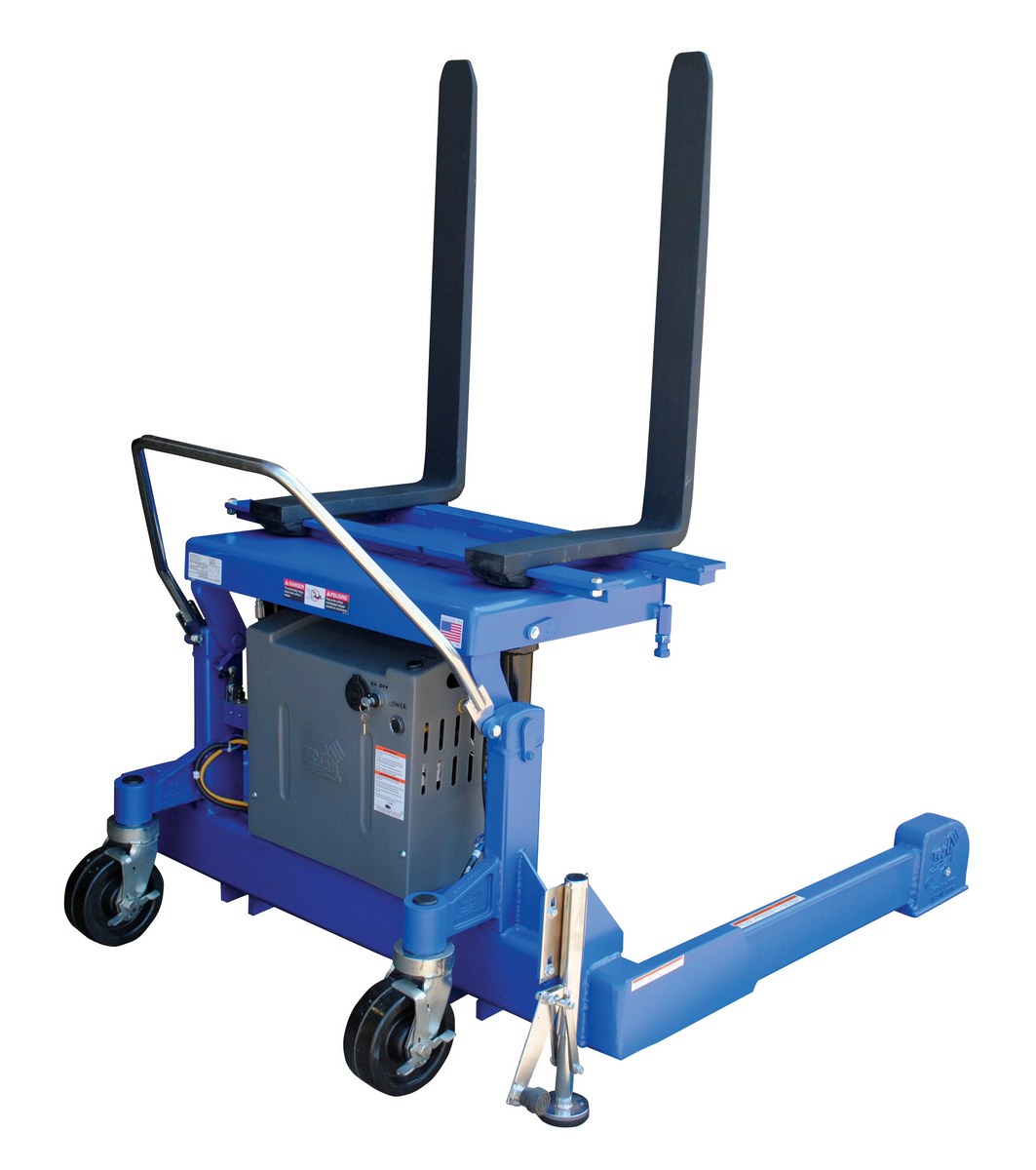

TMS-20-DC

model TMS-20-DC

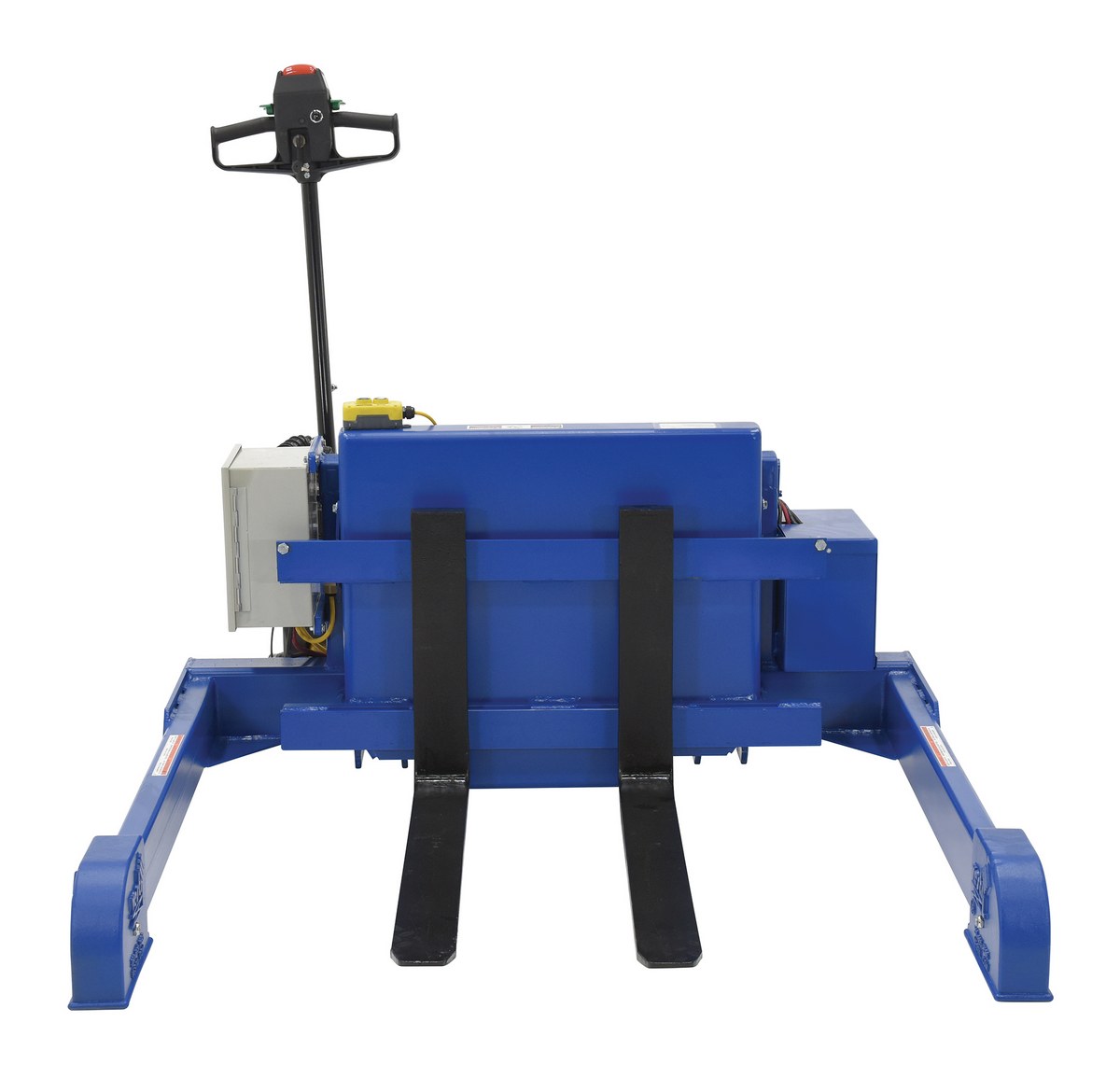

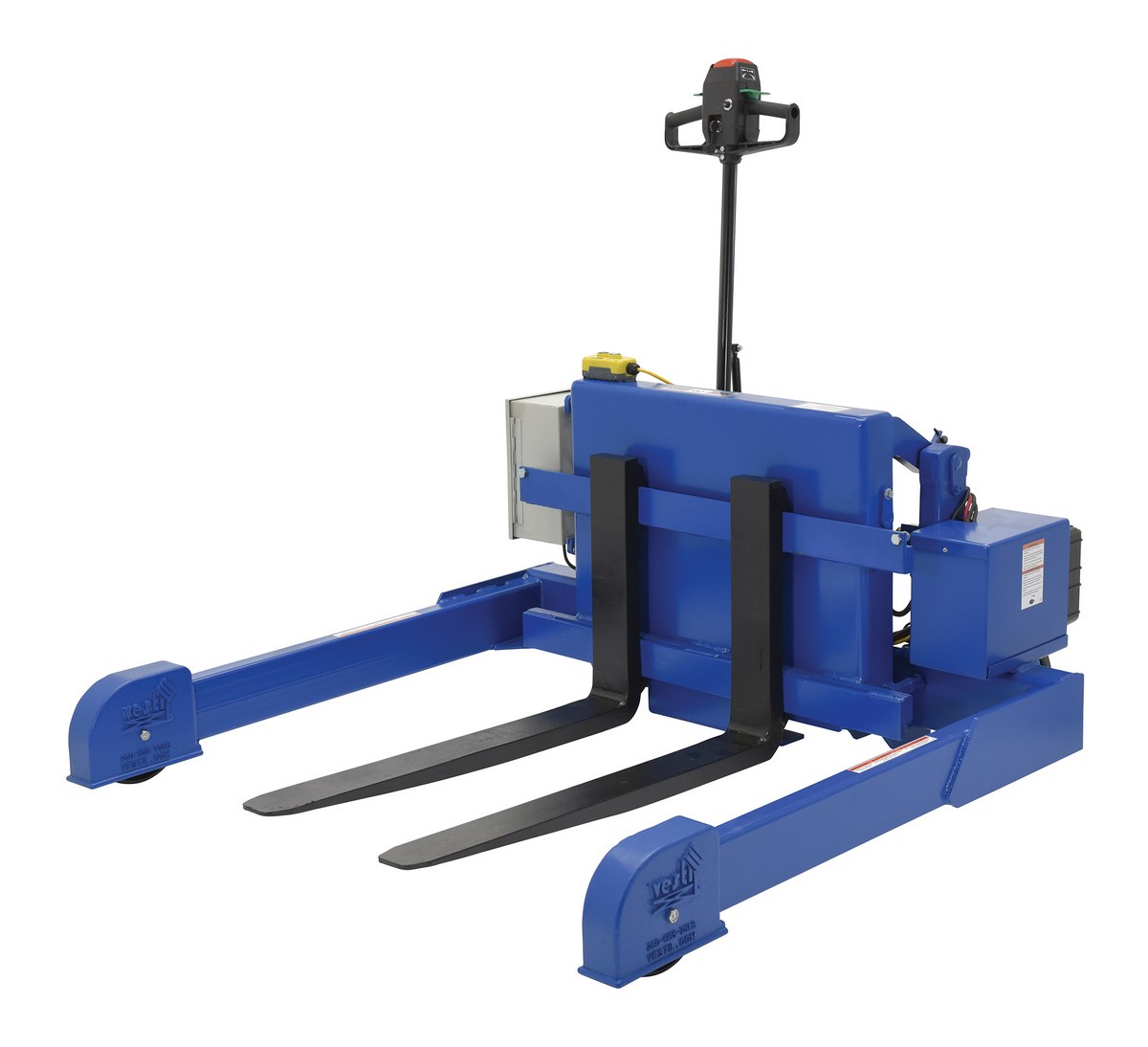

TMS-40-DC-PTDS

model TMS-40-DC-PTDS

TMS-40-DC

model TMS-40-DC

Click A Tab For More Information. If A Tab Is Missing, This Product Has No Content For That Tab.

KEY: Approval Drawing = Approval Drawing -- Approval Drawing = Warranty -- Approval Drawing = Testing Certificate

Model Number & Specs Table

Tilt Master & Tilt Master Straddle
Model PDF's Capacity
(lbs)
Fork Adjustment Operator
Reach
Fork
Width
Power Control Wt (lbs)
Tilt Master
TM-20-AC icon_approvaldrawings.jpgtilt_m4.jpgCompliance Certificate 2,000 Fixed at 26" (OD) 7-1/4" 6" 115V / 1 PH Hand 646
TM-20-DC icon_approvaldrawings.jpgtilt_m4.jpgCompliance Certificate 2,000 Fixed at 26" (OD) 7-1/4" 6" 12V DC Hand 767

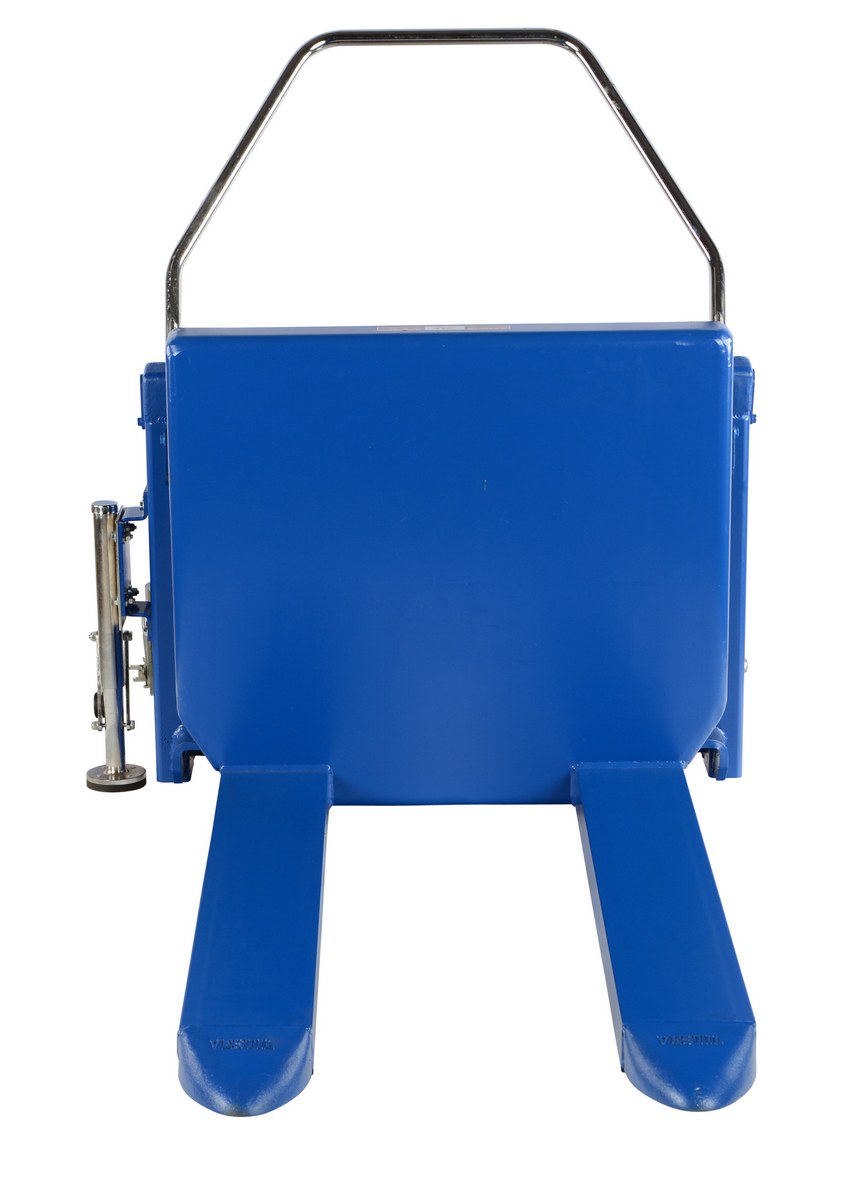

TM-20-DC-FC tilt_m4.jpgCompliance Certificate 2,000 Fixed at 26" (OD 7-1/4" 6" 12V DC Foot 772
TM-20-DC-PTDS tilt_m4.jpgCompliance Certificate 2,000 Fixed at 26" (OD 7-1/4" 6" 12V DC Hand ** 950
TM-20-AIR icon_approvaldrawings.jpgtilt_m4.jpgCompliance Certificate 2,000 Fixed at 26" (OD) 7-1/4" 6" AIR/OIL Foot 621
TM-40-AC icon_approvaldrawings.jpgtilt_m4.jpgCompliance Certificate 4,000 Fixed at 26" (OD) 7-1/4" 6" 115V / 1 PH Hand 707
TM-40-DC icon_approvaldrawings.jpgtilt_m4.jpgCompliance Certificate 4,000 Fixed at 26" (OD) 7-1/4" 6" 12V DC Hand 781
TM-40-DC-FC tilt_m4.jpgicon_approvaldrawings.jpg 4,000 Fixed at 26" (OD 7-1/4" 6" 12V DC Foot 786

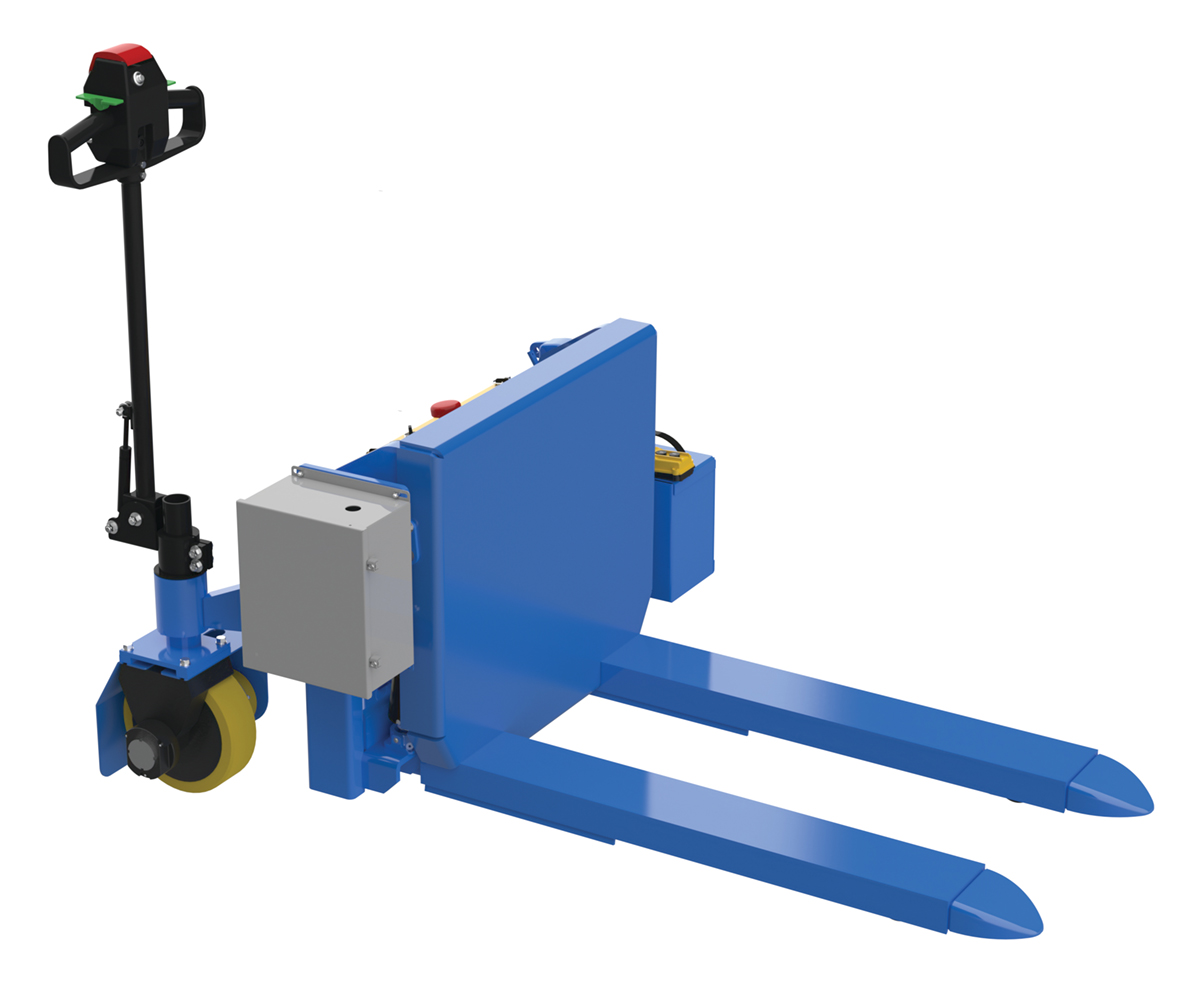

TM-40-DC-PTDS tilt_m4.jpgicon_approvaldrawings.jpgCompliance Certificate 4,000 Fixed at 26" (OD 7-1/4" 6" 12V DC Hand ** 964
TM-40-AIR icon_approvaldrawings.jpgtilt_m4.jpgCompliance Certificate 4,000 Fixed at 26" (OD) 7-1/4" 6" AIR/OIL Foot 631
TM-60-AC icon_approvaldrawings.jpgtilt_m4.jpgCompliance Certificate 6,000 Fixed at 27" (OD) 7-1/4" 6-1/2" with stiffener 115V / 1 PH Hand 739
TM-60-DC icon_approvaldrawings.jpgtilt_m4.jpgCompliance Certificate 6,000 Fixed at 27" (OD) 7-1/4" 6-1/2" with stiffener 12V DC Hand 777
TM-60-DC-PTDS tilt_m4.jpgCompliance Certificate 6,000 Fixed at 27" (OD) 7-1/4" 6-1/2" with stiffener 12V DC Hand ** 960

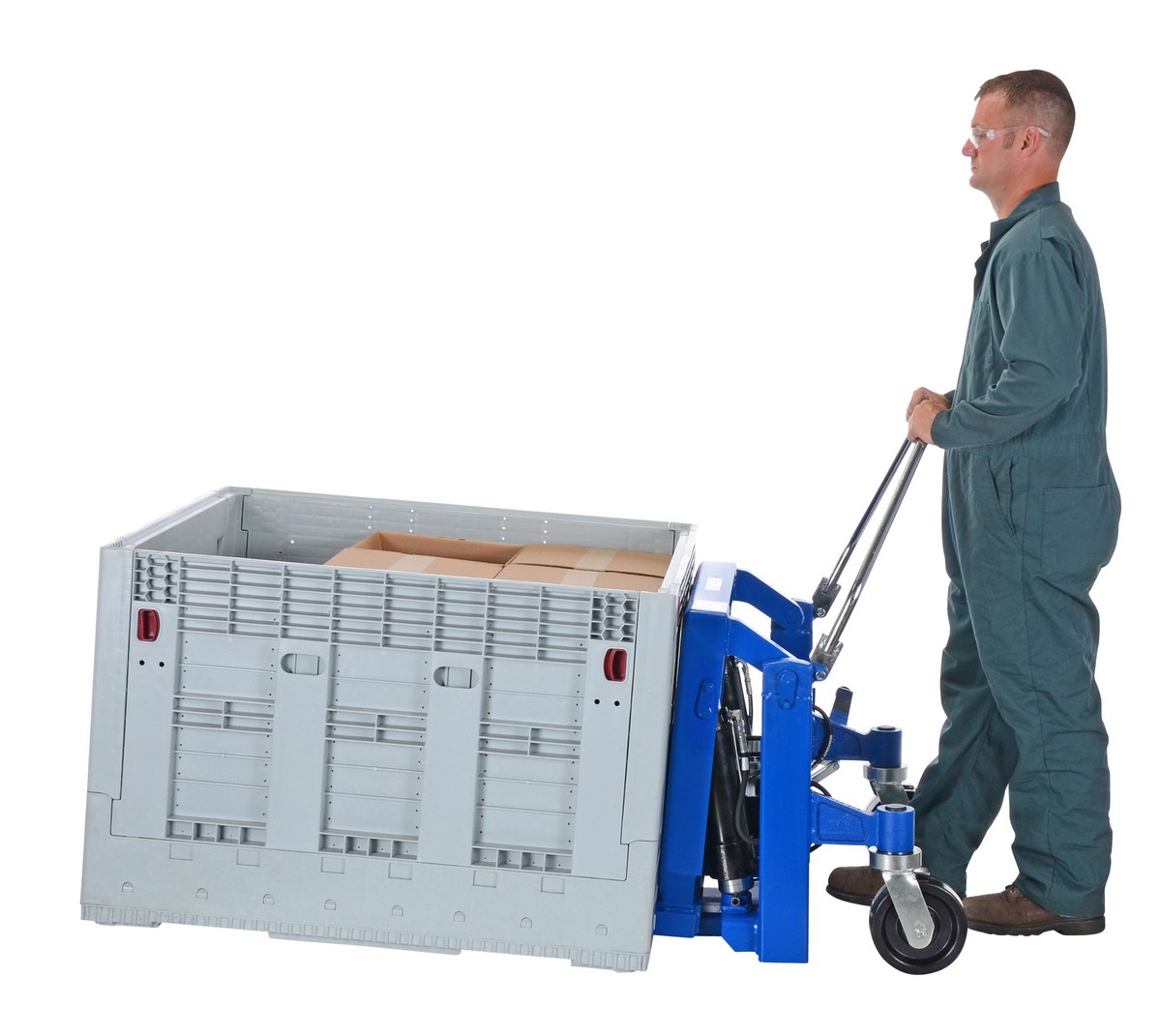

TM-60-AIR icon_approvaldrawings.jpgtilt_m4.jpgCompliance Certificate 6,000 Fixed at 27" (OD) 7-1/4" 6-1/2" with stiffener AIR/OIL Foot 851
Tilt Master Straddle
TMS-20-AC icon_approvaldrawings.jpgtilt_m4.jpgCompliance Certificate 2,000 1/2" to 28-1/2" (ID) 13-1/2" 4" 115V / 1 PH Hand 989
TMS-20-DC icon_approvaldrawings.jpgtilt_m4.jpgCompliance Certificate 2,000 1/2" to 28-1/2" (ID) 13-1/2" 4" 12V DC Hand 1017
TMS-20-DC-PTDS tilt_m4.jpgCompliance Certificate 2,000 1/2" to 28-1/2" (ID) 13-1/2" 4" 12V DC Hand ** 1200
TMS-20-AIR icon_approvaldrawings.jpgtilt_m4.jpgCompliance Certificate 2,000 1/2" to 28-1/2" (ID) 13-1/2" 4" AIR/OIL Foot 886
TMS-40-AC icon_approvaldrawings.jpgtilt_m4.jpgCompliance Certificate 4,000 1/2" to 28-1/2" (ID) 13-1/2" 4" 115V / 1 PH Hand 953
TMS-40-DC icon_approvaldrawings.jpgtilt_m4.jpgCompliance Certificate 4,000 1/2" to 28-1/2" (ID) 13-1/2" 4" 12V DC Hand 1046
TMS-40-DC-PTDS tilt_m4.jpgCompliance Certificate 4,000 1/2" to 28-1/2" (ID) 13-1/2" 4" 12V DC Hand ** 1229
TMS-40-AIR icon_approvaldrawings.jpgtilt_m4.jpgCompliance Certificate 4,000 1/2" to 28-1/2" (ID) 13-1/2" 4" AIR/OIL Foot 893
TMS-60-AC icon_approvaldrawings.jpgtilt_m4.jpgCompliance Certificate 6,000 1/2" to 28-1/2" (ID) 13-1/2" 4" 115V/1 PH Hand 978
TMS-60-DC icon_approvaldrawings.jpgtilt_m4.jpgCompliance Certificate 6,000 1/2" to 28-1/2" (ID) 13-1/2" 4" 12V DC Hand 1067
TMS-60-DC-PTDS tilt_m4.jpgCompliance Certificate 6,000 1/2" to 28-1/2" (ID) 13-1/2" 4" 12V DC Hand ** 1250
TMS-60-AIR icon_approvaldrawings.jpgtilt_m4.jpgCompliance Certificate 6,000 1/2" to 28-1/2" (ID) 13-1/2" 4" AIR/OIL Foot 967

KEY: Approval Drawing = Approval Drawing -- Approval Drawing = Warranty -- Approval Drawing = Testing Certificate

Owner's Manuals


Survey Sheets

No Survey Sheets For This Product.


Approval Drawings

TM-20-AC
TM-20-AIR
TM-20-DC
TM-40-AC
TM-40-AIR
TM-40-DC
TM-60-AC
TM-60-AIR
TM-60-DC
TMS-20-AC
TMS-20-AIR
TMS-20-DC
TMS-40-AC
TMS-40-AIR
TMS-40-DC
TMS-60-AC
TMS-60-AIR
TMS-60-DC

Testing Certificates

TCD-M
TM-20-AC
TM-20-AIR
TM-20-DC
TM-20-DC-FC
TM-20-DC-PTDS
TM-40-AC
TM-40-AIR
TM-40-DC
TM-40-DC-FC
TM-40-DC-PTDS
TM-60-AC
TM-60-AIR
TM-60-DC
TM-60-DC-PTDS
TM-CHUTE
TMS-20-AC
TMS-20-AIR
TMS-20-DC
TMS-20-DC-PTDS
TMS-40-AC
TMS-40-AIR
TMS-40-DC
TMS-40-DC-PTDS
TMS-60-AC
TMS-60-AIR
TMS-60-DC
TMS-60-DC-PTDS

Other PDF's

No "Other PDFs" For This Product...


Directory Links Of Available PDF's For All Products

Options

Tilt Master Options
Model Description Wt. (lbs)

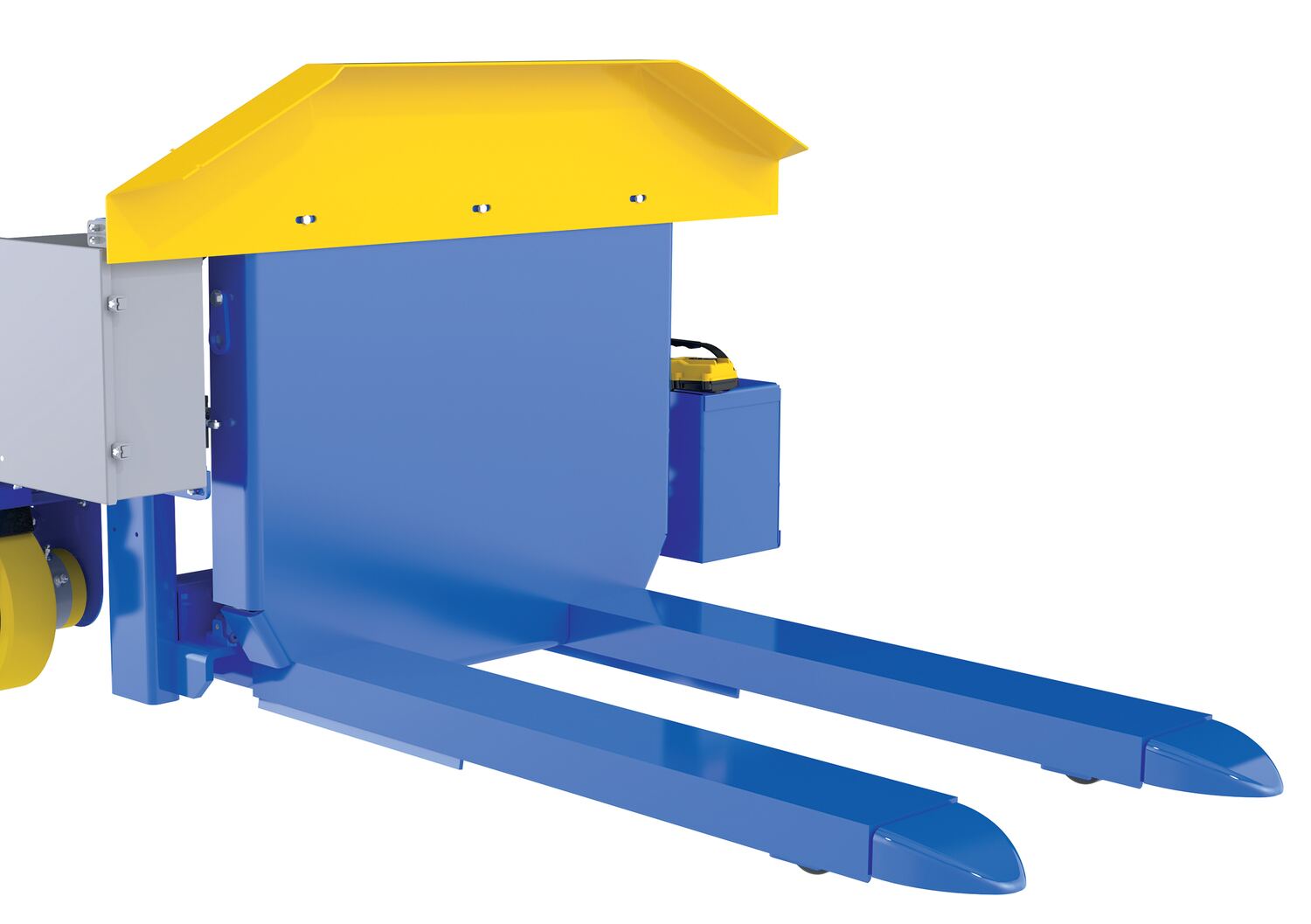

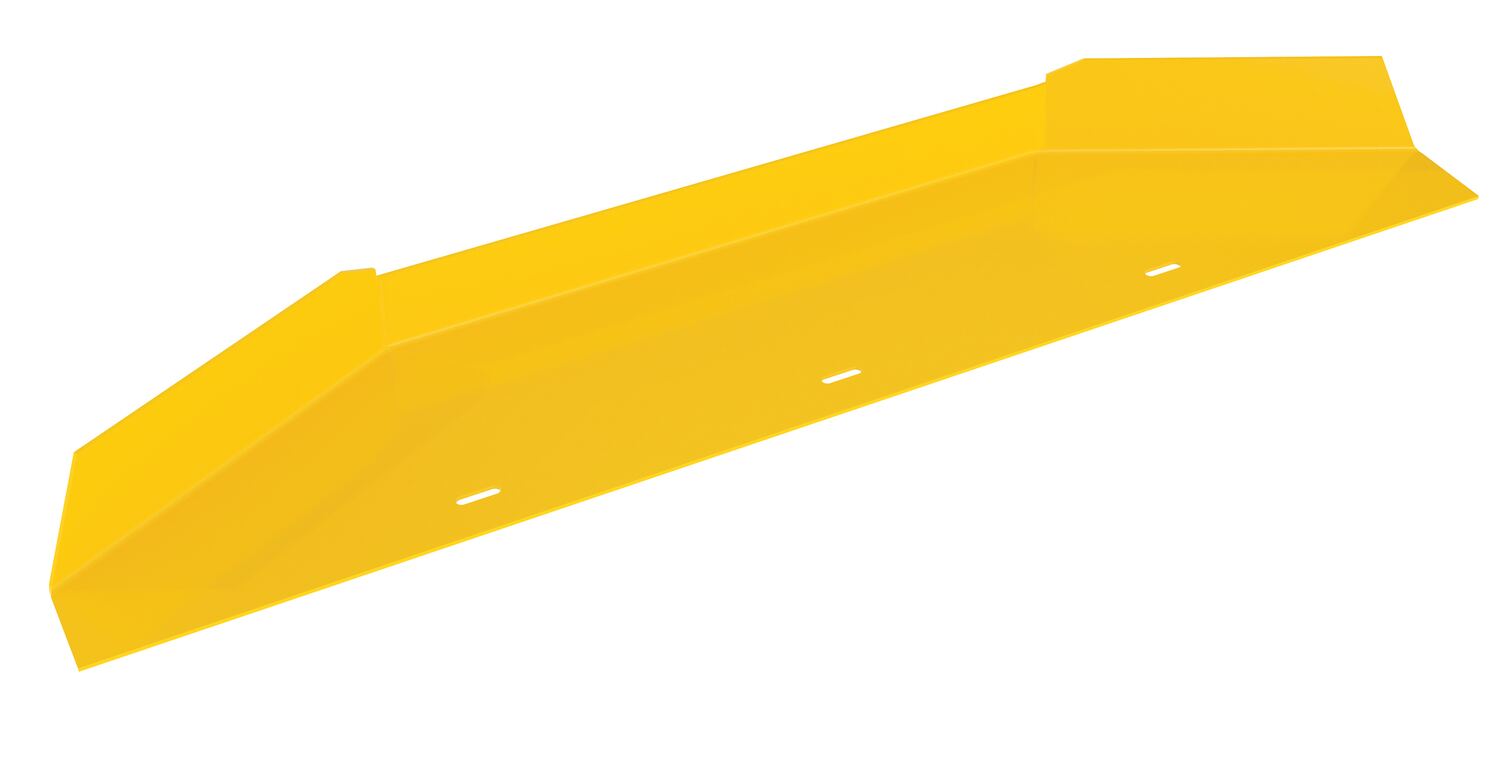

TM-CHUTE icon_approvaldrawings.jpgRetrofit chute for TM-series only 18
