Efficiency Master Tilt Tables

  2. Ergonomic Solutions
  3. Tilters
  4. ...
Click Image to Enlarge

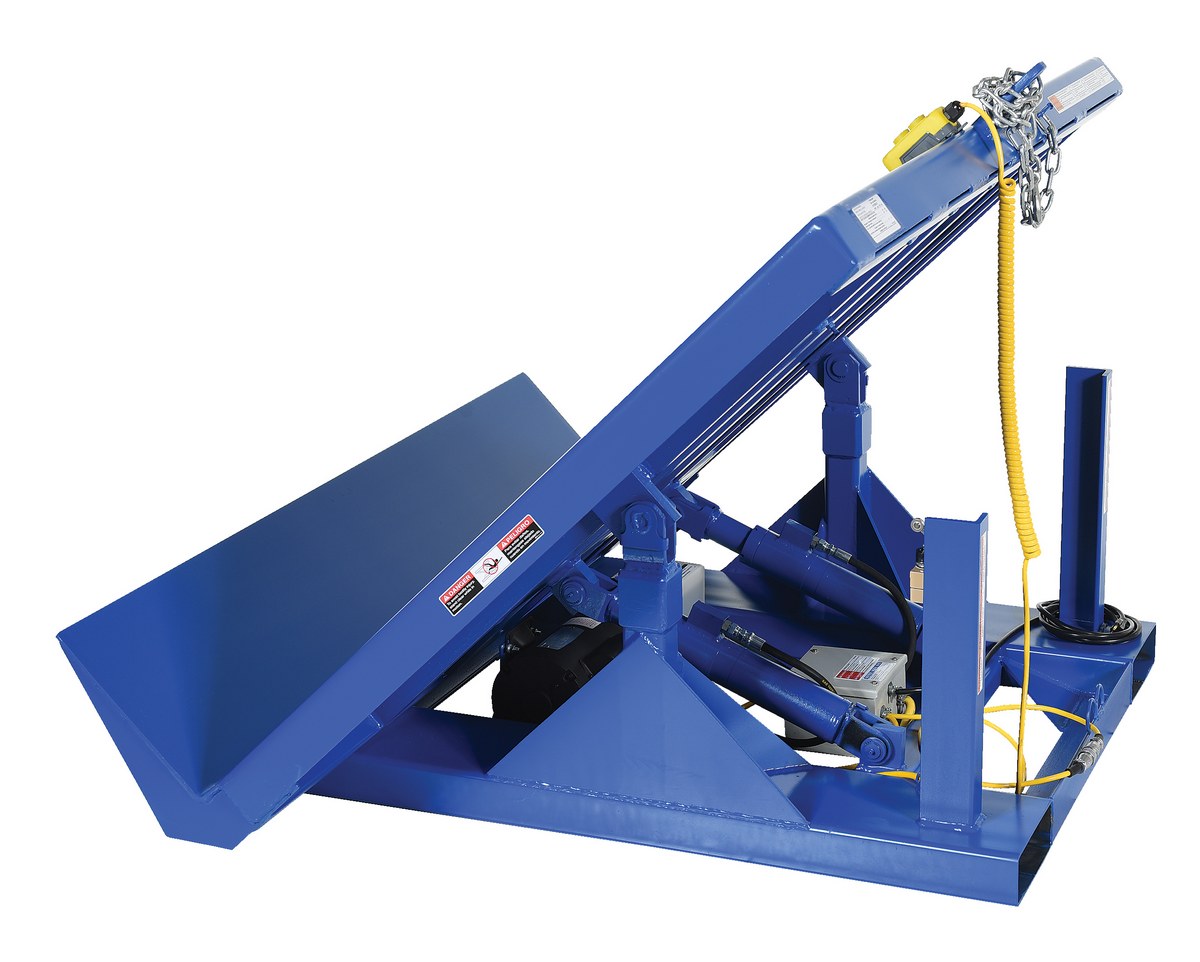

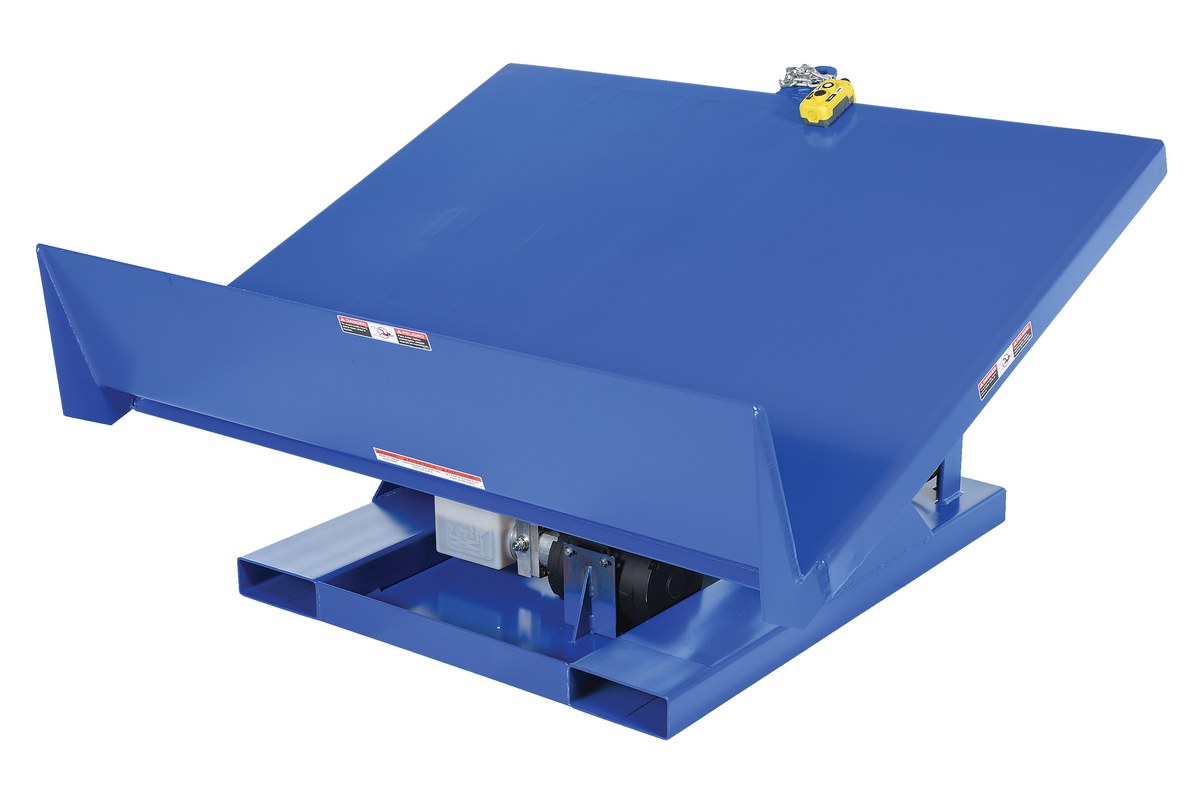

model: EM1-200-6050-6

EM1-200-6050-6_I.jpg EM1-200-6050-6_A.jpg EM1-200-6050-6_H.jpg EM1-200-6050-6_C.jpg
EM1-200-6050-6_D.jpg EM1-200-6050-6_E.jpg EM1-200-6050-6_F.jpg EM1-200-6050-6_G.jpg
Print Friendly
Efficiency Master Tilt Tables
SERIES: EM1

460V 3-PHASE STANDARD

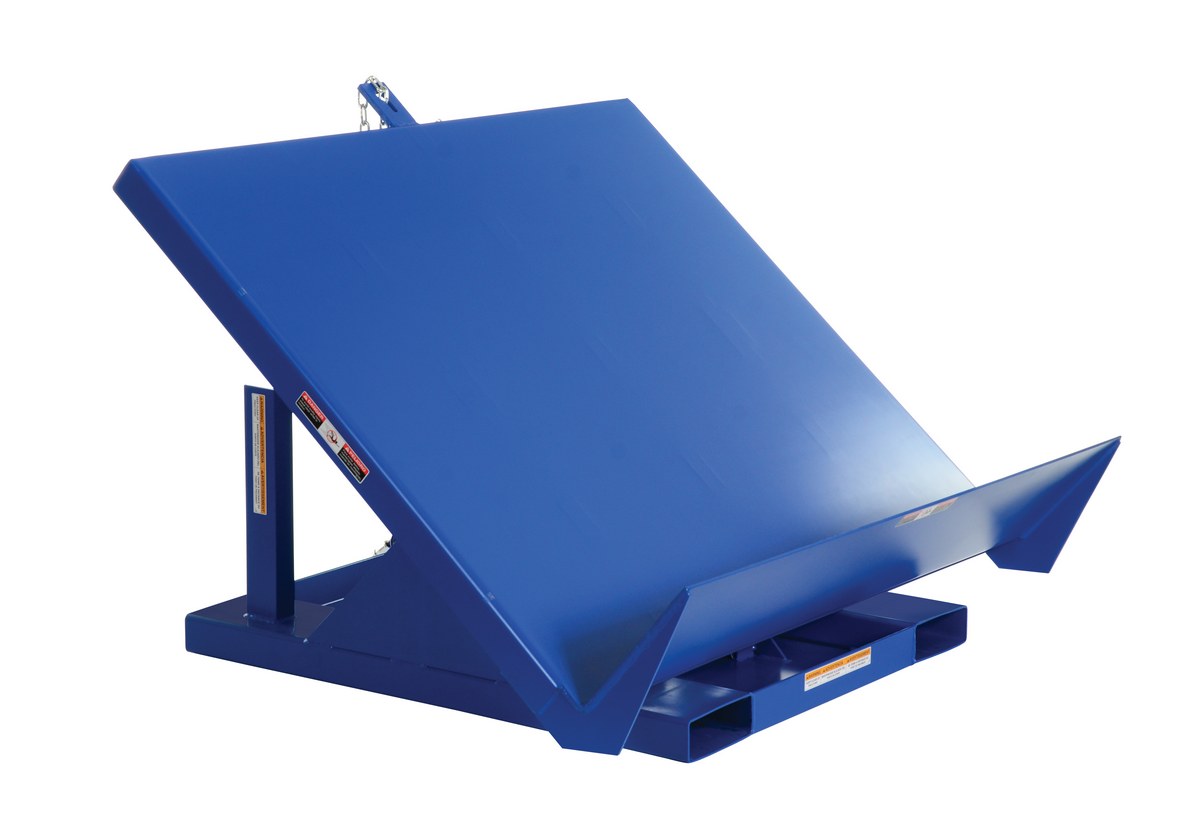

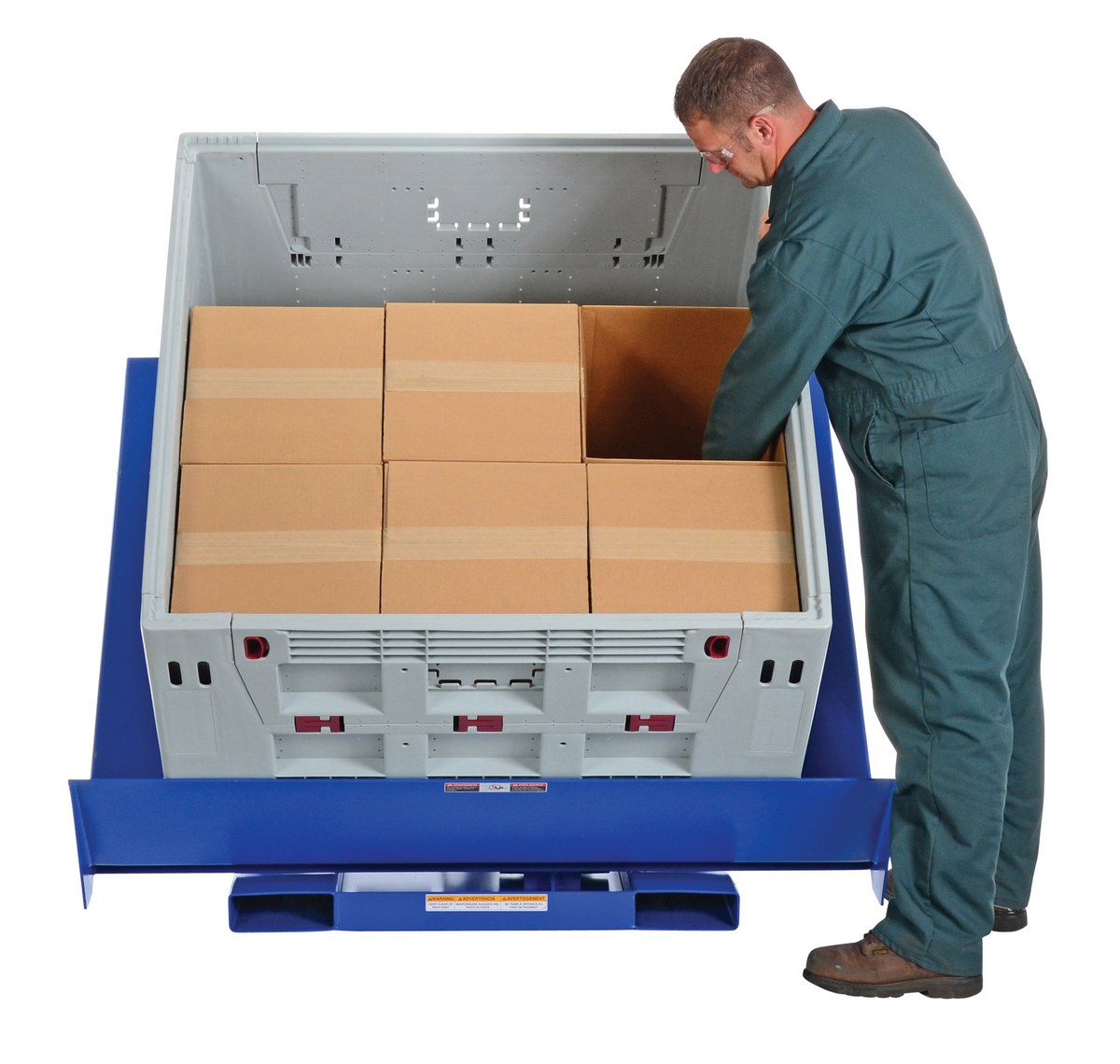

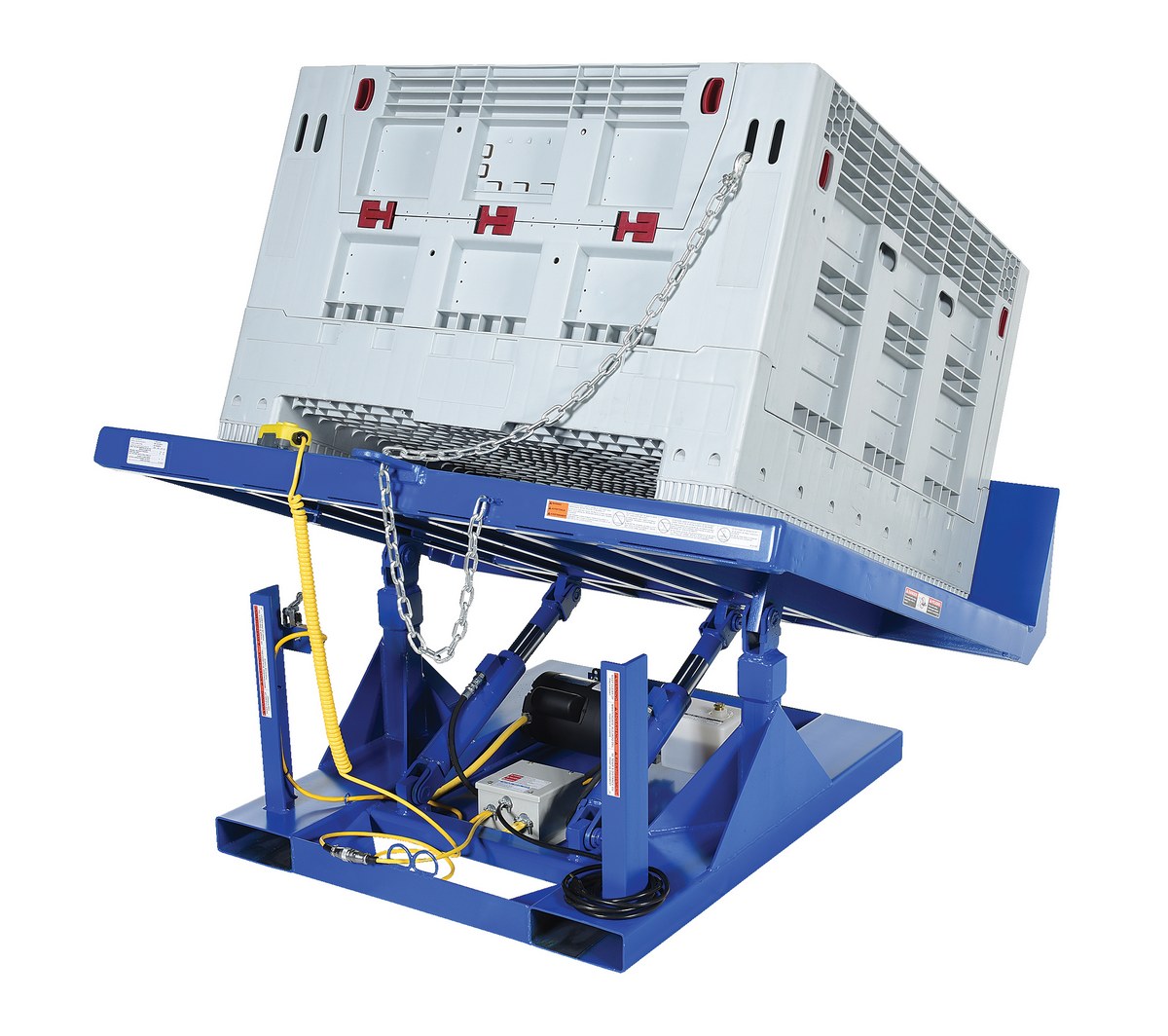

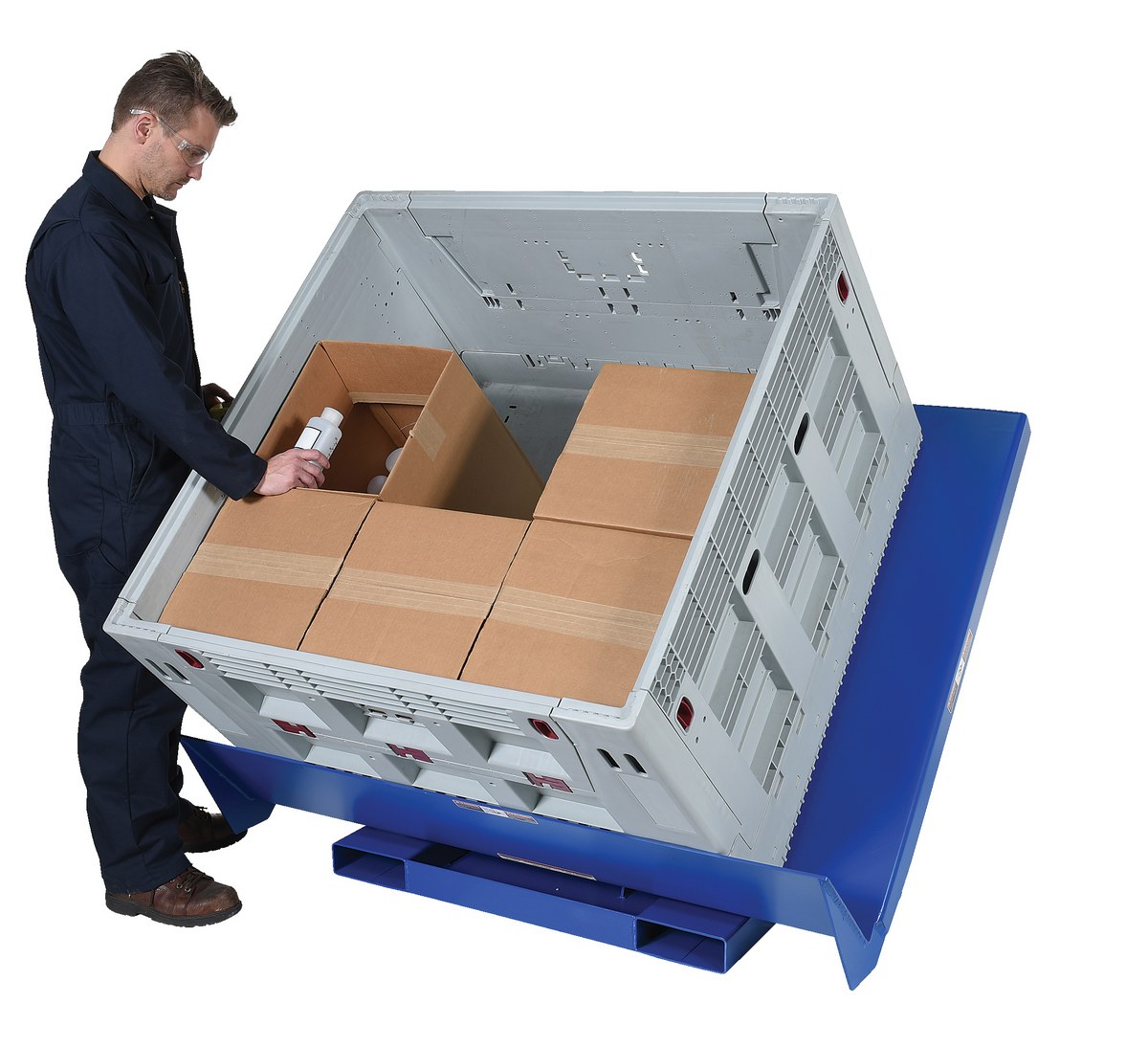

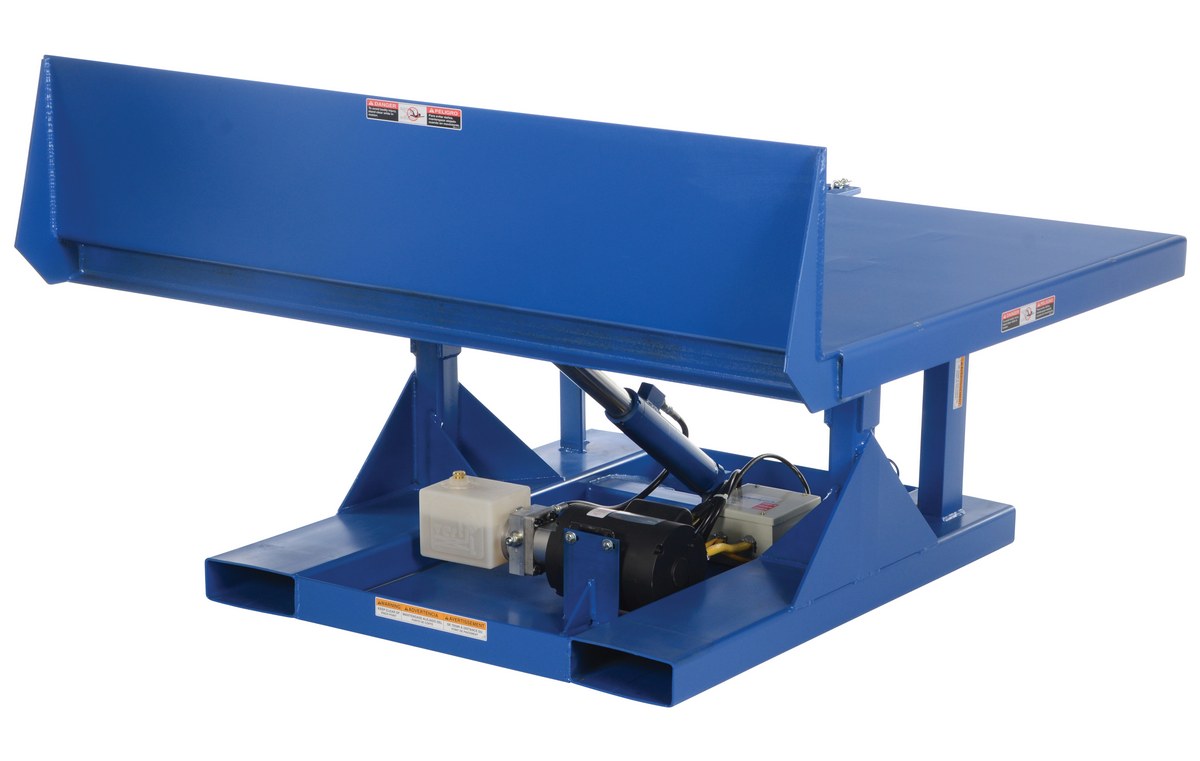

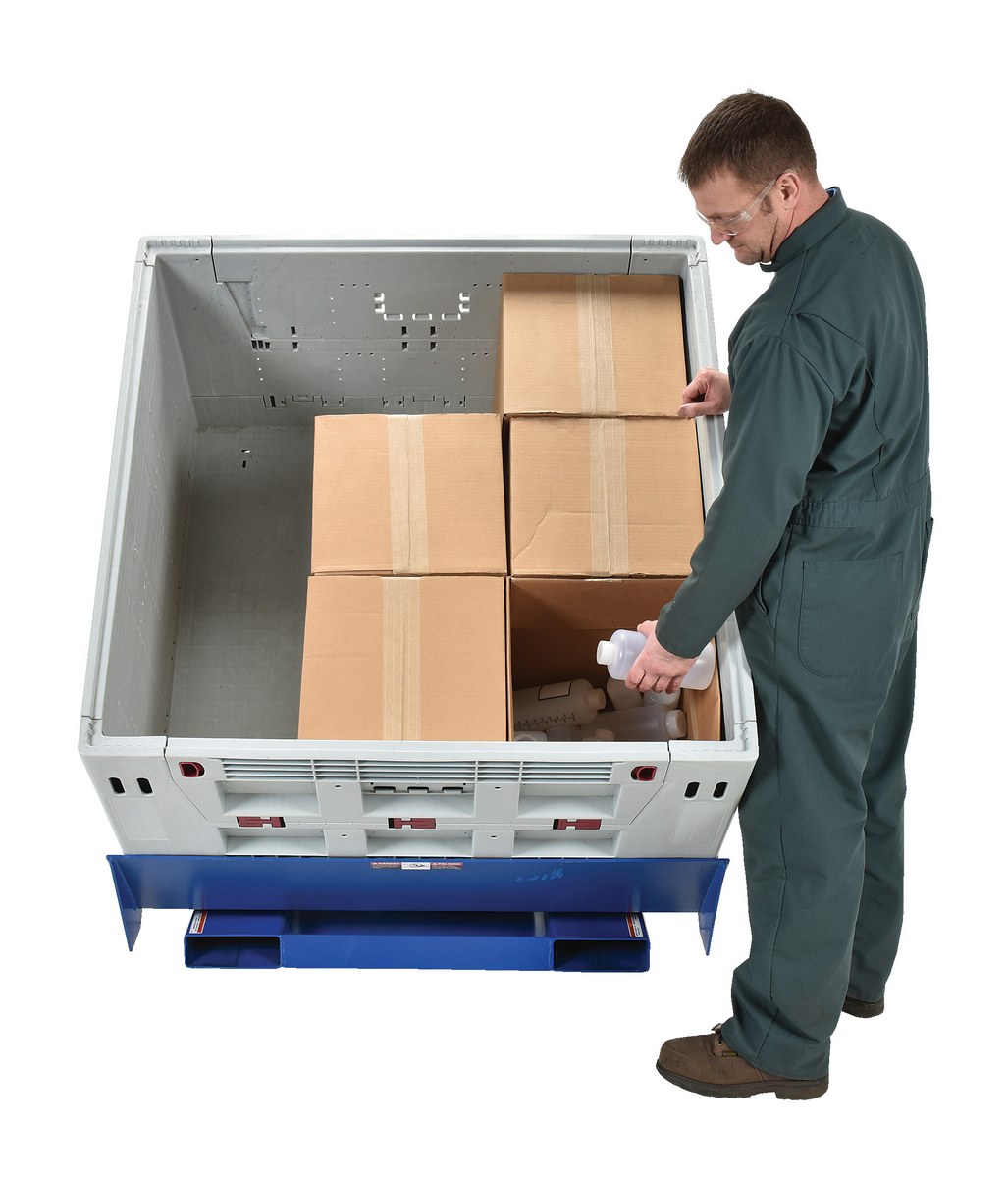

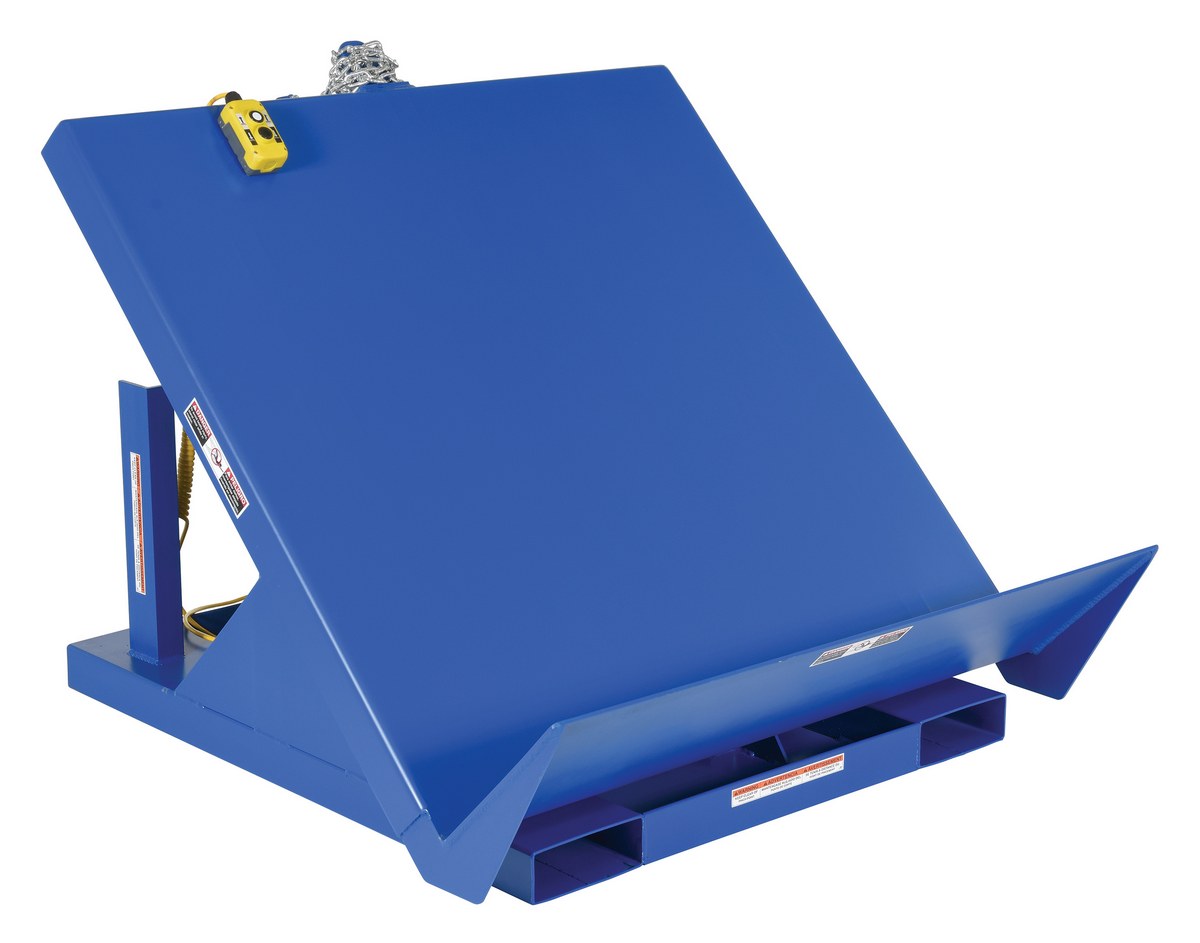

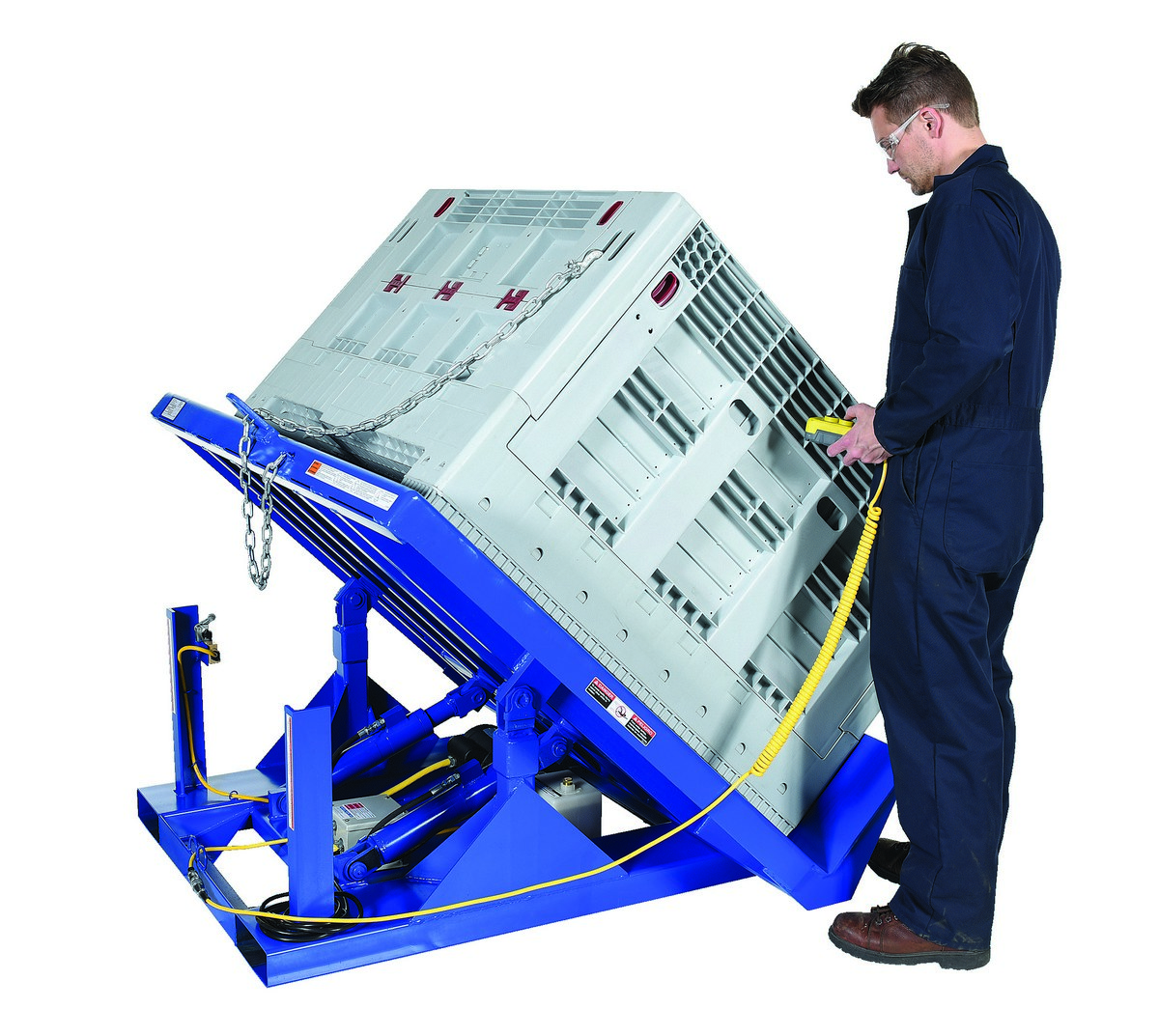

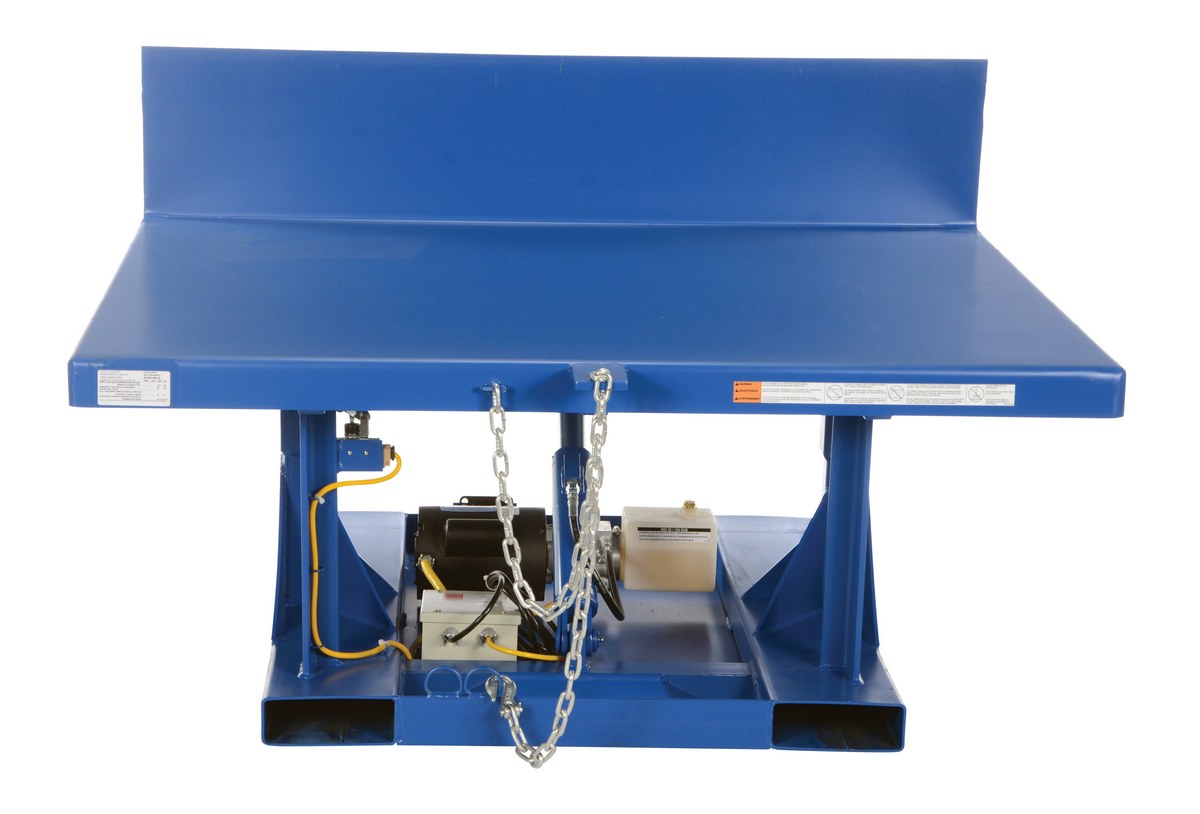

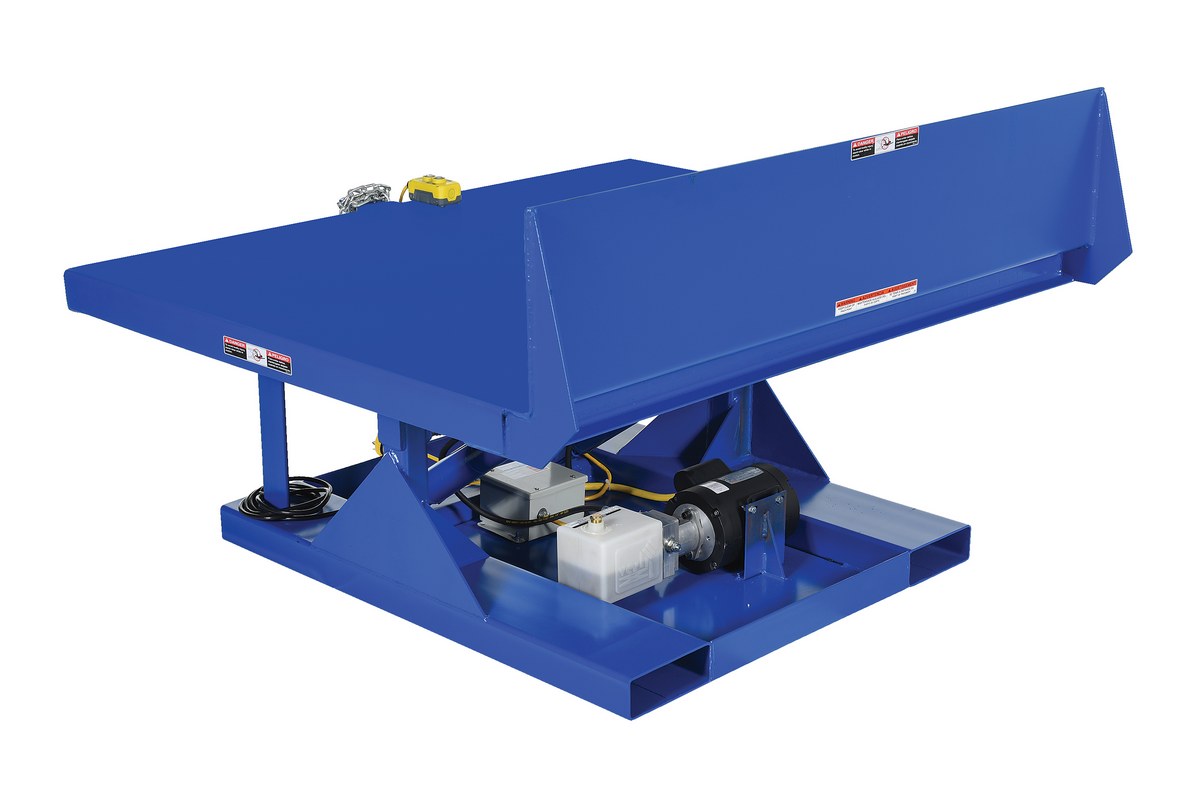

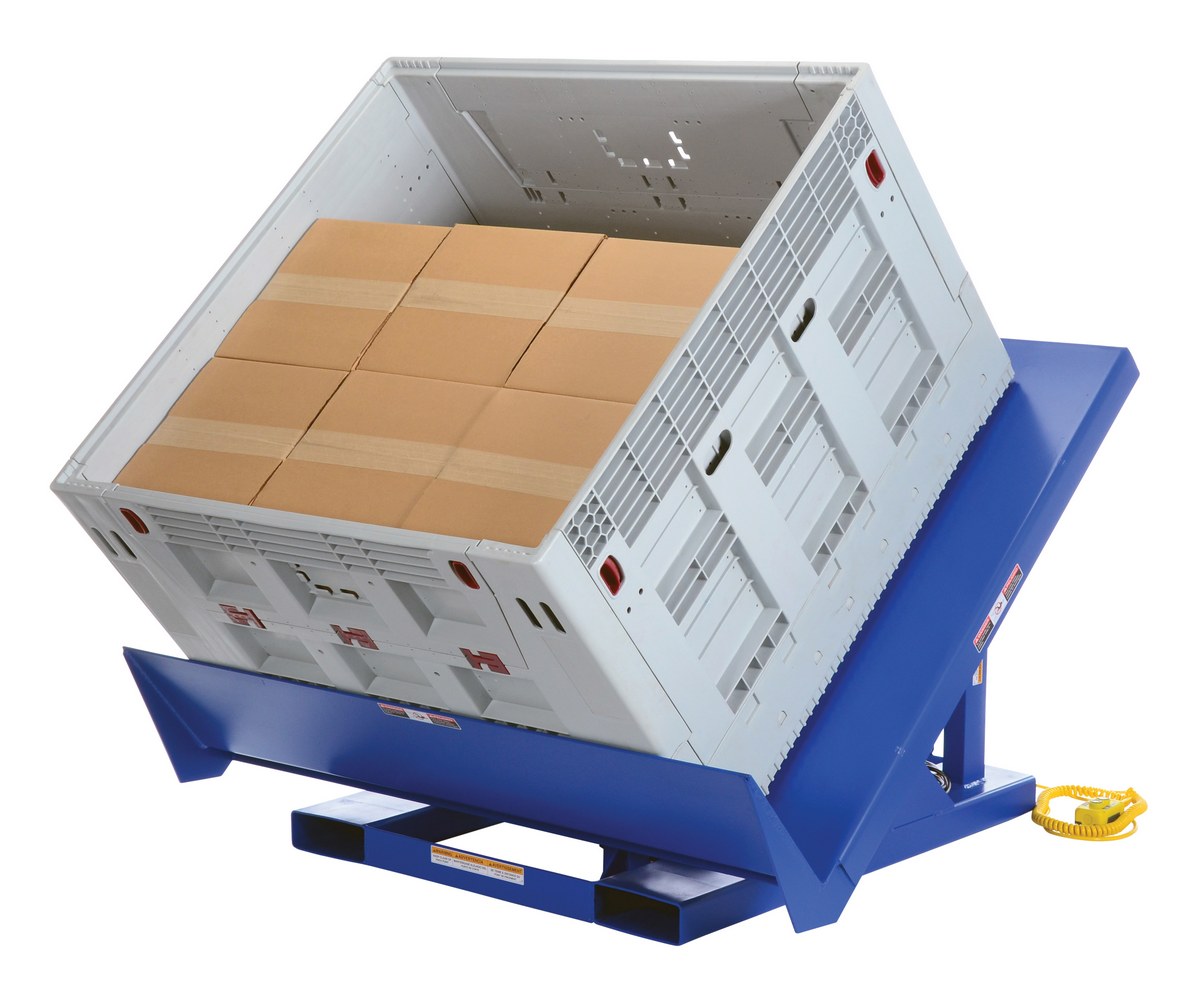

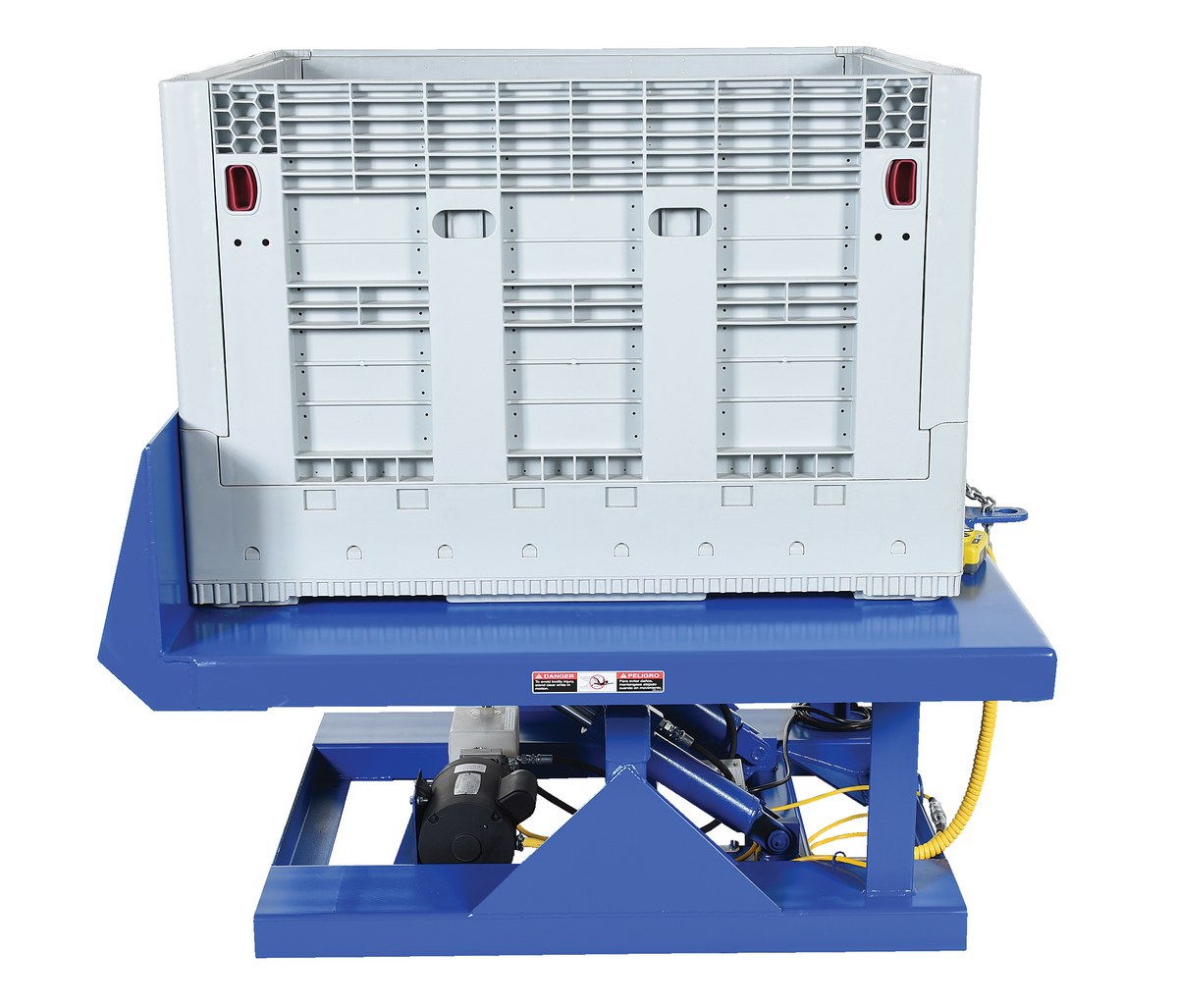

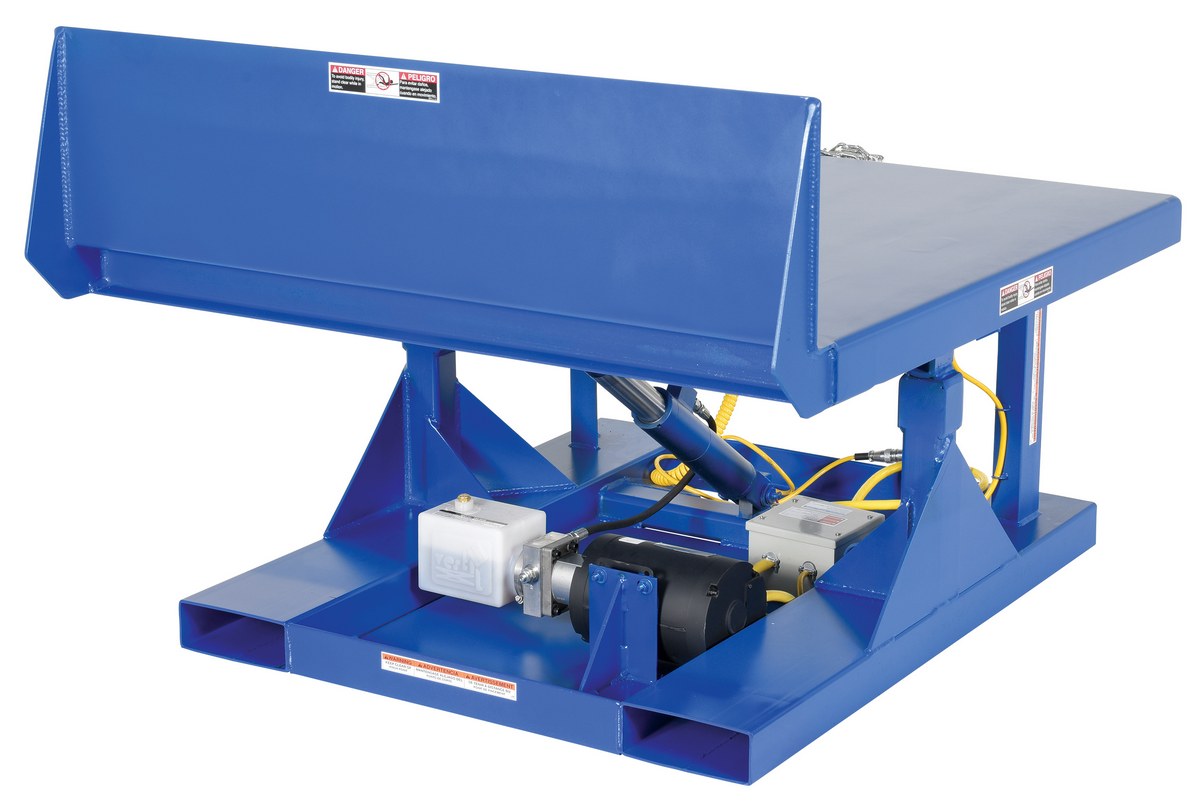

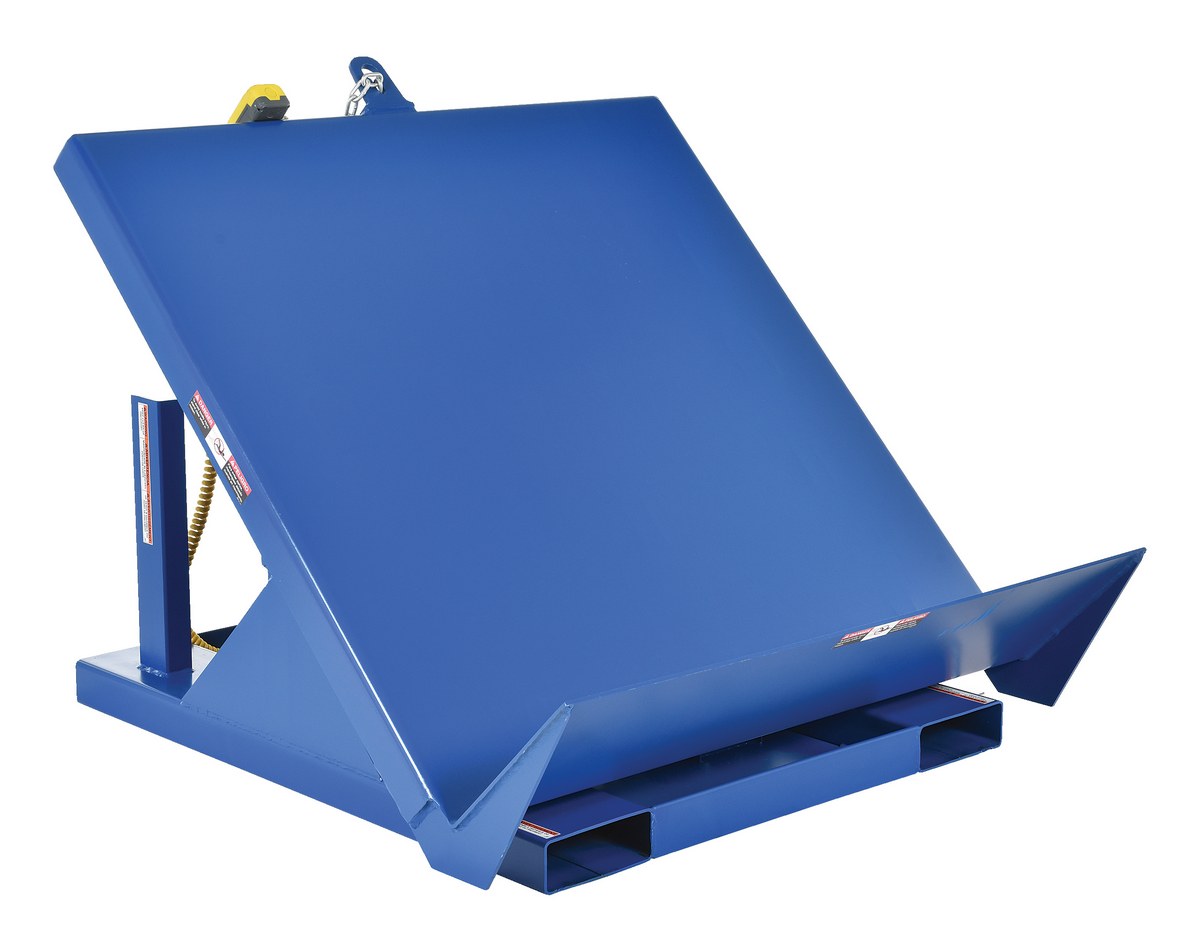

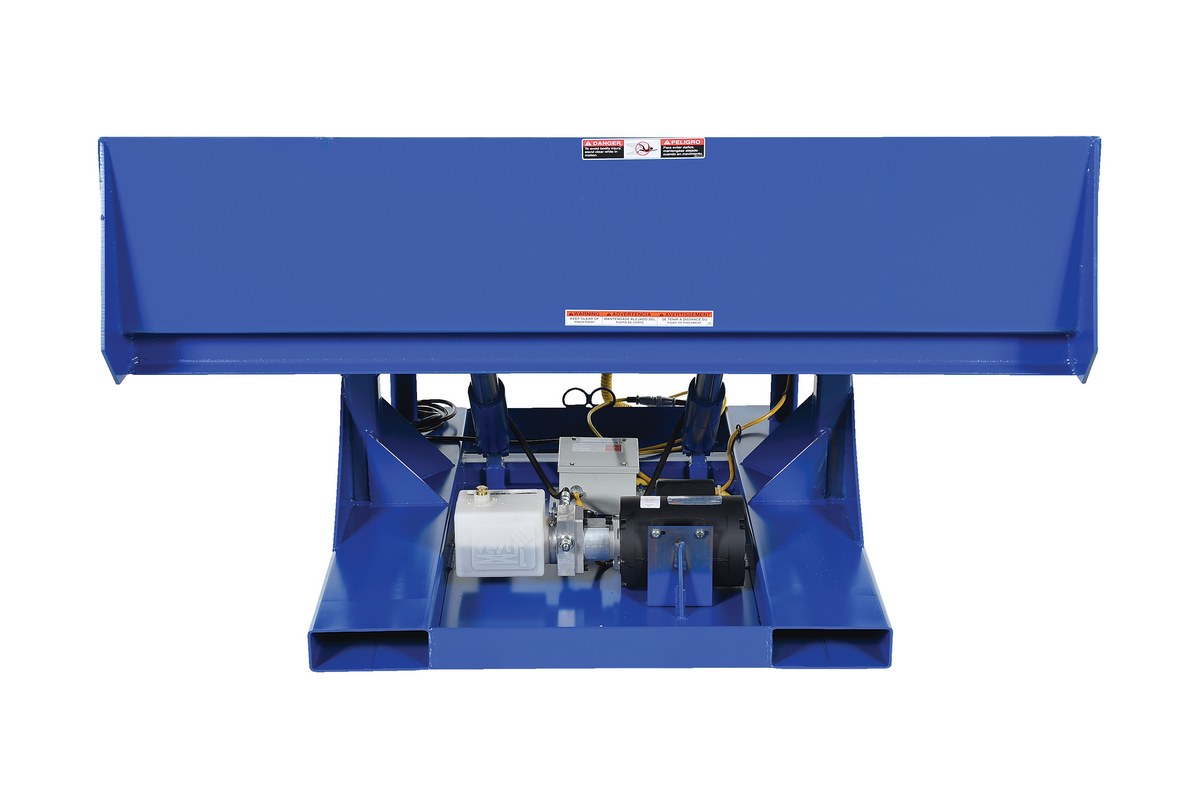

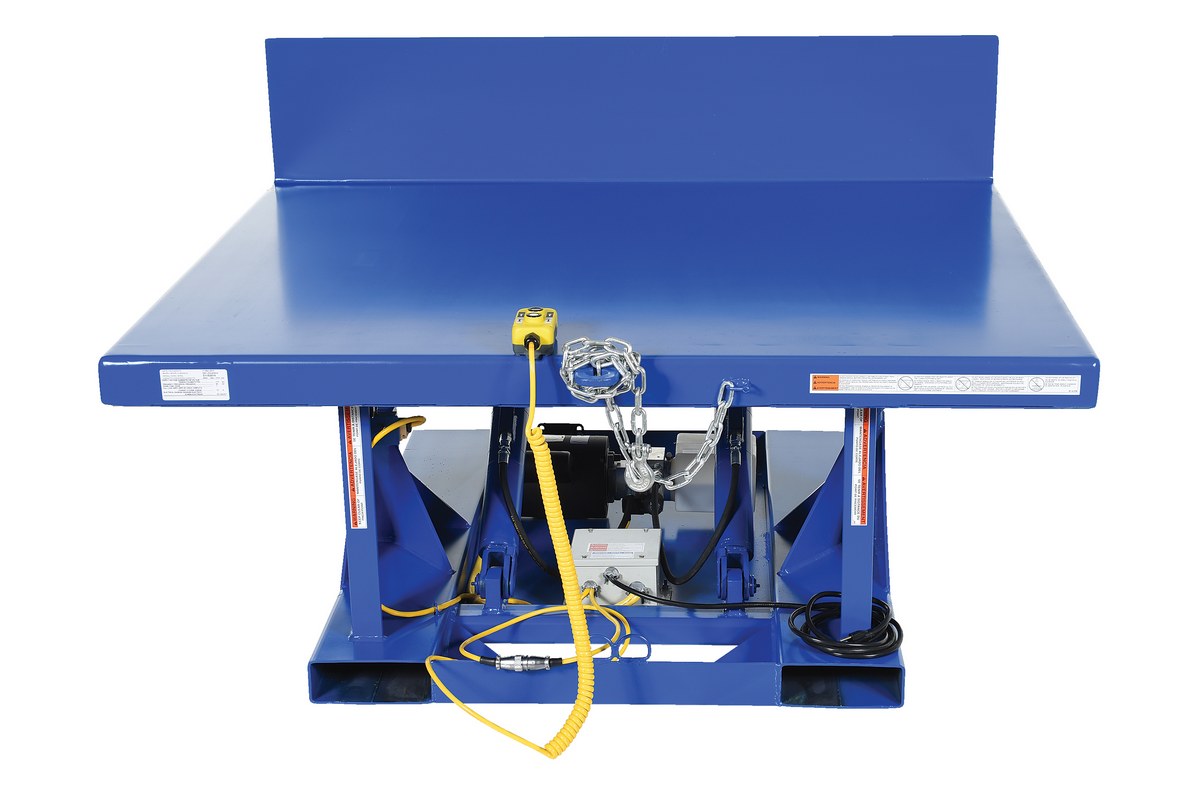

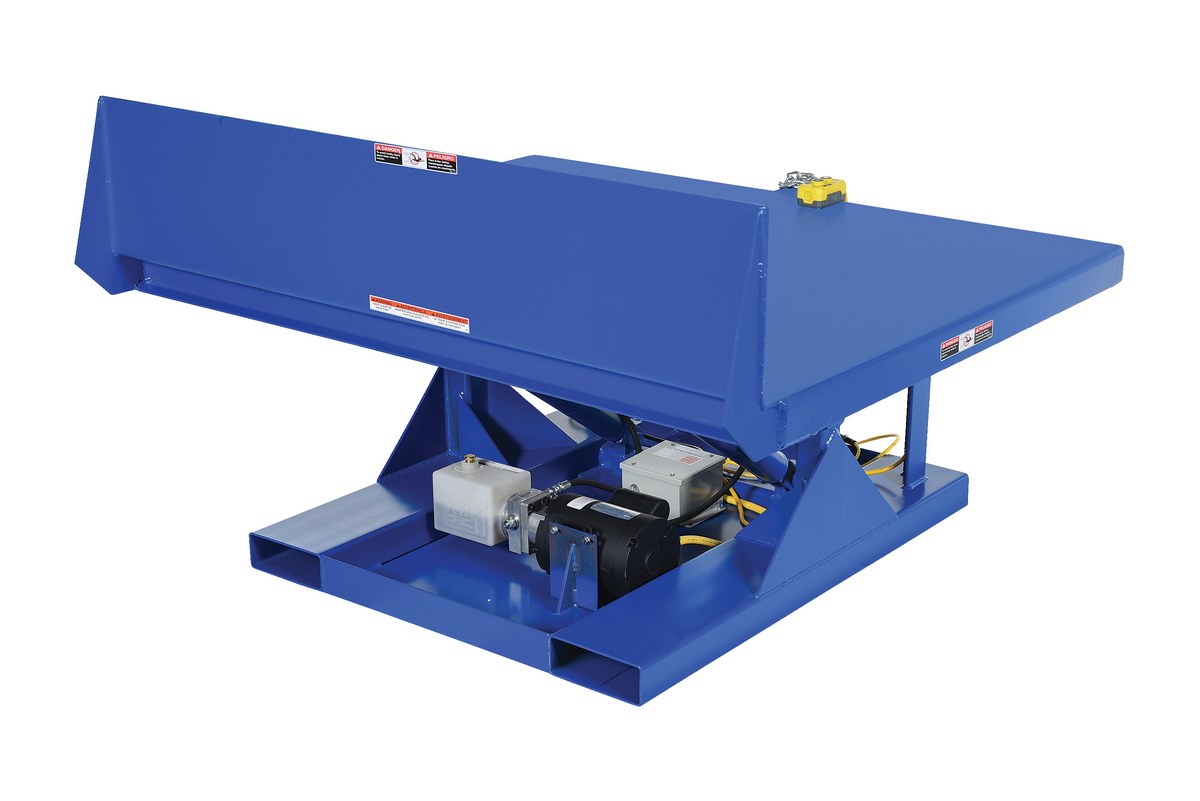

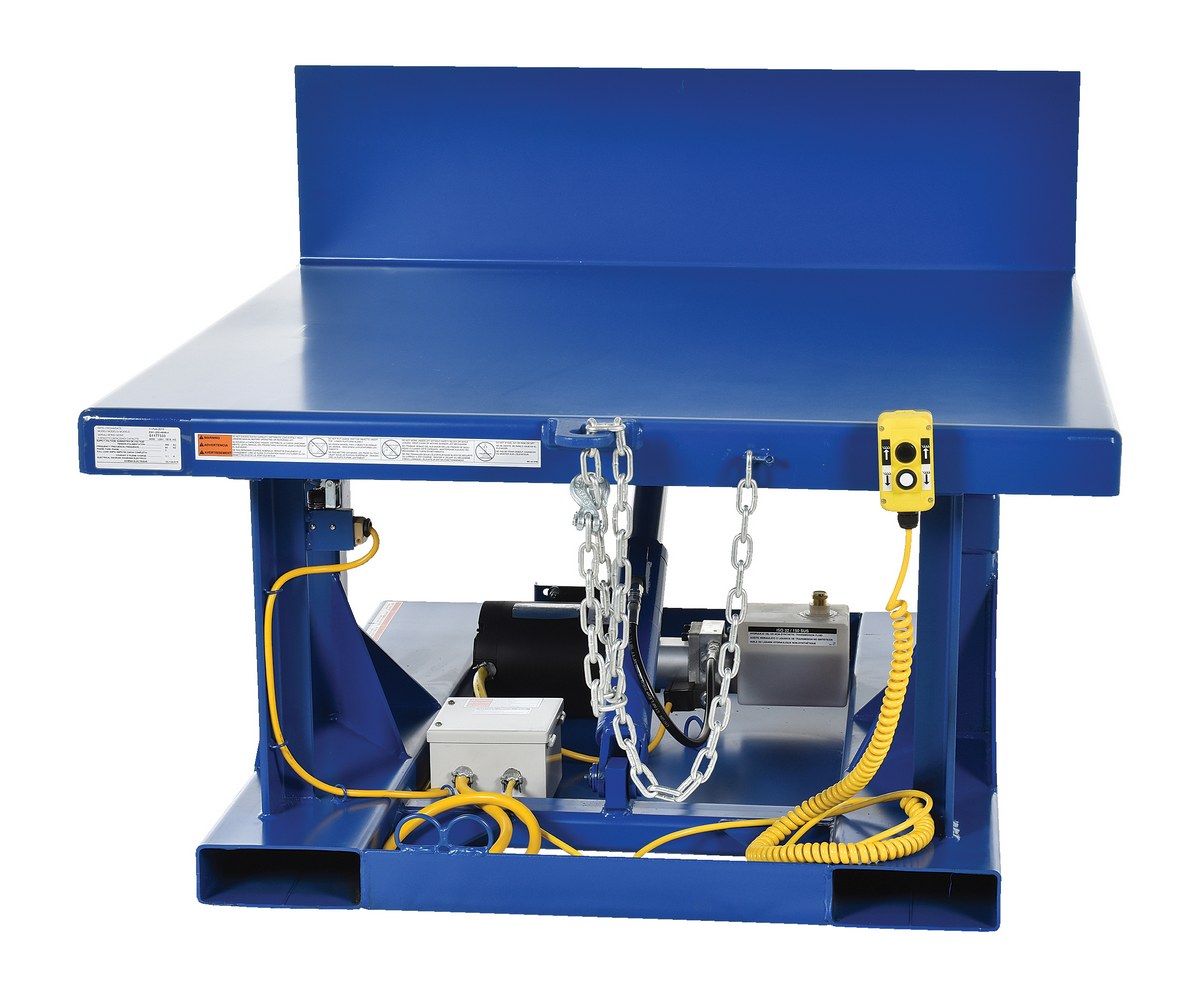

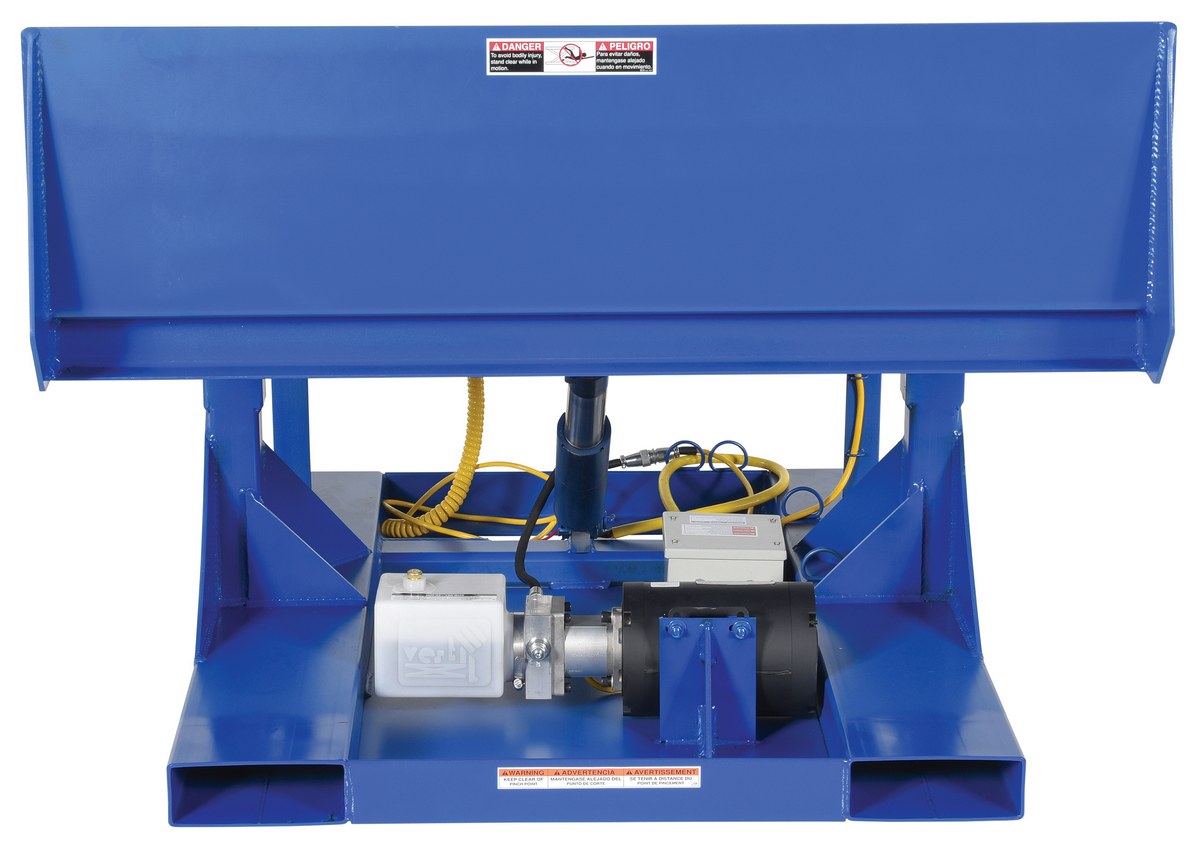

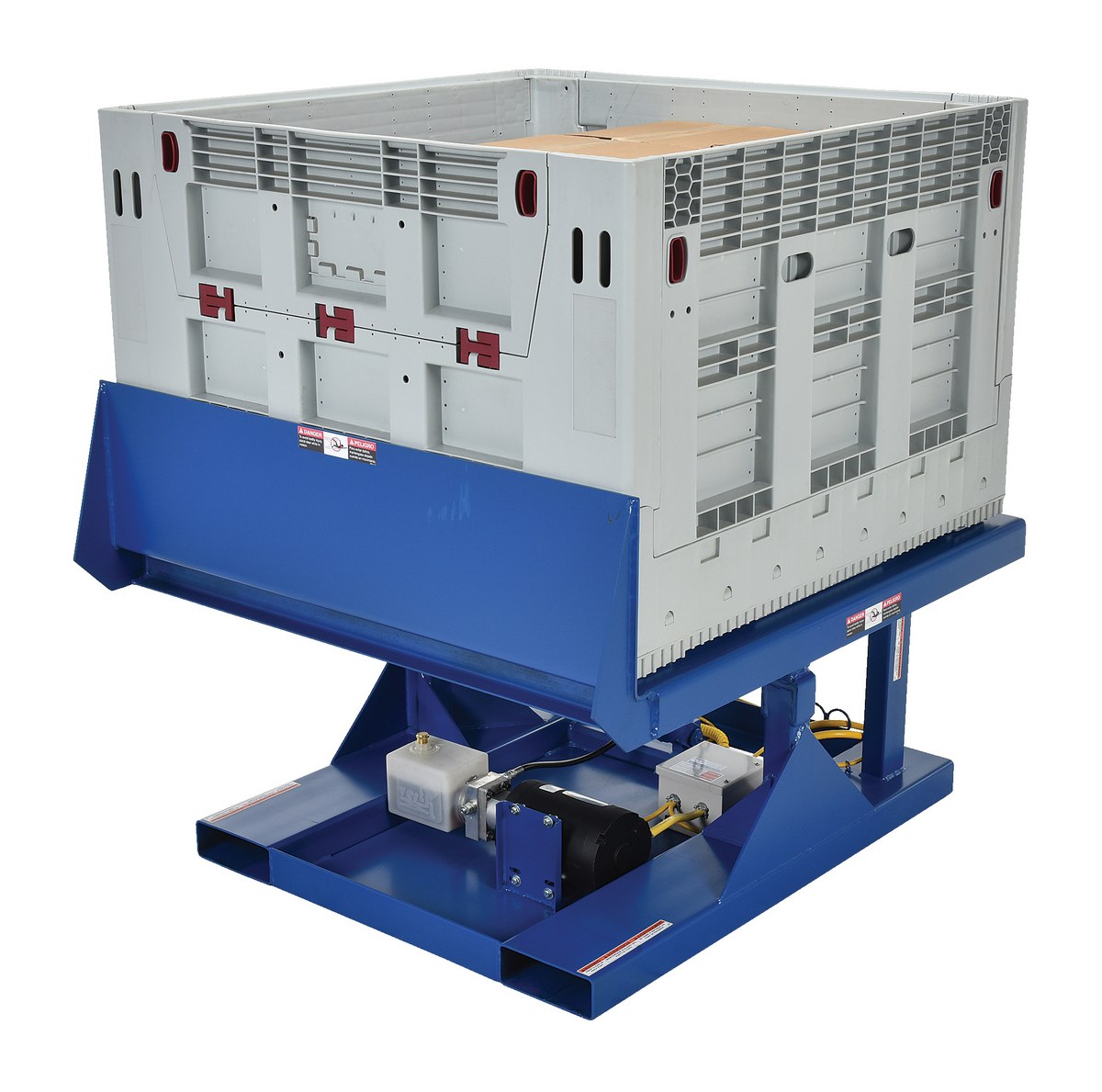

The model EM1-200 tilts pallets, crates, boxes, or baskets 45 degrees to facilitate loading or unloading. The deck height is 24" when horizontal. Tables have all welded steel construction for years of durability. Unique design minimizes pinch points to meet OSHA requirements. The EM1-200 is equipped with an industrial quality, 56 frame 2 HP motor. This motor delivers best torque with minimal amperage draw and maximum life. Standard voltage is 460/3Ph (208/230 option is available). A push button hand control with a NEMA type 4 enclosure is standard. Base includes 7-1/2" W x 2-1/2" H usable fork pockets on 30" centers for portability with forklift. Optional foot control with guard is available.

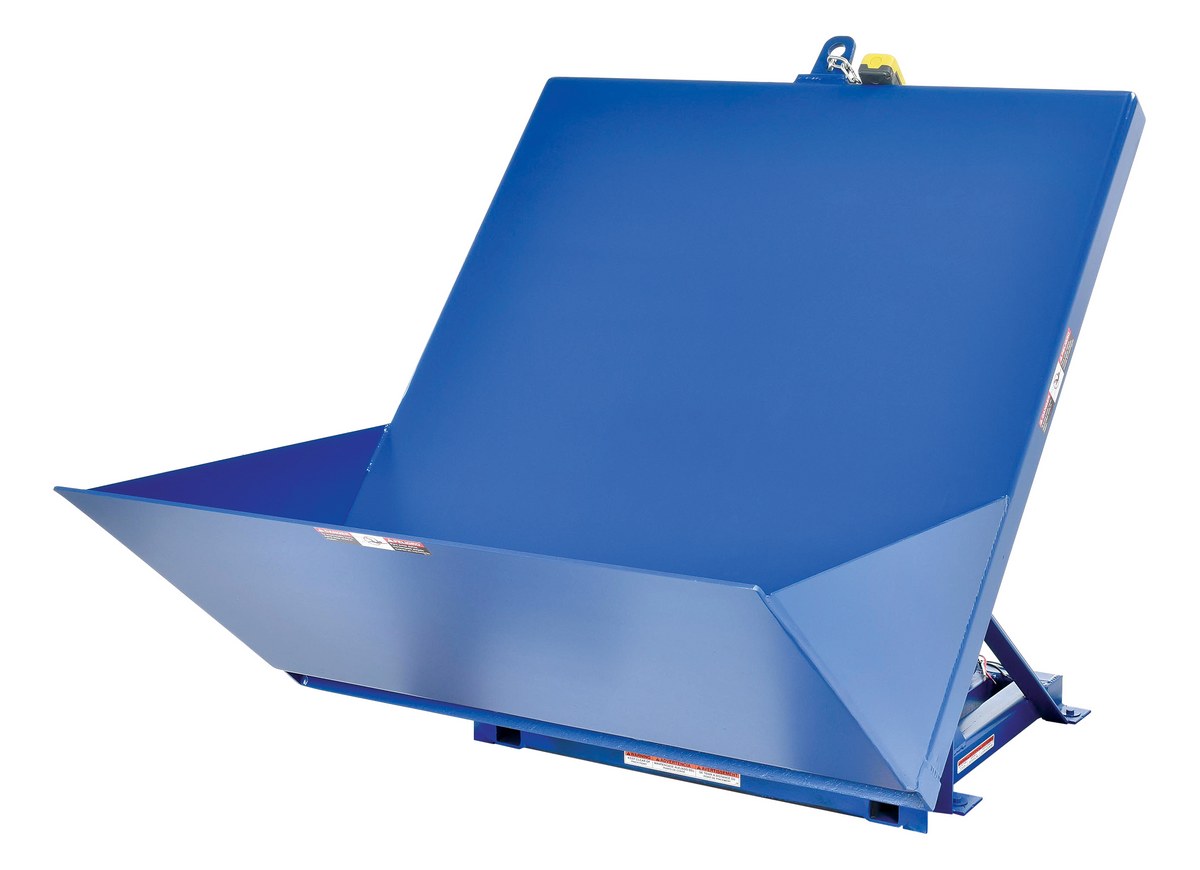

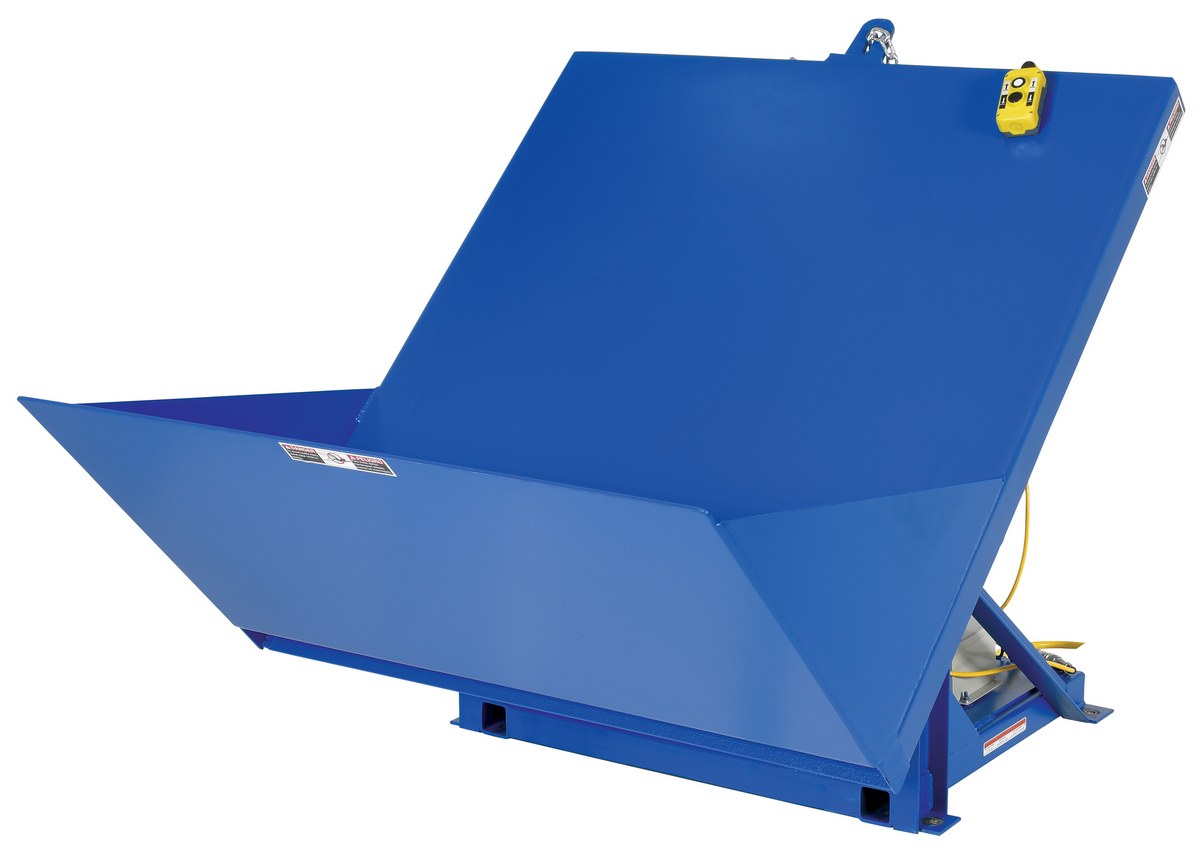

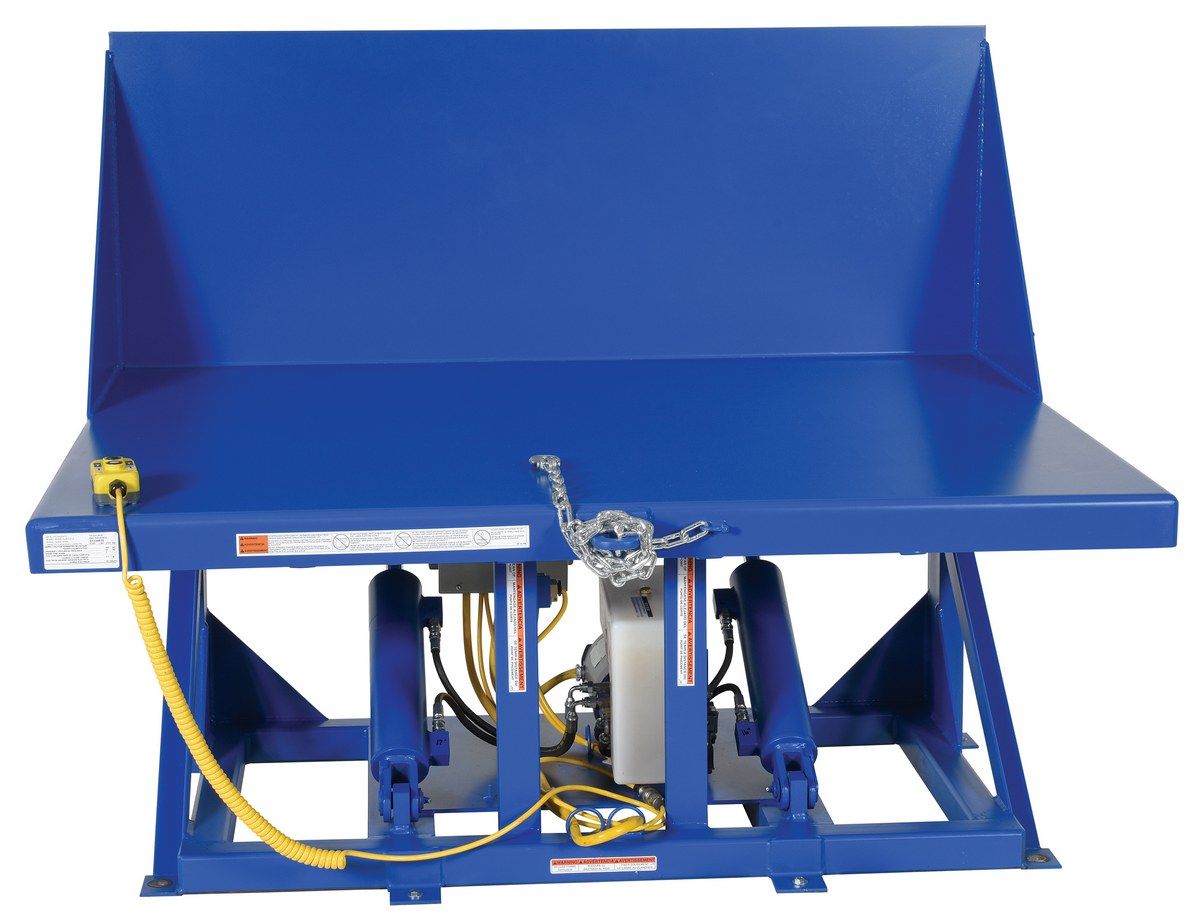

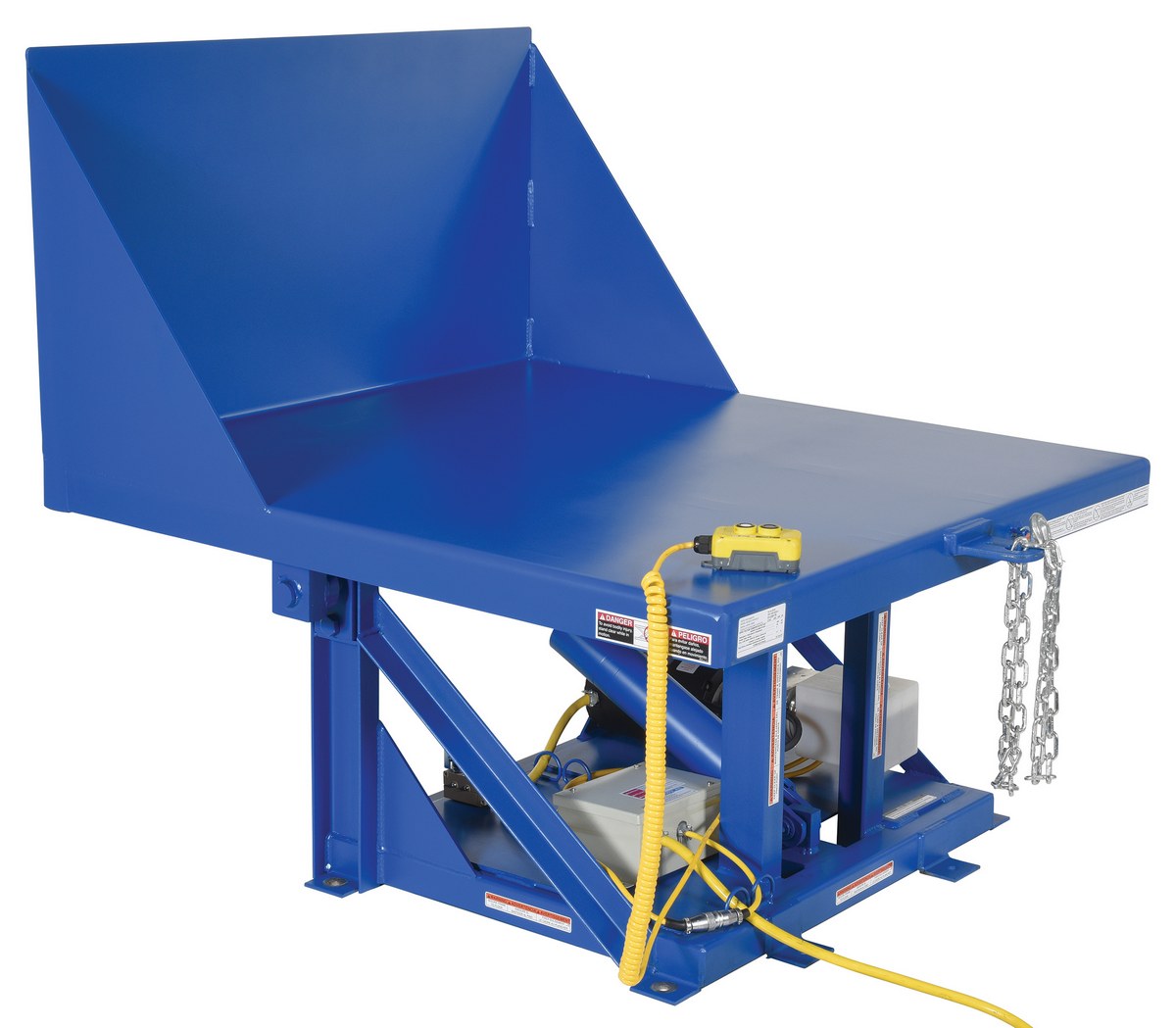

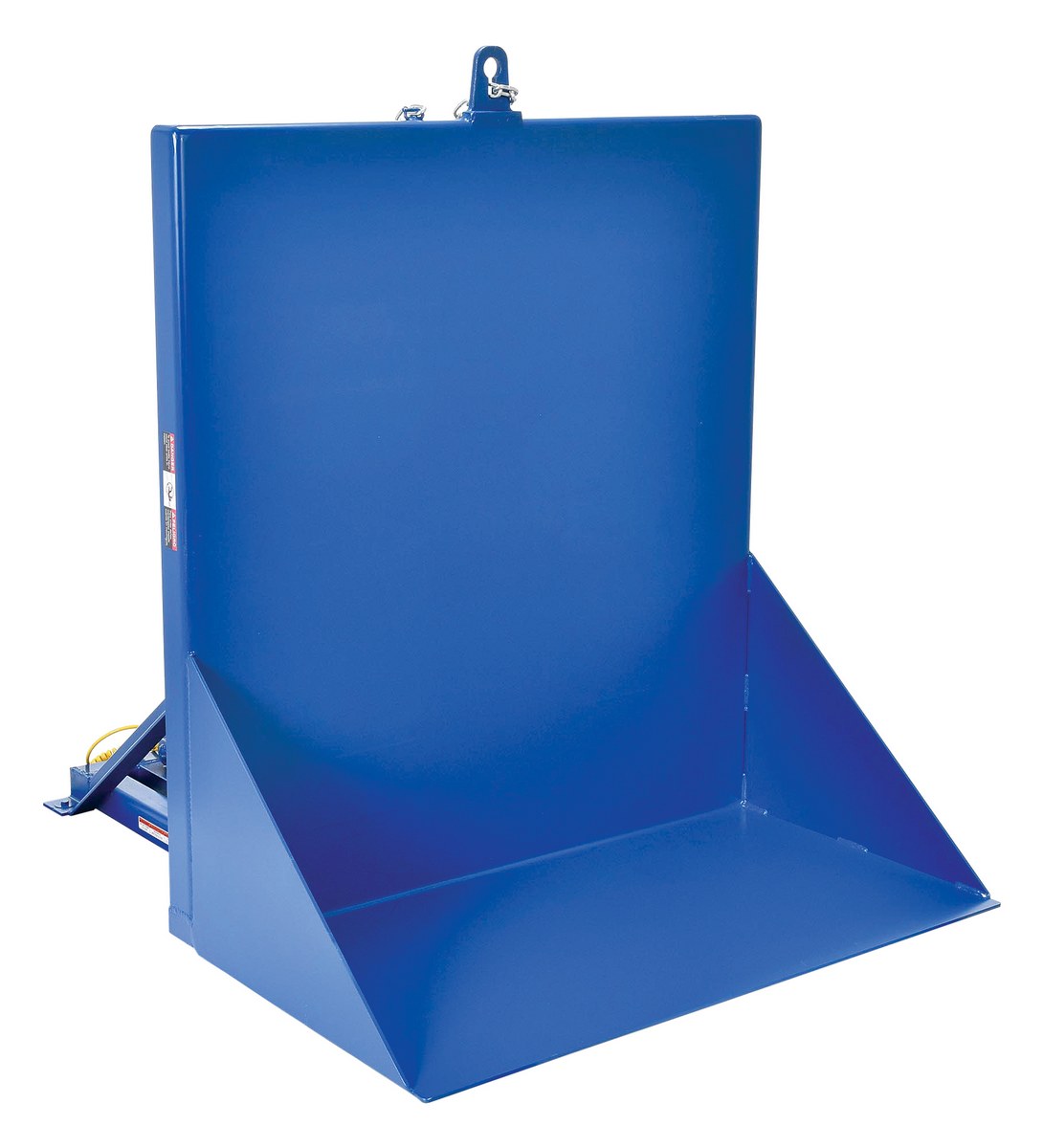

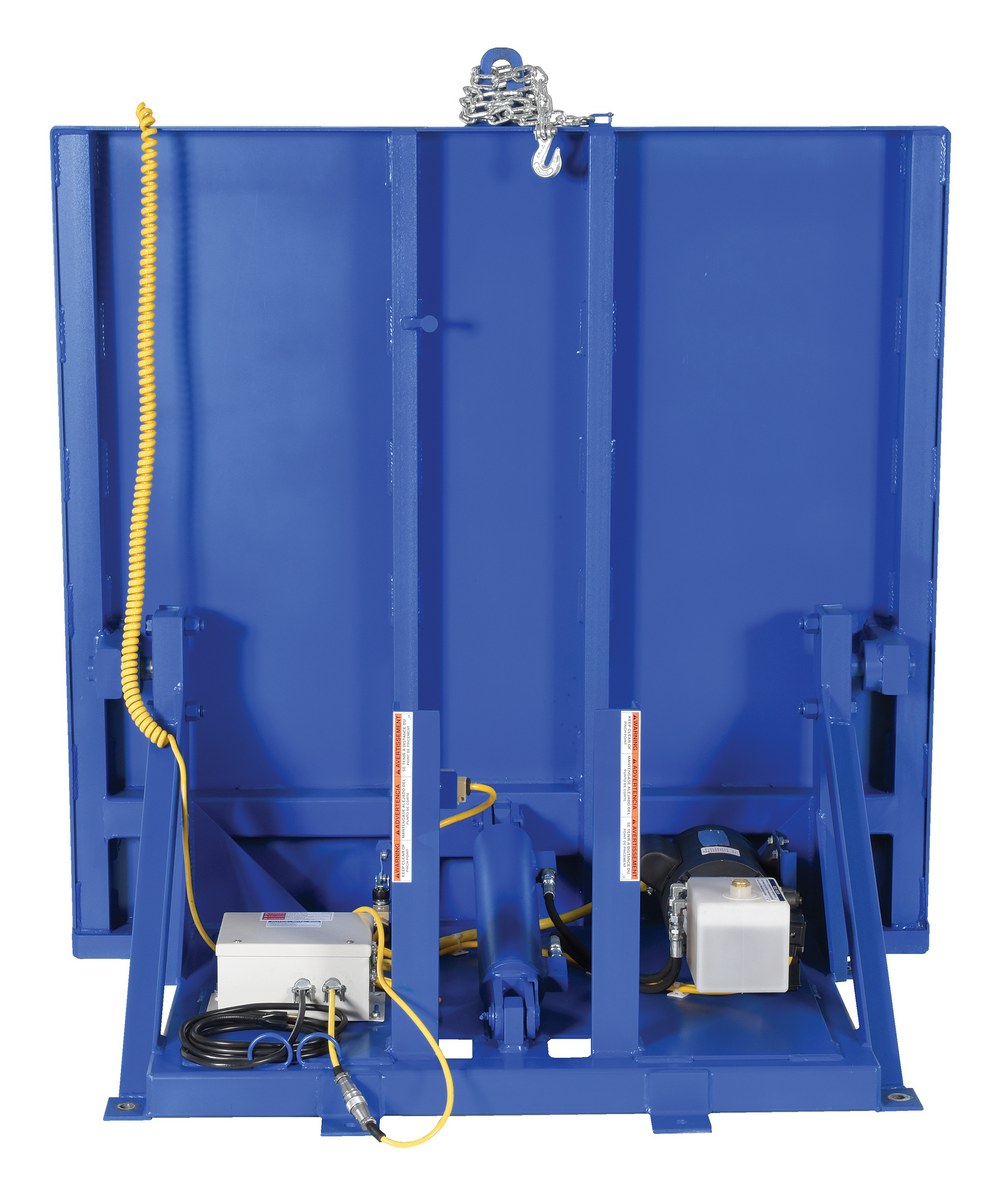

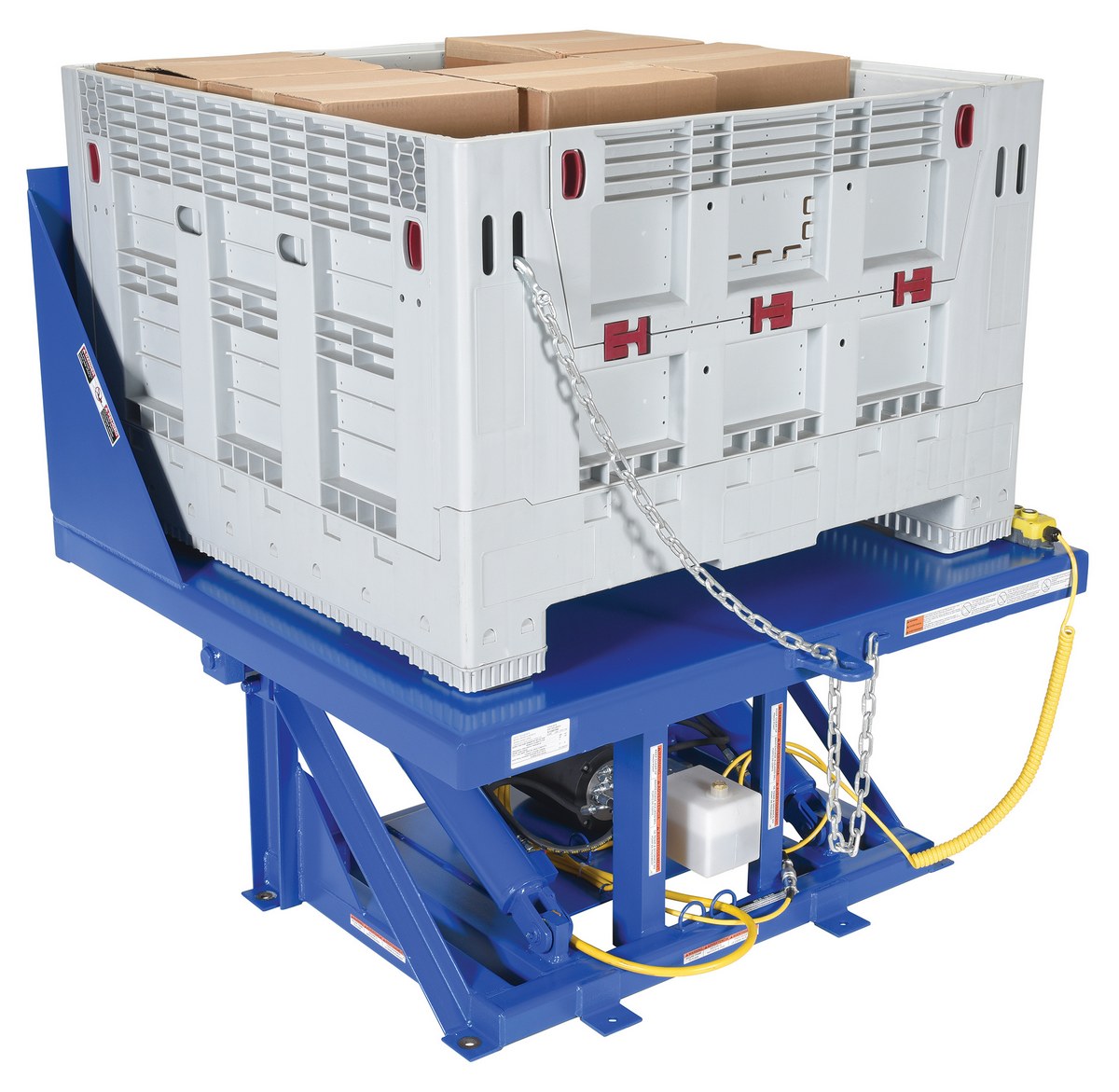

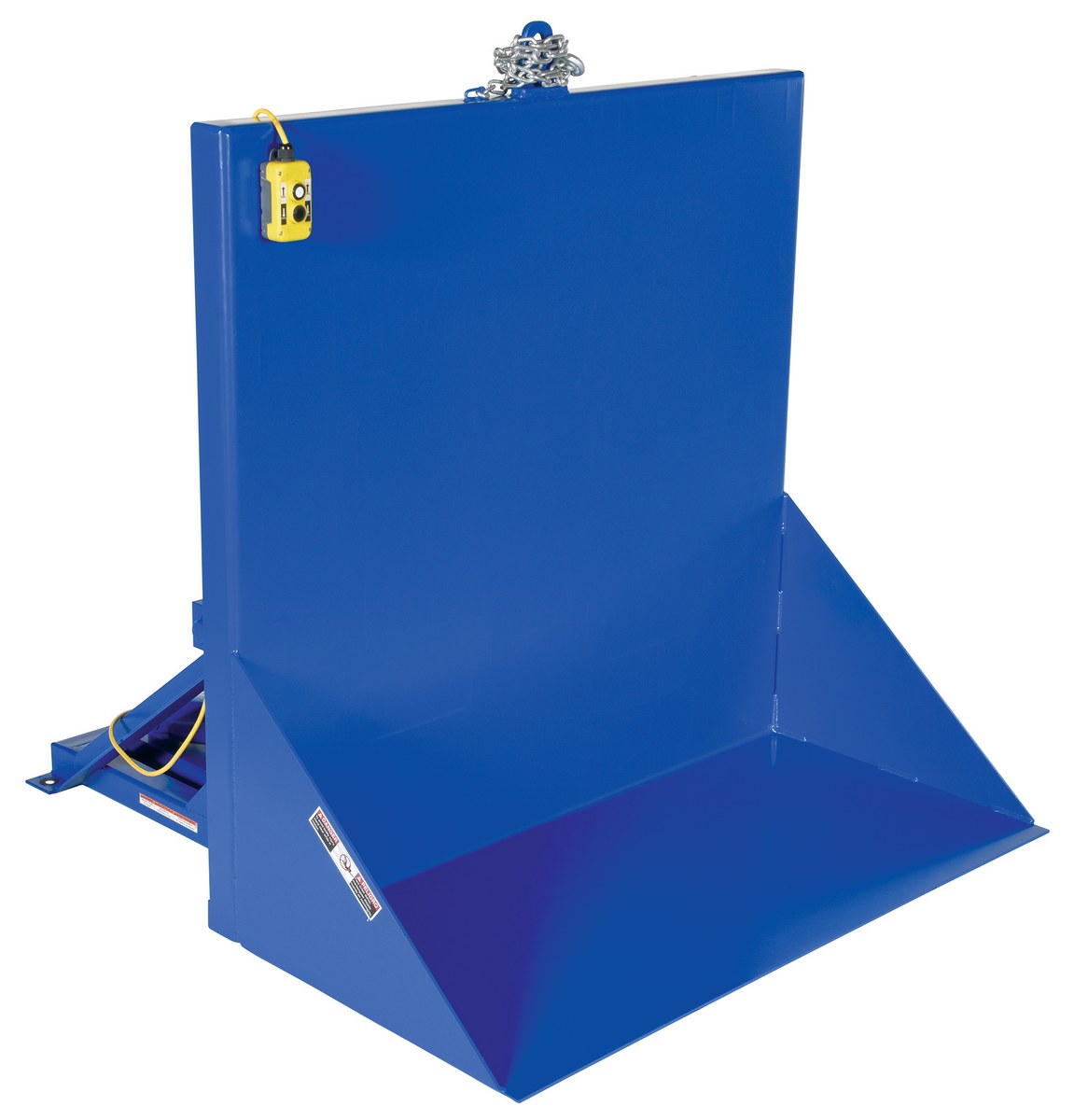

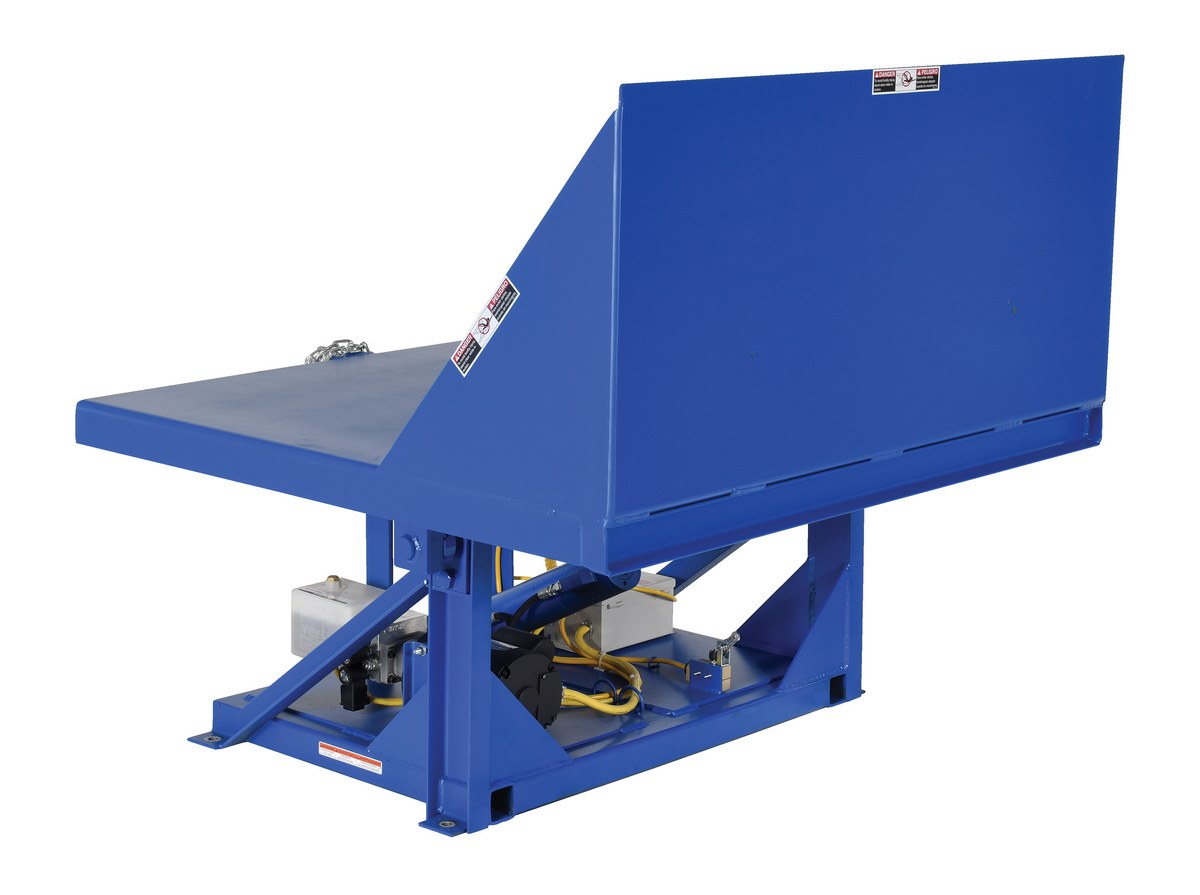

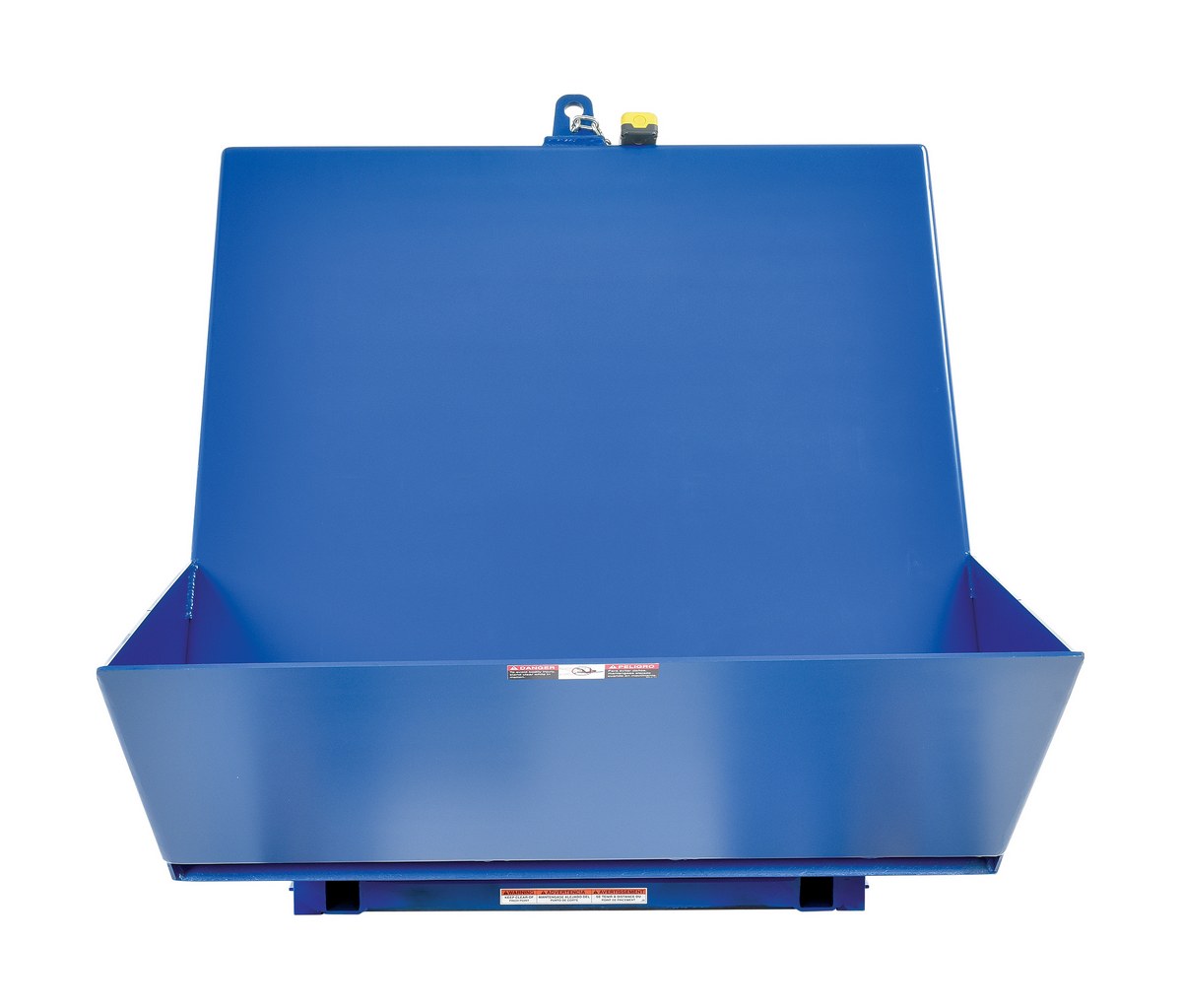

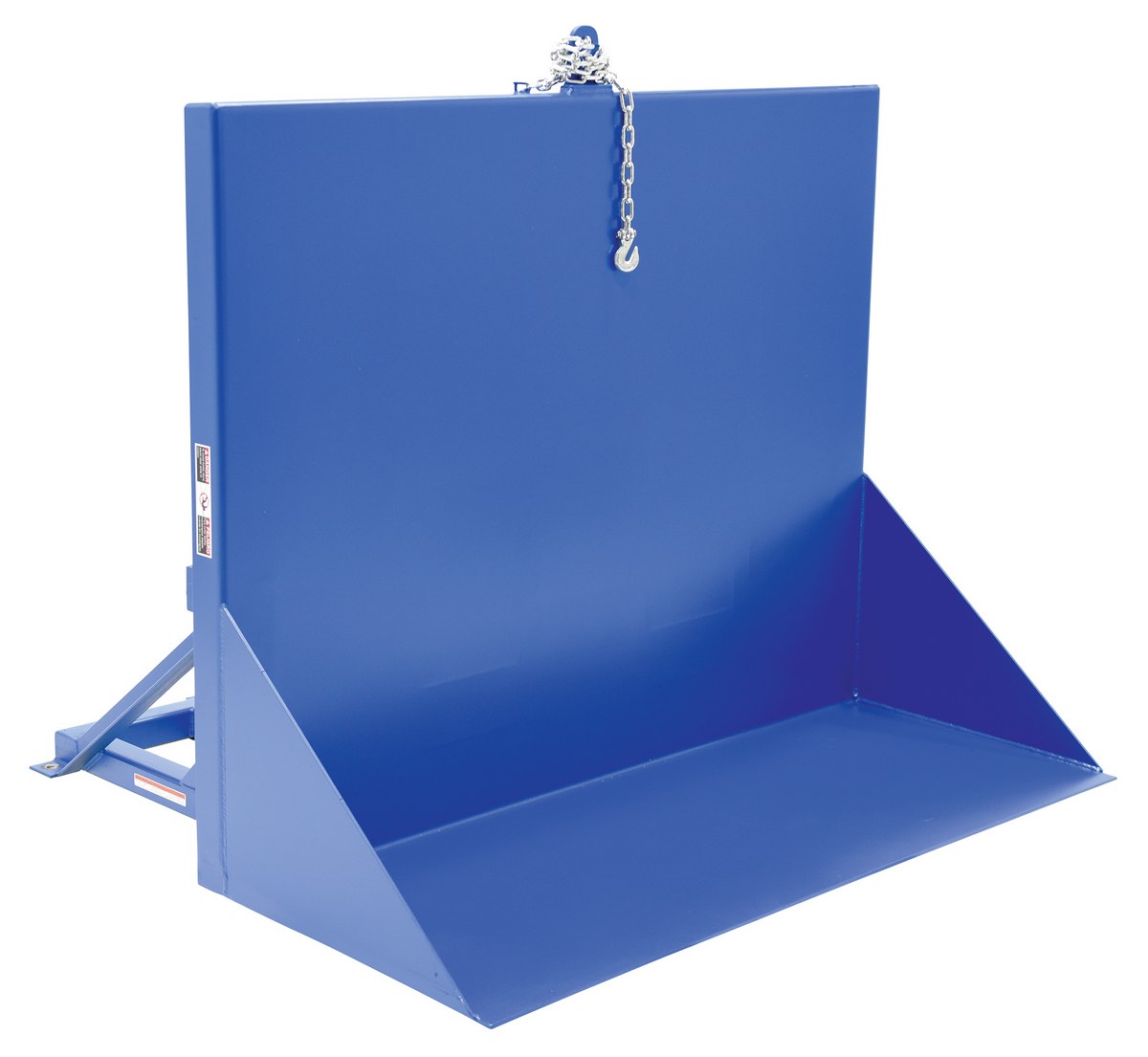

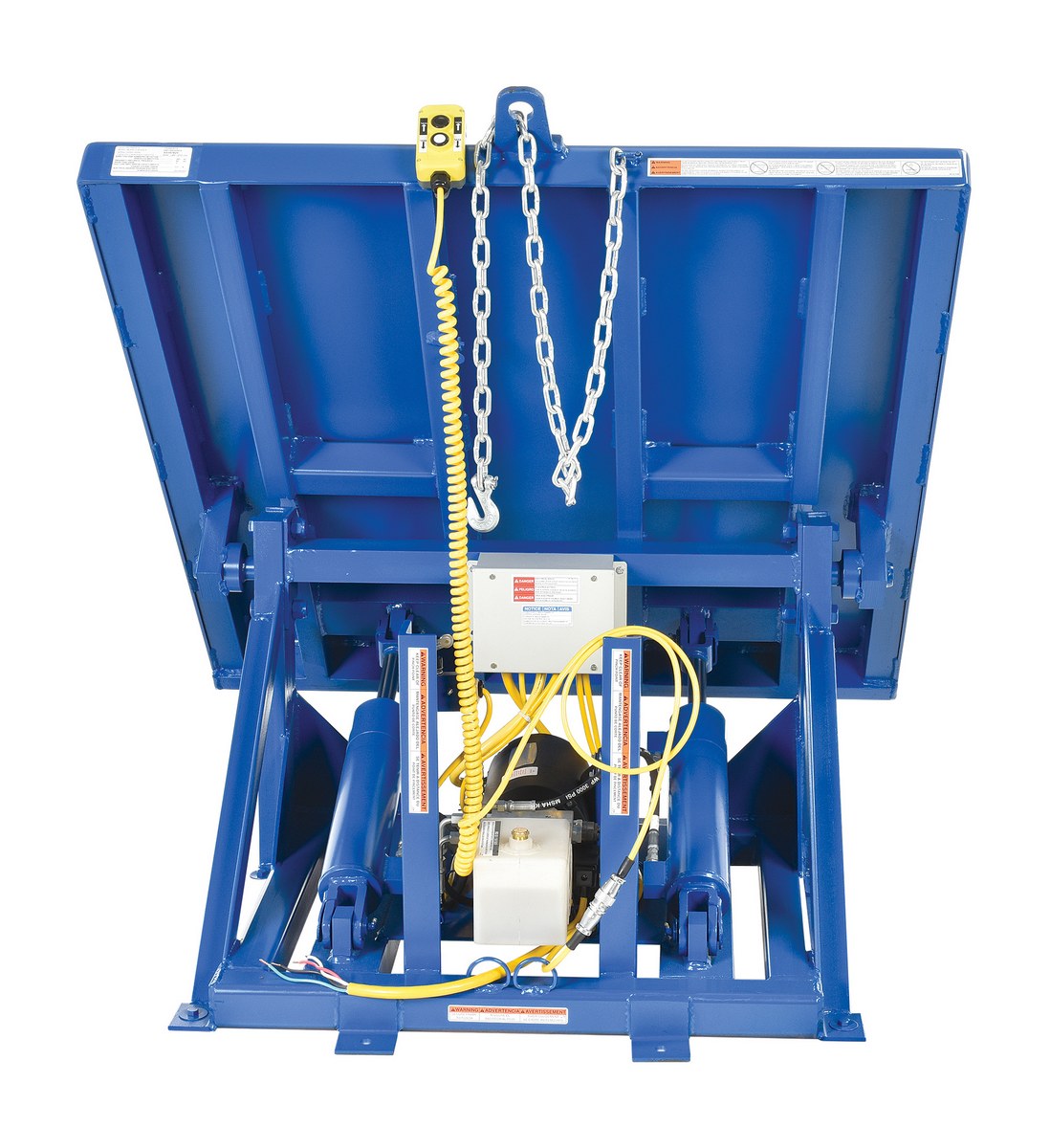

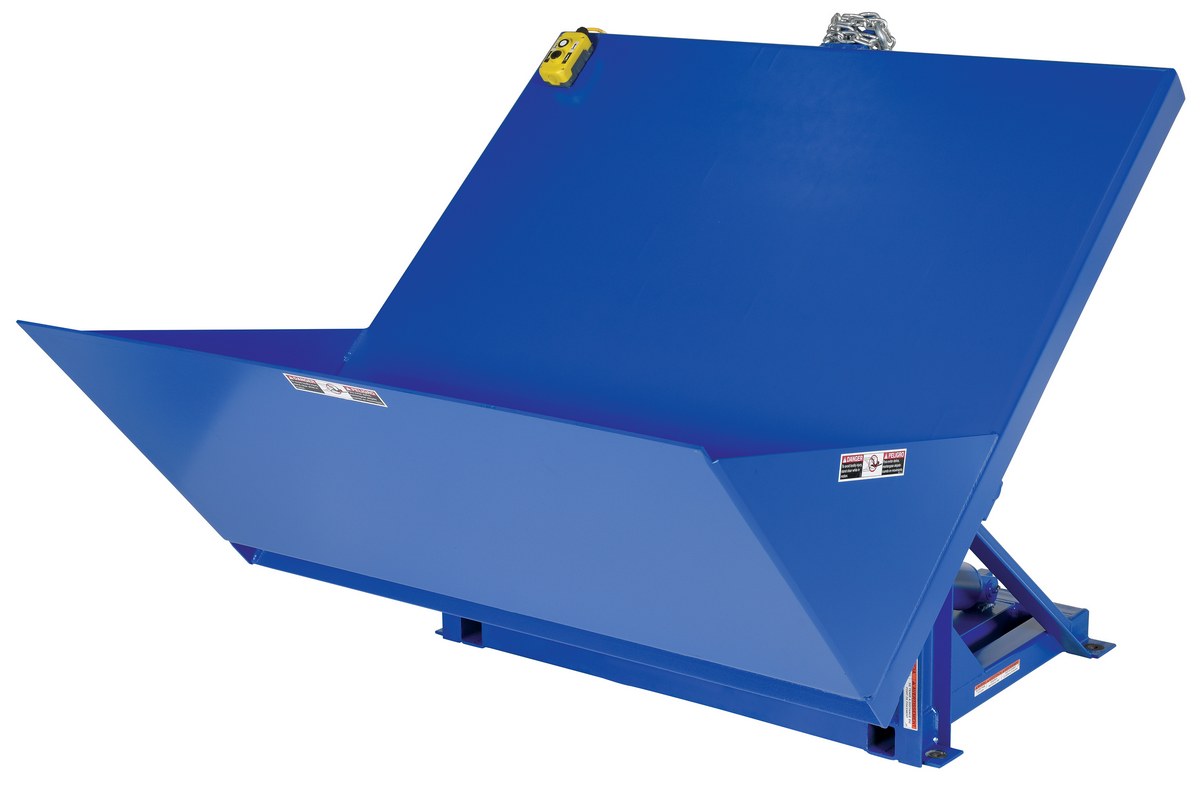

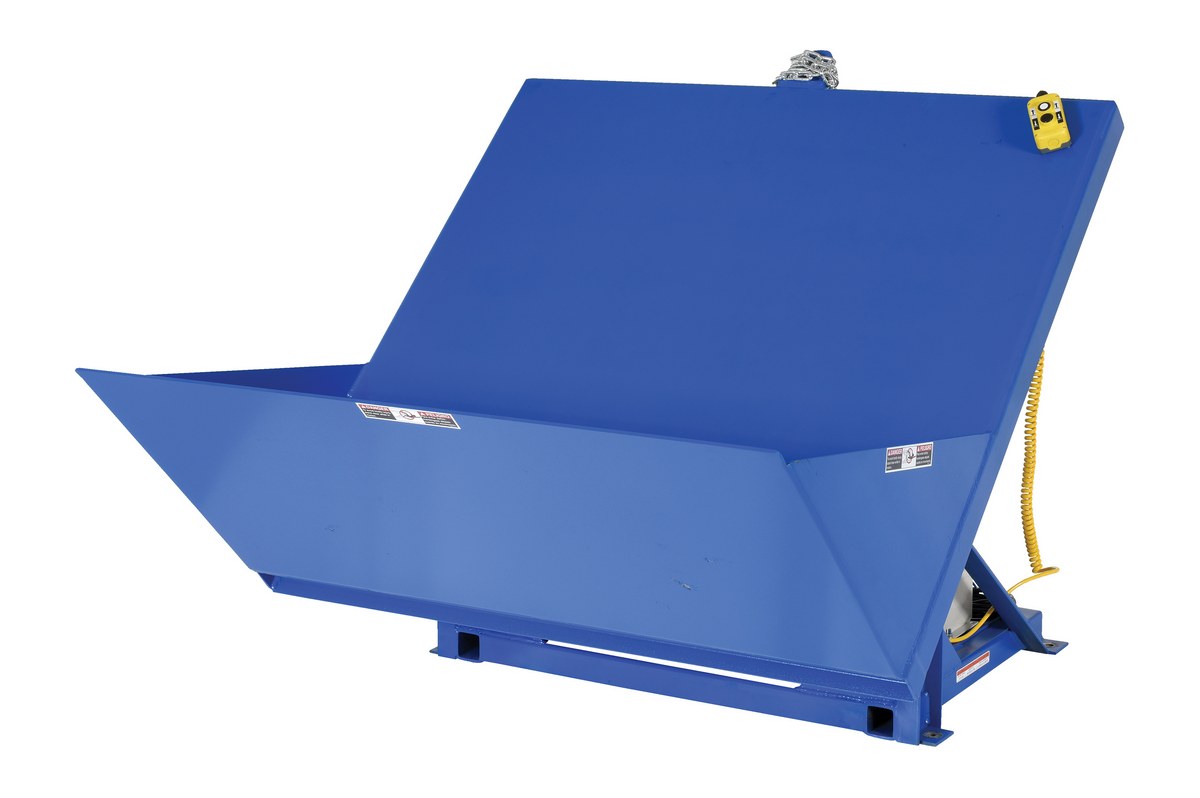

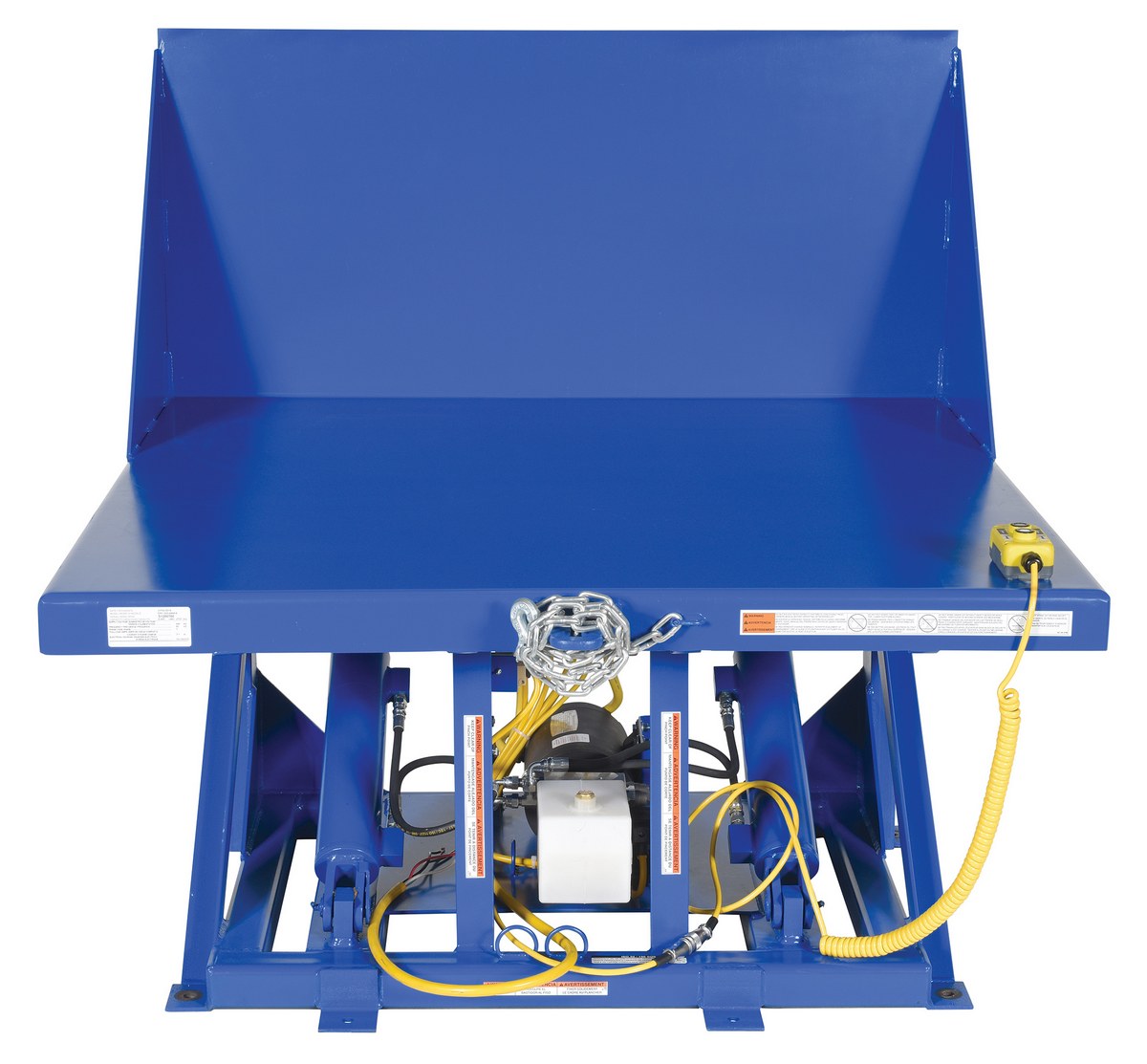

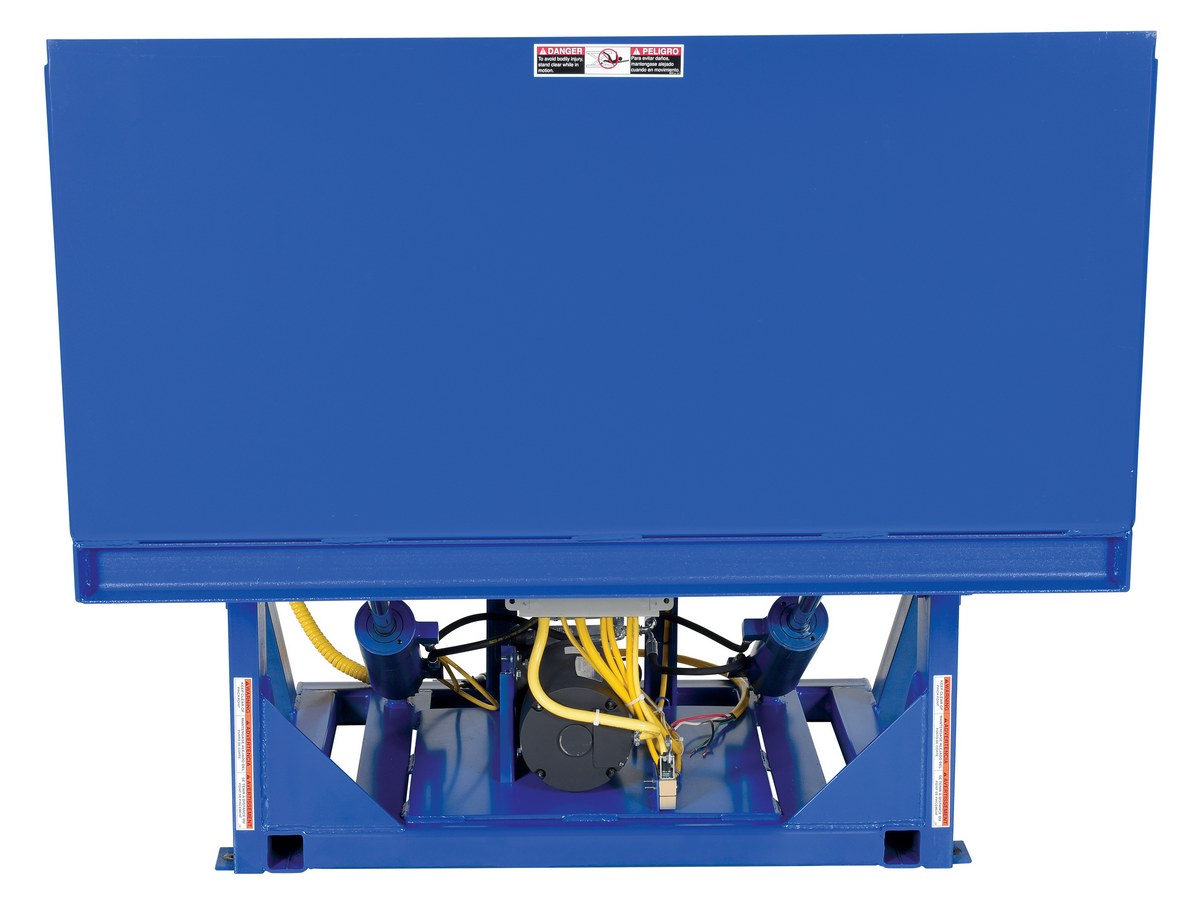

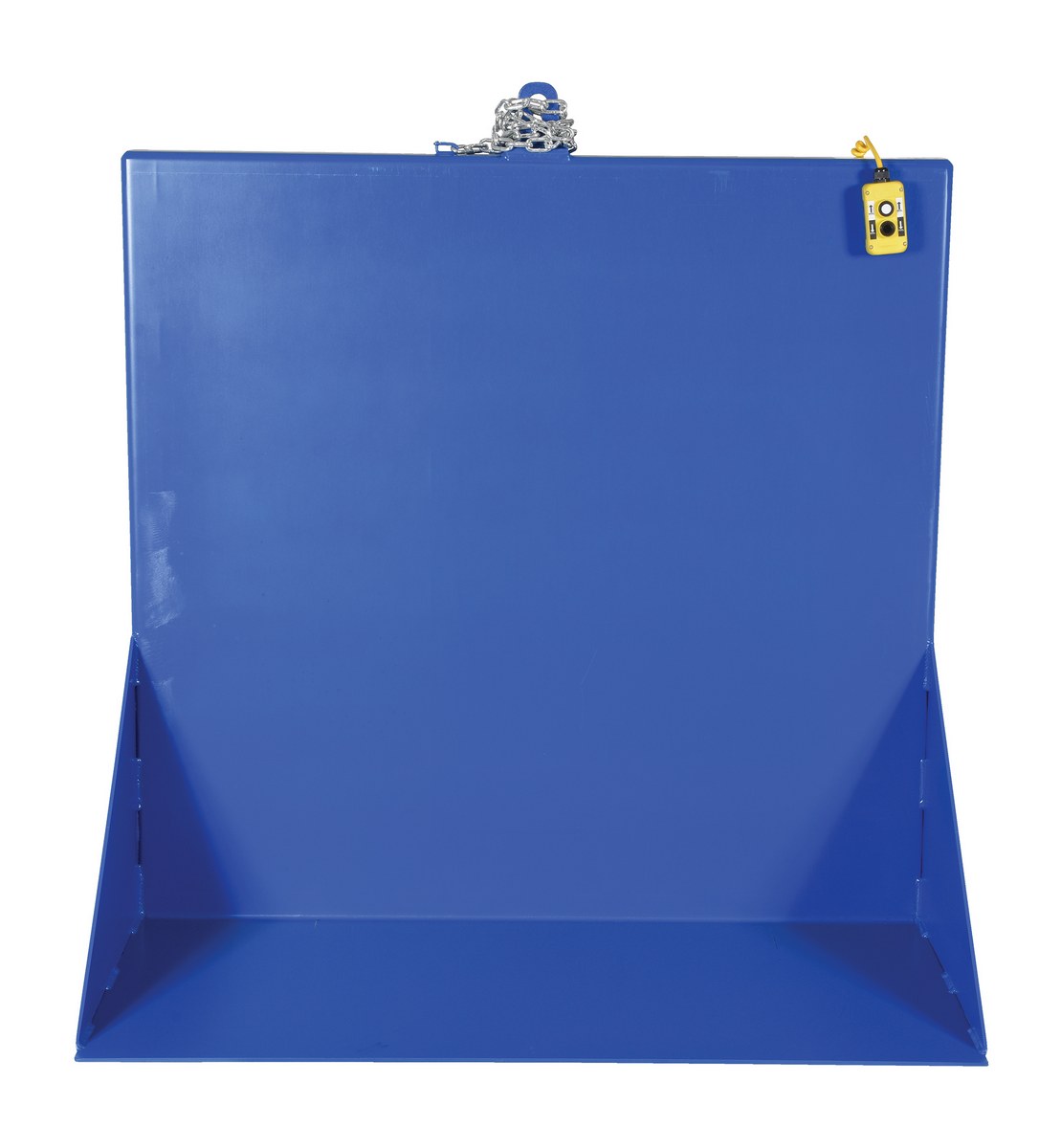

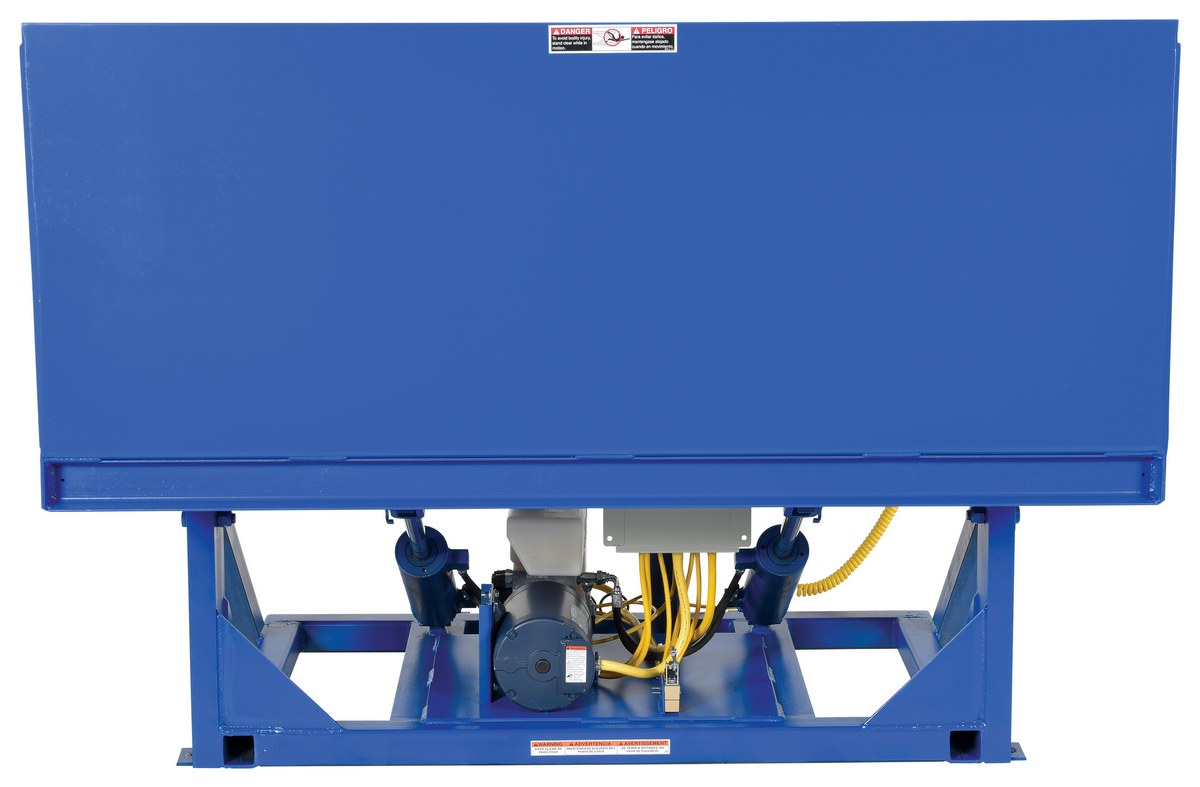

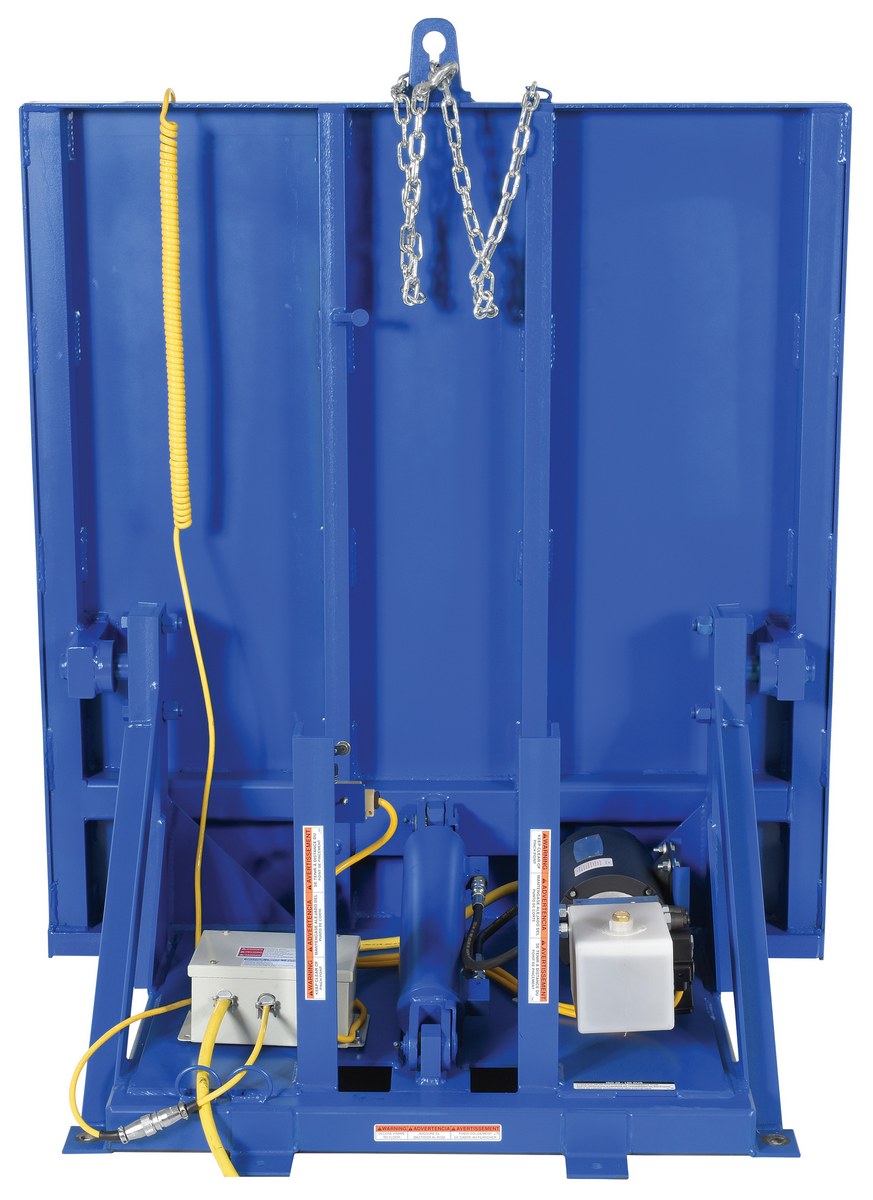

The model EM1-500 incorporates many of the same quality features found in the Series EM1-200, but features a full 90 degrees of tilt. Unit is ideal for upending products in shipping and receiving operations. Standard with double acting cylinder for controlled tilt and return. Unit must be lagged to floor.

460V 3-PHASE STANDARD

The model EM1-200 tilts pallets, crates, boxes, or baskets 45 degrees to facilitate loading or unloading. The deck height is 24" when horizontal. Tables have all welded steel construction for years of durability. Unique design minimizes pinch points to meet OSHA requirements. The EM1-200 is equipped with an industrial quality, 56 frame 2 HP motor. This motor delivers best torque with minimal amperage draw and maximum life. Standard voltage is 460/3Ph (208/230 option is available). A push button hand control with a NEMA type 4 enclosure is standard. Base includes 7-1/2" W x 2-1/2" H usable fork pockets on 30" centers for portability with forklift. Optional foot control with guard is available.

The model EM1-500 incorporates many of the same quality features found in the Series EM1-200, but features a full 90 degrees of tilt. Unit is ideal for upending products in shipping and receiving operations. Standard with double acting cylinder for controlled tilt and return. Unit must be lagged to floor.

Other Tilters

 Economy Transporter / Tilter Manual Tilt Master Efficiency Master Tilt Tables Tilt Master & Tilt Master Straddle

EM1-200-4848-2

model EM1-200-4848-2

EM1-200-4848-4

model EM1-200-4848-4

EM1-200-6050-2

model EM1-200-6050-2

EM1-500-4250-2

model EM1-500-4250-2

EM1-500-4250-6

model EM1-500-4250-6

EM1-500-4848-2

model EM1-500-4848-2

EM1-500-4848-6

model EM1-500-4848-6

How To Order
Share:


All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.
The Search Box below is within the Model Chart on this page. Not an entire site search.
Model Image PDFs Description Attributes Net Wt.
(lbs)
EM1-200-4250-2 1 Year Limited WarrantyEfficiency Master Tilt Table 42 In. x 50 In. 2000 Lb. Capacity BlueUniform Capacity (lb.) 2000
740
EM1-200-4250-4 1 Year Limited WarrantyEfficiency Master Tilt Table 42 In. x 50 In. 4000 Lb. Capacity BlueUniform Capacity (lb.) 4000
780
EM1-200-4250-6 1 Year Limited WarrantyEfficiency Master Tilt Table 42 In. x 50 In. 6000 Lb. Capacity BlueUniform Capacity (lb.) 6000
822
EM1-200-4848-2 1 Year Limited WarrantyEfficiency Master Tilt Table 48 In. x 48 In. 2000 Lb. Capacity BlueUniform Capacity (lb.) 2000
697
EM1-200-4848-2-YEL 1 Year Limited WarrantyEfficiency Master Tilt Table 48 In. x 48 In. 2000 Lb. Capacity YellowUniform Capacity (lb.) 2000
697
EM1-200-4848-4 1 Year Limited WarrantyEfficiency Master Tilt Table 48 In. x 48 In. 4000 Lb. Capacity BlueUniform Capacity (lb.) 4000
733
EM1-200-4848-4-YEL 1 Year Limited WarrantyEfficiency Master Tilt Table 48 In. x 48 In. 4000 Lb. Capacity YellowUniform Capacity (lb.) 4000
733
EM1-200-4848-6 1 Year Limited WarrantyEfficiency Master Tilt Table 48 In. x 48 In. 6000 Lb. Capacity BlueUniform Capacity (lb.) 6000
832
EM1-200-6050-2 1 Year Limited WarrantyEfficiency Master Tilt Table 60 In. x 50 In. 2000 Lb. Capacity BlueUniform Capacity (lb.) 2000
834
EM1-200-6050-4 1 Year Limited WarrantyEfficiency Master Tilt Table 60 In. x 50 In. 4000 Lb. Capacity BlueUniform Capacity (lb.) 4000
894
EM1-200-6050-6 1 Year Limited WarrantyEfficiency Master Tilt Table 60 In. x 50 In. 6000 Lb. Capacity BlueUniform Capacity (lb.) 6000
912
EM1-500-4250-2 1 Year Limited WarrantySteel 90 Degree Efficiency Master Tilt Table 42 In. x 50 In. 2000 Lb. Capacity BlueUniform Capacity (lb.) 2000
849
EM1-500-4250-4 1 Year Limited WarrantySteel 90 Degree Efficiency Master Tilt Table 42 In. x 50 In. 4000 Lb. Capacity BlueUniform Capacity (lb.) 4000
870
EM1-500-4250-6 1 Year Limited WarrantySteel 90 Degree Efficiency Master Tilt Table 42 In. x 50 In. 6000 Lb. Capacity BlueUniform Capacity (lb.) 6000
865
EM1-500-4848-2 1 Year Limited WarrantySteel 90 Degree Efficiency Master Tilt Table 48 In. x 48 In. 2000 Lb. Capacity BlueUniform Capacity (lb.) 2000
887
EM1-500-4848-4 1 Year Limited WarrantySteel 90 Degree Efficiency Master Tilt Table 48 In. x 48 In. 4000 Lb. Capacity BlueUniform Capacity (lb.) 4000
905
EM1-500-4848-6 1 Year Limited WarrantySteel 90 Degree Efficiency Master Tilt Table 48 In. x 48 In. 6000 Lb. Capacity BlueUniform Capacity (lb.) 6000
923
EM1-500-6050-2 1 Year Limited WarrantySteel 90 Degree Efficiency Master Tilt Table 60 In. x 50 In. 2000 Lb. Capacity BlueUniform Capacity (lb.) 2000
1035
EM1-500-6050-4 1 Year Limited WarrantySteel 90 Degree Efficiency Master Tilt Table 60 In. x 50 In. 4000 Lb. Capacity BlueUniform Capacity (lb.) 4000
1047
EM1-500-6050-6 1 Year Limited WarrantySteel 90 Degree Efficiency Master Tilt Table 60 In. x 50 In. 6000 Lb. Capacity BlueUniform Capacity (lb.) 6000
1106

KEY: = Click For Expanded Model Details -- = Approval Drawing -- = Testing Certificate -- Warranty

If you did not find an expected Model or SKU # in the table, try the Options Section Below
Efficiency Master Tilt Table Series 200
Model Image PDF's Platform
(WxL)		 Capacity
(lbs)		 Degree
of Tilt		 Horizontal
Height		 Wt. (lbs)
EM1-200-4250-2 icon_approvaldrawings.jpgWarranty PDFCompliance Certificate 42"x50" 2,000 45 24" 740
EM1-200-4848-2 icon_approvaldrawings.jpgWarranty PDFCompliance Certificate 48"x48" 2,000 45 24" 697
EM1-200-6050-2 icon_approvaldrawings.jpgWarranty PDFCompliance Certificate 60"x50" 2,000 45 24" 834
EM1-200-4250-4 icon_approvaldrawings.jpgWarranty PDFCompliance Certificate 42"x50" 4,000 45 24" 780
EM1-200-4848-4 icon_approvaldrawings.jpgWarranty PDFCompliance Certificate 48"x48" 4,000 45 24" 733
EM1-200-6050-4 icon_approvaldrawings.jpgWarranty PDFCompliance Certificate 60"x50" 4,000 45 24" 894
EM1-200-4250-6 icon_approvaldrawings.jpgWarranty PDFCompliance Certificate 42"x50" 6,000 45 24" 822
EM1-200-4848-6 icon_approvaldrawings.jpgWarranty PDFCompliance Certificate 48"x48" 6,000 45 24" 832
EM1-200-6050-6 icon_approvaldrawings.jpgWarranty PDFCompliance Certificate 60"x50" 6,000 45 24" 912
Efficiency Master Tilt Table Series 500
Model Image PDF's Useable Size
(WxL)		 Capacity
(lbs)		 Degree
of Tilt		 Horizontal
Height		 Wt. (lbs)
EM1-500-4250-2 icon_approvaldrawings.jpgWarranty PDFCompliance Certificate 42"x50" 2,000 90 24" 849
EM1-500-4848-2 icon_approvaldrawings.jpgWarranty PDFCompliance Certificate 48"x48" 2,000 90 24" 887
EM1-500-6050-2 icon_approvaldrawings.jpgWarranty PDFCompliance Certificate 60"x50" 2,000 90 24" 1035
EM1-500-4250-4 icon_approvaldrawings.jpgWarranty PDFCompliance Certificate 42"x50" 4,000 90 24" 870
EM1-500-4848-4 icon_approvaldrawings.jpgWarranty PDFCompliance Certificate 48"x48" 4,000 90 24" 905
EM1-500-6050-4 icon_approvaldrawings.jpgWarranty PDFCompliance Certificate 60"x50" 4,000 90 24" 1047
EM1-500-4250-6 icon_approvaldrawings.jpgWarranty PDFCompliance Certificate 42"x50" 6,000 90 24" 865
EM1-500-4848-6 icon_approvaldrawings.jpgWarranty PDFCompliance Certificate 48"x48" 6,000 90 24" 923
EM1-500-6050-6 icon_approvaldrawings.jpgWarranty PDFCompliance Certificate 60"x50" 6,000 90 24" 1106

KEY: Approval Drawing = Approval Drawing -- Approval Drawing = Warranty -- Approval Drawing = Testing Certificate

If you did not find an expected Model or SKU # in the table, try the Options Section Below

Efficiency Master Tilt Table 42 In. x 50 In. 2000 Lb. Capacity Blue


Unit: EACH
Size: 42W x 58L x 36H
Weight: 740
1 Year Limited Warranty
Uniform Capacity (lb.): 2000
Usable Width (in.): 42
Uniform Capacity (lb.): 2000
Usable Width (in.): 42

Efficiency Master Tilt Table 42 In. x 50 In. 4000 Lb. Capacity Blue


Unit: EACH
Size: 42W x 58L x 36H
Weight: 780
1 Year Limited Warranty
Uniform Capacity (lb.): 4000
Usable Width (in.): 42
Uniform Capacity (lb.): 4000
Usable Width (in.): 42

Efficiency Master Tilt Table 42 In. x 50 In. 6000 Lb. Capacity Blue


Unit: EACH
Size: 42W x 58L x 36H
Weight: 822
1 Year Limited Warranty
Uniform Capacity (lb.): 6000
Usable Width (in.): 42
Uniform Capacity (lb.): 6000
Usable Width (in.): 42

Efficiency Master Tilt Table 48 In. x 48 In. 2000 Lb. Capacity Blue


Unit: EACH
Size: 48W x 56L x 36H
Weight: 697
1 Year Limited Warranty
Uniform Capacity (lb.): 2000
Usable Width (in.): 48
Uniform Capacity (lb.): 2000
Usable Width (in.): 48

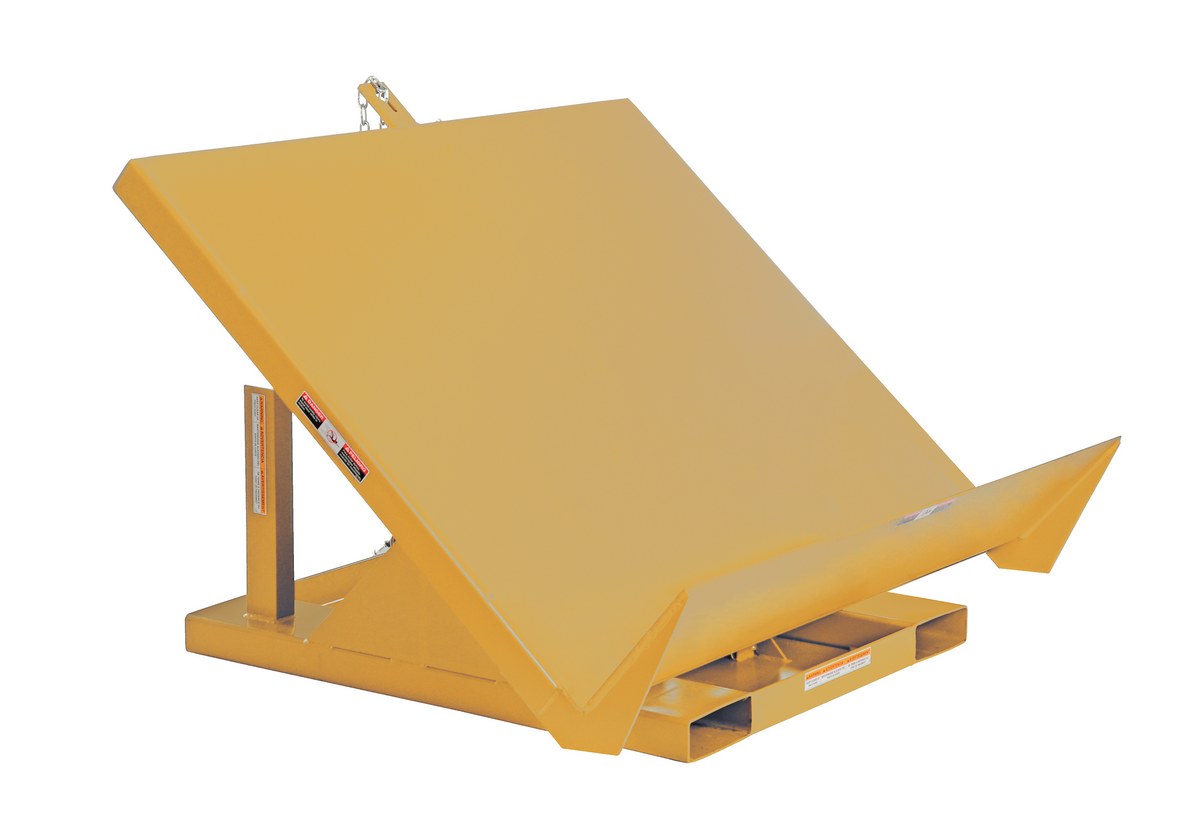

Efficiency Master Tilt Table 48 In. x 48 In. 2000 Lb. Capacity Yellow


Unit: EACH
Size: 48W x 56L x 36H
Weight: 697
1 Year Limited Warranty
Uniform Capacity (lb.): 2000
Usable Width (in.): 48
Uniform Capacity (lb.): 2000
Usable Width (in.): 48

Efficiency Master Tilt Table 48 In. x 48 In. 4000 Lb. Capacity Blue


Unit: EACH
Size: 48W x 56L x 36H
Weight: 733
1 Year Limited Warranty
Uniform Capacity (lb.): 4000
Usable Width (in.): 48
Uniform Capacity (lb.): 4000
Usable Width (in.): 48

Efficiency Master Tilt Table 48 In. x 48 In. 4000 Lb. Capacity Yellow


Unit: EACH
Size: 48W x 56L x 36H
Weight: 733
1 Year Limited Warranty
Uniform Capacity (lb.): 4000
Usable Width (in.): 48
Uniform Capacity (lb.): 4000
Usable Width (in.): 48

Efficiency Master Tilt Table 48 In. x 48 In. 6000 Lb. Capacity Blue


Unit: EACH
Size: 48W x 56L x 36H
Weight: 832
1 Year Limited Warranty
Uniform Capacity (lb.): 6000
Usable Width (in.): 48
Uniform Capacity (lb.): 6000
Usable Width (in.): 48

Efficiency Master Tilt Table 60 In. x 50 In. 2000 Lb. Capacity Blue


Unit: EACH
Size: 60W x 58L x 36H
Weight: 834
1 Year Limited Warranty
Uniform Capacity (lb.): 2000
Usable Width (in.): 60
Uniform Capacity (lb.): 2000
Usable Width (in.): 60

Efficiency Master Tilt Table 60 In. x 50 In. 4000 Lb. Capacity Blue


Unit: EACH
Size: 60W x 58L x 36H
Weight: 894
1 Year Limited Warranty
Uniform Capacity (lb.): 4000
Usable Width (in.): 60
Uniform Capacity (lb.): 4000
Usable Width (in.): 60

Efficiency Master Tilt Table 60 In. x 50 In. 6000 Lb. Capacity Blue


Unit: EACH
Size: 60W x 58L x 36H
Weight: 912
1 Year Limited Warranty
Uniform Capacity (lb.): 6000
Usable Width (in.): 60
Uniform Capacity (lb.): 6000
Usable Width (in.): 60

Steel 90 Degree Efficiency Master Tilt Table 42 In. x 50 In. 2000 Lb. Capacity Blue


Unit: EACH
Size: 46W x 57.25L x 54.75H
Weight: 849
1 Year Limited Warranty
Uniform Capacity (lb.): 2000
Usable Width (in.): 42
Uniform Capacity (lb.): 2000
Usable Width (in.): 42

Steel 90 Degree Efficiency Master Tilt Table 42 In. x 50 In. 4000 Lb. Capacity Blue


Unit: EACH
Size: 46W x 57.25L x 54.75H
Weight: 870
1 Year Limited Warranty
Uniform Capacity (lb.): 4000
Usable Width (in.): 42
Uniform Capacity (lb.): 4000
Usable Width (in.): 42

Steel 90 Degree Efficiency Master Tilt Table 42 In. x 50 In. 6000 Lb. Capacity Blue


Unit: EACH
Size: 46W x 57.25L x 54.75H
Weight: 865
1 Year Limited Warranty
Uniform Capacity (lb.): 6000
Usable Width (in.): 42
Uniform Capacity (lb.): 6000
Usable Width (in.): 42

Steel 90 Degree Efficiency Master Tilt Table 48 In. x 48 In. 2000 Lb. Capacity Blue


Unit: EACH
Size: 52W x 57.25L x 54.75H
Weight: 887
1 Year Limited Warranty
Uniform Capacity (lb.): 2000
Usable Width (in.): 48
Uniform Capacity (lb.): 2000
Usable Width (in.): 48

Steel 90 Degree Efficiency Master Tilt Table 48 In. x 48 In. 4000 Lb. Capacity Blue


Unit: EACH
Size: 52W x 57.25L x 54.75H
Weight: 905
1 Year Limited Warranty
Uniform Capacity (lb.): 4000
Usable Width (in.): 48
Uniform Capacity (lb.): 4000
Usable Width (in.): 48

Steel 90 Degree Efficiency Master Tilt Table 48 In. x 48 In. 6000 Lb. Capacity Blue


Unit: EACH
Size: 52W x 57.25L x 54.75H
Weight: 923
1 Year Limited Warranty
Uniform Capacity (lb.): 6000
Usable Width (in.): 48
Uniform Capacity (lb.): 6000
Usable Width (in.): 48

Steel 90 Degree Efficiency Master Tilt Table 60 In. x 50 In. 2000 Lb. Capacity Blue


Unit: EACH
Size: 64W x 57.25L x 54.75H
Weight: 1035
1 Year Limited Warranty
Uniform Capacity (lb.): 2000
Usable Width (in.): 60
Uniform Capacity (lb.): 2000
Usable Width (in.): 60

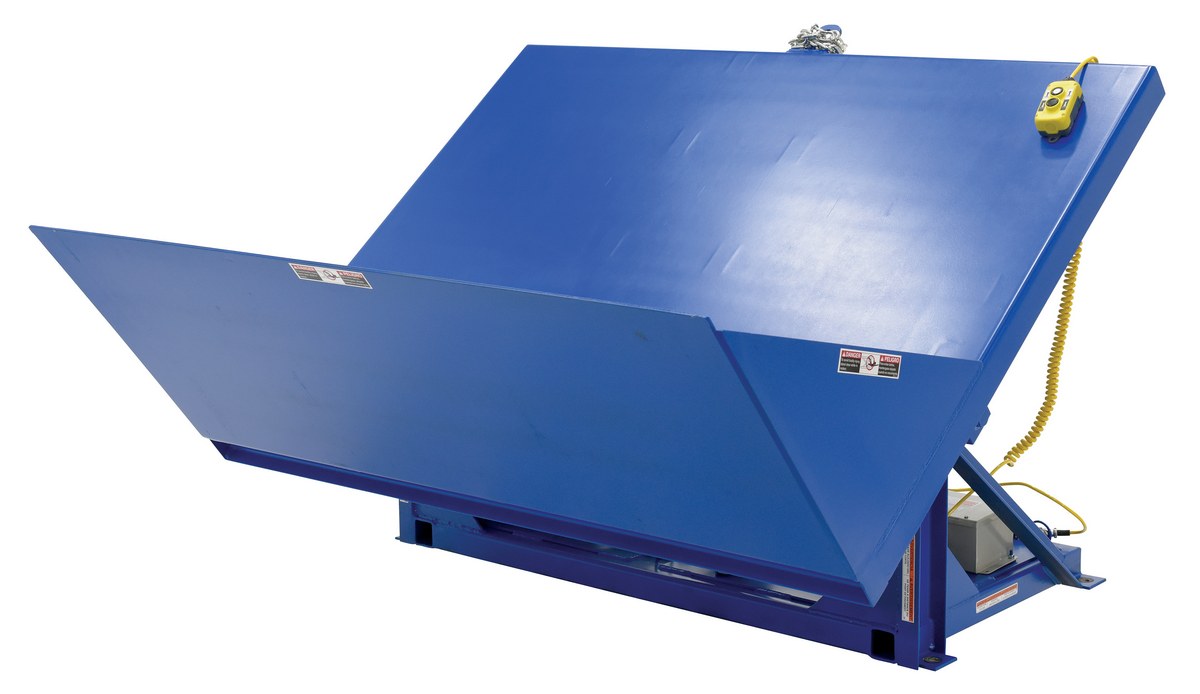

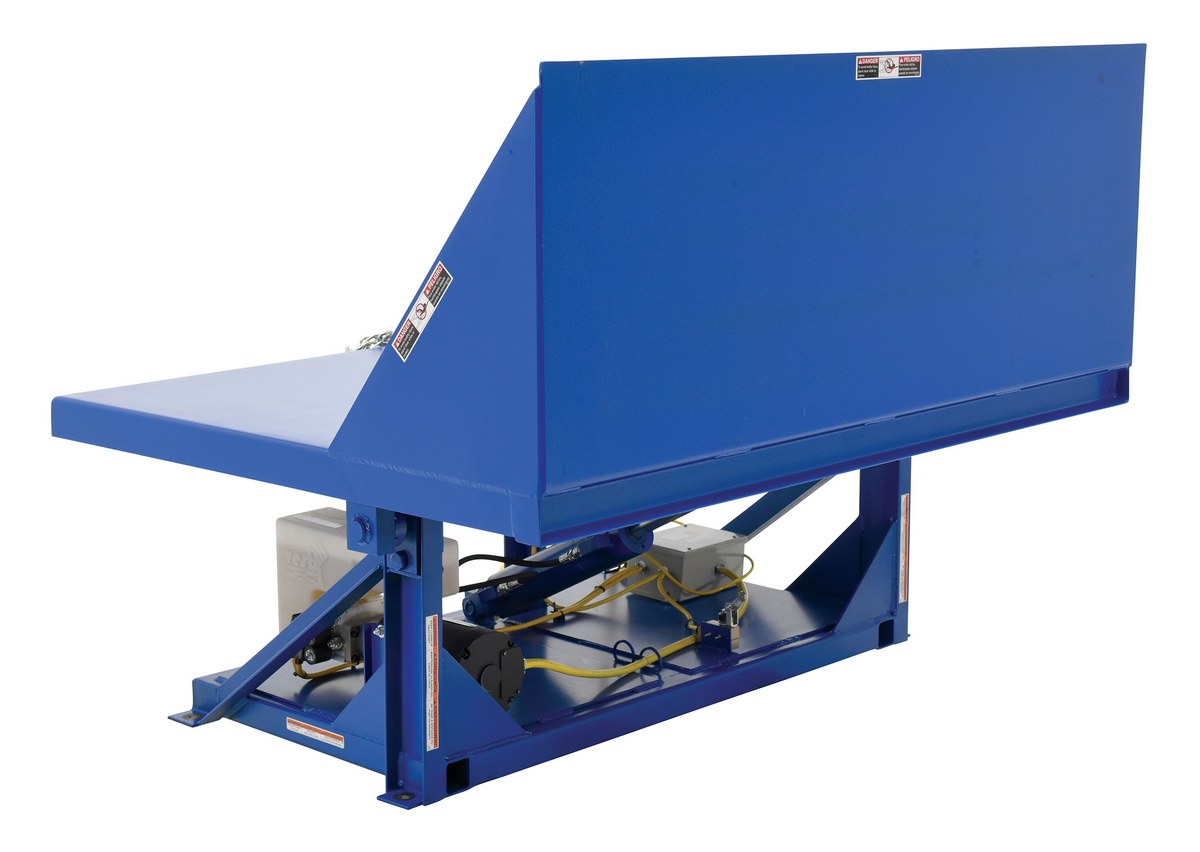

Steel 90 Degree Efficiency Master Tilt Table 60 In. x 50 In. 4000 Lb. Capacity Blue


Unit: EACH
Size: 64W x 57.25L x 54.75H
Weight: 1047
1 Year Limited Warranty
Uniform Capacity (lb.): 4000
Usable Width (in.): 60
Uniform Capacity (lb.): 4000
Usable Width (in.): 60

Steel 90 Degree Efficiency Master Tilt Table 60 In. x 50 In. 6000 Lb. Capacity Blue


Unit: EACH
Size: 64W x 57.25L x 54.75H
Weight: 1106
1 Year Limited Warranty
Uniform Capacity (lb.): 6000
Usable Width (in.): 60
Uniform Capacity (lb.): 6000
Usable Width (in.): 60

Model Image Description Wt. (lbs)
RRC-2PB Radio Remote Control 2-Button System (Lift-Hold-Lower Circuit) 1

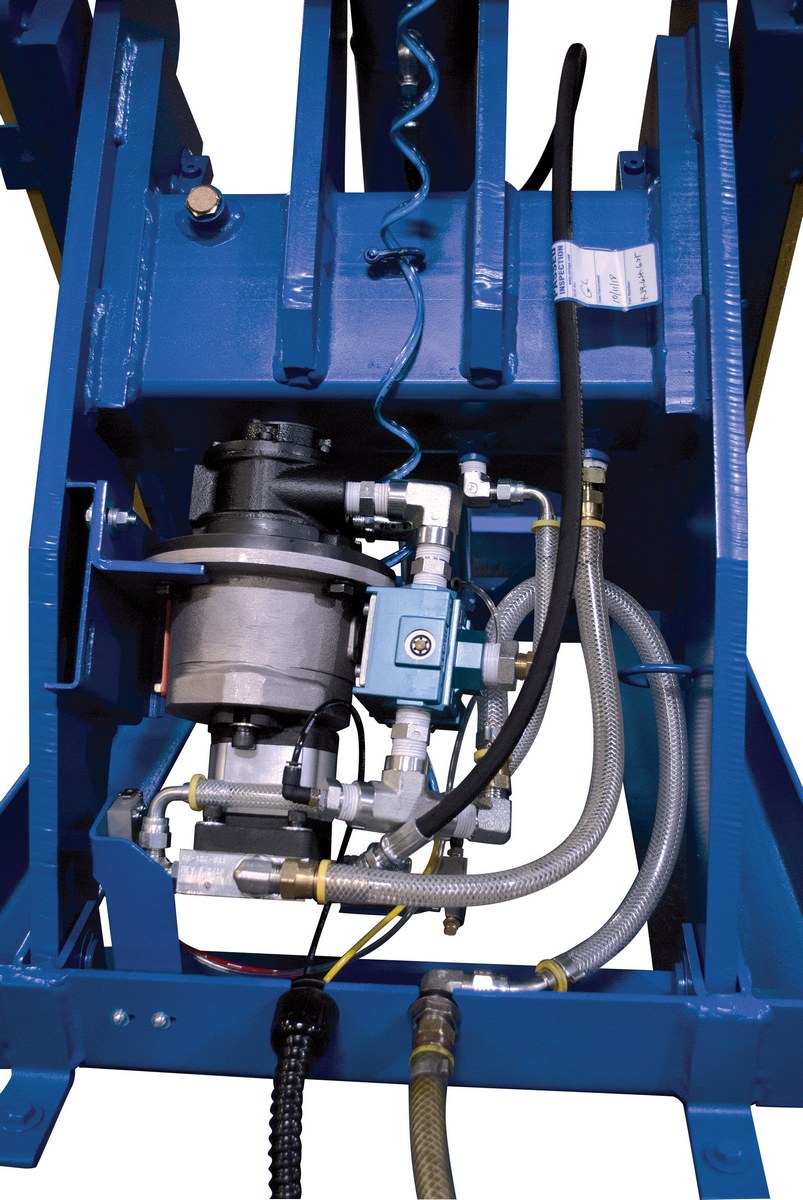

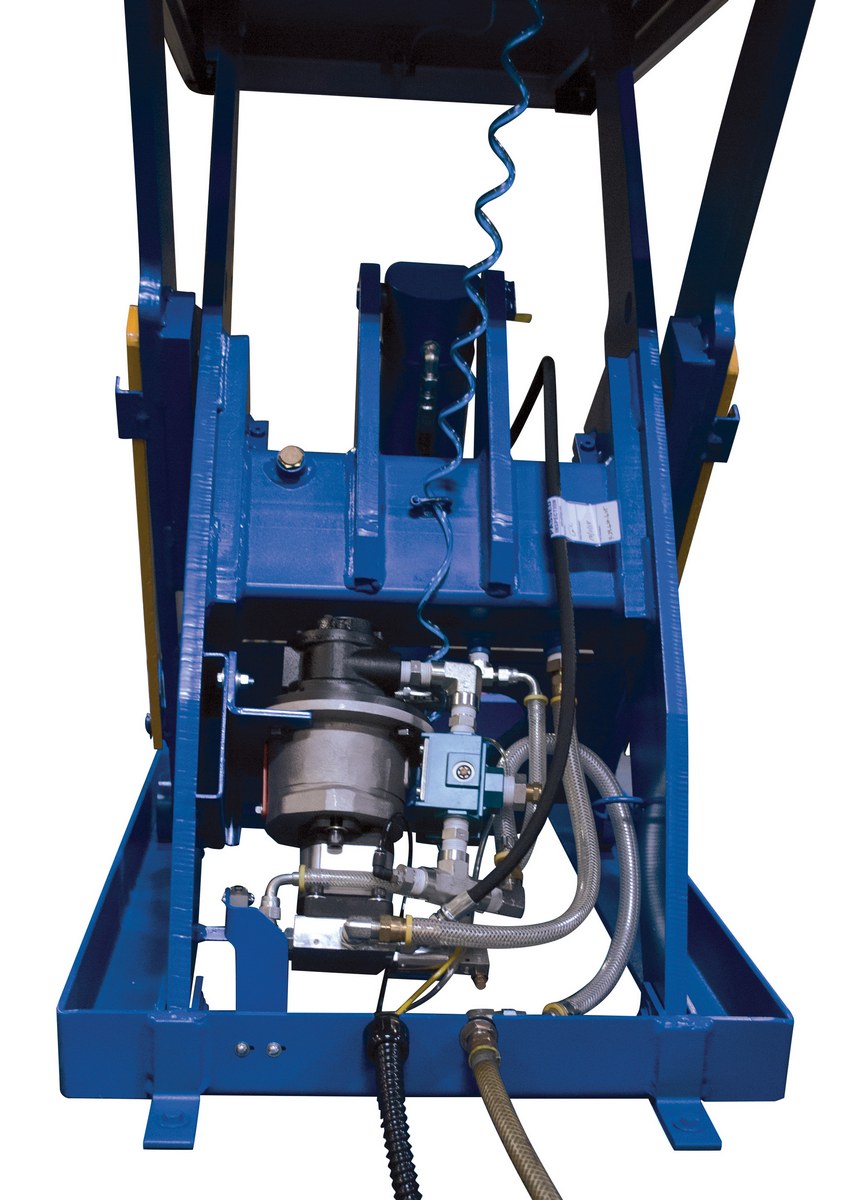

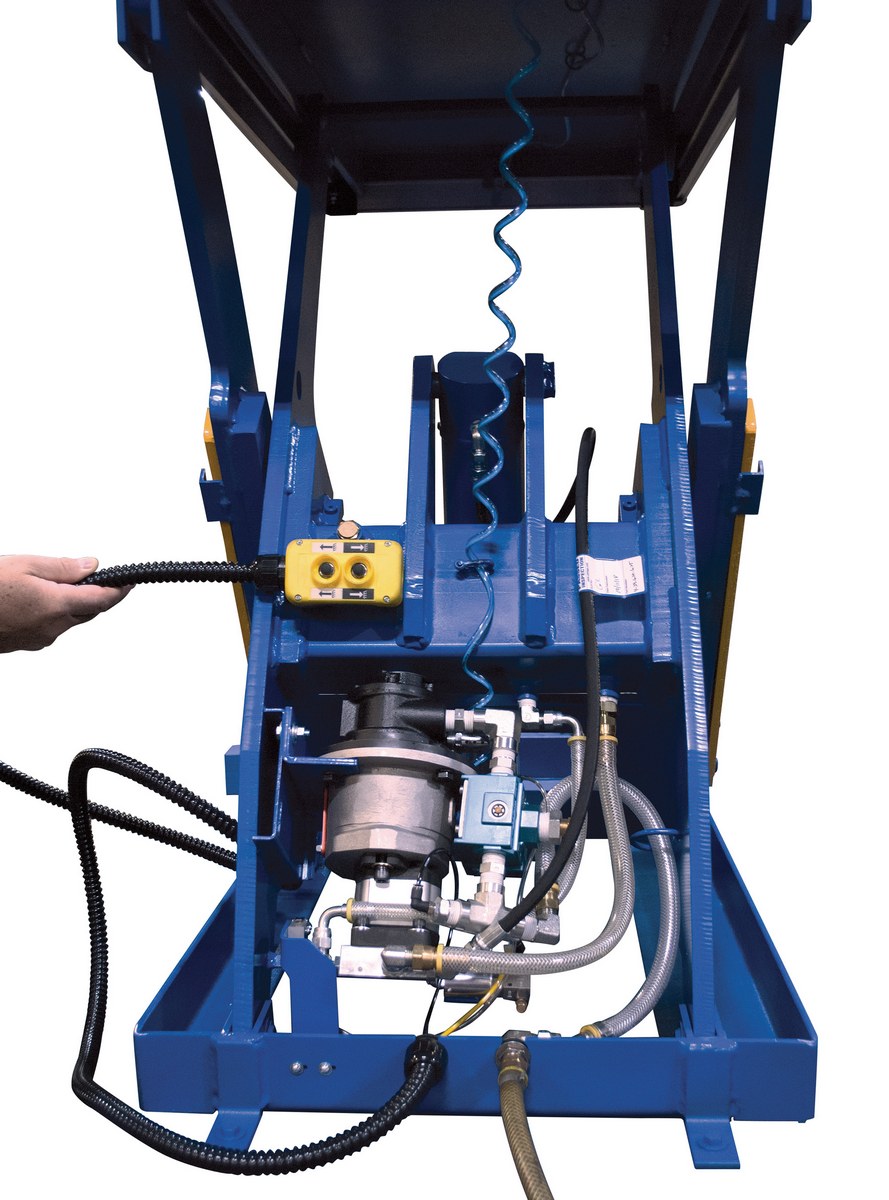

EM1-300-APPB - *HAND HELD CONTROL AIR POWERED HYDRAULIC - ROTARY-PB-2, FOR 45 degree TILTERS -
EM1-300-APFC - *FOOT CONTROL AIR POWERED HYDRAULIC - ROTARY-FC-2, FOR 45 degree TILTERS -
EM1-300-APFT - *FOOT TREADLE AIR POWERED 2000# & 4000# ONLY - RECIPR, FOR 45 degree TILTERS -
EM1-600-APPB - *HAND HELD CONTROL AIR POWERED HYDRAULIC - ROTARY-PB-2, FOR 90 degree TILTERS -
EM1-600-APFC - *FOOT CONTROL AIR POWERED HYDRAULIC - ROTARY-FC-2, FOR 90 degree TILTERS -
* Filter Regulator - Lubricator required to operate unit

KEY: Approval Drawing = Approval Drawing -- Approval Drawing = Warranty -- Approval Drawing = Testing Certificate

If you did not find an expected Model or SKU # in this table, try the Product Specifications Section Above


Efficiency Master Tilt Tables PDF's will open in a new window when clicked.

EM1-200 & -500, EHTT, EHTT-L
Owners Manual

Survey Sheets


EM1
Survey Sheet

Approval Drawings


EM1-200-4250-2

EM1-200-4250-4

EM1-200-4250-6

EM1-200-4848-2

EM1-200-4848-4

EM1-200-4848-6

EM1-200-6050-2

EM1-200-6050-4

EM1-200-6050-6

EM1-500-4250-2

EM1-500-4250-4

EM1-500-4250-6

EM1-500-4848-2

EM1-500-4848-4

EM1-500-4848-6

EM1-500-6050-2

EM1-500-6050-4

EM1-500-6050-6

Testing Certificates


EM1-200-4250-2

EM1-200-4250-4

EM1-200-4250-6

EM1-200-4848-2

EM1-200-4848-2-YEL

EM1-200-4848-4

EM1-200-4848-4-YEL

EM1-200-4848-6

EM1-200-6050-2

EM1-200-6050-4

EM1-200-6050-6

EM1-300-APFC

EM1-300-APFT

EM1-300-APPB

EM1-500-4250-2

EM1-500-4250-4

EM1-500-4250-6

EM1-500-4848-2

EM1-500-4848-4

EM1-500-4848-6

EM1-500-6050-2

EM1-500-6050-4

EM1-500-6050-6

EM1-600-APFC

EM1-600-APPB

ROTARY-DA-HHPB

ROTARY-LHL-HHPB

Other PDF's

No "Other PDFs" For This Product...


Directory Links Of Available PDF's For All Products

Manuals
Survey Sheets
Drawings
Certificates of Testing
Warranties
SDS Data Sheets









Visit Our Youtube Channel For All Available Videos For All Products


EM1-200-4250-2
 EM1-200-4250-2 EM1-200-4250-4
 EM1-200-4250-4 EM1-200-4250-6
 EM1-200-4250-6 EM1-200-4848-2-YEL
 EM1-200-4848-2-YEL EM1-200-4848-2
 EM1-200-4848-2 EM1-200-4848-2
 EM1-200-4848-2 EM1-200-4848-2
 EM1-200-4848-2 EM1-200-4848-2
 EM1-200-4848-2 EM1-200-4848-4-YEL
 EM1-200-4848-4-YEL EM1-200-4848-4
 EM1-200-4848-4 EM1-200-4848-4
 EM1-200-4848-4 EM1-200-4848-4
 EM1-200-4848-4 EM1-200-4848-4
 EM1-200-4848-4 EM1-200-4848-4
 EM1-200-4848-4 EM1-200-4848-4
 EM1-200-4848-4 EM1-200-4848-4
 EM1-200-4848-4 EM1-200-4848-6
 EM1-200-4848-6 EM1-200-6050-2
 EM1-200-6050-2 EM1-200-6050-2
 EM1-200-6050-2 EM1-200-6050-2
 EM1-200-6050-2 EM1-200-6050-2
 EM1-200-6050-2 EM1-200-6050-2
 EM1-200-6050-2 EM1-200-6050-4
 EM1-200-6050-4 EM1-200-6050-6
 EM1-200-6050-6 EM1-200-6050-6
 EM1-200-6050-6 EM1-200-6050-6
 EM1-200-6050-6 EM1-200-6050-6
 EM1-200-6050-6 EM1-200-6050-6
 EM1-200-6050-6 EM1-200-6050-6
 EM1-200-6050-6 EM1-200-6050-6
 EM1-200-6050-6 EM1-200-6050-6
 EM1-200-6050-6 EM1-200-6050-6
 EM1-200-6050-6 EM1-200-6050-6
 EM1-200-6050-6 EM1-500-4250-2
 EM1-500-4250-2 EM1-500-4250-2
 EM1-500-4250-2 EM1-500-4250-2
 EM1-500-4250-2 EM1-500-4250-2
 EM1-500-4250-2 EM1-500-4250-4
 EM1-500-4250-4 EM1-500-4250-6
 EM1-500-4250-6 EM1-500-4250-6
 EM1-500-4250-6 EM1-500-4250-6
 EM1-500-4250-6 EM1-500-4250-6
 EM1-500-4250-6 EM1-500-4848-2
 EM1-500-4848-2 EM1-500-4848-2
 EM1-500-4848-2 EM1-500-4848-2
 EM1-500-4848-2 EM1-500-4848-2
 EM1-500-4848-2 EM1-500-4848-4
 EM1-500-4848-4 EM1-500-4848-6
 EM1-500-4848-6 EM1-500-4848-6
 EM1-500-4848-6 EM1-500-4848-6
 EM1-500-4848-6 EM1-500-4848-6
 EM1-500-4848-6 EM1-500-4848-6
 EM1-500-4848-6 EM1-500-6050-2
 EM1-500-6050-2 EM1-500-6050-4
 EM1-500-6050-4 EM1-500-6050-4
 EM1-500-6050-4 EM1-500-6050-4
 EM1-500-6050-4 EM1-500-6050-4
 EM1-500-6050-4 EM1-500-6050-6
 EM1-500-6050-6 EM1-500-6050-6
 EM1-500-6050-6 EM1-500-6050-6
 EM1-500-6050-6 EM1-500-6050-6
 EM1-500-6050-6 ROTARY-LHL-HHPB
 ROTARY-LHL-HHPB ROTARY-LHL-HHPB
 ROTARY-LHL-HHPB ROTARY-LHL-HHPB
 ROTARY-LHL-HHPB ROTARY-LHL-HHPB
 ROTARY-LHL-HHPB
We are hoping to continue adding new product pictures to each gallery. Check back soon.

Q: What is the standard voltage and phase? Can the voltage and phase be changed?

A: The lift tables come standard 460 V 3 phase. The voltage and phase can be changed. For details, please see "options for electric hydraulic equipment" or contact a sales associate for voltage options.




Print Friendly

Related or Similar Products:

Tilt Master & Tilt Master Straddle
Product

Tilt Master & Tilt Master Straddle

Multi-Purpose Tote Dumpers
Product

Multi-Purpose Tote Dumpers

Manual Tilt Master
Product

Manual Tilt Master

Economy Transporter / Tilter
Product

Economy Transporter / Tilter

Bench Top Tilters
Product

Bench Top Tilters

Ground Tilter
Product

Ground Tilter

Before placing an order, please confirm that the ship to company is able to receive shipments on the estimated delivery date





Efficiency Master Tilt Tables




460V 3-PHASE STANDARD

The model EM1-200 tilts pallets, crates, boxes, or baskets 45 degrees to facilitate loading or unloading. The deck height is 24" when horizontal. Tables have all welded steel construction for years of durability. Unique design minimizes pinch points to meet OSHA requirements. The EM1-200 is equipped with an industrial quality, 56 frame 2 HP motor. This motor delivers best torque with minimal amperage draw and maximum life. Standard voltage is 460/3Ph (208/230 option is available). A push button hand control with a NEMA type 4 enclosure is standard. Base includes 7-1/2" W x 2-1/2" H usable fork pockets on 30" centers for portability with forklift. Optional foot control with guard is available.

The model EM1-500 incorporates many of the same quality features found in the Series EM1-200, but features a full 90 degrees of tilt. Unit is ideal for upending products in shipping and receiving operations. Standard with double acting cylinder for controlled tilt and return. Unit must be lagged to floor.


Efficiency Master Tilt Table Series 200
Model Image PDF's Platform
(WxL)		 Capacity
(lbs)		 Degree
of Tilt		 Horizontal
Height		 Wt. (lbs)
EM1-200-4250-2 icon_approvaldrawings.jpgWarranty PDFCompliance Certificate 42"x50" 2,000 45 24" 740
EM1-200-4848-2 icon_approvaldrawings.jpgWarranty PDFCompliance Certificate 48"x48" 2,000 45 24" 697
EM1-200-6050-2 icon_approvaldrawings.jpgWarranty PDFCompliance Certificate 60"x50" 2,000 45 24" 834
EM1-200-4250-4 icon_approvaldrawings.jpgWarranty PDFCompliance Certificate 42"x50" 4,000 45 24" 780
EM1-200-4848-4 icon_approvaldrawings.jpgWarranty PDFCompliance Certificate 48"x48" 4,000 45 24" 733
EM1-200-6050-4 icon_approvaldrawings.jpgWarranty PDFCompliance Certificate 60"x50" 4,000 45 24" 894
EM1-200-4250-6 icon_approvaldrawings.jpgWarranty PDFCompliance Certificate 42"x50" 6,000 45 24" 822
EM1-200-4848-6 icon_approvaldrawings.jpgWarranty PDFCompliance Certificate 48"x48" 6,000 45 24" 832
EM1-200-6050-6 icon_approvaldrawings.jpgWarranty PDFCompliance Certificate 60"x50" 6,000 45 24" 912
Efficiency Master Tilt Table Series 500
Model Image PDF's Useable Size
(WxL)		 Capacity
(lbs)		 Degree
of Tilt		 Horizontal
Height		 Wt. (lbs)
EM1-500-4250-2 icon_approvaldrawings.jpgWarranty PDFCompliance Certificate 42"x50" 2,000 90 24" 849
EM1-500-4848-2 icon_approvaldrawings.jpgWarranty PDFCompliance Certificate 48"x48" 2,000 90 24" 887
EM1-500-6050-2 icon_approvaldrawings.jpgWarranty PDFCompliance Certificate 60"x50" 2,000 90 24" 1035
EM1-500-4250-4 icon_approvaldrawings.jpgWarranty PDFCompliance Certificate 42"x50" 4,000 90 24" 870
EM1-500-4848-4 icon_approvaldrawings.jpgWarranty PDFCompliance Certificate 48"x48" 4,000 90 24" 905
EM1-500-6050-4 icon_approvaldrawings.jpgWarranty PDFCompliance Certificate 60"x50" 4,000 90 24" 1047
EM1-500-4250-6 icon_approvaldrawings.jpgWarranty PDFCompliance Certificate 42"x50" 6,000 90 24" 865
EM1-500-4848-6 icon_approvaldrawings.jpgWarranty PDFCompliance Certificate 48"x48" 6,000 90 24" 923
EM1-500-6050-6 icon_approvaldrawings.jpgWarranty PDFCompliance Certificate 60"x50" 6,000 90 24" 1106

Options


Model Image Description Wt. (lbs)
RRC-2PB Radio Remote Control 2-Button System (Lift-Hold-Lower Circuit) 1
EM1-300-APPB - *HAND HELD CONTROL AIR POWERED HYDRAULIC - ROTARY-PB-2, FOR 45 degree TILTERS -
EM1-300-APFC - *FOOT CONTROL AIR POWERED HYDRAULIC - ROTARY-FC-2, FOR 45 degree TILTERS -
EM1-300-APFT - *FOOT TREADLE AIR POWERED 2000# & 4000# ONLY - RECIPR, FOR 45 degree TILTERS -
EM1-600-APPB - *HAND HELD CONTROL AIR POWERED HYDRAULIC - ROTARY-PB-2, FOR 90 degree TILTERS -
EM1-600-APFC - *FOOT CONTROL AIR POWERED HYDRAULIC - ROTARY-FC-2, FOR 90 degree TILTERS -
* Filter Regulator - Lubricator required to operate unit

Our Customer Service Associates Are Here To Assist You!
Call Vestil At 260-665-7586 Or info@vestil.com
