SERIES: CBFC


Counter Balanced Floor Cranes

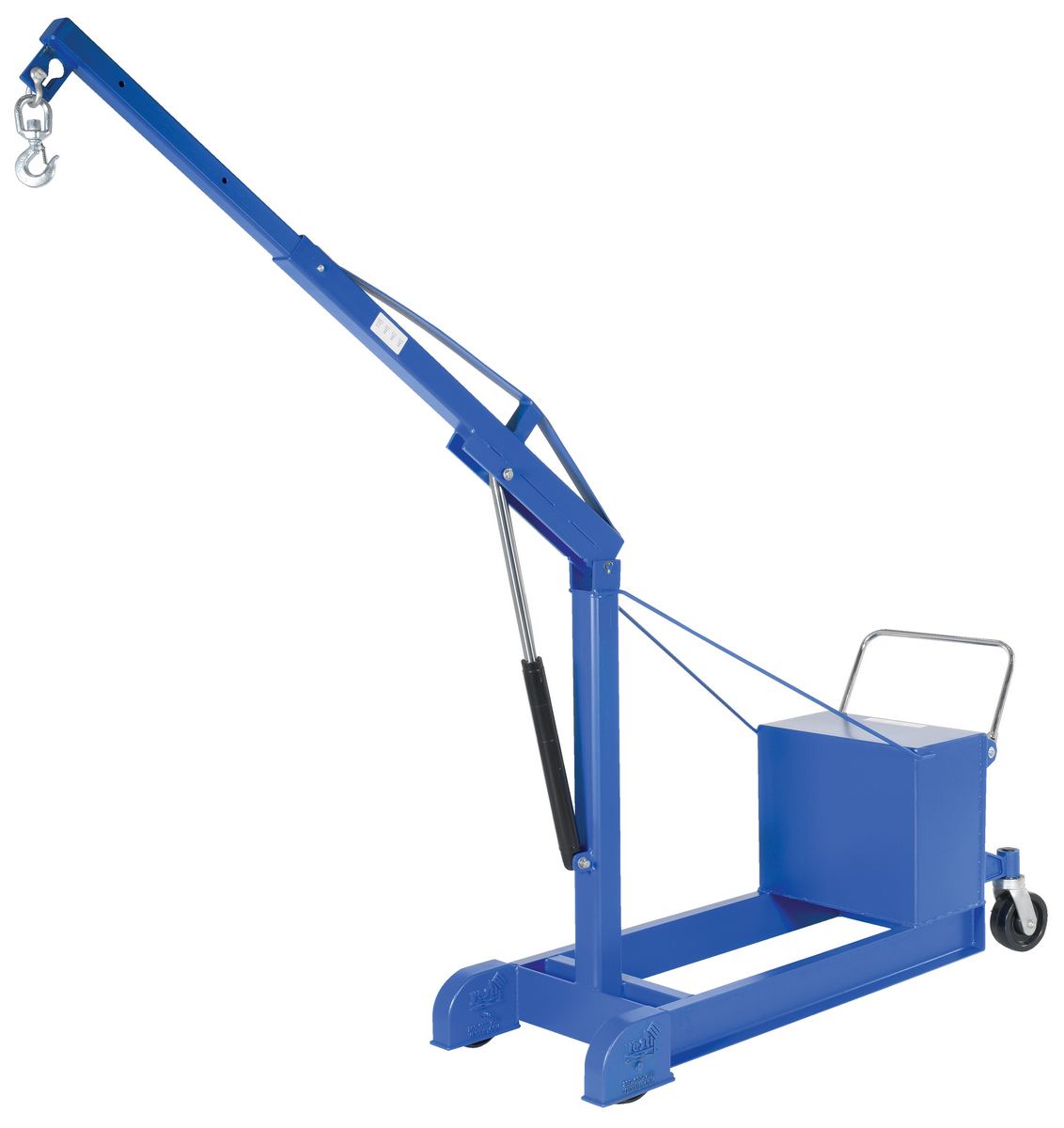

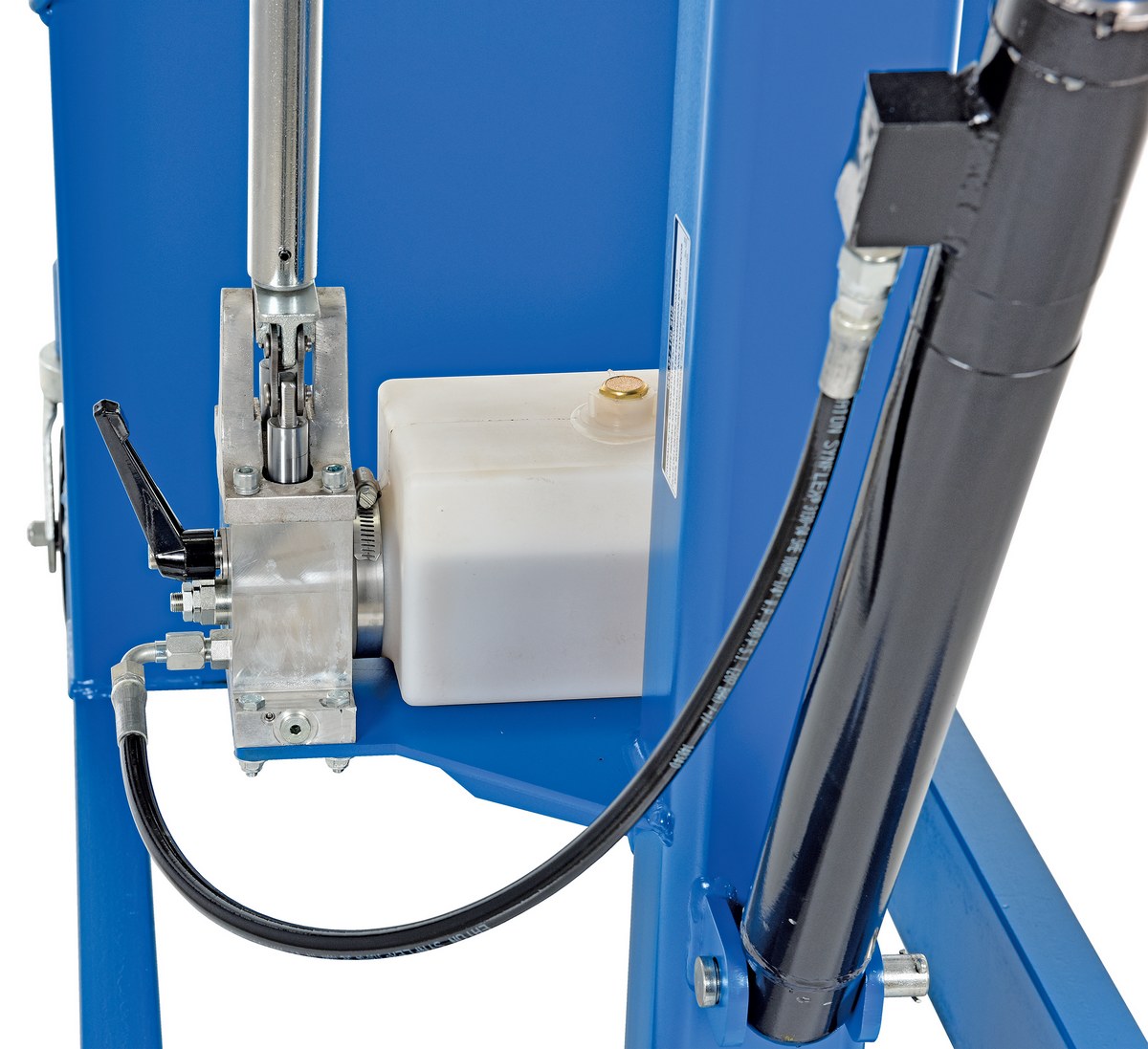

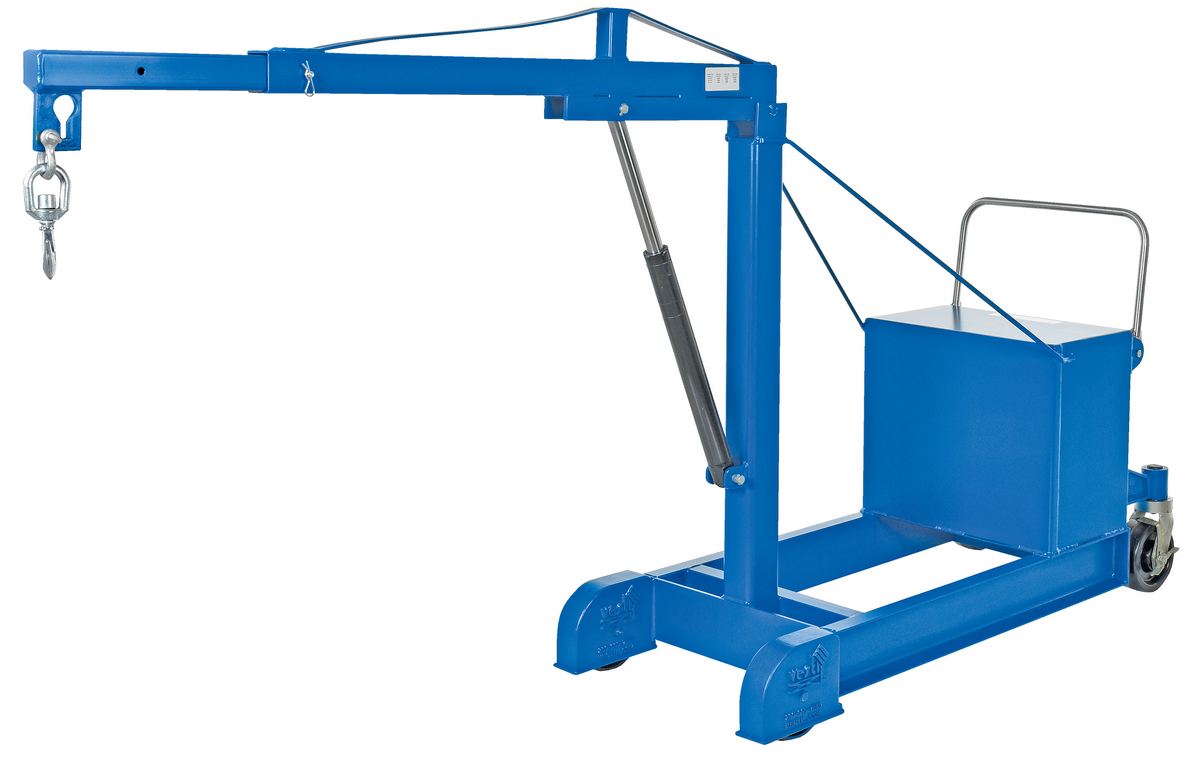

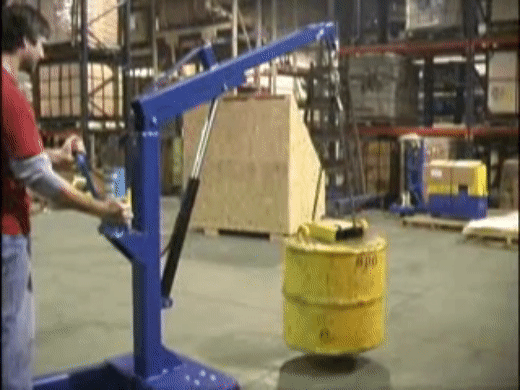

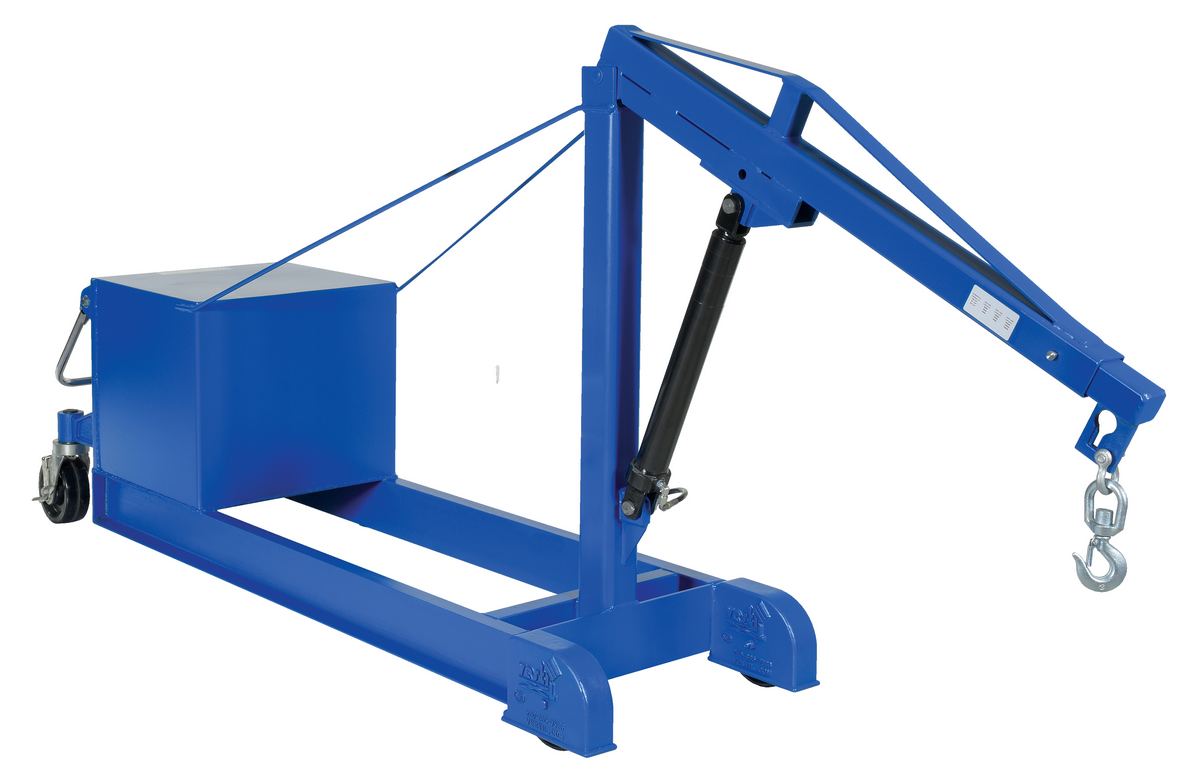

This Crane has an adjustable boom to allow for maximum adjustment and versatility to lift a variety of loads. Boom is raised with a manual hydraulic hand pump. Boom also telescopes out for greater reach. The counterbalance design eliminates the need for front legs, making the unit easier to maneuver and ideal for reaching tight, hard to reach areas. Units roll on two (2) rigid 8" x 2" glass-filled nylon and two (2) swivel 8" x 3" phenolic casters with side brake. Counterbalance included. Welded steel construction. Painted finish. Air operation available, contact factory.

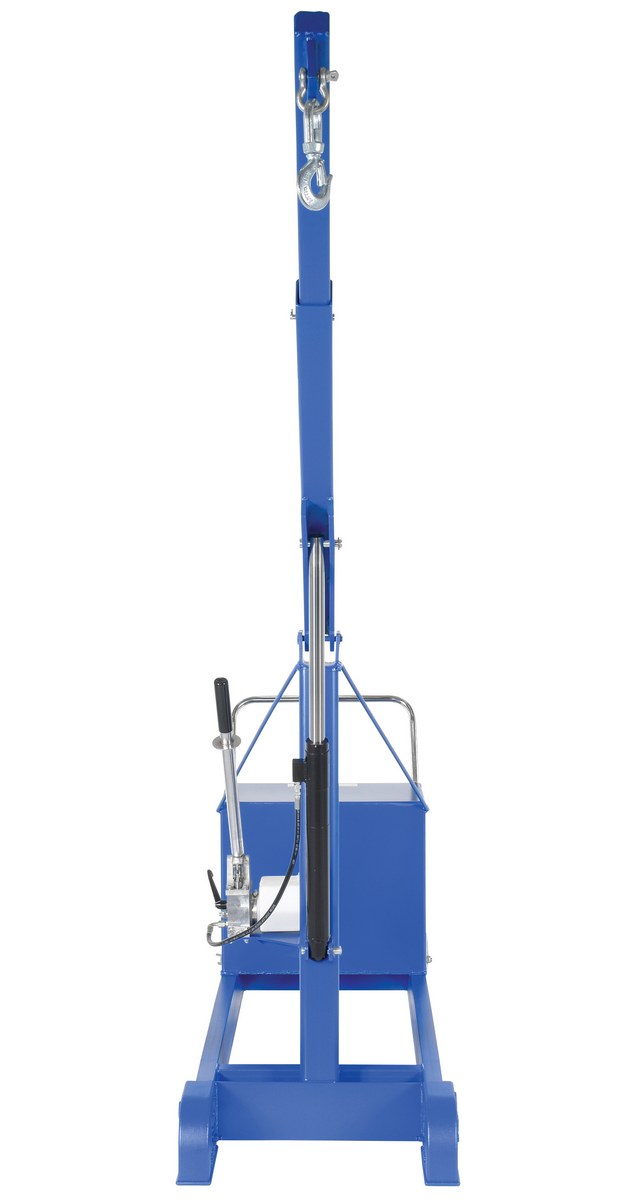

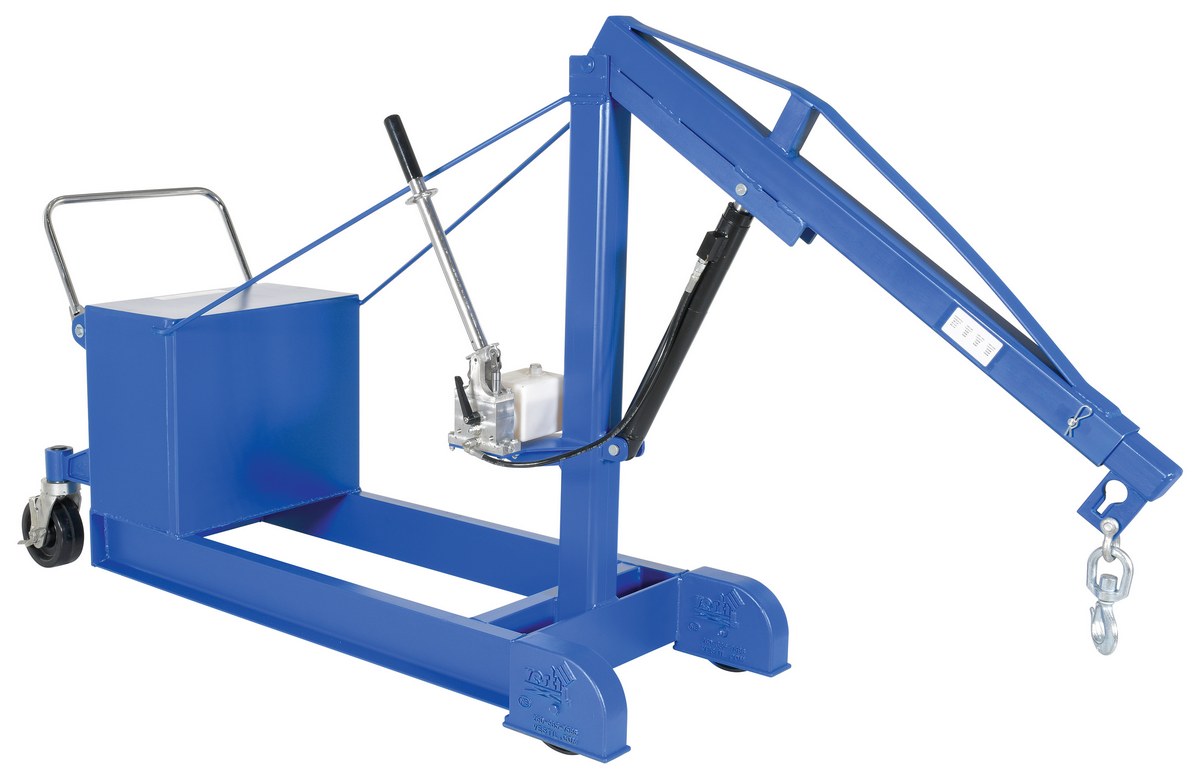

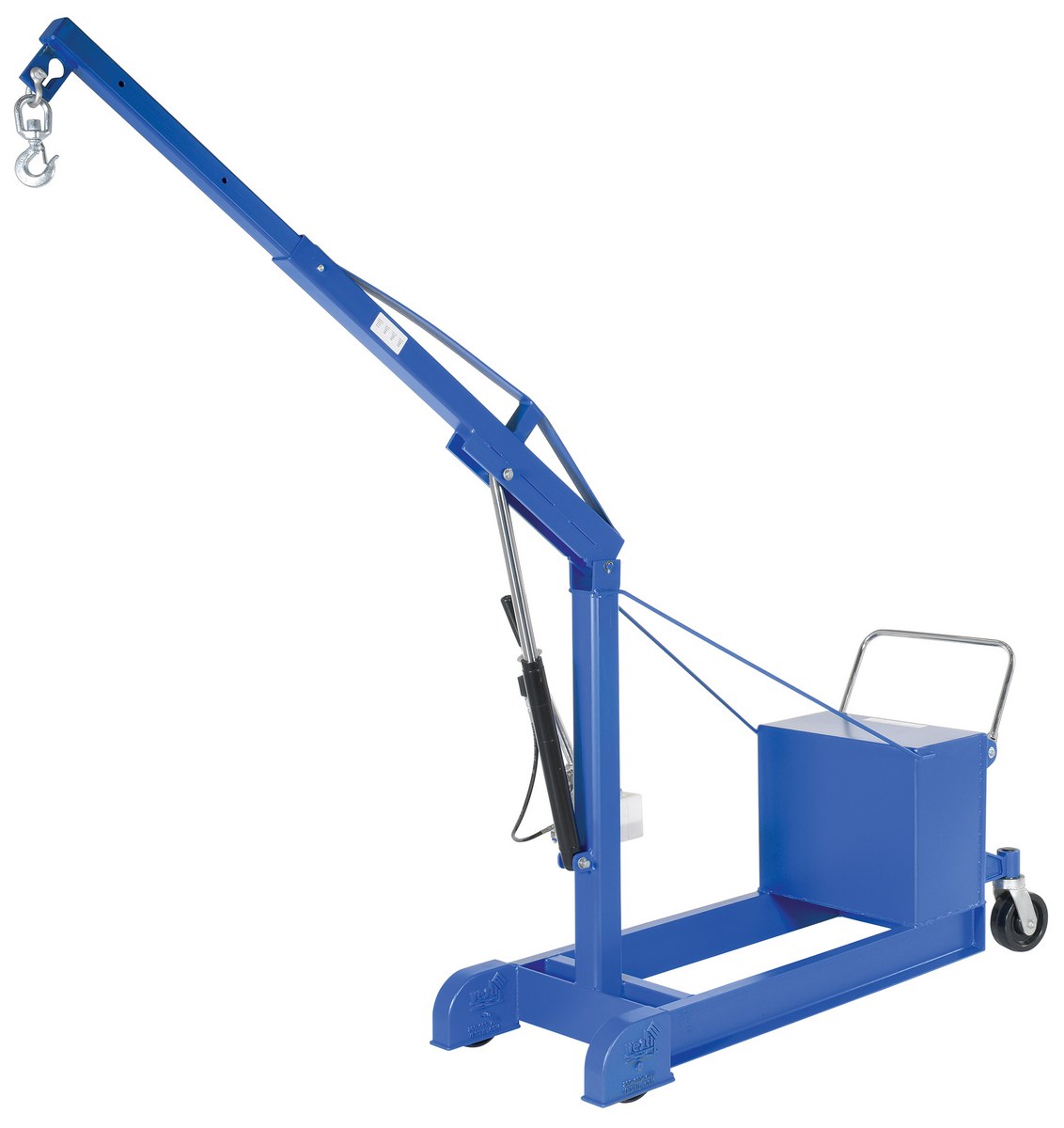

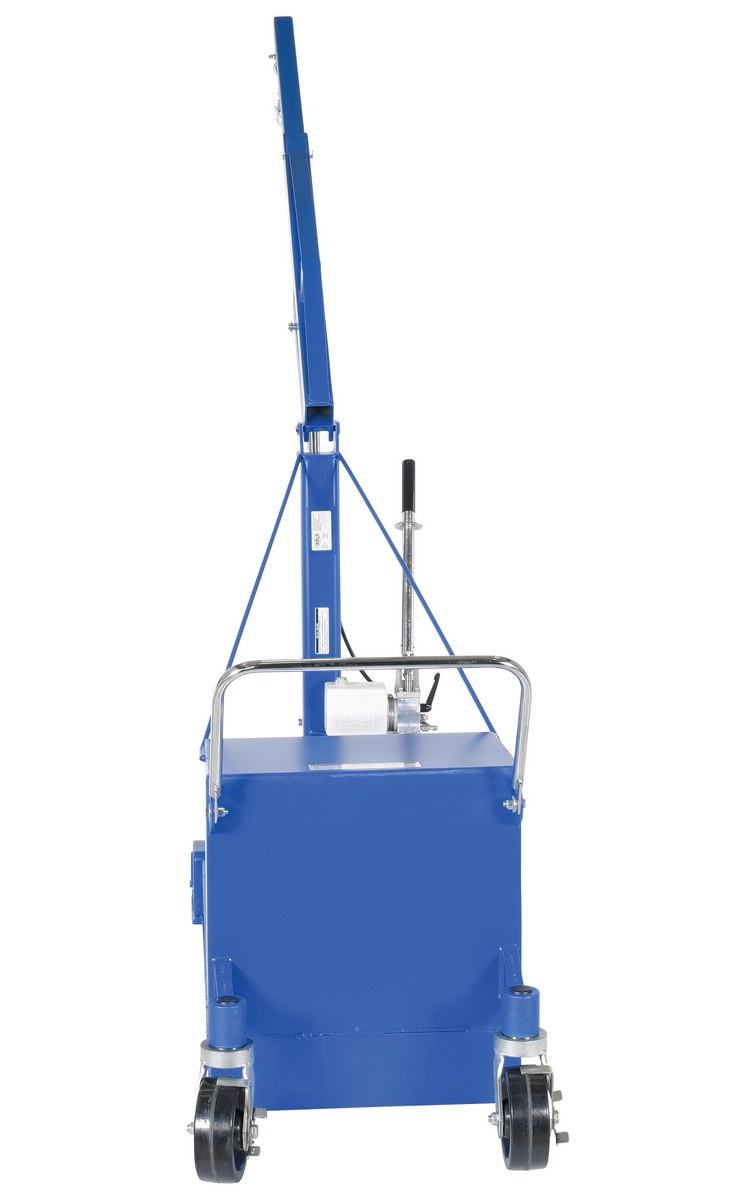

CBFC-1000

model CBFC-1000

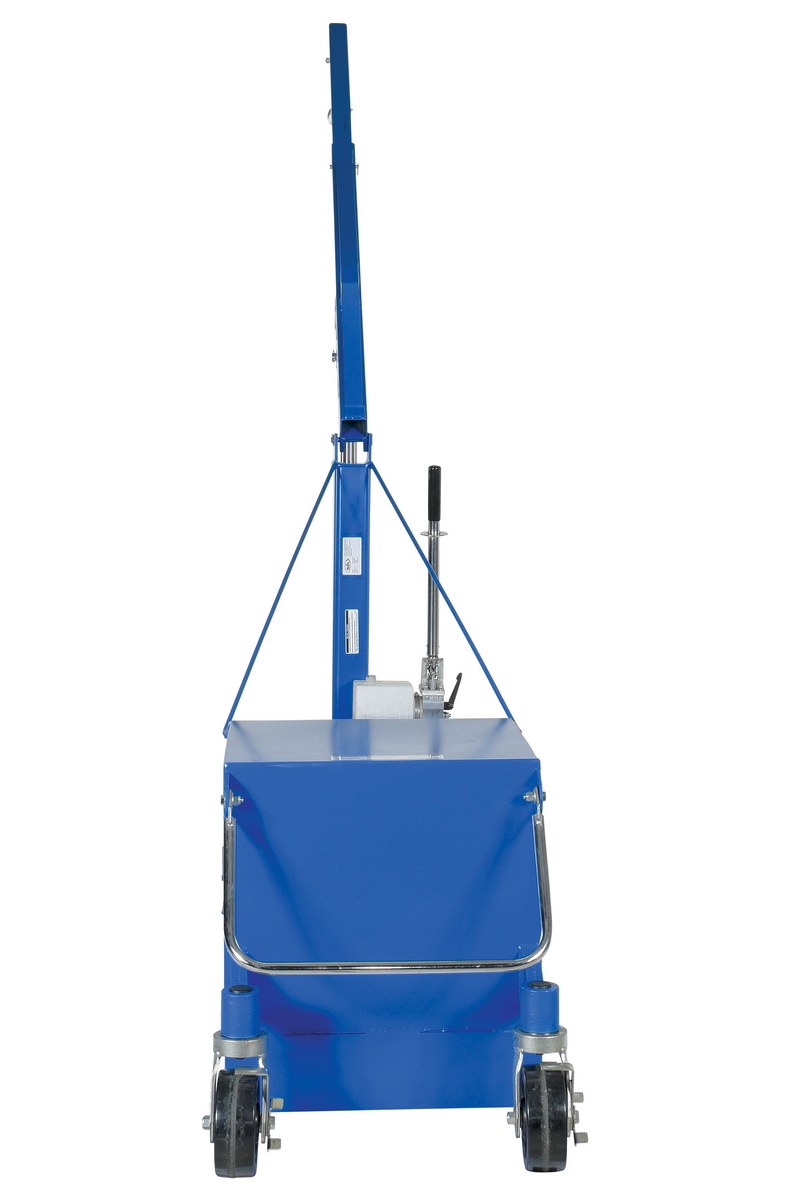

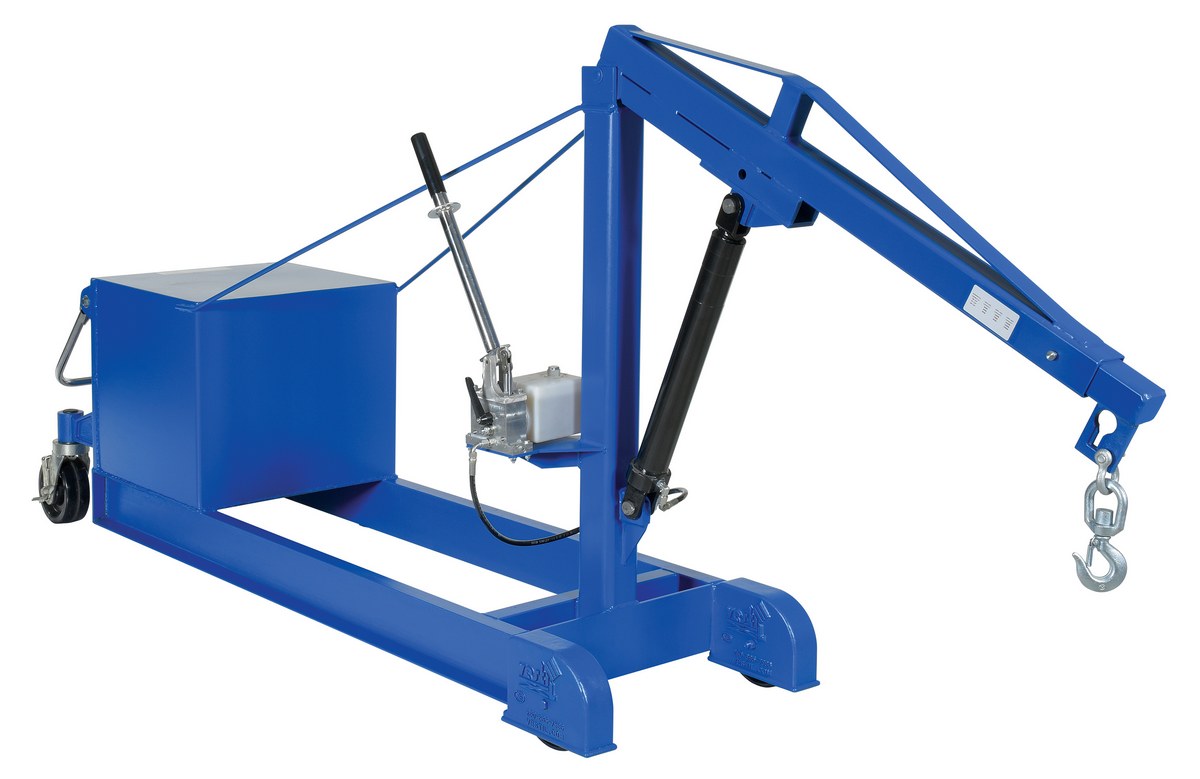

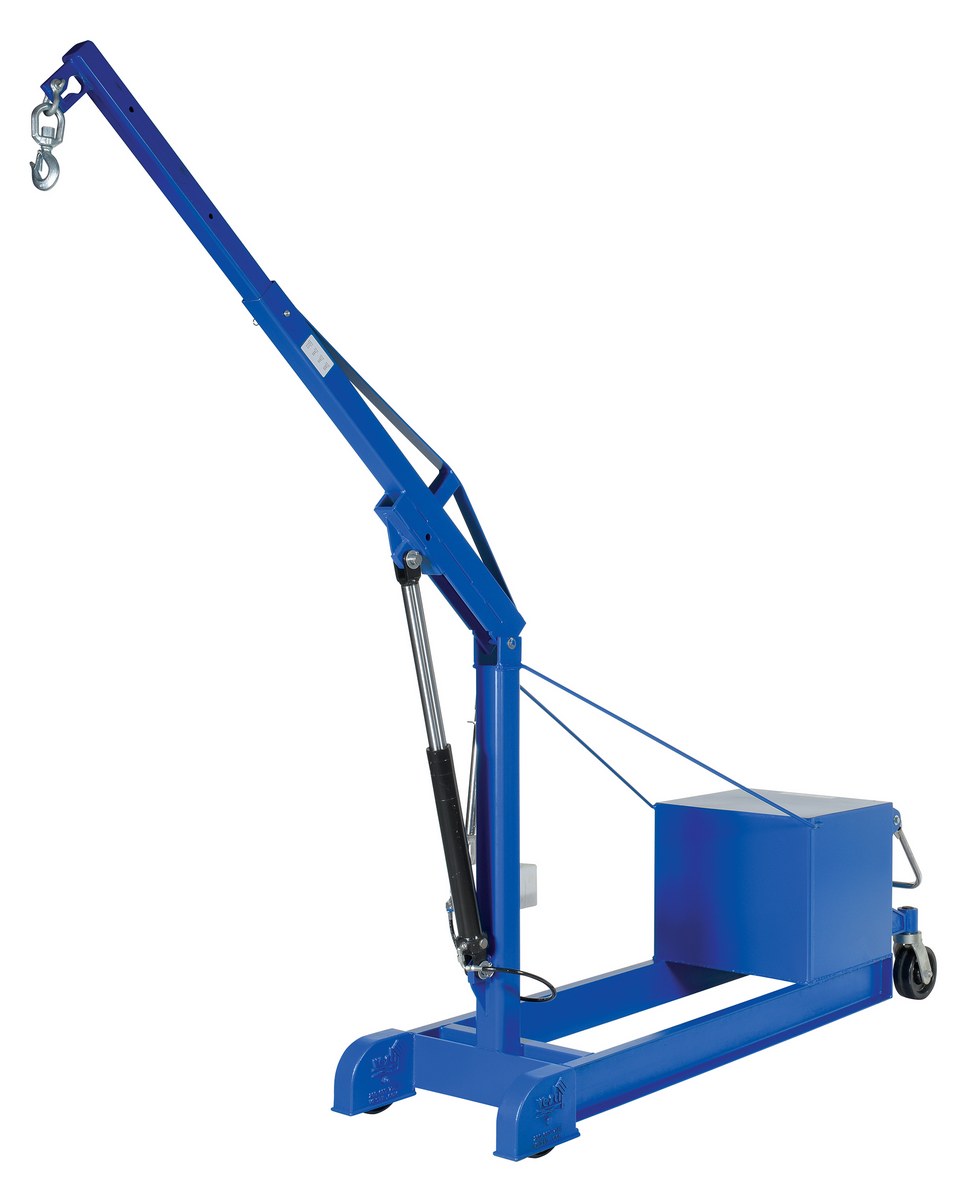

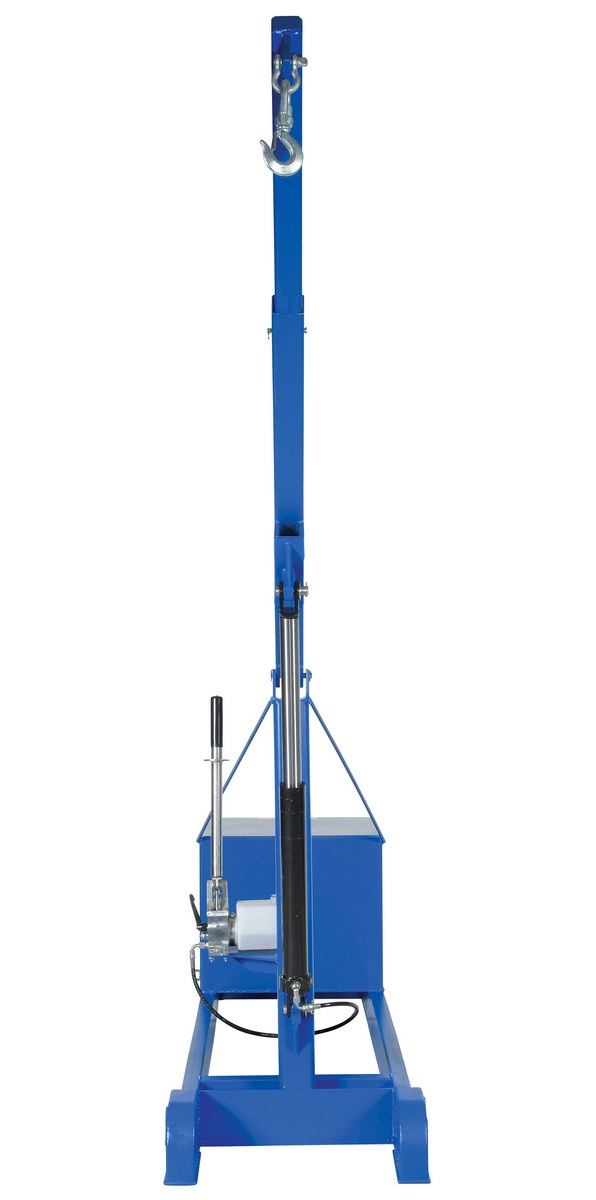

CBFC-2000

model CBFC-2000

Click A Tab For More Information. If A Tab Is Missing, This Product Has No Content For That Tab.

KEY: Approval Drawing = Approval Drawing -- Approval Drawing = Warranty -- Approval Drawing = Testing Certificate

Model Number & Specs Table

Counter Balanced Floor Cranes
Model PDF's Max. Uniform
Capacity
Boom
Reach
Hook
Height
Overall Size
(WxLxH)
Wt.
(lbs)
Hand Pump Operation

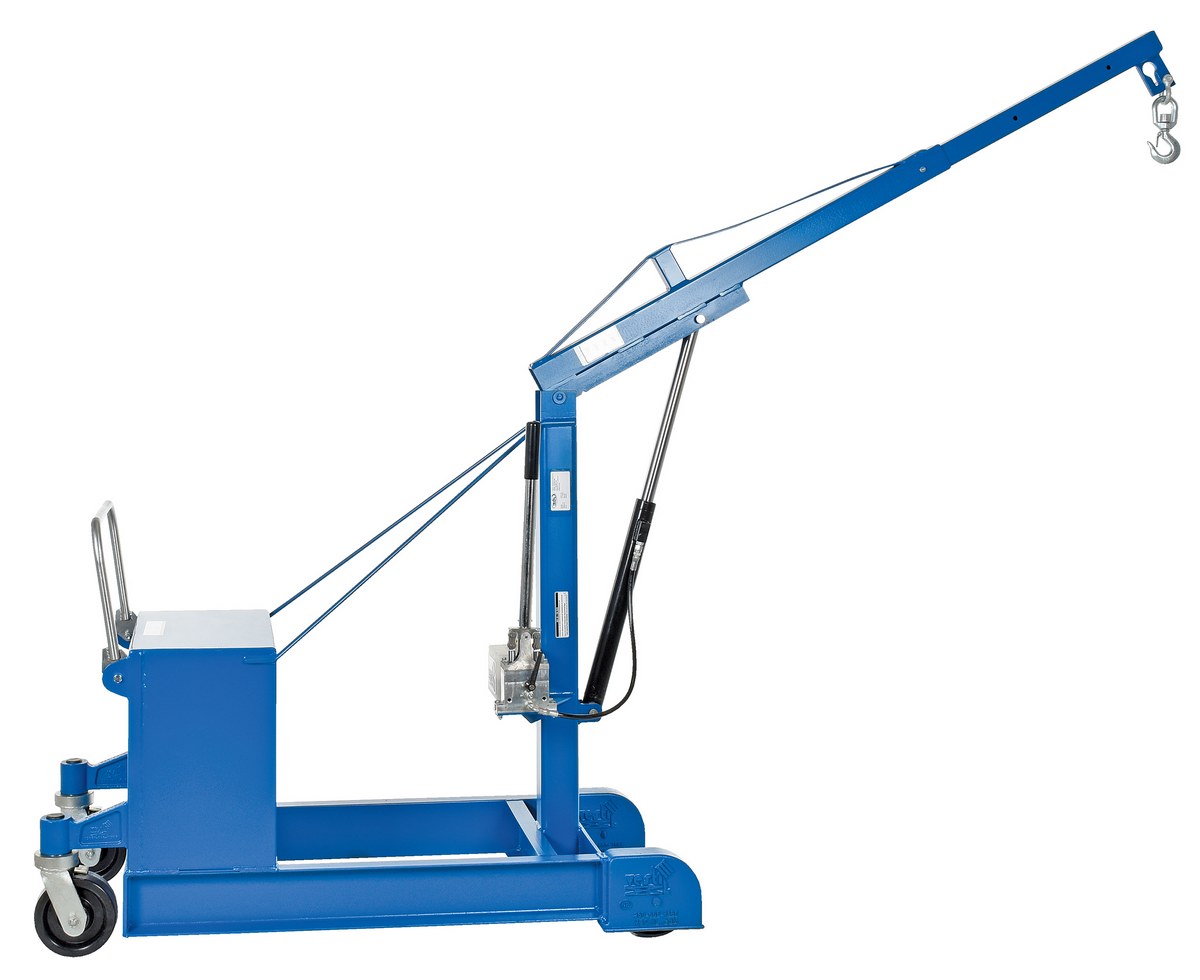

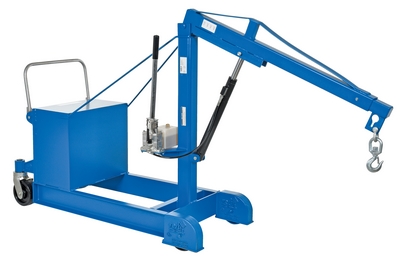

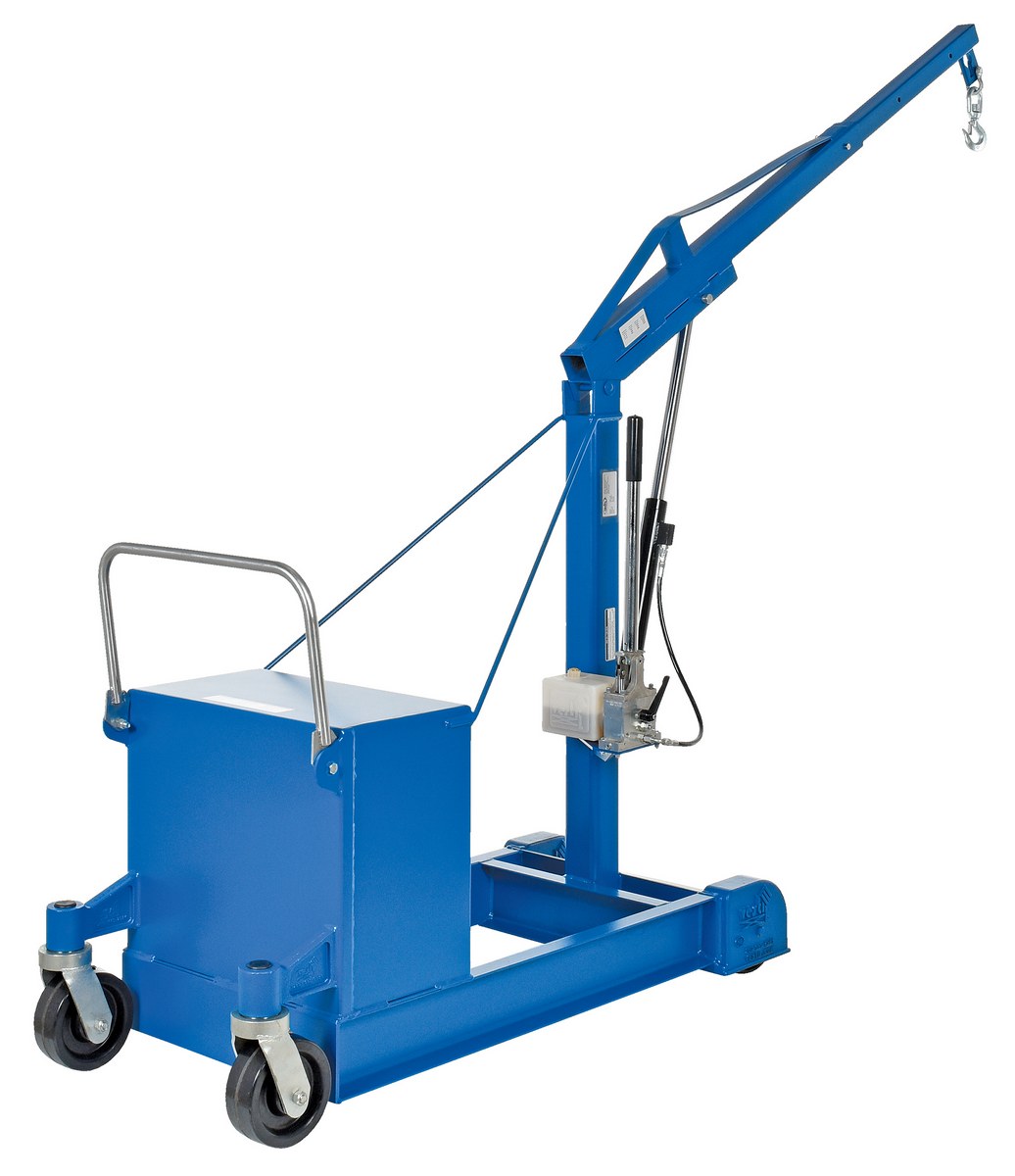

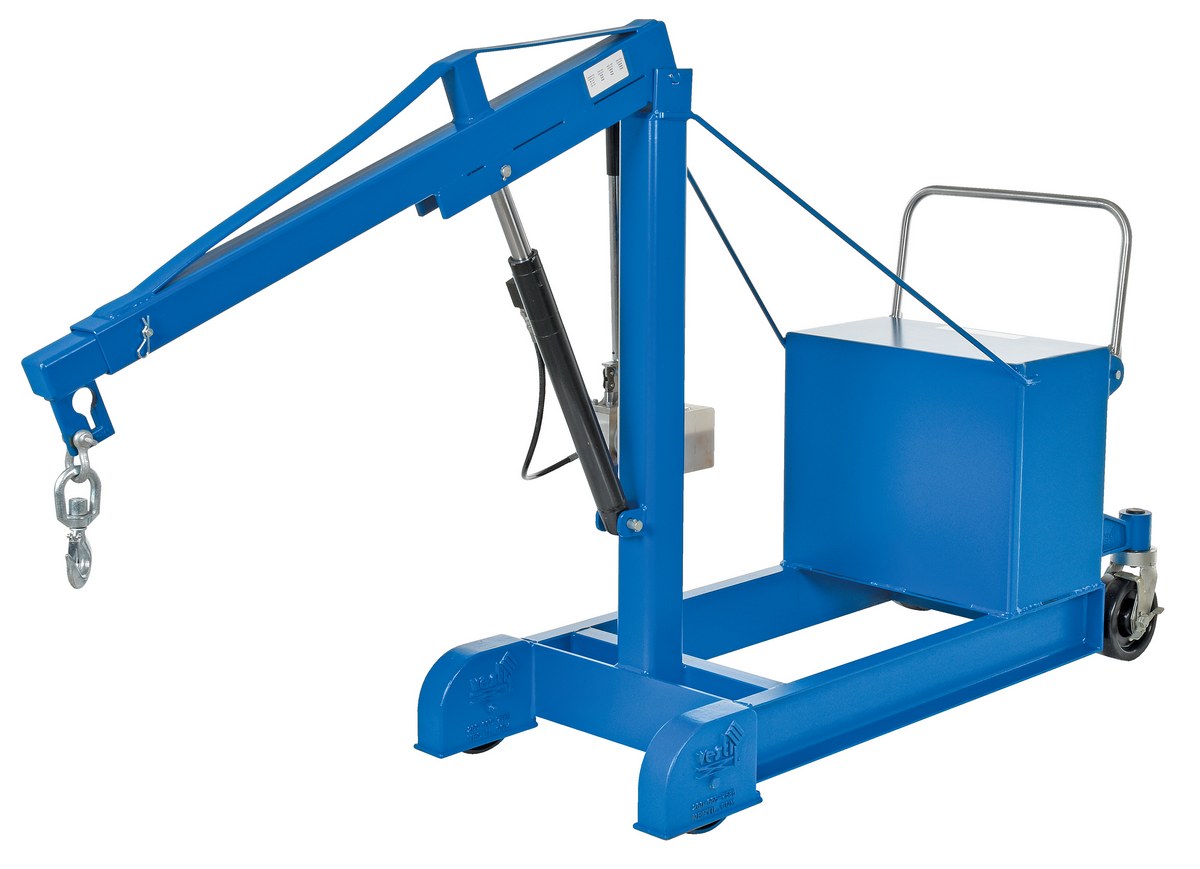

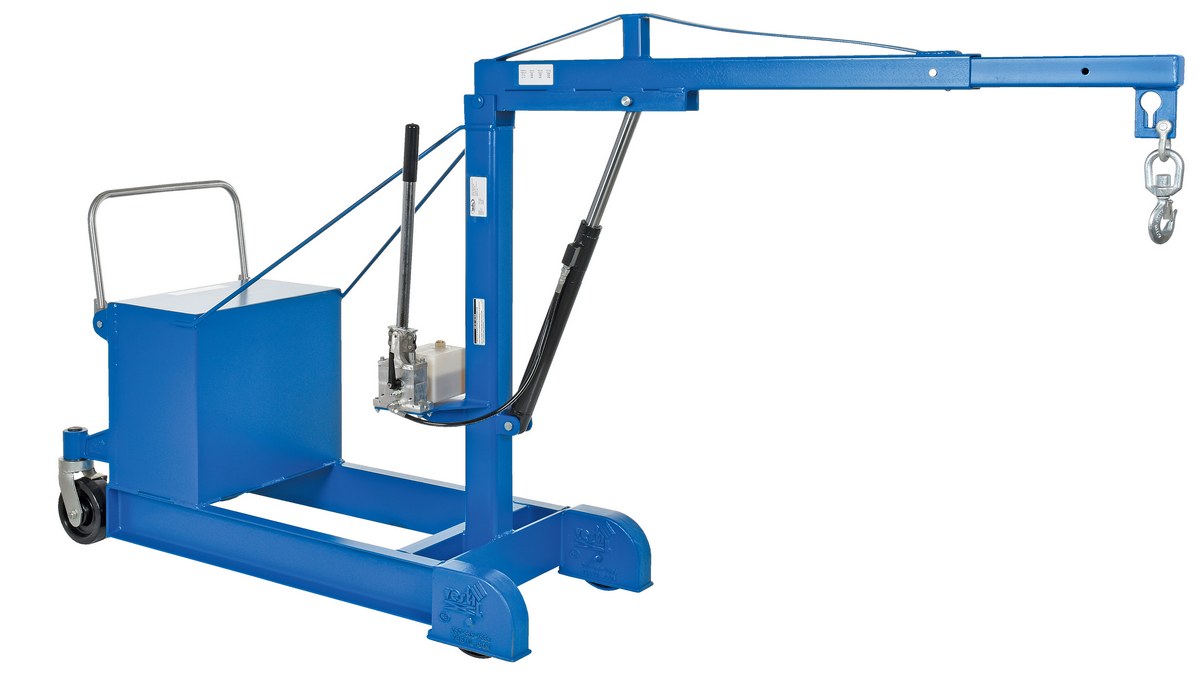

CBFC-500 icon_approvaldrawings.jpgWarranty PDFCompliance Certificate 500lbs 39-1/4"- 63-5/16" 5"- 90" 29"x135-1/8"x102" 1259
CBFC-1000 icon_approvaldrawings.jpgWarranty PDFCompliance Certificate 1,000lbs 39-1/4"- 63-1/4" 5"- 90" 29"x145-1/4"x102" 1845
CBFC-2000 icon_approvaldrawings.jpgWarranty PDFCompliance Certificate 2,000lbs 39-1/4"- 63-1/4" 15"- 96" 29"x159-1/8"x107-1/2" 2736
DC Powered Operation

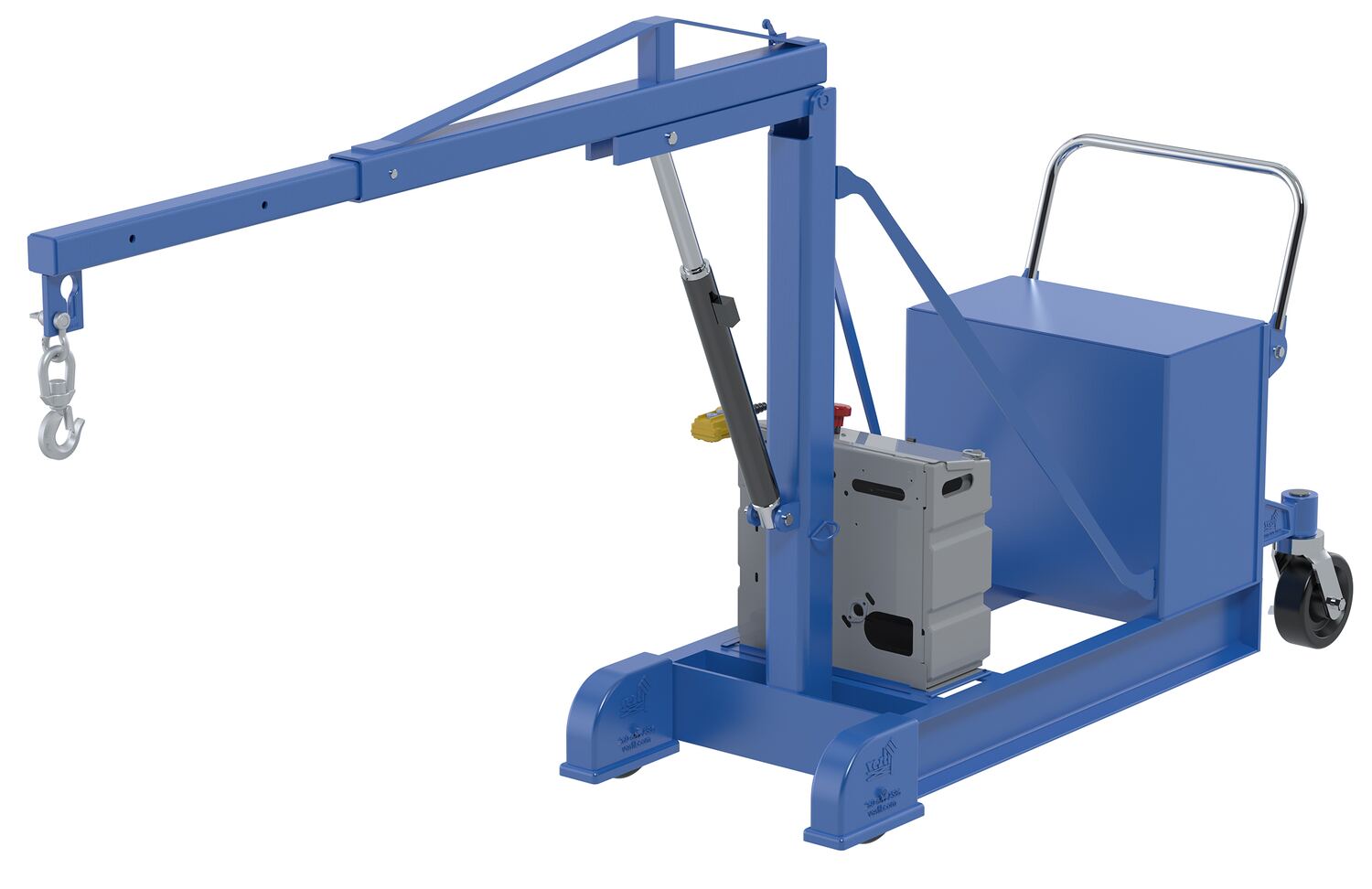

CBFC-500-DC Warranty PDFCompliance Certificate 500lbs 39-1/4"- 63-5/16" 5"- 90" 29"x135-1/8"x102" 1319
CBFC-1000-DC Warranty PDFCompliance Certificate 1,000lbs 39-1/4"- 63-1/4" 5"- 90" 29"x145-1/4"x102" 1905

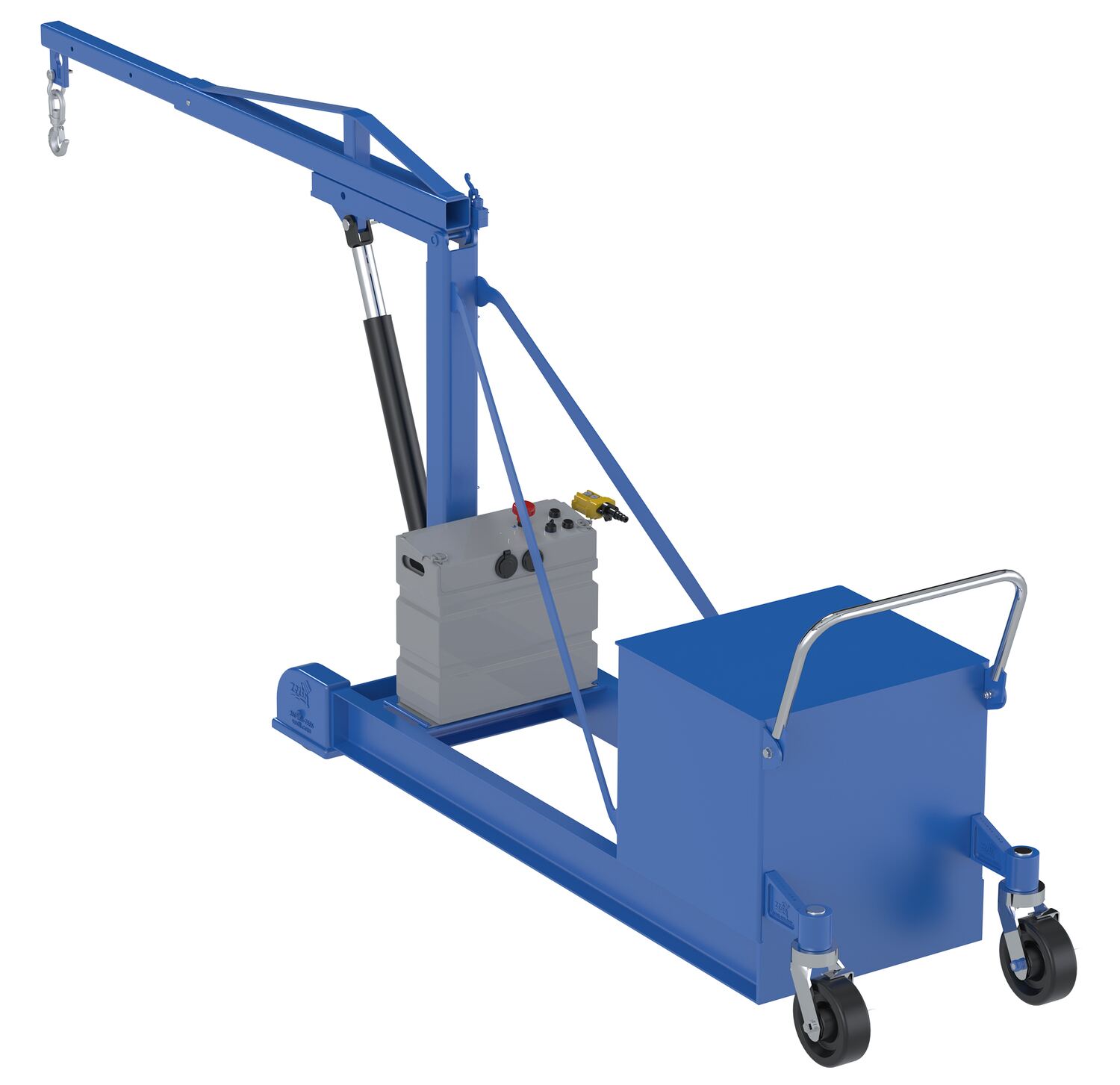

CBFC-2000-DC Warranty PDFCompliance Certificate 2,000lbs 39-1/4"- 63-1/4" 15"- 96" 29"x159-1/8"x107-1/2" 2796

KEY: Approval Drawing = Approval Drawing -- Approval Drawing = Warranty -- Approval Drawing = Testing Certificate

Owner's Manuals


Survey Sheets

No Survey Sheets For This Product.


Approval Drawings

CBFC-500
CBFC-1000
CBFC-2000

Testing Certificates

CBFC-500
CBFC-1000
CBFC-2000
CBFC-PTDS-E

Other PDF's

No "Other PDFs" For This Product...


Directory Links Of Available PDF's For All Products

Options

 Options

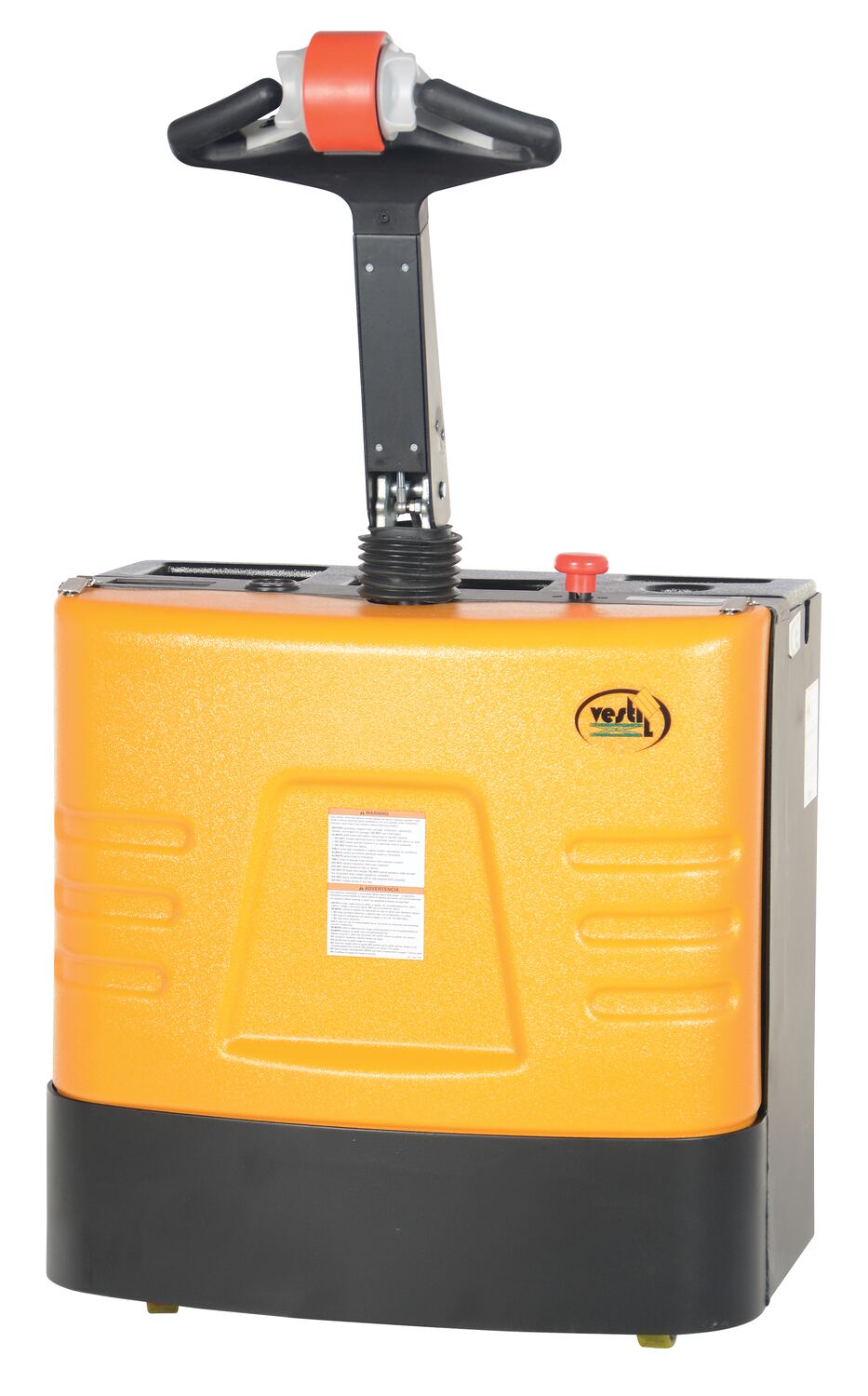

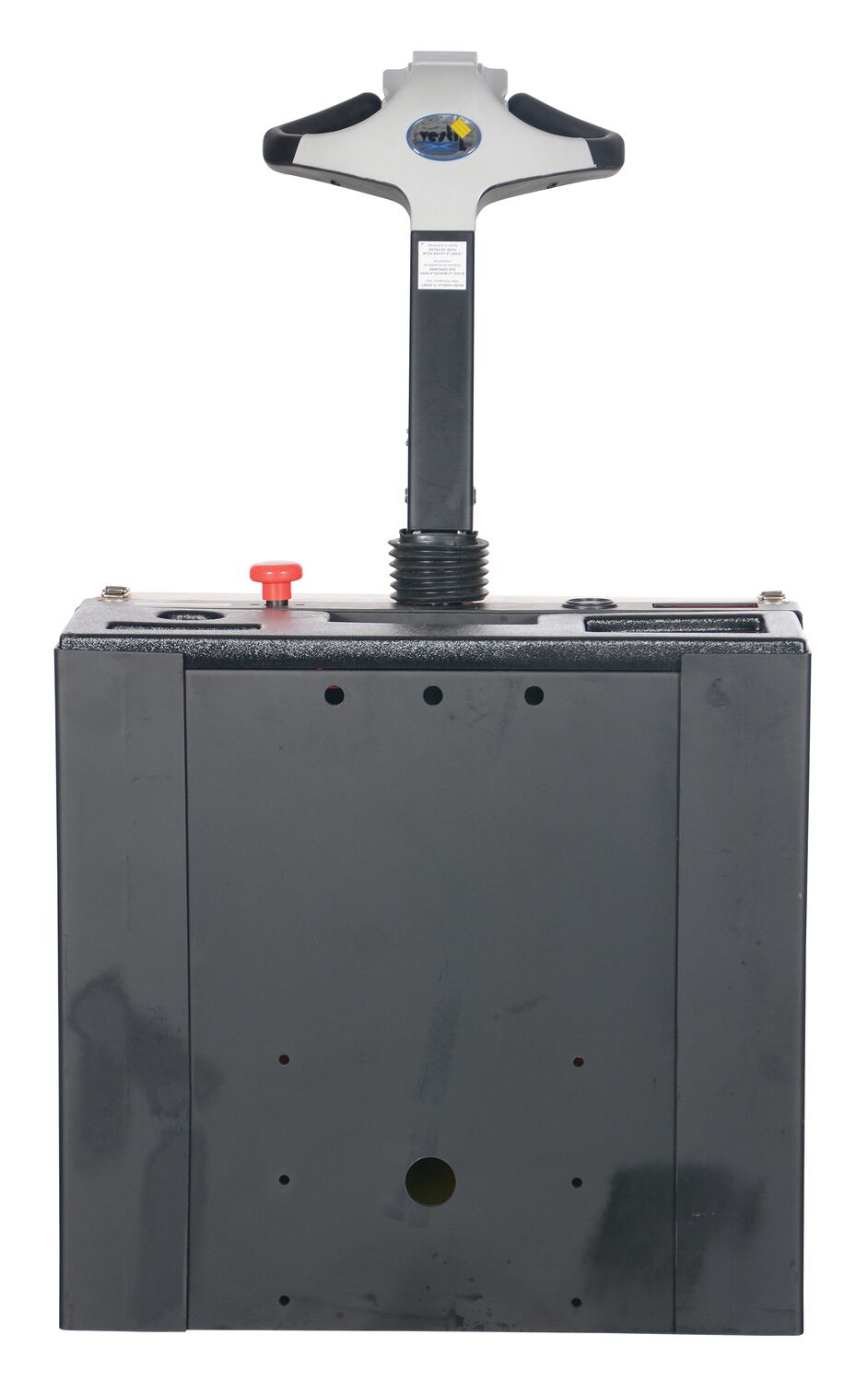

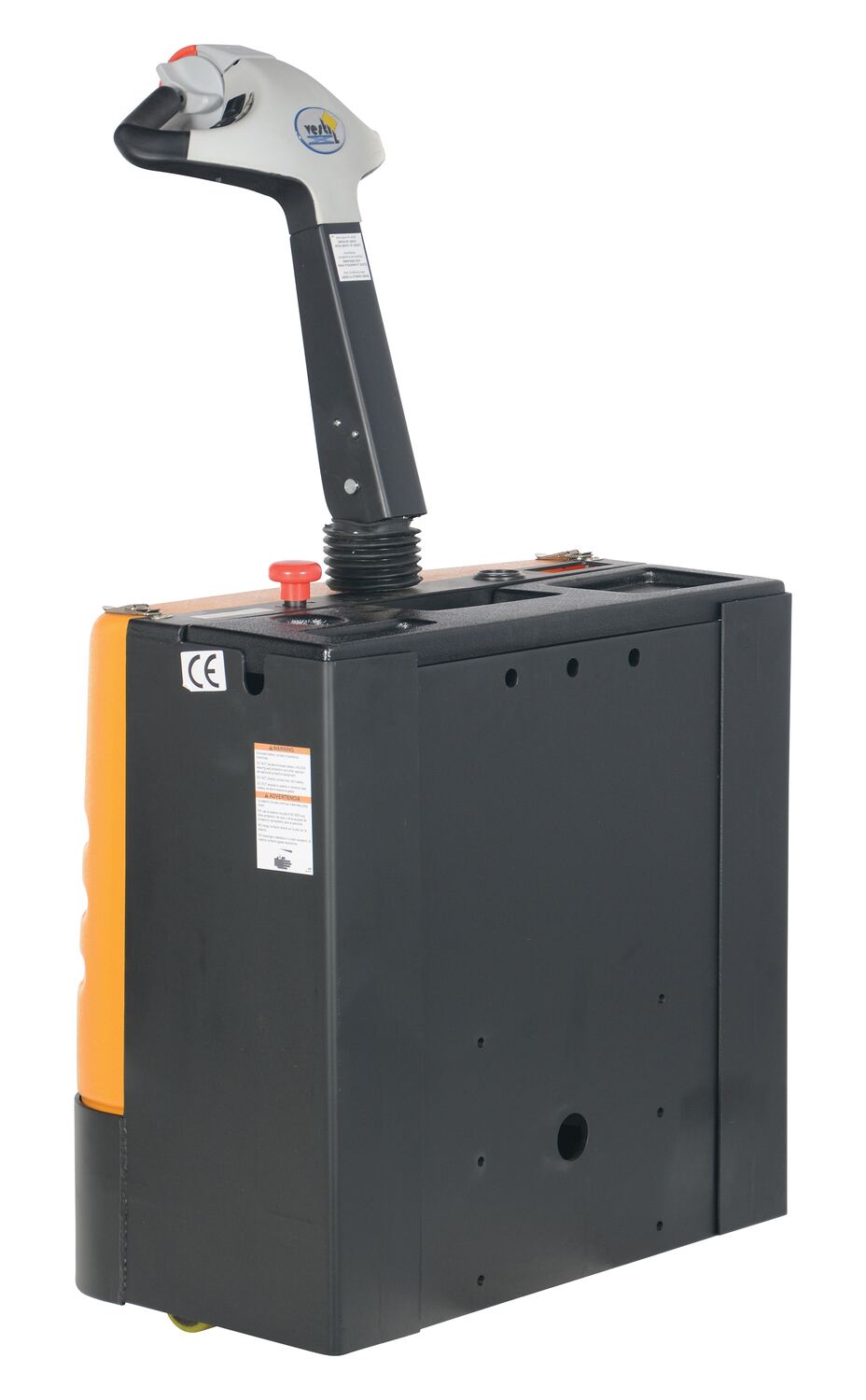

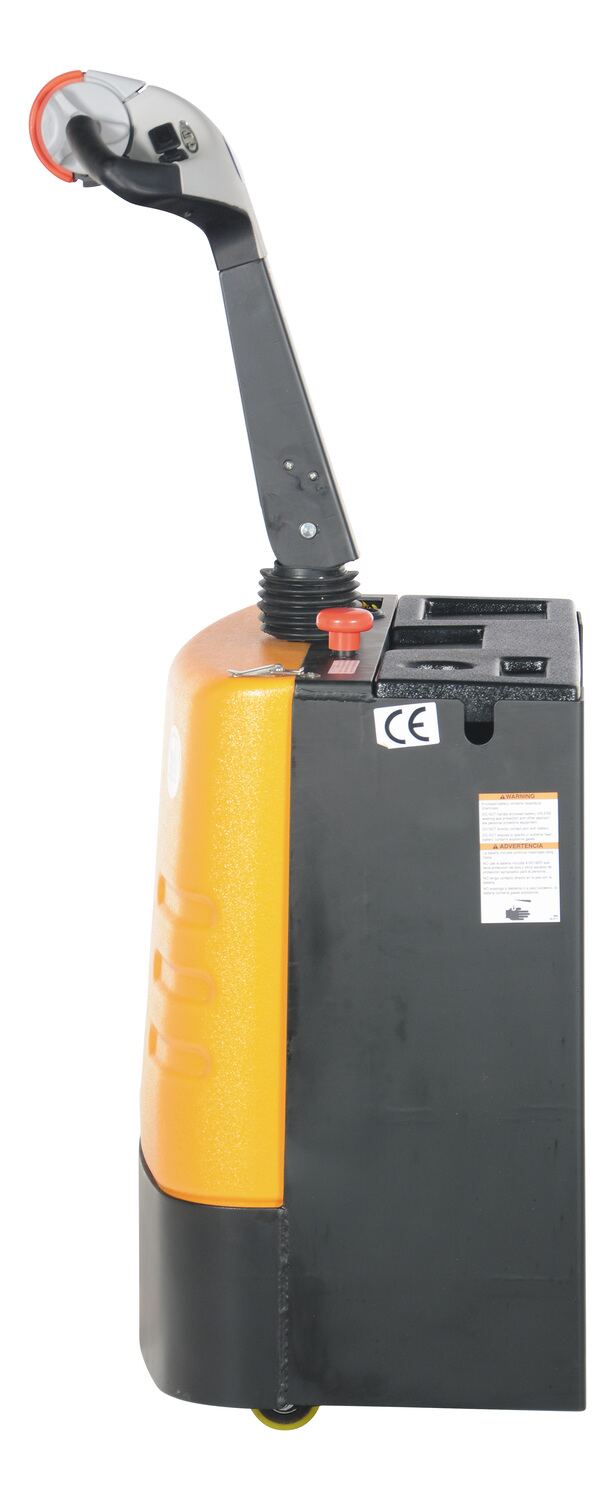

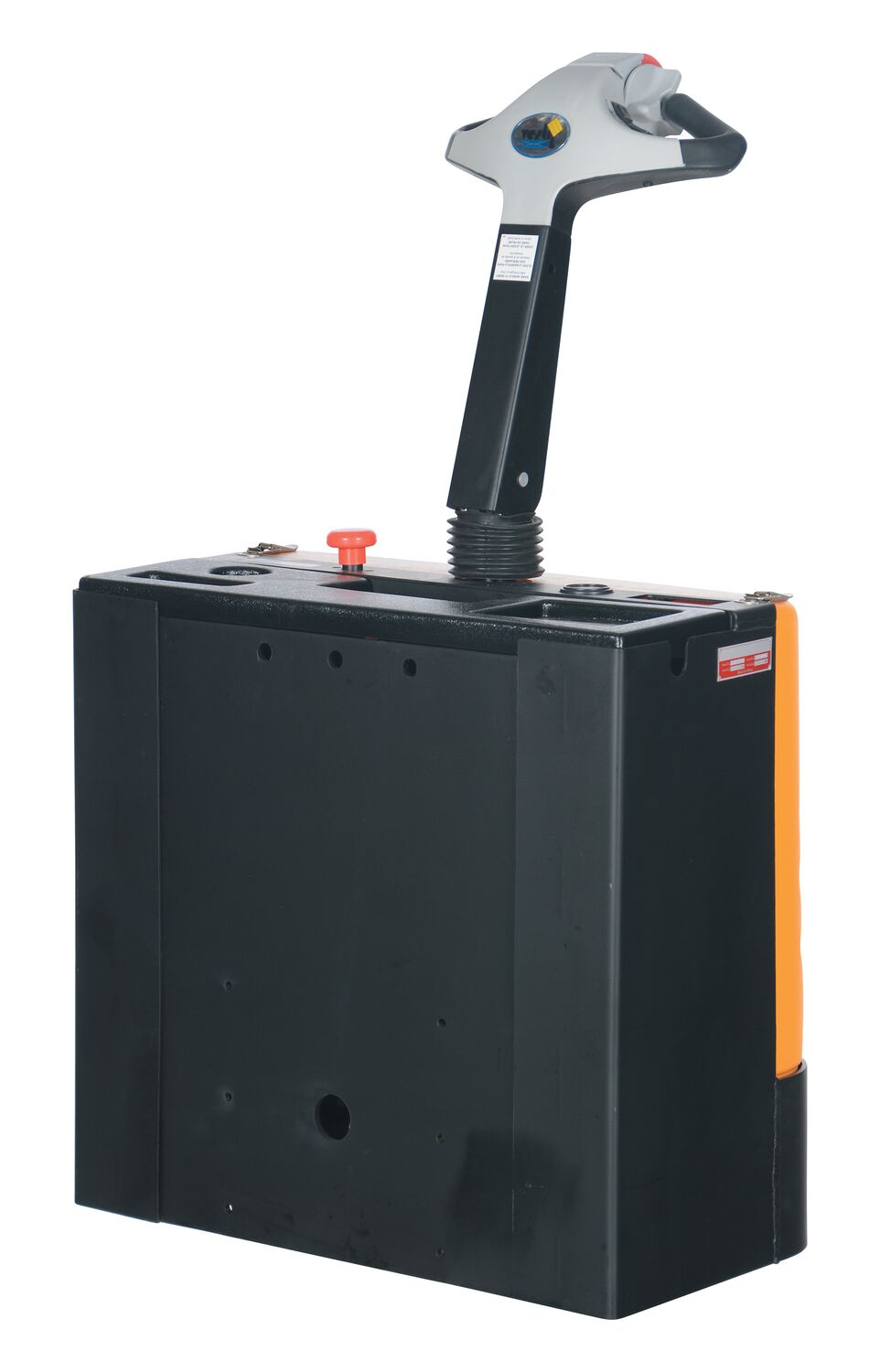

CBFC-PTDS-E Warranty PDF Power Traction Drive System Option 181

KEY: Approval Drawing = Approval Drawing -- Approval Drawing = Warranty -- Approval Drawing = Testing Certificate

Questions & Answers

No current Questions for this product. Check back soon, or submit a question to be answered below
