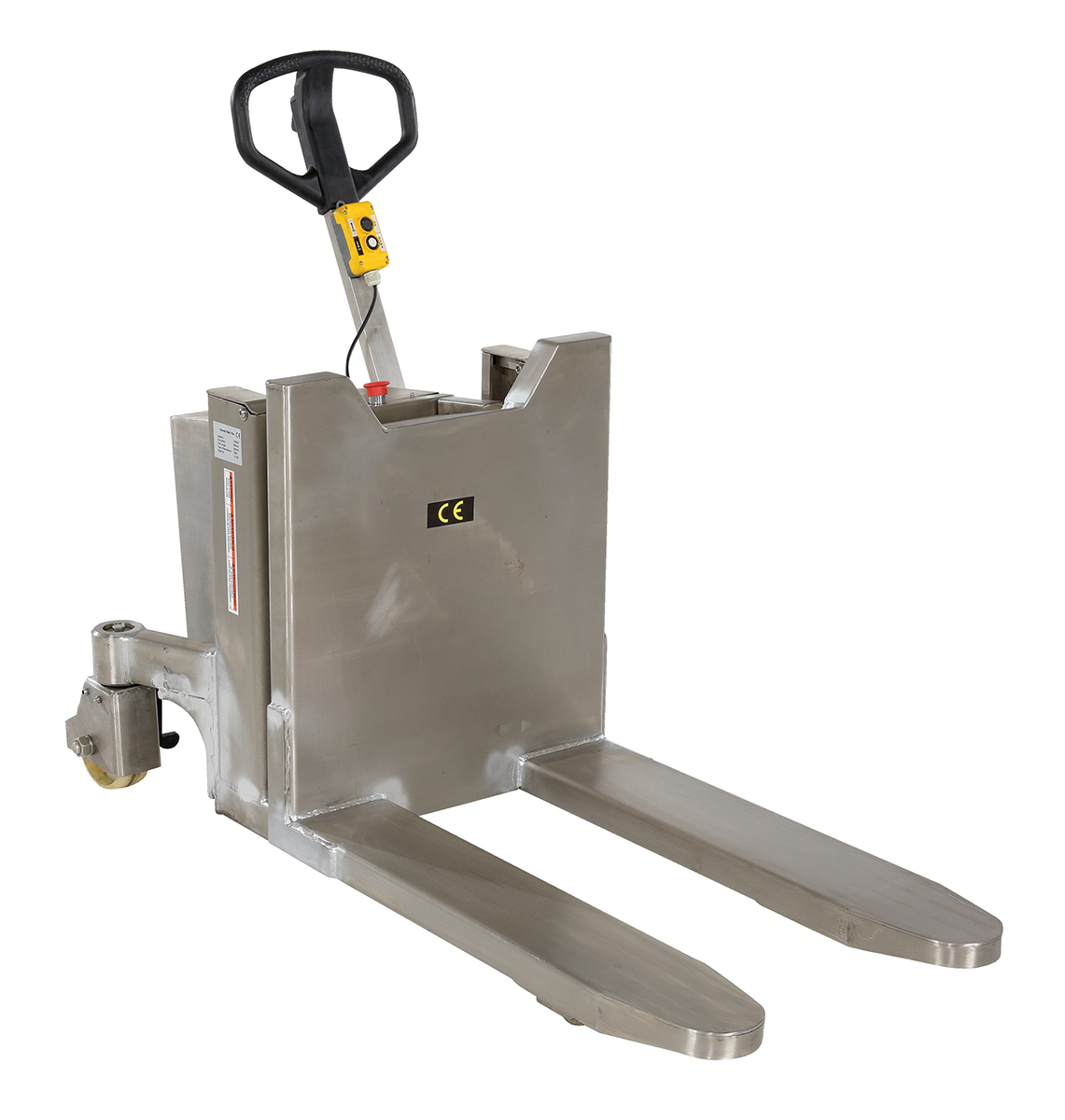

model: TM-22-DC-SS


DC Powered Tilt Master
SERIES: TM-22-DC

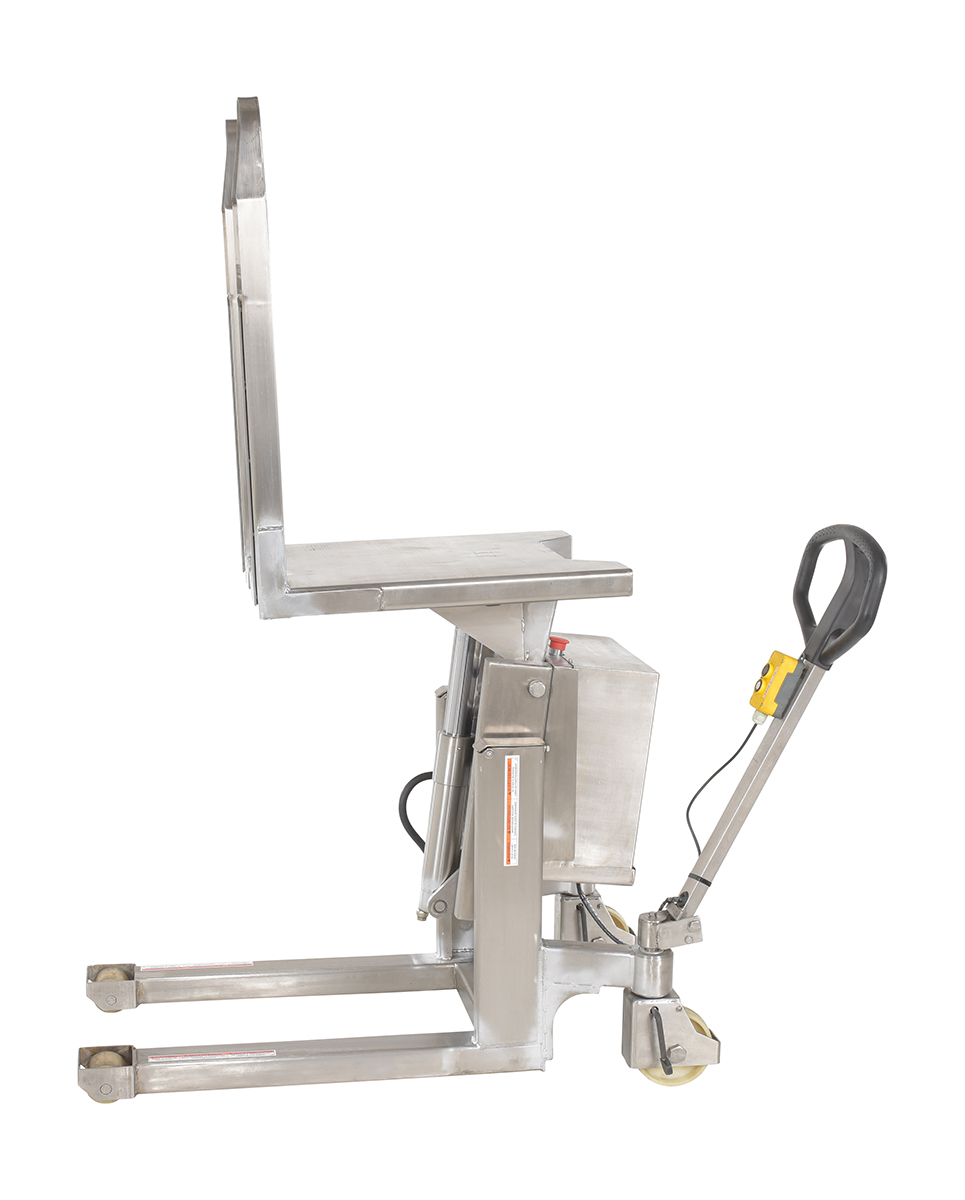

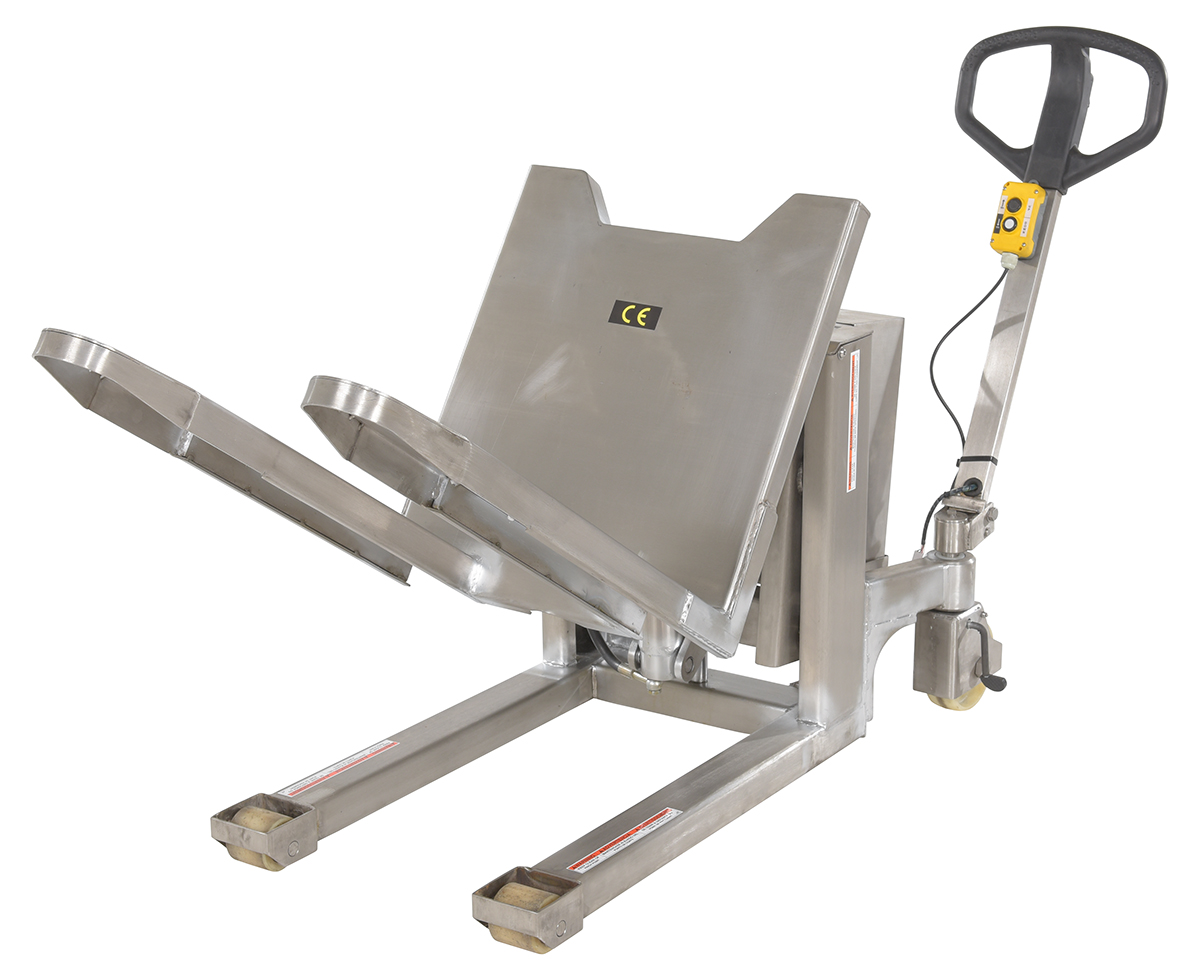

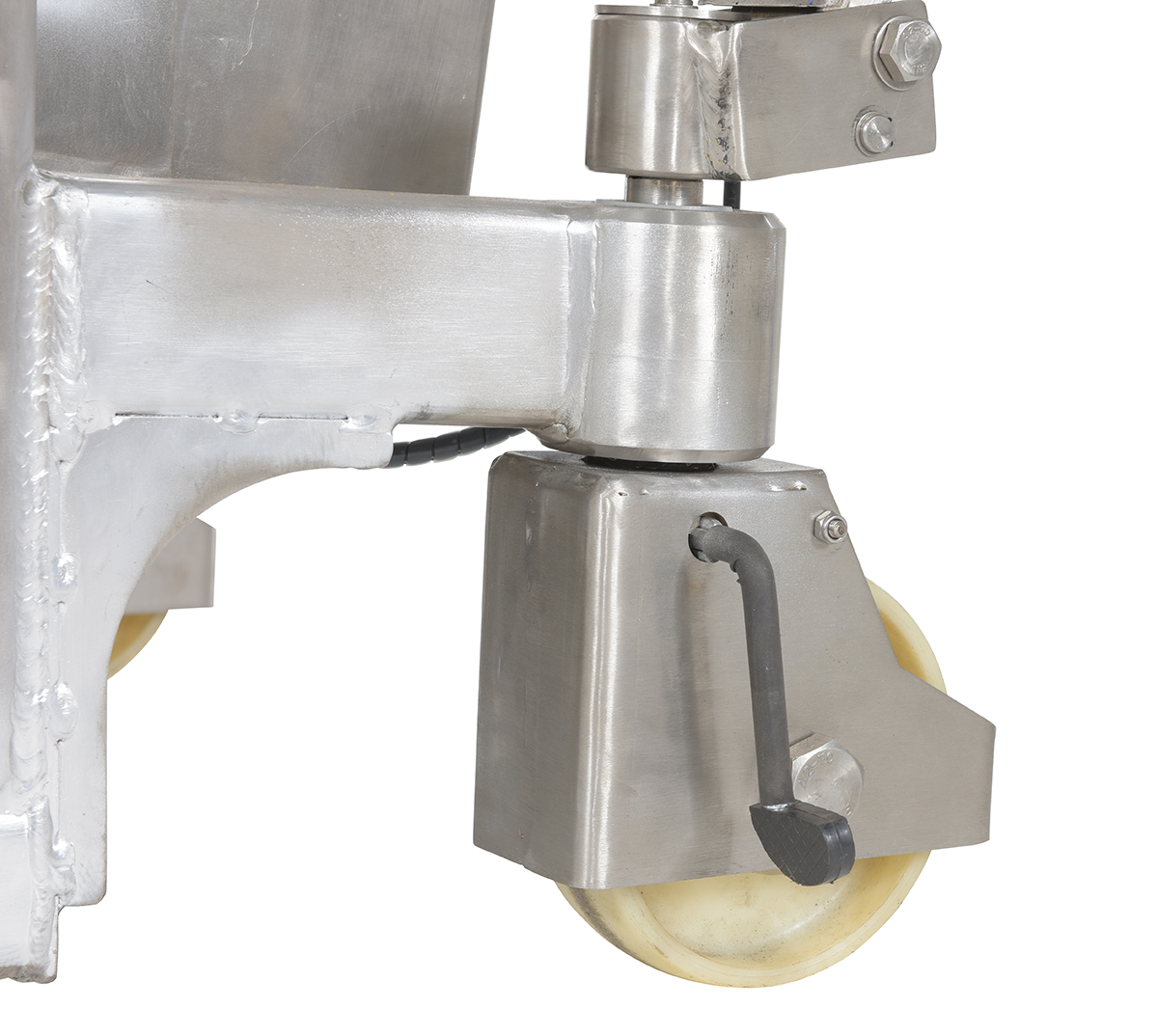

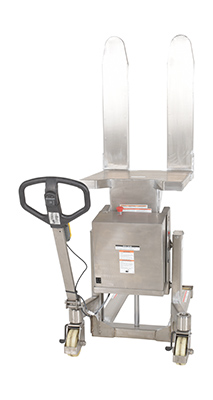

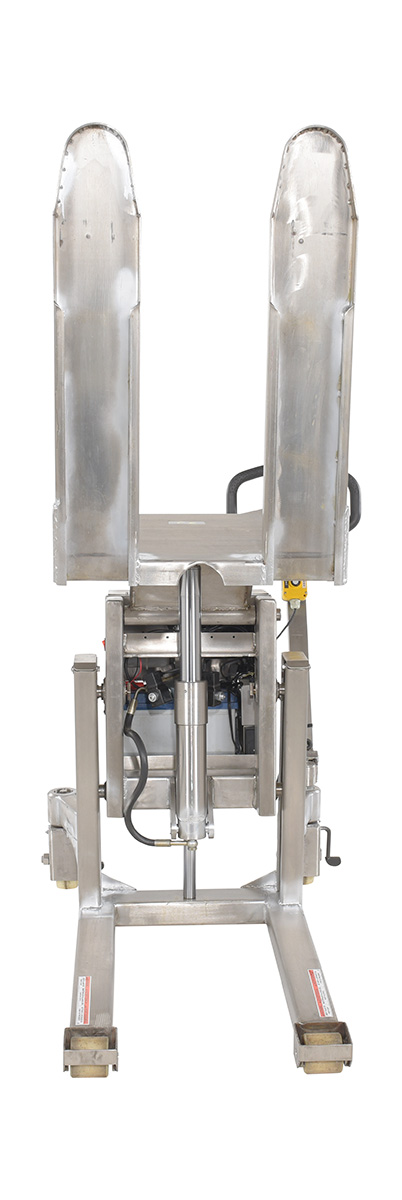

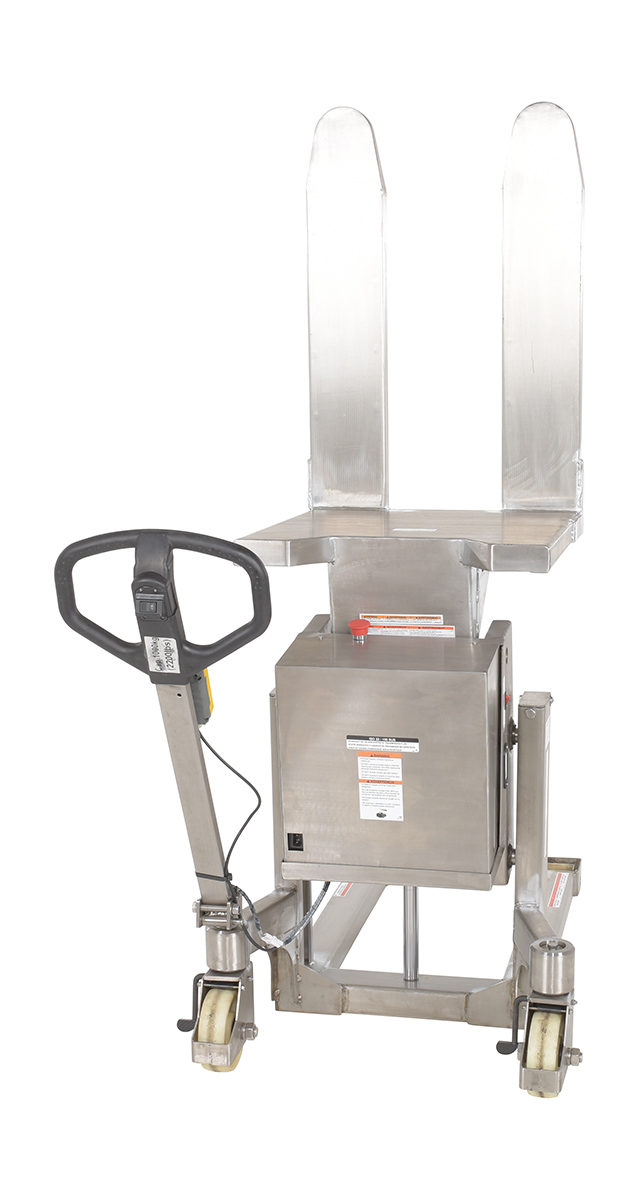

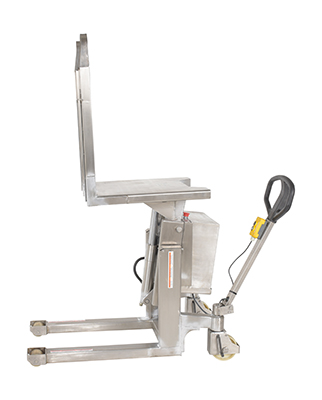

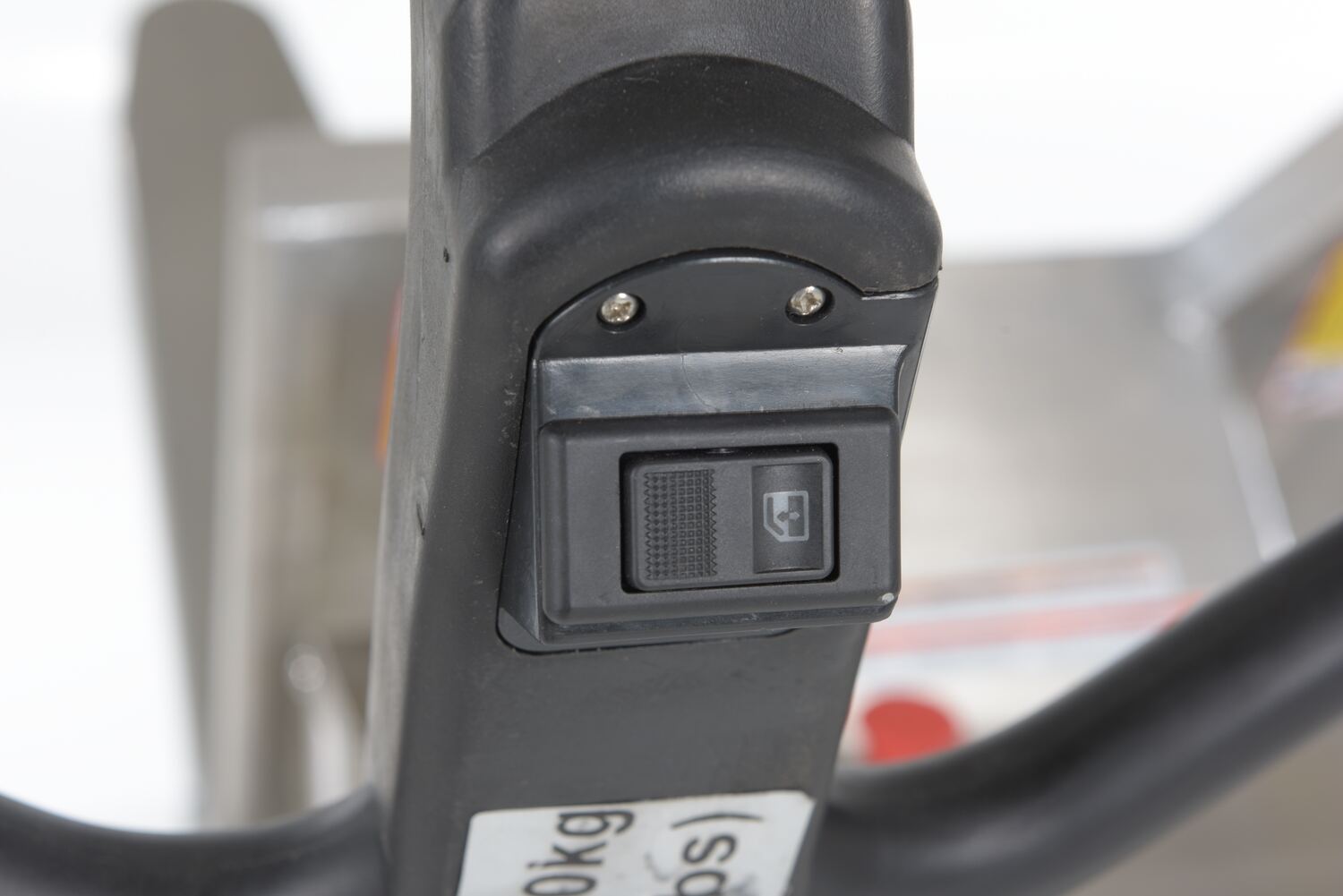

The battery operated electric lifter and tilter is designed to give the user an ergonomically correct position to reach loads easily without the need for bending down or excessively reaching over. Lift, tilt and transport crates, boxes, and pallets with an open bottom. Forks can be tilted to 90 degrees. Rolls smoothly on 6" x 2" nylon swivel casters with brake and foot protectors. Width between forks is 9-1/2". The overall fork width is 22". The individual fork width is 6-1/4". Handle can be turned and locked in position away for the work area. Features include hand control for the tilt and emergency on/off switch. 12V battery and external battery charger included. The stainless steel constructed version provides strength and durability throughout a lifetime of daily use.

  • Powered for efficient mobility
  • Stainless steel constructed model for a smooth finish and cleanliness
  • Tilt angle allows for better ergonomic access
  • Ergonomic push handle folds down when not needed for better access


Check Out Our Manual Tilt Master

The battery operated electric lifter and tilter is designed to give the user an ergonomically correct position to reach loads easily without the need for bending down or excessively reaching over. Lift, tilt and transport crates, boxes, and pallets with an open bottom. Forks can be tilted to 90 degrees. Rolls smoothly on 6" x 2" nylon swivel casters with brake and foot protectors. Width between forks is 9-1/2". The overall fork width is 22". The individual fork width is 6-1/4". Handle can be turned and locked in position away for the work area. Features include hand control for the tilt and emergency on/off switch. 12V battery and external battery charger included. The stainless steel constructed version provides strength and durability throughout a lifetime of daily use.

  • Powered for efficient mobility
  • Stainless steel constructed model for a smooth finish and cleanliness
  • Tilt angle allows for better ergonomic access
  • Ergonomic push handle folds down when not needed for better access


Check Out Our Manual Tilt Master

Share This Page

TM-22-DC

model TM-22-DC




KEY: Approval Drawing = Approval Drawing -- Approval Drawing = Warranty -- Approval Drawing = Testing Certificate

All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.
DC Powered Tilt Master
Model Image PDF's Fork
Length
Uniform
Capacity (lbs)
Vertical
Lift Height
Lowered
Fork Height
Wt.
(lbs)

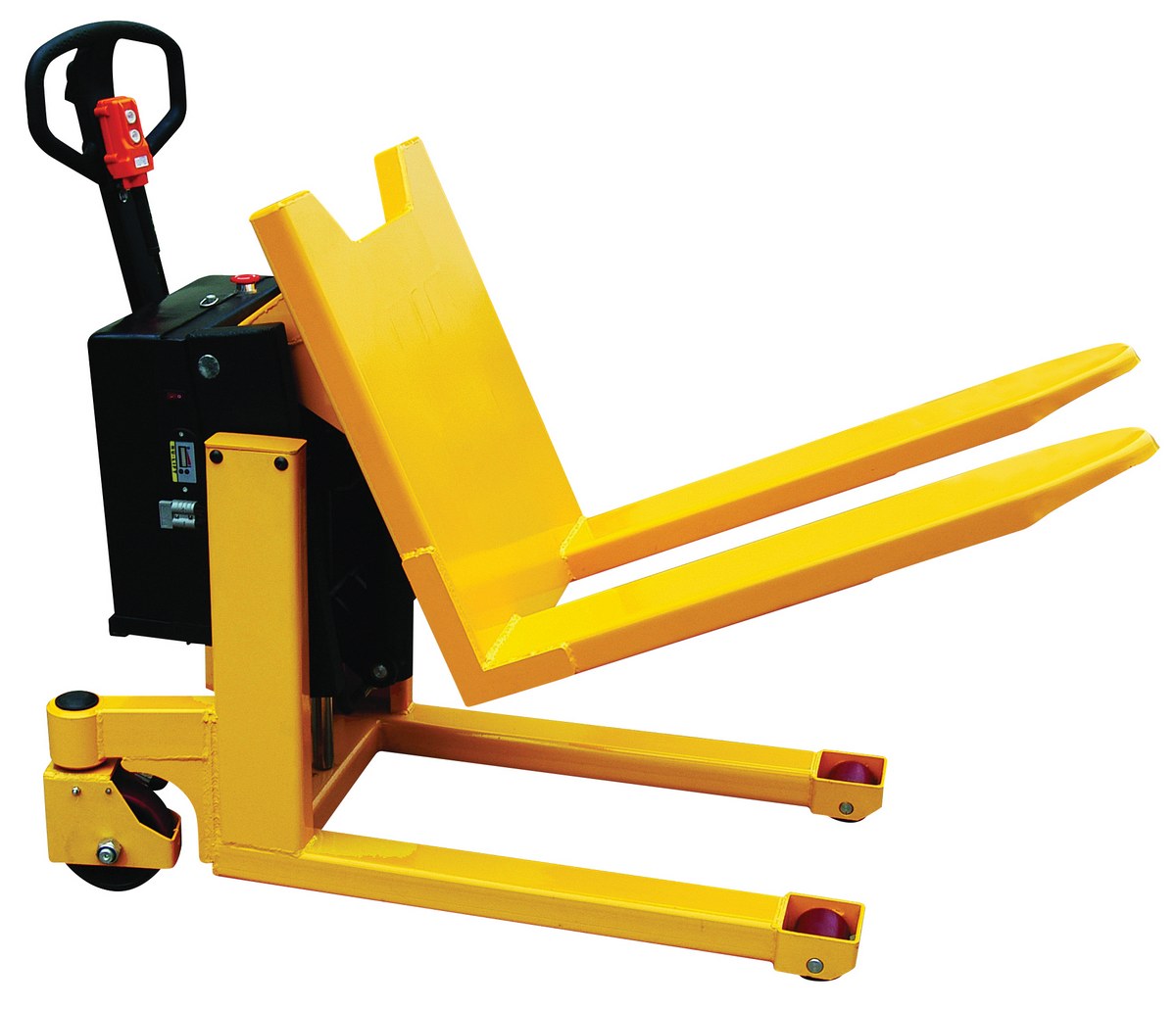

TM-22-DC icon_approvaldrawings.jpg tilt_m4.jpg 31-1/2" 2,200 11-1/4" 3-1/2" 435
Stainless Steel Tilt Master
TM-22-DC-SS tilt_m4.jpg 31-1/2" 2,200 59-1/2" 3-1/2" 455

KEY: Approval Drawing = Approval Drawing -- Approval Drawing = Warranty -- Approval Drawing = Testing Certificate


Model Image PDFs Description * Net Wt.
(lbs)
TM-22-DC download.gif90 Days WarrantyTILT MASTER DC POWERED 2200 LB CAPACITYUniform Capacity (lb.): 2200450



DC Powered Tilt Master PDF's will open in a new window when clicked.
No Owners Manuals For This Product.


Survey Sheets

No Survey Sheets For This Product.


Approval Drawings

TM-22-DC
TM-22-DC-SS

Testing Certificates

TM-22-DC
TM-22-DC-SS

Other PDF's

No "Other PDFs" For This Product...


Directory Links Of Available PDF's For All Products

Before placing an order, please confirm that the ship to company is able to receive shipments on the estimated delivery date





DC Powered Tilt Master




The battery operated electric lifter and tilter is designed to give the user an ergonomically correct position to reach loads easily without the need for bending down or excessively reaching over. Lift, tilt and transport crates, boxes, and pallets with an open bottom. Forks can be tilted to 90 degrees. Rolls smoothly on 6" x 2" nylon swivel casters with brake and foot protectors. Width between forks is 9-1/2". The overall fork width is 22". The individual fork width is 6-1/4". Handle can be turned and locked in position away for the work area. Features include hand control for the tilt and emergency on/off switch. 12V battery and external battery charger included. The stainless steel constructed version provides strength and durability throughout a lifetime of daily use.

  • Powered for efficient mobility
  • Stainless steel constructed model for a smooth finish and cleanliness
  • Tilt angle allows for better ergonomic access
  • Ergonomic push handle folds down when not needed for better access


Check Out Our Manual Tilt Master


DC Powered Tilt Master
Model Image PDF's Fork
Length
Uniform
Capacity (lbs)
Vertical
Lift Height
Lowered
Fork Height
Wt.
(lbs)
TM-22-DC icon_approvaldrawings.jpg tilt_m4.jpg 31-1/2" 2,200 11-1/4" 3-1/2" 435
Stainless Steel Tilt Master
TM-22-DC-SS tilt_m4.jpg 31-1/2" 2,200 59-1/2" 3-1/2" 455
