Ground Lift & Tilt Tables
SERIES: EHLTGT

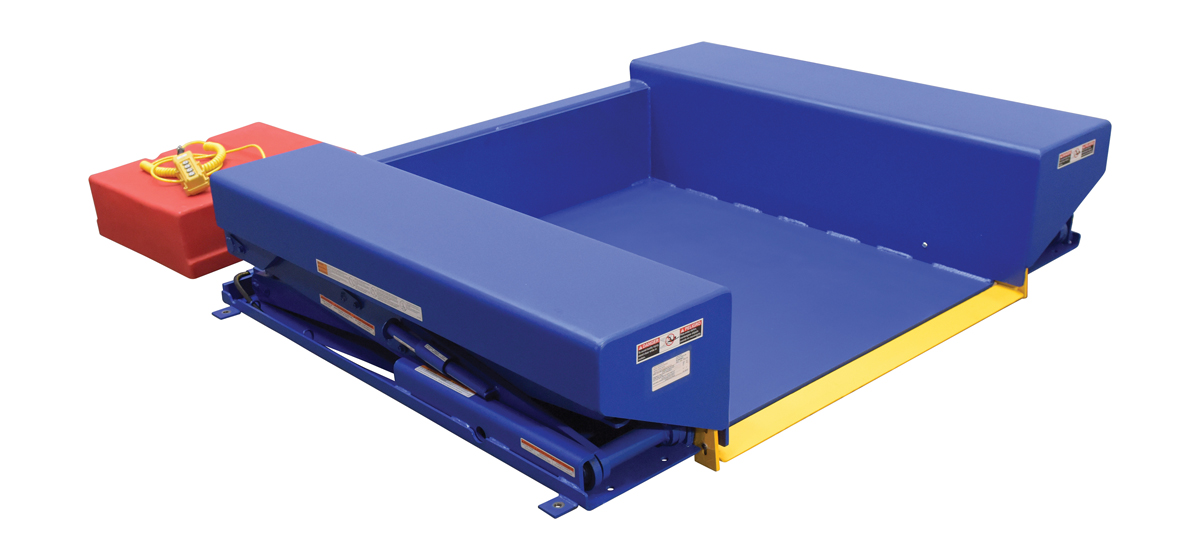

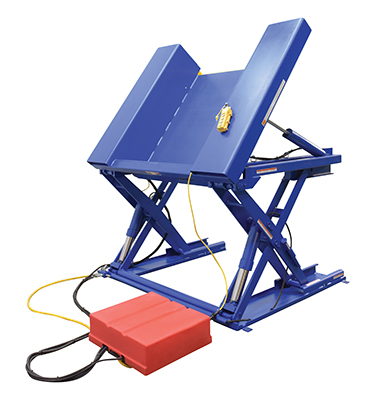

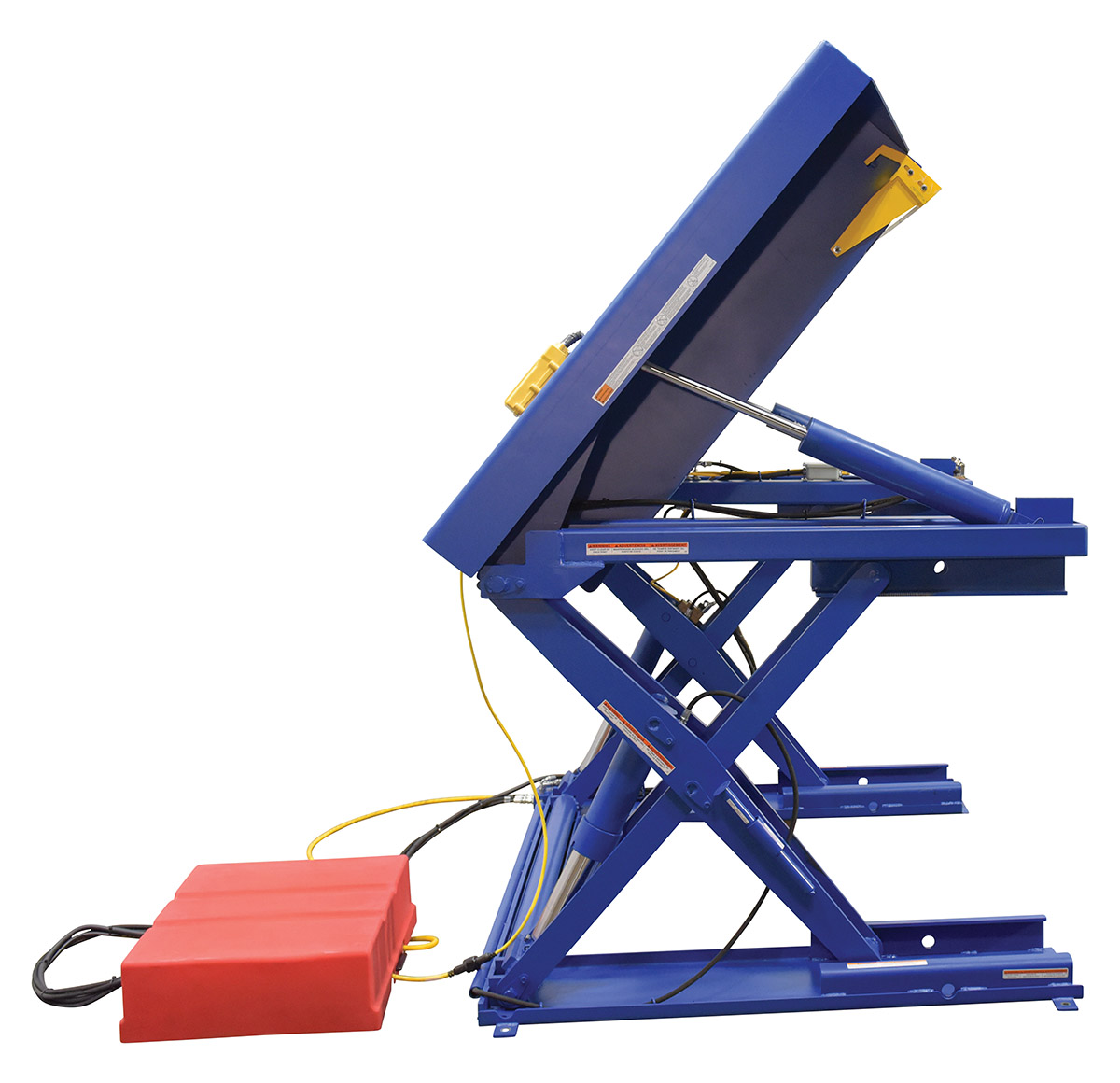

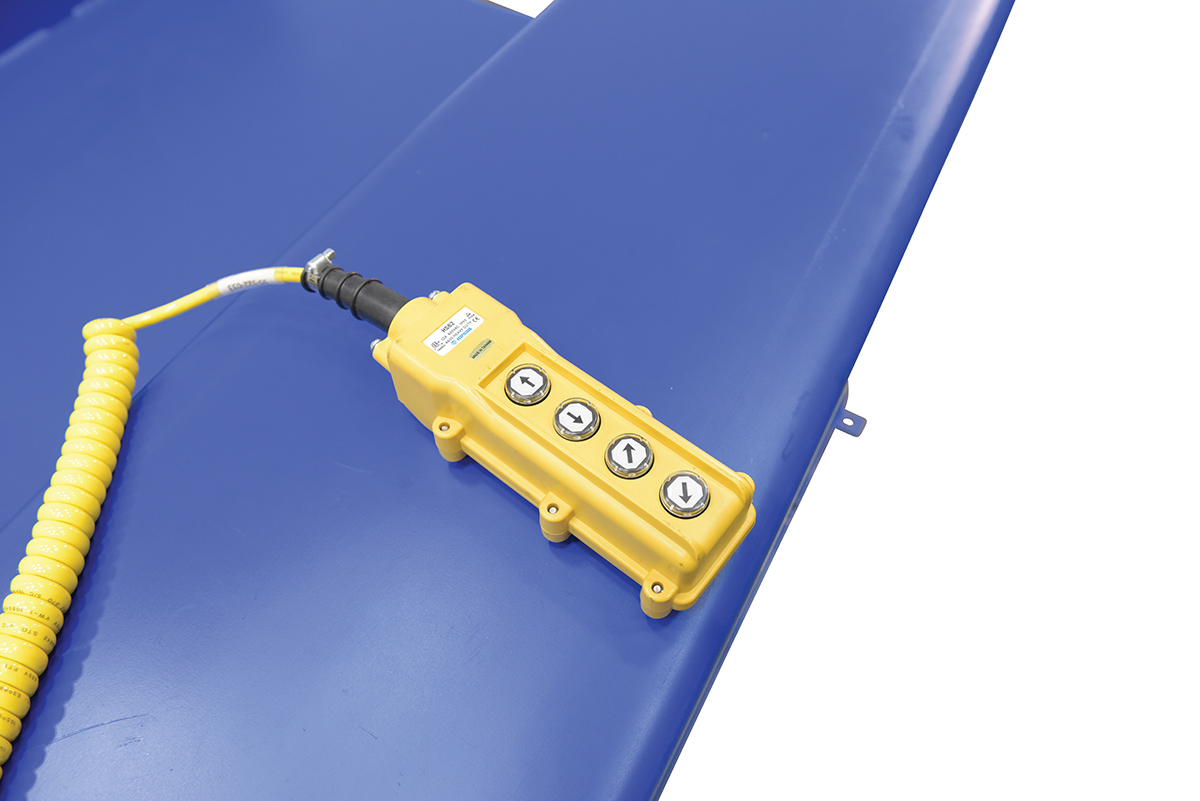

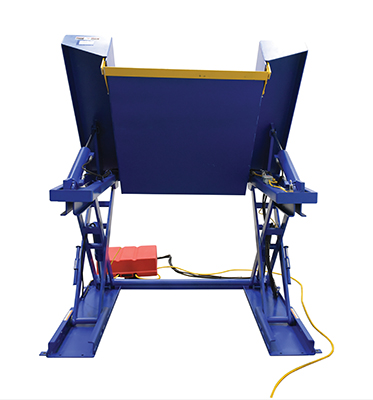

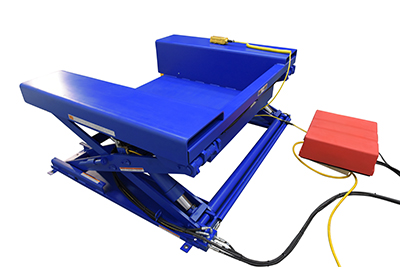

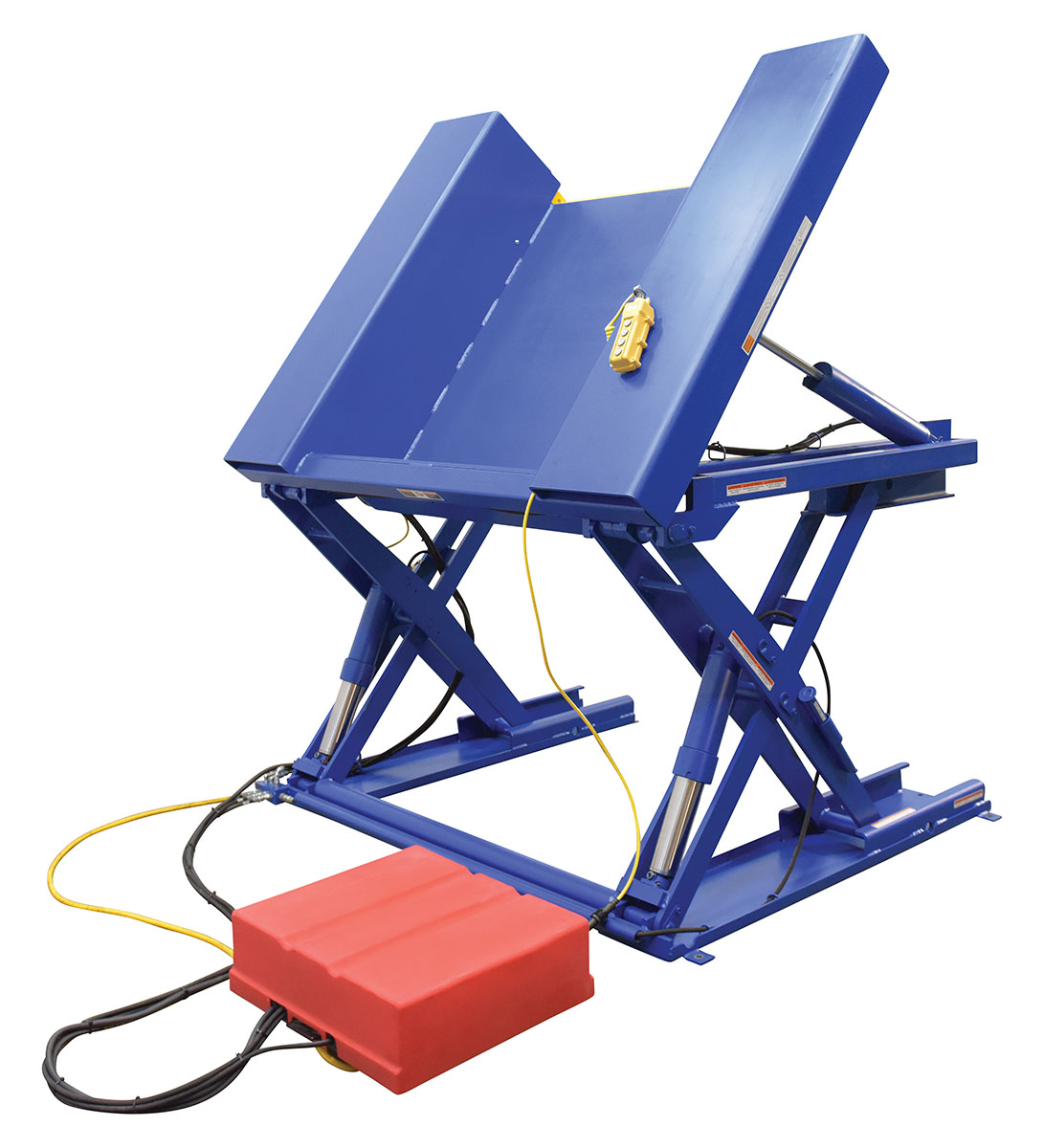

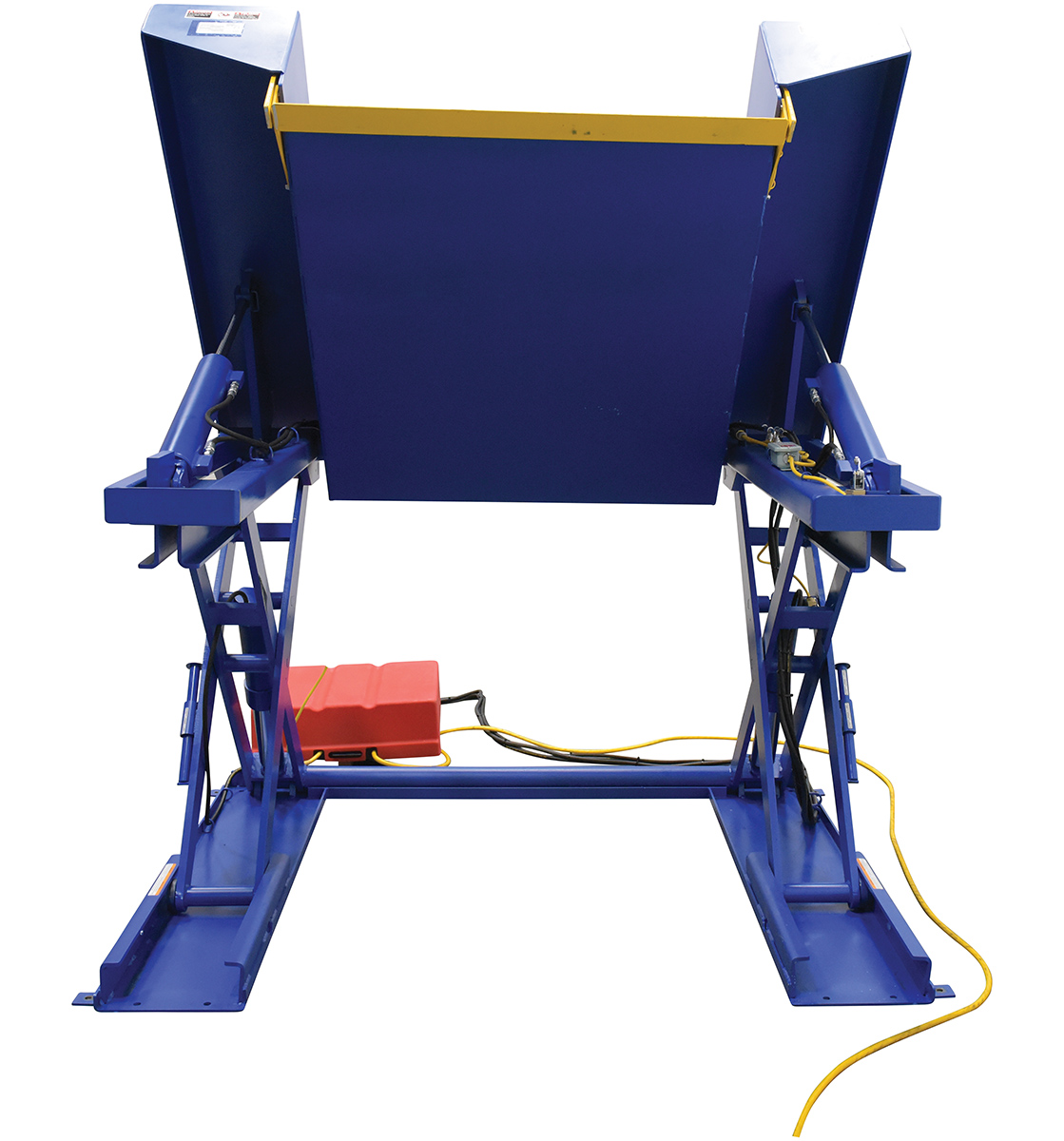

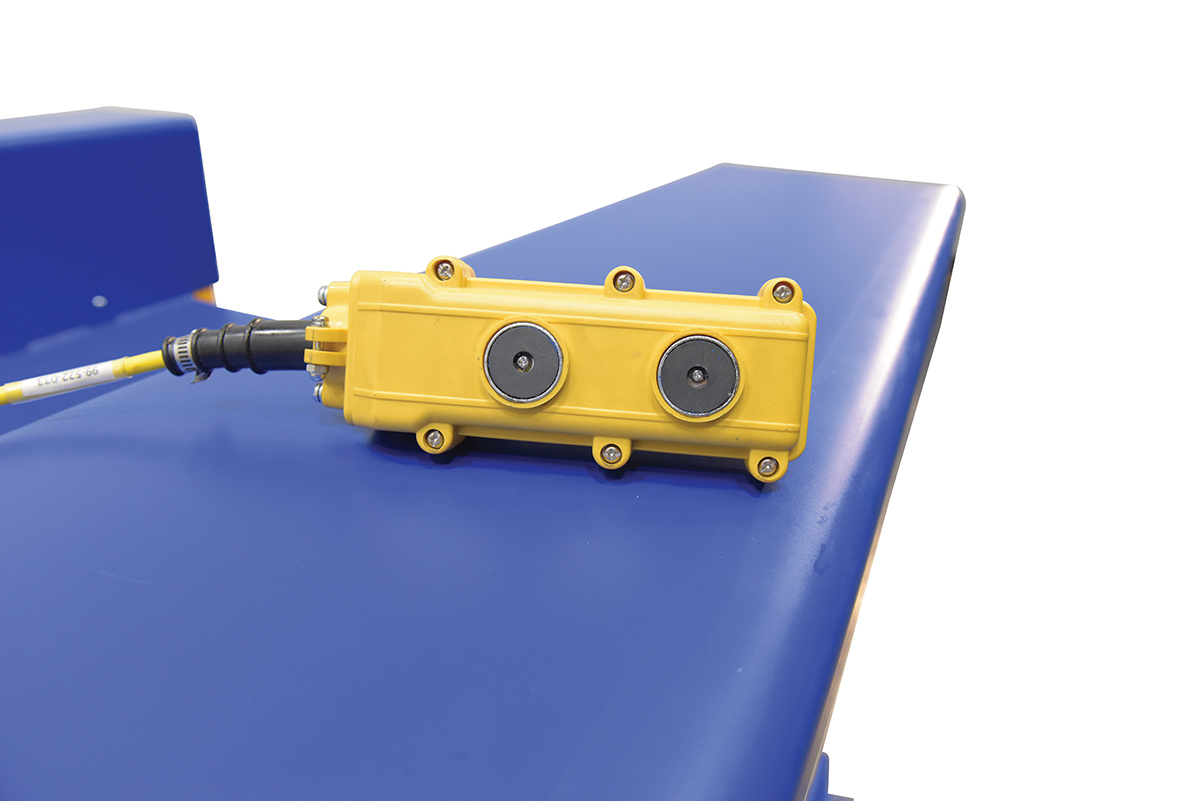

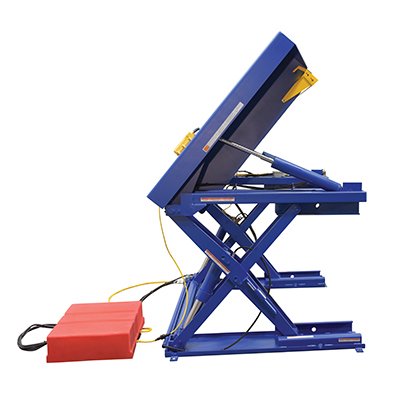

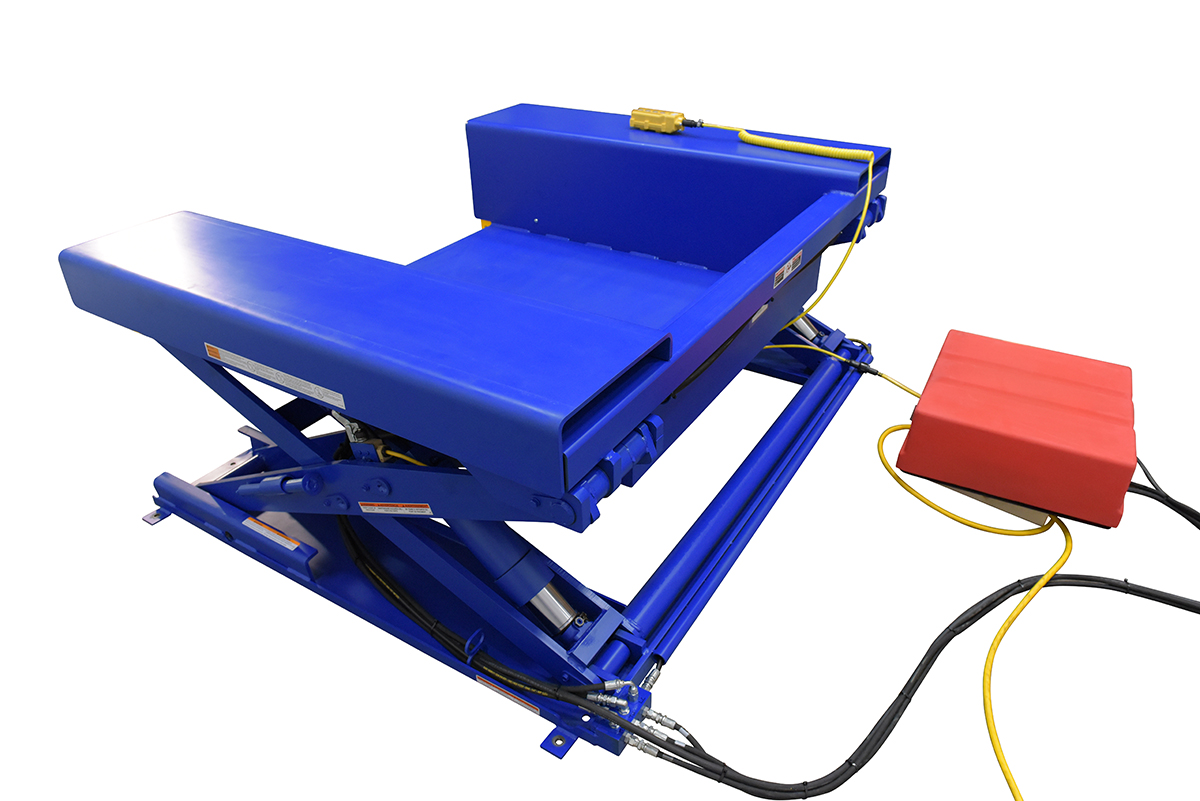

A Ground Lift & Tilt Table is designed to lift or tilt products to an ergonomic working position, reducing operator bending. Products may be loaded and unloaded with the use of a standard hand pallet truck. There is no pit mounting required. Lift and tilt is controlled separately. Remote Power unit with hand-held control is standard.

Check Out Our Non-Tilting Ground Lift Scissor Tables

A Ground Lift & Tilt Table is designed to lift or tilt products to an ergonomic working position, reducing operator bending. Products may be loaded and unloaded with the use of a standard hand pallet truck. There is no pit mounting required. Lift and tilt is controlled separately. Remote Power unit with hand-held control is standard.

Check Out Our Non-Tilting Ground Lift Scissor Tables




All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.
The Search Box below is within the Model Chart on this page. Not an entire site search.
Model Image PDFs Description Attributes Net Wt.
(lbs)
EHLTGT-4452-2-36 1 Year Limited WarrantySteel Electric Hydraulic Ground Lift Table with Tilt 44 In. x 52 In. 2000 Lb. Capacity BlueUniform Capacity (lb.) 2000
2121
EHLTGT-4452-4-36 1 Year Limited WarrantySteel Electric Hydraulic Ground Lift Table with Tilt 44 In. x 52 In. 4000 Lb. Capacity BlueUniform Capacity (lb.) 4000
2230
EHLTGT-4472-2-48 1 Year Limited WarrantySteel Electric Hydraulic Ground Lift Table with Tilt 44 In. x 72 In. 2000 Lb. Capacity BlueUniform Capacity (lb.) 2000
2950
EHLTGT-4472-4-48 1 Year Limited WarrantySteel Electric Hydraulic Ground Lift Table with Tilt 44 In. x 72 In. 4000 Lb. Capacity BlueUniform Capacity (lb.) 4000
3013
EHLTGT-5252-2-36 1 Year Limited WarrantySteel Electric Hydraulic Ground Lift Table with Tilt 52 In. x 52 In. 2000 Lb. Capacity BlueUniform Capacity (lb.) 2000
2337
EHLTGT-5252-4-36 1 Year Limited WarrantySteel Electric Hydraulic Ground Lift Table with Tilt 52 In. x 52 In. 4000 Lb. Capacity BlueUniform Capacity (lb.) 4000
2371
EHLTGT-5272-2-48 1 Year Limited WarrantySteel Electric Hydraulic Ground Lift Table with Tilt 52 In. x 72 In. 2000 Lb. Capacity BlueUniform Capacity (lb.) 2000
3045
EHLTGT-5272-4-48 1 Year Limited WarrantySteel Electric Hydraulic Ground Lift Table with Tilt 52 In. x 72 In. 4000 Lb. Capacity BlueUniform Capacity (lb.) 4000
3074

KEY: = Click For Expanded Model Details -- = Approval Drawing -- = Testing Certificate -- Warranty

Ground Lift & Tilt Tables

Model

Image Uniform
Capacity (lbs)
Overall Deck
Size (WxL)
Usable
Size (WxL)
Deck
Range
Fender Height
Range
Wt.
(lbs.)
EHLTGT-4452-2-36 2,000 72-3/4"x56-1/4" 44"x52-3/4" 1/2" to 35-5/16" 15-1/4" to 49-15/16" 2121
EHLTGT-4452-4-36 4,000 72-3/4"x56-1/4" 44"x52-3/4" 1/2" to 35-5/16" 15-1/4" to 49-15/16" 2230
EHLTGT-4472-2-48 2,000 72-3/4"x76-1/4" 44"x72-3/4" 1/2" to 47-5/16" 15-1/4" to 61-15/16" 2950
EHLTGT-4472-4-48 4,000 72-3/4"x76-1/4" 44"x72-3/4" 1/2" to 47-5/16" 15-1/4" to 61-15/16" 3013
EHLTGT-5252-2-36 2,000 72-3/4"x56-1/4" 52"x52-3/4" 1/2" to 35-5/16" 15-1/4" to 49-15/16" 2337
EHLTGT-5252-4-36 4,000 72-3/4"x56-1/4" 52"x52-3/4" 1/2" to 35-5/16" 15-1/4" to 49-15/16" 2322
EHLTGT-5272-2-48 2,000 72-3/4"x76-1/4" 52"x72-3/4" 1/2" to 47-5/16" 15-1/4" to 61-15/16" 3045
EHLTGT-5272-4-48 4,000 72-3/4"x76-1/4" 52"x72-3/4" 1/2" to 47-5/16" 15-1/4" to 61-15/16" 3074

KEY: Approval Drawing = Approval Drawing -- Approval Drawing = Warranty -- Approval Drawing = Testing Certificate

Steel Electric Hydraulic Ground Lift Table with Tilt 44 In. x 52 In. 2000 Lb. Capacity Blue


Unit: EACH
Size: 72.75W x 56.25L x 49.9375H
Weight: 2121
1 Year Limited Warranty
Uniform Capacity (lb.): 2000
Usable Width (in.): 44
Uniform Capacity (lb.): 2000
Usable Width (in.): 44

Steel Electric Hydraulic Ground Lift Table with Tilt 44 In. x 52 In. 4000 Lb. Capacity Blue


Unit: EACH
Size: 72.75W x 56.25L x 49.9375H
Weight: 2230
1 Year Limited Warranty
Uniform Capacity (lb.): 4000
Usable Width (in.): 44
Uniform Capacity (lb.): 4000
Usable Width (in.): 44

Steel Electric Hydraulic Ground Lift Table with Tilt 44 In. x 72 In. 2000 Lb. Capacity Blue


Unit: EACH
Size: 72.75W x 74.25L x 49.9375H
Weight: 2950
1 Year Limited Warranty
Uniform Capacity (lb.): 2000
Usable Width (in.): 44
Uniform Capacity (lb.): 2000
Usable Width (in.): 44

Steel Electric Hydraulic Ground Lift Table with Tilt 44 In. x 72 In. 4000 Lb. Capacity Blue


Unit: EACH
Size: 72.75W x 74.25L x 49.9375H
Weight: 3013
1 Year Limited Warranty
Uniform Capacity (lb.): 4000
Usable Width (in.): 44
Uniform Capacity (lb.): 4000
Usable Width (in.): 44

Steel Electric Hydraulic Ground Lift Table with Tilt 52 In. x 52 In. 2000 Lb. Capacity Blue


Unit: EACH
Size: 80.75W x 56.25L x 49.9375H
Weight: 2337
1 Year Limited Warranty
Uniform Capacity (lb.): 2000
Usable Width (in.): 52
Uniform Capacity (lb.): 2000
Usable Width (in.): 52

Steel Electric Hydraulic Ground Lift Table with Tilt 52 In. x 52 In. 4000 Lb. Capacity Blue


Unit: EACH
Size: 80.75W x 56.25L x 49.9375H
Weight: 2371
1 Year Limited Warranty
Uniform Capacity (lb.): 4000
Usable Width (in.): 52
Uniform Capacity (lb.): 4000
Usable Width (in.): 52

Steel Electric Hydraulic Ground Lift Table with Tilt 52 In. x 72 In. 2000 Lb. Capacity Blue


Unit: EACH
Size: 80.75W x 74.25L x 49.9375H
Weight: 3045
1 Year Limited Warranty
Uniform Capacity (lb.): 2000
Usable Width (in.): 52
Uniform Capacity (lb.): 2000
Usable Width (in.): 52

Steel Electric Hydraulic Ground Lift Table with Tilt 52 In. x 72 In. 4000 Lb. Capacity Blue


Unit: EACH
Size: 80.75W x 74.25L x 49.9375H
Weight: 3074
1 Year Limited Warranty
Uniform Capacity (lb.): 4000
Usable Width (in.): 52
Uniform Capacity (lb.): 4000
Usable Width (in.): 52


Ground Lift & Tilt Tables PDF's will open in a new window when clicked.

Manuals

No Owners Manuals For This Product


Survey Sheets

No Survey Sheets For This Product


Approval Drawings

Testing Certificates

SDS Sheets

Hydraulic Oil SDS Sheet for: EHLTGT-4452-2-36
Hydraulic Oil SDS Sheet for: EHLTGT-4452-4-36
Hydraulic Oil SDS Sheet for: EHLTGT-4472-2-48
Hydraulic Oil SDS Sheet for: EHLTGT-4472-4-48
Hydraulic Oil SDS Sheet for: EHLTGT-5252-2-36
Hydraulic Oil SDS Sheet for: EHLTGT-5252-4-36
Hydraulic Oil SDS Sheet for: EHLTGT-5272-2-48
Hydraulic Oil SDS Sheet for: EHLTGT-5272-4-48

Other PDF's


Directory Links Of Available PDF's For All Products

Before placing an order, please confirm that the ship to company is able to receive shipments on the estimated delivery date





Ground Lift & Tilt Tables




A Ground Lift & Tilt Table is designed to lift or tilt products to an ergonomic working position, reducing operator bending. Products may be loaded and unloaded with the use of a standard hand pallet truck. There is no pit mounting required. Lift and tilt is controlled separately. Remote Power unit with hand-held control is standard.

Check Out Our Non-Tilting Ground Lift Scissor Tables


Ground Lift & Tilt Tables

Model

Image Uniform
Capacity (lbs)
Overall Deck
Size (WxL)
Usable
Size (WxL)
Deck
Range
Fender Height
Range
Wt.
(lbs.)
EHLTGT-4452-2-36 2,000 72-3/4"x56-1/4" 44"x52-3/4" 1/2" to 35-5/16" 15-1/4" to 49-15/16" 2121
EHLTGT-4452-4-36 4,000 72-3/4"x56-1/4" 44"x52-3/4" 1/2" to 35-5/16" 15-1/4" to 49-15/16" 2230
EHLTGT-4472-2-48 2,000 72-3/4"x76-1/4" 44"x72-3/4" 1/2" to 47-5/16" 15-1/4" to 61-15/16" 2950
EHLTGT-4472-4-48 4,000 72-3/4"x76-1/4" 44"x72-3/4" 1/2" to 47-5/16" 15-1/4" to 61-15/16" 3013
EHLTGT-5252-2-36 2,000 72-3/4"x56-1/4" 52"x52-3/4" 1/2" to 35-5/16" 15-1/4" to 49-15/16" 2337
EHLTGT-5252-4-36 4,000 72-3/4"x56-1/4" 52"x52-3/4" 1/2" to 35-5/16" 15-1/4" to 49-15/16" 2322
EHLTGT-5272-2-48 2,000 72-3/4"x76-1/4" 52"x72-3/4" 1/2" to 47-5/16" 15-1/4" to 61-15/16" 3045
EHLTGT-5272-4-48 4,000 72-3/4"x76-1/4" 52"x72-3/4" 1/2" to 47-5/16" 15-1/4" to 61-15/16" 3074
