Click Image to Enlarge

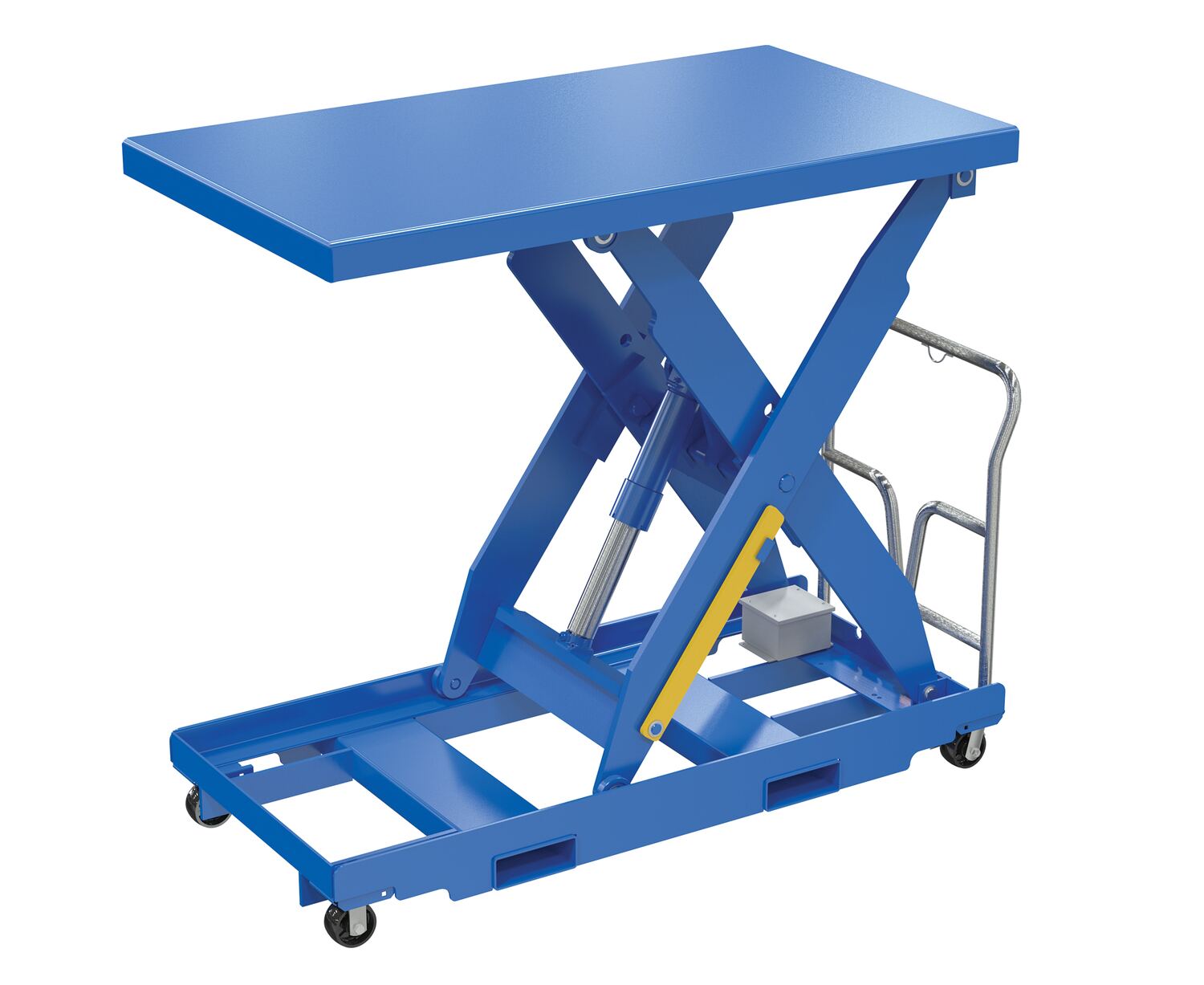

model: EHLTP-3664-1-60


Portable Electric Hydraulic Lift Table
SERIES: EHLTP

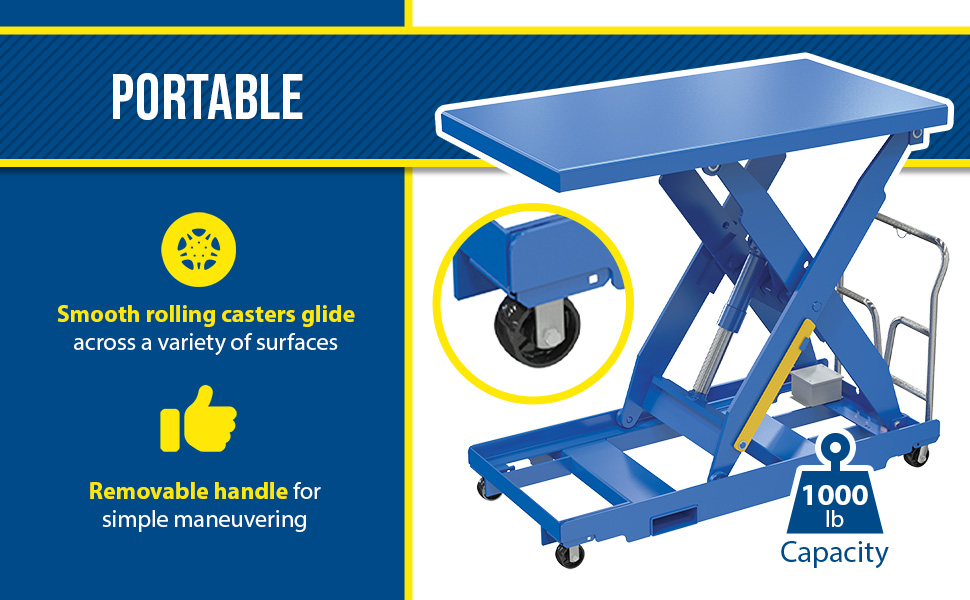

The Portable Electric Hydraulic Lift Tables used to be one of the most efficient way raise and lower heavy equipment, and now, it's even better. With the addition of smooth rolling casters, the lift table is now easily portable to different areas and across a variety of surfaces. A removable handle for simple maneuvering is also included to enhance the workability of the unit. The casters and handle make a once steel constructed stationary unit accessible throughout the entire workplace. A corded hand control allows the user to keep clear of the unit during operation for added safety.

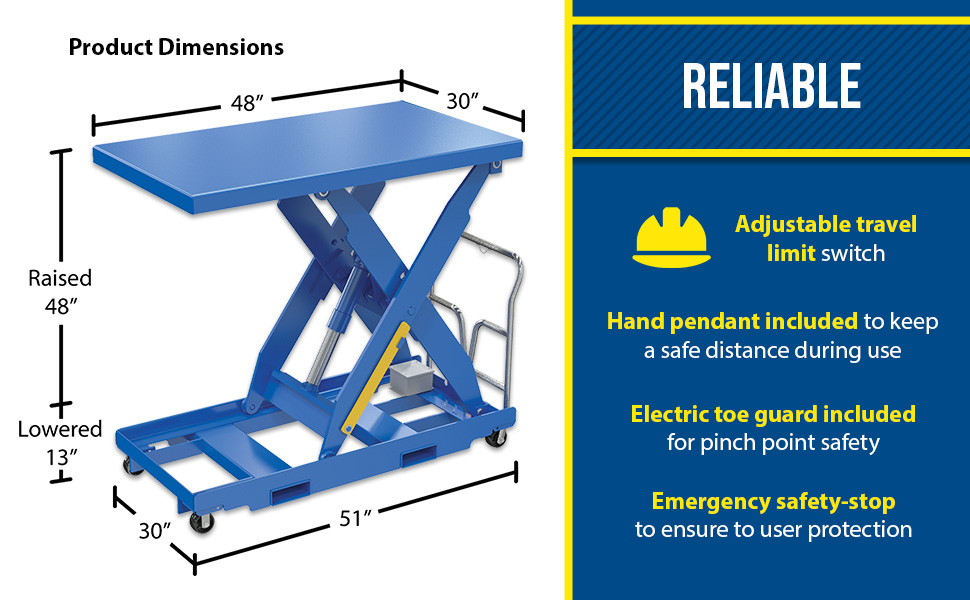

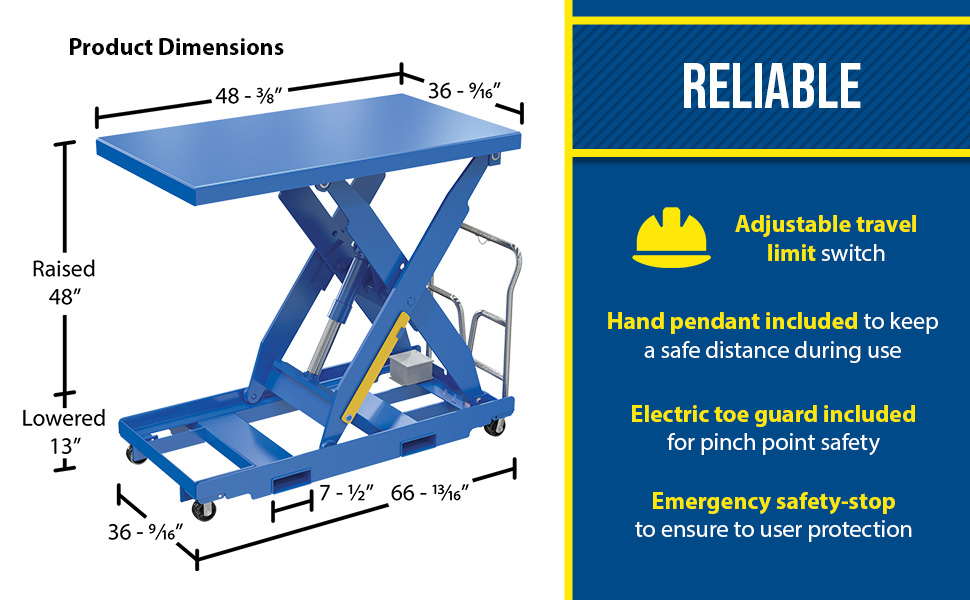

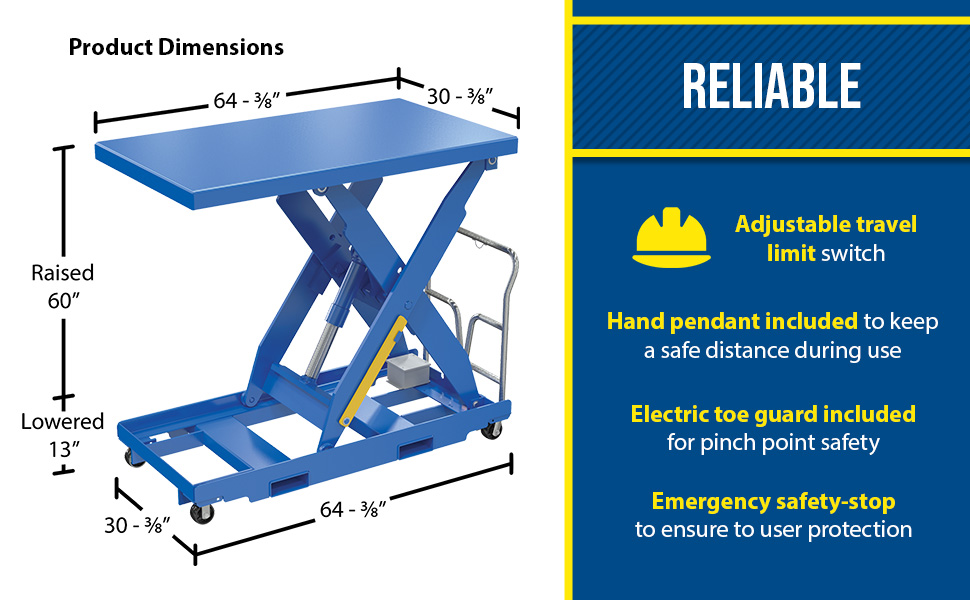

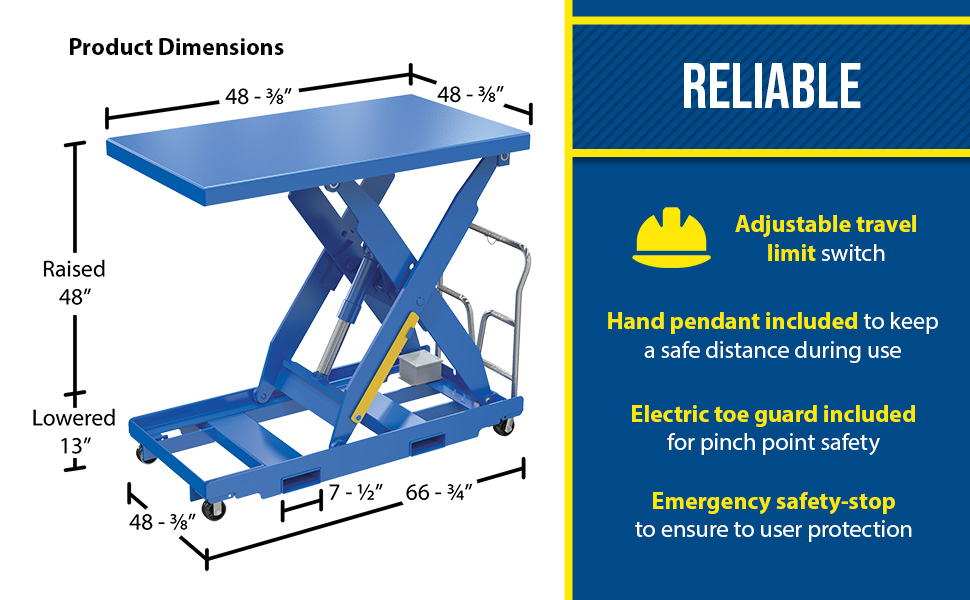

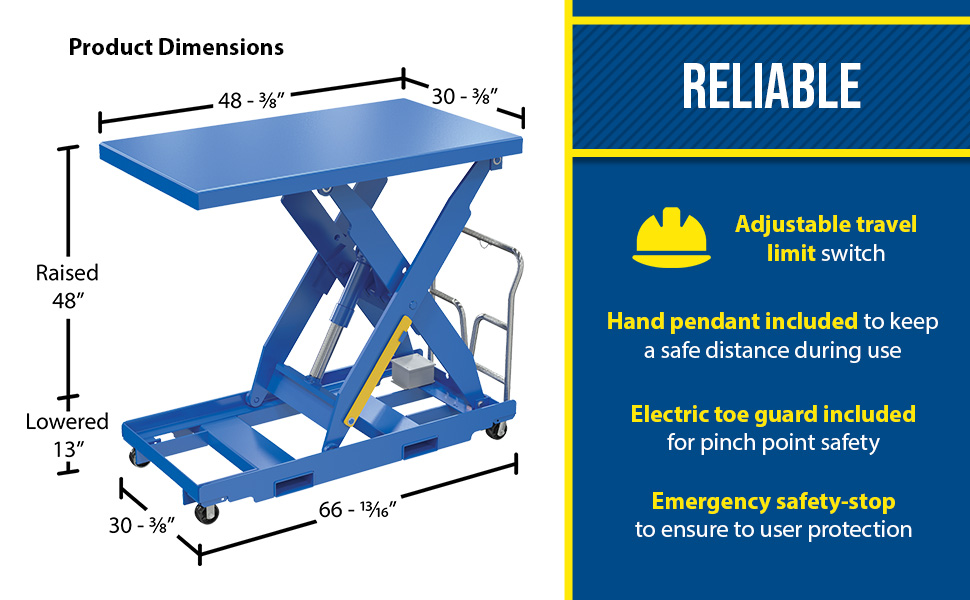

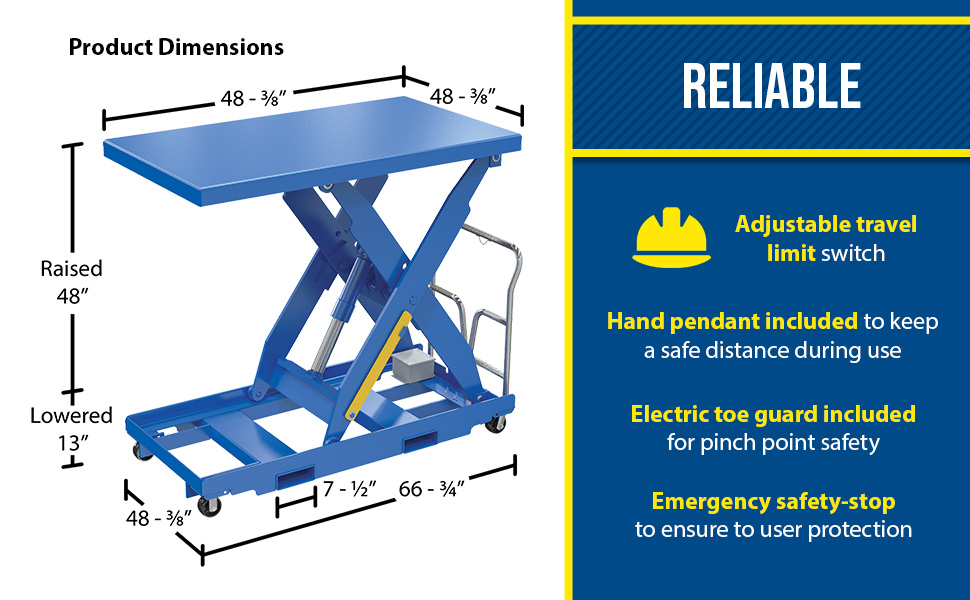

Safety Features:

  • Adjustable Travel Limit Switch
  • Hand Pendent Included To Keep Safe Distance During Use
  • Large Capacity To Lift Items Both Big and Small
  • Emergency Saftey-Stop To Ensure Safety

The Portable Electric Hydraulic Lift Tables used to be one of the most efficient way raise and lower heavy equipment, and now, it's even better. With the addition of smooth rolling casters, the lift table is now easily portable to different areas and across a variety of surfaces. A removable handle for simple maneuvering is also included to enhance the workability of the unit. The casters and handle make a once steel constructed stationary unit accessible throughout the entire workplace. A corded hand control allows the user to keep clear of the unit during operation for added safety.

Safety Features:

  • Adjustable Travel Limit Switch
  • Hand Pendent Included To Keep Safe Distance During Use
  • Large Capacity To Lift Items Both Big and Small
  • Emergency Saftey-Stop To Ensure Safety



All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.
The Search Box below is within the Model Chart on this page. Not an entire site search.
Model Image PDFs Description * Net Wt.
(lbs)
EHLTP-3048-1-48-A1 1 Year Limited WarrantyLIFT TABLE PORTABLE 115V 1PH 30X48 1000#Uniform Capacity (lb.): 1000890
EHLTP-3048-1-48-A2 1 Year Limited WarrantyLIFT TABLE PORTABLE 208/230V 1PH 30X48 1000#Uniform Capacity (lb.): 1000890
EHLTP-3048-1-48-A3 1 Year Limited WarrantyLIFT TABLE PORTABLE 230V 3PH 30X48 1000#Uniform Capacity (lb.): 1000890
EHLTP-3048-1-48-A4 1 Year Limited WarrantyLIFT TABLE PORTABLE 460V 3PH 30X48 1000#Uniform Capacity (lb.): 1000890
EHLTP-3048-1-48-D2 1 Year Limited WarrantyLIFT TABLE PORTABLE 12V DC 30X48 1000#Uniform Capacity (lb.): 1000940
EHLTP-3048-2-48-A1 1 Year Limited WarrantyLIFT TABLE PORTABLE 115V 1PH 30X48 2000#Uniform Capacity (lb.): 2000902
EHLTP-3048-2-48-A2 1 Year Limited WarrantyLIFT TABLE PORTABLE 208/230V 1PH 30X48 2000#Uniform Capacity (lb.): 2000902
EHLTP-3048-2-48-A3 1 Year Limited WarrantyLIFT TABLE PORTABLE 230V 3PH 30X48 2000#Uniform Capacity (lb.): 2000902
EHLTP-3048-2-48-A4 1 Year Limited WarrantyLIFT TABLE PORTABLE 460V 3PH 30X48 2000#Uniform Capacity (lb.): 2000902
EHLTP-3048-2-48-D2 1 Year Limited WarrantyLIFT TABLE PORTABLE 12V DC 30X48 2000#Uniform Capacity (lb.): 2000942
EHLTP-3048-3-48-A1 1 Year Limited WarrantyLIFT TABLE PORTABLE 115V 1PH 30X48 3000#Uniform Capacity (lb.): 3000902
EHLTP-3048-3-48-A2 1 Year Limited WarrantyLIFT TABLE PORTABLE 208/230V 1PH 30X48 3000#Uniform Capacity (lb.): 3000902
EHLTP-3048-3-48-A3 1 Year Limited WarrantyLIFT TABLE PORTABLE 230V 3PH 30X48 3000#Uniform Capacity (lb.): 3000902
EHLTP-3048-3-48-A4 1 Year Limited WarrantyLIFT TABLE PORTABLE 460V 3PH 30X48 3000#Uniform Capacity (lb.): 3000902
EHLTP-3048-3-48-D2 1 Year Limited WarrantyLIFT TABLE PORTABLE 12V DC 30X48 3000#Uniform Capacity (lb.): 3000942
EHLTP-3064-1-60-A1 1 Year Limited WarrantyLIFT TABLE PORTABLE 115V 1PH 30X641000#Uniform Capacity (lb.): 10001250
EHLTP-3064-1-60-A2 1 Year Limited WarrantyLIFT TABLE PORTABLE 208/230V 1PH 30X641000#Uniform Capacity (lb.): 10001250
EHLTP-3064-1-60-A3 1 Year Limited WarrantyLIFT TABLE PORTABLE 230V 3PH 30X641000#Uniform Capacity (lb.): 10001250
EHLTP-3064-1-60-A4 1 Year Limited WarrantyLIFT TABLE PORTABLE 460V 3PH 30X641000#Uniform Capacity (lb.): 10001250
EHLTP-3064-1-60-D2 1 Year Limited WarrantyLIFT TABLE PORTABLE 12V DC 30X641000#Uniform Capacity (lb.): 10001290
EHLTP-3064-2-60-A1 1 Year Limited WarrantyLIFT TABLE PORTABLE 115V 1PH 30X64 2000#Uniform Capacity (lb.): 20001260
EHLTP-3064-2-60-A2 1 Year Limited WarrantyLIFT TABLE PORTABLE 208/230V 1PH 30X64 2000#Uniform Capacity (lb.): 20001260
EHLTP-3064-2-60-A3 1 Year Limited WarrantyLIFT TABLE PORTABLE 230V 3PH 30X64 2000#Uniform Capacity (lb.): 20001260
EHLTP-3064-2-60-A4 1 Year Limited WarrantyLIFT TABLE PORTABLE 460V 3PH 30X64 2000#Uniform Capacity (lb.): 20001260
EHLTP-3064-2-60-D2 1 Year Limited WarrantyLIFT TABLE PORTABLE 12V DC 30X64 2000#Uniform Capacity (lb.): 20001300
EHLTP-3064-3-60-A1 1 Year Limited WarrantyLIFT TABLE PORTABLE 115V 1PH 30X64 3000#Uniform Capacity (lb.): 30001260
EHLTP-3064-3-60-A2 1 Year Limited WarrantyLIFT TABLE PORTABLE 208/230V 1PH 30X64 3000#Uniform Capacity (lb.): 30001260
EHLTP-3064-3-60-A3 1 Year Limited WarrantyLIFT TABLE PORTABLE 230V 3PH 30X64 3000#Uniform Capacity (lb.): 30001260
EHLTP-3064-3-60-A4 1 Year Limited WarrantyLIFT TABLE PORTABLE 460V 3PH 30X64 3000#Uniform Capacity (lb.): 30001260
EHLTP-3064-3-60-D2 1 Year Limited WarrantyLIFT TABLE PORTABLE 12V DC 30X64 3000#Uniform Capacity (lb.): 30001300
EHLTP-3648-1-48-A1 1 Year Limited WarrantyLIFT TABLE PORTABLE 115V 1PH 36X48 1000#Uniform Capacity (lb.): 1000989
EHLTP-3648-1-48-A2 1 Year Limited WarrantyLIFT TABLE PORTABLE 208/230V 1PH 36X48 1000#Uniform Capacity (lb.): 1000989
EHLTP-3648-1-48-A3 1 Year Limited WarrantyLIFT TABLE PORTABLE 230V 3PH 36X48 1000#Uniform Capacity (lb.): 1000989
EHLTP-3648-1-48-A4 1 Year Limited WarrantyLIFT TABLE PORTABLE 460V 3PH 36X48 1000#Uniform Capacity (lb.): 1000989
EHLTP-3648-1-48-D2 1 Year Limited WarrantyLIFT TABLE PORTABLE 12V DC 36X48 1000#Uniform Capacity (lb.): 10001029
EHLTP-3648-2-48-A1 1 Year Limited WarrantyLIFT TABLE PORTABLE 115V 1PH 36X48 2000#Uniform Capacity (lb.): 2000999
EHLTP-3648-2-48-A2 1 Year Limited WarrantyLIFT TABLE PORTABLE 208/230V 1PH 36X48 2000#Uniform Capacity (lb.): 2000999
EHLTP-3648-2-48-A3 1 Year Limited WarrantyLIFT TABLE PORTABLE 230V 3PH 36X48 2000#Uniform Capacity (lb.): 2000999
EHLTP-3648-2-48-A4 1 Year Limited WarrantyLIFT TABLE PORTABLE 460V 3PH 36X48 2000#Uniform Capacity (lb.): 2000999
EHLTP-3648-2-48-D2 1 Year Limited WarrantyLIFT TABLE PORTABLE 12V DC 36X48 2000#Uniform Capacity (lb.): 20001039
EHLTP-3648-3-48-A1 1 Year Limited WarrantyLIFT TABLE PORTABLE 115V 1PH 36X48 3000#Uniform Capacity (lb.): 3000999
EHLTP-3648-3-48-A2 1 Year Limited WarrantyLIFT TABLE PORTABLE 208/230V 1PH 36X48 3000#Uniform Capacity (lb.): 3000999
EHLTP-3648-3-48-A3 1 Year Limited WarrantyLIFT TABLE PORTABLE 230V 3PH 36X48 3000#Uniform Capacity (lb.): 3000999
EHLTP-3648-3-48-A4 1 Year Limited WarrantyLIFT TABLE PORTABLE 460V 3PH 36X48 3000#Uniform Capacity (lb.): 3000999
EHLTP-3648-3-48-D2 1 Year Limited WarrantyLIFT TABLE PORTABLE 12V DC 36X48 3000#Uniform Capacity (lb.): 30001039
EHLTP-3664-1-60-A1 1 Year Limited WarrantyLIFT TABLE PORTABLE 115V 1PH 36X64 1000#Uniform Capacity (lb.): 10001350
EHLTP-3664-1-60-A2 1 Year Limited WarrantyLIFT TABLE PORTABLE 208/230V 1PH 36X64 1000#Uniform Capacity (lb.): 10001350
EHLTP-3664-1-60-A3 1 Year Limited WarrantyLIFT TABLE PORTABLE 230V 3PH 36X64 1000#Uniform Capacity (lb.): 10001350
EHLTP-3664-1-60-A4 1 Year Limited WarrantyLIFT TABLE PORTABLE 460V 3PH 36X64 1000#Uniform Capacity (lb.): 10001350
EHLTP-3664-1-60-D2 1 Year Limited WarrantyLIFT TABLE PORTABLE 12V DC 36X64 1000#Uniform Capacity (lb.): 10001390
EHLTP-3664-2-60-A1 1 Year Limited WarrantyLIFT TABLE PORTABLE 115V 1PH 36X64 2000#Uniform Capacity (lb.): 20001360
EHLTP-3664-2-60-A2 1 Year Limited WarrantyLIFT TABLE PORTABLE 208/230V 1PH 36X64 2000#Uniform Capacity (lb.): 20001360
EHLTP-3664-2-60-A3 1 Year Limited WarrantyLIFT TABLE PORTABLE 230V 3PH 36X64 2000#Uniform Capacity (lb.): 20001360
EHLTP-3664-2-60-A4 1 Year Limited WarrantyLIFT TABLE PORTABLE 460V 3PH 36X64 2000#Uniform Capacity (lb.): 20001360
EHLTP-3664-2-60-D2 1 Year Limited WarrantyLIFT TABLE PORTABLE 12V DC 36X64 2000#Uniform Capacity (lb.): 20001400
EHLTP-3664-3-60-A1 1 Year Limited WarrantyLIFT TABLE PORTABLE 115V 1PH 36X64 3000#Uniform Capacity (lb.): 30001360
EHLTP-3664-3-60-A2 1 Year Limited WarrantyLIFT TABLE PORTABLE 208/230V 1PH 36X64 3000#Uniform Capacity (lb.): 30001360
EHLTP-3664-3-60-A3 1 Year Limited WarrantyLIFT TABLE PORTABLE 230V 3PH 36X64 3000#Uniform Capacity (lb.): 30001360
EHLTP-3664-3-60-A4 1 Year Limited WarrantyLIFT TABLE PORTABLE 460V 3PH 36X64 3000#Uniform Capacity (lb.): 30001360
EHLTP-3664-3-60-D2 1 Year Limited WarrantyLIFT TABLE PORTABLE 12V DC 36X64 3000#Uniform Capacity (lb.): 30001400
EHLTP-4848-1-48-A1 1 Year Limited WarrantyLIFT TABLE PORTABLE 115V 1PH 48X48 1000#Uniform Capacity (lb.): 10001090
EHLTP-4848-1-48-A2 1 Year Limited WarrantyLIFT TABLE PORTABLE 208/230V 1PH 48X48 1000#Uniform Capacity (lb.): 10001090
EHLTP-4848-1-48-A3 1 Year Limited WarrantyLIFT TABLE PORTABLE 230V 3PH 48X48 1000#Uniform Capacity (lb.): 10001090
EHLTP-4848-1-48-A4 1 Year Limited WarrantyLIFT TABLE PORTABLE 460V 3PH 48X48 1000#Uniform Capacity (lb.): 10001090
EHLTP-4848-1-48-D2 1 Year Limited WarrantyLIFT TABLE PORTABLE 12V DC 48X48 1000#Uniform Capacity (lb.): 10001130
EHLTP-4848-2-48-A1 1 Year Limited WarrantyLIFT TABLE PORTABLE 115V 1PH 48X48 2000#Uniform Capacity (lb.): 20001102
EHLTP-4848-2-48-A2 1 Year Limited WarrantyLIFT TABLE PORTABLE 208/230V 1PH 48X48 2000#Uniform Capacity (lb.): 20001102
EHLTP-4848-2-48-A3 1 Year Limited WarrantyLIFT TABLE PORTABLE 230V 3PH 48X48 2000#Uniform Capacity (lb.): 20001102
EHLTP-4848-2-48-A4 1 Year Limited WarrantyLIFT TABLE PORTABLE 460V 3PH 48X48 2000#Uniform Capacity (lb.): 20001102
EHLTP-4848-2-48-D2 1 Year Limited WarrantyLIFT TABLE PORTABLE 12V DC 48X48 2000#Uniform Capacity (lb.): 20001142
EHLTP-4848-3-48-A1 1 Year Limited WarrantyLIFT TABLE PORTABLE 115V 1PH 48X48 3000#Uniform Capacity (lb.): 30001102
EHLTP-4848-3-48-A2 1 Year Limited WarrantyLIFT TABLE PORTABLE 208/230V 1PH 48X48 3000#Uniform Capacity (lb.): 30001102
EHLTP-4848-3-48-A3 1 Year Limited WarrantyLIFT TABLE PORTABLE 230V 3PH 48X48 3000#Uniform Capacity (lb.): 30001102
EHLTP-4848-3-48-A4 1 Year Limited WarrantyLIFT TABLE PORTABLE 460V 3PH 48X48 3000#Uniform Capacity (lb.): 30001102
EHLTP-4848-3-48-D2 1 Year Limited WarrantyLIFT TABLE PORTABLE 12V DC 48X48 3000#Uniform Capacity (lb.): 30001142
EHLTP-4864-1-60-A1 1 Year Limited WarrantyLIFT TABLE PORTABLE 115V 1PH 48X64 1000#Uniform Capacity (lb.): 10001450
EHLTP-4864-1-60-A2 1 Year Limited WarrantyLIFT TABLE PORTABLE 208/230V 1PH 48X64 1000#Uniform Capacity (lb.): 10001450
EHLTP-4864-1-60-A3 1 Year Limited WarrantyLIFT TABLE PORTABLE 230V 3PH 48X64 1000#Uniform Capacity (lb.): 10001450
EHLTP-4864-1-60-A4 1 Year Limited WarrantyLIFT TABLE PORTABLE 460V 3PH 48X64 1000#Uniform Capacity (lb.): 10001450
EHLTP-4864-1-60-D2 1 Year Limited WarrantyLIFT TABLE PORTABLE 12V DC 48X64 1000#Uniform Capacity (lb.): 10001490
EHLTP-4864-2-60-A1 1 Year Limited WarrantyLIFT TABLE PORTABLE 115V 1PH 48X64 2000#Uniform Capacity (lb.): 20001460
EHLTP-4864-2-60-A2 1 Year Limited WarrantyLIFT TABLE PORTABLE 208/230V 1PH 48X64 2000#Uniform Capacity (lb.): 20001460
EHLTP-4864-2-60-A3 1 Year Limited WarrantyLIFT TABLE PORTABLE 230V 3PH 48X64 2000#Uniform Capacity (lb.): 20001460
EHLTP-4864-2-60-A4 1 Year Limited WarrantyLIFT TABLE PORTABLE 460V 3PH 48X64 2000#Uniform Capacity (lb.): 20001460
EHLTP-4864-2-60-D2 1 Year Limited WarrantyLIFT TABLE PORTABLE 12V DC 48X64 2000#Uniform Capacity (lb.): 20001500
EHLTP-4864-3-60-A1 1 Year Limited WarrantyLIFT TABLE PORTABLE 115V 1PH 48X64 3000#Uniform Capacity (lb.): 30001460
EHLTP-4864-3-60-A2 1 Year Limited WarrantyLIFT TABLE PORTABLE 208/230V 1PH 48X64 3000#Uniform Capacity (lb.): 30001460
EHLTP-4864-3-60-A3 1 Year Limited WarrantyLIFT TABLE PORTABLE 230V 3PH 48X64 3000#Uniform Capacity (lb.): 30001460
EHLTP-4864-3-60-A4 1 Year Limited WarrantyLIFT TABLE PORTABLE 460V 3PH 48X64 3000#Uniform Capacity (lb.): 30001460
EHLTP-4864-3-60-D2 1 Year Limited WarrantyLIFT TABLE PORTABLE 12V DC 48X64 3000#Uniform Capacity (lb.): 30001500

KEY: = Click For Expanded Model Details -- = Approval Drawing -- = Testing Certificate -- Warranty

Electric Hydraulic Lift Table Portable

Model

Image PDF's Uniform
Capacity (lbs)
Platform
Size (WxL)
Lowered- Raised
Height
Power
Description
Wt.
(lbs.)
EHLTP-3048-1-48-A1 Warranty PDF 1,000 30"x48" 13"-48" 115V 1 PH 890
EHLTP-3048-1-48-A2 Warranty PDF 1,000 30"x48" 13"-48" 208/230V 1 PH 890
EHLTP-3048-1-48-A3 Warranty PDF 1,000 30"x48" 13"-48" 230V 3 PH 890
EHLTP-3048-1-48-A4 Warranty PDF 1,000 30"x48" 13"-48" 460V 3 PH 890
EHLTP-3048-1-48-D2 Warranty PDF 1,000 30"x48" 13"-48" 12V DC 986
EHLTP-3048-2-48-A1 Warranty PDF 2,000 30"x48" 13"-48" 115V 1 PH 902
EHLTP-3048-2-48-A2 Warranty PDF 2,000 30"x48" 13"-48" 208/230V 1 PH 902
EHLTP-3048-2-48-A3 Warranty PDF 2,000 30"x48" 13"-48" 230V 3 PH 902
EHLTP-3048-2-48-A4 Warranty PDF 2,000 30"x48" 13"-48" 460V 3 PH 902
EHLTP-3048-2-48-D2 Warranty PDF 2,000 30"x48" 13"-48" 12V DC 998
EHLTP-3048-3-48-A1 Warranty PDF 3,000 30"x48" 13"-48" 115V 1 PH 902
EHLTP-3048-3-48-A2 Warranty PDF 3,000 30"x48" 13"-48" 208/230V 1 PH 902
EHLTP-3048-3-48-A3 Warranty PDF 3,000 30"x48" 13"-48" 230V 3 PH 902
EHLTP-3048-3-48-A4 Warranty PDF 3,000 30"x48" 13"-48" 460V 3 PH 902
EHLTP-3048-3-48-D2 Warranty PDF 3,000 30"x48" 13"-48" 12V DC 998
EHLTP-3064-1-60-A1 Warranty PDF 1,000 30"x64" 13"-60" 115V 1 PH
EHLTP-3064-1-60-A2 Warranty PDF 1,000 30"x64" 13"-60" 208/230V 1 PH
EHLTP-3064-1-60-A3 Warranty PDF 1,000 30"x64" 13"-60" 230V 3 PH
EHLTP-3064-1-60-A4 Warranty PDF 1,000 30"x64" 13"-60" 460V 3 PH
EHLTP-3064-1-60-D2 Warranty PDF 1,000 30"x64" 13"-60" 12V DC 1346
EHLTP-3064-2-60-A1 Warranty PDF 2,000 30"x64" 13"-60" 115V 1 PH
EHLTP-3064-2-60-A2 Warranty PDF 2,000 30"x64" 13"-60" 208/230V 1 PH
EHLTP-3064-2-60-A3 Warranty PDF 2,000 30"x64" 13"-60" 230V 3 PH
EHLTP-3064-2-60-A4 Warranty PDF 2,000 30"x64" 13"-60" 460V 3 PH
EHLTP-3064-2-60-D2 Warranty PDF 2,000 30"x64" 13"-60" 12V DC 1356
EHLTP-3064-3-60-A1 Warranty PDF 3,000 30"x64" 13"-60" 115V 1 PH
EHLTP-3064-3-60-A2 Warranty PDF 3,000 30"x48" 13"-60" 208/230V 1 PH
EHLTP-3064-3-60-A3 Warranty PDF 3,000 30"x64" 13"-60" 230V 3 PH
EHLTP-3064-3-60-A4 Warranty PDF 3,000 30"x64" 13"-60" 460V 3 PH
EHLTP-3064-3-60-D2 Warranty PDF 3,000 30"x64" 13"-60" 12V DC 1356
EHLTP-3648-1-48-A1 Warranty PDF 1,000 36"x48" 13"-48" 115V 1 PH 890
EHLTP-3648-1-48-A2 Warranty PDF 1,000 36"x48" 13"-48" 208/230V 1 PH 890
EHLTP-3648-1-48-A3 Warranty PDF 1,000 36"x48" 13"-48" 230V 3 PH 890
EHLTP-3648-1-48-A4 Warranty PDF 1,000 36"x48" 13"-48" 460V 3 PH 890
EHLTP-3648-1-48-D2 Warranty PDF 1,000 36"x48" 13"-48" 12V DC 1085
EHLTP-3648-2-48-A1 Warranty PDF 2,000 36"x48" 13"-48" 115V 1 PH 902
EHLTP-3648-2-48-A2 Warranty PDF 2,000 36"x48" 13"-48" 208/230V 1 PH 902
EHLTP-3648-2-48-A3 Warranty PDF 2,000 36"x48" 13"-48" 230V 3 PH 902
EHLTP-3648-2-48-A4 Warranty PDF 2,000 36"x48" 13"-48" 460V 3 PH 902
EHLTP-3648-2-48-D2 Warranty PDF 2,000 36"x48" 13"-48" 12V DC 1095
EHLTP-3648-3-48-A1 Warranty PDF 3,000 36"x48" 13"-48" 115V 1 PH 902
EHLTP-3648-3-48-A2 Warranty PDF 3,000 36"x48" 13"-48" 208/230V 1 PH 902
EHLTP-3648-3-48-A3 Warranty PDF 3,000 36"x48" 13"-48" 230V 3 PH 902
EHLTP-3648-3-48-A4 Warranty PDF 3,000 36"x48" 13"-48" 460V 3 PH 902
EHLTP-3648-3-48-D2 Warranty PDF 3,000 36"x48" 13"-48" 12V DC 1095
EHLTP-3664-1-60-A1 Warranty PDF 1,000 36"x64" 13"-60" 115V 1 PH
EHLTP-3664-1-60-A2 Warranty PDF 1,000 36"x64" 13"-60" 208/230V 1 PH
EHLTP-3664-1-60-A3 Warranty PDF 1,000 36"x64" 13"-60" 230V 3 PH
EHLTP-3664-1-60-A4 Warranty PDF 1,000 36"x64" 13"-60" 460V 3 PH
EHLTP-3664-1-60-D2 Warranty PDF 1,000 36"x64" 13"-60" 12V DC 1446
EHLTP-3664-2-60-A1 Warranty PDF 2,000 36"x64" 13"-60" 115V 1 PH
EHLTP-3664-2-60-A2 Warranty PDF 2,000 36"x64" 13"-60" 208/230V 1 PH
EHLTP-3664-2-60-A3 Warranty PDF 2,000 36"x64" 13"-60" 230V 3 PH
EHLTP-3664-2-60-A4 Warranty PDF 2,000 36"x64" 13"-60" 460V 3 PH
EHLTP-3664-2-60-D2 Warranty PDF 2,000 36"x64" 13"-60" 12V DC 1456
EHLTP-3664-3-60-A1 Warranty PDF 3,000 36"x64" 13"-60" 115V 1 PH
EHLTP-3664-3-60-A2 Warranty PDF 3,000 36"x48" 13"-60" 208/230V 1 PH
EHLTP-3664-3-60-A3 Warranty PDF 3,000 36"x64" 13"-60" 230V 3 PH
EHLTP-3664-3-60-A4 Warranty PDF 3,000 36"x64" 13"-60" 460V 3 PH

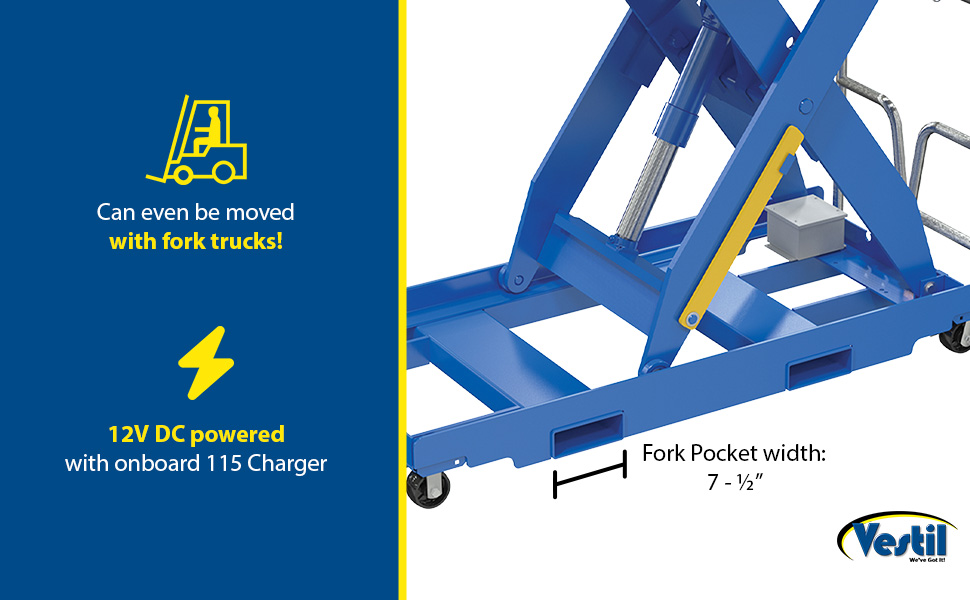

EHLTP-3664-3-60-D2 Warranty PDF 3,000 36"x64" 13"-60" 12V DC 1456
EHLTP-4848-1-48-A1 Warranty PDF 1,000 48"x48" 13"-48" 115V 1 PH
EHLTP-4848-1-48-A2 Warranty PDF 1,000 48"x48" 13"-48" 208/230V 1 PH
EHLTP-4848-1-48-A3 Warranty PDF 1,000 48"x48" 13"-48" 230V 3 PH
EHLTP-4848-1-48-A4 Warranty PDF 1,000 48"x48" 13"-48" 460V 3 PH
EHLTP-4848-1-48-D2 Warranty PDF 1,000 48"x48" 13"-48" 12V DC 1110
EHLTP-4848-2-48-A1 Warranty PDF 2,000 48"x48" 13"-48" 115V 1 PH
EHLTP-4848-2-48-A2 Warranty PDF 2,000 48"x48" 13"-48" 208/230V 1 PH
EHLTP-4848-2-48-A3 Warranty PDF 2,000 48"x48" 13"-48" 230V 3 PH
EHLTP-4848-2-48-A4 Warranty PDF 2,000 48"x48" 13"-48" 460V 3 PH
EHLTP-4848-2-48-D2 Warranty PDF 2,000 48"x48" 13"-48" 12V DC 1230
EHLTP-4848-3-48-A1 Warranty PDF 3,000 48"x48" 13"-48" 115V 1 PH
EHLTP-4848-3-48-A2 Warranty PDF 3,000 48"x48" 13"-48" 208/230V 1 PH
EHLTP-4848-3-48-A3 Warranty PDF 3,000 48"x48" 13"-48" 230V 3 PH
EHLTP-4848-3-48-A4 Warranty PDF 3,000 48"x48" 13"-48" 460V 3 PH
EHLTP-4848-3-48-D2 Warranty PDF 3,000 48"x48" 13"-48" 12V DC 1230
EHLTP-4864-1-60-A1 Warranty PDF 1,000 48"x64" 13"-60" 115V 1 PH
EHLTP-4864-1-60-A2 Warranty PDF 1,000 48"x64" 13"-60" 208/230V 1 PH
EHLTP-4864-1-60-A3 Warranty PDF 1,000 48"x64" 13"-60" 230V 3 PH
EHLTP-4864-1-60-A4 Warranty PDF 1,000 48"x64" 13"-60" 460V 3 PH
EHLTP-4864-1-60-D2 Warranty PDF 1,000 48"x64" 13"-60" 12V DC 1560
EHLTP-4864-2-60-A1 Warranty PDF 2,000 48"x64" 13"-60" 115V 1 PH
EHLTP-4864-2-60-A2 Warranty PDF 2,000 48"x64" 13"-60" 208/230V 1 PH
EHLTP-4864-2-60-A3 Warranty PDF 2,000 48"x64" 13"-60" 230V 3 PH

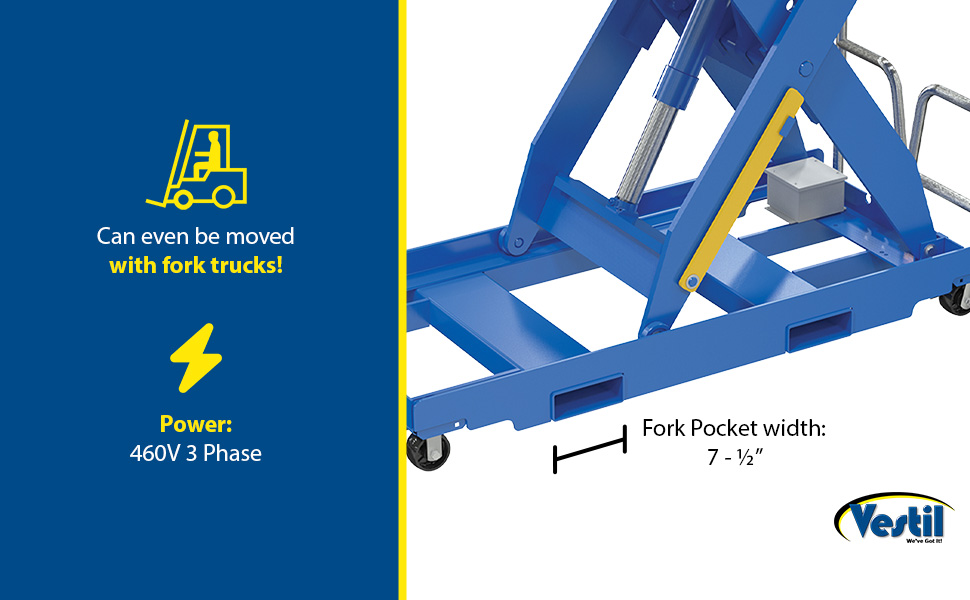

EHLTP-4864-2-60-A4 Warranty PDF 2,000 48"x64" 13"-60" 460V 3 PH
EHLTP-4864-2-60-D2 Warranty PDF 2,000 48"x64" 13"-60" 12V DC 1570
EHLTP-4864-3-60-A1 Warranty PDF 3,000 48"x64" 13"-60" 115V 1 PH
EHLTP-4864-3-60-A2 Warranty PDF 3,000 48"x48" 13"-60" 208/230V 1 PH
EHLTP-4864-3-60-A3 Warranty PDF 3,000 48"x64" 13"-60" 230V 3 PH
EHLTP-4864-3-60-A4 Warranty PDF 3,000 48"x64" 13"-60" 460V 3 PH
EHLTP-4864-3-60-D2 Warranty PDF 3,000 48"x64" 13"-60" 12V DC 1570

KEY: Approval Drawing = Approval Drawing -- Approval Drawing = Warranty -- Approval Drawing = Testing Certificate




Portable Electric Hydraulic Lift Table PDF's will open in a new window when clicked.

Survey Sheets

No Survey Sheets For This Product


Approval Drawings

No Approval Drawings For This Product

Testing Certificates

Other PDF's

No "Other PDFs" For This Product...


Directory Links Of Available PDF's For All Products




EHLTP-3048-1-48-A1
EHLTP-3048-1-48-A1
EHLTP-3048-1-48-A2
EHLTP-3048-1-48-A2
EHLTP-3048-1-48-A3
EHLTP-3048-1-48-A3
EHLTP-3048-1-48-A4
EHLTP-3048-1-48-A4
EHLTP-3048-1-48-D2
EHLTP-3048-1-48-D2
EHLTP-3048-2-48-A1
EHLTP-3048-2-48-A1
EHLTP-3048-2-48-A2
EHLTP-3048-2-48-A2
EHLTP-3048-2-48-A3
EHLTP-3048-2-48-A3
EHLTP-3048-2-48-A4
EHLTP-3048-2-48-A4
EHLTP-3048-2-48-D2
EHLTP-3048-2-48-D2
EHLTP-3048-3-48-A1
EHLTP-3048-3-48-A1
EHLTP-3048-3-48-A2
EHLTP-3048-3-48-A2
EHLTP-3048-3-48-A3
EHLTP-3048-3-48-A3
EHLTP-3048-3-48-A4
EHLTP-3048-3-48-A4
EHLTP-3048-3-48-D2
EHLTP-3048-3-48-D2
EHLTP-3064-1-60-A1
EHLTP-3064-1-60-A1
EHLTP-3064-1-60-A3
EHLTP-3064-1-60-A3
EHLTP-3064-1-60-A4
EHLTP-3064-1-60-A4
EHLTP-3064-1-60-D2
EHLTP-3064-1-60-D2
EHLTP-3064-2-60-A1
EHLTP-3064-2-60-A1
EHLTP-3064-2-60-A2
EHLTP-3064-2-60-A2
EHLTP-3064-2-60-A3
EHLTP-3064-2-60-A3
EHLTP-3064-2-60-A4
EHLTP-3064-2-60-A4
EHLTP-3064-2-60-D2
EHLTP-3064-2-60-D2
EHLTP-3064-3-60-A1
EHLTP-3064-3-60-A1
EHLTP-3064-3-60-A2
EHLTP-3064-3-60-A2
EHLTP-3064-3-60-A3
EHLTP-3064-3-60-A3
EHLTP-3064-3-60-A4
EHLTP-3064-3-60-A4
EHLTP-3064-3-60-D2
EHLTP-3064-3-60-D2
EHLTP-3648-1-48-A1
EHLTP-3648-1-48-A1
EHLTP-3648-1-48-A2
EHLTP-3648-1-48-A2
EHLTP-3648-1-48-A3
EHLTP-3648-1-48-A3
EHLTP-3648-1-48-A4
EHLTP-3648-1-48-A4
EHLTP-3648-1-48-D2
EHLTP-3648-1-48-D2
EHLTP-3648-2-48-A1
EHLTP-3648-2-48-A1
EHLTP-3648-2-48-A2
EHLTP-3648-2-48-A2
EHLTP-3648-2-48-A3
EHLTP-3648-2-48-A3
EHLTP-3648-2-48-A4
EHLTP-3648-2-48-A4
EHLTP-3648-2-48-D2
EHLTP-3648-2-48-D2
EHLTP-3648-3-48-A1
EHLTP-3648-3-48-A1
EHLTP-3648-3-48-A2
EHLTP-3648-3-48-A2
EHLTP-3648-3-48-A3
EHLTP-3648-3-48-A3
EHLTP-3648-3-48-A4
EHLTP-3648-3-48-A4
EHLTP-3648-3-48-D2
EHLTP-3648-3-48-D2
EHLTP-3664-1-60-A1
EHLTP-3664-1-60-A1
EHLTP-3664-1-60-A2
EHLTP-3664-1-60-A2
EHLTP-3664-1-60-A3
EHLTP-3664-1-60-A3
EHLTP-3664-1-60-A4
EHLTP-3664-1-60-A4
EHLTP-3664-1-60-D2
EHLTP-3664-1-60-D2
EHLTP-3664-2-60-A1
EHLTP-3664-2-60-A1
EHLTP-3664-2-60-A2
EHLTP-3664-2-60-A2
EHLTP-3664-2-60-A3
EHLTP-3664-2-60-A3
EHLTP-3664-2-60-A4
EHLTP-3664-2-60-A4
EHLTP-3664-2-60-D2
EHLTP-3664-2-60-D2
EHLTP-3664-3-60-A1
EHLTP-3664-3-60-A1
EHLTP-3664-3-60-A2
EHLTP-3664-3-60-A2
EHLTP-3664-3-60-A3
EHLTP-3664-3-60-A3
EHLTP-3664-3-60-A4
EHLTP-3664-3-60-A4
EHLTP-3664-3-60-D2
EHLTP-3664-3-60-D2
EHLTP-4848-1-48-A1
EHLTP-4848-1-48-A1
EHLTP-4848-1-48-A2
EHLTP-4848-1-48-A2
EHLTP-4848-1-48-A3
EHLTP-4848-1-48-A3
EHLTP-4848-1-48-A4
EHLTP-4848-1-48-A4
EHLTP-4848-1-48-D2
EHLTP-4848-1-48-D2
EHLTP-4848-2-48-A1
EHLTP-4848-2-48-A1
EHLTP-4848-2-48-A2
EHLTP-4848-2-48-A2
EHLTP-4848-2-48-A3
EHLTP-4848-2-48-A3
EHLTP-4848-2-48-A4
EHLTP-4848-2-48-A4
EHLTP-4848-2-48-D2
EHLTP-4848-2-48-D2
EHLTP-4848-3-48-A1
EHLTP-4848-3-48-A1
EHLTP-4848-3-48-A2
EHLTP-4848-3-48-A2
EHLTP-4848-3-48-A3
EHLTP-4848-3-48-A3
EHLTP-4848-3-48-A4
EHLTP-4848-3-48-A4
EHLTP-4848-3-48-D2
EHLTP-4848-3-48-D2
EHLTP-4864-1-60-A1
EHLTP-4864-1-60-A1
EHLTP-4864-1-60-A2
EHLTP-4864-1-60-A2
EHLTP-4864-1-60-A3
EHLTP-4864-1-60-A3
EHLTP-4864-1-60-A4
EHLTP-4864-1-60-A4
EHLTP-4864-1-60-D2
EHLTP-4864-1-60-D2
EHLTP-4864-2-60-A1
EHLTP-4864-2-60-A1
EHLTP-4864-2-60-A2
EHLTP-4864-2-60-A2
EHLTP-4864-2-60-A3
EHLTP-4864-2-60-A3
EHLTP-4864-2-60-A4
EHLTP-4864-2-60-A4
EHLTP-4864-2-60-D2
EHLTP-4864-2-60-D2
EHLTP-4864-3-60-A1
EHLTP-4864-3-60-A1
EHLTP-4864-3-60-A2
EHLTP-4864-3-60-A2
EHLTP-4864-3-60-A3
EHLTP-4864-3-60-A3
EHLTP-4864-3-60-A4
EHLTP-4864-3-60-A4
EHLTP-4864-3-60-D2
EHLTP-4864-3-60-D2

We are hoping to continue adding new product pictures to each gallery. Check back soon.

Before placing an order, please confirm that the ship to company is able to receive shipments on the estimated delivery date





Portable Electric Hydraulic Li...




The Portable Electric Hydraulic Lift Tables used to be one of the most efficient way raise and lower heavy equipment, and now, it's even better. With the addition of smooth rolling casters, the lift table is now easily portable to different areas and across a variety of surfaces. A removable handle for simple maneuvering is also included to enhance the workability of the unit. The casters and handle make a once steel constructed stationary unit accessible throughout the entire workplace. A corded hand control allows the user to keep clear of the unit during operation for added safety.

Safety Features:

  • Adjustable Travel Limit Switch
  • Hand Pendent Included To Keep Safe Distance During Use
  • Large Capacity To Lift Items Both Big and Small
  • Emergency Saftey-Stop To Ensure Safety

Electric Hydraulic Lift Table Portable

Model

Image PDF's Uniform
Capacity (lbs)
Platform
Size (WxL)
Lowered- Raised
Height
Power
Description
Wt.
(lbs.)
EHLTP-3048-1-48-A1 Warranty PDF 1,000 30"x48" 13"-48" 115V 1 PH 890
EHLTP-3048-1-48-A2 Warranty PDF 1,000 30"x48" 13"-48" 208/230V 1 PH 890
EHLTP-3048-1-48-A3 Warranty PDF 1,000 30"x48" 13"-48" 230V 3 PH 890
EHLTP-3048-1-48-A4 Warranty PDF 1,000 30"x48" 13"-48" 460V 3 PH 890
EHLTP-3048-1-48-D2 Warranty PDF 1,000 30"x48" 13"-48" 12V DC 986
EHLTP-3048-2-48-A1 Warranty PDF 2,000 30"x48" 13"-48" 115V 1 PH 902
EHLTP-3048-2-48-A2 Warranty PDF 2,000 30"x48" 13"-48" 208/230V 1 PH 902
EHLTP-3048-2-48-A3 Warranty PDF 2,000 30"x48" 13"-48" 230V 3 PH 902
EHLTP-3048-2-48-A4 Warranty PDF 2,000 30"x48" 13"-48" 460V 3 PH 902
EHLTP-3048-2-48-D2 Warranty PDF 2,000 30"x48" 13"-48" 12V DC 998
EHLTP-3048-3-48-A1 Warranty PDF 3,000 30"x48" 13"-48" 115V 1 PH 902
EHLTP-3048-3-48-A2 Warranty PDF 3,000 30"x48" 13"-48" 208/230V 1 PH 902
EHLTP-3048-3-48-A3 Warranty PDF 3,000 30"x48" 13"-48" 230V 3 PH 902
EHLTP-3048-3-48-A4 Warranty PDF 3,000 30"x48" 13"-48" 460V 3 PH 902
EHLTP-3048-3-48-D2 Warranty PDF 3,000 30"x48" 13"-48" 12V DC 998
EHLTP-3064-1-60-A1 Warranty PDF 1,000 30"x64" 13"-60" 115V 1 PH
EHLTP-3064-1-60-A2 Warranty PDF 1,000 30"x64" 13"-60" 208/230V 1 PH
EHLTP-3064-1-60-A3 Warranty PDF 1,000 30"x64" 13"-60" 230V 3 PH
EHLTP-3064-1-60-A4 Warranty PDF 1,000 30"x64" 13"-60" 460V 3 PH
EHLTP-3064-1-60-D2 Warranty PDF 1,000 30"x64" 13"-60" 12V DC 1346
EHLTP-3064-2-60-A1 Warranty PDF 2,000 30"x64" 13"-60" 115V 1 PH
EHLTP-3064-2-60-A2 Warranty PDF 2,000 30"x64" 13"-60" 208/230V 1 PH
EHLTP-3064-2-60-A3 Warranty PDF 2,000 30"x64" 13"-60" 230V 3 PH
EHLTP-3064-2-60-A4 Warranty PDF 2,000 30"x64" 13"-60" 460V 3 PH
EHLTP-3064-2-60-D2 Warranty PDF 2,000 30"x64" 13"-60" 12V DC 1356
EHLTP-3064-3-60-A1 Warranty PDF 3,000 30"x64" 13"-60" 115V 1 PH
EHLTP-3064-3-60-A2 Warranty PDF 3,000 30"x48" 13"-60" 208/230V 1 PH
EHLTP-3064-3-60-A3 Warranty PDF 3,000 30"x64" 13"-60" 230V 3 PH
EHLTP-3064-3-60-A4 Warranty PDF 3,000 30"x64" 13"-60" 460V 3 PH
EHLTP-3064-3-60-D2 Warranty PDF 3,000 30"x64" 13"-60" 12V DC 1356
EHLTP-3648-1-48-A1 Warranty PDF 1,000 36"x48" 13"-48" 115V 1 PH 890
EHLTP-3648-1-48-A2 Warranty PDF 1,000 36"x48" 13"-48" 208/230V 1 PH 890
EHLTP-3648-1-48-A3 Warranty PDF 1,000 36"x48" 13"-48" 230V 3 PH 890
EHLTP-3648-1-48-A4 Warranty PDF 1,000 36"x48" 13"-48" 460V 3 PH 890
EHLTP-3648-1-48-D2 Warranty PDF 1,000 36"x48" 13"-48" 12V DC 1085
EHLTP-3648-2-48-A1 Warranty PDF 2,000 36"x48" 13"-48" 115V 1 PH 902
EHLTP-3648-2-48-A2 Warranty PDF 2,000 36"x48" 13"-48" 208/230V 1 PH 902
EHLTP-3648-2-48-A3 Warranty PDF 2,000 36"x48" 13"-48" 230V 3 PH 902
EHLTP-3648-2-48-A4 Warranty PDF 2,000 36"x48" 13"-48" 460V 3 PH 902
EHLTP-3648-2-48-D2 Warranty PDF 2,000 36"x48" 13"-48" 12V DC 1095
EHLTP-3648-3-48-A1 Warranty PDF 3,000 36"x48" 13"-48" 115V 1 PH 902
EHLTP-3648-3-48-A2 Warranty PDF 3,000 36"x48" 13"-48" 208/230V 1 PH 902
EHLTP-3648-3-48-A3 Warranty PDF 3,000 36"x48" 13"-48" 230V 3 PH 902
EHLTP-3648-3-48-A4 Warranty PDF 3,000 36"x48" 13"-48" 460V 3 PH 902
EHLTP-3648-3-48-D2 Warranty PDF 3,000 36"x48" 13"-48" 12V DC 1095
EHLTP-3664-1-60-A1 Warranty PDF 1,000 36"x64" 13"-60" 115V 1 PH
EHLTP-3664-1-60-A2 Warranty PDF 1,000 36"x64" 13"-60" 208/230V 1 PH
EHLTP-3664-1-60-A3 Warranty PDF 1,000 36"x64" 13"-60" 230V 3 PH
EHLTP-3664-1-60-A4 Warranty PDF 1,000 36"x64" 13"-60" 460V 3 PH
EHLTP-3664-1-60-D2 Warranty PDF 1,000 36"x64" 13"-60" 12V DC 1446
EHLTP-3664-2-60-A1 Warranty PDF 2,000 36"x64" 13"-60" 115V 1 PH
EHLTP-3664-2-60-A2 Warranty PDF 2,000 36"x64" 13"-60" 208/230V 1 PH
EHLTP-3664-2-60-A3 Warranty PDF 2,000 36"x64" 13"-60" 230V 3 PH
EHLTP-3664-2-60-A4 Warranty PDF 2,000 36"x64" 13"-60" 460V 3 PH
EHLTP-3664-2-60-D2 Warranty PDF 2,000 36"x64" 13"-60" 12V DC 1456
EHLTP-3664-3-60-A1 Warranty PDF 3,000 36"x64" 13"-60" 115V 1 PH
EHLTP-3664-3-60-A2 Warranty PDF 3,000 36"x48" 13"-60" 208/230V 1 PH
EHLTP-3664-3-60-A3 Warranty PDF 3,000 36"x64" 13"-60" 230V 3 PH
EHLTP-3664-3-60-A4 Warranty PDF 3,000 36"x64" 13"-60" 460V 3 PH
EHLTP-3664-3-60-D2 Warranty PDF 3,000 36"x64" 13"-60" 12V DC 1456
EHLTP-4848-1-48-A1 Warranty PDF 1,000 48"x48" 13"-48" 115V 1 PH
EHLTP-4848-1-48-A2 Warranty PDF 1,000 48"x48" 13"-48" 208/230V 1 PH
EHLTP-4848-1-48-A3 Warranty PDF 1,000 48"x48" 13"-48" 230V 3 PH
EHLTP-4848-1-48-A4 Warranty PDF 1,000 48"x48" 13"-48" 460V 3 PH
EHLTP-4848-1-48-D2 Warranty PDF 1,000 48"x48" 13"-48" 12V DC 1110
EHLTP-4848-2-48-A1 Warranty PDF 2,000 48"x48" 13"-48" 115V 1 PH
EHLTP-4848-2-48-A2 Warranty PDF 2,000 48"x48" 13"-48" 208/230V 1 PH
EHLTP-4848-2-48-A3 Warranty PDF 2,000 48"x48" 13"-48" 230V 3 PH
EHLTP-4848-2-48-A4 Warranty PDF 2,000 48"x48" 13"-48" 460V 3 PH
EHLTP-4848-2-48-D2 Warranty PDF 2,000 48"x48" 13"-48" 12V DC 1230
EHLTP-4848-3-48-A1 Warranty PDF 3,000 48"x48" 13"-48" 115V 1 PH
EHLTP-4848-3-48-A2 Warranty PDF 3,000 48"x48" 13"-48" 208/230V 1 PH
EHLTP-4848-3-48-A3 Warranty PDF 3,000 48"x48" 13"-48" 230V 3 PH
EHLTP-4848-3-48-A4 Warranty PDF 3,000 48"x48" 13"-48" 460V 3 PH
EHLTP-4848-3-48-D2 Warranty PDF 3,000 48"x48" 13"-48" 12V DC 1230
EHLTP-4864-1-60-A1 Warranty PDF 1,000 48"x64" 13"-60" 115V 1 PH
EHLTP-4864-1-60-A2 Warranty PDF 1,000 48"x64" 13"-60" 208/230V 1 PH
EHLTP-4864-1-60-A3 Warranty PDF 1,000 48"x64" 13"-60" 230V 3 PH
EHLTP-4864-1-60-A4 Warranty PDF 1,000 48"x64" 13"-60" 460V 3 PH
EHLTP-4864-1-60-D2 Warranty PDF 1,000 48"x64" 13"-60" 12V DC 1560
EHLTP-4864-2-60-A1 Warranty PDF 2,000 48"x64" 13"-60" 115V 1 PH
EHLTP-4864-2-60-A2 Warranty PDF 2,000 48"x64" 13"-60" 208/230V 1 PH
EHLTP-4864-2-60-A3 Warranty PDF 2,000 48"x64" 13"-60" 230V 3 PH
EHLTP-4864-2-60-A4 Warranty PDF 2,000 48"x64" 13"-60" 460V 3 PH
EHLTP-4864-2-60-D2 Warranty PDF 2,000 48"x64" 13"-60" 12V DC 1570
EHLTP-4864-3-60-A1 Warranty PDF 3,000 48"x64" 13"-60" 115V 1 PH
EHLTP-4864-3-60-A2 Warranty PDF 3,000 48"x48" 13"-60" 208/230V 1 PH
EHLTP-4864-3-60-A3 Warranty PDF 3,000 48"x64" 13"-60" 230V 3 PH
EHLTP-4864-3-60-A4 Warranty PDF 3,000 48"x64" 13"-60" 460V 3 PH
EHLTP-4864-3-60-D2 Warranty PDF 3,000 48"x64" 13"-60" 12V DC 1570


Our Customer Service Associates Are Here To Assist You!
Call Vestil At 260-665-7586 Or info@vestil.com
